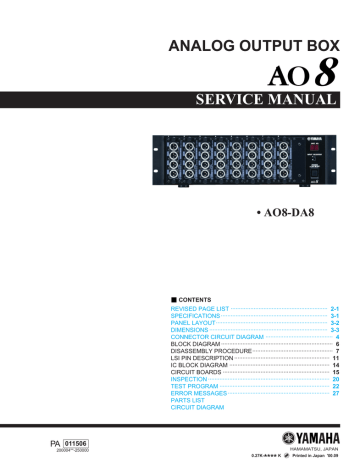

Yamaha AO8-DA8 Service manual

ANALOG OUTPUT BOX
SERVICE MANUAL
• AO8-DA8
CONTENTS
REVISED PAGE LIST ··························································· 2-1
SPECIFICATIONS································································· 3-1
PANEL LAYOUT···································································· 3-2
DIMENSIONS ········································································ 3-3
CONNECTOR CIRCUIT DIAGRAM ········································· 4
BLOCK DIAGRAM ···································································· 6
DISASSEMBLY PROCEDURE················································· 7
LSI PIN DESCRIPTION ·························································· 11
IC BLOCK DIAGRAM ····························································· 14
CIRCUIT BOARDS ································································· 15
INSPECTION ·········································································· 20
TEST PROGRAM ··································································· 22
ERROR MESSAGES······························································ 27
PARTS LIST
CIRCUIT DIAGRAM
PA
011506
HAMAMATSU, JAPAN
200004**-250000
****
0.27K-
K
Printed in Japan '00.09
AO8
REVISED PAGE LIST
ITEM
PAGE
SPECIFICATIONS
3-1
PANEL LAYOUT
3-2
DIMENSIONS
3-3
CONNECTOR CIRCUIT DIAGRAM
5
INSPECTION
20~21
TEST PROGRAM
22~26
ERROR MESSAGES
27
<PARTS LIST>
ITEM
PAGE
OVERALL ASSEMBLY
3, 4
SIDE PANEL ASSEMBLY
5
MOTHER ASSEMBLY
6
ELECTRICAL PARTS
7~10
<CIRCUIT DIAGRAM>
ITEM
IFC3 CIRCUIT DIAGRAM
PAGE
002
9
003
10
004
11
005
12
006
13
007
14
IPC2 CIRCUIT DIAGRAM
15
AOCOM CIRCUIT DIAGRAM 002
18
003
19
2-1
AO8
IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that
basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by
the users, and have therefore not been restated.
WARNING:
Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components and failure of the product to perform as specified. For these
reasons, we advise all Yamaha product owners that all service required should be performed by an authorized
Yamaha Retailer or the appointed service representative.
IMPORTANT:
This presentation or sale of this manual to any individual or firm does not constitute authorization, certification,
recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form.
The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and
service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and
changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist,
please contact the distributor's Service Division.
WARNING:
Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus).
IMPORTANT:
Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the
unit.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly
other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON
WHAT SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes
to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling
food.
IMPORTANT NOTICE FOR THE UNITED KINGDOM
Connecting the Plug and Cord
IMPORTANT.
The wires in this main lead are coloured in
accordance with the following code:
BLUE:
NEUTRAL
BROWN: LIVE
As the colours of the wires in the main lead of this apparatus may not
correspond with the coloured markings identifying the terminals in
your plug, proceed as follows:
The BLUE wire must be connected to the terminal that is marked with
the letter N (or coloured BLACK).
The BROWN wire must be connected to the terminal that is marked
with the letter L (or coloured RED).
Be certain that neither core is connected to the earth terminal of the
three pin plug.
WARNING
Components having special characteristics are marked
originally installed.
2-2
and must be replaced with parts having specification equal to those
AO8
SPECIFICATIONS
Sampling frequency (external sync)
39.69 kHz – 50.88 kHz
USA and Canada: 120 V, 60 Hz
Power supply
Others: 230 V, 50 Hz
Power consumption
120 W
Dimensions (W x H x D)
480 mm x 141.5 mm x 466.8 mm
Weight
15.4 kg
Operating temperature
10 – 35 ˚C
Power cable length
2.1 m
Cooling fan speed
always fixed
Accessories
Connection cable (68-pin, D-sub, half-pitch) x 1, Length: 3 m
Digital I/Os
I/O connectors
Level
Type
INPUT A, B, C
RS-422
D-sub, half-pitch, 68-pin connector (female)
WORD CLOCK IN
TTL/75 Ω (ON/OFF)
BNC Connector
WORD CLOCK OUT
TTL/75 Ω
BNC Connector
Slots
Card
LMY4-AD
Input
Channel 1 – 4
3-1
AO8
PANEL LAYOUT
OUTPUT UNIT ID
Front Panel
1
INPUT SELECTOR
1
2
3
4
5
6
7
8
A
2
UNIT NO.
B
INPUT SELECTOR
A
B
POWER
ON/ OFF
POWER
ON/ OFF
ANALOG OUTPUT BOX
* The illustration shows the AO8 analog output box.
3
ANALOG OUTPUT BOX
1 OUTPUT UNIT ID indicator
2 INPUT SELECTOR switch
3 POWER ON/OFF
4
Rear Panel
INPUT
B
WORD
CLOCK
INPUT
B
WORD
CLOCK
A
5
IN
IN
OFF
ON
75
OFF
ON
OUT
75
6
OUT
4 INPUT connectors A and B
5 WORD CLOCK IN jack, ON/OFF switch
6 WORD CLOCK OUT jack
3-2
A
AO8
DIMENSIONS
466.8
455
430
480
4
5
6
7
8
OUTPUT UNIT ID
INPUT SELECTOR
A
B
POWER
ON/ OFF
141.5
3
ANALOG OUTPUT BOX
9.5
2
132 (3U)
1
Unit: mm
3-3
AO8
CONNECTOR CIRCUIT DIAGRAM
[POWER
ON/OFF]
3P CN600
**
POWER
TRANSFORMER
PSB
AC
2P CN400
14P CN100
**
FG
[OUTPUT
UNIT ID]
CN402 CN401
3P
4P
6P CN104
DR
FAN
3P
CN502
CN500
2P
LED2
5P CN127
4P CN126
4P CN125
CN100 14P
CN002
3P
CN101 4P
CN300 2P
CN001
5P
CN301 4P
CN302 2P
6P CN124
4P CN123
CN303 4P
6P CN122
CN200 16P
4P CN121
CN201 6P
DC
[8]
CN402 8P
8P CN116
CN107
100P
[7]
CN403 8P
8P CN115
CN106
100P
[6]
CN404 8P
8P CN114
CN105
100P
[5]
CN405 8P
8P CN113
CN104
100P
[4]
CN406 8P
8P CN112
CN103
100P
[3]
CN407 8P
8P CN111
CN102
100P
[2]
CN408 8P
8P CN110
CN101
100P
[1]
CN105 6P
6P CN118
5P CN106
IPC4
CN101 13P
13P CN605
CN102 13P
13P CN606
CN103 10P
10P CN607
10P CN608
IPC2
CN101 13P
13P CN601
CN102 13P
13P CN602
CN103 10P
10P CN603
10P CN604
CN104 10P
[INPUT]
8P CN117
100P
CN300 5P
CN104 10P
[A]
CN401 8P
CN108
[B]
30P CN119
CN103 14P
[ON]
[OFF]
[IN]
[WORD CLOCK]
[OUT]
CN101 30P
100P
]
20P CN120
CN109
[75
CN102 20P
IPC2
UNC
SLOT NO.
IFC3
MB1
KEC-92523-2
4
AO8
KEC-92523-3
Circuit Board
CN No.
Pin No.
Circuit Board
CN No.
Pin No.
DC
CN100
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
1
2
3
4
5
6
1
2
3
1
2
1
2
3
4
2
1
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
MB1
CN122
MB1
CN124
MB1
IFC3
CN127
CN104
MB1
CN122
MB1
CN124
MB1
IFC3
CN127
CN104
MB1
IFC3
CN127
CN104
MB1
MB1
MB1
MB1
MB1
MB1
MB1
MB1
MB1
DR
CN121
CN123
CN125
CN121
CN123
CN125
CN121
CN123
CN125
CN500
MB1
MB1
MB1
CN122
CN124
CN126
MB1
MB1
MB1
LED1
CN127
CN122
CN124
CN100
4
3
4
3
5
1
2
2
1
2
1
3
3
4
4
5
6
4
4
4
1
1
1
2
2
2
1
2
6
6
2
1
1
5
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
PSB
CN600
DC
CN101
DC
CN200
DC
CN201
DC
CN300
DC
CN301
DC
DC
CN302
CN303
IFC3
CN103
AC
CN701
1
4
1
3
1
5
DIA
/CS1
[1]
O12
/CON1
IC401
WCI
[A]
Driver
Receiver
DIR2
O21
ID I/O
ATSC
2
INPUT CLOCK
IPC2
IC301
WCO
/CON2
O31
44.1K
48K
DIR2
/CS2
[2]
O22
INPUT CLOCK
/CS3
[3]
O32
/CON3
DIB
IC501
IC502
IC402
WCI
IPC2
DIR2
SELECTOR
O51
/CS5
[5]
O52
O61
DIR2
WCO
Register
IC202
FPGA
IC302
IC303
[OFF]
DIR2
/CS6
[6]
O62
ATSC
2
[ON]
[75 ]
/CON5
Decoder
IC403
[IN]
[WORD CLOCK]
[OUT]
/CON4
WC SEL & SYNC DETECTOR
WCO
WCI
/CS4
[4]
O42
WC
ID I/O
O41
LOCK
/CON6
O71
2
/CS7
[7]
O72
/CON7
IC404
MASTER CLOCK
~
[B]
Driver
Receiver
IC502
IC504
IPC4
IC407
O81
/CS8
[8]
O82
/CON8
MB1
IFC3
[INPUT SELECTOR]
[A]
CPU
[B]
[OUTPUT UNIT ID]
LED2
Data Bus
Register
Address Bus
Decoder
IC101
FLASH
RAM
IC201
IC203
UNC
KEC-92521
BLOCK DIAGRAM
SLOT No.
O11
AO8
6
[INPUT]
AO8
DISASSEMBLY PROCEDURE
1.
UNC Card Assembly
1-1
Remove the four (4) screws marked [470]. The UNC card
assembly can them be removed. (Fig. 1)
2.
Front Panel Assembly
2-1
2-2
Remove the UNC card assembly. (See Procedure 1.)
Remove the thirty-two (32) screws marked [500]. The
blank panel can then be removed. (Fig. 1)
Remove the six (6) screws marked [450]. Each mount
bracket can then be removed. (Fig. 1)
Remove the six (6) screws marked [400]. The front panel
assembly can then be removed. (Fig. 1)
2-3
2-4
[400]
Front panel assembly
1
2
3
4
[470]
Blank panel
5
6
7
UNC card assembly
<Right Side View>
8
[450]
[400]
Mount bracket
Mount bracket
[400]
[500] x 32
[470]
Mount bracket
<Left Side View>
[450]
Mount bracket
[400]: Flat Head Screw 4.0x8 MFZN2BL (VA221200)
[450]: Oval Head Screw 4.0x8 MFZN2BL (VS153600)
[470]: Bonding Screw 3.0x6 MFZN2BL (VS863000)
[500]: Bonding Screw 3.0x6 MFZN2BL (VS863000)
Fig. 1
3.
LED2 Circuit Board
3-1
3-2
Remove the front panel assembly. (See Procedure 2.)
Remove the two (2) screws marked [80]. The LED2
circuit board can then be removed. (Fig. 2)
4.
PSB Circuit Board
4-1
4-2
4-3
Remove the UNC card assembly. (See Procedure 1.)
Remove the front panel assembly. (See Procedure 2.)
Remove the seventeen (17) screws marked [430]. The top
panel can then be removed. (Fig. 2)
Remove the two (2) screws marked [100]. The PSB circuit
board can then be removed. (Fig. 2)
4-4
7
AO8
[170]
<Top View>
[430] x 17
LED2
[80]
[100]
PSB
Top panel
[80]: Bind Head Tapping Screw-B 3.0x6 MFZN2BL (EP600230)
[100]: Bind Head Screw 3.0x8 MFZN2BL (VB659000)
[170]: Bind Head Tapping Screw-B A4.0x8 MFZN2BL (VC688800)
[430]: Bind Head Tapping Screw-B A4.0x8 MFZN2BL (VC688800)
Fig. 2
5.
Circuit Boards and Units
Remove the top panel, each circuit board and unit can
then be removed. (Fig. 3)
Circuit Board and Unit
Ref. No.
A
310
320
380
240
IPC2
IPC4
DR
Power Transformer
Screw
Screw
Bonding Screw 3.0x6 MFZN2BL (VS863000)
Bind Head Screw A4.0x6 MFZN2BL (EG340290)
Bonding Tapping Screw-B (VN413300)
Bonding Tapping Screw-B (VC688800)
6.
Mother Assembly
6-1
6-2
6-3
6-4
Remove the UNC card assembly. (See Procedure 1.)
Remove the front panel assembly. (See Procedure 2.)
Remove the top panel. (See Procedure 4-3.)
Remove the seven (7) screws marked [280]. The mother
assembly can then be removed. (Fig. 3)
<Top View>
IPC2
IPC4
QTY
2
2
2
2
4
<Rear View>
[240]
DR
Power transformer
[380]
[320]
[A]
[280]
[310]
[320]
[A]
Mother assembly
[180]
[180]: Bind Head Tapping Screw-B A3.0x6 MFZN2BL (VP157900)
[280]: Bind Head Tapping Screw-B A4.0x8 MFZN2BL (VC688800)
[280]
Upper chassis
Fig. 3
8
AO8
7.
MB1 Circuit Board
7-1
7-2
Remove the mother assembly. (See Procedure 6.)
Remove the nine (9) screws marked [30] and the five (5)
screws marked [50]. The MB1 circuit board can then be
removed. (Fig. 4)
8.
IFC3 Circuit Board
8-1
8-2
Remove the mother assembly. (See Procedure 6.)
Remove the six (6) screws marked [70]. The IFC3 circuit
board can then be removed. (Fig. 4)
9.
Side Panel Assembly
9-1
9-2
9-3
9-4
9-5
Remove the UNC card assembly. (See Procedure 1.)
Remove the front panel assembly. (See Procedure 2.)
Remove the top panel. (See Procedure 4-3.)
Remove the mother assembly. (See Procedure 6.)
Remove the six (6) screws marked [450]. Each mount
bracket can then be removed. (Fig. 5)
Remove the seven (7) screws marked [200]. The side
panel (L) can then be removed.
Remove the three (3) screws marked [170] and the five (5)
screws marked [180]. The upper chassis can then be
removed. (Fig. 2, Fig. 3)
Remove the seven (7) screws marked [260]. The side
panel assembly can then be removed. (Fig. 5)
9-6
9-7
9-8
• Mother Assembly
<Left Side View>
Side panel L
[200]
Mount bracket
[450]
IFC3
<Right Side View>
[30]
[70]
[200]
Mount bracket
Side panel assembly
[450]
<Rear View>
[50]
[260]
[260]
MB1
[30]: Bind Head Tapping Screw-B 3.0x6 MFZN2BL (EP600230)
[50]: Bind Head Tapping Screw-B 3.0x6 MFZN2BL (EP600230)
[70]: Bind Head Tapping Screw-B 3.0x6 MFZN2BL (EP600230)
Fig. 4
[200]: Bind Head Tapping Screw-B A4.0x8 MFZN2BL (VC688800)
[260]: Bind Head Tapping Screw-B A4.0x8 MFZN2BL (VC688800)
[450]: Oval Head Screw 4.0x8 MFZN2BL (VS153600)
Fig. 5
9
AO8
10.
AC Assembly
10-1
10-2
Remove the side panel assembly. (See Procedure 9.)
Remove the three (3) screws marked [90]. The AC
assembly can then be removed. (Fig. 6)
11.
DC Assembly
11-1
11-2
Remove the side panel assembly. (See Procedure 9.)
Remove the four (4) screws marked [60]. The DC
assembly can then be removed. (Fig. 6)
12.
DC Circuit Board
12-1
12-2
12-3
Remove the side panel assembly. (See Procedure 9.)
Remove the DC assembly. (See Procedure 11.)
Remove the four (4) screws marked [D60]. The TR holder
can then be removed. (Fig. 7)
Remove the three (3) screws marked [D80]. The BR
holder can then be removed. (Fig. 7)
Remove the five (5) screws marked [D90]. The DC cricuit
board can then be removed. (Fig. 7)
12-4
12-5
• Side Panel Assembly
• DC Assembly
[D60]
DC assembly
AC assembly
TR holder
DC
BR holder
[60]
[90]
[D90]
[D80]
[60]: Bind Head Screw A4.0x6 MFZN2BL (EG340290)
[90]: Bind Head Tapping Screw-B A4.0x8 MFZN2BL (VC688800)
Fig. 6
10
[D60]: Pan Head Screw SP4.0x8 MFZN2Y (EL200020)
[D80]: Pan Head Screw SP4.0x8 MFZN2Y (EL200020)
[D90]: Bind Head Tapping Screw-B 3.0x6 MFZN2BL (EP600230)
Fig. 7
AO8
LSI PIN DESCRIPTION
SGH609080F-47F (XU235A00) ATSC
PIN
NO.
1
NAME
I/O
syncati
I
2
mccti
I
3
mcbti
I
4
5
6
VCC
GND
mcati
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
GND
siat0
siat1
siat2
siat3
ati
GND
ato
soat3
soat2
soat1
soat0
VCC
GND
mcato
22
23
GND
mcbto
I
24
mccto
I
25 syncato
26
clksel
I
I
I
I
I
I
O
O
O
O
O
I
I
I
27 ato-sel0
I
28 ato-sel1
I
FUNCTION
Synch. word input terminal for ati,
siat3-0 input
64 fs clock input terminal for ati,
siat3-0 input
128 fs clock input terminal for ati,
siat3-0 input
Power supply (+5 V)
Ground
256 fs clock input terminal for ati,
siat3-0 input
Ground
Serial data input terminal
Optical input terminal
Ground
Optical output terminal
Serial data output terminal
Power supply (+5 V)
Ground
256 fs clock input terminal for ato,
soat3-0 output
Ground
128 fs clock input terminal for ato,
soat3-0 output
64 fs clock input terminal for ato,
soat3-0 output
Synch. word input terminal for ato,
soat3-0 output
Clock select terminal for ato,
soat 3-0 output
0: mcato,mcbto,mccto,syncato
1: mcai,mcbi,mcci,synci
Format select terminal for ato,
soat3-0 output
Format select terminal for ato,
soat3-0 output
0: mcato,mcbto,mccto,syncato
1: mcai,mcbi,mcci,synci
output format
ato sel1 ato sel0
ato
1
1
soat0
1
0
soat2, 0
0
1
soat3-0
0
0
29 bitsel2
30 bitsel1
31 bitsel0
VCC
32
GND
33
34 ext-sync2
35
ui0
36
ui1
37
ui2
38
ui3
39 si-sel0
40 si-sel1
I/O
synci
I
Synch. word input terminal for si3-0 input
42
mcci
I
64 fs clock input terminal for si3-0 input
43
mcbi
I
128 fs clock input terminal for si3-0 input
44
45
46
VCC
GND
mcai
I
Power supply (+5 V)
Ground
256 fs clock input terminal for si3-0 input
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
GND
si0
si1
si2
si3
GND
so3
so2
so1
so0
VCC
GND
mcao
GND
mcbo
FUNCTION
62
63
Ground
I
I
I
I
Serial data input terminal
Ground
O
O
O
O
Serial data output terminal
I
I
Power supply (+5 V)
Ground
256 fs clock input terminal for so3-0 output
Ground
128 fs clock input terminal for so3-0 output
mcco
synco
I
I
64 fs clock input terminal for so3-0 output
Synch. word input terminal for so3-0 output
64
so-sel1
I
Format select terminal for soat3-0 output
65
so-sel0
I
Format select terminal for soat3-0 output
66
uo3
O
67
uo2
O
68
U-bit input terminal for optical output
input format select terminal for si3-0
input format select terminal for si3-0i
input format
not enable to set
si0
si2, 0
si3-0
NAME
so sel1
1
1
0
0
so sel0
1
0
1
0
input format
not enable to set
so0
so2, 0
so3-0
(8ch/line)
(4ch/line)
(2ch/line)
uo1
O
(8ch/line)
(4ch/line)
(2ch/line)
Power supply (+5 V)
Ground
Synch. detect output terminal 2
si sel0
1
0
1
0
PIN
NO.
41
U-bit output terminal for optical output
Bit shift select terminal for the ato output
si sel1
1
1
0
0
IFC3: IC501–504
(8ch/line)
(4ch/line)
(2ch/line)
uo0
69
70 ext-sync1
VCC
71
GND
72
clk
73
GND
74
/res
75
GND
76
77 wc-at
mute
78
79 ati-sel1
80 ati-sel0
O
O
I
I
O
I
I
I
Synch. detect output terminal 1
Power supply (+5 V)
Ground
Clock input terminal for word clock extract
Ground
System reset input terminal
Ground
Word clock output terminal
Data mute input terminal
Input format select terminal for ati, siat3-0.
input format select terminal for ati, siat3-0.
ati sel1
1
1
0
0
ati sel0
1
0
1
0
input format
ati
ati0
ati2, 0
ati3-0
(8ch/line)
(4ch/line)
(2ch/line)
11
AO8
YM3436DK (XG948E0) DIR2 (Digital Format Interface Receiver)
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
I/O
DAUX
HDLT
DOUT
VFL
OPT
SYNC
MCC
WC
MCB
MCA
SKSY
I
O
O
O
O
O
O
O
O
O
I
Auxiliary input for audio data
Asynchronous buffer operation flag
Audio data output
Parity flag output
Fs x 1 Synchronous output signal for DAC
Fs x 1 Synchronous output signal for DSP
Fs x 64 Bit clock output
FS x 1 Word clock output
Fs x 128 Bit clock output
Fs x 256 Bit clock output
Clock synchronization control input
12
XI
I
34
FS0
O
13
14
XO
P256
O
O
Crystal oscillator connection or external
clock input
Crystal oscillator connection
VCO oscillating clock connection
35
36
CSM
EXTW
I
I
15
16
17
18
19
LOCK
Vss
TC
DIM1
DIM0
O
37
38
39
40
41
DDIN
LR
Vdd
ERR
EMP
I
O
O
I
I
PLL lock flag
Logic section power (GND)
PLL time constant switching output
Data input mode selection
Data input mode selection
20
DOM1
I
Data output mode selection
42
CD0
O
21
DOM0
I
Data output mode selection
43
CCK
I
22
KM1
I
Clock mode switching input 1
44
CLD
I
12
FUNCTION
PIN
NO.
23
24
25
26
27
28
29
30
31
32
33
NAME
NAME
I/O
RSTN
Vdda
CTLN
PCO
(NC)
CTLP
Vssa
TSTN
KM2
KM0
FS1
I
I
O
I
I
I
I
O
O
O
IFC3: IC301 to 303, 401 to 403
FUNCTION
System reset input
VCO section power (+5V)
VCO control input N
PLL phase comparison output
VCO control input P
VCO section power (GND)
Test terminal. Open for normal use
Clock mode switching input 2
Clock mode switching input 0
Channel status sampling frequency
display output 1
Channel status sampling frequency
display output 0
Channel status output method selection
External synchronous auxiliary input
word clock
EIAJ (AES/EBU) data input
PLL word clock output
Logic section power (+5 V)
Data error flag output
Channel status emphasis control code
output
3-wire type microcomputer interface data
output
3-wire type microcomputer interface clock
input
3-wire type microcomputer interface load
input
AO8
HD6477042AF28 (XY715A00) CPU
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
NAME
I/O
PE14
PE15
VSS
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
VCC
A17
VSS
/RAS
/CASL
/CASH
VSS
RDWR / PB5
A18
A19
A20
PB9 /A21
VSS
/RD
/WDTOVF
/WRH
VCC
/WRL
VSS
/CS1
/CS0
O
O
I
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
I
O
I
O
O
O
O
O
O
O
O
O
I
O
O
O
I
O
I
O
O
O
I
O
O
I
O
I
I
O
I
I/O
I/O
I/O
I
I/O
PA9 / TCLKD
/IRQ2 / TCLKC
/CS3
/CS2
/IRQ1
TXD
RXD
/IRQ0
PA1 / TXD0
PA0 / RXD0
D15
D14
D13
VSS
D12
FUNCTION
Port E
Port E
Ground
Address bus
Power supply
Address bus
Ground
Row address strobe
Column address strobe (low)
Column address strobe (high)
Ground
DRAM read/write / Port B
Address bus
Port B / Address bus
Ground
Read
Watch dog timer overflow
High write
Power supply
Low write
Ground
Chip select
Chip select
Port A / Timer clock
Interrupt request / Timer clock
Chip select
Chip select
Interrupt request
Data transmission
Data reception
Interrupt request
Port A / Data transmission
Port A / Data reception
Data bus
Ground
Data bus
UNC: IC101
PIN
NO.
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
NAME
I/O
D11
D10
D9
D8
VSS
D7
D6
D5
VCC
D4
D3
D2
D1
D0
VSS
XTAL
MD3
EXTAL
MD2
NMI
VCC
MD1
MD0
PLLVCC
PLLCAP
PLLVSS
PA15 / CK
/RES
PE0
PE1
PE2
PE3
PE4
VSS
AN0 / PF0
AN1 / PF1
AN2 / PF2
AN3 / PF3
AN4 / PF4
AN5 / PF5
AVSS
AN6 / PF6
AN7 / PF7
AVCC
VSS
PE5
VCC
PE6
PE7
PE8
PE9
PE10
VSS
PE11
PE12
PE13
I/O
I/O
I/O
I/O
I
I/O
I/O
I/O
I
I/O
I/O
I/O
I/O
I/O
I
I
I
I
I
I
I
I
I
I
I
I
O
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
O
I
O
O
O
O
O
I
O
O
O
FUNCTION
Data bus
Ground
Data bus
Power supply
Data bus
Ground
Crystal oscillator
Mode control
Crystal oscillator
Mode control
Non-maskable interrupt request
Power supply
Mode control
Mode control
PLL Power supply
PLL capacitor
PLL Ground
Port A / Clock
Reset
Port E
Ground
Analog input / Port F
Analog ground
Analog input / Port F
Analog input / Port F
Power supply
Ground
Port E
Power supply
Port E
Ground
Port E
13
AO8
IC BLOCK DIAGRAM
HD74LVU04AFPEL (XY102A00)
Hex Inverter
HD74LV04AFPEL (IS000400)
Hex Inverter
HD74LV08AFPEL (IS000800)
Quad 2 Input AND
IFC3: IC105
IFC3: IC311, 408
UNC: IC105
IFC3: IC104, 310, 409
UNC: IC104, 213
1A
1
14
14
2
13
6A
1Y
2
13
6A
2A
3
12
6Y
2A
3
12
6Y
4
11
3A
5
10
5Y
3Y
6
9
Vss
7
8
4
2Y
5A
11
1A
1
14
VDD
1B
2
13
4B
1Y
3
12
4A
2A
4
11
4Y
2B
5
10
3B
2Y
6
9
3A
VSS
7
8
3Y
VDD
1Y
2Y
5A
3A
5
10
5Y
4A
3Y
6
9
4A
4Y
Vss
7
8
4Y
SN74LV138ANSR (IS013810)
3 to 8 Demultiplexer
HD74LV245AFPEL (IS024500)
Octal 3-State Bus Transceiver
DS26C32ATMX (XU815A00)
Quad Differential Line Receiver
UNC: IC211, 212
IPC2: IC104, 105
IFC3: IC101-103, 106, 107, 404-407,
601-608
UNC: IC102, 204, 210
IPC2: IC100-103, 106
B
2
B
Y0
15
YO
D1R
C
3
C
Y1
14
Y1
A1
G2A
4
G2A Y2
13
Y2
A2
3
G2B
5
G2B Y3
12
Y3
A3
4
17
G1
6
G1
Y4
11
Y4
A4
5
16
Y7
7
Y7
Y5
Y6
10
Y5
A5
6
15
GND
8
9
Y6
A6
7
14
A7
8
13
B6
A8
9
12
B7
10
11
B8
Vcc
INPUT A
1
-
16
Vcc
INPUT A
2
+
15
1
20
2
19
INPUT B
OUTPUT A
3
14
18
INPUT B
B1
ENABLE
4
13
Output
OUTPUT B
B2
OUTPUT C
5
12
ENABLE
B3
INPUT C
6
11
OUTPUT D
B4
INPUT C
7
B5
GND
8
GND
Vcc
G
+
-
-
16
A
+
Output
1
-
Enable
A
+
Select
10
INPUT D
9
INPUT D
AM26LS31CNSR (XU996A00)
Quad Line Driver
SN75124N (XE737A00)
Triple Line Receiver
SN75121 (XE638A00)
Dual Line Driver
IPC2: IC107
IPC4: IC300
IPC4: IC301
1A
1
16
Vcc
1Y
2
15
4A
1Z
3
14
4Y
ENABLE G
4
2Z
2Y
13
5
12
6
11
4Z
ENABLE G
3Z
2A
7
10
3Y
GND
8
9
3A
INPUT
A
H
L
H
L
X
ENABLES
G
G
H
X
H
X
X
L
X
L
L
H
H= high level
L= low level
14
1
1A
VDD
OUTPUTS
Y
Z
H
L
L
H
H
L
L
H
Z
Z
X= irrelevant
Z= high impedance (off)
1A
1
16
Vcc
1A
1
16
Vcc
1B
2
15
1S
1B
2
15
2F
2R
3
14
1R
1C
3
14
2E
13
1Y
1D
4
13
2D
12
2C
2S
4
2A
5
12
3A
1E
5
2B
6
11
3S
1F
6
11
2B
2Y
7
10
3R
1Y
7
10
2A
GND
8
9
3Y
GND
8
9
2Y
AO8
CIRCUIT BOARDS
AC Circuit Board (XW295B0) ······················································································· 16
DC Circuit Board (XW295B0)······················································································· 17
DR Circuit Board (XW295B0)······················································································· 16
IFC3 Circuit Board (XW287A0) ···················································································· 19
IPC2 Circuit Board (XW289A0)···················································································· 15
IPC4 Circuit Board (XW286B0)···················································································· 16
LED2 Circuit Board (XW286B0)··················································································· 16
MB1 Circuit Board (XW282A0) ···················································································· 17
PSB Circuit Board (XW295B0)····················································································· 16
UNC Circuit Board (XW281B0) ···················································································· 18
Note: See parts list for details of circuit board component parts.
IPC2 1/2 Circuit Board
INPUT A
to IFC3-CN604
to IFC3-CN602
to IFC3-CN601
to IFC3-CN603
Component side
IPC2 2/2 Circuit Board
INPUT B
to IFC3-CN608
to IFC3-CN606
to IFC3-CN605
3NA-V488240
to IFC3-CN607
Component side
15
AO8
DR Circuit Board
to FAN
AC Circuit Board
to DC-CN300
AC Cord
Component side
PSB Circuit Board
POWER ON/OFF
to PSB-CN600
Power transformer
to AC-CN401
Component side
IPC4 Circuit Board
Component side
LED2 Circuit Board
IN
to IFC3-CN106
to IFC3-CN103
75
WORD
CLOCK
ON
OFF
OUT
INPUT SELECTOR A/B
Component side
Component side
16
AC, DR, PSB: 3NA-V412970 1
IPC4, LED2: 3NA-V491380
17
to DC-CN100
CN301
CN303
to DC-CN100
CN301
CN303
to DC-CN200
CN201
to DC-CN100
CN101
CN302
to DC-CN301
to IFC3-CN101
to IFC3-CN102
MB1 Circuit Board
to IFC3-CN105
to DC-CN200
CN201
Component side
AO8
to DC-CN200
CN201
to IFC3-CN408
to IFC3-CN407
to IFC3-CN406
to IFC3-CN405
to IFC3-CN403
to IFC3-CN402
to IFC3-CN401
to MB1-CN121
CN123
CN125
1
to MB1-CN122
CN124
Power transformer
to DR-CN500
to MB1-CN127
to MB1-CN121
CN123
CN125
Power transformer
to MB1-CN122, CN124,
CN127
IFC3-CN104
to MB1-CN127
IFC3-CN104
DC: 3NA-V412970
MB1: 3NA-V412880
DC Circuit Board
Component side
to MB1-CN122
CN124
CN126
to IFC3-CN404
AO8
UNC Circuit Board
Component side
18
Pattern side
3NA-V412870 2
to IPC2 1/2-CN102
to MB1-CN118
to IPC2 2/2-CN102
to MB1-CN120
to MB1-CN116
to MB1-CN115
to MB1-CN114
to MB1
-CN113
to MB1-CN112
to IPC4
-CN300
to IPC2 2/2
-CN104
to MB1-CN111
to MB1-CN110
to IPC2 1/2-CN103
IFC3 Circuit Board
to MB1-CN117
to IPC2 2/2 to IPC2 1/2-CN104
-CN103
3NA-V413000
to DC-CN100
CN101
to IPC2 1/2-CN101
to LED1-CN100
Component side
to MB1-CN119
19
Pattern side
AO8
to IPC2 2/2-CN101
AO8
INSPECTION
1.
Range of Applicability
These specifications apply to the AO8 and AO8-DA8.
2.
Preparations
2-1.
Conditions
For details on the connection method, refer to the Test Program Specifications KES-92653.
Unless otherwise specified, the conditions are as follows.
· Set the INPUT SELECTOR switch to A.
· Set WORD CLOCK IN 75 Ω to ON.
2-2
Loading the Firmware
The firmware used must be the “AI8/AO8 Firmware” (managed with the already drawn CD-R assembly drawing (3JL-XY714A0))
of the PM1D System Software matching the version on the cover sheet. For details on the firmware writing method, refer to the
Test Program Specifications KES-92653.
2-3.
Test Program
For details on the starting method etc., refer to the Test Program Specifications KES-92653.
3.
Inspection
3-1.
Inspection with Test Program
· Inspect based on the Test Program Specifications KES-92653.
3-2.
Jitter Measurement
· Connect the LMY-slot inspection jig Canon terminal to DSA1.
· Set Fs to 48 kHz and 44.1 kHz with the test program and measure the jitter at DSA1.
48 kHz
44.1 kHz
Range of tolerance
6 nsec max.
5 nsec max.
3-3.
Fan Operation Check
· Check that the fan rotates while the power is on.
3-4.
Sound
· The connections are as in the diagram below.
Connection diagram
LMY4-AD
AI8
OUTPUT A
x8
LMY4-AD
AO8
68-pin cable
LMY4-DA
INPUT A
x8
BNC
LMY4-DA
Function Generator
OMNI OUT
01V
INPUT
Power speaker
ST OUT
· Set the AI8 and AO8 sheet UNC DIP switch as below. DIP Switch 8 is not used.
AI8
AO8
1
OFF
OFF
2
ON
OFF
3
OFF
OFF
DIP SW
4
OFF
ON
5
ON
OFF
6
ON
OFF
7
ON
OFF
· For 01V, OSC1kHz is output from OMNI1 OUT and the signal input to INPUT is assigned to ST OUT.
· For AO8, insert the inspection LMY4-DA cards in Slot 1-8.
· For AO8-DA8, insert the shipping LMY4-DA cards in Slot 1-8.
20
AO8
(1) Fs = 51.12 kHz (48 kHz + 6.5 %)
· Set the function generator to 51.12 kHz.
· Test listen for 30 seconds at all the output terminals and verify that there is no noise.
(2) Fs = 39.69 kHz (44.1 kHz -10 %)
· Set the function generator to 39.69 kHz.
· Test listen for 30 seconds at all the output terminals and verify that there is no noise.
3-5.
4.
Firmware Load Test
Check that it is possible to load the firmware as in 2-2. using the Input B terminal.
Factory Settings
· Switch all the sheet UNC DIP switch settings On.
· Front panel
INPUT SELECTOR:
A
· Rear panel
WORD CLOCK IN 75 Ω:
On
21
AO8
TEST PROGRAM
A. Preparations for Inspection
• Writing the firmware
This equipment requires firmware. When there are changes to the manufacturing processes and program for this equipment, it is
necessary to download the new firmware to FlashRom from a PC. (If there is no firmware loaded or its checksum does not match
the correct value, when the power is first switched on the LED on UNC flashes at one second intervals.)
The only sheet for which the firmware must be downloaded is UNC. There are two methods for writing this firmware: to write it
indirectly using the CS1D or DSP1D RS232C port or to write it directly to the AO8 UNC sheet. The detailed methods are given
below.
• Method for writing firmware using the CS1D or DSP1D RS232C port
* It is possible to write the AO8 (UNC) firmware from the PC via the CS1D or DSP1D RS232C port. This is the method
normally used.
Software used: PM1DLOAD within PM1D system software
Firmware used: AI8/AO8 firmware in PM1D system software
Version used:
PM1DLOAD and the AI8/AO8 firmware are PM1D system software component files with the
version number listed on the cover sheet.
(Managed with the already drawn CD-R assembly drawing (3JL-XY714A0).)
* For the installation and setting methods, refer to the CS1D Test Program Specifications.
DSP1D
AI8
OUTPUT A
INTPUT 1
Only COM1 can be used.
RS232C
Serial connection
D-sub 9-pin
cross-cable
One or the other
PC
(Windows 95 or later)
CS1D
AO8
Ether cable
INPUT A
OUTPUT 1
RS232C
1. Install and set the above reference destination files.
2. Connect as in the figure above. Do not connect any other signal lines. At this time, since data is written to ports other than
OUTPUT1, connect only one AO8 or one each of AI8 and AO8. However, to write firmware just to this equipment for a
manufacturing process with this equipment, the configuration with only the AO8, DSP1D, and PC is sufficient.
3. Write the firmware to all the units connected with the method listed in the CS1D Test Program Specifications. After the
firmware has been written, check that the versions for all the units are the desired versions.
• Method for writing firmware directly to the AO8 UNC
* When there is some kind of problem or the DSP1D is unavailable due to this equipment's production processes and
the firmware can not be written with the method on the previous page, use the method below.
AO8
1 2 3 4 5 6 7 8
UNC sheet
Connect the 5-pin PH connectors
with a straight-wired cable.
Serial
communications jig
Serial connection
PC
(Windows 95 or later)
D-sub 9-pin cross-cable
For the connection diagram, refer to the
LMY-slot inspection jig specifications.
Only COM1 can be used.
1. Connect the D-sub 9-pin serial cables (cross) and DSP-CHECK board between the 5-pin connector for the target board and the
PC. At this time, do not connect other signal lines.
2. After PM1DLOAD starts up, select CardDirect with MODE SELECT, then press OK.
3. Press the Update button in the AO8 item.
4. Select the UNC, then press Write.
5. After writing ends, end PM1DLOAD.
6. Switch off the power for AO8 and remove the PH connector, then switch the power for AO8. DSP1D on again and check that it
starts up normally.
• PM1D inspection PC software preparation
Inspection with this device uses special PC software for inspection.
The software versions are as follows
22
AO8
Software used:
Version used:
PM1D inspection PC software in PM1D system software
PM1D system software component files with the version number listed on the cover sheet.
(Managed with the already drawn CD-R assembly drawing (3JL-XY714A0).)
For details on the preparation and execution methods, refer to the CS1D Test Program Specifications. Before starting inspection,
refer to version.txt in the same directory as the firmware shown on the previous page and input the version character string as
instructed.
B. Inspection Method
The inspection configuration is shown in the diagram below.
LMY-slot
inspection jig
x8
AO8
BNC
LMY-slot
inspection jig
68-pin
ID
change jig
PC
AI8
Oscilloscope
OUT
IN
LMY-slot
inspection jig
SLOT1
A
68-pin
port connection
change
This connection
is changed.
W.CLK I/O
OUT
SERIAL
IN
Serial
communications jig
UNC
Jitter meter
DSA-1
W.CLK I/O
For jitter measurement, use either according
to the Overall Inspection Specifications.
AO8 inspection jig
Install the inspection jig to the AO8 to be inspected as in the figure above. Send the inspection commands from the PC via the AI8 to the
LMY-slot inspection jig and take in at the PC the results returned from the LMY-slot inspection jig. Always switch on the Phantom
switch before starting the inspection. (The pop-up box is displayed on the PM1D inspection PC software when the checks start.)
* Use the LMY-slot inspection jigs inserted into the LMY-slots. For details, see the LMY-slot inspection jig
specifications.
* Serial communications jigs are boards that convert the serial interface from the PC. For details, see the LMY-slot
inspection jig specifications.
* Set the DIP switches on the ID change jig for AO8 inspection as shown below. For details on the IC change jig, see
the LMY-slot inspection jig specifications.
SW 101
SW 102
ON
ON
ID change jig DIP switch settings
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
PM1D inspection PC software summary
The AO8 is inspected using PC inspection software. This inspection software is common for AI8/AO8/DSP1D/CS1D. For the basic
operation methods, menu screen specifications, etc., see the CS1D Test Program Specifications.
Below is the menu for AO8 inspection.
Input the latest version of AO8 UNC before starting the inspection. (This is necessary for the version check.) For the character string
to input, refer to version.txt in the same directory as the AI8/AO8 firmware. Details of each check item and the corresponding PC
software are shown on the following pages.
Version character string input example
Latest Version
Input the latest firmware version. When
the version is checked, this character
string and the version actually written in
the firmware are compared. The value
entered here is retained in memory.
xxxxxxxx
Auto Test Start
Only items whose checkboxes are
checked are automatically checked.
ALL checks all the items.
CLEAR removes all the checks.
1.
AO8-UNC Test
OK
2.
AO8-IFC3 Test
OK
3.
AO8-SLOT Test
OK
4.
AO8-IPC4, LED2 Test
OK
5.
AO8-IPC2 Test
OK
ALL
23
CLR
Pressing this button starts the automatic checks of the checked items.
The check item and the check results
are displayed. Just one item can be
inspected by pressing its button.
AO8
C. Inspection Items
The inspection items are as below. Details of the inspection items are shown on the following pages.
* However, 128 Fs Sync must be normal for the DSP to operate, so there is no special check item.
No.
1
2
3
4
5
1.
Item
AO8 - UNC test
AO8 - IFC3 test
AO8 - SLOT test
AO8 - IPC4, LED2 test
AO8 - IPC2 test
AO8 - UNC Test
This test checks around the AO8-UNC.
OK/NG display for the page as a whole
Displayed when all the checks have been completed.
1. AO8-UNC Test
Received ID displayed as
board name and hexadecimal
OK
* ID
UNC [1Eh]
* RAM
Sub-item
DataBus
AddressBus
* Flash
* Version
Main item
OK
OK
1. AO8-UNC Test
1. AO8-UNC Test
ID:
RAM:
Flash:
Version:
OK
unc[1Eh]
If OK, sub-items are
not displayed.
OK
OK
OK
OK
OK
Checked in order from top to bottom.
Completed main items have marks
next to them.
Corresponding pin number
NG example
OK/NG display for individual items
The NG is displayed the moment the
item is found to be NG, even if the
test is still underway.
* ID
* RAM
DataBus
AddressBus
* Flash
* Version
xxx [xxh]
NG
NG
NG
NG
1. AO8-UNC Test
ID:
xxx [xxh]
NG
RAM:
NG
DBus[38-35,32-29,16-13,10-7 pin]
NG
11111111 11111111
ABus[18-21,24-27,42-44,1-5 pin]
NG
1 11111111 1111111Flash:
NG
CheckSum = xxxx[xxxx]
Version:
NG
Current = x.xx , Latest = x.xx
Abnormal port name
Terminal status display
Delimited in units of 8
digits right justified in the
order upper then lower.
0: Normal 1: Abnormal
-: Ignored
Previously read value.
[ ] gives the correct value.
4-digit hexadecimal notation
Now Checking …
Version
Current status display
Displays all the detailed results so
far. This display can be scrolled.
(
2.
SRAM
Flash
Stopped the moment an
actual ID NG appears;
stopped at the end of the
page for any other NG.
OK:
NG:
OK:
NG:
Gives the current version
and the latest version
LED lit up
LED flashes on (0.2 s) - Off (0.2 s) - On (0.2 s) - Off (0.1 s)
LED lit up
LED flashes on (0.1 s) - Off (0.1 s) - On (0.1 s) - Off (0.1 s)
)
AO8 - IFC3 Test
This test checks around the AO8-IFC3.
2. AO8-IFC3 Test
* SICKB
* FPGA
* DIR2
NG example
OK
OK
OK
OK
2. AO8-IFC3 Test
2. AO8-IFC3 Test
SICKB:
FPGA:
DIR2:
OK
OK
OK
* SICKB
* FPGA
* DIR2
NG
NG
NG
Same as up till here
2. AO8-IFC3 Test
SICKB:
FPGA:
DIR2:
NG
NG
NG
Same as up till here
Now Checking …
DIR2
24
AO8
3-1. AO8 - Slot [Initial] Test
Stopped the moment an actual Addr.BusTest
or DataBusTest NG appears.
Checks slot operation by checking the minimum necessary number of pins.
The results for each slot are displayed in order from the left. A mark is made
for each check to show the progress of the checks.
(Blank: Not yet checked; 0: Normal; 1: Abnormal; N: No response)
NG example
3-1. AO8-SLOT [Initial] Test
* Address Bus Test
* Data Bus Test
* Voltage Check
00000000
+20V
00000000
+15V
00000000
-15V
00000000
+5V
00000000
-5V
* /CON Line Test
OK
00000000 OK
00000000 OK
00000000 OK
Shows which pin is NG;
display for 16 pins.
(1: NG; 0: OK)
3-1. AO8-SLOT [Initial] Test
3-1. AO8-SLOT [Initial] Test
Address Bus Test:
Data Bus Test:
Voltage Check:
/CON Line Test:
OK
OK
OK
OK
* Address Bus Test
* Data Bus Test
* Voltage Check
00010000
+20V
00010000
+15V
00000000
-15V
00000000
+5V
00000100
-5V
one slot are * /CON Line Test
First, all the voltages for
checked, then this is repeated for the
next slot. (The notation is each
voltage [x 8 slots], but the check
order is each slot [x all voltages].)
00000000 OK
00000100 NG
00010100 NG
00010100 NG
00010100 NG
3-1. AO8-SLOT [Initial] Test
Address Bus Test:
SLOT6 11111111 11111111
Data Bus Test:
SLOT4 11111111 11111111
SLOT6 11111111 11111111
Voltage Check:
SLOT4
+20V => +xx.xxV (-xx.x%)
+15V => +xx.xxV (+xx.x%)
SLOT6
-5V
=> +xx.xxV (-xx.x%)
/CON Line Test:
00010100
NG
NG
NG
NG
NG
NG
NG
NG
NG
Now Checking …
/CON Line Test
The detected voltage is displayed and the
percentage deviation from the ideal state
is displayed. This is shown for each slot.
Basically, the same as up till here
3-2. AO8 - Slot [Clock Line] Test
This test checks around the slot clock.
NG example
3-2. AO8-SLOT [Clock Line] Test OK
* FS Line Check
Fs
64Fs
256Fs
OK
00000000
00000000
00000000
3-2. AO8-SLOT [Clock Line] Test
3-2. AO8-SLOT [Clock Line] Test
FS Line Check:
OK
* FS Line Check
Fs
64Fs
256Fs
NG
00010000
00010000
00010100
3-2. AO8-SLOT [Clock Line] Test
FS Line Check:
SLOT4
Fs
-> xx.xxx
64Fs -> xx.xxx
256Fs -> xx.xxx
SLOT6
256Fs -> xx.xxx
Basically, the same as up till here
Now Checking …
FS Check 256Fs
NG
NG
kHz
(-xx.x%)
kHzX64 (+xx.x%)
kHzX256 (-xx.x%)
NG
kHzX256 (-xx.x%)
The detected FS frequency is displayed
and the percentage deviation from the
ideal state is displayed.
The values for 64 Fs and 256 Fs are
displayed in such a way that they can be
easily grasped.
3-3. AO8 - Slot [Data Line] Test
This test checks around the serial communications.
NG example
3-3. AO8-SLOT [Data Line] Test OK
* Digital Signal line Test
SI
00000000
OK
3-3. AO8-SLOT [Data Line] Test
3-3. AO8-SLOT [Data Line] Test
Digital Signal Line Test:
OK
* Digital Signal line Test
SI
00010000
NG
3-3. AO8-SLOT [Data Line] Test
Digital Signal Line Test:
SLOT4
SI [a7,b7 pin]
NG
NG
The ID change jig digital line
change is on the rear.
Basically, the same as up till here
Now Checking …
SI Test
25
AO8
4.
AO8 - IPC4, LED2 test
This test checks around the AO8 - IPC4 and LED2.
4. AO8-IPC4, LED2 Test
For the 75 item, the pop-up box is displayed below and the inspector judges
visually on the oscilloscope.
OK
* Input Selector SW
* W.CLK 75ohm SW
* 7segments LED
* W.CLK
In 48 kHz + 6%
In 44.1kHz - 10%
Jitter 48 kHz
Jitter 44.1kHz
In/Out
OK
OK
OK
OK
4. AO8-IPC4, LED2 Test
Please check [WordClock 75ohm SW].
Input Selector SW:
WordClock 75ohm SW:
7segments LED:
W.CLK:
OK
OK
OK
OK
OK
NG
Normal behavior on the
oscilloscope for 75 switch.
ON
OFF
For the LED lighting order, see *1. If the LEDs light this way, they are OK.
For the jitter ** kHz item, the pop-up box is displayed with the system in the
48/44.1 kHz output state to ask the user to measure the jitter. The inspector
judges the jitter.
Please check [Jitter (48kHz)].
OK
NG
When moving from the jitter measurement to the In/Out check, the the pop-up
box is displayed to ask the user to check the connections.
Connect [AO8 BNC Out] to [AI8 BNC In].
OK
When other checks are necessary, the pop-up dialog box is displayed to ask the inspector
to select OK or NG and the system stands by until the inspector makes a selection.
Please check [7segment LED].
The current switch status is displayed in real time and the inspector looks at the behavior
of the system and judges it OK/NG.
7segment LED= xx
OK
NG
(*1) 7-segment LED lighting order
0.0. 1.1 .2.2. · · · 9.9.
5.
AO8 - IPC2 test
This test checks around the AO8 - IPC2. Ports A and B are both checked, so the same procedure is carried out in 5-1 for Port A and
in 5-2 for Port B.
NG example
5-1. AO8-IPC2 [PortA] Test
OK
* SI
* RQ
* AK
* W.CLK
* CONTROL
* ID
In
Out
* MSB/LSB
* 2CH/4CH
OK
OK
OK
OK
OK
OK
5-1. AO8-IPC2 [PortA] Test
5-1. AO8-IPC2 [PortA] Test
SI:
RQ:
AK:
W.CLK:
CONTROL:
ID:
MSB/LSB:
2CH/4CH:
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
* SI
* RQ
* AK
* W.CLK
* CONTROL
* ID
In
Out
* MSB/LSB
* 2CH/4CH
NG
NG
NG
NG
NG
NG
NG
5-1. AO8-IPC2 [PortA] Test
SI:
RQ:
AK:
W.CLK:
CONTROL:
ID:
In
Out
MSB/LSB
2CH/4CH:
NG
NG
NG
NG
NG
NG
NG
NG
NG
NG
NG
Same as up till here
Same as up till here
Now Checking …
2CH/4CH
When changing to the next port, a pop-up
box like that on the right is displayed.
Change to [B port] and push OK Button.
OK
26
AO8
ERROR MESSAGES
If an error occurs in the connection to the DSP1D, or if the unit does not lock to the wordclock signal, one of the following
error indications appears.
ERROR MESSAGE
DESCRIPTION
The AO8 is connected to the INPUT connector of the DSP1D/DSP1D-EX. Connect the AO8 to the
OUTPUT connector.
A cable is disconnected from the INPUT A, B, or C connector on the rear panel, or the connection is
made incorrectly. If the connection is proper, replace the cable.
The unit does not lock to the wordclock signal.
The control signal is not being received correctly.
(two dots and the ID number of the OUTPUT connector on the DSP1D/DSP1D-EX)
Illuminating dots means that the AO8 is con-nected in Mirror mode from the DSP1D/DSP1D-EX.
If “.x .” lights up continuously during Mirror mode operation, the INPUT SELECTOR switch setting
matches the setting controlled from the CS1D and the system is operating normally.
If the control signal from the CS1D has changed the setting during Mirror mode operation and it
does not match the INPUT SELECTOR switch setting any more, this indicator changes in the
following order.
“. .”
“ .x.”
“. .”
“
”( or “
”)
“
” means that the control signal from the CS1D has changed the setting to “A”
“
” means that the control signal from the CS1D has changed the setting to “B.”
During this time period, you can connect or disconnect the cable from the unselected output connector.
If you set the INPUT SELECTOR switch so that it matches the setting made via the control signal
from the CS1D, “
” lights up continuously.
27
ANALOG OUTPUT BOX
PARTS LIST
CONTENTS
OVERALL ASSEMBLY······························································································································ 2
SIDE PANEL ASSEMBLY ························································································································· 4
MOTHER ASSEMBLY······························································································································· 6
ELECTRICAL PARTS ························································································································· 7~11
Notes : DESTINATION ABBREVIATIONS
A:
B:
C:
D:
E:
F:
H:
I :
J:
Australian model
British model
Canadian model
German model
European model
French model
North European model
Indonesian model
Japanese model
M: South African model
O: Chinese model
Q: South-east Asia model
T: Taiwan model
U: U.S.A. model
V: General export model (110 V)
W: General export model (220 V)
N,X: General export model
Y: Export model
WARNING
Components having special characteristics are marked
specification equal to those originally installed.
•
•
•
•
•
and must be replaced with parts having
The numbers in “ QTY ” show quantities for each unit.
The parts with “ - - ” in “ PART NO. ” are not available as spare parts.
The mark “
” in the remarks column indicates that these parts are interchangeable.
The second letter of the shaded (
) part number is O, not zero.
The second letter of the shaded (
) part number is I, not one.
AO8
OVERALL ASSEMBLY
320
220
221
310
380
290
360
350
355
300
475
170
210
370
365
430
260
330
420
50
340
280
160
390
70
130
180
90
110
80
100
410
120
390b
390a
400
150
390c
500
480
460
470
460a
190
460c
240
270
280
460b
450
140
280
40
200
560
230
530
540
285
550
520
440
10
260
200
60
20
250
30
2
440
AO8
REF NO.
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
221
230
230
230
240
250
250
250
250
260
270
280
285
290
300
310
320
330
340
350
355
360
365
370
380
390
390a
390b
390c
400
410
420
430
440
450
460
460a
460b
460c
470
475
480
500
PART NO. DESCRIPTION
OVERALL ASSEMBLY
-Overall Assembly
-Overall Assembly
-Overall Assembly
-Overall Assembly
V4277100 Bottom Chassis
CB806590 Leg
VR138400 Bind Head Tapping Screw-B
V4278900 PET Sheet
V4277800 Front Shassis
VC688800 Bind Head Tapping Screw-B
V4913600 Circuit Board
EP600230 Bind Head Tapping Screw-B
V4913700 Circuit Board
VB659000 Bind Head Screw
V5087200 Connector Assembly
V4277900 Chassis
VC688800 Bind Head Tapping Screw-B
V4914400 Shield
VP157900 Bind Head Tapping Screw-B
V4278000 Chassis
VC688800 Bind Head Tapping Screw-B
VP157900 Bind Head Tapping Screw-B
V4277200 Side Panel
VC688800 Bind Head Tapping Screw-B
V4279000 Rear Panel
VC688800 Bind Head Tapping Screw-B
VC688800 Bind Head Tapping Screw-B
XW261A00 Power Transformer
XW262A00 Power Transformer
XW263B00 Power Transformer
VC688800 Bind Head Tapping Screw-B
-Side Panel Assembly
-Side Panel Assembly
-Side Panel Assembly
-Side Panel Assembly
VC688800 Bind Head Tapping Screw-B
-Mother Assembly
VC688800 Bind Head Tapping Screw-B
CB817510 Cord Binder
V4130200 Circuit Board
V4129300 Circuit Board
VS863000 Bonding Screw
EG340290 Bind Head Screw
V5789100 Motor
V5107200 Fan Guide
VK949100 Fan Guard
ET800070 Toothed Lock Washer
VG605800 Bind Head Screw
CB817510 Cord Binder
V4649200 Circuit Board
VN413300 Bonding Tapping Screw-B
-Front Panel Assembly
V4279300 Front Panel
V4278800 LED Cover
VL813000 Escutcheon, Power Switch
VA221200 Flat Head Screw
VL812900 Power Switch Knob
V4278200 Top Panel
VC688800 Bind Head Tapping Screw-B
V4278700 Mount Bracket
VS153600 Oval Head Screw
-UNC Card Assembly
V4128700 Circuit Board
V4278600 UNC Plate
VS154500 Bonding Screw
VS863000 Bonding Screw
-Label, Caution
V4278500 Blank Panel
VS863000 Bonding Screw
*: New Parts
REMARKS
AO8
J
U,V
H,W
B
QTY
(V479550)
(V479560)
(V479570)
(V479580)
4
15
03
01
02
08
01
08
01
07
01
05
11
01
06
01
08
01
01
09
01
10
01
01
17
18
17
01
7
01
7
1
2
01
03
27
14
01
01
09
06
06
01
01
03
07
01
BL
4.0X12 MFZN2BL
4
4
3
A4.0X8 MFZN2BL
AO8 LED2 (IPCOM)
3.0X6 MFZN2BL
AO8 PSB (AOCOM)
3.0X8 MFZN2BL
VH4P-VH3P #18
LOWER
A4.0X8 MFZN2BL
4
A3.0X6
UPPER
A4.0X8
A3.0X6
LEFT
A4.0X8
MFZN2BL
2
MFZN2BL
MFZN2BL
3
5
MFZN2BL
7
A4.0X8 MFZN2BL
A4.0X8 MFZN2BL
6
2
2
4
J
U,V
H,B,W
A4.0X8 MFZN2BL
RIGHT
RIGHT
RIGHT
RIGHT
A4.0X8 MFZN2BL
J
U,V
H,W
B
RANK
(V479360)
(V479370)
(V479380)
(V479390)
(V479300)
A4.0X8 MFZN2BL
S-14B
AO8 IPC2
AO8 IPC4 (IPCOM)
3.0X6 MFZN2BL
A4.0X6 MFZN2BL
DC KDE1208PTS3-6
2
2
Fan
FG-08UL
A4.0 MFZN2BL
4.0X35 MFZN2BL
S-14B
AO8 DR (AOCOM)
3.0X8 MFZN2BL
4
4
2
2
(V479200)
17
2
6
16
05
03
01
03
13
01
08
01
2
4
31
04
01
01
8
32
07
01
7 SEG.
4.0X8 MFZN2BL
6
POWER ON/OFF
A4.0X8 MFZN2BL
4.0X8 MFZN2BL
(V479500)
AI8 UNC
4.0X8 MFZN2BL
3.0X6 MFZN2BL
(V533510)
3.0X6 MFZN2BL
RANK: Japan only
3
AO8
PART NO.
CB835590
CB069250
VC362700
-VP156800
REF NO.
520
530
540
550
560
DESCRIPTION
Holder
Cord Holder
Ferrite Core
Connector Assembly
Bind Head Screw
ACCESSORIES
V4789400 Cable, SCSI
*
REMARKS
TMS-20
BK-1
FR25/15/12-1400L
Earth #18
A4.0X8 MFZN2BL
QTY
RANK
2
2
2
01
01
04
2
01
(V572480)
DHK-HA2-3000
27
SIDE PANEL ASSEMBLY
50
D60
70
D20
D30
D50
130
120
40
D40
30
20
100
110
FZ301
D90
90
80b
FZ300
FZ201
FZ200
D90
D70
D30
80a
FZ100
D100
D10
D80
10
60
4
80
AO8
REF NO.
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
10
10
10
20
20
20
20
30
30
30
40
50
50
60
70
80
80
80a
80b
80b
90
100
110
120
130
D10
D20
D30
D40
D50
D60
* D70
D75
D80
D90
D100
FZ100
FZ100
FZ200
FZ200
FZ201
FZ201
FZ300
FZ300
FZ301
FZ301
PART NO. DESCRIPTION
SIDE PANEL ASSEMBLY
-Side Panel Assembly
-Side Panel Assembly
-Side Panel Assembly
-Side Panel Assembly
V5302700 Side Panel
V5302800 Side Panel
V5302900 Side Panel
VS228900 AC Cord Assembly
VS229000 AC Cord Assembly
VS229100 AC Cord Assembly
VS229200 AC Cord Assembly
CB806850 Cord Strain Relief
CB811230 Cord Strain Relief
CB032840 Cord Strain Relief
VP156800 Bind Head Screw
V4794300 DC Assembly
V4794400 DC Assembly
EG340290 Bind Head Screw
V5099200 Connector Assembly
-AC Assembly
-AC Assembly
V4648700 Circuit Board
KB003620 Fuse
KB003090 Fuse
VC688800 Bind Head Tapping Screw-B
VC362700 Ferrite Core
CB069250 Cord Holder
V4914300 AC Shield Cover
VC688800 Bind Head Tapping Screw-B
V4794300
V4794400
V4914800
V4914900
V4276400
V4649000
V4276600
EL200020
V4914600
CB817510
EL200020
EP600230
CB817510
VS823300
KB003250
KB003630
KB003100
KB003630
KB003100
KB003630
KB003100
KB003630
KB003100
*: New Parts
DC Assembly
DC Assembly
Heat Sink
Heat Sink
Isolation Sheet
Circuit Board
Holder
Pan Head Screw
Holder
Cord Binder
Pan Head Screw
Bind Head Tapping Screw-B
Cord Binder
Fuse
Fuse
Fuse
Fuse
Fuse
Fuse
Fuse
Fuse
Fuse
Fuse
REMARKS
RIGHT
RIGHT
RIGHT
RIGHT
RIGHT
RIGHT
RIGHT
RIGHT
2P 15A
3P 10A
3P 6A
3P 10A
SR-6N3-4
SR-6N-4
SR-5N-4
A4.0X8 MFZN2BL
AO8
J
U,V
H,W
B
J
U,V
H,B,W
J
U,V
H,W
B
J
U,V
H,B,W
U,H,B,V,W
J,U,V
H,B,W
QTY
(V479360)
(V479370)
(V479380)
(V479390)
A4.0X6 MFZN2BL
PH-DC
4
J,U,V
H,B,W
AO8 AC (AOCOM)
4.00A JU
3.15A S
A4.0X8 MFZN2BL
FR25/15/12-1400L
BK-1
J,U,V
H,B,W
3
J,U,V
H,B,W
2
4
3
4
4
J,U,V
H,B,W
J,U,V
H,B,W
J,U,V
H,B,W
J,U,V
H,B,W
J,U,V
H,B,W
12
12
12
09
10
10
11
02
02
03
01
41
39
01
16
(V479470)
(V479480)
A4.0X8 MFZN2BL
DC LOW
DC UP
DC
AO8 DC (AOCOM)
TR
SP 4.0X8 MFZN2Y
BR
S-14B
SP 4.0X8 MFZN2Y
3.0X6 MFZN2BL
S-14B
8.00A JU
6.30A S
5.00A JU
4.00A S
5.00A JU
4.00A S
5.00A JU
4.00A S
5.00A JU
4.00A S
RANK
07
01
01
01
04
01
03
01
41
39
07
07
05
30
09
01
07
03
01
01
03
02
01
01
01
01
01
01
01
01
01
RANK: Japan only
5
AO8
MOTHER ASSEMBLY
20
100
110
70
130
40
120
70
30
60
80
10
90
50
REF NO.
10
20
30
* 40
50
* 60
65
70
80
90
100
110
120
130
*
*
PART NO.
-V4128800
V4278300
EP600230
V4278100
EP600230
V4130000
CB817510
EP600230
-------
*: New Parts
6
DESCRIPTION
MOTHER ASSEMBLY
Circuit Board
Support Metal
Bind Head Tapping Screw-B
Support Metal
Bind Head Tapping Screw-B
Circuit Board
Cord Binder
Bind Head Tapping Screw-B
Cable, FFC
Cable, FFC
Connector Assembly
Connector Assembly
Connector Assembly
Connector Assembly
REMARKS
AO8
AI8 UNC
1
3.0X6 MFZN2BL
2
3.0X6 MFZN2BL
AO8 IFC3
S-14B
3.0X6 MFZN2BL
P=1.25-K-20-80
P=1.25-K-30-80
PH&PH 13P 80 #28
PH&PH 10P 80 #28
PH&PH 5P 200L #28
PH&PH 12P 80 #28
QTY
RANK
(V479300)
9
5
2
6
(V508550)
(V508560)
(V508800)
(V508810)
(VN38360)
(V508820)
21
09
01
07
01
54
03
01
4
2
2
RANK: Japan only
AO8
ELECTRICAL PARTS
REF NO.
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
* C104
C106
C108
C110
C112
* C204
* C205
C208
C209
C212
C213
C216
C217
C304
C305
C308
C309
C312
C313
* C400
C500
C501
C503
C600
CN001
CN002
CN100
CN101
CN200
CN201
CN300
CN301
CN302
CN303
CN400
CN401
CN402
CN500
CN502
CN600
D100
-107
D200
-211
PART NO. DESCRIPTION
ELECTRICAL PARTS
V4648700 Circuit Board
V4649000 Circuit Board
V4649200 Circuit Board
V4913700 Circuit Board
V4130200 Circuit Board
V4130000 Circuit Board
V4129300 Circuit Board
V4913600 Circuit Board
V4128800 Circuit Board
V4128700 Circuit Board
V4648700
V4649000
V4649200
V4913700
VH610100
VR144900
VA078900
V4276300
V4797200
VN057300
V5101700
V4871100
UR838100
UR838100
UR838100
UR838100
V4871300
V4871300
UR838100
UR838100
UR838100
UR838100
UR838100
UR838100
VR499300
VR499300
UR848100
UR848100
UR848100
UR848100
V5170300
UR838100
UR848220
UR838100
V3311600
VS589000
FG644100
UA355100
LB932050
LB932030
VE352600
VB390000
VB390200
VB390200
VB389800
VB390000
VB389800
VB390000
VG879900
LB933040
LB933030
VB858100
VB858200
LB933030
VB481900
VB481900
VB481900
VB481900
*: New Parts
Circuit Board
Circuit Board
Circuit Board
Circuit Board
Bind Head Screw
Bonding Tapping Screw-B
Jumper Wire
AC Shield Metal
Transistor Holder
Heat Sink
Insulation Sheet
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Capacitor
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Capacitor-KH
Ceramic Capacitor-E
Ceramic Capacitor-F
Mylar Capacitor
Base Post Connector
Base Post Connector
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Base Post Connector
Base Post Connector
Base Post Connector
Connector Base Post
Connector Base Post
Base Post Connector
Diode
Diode
Diode
Diode
REMARKS
QTY
RANK
AO8
AO8 AC (AOCOM)
AO8 DC (AOCOM)
AO8 DR (AOCOM)
AO8 PSB (AOCOM)
AO8 IPC2
AO8 IFC3
AO8 IPC4 (IPCOM)
AO8 LED2 (IPCPM)
AI8 MB1
AI8 UNC
(XW295B0)
(XW295B0)
(XW295B0)
(XW295B0)
(XW289A0)
(XW287A0)
(XW286B0)
(XW286B0)
(XW282A0)
(XW281B0)
07
30
07
07
27
54
14
08
21
31
AO8 AC (AOCOM)
AO8 DC (AOCOM)
AO8 DR (AOCOM)
AO8 PSB (AOCOM)
3.0X14 MFZN2BL
3.0X6 MFZN2BL
0.55
(XW295B0)
(XW295B0)
(XW295B0)
(XW295B0)
07
30
07
07
01
33000 16.0V
100.00 16.0V
100.00 16.0V
100.00 16.0V
100.00 16.0V
22000 16
22000 16
100.00 16.0V
100.00 16.0V
100.00 16.0V
100.00 16.0V
100.00 16.0V
100.00 16.0V
4700 35.0V
4700 35.0V
100.00 25.0V
100.00 25.0V
100.00 25.0V
100.00 25.0V
0.220 275V U.C.S
100.00 16.0V
220.00 25.0V
100.00 16.0V
0.010 250V J.U.C.S
4700P 500V M
0.0100 50V Z
0.1000 50V J
VH 5P TE
VH 3P TE
PH-14P TE
PH 4P TE
PH 6P TE
PH 6P TE
PH 2P TE
PH 4P TE
PH 2P TE
PH 4P TE
VA 2P TE
VH 4P SE
VH 3P SE
PH 2P SE
PH 3P SE
VH 3P SE
11ES4
11ES4
11ES4
11ES4
04
07
08
01
06
01
01
01
01
05
05
01
01
01
01
01
01
05
05
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
RANK: Japan only
7
AO8
REF NO.
D300
-307
DB100
DB200
DB300
EM100
-103
EM200
-205
EM300
-303
FZ100
FZ200
FZ201
FZ300
FZ301
FZ400
FZ500
IC100
-102
* IC103
IC200
IC201
IC202
IC203
IC204
IC205
IC300
IC301
IC302
IC303
IC304
K700
-703
* L400
R502
R504
SW600
TR300
TR500
TR501
TR502
ZD500
PART NO.
VB481900
VB481900
VM621400
VT682400
VT682400
FZ006970
FZ006970
FZ006970
FZ006970
FZ006920
FZ006920
VP206500
VP206500
VP206500
VP206500
VP206500
VP206500
VG297000
XH672A00
XH672A00
XW196A00
XR607A00
XK309A00
XR607A00
XK309A00
XR607A00
XK309A00
XR608A00
XD854A00
XR608A00
XD854A00
XD631A00
BB069510
BB069510
V4122100
VC757100
VC740100
HF456330
HF456470
HF457100
V3127000
IA101590
IB059600
IC1815M0
IC1815M0
VQ554100
V4130200
C108 UF038100
UB245100
* CN100 V4158600
CN101 VF283100
CN102 VF283100
CN103 VB390600
CN104 VB390800
DA100 VV556300
-156 VV556300
EM100 VL534100
-102 VL534100
EM104 VL534100
-106 VL534100
EM108 FZ006970
IC100 XU815A00
-103 XU815A00
IC104 XT487A00
IC105 XT487A00
IC106 XU815A00
IC107 XU996A00
RA100 RE047100
-103 RE047100
*
*: New Parts
8
DESCRIPTION
Diode
Diode
Diode Stack
Diode Stack
Diode Stack
LC Filter
LC Filter
LC Filter
LC Filter
LC Filter
LC Filter
Fuse Holder
Fuse Holder
Fuse Holder
Fuse Holder
Fuse Holder
Fuse Holder
IC Protector
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
Land Terminal
Land Terminal
Line Filter
Metal Oxide Film Resistor
Metal Oxide Film Resistor
Carbon Resistor
Carbon Resistor
Carbon Resistor
Push Switch
Transistor
Transistor
Transistor
Transistor
Zener Diode
11ES4
11ES4
RBV-1506
D6SB60L 6.0A 600V
D6SB60L 6.0A 600V
LS MT Y223NB
LS MT Y223NB
LS MT Y223NB
LS MT Y223NB
LS MT B271KB
LS MT B271KB
EYF-52BC
EYF-52BC
EYF-52BC
EYF-52BC
EYF-52BC
EYF-52BC
ICP-F20
PQ05RF2
PQ05RF2
UPC2933HF
UPC2405AHF
NJM7905FA
UPC2405AHF
NJM7905FA
UPC2405AHF
NJM7905FA
UPC2415AHF
NJM7915FA
UPC2415AHF
NJM7915FA
PST518B-TP
A-8
A-8
PLH10A7003R6P02
22.0 2W J
1.0 1W J
3.3K 1/4 J
4.7K 1/4 J
10.0K 1/4 J
ESB92S23B J.U.C.S
2SA1015 O,Y
2SB596LBB O,Y
2SC1815 Y,GR
2SC1815 Y,GR
MTZJ7.5A 7.5V
Circuit Board
Electrolytic Cap. (chip)
Monolithic Ceramic Cap.
Connector
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Diode Array
Diode Array
LC Filter
LC Filter
LC Filter
LC Filter
LC Filter
IC
IC
IC
IC
IC
IC
Resistor Array
Resistor Array
AO8 IPC2
100 16V
F 0.100 25V Z
230R(SCSI) 68P SE
PH 13P TE
PH 13P TE
PH 10P TE
PH 12P TE
DAN217 0.3A X2
DAN217 0.3A X2
NFA81R00C101
NFA81R00C101
NFA81R00C101
NFA81R00C101
LS MT Y223NB
DS26C32ATMX
DS26C32ATMX
TC74VHC245F
TC74VHC245F
DS26C32ATMX
AM26LS31CNSR
10KX4
10KX4
REMARKS
QTY
01
01
05
04
04
02
02
02
02
01
01
01
01
01
01
01
01
02
04
04
03
04
03
04
03
04
03
04
03
04
03
02
01
01
02
01
01
01
01
01
02
01
04
01
01
01
REGULATOR +5V 2A
REGULATOR +5V 2A
REGULATOR +3.3V
REGULATOR +5V
REGULATOR -5V
REGULATOR +5V
REGULATOR -5V
REGULATOR +5V
REGULATOR -5V
REGULATOR +15V
REGULATOR -15V
REGULATOR +15V
REGULATOR -15V
SYSTEM RESET
POWER ON/OFF
(XW289A0)
INPUT A/B
LINE RECEIVER
LINE RECEIVER
TRANSCEIVER
TRANSCEIVER
LINE RECEIVER
LINE DRIVER
RANK
27
01
01
06
01
01
01
01
01
01
05
05
05
05
02
06
06
03
03
06
05
01
01
RANK: Japan only
AO8
REF NO.
*
C112
C116
C118
C304
-306
C404
-406
*
*
*
*
*
*
*
*
*
*
*
*
*
CN101
CN102
CN103
CN104
CN105
CN106
CN201
CN401
-408
CN601
CN602
CN603
CN604
CN605
CN606
CN607
CN608
EM101
EM102
IC101
-103
IC104
IC105
IC106
IC107
IC108
IC201
IC202
IC202
IC301
-303
IC309
IC310
IC311
IC401
-403
IC404
-407
IC408
IC409
IC410
-412
IC501
-504
IC601
-608
L101
-124
L301
-303
PART NO.
RD254100
RD255150
RD256100
RD257100
RD257220
RD257470
DESCRIPTION
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
10.0 0.1 J
150.0 0.1 J
1.0K 0.1 J
10.0K 0.1 J
22.0K 0.1 J
47.0K 0.1 J
V4130000
UF038100
UF017220
UF038100
UF037470
UF037470
UF037470
UF037470
UB051220
UB245100
UB245220
UB445330
VR327300
VQ045900
VQ045000
VE352600
VB390200
VF728300
VB390100
VB390600
VK025200
VK025200
VF283100
VF283100
VB390600
VB390800
VF283100
VF283100
VB390600
VB390800
FZ006970
FZ006970
XT487A00
XT487A00
IS000800
XY102A00
XT487A00
XT487A00
XY094A00
XW239A00
XY089A00
XY217A00
XG948E00
XG948E00
XW422A00
IS000800
IS000400
XG948E00
XG948E00
XT487A00
XT487A00
IS000400
IS000800
XW422A00
XW422A00
XU235A00
XU235A00
XT487A00
XT487A00
VS740100
VS740100
GE300610
GE300610
Circuit Board
Electrolytic Cap. (chip)
Electrolytic Cap. (chip)
Electrolytic Cap. (chip)
Electrolytic Cap. (chip)
Electrolytic Cap. (chip)
Electrolytic Cap. (chip)
Electrolytic Cap. (chip)
Monolithic Ceramic Cap.
Monolithic Ceramic Cap.
Monolithic Ceramic Cap.
Monolithic Ceramic Cap.
Mylar Capacitor (chip)
Connector, FFC
Connector, FFC
Connector Base Post
Connector Base Post
Wire Trap
Connector Base Post
Connector Base Post
Wire Trap
Wire Trap
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
LC Filter
LC Filter
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
Chip Inductance
Chip Inductance
Ferrite Bead
Ferrite Bead
AO8 IFC3
100 16V
22 6.3V
100 16V
47 16V
47 16V
47 16V
47 16V
SL 22P 50V J
F 0.100 25V Z
F 0.220 25V Z
F 0.330 16V Z
0.0820 16V J
52044 30P SE
52044 20P SE
PH-14P TE
PH 6P TE
52147 6P TE
PH 5P TE
PH 10P TE
52147 8P TE
52147 8P TE
PH 13P TE
PH 13P TE
PH 10P TE
PH 12P TE
PH 13P TE
PH 13P TE
PH 10P TE
PH 12P TE
LS MT Y223NB
LS MT Y223NB
TC74VHC245F
TC74VHC245F
HD74LV08AFPEL
HD74LVU04AFPEL
TC74VHC245F
TC74VHC245F
LT1118CST-2.5
EPC1PC8
EPF10K30EQC208-3
EPF10K50EQC208
YM3436DK
YM3436DK
M51953AFP
HD74LV08AFPEL
HD74LV04AFPEL
YM3436DK
YM3436DK
TC74VHC245F
TC74VHC245F
HD74LV04AFPEL
HD74LV08AFPEL
M51953AFP
M51953AFP
SGH609080F-47F
SGH609080F-47F
TC74VHC245F
TC74VHC245F
BLM21B751S 2125
BLM21B751S 2125
BL02RN1-R62T4
BL02RN1-R62T4
*: New Parts
REMARKS
QTY
RANK
01
01
01
01
01
01
(XW287A0)
TRANSCEIVER
TRANSCEIVER
AND
INVERTER
TRANSCEIVER
TRANSCEIVER
REGULATOR
EPROM 1M
FPGA
FPGA
DIR2
DIR2
SYSTEM RESET
AND
INVERTER
DIR2
DIR2
TRANSCEIVER
TRANSCEIVER
INVERTER
AND
SYSTEM RESET
SYSTEM RESET
ATSC
ATSC
TRANSCEIVER
TRANSCEIVER
54
01
01
01
01
01
01
01
01
01
01
01
01
02
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
02
02
03
03
01
01
03
03
08
09
22
25
11
11
01
01
01
11
11
03
03
01
01
01
01
10
10
03
03
03
03
01
01
RANK: Japan only
9
AO8
REF NO.
L401
-403
RA101
RA102
RA103
RA104
RA105
RA106
-110
RA601
-612
* SC201
TA101
TA102
X101
X102
X103
*
*
*
*
*
C304
CN100
CN300
D300
-303
EM300
EM301
EM302
IC300
IC301
JK300
JK301
K300
K301
* LD100
* SP100
SW1
SW300
*
CN101
-109
CN110
-117
CN118
CN119
CN120
CN121
CN122
PART NO.
GE300610
GE300610
RE048100
RE048100
RE047100
RE048100
RE048100
RE047100
RE047100
RE047100
RE047100
VV047100
VQ248400
VQ248500
VZ568200
VZ568300
VI927300
RD154270
RD254470
RD255100
RD155330
RD255470
VV375100
RD256100
VV315200
VV320200
RD256330
VV333200
RD257100
RD258100
RD259100
DESCRIPTION
Ferrite Bead
Ferrite Bead
Resistor Array
Resistor Array
Resistor Array
Resistor Array
Resistor Array
Resistor Array
Resistor Array
Resistor Array
Resistor Array
IC Socket
Transistor Array
Transistor Array
Quartz Crystal Unit
Quartz Crystal Unit
Quartz Crystal Unit
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
V4129300
V4913600
UR838100
FG651330
FG652100
VT439600
VE352600
VB390100
VB941200
VB941200
FZ006920
FZ006920
FZ006970
XE737A00
XE683A00
VI552200
VI552200
VI474400
VI474400
V4078200
V4411600
VG837400
VQ907900
HF753470
HF754470
HF754750
HF756220
Circuit Board
Circuit Board
Electrolytic Cap.
Ceramic Capacitor-SL
Ceramic Capacitor-SL
Monolithic Ceramic Cap.
Connector Base Post
Connector Base Post
Diode
Diode
LC Filter
LC Filter
LC Filter
IC
IC
BNC Connector
BNC Connector
Terminal Plate
Terminal Plate
LED Display
Spacer
Slide Switch
Slide Switch
Carbon Resistor
Carbon Resistor
Carbon Resistor
Carbon Resistor
AO8 IPC4 (IPCOM)
AO8 LED2 (IPCOM)
100.00 16.0V
33P 50V J
100P 50V J
0.100 50V Z
PH-14P TE
PH 5P TE
1SS133,1SS176
1SS133,1SS176
LS MT B271KB
LS MT B271KB
LS MT Y223NB
SN75124N
SN75121
YKS11-0 1P
YKS11-0 1P
V4128800
VU328200
VU328200
VI878600
VI878600
VI878400
VQ045900
VQ045000
VB858300
VB858500
Circuit Board
Plug
Plug
Cable Holder
Cable Holder
Cable Holder
Connector, FFC
Connector, FFC
Connector Base Post
Connector Base Post
AI8 MB1
PHEC 100P TE
PHEC 100P TE
51048 8P TE
51048 8P TE
51048 6P TE
52044 30P SE
52044 20P SE
PH 4P SE
PH 6P SE
*: New Parts
10
REMARKS
QTY
BL02RN1-R62T4
BL02RN1-R62T4
100KX4
100KX4
10KX4
100KX4
100KX4
10KX4
10KX4
10KX4
10KX4
DICF-8CS-E
TD62783AF
TD62381F
22.5792MHz DSO751S
24.576MHz DSO751S
20.0000MHz AT-49
27.0 1/4 J
47.0 0.1 J
100.0 0.1 J
330.0 1/4 J
470.0 0.1 J
750.0 0.1 D
1.0K 0.1 J
1.5K 0.1 D
2.0K 0.1 D
3.3K 0.1 J
3.3K 0.1 D
10.0K 0.1 J
100.0K 0.1 J
1.0M 0.1 J
LNM423AS01
7 SEG. 2S
SSSB04
SSSU112-S06N-1
4.7 1/4 J
47.0 1/4 J
75.0 1/4 J
2.2K 1/4 J
RANK
01
01
01
01
01
01
01
01
01
01
01
01
04
04
06
06
03
01
01
01
01
01
01
01
01
01
01
01
01
01
01
(XW286B0)
(XW286B0)
LINE RECEIVER
LINE DRIVER
WORD CLOCK IN
WORD CLOCK OUT
UNIT NO.
INPUT SELECTOR
WORD CLOCK 75ohm OFF/ON
(XW282A0)
SLOT 1-8,UNC Card
14
08
01
01
01
01
01
01
01
01
01
01
02
05
05
05
05
01
01
06
01
03
01
01
01
01
01
21
05
05
01
01
01
02
01
01
01
RANK: Japan only
AO8
REF NO.
CN123
CN124
CN125
CN126
CN127
W110
-117
W118
*
*
*
*
*
*
*
*
*
*
PART NO.
VB858300
VB858500
VB858300
VB858300
VB858400
----
V4128700
C218 UF038100
FG652120
FG612560
UB012470
UB245100
CN101 VB390100
CN202 VT640300
EM201 FZ006970
IC101 XY715A00
IC102 XT487A00
IC103 XP226A00
IC104 IS000800
IC105 IS000400
IC201 XV685A00
IC203 XV729A00
IC204 XT487A00
-210 XT487A00
IC211 IS013810
IC212 IS013810
IC213 IS000800
K201 VI474400
K202 VI474400
LD101 V3990300
RA101 RE047100
-120 RE047100
RA202 RE048100
-212 RE048100
SW102 VQ949900
X101 V3990700
RD250000
RD255220
RD256300
RD257100
DESCRIPTION
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Ribbon Cable
Ribbon Cable
Ribbon Cable
Circuit Board
Electrolytic Cap. (chip)
Ceramic Capacitor
Ceramic Capacitor
Monolithic Ceramic Cap.
Monolithic Ceramic Cap.
Connector Base Post
Receptacle
LC Filter
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
Terminal Plate
Terminal Plate
LED (chip)
Resistor Array
Resistor Array
Resistor Array
Resistor Array
Switch
Ceramic Resonator
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
TLSU1008 RE
10KX4
10KX4
100KX4
100KX4
SSGM18151A
CSTCC7.16MG0H6-TC
0.0 0.0 J
220.0 0.1 J
3.0K 0.1 J
10.0K 0.1 J
RANK
01
01
01
01
01
(V507960)
(V507960)
(V510880)
(XW281B0)
CPU
TRANSCEIVER
SYSTEM RESET
AND
INVERTER
FLASH ROM 4M
RAM 1M
TRANSCEIVER
TRANSCEIVER
DECODER
DECODER
AND
FOR TEST
FUNCTION
31
01
01
01
01
01
01
04
02
10
03
03
01
01
11
09
03
03
01
01
01
01
01
01
01
01
01
01
03
01
01
01
01
01
17
18
17
DC KDE1208PTS3-6
Fan
09
AC Cord Assembly
AC Cord Assembly
AC Cord Assembly
AC Cord Assembly
2P 15A
3P 10A
3P 6A
3P 10A
J
U,V
H,W
B
09
10
10
11
Fuse
Fuse
Fuse
Fuse
Fuse
Fuse
Fuse
Fuse
Fuse
Fuse
Fuse
Fuse
4.00A JU
3.15A S
8.00A JU
6.30A S
5.00A JU
4.00A S
5.00A JU
4.00A S
5.00A JU
4.00A S
5.00A JU
4.00A S
J,U,V
H,B,W
J,U,V
H,B,W
J,U,V
H,B,W
J,U,V
H,B,W
J,U,V
H,B,W
J,U,V
H,B,W
01
01
02
01
01
01
01
01
01
01
01
01
XW261A00 Power Transformer
XW262A00 Power Transformer
XW263B00 Power Transformer
*
V5789100 Motor
VS228900
VS229000
VS229100
VS229200
KB003620
KB003090
VS823300
KB003250
KB003630
KB003100
KB003630
KB003100
KB003630
KB003100
KB003630
KB003100
*: New Parts
AI8 UNC
100 16V
120P 50V K
560P 50V K
B 470P 50V K
F 0.100 25V Z
PH 5P TE
PHEC 100P SE
LS MT Y223NB
PM1D42 V1.01
TC74VHC245F
IC-PST591DMT
HD74LV08AFPEL
HD74LV04AFPEL
MBM29F400BC-70PFTN
IDT71016S15Y-TR
TC74VHC245F
TC74VHC245F
SN74LV138ANSR
SN74LV138ANSR
HD74LV08AFPEL
QTY
J
U,V
H,B,W
*
*
*
FZ400
FZ400
FZ100
FZ100
FZ200
FZ200
FZ201
FZ201
FZ300
FZ300
FZ301
FZ301
REMARKS
PH 4P SE
PH 6P SE
PH 4P SE
PH 4P SE
PH 5P SE
P=2.0 #26 8P 140L
P=2.0 #26 8P 140L
P=2.0 #26 6P 140L
RANK: Japan only
11
