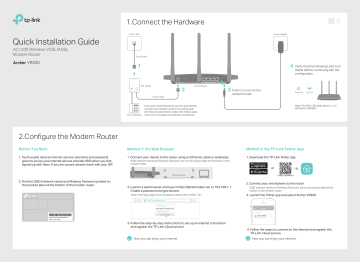

TP-Link Archer VR400 Quick Installation Manual

1.Connect the Hardware
Quick Installation Guide
Phone Jack
AC1200 Wireless VDSL/ADSL
Modem Router
Power Adapter
Phone Cable
VR400
4
1
Verify that the following LEDs turn
stable before continuing with the
configuration.
LINE
DSL Splitter
2
PHONE MODEM
Phone Cable
Phone (Optional)
Modem Router
3 Push in to turn on the
Power On
modem router.
DSL On
Note: The DSL LED takes about 1 to 2
minutes to stabilize.
If you don’t need the phone service, just directly
connect the modem router to the phone jack
with the provided phone cable, then follow steps
3 and 4 to complete the hardware connection.
2.Configure the Modem Router
Before You Start
Method 1: Via Web Browser
Method 2: Via TP-Link Tether App
1. You'll usually need an internet service username and password,
given to you by your internet service provider (ISP) when you first
signed up with them. If you are unsure, please check with your ISP.
1. Connect your device to the router using an Ethernet cable or wirelessly.
1. Download the TP-Link Tether app.
SSID (network name) and Wireless Password are on the product label at the bottom of the
modem router.
or
Ethernet Cable
2. Find the SSID (network name) and Wireless Password printed on
the product label at the bottom of the modem router.
2. Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1.
Create a password and get started.
Note: If the login page does not appear, please refer to FAQ > Q1.
Scan to download
2. Connect your smartphone to the router.
SSID (network name) and Wireless Password are on the product label at the
bottom of the modem router.
3. Launch the Tether app and select Archer VR400.
http://tplinkmodem.net
New Password
Low
Middle
Device
High
Confirm Password
Let’s Get Started
Local Device
Archer VR400
50-C7-BF-02-EA-DC
3. Follow the step-by-step instructions to set up an internet connection
and register the TP-Link Cloud service.
Now you can enjoy your internet.
4. Follow the steps to connect to the internet and register the
TP-Link Cloud service.
Now you can enjoy your internet.
Already have a modem?
USB Applications
If you already have a modem or your internet comes directly from an Ethernet
wall outlet, you can switch to Wireless Router mode. Follow the steps below
to set up.
The USB port can be used for printer, file and media sharing, both locally
over your home network and remotely over the internet using the router's
built-in FTP server capability.
1. Connect the hardware and wait until the Power LED
becomes stable.
LED Indicators
USB Port
LED
Status
Indication
On
Flashing
Off
System initialization is complete.
The system is initializing or the firmware is being upgraded.
Do not disconnect or power off the modem router.
Power is off.
On
Flashing
Off
DSL synchronization is complete.
DSL synchronization is in progress.
DSL synchronization failed.
Internet
On
Off
Internet connection is available.
No internet connection or the modem router is operating in
Bridge mode.
Wireless
2.4GHz
On
Off
The 2.4GHz wireless radio band is enabled.
The 2.4GHz wireless radio band is disabled.
Wireless
5GHz
On
Off
The 5GHz wireless radio band is enabled.
The 5GHz wireless radio band is disabled.
LAN
On
Off
The corresponding LAN port is connected.
No LAN port is connected.
USB
On
Flashing
Off
The USB device is ready to use.
A new USB device is being identified.
No USB device is plugged into the USB port.
On/Off
Turns On when a WPS synchronization is established and
automatically turns Off about five minutes later.
A wireless device is trying to connect to the network via
WPS. This process may take up to 2 minutes.
Power
Power Adapter
DSL
Modem
Modem Router
Remote Access
via FTP Server
Media Sharing
Local Storage
Sharing
Printer Sharing
Ethernet Cable
2. Connect your device to the router via an Ethernet cable or wirelessly.
SSID (network name) and Wireless Password are on the product label at the bottom of
the modem router.
3. Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1.
Create a password for router management and get started.
Note: If the login page does not appear, please refer to FAQ > Q1.
http://tplinkmodem.net
4. Follow the Quick Setup and select Wireless Router Mode to connect to
the internet.
If there is no Operation Mode selection page in the Quick Setup, go to the
Advanced > Operation Mode page and switch to Wireless Router Mode,
then go to Basic > Internet to finish the set up.
To learn more about the USB features, visit
http://tp-link.com/app/usb or scan the QR code.
Support
For detailed configuration instructions and more supported features
(including TP-Link Cloud service, Guest Network, Parental Controls and
QoS) please refer to the User Guide available from this product's support
page at www.tp-link.com.
WPS
Slow Flashing
For technical support and other information, please visit
http://www.tp-link.com/support.
Now you can enjoy the internet.
FAQ (Frequently Asked Questions)
7106507460 REV2.1.0
©2017 TP-Link
Q1. What should I do if I cannot access the web management page?
A1. If the computer is set to a static IP address, change its settings to obtain an IP address
automatically.
A2. Make sure http://tplinkmodem.net or http://192.168.1.1 is correctly entered in the web
browser.
A3. Use another web browser and try again.
A4. Reboot your modem router and try again.
A5. Disable then enable the network adapter in use.
Q2. What should I do if the DSL LED
does not turn solid on?
A1. Check your cables and make sure they are all plugged in correctly, including the
telephone lines and power adapter.
A2. Restore your modem router to its factory default settings.
A3. Remove the DSL splitter, directly connect the modem router to the phone jack and
follow this guide to reconfigure the modem router.
A4. Contact your ISP (internet service provider) to check the status of your DSL line.
A5. If the problem persists, contact our Technical Support.
Q3. What should I do if I cannot access the internet?
A1. Make sure all telephone and Ethernet cables are correctly and securely connected to the
modem router.
A2. Try to log in to the web management page of the modem router using the default address
at http://tplinkmodem.net or http://192.168.1.1. If you cannot, change your computer
settings to obtain an IP address automatically from the modem router. If you can, try the
steps below.
A3. Ask your internet service provider for the VPI/VCI (or VLAN ID), Connection Type, internet
service username and password, and make sure all are correctly entered into your router's
management page.
A4. Restore the modem router to its factory default settings and reconfigure it by following the
instructions in this guide.
A5. Please contact our Technical Support if the problem persists.
Q4. What should I do if I forget my password?
For the web management page:
A1. If you are using a TP-Link ID to log in, click Forgot password on the login page and then
follow the instructions to reset it.
A2. Alternatively, restore the modem router to its factory default settings and then set a
new password.
For the Wi-Fi network:
A1. The default Wi-Fi Password/PIN can be found on the product label at the bottom of the
modem router.
A2. If the default wireless password has been changed, log in to the web management
page and go to Basic > Wireless to retrieve or reset your password.
Q5. How do I restore the modem router to its factory default settings?
A1. With the modem router powered on,
press and hold the Reset button on the
rear panel of the modem router for
approximately 8 seconds until all LEDs
turn back on, then release the button.
Reset Button: Press & Hold for 8 Seconds
A2. Log in to the web management page of the modem router. Go to Advanced > System
Tools > Backup & Restore and click Factory Restore. The modem router will restore
and reboot automatically.
