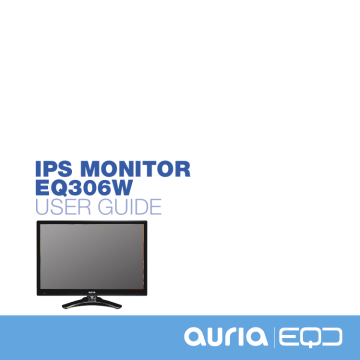

IPS MONITOR
EQ306W
USER GUIDE
CONTENTS
Getting Started ........................................................................................... 2
Setting up your Monitor ........................................................................... 3-6
Connecting your Monitor to your computer ............................................. 7-9
Using your Monitor ................................................................................... 10
Operator Interface ............................................................................... 11-12
Adjusting your Monitor’s Settings......................................................... 13-20
Troubleshooting .................................................................................. 21-22
Specifications ..................................................................................... 23-24
Preset Display Modes ......................................................................... 24-26
Care and Safety .................................................................................. 26-28
Warranty Statement............................................................................. 29-31
1
GETTING STARTED
Your IPS Monitor is designed to work seamlessly with Windows devices that contain a Display Port, HDMI, DVI, or VGA input.You may also use it with Apple devices via Apple’s mini DVI connector.
It features a 30” LED/LCD backlit screen with 2560 x 1600 resolution.
In this user guide you will learn how to:
• Set up your monitor
• Connect your monitor to a computer
• Adjust your monitor’s settings
Important
Carefully read your monitor’s set-up instructions and safety guidelines on pages 26-28 before you set-up and use your display. To download the specifications for your monitor please visit www.eqdcorp.com
2
SET-UP YOUR MONITOR: STEP ONE
Check to make sure your packaging includes each of the following:
1. Monitor / Monitor base
2. Signal Cable (VGA, DVI cables)
3. Power co rd
4. Four screws
3
SET-UP YOUR MONITOR: STEP TWO
Connect your monitor to the base.
Unpack the monitor and attach the base. For snap-in models tools and fasteners are not required. If screws have been provided with your monitor please connect the base as follows:
1. Open the box, and make sure all necessary parts are in the box.
2. Take out four screws (four M4 x 16) in the accessories bag.
3. Cover an even stable surface with a soft cloth. Place the LED/LCD
Monitor unit face-down on the cloth. screw four screws in clockwise direction as shown at
M4 x16, 4PCS
4
SET-UP YOUR MONITOR: STEP THREE
Follow these instructions to adjust your monitor’s viewing angle:
Hold the base of the monitor with one hand (to keep the screen from shaking)
Using your other hand, grab the side or top of the monitor and tilt the screen forward or backwards. You may adjust the angle of the display from 5°
(forward) to 15° (back). Do not touch the actual screen when you adjust view angle of the monitor as this may cause damage or scratching.
5° 15°
5
SET-UP YOUR MONITOR: STEP FOUR
Connect your monitor to a power source.
1. Connect the output cable from the AC Power to the AC Power In connector
(flat side of connector towards the cabinet rear) on the monitor.
2. Plug in the IEC Power Cord to the input side of The Brick and your
100/120V or 220/240V AC grounded power outlet using the provided power cord. NOTE: using the device with voltages other than those listed above may cause permanent damage to the monitor. It is strongly recommend that you use a power strip with a surge suppressor.
NOTE: It is suggested that you leave the AC Power Adapter (The Brick) plugged into 120 VAC source all of the time (do not use the switch on the power strip to turn the monitor On/Off). Please use the Power Button on the monitor to turn On/Off.
When the monitor is off, the Brick goes into “stand-by” mode (burns 1 or 2 watts) and the Green LED remains lit.
6
CONNECT YOUR MONITOR TO YOUR
COMPUTER OR DEVICE
Plug in the Cable connecting your desktop, laptop or other device to your monitor .
Using the Display Port will provide for best performance and resolution.
If Display Port is not available, we recommend using Dual Link DVI or
HDMI 1.4 device.
Notes:
• HDMI 1.4 device does support 2560 x 1440 (WQHD/WQXGA). But you have to check your signal source & HDMI Cable both support HDMI ver. 1.4.
• Auria does not recommend using VGA for WQHD/UWXGA.
• If you are using the DVI or VGA video cable, be certain to tighten down the
grounding screws on the connector (on both ends of the video cable).
Turn on the source device then turn on the monitor (push power button on the cabinet). For the best performance, use 2560 x 1600 (WQHD/UWXGA) graphics’ mode (If supported by your graphics card).
7
CONNECTING YOUR MONITOR:
FOR YOUR REFERENCE
1
Port Connections
(Down to Up)
• DP (Display Port)
• VGA
• DVI
• HDMI
• AUDIO IN
3
DP VGA DVI HDMI Audio
Mainframe computer
8
CONNECTING YOUR MONITOR:
FOR YOUR REFERENCE
:ON
:Off
2
Port connections
(Left to Right)
Switch
AC Power In: Connect to an earth
100-240V, 50/60Hz AC outlet with the Power Cable.
Switch:Turn on/ off the power supply.
When using a DVI cable, make sure it is a dual link cable, as only a dual link cable will support 2560 x 1440 Resolution. If using a DVI to HDMI cable, the
DVI end must be dual link.
DVI-D(Single Link)
18+1 needle DVI cable support the resolution 1920 x 1080
DVI-D(Dual Link)
24+1 needle DVI cable support the resolution 2560 x 1440
1.If you want to use transferring cable or connector on the monitor,please refer to the table and note that some kind of combination is not work.
2.Please also note the table's "DVI" interface all means DVI-D Dual link,as you choose your transferring cable or connector,please must note it.
1.Not work
Computer or Signal Source
DVI
Monitor
Display Port
Computer or Signal Source
HDMI
Monitor
Display Port
9
2.Work
Computer or Signal Source
Mini Display Port
Computer or Signal Source
Mini Display Port
Computer or Signal Source
Mini Display Port
Monitor
Display Port
Monitor
DVI
Monitor
HDMI
Computer or Signal Source
HDMI
Computer or Signal Source
Display Port
Computer or Signal Source
HDMI
Monitor
DVI
Monitor
HDMI
Monitor
DVI
Computer or Signal Source Monitor
DVI HDMI
USING YOUR MONITOR
Turn on your monitor by using the ON/OFF power key (located on the front, bottom edge). The power ON indicator LED should be lit. In the following section you will learn how to adjust your monitor’s settings.
3
3
10
Keys (Left to Right)
• AUTO: Multi-purpose auto adjustment and menu exit key
• MENU
• VOL +
Show main menu
Increase the sound level by adjusting to the right
• VOL -
• UP
• DOWN
• Power
Decrease the sound by adjusting to the left
Navigate or select higher options
Navigate or select lower options
ON/OFF
OPERATOR INTERFACE
AUTO Key:
1.Shortcut key to switch input signal source.
2.This key is an exit key (exit OSD menu) when OSD menu is active.
3.Press the key, monitor will into automatic adjustment. When the
OSD menu is OFF. Press the button for 3 seconds and into auto-adjustment function, but only on VGA mode.
MENU Key Menu/Select :
Activate OSD menu or confirm function adjustment.
VOL-Volume control key:
1.Press this key to decrease volume.
2.Press this key to adjust the options to move left.
VOL+Volume control key:
1.Press this key to increase volume.
2.Press this key to adjust the options to move right.
UP KEY/ECO Adjustment Key:
When OSD menu is active, press this key to adjust the options move up.
11
OPERATOR INTERFACE
DOWN Key/DCR Adjustment Key:
When the OSD menu is active, press this key to adjust the options move down.
POWER:
Green -Turn on
Red -on standby
12
ADJUST YOUR MONITOR’S SETTINGS
1. Press the “MENU” key to activate the OSD interface.
2. Use the “UP” or “DOWN” Keys to browse the main functions.
3. In order to select a function press the “MENU” key.
4. If the function you need has a sub-menu use the “UP” or “DOWN” keys to navigate it, then press “MENU” to select.
5. Press “UP” or “DOWN” to adjust the selected function.
6. Click the “AUTO” button to save and exit.
ADJUSTING THE INPUT SOURCE
1. Press the “AUTO” button to display the input
source list
2. Press “UP” or “DOWN” to browse input sources
3. Press “MENU” to select the input source you want
to watch
4. Press “AUTO” to save and quit
13
ADJUST BRIGHTNESS
1. Press the “MENU” key
2. Press the “UP/DOWN” buttons and browse to “BRIGHTNESS” in the main menu, then press “MENU” to select it.
3. Use the “UP/DOWN” keys to browse BRIGHTNESS, CONTRAST, ECO &
DCR, click “MENU” to select and adjust any of these.
4. Use the “VOL + / VOL -” keys to adjust the settings.
5. Click “MENU” to save and exit
14
ADJUST IMAGE
1. Press the “MENU” key
2. Press the “UP/DOWN” buttons and browse to “IMAGE” in the main menu, then press “MENU” to select it.
3. Use the “UP/DOWN” keys to browse H.POSITION, V.POSITION, CLOCK,
PHASE or ASPECT RATIO, click “MENU” to select and adjust any of these.
4. Use the “VOL + / VOL -” keys to adjust the settings.
5. Click “MENU” to save and exit
15
ADJUST COLOR TEMP
1. Press the “MENU” key
2. Press the “UP/DOWN” buttons and browse to “COLOR TEMP” in the main menu, then press “MENU” to select it.
3. Use the “UP/DOWN” keys to browse COLOR TEMP, RED, GREEN or BLUE, click “MENU” to select and adjust any of these.
4. Use the “VOL + / VOL -” keys to adjust the settings.
5. Click “MENU” to save and exit
16
ADJUST OSD SETTINGS
1. Press the “MENU” key
2. Press the “UP/DOWN” buttons and browse to “OSD” in the main menu, then press “MENU” to select it.
3. Use the “UP/DOWN” keys to browse LANGUAGE, OSD H.POS., OSD
V.POS, OSD TIMER or TRANSPARENCY click “MENU” to select and adjust any of these.
4. Use the “VOL + / VOL -” keys to adjust the settings.
5. Click “MENU” to save and exit
17
ADJUST LANGUAGE
1. Press the “MENU” key
2. Press the “UP/DOWN” buttons and browse to “OSD SETTINGS” in the main menu, then press “MENU” to select it.
3. Use the “UP/DOWN” keys to select “LANGUAGE” and click “MENU”.
4. Use the “UP/DOWN” keys to browse languages.
5. Click “MENU” to save and exit
18
ADJUST RESET SETTINGS
1. Press the “MENU” key
2. Press the “UP/DOWN” buttons and browse to “RESET” in the main menu, then press “MENU” to select it.
3. Use the “UP/DOWN” keys to browse IMAGE AUTO ADJUST, COLOR AUTO
ADJUST or RESET, click “MENU” to select and adjust any of these.
4. Click “MENU” to save and exit
19
ADJUST MISCELLANEOUS SETTINGS
1. Press the “MENU” key
2. Press the “UP/DOWN” buttons and browse to “MISC” in the main menu, then press “MENU” to select it.
3. Use the “UP/DOWN” keys to browse HOTKEY TYPE, SIGNAL SOURCE,
AUDIO SELECT or VOLUME click “MENU” to select and adjust any of these.
4. Use the “VOL + / VOL -” keys to adjust the settings.
5. Click “MENU” to save and exit
2560x 1600 50Hz
20
TROUBLESHOOTING
Power pilot lamp is dim
Check to make sure the power is turned ON
Check to make sure the power cord is securely connected to both the monitor and the socket.
Picture looks faint
Adjust brightness or contrast ratio
Screen display distorted or picture becomes wavy
Possibly caused by electronic jamming due to nearby electrical equipment
Power pilot lamp is bright, but there is no image on the screen
• Confirm the computer power is ON
• Confirm the computer graphics card is inserted
• Confirm the computer signal cable is properly connected
• Check each pin on the monitor signal cable to make sure none are bent
• Press “Caps Lock” key on your keyboard to confirm the computer is in operation and not sleep mode.
Color loss (Red, Green, Blue)
Check each pin on the monitor signal cable to make sure none are bent.
21
TROUBLESHOOTING
Picture is not in the middle or incorrect size
Adjust CLOCK and FOCUS or hot keys (AUTO)
The images have color shading (white looks not pure white)
Adjust RGB color or choose new color temperature
Weak brightness and contrast
Monitor brightness may be reduced due to over use. The monitor may need service. Please send monitor to authorized service organization for repair.
Picture displays horizontal or vertical interference
Close Win95/98/2000 / ME/XP, adjust CLOCK and FOCUS or press hot keys
(AUTO key )
The Clock controls the quantity of scanned pixel at each line. If the frequency is not correct, vertical stripes may appear on screen, and appear incorrect screen width. FOCUS adjust phase of Point frequency signal, a wrong phase adjustment will cause picture appear horizontal interference. Use “dot-pattern” or Win95/98/2000/ME/XP shutdown pattern to adjust CLOCK and FOCUS.
22
SPECIFICATIONS
Panel
Display Equipment
Dimensions
Dot Pitch (mm)
Resolution (Max)
Panel (LED/LCD backlight)
30”
0.233 x 0.233
2560 x 1600
Input Signal
VGA
DVI
DP
HDMI
D-Sub 15 pin Connector
DVI-D Dual LInk Connector
DP Version 1.2 Connector
HDMI version 1.4 Connector
Frequency
HFR (Horizontal Frequency) 30KHz 88.7KHz
VFR (Vertical Frequency) 60Hz
Pixel Clock Frequency 241.5MHz
PNP (Plug and Play) VESA DDC2B
Power Consumption
Operation
Standby
< 180W
≤ 1.5W
23
SPECIFICATIONS
Power Equipment
Ambient Temperature Humidity
Dimensions (mm)
Weight (Net)
AC100-240V,50-60Hz
Operating temperature:0~50°C
Storage temperature:-20~60°C
Operation relative humidity: 10~85%
760(L) x 200(W) x 585(H) mm
10.5Kg
24
PRESET DISPLAY MODES
Resolution HFR(KHz)
DOS Mode
VGA
SVGA
XGA
SXGA
WXGA+
WSXGA+
720 x 400
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1280 x 1024
1280 x 1024
1440 x 900
1680 x 1050
31.469
31.469
37.861
37.500
37.879
47.20
46.875
48.363
56.476
60.023
63.981
79.976
55.674
59.80
60
70
75
60
75
60
60
60
72
75
60
72
75
VFR(Hz)
70
25
PRESET DISPLAY MODES
Resolution HFR(KHz)
WUXGA
WQXGA
1920 x 1200
2560 x 1600
74.03
98.71
VFR(Hz)
60
60
CARE & SAFETY
Attention:
Any unauthorized modifications or changes may cause the monitor to not work properly. The manufacturer is not responsible for radio or image interference caused by unapproved modifications. Users should solve interference issues by themselves.
Warning:
To prevent fire hazards or explosions, do not expose the monitor to rain or humid environments. Please do not open the monitor’s back cover or you may be exposed to high voltage current. Contact professional personnel for maintenance.
26
CARE & SAFETY
Usage
It is normal for your monitor to “blink” the first time you use it. If this occurs simply turn your monitor off, then on again. The effective screen pixels of your monitor should read 99.99% or more, pixel or brightness loss should be less than 0.01%. During normal usage your monitor should not have pixel residue.
However, when the same static picture is showed a long time before changing the image, the previous image may remain, which is called “the shadow”. The best way to avoid this “shadow” is when you are not operating your PC or computer system, run monochrome or dynamic images as a screen saver, or turn off monitor power 2 hours at every 12 hours. When the screen is black, blinking, etc., Please contact the dealer or authorized service center to replace related parts. Do not attempt to fix the monitor yourself.
Environments
Keep your monitor away from water sources, such as the bathroom, dishwasher, kitchen, washing machine, swimming pools or humid basements.
Also avoid placing your monitor near direct heat such as heaters, hot air pipes or under direct sunshine. Also avoid unstable surfaces or places with excess dust or vibration. If your monitor is fixed on the wall or shelf, installation should be confirmed by a professional installer. The long, narrow holes in the upper and bottom part of the monitor back cover are for ventilation. These holes must be kept clear at all times to prevent overheating.
27
CARE & SAFETY
Cleaning & transport
Keep the original box and other packing material in the event that you need to ship your monitor. To clean your monitor use a soft, dry cloth and only cleaners intended for use with a screen or display. Cleaners with alcohol or acetone will damage your screen. Any marks on the monitor should be cleaned gently so as to prevent damage. For your safety, please un-plug power cord before cleaning.
Power
For safety purposes, your monitor may only be used with a power supply voltage range of 100 ~ 240V AC. If you can’t confirm the supply voltage you can consult your reseller or the local power company. This monitor is equipped with a three-wire grounding plug, one end grounded. For safety, the plug should be inserted only into grounded power outlets. If you can’t insert the plug into a three-phase socket, please find an electrician to install one or use an adapter to ground the equipment safely. When the display is not used for a long period of time unplug it to cut off the power supply. Such action can prevent electrical shock, fire or abnormal power voltage due to events like thunderstorms. Do not open your monitor’s shell or place foreign material inside the shell as this may cause fire or electrical shock.
28
Warranty Statement
For AURIA LED/LCD Monitor - EQ306W
Including those Sold within North America
AURIA warrants this product to be free from defects in material and workmanship for a period of twelve months after the original date of consumer purchase.
During this period, Auria will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The parts or products that are replaced become the property of Auria. In the USA to obtain service under this limited warranty, call Auria for the name of the Authorized Service Center (ASC). Deliver the product freight pre-paid, along with the dated proof of purchase, to the Auria
ASC.
●
●
●
●
●
Pack it in its original shipping container (or equivalent)
Put the RMA number on the address label
Put the RMA number on the shipping carton
Insure it (or assume the risk of loss/damage during shipment)
Pay all shipping charges
Auria is not responsible for damage to inbound product that was not properly packaged.
Auria will pay for the return shipment charges with in the USA and is responsible for any costs across any international borders. In the USA or Canada, please contact your local dealer or call Auria customer service at (877)375-1065.
If the unit is found not to be defective, the unit will be shipped back at the owner’s expense.
29
This limited warranty does not cover any losses or damages that occur as a result of:
●
Shipping or improper installation or maintenance
●
Misuse
●
Neglect
●
Adjustment by non-authorized sources
●
Any cause other than ordinary usage
●
Repair, modification, installation of options or parts by anyone other than an Auria ASC
●
Improper environment
●
Excessive or inadequate heating or air conditioning or electrical power failures, surges, or irregularities
This one year warranty does not cover any of the products firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.
ALL EXPRESSED AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF ONE (1) YEARS FOR
PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE.
NO WARRANTIES(EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD.
IN THE UNITED STATES OF AMERICA, SOME STATES DONOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU.
30
AURIA OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND
EXCLUSIVELY AS
STATES HERE. AURIA LIABILITY, WHETHER BASED ON CONTRACT, TORT,
WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED
THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE
BASIS OF THE CLAIM. IN NO EVENT SHALL AURIA BE LIABLE FOR ANY LOSS
OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER
INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. IN THE UNITED STATES
OF AMERICA, SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUNTIAL DAMAGES, SO THE ABOVE LIMITATION
MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY
FROM STATE TO STATE.
31
EQD is located at:
3309 E. Miraloma Avenue
Suite 107
Anaheim, CA 92806
For Customer Service please call 877-375-1065 or visit www.eqdcorp.com
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
