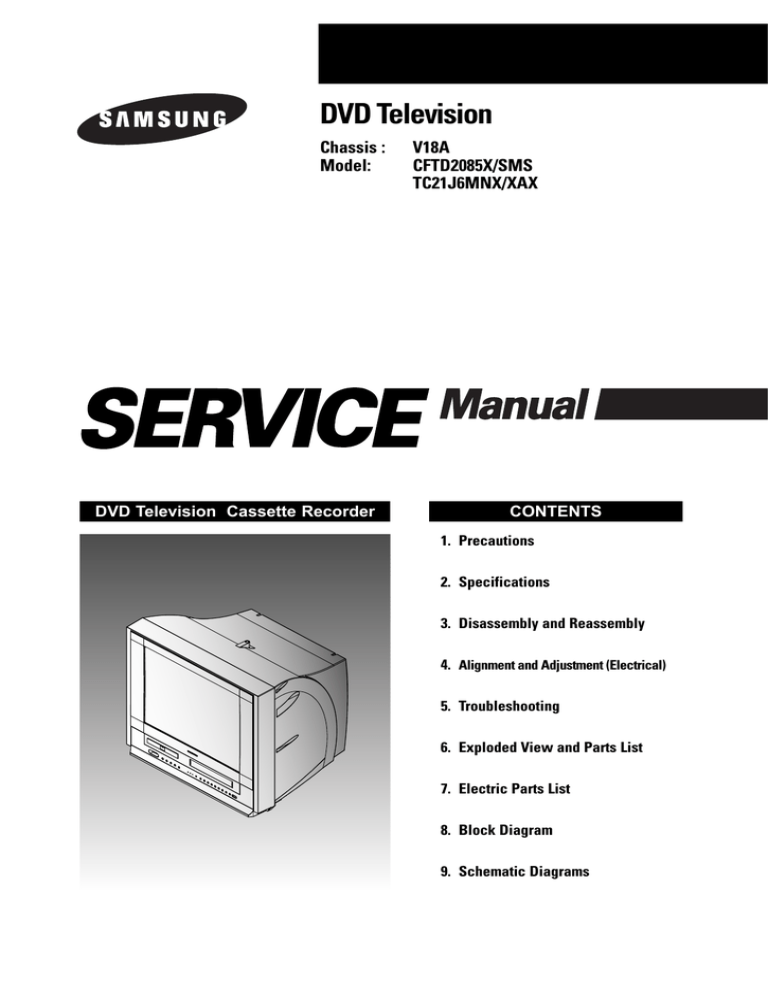

DVD Television

Chassis : V18A

Model: CFTD2085X/SMS

TC21J6MNX/XAX

DVD Television Cassette Recorder CONTENTS

1.

Precautions

2.

Specifications

3.

Disassembly and Reassembly

4.

Alignment and Adjustment (Electrical)

5.

Troubleshooting

6.

Exploded View and Parts List

7.

Electric Parts List

8.

Block Diagram

9.

Schematic Diagrams

ELECTRONICS

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

© Samsung Electronics Co., Ltd. JUL. 2003

Printed in Korea

AA82-00799A

Precautions

1. Precautions

Follow these safety, servicing and ESD precautions to prevent damage and protect against potential hazards such as electrical shock and X-rays.

1-1 Safety Precautions

1. Be sure that all of the built-in protective devices are replaced. Restore any missing protective shields.

2. When reinstalling the chassis and its assemblies, be sure to restore all protective devices, including: nonmetallic control knobs and compartment covers.

3. Make sure that there are no cabinet openings through which people—particularly children—might insert fingers and contact dangerous voltages. Such openings include the spacing between the picture tube and the cabinet mask, excessively wide cabinet ventilation slots, and improperly fitted back covers.

If the measured resistance is less than 1.0

megohm or greater than 5.2 megohms, an abnormality exists that must be corrected before the unit is returned to the customer.

4. Leakage Current Hot Check (Figure 1-1):

Warning: Do not use an isolation transformer during this test. Use a leakagecurrent tester or a metering system that complies with American National Standards

Institute (ANIS C101.1, Leakage Current for

Appliances), and Underwriters Laboratories

(UL Publication UL1410, 59.7).

5. With the unit completely reassembled, plug the AC line cord directly into the power outlet. With the unit’s AC switch first in the

ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including: antennas, handle brackets, metal cabinets, screwheads and control shafts. The current measured should not exceed 0.5 milliamp. Reverse the powerplug prongs in the AC outlet and repeat the test.

DEVICE

UNDER

TEST

TEST ALL

EXPOSED METAL

SURFACES

2-WIRE CORD

ALSO TEST WITH

PLUG REVERSED

(USING AC ADAPTER

PLUG AS REQUIRED)

LEAKAGE

CURRENT

TESTER

(READING SHOULD

NOT BE ABOVE

0.5mA)

EARTH

GROUND

Fig. 1-1 AC Leakage Test

6. Antenna Cold Check:

With the unit’s AC plug disconnected from the

AC source, connect an electrical jumper across the two AC prongs. Connect one lead of the ohmmeter to an AC prong. Connect the other lead to the coaxial connector.

7. X-ray Limits:

The picture tube is especially designed to prohibit X-ray emissions. To ensure continued

X-ray protection, replace the picture tube only with one that is the same type as the original.

Carefully reinstall the picture tube shields and mounting hardware; these also provide X-ray protection.

8. High Voltage Limits:

High voltage must be measured each time servicing is done on the B+, horizontal deflection or high voltage circuits. Correct operation of the X-ray protection circuits must be reconfirmed whenever they are serviced.

(X-ray protection circuits also may be called

“horizontal disable” or “hold-down”.)

Heed the high voltage limits. These include the X–ray Protection Specifications Label, and the Product Safety and X-ray Warning Note on the service data schematic.

Samsung Electronics 1-1

Precautions

1-1 Safety Precautions (Continued)

9. High voltage is maintained within specified limits by close-tolerance, safety-related components and adjustments. If the high voltage exceeds the specified limits, check each of the special components.

10. Design Alteration Warning:

Never alter or add to the mechanical or electrical design of this unit. Example: Do not add auxiliary audio or video connectors. Such alterations might create a safety hazard. Also, any design changes or additions will void the manufacturer’s warranty.

11. Hot Chassis Warning:

Some TV receiver chassis are electrically connected directly to one conductor of the AC power cord. If an isolation transformer is not used, these units may be safely serviced only if the AC power plug is inserted so that the chassis is connected to the ground side of the

AC source.

To confirm that the AC power plug is inserted correctly, do the following: Using an AC voltmeter, measure the voltage between the chassis and a known earth ground. If the reading is greater than 1.0V, remove the AC power plug, reverse its polarity and reinsert.

Re-measure the voltage between the chassis and ground.

12. Some TV chassis are designed to operate with

85 volts AC between chassis and ground, regardless of the AC plug polarity. These units can be safely serviced only if an isolation transformer inserted between the receiver and the power source.

13. Some TV chassis have a secondary ground system in addition to the main chassis ground.

This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulating material that must not be defeated or altered.

14. Components, parts and wiring that appear to have overheated or that are otherwise damaged should be replaced with parts that meet the original specifications. Always determine the cause of damage or overheating, and correct any potential hazards.

1-2

15. Observe the original lead dress, especially near the following areas: Antenna wiring, sharp edges, and especially the AC and high voltage power supplies. Always inspect for pinched, out-of-place, or frayed wiring. Do not change the spacing between components and the printed circuit board. Check the AC power cord for damage. Make sure that leads and components do not touch thermally hot parts.

16. Picture Tube Implosion Warning:

The picture tube in this receiver employs

“integral implosion” protection. To ensure continued implosion protection, make sure that the replacement picture tube is the same as the original.

17. Do not remove, install or handle the picture tube without first putting on shatterproof goggles equipped with side shields. Never handle the picture tube by its neck. Some

“in-line” picture tubes are equipped with a permanently attached deflection yoke; do not try to remove such “permanently attached” yokes from the picture tube.

18. Product Safety Notice:

Some electrical and mechanical parts have special safety-related characteristics which might not be obvious from visual inspection.

These safety features and the protection they give might be lost if the replacement component differs from the original—even if the replacement is rated for higher voltage, wattage, etc.

Components that are critical for safety are indicated in the circuit diagram by shading,

Use replacement components that have the same ratings, especially for flame resistance and dielectric strength specifications.

A replacement part that does not have the same safety characteristics as the original might create shock, fire or other hazards.

Samsung Electronics

Precautions

1-2 Servicing Precautions

Warning1: First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a conflict between the servicing and safety precautions, always follow the safety precautions.

Warning2: An electrolytic capacitor installed with the wrong polarity might explode.

1. Servicing precautions are printed on the cabinet. Follow them.

2. Always unplug the unit’s AC power cord from the AC power source before attempting to: (a)

Remove or reinstall any component or assembly, (b) Disconnect an electrical plug or connector, (c) Connect a test component in parallel with an electrolytic capacitor.

3. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.

4. After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the portion around the serviced part has not been damaged.

5. Check the insulation between the blades of the

AC plug and accessible conductive parts

(examples: metal panels, input terminals and earphone jacks).

6. Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500V) to the blades of the AC plug.

The insulation resistance between each blade of the AC plug and accessible conductive parts

(see above) should be greater than 1 megohm.

7. Never defeat any of the B+ voltage interlocks.

Do not apply AC power to the unit (or any of its assemblies) unless all solid-state heat sinks are correctly installed.

8. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last.

Samsung Electronics 1-3

Precautions

1-3 Precautions for Electrostatically Sensitive Devices (ESDs)

1. Some semiconductor (“solid state”) devices are easily damaged by static electricity. Such components are called Electrostatically

Sensitive Devices (ESDs); examples include integrated circuits and some field-effect transistors. The following techniques will reduce the occurrence of component damage caused by static electricity.

2. Immediately before handling any semicon ductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. (Be sure to remove it prior to applying power— this is an electric shock precaution.)

3. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of electrostatic charge.

4. Do not use freon-propelled chemicals. These can generate electrical charges that damage

ESDs.

5. Use only a grounded-tip soldering iron when soldering or unsoldering ESDs.

6. Use only an anti-static solder removal device.

Many solder removal devices are not rated as

“anti-static”; these can accumulate sufficient electrical charge to damage ESDs.

7. Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials.

8. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed.

9. Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting a foot from a carpeted floor can generate enough static electricity to damage an ESD.

CAUTION

These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

1-4 Samsung Electronics

Precautions

1-4 Handling the optical pick-up

The laser diode in the optical pick up may suffer electrostatic breakdown because of potential static electricity from clothing and your body.

The following method is recommended.

(1) Place a conductive sheet on the work bench (The black sheet used for wrapping repair parts.)

(2) Place the set on the conductive sheet so that the chassis is grounded to the sheet.

(3) Place your hands on the conductive sheet(This gives them the same ground as the sheet.)

(4) Remove the optical pick up block

(5) Perform work on top of the conductive sheet. Be careful not to let your clothes or any other static sources to touch the unit.

Be sure to put on a wrist strap grounded to the sheet.

Be sure to lay a conductive sheet made of copper etc.

Which is grounded to the table.

WRIST-STRAP

FOR GROUNDING

1M

THE UNIT

CONDUCTIVE SHEET

1M

Fig.1-2

(6) Short the short terminal on the PCB, which is inside the Pick-Up ASS’Y, before replacing the Pick-

Up. (The short terminal is shorted when the Pick-

Up Ass’y is being lifted or moved.)

(7) After replacing the Pick-up, open the short terminal on the PCB.

Samsung Electronics 1-5

Precautions

1-5 Pick-up disassembly and reassembly

1-5-1 Disassembly 1-5-2 Assembly

1) Remove the power code.

2) Disassemble the Deck-Assy.

3) Make solder land 2 points short on Pich-up.

(See Fig. 1-3)

4) Disassembly the Pick-up.

1) Replace the Pick-up.

2) Remove the soldering 2 points on Pick-up.

3) Reassemble the Deck-Assy.

Note : If the assembly and disassembly are not done in correct sequence, the Pick-up may be damaged.

PICK-UP ASS'Y

1-6

Fig. 1-3

SOLDER LAND 2 POINTS SHORT

Samsung Electronics

2. Specifications

Samsung Electronics 3-1

MEMO

3-2 Samsung Electronics

3. Disassembly and Reassembly

3-1 Disassembly

3-1-1 Back Cover Removal

Disassembly and Reassembly

1. Remove the screws located on the side of the back cover.

Samsung Electronics 3-1

Disassembly and Reassembly

3-1-2 Main Assembly Removal

1. Release four connectors between DVD Interface and Main PCB Assembly.

2. Remove screws from the DVD and VCR shield case.

3. Remove shield case, then take out DVD PCB Assembly.

4. Remove screws from the DVD and VCR Deck.

5. Life up the DVD and VCR Deck, then Remove screws from Main and DVD Interface PCB Assembly.

6. Remove the Main and DVD Interface PCB Assembly.

3-2 Samsung Electronics

3-1-3 Power Assembly Removal

Disassembly and Reassembly

1. Release two connectors between Power and Main PCB Assembly.

2. Remove screws from the Power Assembly.

Samsung Electronics 3-3

Disassembly and Reassembly

3-2 VCR Deck Parts Locations

3-2-1 Top View

Œ ´

ˇ

ΠGEAR FL CAM

´ MOTOR LOADING ASS’Y

ˇ LEVER FL ARM ASS’Y

¨ HOLDER FL CASSETTE ASS’Y

ˆ LEVER FL DOOR

Ø SLIDER FL DRIVE

¨ ˆ

Fig. 3-1 Top parts Location-1

Ø

3-4 Samsung Electronics

Œ ´ ˇ ¨ ˆ

Disassembly and Reassembly

Ø ∏ ” ’ ” Ô ˝  Ò

Fig. 3-2 Top Parts Location-2

ΠFE HEAD

´ CYLINDER ASS’Y

ˇ ACE HEAD ASS’Y

¨ LEVER UNIT PINCH ASS’Y

ˆ LEVER #9 GUIDE ASS’Y

Ø LEVER TENSION ASS’Y

∏ BAND BRAKE ASS’Y

” DISK S REEL

’ LEVER S BRAKE ASS’Y

˝ GEAR IDLE

Ô LEVER IDLE

 LEVER T BRAKE ASS’Y

Ò DISK T REEL

Samsung Electronics 3-5

Disassembly and Reassembly

3-2-2Bottom View

Œ ´ ˇ ¨ ˆ Ø ∏

ΠGEAR JOINT 1

´ GEAR JOINT 2

ˇ BRACKET GEAR

¨ MOTOR CAPSTAN ASS’Y

ˆ LEVER T LOAD ASS’Y

Ø GEAR LOADING DRIVE

∏ LEVER S LOAD ASS’Y

” HOLDER CLUTCH ASS’Y

’ BELT PULLEY

˝ SLIDER CAM

3-6

” ’ ˝

Fig. 3-3 Bottom Parts Location

Samsung Electronics

Disassembly and Reassembly

3-3 Main Deck

3-3-1 Lever FL Door Removal

1) Push the Holder FL Cassette Ass'y Πabout

20mm in the direction of arrow “A”.

2) Rotate the Lever FL Door ´ in the direction of arrow “B”.

3) Release the Hook ˇ and Remove the Lever FL

Door ´ in the direction of arrow “C”.

ΠHOLDER FL CASSETTE ASS'Y

"A"

3-3-2 Holder FL Cassette Ass’y Removal

1) Pull the Holder FL Cassette Ass'y Πto the eject position.

2) Pull the Holder FL Cassette Ass'y Πas grasping the Holder FL Cassette Ass'y Πand Lever

FL Cassette-R ´ in the same time to release hooking from Main Base until the Boss [A] of

Holder FL Cassette Ass'y Πis taken out from the Rail [B].

3) Lift the Holder FL Cassette Ass'y Œ, in this time, you have to grasp the Lever FL Cassette-R

´ Continuously until the Holder FL Cassette

Ass'y Πis taken out completely.

Note : Be sure to insert Lever FL Cassette-R ´ in the direction of “A” to prevent separation and breakage of the Lever FL Cassette-R ´ at disassembling and reassembling.

"B"

´ LEVER FL DOOR

ˇ HOOK

"C"

Fig. 3-4 Lever FL Door Removal

ΠHOLDER FL

CASSETTEE ASS`Y

BOSS [A]

"A"

´ LEVER FL CASSETTEE -R

RAIL [B]

Fig. 3-5 Holder FL Cassette Ass’y Removal

Samsung Electronics 3-7

Disassembly and Reassembly

3-3-3 Slider FL Drive, Gear FL Cam Removal

1) Pull the Slider FL Drive Πto the front direc tion.

2) Remove the Slider FL Drive Πin the direction of arrow. (Refer to Fig. 3-6)

3) Remove the Gear FL cam ´.

Note : When reinstalling be sure to reassemble

Slider FL drive Πafter you insert the Boss of

Lever FL ARM-R in Groove of Slider Fl drive Œ.

Assembly : Align the Gear FL Cam Πwith the

Gear worm wheel Post as shown drawing.

(Refer to Timing point)

3-3-4 Lever FL Arm Ass’y Removal

1) Push the hole “A” in the direction of arrow “B” use the pin.(about Dia. 2.5)

2) Pull out the Lever FL Arm Ass'y Πfrom the

Boss of Main Base.

3) Remove the Lever FL Arm Ass'y Œ in the direction of arrow “C”.

HOLE "A"

PIN

"B"

"C"

ΠLEVER FL ARM ASS`Y

Fig. 3-8 Lever FL Arm Ass’y Removal

´ GEAR FL CAM

ΠSLIDER FL DRIVE

Fig. 3-6 Slider FL Drive Removal

ΠGEAR FL CAM

GEAR WORM WHEEL

TIMING POINT

POST

Fig. 3-7 Gear FL Cam, Gear Worm

3-8 Samsung Electronics

3-3-5 Gear Worm Wheel Removal

1) Remove the Gear Worm wheel Œ.

Disassembly and Reassembly

3-3-6 Motor Loading Ass’y Removal

1) Remove the screw Œ.

2) Remove the Motor Loading Ass’y ´.

ΠGEAR WORM WHEEL

Fig. 3-9 Gear Worm Wheel Removal

´ MOTOR LOADING ASS`Y

ΠSCREW

Fig. 3-10 Motor Loading Ass’y Removal

Samsung Electronics 3-9

Disassembly and Reassembly

3-3-7 Bracket Gear, Gear Joint 2, 1 Removal

1) Remove the SCREW Œ.

2) Remove the Bracket Gear ´.

3) Remove the Gear Joint 2 ˇ.

4) Remove the Gear Joint 1 ¨.

Assembly :

1) Be sure to align dot mark of Gear Joint 1 Œ with dot mark of Gear Joint 2 ´ as shown Fig

3-12.

(Refer to Timing point1)

2) Confirm the Timing Point 2 of the Gear Joint 2

´ and Slider Cam ˇ.

3-3-8 Gear Loading Drive, Slider Cam,

Lever Load S, T Ass’y Removal

1) Remove the Belt Pulley. (Refer to Fig. 3-30)

2) Remove the Gear Loading Drive Πafter releasing Hook [A] in the direction arrow as shown in detail drawing.

3) Remove the Slider Cam ´.

4) Remove the Lever Load ˇ, Link Load ˆ &

Lever Load ¨, Link Load Ø.

¨ GEAR JOINT 1

ˇ GEAR JOINT 2

ΠSCREW

´ BRAKET GEAR

´ SLIDE CAM

HOOK(A)

ΠGEAR LOADING DRIVE

¨ LEVER LOAD T

Ø LINK LOAD T

ˇ LEVER LOAD S

ˆ LINK LOAD S

Fig. 3-11 Bracket Gear, Gear Joint 1,2 Removal

ΠGEAR JOINT1

´ GEAR JOINT2

ˇ SLIDER CAM

TIMING POINT 1 TIMING POINT 2

Fig. 3-12 Gear Joint 1,2 Assembly

Fig. 3-13 Gear Loading Drive, Slider Cam,

Lever T, S Load Ass’y Removal

3-10 Samsung Electronics

3-3-9 Gear Loading Drive, Slider Cam,

Lever Load S, T Ass’y Assembly

1) When reinstalling, be sure to align dot of Lever

Load T Ass'y Πwith dot of Lever Load S

Ass'y ´ as shown in drawing, (Refer to Timing

Point 1).

2) Insert the Pin A,B,C,D into the Slider Cam ˇ hole,

3) Be sure to align dot of Lever Load T Œ and dot of Gear Loading Drive ¨, (Refer to Timing

Point 2).

4) Aline dot of Gear Loading drive ¨ with mark of Slider Cam ˇ as shown in drawing(Refer to

Timing Point 3).

Disassembly and Reassembly

3-3-10 Lever Pinch Drive,

Lever Tension Drive Removal

1) Remove the Lever Pinch Drive Œ, Lever

Tension Drive ´.

ΠLEVER PINCH DRIVE

´ LEVER TENSION DRIVE

ΠLEVER LOAD T

TIMING POINT 1

´ LEVER LOAD S

Fig. 3-15 Lever Pinch Drive,

Lever Tension Drive Removal

TIMING POINT 2

TIMING POINT 3

LEVER LOAD T LEVER LOAD S

PIN A PIN C PIN D

ˇ SLIDER CAM

PIN B

Fig. 3-14 Gear Loading Drive, Slider Cam,

Lever Load S, T Ass’y Assembly

Samsung Electronics 3-11

Disassembly and Reassembly

3-3-11 Lever Tension Ass’y,

Band Brake Ass’y Removal

1) Remove the Lever Brake S Ass'y (Refer to Fig

3-17).

2) Remove the Spring Tension Lever Œ.

3) Rotate stopper of Main Base in the direction of arrow “A”.

4) Lift the Lever Tension Ass'y ´ & Band brake

Ass'y ˇ.

Note :

1) When replacing the Lever Tension Ass'y ´, be sure to apply Grease on the post,

2) Take care not to touch stain on the felt side, and not to be folder and broken Band brake Ass'y

3) After Lever Tension Ass'y seated, Rotate stopper of Main Base to the Mark[B].

3-3-12 Lever Brake S, T Ass’y Removal

1) Release the Hook [A] and the Hook [B], [C] in the direction of arrow as shown in Fig 3-17.

2) Lift the Lever S, T Brake Ass'y Œ, ´ with spring brake ˇ.

Assembly :

1)Assembly the Lever S Brake Ass'y Πon the

Main Base.

2)Assembly the Lever T Brake Ass'y ´ with spring brake ˇ.

Note : Take extreme care not to be folded and transformed Spring Brake at removing or reinstalling.

ΠSPRING TENTION LEVER

STOPPER

"A"

MARK[B]

ˇ BAND BRAKE ASS`Y

´ LEVER TENTION ASS`Y

ΠLEVER S BRAKE ASS`Y

HOOK(A)

ˇ SPRING BRAKE

HOOK(C)

HOOK(B)

´ LEVER T BRAKE ASS`Y

Fig. 3-16 Lever Tension Ass’y,

Band Brake Ass’y Removal

Fig. 3-17 Lever Brake S, T Ass’y Removal

3-12 Samsung Electronics

3-3-13 Gear Idle Ass’y Removal

1) Push the Lever Idle Πin the direction of arrow

“A”, “B”.

2) Lift the Lever Idle Œ.

Assembly :

1) Apply oil in two Bosses of Lever Idle Œ.

2) Assemble the Gear Idle ´ with the Lever Idle

Œ.

Note : When replacing the Gear Idle ´, be sure to add oil in the boss of Lever Idle Œ.

ΠDISK S REEL

Disassembly and Reassembly

3-3-14 Disk S, T Reel Removal

1) Lift the Disk S, T Reel Œ, ´.

´ DISK T REEL

´ GEAR IDLE

"A"

HOOK "C"

ΠLEVER IDLE

"B"

´ GEAR IDLE

Fig. 3-19 Disk S, T Reel Removal

Fig. 3-18 Gear Idle Ass’y Removal

Samsung Electronics 3-13

Disassembly and Reassembly

3-3-15 Holder Clutch Ass’y Removal

1) Remove the Washer Slit Œ.

2) Lift the Holder Clutch Ass’y ´.

Note : When you reinstall Holder Clutch Ass'y

1) Check the condition of spring as shown in detail A.

2) Don't push Holder Clutch Ass'y down with excessive force Just insert Holder Clutch Ass'y into post center with dead force and Rotate it smoothly.

Be sure to confirm that spring is in the slit of

Gear Center Ass'y as shown in detail B.

ΠWASHER SLIT

´ HOLDER CLUTCH ASS`Y

3-3-16 Lever Up Down Ass’y, Gear Center

Ass’y Removal

1) Remove the 2 hooks in the direction of arrow as shown Fig. 3-21 and lift the Lever Up Down Ass’y

Œ.

2) Lift the Gear Center Ass’y ´.

Assembly :

1) Insert the Lever Up Down Ass'y Πin the rectangular holes on Main Base as shown in Fig 3-

22.

2) Lift the Lever Up Down Ass'y Œ about 35°.

(Refer to Fig 3-22)

3) Insert Ring of the Gear Center Ass'y ´ in the

Guide of the Lever Up Down Ass'y Œ.

4) Insert the Gear Center Ass'y ´ in the post on

Main Base.

5) Push down the Lever Up Down Ass'y Πfor locking of the Hook.

Note :

1) Take care not to separate and sentence does not mark sense.

2) Be sure to confirm that Ring of the Gear Center

Ass'y ´ is in the Guide of the Lever Up Down

Ass'y Πafter finishing assembly of Lever Up

Down Ass'y Œ and Gear Center Ass'y ´.

ΠLEVER UP DOWN ASS`Y

´ GEAR CENTER ASS`Y

DETAIL A

<BAD> SPRING

DETAIL B

SPRING

<GOOD>

3-14

<BAD> <GOOD>

Fig. 3-20 Holder Clutch Ass’y Removal

Fig. 3-21 Lever Up Down Ass’y Removal

RING

GEAR

POST

GEAR CENTER ASS'Y

GUIDE

LEVER UP DOWN ASS'Y

HOOK

35

Fig. 3-22 Lever Up Down Ass’y Removal

MAIN BASE

Samsung Electronics

3-3-17 Guide Cassette Door Removal

1) Lift the Hook [A].

2) Rotate the Guide Cassette Door Πin the direction of arrow.

Note : After reinstalling the Guide Cassette Door

Πsure the Hook [A].

ΠGUIDE CASSETTE DOOR

Disassembly and Reassembly

3-3-18 Lever Unit Pinch Ass’y, Plate Joint,

Spring Pinch Drive Removal

1) Lift the Unit Pinch Ass’y Œ.

2) Remove the Plate Joint ´ from Lever Pinch

Drive.

3) Remove the Spring Pinch Drive ˇ.

Note :

1) Take extreme care not to touch the grease on the Roller Pinch.

2) When reinstalling, be sure to apply grease on the post pinch roller.

HOOK [A]

ΠLEVER UNIT PINCH ASS`Y

´ PLATE JOINT

ˇ SPRING PINCH DRIVE

Fig. 3-23 Guide Cassette Door Removal

Fig. 3-24 Lever Unit Pinch Ass’y, Plate Joint,

Spring Pinch Drive Removal

Samsung Electronics 3-15

Disassembly and Reassembly

3-3-19 Lever #9 Guide Ass’y Removal

1) Remove the Spring #9 Guide Œ.

2) Lift the Spring #9 Guide Ass’y ´ in the direction of arrow “A”.

Note :

1) Take extreme care not to get grease on the tape

Guide Post.

2) After reinstalling, check the bottom side of the

Post #9 Guide to the top side of Main Base.

3-3-20 FE Head Removal

1) Remove the screw Œ.

2) Lift the FE Head ´.

ΠFE HEAD

"A"

ΠSPRING #9 GUIDE

´ LEVER #9 GUIDE ASS`Y

"B"

Fig. 3-26 FE Head Removal

Fig. 3-25 Lever #9 Guide Ass’y Removal

3-16 Samsung Electronics

3-3-21 ACE Head Removal

1) Pull out the FPC from connector of ACE Head

Ass’y ´.

2) Remove the screw Œ.

3) Lift the ACE Head Ass’y ´.

ΠSCREW

´ HEAD ACE ASS`Y

Disassembly and Reassembly

3-3-22 Slider S, T Ass’y Removal

1) Move the Slider S, T Ass’y Œ, ´ to slot, and then lift it to remove. (Refer to arrow)

ΠSLIDER S ASS`Y

´ SLIDER T ASS`Y

Fig. 3-28 Slider S, T Ass’y Removal

Fig. 3-27 ACE Head Removal

Samsung Electronics 3-17

Disassembly and Reassembly

3-3-23 Plate Ground Deck, Cylinder Ass’y

Removal

1) Remove the 3 Screws Œ.

2) Lift the Plate Ground Deck ´.

3) Lift the Cylinder Ass’y ˇ.

Assembly :

1) Match the 3 holes in the bottom of Cylinder ass'y ˇ to the 3 holes of Main Base as attending not to drop or knock the Cylinder ass'y ˇ.

2) Tighten the 1 Screw Œ.

3) Match the Plate Ground Deck ´ to the Hole of

Base Main.

4) Tighten the other 2 Screws Œ.

Note :

1) Take care not to touch the Cylinder Ass'y ˇ and the tape guide post at reinstalling.

2) When reinstalling, Don't push down too much on Screw Driver.

3-3-24 Belt Pulley Removal

1) Remove the Belt Pulley Œ.

Note : Take extreme care not to get grease on Belt

Pulley Πat assembling or reassembling.

ΠBELT PULLEY

Π3 SCREWS

´ PLATE GROUND DECK

Fig. 3-30 Belt Pulley Removal

3-3-25 Level Head Cleaner Ass’y Removal

(Optional)

1) Release the Hook Œ.

2) Lift the Lever Head Cleaner Ass’y ´.

´ LEVER HEAD CLEANER ASS'Y

ΠHOOK

SLEEVE-HEAD CLEANER

ˇ CYLINDER ASS'Y

3-18

Fig. 3-29 Plate Ground Deck, Cylinder Ass’y Removal

Fig. 3-31 Level Head Cleaner Ass’y Removal

Samsung Electronics

3-3-26 Damper Capstan, Motor Capstan Ass’y

Removal

1) Remove the Damper Capstan Πin the direction of arrow.

2) Remove the 3 Screws ´.

3) Remove the Motor Capstan Ass’y ˇ.

Assembly :

1) Match the 3 holes of Motor Capstan Ass’y ˇ to the 3 holes of Main Base. Be careful not to drop or knock the Motor Capstan Ass'y ˇ.

2) Tighten the 3 Screws ´ in the direction of arrow as shown detail drawing.

3) Assemble the Damper Capstan Œ.

Note : After tightening screws, check if there is gap between the head of screws and the top side of Main Base. There should have no gap between the head of screws and the top side of Main Base.

After reinstalling, adjusting the tape transport system again.

Disassembly and Reassembly

3-3-27 How to Eject the Cassette Tape

(If the unit does not operate on condition that is inserted into housing ass’y)

1) Turn the Gear worm Πclockwise with screw driver.(Refer to arrow)

(Other method : Remove the Screw of Motor

Load Ass'y, Separate the Motor Load Ass'y)

ΠGEAR WORM

´ 3 SCREWS

A B

C

ΠDAMPER CAPSTAN

Fig. 3-33 How to Eject the Cassette Tape

2) When Slider S,T are approched in the position of unloading, rotate holder Clutch counterclockwise after inserting screw driver in the hole of frame's bottom in order to wind the unwinded tape.

(Refer to Fig.3-34)

(If you rotate Gear Worm Πcontinuously when tape is in state of unwinding, you may cause a tape contamination by grease and tape damage.

Be sure to wind the unwinded tape in the state of set horizently.)

3) Rotate Gear Worm Πclockwise using screw driver again up to the state of eject mode and then pick out the tape.(Refer to Fig.3-33)

ˇ MOTOR CAPSTAN ASS'Y

Fig. 3-32 Damper Capstan,Motor Capstan Ass’y Removal

FRAME

Fig. 3-34

Samsung Electronics 3-19

Disassembly and Reassembly

3-4 Tape Transport System and Adjustment Locations

The tape transport system has been adjusted precisely in the factory. Alignment is not necessary except for the following :

1) Noise observed on the screen.

2) Tape damage.

3) Parts replacement in the tape transport system.

Lower flange height of tape guide is used as the reference for the transport adjustment.

To maintain the height of the tape guide and prevent damage, do not apply excessive force onto the main base.

GUIDE ROLLER "S"

CYLINDER ASS'Y

GUIDE ROLLER "T"

FULL ERASE HEAD

#3 GUIDE POST

TENSION POST

HEIGHT SCREW

PINCH ROLLER

#9 GUIDE POST

TILT SCREW

X - POSITION

ADJUST SILT

AZIMUTH SCREW

#8 GUIDE POST

CAPSTAN

3-20

SUPPLY REEL DISK TAKE UP REEL DISK

Fig. 3-4-1 Location of Tape Transport Adjustment

FE HEAD

GUIDE ROLLER "S"

CYLINDER ASS'Y

POST TENSION

PINCH ROLLER

GUIDE ROLLER "T"

#8 GUIDE POST #9 GUIDE POST

#3 GUIDE POST

ACE HEAD

CAPSTAN SHAFT

Fig. 3-4-2 Tape Travel Diagram

MAIN BASE

Samsung Electronics

Disassembly and Reassembly

3-5 Tape Transport System Adjustment

When parts are replaced, perform the required adjustments by referring to procedures for the tape transport system. If there are any changes to the tape path, first run a T-120 tape and make sure excessive tape wrinkle does not occur at the tape guides.

1) If tape wrinkle is observed at the guide roller

S, T, turn the guide roller S, T until wrinkle disappears.

2) If the tape wrinkle is still observed at the tape guide, perform the tilt adjustment of the ACE head.

(See “2. Alignment and Adjustment” of the

Service Manual for Test Point Locations.)

3-5-1 ACE Head Assembly Adjustment

3-5-1(a) ACE HEAD HEIGHT ADJUSTMENT

1) Run the alignment tape (Color bar) in the playback mode.

2) Observe surface of the audio head using a dental mirror.

3) Turn screw (C) clockwise or counterclockwise until the gap of lower tape edge and the lower edge of the control head is about 0.25mm.

(Refer to Fig. 3-5-1 and 3-5-2)

SCREW (A)

TLIT ADJUST

SCREW (C)

HEIGHT ADJUST

X-POSITION

ADJUSTING SLIT

SCREW (B)

AZIMUTH ADJUST

SCREW (D)

X-POSITION LOCKING

Fig. 3-5-1 Location of ACE Head Adjustment Screw

AUDIO HEAD

VIDEO HEAD

3-5-1(b) ACE HEAD TILT ADJUSTMENT

1) Playback a blank tape and observe the position of the tape at the lower flange of tape guide.

2) Confirm that there is no curl or wrinkle at the lower flange of tape guide as shown in

Fig. 3-5-3 (B).

3) If a curl or wrinkle of the tape occurs, slightly turn the screw (A) tilt adjust on the ACE head ass’y.

4) Reconfirm the ACE head height.

(A) (B)

WRINKLE

(BAD)

Fig. 3-5-3 Tape Guide Check

(GOOD)

3-5-1(c) AUDIO AZIMUTH ADJUSTMENT

1) Load alignment tape (Mono scope) and playback the NTSC : 7KHz (PAL : 6KHz) signal.

2) Connect channel-1 scope probe to audio output. (Monitor Output)

3) Adjust screw (B) to achieve maximum audio level. (See Fig. 3-5-1)

4-5-1(d) ACE HEAD POSITION (X-POINT)

ADJUSTMENT

1) See = (Alignment and Adjustment) for ACE

Head position (X-Point) adjustment.

0 ~ 0 .25 mm

CONTROL HEAD

Fig. 3-5-2 ACE Head Height Adjustment

Samsung Electronics 3-21

Disassembly and Reassembly

(Alignment and Adjustment)

1. Load alignment tape (Mono Scope) and play back a 7KHz signal. (SP Mode)

2. Connect CH1 scope probe to J008 or J009

(Monitor Audio Out) CH2 scope probe to

TPM01 H’D SW Adjust sync to Channel 1.

3) Set the control pulse to 7 msec using the Fine tracking buttons +/- on the remote control.

(see Fig. (A),(B))

4) Connect CH1 scope probe to TPM01 Video

ENV.

5) Insert the adjusting driver into the X-position adjusting gear and adjust the driver for maximum envelope waveform.

Note:

Do not adjust the X-point using excessive force.

After turning the X-point adjusting screw (D) counteerclock wise a little, perform the adjustment and then tighten the screw.

(See Fig. 3-5-1)

REMOTE

BUTTONS

_

+

CONTROL PULSE REMOVE

_

+

(B) Control Pulse Adjustment

A/V JACK

TPM01

GND

VIDEO Envelope

HD SW

Control

SCOPE SETTINGS

Setting of Scope

- Volt/div. ; CH-1 = 0.1V

CH-2 = 0.2V

CH-2 PROBE

H'D SW

PULSE

-Time/div. ; 5 msec

CH-1 PROBE

CTL PULSE

7 msec

(A) Tracking Preset Adjustment (4HD/6HD)

MAIN PCB TOP View

(C) MAIN PCB VCR TP Point

3-22 Samsung Electronics

Disassembly and Reassembly

3-5-2 Linearity adjustment

(Guide roller S, T adjustment)

1) Playback the Mono Scope alignment tape (SP mode).

2) Observe the video envelope signal on an oscillo-scope (triggered by the video switching pulse).

3) Make sure the video envelope waveform (at its minimum) meets the specification shown in

Fig. 3-5-4.

If it does not, adjust as follows : b a c a b c d c,b,d/a 63%

Fig. 3-5-4 Envelope Waveform Adjustment

Note : a=Maximum output of the video RF envelope.

b=Minimum output of the video RF envelope at the entrance side.

c=Minimum output of the video RF envelope at the center point.

d=Maximum output of the video RF envelope at the exit side.

4) If the section A in Fig. 3-5-5 does not meet the speci-fication, adjust the guide roller S up or down.

5) If the section B in Fig. 3-5-5 does not meet the speci-fication, adjust the guide roller T up or down.

H'D SWITCHING

PULSE

ENVELOPE

A

A

B

B

Fig. 3-5-5 Adjustment Points

6) Play back the Mono Scope alignment tape (SP mode).

7) Connect an oscilloscope CH-1 to the Envelope and CH-2 to the H’D SW Pulse for triggering. (TPM01)

8) Turn the guide roller heads with a flat head ( ) driver to obtain a flat video RF envelope as shown in

Fig. 3-8.

d

IDEAL ENVELOPE

S HEIGHT TOO HIGH S HEIGHT TOO LOW T HEIGHT TOO HIGH T HEIGHT TOO LOW

Samsung Electronics

GUIDE ROLLER S

Fig. 3-5-6 Guide Roller S, T Height Adjustment

GUIDE ROLLER T

3-23

Disassembly and Reassembly

3-5-3 Check Transitional Operation from

RPS to Play

Check transition from RPS mode to play mode :

Using a pre-recorded SP tape, make sure the entry side of envelope comes to an appropriate steady state within 3 seconds (as shown in Fig. 3-5-7).

If the envelope waveform does not reach specified peak-to peak amplitude within 3 seconds, adjust as follows :

1) Make sure there is no gap between the supply roller lower flange and the tape.

If there is a gap, adjust the supply guide roller again.

2) Change operation mode from the RPS to the play mode (again) and make sure the entry side of envelope rises within 3 second.

ENTRANCE SIDE ENVELOPE

3-5-4 Envelope Check

1) Make recordings on T-120 (E-120) and T-160

(E-180) tape.

Make sure the playback output envelope meets the specification as shown in Fig. 3-5-8.

2) Play back a self recorded tape (recording made on the unit using with T-120 (E-120).

The video envelope should meet the specification as shown in Fig. 3-5-8.

In SP mode, (A) should equal (B).

If the head gap is wide, upper cylinder should be checked.

A B

Fig. 3-5-7 Video Envelope Rising when Operation mode

Changes from RPS to Play Mode

Fig. 3-5-8 Envelope Output and Output Level

3-5-5 Tape Wrinkle Check

1) Run the T-160 (E-180) tape in the playback, FPS,

RPS and Pause modes and observe tape wrinkle at each guide.

2) If excessive tape wrinkle is observed, perform the following adjustments in Playback mode :

Tape wrinkle at the guide roller S, T section :

Linearity adjustment.

Tape wrinkle at tape guide flange :

ACE head assembly coarse adjustment.

3-6 Reel Torque

1) The rotation of the capstan motor causes the

Holder Clutch Ass’y to rotate through the Belt

Pulley.

2) The spring wrap PLAY/REV of holder clutch ass’y drives the disk reel S, T through gear idle by rotation of gear center ass’y.

3) Brake is operated by slider cam at FF/REW mode.

4) Transportation of accurate driving force is done by gears. (Gear Center Ass’y)

Note : If the spec. does not meet the followings specifications, replace the holder clutch ass’y and then recheck.

<Table 2-1>

MODE TORQUE g/cm GAUGE

PB 42± 11 Cassette Torquemeter

RPS 145 ± 30 Cassette Torquemeter

3-24 Samsung Electronics

Disassembly and Reassembly

3-7 Deck

3-7-1 Tray Disc Removal

(1) Insert a Screw Driver Œ into Emergency Hole ´ and push the Slider Housing ˇ in the direction arrow

“A”.

(2) When the Tray Disc ¨ comes out a little, pull it in the direction arrow “B” by hand.

(3) Pull the Tray Disc ¨ to disassemble , while simultaneously pushing 2 Stoppers ˆ (left, right) in the direction arrow “C”, “D”.

STOPPER SLIDER HOUSING

TRAY DISC

STOPPER

Fig. 3-7-1 Tray Disc Removal

SCREW DRIVER

EMERGENCY HOLE

Samsung Electronics 3-25

Disassembly and Reassembly

3-7-2 Assy P/U Deck Removal

(1) Disconnect DCN2 Œ, DCN3 ´.

(2) Lift down the Assy P/U Deck ˇ while simultaneously pushing 2 Hooks ¨, ˆ in the direction of arrow

“A”, “B”.

3-26

Fig. 3-7-2 Assy P/U Deck Removal

Samsung Electronics

Disassembly and Reassembly

3-7-3 Housing Ass’y Removal

(1) Remove Belt .

(2) Push the Hook in the direction arrow “A” and lift up Pulley Gear .

(3) Push the Slider Housing in the direction arrow “B” and lift up the Gear Tray .

(4) Lift up the Slider Housing .

(5) Remove the soldering of 2 points (Red, Black).

(6) Remove 2 Screws and lift dowm the Motor Load Assy .

(7) Push the 3 Hooks bottom side in the direction arrow “C” and lift up the Housing PCB .

(8) Push the Hooks and remove Deck PCB .

Samsung Electronics

"C"

"C"

"C"

Fig. 3-7-3 Housing Ass’y Removal

3-27

Disassembly and Reassembly

3-7-4 Sub Chassis Removal

(1) Remove the Soldering of Motor Feed (+,- wire) .

(2) Remove the 4 Screws .

(3) Lift up the Ass’y Brkt Deck .

+

Fig. 3-7-4 Sub Chassis Removal

3-28 Samsung Electronics

3-7-5 Ass’y Brkt Deck Removal

(1) Remove Washer .

(2) Remove Gear Feed B , Gear Feed A .

(3) Remove 2 Screws .

(4) Remove Shaft Pick-Up and Pick-Up Assy .

(5) Remove 1 Screw .

(6) Remove 2 Screws .

(7) Remove 3 Spring Spindle and Motor Spindle Ass’y .

Disassembly and Reassembly

Samsung Electronics

Fig. 3-7-5 Ass’y Brkt Deck Removal

3-29

Alignment and Adjustments (Electrical)

4. Alignment and Adjustments (Electrical)

4-1 Preadjustment

4-1-1 Factory Mode

1. Do not attempt these adjustments in the Video

Mode.

2. The Factory Mode adjustments are necessary when either the EEPROM (IC901) or the CRT is replaced.

3. Do not tamper with the “Adjustment” screen of the Factory Mode menu. This screen is intended only for factory use.

4-1-3 When CRT Is Replaced

Make the following adjustments after setting up purity and convergence:

White Balance

Sub-Brightness

Vertical Center

Vertical Size

Horizontal Size

4-1-2 When EEPROM (IC901) Is Replaced

1. When IC901 is replaced all adjustment data revert to initial values. It is necessary to reprogram this data.

2. After IC901 is replaced, warm up the TV for

10 seconds.

4-2 Factory (“Service”) Mode

4-2-1 Procedure for the “Adjustment” Mode

1. This mode uses the standard remote control.

The Service Mode is activated by: (1) pressing the “FACTORY” service key on the local-keyboard, or (2) by entering the following remotecontrol sequence (within 2 seconds):

STAND-BY →MUTE →1 → 8 →2 →

POWER ON

2. The “SERVICE (FACTORY)” message will be displayed. The Service Mode has three components: Adjustment, Option Bytes and Reset.

3. Access the Adjustment Mode by pressing the

“SELECT” keys ( ). The adjustment parameters are listed in the accompanying table, and selected by pressing the “SELECT” keys

(s,t).

4. Selection sequences for the NTSC systems: down or up key:

CAP>SBT>SCT>SCR>STT>BLR>BLG>RG>

GG>BG>PWL>SC>VSL>VA>NVS>NHS>

EW1>EWP>EWUC>EWLC>VSC>HP>HB>

TC>EW2>CDL>BKS>NDL>WS>VM

5. The “SELECT” keys (s,t) increase or decrease the adjustment values, (stored in the non-volatile memory) when Adjustment Mode is cancelled.

Samsung Electronics 4-1

Alignment and Adjustments (Electrical)

4-2-2 Adjust

SC

VSL

VA

NVS

RG

GG

BG

PWL

SCR

STT

BLR

BLG

OSD

CAP

SBT

SCT

12

24

15

32

32

32

32

12

13

2

32

32

Initial

10

4

15

Adjust

Fix

Fix

Fix

Fix

Fix

0-23

0-23

0-13

0-13

0-63

0-63

0-63

0-63

0-63

0-15

0-63

0-63

0-63

0-63

Range Function

CAPTION Position

Sub Brigh

Sub Contrast

Sub Color

Sub Tint

Low Light R

Low Light G

High Light R

High Light G

High Light B

Peak white level

S-Correction

Vertical Slope

Vertical Amplitude

Vertical shift

HB

TC

EW2

CDL

BKS

NDL

WS

VM

OSD

NHS

EW1

EWP

EWUC

EWLC

VSC

HP

3

0

1

7

32

26

32

10

32

32

32

34

Initial

35

25

3

Fix

Fix

Fix

Fix

Fix

Fix

Adjust

Fix

Fix

Fix

Range

0-63

0-63

0-63

0-63

0-63

0-63

0-63

0-63

0-63

0-63

0-15

0-1

0-15

0-3

0-3

Function

Horizon Shift

EW

EW (Panorama)

Upper Corner

Lower Corner

Vertical scroll

H-Paralleogram

Horizontal Bow

EW Trapezium

28”EW

Cathode Drive Level

Black Stretcher

NTSC Delay

White Stretch

Amplitude of Scan Velocity

4-2-3 AGING Mode(Reference Only)

This pattern is used for pre-heating the CRT during manufacturing-it is accessed in the factory by twice pressing the “FACTORY” key.

Even if the TV power is cut off, the Aging Mode is not cancelled.

The “AGING” marking is displayed on the screen.

The AGING mode is cancelled by epresing the “FACTORY” key.

4-2 Samsung Electronics

Alignment and Adjustments (Electrical)

4-2-4 Option

6

7

4

5

NO

1

2

3

8

9

10

11

OSD

VIDEO MUTE

ZOOM

AUTO POWER

AUDIO MUTE

LANGUAGE

V REFRESH

BLUE SCREEN

V-CHIP

ANTENNA

S-VIDEO

VCR HEAD

Adjust

ON

NOR/ZOOM/16:9

ON

ON

English

ON

ON

ON

IRC

OFF

HIFI

Range

ON/OFF

NORMAL,NOR/ZOOM,NOR/ZOOM/16:9

ON/OFF

ON/OFF

English/Espanol/Franch

ON/OFF

ON/OFF

ON/OFF

IRC/AFN

ON/OFF

HIFI/4HD/2HD

4-2-5 Reset

The Reset Mode is used during factorying inspection

Function Reset : After Factorying Reset, the following items itens revert to their initial values.

1. Volume

2. Channel

3. P- STD

4. Auto Power

5. NR

10

ANT 3

MEMORY

ON

OFF

Cautim : When the EEPROM is replaced ; all items revert to their initial values.

4-2-6 VCR Test Mode (Reference Only)

The VCR Test Mode is used during factorying inspection or when exchange VCR deck.

* Entering : STBY Mode -> factory key -> Power key (light up all LED)

Function : “9” -> Head Switch Auto Adjustment.

“5” -> Env Center point Auto Adjustment.

“TRK + “ -> Env max point Adjustment.

“TRK - “ -> Env min point Adjustment.

* Cancellation : pull out power cord.

Samsung Electronics 4-3

Alignment and Adjustments (Electrical)

4-3 Other Adjustments

4-3-1 General

1. Usually, a color TV needs only slight touch-up adjustment upon installation.

Check the basic characteristics such as height, horizontal and vertical sync and focus.

2. The picture should have good black and white details. There should be no objectionable color shading; if color shading is present, perform the purity and convergence adjustments described below.

3. Use the specified test equipment or its equivalent.

4. Correct impedance matching is essential.

5. Avoid overload. Excessive signal from a sweep generator might overload the front-end of the

TV. When inserting signal markers, do not allow the marker generator to distort test results.

6. Connect the TV only to an AC power source with voltage and frequency as specified on the backcover nameplate.

7. Do not attempt to connect or disconnect any wires while the TV is turned on. Make sure that the power cord is disconnected before replacing any parts.

8. To protect against shock hazard, use an isolation transformer.

4-3-2 Automatic Degaussing

A degaussing coil is mounted around the picture tube, so that external degaussing after moving the TV should be unnecessary. But the receiver must be properly degaussed upon installation.

The degaussing coil operates for about 1 second after the power is switched ON. If the set has been moved or turned in a different direction, disconnect its AC power for at least

10 minutes.

If the chassis or parts of the cabinet become magnetized, poor color purity will result. If this happens, use an external degaussing coil.

Slowly move the degaussing coil around the faceplate of the picture tube and the sides and front of the receiver. Slowly withdraw the coil to a distance of about 6 feet before removing power.

4-3-3 High Voltage Check

CAUTION: There is no high voltage adjustment on this chassis. The B+ power supply must be set to +130 volts (Full color bar input and normal picture level).

1. Connect a digital voltmeter to the second anode of the picture tube.

2. Turn on the TV. Set the Brightness and

Contrast controls to minimum (zero beam current).

3. The high voltage should not exceed 30KV.

4. Adjust the Brightness and contrast controls to both extremes. Ensure that the high voltage does not exceed 30KV under any conditions.

4-4 Samsung Electronics

Alignment and Adjustments (Electrical)

4-3-4 FOCUS Adjustment

1. Input a CROSS hatch signal.

2. Adjust the tuning Focus VR for the clearest picture.

3. Adjust the FOCUS control for well defined scanning lines in the center area of the screen.

4-3-5 Screen Adjustment

1. Turn to the White Signal.

2. Adjust the VR screen for a normal picture is (no blooming or flyback line).

Input the Factory -> G2-Adjust choice -> Screen VR tuning OK Mode

4-3-6 Purity Adjustment

1. Warm up the receiver for at least 20 minutes.

2. Plug in the CRT deflection yoke and tighten the clamp screw.

3. Plug the convergence yoke into the CRT and set in as shown in Fig. 5-1.

4. Input a black and white signal.

5. Fully demagnetize the receive by applying an external degaussing coil.

6. Turn the CONTRAST and BRIGHTNESS controls to maximum.

7. Loosen the clamp screw holding the yoke. Slide the yoke backward or forward to provide vertical green belt. (Fig. 5-2).

8. Tighten the convergence yoke.

9. Slowly move the deflection yoke forward, and adjust for the best overall green screen.

10. Temporarily tighten the deflection yoke.

11. Produce blue and red rasters by adjusting the low-light controls. Check for good purity in each field.

12. Tighten the deflection yoke.

Samsung Electronics 4-5

Alignment and Adjustments (Electrical)

2 4-3-7 I C BUS GEOMETRIC Adjust

1. V SIZE(VA)

3. V LINEARITY (VSL)

5. V S CORRECTION (SC)

7. H POSITION (NHS)

9. H SIZE(EWI)

11. PIN COMP (EWP)

2. UP CPIN (EWUC) : 29" Only

4. LO CPIN (EWLC) : 29" Only

6. TILT (TC)

8. AFC BOW (HB)

10. AFC ANGLE (HP)

12. V POSITION (NVS)

4-6 Samsung Electronics

6 Pole Magnet

Clamper

Screw

4 Pole Magnet

2 Pole Magnet

2 POLE

PURITY

Alignment and Adjustments (Electrical)

Fig. 5 -1 Convergence Magnet Assembly

YOKE

CLAMP

SCREW

6 POLE

CONVERGENCE

4 POLE

CONVERGENCE

Vertical Green Belt

31m/m

4-3-8 White Balance Adjustment

4-4-7 (A) HIGH-LIGHT ADJUSTMENT

1. Input either a Lion Head or a “pure white” pattern.

2. Warm up the TV for 30 minutes.

3. Check the data in the Service Mode

4. Adjust RG, BG in the Factory Mode.

4-4-7 (B) LOW-LIGHT ADJUSTMENT

1. Automatically accomplished during the high-light adjustment.

Samsung Electronics

Fig. 5-2 Center Convergence Adjustment

4-7

Alignment and Adjustments (Electrical)

4-3-8 Center Convergence Adjustment

1. Warm up the receiver for at least 20 minutes.

2. Adjust the two tabs of the 4 pole magnets to change the angle between them. Superimpose the red and blue vertical lines in the center area of the screen.

3. Adjust the Brightness and Contrast controls for a well defined picture.

4. Adjust the two-tab pairs of the 4 pole magnets, and change the angle between them.

Superimpose the red and the blue vertical lines in the center area of the screen.

5. Turn the both tabs at the same time, keeping the angle constant, and superimpose the red and blue horizontal line in the center of the screen.

6. Adjust the two-tab pairs of the 6-pole magnets to superimpose the red and blue line onto the green. (Changing the angle affects the vertical lines, and rotating both magnets affects the horizontal lines.)

7. Repeat adjustments 2~6, if necessary.

8. Since the 4-pole magnets and 6-pole magnets interact, the dot movement is complex

(Fig. 5-3).

BLUE

RED

BLUE RED

RED/BLUE

GREEN

4-Pole Magnet Movement

Fig 5-3 Center Convergence Adjustment

RED/BLUE GREEN

6-Pole Magnet Movement

4-8 Samsung Electronics

Troubleshooting

5. Troubleshooting

5-1 No Power (No Picture on)

No

Check both terminal voltages of

C806 (280~300V).

Yes

No

Check D801S

FB801S

No

Is IC801S Pin 3

19~22V?

Yes

Check/Replace

DZ801,DZ804,

DZ802,PC801S

Check IC801S

Check both terminal voltages of C814

Yes

No

Check whether each power line is short or open.

No

Check

Voltage of 8V, 12V, 6V,

20V power line..

Yes

Is Q805-E

Output Voltage 5V?

Yes

No

Check/Replace

Q901, DZ901, D901

No

Check/Replace

IC902

Is Q901-E

Voltage 3.3V?

Yes

Check

Q811-B is High when power is On

(about 0.6~2.0v)

Yes

Check /Replace

Q810, Q812, DZ805

Samsung Electronics 5-1

Troubleshooting

5-2 No Power (No Picture)

Q810-E Output

Voltage 8V?

Yes

H-Drive Out?

(CN401 #6)

Yes

No

Check/Replace

Q810, DZ805

No

Check (IC902)

FBT Output line

Voltage?

No

Check/Replace

Q401, Q402, D414

5-3 E/W Correction Not

E/W Out check?

(CN401 #5)

Yes

No

Check/Replace

IC902

Check Q403

Drain Pin E/W wave output?

No

Q403,

R413,L405

Check/Replace

5-2 Samsung Electronics

5-4 No Raster / No RF Signal

* No Raster

Q810-E Output

Voltage?

Yes

No

Check Q811-B(0.6~2.0V)

Check IC902 #1

Check H-Drive

(CN003 #8)

No

Check/Replace

IC902

Yes

Check Q402,

Q401, D414

No

Check/Replace

Yes

Check

R405, R435

R424, R425

No

Check/Replace

Check the

CRT PCB, IC501,

R513, L501

No

Replace

No

Check/Replace

Troubleshooting

* No signal

IC902 #1 TV

Power High?

Yes

Q810-E Output

Voltage 8V?

Yes

Tuner B+

5V?

Yes

Tuner 33V

Line Check

No

No

Check/Replace

IC902

No

Replace Q810

Tuner 5V

Line Check

Samsung Electronics 5-3

Troubleshooting

5-5 No Sound

Power On

Yes

Check Amp

IC601 B+(12V:#3,#13)

In Power Board

Yes

Check Amp

Mute Pin(High:#6,#7)

In Power Board

Yes

Check Tone

Control IC601 #21,#22

In Main Board

Yes

No

No

No

Check ICM501

L,R out check and SIF

Input check

Yes

Check/Replace Speaker

No

Check/Replace

FA802S,D808

A+13.5V Line

Check/Replace

Q601&A-Mute

Check/I

2

Line

IC902 #71, #72

Check/Replace

ICM501&HIFI/

TM Block

5-4 Samsung Electronics

5-6 Horizotal Line

IC301(LA7845)#1,

#6 Pin 16.5V,-13.5

Output?

Yes

No

Check IC301

Check/Replace Speaker output?

Yes

No

D301,DZ302

DZ303,DZ304,DZ305

DZ306 check?

Yes

No

Replace IC301(LA7845)

Check/Replace

R425,R424,

D401,D402

IC301 #2 vertial wave input check

Replace

5-7 No Picture (Sound OK)

1 Check the Brightness, Contrast and Color adjustments

2. Check: AV Picture

3. See Signal Block Diagram

5-8 No Sound (Picture OK)

1. Check the Volume adjustment level.

2. Check AV Video

3. See Signal Block Diagram

Troubleshooting

Samsung Electronics 5-5

Troubleshooting

5-9 RF Weak Signal (Playback, AV Mode OK)

1. Check Tuner (TU01S) B+. Check: 8V

33V (DZ201). Check 5V

5-10 No Vertical SCAN

1. Check R425, D401

2. Check IC301, #2

3. Check Chroma module Vertical-out Line

4. Check DY Connector

5-11 Horizontal Size

1. Check C411, R421, Q403, R413, R405

5-12 On-Screen Display Missing

1. Check IC902 #56, #57, #58

5-6 Samsung Electronics

Troubleshooting

5-13 No Audio During Playback (Mono Audio)

Check the audio signal of ICM301

Pin 10

Normal

Abnormal

Check the line of ICM501 Pin 62

(Mono Audio Out Line)

Check the Audio signal of ICM301

Pin 2, 3

Abnormal

Normal Check if ICM301

Pin 53, 54, 55 is Low

(Serial Data)

Abnormal

Normal

Check Serial Line &

ICM601

Check the B 5V of ICM301 Pin 77

Abnormal

Check the B 5V line

Normal

Check AC head line and CNM302

Abnormal

Replace ICM301

Replace ICM301

Samsung Electronics 5-7

Troubleshooting

5-14 No Audio During Playback (HIFI)

Check the audio signal of ICM501

Pin 53,57

Normal

Abnormal

Check the IC601(TONE Control)

Pin 24:+8V, Pin 21,22:I

2

C

Check the HIFI

Env ICM501

Pin 30

Abnormal

Normal Check the ICM501

Pin 42,43

(I

2

C Data)

Abnormal

Normal

Check the I

2

C Line

ICM601 Pin 66,67

Check the B5V/B9V of ICM501 Pin25,40,58

Abnormal

Check the B5V/B9V line

Replace ICM501

Normal

Check Rotaly Head line and CNM301

Abnormal

Replace Head Drum

5-8 Samsung Electronics

5-15 No Audio During Record (Mono Audio)

Press the "REC" button for the recording

mode

Normal

Check the audio signal of ICM301

Pin 9

Normal

Abnormal

Check the audio signal of ICM301 Pin 76

Check the bias signal

ICM301 Pin 6

Abnormal

Normal

Replace ICM301

Check CNM302

Pin 4, 5, 6

Normal

Abnormal

Normal

Check AC head

Check the REC bias signal of FLM301

Check/Replace

FLM301, QM304, QM302

Abnormal

Troubleshooting

Samsung Electronics 5-9

Troubleshooting

5-16 No Audio During Record (HIFI Audio)

Press the "REC" button for the recording

mode

Normal

Check the FM signal of ICM501

Pin 21

Normal

Check the I 2 C Line

ICM501 Pin 42,43

Abnormal

Check the REC-Mute of ICM501 Pin 29

(DM501(+)) High

Abnormal

Check the ICM601 Pin 68

Check the ICM601

Normal

Check/Replace

CNM301&Head Drum

5-10 Samsung Electronics

5-17 No Playback

Insert a video tape and start PLAYBACK

Check the tape loading

Normal

Abnormal

Check :

ICM601 Pin 38 : High

ICM601 Pin 39 : Low

Abnormal

Replace ICM601

Check

ICM601 Pin 76, 77

(Start/end sensor)

OK

NO

Check the Rotation of Cylinder

Abnormal

Normal

Check

ICM601 Pin 24

(SW 30Hz)

Normal

Abnormal

Abnormal

Check the rotation of capstan

Normal

Check the tape

Refer to "Cylinder doesn't rotate"

Check ICM601

Pin 97(D-FG) and Pin 96 (D-PG)

Refer to "Capstan

doesn't Rotate"

Abnormal

Check PTM602, PTM601,

T-Reel takeup sensor

Check ICM601

Pin 98,99

Normal

Check

ICM601 Pin 34,35,36

( PROG, SW)

Stop Mode

Check the loading motor

Normal

Replace ICM601

Samsung Electronics

Troubleshooting

5-11

Troubleshooting

5-18 REC Doesn’t Operate

Check the PLAYBACK operation

Insert a tape and set to the REC mode

Normal

Abnormal Check the tape takeout

Normal

Check the tape

Abnormal Check the logic of

ICM601 Pin 73

(REC SW)

Check if the voltage of ICM601

Pin 33 is high

(D REC)

Normal

Abnormal

Refer to

"No REC Screen"

Check ICM601

5-12 Samsung Electronics

5-19 FF/ “REW” Doesn’t Operate

Check the REW operation

Normal

Check

ICM601 Pin 34,35,36

(PROG. SW)

Abnormal

Stop

Refer to "REW

Not operated"

Refer to "Deck doesn't

Operated during playback"

FF/REW

Check the rotation of capstan

Normal

Check the Deck.

Abnormal

Refer to

"Capstan doesn't rotate"

Troubleshooting

Samsung Electronics 5-13

Troubleshooting

5-20 “Forward Direction Search

Check the PLAYBACK operation

Abnormal

Refer to "PLAYBACK

Doesn't Operate

Normal

Set to right direction search screen mode

Normal

Check the speed of capstan motor

Playback Speed

Check the C-FG input of

ICM601 Pin 93

Searching Speed

Check if the noise bar is fixed

Abnormal

Normal

Check the Deck

Normal

Replace ICM601 Normal

Check the control pulse of ICM601 Pin 88,89

Abnormal

Readjust the height of A/C head

Normal

Check/Replace

ICM601

Normal

Check the B+

Capstan Motor

Normal

Check the capstan motor

5-14 Samsung Electronics

Troubleshooting

5-21 “Reverse Direction Search Screen “Doesn’t Operateß

Check the PLAYBACK operation

Abnormal

Refer to "PLAYBACK

Doesn't Operate

Normal

Set to the reverse direction search screen mode

Abnormal

Search towards right

Abnormal

Abnormal

Normal

Check the speed of capstan motor

Playback Speed

Check the C-FG input of

ICM601 Pin 93

Searching Speed

Normal

Check the deck

Normal

Replace ICM601

Check ICM601 Pin 25 and CAP F/R

Check for noise bar

Abnormal

Normal

Check/Replace

ICM601

Check the control pulse of ICM601 Pin 88,89

Abnormal

Readjust the height of A/C head

Normal

Check the B+

Capstan Motor

Normal

Check the capstan motor

Samsung Electronics 5-15

Troubleshooting

5-22 Tape Doesn’t Load

Insert a tape

Check the followings:

ICM601 Pin38 : HIGH

ICM601 Pin39 : LOW

Normal

Check the voltage of

ICM603 Pin 9,21

(B 12V)

Normal

Check of ICM603

Pin 3 (B5V)&

Pin 7,8 (DPG,FG)

Normal

Check

ICM601 Pin 34,35,36

Abnormal

Abnormal

Abnormal

Replace ICM601

Check the B+ terminal of loading motor

Replace ICM603

Normal

Check/Replace the loading motor

5-16 Samsung Electronics

Troubleshooting

5-23 Capstan Doesn’t Rotate

Check the input to CNM602 Pin 5

(A 15V)

Normal

Abnormal

Check the A 15V line

Check

ICM601 Pin 14,41,59

50,69,70,92(5V)

Abnormal

Check the A5V Line

Normal

Insert a tape and set to the PLAYBACK mode

Check CNM602

Pin 4 (2.5V)

Abnormal

Check the capstan PWM CTL at ICM601 Pin 10

Abnormal

Normal

Check the voltage of CNM602

Pin 8 (5V)

Abnormal

Check the B+5V Line

Normal

Check the capstan motor

Replace ICM601

Samsung Electronics 5-17

Troubleshooting

5-24 Cylinder Doesn’t Rotate

Check the voltage of

ICM603 Pin9,21

(B 3V)

Normal

Abnormal

Check the motor B+ line

Check DFG at

ICM603 Pin 8

Abnormal

Replace the ICM603

Normal

Check the head SW pulse at

ICM601 Pin 24

Abnormal

Normal

Insert a tape and set to the PLAYBCAK mode

Check the DPG at

ICM603 Pin 7

Check

the rotation speed of cylinder

(Fast/Slow)

(Slow)

Check the cylinder motor

Abnormal

Check the PWM at ICM601

Pin 9

Normal

Check the voltage of ICM601 B+

Normal

Check XTM601

(8MHz)

5-18 Samsung Electronics

Troubleshooting

5-25 No Picture During Playback

Insert a tape and set to the PLAYBCAK mode

Check the FM video signal at ICM301

Pin 14

Abnormal

Check the ENV connecting pattern

Normal

Check the video signal at

ICM301 Pin 21

Normal

Abnormal

Check the voltage of ICM301

Pin 58

Abnormal

Check the voltage of

ICM601 Pin24

Normal

Replace ICM301

Check the video signal at

ICM301 PIn 34

Abnormal

Check the output of video signal at CM354

Normal

Check the video output signal at ICM301

Pin 26

Normal

Check IC902(UOC) neighbor circuits

Abnormal

Replace ICM301

Samsung Electronics 5-19

Troubleshooting

5-26 No Picture During Record

Insert a Video tape and

Set to the REC mode

Check the ICM301 Pin 32 has the Video input signal

Normal

Abnormal

Check the Input/Output block IC902(UOC)

Check the

ICM301 Pin 73 has the

FM video signal

Normal

Check the video head (DRUM)

Abnormal

Check the ICM301 Pin72,

74 has the FM video signal

Normal

Abnormal

Check the high voltage of

IC901 Pin 54, 55, 56 (D-REC)

Replace ICM301

5-20 Samsung Electronics

5-27 No Color During Playback

No Color (On Playback)

Check the

ICM301 Pin 14 has the

ENVE Signal

Abnormal

Normal

Check the voltage of

ICM301 Pin 52, 44, 23

Normal

DRUM Check

Check the

ICM301 Pin 39 has the color signal

Abnormal

Normal

Check

ICM301-50 OSC :

_

Abnormal

Normal

Replace ICM301

Check Pin 57 (Rotary)

XTM301

Replace

Troubleshooting

Samsung Electronics 5-21

Troubleshooting

5-28 No Color During Record

No Color (On REC)

Check the ICM301 Pin 46 has the color signal

Normal

Abnormal

Check

ICM301- 50 OSC

Abnormal

Replace XTM301

Normal

Replace ICM301

Check the color DET signal of

ICM301 Pin 39

Abnormal Check connecting pattern

and Pin 57 (Rorary SW)

Normal

Replace ICM301

5-22 Samsung Electronics

5-29 DVD Block

Troubleshooting

Samsung Electronics 5-23

Troubleshooting

5-24 Samsung Electronics

Troubleshooting

Samsung Electronics 5-25

Troubleshooting

5-26 Samsung Electronics

Troubleshooting

Samsung Electronics 5-27

Troubleshooting

5-28 Samsung Electronics

Electric Parts List

You can search for the updated part code through ITSELF web site.

URL : http://itself.sec.samsung.co.kr

7. Electrical Parts List

7-1 CFTD2085X/SMS

Level Loc. No. Code No.

Description ; Specification

ASSY CHASSIS

1 M0017 AA91-06789A ASSY CHASSIS;V18A,20,SEA,SAM’S,CFTD2085 S.N.A

.....5

.....5

.....5

.....5

.....5

.....5

.....5

.....5

..2

M0017 AA91-06164A ASSY CHASSIS;CFTD2083TX/SMS,V18A,TTSEC S.N.A

...3

AA91-06169A ASSY MISC-CHASSISPACK;CFTD2083TX/SMS,V1S.N.A

....4

T0157 AA94-12786A ASSY PCB MISC-M/DECK;DP-CFTD2083TX/SMS,V

.....5

T0081 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZP

.....5

T0081 6003-001022 SCREW-TAPTITE;RH,+,B,M3,L12,ZPC(BLK),SWR S.N.A

.....5

T0081 6003-001022 SCREW-TAPTITE;RH,+,B,M3,L12,ZPC(BLK),SWR S.N.A

.....5

IP+HD 6003-001023 SCREW-TAPTITERWH,+,B,M3,L10,ZPC(YEL)

.....5

MAINP+ 6003-001023 SCREW-TAPTITERWH,+,B,M3,L10,ZPC(YEL)

.....5

SDVD+H 6003-001023 SCREW-TAPTITERWH,+,B,M3,L10,ZPC(YEL)

.....5

SVCR+H 6003-001023 SCREW-TAPTITERWH,+,B,M3,L10,ZPC(YEL)

.....5

T0076 AA39-20497B LEAD CONNECTOR-ASSY;,1P,YFH800-01,RING,2

S.N.A

S.N.A

S.N.A

S.N.A

AA60-00157A SPACER-BUMPON;,COMBO,D10.2,BLK,T2.5,W10. S.N.A

AA61-01184A HOLDER-DECK;COMBO,HIPS V0,G4309 S.N.A

AA61-01187A HOLDER-TRAY;21J5,ABS HB,BLK

AA63-00443B SHIELD;TVCR,SPTE ,T0.3,SUS-DECK

AA63-00594A SHIELD-VCR;COMBO,SECC,T0.5

AA63-00595A SHIELD-DVD;COMBO,SECC,T0.5

AA63-10007C BAND PP;W18,CLEAR,1G

AA64-01763B INLAY-BARRIER,FRONT;21G5,PVC,T0.4,-,-,-,

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

.....5

.....5

.....5

AA65-30009A CLAMP-FBT;-,ABS,V0,BLK,-,S.N.A

AA69-01403A WRAP VINYL-PACKING;SKD CHASSIS,LDPE,T0.0 S.N.A

AA69-01808A BAG-SHEET;,LDPE(ANTISTATIC),T0.05,950,90

.....5

T0073 AA94-11151A ASSY PCB MAIN;TORNADO,V18A

S.N.A

......6 PTM601 0604-001122 PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,

......6 PTM602 0604-001122 PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,

......6 ICM603 1003-001318 IC-MOTOR DRIVER;LB11880,DIP,30P,417MIL,-

......6 JK702 3707-001005 CONNECTOR-OPTICAL;PLUG,SM,-,4.4/2.0MM

......6 CNM301 3708-000391 CONNECTOR-FPC/FFC/PIC;10P,1.25mm,STRAIGH

......6 CNM302 3708-000394 CONNECTOR-FPC/FC/PIC;6P,1.25mm,STRAIGHT,

......6 CNM604 3708-001053 CONNECTOR-FPC/FC/PIC;7P,1.2MM,

......6 CNM303 3710-001648 CONNECTOR-SOCKET;2P,1R,2.5mm,STRAIGHT,SN

......6 CN005 3711-002642 POST-HEADER;67094-003(AUTO)

......6 CN906 3711-003051 CONNECTOR-HEADER;BOX,8P,1R,2.5MM,STRAIGH

......6 CN906 3711-003749 CONNECTOR-HEADER;BOX,8P,2R,2mm,STRAIGHT,

......6 CN906 3711-003973 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG

......6 JK701 3722-001215 JACK-PIN;9P(6P),3.4mm,SN,BLK,#16-22

......6 C0104 3809-001206 CABLE-FLAT;30V,-20to+80C,140mm,6P,1.25mm

......6 C0104 3809-001312 CABLE-FLAT;30V,80C,110MM,7P,1.25MM,UL289

......6 FLM301 AA26-10006C TRANS-IF;7ML,BIAS,-,7MM,3100PF

......6 SWM601 AA34-20001A SWITCH-MODE;1,25x14.6x29.8mm,BK,DC5V

......6 SWM602 AA34-40001A SWITCH-REC.;1EA,37.5x14.4mm,BK,DC5V

......6 T0077 AA39-00180D LEAD CONNECTOR ASSY;V18A,UL1007#26,UL/CS

......6 T0077 AA39-00180D LEAD CONNECTOR ASSY;V18A,UL1007#26,UL/CS

......6 T0076 AA39-20603A LEAD CONNECTOR-ASSY;-,GIL-S-2S-S2C2-S,YB

......6 REM701 AA59-60003V MODULE-REMOCON;DP,SRV-18,38KHz,940nm,MES

......6 GPM001 AA63-00444B GROUND;TVCR,PBS,T0.3,SUS-DECK S.N.A

......6 LDM602 AA91-60318A ASSY-HOLDER,LED;-,ABS,HB,BLK,IR LED,TS-D

.......7 Q013 0601-001303 LED-IR;SIDE-VIEW,2.5MM,75MW,6V,950NM,

.......7

AA61-00003A HOLDER-LED;TVN-502V,ABS,-,-,-,BLK,HB S.N.A

......6 SM601 AA91-60319A ASSY-HOLDER,SENSOR;-,ABS,HB,BLK,TR LED,T

......6 SM602 AA91-60319A ASSY-HOLDER,SENSOR;-,ABS,HB,BLK,TR LED,T

.......7 P016

.......7

0603-001011 PHOTO TR;NPN,35V,6V,50mA,75mW,BK

AA61-00005A HOLDER-SENSOR;TVN-502V,ABS,-,-,-,BLK,HB

......6 LDM601 AA96-00462A ASSY LED GUIDE;-,-,DL-11S2R1,RED

......6

0202-000187 SOLDER-WIREFLUX;-,RS60S,D1.2,6

......6 A/ROBO AA97-07668A ASSY ROBOT;CFTD2083TX/SMS,V18A, ,

.......7 IC112 1103-001106 IC-EEPROM;24C080,1028x8BIT,DIP,8P,300MIL

.......7 TPM01 3711-002643 POST-HEADER;YW025-04(AUTO)

S.N.A

S.N.A

S.N.A

S.N.A

.......7 CN906 3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG

.......7 TU01S AA40-00091A TUNER;115-V-F035AP,NTSC,181CH,45.75MHZ,F

Remark Level Loc. No. Code No.

Description ; Specification Remark

.......7

........8 D201

........8 D901

AA97-07616A ASSY AUTO-MAIN;,V18A

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

........8 DM103 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

........8 DM104 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

........8 DM105 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

........8 DM501 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

........8 DM605 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

........8 DM606 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

........8 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

........8 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

........8 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

........8 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

........8 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

........8 DZ016 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

........8 DZ016 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

........8 DZ016 0403-000719 DIODE-ZENER;MTZJ7.5B,7.5V,7.07-7.45V,500

........8 DZ016 0403-000719 DIODE-ZENER;MTZJ7.5B,7.5V,7.07-7.45V,500

........8 DZ016 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

........8 DZ016 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D

........8 DZ016 0403-001317 DIODE-ZENER;MTZJ3.0B,3.01-3.22V,500mW,DO

........8 DZ016 0403-001373 DIODE-ZENER;MTZJ5.1A,4.81V-5.07V,500mW,D

........8 DZ016 0403-001373 DIODE-ZENER;MTZJ5.1A,4.81V-5.07V,500mW,D

........8 QM304 0501-000010 TR-SMALLSIGNAL;KSC1008,NPN,80V

........8 Q203 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

........8 Q701

........8 Q702

........8 Q703

0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

........8 QM303 0501-000303 TR-SMALLSIGNAL;KSA733,PNP,250M

........8 QM305 0501-000303 TR-SMALLSIGNAL;KSA733,PNP,250M

........8 QM307 0501-000303 TR-SMALLSIGNAL;KSA733,PNP,250M

........8 QM308 0501-000303 TR-SMALLSIGNAL;KSA733,PNP,250M

........8 Q901 0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

........8 QM101 0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

........8 QM104 0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

........8 QM105 0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

........8 QM306 0501-000398 TR-SMALLSIGNAL;KSC945,NPN,60V,

........8 QM301 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9

S.N.A

........8 QM302 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9

........8 QM103 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,2

........8 QM701 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,2

........8 QM702 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,2

........8 QM703 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,2

........8 QM102 0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4

........8 ICM605 1203-000642 IC-RESET;572,TO-92,3P,-,PLASTI

........8 R125

........8 R125

........8 R125

2001-000004 R-CARBON;200KOHM,5%,1/8W,AA,TP

2001-000008 R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2001-000008 R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM

........8 R125

........8 R125

2001-000010 R-CARBON;68Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000012 R-CARBON;680Kohm,5%,1/8W,AA,TP,1.8x3.2m

........8 R707 2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,

........8 RM101 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

........8 RM667 2001-000118 R-CARBON(S);180OHM,5%,1/2W,AA,

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP

2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP

2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP

2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP

2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP

2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP

2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP

Samsung Electronics 7-1

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000347 R-CARBON;13KOHM,5%,1/8W,AA,TP,

2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,

2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,

2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,

2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,

2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

Code No. Description ; Specification Remark

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

........8 RM303 2001-000458 R-CARBON2.2OHM,1/8W,AA,TP,1.8x3.2mm

........8 R125

........8 R125

........8 R125

2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP

2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP

2001-000508 R-CARBON;220KOHM,5%,1/8W,AA,TP

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,

2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,

2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,

2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,

2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP

2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP

2001-000633 R-CARBON;30KOHM,5%,1/8W,AA,TP,

2001-000645 R-CARBON;330KOHM,5%,1/8W,AA,TP

2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,

2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,

2001-000679 R-CARBON;36KOHM,5%,1/8W,AA,TP,

2001-000702 R-CARBON;39KOHM,5%,1/8W,AA,TP,

2001-000702 R-CARBON;39KOHM,5%,1/8W,AA,TP,

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

7-2 Samsung Electronics

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

........8 R125

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000766 R-CARBON;43KOHM,5%,1/8W,AA,TP,

2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,

2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,

2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,

2001-000812 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000812 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000812 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,

2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,

2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,

2001-000850 R-CARBON;560Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000850 R-CARBON;560Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000878 R-CARBON;6.2KOHM,5%,1/8W,AA,TP

2001-000878 R-CARBON;6.2KOHM,5%,1/8W,AA,TP

2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1

2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1

2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1

2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1

2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1

2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1

2001-000977 R-CARBON;8.2Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000977 R-CARBON;8.2Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000977 R-CARBON;8.2Kohm,5%,1/8W,AA,TP,1.8x3.2m

........8 RM106 2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,

........8 RM701 2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,

........8 RM702 2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,

........8 RM703 2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,

........8 R701 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

........8 R702 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

........8 RM104 2001-001107 R-CARBON(S);220OHM,5%,1/2W,AA,

........8 RM355 2001-001108 R-CARBON(S);22KOHM,5%,1/2W,AA,

........8 RM356 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,

........8 R107 2003-000493 R-METAL OXIDE(S);12ohm,5%,2W,AF,TP,4x12m

........8 RM505 2004-000500 R-METAL;2.7Kohm,1%,1/8W,AA,TP,1.8x3.2m

........8 RM619 2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

........8 C598

........8 C598

........8 C598

2201-000262 C-CERAMIC,DISC;180PF,10%,50V,Y

2201-000262 C-CERAMIC,DISC;180PF,10%,50V,Y

2201-000262 C-CERAMIC,DISC;180PF,10%,50V,Y

........8 CM318 2201-000863 c-CERAMIC,DISC;680PF,10%,50V,Y

........8 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

........8 C689

........8 C689

........8 C689

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

........8 C689

........8 C689

........8 C219

........8 C247

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

........8 CM541 2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

........8 CM542 2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

........8 CM632 2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

........8 CM633 2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

........8 C221 2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

........8 C689

........8 C689

2202-000205 C-CERAMIC,MLC-AXIAL;22PF,5%,50

2202-000205 C-CERAMIC,MLC-AXIAL;22PF,5%,50

Code No. Description ; Specification Remark

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

2202-000231 C-CERAMIC,MLC-AXIAL;330PF,10%,50V,Y5P,3.

2202-000231 C-CERAMIC,MLC-AXIAL;330PF,10%,50V,Y5P,3.

2202-000263 C-CERAMIC,MLC-AXIAL;470PF,10%,50V,Y5P,3.

2202-000279 C-CERAMIC,MLC-AXIAL;47PF,5%,50

2202-000279 C-CERAMIC,MLC-AXIAL;47PF,5%,50

2202-000286 C-CERAMIC,MLC-AXIAL;56PF,5%,50

2202-000286 C-CERAMIC,MLC-AXIAL;56PF,5%,50

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000718 C-CERAMIC,MLC-AXIAL;3.9nF,20%,16V,Y5R,TP

2202-000718 C-CERAMIC,MLC-AXIAL;3.9nF,20%,16V,Y5R,TP

2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50

2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50

2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50

2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50

2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50

2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

........8 C689

........8 C689

........8 C689

........8 C689

........8 C689

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

........8 C689 2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

........8 CM512 2301-000104 C-FILM,PEF;1.2NF,5%,50V,6.5X3.0X5.5MM,5M

........8 CM306 2301-000160 C-FILM,PEF;12NF,5%,50V,11.0X6.

........8 C232 2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

........8 CM510 2301-000224 C-FILM,PEF;22NF,5%,50V,7.4X3.9

........8 CM538 2301-000224 C-FILM,PEF;22NF,5%,50V,7.4X3.9

........8 C614 2301-000232 C-FILM,PEF;3.3NF,5%,50V,8.1X4.

........8 C615 2301-000232 C-FILM,PEF;3.3NF,5%,50V,8.1X4.

........8 CM604 2301-000232 C-FILM,PEF;3.3NF,5%,50V,8.1X4.

........8 CM305 2301-000254 C-FILM,PEF;39NF,5%,50V,7.5X3.5X6.5MM,5MM

........8 CM308 2301-000301 C-FILM,PEF;6.8NF,5%,50V,6.5X5.

........8 CM321 2301-000301 C-FILM,PEF;6.8NF,5%,50V,6.5X5.

........8 CM603 2301-000310 C-FILM,PEF;68NF,5%,50V,8.0X8.5

........8 CM623 2301-000310 C-FILM,PEF;68NF,5%,50V,8.0X8.5

........8 CM313 2301-000314 C-FILM,PEF;8.2NF,5%,50V,6.5X3.

........8 CM320 2301-000314 C-FILM,PEF;8.2NF,5%,50V,6.5X3.

Samsung Electronics 7-3

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

........8 CM317 2301-000342 C-FILM,PEF;2.2nF,5%,50V,TP,7.4x3.9x13mm,

........8 C610

........8 C611

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

........8 C612

........8 C613

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

........8 CM367 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

........8 CM368 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

........8 CM369 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

........8 CM314 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

........8 CM322 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

........8 CM331 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

........8 CM332 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

........8 C231 2305-000196 C-FILM,MPEF;150nF,5%,63V,TP,-,5mm

........8 C238

........8 C239

........8 C240

2305-000196 C-FILM,MPEF;150nF,5%,63V,TP,-,5mm

2305-000196 C-FILM,MPEF;150nF,5%,63V,TP,-,5mm

2305-000196 C-FILM,MPEF;150nF,5%,63V,TP,-,5mm

........8 C913

........8 C915

2305-000289 C-FILM,MPEF;220NF,5%,63V,-,5MM

2305-000289 C-FILM,MPEF;220NF,5%,63V,-,5MM

........8 CM643 2305-000289 C-FILM,MPEF;220NF,5%,63V,-,5MM

........8 C601 2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

........8 C602 2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

........8 C603

........8 C604

........8 C605

........8 C606

........8 C607

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

........8 C621

........8 C904

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

........8 CM527 2305-000665 C-FILM;104J, 60V,5MM TAPING

........8 CM525 2305-000665 C-FILM;104J, 60V,5MM TAPING

........8 C914 2306-000122 C-FILM,MPPF;100NF,5%,50V,7.3X4

........8 CM312 2306-000122 C-FILM,MPPF;100NF,5%,50V,7.3X4

........8 C229 2309-000138 C-FILM,PE-PPF;100NF,5%,50V,TP,

........8 C701

........8 C105

........8 C701

2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5mm

2401-000039 C-ALUMINUM;1000UF,20%,16V,GP,10*16MM,EA

2401-000302 C-AL;100UF,20%,25V,GP,6X11MM,5

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C222

........8 C608

........8 C609

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000480 C-AL;10UF,20%,50V,GP,5X11MM,5M

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000603 C-AL;1UF,20%,50V,GP,5X11MM,5MM

2401-000603 C-AL;1UF,20%,50V,GP,5X11MM,5MM

2401-000660 C-ELECTROLYTIC;CE04WTAPG50V2.2

2401-000660 C-ELECTROLYTIC;CE04WTAPG50V2.2

2401-000660 C-ELECTROLYTIC;CE04WTAPG50V2.2

........8 CM533 2401-000660 C-ELECTROLYTIC;CE04WTAPG50V2.2

........8 C701 2401-000753 C-AL;220nF,20%,50V,GP,TP,3x5,5

2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5

2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5

2401-001026 C-AL;3.3UF,20%,50V,GP,5X11MM,5

2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5

2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5

........8 C701 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5

........8 CM702 2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

Code No. Description ; Specification Remark

........8 C103

........8 C705

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

2401-002009 C-AL;100UF,20%,16V,GP,TP,6.3X7

2401-002009 C-AL;100UF,20%,16V,GP,TP,6.3X7

2401-002069 C-AL;33uF,20%,16V,GP,TP,6.3x5,5

2401-002069 C-AL;33uF,20%,16V,GP,TP,6.3x5,5

2401-002069 C-AL;33uF,20%,16V,GP,TP,6.3x5,5

2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5mm

2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

........8 C701

........8 C701

........8 C701

........8 C701

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

........8 CM102 2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

........8 CM108 2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

........8 CM302 2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

........8 CM338 2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

........8 CM353 2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

........8 CM356 2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

........8 CM365 2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

........8 CM516 2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

........8 CM614 2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

........8 CM639 2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

........8 C701 2401-002299 C-AL;4.7UF,20%,50V,GP,TP,4X7,5

........8 C701

........8 C703

........8 C704

........8 C710

2401-002299 C-AL;4.7UF,20%,50V,GP,TP,4X7,5

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

........8 CM622 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

........8 C701

........8 C701

........8 C701

........8 C701

........8 C701

2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5

2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

2401-003102 C-AL;100uF,20%,10V,GP,TP,5x11,5

2401-003102 C-AL;100uF,20%,10V,GP,TP,5x11,5

........8 C701

........8 C701

2401-003102 C-AL;100uF,20%,10V,GP,TP,5x11,5

2401-003102 C-AL;100uF,20%,10V,GP,TP,5x11,5

........8 C701 2401-003102 C-AL;100uF,20%,10V,GP,TP,5x11,5

........8 LM101 2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

........8 LM302 2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

........8 LM304 2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

........8 LM305 2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

........8 LM307 2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

........8 LM601 2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

........8 LM602 2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

........8 LM301 2701-000112 INDUCTOR-AXIAL;100UH,10%,2.8X7

........8 LM306 2701-000112 INDUCTOR-AXIAL;100UH,10%,2.8X7

........8 LM502 2701-000112 INDUCTOR-AXIAL;100UH,10%,2.8X7

........8 LM504 2701-000112 INDUCTOR-AXIAL;100UH,10%,2.8X7

........8 L102 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

........8 L201

........8 L202

........8 L203

........8 L601

........8 L901

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

........8 L902

........8 L904

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

........8 LM604 2701-000115 INDUCTOR-AXIAL;10UH,10%,2.8X7M

........8 LM605 2701-000115 INDUCTOR-AXIAL;10UH,10%,2.8X7M

........8 LM501 2701-000123 INDUCTOR-AXIAL;150uH,10%,2.5x3.4mm

........8 LM303 2702-000120 INDUCTOR-RADIAL;15MH,5%,6.2X7.

........8 XT901 2801-003433 CRYSTAL-UNIT;12MHZ,30PPM,28-AAM,30PF,30O

........8 XTM301 2801-003610 CRISTAL-UNIT 3.57MHZ

........8 XTM601 2801-003750 CRYSTAL-UNIT;8MHZ,30PPM,28-AAA,22PF,80OH

........8 T101 2903-000135 FILTER-CERAMIC;BP,4.5MHZ

........8 BDM601 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

........8 SWM701 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

........8 SWM702 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

........8 SWM703 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

........8 SWM704 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

........8 SWM705 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

7-4 Samsung Electronics

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

........8 SWM706 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

........8 SWM707 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

........8 SWM708 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

........8 SWM709 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

........8 SWM710 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

........8 01VER AA41-00794B PCB MAIN-VCR;V18B,FR-1,1,VER.01,1.6,245*

........8 GT001 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

........8 GT002 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

........8 GT003 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

........8 R125 2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,

........8 R125 2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,

........8 R125

........8 R125

........8 EY01

........8 EY02

........8 EY03

2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,

2001-000938 R-CARBON ;68ohm,5%,1/8W,AA,TP,1.8x3.2mm

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

S.N.A

S.N.A

S.N.A

S.N.A

........8 EY04

........8 EY05

........8 R712

........8 R713

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

2003-001090 R-METALOXIDE;RS2RT(S)103-J10K

2003-001090 R-METALOXIDE;RS2RT(S)103-J10K

........8 A/SMD AA97-07656A ASSY SMD;V18A, , , ,

.........9 IC601 1204-001465 IC-VOLUME/TONE CONT.;TDA7440D,SOP,28,18.

.........9 ICM501 1204-001754 IC-SIGNAL PROCESSOR;AN3663FBP,QFP,64P,-,

.........9 IC118 1204-001952 IC-VIDEO PROCESS;LA71207,QFP,80P,14X14MM

.........9 T0119 AA09-00314A IC MICOM;UPD784927GF-236-3BA,SNM-646MD,1

.........9 T0119 AA09-00337A IC MICOM;TDA9395H/N1/4/0887,SPM-672,80P,

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

........8 LM503 2701-000116 INDUCTOR-AXIAL;10UH,10%,4.2X9.

......6 D903 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5

T0154 AA94-11153A ASSY PCB MISC-INTERFACE;TORNADO,V18A,

......6 RD106 2006-000162 R-CEMENT;2.7ohm,5%,5W,CB,BK,10x13x25.4m

......6 CN11 3708-001364 CONNECTOR-FPC/FFC/PIC;35P,1.25MM,STRAIGH

......6 DCN003 3708-001695 CONNECTOR-FPC/FFC/PIC;13P,1MM,STRAIGHT,S

......6 DCN006 3708-001695 CONNECTOR-FPC/FFC/PIC;13P,1MM,STRAIGHT,S

......6 DCN005 3708-001696 CONNECTOR-FPC/FFC/PIC;24P,1MM,STRAIGHT,S

......6 DCN007 3708-001696 CONNECTOR-FPC/FFC/PIC;24P,1MM,STRAIGHT,S

......6 CN906 3711-001018 CONNECTOR-HEADER;BOX,5P,1R,2mm,STRAIGHT,

......6 JKD01 3722-001749 JACK-PIN;3P(3P),-,NI,YEL/WHT/RED,-

......6 C0104 3809-001358 CABLE-FLAT;60V,80C,200MM,13P,1MM,UL20624

......6 C0104 3809-001359 CABLE-FLAT;60V,80C,200MM,24P,1MM,UL20624

......6 C0104 3809-001360 CABLE-FLAT;30V,80C,150MM,35P,1.25MM,UL28

......6 T0076 AA39-00074A LEAD CONNECTOR-ASSY;,8P,YBNH250-08,35155

......6 T0076 AA39-00116C LEAD CONNECTOR-ASSY;,12P,YBNH250-12,3515

......6 T0077 AA39-00117D LEAD CONNECTOR ASSY;V18A,UL1007#26,UL/CS

......6 T0077 AA39-00229C LEAD CONNECTOR ASSY;V18A,UL1007#26,UL/CS

......6 T0077 AA39-00329A LEAD CONNECTOR ASSY;V18A,UL1007#26,UL/CS

......6 T0077 AA39-20005G LEAD CONNECTOR ASSY;V18A,UL1007#26,UL/CS

......6 IC104 0801-000442 IC-CMOS LOGIC;74HCU04,INVERTER,SOP,14P,1

......6 IC107 1002-001241 IC-D/A CONVERTER;AK4382VT,24BIT,TSSOP,16

......6 DU410 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m

......6 T0119 AA09-00305A IC MICOM;UPD78F0034AGC-580-8B,SNM-746,64

......6 A/AUTO AA97-12101A ASSY AUTO;CFTD2083TX/SMS,V18A S.N.A

.......7 DD101 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.......7 DD104 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.......7 DD505 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.......7 DD506 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.......7 DD507 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.......7 DD508 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.......7 DD602 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.......7 DD603 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.......7 DD604 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.......7 DZ016 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

.......7 DZ016 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

.......7 DZ016 0403-000714 DIODE-ZENER;MTZJ3.3B,3.3V,3.32-3.53V,500

.......7 DZ016 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D

.......7 DD102 0404-000156 DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP

.......7 DD103 0404-000156 DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP

.......7 QD301 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

.......7 QD302 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

.......7 QD303 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

.......7 QD603 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

.......7 QD101 0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

.......7 QD102 0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

.......7 QD103 0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

.......7 QD108 0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

.......7 QD109 0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

.......7 QD501 0501-000398 TR-SMALLSIGNAL;KSC945,NPN,60V,

.......7 QD502 0501-000398 TR-SMALLSIGNAL;KSC945,NPN,60V,

Code No. Description ; Specification Remark

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 QD105 0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,4

.......7 QD107 0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,4

.......7 QD104 0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4

.......7 QD106 0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4

.......7 ICD602 1203-001274 IC-VOL.DETECTOR;7545,TO-92,3P,-,PLASTIC

.......7 R125 2001-000010 R-CARBON;68Kohm,5%,1/8W,AA,TP,1.8x3.2mm

.......7 RD304 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

.......7 RD305 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

.......7 RD306 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

.......7 R125 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP

.......7 R125 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

Samsung Electronics 7-5

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 R125

.......7 C598

.......7 C598

.......7 C598

.......7 C598

.......7 C689

.......7 C689

.......7 C689

.......7 C689

.......7 C689

.......7 C689

.......7 C689

.......7 C689

.......7 C701

.......7 C701

.......7 C701

.......7 C701

.......7 C701

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,

2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,

2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,

2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

.......7 R125 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,

.......7 RD102 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

.......7 RD108 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

.......7 RD101 2001-001107 R-CARBON(S);220OHM,5%,1/2W,AA,

.......7 RD103 2001-001107 R-CARBON(S);220OHM,5%,1/2W,AA,

2201-000558 C-CERAMIC,DISC;470PF,10%,50V,Y

2201-000558 C-CERAMIC,DISC;470PF,10%,50V,Y

2201-000558 C-CERAMIC,DISC;470PF,10%,50V,Y

2201-000558 C-CERAMIC,DISC;470PF,10%,50V,Y

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,

.......7 CD507 2301-000232 C-FILM,PEF;3.3NF,5%,50V,8.1X4.

.......7 CD510 2301-000232 C-FILM,PEF;3.3NF,5%,50V,8.1X4.

.......7 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

2401-002009 C-AL;100UF,20%,16V,GP,TP,6.3X7

2401-002009 C-AL;100UF,20%,16V,GP,TP,6.3X7

2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

.......7 C701 2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

.......7 CD102 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.......7 CD105 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.......7 CD106 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.......7 CD107 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.......7 CD110 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.......7 CD111 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.......7 CD112 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.......7 CD113 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.......7 CD301 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.......7 CD302 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.......7 CD303 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.......7 LD501 2701-000112 INDUCTOR-AXIAL;100UH,10%,2.8X7

.......7 T0122 2802-000194 RESONATOR-CERAMIC;8MHz,1.0%,TP,8.5x4.5x5

.......7 BD501 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

.......7 BD502 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

.......7 SWD701 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

.......7 SWD702 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

.......7 SWD703 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

.......7 SWD704 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

.......7 SWD705 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

.......7 00VER AA41-00665A PCB-INTERFACE;SMD-29J5,FR-1,1L,A,1.6T,33

.......7 F101 2901-001125 FILTER-EMI ON BOARD;50V,0.5A,-,220pF,7x2

.......7 A/SMD AA97-07657A ASSY SMD;V18A, , , ,

S.N.A

S.N.A

Code No. Description ; Specification Remark

........8 IC104 0801-000442 IC-CMOS LOGIC;74HCU04,INVERTER,SOP,14P,1

........8 IC107 1002-001241 IC-D/A CONVERTER;AK4382VT,24BIT,TSSOP,16

........8 DU410 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m

........8 T0119 AA09-00305A IC MICOM;UPD78F0034AGC-580-8B,SNM-746,64

.....5

AA96-00959A ASSY MISC P-M-DECK;, , ,6HD,19UM,NTSC,HQ S.N.A

.....5

AA96-00976A ASSY MISC P-M/DVDP;DVD-DS002/SAM,V18A, ,S.N.A

.....5

T0298 AA96-00977A ASSY MISC P-PCB,M/DVDP;DVD-PSA21/SAM,V18

....4

AA94-12787A ASSY PCB MISC-POWER;DP-21,SMS,SEA,SECA,

.....5

0202-000187 SOLDER-WIREFLUX;-,RS60S,D1.2,6

.....5

T0083 0402-000586 DIODE-RECTIFIER;RK49,90V,3.5A,DO-201AD

S.N.A

.....5

T0083 0402-000586 DIODE-RECTIFIER;RK49,90V,3.5A,DO-201AD

.....5

D801S 0402-001082 DIODEBRIDGE;RBV406LFB,600V,4A

.....5

T0083 0402-001296 DIODE-RECTIFIER;FMP-3FU,1500V,5A,T0-3PF

.....5

PC801S 0604-001038 PHOTOCOUPLER;TR,130-260%,200MW

.....5

NT801S 1404-001045 THERMISTOR NTC;4.7OHM,15%,2900K,35.0MW,T

.....5

P803T 1404-001246 THERMISTOR-PTC;1.5OHM,+30/-20,110V,140VA

.....5

CY801S 2201-000446 C-CERAMIC,AC;CK45PE400V332-M(T

.....5

CY802S 2201-000446 C-CERAMIC,AC;CK45PE400V332-M(T

.....5

CR405S 2306-000195 C-FILM,MPPF;360NF,5%,400V,26.0

.....5

CX801S 2306-000318 C-FILM,MPPF;220NF,20%,250V,-,2

.....5

CR401S 2306-000357 C-FILM,MPPF;8.2nF,5%,1.6KV,BK,20x9.5x17.

.....5

C806 2401-002251 C-ELECTROLYTIC;CE04W200V470M(2

.....5

RL801S 3501-001040 RELAYPOWER;12VDC,500MW,10A,1FO

.....5

FP801S 3601-001012 FUSE-FERRULE;250V,4A,SLOW-BLOW

.....5

V999S 3704-001105 SOCKET-CRT;11P,20PI,26.5PI,NI,-

.....5

CN906 3711-003975 CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG

.....5

CN906 3711-003975 CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG

.....5

T444S AA26-00167A TRANS FBT;FQH-29A001(S),CT29D4,3.5MH,130

.....5

T801S AA26-00183A TRANS SWITCHING;EER4245,V18A,90 ~264,PM5

.....5

T401 AA26-50001M TRANS HORIZ DRIVE;-,80MH,520UH,4UH,E

.....5

L405 AA27-00025A COIL-CHOKE;-,1MH,10%,-,-,BK,-,12X20,14X2

.....5

.....5

.....5

.....5

.....5

.....5

LR401S AA27-30003L COIL LINEARITY;-,73UH,DR,12X15,0.55MM,BK

.....5

LX801S AA29-30002N FILTER-LINE NOISE;-,16MH,1.5A,AC100~260V

.....5

T0076 AA39-00070A LEAD CONNECTOR-ASSY;4P,200mm,YBNH250-04,

.....5

CN501 AA39-20620B LEAD-CONNECTOR;ASSY,9P,YBNH250-09,S,400m

.....5

CN301 AA60-40012D PIN-GT,ASSY;4P,T1.6,6-12.5-14MM,NYLON66 S.N.A

AA63-10007C BAND PP;W18,CLEAR,1G

AA65-30014A CLAMP-WIRE;-,NYLON-66,V0,-,NTR,DATL-450-

S.N.A

S.N.A

AA65-30104C CLAMP-WIRE;NYLON 66,V2,NTR,W1 Z4,ALL MO S.N.A

AA69-01396A BAG PE;SKD CHASSIS,LDPE,T0.03,240,180,NO S.N.A

AA69-01403A WRAP VINYL-PACKING;SKD CHASSIS,LDPE,T0.0 S.N.A

.....5

.....5

Q403

......6

......6 Q409

AA69-01808A BAG-SHEET;,LDPE(ANTISTATIC),T0.05,950,90

AA96-00243F ASSY H/S;-,VERTICAL,AA62-00045A,IRF620,V S.N.A

0205-000129 GREASE-SILICON;SC102,JAPAN

0505-000156 FET-SILICON;IRF620,N,200V,5A,0.8ohm,50W,

S.N.A

S.N.A

......6 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

......6

.....5

Q805

.....5

Q810

......6

AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,

......6 T0090 0502-001007 TR-POWER;KSC2073-H2,NPN,150V,1

S.N.A

AA96-00243G ASSY H/S;-,POWER,AA62-00045A,C2073-H2,V1 S.N.A

AA96-00243G ASSY H/S;-,POWER,AA62-00045A,C2073-H2,V1 S.N.A

0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

......6 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

......6

AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

.....5

Q804

......6

AA96-00243H ASSY H/S;-,POWER,AA62-00045A,KSD73Y,C17A S.N.A

0205-000129 GREASE-SILICON;SC102,JAPAN

......6 T0090 0502-000298 TR-POWER;KSD73,NPN,100V,60V,5A

S.N.A

......6 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

......6

AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

.....5

IC601 AA96-00244B ASSY H/S;-,-,AA62-00046A,TDA7266S,-

......6

0205-000129 GREASE-SILICON;SC102,JAPAN

......6 IC602 1201-001308 IC-POWERAMP;7266,ZIP,15P,-,DUAL,26dB,PL

S.N.A

S.N.A

......6 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

......6

AA62-00046A HEAT SINK-PS;-,-,T1.0,-,D1(DREAM) 60X25X S.N.A

.....5

IC301 AA96-00244F ASSY H/S;-,VERTICAL,AA62-00046A,LA7841, S.N.A

......6

0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

......6 T0088 1204-001807 IC-VERTICAL PROCESSO;LA7841,SIP,7P,708MI

......6 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

......6 H/SINK AA62-00046A HEAT SINK-PS;-,-,T1.0,-,D1(DREAM) 60X25X S.N.A

.....5

IC801S AA96-00662C ASSY H/S;,AA62-30171J,5Q12656RT,OIL SILI

......6 CIS 0205-001027 OIL-SILICON;G746

......6 T0086 1203-002257 IC-PWM CONTROLLER;5Q12656RT,TO-220F-5L,5

S.N.A

S.N.A

......6 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

......6 CIS AA62-30171J HEAT SINK-ES;-,-,-,SILVER,-,DREAM1,-,-,S.N.A

.....5

Q401

......6

AA96-00817B ASSY H/S;,AA62-00113A,KSD5703,TORNADO(V1 S.N.A

0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

......6 T0090 0502-001136 TR-POWER;KSD5703,NPN,70W,TO-3PF,ST,8-

......6 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

7-6 Samsung Electronics

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

......6

AA60-30001A WASHER-PLATE;-,M3,ID3.5,15X8.5,T1.0,-,SB S.N.A

......6

AA62-00113A HEAT SINK;BH62-00041A,A1050S,T1.0,W23.0, S.N.A

.....5

IC501 AA96-50311E ASSY-H/S;-,-,AA62-30175D,TDA6108Q,S.N.A

......6

1201-001330 IC-VIDEO;TDA6108JF,ZSIP,9,SINGLE,-

......6 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZP

......6

AA62-30175D HEATSINK-PS;-,SECC,T1.0,-,33X15X30FT-2 S.N.A

S.N.A

.....5

......6 D403

......6 D405

......6 D406

......6 D412

AA97-13876A ASSY AUTO-POWER;21,SAM’S,V18A,TTSEC

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

......6 D601

......6 D602

......6 D833

......6 D834

......6 D835

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

......6 D848 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

......6 T0083 0402-000010 DIODE-RECTIFIER;RGP15G,400V,1.5A,DO-204A

......6 T0083 0402-000010 DIODE-RECTIFIER;RGP15G,400V,1.5A,DO-204A

......6 T0083 0402-000010 DIODE-RECTIFIER;RGP15G,400V,1.5A,DO-204A

......6 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

......6 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

......6 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

......6 T0083 0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5

......6 T0083 0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5

......6 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

......6 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

......6 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

......6 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

......6 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

......6 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

......6 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

......6 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

......6 DZ016 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

......6 DZ016 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

......6 DZ016 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,

......6 DZ016 0403-000716 DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m

......6 DZ016 0403-000718 DIODE-ZENER;MTZJ6.8B,6.8V,6.49-6.83V,500

......6 DZ016 0403-000719 DIODE-ZENER;MTZJ7.5B,7.5V,7.07-7.45V,500

......6 DZ016 0403-001167 DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500

......6 DZ016 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D

......6 DZ016 0403-001221 DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D

......6 DZ016 0403-001318 DIODE-ZENER;MTZJ4.3B,4.17-4.43V,500mW,DO

......6 DZ016 0403-001322 DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO

......6 DZ016 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D

......6 DZ016 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,

......6 DZ016 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,

......6 DZ016 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,

......6 DZ016 0403-001330 DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D

......6 D836 0404-000156 DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP

......6 D808 0404-001056 DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP

......6 D810 0404-001056 DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP

......6 QR01S 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

......6 Q402

......6 Q802

......6 Q601

0501-000369 TRANSISTOR;KSC2331-Y(TAPG)

0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

0501-000398 TR-SMALLSIGNAL;KSC945,NPN,60V,

......6 Q811

......6 Q602

......6 Q812

......6 Q803

0501-000398 TR-SMALLSIGNAL;KSC945,NPN,60V,

0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4

0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4

1203-001217 IC-POST,ADJUSTREG;431,T0-92,3P,4.58MIL,P

......6 VP801S 1405-000152 VARISTOR;560V,2500A,14X8.5MM,T

......6 VX801S 1405-000152 VARISTOR;560V,2500A,14X8.5MM,T

......6 R303 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP

......6 R813

......6 R409

......6 R412

2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m

2001-000020 R-CARBON(S);22OHM,5%,1/2W,AA,T

2001-000020 R-CARBON(S);22OHM,5%,1/2W,AA,T

......6 R837

......6 R407

......6 R850

......6 R847

......6 R810

2001-000020 R-CARBON(S);22OHM,5%,1/2W,AA,T

2001-000028 R-CARBON(S);100OHM,5%,1/2W,AB,

2001-000028 R-CARBON(S);100OHM,5%,1/2W,AB,

2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,

2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

......6 R842

......6 R125

......6 R125

......6 R125

......6 R125

......6 R125

2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

Code No. Description ; Specification Remark

......6 R425

......6 R435

......6 R513

......6 R304

......6 R305

......6 R824

......6 R822

......6 R405

......6 C598

......6 C598

......6 C804

......6 C810

......6 C598

......6 C598

......6 C598

......6 C598

......6 C598

......6 C598

......6 C598

......6 C598

......6 C598

......6 R413

......6 R802

......6 R803

......6 R510

......6 R436

......6 R306

......6 R426

......6 R315

......6 R024

......6 R024

......6 R024

......6 R429

......6 R024

......6 R301

......6 R819

......6 R302

......6 R314

......6 R024

......6 R024

......6 R424

......6 R125

......6 R125

......6 R125

......6 R125

......6 R125

......6 R125

......6 R125

......6 R125

......6 R511

......6 R404

......6 R402

......6 R406

......6 R421

......6 R816

......6 R817

......6 R504

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP

2001-000812 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-001062 R-CARBON(S);10MOHM,5%,1/2W,AA,

2001-001074 R-CARBON(S);130OHM,5%,1/2W,AA,TP,2.4X6.4

2001-001078 R-CARBON(S);15KOHM,5%,1/2W,AA,

2001-001078 R-CARBON(S);15KOHM,5%,1/2W,AA,

2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

2001-001102 R-CARBON(S);200OHM,5%,1/2W,AA,

......6 R505

......6 R506

2001-001102 R-CARBON(S);200OHM,5%,1/2W,AA,

2001-001102 R-CARBON(S);200OHM,5%,1/2W,AA,

......6 RR03S 2001-001103 R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4

......6 R410 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,

......6 R818 2001-001131 R-CARBON(S);33KOHM,5%,1/2W,AA,

......6 R411

......6 R811

......6 R825

......6 R826

......6 R403

2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,

2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,

2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,

2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,

2001-001155 R-CARBON(S);5.6Kohm,5%,1/2W,AA,TP,2.4x6.

......6 R408

......6 R807

2001-001155 R-CARBON(S);5.6Kohm,5%,1/2W,AA,TP,2.4x6.

2001-001192 R-CARBON(S);820OHM,5%,1/2W,AB,

......6 R432 2001-001194 R-CARBON(S);82KOHM,5%,1/2W,AA,

......6 RP801S 2002-001010 R-COMPOSITION;1.8MOHM,5%,1/2W,AA,TP,3.7X

......6 RX801S 2002-001011 R-COMPOSITION;3.3Mohm,10%,1/2W,AA,TP,3.7

......6 R512 2002-001012 R-COMPOSITION;8.2MOhm,5%,1/2W,AA,TP,3.7X

......6 RY801S 2002-001013 R-COMPOSITION;4.7MOhm,5%,1/2W,AA,TP,3.7X

......6 R507

......6 R508

......6 R509

2002-001017 R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m

2002-001017 R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m

2002-001017 R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m

2003-000540 R-METALOXIDE(S);1KOHM,5%,2W,AD

2003-000586 R-METALOXIDE(S);22KOHM,5%,2W,A

2003-000586 R-METALOXIDE(S);22KOHM,5%,2W,A

2003-002007 R-METAL OXIDE(S);4.7KOHM,5%,2W,AF,TP,3.9

2003-002151 R-METALOXIDE;18KOHM,5%,2W,AG,TP,6X16

2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM

2003-002178 R-METAL OXIDE(S) 1Kohm,5%,2W,AG,TP,3.9X1

2004-001126 R-METAL;6.2Kohm,1%,1/8W,AA,TP,1.8x3.2m

2004-001382 R-METAL(S);13KOHM,1%,1/2W,AA,TP,2.4X6.4M

2004-001390 R-METAL(S);1KOHM,2%,1/2W,AA,TP

2004-001402 R-METAL(S);6.8KOHM,1%,1/2W,AA,

2004-001403 2-METAL(S);7.5Kohm,1%,1/2W,AA,TP,2.4x6.4

2004-001889 R-METAL(S);127KOHM,1%,1/2W,AA,TP,2.5X6.5

2004-001983 R-METAL;2.49KOHM,1%,1/2W,AA,TP,2.4X6.4

2004-001983 R-METAL;2.49KOHM,1%,1/2W,AA,TP,2.4X6.4

2004-001984 R-METAL;26.7KOHM,1%,1/2W,AA,TP

2004-001986 R-METAL;35.7KOHM,1%,1/2W,AA,TP

2004-004029 R-METAL(S);10Kohm,1%,1/2W,AA,TP,2.5x6.5m

2004-004029 R-METAL(S);10Kohm,1%,1/2W,AA,TP,2.5x6.5m

2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

2008-001013 R-FUSIBLE(S);1.2ohm,5%,2W,AF,TP,3.9x10mm

2008-001029 R-FUSIBLE(S);5.6OHM,5%,2W,AF,T

2008-001029 R-FUSIBLE(S);5.6OHM,5%,2W,AF,T

2008-001058 R-FUSIBLE(S);0.18OHM,10%,1W,AF

2008-001109 R-FUSIBLE(S);0.18ohm,10%,2W,AG,TP,3.9x12

2008-001135 R-FUSIBLE(S);3.9ohm,5%,1W,AF,TP,3.9x10mm

2201-000108 C-CERAMIC,DISC;1.5NF,10%,1KV,Y

2201-000132 C-CERAMIC,DISC;100PF,10%,500V,Y5P,6X3MM,

2201-000332 C-CERAMIC,AC;CK45PTAPGE250V222

2201-000332 C-CERAMIC,AC;CK45PTAPGE250V222

2201-000374 C-CERAMIC,DISC;220pF,5%,50V,CH,TP,12.5x3

2201-000599 C-CERAMIC,DISC;560PF,10%,500V,

2201-000599 C-CERAMIC,DISC;560PF,10%,500V,

2201-000599 C-CERAMIC,DISC;560PF,10%,500V,

2201-000599 C-CERAMIC,DISC;560PF,10%,500V,

2201-000639 C-CERAMIC,DISC;680PF,10%,2KV,Y5P,-,5MM,T

2201-000639 C-CERAMIC,DISC;680PF,10%,2KV,Y5P,-,5MM,T

2201-000723 C-CERAMIC,DISC;4.7nF,20%,3KV,Y5U,TP,16x5

2201-002022 C-CERAMIC,DISC;5PF,0.25PF,500V

Samsung Electronics 7-7

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

......6 C301

......6 C309

......6 C411

......6 C821

......6 C840

......6 C811

2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

2301-000224 C-FILM,PEF;22NF,5%,50V,7.4X3.9

2301-000224 C-FILM,PEF;22NF,5%,50V,7.4X3.9

2301-000232 C-FILM,PEF;3.3NF,5%,50V,8.1X4.

......6 C305

......6 C306

......6 C608

......6 C610

......6 C807

2301-000261 C-FILM,PEF;4.7NF,5%,100V,10.5X

2301-000342 C-FILM,PEF;2.2nF,5%,50V,TP,7.4x3.9x13mm,

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2301-001397 C-FILM,PPF;2.2nF,5%,1.2kV,TP,15x8.5x13.5

......6 CR403S 2303-001001 C-FILM,PPF;22nF,5%,630V,TP,18x14.5x8.5mm

......6 C308 2305-000149 C-FILM;CF922N100VT104-J-40/105

......6 C412

......6 C304

......6 C408

2305-000178 C-FILM,MPEF;10NF,5%,100V,-,5MM

2305-000285 C-FILM,MPEF;220NF,5%,100V,-,5M

2305-000382 C-FILM,MPEF;4.7NF,5%,400V,TP,-,5MM.

......6 C801

......6 C841

......6 C507

......6 C508

......6 C420

......6 C812

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C816

......6 C701

......6 C701

......6 C505

......6 C506

......6 C701

2305-000665 C-FILM;104J, 60V,5MM TAPING

2305-000665 C-FILM;104J, 60V,5MM TAPING

2305-000704 C-M,POLYESTER;CFS922MTAPG250V1

2305-000704 C-M,POLYESTER;CFS922MTAPG250V1

2306-000224 C-FILM,MPPF;47nF,5%,400V,TP,19x15.5x7,7.

2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5

2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5

2401-000142 C-AL;1000UF,20%,16V,WT,10X20MM

2401-000142 C-AL;1000UF,20%,16V,WT,10X20MM

2401-000287 C-AL;100UF,20%,16V,WT,6X11MM,5

2401-000287 C-AL;100UF,20%,16V,WT,6X11MM,5

2401-000293 C-ELECTROLYTIC;CE04WTAPG200V10

2401-000360 C-AL;100UF,20%,50V,GP,8X11MM,5

2401-000360 C-AL;100UF,20%,50V,GP,8X11MM,5

2401-000430 C-ELECTROLYTIC;CE04WTAPG250V10

2401-000430 C-ELECTROLYTIC;CE04WTAPG250V10

2401-000480 C-AL;10UF,20%,50V,GP,5X11MM,5M

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C701

......6 C803

......6 C819

......6 C839

2401-000480 C-AL;10UF,20%,50V,GP,5X11MM,5M

2401-000689 C-AL;2200UF,20%,16V,GP,13X25MM

2401-000927 C-AL;22UF,20%,250V,GP,13X20MM,

2401-001192 C-AL;33UF,20%,50V,GP,6X11MM,5MM,TP

2401-001232 C-AL;4.7UF,20%,250V,GP,10X12.5

2401-001363 C-AL;470UF,20%,16V,GP,TP,10X12

2401-001363 C-AL;470UF,20%,16V,GP,TP,10X12

2401-001363 C-AL;470UF,20%,16V,GP,TP,10X12

2401-001363 C-AL;470UF,20%,16V,GP,TP,10X12

2401-001397 C-AL;470UF,20%,25V,GP,10X16MM,

2401-001397 C-AL;470UF,20%,25V,GP,10X16MM,

2401-001496 C-AL;47UF,20%,16V,GP,5X7MM,5MM

2401-001513 C-AL;47UF,20%,16V,WT,5X11MM,5M

2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5

2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5

2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

2401-002267 C-AL;2.2UF,20%,250V,GP,8X12MM,

2401-002300 C-ELECTROLYTIC;CE04WTAPG50V47U

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

......6 C701

......6 C701

......6 C701

......6 L501

......6 L806

......6 L308

......6 L309

......6 L805

......6 L808

......6 L303

2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

2401-003034 C-AL;220UF,20%,16V,WT,TP,8X11.

2401-003058 C-AL;100UF,20%,200V,WT,16X25MM

2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000115 INDUCTOR-AXIAL;10UH,10%,2.8X7M

2701-001007 INDUCTOR-AXIAL;24uH,10%,4.5x14mm

2701-001032 INDUCTOR-AXIAL;100UH,10%,5X14MM

......6 F101

......6 L302

......6 L304

......6 L305

......6 L801

2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

......6 L809 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

......6 FA801S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

......6 FA802S 3601-001199 FUSE-AXIAL LEAD;125V,3A,SLOW-BLOW,EPOXY,

......6 F801A 3602-000114 FUSE-HOLDER;-,-,30MOHM

......6 F801B 3602-000114 FUSE-HOLDER;-,-,30MOHM

......6 EL01 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

1

..2

..2

..2

..2

Code No. Description ; Specification Remark

......6 EY14

......6 EY15

......6 EY16

......6 EY17

......6 EY18

......6 EY19

......6 EY20

......6 EY21

......6 EY22

......6 EY23

......6 EY24

......6 EY25

......6 EY26

......6 EY27

......6 EY28

......6 EY29

......6 EY30

......6 EY33

......6 EY34

......6 EY35

......6 EL06 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH

......6 EL07 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH

......6 EL701 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH

......6 EL702 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH

......6 EY01 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

......6 EY02 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

......6 EY03

......6 EY04

......6 EY05

......6 EY06

......6 EY07

......6 EY08

......6 EY10

......6 EY11

......6 EY12

......6 EY13

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

......6 EY36

......6 EY37

......6 EY38

......6 EY39

......6 EY40

......6 EY41

......6 EY42

......6 EY43

......6 EY44

......6 EY45

......6 EY46

......6

......6 GT05

......6 GT06

......6 GT07

......6 GT08

......6 GT09

......6 GT10

......6 GT11

......6 GT12

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

AA41-00666A PCB-POWER CRT;21J5,FR-1,1L,A,1.6T,245X24 S.N.A

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

S.N.A

S.N.A

S.N.A

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

......6 GT502 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

......6 GT503 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

..2

..2

..2

T0081 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZP

POWERP 6003-001023 SCREW-TAPTITERWH,+,B,M3,L10,ZPC(YEL)

T0245 AA61-01185A HOLDER-PCB;COMBO,HIPS V0,G4309

S.N.A

S.N.A

S.N.A

S.N.A

..2

T0066 AA96-20129K ASSY POWER CORD;,EP2/YES,H/S 450MM,KJ10 S.N.A

...3

T0077 AA39-10007Y POWER-CORD;-,EP2/YES,SPT-2 18AWGx2C,2.4m

...3

..2

1

CW

AA61-20284A HOLDER P CORD;PP,VO,BLK,KE-002

AA65-00011C CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,25 S.N.A

A/LABE AA92-08174A ASSY LABEL;V18A,20,AKAI

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

S.N.A

ASSY COVER FRONT

M0001 AA90-04746A ASSY COVER FRONT;V18,21J5,SV704P,SAM’S S.N.A

SC016 AA60-10050R SCREW-ASSY;WC,HH,+M5,L31.5,SWR S.N.A

T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A

L/SPK AA39-00102S LEAD-CONNECTOR,ASSY;4P,35155-0400,REC,40

T0082 3001-001020 SPEAKER;3W,8ohm,90dB,140Hz

7-8 Samsung Electronics

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

..2

T0057 AA64-03227A BADGE-BRAND;CT26F7,AL,T1.5,9,40,BLACK,AK

..2

T0003 AA96-01698A ASSY COVER P-FRONT;21J5,HIPS,V0,G4309,SV

...3

T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A

...3

T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A

...3

T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A

...3

T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A

...3

T0268 AA64-03703A PANEL CONTROL;21J5,HIPS,V0,G4309,SV704P

...3

DT AA64-03704A DOOR;TRAY,21J5,ABS,HB,G4309,SV704P

...3

KF AA64-03705A KNOB;FAMILY,21J5,ABS,HB,,G3676,SV704P+W9

...3

T0152 AA64-03706A KNOB-DVD;21J5,ABS,HB,,G3676,SV704P+W971

...3

WL AA64-02819A WINDOW-LED;21J5,PC,CLR

...3

T0072

...3

SDD

AA61-01225A BRACKET-CRT;21J5,SECC,T2.0

AA61-01223A SPRING ETC-DOOR,DVD;21J5,SUS304,T0.3

S.N.A

...3

T0081 AA60-10050T SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW S.N.A

...3

T150 AA64-03707A DOOR-HOUSING;21J5,ABS HB,G4309,SV704P

S.N.A

...3

SDV

...3

CIS3

AA61-01224A SPRING ETC-DOOR,VCR;21J5,SUS304,T0.4

AA64-03702A CABINET FRONT;21J5,HIPS,V0,G4309,SV704P

S.N.A

1

..2

..2

..2

..2

..2

..2

ASSY COVER REAR

M0002 AA90-04747A ASSY COVER REAR;V18A,21J6,G4309,SAM’S S.N.A

T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,-

T0015 AA64-02811B CABINET BACK;21J6,HIPS,VO,,,,,G4309,

INLAYB AA64-02820A INLAY-BACK;21J5,PS SHEET,T0.5

S.N.A

S.N.A

AC+BC AA65-30008A CLAMP-CORD;-,PE,HB,BLK,-,S.N.A

T0081 AA60-10050T SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW S.N.A

T0081 AA60-10050T SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW S.N.A

1

..2

..2

ASSY P/MATERIAL

A/PACK AA92-06250A ASSY P/MATERIAL;CFTD2083TX/SMS,V18A

STAPLE AA60-40006A PIN-STAPLE;-,-,-,H18,33X17.8X2

PE-BAG AA69-01209A BAG;SHEET,25-27,W54,L60,FOAM,OEM.

S.N.A

S.N.A

S.N.A

1

..2

..2

..2

..2

..2

..2

..2

..2

ASSY CPT

A/CPT AA91-02169E ASSY CPT;A51QDX992X,21,0MG,BARE,AA03-00 S.N.A

T0063 AA03-00213A CRT COLOR;A51QDX992X(M),0MG,1.85MH,18.0M

T0079 AA27-00002A MAGNET-CONVERGENCE;JH291-SC-OB,29.1M

T0078 AA27-00198A DEFLECTION YOKE;21DF,DIF-2192AA(NF),ST-3

S.N.A

SPACER AA63-60028A SPACER-DY;-,NEOPRENE,-,BLK,V0W

T0089 AA27-00213A COIL-DEGAUSSING;21INCH F,0.8MH,10%,23T,1

A/TBC AA98-00011B ASSY-TBC,WIRE(P);-,21INCH,PAL,2P,CS-5399

CDCOIL AA65-00009B CLAMP-D,COIL;NYLON 66,V0,-,-,21A8,-

INL/CR AA64-03072A INLAY-COVER;PS-SHEET,50X30,T.1.0

S.N.A

S.N.A

1

..2

..2

1

..2

..2

..2

..2

ASSY ACCESSORY

M0016 AA92-08175A ASSY ACCESSORY;V18A,20,SAM’S S.N.A

T0074 AA59-00265A REMOCON;,TM66,3WAY COMBO,53,G6671B,S/S,A

BAG-PE AA69-01195A BAG PE;CL29A6W8X,HDPET0.012,93/4X151

CIS AA68-02957A MANUAL USERS;V18A,SPA,W/P100(G)B5

S.N.A

CIS AA68-02958A MANUAL USERS;V18A,ENG,Q/P100(G)B5

W/C 1 AA68-02284A CARD WARRANTY;CFT2790,SMS,W/P100(G),EN S.N.A

W/C 2 AA68-02154A CARD WARRANTY;KS3A,1 PAGE,SAM’S CLUB,SPA

A/BOX AA92-08176A ASSY BOX;V18A,21J6,SAM’S S.N.A

Code No. Description ; Specification Remark

Samsung Electronics 7-9

Electric Parts List

You can search for the updated part code through ITSELF web site.

URL : http://itself.sec.samsung.co.kr

7-2 TC21J6MNX/XAX

Level Loc. No. Code No.

Description ; Specification

ASSY CHASSIS

1 A/CHASSISAA91-06633A ASSY CHASSIS;V18A,SEM,TC21J6

3

3 Q805

3 Q810

4

4

4

4

3 Q804

4

4

3

3

3

3

3

3

3

3

3

3

4

4

3 IC601

4

4

2 CW AA65-00011C CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,25M

2 PWR/AC AA96-20112F ASSY POWER CORD;-,EP2/NO,H/C 450mm,KJ10,

3 AA39-10006K POWER-CORD;KJ-10W,AWG SPT-2

3 AA61-20284A HOLDER P CORD;PP,VO,BLK,KE-002

2 H/P AA61-01185A HOLDER-PCB;COMBO,HIPS V0,G4309

2 POWERP+H6003-001023 SCREW-TAPTITERWH,+,B,M3,L10,ZPC(YEL)

2 HP+HD 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZP

2 POWER AA94-13034A ASSY PCB MISC-POWER;DP-TC21J6MNX/XAX,V18

3 0202-000008 SOLDER-WIRE;S63S-D3.0,S63A,D3,63/37

3

3

3

3 D805

3 D811

0202-000187 SOLDER-WIREFLUX;-,RS60S,D1.2,6

0204-000442 SOLVENT;CH3-CH5H-CH396%IM-1000

0204-001527 FLUX;DF-201TVS,MIX,0.820,FLUX 13%, 14KG

0402-000586 DIODE-RECTIFIER;RK49,90V,3.5A,DO-201AD

0402-000586 DIODE-RECTIFIER;RK49,90V,3.5A,DO-201AD

3 D801S

3 D414

0402-001082 DIODEBRIDGE;RBV406LFB,600V,4A

0402-001296 DIODE-RECTIFIER;FMP-3FU,1500V,5A,T0-3PF

3 PC801S 0604-001038 PHOTOCOUPLER;TR,130-260%,200MW

3 NT801S 1404-001045 THERMISTOR NTC;4.7OHM,15%,2900K,35.0MW,T

3 PT801S 1404-001264 THERMISTOR-PTC;4.5OHM,+30/-20%,220V,290V

3 CY801S 2201-000446 C-CERAMIC,AC;CK45PE400V332-M(T

3 CR405S 2306-000195 C-FILM,MPPF;360NF,5%,400V,26.0

3 CX801S 2306-000318 C-FILM,MPPF;220NF,20%,250V,-,2

3 CR401S 2306-000357 C-FILM,MPPF;8.2nF,5%,1.6KV,BK,20x9.5x17.

3 C806 2401-002219 C-AL;220UF,20%,400V,-,25X40,10MM,ST

3 RL801S 3501-001040 RELAYPOWER;12VDC,500MW,10A,1FO

3 FP801S 3601-001012 FUSE-FERRULE;250V,4A,SLOW-BLOW

3 V999S

3 CN401

3 CN802

3704-001105

3711-003975

3711-003975

SOCKET-CRT;11P,20PI,26.5PI,NI,-

CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG

CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG

3 T444S

3 T801S

3 T401

3 L405

AA26-00167A TRANS FBT;FQH-29A001(S),CT29D4,3.5MH,130

AA26-00183A TRANS SWITCHING;EER4245,V18A,90 ~264,PM5

AA26-50001M TRANS HORIZ DRIVE;-,80MH,520UH,4UH,E

AA27-00025A COIL-CHOKE;-,1MH,10%,-,-,BK,-,12X20,14X2

3 LR401S AA27-30003L COIL LINEARITY;-,73UH,DR,12X15,0.55MM,BK

3 LX801S AA29-30002N FILTER-LINE NOISE;-,16MH,1.5A,AC100~260V

3 CN601 AA39-00070A LEAD CONNECTOR-ASSY;4P,200mm,YBNH250-04,

3 CN501

3 CN301

3

AA39-20620B LEAD-CONNECTOR;ASSY,9P,YBNH250-09,S,400m

AA60-40012D PIN-GT,ASSY;4P,T1.6,6-12.5-14MM,NYLON66

AA61-30009A LOCKER-BAND,CLIP;-,SPC-1,-,-,18MMT0.5,-

AA63-10007C BAND PP;W18,CLEAR,1G

AA65-30014A CLAMP-WIRE;-,NYLON-66,V0,-,NTR,DATL-450-

AA65-30104C CLAMP-WIRE;NYLON 66,V2,NTR,W1 Z4,ALL MOD

AA68-50062W LABEL-LINE,NO;A/P90(S),T0.2,-,-,WHT,-,-

AA69-01381D PAD-TYPE;V18A,EX300 LINER,240,200

AA69-01396A BAG PE;SKD CHASSIS,LDPE,T0.03,240,180,NO

AA69-01403A WRAP VINYL-PACKING;SKD CHASSIS,LDPE,T0.0

AA69-01808A BAG-SHEET;,LDPE(ANTISTATIC),T0.05,950,90

AA69-02163A CUSHION-CHASSIS;V18 POWER,PS C=0.02,,,,,

AA69-02170B PALLET-CKD;CKD,PAPER,1135,955,130,,,

AA69-02188E PAD;EPS C=0.016,1095,900,36

AA96-00243G ASSY H/S;-,POWER,AA62-00045A,C2073-H2,V1

AA96-00243G ASSY H/S;-,POWER,AA62-00045A,C2073-H2,V1

0205-000129 GREASE-SILICON;SC102,JAPAN

0502-001007 TR-POWER;KSC2073-H2,NPN,150V,1

6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR

AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,

AA96-00243H ASSY H/S;-,POWER,AA62-00045A,KSD73Y,C17A

0205-000129 GREASE-SILICON;SC102,JAPAN

0502-000298 TR-POWER;KSD73,NPN,100V,60V,5A

6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR

AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,

AA96-00244B ASSY H/S;-,-,AA62-00046A,TDA7266S,-

0205-000129 GREASE-SILICON;SC102,JAPAN

1201-001308 IC-POWERAMP;7266,ZIP,15P,-,DUAL,26dB,PL

Remark Level Loc. No. Code No.

Description ; Specification

4

4

3 IC301

6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR

AA62-00046A HEAT SINK-PS;-,-,T1.0,-,D1(DREAM) 60X25X

AA96-00244F ASSY H/S;-,VERTICAL,AA62-00046A,LA7841,

4

4

0205-000129 GREASE-SILICON;SC102,JAPAN

1204-001807 IC-VERTICAL PROCESSO;LA7841,SIP,7P,708MI

4 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR

4 H/SINK AA62-00046A HEAT SINK-PS;-,-,T1.0,-,D1(DREAM) 60X25X

3 IC801S AA96-00662C ASSY H/S;,AA62-30171J,5Q12656RT,OIL SILI

4

4

4

4

4

4 CIS

4 CIS

4 CIS

4 CIS

3 Q401

0205-001027

1203-002257

6003-000333

OIL-SILICON;G746

IC-PWM CONTROLLER;5Q12656RT,TO-220F-5L,5

SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

AA62-30171J HEAT SINK-ES;-,-,-,SILVER,-,DREAM1,-,-,-

AA96-00817B ASSY H/S;,AA62-00113A,KSD5703,TORNADO(V1

0205-000129 GREASE-SILICON;SC102,JAPAN

0502-001136 TR-POWER;KSD5703,NPN,70W,TO-3PF,ST,8-

6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

AA60-30001A WASHER-PLATE;-,M3,ID3.5,15X8.5,T1.0,-,SB

AA62-00113A HEAT SINK;BH62-00041A,A1050S,T1.0,W23.0,

4 D403

4 D405

4 D406

4 D412

4 D601

4 D602

4 D833

4 D834

4 D835

4 D848

4

4

3 IC501

4

3 Q403

AA96-50311E ASSY-H/S;-,-,AA62-30175D,TDA6108Q,-

1201-001330 IC-VIDEO;TDA6108JF,ZSIP,9,SINGLE,-

6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZP

AA62-30175D HEATSINK-PS;-,SECC,T1.0,-,33X15X30FT-2

BP96-00020P ASSY HEAT SINK P;AA62-00045A,SCREW,FQP63

4 CIS

4 CIS

4 CIS

4 CIS

0205-001027

0505-001723

6003-000335

OIL-SILICON;G746

FET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM,

SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR

AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-,

3 A/AUTO AA97-12100B ASSY AUTO;TC21J6MNX/XAX,V18A

0401-000005

0401-000005

0401-000005

0401-000005

0401-000005

DIODE;1N4148,100V,300mA,1V,8nS,TAPING

DIODE;1N4148,100V,300mA,1V,8nS,TAPING

DIODE;1N4148,100V,300mA,1V,8nS,TAPING

DIODE;1N4148,100V,300mA,1V,8nS,TAPING

DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

4 D401

4 D402

4 D413

4 D504

4 D807

4 D809

4 D411

4 D812

4 D301

4 D501

4 D502

4 D503

4 D801

4 D803

4 D804

4 DR01S

4 DZ808

4 DZ814

4 DZ807

4 DZ802

0402-000010

0402-000010

0402-000010

0402-000132

0402-000132

DIODE-RECTIFIER;RGP15G,400V,1.5A,DO-204A

DIODE-RECTIFIER;RGP15G,400V,1.5A,DO-204A

DIODE-RECTIFIER;RGP15G,400V,1.5A,DO-204A

DIODE-RECTIFIER;1N4004,400V,1A,DO-41

DIODE-RECTIFIER;1N4004,400V,1A,DO-41

0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5

0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5

0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,

0403-000716 DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m

4 DZR01S 0403-000718 DIODE-ZENER;MTZJ6.8B,6.8V,6.49-6.83V,500

4 DZ501 0403-000719 DIODE-ZENER;MTZJ7.5B,7.5V,7.07-7.45V,500

4 DZ306

4 DZ801

4 DZ305

0403-001167

0403-001211

0403-001221

DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500

DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D

DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D

4 DZ806

4 DZ805

4 DZ804

4 DZ302

4 DZ303

4 DZ304

0403-001318

0403-001322

0403-001327

0403-001329

0403-001329

0403-001329

DIODE-ZENER;MTZJ4.3B,4.17-4.43V,500mW,DO

DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO

DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D

DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,

DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,

DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,

Remark

7-10 Samsung Electronics

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

4 R623

4 R820

4 R621

4 R622

4 R833

4 R417

4 R829

4 R849

4 R625

4 R814

4 R409

4 R412

4 R837

4 R407

4 R850

4 R847

4 R810

4 R842

4 R624

4 R620

4 DZ803

4 D836

4 D808

4 D810

4 QR01S

4 Q402

0403-001330 DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D

0404-000156 DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP

0404-001056 DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP

0404-001056 DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP

0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

0501-000369 TRANSISTOR;KSC2331-Y(TAPG)

4 Q802

4 Q601

4 Q811

4 Q602

4 Q812

0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

0501-000398 TR-SMALLSIGNAL;KSC945,NPN,60V,

0501-000398 TR-SMALLSIGNAL;KSC945,NPN,60V,

0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4

0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4

4 Q803 1203-001217 IC-POST,ADJUSTREG;431,T0-92,3P,4.58MIL,P

4 VP801S 1405-000152 VARISTOR;560V,2500A,14X8.5MM,T

4 VX801S 1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP

4 R303 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP

4 R813 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m

2001-000020

2001-000020

2001-000020

2001-000028

2001-000028

R-CARBON(S);22OHM,5%,1/2W,AA,T

R-CARBON(S);22OHM,5%,1/2W,AA,T

R-CARBON(S);22OHM,5%,1/2W,AA,T

R-CARBON(S);100OHM,5%,1/2W,AB,

R-CARBON(S);100OHM,5%,1/2W,AB,

2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,

2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP

4 R834

4 R511

4 R404

4 R402

4 R406

4 R421

4 R816

4 R817

4 R504

4 R505

4 R506

4 RR03S

4 R410

4 R818

4 R411

4 R811

4 R825

4 R826

4 R403

4 R408

2001-000812 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-001062 R-CARBON(S);10MOHM,5%,1/2W,AA,

2001-001074 R-CARBON(S);130OHM,5%,1/2W,AA,TP,2.4X6.4

2001-001078 R-CARBON(S);15KOHM,5%,1/2W,AA,

2001-001078 R-CARBON(S);15KOHM,5%,1/2W,AA,

2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

2001-001102 R-CARBON(S);200OHM,5%,1/2W,AA,

2001-001102 R-CARBON(S);200OHM,5%,1/2W,AA,

2001-001102 R-CARBON(S);200OHM,5%,1/2W,AA,

2001-001103 R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4

2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,

2001-001131 R-CARBON(S);33KOHM,5%,1/2W,AA,

2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,

2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,

2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,

2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,

2001-001155 R-CARBON(S);5.6Kohm,5%,1/2W,AA,TP,2.4x6.

2001-001155 R-CARBON(S);5.6Kohm,5%,1/2W,AA,TP,2.4x6.

4 R807

4 R432

2001-001192 R-CARBON(S);820OHM,5%,1/2W,AB,

2001-001194 R-CARBON(S);82KOHM,5%,1/2W,AA,

4 RX801S 2002-001011 R-COMPOSITION;3.3Mohm,10%,1/2W,AA,TP,3.7

4 R512 2002-001012 R-COMPOSITION;8.2MOhm,5%,1/2W,AA,TP,3.7X

4 RY801S 2002-001012 R-COMPOSITION;8.2MOhm,5%,1/2W,AA,TP,3.7X

4 R507

4 R508

4 R509

4 R413

4 R802

2002-001017

2002-001017

2002-001017

2003-000540

2003-000586

R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m

R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m

R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m

R-METALOXIDE(S);1KOHM,5%,2W,AD

R-METALOXIDE(S);22KOHM,5%,2W,A

4 R803

4 R510

4 R436

4 R306

4 R426

2003-000586 R-METALOXIDE(S);22KOHM,5%,2W,A

2003-002007 R-METAL OXIDE(S);4.7KOHM,5%,2W,AF,TP,3.9

2003-002151 R-METALOXIDE;18KOHM,5%,2W,AG,TP,6X16

2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM

2003-002178 R-METAL OXIDE(S) 1Kohm,5%,2W,AG,TP,3.9X1

4 R315

4 RR07S

2004-001126 R-METAL;6.2Kohm,1%,1/8W,AA,TP,1.8x3.2m

2004-001382 R-METAL(S);13KOHM,1%,1/2W,AA,TP,2.4X6.4M

4 RR401S 2004-001390 R-METAL(S);1KOHM,2%,1/2W,AA,TP

4 RR04S 2004-001402 R-METAL(S);6.8KOHM,1%,1/2W,AA,

4 R429

4 R821

2004-001403 R-METAL(S);7.5Kohm,1%,1/2W,AA,TP,2.4x6.4

2004-001889 R-METAL(S);127KOHM,1%,1/2W,AA,TP,2.5X6.5

Code No. Description ; Specification Remark

4 C504

4 C303

4 C301

4 C309

4 C411

4 C821

4 C840

4 C811

4 C305

4 C306

4 C424

4 C804

4 C810

4 C843

4 C817

4 C820

4 C824

4 C828

4 C407

4 C814

4 R301

4 R819

4 R302

4 R314

4 RR02S

4 RR06S

4 R424

4 R425

4 R435

4 R513

4 R304

4 R305

4 R824

4 R822

4 R405

4 C823

2004-001983 R-METAL;2.49KOHM,1%,1/2W,AA,TP,2.4X6.4

2004-001983 R-METAL;2.49KOHM,1%,1/2W,AA,TP,2.4X6.4

2004-001984 R-METAL;26.7KOHM,1%,1/2W,AA,TP

2004-001986 R-METAL;35.7KOHM,1%,1/2W,AA,TP

2004-004029 R-METAL(S);10Kohm,1%,1/2W,AA,TP,2.5x6.5m

2004-004029 R-METAL(S);10Kohm,1%,1/2W,AA,TP,2.5x6.5m

2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

2008-001013 R-FUSIBLE(S);1.2ohm,5%,2W,AF,TP,3.9x10mm

2008-001029 R-FUSIBLE(S);5.6OHM,5%,2W,AF,T

2008-001029 R-FUSIBLE(S);5.6OHM,5%,2W,AF,T

2008-001058 R-FUSIBLE(S);0.18OHM,10%,1W,AF

2008-001109 R-FUSIBLE(S);0.18ohm,10%,2W,AG,TP,3.9x12

2008-001135 R-FUSIBLE(S);3.9ohm,5%,1W,AF,TP,3.9x10mm

2201-000108 C-CERAMIC,DISC;1.5NF,10%,1KV,Y

2201-000132 C-CERAMIC,DISC;100PF,10%,500V,Y5P,6X3MM,

2201-000332 C-CERAMIC,AC;CK45PTAPGE250V222

2201-000332 C-CERAMIC,AC;CK45PTAPGE250V222

2201-000374 C-CERAMIC,DISC;220pF,5%,50V,CH,TP,12.5x3

2201-000599 C-CERAMIC,DISC;560PF,10%,500V,

2201-000599 C-CERAMIC,DISC;560PF,10%,500V,

2201-000599 C-CERAMIC,DISC;560PF,10%,500V,

2201-000599 C-CERAMIC,DISC;560PF,10%,500V,

2201-000639 C-CERAMIC,DISC;680PF,10%,2KV,Y5P,-,5MM,T

2201-000639 C-CERAMIC,DISC;680PF,10%,2KV,Y5P,-,5MM,T

2201-000723 C-CERAMIC,DISC;4.7nF,20%,3KV,Y5U,TP,16x5

2201-002022 C-CERAMIC,DISC;5PF,0.25PF,500V

2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

2301-000224 C-FILM,PEF;22NF,5%,50V,7.4X3.9

2301-000224 C-FILM,PEF;22NF,5%,50V,7.4X3.9

2301-000232 C-FILM,PEF;3.3NF,5%,50V,8.1X4.

2301-000261 C-FILM,PEF;4.7NF,5%,100V,10.5X

2301-000342 C-FILM,PEF;2.2nF,5%,50V,TP,7.4x3.9x13mm,

4 C422

4 C808

4 C421

4 C805

4 C826

4 C830

4 C847

4 C402

4 C404

4 C802

4 C622

4 C809

4 C813

4 C816

4 C302

4 C307

4 C505

4 C506

4 C406

4 CR02S

4 C848

4 C608

4 C610

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

4 C807 2301-001397 C-FILM,PPF;2.2nF,5%,1.2kV,TP,15x8.5x13.5

4 CR403S 2303-001001 C-FILM,PPF;22nF,5%,630V,TP,18x14.5x8.5mm

4 C308 2305-000149 C-FILM;CF922N100VT104-J-40/105

4 C412

4 C304

4 C408

4 C801

4 C841

2305-000178

2305-000285

2305-000382

2305-000665

2305-000665

C-FILM,MPEF;10NF,5%,100V,-,5MM

C-FILM,MPEF;220NF,5%,100V,-,5M

C-FILM,MPEF;4.7NF,5%,400V,TP,-,5MM.

C-FILM;104J, 60V,5MM TAPING

C-FILM;104J, 60V,5MM TAPING

4 C507

4 C508

4 C420

4 C812

4 C605

4 CR03S

4 C604

4 C829

4 C818

4 C822

2305-000704

2305-000704

2306-000224

2401-000025

2401-000050

C-M,POLYESTER;CFS922MTAPG250V1

C-M,POLYESTER;CFS922MTAPG250V1

C-FILM,MPPF;47nF,5%,400V,TP,19x15.5x7,7.

C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5

2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5

2401-000142 C-AL;1000UF,20%,16V,WT,10X20MM

2401-000142 C-AL;1000UF,20%,16V,WT,10X20MM

2401-000287

2401-000287

2401-000293

2401-000360

2401-000360

2401-001513

C-AL;100UF,20%,16V,WT,6X11MM,5

C-AL;100UF,20%,16V,WT,6X11MM,5

C-ELECTROLYTIC;CE04WTAPG200V10

C-AL;100UF,20%,50V,GP,8X11MM,5

C-AL;100UF,20%,50V,GP,8X11MM,5

2401-000430 C-ELECTROLYTIC;CE04WTAPG250V10

2401-000430 C-ELECTROLYTIC;CE04WTAPG250V10

2401-000480 C-AL;10UF,20%,50V,GP,5X11MM,5M

2401-000480 C-AL;10UF,20%,50V,GP,5X11MM,5M

2401-000689 C-AL;2200UF,20%,16V,GP,13X25MM

2401-000927 C-AL;22UF,20%,250V,GP,13X20MM,

2401-001192 C-AL;33UF,20%,50V,GP,6X11MM,5MM,TP

2401-001232 C-AL;4.7UF,20%,250V,GP,10X12.5

2401-001363 C-AL;470UF,20%,16V,GP,TP,10X12

2401-001363 C-AL;470UF,20%,16V,GP,TP,10X12

2401-001363 C-AL;470UF,20%,16V,GP,TP,10X12

2401-001363 C-AL;470UF,20%,16V,GP,TP,10X12

2401-001397 C-AL;470UF,20%,25V,GP,10X16MM,

2401-001397 C-AL;470UF,20%,25V,GP,10X16MM,

2401-001496 C-AL;47UF,20%,16V,GP,5X7MM,5MM

C-AL;47UF,20%,16V,WT,5X11MM,5M

Samsung Electronics 7-11

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

4 EY04

4 EY05

4 EY06

4 EY07

4 EY08

4 EY10

4 EY11

4 EY12

4 EY13

4 EY14

4 EY15

4 R502

4 R503

4 EL01

4 EL06

4 EL07

4 EL701

4 EL702

4 EY01

4 EY02

4 EY03

4 J804

4 J805

4 J806

4 J807

4 J808

4 J809

4 J810

4 L401

4 L802

4 R501

4 J502

4 J601

4 J602

4 J603

4 J604

4 J605

4 J607

4 J801

4 J802

4 J803

4 C609

4 C611

4 C620

4 C427

4 C803

4 C819

4 C839

4 C414

4 C621

4 C815

4 L501

4 L806

4 L308

4 L309

4 L805

4 L808

2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5

2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5

2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

2401-002267 C-AL;2.2UF,20%,250V,GP,8X12MM,

2401-002300 C-ELECTROLYTIC;CE04WTAPG50V47U

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

2401-003034 C-AL;220UF,20%,16V,WT,TP,8X11.

2401-003058 C-AL;100UF,20%,200V,WT,16X25MM

2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000115 INDUCTOR-AXIAL;10UH,10%,2.8X7M

2701-001007 INDUCTOR-AXIAL;24uH,10%,4.5x14mm

4 F801B

4 J301

4 J302

4 J401

4 J402

4 J403

4 J404

4 J405

4 J408

4 J501

4 L303

4 L804

4 L302

4 L304

4 L305

2701-001032 INDUCTOR-AXIAL;100UH,10%,5X14MM

2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

4 L801

4 L809

3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

4 FA801S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

4 FA802S 3601-001199 FUSE-AXIAL LEAD;125V,3A,SLOW-BLOW,EPOXY,

4 F801A 3602-000114 FUSE-HOLDER;-,-,30MOHM

3602-000114

3812-000219

3812-000219

3812-000219

3812-000219

FUSE-HOLDER;-,-,30MOHM

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219

3812-000219

3812-000219

3812-000219

3812-000219

6042-000002

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH

6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH

6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH

6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH

6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

Code No. Description ; Specification Remark

4 EY34

4 EY35

4 EY36

4 EY37

4 EY38

4 EY39

4 EY40

4 EY41

4 EY42

4 EY43

4 EY44

4 EY45

4 EY46

4 00VER

4 GT05

4 GT06

4 GT07

4 GT08

4 GT09

4 GT10

4 EY16

4 EY17

4 EY18

4 EY19

4 EY20

4 EY21

4 EY22

4 EY23

4 EY24

4 EY25

4 EY26

4 EY27

4 EY28

4 EY29

4 EY30

4 EY33

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

AA41-00666A PCB-POWER CRT;21J5,FR-1,1L,A,1.6T,245X24

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

4 GT11

4 GT12

4 GT502

4 GT503

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

2 M/DECK AA94-13086A ASSY PCB MISC-M/DECK;DP-TC21J6MNX/XAX,V1

3 VDECK+HD 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZP

3 DDECK+HD 6003-001022 SCREW-TAPTITE;RH,+,B,M3,L12,ZPC(BLK),SWR

3 DVDP+HD 6003-001022 SCREW-TAPTITE;RH,+,B,M3,L12,ZPC(BLK),SWR

3 IP+HD 6003-001023 SCREW-TAPTITERWH,+,B,M3,L10,ZPC(YEL)

3 MAINP+HD6003-001023 SCREW-TAPTITERWH,+,B,M3,L10,ZPC(YEL)

3

3

3

3

3

3

3

3 SDVD+HD 6003-001023 SCREW-TAPTITERWH,+,B,M3,L10,ZPC(YEL)

3 SVCR+HD 6003-001023 SCREW-TAPTITERWH,+,B,M3,L10,ZPC(YEL)

3

AA39-20497B LEAD CONNECTOR-ASSY;,1P,YFH800-01,RING,2

AA60-00157A SPACER-BUMPON;,COMBO,D10.2,BLK,T2.5,W10.

AA61-01184A HOLDER-DECK;COMBO,HIPS V0,G4309

AA61-01187A HOLDER-TRAY;21J5,ABS HB,BLK

AA61-30009A LOCKER-BAND,CLIP;-,SPC-1,-,-,18MMT0.5,-

AA63-00443B SHIELD;TVCR,SPTE ,T0.3,SUS-DECK

AA63-00594A SHIELD-VCR;COMBO,SECC,T0.5

AA63-00595A SHIELD-DVD;COMBO,SECC,T0.5

3

3

3

3

3

3

3

3

3

3

AA63-10007C BAND PP;W18,CLEAR,1G

AA64-01763B INLAY-BARRIER,FRONT;21G5,PVC,T0.4,-,-,-,

AA65-30009A CLAMP-FBT;-,ABS,V0,BLK,-,-

AA68-00364B LABEL-SERIAL;ALL MODEL,A/P 90G,60X30

AA68-50062W LABEL-LINE,NO;A/P90(S),T0.2,-,-,WHT,-,-

AA69-01403A WRAP VINYL-PACKING;SKD CHASSIS,LDPE,T0.0

AA69-01808A BAG-SHEET;,LDPE(ANTISTATIC),T0.05,950,90

AA69-02162A CUSHION-CHASSIS;,PS C=0.02,,,,,,,

AA69-02167A PAD-TYPE;,CB DW-2,1228,640,,,,,

AA69-02170A PALLET-CKD;CKD,PAPER,1025,890,130,,,

3

3

AA69-02188D PAD;EPS C=0.016,985,850,36

AA94-11151B ASSY PCB MAIN;CXN2085TPX/XAA,V18A,SEA

4 PTM601 0604-001122 PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,

4 PTM602 0604-001122 PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,

4 ICM603 1003-001318 IC-MOTOR DRIVER;LB11880,DIP,30P,417MIL,-

4 JK702 3707-001005 CONNECTOR-OPTICAL;PLUG,SM,-,4.4/2.0MM

4 CNM301 3708-000391 CONNECTOR-FPC/FFC/PIC;10P,1.25mm,STRAIGH

4 CNM302 3708-000394 CONNECTOR-FPC/FC/PIC;6P,1.25mm,STRAIGHT,

4 CNM604 3708-001053 CONNECTOR-FPC/FC/PIC;7P,1.2MM,

4 CNM303 3710-001648 CONNECTOR-SOCKET;2P,1R,2.5mm,STRAIGHT,SN

4 CN005 3711-002642 POST-HEADER;67094-003(AUTO)

7-12 Samsung Electronics

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

4 CN004 3711-003051 CONNECTOR-HEADER;BOX,8P,1R,2.5MM,STRAIGH

4 CNM602 3711-003749 CONNECTOR-HEADER;BOX,8P,2R,2mm,STRAIGHT,

4 CN701 3711-003973 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG

4 JK701 3722-001215 JACK-PIN;9P(6P),3.4mm,SN,BLK,#16-22

4 CNM32A 3809-001206 CABLE-FLAT;30V,-20to+80C,140mm,6P,1.25mm

4 CNM64A 3809-001312 CABLE-FLAT;30V,80C,110MM,7P,1.25MM,UL289

4 FLM301 AA26-10006C TRANS-IF;7ML,BIAS,-,7MM,3100PF

4 SWM601 AA34-20001A SWITCH-MODE;1,25x14.6x29.8mm,BK,DC5V

4 SWM602 AA34-40001A SWITCH-REC.;1EA,37.5x14.4mm,BK,DC5V

4 CN001 AA39-00180D LEAD CONNECTOR ASSY;V18A,UL1007#26,UL/CS

4 CN003 AA39-00180D LEAD CONNECTOR ASSY;V18A,UL1007#26,UL/CS

4 CNM601 AA39-20603A LEAD CONNECTOR-ASSY;-,GIL-S-2S-S2C2-S,YB

4 REM701 AA59-60003V MODULE-REMOCON;DP,SRV-18,38KHz,940nm,MES

4 GPM001 AA63-00444B GROUND;TVCR,PBS,T0.3,SUS-DECK

4 LDM602 AA91-60318A ASSY-HOLDER,LED;-,ABS,HB,BLK,IR LED,TS-D

5 0601-001303 LED-IR;SIDE-VIEW,2.5MM,75MW,6V,950NM,

5

4 SM601

4 SM602

5

5

AA61-00003A HOLDER-LED;TVN-502V,ABS,-,-,-,BLK,HB

AA91-60319A ASSY-HOLDER,SENSOR;-,ABS,HB,BLK,TR LED,T

AA91-60319A ASSY-HOLDER,SENSOR;-,ABS,HB,BLK,TR LED,T

0603-001011 PHOTO TR;NPN,35V,6V,50mA,75mW,BK

AA61-00005A HOLDER-SENSOR;TVN-502V,ABS,-,-,-,BLK,HB

4 LDM601 AA96-00462A ASSY LED GUIDE;-,-,DL-11S2R1,RED

4 IC901 1103-001106 IC-EEPROM;24C080,1028x8BIT,DIP,8P,300MIL

4 TPM01

4 CN002

4 TU01S

3711-002643

3711-003974

POST-HEADER;YW025-04(AUTO)

CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG

AA40-00091A TUNER;115-V-F035AP,NTSC,181CH,45.75MHZ,F

4

4

4

4

4 L/PQS

0202-000008 SOLDER-WIRE;S63S-D3.0,S63A,D3,63/37

0202-000187 SOLDER-WIREFLUX;-,RS60S,D1.2,6

0204-000442 SOLVENT;CH3-CH5H-CH396%IM-1000

0204-001024 FLUX;DF-96TVS,-,20%,-

AA68-01018A LABEL-PQS,-,50mmX,13,-,WHITE,-

4 A/AUTO AA97-07616B ASSY AUTO-MAIN;CXN2085TPX/XAA,V18A,SEA

5 D201 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

5 DM103 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

5 DM104 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

5 DM105 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

5 DM501 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

5 DM605 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

5 DM606 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

5 D901 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

5 D101 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

5 D902 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

5 DM101 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

5 DM102 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

5 DM106 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

5 DZ701 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

5 DZM701 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

5 DZ601 0403-000719 DIODE-ZENER;MTZJ7.5B,7.5V,7.07-7.45V,500

5 DZ602 0403-000719 DIODE-ZENER;MTZJ7.5B,7.5V,7.07-7.45V,500

5 DZM103 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

5 DZM101 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D

5 DZ901

5 DZ102

0403-001317 DIODE-ZENER;MTZJ3.0B,3.01-3.22V,500mW,DO

0403-001373 DIODE-ZENER;MTZJ5.1A,4.81V-5.07V,500mW,D

5 DZM102 0403-001373 DIODE-ZENER;MTZJ5.1A,4.81V-5.07V,500mW,D

5 QM304 0501-000010 TR-SMALLSIGNAL;KSC1008,NPN,80V

5 Q203 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

5 Q701

5 Q702

0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

5 Q703 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

5 QM303 0501-000303 TR-SMALLSIGNAL;KSA733,PNP,250M

5 QM305 0501-000303 TR-SMALLSIGNAL;KSA733,PNP,250M

5 QM307 0501-000303 TR-SMALLSIGNAL;KSA733,PNP,250M

5 QM308 0501-000303 TR-SMALLSIGNAL;KSA733,PNP,250M

5 Q901 0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

5 QM101 0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

5 QM104 0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

5 QM105 0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

5 QM306 0501-000398 TR-SMALLSIGNAL;KSC945,NPN,60V,

5 QM301 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9

5 QM302 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9

5 QM103 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,2

5 QM701 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,2

5 QM702 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,2

5 QM703 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,2

5 QM102 0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4

5 ICM605 1203-000642 IC-RESET;572,TO-92,3P,-,PLASTI

5 RM344 2001-000004 R-CARBON;200KOHM,5%,1/8W,AA,TP

Code No. Description ; Specification Remark

5 RM629

5 RM630

5 R230

5 R936

5 RM310

5 RM313

5 RM351

5 RM354

5 RM607

5 RM642

5 RM644

5 RM646

5 RM665

5 RM674

5 RM681

5 RM682

5 RM683

5 RM684

5 RM689

5 RM704

5 RM515

5 R907

5 R908

5 R909

5 R910

5 R911

5 R912

5 R913

5 R914

5 R915

5 R916

5 R917

5 R934

5 RM301

5 RM341

5 RM342

5 RM359

5 RM510

5 RM511

5 RM618

5 RM628

5 R234

5 R235

5 R601

5 R602

5 R901

5 R902

5 R903

5 R904

5 R905

5 R906

5 R221

5 R236

5 RM686

5 R104

5 R105

5 R215

5 R220

5 R223

5 R227

5 R233

5 RM323

5 RM334

5 RM622

5 RM346

5 R707

5 RM101

5 RM667

5 RM311

5 RM318

5 RM347

5 RM340

5 RM348

5 RM309

5 RM336

5 RM338

5 RM349

2001-000008 R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2001-000008 R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2001-000010 R-CARBON;68Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000012 R-CARBON;680Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,

2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

2001-000118 R-CARBON(S);180OHM,5%,1/2W,AA,

2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP

2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP

2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP

2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP

2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP

2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP

2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP

2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000347 R-CARBON;13KOHM,5%,1/8W,AA,TP,

Samsung Electronics 7-13

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

5 RM345

5 RM303

5 R515

5 RM506

5 R102

5 R933

5 RM343

5 R231

5 R711

5 RM669

5 RM670

5 R211

5 RM302

5 RM320

5 RM602

5 RM604

5 RM666

5 R106

5 RM361

5 RM601

5 RM603

5 RM643

5 RM645

5 RM647

5 RM648

5 RM649

5 RM653

5 RM654

5 RM655

5 RM656

5 RM658

5 RM664

5 RM668

5 RM671

5 RM679

5 RM680

5 R918

5 R928

5 R929

5 R930

5 RM102

5 RM605

5 RM608

5 RM609

5 RM610

5 RM611

5 RM612

5 RM621

5 RM625

5 RM626

5 RM627

5 RM632

5 RM633

5 RM634

5 RM635

5 RM636

5 RM637

5 RM638

5 RM639

5 RM640

5 RM641

5 RM315

5 R605

5 R606

5 RM308

5 RM352

5 RM353

5 R216

5 R217

5 R935

5 RM103

5 RM305

5 RM306

5 RM317

5 RM508

5 RM512

5 RM513

2001-000362

2001-000554

R-CARBON;150OHM,5%,1/8W,AA,TP,

2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,

2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,

2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,

2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,

2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000458 R-CARBON2.2OHM,1/8W,AA,TP,1.8x3.2mm

2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP

2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP

2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,

2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,

2001-000508 R-CARBON;220KOHM,5%,1/8W,AA,TP

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,

2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,

2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,

R-CARBON;270OHM,5%,1/8W,AA,TP,

Code No. Description ; Specification Remark

5 RM350

5 RM501

5 RM504

5 RM106

5 RM701

5 RM702

5 RM703

5 R701

5 R702

5 RM104

5 RM355

5 RM356

5 R107

5 R712

5 R713

5 RM505

5 RM619

5 CM335

5 CM337

5 CM352

5 CM318

5 R604

5 RM312

5 RM331

5 RM332

5 RM659

5 R232

5 RM606

5 R101

5 RM613

5 RM614

5 RM687

5 RM335

5 RM509

5 R238

5 R226

5 R228

5 R229

5 R706

5 R709

5 RM357

5 R921

5 R922

5 R923

5 R924

5 R926

5 R927

5 R931

5 R932

5 RM360

5 RM650

5 RM651

5 RM652

5 RM319

5 RM307

5 RM322

5 RM339

5 RM502

5 RM503

5 RM615

5 R603

5 R219

5 R222

5 RM304

5 RM316

5 R225

5 RM688

5 RM678

5 RM314

5 RM507

5 RM617

5 RM514

5 R103

5 R218

5 R708

5 R919

5 R920

2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP

2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP

2001-000633 R-CARBON;30KOHM,5%,1/8W,AA,TP,

2001-000645 R-CARBON;330KOHM,5%,1/8W,AA,TP

2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,

2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,

2001-000679 R-CARBON;36KOHM,5%,1/8W,AA,TP,

2001-000702 R-CARBON;39KOHM,5%,1/8W,AA,TP,

2001-000702 R-CARBON;39KOHM,5%,1/8W,AA,TP,

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000766 R-CARBON;43KOHM,5%,1/8W,AA,TP,

2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,

2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,

2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,

2001-000812 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000812 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000812 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,

2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,

2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,

2001-000850 R-CARBON;560Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000850 R-CARBON;560Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000878 R-CARBON;6.2KOHM,5%,1/8W,AA,TP

2001-000878 R-CARBON;6.2KOHM,5%,1/8W,AA,TP

2001-000938 R-CARBON ;68ohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1

2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1

2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1

2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1

2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1

2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1

2001-000977 R-CARBON;8.2Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000977 R-CARBON;8.2Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-000977 R-CARBON;8.2Kohm,5%,1/8W,AA,TP,1.8x3.2m

2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,

2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,

2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,

2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,

2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

2001-001107 R-CARBON(S);220OHM,5%,1/2W,AA,

2001-001108 R-CARBON(S);22KOHM,5%,1/2W,AA,

2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,

2003-000493 R-METAL OXIDE(S);12ohm,5%,2W,AF,TP,4x12m

2003-001090 R-METALOXIDE;RS2RT(S)103-J10K

2003-001090 R-METALOXIDE;RS2RT(S)103-J10K

2004-000500 R-METAL;2.7Kohm,1%,1/8W,AA,TP,1.8x3.2m

2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

2201-000262 C-CERAMIC,DISC;180PF,10%,50V,Y

2201-000262 C-CERAMIC,DISC;180PF,10%,50V,Y

2201-000262 C-CERAMIC,DISC;180PF,10%,50V,Y

2201-000863 c-CERAMIC,DISC;680PF,10%,50V,Y

7-14 Samsung Electronics

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

5 CM640

5 C218

5 C223

5 C234

5 C250

5 C902

5 C908

5 CM362

5 CM520

5 CM620

5 CM647

5 CM648

5 CM649

5 C104

5 C106

5 C618

5 C910

5 C912

5 CM104

5 CM109

5 CM355

5 CM339

5 CM344

5 CM363

5 CM364

5 CM606

5 CM613

5 CM615

5 CM625

5 CM628

5 CM629

5 CM638

5 CM642

5 CM701

5 CM645

5 CM646

5 C226

5 C227

5 CM366

5 CM659

5 CM660

5 C219

5 C221

5 C247

5 CM541

5 CM542

5 CM632

5 CM633

5 CM609

5 CM610

5 C101

5 C102

5 CM634

5 C905

5 C906

5 C248

5 CM350

5 C241

5 CM103

5 CM301

5 CM303

5 CM636

5 C233

5 C712

5 CM333

5 CM351

5 CM354

5 CM361

5 CM513

5 CM514

5 CM601

5 CM612

5 CM617

5 CM621

5 CM630

5 CM631

5 CM644

2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

2202-000183 C-CERAMIC;CKOAX7R16VT222-MEP05

2202-000205 C-CERAMIC,MLC-AXIAL;22PF,5%,50

2202-000205 C-CERAMIC,MLC-AXIAL;22PF,5%,50

2202-000231 C-CERAMIC,MLC-AXIAL;330PF,10%,50V,Y5P,3.

2202-000231 C-CERAMIC,MLC-AXIAL;330PF,10%,50V,Y5P,3.

2202-000263 C-CERAMIC,MLC-AXIAL;470PF,10%,50V,Y5P,3.

2202-000279 C-CERAMIC,MLC-AXIAL;47PF,5%,50

2202-000279 C-CERAMIC,MLC-AXIAL;47PF,5%,50

2202-000286 C-CERAMIC,MLC-AXIAL;56PF,5%,50

2202-000286 C-CERAMIC,MLC-AXIAL;56PF,5%,50

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000718 C-CERAMIC,MLC-AXIAL;3.9nF,20%,16V,Y5R,TP

2202-000718 C-CERAMIC,MLC-AXIAL;3.9nF,20%,16V,Y5R,TP

2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50

2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50

2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50

2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50

2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50

2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

Code No. Description ; Specification Remark

5 CM312

5 C229

5 C103

5 C705

5 CM702

5 C105

5 C616

5 C619

5 C620

5 C903

5 C909

5 CM504

5 CM534

5 CM537

5 CM540

5 CM616

5 CM315

5 CM343

5 CM345

5 CM502

5 CM508

5 CM332

5 C231

5 C238

5 C239

5 C240

5 C913

5 C915

5 CM643

5 C601

5 C602

5 C603

5 C604

5 C605

5 C606

5 C607

5 C621

5 C904

5 CM527

5 CM525

5 C914

5 C615

5 CM604

5 CM305

5 CM308

5 CM321

5 CM603

5 CM623

5 CM313

5 CM320

5 CM317

5 C610

5 C611

5 C612

5 C613

5 CM367

5 CM368

5 CM369

5 CM314

5 CM322

5 CM331

5 CM357

5 CM501

5 CM511

5 CM515

5 CM517

5 CM528

5 CM529

5 CM530

5 CM532

5 CM535

5 CM512

5 CM306

5 C232

5 CM510

5 CM538

5 C614

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

2301-000104 C-FILM,PEF;1.2NF,5%,50V,6.5X3.0X5.5MM,5M

2301-000160 C-FILM,PEF;12NF,5%,50V,11.0X6.

2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

2301-000224 C-FILM,PEF;22NF,5%,50V,7.4X3.9

2301-000224 C-FILM,PEF;22NF,5%,50V,7.4X3.9

2301-000232 C-FILM,PEF;3.3NF,5%,50V,8.1X4.

2301-000232 C-FILM,PEF;3.3NF,5%,50V,8.1X4.

2301-000232 C-FILM,PEF;3.3NF,5%,50V,8.1X4.

2301-000254 C-FILM,PEF;39NF,5%,50V,7.5X3.5X6.5MM,5MM

2301-000301 C-FILM,PEF;6.8NF,5%,50V,6.5X5.

2301-000301 C-FILM,PEF;6.8NF,5%,50V,6.5X5.

2301-000310 C-FILM,PEF;68NF,5%,50V,8.0X8.5

2301-000310 C-FILM,PEF;68NF,5%,50V,8.0X8.5

2301-000314 C-FILM,PEF;8.2NF,5%,50V,6.5X3.

2301-000314 C-FILM,PEF;8.2NF,5%,50V,6.5X3.

2301-000342 C-FILM,PEF;2.2nF,5%,50V,TP,7.4x3.9x13mm,

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

2305-000196 C-FILM,MPEF;150nF,5%,63V,TP,-,5mm

2305-000196 C-FILM,MPEF;150nF,5%,63V,TP,-,5mm

2305-000196 C-FILM,MPEF;150nF,5%,63V,TP,-,5mm

2305-000196 C-FILM,MPEF;150nF,5%,63V,TP,-,5mm

2305-000289 C-FILM,MPEF;220NF,5%,63V,-,5MM

2305-000289 C-FILM,MPEF;220NF,5%,63V,-,5MM

2305-000289 C-FILM,MPEF;220NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

2305-000665 C-FILM;104J, 60V,5MM TAPING

2305-000665 C-FILM;104J, 60V,5MM TAPING

2306-000122 C-FILM,MPPF;100NF,5%,50V,7.3X4

2306-000122 C-FILM,MPPF;100NF,5%,50V,7.3X4

2309-000138 C-FILM,PE-PPF;100NF,5%,50V,TP,

2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

2401-000039 C-ALUMINUM;1000UF,20%,16V,GP,10*16MM,EA

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000302 C-AL;100UF,20%,25V,GP,6X11MM,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

Samsung Electronics 7-15

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

5 CM505

5 C703

5 C704

5 C710

5 CM622

5 CM370

5 C911

5 CM105

5 C216

5 C235

5 C249

5 C901

5 C907

5 LM101

5 LM302

5 LM304

5 LM305

5 LM307

5 LM601

5 LM602

5 LM301

5 CM637

5 CM311

5 CM507

5 CM523

5 C242

5 CM524

5 CM307

5 CM531

5 CM536

5 CM102

5 CM108

5 CM302

5 CM338

5 CM353

5 CM356

5 CM365

5 CM516

5 CM614

5 CM639

5 CM503

5 CM359

5 CM360

5 CM506

5 CM518

5 C220

5 C711

5 C222

5 C608

5 C609

5 CM533

5 CM519

5 C246

5 C617

5 CM304

5 CM341

5 CM526

5 CM319

5 CM611

5 CM635

5 CM543

5 CM509

5 CM521

5 CM522

5 CM539

5 C108

5 CM101

5 CM316

5 CM334

5 CM336

5 CM340

5 CM342

5 CM346

5 CM347

5 CM348

5 CM349

5 CM358

2401-000426

2701-000112

C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000426 C-AL;10uF,20%,16V,GP,TP,3.5x5,5

2401-000480 C-AL;10UF,20%,50V,GP,5X11MM,5M

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000590 C-AL;1UF,20%,50V,GP,3X5MM,5MM,

2401-000603 C-AL;1UF,20%,50V,GP,5X11MM,5MM

2401-000603 C-AL;1UF,20%,50V,GP,5X11MM,5MM

2401-000660 C-ELECTROLYTIC;CE04WTAPG50V2.2

2401-000660 C-ELECTROLYTIC;CE04WTAPG50V2.2

2401-000660 C-ELECTROLYTIC;CE04WTAPG50V2.2

2401-000660 C-ELECTROLYTIC;CE04WTAPG50V2.2

2401-000753 C-AL;220nF,20%,50V,GP,TP,3x5,5

2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5

2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5

2401-001026 C-AL;3.3UF,20%,50V,GP,5X11MM,5

2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5

2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5

2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5

2401-002009 C-AL;100UF,20%,16V,GP,TP,6.3X7

2401-002009 C-AL;100UF,20%,16V,GP,TP,6.3X7

2401-002069 C-AL;33uF,20%,16V,GP,TP,6.3x5,5

2401-002069 C-AL;33uF,20%,16V,GP,TP,6.3x5,5

2401-002069 C-AL;33uF,20%,16V,GP,TP,6.3x5,5

2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5mm

2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5mm

2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M

2401-002299 C-AL;4.7UF,20%,50V,GP,TP,4X7,5

2401-002299 C-AL;4.7UF,20%,50V,GP,TP,4X7,5

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5

2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

2401-003102 C-AL;100uF,20%,10V,GP,TP,5x11,5

2401-003102 C-AL;100uF,20%,10V,GP,TP,5x11,5

2401-003102 C-AL;100uF,20%,10V,GP,TP,5x11,5

2401-003102 C-AL;100uF,20%,10V,GP,TP,5x11,5

2401-003102 C-AL;100uF,20%,10V,GP,TP,5x11,5

2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

2701-000002 INDUCTOR-AXIAL;100UH,10%,4.2X9

INDUCTOR-AXIAL;100UH,10%,2.8X7

Code No. Description ; Specification Remark

5 J027

5 J028

5 J029

5 J030

5 J031

5 J032

5 J033

5 J034

5 J035

5 J036

5 J037

5 J038

5 J039

5 J040

5 J041

5 J042

5 J043

5 J044

5 J045

5 J048

5 JM001

5 J017

5 J018

5 J019

5 J020

5 J021

5 J022

5 J023

5 J024

5 J025

5 J026

5 J007

5 J008

5 J009

5 J010

5 J011

5 J012

5 J013

5 J014

5 J015

5 J016

5 LM306

5 LM502

5 LM504

5 L102

5 L201

5 L202

2701-000112 INDUCTOR-AXIAL;100UH,10%,2.8X7

2701-000112 INDUCTOR-AXIAL;100UH,10%,2.8X7

2701-000112 INDUCTOR-AXIAL;100UH,10%,2.8X7

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

5 L203

5 L601

5 L901

5 L902

5 L904

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

5 LM604

5 LM605

5 LM501

5 LM303

2701-000115

2701-000115

2701-000123

2702-000120

INDUCTOR-AXIAL;10UH,10%,2.8X7M

INDUCTOR-AXIAL;10UH,10%,2.8X7M

INDUCTOR-AXIAL;150uH,10%,2.5x3.4mm

INDUCTOR-RADIAL;15MH,5%,6.2X7.

5 XTM301 2801-003610 CRISTAL-UNIT 3.57MHZ

5 XTM601 2801-003750 CRYSTAL-UNIT;8MHZ,30PPM,28-AAA,22PF,80OH

5 T101 2903-000135 FILTER-CERAMIC;BP,4.5MHZ

5 BDM601 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

5 SWM701 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 SWM702 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 SWM703 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 SWM704 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 SWM705 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 SWM706 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 SWM707 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 SWM708 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 SWM709 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 SWM710 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 D102 3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

5 J001 3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

5 J002

5 J003

5 J004

5 J005

5 J006

3812-000219

3812-000219

3812-000219

3812-000219

3812-000219

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219

3812-000219

3812-000219

3812-000219

3812-000219

3812-000219

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

7-16 Samsung Electronics

Electric Parts List

Loc. No.

5 JM061

5 JM062

5 JM063

5 JM064

5 JM067

5 JM068

5 JM069

5 JM070

5 JM071

5 JM072

5 JM073

5 JM074

5 JM075

5 JM076

5 JM077

5 JM078

5 JM079

5 JM080

5 JM081

5 JM082

5 JM083

5 JM040

5 JM041

5 JM042

5 JM043

5 JM044

5 JM045

5 JM046

5 JM047

5 JM048

5 JM049

5 JM051

5 JM052

5 JM053

5 JM054

5 JM055

5 JM056

5 JM057

5 JM058

5 JM059

5 JM060

5 JM018

5 JM019

5 JM020

5 JM021

5 JM022

5 JM023

5 JM024

5 JM025

5 JM026

5 JM027

5 JM028

5 JM029

5 JM030

5 JM031

5 JM032

5 JM033

5 JM034

5 JM036

5 JM038

5 JM039

5 JM002

5 JM003

5 JM004

5 JM005

5 JM006

5 JM007

5 JM008

5 JM009

5 JM010

5 JM011

5 JM012

5 JM013

5 JM014

5 JM015

5 JM016

5 JM017

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

Code No. Description ; Specification Remark Loc. No.

Code No. Description ; Specification Remark

5 JM101

5 JM102

5 JM103

5 JM104

5 JM105

5 JM108

5 JM109

5 JM110

5 JM111

5 JM112

5 JM113

5 JM114

5 JM116

5 JM117

5 JM118

5 JM120

5 JM121

5 JM122

5 JM123

5 EY01

5 JM084

5 JM085

5 JM086

5 JM087

5 JM088

5 JM089

5 JM090

5 JM091

5 JM093

5 JM094

5 JM095

5 JM096

5 JM097

5 JM098

5 JM099

5 JM100

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

5 EY02

5 EY03

5 EY04

5 EY05

5 01VER

5 GT001

5 GT002

5 GT003

5

6 IC601

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH

AA41-00794B PCB MAIN-VCR;V18B,FR-1,1,VER.01,1.6,245*

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO

AA97-07656B ASSY SMD-MAIN;CXN2085TPX/XAA,V18A,SEA, ,

1204-001465 IC-VOLUME/TONE CONT.;TDA7440D,SOP,28,18.

6 ICM501 1204-001754 IC-SIGNAL PROCESSOR;AN3663FBP,QFP,64P,-,

6 ICM301 1204-001952 IC-VIDEO PROCESS;LA71207,QFP,80P,14X14MM

6 ICM601 AA09-00314A IC MICOM;UPD784927GF-236-3BA,SNM-646MD,1

6 IC902 AA09-00390A IC MICOM;CMX2785TPX,TDA9395H/N1/4,80P,3.

5 LM503 2701-000116 INDUCTOR-AXIAL;10UH,10%,4.2X9.

5 RM517

5 XT901

4 RWK1

3

4 RD106

2004-001403

2801-003433

0401-000005

2006-000162

R-METAL(S);7.5Kohm,1%,1/2W,AA,TP,2.4x6.4

CRYSTAL-UNIT;12MHZ,30PPM,28-AAM,30PF,30O

DIODE;1N4148,100V,300mA,1V,8nS,TAPING

AA94-11153A ASSY PCB MISC-INTERFACE;TORNADO,V18A,

R-CEMENT;2.7ohm,5%,5W,CB,BK,10x13x25.4m

4 CN11 3708-001364 CONNECTOR-FPC/FFC/PIC;35P,1.25MM,STRAIGH

4 DCN003 3708-001695 CONNECTOR-FPC/FFC/PIC;13P,1MM,STRAIGHT,S

4 DCN006 3708-001695 CONNECTOR-FPC/FFC/PIC;13P,1MM,STRAIGHT,S

4 DCN005 3708-001696 CONNECTOR-FPC/FFC/PIC;24P,1MM,STRAIGHT,S

4 DCN007 3708-001696 CONNECTOR-FPC/FFC/PIC;24P,1MM,STRAIGHT,S

4 DCN002 3711-001018 CONNECTOR-HEADER;BOX,5P,1R,2mm,STRAIGHT,

4 JKD01 3722-001749 JACK-PIN;3P(3P),-,NI,YEL/WHT/RED,-

4 DCN06A 3809-001358 CABLE-FLAT;60V,80C,200MM,13P,1MM,UL20624

4 DCN07A 3809-001359 CABLE-FLAT;60V,80C,200MM,24P,1MM,UL20624

4 CN11A 3809-001360 CABLE-FLAT;30V,80C,150MM,35P,1.25MM,UL28

4 CND002 AA39-00074A LEAD CONNECTOR-ASSY;,8P,YBNH250-08,35155

4 CND001 AA39-00116C LEAD CONNECTOR-ASSY;,12P,YBNH250-12,3515

4 CND004 AA39-00117D LEAD CONNECTOR ASSY;V18A,UL1007#26,UL/CS

4 DCN001 AA39-00229C LEAD CONNECTOR ASSY;V18A,UL1007#26,UL/CS

4 CN12 AA39-00329A LEAD CONNECTOR ASSY;V18A,UL1007#26,UL/CS

4 CND003 AA39-20005G LEAD CONNECTOR ASSY;V18A,UL1007#26,UL/CS

4 ICD503 0801-000442 IC-CMOS LOGIC;74HCU04,INVERTER,SOP,14P,1

4 ICD501

4 ICD502

1002-001241

1201-000163

IC-D/A CONVERTER;AK4382VT,24BIT,TSSOP,16

IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m

4 ICD601 AA09-00305A IC MICOM;UPD78F0034AGC-580-8B,SNM-746,64

4 A/AUTO AA97-12101A ASSY AUTO;CFTD2083TX/SMS,V18A

Samsung Electronics 7-17

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

5 RD627

5 RD628

5 RD702

5 RD704

5 RD508

5 RD509

5 RD510

5 RD523

5 RD524

5 RD616

5 RD617

5 RD629

5 RD630

5 RD631

5 RD632

5 RD633

5 RD634

5 RD635

5 RD636

5 RD637

5 RD643

5 RD703

5 RD504

5 RD505

5 RD506

5 RD507

5 RD602

5 RD603

5 RD604

5 RD605

5 RD606

5 RD607

5 RD611

5 RD612

5 RD613

5 RD615

5 RD622

5 RD623

5 RD624

5 RD625

5 RD626

5 QD302

5 QD303

5 QD603

5 QD101

5 QD102

5 QD103

5 QD108

5 QD109

5 QD501

5 QD502

5 QD105

5 QD107

5 QD104

5 QD106

5 ICD602

5 RD639

5 RD304

5 RD305

5 RD306

5 RD701

5 DD101

5 DD104

5 DD505

5 DD506

5 DD507

5 DD508

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

5 DD602

5 DD603

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

5 DD604 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

5 ZDD102 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

5 ZDD104 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

5 ZDD103 0403-000714 DIODE-ZENER;MTZJ3.3B,3.3V,3.32-3.53V,500

5 ZDD101 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D

5 DD102

5 DD103

5 QD301

0404-000156

0404-000156

0501-000283

DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP

DIODE-SCHOTTKY;RB441Q,10V,100MA,DO-34,TP

TRANSISTOR;KSA539-Y(TAPG)/YTAM

0501-000283

0501-000283

0501-000283

0501-000362

0501-000362

0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

0501-000362 TRANSISTOR;KSC2328A-Y/2SC2655-

0501-000398 TR-SMALLSIGNAL;KSC945,NPN,60V,

0501-000398

0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,4

0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,4

0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4

0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4

1203-001274

2001-000010 R-CARBON;68Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

2001-000273

2001-000273

2001-000281

2001-000281

2001-000281

2001-000281

2001-000290

TRANSISTOR;KSA539-Y(TAPG)/YTAM

TRANSISTOR;KSA539-Y(TAPG)/YTAM

TRANSISTOR;KSA539-Y(TAPG)/YTAM

TRANSISTOR;KSC2328A-Y/2SC2655-

TRANSISTOR;KSC2328A-Y/2SC2655-

TR-SMALLSIGNAL;KSC945,NPN,60V,

IC-VOL.DETECTOR;7545,TO-92,3P,-,PLASTIC

R-CARBON;100KOHM,5%,1/8W,AA,TP

R-CARBON;100KOHM,5%,1/8W,AA,TP

R-CARBON;100OHM,5%,1/8W,AA,TP,

R-CARBON;100OHM,5%,1/8W,AA,TP,

R-CARBON;100OHM,5%,1/8W,AA,TP,

R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

R-CARBON;10KOHM,5%,1/8W,AA,TP,

Code No. Description ; Specification Remark

5 RD108

5 RD101

5 RD103

5 CD508

5 CD509

5 CD511

5 CD512

5 CD101

5 CD109

5 CD506

5 CD514

5 CD523

5 CD603

5 CD501

5 CD602

5 CD507

5 CD510

5 CD505

5 CD114

5 CD601

5 CD513

5 RD107

5 RD514

5 RD515

5 RD520

5 RD521

5 RD527

5 RD528

5 RD534

5 RD535

5 RD668

5 RD511

5 RD512

5 RD513

5 RD516

5 RD517

5 RD518

5 RD519

5 RD522

5 RD640

5 RD102

5 RD526

5 RD608

5 RD610

5 RD618

5 RD619

5 RD620

5 RD621

5 RD638

5 RD641

5 RD642

5 RD645

5 RD654

5 RD659

5 RD660

5 RD661

5 RD662

5 RD663

5 RD685

5 RD104

5 RD105

5 RD644

5 RD646

5 RD647

5 RD648

5 RD649

5 RD650

5 RD651

5 RD653

5 RD655

5 RD657

5 RD664

5 RD665

5 RD666

5 RD501

5 RD502

5 RD525

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,

2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,

2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,

2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,

2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

2001-001107 R-CARBON(S);220OHM,5%,1/2W,AA,

2001-001107 R-CARBON(S);220OHM,5%,1/2W,AA,

2201-000558 C-CERAMIC,DISC;470PF,10%,50V,Y

2201-000558 C-CERAMIC,DISC;470PF,10%,50V,Y

2201-000558 C-CERAMIC,DISC;470PF,10%,50V,Y

2201-000558 C-CERAMIC,DISC;470PF,10%,50V,Y

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,

2301-000232 C-FILM,PEF;3.3NF,5%,50V,8.1X4.

2301-000232 C-FILM,PEF;3.3NF,5%,50V,8.1X4.

2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

2401-002009 C-AL;100UF,20%,16V,GP,TP,6.3X7

2401-002009 C-AL;100UF,20%,16V,GP,TP,6.3X7

2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

7-18 Samsung Electronics

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

5 CD104

5 CD517

5 CD518

5 CD102

5 CD105

5 CD106

2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

5 CD107

5 CD110

5 CD111

5 CD112

5 CD113

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

5 CD301

5 CD302

5 CD303

5 LD501

2401-002463

2401-002463

2401-002463

2701-000112

C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

INDUCTOR-AXIAL;100UH,10%,2.8X7

5 XTD601 2802-000194 RESONATOR-CERAMIC;8MHz,1.0%,TP,8.5x4.5x5

5 BD501

5 BD502

3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

5 SWD701 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 SWD702 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 SWD703 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 SWD704 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 SWD705 3404-000244 SWITCH-TACT;15V,20MA,90-170GF,

5 JD005

5 JD006

5 JD008

3812-000219

3812-000219

3812-000219

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

5 JD009

5 JD010

5 JD011

5 JD012

5 JD014

5 JD016

5 JD017

5 JD018

5 JD019

5 JD020

3812-000219

3812-000219

3812-000219

3812-000219

3812-000219

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

5 JD021

5 JD022

5 JD023

5 JD024

5 JD025

5 JD026

5 JD027

5 JD028

5 JD029

5 JD030

5 JD033

5 JD034

5 JD035

5 JD036

5 JD037

5 JD038

5 JD040

5 JD041

5 JD042

5 JD043

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

5 JD044

5 JD045

5 JD047

5 JD048

5 JD049

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

5 JD013

5 00VER

3812-000219 JUMPER-WIRE-SO,COPPER;TA0.6SN/52M/M(A

AA41-00665A PCB-INTERFACE;SMD-29J5,FR-1,1L,A,1.6T,33

5 FLD501 2901-001125 FILTER-EMI ON BOARD;50V,0.5A,-,220pF,7x2

5 A/SMD AA97-07657A ASSY SMD;V18A, , , ,

6 ICD503 0801-000442 IC-CMOS LOGIC;74HCU04,INVERTER,SOP,14P,1

3

3

6 ICD501

6 ICD502

6 ICD601

3

1002-001241

1201-000163

IC-D/A CONVERTER;AK4382VT,24BIT,TSSOP,16

IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m

AA09-00305A IC MICOM;UPD78F0034AGC-580-8B,SNM-746,64

AA96-00959A ASSY MISC P-M-DECK;, , ,6HD,19UM,NTSC,HQ

AA96-00976A ASSY MISC P-M/DVDP;DVD-DS002/SAM,V18A, ,

AA96-01556A ASSY PCB P-MPEG BOARD(SELLINO);DVD-PSA14

Code No. Description ; Specification Remark

ASSY COVER FRONT

1 A/CFRNT AA90-04558B ASSY COVER FRONT;TC21J6MNX/XAX

2 CRT+CF AA60-10050R SCREW-ASSY;WC,HH,+M5,L31.5,SWR

2 SPK+CF 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR

2 L/SPK

2 SPK

2 A/FC

3 KD+CF

3 KF+CF

AA39-00102S LEAD-CONNECTOR,ASSY;4P,35155-0400,REC,40

3001-001020

6003-001026

6003-001026

SPEAKER;3W,8ohm,90dB,140Hz

AA96-01415C ASSY COVER P-FRONT;21J6,HIPS HB,G4309,SV

SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR

SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR

3 PC+CF 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR

3 WR+CF 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR

3 PANEL

3 DT

3 KF

AA64-03316C PANEL-CONTROL;21J6,HIPS,HB,G4309,SV012P

AA64-03317B DOOR-TRAY;21J6,ABS HB,G4309,SVM3012

AA64-02815C KNOB-FAMILY;21J6,ABS,HB,G3676,SVM3012

3 KD

3 WL

AA64-02816C KNOB-DVD;21J6,ABS,HB,G3676,SVM3012

AA64-02819A WINDOW-LED;21J5,PC,CLR

3 BRKT+CF AA60-10050T SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW

3 DH AA64-02960F DOOR-HOUSUNG;29J6,ABS,HB,G4309,SV012P

3 BRK AA61-01225A BRACKET-CRT;21J5,SECC,T2.0

3 SDD

3 SDV

3 TAPE

3 L/DVD

3 C/F

3 F/C

2 BADGE

2 L/QMS

AA61-01223A SPRING ETC-DOOR,DVD;21J5,SUS304,T0.3

AA61-01224A SPRING ETC-DOOR,VCR;21J5,SUS304,T0.4

0203-001085 TAPE-DOUBLE FACE;#4929,T0.64,W12,-,BLK

AA68-01132G LABEL-DVD;21G5,HOLOGRAM,T0.3,SV012P

0203-001290 TAPE-OPP MASKING;ANT 100C,T0.073,W30,L50

AA64-02810F CABINET FRONT;21J6,HIPS,HB,G4309,SV012P,

AA64-70123A BADGE-BRAND;AL,SAMSUNG,SILVER,L=50,FLAT,

AA68-02391A LABEL-QMS;ART-PAPER(90)G,110x24mm

ASSY COVER REAR

1 A/REAR AA90-04559B ASSY COVER REAR;TC21J6MNX/XAX

2 SPCBC AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,-

2 B/C AA64-02811C CABINET BACK;21J6,HIPS,HB,G4309

2 INLAYB AA64-02820A INLAY-BACK;21J5,PS SHEET,T0.5

2 AC+BC

2 CB+CF

AA65-30008A CLAMP-CORD;-,PE,HB,BLK,-,-

AA60-10050T SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW

2 RCA+CB AA60-10050T SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW

1 A/BOX

2 L/BN

2 PCK

ASSY BOX

AA92-07649B ASSY BOX;TC21J6MNX/XAX

AA68-01793A LABEL;BOX & NOM,WTH,PAPER,MEX & TIJ

AA69-02173B PACKING CASE;21J6(SAMEX),D-3 AB,A1,YEL,S

ASSY P/MATERIAL

1 A/PACK AA92-07650A ASSY P/MATERIAL;21J6,CXN2085TPX/XAA,,,,

2 BXTAPE 0203-001295 TAPE-OPP MASKING;1242,T0.06,W100,L91.4M,

2 STAPLE AA60-40006A PIN-STAPLE;-,-,-,H18,33X17.8X2

2 PE-BAG AA69-01208A BAG;SHEET,19-20,W42,L50,FOAM,OEM

2 C/SET AA69-01692A CUSHION-SET;21J5,PS FOAMED,C=0.02

ASSY LABEL

1 A/LABEL AA92-07789A ASSY LABEL;PAL

2 L/RAT AA68-02297A LABEL RATING;TOJAN,ART PAPER 90,60X,90MM

1 A/CPT

2 TAPE

ASSY CPT

AA91-05992D ASSY CPT;TC21J6MNX/XAX,V18A,MEXICO,SDI-F

0203-000432 TAPE-ACETATE;ACETATET0.25W19WH

Samsung Electronics 7-19

Electric Parts List

Loc. No.

Code No. Description ; Specification Remark Loc. No.

2 CRT

2 C-Y

2 D-COIL

AA03-00317A CRT COLOR;A51QDX992X,0MG,1.85MH,18.0MH,2

AA27-00002A MAGNET-CONVERGENCE;JH291-SC-OB,29.1M

AA27-00113A COIL DEGAUSSING;-,-,4.8mH,-,48T,9ohm,-,2

2 D-Y AA27-00198A DEFLECTION YOKE;21DF,DIF-2192AA(NF),ST-3

2 SPACER AA63-60028A SPACER-DY;-,NEOPRENE,-,BLK,V0W

2 CDCOIL AA65-00009B CLAMP-D,COIL;NYLON 66,V0,-,-,21A8,-

2 A/TBC AA98-00011B ASSY-TBC,WIRE(P);-,21INCH,PAL,2P,CS-5399

2 INL/CRT AA64-03072A INLAY-COVER;PS-SHEET,50X30,T.1.0

ASSY ACCESSORY

1 A/ACCE AA92-07782A ASSY ACCESSORY;TC21J6MNX/XAX,V18A

2 BATT 4301-000120 BATTERY-MN;1.5V,-,AA

2 T/MATCH AA26-90001F TRANS-MATCHING;-,300OHM/75OHM,NTSC,40-89

2 A/ROD

2 RMT

AA42-00004A ANT ROD;VHF,4SDODIPOLE850MMBRN

AA59-00265B REMOCON;,TM65,3WAY COMBO,53,G6671B,S/S,S

2 W/CARD AA68-00559C CARD WARRANTY;-,-,W/P150(G),-,138X212,-,

2 C/REG AA68-02967A MARK RECYCLE-CARD REGISTRATION;,8.5X11,

2 M/SERV AA68-02879A MANUAL SERVICE;WHT,ALL MEX&TIJ

2 BAG-PE AA69-01195A BAG PE;CL29A6W8X,HDPET0.012,93/4X151

2 L/CONS AA68-01574A LABEL;CONSIGN-REEXP,L,W;3,1/2; 1,15

2 I/B AA68-02966A MANUAL USERS;V18B,SPA,W/P100(G)B5

Code No. Description ; Specification Remark

7-20 Samsung Electronics

8. Block Diagrams

8-1 Signal Block Diagram

Block Diagrams

Samsung Electronics 8-1

Block Diagrams

8-2 POWER Block Diagram

8-2 Samsung Electronics

8-3 DVD Block

Block Diagrams

Samsung Electronics 8-3

MEMO

8-4 Samsung Electronics

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
