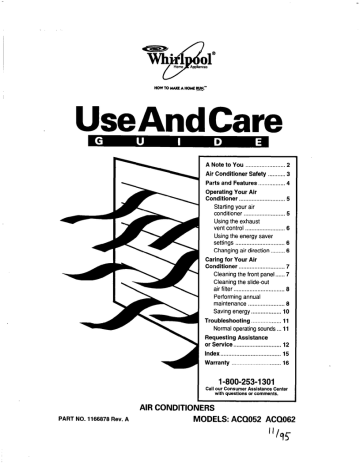

UseAndCare

A Note to You ......................... 2

Air Conditioner Safety ........... 3

Parts and Features ................. 4

Operating Your Air

Conditioner ............................. 5

Starting your air conditioner .......................... 5

Using the exhaust vent control ......................... 6

Using the energy saver settings ............................... 6

Changing air direction ......... 6

Caring for Your Air

Conditioner ............................. 7

Cleaning the front panel.. ... .7

Cleaning the slide-out air filter.. .............................. 8

Performing annual maintenance ....................... 8

Saving energy.. ................. 10

Troubleshooting ................... 11

Normal operating sounds ... 11

Requesting Assistance or Service .............................. 12

Index.. .................................... 15

Warranty ............................... 16

PART NO. 1166878 Rev. A

1-800-253-I 301

Call our Consumer Assistance Center with questions or comments.

AIR CONDITIONERS

MODELS: ACQ052 ACQ062

“fq5

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL Air Conditioners are easy to use, save time, and help you manage your home better. To ensure you enjoy years of trouble-free operation, we developed this Use and Care Guide. It contains valuable infor- mation about how to operate and maintain your appliance properly and safely. Please read it carefully. Also, please complete and mail the Ownership Registration Card provided with your appliance. This card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on your appliance, you need to know your complete model number and serial number.

You can find this information on the model and serial number label (see diagram on page 4 for location of label).

Please also record the Durchase date of your appliance and your dealer’s name, address, and telephone number.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

I

Our Consumer Assistance Center number is toll-free 24-hours a day.

1-800-253-1301 1

Air Conditioner Safety

Your safety is important to us.

This guide contains statements under warning symbols. Please pay special attention to these symbols and follow any instructions given. Here is a brief explana- tion of the use of the warning symbol.

This symbol alerts you to such dangers as fire, electrical shock, burns, and personal injury.

IMPORTANT SAFETY INSTRUCTIONS

l

Read all instructions before using the air conditioner.

*Complete the installation requirements as described in the Installation

Instructions. l

Do not operate the air conditioner with the front panel removed. l

Never clean air conditioner parts with flammable fluids. The fumes can create a fire hazard or explosion. l

FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

l l l l

Help us help you

Please:

Install your air conditioner in a window that will hold the weight, and secure the air conditioner according to the Installation

Instructions.

Connect the air conditioner to the proper kind of outlet with the correct electrical supply and grounding. (See the Installation

Instructions.)

Make sure the air conditioner is the correct size for the area you want to cool.

Use the air conditioner only to do what a window air conditioner is designed to do. l l

Make sure the air conditioner is not used by anyone unable to operate it properly.

Maintain the air conditioner properly.

Also, remove the Energy Label. Use a damp cloth to take off any glue residue. DO NOT use sharp instruments, flammable fluids, or abrasive cleaners. These can damage the material.

3

4

Parts and Features

This section contains captioned illustrations of your appliance. Use them to become familiar with where all parts and features are located and what they look like. To help you find information on specific parts or features quickly, page references are included.

Air direction louvers and tab

Slide-out air filter

(P. 8)

Model and serial number label

Cdntrol panel door

(P. 5)

Redovable front panel

(P. 7)

Operating Your Air Conditioner

To obtain the best possible results from your air conditioner, it is important that you operate it properly. This section tells you how to set the controls and how to direct the cooled air.

Starting your air conditioner

Fire Hazard

Do not use an extension cord.

Doing so can result in death, fire, or electrical shock.

1. Set Exhaust Control to CLOSED for maximum cooling performance. (See

“Using the exhaust vent control” on page 6.1

2. Set the Fan Control to the desired setting. You can use either the Energy

Saver or Normal Fan settings. (See

“Using the energy saver settings” on paw 6.1

LOW - for sleeping comfort

MED - for normal cooling

QUICK COMFORT - for fastest cooling

FAN ONLY-to circulate room air without cooling it

3. Turn the Thermostat Control to the desired setting. You can adjust the air conditioner’s cooling performance by turning the Thermostat Control clockwise for more cooling or counterclockwise for less cooling. You will need to experiment to find the setting which suits you best.

IMPORTANT: If you turn the air conditioner off, or if the compressor turns off when you lower the Thermostat Control, wait at least

3 minutes before turning the air conditioner back on. If you don’t wait, you may blow a fuse or trip a circuit breaker.

Electrical Shock Hazard

Plug into a grounded 3-prong outlet.

Do not remove ground prong.

Failure to follow these instructions can result in death or electrical shock.

EXHAUST VENT

(

OPEN

CLOSED

THERMOSTAT

. l

.

5

. __^_._.

Using the exhaust vent control

The Exhaust Vent Control draws stale or smoky air from the room or circulates existing room air.

To exhaust room air:

1. Set Exhaust Control to OPEN.

2. Set Fan Control to desired setting. If no cooling is desired, set Fan Control to

FAN ONLY.

3. Set Thermostat Control to desired setting.

EXHAUST VENT

OPEN

1

CLOSED

To circulate room air:

1. Set Exhaust Control to CLOSED.

2. Set Fan Control to desired setting. If no cooling is desired, set Fan Control to

FAN ONLY.

3. Set Thermostat Control to desired setting.

NOTE: For maximum performance, the

Exhaust Vent Control must be in the

CLOSED position when cooling or room air circulation is desired.

I

I

EXHAUST VENT

(

OPEN CLOSED

Using the energy saver set :tings

Use the Energy Saver settings when you do not want the fan to run continuously. Using these settings causes the fan to stop when the compressor stops, and saves energy.

Set the Fan Control to the desired setting.

LOW - for sleeping comfort

MED - for normal cooling

QUICK COMFORT - for fastest cooling

I

ENERGY

SAVER

NORMAL

FAN

Changing air direction

The air direction louvers, in the top grille area of the front panel, control the direction of the cooled air. Move the tabs in the direction you want the air to flow (right, left, or straight ahead). A tab in the center of the louver area (on some models) adjusts the airflow up or down.

CaringfbrYourAir Conditioner

Proper care of your air conditioner helps ensure longer life of the unit and lower operating costs. Follow these instructions carefully. Call your authorized Whirlpool servicing dealer for an annual checkup.

Cleaning the front panel

Explosion Hazard

Unplug power cord from outlet before cleaning the air conditioner.

Use only nonflammable cleaners.

Failure to follow these instructions can result in death, explosion, fire, or electrical shock.

1. Disconnect power cord from outlet.

2. Remove the front panel from the unit for cleaning. Press down at the top of the front panel to release it from the top of the cabinet.

3. Pull the top of the front panel toward you.

4. Lift front panel up and away from the bottom spring clips.

5. Remove the slide-out air filter and clean separately. (See “Cleaning the slide-out air filter” on page 8.)

NOTE: The front panel does not have to be removed to clean filter.

6. Clean front panel with warm water, mild soap or detergent, and a soft cloth.

Rinse and dry thoroughly.

7. Wipe control panel clean with a soft, dry cloth.

8. Replace the front panel. Locate bottom of panel on the spring clips. Press down on top edge of front panel and push it toward the unit to secure the upper tabs.

9. Replace air filter.

10. Plug in the power cord.

Tabs

\ -

7

Cleaning the slide-out air filter

The filter is cleanable. A clean filter helps remove dust, lint, and other particles from the air. Check every two weeks to see if filter needs cleaning.

1. Remove filter by sliding it up and out the top of the front panel.

2. Clean filter using a vacuum cleaner.

OR

If very dirty, wash filter with warm water and mild detergent. Air dry thoroughly before replacing.

3. Replace filter by sliding it back down into opening at top of front panel.

Performing annual maintenance

l l

Your air conditioner needs annual mainte- nance to ensure steady, top performance throughout the year. Call the service com- pany recommended by your dealer to:

Inspect and clean the coils and condensate water passages.

Check fan.

The compressor and fan motor are sealed and need no oiling. The expense of an annual inspection is the consumer’s responsibility.

Electrical Shock Hazard

OR

If you are familiar with electrical appliances, you can do the inspection and maintenance yourself. If you choose to do so, follow these steps:

Unplug power cord from outlet before servicing.

Be sure no liquid gets into the motor, electrical control box, or compressor terminals.

Failure to follow these instructions can result in death, electrical shock, or serious injury.

NOTE: Do not lift, push, or pull any white beaded foam (expanded polystyrene) parts.

1. Disconnect power cord from outlet.

2. Remove the front panel. (See “Cleaning the front panel” on page 7.)

3. Remove unit from the window.

8

Excessive Weight Hazard

Use 2 or more people to move and install air conditioner.

Failure to do so can result in back or other injury.

4.

5.

Remove side curtains. Slide curtains out to their fullest width. From the back side, remove the Phillips-head screws (A) holding the curtains to the cabinet.

Remove the slotted hex-head screws (B) holding the top channel.

6. Remove the slotted hex-head screws (C) on the sides of the cabinet.

7. Holding both sides of the cabinet, care- fully lift the cabinet off the base. Watch out for the sharp metal fins on the front and rear coils.

8. Wrap the motor, electrical control box, and the compressor terminal box in plastic film to make sure no water or other liquid gets inside. Water or other liquids could damage the insulation and cause serious mechanical problems.

9. Clean and hose out the base, coils, and condensate pans. Clean at least once a year, or more often if the condenser coils and pans collect dirt, sand, leaves, insects, or algae. Also, clean if you detect an odor coming from the air conditioner.

Do not use the collected water for drinking purposes. It is not sanitary.

10. Remove plastic film from motor and electrical parts.

11. Replace unit in the cabinet. Reattach top channel and side curtains. Tighten all screws.

12. Reinstall unit in the window.

13.

14.

Replace the front panel.

Plug in the power cord.

NOTE: It is a good idea to wait 24 hours before starting the unit again. This allows time !or all areas to dry thoroughly. The water from rainfall or from normal opera- tion does not harm the components.

9

._.*_.-..~.

Saving energy

l l l l l

Improve your home’s insulation. Seal all doors and windows. Close the fireplace flue.

Close blinds or drapes on the sunny side of the house. Add window awnings.

Keep the air filter clean.

Do not block the airflow from the air conditioner with drapes or furniture.

Ventilate the attic. High temperatures in the attic add to the cooling load. l l l l

Try not to use heat-producing appliances during the hottest part of the day.

Turn lights and appliances off when not needed.

Keep heat registers and cool-air returns closed.

Use exhaust venting fans while cooking, doing laundry, or bathing.

10

Troubleshooting

Listed in the chart below are the most common problems consumers run into with their air conditioners. Please read through this chart before calling for service. It could save you the cost of a service call.

PROBLEM

Air conditioner won’t run

Unit blows fuses or trips circuit breaker

Unit turns on and off

OR does not cool the room

CHECK THE FOLLOWING

Is the unit plugged into a live circuit with proper voltage?

Has the time-delay fuse blown or circuit breaker tripped?

Is the Fan Control set to OFF?

Is the Thermostat Control set correctly?

Has the local power failed?

Are time-delay fuses being used?

Is an extension cord being used? Do not use an extension cord with this or any other appliance.

Are you waiting 3 minutes before trying to restart the unit?

Is the air filter clean?

Are the inside evaporator coils and the outside condenser coils clean?

Is there excessive moisture or heat in the room (open container cooking, showers, etc.)?

Is the Fan Control set too low?

Is the Thermostat Control set too low? l l l

Normal operating sounds

When your air conditioner operates nor- mally, you will hear sounds such as:

Pinging or clicking as water droplets hit the condenser. Water droplets help cool the condenser.

Air movement from the fan, especially on

QUICK COMFORT setting.

Clicks from the cooling cycle.

Sounds may also be caused by house construction - such as vibration of the unit due to wall construction or an unsteady window mounting area.

11

Reauestina Assistance or

Service

Before calling for assistance or service, please check “Troubleshooting” on page 11. It may save you the cost of a service call. If you still need help, follow the instructions below.

1. If you need assistance* . . .

Call the Whirlpool Consumer Assistance r Center telephone number. Dial toll-free from anywhere in the U.S.A.:

1-800-253-l 301

- and talk with one of our trained consultants. The consultant can instruct you in how to obtain satisfactory operation from your appliance or, if service is necessary, recommend a qualified service company in your area.

If you prefer, write to:

Mr. William Clark

Consumer Assistance Representative

Whirlpool Corporation

2000 North M-63

Benton Harbor, Ml 49022-2692

Please include a daytime phone number in your correspondence.

2. If you need service* . . .

Whirlpool has a nationwide network of authorized Whirlpool service companies. Whirlpool service

SERVKE

technicians are trained to fulfill the product warranty and

El provide after-warranty service, anywhere in the United States. To locate the authorized Whirlpool service company in your area, call our Consumer Assistance

Center telephone number (see Step 2) or look in your telephone directory Yellow

Pages under:

-APPLIANCE-HOUSEHOLD

MAJOR, SERVICE L REPAIR

- See: Whirlpool Appliances or

Aulhorized Whirlpool Service

(Example: XYZ Sewice Co.) l

WASHING MACHINES 6

DRYERS, SERVICE h REPAIR

- See: Whirlpool Appliances or

Atihorized Whirlpool Servce

(Examp/e.-xYz Service CO.)

3. If you need FSP replace- ment parts . . .

FSP is a registered trademark of Whirlpool

Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your WHIRLPOOL@ appliance. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new WHIRLPOOL appliance.

To locate FSP replacement parts in your area, refer to Step 3 above or call the

Whirlpool Consumer Assistance Center number in Step 2.

4. If you are not satisfied with how the problem was solved . . .

l l

Contact the Major Appliance Consumer

Action Program (MACAP). MACAP is a group of independent consumer experts that voices consumer views at the highest levels of the major appliance industry.

Contact MACAP only when the dealer, authorized servicer, and Whirlpool have failed to resolve your problem.

Major Appliance Consumer Action Program

20 North Wacker Drive

Chicago, IL 60606 l

MACAP will in turn inform us of your action. l

When asking for help or service:

Please provide a detailed description of the problem, your appliance’s complete model and serial numbers, and the purchase date. (See page 2.) This information will help us respond properly to your request.

12

._~.

Index

This index is alphabetical. Look for the word or phrase you are interested in, then look for the page number.

TOPIC PAGE

AIRFLOW

Directing .................................................. 6

CLEANING

Air filter ....................................................

Front panel ..............................................

8

7

ENERGY

Saving ................................................... 10

ENERGY SAVER SETTINGS .................... 6

EXHAUST VENT CONTROL ..................... 6

FEATURES/PARTS ................................... 4

MAINTENANCE

Annual, performing .............................. 8, 9

PARTS/FEATURES ................................... 4

SAFETY ..................................................... 3

SERVICE

Parts.. ....................................................

Requesting ............................................

12

12

STARTING AIR CONDITIONER ................ 5

TROUBLESHOOTING ............................. 1 1

WARRANTY.. ........................................... 16

15

WHIRLPOOL@

Room Air Conditioner

Warranty

LENGTH OF WARRANTY

FULL ONE-YEAR

WARRANTY

From Date of Purchase

WHIRLPOOL WILL PAY FOR

FSP@ replacement parts and repair labor to correct defects in materials or workmanship.

FULL FIVE-YEAR

WARRANTY

From Date of Purchase

FSP replacement parts and repair labor to correct defects in materials or workmanship in the sealed refrigeration system. These parts are:

1. Compressor 4. Drier-strainer

2. Evaporator 5. Connecting tubing

3. Condenser

WHIRLPOOL WILL NOT PAY FOR

A. Service calls to:

1. Correct the installation of your air conditioner.

2. Instruct you how to use your air conditioner.

3. Replace house fuses or correct house wiring.

4. Clean or replace air filter.

B. Pickup and delivery. Your air conditioner is designed to be repaired in the home.

C. Damage to your air conditioner caused by accident, misuse, fire, flood, acts of God, or use of products not approved by Whirlpool.

D. The removal and reinstallation of your air conditioner if it is installed in an overhead or other inaccessible location or not installed in accordance with published installation instructions.

E. Repairs to parts or systems caused by unauthorized modifications made to the appli- ance. 619

Service under the full warranties must be provided by an authorized Whirlpool service company.

WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE-

QUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Outside the United States, a different warranty may apply. For details, please contact your authorized Whirlpool dealer.

If you need service, first see the “Troubleshooting” section of this book. After checking

“Troubleshooting,” additional help can be found by checking the “Requesting Assistance or Service” section, or by calling our Consumer Assistance Center telephone number, l-800-253-1301, from anywhere in the U.S.A.

PART NO. 1166878 Rev. A

0 1995 Whirlpool Corporation @Registered Trademark of Whirlpool U.S.A.

11195

Printed in U.S.A.
