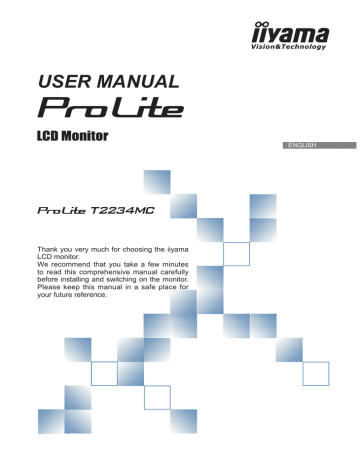

USER MANUAL
ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor.
Please keep this manual in a safe place for your future reference.
CE MARKING DECLARATION OF CONFORMITY
This LCD monitor complies with the requirements of the EC Directive 2004/108/EC “EMC Directive”
, 2006/95/EC “Low Voltage Directive” and 2009/125/EC “ErP Directive”.
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterised by their connection to the public low voltage power supply system.
IIYAMA CORPORATION: Breguetlaan 8, 1438BC Oude Meer The Netherlands
We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com
You can access the Web page of different countries from there.
We reserve the right to change specifi cations without notice.
All trademarks used in this user manual are the property of their respective owners.
TABLE OF CONTENTS
FOR YOUR SAFETY ..........................................................................1
SAFETY PRECAUTIONS ..............................................................1
SPECIAL NOTES ON LCD MONITORS .......................................3
CUSTOMER SERVICE .................................................................3
CLEANING ....................................................................................3
BEFORE YOU OPERATE THE MONITOR ........................................4
FEATURES ....................................................................................4
CHEKING THE CONTENTS OF THE PACKAGE .........................4
WALL MOUNTING ........................................................................5
CONTROLS AND CONNECTORS ................................................6
CONNECTING YOUR MONITOR .................................................7
COMPUTER SETTING .................................................................8
ADJUSTING THE VIEWING ANGLE ...........................................8
OPERATING THE MONITOR .............................................................9
ADJUSTMENT MENU CONTENTS ............................................10
SCREEN ADJUSTMENTS ..........................................................14
POWER MANAGEMENT FEATURE ...........................................17
TROUBLE SHOOTING ....................................................................18
RECYCLING INFORMATION ...........................................................19
APPENDIX ......................................................................................20
SPECIFICATIONS .......................................................................20
DIMENSIONS ..............................................................................21
COMPLIANT TIMING ..................................................................21
FOR YOUR SAFETY
SAFETY PRECAUTIONS
WARNING
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fi re or electric shock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fi re or electric shock.
DO NOT PUT ANY OBJECT INTO THE MONITOR
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
The monitor may cause an injury if it falls or is dropped.
DO NOT USE THE MONITOR NEAR WATER
Do not use where water may be splashed or spilt onto the monitor as it may cause fi re or electric shock.
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Be sure to operate the monitor only with the specifi ed power supply. Use of an incorrect voltage will cause malfunction and may cause fi re or electric shock.
CORRECT USE OF THE AC ADAPTER
Use only the AC Adapter provided by iiyama. Any deviation from this by using another type of adapter may result in damage to the accessory and the monitor by fi re or electric shock.
DO NOT DISASSEMBLE THE AC ADAPTER
Disassembling the AC Adapter may expose you to the danger of fi re or electric shock.
PROTECT THE CABLES
Do not pull or bend the AC adapter, the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables. If damaged, the cables may cause fi re or electric shock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.
FOR YOUR SAFETY 1
CAUTION
INSTALLATION LOCATION
Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor.
DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fi re.
To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.
Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the cabinet will be blocked and the monitor may overheat if the stand is removed. This may cause fi re or damage.
Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also cause damage.
DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal cable is disconnected. If you do not disconnect them, it may cause fi re or electric shock.
UNPLUG THE MONITOR
If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the AC adapter, the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause fi re or electric shock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage your computer.
CARE TO A HAND AND FINGERS!
Careful attention is required not to catch your fi ngers or hands when you change the height or the angle.
Injury can occur if care is not taken to avoid fi nger contact with the displays base when adjusting the height. (Just for height adjustable model.)
DO NOT USE THE MONITOR FOR 24-HOURS CONTINUOUSLY
The monitor is not designed to work for 24-hours continuously, do not use the monitor for 24-hours continuously.
OTHERS
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room.
For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches) away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.
2 FOR YOUR SAFETY
SPECIAL NOTES ON LCD MONITORS
The following symptoms are normal with LCD monitors and do not indicate a problem.
NOTE
because of the type of computer that is used. In this case, adjust the picture position to the correct position.
Power Switch and then turn it on again to make sure the fl icker disappears.
pattern you use.
remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power
Switch for some hours.
screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself.
CUSTOMER SERVICE
NOTE
discarded, please contact your dealer or iiyama service center for advice or replacement packaging.
CLEANING
WARNING
unplug the power cable immediately and contact your dealer or iiyama service center.
CAUTION
it.
NOTE
LCD screen.
Spray-type cleaner Wax Acid or Alkaline solvent cause degeneration or loss of paint on the cabinet.
CABINET
LCD
SCREEN
Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then wipe the cabinet with a soft dry cloth.
Periodic cleaning with a soft dry cloth is recommended.
Don't use tissue paper etc. because these will damage the LCD screen.
FOR YOUR SAFETY 3
BEFORE YOU OPERATE THE MONITOR
FEATURES
Supports Resolutions up to 1920 × 1080
High Contrast 1000:1 (Typical: with Touch panel) / Brightness 225cd/m
2
(Typical: with Touch panel)
Digital Character Smoothing
Automatic Set-up
Plug & Play VESA DDC2B Compliant
Windows
®
95/98/2000/Me/XP/Vista/7 Compliant
Power Management (VESA DPMS Compliant)
VESA Mounting Standard (100mm×100mm) Compliant
Keyhole for Security Lock
IP54 Standard Compliant (Only front face)
CHEKING THE CONTENTS OF THE PACKAGE
The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.
Power Cable*
1
DVI-D Cable
Safety Guide
AC Adapter*
1
D-Sub Signal Cable
Quick Start Guide
2
CAUTION
*
1
1. TO USERS IN 120V AREA
The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using
a power supply higher than this rating, then a power cable with a rating of 10A/250V
must be used. However, all guarantees and warranties are void for any problems or
damage caused by a power cable or AC adapter not supplied by iiyama.
AC Adapter Type Name : PA-1051-0 (LITE-ON technology corporation)
*
2
This CD-ROM contains the touch screen driver software.
Install the Touch Panel Driver Disk after connecting the computer to the monitor with
USB Cable. For the details, see Readme fi le in the Touch Panel Driver Disk.
4 BEFORE YOU OPERATE THE MONITOR
WALL MOUNTING
WARNING
When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 8mm to fasten the monitor.
Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor.
Screw
Mounting Stage
L
Chassis
BEFORE YOU OPERATE THE MONITOR 5
CONTROLS AND CONNECTORS
Remote Control
OSD Key*
<Front>
Menu Button (MENU)*
Scroll Up / Brightness Button ( )*
Scroll Down / Contrast Button ( )*
Select / Auto Button (SELECT)*
Power Switch ( )*
D-SUB mini 15pin Connector
DVI-D 24pin Connector
Remote Control OSD Key Connector
USB Connector
Connector for AC Adapter
Power Indicator
NOTE
AC Adapter fastening
* Remote Control OSD key is optional.
<Back>
6 BEFORE YOU OPERATE THE MONITOR
CONNECTING YOUR MONITOR
Ensure that both the computer and the monitor are switched off.
Connect the computer to the monitor with the signal cable.
Connect the computer to the monitor with the USB Cable.
Connect the monitor cable to the Remote Control OSD key (option), if necessary.
Connect the AC Adapter to the monitor and the Power Cable to the AC Adapter first and then connect to the power supply.
Turn on your monitor and computer.
NOTE
The signal cables used for connecting the computer and monitor may vary with the type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector.
If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.
For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama offi ce for a suitable adaptor.
Make sure you tighten the fi nger screws at each end of the Signal Cable.
[Example of Connection]
<Back>
Remote Control
OSD Key
(option)
Power Cable
(Accessory)
AC Adapter
(Accessory)
D-Sub Signal Cable (Accessory)
DVI-D Signal Cable (Accessory)
USB Cable (Accessory)
Computer
[Collect Cables]
Put the cables through the cable holes.
Collect cables at the back of the stand.
AC adapter fastening
Cable Hole
BEFORE YOU OPERATE THE MONITOR 7
COMPUTER SETTING
Signal Timing
Change to the desired signal timing listed on page 21: COMPLIANT TIMING.
Windows 95/98/2000/Me/XP/Vista/7 Plug & Play
The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on
Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied.
For installation on Windows 95/98/2000/Me/XP: The monitor Information File for iiyama monitors may be necessary for your computer and obtained via the Internet, using the address:
http://www.iiyama.com
NOTE
please access the internet site noted above.
For further information, please contact your computer dealer fi rst for advice.
Procedure for turning ON the Power Switch
Turn ON the monitor fi rst, and then the computer.
Touch screen driver software and system may not start when you start your computer while touching the screen.
Touch screen driver software may not run due to the power saving function depending on the BIOS of your computer. In this case, set the power saving function to off.
ADJUSTING THE VIEWING ANGLE
For optimal viewing it is recommended to look at the full face of the monitor.
Hold the panel so that the monitor does not topple when you change the monitor’s angle.
You are able to adjust the monitor ’s angle up to 90 degrees upward, 5 degrees downward.
NOTE
Do not touch the LCD screen when you change the angle. It may cause damage or break the
LCD screen.
Careful attention is required not to catch your fi ngers or hands when you change the angle.
90°
5°
8 BEFORE YOU OPERATE THE MONITOR
OPERATING THE MONITOR
To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT
TIMING shown on page 21. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 14 for SCREEN ADJUSTMENTS.
Press the MENU Button to start the On Screen Display feature. There are additional
Menu items which can be switched by using the / Buttons.
C O N T R A S T
B R I G H T N E S S
1 2 8 0 x 1 0 2 4
F H : 6 3 K H z F V: 5 9 . 9 H z
B Select the Menu item which contains the adjustment icon relating to the adjustment
you want to make. Use the SELECT Button to highlight the desired adjustment icon.
C Use the / Buttons to make the appropriate adjustment or setting.
D Press the MENU Button to leave the menu, and the settings you just made would be
automatically saved.
For example, to correct for vertical position, select Menu item of . Then, select V-POSITION by using the SELECT Button.
Use the / Buttons to change the vertical position settings. The vertical position of the overall display should be changing accordingly while you are doing this.
Press the MENU Button lastly, it ends, all changes are saved in the memory.
A U TO A D J U S T
H - P O S I T I O N
V- P O S I T I O N
H - S I Z E
F I N E
100
NOTE
time set for the OSD TIMEOUT has passed.
MENU button can be used to return previous menu item.
Turning off the power should be avoided while using the Menu.
adjustments, all other adjustments have only one setting which applies to all signal timings.
OPERATING THE MONITOR 9
ADJUSTMENT MENU CONTENTS
C O N T R A S T
B R I G H T N E S S
Adjustment Item
CONTRAST
1 2 8 0 x 1 0 2 4
F H : 6 3 K H z F V: 5 9 . 9 H z
Problem / Option Button to Press
Too dull
Too intense
BRIGHTNESS *
Direct
Too dark
Too bright
* Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright.
Direct
You can skip the Menu items and display an adjustment scale directly by using the following button operations.
Button when the Menu is not displayed.
Direct
Press the MENU button to display the OSD menu. Pressing and holding the MENU button again and press the Power Switch.
* The OSD menu is not displayed when the OSD is locked. Pressing and holding the MENU button again and press the Power Switch.
The following OSD menu is displayed.
Adjustment Item
POWER
OSD
LOCK
UNLOCK
LOCK
UNLOCK
Problem / Option
The POWER SWITCH is Locked.
The POWER SWITCH is Unlocked.
The OSD menu is Locked.
The OSD menu is Unlocked.
ON: Pressing and holding of the MENU Button and the SELECT Button at the same time when the
Menu is not displayed, massage "TOUCH DISABLE" will appear on the top right corner.
OFF: Pressing and holding of the MENU Button and the SELECT Button at the same time for about
5 seconds when the Menu is not displayed, till "TOUCH DISABLE" disappears.
10 OPERATING THE MONITOR
Only Analog Input
A U TO A D J U S T
H - P O S I T I O N
V- P O S I T I O N
H - S I Z E
F I N E
Adjustment Item
AUTO ADJUST *
1
Direct
Problem / Option Button to Press
Adjust H/V-POSITION, H-SIZE and FINE automatically.
H-POSITION
V-POSITION
H-SIZE *
2
Too left
Too right
Too low
Too high
Too narrow
Too wide
FINE *
2
To correct fl ickering text or lines
*
1
For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 14 for
SCREEN ADJUSTMENTS.
*
2
See page 14 for SCREEN ADJUSTMENTS.
Direct
You can skip the Menu items and display an adjustment scale directly by using the following button operations.
OPERATING THE MONITOR 11
O S D H - P O S I T I O N
O S D V- P O S I T I O N
O S D T I M E O U T
R E S E T
I N P U T S E L E C T
Adjustment Item
OSD H-POSITION
OSD V-POSITION
OSD TIMEOUT
Problem / Option Button to Press
OSD is too left
OSD is too right
OSD is too low
OSD is too high
You can set the OSD display duration time between 5 and 60 seconds.
RESET Factory-preset data is restored.
INPUT SELECT
VGA
DVI
Select the analog input.
Select the digital input.
NOTE
When only one of the two signal inputs is connected to the signal source, the one connected is automatically selected. Input Select function is not available if there is no signal input from the selected connector or during the power management mode.
ENGLISH
FRANÇAIS
DEUTSCH
ITALIANO
ESPAÑOL
Adjustment Item
OSD LANGUAGE
Problem / Option Button to Press
ENGLISH English
FRANÇAIS French
DEUTSCH
ITALIANO
German
Italian
ESPAÑOL Spanish
Japanese
Traditional Chinese
Simplifi ed Chinese
12 OPERATING THE MONITOR
Adjustment Item
Color Temp.
9300
6500
5500
7500
USER
RED
GREEN
BLUE
94
90
100
Problem / Option Button to Press
9300
6500
5500
7500
USER
Bluish white
Reddish white
Greenish white
Yellowish white
RED
GREEN
BLUE
Too weak
Too strong
OPERATING THE MONITOR 13
SCREEN ADJUSTMENTS
Adjust the image by following the procedure below to get the desired picture when selecting Analog input.
The screen adjustments described in this manual are designed to set image position and minimize fl icker or blur for the particular computer in use.
The monitor is designed to provide the best performance at resolution of 1920 × 1080, but can not provide the best at resolutions of less than 1920 × 1080 because the picture is automatically stretched to fi t the full screen. It is recommended to operate at resolution of 1920 × 1080 in normal use.
Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to the screen enlargement process.
It is preferable to adjust the image position and frequency with the monitor controls, rather than the computer software or utilities.
Perform adjustments after a warm-up period of at least thirty minutes.
Additional adjustments may be required after the Auto Adjust depending on the resolution or signal timing.
The Auto Adjust may not work correctly when displaying the picture other than the screen adjustment pattern. In this case, manual adjustments are required.
There are two ways to adjust the screen. One way is automatic adjustment for H/V-POSITION, H-SIZE and FINE. The other way is performing each adjustment manually.
Perform the Auto Adjust first when the monitor is connected to a new computer, or resolution is changed. If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com).
Adjust the image by following the procedure below to get the desired picture.
This manual explains adjustment under Windows 95/98/2000/Me/XP/Vista/7.
A Display the picture at the optimum resolution.
B Enter the Test.bmp (screen adjustment pattern) to wallpaper.
NOTE
Consult the appropriate documentation for doing this.
Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in the wallpaper setting dialogue box. If you use Microsoft
®
PLUS! 95/98 cancel the setting of
“Stretch desktop wallpaper to fi t the screen”.
[Adjustment pattern]
Zebra pattern
Color bar
Picture frame
14 OPERATING THE MONITOR
C Press the SELECT Button. (AUTO ADJUST)
D Adjust the image manually by following procedure below when the screen has a fl icker or
blur, or the picture does not fi t in the display area after performing the Auto Adjust.
E Adjust the V-POSITION so that the top and bottom of the picture frame will fi t to the display
area.
F 1) Adjust the H-POSITION so that the left side of the picture frame will move to the left edge of the
2) Stretch the right side of the picture frame to the right edge of the display area by
adjusting the H-SIZE.
NOTE
When the left side of the picture frame moves apart from the left edge of the display area during the H-SIZE adjustment, adjust steps 1) and 2).
Another way to make the H-SIZE adjustment is to correct the vertical wavy lines in the zebra pattern.
The picture may fl icker during the H-SIZE, H/V-POSITION adjustment.
In case the picture frame is bigger or smaller than the data display area after the
H-SIZE adjustment, repeat steps from
C.
OPERATING THE MONITOR 15
G Adjust the FINE to correct horizontal wavy noise, fl icker or blur in the zebra pattern.
NOTE
In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and
G because the H-SIZE may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from
C again.
Adjust the H-POSITION after the FINE adjustment if the horizontal position moves during the adjustment.
H Adjust the Brightness and Color to get the desired picture after you complete the H-SIZE
and FINE adjustments.
Put back your favorite wallpaper.
16 OPERATING THE MONITOR
POWER MANAGEMENT FEATURE
When your computer is not in use, the power management feature will automatically reduce the power consumption of your monitor.
To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be confi gured.
When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the monitor enters into Power Management Mode which reduces the power consumption to less than 3W. The screen becomes dark. From Power Management Mode, the image reappears in several seconds when either the keyboard or the mouse are touched again.
NORMAL MODE
POWER MANAGEMENT MODE
POWER 0
CONSUMPTION
3W 100%
NOTE
the Power Switch whenever the monitor is not in use, during the night and weekends, to avoid unnecessary power consumption.
signal is missing. In this instance, the POWER MANAGEMENT feature may not work properly.
OPERATING THE MONITOR 17
TROUBLE SHOOTING
If the monitor fails to operate correctly, please follow the steps below for a possible solution.
1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you have. If the monitor does not get a picture, skip to 2.
2. Consult the following items if you cannot fi nd an appropriate adjustment item in OPERATING THE
MONITOR or if the problem persists.
3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance.
Check Problem
The picture does not appear.
The screen is not synchronized.
T h e s c r e e n position is not in the center.
The screen is too bright or too dark.
T h e s c r e e n i s shaking.
T h e t o u c h screen shows no response.
The touch position does not deviate.
monitor.
18 TROUBLE SHOOTING
RECYCLING INFORMATION
For better environment protection please don't dispose your monitor.
Please visit our web site: www.iiyama.com/recycle for monitor recycling.
Recycling information 19
APPENDIX
SPECIFICATIONS
Touch
Screen
Technology Projected capacitive
Light transmission
90%
Communication
USB serial transfer system
Size Category
22"
LCD Panel Driving system
Size a-Si TFT Active Matrix
Diagonal: 21.5" (55cm)
Plug & Play
Pixel pitch
Brightness
Input Sync Signal
Input Video Signal
0.247mm H × 0.247mm V
225cd/m
2
(Typical: with Touch panel)
1000 : 1 (Typical: with Touch panel) Contrast ratio
Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical)
Response time
Display Colors
8ms (Gray to Gray Typical)
Approx.16.7M
Sync Frequency
Maximum Resolution
Horizontal: 31.5-82.3kHz, Vertical: 56-75Hz
1920 × 1080, 2.1 MegaPixels
Input Connector
D-Sub mini 15 pin, DVI-D 24 pin
VESA DDC2B
TM
Separate sync: TTL, Positive or Negative
Analog: 0.7Vp-p (Standard), 75
Positive
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance
Maximum Screen Size
Power Source
AC Adapter (accessory)
Power Consumption*
1
Dimensions / Net Weight
Tilt Angle
476.6mm W × 268.1mm H / 18.8" W × 10.6" H
12VDC, 4A
Input: 100-240VAC, 50/60Hz
40W typical, Power management mode: 3W maximum
517.5 × 351.5 × 219.0mm / 20.4 × 13.8 × 8.6" (W×H×D)
7.2kg / 15.9lbs (Excluding the AC Adapter)
Upward: 90 degrees Downward: 5 degrees
Environmental
Considerations
Approvals
Operating: Temperature
Storage:
Humidity
Temperature
5 to 35°C / 41 to 95°F
20 to 80% (No condensation)
-20 to 60°C / -4 to 140°F
Humidity 10 to 90% (No condensation)
CE, TÜV-Bauart, VCCI, IP54*
2
NOTE *
1
USB peripherals is not connected.
*
2
IP54 Standard Compliant : Only front face
20 APPENDIX
DIMENSIONS
517.5mm/20.4”
476.5mm/18.8” 46.0mm/1.8”
249.5mm/9.8”
COMPLIANT TIMING
VESA
Video Mode
VGA
SVGA
XGA
640 × 480
800 × 600
1024 × 768
SXGA
1280 × 1024
WXGA+ 1440 × 900
WSXGA+ 1680 × 1050
Full HD
1920 × 1080
Horizontal
Frequency
31,469kHz
37,500kHz
37,861kHz
35,156kHz
37,879kHz
46,875kHz
48,077kHz
48,363kHz
56,476kHz
60,023kHz
63,981kHz
79,976kHz
55,935kHz
65,290kHz
67,500kHz
Vertical
Frequency
59,940Hz
75,000Hz
72,809Hz
56,250Hz
60,317Hz
75,000Hz
72,188Hz
60,004Hz
70,069Hz
75,029Hz
60,020Hz
75,025Hz
59,887Hz
59,954Hz
60,000Hz
Dot Clock
25,175MHz
31,500MHz
31,500MHz
36,000MHz
40,000MHz
49,500MHz
50,000MHz
65,000MHz
75,000MHz
78,750MHz
108,000MHz
135,000MHz
106,500MHz
146,250MHz
148,500MHz
APPENDIX 21
M087A21
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 5 FOR YOUR SAFETY
- 5 SAFETY PRECAUTIONS
- 7 SPECIAL NOTES ON LCD MONITORS
- 7 CUSTOMER SERVICE
- 7 CLEANING
- 8 BEFORE YOU OPERATE THE MONITOR
- 8 FEATURES
- 8 CHEKING THE CONTENTS OF THE PACKAGE
- 9 WALL MOUNTING
- 10 CONTROLS AND CONNECTORS
- 11 CONNECTING YOUR MONITOR
- 12 COMPUTER SETTING
- 12 ADJUSTING THE VIEWING ANGLE
- 13 OPERATING THE MONITOR
- 14 ADJUSTMENT MENU CONTENTS
- 18 SCREEN ADJUSTMENTS
- 21 POWER MANAGEMENT FEATURE
- 22 TROUBLE SHOOTING
- 23 RECYCLING INFORMATION
- 24 APPENDIX
- 24 SPECIFICATIONS
- 25 DIMENSIONS
- 25 COMPLIANT TIMING
