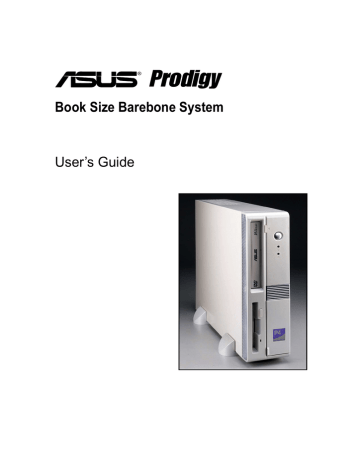

Prodigy
Book Size Barebone System
User’s Guide
Disclaimer/Copyrights
Checklist
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK COMPUTER INC.
(“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE
OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
The product name and revision number are both printed on the product itself. Manual
revisions are released for each product design represented by the digit before and after the
period of the manual revision number. Manual updates are represented by the third digit in
the manual revision number.
For previous or updated manuals, BIOS, drivers, or product release information, contact
ASUS at http://www.asus.com.tw or through any of the means indicated on the following
page.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME
WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS.
ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Copyright © 2002 ASUSTeK COMPUTER INC. All Rights Reserved.
Product Name:
Manual Revision:
Release Date:
2
Prodigy Book Size Barebone System
1.01 E1099
August 2002
ASUS contact information
Address:
General Tel:
General Fax:
General Email:
Features
ASUSTeK COMPUTER INC. (Asia-Pacific)
150 Li-Te Road, Peitou, Taipei, Taiwan 112
+886-2-2894-3447
+886-2-2894-3449
info@asus.com.tw
Technical Support
MB/Others (Tel):
Notebook (Tel):
Desktop/Server (Tel):
Support Fax:
Support Email:
Web Site:
Newsgroup:
+886-2-2890-7121 (English)
+886-2-2890-7122 (English)
+886-2-2890-7123 (English)
+886-2-2890-7698
tsd@asus.com.tw
www.asus.com.tw
cscnews.asus.com.tw
ASUS COMPUTER INTERNATIONAL (America)
Address:
General Fax:
General Email:
6737 Mowry Avenue, Mowry Business Center,
Building 2, Newark, CA 94560, USA
+1-510-608-4555
tmd1@asus.com
Technical Support
Support Fax:
General Support:
Web Site:
Support Email:
+1-510-608-4555
+1-502-995-0883
www.asus.com
tsd@asus.com
ASUS COMPUTER GmbH (Europe)
Address:
General Fax:
General Email:
Harkortstr. 25, 40880 Ratingen, BRD, Germany
+49-2102-442066
sales@asuscom.de (for marketing requests only)
Technical Support
Support Hotline:
Notebook (Tel):
Support Fax:
Support (Email):
Web Site:
MB/Others: +49-2102-9599-0
+49-2102-9599-10
+49-2102-9599-11
www.asuscom.de/de/support (for online support)
www.asuscom.de
3
Notices
Safeguards
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the
following two conditions:
•
This device may not cause harmful interference, and
•
This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with manufacturer’s instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
WARNING!
The use of shielded cables for connection of the monitor to the graphics
card is required to assure compliance with FCC regulations. Changes
or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate
this equipment.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
4
Table of contents
Disclaimer/Copyrights ....................................................................
ASUS contact information ..............................................................
Notices ...........................................................................................
Table of Contents ...........................................................................
System package contents ..............................................................
About this guide ..............................................................................
2
3
4
5
6
7
Chapter 1: System Introduction ............................................ 9
1.1
1.2
1.3
Front panel features ............................................................ 10
Rear panel features .............................................................. 11
Internal features .................................................................. 12
Chapter 2: System Assembly .............................................. 13
2.1
2.2
2.3
2.4
2.5
2.6
Opening the chassis ............................................................
Remove the disk drive assembly .........................................
Install the hard disk drive .....................................................
Install system memory .........................................................
Install a CPU .......................................................................
Closing the chassis .............................................................
14
16
17
18
19
21
Chapter 3: Optional Procedures ......................................... 23
3.1
3.2
Removing the PCI I/O cover ................................................ 24
Installing a PCI expansion card ........................................... 25
Chapter 4: System Placement ............................................. 27
4.1
4.2
Vertical placement ............................................................... 28
Horizontal placement ........................................................... 29
5
System package contents
This checklist enumerates all the built-in components and all the support
materials included with the standard system package.
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
15)
16)
17)
System Chassis: 305 x 88 x 385mm.
ASUS motherboard
Switching Power Supply, 165W with active PFC
CD or DVD Drive
1.44MB Floppy Disk Drive
PCI Riser Card
CPU Heatsink
Motherboard Support CD
1 UltraDMA/33/66 IDE Cable
1 Floppy Cable
Powered-by ASUS name plate
56K PCI Modem Card (optional)
TV Connector Module (optional)
2 Foot Stands
4 Rubber Footpads
Motherboard User’s Manual
Prodigy Book Size Barebone System User’s Guide
If assembling the Prodigy system by yourself, read through the guide and
prepare all the components before starting.
NOTE: The ASUS Prodigy is shipped in barebone style: it does not
include a CPU, a hard disk drive, DRAM, or any other peripherals
except those listed above. If users have any problems with the
hardware or software, please contact your dealer or distributor.
6
About this guide
Audience
This guide provides general information and installation instructions about
the ASUS Prodigy Book Size Barebone System. This guide is intended for
experienced users and integrators with hardware knowledge of personal
computers.
How this guide is organized
This document contains the following parts:
1.
Chapter 1: System Introduction
All about the ASUS Prodigy Book Size Barebone System: the front
and rear panel features, and the internal layout and design.
2.
Chapter 2: System assembly
Step-by-step instructions on how to install basic components.
3.
Chapter 3: Optional procedures
How to install optional components.
4.
Chapter 4: System placement
Two system placement options help to maximize work space and
afford more convenience.
7
8
All about the ASUS Prodigy Book Size Barebone
System: the front and rear panel features, and the
internal layout and design.
ASUS Prodigy Book Size Barebone System
System Introduction
Chapter 1
9
1.1
Front Panel Features
The ASUS Prodigy Book Size Barebone System includes the ASUS
motherboard, a power supply, a CD-ROM or DVD drive and a floppy disk
drive built into in a dual-positional chassis.
The front panel features:
CD/DVD Control Button
Power Button
Power LED
HDD LED
CD-ROM / DVD Drive
Floppy Drive
I/O Panel,
(behind door)
“Powered by ASUS”
name plate
USB Ports (2&3)
SPDIF out (optional)
PCMCIA (optional)
Microphone
Headphone
6-pin 1394 (optional)
4-pin 1394 (optional)
10
On the lower right of the front panel
a small door conceals Input and
Output features: a fiber optical
SPDIF out connector, two USB
connectors (Ports 2&3),
headphone and microphone
connectors. Optional connectors
include: a 4 or 6 pin 1394 and a
PCMCIA slot.
Pull the door to open it.
Chapter 1: System Introduction
1.2
Rear Panel Features
The rear panel of the ASUS Prodigy Book Size Barebone System includes
the standard PC99 I/O connectors for external devices, power supply
socket, and optional feature connectors.
The rear panel features:
PS/2 Keyboard
USB (0&1)
PS/2 Mouse
LAN Port
Serial Port
Parallel Port
VGA Port
Line Out
Line In
Microphone
Game/MIDI
DVI-Out (optional)
TV-Out (optional)
Modem
(optional)
Power Supply
DVI-Out (optional)
S/PDIF (optional)
NOTE
The rear panel optional features may vary as shown in the above
pictures.
ASUS Prodigy Book Size Barebone System
11
1.3
Internal Features
The figure below shows the system from above. The standard components
are already installed.
ASUS Motherboard
CPU Cooler
Power Supply PCI Riser Card
12
CD / DVD ROM Drive
3.5” Floppy Drive
Chapter 1: System Introduction
Chapter 2
IMPORTANT: ASUS has designed the
Prodigy to accept an ASUS “Flex ATX”
motherboard with dimensions between
19.1 x 22.9 cm, (or 7.5 x 9 inches). It is
not advisable to install other boards.
Before installing any motherboard other
than the original supplied by ASUS,
make sure that it fits into the case and
the I/O connectors correspond to the
openings on the back panel.
Prodigy Book Size Barebone System
System Assembly
Step-by-step instructions on how to install basic
components.
13
2.1
14
Opening the chassis
1.
Remove the two screws
on each end of the back
panel. This frees the the
top cover from the
chassis.
2.
Seperate the case and
top cover: use your
thumbs to pull it off, from
the front to the back,
then lift it off the chassis.
3.
Open the case, lifting
the top cover.
Chapter 2: System Assemby
Prodigy Book Size Barebone System
4.
Lift the link-up bar to
gain access to the
components.
5.
Gently detach the three
front bezel hooks from
the case front so that it
may be removed.
6.
Remove the front bezel
and set it aside.
15
2.2 Remove the disk drive assembly
16
1.
Press your right thumb
firmly down on the right
edge of the chassis
while gripping your
fingers under both sides
of the CD and floppy
disk drive assembly. It
will come loose. Firmly
lift the assembly up and
out.
2.
Lift out the CD/floppy
drive module.
3.
Slide the hard disk drive
cage from right to left
and lift it up to install a
hard disk.
Chapter 2: System Assemby
2.3 Install the hard disk drive
1.
Carefully slip the hard
disk drive into the cage.
Ensure that the four
screw holes are properly
aligned. Tighten in the
screws.
2.
Slide the hard drive
cage back into its
original place. Connect
the IDE cable to the
primary IDE connector
on the hard disk drive.
Locate the P3 power
cable and connect it to
the hard disk drive.
IDE Cable
Power Cable (P3)
(Red strip to Pin 1)
Prodigy Book Size Barebone System
17
2.4 Install system memory
1.
Set the CD and floppy disk drive assemply on the side of the chassis.
2.
Locate the two DDR SDRAM DIMM sockets on the ASUS
motherboard.
104 Pins
80 Pins
®
184-Pin DDR DIMM Sockets
CAUTION
A DDR DIMM is keyed with a notch
so that it fits in only one direction.
DO NOT force a DIMM into a socket
to avoid damaging the DIMM.
18
3.
Unlock a DIMM socket
by pressing the retaining
clips outward.
4.
Align a DIMM on the
socket such that the
notch on the DIMM
matches the break on
the socket.
5.
Firmly insert the DIMM
into the socket until the
retaining clips snap back
in place and the DIMM is
properly seated.
6.
After installing the
DIMM, place the CD and
floppy drive assembly
back into its original
position. Then, replace
the front bezel; take care
to insert the three plastic
tabs without stress.
Chapter 2: System Assemby
2.5 Install a CPU
1.
To install the CPU, it is
necessary to remove the
pre-installed heatsink
assembly.
2.
Press down and unhook
the metal retaining clips
on both sides of the
metal heatsink.
3.
Disconnect the CPU fan
power cable if it is too
short.
4.
Lift the heatsink
assembly up and out.
Metal retaining clip
CPU Fan power cable
5.
Prodigy Book Size Barebone System
Locate the CPU Socket
478 on the motherboard.
19
Socket Lever
90 - 100
6. Unlock the socket by
pressing the socket lever
sideways, then lift it up to
a 90°-100° angle.
NOTE
Make sure that the socket
lever is lifted up to 90°-100°
angle, otherwise the CPU
does not fit in completely.
Gold Mark
7. Position the CPU above
the socket such that its
marked corner matches
the base of the socket
lever.
8. Carefully insert the CPU
into the socket until it fits
in place.
CAUTION
The CPU fits only in one
correct orientation. DO
NOT force the CPU into the
socket to prevent bending
the pins and damaging the
CPU!
9. When the CPU is in place, press it firmly on the socket while you push
down the socket lever to secure the CPU. The lever clicks on the side
tab to indicate that it is locked.
20
Chapter 2: System Assemby
2.6 Closing the chassis
Prodigy Book Size Barebone System
1.
Replace the heatsink
assembly. Ensure that
the black fan faces
towards the front of the
unit.
2.
Re-attach the CPU fan
power cable.
3.
Re-attach the metal
retaining clips: hook on
one side then press the
spring retainer down on
the other until it clicks
into the slot.
4.
Replace the front bezel.
21
22
5.
Lower the link-up bar
and snap it gently into
place.
6.
Replace the top cover.
To make sure the inner
tabs slide into place
properly, lay the cover
down flush on top of the
chassis about one
centimeter behind the
edge of the front bezel.
Then, slide the cover
forward while pressing in
on the lower edges of
the cover to engage
the inner tabs.
Chapter 2: System Assemby
How to install optional components.
Prodigy Book Size Barebone System
Optional Procedures
Chapter 3
23
3.1
Removing the PCI I/O cover
The Prodigy chassis accommodates two PCI expansion card through a
PCI riser card. Before installing a new PCI card, it is necessary to detach
the I/O cover.
24
1.
To remove the I/O cover
from the chassis,
unfasten the screw with
a Philips (cross)
screwdriver.
2.
After removing the I/O
cover, the back panel
exposes the external I/O
port to permit external
access for component
connections, like a VGA
card connector.
Chapter 3: Optional Procedures
3.2 Installing a PCI expansion card
Prodigy Book Size Barebone System
1.
A PCI card is precisely
sized for for easy
alignment with both the
onboard notches and
the external I/O port.
2.
Align and firmly plug the
PCI card into the slot.
3.
For card stability, make
sure that the card
bracket end goes into
the cleft on the slot
frame.
25
26
Chapter 3: Optional Procedures
Chapter 4
System Placement
Two system placement options help to
maximize work space and afford more
convenience.
Prodigy Book Size Barebone System
27
4.1
Vertical placement
Normally, the Prodigy Book Size Barebone System is placed upright on
the desk. If you desire to position the system this way, fit the two foot
stands on the bottom of the system chassis. A “Powered by ASUS”
nameplate is supplied, too.
Position the foot stands beneath
the chassis.
The “Powered by ASUS” nameplate can be
placed on the I/O panel door. The
nameplate snaps onto the chassis in both
placement positions.
28
Chapter 4: System Placement
4.2 Horizontal placement
The Prodigy may also be set-up in a horizontal position. The Prodigy is
supplied with four rubber footpads to protect the chassis and the surface
below.
If you wish to place the system in the
horizontal position, attach the four
rubber footpads to the bottom of the
chassis.
Rubber footpad
Prodigy Book Size Barebone System
29
30
Chapter 4: System Placement
