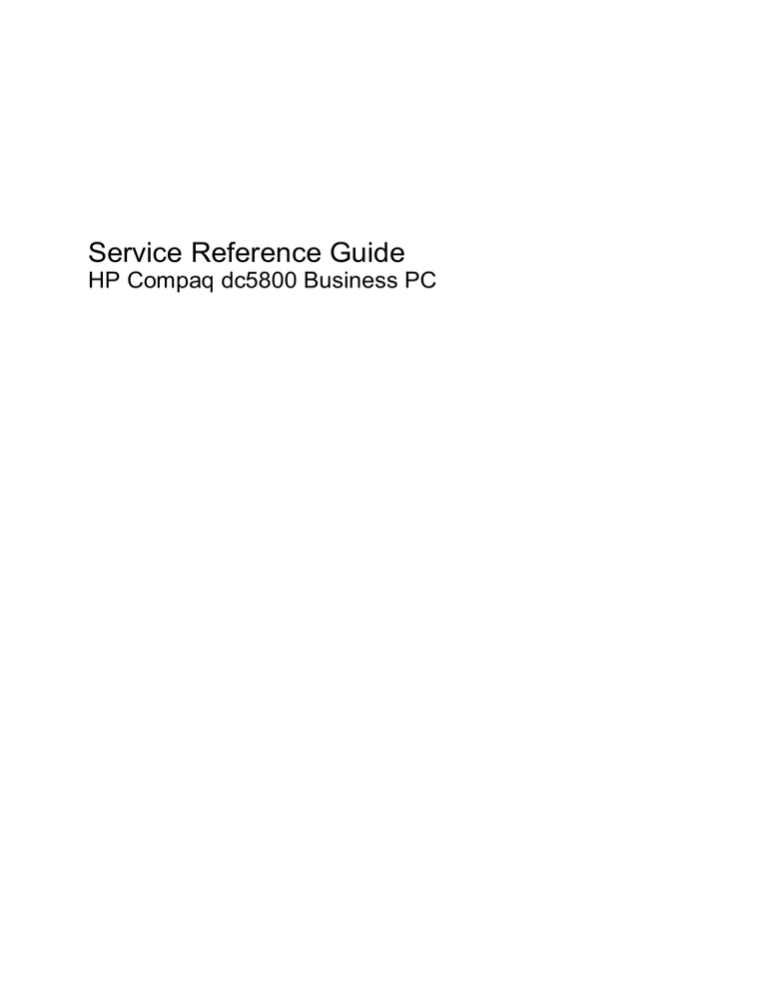

HP Compaq dc5800 User guide

Service Reference Guide
HP Compaq dc5800 Business PC
© Copyright 2008 Hewlett-Packard
Development Company, L.P. The
information contained herein is subject to
change without notice.
Microsoft and Windows are trademarks of
Microsoft Corporation in the U.S. and other
countries.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products
and services. Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
This document contains proprietary
information that is protected by copyright. No
part of this document may be photocopied,
reproduced, or translated to another
language without the prior written consent of
Hewlett-Packard Company.
Service Reference Guide
Business PCs
First Edition (February 2008)
Document Part Number: 481402-001
Table of contents
1 Installing and Customizing the Software
Installing the Operating System ........................................................................................................... 1
Installing or Upgrading Device Drivers ................................................................................................. 1
HP Backup and Recovery Manager ..................................................................................................... 2
2 Computer Setup (F10) Utility
Computer Setup (F10) Utilities ............................................................................................................. 3
Using Computer Setup (F10) Utilities .................................................................................. 4
Computer Setup—File ......................................................................................................... 5
Computer Setup—Storage .................................................................................................. 6
Computer Setup—Security .................................................................................................. 8
Computer Setup—Power ................................................................................................... 11
Computer Setup—Advanced ............................................................................................. 12
Recovering the Configuration Settings ............................................................................................... 14
3 Computer Diagnostic Features
HP Insight Diagnostics ....................................................................................................................... 15
Accessing HP Insight Diagnostics ..................................................................................... 15
Survey Tab ........................................................................................................................ 16
Test Tab ............................................................................................................................. 17
Status Tab ......................................................................................................................... 17
Log Tab .............................................................................................................................. 18
Help Tab ............................................................................................................................ 18
Saving and Printing Information in HP Insight Diagnostics ................................................ 19
Downloading the Latest Version of HP Insight Diagnostics ............................................... 19
Protecting the Software ...................................................................................................................... 19
HP Backup and Recovery Manager ................................................................................................... 20
4 Desktop Management
Initial Configuration and Deployment ................................................................................................. 21
HP Software Agent ............................................................................................................ 22
Altiris Deployment Solution Agent ..................................................................................... 22
Remote System Installation ................................................................................................................ 23
Software Updating and Management ................................................................................................. 23
HP Client Management Interface ....................................................................................... 23
HP SoftPaq Download Manager ........................................................................................ 24
HP System Software Manager .......................................................................................... 24
HP ProtectTools Security Manager ................................................................................... 25
iii
HP Client Catalog for SMS ................................................................................................ 25
HP Client Configuration Manager ....................................................................................................... 26
HP Configuration Management Solution ............................................................................................ 26
HP Client Manager for Altiris .............................................................................................................. 26
Altiris Client Management Suite ......................................................................................................... 27
HP Client Catalog for SMS ................................................................................................................. 27
HP Backup and Recovery Manager ................................................................................................... 28
Intel vPro-branded PCs with Active Management Technology .......................................................... 28
Verdiem Surveyor ............................................................................................................................... 30
HP Proactive Change Notification ...................................................................................................... 30
Subscriber’s Choice ........................................................................................................................... 31
Retired Solutions ................................................................................................................................ 31
ROM Flash ......................................................................................................................................... 31
Remote ROM Flash ........................................................................................................... 31
HPQFlash .......................................................................................................................... 32
Boot Block Emergency Recovery Mode ............................................................................................. 32
Replicating the Setup ......................................................................................................................... 32
Copying to Single Computer .............................................................................................. 33
Copying to Multiple Computers .......................................................................................... 33
Creating a Bootable Device ............................................................................................... 34
Supported USB Flash Media Device ................................................................. 34
Unsupported USB Flash Media Device ............................................................. 36
Dual-State Power Button .................................................................................................................... 37
HP Web Site Support ......................................................................................................................... 38
Industry Standards ............................................................................................................................. 38
Asset Tracking and Security ............................................................................................................... 38
Password Security ............................................................................................................. 40
Establishing a Setup Password Using Computer Setup ................................... 40
Establishing a Power-On Password Using Computer Setup ............................ 41
Entering a Power-On Password ........................................................................ 41
Entering a Setup Password ............................................................................... 41
Changing a Power-On or Setup Password ....................................................... 42
Deleting a Power-On or Setup Password ......................................................... 42
National Keyboard Delimiter Characters ........................................................... 43
Clearing Passwords .......................................................................................... 43
DriveLock ........................................................................................................................... 43
Using DriveLock ................................................................................................ 43
DriveLock Applications ...................................................................................... 44
Smart Cover Sensor .......................................................................................................... 45
Setting the Smart Cover Sensor Protection Level ............................................. 45
Smart Cover Lock .............................................................................................................. 45
Locking the Smart Cover Lock .......................................................................... 46
Unlocking the Smart Cover Lock ....................................................................... 46
Using the Smart Cover FailSafe Key ................................................................ 46
Cable Lock Provision ......................................................................................................... 47
Fingerprint Identification Technology ................................................................................. 47
Fault Notification and Recovery ......................................................................................... 47
Drive Protection System .................................................................................................... 47
Surge-Tolerant Power Supply ............................................................................................ 47
Thermal Sensor ................................................................................................................. 47
iv
5 Serial and Parallel ATA Drive Guidelines and Features
SATA Hard Drives .............................................................................................................................. 48
SATA Hard Drive Cables .................................................................................................................... 49
SATA Data Cable .............................................................................................................. 49
SATA Power Cable ............................................................................................................ 49
PATA Device Information ................................................................................................................... 50
ATA SMART Drives ............................................................................................................................ 50
Hard Drive Capacities ........................................................................................................................ 50
6 Identifying the Chassis, Routine Care, and Disassembly Preparation
Chassis Designations ......................................................................................................................... 51
Microtower (MT) ................................................................................................................. 51
Small Form Factor (SFF) ................................................................................................... 52
Electrostatic Discharge Information .................................................................................................... 53
Generating Static ............................................................................................................... 53
Preventing Electrostatic Damage to Equipment ................................................................ 53
Personal Grounding Methods and Equipment ................................................................... 54
Grounding the Work Area .................................................................................................. 54
Recommended Materials and Equipment .......................................................................... 54
Operating Guidelines .......................................................................................................................... 55
Routine Care ...................................................................................................................................... 56
General Cleaning Safety Precautions ................................................................................ 56
Cleaning the Computer Case ............................................................................................ 56
Cleaning the Keyboard ...................................................................................................... 56
Cleaning the Monitor .......................................................................................................... 57
Cleaning the Mouse ........................................................................................................... 57
Service Considerations ...................................................................................................................... 57
Power Supply Fan ............................................................................................................. 57
Tools and Software Requirements .................................................................................... 57
Screws ............................................................................................................................... 58
Cables and Connectors ..................................................................................................... 58
Hard Drives ........................................................................................................................ 58
Lithium Coin Cell Battery ................................................................................................... 59
7 Removal and Replacement Procedures Microtower (MT) Chassis
Serial Number Location ...................................................................................................................... 60
Preparation for Disassembly .............................................................................................................. 61
External Security Devices .................................................................................................................. 62
Cable Lock ......................................................................................................................... 62
Padlock .............................................................................................................................. 62
HP Business PC Security Lock .......................................................................................... 63
Front Bezel Security .......................................................................................................... 65
Computer Access Panel ..................................................................................................................... 66
Front Bezel ......................................................................................................................................... 67
Cable Management ............................................................................................................................ 68
Cable Connections ............................................................................................................ 69
Memory .............................................................................................................................................. 70
Expansion Cards ................................................................................................................................ 73
Drives ................................................................................................................................................. 77
System Board Drive Connections ...................................................................................... 79
v
Drive Positions ................................................................................................................... 80
Removing an External 5.25-inch or 3.5-inch Drive ............................................................ 81
Installing an External 5.25-inch or 3.5-inch Drive .............................................................. 83
Removing an Internal 3.5-inch Hard Drive ......................................................................... 86
Installing an Internal 3.5-inch Hard Drive ........................................................................... 87
Removing and Replacing a Removable 3.5-inch SATA Hard Drive .................................. 89
ReadyBoost Card ............................................................................................................................... 94
Processor Baffle ................................................................................................................................. 95
Fan/Air Baffle ...................................................................................................................................... 96
Front USB Panel ................................................................................................................................ 97
Power Switch/LED Assembly ............................................................................................................. 98
Heatsink ............................................................................................................................................. 99
Processor ......................................................................................................................................... 100
Speaker ............................................................................................................................................ 101
Rear Chassis Fan ............................................................................................................................. 102
Optional Serial Port .......................................................................................................................... 103
Power Supply ................................................................................................................................... 104
System Board ................................................................................................................................... 106
Battery .............................................................................................................................................. 107
Type 1 Battery Holder ...................................................................................................... 108
Type 2 Battery Holder ...................................................................................................... 108
Type 3 Battery Holder ...................................................................................................... 109
8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
Preparation for Disassembly ............................................................................................................ 110
External Security Devices ................................................................................................................ 111
Installing a Security Lock ................................................................................................. 111
Cable Lock ...................................................................................................... 111
Padlock ........................................................................................................... 112
HP Business PC Security Lock ....................................................................... 113
Front Bezel Security ........................................................................................ 115
Computer Access Panel ................................................................................................................... 116
Front Bezel ....................................................................................................................................... 117
Bezel Blanks ..................................................................................................................................... 118
Using the Small Form Factor Computer in a Tower Orientation ...................................................... 119
Installing Additional Memory ............................................................................................................ 121
DIMMs ............................................................................................................................. 121
DDR2-SDRAM DIMMs .................................................................................................... 121
Populating DIMM Sockets ............................................................................................... 122
Installing DIMMs .............................................................................................................. 123
Expansion Cards .............................................................................................................................. 125
Cable Management .......................................................................................................................... 129
Cable Connections ........................................................................................................................... 131
Drives ............................................................................................................................................... 132
Drive Positions ................................................................................................................. 132
Installing and Removing Drives ....................................................................................... 133
System Board Drive Connections ................................................................... 135
Removing an Optical Drive ............................................................................. 136
Installing an Optical Drive into the 5.25-inch Drive Bay .................................. 137
Removing an External 3.5-inch Drive .............................................................. 140
vi
Installing a Drive into the 3.5-inch External Drive Bay .................................... 142
Removing and Replacing the Primary 3.5-inch Internal SATA Hard Drive ..... 144
Removing and Replacing a Removable 3.5-inch SATA Hard Drive ............... 148
Cable Routing ................................................................................................................................... 152
ReadyBoost Card ............................................................................................................................. 153
Inner Baffle ....................................................................................................................................... 154
Fan/Outer Baffle ............................................................................................................................... 155
Power Switch Assembly ................................................................................................................... 156
Front I/O Device ............................................................................................................................... 157
Heatsink ........................................................................................................................................... 158
Processor ......................................................................................................................................... 159
Speaker ............................................................................................................................................ 160
Power Supply ................................................................................................................................... 161
System Board ................................................................................................................................... 162
Battery .............................................................................................................................................. 163
Type 1 Battery Holder ...................................................................................................... 164
Type 2 Battery Holder ...................................................................................................... 164
Type 3 Battery Holder ...................................................................................................... 165
Appendix A Connector Pin Assignments
Keyboard .......................................................................................................................................... 166
Mouse ............................................................................................................................................... 166
Ethernet BNC ................................................................................................................................... 166
Ethernet RJ-45 ................................................................................................................................. 167
Ethernet AUI ..................................................................................................................................... 167
Parallel Interface .............................................................................................................................. 168
Serial Interface, Powered and Non-Powered ................................................................................... 168
USB .................................................................................................................................................. 169
Microphone ....................................................................................................................................... 169
Headphone ....................................................................................................................................... 169
Line-in Audio .................................................................................................................................... 169
Line-out Audio .................................................................................................................................. 169
External Infrared Transceiver ........................................................................................................... 170
Monitor ............................................................................................................................................. 170
ATA/ATAPI (IDE) Standard Drive Cable .......................................................................................... 171
CD-ROM 50-Pin Connector .............................................................................................................. 172
24-Pin Power .................................................................................................................................... 172
24-Pin MicroFit Power (CMT, SFF) .................................................................................................. 173
4-Pin Power (for CPU) ...................................................................................................................... 173
6-Pin Power (for CPU) (CMT, SFF) .................................................................................................. 173
SATA Data and Power ..................................................................................................................... 174
PCI Express .................................................................................................................................... 174
PCI Express ..................................................................................................................................... 175
PCI Express Mini Card ..................................................................................................................... 176
DVI Connector .................................................................................................................................. 177
Appendix B Power Cord Set Requirements
General Requirements ..................................................................................................................... 178
Japanese Power Cord Requirements .............................................................................................. 178
Country-Specific Requirements ........................................................................................................ 179
vii
Appendix C POST Error Messages
POST Numeric Codes and Text Messages ..................................................................................... 181
Interpreting POST Diagnostic Front Panel LEDs and Audible Codes .............................................. 188
Appendix D Password Security and Resetting CMOS
Resetting the Password Jumper ...................................................................................................... 192
Clearing and Resetting the CMOS ................................................................................................... 193
Appendix E Troubleshooting Without Diagnostics
Safety and Comfort .......................................................................................................................... 195
Before You Call for Technical Support ............................................................................................. 195
Helpful Hints ..................................................................................................................................... 196
Solving General Problems ................................................................................................................ 198
Solving Power Problems .................................................................................................................. 202
Solving Diskette Problems ............................................................................................................... 203
Solving Hard Drive Problems ........................................................................................................... 206
Solving Media Card Reader Problems ............................................................................................. 209
Solving Display Problems ................................................................................................................. 211
Solving Audio Problems ................................................................................................................... 215
Solving Printer Problems .................................................................................................................. 217
Solving Keyboard and Mouse Problems .......................................................................................... 218
Solving Hardware Installation Problems ........................................................................................... 220
Solving Network Problems ............................................................................................................... 222
Solving Memory Problems ............................................................................................................... 225
Solving Processor Problems ............................................................................................................ 227
Solving CD-ROM and DVD Problems .............................................................................................. 228
Solving Drive Key Problems ............................................................................................................. 230
Solving Front Panel Component Problems ...................................................................................... 231
Solving Internet Access Problems .................................................................................................... 232
Solving Software Problems .............................................................................................................. 234
Contacting Customer Support .......................................................................................................... 235
Appendix F System Board and Riser Board Reference Designators
.......................................................................................................................................................... 236
Index ................................................................................................................................................................. 242
viii
1
Installing and Customizing the Software
NOTE: If the computer was shipped with Windows Vista loaded, you will be prompted to register the
computer with HP Total Care before installing the operating system. You will see a brief movie followed
by an online registration form. Fill out the form, click the Begin button, and follow the instructions on the
screen.
CAUTION: Do not add optional hardware or third-party devices to the computer until the operating
system is successfully installed. Doing so may cause errors and prevent the operating system from
installing properly.
Installing the Operating System
The first time you turn on the computer, the operating system is installed automatically. This process
takes about 5 to 10 minutes, depending on which operating system is being installed. Carefully read
and follow the instructions on the screen to complete the installation.
CAUTION: Once the automatic installation has begun, DO NOT TURN OFF THE COMPUTER UNTIL
THE PROCESS IS COMPLETE. Turning off the computer during the installation process may damage
the software that runs the computer or prevent its proper installation.
NOTE: If the computer shipped with more than one operating system language on the hard drive, the
installation process could take up to 60 minutes.
If your computer was not shipped with a Microsoft operating system, some portions of this documentation
do not apply. Additional information is available in online help after you install the operating system.
Installing or Upgrading Device Drivers
When installing optional hardware devices after the operating system installation is complete, you must
also install the drivers for each of the devices.
If prompted for the i386 directory, replace the path specification with C:\i386, or use the Browse button
in the dialog box to locate the i386 folder. This action points the operating system to the appropriate
drivers.
Obtain the latest support software , including support software for the operating system from
http://www.hp.com/support. Select your country and language, select Download drivers and
software, enter the model number of the computer, and press Enter.
Installing the Operating System
1
HP Backup and Recovery Manager
The HP Backup and Recovery Manager is an easy-to-use, versatile application that allows you to back
up and recover the primary hard drive on the PC. The application works within Windows to create
backups of Windows, all applications, and all data files. Backups can be scheduled to occur
automatically at designated intervals, or they can be initiated manually. Important files can be archived
separately from regular backups.
HP Backup and Recovery Manager is preinstalled on the hard drive's Recovery Partition.
Recovery Points and file backups can be copied to CD or DVD discs, while all backups can be copied
to network or secondary hard disks.
HP highly recommends that you create a Recovery Disc Set immediately before using the computer
and schedule regular automatic Recovery Point backups.
To create the Recovery Disc Set:
1.
Click Start > HP Backup and Recovery > HP Backup and Recovery Manager to open the
Backup and Recovery Wizard, then click Next.
2.
Select Create a set of recovery discs (Recommended) and click Next.
3.
Follow the instructions in the wizard.
For more information on using HP Backup and Recovery Manager, refer to the HP Backup and Recovery
Manager User Guide by selecting Start > HP Backup and Recovery > HP Backup and Recovery
Manager Manual.
NOTE: You can order a Recovery Disc Set from HP by calling the HP support center. Go to the
following Web site, select your region, and click the Technical support after you buy link under the
Call HP heading to obtain the support center telephone number for your region.
http://welcome.hp.com/country/us/en/wwcontact_us.html
2
Chapter 1 Installing and Customizing the Software
2
Computer Setup (F10) Utility
Computer Setup (F10) Utilities
Use Computer Setup (F10) Utility to do the following:
●
Change factory default settings.
●
Set the system date and time.
●
Set, view, change, or verify the system configuration, including settings for processor, graphics,
memory, audio, storage, communications, and input devices.
●
Modify the boot order of bootable devices such as hard drives, diskette drives, optical drives, or
USB flash media devices.
●
Enable Quick Boot, which is faster than Full Boot but does not run all of the diagnostic tests run
during a Full Boot. You can set the system to:
always Quick Boot (default);
periodically Full Boot (from every 1 to 30 days); or
always Full Boot.
●
Select Post Messages Enabled or Disabled to change the display status of Power-On Self-Test
(POST) messages. Post Messages Disabled suppresses most POST messages, such as memory
count, product name, and other non-error text messages. If a POST error occurs, the error is
displayed regardless of the mode selected. To manually switch to Post Messages Enabled during
POST, press any key (except F1 through F12).
●
Establish an Ownership Tag, the text of which is displayed each time the system is turned on or
restarted.
●
Enter the Asset Tag or property identification number assigned by the company to this computer.
●
Enable the power-on password prompt during system restarts (warm boots) as well as during
power-on.
●
Establish a setup password that controls access to Computer Setup (F10) Utility and the settings
described in this section.
●
Secure integrated I/O functionality, including the serial, USB, or parallel ports, audio, or embedded
NIC, so that they cannot be used until they are unsecured.
●
Enable or disable removable media boot ability.
●
Enable or disable legacy diskette write ability (when supported by hardware).
Computer Setup (F10) Utilities
3
●
Solve system configuration errors detected but not automatically fixed during the Power-On SelfTest (POST).
●
Replicate the system setup by saving system configuration information on diskette and restoring
it on one or more computers.
●
Execute self-tests on a specified ATA hard drive (when supported by drive).
●
Enable or disable DriveLock security (when supported by drive).
Using Computer Setup (F10) Utilities
Computer Setup can be accessed only by turning the computer on or restarting the system. To access
the Computer Setup Utilities menu, complete the following steps:
1.
Turn on or restart the computer. If you are in Microsoft Windows, click Start > Shut Down >
Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
press F10 when the monitor light turns green to access the utility.
3.
Select your language from the list and press Enter.
4.
A choice of five headings appears in the Computer Setup Utilities menu: File, Storage, Security,
Power and Advanced.
5.
Use the arrow (left and right) keys to select the appropriate heading. Use the arrow (up and down)
keys to select the option you want, then press Enter. To return to the Computer Setup Utilities
menu, press Esc.
6.
To apply and save changes, select File > Save Changes and Exit.
●
If you have made changes that you do not want applied, select Ignore Changes and Exit.
●
To reset to factory settings or previously saved default settings (some models), select Apply
Defaults and Exit. This option will restore the original factory system defaults.
CAUTION: Do NOT turn the computer power OFF while the BIOS is saving the Computer Setup (F10)
changes because the CMOS could become corrupted. It is safe to turn off the computer only after exiting
the F10 Setup screen.
Table 2-1 Computer Setup (F10) Utility
4
Heading
Table
File
Table 2-2 Computer Setup—File on page 5
Storage
Table 2-3 Computer Setup—Storage on page 6
Security
Table 2-4 Computer Setup—Security on page 8
Power
Table 2-5 Computer Setup—Power on page 11
Advanced
Table 2-6 Computer Setup—Advanced (for advanced users)
on page 12
Chapter 2 Computer Setup (F10) Utility
Computer Setup—File
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-2 Computer Setup—File
Option
Description
System Information
Lists:
●
Product name
●
SKU number (some models)
●
Processor type/speed/stepping
●
Cache size (L1/L2) (dual core processors have this listed twice)
●
Installed memory size/speed, number of channels (single or dual) (if applicable)
●
Integrated MAC address for embedded, enabled NIC (if applicable)
●
System BIOS (includes family name and version)
●
Chassis serial number
●
Asset tracking number
●
ME firmware version
●
ME management mode
About
Displays copyright notice.
Set Time and Date
Allows you to set system time and date.
Flash System ROM
Allows you to update the system ROM with a BIOS image file located on a USB flash media device
or CD-ROM.
Replicated Setup
Save to Removable Media
Saves system configuration, including CMOS, to a formatted 1.44-MB diskette, a USB flash media
device, or a diskette-like device (a storage device set to emulate a diskette drive).
Restore from Removable Media
Restores system configuration from a diskette, a USB flash media device, or a diskette-like device.
Default Setup
Save Current Settings as Default
Saves the current system configuration settings as the default.
Restore Factory Settings as Default
Restores the factory system configuration settings as the default.
Apply Defaults and
Exit
Applies the currently selected default settings and clears any established passwords.
Ignore Changes
and Exit
Exits Computer Setup without applying or saving any changes.
Save Changes and Exit
Saves changes to system configuration or default settings and exits Computer Setup.
Computer Setup (F10) Utilities
5
Computer Setup—Storage
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-3 Computer Setup—Storage
Option
Description
Device Configuration
Lists all installed BIOS-controlled storage devices.
When a device is selected, detailed information and options are displayed. The following options
may be presented.
Diskette Type (Legacy Diskettes only)
Identifies the highest capacity media type accepted by the diskette drive. Options are 3.5" 1.44 MB
and 5.25" 1.2 MB.
Drive Emulation
Allows you to select a drive emulation type for a certain storage device. (For example, a Zip drive
can be made bootable by selecting diskette emulation.)
Emulation Type
ATAPI Zip drive:
●
None (treated as Other).
●
Diskette (treated as diskette drive).
Legacy Diskette: No emulation options available.
CD-ROM: No emulation options available.
ATAPI LS-120:
●
None (treated as Other).
●
Diskette (treated as diskette drive).
Hard Disk
●
None (prevents BIOS data accesses and disables it as a boot device).
●
Hard Disk (treated as hard disk).
Multisector Transfers (ATA disks only)
Specifies how many sectors are transferred per multi-sector PIO operation. Options (subject to
device capabilities) are Disabled, 8, and 16.
Translation Mode (ATA disks only)
Lets you select the translation mode to be used for the device. This enables the BIOS to access
disks partitioned and formatted on other systems and may be necessary for users of older versions
of UNIX (e.g., SCO UNIX version 3.2). Options are Automatic, Bit-Shift, LBA Assisted, User, and
None.
CAUTION: Ordinarily, the translation mode selected automatically by the BIOS should not be
changed. If the selected translation mode is not compatible with the translation mode that was active
when the disk was partitioned and formatted, the data on the disk will be inaccessible.
Translation Parameters (ATA disks only)
NOTE: This feature appears only when User translation mode is selected.
6
Chapter 2 Computer Setup (F10) Utility
Table 2-3 Computer Setup—Storage (continued)
Allows you to specify the parameters (logical cylinders, heads, and sectors per track) used by the
BIOS to translate disk I/O requests (from the operating system or an application) into terms the hard
drive can accept. Logical cylinders may not exceed 1024. The number of heads may not exceed
256. The number of sectors per track may not exceed 63. These fields are only visible and
changeable when the drive translation mode is set to User.
SATA Default Values
Allows you to specify the default values for the Multisector Transfers, Transfer Mode, and Translation
Mode for ATA devices.
Storage Options
Removable Media Boot
Enables/disables ability to boot the system from removable media.
Legacy Diskette Write
Enables/disables ability to write data to legacy diskettes.
NOTE: After saving changes to Removable Media Write, the computer will restart. Turn the
computer off, then on, manually.
DPS Self-Test
Allows you to execute self-tests on ATA hard drives capable of performing the Drive Protection
System (DPS) self-tests.
NOTE: This selection will only appear when at least one drive capable of performing the DPS selftests is attached to the system.
Boot Order
Allows you to:
●
Specify the order in which attached devices (such as a USB flash media device, diskette drive,
hard drive, optical drive, or network interface card) are checked for a bootable operating system
image. Each device on the list may be individually excluded from or included for consideration
as a bootable operating system source.
●
Specify the order of attached hard drives. The first hard drive in the order will have priority in
the boot sequence and will be recognized as drive C (if any devices are attached).
NOTE: MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating system
has started.
Shortcut to Temporarily Override Boot Order
To boot one time from a device other than the default device specified in Boot Order, restart the
computer and press F9 when the monitor light turns green. After POST is completed, a list of bootable
devices is displayed. Use the arrow keys to select the preferred bootable device and press Enter.
The computer then boots from the selected non-default device for this one time.
Computer Setup (F10) Utilities
7
Computer Setup—Security
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-4 Computer Setup—Security
Option
Description
Setup Password
Allows you to set and enable setup (administrator) password.
NOTE: If the setup password is set, it is required to change Computer Setup options, flash the
ROM, and make changes to certain plug and play settings under Windows.
See the Troubleshooting Guide for more information.
Power-On Password
Allows you to set and enable power-on password. The power-on password prompt appears after a
power cycle. If the user does not enter the correct power-on password, the unit will not boot.
NOTE: This password does not appear on warm boots , such as Ctrl+Alt+Delete or Restart from
Windows, unless enabled in Password Options, below.
See the Troubleshooting Guide for more information.
Password Options
Allows you to:
(This selection appears
only if a power-on
password or setup
password is set.)
●
Lock legacy resources (appears if a setup password is set)
●
Enable/disable network server mode (appears if a power-on password is set)
●
Specify whether the password is required for warm boot (Ctrl+Alt+Delete) (appears if a poweron password is set)
●
Enable/Disable Setup Browse Mode (appears if a setup password is set) (allows viewing, but
not changing, the F10 Setup Options without entering setup password)
See the Desktop Management Guide for more information.
Smart Cover (some
models)
Allows you to:
●
Lock/unlock the Cover Lock.
●
Set the Cover Removal Sensor to Disable/Notify User/Setup Password.
NOTE: Notify User alerts the user that the sensor has detected that the cover has been
removed. Setup Password requires that the setup password be entered to boot the computer if the
sensor detects that the cover has been removed.
This feature is supported on some models only. See the Desktop Management Guide for more
information.
Device Security
8
Allows you to set Device Available/Device Hidden for
●
Serial ports
●
Parallel port
●
Front USB ports
●
Rear USB ports
●
Internal USB ports
●
System audio
●
Network controllers (some models)
Chapter 2 Computer Setup (F10) Utility
Table 2-4 Computer Setup—Security (continued)
●
Legacy diskette
●
Embedded security device (some models)
●
SATA0
●
SATA1 (some models)
●
SATA4 (some models)
●
SATA5 (some models)
Network Service Boot
Enables/disables the computer’s ability to boot from an operating system installed on a network
server. (Feature available on NIC models only; the network controller must be either a PCI expansion
card or embedded on the system board.)
System IDs
Allows you to set:
DriveLock Security
●
Asset tag (18-byte identifier) and ownership tag (80-byte identifier displayed during POST).
See the Desktop Management Guide for more information.
●
Chassis serial number or Universal Unique Identifier (UUID) number. The UUID can only be
updated if the current chassis serial number is invalid. (These ID numbers are normally set in
the factory and are used to uniquely identify the system.)
●
Keyboard locale setting (for example, English or German) for System ID entry.
Allows you to assign or modify a master or user password for hard drives. When this feature is
enabled, the user is prompted to provide one of the DriveLock passwords during POST. If neither
is successfully entered, the hard drive will remain inaccessible until one of the passwords is
successfully provided during a subsequent cold-boot sequence.
NOTE: This selection will only appear when at least one drive that supports the DriveLock feature
is attached to the system.
See the Desktop Management Guide for more information.
System Security (some
models: these options
are hardware
dependent)
Data Execution Prevention (some models) (enable/disable) Helps prevent operating system security
breaches.
Virtualization Technology (some models) (enable/disable) Controls the virtualization features of the
processor. Changing this setting requires turning the computer off and then back on.
Embedded Security Device Support (some models) (enable/disable) Permits activation and
deactivation of the Embedded Security Device. Changing this setting requires turning the computer
off and then back on.
NOTE:
To configure the Embedded Security Device, a Setup password must be set.
If Embedded Security Device Support is enabled, the following options are available:
●
Reset to Factory Settings (some models) (Do not reset/Reset) Resetting to factory defaults will
erase all security keys. Changing this setting requires turning the computer off and then back
on.
CAUTION: The embedded security device is a critical component of many security schemes.
Erasing the security keys will prevent access to data protected by the Embedded Security
Device. Choosing Reset to Factory Settings may result in significant data loss.
●
Power-on authentication support (some models) (enable/disable) Controls the power-on
password authentication scheme that utilizes the Embedded Security Device. Changing this
setting requires turning the computer off and then back on.
●
Reset authentication credentials (some models) (Do not reset/Reset) Selecting Reset disables
the power-on authentication support and clears the authentication information from the
Embedded Security Device. Changing this setting requires turning the computer off and then
back on
Computer Setup (F10) Utilities
9
Table 2-4 Computer Setup—Security (continued)
OS management of Embedded Security Device (some models) (enable/disable) This option allows
the user to limit operating system control of the Embedded Security Device. Changing this setting
requires turning the computer off and then back on. This option allows the user to limit OS control
of the Embedded Security Device.
●
Reset of Embedded Security Device through OS (some models) (enable/disable) This option
allows the user to limit the operating system ability to request a Reset to Factory Settings of
the Embedded Security Device. Changing this setting requires turning the computer off and
then back on.
NOTE: To enable this option, a Setup password must be set.
Smart Card BIOS Password Support (some models) (enable/disable) Allows the user to enable/
disable the Smart Card to be used in place of the Setup and Power-On Passwords. This setting
requires additional initialization within ProtectTools® before this option will take effect.
Setup Security Level
Provides a method to allow end-users limited access to change specified setup options, without
having to know the Setup Password.
This feature allows the administrator the flexibility to protect changes to essential setup options,
while allowing the user to view system settings and configure nonessential options. The administrator
specifies access rights to individual setup options on a case-by-case basis via the Setup Security
Level menu. By default, all setup options are assigned Setup Password, indicating the user must
enter the correct Setup Password during POST to make changes to any of the options. The
administrator may set individual items to None, indicating the user can make changes to the specified
options when setup has been accessed with invalid passwords. The choice, None, is replaced by
Power-On Password if a Power-On Password is enabled.
NOTE: Setup Browse Mode must be set to Enable in order for the user to enter Setup without
knowing the setup password.
10
Chapter 2 Computer Setup (F10) Utility
Computer Setup—Power
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-5 Computer Setup—Power
Option
Description
OS Power
Management
●
Runtime Power Management— Enable/Disable. Allows certain operating systems to reduce
processor voltage and frequency when the current software load does not require the full
capabilities of the processor.
●
Idle Power Savings—Extended/Normal. Allows certain operating systems to decrease the
processors power consumption when the processor is idle.
●
ACPI S3 Hard Disk Reset—Enabling this causes the BIOS to ensure hard disks are ready to
accept commands after resuming from S3 before returning control to the operating system.
●
ACPI S3 PS2 Mouse Wakeup—Enables or disables waking from S3 due to PS2 mouse activity.
●
USB Wake on Device Insertion (some models)—Allows system to wake from Standby on USB
device insertion.
●
Unique Sleep State Blink Rates—Enable/Disable. This feature is designed to provide a visual
indication of what sleep state the system is in. Each sleep state has a unique blink pattern.
◦
S0 = Solid green LED.
◦
S3 = 3 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds (green LED) —
repeated cycles of 3 blinks and a pause.
◦
S4 = 4 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds (green LED) —
repeated cycles of 4 blinks and a pause.
◦
S5 = LED is off.
NOTE: If this feature is disabled, S4 and S5 both have the LED off. S1 (no longer supported)
and S3 use 1 blink per second.
Hardware Power
Management
SATA power management enables or disables SATA bus and/or device power management.
Thermal
Fan idle mode—This bar graph controls the minimum permitted fan speed.
NOTE: This setting only changes the minimum fan speed. The fans are still automatically
controlled.
Computer Setup (F10) Utilities
11
Computer Setup—Advanced
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-6 Computer Setup—Advanced (for advanced users)
12
Option
Heading
Power-On Options
Allows you to set:
●
POST mode (QuickBoot, FullBoot, or FullBoot every 1–30 days).
●
POST messages (enable/disable).
●
MEBx Setup Prompt (hidden/displayed). Enabling this feature displays the text CTRL+P =
MEBx during POST. Disabling this feature prevents the text from being displayed. However,
pressing Ctrl+P still accesses the ME BIOS Extension Setup Utility, which is used to configure
manageability settings.
●
F9 prompt (hidden/displayed). Enabling this feature will display the text F9 = Boot Menu during
POST. Disabling this feature prevents the text from being displayed. However, pressing F9 will
still access the Shortcut Boot [Order] Menu screen. See Storage > Boot Order for more
information.
●
F10 prompt (hidden/displayed). Enabling this feature will display the text F10 = Setup during
POST. Disabling this feature prevents the text from being displayed. However, pressing F10
will still access the Setup screen.
●
F11 prompt (hidden/displayed). Setting this feature to displayed will display the text F11 =
Recovery during POST. Hiding the feature prevents the text from being displayed. However,
pressing F11 will still attempt to boot to the HP Backup and Recovery partition. See Factory
Recovery Boot Support for more information.
●
F12 prompt (hidden/displayed). Enabling this feature will display the text F12 = Network during
POST. Disabling this feature prevents the text from being displayed. However, pressing F12
will still force the system to attempt booting from the network.
●
Factory Recovery Boot Support (enable/disable). Enabling this feature will cause an additional
prompt, F11 = Recovery, to be displayed during POST on systems with HP Backup and
Recovery software installed and configured with a recovery partition on the boot hard drive.
Pressing F11 causes the system to boot to the recovery partition and launch HP Backup and
Recovery. The F11 = Recovery prompt can be hidden with the F11 prompt (hidden/displayed)
option (see above).
●
Option ROM prompt (enable/disable). Enabling this feature will cause the system to display a
message before loading option ROMs. (This feature is supported on some models only.)
●
Remote wakeup boot source (remote server/local hard drive).
●
After Power Loss (off/on/previous state): Setting this option to:
◦
Off—causes the computer to remain powered off when power is restored.
◦
On—causes the computer to power on automatically as soon as power is restored.
◦
On—allows you to power on the computer using a power strip switch, if the computer is
connected to an electric power strip.
◦
Previous state—causes the computer to power on automatically as soon as power is
restored, if it was on when power was lost.
Chapter 2 Computer Setup (F10) Utility
Table 2-6 Computer Setup—Advanced (for advanced users) (continued)
NOTE: If you turn off power to the computer using the switch on a power strip, you will not be able
to use the suspend/sleep feature or the Remote Management features.
●
POST Delay (None, 5, 10 15, or 20 seconds). Enabling this feature will add a user-specified
delay to the POST process. This delay is sometimes needed for hard disks on some PCI cards
that spin up very slowly, so slowly that they are not ready to boot by the time POST is finished.
The POST delay also gives you more time to select F10 to enter Computer (F10) Setup.
●
Limit CPUID Maximum Value to 3. Restricts the number of CPUID functions reported by the
microprocessor. Enable this feature if booting to Windows NT.
Execute Memory Test
(some models)
Restarts the computer and executes the POST memory test.
BIOS Power-On
Allows you to set the computer to turn on automatically at a time you specify.
Onboard Devices
Allows you to set resources for or disable onboard system devices (diskette controller, serial port,
or parallel port).
PCI Devices
●
Lists currently installed PCI devices and their IRQ settings.
●
Allows you to reconfigure IRQ settings for these devices or to disable them entirely. These
settings have no effect under an ACPI-based operating system.
PCI VGA Configuration
Displayed only if there are multiple PCI video adapters in the system. Allows you to specify which
VGA controller will be the “boot” or primary VGA controller.
NOTE: In order to see this entry, you must enable Integrated Video (Advanced > Device
Options) and Save Changes and Exit.
Bus Options
Device Options
On some models, allows you to enable or disable:
●
PCI SERR# Generation.
●
PCI VGA palette snooping, which sets the VGA palette snooping bit in PCI configuration space;
only needed when more than one graphics controller is installed.
Allows you to set:
●
Printer mode (Bi-Directional, EPP + ECP, Output Only).
●
Num Lock state at power-on (off/on).
●
S5 Wake on LAN (enable/disable).
●
◦
To disable Wake on LAN during the off state (S5), use the arrow (left and right) keys to
select the Advanced > Device Options menu and set the S5 Wake on LAN feature to
Disable. This obtains the lowest power consumption available on the computer during
S5. It does not affect the ability of the computer to Wake on LAN from suspend or
hibernation, but will prevent it from waking from S5 via the network. It does not affect
operation of the network connection while the computer is on.
◦
If a network connection is not required, completely disable the network controller (NIC) by
using the arrow (left and right) keys to select the Security > Device Security menu. Set
the Network Controller option to Device Hidden. This prevents the network controller
from being used by the operating system and reduces the power used by the computer
in S5.
Integrated Video (enable/disable). Allows you to use integrated video and PCI Up Solution
video at the same time (available on some models only). This option is only available if a PCI
Up video card is installed.
NOTE: After Integrated Video is enabled and changes saved, a new menu item appears
under Advanced to allow you to select the primary VGA controller video device.
Inserting a PCI Express video card automatically disables Integrated Video. When PCI Express
video is on, Integrated Video must remain disabled.
Computer Setup (F10) Utilities
13
Table 2-6 Computer Setup—Advanced (for advanced users) (continued)
●
Multi-Processor (enable/disable). This option may be used to disable multi-processor support
under the OS.
●
Internal speaker (some models) (does not affect external speakers)
●
Monitor Tracking (enable/disable). Allows BIOS to save monitor asset information.
●
NIC PXE Option ROM Download (enable/disable). The BIOS contains an embedded NIC option
ROM to allow the unit to boot through the network to a PXE server. This is typically used to
download a corporate image to a hard drive. The NIC option ROM takes up memory space
below 1MB commonly referred to as DOS Compatibility Hole (DCH) space. This space is
limited. This F10 option will allow users to disable the downloading of this embedded NIC option
ROM thus giving more DCH space for additional PCI cards which may need option ROM space.
The default will be to have the NIC option-ROM-enabled.
Recovering the Configuration Settings
This method of recovery requires that you first perform the Save to Removable Media command with
the Computer Setup (F10) Utility before Restore is needed. (See Save to Removable Media
on page 5 in the Computer Setup—File table.)
NOTE: It is recommended that you save any modified computer configuration settings to a diskette,
a USB flash media device, or a diskette-like device (a storage device set to emulate a diskette drive)
and save the diskette or device for possible future use.
To restore the configuration, insert the diskette, USB flash media device, or other storage media
emulating a diskette with the saved configuration and perform the Restore from Removable Media
command with the Computer Setup (F10) Utility. (See Restore from Removable Media on page 5 in the
Computer Setup—File table.)
14
Chapter 2 Computer Setup (F10) Utility
3
Computer Diagnostic Features
HP Insight Diagnostics
NOTE:
HP Insight Diagnostics is included on CD with some computer models only.
The HP Insight Diagnostics utility allows you to view information about the hardware configuration of
the computer and perform hardware diagnostic tests on the subsystems of the computer. The utility
simplifies the process of effectively identifying, diagnosing, and isolating hardware issues.
The Survey tab is displayed when you invoke HP Insight Diagnostics. This tab shows the current
configuration of the computer. From the Survey tab, there is access to several categories of information
about the computer. Other tabs provide additional information, including diagnostic test options and test
results. The information in each screen of the utility can be saved as an html file and stored on a diskette
or USB HP Drive Key.
Use HP Insight Diagnostics to determine if all the devices installed on the computer are recognized by
the system and functioning properly. Running tests is optional but recommended after installing or
connecting a new device.
You should run tests, save the test results, and print them so that you have printed reports available
before placing a call to the Customer Support Center.
NOTE:
Third party devices may not be detected by HP Insight Diagnostics.
Accessing HP Insight Diagnostics
To access HP Insight Diagnostics, you must create a Recovery Disc Set then boot to the CD containing
the utility. It can also be downloaded from http://www.hp.com. See Downloading the Latest Version of
HP Insight Diagnostics on page 19 for more information.
NOTE: HP Insight Diagnostics is included as part of the Recovery Disk Set with some computer
models only.
If you have already created a Recovery Disc Set, begin the following procedure at step 4.
1.
Click Start > HP Backup and Recovery > HP Backup and Recovery Manager to open the
Backup and Recovery Wizard, then click Next.
2.
Select Create a set of recovery discs (Recommended) and click Next.
3.
Follow the instructions in the wizard to create a Recovery Disc Set.
4.
Use Windows Explorer to search the Recovery Disc Set for the CD with the compaq\hpdiags
directory.
5.
While the computer is on, insert the CD into an optical drive on the computer.
HP Insight Diagnostics
15
6.
Shut down the operating system and turn off the computer.
7.
Turn on the computer. The system will boot to the CD.
NOTE: If the system does not boot to the CD in the optical drive, you may need to change the
boot order in the Computer Setup (F10) utility so that the system attempts to boot to the optical
drive before booting to the hard drive. Refer to the Computer Setup (F10) Utility Guide for more
information.
8.
Select the appropriate language and click Continue.
NOTE: It is recommended that you accept the assigned default keyboard for your language
unless you want to test your specific keyboard.
9.
In the End User License Agreement page, click Agree if you agree with the terms. The HP Insight
Diagnostics utility launches with the Survey tab displayed.
Survey Tab
The Survey tab displays important system configuration information.
In the View level field, you can select the Summary view to see limited configuration data or select
the Advanced view to see all the data in the selected category.
In the Category field, you can select the following categories of information to display:
All—Gives a listing of all categories of information about the computer.
Overview—Gives you a listing of general information about the computer.
Architecture—Provides system BIOS and PCI device information.
Asset Control—Shows product name, asset tag, system serial number, and processor information.
Communication—Shows information about the computer parallel (LPT) and serial (COM) port settings,
plus USB and network controller information.
Graphics—Shows information about the graphics controller of the computer.
Input Devices—Shows information about the keyboard, mouse, and other input devices connected to
the computer.
Memory—Shows information about all memory in the computer. This includes memory slots on the
system board and any memory modules installed.
Miscellaneous—Shows HP Insight Diagnostics version information, computer configuration memory
(CMOS) information, system board data, and system management BIOS data.
Storage—Shows information about storage media connected to the computer. This list includes all fixed
disks, diskette drives, and optical drives.
System—Shows information about the computer model, processor, chassis, and BIOS, plus internal
speaker and PCI bus information.
16
Chapter 3 Computer Diagnostic Features
Test Tab
The Test tab allows you to choose various parts of the system to test. You can also choose the type of
test and testing mode.
There are three types of tests to choose from:
●
Quick Test—Provides a predetermined script where a sample of each hardware component is
exercised and requires no user intervention in either Unattended or Interactive mode.
●
Complete Test—Provides a predetermined script where each hardware component is fully tested.
There are more tests available in the Interactive mode, but these require user intervention.
●
Custom Test—Provides the most flexibility in controlling the testing of a system. The Custom Test
mode allows you to specifically select which devices, tests, and test parameters are run.
For each test type, there are two test modes to choose from:
●
Interactive Mode—Provides maximum control over the testing process. The diagnostic software
will prompt you for input during tests that require your interaction. You may also determine whether
the test passed or failed.
●
Unattended Mode—Does not display prompts and requires no interaction. If errors are found, they
are displayed when testing is complete.
To begin testing:
1.
Select the Test tab.
2.
Select the tab for the type of test you want to run: Quick, Complete, or Custom.
3.
Select the Test Mode: Interactive or Unattended.
4.
Choose how you want the test to be executed, either Number of Loops or Total Test Time. When
choosing to run the test over a specified number of loops, enter the number of loops to perform. If
you desire to have the diagnostic test for a specified time period, enter the amount of time in
minutes.
5.
If performing a Quick Test or Complete Test, select the device to be tested from the drop-down
list. If performing a Custom Test, Click the Expand button and select the devices to be tested or
click the Check All button to select all devices.
6.
Click the Begin Testing button at the bottom right corner of the screen to start the test. The Status
tab, which allows you to monitor the progress of the test, is automatically displayed during the
testing process. When the test is complete, the Status tab shows whether the device passed or
failed.
7.
If errors are found, go to the Log tab and click the Error Log to display more detailed information
and recommended actions.
Status Tab
The Status tab displays the status of the selected tests. The type of test executed (Quick, Complete,
or Custom) is also displayed. The main progress bar displays the percent complete of the current set
of tests. While testing is in progress, a Cancel Testing button is displayed for use if you want to cancel
the test.
HP Insight Diagnostics
17
After testing has completed, the Cancel Testing button is replaced with a Retest button. The Retest
button will retest the last set of tests executed. This enables you to re-run the set of tests without having
to re-enter the data in the Test tab.
The Status tab also shows:
●
The devices being tested
●
The test status (running, passed, or failed) of each device being tested
●
The overall test progress of all devices being tested
●
The test progress for each device being tested
●
The elapsed test times for each device being tested
Log Tab
The Log tab contains a Test Log tab and an Error Log tab.
The Test Log displays all tests that have been executed, the number of times of execution, the number
of times failed, and the time it took to complete each test. The Clear Test Log button will clear the
contents of the Test Log.
The Error Log displays the tests for devices that have failed during the diagnostic testing and includes
the following columns of information.
●
The Device section displays the device tested.
●
The Test section displays the type of test run.
●
The Description section describes the error that the diagnostic test found.
●
The Recommended Repair will give a recommended action that should be performed to resolve
the failed hardware.
●
The Failed Count is the number of times the device has failed a test.
●
The Error Code provides a numerical code for the failure. The error codes are defined in the Help
tab.
The Clear Error Log button will clear the contents of the Error Log.
Help Tab
On the Help tab contains an HP Insight Diagnostics tab, an Error Codes tab, and a Test
Components tab.
The HP Insight Diagnostics tab contains help topics and includes search and index features.
The Error Codes tab provides a description of each numerical error code that may appear in the Error
Log tab located on the Log tab. Each code has a corresponding error Message and a Recommended
Repair action that should help solve the problem. To find an error code description quickly, enter the
code in the box at the top of the tab and click the Find Error Codes button.
The Test Components tab displays low-level information on tests that are run.
18
Chapter 3 Computer Diagnostic Features
Saving and Printing Information in HP Insight Diagnostics
You can save the information displayed in the HP Insight Diagnostics Survey and Log tabs to a diskette
or a USB 2.0 HP Drive Key (64MB or higher). You can not save to the hard drive. The system will
automatically create an html file that has the same appearance as the information displayed on the
screen.
1.
Insert a diskette or USB 2.0 HP Drive Key (capacity must be 64MB or higher). USB 1.0 Drive Keys
are not supported.
2.
Click Save in the bottom right corner of the screen.
3.
Select Save to the floppy or Save to USB key.
4.
Enter a file name in the File Name box and click the Save button. An html file will be saved to the
inserted diskette or USB HP Drive Key.
NOTE: Do not remove the diskette or USB key until you see a message indicating that the html
file has been written to the media.
5.
Print the information from the storage device used to save it.
NOTE: To exit HP Insight Diagnostics, click Exit Diagnostics button in the bottom left corner of the
screen then remove the CD from the optical drive.
Downloading the Latest Version of HP Insight Diagnostics
1.
Go to http://www.hp.com.
2.
Click the Software & Driver Downloads link.
3.
Enter your product number (for example, dc5800) in the text box and press the Enter key.
4.
Select your specific computer model.
5.
Select your OS.
6.
Click the Diagnostic link.
7.
Click HP Insight Diagnostics Offline Edition.
8.
Select a language and click Download.
NOTE:
The download includes instructions on how to create the bootable CD.
Protecting the Software
To protect software from loss or damage, you should keep a backup copy of all system software,
applications, and related files stored on the hard drive. See the operating system or backup utility
documentation for instructions on making backup copies of data files.
Protecting the Software
19
HP Backup and Recovery Manager
The HP Backup and Recovery Manager is an easy-to-use, versatile application that allows you to back
up and recover the primary hard drive on the PC. The application works within Windows to create
backups of Windows, all applications, and all data files. Backups can be scheduled to occur
automatically at designated intervals, or they can be initiated manually. Important files can be archived
separately from regular backups.
HP Backup and Recovery Manager is preinstalled on the hard drive's Recovery Partition and allows you
to create Recovery Points to back up the entire system incrementally.
Recovery Points and file backups can be copied to CD or DVD discs, while all backups can be copied
to network or secondary hard disks.
HP highly recommends that you create a Recovery Disc Set immediately before using the computer
and schedule regular automatic Recovery Point backups. Backups can also be copied to a network or
secondary hard disks.
To create the Recovery Disc Set:
1.
Click Start > HP Backup and Recovery > HP Backup and Recovery Manager to open the
Backup and Recovery Wizard, then click Next.
2.
Select Create a set of recovery discs (Recommended) and click Next.
3.
Follow the instructions in the wizard.
PC Recovery requires a reboot to the Recovery Partition or from the Recovery Disc Set. To reboot to
the Recovery Partition, press F11 at startup when you see the message “Press F11 for Emergency
Recovery.”
For more information on using HP Backup and Recovery Manager, refer to the HP Backup and Recovery
Manager User Guide by selecting Start > HP Backup and Recovery > HP Backup and Recovery
Manager Manual.
NOTE: You can order a Recovery Disc Set from HP by calling the HP support center. Go to the
following Web site, select your region, and click the Technical support after you buy link under the
Call HP heading to obtain the support center telephone number for your region.
http://welcome.hp.com/country/us/en/wwcontact_us.html
20
Chapter 3 Computer Diagnostic Features
4
Desktop Management
HP Client Management Solutions provides standards-based solutions for managing and controlling
desktops, workstations, and notebook PCs in a networked environment. HP pioneered desktop
manageability in 1995 with the introduction of the industry’s first fully manageable desktop personal
computers. HP is a patent holder of manageability technology. Since then, HP has led an industry-wide
effort to develop the standards and infrastructure required to effectively deploy, configure, and manage
desktops, workstations, and notebook PCs. HP develops its own management software and works
closely with leading management software solution providers in the industry to ensure compatibility
between HP Client Management Solutions and these products. HP Client Management Solutions are
an important aspect of our broad commitment to providing you with solutions that assist you in lowering
the total cost of owning and maintaining the PCs throughout their lifecycle.
The key capabilities and features of desktop management are:
●
Initial configuration and deployment
●
Remote system installation
●
Software updating and management
●
ROM flash
●
Hardware option configuration
●
Asset tracking and security
●
Fault notification and recovery
NOTE:
Support for specific features described in this guide may vary by model or software version.
Initial Configuration and Deployment
The computer comes with a preinstalled system software image. After a brief software “unbundling”
process, the computer is ready to use.
You may prefer to replace the preinstalled software image with a customized set of system and
application software. There are several methods for deploying a customized software image. They
include:
●
Installing additional software applications after unbundling the preinstalled software image.
●
Using software deployment tools, such as HP Client Configuration Manager, HP Configuration
Management Solution (based on Radia technology), or Altiris Deployment Solution, to replace the
preinstalled software with a customized software image.
●
Using a disk cloning process to copy the contents from one hard drive to another.
Initial Configuration and Deployment
21
The best deployment method depends on your information technology environment and processes. The
PC Deployment section of the HP Lifecycle Service Web site (http://h20219.www2.hp.com/services/
cache/80906-0-0-225-121.html) provides information to help you select the best deployment method.
The Restore Plus! CD, ROM-based setup, and ACPI hardware provide further assistance with recovery
of system software, configuration management and troubleshooting, and power management.
NOTE: See HP Backup and Recovery Manager on page 2 for information on creating the Restore
Plus! CD.
HP Software Agent
The management agent used by both HP Client Configuration Manager and HP Configuration
Management Solution is pre-loaded on the computer. When installed, it enables communication with
the HP management console.
To install the HP Software Agent:
1.
Click Start.
2.
Click All Programs.
3.
Click HP Manageability.
4.
Click Radia Management Agent Readme.
5.
Review and follow the instructions contained in the Readme file to install the HP Software Agent.
The HP Software Agent is a key infrastructure component for enabling all of the HP configuration
management solutions. To learn about the other infrastructure components necessary for implementing
the HP configuration management solutions, please visit http://h20229.www2.hp.com/solutions/ascm/
index.html.
Altiris Deployment Solution Agent
This program is pre-loaded on the computer. When installed, it enables communication with the
administrator Deployment Solution console.
To install Altiris Deployment Solution Agent:
1.
Click Start.
2.
Click All Programs.
3.
For Windows Vista, click Install Altiris DAgent. For Windows XP, click Install Altiris AClient.
4.
Follow the on-screen instructions to set up and configure the Altiris client.
This agent is a key infrastructure component for enabling Altiris Deployment Solution which is part of
the Altiris Client Management Suite. To learn about the other infrastructure components necessary for
implementing Altiris Client Management Suite, please visit http://www.hp.com/go/easydeploy.
22
Chapter 4 Desktop Management
Remote System Installation
Remote System Installation allows you to start and set up the system using the software and
configuration information located on a network server by initiating the Preboot Execution Environment
(PXE). The Remote System Installation feature is usually used as a system setup and configuration
tool, and can be used for the following tasks:
●
Formatting a hard drive
●
Deploying a software image on one or more new PCs
●
Remotely updating the system BIOS in flash ROM (Remote ROM Flash on page 31)
●
Configuring the system BIOS settings
To initiate Remote System Installation, press F12 when the F12 = Network Service Boot message
appears in the lower-right corner of the HP logo screen when the computer is booting up. Follow the
instructions on the screen to continue the process. The default boot order is a BIOS configuration setting
that can be changed to always attempt to PXE boot.
Software Updating and Management
HP provides several tools for managing and updating software on desktops, workstations, and
notebooks:
●
HP Client Management Interface
●
HP SoftPaq Download Manager
●
HP System Software Manager
●
HP ProtectTools Security Manager
●
HP Client Configuration Manager
●
HP Configuration Management Solution
●
HP Client Manager for Altiris
●
Altiris Client Management Suite
●
HP Client Catalog for SMS
●
HP Backup and Recovery Manager
●
Intel vPro-branded PCs with Active Management Technology
●
Verdiem Surveyor
●
HP Proactive Change Notification
●
HP Subscriber's Choice
HP Client Management Interface
Regardless of the system management tools your IT department uses, managing both your hardware
and software assets is important to keeping your IT costs low and your business agile. The IT
Remote System Installation
23
administrator can access the HP Client Management Interface by writing simple scripts and integrating
those scripts to the management solution of their choice.
With the HP Client Management Interface (HP CMI), new HP business computers seamlessly integrate
into your managed IT environment. HP CMI provides an interface that simplifies the integration of HP
business computers with popular industry system management tools (including Microsoft Systems
Management Server, IBM Tivoli Software, and HP Operations) and custom inhouse developed
management applications. Using HP CMI, systems management tools and applications can request indepth client inventory, receive health status information, and manage system BIOS settings by
communicating directly with the client computer, reducing the need for agent or connector software to
achieve integration.
HP Client Management Interface is based on industry standards that include Microsoft Windows
Management Interface (MS WMI), Web-Based Enterprise Management (WBEM), System Management
BIOS (SMBIOS), and Advanced Configuration and Power Interface (ACPI). HP CMI is a foundation
technology utilized in HP Client Management Solutions. With HP CMI, HP gives you flexibility in choosing
how you manage your HP client computers.
HP Client Management Interface used in conjunction with system management software can:
●
Request in-depth client inventory information—Capture detailed information about the processors,
hard drives, memory, BIOS, drivers, including sensor information (such as fan speed, voltage, and
temperature).
●
Receive health status information—Subscribe for a wide range of client hardware alerts (such as
over-temperature, fan stall, and hardware configuration changes) to be sent to the system
management console, application, or to the local client computer. Alerts are sent real-time when
triggered by hardware events.
●
Manage system BIOS settings—Perform F10 functions including setting and changing the BIOS
passwords and computer boot order remotely from your system management console on any or
all of your client systems without having to visit each machine.
For more information on HP Client Management Interface, refer to http://www.hp.com/go/hpcmi/.
HP SoftPaq Download Manager
HP SoftPaq Download Manager is a free, easy-to-use interface for locating and downloading software
updates for the HP client PC models in your environment. By specifying your models, operating system,
and language, you can quickly locate, sort, and select the softpaqs you need. To download HP SoftPaq
Download Manager, visit http://h20331.www2.hp.com/Hpsub/cache/509658-0-0-225-121.html.
HP System Software Manager
HP System Software Manager (SSM) is a free utility that automates remote deployment of device drivers
and BIOS updates for your networked HP business PCs. When SSM runs, it silently (without user
interaction) determines the revision levels of drivers and BIOS installed on each networked client system
and compares this inventory against system software SoftPaqs that have been tested and stored in a
central file store. SSM then automatically updates any down-revision system software on the networked
PCs to the later levels available in the file store. Since SSM only allows distribution of SoftPaq updates
to the correct client system models, administrators can confidently and efficiently use SSM to keep
system software updated.
System Software Manager integrates with enterprise software distribution tools such as HP
Configuration Management Solution, HP Client Manager for Altiris, and Microsoft Systems Management
24
Chapter 4 Desktop Management
Server (SMS). Using SSM, you can distribute customer-created or third-party updates that have been
packaged in the SSM-format.
SSM may be downloaded at no charge by visiting http://www.hp.com/go/ssm.
NOTE: SSM does not currently support remote ROM flash on systems that have Windows Vista
BitLocker enabled and are using TPM measurements to protect the BitLocker keys because flashing
the BIOS would invalidate the trust signature that BitLocker created for the platform. Disable BitLocker
via Group Policy in order to flash the system BIOS.
You can enable BitLocker support without TPM measurements of BIOS to avoid invalidating the
BitLocker keys. HP recommends you keep a secure backup of the BitLocker credentials in case of
recovery emergencies.
HP ProtectTools Security Manager
HP ProtectTools Security Manager software provides security features that help protect against
unauthorized access to the computer, networks, and critical data. Enhanced security functionality is
provided by the following software modules:
●
Credential Manager for HP ProtectTools
●
Embedded Security for HP ProtectTools
●
Java Card Security for HP ProtectTools
●
BIOS Configuration for HP ProtectTools
●
Drive Encryption for HP ProtectTools
●
Device Access Manager for HP ProtectTools
The software modules available for your computer may vary depending on your model. For example,
Embedded Security for HP ProtectTools is available only for computers on which the Trusted Platform
Module (TPM) embedded security chip is installed.
HP ProtectTools software modules may be preinstalled, preloaded, or available for download from the
HP Web site. For select HP Compaq Desktops, HP ProtectTools is available as an after market option.
Visit http://www.hp.com for more information.
NOTE: The instructions in this guide are written with the assumption that you have already installed
the applicable HP ProtectTools software modules.
HP Client Catalog for SMS
Update management is an important function of maintaining any set of computers, from a single PC to
an enterprise datacenter. The ability to identify which updates exist—and selectively deploy those
updates in a timely and automated manner—can help maintain security and productivity for the managed
organization. HP now offers a mechanism to streamline updates for HP systems within a Microsoft
System Management Server management infrastructure. The HP Client Catalog for SMS contains
software driver and patch information for desktop, mobile and workstation platforms. With SMS 2003
R2 and Inventory Tool for Custom Updates, organizations can integrate and deploy HP software updates
quickly and easily, based on detailed platform characteristics that the HP Client Catalog for SMS
provides to target appropriate client systems within the managed enterprise.
For more information on HP Client Catalog for SMS, visit http://www/hp/com/go/easydeploy/.
Software Updating and Management
25
HP Client Configuration Manager
HP Client Configuration Manager is a hardware and software management solution for Windows Vista,
Windows XP and HP Thin Client environments that is easy to use and quick to deploy, while providing
a strong foundation for future requirements. It is offered in two editions:
●
The Basic Edition is a free product for managing HP desktops, notebooks and workstations,
providing hardware and software inventory, remote control, HP alert monitoring, HP BIOS and
driver updates, integration with HP Protect Tools and add-on support for Intel AMT. The Basic
Edition also supports deployment and management of HP Thin Clients.
●
The Premium Edition, available for purchase, includes all functionality provided in Basic Edition
and adds Windows deployment and migration, patch management capabilities, software
distribution and software usage metering.
HP Client Configuration Manager provides a migration path to HP Configuration Management Solution
(based on Radia technology) for automated management of large, heterogeneous and continuously
changing IT environments.
For more information about the HP Client Configuration Manager, visit
http://www.managementsoftware.hp.com/products/ccm/index.html.
HP Configuration Management Solution
HP Configuration Management Solution is a policy-based solution that enables administrators to
inventory, deploy, patch, and continuously manage software and content across heterogeneous client
platforms. With the HP Configuration Management Solution, the IT professional can:
●
Automate the entire lifecycle management process from discovery, deployment, and ongoing
management through migration and retirement
●
Automatically deploy and continuously manage an entire software stack (operating systems,
applications, patches, settings, and content) to a desired state
●
Manage software on virtually any device, including desktops, workstations, and notebooks, in a
heterogeneous or standalone infrastructure
●
Manage software on most operating systems
With continuous configuration management, HP customers report dramatic savings in IT costs,
accelerated time-to-market for software and content, and increased user productivity and satisfaction.
For more information on HP Configuration Management Solution, visit http://h20229.www2.hp.com/
solutions/ascm/index.html.
HP Client Manager for Altiris
HP Client Manager, developed with Altiris, is available free for all supported HP business desktop,
notebook, and workstation models. SSM is integrated into HP Client Manager, and enables central
tracking, monitoring, and management of the hardware aspects of HP client systems.
Use HP Client Manager to:
26
●
Get valuable hardware information such as CPU, memory, video, and security settings
●
Monitor system health to fix problems before they occur
Chapter 4 Desktop Management
●
Automatically acquire and install drivers and BIOS updates without visiting each PC
●
Remotely configure BIOS and security settings
●
Automate processes to quickly resolve hardware problems
Tight integration with HP Instant Support tools reduces hardware troubleshooting time.
●
Diagnostics—remotely run & view reports on HP desktop, notebook, and workstation models
●
System Health Scan—check for known hardware issues in your installed base of HP client systems
●
Active Chat—connect to HP customer support to resolve issues
●
HP Knowledgebase—link to expert information
●
Automated SoftPaq collection and delivery process for fast resolution of hardware problems
●
Identify, inventory, and initialize systems with HP ProtectTools embedded security chip
●
Option for health alerts to display locally on the client system
●
Report basic inventory information for non-HP clients
●
Setup and configure TPM security chip
●
Centrally schedule client backup and recovery
●
Add on support for managing Intel AMT
For more information on HP Client Manager, visit http://www.hp.com/go/clientmanager.
Altiris Client Management Suite
Altiris Client Management Suite is an easy-to-use solution for full life-cycle software management of
desktops, notebooks, and workstations. Client Management Suite Level 1 includes the following Altiris
products:
●
Inventory Solution
●
Deployment Solution
●
Software Delivery Solution
●
Patch Management Solution
●
Application Metering Solution
●
Application Management Solution
●
Carbon Copy Solution
For more information on Altiris Client Management Suite, visit http://www.altiris.com/Products/
ClientManagementSuite.aspx.
HP Client Catalog for SMS
Update management is an important function of maintaining any set of computers, from a single PC to
an enterprise datacenter. The ability to identify which updates exist—and selectively deploy those
Altiris Client Management Suite
27
updates in a timely and automated manner—can help maintain security and productivity for the managed
organization. HP now offers a mechanism to streamline updates for HP systems within a Microsoft
System Management Server management infrastructure. The HP Client Catalog for SMS contains
software driver and patch information for desktop, mobile and workstation platforms. With SMS 2003
R2 and Inventory Tool for Custom Updates, organizations can integrate and deploy HP software updates
quickly and easily, based on detailed platform characteristics that the HP Client Catalog for SMS
provides to target appropriate client systems within the managed enterprise.
For more information on HP Client Catalog for SMS, visit http://www/hp/com/go/easydeploy/.
HP Backup and Recovery Manager
The HP Backup and Recovery Manager is an easy-to-use, versatile application that allows you to back
up and recover the primary hard drive on the PC. The application works within Windows to create
backups of Windows, all applications, and all data files. Backups can be scheduled to occur
automatically at designated intervals, or they can be initiated manually. Important files can be archived
separately from regular backups.
HP Backup and Recovery Manager is preinstalled on the hard drive's Recovery Partition.
Recovery Points and file backups can be copied to CD or DVD discs, while all backups can be copied
to network or secondary hard disks.
HP highly recommends that you create a Recovery Disc Set immediately before using the computer
and schedule regular automatic Recovery Point backups.
To create the Recovery Disc Set:
1.
Click Start > HP Backup and Recovery > HP Backup and Recovery Manager to open the
Backup and Recovery Wizard, then click Next.
2.
Select Create a set of recovery discs (Recommended) and click Next.
3.
Follow the instructions in the wizard.
For more information on using HP Backup and Recovery Manager, refer to the HP Backup and Recovery
Manager User Guide by selecting Start > HP Backup and Recovery > HP Backup and Recovery
Manager Manual.
NOTE: You can order a Recovery Disc Set from HP by calling the HP support center. Go to the
following Web site, select your region, and click the Technical support after you buy link under the
Call HP heading to obtain the support center telephone number for your region.
http://welcome.hp.com/country/us/en/wwcontact_us.html
Intel vPro-branded PCs with Active Management
Technology
Intel Active Management Technology (AMT) allows better discovery, healing, and protection of
networked computing assets. With AMT, PCs can be managed whether the system is on, off, or the
operating system is hung.
28
Chapter 4 Desktop Management
Intel vPro features include:
●
Hardware inventory information
●
Alerting
●
Power management—power on/off, cycle power
●
Remote diagnosis and repair
●
◦
Serial-over-LAN—allows console control of remote PC during its boot phase
◦
IDE-Redirect—allows system booting from a remote boot drive, disk, or ISO image
Hardware-based isolation and recovery—limit or cut off PC network access, if virus-like activity is
detected
NOTE:
For an overview of Intel vPro technology, visit http://www.intel.com/vpro.
For HP-specific information on Intel vPro technology, see the white papers at http://www.hp.com/
support. Select your country and language, select See support and troubleshooting information,
enter the model number of the computer, and press Enter. In the Resources category, click Manuals
(guides, supplements, addendums, etc.). Under Quick jump to manuals by category, click White
papers.
On Intel vPro-branded PCs, available management technologies include the following:
●
AMT
●
ASF
●
Virtualization Technology (VT)
ASF and AMT may not be configured at the same time, but both are supported.
To configure Intel vPro systems for AMT or ASF:
1.
Turn on or restart the computer. If you are in Microsoft Windows, click Start > Shut Down >
Restart.
2.
As soon as the computer is turned on, press the hot key, Ctrl+P, when the monitor light turns green.
NOTE: If you do not press Ctrl+P at the appropriate time, you must restart the computer and
again press Ctrl+P when the monitor light turns green to access the utility.
This hot-key enters the Intel Management Engine BIOS Execution (MEBx) setup utility. This utility allows
the user to configure various aspects of the management technology. Configuration options include:
●
ME Platform Configuration
◦
ME Platform State Control—enable/disable management engine
◦
ME Firmware Local Update—local enable/disable management of firmware updates
◦
LAN Controller—enable/disable integrated network controller
Intel vPro-branded PCs with Active Management Technology
29
●
●
◦
ME Features Control—enable AMT, ASF, or none
◦
ME Power Control—configure management engine power policies
Intel AMT Configuration
◦
Change AMT Password—required in order to configure AMT (the default password is
admin)
◦
Host Name—allows administrator to assign a name to the client
◦
TCP/IP—allows administrator to assign an IP address or enable DHCP
◦
Provisioning Server—allows administrator to assign IP address of provisioning server
◦
Provision Model—allows administrator to configure either enterprise or SMB mode
◦
Set PID and PPS—allows administrator to provide pre-provisioning key (see HP’s white
paper, Intel vPro Provisioning)
◦
Un-Provision—allows administrator to reset AMT configuration to factory defaults
◦
VLAN—allows administrator to enable LAN virtualization support
◦
SOL/IDE-R—allows administrator to enable remote boot and control sessions
Change MEBx Password (HP highly recommends that this password be changed. The default
password is admin.)
In order to remotely manage AMT systems, the administrator must use a remote console that supports
AMT. Enterprise management consoles are available from suppliers such as HP, Altiris and Microsoft
SMS. In SMB mode, the client provides a Web browser interface. To access this feature, open a browser
from any other system on the network and enter http://host_name:16992 where host_name is
the name assigned to the system. Alternatively, the IP address may be used in place of the host name.
Verdiem Surveyor
Verdiem Surveyor is a software solution that helps manage PC energy costs. Surveyor measures and
reports how much energy each PC consumes. It also provides control over PC power settings enabling
administrators to easily implement energy saving strategies across their networks. An HP SoftPaq
containing the Surveyor agent may be downloaded from the HP Support site and installed on supported
commercial desktop models. Surveyor licenses for managing PCs may be purchased through your HP
representative.
HP Proactive Change Notification
The Proactive Change Notification program uses the Subscriber's Choice Web site in order to
proactively and automatically:
30
●
Send you Proactive Change Notification (PCN) e-mail informing you of hardware and software
changes to most commercial computers and servers, up to 60 days in advance
●
Send you e-mail containing Customer Bulletins, Customer Advisories, Customer Notes, Security
Bulletins, and Driver alerts for most commercial computers and servers
Chapter 4 Desktop Management
You create your own profile to ensure that you only receive the information relevant to a specific IT
environment. To learn more about the Proactive Change Notification program and create a custom
profile, visit http://h30046.www3.hp.com/subhub.php
Subscriber’s Choice
Subscriber’s Choice is a client-based service from HP.
Based on your profile, HP will supply you with personalized product tips, feature articles, and/or driver
and support alerts/notifications.
Subscriber’s Choice Driver and Support Alerts/Notifications will deliver e-mails notifying you that the
information you subscribed to in your profile is available for review and retrieval. To learn more about
Subscriber’s Choice and create a custom profile, visit http://h30046.www3.hp.com/subhub.php.
Retired Solutions
Two software packages, Altiris Local Recovery, and Dantz Retrospect, will no longer be shipping on HP
business desktops, notebooks, or workstations. Starting with new business desktops, notebooks, and
workstations released in 2006, all will ship with HP Backup and Recovery Manager.
ROM Flash
The computer's BIOS is stored in a programmable flash ROM (read only memory). By establishing a
setup password in the Computer Setup (F10) Utility, you can protect the ROM from being unintentionally
updated or overwritten. This is important to ensure the operating integrity of the computer. Should you
need or want to upgrade the BIOS, you may download the latest BIOS images from the HP driver and
support page, http://www.hp.com/support/files.
CAUTION: For maximum ROM protection, be sure to establish a setup password. The setup password
prevents unauthorized ROM upgrades. System Software Manager allows the system administrator to
set the setup password on one or more PCs simultaneously. For more information, visit
http://www.hp.com/go/ssm.
Remote ROM Flash
Remote ROM Flash allows the system administrator to safely upgrade the BIOS on remote HP
computers directly from the centralized network management console. Enabling the system
administrator to perform this task remotely on multiple computers results in a consistent deployment of,
and greater control over, HP PC BIOS images over the network. It also results in greater productivity
and lower total cost of ownership.
NOTE: SSM does not currently support remote ROM flash on systems that have Windows Vista
BitLocker enabled and are using TPM measurements to protect the BitLocker keys because flashing
the BIOS would invalidate the trust signature that BitLocker created for the platform. Disable BitLocker
via Group Policy in order to flash the system BIOS.
The computer must be powered on, or turned on through Remote Wakeup, to take advantage of Remote
ROM Flash.
For more information on Remote ROM Flash, refer to the HP Client Manager Software or System
Software Manager at http://www.hp.com/go/ssm/.
Subscriber’s Choice
31
HPQFlash
The HPQFlash utility is used to locally update or restore the system BIOS of individual PCs from a
Windows operating system.
For more information on HPQFlash, visit http://www.hp.com/support/files and enter the model number
of the computer when prompted.
Boot Block Emergency Recovery Mode
Boot Block Emergency Recovery Mode permits system recovery in the unlikely event of a ROM flash
failure. For example, if a power failure were to occur during a BIOS upgrade, the ROM flash would be
incomplete. This would render the system BIOS unusable. The Boot Block is a flash-protected section
of the ROM that contains code that checks for a valid system BIOS image when the system is turned
on.
●
If the system BIOS image is valid, the system starts normally.
●
If the system BIOS image is not valid, a failsafe Boot Block BIOS provides enough support to search
removable media for BIOS image files. If an appropriate BIOS image file is found, it is automatically
flashed into the ROM.
When an invalid system BIOS image is detected, the system power LED will blink red 8 times, one blink
every second. Simultaneously, the speaker will beep 8 times. If the portion of the system ROM containing
the video option ROM image is not corrupt, Boot Block Emergency Recovery Mode will be displayed
on the screen.
To recover the system after it enters Boot Block Emergency Recovery Mode, complete the following
steps:
1.
Turn off the power.
2.
Insert a CD or USB flash device containing the desired BIOS image file in the root directory.
NOTE: The media must be formatted using the FAT12, FAT16, or FAT32 file system.
3.
Turn on the computer.
If no appropriate BIOS image is found, you will be prompted to insert media containing a BIOS
image file.
If the system successfully reprograms the ROM, the system will automatically power off.
4.
Remove the removable media used to upgrade the BIOS.
5.
Turn the power on to restart the computer.
NOTE: BitLocker prevents Windows Vista from booting when a CD containing the BIOS image file is
in an optical drive. If BitLocker is enabled, remove this CD before attempting to boot to Windows Vista.
Replicating the Setup
The following procedures give an administrator the ability to easily copy one setup configuration to other
computers of the same model. This allows for faster, more consistent configuration of multiple
computers.
32
Chapter 4 Desktop Management
NOTE: Both procedures require a diskette drive or a supported USB flash media device, such as an
HP Drive Key.
Copying to Single Computer
CAUTION: A setup configuration is model-specific. File system corruption may result if source and
target computers are not the same model. For example, do not copy the setup configuration from a
dc5xxx PC to a dx5xxx PC.
1.
Select a setup configuration to copy. Turn off the computer. If you are in Windows, click Start >
Shut Down > Shut Down.
2.
If you are using a USB flash media device, insert it now.
3.
Turn on the computer.
4.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
press F10 when the monitor light turns green to access the utility.
5.
If you are using a diskette, insert it now.
6.
Click File > Replicated Setup > Save to Removable Media. Follow the instructions on the screen
to create the configuration diskette or USB flash media device.
7.
Turn off the computer to be configured and insert the configuration diskette or USB flash media
device.
8.
Turn on the computer to be configured.
9.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
10. Click File > Replicated Setup > Restore from Removable Media, and follow the instructions on
the screen.
11. Restart the computer when the configuration is complete.
Copying to Multiple Computers
CAUTION: A setup configuration is model-specific. File system corruption may result if source and
target computers are not the same model. For example, do not copy the setup configuration from a
dc7xxx PC to a dx7xxx PC.
This method takes a little longer to prepare the configuration diskette or USB flash media device, but
copying the configuration to target computers is significantly faster.
Replicating the Setup
33
NOTE: A bootable diskette is required for this procedure or to create a bootable USB flash media
device. If Windows XP is not available to use to create a bootable diskette, use the method for copying
to a single computer instead (see Copying to Single Computer on page 33).
1.
Create a bootable diskette or USB flash media device. See Supported USB Flash Media Device
on page 34 or Unsupported USB Flash Media Device on page 36.
CAUTION: Not all computers can be booted from a USB flash media device. If the default boot
order in the Computer Setup (F10) Utility lists the USB device before the hard drive, the computer
can be booted from a USB flash media device. Otherwise, a bootable diskette must be used.
2.
Select a setup configuration to copy. Turn off the computer. If you are in Windows, click Start >
Shut Down > Shut Down.
3.
If you are using a USB flash media device, insert it now.
4.
Turn on the computer.
5.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
press F10 when the monitor light turns green to access the utility.
6.
If you are using a diskette, insert it now.
7.
Click File > Replicated Setup > Save to Removable Media. Follow the instructions on the screen
to create the configuration diskette or USB flash media device.
8.
Download a BIOS utility for replicating setup (repset.exe) and copy it onto the configuration diskette
or USB flash media device. To obtain this utility, go to http://welcome.hp.com/country/us/en/
support.html and enter the model number of the computer.
9.
On the configuration diskette or USB flash media device, create an autoexec.bat file containing the
following command:
repset.exe
10. Turn off the computer to be configured. Insert the configuration diskette or USB flash media device
and turn the computer on. The configuration utility will run automatically.
11. Restart the computer when the configuration is complete.
Creating a Bootable Device
Supported USB Flash Media Device
Supported devices have a preinstalled image to simplify the process of making them bootable. All HP
or Compaq and most other USB flash media devices have this preinstalled image. If the USB flash media
device being used does not have this image, use the procedure later in this section (see Unsupported
USB Flash Media Device on page 36).
34
Chapter 4 Desktop Management
To create a bootable USB flash media device, you must have:
●
a supported USB flash media device
●
a bootable DOS diskette with the FDISK and SYS programs (If SYS is not available, FORMAT may
be used, but all existing files on the USB flash media device will be lost.)
●
a PC that is bootable from a USB flash media device
CAUTION: Some older PCs may not be bootable from a USB flash media device. If the default boot
order in the Computer Setup (F10) Utility lists the USB device before the hard drive, the computer can
be booted from a USB flash media device. Otherwise, a bootable diskette must be used.
1.
Turn off the computer.
2.
Insert the USB flash media device into one of the computer's USB ports and remove all other USB
storage devices except USB diskette drives.
3.
Insert a bootable DOS diskette with FDISK.COM and either SYS.COM or FORMAT.COM into a
diskette drive and turn on the computer to boot to the DOS diskette.
4.
Run FDISK from the A:\ prompt by typing FDISK and pressing Enter. If prompted, click Yes (Y) to
enable large disk support.
5.
Enter Choice [5] to display the drives in the system. The USB flash media device will be the drive
that closely matches the size of one of the drives listed. It will usually be the last drive in the list.
Note the letter of the drive.
USB flash media device drive: __________
CAUTION: If a drive does not match the USB flash media device, do not proceed. Data loss can
occur. Check all USB ports for additional storage devices. If any are found, remove them, reboot
the computer, and proceed from step 4. If none are found, either the system does not support the
USB flash media device or the USB flash media device is defective. DO NOT proceed in attempting
to make the USB flash media device bootable.
6.
Exit FDISK by pressing the Esc key to return to the A:\ prompt.
7.
If your bootable DOS diskette contains SYS.COM, go to step 8. Otherwise, go to step 9.
8.
At the A:\ prompt, enter SYS x: where x represents the drive letter noted above.
CAUTION:
Be sure that you have entered the correct drive letter for the USB flash media device.
After the system files have been transferred, SYS will return to the A:\ prompt. Go to step 13.
9.
Copy any files you want to keep from your USB flash media device to a temporary directory on
another drive (for example, the system's internal hard drive).
10. At the A:\ prompt, enter FORMAT /S X: where X represents the drive letter noted before.
CAUTION:
Be sure that you have entered the correct drive letter for the USB flash media device.
FORMAT will display one or more warnings and ask you each time whether you want to proceed.
Enter Y each time. FORMAT will format the USB flash media device, add the system files, and ask
for a Volume Label.
11. Press Enter for no label or enter one if desired.
Replicating the Setup
35
12. Copy any files you saved in step 9 back to your USB flash media device.
13. Remove the diskette and reboot the computer. The computer will boot to the USB flash media
device as drive C.
NOTE: The default boot order varies from computer to computer, and it can be changed in the
Computer Setup (F10) Utility.
If you have used a DOS version from Windows 9x, you may see a brief Windows logo screen. If
you do not want this screen, add a zero-length file named LOGO.SYS to the root directory of the
USB flash media device.
Return to Copying to Multiple Computers on page 33.
Unsupported USB Flash Media Device
To create a bootable USB flash media device, you must have:
●
a USB flash media device
●
a bootable DOS diskette with the FDISK and SYS programs (If SYS is not available, FORMAT may
be used, but all existing files on the USB flash media device will be lost.)
●
a PC that is bootable from a USB flash media device
CAUTION: Some older PCs may not be bootable from a USB flash media device. If the default boot
order in the Computer Setup (F10) Utility lists the USB device before the hard drive, the computer can
be booted from a USB flash media device. Otherwise, a bootable diskette must be used.
1.
If there are any PCI cards in the system that have SCSI, ATA RAID or SATA drives attached, turn
off the computer and unplug the power cord.
CAUTION:
The power cord MUST be unplugged.
2.
Open the computer and remove the PCI cards.
3.
Insert the USB flash media device into one of the computer's USB ports and remove all other USB
storage devices except USB diskette drives. Close the computer cover.
4.
Plug in the power cord and turn on the computer.
5.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
press F10 when the monitor light turns green to access the utility.
6.
Go to Advanced > PCI Devices to disable both the PATA and SATA controllers. When disabling
the SATA controller, note the IRQ to which the controller is assigned. You will need to reassign the
IRQ later. Exit setup, confirming the changes.
SATA IRQ: __________
36
7.
Insert a bootable DOS diskette with FDISK.COM and either SYS.COM or FORMAT.COM into a
diskette drive and turn on the computer to boot to the DOS diskette.
8.
Run FDISK and delete any existing partitions on the USB flash media device. Create a new partition
and mark it active. Exit FDISK by pressing the Esc key.
Chapter 4 Desktop Management
9.
If the system did not automatically restart when exiting FDISK, press Ctrl+Alt+Del to reboot to the
DOS diskette.
10. At the A:\ prompt, type FORMAT C: /S and press Enter. Format will format the USB flash media
device, add the system files, and ask for a Volume Label.
11. Press Enter for no label or enter one if desired.
12. Turn off the computer and unplug the power cord. Open the computer and re-install any PCI cards
that were previously removed. Close the computer cover.
13. Plug in the power cord, remove the diskette, and turn on the computer.
14. As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
15. Go to Advanced > PCI Devices and re-enable the PATA and SATA controllers that were disabled
in step 6. Put the SATA controller on its original IRQ.
16. Save the changes and exit. The computer will boot to the USB flash media device as drive C.
NOTE: The default boot order varies from computer to computer, and it can be changed in the
Computer Setup (F10) Utility. Refer to the Computer Setup (F10) Utility for instructions.
If you have used a DOS version from Windows 9x, you may see a brief Windows logo screen. If
you do not want this screen, add a zero-length file named LOGO.SYS to the root directory of the
USB flash media device.
Return to Copying to Multiple Computers on page 33.
Dual-State Power Button
With Advanced Configuration and Power Interface (ACPI) enabled, the power button can function either
as an on/off switch or as a standby button. The standby feature does not completely turn off power, but
instead causes the computer to enter a low-power standby state. This allows you to power down quickly
without closing applications and to return quickly to the same operational state without any data loss.
To change the power button’s configuration, complete the following steps:
1.
Left click on the Start Button, then select Control Panel > Power Options.
2.
In the Power Options Properties, select the Advanced tab.
3.
In the Power Button section, select Stand by.
After configuring the power button to function as a standby button, press the power button to put the
system in a very low power state (standby). Press the button again to quickly bring the system out of
standby to full power status. To completely turn off all power to the system, press and hold the power
button for four seconds.
CAUTION: Do not use the power button to turn off the computer unless the system is not responding;
turning off the power without operating system interaction could cause damage to or loss of data on the
hard drive.
Dual-State Power Button
37
HP Web Site Support
HP engineers rigorously test and debug software developed by HP and third-party suppliers, and
develop operating system specific support software, to ensure performance, compatibility, and reliability
for HP computers.
When making the transition to new or revised operating systems, it is important to implement the support
software designed for that operating system. If you plan to run a version of Microsoft Windows that is
different from the version included with the computer, you must install corresponding device drivers and
utilities to ensure that all features are supported and functioning properly.
HP has made the task of locating, accessing, evaluating, and installing the latest support software easier.
You can download the software from http://www.hp.com/support.
The Web site contains the latest device drivers, utilities, and flashable ROM images needed to run the
latest Microsoft Windows operating system on the HP computer.
Industry Standards
HP management solutions integrate with other systems management applications, and are based on
industry standards, such as:
●
Web-Based Enterprise Management (WBEM)
●
Windows Management Interface (WMI)
●
Wake on LAN Technology
●
ACPI
●
SMBIOS
●
Pre-boot Execution (PXE) support
Asset Tracking and Security
Asset tracking features incorporated into the computer provide key asset tracking data that can be
managed using HP Systems Insight Manager, HP Client Manager, HP Configuration Management
Solution, HP Client Configuration Manager, or other system management applications. Seamless,
automatic integration between asset tracking features and these products enables you to choose the
management tool that is best suited to the environment and to leverage the investment in existing tools.
HP also offers several solutions for controlling access to valuable components and information. HP
Embedded Security for ProtectTools, if installed, prevents unauthorized access to data and checks
system integrity and authenticates third-party users attempting system access. (For more information,
refer to the HP ProtectTools Security Manager Guide at http://www.hp.com.) Security features such as
HP Embedded Security for ProtectTools, the Smart Cover Sensor and the Smart Cover Lock, available
on some models, help to prevent unauthorized access to the internal components of the personal
computer. By disabling parallel, serial, or USB ports, or by disabling removable media boot capability,
you can protect valuable data assets. Memory Change and Smart Cover Sensor alerts can be
automatically forwarded to system management applications to deliver proactive notification of
tampering with a computer’s internal components.
NOTE: HP Embedded Security for ProtectTools, the Smart Cover Sensor, and the Smart Cover Lock
are available as options on some systems.
38
Chapter 4 Desktop Management
Use the following utilities to manage security settings on the HP computer:
●
Locally, using the Computer Setup Utilities. See the Computer Setup (F10) Utility Guide included
with the computer for additional information and instructions on using the Computer Setup Utilities.
Some computers also have HP BIOS Configuration for ProtectTools, which is a Windows-based
component of ProtectTools that allows administrators to configure BIOS security settings from
within the running OS.
●
Remotely, using HP Client Manager, HP Client Configuration Manager, or System Software
Manager. This software enables the secure, consistent deployment and control of security settings.
The following table and sections refer to managing security features of the computer locally through the
Computer Setup (F10) Utilities.
Table 4-1 Security Features Overview
Option
Description
Setup Password
Allows you to set and enable setup (administrator) password.
NOTE: If the setup password is set, it is required to change Computer Setup
options, flash the ROM, and make changes to certain plug and play settings
under Windows.
See the Troubleshooting Guide for more information.
Power-On Password
Allows you to set and enable power-on password. The power-on password
prompt appears after a power cycle. If the user does not enter the correct
power-on password, the unit will not boot.
NOTE: This password does not appear on warm boots, such as Ctrl+Alt
+Delete or Restart from Windows, unless enabled in Password Options,
below.
See the Troubleshooting Guide for more information.
Password Options
(This selection will appear only if a
power-on password is set.)
Allows you to specify whether the password is required for warm boot (Ctrl
+Alt+Del).
See the Troubleshooting Guide for more information.
Pre-Boot Authorization
Allows you to enable/disable the Smart Card to be used in place of the PowerOn Password.
Smart Cover (some models)
Allows you to:
●
Enable/disable the Cover Lock.
●
Enable/disable the Cover Removal Sensor.
NOTE: Notify User alerts the user that the sensor has detected that the
cover has been removed. Setup Password requires that the setup password
be entered to boot the computer if the sensor detects that the cover has been
removed.
Embedded Security
Allows you to:
●
Enable/disable the Embedded Security device.
●
Reset the device to Factory Settings.
This feature is supported on some models only. See the HP ProtectTools
Security Manager Guide at http://www.hp.com
Device Security
Enables/disables serial ports, parallel port, front USB ports, system audio,
network controllers (some models), and SCSI controllers (some models).
Asset Tracking and Security
39
Table 4-1 Security Features Overview (continued)
Option
Description
Network Service Boot
Enables/disables the computer’s ability to boot from an operating system
installed on a network server. (Feature available on NIC models only; the
network controller must be either a PCI expansion card or embedded on the
system board.)
System IDs
Allows you to set:
DriveLockSecurity (some models)
●
Asset tag (18-byte identifier) and ownership Tag (80-byte identifier
displayed during POST). See the Computer Setup (F10) Utility Guide
for more information.
●
Chassis serial number or Universal Unique Identifier (UUID) number.
The UUID can only be updated if the current chassis serial number is
invalid. (These ID numbers are normally set in the factory and are used
to uniquely identify the system.)
Allows you to assign or modify a master or user password for hard drives.
When this feature is enabled, the user is prompted to provide one of the
DriveLock passwords during POST. If neither is successfully entered, the
hard drive will remain inaccessible until one of the passwords is successfully
provided during a subsequent cold-boot sequence.
NOTE: This selection will only appear when at least one drive that supports
the DriveLock feature is attached to the system.
For more information about Computer Setup, see the Computer Setup (F10) Utility Guide.
Support for security features may vary depending on the specific computer configuration.
Password Security
The power-on password prevents unauthorized use of the computer by requiring entry of a password
to access applications or data each time the computer is turned on or restarted. The setup password
specifically prevents unauthorized access to Computer Setup, and can also be used as an override to
the power-on password. That is, when prompted for the power-on password, entering the setup
password instead will allow access to the computer.
A network-wide setup password can be established to enable the system administrator to log in to all
network systems to perform maintenance without having to know the power-on password, even if one
has been established.
Establishing a Setup Password Using Computer Setup
If the system is equipped with an embedded security device, refer to the HP ProtectTools Security
Manager Guide at http://www.hp.com. Establishing a setup password through Computer Setup prevents
reconfiguration of the computer (use of the Computer Setup (F10) utility) until the password is entered.
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
press F10 when the monitor light turns green to access the utility.
40
3.
Select Security, then select Setup Password and follow the instructions on the screen.
4.
Before exiting, click File > Save Changes and Exit.
Chapter 4 Desktop Management
Establishing a Power-On Password Using Computer Setup
Establishing a power-on password through Computer Setup prevents access to the computer when
power is turned on, unless the password is entered. When a power-on password is set, Computer Setup
presents Password Options under the Security menu. Password options include Password Prompt
on Warm Boot. When Password Prompt on Warm Boot is enabled, the password must also be
entered each time the computer is rebooted.
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
press F10 when the monitor light turns green to access the utility.
3.
Select Security, then Power-On Password and follow the instructions on the screen.
4.
Before exiting, click File > Save Changes and Exit.
Entering a Power-On Password
To enter a power-on password, complete the following steps:
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart the
Computer.
2.
When the key icon appears on the monitor, type the current password, then press Enter.
NOTE:
Type carefully; for security reasons, the characters you type do not appear on the screen.
If you enter the password incorrectly, a broken key icon appears. Try again. After three unsuccessful
tries, you must turn off the computer, then turn it on again before you can continue.
Entering a Setup Password
If the system is equipped with an embedded security device, refer to the HP ProtectTools Security
Manager Guide at http://www.hp.com.
If a setup password has been established on the computer, you will be prompted to enter it each time
you run Computer Setup.
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
press F10 when the monitor light turns green to access the utility.
3.
When the key icon appears on the monitor, type the setup password, then press Enter.
NOTE:
Type carefully; for security reasons, the characters you type do not appear on the screen.
If you enter the password incorrectly, a broken key icon appears. Try again. After three unsuccessful
tries, you must turn off the computer, then turn it on again before you can continue.
Asset Tracking and Security
41
Changing a Power-On or Setup Password
If the system is equipped with an embedded security device, refer to the HP ProtectTools Security
Manager Guide at http://www.hp.com.
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart the
Computer.
2.
To change the Power-On password, go to step 3.
To change the Setup password, as soon as the computer is turned on, press F10 when the monitor
light turns green to enter Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
press F10 when the monitor light turns green to access the utility.
3.
When the key icon appears, type the current password, a slash (/) or alternate delimiter character,
the new password, another slash (/) or alternate delimiter character, and the new password again
as shown: current password/new password/new password
NOTE: Type carefully; for security reasons, the characters you type do not appear on the screen.
4.
Press Enter.
The new password takes effect the next time you turn on the computer.
NOTE: Refer to the National Keyboard Delimiter Characters on page 43 for information about the
alternate delimiter characters. The power-on password and setup password may also be changed using
the Security options in Computer Setup.
Deleting a Power-On or Setup Password
If the system is equipped with an embedded security device, refer to the HP ProtectTools Security
Manager Guide at http://www.hp.com.
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart the
Computer.
2.
To delete the Power-On password, go to step 3.
To delete the Setup password, as soon as the computer is turned on, press F10 when the monitor
light turns green to enter Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
press F10 when the monitor light turns green to access the utility.
3.
When the key icon appears, type the current password followed by a slash (/) or alternate delimiter
character as shown: current password/
4.
Press Enter.
NOTE: Refer to National Keyboard Delimiter Characters on page 43 for information about the
alternate delimiter characters. The power-on password and setup password may also be changed
using the Security options in Computer Setup.
42
Chapter 4 Desktop Management
National Keyboard Delimiter Characters
Each keyboard is designed to meet country-specific requirements. The syntax and keys that you use to
change or delete the password depend on the keyboard that came with the computer.
National Keyboard Delimiter Characters
/
Arabic
-
Greek
/
Russian
=
Belgian
.
Hebrew
-
Slovakian
-
BHCSY*
-
Hungarian
-
Spanish
/
Brazilian
-
Italian
/
Swedish/Finnish
/
Chinese
/
Japanese
-
Swiss
-
Czech
/
Korean
/
Taiwanese
-
Danish
-
Latin American
/
Thai
!
French
-
Norwegian
.
Turkish
é
French Canadian
-
Polish
/
U.S. English
-
German
-
Portuguese
* For Bosnia-Herzegovina, Croatia, Slovenia, and
Yugoslavia
Clearing Passwords
If you forget the password, you cannot access the computer. Refer to the Troubleshooting Guide for
instructions on clearing passwords.
If the system is equipped with an embedded security device, refer to the HP ProtectTools Security
Manager Guide at http://www.hp.com.
DriveLock
DriveLock is an industry-standard security feature that prevents unauthorized access to the data on ATA
hard. DriveLock has been implemented as an extension to Computer Setup. It is only available when
hard drives that support the ATA Security command set are detected. DriveLock is intended for HP
customers for whom data security is the paramount concern. For such customers, the cost of the hard
drive and the loss of the data stored on it is inconsequential when compared with the damage that could
result from unauthorized access to its contents. In order to balance this level of security with the practical
need to accommodate a forgotten password, the HP implementation of DriveLock employs a twopassword security scheme. One password is intended to be set and used by a system administrator
while the other is typically set and used by the end-user. There is no "back-door" that can be used to
unlock the drive if both passwords are lost. Therefore, DriveLock is most safely used when the data
contained on the hard drive is replicated on a corporate information system or is regularly backed up.
In the event that both DriveLock passwords are lost, the hard drive is rendered unusable. For users who
do not fit the previously defined customer profile, this may be an unacceptable risk. For users who do
fit the customer profile, it may be a tolerable risk given the nature of the data stored on the hard drive.
Using DriveLock
When one or more hard drives that support the ATA Security command set are detected, the DriveLock
option appears under the Security menu in Computer Setup. The user is presented with options to set
Asset Tracking and Security
43
the master password or to enable DriveLock. A user password must be provided in order to enable
DriveLock. Since the initial configuration of DriveLock is typically performed by a system administrator,
a master password should be set first. HP encourages system administrators to set a master password
whether they plan to enable DriveLock or keep it disabled. This will give the administrator the ability to
modify DriveLock settings if the drive is locked in the future. Once the master password is set, the system
administrator may enable DriveLock or choose to keep it disabled.
If a locked hard drive is present, POST will require a password to unlock the device. If a power-on
password is set and it matches the device’s user password, POST will not prompt the user to re-enter
the password. Otherwise, the user will be prompted to enter a DriveLock password. On a cold boot,
either the master or the user password may be used. On a warm boot, enter the same password used
to unlock the drive during the preceding cold-boot. Users will have two attempts to enter a correct
password. On a cold boot, if neither attempt succeeds, POST will continue but the drive will remain
inaccessible. On a warm boot or restart from Windows, if neither attempt succeeds, POST will halt and
the user will be instructed to cycle power.
DriveLock Applications
The most practical use of the DriveLock security feature is in a corporate environment. The system
administrator would be responsible for configuring the hard drive which would involve, among other
things, setting the DriveLock master password and a temporary user password. In the event that the
user forgets the user password or the equipment is passed on to another employee, the master
password can always be used to reset the user password and regain access to the hard drive.
HP recommends that corporate system administrators who choose to enable DriveLock also establish
a corporate policy for setting and maintaining master passwords. This should be done to prevent a
situation where an employee intentionally or unintentionally sets both DriveLock passwords before
leaving the company. In such a scenario, the hard drive would be rendered unusable and require
replacement. Likewise, by not setting a master password, system administrators may find themselves
locked out of a hard drive and unable to perform routine checks for unauthorized software, other asset
control functions, and support.
For users with less stringent security requirements, HP does not recommend enabling DriveLock. Users
in this category include personal users or users who do not maintain sensitive data on their hard drives
as a common practice. For these users, the potential loss of a hard drive resulting from forgetting both
passwords is much greater than the value of the data DriveLock has been designed to protect. Access
to Computer Setup and DriveLock can be restricted through the Setup password. By specifying a Setup
password and not giving it to end users, system administrators are able to restrict users from enabling
DriveLock.
44
Chapter 4 Desktop Management
Smart Cover Sensor
CoverRemoval Sensor, available on some models, is a combination of hardware and software
technology that can alert you when the computer cover or side panel has been removed. There are
three levels of protection, as described in the following table.
Table 4-2 Smart Cover Sensor Protection Levels
Level
Setting
Description
Level 0
Disabled
Smart Cover Sensor is disabled (default).
Level 1
Notify User
When the computer is restarted, the screen displays a message
indicating that the computer cover or side panel has been removed.
Level 2
Setup Password
When the computer is restarted, the screen displays a message
indicating that the computer cover or side panel has been removed. You
must enter the setup password to continue.
NOTE: These settings can be changed using Computer Setup. For more information about Computer Setup,
see the Computer Setup (F10) Utility Guide.
Setting the Smart Cover Sensor Protection Level
To set the Smart Cover Sensor protection level, complete the following steps:
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
press F10 when the monitor light turns green to access the utility.
3.
Select Security > Smart Cover > Cover Removal Sensor, and select the desired security level.
4.
Before exiting, click File > Save Changes and Exit.
Smart Cover Lock
The Smart Cover Lock is a software-controllable cover lock featured on some HP computers. This lock
prevents unauthorized access to the internal components. Computers ship with the Smart Cover Lock
in the unlocked position.
CAUTION: For maximum cover lock security, be sure to establish a setup password. The setup
password prevents unauthorized access to the Computer Setup utility.
NOTE:
The Smart Cover Lock is available as an option on some systems.
Asset Tracking and Security
45
Locking the Smart Cover Lock
To activate and lock the Smart Cover Lock, complete the following steps:
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
press F10 when the monitor light turns green to access the utility.
3.
Select Security > Smart Cover > Cover Lock > Lock option.
4.
Before exiting, click File > Save Changes and Exit.
Unlocking the Smart Cover Lock
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
press F10 when the monitor light turns green to access the utility.
3.
Select Security > Smart Cover > Cover Lock > Unlock.
4.
Before exiting, click File > Save Changes and Exit.
Using the Smart Cover FailSafe Key
If you enable the Smart Cover Lock and cannot enter the password to disable the lock, you will need a
Smart Cover FailSafe Key to open the computer cover. You will need the key in any of the following
circumstances:
●
Power outage
●
Startup failure
●
PC component failure (such as processor or power supply)
●
Forgotten password
CAUTION: The Smart Cover FailSafe Key is a specialized tool available from HP. Be prepared; order
this key before you need oneat an authorized reseller or service provider.
To obtain the FailSafe Key, do any one of the following:
●
Contact an authorized HP reseller or service provider.
●
Call the appropriate number listed in the warranty.
For more information about using the Smart Cover FailSafe Key, consult the Hardware Reference
Guide.
46
Chapter 4 Desktop Management
Cable Lock Provision
The rear panel of the computer (some models) accommodates a cable lock so that the computer can
be physically secured to a work area.
For illustrated instructions, please see the Hardware Reference Guide.
Fingerprint Identification Technology
Eliminating the need to enter user passwords, HP Fingerprint Identification Technology tightens network
security, simplifies the login process, and reduces the costs associated with managing corporate
networks. Affordably priced, it is not just for high-tech, high-security organizations anymore.
NOTE:
Support for Fingerprint Identification Technology varies by model.
For more information, visit:
http://h18004.www1.hp.com/products/security/.
Fault Notification and Recovery
Fault Notification and Recovery features combine innovative hardware and software technology to
prevent the loss of critical data and minimize unplanned downtime.
If the computer is connected to a network managed by HP Client Manager, the computer sends a fault
notice to the network management application. With HP Client Manager Software, you can also remotely
schedule diagnostics to automatically run on all managed PCs and create a summary report of failed
tests.
Drive Protection System
The Drive Protection System (DPS) is a diagnostic tool built into the hard drives installed in some HP
computers. DPS is designed to help diagnose problems that might result in unwarranted hard drive
replacement.
When HP computers are built, each installed hard drive is tested using DPS, and a permanent record
of key information is written onto the drive. Each time DPS is run, test results are written to the hard
drive. The service provider can use this information to help diagnose conditions that caused you to run
the DPS software. Refer to the Troubleshooting Guide for instructions on using DPS.
Surge-Tolerant Power Supply
An integrated surge-tolerant power supply provides greater reliability when the computer is hit with an
unpredictable power surge. This power supply is rated to withstand a power surge of up to 2000 volts
without incurring any system downtime or data loss.
Thermal Sensor
The thermal sensor is a hardware and software feature that tracks the internal temperature of the
computer. This feature displays a warning message when the normal range is exceeded, which gives
you time to take action before internal components are damaged or data is lost.
Asset Tracking and Security
47
5
Serial and Parallel ATA Drive Guidelines
and Features
NOTE:
Serial ATA = SATA
Parallel ATA = PATA
SATA Hard Drives
Serial ATA Hard Drive Characteristics
Number of pins/conductors in data cable
7/7
Number of pins in power cable
15
Maximum data cable length
39.37 in (100 cm)
Data interface voltage differential
400-700 mV
Drive voltages
3.3 V, 5 V, 12 V
Jumpers for configuring drive
N/A
Data transfer rate
3.0 Gb/s
SATA connectors on the system board are color coded to make identification easier.
SATA Identification
Color
Port
Attachment Sequence
Primary channel, device 0
Dark blue
SATA 0
1
Primary channel, device 1
Light Blue
SATA 4
4
Secondary channel, device 0
White
SATA 1
2
Secondary channel, device 1
Orange
SATA 5
3
NOTE: If there is an error on the application of the attach rules, a POST error message may be
displayed.
48
Chapter 5 Serial and Parallel ATA Drive Guidelines and Features
SATA Hard Drive Cables
SATA Data Cable
Always use an HP approved SATA 3.0 Gb/s cable as it is fully backwards compatible with the SATA 1.5
Gb/s drives.
Current HP desktop products ship with SATA 3.0 Gb/s hard drives.
SATA data cables are susceptible to damage if overflexed. Never crease a SATA data cable and never
bend it tighter than a 30 mm (1.18 in) radius.
The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive. As shown
in the table, each cable has 3 grounds, and 4 transmit/receive pins.
Pin Number
Usage
Device Plug
Host Plug
P1
Ground
Ground
Ground
P2
A+
Transmit data
Receive data
P3
A-
Transmit data
Receive data
P4
Ground
Ground
Ground
P5
B-
Receive data
Transmit data
P6
B+
Receive data
Transmit data
P7
Ground
Ground
Ground
P2 and P3 differential signal pair
P5 and P6 differential signal pair
SATA Power Cable
Pin
Usage
Notes
Pin
Usage
Notes
P1
V3.3
3.3 V power
P9
V5
5 V power
P2
V3.3
3.3 V power
P10
Ground
P3
V3.3
3.3 V power
P11
Ground
P4
Ground
P12
Ground
P5
Ground
P13
V12
12 V power
P6
Ground
P14
V12
12 V power
P7
V5
5 V power
P15
V12
12 V power
P8
V5
5 V power
SATA Hard Drive Cables
49
PATA Device Information
The USDT model is the only product that supports a PATA optical drive. No PATA drives are supported
on any other model.
ATA SMART Drives
The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal
Computers have built-in drive failure prediction that warns the user or network administrator of an
impending failure or crash of the hard drive. The SMART drive tracks fault prediction and failure
indication parameters such as reallocated sector count, spin retry count, and calibration retry count. If
the drive determines that a failure is imminent, it generates a fault alert.
Hard Drive Capacities
The combination of the file system and the operating system used in the computer determines the
maximum usable size of a drive partition. A drive partition is the largest segment of a drive that may be
properly accessed by the operating system. A single hard drive may therefore be subdivided into a
number of unique drive partitions in order to make use of all of its space.
Because of the differences in the way that drive sizes are calculated, the size reported by the operating
system may differ from that marked on the hard drive or listed in the computer specification. Drive size
calculations by drive manufacturers are bytes to the base 10 while calculations by Microsoft are bytes
to the base 2.
Drive/Partition Capacity Limits
Maximum Size
50
File System
Controller Type
Operating System
Partition
Drive
FAT 32
ATA
Windows 2000/XP/Vista
32 GB
2 TB
NTFS
ATA
Windows 2000/XP/Vista
2 TB
2 TB
Chapter 5 Serial and Parallel ATA Drive Guidelines and Features
6
Identifying the Chassis, Routine Care,
and Disassembly Preparation
This chapter provides general service information for the computer. Adherence to the procedures and
precautions described in this chapter is essential for proper service.
CAUTION: When the computer is plugged into an AC power source, voltage is always applied to the
system board. You must disconnect the power cord from the power source before opening the computer
to prevent system board or component damage.
Chassis Designations
Microtower (MT)
Chassis Designations
51
Small Form Factor (SFF)
52
Chapter 6 Identifying the Chassis, Routine Care, and Disassembly Preparation
Electrostatic Discharge Information
A sudden discharge of static electricity from your finger or other conductor can destroy static-sensitive
devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic
device exposed to electrostatic discharge (ESD) may not appear to be affected at all and can work
perfectly throughout a normal cycle. The device may function normally for a while, but it has been
degraded in the internal layers, reducing its life expectancy.
Networks built into many integrated circuits provide some protection, but in many cases, the discharge
contains enough power to alter device parameters or melt silicon junctions.
Generating Static
The following table shows that:
●
Different activities generate different amounts of static electricity.
●
Static electricity increases as humidity decreases.
Relative Humidity
Event
55%
40%
10%
Walking across carpet
7,500 V
15,000 V
35,000 V
Walking across vinyl floor
3,000 V
5,000 V
12,000 V
Motions of bench worker
400 V
800 V
6,000 V
Removing DIPs from plastic tube
400 V
700 V
2,000 V
Removing DIPs from vinyl tray
2,000 V
4,000 V
11,500 V
Removing DIPs from Styrofoam
3,500 V
5,000 V
14,500 V
Removing bubble pack from PCB
7,000 V
20,000 V
26,500 V
Packing PCBs in foam-lined box
5,000 V
11,000 V
21,000 V
These are then multi-packaged inside plastic tubes, trays, or Styrofoam.
NOTE:
700 volts can degrade a product.
Preventing Electrostatic Damage to Equipment
Many electronic components are sensitive to ESD. Circuitry design and structure determine the degree
of sensitivity. The following packaging and grounding precautions are necessary to prevent damage to
electric components and accessories.
●
To avoid hand contact, transport products in static-safe containers such as tubes, bags, or boxes.
●
Protect all electrostatic parts and assemblies with conductive or approved containers or packaging.
●
Keep electrostatic sensitive parts in their containers until they arrive at static-free stations.
●
Place items on a grounded surface before removing them from their container.
●
Always be properly grounded when touching a sensitive component or assembly.
Electrostatic Discharge Information
53
●
Avoid contact with pins, leads, or circuitry.
●
Place reusable electrostatic-sensitive parts from assemblies in protective packaging or conductive
foam.
Personal Grounding Methods and Equipment
Use the following equipment to prevent static electricity damage to equipment:
●
Wrist straps are flexible straps with a maximum of one-megohm ± 10% resistance in the ground
cords. To provide proper ground, a strap must be worn snug against bare skin. The ground cord
must be connected and fit snugly into the banana plug connector on the grounding mat or
workstation.
●
Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible
with most types of shoes or boots. On conductive floors or dissipative floor mats, use them on both
feet with a maximum of one-megohm ± 10% resistance between the operator and ground.
Static Shielding Protection Levels
Method
Voltage
Antistatic plastic
1,500
Carbon-loaded plastic
7,500
Metallized laminate
15,000
Grounding the Work Area
To prevent static damage at the work area, use the following precautions:
●
Cover the work surface with approved static-dissipative material. Provide a wrist strap connected
to the work surface and properly grounded tools and equipment.
●
Use static-dissipative mats, foot straps, or air ionizers to give added protection.
●
Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate.
Handle them only at static-free work areas.
●
Turn off power and input signals before inserting and removing connectors or test equipment.
●
Use fixtures made of static-safe materials when fixtures must directly contact dissipative surfaces.
●
Keep work area free of nonconductive materials such as ordinary plastic assembly aids and
Styrofoam.
●
Use field service tools, such as cutters, screwdrivers, and vacuums, that are conductive.
Recommended Materials and Equipment
Materials and equipment that are recommended for use in preventing static electricity include:
54
●
Antistatic tape
●
Antistatic smocks, aprons, or sleeve protectors
●
Conductive bins and other assembly or soldering aids
Chapter 6 Identifying the Chassis, Routine Care, and Disassembly Preparation
●
Conductive foam
●
Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance
●
Static-dissipative table or floor mats with hard tie to ground
●
Field service kits
●
Static awareness labels
●
Wrist straps and footwear straps providing one-megohm +/- 10% resistance
●
Material handling packages
●
Conductive plastic bags
●
Conductive plastic tubes
●
Conductive tote boxes
●
Opaque shielding bags
●
Transparent metallized shielding bags
●
Transparent shielding tubes
Operating Guidelines
To prevent overheating and to help prolong the life of the computer:
●
Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.
●
Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all vented
sides of the computer and above the monitor to permit the required airflow.
●
Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the
keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also
restricts airflow.
●
Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign
matter can block the vents and limit the airflow. Be sure to unplug the computer before cleaning
the air vents.
●
Never operate the computer with the cover or side panel removed.
●
Do not stack computers on top of each other or place computers so near each other that they are
subject to each other’s re-circulated or preheated air.
●
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must
be provided on the enclosure, and the same operating guidelines listed above will still apply.
●
Keep liquids away from the computer and keyboard.
●
Never cover the ventilation slots on the monitor with any type of material.
●
Install or enable power management functions of the operating system or other software, including
sleep states.
Operating Guidelines
55
Routine Care
General Cleaning Safety Precautions
1.
Never use solvents or flammable solutions to clean the computer.
2.
Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and then
use the cloth on the component.
3.
Always unplug the computer when cleaning with liquids or damp cloths.
4.
Always unplug the computer before cleaning the keyboard, mouse, or air vents.
5.
Disconnect the keyboard before cleaning it.
6.
Wear safety glasses equipped with side shields when cleaning the keyboard.
Cleaning the Computer Case
Follow all safety precautions in General Cleaning Safety Precautions on page 56 before cleaning the
computer.
To clean the computer case, follow the procedures described below:
●
To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.
●
For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping it with a
cloth or swab dampened with clear water.
●
For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed as the alcohol will
evaporate quickly and not leave a residue.
●
After cleaning, always wipe the unit with a clean, lint-free cloth.
●
Occasionally clean the air vents on the computer. Lint and other foreign matter can block the vents
and limit the airflow.
Cleaning the Keyboard
Follow all safety precautions in General Cleaning Safety Precautions on page 56 before cleaning the
keyboard.
To clean the tops of the keys or the keyboard body, follow the procedures described in Cleaning the
Computer Case on page 56.
When cleaning debris from under the keys, review all rules in General Cleaning Safety Precautions
on page 56 before following these procedures:
CAUTION: Use safety glasses equipped with side shields before attempting to clean debris from under
the keys.
56
●
Visible debris underneath or between the keys may be removed by vacuuming or shaking.
●
Canned, pressurized air may be used to clean debris from under the keys. Caution should be used
as too much air pressure can dislodge lubricants applied under the wide keys.
Chapter 6 Identifying the Chassis, Routine Care, and Disassembly Preparation
●
If you remove a key, use a specially designed key puller to prevent damage to the keys. This tool
is available through many electronic supply outlets.
CAUTION: Never remove a wide leveled key (like the space bar) from the keyboard. If these keys
are improperly removed or installed, the keyboard may not function properly.
●
Cleaning under a key may be done with a swab moistened with isopropyl alcohol and squeezed
out. Be careful not to wipe away lubricants necessary for proper key functions. Use tweezers to
remove any fibers or dirt in confined areas. Allow the parts to air dry before reassembly.
Cleaning the Monitor
●
Wipe the monitor screen with a clean cloth moistened with water or with a towelette designed for
cleaning monitors. Do not use sprays or aerosols directly on the screen; the liquid may seep into
the housing and damage a component. Never use solvents or flammable liquids on the monitor.
●
To clean the monitor body follow the procedures in Cleaning the Computer Case on page 56.
Cleaning the Mouse
Before cleaning the mouse, ensure that the power to the computer is turned off.
●
Clean the mouse ball by first removing the retaining plate and the ball from the housing. Pull out
any debris from the ball socket and wipe the ball with a clean, dry cloth before reassembly.
●
To clean the mouse body, follow the procedures in Cleaning the Computer Case on page 56.
Service Considerations
Listed below are some of the considerations that you should keep in mind during the disassembly and
assembly of the computer.
Power Supply Fan
The power supply fan is a variable-speed fan based on the temperature in the power supply.
CAUTION: The cooling fan is always on when the computer is in the “On” mode. The cooling fan is
off when the computer is in “Standby,” “Suspend,” or “Off” modes.
You must disconnect the power cord from the power source before opening the computer to prevent
system board or component damage.
Tools and Software Requirements
To service the computer, you need the following:
●
Torx T-15 screwdriver (HP screwdriver with bits, PN 161946-001)
●
Torx T-15 screwdriver with small diameter shank (for certain front bezel removal)
●
Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver)
●
Phillips #2 screwdriver
Service Considerations
57
●
Diagnostics software
●
HP tamper-resistant T-15 wrench (Smart Cover FailSafe Key, PN 166527-001) or HP tamperresistant bits (Smart Cover FailSafe Key, PN 166527-002)
Screws
The screws used in the computer are not interchangeable. They may have standard or metric threads
and may be of different lengths. If an incorrect screw is used during the reassembly process, it can
damage the unit. HP strongly recommends that all screws removed during disassembly be kept with
the part that was removed, then returned to their proper locations.
CAUTION: Metric screws have a black finish. U.S. screws have a silver finish and are used on hard
drives only.
CAUTION: As each subassembly is removed from the computer, it should be placed away from the
work area to prevent damage.
Cables and Connectors
Most cables used throughout the unit are flat, flexible cables. These cables must be handled with care
to avoid damage. Apply only the tension required to seat or unseat the cables during insertion or removal
from the connector. Handle cables by the connector whenever possible. In all cases, avoid bending or
twisting the cables, and ensure that the cables are routed in such a way that they cannot be caught or
snagged by parts being removed or replaced.
CAUTION: When servicing this computer, ensure that cables are placed in their proper location during
the reassembly process. Improper cable placement can damage the computer.
Hard Drives
Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This
applies to failed drives as well as replacement spares.
58
●
If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective
packaging and label the package “Fragile: Handle With Care.”
●
Do not remove hard drives from the shipping package for storage. Keep hard drives in their
protective packaging until they are actually mounted in the CPU.
●
Avoid dropping drives from any height onto any surface.
●
If you are inserting or removing a hard drive, turn off the computer. Do not remove a hard drive
while the computer is on or in standby mode.
●
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive,
avoid touching the connector. For more information about preventing electrostatic damage, refer
to Electrostatic Discharge Information on page 53
●
Do not use excessive force when inserting a drive.
●
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
Chapter 6 Identifying the Chassis, Routine Care, and Disassembly Preparation
Lithium Coin Cell Battery
The battery that comes with the computer provides power to the real-time clock and has a minimum
lifetime of about three years.
See the appropriate removal and replacement chapter for the chassis you are working on in this guide
for instructions on the replacement procedures.
WARNING! This computer contains a lithium battery. There is a risk of fire and chemical burn if the
battery is handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose in
water or fire, or expose it to temperatures higher than 140ºF (60ºC). Do not attempt to recharge the
battery.
NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the general
household waste. In order to forward them to recycling or proper disposal, please use the public
collection system or return them to HP, their authorized partners, or their agents.
Service Considerations
59
7
Removal and Replacement Procedures
Microtower (MT) Chassis
Adherence to the procedures and precautions described in this chapter is essential for proper service.
After completing all necessary removal and replacement procedures, run the Diagnostics utility to verify
that all components operate properly.
NOTE:
Not all features listed in this guide are available on all computers.
Serial Number Location
Each computer has a unique serial number and product ID number that are located on the top cover of
the computer. Keep these numbers available for use when contacting customer service for assistance.
60
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Preparation for Disassembly
See Identifying the Chassis, Routine Care, and Disassembly Preparation on page 51 for initial safety
procedures.
1.
Remove/disengage any security devices that prohibit opening the computer (External Security
Devices on page 62).
2.
Close any open software applications.
3.
Exit the operating system.
4.
Remove any diskette, compact disc, or media card from the computer.
5.
Turn off the computer and any peripheral devices that are connected to it.
CAUTION: Turn off the computer before disconnecting any cables.
Regardless of the power-on state, voltage is always present on the system board as long as the
system is plugged into an active AC outlet. In some systems the cooling fan is on even when the
computer is in the “Standby,” or “Suspend” modes. The power cord should always be disconnected
before servicing a unit.
6.
Disconnect the power cord from the electrical outlet and then from the computer.
7.
Disconnect all peripheral device cables from the computer.
8.
Lay the computer down on its side to achieve a safe working position.
NOTE: During disassembly, label each cable as you remove it, noting its position and routing.
Keep all screws with the units removed.
CAUTION: The screws used in the computer are of different thread sizes and lengths; using the wrong
screw in an application may damage the unit.
Preparation for Disassembly
61
External Security Devices
The following security devices are used to prevent unauthorized access to the internal components of
the computer and/or secure the computer to a fixed object.
Cable Lock
Padlock
62
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
HP Business PC Security Lock
1.
Fasten the security cable by looping it around a stationary object.
2.
Thread the keyboard and mouse cables through the lock.
External Security Devices
63
64
3.
Screw the lock to the chassis using the screw provided.
4.
Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the
lock. Use the key provided to disengage the lock.
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Front Bezel Security
The front bezel can be locked in place by installing a security screw provided by HP.
The security screw is located on the fan duct inside the chassis. To lock the front bezel, remove the
security screw from the fan duct (1) and install it through the chassis frame into the front bezel (2).
External Security Devices
65
Computer Access Panel
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
CAUTION: Before removing the computer access panel, ensure that the computer is turned off
and that the power cord is disconnected from the electrical outlet.
2.
Loosen the captive thumbscrew (1) that secures the access panel to the computer chassis.
3.
Slide the access panel back (2) about 1.3 cm (1/2 inch), then lift it off the unit.
To install the access panel, reverse the removal procedure.
66
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Front Bezel
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Press outward on the two latches on the right side of the bezel and the single latch on the left side
of the bezel (1) to release the bottom of the bezel, then swing the bottom of the bezel away from
the chassis (2) to release the top of the bezel.
To reinstall the front bezel, reverse the removal procedure.
Front Bezel
67
Cable Management
Always follow good cable management practices when working inside the computer.
●
Keep cables away from major heat sources like the heatsink.
●
Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like these
are not designed to take excessive pressure on them.
●
Keep cables clear of sliding or moveable parts to prevent them from being cut or crimped when
the parts are moved.
●
When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the
wires.
●
Some flat ribbon cables come prefolded. Never change the folds on these cables.
●
Do not bend any cable sharply. A sharp bend can break the internal wires.
●
Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
●
Never crease a SATA data cable.
●
Do not rely on components like the drive cage, power supply, or computer cover to push cables
down into the chassis. Always position the cables to lay properly by themselves.
When removing the power supply power cables from the P1 or P3 connectors on the system board,
always follow these steps:
1.
Squeeze on the top of the retaining latch attached to the cable end of the connector (1).
2.
Grasp the cable end of the connector and pull it straight up (2).
CAUTION: Always pull the connector - NEVER pull on the cable. Pulling on the cable could
damage the cable and result in a failed power supply.
68
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Cable Connections
System board connectors are color-coded to make it easier to find the proper connection.
System Board Connections
System Board Connector, Name, and Connector Color
Description
P1, PWR, black
Power supply, 24-pin
P3, PWRCPU, black
Power supply, 4-pin
P10, FLOPPY, black
Diskette drive
P8, CPU FAN, white
Heatsink fan
P9, CHASSIS FAN, brown or red
Chassis fan
P5, PB/LED, black
Front power button/LED
P24, FRNT USB, Yellow
Front I/O USB cable
P23, FRNT I/O, black
Front I/O audio
P6, SPKR
Internal speaker
P150, MEDIA CARD
Media card reader
P11, REAR FAN, red/maroon
Rear fan
P12, FRONT_AUD, white
Front audio
Power Supply Cable Connections
Power Supply Connector ID
Description
P1
Main power
P3
CPU power
P4
1st Hard drive, SATA0
P5
2nd HDD
P6
PATA/Zip/Media card reader
P8
Diskette drive
P9
1st ODD or 2nd HDD if no ODD present, SATA1
P10
2nd ODD
P11
3rd ODD
Cable Management
69
Memory
The computer comes with double data rate 2 synchronous dynamic random access memory (DDR2SDRAM) dual inline memory modules (DIMMs).
The memory sockets on the system board can be populated with up to four industry-standard DIMMs.
These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 8 GB of memory configured in a highperforming dual channel mode.
For proper system operation, the DDR2-SDRAM DIMMs must be:
●
industry-standard 240-pin
●
unbuffered, PC2-5300 667 MHz-compliant or PC2-6400 800 MHz-compliant
●
1.8 volt DDR2-SDRAM DIMMs
The DDR2-SDRAM DIMMs must also:
●
support CAS latency 5 DDR2 667 Mhz (5-5-5 timing), CAS latency 5 DDR2 800 Mhz (5-5-5 timing),
and CAS latency 6 DDR2 800 Mhz (6-6-6 timing)
●
contain the mandatory JEDEC SPD information
In addition, the computer supports:
●
512Mbit and 1Gbit non-ECC memory technologies
●
single-sided and double-sided DIMMs
●
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
supported
NOTE:
The system will not operate properly if you install unsupported DIMMs.
There are four DIMM sockets on the system board, with two sockets per channel. The sockets are
labeled XMM1, XMM2, XMM3, and XMM4. Sockets XMM1 and XMM2 operate in memory channel A.
Sockets XMM3 and XMM4 operate in memory channel B.
70
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Item
Description
Socket Color
1
DIMM socket XMM1, Channel A
(populate first)
Black
2
DIMM socket XMM2, Channel A
White
3
DIMM socket XMM3, Channel B
(populate second)
Black
4
DIMM socket XMM4, Channel B
White
NOTE:
A DIMM must occupy the XMM1 socket.
The system will automatically operate in single channel mode, dual channel mode, or flex mode,
depending on how the DIMMs are installed.
●
The system will operate in single channel mode if the DIMM sockets are populated in one channel
only.
●
The system will operate in a higher-performing dual channel mode if the total memory capacity of
the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B. The
technology and device width can vary between the channels. For example, if Channel A is
populated with two 512MB DIMMs and Channel B is populated with one 1GB DIMM, the system
will operate in dual channel mode.
●
The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is not
equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel populated
with the least amount of memory describes the total amount of memory assigned to dual channel
and the remainder is assigned to single channel. For optimal speed, the channels should be
balanced so that the largest amount of memory is spread between the two channels. If one channel
will have more memory than the other, the larger amount should be assigned to Channel A. For
example, if you are populating the sockets with one 1GB DIMM, and three 512MB DIMMs, Channel
A should be populated with the 1GB DIMM and one 512MB DIMM, and Channel B should be
populated with the two 512MB DIMMs. With this configuration, 2GB will run as dual channel and
512MB will run as single channel.
●
In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
CAUTION: The memory module sockets have gold metal contacts. When upgrading the memory, it
is important to use memory modules with gold metal contacts to prevent corrosion and/or oxidation
resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object. Refer to Electrostatic Discharge Information on page 53 for more information.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system
components to cool before touching.
Memory
71
3.
Open both latches of the memory module socket (1), and insert the memory module into the socket
(2).
NOTE: A memory module can be installed in only one way. Match the notch on the module with
the tab on the memory socket. A DIMM must occupy the black XMM1 socket.
NOTE: For maximum performance, populate the sockets so that the memory capacity is spread
as equally as possible between Channel A and Channel B.
4.
Push the DIMM module down firmly into the socket, ensuring that the module is fully inserted and
properly seated. The DIMM must be pushed all the way down into the socket and sit evenly in the
socket to avoid memory corruption. Make sure the latches are in the closed position (3).
5.
Repeat steps 3 and 4 for any additional modules that you want to install.
NOTE:
The computer automatically recognizes the additional memory when turned on.
To reassemble the computer, reverse the removal procedure.
72
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Expansion Cards
The computer has one standard PCI expansion slot that can accommodate an expansion card up to
17.46 cm (6.875 inches) in length. The computer also has two PCI Express x1 expansion slots and one
PCI Express x16 expansion slot.
Item
Description
1
PCI Express x1 expansion slot
2
PCI Express x1 expansion slot
3
PCI expansion slot
4
PCI Express x16 expansion slot
NOTE: You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16
expansion slot.
To remove, replace, or add an expansion card:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Locate the correct vacant expansion socket on the system board and the corresponding expansion
slot on the back of the computer chassis.
Expansion Cards
73
4.
On the rear of the computer, a slot cover lock secures the expansion card brackets and expansion
slot covers in place. Lift up on the tab at the top of the lock and rotate the lock open.
5.
Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
NOTE: Before removing an installed expansion card, disconnect any cables that may be attached
to the expansion card.
a.
74
If you are installing an expansion card in a vacant socket, remove the appropriate expansion
slot cover on the back of the chassis. Pull the slot cover straight up then away from the inside
of the chassis.
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
b.
If you are removing a standard PCI card, hold the card at each end, and carefully rock it back
and forth until the connectors pull free from the socket. Pull the expansion card straight up
from the socket (1) then away from the inside of the chassis (2) to release it from the chassis
frame. Be sure not to scrape the card against the other components.
c.
If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion
socket away from the card and carefully rock the card back and forth until the connectors pull
free from the socket. Pull the expansion card straight up from the socket then away from the
inside of the chassis to release it from the chassis frame. Be sure not to scrape the card against
the other components.
6.
Store the removed card in anti-static packaging.
7.
If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
Expansion Cards
75
CAUTION: After removing an expansion card, you must replace it with a new card or expansion
slot cover for proper cooling of internal components during operation.
8.
To install a new expansion card, hold the card just above the expansion socket on the system
board then move the card toward the rear of the chassis (1) so that the bracket on the card is
aligned with the open slot on the rear of the chassis. Press the card straight down into the expansion
socket on the system board (2).
NOTE: When installing an expansion card, press firmly on the card so that the whole connector
seats properly in the expansion card slot.
9.
Rotate the slot cover lock to the closed position, ensuring that it snaps securely in place.
10. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
11. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide for
instructions on using Computer Setup.
76
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Drives
When installing additional drives, follow these guidelines:
●
The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA
connector on the system board labeled SATA0.
●
Connect the first SATA optical drive to the white SATA connector on the system board labeled
SATA1.
●
Always populate the dark blue SATA0 and white SATA1 connectors before the light blue SATA4
and orange SATA5 connectors.
●
Connect a second SATA optical drive to the orange SATA5 connector.
●
Connect additional SATA hard drives to the next available (unpopulated) SATA connector on the
system board in the following order: SATA0, SATA1, SATA5, SATA4.
●
Connect a diskette drive to the connector labeled FLOPPY.
●
Connect a media card reader to the USB connector labeled MEDIA.
●
The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.
●
You may install either a third-height or a half-height drive into a half-height bay.
●
You must install guide screws to ensure the drive will line up correctly in the drive cage and lock
in place. HP has provided extra guide screws installed on the interior of the chassis frame next to
the power supply. The hard drive uses 6-32 isolation mounting guide screws. All other drives use
M3 metric screws. The HP-supplied metric guide screws (1) are black. The HP-supplied 6-32
isolation mounting guide screws (2) are silver and blue.
Drives
77
CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the computer,
and unplug the power cord. Do not remove a drive while the computer is on or in standby mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid
touching the connector. For more information about preventing electrostatic damage, refer to
Electrostatic Discharge Information on page 53.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and label
the package “Fragile: Handle With Care.”
78
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.
No.
System Board Connector
System Board Label
Color
1
SATA0
SATA0
dark blue
2
SATA1
SATA1
white
3
SATA4
SATA4
light blue
4
SATA5
SATA5
orange
5
Diskette Drive
FLOPPY
black
6
Media Card Reader
MEDIA
black
Drives
79
Drive Positions
1
Two 5.25-inch external drive bays for optional drives (optical drives shown)
2
One 3.5-inch external drive bay for optional drive (media card reader shown)
3
Primary 3.5-inch internal hard drive bay
4
Secondary 3.5-inch internal hard drive bay for optional hard drive
To verify the type and size of the storage devices installed in the computer, run Computer Setup. Refer
to the Computer Setup (F10) Utility Guide for more information.
80
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Removing an External 5.25-inch or 3.5-inch Drive
CAUTION:
computer.
All removable media should be taken out of a drive before removing the drive from the
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Remove the front bezel (Front Bezel on page 67).
4.
Disconnect the drive cables, as indicated in the following illustrations.
a.
If you are removing a 5.25-inch optical drive, disconnect the power cable (1) and data cable
(2) from the back of the drive.
b.
If you are removing a diskette drive, disconnect the data cable (1) and power cable (2) from
the back of the drive.
Drives
81
c.
82
If you are removing a media card reader, disconnect the USB cable from the system board.
5.
A latch drive bracket with release tabs secures the drives in the drive bay. Lift the release tab on
the latch drive bracket (1) for the drive you want to remove, then slide the drive from its drive bay
(2).
6.
Remove the four guide screws (two on each side) from the old drive. You will need these screws
to install a new drive.
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Installing an External 5.25-inch or 3.5-inch Drive
NOTE:
1.
The system does not support Parallel ATA (PATA) optical drives.
Install the four guide screws (two on each side) that were removed from the old drive into the new
drive. The screws help guide the drive into its proper position in the bay. Extra guide screws are
provided on the interior of the chassis frame next to the power supply if needed.
NOTE: Optical drives, diskette drives, and media card readers use M3 metric guide screws. Four
extra metric guide screws are provided on the interior of the chassis frame next to the power supply.
The HP-supplied metric screws are black. Refer to Drives on page 77 for an illustration of the extra
M3 metric guide screws location.
If you are replacing a drive, transfer the guides screws from the old drive to the new one.
2.
If necessary, remove the appropriate drive bezel blank from the front bezel by pressing the two
retaining tabs towards the outer left edge of the bezel (1) and pull the bezel blank inwards to remove
it (2).
Drives
83
3.
Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until
the drive snaps into place.
4.
Connect the power and data cables to the drive as indicated in the following illustrations.
a.
If you are installing an optical drive, connect the power cable (1) and data cable (2) to the back
of the drive.
CAUTION: Never crease or bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
A sharp bend can break the internal wires.
84
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
b.
5.
If you are installing a diskette drive, connect the data cable (1) and power cable (2) to the back
of the drive.
If installing a new drive, connect the opposite end of the data cable to the appropriate system board
connector.
NOTE: If you are installing a SATA optical drive, connect the first optical drive to the white SATA
connector on the system board labeled SATA1. Connect a second optical drive to the orange SATA
connector labeled SATA5.
If you are installing a diskette drive, connect it to the connector on the system board labeled
FLOPPY.
If installing a media card reader, connect the USB cable from the media card reader to the USB
connector on the system board labeled MEDIA.
Refer to System Board Drive Connections on page 79 for an illustration of the system board drive
connectors.
Drives
85
Removing an Internal 3.5-inch Hard Drive
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive. Also, if you are replacing the primary hard drive,
make sure you have created a Recovery Disc Set to restore the operating system, software drivers, and
any software applications that were preinstalled on the computer. If you do not have this CD set,
select Start > HP Backup and Recovery and create it now.
86
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Remove the front bezel (Front Bezel on page 67).
4.
Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
5.
Release the drive by pulling the release tab away from the drive (1) and sliding the drive out of the
bay (2).
6.
Remove the four guide screws (two on each side) from the old drive. You will need these screws
to install a new drive.
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Installing an Internal 3.5-inch Hard Drive
NOTE:
1.
The system does not support Parallel ATA (PATA) hard drives
Install the four guide screws (two on each side) that were removed from the old drive into the new
drive. The screws help guide the drive into its proper position in the bay. Extra guide screws are
provided on the interior of the chassis frame next to the power supply.
NOTE: The hard drive uses 6-32 isolation mounting guide screws. Four extra guide screws are
installed on the interior of the chassis frame next to the power supply. The HP-supplied isolation
mounting guide screws are silver and blue. Refer to Installing and Removing Drives
on page 133 for an illustration of the extra 6-32 isolation mounting guide screws location.
If you are replacing a drive, transfer the guides screws from the old drive to the new one.
2.
Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until
the drive snaps into place. The upper bay is for the primary hard drive. The bottom bay is for an
optional secondary hard drive.
Drives
87
3.
Connect the power cable (1) and data cable (2) to the back of the hard drive.
NOTE: If you are installing a primary hard drive, use the power connector labeled P4. If you are
installing a secondary hard drive, use the power connector labeled P3.
CAUTION: Never crease or bend a SATA data cable tighter than a 30 mm (1.18 in) radius. A
sharp bend can break the internal wires.
4.
If installing a new drive, connect the opposite end of the data cable to the appropriate system board
connector.
NOTE: If your system has only one SATA hard drive, you must connect the hard drive data cable
to the dark blue connector labeled SATA0 to avoid any hard drive performance problems. If you
are adding a second hard drive, connect the data cable to the next available (unpopulated) SATA
connector on the system board in the following order: SATA0, SATA1, SATA5, SATA4.
5.
Route the power and data cables in their cable retainers.
6.
Replace the front bezel and computer access panel.
7.
Reconnect the power cord and any external devices, then turn on the computer.
8.
Lock any security devices that were disengaged when the access panel was removed.
NOTE: If you are replacing the primary hard drive, use the Recovery Disc Set to restore the operating
system, software drivers, and any software applications that were preinstalled on the computer.
88
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Removing and Replacing a Removable 3.5-inch SATA Hard Drive
Some models are equipped with a Removable SATA Hard Drive Enclosure in the 5.25-inch external
drive bay. The hard drive is housed in a carrier that can be quickly and easily removed from the drive
bay. To remove and replace a drive in the carrier:
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive. Also, if you are replacing the primary hard drive,
make sure you have created a Recovery Disc Set to restore the operating system, software drivers, and
any software applications that were preinstalled on the computer. If you do not have this CD set,
select Start > HP Backup and Recovery and create it now.
1.
Unlock the hard drive carrier with the key provided and slide the carrier out of the enclosure.
2.
Remove the screw from the rear of the carrier (1) and slide the top cover off the carrier (2).
Drives
89
90
3.
Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and
move the thermal sensor away from the carrier (2).
4.
Remove the four screws from the bottom of the hard drive carrier.
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
5.
Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.
6.
Place the new hard drive in the carrier then slide the hard drive back so that it seats in the SATA
connector on the carrier's circuit board. Be sure the connector on the hard drive is pressed all the
way into the connector on the carrier's circuit board.
Drives
91
92
7.
Replace the four screws in the bottom of the carrier to hold the drive securely in place.
8.
Place the thermal sensor on top of the hard drive in a position that does not cover the label (1) and
attach the thermal sensor to the top of the hard drive with the adhesive strip (2).
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
9.
Slide the cover on the carrier (1) and replace the screw on the rear of the carrier to secure the cover
in place (2).
10. Slide the hard drive carrier into the enclosure on the computer and lock it with the key provided.
NOTE:
The carrier must be locked for power to be supplied to the hard drive.
Drives
93
ReadyBoost Card
A ReadyBoost card is installed on the system board. A 10-pin connector, as well as a separate post,
secures the ReadyBoost card to the system board.
You can use two different methods to remove the ReadyBoost card. If replacing only the card, you can
remove the card from the system board but leave the post in place. If replacing the card and post, you
must remove the system board and then loosen the post from the bottom side of the system board before
removing the card.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Disconnect the main power cable from the system board and push it aside.
4.
Use tweezers or a small needle-nose pliers to compress the locking tip on the plastic standoff that
secures the ReadyBoost module and then carefully lift the back edge of the module until it releases.
To install the ReadyBoost card:
NOTE: If you are installing a ReadyBoost module for the first time, insert the plastic standoff into the
mounting hole provided on the system board.
94
1.
Align the ReadyBoost module with the connector on the system board and the locking tip on the
standoff.
2.
Push down until the module is securely in place.
3.
Connect the main power cable to the system board.
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Processor Baffle
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Remove the hard drive cable from the clip on top of the baffle.
4.
Slide the baffle toward the rear of the chassis until the tab on the top of the baffle clears the slot
on the fan baffle and the tabs on the bottom of the baffle slide to the larger opening in the slots in
the base of the chassis.
5.
Lift the baffle up and out of the chassis.
To reinstall the processor baffle, reverse the removal procedure.
When reinstalling the processor baffle, first insert the two tabs on the bottom of the baffle into the slots
in the base of the chassis, and the slide the baffle toward the front of the chassis until the tab on the top
of the baffle slides into the fan baffle and the bottom tabs lock into place.
Processor Baffle
95
Fan/Air Baffle
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Unplug the fan cable from the system board (CHFAN, P9).
4.
Remove the processor baffle.
5.
Remove the silver T15 screw that secures the baffle to the base of the chassis.
6.
Unplug the speaker cable.
7.
Push down on the two top tabs that secure the baffle to the front of the chassis (1), and then push
the two bottom tabs toward each other (2).
8.
Slide the baffle about 1 inch (2.5 cm) toward the rear of the unit, and then lift the baffle up and out
of the chassis while threading the speaker cable through the hole on the side of the baffle.
To reinstall the fan/air baffle, reverse the removal procedure.
When reinstalling the baffle, be sure to thread the speaker cable back through the hole in the side of
the baffle, and then plug the cable back into the system board.
96
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Front USB Panel
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Remove the front bezel (Front Bezel on page 67).
4.
Disconnect the front I/O cable from the blue system board connector (P6) and the USB cable from
the yellow system board connector (FRONT_USB, P24).
5.
Stand the unit upright.
6.
Remove the silver T15 screw that secures the panel to the chassis.
7.
Pull the panel away from the unit while threading the wires between the drive cage and the baffle
and through the hole in the front of the chassis.
To reinstall the panel, reverse the removal procedure.
Front USB Panel
97
Power Switch/LED Assembly
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Remove the front bezel (Front Bezel on page 67).
4.
Remove the processor baffle (Processor Baffle on page 95).
5.
Remove the fan/baffle (Fan/Air Baffle on page 96).
6.
Disconnect the cable from the system board (P5, PB/LED).
7.
Press on the left side of the assembly and rotate away from the chassis while threading the cable
between the drive cage and the front of the chassis, then through the hole in front of the chassis.
8.
Remove the assembly from the chassis.
To reinstall the assembly, insert the tabs on the right side of the assembly into the slots in the chassis,
and then rotate the left side of the assembly down until it snaps into place.
98
Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Heatsink
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Unplug the fan cable from the system board (CPUFAN, P8).
4.
Loosen the four silver T15 captive screws that secure the heatsink to the system board.
CAUTION: Heatsink retaining screws should be removed in diagonally opposite pairs (as in an
X) to even the downward forces on the processor. This is especially important as the pins on the
socket are very fragile and any damage to them may require replacing the system board.
5.
Remove the heatsink from the processor.
When reinstalling the heatsink, make sure that its bottom has been cleaned with an alcohol wipe and
fresh thermal grease has been applied to the top of the processor.
CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in an X) to
evenly seat the heatsink on the processor. This is especially important as the pins on the socket are
very fragile and any damage to them may require replacing the system board.
Heatsink
99
Processor
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Remove the heatsink (Heatsink on page 99).
4.
Rotate the locking lever to its full open position (1).
5.
Raise and rotate the microprocessor retainer to its fully open position (2).
6.
Carefully lift the processor from the socket (3).
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and
handling them could cause irreparable damage. Once pins are damaged it may be necessary to
replace the system board.
The heatsink must be installed within 24 hours of installing the processor to prevent damage to the
processor’s solder connections.
To install a new processor:
1.
Place the processor in its socket and close the retainer.
2.
Secure the locking lever.
If reusing the existing heatsink, go to step 3.
If using a new heatsink, go to step 5.
3.
If reusing the existing heatsink, apply the thermal grease provided in the spares kit to the top of
the processor.
4.
Clean the bottom of the heatsink with the provided alcohol pad and place it atop the processor.
100 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
5.
If using a new heatsink, remove the protective covering from the bottom of the heatsink and place
it in position atop the processor.
6.
Secure the heatsink to the system board and system board tray with the four captive screws and
attach the heatsink control cable to the system board.
CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in an
X) to evenly seat the heatsink on the processor. This is especially important as the pins on the
socket are very fragile and any damage to them may require replacing the system board.
NOTE: After installing a new processor onto the system board, always update the system ROM to
ensure that the latest version of the BIOS is being used on the computer. The latest system BIOS can
be found on the Web at: http://h18000.www1.hp.com/support/files.
Speaker
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Remove the processor baffle (Processor Baffle on page 95).
4.
Remove the fan baffle (Fan/Air Baffle on page 96).
5.
Make sure the speaker wire is disconnected from the system board (SPKR, P6).
6.
From the inside of the chassis, remove the two silver T15 screws that secure the speaker to the
chassis.
7.
Slide the speaker up and lift it out of the chassis.
To replace the speaker, reverse the removal procedures.
When replacing the speaker, be sure to route the cable through the hole in the left side of the processor
baffle.
Speaker 101
Rear Chassis Fan
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Disconnect the fan control cable from the system board (P11, POWER FAN).
4.
Remove the four silver Phillips screws that secure the fan to the chassis.
5.
Lift the fan out of the chassis.
To install the fan assembly, reverse the removal procedure. Be sure to orient the air flow out of the unit.
102 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Optional Serial Port
The computer may include an optional second serial port. This port is installed in an expansion card
slot, and you can use expansion card removal and replacement procedures to remove and install it.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Disconnect the serial port cable from the system board.
4.
Remove the port assembly using the same procedure used to remove an expansion card. See
Expansion Cards on page 73 for more information.
To install the serial port, reverse the removal procedure.
Optional Serial Port 103
Power Supply
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Disconnect all power cables from the drives and from the system board.
4.
Remove the four silver T15 screws that connect the power supply to the chassis.
104 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
5.
Press the tab in front of the power supply that holds it in place.
6.
Slide the power supply toward the front of the computer, rotate toward the fan so the power supply
clears the lip on the top of the chassis, and then lift the power supply out of the chassis.
To install the power supply, reverse the removal procedure.
Power Supply 105
System Board
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Remove all expansion boards (Expansion Cards on page 73).
4.
Disconnect all cables connected to the system board, noting their location for reinstallation.
5.
Remove the heatsink (Heatsink on page 99).
6.
Remove the seven screws that secure the system board to the chassis.
7.
Slide the system board toward the front of the computer to disengage the I/O panel from the rear
of the chassis.
8.
Lift the system board out of the computer.
When reinstalling the system board, first insert the I/O panel back into the slots in the rear of the chassis,
and then align the board with the chassis screw holes.
NOTE:
When replacing the system board, you must change the chassis serial number in the BIOS.
106 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
Battery
The battery that comes with the computer provides power to the real-time clock. When replacing the
battery, use a battery equivalent to the battery originally installed in the computer. The computer comes
with a 3-volt lithium coin cell battery.
WARNING! The computer contains an internal lithium manganese dioxide battery. There is a risk of
fire and burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 60°C (140ºF).
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace the battery only with the HP spare designated for this product.
CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings. When
the battery is removed or replaced, the CMOS settings will be cleared. Refer to the Computer Setup
(F10) Utility Guide for information on backing up the CMOS settings.
Static electricity can damage the electronic components of the computer or optional equipment. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object.
NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live AC wall
socket. The lithium battery is only used when the computer is NOT connected to AC power.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries. For more information about recycling programs, go to http://www.hp.com/
recycle.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
NOTE:
It may be necessary to remove an expansion card to gain access to the battery.
3.
Locate the battery and battery holder on the system board.
4.
Depending on the type of battery holder on your system board, complete the following instructions
to replace the battery:
Battery 107
Type 1 Battery Holder
1.
Lift the battery out of its holder.
2.
Slide the replacement battery into position, positive side up.
3.
The battery holder automatically secures the battery in the proper position.
4.
Replace the computer access panel.
5.
Plug in the computer and turn on power to the computer.
6.
Reset the date and time and any special system setups using Computer Setup. Refer to the
Computer Setup (F10) Utility Guide.
Type 2 Battery Holder
1.
To release the battery from its holder, squeeze the metal clamp (1) that extends above one edge
of the battery. When the battery pops up, lift it out.
2.
To insert the new battery, slide one edge of the replacement battery under the holder’s lip with the
positive side up (2). Push the other edge down until the clamp snaps over the other edge of the
battery.
3.
Replace the computer access panel.
108 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
4.
Plug in the computer and turn on power to the computer.
5.
Reset the date and time and any special system setups using Computer Setup. Refer to the
Computer Setup (F10) Utility Guide.
Type 3 Battery Holder
1.
Pull back on the clip (1) that holds the battery in place, then remove the battery (2).
2.
Insert the new battery and position the clip back in place.
3.
Replace the computer access panel.
4.
Plug in the computer and turn on power to the computer.
5.
Reset the date and time and any special system setups using Computer Setup. Refer to the
Computer Setup (F10) Utility Guide.
Battery 109
8
Removal and Replacement Procedures
Small Form Factor (SFF) Chassis
Adherence to the procedures and precautions described in this chapter is essential for proper service.
After completing all necessary removal and replacement procedures, run the Diagnostics utility to verify
that all components operate properly.
NOTE:
Not all features listed in this guide are available on all computers.
Preparation for Disassembly
See Identifying the Chassis, Routine Care, and Disassembly Preparation on page 51 for initial safety
procedures.
1.
Remove/disengage any security devices that prohibit opening the computer (External Security
Devices on page 111).
2.
Close any open software applications.
3.
Exit the operating system.
4.
Remove any diskette, compact disc. or media card from the computer.
5.
Turn off the computer and any peripheral devices that are connected to it.
CAUTION:
Turn off the computer before disconnecting any cables.
Regardless of the power-on state, voltage is always present on the system board as long as the
system is plugged into an active AC outlet. In some systems the cooling fan is on even when the
computer is in the “Standby,” or “Suspend” modes. The power cord should always be disconnected
before servicing a unit.
6.
Disconnect the power cord from the electrical outlet and then from the computer.
7.
Disconnect all peripheral device cables from the computer.
NOTE: During disassembly, label each cable as you remove it, noting its position and routing.
Keep all screws with the units removed.
CAUTION: The screws used in the computer are of different thread sizes and lengths; using the
wrong screw in an application may damage the unit.
110 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
External Security Devices
The following security devices are used to prevent unauthorized access to the internal components of
the computer and/or secure the computer to a fixed object.
Installing a Security Lock
The security locks displayed below and on the following pages can be used to secure the computer.
Cable Lock
External Security Devices 111
Padlock
112 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
HP Business PC Security Lock
1.
Fasten the security cable by looping it around a stationary object.
2.
Thread the keyboard and mouse cables through the lock.
External Security Devices 113
3.
Screw the lock to the chassis using the screw provided.
4.
Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the
lock. Use the key provided to disengage the lock.
114 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
Front Bezel Security
The front bezel can be locked in place by installing a security screw provided by HP.
The security screw is located on the fan duct inside the chassis. To lock the front bezel, remove the
security screw from the fan duct (1) and install it through the chassis frame into the front bezel (2).
External Security Devices 115
Computer Access Panel
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Press the buttons on the left and right sides of the computer (1) then slide the access panel back
until it stops and lift it up and off the chassis (2).
To install the access panel, reverse the removal procedure.
116 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
Front Bezel
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Lift up the green latch behind the upper right side of the bezel and push down on the latch behind
the lower right side of the bezel (1), then pull the right side of the bezel off the chassis (2), followed
by the left side.
To replace the front bezel, reverse the removal procedures.
Front Bezel 117
Bezel Blanks
On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch external drive bays that
need to be removed before installing a drive. To remove a bezel blank:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Remove the front bezel (Front Bezel on page 67).
4.
To remove the 3.5-inch bezel blank, push the two retaining tabs that hold the bezel blank in place
towards the outer right edge of the bezel (1) and slide the bezel blank to the right to remove it (2).
5.
To remove the 5.25-inch bezel blank, push the two retaining tabs that hold the bezel blank in place
towards the outer left edge of the bezel (1) and pull the bezel blank inwards to remove it (2).
6.
Replace the front bezel.
118 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
Using the Small Form Factor Computer in a Tower
Orientation
The Small Form Factor computer can be used in a tower orientation. The HP logo plate on the front
bezel is adjustable for either desktop or tower orientation.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2.
Remove the computer access panel (Computer Access Panel on page 66).
3.
Remove the front bezel (Front Bezel on page 67).
4.
Remove the front bezel.
5.
Squeeze together the two sides of the peg on the back side of the logo plate (1) and push the peg
inwards towards the front side of the bezel (2).
6.
Rotate the plate 90 degrees (3) then pull back on the peg to lock the logo plate in place.
7.
Replace the front bezel.
8.
Replace the access panel.
Using the Small Form Factor Computer in a Tower Orientation 119
9.
Orient the computer so that its right side is facing down.
NOTE: To stabilize the computer in a tower orientation, HP recommends the use of the optional
tower stand.
NOTE: Ensure at least 10.2 centimeters (4 inches) of space on all sides of the computer remains clear
and free of obstructions.
120 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
Installing Additional Memory
The computer comes with double data rate 2 synchronous dynamic random access memory (DDR2SDRAM) dual inline memory modules (DIMMs).
DIMMs
The memory sockets on the system board can be populated with up to four industry-standard DIMMs.
These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 8 GB of memory configured in a highperforming dual channel mode.
DDR2-SDRAM DIMMs
For proper system operation, the DDR2-SDRAM DIMMs must be:
●
industry-standard 240-pin
●
unbuffered PC2-5300 667 MHz-compliant or PC2-6400 800 MHz-compliant
●
1.8 volt DDR2-SDRAM DIMMs
The DDR2-SDRAM DIMMs must also:
●
support CAS latency 5 DDR2 667 Mhz (5-5-5 timing), CAS latency 5 DDR2 800 Mhz (5-5-5 timing),
and CAS latency 6 DDR2 800 Mhz (6-6-6 timing)
●
contain the mandatory JEDEC SPD information
In addition, the computer supports:
●
512Mbit and 1Gbit non-ECC memory technologies
●
single-sided and double-sided DIMMs
●
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
supported
NOTE:
The system will not operate properly if you install unsupported DIMMs.
Installing Additional Memory 121
Populating DIMM Sockets
There are four DIMM sockets on the system board, with two sockets per channel. The sockets are
labeled XMM1, XMM2, XMM3, and XMM4. Sockets XMM1 and XMM2 operate in memory channel A.
Sockets XMM3 and XMM4 operate in memory channel B.
Item
Description
Socket Color
1
DIMM socket XMM1, Channel A
(populate first)
Black
2
DIMM socket XMM2, Channel A
White
3
DIMM socket XMM3, Channel B
(populate second)
Black
4
DIMM socket XMM4, Channel B
White
NOTE: A DIMM must occupy the XMM1 socket.
The system will automatically operate in single channel mode, dual channel mode, or flex mode,
depending on how the DIMMs are installed.
●
The system will operate in single channel mode if the DIMM sockets are populated in one channel
only.
●
The system will operate in a higher-performing dual channel mode if the total memory capacity of
the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B. The
technology and device width can vary between the channels. For example, if Channel A is
populated with two 512MB DIMMs and Channel B is populated with one 1GB DIMM, the system
will operate in dual channel mode.
●
The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is not
equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel populated
with the least amount of memory describes the total amount of memory assigned to dual channel
and the remainder is assigned to single channel. For optimal speed, the channels should be
balanced so that the largest amount of memory is spread between the two channels. If one channel
122 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
will have more memory than the other, the larger amount should be assigned to Channel A. For
example, if you are populating the sockets with one 1GB DIMM, and three 512MB DIMMs, Channel
A should be populated with the 1GB DIMM and one 512MB DIMM, and Channel B should be
populated with the two 512MB DIMMs. With this configuration, 2GB will run as dual channel and
512MB will run as single channel.
●
In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
Installing DIMMs
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to
drain before adding or removing memory modules. Regardless of the power-on state, voltage is always
supplied to the memory modules as long as the computer is plugged into an active AC outlet. Adding
or removing memory modules while voltage is present may cause irreparable damage to the memory
modules or system board. If you see an LED light on the system board, voltage is still present.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is
important to use memory modules with gold-plated metal contacts to prevent corrosion and/or oxidation
resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object. For more information, refer to Electrostatic Discharge Information on page 53.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Rotate up the external drive bay housing and the power supply to access the memory module
sockets on the system board.
WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system
components to cool before touching.
Installing Additional Memory 123
4.
Open both latches of the memory module socket (1), and insert the memory module into the socket
(2).
NOTE: A memory module can be installed in only one way. Match the notch on the module with
the tab on the memory socket.
A DIMM must occupy the black XMM1 socket.
For maximum performance, populate the sockets so that the memory capacity is spread as equally
as possible between Channel A and Channel B. Refer to Populating DIMM Sockets on page 122
for more information.
5.
Push the module down into the socket, ensuring that the module is fully inserted and properly
seated. Make sure the latches are in the closed position (3).
6.
Repeat steps 4 and 5 to install any additional modules.
The computer should automatically recognize the additional memory the next time you turn on the
computer.
124 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
Expansion Cards
The computer has one standard low-profile PCI expansion slot that can accommodate an expansion
card up to 17.46 cm (6.875 inches) in length. The computer also has two PCI Express x1 expansion
slots and one PCI Express x16 expansion slot.
NOTE:
The PCI and PCI Express slots support only low profile cards.
Item
Description
1
PCI Express x16 expansion slot
2
PCI expansion slot
3
PCI Express x1 expansion slot
4
PCI Express x1 expansion slot
NOTE: You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16
expansion slot.
To install an expansion card:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Locate the correct vacant expansion socket on the system board and the corresponding expansion
slot on the back of the computer chassis.
Expansion Cards 125
4.
Release the slot cover retention latch that secures the PCI slot covers by lifting the green tab on
the latch and rotating the latch to the open position.
5.
Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
NOTE: Before removing an installed expansion card, disconnect any cables that may be attached
to the expansion card.
a.
If you are installing an expansion card in a vacant socket, remove the appropriate expansion
slot cover on the back of the chassis. Pull the slot cover straight up then away from the inside
of the chassis.
126 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
b.
If you are removing a standard PCI card, hold the card at each end, and carefully rock it back
and forth until the connectors pull free from the socket. Pull the expansion card straight up
from the socket (1) then away from the inside of the chassis (2) to release it from the chassis
frame. Be sure not to scrape the card against the other components.
c.
If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion
socket away from the card and carefully rock the card back and forth until the connectors pull
free from the socket. Pull the expansion card straight up from the socket then away from the
inside of the chassis to release it from the chassis frame. Be sure not to scrape the card against
the other components.
6.
Store the removed card in anti-static packaging.
7.
If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
Expansion Cards 127
CAUTION: After removing an expansion card, you must replace it with a new card or expansion
slot cover for proper cooling of internal components during operation.
8.
To install a new expansion card, hold the card just above the expansion socket on the system
board then move the card toward the rear of the chassis (1) so that the bracket on the card is
aligned with the open slot on the rear of the chassis. Press the card straight down into the expansion
socket on the system board (2).
NOTE: When installing an expansion card, press firmly on the card so that the whole connector
seats properly in the expansion card slot.
9.
Rotate the slot cover retention latch back in place to secure the expansion card.
128 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
10. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
11. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide for
instructions on using Computer Setup.
Cable Management
The Small Form Factor chassis is very compact and proper routing of the internal cables is critical to
the computer operation. Follow good cable management practices when working inside the computer.
●
Keep cables away from major heat sources like the heatsink.
●
Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like these
are not designed to take excessive pressure on them.
●
Keep cables clear of movable or rotating parts like the power supply and drive cage to prevent
them from being cut or crimped when the component is lowered into its normal position.
●
When folding a flat ribbon cable, never fold to a sharp crease.
●
Some flat ribbon cables come prefolded. Never change the folds on these cables.
●
Do not bend any cable sharply. A sharp bend can break the internal wires.
●
Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
●
Never crease a SATA data cable.
●
Do not rely on components like the drive cage, power supply, or computer cover to push cables
down into the chassis. Always position the cables to lay properly by themselves.
When removing the power supply power cables from the P1 connector on the system board, always
follow these steps:
1.
Squeeze on the top of the retaining latch attached to the cable end of the connector (1).
2.
Grasp the cable end of the connector and pull it straight up (2).
CAUTION: Always pull the connector - NEVER pull on the cable. Pulling on the cable could
damage the cable and result in a failed power supply.
Cable Management 129
130 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
Cable Connections
System board connectors are color-coded to make it easier to find the proper connection.
Cable
To
Cable Designator
Power Supply
System board, 24-pin
P1
Power Supply
CPU power, 4-pin
P2
Power Supply
1st Hard drive
P3
Power Supply
1st Optical drive
P4
Power Supply
2nd hard drive
P5
Power Supply
2nd Optical drive
P7
Cable
To
PCA Designator
Diskette drive
System board
P10, FLOPPY (Black)
1st hard drive
System board
P60, SATA 0 (Dark Blue)
1st ODD or 2nd HDD if no ODD present System board
P61, SATA 1 (White)
2nd HDD if ODD present
System board
P62, SATA 4 (Light blue)
2nd ODD
System board
P63, SATA5 (Orange)
Serial port A
System board
P54, COMA
Serial port B
System board
P52, COMB
Heatsink fan
System board
P8, CPUFAN (white)
Front power button/LED
System board
P5, PB/LED (black)
Front I/O USB
System board
P24, FRONT_USB (Yellow)
Speaker
System board
P6, SPKR (white)
Front audio
System board
P23, FRONT AUD, (Black)
Chassis fan
System board
P9, CHFAN (red)
Media card reader
System board
P150, MEDIA (black)
Cable Connections 131
Drives
A Torx T-15 screwdriver is needed to remove and install the guide screws on a drive.
CAUTION: Make sure personal files on the hard drive are backed up to an external storage device
before removing the hard drive. Failure to do so will result in data loss. After replacing the primary hard
drive, you will need to run the Restore Plus! CD to load the HP factory-installed files.
Drive Positions
1
3.5-inch internal hard drive bay
2
3.5-inch external drive bay for optional drives (media card reader shown)
3
5.25-inch external drive bay for optional drives (optical drive shown)
NOTE: The 3.5-inch external drive bay can also be configured with a secondary
internal hard drive covered by a bezel blank.
To verify the type, size, and capacity of the storage devices installed in the computer, run Computer
Setup. Refer to the Computer Setup (F10) Utility Guide for more information.
132 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
Installing and Removing Drives
When installing additional drives, follow these guidelines:
●
The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA
connector on the system board labeled SATA0.
●
Connect a SATA optical drive to the white SATA connector on the system board labeled SATA1.
●
Connect additional SATA hard drives to the next available (unpopulated) SATA connector on the
system board in the following order: SATA0, SATA1, SATA5, SATA4.
●
Always populate the dark blue SATA0 and white SATA1 connectors before the light blue SATA4
and orange SATA5 connectors.
●
Connect a diskette drive to the connector labeled FLOPPY.
●
Connect a media card reader to the USB connector labeled MEDIA.
●
The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.
●
You must install guide screws to ensure the drive will line up correctly in the drive cage and lock
in place. HP has provided extra guide screws for the external drive bays (four 6-32 standard screws
and four M3 metric screws), installed in the front of the chassis, under the front bezel. The 6-32
standard screws are required for a secondary hard drive. All other drives (except the primary hard
drive) use M3 metric screws. The HP-supplied metric screws are black and the HP-supplied
standard screws are silver. If you are replacing the primary hard drive, you must remove the four
silver and blue 6-32 isolation mounting guide screws from the old hard drive and install them in the
new hard drive.
Drives 133
CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the computer,
and unplug the power cord. Do not remove a drive while the computer is on or in standby mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid
touching the connector. For more information about preventing electrostatic damage, refer to
Electrostatic Discharge Information on page 53.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and label
the package “Fragile: Handle With Care.”
134 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.
No.
System Board Connector
System Board Label
Color
1
SATA0
SATA0
dark blue
2
SATA1
SATA1
white
3
SATA4
SATA4
light blue
4
SATA5
SATA5
orange
5
Diskette Drive
FLOPPY
black
6
Media Card Reader
MEDIA
black
Drives 135
Removing an Optical Drive
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
To remove an optical drive:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Rotate the drive cage to its upright position.
4.
Disconnect the power cable (1) and data cable (2) from the rear of the optical drive.
136 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
5.
Rotate the drive cage back down to its normal position.
CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.
6.
Press down on the green drive retainer button located on the left side of the drive to disengage the
drive from the drive cage (1). While pressing the drive retainer button, slide the drive back until it
stops, then lift it up and out of the drive cage (2).
NOTE: To replace the optical drive, reverse the removal procedure. When replacing a drive, transfer
the four guide screws from the old drive to the new one.
Installing an Optical Drive into the 5.25-inch Drive Bay
To install an optional 5.25-inch optical drive:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
If you are installing a drive in a bay covered by a bezel blank, remove the front bezel then remove
the bezel blank. See Front Bezel on page 117 and Bezel Blanks on page 118 for more information.
Drives 137
4.
Install two M3 metric guide screws in the lower holes on each side of the drive. HP has provided
four extra M3 metric guide screws on the front of the chassis, under the front bezel. The M3 metric
guide screws are black. Refer to Installing and Removing Drives on page 133 for an illustration of
the extra M3 metric guide screws location.
CAUTION: Use only 5-mm long screws as guide screws. Longer screws can damage the internal
components of the drive.
NOTE: When replacing the drive, transfer the four M3 metric guide screws from the old drive to
the new one.
5.
Position the guide screws on the drive into the J-slots in the drive bay. Then slide the drive toward
the front of the computer until it locks into place.
138 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
6.
Rotate the drive cage to its upright position.
7.
Connect the SATA data cable to the white system board connector labeled SATA1.
8.
Route the data cable through the cable guides.
CAUTION: There are two cable guides that keep the data cable from being pinched by the drive
cage when raising or lowering it. One is located on the bottom side of the drive cage. The other is
located on the chassis frame under the drive cage. Ensure that the data cable is routed through
these guides before connecting it to the optical drive.
9.
Connect the power cable (1) and data cable (2) to the rear of the optical drive.
Drives 139
10. Rotate the drive cage back down to its normal position.
CAUTION:
Be careful not to pinch any cables or wires when rotating the drive cage down.
The system automatically recognizes the drive and reconfigures the computer.
Removing an External 3.5-inch Drive
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
NOTE:
The 3.5-inch drive bay may contain a diskette drive or a media card reader.
The 3.5-inch drive is located underneath the optical drive. You must remove the optical drive before
removing the external 3.5-inch drive.
1.
Follow the procedure in Removing an Optical Drive on page 136 to remove the optical drive and
access the 3.5-inch drive.
CAUTION: Ensure that the computer is turned off and that the power cord is disconnected from
the electrical outlet before proceeding.
140 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
2.
Disconnect the drive cables, as indicated in the following illustrations:
a.
If you are removing a diskette drive, disconnect the data cable (1) and power cable (2) from
the back of the drive.
b.
If you are removing a media card reader, disconnect the USB cable from the system board.
Drives 141
3.
Press the green drive retainer latch (1) located on the right side of the drive to disengage the drive
from the drive cage. While pressing the drive retainer latch, slide the drive back until it stops, then
lift it up and out of the drive cage (2).
NOTE:
To replace the 3.5-inch drive, reverse the removal procedure.
When replacing a 3.5-inch drive, transfer the four guide screws from the old drive to the new one.
Installing a Drive into the 3.5-inch External Drive Bay
Depending on the computer configuration, the 3.5-inch external drive bay on the front of the computer
may be configured with a media card reader or a diskette drive, or it may be an empty drive bay.
If the computer was not configured with a 3.5-inch drive, you can install a media card reader, diskette
drive, or hard drive into the drive bay.
The 3.5-inch bay is located underneath the optical drive. To install a drive into the 3.5-inch bay:
NOTE: Install guide screws to ensure the drive will line up correctly in the drive cage and lock in place.
HP has provided extra guide screws for the external drive bays (four 6-32 standard screws and four M3
metric screws), installed in the front of the chassis, under the front bezel. A secondary hard drive uses
6-32 standard screws. All other drives (except the primary hard drive) use M3 metric screws. The HPsupplied M3 metric screws are black and the HP-supplied 6-32 standard screws are silver. Refer to
Installing and Removing Drives on page 133 for illustrations of the guide screw locations.
1.
Follow the procedure in Removing an Optical Drive on page 136to remove the optical drive and
access the 3.5-inch drive bay.
CAUTION: Ensure that the computer is turned off and that the power cord is disconnected from
the electrical outlet before proceeding.
2.
If you are installing a diskette drive or media card reader in a bay covered by a bezel blank, remove
the front bezel then remove the bezel blank. See Bezel Blanks on page 118 for more information.
142 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
3.
Position the guide screws on the drive into the J-slots in the drive bay. Then slide the drive toward
the front of the computer until it locks into place.
4.
Connect the appropriate drive cables:
a.
If installing a diskette drive, connect the power and data cables to the rear of the drive and
connect the other end of the data cable to the connector on the system board labeled FLOPPY.
b.
If installing a second hard drive, connect the power and data cables to the rear of the drive
and connect the other end of the data cable to the next available (unpopulated) SATA
connector on the system board in the following order: SATA0, SATA1, SATA5, SATA4.
c.
If installing a media card reader, connect the USB cable from the media card reader to the
USB connector on the system board labeled MEDIA.
NOTE: Refer to System Board Drive Connections on page 135 for an illustration of the
system board drive connectors.
5.
Replace the optical drive.
Drives 143
Removing and Replacing the Primary 3.5-inch Internal SATA Hard Drive
NOTE:
The system does not support Parallel ATA (PATA) hard drives.
Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you
can transfer the data to the new hard drive. Also, if you are replacing the primary hard drive, make sure
you have created a Recovery Disc Set to restore the operating system, software drivers, and any
software applications that were preinstalled on the computer. If you do not have this CD set, select
Start > HP Backup and Recovery and create it now.
The preinstalled 3.5-inch hard drive is located under the power supply. To remove and replace the hard
drive:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Rotate the drive cage for external drives to its upright position.
144 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
4.
Rotate the power supply to its upright position. The hard drive is located beneath the power supply.
5.
Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
Drives 145
6.
Press down on the green release latch next to the hard drive (1). While holding the latch down,
slide the drive forward until it stops, then lift the drive up and out of the bay (2).
7.
To install a hard drive, you must transfer the silver and blue isolation mounting guide screws from
the old hard drive to the new hard drive.
146 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
8.
Align the guide screws with the slots on the chassis drive cage, press the hard drive down into the
bay, then slide it back until it stops and locks in place.
9.
Connect the power and data cables to the back of the hard drive.
NOTE: When replacing the primary hard drive, be sure to route the SATA and power cables
through the cable guide on the bottom of the chassis frame behind the hard drive.
If the system has only one SATA hard drive, the data cable must be connected to the dark blue
connector labeled SATA0 on the system board to avoid any hard drive performance problems. If
you are adding a second hard drive, connect the other end of the data cable to the next available
(unpopulated) SATA connector on the system board in the following order: SATA0, SATA1, SATA5,
SATA4.
10. Rotate the drive cage for external drives and the power supply down to their normal positions.
NOTE: If you are replacing the primary hard drive, use the Recovery Disc Set to restore the operating
system, software drivers, and any software applications that were preinstalled on the computer.
Drives 147
Removing and Replacing a Removable 3.5-inch SATA Hard Drive
Some models are equipped with a Removable SATA Hard Drive Enclosure in the 5.25-inch external
drive bay. The hard drive is housed in a carrier that can be quickly and easily removed from the drive
bay. To remove and replace a drive in the carrier:
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive. Also, if you are replacing the primary hard drive,
make sure you have created a Recovery Disc Set to restore the operating system, software drivers, and
any software applications that were preinstalled on the computer. If you do not have this CD set,
select Start > HP Backup and Recovery and create it now.
1.
Unlock the hard drive carrier with the key provided and slide the carrier out of the enclosure.
2.
Remove the screw from the rear of the carrier (1) and slide the top cover off the carrier (2).
3.
Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and
move the thermal sensor away from the carrier (2).
148 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
4.
Remove the four screws from the bottom of the hard drive carrier.
5.
Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.
Drives 149
6.
Place the new hard drive in the carrier then slide the hard drive back so that it seats in the SATA
connector on the carrier's circuit board. Be sure the connector on the hard drive is pressed all the
way into the connector on the carrier's circuit board.
7.
Replace the four screws in the bottom of the carrier to hold the drive securely in place.
150 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
8.
Place the thermal sensor on top of the hard drive in a position that does not cover the label (1) and
attach the thermal sensor to the top of the hard drive with the adhesive strip (2).
9.
Slide the cover on the carrier (1) and replace the screw on the rear of the carrier to secure the cover
in place (2).
10. Slide the hard drive carrier into the enclosure on the computer and lock it with the key provided.
NOTE:
The carrier must be locked for power to be supplied to the hard drive.
Drives 151
Cable Routing
When servicing the computer, please note the original locations of the cables and how they are routed
in the chassis. There are two white plastic cable clamps in the chassis located under the drive cage —
one attached directly to the drive cage, the other attached to the chassis base. Make sure to replace all
cables to their proper locations when reassembling the computer. The image below illustrates proper
cable routing.
152 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
ReadyBoost Card
A ReadyBoost card is installed in the computer. The card is secured to the chassis, and a cable connects
the card to the system board.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Unplug the ReadyBoost cable from the system board, and then lift the card assembly from the
chassis.
To install the ReadyBoost card, reverse the removal procedure.
ReadyBoost Card 153
Inner Baffle
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Lift the inner baffle straight up out of the chassis.
To install the inner baffle, reverse the removal procedure.
When reinstalling the inner baffle, be careful of the location of the power switch wire.
154 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
Fan/Outer Baffle
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Remove the front bezel (Front Bezel on page 117).
4.
Remove the inner baffle (Inner Baffle on page 154).
5.
Unplug the fan cable from the system board (P9, CHFAN).
6.
Remove the black Phillips screw (1) that secures the baffle to the front of the chassis.
7.
When viewed from the front, slide the baffle toward the right to loosen the tabs (2) from the front
of the chassis, and then lift the assembly from the chassis.
To install the fan/outer baffle, reverse the removal procedure.
Be careful of the power switch wires when reinstalling.
Fan/Outer Baffle 155
Power Switch Assembly
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Remove the front bezel (Front Bezel on page 117).
4.
Remove the fan/outer baffle (Fan/Outer Baffle on page 155).
5.
Rotate the drive cage to the upright position.
6.
Unplug the power switch cable from the system board (P5, PB/LED).
7.
Squeeze the switch holder retaining clips together at the front of the chassis (1) and push the switch
assembly into the chassis (2).
NOTE: Note the location of each LED so you can reassemble in the correct order
8.
Push the two LEDs into the chassis (3).
9.
Remove the assembly from the chassis.
To install the power switch assembly, reverse the removal procedure.
When installing the power switch, replace the LEDs first. You may need to first insert one clip and the
power button, then use a small flat-blade screwdriver to help guide the other clip into its slot.
156 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
Front I/O Device
You do not have to remove the fan/outer baffle to remove the front I/O device.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Remove the front bezel (Front Bezel on page 117).
4.
Disconnect the front I/O cable (FRONT_AUD, P23) from the blue connector on the system board
and the USB cable (FRONT_USB, P24) from the yellow connector on the system board.
5.
Rotate the drive cage to its upright position.
6.
Remove the silver T15 screw that secures the front I/O device to the chassis.
7.
Pull the device from the chassis and guide the cables through the hole to remove them from the
chassis.
To reinstall the front I/O device, reverse the removal procedure.
When reinstalling the front I/O device, be sure to guide the cables through the opening in the drive cage
directly behind the front I/O device slot in the front of the chassis.
Front I/O Device 157
Heatsink
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Disconnect the heatsink fan control cable from the system board (P8, CPUFAN).
4.
Loosen the four captive silver T15 screws that secure the heatsink to the system board tray.
CAUTION: Heatsink retaining screws should be removed in diagonally opposite pairs (as in an
X) to even the downward forces on the processor. This is especially important as the pins on the
socket are very fragile and any damage to them may require replacing the system board.
5.
Lift the heatsink from atop the processor and set it on its side to keep from contaminating the work
area with thermal grease.
When reinstalling the heatsink, make sure that its bottom has been cleaned with an alcohol wipe and
fresh thermal grease has been applied to the top of the processor.
CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in an X) to
evenly seat the heatsink on the processor. This is especially important as the pins on the socket are
very fragile and any damage to them may require replacing the system board.
Failure to install the fan shroud may cause the computer to overheat.
158 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
Processor
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Remove the heatsink (Heatsink on page 158).
4.
Rotate the locking lever to its full open position (1).
5.
Raise and rotate the microprocessor retainer to its fully open position (2).
6.
Carefully lift the processor from the socket (3).
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and
handling them could cause irreparable damage. Once pins are damaged it may be necessary to
replace the system board.
The heatsink must be installed within 24 hours of installing the processor to prevent damage to the
processor’s solder connections.
To install a new processor:
1.
Place the processor in its socket and close the retainer.
2.
Secure the locking lever. If reusing the existing heatsink, go to step 3. If using a new heatsink, go
to step 6.
3.
If reusing the existing heatsink, clean the bottom of the heatsink with the alcohol pad provided in
the spares kit.
CAUTION: Before reinstalling the heatsink you must clean the top of the processor and the
bottom of the heatsink with an alcohol pad supplied in the spares kit. After the alcohol has
evaporated, apply thermal grease to the top of the processor from the syringe supplied in the spares
kit.
4.
Apply the thermal grease provided in the spares kit to the top of the processor and install the
heatsink atop the processor.
Processor 159
5.
Go to step 7.
6.
If using a new heatsink, remove the protective covering from the bottom of the heatsink and place
it in position atop the processor.
7.
Secure the heatsink to the system board and system board tray with the four captive screws and
attach the heatsink control cable to the system board.
CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in an
X) to evenly seat the heatsink on the processor. This is especially important as the pins on the
socket are very fragile and any damage to them may require replacing the system board.
NOTE: After installing a new processor onto the system board, always update the system ROM to
ensure that the latest version of the BIOS is being used on the computer. The latest system BIOS can
be found on the Web at: http://h18000.www1.hp.com/support/files.
Speaker
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Remove the front bezel (Front Bezel on page 117).
4.
Rotate the drive cage to its upright position.
5.
Disconnect the speaker wire from the system board (SPKR, P6).
6.
Remove the two black T15 screws that secure the speaker to the chassis.
7.
Lift the speaker up and out of the chassis while guiding the wire through the hole in the drive cage.
To install the speaker, reverse the removal procedures.
When reinstalling the speaker, be sure to run the speaker wire through the hole in the drive cage directly
behind the speaker.
160 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
Power Supply
WARNING! Voltage is always present on the system board when the computer is plugged into an
active AC outlet. To avoid possible personal injury and damage to the equipment the power cord should
be disconnected from the computer and/or the AC outlet before opening the computer.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Rotate the drive cage up and disconnect the power cables from all of the drives.
4.
Disconnect the power cables from the system board. Ensure you have disconnected all power
supply cables.
5.
Release the power supply cables from the cable retaining clips on the bottom of the chassis and
under the drive cage.
6.
Rotate the power supply to its full upright position (1), pull the power supply forward about 1/2 inch,
and then lift the power supply straight up and out of the chassis (2).
To install the power supply:
CAUTION: When installing the power supply cables, make sure they are properly positioned so they
are not cut by the drive cage and are not pinched by the rotating power supply.
1.
Place the power supply in the upright position.
2.
Insert all four knobs (two on each side of the power supply) into their associated slots in the power
supply brackets.
3.
Push the power supply all the way down, and then press toward the rear of the unit until it snaps
into place.
The top of a properly installed power supply will set flush with the top of the chassis.
Power Supply 161
System Board
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
3.
Remove all PCI and PCI Express expansion boards (Expansion Cards on page 125).
4.
Remove the fan shroud from the chassis (Inner Baffle on page 154).
5.
Rotate the drive cage to its upright position.
6.
Rotate the power supply to its full upright position.
7.
Disconnect all data and power cables from the system board.
8.
Disconnect the serial port from the system board.
9.
Disconnect the balance of the cables from the system board.
10. Remove the heatsink (Heatsink on page 158).
11. Remove the six remaining silver T15 screws that secure the system board to the chassis (1).
12. Lift up the front of the system board (2), and then pull the system board forward, up, and out of the
chassis (3).
To install the system board, reverse the removal procedure.
NOTE:
When replacing the system board, you must change the chassis serial number in the BIOS.
NOTE: The heatsink should be installed on the system board before the system board is reinstalled
in the chassis.
CAUTION: Before reinstalling the heatsink you must clean the top of the processor and the bottom of
the heatsink with an alcohol pad supplied in the spares kit. After the alcohol has evaporated, apply
thermal grease to the top of the processor from the syringe supplied in the spares kit.
162 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
CAUTION: When reconnecting the cables it is important that they be positioned so they do not interfere
with the rotation of the drive cage or power supply.
Battery
The battery that comes with your computer provides power to the real-time clock and has a lifetime of
about three years. When replacing the battery, use a battery equivalent to the battery originally installed
on the computer. The computer comes with a 3-volt lithium coin cell battery.
NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live AC wall
socket. The lithium battery is only used when the computer is NOT connected to AC power.
WARNING! This computer contains an internal lithium manganese dioxide battery. There is a risk of
fire and burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 140°F (60°C).
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace the battery only with the HP spare designated for this product.
CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings. When
the battery is removed or replaced, the CMOS settings will be cleared. Refer to the Computer Setup
(F10) Utility Guide for information on backing up the CMOS settings.
NOTE: HP encourages customers to recycle used electronic hardware, HP original print cartridges,
and rechargeable batteries. For more information about recycling programs, go to http://www.hp.com/
recycle.
CAUTION: Static electricity can damage the electronic components of the computer or optional
equipment. Before beginning these procedures, ensure that you are discharged of static electricity by
briefly touching a grounded metal object.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2.
Remove the access panel (Computer Access Panel on page 116).
NOTE:
It may be necessary to remove an expansion card to gain access to the battery.
3.
Locate the battery and battery holder on the system board.
4.
Depending on the type of battery holder on your system board, complete the following instructions
to replace the battery:
Battery 163
Type 1 Battery Holder
1.
Lift the battery out of its holder.
2.
Slide the replacement battery into position, positive side up.
3.
The battery holder automatically secures the battery in the proper position.
4.
Replace the computer access panel.
5.
Plug in the computer and turn on power to the computer.
6.
Reset the date and time, your passwords, and any special system setups, using Computer Setup.
Refer to the Computer Setup (F10) Utility Guide.
Type 2 Battery Holder
1.
To release the battery from its holder, squeeze the metal clamp that extends above one edge of
the battery. When the battery pops up, lift it out (1).
2.
To insert the new battery, slide one edge of the replacement battery under the holder’s lip with the
positive side up (2). Push the other edge down until the clamp snaps over the other edge of the
battery.
3.
Replace the computer access panel.
164 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
4.
Plug in the computer and turn on power to the computer.
5.
Reset the date and time, your passwords, and any special system setups, using Computer Setup.
Refer to the Computer Setup (F10) Utility Guide.
Type 3 Battery Holder
1.
Pull back on the clip (1) that holds the battery in place, then remove the battery (2).
2.
Insert the new battery and position the clip back in place.
3.
Replace the computer access panel.
4.
Plug in the computer and turn on power to the computer.
5.
Reset the date and time, your passwords, and any special system setups, using Computer Setup.
Refer to the Computer Setup (F10) Utility Guide.
Battery 165
A
Connector Pin Assignments
This appendix contains the pin assignments for many computer and workstation connectors. Some of
these connectors may not be used on the product being serviced.
Keyboard
Connector and Icon
Pin
Signal
1
Data
2
Unused
3
Ground
4
+5 VDC
5
Clock
6
Unused
Pin
Signal
1
Data
2
Unused
3
Ground
4
+5 VDC
5
Clock
6
Unused
Pin
Signal
1
Data
2
Ground
Mouse
Connector and Icon
Ethernet BNC
Connector and Icon
166 Appendix A Connector Pin Assignments
Ethernet RJ-45
Connector and Icon
Pin
Signal
1
(+) Transmit Data
2
(-) Transmit Data
3
(+) Receive Data
4
Unused
5
Unused
6
(-) Receive Data
7
Unused
8
Unused
Ethernet AUI
Connector and Icon
Pin
Signal
Pin
Signal
1
Ground
9
Positive AUI Differential Receive
2
Negative AUI Differential Collision
10
+12V
3
Positive AUI Differential Collision
11
Ground
4
Negative AUI Differential Transmit
12
Ground
5
Positive AUI Differential Transmit
13
Unused
6
Ground
14
Unused
7
Ground
15
Unused
8
Negative AUI Differential Receive
16
Unused
Ethernet RJ-45 167
Parallel Interface
Connector and Icon
Pin
Signal
Pin
Signal
1
Strobe
10
Acknowledge
2
Data Bit 0
11
Busy
3
Data Bit 1
12
Paper End
4
Data Bit 2
13
Select
5
Data Bit 3
14
Auto Linefeed
6
Data Bit 4
15
Error
7
Data Bit 5
16
Initialize Printer
8
Data Bit 6
17
Select IN
9
Data Bit 7
18–25
Signal Ground
Serial Interface, Powered and Non-Powered
Connector and Icon
168 Appendix A Connector Pin Assignments
Pin
Signal
1
Carrier Detect (12V if powered)
2
Receive Data
3
Transmit Data
4
Data Terminal Ready
5
Signal Ground
6
Data Set Ready
7
Request to Send
8
Clear to Send
9
Ring Indicator (5V if powered)
USB
Connector and Icon
Pin
Signal
1
+5 VDC
2
- Data
3
+ Data
4
Ground
Pin
Signal
1 (Tip)
Audio_left
2 (Ring)
Power_Right
3 (Shield)
Audio_right
Pin
Signal
1 (Tip)
Audio_left
2 (Ring)
Power_Right
3 (Shield)
Ground
Pin
Signal
1 (Tip)
Audio_In_Left
2 (Ring)
Audio_In_Right
3 (Shield)
Ground
Pin
Signal
1 (Tip)
Audio_Out_Left
2 (Ring)
Audio_Out_Right
3 (Shield)
Ground
Microphone
Connector and Icon (1/8” miniphone)
1 2 3
Headphone
Connector and Icon (1/8” miniphone)
1 2 3
Line-in Audio
Connector and Icon (1/8” miniphone)
1 2 3
Line-out Audio
Connector and Icon (1/8” miniphone)
1 2 3
USB 169
External Infrared Transceiver
Connector and Icon
Pin
Signal
1
Transmit
2
Receive
3
Ground
4
5V
5
Mode
6
Not Used
7
Not Used
8
Not Used
Monitor
Connector and Icon
Pin
Signal
Pin
Signal
1
Red Analog
9
+5V (fused)
2
Green Analog
10
Ground
3
Blue Analog
11
Not used
4
Not used
12
DDC Serial Data
5
Ground
13
Horizontal Sync
6
Ground
14
Vertical Sync
7
Ground
15
DDC Serial Clock
8
Ground
170 Appendix A Connector Pin Assignments
ATA/ATAPI (IDE) Standard Drive Cable
Connector
Pin
Signal
Pin
Signal
Pin
Signal
1
Reset
15
DD1
29
DMAK
2
Ground
16
DD14
30
Ground
3
DD7
17
DD0
31
INTRQ
4
DD8
18
DD15
32
IOCS16
5
DD6
19
Ground
33
DA1
6
DD9
20
(Key)
34
PDIAG (cable detect)
7
DD5
21
DMARQ
35
DA0
8
DD10
22
Ground
36
DA2
9
DD4
23
DIOW
37
CS1FX
10
DD11
24
Ground
38
CS3FX
11
DD3
25
DIOR
39
DASP
12
DD12
26
Ground
40
Ground
13
DD2
27
IORDY
14
DD13
28
CSEL
ATA/ATAPI (IDE) Standard Drive Cable 171
CD-ROM 50-Pin Connector
Connector
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
Audio L-ch
14
DD12
27
IORDY
40
+5V
2
Audio R-ch
15
DD3
28
DMACK
41
+5V
3
Audio GND
16
DD13
29
INTRQ
42
+5V
4
GND
17
DD2
30
IOCS16
43
GND
5
RESET
18
DD14
31
DA1
44
GND
6
DD8
19
DD1
32
PDIAG
45
GND
7
DD7
20
DD15
33
DA0
46
GND
8
DD9
21
DD0
34
DA2
47
CSEL
9
DD6
22
DMARQ
35
CS1FX
48
GND
10
DD10
23
GND
36
CS3FX
49
Vendor-specific
11
DD5
24
DIOR
37
DASP
50
Vendor-specific
12
DD11
25
DIOW
38
+5V
13
DD4
26
GND
39
+5V
24-Pin Power
Connector
24
13
Front
12
1
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
+3.3V
7
GND
13
+3.3V
19
GND
2
+3.3V
8
POK
14
–12V
20
open
3
GND
9
+5 Vaux
15
GND
21
+5V
4
+5V
10
+12V
16
PSON
22
+5V
5
GND
11
+12V
17
GND
23
+5V
6
+5V
12
+3.3V
18
GND
24
GND
172 Appendix A Connector Pin Assignments
24-Pin MicroFit Power (CMT, SFF)
Connector
24
13
Front
12
1
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
+5 Vaux
7
PWRGD
13
+12V
19
GND
2
GND
8
+3.3V
14
+5V Sense
20
+3.3V
3
+5V
9
+3.3V
15
GND
21
Sense
4
+5V
10
Tach
16
+5V
22
+3.3V
5
PS_ON
11
GND
17
+5V
23
+3.3V
6
GND
12
Fan-CMD
18
+3.3V
24
GND
4-Pin Power (for CPU)
Connector and Icon
Pin
Signal
1
GND
2
GND
3
+12V CPU
4
-12V CPU
Pin
Signal
1
GND
2
GND
3
GND
4
12V CPU
5
12V CPU
6
+12V
6-Pin Power (for CPU) (CMT, SFF)
Connector and Icon
4
6
24-Pin MicroFit Power (CMT, SFF) 173
SATA Data and Power
Drive Connector
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
S1
Ground
S2
A+
S3
A-
S4
Ground
S5
B-
S6
B+
S7
Ground
P1
Ground
P2
V 3.3
P3
V 3.3
P4
Ground
P5
B-
P6
Ground
P7
V5
P8
V5
P9
V5
P10
Ground
P11
Reserved
P12
Ground
P13
V 12
P14
V12
P15
V 12
S = Data, P = Power
PCI Express
x1, x4, x8, and x16 PCI Express Connector
Pin A
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
PRSNT1
6
JTAG3
11
PERST#
16
PERp0
21
PERp1
2
+12V
7
JTAG4
12
GND
17
PERn0
22
PERn1
3
+12V
8
JTAG5
13
REFCLK+
18
GND
23
GND
4
GND
9
+3.3V
14
REFCLK-
19
RSVD
24
GND
5
JTAG2
10
+3.3V
15
GND
20
GND
25
PERp2
26
PERn(2)
31
GND
36
PERn4
41
GND
46
GND
27
GND
32
RSVD
37
GND
42
GND
47
PERp7
28
GND
33
RSVD
38
GND
43
PERp6
48
PERn7
29
PERp3
34
GND
39
PERp5
44
PERn6
49
GND
30
PERn3
35
PERp4
40
PERn5
45
GND
50
RSVD
51
GND
56
PERp9
61
PERn10
66
GND
71
GND
174 Appendix A Connector Pin Assignments
52
PERp8
57
PERn9
62
GND
67
GND
72
PERp13
53
PERN8
58
GND
63
GND
68
PERp12
73
PERn13
54
GND
59
GND
64
PERp11
69
PERn12
74
GND
55
GND
60
PERp10
65
PERn11
70
GND
75
GND
76
PERp14
81
PERn15
77
PERn14
82
GND
78
GND
79
GND
80
PERp15
NOTE:
x1 PCI Express uses pins 1-18
x4 PCI Express uses pins 1-32
x8 PCI Express uses pins 1-49
x16 PCI Express uses pins 1-8
PCI Express
x1, x4, x8, and x16 PCI Express Connector
Pin B
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
+12V
6
SMDAT
11
WAKE#
16
GND
21
GND
2
+12V
7
GND
12
RSVD
17
GND
22
GND
3
RSVD
8
+3.3 V
13
GND
18
GND
23
PETp2
4
GND
9
JTAG1
14
PETp0
19
PETp1
24
PETn2
5
SMCLK
10
3.3vAux
15
PETn0
20
PETn1
25
GND
26
GND
31
PRSNT2#
36
GND
41
PETp6
46
PETn7
27
PETp3
32
GND
37
PETp5
42
PRTn6
47
GND
28
PETn3
33
PETp4
38
PETn5
43
GND
48
PRSNT2#
29
GND
34
PETn4
39
GND
44
GND
49
GND
30
RSVD
35
GND
40
GND
45
PETp7
50
PETp8
51
PETn8
56
GND
61
GND
66
PETp12
71
PETn13
PCI Express 175
52
GND
57
GND
62
PETp11
67
PETn12
72
GND
53
GND
58
PETp10
63
PETn11
68
GND
73
GND
54
PETp9
59
PETn10
64
GND
69
GND
74
PETp14
55
PETn9
60
GND
65
GND
70
PETp13
75
PETn14
76
GND
81
PRSNT2#
77
GND
82
RSVD
78
PETp15
79
PETn15
80
GND
NOTE: x1 PCI Express uses pins 1-18
x4 PCI Express uses pins 1-32
x8 PCI Express uses pins 1-49
x16 PCI Express uses pins 1-8
PCI Express Mini Card
PCI Express Mini Card Connector
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
WAKE#
7
CLKREQ#
13
REFCLK+
19
Reserved***
(UIM_C4)
25
PERp0
2
3.3V
8
UIM_PWR
14
UIM_RESET
26
GND
20
W_DISABLE#
27
GND
21
GND
28
+1.5V
22
PERST#
Reserved ***
(UIM_C8)
29
GND
23
PERn0
30
SMB_CLK
GND
24
+3.3Vaux
3
4
5
6
Reserved**
GND
Reserved**
1.5V
9
10
11
12
GND
UIM_DATA
REFCLK-
15
16
17
GND
UIM_VPP
UIM_CLK
18
176 Appendix A Connector Pin Assignments
31
PETn0
37
Reserved*
43
Reserved*
49
Reserved*
32
SMB_DATA
38
USB_D+
44
LED_WLAN#
50
GND
33
PETp0
39
Reserved*
45
Reserved*
51
Reserved*
34
GND
40
GND
46
LED_WPAN#
52
+3.3V
36
GND
41
Reserved*
47
Reserved*
36
USB_D-
42
LED_WWAN#
48
+1.5V
NOTE:
*Reserved for future second PCI Express LAN (if needed)
**Reserved for future wireless coexistence control interface (if needed)
***Reserved for future UIM interface (if needed)
DVI Connector
Connector and Icon
Pin
Signal
Pin
Signal
1
T.M.D.S. Data2–
13
T.M.D.S. Data3+
2
T.M.D.S. Data2+
14
+5V Power
3
T.M.D.S. Data2/4 Shield
15
Ground (for +5V)
4
T.M.D.S. Data4–
16
Hot Pug Detect
5
T.M.D.S. Data4+
17
T.M.D.S. Data0–
6
DDC Clock
18
T.M.D.S. Data0+
7
DDC Data
19
T.M.D.S. Data0/5 Shield
8
No Connect
20
T.M.D.S. Data5–
9
T.M.D.S. Data1–
21
T.M.D.S. Data5+
10
T.M.D.S. Data1+
22
T.M.D.S. Data Shield
11
T.M.D.S. Data1/3 Shield
23
T.M.D.S. Clock+
12
T.M.D.S. Data3–
24
T.M.D.S. Clock-
DVI Connector 177
B
Power Cord Set Requirements
The power supplies on some computers have external power switches. The voltage select switch feature
on the computer permits it to operate from any line voltage between 100-120 or 220-240 volts AC. Power
supplies on those computers that do not have external power switches are equipped with internal
switches that sense the incoming voltage and automatically switch to the proper voltage.
The power cord set received with the computer meets the requirements for use in the country where
you purchased the equipment.
Power cord sets for use in other countries must meet the requirements of the country where you use
the computer.
General Requirements
The requirements listed below are applicable to all countries:
1.
The power cord must be approved by an acceptable accredited agency responsible for evaluation
in the country where the power cord set will be installed.
2.
The power cord set must have a minimum current capacity of 10A (7A Japan only) and a nominal
voltage rating of 125 or 250 volts AC, as required by each country’s power system.
3.
The diameter of the wire must be a minimum of 0.75 mm2 or 18AWG, and the length of the cord
must be between 1.8 m (6 feet) and 3.6 m (12 feet).
The power cord should be routed so that it is not likely to be walked on or pinched by items placed upon
it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the
cord exits from the product.
WARNING! Do not operate this product with a damaged power cord set. If the power cord set is
damaged in any manner, replace it immediately.
Japanese Power Cord Requirements
For use in Japan, use only the power cord received with this product.
CAUTION: Do not use the power cord received with this product on any other products.
178 Appendix B Power Cord Set Requirements
Country-Specific Requirements
Additional requirements specific to a country are shown in parentheses and explained below.
Country
Accrediting Agency
Country
Accrediting Agency
Australia (1)
EANSW
Italy (1)
IMQ
Austria (1)
OVE
Japan (3)
METI
Belgium (1)
CEBC
Norway (1)
NEMKO
Canada (2)
CSA
Sweden (1)
SEMKO
Denmark (1)
DEMKO
Switzerland (1)
SEV
Finland (1)
SETI
United Kingdom (1)
BSI
France (1)
UTE
United States (2)
UL
Germany (1)
VDE
1.
The flexible cord must be Type HO5VV-F, 3-conductor, 0.75mm2 conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country where it will be used.
2.
The flexible cord must be Type SVT or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding
type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V) configuration.
3.
Appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the
Japanese Dentori Law. Flexible cord must be Type VCT or VCTF, 3-conductor, 0.75 mm2 conductor size. Wall plug must
be a two-pole grounding type with a Japanese Industrial Standard C8303 (7A, 125V) configuration.
Country-Specific Requirements 179
C
POST Error Messages
This appendix lists the error codes, error messages, and the various indicator light and audible
sequences that you may encounter during Power-On Self-Test (POST) or computer restart, the probable
source of the problem, and steps you can take to resolve the error condition.
POST Message Disabled suppresses most system messages during POST, such as memory count
and non-error text messages. If a POST error occurs, the screen will display the error message. To
manually switch to the POST Messages Enabled mode during POST, press any key (except F10 or
F12). The default mode is POST Message Disabled.
The speed at which the computer loads the operating system and the extent to which it is tested are
determined by the POST mode selection.
Quick Boot is a fast startup process that does not run all of the system level tests, such as the memory
test. Full Boot runs all of the ROM-based system tests and takes longer to complete.
Full Boot may also be enabled to run every 1 to 30 days on a regularly scheduled basis. To establish
the schedule, reconfigure the computer to the Full Boot Every x Days mode, using Computer Setup.
NOTE:
For more information on Computer Setup, see the Computer Setup (F10) Utility Guide.
180 Appendix C POST Error Messages
POST Numeric Codes and Text Messages
This section covers those POST errors that have numeric codes associated with them. The section also
includes some text messages that may be encountered during POST.
NOTE:
The computer will beep once after a POST text message is displayed on the screen.
Table C-1 Numeric Codes and Text Messages
Control panel message
Description
Recommended action
101-Option ROM Checksum Error
System ROM or expansion board option
ROM checksum.
1.
Verify the correct ROM.
2.
Flash the ROM if needed.
3.
If an expansion board was recently
added, remove it to see if the problem
remains.
4.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 191.)
5.
If the message disappears, there may
be a problem with the expansion card.
6.
Replace the system board.
1.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 191.)
2.
Remove expansion boards.
3.
Replace the system board.
1.
If a PCI expansion card was recently
added, remove it to see if the problem
remains.
2.
In Computer Setup, set Advanced >
Device Options > NIC PXE Option
ROM Download to DISABLE to prevent
PXE option ROM for the internal NIC
from being downloaded during POST to
free more memory for an expansion
card's option ROM. Internal PXE option
ROM is used for booting from the NIC to
a PXE server.
3.
Ensure the ACPI/USB Buffers @ Top of
Memory setting in Computer Setup is
enabled.
103-System Board Failure
110-Out of Memory Space for Option ROMs
162-System Options Not Set
DMA or timers.
Recently added PCI expansion card contains
an option ROM too large to download during
POST.
Configuration incorrect.
RTC (real-time clock) battery may need to
be replaced.
Run Computer Setup and check the
configuration in Advanced > Onboard
Devices.
Reset the date and time under Control
Panel. If the problem persists, replace the
RTC battery. See the Hardware Reference
Guide for instructions on installing a new
battery, or contact an authorized dealer or
reseller for RTC battery replacement.
POST Numeric Codes and Text Messages 181
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
163-Time & Date Not Set
Invalid time or date in configuration memory.
Reset the date and time under Control
Panel (Computer Setup can also be used). If
the problem persists, replace the RTC
battery. See the Hardware Reference Guide
for instructions on installing a new battery, or
contact an authorized dealer or reseller for
RTC battery replacement.
RTC (real-time clock) battery may need to
be replaced.
163-Time & Date Not Set
CMOS jumper may not be properly installed.
Check for proper placement of the CMOS
jumper if applicable.
164-MemorySize Error
Memory amount has changed since the last
boot (memory added or removed).
Press the F1 key to save the memory
changes.
164-MemorySize Error
Memory configuration incorrect.
1.
Run Computer Setup or Windows
utilities.
2.
Make sure the memory module(s) are
installed properly.
3.
If third-party memory has been added,
test using HP-only memory.
4.
Verify proper memory module type.
1.
Run Computer Setup or Windows
utilities.
2.
Ensure memory modules are correctly
installed.
3.
Verify proper memory module type.
4.
Remove and replace the identified faulty
memory module(s).
5.
If the error persists after replacing
memory modules, replace the system
board.
A memory module in memory socket
identified in the error message is missing
critical SPD information, or is incompatible
with the chipset.
1.
Verify proper memory module type.
2.
Try another memory socket.
3.
Replace DIMM with a module
conforming to the SPD standard.
214-DIMM Configuration Warning
Populated DIMM Configuration is not
optimized.
Rearrange the DIMMs so that each channel
has the same amount of memory.
219-ECC Memory Module Detected ECC
Modules not supported on this Platform
Recently added memory module(s) support
ECC memory error correction.
1.
If additional memory was recently
added, remove it to see if the problem
remains.
2.
Check product documentation for
memory support information.
1.
Reconnect keyboard with computer
turned off.
2.
Check connector for bent or missing
pins.
201-Memory Error
213-Incompatible Memory Module in
Memory Socket(s) X, X, ...
301-Keyboard Error
RAM failure.
Keyboard failure.
182 Appendix C POST Error Messages
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
303-Keyboard Controller Error
304-Keyboard or System Unit Error
501-Display Adapter Failure
Description
Recommended action
I/O board keyboard controller.
Keyboard failure.
Graphics display controller.
3.
Ensure that none of the keys are
depressed.
4.
Replace keyboard.
1.
Reconnect keyboard with computer
turned off.
2.
Replace the system board.
1.
Reconnect the keyboard with computer
turned off.
2.
Ensure that none of the keys are
depressed.
3.
Replace the keyboard.
4.
Replace the system board.
1.
Reseat the graphics card (if applicable).
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 191.)
3.
Verify monitor is attached and turned
on.
4.
Replace the graphics card (if possible).
510-Flash Screen Image Corrupted
Flash Screen image has errors.
Reflash the system ROM with the latest BIOS
image.
511-CPU, CPUA, or CPUB Fan not Detected
CPU fan is not connected or may have
malfunctioned.
1.
Reseat CPU fan.
2.
Reseat fan cable.
3.
Replace CPU fan.
1.
Reseat chassis, rear chassis, or front
chassis fan.
2.
Reseat fan cable.
3.
Replace chassis, rear chassis, or front
chassis fan.
1.
Reseat CPU or chassis fan.
2.
Reseat fan cable.
3.
Replace CPU or chassis fan.
1.
Run Computer Setup.
2.
Check and/or replace cables.
3.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 191.)
4.
Replace diskette drive.
5.
Replace the system board.
512-Chassis, Rear Chassis, or Front Chassis
Fan not Detected
514-CPU or Chassis Fan not Detected
601-Diskette Controller Error
Chassis, rear chassis, or front chassis fan is
not connected or may have malfunctioned.
CPU or chassis fan is not connected or may
have malfunctioned.
Diskette controller circuitry or floppy drive
circuitry incorrect.
POST Numeric Codes and Text Messages 183
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
605-Diskette Drive Type Error
Mismatch in drive type.
1.
Run Computer Setup.
2.
Disconnect any other diskette controller
devices (tape drives).
3.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 191.)
660-Display cache is detected unreliable
Integrated graphics controller display cache
is not working properly and will be disabled.
Replace system board if minimal graphics
degrading is an issue.
912-Computer Cover Has Been Removed
Since Last System Startup
Computer cover was removed since last
system startup.
No action required.
917-Front Audio Not Connected
Front audio harness has been detached or
unseated from motherboard.
Reconnect or replace front audio harness.
918-Front USB Not Connected
Front USB harness has been detached or
unseated from motherboard.
Reconnect or replace front USB harness.
921-Device in PCI Express slot failed to
initialize
There is an incompatibility/problem with this
device and the system or PCI Express Link
could not be retrained to an x1.
Try rebooting the system. If the error
reoccurs, the device may not work with this
system
1151-Serial Port A Address Conflict Detected
Both external and internal serial ports are
assigned to COM1.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 191.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 191.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 191.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1152-Serial Port B Address Conflict Detected
1155-Serial Port Address Conflict Detected
Both external and internal serial ports are
assigned to COM2.
Both external and internal serial ports are
assigned to same IRQ.
184 Appendix C POST Error Messages
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
1720-SMART Hard Drive Detects Imminent
Failure
Hard drive is about to fail. (Some hard drives
have a hard drive firmware patch that will fix
an erroneous error message.)
1.
Determine if hard drive is giving correct
error message. Enter Computer Setup
and run the Drive Protection System test
under Storage > DPS Self-test.
2.
Apply hard drive firmware patch
if applicable. (Available at
http://www.hp.com/support.)
3.
Back up contents and replace hard
drive.
1796-SATA Cabling Error
One or more SATA devices are improperly
attached. For optimal performance, the SATA
0 and SATA 1 connectors must be used
before SATA 4 and SATA 5.
Ensure SATA connectors are used in
ascending order. For one device, use SATA
0. For two devices, use SATA 0 and SATA 1.
For three devices, use SATA 0, SATA1, and
SATA 4.
1797-SATA Drivelock is not supported in
RAID mode.
Drivelock is enabled on one or more SATA
hard drives, and they cannot be accessed
while the system is configured for RAID
mode.
Either remove the Drivelocked SATA device
or disable the Drivelock feature. To disable
the Drivelock feature, enter Computer Setup,
change Storage > Storage Options > SATA
Emulation to IDE, and select File > Save
Changes and Exit. Reenter Computer Setup
and select Security > Drivelock. For each
listed Drivelock-capable SATA device,
ensure Drivelock is Disabled. Lastly,
change Storage > Storage Options > SATA
Emulation back to RAID and select File >
Save Changes and Exit.
1801-Microcode Patch Error
Processor is not supported by ROM BIOS.
1.
Upgrade BIOS to proper version.
2.
Change the processor.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat the
memory modules, and reboot the
computer.
3.
If the memory configuration was
recently changed, unplug the computer,
restore the original memory
configuration, and reboot the computer.
4.
If the error persists, replace the system
board.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat the
memory modules, and reboot the
computer.
3.
If the memory configuration was
recently changed, unplug the power
cord, restore the original memory
configuration, and reboot the computer.
4.
If the error persists, replace the system
board.
2200-PMM Allocation Error during MEBx
Download
2201-MEBx Module did not checksum
correctly
Memory error during POST execution of the
Management Engine (ME) BIOS Extensions
option ROM
Memory error during POST execution of the
Management Engine (ME) BIOS Extensions
option ROM
POST Numeric Codes and Text Messages 185
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
2202-PMM Deallocation Error during MEBx
cleanup
Memory error during POST execution of the
Management Engine (ME) BIOS Extensions
option ROM
1.
Reboot the computer.
2.
Unplug the power cord, re-seat the
memory modules, and reboot the
computer.
3.
If the memory configuration was
recently changed, unplug the power
cord, restore the original memory
configuration, and reboot the computer.
4.
If the error persists, replace the system
board.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat the
memory modules, and reboot the
computer.
3.
If the memory configuration was
recently changed, unplug the power
cord, restore the original memory
configuration, and reboot the computer.
4.
If the error persists, replace the system
board.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version.
3.
If the error still persists, replace the
system board.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version.
3.
If the error still persists, replace the
system board.
2203-Setup error during MEBx execution
2204-Inventory error during MEBx execution
2205-Interface error during MEBx execution
MEBx selection or exit resulted in a setup
failure.
BIOS information passed to the MEBx
resulted in a failure.
MEBx operation experienced a hardware
error during communication with ME.
2211-Memory not configured correctly for
proper MEBx execution.
DIMM1 is not installed.
Make sure there is a memory module in the
black DIMM1 socket and that it is properly
seated.
Invalid Electronic Serial Number
Electronic serial number is missing.
Enter the correct serial number in Computer
Setup.
Network Server Mode Active and No
Keyboard Attached
Keyboard failure while Network Server Mode
enabled.
1.
Reconnect keyboard with computer
turned off.
2.
Check connector for bent or missing
pins.
3.
Ensure that none of the keys are
depressed.
4.
Replace keyboard.
Parity Check 2
Parity RAM failure.
186 Appendix C POST Error Messages
Run Computer Setup and Diagnostic utilities.
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
System will not boot without fan
Description
Recommended action
Third-party graphics card may be causing a
problem.
Remove third-party graphics card to see if the
problem goes away.
CPU fan not installed or disconnected in
VSFF chassis.
1.
Remove the computer cover, press the
power button, and see if the processor
fan spins. If the processor fan is not
spinning, make sure the fan's cable is
plugged onto the system board header.
Ensure the heatsink is properly seated
and installed.
2.
If the fan is plugged in and the heatsink
is properly seated but the fan does not
spin, then replace the heatsink-fan
assembly.
POST Numeric Codes and Text Messages 187
Interpreting POST Diagnostic Front Panel LEDs and
Audible Codes
This section covers the front panel LED codes as well as the audible codes that may occur before or
during POST that do not necessarily have an error code or text message associated with them.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to the
system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure
to disconnect the power cord from the wall outlet and allow the internal system components to cool
before touching.
Look for the LED on the system board. If the LED is illuminated, the system still has power. Power off
the computer and remove the power cord before proceeding.
NOTE: If you see flashing LEDs on a PS/2 keyboard, look for flashing LEDs on the front panel of the
computer and refer to the following table to determine the front panel LED codes.
Recommended actions in the following table are listed in the order in which they should be performed.
Not all diagnostic lights and audible codes are available on all models.
Table C-2 Diagnostic Front Panel LEDs and Audible Codes
Activity
Beeps
Possible Cause
Recommended Action
Green Power LED On.
None
Computer on.
None
Green Power LED flashes
every two seconds.
None
Computer in Suspend to
RAM mode (some models
only) or normal Suspend
mode.
None required. Press any key or move the mouse
to wake the computer.
Red Power LED flashes two
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
2
Processor thermal
protection activated:
1.
Ensure that the computer air vents are not
blocked and the processor cooling fan is
running.
2.
Open hood, press power button, and see if
the processor fan spins. If the processor fan
is not spinning, make sure the fan's cable is
plugged onto the system board header.
3.
If fan is plugged in, but is not spinning, then
replace heatsink/fan assembly.
4.
Contact an authorized reseller or service
provider.
1.
Check to see that the processor is present.
2.
Reseat the processor.
A fan may be blocked or
not turning.
OR
The heatsink/fan
assembly is not properly
attached to the processor.
Red Power LED flashes three
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
3
188 Appendix C POST Error Messages
Processor not installed
(not an indicator of bad
processor).
Table C-2 Diagnostic Front Panel LEDs and Audible Codes (continued)
Activity
Beeps
Possible Cause
Recommended Action
Red Power LED flashes four
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
4
Power failure (power
supply is overloaded).
1.
Open the hood and ensure the 4 or 6-wire
power supply cable is seated into the
connector on the system board.
2.
Check if a device is causing the problem by
removing ALL attached devices (such as
hard, diskette, or optical drives, and
expansion cards). Power on the system. If
the system enters the POST, then power off
and replace one device at a time and repeat
this procedure until failure occurs. Replace
the device that is causing the failure.
Continue adding devices one at a time to
ensure all devices are functioning properly.
3.
Replace the power supply.
4.
Replace the system board.
Red Power LED flashes five
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
Red Power LED flashes six
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
5
6
Pre-video memory error.
Pre-video graphics error.
CAUTION: To avoid damage to the DIMMs or
the system board, you must unplug the computer
power cord before attempting to reseat, install, or
remove a DIMM module.
1.
Reseat DIMMs.
2.
Replace DIMMs one at a time to isolate the
faulty module.
3.
Replace third-party memory with HP
memory.
4.
Replace the system board.
For systems with a graphics card:
1.
Reseat the graphics card.
2.
Replace the graphics card.
3.
Replace the system board.
For systems with integrated graphics, replace the
system board.
Red Power LED flashes seven
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
7
System board failure
(ROM detected failure
prior to video).
Replace the system board.
Red Power LED flashes eight
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
8
Invalid ROM based on bad 1.
checksum.
2.
Reflash the system ROM with the latest BIOS
image. See the “Boot Block Emergency
Recovery Mode” section of the Desktop
Management Guide for more information.
Replace the system board.
Interpreting POST Diagnostic Front Panel LEDs and Audible Codes 189
Table C-2 Diagnostic Front Panel LEDs and Audible Codes (continued)
Activity
Beeps
Possible Cause
Recommended Action
Red Power LED flashes nine
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
9
System powers on but is
unable to boot.
1.
Check that the voltage selector, located on
the rear of the power supply (some models),
is set to the appropriate voltage. Proper
voltage setting depends on your region.
2.
Unplug the AC power cord from the
computer, wait 30 seconds, then plug the
power cord back in to the computer.
3.
Replace the system board.
4.
Replace the processor.
1.
Check each option card by removing the card
(one at a time if multiple cards), then power
on the system to see if fault goes away.
2.
Once a bad card is identified, remove and
replace the bad option card.
3.
Replace the system board.
Red Power LED flashes ten
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
10
System does not power on and None
LEDs are not flashing.
Bad option card.
System unable to power
on.
Press and hold the power button for less than 4
seconds. If the hard drive LED turns green, the
power button is working correctly. Try the
following:
1.
Check that the voltage selector (some
models), located on the rear of the power
supply, is set to the appropriate voltage.
Proper voltage setting depends on your
region.
2.
Replace the system board.
OR
Press and hold the power button for less than 4
seconds. If the hard drive LED does not turn on
green then:
190 Appendix C POST Error Messages
1.
Check that the unit is plugged into a working
AC outlet.
2.
Open hood and check that the power button
harness is properly connected to the system
board.
3.
Check that both power supply cables are
properly connected to the system board.
4.
Check to see if the 5V_aux light on the
system board is turned on. If it is turned on,
then replace the power button harness. If the
problem persists, replace the system board.
5.
If the 5V_aux light on the system board is not
turned on, remove the expansion cards one
at a time until the 5V_aux light on the system
board turns on. It the problem persists,
replace the power supply.
D
Password Security and Resetting
CMOS
This computer supports security password features, which can be established through the Computer
Setup Utilities menu.
This computer supports two security password features that are established through the Computer
Setup Utilities menu: setup password and power-on password. When you establish only a setup
password, any user can access all the information on the computer except Computer Setup. When you
establish only a power-on password, the power-on password is required to access Computer Setup and
any other information on the computer. When you establish both passwords, only the setup password
will give you access to Computer Setup.
When both passwords are set, the setup password can also be used in place of the power-on password
as an override to log in to the computer. This is a useful feature for a network administrator.
If you forget the password for the computer, you can clear that password so you can gain access to the
information on the computer by resetting the password jumper.
CAUTION: Pushing the CMOS button will reset CMOS values to factory defaults. It is important to
back up the computer CMOS settings before resetting them in case they are needed later. Back up is
easily done through Computer Setup. See the Computer Setup (F10) Utility Guide for information on
backing up the CMOS settings.
191
Resetting the Password Jumper
To disable the power-on or setup password features, or to clear the power-on or setup passwords,
complete the following steps:
1.
Shut down the operating system properly, then turn off the computer and any external devices,
and disconnect the power cord from the power outlet.
2.
With the power cord disconnected, press the power button again to drain the system of any residual
power.
WARNING! To reduce the risk of personal injury from electrical shock and/or hot surfaces, be
sure to disconnect the power cord from the wall outlet, and allow the internal system components
to cool before touching.
CAUTION: When the computer is plugged in, the power supply always has voltage applied to
the system board even when the unit is turned off. Failure to disconnect the power cord can result
in damage to the system.
Static electricity can damage the electronic components of the computer or optional equipment.
Before beginning these procedures, ensure that you are discharged of static electricity by briefly
touching a grounded metal object. See the Hardware Reference Guide for more information.
3.
Remove the computer cover or access panel.
4.
Locate the header and jumper.
NOTE: The password jumper is green so that it can be easily identified. For assistance locating
the password jumper and other system board components, see the Illustrated Parts Map (IPM) for
that particular system. The IPM can be downloaded from http://www.hp.com/support.
5.
Remove the jumper from pins 1 and 2. Place the jumper on either pin 1 or 2, but not both, so that
it does not get lost.
6.
Replace the computer cover or access panel.
7.
Reconnect the external equipment.
8.
Plug in the computer and turn on power. Allow the operating system to start. This clears the current
passwords and disables the password features.
9.
To establish new passwords, repeat steps 1 through 4, replace the password jumper on pins 1 and
2, then repeat steps 6 through 8. Establish the new passwords in Computer Setup. Refer to the
Computer Setup (F10) Utility Guide for Computer Setup instructions.
192 Appendix D Password Security and Resetting CMOS
Clearing and Resetting the CMOS
The computer’s configuration memory (CMOS) stores information about the computer’s configuration.
The CMOS button resets CMOS but does not clear the power-on and setup passwords.
Clearing CMOS will clear the Active Management Technology (AMT) settings in the Management
Engine BIOS Extension (MEBx), including the password. The password will default to “admin” and will
need to be reset. The AMT settings will also need to be reset. To access the MEBx, press CTRL+P
during POST.
1.
Turn off the computer and any external devices, and disconnect the power cord from the power
outlet.
2.
Disconnect the keyboard, monitor, and any other external equipment connected to the computer.
WARNING! To reduce the risk of personal injury from electrical shock and/or hot surfaces, be
sure to disconnect the power cord from the wall outlet, and allow the internal system components
to cool before touching.
CAUTION: When the computer is plugged in, the power supply always has voltage applied to
the system board even when the unit is turned off. Failure to disconnect the power cord can result
in damage to the system.
Static electricity can damage the electronic components of the computer or optional equipment.
Before beginning these procedures, ensure that you are discharged of static electricity by briefly
touching a grounded metal object. See the Hardware Reference Guide for more information.
3.
Remove the computer cover or access panel.
CAUTION: Pushing the CMOS button will reset CMOS values to factory defaults. It is important
to back up the computer CMOS settings before resetting them in case they are needed later. Back
up is easily done through Computer Setup. See the Computer Setup (F10) Utility Guide for
information on backing up the CMOS settings.
Clearing and Resetting the CMOS 193
4.
Locate, press, and hold the CMOS button in for five seconds.
NOTE: Make sure you have disconnected the AC power cord from the wall outlet. The CMOS
button will not clear CMOS if the power cord is connected.
Figure D-1 CMOS button
NOTE: For assistance locating the CMOS button and other system board components, see the
Illustrated Parts Map (IPM) for that particular system.
5.
Replace the computer cover or access panel.
6.
Reconnect the external devices.
7.
Plug in the computer and turn on power.
NOTE: You will receive POST error messages after clearing CMOS and rebooting advising you
that configuration changes have occurred. Use Computer Setup to reset any special system setups
along with the date and time.
For instructions on Computer Setup, see the Computer Setup (F10) Utility Guide.
194 Appendix D Password Security and Resetting CMOS
E
Troubleshooting Without Diagnostics
This chapter provides information on how to identify and correct minor problems, such as diskette drive,
hard drive, optical drive, graphics, audio, memory, and software problems. If you encounter problems
with the computer, refer to the tables in this chapter for probable causes and recommended solutions.
NOTE: For information on specific error messages that may appear on the screen during Power-On
Self-Test (POST) at startup, refer to Appendix A, POST Error Messages on page 180.
Safety and Comfort
WARNING! Misuse of the computer or failure to establish a safe and comfortable work environment
may result in discomfort or serious injury. Refer to the Safety & Comfort Guide at http://www.hp.com/
ergo for more information on choosing a workspace and creating a safe and comfortable work
environment. This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. For more information, refer to the Safety & Regulatory
Information guide.
Before You Call for Technical Support
If you are having problems with the computer, try the appropriate solutions below to try to isolate the
exact problem before calling for technical support.
●
Run the diagnostics utility. Refer to Chapter 1, Computer Diagnostic Features on page 15 for more
information.
●
Run the Drive Protection System (DPS) Self-Test in Computer Setup. Refer to the Computer Setup
(F10) Utility Guide for more information.
●
Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights
are error codes that will help you diagnose the problem. Refer to Appendix A, POST Error
Messages on page 180 for more information.
●
If the screen is blank, plug the monitor into a different video port on the computer if one is available.
Or, change out the monitor with a monitor that you know is functioning properly.
●
If you are working on a network, plug another computer with a different cable into the network
connection. There may be a problem with the network plug or cable.
●
If you recently added new hardware, remove the hardware and see if the computer functions
properly.
●
If you recently installed new software, uninstall the software and see if the computer functions
properly.
Safety and Comfort 195
●
Boot the computer to the Safe Mode to see if it will boot without all of the drivers loaded. When
booting the operating system, use “Last Known Configuration.”
●
Refer to the comprehensive online technical support at http://www.hp.com/support.
●
Refer to the following Helpful Hints on page 196 section in this guide.
To assist you in resolving problems online, HP Instant Support Professional Edition provides you with
self-solve diagnostics. If you need to contact HP support, use HP Instant Support Professional Edition's
online chat feature. Access HP Instant Support Professional Edition at: http://www.hp.com/go/ispe.
Access the Business Support Center (BSC) at http://www.hp.com/go/bizsupport for the latest online
support information, software and drivers, proactive notification, and worldwide community of peers and
HP experts.
If it becomes necessary to call for technical assistance, be prepared to do the following to ensure that
your service call is handled properly:
●
Be in front of your computer when you call.
●
Write down the computer serial number and product ID number, and the monitor serial number
before calling.
●
Spend time troubleshooting the problem with the service technician.
●
Remove any hardware that was recently added to your system.
●
Remove any software that was recently installed.
●
Restore the system from the Recovery Disc Set that you created or restore the system to its original
factory condition in HP Backup and Recovery Manager.
CAUTION: Restoring the system will erase all data on the hard drive. Be sure to back up all data files
before running the restore process.
NOTE: For sales information and warranty upgrades (Care Packs), call your local authorized service
provider or dealer.
Helpful Hints
If you encounter problems with the computer, monitor, or software, see the following list of general
suggestions before taking further action:
●
Check that the computer and monitor are plugged into a working electrical outlet.
●
Check to see that the voltage select switch (some models) is set to the appropriate voltage for your
region (115V or 230V).
●
Check to see that the computer is turned on and the green power light is on.
●
Check to see that the monitor is turned on and the green monitor light is on.
●
Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights
are error codes that will help you diagnose the problem. Refer to Appendix A, POST Error
Messages on page 180 for more information.
●
Turn up the brightness and contrast controls of the monitor if the monitor is dim.
●
Press and hold any key. If the system beeps, then the keyboard should be operating correctly.
196 Appendix E Troubleshooting Without Diagnostics
●
Check all cable connections for loose connections or incorrect connections.
●
Wake the computer by pressing any key on the keyboard or pressing the power button. If the system
remains in suspend mode, shut down the computer by pressing and holding the power button for
at least four seconds then press the power button again to restart the computer. If the system will
not shut down, unplug the power cord, wait a few seconds, then plug it in again. The computer will
restart if automatic start on power loss is set in Computer Setup. If it does not restart, press the
power button to start the computer.
●
Reconfigure the computer after installing a non–plug and play expansion board or other option.
See Solving Hardware Installation Problems on page 220 for instructions.
●
Be sure that all the needed device drivers have been installed. For example, if you are using a
printer, you need a driver for that model printer.
●
Remove all bootable media (diskette, CD, or USB device) from the system before turning it on.
●
If you have installed an operating system other than the factory-installed operating system, check
to be sure that it is supported on the system.
●
If the system has multiple video sources (embedded, PCI, or PCI-Express adapters) installed
(embedded video on some models only) and a single monitor, the monitor must be plugged into
the monitor connector on the source selected as the primary VGA adapter. During boot, the other
monitor connectors are disabled and if the monitor is connected into these ports, the monitor will
not function. You can select which source will be the default VGA source in Computer Setup.
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied
to the system board. You must disconnect the power cord from the power source before opening the
computer to prevent system board or component damage.
Helpful Hints 197
Solving General Problems
You may be able to easily resolve the general problems described in this section. If a problem persists
and you are unable to resolve it yourself or if you feel uncomfortable about performing the operation,
contact an authorized dealer or reseller.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to the
system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure
to disconnect the power cord from the wall outlet and allow the internal system components to cool
before touching.
Look for the LED on the system board. If the LED is illuminated, the system still has power. Power off
the computer and remove the power cord before proceeding.
Table E-1 Solving General Problems
Computer appears locked up and will not turn off when the power button is pressed.
Cause
Solution
Software control of the power switch is not functional.
1.
Press and hold the power button for at least four seconds
until the computer turns off.
2.
Disconnect the power cord from the electrical outlet.
Computer will not respond to USB keyboard or mouse.
Cause
Solution
Computer is in standby mode.
To resume from standby mode, press the power button or
press any key.
CAUTION: When attempting to resume from standby mode,
do not hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
System has locked up.
Restart computer.
Computer date and time display is incorrect.
Cause
Solution
RTC (real-time clock) battery may need to be replaced.
First, reset the date and time under Control Panel (Computer
Setup can also be used to update the RTC date and time). If
the problem persists, replace the RTC battery. See the
Hardware Reference Guide for instructions on installing a new
battery, or contact an authorized dealer or reseller for RTC
battery replacement.
NOTE: Connecting the computer to a live AC outlet prolongs
the life of the RTC battery.
198 Appendix E Troubleshooting Without Diagnostics
Table E-1 Solving General Problems (continued)
Cursor will not move using the arrow keys on the keypad.
Cause
Solution
The Num Lock key may be on.
Press the Num Lock key. The Num Lock light should not be on
if you want to use the arrow keys. The Num Lock key can be
disabled (or enabled) in Computer Setup.
There is no sound or sound volume is too low.
Cause
Solution
System volume may be set low or muted.
1.
Check the F10 BIOS settings to make sure the internal
system speaker is not muted (this setting does not affect
the external speakers).
2.
Make sure the external speakers are properly connected
and powered on and that the speakers' volume control is
set correctly.
3.
Use the system volume control available in the operating
system to make sure the speakers are not muted or to
increase the volume.
The audio device may be connected to the wrong jack on the
rear of the computer.
Ensure that the device is connected to the correct jack on the
rear of the computer.
Poor performance is experienced.
Cause
Solution
Processor is hot.
1.
Make sure airflow to the computer is not blocked. Leave
a 10.2-cm (4-inch) clearance on all vented sides of the
computer and above the monitor to permit the required
airflow
2.
Make sure fans are connected and working properly
(some fans only operate when needed).
3.
Make sure the processor heatsink is installed properly.
Hard drive is full.
Transfer data from the hard drive to create more space on the
hard drive.
Low on memory.
Add more memory.
Hard drive fragmented.
Defragment hard drive.
Program previously accessed did not release reserved
memory back to the system.
Restart the computer.
Virus resident on the hard drive.
Run virus protection program.
Solving General Problems 199
Table E-1 Solving General Problems (continued)
Poor performance is experienced.
Cause
Solution
Too many applications running.
1.
Close unnecessary applications to free up memory.
Some applications run in the background and can be
closed by right-clicking on their corresponding icons in the
task tray. To prevent these applications from launching at
startup, go to Start > Run (Windows XP) or Start >
Accessories > Run (Windows Vista) and type
msconfig. On the Startup tab of the System
Configuration Utility, uncheck applications that you do not
want to launch automatically.
CAUTION: Do not prevent applications from launching
at startup that are required for proper system operation.
Some software applications, especially games, are stressful
on the graphics subsystem
Cause unknown.
2.
Add more memory.
1.
Lower the display resolution for the current application or
consult the documentation that came with the application
for suggestions on how to improve performance by
adjusting parameters in the application.
2.
Add more memory.
3.
Upgrade the graphics solution.
Restart the computer.
Computer powered off automatically and the Power LED flashes Red two times, once every second, followed by a two
second pause, and the computer beeps two times. (Beeps stop after fifth iteration but LEDs continue flashing).
Cause
Solution
Processor thermal protection activated:
1.
Ensure that the computer air vents are not blocked and
the processor cooling fan is running.
2.
Open hood, press power button, and see if the processor
fan spins. If the processor fan is not spinning, make sure
the fan's cable is plugged onto the system board header.
3.
If fan is plugged in, but is not spinning, then replace the
heatsink/fan assembly.
4.
Contact an authorized reseller or service provider.
A fan may be blocked or not turning.
OR
The heatsink is not properly attached to the processor.
200 Appendix E Troubleshooting Without Diagnostics
Table E-1 Solving General Problems (continued)
System does not power on and the LEDs on the front of the computer are not flashing.
Cause
Solution
System unable to power on.
Press and hold the power button for less than 4 seconds. If the
hard drive LED turns green, then:
1.
Check that the voltage selector, located on the rear of the
power supply on some models, is set to the appropriate
voltage. Proper voltage setting depends on your region.
2.
Remove the expansion cards one at a time until the
5V_aux light on the system board turns on.
3.
Replace the system board.
OR
Press and hold the power button for less than 4 seconds. If the
hard drive LED does not turn on green then:
1.
Check that the unit is plugged into a working AC outlet.
2.
Open hood and check that the power button harness is
properly connected to the system board.
3.
Check that both power supply cables are properly
connected to the system board.
4.
Check to see if the 5V_aux light on the system board is
turned on. If it is turned on, then replace the power button
harness.
5.
If the 5V_aux light on the system board is off, then replace
the power supply.
6.
Replace the system board.
Solving General Problems 201
Solving Power Problems
Common causes and solutions for power problems are listed in the following table.
Table E-2 Solving Power Problems
Power supply shuts down intermittently.
Cause
Solution
Voltage selector switch on rear of computer chassis (some
models) not switched to correct line voltage (115V or 230V).
Select the proper AC voltage using the selector switch.
Power supply will not turn on because of internal power supply
fault.
Contact an authorized service provider to replace the power
supply.
Computer powered off automatically and the Power LED flashes Red two times, once every second, followed by a two
second pause, and the computer beeps two times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Processor thermal protection activated:
1.
Ensure that the computer air vents are not blocked and
the processor cooling fan is running.
2.
Open hood, press power button, and see if the processor
fan spins. If the processor fan is not spinning, make sure
the fan's cable is plugged onto the system board header.
3.
If fan is plugged in, but is not spinning, then replace the
heatsink/fan assembly.
4.
Contact an authorized reseller or service provider.
A fan may be blocked or not turning.
OR
The heatsink is not properly attached to the processor.
Power LED flashes Red four times, once every second, followed by a two second pause, and the computer beeps four
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Power failure (power supply is overloaded).
1.
Open the hood and ensure the 4- or 6-wire power supply
cable is seated into the connector on the system board.
2.
Check if a device is causing the problem by removing ALL
attached devices (such as hard, diskette, or optical
drives, and expansion cards). Power on the system. If the
system enters the POST, then power off and replace one
device at a time and repeat this procedure until failure
occurs. Replace the device that is causing the failure.
Continue adding devices one at a time to ensure all
devices are functioning properly.
3.
Replace the power supply.
4.
Replace the system board.
202 Appendix E Troubleshooting Without Diagnostics
Solving Diskette Problems
Common causes and solutions for diskette problems are listed in the following table.
NOTE: You may need to reconfigure the computer when you add or remove hardware, such as an
additional diskette drive. See Solving Hardware Installation Problems on page 220 for instructions.
Table E-3 Solving Diskette Problems
Diskette drive light stays on.
Cause
Solution
Diskette is damaged.
In Microsoft Windows XP, right-click Start, click Explore, and
select a drive. Select File > Properties > Tools. Under Errorchecking click Check Now.
In Microsoft Windows Vista, right-click Start, click Explore,
and right-click on a drive. Select Properties then select the
Tools tab. Under Error-checking click Check Now.
Diskette is incorrectly inserted.
Remove diskette and reinsert.
Drive cable is not properly connected.
Reconnect drive cable. Ensure that all four pins on the diskette
power cable are connected to the drive.
Drive not found.
Cause
Solution
Cable is loose.
Reseat diskette drive data and power cable.
Removable drive is not seated properly.
Reseat the drive.
The device has been hidden in Computer Setup.
Run the Computer Setup utility and ensure Device Available
is selected for the Legacy Diskette in Security > Device
Security.
Diskette drive cannot write to a diskette.
Cause
Solution
Diskette is not formatted.
Format the diskette.
1.
From Windows Explorer select the disk (A) drive.
2.
Right-click the drive letter and select Format.
3.
Select the desired options, and click Start to begin
formatting the diskette.
Diskette is write-protected.
Use another diskette or remove the write protection.
Writing to the wrong drive.
Check the drive letter in the path statement.
Not enough space is left on the diskette.
1.
Use another diskette.
2.
Delete unneeded files from diskette.
Solving Diskette Problems 203
Table E-3 Solving Diskette Problems (continued)
Diskette drive cannot write to a diskette.
Cause
Solution
Legacy diskette writes are disabled in Computer Setup.
Enter Computer Setup and enable Legacy Diskette Write
in Storage > Storage Options.
Diskette is damaged.
Replace the damaged disk.
Cannot format diskette.
Cause
Solution
Invalid media reported.
When formatting a disk in MS-DOS, you may need to specify
diskette capacity. For example, to format a 1.44-MB diskette,
type the following command at the MS-DOS prompt:
FORMAT A: /F:1440
Disk may be write-protected.
Open the locking device on the diskette.
Legacy diskette writes are disabled in Computer Setup.
Enter Computer Setup and enable Legacy Diskette Write
in Storage > Storage Options.
A problem has occurred with a disk transaction.
Cause
Solution
The directory structure is bad, or there is a problem with a file. In Microsoft Windows XP, right-click Start, click Explore, and
select a drive. Select File > Properties > Tools. Under Errorchecking, click Check Now.
In Microsoft Windows Vista, right-click Start, click Explore,
and right-click on a drive. Select Properties then select the
Tools tab. Under Error-checking click Check Now.
Diskette drive cannot read a diskette.
Cause
Solution
You are using the wrong diskette type for the drive type.
Check the type of drive that you are using and use the correct
diskette type.
You are reading the wrong drive.
Check the drive letter in the path statement.
Diskette is damaged.
Replace the diskette with a new one.
“Invalid system disk” message is displayed.
Cause
Solution
A diskette that does not contain the system files needed to start When drive activity stops, remove the diskette and press the
the computer has been inserted in the drive.
Spacebar. The computer should start up.
Diskette error has occurred.
204 Appendix E Troubleshooting Without Diagnostics
Restart the computer by pressing the power button.
Table E-3 Solving Diskette Problems (continued)
Cannot Boot to Diskette.
Cause
Solution
Diskette is not bootable.
Replace with a bootable diskette.
Diskette boot has been disabled in Computer Setup.
1.
Run Computer Setup and enable diskette boot in
Storage > Boot Order.
2.
Run Computer Setup and enable diskette boot in
Storage > Storage Options > Removable Media
Boot.
NOTE: Both steps should be used as the Removable Media
Boot function in Computer Setup overrides the Boot Order
enable command.
Network server mode is enabled in Computer Setup.
Run Computer Setup and disable Network Server Mode in
Security > Password Options.
Removable media boot has been disabled in Computer Setup. Run Computer Setup and enable Removable Media Boot in
Storage > Storage Options > Removable Media Boot.
Solving Diskette Problems 205
Solving Hard Drive Problems
Table E-4 Solving Hard Drive Problems
Hard drive error occurs.
Cause
Solution
Hard disk has bad sectors or has failed.
1.
In Microsoft Windows XP, right-click Start, click
Explore, and select a drive. Select File > Properties >
Tools. Under Error-checking, click Check Now.
In Microsoft Windows Vista, right-click Start, click
Explore, and right-click on a drive. Select
Properties then select the Tools tab. Under Errorchecking click Check Now.
2.
Use a utility to locate and block usage of bad sectors. If
necessary, reformat the hard disk.
Disk transaction problem.
Cause
Solution
Either the directory structure is bad or there is a problem with
a file.
In Microsoft Windows XP, right-click Start, click Explore, and
select a drive. Select File > Properties > Tools. Under Errorchecking, click Check Now.
In Microsoft Windows Vista, right-click Start, click Explore,
and right-click on a drive. Select Properties then select the
Tools tab. Under Error-checking click Check Now.
Drive not found (identified).
Cause
Solution
Cable could be loose.
Check cable connections.
The system may not have automatically recognized a newly
installed device.
See reconfiguration directions in Solving Hardware Installation
Problems on page 220. If the system still does not recognize
the new device, check to see if the device is listed within
Computer Setup. If it is listed, the probable cause is a driver
problem. If it is not listed, the probable cause is a hardware
problem.
If this is a newly installed drive, run the Computer Setup utility
and try adding a POST delay under Advanced > Power-On.
The device is attached to a SATA port that has been hidden in
Computer Setup.
Run the Computer Setup utility and ensure Device Available
is selected for the device's SATA port in Security > Device
Security.
Drive responds slowly immediately after power-up.
Run Computer Setup and increase the POST Delay in
Advanced > Power-On Options.
206 Appendix E Troubleshooting Without Diagnostics
Table E-4 Solving Hard Drive Problems (continued)
Nonsystem disk/NTLDR missing message.
Cause
Solution
The system is trying to start from a diskette that is not bootable. Remove the diskette from the diskette drive.
The system is trying to start from the hard drive but the hard
drive may have been damaged.
System files missing or not properly installed.
1.
Insert a bootable diskette into the diskette drive and
restart the computer.
2.
Check the hard drive format using fdisk: If NTFS
formatting, use a third party reader to evaluate the drive.
If FAT32 formatting, the hard drive cannot be accessed.
1.
Insert a bootable diskette into the diskette drive and
restart the computer.
2.
Check the hard drive format using Fdisk: If NFTFS
formatting, use a third party reader to evaluate the drive.
If FAT32 formatting, the hard drive cannot be accessed.
3.
Install system files for the appropriate operating system.
4.
Restore the system to a recovery point in HP Backup and
Recovery Manager. Refer to the HP Backup and
Recovery Manager User Guide in the Windows Start
menu for more information.
Hard drive boot has been disabled in Computer Setup.
Run the Computer Setup utility and enable the hard drive entry
in the Storage > Boot Order list.
Bootable hard drive is not attached as first in a multi-hard drive
configuration.
If attempting to boot from a hard drive, ensure it is attached to
the dark blue system board connector labeled SATA 0.
Bootable hard drive's controller is not listed first in the Boot
Order.
Run the Computer Setup utility and select Storage > Boot
Order and ensure the bootable hard drive's controller is listed
immediately under the Hard Drive entry.
Computer will not boot from hard drive.
Cause
Solution
The device is attached to a SATA port that has been hidden in Run the Computer Setup utility and ensure Device Available
Computer Setup.
is selected for the device's SATA port in Security > Device
Security.
Boot order is not correct.
Run the Computer Setup utility and change boot sequence
in Storage > Boot Order.
Hard Drive's "Emulation Type" is set to "None."
Run the Computer Setup utility and change the "Emulation
Type" to "Hard Disk" in the device's details under Storage >
Device Configuration.
Hard drive is damaged.
Observe if the front panel Power LED is blinking RED and if
any beeps are heard. See Appendix A, POST Error
Messages on page 180 to determine possible causes for the
blinking red and beep codes.
See the Worldwide Limited Warranty for terms and conditions.
Solving Hard Drive Problems 207
Table E-4 Solving Hard Drive Problems (continued)
Computer seems to be locked up.
Cause
Solution
Program in use has stopped responding to commands.
Attempt the normal Windows “Shut Down” procedure. If this
fails, press the power button for four or more seconds to turn
off the power. To restart the computer, press the power button
again.
The removable hard drive has no power to the hard drive enclosure.
Cause
Solution
The lock on the enclosure is not turned to the “ON” position.
Insert the key and turn the lock clockwise 90 degrees. The
green LED on the front of the enclosure should be on.
Power cable from the computer power supply to the enclosure
frame is not properly connected.
Check the power supply to make sure it is properly connected
to the rear of the enclosure frame.
The removable hard drive is not recognized by the computer.
Cause
Solution
The removable hard drive carrier is not fully seated in the
enclosure frame or the hard drive is not fully seated in the
carrier.
Push the carrier into the enclosure frame so that the connector
on the rear of the frame is properly seated. If this does not solve
the problem, turn off the computer, remove the carrier, and
check to see if the connector on the hard drive is properly
seated in the carrier.
The removable hard drive enclosure is beeping and the green LED is flashing.
Cause
Solution
Fan failure alarm on the removable hard drive enclosure has
been activated.
Shut down the computer and contact HP for a replacement
enclosure.
208 Appendix E Troubleshooting Without Diagnostics
Solving Media Card Reader Problems
Table E-5 Solving Media Card Reader Problems
Media card will not work in a digital camera after formatting it in Microsoft Windows XP or Microsoft Windows Vista.
Cause
Solution
By default, Windows XP and Windows Vista will format any
media card with a capacity greater than 32MB with the FAT32
format. Most digital cameras use the FAT (FAT16 & FAT12)
format and can not operate with a FAT32 formatted card.
Either format the media card in the digital camera or select FAT
file system to format the media card in a computer with
Windows XP or Windows Vista.
A write-protected or locked error occurs when attempting to write to the media card.
Cause
Solution
Media card is locked. Locking the media card is a safety feature
that prevents writing to and deleting from an SD/Memory Stick/
PRO card.
If using an SD card, make sure that the lock tab located on the
right of the SD card is not in the locked position. If using a
Memory Stick/PRO card, make sure that the lock tab located
on the bottom of the Memory Stick/PRO card is not in the
locked position.
Can not write to the media card.
Cause
Solution
The media card is a read-only memory (ROM) card.
Check the manufacturer’s documentation included with your
card to see if it is writable.
Media card is locked. Locking the media card is a safety feature
that prevents writing to and deleting from an SD/Memory Stick/
PRO card.
If using an SD card, make sure that the lock tab located on the
right of the SD card is not in the locked position. If using a
Memory Stick/PRO card, make sure that the lock tab located
on the bottom of the Memory Stick/PRO card is not in the
locked position.
Unable to access data on the media card after inserting it into a slot.
Cause
Solution
The media card is not inserted properly, is inserted in the wrong
slot, or is not supported.
Ensure that the card is inserted properly with the gold contact
on the correct side. The green LED will light if inserted properly.
Do not know how to remove a media card correctly.
Cause
Solution
The computer’s software is used to safely eject the card.
Open My Computer (Windows XP) or Computer (Windows
Vista), right-click on the corresponding drive icon, and select
Eject. Then pull the card out of the slot.
NOTE: Never remove the card when the green LED is
flashing
Solving Media Card Reader Problems 209
Table E-5 Solving Media Card Reader Problems (continued)
After installing the media card reader and booting to Windows, the reader and the inserted cards are not recognized
by the computer.
Cause
Solution
The operating system needs time to recognize the device if the
reader was just installed into the computer and you are turning
the PC on for the first time.
Wait a few seconds so that the operating system can recognize
the reader and the available ports, and then recognize
whatever media is inserted in the reader.
After inserting a media card in the reader, the computer attempts to boot from the media card.
Cause
Solution
The inserted media card has boot capability.
If you do not want to boot from the media card, remove it during
boot or do not select the option to boot from the inserted media
card during the boot process.
210 Appendix E Troubleshooting Without Diagnostics
Solving Display Problems
If you encounter display problems, see the documentation that came with the monitor and to the common
causes and solutions listed in the following table.
Table E-6 Solving Display Problems
Blank screen (no video).
Cause
Solution
Monitor is not turned on and the monitor light is not on.
Turn on the monitor and check that the monitor light is on.
Bad monitor.
Try a different monitor.
The cable connections are not correct.
Check the cable connection from the monitor to the computer
and to the electrical outlet.
You may have a screen blanking utility installed or energy
saver features are enabled.
Press any key or click the mouse button and, if set, type your
password.
System ROM is corrupted; system is running in Boot Block
Emergency Recovery Mode (indicated by eight beeps).
Reflash the system ROM with the latest BIOS image. See the
“Boot Block Emergency Recovery Mode” section of the
Desktop Management Guide for more information
You are using a fixed-sync monitor and it will not sync at the
resolution chosen.
Be sure that the monitor can accept the same horizontal scan
rate as the resolution chosen.
Computer is in standby mode.
Press the power button to resume from standby mode.
CAUTION: When attempting to resume from standby mode,
do not hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
Monitor cable is plugged into the wrong connector.
If the computer system has both an integrated graphics
connector and an add-in graphics card connector, plug the
monitor cable into the graphics card connector on the back of
the computer.
Monitor settings in the computer are not compatible with the
monitor.
1.
In Windows XP Control Panel, double-click the Display
icon and select the Settings tab.
In Windows Vista Control Panel, under Appearance and
Personalization, select Adjust screen resolution.
2.
Use the sliding control to reset the resolution.
Cannot enable integrated graphics after installing a PCI Express graphics card.
Cause
Solution
On systems with Intel integrated graphics, the integrated
graphics cannot be enabled after installing a PCI Express x16.
The integrated graphics can be enabled in Computer Setup if
a PCI or PCI Express x1 graphics card is installed, but it cannot
be enabled if there is a graphics card in the PCI Express x16
slot.
Solving Display Problems 211
Table E-6 Solving Display Problems (continued)
Blank screen and the power LED flashes Red five times, once every second, followed by a two second pause, and the
computer beeps five times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Pre-video memory error.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty module.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Blank screen and the power LED flashes Red six times, once every second, followed by a two second pause, and the
computer beeps six times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Pre-video graphics error.
For systems with a graphics card:
1.
Reseat the graphics card. Power on the system.
2.
Replace the graphics card.
3.
Replace the system board.
For systems with integrated graphics, replace the system
board.
Blank screen and the power LED flashes Red seven times, once every second, followed by a two second pause, and
the computer beeps seven times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
System board failure (ROM detected failure prior to video).
Replace the system board.
Monitor does not function properly when used with energy saver features.
Cause
Solution
Monitor without energy saver capabilities is being used with
energy saver features enabled.
Disable monitor energy saver feature.
Dim characters.
Cause
Solution
The brightness and contrast controls are not set properly.
Adjust the monitor brightness and contrast controls.
Cables are not properly connected.
Check that the graphics cable is securely connected to the
graphics card and the monitor.
212 Appendix E Troubleshooting Without Diagnostics
Table E-6 Solving Display Problems (continued)
Blurry video or requested resolution cannot be set.
Cause
Solution
If the graphics controller was upgraded, the correct graphics
drivers may not be loaded.
Install the video drivers included in the upgrade kit.
Monitor is not capable of displaying requested resolution.
Change requested resolution.
Graphics card is bad.
Replace the graphics card.
The picture is broken up, rolls, jitters, or flashes.
Cause
Solution
The monitor connections may be incomplete or the monitor
may be incorrectly adjusted.
1.
Be sure the monitor cable is securely connected to the
computer.
2.
In a two-monitor system or if another monitor is in close
proximity, be sure the monitors are not interfering with
each other’s electromagnetic field by moving them apart.
3.
Fluorescent lights or fans may be too close to the monitor.
Monitor needs to be degaussed.
Degauss the monitor. Refer to the documentation that came
with the monitor for instructions.
Image is not centered.
Cause
Solution
Position may need adjustment.
Press the monitor's Menu button to access the OSD menu.
Select ImageControl/ Horizontal Position or Vertical
Position to adjust the horizontal or vertical position of the
image.
“No Connection, Check Signal Cable” displays on screen.
Cause
Solution
Monitor video cable is disconnected.
Connect the video cable between the monitor and computer.
CAUTION: Ensure that the computer power is off while
connecting the video cable.
“Out of Range” displays on screen.
Cause
Solution
Video resolution and refresh rate are set higher than what the
monitor supports.
Restart the computer and enter Safe Mode. Change the
settings to a supported setting then restart the computer so that
the new settings take effect.
Solving Display Problems 213
Table E-6 Solving Display Problems (continued)
Vibrating or rattling noise coming from inside a CRT monitor when powered on.
Cause
Solution
Monitor degaussing coil has been activated.
None. It is normal for the degaussing coil to be activated when
the monitor is powered on.
Clicking noise coming from inside a CRT monitor.
Cause
Solution
Electronic relays have been activated inside the monitor.
None. It is normal for some monitors to make a clicking noise
when turned on and off, when going in and out of standby
mode, and when changing resolutions.
High pitched noise coming from inside a flat panel monitor.
Cause
Solution
Brightness and/or contrast settings are too high.
Lower brightness and/or contrast settings.
Fuzzy focus; streaking, ghosting, or shadowing effects; horizontal scrolling lines; faint vertical bars; or unable to
center the picture on the screen (flat panel monitors using an analog VGA input connection only).
Cause
Solution
Flat panel monitor’s internal digital conversion circuits may be
unable to correctly interpret the output synchronization of the
graphics card.
1.
Select the monitor’s Auto-Adjustment option in the
monitor’s on-screen display menu.
2.
Manually synchronize the Clock and Clock Phase onscreen display functions. To download a SoftPaq that will
assist you with the synchronization, go to the following
Web site, select the appropriate monitor, and download
either SP32347 or SP32202: http://www.hp.com/support
1.
Reseat the graphics card.
2.
Replace the graphics card.
Graphics card is not seated properly or is bad.
Certain typed symbols do not appear correct.
Cause
Solution
The font you are using does not support that particular symbol. Use the Character Map to locate and select the appropriate
symbol. Click Start > All Programs > Accessories > System
Tools > Character Map. You can copy the symbol from the
Character Map into a document.
214 Appendix E Troubleshooting Without Diagnostics
Solving Audio Problems
If the computer has audio features and you encounter audio problems, see the common causes and
solutions listed in the following table.
Table E-7 Solving Audio Problems
Sound cuts in and out.
Cause
Solution
Processor resources are being used by other open
applications.
Shut down all open processor-intensive applications.
Direct sound latency, common in many media player
applications.
In Windows XP only:
1.
From the Control Panel, select Sounds and Audio
Devices.
2.
On the Audio tab, select a device from the Sound
Playback list.
3.
Click the Advanced button and select the Performance
tab.
4.
Set the Hardware acceleration slider to None and the
Sample rate conversion quality slider to Good and
retest the audio.
5.
Set the Hardware acceleration slider to Full and the
Sample rate conversion quality slider to Best and
retest the audio.
Sound does not come out of the speaker or headphones.
Cause
Solution
Software volume control is turned down or muted.
Double-click the Speaker icon on the taskbar, then make sure
that Mute is not selected and use the volume slider to adjust
the volume.
Audio is hidden in Computer Setup.
Enable the audio in Computer Setup: Security >
Device Security > Audio.
The external speakers are not turned on.
Turn on the external speakers.
The audio device may be connected to the wrong jack on the
rear of the computer.
Ensure that the device is connected to the correct jack on the
rear of the computer.
External speakers plugged into the wrong audio jack on a
recently installed sound card.
See the sound card documentation for proper speaker
connection.
Digital CD audio is not enabled.
Enable digital CD audio. In the Device Manager, right-click on
the CD/DVD device and select Properties. Make sure Enable
digital CD audio for this CD-ROM device is checked.
Headphones or devices connected to the line-out connector
mute the internal speaker.
Turn on and use headphones or external speakers, if
connected, or disconnect headphones or external speakers.
Computer is in standby mode.
Press the power button to resume from standby mode.
Solving Audio Problems 215
Table E-7 Solving Audio Problems (continued)
Sound does not come out of the speaker or headphones.
Cause
Solution
CAUTION: When attempting to resume from standby mode,
do not hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
Internal speaker is disabled in Computer Setup.
Enable the internal speaker in Computer Setup. Select
Advanced > Device Options > Internal Speaker.
Sound from headphones is not clear or muffled.
Cause
Solution
Headphones are plugged into the rear audio output connector.
The rear audio output connector is for powered audio devices
and is not designed for headphone use.
Plug the headphones into the headphone connector on the
front of the computer.
Computer appears to be locked up while recording audio.
Cause
Solution
The hard disk may be full.
Before recording, make sure there is enough free space on the
hard disk. You can also try recording the audio file in a
compressed format.
Line-in jack is not functioning properly.
Cause
Solution
Jack has been reconfigured in the audio driver or application
software.
In the audio driver or application software, reconfigure the jack
or set the jack to its default value.
216 Appendix E Troubleshooting Without Diagnostics
Solving Printer Problems
If you encounter printer problems, see the documentation that came with the printer and to the common
causes and solutions listed in the following table.
Table E-8 Solving Printer Problems
Printer will not print.
Cause
Solution
Printer is not turned on and online.
Turn the printer on and make sure it is online.
The correct printer drivers for the application are not installed.
1.
Install the correct printer driver for the application.
2.
Try printing using the MS-DOS command:
DIR C:\ > [printer port]
where [printer port] is the address of the printer being
used. If the printer works, reload the printer driver.
If you are on a network, you may not have made the connection Make the proper network connections to the printer.
to the printer.
Printer may have failed.
Run printer self-test.
Printer will not turn on.
Cause
Solution
The cables may not be connected properly.
Reconnect all cables and check the power cord and electrical
outlet.
Printer prints garbled information.
Cause
Solution
The correct printer driver for the application is not installed.
Install the correct printer driver for the application.
The cables may not be connected properly.
Reconnect all cables.
Printer memory may be overloaded.
Reset the printer by turning it off for one minute, then turn it
back on.
Printer is offline.
Cause
Solution
The printer may be out of paper.
Check the paper tray and refill it if it is empty. Select online.
Solving Printer Problems 217
Solving Keyboard and Mouse Problems
If you encounter keyboard or mouse problems, see the documentation that came with the equipment
and to the common causes and solutions listed in the following table.
Table E-9 Solving Keyboard Problems
Keyboard commands and typing are not recognized by the computer.
Cause
Solution
Keyboard connector is not properly connected.
1.
On the Windows XP Desktop, click Start > Shut Down.
On the Windows Vista Desktop, click Start, click the
arrow on the lower right corner of the Start menu, then
select Shut Down.
2.
After the shutdown is complete, reconnect the keyboard
to the back of the computer and restart the computer.
Program in use has stopped responding to commands.
Shut down your computer using the mouse and then restart
the computer.
Keyboard needs repairs.
See the Worldwide Limited Warranty for terms and conditions.
Computer is in standby mode.
Press the power button to resume from standby mode.
CAUTION: When attempting to resume from standby mode,
do not hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
Cursor will not move using the arrow keys on the keypad.
Cause
Solution
The Num Lock key may be on.
Press the Num Lock key. The Num Lock light should not be on
if you want to use the arrow keys. The Num Lock key can be
disabled (or enabled) in Computer Setup.
Table E-10 Solving Mouse Problems
Mouse does not respond to movement or is too slow.
Cause
Solution
Mouse connector is not properly plugged into the back of the
computer.
Shut down the computer using the keyboard.
Program in use has stopped responding to commands.
218 Appendix E Troubleshooting Without Diagnostics
1.
Press the Ctrl and Esc keys at the same time (or press
the Windows logo key) to display the Start menu.
2.
Use the arrow keys to select Shut Down and then press
the Enter key.
3.
After the shutdown is complete, plug the mouse
connector into the back of the computer (or the keyboard)
and restart.
Shut down the computer using the keyboard then restart the
computer.
Table E-10 Solving Mouse Problems (continued)
Mouse does not respond to movement or is too slow.
Cause
Solution
Mouse may need cleaning.
Remove the roller ball cover on the mouse and clean the
internal components.
Mouse may need repair.
See the Worldwide Limited Warranty for terms and conditions.
Computer is in standby mode.
Press the power button to resume from standby mode.
CAUTION: When attempting to resume from standby mode,
do not hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
Mouse will only move vertically, horizontally, or movement is jerky.
Cause
Solution
Mouse roller ball or the rotating encoder shafts that make
contact with the ball are dirty.
Remove roller ball cover from the bottom of the mouse and
clean the internal components with a mouse cleaning kit
available from most computer stores.
Solving Keyboard and Mouse Problems 219
Solving Hardware Installation Problems
You may need to reconfigure the computer when you add or remove hardware, such as an additional
drive or expansion card. If you install a plug and play device, Windows automatically recognizes the
device and configures the computer. If you install a non–plug and play device, you must reconfigure the
computer after completing installation of the new hardware. In Windows, use the Add Hardware
Wizard and follow the instructions that appear on the screen.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to the
system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure
to disconnect the power cord from the wall outlet and allow the internal system components to cool
before touching.
Look for the LED on the system board. If the LED is illuminated, the system still has power. Power off
the computer and remove the power cord before proceeding.
Table E-11 Solving Hardware Installation Problems
A new device is not recognized as part of the system.
Cause
Solution
Device is not seated or connected properly.
Ensure that the device is properly and securely connected and
that pins in the connector are not bent down.
Cable(s) of new external device are loose or power cables are
unplugged.
Ensure that all cables are properly and securely connected and
that pins in the cable or connector are not bent down.
Power switch of new external device is not turned on.
Turn off the computer, turn on the external device, then turn on
the computer to integrate the device with the computer system.
When the system advised you of changes to the configuration,
you did not accept them.
Reboot the computer and follow the instructions for accepting
the changes.
A plug and play board may not automatically configure when
added if the default configuration conflicts with other devices.
Use Windows Device Manager to deselect the automatic
settings for the board and choose a basic configuration that
does not cause a resource conflict. You can also use Computer
Setup to reconfigure or disable devices to resolve the resource
conflict.
USB ports on the computer are disabled in Computer Setup.
Enter Computer Setup (F10) and enable the USB ports.
Computer will not start.
Cause
Solution
Wrong memory modules were used in the upgrade or memory
modules were installed in the wrong location.
1.
Review the documentation that came with the system to
determine if you are using the correct memory modules
and to verify the proper installation.
NOTE: DIMM 1 must always be installed.
220 Appendix E Troubleshooting Without Diagnostics
2.
Observe the beeps and LED lights on the front of the
computer. Beeps and flashing LEDs are codes for
specific problems.
3.
If you still cannot resolve the issue, contact Customer
Support.
Table E-11 Solving Hardware Installation Problems (continued)
Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Memory is installed incorrectly or is bad.
CAUTION: To avoid damage to the DIMMs or the system
board, you must unplug the computer power cord before
attempting to reseat, install, or remove a DIMM module.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty module.
NOTE: DIMM 1 must always be installed.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Power LED flashes Red six times, once every second, followed by a two second pause, and the computer beeps six
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Graphics card is not seated properly or is bad, or system board
is bad.
For systems with a graphics card:
1.
Reseat the graphics card. Power on the system.
2.
Replace the graphics card.
3.
Replace the system board.
For systems with integrated graphics, replace the system
board.
Power LED flashes Red ten times, once every second, followed by a two second pause, and the computer beeps ten
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Bad option card.
1.
Check each option card by removing the cards one at time
(if multiple cards), then power on the system to see if fault
goes away.
2.
Once bad card is identified, remove and replace bad
option card.
3.
Replace the system board.
Solving Hardware Installation Problems 221
Solving Network Problems
Some common causes and solutions for network problems are listed in the following table. These
guidelines do not discuss the process of debugging the network cabling.
Table E-12 Solving Network Problems
Wake-on-LAN feature is not functioning.
Cause
Solution
Wake-on-LAN is not enabled.
To enable Wake-on-LAN in Windows XP:
NOTE: Some NICs come with their own configuration
applets that allow for more detailed control and configuration
of wake features. Refer to the documentation included with the
NIC for more information.
1.
Select Start > Control Panel.
2.
Double-click Network Connections.
3.
Double-click Local Area Connection.
4.
Click Properties.
5.
Click Configure.
6.
Click the Power Management tab, then select the check
box to Allow this device to bring the computer out of
standby.
To enable Wake-on-LAN in Windows Vista:
1.
Select Start > Control Panel.
2.
Under Network and Internet, select View network
status and tasks.
3.
In the Tasks list, select Manage network connections.
4.
Double-click Local Area Connection.
5.
Click the Properties button.
6.
Click the Configure button.
7.
Click the Power Management tab, then select the check
box to Allow this device to wake the computer.
Network driver does not detect network controller.
Cause
Solution
Network controller is disabled.
1.
Run Computer Setup and enable network controller.
2.
Enable the network controller in the operating system via
Device Manager.
Incorrect network driver.
222 Appendix E Troubleshooting Without Diagnostics
Check the network controller documentation for the correct
driver or obtain the latest driver from the manufacturer’s Web
site.
Table E-12 Solving Network Problems (continued)
Network status link light never flashes.
NOTE:
The network status light is supposed to flash when there is network activity.
Cause
Solution
No active network is detected.
Check cabling and network equipment for proper connection.
Network controller is not set up properly.
Check for the device status within Windows, such as Device
Manager for driver load and the Network Connections applet
within Windows for link status.
Network controller is disabled.
1.
Run Computer Setup and enable network controller.
2.
Enable the network controller in the operating system via
Device Manager.
Network driver is not properly loaded.
Reinstall network drivers.
System cannot autosense the network.
Disable auto-sensing capabilities and force the system into the
correct operating mode.
Diagnostics reports a failure.
Cause
Solution
The cable is not securely connected.
Ensure that the cable is securely attached to the network
connector and that the other end of the cable is securely
attached to the correct device.
The cable is attached to the incorrect connector.
Ensure that the cable is attached to the correct connector.
There is a problem with the cable or a device at the other end
of the cable.
Ensure that the cable and device at the other end are operating
correctly.
Network controller interrupt is shared with an expansion board.
Under the Computer Setup Advanced menu, change the
resource settings for the board.
The network controller is defective.
Contact an authorized service provider.
Diagnostics passes, but the computer does not communicate with the network.
Cause
Solution
Network drivers are not loaded, or driver parameters do not
match current configuration.
Make sure the network drivers are loaded and that the driver
parameters match the configuration of the network controller.
Make sure the correct network client and protocol is installed.
The network controller is not configured for this computer.
Select the Network icon in the Control Panel and configure
the network controller.
Network controller stopped working when an expansion board was added to the computer.
Cause
Solution
Network controller interrupt is shared with an expansion board. Under the Computer Setup Advanced menu, change the
resource settings for the board.
Solving Network Problems 223
Table E-12 Solving Network Problems (continued)
Network controller stopped working when an expansion board was added to the computer.
Cause
Solution
The network controller requires drivers.
Verify that the drivers were not accidentally deleted when the
drivers for a new expansion board were installed.
The expansion board installed is a network card (NIC) and
conflicts with the embedded NIC.
Under the Computer Setup Advanced menu, change the
resource settings for the board.
Network controller stops working without apparent cause.
Cause
Solution
The files containing the network drivers are corrupted.
Reinstall the network drivers, using the Recovery Disc Set
created from the hard drive's Recovery Partition.
The cable is not securely connected.
Ensure that the cable is securely attached to the network
connector and that the other end of the cable is securely
attached to the correct device.
The network controller is defective.
Contact an authorized service provider.
New network card will not boot.
Cause
Solution
New network card may be defective or may not meet industrystandard specifications.
Install a working, industry-standard NIC, or change the boot
sequence to boot from another source.
Cannot connect to network server when attempting Remote System Installation.
Cause
Solution
The network controller is not configured properly.
Verify Network Connectivity, that a DHCP Server is present,
and that the Remote System Installation Server contains the
NIC drivers for your NIC.
System setup utility reports unprogrammed EEPROM.
Cause
Solution
Unprogrammed EEPROM.
Contact an authorized service provider.
224 Appendix E Troubleshooting Without Diagnostics
Solving Memory Problems
If you encounter memory problems, some common causes and solutions are listed in the following table.
CAUTION: Power may still be supplied to the DIMMs when the computer is turned off (depending on
the Management Engine (ME) settings). To avoid damage to the DIMMs or the system board, you must
unplug the computer power cord before attempting to reseat, install, or remove a DIMM module.
For those systems that support ECC memory, HP does not support mixing ECC and non-ECC memory.
Otherwise, the computer will not boot the operating system.
NOTE: The memory count will be affected by configurations with the Management Engine (ME)
enabled. The ME uses 8MB of system memory in single channel mode or 16MB of memory in dualchannel mode to download, decompress, and execute the ME firmware for Out-of-Band (OOB), thirdparty data storage, and other management functions.
Table E-13 Solving Memory Problems
System will not boot or does not function properly after installing additional memory modules.
Cause
Solution
A memory module is not installed in the XMM1 (or DIMM1)
socket.
Ensure that a memory module is installed in the black XMM1
(or DIMM1) socket on the system board. This socket must be
populated with a memory module.
Memory module is not the correct type or speed grade for the
system or the new memory module is not seated properly.
Replace module with the correct industry-standard device for
the computer. On some models, ECC and non-ECC memory
modules cannot be mixed.
Out of memory error.
Cause
Solution
Memory configuration may not be set up correctly.
Use the Device Manager to check memory configuration.
You have run out of memory to run the application.
Check the application documentation to determine the memory
requirements.
Memory count during POST is wrong.
Cause
Solution
The memory modules may not be installed correctly.
Check that the memory modules have been installed correctly
and that proper modules are used.
Integrated graphics may use system memory.
No action required.
Solving Memory Problems 225
Table E-13 Solving Memory Problems (continued)
Insufficient memory error during operation.
Cause
Solution
Too many Terminate and Stay Resident programs (TSRs) are
installed.
Delete any TSRs that you do not need.
You have run out of memory for the application.
Check the memory requirements for the application or add
more memory to the computer.
Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Memory is installed incorrectly or is bad.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty module.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
226 Appendix E Troubleshooting Without Diagnostics
Solving Processor Problems
If you encounter processor problems, common causes and solutions are listed in the following table.
Table E-14 Solving Processor Problems
Poor performance is experienced.
Cause
Solution
Processor is hot.
1.
Make sure the airflow to the computer is not blocked.
2.
Make sure the fans are connected and working properly
(some fans only operate when needed).
3.
Make sure the processor heatsink is installed properly.
Power LED flashes Red three times, once every second, followed by a two second pause.
Cause
Solution
Processor is not seated properly or not installed.
1.
Check to see that the processor is present.
2.
Reseat the processor.
Solving Processor Problems 227
Solving CD-ROM and DVD Problems
If you encounter CD-ROM or DVD problems, see the common causes and solutions listed in the
following table or to the documentation that came with the optional device.
Table E-15 Solving CD-ROM and DVD Problems
System will not boot from CD-ROM or DVD drive.
Cause
Solution
The device is attached to a SATA port that has been hidden in
the Computer Setup utility.
Run the Computer Setup utility and ensure Device Available
is selected for the device's SATA port in Security > Device
Security.
Removable Media Boot is disabled in the Computer Setup
utility.
Run the Computer Setup utility and enable booting to
removable media in Storage > Storage Options. Ensure CDROM is enabled in Storage > Boot Order.
Network Server Mode is enabled in Computer Setup.
Run the Computer Setup utility and disable Network Server
Mode in Security > Password Options.
Non-bootable CD in drive.
Try a bootable CD in the drive.
Boot order not correct.
Run the Computer Setup utility and change boot sequence
in Storage > Boot Order.
Drive not found (identified).
Cause
Solution
Cable could be loose.
Check cable connections.
The system may not have automatically recognized a newly
installed device.
See reconfiguration directions in Solving Hardware Installation
Problems on page 220. If the system still does not recognize
the new device, check to see if the device is listed within
Computer Setup. If it is listed, the probable cause is a driver
problem. If it is not listed, the probable cause is a hardware
problem.
If this is a newly installed drive, run the Computer Setup utility
and try adding a POST delay under Advanced > Power-On
Options.
The device is attached to a SATA port that has been hidden in
Computer Setup.
Run the Computer Setup utility and ensure Device Available
is selected for the device's SATA port in Security > Device
Security.
Drive responds slowly immediately after power-up.
Run Computer Setup and increase the POST Delay in
Advanced > Power-On Options.
CD-ROM or DVD devices are not detected or driver is not loaded.
Cause
Solution
Drive is not connected properly or not properly configured.
See the documentation that came with the optional device.
228 Appendix E Troubleshooting Without Diagnostics
Table E-15 Solving CD-ROM and DVD Problems (continued)
Movie will not play in the DVD drive.
Cause
Solution
Movie may be regionalized for a different country.
See the documentation that came with the DVD drive.
Decoder software is not installed.
Install decoder software.
Damaged media.
Replace media.
Movie rating locked out by parental lock.
Use DVD software to remove parental lock.
Media installed upside down.
Reinstall media.
Cannot eject compact disc (tray-load unit).
Cause
Solution
Disc not properly seated in the drive.
Turn off the computer and insert a thin metal rod into the
emergency eject hole and push firmly. Slowly pull the tray out
from the drive until the tray is fully extended, then remove
the disc.
CD-ROM, CD-RW, DVD-ROM, or DVD-R/RW drive cannot read a disc or takes too long to start.
Cause
Solution
Media has been inserted upside down.
Re-insert the Media with the label facing up.
The DVD-ROM drive takes longer to start because it has to
determine the type of media played, such as audio or video.
Wait at least 30 seconds to let the DVD-ROM drive determine
the type of media being played. If the disc still does not start,
read the other solutions listed for this topic.
CD or DVD disc is dirty.
Clean CD or DVD with a CD cleaning kit, available from most
computer stores.
Windows does not detect the CD-ROM or DVD-ROM drive.
1.
Use Device Manager to remove or uninstall the device.
2.
Restart the computer and let Windows detect the CD or
DVD driver.
Recording or copying CDs is difficult or impossible.
Cause
Solution
Wrong or poor quality media type.
1.
Try using a slower speed when recording.
2.
Verify that you are using the correct media for the drive.
3.
Try a different brand of media. Quality varies widely
between manufacturers.
Solving CD-ROM and DVD Problems 229
USDT computer boots too slow after removing a CD-ROM or DVD drive.
Cause
Solution
The system is searching for the drive during boot because the
drive cable is still attached to the system board.
Disconnect the drive cable from the system board.
Solving Drive Key Problems
If you encounter Drive Key problems, common causes and solutions are listed in the following table.
Table E-16 Solving Drive Key Problems
USB Drive Key is not seen as a drive letter in Windows.
Cause
Solution
The drive letter after the last physical drive is not available.
Change the default drive letter for the Drive Key in Windows.
USB Drive Key not found (identified).
Cause
Solution
The device is attached to a USB port that has been hidden in
Computer Setup.
Run the Computer Setup utility and ensure that "Device
available" is selected for "All USB Ports" and "Front USB Ports"
under Security > Device Security.
The device was not properly seated before power-up.
Ensure the device is fully inserted into the USB port before
applying power to the system
System will not boot from USB Drive Key.
Cause
Solution
Boot order is not correct.
Run the Computer Setup utility and change boot sequence
in Storage > Boot Order.
Removable Media Boot is disabled in the Computer Setup
utility.
Run the Computer Setup utility and enable booting to
removable media in Storage > Storage Options. Ensure USB
is enabled in Storage > Boot Order.
The image on the device is not bootable.
Follow the procedures described in the "ROM Flash:
Replicating the Setup: Creating a Bootable Device: Supported
USB Flash Media Device" section of the Service Reference
Guide.
The computer boots to DOS after making a bootable Drive Key.
Cause
Solution
Drive Key is bootable.
Install the Drive Key only after the operating system boots.
230 Appendix E Troubleshooting Without Diagnostics
Solving Front Panel Component Problems
If you encounter problems with devices connected to the front panel, refer to the common causes and
solutions listed in the following table.
Table E-17 Solving Front Panel Component Problems
A USB device, headphone, or microphone is not recognized by the computer.
Cause
Solution
Device is not properly connected.
1.
Turn off the computer.
2.
Reconnect the device to the front of the computer and
restart the computer.
The device does not have power.
If the USB device requires AC power, be sure one end is
connected to the device and one end is connected to a live
outlet.
The correct device driver is not installed.
1.
Install the correct driver for the device.
2.
You might need to reboot the computer.
1.
If possible, replace the cable.
2.
Restart the computer.
1.
Replace the device.
2.
Restart the computer.
The cable from the device to the computer does not work.
The device is not working.
USB ports on the computer are disabled in Computer Setup.
Enter Computer Setup (F10) and enable the USB ports.
Solving Front Panel Component Problems 231
Solving Internet Access Problems
If you encounter Internet access problems, consult your Internet Service Provider (ISP) or refer to the
common causes and solutions listed in the following table.
Table E-18 Solving Internet Access Problems
Unable to connect to the Internet.
Cause
Solution
Internet Service Provider (ISP) account is not set up properly.
Verify Internet settings or contact your ISP for assistance.
Modem is not set up properly.
Reconnect the modem. Verify the connections are correct
using the quick setup documentation.
Web browser is not set up properly.
Verify that the Web browser is installed and set up to work with
your ISP.
Cable/DSL modem is not plugged in.
Plug in cable/DSL modem. You should see a “power” LED light
on the front of the cable/DSL modem.
Cable/DSL service is not available or has been interrupted due
to bad weather.
Try connecting to the Internet at a later time or contact your
ISP. (If the cable/DSL service is connected, the “cable” LED
light on the front of the cable/DSL modem will be on.)
The CAT5 UTP cable is disconnected.
Connect the CAT5 UTP cable between the cable modem and
the computers’s RJ-45 connector. (If the connection is good,
the “PC” LED light on the front of the cable/DSL modem will be
on.)
IP address is not configured properly.
Contact your ISP for the correct IP address.
Cookies are corrupted. (A “cookie” is a small piece of
information that a Web server can store temporarily with the
Web browser. This is useful for having the browser remember
some specific information that the Web server can later
retrieve.)
Windows Vista
1.
Select Start > Control Panel.
2.
Click Network and Internet.
3.
Click Internet Options.
4.
In the Browsing history section on the General tab, click
the Delete button.
5.
Click the Delete cookies button.
Windows XP
1.
Select Start > Control Panel.
2.
Double-click Internet Options.
3.
On the General tab, click the Delete Cookies button.
Cannot automatically launch Internet programs.
Cause
Solution
You must log on to your ISP before some programs will start.
Log on to your ISP and launch the desired program.
232 Appendix E Troubleshooting Without Diagnostics
Table E-18 Solving Internet Access Problems (continued)
Internet takes too long to download Web sites.
Cause
Solution
Modem is not set up properly.
Verify that the modem is connected and communicating
properly.
Windows XP
1.
Select Start > Control Panel.
2.
Double-click System.
3.
Click the Hardware tab.
4.
In the Device Manager area, click the Device Manager
button.
5.
Double-click Modems.
6.
Double-click Agere Systems PCI-SV92PP Soft
Modem.
7.
On the General tab, click Diagnostics.
8.
Click Query Modem. A “Success” response indicates the
modem is connected and working properly.
Windows Vista
1.
Select Start > Control Panel.
2.
Click on System and Maintenance.
3.
Click on System.
4.
In the Tasks list, select Device Manager.
5.
Double-click Modems.
6.
Double-click Agere Systems PCI-SV92PP Soft
Modem.
7.
On the General tab, click Diagnostics.
8.
Click Query Modem. A “Success” response indicates the
modem is connected and working properly.
Solving Internet Access Problems 233
Solving Software Problems
Most software problems occur as a result of the following:
●
The application was not installed or configured correctly.
●
There is insufficient memory available to run the application.
●
There is a conflict between applications.
●
Be sure that all the needed device drivers have been installed.
●
If you have installed an operating system other than the factory-installed operating system, check
to be sure it is supported on the system.
NOTE: HP Backup and Recovery Manager can be used to restore the software to a recovery point or
to restore the system to its factory configuration. Refer to HP Backup and Recovery Manager
on page 2 for more information.
If you encounter software problems, see the applicable solutions listed in the following table.
Table E-19 Solving Software Problems
Computer will not continue and no HP logo screen has appeared.
Cause
Solution
POST error has occurred.
Observe the beeps and LED lights on the front of the computer.
See Appendix A, POST Error Messages on page 180 to
determine possible causes.
See the Restore Kit or the Worldwide Limited Warranty for
terms and conditions.
Computer will not continue after HP logo screen has appeared.
Cause
Solution
System files may be damaged.
Restore the files from the Recovery Disc Set or backups you
created in HP Backup and Recovery Manager.
“Illegal Operation has Occurred” error message is displayed.
Cause
Solution
Software being used is not Microsoft-certified for your version
of Windows.
Verify that the software is certified by Microsoft for your version
of Windows (see program packaging for this information).
Configuration files are corrupt.
If possible, save all data, close all programs, and restart the
computer.
234 Appendix E Troubleshooting Without Diagnostics
Contacting Customer Support
For help and service, contact an authorized reseller or dealer. To locate a reseller or dealer near you,
visit http://www.hp.com.
NOTE: If you take the computer to an authorized reseller, dealer, or service provider for service,
remember to provide the setup and power-on passwords if they are set.
Refer to the number listed in the warranty or in the Support Telephone Numbers guide for technical
assistance.
Contacting Customer Support 235
F
System Board and Riser Board
Reference Designators
These reference designators are used on most but not all HP system and riser boards.
Designator
Component
BAT
Battery socket/Battery
CR1
LED - 5V_Aux (on)
CR2
Health-LED
CR3
UID LED
CR4
Power LED
CR35
Hard drive activity LED
E14
Boot block header/jumper
E15
Boot block recovery header
E16
ROM recovery header
E25
CPLD programming header
E49/JP49
Clear Password header/jumper
E50
Clear CMOS header
J7
RJ45 jack
J9
Stacked RJ45/Dual USB
J10
Quad stacked USB
J11
First IEEE 1394 connector
J12
Second IEEE 1394 connector
J13
SPDIF input
J14
SPDIF output
J20 - 29
PCI slots
J30
PCI extender slot (male)
J31 - J35
PCI Express slots
J37
Primary SCSI connector
236 Appendix F System Board and Riser Board Reference Designators
J38
Secondary SCSI connector
J39
Stacked parallel/SCSI connector
J40
AGP slot
J41
x16 PCI Express slot for graphics
J50
First parallel port
J51
Second parallel port
J52
Double-stacked parallel port, Top = Port B, Bottom = Port A
J53
Parallel port over single Serial Port
J54
Parallel port over Serial Port and Video Port
J55
Parallel port over dual VGA ports
J65
DVI connector
J66
Keyboard connector, PS/2 (Closest to power supply)
J67
Mouse connector, PS/2
J68
Stacked mouse (Top)/keyboard (Bottom) connector
J69
Video connector, VGA
J70
Primary single USB connector
J71
Secondary single USB port
J72
Microphone jack
J73
Line-in jack
J74
Line-out jack
J75
Headphone jack
J76
Volume control
J77
Double-stacked headphone (Bottom)/microphone (Top) connector
J78
Double-stacked line-in (Top)/line-out (Bottom) connector
J80
Stacked serial/audio connector
J81
Primary double-stack USB, Top = Port 2, Bottom = Port 1
J82
Secondary double-stack USB, Top = Port 4, Bottom = Port 3
J83
Triple-stacked audio jack (line in, line out/headphone, microphone)
J101
Security board connector - for security card
J9020-J9029
PCI slots on riser card
J9030-J9034
PCI express slots on riser card
JP49/E49
Clear password header/jumper
L1
USB front port choke (1st)
L2
USB rear port choke (1st)
237
L3
USB rear port choke (2nd)
L4
USB rear port choke (3rd)
L5
USB front port choke (2nd)
P1
P/S connector (20 or 24 pin)
P2
Second P/S connector (as required)
P3
Processor 12V header
P4
Secondary Processor 12V header
P5
Main Power/HDD LED connector
P6
Speaker connector
P7
Analog audio connector (from CD-ROM)
P8
Primary chassis fan header or primary CPU heatsink fan
P9
Secondary chassis fan header
P10
Diskette drive connector
P11
Auxiliary Audio connector
P12
Alert on LAN connector
P13
VRM module footprint
P15
AUI connector
P16
Fan command/fan sink header (may be 2 or 4 pin)
P17
Digital audio expansion header
P18
SPDIF internal input header
P19
SPDIF internal output header
P20
Primary IDE connector
P21
Secondary IDE/MultiBay connector
P22
Header for NEWCARD
P23
Header for front panel audio
P24
Header for front panel USB
P25
Internal USB connector 1
P26
Internal USB connector 2
P27
MultiBay header
P29
SCSI LED connector
P30
PCI extender slot (female)
P40
Blade PC graphics connector (outboard)
P41
Blade PC graphics connector (inboard)
P52
Second serial port
238 Appendix F System Board and Riser Board Reference Designators
P54
Primary serial port
P55
Double stack serial port, Top = Serial B, Bottom = Serial A
P58
Riser edge connector (male-mates with J30)
P60
PrimarySerial ATA (SATA) connector
P61
Second Serial ATA (SATA) connector
P62
Third Serial ATA (SATA) connector
P63
Fourth Serial ATA (SATA) connector
P64
VSFF expansion connector
P65
Graphics option connector
P66
Fifth Serial ATA (SATA) connector
P67
Sixth Serial ATA (SATA) connector
P68
Seventh Serial ATA (SATA) connector
P69
Eighth Serial ATA (SATA) connector
P70
Primary (CPU) fan header for fansink
P71
Secondary CPU fan header for fansink
P80
Primary Serial Attached SCSI (SAS) connector
P81
Second Serial Attached SCSI (SAS) connector
P82
Third Serial Attached SCSI (SAS) connector
P83
Fourth Serial Attached SCSI (SAS) connector
P84
Fifth Serial Attached (SAS) connector
P85
Sixth Serial Attached (SAS) connector
P86
Seventh Serial Attached (SAS) connector
P87
Eighth Serial Attached (SAS) connector
P101
Security board connector, system board
P106
Secondary speaker connector
P124
Hood lock header
P125
Hood sensor header
P126
Flying parallel port header
P150
Media reader header
P216
White box chassis fan header
SW2
Security hood switch on riser card
SW50
Clear CMOS switch/push button
U2
Single chip solution (combined northbridge/southbridge)
U3
North bridge
239
U4
South bridge
U5
Super I/O
U6
Clock chip
U7
64 bit Bridge
U10
LOM1
U11
LOM1 EEPROM
U12
LOM1 PHY
U13
Audio Codec
U14
Audio amplifier
U16
LOM2
U17
LOM2 EEPROM
U18
LOM2 PHY
U19
SPI ROM - SOIC-8 footprint
U20
Fan controller
U21
SPI ROM - SO16 footprint
U29
TMDS controller
U30
Parallel port diode array
U31
First serial port transceiver
U32
Second serial port transceiver
U46
VRM controller
U50
USB front port power switch
U51
First USB rear port power switch
U52
Second USB rear port power switch
U53
Third USB rear port power switch
XBT
Battery retainer
XMM1
Memory slot. DIMM1 or RIMM1 populated and tested
XMM2 - XMM5
Following memory slots
XU1
Primary processor socket
XU2
Secondary processor socket
XU15/U15
System ROM and Socket (Socket = XU15, ROM = U15)
XU19/U19
SPI ROM and socket (XU19 = socket, U19 = SPI ROM)
Y1
Primary (TH) system clock crystal
Y2
Secondary (SMT) system clock crystal
Y3
Primary NIC clock crystal
240 Appendix F System Board and Riser Board Reference Designators
Y4
Secondary NIC clock crystal
Y5/H5
RTC clock crystal/tie-down
241
Index
Symbols/Numerics
24-pin MicroFit power pin
assignments 173
24-pin power pin
assignments 172
4-pin power pin assignments 173
6-pin power pin assignments 173
A
access to computer,
controlling 38
Active Management Technology,
Intel vPro-branded PCs with 28
Altiris
AClient 22
Deployment Solution
Agent 22
asset tracking 38
ATA/ATAPI (IDE) drive cable pin
assignments 171
audible codes 188
audio problems 215
B
battery
disposal 59
SFF removal and
replacement 163
beep codes 188
bezel blanks
SFF removal and
replacement 118
BIOS
Boot Block Emergency
Recovery Mode 32
HPQFlash 32
Remote ROM Flash 31
Boot Block Emergency Recovery
Mode 32
boot problems 230
242 Index
bootable device
creating 34
DiskOnKey 34, 36
HP Drive Key 34, 36
USB flash media device
booting options
Full Boot 180
Quick Boot 180
34
C
cable connections
MT 69
SFF 131
cable lock provision 47
cable management
MT 68
SFF 129
cable pinouts
SATA data 49
SATA power 49
cable routing
SFF removal and
replacement 152
cautions
AC power 51
cables 58
cooling fan 57
cover lock security 45
electrostatic discharge 53
FailSafe Key 46
keyboard cleaning 56
keyboard keys 57
protecting ROM 31
CD-ROM connector pin
assignments 172
CD-ROM or DVD problems 228
change notification 30
changing operating systems,
important information 38
changing password 42
chasis types, illustrated 51
chassis
MT illustrated 51
SFF illustrated 52
cleaning
computer 56
mouse 57
safety precautions 56
clearing password 43
Client Management Interface 23
Client Manager 26
cloning tools, software 21
CMOS
backing up 191
clearing and resetting 193
computer access panel
MT removal and
replacement 66
SFF removal and
replacement 116
computer cleaning 56
Computer Setup Utilities 32
Configuration Management
Solution 26
configuring power button 37
connections
MT system board 69
SFF system board 131
connector pin assignments 166
controlling access to
computer 38
country power cord set
requirements 179
cover lock 45
cover lock security, caution 45
Customer Support 195, 235
customizing software 21
D
deleting password 42
delimiter characters, table 43
deployment tools, software 21
diagnostic tool for hard drives 47
diagnostics utility 15
DIMMs. See memory
disassembly preparation
MT 61
SFF 110
disk, cloning 21
diskette drive
installing 83, 142
removing 81, 140
diskette problems 203
DiskOnKey
bootable 34, 36
HP Drive Key 34
drive connectors
MT 79
Drive Key problems 230
drive, protecting 47
DriveLock
applications 44
using 43
drives
MT locations 80
SFF locations 132
SFF removal and
replacement 132
dual-state power button 37
DVI pin assignments 177
E
electrostatic discharge (ESD)
preventing damage 53
Emergency Recovery Mode, Boot
Block 32
entering
power-on password 41
setup password 41
error
codes 180, 188
messages 181
ethernet
AUI pin assignments 167
BNC pin assignments 166
RJ-45 pin assignments 167
expansion cards
MT removal and
replacement 73
expansion slot cover
removing 126
removing MT 74
replacing 76, 128
F
FailSafe Key
caution 46
ordering 46
fan shroud
MT removal and
replacement 95
SFF removal and
replacement 155
fan, power supply 57
fan/air baffle
MT removal and
replacement 96
Fault Notification and Recovery
HP Client Manager 47
fingerprint identification
technology 47
flashing LEDs 188
front bezel
MT removal and
replacement 67
security 65, 115
SFF removal and
replacement 117, 123,
125, 136, 137, 144
front I/O device
SFF removal and
replacement 157
front panel problems 231
front USB panel
MT removal and
replacement 97
G
general problems 198
grounding methods 54
H
hard drive
installing 87, 144
installing secondary 142
proper handling 58
removing 86, 144
SATA characteristics 48
hard drive problems 206
hard drives, diagnostic tool 47
hardware installation
problems 220
headphone pin assignments 169
heatsink
MT removal and
replacement 99
SFF removal and
replacement 158
helpful hints 196
HP
Client Catalog for SMS 25
Client Management
Interface 23
Client Manager for Altiris 26
Configuration Management
Solution 26
ProtectTools Security
Manager 25
System Software Manager 24
HP Client Catalog for SMS 27
HP Drive Key
bootable 34, 36
DiskOnKey 34
HP Lifecycle solutions 21
HPQFlash 32
I
industry standards 38
infrared (IR) transceiver, external,
pin assignments 170
initial configuration 21
inner baffle
SFF removal and
replacement 154
Insight Diagnostics 15
installing
diskette drive 83, 142
hard drive 87, 144
media card reader 83, 142
memory 121
optical drive 83, 137
removable hard drive 89, 148
Intel vPro-branded PCs with Active
Management Technology 28
internal temperature of
computer 47
Internet access problems 232
Internet addresses. See Web sites
Index 243
K
keyboard
cleaning 56
pin assignments 166
keyboard delimiter characters,
national 43
keyboard problems 218
L
LEDs
blinking power 188
blinking PS/2 keyboard 188
line-in audio pin
assignments 169
line-out audio pin
assignments 169
locking Smart Cover Lock 46
locks
cable lock 62, 111
front bezel 65, 115
HP Business PC Security
Lock 63, 113
padlock 62, 112
M
media card reader
installing 83, 142
removing 81, 140
Media Card Reader
problems 209
memory
installing 121
MT removal and
replacement 70
populating sockets 122
specifications 121
memory problems 225
microphone pin assignments 169
monitor
pin assignments 170
monitor problems 211
mouse
cleaning 57
pin assignments 166
mouse problems 218
MT
access panel removal and
replacement 66
cable connections 69
cable management 68
244 Index
chassis, illustrated 51
disassembly preparation 61
expansion cards removal and
replacement 73
external security 62
fan shroud removal and
replacement 95
fan/air baffle removal and
replacement 96
front bezel removal and
replacement 67
front USB panel removal and
replacement 97
heatsink removal and
replacement 99
memory removal and
replacement 70
power supply removal and
replacement 104
power switch/LED assembly
removal and replacement 98
preparation for
disassembly 61
processor removal and
replacement 100
ReadyBoost card removal and
replacement 94
rear chassis fan removal and
replacement 102
serial port removal and
replacement 103
speaker removal and
replacement 101
system board connections 69
system board removal and
replacement 106
N
national keyboard delimiter
characters 43
network problems 222
notification of changes 30
numeric error codes 181
O
operating guidelines 55
operating systems, important
information about 38
optical drive
installing 83, 137
removing 81, 136
optical drive problems 228
ordering FailSafe Key 46
overheating, prevention 55
P
parallel interface pin
assignments 168
password
changing 42
clearing 43, 191
deleting 42
power-on 41, 191
security 40
setup 40, 41, 191
PC deployment 21
PCI card 73, 75, 125, 127
PCI Express card 73, 75, 125,
127
PCI Express Mini Card pin
assignments 176
PCI Express pin
assignments 174
PCN (Proactive Change
Notification) 30
POST error messages 180
power button
configuring 37
dual-state 37
power cord set requirements
country specific 179
power problems 202
power supply
fan 57
MT removal and
replacement 104
SFF removal and
replacement 161
power supply, surge-tolerant 47
power switch assembly
SFF removal and
replacement 156
power switch/LED assembly
MT removal and
replacement 98
power-on password
changing 42
deleting 42
entering 41
setting 41
Preboot Execution Environment
(PXE) 23
preinstalled software image 21
printer problems 217
Proactive Change Notification
(PCN) 30
problems
audio 215
CD-ROM or DVD 228
diskette 203
Drive Key 230
front panel 231
general 198
hard drive 206
hardware installation 220
Internet access 232
keyboard 218
Media Card Reader 209
memory 225
monitor 211
mouse 218
network 222
power 202
printer 217
processor 227
software 234
processor
MT removal and
replacement 100
SFF removal and
replacement 159
processor problems 227
product ID location 60
protecting hard drive 47
protecting ROM, caution 31
ProtectTools Security
Manager 25
PXE (Preboot Execution
Environment) 23
R
ReadyBoost card
MT removal and
replacement 94
SFF removal and
replacement 153
rear chassis fan
MT removal and
replacement 102
Recovery Mode, Boot Block
Emergency 32
recovery, software 21
reference designators 236
Remote ROM Flash 31
remote setup 23
Remote System Installation 23
removable hard drive
replacing 89, 148
removal and replacement
MT access panel 66
MT expansion cards 73
MT fan shroud 95
MT fan/air baffle 96
MT front bezel 67
MT front USB panel 97
MT heatsink 99
MT memory 70
MT power supply 104
MT power switch/LED
assembly 98
MT processor 100
MT ReadyBoost card 94
MT rear chassis fan 102
MT serial port 103
MT speaker 101
MT system board 106
SFF battery 163
SFF bezel blanks 118
SFF cable routing 152
SFF computer access
panel 116
SFF drives 132
SFF fan shroud 155
SFF front bezel 117, 123,
125, 136, 137, 144
SFF front I/O device 157
SFF heatsink 158
SFF inner baffle 154
SFF power supply 161
SFF power switch
assembly 156
SFF processor 159
SFF ReadyBoost card 153
SFF speaker 160
SFF system board 162
removing
diskette drive 81, 140
expansion slot cover 74, 126
hard drive 86, 144
media card reader 81, 140
optical drive 81, 136
PCI card 75, 127
PCI Express card 75, 127
resetting
CMOS 191
password jumper 191
retired solutions 31
riser board
reference designators 236
ROM
flash 31
Remote Flash 31
S
safety and comfort 195
safety precautions
cleaning 56
SATA
connectors on system
board 48
data cable pinouts 49
hard drive characteristics 48
pin assignments 174
power cable pinouts 49
screws, correct size 58
security
cable lock 47, 62, 111
DriveLock 43
features, table 39
fingerprint identification
technology 47
front bezel 65, 115
HP Business PC Security
Lock 63, 113
MT 62
padlock 62, 112
password 40
ProtectTools Security
Manager 25
settings 38
SFF 111
Smart Cover Lock 45
Smart Cover Sensor 45
serial interface pin
assignments 168
Index 245
serial number location 60
serial port
MT removal and
replacement 103
service considerations 57
setup
copying to multiple
computers 33
copying to single computer 33
initial 21
replicating 32
setup password
changing 42
deleting 42
entering 41
setting 40
SFF
battery removal and
replacement 163
cable connections 131
cable management 129
cable routing 152
chassis, illustrated 52
computer access panel removal
and replacement 116
disassembly preparation 110
drives removal and
replacement 132
external security 111
fan shroud removal and
replacement 155
front bezel removal and
replacement 117, 123,
125, 136, 137, 144
front I/O device removal and
replacement 157
heatsink removal and
replacement 158
inner baffle removal and
replacement 154
power supply removal and
replacement 161
power switch assembly removal
and replacement 156
preparation for
disassembly 110
processor removal and
replacement 159
