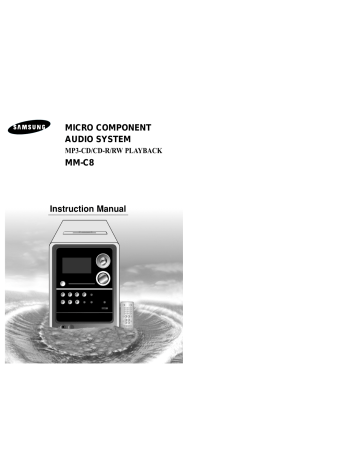

Samsung MM-C8R Instruction manual

MICRO COMPONENT

AUDIO SYSTEM

MP3-CD/CD-R/RW PLAYBACK

MM-C8

Instruction Manual

B

Safety Warnings

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LASER CLASE 1

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE REAR COVER, NO USER

SERVICEABLE PARTS INSIDE, REFER SER-

VICING TO QUALIFIED SERVICE

PERSONNEL.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1

LASER product.

Use of controls adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN

AND INTER LOCKS DEFEATED, AVOID EXPOSURE TO

BEAM.

WARNING: TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT,

FULLY INSERT.

This symbol indicates that dangerous voltage constituting of a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the owners manual accompanying this unit.

Wiring the Mains Power Supply Plug(UK Only)

IMPORTANT NOTICE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and, if it requires replacing, a fuse approved to BS1362 of the same rating must be used.

Never use the plug with the fuse cover omitted. If the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.

However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do NOT connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:–

BLUE = NEUTRAL BROWN = LIVE

As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:–

The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured

BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E OR BY

THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.

2

Contents

Thank you for buying this

SAMSUNG micro component system.

Please take time to read these instructions.

They will allow you to operate your system with ease and take full advantage of its features.

S AFETY W ARNINGS .................................................................................................................................................................................. 2

I NSTALLING Y OUR M ICRO C OMPONENT S YSTEM

Front Panel View ........................................................................................................................................................................................4

Remote Control ..........................................................................................................................................................................................5

Rear Panel View ........................................................................................................................................................................................6

Where to Install Your Micro Component System ......................................................................................................................................7

Connecting your System to the Power Supply ..........................................................................................................................................7

Inserting Remote Control Batteries ............................................................................................................................................................7

Connecting to an External Source ............................................................................................................................................................8

CD Digital Out Jack ....................................................................................................................................................................................8

Speaker Connection ..................................................................................................................................................................................8

Connecting the AM (MW)/LW Aerial ..........................................................................................................................................................9

Connecting the FM Aerial ..........................................................................................................................................................................9

DEMO Function ........................................................................................................................................................................................10

DIMMER Function ....................................................................................................................................................................................10

Setting the Clock ......................................................................................................................................................................................10

MP3-CD/CD-P LAYER

To replay the CD/MP3-CD ......................................................................................................................................................................11

Selecting a Track ....................................................................................................................................................................................11

To select the MP3-CD album and track ..................................................................................................................................................11

Searching for a Specific Music Passage on a CD ..................................................................................................................................12

Function to skip through 10 tracks at a time............................................................................................................................................13

Repeating One or All Tracks on the Compact Discs ..............................................................................................................................13

Last Memory Function..............................................................................................................................................................................13

Programming the Order of Playback........................................................................................................................................................14

Checking or Changing Programmed Tracks ............................................................................................................................................14

T UNER

Searching for and Storing the Radio Stations ........................................................................................................................................15

Selecting a Stored Station........................................................................................................................................................................15

Improving Radio Reception ......................................................................................................................................................................15

About RDS broadcasting..........................................................................................................................................................................16

About RDS DISPLAY function..................................................................................................................................................................17

PTY(Program Type) indication and PTY-SEARCH function ..................................................................................................................17

T APE D ECK

Listening to a Cassette ............................................................................................................................................................................18

Selecting the Cassette Playback Mode ..................................................................................................................................................18

Tape Counter............................................................................................................................................................................................................18

Recording a Compact Disc ......................................................................................................................................................................19

Recording a Radio Program ....................................................................................................................................................................19

O THER F UNCTIONS

Timer Function ........................................................................................................................................................................................20

Canceling the Timer ................................................................................................................................................................................20

EQ/S.BASS Function ..............................................................................................................................................................................21

Selecting Sound Mode ............................................................................................................................................................................21

Treble Level Function ..............................................................................................................................................................................21

Bass Level Function ................................................................................................................................................................................22

MUTE Function ........................................................................................................................................................................................22

Setting the System to Switch off Automatically........................................................................................................................................22

Connecting Headphones..........................................................................................................................................................................22

R ECOMMENDATIONS FOR U SE

Safety Precautions ..................................................................................................................................................................................23

Cleaning Your Micro Component System................................................................................................................................................23

Precautions When Using Compact Discs ................................................................................................................................................24

Precautions When Using Audio Cassettes ..............................................................................................................................................24

Before Contacting the After-Sales Service ..............................................................................................................................................24

Technical Specifications ..........................................................................................................................................................................25

Symbols

GB

Press Push Important Note

3

B

Front Panel View

14

1

2

3

4

5

1. STANDBY/ON

2. FUNCTIONS (TUNER/MP3-CD/CD/TAPE)

3. SEARCH FUNCTION BUTTONS

TUNING MODE OR STOP BUTTON

4. DISC TRAY

5. HEADPHONE JACK CONNECTOR

6. CD SYNCHRO / REC/PAUSE

7. SURROUND XT

8. CD DOOR OPEN/CLOSE

9. DEMO/DIMMER

10. EQ

11. AUX

12. VOLUME CONTROL

13. MULTI JOG(PUSH ENTER)

14. PUSH EJECT

(CASSETTE DOOR OPEN/CLOSE)

13

12

9

8

11

10

7

6

4

Remote Control

1

9

10

2

3

4

5

6

7

8

11

12

TUNER

BAND

AUX

SLEEP

TIMER/CLOCK TIMER ON/OFF

PROGRAM/SET

REC./PAUSE

COUNTER RESET

MO/ST

SURROUND XT

REV.MODE

DISPLAY RDS PTY

CD/MP3-CD

REPEAT

VOLUME

TUNING/

ALBUM

TUNING

MODE

+10

TA P E

MUTE

16

15

14

13

22

21

20

19

18

17

25

24

23

GB

8.

9.

10.

11.

12.

13.

1.

2.

PROGRAM/SET

STANDBY/ON

3.

4.

TUNER/BAND

AUX

5.

SLEEP

6. REV.MODE

7.

CD SKIP OR SEARCH

CD STOP

REPEAT

VOLUME CONTROL

TAPE REWIND

TAPE STOP

TAPE PLAY

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

TAPE FAST-FORWARD

TUNING UP OR DOWN / ALBUM SKIP

TUNING MODE/+10

CD PLAY/PAUSE

DISPLAY(RDS)

PTY(RDS)

SURROUND XT

CUNTER RESET / FM MONO/STEREO

TIMER ON/OFF

MUTE

REC./PAUSE

TIMER/CLOCK

5

B

Rear Panel View

6

1. AM Aerial Connector Terminals

2. FM Aerial Connector Terminal

3. CD Digital Out(optical)

4. AUX-Input

5. Loudspeaker Connector Terminals

1

2

3

4

5

Where to Install Your

Micro Component System

To take full advantage of your new micro component system, follow these installation instructions before connecting the unit.

Install the system on a flat, stable surface.

Never place this unit on carpeting.

Never place this unit in an outdoor area.

Maintain an open space of approximately 6 inches (15 cm) on the sides and rear of the system, for ventilation purposes.

Make sure that you have enough room to open the compact disc compartment easily.

Place the loudspeakers at a reasonable distance on either side of the system to ensure good stereo sound.

Direct the loudspeakers towards the listening area.

For optimum performance, make sure that both speakers are placed at an equal distance above the floor.

Inserting Remote Control Batteries

Insert or replace remote control batteries when you:

Purchase the micro component system

Find that the remote control is no longer operating correctly

When replacing the batteries, use a new set of batteries and never mix alkaline and manganese batteries.

1 Place your thumb on the position marked on the battery compartment cover (rear of the remote control) and push the cover in the direction of the arrow.

2

Insert two AAA, LR03 or equivalent batteries, taking care to respect the polarities:

+ on the battery against + in the battery compartment

– on the battery against – in the battery compartment

3

Replace the cover by sliding it back until it clicks into position.

GB

Connecting your System to the

Power Supply

The main lead must be plugged into an appropriate socket.

Before plugging your system into a main socket, you must check the voltage.

1

2

Plug the main lead into an appropriate socket.

Press the ( ) button to switch your micro component system on.

7

Connecting to an External Source

B

The auxiliary input can be used to take advantage of the sound quality of your micro component system when listening to other sources.

A video disc player

A Hi-Fi stereo video cassette recorder

To connect to the external source, the source must have an audio output. In addition, you need an RCA connection cable.

1 Set the system to standby mode and disconnect it and the external source from the main socket.

2 Connect the audio cable to the rear of the micro component system.

Connect the...

To the connector marked...

Red jack

White jack

R (right)

L (left)

For optimum sound quality, do not invert the right and left channels.

3 Plug the system back into the main socket and press ( ) to switch it on.

4 Select the AUX source by pressing AUX.

Result: AUX is displayed.

5 Switch the external source on.

Example: You can watch a film and take advantage of stereo sound provided that the original sound track is in stereo (as if you were in a cinema).

Speaker Connection

Main Speaker Connection: Connect the Speaker cords

(red/black) to the Main Speaker jacks of System.

Red wire to the + terminals

Black wire to the – terminals

(Right Speaker)

(+) (-)

(Left Speaker)

(+) (-)

Directions in Installing Speaker

Installation in a place near heating apparatus, under direct lay of light or with high humidity may cause performance degradation of the speaker.

Do not install on the wall or on a high place of pole or other unstable place to prevent any safety accident caused by falling of the speaker.

Do not take the speaker apart from TV or computer monitor.

The speaker near the TV or computer monitor may influence the quality of the screen display.

CD Digital Out Jack

This unit can output CD digital sound signals through this jack.

Use an optical cable to connect digital audio equipment.

(DAT deck, MD recorder, etc.).

Remove the dust cap (1) from the CD DIGITAL OUT jack.

Then, connect an optical cable plug to the CD DIGITAL OUT jack.

(1)

When the CD DIGITAL OUT jack is not being used.

Attach the supplied dust cap.

8

Connecting the AM (MW)/LW Aerial

The AM aerial (for long and medium waves) can be:

Placed on a stable surface

Fixed to the wall (you must first remove the base)

The AM aerial connector terminals are located on the rear of the system and are marked AM ANT .

To avoid noise interference, check that the loudspeaker wires do not run close to the aerial wires.

Always keep them at least 2 inches (5 cm) away.

Connecting the FM Aerial

How to connect a COAXIAL TYPE aerial.

Connect a 75

Ω antenna to the FM antenna terminal.

Plug the connector on the FM aerial supplied into the coaxial socket (75

Ω

) marked FM on the rear of the system.

Follow the instructions given on Page 15 to tune into a radio station, and determine the best position for the aerial.

If reception is poor, you may need to install an outdoor aerial.

To do so, connect an outdoor FM aerial to the FM socket on the rear of the system using a 75 Ω coaxial cable (not supplied).

9

GB

DEMO Function

B

You can view the various functions available on your system.

1

Press DEMO/DIMMER button.

Result: The various functions available are listed in turn on the display.

All these functions are described in detail in this booklet.

For instructions on how to use them, refer to the appropriate sections.

2

To cancel this function, press DEMO/DIMMER again.

DIMMER Function

You can adjust the brightness of the VFD display depending on the surrounding lighting conditions.

1

Press the DEMO/DIMMER button.

Your selection switches each time the button is pressed:

DIMMER ON(Dim) ➞ DIMMER OFF(Bright) .

Setting the Clock

Your system is equipped with a clock which allows you to turn your system on and off automatically.

You should set the clock:

When you first purchase the micro component system

After a power failure

After unplugging the unit

For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.

1

2

Switch the system on by pressing ( ) .

Press TIMER/CLOCK twice.

Result: CLOCK is displayed.

3

Press PROGRAM/SET.

Result: The hour flashes.

4

To...

Increase the hours

Decrease the hours

Press...

5

When the correct hour is displayed, press PROGRAM/SET.

Result: The minutes flash.

6

To...

Increase the minutes

Decrease the minutes

Press...

7

When the correct time is displayed, press PROGRAM/SET.

Result: " TIMER " appears in the display.

The current time is now set.

You can display the time, even when you are using another function, by pressing TIMER/CLOCK once.

In standby,you can press MULTI JOG(PUSH ENTER) button instead of PROGRAM/SET button and press / buttons or turn MULTI JOG(PUSH ENTER) knob on the front panel instead of / buttons on the remote control.

MUTE

1

TUNER

BAND

AUX

SLEEP


PROGRAM/SET

2

COUNTER RESET

MO/ST

SURROUND XT

REV.MODE

DISPLAY RDS PTY

CD/MP3-CD

REPEAT

VOLUME

TUNING/

ALBUM

4,6

TUNING

MODE

+10

TA P E

4,6

10

To replay the CD/MP3-CD

You can play 12 cm or 8 cm compact discs without an adapter.

This unit has been designed to playback the CDs: Audio CD,

CD Text, CD-R, CD-RW and MP3-CD.

Continued use of irregular shape CDs (heart-shape, octagonal, etc.) can damage the unit.

1

Select the CD function by pressing MP3-CD/CD( √ / » ) button.

2 Press the Open/Close ( ) button.

Result: The compartment opens.

3

Place your disc in the compartment, with the label on the disc facing upwards.

4

Close the compartment by pressing the Open/Close ( ) button again.

5 Press the MP3-CD/CD( √ / » ) button.

Your CD Player will take a few moments to scan through all the tracks recorded on a particular MP3-CD

The English name of the song may be indicated on the display only if directly downloaded from the PC or if the purchased

MP3-CD is sorted according to titles(directory).

(Other languages besides English may not be indicated.)

The English name of the track may not be indicated depending on the characteristics of the MP3-CD.

6

Adjust the volume according to needs with the following procedures.

Turn the VOLUME control of the main unit.

or

Press the VOLUME + or – button of the remote control.

The volume level can be adjust in 31 steps(VOL MIN,VOL 1-

VOL 29,and VOL MAX).

7

To stop playback temporarily, press the MP3-CD/CD ( √ / » ) button.

Press MP3-CD/CD ( √ / » ) again to continue playing the disc.

8

Press the STOP ( ) button when you have finished.

Selecting a Track

You can select the track you wish to listen to, either when the compact disc player is stopped or when a disc is playing.

To start playback at the beginning of the...

Next track

Current track

Previous track

Track of your choice

Press...

once once twice or the appropriate number of times.

SLEEP REC./PAUSE SURROUND XT

REV.MODE

DISPLAY RDS PTY

CD/MP3-CD

GB

REPEAT

VOLUME

TUNING/

ALBUM

TUNING

MODE

+10

TA P E

To select the MP3-CD album and track

The album and track of the MP3-CD desired to listen may be selected on stopping or during playbacks.

1

To move the album, press the TUNING/ALBUM / button.

2

To move the track, press the ,

Moves the track within the album.

button.

If the , button is pressed more than the number of tracks within the album, it moves to the next album.

This function works only with remote control.

1,5,7

6

2 CD/MP3-CD

REPEAT

VOLUME

1

TUNING/

ALBUM

TUNING

MODE

+10

2

8

2,4

11

B

What is MP3?

MP3 means MPEG1 Layer 3, the global standard for audio signal compression technology. It uses digital compression technology to compress original sound data by up to 12 times without sound quality degradation.

File Compatibility

The unit will playback files created in MP3 format

(Mpeg1.Layer3) with *.mp3 as their extension.

Files created in MP2 format (Mpeg1.Layer2) with *.mp2 as their extension can also be played back.

How many MP3 files can a CD-R or CD-RW disc record?

The maximum capacity of one CD-R or CD-RW disc is

740MB.

Normally, one MP3 file has a capacity of 4MB, therefore approximately 180 files can be recorded on a single disc.

Regarding the playback of CD-R/RW

In the case of an original CD-R(Recordable) recorded in audio CD format, CD-RW(Rewritable) and editing by the user, playback is processed on the respective completed status. (The player may not be played back according to the characteristics of the CD or recorded status.)

The CD-RW is comparably less reflexive than CD which causes more time delay to read.

Searching for a Specific Music

Passage on a CD

When listening to a compact disc, you can quickly search for a specific music passage on a track.

To search through the tracks...

Forwards

Backwards

Press and hold down...

for at least one second for at least one second

It is recommended that you turn the volume down before using this function.

SLEEP

REV.MODE

REC./PAUSE SURROUND XT

DISPLAY RDS PTY

CD/MP3-CD

REPEAT

VOLUME

TUNING/

ALBUM

TUNING

MODE

+10

TA P E

Playback sequence of albums and tracks

In case of Window Explorer display.

The arrows indicates playback sequence of albums and tracks.

Tracks with jpg, wav or doc only are not audio files and therefore will be skipped.

(E) CD-ROM drive Album 01

Kevin01.mp3

Kevin02.mp3

Kevin03.mp3

Kevin04.mp3

Album 02

Summer05.mp3

Summer06.mp3

Album 03

Michael07.mp3

Michael08.mp3

Skipped

Kenny01.wav

Kenny02.wav

Skipped


Life.doc

Album 04

Garden.mp3

Garden.mp3

Album 05

Water.mp3

Water.mp3

Album 06

Butterfly.mp3

Album 07

Piano14.mp3

John15.mp3

Function to skip through 10 tracks at a time

Press the +10 button briefly while playing back a

CD. The track 10 tracks after the current one will then be played back.

Example: If you want to select track 43 during playback of track

15, press the +10 button three times, and then press the button three times.

15 ➝ 20 ➝ 30 ➝ 40 ➝ 41 ➝ 42 ➝ 43

Last Memory Function

(This function is only available during playback of an MP3-CD.)

When CD playback is selected again after your CD player has been stopped or turned off, this function allows playback from the start of the track that you last listened to.

Press the PROGRAM/SET button while your MP3-CD is being played back.

The LAST ON and LAST OFF may be repeatedly selected.

GB

+10 +10 +10

REV.MODE

DISPLAY RDS PTY

CD/MP3-CD

REPEAT

VOLUME

TUNING/

ALBUM

TUNING

MODE

+10

TA P E

MUTE

TUNER

BAND

AUX

SLEEP


PROGRAM/SET COUNTER RESET

MO/ST


REV.MODE

DISPLAY RDS PTY

Repeating One or All Tracks on the Compact Discs

You can repeat indefinitely:

A specific track on a compact disc.

All tracks on the compact disc selected.

1

To repeat...

The current track indefinitely

All tracks

Press Repeat on the remote control one or more times until...

REPEAT 1 is displayed

REPEAT ALL is displayed

2

To cancel this function, press REPEAT again.

CD/MP3-CD

REPEAT

VOLUME

TUNING/

ALBUM

TUNING

MODE

+10

1,2

TA P E

12 13

B

Programming the Order of Playback

(This function is not available during playback of an MP3-CD.)

You can decide:

The order of the track desired to listen

The track not desired to listen

A maximum of up to 24 order of tracks desired to listen may be programmed.

Before selecting the track, the CD player should be stopped.

This function may be used simultaneously with the CD

Repeat function.

In the case of the MP3-CD, the PROGRAM/SET button may be used as the RESUME ON , OFF function.

1

2

3

If the CD function is selected, stop the player by pressing

Load the selected CD.

Press PROGRAM/SET.

Result: The following indications are displayed: button.

(01 = Program no., -- -- = Track no. on the disc)

4 Select the required track by pressing: to move back through the tracks to move forward through the tracks

5 Press PROGRAM/SET to confirm your selection.

Result: The selection is stored and is displayed.

6

7

To select other tracks, repeat Steps 4 to 5.

Press MP3-CD/CD ( √ / grammed.

» ) to listen to the track selection in the order pro-

8

9

To...

Listen to the current track again

Listen to the previous track

Listen to the next track

Skip forwards or backwards one or more tracks

To cancel the selection, press button.

Once if the compact disc player is stopped

Result: PROG is no longer displayed.

Press...

once twice once or the appropriate number of times

If you open the compartment, the selection is cancelled.

TUNER

BAND

AUX

SLEEP


3,5

REC./PAUSE

COUNTER RESET

MO/ST

SURROUND XT

REV.MODE

DISPLAY RDS PTY

4,8

1, 9

CD/MP3-CD

4,8

VOLUME 7

TUNING/

ALBUM

TUNING

Checking or Changing Programmed

Tracks

You can check or change your selection of tracks at any time.

1

2

Press once if you have started listening to the selection.

Press PROGRAM/SET button twice.

Result: The following indications are displayed:

(01 = Program no., – – = Track no. on the disc)

If you have already programmed 24 tracks, Check is displayed instead of CH when you press PROGRAM/SET.

3 Press PROGRAM/SET one or more times until the track to be changed is displayed.

4

5

Press or to select a different track.

Press PROGRAM/SET to confirm your change.

6

Press MP3-CD/CD ( √ / » ) to start listening to the selection.

Result: The first track selected is played.

TUNER

BAND

AUX


2,3,5

COUNTER RESET

MO/ST

SLEEP REC./PAUSE SURROUND XT

4

REV.MODE

DISPLAY RDS PTY

1

CD/MP3-CD 4

REPEAT

VOLUME

ALBUM

TUNING

MODE

+10

14

Searching for and Storing the Radio

Stations

You can store up to:

15 FM stations

8 MW stations

7 LW stations

1

2

Switch the system on by pressing ( ).

Select the required frequency band by pressing TUNER/BAND again on the front panel or BAND on the remote control.

Result: The appropriate indication is displayed:

FM

MW

LW

Frequency Modulation

Medium Wave

Long Wave

3

4

5

6

To search for a station...

Press TUNING MODE

Manually

Automatically

One or more times until MANUAL is displayed.

One or more times until AUTO is displayed.

PRESET function is explained in detail in the section

“Selecting a Stored Station” on.

Select the station to be stored by: or buttons on the remote control to increase or decrease the frequency respectively.

To scroll through the frequencies faster when searching manually, hold down the or buttons.

The automatic search procedure may stop on a frequency that does not correspond to a radio station.

If this happens, use the manual search mode.

If you do not want to store the radio station found, revert to Step 4 and search for another station.

Otherwise:

a Press PROGRAM/SET.

Result: The PROG is displayed for a few seconds. or buttons on the remote control to assign a program number .

c Press PROGRAM/SET to store the radio station.

Result: PROG is no longer displayed and the station is stored.

To store any other radio frequencies required, repeat Steps 3 to 5.

The PROGRAM function can be used to assign a new station to an existing program number.

2

4 5

3

4 5

Selecting a Stored Station

You can listen to a stored radio station as follows:

1

2


Select the required frequency band by pressing TUNER/BAND on the front panel.

3 Select the radio station as follows.

To listen to ... Press ...

Stored station 1. the TUNING MODE button until

“ PRESET ” is displayed.

2. or button to select the required program.

1

3

2

3

3

Improving Radio Reception

You can improve the quality of radio reception by:

Rotating the FM or AM(MW) aerial

If reception from a specific FM radio station is poor, press MO/ST. to switch from stereo mode to mono. The quality of the sound will be improved.

MUTE

TUNER

BAND

AUX

SLEEP

5


REC./PAUSE

COUNTER RESET

MO/ST

SOUND MODE

REV.MODE

DISPLAY RDS PTY

CD/MP3-CD

REPEAT

VOLUME

4 5

TUNING/

ALBUM

4 5

TUNING

MODE

+10

3

TA P E

TUNER

BAND

AUX

SLEEP



MO/ST


REV.MODE

DISPLAY RDS PTY

CD/MP3-CD

15

GB

About RDS broadcasting

B

This unit has the RDS (Radio Data System) function, which enables for the various information such as broadcasting station, radio text, time and 30 types of programs (News, Rock, Classic, etc.) to be received from the FM RDS station together with normal radio signal.

1

2

3

Press the ( ) button.

Receive the FM radio.

See the radio receiving method on the page 15.

FM and frequency are shown on the display

If the received station transfers the RDS information, 'RDS' appears automatically on the display.

Press the RDS Display button to select the desired RDS mode.

Whenever the button is pressed, RDS mode changes as follows.

PS NAME RT CT Current FM frequency

The RDS function is available only in FM broadcasting.

Description on RDS function

1. PTY(Program Type) : Displays the type of programme currently being broadcast

2. PS NAME(Program Service Name) : Indicates the name of broadcasting station and is composed of 8 characters.

3. RT(Radio Text) : Decodes the text broadcast by a station (if any) and is composed of maximum 64 characters.

4. CT(Clock Time) : Decodes the real time clock from the FM frequency.

Some stations may not transmit PTY, RT or CT information therefore this may not be displayed in all cases.

5. TA(Traffic Announcement) : When this symbol flashes it shows that the traffic announcement is in progress.

1 MUTE

TUNER

BAND

AUX


SLEEP


MO/ST


REV.MODE

DISPLAY RDS

CD/MP3-CD

3

PTY

About RDS DISPLAY function

About "PS NAME" MODE

Displays the name of broadcasting station.

Press the RDS DISPLAY button to select the PS NAME.

"PS NAME" appears on the display.

If the PS information is being received, the PS name (BBC, AFO, NDR, etc.) is shown on the display.

If the PS information isn't received, the original FM frequency is shown.

Even though no RDS DISPLAY button is pressed, the reception of PS information ensues the PS name is displayed.

About 'RT' MODE

Displays the character transmitted from the broadcasting station.

Press the RDS DISPLAY button to select the RT MODE.

"RT" appears on the display.

If the RT information is being received, the received information is shown on the display.

If the RT information isn't received, the "NO RT" is shown.

On the display.

About CT(Clock Time)

Sets the time of RDS clock.

To select the CT time, set the RDS DISPLAY button to CT MODE.

The CT information will take up to 2 minutes to be decoded therefore the clock isn’t displayed immediately.

If there is no received CT information, "NO CT" is displayed.

VOLUME

TUNING/

ALBUM

PTY(Program Type) indication and

PTY-SEARCH function

NEWS

Display

INFO

SPORT

EDUCATE

DRAMA

POP M

ROCK M

M.O.R.M

LIGHT M

OTHER M

WEATHER

FINANCE

CHILDREN

SOCIAL

RELIGION

PHONE IN

TRAVEL

LEISURE

JAZZ

COUNTRY

NATION M

OLDIES

FOLK M

DOCUMENT

TEST

◆ The PTY information is composed of an identification symbol, which helps the FM radio to recognize the program type of each FM station.

◆ The below 30 PTY information is shown on the display by pressing the Pty button.

AFFAIRS

CULTURE

SCIENCE

VARIED

CLASSICS

Program Type

• News including an announced opinion and report

• Several matters including a current incident, documentary, discussion and analysis.

• Information including weights and measures, returns and forecast, matters interesting the customer, medical information, etc.

• Sports

• Education

• Drama-Radio serial, etc.

• Culture-National or local culture including the religious problem, social science, language, theater,etc.

• Natural science and technology

• Others-Speech, amusing program (quiz, game), interview, comedy and satirical play, etc.

• Pop music

• Rock music

• M.O.R- Comfortable music, occasionally vocal or piece

• Light classical music- Classical music and instrumental and chorus music

• Heavy classical music-Orchestra music, symphony, chamber music and opera

• Other music - Jazz, R&B country music

• Weather

• Finance

• Children’s programmes

• Social affairs

• Religion

• Phone in

• Travel

• Leisure

• Jazz Music

• Country Music

• National Music

• Oldies Music

• Folk Music

• Documentary

• Alarm Test

About PTY-SEARCH

1

2

Receive the FM radio.

See the radio receiving method on the page 15.

The FM and frequency appear on the display.

If th e r lights up.

Press the PTY button.

The PTY MODE(NEWS, AFFAIRS, etc.) appears on the display.

Press the TUNING

MODE.

or button to select the desired PTY

GB

If the station is transmitting no PTY information, 'NO PTY' lights on the display.

When the PTY MODE is selected(The PTY MODE is shown on the display), press the PTY KEY once again to convert into

PTY-SEARCH MODE and auto-search the station sequentially.

If the PTY MODE received in the course of auto-search agrees with the selected PTY MODE, the auto-search stops and the

PTY-SEARCH is finished.

If the PTY MODE which agrees with the PTY MODE selected in the course of auto-search, isn't received, it is returned to the first frequency at beginning the PTY SEARCH and the auto-search and PTY SEARCH are suspended.

TUNER

BAND

AUX

SLEEP



MO/ST


REV.MODE

DISPLAY RDS PTY 2

CD/MP3-CD

REPEAT

VOLUME

2

TA P E

TUNING/

ALBUM

2

TUNING

MODE

+10

16 17

Listening to a Cassette

GB

Always treat your cassettes with care; refer, if necessary, to the section entitled “ Precautions When Using Audio Cassettes ” on page 24 .

1

2

Switch the system on by pressing ( ).

Open the cassette deck by pushing on the corner of the cover marked PUSH EJECT ( ) until you hear a click and then releasing it.

Insert the pre-recorded cassette with the open edge of the tape facing downwards.

3

4

Close the deck by pushing on it until it clicks into place.

To listen to...

Side A

Side B

Result: The cassette starts playing.

Press ...

Tape (

Tape (

) button once.

) button twice.

5

6

Press the ,

To...

Rewind the cassette or

Fast-forward the cassette

, button if necessary.

Press ...

/

/ button.

button.

When you have finished playback, press button.

Selecting the Cassette

Playback Mode

Your micro component system has three cassette playback modes which enable you to listen to both sides of a cassette automatically.

Press REV.MODE until the appropriate symbol is displayed.

When the display indicates...

The micro component system plays back...

One side of the selected cassette and then stops.

One side of the cassette.

The other side of the cassette and then stops.

Both sides of the cassette indefinitely until you press stop.

AUX

SLEEP

REV.MODE


MO/ST


DISPLAY RDS PTY

CD/MP3-CD

REPEAT

VOLUME

TUNING/

ALBUM

TUNING

MODE

+10

1

Tape Counter

4

5

6

5

2,3

When playing a cassette, a counter is displayed to enable you to take note of the counter value at the start of each track and thus start playback at the beginning of the track to which you wish to listen.

The counter is only displayed when a cassette is being played.

Before starting to record a cassette for which you wish to take note of the counter values at the beginning of each track, reset the counter by pressing COUNTER RESET.

MUTE

TUNER

BAND

AUX

SLEEP



MO/ST


REV.MODE

DISPLAY RDS PTY

CD/MP3-CD

18

Recording a Compact Disc

You can record a compact disc on a cassette in two different ways:

Synchronised recording

Direct recording

Synchronised recording

This feature enables you to synchronize the start of the recording with the start of the disc or track of your choice.

1

2


Insert a blank cassette in Deck.

Press the PUSH/EJECT button ( ) to open the cassette door, insert a cassette, and then close the cassette door.

Insert the cassette with the safety tabs.

3

4

5

6

Load a compact disc.

Press the OPEN/CLOSE button (

Insert a CD and press the OPEN/CLOSE button ( the CD door.

) to open the CD door.

) to close

Press the MP3-CD/CD( √ / » ) button.

Use the CD selection ( , ) buttons to select the desired song.

Press and hold CD SYNC/REC/PAUSE button.

When stopped, press the button to start the recording from the first piece of music.

Press and hold CD SYNC/REC/PAUSE button during the playback of CD to start the recording from the first part of the music being played.

To stop recording, press button.

3

4

5


Press the OPEN/CLOSE button (

Insert a CD and press the OPEN/CLOSE button ( the CD door.

) to open the CD door.

) to close

Press the MP3-CD/CD( √ / » ) button.

Use the CD selection ( , ) buttons to select the desired song.

Press the CD SYNC/REC/PAUSE button.

Result: Recording will begin.


GB

1

4

4

5 4

5

2

3

4

4

1

6 4

5

2

3

Recording a Radio Program

You can record a radio program of your choice.

You do not need to adjust the volume, as it has no effect on the recording.

1

2

3

4



Select the TUNER function by pressing TUNER/BAND.

Select the radio station that you wish to record by pressing or button .

5

Press the CD SYNC/REC/PAUSE button.

Result: REC is displayed and recording starts.

6


Direct recording

The direct recording mode enables you to start recording with any track on the compact disc.

You do not need to adjust the volume, as it has no effect on the recording.

1

2



Press the PUSH/EJECT button ( ) to open the cassette door, insert a cassette, and then close the cassette door.

Insert the cassette with the safety tabs.

4

3

6

1

4

5

19

Timer Function

B

The timer enables you to switch the system on or off at specific times.

Example: You wish to wake up to music every morning.

If you no longer want the system to be switched on or off automatically, you must cancel the timer.

Before setting the timer, check that the current time is correct.

For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.

1

2


Press TIMER/CLOCK until TIMER is displayed.

3

Press PROGRAM/SET.

Result: ON TIME is displayed (instead of the equalizer symbols) for a few seconds, followed by any switch-on time already set; you can set the timer switch-on time.

4

Set the timer switch-on time.

a Set the hour by pressing

b Press PROGRAM/SET.


or button.

c Set the minutes by pressing or button.

d Press PROGRAM/SET.

Result: OFF TIME is displayed (instead of the equalizer symbols) for a few seconds, followed by any switch-off time already set; you can now set the timer switch-off time.

5

Set the timer switch-off time.

a Set the hour by pressing b Press PROGRAM/SET.


or button.

c Set the minutes by pressing d Press PROGRAM/SET.

or button.

Result: VOL 10 is displayed, where 10 corresponds to the volume already set.

6

Press or

PROGRAM/SET.

button to adjust the volume level and press

Result: The source to be selected is displayed.

7

Press or button to select the source to be played when the system switches on.

If you select...

TAPE (cassette)

TUNER (radio)

CD (compact disc)

You must also...

Insert a cassette tape.

a Press PROGRAM/SET.

b Select a preset station by pressing or .


8

Press PROGRAM/SET to confirm the timer.

9

Press ( ) to set the system to standby mode.

Result: is displayed to the bottom left of the time, indicating that the timer has been set. The system will switch on and off automatically at the required times.

20

If the timer switch on and off times are identical, the word ERROR is displayed.

In standby,you can press MULTI JOG(PUSH ENTER) button instead of PROGRAM/SET button and press / buttons or turn MULTI JOG(PUSH ENTER) knob on the front panel instead of / buttons on the remote control in step 4,5,6,7..

MUTE

TIMER ON/OFF

BAND

AUX PROGRAM/SET COUNTER RESET

MO/ST

SLEEP

3,4,5,6,7,8

SURROUND XT

REV.MODE

DISPLAY RDS PTY

CD/MP3-CD

REPEAT

VOLUME

TUNING/

4,5,6,7

TUNING

MODE

TA P E

Canceling the Timer

After having set the timer, it will start automatically as shown by the TIMER indication on the display. If you no longer wish to use the timer, you must cancel it.

You can stop the timer at any time (system on or in standby mode).

To...

Cancel the timer

Restart the timer

Press TIMER ON/OFF...

Once.

Result: is no longer displayed.

Twice.

Result: is displayed again.

MUTE

TUNER

BAND

AUX

SLEEP



MO/ST


O DISPLAY RDS PTY

EQ/S.BASS Function

Your micro component system is equipped with a preset equalizer that allows you to choose the most appropriate balance between treble and bass frequencies, according to the type of music you are listening to.

Press EQ or MULTI JOG(PUSH ENTER) button until the required option is selected.

Result: Press the button repeatedly to select “EQ PASS ➞ POP ➞

ROCK ➞ CLASSIC ➞ JAZZ ➞ S.BASS ”.

S.BASS Function : S.Bass function emphasizes the bass sound to produce the effect of explosion or booms.

Treble Level Function

Treble Control function stresses high tones providing thudding sound effects.

1

Press MULTI JOG(PUSH ENTER) button until TREB 00 is displayed.

Turn MULTI JOG(PUSH ENTER) knob to select from TREB -07 to

TREB 07, total 15 steps .

2

You can select the level of high tones you desire.

GB

Selecting Sound Mode

BASS Level Function

Your compact system is equipped with the function of

Power Sound/Power Surround/Power Surround XT.

The Power Surround replaces conventional stereo sound with a wider and more true-to-life sound. It creates the feeling of being right at the centre of the music and being surrounded by total music sound.

The function of Power Sound amplifies bass and improves high key or bass twice as much for you to appreciate powerful real sound.

Press SURROUND XT button until the required option is selected. Each time the SURROUND XT button is pressed,

“P.SOUND

, P.SURR ,P.SURR XT, OFF” is selected or cancelled in this order.

BASS function stresses low tones providing thudding sound effects.

1

Press MULTI JOG(PUSH ENTER) button until BASS 00 is displayed.

Turn MULTI JOG(PUSH ENTER) knob to select from BASS -07 to

BASS 07, total 15 steps .

2

You can select the level of low tones you desire.

21

MUTE Function

B

You can turn the sound off temporarily on your system.

Example: You wish to answer a telephone call.

1

2

Press MUTE ( ).

To switch the sound back on (at the same volume as before), press

MUTE again or the VOLUME buttons.

Connecting Headphones

You can connect a set of headphones to your micro component system so that you can listen to music or radio programmers without disturbing other people in the room.

The earphones must have a 3.5

ø jack or an appropriate adapter.

Connect the headphones to the PHONES jack on the front panel.

Result: The loudspeakers are no longer used to output the sound.

Prolonged use of headphones at a high volume may damage your hearing.

MUTE

TUNER

BAND

AUX



MO/ST

Setting the System to Switch off

Automatically

While listening to a compact disc or a cassette, you can set the system to switch off automatically

Example: You wish to go to sleep to music.

1

2

Press SLEEP or MULTI JOG(PUSH ENTER) button until the option is selected .

Result: The following indications are displayed:

90

MIN

Press SLEEP one or more times or turn MULTI JOG(PUSH ENTER) knob to indicate how long the system should continue playing before it switches off:

90 MIN 60 MIN 45 MIN

OFF SLEEP 15 MIN 30 MIN

At any time, you can:

Check the remaining time by pressing SLEEPor MULTI

JOG(PUSH ENTER).

Change the remaining time by repeating Steps 1 and 2.

3

To cancel SLEEP function, press SLEEP or turn MULTI JOG(PUSH

ENTER) knob one or more times until OFF is display.

AUX

SLEEP

REV.MODE


MO/ST


DISPLAY RDS PTY

Safety Precautions

The following diagrams illustrate the precautions to be taken when using or moving your micro component system.

Ambient operating conditions:

Ambient temperature

Humidity

5°C-35°C

10-75%

Do not expose the unit to direct sun radiation or other heat sources.

This could lead to overheating and malfunction of the unit.

Do not place potted plants or vases on top of the unit. Moisture entering the unit could lead to dangerous electric shock and can cause equipment damage. In such events immediately disconnect the main plug from the socket.

During thunderstorms, disconnect the main plug from the socket.

Main voltage peaks due to lightning could damage the unit.

Cleaning Your Micro Component

System

To obtain the best possible results from your micro component system, you must clean the following elements regularly:

The outer casing

The compact disc player

The cassette players (heads, rollers and drive capstans)

Always unplug the system from the wall outlet:

Before cleaning it

If you are not going to be using it for a long time

Outer Casing

Clean the outer casing regularly using a soft cloth and a light detergent. Do not use abrasive powders, liquids or aerosol cleaners. Never let any liquids get into the system.

Compact Disc Player

1

Before playing a compact disc, clean it with a special CD cleaning agent. Do not use the same cleaning agents as for vinyl LP records.

Carefully wipe the disc from the centre outward.

2

Regularly clean the player with a special cleaning disc (available from your local dealer).

Tape Decks

1

2

Press PUSH EJECT( ) to open the cassette deck.

Use a cotton bud and a special cassette cleaning agent to clean the:

Head (1)

Rollers (2)

Drive capstans (3)

3

GB

UP

VOLUME

DOWN

Remove the batteries from the remote control, if not used for any extended period.

Leaking batteries can cause serious damage to the remote control.

When using headphones, take care not to listen at excessive volumes.

Extended use of headphones at high volumes will lead to hearing damage.

1 2

If you will not be using the remote control for a long time, remove the batteries to prevent corrosion.

Although your system is very hard-wearing, it should not be used in an excessively dusty environment or subjected to shocks or extreme heat (close to heating appliances or in direct sunlight, etc.).

If the unit emits an unpleasant odor when in use, unplug it from the main supply and contact the after-sales service.

Do not place heavy items on the main lead. Main cable damage can lead to damage of the equipment (fire hazard) and can cause electric shock.

Do not remove any equipment panels.

The inside of the unit contains live components, which cause electric shock.

22 23

B

Precautions When Using Compact

Discs

Handle your compact discs with care. Always hold them by the edges to avoid leaving fingerprints on the shiny surface.

When you have finished playing a compact disc, always put it back in its case.

Do not fix paper or adhesive tape to the discs and do not write on the label.

Clean them with a special-purpose cloth.

Store your compact discs in a clean place, out of direct sunlight, where they will not be exposed to high temperatures.

COMPACT

Always use compact discs marked .

DIGITAL AUDIO

Precautions When Using Audio

Cassettes

Check that the tape in the cassette is sufficiently taut.

To prevent erasing a cassette that you wish to keep, remove the safety tab on the upper edge of the cassette. To record a cassette, where the tab has been broken, simply cover the opening with adhesive tape.

When you have finished playing a cassette, always put it back in its case.

Store your cassettes in a clean place, out of direct sunlight, where they will not be exposed to high temperatures.

Avoid using 120-minute cassettes as they place unnecessary strain on the tape mechanism.

Before Contacting the After-Sales

Service

It always takes a little time to become familiar with a new appliance.

If you have any of the problems listed below, try the solutions given.

They may save you the time and inconvenience of an unnecessary service call.

Problem

The system does not work

Checks/Explanation

• The main lead is not correctly plugged into a wall socket or the wall socket is not switched on.

• The remote control batteries need replacing or the polarity has not been respected.

• The button has not been pressed.

R

A

N

E

G

E

L

There is no sound

The Timer does not work

• The volume has been completely turned down.

• The correct function (TUNER, MP3-CD/CD,

TAPE, AUX) has not been selected.

• You have connected a set of earphones.

• The loudspeaker wires have been disconnected.

• The MUTE button has been pressed.

• The timer has been stopped by pressing

TIMER ON/OFF.

C

D

In case it does not work, even the action is taken as above.

• Press the STOP ( )button for 5 seconds in power ‘OFF’(standby), then it is returned the original position (RESET)

The compact disc player does not start playing

• The CD function has not been selected.

• The disc has been inserted face down or is either dirty or scratched.

• The laser sensor is dirty or dusty.

• The system has not been installed on a flat, horizontal surface.

• Condensation has formed in the player; leave the system in a warm, airy room for at least one hour.

E

T

S

S

C

A

T

E

S

The tape does not start playing

The volume falls off

The cassette is not erased correctly

There is excessive wow and flutter

R

A

D

I

O

Reception is poor or no radio stations are received at all

• The TAPE function has not been selected.

• The cassette has not been inserted correctly.

• The cassette player has not been closed.

• The tape is either slack or broken.

• The audio heads are dirty.

• The rollers or drive capstans are dirty.

• The tape is worn.

• The TUNER function has not been selected.

• The radio frequency has not been correctly selected.

• The aerial has been disconnected or is not facing the right way. Turn it until you find the best orientation.

• You are in a building that blocks radio waves; you must use an outside aerial.

If the above guidelines do not allow you to solve the problem, take a note of:

The model and serial numbers, normally printed on the rear of the system

Your warranty details

A clear description of the problem

Then contact your local dealer or SAMSUNG after-sales service.

Technical Specifications

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

RADIO

LW

Usable sensitivity

AM (MW)

Signal/noise ratio

62 dB

40 dB

Usable sensitivity

Total harmonic distortion

56 dB

2 %

FM

Signal/noise ratio 55 dB

Usable sensitivity 10 dB

Total harmonic distortion 0.8 %

COMPACT DISC PLAYER

Frequency range

Signal/noise ratio

Distortion

Channel separation

Disc sizes

TAPE DECK

Frequency range

Signal/noise ratio

Channel separation

Erasing effect

20 Hz - 20 KHz (± 1 dB)

70 dB (at 1 KHz) with filter

0.2 % (at 1 KHz)

45 dB

Diameter: 120 or 80 mm. Thickness: 1.2 mm

125 Hz ~ 10 KHz

40 dB

33 dB

45 dB

AMPLIFIER

Output power(4

Ω

)

Channel separation

Signal/noise ratio

GENERAL

Dimensions

2X35 Watts RMS (total harmonic distortion : 10%)

45 dB

72 dB

170(W) x 232 (H) x 332(D) mm

GB

24 25

THIS APPLIANCE IS MANUFACTURED BY:

ELECTRONICS

AH68-01665B

No results
