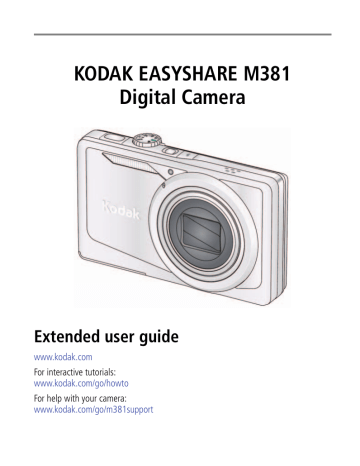

Kodak M381 Camera User Guide

KODAK EASYSHARE M381

Digital Camera

Extended user guide

www.kodak.com

For interactive tutorials: www.kodak.com/go/howto

For help with your camera: www.kodak.com/go/m381support

Eastman Kodak Company

Rochester, New York 14650

© Kodak, 2009

All screen images are simulated.

Kodak, EasyShare, and Perfect Touch are trademarks of Eastman Kodak Company.

4H6510_en

Front view

Mode dial

Shutter button

Flash

Microphone

Power button

Flash button

Self-timer light

Product features

Lens/Cover

www.kodak.com/go/support i

ii

Product features

Back view

LCD Delete, Menu,

Info buttons

Battery

Charging light

Zoom

(Telephoto/

Wide Angle) button

USB/AV Out

DC-In (5V)

Strap post

Tripod socket

SD/SDHC Card/

Battery compartment

OK button

Share button

Review button

www.kodak.com/go/support

Table of contents

1

1 Setting up your camera .........................................................................1

Attaching the strap ....................................................................................... 1

Loading the KLIC-7003 battery...................................................................... 1

Charging the battery ..................................................................................... 2

Turning on the camera .................................................................................. 3

Setting the language and date/time............................................................... 3

Storing pictures on an optional SD or SDHC Card........................................... 4

2 Taking pictures/videos ...........................................................................5

Taking a picture ............................................................................................ 5

Using optical and digital zoom ...................................................................... 6

Using the flash.............................................................................................. 7

Using different modes ................................................................................... 8

Taking a video ............................................................................................ 10

Using shortcuts ........................................................................................... 10

Using the self-timer..................................................................................... 11

Taking panoramic pictures........................................................................... 12

Understanding the picture-taking icons........................................................ 13

3 Working with pictures/videos ..............................................................14

Reviewing pictures/videos ........................................................................... 14

Deleting pictures/videos .............................................................................. 15

Viewing pictures/videos in different ways..................................................... 16

Selecting multiple pictures/videos ................................................................ 16

Making a multimedia slide show ................................................................. 17

Using the menu button in review................................................................. 19

Cropping pictures........................................................................................ 20

Using KODAK PERFECT TOUCH Technology................................................. 20

Copying pictures/videos............................................................................... 21

Editing videos ............................................................................................. 21

Understanding the review icons................................................................... 24

www.kodak.com/go/support iii

Table of contents

4 Using the Menu button .......................................................................25

Using the Capture tab ................................................................................. 25

Using the Setup tab .................................................................................... 29

5 Transferring, printing, tagging ............................................................32

Installing the software................................................................................. 32

Transferring pictures/videos......................................................................... 33

Printing pictures.......................................................................................... 34

Tagging/marking your pictures .................................................................... 36

6 Getting help ........................................................................................40

Getting help from your camera .................................................................... 40

Getting help on the Web ............................................................................. 41

Troubleshooting .......................................................................................... 42

7 Appendix .............................................................................................46

Camera specifications ................................................................................. 46

Care and maintenance ................................................................................ 48

Upgrading your software and firmware........................................................ 48

Storage capacities ....................................................................................... 49

Important safety instructions ....................................................................... 49

Battery replacement, battery life .................................................................. 50

Limited warranty ......................................................................................... 51

Regulatory compliance ................................................................................ 53

iv www.kodak.com/go/support

1

Setting up your camera

IMPORTANT: For package contents, see your product package.

Attaching the strap

Loading the KLIC-7003 battery

Notched corner

For information on replacing the battery and extending battery life, see

page 50 .

www.kodak.com/go/support 1

Setting up your camera

Charging the battery

1

Turn off the camera.

2 Connect the KODAK USB Cable,

Model U-8.

Battery Charging light:

• Blinking: charging

• Steady: finished

Charge Li-Ion batteries frequently, even if power remains.

Other charging options

KODAK 5V AC Adapter

(May be sold separately)

2

Purchase accessories www.kodak.com/go/m381accessories www.kodak.com/go/support

Turning on the camera


Setting the language and date/time

Language: to change.

OK to accept.

Date/Time:

At the prompt, press OK.

to change current field.

for previous/next field.

OK to accept.

NOTE: To change language and date/time in the future, use the Setup tab (

see page 29 ).



Storing pictures on an optional SD or SDHC Card

Your camera has internal memory. You can purchase an SD or SDHC Card to conveniently store more pictures/videos.

CAUTION:

A card can only be inserted one way; forcing it may cause damage. Inserting or removing a card while the camera is on may damage the pictures, the card, or the camera.

1 Turn off the camera.

2 Insert or remove the optional card.

3 Turn on the camera.

4

Purchase accessories www.kodak.com/go/m381accessories www.kodak.com/go/support

2

Taking pictures/videos

Taking a picture

1 Turn the Mode dial to Smart Capture . Then press the Power button to turn on the camera.

2 Compose the picture.

3 Press the Shutter button halfway to focus and set exposure. When the framing marks turn green, press the Shutter button completely down .

Using the framing marks to take pictures

Framing marks indicate the camera focus area. In Smart Capture mode (and in SCN modes designed for pictures of people), the camera attempts to focus on faces.

Framing marks

1 Press the Shutter button halfway .

If the camera is not focusing on the desired subject, release the Shutter button and recompose the scene.

2 Press the Shutter button completely down to take the picture.

NOTE: Framing marks do not appear in all modes. Multiple framing marks may appear when faces are detected. www.kodak.com/go/support 5

Taking pictures/videos

Reviewing the picture/video just taken

After you take a picture/video, the LCD briefly displays a quickview. (To exit the quickview sooner, press the Shutter button halfway.)

Delete the current picture/video

OK Play/pause a video

Adjust volume

6

To review pictures/videos anytime, see page 14

.

Using optical and digital zoom

1 To zoom in, press Telephoto (T).

To zoom out, press Wide Angle (W).

2 Take the picture.

NOTE: For focus distances, see Camera Specifications starting on

page 46

.

To use the 5X digital zoom:

■

■

In video mode, press the Telephoto (T) button.

In picture-taking mode, press the Telephoto (T) button until the slider on the LCD is at the maximum optical zoom range. Release

Telephoto (T), then press it again.

NOTE: Optical zoom is not available in Video mode. Digital zoom is not available in Smart Capture mode.

You may notice decreased image quality when using digital zoom. The slider pauses and turns red when the picture quality reaches the limit for an acceptable 4 x 6-in. (10 x 15 cm) print.



Using the flash

Press the flash button repeatedly to scroll through flash modes.

The current flash mode is shown in the LCD status area.

Flash modes

Auto

Fill (Flash On)

Flash fires

When the lighting conditions require it.

Red Eye

Your camera can correct red-eye using 2 methods. To choose a

red eye setting, see Red

Eye Reduction, page 29 .

Preflash

Digital

Correction

Every time you take a picture, regardless of the lighting conditions. Use when the subject is in shadow or is

“backlit” (when the light is behind the subject). In low light, hold the camera steady or use a tripod.

NOTE: (Not available in Smart Capture mode.)

A preflash fires, shrinking the eye pupil, before the picture is taken.

A preflash does not fire; the camera corrects red eye.

Off Never www.kodak.com/go/support 7


Using different modes

Turn the Mode dial to the mode that best suits your subjects and surroundings.

8

Use this mode

Smart

Capture

For

General picture taking—it offers excellent image quality and ease of use.

■

■

Faces are detected.

The scene is analyzed for other content and for lighting.

You can choose the best picture size and aspect ratio for your needs—just press the Menu button and choose Picture Size.

■

■

■

3:2 (the best choice when making 4 x 6 prints)

16:9 (wide screen)

4:3 (the default setting)

Program Advanced picture taking—allows access to manual settings.

Blur

Reduction

Sport

Reducing blur caused by camera shake or subject motion.

Action pictures.

Panorama

“Stitching” up to 3 pictures into a panoramic scene. (See page 12

.)

Scene

Video

Point-and-shoot simplicity when taking pictures in practically any

situation. (See page 9

.)

Capturing video with sound. (See page 10 .)



Using Scene (SCN) modes

Choose a Scene mode—for great pictures in practically any situation!

1 Turn the Mode dial to SCN.

2 Press to view scene mode descriptions.

If the mode description turns off before you finish reading it, press OK.

3 Press OK to choose a Scene mode.

SCN mode For

Portrait

Landscape

Close-up

Flower

Sunset

Backlight

Candle Light

Children

Manner/

Museum

Text

Beach

Full-frame portraits of people.

Distant scenes.

Close range. Use available light instead of flash, if possible.

Close-ups of flowers or other small subjects in bright light.

Subjects at dusk.

Subjects that are in shadow or “backlit” (when light is behind the subject).

Subjects illuminated by candle light.

Action pictures of children in bright light.

Quiet occasions, like a wedding or lecture. Flash and sound are disabled.

Place the camera on a steady surface or tripod.

Documents. Place the camera on a steady surface or tripod.

Bright beach scenes.

Snow

Fireworks

Self-

Portrait

Bright snow scenes.

Fireworks. Place the camera on a steady surface or tripod.

Close-ups of yourself. Assures proper focus and minimizes red eye.

Night Portrait Reduction of red eye in night scenes or low-light conditions.

Night Landscape Distant scenery at night. Flash does not fire.

Panning

High-ISO

Emphasizing horizontal motion, keeping the foreground sharp.

Low-light pictures (such as people on a stage).



Taking a video

1 Turn the Mode dial to Video.

2 Press the Shutter button completely down , then release it. To stop recording, press and release the Shutter button again.

To review and work with videos, see page 14

.

Using shortcuts

For quick access to the most popular functions:

1 Press the Info button.

The shortcuts appear.

2 Press to access functions like Exposure Compensation, Self-timer, and Auto focus. (You’ll see different functions in different modes.)

3 Press to choose a setting.

4 To hide the shortcuts again, press .

Shortcuts

10 view single picture.



Using the self-timer

Use the self-timer when you want to be included in a picture, or to ensure a steady

Shutter button press. Place the camera on a tripod or flat surface.

1 In any picture-taking mode, press the Info button to show shortcuts.

2 Press to highlight the self-timer icon. Press to choose a setting:

10 seconds—

10

A picture is taken after a 10-second delay (so you have time to get into the scene).

2 seconds—

2 release on a tripod).

A picture is taken after a 2-second delay (for a steady, shutter

2 shot—

2x

The first picture is taken after a 10-second delay. A second picture is taken 8 seconds later.

3 Compose the scene. Press the Shutter button halfway , then completely down .

The camera takes the picture/pictures after the delay.

NOTE: In Panoramic modes (

page 12

), only the 2- and 10-second options are available.

Use the same procedure to take a 2- or 10-second self-timer video, but press the

Shutter button completely down .



Taking panoramic pictures

Use panorama to “stitch” up to 3 pictures into a panoramic scene.

NOTE: For best results, use a tripod. Only the panoramic picture is saved; individual pictures are not.

(Exposure and white balance are set with the first picture. The flash is set to Off.)

1 Turn the Mode dial to .

2 Press to highlight Panorama Left-Right or Panorama Right-Left (depending on the direction you want to pan), then press OK.

3 Take the first picture.

After a quickview, the LCD displays the liveview and an “overlay” from the first picture.

4 Compose the second picture. Make the overlay from the first picture cover the same portion in the new picture. (You can press the Delete button to re-take a picture.)

5 If you are taking only 2 pictures, press OK to stitch them together.

After you take 3 pictures, the pictures are automatically stitched together.

Take 2 or 3 pictures.

Get 1 panoramic picture.

NOTE: To use the self-timer 10-second or 2-second setting, see

page 11

.

12 www.kodak.com/go/support


Understanding the picture-taking icons

Self timer

Exposure compensation

Flash mode

Capture mode

Pictures/time remaining

Zoom slider

Tag name Battery level

FPO www.kodak.com/go/support 13

3

Working with pictures/videos

Reviewing pictures/videos

1 Press the Review button.

2 Press

■ for previous/next picture/video.

Press the Shutter button halfway down to return to Capture mode.

■ To view pictures/videos as thumbnails, see

page 16

.

Magnifying a picture

1 Press T to magnify 1X–8X.

2 Press picture.

■

to view other parts of a

Press OK to return to 1X.

Playing a video

14

4X

Playback speed

2X 1X 2X 4X

Reverse Forward

Press OK to play a video. Press OK to pause/resume.

During playback:

■ Press to adjust the volume.

■ Press to play at 2X speed; press again for 4X.

■ Press to reverse at 2X speed; press again for 4X.


Working with pictures/videos

Deleting pictures/videos


2 Press for previous/next picture/video.

3 Press the Delete button.

4 Follow the screen prompts.

NOTE: To delete protected pictures/videos, remove protection before deleting. (See Protecting pictures/videos from deletion

.)

Using the undo delete feature

If you accidentally delete a picture, you may be able to use Undo Delete to retrieve it.

This feature is only available immediately after you delete a picture.

Protecting pictures/videos from deletion


2 Press for picture/video.

3 Press the Menu button.

4 Press to highlight Protect, then press OK.

The picture/video is protected and cannot be deleted. The Protect icon appears with the protected picture/video.

■ Press the Shutter button halfway down to return to Capture mode.

IMPORTANT:

Your camera offers a built-in Help system. See page 40 .

CAUTION:

Formatting internal memory or an SD or SDHC Card deletes all

(including protected) pictures/videos. (Formatting internal memory also deletes email addresses and tag names. To restore them, see EASYSHARE Software Help.) www.kodak.com/go/support 15


Viewing pictures/videos in different ways

Viewing as thumbnails (multi-up)


The camera shows the last picture that was taken.

2 Press the Wide Angle (W) button to view pictures/videos as thumbnails. (Press it again to see more, smaller thumbnails.)

To view all pictures/videos, highlight the All tab.

To sort by favorites, date, or tagged pictures/videos, press appropriate tab.

and highlight the

3 To see a single picture/video, press

(T) button.

■

■

to highlight it. Then press the Telephoto

To select multiple pictures/videos, see

Selecting multiple pictures/videos .

Press the Shutter button halfway down to return to Capture mode.

Selecting multiple pictures/videos

Use the multi-select feature when you have two or more pictures to print, transfer,

delete, etc. Multi-select is used most effectively in Multi-Up mode, page 16

.

Selected pictures

1 Press the Review button, then to find a picture/video.

and

2 Press OK to select pictures/videos.

A check mark appears on the picture. You can now print, transfer, delete, etc. the selected pictures. You can press OK a second time to remove a check mark.



Making a multimedia slide show

Use Multimedia Slide Show to display your pictures/videos on the LCD. You can play all pictures/videos, or select pictures to include in the slide show. You can even save a slide show.

Make a multimedia slide show that you can save

1 Press the Review button. Select 2-100 pictures (see

page 16 ).

2 Press the Menu button, then

Multimedia Slide Show, then press OK.

to highlight the Review tab. Highlight

3 Press to highlight Preview Show, then press OK.

Each picture/video is displayed once. To interrupt the slide show, press OK. After the slide show plays, you may save or modify it.

IMPORTANT:


Play a multimedia slide show loop

When you turn on Loop, the slide show is continuously repeated.

1 On the Multimedia Slide Show menu, press press OK.

to highlight Loop, then

2 Press to highlight On, then press OK.

3 Press to highlight Preview Show, then press OK.

The slide show repeats until you press OK or until the battery is exhausted.



Displaying pictures/videos on a television

You can display pictures/videos on a television, computer monitor, or any device equipped with a video input. To connect the camera directly to a television, use an

A/V cable (may be sold separately).

Purchase accessories www.kodak.com/go/m381accessories

NOTE: Ensure that the Video Out setting (NTSC or PAL) is correct (

see page 30

). The slide show stops if you connect or disconnect the cable while the slide show is running. (Image quality on a television screen may not be as good as on a computer monitor or when printed.)



Using the menu button in review

To use the Menu button in review:

1 Press the Review button, then the Menu button.

2 Press

■

■

Review to view and share pictures/videos

Edit to highlight a tab: to edit pictures/videos

■ Setup

3 Press to control how your camera operates

to highlight a setting, then press OK.

4 Highlight an option, then press OK.

IMPORTANT:




Cropping pictures

You can crop a picture so that only the desired portion of the picture remains.

1 Press the Review button, then to find a picture to crop.

Picture Cropped picture

2 Press the Menu button, then to highlight the Edit tab. Highlight Crop, then press OK.

3 Press Telephoto (T) to zoom in, or


to move the crop box. Press OK.

The picture is cropped. (The original is saved.) Cropped pictures cannot be cropped again on the camera.


IMPORTANT:


Using KODAK PERFECT TOUCH Technology

KODAK PERFECT TOUCH Technology helps ensure better, brighter pictures. PERFECT

TOUCH Technology is automatically applied to pictures taken in Smart Capture mode.

(You cannot apply PERFECT TOUCH Technology to videos, panoramic pictures, or pictures to which PERFECT TOUCH Technology is already applied.)

1 Press the Review button, then for previous/next picture.

2 Press the Menu button, then

PERFECT TOUCH Tech, then press OK.

The enhancement is previewed. Press

to highlight the Edit tab. Highlight

to view other parts of the picture.

3 Press OK. Follow the screen prompts to replace the original picture or to save the enhanced picture as a new one.




Copying pictures/videos

You can copy pictures/videos from a card to internal memory or from internal memory to a card.

Copy pictures/videos:


2 Press the Menu button, then to highlight the Review tab.

3 Press to highlight Copy, then press OK. Highlight a choice, then press OK.

NOTE: Pictures/videos are copied, not moved. To remove pictures/videos from the original location after copying, delete them (see

page 15

).

IMPORTANT:


Editing videos

You can do incredible things with your videos!

Making a picture from a video

You can choose a single frame from a video, then make a picture suitable for a

4 x 6-inch (10 x 15 cm) print.

1 Press the Review video.

button, then to find a

2 Press the Menu button, then to highlight the Edit tab. Highlight Make Picture, then press OK.

Video Picture


A picture is created. (The original video is saved.)


IMPORTANT:




Trimming a video

You can remove an unwanted start or end from a video, saving only the desired portion.



2 Press the Menu button, then to highlight the Edit tab. Highlight Trim, then press OK.

Video Trimmed video


The video is trimmed. (You can save it as a new video or replace the original.)


IMPORTANT:




Making a video action print

From a video, you can make a 9-up picture, suitable for a 4 x 6-inch (10 x 15 cm) print.



Video

9-up picture

2 Press the Menu button, then to highlight the Edit tab. Highlight Action Print, then press OK.


Auto— The camera includes the first and last frames, then 7 equally spaced frames.

Manual— Choose the first and last frames; the camera chooses 7 frames.

A 9-up picture is created.


IMPORTANT:




Understanding the review icons

Print tag/number of prints

Protected

Email tag

Picture/Video number

Video duration

Select picture

Add text tag

View multi-up

Play video

Upload tag

Favorite tag

Text tag name

FPO

Battery level


4

Using the Menu button

You can change settings to get the best results from your camera.


2 Press

■

■

Capture/Video for the most common picture/video-taking settings

Setup to highlight a tab:

for other camera settings

3 Press to highlight a setting, then press OK.


NOTE: Some modes offer limited settings. Some settings remain until you change them; others, until you change modes or turn off the camera.

Using the Capture tab

Press Menu, , then

, and OK to access settings

Capture Options

IMPORTANT: Your camera offers a built-in Help system.

See page 40 .

Exposure Compensation

Make a picture lighter or darker. (Available in Program and Panorama modes.) To use

a shortcut, see page 10 .

0.0, +/-0.3, +/-0.7, +/-1.0, +/-1.3, +/-1.7, +/-2.0

Picture Size

Choose a picture resolution.

See

Camera specifications, page 46

.

Burst

Take up to 3 pictures in quick succession. (Burst is not available in Panorama mode.)

Off

On —press the Shutter button halfway to focus and set exposure. Press the Shutter button completely down and hold it to take pictures.


Using the Menu button



Capture Options


See page 40 .

Self-timer

Take a picture/video after a delay, or take 2 pictures. (Also

see page 11 .)

10 seconds

2 seconds

2-shot

Focus Mode

Select a large or concentrated area of focus.

Long Time Exposure

Choose how long the shutter stays open.

Auto— for general picture-taking.

Macro— for sharpness and detail in pictures at close range.

Use available light instead of flash, if possible. The camera automatically sets the focus distance depending on the zoom position.

Infinity— for distant subjects; auto-focus framing marks are unavailable.

None

0.5, 1.0, 2.0, 4.0, 8.0 seconds

Color Mode

Choose color tones.

Unavailable in Video mode.

High Color

Natural Color

Low Color

Black & White

Sepia

NOTE: EASYSHARE Software also lets you change a color picture to black-and-white or sepia.

AF Control (Still)

Choose an auto-focus setting.

Continuous AF— because the camera is always focusing, there is no need to press the Shutter button halfway down to focus.

Single AF— uses TTL-AF (through-the-lens auto focus) when the Shutter button is pressed halfway down.





Capture Options


See page 40 .

White Balance

Choose your lighting condition. (Available only in

Program and Panorama modes.)

Auto— automatically corrects white balance. Ideal for general picture taking.

Daylight— for pictures in natural lighting.

Tungsten— corrects the orange cast of incandescent light bulbs. Ideal for indoor pictures under tungsten or halogen lighting without flash.

Fluorescent— corrects the green cast of fluorescent lighting.

Ideal for indoor pictures under fluorescent lighting without flash.

Open Shade— for pictures in shade in natural lighting.

Face Detect Capture

Choose if faces get focus priority.

On— in SCN modes designed for pictures of people, the camera attempts to focus on faces.

Off

NOTE: Not available in Smart Capture mode (because face detection is always on).

Exposure Metering

Evaluate light levels at specific areas of a scene.

Multi-Pattern— evaluates lighting conditions throughout the image to give an optimum picture exposure. Ideal for general picture taking.

Center-Weight— evaluates the lighting conditions of the subject centered in the lens. Ideal for backlit subjects.

Center-Spot— similar to Center-weight, except the metering is concentrated on a smaller area of the subject centered in the

LCD.

AF Zone


Multi-Zone— evaluates 5 zones to give an even picture focus. Ideal for general picture taking.

Center-Zone— evaluates the small area centered in the lens.

Ideal when you need precise focus.





Capture Options


See page 40 .

See

Camera specifications, page 46

.

ISO Speed

Control the sensitivity of the camera sensor.

Sharpness

Control picture sharpness.

Sharp

Normal

Soft

Video settings

Press Menu, ,


Video Options


See page 40 .

Video Size

Choose a video resolution.

640 x 480 @ 30 fps (VGA)

320 x 240 @ 30 fps (QVGA)

Self-timer

Take a picture/video after a delay, or take 2 pictures. (Also

see page 11 .)

10 seconds

2 seconds

2-shot

Focus Mode


Auto— for general video-taking.

Macro— for close range. TBD

TBD

Infinity— for distant subjects.

TBD

Video Blur Reduction

Reduce blur caused by camera shake or subject motion.

On

Off



Using the Setup tab

Press Menu,

Setup, then access settings

to highlight

and OK to

Share button

Choose how pictures/videos are handled when you press the Share button (via

EASYSHARE Software for WINDOWS-OS only).

NOTE: Some online services limit video file sizes. Use EASYSHARE Software or choose a preferred online service.

LCD Brightness

Choose LCD brightness.

Image Storage

Choose a storage location for pictures/videos.

Set Tag

Create tag names and assign them to

pictures/videos. See page 36 .

Red Eye Reduction

Choose how you want to reduce red eye.

Setup Options

IMPORTANT: Your camera offers a built-in

Help system. See page 40 .

Favorite and Upload— pictures/videos are tagged as Favorites and uploaded to your preferred online service when you connect to your computer or network.

Favorite— pictures/videos are tagged as

Favorites (5-star in EASYSHARE Software, on your computer).

Upload— pictures/videos are uploaded to your preferred online service when you connect to your computer or network.

Power Save— Lower LCD brightness; conserves power.

High Power— Higher LCD brightness; uses more power.

Auto— the camera uses the card if one is in the camera. If not, the camera uses internal memory.

Internal Memory— the camera always uses internal memory, even if a card is installed.

New Tag— create a tag.

Delete Tag— delete a tag.

Clear All— cancel selected tags.

Preflash— red eye preflash fires before the picture is taken.

Digital Correction— red eye preflash does not fire; the camera corrects red eye.



Press Menu,


to highlight

and OK to

Setup Options



Quickview

Briefly display a picture after it is taken.

On

Off

Digital Zoom

Turn digital zoom on/off.

On

Off

Orientation Sensor

Orient pictures/videos so that they are displayed with the correct side up.

Camera Sounds

Choose sound effects, volume.

On— the camera rotates pictures so that all appear in the same orientation on the camera.

Off— pictures are not rotated.

Power On

Focus Lock

Shutter

Error

Self-timer

Sound Volume (High, Medium, Low, Mute)

Date & Time

Language

Reset Camera

Reset settings to their default.

Set date and time.

Video Out

Choose the regional setting that lets you connect the camera to a television or other external device.

NTSC— used in North America and Japan; most common format.

PAL— used in Europe and China.

Choose your language.



Press Menu,


to highlight

and OK to

Setup Options



Format

CAUTION:

Formatting deletes all pictures/videos, including those that are protected. Removing a card during formatting may damage the card.

About

View camera information.

Memory Card— deletes everything on the card; formats the card.

Cancel— exits without making a change.

Internal Memory— deletes everything in internal memory including email addresses and tag names; formats the internal memory.


32

5

Transferring, printing, tagging

CAUTION:

Before connecting any cables, install the software that was included with your camera. Failure to do so may cause the software to load incorrectly.

Installing the software

1 Close all open software applications before starting the installation.

NOTE: If running WINDOWS OS and installing EASYSHARE Software from the Kodak Web site, do not close the WinZip application. If prompted, allow EASYSHARE Software to access the Internet.

2 Place the KODAK EASYSHARE Software CD into the CD-ROM drive.

3 Load the software:

WINDOWS OS— if the install window does not appear, choose Run from the

Start menu and type d:\setup.exe

where d is the drive letter that contains the

CD.

MAC OS X— double-click the CD icon on the desktop, then click the Install icon.

4 Follow the on-screen instructions to install the software.

NOTE: When prompted, register your camera and software. Registering lets you sign up for information that keeps your system up-to-date. To register later, visit www.kodak.com/go/register.

5 If prompted, restart the computer.

For software help, click the Help button in EASYSHARE Software.


Transferring pictures/videos

Using the USB cable

1 Turn off the camera.

2 Connect a KODAK

USB Cable, Model

U-8.

3 Turn on the camera.

Transferring, printing, tagging

Purchase accessories

Learn more about connecting and transferring www.kodak.com/go/m381accessories www.kodak.com/go/howto

Using other options

You can also use a card reader to transfer your pictures/videos.



Printing pictures

Direct printing with a KODAK All-in-One Printer

Your camera is compatible with PICTBRIDGE Technology, so you can print directly to

PICTBRIDGE enabled Printers. You need a camera with a fully charged battery, a

PICTBRIDGE enabled Printer, and a USB cable.

Connecting the camera to a KODAK All-in-One Printer

1 Turn off the printer. Turn on the camera.

2 Connect the appropriate USB cable from the camera to the printer.

The PICTBRIDGE logo is displayed, followed by the current picture and menu. (If no pictures are found, a message is displayed.) If the menu turns off, press any button to redisplay it.

3 Highlight a printing option, then press OK.

Current Picture— Press to choose a picture. Choose the number of copies.

Tagged Pictures— Print pictures that you tagged for printing and choose a print size.

Index Print— Print thumbnails of all pictures. (This option requires one or more sheets of paper.) If the printer is capable, choose a print size.

All Pictures— Print all pictures in internal memory or on a card. Choose the number of copies.

Image Storage— Access Auto or Internal Memory.

NOTE: During direct printing, pictures are not permanently transferred or saved to the printer. To transfer

pictures to your computer, see page 33 .

Purchase cables, accessories www.kodak.com/go/m381accessories



Disconnecting the camera from a KODAK All-in-One Printer

1 Turn off the camera and printer.

2 Disconnect the USB cable from the camera and the printer.

Using a printer that is not PICTBRIDGE enabled

After you transfer pictures from the camera to your computer, you can print them from

EASYSHARE Software. For details, see Help in EASYSHARE Software.

Ordering prints online

■

■

■

■

KODAK Gallery ( www.kodakgallery.com

) is one of the many online print services offered in EASYSHARE Software. You can easily:

Upload your pictures.

Edit, enhance, and add borders to your pictures.

Store pictures, and share them with family and friends.

Have prints, photo greeting cards, frames, and albums delivered to your door.

Printing from an optional SD or SDHC Card

■ Automatically print tagged pictures when you insert your card into a printer with an SD/SDHC Card slot. See your printer user’s guide for details.

■ Make prints at an SD/SDHC Card-capable KODAK Picture Kiosk. (Contact a location prior to visiting. Visit www.kodak.com/go/picturemaker .)

■ Take the card to your local photo retailer for professional printing.



Tagging/marking your pictures

■

■

■

■

You can tag/mark your pictures so they are easy to:

Print

Email

Organize with a favorite tag

Organize with a tag name that you create

Marking pictures for printing

1 Press the Review button. Press to locate a picture.

2 Press the Menu button. Press to highlight Print, then press OK.

3 Press to select the number of copies.

4 Optional: You can apply a print quantity to other pictures. Press for previous/next. Keep the print quantity as is, or press to change it. Repeat this step until the desired print quantity is applied to the pictures.

5 Press OK.

The Print icon appears in the status area.


IMPORTANT:


Printing marked pictures

When you transfer the marked pictures to your computer, the EASYSHARE Software print screen opens. For details on printing, see Help in EASYSHARE Software.



Marking pictures/videos for emailing

It’s simple to mark pictures so that they’re ready to email using KODAK EASYSHARE

Software. First, create a new email address. (See

Add a new email address or tag name .)

1 Press the Review button. Press to locate a picture, then press OK.

2 Press to highlight Email, then press OK.

3 Press to locate an email address, then press OK.

4 To mark other pictures/videos with the same address, scroll through them. When the picture you want is displayed, press OK.

5 To send the pictures/videos to more than one address, repeat step 3.

■ To remove a selection, highlight a checked address and press OK. To remove all email selections, highlight Clear All, then press OK.


The Email icon appears in the status area.

When you transfer the marked pictures/videos to your computer, EASYSHARE

Software prompts you to send the pictures/videos. For details, see Help in EASYSHARE

Software.

Add a new email address or tag name

1 Press the Review button, then the Menu button.

2 Press to highlight Email or Tag, then press OK.

3 Press to highlight New Email or New Tag, then press OK.

4 Use the on-camera keyboard, then press OK.

The email address/tag name is now available.



Assigning the favorite mark to pictures/videos

To make your favorite pictures/videos easier to locate in EASYSHARE Software, you can assign the favorite mark.

1 Press the Review button, then locate a picture/video.

2 Press the Share button.

The favorite mark appears with the picture. When you transfer the marked pictures/videos to your computer, EASYSHARE Software opens and categorizes your pictures/videos with a 5-star rating. (To configure the Share button in different ways,

see page 29

.)

Assigning text tags to pictures/videos

First, create a new tag name. ( See page 37

.)

1 Press the Review button, then locate a picture/video.


3 Highlight Tag, then press OK.

4 Highlight a tag name, then press OK.

5 To assign the tag to other pictures, press to locate a picture, then press OK.

The tag name appears with the picture. A plus (+) means the picture has more than one tag assigned.

To remove a selection, highlight a tag name and press OK. To remove all tagged selections, highlight Clear All, then press OK.

When you transfer the tagged pictures/videos to your computer, EASYSHARE Software opens and categorizes your pictures/videos with the appropriate tag.

IMPORTANT:




Assigning a tag to pictures/videos you take next

Use the Set Tag feature to assign a tag name to the next pictures/videos you take.

First, create a new tag name. ( See page 37

.)


2 Highlight the Setup tab.

3 Highlight Set Tag, then press OK.

4 Highlight a tag name, then press OK.

The selected tag is displayed on the LCD. The tag is applied to new pictures/videos.


When you transfer the tagged pictures/videos to your computer, EASYSHARE Software opens and categorizes your pictures/videos with the appropriate tag.

IMPORTANT:



40

6

Getting help

Getting help from your camera

■

■

You want the most from your camera. You want to understand:

What it can do for you

And how to take the best possible pictures and videos

Great news!

Your camera offers a built-in Help system. It describes every setting for every menu choice. If you learn nothing else about your camera, learn how to use on-camera Help.

Because the more you know your camera, the more confident you become!

Turning on camera Help

1

2

Press the Menu button, then highlight a menu choice.

Press the Info button.

Scroll through a Help topic www.kodak.com/go/support

Getting help

Getting help on the Web

Camera

Email, write, phone, or chat with Kodak

(Chat is not available in all languages.) www.kodak.com/go/contact

Get support for your product (FAQs, troubleshooting information, arrange for repairs, etc.) www.kodak.com/go/m381support

Purchase camera accessories (lenses, cards, etc.) www.kodak.com/go/m381accessories

Download the latest camera firmware and software www.kodak.com/go/m381downloads

See online demonstrations of your camera www.kodak.com/go/howto

Register your camera www.kodak.com/go/register

Software

Get information on EASYSHARE Software

Get help with the WINDOWS OS and working with digital pictures www.kodak.com/go/easysharesw

(or see Help in EASYSHARE Software) www.kodak.com/go/pcbasics

Other

Get support for cameras, software, accessories, more www.kodak.com/go/support

Get information on KODAK Inkjet Products www.kodak.com/go/inkjet

Optimize your printer for truer, more vibrant colors www.kodak.com/go/onetouch www.kodak.com/go/support 41

Getting help

Troubleshooting

Camera problems

Status

Camera does not turn on/off

Solution

■ Make sure the battery is charged and installed correctly (

page 1 ).

see

Camera buttons and controls do not function

In Review, a blue or black screen is displayed instead of a picture

Flash does not fire

■

■

■

Transfer all

pictures to the computer ( see page 32 ).

Take another picture.

Pictures remaining number does not decrease after taking a picture

■ Continue taking pictures. The camera is operating normally.

(The camera estimates the number of pictures remaining after each picture is taken, based on picture size and content.)

Check the flash setting, and change as needed (

see page 7

).

NOTE: The flash does not fire in all modes.

Memory card is almost or entirely full

The battery does not charge using USB charging

■

■

■

■

Battery life is short ■

■

Transfer the pictures to the computer (

Delete pictures from the card (

See

page 2 or visit

see page 32

see page 15

).

) or insert a new card.

www.kodak.com/go/USBcharging.

Insert a new battery (

see page 1

).

■

Make sure the correct battery type is installed ( see page 50

).

Wipe the contacts with a clean, dry cloth before inserting a battery in the camera.

Insert a new or charged battery (

see page 1

).


Getting help

Status

You cannot take a picture

Memory card not recognized or camera freezes with card

Cannot find the desired picture/video

Solution

■

■

■

■

Turn the camera off, then on again.

Depress the Shutter button all the way (

Insert a new or charged battery (

see page 5

see page 1

).

).

Memory is full. Transfer pictures to the computer ( see page 32

), delete pictures (

see page 15 ), or insert another card.

■

■

■

Card may be corrupted. Format the card in the camera ( see page 31

).

Use another memory card. Only SD or SDHC Cards are supported.

To view pictures on a card or in internal memory, see page 14 .

Computer/connectivity problems

Status

Pictures do not transfer to computer

Slide Show does not run on an external video device

Computer does not communicate with the camera

Solution

■ See Help in EASYSHARE Software.

■

■

Adjust the camera Video Out setting to NTSC or PAL ( see page 30

).

Make sure the external device settings are correct. (See the device’s user’s guide).

■

■

■

■

Make sure the battery is charged and installed correctly ( see page 1 ).

Turn on the camera.

Make sure the USB cable model U-8 is connected to the camera and the computer (

see page 33

).

Make sure EASYSHARE Software is installed (

see page 32

).


Getting help

Picture quality problems

Status Solution

Picture is not clear ■ To automatically set exposure and focus, press the Shutter button halfway . When the framing marks turn green, press the Shutter button completely down to take the picture.

■

■

Clean the lens (

see page 48 ).

Place the camera on a flat, steady surface or use a tripod (especially in high-zoom settings or in low light).

Picture is too dark ■ Reposition the camera for more available light.

■

Use Fill flash ( see page 7

behind the subject.

) or change your position so light is not

■ Move so that the distance between you and the subject is within the effective flash range. (See camera specifications starting on

page 46 .)

■ To automatically set exposure and focus, press the Shutter button halfway . When the framing marks turn green, press the Shutter button completely down to take the picture.

Picture is too light ■ Reposition the camera to reduce the amount of available light.

■

■

Turn the flash off (

Move so that the distance between you and the subject is within the effective flash range. (See camera specifications starting on

page 46 .)

see page 7 ).

■ To automatically set exposure and focus, press the Shutter button halfway . When the framing marks turn green, press the Shutter button completely down to take the picture.

■ In Program and Panorama modes, adjust the Exposure

Compensation (

see page 25 ).


Getting help

Direct printing (PICTBRIDGE enabled Printer) problems

Status

Cannot find the desired picture

The Direct printing menu interface turns off

Cannot print pictures

Camera or printer display an error message

Solution

■ Use the Direct printing menu to change the image storage location

(

see page 34 ).

■ Press any camera button to redisplay the menu.

■

■

■

Make sure there is a connection between the camera and the printer

(

see page 34 ).

Make sure the printer and the camera have power.

Follow the prompts to resolve the issue.


7

Appendix

Camera specifications

CCD— 1/2.33-type

Effective pixels— 12.4 MP, 4096 x 3016

LCD— 7.6 cm (3.0 in.) LCD; 230K pixels

Image storage— Optional SD/SDHC Card (The SD logo is a trademark of the

SD Card Association.) Maximum supported card size: 32 GB

Internal storage capacity— 32 MB internal memory (17 MB available for image storage. 1 MB equals one million bytes.)

Taking lens— 5X optical zoom; f/3.0–f/4.8; 35 mm equivalent: 35–175 mm

Lens protection— Built-in

Digital zoom— 5X continuous

Focus system— TTL-AF (through-the-lens auto focus); Auto: Multi-Zone,

Center-Zone. Working range:

60 cm (23.6 in.)–infinity @ wide, normal

90 cm (35.4 in.)–infinity @ telephoto, normal

10–70 cm (3.9–27.6 in.) @ wide, Macro mode

80–100 cm (31.5–39.4 in.) @ telephoto, Macro mode

10 m (32.8 ft)–infinity @ wide, Landscape mode

Auto focus control— Still: Continuous, Single AF; Video: Single AF

Face detection— Up to 5 faces

Shutter speed— 8–1/1400 seconds; long time exposure 0.5–8 seconds

ISO speed— Auto (in Smart Capture): 80–1600; Auto (in P mode): 80–400; Manual:

80, 100, 200, 400, 800, 1600

Exposure metering— TTL-AE; Multi-Pattern, Center-Weight, Center-Spot


Appendix

Exposure compensation— +/-2.0 EV with 1/3 EV step

White Balance— Auto, Daylight, Tungsten, Fluorescent, Open Shade

Electronic Flash— Auto flash; Auto, Fill, Red Eye, Off; Guide No.6.3; working range

@ ISO 200: 0.6–3.0 m (2–9.8 ft) @ wide; 0.9–1.9 m (3–6.2 ft) @ telephoto

Burst mode— Maximum 3 pictures @ 2 fps; Auto Exposure, Auto Focus, Auto White

Balance executed for first shot only

Capture modes— Smart Capture, Program, Scene modes, Video, Sport, Blur

Reduction, Panorama

Image file format—

Still: EXIF 2.21 (JPEG compression); file organization DCF

Video: QUICKTIME (CODEC Motion JPEG; audio: G.711)

Picture size— 11.8 MP (4:3): 3968 x 2976 pixels

10.5 MP (3:2): 3968 x 2640 pixels

8.8 MP (16:9): 3968 x 2224 pixels

6.2 MP (4:3): 2880 x 2160 pixels

3.1 MP (4:3): 2048 x 1536 pixels

2.2 MP (3:2): 1824 x 1216 pixels

2.1 MP (16:9): 1920 x 1088 pixels

1.2 MP (4:3): 1280 x 960 pixels

Color modes— High Color, Natural Color, Low Color, Black & White, Sepia

Sharpness modes— Sharp, Normal, Soft

Video capture— 4 GB maximum

VGA (640 x 480 @ 30 fps)

QVGA (320 x 240 @ 30 fps)

Video blur reduction— Yes

Communication with computer— USB 2.0 high speed (PIMA 15740 protocol); via USB cable model U-8 www.kodak.com/go/support 47

Appendix

Video output— NTSC or PAL

Microphone— Yes

Speaker— Yes

PICTBRIDGE support— Yes

Power— KODAK Li-Ion Rechargeable Digital Camera Battery KLIC-7003 (1050 mAh);

5V AC adapter; USB charging

Tripod mount— 1/4 inch

Size— 100.9 x 59.5 x 20 mm (4.0 x 2.3 x 0.8 in.) @ power off

Weight— TBD g ( TBD oz) without card or battery

Operating temperature— 0–40

°

C (32–104

°

F)

Care and maintenance

■

■

■

If you suspect water has gotten inside the camera, remove the battery and card.

Allow all components to air-dry for at least 24 hours before using the camera.

Blow gently on the lens or LCD to remove dust and dirt. Wipe gently with a soft, lint-free cloth or an untreated lens-cleaning tissue. Do not use cleaning solutions unless designed specifically for camera lenses. Do not allow chemicals, such as suntan lotion, to contact painted surfaces.

Service agreements may be available in your country. Contact a dealer of KODAK

Products for more information.

■ For digital camera disposal or recycling information, contact your local authorities.

In the US, visit the Electronics Industry Alliance at www.eiae.org

or www.kodak.com/go/m381support .

Upgrading your software and firmware

Download the latest versions of the software included on the KODAK EASYSHARE

Software CD and the camera firmware (the software that runs on the camera). Visit www.kodak.com/go/m381downloads .


Appendix

Storage capacities

The LCD displays the approximate number of pictures (or minutes/seconds of video) remaining. For average SD Card capacities, visit www.kodak.com/go/SDcapacities .

Actual storage capacity varies depending on subject composition, card size, and other factors. You may be able to store more or fewer pictures and videos. Favorites take up additional space in internal memory.

Important safety instructions

CAUTION:

Do not disassemble this product; there are no user-serviceable parts inside. Refer servicing to qualified service personnel. KODAK AC Adapters and Battery Chargers are intended for indoor use only. The use of controls, adjustments, or procedures other than those specified herein may result in exposure to shock and/or electrical or mechanical hazards. If the LCD breaks, do not touch the glass or liquid. Contact Kodak customer support.

■

■

The use of an accessory that is not recommended by Kodak may cause fire, electric shock, or injury. For approved accessories, see www.kodak/go/accessories .

Use only a USB-certified computer equipped with a current-limiting motherboard.

Contact your computer manufacturer if you have questions.

If using this product in an airplane, observe all instructions of the airline.

■

■

■

■

■

■

When removing the battery, allow it to cool; it may be hot.

Follow all warnings and instructions supplied by the battery manufacturer.

Use only batteries approved for this product to avoid risk of explosion.

Keep batteries out of the reach of children.

■

Do not allow batteries to touch metal objects, including coins. Otherwise, a battery may short circuit, discharge energy, become hot, or leak.

Do not disassemble, install backward, or expose batteries to liquid, moisture, fire, or extreme temperature.


Appendix

■

■

Remove the battery when the product is stored for an extended period of time. In the unlikely event that battery fluid leaks inside the product, contact Kodak customer support.

In the unlikely event that battery fluid leaks onto your skin, wash immediately with water and contact your local health provider. For additional health-related information, contact your local Kodak customer support.

■ See www.kodak.com/go/REACH for information about the presence of substances included on the candidate list according to article 59(1) of Regulation (EC) No.

1907/2006 (REACH).

■ Dispose of batteries according to local and national regulations. See www.kodak.com/go/kes.

■ Do not charge non-rechargeable batteries. For more information, see www.kodak.com/go/batteries .

Battery replacement, battery life

KODAK Li-Ion Rechargeable Digital Camera Battery KLIC-7003 (1050 mAh): 310 pictures per charge. Battery life per CIPA testing method. (Approx. number of pictures in Smart Capture mode.) Actual life may vary based on usage.

Extending battery life

■

■

■

■

Use power-saving features (see

Using the Setup tab, page 29

Keep battery contacts/terminals clean. Wipe with a dry cloth.

).

Charge Li-Ion batteries frequently, even if power remains.

Battery performance is reduced at low temperatures. When using your camera in cold weather, keep spare batteries warm. Do not discard cold batteries that do not work; when they return to room temperature, they may be usable.


Appendix

Limited warranty

Kodak warrants its digital cameras and accessories (excluding batteries) to be free from malfunctions and defects in both materials and workmanship for the warranty period specified on your Kodak Product packaging. Retain the original dated sales receipt. Proof of purchase date is required with any request for warranty repair.

Limited warranty coverage

Warranty service is only available from within the country where the Products were originally purchased. You may be required to ship Products, at your expense, to the authorized service facility for the country where the Products were purchased. Kodak will repair or replace Products if they fail to function properly during the warranty period, subject to any conditions and/or limitations stated herein. Warranty service will include all labor as well as any necessary adjustments and/or replacement parts. If

Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak along with proof of the purchase price paid. Repair, replacement, or refund of the purchase price are the sole remedies under the warranty. If replacement parts are used in making repairs, those parts may be remanufactured, or may contain remanufactured materials. If it is necessary to replace the entire Product, it may be replaced with a remanufactured Product. Remanufactured Products, parts and materials are warranted for the remaining warranty term of the original Product, or 90 days after the date of repair or replacement, whichever is longer.

Limitations

This warranty does not cover circumstances beyond Kodak's control. This warranty does not apply when failure is due to shipping damage, accident, alteration, modification, unauthorized service, misuse, abuse, use with incompatible accessories or attachments (such as third party ink or ink tanks), failure to follow Kodak's operation, maintenance or repacking instructions, failure to use items supplied by

Kodak (such as adapters and cables), or claims made after the duration of this warranty. Kodak makes no other express or implied warranty for this product. In the event that the exclusion of any implied warranty is ineffective under the law, the duration of the implied warranty will be the length of the express warranty period www.kodak.com/go/support 51

Appendix specified on your Kodak product packaging. The option of repair, replacement, or refund is Kodak's only obligation. Kodak will not be responsible for any special, consequential or incidental damages resulting from the sale, purchase, or use of this product regardless of the cause. Liability for any special, consequential or incidental damages (including but not limited to loss of revenue or profit, downtime costs, loss of the use of the equipment, cost of substitute equipment, facilities or services, or claims of your customers for such damages resulting from the purchase, use, or failure of the Product), regardless of cause or for breach of any written or implied warranty is expressly disclaimed.

Your rights

Some states or jurisdictions do not allow exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Some states or jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific rights, and you may have other rights which vary from state to state or by jurisdiction.

Outside the United States and Canada

In countries other than the United States and Canada, the terms and conditions of this warranty may be different. Unless a specific Kodak warranty is communicated to the purchaser in writing by a Kodak company, no warranty or liability exists beyond any minimum requirements imposed by law, even though defect, damage, or loss may be by negligence or other act.


Appendix

Regulatory compliance

FCC compliance and advisory

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for additional suggestions. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulation.

Waste Electrical and Electronic Equipment labeling/battery disposal

In Europe: For human/environmental protection, it is your responsibility to dispose of this equipment and batteries at a collection facility established for this purpose (separate from municipal waste.) For more information, contact your retailer, collection facility, or appropriate local authorities; or visit www.kodak.com/go/recycle . Product weight TBD g (TBD oz).


Appendix

Australian C-Tick

N137

Korean Class B ITE

VCCI Class B ITE

Russian GOST-R

Eastman Kodak Company

Rochester, NY 14650


Appendix

China RoHS

Canadian DOC statement

DOC Class B Compliance— This Class B digital apparatus complies with Canadian

ICES-003.

Observation des normes-Classe B— Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CE

Hereby, Eastman Kodak Company declares that this KODAK Product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/E.


56

1

Index

A

A/V out, 18

about this camera, 31

accessories, 33

battery, 50

buying, 41

SD/SDHC Card, 4

AF control (video), 26

AF zone, 27

auto, 8

enhancement, 20

focus control, 26, 27

focus framing marks, 5

auto focus (AF)

zone, 27

B

backlight, 9

battery

charging, 2

expected life, 50

loading, 1

types, 50

beach, 9

button

delete, 6 telephoto/zoom, 6

C cable

audio/video, 18

USB, 33

camera sounds, 30

Canadian compliance, 55

care and maintenance, 48

charging the battery, 2

children, 9

clock, setting, 3

color mode, 26

computer

connecting camera, 32 transfer to, 32

connector, USB / A/V, 18, 33

copy pictures

card to memory, 21 memory to card, 21

to computer via USB cable, 32

cropping pictures, 20

customize camera, 29

D

date setting, 3

deleting

during quickview, 6

from internal memory, 15 from SD/SDHC Card, 15 protecting pictures, videos, 15

digital zoom, 30

displaying slide show, 17

disposal, recycling, 48

downloading pictures, 32

E

EASYSHARE Software, 32


edit videos, 21

emailing pictures, videos, 37

expected battery life, 50

exposure

long time, 26, 29

metering, 27

exposure compensation, 25

exposure metering, 27

external video device

viewing pictures, videos, 18

F

face detect capture, 27

favorites tagging, 38

FCC compliance, 53

fireworks, 9

firmware, upgrading, 48

flash, using, 7

flower, 9

focus framing marks, 5

focus mode, 26, 28

format, 31

framing marks, 5

G

guidelines, battery, 50

H help

camera help, 40

Web links, 40

I

icons, modes, 8

image storage, 29

www.kodak.com/go/support installing

battery, 1

SD/SDHC Card, 4

software, 32

ISO speed, 28

K

KODAK EASYSHARE Software

installing, 32

upgrading, 48

KODAK PERFECT TOUCH

Technology, 20

Kodak Web sites, 40

L

language, 30

LCD

brightness, 29

reviewing pictures, 14 reviewing videos, 14

LCD brightness, 29

lens

cleaning lens, 48

loading

battery, 1

SD/SDHC Card, 4

software, 32

long time exposure, 26, 29

M

MAC OS, installing software, 32

magnify a picture, 14

maintenance, camera, 48

make picture from video, 21

manner/museum, 9

Index

57

Index memory

inserting card, 4

modes, 8 auto, 8

backlight, 9 beach, 9 children, 9 fireworks, 9 flower, 9 manner/museum, 9 night landscape, 9 night portrait, 9 scene (SCN), 9 self-portrait, 9 snow, 9 text, 9

modes, capture

smart capture, 8

multiple selections, 16 multi-up, 16

N

night landscape, 9 night portrait, 9

O

online prints, ordering, 35

optical zoom, 6

orientation sensor, 30

P

panoramic pictures, 12

PERFECT TOUCH Technology, 20

PICTBRIDGE enabled printer, 34

picture size, 25

58 pictures

copying, 21

cropping, 20

emailing tagged, 37

PERFECT TOUCH, 20

printing, 35

printing tagged, 36

protecting, 15

review icons, 24

reviewing, 14

tagging, 36

taking, modes, 8

transfer via USB cable, 32

pictures/video

deleting, 15

playing a video, 14

power

camera, 3

pre-tagging, 39

printing

from a card, 35 from computer, 35

optimizing printer, 40

order online, 35

PICTBRIDGE, 34

tagged pictures, 35

protecting pictures, videos, 15

Q

quickview, 30

quickview, using, 6

R

recycling, disposal, 48


Index

regulatory information, 53

repair, 41

reset camera, 30

reviewing pictures/video

as you take them, 6

deleting, 15

LCD, 14

protecting, 15

slide show, 17 running slide show, 17

S

safety, 49

scene modes (SCN), 9

SD/SDHC Card

inserting, 4

SD/SDHC card

printing from, 35

select multiple pictures/videos, 16

self-portrait, 9

self-timer, 11

set tag, 29

setting

AF zone, 27 auto-focus, 26, 27

camera sounds, 30

color mode, 26

date and time, 3

exposure metering, 27

image storage, 29

ISO, 28

language, 30

LCD brightness, 29 long time exposure, 26, 29


orientation sensor, 30

picture size, 25

picture-taking mode, 8

self-timer, 11

sharpness, 28

video out, 30

video size, 28

white balance, 27

setting up the camera, 1

setup menu, 29

Share button, 29

sharpness, 28

shutter

problems, 43

self-timer delay, 11

slide show

continuous loop, 17 running, 17

smart capture, 8

snow, 9

software

installing, 32

upgrading, 48

sounds, 30

specifications, camera, 46

strap, 1

T tagging

creating tags, 38 favorites, 38

for email, 37

for print, 36

pre-tagging, 39

59

Index

taking pictures, videos, 5

television, slide show, 18

text, 9

time, setting, 3

timer, shutter delay, 11

tips

battery guidelines, 50

care & maintenance, 48

transfer, via USB cable, 32

trash can, deleting, 6

trimming a video, 22

turning camera on and off, 3

U

undelete, undo, 15

upgrading software, firmware, 48

URLs, Kodak Web sites, 40

USB

transferring pictures, 32

V video

action print, 23

copying, 21 edit, 21

emailing tagged, 37

out, 30

playback, 14

protecting, 15

review icons, 24

size, 28

transfer to computer, 32

viewing, 14

video out, 30

60

video size, 28

viewing

by multi-up, 16

picture, after taking, 6, 14

W

warranty, 51

white balance, 27

WINDOWS OS, installing software, 32

Z zoom

optical, 6


No results
