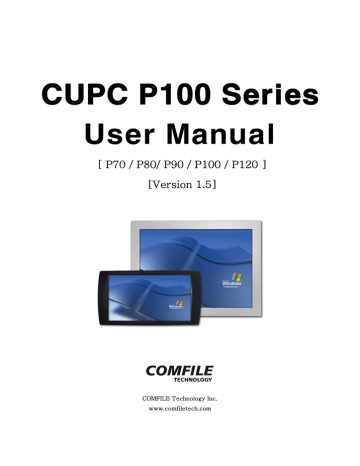

CUPC P100 Series
User Manual
[ P70 / P80/ P90 / P100 / P120 ]
[Version 1.5]
COMFILE Technology Inc. www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Table of Contents
Chapter 1. hardware Specification ................................................................................................... 3
Chapter 2. Parts Diagram ................................................................................................................. 4
Chapter 3. Dimensions ..................................................................................................................... 6
3-1. CUPC-P70 Dimensions ..................................................................................................... 6
3-2. CUPC-P80 Dimensions ..................................................................................................... 7
3-3. CUPC-P90 Dimensions ..................................................................................................... 8
3-4. CUPC-P100 Dimensions ................................................................................................... 9
3-5. CUPC-P120 Dimensions ................................................................................................. 10
Chapter 4. PANEL CUTOUT .......................................................................................................... 11
4-1. Installation Requirements and Installation ...................................................................... 11
4-2. Bezel Size and Installation .............................................................................................. 12
Chapter 5. Bracket Installation ...................................................................................................... 17
5-1. CUPC-P80 Bracket Installation ...................................................................................... 17
5-2. CUPC-P90 Bracket Installation ...................................................................................... 17
5-3. CUPC-P100 Bracket Installation .................................................................................... 19
5-4. CUPC-P120 Bracket Installation .................................................................................... 20
Chapter 6. Input/Output Connector Type and Pin Assignment ...................................................... 21
6-1. VGA Output Connector .................................................................................................... 21
6-2. RS232C Input/Output Connector (COM1,COM2,COM3) .................................................. 21
6-3. COM4 Mode Setting and Connector ................................................................................ 22
6-4. RS485 Input/Output Connector (COM5) .......................................................................... 23
6-5. Ext. Power ON/OFF Switch Connector ........................................................................... 23
6-6 Power Input Connector .................................................................................................... 24
Chapter 7. System Restoration ...................................................................................................... 25
7-1. Getting Ready .................................................................................................................. 25
7-2. ROM Bios Configuration ................................................................................................... 26
7-2-1. Changing First Boot Device ............................................................................................... 26
7-4. Restoration ...................................................................................................................... 28
7-5. Backing Up ....................................................................................................................... 34
MEMO ............................................................................................................................................. 40
---------------------------------------------------------------------
2/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Chapter 1. hardware Specification
ITEM
CPU
Chipset
BIOS
Display
Chipset
LCD
Backlight
Ethernet
CUPC-P70 CUPC-P80
AMD Geode LX800 500MHz Process
Support MMX, AMD 3DNOW Instruction set
AMD LX800 & CS5536 Companion Chip
Award Bios
MODEL
CUPC-P90
AMD LX800 Geode Integrated Graphics Controller
High Performance 2D Accelerator
VGA CRT Output Port
7inch (800x480)
300cd/m
2
White LED
Lifetime :
>20,000hr
10.2inch (800x480)
350cd/m
2
White LED
Lifetime : >20,000hr
10.4inch
(1024x768)
300cd/m
2
1 Channel CCFL
Lifetime :
>30,000hr
10/100 Base-T Ethernet Port
VIA VT6107 Ethernet Controller Chip
CUPC-P100
15inch (1024x768)
250cd/m
2
2 Channel CCFL
Lifetime : >40,000hr
CUPC-P120
Audio
VT1616 AC97 Codec
Speaker Out Port. MIC In Port
USB
Serial
3 Universal Serial Bus Support
Support USB2.0 Host Controller
SDCARD
1 slot Support
Keyboard
PS/2 Keyboard Port
Mouse
HDD
PS/2 Mouse Port
Embedded FALSH Disk(4GB), S-ATA Support
4 RS232C Serial Port.(COM4 RS232 & RS485 S/W Select Port)
One RS485 Serial Port.(Auto Direction Control Support)
Input Power
DC+12V DC+14V
Power
Consumption
<12W
(1.0A@DC+12V)
<15W
(1.2A@DC+12V)
<17W
(1.2A@DC+14V)
<22W (1.6A@DC+14V)
Weight
Operating
Temperature
0.67Kg 1.1Kg 1.8Kg 4.8Kg 4.5Kg
0
0
C ~ 60
0
C 0
0
C ~ 50
0
C
[Table 1] CUPC Hardware Specification
---------------------------------------------------------------------
3/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Chapter 2. Parts Diagram
[Figure 1] CUPC Parts Diagram
Name
1 COM1
2 COM2
3 COM3
Description
4 COM4
5 COM5
6
COM4 Mode Selection
S/W
7 USB
RS232C/RS485 Port. => Switched to RS232C or RS485 by the mode selector.
1 port.
2
Switch for selecting COM4 mode. (Refer to Chapter 2-3)
Provides 3 USB ports (USB2.0).
1
When using RS485 mode, no other RTS signal control is needed because Auto Direction Control
2 is supported.
No other RTS signal control is needed because Auto Direction Control is supported.
---------------------------------------------------------------------
4/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
8 Ethernet
9 Audio OUT
10 MIC
11 Mouse
12 Keyboard
13 VGA Out
14 ATX Power S/W
15 Power ON/OFF
17 RESET S/W
19 DC INPUT(Adaptor)
20 DC INPUT
10/100Base-T Ethernet Port (1EA)
Stereo sound output port
Microphone input port.
PS/2 mouse input port.
PS/2 keyboard input port.
External monitor video output port
ATX mode power switch, which can turn on and off the system.
3
Power ON/OFF switch.
SDCARD slot for OS recovery.
(CAUTION : Use only for OS recovery)
Reset switch.
The connector which can be linked to external switch.
Same function with ATX Power S/W.
Connector for adaptor power supply.
Connector for power supply.
3
CUPC is released on AT power mode. If you need ATX power mode, please contact us.
---------------------------------------------------------------------
5/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Chapter 3. Dimensions
3-1. CUPC-P70 Dimensions
Back cover of product
Avoid using long bolts when assembling VESA mounts or add-on board.
The inner maximum length is about 9mm.
[Figure 2] CUPC-P70 Dimensions
---------------------------------------------------------------------
6/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
3-2. CUPC-P80 Dimensions
Back cover of product
Avoid using long bolts when assembling
VESA mounts or addon board.
The inner maximum length is about 9mm.
[Figure 3] CUPC-P80 Dimensions
---------------------------------------------------------------------
7/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
3-3. CUPC-P90 Dimensions
Back cover of product
Avoid using long bolts when assembling
VESA mounts or addon board.
The inner maximum length is about 9mm.
[Figure 4] CUPC-P90 Dimensions
---------------------------------------------------------------------
8/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
3-4. CUPC-P100 Dimensions
10
Back cover of product
Avoid using long bolts when assembling
VESA mounts or addon board.
The inner maximum length is about 10mm.
[Figure 5] CUPC-P100 Dimensions
---------------------------------------------------------------------
9/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
3-5. CUPC-P120 Dimensions
12
Back cover of product
Avoid using long bolts when assembling
VESA mounts or addon board.
The inner maximum length is about 12mm.
[Figure 6] CUPC-P120 Dimensions
---------------------------------------------------------------------
10/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Chapter 4. PANEL CUTOUT
4-1. Installation Requirements and Installation
[Installation Requirements]
[Installation]
CUPC X (Width) Y (Height) T (Thickness) Unit
P70
P80
P90
P100
P120
154
[6.06]
265
[10.44]
212
[8.34]
335
[13.19]
335
[13.19]
93
[3.66]
152
[5.99]
159
[6.25]
262
[10.32]
279
[10.99]
1.6 to 5.0
[0.06 to 0.20]
1.6 to 5.0
[0.06 to 0.20]
1.6 to 5.0
[0.06 to 0.20]
1.6 to 15.0
[0.06 to 0.59]
1.6 to 6.0
[0.06 to 0.24] mm
[inch] mm
[inch] mm
[inch] mm
[inch] mm
[inch]
---------------------------------------------------------------------
11/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
4-2. Bezel Size and Installation
[Figure 7] CUPC-P70 Panel Cutout size
---------------------------------------------------------------------
12/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
[Figure 8] CUPC-P80 Panel Cutout size
---------------------------------------------------------------------
13/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
[Figure 9] CUPC-P90 Panel Cutout size
---------------------------------------------------------------------
14/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
[Figure 10] CUPC-P100 Panel Cutout size
---------------------------------------------------------------------
15/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
[Figure 11] CUPC-P120 Panel Cutout size
---------------------------------------------------------------------
16/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Chapter 5. Bracket Installation
5-1. CUPC-P80 Bracket Installation
1. Insert a bolt into each mounting bracket as shown in the diagram below.
2. Make a hole in the panel according to the CUPC's cutout diagram, and insert the CUPC into place.
3. Hook a bracket into one of the CUPC's bracket mounting holes, and pull gently to hold it firmly in place.
4. Tighten the bolt against the panel to secure the CUPC to the panel. (Be careful not to tighten the bolts too tightly, or the CUPC could be damaged.)
5. Repeat steps 3 and 4 for each mounting bracket.
5-2. CUPC-P90 Bracket Installation
1. Make holes and a rectangle in your panel.
2. Insert the bezel from the front side of your panel.
(The bezel has directions of upside and downside. Refer to the "▲ Upside" mark at the rear side of bezel)
3. At the rear side of your panel, combine each spacer with 4 bezel bolts and insert them
into CUPC. (The spacers are for protecting the touch screen)
---------------------------------------------------------------------
17/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
4. Install washers and nuts at the 4 bezel bolts, and tighten the CUPC.
The order is flat washer, spring washer, and then nut. (Do not tighten too tightly, or it may damage the touch pad.)
Before, Washer and Nut Assy. (Back Panel) After, Washer and Nut Assy. (Back
Panel)
---------------------------------------------------------------------
18/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
5-3. CUPC-P100 Bracket Installation
When you purchase the product, the bracket for installing P100 to the front panel is
provided.
After mounting the CUPC to the panel, insert the bracket to the side of product and tighten
with the bolts.
---------------------------------------------------------------------
19/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
5-4. CUPC-P120 Bracket Installation
To fasten CUPC-P120 to an upright panel, the brackets (left 2ea, right 2ea) are supplied when you purchase P120.
* Procedure *
1) Push and install the CUPC-P120 into your panel.
2) Press the bracket as the following directions in two steps.
3) To fix the CUPC-P120 to the panel, fasten the bolts.
---------------------------------------------------------------------
20/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Chapter 6. Input/Output Connector Type and Pin Assignment
6-1. VGA Output Connector
Connector Type
5 4 3 2 1
10 6
15 14 13 12 11
* D-SUB 15 Pin Female
Pin No.
1
3
5
7
9
Signal
RED
BLUE
GND
AGND
+5V
Pin Assignment
Pin No.
2
4
6
8
10
Signal
GREEN
-
AGND
AGND
GND
11
13
-
HSYNC
12
14
DDDATA
VSYNC
15 DDCLK - -
[Table 2] VGA Output Connector Type and Pin Assignment
6-2. RS232C Input/Output Connector (COM1,COM2,COM3)
Connector Type
5 4 3 2 1
9 8 7
6
*D-SUB 9Pin Female
Pin No.
1
3
5
Signal
DCD
TXD
GND
Pin Assignment
Pin No.
2
4
6
Signal
RXD
DTR
DSR
7
9
RTS
RI
8
-
CTS
-
[Table 3] RS232C Input/Output Connector Type and Pin Assignment
---------------------------------------------------------------------
21/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
6-3. COM4 Mode Setting and Connector
6-3-1. RS232C Mode
Mode Setting
RS232C Mode
ON
Connector Type
5 4 3 2 1
1
2 3
4
5
6
7 8
9 8 7 6
*D-SUB 9 Pin Female
ON
OFF
Pin No.
1
3
5
Signal
DCD
TXD
GND
Pin Assignment
Pin No.
2
4
6
Signal
RXD
DTR
DSR
7
9
RTS
RI
8
-
CTS
-
[Table 4] COM4 Connector Type and Pin Assignment for RS232C mode
6-3-2. RS485 Mode
* AutoDirection Control is supported so no other RTS Signal Control required.
Mode Setting Connector Type
5 4 3
2
1
9 8 7 6
*D-SUB 9 Pin Female
Pin No.
1
3
5
Signal
-
RS485 DATA-
GND
Pin Assignment
Pin No.
2
4
6
Signal
RS485 DATA+
-
-
7
9
-
-
8
-
-
-
[Table 5] COM4 Connector Type and Pin Assignment for RS485 mode
---------------------------------------------------------------------
22/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
6-4. RS485 Input/Output Connector (COM5)
* AutoDirection Control is supported so no other RTS Signal Control required.
Connector Type
RS485 D+
RS485 D-
GND
TOP
1
2
3
Pin No.
1
2
Pin Assignment
Signal
RS485 DATA+
RS485 DATA-
3 GND
[Table 6] COM5 Connector Type and Pin Assignment
6-5. Ext. Power ON/OFF Switch Connector
* CUPC is released on AT power mode. If you want ATX, please contact us.
Connector Type
2 1
* Part No. : YMW025-02R
Mating Connector : YMH025-02R
Pin No.
1
2
Pin Assignment
Signal
PWRBTN#
GND
[Table 7] Ext. Power ON/OFF Switch Type and Pin Assignment
---------------------------------------------------------------------
23/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
6-6 Power Input Connector
Connector Type
2 1
Pin No.
1
2
Pin Assignment
Signal
DC IN
GND
[Table 8] Power Input Connector Type and Pin Assignment
!
CAUTION
- Make sure the power supply is turned off when you begin wiring.
- Before you turn on the power supply, please check the voltage of
power supply and wiring is all ok.
---------------------------------------------------------------------
24/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Chapter 7. System Restoration
CUPC provides a system restoration solution using Clonix’s WinClon, which is included when you purchase the OS Option Package. You can restore the CUPC to its original state or to any state you may have saved using the backup procedure.
7-1. Getting Ready
In order to perform the restoration procedure, the following is needed.
- CUPC
- WinClon Recovery SDCARD
- Keyboard & Mouse (* PS/2 Type is recommended.)
- DC Power
CUPC
DC
Power
Recovery
SDCARD
PS/2
Keyboard
PS/2
Mouse
[Figure 12] Getting Ready
Please be sure to use the recovery SDCARD with the WinClon logo.
[Figure 13] Recovery SDCARD
---------------------------------------------------------------------
25/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
7-2. ROM Bios Configuration
7-2-1. Changing First Boot Device
After turning on the power, if you press the [DEL] key on the initial screen, the BIOS Setup
Utility will open as shown in Figure 12.
[Figure 14] BIOS SETUP Initial Screen
Select the [Advanced BIOS Features] menu.
[Figure 15] Advanced BIOS Features menu
---------------------------------------------------------------------
26/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Choose
[USB-HDD] as the First Boot Device.
[Figure 16] BIOS SETUP Save & Exit Screen
Select the Save & Exit Setup option from the menu and confirm your selection by Pressing the Y
Key . The system will then reboot.
7-3. Booting with the WinClon SDCARD
Insert the WinClon Recovery SDCARD and turn on the power.
The System will begin booting into Windows PE as shown in [Figure15].
[Figure 17] WinPE Booting Screen
---------------------------------------------------------------------
27/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
After the system boots into Windows PE, WinClon will be executed as shown in [
Figure
16]
[Figure 18] WinClon Initial Screen
7-4. Restoration
On the initial WinClon screen, click ‘Restore’.
Click
[Figure 19] Restoring Menu Selection
Select the restoration image according to the following steps.
---------------------------------------------------------------------
28/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Click
Click on the folder icon.
[Figure 20] Selecting Image
[Figure 21] Exploring image file
---------------------------------------------------------------------
29/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
[Figure 22] Select image file
In the SD card you purchased, you will find an initial restoration image named by CUPC model.
If you have performed a backup, you may see your own image, too. Select an image from the list.
Select the partition you want to restore.
In this example, we will restore the entire disk.
---------------------------------------------------------------------
30/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Check
[Figure 23] Selecting the restoring partition
Click the ‘Next’ button and select the disk to restore, i.e. Disk1.
Check
[Figure 24] Selecting the restoring disk
Click ‘Next’.
---------------------------------------------------------------------
31/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Click ‘Process’.
[Figure 25] Restoring Summary Screen
[Figure 26] Continue Screen
Click ‘Yes’ to confirm.
---------------------------------------------------------------------
32/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
[Figure 27] Restoration Progress Screen
The restoration process will begin. It will take about 4~5 minutes.
[Figure 28] Restoration Complete
After the restoration is complete, refer to the chapter 7-2-1 to change the CUPC First Boot Device to HDD-0 and reboot.
---------------------------------------------------------------------
33/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
7-5. Backing Up
You can also use the WinClon utility to backup the system after customizing it to the state you want. This will allow you to restore to your custom state rather than the original state.
On the initial WinClon screen, click ‘Backup’.
Click
[Figure 29] Selecting Backup Menu
Select the disk or partition to back up. In this example we will backup the entire disk.
Click
[Figure 30] Selecting the partition and disk to back up
---------------------------------------------------------------------
34/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Confirm the selected partition and/or disk.
[Figure 31] Confirm the partition and disk to back up
You are now ready to save the disk to an image file.
Click the folder icon to locate the image file for saving.
Click
[Figure 32] Selecting folder icon
---------------------------------------------------------------------
35/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Select the folder and enter a desired file name. Then click the ‘Save’button.
Click ‘Next’.
[Figure 33] Input the image file name
[Figure 34] Image file determined
If you want to protect your image, entered your password and click ‘Next’.
---------------------------------------------------------------------
36/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Click ‘Process’.
[Figure 35] Password set
[Figure 36] Backup Summary Screen
---------------------------------------------------------------------
37/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
Click ‘Yes’ to confirm.
[Figure 37] Backup Start Confirmation Screen
The backup process will begin. It will take about 5~6 minutes.
[Figure 38] Backup Progress Screen
---------------------------------------------------------------------
38/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
When the backup process is finished WinClon will display the newly created image file. To fishish, click ‘OK’.
[Figure 39] Backup Complete
---------------------------------------------------------------------
39/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
CUPC P100 Series User Manual
--------------------------------------------------------------------------------------------------
MEMO
---------------------------------------------------------------------
40/40
1175 Chess Dr., Suite F, Foster city, CA 94404, USA www.comfiletech.com
advertisement
Related manuals
advertisement
