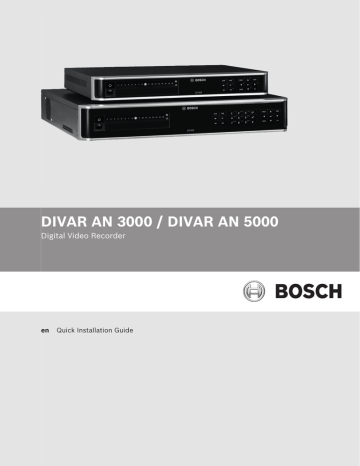

DIVAR AN 3000 / DIVAR AN 5000
Digital Video Recorder
en
Quick Installation Guide
DIVAR AN 3000 / DIVAR AN 5000
Table of Contents | en
3
Table of contents
1
Basic Safety
4
1.1
Safety precautions
4
1.2
Important safety instructions
4
1.3
Important Notices
6
1.4
FCC and UL
8
2
System overview
3
Quick install
10
3.1
Connections
10
3.1.1
Primary connections
12
3.1.2
Optional connections
12
3.2
Powering up
13
3.3
Login
14
3.4
Startup Wizard
15
3.4.1
Reset startup wizard
16
3.4.2
General
16
3.4.3
Encode
17
3.4.4
Schedule
18
3.4.5
Record
18
3.4.6
Network
19
3.5
Shutdown/Logout
20
4
First time operation
21
4.1
Live viewing
21
4.2
Quick menu
24
4.3
Mouse controls
25
4.4
Main menu
27
4.5
Search/Playback
28
4.5.1
Export
34
5
Maintenance
35
5.1
Maintenance precautions
37
5.1.1
Attach ESD strap
37
5.1.2
High Voltage
37
5.1.3
Connector/processor damage
38
5.2
Replace internal battery
39
5.3
Install HDD in DIVAR AN 3000
40
5.3.1
Install HDD 1
41
5.3.2
Install HDD 2
42
5.4
Install HDD in DIVAR AN 5000
43
5.4.1
Install HDD 1
44
5.4.2
Install HDD 2
45
5.4.3
Install HDD 3 and 4
46
5.5
Install DVD in DIVAR AN 3000
47
5.6
Install DVD in DIVAR AN 5000
49
Bosch Security Systems
9
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
4
en | Basic Safety
1
DIVAR AN 3000 / DIVAR AN 5000
Basic Safety
This safety section describes safety requirements and the format used for warnings and
cautions.
1.1
Safety precautions
Danger!
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
!
Warning!
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Caution!
!
Indicates a hazardous situation which, if not avoided, could result in minor or moderate
injury.
Notice!
Indicates a situation which, if not avoided, could result in damage to the equipment or
environment, or data loss.
1.2
Important safety instructions
Read, follow, and retain for future reference all of the following safety instructions. Heed all
warnings on the unit and in the operating instructions before operating the unit.
1.
Cleaning - Unplug the unit from the outlet before cleaning. Follow any instructions
provided with the unit. Generally, using a dry cloth for cleaning is sufficient but a moist,
fluff-free cloth or leather shammy may also be used. Do not use liquid cleaners or aerosol
cleaners.
2.
Heat Sources - Do not install the unit near any heat sources such as radiators, heaters,
stoves, or other equipment (including amplifiers) that produce heat.
3.
Ventilation - Any openings in the unit enclosure are provided for ventilation to prevent
overheating and ensure reliable operation. Do not block or cover these openings. Do not
place the unit in an enclosure unless proper ventilation is provided, or the manufacturer's
instructions have been adhered to.
4.
Water - Do not use this unit near water, for example near a bathtub, washbowl, sink,
laundry basket, in a damp or wet basement, near a swimming pool, in an outdoor
installation, or in any area classified as a wet location. To reduce the risk of fire or
electrical shock, do not expose this unit to rain or moisture.
5.
Object and liquid entry - Never push objects of any kind into this unit through openings
as they may touch dangerous voltage points or short-out parts that could result in a fire
or electrical shock. Never spill liquid of any kind on the unit. Do not place objects filled
with liquids, such as vases or cups, on the unit.
6.
Lightning - For added protection during a lightning storm, or when leaving this unit
unattended and unused for long periods, unplug the unit from the wall outlet and
disconnect the cable system. This will prevent damage to the unit from lightning and
power line surges.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
Basic Safety | en
DIVAR AN 3000 / DIVAR AN 5000
7.
5
Controls adjustment - Adjust only those controls specified in the operating instructions.
Improper adjustment of other controls may cause damage to the unit. Use of controls or
adjustments, or performance of procedures other than those specified, may result in
hazardous radiation exposure.
8.
Overloading - Do not overload outlets and extension cords. This can cause fire or
electrical shock.
9.
Power supply cord and plug protection - Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or against them,
playing particular attention to cords and plugs, convenience receptacles, and the point
where they exit from the appliance.
10. Power disconnect - Units have power supplied to the unit whenever the power cord is
inserted into the power source. The power cord plug is the main power disconnect device
for switching off the voltage for the unit.
11. Power sources - Operate the unit only from the type of power source indicated on the
label. Before proceeding, be sure to disconnect the power from the cable to be installed
into the unit.
12. Servicing - Do not attempt to service this unit yourself. Opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
13. Damage requiring service - Unplug the power unit from the main AC power source and
refer servicing to qualified service personnel when any damage to the equipment has
occurred, such as:
–
the power supply cord or plug is damaged;
–
exposure to moisture, water, and/or inclement weather (rain, snow, etc.);
–
liquid has been spilled in or on the equipment;
–
an object has fallen into the unit;
–
unit has been dropped or the unit cabinet is damaged;
–
unit exhibits a distinct change in performance;
–
unit does not operate normally when the user correctly follows the operating
instructions.
14. Replacement parts - Be sure the service technician uses replacement parts specified by
the manufacturer, or that have the same characteristics as the original parts.
Unauthorized substitutions could void the warranty and cause fire, electrical shock, or
other hazards.
15. Safety check - Safety checks should be performed upon completion of service or repairs
to the unit to ensure proper operating condition.
16. Installation - Install in accordance with the manufacturer's instructions and in accordance
with applicable local codes.
17. Attachments, changes or modifications - Only use attachments/accessories specified by
the manufacturer. Any change or modification of the equipment, not expressly approved
by Bosch, could void the warranty or, in the case of an authorization agreement, authority
to operate the equipment.
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
6
en | Basic Safety
1.3
DIVAR AN 3000 / DIVAR AN 5000
Important Notices
Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount. The
unit may fall, causing serious injury and/or serious damage to the unit. Use only with the
cart, stand, tripod, bracket, or table specified by the manufacturer. When a cart is used, use
caution and care when moving the cart/apparatus combination to avoid injury from tip-over.
Quick stops, excessive force, or uneven surfaces may cause the cart/unit combination to
overturn. Mount the unit per the manufacturer's instructions.
All-pole power switch - Incorporate an all-pole power switch, with a contact separation of at
least 3 mm in each pole, into the electrical installation of the building. If it is needed to open
the housing for servicing and/or other activities, use this all-pole switch as the main
disconnect device for switching off the voltage to the unit.
Battery replacement - For qualified service personnel only - A lithium battery is located
inside the unit enclosure. To avoid danger of explosion, replace the battery as per
instructions. Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of the replaced battery in an environmentally friendly way and not with
other solid waste. Refer all servicing to qualified service personnel.
Notice!
Batteries must not be disposed of in household waste. Dispose of batteries only at suitable
collection points and, in the case of lithium batteries, mask the poles.
For further information refer to: http://www.BoschSecurity.com/standards
Caution!
!
Class I Laser Product
Invisible laser radiation when open. Avoid exposure to beam.
Coax grounding:
–
Ground the cable system if connecting an outside cable system to the unit.
–
Connect outdoor equipment to the unit's inputs only after this unit has had its grounding
plug connected to a grounded outlet or its ground terminal is properly connected to a
ground source.
–
Disconnect the unit's input connectors from outdoor equipment before disconnecting the
grounding plug or grounding terminal.
–
Follow proper safety precautions such as grounding for any outdoor device connected to
this unit.
U.S.A. models only - Section 810 of the National Electrical Code, ANSI/NFPA No.70, provides
information regarding proper grounding of the mount and supporting structure, grounding of
the coax to a discharge unit, size of grounding conductors, location of discharge unit,
connection to grounding electrodes, and requirements for the grounding electrode.
Disposal - Your Bosch product was developed and manufactured with high-quality material
and components that can be recycled and reused. This symbol means that electronic and
electrical appliances, which have reached the end of their working life, must be collected
and disposed of separately from household waste material. Separate collecting systems are
usually in place for disused electronic and electrical products. Please dispose of these units
at an environmentally compatible recycling facility, per European Directive 2002/96/EC.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
Basic Safety | en
7
Caution!
!
Electronic Surveillance - This device is intended for use in public areas only.
U.S. federal law strictly prohibits surreptitious recording of oral communications.
Electrostatic-sensitive device - Use proper CMOS/MOS-FET handling precautions to avoid
electrostatic discharge. NOTE: Wear required grounded wrist straps and observe proper ESD
safety precautions when handling the electrostatic-sensitive printed circuit boards.
Environmental statement - Bosch has a strong commitment towards the environment. This
unit has been designed to respect the environment as much as possible.
Fuse rating - For protection of the device, the branch circuit protection must be secured with
a maximum fuse rating of 16 A. This must be in accordance with NEC800 (CEC Section 60).
Grounding and polarization - This unit may be equipped with a polarized alternating current
line plug (a plug with one blade wider than the other blade). This safety feature allows the
plug to fit into the power outlet in only one way. If unable to insert the plug fully into the
outlet, contact a locally certified electrician to replace the obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
Alternately, this unit may be equipped with a 3-pole grounding plug (a plug with a third pin for
earth grounding). This safety feature allows the plug to fit into a grounded power outlet only.
If unable to insert the plug into the outlet, contact a locally certified electrician to replace the
obsolete outlet. Do not defeat the safety purpose of the grounding plug.
Moving - Disconnect the power before moving the unit. Move the unit with care. Excessive
force or shock may damage the unit and the hard disk drives.
Outdoor signals - The installation for outdoor signals, especially regarding clearance from
power and lightning conductors and transient protection, must be in accordance with NEC725
and NEC800 (CEC Rule 16-224 and CEC Section 60).
Permanently connected equipment - Incorporate a readily accessible disconnect device
external to the equipment.
Pluggable equipment - Install the socket outlet near the equipment so it is easily accessible.
Rack-mount (only DIVAR 5000 family)
–
Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the
operating ambient temperature of the rack environment may be greater than room
ambient. Therefore, consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature (Tma) specified by the
manufacturer.
–
Reduced Air Flow - Installation of the equipment in a rack should be such that the amount
of air flow required for safe operation of the equipment is not compromised.
–
Mechanical loading - Mounting of the equipment in the rack should be such that a
–
Circuit Overloading - Consideration should be given to the connection of the equipment
hazardous condition is not achieved due to uneven mechanical loading.
to the supply circuit and the effect that overloading of the circuits might have on
overcurrent protection and supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.
–
Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct connections
to the branch circuit (e.g. use of power strips).
SELV - All the input/output ports are Safety Extra Low Voltage (SELV) circuits. SELV circuits
should only be connected to other SELV circuits.
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
8
en | Basic Safety
DIVAR AN 3000 / DIVAR AN 5000
Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security
Systems cannot be held liable for any damage that results from missing video information. To
minimize the risk of lost digital information, Bosch Security Systems recommends multiple,
redundant recording systems, and a procedure to back up all analog and digital information.
1.4
FCC and UL
FCC & ICES Information
(U.S.A. and Canadian Models Only)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules and ICES-003 of Industry Canada. These limits
are designed to provide reasonable protection against harmful interference when the
equipment is operated in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
–
Reorient or relocate the receiving antenna;
–
Increase the separation between the equipment and the receiver;
–
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected;
–
Consult the dealer or an experienced radio/TV technician for help.
Intentional or unintentional modifications, not expressly approved by the party responsible for
compliance, shall not be made. Any such modifications could void the user's authority to
operate the equipment. If necessary, the user should consult the dealer or an experienced
radio/television technician for corrective action.
The user may find the following booklet, prepared by the Federal Communications
Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This
booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock
No. 004-000-00345-4.
UL Disclaimer
Underwriter Laboratories Inc. ("UL") has not tested the performance or reliability of the
security or signaling aspects of this product. UL has only tested fire, shock and/or casualty
hazards as outlined in Standard(s) for Safety for Information Technology Equipment, UL
60950-1 . UL Certification does not cover the performance or reliability of the security or
signaling aspects of this product.
UL MAKES NO REPRESENTATIONS, WARRANTIES, OR CERTIFICATIONS WHATSOEVER
REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING-RELATED
FUNCTIONS OF THIS PRODUCT.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
2
System overview | en
9
System overview
The Bosch Video Recorder DIVAR 3000/5000 is a multi-channel digital recorder that uses the
latest 960H high resolution technology, plus modern compression techniques. Simultaneous
monitoring, recording, archiving and playback are guided remote or local by simple menu
selections and operator commands. If required, a variety of optional storage capacities can be
added (including built-in HDDs and/or a DVD writer).
The DIVAR 3000/5000 records multiple video and audio signals while simultaneously providing
live multi-screen viewing and playback. Comprehensive search and playback functions provide
quick recall and viewing of recorded video.
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
10
3
en | Quick install
DIVAR AN 3000 / DIVAR AN 5000
Quick install
To get the unit operational, perform the following quick install steps:
1.
Make all the hardware connections – see Connections, page 10.
2.
Power up the system – see Powering up, page 13.
3.
Log in – see Login, page 14.
4.
Correctly configure your system software with the Startup wizard (this appears the first
time the unit is started) – see Startup Wizard, page 15.
After completing this initial setup, the system is ready to run and will show a live view of the
camera image(s). If required, you can alter the settings later using the menus and/or factory
defaults, or you can run the Startup wizard again.
3.1
Connections
Connections on back of DIVAR AN 3000
12
14
16
CVBS MON. A
2
4
3
1
5
7
9
11
13
15
9 10 11 12
ON
13 14 15 16
OFF
0
NO1
C1
ALARM IN
1
CVBS MON. B
5 6 7 8
AUDIO OUT
3
AUDIO IN
1 Camera VIDEO IN BNC connectors
MIC IN
C3
10
VIDEO IN
8
NO2
C2
6
4
NO3
2
ALARM OUT
G
+ _
RS-232
-
+
G
VGA MON.A
RS-485
ETHERNET 12VDC
HDMI MON.A
9 RJ45 ethernet connector
2 CVBS output - Monitor A
10 VGA output - Monitor A
3 Audio inputs
11 HDMI output - Monitor A
4 Audio output
12 USB connector
5 Alarm inputs
13 RS485 connector for Dome control
6 RS232 connector for Dome control
14 Alarm outputs
7 Power ON/OFF switch
15 Microphone input
8 12 VDC Power connector
16 CVBS output - Monitor B
Notice!
The 4- and 8-channel DIVAR AN 3000
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
Quick install | en
DIVAR AN 3000 / DIVAR AN 5000
11
Connections on back of DIVAR AN 5000 (16-channel)
2
ON
6
4
8
10
12
14
16
CVBS MON. A
2
4
5 6 7 8
AUDIO OUT
9 10 11 12
13 14 15 16
1
1
3
5
7
9
11
13
15
CVBS MON. B
3
G
+12V
CTRL
C5
NO5
ALARM OUT
+12V
NO2
C2
C3
NO4
C4
NO3
NO1
C1
0
VIDEO IN
OFF
ALARM IN
G
+ _
G
+ _
G
RS-485 KEYBOARD
MIC IN
AUDIO IN
RS-232
VIDEO OUT
VGA MON.A
HDMI MON.A
e-SATA
ETHERNET
1 Power ON/OFF switch
10 RS232 connector for Dome control
2 Camera VIDEO IN BNC connectors
11 USB connector
3 CVBS output - Monitor A
12 e-SATA connector
4 Audio inputs
13 HDMI output - Monitor A
5 Audio output and MIC IN connector
14 VGA output - Monitor A
6 Alarm outputs
15 CVBS output - Monitor B
7 Alarm inputs
16 VIDEO OUT connectors (loop through)
8 RS485 and keyboard connectors
17 Power connector
9 RJ45 ethernet connector
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
12
en | Quick install
DIVAR AN 3000 / DIVAR AN 5000
Connections on back of DIVAR AN 5000 (4/8-channel)
1
3
2
4
5
6
7
CVBS MON. A
8
2
4
5 6 7 8
AUDIO OUT
VIDEO OUT
1
1
2
3
4
5
6
7
8
CVBS MON. B
3
G
+12V
CTRL
C5
NO5
ALARM OUT
+12V
NO2
C2
0
C3
NO4
C4
VIDEO IN
NO3
OFF
NO1
C1
ON
ALARM IN
+ _
G
G
+ _
G
RS-485 KEYBOARD
MIC IN
AUDIO IN
RS-232
VGA MON.A
HDMI MON.A
e-SATA
ETHERNET
1 Power ON/OFF switch
10 RS232 connector for Dome control
2 Camera VIDEO IN BNC connectors
11 USB connector
3 CVBS output - Monitor A
12 e-SATA connector
4 Audio inputs
13 HDMI output - Monitor A
5 Audio output and MIC IN connector
14 VGA output - Monitor A
6 Alarm outputs
15 CVBS output - Monitor B
7 Alarm inputs
16 VIDEO OUT (loop through)
8 RS485 and keyboard connectors
17 Power connector
9 RJ45 ethernet connector
Notice!
The 4-channel DIVAR AN 5000 models have a slightly different back panel (VIDEO IN/OUT
connectors 5 to 8 are disabled).
3.1.1
Primary connections
1.
Connect the cameras to the VIDEO IN BNC connectors.
2.
Connect monitor A to the VGA MON A output, or the HDMI MON A output, or the CVBS
MON A output.
3.
Connect the USB mouse to a USB port (front or back panel).
For first time use, the NTSC or PAL selection is determined by the camera type connected to
VIDEO IN 1 in step 1. If no camera is connected to VIDEO IN 1 during first time use, the video
standard is default and can be set in the Startup Wizard.
3.1.2
Optional connections
1.
Connect monitor B to the CVBS MON B connector.
2.
Connect up to 4 audio signals to the AUDIO IN RCA (CINCH) inputs.
3.
Connect 1 microphone to the MIC IN RCA (CINCH) output.
4.
Connect 1 AUDIO OUT RCA (CINCH) output to the monitor or an audio amplifier.
5.
Connect up to 16 ALARM IN inputs (via the supplied terminal blocks).
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
Quick install | en
6.
Connect up to 6 ALARM OUT outputs (via the supplied terminal blocks).
7.
Connect a pan/tilt/zoom control unit to the RS-485 or RS-232 port.
8.
Connect to your network via the ETHERNET connector.
9.
Connect extra video out cables to the VIDEO OUT ports if loop through is required to
13
other devices (only for DIVAR 5000).
10. If required, connect a Bosch Intuikey keyboard cable to the KEYBOARD connector using
the supplied adaptor (only for DIVAR 5000).
3.2
Powering up
For the DIVAR AN 3000
1. Switch on all connected equipment.
2.
Connect the supplied external power adaptor to the AC power outlet.
3.
Connect the DC power cord to the 12 VDC connector on the unit.
4.
Turn on the unit power ON/OFF switch on the rear of the unit.
For the DIVAR AN 5000
1. Switch on all connected equipment.
2.
Connect the power cable to the AC power outlet.
3.
Turn on the unit power ON/OFF switch on the rear of the unit.
Normal power up
For normal day-to-day operation, leave the rear power switch on, and use the convenient
Power On/Off button on the front of the unit to switch on the system.
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
14
3.3
en | Quick install
DIVAR AN 3000 / DIVAR AN 5000
Login
The system login interface is shown in the following figure:
When you startup the system for the first time, the Startup Wizard appears where you can
setup the system software. Here the default User ID is administrator and the default
password is 000000 (six zeros).
Use the supplied USB mouse, front panel, remote control or keyboard to input data and
commands. See Mouse controls, page 25 for how to use the mouse.
Notice!
Unauthorized system use
For security reason, please alter your password after you first login.
When required, you can logout from the user interface using the Shutdown menu – see
Shutdown/Logout, page 20.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
3.4
Quick install | en
15
Startup Wizard
The Startup Wizard opens automatically after you log in for the first time. See following
screen:
Select a language and video standard from the drop-down menus and click <Next step>. The
wizard will guide you through the following steps:
1.
Choose to reset the startup wizard to run after the next system restart – see Reset startup
wizard, page 16.
2.
Assign General settings – see General, page 16.
3.
Assign Encoder settings – see Encode, page 17.
4.
Assign Schedule settings – see Schedule, page 18.
5.
Assign Record settings – see Record, page 18.
6.
Assign Network settings – see Network, page 19.
7.
Finish the startup by clicking <Finished>.
8.
Confirm the setup by clicking <OK>.
Use the following buttons to navigate through the wizard screens and assign your correct user
settings:
–
<Cancel> exit the Startup wizard and immediately access the DIVAR user interface (this
action will automatically install all factory defaults for the remaining Startup wizard
screens)
Bosch Security Systems
–
<Next Step> go to the next wizard screen.
–
<Previous step> return to the previous Startup wizard screen
–
<Default> assign the factory defaults for the current setup screen
–
<Copy> copy the current screen settings for a channel to other channels
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
16
en | Quick install
3.4.1
DIVAR AN 3000 / DIVAR AN 5000
Reset startup wizard
If required, select the check box here to activate the Startup wizard after the next system
restart (this is only useful if you need to reconfigure the system during the next startup).
Later, during operation, you can also reset this mode in the General screen.
Click <Next step> for the next Startup wizard screen (General settings).
3.4.2
General
Check the general settings on this screen:
–
If they are correct, click <Next step> to go to the next Startup wizard screen (Encoder
settings).
–
If changes are required, use the drop-down menus and entry fields to assign the correct
settings (if you change the system time and/or date, click <Save> before continuing).
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
–
3.4.3
Quick install | en
17
When ready, click <Next step> to move to the Encoder Startup wizard screen.
Encode
Assign here the encoder settings and click <Next step> for the next Startup wizard screen
(Schedule settings). To save time when setting up channels, use <Copy> to copy settings from
one channel to other(s).
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
18
en | Quick install
3.4.4
DIVAR AN 3000 / DIVAR AN 5000
Schedule
Assign here all the schedule settings and click <Next step> for the next Startup wizard screen
(Record settings). Use <Copy> to copy settings from one channel to other(s).
3.4.5
Record
Assign here all the record settings and click <Next step> for the next Startup wizard screen
(Network settings):
–
Schedule: The selected channels will record according to the schedule setup (see
–
Manual: selected channels will automatically begin recording
–
Stop: No recording on the selected channels
previous setup screen)
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
3.4.6
Quick install | en
19
Network
Assign here all the network settings and click <Finished> to complete the Startup wizard (you
will need to confirm the setup by clicking <OK>).
The system will automatically display the active view mode (with a maximum 16 camera
views). From here you can operate your system using the mouse, remote control or front
panel. See the following sections.
When you eventually need to log off from your system (or shut down completely), use the
Shutdown menu – see Shutdown/Logout, page 20.
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
20
3.5
en | Quick install
DIVAR AN 3000 / DIVAR AN 5000
Shutdown/Logout
1.
Right-click the mouse to access the Quick menu; from here choose the option Main
menu.
2.
Select the Shutdown option on the Main menu for the following dialog box.
3.
Use the drop-down menu to choose from the following options:
Logout user
Shutdown
Restart system
Switch user
4.
Click <OK> to confirm the selection.
Shut down with power button
Another way to shut down the system is to press the power button on the front panel for at
least 3 seconds (the system will automatically backup video recordings and settings).
Start up the system again (and access login screen) by briefly pressing the power button.
Power Failure
The system will automatically backup video recordings and settings after a power failure.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
4
First time operation | en
21
First time operation
Once the Startup Wizard steps have been completed, your monitor will show the live viewing
mode with real time camera displays - see Live viewing, page 21.
From here, you can control your system via menus (Quick menu and Main menu) using the
mouse, front panel buttons, or the remote control.
Notice!
The mouse is normally the preferred input device when setting up the system and entering
field values. Clicking the right mouse button is the quickest way to select and leave menus.
See the following descriptions:
–
Quick menu, page 24
–
Main menu, page 27
–
Mouse controls, page 25
For a detailed description of configuring and operating the system (plus all technical
specifications), refer to the Operator Manual on the supplied DVD.
4.1
Live viewing
After you log in, the system is in live viewing mode with 1 to 16 live images on the display
(from a maximum 16 connected cameras). See following example view.
Figure 4.1: Live view (4 camera views displayed)
The system date and time is displayed in the top right corner of the screen, and the channel ID
is shown in the bottom left of each channel display.
Bosch Security Systems
–
To change system date and time, see general settings (Main Menu > Setting > General).
–
To modify the channel ID, see display settings (Main Menu > Setting > Display).
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
22
en | First time operation
DIVAR AN 3000 / DIVAR AN 5000
Each channel view has one or more of the following icons displayed:
Recording – this icon is
Camera masking – the camera has been
displayed when a channel is
blocked
recording
Motion detection – a
No camera is attached to this channel or
movement has been detected
communication has been lost from this
in the camera view
camera
PTZ active If your camera is
equipped with a PTZ function,
you can pan, tilt and zoom the
live viewing image as
described in the PTZ function.
If multiple channels are displayed, you can double-click on a particular channel to show this
channel in full-screen (double-click on it again to return to multiple-channel view). The
currently selected channel is shown with a yellow border. From live mode, you can switch to
playback mode or access the main menu as described below.
Changing the display
1. Bring up the Quick menu.
2.
Select View 1, 4, 8, 9 or 16 and choose the corresponding Camera configuration.
Other functions in Live mode are:
–
Playback and zoom
–
PTZ
–
Sequence
Access to these functions requires the correct user level. Check with your administrator if you
do not have access.
Playback and Zoom
Move the mouse to the top centre of the video of the current channel; the system pops up the
following playback and zoom control bar.
Figure 4.2: Playback and zoom
If your mouse stays inactive in this area for more than 6 seconds, the control bar automatically
disappears. See the following table for detailed information on the buttons on this control bar.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
First time operation | en
DIVAR AN 3000 / DIVAR AN 5000
Icon name
Function
Instant playback
Press to playback the previous 5-60 minutes recorded on the
23
current channel (default is 5 minutes). The playback screen
supports drag and play function - use your mouse to drag the
play bar to any playback start time (use the pause and exit
functions as required). During the instant playback:
–
you can not see the channel title and record status of
current channel (they only reappear once you exit preview
playback)
–
you can not switch the displayed channel or change current
window-display mode
Set the time for Instant playback in Main Menu > Setting >
General.
Note: The system may pop up a dialog box if there is no
recorded data for the current channel, or you need to accept a
disclaimer before playing.
Digital zoom
Zoom in on a specified zone of current channel (zoom-in
function is supported in multiple-channel view).
When you click on the zoom icon it will change to a new icon
; you can now select an area by holding down the left
mouse button and dragging an area on the screen. Release the
mouse and the selected area will be zoomed.
Right-click the mouse to exit the zoomed area.
Exit the digital zoom function at any time by clicking on the icon
again – it will change back to
Bosch Security Systems
Quick Installation Guide
.
2014.10 | 2.0 | AM18-Q0668
24
4.2
en | First time operation
DIVAR AN 3000 / DIVAR AN 5000
Quick menu
When in live viewing mode, right-click the mouse for the following quick menu:
Figure 4.3: Quick menu
Here you can select:
–
View 1, 4, 9, 16 – choose here the number of view windows shown on Monitor A (onewindow, four-windows, nine-windows or sixteen-windows). Press play to activate the new
view.
–
Pan/Tilt/Zoom – only possible if you have a PTZ camera attached and configured
–
Color setting – to change the color settings of the viewed camera images – see below
–
Search/Play –searching for records, and playing/exporting them – see Search/Play
–
Sequence on – activate a camera tour sequence on Monitor A (to disable the sequence,
access Quick Menu again and select ‘Sequence off’)
–
Alarm output – access the alarm output screen to configure the alarm output relays – see
–
Switch user –activate the Login screen where you can login as a different user
–
Main menu – for settings and user modes – see Main menu
Alarm Output
Notice!
Pan/Tilt/Zoom and color settings in multi-window mode
The Pan/Tilt/Zoom and Color setting applies for the currently selected channel. If you are in
multiple-window mode, the system automatically switches to the corresponding channel.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
4.3
First time operation | en
25
Mouse controls
Mouse
Function
Left button
In Live mode, click once to select channel and choose other functions
In the Quick menu, use the left mouse button for the following options:
–
Go to the main menu (after selecting a menu item, left-click again to view
menu content and make selections)
–
Modify a checkbox or motion detection status
When inputting data, one of the following input keypads appears (depending
on whether you need to enter alphanumeric or only numeric characters):
Left click the corresponding button on the keypad to input the required
characters (use Shift on alphanumeric keypad to switch between small/
capitalized)
Double-click
Implement a special control operation, e.g. double-click an item in the file list
left button
to play the video
In multiple window mode, double-click one channel to view in full-screen
mode; double-click current video again to go back to previous multiple
window mode
Drag mouse
with left
button
Select motion detection zone
Select privacy mask zone.
pressed
Middle scroll
wheel
In numeral input box, increase or decrease numeric value
Switch items in a check box
Page up or page down in a list
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
26
en | First time operation
Right button
DIVAR AN 3000 / DIVAR AN 5000
In Live mode, the following Quick menu appears:
If you are currently in a menu, right-click to exit the current menu without
saving any modifications.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
4.4
First time operation | en
27
Main menu
Access the Main menu as follows:
–
Use the Enter key and the direction buttons on the front panel or the remote control
–
Right-click the mouse for the Quick menu and select ‘Main menu’
Figure 4.4: Main menu
Here you can select the following sub-menus:
Bosch Security Systems
–
Setting and Advanced for system configuration
–
Search/Play to search for and play recordings
–
Info for relevant system status information
–
Export to export your recorded files to a memory device
–
Shutdown logout or switch user, and shutdown/restart your system
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
28
4.5
en | First time operation
DIVAR AN 3000 / DIVAR AN 5000
Search/Playback
Click Search/Play in the Main Menu (or from the Quick menu) for the following screen.
Note: A disclaimer screen may initially appear (click <Accept> to continue).
Figure 4.5: Search/Play screen
See the following table for an overview of the features on this screen.
ID
Name
Function
1
Display
Display of the currently chosen picture or file (supports 1/4/9/16-window
window
playback.)
Search
Here you can select to search for a picture (PIC) or a recorded file (REC).
type
Select to play from the internal HDD or an optional connected external
2
memory device.
3
Playback
Choose between 1/4/9/16 window or full screen display:
mode
–
1-window (select which channel to display from the drop-down menu)
and
–
4-window (select which 4 channels to display)
channel
–
9-window (channels 1 to 9)
selection
–
pane
–
2014.10 | 2.0 | AM18-Q0668
16-window (switch between1-16 and 17-32 channels – only available
for DIVAR AN 5000 )
Full-screen (click right mouse button to exit full screen)
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
4
First time operation | en
29
Calendar
Select a date to overview the recordings available for that day (dates
and time
highlighted in blue have recordings available for that day). The time bar on
the bottom of the screen will show a 24-hour trace of the recordings
available for the chosen date.
If required, play a recording for a particular date as follows:
–
Assign a start time (hour, minute, second) in the time field (below the
calendar)
–
Press the play button
–
Click on a colored zone on the time bar (at the bottom of the screen)
to start playing at that selected time
5
Play or Pause (the ‘pause’ button is displayed if the DVR is already playing
and you wish to pause the play)
Stop playback
Backward play
In normal play mode, left click the button, the file begins backward play.
Click it again to pause current play.
In backward play mode, click
to restore normal play.
In playback mode, click to play the next or the previous section (click
continuously to watch consecutive files from the same channel.
In normal play mode, press pause then click
and
to begin frame-by-
frame playback.
In frame-by-frame playback mode, click
to restore normal playback.
Slow play
In playback mode, click for various slow play modes such as slow play 1,
slow play 2, etc.
Fast forward
In playback mode, click to realize various fast play modes such as fast
play 1, fast play 2, etc.
Smart search – see description below
Turn the audio on/off and adjust the volume during video playback
Click in full-screen mode to export snapshot(s) to a memory device (scroll
to the bottom of the full-screen to enable the snapshot button). Use the
Export screen to setup the snapshot export settings - see Export.
Bosch Security Systems
Digital
When the system is in playback mode:
zoom
1.
Left-click the mouse in the screen and hold down the mouse button.
2.
Drag to select a section then release the mouse button.
3.
Left-click in the selection for digital zoom of the selection.
4.
Right-click to exit zoom.
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
30
en | First time operation
6
DIVAR AN 3000 / DIVAR AN 5000
File list
Double click to view a list of recorded files for the selected day.
The list displays the first channel of the recorded file (click the numbers
above to select another channel). A maximum 128 files are shown at one
time. The character shown beside each file has the following meaning:
R — regular recording
A — external Alarm recording
M — motion detect recording
The time span of ‘R’ recorded files in a file list is determined by the defined
‘Pack duration’ set in the General menu screen. For example, if the file list
is set with a pack duration of 1 hour, the file list will show a list of files that
are all 1 hour long (i.e. from 8:00 to 9:00, 9:00 to 10:00, etc.). ‘M’ and ‘A’
files span the time that the motion/alarm occurred.
Click once on a file to view the file details under the list, or double click a
file to playback the file on the screen. You can also select the checkbox
beside file(s), then select the ‘Export’ button to export files (See Export).
For a precise search for a time period, stop the current file being played
and enter a period in the time panel (shown above the list):
When ready, return to the original calendar and channel setup interface by
clicking
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
First time operation | en
DIVAR AN 3000 / DIVAR AN 5000
7
Smart
This function is only active when the system is playing a recording in 1-
search
window mode.
31
to activate smart search. See following figure.
Click
Use your mouse to drag and select zone(s) in the window to detect motion.
again to begin smart search.
Click
The system searches for motion in the chosen area(s).
When ready, click
again to stop smart search playback.
Extra notes on smart search:
–
As default, the system will view the whole play zone as a motion detect
region.
–
If you choose to play another file in the file list, the system will switch
to motion detect play of the other file.
–
During motion detect play, you cannot implement operations such as
changing the time bar, play backward, or play frame-by-frame.
–
Bosch Security Systems
System supports 396 (22x18 PAL) and 330 (22x15 NTSC) zones.
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
32
en | First time operation
8
DIVAR AN 3000 / DIVAR AN 5000
Time bar
Displays a maximum 16 channel time bars for the current search date (use
the scroll bars on the right to scroll up and down through the available
channels). The color of each channel bar changes depending on if a
recording is present for the chosen date:
–
Green for a regular record file
–
Red for an external alarm record file
–
Yellow for a motion detect record file
Click on a point in a colored zone in the time bar to begin playback at that
point.
Alternatively, hold down the left mouse button and select a region of the
time bar (the region will be highlighted); left-click on the selected region to
display a menu for the following functions (Export region; Restrict/Protect
region; Clear region) – see separate descriptions here for Export and
Restrict/Protect.
When you first open Search/Play, the time bar begins at 0:00 hour, and will
zoom to the period of the current playback when playing the file.
If required, use the time bar unit to zoom in (see the following description).
9
Time bar
The option includes: 24H, 12H, 1H and 30 minutes (the smaller the unit, the
unit
higher the zoom rate). This helps you to precisely locate a time in the time
bar when playing a recording.
10
Export
Use to export recordings onto a memory device (recordable DVD or USB
storage device. See Export.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
First time operation | en
DIVAR AN 3000 / DIVAR AN 5000
11
Restrict/
Use this function to restrict playback of a recording and/or to protect that
Protect
recording from being deleted. The restrict/protect permission can be
33
individually set for each user account.
Restrict/Protect recording(s) as follows:
–
Assign a start and end time
–
Choose channel(s)
–
Choose checkbox for Restrict and/or Protect
–
Select <Lock> to lock the segment (the recording appears in a list with
start and end time). Repeat these steps for new recordings as needed.
–
If required, unlock a recording by selecting its checkbox and select
<Unlock>. Delete a recording permanently with <Delete>
–
Select <OK> to save the settings (depending on user access, all
restricted/protected recordings will show a blank screen with a lock
logo when playing)
Important: When entering a start and end time for Restrict/Protect
playback, be aware that the selected time may include a portion of a
recorded file. In this case the complete file will be Restricted/Protected. For
example, if you set a start time of 9:30 and an end time of 10:30 then both
the recorded files 9:00 to 10:00 and 10:00 to 11:00 will be selected for
restrict/protect because they both include portions of the selected time
span. The same principle applies if you Delete a time period from 9:30 to
10:30 then both the files 9:00 to 10:00 and 10:00 to 11:00 will be deleted.
12
Bosch Security Systems
Record
This status line shows the current play mode (or Stop) and a checked box
type
shows the recording type (Motion, Alarm, Normal, All).
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
34
en | First time operation
4.5.1
DIVAR AN 3000 / DIVAR AN 5000
Export
The Export menu is accessed from the main menu or Search/Play screen (or by pressing the
Export key on the Front Panel or on the remote control). Use this menu to write segments of
recorded video to a USB storage device or recordable DVD.
Figure 4.6: Export screen
1.
Choose from the Selected Device pull-down list to export recording(s) to either a USB
memory stick or CD/DVD. If required, <Refresh> the device selection, or <Format> the
selected memory device.
2.
Choose the save location on the memory device (<Browse> if necessary).
3.
Select the Type of file to export (All, Alarm, MD, Alarm/MD, Card, Normal, PIC).
4.
Select the File format (DAV or ASF).
5.
Enter a Start time and End time for the video segments (files) to archive.
6.
Select the Channel to archive (All for all channels). The expected size of the recorded file
is shown below the channel selection.
7.
Click <Add> to add the file to the export list.
8.
If required, repeat steps 3 to 7 for more recordings. (Remove a selected recording by
selecting its check box and pressing <Remove>.)
The total size of the selected recordings (and available space on the memory device) are
shown.
9.
Click <Start> to export the selected recording(s).
If the total size of the selected recordings is more than the free space on the memory
device, then only the first recordings that fit are exported.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
5
Maintenance | en
35
Maintenance
Maintenance of this unit is limited to:
–
External cleaning and inspection
–
Replace internal battery, page 39
–
Install HDD in DIVAR AN 3000, page 40
–
Install HDD in DIVAR AN 5000, page 43
–
Install DVD in DIVAR AN 3000, page 47
–
Install DVD in DIVAR AN 5000, page 49
The following figures show the DIVAR AN 3000 and the DIVAR AN 5000 (with top covers
removed) and the installed positions of the battery (1), DVD (2) and HDD (3):
Figure 5.1: DIVAR AN 3000
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
36
en | Maintenance
DIVAR AN 3000 / DIVAR AN 5000
Figure 5.2: DIVAR AN 5000
Refer to the Appendix in the Operator Manual for recommended DVD and HDD types.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
Maintenance | en
5.1
Maintenance precautions
5.1.1
Attach ESD strap
37
Precaution – ESD
Caution!
!
Possible processor damage.
When the DIVAR cover is removed for installing, replacing or repairing internal components
(battery, HDD or DVD), always make sure you wear an approved ESD wrist strap – see below.
Figure 5.3: ESD strap
The ESD strap is vital to prevent damage to ESD-sensitive parts when maintaining components
in an opened DVR cabinet.
Always attach the ESD strap around your wrist as follows:
1.
Slide the expandable strap over your wrist.
2.
Connect the clip on the flexible grounding cord to an unpainted ground point (or to an
approved ground point).
3.
Keep the strap on and connected while you touch, insert, or remove any ESD-sensitive
part.
5.1.2
High Voltage
Danger!
High voltage. Risk of electric shock.
When opening the top cover to service the unit, always make sure that the power has been
switched off and the power cable is disconnected.
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
38
en | Maintenance
DIVAR AN 3000 / DIVAR AN 5000
Connector/processor damage
5.1.3
Caution!
!
Possible connector damage.
Notice also that some cables for both the DIVAR AN 3000 and DIVAR AN 5000 have a lock
which must be pressed and held when inserting/removing the cable. See following figures.
Press pin
Hold pin and connect cable
Press pin
Hold pin and connect cable
Caution!
Loose connectors and cables.
!
After installing HDD(s), always make sure that the connectors and cabling are firmly attached
in place with tie wraps and tie cables to prevent connector movement and cable strain (see
arrowed locations in following example). Avoid sharp bends in the SATA cables.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
Maintenance | en
39
See also
–
5.2
Attach ESD strap, page 37
Replace internal battery
This product uses a 3.0 V Lithium CR2032 battery (article number F01U099057) as the backup
power supply for internal system status (e.g. real time clock).
Under normal circumstances this battery will last for a minimum of 5 years. Low battery power
affects the DVR operation causing it to reset at every power-up. A log message appears when
the battery needs replacing (it should not be replaced unless required).
If the battery needs replacing, contact Bosch for assistance. Take note of the following
precautions:
Bosch Security Systems
–
Danger of explosion if battery is incorrectly replaced.
–
Replace only with the same battery type (or equivalent).
–
Dispose of used batteries according to the manufacturer’s instructions.
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
40
5.3
en | Maintenance
DIVAR AN 3000 / DIVAR AN 5000
Install HDD in DIVAR AN 3000
See the following components for installing HDD (brackets, rubbers, screws, tie wrap and
cables included in package; HDD not included):
Figure 5.4: HDD install components for DIVAR AN 3000
Note: A maximum 2 HDDs can be installed in the DIVAR AN 3000
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
Maintenance | en
41
Install HDD 1
5.3.1
4x
4x
(1)
(3)
(2)
4x
(4)
(5)
(6)
(8)
(9)
4x
(7)
4x
(10)
Bosch Security Systems
(11)
Quick Installation Guide
(12)
2014.10 | 2.0 | AM18-Q0668
42
en | Maintenance
5.3.2
DIVAR AN 3000 / DIVAR AN 5000
Install HDD 2
Install HDD 2 in the position of the optional DVD – see following figure:
Figure 5.5: Install HDD 2
Use the same install steps described for installing HDD 1.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
5.4
Maintenance | en
43
Install HDD in DIVAR AN 5000
See the following components for installing HDD (brackets, rubbers, screws, tie wrap and
cables included in package; HDD not included):
Figure 5.6: HDD install components for DIVAR AN 5000
Note: A maximum 4 HDDs can be installed in the DIVAR AN 5000
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
44
en | Maintenance
5.4.1
DIVAR AN 3000 / DIVAR AN 5000
Install HDD 1
2x
4x
(1)
(2)
(3)
2x
2x
(4)
(5)
(6)
(8)
(9)
4x
(7)
2x
(10)
2014.10 | 2.0 | AM18-Q0668
(11)
Quick Installation Guide
(12)
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
5.4.2
Maintenance | en
45
Install HDD 2
Use the same procedure as for installing HDD 1, but include the following extra steps:
4x
(5a)
(8a)
(5b)
(8b)
(10a)
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
46
en | Maintenance
5.4.3
DIVAR AN 3000 / DIVAR AN 5000
Install HDD 3 and 4
Use the same install steps as for HDD 1 and 2, but install HDD 3 and 4 at the optional DVD
location. See following figure.
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
5.5
Maintenance | en
47
Install DVD in DIVAR AN 3000
See the following components and steps required for this installation (screws included in
package):
Figure 5.7: DVD install components for DIVAR AN 3000
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
48
en | Maintenance
DIVAR AN 3000 / DIVAR AN 5000
4x
(1)
(3)
(2)
4x
(4)
(5)
(6)
4x
(7)
(8)
(9)
Figure 5.8: Install DVD in DIVAR AN 3000
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
DIVAR AN 3000 / DIVAR AN 5000
5.6
Maintenance | en
49
Install DVD in DIVAR AN 5000
See the following components and steps required for this installation (spacers and screws
included in package):
Figure 5.9: DVD install components for DIVAR AN 5000
Bosch Security Systems
Quick Installation Guide
2014.10 | 2.0 | AM18-Q0668
50
en | Maintenance
DIVAR AN 3000 / DIVAR AN 5000
2x
(1)
(3)
(2)
4x
(4)
(6)
(5)
4x
4x
(7)
(8)
(9)
2x
(10)
(11)
(12)
Figure 5.10: Install DVD in DIVAR AN 5000
2014.10 | 2.0 | AM18-Q0668
Quick Installation Guide
Bosch Security Systems
Bosch Security Systems B.V.
Torenallee 49
5617 BA Eindhoven
The Netherlands
www.boschsecurity.com
© Bosch Security Systems B.V., 2014
