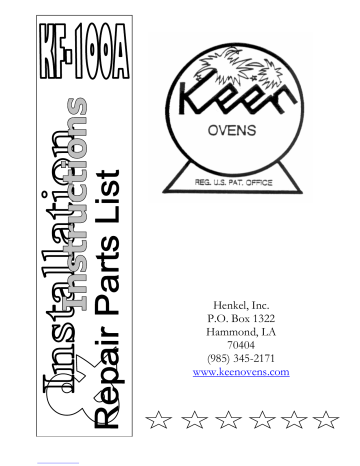

Henkel, Inc.

P.O. Box 1322

Hammond, LA

70404

(985) 345-2171

www.keenovens.com

Henkel, Inc.

P.O. Box 1322 * Hammond, Louisiana * 70404 * (985) 345-2171

www.keenovens.com

Models KF-100A Flux Holding Oven

Installation Instructions & Repair Parts List

One Year Limited Warranty

Henkel, Inc. warrants its products against defects in material and workmanship. Henkel,

Inc. will either repair or replace without charge any properly installed product which fails under normal operating conditions within one year from date of installation, provided it is returned to our factory, transportation prepaid, and our inspection determined it to be defective under the terms of this warranty. The warranty covers only equipment manufactured by Henkel, Inc., and does not extend to transportation, installation, or replacement charges at the buyers’ facility; nor does it apply to any other equipment of another manufacturer used in conjunctions with Henkel, Inc. equipment. No other warranty, expressed or implies exists beyond that included in this statement.

Keen Ovens

Model KF-100A Flux Holding Oven

Specifications

Voltage (Specify)

Wattage

Thermostat

Temperature

Insulation

Interior Dimensions

Net Weight

Shipping Weight

Shipping Dimensions

120V 240V

500W 500W

Factory Preset/ Field Adjustable

Preset 275ºF : Range 100ºF-400ºF

2" Thermal Insulating Wool

12" X 16" X 22"

95 lbs.

170 lbs.

30" X 48" X 30"

Recommended Spare Parts

When it is critical to have continuous operation of this unit; we suggest having the following spare parts on hand:

Heating Element Assemblies

Thermostat

General Information

The model KF-100A is a portable hopper style flux oven capable of storing 125 pounds of welding flux. Flux is top loaded by way of a removable door and discharged through a slide valve located on the bottom of the unit.

Safety Precautions

Read all instructions completely before attempting to operate this unit.

*** SAVE THESE SAFETY INSTRUCTIONS ***

To reduce the risk of electrical shock, fire, or personal injury follow the guidelines below:

•

Before connecting unit to a power source, be sure the voltage supplied is the same as that specified on the nameplate of the unit.

•

Check outlet to ensure proper grounding of the electrical cable. Have a licensed electrician check the

A/C power outlet if you are not sure.

•

Use this unit for its intended purpose as described by literature.

•

Make sure power cord is located so that it will not be stepped on, tripped over, or otherwise subjected to stress of heat, oil, or sharp edges. Do not close doors on the cord.

•

To reduce the risk of damage to the electric plug and cord, disconnect by plug rather than by the cord.

•

Do not use this unit if cord or plug is in poor condition. If it has been exposed to weather or immersed in water, have a qualified serviceman inspect and replace parts as necessary.

•

•

•

WARNING! NEVER HANDLE PLUG, CORD, OR UNIT WITH WET HANDS OR WHILE

STANDING IN WATER.

Use special care when moving heavily loaded units.

Do not store combustible material on or around the unit.

•

Do not operate this unit empty.

•

When using the unit at a distance where an extension cord becomes necessary, a 3-conductor grounding cord of adequate size must be used for safety, and to prevent loss of power and overheating. Use only a UL listed extension cord suitable for outdoor use. Make certain wire size is large enough for A/C amperage rating of unit.

Operation

Load oven with flux. To turn unit on, simply plug the power cord into the appropriate single phase A/C power source. (See oven nameplate for voltage rating.) Indicating light glows when power is being supplied to the heating elements. Plugs are not supplied on 240-volt models due to the many different receptical configurations in the field. All units meet electrical code requirements when used with a grounded power source.

***CAUTION: DO NOT USE ON D/C POWER SUPPLY! ***

The KF-100A is designed to vent around the perimeter of the lid. In instances where there is high moisture content in the flux, the interior of the lid is designed to channel condensation into the well built into the top lip of the oven.

Temperature Setting

The thermostat on the model KF-100A is factory preset at approximately 275ºF but has a range of

100º - 400ºF. To adjust temperature setting, disconnect oven from power source, then remove snap-in plug from element cover. This exposes thermostat adjustment screw. Using a small screwdriver, adjust set screw until desired temperature is attained. (Turning set screw counter clockwise increases temperature, turning set screw clockwise decreases temperature.) One-quarter turn equals approximately

35ºF. Replace snap-in plug and reconnect oven to power source.

Guide to Storage

See the enclosed guide to storage. This guide may be used in the absence of storage information from the flux manufacturer. In critical situations, contact your flux manufacturer.

Functional Description

The model KF-100A is a portable hopper style flux oven designed to hold 125 pounds of welding flux at moderate optimum temperature. Temperature is regulated by a field adjustable thermostat with an indicating pilot light, and monitored with a bimetal thermometer. This oven may be used as a portable unit or may be readily attached from its carrier and mounted directly to the welding manipulator. The model KF-100A is insulated with a full 2” of thermal insulating wool and is equipped with lifting lugs.

Scheduled Maintenance

The manufacturer recommends that the operator periodically clean all flux residue from heating elements and brackets. Excessive flux buildup on elements may cause hot spots and shorten element life.

Troubleshooting

The Keen oven model KF-100A requires a minimal amount of electrical knowledge to repair if necessary.

IF OVEN FAILS TO OPERATE – NO HEAT

1.

Check power source.

2.

Check power cord continuity. Replace cord assembly if faulty. (Strain relief may have to be removed from power cord to gain access.)

3.

If cord and power supply check okay, remove leads from thermostat terminals and check for continuity across terminals. If continuity is not present across thermostat terminals, replace thermostat.

4.

If thermostat is good, check continuity of elements and element wiring. If elements or wiring are faulty, replace.

IF OVEN OVERHEATS

1.

If oven overheats, adjust thermostat. (See “Temperature Setting” section.)

2.

If thermostat calibration fails to lower temperature, replace thermostat. (See “Corrective

Maintenance” section.)

IF OVEN HEATS BUT FAILS TO REACH TEMPERATURE

1 . Calibrate thermostat. (See “Temperature Setting” section.)

Corrective Maintenance

CHANGING THE HEATING ELEMENTS

1.

Disconnect power source and empty oven of flux.

2.

Remove element cover and leads from elements (Note: power cord strain relief may have to be removed to gain clearance.)

3.

From interior of oven, remove elements from clips and pull elements free of hopper wall.

4.

Replace new elements and electrical leads being sure terminals are not shorted to oven body. Replace element cover.

CHANGING THE THERMOSTAT

1.

Disconnect from the power source.

2.

Remove element cover (Note: power cord strain relief may have to be removed to gain clearance).

3.

Remove electrical leads from thermostat and remove thermostat from mounting bolt.

4.

Replace and rewire new thermostat being sure terminals are not shorted to oven body. Do not over tighten elements mounting bolt.

KF –100A 120V / 500W

Wiring Diagram

KF –100A 240V / 500W

Wiring Diagram

Model KF-100A Repair Parts List

ITEM # QUANTITY DESCRIPTION PART NUMBER

1

3

1

1

* Elements 120V

W/T 240V

Power Cord

301023

301026

301018

6

7

4

5

1

2

1

1

Strain Relief

Thermometer

Pilot Light

Wheel

301043

301127

301085

460106

2 1 Thermostat 301024

** Please state model number and serial number and specify voltage and wattage when ordering repair parts, spare parts, or accessory parts. All necessary attaching hardware is supplied with each part ordered.

(Item numbers refer to pictorial drawings below for repair parts.)

HENKEL, INC.

Manufacturer of KEEN Ovens

Quality Since 1923.

Phone (985) 345-2171

Fax (985) 345-5653

PO Box 1322

Hammond, Louisiana

70401

Flux and Electrode Stabilizing Guide

Type (AWS

)

Standard

EXX10

EXX11

EXX12

EXX13

EXX20

EXX30

Iron Powder

EXX14

EXX24

EXX27

Iron Powder -

Low Hydrogen

EXX18

EXX28

Low Hydrogen

EXX15

EXX16

Low

-

Hydrogen

High Tensile

EXXX15

EXXX16

Stainless

Inconel

Monel

Nickel

Brasses

Bronzes

Hard Surfacing

Special Alloys

Granulated or

Agglomerated

Flux

Air Conditioned

Storage

Before Opening

80

°

F

±

20

°

60%

±

10% RH

90

°

F

±

20

°

50% RH max

90

°

F

±

20

°

50% RH max

90

°

F

±

20

°

50% RH max

90

°

F

±

20

°

50% RH max

90

°

F

±

20

°

50% RH max

90

°

F

±

20

°

50% RH max

Dry Rod

Oven Holding

After Opening

140

°

F

±

30

°

140

°

F

±

30

°

400

°

F

±

50

°

400

°

F

±

50

°

400

°

F

±

50

°

225

°

F

±

50

°

240

°

F

±

50

°

180

°

F

±

25

° two hours

After Exposure to Moisture a

Sufficient Time to affect Weld Quality

Recondition

Step 1

Rebake

Step 2

240

°

F

±

25

° one hour

Three hour total

180

°

F

±

25

° two hours

180

°

F

±

25

° two hours

180

°

F

±

25

° two hours

180

°

F

±

25

° two hours

180

°

F

±

25

° one hour

Not required

325

°

F

±

25

° one hour

Three hour total

700

°

F

±

100

° one-half hour

Two & one-half hour total

600

°

F

±

100

° one-half hour

Two & one-half hour total

700

°

F

±

100

° one-half hour

Two & one-half hour total

350

°

F

±

50

° one hour

Two hour total

700

°

F

±

100

° ∅ two hours

CONTACT YOUR ELECTRODE MANUFACTURER FOR SPECIFIC INFORMATION INVOLVING

CRITICAL OPERATIONS.

Electrode coating should not be exposed to the rebaking temperature without first having been reconditioned at a lower temperature. Failure to observe this rule will result in breakdown of electrode coatings.

After rebake, lower temperature to holding level until reissue .

IMPORTANT:

This table is offered as a guide to proper storage and oven holding temperatures for the most common electrodes in use today. In addition, recondition/rebake procedures for electrode coatings that have been exposed to moisture for a sufficient period of time to affect the weld quality are included.

Good judgment and the manufacturer’s recommendations should be your guide.

Note: In the HTS

Stainless electrode groups, and 15 & 16 type coatings, there can be a greater difference in the maximum temperature requirements for rebaking than those shown. This can be handled by special request to the particular manufacturer involved.
