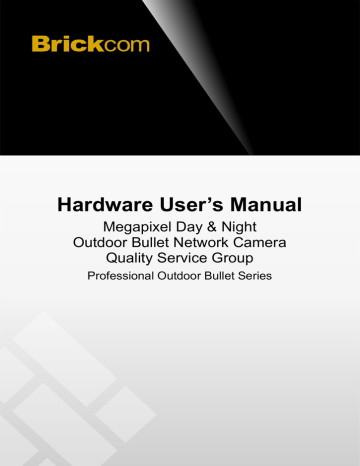

Hardware User’s Manual
Megapixel Day & Night
Outdoor Bullet Network Camera
Quality Service Group
Professional Outdoor Bullet Series
Review History:
1. Separate User Manual into HW and SW.
2. Merge OB-100A V2 series /OB-130N-series into this User Manual.
3. Add OB-500A Series /OB-300N Series into the User Manual.
4. Clarify the OB series Reset button and WPS button.
5. HW add one function for TV out Connector.
6. Modify I/O Terminal Block definition.
7. Add OB-200Np-LR Series into the User Manual
8. Update OB-P series V6 version
9. Add WOB Series and GOB Series into the User Manual
Product name:
Release Date:
Manual Revision:
Web site:
Email:
Network Camera (Outdoor Bullet series)
2015/09
V4.0 www.brickcom.com
© 2015 Brickcom Corporation. All Rights Reserved
1
Table of Contents
Chapter 2 - Outdoor Bullet Network Camera Overview .............................................. 7
2
Before You Use This Product
In many countries, there are laws prohibiting or restricting the use of surveillance devices. This Network Camera is a high-performance, web-ready camera which can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of this camera is legal before installing this unit for its intended use.
Upon opening the product’s package, verify that all the accessories listed on the
“Package Contents” are included. Before installing the Network Camera, read the warnings in the “Quick Installation Guide” to avoid misuse. When installing the Network
Camera, carefully read and follow the instructions in the “Installation” chapters to avoid damages due to faulty assembly or installation.
3
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.
4
Chapter 1 - Package Contents
Please check to make sure the product package contains all the accessories listed below.
A. Camera Package Contents a. Network Camera
OB-p Series OB-p-LR Series
b. Shielding Cover c. Screw bag d. Product CD e. Warranty Card / Easy Installation
Guide f. Water Proof Connectors g. Dry Bag h. High Power POE (Optional) i. Bracket (Optional) j. Bracket Assembly Plate (Optional) k. Wi-Fi Dual Band Antenna package
(Optional) l. 3G Antenna package (Optional)
5
m. Power adapter (Non LR-Series)
B. Wi-Fi Antenna Package contents (Optional for WOB-P Series)
Refer to the installation guide included in the package when installing the
Wi-Fi antenna a. Wi-Fi Dual Band Antenna b. Extension Cable c. Surge Arrestor Kit d. Mount Kit
C. 3G / 4G LTE Antenna Package contents (Optional for GOB-P series)
Refer to the installation guide included in the package when installing the
3G antenna a. 3G / 4G LTE Antenna b. Extension Cable c. Surge Arrestor Kit d. Mount Kit
6
Chapter 2 - Outdoor Bullet Network Camera
Overview
The Brickcom Outdoor Bullet SERIES is an outdoor bullet network camera. It adopts a megapixel sensor which allows the camera to deliver extremely clear and detailed images that CCTV cameras cannot offer. To optimize use of the megapixel resolution, the Outdoor Bullet SERIES uses efficient H.264/ MJPEG/ MPEG-4 codec compression to deliver dual configurable video streams simultaneously at up to 30 fps. These features make this series the perfect outdoor camera for neighborhood, school campus, and parking lot surveillance.
The Outdoor Bullet SERIES has many user friendly features, such as the Smart Focus capability which allows users to configure settings for excellent image quality without difficult procedures. Support for Power over Ethernet enables the camera to use the same cable for power and data transmission, eliminating the need to install an external power supply.
Installation for the WOB/GOB Series models is not restricted by location or landforms.
The cameras offer various wireless options that make connecting to networks easier by adopting the technology of IEEE 802.11 a/b/g/n and 3G SIM module. The wireless
Bullet Cameras can be set within any wireless or 3G signal coverage areas. Users do not have to worry about the data connection failing because each camera is equipped with a SD/SDHC memory card slot for local storage.
With an IP67 certified outdoor enclosure, the Outdoor Bullet SERIES is not only weather proof, but also dust and rust resistant. By utilizing a built-in industrial fan and heater, it can perform well in extreme environments.
7
Chapter 3 - Device Appearance Description
< Front Panel >
< Rear Panel >
< Top >
< Bottom >
8
< Side >
Micro-SD/SDHC Card Slot
3G SIM Card Slot
**3G SIM Card Slot only apply for GOB & WOB series**
< OB-p-LR series >
Micro-SD/SDHC/SDXC Card Slot
9
<Inside> TV out Connector
***This function only apply below models.***
OB-502A Series/OB-500A Series and OB-302N Series/OB-300NSeries
< OB-p-LR series >
TV out Connector
10
< Extension I/O Terminal Block >
The Network Camera provides an extension I/O terminal block which is used to connect the camera with external input/output devices. The pin definitions are listed as below.
Pin No.
Pin 1
Pin 2
Pin 3
Pin 4
Power +4.5V / 12V*
Digital Output
Digital Input
Ground
Pin 5
Pin 6
RS-485-
RS-485+
Pin 7 Audio-in
Pin 8 Audio-out
* V5 & V6 Series Supported
*V5&V6 (WDRPro & Star & StarPlus) Series Supported
DI/DO Diagram >
/ +12V*
/ + 12V*
/ +12V*
OB-100Ap Series and OB-130N Series
11
< Reset button >
Reset Button
OB-502A Series and OB-302N Series
Reset Button and WPS button
**WPS Button only applies for WOB-502A Series/WOB-500Ap Series /WOB-302Np
Series/WOB-300Np Series**
<Noted> WPS button for quickly link to WiFi.
12
< Hardware Reset >
The Reset Button can be used to reboot the camera or restore it to factory default settings. If the camera experiences a problem, rebooting the camera may correct the problem. If the problem remains, please restore the camera to factory default settings and reinstall the software.
To Reboot
Press and hold the Reset Button for one second using a paper clip or thin object. Wait for the camera to reboot.
To Restore
Press and hold the Reset Button for ten seconds until the LED light turns off. When successful restored, the LED will be blue during normal operation.
NOTE - By restoring the camera, all settings will be restored to the factory default settings.
Micro-SD/SDHC Card Capacity
The network camera is compatible with Micro-SD/SDHC (Maximum 32GB) cards.
(*) These are optional features. Please refer to the Product List for the full list of optional features that are available for this product.
13
Chapter 4 - Installation
4.1 Hardware Installation
WARNING - Do not mount the camera on a soft material. The camera
may fall and be damaged.
A. Micro-SD/SDHC Card and 3G SIM Card(GOB series) Installation
a. Remove the Lens cover from the Bullet Camera. b. Inset the Micro SD/SDHC card and 3G SIM card(*) into their respective slots. c. Place a dry bag onto the camera device. d. Reattach the Lens cover and secure the cover to the top of the camera device using two screws.
B.Wall Installation Using the Optional Bracket
a. Using the Bracket plate as a guide, drill three holes into the wall and hammer the supplied plastic anchors into the three holes. Use a
14
screwdriver and the supplied screws to secure the plate to the wall. b. Attach the Bracket Assembly Plate to the bottom of the camera using two screws. c. (1) Use the two supplied screws to secure the bracket to the side of the camera. (2) Push back the spring on the mortise lock and hook the camera and attached bracket onto the groove of the wall mount bracket as shown in the diagram. d. Connect (1) the POE cable; (2) DIDO, Audio In/Out, RS485 cable; and
15
(3) Antenna cable with the camera (only for GOB series). Refer to step 3 for more details installation information. e. Secure the two screws on the wall mount bracket. f. Place the wall mount bracket on the plate and attach it using the supplied screws. Adjust the angle of the wall mount bracket towards the area to be monitored.
B. DIDO, Audio In/Out, RS485, and Antenna Connection(GOB & WOB series only)
16
a. PoE Connection
For the Power over Ethernet connection, construct the PoE cable using the pin definitions of the RJ45 connector below and refer to step 5 for instructions on how to install the Water Proof Connector. Once the
PoE cable has been constructed using the waterproof connector, pass the RJ-45 cable from the camera through the bracket and connect it to the PoE cable.
RJ45 Connector 1
Pin No. Function
Pin 1
Pin 2
Pin 3
Transmit Out+ (Tx+)
Transmit Out- (Tx-)
Receive In+ (Rx+)
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
DC 48V
DC 48V
Receive In- (Rx-)
48V_GND
48V_GND
b. DIDO, Audio In/Out, RS485 Cable Connection
For the DIDO, Audio In/Out and RS485 cable connection, construct an
Ethernet cable using the pin definitions of the RJ-45 connector below and refer to step 4 for instructions on how to install the Water Proof
Connector. Once the Ethernet cable has been constructed using the waterproof connector, pass the cable through the bracket and connect
17
it to the RJ-45 connector at the bottom of the camera.
RJ45 Connector 2
Pin No.
Pin 1
Function
Power +4.5V / 12V*
Pin 2
Pin 3
Pin 4
Pin 5
Digital Output
Digital Input
Ground
RS-485-
Pin 6
Pin 7
RS-485+
Audio-in
Pin 8 Audio-out
*V5&V6 (WDRPro & Star & StarPlus) Series Supported
DIDO Diagram
/ +12V*
/ + 12V*
/ + 12V* c. WiFi or 3G Antenna Extension Cable Connection(GOB & WOB series only)
Pass the Antenna extension cable (1) through and bracket and connect it to the Antenna connector (2) at the bottom of the camera.
18
4.2 Camera Connection
The Outdoor Bullet Series is PoE compliant, so there are two options for connecting the camera to a power and Ethernet source. The camera can either be connected to a PoE-enabled switch or a non-PoE switch.
a. If using a PoE-enabled switch: (OB-X00Np-LR series require 802.3at
PoE)
i. Use a single Ethernet cable to connect the camera to the PoE-enabled switch.
b. If using a non-PoE switch: (OB-X00Np-LR series require 802.3at PoE)
i. Use a standard RJ-45 cable to connect the camera to a PoE Injector. ii. Use a standard RJ-45 cable to connect the PoE Injector to the non-PoE switch.
c. Use a standard power cable to connect the PoE Injector to a power outlet.If
19
using a PoE injector as power input (OB-X00Np-LR series require
802.3at PoE):
i. Use a standard RJ-45 cable to connect the camera to a PoE Injector. ii. Use a standard power cable to connect the PoE Injector to a power outlet.
d. If using the DC12V for the power Supply. The RJ45 cable will be data
transmission. (This only apply in OB-500A Series /OB-300N Series)
(OB-X00Np-LR series require 802.3at PoE)
20
4.3 System Requirements
Operating System:
Microsoft Windows 8.1/8/7/Vista/XP/2000
Computer:
IBM PC/AT Compatible
CPU:
Pentium 3GHz or faster
Memory:
1024 MB or more
Monitor:
1024 x 768 pixels or more, 24-bit True color or better
Network Interface:
10/100Mbps Network interface card must be installed
Web Browser:
Microsoft Internet Explorer 6.0 SP2 or higher
Adobe Reader:
Adobe Reader 8.0 or higher
Audio:
The audio function will not work if a sound card is not installed in the PC. Audio may be interrupted depending on network traffic.
21
4.4 Software Installation
In this manual, "User" refers to whoever has access to the Network Camera, and
"Administrator" refers to the person who can configure the camera and grant user access to the camera.
After checking the hardware connection, run the Installation Wizard program included on the product’s CDROM to automatically search the intranet for the camera. There may be many cameras on the local network. Differentiate the cameras using the serial number which is printed on the labels on the carton and the bottom of the camera.
A. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the
Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box. Click
<Install> and follow the steps to install the EasyConfig wizard on the desired computer.
22
B. In the Install Shield Wizard dialog box, click <Next> to continue.
C. Read the End-
User License Agreement and check the option “I accept the terms of the license agreement”. Click <Next> to continue.
23
D. Select either
“Complete” setup or “Custom” setup to install the system.
a. If COMPLETE SETUP is selected:
i. All program features will be installed into the default directory.
Check the option “Complete” and then click <Next>. ii. Click <Change> to change the appointed folder where installation and program files will be stored. Click <Next> to continue.
24
iii. Select to create shortcuts. Click <Next> to continue. iv. The installation information will be displayed. Click <Next> to continue.
25
v. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual.
b. If CUSTOM SETUP is selected:
i. This option is recommended for advanced users. It can be used to install the system to a preferred directory or to select specific program feature(s). ii.
Check the option “Custom”, and then click <Next>.
26
iii. Select the features to install. Click <Next> to continue. iv. Click <Change> to change the appointed folder where installation and program files will be stored. Click <Next> to continue.
27
v. Select programs to create shortcuts. Click <Next> to continue. vi. The installation information will be displayed. Click <Next> to continue.
28
E. To launch EasyConfig or PC-NVR Standard, select the application and click
<Finish>. When launching the PC-NVR program, please refer to the
PC-NVR user manual.
29
4.4.1 EasyConfig
To launch EasyConfig, select EasyConfig from the start menu. If Complete
Setup type was used in the software installation, an EasyConfig icon was installed on the desktop. Double click to open the icon.
If Custom Setup type was used in the software installation and an EasyConfig icon was not installed on the desktop, the program will be installed under
C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory.
A. Click <Start> to continue. The program will automatically search for the camera in the intranet.
NOTE - Check
“Skip the hardware installation guide” to skip checking the hardware connection. To check the hardware installation settings, do not check the option box.
30
31
B. Select either
“Simple Mode” or “Professional Mode” to obtain the camera’s
IP settings. If
“Simple Mode” is selected, EasyConfig will set up the connection automatically. If
“Professional Mode” is selected, the user will need to configure the IP settings manually.
32
C. There may be many cameras in the local network. Differentiate the cameras using their UPnP name. Double click on the camera from the survey list to connect.
D. For configuring the IP address settings, select either <Settings remain the same>, <Automatically obtain an IP Address (DHCP)> or <Set IP Address configuration manually>. The DHCP setting is recommended.
33
If <Set IP Address configuration manually> is selected, the following pages will be displayed.
34
E. If the camera supports the EasyLinkTM function, the following page will be displayed. Otherwise, this page will not be shown. *If desired, click <Skip> to skip this setting.
EasyLinkTM is a unique Brickcom function which allows users to assign a unique EasyLink name to their network camera’s IP address. There is no need to configure the router to open up ports or remember hard-to-memorize IP addresses. Users can log onto
[uniqueEasyLinkname].mybrickcom.com to v iew the camera’s web GUI and live view. a. Enter a unique EasyLink name whose length must be between 5-32 characters. b. When finished, click the arrow button to continue.
35
F. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation. a. If
“DHCP IP address settings” was selected, the failure page will be displayed as below: b. If
“Static IP address settings” was selected, the failure page will be displayed as below:
36
c. If the connection was successful, the user will see the message:
“Congratulations. The installation of the camera is complete.”
When this window is displayed, click <PC-NVR> to start the PC-NVR program, <Live View> to view the live video from the connected IP camera, or <X> in the top right corner of the screen to close the installation window. If the user starts the PC-NVR program, please refer to the PC-NVR user manual. d. Log in to the camera. Key in the username and password on the log-in window. The default username and password are "admin" and
"admin".
37
e. Install the plug-in. Please click to install the ActiveX plug-in on the Internet Explorer. f.
Live View
38
advertisement
Related manuals
advertisement
