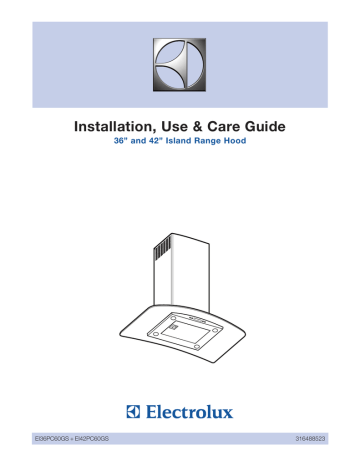

Installation, Use & Care Guide
36” and 42” Island Range Hood
Guia de Instalación, Uso y Cuidado
36” y 42” Campana extractora
Guide d’installation, utilisation et d’entretien
36” et 42” Hotte aspirante
EI36PC60GS + EI42PC60GS
316488523
2
Finding Information
Please read and save this guide
olux
Thank you for choosing Electr
Electrolux
olux, the new premium brand in home appliances. This Use & Care Guide is
part of our commitment to customer satisfaction and product quality throughout the service life of your new
appliance.
We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you,
please use this page to record important product information.
Keep a rrecor
ecor
d for quick rrefer
efer
ence
ecord
eference
Purchase date
Electrolux model number
NOTE
Registering your product with Electrolux enhances
our ability to serve you. You can register online at
www
.electr
oluxusa.com or by dropping your
www.electr
.electroluxusa.com
Product Registration Card in the mail.
Electrolux serial number (see picture for location)
Questions?
For toll-free telephone support in the U.S. and Canada:
1-877-4ELECTROLUX (1-877-435-3287)
www
.electr
oluxusa.com
For online support and Internet product information visit http://www
www.electr
.electroluxusa.com
Table of contents
Important Safety Instructions ........................... 3-4
Electrical & Installation rrequir
equir
ements .................... 5
equirements
Electrical requirements .......................................... 5
IMPORTANT ......................................................... 5
Before installing the hood ..................................... 5
List of Materials ................................................... 6
Parts Included with your Hood .............................. 6
Optional Accessories ............................................ 6
Tools/Materials required ........................................ 6
Installing the hood ......................................... 7-12
Installing preparation ............................................. 8
Removing the packaging ...................................... 8
Ceiling Support Structures .................................... 9
Ceiling ducting .................................................... 11
Making the electrical connections ....................... 11
Connecting the ductwork ................................... 12
Air deflector installation
(Recirculating accessories) .................................. 12
©2007 Electrolux Home Products, Inc.
Featur
es ............................................................ 13
Features
Contr
ol
Control buttons ................................................. 14
Special functions ............................................... 15
Clock programming ............................................ 15
Grease filter saturation alarm ............................... 15
Charcoal filter saturation alarm
(Recirculating accessories) .................................. 15
Audible signal activation and deactivation ........... 15
Charcoal filter inclusion and exclusion
(Recirculating accessories) .................................. 15
Heat sensor ........................................................ 15
For Best results .................................................. 16
Car
e and cleaning ............................................. 17
Care
Filters ................................................................. 17
Lights ................................................................. 17
Optional Charcoal Filters ..................................... 18
Hood Surface ..................................................... 18
Warranty Information ......................................... 19
All rights reserved. Printed in Mexico
Important Safety Instructions
Important Safety Instructions
Read all instructions befor
e using this
before
appliance.
Save these instructions for futur
e
future
refer
ence.
eference.
Appr
oved for rresidential
esidential appliances
Approved
For rresidential
esidential use only
Do not attempt to install or operate your appliance
until you have read the safety precautions in this
manual. Safety items throughout this manual are
labeled with a WARNING or CAUTION based on the
risk type.
This symbol alerts you to
situations that may cause
serious body harm, death
or property damage.
This symbol alerts you to
situations that may cause
bodily injury or property
damage.
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.
IMPORTANT: Save these Instructions for the Local Electrical Inspector’s use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Safety Warning: Turn off power circuit at service panel and lock out panel, before wiring this appliance.
Requirement: 120 V AC, 60 Hz. 15 or 20 A Branch Circuit
3
4
Important safety Instructions
READ AND SAVE THESE INSTRUCTIONS
Important safety Instructions
FOR GENERAL VENTILATING USE ONLY. DO NOT USE
TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS OR VAPORS.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
B. Before servicing or cleaning the unit, switch power off
at service panel and lock service panel disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
C. Installation Work and Electrical Wiring Must Be Done
By Qualified Person(s) In Accordance With All Applicable Codes & Standards, Including Fire-rated Construction.
D. Sufficient air is needed for proper combustion and exhausting of gases through the flue (Chimney) of fuel
burning equipment to prevent back- drafting. Follow
the heating equipment manufacturers guideline and
safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
E. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
F. Ducted systems must always be vented to the outdoors.
To reduce risk of fire and to properly exhaust air, be
sure to duct air outside - do not vent exhaust air into
spaces within walls, ceilings, attics, crawl spaces, or
garages.
TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCT WORK.
Install this hood in accordance with all requirements specified.
To Reduce The Risk Of Fire Or Electric Shock, Do Not
Use This Hood With Any External Solid State Speed
Control Device.
Automatically Operated Device - To Reduce The
Risk Of Injury Disconnect From Power Supply Before
Servicing.
This unit is equpeed with integral disconnecting switch
located inside the blower housing
TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE.
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food (I.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not
be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS, IN
THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie
sheet, or other metal tray, then turn off the gas burner
or the electric element. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - you may be
burned.
c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a class ABC extinguisher, and
you already know how to operate it.
2) The fire is small and contained in the area where it
started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.
OPERATION
a. Always leave safety grills and filters in place. Without
these components, operating blowers could catch onto hair,
fingers and loose clothing.
The manufacturer declines all responsibility in the event
of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The
manufacturer further declines all responsibility for injury
due to negligence and the warranty of the unit automatically expires due to improper maintenance.
Important safety Instructions - Electrical & Installation
requirements
READ AND SAVE THESE INSTRUCTIONS
Electrical & Installation requirements
Electrical rrequir
equir
ements
equirements
Before installing the hood
IMPOR
TANT
IMPORT
1. For the most efficient air flow exhaust, use a
straight run or as few elbows as possible.
Observe all governing codes and ordinances.
It is the customer’s responsibility:
To contact a qualified electrical installer.
To assure that the electrical installation is adequate
and in conformance with National Electrical Code,
ANSI/NFPA 70 — latest edition*, or CSA Standards
C22.1-94, Canadian Electrical Code, Part 1 and
C22.2 No.0-M91 - latest edition** and all local codes
and ordinances.
If codes permit and a separate ground wire is used, it
is recommended that a qualified electrician determine
that the ground path is adequate.
Do not ground to a gas pipe.
Check with a qualified electrician if you are not sure
range hood is properly grounded.
Do not have a fuse in the neutral or ground circuit.
IMPOR
TANT
IMPORT
Save Installation Instructions for electrical inspector’s
use.
The range hood must be connected with copper wire
only.
The range hood should be connected directly to the
fused disconnect (Or circuit breaker) box through
metal electrical conduit.
Wire sizes must conform to the requirements of the
National Electrical Code ANSI/NFPA 70 — latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code Part 1 and C22.2 No. 0-M91 - latest edition** and all local codes and ordinances.
A U.L.- or C.S.A.-listed conduit connector must be
provided at each end of the power supply conduit (at
the range hood and at the junction box).
Copies of the standards listed may be obtained from:
* National Fire Protection Association Batterymarch Park Quincy,
Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575
Vent unit to outside of building, only.
2. At least two people are necessary for installation.
3. The hood is fitted with Screws and Drywall
Anchors suitable for most surfaces, consult a
Qualified Installer, check if they perfectly fit with
your cabinet/wall.
4. Do not use flex ducting.
5. COLD WEATHER installations should have an
additional backdraft damper installed to minimize
backward cold air flow and a nonmetallic thermal
break to minimize conduction of outside
temperatures as part of the ductwork. The
damper should be on the cold air side of the
thermal break.
The break should be as close as possible to
where the ducting enters the heated portion of
the house.
6. Make up air: Local building codes may require the
use of Make-Up Air Systems when using Ducted
Ventilation Systems greater than specified CFM of
air movement.
The specified CFM varies from locale to locale.
Consult your HVAC professional for specific
requirements in your area.
5
6
List of Materials
List of Materials
Parts included in your hood
•
•
•
•
•
Hood structure assembly with blower, transition.
4 Lamps already installed.
1 Grease filter
4 Duct covers.
Hardware bag with:
• Ceiling Mount Template
• Use, care and installation guide
• Wood screws (4 pieces - 3/16" x 1" 3/4)
• Glass Brackets, Springs, Gaskets ( 2 each )
• Assembly screws (70 pieces)
• 4 Plastic Springs
• Duct cover brackets (4 each)
• 8 Vertical supports.
• 2 Upper Ductcover supports.
• 2 Horizontal supports.
• Glass canopy
Optional accessories
• Recirculation KIT
• Charcoal filter
Tools/Materials rrequir
equir
ed
equired
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Duct tape
Wire nuts
Tape to mount template
8" rounded metal duct (lenght to suit installation)
Measuring tape
Pliers
Gloves to protect against sharp edges
Knife
Safety glasses
Electric drill with 5/16" and 3/8" bits
Strain relief
Spirit level
Phillips (Pozidrive) # 2 screwdriver + torx # 2
Wire cutter/stripper
Masking tape
Hammer
Saw, jig saw or reciprocating saw
Installing the hood
Installing the hood
• For the most efficient air flow exhaust, use a
straight run or as few elbows as possible.
Vent unit to outside of building, only.
• On avarage 2 to 3 hours are necessary to complete installation (without considering cut to be
done on wall and or on cabinet, installation of
ducts , conduit and electrical connections to the
mains).
• The hood is fitted with Screws and Drywall
Anchors suitable for most surfaces, consult a
Qualified Installer, check if they perfectly fit with
your cabinet/wall.
• Do not use flex ducting.
• COLD WEATHER installations should have an
additional backdraft damper installed to minimize
backward cold air flow and a nonmetallic thermal
break to minimize conduction of outside
temperatures as part of the ductwork. The
damper should be on the cold air side of the
thermal break.
The break should be as close as possible to
where the ducting enters the heated portion of
the house.
• Make up air: Local building codes may require the
use of Make-Up Air Systems when using Ducted
Ventilation Systems greater than specified CFM of
air movement.
The specified CFM varies from locale to locale.
Consult your HVAC professional for specific
requirements in your area.
• Typical installation
Min installation height from the range top to the
bottom of the hood is 30" if a gas range is used
or 24" to 30" if an electric range is used.
These hoods ar
e not rrecommended
ecommended to be used
are
over indoor grills.
The hood may be installed vented to the outdoors, or
it can be installed for recirculating operation
(recirculating accessories not supplied with the
hood).
This hood can be installed over any electric and gas
cooktop/range.
This hood must not be installed over any
pr
ofessional cooktop / range.
professional
7
8
Installing the hood
Installing pr
eparation
preparation
• The vent hood should be on site before final
framing and wall finishing. This will help to
accurately locate the duct work and electrical
service.
• Installation will be easier if the vent hood is
installed before the cook-top and countertop are
installed.
Ductwork and wiring locations:
• Determine the exact location of the vent hood.
• Plan the route for venting exhaust to the
outdoors.
• Use the shortest and straightest duct route
possible.
For satisfactory performance duct run should not
exceed 100’ equivalent length for any duct
configurations.
Ductwork installation guidelines
• Refer to “Ductwork
guidelines” chart
to compute the maximum permissible length for
duct runs to the outdoors.
Ductwork installation guidelines
For safety reasons, ducting should vent directly
outdoors (not into an attic, underneath the house,
into the garage or into any enclosed space).
Keep duct runs as short and straight as possible.
Duct fittings (elbows and transitions) reduce air
flow efficiency.
Back to back elbows and „S“ turns give very poor
delivery and are not recommended.
A short straight length of duct at the inlet of the
remote blower gives the best delivery.
Transition to duct from the integral blower or
remote duct transition as close to the downdraft
as is pos-sible.
In order of preference, use
1st. 10" round duct
2nd. 8" round duct
3rd. 3-1/4" x 14" duct
4th. 7" round duct
5th. 3-1/4" x l0" duct
6th. 6" round duct
The use of flexible metal round duct should only
be used when no other duct fitting exists. Limit
use to short lengths and do not crush when
making corners.
• Install a wall cap with damper or roof cap at the
exterior opening. Order the wall or roof cap and
any transition needed in advance.
• Use 8" round metal ductwork only.
Removing the packaging
Remove the carton carefully. Wear gloves to protect
against sharp edges.
Remove the protective film covering the product
before putting into operation.
Installing the hood
Ceiling Support Structur
es
Structures
• This vent hood is heavy.
‘Adequate structure and support must be
provided in all types of installations.
• At the hood location, install 2"x 4" cross framing
between ceiling joists as shown. (2"x 4" are
required to support the weight of the hood.)
• Arrange cross framing in the ceiling to suit the
existing structure.
• Your ceiling joists will be like one of the following
examples.
10-1/16"
Install cross-framing
symmetrically over
duct/cooktop
centerline
EXAMPLE A
7 1/16"
16" joist
spacing
8" duct
2x4 cross
framing
Drill3/16”
Pilot
Approx.1 1/2”
Deep
Cut
Dia.
Wire Access
10 1/4” to
Centerline
Drill3/16”
Pilot
Approx.1 1/2”
Deep
8 1/4” to
Centerline
Align duct
to center
of cooktop
Cooktop
outline
Front
of hood
Top view–ceiling joists parallel to front of hood
8-
1/2
D
ia
.
49-80406
Printed Italy 04-06JR
emplate
Cut
Dia.
Wire Access
8 1/4” to
Centerline
FRONTOFHOOD
NOTE: Do not cut the duct opening shown on
the template for the recirculating installation.
10-1/16"
Install cross-framing
symmetrically over
duct/cooktop
centerline
EXAMPLE B
16" joist
spacing
7 1/16"
IMPOR
TANT
IMPORT
Framing must be capable of supporting 150lbs.
2x4 cross
framing
8" duct
Align duct
to center
Front of cooktop
of hood
Top view–ceiling joists run perpendicular to front of hood
Cooktop
outline
EXAMPLE C
10-1/16" Install cross-framing
symmetrically over duct/cooktop
centerline
7 1/16"
2x4 cross
framing
8" duct
16" joist
spacing
Align duct
to center
Front
of
cooktop
of hood
Top view–ceiling joists at angle to front of hood
Cooktop
outline
9
10
Installing the hood
8 assembly
screw
(B)
(A)
4 wood screws
Place the template in the ceiling
considering the instructions for
ceiling support structures.
Mark with a pencil the hole
locations for screws and duct in
the ceiling (see also next page)
16 assembly screws
Fix the upper horizontal
support with 4 wood screws.
Attach the vertical supports (inf)
(A) to the hood. Then attach
horizontal support (B) (inf)
2 /side
16 assembly screws
Attach a second vertical
support set to adjust the
vertical distance.
click !
Insert the plastic gaskets on
each side of the hood.
(rear and front)
Place the Glass Canopy onto
the hood. 2 people are
recommended to do this.
Place glass brackets using 2
screws by side.
All version:
Perform the electrical
connection.
Vent hood ONLY
Perform the ductwork
connection.
Installation with optional
recirculation kit.
Install the recirculation kit and
connect air deflector to transition
Attach the assembly to the
support fixed on the ceiling
Assure with screws (16)
SEE NEXT PAGES
FOR FURTHER DETAIL
Attach the vertical duct cover
supports using 4 screws. Place
each spring using a screw by side.
Place upper duct covers
sliding through until spring
sounds “click”. Then verify
Instal the grease filter and turn power on at service
panel. Check operation of the hood.
IMPORTANT: If the hood doesn’t switch ON, before
calling for service, check if the internal General ON/
OFF Pushb-utton Switch is switched ON.
Frontside of the hood
Place lower duct covers
using one plastic bracket at
each vertex. (4 needed)
The lower duct cover shall
be secured to rangehood by
4 screws.
General ON/OFF
Push button Switch
Back side of the hood
Installing the hood
Ceiling ducting
• Use the template previously installed to prepare a
8-½” hole in the ceiling for ductwork.
Failur
e to do so can rresult
esult in death or electrical
Failure
shock.
• Remove junction box cover and knockout on the
top left side.
Knockout
8 1/2"
Junction box
cover
4 12/16" (At least)
23 12/16"
8.43" - 10"
minimum ceiling
7.93" - 10"
minimum ceiling
30" Gas Cooktop (min)
24" - 30" Electric Cooktop (min)
• If not already done, install 1/2” conduit connector
in j-box.
Metal electrical
conduit
House
wiring
Making the electrical connections
Electrical Shock Hazard
Warning: Turn off power at the service panel before
wiring this unit.
120 V
AC, 15 or 20 Amp cir
cuit rrequir
equir
ed.
VAC,
circuit
equired.
ELECTRICAL GROUNDING INSTRUCTIONS
THIS APPLIANCE IS FITTED WITH AN ELECTRICAL
JUNCTION BOX WITH 3 WIRES, ONE OF WHICH
(GREEN/YELLOW) SERVES TO GROUND THE
APPLIANCE. TO PROTECT YOU AGAINST
ELECTRIC SHOCK, THE GREEN AND YELLOW
WIRE MUST BE CONNECTED TO THE
GROUNDING WIRE IN YOUR
HOME ELECTRICAL SYSTEM, AND IT MUST
UNDER NO CIRCUMSTANCES BE CUT OR REMOVED.
U.L. listed
nut
• Run black (live), white (neutral), and green (earth)
wires (#14 AWG) according to the National
Electrical Code or CSA Standards and local
codes and ordinances in 1/2” conduit from power
supply to j-box.
• Connect black, white, and green wires from
power supply to black, white, and green/yellow
wires in j-box respectively.
• These connections should be done always
making reference to the electrical diagram found
inside the hood.
• Close j-box cover and reapply screws.
11
12
Installing the hood
Connecting the ductwork
• Install ductwork, making connections in the
direction of airflow as illustrated.
• Push duct over the exhaust outlet.
• Wrap all duct joints and the flange connections
with duct tape for an airtight seal.
• Make the same connection in the wall or ceiling
vent exit.
• Measure from the bottom of the air deflector to
the bottom of the hood outlet, as shown.
Airflow
Duct tape
over seam
Air deflector installation
(Recir
culating accessories)
(Recirculating
• Assemble the air deflector with the duct cover
bracket with 4 assembly screws provided as
shown.
• Cut the duct at the measured size.
• Uninstall the air deflector removing the 4
assembly screws.
• Slip the duct onto the bottom of the deflector.
• Place the assembled deflector and duct over the
exhaust outlet from the hood. Assemble the air
deflector with the duct cover bracket with 4
assembly screws provided as shown.
• Use duct tape to seal the deflector and at the
exhaust outlet from the hood.
Features
Features
1.
2.
3.
4.
5.
6.
7.
Blower and light controls
Lamp housings
Grease filter Handle
Grease filter
Canopy
Duct covers
Louver holes (Only for Recirculating version)
7
6
1
5
4
3
2
13
14
Control buttons
Control buttons
This hood is equipped with an electronic motor and
lamp control.
The control is able to set 4 different fan speeds, turn
ON/OFF light and has a timer function.
In the following drawing are described the main key
functions.
1. Light Button
• Press lamp button to turn ON the light (Lamp
state previously OFF).
• Press lamp button to turn OFF the light (Lamp
state previously ON).
2. Timer Button
• The default timer setting is 10 minutes, and it
can be adjusted between 20 minutes and
1minute.
• After pressing the timer button, the control
enters to a timer setup mode, and user can
adjust the timer countdown time with the
“
” and “
” buttons within 5 seconds.
The timer can be initiated immediately
pressing the timer button, after setting the
timer duration or pressing the timer button
twice (default 10 minutes setting).
• If no action occurs within 5 seconds, the
countdown will start.
• During the timer setup the “
” and “
”
buttons are dedicated to the timer and no
motor action will occur.
• Once the timer is initiated, it can be cancelled
by pressing the timer button again.
3. Display
• Shows the hood settings.
4. “
1
2
3
4
5
• If the fan is at fourth speed and the “
”
button is pressed, the fan will be set to third
speed.
• If the fan is OFF and the “
” button is
pressed, the control backlight will light up.
5. “
” Button. Speed Incr
ease / ON
Increase
• This button is used to increase the fan speed,
or turn ON the fan.
” button is
• The fan will turn ON if the “
pressed and the hood was OFF.
• If the fan is at first speed and the “
” button
is pressed, the fan will be set to second
speed.
• If the fan is at second speed and the “
”
button is pressed, the fan will be set to third
speed.
• If the fan is at third speed and the “
”
button is pressed, the fan will be set to fourth
speed.
• If the fan is at fourth speed and the “
”
button is pressed, a beep will sound.
IMPORTANT: If the hood doesn’t switch ON, before
calling for service, check if the internal General ON/
OFF Pushb-utton Switch is switched ON.
” Button. Speed Decr
ease / OFF
Decrease
• This button is used to decrease the fan speed,
or turn OFF the fan.
• The fan will turn OFF if the “
” button is
pressed and the hood was in the first speed.
• If the fan is at second speed and the “
”
button is pressed, the fan will be set to first
speed.
• If the fan is at third speed and the “
” key is
pressed, the fan will be set to second speed.
Frontside of the hood
General ON/OFF
Push button Switch
Back side of the hood
Control buttons - Special functions
Special functions
Clock pr
ogramming
programming
• The clock can be reprogrammed at any time except during an active timed function.
• The clock can be displayed in a twelve hour format and valid clock times are from 1:00 to 12:59.
Timer
• The clock can be reprogrammed pressing the “T
imer” button for 5 seconds, and after, the clock can be
adjusted with the “
” and “
” buttons. Colon “:” will flash indicating clock programming mode.
• The user can have minute increments / decrements of 1 minute, but if the user keep pressing the “
”/
”
” buttons for more than 1 second, the increments / decrements will be of 5 minutes.
During this option the control will round to the nearest 5 minutes.
T imer
• The user can finish on reprogramming the clock pressing the “T
imer” button.
• After 1 minute of no button pressed the control will accept the programmed clock time and will add one
minute to the set clock.
Gr
ease filter saturation alarm
Grease
Gr
ease Filter
• After thirty fan functional hours, the display will show “Gr
Grease
Filter” if the fan is active.
When this icon is shown in the display, the grease filters installed are required to be washed.
• To reset the grease filter saturation alarm the user must press the “
” button for 5 seconds, after this
Gr
ease filter
filter” is not displayed, and the hood has the normal display operation.
action the icon “Gr
Grease
Char
coal filter saturation alarm (Recir
culating accessories)
Charcoal
(Recirculating
Char
coal Filter
• After one hundred and twenty functional hours of the fan, the display will show “Char
Charcoal
Filter” if the fan
is active. When this icon flashes on display, the charcoal filters installed are required to be replaced or
reactivated.
• To reset the charcoal filter saturation indication the user must press the “
” button for 5 seconds, after
Char
coal filter
Charcoal
filter” is not displayed and the hood has the normal display operation.
this time the icon “Char
Audible signal activation and deactivation
Light
• The audible signals can be activated or deactivated pressing the “Light
Light” button for 5 seconds.
Snd
• If the audible signal is activated, a tone must sound and the “Snd
Snd” symbol must appear on the display for
2 seconds.
Snd
• If the audible signal is deactivated, the “Snd
Snd” symbol must appear on the display for 2 seconds and no
tone must sound.
Char
coal filter inclusion and exclusion (Recir
culating accessories)
Charcoal
(Recirculating
• The charcoal filter inclusion or exclusion can be set by pressing the “
” and “
” buttons at the same
time for 5 seconds.
• The Inclusion or exclusion of charcoal filter must be selected while the lamps and the motor are OFF.
• When the charcoal filter has been excluded, the charcoal filter alarm is disabled.
Heat sensor
• The control is equipped with a heat sensor that will turn on the blower at second speed if excessive heat
occurs (over 158° F or 70°C
70°C) surrounding the control area.
• If the blower is OFF or if it is operating at first speed, the blower will be set automatically to second speed,
CArE
the display shows the word "CArE
CArE" to indicate that heat sensor has detected an excessive heat.
• During this state, the user may raise the blower speed to third speed but can not decrease the speed.
• When the temperature level on the hood drops to normal, the blower will operate in the setting defined by
the user before the alarm occured.
15
16
For Best rresults
esults
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Continuous use of the fan system while cooking helps keep the kitchen comfortable and less humid.
It also reduces cooking odors and soiling moisture that create a frequent need for cleaning.
Turn the blower on before starting to cook.
Use a rear burner when browning or pan frying meat.
Open a window or inside door slightly.
Clean the filters and the wall behind the filters frequently.
e cooking in order to establish air currents upward
The blower should be turned on for a few minutes befor
before
through the hood. Thus when heat, smoke, moisture, grease and cooking odors are produced, they will
be carried outside instead of drifting into other rooms.
Use the low speeds for normal use and the higher speeds for strong odors or fumes.
Drafts across the range or cooktop will cause the escape of heat, smoke, moisture, grease and cooking
odors from the hood. Such drafts should be prevented in so far as possible.
The best job of ventilation in the kitchen is done where the only air currents are those created by the
blower itself.
For Gas Cooktops, a lower blower speed should be used if:
the gas flame is being distorted by the air movement.
the burner continually sparks (clicks)
the burner flame repeatedly blows out.
Care and cleaning
Care and cleaning
The efficiency of the range hood system depends on
the cleanliness of the intake and filters.
The frequency of cleaning depends on the amount
and type of cooking.
• Do not use the ventilating system without the
filters in place or with grease-laden filters or
surfaces.
To avoid risk of fire and explosion do not use
flammable liquids or solvents.
Always unplug or disconnect the appliance from the
power supply before servicing.
Be sure the entire hood (including the filters and light
bulbs) has cooled and grease has solidified before
attempting to clean any part of the appliance.
Lights
Before replacing the lamps, switch power off at
service panel and lock service panel disconnecting
means to prevent power from being switched on
accidentally.
NOTE: T
ur
n of
Tur
urn
offf the lights and fan. Allow the lights
to cool befor
e
before handling. If new lights do not
operate be sur
e lights ar
e inserted corr
ectly befor
e
sure
are
correctly
before
calling service.
Replace Lights
• Remove the inner lamp lens cover by inserting a
small flat blade screwdriver into each of the three
slots and gently prying it free.
NOTE: Do not remove the outer trim ring (lamp
assembly).
Filters
The metal grease filters are made of anodized
aluminum and are long lasting.
To Remove The Metal Gr
ease Filters
Grease
• Turn the fan and lights off.
• Pull the spring release handle.
• Grasp the bulb and pull it straight out.
• Replace with 12 volt, 20 watt halogen bulbs with
a G4 base SUITABLE FOR USE IN OPEN
LUMINAIRES.
ections, wear gloves, do not
Follow package dir
directions,
touch bulb with your bar
e fingers.
bare
Bulb
To Replace The Metal Gr
ease Filters
Grease
• Reverse procedure.
To Clean Filters
• It is recommended that the filters be washed at
least once a month; they can be washed by hand
or in the dishwasher.
• Drain water through edge holes and let each filter
dry thoroughly before replacing it.
• Replace inner cover by inserting the three
retaining tabs into the three slots and pressing
them firmly in place.
17
18
Care and cleaning
Optional Char
coal Filters
Charcoal
If the model is not vented to the outside, the air will be recirculated through disposable charcoal filters that
help remove smoke and odors.
The charcoal filters cannot be cleaned.
They must be replaced.
The charcoal filters are clipped inside of each metal grease filter (mounting instructions included with charcoal
filters kit).
The charcoal filters should be replaced every 4-6 months (depending on hood usage).
NOTE: DO NOT rinse, or put charcoal filters in an automatic dishwasher.
NOTE: Charcoal filters are not included with the hood.
They must be ordered from your supplier.
Order the needed kit specifying your hood model and width size.
Char
coal filter placement (Recir
culating accessories)
Charcoal
(Recirculating
Fit the charcoal filter mattress on the upper side of each grease filter.
Use provided springs to fix it in place.
Note: When removing for replacing for a new one do not remove Fixing Springs, simply pull out one and
rotate outwards.
Cleaning
• Always use the mildest cleaner that will do the
job. Use clean, soft cloths, sponges or paper
towels.
• Rub stainless steel finishes in the direction of the
grain. Wipe area dry to avoid water marks.
• After cleaning, place all parts in their proper
positions before using.
The cleaners recommended below indicate a type
and do not constitute an endorsement. Use all
products according to package directions.
Hood Surface
Painted Surfaces: For general care, wipe the outside
of the hood with sudsy water or household cleaners
such as Fantastic or Formula 409, rinse well and dry
with a clean soft cloth to avoid water marks.
Stainless Steel Surfaces: Wipe and dry stainless
steel in the same direction as the grain. Avoid using
too much pressure, which may mar the surface. To
remove finger prints and give added shine, use
cleaners such as Stainless Steel Magic. Do not allow
any cleaning compounds to remain in contact with
stainless steel for extended periods.
Plastic surfaces: Wipe with a moist soapy sponge.
Rinse and dry.
Aluminum Mesh Filters: Clean filters in the dishwasher or by agitating in sudsy water. Ensure that
there is no soil trapped in the fine mesh. Dry the
filters before reinstalling them.
Anodized Aluminum surfaces: Top cap is not removable. Wash top and underside with hot sudsy water.
Rinse and wipe dry or apply Fantastic® or Formula
409® first to a clean sponge or paper towel and
wipe clean. DO NOT USE powdered cleansers or
steel wool pads.
Warranty Information
WARRANTY
RANGE W
ARRANTY Your range is protected by this warranty
In the U.S.A., your appliance is warranted by Electrolux Home Products North America, a division of White
Consolidated Industries, Inc. We authorize no person to change or add to any of our obligations under this
warranty. Our obligations for service and parts under this warranty must be performed by us or authorized
Electrolux Home Products North America servicer. In Canada
Canada, our appliance is warranted by Electrolux
Canada Corp.
THE CONSUMER WILL BE
WARRANTY THROUGH OUR AUTHORIZED
SERVICERS, WE WILL:
RESPONSIBLE FOR:
PERIOD
FULL ONE-YEAR
WARRANTY
One year from Pay all costs for repairing or replacing any Costs of service calls that are listed
original purchase parts of this appliance which prove to be under NORMAL RESPONSIBILITIES
OF THE CONSUMER.*
date
defective in materials or workmanship.
LIMITED
Time periods
WARRANTY
listed above
(Applicable to
the State of Alaska)
Costs of the technician’s travel to the
All of the provisions of the full and limited
home and any costs for pick up and
warranties above and the exclusions
delivery of the appliance required
listed below apply.
because of service.
This warranty applies only to pr
oducts in or
dinary household use and the consumer is
products
ordinary
*NORMAL
below..
RESPONSIBILITIESresponsible for the items listed below
1. Proper use of the appliance in accordance with instructions provided with the product.
OF THE
2. Proper installation by an authorized servicer in accordance with instructions provided with
CONSUMER
the appliance and in accordance with all local plumbing, electrical and/or gas codes.
3. Proper connection to grounded power supply of sufficient voltage, replacement of blown
fuses, repair of loose connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim,
cupboards, shelves, etc., which are not a part of the appliance when it was shipped from
the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).
EXCLUSIONS
This warranty does not cover the following
following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED
WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential
damages, so this limitation or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or
for appliances not in ordinary household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by servicers other than Electrolux Home
Products North America or its authorized servicers; use of parts other than genuine
Electrolux Home Products parts; obtained from persons other that such servicers; or
external causes such as abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be
readily determined.
IF YOU NEED
SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on
the bill establishes the warranty period should service be required. If service is performed, it
is in your best interest to obtain and keep all receipts. This written warranty gives you
specific legal rights. You may also have other rights that vary from state to state. Service
under this warranty must be obtained by contacting Electrolux Home Products.
This warranty only applies in the 50 states of the U.S.A., Puerto Rico and Canada. Product features or
specifications as described or illustrated are subject to change without notice. All warranties are made by
Electrolux Home Products North America, a division of White Consolidation Industries, Inc. In Canada
Canada, your
appliance is warranted by Electrolux Canada Corp.
USA
1-800-944-9044
Electrolux Home Products
North America
P.O. Box 212378
Augusta, GA 30917
Canada
1-800-265-8352
Electrolux Home Products
North America
802, boul. L’Ange-Gardien
L’Assomption, Quebec J5W 1T6
19
