E:\STR_rev\4184690121\4184690121STRDA5600ESCEL\00COV-
STRDA5600ESCEL\120BCO.fm
120BCO.fm Page 154 Friday, August 27, 2010 11:51 AM
masterpage: Left
E:\STR_rev\4184690121\4184690121STRDA5600ESCEL\00COV-
010COV.fm Page 1 Friday, August 27, 2010 11:14 AM
STRDA5600ESCEL\010COV.fm
Master:
Right

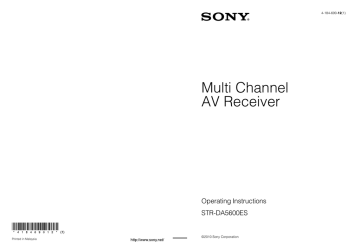

4-184-690-12(1)
Multi Channel
AV Receiver
Printed in Malaysia
STR-DA5600ES
4-184-69012(1)
Operating Instructions
STR-DA5600ES
©2010 Sony Corporation
4-184-69012(1)
STR-DA5600ES
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
To reduce the risk of fire, do not cover the ventilation opening of the apparatus with newspapers, tablecloths, curtains, etc. Do not place the naked flame sources such as lighted candles on the apparatus.
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus.
As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible
AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.
Do not expose batteries or apparatus with batteryinstalled to excessive heat such as sunshine, fire or the like.
The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.
Excessive sound pressure from earphones and headphones can cause hearing loss.
This symbol is intended to alert the user to the presence of the Hot
Surface that may be hot if it is touched during the normal operation.
This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection cable shorter than 3 meters.
For customers in the United
States and Canada
This symbol is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
For customers in the United
States
Owner’s Record
The model and serial numbers are located on the rear of the unit. Record these numbers in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.
Model No. Serial No.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11)Only use attachments/accessories specified by the manufacturer.
2
GB
12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13)Unplug this apparatus during lightning storms or when unused for long periods of time.
14)Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
To reduce the risk of electric shock, the speaker cord should be connected to the apparatus and the speakers in accordance with the following instructions.
1) Disconnect the AC power cord from the MAINS.
2) Strip 10 to 15 mm of the wire insulation of the speaker cord.
3) Connect the speaker cord to the apparatus and the speakers carefully so as not to touch the core of speaker cord by hand. Also disconnect the AC power cord from the MAINS before disconnecting the speaker cord from the apparatus and the speakers.
The following FCC statement applies only to the version of this model manufactured for sale in the U.S.A. Other versions may not comply with
FCC technical regulations.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
For customers in Europe
Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-
0075 Japan. The Authorized Representative for
EMC and product safety is Sony Deutschland
GmbH, Hedelfinger Strasse 61, 70327 Stuttgart,
Germany. For any service or guarantee matters, please refer to the addresses given in separate service or guarantee documents.
Disposal of Old
Electrical & Electronic
Equipment (Applicable in the European Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local
continued
3
GB
Civic Office, your household waste disposal service or the shop where you purchased the product.
Applicable Accessory: IR Blaster
Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)
This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
About This Manual
• The instructions in this manual are for model
STR-DA5600ES (the receiver). Check your model number by looking at the lower right corner of the front panel.
• In this manual, the USA/Canadian model is used for illustration purpose unless stated otherwise.
Any differences in operation are clearly indicated in the text, for example, “European model only.”
• The instructions in this manual describe mostly the controls on the supplied simple remote. You can also use the controls on the receiver if they have the same or similar names as those on the remote.
On Copyrights
This receiver incorporates Dolby* Digital and Pro
Logic Surround and the DTS** Digital Surround
System.
* Manufactured under license from Dolby
Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.
** Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,226,616; 6,487,535; 7,212,872; 7,333,929;
7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-
HD, DTS-HD Master Audio, and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
This receiver incorporates High-Definition
Multimedia Interface (HDMI™) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
SIRIUS, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All rights reserved. Service not
available in Alaska and Hawaii.
4
GB
The font type (Shin Go R) installed in this receiver is provided by MORISAWA & COMPANY LTD.
These names are the trademarks of MORISAWA &
COMPANY LTD., and the copyright of the font also belongs to MORISAWA & COMPANY LTD.
iPod is a trademark of Apple Inc., registered in the
U.S. and other countries.
All other trademarks and registered trademarks are of their respective holders. In this manual, ™ and ® marks are not specified.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license.
Other trademarks and trade names are those of their respective owners.
DLNA and DLNA CERTIFIED are trademarks and/ or service marks of the Digital Living Network
Alliance.
Microsoft, Windows, Windows Vista, and Windows
Media are trademarks or registered trademarks of
Microsoft Corporation in the United States and/or other countries.
Intel, Intel Core, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
Rhapsody and the Rhapsody logo are trademarks and/or registered trademarks of RealNetworks, Inc.
SHOUTcast
®
is a registered trademark of AOL
LLC.
THIS PRODUCT IS LICENSED UNDER THE
VC-1 PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL USE OF
A CONSUMER TO
(i) ENCODE VIDEO IN COMPLIANCE WITH
THE VC-1 STANDARD (“VC-1 VIDEO”)
AND/OR
(ii) DECODE VC-1 VIDEO THAT WAS
ENCODED BY A CONSUMER ENGAGED IN A
PERSONAL AND NON-COMMERCIAL
ACTIVITY AND/OR WAS OBTAINED FROM A
VIDEO PROVIDER LICENSED TO PROVIDE
VC-1 VIDEO.
NO LICENSE IS GRANTED OR SHALL BE
IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM
MPEG LA, L.L.C. SEE HTTP://
WWW.MPEGLA.COM
MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
“BRAVIA” Sync is a trademark of Sony
Corporation.
VAIO is a trademark of Sony Corporation.
“x.v.Color (x.v.Colour)” and “x.v.Color
(x.v.Colour)” logo are trademarks of Sony
Corporation.
“PlayStation
®
” is a registered trademark of Sony
Computer Entertainment Inc.
5
GB
Table of Contents
Description and location of parts ..................8
Getting Started
1: Installing speakers ..................................21
2: Connecting the monitor ..........................25
3: Connecting the video components .........26
4: Connecting the audio components .........35
5: Connecting the IR Blaster ......................39
6: Connecting the antennas (aerials) ...........40
7: Connecting to the network .....................41
8: Preparing the receiver and the remote ....43
9: Setting the speakers ................................44
10: Calibrating the appropriate speaker settings automatically
(Auto Calibration) .................................47
12: Preparing a computer to use as a server .....................................................53
Guide to on-screen display operation .........55
Selecting a channel of the satellite radio ... 69
Presetting satellite radio channels .............. 70
Restricting access to specific channels
(Parental Lock) ..................................... 71
Enjoying Surround Sound
Playing back with 2-channel sound ........... 74
Playing back with multi-channel surround ................................................ 75
Enjoying a surround effect for music ......... 76
Enjoying a surround effect for movies ....... 78
Using Network Features
About the network functions of the receiver .................................................. 81
Enjoying content stored on the server ........ 82
Using a controller ....................................... 87
Listening to Rhapsody ............................... 88
Listening to SHOUTcast ............................ 91
Playback
Enjoying sound/images from the component connected to the receiver .......................58
Enjoying sound/images from the components connected to the DIGITAL MEDIA
PORT .....................................................60
Operating the TDM-iP50 using the GUI menu of the receiver ........................................61
Using Multi-zone Features
What you can do with the Multi-zone function ................................................. 94
Making a multi-zone connection ............... 94
Setting the speakers in zone 2 .................... 98
Switching the zone setting of the remote ... 99
Operating the receiver from another zone
(ZONE 2/ZONE 3 operations) .............. 99
Tuning
Listening to FM/AM radio .........................64
Presetting FM/AM radio stations ...............66
(USA/Canadian model only) .................67
Connecting a satellite radio tuner ...............68
Preparing to listen to a satellite radio .........68
6
GB
Using Other Features
Using “BRAVIA” Sync features .............. 102
Outputting the HDMI signals even when the receiver is in standby mode
(Pass Through) .................................... 105
Switching between digital and analog audio .................................................... 106
Enjoying the sound/images from other inputs
(Input Assign) ..................................... 107
Using the sleep timer ................................ 109
Enjoying the surround effect at low volume levels (Night Mode) ............................ 109
Recording using the receiver .................... 110
Switching the command mode of the receiver and the remote ..................................... 111
Using a bi-amplifier connection ............... 112
Setting remote control codes that are not stored in Quick Click ...........................150
Resetting the remote code for Quick
Click ....................................................151
Operating Each Component
Using the Multifunction
Remote
Operating each component using the multifunction remote ...........................152
Programming the remote ..........................153
Performing several commands in sequence automatically (Macro Play) .................157
Setting remote commander codes that are not stored in the remote .............................158
Clearing all the contents of the remote’s memory ................................................160
Adjusting Settings
Using the setting menu ............................. 114
Auto Calibration ....................................... 115
Speaker settings ........................................ 118
Surround settings ...................................... 122
EQ settings ............................................... 123
Multi Zone settings .................................. 124
Audio settings .......................................... 125
Video settings ........................................... 127
HDMI settings .......................................... 129
Network settings ...................................... 131
Quick Click settings ................................. 133
System settings ......................................... 134
Operating without connecting to a TV ..... 135
Additional Information
Precautions ...............................................161
Troubleshooting ........................................162
Specifications ...........................................169
Index .........................................................174
Operating Each Component
Using the On-screen Remote
(Quick Click)
Operating components or lighting connected to the receiver using the on-screen remote
(Quick Click) ...................................... 142
Using Quick Click .................................... 143
Setting components that are operated by the on-screen remote ................................. 148
Performing several commands in sequence automatically with Quick Click
(Macro Play) ....................................... 148
7
GB
Description and location of parts
Front panel
To remove the cover
Press PUSH.
When you remove the cover, keep it out of reach from children.
To open the cover
Slide the cover to the left.
A ?/1 (on/standby)
Press to turn the receiver on or off. When the power is on, the lamp above the button lights up in green.
Saving the power in standby mode.
When “Control for HDMI” (page 129),
“Server Function” (page 132), “Network
Standby” (page 133), and “RS232C
Control” (page 134) are set to “OFF,” and
the power for zone 2/zone 3 is turned off.
If “Control for HDMI,” “Server
Function,” or “Network Standby” is set to
“ON,” “A.STNDBY” appears in the display window of the receiver while the receiver is in standby mode. The top of the receiver may become hot. This condition occurs because current is flowing in the internal circuits of the receiver. This is not a malfunction.
B TONE MODE, TONE
Adjusts FRONT, CENTER,
SURROUND/SURROUND BACK,
FRONT HIGH BASS and TREBLE.
Press TONE MODE repeatedly to select
BASS or TREBLE, then turn TONE to adjust the level.
C MEMORY/ENTER, TUNING MODE,
TUNING
Press to operate a tuner (FM/AM) and satellite radio (SIRIUS) (USA/Canadian model only).
D Remote sensor
Receives signals from remote commander.
8
GB
E DIMMER
Press repeatedly to adjust brightness of the display window.
F DISPLAY
Press repeatedly to select information displayed on the display.
I 2CH/A.DIRECT, A.F.D., MOVIE/
HD-D.C.S., MUSIC (page 74, 75, 76,
J HD Digital Cinema Sound lamp
Lights up when a sound field with HD-
D.C.S. is selected.
K ZONE/SELECT, POWER (page 94)
Press SELECT repeatedly to select zone
2, zone 3 or main zone. Each time you press POWER, the output signals for the selected zone will be turned on or off.
Press to select the input signal from the component connected to the HDMI IN jacks.
N PHONES jack
Connects to headphones.
O SPEAKERS (A/B/A+B/OFF)
R MULTI CHANNEL DECODING lamp
Lights up when multi-channel audio signals are decoded.
S INPUT SELECTOR
Turn to select the input source to play back.
To select the input source for zone 2 or zone 3, press ZONE SELECT (qa) to select zone 2 or zone 3 first (“ZONE 2
[input name]” or “ZONE 3 [input name]” appears on the display window), then turn
INPUT SELECTOR to select the input source.
T MASTER VOLUME
Turn to adjust the volume level of all speakers at the same time.
continued
9
GB
Indicators on the display
A SW
Lights up when subwoofer is connected and the audio signal is output from the
SUBWOOFER jack.
B Playback channel indicators
The letters (L, C, R, etc.) indicate the channels being played back. The boxes around the letters vary to show how the receiver downmixes the source sound
(based on the speaker settings).
L
Front Left
R
Front Right
C
Center (monaural)
LH
Left High
RH
Right High
SL
Surround Left
SR
Surround Right
S
Surround (monaural or the surround components obtained by Pro Logic processing)
SBL
Surround Back Left
10
GB
SBR
Surround Back Right
SB
Surround Back (the surround back components obtained by 6.1 channel decoding)
Example:
Recording format (Front/Surround): 3/2.1
Output channel: Surround speakers are set to “NO.”
Sound Field: A.F.D. Auto
C INPUT indicators
Light up to indicate the current input.
AUTO
Lights up with the corresponding indicators that indicate the current input when INPUT MODE is set to “Auto.”
HDMI
The receiver recognizes a component connected via an HDMI IN jack.
COAX
Digital signal is input through the
COAXIAL jack.
OPT
Digital signal is input through the
OPTICAL jack.
MULTI
The multi-channel input is selected.
TV input is selected and the Audio Return
Channel (ARC) signals are detected.
Lights up when the signals are output from the HDMI OUT A or B jack. + also lights up, along with A and B when the signals are output from both jacks.
E SLEEP
Lights up when the sleep timer is activated.
F MEMORY
A memory function, such as Name Input, etc., is activated.
G ZONE 2/ZONE 3
Lights up while operation in zone 2/zone
3 is being enabled.
Lights up when the server function is activated.
I L.F.E.
Lights up when the disc being played back contains an L.F.E. (Low Frequency
Effects) channel. The L.F.E. channel signal is actually being reproduced, the bars underneath the letters light up to indicate the level.
K BI-AMP
Lights up when surround back speakers selection is set to “BI-AMP.”
L D.C.A.C.
Lights up when auto calibration is performed.
M D.L.L.
Lights up when the D.L.L. (Digital
Legato Linear) function is activated.
N H.A.T.S.
Lights up when the H.A.T.S. (High quality digital Audio Transmission
System) function is activated.
O Tuning indicators
Lights up when the receiver tunes in radio stations, or satellite radio stations.
SIRIUS (USA/Canadian model only)
The SiriusConnect Home tuner is connected and “SIRIUS” is selected.
ST
Stereo broadcast
MONO
Monaural broadcast
RDS (European model only)
RDS information is received.
CAT (USA/Canadian model only)
The category mode is selected during the satellite radio operation.
PRESET
The tuning mode is set to the preset mode.
P VOLUME
Displays the current volume.
Q D.RANGE
Lights up when dynamic range compression is activated.
R Dolby Digital Surround indicators
Lights up one of the respective indicators when the receiver is decoding the corresponding Dolby Digital format signals.
;D
Dolby Digital
;D+
Dolby Digital Plus
;D EX
Dolby Digital Surround EX
Note
When playing a Dolby Digital format disc, be sure that you have made digital connections and that INPUT MODE is not set to “Analog.”
S DTS-HD indicators
Light up when the receiver is decoding
DTS-HD.
DTS-HD
Lights up constantly with the one of the following indicators.
MSTR
DTS-HD Master Audio
HI RES
DTS-HD High Resolution Audio
continued
11
GB
T ;TrueHD
Lights up when the receiver is decoding
Dolby TrueHD.
U Dolby Pro Logic indicators
Lights up one of the respective indicators when the receiver performs Dolby Pro
Logic processing. This matrix surround decoding technology can enhance input signals.
;PL
Dolby Pro Logic
;PLII
Dolby Pro Logic II
;PLIIx
Dolby Pro Logic IIx
;PLIIz
Dolby Pro Logic IIz
Note
This indicator does not light when either the center speaker and surround speaker is not connected.
Lights up when the A.P.M. (Automatic
Phase Matching) function is activated.
W EQ
Lights up when the equalizer is activated.
X L-PCM
Lights up when Linear PCM (Pulse Code
Modulation) signals are input.
Y DSD
Lights up when the receiver is receiving
DSD (Direct Stream Digital) signals.
Z DTS(-ES) indicators
Light up when DTS or DTS-ES signals are input.
DTS
Lights up when the receiver is decoding
DTS signals. Either 96/24 or NEO:6 also lights up depending on the input signal format or decoding format.
DTS-ES
Lights up with the either following indicator depending on the input signal decoding format.
96/24
DTS 96/24 (96 kHz/24 bit) decoding
12
GB
DISCRETE
DTS-ES Discrete 6.1
MATRIX
DTS-ES Matrix 6.1
NEO:6
DTS Neo:6 Cinema/Music
Note
When playing a DTS format disc, be sure that you have made digital connections and that
INPUT MODE is not set to “Analog.”
Rear panel
A DIGITAL INPUT/OUTPUT section
OPTICAL IN/OUT jacks
COAXIAL IN jacks
HDMI IN/OUT* jacks
B Control jacks for Sony equipment
and other external components
IR REMOTE IN/OUT
TRIGGER OUT jacks
Connect to interlock on/off of the power supply of other 12V TRIGGER compliant components, or the amplifier/receiver of zone 2 or zone 3.
D LAN ports (switching hubs)
E VIDEO/AUDIO INPUT/OUTPUT
AUDIO IN/OUT jacks
VIDEO IN/OUT* jacks
AUDIO OUT jacks
VIDEO OUT jack
EXT VIDEO IN jack
Connects to the component when you want to watch in PIP (Picture in Picture) window.
continued
13
GB
ZONE 2 VIDEO OUT jack
(USA/Canadian model
An RJ-45 jack used to send a video signal to the component in zone 2. Use a CAT5 cable for the connection. Used for custom installation. For information on how to use this jack, consult your dealer.
Attention
Do not use this jack for an Ethernet LAN connection. Doing so may cause a malfunction.
F COMPONENT VIDEO INPUT/
I AUDIO INPUT/OUTPUT section
AUDIO IN/OUT jacks
MULTI CHANNEL INPUT
PRE OUT jacks
Connect to an external power amplifier.
Y, P
B
, P
R
IN/OUT* jacks
* You can watch the selected input image when you connect the HDMI OUT or MONITOR OUT jacks
G ANTENNA section
FM ANTENNA jack
AM ANTENNA jack
SIRIUS jack (USA/
Canadian model only)
H RS232C port
Used for maintenance and service.
14
GB
Remote commander
You can use the supplied remote to operate the receiver and to control the Sony audio/video components that the remote is assigned to operate.
Simple remote commander
(RM-AAU061)
This remote can only be used to operate the receiver. You can control the main functions of the receiver with simple operations using this remote.
G DMPORT/NETWORK, N, x,
H INPUT SELECTOR
Press to select the input source to play back.
L DISPLAY
Press repeatedly to select information displayed on the display.
A ?/1 (on/standby)
Press to turn a receiver on or off.
B 2CH/A.DIRECT, A.F.D., MOVIE,
D
V/v/B/b
Press
V/v/B/b to select the menu item.
Then press to enter the selection.
continued
15
GB
Multifunction remote commander
(RM-AAL031/RM-AAL032)
The RM-AAL031 remote is supplied with the
USA/Canadian model only and RM-AAL032 is supplied with the European model only. The
RM-AAL031 remote is used for illustration purpose. Any differences in operation are clearly indicated in the text, for example,
“USA/Canadian model only.”
A AV ?/1 (on/standby)
Press to turn on or off the audio/video components that the remote is assigned to
If you press ?/1 (2) at the same time, it will turn off the receiver and all other components including an amplifier in zone 2 or zone 3 (SYSTEM STANDBY).
Note
The function of the AV ?/1 switch changes automatically each time you press the input button (5).
B ?/1 (on/standby)
Press to turn the receiver on or off.
If you press ZONE (3) to switch the remote to zone 2 (zone 3) mode, you can turn the power for zone 2 (zone 3) on or off using ?/1.
D AMP
Press to enable the receiver operation for main zone.
E Input buttons
Press one of the buttons to select the component you want to use. When you press any of the input buttons, the receiver turns on. The buttons are factory assigned
to control Sony components (page 58).
You can program the remote to control non-Sony components following the steps
in “Programming the remote” (page 153).
F TV INPUT
Press TV (ws), then press TV INPUT to select the input signal of a TV.
(Input select) (European model only)
Selects the input signal (TV or video).
(Text hold) (European model only)
In text mode: Holds the current page.
G GUIDE (
(Guide) for European model)
Press SHIFT (wd), then press GUIDE to display the on-screen program guide.
16
GB
Press SHIFT (wd), then press to enter direct tuning mode.
I MEMORY
Press SHIFT (wd), then press MEMORY to enter the Memory mode of the tuner.
/ (Text) (European model only)
Press SHIFT (wd), then press / (Text) to display text information.
J ENTER
Press SHIFT (wd), then press ENTER to enter the value after selecting a channel, disc, or track using the numeric buttons, or to store a station during tuner operation.
K SOUND FIELD +/– (page 74, 75, 76,
Select a sound field.
L Color buttons
Display an operation guide on the TV screen when the color buttons are available. Follow the operation guide to perform a selected operation.
N
V/v/B/b
Press
V/v/B/b to select the menu items.
Then press to enter the selection.
O TOOLS/OPTIONS
Press to display and select items from option menus for receiver, DVD player,
TV, or Blu-ray Disc Player, etc.
P MENU, HOME
Press to display the menu used to operate audio/video components or a TV.
Q m/M
1)
./>
, x
1)
1)
, X
1)
, N
1) 2)
,
Press to operate the DVD player, Blu-ray
Disc Player, CD player, MD deck, tape deck, or component connected to the
DIGITAL MEDIA PORT adapter etc.
CATEGORY MODE (USA/Canadian model only)
Press to select the category mode for satellite tuner.
TUNING +/–
Press to select station.
R PRESET +
2)
/–
Press to select preset stations.
TV CH +
2)
/– (PROG +
2)
/– for
European model)
Press TV (ws), then press TV CH +/– to operate the TV, satellite tuner, VCR, etc.
c
2)
/C (European model only)
In text mode: Selects the next or previous page.
S F1/F2
Press BD or DVD (5), then press F1 or
F2 to select a component to operate.
HDD/DISC combo
F1: HDD
F2: DVD disc, Blu-ray Disc
DVD/VCR combo
F1: DVD disc, Blu-ray Disc
F2: VCR
Press AMP (4), then press SLEEP to activate the sleep timer function.
U THEATER (THEATRE for European
model)
Press to turn the Theater Mode on and off when connecting the receiver to products featuring “BRAVIA” Sync.
V TV
Press to enable the TV operation.
W SHIFT
Press to light up the button. It changes the remote button function to activate the buttons with pink printing.
continued
17
GB
X Numeric buttons
Press SHIFT (wd), then press to
– preset/tune to preset stations.
– select track numbers of the CD player,
DVD player, Blu-ray Disc Player or
MD deck. Press -/-- (wg) to select track number 10.
– select channel numbers of the VCR or satellite tuner.
– After pressing TV (ws), press the numeric buttons to select the TV channels.
Y -/--
Press to
– select track numbers over 10 of the CD player, DVD player, Blu-ray Disc
Player, or MD deck.
– select channel numbers over 10 of the
TV, Satellite tuner or the VCR.
Z PIP
Press SHIFT (wd), then press PIP to switch the image of the PIP (Picture in
Picture) window. The image of the PIP window is the one from the EXT VIDEO
IN jack or the one to the zone 2. You can swap the position of the main screen and the PIP window by pressing (qf).
Note
When the HDMI input is selected on the main screen, you cannot swap the position of the main screen and the PIP window.
wl DISPLAY
Press repeatedly to select information displayed on the display.
, (Info, Text reveal)
(European model only)
Displays information such as current channel number and screen mode.
In text mode: Reveals hidden information
(e.g., answers to a quiz).
e; RETURN/EXIT O
Press to return to the previous menu or exit the menu while the menu or on-screen guide of the Blu-ray Disc
Player, DVD player, or satellite tuner is displayed on the TV screen.
ea CATEGORY +/– (USA/Canadian
model only)
Press to select the category for satellite tuner.
B·/·b
Press to select an album.
es DISC SKIP
Press to skip a disc when using a multidisc changer.
ed MASTER VOL +/– (
+/– for
European model)
Press to adjust the volume level of all speakers at the same time.
TV VOL +/– ( +/– for European model)
Press TV (ws), then press TV VOL +/– to adjust the volume level of the TV.
ef MUTING (
(Muting) for European model)
Press to turn off the sound temporarily.
Press the button again to restore the sound.
eg BD/DVD/TOP MENU, MENU
Press to display the menus of the DVD player on the TV screen. Then use V/v/B/ b and to perform a menu operations.
Press AMP (4), then press MACRO 1 or
MACRO 2 to set up the macro function.
1)
See the table on page 152 for information on the
buttons that you can use to control each
2) component.
The tactile dot is attached to these buttons
(VIDEO 2/5, N, PRESET +/TV CH + (PROG + for European model), c (European model only)).
Use as a mark of operation.
18
GB
Notes
• Some functions explained in this section may not work depending on the model.
• The above explanation is intended to serve as an example only. Therefore, depending on the component, the above operation may not be possible or may operate differently than described.
19
GB
Getting Started
Checking the connection appropriate for your components
If the warning label is stuck on the top of the receiver, be sure to remove the paper before you use the receiver.
Installing Speakers
See “1: Installing speakers” (page 21).
Connecting the monitor and video components
The image quality depends on the connecting jack. See the illustration on the right. Select the connection according to the jacks on your components.
Q: Does your monitor have an HDMI jack?
t No: See the connection for a TV monitor
without an HDMI jack in “2: Connecting
the monitor” (page 25) and “Connecting components without HDMI jacks”
t Yes: See the connection for the TV monitor with
HDMI jack in “2: Connecting the monitor”
v
Digital Analog
High quality image
Q: Does your video component have an HDMI jack?
t No: See “Connecting components without HDMI jacks” (page 29).
t Yes: See “Connecting components with HDMI jacks” (page 26).
Connecting the audio components
v
See “4: Connecting the audio components” (page 35).
v
Setting the audio output settings on the connected components
To output multi-channel digital audio, check the digital audio output setting on the connected components.
For a Blu-ray Disc Player, check that “Audio (HDMI),” “Dolby Digital (Coaxial/Optical),” and “DTS (Coaxial/Optical)” are set to “Auto,” “Dolby Digital,” and “DTS,” respectively (as of March 2010).
For a PlayStation 3, check that “BD Audio Output Format” is set to “Bitstream” (with system software version 3.15).
For details, refer to the operating instructions supplied with the connected components.
v
Preparing the receiver and the remote
See “8: Preparing the receiver and the remote” (page 43).
v
Setting the speakers
Calibrating the appropriate speaker settings automatically (Auto Calibration)” (page 47).
Note
connection and make the settings explained above, again.
20
GB
1: Installing speakers
This receiver allows you to use a 7.1 channel system (7 speakers and one subwoofer).
Examples of speaker system configuration
5.1 channel speaker system
To fully enjoy theater-like multi-channel surround sound requires five speakers (two front speakers, a center speaker, and two surround speakers) and a subwoofer (5.1 channel system).
AFront left speaker
BFront right speaker
CCenter speaker
DSurround left speaker
ESurround right speaker
JSubwoofer
7.1 channel speaker system using surround back speakers
You can enjoy high fidelity reproduction of
DVD or Blu-ray Disc software recorded sound in 6.1 channel or 7.1 channel format if you connect one additional surround back speaker
(6.1 channel system) or two surround back speakers (7.1 channel system).
AFront left speaker
BFront right speaker
CCenter speaker
DSurround left speaker
ESurround right speaker
FSurround back left speaker
GSurround back right speaker
JSubwoofer
7.1 channel speaker system using front high speakers
You can enjoy vertical sound effects (e.g., Pro
Logic IIz mode) if you connect additional two front high speakers.
AFront left speaker
BFront right speaker
CCenter speaker
DSurround left speaker
ESurround right speaker
HLeft high speaker
IRight high speaker
JSubwoofer
continued
21
GB
Tips
• The angle A should be the same.
• When you connect a 6.1 channel speaker system, place the surround back speaker behind the seating position.
• Since the subwoofer does not emit highly directional signals, you can place it wherever you want.
22
GB
Connecting speakers
Before connecting cords, make sure to disconnect the AC power cord (mains lead).
A B B
FRONT B/FRONT
HIGH terminals
1)
B B B
A
Monaural audio cord (not supplied)
B
Speaker cords (not supplied)
AFront speaker A (L)
BFront speaker A (R)
CCenter speaker
DSurround speaker (L)
ESurround speaker (R)
FSurround back speaker (L)
2) 4)
GSurround back speaker (R)
2) 4)
HFront high speaker (L)
3) 4)
IFront high speaker (R)
3) 4)
JSubwoofer
5)
1)
If you have an additional front speaker system, connect them to the FRONT B/
FRONT HIGH terminals. You can select the front speaker system you want to use with
SPEAKERS on the front panel (page 46).
2)
If you connect only one surround back speaker, connect it to the SURROUND
BACK/ZONE 2 L terminals.
3)
If you use front high speakers, connect them to the FRONT B/FRONT HIGH terminals.
4)
You can connect both the surround back speakers and the front high speakers.
However, sound cannot be output from the surround back speakers and the front high speakers simultaneously.
continued
23
GB
When you select “PLIIz Height” as the sound field, or the digital input signal contains signals for the front high channels, sound is output from the front high speakers.
In other cases, sound is output from the surround back speakers.
If you always want to output sound from the front high speakers, set the speaker pattern so that there are no surround back speakers
5)
When you connect a subwoofer with an auto standby function, turn off the function when watching movies. If the auto standby function of the subwoofer is set to on, it goes into standby automatically based on the level of the input signal to a subwoofer, then sound may not be output.
Notes
• When you connect all the speakers with a nominal impedance of 8 ohms or higher, set “Impedance” in the Speaker settings menu to “8
Ω.” In other connections, set it to “4
Setting the speakers” (page 44).
• Before connecting the AC power cord (mains lead), make sure that metallic wires of the speaker cords are not touching each other between the
SPEAKERS terminals.
Tips
• You can loosen or tighten the SPEAKERS terminal easily using the supplied speaker cord connection tool.
ZONE 2 connection
You can assign the SURROUND BACK/
ZONE 2 terminals F and G to the speakers of the zone 2. Set “Sur Back Assign” to
“ZONE2” in the Speaker settings menu.
See “Using Multi-zone Features” (page 94)
for details on connection and operation in zone 2.
Note
If the speaker pattern is set so that there are surround back speakers or front high speakers, you cannot use the speakers of the zone 2 as intended.
Loosen
Tighten
Speaker cord connection tool
• To connect certain speakers to another power amplifier, use the PRE OUT jacks. The same signal is output from both the SPEAKERS terminals and the PRE OUT jacks. For example, if you want to connect just the front speakers to another amplifier, connect that amplifier to the PRE OUT FRONT L and R jacks.
24
GB
2: Connecting the monitor
You can watch the selected input image when you connect the HDMI OUT or MONITOR OUT jacks to a TV. You can operate this receiver using a GUI (Graphical User Interface).
Audio signals
TV monitor with an HDMI jack
Video signals
** *
A E
A B C D
Audio signals Video signals or or
TV monitor without an HDMI jack
A Optical digital cord (not supplied)
B
Audio cord (not supplied)
C
Video cord (not supplied)
D Component video cord (not supplied)
E
HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
continued
25
GB
* If your TV is compatible with the Audio Return
Channel (ARC) function, the TV sound will output from the speakers connected to the receiver via the HDMI OUT A jack. In this case, set “Control for HDMI” to “ON” in HDMI
settings menu (page 129). If you want to select
an audio signal using other than an HDMI cable
(e.g., via an optical digital cord or an audio cord), switch the audio input mode using INPUT
** If you connect the receiver to the ARC compatible TV’s HDMI jack via an HDMI cable, you do not need to connect the TV to the receiver with the digital optical cord.
To enjoy TV multi channel surround sound broadcasting
You can listen to TV multi channel surround sound broadcasting from the speakers connected to the receiver.
Connect the OPTICAL output jack of the TV to the OPTICAL IN jack of the receiver, or connect the HDMI input jack of the TV compatible with the Audio Return Channel
(ARC) function to the HDMI OUT A jack of the receiver.
Notes
• Before connecting cords, make sure to disconnect the AC power cord (mains lead).
• Connect image display components such as a TV monitor or a projector to the MONITOR VIDEO
OUT jack on the receiver. You may not be able to record, even if you connect recording components.
• Turn on the receiver when the video and audio of a playback component are being output to a TV via the receiver. If the power supply of the receiver is not turned on, neither video nor audio is transmitted.
• Depending on the status of the connection between the TV and the antenna (aerial), the image on the
TV screen may be distorted. In this case, place the antenna (aerial) farther away from the receiver.
Tips
• The receiver has a video conversion function. For
details, see “Notes on converting video signals”
• The sound of the TV is output from the speakers connected to the receiver if you connect the audio output jack of the TV and the TV IN jacks of the receiver. In this configuration, set the sound output
26
GB
jack of the TV to “Fixed” if it can be switched between either “Fixed” or “Variable.”
3: Connecting the video components
Connecting components with
HDMI jacks
HDMI is the abbreviated name for High-
Definition Multimedia Interface. It is an interface which transmits video and audio signals in digital format.
HDMI features
• A digital audio signals transmitted by HDMI can be output from the speakers and the PRE
OUT jacks on this receiver. This signal supports Dolby Digital, DTS, DSD, and
Linear PCM. For details, see “Digital audio formats supported by the receiver”
• Analog video signals input to the VIDEO jack, or COMPONENT VIDEO jacks can be output as HDMI signals. Audio signals are not output from the HDMI OUT jacks when the image is converted.
• This receiver supports High Bitrate Audio
(DTS-HD Master Audio, Dolby TrueHD),
Deep Color (Deep Colour), x.v.Color
(x.v.Colour) and 3D transmission.
• The HDMI jacks of this receiver support the
Control for HDMI function. The HDMI
OUT B jack, however, does not support the
Control for HDMI function.
DVD player, Blu-ray Disc Player, PlayStation 3, Hard disk recorder, Satellite tuner/Cable box, etc.
Audio/video signals
A
*
Camcorder
Audio/video signals
A
HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
A
* You can connect any components with HDMI output jacks to the HDMI IN jacks of the receiver.
However, HDMI IN 4 and IN 5 are inputs which take sound quality into account.
continued
27
GB
Tip
You can watch the image of the camcorder easily with connecting your camcorder to the HDMI IN 1,
IN 2, and IN 6 jacks (page 103).
Notes on connecting cables
• Use a High Speed HDMI cable. If you use a
Standard HDMI cable, 1080p, Deep Color, or 3D images may not be displayed properly.
• Sony recommends that you use an HDMIauthorized cable or Sony HDMI cable.
• We do not recommend using an HDMI-DVI conversion cable. When you connect an
HDMI-DVI conversion cable to a DVI-D component, the sound and/or the image may not be output. Connect other audio cords or digital connecting cords, then set “Input
Assign” in the Input Option menu when the sound is not output correctly.
• Before connecting cables, make sure to disconnect the AC power cord (mains lead).
Notes on HDMI connections
• An audio signal input to the HDMI IN jack is output from the speaker output jacks,
PHONES jack, HDMI OUT jack and PRE
OUT jacks. It is not output from any other audio jacks.
• A video signal input to the HDMI IN jack can only be output from the HDMI OUT jack. The video input cannot be output from the VIDEO OUT jacks or MONITOR
VIDEO OUT jacks.
• When you want to listen to the sound from the TV speaker, set “Audio Out” to
“TV+AMP” in the HDMI settings menu. If set to “AMP,” the sound is not output from the TV speaker. If you output the multichannel sound from the receiver, set to
“AMP.”
• Be sure to turn on the receiver when video and audio signals of a playback component are being output to a TV through this receiver. If you set “Pass Through” to
“OFF,” unless the power is on, neither video nor audio signals will be transmitted.
• Audio signals (format, sampling frequency, bit length, etc.) transmitted from an HDMI jack may be suppressed by the connected component. Check the setup of the connected component if an image is poor or the sound does not come out of a component connected via the HDMI cable.
• Sound may be interrupted when the sampling frequency, the number of channels or audio format of audio output signals from the playback component is switched.
• When the connected component is not compatible with copyright protection technology (HDCP), the image and/or the sound from the HDMI OUT jack may be distorted or may not be output.
In this case, check the specification of the connected component.
• Set the image resolution of the player to more than 720p/1080i to enjoy High Bitrate
Audio (DTS-HD Master Audio, Dolby
TrueHD).
• The image resolution of player may need certain settings be made before you can enjoy DSD and multi-channel Linear PCM.
Refer to the operating instructions of the player.
• You can enjoy High Bitrate Audio (DTS-HD
Master Audio, Dolby TrueHD), DSD, and multi-channel Linear PCM with an HDMI connection only.
• To enjoy 3D images, connect 3D-compatible
TV and video components (Blu-ray Disc
Player, Blu-ray Disc recorder, PlayStation 3, etc.) to the receiver using High Speed HDMI cables, put on 3D glasses, and then play back a 3D-compatible content.
• Not every HDMI component supports all functions that are defined by the specified
HDMI version. For example, components that support HDMI, ver. 1.3a, may not support Deep Color.
• Refer to the operating instructions of each component connected for details.
28
GB
Connecting components without HDMI jacks
To connect a DVD player, Blu-ray Disc Player
DVD player, Blu-ray Disc Player
Audio signals Video signals or or or or
A B
C D E
*
C
A
Optical digital cord (not supplied)
B
Coaxial digital cord (not supplied)
C
Audio cord (not supplied)
D Video cord (not supplied)
E
Component video cord (not supplied)
F
F
Monaural audio cord (not supplied)
* When you connect a component equipped with an
OPTICAL jack, set “Input Assign” in the Input
continued
29
GB
Notes
• To output multi-channel digital audio, set the digital audio output setting on the DVD player,
Blu-ray Disc Player. Refer to the operating instructions supplied with the DVD player, Blu-ray
Disc Player.
• DVD player and Blu-ray Disc Player may not have the SURROUND BACK jacks.
• Before connecting cords, make sure to disconnect the AC power cord (mains lead).
30
GB
To connect a satellite tuner, cable box
Audio signals
Satellite tuner, Cable box
Video signals or or
A B C D
A
Optical digital cord (not supplied)
B Audio cord (not supplied)
C
Video cord (not supplied)
D
Component video cord (not supplied)
Note
Before connecting cords, make sure to disconnect the AC power cord (mains lead).
continued
31
GB
To connect a DVD recorder, VCR
Audio signals
DVD recorder, VCR
Video signals
A B
A
Audio cord (not supplied)
B
Video cord (not supplied)
32
GB
To connect a camcorder, video game
To the VIDEO 2 IN jacks
C
Camcorder, video game
C Audio/video cord (not supplied)
Note
Before connecting cords, make sure to disconnect the AC power cord (mains lead).
Function for conversion of video signals
This receiver is equipped with a function for converting video signals.
• Composite video signals can be output as HDMI video and component video signals.
• Component video signals can be output as HDMI video and video signals.
As the initial setting, video signals input from the connected component are output to the HDMI
OUT or MONITOR OUT jacks as shown in the table below.
We recommend you set the video conversion function to match the resolution of the monitor you are using.
For details on the video converting function, see “
OUTPUT jack
INPUT jack
HDMI IN 1/2/3/4/5/6*
VIDEO IN
COMPONENT VIDEO IN
HDMI OUT A/B
a a a
COMPONENT VIDEO
MONITOR OUT
– a a
MONITOR VIDEO OUT
– a a a : Video signals are output.
– : Video signals are not output.
* HDMI video signals cannot be converted to component video signals and video signals.
continued
33
GB
Notes on converting video signals
• When video signals from a VCR, etc., are converted on this receiver and then output to your TV, depending on the status of the video signal output, the image on the TV screen may appear distorted horizontally or no image may be output.
• The converted video signals are not output from the VIDEO OUT jack.
• When you play a VCR with an image improvement circuit, such as TBC, the images may be distorted or may not be output. In this case, set the image improvement circuit function to off.
• The resolution of the signals output to the
COMPONENT VIDEO MONITOR OUT jacks is converted up to 1080i. The resolution of the signals output to the HDMI
OUT jacks is converted up to 1080p.
• COMPONENT VIDEO MONITOR OUT jacks have restrictions on resolution when the resolution of video signals protected by copyright technology is converted. The resolution of the signals output to the
COMPONENT VIDEO MONITOR OUT jacks is converted up to 480p/576p. The
HDMI OUT jacks have no restriction on resolution.
• Video signals for which the resolution has been converted cannot be output from the
COMPONENT VIDEO MONITOR OUT jacks or the HDMI OUT jacks simultaneously. The video signals are output from the HDMI OUT jacks when both are connected.
• Set “Resolution” to “AUTO” or “480i/576i” in the Video settings menu to output the video signals from the MONITOR VIDEO
OUT, COMPONENT VIDEO MONITOR
OUT jacks when both are connected.
To display Closed Caption
Set “Resolution” to “DIRECT” in the Video settings menu when receiving a signal that supports Closed Captions.
Use the same kind of cords for the input/output signals.
To connect a recording component
When recording, connect the recording component to the VIDEO OUT jacks of the receiver. Connect cords for input and output signals to the same type of jack, as VIDEO
OUT jacks do not have an up-conversion function.
Note
Signals output from the HDMI OUT or MONITOR
OUT jacks may not be recorded properly.
34
GB
4: Connecting the audio components
Connecting components with digital audio input/output jacks
The following illustration shows how to connect a Super Audio CD player, CD player, an MD deck and DIGITAL MEDIA PORT adapter.
Super Audio CD player,
CD player
MD deck DIGITAL MEDIA PORT adapter
A B
A Coaxial digital cord (not supplied)
B
Optical digital cord (not supplied)
Notes
• When connecting optical digital cords, insert the plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
• To disconnect the DIGITAL MEDIA PORT adapter, remove the DIGITAL MEDIA PORT adapter by squeezing the sides of the connector, since the connector is locked in place.
• Before connecting cords, make sure to disconnect the AC power cord (mains lead).
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz sampling frequencies.
continued
35
GB
Notes on playing a Super Audio
CD on a Super Audio CD player
• No sound is output when playing a Super
Audio CD on a Super Audio CD player connected to only the COAXIAL SA-CD/
CD IN jack on this receiver. When you play a Super Audio CD, connect the player to the
MULTI CHANNEL INPUT or SA-CD/CD
IN jacks, or connect a player which can output DSD signals from the HDMI jack to the receiver using an HDMI cable. Refer to the operating instructions supplied with the
Super Audio CD player.
• You cannot make digital recordings of a
Super Audio CD.
If you want to connect several digital components, but cannot find an unused input
See “Enjoying the sound/images from other inputs (Input Assign)” (page 107).
36
GB
Connecting components with multi-channel output jacks
If your Super Audio CD player is equipped with multi-channel output jacks, you can connect them to the MULTI CHANNEL INPUT jacks of this receiver to enjoy multi-channel sound.
Alternatively, the multi-channel input jacks can be used to connect an external multi-channel decoder.
Super Audio CD player, etc.
A B
A
Audio cord (not supplied)
B Monaural audio cord (not supplied)
Notes
• Before connecting cords, make sure to disconnect the AC power cord (mains lead).
• Super Audio CD player may not have the
SURROUND BACK jacks.
• If the speaker pattern is set so that there are no surround back speakers, the input to the SUR
BACK jacks is invalid.
• Audio input signals from MULTI CHANNEL
INPUT jacks are not output to any audio output jacks. The signals cannot be recorded.
continued
37
GB
Connecting components with analog audio jacks
The following illustration shows how to connect a component with analog jacks, such as Super
Audio CD player, CD player, MD deck, tape deck and turntable, etc.
MD deck Tape deck
A A
A A
Turntable
A
Audio cord (not supplied)
Notes
• If your turntable has a ground (earth) wire, connect it to the (U) SIGNAL GND terminal.
• Before connecting cords, make sure to disconnect the AC power cord (mains lead).
Super Audio CD player,
CD player
38
GB
5: Connecting the IR Blaster
Attach the supplied IR Blaster to components connected to the receiver. You can control components connected to the receiver via the IR Blaster using the on-screen remote control.
IR Blaster (supplied)
Infrared transmitter
Remote sensor
Place the components and the IR Blaster as follows when you want to operate two components with the IR Blaster.
IR Blaster
Remote sensors
If the infrared receivers on the two components do not line up as shown in the illustration on the left, you must purchase an optional IR Blaster (VM-50, not supplied) and install it.
Note
For details on how to set up a component, refer to the operating instructions of the component.
Tip
If the IR Blaster cable is too short, use a 3.5 mm jack extension cable (not supplied).
After referring to the operating instructions of the components connected to the receiver, make sure to place the IR Blaster just above or below the remote sensor. Remote sensors on
Sony Recorders and other products are identified by the symbol.
Note
Do not remove the backing paper from the IR
Blaster yet.
After configuring the settings, remove the backing paper from the IR Blaster and fix it in place.
39
GB
6: Connecting the antennas (aerials)
Connect the supplied AM loop antenna (aerial) and FM wire antenna (aerial).
AM loop antenna (aerial)
(supplied)
FM wire antenna (aerial) (supplied)
* The shape of the connector varies depending on the area.
Notes
• To prevent noise pickup, keep the AM loop antenna
(aerial) away from the receiver and other components.
• Be sure to fully extend the FM wire antenna
(aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
• Before connecting cords, make sure to disconnect the AC power cord (mains lead).
40
GB
7: Connecting to the network
Configuring your home network with DLNAcompliant devices.
If your computer is connected to the Internet, you can connect this receiver to the Internet as well, through the wired LAN connection.
Note
The method used to connect your computer to the
Internet depends on the devices, your ISP, your computer, and the router used.
• If the receiver is used in an environment in which there is power supply noise from electric products or in a noisy network environment, use a shielded-type LAN cable.
System requirements
The following system environment is required to use the network function of the receiver.
A Broadband line connection
A Broadband line connection to the Internet is required in order to listen to Rhapsody
®
or
SHOUTcast and to use the software update function of the receiver. Rhapsody is only available in the US.
Modem
This is the device that is connected to the broadband line to communicate with the
Internet. Some of these devices are integrated with the router.
Router
• Use a router compatible with 100 Mbps or greater transmission speeds to enjoy content on your home network.
• We recommend that you use a router equipped with the built-in DHCP (Dynamic
Host Configuration Protocol) server.
This function automatically assigns IP addresses on the LAN.
LAN cable (CAT5)
• We recommend that you use this type of cable for a wired LAN.
Some flat-type LAN cables are easily affected by noise. We recommend that you use normal-type cables.
continued
41
GB
Configuration example
The following illustration is a configuration example of a home network with the receiver, a computer.
We recommend that you use a wired connection.
LAN cable
(not supplied)
Internet Modem
Computer
LAN cable
(not supplied)
Router
Notes
• A audio or video playback on the computer may occasionally be interrupted when you use a wireless connection.
• Connect a router to one among ports 1 to 4 of the receiver using only one LAN cable. Do not connect the same router to the receiver using more than one
LAN cable. It may cause a malfunction.
42
GB
8: Preparing the receiver and the remote
Connecting the AC power cord
(mains lead)
Connect the supplied AC power cord (mains lead) to the AC IN terminal on the receiver, then connect the AC power cord (mains lead) to a wall outlet.
Notes
• Before connecting the AC power cord (mains lead), make sure that metallic wires of the speaker cords are not touching each other between the
SPEAKERS terminals.
• Connect the AC power cord (mains lead) firmly.
Performing initial setup operations
Before using the receiver for the first time, initialize the receiver by performing the following procedure. This procedure can also be used to return settings you have made to their factory defaults.
?/1
TONE MODE HDMI IN
AC OUTLET (USA/
Canadian model only)
AC IN terminal
To the wall outlet
AC power cord
(mains lead)
(supplied)
A several space is left between the plug and the rear panel even when the power cord (mains lead) is inserted firmly. The cord is supposed be connected this way. This is not malfunction.
1
Press ?/1 to turn off the
receiver.
2
While holding down the TONE
MODE and HDMI IN, press ?/1
to turn on the receiver.
3
Release the TONE MODE and
HDMI IN after a few seconds.
After “MEMORY CLEARING...” appears on the display for a while,
“MEMORY CLEARED.” appears.
All the settings you have changed or adjusted are reset to the initial settings.
Note
It takes about 30 seconds for the memory to be cleared completely. Do not turn the receiver off until
“MEMORY CLEARED.” appears on the display.
To reboot the receiver
If the buttons on the receiver or the remote do not work due to a malfunction of the receiver, reboot the receiver.
1
Press ?/1 to turn off the receiver.
2
Hold down ?/1 for 10 seconds.
continued
43
GB
The receiver will be rebooted. When the lamp above ?/1 flashes in green, the reboot is complete.
Inserting batteries into the remote
Insert two R6 (size-AA) batteries in the RM-
AAL031 or RM-AAL032 remote commander, and the RM-AAU061 remote commander.
Observe the correct polarity when installing batteries.
9: Setting the speakers
Setting the speaker impedances
Set the appropriate speaker impedance for the speakers you are using.
V/v/b,
RM-AAL031
RM-AAL032
RM-AAU061
Notes
• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with old ones.
• Do not mix manganese batteries and other kinds of batteries.
• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.
• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.
• When you replace the batteries, the programmed remote codes may be cleared. If this happens,
program the remote codes again (page 153).
Tip
When the remote no longer operates the receiver, replace all the batteries with new ones.
MENU
1
Press MENU.
The menu is displayed on the TV screen.
2
Press
V/v repeatedly to select
“ Settings,” then press or
b.
The Settings menu list appears on the TV screen.
3
Press
V/v repeatedly to select
“Speaker,” then press or
b.
44
GB
4
Press
V/v repeatedly to select
“Impedance,” then press .
• When you connect front speakers to both the
FRONT A and FRONT B/FRONT HIGH terminals, connect the speakers with a nominal impedance of 8 ohms or higher.
– When you connect speakers with impedance of
16 ohms or higher in both “A” and “B/
FRONT HIGH” configuration:
Set “Impedance” to “8
Ω” in the Speaker settings menu.
– For other types of speakers in other configurations:
Set “Impedance” to “4
Ω” in the Speaker settings menu.
5
Press
V/v repeatedly to select
“4
Ω” or “8 Ω” depending on
the speakers you are using, then press .
The parameter you have selected is entered.
To exit the menu
Press MENU.
Notes
• If you are not sure of the impedances of the speakers, refer to the operating instructions supplied with your speakers. (This information is often on the back of the speaker.)
• When you connect all speakers with a nominal impedance of 8 ohms or higher, set “Impedance” to
“8
Ω.” When connecting other types of speakers, set it to “4
Ω.”
Selecting the speaker pattern
Select the speaker pattern according to the speaker system which you are using.
1
Press MENU.
The menu is displayed on the TV screen.
2
Press
V/v repeatedly to select
“ Settings,” then press or
b.
The Settings menu list appears on the TV screen.
3
Press
V/v repeatedly to select
“Speaker,” then press or
b.
4
Press
V/v repeatedly to select
“Speaker Pattern,” then press
.
The Speaker Pattern screen appears.
5
Press
V/v to select the speaker
pattern you want, then press
.
6
Press RETURN/EXIT O.
continued
45
GB
Setting the surround back speakers
You can switch the usage of the speaker(s) connected to the SURROUND BACK/
ZONE 2 terminals in accordance with the intended use. Be sure to set “Sur Back Assign” before you perform auto calibration.
1
Press MENU.
The menu is displayed on the TV screen.
2
Press
V/v repeatedly to select
“ Settings,” then press or
b.
The Settings menu list appears on the TV screen.
3
Press
V/v repeatedly to select
“Speaker,” then press or
b.
4
Press
V/v repeatedly to select
“Sur Back Assign,” then press
.
5
Press
V/v repeatedly to select
the parameter you want, then press .
Parameter
OFF
BI-AMP
Explanation
The SURROUND BACK/
ZONE 2 terminals can be used for a surround back speakers connection.
The SURROUND BACK/
ZONE 2 terminals can also be used for a bi-amplifier
ZONE2 The SURROUND BACK/
ZONE 2 terminals can also be used for a zone 2
6
Press RETURN/EXIT O.
Note
This setting is available if the speaker pattern is set so that there are no surround back speakers and no front high speakers.
Selecting the front speakers
You can select the front speakers you want to drive.
SPEAKERS (A/B/A+B/OFF)
Press SPEAKERS (A/B/A+B/OFF) repeatedly to select the front speaker system you want to drive.
You can confirm which set of terminals (A or
B) are selected by checking the indicators in the display window.
Indicators Selected speakers
The speakers connected to the
FRONT A terminals.
The speakers connected to the
FRONT B/FRONT HIGH terminals.
The speakers connected to both the
FRONT A and FRONT B/FRONT
HIGH terminals (parallel connection).
“SPEAKERS OFF” appears in the display window.
No audio signals are output from any speaker terminals, or the PRE OUT jacks.
Notes
• If the speaker pattern is set so that there are front high speakers, you cannot select the FRONT B/
FRONT HIGH terminals.
• This setting is not available when headphones are connected.
46
GB
10: Calibrating the appropriate speaker settings automatically
(Auto Calibration)
The DCAC (Digital Cinema Auto Calibration) function allows you to perform automatic calibration, such as checking the connection between each speaker and the receiver, adjusting the speaker level, and measuring the distance of each speaker from your seating position automatically.
– When using the zone 2/zone 3 function in zone
2/zone 3.
• Cancel MUTING if it is set to on.
Optimizer microphone
Before you perform auto calibration
• Set up and connect the speakers (page 21-
• The AUTO CAL MIC jack is used for the supplied optimizer microphone only. Do not connect other microphones. Doing so may damage the receiver and the microphone.
• During the measurement, the sound that comes out of the speakers is very loud. The volume of the sound cannot be adjusted. Pay attention to the presence of children or to the effect on your neighborhood.
• Perform the measurement in a quiet environment to avoid the effect of noise and get a more accurate measurement.
• If there are any obstacles in the path between the optimizer microphone and the speakers, the calibration cannot be performed correctly. Remove any obstacle from the measurement area to avoid measurement error.
Notes
• In the following situations, the measurements have not been performed correctly or auto calibration cannot be performed.
– When headphones are connected.
– When connecting special speakers, such as dipole speakers.
1
Select the speaker pattern
If you connect front high speakers, select the speaker pattern that has front high speakers (5/x.x or 4/x.x) each time you perform auto calibration. Otherwise, the characteristics of the front high speakers cannot be measured.
However, even if you perform auto calibration with a speaker pattern such as
5/2.x or 4/2.x, when surround back speakers or a subwoofer are (is) connected to the receiver, the speaker pattern is set automatically so that all the detected speakers are utilized (e.g., 5/4.1, etc.). If you change the number of speakers you want to use, reselect the desired speaker pattern manually after auto calibration.
Then, you can restore the speaker pattern that has surround back speakers or a subwoofer such as 5/4.x, as the measurement value for those speakers is stored in the receiver.
continued
47
GB
2
Connect the supplied optimizer microphone to the AUTO CAL
MIC jack.
3
Set up the optimizer microphone.
Place the optimizer microphone at your seating position. Use a stool or tripod so that the optimizer microphone remains at the same height as your ears. Orient the L end of the optimizer microphone toward the front left speaker and the R end of the optimizer microphone toward the front right speaker.
Note
When you position the optimizer microphone at the center of the two speakers, if the angle between the two speakers is too narrow, the optimizer microphone cannot measure the left and right speakers properly.
On setting up the active subwoofer
• When a subwoofer is connected, turn on the subwoofer and turn up the volume beforehand. Turn the LEVEL knob to just before the mid-point.
• If you connect a subwoofer with the crossover frequency function, set the value to maximum.
• If you connect a subwoofer with an auto standby function, set it to off (deactivated).
Note
Depending on the characteristics of the subwoofer you are using, the setup distance value may be further away from the actual position.
To use the receiver as a preamplifier
You can use the auto calibration function when you use the receiver as a pre-amplifier.
In this case, the distance value shown on the display may differ from the actual distance value. However, there will be no problems, even if you continue to use the receiver with that value.
Performing auto calibration
The auto calibration function allows you to measure the following:
• Speaker connections
1)
• Polarity of speakers
• Speaker distance
2)
• Speaker size
2)
• Speaker level
• Frequency characteristics (EQ)
2) 3)
• Frequency characteristics (Phase)
2) 4)
1)
This receiver corrects signals by analog downmix processing only for the center speaker and subwoofer when the multi-channel input is selected. The correction is invalid for other speakers.
2)
The measurement result is not utilized in the following cases.
– The multi-channel input is selected.
– “2ch Analog Direct” is being used.
3)
• Signals with a sampling frequency of 176.4 kHz and higher are always played back at either
44.1 kHz or 48 kHz.
• The measurement result is not utilized when
Dolby TrueHD signals with a sampling frequency of 176.4 kHz and higher are being received.
4)
• Signals with a sampling frequency of 88.2 kHz and higher are always played back at either
44.1 kHz or 48 kHz.
• The measurement result is not utilized when
Dolby TrueHD signals with a sampling frequency of 176.4 kHz and higher or DTS-HD signals with a sampling frequency of 88.2 kHz and higher are being received.
48
GB
V/v/B/b,
MENU
1
Press MENU.
The menu is displayed on the TV screen.
4
Press
V/v repeatedly to select
“Quick Setup,” then press .
The screen on which you can select the item to be measured appears.
2
Press
V/v repeatedly to select
“ Settings,” then press or
b.
The Settings menu list appears on the TV screen.
5
Press
V/v repeatedly and
to un-check the items you do not want to measure, then press
b.
The confirmation screen, asking whether you are ready to start measurement, appears.
3
Press
V/v repeatedly to select
“Auto Calibration,” then press
or
b.
6
Press to select “Start.”
The measurement starts in five seconds.
When the measurement ends, a beep sounds and the measurement result appears on the TV screen.
continued
49
GB
7
Press to select “Next.”
“Save auto calibration (auto speaker setup)?” appears. To save the measurement results, follow the steps in
“Saving the measurement results”
If a warning message or error code
appears on the screen, see “Message list after auto calibration measurement”
Saving the measurement results
To save the measurement results obtained in
“Performing auto calibration” (page 48),
proceed with the following steps.
1
Press
B/b to select “Yes” in
step 7 in “Performing auto calibration” (page 48), then
press .
The selecting screen of the calibration type appears.
Note
When the speaker(s) is (are) out of the phase, “Out
Phase” is displayed on the TV screen. The “+” and
“–” terminals of the speaker may be connected the other way around. However, depending on the speakers, “Out Phase” appears on the TV screen even though the speakers are connected properly.
This is because of the speakers’ specifications. In this case, you can continue to use the receiver.
Tips
• Operations other than turning the receiver on or off are deactivated during the measurement.
• You can change the unit of distance use in
“Distance Unit” in the Speaker settings menu.
To cancel the measurement
The measurement is cancelled when you change the volume, switch functions, change the setting of the SPEAKERS switch, or connect headphones.
50
GB
2
Press
V/v repeatedly to select
the calibration type, then press
.
Parameter Explanation
Full Flat
Engineer
Makes the measurement of frequency from each speaker flat.
Sets the frequency to one that matches that of the
Sony listening room standard.
Front Reference Adjusts the characteristics of all the speakers to match the characteristics of the front speaker.
User Reference Sets the frequency to one that you adjusted using the
Setup Manager application software. This parameter appears only if you adjusted the frequency using the
Setup Manager application
OFF Sets the auto calibration EQ to off.
The measurement results are saved.
3
Press
b.
The exit screen appears.
4
Press to select “Exit.”
Notes
• After reflecting the results of a compensation for a frequency characteristic, signals with a sampling frequency of 88.2 kHz and higher are always played back at either 44.1 kHz or 48 kHz.
• The frequency response measurement result is not utilized in the following cases.
– The multi-channel input is selected.
– “2ch Analog Direct” is being used.
– Dolby TrueHD signals with a sampling frequency of 176.4 kHz and higher are being received.
Tip
The size of a speaker (LARGE/SMALL) is determined by the low characteristics. The measurement results may vary, depending on the position of the optimizer microphone and speakers, and the shape of the room. It is recommended that you follow the measurement results. However, you can change those settings in the Speaker settings menu. Save the measurement results first, then try to change the settings if you want.
When error occurs during calibration
1
Press B/b to select “Yes,” then press
when “Error occurred during calibration, press to investigate.” appears on the screen.
Confirm the details of the measurement results, then proceed with the appropriate remedy.
2
Press B/b to select “Retry,” then press
.
3
Repeat steps 6 to 7 in “Performing auto calibration” (page 48).
To save measurement results that caused an error without taking a remedy
1
Press B/b to select “No,” then press when “Error occurred during calibration, press to investigate.” appears on the screen.
2
Follow the steps in “Saving the measurement results” (page 50) to
save the measurement results.
Checking the auto calibration results
If a warning message appears in step 7 of
“Performing auto calibration” (page 48),
check the message and use the receiver without change. Or if necessary, perform auto calibration again.
continued
51
GB
Message list after auto calibration measurement
Display
Code 30
Code 31
Code 32
Code 33
Code 34
Warning 40
Warning 41
Warning 42
Explanation
Headphones are connected. Remove the headphones and perform auto calibration again.
SPEAKERS (A/B/A+B/OFF) is set to OFF. Set it to others and re-perform the measurement.
None of the speakers were detected. Make sure that the optimizer microphone is connected properly and reperform the measurement.
If the optimizer microphone is connected properly but the error code appears, the optimizer microphone cable may be damaged or improperly connected.
• None of the front speakers are connected or only one front speaker is connected.
• The optimizer microphone is not connected.
• Either the left or right surround speaker is not connected.
• Surround back speakers are connected even though surround speakers are not connected.
Connect the surround speaker(s) to the SURROUND terminals.
• The surround back speaker is connected only to the SURROUND BACK/ZONE 2 R terminals. When you connect only one surround back speaker, connect it to the
SURROUND BACK/ZONE 2 L terminals.
• Only one front high speaker is connected. Connect the front high speaker to each of the
FRONT B/FRONT HIGH terminals.
• Front high speakers are connected even though surround speakers are not connected.
Connect the surround speaker(s) to the SURROUND terminals.
Speakers are not placed in the proper position. Speakers or an optimizer microphone on the
right or left may be placed wrongly. See “1: Installing speakers” (page 21) and check the
speaker position.
The measurement has completed. However, the noise level is high. You may be able to perform the measurement properly if you try it again, even though the measurement cannot be performed in all environments. Try to perform the measurement in a quiet environment.
The input from the microphone is too big.
• It may be too close the distance between the speaker and the microphone.
Retry the measurement after setting apart from each other.
• When you use the receiver as a pre-amplifier, either messages may appear, depending the power amplifier you connect. However, there will be no problems, even if you continue to use the receiver without changes.
Warning 43
Warning 44
The distance and position of a subwoofer cannot be detected. Or the angle of the speaker position cannot be detected. This may be caused by noise. Try to perform the measurement in a quiet environment.
Measurement has been completed. However the speakers are not placed in the proper position
with respect to each other. See “1: Installing speakers” (page 21) and check the relative
positions of the speakers.
NO WARNING There is no warning information.
---------No speakers are connected.
Tip
Depending on the position of the subwoofer, the measurement results for polarity may vary. However, there will be no problems even if you continue to use the receiver with that value.
52
GB
11: Configuring the network settings of the receiver
The network settings for the receiver must be set correctly to use the network functions of the receiver.
You can make the required network settings for the receiver by following the instructions provided by an initial setup wizard.
The procedure used to set up the IP address automatically (DHCP) is explained below.
In this case, the router that is connected to the receiver or the Internet provider must support
DHCP.
V/v/b,
6
Press to select “Connect
Automatically (DHCP).”
“Success! The receiver is now connected to network.” appears on the TV screen when you have succeeded in making a connection.
If the failure screen is displayed, perform
the process referring to “Network Setup”
(page 131), after you have completed this
process.
7
Press to select “Finish.”
In the initial setup, the procedure continues to the setting of “Server
Function,” “External Control,” and
“Network Standby” after this. For details,
see “Network Setup” (page 131).
To set the network settings manually
See “To set the IP address manually”
(page 131) or “To set the Proxy server manually” (page 131).
Note
The wizard screen appears on the TV screen each time you use the network function, until the network function setup has been completed.
MENU
1
Press MENU.
The menu is displayed on the TV screen.
2
Press
V/v repeatedly to select
“ Settings,” then press or
b.
3
Press
V/v repeatedly to select
“Network,” then press or
b.
4
Press
V/v repeatedly to select
“Network Setup,” then press
.
“Start Network function Setup Wizard” appears on the TV screen.
5
Press to select “Next.”
12: Preparing a computer to use as a server
A server is a device which delivers content
(music, photos, and videos) to a DLNA device on a home network.
You can play back content stored on a computer on a home network with this receiver via that network after you have installed application software* which has a DLNA compliant sever function.
* If you use a Windows 7-based computer, use
Windows Media Player 12 bundled with
Windows 7.
If you use a Windows XP or Windows Vista-based computer, install the VAIO Media plus application software supplied with the receiver. See below for more details on VAIO Media plus. In addition, refer to the help files of VAIO Media plus.
continued
53
GB
What you can do with VAIO
Media plus
VAIO Media plus is an application software that enables you to quickly find content on your home network, such as music, photos, and videos, and view the content on the computer through the home network.
By connecting other devices to VAIO Media plus, you can also find and view the content on the connected devices through the home network. For example, you can enjoy photos and music, stored on your computer, on your
TV and audio device or play a TV program, recorded with a hard disk recorder, on your computer.
If you use a VAIO computer, you can deliver content saved on an external hard disk drive or in Network-Attached Storage (NAS).
Note
If you use a computer other than a VAIO, you can only deliver content saved on the internal disk drive of that computer.
Graphic chip
Windows XP Windows Vista
Equipped with graphic chip by Intel,
NVIDIA or ATI.
DirectX 9.0c compatible video card
(DirectX 9.0c/128 MB compatible video card and the latest driver are recommended.)
Display 800 × 600 or higher resolution
HDD 500 MB or more is recommended.
Network 100Base-TX or higher
Sound card
Direct Sound compatible sound card
Note
Sony does not guarantee trouble-free operation on all computers that satisfy the system requirements.
Other software operating on background may affect the operation of this software.
System Requirements
Operating System
Windows XP Home Edition/Professional/
Media Center Edition 2004/Media Center
Edition 2005 (SP3, 32 bit)
Windows Vista Home Basic/Home Premium/
Business/Ultimate (SP1, 32 bit/64 bit)
Computer
Windows XP Windows Vista
Computer IBM PC/AT compatible
CPU Intel Celeron M processor
1.40 GHz or higher
(Intel Core 2 Duo
1.80 GHz or higher is recommended.)
Intel Core Duo
1.33 GHz or higher
(Intel Core 2 Duo
2.26 GHz or higher is recommended.)
Memory 512 MB or more
(1 GB or more is recommended.)
1 GB or more
(2 GB or more is recommended.)
54
GB
Installing the VAIO Media plus application software on a computer
When you use VAIO Media plus as server software, install on your computer the VAIO
Media plus application software provided on the CD-ROM supplied with the receiver by following steps below.
If an older version of VAIO Media plus has already been installed on your computer, uninstall the following three programs using
“Programs and Features” (for Windows Vista) or “Add or Remove Programs” (for Windows
XP) in Control Panel beforehand.
• VAIO Media plus
• VAIO Content Folder Watcher
• VAIO Content Folder Setting
1
Turn on your computer and login as an administrator.
2
Insert the supplied CD-ROM into the CD-ROM drive of your computer.
The installation launcher starts automatically, then a Software Setup window appears on the screen.
If installation launcher does not start automatically, double-click
“SetupLauncher.exe” on the disc.
Guide to on-screen display operation
You can display the menu of the receiver on the TV screen and select the function you want to use on the TV screen by pressing V/v/B/b and on the remote.
To display the menu of the receiver on the TV screen, make sure that the receiver is in “GUI
MODE” following the step in “To turn “GUI
CD-ROM (VAIO Media plus application software) (supplied)
GUI
MODE
3
Install the VAIO Media plus application software following the instructions given in the message on the screen.
RETURN/
EXIT O
V/v/B/b,
OPTIONS
MENU
Referring to help files
For VAIO Media plus operations, refer to the help files.
Click “ Settings” in the Home Menu window, then select “ Help” to display help files.
Using the menu
1
Switch the input of the TV so that an image of the menu is displayed.
2
Press MENU.
The menu is displayed on the TV screen.
continued
55
GB
3
Press
V/v repeatedly to select
the menu you want, then press
or
b to enter the menu
mode.
The menu item list appears on the TV screen.
Example: When you select “ Input”
4
Press
V/v repeatedly to select
the menu item you want to adjust, then press to enter the menu item.
5
Repeat steps 3 and 4 to select the parameter you want.
To return to the previous screen
Press RETURN/EXIT O.
To exit the menu
Press MENU.
To turn “GUI MODE” on and off
Press GUI MODE. “GUI MODE ON” or
“GUI MODE OFF” is displayed in the display window of the receiver, depending on the mode selected.
Overview of the main menus
Menu icon
Input
Description
Selects the input source component connected to the
Menu icon
Music
Video
Rhapsody
Description
Selects the music from the server on the home network,
“My Library,” or the audio component connected to the
DIGITAL MEDIA PORT
Selects the photos from the server on the home network or “My Library.”
Selects the images from the server on the home network,
“My Library,” or the audio component connected to the
DIGITAL MEDIA PORT
Selects the Rhapsody radio
is only available in the US.
SHOUTcast Selects the SHOUTcast radio
FM/AM/
SIRIUS
Selects the built-in FM/AM radio or satellite tuner
Settings You can adjust the settings of the speakers, the surround effect, equalizer, audio, video and other inputs connected to the HDMI jacks
Using the option menus
When you press OPTIONS, the option menus for the selected main menu are displayed. You can select a related function without reselecting the menu.
1
Press MENU.
The menu is displayed on the TV screen.
56
GB
2
Press
V/v repeatedly to select a
menu you want, then press or
b to enter the menu mode.
The menu item list appears on the TV screen.
Example: When you select “ Input”
3
Press OPTIONS while the menu item list is displayed.
The option menu appears.
4
Press
V/v repeatedly to select
the option menu item you want, then press .
5
Press
V/v repeatedly to select
the parameter you want, then press .
To exit the option menus
Press MENU.
57
GB
Playback
Enjoying sound/images from the component connected to the receiver
V/v/B/b,
OPTIONS
MENU
MASTER
VOLUME
MUTING
1
Select “ Input,” then press
or
b.
The menu item list appears on the TV screen.
2
Select the component you want, then press .
The menu screen disappears and the playback screen of the external input appears.
Selected input
BD
Components that can be used
Blu-ray Disc Player, etc., connected to the
BD jack.
DVD DVD player, etc., connected to the DVD jack.
SAT/CATV Satellite tuner, etc., connected to the SAT/
CATV jack.
Selected input
TV
Video1,
Video2
Tape
MD
SA-CD/CD
Phono
Multi In
Components that can be used
TV connected to the TV jack.
VCR, etc., connected to the VIDEO 1 or
VIDEO 2 jack.
Tape deck, etc., connected to the TAPE jack.
MD deck, etc., connected to the MD jack.
Super Audio CD or CD player, etc., connected to the SA-CD/CD jack.
Turntable, etc., connected to the
PHONO jack.
Component connected to the MULTI
CHANNEL INPUT jack.
HDMI1, 2, 3,
4, 5, 6
HDMI components connected to the
HDMI1, HDMI2,
HDMI3, HDMI4,
HDMI5, or HDMI6 jack.
3
Turn on the component and start playback.
4
Press MASTER VOLUME +/– to adjust the volume.
Tips
• You can adjust the volume differently depending on the speed with which you turn the MASTER
VOLUME knob.
To turn the volume up or down quickly: turn the knob quickly.
To make fine adjustment: turn the knob slowly.
• You can adjust the volume differently depending on the length of time you press and hold the
MASTER VOLUME +/– button on the remote.
To turn the volume up or down quickly: press and hold the button.
To make a fine adjustment: press the button and release it immediately.
58
GB
To activate the muting function
Press MUTING on the remote. To cancel, press MUTING on the remote again or press
MASTER VOLUME + to raise the volume.
To avoid damaging your speakers
Before you turn off the receiver, be sure to turn down the volume level.
Naming the input (Name Input)
You can enter a name of up to 8 characters for inputs and display it.
This is convenient for labeling the jacks with the names of the connected components.
1
Select the input you want to name on the “ Input” screen.
2
Press OPTIONS.
The option menu appears.
3
Select “Name Input,” then press
.
The soft keyboard appears on the screen.
4
Press
V/v/B/b and
to select a character one by one to enter the name.
5
Select “Finish,” then press .
The name you entered is registered.
To cancel naming input
Press V/v/B/b to select “Cancel,” then press .
1
Select the input for which you want to change the item to be displayed on the “ Input” screen.
2
Press OPTIONS.
The option menu appears.
3
Select “List Mode,” then press
.
4
Select the item you want to display, then press .
• Input Assign
Input name and audio/video input jack assigned to the input are displayed in a list.
• Sound Field
Input name and the sound field selected for the input are displayed in a list.
Changing the display items (List
Mode)
When you select “ Input,” you can change the items to be displayed.
59
GB
Enjoying sound/images from the components connected to the DIGITAL
MEDIA PORT
The DIGITAL MEDIA PORT is for enjoying sound/images from a portable audio source or computer by connecting a DIGITAL MEDIA
PORT adapter.
Available DIGITAL MEDIA PORT adapters vary in each area.
For details on connecting the DIGITAL
MEDIA PORT adapter, see “Connecting components with digital audio input/output jacks” (page 35).
You can use the following Sony DIGITAL
MEDIA PORT adapters:
• TDM-BT1/BT10 Bluetooth™ Wireless
Audio Adapter
• TDM-NW10 DIGITAL MEDIA PORT
Adapter
• TDM-iP10/iP50 DIGITAL MEDIA PORT
Adapter
• TDM-MP10 DIGITAL MEDIA PORT
Adapter
The DIGITAL MEDIA PORT adapter is an optional product.
Notes
• Do not connect an adapter other than the DIGITAL
MEDIA PORT adapter.
• Before disconnecting the DIGITAL MEDIA PORT adapter, make sure to turn the receiver off using the remote.
• Do not connect or disconnect the DIGITAL
MEDIA PORT adapter to/from the receiver while the system is turned on.
• Depending on the type of DIGITAL MEDIA
PORT adapter, the images are also output.
• Do not connect to the receiver a DIGITAL MEDIA
PORT adapter that uses a network function such as
TDM-NC1 Wireless Network Audio Client.
You can use the network function of the receiver without using a DIGITAL MEDIA PORT adapter.
MASTER
VOLUME
V/v/b,
MENU
1
Select “ Music” or
“ Video” from the menu, then press or
b.
2
Select “DMPORT” or a component connected to the
DIGITAL MEDIA PORT adapter, then press .
The component connected to the
DIGITAL MEDIA PORT adapter is recognized and “DMPORT” on the screen will change to the respective component’s name with an icon. If the adapter connected cannot be recognized,
“DMPORT” is displayed on the TV screen.
Icon Component that is connected
DMPORT A component other than one of the following is connected.
iPod The iPod model recognized is connected.
Walkman The Walkman recognized is connected.
Bluetooth The Bluetooth drive recognized is connected.
Mobile
Phone
The Mobile Phone recognized is connected.
60
GB
3
Select a track you want to play using the component connected to the DIGITAL
MEDIA PORT adapter.
4
Press MASTER VOLUME +/– to adjust the volume.
Operating the TDM-iP50 using the GUI menu of the receiver
Make sure that “System GUI” is selected in
step 4 in “Changing the operation screen using the DIGITAL MEDIA PORT” (page 62).
3
Select track or content from the contents list, then press .
The following content lists are just examples. They may vary depending on the components connected to the receiver.
Music Playlists > Playlist > Track
Artists > Artist > Album > Track
Albums > Album > Track
Songs > Track
Genres > Genre > Artist > Album > Track
Composers > Composer > Album > Track
Audiobooks > Track
Video Movies > Content
TV Shows > Episode > Content
Music Videos > Artist > Content
Video Podcast > Episode > Content
4
Press MASTER VOLUME +/– to adjust the volume.
MASTER
VOLUME
1
Select “ Music” or
“ Video” from the menu, then press or
b.
2
Select the component connected to the DIGITAL
MEDIA PORT adapter you want to play, then press .
The contents list appears.
V/v/B/b,
OPTIONS
MENU
Selecting the playback mode
1
Play back the track you want to listen to following the steps
outlined in “Operating the TDMiP50 using the GUI menu of the receiver” (page 61).
2
Press OPTIONS.
The option menu appears.
3
Select “Shuffle,” “Repeat,” or
“Audiobook Speed,” then press
.
4
Select a mode from the following, then press .
continued
61
GB
x Shuffle
Plays all the tracks in random order.
• Off
Deactivates the shuffle play mode.
• Albums
Plays all the tracks on an album in random order.
• Songs
Plays all the tracks in “Songs” in random order.
x Repeat
Plays one or all the tracks repeatedly.
• Off
Deactivates the repeat play mode.
• One
Plays one track repeatedly.
• All
Plays all the tracks repeatedly.
x Audiobook Speed
Selects the display speed of the Audiobook.
• Low
Slows the display speed.
• Normal
Sets the display speed to standard.
• High
Increases the display speed.
DIGITAL MEDIA PORT message list
Message appears Explanation
No Adapter The adapter is not connected.
No Device There is no device connected to the adapter.
No Audio
Loading
No Item
No audio file was found.
The data is being read.
No item was found.
Changing the operation screen using the DIGITAL MEDIA PORT
You can change the operation screen using the
GUI menu. The DMPORT Control mode is supported by the DIGITAL MEDIA PORT adapters like TDM-iP50. This mode is not supported by other adapters.
1
Select the DIGITAL MEDIA
PORT adapter you want on the
“ Music” or “ Video” screen, then press or
b.
2
Press OPTIONS.
The option menu appears.
3
Select “DMPORT Control,” then press .
If “DMPORT Control” is not displayed, refer to the operating instructions supplied with component for details on operating that component.
4
Select the mode you want, then press .
• System GUI
The list of tracks will be displayed on the GUI screen of the receiver. You can select a track you want and play back it on each GUI screen.
• Adapter GUI
The menu of the adapter will be displayed on the TV screen.
• iPod
To operate the TDM-iP50 using the adapter menu
Make sure that “Adapter GUI” is selected in
step 4 in “Changing the operation screen using the DIGITAL MEDIA PORT” (page 62).
For details on operating the adapter using the adapter GUI menu, refer to the operating instructions supplied with the adapter you are using.
62
GB
To operate the TDM-iP50 using the iPod menu
Make sure that “iPod” is selected in step 4 in
“Changing the operation screen using the
DIGITAL MEDIA PORT” (page 62).
For details on operating the iPod, refer to the operating instruction supplied with the iPod.
63
GB
Tuning
Listening to FM/AM radio
You can listen to FM and AM broadcasts through the built-in tuner. Before operation, make sure you have connected the FM and
AM antennas (aerials) to the receiver
Tip
The tuning scale for direct tuning is shown below.
• FM band 100 kHz (USA/Canadian model)
50 kHz (European model)
• AM band 10 kHz* (USA/Canadian model)
9 kHz (European model)
* The AM tuning scale can be changed (page 66).
3
Press
V/v.
Press V to scan from low to high, press v to scan from high to low.
The receiver stops scanning whenever a station is received.
In case of poor FM stereo reception
1
Tune in the station you want to listen to using Auto Tuning, Direct Tuning
(page 64), or select the preset station
2
Press OPTIONS.
The option menu appears.
3
Select “FM Mode,” then press .
4
Select “MONO,” then press .
V/v/b,
OPTIONS
MENU
Tuning into a station directly
(Direct Tuning)
Enter the frequency of a station directly by using the numeric buttons on the multifunction remote. This operation cannot be performed using the simple remote.
Tuning into a station automatically (Auto Tuning)
1
Select “ FM” or “ AM” from the menu, then press or
b.
The FM or AM menu list appears on the
TV screen.
2
Select “Auto Tuning,” then press .
64
GB
SHIFT
Numeric buttons
AMP
V/v/b,
MENU
1
Press AMP.
The receiver can be operated using the remote.
2
Press MENU.
The menu is displayed on the TV screen.
3
Press
V/v repeatedly to select
“ FM” or “ AM,” then press
or
b.
4
Select “Direct Tuning,” then press .
5
Press SHIFT, then press the numeric buttons to enter the frequency, then press .
Example 1: FM 102.50 MHz
Select 1 b 0 b 2 b 5 (b 0*)
Example 2: AM 1,350 kHz
Select 1 b 3 b 5 b 0
*Press the numeric button 0 when you are using the European model.
Tip
If you have tuned in an AM station, adjust the direction of the AM loop antenna (aerial) for optimum reception.
If you cannot tune in a station
“– – – .– – MHz” appears and then the display returns to the current frequency.
Make sure you have entered the right frequency. If not, repeat step 5. If you still cannot tune in a station, the frequency is not used in your area.
Receiving RDS broadcasts
(European model only)
The Radio Data System (RDS) is a broadcasting service that allows radio stations to send additional information along with the regular program signal. This tuner offers convenient RDS features, such as station name display. RDS is available only for FM stations.*
* Not all FM stations provide RDS service, nor do they provide the same type of services. If you are not familiar with the RDS system, check with your local radio stations for details on RDS services in your area.
Simply select a station from the FM band.
When you tune in a station that provides RDS services, the station name* appears on the TV screen and in the front panel display.
* If an RDS broadcast is not received, a station name will not appear in the display window.
Notes
• RDS may not work properly if the station you tuned to is not transmitting the RDS signal properly or if the signal strength is weak.
• Some letters that can be displayed on the TV screen cannot be displayed in the front panel display.
Tip
When a station name is displayed, you can check the frequency by pressing DISPLAY repeatedly.
continued
65
GB
Changing the AM tuning scale
(USA/Canadian model only)
You can change the AM tuning scale to either
9 kHz or 10 kHz on the receiver.
?/1
TUNING MODE
Presetting FM/AM radio stations
You can preset up to 30 FM and 30 AM stations. Then you can easily tune in the stations you often listen to.
1
Press ?/1 to turn off the
receiver.
2
While holding down TUNING
MODE, press ?/1 on the
receiver.
3
Change the current AM tuning scale to 9 kHz (or 10 kHz).
To reset the scale to 10 kHz (or 9 kHz), repeat the procedure above.
Note
All preset stations will be erased when you change the tuning scale.
V/v/B/b,
OPTIONS
MENU
1
Tune in the station that you want to preset using Auto
In case of poor FM stereo reception,
switch the FM reception mode (page 64).
2
Press OPTIONS.
The option menu appears.
3
Select “Memory,” then press
.
4
Select a preset number, then press .
The station is stored as the selected preset number.
5
Repeat steps 1 to 4 to preset another station.
You can store stations as follows:
• AM band: AM1 to AM30
• FM band: FM1 to FM30
66
GB
Tuning to preset stations
1
Select “ FM” or “ AM” from the menu, then press or
b.
2
Select the preset number station you want.
Preset numbers from 1 to 30 are available.
Naming preset stations (Name
Input)
1
Select the preset number on which you want to name on
“ FM” or “ AM” screen.
2
Press OPTIONS.
The option menu appears.
3
Select “Name Input,” then press
.
The soft keyboard appears on the screen.
4
Press
V/v/B/b and
to select a character one by one to enter the name.
5
Select “Finish,” then press .
The name you entered is registered.
To cancel naming input
Select “Cancel,” then press .
Listening to satellite radio
(USA/Canadian model only)
To listen to Satellite Radio, you’ll need to connect a SIRIUS Satellite Radio tuner (sold separately) to your Sirius-Ready receiver.
SIRIUS Satellite Radio is available to residents of the US (except Alaska and
Hawaii) and Canada.
Satellite Radio delivers a variety of commercial-free music from categories ranging from Pop, Rock, Country, R&B,
Dance, Jazz, Classical and many more plus coverage of all the top professional and college sports including play by play games from select leagues and teams. Additional programming includes expert sports talk, uncensored entertainment, comedy, family programming, local traffic and weather and news from your most trusted sources.
Once you’ve purchased a SIRIUS tuner you’ll need to activate it and subscribe to begin enjoying the service. Easy to follow installation and setup instructions are provided with the SIRIUS tuner. There are a variety of programming packages available, including the option of adding “The Best of XM” programming to the SIRIUS service. The “Best of XM” service is not available to SIRIUS
Canada subscribers at this time. Please check with SIRIUS Canada for any updates using the numbers and web address below.
Family friendly packages are also available to restrict channels featuring content that may be inappropriate for children.
To subscribe to SIRIUS, U.S. and Canadian customers can call 1-888-539-SIRI (1-888-
539-7474) or visit sirius.com (US) or siriuscanada.ca (Canada).
continued
67
GB
SIRIUS and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All other marks and logos are the property of their respective owners. All rights reserved. SIRIUS subscription sold separately.
Taxes and a one-time activation fee may apply.
SIRIUS tuner required (sold separately) to receive the SIRIUS service. All programming and fees subject to change. It is prohibited to copy, decompile, disassemble, reverse engineer, hack, manipulate or otherwise make available any technology or software incorporated in receivers compatible with the SIRIUS Satellite Radio System.
Service not available in Alaska or Hawaii.
Preparing to listen to a satellite radio
V/v/b,
OPTIONS
MENU
Connecting a satellite radio tuner
SIRIUS jack
To connect to the SIRIUS jack
Connect the SiriusConnect Home tuner. When you use the SiriusConnect Home tuner with this receiver, be sure to connect the AC power adaptor supplied with the tuner to a wall outlet.
Keep the SiriusConnect Home tuner, antenna, and AC power adaptor away from the speaker cords and the power cord to avoid picking up noise.
Checking the ID number
1
Select “ SIRIUS” from the menu, then press or
b.
2
Select “ALL,” then press or
b.
When the “Preset Mode” screen is displayed, change the tuning mode to
“Category Mode,” then select “ALL.”
Press OPTIONS, then select “Category
Mode.”
3
Select the channel 0, then press
.
4
Check the Sirius ID on the TV screen and write it in the space provided here.
Sirius ID:_________________________
You can also check the Sirius ID using the display on the receiver.
68
GB
Checking receiving conditions
(Antenna Aiming)
1
Select “ SIRIUS” from the menu, then press or
b.
2
Press OPTIONS.
The option menu appears.
3
Select “Antenna Aiming,” then press .
The Antenna Aiming screen appears.
4
While checking the quality of the reception, adjust the direction of the antenna to obtain the best reception.
To exit the menu
Press MENU.
Selecting a channel of the satellite radio
Selecting a channel by category
(Category Mode)
You can select a channel from one category or all the categories.
1
Select “ SIRIUS” from the menu, then press or
b.
2
Select the category, then press
.
• ALL: You can select a channel from all the categories.
• (category name): You can select a channel from one category.
When the “Preset Mode” screen is displayed, press OPTIONS, then press V/ v repeatedly to select “Category Mode.”
3
Select the channel, then press
.
The selected channel is being received.
The channel information is displayed on the TV screen.
Note
When you select a channel in the “Category Mode,” the channel you selected may not be the one in the category you want. This is because one channel may belong to more than one category.
V/v/b,
OPTIONS
MENU
Selecting a channel by inputting the channel number directly
(Direct Tuning)
Enter the channel number directly by using the numeric buttons on the multifunction remote.
This operation cannot be performed using the simple remote.
continued
69
GB
SHIFT
Numeric buttons
AMP
Presetting satellite radio channels
You can select the channels you want directly by presetting them using the preset numbers.
You can preset up to 30 SIRIUS Satellite
Radio channels.
1
Press AMP.
The receiver can be operated using the remote.
2
Press MENU.
The menu is displayed on the TV screen.
3
Press
V/v repeatedly to select
“ SIRIUS,” then press or
b.
4
Press OPTIONS.
The option menu appears.
5
Select “Direct Tuning,” then press .
6
Press SHIFT, then press the numeric buttons to enter the channel number, then press
.
The selected channel is tune in.
V/v/b,
OPTIONS
MENU
V/v/b,
OPTIONS
MENU
1
Select a channel you want to preset using Category Mode
2
Press OPTIONS.
The option menu appears.
3
Select “Memory,” then press
.
The preset number selection screen appears.
4
Select the preset number you want to use as the preset channel, then press .
Preset channels from 1 to 30 are available, and a default channel is preset for all the preset channels when you purchase the receiver.
The selected channel is registered as the preset channel you selected in step 1.
70
GB
5
Repeat steps 1 to 4 to preset another channel.
You can store channels from 1 to 30.
SHIFT
Selecting preset channels
1
Select “ SIRIUS” from the menu, then press or
b.
2
Select the preset number from the preset list, then press .
You can select stored preset channels from 1 to 30.
Notes
• The channel information you have preset may be changed if Sirius XM Radio Inc. change its channel programming.
• When the “Category Mode” screen is displayed, press OPTIONS, then press
V/v to select “Preset
Mode.”
Numeric buttons
RETURN/
EXIT O
V/v/b,
OPTIONS
Restricting access to specific channels
(Parental Lock)
You can restrict access to certain channels using your own lock code. The lock code is set to “0000” as the default. Use the multifunction remote for this operation. This operation cannot be performed using the simple remote.
Change the lock code before you use this
function for the first time. See “To change the lock code (Lock Code)” (page 72).
1
Select a channel you want to lock using Category Mode
2
Press OPTIONS.
The option menu appears.
3
Select “Parental Lock,” then press
b.
4
Select “ON,” then press .
“Enter your 4-digit lock code.” appears.
5
Press SHIFT, then enter your 4digit lock code using the numeric buttons.
“The channel has been locked.” appears and the Parental Lock is set.
To delete the numbers you have entered, go back to step 2 by pressing RETURN/
EXIT O, and then repeat the procedure above from step 2.
continued
71
GB
To change the lock code (Lock
Code)
1
Select any channel using Category
Mode (page 69) or Direct Tuning
2
Press OPTIONS.
The option menu appears.
3
Select “Lock Code,” then press .
“Enter your 4-digit lock code.” appears.
4
Press SHIFT, then enter your 4-digit lock code using the numeric buttons.
“Enter a new lock code.” appears.
5
Press SHIFT, then enter a new 4-digit lock code using the numeric buttons.
“To confirm, enter your new lock code again.” appears.
6
Press SHIFT, then reenter the new lock code with the numeric buttons.
“The lock code has been changed.” appears.
To listen to the locked channels
1
Select a locked channel you want to
listen to using Direct Tuning (page 69).
“Enter your 4-digit lock code.” appears.
2
Press SHIFT, then enter your 4-digit lock code using the numeric buttons.
The channel is tuned in.
To cancel the Parental Lock
1
Select a channel you want to unlock
using Direct Tuning (page 69).
2
Press OPTIONS.
The option menu appears.
3
Select “Parental Lock,” then press or b.
4
Select “OFF,” then press .
“Enter your 4-digit lock code.” appears.
5
Press SHIFT, then enter your 4-digit lock code using the numeric buttons.
“The channel has been unlocked.” appears and the channel is unlocked.
Notes
• You can set only one lock code on the receiver. You cannot set individual lock codes for each channel.
• When you select a channel using Category Mode, locked channels are skipped.
• When the receiver is reset to the factory settings, the lock code returns to the default (0000), but the
Parental Lock settings are not removed.
• You cannot preset locked channels. If you set the
Parental Lock for a preset channel, the preset information for that channel returns to the default.
• You cannot set the Parental Lock for channel 0 or channel 184.
72
GB
Message list
Message appears
Explanation Remedies
Antenna Error The antenna is not connected properly. Check the connection between the SiriusConnect
Home tuner and the antenna.
Acquiring Signal The receiving condition is not good.
Try moving the antenna to another location. For details about the antenna location, refer to the instructions supplied with the SiriusConnect
Home tuner.
Call 888-539-
SIRI
Check Sirius
Tuner
Invalid Channel
You have not subscribed for the selected channel.
—
The SiriusConnect Home tuner is not connected properly.
You have entered an invalid channel number.
The selected channel is locked.
Check all the connections, and then turn the system on again. Also make sure if the AC adaptor supplied with the SiriusConnect Home tuner is connected to a wall socket.
The channel to be tuned in is void due to the change by the broadcast service, or the receiving condition is not good.
— Locked
Channel
Subscription
Updated
The subscription information has been updated.
—
Channel information is being updated.
— Updating
Channels xx%
Completed
(xx are for integers)
Firmware
Updating
–––––
The SiriusConnect Home tuner software is being updated.
There is no text information in the channel.
—
This is not an error. The text information may not be displayed depending on the system condition, for example, right after the system has received a channel.
73
GB
Enjoying Surround Sound
Playing back with 2-channel sound
You can switch the output sound to 2-channel sound regardless of the recording formats of the software you are using, the playback component connected, or the sound field settings of the receiver.
2CH/
A.DIRECT
Press 2CH/A.DIRECT repeatedly to select the 2-channel sound mode of the sound output you want.
2CH mode
2ch Stereo
2ch Analog Direct
Effect
The receiver outputs the sound from the front left/right speakers only. There is no sound from the subwoofer.
Standard 2 channel stereo sources completely bypass the sound field processing and multi-channel surround formats are downmixed to 2 channel.
You can switch the audio of the selected input to 2 channel analog input. This function enables you to enjoy high quality analog sources.
When using this function, only the volume and front speaker level can be adjusted.
To listen to music through headphones connected to the receiver
Sound field
Headphone (2ch)
Headphone (Direct)
Headphone (Multi)
Effect
This mode is selected automatically if you use headphones when the mode other than “2ch Analog Direct” is selected. Standard 2 channel stereo sources completely bypass the sound field processing and multi-channel surround formats are downmixed to 2 channels.
Outputs the analog signals without processing by the tone, sound field, etc.
This mode is selected automatically if you use headphones when the multichannel input is selected. Outputs the front analog signals from the MULTI
CHANNEL INPUT jacks.
Note
• You cannot select “2ch Analog Direct” in the following cases.
– When you play back content on devices on a home network.
– The HDMI input or multi-channel input is selected.
74
GB
Playing back with multi-channel surround
The Auto Format Direct (A.F.D.) mode allows you to listen to higher fidelity sound and select the decoding mode for listening to a 2 channel stereo sound as multi-channel sound.
A.F.D.
Press A.F.D. repeatedly to select the A.F.D. mode you want.
A.F.D. mode
A.F.D. Auto
Multi Stereo
Multi-channel audio after decoding
(Detecting automatically)
(Multi Stereo)
Effect
Presets the sound as it was recorded/encoded without adding any surround effects.
Outputs 2 channel left/right signals from all speakers.
Notes
• This function does not work when the multichannel input is selected.
• Even if you set the speaker pattern so that there are both surround back speakers and front high speakers, sound cannot be output from each pair of speakers simultaneously.
When you select “PLIIz Height,” or the digital input signal contains signals for the front high channels, sound is output from the front high speakers. In other cases, sound is output from the surround back speakers.
If you always want to output sound from the front high speakers, set the speaker pattern so that there
are no surround back speakers (page 45).
• “Multi Stereo” does not work when multi-channel audio signals are being received.
• If you set the speaker pattern so that there are both surround back speakers and front high speakers, and then you select “Multi Stereo,” if 2 channel signals are input, sound is output from each pair of speakers simultaneously. However, sound cannot be output from the PRE OUT FRONT HIGH L and
R jacks.
Tip
We usually recommend “A.F.D. Auto.”
75
GB
Enjoying a surround effect for music
You can take advantage of surround sound simply by selecting one of the receiver’s preprogrammed sound fields. They bring the exciting and powerful sound of concert halls into your home.
MUSIC
Press MUSIC repeatedly to select the surround effect you want for music.
Sound field
D.Concert Hall A
D.Concert Hall B
Jazz Club
Live Concert
Stadium
Sports
Portable Audio
PLII Music
PLIIx Music
PLIIz Height
Neo:6 Music
Effect
Uses 3D sound imaging to reproduce the sound characteristics of a concert hall, which simulates a large sound stage produced by reflectivity.
Uses 3D sound imaging to reproduce the sound characteristics of a concert hall, which simulates resonant and unique reverberative sound.
Reproduces the acoustics of a jazz club.
Reproduces the acoustics of a 300-seat live house.
Reproduces the feeling of a large open-air stadium.
Reproduces the feeling of sports broadcasting.
Reproduces a clear enhanced sound image from your portable audio device.
This mode is ideal for MP3 and other compressed music.
Perform Dolby Pro Logic II Music mode decoding. This setting is ideal for normal stereo sources such as CDs.
Performs Dolby Pro Logic IIx Music mode decoding. This setting is ideal for normal stereo sources such as CDs.
Performs Dolby Pro Logic IIz mode decoding. This setting increases flexibility to expand a 5.1 to a 7.1 channel system. Its vertical component gives a dimension of presence and depth. “PLIIz Height” is the same sound field as that
is described on page 78. You can adjust the gain level for “PLIIz Height.” For
details, see “Surround settings” (page 122).
Performs DTS Neo:6 Music mode decoding. A source recorded in 2 channel format is decoded into 7 channels. This setting is ideal for normal stereo sources such as CDs.
To turn off the surround effect for MUSIC
Press 2CH/A.DIRECT or A.F.D.
76
GB
Notes
• The sound fields for music do not work in the following cases.
– The multi-channel input is selected.
– Dolby TrueHD signals with a sampling frequency of 176.4 kHz and higher are being received.
• The sound fields for music other than “PLII
Music,” “PLIIx Music,” “PLIIz Height,” and
“Neo:6 Music” also do not work when DTS-HD signals with a sampling frequency of 88.2 kHz and higher are being received.
• “PLII Music,” “PLIIx Music,” “PLIIz Height,” and
“Neo:6 Music” also do not work when the speaker pattern is set to 2/0 or 2/0.1.
• If you select “PLII Music,” “PLIIx Music,” “PLIIz
Height,” or “Neo:6 Music” while the receiver is receiving signals with a sampling frequency of
176.4 kHz and higher, the signals will always be played back at either 44.1 kHz or 48 kHz.
• If you select a sound field other than “PLII Music,”
“PLIIx Music,” “PLIIz Height,” or “Neo:6 Music” while the receiver is receiving signals with a sampling frequency of 88.2 kHz and higher, the signals will always be played back at either
44.1 kHz or 48 kHz.
• “PLIIx Music,” and “PLIIz Height” do not appear depending on the speaker pattern you select.
– “PLIIx Music” is available only when the speaker pattern is set so that there are surround back speaker(s).
– “PLIIz Height” is available only when the speaker pattern is set so that there are front high speakers.
• Some speakers may not output sound, depending on the sound field setting.
• When one of the sound fields for music is selected, no sound is output from the subwoofer if all the speakers are set to “LARGE” in the Speaker settings menu. However, the sound will be output from the subwoofer if the digital input signal contains L.F.E. signals, or if the front or surround speakers are set to “SMALL,” the sound field for movie is selected, or “Portable Audio” is selected.
• If there is any noise present, the noise may be different depending on the sound field you select.
• Even if you set the speaker pattern so that there are both surround back speakers and front high speakers, sound cannot be output from each pair of speakers simultaneously.
When you select “PLIIz Height,” or the digital input signal contains signals for the front high channels, sound is output from the front high speakers. In other cases, sound is output from the surround back speakers.
If you always want to output sound from the front high speakers, set the speaker pattern so that there
are no surround back speakers (page 45).
77
GB
Enjoying a surround effect for movies
You can take advantage of surround sound simply by selecting one of the receiver’s preprogrammed sound fields. They bring the exciting and powerful sound of movie theaters into your home.
MOVIE
Press MOVIE.
Sound field
HD-D.C.S.
PLII Movie
PLIIx Movie
PLIIz Height
Neo:6 Cinema
Effect
HD Digital Cinema Sound (HD-D.C.S.) is Sony’s new innovative home theater technology using the latest acoustic and digital signal processing technologies.
It is based on precise response measurement data of a mastering studio.
With HD-D.C.S., you are able to enjoy Blu-ray and DVD movies at home with not only the high quality of sound, but also the best sound ambience, just as the movie’s sound engineer intended in the mastering process.
You can select the effect type for HD-D.C.S. For details, see “Surround settings” (page 122).
Performs Dolby Pro Logic II Movie mode decoding. This setting is ideal for movies encoded in Dolby Surround. In addition, this mode can reproduce sound in 5.1 channel for watching videos of overdubbed or old movies.
Performs Dolby Pro Logic IIx Movie mode decoding. This setting expands
Dolby Pro Logic II Movie or Dolby Digital 5.1 to discrete 7.1 movie channels.
Performs Dolby Pro Logic IIz mode decoding. This setting increases flexibility to expand a 5.1 to a 7.1 channel system. Its vertical component gives a dimension of presence and depth. “PLIIz Height” is the same sound field as that
is described on page 76. You can adjust the gain level for “PLIIz Height.” For
details, see “Surround settings” (page 122).
Performs DTS Neo:6 Cinema mode decoding. A source recorded in 2 channel format is decoded into 7 channels.
To turn off the surround effect for MOVIE
Press 2CH/A.DIRECT or A.F.D.
Notes
• The sound fields for movie do not work in the following cases.
– The multi-channel input is selected.
– Dolby TrueHD signals with a sampling frequency of 176.4 kHz and higher are being received.
• “HD-D.C.S.” also do not work when DTS-HD signals with a sampling frequency of 88.2 kHz and higher are being received.
• “PLII Movie,” “PLIIx Movie,” “PLIIz Height,” and
“Neo:6 Cinema” also do not work when the speaker pattern is set to 2/0 or 2/0.1.
• If you select “PLII Movie,” “PLIIx Movie,” “PLIIz
Height,” or “Neo:6 Cinema” while the receiver is receiving signals with a sampling frequency of
176.4 kHz and higher, the signals will always be played back at either 44.1 kHz or 48 kHz.
78
GB
• If you select the sound field other than “PLII
Movie,” “PLIIx Movie,” “PLIIz Height,” and
“Neo:6 Cinema” while the receiver is receiving signals with a sampling frequency of 88.2 kHz and higher, the signals will always be played back at either 44.1 kHz or 48 kHz.
• “PLIIx Movie,” and “PLIIz Height” do not appear depending on the speaker pattern you select.
– “PLIIx Movie” is available only when the speaker pattern is set so that there are surround back speaker(s).
– “PLIIz Height” is available only when the speaker pattern is set so that there are front high speakers.
• Some speakers may not output sound depending on the sound field.
• If there is any noise present, the noise may be different depending on the sound field you select.
• Even if you set the speaker pattern so that there are both surround back speakers and front high speakers, sound cannot be output from each pair of speakers simultaneously.
When you select “PLIIz Height,” or the digital input signal contains signals for the front high channels, sound is output from the front high speakers. In other cases, sound is output from the surround back speakers.
If you always want to output sound from the front high speakers, set the speaker pattern so that there
are no surround back speakers (page 45).
For example, when you select the “HD-D.C.S.” sound field, sound is output from the surround back speakers if 5/4.x is set (HD-D.C.S.
(STANDARD)), and sound is output from the front high speakers if 5/2.x is set (HD-D.C.S. (FH)).
Digital audio formats supported by the receiver
Digital audio formats that this receiver can decode depend on digital audio input jacks for the components connected.
This receiver supports the following audio formats.
Audio format
Maximum number of channels
Connection of the playback component and the receiver
COAXIAL/OPTICAL HDMI
Dolby Digital
5.1ch
a a
Dolby Digital EX
6.1ch
a a
Dolby Digital Plus a)
7.1ch
× a
Dolby TrueHD a)
7.1ch
× a
DTS
5.1ch
a a
DTS-ES
6.1ch
a a
continued
79
GB
Audio format
DTS 96/24
Maximum number of channels
Connection of the playback component and the receiver
COAXIAL/OPTICAL HDMI
5.1ch
a a
DTS-HD
High Resolution Audio a)
7.1ch
× a
DTS-HD
Master Audio a) b)
7.1ch
× a
DSD a)
5.1ch
× a
Multi channel Linear PCM a)
7.1ch
× a a)
Audio signals are output in another format if the playback component does not correspond to the format. For details, refer to the operating instructions of the playback component.
b)
Signals with a sampling frequency of 176.4 kHz and higher are played back at 96 kHz or 88.2 kHz.
80
GB
Using Network Features
About the network functions of the receiver
• You can enjoy content (music, photos, and videos) which have been stored on a DLNAcompliant device (DLNA CERTIFIED™
Products) that has an authorized DLNA logo
displayed on the device (page 82).
• You can enjoy audio from components connected to the receiver or FM/AM tuner with a DLNA-compliant device (DLNA
CERTIFIED™ Products) that has an authorized DLNA logo displayed on the
• You can use the receiver as a device equivalent to a UPnP media renderer on your home network.
• With an Internet connection, you can listen
to Rhapsody and SHOUTcast (page 88, 91)
and upgrade the software of the receiver.
Rhapsody is only available in the US.
• You can change the settings of the receiver using a computer on your home network
About DLNA
DLNA (Digital Living Network Alliance) is a standards organization made up of manufacturers of various products, such as computers, AV components, and mobile computing devices which exchange content
(music, photos, and videos). DLNA decides upon standards and publishes an authorized logo to be displayed on devices which support
DLNA standards.
81
GB
Enjoying content stored on the server
A server is a device which delivers content (music, photos, and videos) to a DLNA device on a home network.
You can play back music, photos, and videos stored on the server using the receiver.
Computer
V/v/B/b,
OPTIONS
MENU
1
Select “ Music,” “ Photo,” or “ Video” from the menu, then press or
b.
2
Select “Server,” then press .
The server list appears on the TV screen.
3
Select the server which holds the content you want to play.
The content list appears on the TV screen.
4
Select content you want to play from the content list.
The playback screen appears on the TV screen, and content you selected is played back.
STR-DA5600ES
To search the server
You can search the server if the server list does not appear on the TV screen.
1
Select “ Music,” “ Photo,” or
“ Video” from the menu, then press
or b.
2
Select “Server,” then press .
3
Press OPTIONS.
4
Select “Server Search,” then press .
The confirming message appears on the TV screen.
5
Select “Yes,” then press .
The server list appears on the TV screen.
Registering your favorite content
You can register your favorite content played back from “ Music,” “ Photo,” or
“ Video,” in “My Library.”
1
Press OPTIONS while playing back the content.
2
Select “Add track (picture, movie) to My Library,” then press .
82
GB
3
Select the number you want to use to register the content from the list, then press .
The content you chose will be registered in “My Library.”
* This button may not work depending on the connected server or the type of content.
** This button is available when photos are played back in the slideshow mode or from “My
Library.”
Playing back content registered in My Library
1
Select “ Music,” “ Photo,” or “ Video” from the menu, then press or
b.
2
Select “My Library,” then press
.
3
Select content you want to play from the content list.
The playback screen appears on the TV screen, and content you selected is played back.
Note
You cannot register content played back from “My
Library” in “My Library.”
Using the multifunction remote to play back content
You can enjoy content on the server by using the following buttons on the multifunction remote.
Press AMP to operate the receiver using the remote.
Type of content
Remote button
N x
X
>
.
Music Photo Video
z z z z z z z z z z z** z** z**
M m z* z* z* z*
Selecting the playback mode
You can select the playback mode of the Music category.
1
Press OPTIONS while the music selections are displayed on the list*, or while listening to the music.
*OPTIONS may not work, depending on the type of content.
2
Select “Repeat,” or “Shuffle,” then press .
3
Select a mode from the following, then press .
x Repeat
Plays one or all the tracks repeatedly.
• Off
Deactivates the repeat play mode.
• One
Plays one track repeatedly.
• All
Plays all the tracks repeatedly.
x Shuffle
Plays all the tracks in random order.
• Off
Deactivates the shuffle play mode.
• On
Activates the shuffle play mode.
continued
83
GB
To play back a photo together with background music (BGM)
You can enjoy photos with music registered in
“My Library” as background music.
1
Play back a photo from “Server”
(page 82) or “My Library” (page 83).
If you select a photo from “Server,” you will be offered a choice of displaying a single photo or a slideshow of photos on the server.
If you select a photo from “My Library,” photos in “My Library” will be played back in sequence in the slideshow mode.
2
Press OPTIONS.
3
Select “BGM,” then press .
4
Select a mode from the following, then press .
• Off
Stops playback of background music.
• On
Plays all the tracks in “My Library” repeatedly.
• On (Shuffle)
Plays all the tracks in “My Library” repeatedly in random order.
84
GB
Enjoying the audio of a component connected to the receiver using other device via the home network
The receiver can deliver the audio of a component connected to the receiver using an audio cord, or the audio from an FM/AM tuner that have been converted to linear PCM format to the devices on the home network.
Note
Digital audio signals which are input to the receiver cannot be played back on a DLNA-compliant device
(DLNA CERTIFIED™ Products) that have an authorized DLNA logo displayed on the device.
Moreover, some content may not be playable on a compliant device (DLNA CERTIFIED™ Products).
Listening to the audio of the components connected to the receiver or the built-in FM/AM tuner on a device on your home network
The following illustration is an example of listening to the audio of a component connected to the
receiver using a computer. Set “Server Function” to “ON” in the Network settings menu (page 132)
beforehand.
Computer
STR-DA5600ES
1
Select the receiver as a server using the device on the home network.
2
Select the content you want to play back using device on the home network.
Refer to the operating instructions of the device.
Component connected using an audio cord (not supplied)
Notes
• You cannot play back on two or more devices on your home network at the same time audio delivered from the receiver. When there is a device already playing back content of the receiver, you cannot play back any of the content of the receiver on another device.
• When you operate the FM/AM tuner on this receiver while listening to the FM/AM tuner on the home network, the audio is switched to the latest audio which is selected on the receiver, even though the display of devices on a home network does not change.
continued
85
GB
• Turn the server function off, then turn it on again to reflect the latest setting onto the home network after you change the following setting items.
– input name and icon assigned that name
– preset station name on the FM/AM tuner
You can turn on/off the server function in “Server
Function” in the Network settings menu
Content/input which can be selected from the device on your home network
Content which can be played back/listened to with a device on your home network
Content which can be played back using a device on your home network are as follows.
Content
Music (analog signal)
Music (digital signal)
Video
×
×
×
Playback
a
Notes
• Some content may not be able to be played back depending on the connected player or the type of content.
• The audio signals of a component connected to the receiver using a audio cord or FM/AM tuner can be delivered to your home network.
Audio input which can be selected from a device on a home network
You can select analog audio input from a device on your home network as follows.
Input name
BD
DVD
SAT/CATV
TV
VIDEO1
VIDEO2
× a a
Select
a a a
86
GB
Input name
TAPE
MD
SA-CD/CD
PHONO
FM
AM
MULTI IN
DMPORT
HDMI1-6
Server
SHOUTcast
SOURCE
Rhapsody
× a
×
×
× a
×
× a a
Select
a a a
Using a controller
You can do the following using a device which has a control function on the home network.
– Playing back content stored on the server with the receiver
– Operating the receiver using Windows 7-based computer with Windows Media Player 12
Note
Before you operate the receiver using a controller, you have to set the controller you want to use to match the receiver. Set “External Control” to “ON,” then set “Controllers” in the Network settings menu. For details on
settings for controllers, see “Controllers” (page 132).
Enjoying content stored on the server
You can enjoy, or check the status of content (music, photos, and videos) on the server using a controller. However, only the main zone of the receiver can be operated by a controller.
The following operations are supported.
• Playback, stop, pause, fast-forward and fast-reverse of content
• Go to the next/previous content item
• Checking the elapsed time of the currently playing content
Notes
• Some operations may not be performed, depending on the device used as a controller. For details, refer to the operating instructions of each device.
• If you operate the receiver using the supplied remote together with a controller, the receiver may not work properly.
Computer
(server, controller)
1
Select the device to be used as a server using a controller on the home network.
2
Select the content you want to play back using a controller on the home network.
STR-DA5600ES
3
Select the receiver to be used to play back the content using a controller on the home network.
Refer to the operating instructions of each device.
87
GB
Listening to Rhapsody
You can enjoy the Rhapsody Digital Music
Service by connecting your receiver to the
Internet.
Rhapsody is only available in the US.
Rhapsody Digital Music Service
Play all the music you want with Rhapsody
®
Thousands of artists. Millions of songs.
Rhapsody is the critically-acclaimed digital music service that gives you unlimited access to a massive music catalog of millions of songs and thousands of artists. You’ll also get exclusive content, personalized recommendations, DJ/ad-free listening on
“Rhapsody Radio” and more.
For more information go to: www.rhapsody.com/sonystr
Setting an account
V/v/B/b,
OPTIONS
MENU
Before using the Rhapsody Digital Music
Service, it is necessary to register an account using your computer.
Refer to www.rhapsody.com/sonystr for details.
Sign in using your account on the receiver.
1
Select “ Settings” from the menu, then press or
b.
2
Select “Network,” then press
or
b.
3
Select “Rhapsody Account,” then press .
The confirmation screen for account input appears on the TV screen.
4
Select “Yes,” then press .
The account input screen appears on the
TV screen.
5
Select the Username box, then press .
The soft keyboard appears on the TV screen.
6
Press
V/v/B/b and
to select a character one by one to enter your user name.
7
Select “Finish,” then press .
8
Select the Password box, then press .
9
Press
V/v/B/b and
to select a character one by one to enter your password.
10
Select “Finish,” then press .
11
Select “Finish,” then press .
Note
Repeat the process again from step 6 if the sign in fails.
To check the account information
1
Select “ Settings” from the menu, then press or b.
2
Select “Network,” then or b.
3
Select “Rhapsody Account,” then press
.
88
GB
4
Press OPTIONS to select “Account
Information,” then press .
The account type and the customer support
ID appear on the TV screen.
To delete an account
1
Select “ Settings” from the menu, then press or b.
2
Select “Network,” then press or b.
3
Select “Rhapsody Account,” then press
.
4
Press OPTIONS to select “Remove
Account,” then press .
5
Select “Yes,” then press .
The user name and the password are deleted.
Selecting the station from the
Rhapsody Stations list
You can select the station you want to listen using the Rhapsody Stations list.
1
Select “ Rhapsody” from the menu, then press or
b.
2
Select “Rhapsody Radio,” then press
b.
3
Select the station you want to listen to, then press .
The reception screen appears on the TV screen and the station you selected is received.
Note
You can only listen to the same station when listening in the main zone, zone 2, and zone 3 simultaneously.
Priority is given to the station which has most recently been selected, even if other station has already been selected in one of zones.
Selecting the track using Music
Guide
The Music Guide displays a variety of music selections to sample, including top tracks and artists, and recommendations.
Select genre names, charts, and new releases anywhere in the Music Guide pages to browse more.
1
Select “ Rhapsody” from the menu, then press .
2
Select “Rhapsody Music
Guide,” then press .
3
Select “Genres,” “Charts,”
“New Releases,” or “Rhapsody
Recommends,” then press or
b.
4
Select the track you want to listen to from the list, then press .
The playback screen appears on the TV screen and the track you selected is played back.
Note
You can only listen to the same track when listening in the main zone, zone 2, and zone 3 simultaneously.
Priority is given to the track which has most recently been selected, even if other track has already been selected in one of zones.
Searching for a track, album, or artist you want to listen to
You can search for a track, album, or artist using the search function.
1
Select “ Rhapsody” from the menu, then press or
b.
2
Select “Search,” then press or
b.
continued
89
GB
3
Select “Artists,” “Albums,” or
“Tracks” you want to search for, then press .
The soft keyboard appears on the TV screen.
4
Press
V/v/B/b and
to select a character one by one to enter the title or name you want to search for.
5
Select “Finish,” then press .
Wait until the search result is displayed.
6
Press
b to select the search
results.
7
Select the track you want to listen to from the search result, then press .
The playback screen appears on the TV screen, and track you selected is played back.
Note
You can only listen to the same track when listening in the main zone, zone 2, and zone 3 simultaneously.
Priority is given to the track which has most recently been selected, even if other track has already been selected in one of zones.
Registering your favorite track, album, or station
You can register your favorite track, album, or station in “My Library” while playing back the track or during reception.
You can select the track, album or station that you registered in “My Library” from “My
Artists,” “My Albums,” “My Genres,” “My
Tracks,” “My Playlists,” or “My Stations.”
1
Press OPTIONS while a track is playing back or you are selecting a station.
2
Select “Add track to My
Library,” “Add album to My
Library,” or “Add station to My
Library,” then press .
The track, album, or station you chose will be registered in “My Library.”
To remove a track, album, or station registered in My Library
You can remove a track, album, or station registered in “My Library.”
1
Press OPTIONS while a track is playing back or you are selecting a station.
2
Select “Delete album from My Library,”
“Delete track from My Library,” or
“Delete station from My Library,” then press .
The confirmation screen of deletion appears on the screen.
3
Select “Yes,” then press .
The deletion is completed.
Selecting a track, playlist or station registered in My Library
You can select a track, playlist or station registered in “My Library.”
1
Select “ Rhapsody” from the menu, then press or
b.
2
Select “My Library,” then press
.
3
Select the track you want to listen to using the My Library list, then press .
My Library list
My Artists > Artist(s)* > Albums(s)* > Track(s)*
My Albums > Album(s)* > Track(s)*
My Genres > Genre(s)* > Artist(s)* > Album(s)* > Track(s)*
My Tracks > Track(s)*
My Playlists > Playlist(s)* > Track(s)*
My Stations > Station(s)*
90
GB
*The number of lists displayed on the screen depends on the status of the Rhapsody Digital
Music Service you are using.
The playback screen appears on the TV screen and the track you selected is played back.
Listening to SHOUTcast
SHOUTcast is a digital audio streaming technology-based radio service.
SHOUTcast is a directory of Internet radio stations, allowing users to access thousands of free online radio stations from DJs and broadcasters around the world.
Refer to http://www.shoutcast.com for details.
RETURN/
EXIT O
V/v/B/b,
OPTIONS
MENU
Selecting a SHOUTcast station
1
Select “ SHOUTcast” from the menu, then press or
b.
2
Select “Preset List,” “0-9,” or A to Z, then press .
3
Select the genre you want to listen to, then press .
4
Select the station you want to listen to, then press .
The reception screen appears on the TV screen, and the station you selected is received.
Notes
• When the number of stations is large, up to 100 stations can be displayed (in order) on this receiver.
• The audio supplied in a format that is not supported by this receiver does not appear on the list.
• You can only listen to the same station when listening in the main zone, zone 2, and zone 3 simultaneously.
continued
91
GB
Priority is given to the station which has most recently been selected, even if other station has already been selected in one of zones.
Presetting favorite stations
You can register your favorite SHOUTcast stations on the receiver.
1
Press OPTIONS while listening to the radio station.
2
Press to select “Add to
Preset List.”
The preset number list appears on the TV screen.
3
Select the preset number you want to preset, then press .
Note
If you select a list number for which a station has already been registered, the previously registered station will be overwritten.
To return to the previous screen
Press RETURN/EXIT O.
Features of the Setup
Manager application software
You can check the settings of the receiver, and adjust those settings using your computer, as well as using the receiver, after installing the
Setup Manager application software provided on the CD-ROM supplied with the receiver.
The following settings cannot be set using the computer with the Setup Manager application software.
• Auto Calibration
All settings other than the frequency adjustment for User Reference
• Speaker
– Test Tone
• Multi Zone
– Zone Power ON/OFF
– Zone Input Change
– Zone Volume Adjust
Selecting preset stations
You can select your favorite stations from among the registered stations.
1
Select “ SHOUTcast” from the menu, then press or
b.
2
Select “Preset List,” then press
or
b.
3
Select the preset number station you want to listen to, then press .
The reception screen appears on the TV screen, and the station you selected is received.
System Requirements
Operating System
Windows 7 Starter/Home Premium/
Professional/Ultimate (32bit/64bit)
Windows Vista Home Basic/Home Premium/
Business/Ultimate (SP2, 32bit/64bit)
Windows XP Home Edition/Professional
(SP3, 32bit)
Computer
CPU: Celeron, Pentium III or higher
Clock Speed: 1 GHz or higher
RAM: 512 MB or more
HDD: 20 MB or more free disk space
(280 MB free disk space is required when
.NET Framework 2.0 is not installed.)
Monitor: 1024 × 768, High Color
(65536 colors)
Network: 100Base-TX or higher
92
GB
Installing the Setup Manager application software on a computer
1
Turn on your computer and login as an administrator.
2
Insert the supplied CD-ROM into the CD-ROM drive of your computer.
The installation launcher starts automatically, then a Software Setup screen appears on the screen.
If the installation launcher does not start automatically, double-click
“SetupLauncher.exe” on the disc.
CD-ROM (Setup
Manager application software) (supplied)
3
Install the Setup Manager application software following the instructions given in the message on the screen.
Updating the receiver software using the Setup Manager
You can update the receiver software using the
Setup Manager application software provided on the CD-ROM supplied with the receiver.
Refer to the HELP of the Setup Manager for details on operations of the Setup Manager.
Before updating the receiver software, set
“UPDATE(PC)” from “DENY” to “PERMIT” using the display window of the receiver so that the receiver software can be updated using
1
Download the update program from the support website on the computer to which you installed the Setup Manager.
2
Click “System” in the Setup
Manager window on the computer screen, then click
“Browse...” and specify the path of the update program, and click “Start Update.”
Receiver updating starts.
The MULTI CHANNEL DECODING lamp on the front panel flashes while updating.
When the updating complete, the receiver will restart automatically.
Notes
• Do not turn the receiver off or disconnect the network cable during software updating. It may cause a malfunction.
• It may take 50 minutes for the software updating to complete.
To check the HELP
When you want to check the HELP of the
Setup Manager application software, click [Start] – [All Programs] – [Setup
Manager] – [Help for Setup Manager], in that order.
93
GB
Using Multi-zone Features
What you can do with the
Multi-zone function
You can enjoy images and sounds from a component connected to the receiver in a zone other than the main zone. For example, you can watch the DVD in the main zone and listen to the CD in zone 2 or zone 3.
When using an IR repeater (not supplied), you can operate both a component in the main zone and Sony receiver in zone 2 or zone 3 from zone 2 or zone 3.
Use the multifunction remote in zone 2 or zone 3. You cannot use the simple remote in a zone (zone 2 or zone 3) other than the main zone.
To operate the receiver from zone 2 or zone 3
You can operate the receiver without pointing the remote toward the receiver if you connect an IR repeater (not supplied) to the IR
REMOTE jack.
Use an IR repeater when you install the receiver in a place where signals from the remote cannot reach.
Making a multi-zone connection
1:Zone 2 connections
1
Outputs sound from speakers in zone 2 using the SURROUND
BACK/ZONE 2 terminals of the receiver.
Main zone Zone 2
STR-DA5600ES
IR REMOTE IN
B
TV monitor
A
B
ZONE 2 VIDEO
OUT*
Multifunction remote
SURROUND BACK/
ZONE 2
94
GB
2
Outputs sound from speakers in zone 2 using the receiver and another amplifier.
Main zone Zone 2
B
TV monitor
B
C
IR REMOTE IN
STR-DA5600ES
A
ZONE 2 VIDEO OUT*
ZONE 2 AUDIO OUT
A IR repeater (not supplied)
B Speakers
C
Sony Amplifier/Receiver
* You can also connect to the ZONE 2 COMPONENT VIDEO OUT jack.
Multifunction remote
2:Zone 3 connections
Main zone Zone 3
B B
IR REMOTE IN C
STR-DA5600ES
A
ZONE 3 AUDIO OUT
Multifunction remote
A IR repeater (not supplied)
B
Speakers
C
Sony Amplifier/Receiver
continued
95
GB
Making a zone 2 configuration using ZONE 2 VIDEO OUT (RJ-45 jack)
(USA/Canadian model only)
ZONE 2 VIDEO OUT (RJ-45 jack) is used only for custom installation by a qualified person.
ZONE 2 VIDEO OUT (RJ-45 jack) is a jack that sends a source video signal to the component video input for zone 2. For details, consult your dealer.
Note
This jack is not for an Ethernet LAN connection.
ZONE 2 VIDEO OUT (RJ-45 jack) connection
The RJ-45 pinouts use the T568B standard.
Refer to the illustration below.
Zone 2
Component Video Balun
CAV-CVB1
TV monitor
CAT5 cable Component video cable
ZONE 2 VIDEO OUT
(RJ-45 jack)
Note
CAV-CVB1 (Component Video Balun) must be used. Other types will cause trouble and may void your warranty.
RJ-45 Video Pinout
The RJ-45 pinouts use the T568B standard.
Refer to the illustration below.
Pinout
A Pin 1
B Pin 2
C Pin 3
D Pin 4
E Pin 5
F Pin 6
G Pin 7
H Pin 8
Wire color
BLUE/Pb (R) White/Orange
BLUE/Pb (T) Orange
GREEN/Y (R) White/Green
GND Blue
+11V White/Blue
GREEN/Y (T) Green
RED/Pr (R)
RED/Pr (T)
White/Brown
Brown
96
GB
CAT5 cable
Be sure to verify the CAT5 wiring connection is correct.
Use Category 5e or Category 6 cable.
CAT5 cable
RJ-45 connector
RJ-45 connector
Wire color
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
Pin No.
3
4
1
2
7
8
5
6
4
5
6
7
8
1
2
3
97
GB
Setting the speakers in zone 2
When the speakers in zone 2 are connected to the SURROUND BACK/ZONE 2 terminals of
the receiver (page 94), make the setting so that
the sound selected in zone 2 is output from the speakers connected to the SURROUND
BACK/ZONE 2 terminals.
AMP
5
Select “Speaker Pattern,” to select the pattern that has no surround back speakers or no front high speakers.
6
Press RETURN/EXIT O.
7
Select “Sur Back Assign,” then press .
8
Select “ZONE2,” then press .
Note
If the speaker pattern is set so that there are surround back speakers or front high speakers, you cannot make the zone 2 settings.
To exit the menu
Press MENU.
RETURN/
EXIT O
V/v/b,
MENU
1
Press AMP.
The receiver can be operated using the remote.
2
Press MENU.
The menu is displayed on the TV screen.
3
Select “ Settings” from the menu, then press or
b.
4
Select “Speaker,” then press
or
b.
Set the volume control for zone 2
You can set the volume control for the ZONE
2 AUDIO OUT jacks variable or fixed.
1
Select “ Settings” from the menu, then press or
b.
2
Select “Multi Zone,” then press
or
b.
3
Select “Zone2 Line Out Level,” then press .
4
Select the parameter you want, then press .
Parameter
VARIABLE
FIXED
Explanation
The volume control is set to
–40 dB initially.
Recommended when using a power amplifier.
The volume control is fixed to ±0 dB. Recommended when using a component with the variable volume control.
98
GB
Tip
When you set this item to “VARIABLE,” the volume for the ZONE 2 AUDIO OUT and the ZONE 2
SPEAKERS terminals can be changed in conjunction with each other.
Switching the zone setting of the remote
The remote commander is initially set to be used in zone 2. If you want to use it in zone 3, switch the zone setting of the remote.
?/1
RM SET
UP
AMP
SHIFT
ZONE
2, 3
Operating the receiver from another zone
(ZONE 2/ZONE 3 operations)
The following operations are described for connecting an IR repeater and operating the receiver in zone 2 or zone 3. When an IR repeater is not connected, use this receiver in the main zone.
ZONE
SHIFT
?/1
Input buttons
SOURCE
ENTER
V/v/b,
MENU
1
Press ?/1 while pressing RM
SET UP.
The AMP and ZONE buttons flash.
2
Press ZONE.
The AMP button goes off, the ZONE button keeps flashing and the SHIFT button lights up.
3
Press SHIFT, then press the numeric button 2 for the zone 2, or 3 for the zone 3 while the
ZONE button is flashing.
The ZONE button lights up.
4
Press ENTER.
The ZONE button flashes twice and the remote switches to zone 2 or zone 3 mode.
MASTER
VOL
continued
99
GB
Operating the receiver from zone 2
1
Turn on the main receiver (this receiver).
2
In the case of illustration 1-2
(page 94), turn on the amplifier
in zone 2.
3
Press ZONE.
The remote switches to zone 2.
4
Press ?/1.
The zone function is activated.
5
Press MENU.
The menu is displayed on the TV screen.
6
Select “ Input” from the menu, then press or
b.
7
Select the input source you want, then press .
For zone 2, analog video and audio signals are output. When you select
SOURCE, the signals of the current input of the main zone are output to the ZONE
2 OUT jack.
8
Adjust to a suitable volume.
• In the case of illustration 1-1
(page 94), adjust the volume using
MASTER VOL +/– on the remote.
• In the case of illustration 1-2
(page 95), adjust the volume using the
receiver in zone 2. If you set “Zone2
Line Out Level” to “VARIABLE,” you can also adjust the volume using
MASTER VOL +/– on the remote
To finish the zone 2 operation
Press ZONE, then press ?/1.
Operating the receiver from zone 3
1
Turn on the main receiver (this receiver) and the amplifier in zone 3.
2
Press ZONE.
The remote switches to zone 3. Change the zone setting of the remote to zone 3 in
3
Press ?/1.
The zone function is activated.
4
Press one of the input buttons on the remote to select the source signals you want to output.
For zone 3, only analog audio signals are output. When you select SOURCE, the signals of the current input in main zone are output.
5
Adjust to a suitable volume using the receiver in zone 3.
To finish the zone 3 operation
Press ZONE, then press ?/1.
Tips
• Even when this receiver is standby mode (press
?/1 on the remote to turn off this receiver), the receiver in zone 2 or zone 3 remains turned on. To turn off all receivers, press ?/1 and AV ?/1 on the multifunction remote at the same time (SYSTEM
STANDBY).
• Only signals from components connected to the analog input jacks are output through the ZONE 2
OUT/ZONE 3 OUT jacks. No signals are output from components connected to only the digital input jacks.
• When SOURCE is selected, the signals input to the
MULTI CHANNEL INPUT jacks are not output from the ZONE 2 OUT or ZONE 3 OUT jacks even when the multi-channel input is selected.
• The TV input, phono input, or multi-channel input can be selected in the main zone only.
100
GB
• “Server,” “Rhapsody,” or “SHOUTcast,” cannot be selected in zone 3.
• You can select either “FM” or “AM” from the main zone, zone 2, or zone 3. Priority is given to the choice which has most recently been selected, even if a different choice has already been selected in one of the zones.
• You can select any one of “Server,” “Rhapsody,” or
“SHOUTcast” from the main zone and zone 2.
Priority is given to the choice which has most recently been selected, even if a different choice has already been selected in either zone.
• You can select only the same channel from
“SIRIUS” when listening in both the main zone, zone 2, and zone 3 simultaneously. Priority is given to the channel which has most recently been selected, even if a different channel has already been selected in one of zones.
101
GB
Using Other Features
Using “BRAVIA” Sync features
What is “BRAVIA” Sync?
“BRAVIA” Sync is compatible with a Sony
TV, Blu-ray Disc/DVD player, AV amplifier, etc., that is equipped with the Control for
HDMI function.
By connecting Sony components that are compatible with the “BRAVIA” Sync with an
HDMI cable (not supplied), operation is simplified as below:
– System Audio Control (page 103)
– Theater Mode Sync (page 104)
Control for HDMI is a mutual control function standard used by HDMI CEC (Consumer
Electronics Control) for HDMI (High-
Definition Multimedia Interface).
The Control for HDMI function does not work in the following cases:
• When you connect the receiver to a component which is not correspond with
Sony Control for HDMI function.
• When you connect the receiver and components using other than HDMI connection.
• The Control for HDMI function does not work on a component connected to the
HDMI OUT B jack of the receiver.
We recommend that you connect the receiver to products featuring “BRAVIA” Sync.
Note
Depending on the connected component, the
Control for HDMI function may not work. Refer to the operating instructions of the component.
102
GB
Preparing for the “BRAVIA”
Sync
To use the “BRAVIA” Sync, turn the Control for HDMI function on for both the receiver and the connected component.
Turn the Control for HDMI function of the receiver and the connected component on individually.
Use the multifunction remote for this operation. This operation cannot be performed using the simple remote.
?/1
1
GUI
MODE
Press AMP.
AMP
HDMI input buttons
V/v/b,
MENU
The receiver can be operated using the remote.
2
Press MENU.
The menu is displayed on the TV screen.
3
Select “ Settings” from the menu, then press or
b.
4
Select “HDMI,” then press or
b.
5
Select “Control for HDMI,” then press
b.
6
Select “ON,” then press .
The Control for HDMI function of the receiver is activated.
7
Press GUI MODE to exit the GUI menu.
If the GUI menu is displayed, the Control for HDMI function of the playback components will not work properly.
8
Press one of the HDMI input buttons to display the image of the playback components for which you want to set the
Control for HDMI function.
9
Turn the Control for HDMI function of the connected component on.
For details on setting the connected component, refer to its operating instructions.
10
Repeat steps 8 and 9 to set the
Control for HDMI function and to display the image of all the playback components you want to use.
Notes
• When you pull out the HDMI cable or change the connection, perform the steps above.
However, you do not need to perform these steps when you use an HDMI IN 1, IN 2, or IN 6 jack.
• When you assign the component video input to the
HDMI input using the Input Assign function, you cannot set “Control for HDMI” to “ON.”
Playing back components with one-touch operation (One-Touch
Play)
By a simple operation (one-touch), components connected to the receiver with
HDMI connections start automatically.
You can enjoy the sound/image using connected components.
When you set
“
Pass Through
” to
“
ON,
” sound and image can be output only from the TV while the receiver remains in standby mode.
Play back a connected component.
The receiver and TV are turned on simultaneously, and sound and image are output from the receiver and TV.
To use the One-Touch Play of the camcorder
1
Turn the Control for HDMI function on for both the receiver and your camcorder.
2
Connect your camcorder to the HDMI
IN 1, IN 2, or IN 6 jack (page 26).
The receiver and TV are turned on simultaneously, and sound and image are output from the receiver and TV.
Notes
• Connect your camcorder to the HDMI IN 1, IN 2, or IN 6 jack. The camcorder may not work correctly if you connect it to the HDMI IN 3, IN 4, or IN 5 jack.
• Depending on the TV, the start of the content may not be output.
Enjoying the TV sound from the speakers connected to the receiver (System Audio Control)
You can enjoy the TV sound from the speakers connected to the receiver by a simple operation.
continued
103
GB
Depending on the TV settings, while you are watching the TV, the receiver turns on and switches to the “TV” function automatically.
TV sound is output from the speakers connected to the receiver, and the volume of the TV is minimized simultaneously.
You can use the System Audio Control function as follows.
• The sound of the TV is output from the speakers connected to the receiver when you turn the receiver on while the sound is being output from the TV speaker.
• You can adjust the receiver’s volume when you adjust the TV volume.
You can also operate this function using the
TV menu. For details, refer to the operating instructions of the TV.
Notes
• When “Control for HDMI” is set to “ON,” the
“Audio Out” settings in the HDMI settings menu will set automatically depending on the System
Audio Control settings.
• When you connect a TV that does not have System
Audio Control function, the System Audio Control function does not work.
• If the TV is turned on before turning on the receiver, the TV sound will not be output for a moment.
TV
AV ?/1
Press TV, then press AV ?/1.
The TV, receiver and connected components are turned off.
Notes
• Set the TV power supply interlock function to on before using the System Power Off function. For details, refer to the operating instructions of the
TV.
• Depending on the status, the connected components may not be turned off. For details, refer to the operating instructions of the connected components.
Turning off the receiver with the
TV (System Power-Off)
When you turn the TV off by using the power button on the TV’s remote, the receiver and the connected components turn off automatically.
You can also use the multifunction remote to turn off the TV.
Enjoying movies with the optimum sound field (Theater
Mode Sync)
Press the THEATER button on the remote of the receiver, TV, or the
Blu-ray Disc Player, while pointing the remote toward the TV.
The sound field switches to HD-D.C.S.
To return to the previous sound field, press the
THEATER button again.
Note
The sound field may not switch depending on the
TV.
Tip
The sound field may be changed back to the previous one when you change the TV’s input.
104
GB
Switching the monitors that output the HDMI video signals
When you have two monitors connected to the
HDMI OUT A and HDMI OUT B jacks, you can switch the output for these two monitors using the HDMI OUTPUT button on the multifunction remote. This operation cannot be performed using the simple remote.
?/1
Outputting the HDMI signals even when the receiver is in standby mode
(Pass Through)
You can output the video and audio signals from the HDMI IN jack to the TV connected to the HDMI OUT A jack even when the receiver is in standby mode.
When you activate this function, make the settings for “Pass Through” following the steps below.
V/v/b,
HDMI
OUTPUT
1
Turn on the receiver and the two monitors.
2
Press HDMI OUTPUT.
Each time you press the button, the output will be switched as follows:
HDMI A t HDMI B t HDMI A + B t OFF t HDMI A…
You can also use the HDMI OUT button on the receiver.
Notes
• If the compatible video format differs between the monitors connected to the HDMI OUT A jack and the HDMI OUT B jack of the receiver, “HDMI
A + B” may not work.
• Depending on the playback component you connect, “HDMI A + B” may not work.
MENU
1
Select “ Settings” from the menu, then press or
b.
2
Select “HDMI,” then press or
b.
3
Select “Pass Through,” then press
b.
4
Select the parameter you want, then press or
b.
Parameter
ON
Explanation
When the receiver is in the standby mode, the receiver continuously outputs HDMI signals from the receiver’s
HDMI OUT A jack.
continued
105
GB
Parameter
OFF
Explanation
The receiver does not output
HDMI signals when in the standby mode. Turn on the receiver to enjoy the connected component’s source on the TV. This setting saves power in the standby mode, compared with the “ON” setting.
Notes
• This function does not work when “Control for
HDMI” is set to “OFF.”
• This function is available only when you select
“HDMI A” or “HDMI A + B” using the HDMI
OUTPUT button. When you select “HDMI B” or
“OFF,” this function does not work.
Switching between digital and analog audio
When you connect components to both digital and analog audio input jacks on the receiver, you can fix the audio input mode to either of them, or switch from one to the other, depending on the type of material you intend to watch.
In addition, the Audio Return Channel (ARC) function is available by selecting “AUTO,” if
TV input is selected and your TV is compatible with the Audio Return Channel
(ARC) function. When using this function, you can output the TV sound to the receiver via an HDMI cable connected to the HDMI
OUT A jack without connecting the TV
AUDIO IN or TV OPTICAL jacks.
INPUT SELECTOR
INPUT MODE
1
Select the input source using
INPUT SELECTOR on the receiver.
2
Press INPUT MODE on the receiver.
The selected audio input mode appears in the display window.
• AUTO
Gives priority to digital audio signals when there are both digital and analog connections.
If there are no digital audio signals, analog audio signals are selected.
When TV input is selected, priority is given to the Audio Return Channel
(ARC) signals. If your TV is not
106
GB
compatible with the Audio Return
Channel (ARC) function, the digital optical audio signals are selected.
• OPT
Appears only when TV input is selected, and specifies the digital optical audio signals input to the TV OPTICAL
IN jack.
• ANALOG
Specifies the analog audio signals input to the AUDIO IN (L/R) jacks.
Notes
• Some audio input modes may not be set up depending on the input.
• When either the HDMI input, DIGITAL MEDIA
PORT adapter, Server, Rhapsody, SHOUTcast, or
SIRIUS is selected, “------” appears on the display, and you cannot select other modes. Select an input other than the HDMI input, DIGITAL MEDIA
PORT adapter, Server, Rhapsody, SHOUTcast, or
SIRIUS then set the audio input mode.
• When “2ch Analog Direct” is being used, or the multi-channel input is selected, audio input is set to
“Analog.” You cannot select other modes.
• The Audio Return Channel (ARC) function does not work in the following cases.
– Your TV is not compatible with the Audio
Return Channel (ARC) function.
– “Control for HDMI” is set to “OFF.”
– When you do not connect the receiver to the
ARC compatible TV’s HDMI jack via an HDMI cable.
Enjoying the sound/ images from other inputs
(Input Assign)
You can reassign video and/or audio signals to another input.
Example) Connect the OPTICAL OUT jack of the DVD player to the OPTICAL VIDEO 1 IN jack of this receiver when you want to input the only digital optical audio signals from the
DVD player.
Connect the component video jack of the DVD player to the COMPONENT VIDEO IN 1/
COMPONENT VIDEO IN 2, or
COMPONENT VIDEO IN 3 jack of this receiver when you want to input the video signals from the DVD player. Assign video and/or audio signals to the DVD input jack using “Input Assign” in the Input menu.
V/v/B/b,
OPTIONS
MENU
1
Select “ Input” from the menu, then press or
b.
2
Select the input name you want to assign.
3
Press OPTIONS.
The option menu appears.
4
Select “Input Assign,” then press .
5
Select the audio and/or video signals you want to assign to the input selected in step 2, then press .
continued
107
GB
Input name BD DVD SAT/
CATV
VIDEO1 VIDEO2 TAPE MD SA-CD/
CD
MULTI
IN
HDMI1 HDMI2 HDMI3 HDMI4 HDMI5 HDMI6
a – – – – – – – – – – – – – –
Assignable
BD video input
Composite jacks
DVD
Composite
– a
SAT/CATV
Composite
– –
VIDEO1
Composite
– –
– a
–
–
– a*
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
– a* – – – – – – – – – – VIDEO2
Composite
– – –
Component1 a* a a
Component2 a a* a
Component3 a a a* a a a HDMI1
HDMI2
HDMI3
HDMI4 a a a a a a a a a a a a
HDMI5
HDMI6
Assignable audio input jacks
VIDEO1
OPT
VIDEO2
OPT a a a a a a a
–
– a a a a a a a a a a*
– a a a a a a a a a
– a* a a a a a a a a a
–
– a a a a a a a a a
–
– a a a a a a a a a a a a a** a** a** a** a** a** a a** a** a** a** a** a** a a** a** a** a** a** a** a a a a a a
–
– a*
–
–
–
–
–
–
–
– a*
–
–
–
–
–
–
–
– a*
–
–
–
–
–
–
–
– a*
–
–
–
–
–
–
–
– a*
–
–
–
–
–
–
–
– a*
–
–
SAT/CATV
OPT a a a*
TAPE OPT a
MD OPT a a
BD COAX a* a
–
–
– a
DVD
COAX
– a*
SA-CD/CD
COAX
– – a a
–
–
– a a a
–
–
– a a a
– – a* – a
– a* a a a a a a a a
–
– a*
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
* Initial setting
** When you assign a component video input to the HDMI input via the Input Assign menu, component video signals are not converted to HDMI video signals and are not output from the HDMI OUT jacks. Component video signals are output from the COMPONENT VIDEO MONITOR OUT jack. In this case, the resolution of the GUI output is set to “480p” for both component video input and HDMI video input.
Notes
• You cannot assign other optical input to the inputs to which optical input jack is initially assigned, and you cannot assign other coaxial input to the inputs to which coaxial input jack is initially assigned.
• When you assign the digital audio input, the
INPUT MODE setting may change automatically.
• You cannot reassign more than one HDMI input to the same input.
• You cannot reassign more than one digital audio input to the same input.
• You cannot reassign more than one component video input to the same input.
• When you assign a component video input to the
HDMI input, set “Control for HDMI” to “OFF.”
108
GB
Using the sleep timer
You can set the receiver to turn off automatically at a specified time.
Use the multifunction remote for this operation. This operation cannot be performed using the simple remote.
When sleep timer is being used, “SLEEP” lights up in the display window of the receiver.
Tip
To check the remaining time before the receiver turns off, press SLEEP. The remaining time appears on the display. If you press SLEEP again, the sleep timer will be changed.
AMP
Enjoying the surround effect at low volume levels
(Night Mode)
This function allows you to retain a theater like environment at low volume levels. This function can be used with other sound fields.
When watching a movie late at night, you will be able to hear the dialog clearly even at a low volume level.
V/v/b,
SLEEP
1
Press AMP.
2
Press SLEEP repeatedly.
Each time you press SLEEP, the display changes cyclically as follows:
MENU
1
Select “ Settings” from the menu, then press or
b.
2
Select “Audio,” then press or
b.
3
Select “Night Mode,” then press
.
4
Select “ON,” then press .
continued
109
GB
Notes
• This function does not work when the multichannel input is selected.
• This function does not work when “2ch Analog
Direct” is being used.
• This function does not work when Dolby TrueHD signals with a sampling frequency of 176.4 kHz and higher are being received.
• If the Night Mode function is turned on while the receiver is receiving signals with a sampling frequency of 176.4 kHz and higher, the signals will always be played back at either 44.1 kHz or
48 kHz.
Tip
While this function is on, the Bass, Treble increase, and “D. Range Comp” is automatically set to
“MAX.”
Recording using the receiver
You can record from a video/audio component using the receiver. Refer to the operating instructions supplied with your recording component.
V/v/b,
2
Select the playback component, then press .
3
Prepare the playback component for playing.
For example, insert a CD into the CD player.
4
Prepare the recording component.
Insert a blank MD or tape into the recording deck and adjust the recording level.
5
Start recording on the recording deck, then start playback on the playback component.
Notes
• If you use an SCMS-compliant recording deck, you may not make recordings.
• The audio input signals from the MULTI
CHANNEL INPUT jacks may not be output.
• Only analog input signals are output from the analog output jack (for recording).
• Signals input from the COAXIAL IN jack or the
OPTICAL IN jack are output to the OPTICAL MD
OUT jack, unless MD input is selected.
• HDMI sound cannot be recorded.
To record digital sound
Connect a component for playback to the digital audio input (OPTICAL IN) jack, and connect the recording component to the
OPTICAL MD OUT jack.
MENU
Recording with an audio component
You can record with an audio component using the receiver. Refer to the operating instructions supplied with your MD deck or tape deck.
1
Select “ Input” from the menu, then press or
b.
110
GB
Recording with a video component
1
Select “ Input” from the menu, then press or
b.
2
Select the playback component, then press .
3
Prepare the component for playing.
For example, insert the video tape you want to copy into the VCR.
4
Prepare the recording component.
Insert a blank video tape, etc., into the recording component (VIDEO 1) for recording.
5
Start recording on the recording component, then start playback on the playback component.
Notes
• Some sources contain copy guards to prevent recording. In this case, you may not be able to record from the sources.
• Analog input signals (audio and composite video) are output from the analog output jacks.
• While only composite video signals are being recorded, the auto standby function of the receiver may start up and interrupt the recording. In this
case, set “Auto Standby” to “OFF” (page 134).
remote are different, you cannot use the remote to operate the receiver.
Switching the command mode of the receiver
?/1 2CH/A.DIRECT
1
Press ?/1 to turn off the
receiver.
2
While holding down 2CH/
A.DIRECT, press ?/1 to turn on
the receiver.
When the command mode is set to “AV2,”
“COMMAND MODE [AV2]” appears on the display.
When the command mode is set to “AV1,”
“COMMAND MODE [AV1]” appears on the display.
Switching the command mode of the receiver and the remote
You can switch the command mode
(COMMAND MODE AV 1 or COMMAND
MODE AV 2) of the receiver and the remote.
Switch the command mode from the initial setting to the appropriate setting, if other Sony component is operated accidentally by the same remote, when you are operating the receiver using the remote supplied with the receiver.
The command modes of both the receiver and the remote are those of the initial setting
(COMMAND MODE AV 2).
The receiver and the remote, on the contrary, should use the same command mode. If the command modes of the receiver and the
Switching the command mode of the simple remote commander
DISPLAY
MUTING
continued
111
GB
Press MUTING and at the same time while pressing DISPLAY.
Switching the command mode of the multifunction remote commander
?/1
RM SET
UP
SHIFT AMP
Using a bi-amplifier connection
If you are not using surround back speakers and front high speakers, you can use the
SURROUND BACK/ZONE 2 terminals for the front speakers for use with a bi-amplifier connection.
To connect speakers
Front speaker
(R)
Front speaker
(L)
1, 2 ZONE
ENTER
Hi
Lo
Hi
Lo
1
Press ?/1 while pressing RM
SET UP.
The AMP and ZONE buttons flash.
2
Press AMP.
The ZONE button goes off, the AMP button keeps flashing and the SHIFT button lights up.
3
Press the numeric button 1 or 2 while the AMP button is flashing.
When you press 1, the command mode is set to AV SYSTEM 1. When you press 2, the command mode is set to AV SYSTEM
2.
The AMP button lights up.
4
Press ENTER.
The AMP button flashes twice, then the command mode setting process is completed.
Connect the jacks on the Lo (or Hi) side of the front speakers to the FRONT A terminals, and connect the jacks on the Hi (or Lo) side of the front speakers to the SURROUND BACK/
ZONE 2 terminals. Make sure that metal fittings of Hi/Lo attached to the speakers have been removed from the speakers. Not doing so may cause a malfunction of the receiver.
To set up speakers
1
Select “ Settings” from the menu, then press or b.
2
Select “Speaker,” then press or b.
3
Select “Speaker Pattern,” then press
.
112
GB
4
Select the appropriate speaker pattern so that there are no surround back speakers and no front high speakers.
5
Press RETURN/EXIT O.
6
Select “Sur Back Assign,” then press
.
7
Select “BI-AMP,” then press .
The same signals output from the FRONT
A terminals can be output from the
SURROUND BACK/ZONE 2 terminals.
Notes
• You cannot use the FRONT B/FRONT HIGH terminals for a bi-amplifier connection.
• When you use the auto calibration function, make the bi-amplifier settings before you perform auto calibration.
• If you make the bi-amplifier settings, the speaker level, balance, and equalizer settings of the surround back speakers become invalid, and those of the front speakers are used.
• Signals output from the PRE OUT jacks are used with the same settings as those of the SPEAKERS terminals.
• If the speaker pattern is set so that there are surround back speakers or front high speakers, you cannot make the bi-amplifier settings.
113
GB
Adjusting Settings
Using the setting menu
You can adjust the various settings for speakers, surround effects, multi zone, etc., using the setting menu.
To display the menu of the receiver on the TV screen, make sure that the receiver is in “GUI
MODE” by following the step in “To turn
“GUI MODE” on and off” (page 56).
3
Select the menu item you want, then press to enter.
Example: When you select “Auto Calibration”
RETURN/
EXIT O
V/v/B/b,
OPTIONS
MENU
1
Press MENU.
The menu is displayed on the TV screen.
2
Select “ Settings” from the menu, then press or
b to
enter the menu mode.
The setting menu list appears on the TV screen.
4
Select the parameter you want, then press to enter.
To return to the previous screen
Press RETURN/EXIT O.
To exit the menu
Press MENU.
Setting menu list
Menu icon
Auto
Calibration
Speaker
Surround
EQ
Description
Sets the speaker level or distance and makes the measurement automatically
Sets the speaker position and impedance manually
Adjusts the sound field
(surround effect) you
Adjusts the equalizer (bass/
114
GB
Menu icon
Multi Zone
Audio
Video
HDMI
Network
Description
Makes the settings for Multi
Sets various sound items
Adjusts the resolution of analog video signals
Makes settings for sound/ images from components connected to the HDMI jacks
Makes the settings for the
Quick Click Controls components connected to the receiver using the on-screen remote
System Makes the settings for the system of the receiver
Auto Calibration
Quick Setup
Performs auto calibration. For details, see “10:
Calibrating the appropriate speaker settings automatically (Auto Calibration)” (page 47).
Note
The measurement results will be overwritten and saved on Position 1 in the Enhanced Setup menu.
Enhanced Setup
You can register three patterns for “Seating
Position” depending on the seating positions, listening environment, and measurement conditions.
You can also select a calibration type to compensate the each speaker.
To register more than one set of settings for the listening environment
You can select the seating position you want and register the measurement results of auto calibration for that seating position.
1
Select the “Seating Position” for which you want to register the measurement results on the Enhanced Setup screen.
• Pos. (Position) 1
• Pos. (Position) 2
• Pos. (Position) 3
2
Press b to perform auto calibration.
To set a compensation type for the speakers
You can select the compensation type to be used for the speakers for each Seating
Position.
1
Select the “Seating Position” for which you want to set the speaker compensation type, then press .
continued
115
GB
2
Select the “Calibration Type” you want, then press .
• Full Flat
Makes the measurement of frequency from each speaker flat.
• Engineer
Sets the frequency to match that of the
Sony listening room standard.
• Front Reference
Adjusts the characteristics of all the speakers to match the characteristics of the front speakers.
• User Reference
Sets the frequency to one that you adjusted using the Setup Manager application software. This parameter appears only if you adjusted the frequency using the Setup Manager
application software (page 92).
• OFF
Sets the auto calibration EQ to off.
Note
You cannot set “Calibration Type” for “Seating
Position” for which the measurement results have not been registered.
To confirm the equalizer setting for the Seating Position
1
Select the “Seating Position” for which you want to confirm the equalizer setting.
2
Press OPTIONS.
The option menu appears.
3
Select “EQ Curve,” then press .
4
Select the speaker on the screen for which you want to confirm the equalizer setting.
• FRONT
• CENTER
• SURROUND
• SURROUND BACK
• FRONT HIGH
To name the Seating Position
1
Select the “Seating Position” for which you want to name.
2
Press OPTIONS.
The option menu appears.
3
Select “Name Input,” then press .
The soft keyboard appears on the screen.
4
Press V/v/B/b and to select a character one by one.
5
Select “Finish,” then press .
A.P.M.
You can set the A.P.M. (Automatic Phase
Matching) function in the DCAC (Digital
Cinema Auto Calibration) function (page 47).
x OFF
Does not activate the A.P.M. function.
x AUTO
Switches the A.P.M. function on or off automatically.
Notes
• Even when you set this item to “AUTO,” this function does not work if you select “OFF” for the
• This function does not work in the following cases.
– The multi-channel input is selected.
– “2ch Analog Direct” is being used.
– DTS-HD signals with a sampling frequency of
88.2 kHz and higher are being received.
– Dolby TrueHD signals with a sampling frequency of 176.4 kHz and higher are being received.
• Signals with a sampling frequency of 88.2 kHz and higher are always played back at either 44.1 kHz or
48 kHz.
Speaker Relocation
You can calibrate speaker positioning
(configuration angle of each speaker from the measurement position) to improve the surround effect.
116
GB
x TYPE A
Places surround back speakers on the back wall in addition to those speakers in
Recommendation ITU-R for 5.1 channel speaker placement.
Drawing of the relocated speaker placement
– When the speaker pattern is set so that there are no surround speakers.
• This function does not work in the following cases.
– DTS-HD signals with a sampling frequency of
88.2 kHz and higher are being received.
– Dolby TrueHD signals with a sampling frequency of 176.4 kHz and higher are being received.
• Signals with a sampling frequency of 88.2 kHz and higher are always played back at either 44.1 kHz or
48 kHz.
x TYPE B
Places four surround speakers at virtually identical angles, according to
Recommendation ITU-R for 7.1 channel speaker placement.
Drawing of the relocated speaker placement
SP Pair Matching
Lets you set the pair match mode for the auto calibration EQ pattern.
x ALL
Calibrates all the speakers using the pair match processing of the left and right channels for each pair of speakers.
x SUR
Calibrates the surround speakers and the surround back speakers using the pair match processing or the left and right channels for each pair of speakers.
x OFF
Calibrates each speaker individually.
Notes
• This function does not work when auto calibration is not performed.
• You cannot set “SP Pair Matching” to “ALL” when you select “Front Reference” for the auto
x OFF
Does not relocate speaker positioning.
Notes
• This function does not work in the following cases.
– When you select “OFF” for the auto calibration
– When you set “A.P.M.” to “OFF” (page 116).
Front Ref Type
You can set the reference value when you select “Front Reference” for the auto
x L/R
Sets the data of the left and right channels to the reference value.
continued
117
GB
x L
Sets the data of the left channel to the reference value.
x R
Sets the data of the right channel to the reference value.
Notes
• This function works only when you select “Front
Reference” for the auto calibration type
• Perform auto calibration after you set “Front Ref
Type.”
Speaker settings
You can adjust each speaker manually. You can also adjust the speaker levels after auto calibration is completed.
Note
The Speaker settings are only for the current
“Seating Position.”
Impedance
You can set the speaker impedance. For
details, see “9: Setting the speakers”
x 4
Ω x 8
Ω
Speaker Pattern
Selects “Speaker Pattern” according to the speaker system which you are using. Select the speaker pattern before you perform auto calibration.
Center Mix
You can set the analog downmix settings on or off.
x OFF
If the speaker pattern is set so that there is a center speaker, this setting is set to “OFF” automatically.
x ON
We recommend you set “Center Mix” to “ON” to enjoy digital audio with high quality sound when you do not have a center speaker connected. Analog downmix works when you set “Center Mix” to “ON.” This setting is also effective to input signals from the MULTI
CHANNEL INPUT jacks.
118
GB
Sur Back Assign
Lets you set the SURROUND BACK/ZONE 2 terminals for a bi-amplifier connection or a zone 2 connection. x OFF x BI-AMP x ZONE2
Note
Set “Sur Back Assign” to “OFF,” then connect the surround back speakers to this receiver when you want to change the connection from a bi-amplifier connection or a zone 2 connection to a surround back speakers connection. Re-set up the speakers after you connect the surround back speakers. See
“Auto Calibration” (page 47) or “Manual Setup”
Manual Setup
You can adjust each speaker manually on the
Manual Setup screen. You can also adjust the speaker levels after auto calibration is completed.
To adjust the speaker level
You can adjust each speaker’s level (center, surround left/right, surround back left/right, front high left/right, subwoofer).
1
Select the speaker on the screen for which you want to adjust the level, then press .
2
Select “Level:,” then press .
3
Set the level of the selected speaker, then press .
You can adjust the level from –20 dB to
+10 dB in 0.5 dB steps.
For the front left/right speakers, you can adjust the balance on either side. You can adjust the front left level from FL–10.0 dB to FL+10.0 dB in 0.5 dB steps. You can also adjust the front right level from
FR–10.0 dB to FR+10.0 dB in 0.5 dB steps.
Note
When one of the sound fields for music is selected, no sound is output from the subwoofer if all the speakers are set to “LARGE.” However, the sound will be output from the subwoofer if the digital input signal contains L.F.E. signals, or if the front or surround speakers are set to “SMALL,” the sound field for movie is selected, or “Portable Audio” is selected.
To adjust the distance from the seating position to each speaker
You can adjust the distance from the seating position to each speaker (front left/right, center, surround left/right, surround back left/ right, front high left/right, subwoofer.)
1
Select the speaker on the screen for which you want to adjust the distance from the seating position, then press
.
2
Select a “Distance:,” then press .
3
Set the distance of the selected speaker, then press .
You can adjust the distance from 1.0 meter to 10.0 meters (3 feet 3 inches to 32 feet
9 inches) in 1 cm (1 inch) steps.
To adjust the size of each speaker
You can adjust each speaker’s (front left/right, center, surround left/right, surround back left/ right, front high left/right) size.
1
Select the speaker on the screen for which you want to adjust the size, then press .
2
Select a “Size:,” then press .
3
Set the size of the selected speaker, then press .
• LARGE
If you connect large speakers that will effectively reproduce bass frequencies,
continued
119
GB
select “LARGE.” Normally, select
“LARGE.”
• SMALL
If the sound is distorted, or you feel a lack of surround effects when using multichannel surround sound, select
“SMALL” to activate the bass redirection circuitry and output the bass frequencies of each channel from the subwoofer or other “LARGE” speakers.
Tips
• The “LARGE” and “SMALL” settings for each speaker determine whether the internal sound processor will cut the bass signal from that channel.
When the bass is cut from a channel, the bass redirection circuitry sends the corresponding bass frequencies to the subwoofer or other “LARGE” speakers.
However, since bass sound has a certain amount of directionality, it is best not to cut it, if possible.
Therefore, even when using small speakers, you can set them to “LARGE” if you want to output the bass frequencies from that speaker. On the other hand, if you are using a large speaker, but prefer not to have bass frequencies output from that speaker, set it to “SMALL.”
If the overall sound level is lower than you prefer, set all speakers to “LARGE.” If there is not enough bass, you can use the equalizer to boost the bass levels.
• The surround back speakers will be set to the same setting as that of the surround speakers.
• When the front speakers are set to “SMALL,” the center, surround, surround back, and front high speakers are also automatically set to “SMALL.”
• If you do not use the subwoofer, the front speakers are automatically set to “LARGE.”
Crossover Freq (Speaker crossover frequency)
Lets you set the bass crossover frequency of speakers that has been set to “SMALL” in the
Speaker menu. Measured speaker crossover frequency is set for each speaker after auto calibration.
1
Select the speaker on the screen you want to adjust.
2
Adjust the value, then press
b
or RETURN/EXIT O.
Test Tone
You can select the test tone type on the Test
Tone screen.
Tips
• To adjust the level of all speakers at the same time, press MASTER VOLUME +/–.
• The adjusted value is shown on the display during adjustment.
To output a test tone from each speaker
You can output a test tone from the speakers in sequence.
1
Select “Test Tone,” then press .
The Test Tone screen appears.
2
Adjust the parameter, then press .
• OFF
• AUTO
The test tone is output from each speaker in sequence.
• L, C, R, SR, SB*, SBR, SBL, SL, LH,
RH, SW
* “SB” appears when only one surround back speaker is connected.
You can select which speakers will output the test tone.
3
Adjust “Level:,” then press .
To output a test tone from adjacent speakers
You can output a test tone from adjacent speakers so that you can adjust the balance between the speakers.
1
Select “Phase Noise,” then press .
The Phase Noise screen appears.
2
Adjust the parameter, then press .
• OFF
120
GB
• L/C, C/R, R/SL, R/SR, SR/SL, SR/SBR,
SR/SB*, SBR/SBL, SB/SL*, SBL/SL,
SL/L, L/SR, L/RH, LH/RH, LH/R
* “SR/SB” and “SB/SL” appear when only one surround back speaker is connected.
Lets you output the test tone sequentially from adjacent speakers.
Some items may not be displayed, depending on the setting of the speaker pattern.
3
Adjust “Level:,” then press .
To output the source sound from adjacent speakers
You can output the source sound from adjacent speakers so that you can adjust the balance between the speakers.
1
Select “Phase Audio,” then press .
The Phase Audio screen appears.
2
Adjust the parameter, then press .
• OFF
• L/C, C/R, R/SL, R/SR, SR/SL, SR/SBR,
SR/SB*, SBR/SBL, SB/SL*, SBL/SL,
SL/L, L/SR, L/RH, LH/RH, LH/R
* “SR/SB” and “SB/SL” appear when only one surround back speaker is connected.
Lets you output front 2 channel source sound (instead of the test tone) sequentially from adjacent speakers.
Some items may not be displayed, depending on the setting of the speaker pattern.
3
Adjust “Level:,” then press .
When a test tone is not output from the speakers
• The speaker cords may not be connected securely. Check to see if they are connected securely and cannot be disconnected by pulling on them slightly.
• The speaker cords may have the short-circuit problem.
When a test tone is output from a different speaker than the speaker displayed on the screen
The speaker pattern to the connected speaker is not set up correctly. Make sure the speaker connection and the speaker pattern match.
D. Range Comp (Dynamic range compressor)
Lets you compress the dynamic range of the soundtrack. This may be useful when you want to watch movies at low volumes late at night.
Dynamic range compression is possible with
Dolby Digital sources only.
x OFF
The dynamic range is not compressed.
x AUTO
The dynamic range is compressed automatically.
x STD
The dynamic range is compressed as intended by the recording engineer.
x MAX
The dynamic range is compressed dramatically.
Tips
• Dynamic range compressor lets you compress the dynamic range of the soundtrack based on the dynamic range information included in the Dolby
Digital signal.
• “STD” is the standard setting, but it only enacts light compression. Therefore, we recommend using the “MAX” setting. This greatly compresses the dynamic range and lets you view movies late at night at low volumes. Unlike analog limiters, the levels are predetermined and provide a very natural compression.
continued
121
GB
Distance Unit (Distance unit)
Lets you select the unit of measure for setting distances.
x meter
The distance is displayed in meters.
x feet
The distance is displayed in feet.
Surround settings
You can select the sound field and adjust the effect level, etc., on the Sound Field Select screen.
For details on the sound field, see “Enjoying
Note
The setup items you can adjust on each menu vary depending on the sound field.
To select the sound field
1
Select the Sound Field you want.
2
Press RETURN/EXIT O.
To select the effect type for HD-
D.C.S.
1
Select “HD-D.C.S.,” then press b.
2
Select the effect type you want, then press B.
HD-D.C.S. has three different types:
Theater, Dynamic, and Studio. Each type has different reflection and reverberation sound mixture levels and is optimized to match a listener’s room uniqueness, taste and mood.
• Dynamic
Want to enjoy the sound effects to the full extent, just like at the movie theaters?
Dynamic type emphasizes on the reflection sound. Without HD-D.C.S., many rooms are often somewhat reverberant but lack a spacious feeling.
This type acoustically opens up those types of rooms and provides a spacious and dynamism feeling equivalent to a mastering studio.
122
GB
• Theater
Theater type (default setting) mixes reflection and reverberation sound creating the characteristics of a mastering studio. Additionally, this type mixes in frequency characteristics that are often found in professional studios and movie theaters. It is ideal for watching movies in a listening room that has less reverberation.
• Studio
In Studio type, effects are kept to a minimum, while still providing a great theater experience. This type provides the accuracy of the original recording.
3
Press RETURN/EXIT O.
To adjust the gain level of the front height channels
You can adjust the gain level of the front height channels for Pro Logic IIz mode.
1
Select “PLIIz Height,” then press b.
2
Adjust the gain level, then press B.
• Low
Decreases the gain level to ±0 dB.
• Mid
Increases the gain level to +3 dB (default setting).
• High
Increases the gain level to +5 dB.
3
Press RETURN/EXIT O.
EQ settings
You can use following parameters to adjust the tonal quality (bass/treble level) of front, center and surround/surround back speakers.
Level
(dB)
Bass
Frequency
(Hz)
Treble
Notes
• This function does not work in the following cases.
– The multi-channel input is selected.
– “2ch Analog Direct” is being used.
– Dolby TrueHD signals with a sampling frequency of 176.4 kHz and higher are being received.
• If the equalizer is adjusted while the receiver is receiving signals with a sampling frequency of
176.4 kHz and higher, the signals will always be played back at either 44.1 kHz or 48 kHz.
To adjust the equalizer on the
EQ screen
1
Select the speaker on the screen you want to adjust, then press .
2
Select “Bass” or “Treble.”
3
Adjust the gain, then press .
123
GB
Multi Zone settings
You can make settings for the main zone, zone
2 or zone 3.
Multi Zone Setup
To turn the power on or off for zone 2/zone 3
You can turn zone 2 or zone 3 operation on or off. “Main” (this receiver) is always selected.
You cannot turn it off.
1
Select the zone you want to turn on or off, then press .
2
Select “ON” or “OFF,” then press .
x ON x OFF
To select the output source for each zone
You can select the source that is output to the zone. Audio and video signals are output to zone 2, while only audio signals are output to zone 3.
1
Select the zone to which you want to output audio/video signals, then press
.
2
Select “Input,” then press .
3
Select the input, then press .
To adjust the volume for zone 2
You can adjust the volume in the main zone.
If “Sur Back Assign” is set to “ZONE2” in the
Speaker settings menu, you can also adjust the volume of zone 2.
If you set “Zone2 Line Out Level” to
“VARIABLE,” you can also adjust the volume using “Multi Zone Setup.”
1
Select the zone for which you want to adjust the volume, then press .
2
Select “Volume,” then press .
3
Adjust the volume, then press .
To preset the volume for main zone/zone 2
You can preset the volume of turning the power on for each zone.
1
Select the zone for which you want to preset the volume, then press .
2
Select “Preset Volume,” then press .
3
Adjust the volume, then press .
During the adjustment, the sound is output at the volume level to which you have adjusted it, regardless of the value of
MASTER VOLUME control.
If you select “OFF,” each zone is activated at the same volume as that in effect when you turned the power off last time.
Note
• You cannot preset the volume for zone 2 in the following cases.
– “Sur Back Assign” is set to “OFF” or “BI-
AMP.”
– “Zone2 Line Out Level” is set to “FIXED.”
Zone2 Line Out Level
Lets you set the volume control for the ZONE
2 AUDIO OUT jacks to “VARIABLE” or
“FIXED.” For details, see “Set the volume control for zone 2” (page 98)
x FIXED x VARIABLE
12V Trigger
You can turn the receiver on or off in another zone, or select various options for use of the
12V Trigger function.
124
GB
x OFF
Lets you turn off output of 12V triggers even when the main receiver is turned on.
x CTRL
Lets you turn the output of 12V triggers on or off manually using the control command of an external control device.
x ZONE
Lets you turn the output of 12V triggers on or off based on whether the selected zone is turned on or off.
x INPUT (for “Main” only)
Lets you turn on the output of 12V triggers when the preset input is selected.
When you select “Input,” the setting display which sets each input trigger to on/off appears.
Press V/v to select the input, then press to check the box.
x HDMI A (for “Main” only)
Lets you turn the output of 12V triggers on or off based on the output setting of the HDMI
OUT A jack.
x HDMI B (for “Main” only)
Lets you turn the output of 12V triggers on or off based on the output setting of the HDMI
OUT B jack.
x MAIN (for “Zone2” and “Zone3”
only)
Lets you link operation of trigger in zone 2 or zone 3 to the TRIGGER OUT MAIN jack.
Tip
Even when this receiver is standby mode (press ?/1 on the remote to turn off this receiver), the receiver in zone 2 or zone 3 remains turned on. To turn off all receivers, press ?/1 and AV ?/1 on the multifunction remote at the same time (SYSTEM
STANDBY).
Audio settings
You can make settings for the audio to suit your preference.
Digital Legato Linear (D.L.L.)
The D.L.L. function is Sony proprietary technology that allows low quality digital audio signals and analog audio signals to be played back with high quality sound.
x OFF x AUTO 1
This function is available for lossy compression audio formats and analog audio signals.
x AUTO 2
This function is available for Linear PCM signals, as well as lossy compression audio formats and analog audio signals.
Note
• This function works when “A.F.D. Auto” is selected. However, this function does not work in the following cases.
– Linear PCM signals with a sampling frequency of other than 44.1 kHz are being received.
– Dolby Digital Plus, Dolby Digital EX, Dolby
TrueHD, DTS 96/24, DTS-ES Matrix 6.1, DTS-
HD Master Audio, or DTS-HD High Resolution
Audio signals are being received.
A/V Sync (Synchronizes audio and video output)
Lets you delay the output of audio to minimize the time gap between audio output and visual display.
continued
125
GB
x HDMI AUTO
The time gap between audio output and visual display for the monitor connected via an
HDMI connection will be adjusted automatically based on the information for the
TV. This feature is available only when the monitor supports the A/V Sync function.
x 0 ms – 1200 ms
You can adjust the delay from 0 ms to
1200 ms* in 10 ms steps.
* The maximum delay may be limited to the lower value, depending on the audio stream.
Notes
• This function is useful when you use a large LCD or plasma monitor or a projector.
• This function does not work in the following cases.
– The multi-channel input is selected.
– “2ch Analog Direct” is being used.
x PCM
When signals from the DIGITAL IN jack are selected, PCM signals are given priority (to prevent interruption when playback starts).
However, when other signals are input, there may be no sound, depending on the format. In this case, set this item to “AUTO.”
When signals from the HDMI IN jack are selected, only PCM signals are output from the connected player. When signals in any other format are received, set this item to “AUTO.” x AUTO
Automatically switches the input mode between Dolby Digital, DTS, or PCM.
Note
Even when “Decode Priority” is set to “PCM,” the sound may be interrupted at the very beginning of the first track due to signals on the CD being played back.
Dual Mono (Digital broadcast language selection)
Lets you select the language you want when you listen to the dual audio of a digital broadcast. This feature only functions for
Dolby Digital sources.
x MAIN/SUB
Sound of the main language will be output through the front left speaker, and sound of the sub language will be output through the front right speaker simultaneously.
x MAIN
Sound of the main language will be output.
x SUB
Sound of the sub language will be output.
Night Mode
Lets you to retain a theater-like environment at low volume levels. This function can be used with other sound fields. When watching a movie late at night, you will be able to hear the dialog clearly even at a low volume level.
x OFF x ON
Decode Priority (Digital audio input decoding priority)
Lets you specify the input mode for the digital signal input to the DIGITAL IN jacks or
HDMI IN jacks.
126
GB
Video settings
Makes settings for video.
Resolution (Converting video signals)
Lets you convert the resolution of analog video input signals.
x 480i/576i x 480p/576p x DIRECT
Lets you output analog video input signals without conversion.
x 720p x 1080i x AUTO
“Resolution” menu setting
DIRECT
AUTO
(initial setting)
480i/576i
480p/576p
720p, 1080i
1080p x 1080p
Input from
COMPONENT VIDEO
IN jacks
Output from
HDMI OUT jacks MONITOR
COMPONENT
VIDEO OUT jacks
MONITOR VIDEO
OUT jack
– a –
– – z b) a z b)
VIDEO IN jacks
COMPONENT VIDEO
IN jacks
VIDEO IN jacks
COMPONENT VIDEO
IN jacks z z a) c) z b) z z b) z z c) z z VIDEO IN jacks
COMPONENT VIDEO
IN jacks
VIDEO IN jacks
COMPONENT VIDEO
IN jacks z z z z z z d)
– a
– z z d) a
VIDEO IN jacks
COMPONENT VIDEO
IN jacks
VIDEO IN jacks z z a
–
– a z : Video signals are converted and output through the video converter.
a : The same type of signal as that of the input signal is output. Video signals are not converted.
– : Video signals are not output.
a)
The resolution is set automatically, depending on the connected monitor.
b)
When the TV is connected to jacks other than the
HDMI jacks, 480i/576i signals are output when
“Resolution” is set to “AUTO.” c)
480p/576p signals are output even if 480i/576i is set.
d)
Video signals without copyright protection are output based on the settings menu. Video signals with copyright protection are output as 480p.
continued
127
GB
Notes
• Video signals are not output from the
COMPONENT VIDEO MONITOR OUT or
MONITOR VIDEO OUT jacks when the monitor, etc., is connected to HDMI OUT jacks.
• If you select a resolution that the connected TV does not support in the “Resolution” menu, the images from the TV cannot be output correctly.
• Converted HDMI image output does not support x.v.Color (x.v.Colour), Deep Color (Deep Colour) and 3D.
Zone Resolution
Lets you convert the resolution of analog video input signal in zone 2.
x 720p x 1080i x 480i/576i x 480p/576p
“Zone
Resolution” menu setting
480i/576i
(initial setting)
480p/576p
720p, 1080i
Output from
Input signals
ZONE 2
COMPONENT
VIDEO OUT jacks
COMPONENT VIDEO
IN jacks z z VIDEO IN jacks
COMPONENT VIDEO
IN jacks z z
VIDEO IN jacks
COMPONENT VIDEO
IN jacks
VIDEO IN jacks z* z*
ZONE 2 VIDEO
OUT jack
z z
–
–
–
– z : Video signals are converted and output through the video converter.
– : Video signals are not output.
* Video signals without copyright protection are output based on the settings menu. Video signals with copyright protection are output as 480p.
128
GB
HDMI settings
Makes the required settings for components connected to the HDMI jacks.
Control for HDMI
Lets you turn the function which controls components connected to the HDMI jack using an HDMI cable on or off.
x OFF x ON
Note
When “Control for HDMI” is set to “ON,” “Audio
Out” may be changed automatically.
Pass Through
Lets you output the HDMI signals to the TV even when the receiver is in standby mode. For
details, see “Outputting the HDMI signals even when the receiver is in standby mode
x OFF x ON
Note
When “Control for HDMI” is set to “OFF,” you cannot set “Pass Through.” x OFF x ON
Notes
• It takes some time to output the sound after a playback operation is performed on the connected component (e.g., pressing the PLAY button, pressing the STOP button, pressing the PAUSE button) due to limitations of the H.A.T.S. system.
The time lag depends on the sound source. This feature may be ineffective depending on the component and the sound source, even if you set it to ON.
• The components connected to the HDMI jack must support the H.A.T.S. feature.
• When “Audio Out” is set to “TV+AMP,” the
H.A.T.S. function may not work depending on the component connected or the status of that component. In this case, select “AMP” for “Audio
Out.”
• The H.A.T.S. function of this receiver works when a Sony SCD-XA5400ES is connected to the receiver.
Stream information about the
H.A.T.S. function available
Audio signal input Sampling frequency
Linear PCM 2ch 44.1 kHz, 48 kHz,
88.2 kHz, 96 kHz,
176.4 kHz, 192 kHz
Linear PCM Multi
DSD
44.1 kHz, 48 kHz,
88.2 kHz, 96 kHz,
176.4 kHz, 192 kHz
2.8224 MHz
H.A.T.S.
Lets you turn the H.A.T.S. (High quality digital Audio Transmission System) function on or off. When the H.A.T.S. function is turned on, the sound quality is enhanced because there is no jitter (timing gaps when reading signals) when transmitting digital audio signals.
Audio Out
Lets you set the HDMI audio signals output from the playback component connected to the receiver via an HDMI connection.
x TV+AMP
The sound is output from the TV speaker and the speakers connected to the receiver.
continued
129
GB
Notes
• The sound quality of the playback component depends on the TV’s sound quality, such as the number of channels, and the sampling frequency, etc. When the TV has stereo speakers, the sound output from the receiver is also stereo as that of the
TV, even if you play multi-channel source.
• When you connect the receiver to a video component (projector, etc.), sound may not be output from the receiver. In this case, select
“AMP.”
• When you select the input that you have assigned the HDMI input, sound is not output from the TV.
x AMP
The HDMI audio signals from the playback component is only output to speakers connected to the receiver. The multi-channel sound can be played back as it is.
Note
Audio signals are not output from the TV speaker when “Audio Out” is set to “AMP.” x OFF
Does not activate the low-pass filter.
x ON
Always activates the low-pass filter with a cutoff frequency of 120 Hz.
Video Direct
Lets you output the video input signals from the HDMI IN jack directly to the HDMI OUT jack.
x OFF
The input signals from the HDMI IN jack are output through a video processor.
x ON
The input signals from the HDMI IN jack are output directly.
Note
Set “Video Direct” to “ON” to receive Adobe
RGB
or
Adobe
YCC601
signals.
Subwoofer Level
Lets you set the level of the subwoofer to 0 dB or +10 dB when PCM signals are input via an
HDMI connection. You can set the level for each HDMI input independently.
x 0 dB x AUTO
Automatically sets the level to 0 dB or +10 dB depending on the audio stream.
x +10 dB
Subwoofer LPF
Lets you turn the low-pass filter for the subwoofer output on or off. The low-pass filter works when PCM signals are input via an
HDMI connection. Turn the function on if you connect a subwoofer without the crossover frequency function.
130
GB
Network settings
Makes the settings for the network.
Network Setup
Lets you make the network settings.
To check the network settings
1
Select “Network Setup,” then press
.
2
Select “Network Information,” then press .
The network setting information of the receiver is displayed on the TV screen.
To configure network settings automatically
1
Select “Network Setup,” then press
.
2
Select “Internet Setup,” then press .
3
Select “Connect Automatically
(DHCP),” then press .
“Success! The receiver is now connected to network.” appears on the TV screen.
4
Press to select “Finish.”
To set the IP address manually
1
Select “Network Setup,” then press
.
2
Select “Internet Setup,” then press .
3
Select “Manual Configuration,” then press .
The setting screen for the IP address appears on the TV screen.
4
Select the IP address.
The soft keyboard appears on the TV screen.
5
Press V/v/B/b and to select a character one by one to enter the IP address.
6
Select “Finish,” then press .
7
Press b to display the next screen.
8
Repeat the process in steps 4 to 7 again to enter the Subnet Mask,
Gateway address, DNS1 address, and
DNS2 address.
9
Select “Test Connection,” then press
.
“Success! The receiver is now connected to network.” appears on the TV screen.
10
Press to select “Finish.”
To set the Proxy server manually
1
Select “Network Setup” then press .
2
Select “Proxy Setup,” then press .
3
Select “Enable,” then press .
4
Press .
The soft keyboard appears on the TV screen.
5
Press V/v/B/b and to select a character one by one to enter the proxy server address.
6
Select “Finish,” then press .
7
Press b to select the Port number box, then press .
The soft keyboard appears on the TV screen.
8
Press V/v/B/b and to select a character one by one to enter the port number.
9
Select “Finish,” then press .
10
Press b.
11
Select “Finish,” then press .
continued
131
GB
Server Function
Lets you activate the server function of the receiver.
x OFF x ON
External Control
Let you turn the function which controls the receiver from external controllers on the home network on or off.
x OFF x ON
Note
If you set “Controllers,” set “External Control” to
“ON.”
Controllers
Lets you set availability of operations allowed for the receiver for network controllers on the home network that have attempted to access the receiver in the past.
1
Select “Controllers,” then press
.
The setting screen used for Controllers appears on the TV screen.
2
Select the controller you want to allow to operate the receiver from the list, then press to check the box.
When you check the box for “Auto
Permission,” all the controllers detected are checked automatically.
3
Select “Finish,” then press .
To cancel the setup
Select “Cancel,” then press in step 3.
To remove the detected controllers from the list
1
Select the controller you want to remove from the list, then press to check the box.
2
Select “Remove All,” then press .
Tip
Up to 10 network controllers that have attempted to access the receiver are listed, and each of them can control the receiver.
Device Name
Lets you assign a device name to the receiver up to 20 characters displayed as being on the home network.
To assign the device name
1
Select “Device Name,” then press .
2
Press .
The soft keyboard appears on the TV screen.
3
Press V/v/B/b and to select a character one by one to enter the device name.
4
Select “Finish,” then press .
When the setting is applied to the receiver, the receiver will restart automatically.
Tip
The default device name is “STR-DA5600ES.”
Rhapsody Account
Lets you enter the Rhapsody Account to listen to the Rhapsody Internet radio service. For
details, see “Setting an account” (page 88).
Rhapsody is only available in the US.
132
GB
Network Standby
Lets you turn the function that activates the switching hubs on the rear of the receiver and allows external control devices to control the receiver on or off even when the receiver is in standby mode.
x OFF
The network function turns off when the receiver is in standby mode.
x ON
The network function works even when the receiver is in standby mode.
In addition, the start-up time of the network function is reduced after the receiver is turned on.
Note
The server function of the receiver works while the receiver is in standby mode, even if “Network
Standby” is set to “OFF.”
Quick Click settings
You can make settings to control components connected to the receiver using the on-screen remote.
See “Operating Each Component Using the
On-screen Remote (Quick Click)” (page 142)
for details on using the on-screen remote.
Source Component
Selects the source component that is to be operated.
x Preset Mode
Customizes the remote to match the source components connected to your receiver. x Learn Mode
Allows the remote learn codes.
x Reset
Resets both programmed codes and learned codes.
Common Component
Selects the common component such as a TV, projector or lights that is to be operated.
x Preset Mode
Customizes the remote to match the common components such as the TV, the projector and the lightings connected to your receiver. x Learn Mode
Allows the remote to learn codes.
x Reset
Resets both programmed codes and learned codes.
Macro
Sets several commands in a sequential order as a single command.
133
GB
System settings
Customizes the settings of the receiver.
RS232C Control
Let you turn the control mode for maintenance and service on or off.
x OFF x ON
Language
Selects the language for the messages on the screen.
x English x Español x Français x Deutsch
Auto Standby
Lets you turn the function that switches the main zone to standby mode automatically when you do not operate the receiver or when there is no signal input to the receiver on or off.
x OFF
Does not switch to standby mode.
x ON
Switches to standby mode after approximately
30 minutes.
Note
This function does not work when “Server,”
“Rhapsody,” “SHOUTcast,” “FM,” “AM,”
“SIRIUS,” or the multi-channel input is selected.
Settings Lock
Lets you lock the settings of the receiver. x ON
You can only turn this function on using the setting menu. When you turn this function off, perform the following procedure.
?/1 MUSIC
HDMI IN
1
Press ?/1 to turn off the
receiver.
2
While holding down MUSIC and
HDMI IN, press ?/1 to turn on
the receiver.
Software Version
You can check the version of the software on the system of the receiver, and you can also update the software of the receiver.
You can also update the software of the receiver using the Setup Manager application software provided on the CD-ROM supplied
with the receiver. For details, see “Updating the receiver software using the Setup
To update the receiver using the menu
1
Select “Software Version,” then press
.
The current software version is displayed on the TV screen.
2
Select “Update via Internet,” then press
.
134
GB
The current software version and latest software version are displayed on the TV screen.
3
Press to select “Update.”
A confirmation screen appears on the TV screen.
4
Select “Start,” then press .
Receiver updating starts.
The MULTI CHANNEL DECODING lamp on the front panel flashes while updating.
When the updating complete, the receiver will restart automatically.
Notes
• In the following cases, a message appears on the
TV screen and the update of the receiver is not performed.
– When all versions are the latest one.
– When the receiver cannot retrieve the data, such as when the network has not been set up, or when the server is down, etc.
• Do not turn the receiver off or disconnect the network cable during software updating. It may cause a malfunction.
• It may take 50 minutes for the software updating to complete.
Operating without connecting to a TV
You can operate the receiver using the display window of the receiver even if the TV is not connected to the receiver.
GUI
MODE
RETURN/
EXIT O
V/v/b,
MENU
Using the menu in the display window
If “GUI MODE” is displayed in the display window of the receiver when you press
MENU, DISPLAY, or
V/v, press GUI MODE to switch the display mode of the menu to
“DISPLAY MODE.” (After “GUI MODE
OFF” has appeared in the display window of the receiver, the receiver is switched to
“DISPLAY MODE.”)
1
Turn on the receiver.
2
Press MENU.
The menu is displayed in the display window of the receiver.
Example: When you select “SPEAKER
SETTINGS”
3
Press
V/v repeatedly to select
the menu, then press or
b.
continued
135
GB
4
Press
V/v repeatedly to select
the menu item, then press .
The parameter appears in brackets.
5
Press
V/v repeatedly to select
the parameter you want, then press .
The parameter is entered and the brackets disappear from the display.
Tip
To return to the previous step, press RETURN/EXIT
O.
136
GB
Menu list (in the display window)
The following options are available in each menu.
“xx…” in the table signifies the parameter for each item.
Menu Item Parameter Initial setting
AUTO
CALIBRATION
AUTO CAL START?
5 4 3 2 1
MEASURING: TONE
MEASURING: T.S.P.
MEASURING: WOOFER
COMPLETE
[xxxxxxxxxx]
RETRY, SAVE EXIT, WRN CHECK,
PHASE INFO, DIST. INFO,
LEVEL INFO, EXIT
WARNING CODE [xxx:4x] FL, FR, C, SL, SR, SBR, SBL, SW, LH,
RH : 0, 1, 2, 3, 4
SAVE
EXIT
NO WARNING
PHASE.INFO [xxx:xxx]
DIST.INFO
[xxxxxxxxxx]
LEV.INFO
[xxx:xxxxxx]dB
ERROR CODE [xxx:3x]
RETRY? [xxxx]
FL, FR, C, SL, SR, SBR, SBL, SW, LH,
RH:OUT, IN
FL, FR, C, SL, SR, SBR, SBL, SW, LH,
RH
FL, FR, C, SL, SR, SBR, SBL, SW, LH,
RH
F, SR, SB : 0, 1, 2, 3, 4
YES, NO
CANCEL
CAL TYPE [xxxxxxxxx] FULL FLAT, ENGINEER,
FRONT REF, USER REF*, OFF
A.P.M. [xxxx]
SP RELOCATION [xxxxx]
FRONT REF TYPE [xxx]
SP PAIR MATCH [xxx]
AUTO, OFF
TypeA, TypeB, OFF
L/R, L, R
ALL, SUR, OFF
YES
FULL
FLAT
AUTO
OFF
L/R
ALL
POSITION [xxxxxxxx] POS.1, POS.2, POS.3
POS.1
NAME IN ? [xxxxxxxx]
* “USER REF” appears only if you adjusted the frequency using the Setup Manager application software.
continued
137
GB
Menu
LEVEL
SETTINGS
Item Parameter
PHASE AUDIO [xxxxxxx] OFF, L/C, C/R, R/SL, R/SR, SR/SL,
SR/SBR, SR/SB, SBR/SBL, SB/SL,
SBL/SL, SL/L, L/SR, L/RH, LH/RH,
LH/R
Initial setting
TEST TONE [xxxxxxxx] OFF, L to RH (AUTO), L to RH (FIX) OFF
PHASE NOISE [xxxxxxx] OFF, L/C, C/R, R/SL, R/SR, SR/SL,
SR/SBR, SR/SB, SBR/SBL, SB/SL,
SBL/SL, SL/L, L/SR, L/RH, LH/RH,
LH/R
OFF
OFF
FRONT L [xxx.xdB]
FRONT R [xxx.xdB]
CENTER [xxx.xdB]
SURROUND L [xxx.xdB]
–10.0 dB to +10.0 dB (0.5 dB step)
–10.0 dB to +10.0 dB (0.5 dB step)
–20.0 dB to +10.0 dB (0.5 dB step)
–20.0 dB to +10.0 dB (0.5 dB step)
0 dB
0 dB
0 dB
0 dB
SURROUND R [xxx.xdB]
SUR BACK [xxx.xdB]
SUR BACK L [xxx.xdB]
SUR BACK R [xxx.xdB]
LEFT HIGH [xxx.xdB]
RIGHT HIGH [xxx.xdB]
SUBWOOFER [xxx.xdB]
D. RANGE COMP. [xxx]
–20.0 dB to +10.0 dB (0.5 dB step)
–20.0 dB to +10.0 dB (0.5 dB step)
–20.0 dB to +10.0 dB (0.5 dB step)
–20.0 dB to +10.0 dB (0.5 dB step)
–20.0 dB to +10.0 dB (0.5 dB step)
–20.0 dB to +10.0 dB (0.5 dB step)
–20.0 dB to +10.0 dB (0.5 dB step)
OFF, AUTO, STD, MAX
0 dB
0 dB
0 dB
0 dB
0 dB
0 dB
0 dB
AUTO
138
GB
Menu Item Parameter
SPEAKER
SETTINGS
SP PATTERN [xxxxx]
FRONT SIZE [xxxxx]
5/4.1 to 2/0 (28 patterns)
LARGE, SMALL
CENTER SIZE [xxxxx] LARGE, SMALL
SURROUND SIZE [xxxxx] LARGE, SMALL
FH SIZE [xxxxx]
SB ASSIGN [xxxxx]
FRONT L [xxxxxxxxx]
FRONT R [xxxxxxxxx]
LARGE, SMALL
OFF, BI-AMP, ZONE2
CENTER [xxxxxxxxx]
SURROUND L
[xxxxxxxxx]
SURROUND R
[xxxxxxxxx]
SUR BACK [xxxxxxxxx]
SUR BACK L
[xxxxxxxxx]
3’ 3” to 32’ 9” (1 inch step)
1.0 to 10.0 (m) (1 cm step)
SUR BACK R
[xxxxxxxxx]
LEFT HIGH [xxxxxxxxx]
RIGHT HIGH
[xxxxxxxxx]
SUBWOOFER
[xxxxxxxxx]
DISTANCE UNIT [xxxxx] meter, feet
FR CROSSOVER** [xxxxx] 40 to 200 (10 Hz step)
40 to 200 (10 Hz step) CNT CROSSOVER**
[xxxxx]
SUR CROSSOVER**
[xxxxx]
40 to 200 (10 Hz step)
FH CROSSOVER** [xxxxx] 40 to 200 (10 Hz step)
CNT A.DOWN MIX [xxx] OFF, ON
SP IMPEDANCE [xohm] 8 ohm, 4 ohm
SUR SETTINGS EFFECT TYPE [xxxxxxx] DYNAMIC, THEATER, STUDIO
HEIGHT GAIN [xxxx] HIGH, MID, LOW
* meter for European model
** You cannot select this setting when the speaker is set to “LARGE.”
Initial setting
3/4.1
LARGE
LARGE
LARGE
LARGE
OFF
9’ 10”
3 m feet*
120
120
120
120
OFF
8 ohm
THEATER
MID
continued
139
GB
Menu
EQ SETTINGS FRONT BASS [xxx.xdB]
FRONT TREB [xxx.xdB]
MULTIZONE
SETTINGS
Item
CENTER BASS [xxx.xdB]
CENTER TREB [xxx.xdB]
SUR/SB BASS [xxx.xdB]
SUR/SB TREB [xxx.xdB]
Parameter
–10 dB to +10 dB (0.5 dB step)
–10 dB to +10 dB (0.5 dB step)
–10 dB to +10 dB (0.5 dB step)
–10 dB to +10 dB (0.5 dB step)
–10 dB to +10 dB (0.5 dB step)
–10 dB to +10 dB (0.5 dB step)
Initial setting
0 dB
0 dB
0 dB
0 dB
0 dB
0 dB
FH BASS [xxx.xdB] –10 dB to +10 dB (0.5 dB step)
OFF, CTRL, ZONE, INPUT, HDMIA,
HDMIB
0 dB
FH TREB [xxx.xdB]
P.VOL. MAIN [xxx.xdb]
P.VOL. ZONE2 [xxxdb]
–10 dB to +10 dB (0.5 dB step)
OFF, –
∞, –92.0 dB to +23.0 dB (0.5 dB step)
0 dB
OFF
OFF, –
∞, –92 dB to +23 dB (1 dB step) OFF
Z2 LINEOUT [xxxxxxxx] FIXED, VARIABLE VARIABLE
12V TRIG. MAIN [xxxxx] OFF
TUNER
SETTINGS
12V TRIG. ZONE2 [xxxxx]
12V TRIG. ZONE3 [xxxxx]
FM MODE [xxxxxx]
NAME IN ? [xxxxxxxx]
FMxx [xxxxxxxx]
NAME IN ? [xxxxxxxx]
AMxx [xxxxxxxx]
PARENTAL LOCK* [xxx]
LOCK CODE EDIT*
OFF, CTRL, ZONE, MAIN
OFF, CTRL, ZONE, MAIN
STEREO, MONO
YES, NO
OFF
OFF
STEREO
NO
0000
AUDIO
SETTINGS
VIDEO
SETTINGS
SR ANTENNA AIMING*
SIRIUS ID DISPLAY*
D.L.L. [xxxx] AUTO2, AUTO1, OFF
A/V SYNC [xxxxxxxxx] HDMI AUTO,
0 ms to 1200 ms (10 ms step)
DUAL MONO [xxxxxxxx] MAIN/SUB, MAIN, SUB
DEC. PRIORITY [xxxx] AUTO, PCM
NIGHT MODE [xxx]
AUDIO ASSIGN ?
ON, OFF
RESOLUTION
[xxxxxxxx]
DIRECT, AUTO, 480/576i, 480/576p,
720p, 1080i, 1080p
ZONE RESO. [xxxxxxxx] 480/576i, 480/576p, 720p, 1080i
VIDEO ASSIGN ?
AUTO1
0 ms
MAIN
AUTO
OFF
AUTO
480/576i
* USA/Canadian model only
140
GB
Menu
HDMI
SETTINGS
SYSTEM
SETTINGS
Item
CTRL FOR HDMI [xxx]
Parameter
ON, OFF
AUDIO OUT [xxxxxx]
SW LEVEL [xxxdB]
SW LPF [xxx]
VIDEO DIRECT [xxx]
NAME IN ? [xxxxxxxx]
RS232C CONTROL [xxx]
AUTO STANDBY [xxx]
VERSION [x.xxx]
UPDATE(PC) [xxxxxx]
AMP, TV+AMP
AUTO, +10 dB, 0 dB
ON, OFF
ON, OFF
ON, OFF
ON, OFF
–
PERMIT, DENY
To change the display
You can check the sound field, etc., by changing the information on the display.
1
Select the input for which you want to check the information.
2
Press DISPLAY repeatedly.
Each time you press DISPLAY, the display will change as follows.
Input you selected t Sound field type t
Stream information* t Input name you entered ...
* Stream information may not be displayed.
When listening to FM and AM radio
Station name t Frequency t Sound field type...
Index name appears only when you have assigned one to the input or preset station.
Index name does not appear when only blank spaces have been entered.
When tuning in a channel from SIRIUS
(USA/Canadian model only)
Channel name t Channel number t
Category t Artist name t Song title t
Composer name t Signal strength t
Sound field type
Initial setting
OFF
OFF
ON
AMP
AUTO
ON
OFF
OFF
ON
–
DENY
When receiving RDS broadcasts (European model only)
PS (Program Service name)
1)
, Preset name,
Band, or Preset number t Frequency, band and preset number t PTY (Program
Type) indication
2) t RT (Radio Text) indication
3) t CT (Clock Time) t Sound field type
1)
This information also appears for non-RDS
FM stations.
2)
Type of program being broadcast
3)
Text messages sent by the RDS station.
141
GB
Operating Each Component Using the On-screen Remote (Quick Click)
Operating components or lighting connected to the receiver using the on-screen remote (Quick Click)
You can control components connected to the receiver, a projector, and the light control unit using the on-screen remote on the TV screen.
On-Screen remote (Quick Click)
IR Blaster
Common Components
Projector
Source Components
TV Light
142
GB
Using Quick Click
You can control components connected to the receiver, a TV, projector, or lighting using the on-screen remote on the TV screen.
QUICK
CLICK
V/v/B/b,
MENU
1
Select “ Input” from the menu, then press or
b.
2
Select the component you want, then press .
3
Press QUICK CLICK.
4
Select the appropriated buttons on the on-screen remote to use the function listed in the table below, then press .
Note
You may not be able to operate some functions for the components you are using.
Table of buttons used to control each component (Quick Click)
See “Operating the components connected to the receiver” (page 144) for details on the buttons of
the on-screen remote.
Category
TV VCR PROJECTOR DVD BD LD CD MD CABLE SAT TAPE DVR LIGHT
Button
1
10 key
+10 (•)
Ent
Input
Display (Info)
Top Menu (Guide) m/N/M/x/X z
./>
V/v/B/b/Menu/
/Exit/Return
Ch +/–
Color buttons
(Red/Blue/Green/
Yellow)
Scene 1-16
All On/Off
On/Off
Raise/Lower z
– z
–
– z z z z z z z z z z
– z z z
– z z
– z z
– z
– z
–
– z
–
–
–
– z
– z z z z z z z z z z z z z
– z
– z
– z
– z z z z
–
– z z z z z z z z z z z z z
– z
– z
– z
– z z z z
–
–
– z z z
– z z
– z z z
–
– z z z z z z z z z z z z
– z z z z z z z z z z z z z
– z z z
– z z
– z
– z
–
– z z z z z z z z z z z z z
– z z z z
continued
143
GB
Button
Light Off
Toggle
Category TV VCR PROJECTOR DVD BD LD CD MD CABLE SAT TAPE DVR LIGHT
z z
Operating the components connected to the receiver
You can control components connected to the receiver using the “Menu” and “10 key” features of Quick Click.
The following explanation provides examples of normal operation. The component may work differently, or may not work at all depending on the component.
Menu tab
Button
A 1
B Display
(Info)
Function
Select to turn components connected to the receiver on or off.
Select to display the current status of or information on components connected to the receiver.
Button
C V/v/B/b,
D Menu
E N, z x, X m/M
./>
F Ch+/Ch–
Function
Select V/v/B/b to select menu items. Then press to enter the selection.
Select to display the menu of components connected to the receiver.
Select to start playback or to record.
Select to stop or pause playback or recording.
Select to fast-forward or fastreverse.
Select to go to the next/previous track.
Select Ch +/– to select the channel of the TV, satellite tuner, VCR, etc.
G Return (Exit) Select to return to the previous menu or exit the menu.
H Top Menu
(Guide)
Select to display the top menu of the DVD player or Blu-ray
Disc Player, etc., or display the program guide of a TV, satellite tuner or hard disk recorder, etc.
I Color
buttons
(Red/Blue/
Green/
Yellow)
J Input
Select when you operate a DVD player/recoder, Blu-ray Disc
Player, or cable box.
Select the input source of the components connected to the receiver.
K Macro
Select to start a macro programmed with Quick Click.
When there are no programmed macros, this button does not appear.
144
GB
10 key tab
Button
A 1
B 10 key
C +10 (.)
D Ent
Function
Select to turn components connected to the receiver on or off.
Select to
– select track numbers of the
CD player, DVD player,
Blu-ray Disc Player, or MD deck.
– select channel numbers of the TV, Satellite tuner or the
VCR.
Select to
– select track numbers over 10 of the CD player, DVD player, Blu-ray Disc Player, or MD deck.
– select channel numbers over
10 of the TV, Satellite tuner or the VCR.
Press to enter the value after selecting a channel, disc or track using the numeric buttons.
Button
E N, z x, X m/M
./>
F Ch+/Ch–
Function
Select to start playback or to record.
Select to stop or pause playback or recording.
Select to fast-forward or fastreverse.
Select to go to the next/previous track.
Select Ch +/– to select the channel of the TV, satellite tuner, VCR, etc.
Select when you operate a DVD player/recoder, Blu-ray Disc
Player, or cable box.
G Color
buttons
(Red/Blue/
Green/
Yellow)
H Input
I Macro
Select the input source of components connected to the receiver.
Select to start a macro programmed with Quick Click.
When there are no programmed macros, this button does not appear.
continued
145
GB
Operating the TV, projector or lighting
To operate the TV, select ( ) on
Common tab.
Button
H Color
buttons
(Red/Blue/
Green/
Yellow)
Function
Select when you operate a DVD player/recoder, Blu-ray Disc
Player, or cable box.
To operate the projector, select
( ) on Common tab.
Button
A Macro
B 1
C Display
(Info)
D V/v/B/b,
E Menu
F Exit
G Guide
Function
Select to start a macro programmed with Quick Click.
When there are no programmed macros, this button does not appear.
Select to turn components connected to the receiver on or off.
Select to display the current status of or information on components connected to the receiver.
Select V/v/B/b to select menu items. Then press to enter the selection.
Select to display the menu of the components connected to the receiver.
Select to exit the menu.
Select to display the program guide of a TV, satellite tuner, hard disk recorder, etc.
Button
A Macro
B 1
C Display
(Info)
D V/v/B/b,
E Menu
F Exit
Function
Select to start a macro programmed with Quick Click.
When there are no programmed macros, this button does not appear.
Select to turn components connected to the receiver on or off.
Select to display the current status of or information on components connected to the receiver.
Select V/v/B/b to select menu items. Then press to enter the selection.
Select to display the menu of components connected to the receiver.
Select to exit the menu.
146
GB
Button
G Input
Function
Select the input source of the components connected to the receiver.
To operate the lighting, select
( ) on Common tab.
Button
J Macro
Function
Select to start a macro programmed with Quick Click.
When there are no programmed macros, this button does not appear.
* A lighting control unit is a device which can adjust the brightness of two or more lights with a onetouch operation.
Consult your installation dealer about lighting control unit installation.
To make the on-screen remote disappear
Press QUICK CLICK or RETURN/EXIT O.
Button
A Light Off
Function
Select to turn off the power of the lighting control unit.*
B Scene 1~16 Select to select a preset lighting pattern.
C All Off
Select to turn down the brightness of all the lights to the minimum (putting out the lights).
D Off
E Lower
Select to turn off a single light.
Select to turn down the brightness of all the lights at the same time.
F Toggle
Select to switch the preset lighting pattern.
G Raise
Select to turn up the brightness of all the lights at the same time.
H On
I All On
Select to turn on a single light.
Select to turn up all the lights to maximum brightness.
147
GB
Setting components that are operated by the onscreen remote
V/v/B/b,
MENU
To set the source component
1
Select “ Settings” from the menu, then press or b.
2
Select “Quick Click,” then press or b.
3
Select “Source Component,” then press
.
4
Select the input (including a TV) for the component you want to set up, then press .
5
Select “Preset Mode,” then press .
6
Select the type of component you want to set up, then press .
7
Select the maker name, then press .
8
Select the code, then press .
If you want to have a test, select “Play” on the TV screen.
9
Select “Finish,” then press .
To set the common component
1
Select “ Settings” from the menu, then press or b.
2
Select “Quick Click,” then press or b.
3
Select “Common Component,” then press .
4
Select the type of component you want to set up, then press .
5
Select “Preset Mode,” then press .
6
Select the component you want to set up, then press .
7
Select the maker name, then press .
8
Select the code, then press .
If you want to have a test, select “Menu” or
“Power” on the TV screen.
If you selected “TV” in step 6, “Menu” appears., In other cases, “Power” appears.
9
Select “Finish,” then press .
Performing several commands in sequence automatically with Quick
Click
(Macro Play)
You can use the macro function easily with
Quick Click.
QUICK
CLICK
V/v/b,
OPTIONS
MENU
1
Select “ Settings,” then press
or
b.
148
GB
2
Select “Quick Click,” then press
or
b.
3
Select “Macro,” then press .
4
Select the macro number for which you want to program the sequence of operation(s), then press .
5
Select the step number you want to set, then press .
6
Select the component type you want, or “- Wait -,” then press
b.
If you select “- Wait -,” go to step 8.
7
Select the key, then press
b.
8
Select the duration of time you want, then press .
9
Repeat steps 6 to 8 when you want to program operations for other components.
10
Select “Finish,” then press .
The settings process is complete.
To cancel programming
Select “Cancel,” then press .
Starting macro play
1
Press QUICK CLICK.
The on-screen remote is displayed on the
TV screen.
2
Select MACRO on on-screen remote.
The macro list appears on the TV screen.
3
Select the macro number you want to start.
The macro starts and executes the commands in the order you assigned them.
To input a macro name
1
Select “ Settings” from the menu, then press or b.
2
Select “Quick Click,” then press or b.
3
Select “Macro,” then press .
4
Press OPTIONS.
The option menu appears.
5
Select “Name Input,” then press .
The soft keyboard appears on the TV screen.
6
Press V/v/B/b and to select a character one by one.
7
Select “Finish,” then press .
The name you entered is registered.
To cancel naming input
Select “Cancel,” then press .
To erase a programmed macro
1
Select “ Settings” from the menu, then press or b.
2
Select “Quick Click,” then press or b.
3
Select “Macro,” then press .
4
Select the macro number you want, then press .
5
Select the step number you want, then press .
6
Select “–” as a component name, then press .
7
Repeat steps 5 and 6 to clear the stored macro.
8
Select “Finish,” then press .
Settings stored as a macro are cleared.
149
GB
Remote sensor
Setting remote control codes that are not stored in Quick Click
About 5 cm - 10 cm (2" - 4")
QUICK
CLICK
V/v/B/b,
MENU
1
Select “ Settings” from the menu, then press or
b.
2
Select “Quick Click,” then press
or
b.
3
Select “Source Component,” or
“Common Component,” then press .
4
Select the component you want, then press .
5
Select “Learn Mode,” then press .
6
Select the code number you want to store as the new command, then press .
7
Keep pressing the corresponding button on the remote of the component to be programmed while pointing the remote toward the receiver’s remote sensor until
“Complete” is displayed on the
TV screen.
“Test” is selected automatically after few seconds when the registration of a new code is completed.
8
Press .
The operation test of the programmed code is started.
Proceed to step 9 if you will not perform the operation test.
9
Select “Finish,” then press .
Note
The display window is turned off while the receiver is registering the new code.
To use a command that has been learned
1
Select “ Input” from the menu, then
2
Select the component you want, then press .
3
Press QUICK CLICK.
4
Select the button on the on-screen remote used to learn that function, then press .
150
GB
Resetting the remote code for Quick Click
V/v/b,
MENU
1
Select “ Settings” from the menu, then press or
b.
2
Select “Quick Click,” then press
or
b.
3
Select “Source Component,” or
“Common Component,” then press .
4
Select the component you want, then press .
5
Select “Reset,” then press .
The confirming message appears on the
TV screen.
6
Select “Yes,” then press .
All the contents of the selected input (e.g., all the programmed data) are cleared.
7
Repeat steps 4 to 6 to clear all programmed data.
Note
The macro itself is not cleared. A default code will be output when you have set a preset code or learned code in the macro step.
151
GB
Operating Each Component
Using the Multifunction Remote
Operating each component using the multifunction remote
You can control Sony or non-Sony components you are using with the multifunction remote supplied with the receiver.
The remote is initially set to control Sony components.
When you change the settings of the remote according to the components you are using, you can control non-Sony and other Sony components that the remote is initially unable
Operating the components connected to the receiver
1
Press the input button that matches the connected component that you want to operate.
2
Press the appropriated buttons to use the function listed in the table below.
Note
You may not be able to operate some functions for the components you are using.
Table of buttons used to control each component
Component
Button
TV VCR DVD player,
Blu-ray HDD
Recorder
DVD/VCR Player combo
Disc
PSX Video CD player, LD player
Digital
CATV terminal e)
DSS e)
Digital
Satellite/
Terrestrial receiver f)
Tape deck
A/B
DAT deck
CD player,
MD deck
DIGITAL
MEDIA
PORT device
AV ?/1 z z z z z z z z z z z z z z z z z z z z z z z z Numeric buttons
TV INPUT
GUIDE
-/--
ENTER
Text f)
Color buttons
TOOLS/OPTIONS z z z z z z z z z z z z z z z z c) c) z z z z z z z z z z z z z z z z a) z z z z z z z z z z z z z z z
DISPLAY
RETURN/EXIT z z z
V/v/B/b, ,
MENU, HOME z z z z ./>
B·/·b m/TUNING –,
M/TUNING +
DISC SKIP z z z z z z z z z z c) z z z z z z z z z z z z z z z z z z z z z z z d) z z z z z z z z z z z z z b) z z z z z z z z z z z
152
GB
Component
Button
TV VCR DVD player,
Blu-ray
Disc
DVD/VCR Player
HDD
Recorder combo
PSX Video CD player, LD player
Digital
CATV terminal e)
DSS e)
Digital
Satellite/
Terrestrial receiver f)
Tape deck
A/B
DAT deck
CD player,
MD deck
DIGITAL
MEDIA
PORT device
N, X, x z z z z z z z z z z z z
MUTING,
MASTER VOL +/–,
TV VOL +/– z
PRESET +/–,
TV CH +/– z z z
BD/DVD TOP
MENU, BD/DVD
MENU z
F1, F2 e) f) a) b) c) d)
LD player only
Deck B only
DVD only
Video CD only
USA/Canadian model only
European model only z z z z z z z a) z z z
Programming the remote
You can customize the remote to match the components connected to your receiver. You can even program the remote to control non-
Sony components and also Sony components that the remote is normally unable to control.
The procedure below uses as an example a case in which a VCR made by a company other than Sony is connected to the VIDEO 2 IN jacks on the receiver.
RM SET
UP
SHIFT
Numeric buttons
AV ?/1
TV
Input buttons
ENTER
2
While the RM SET UP button is flashing, press the input button
(including the TV button) for the component you want to control.
For example, if you are going to control a
VCR connected to VIDEO 2 IN jack, press VIDEO 2.
RM SET UP and SHIFT light up, and the input button flashes.
If you press the button for a component of which you cannot program the remote, such as TUNER, PHONO, DMPORT or
SOURCE, etc., the RM SET UP button keeps flashing.
3
Press the numeric buttons to enter the numeric code (or one of the codes if more than one code exists) corresponding to the component and the maker of the component you want to control.
The input button lights up.
Note
As a remote code value for the TV button, only numbers in the 500’s are valid.
1
Press AV ?/1 while pressing RM
SET UP.
The RM SET UP button flashes.
continued
153
GB
4
Press ENTER.
Once the numeric code has been verified, the RM SET UP button flashes twice and the remote automatically exits the programming mode. The input button also turns off.
To cancel programming
Press RM SET UP during any step.
The numeric codes corresponding to the component and the maker of the component
Use the numeric codes in the tables below to control non-Sony components and also Sony components that the remote is initially unable to control. Since the remote signal that a component accepts differs depending on the model and year of the component, more than one numeric code may be assigned to a component. If you fail to program your remote using one of the codes, try using other codes.
Notes
• The numeric codes are based on the latest information available for each brand. There is a chance, however, that your component will not respond to some or all of the codes.
• All of the input buttons on this remote may not be available when used with your particular component.
To control a CD player
Maker
SONY
DENON
JVC
KENWOOD
MAGNAVOX
MARANTZ
ONKYO
PANASONIC
PHILIPS
PIONEER
TECHNICS
YAMAHA
Code(s)
101, 102, 103
104, 123
105, 106, 107
108, 109, 110
111, 116
116
112, 113, 114
115
116
117
115, 118, 119
120, 121, 122
154
GB
To control a DAT deck
Maker
SONY
PIONEER
Code(s)
203
219
To control a tape deck
Maker
SONY
DENON
KENWOOD
NAKAMICHI
PANASONIC
PHILIPS
PIONEER
TECHNICS
YAMAHA
Code(s)
201, 202
204, 205
206, 207, 208, 209
210
216
211, 212
213, 214
215, 216
217, 218
To control an MD deck
Maker
SONY
DENON
JVC
KENWOOD
Code(s)
301
302
303
304
To control an HDD recorder
Maker
SONY
Code(s)
307, 308, 309
To control a Blu-ray Disc Player
Maker
SONY
PANASONIC
SAMSUNG
LG
Code(s)
310, 311, 312
335
336
337
To control a PSX
Maker
SONY
Code(s)
313, 314, 315
To control a DVD player
Maker
SONY
BROKSONIC
DENON
HITACHI
Code(s)
401, 402, 403
424
405
416
Maker
JVC
MITSUBISHI
ORITRON
PANASONIC
PHILIPS
PIONEER
RCA
SAMSUNG
TOSHIBA
ZENITH
Code(s)
415, 423
419
417
406, 408, 425
407
409, 410
414
416, 422
404, 421
418, 420
To control a DVD/VCR COMBO
(recorder)
Maker
SONY
Code(s)
411
To control a HDD/DVD COMBO
(recorder)
Maker
SONY
Code(s)
401, 402, 403
To control a TV
Maker
SONY
AIWA
AKAI
AOC
CENTURION
CORONADO
CURTIS-MATHES
DAYTRON
DAEWOO
FISHER
FUNAI
FUJITSU
GOLDSTAR/LG
GRUNDIG
HITACHI
ITT/NOKIA
J.C.PENNY
JVC
KMC
MAGNAVOX
MARANTZ
Code(s)
501
501, 536, 539
503
503
566
517
503, 551, 566, 567
517, 566
504, 505, 506, 507, 515,
544
508, 545
548
528
503, 512, 515, 517, 534,
544, 556, 568, 576
511, 533, 534
503, 513, 514, 515, 517,
519, 544, 557, 571
521, 522
503, 510, 566
516, 552
517
503, 515, 517, 518, 544,
566
527
SAMPO
SABA
SANYO
SCOTT
SEARS
SHARP
SYLVANIA
THOMSON
TOSHIBA
TELEFUNKEN
TEKNIKA
WARDS
YORK
ZENITH
GE
LOEWE
Maker
MITSUBISHI/MGA
NEC
NORDMENDE
NOKIA
PANASONIC
PHILIPS
PHILCO
PIONEER
PORTLAND
QUASAR
RADIO SHACK
RCA/PROSCAN
SAMSUNG
Code(s)
503, 519, 527, 544, 566,
568
503, 517, 520, 540, 544,
554, 566
530, 558
521, 522, 573, 575
509, 524, 553, 559, 572
515, 518, 557, 570, 571
503, 504, 514, 517, 518
509, 525, 526, 540, 551,
555
503
509, 535
503, 510, 527, 565, 567
503, 510, 523, 529, 544
503, 515, 517, 531, 532,
534, 544, 556, 557, 562,
563, 566, 569
566
530, 537, 547, 549, 558
508, 545, 546, 560, 567
503, 566
503, 508, 510, 517, 518,
551
517, 535, 550, 561, 565
503, 518, 566
530, 537, 547, 549
535, 539, 540, 541, 551
530, 537, 538, 547, 549,
558
517, 518, 567
503, 517, 566
566
542, 543, 567
503, 509, 510, 544
515, 534, 556
To control an LD player
Maker
SONY
PIONEER
Code(s)
601, 602, 603
606
To control a video CD player
Maker
SONY
Code(s)
605
continued
155
GB
To control a VCR
Maker
SONY
AIWA*
AKAI
BLAUPUNKT
EMERSON
Code(s)
701, 702, 703, 704, 705,
706
710, 750, 757, 758
707, 708, 709, 759
740
711, 712, 713, 714, 715,
716, 750
717, 718, 719, 720
721, 722, 730
FISHER
GENERAL ELECTRIC
(GE)
GOLDSTAR/LG
GRUNDIG
HITACHI
ITT/NOKIA
JVC
MAGNAVOX
MITSUBISHI/MGA
NEC
PANASONIC
PHILIPS
PIONEER
RCA/PROSCAN
SAMSUNG
SANYO
SHARP
TELEFUNKEN
TOSHIBA
ZENITH
723, 753
724
722, 725, 729, 741
717
726, 727, 728, 736
730, 731, 738
732, 733, 734, 735
736
729, 730, 737, 738, 739,
740
729, 730, 731
729
722, 729, 730, 731, 741,
747
742, 743, 744, 745
717, 720, 746
748, 749
751, 752
747, 756
754
* If an AIWA VCR does not work even though you enter the code for AIWA, enter the code for Sony instead.
To control a satellite tuner (box)
Maker
SONY
AMSTRAD
BskyB
GENERAL
ELECTRIC(GE)
GRUNDIG
HUMAX
THOMSON
PACE
PANASONIC
Code(s)
801, 802, 803, 804, 824,
825, 865
845, 846
862
866
859, 860
846, 847
857, 861, 864, 876
848, 849, 850, 852, 862,
863, 864
818, 855
Maker
PHILIPS
NOKIA
RCA/PROSCAN
HITACHI/BITA
HUGHES
JVC/Echostar/Dish
Network
MITSUBISHI
SAMSUNG
TOSHIBA
Code(s)
856, 857, 858, 859, 860,
864, 874
851, 853, 854, 864
866, 871
868
867
873
872
875
869, 870
To control a cable box
Maker
SONY
HAMLIN/REGAL
JERROLD/G.I./
MOTOROLA
Code(s)
821, 822, 823
836, 837, 838, 839, 840
806, 807, 808, 809, 810,
811, 812, 813, 814, 819
JERROLD
OAK
PANASONIC
830, 831
841, 842, 843
PHILIPS
PIONEER
816, 826, 832, 833, 834,
835
830, 831
828, 829
RCA 805
SCIENTIFIC ATLANTA 815, 816, 817
TOCOM/PHILIPS
ZENITH
830, 831
826, 827
156
GB
Performing several commands in sequence automatically
(Macro Play)
The Macro Play function lets you link several commands in a sequential order as a single command.
The remote provides 2 macro lists (MACRO 1 and MACRO 2). You can specify up to 20 commands for each macro list.
Note
When setting up Macro Play, replace the batteries with new ones.
RM SET
UP
AMP
Input buttons
Program the sequence of the operation
1
Press MACRO 1 or MACRO 2 for more than 1 second while pressing RM SET UP.
The RM SET UP button flashes and one of the input buttons lights up (as the initial setting, the BD button lights).
2
Press the input button for the component for which you want to program the sequence of operation(s).
3
Press the buttons you want to program in the same sequence as you want the operation(s) to be performed.
You can program particular operations using the following buttons.
Press Operations to be programmed
The input button for more than 1 second
Switches inputs.
MACRO 1 or
MACRO 2
Make a one second interval. When you want to make a longer interval, press MACRO
1 or MACRO 2 repeatedly.
The input button selected in step 2 flashes twice, then lights up again.
4
Repeat steps 2 and 3 when you want to program operations for other components.
5
Press RM SET UP to finish the programming process.
MACRO 1
MACRO 2
continued
157
GB
Tip
If the RM SET UP button flashes five times in step
1, and the macro programming process does not start, replace the batteries with new ones.
To cancel programming
Not pressing any button for 60 seconds cancels the settings.
The previous command remains valid.
Starting macro play
1
Press AMP.
The AMP button lights up, and then turns off.
2
Press MACRO 1 or MACRO 2 to start the macro.
The macro starts and execute the commands in the order you assigned them. While the commands are being sent, the AMP button flashes and the RM
SET UP button lights up. When the commands have been sent, the RM SET
UP and AMP buttons turn off.
To erase a programmed macro
1
Press MACRO 1 or MACRO 2 for more than 1 second while pressing RM SET
UP to clear the stored macro.
The RM SET UP button flashes.
2
Press RM SET UP.
Settings stored as macro are cleared.
Setting remote commander codes that are not stored in the remote
Even if a remote commander code is not one of the presets stored in the remote, it is possible for the remote to learn the code using the learning function.
Note
When setting up the receiver to learn the remote command modes, replace the batteries with new ones.
THEATER
RM SET
UP
?/1
TV
SHIFT
Input buttons
Buttons used to learn code*
Buttons used to learn code
* To store a new command on one of those buttons, press SHIFT beforehand.
158
GB
1
Press THEATER while pressing
RM SET UP.
The RM SET UP button lights up.
2
Press the input button
(including the TV button) for the component you want to operate with the new command.
The input button flashes. (The RM SET
UP button remains lit.)
3
Press the button on which you want to store the new command. For the buttons with an asterisk in the illustration above, press SHIFT, then press the button.
The input button you selected in step 2 lights up. (The RM SET UP button remains lit.)
4
Point the remote code receiver section of the remote toward the transmitter on the remote commander to be learned from.
Tips
• When the memory capacity for storing remote commander codes reaches a certain limit, the RM
SET UP button flashes 10 times, and then the learning process ends.
• If the RM SET UP button flashes five times in step
1, and the learning process does not start, replace the batteries with new ones.
• If you fail to store the command in step 3, make sure you do not attempt to store a new command assigned to the button to which a command has already been assigned. If a command has already been assigned to the button, erase the previously assigned command beforehand.
To cancel learning
Press RM SET UP. Also, not pressing any button for 60 seconds cancels the settings.
About 5 cm - 10 cm (2" - 4")
5
Press the button on the remote commander to be learned from to transmit the remote code.
While the remote of the receiver is receiving the signal, the input button selected in step 2 turns off.
The RM SET UP button flashes twice, then the learning process is completed.
When the learning process fails, the RM
SET UP button flashes five times. Try to perform process again from step 2.
6
Press RM SET UP to finish the learning function process.
Using a command that has been learned
When selecting a learned input, press the button used to learn that function.
To erase the learned code
1
Press THEATER while pressing RM
SET UP.
2
Press the input button for which you want to clear the setting.
The input button flashes. (The RM SET UP button remains lit.)
3
Press ?/1 for more than 1 second.
The input button flashes twice, repeatedly.
4
Press the button which learned the command to clear the stored setting.
The RM SET UP button flashes twice, then the clearing process is completed.
When the clearing process fails, the RM
SET UP button flashes five times. Try to perform process again from step 2.
5
Press RM SET UP to finish the erasing process.
159
GB
Clearing all the contents of the remote’s memory
AV ?/1
?/1
MASTER
VOL
1
Hold down ?/1 while pressing
MASTER VOL –, then press
AV ?/1, all at the same time.
The RM SET UP button flashes three times.
2
Release all buttons.
All the contents of the remote’s memory
(e.g., all the programmed data) are cleared.
160
GB
Additional Information
Precautions
On safety
Should any solid object or liquid fall into the cabinet, unplug the receiver and have it checked by qualified personnel before operating it any further.
On power sources
• Before operating the receiver, check that the operating voltage is identical with your local power supply.
The operating voltage is indicated on the nameplate on the back of the receiver.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• If you are not going to use the receiver for a long time, be sure to disconnect the receiver from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.
• One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.
• AC power cord (mains lead) must be changed only at a qualified service shop.
On heat buildup
Although the receiver heats up during operation, this is not a malfunction. If you continuously use this receiver at a large volume, the cabinet temperature of the top, side and bottom rises considerably. To avoid burning yourself, do not touch the cabinet.
On placement
• Place the receiver in a location with adequate ventilation to prevent heat buildup and prolong the life of the receiver.
• Do not place the receiver near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.
• Do not place anything on top of the cabinet that might block the ventilation holes and cause malfunctions.
• Do not place the receiver near equipment such as a television, VCR, or tape deck. (If the receiver is being used in combination with a television, VCR, or tape deck, and is placed too close to that equipment, noise may result, and picture quality may suffer.
This is especially likely when using an indoor antenna (aerial). Therefore, we recommend using an outdoor antenna
(aerial).)
On operation
Before connecting other components, be sure to turn off and unplug the receiver.
On cleaning
Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.
If you have any questions or problems concerning your receiver, please consult your nearest Sony dealer.
161
GB
Troubleshooting
If you experience any of the following difficulties while using the receiver, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your nearest Sony dealer.
General
The receiver is turned off automatically.
• “Auto Standby” is set to “ON” (page 134).
• The sleep timer function is working
“ Settings” of the GUI does not appear on the TV screen, or the surround effect does not switch.
• “Settings Lock” is set to “ON” (page 134).
Audio
There is no sound, no matter which component is selected, or only a very low-level sound is heard.
• Check that the speakers and components are connected securely.
• Check that all speaker cords are connected correctly.
• Check that both the receiver and all components are turned on.
• Check that MASTER VOLUME control is not set at –
∞ dB. Try to set it at about
–40 dB.
• Check that SPEAKERS (A/B/A+B/OFF)
• Press MUTING on the remote to cancel the muting function.
• Check that you have selected the correct component with INPUT SELECTOR.
• Check that headphones are not connected.
• Check to see if Night Mode is activated
• The protective device on the receiver has been activated. Turn off the receiver, eliminate the short-circuit problem, and turn on the power again.
There is no sound from a specific component.
• Check that the component is connected correctly to the audio input jacks for that component.
• Check that the cord(s) used for the connection is (are) fully inserted into the jacks on both the receiver and the component.
• Set the INPUT MODE to “AUTO”
There is no sound from one of the front speakers.
• Connect a pair of headphones to the
PHONES jack to verify that sound is output from the headphones. If only one channel is output from the headphones, the component may not be connected to the receiver correctly. Check that all the cords are fully inserted into the jacks on both the receiver and the component. If both channels are output from the headphones, the front speaker may not be connected to the receiver correctly. Check the connection of the front speaker which is not outputting any sound.
• Make sure you have connected both the L and R jacks to an analog component and not just to either the L or R jack. Use a monaural-stereo cable (not supplied).
However, there will be no sound from the center speaker when a sound field (Pro
Logic, etc.) is selected. When the center speaker is not connected, sound is output only from the front left/right speakers.
There is no sound from analog 2 channel sources.
• Check to make sure the selected audio
(digital) input jack is not assigned to other inputs in “Input Assign” in the Input menu
162
GB
There is no sound from digital sources
(from COAXIAL or OPTICAL input jack).
• Check the INPUT MODE (page 106).
• Check that the “2ch Analog Direct” is not being used.
• Check to make sure the selected audio
(digital) input jack is not assigned to other inputs in “Input Assign” in the Input menu
The source sound input from the HDMI
IN jack is not output from an amplifier or the TV speaker connected to the receiver.
• Check that the component is connected correctly to the HDMI IN jack for that component.
• Depending on the playback component, component may need to be set up. Refer to the operating instructions supplied with the each component.
• Be sure to use a connecting cable for the
HDMI jack corresponding to High Speed
HDMI cable when you view images or listen to sound during a 1080p, Deep
Color, or 3D transmission.
• Sound may not be output from the receiver while the GUI appears on the TV screen.
Press GUI MODE to turn “GUI MODE” off.
The left and right sounds are unbalanced or reversed.
• Check that the speakers and components are connected correctly and securely.
• Adjust the balance parameters using the
Auto Calibration settings menu.
There is severe hum or noise.
• Check that the speakers and components are connected securely.
• Check that the connecting cords are away from a transformer or motor, and at least
3 meters (10 feet) away from a TV set or fluorescent light.
• Move your TV away from the audio components.
• Make sure you have grounded the
U SIGNAL GND terminal (only when a turntable is connected).
• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.
There is no sound, or only a very lowlevel sound is heard from the center/ surround/surround back speakers.
• Check that the speaker settings are appropriate using the Auto Calibration settings menu or “Speaker Pattern” in the
Speaker settings menu. And then check that sound is output from each speaker correctly, using “Test Tone” in the Speaker settings menu.
• Select the “HD-D.C.S.” sound field
• Adjust the speaker level (page 119).
• Make sure the center/surround speaker (s) is (are) set to either “SMALL” or
“LARGE.”
There is no sound from the surround back speakers.
• Some discs have no Dolby Digital
Surround EX flag even though the packages have Dolby Digital Surround EX logos.
There is no sound from the subwoofer.
• Check that the subwoofer is connected correctly and securely.
• Make sure you have turned on your subwoofer.
• When all speakers are set to “LARGE” and “Neo:6 Cinema,” or “Neo:6 Music” is selected, there is no sound from the subwoofer.
The surround effect cannot be obtained.
• Make sure the sound field function is on
(press MOVIE/HD-D.C.S. or MUSIC).
• Sound fields do not work when DTS-HD signals with a sampling frequency of
88.2 kHz and higher are being received.
continued
163
GB
• Sound fields do not work when Dolby
TrueHD signals with a sampling frequency of 176.4 kHz and higher are being received.
• “PLII (Music/Movie),” “PLIIx (Music/
Movie),” “PLIIz Height,” and “Neo:6
(Music/Cinema)” do not work when the speaker pattern is set to 2/0 or 2/0.1.
Dolby Digital or DTS multi-channel sound is not reproduced.
• Check that the DVD, etc., you are playing is recorded in Dolby Digital or DTS format.
• When connecting the DVD player, etc., to the digital input jacks of this receiver, make sure the setting for the digital audio output of the connected component is available.
Recording cannot be carried out.
• Check that the components are connected
• Select the source component (page 58).
The MULTI CHANNEL DECODING lamp does not light up in blue.
• Check that the playback component is connected on a digital jack and the input is selected properly on this receiver.
• Check whether the input source of the software being played back corresponds to the multi-channel format.
• Check whether the setup on the playback component is set to multi-channel sound.
• Check to make sure the selected audio
(digital) input jack is not assigned to other inputs in “Input Assign” in the Input menu
There is no sound from the component connected to the DIGITAL MEDIA PORT adapter.
• Adjust the volume of this receiver.
• The DIGITAL MEDIA PORT adapter and/or component is not connected correctly. Turn off the receiver, then reconnect the DIGITAL MEDIA PORT adapter and/or component.
164
GB
• Check the DIGITAL MEDIA PORT adapter and/or component device to make sure it supports this receiver.
Video
There is no picture or an unclear picture appears on the TV screen or monitor.
• Select the appropriate input on the receiver
• Set your TV to the appropriate input mode.
• Move your TV away from the audio components.
• Assign the component video input correctly.
• The input signal should be same as input when you are up-converting an input
signal with this receiver (page 33).
• When you use an HDMI-DVI conversion cable for the connection, the image may not be output correctly.
The image of the COMPONENT VIDEO
OUT is corrupted.
• The resolution of output signals from the
COMPONENT VIDEO OUT jacks may not be supported by your TV. In this case, select the appropriate resolution on the
Images from the component connected to the HDMI jack are not output to the
TV, are distorted, or are interrupted.
• The output of the HDMI video signals of the receiver may be set to “OFF.” In this case, select “HDMI A” or “HDMI B” using the HDMI OUTPUT button
• If the compatible video format differs between the monitors connected to the
HDMI OUT A jack and the HDMI OUT B jack of the receiver, “HDMI A + B” may not work.
• Depending on the playback component you connect, “HDMI A + B” may not work.
• Make sure that cables are correctly and securely connected to components.
• Depending on the playback component, component may need to be set up. Refer to the operating instructions supplied with the each component.
• Be sure to use a connecting cable for the
HDMI jack corresponding to High Speed
HDMI cable when you view images or listen to sound during a 1080p, Deep
Color, or 3D transmission.
• Images from the component connected to the HDMI jack may be distorted. In this case, set “Video Direct” to “ON” in the
HDMI settings menu.
• Images or sound from the component connected to the HDMI jack may be interrupted when video signals are switched. In this case, set “Video Direct” to “ON” in the HDMI settings menu.
• If the start of the video is not output when the 3D video is switched, or the colors of the 3D video are improper, set “Video
Direct” to “ON” in the HDMI settings menu.
No 3D image appears on the TV.
• Depending on the TV or the video component, 3D images may not be displayed. Check the 3D image formats
supported by the system (page 171).
Recording cannot be carried out.
• Check that the components are connected
• Select the source component (page 58).
The GUI does not appear on the TV screen.
• “GUI MODE” may have been turned off.
Press GUI MODE to turn “GUI MODE” on.
• Check the TV is connected correctly.
Images appear later than the associated sound is played when the
HDMI input is selected.
• Depending on the component connected to the HDMI jack, or the source played back, images may appear later than the associated sound. In this case, set “Video
Direct” to “ON” in the HDMI settings menu.
Tuner
The FM reception is poor.
• Use a 75-ohm coaxial cable (not supplied) to connect the receiver to an outdoor FM
antenna (aerial) as shown on page 165. If
you connect the receiver to an outdoor antenna (aerial), ground it against lightning. To prevent a gas explosion, do not connect the ground (earth) wire to a gas pipe.
Outdoor FM antenna (aerial)
Receiver
Ground (earth) wire (not supplied)
To ground
Radio stations cannot be tuned in.
• Check that the antennas (aerials) are connected securely. Adjust the antennas
(aerials) and connect an external antenna
(aerial), if necessary.
• Keep the satellite radio antenna, away from the speaker cords and the power cord to avoid picking up noise.
• The signal strength of the stations is too weak (when tuning in with automatic tuning). Use direct tuning.
continued
165
GB
• Make sure you set the tuning interval correctly (when tuning in AM stations with direct tuning).
• No stations have been preset or the preset stations have been cleared (when tuning by scanning preset stations). Preset the
• Press DISPLAY so that the frequency appears on the display.
The system cannot receive satellite channels at all.
• The receiving condition is not good. Move the antenna to the place where the condition is good.
• Check that you subscribed to the desired
satellite radio service (page 67).
RDS does not work.
• Make sure that you are tuned to an FM
RDS station.
• Select a stronger FM station.
The RDS information that you want does not appear.
• Contact the radio station and find out whether or not they actually provide the service in question. If so, the service may be temporarily out of order.
Control for HDMI
The Control for HDMI function does not work.
• Check the HDMI connection (page 26).
• Make sure “Control for HDMI” is set to
“ON” in HDMI settings menu.
• Make sure the connected component is compatible with the Control for HDMI function.
• Check the Control for HDMI settings on the connected component. Refer to the operating instructions of the connected component.
• If you change the HDMI connection, connect/disconnect the AC power cord, or there is a power failure, repeat the
procedures of “Preparing for the
• If you select “HDMI A” or “HDMI
A + B,” after you have selected “HDMI B” or “OFF,” the Control for HDMI function may not work properly for a while. This is because the component connected to the
HDMI OUT A jack must re-recognize the receiver that is equipped with the Control for HDMI function. If the Control for
HDMI function does not work properly for a long time, perform the steps given in
“Preparing for the “BRAVIA” Sync”
• When you select “HDMI B” or “OFF,” the
Control for HDMI function does not work properly.
• When “Control for HDMI” is set to
“OFF,” the “BRAVIA” Sync does not work properly, even if a component is connected to the HDMI IN jack.
• The types and the number of components which can be controlled by the “BRAVIA”
Sync are restricted in the HDMI CEC standard as follows.
– Recording component (Blu-ray Disc recorder, DVD recorder, etc.): up to 3 components
– Playback component (Blu-ray Disc
Player, DVD player, etc.): up to 3 components
– Tuner-related component: up to 4 components
– AV receiver (audio system): up to 1 component
No sound is output from the receiver and TV speaker while using the System
Audio Control function.
• Make sure the TV is compatible with the
System Audio Control function.
• If the TV does not have System Audio
Control function, set the “Audio Out” settings in HDMI settings menu to
– “TV+AMP” if you want to listen to the sound from the TV speaker and receiver.
166
GB
– “AMP” if you want to listen to the sound from the receiver.
• When you connect the receiver to a video component (projector, etc.), sound may not be output from the receiver. In this case, select “AMP.”
• You cannot listen to the sound of a component connected to the receiver while a TV is selected as the input on the receiver.
– Change the input of the receiver to
HDMI when you want to watch a program on a component connected to the receiver.
– Change the TV channel when you want to watch a TV broadcast.
– Select the component or input you want to watch when you watch a program on the component connected to the TV.
Refer to the operating instructions of the
TV on this operation.
• When using the Control for HDMI function, you cannot control the connected component using TV’s remote.
– Depending on the connected component and TV, you may need to set up the component and TV. Refer to the operation instructions supplied with each component and TV.
– Change the input of the receiver to the
HDMI input connected to the component.
Remote commander
The remote does not function.
• Point the remote at the remote sensor on the receiver.
• Remove any obstacles in the path between the remote and the receiver.
• Replace all the batteries in the remote with new ones, if they are weak.
• Make sure that the command modes of the receiver and the remote are the same. If the command mode of the receiver and the remote are different, you cannot operate
the receiver with the remote (page 111).
• Make sure you select the correct input on the remote.
• When you operate a programmed non-
Sony component, the remote may not function properly depending on the model and the maker of the component.
Network
Cannot find the server.
• Search the server using the “Server
• Check the following:
– Is the router turned on?
– If there is another device between this device and the router, check that device is turned on.
– Are all of the cables connected correctly and securely?
– Is the settings to make sure that they match the router’s settings (DHCP or fixed IP address)?
• When using a computer, check the following:
– The built-in firewall settings for the computer’s operating system.
– The firewall settings of your security software. To check the firewall settings of your security software, refer to your security software’s Help section.
• Register this device with the server. For details, refer to the instructions supplied with the server.
• Wait for a few moments, and then try connecting to the server again.
Cannot find or play back the content on the server.
• On the “ Music,” “ Photo,” and
“ Video” screens, the receiver displays only the content that can be played back with the receiver from among the content offered by the server within the
DLNA guidelines.
• The content without a [*] mark before the name is offered by the server as that defined in the DLNA guidelines, and it can
continued
167
GB
be played back with the receiver.
The content with a [*] mark before the name is offered by the server as that not defined in the DLNA guidelines, and it may be played back with the receiver.
• There may be content that is not displayed even if it can be played back with the receiver because it is not defined in the
DLNA guidelines. However, the receiver may not be able to play back the content, even if it is defined in the DLNA guidelines.
• The availability of certain content may differ, depending on the server software. If the content is not displayed or cannot be played back, try the supplied VAIO Media plus application software as your server software.
Cannot connect to the receiver with the
Setup Manager application software.
• Does antivirus software, firewall software, or a network packet filter driver run on your computer?
Deactivate such software temporarily, or change the settings to accept all incoming
TCP or UDP packets from the receiver.
Cannot access the receiver from the network controller.
• “Server Function” is set to “OFF”
• Make sure “External Control” is set to
“ON” in Network settings menu.
• Is the network controller listed on the
Controllers settings screen, and is the box for “Permit” checked?
If the box is not checked, check the box for
“Auto Permission,” and return to the menu. Then, operate the receiver using the network controller once, and then uncheck the box for “Auto Permission.”
• If the network controller is a computer software controller, is the software filtered by antivirus software or firewall software?
Permit UPnP communications between the software and the receiver.
If the trouble is other than one of the cases described above and the trouble is not solved even if you wait for a while, perform either of the operations below.
• Press ?/1 on the remote to turn the receiver off and then on again.
• Hold down ?/1 on the receiver until the lamp above the button flashes in green to reboot the receiver.
Error messages
If there is a malfunction, the display shows a code of two numbers and a message. You can check the status of the system by the message.
See the following table to solve the problem. If any problem persists, consult your nearest
Sony dealer.
PROTECTOR
The upper panel of the receiver is covered with something. The receiver will automatically turn off after a few seconds.
Remove the object covering the upper panel of the receiver and turn on the power again.
SPEAKER SHORTED
Irregular current is output to the speakers due to a short circuit on the speaker terminals. The receiver will automatically turn off after a few seconds. Check the connection of the speakers and turn on the power again.
For other messages, see “Message list after auto calibration measurement” (page 52),
“DIGITAL MEDIA PORT message list”
(page 62) and “Message list” (page 73).
168
GB
Clearing the memory
Reference sections
To clear
All memorized settings
Multifunction remote commander
See
To clear the memory of the simple remote commander
After removing the batteries, do not use the remote for a few minutes.
About support information
Refer to the following web site for details of the latest information on the receiver.
For customers in the United States and
Canada:
http://www.sony.com/essupport
For the customers in Europe:
http://support.sony-europe.com/quickjump/
STR
Specifications
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 8 ohm loads, both channels driven, from
20 – 20,000 Hz; rated 130
3)
watts per channel minimum RMS power, with no more than
0.09% total harmonic distortion from 250 milliwatts to rated output.
Amplifier section
POWER OUTPUT
Rated Power Output at Stereo Mode
1) 2)
(8 ohms 20 Hz – 20 kHz,
THD 0.09%):
130 W + 130 W
3)
120 W + 120 W
4)
Reference Power Output at Stereo Mode
(4 ohms 20 Hz – 20 kHz,
THD 0.15%):
130 W + 130 W
3)
120 W + 120 W
4)
Reference Power Output
(8 ohms 1 kHz, THD 0.7%)
FRONT
2)
:
140 W + 140 W
3)
130 W + 130 W
4)
CENTER
2)
: 140 W
3)
130 W
4)
SURROUND
2)
140 W + 140 W
:
3)
130 W + 130 W
4)
SURROUND BACK
2)
:
140 W + 140 W
3)
130 W + 130 W
4)
Reference Power Output
(4 ohms 1 kHz, THD 0.7%)
FRONT
2)
:
130 W + 130 W
3)
120 W + 120 W
4)
CENTER
2)
: 130 W
3)
120 W
4)
continued
169
GB
SURROUND
2)
130 W + 130 W
:
3)
120 W + 120 W
4)
SURROUND BACK
2)
:
130 W + 130 W
3)
120 W + 120 W
4)
1)
2)
3)
4)
Depending on the sound field settings and the source, there may be no sound output.
Measured under the following conditions:
Power requirements: 120 V AC, 60 Hz (in USA and Canada), 230 V AC, 50/60 Hz (in Europe and general area)
USA/Canadian model
European model
Frequency response
PHONO
MULTI CHANNEL
INPUT, SA-CD/CD,
TAPE, MD, TV,
VIDEO 1/2, BD, DVD,
SAT/CATV
RIAA equalization curve ± 1.0 dB (20 Hz –
20 kHz)
10 Hz – 100 kHz
± 3 dB
Inputs (Analog)
PHONO
MULTI CHANNEL
INPUT, SA-CD/CD,
TAPE, MD, TV,
VIDEO 1/2, BD, DVD,
SAT/CATV
Sensitivity: 2.5 mV
Impedance: 50 kohms
S/N: 90 dB (A, 20 kHz
LPF)
Sensitivity: 150 mV
Impedance: 50 kohms
S/N: 100 dB (A,
20 kHz LPF)
Inputs (Digital)
BD, DVD,
SA-CD/CD (Coaxial)
VIDEO 1/2, TV, SAT/
CATV, TAPE, MD
(Optical)
Impedance: 75 ohms
S/N: 96 dB (A, 20 kHz
LPF)
S/N: 96 dB
(A, 20 kHz LPF)
Outputs
TAPE (REC OUT),
VIDEO 1, ZONE 2,
ZONE 3 (AUDIO OUT)
Voltage:150 mV
Impedance: 1 kohm
FRONT L/R, CENTER,
SURROUND L/R,
SURROUND BACK L/R,
FRONT HIGH L/R,
SUBWOOFER
Voltage: 2 V
Impedance: 1 kohm
FM tuner section
Tuning range 87.5 – 108.0 MHz
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohms, unbalanced
AM tuner section
Tuning range
Area
USA, Canada
Europe
Tuning scale
10 kHz step 9 kHz step
530 –
1,710 kHz
–
531 –
1,710 kHz
531 –
1,602 kHz
Intermediate frequency
450 kHz
Antenna (aerial) Loop antenna (aerial)
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
P
B
: 0.7 Vp-p, 75 ohms
P
R
: 0.7 Vp-p, 75 ohms
80 MHz HD Pass Through
HDMI Video
Input/Output (HDMI Repeater block)
640 × 480p@60 Hz
720 × [email protected]/60 Hz
1280 × [email protected]/60 Hz
1920 × [email protected]/60 Hz
1920 × [email protected]/60 Hz
720 × 576p@50 Hz
1280 × 720p@50 Hz
1920 × 1080i@50 Hz
170
GB
1920 × 1080p@50 Hz
1920 × 1080p@24 Hz
HDMI Video (3D)
Input/Output (HDMI Repeater block)
1280 × 720p @ 59.94/60 Hz Frame packing
1280 × 720p @ 59.94/60 Hz Top-and-Bottom
1920 × 1080i @ 59.94/60 Hz Frame packing
1920 × 1080i @ 59.94/60 Hz
Side-by-Side (Half)
1920 × 1080p @ 59.94/60 Hz
Side-by-Side (Half)
1280 × 720p @ 50 Hz Frame packing
1280 × 720p @ 50 Hz Top-and-Bottom
1920 × 1080i @ 50 Hz Frame packing
1920 × 1080i @ 50 Hz Side-by-Side (Half)
1920 × 1080p @ 50 Hz Side-by-Side (Half)
1920 × 1080p @ 24 Hz Frame packing
1920 × 1080p @ 24 Hz Top-and-Bottom
Supported playback formats
Content delivered from the device on the home network needs to support the following formats for you to play back content on this receiver.
Type of content
Music Linear
PCM
MPEG-1
Layer3
(MP3)
Windows
Media
Audio
(WMA)
AAC
WAV
LPCM defined in DLNA guidelines 1.0
Sampling Rate:
44.1 kHz, 48 kHz
Channels: 1, 2
Quantization: 16 bit
MPEG defined in
DLNA guidelines 1.0
Bitrate: 32, 40, 48, 56,
64, 80, 96, 112, 128,
160, 192, 224, 256,
320 kbps
Sampling Rate: 32 kHz,
44.1 kHz, 48 kHz
Channels: 1, 2
Encoding: CBR, VBR
WMA_FULL and
WMA_BASE defined in
DLNA guidelines 1.0
Maximum Bitrate:
385 kbps
Sampling Rate: up to
48 kHz
Channels: 2
Not compatible with
WMA Pro files.
AAC_ISO defined in
DLNA guidelines 1.0
AAC Profile @ Level 1,
@ Level 2
Sampling Rate: 8,
11.025, 12, 16, 22.05,
24, 32, 44.1, 48 kHz
Maximum Bitrate:
576 kbps
Channels: 1, 2
Some files may not be played back.
Conforms to Linear
PCM.
Some files may not be played back.
continued
171
GB
Type of content
Photo JPEG
BMP
PNG
JPEG_SM,
JPEG_MED, or
JPEG_LRG defined in
DLNA guidelines 1.0
Maximum Resolution:
4096 × 4096
Non-progressive JPEG
Conforms to JPEG.
Some files may not be played back.
Conforms to JPEG.
Some files may not be played back.
Type of content
Video MPEG-2
(NTSC)
MPEG-2
(PAL)
Windows
Media
Video
(WMV)
MPEG_PS_NTSC defined in DLNA guidelines 1.0
Maximum Resolution:
720 × 480
Maximum System
Bitrate: 10.08 Mbps
Maximum Bitrate*
CBR: 9.80 Mbps/VBR:
9.80 Mbps
* Bitrate is mixed with
MPEG-1 Layer 1/2/3,
PCM, or AC3 audio format.
MPEG_PS_PAL defined in DLNA guidelines 1.0
Maximum Resolution:
720 × 576
Maximum System
Bitrate: 10.08 Mbps
Maximum Bitrate*
CBR: 9.80 Mbps/VBR:
9.80 Mbps
* Bitrate is mixed with
MPEG-1 Layer 1/2/3,
PCM, or AC3 audio format.
Maximum Resolution:
720 × 480
Maximum Bitrate:
2 Mbps
Windows Media Video
7/8/9 standard definition for Main profile mixed with Windows Media
Video 7/8/9 excludes all profile of Windows
Media Audio professional.
Some files may not be played back.
Notes
• Not compatible with DRM protected files.
• Depending on the files, there may be files that sometimes cannot be played back, even if they meet the requirements described above.
• Concerning the formats defined in the DLNA guidelines, the server is required to offer the content to which the format information defined in the DLNA guidelines has been added properly.
172
GB
General
Power requirements 120 V AC, 60 Hz
(in USA and Canada)
230 V AC, 50/60 Hz
(in Europe and general area)
Power output (DIGITAL MEDIA PORT)
DC OUT: 5 V, 700 mA
Power consumption
Area
USA and Canada
Europe
480 W
480 W
Power consumption (during standby mode)
and the power for zone 2/ zone 3 is turned off.)
Dimensions
Mass (Approx.)
430 × 175 × 430 mm
(16
7
/
8
× 6
7
/
8
× 17 inches)
(width/height/depth) including projecting parts and controls
17.3 kg (38 lb 3 oz) (USA/
Canadian model)
16.9 kg (European model)
Supplied accessories
Operating Instructions (this manual)
Quick Setup Guide (1)
GUI Menu List (1)
Software License Information (1)
Optimizer microphone ECM-AC1 (1)
FM wire antenna (aerial) (1)
AM loop antenna (aerial) (1)
AC power cord (mains lead) (1)
Multifunction remote commander (1)
Simple remote commander (1)
R6 (size-AA) batteries (4)
IR Blaster
(1)
Speaker cord connection tool (1)
Setup Manager CD-ROM (1)
VAIO Media plus CD-ROM (1)
Design and specifications are subject to change without notice.
• Standby power consumption 0.5 W.
• Halogenated flame retardants are not used in the printed wiring boards.
173
GB
Index
Symbols
U SIGNAL GND terminal
Numerics
12V Trigger
2 channel
2ch Analog Direct
2ch Stereo (mode)
4
Ω
5.1 channel
7.1 channel
8
Ω
A
A.F.D. (mode)
A.P.M. (Automatic Phase Matching)
A/V Sync
AC power cord
Account
AM
Antenna Aiming
Audio
AUDIO OUT
Audio Out
Audio Return Channel (ARC)
Auto Calibration
,
Auto Standby
Auto Tuning
B
Bass
BI-AMP
Bi-amplifier connection
Blu-ray Disc Player
C
Calibration Type Select
Category Mode
CD player
Center Mix
Changing the display
Clear memory
174
GB
remote
Connections antennas
audio components
monitor
Network
speakers
video components
Control for HDMI
Controller
Controllers
Crossover Freq
D
D. Range Comp (Dynamic range compressor)
DCAC (Digital Cinema Auto Calibration)
Decode Priority
Device Name
Digital Legato Linear (D.L.L.)
DIGITAL MEDIA PORT
Direct Tuning
Display
Distance Unit
DLNA
DMPORT Control
Dolby Digital EX
Dual Mono
DVD player
DVD recorder
E
Effect type
EQ
External Control
F
Favorite stations
FM
FM Mode
Front Ref Type
G
GUI (Graphical User Interface)
H
HD-D.C.S.
HD-D.C.S. (Effect type)
HDMI
HDMI jacks
HDMI OUT button
I
Input
Input Assign
INPUT MODE
iPod
L
L.F.E. (Low Frequency Effect)
LARGE
Level
Listening
Lock Code
M
Manual Setup
MASTER VOLUME
Menu
Messages
Auto Calibration
DIGITAL MEDIA PORT
Error
SIRIUS
Movie
Multi Stereo
Multi Zone
Music
Music Guide
Muting
My Library
My Library (Rhapsody)
N
Name Input
Neo:6 (Cinema)
Neo:6 (Music)
Network settings
Check
Network Standby
Night Mode
O
Option menu
P
Parental Lock
Pass Through
Phase Audio
,
Phase Noise
PHONES
PIP (Picture in Picture)
Playback
Music
PLII (Movie)
PLII (Music)
PLIIx (Movie)
PLIIx (Music)
PLIIz Height
Position (Auto Calibration)
Preset channels
Preset Mode
Preset stations
PROTECTOR
Q
Quick Click
Quick Setup
R
Radio ID
Recording
Remote
Repeat
Resetting
Resolution
Rhapsody
Account
Music Guide
My Library
Rhapsody Digital Music Service
Rhapsody Stations
Search
Rhapsody Digital Music Service
continued
175
GB
Rhapsody Stations
RS232C Control
S
Satellite radio
Search
Server
Preparing
Server Function
Setting menu
Settings
Settings Lock
Setup Manager
SHOUTcast
Favorite stations
Listening
Shuffle
,
SIRIUS
SIRIUS Satellite Radio
Sleep timer
SMALL
Software Version
Sound Field
SP Pair Matching
Speaker
Speaker impedance
Speaker Pattern
Speaker Relocation
SPEAKER SHORTED
SPEAKERS (A/B/A+B/OFF)
Subwoofer Level
Subwoofer LPF
Super Audio CD player
Sur Back Assign
Sur Settings
Surround
System
T
Test Tone
TONE
TONE MODE
Treble
,
Tuner
Tuning
176
GB
U
Up converting
V
VCR
Video
VIDEO 2 IN jacks
Z
Zone 12V Trigger
ZONE 2
Zone2 Line Out Level
177
GB
178
GB
advertisement
Key Features
- Multi-channel surround sound with support for Dolby Atmos and DTS:X
- 4K HDR pass-through for stunning picture quality
- Built-in Wi-Fi and Bluetooth for wireless music streaming
- Multiple HDMI inputs and outputs for easy connectivity
- Advanced sound processing technology for clear, detailed, and powerful sound
- ECO mode for energy saving
Related manuals
Frequently Answers and Questions
How many HDMI inputs and outputs does the STR-DA5600ES have?
Can the STR-DA5600ES upscale lower-resolution video to 4K?
Does the STR-DA5600ES support voice control?
Can I use the STR-DA5600ES to power outdoor speakers?
advertisement
Table of contents
- 6 Table of Contents
- 8 Description and location of parts
- 20 Getting Started
- 20 Checking the connection appropriate for your components
- 21 1: Installing speakers
- 25 2: Connecting the monitor
- 26 3: Connecting the video components
- 35 4: Connecting the audio components
- 39 5: Connecting the IR Blaster
- 40 6: Connecting the antennas (aerials)
- 41 7: Connecting to the network
- 43 8: Preparing the receiver and the remote
- 44 9: Setting the speakers
- 47 10: Calibrating the appropriate speaker settings automatically (Auto Calibration)
- 53 11: Configuring the network settings of the receiver
- 53 12: Preparing a computer to use as a server
- 55 Guide to on-screen display operation
- 58 Playback
- 58 Enjoying sound/images from the component connected to the receiver
- 60 Enjoying sound/images from the components connected to the DIGITAL MEDIA PORT
- 61 Operating the TDM-iP50 using the GUI menu of the receiver
- 64 Tuning
- 64 Listening to FM/AM radio
- 66 Presetting FM/AM radio stations
- 67 Listening to satellite radio (USA/Canadian model only)
- 68 Connecting a satellite radio tuner
- 68 Preparing to listen to a satellite radio
- 69 Selecting a channel of the satellite radio
- 70 Presetting satellite radio channels
- 71 Restricting access to specific channels (Parental Lock)
- 74 Enjoying Surround Sound
- 74 Playing back with 2-channel sound
- 75 Playing back with multi-channel surround
- 76 Enjoying a surround effect for music
- 78 Enjoying a surround effect for movies
- 81 Using Network Features
- 81 About the network functions of the receiver
- 82 Enjoying content stored on the server
