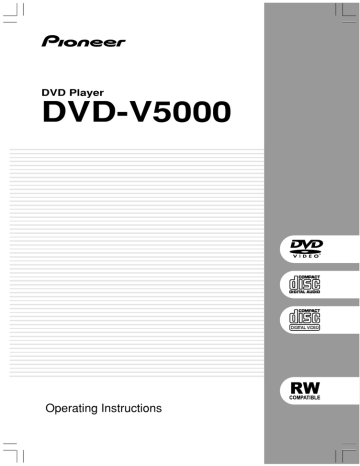

Pioneer DVD-V5000 Safety and Operating Instruction

DVD Player
DVD-V5000
Operating Instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
READ INSTRUCTIONS — All the safety and
operating instructions should be read before the
product is operated.
RETAIN INSTRUCTIONS — The safety and
operating instructions should be retained for
future reference.
HEED WARNINGS — All warnings on the product
and in the operating instructions should be
adhered to.
FOLLOW INSTRUCTIONS — All operating and use
instructions should be followed.
CLEANING — The product should be cleaned only
with a polishing cloth or a soft dry cloth. Never
clean with furniture wax, benzine, insecticides
or other volatile liquids since they may corrode
the cabinet.
ATTACHMENTS — Do not use attachments not
recommended by the product manufacturer as
they may cause hazards.
WATER AND MOISTURE — Do not use this
product near water — for example, near a
bathtub, wash bowl, kitchen sink, or laundry
tub; in a wet basement; or near a swimming
pool; and the like.
ACCESSORIES — Do not place this product on an
unstable cart, stand, tripod, bracket, or table.
The product may fall, causing serious injury to a
child or adult, and serious damage to the
product. Use only with a cart, stand, tripod,
bracket, or table recommended by the
manufacturer, or sold with the product. Any
mounting of the product should follow the
manufacturer’s instructions, and should use a
mounting accessory recommended by the
manufacturer.
CART — A product and cart combination should be
moved with care. Quick stops, excessive force,
and uneven surfaces may cause the product
and cart combination to overturn.
GROUNDING OR POLARIZATION
• If this product is equipped with a polarized
alternating current line plug (a plug having one
blade wider than the other), it will fit into the
outlet only one way. This is a safety feature. If
you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should
still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
• If this product is equipped with a three-wire
grounding type plug, a plug having a third
(grounding) pin, it will only fit into a grounding
type power outlet. This is a safety feature. If you
are unable to insert the plug into the outlet,
contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the
grounding type plug.
POWER-CORD PROTECTION — Power-supply
cords should be routed so that they are not likely
to be walked on or pinched by items placed
upon or against them, paying particular
attention to cords at plugs, convenience
receptacles, and the point where they exit from
the product.
OUTDOOR ANTENNA GROUNDING — If an
outside antenna or cable system is connected to
the product, be sure the antenna or cable
system is grounded so as to provide some
protection against voltage surges and built-up
static charges. Article 810 of the National
Electrical Code, ANSI/NFPA 70, provides
information with regard to proper grounding of
the mast and supporting structure, grounding of
the lead-in wire to an antenna discharge unit,
size of grounding conductors, location of
antenna-discharge unit, connection to
grounding electrodes, and requirements for the
grounding electrode. See Figure A.
LIGHTNING — For added protection for this
product during a lightning storm, or when it is
left unattended and unused for long periods of
time, unplug it from the wall outlet and
disconnect the antenna or cable system. This
will prevent damage to the product due to
lightning and power-line surges.
POWER LINES — An outside antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power
circuits, or where it can fall into such power
lines or circuits. When installing an outside
antenna system, extreme care should be taken
to keep from touching such power lines or
circuits as contact with them might be fatal.
OVERLOADING — Do not overload wall outlets,
extension cords, or integral convenience
receptacles as this can result in a risk of fire or
electric shock.
VENTILATION — Slots and openings in the cabinet
are provided for ventilation and to ensure
reliable operation of the product and to protect
it from overheating, and these openings must
not be blocked or covered. The openings should
never be blocked by placing the product on a
bed, sofa, rug, or other similar surface. This
product should not be placed in a built-in
installation such as a bookcase or rack unless
proper ventilation is provided or the
manufacturer’s instructions have been adhered
to.
POWER SOURCES — This product should be
operated only from the type of power source
indicated on the marking label. If you are not
sure of the type of power supply to your home,
consult your product dealer or local power
company.
LOCATION – The appliance should be installed in a
stable location.
NONUSE PERIODS – The power cord of the
appliance should be unplugged from the outlet
when left un-used for a long period of time.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
D1-4-2-3-A_En
OBJECT AND LIQUID ENTRY — Never push
objects of any kind into this product through
openings as they may touch dangerous voltage
points or short-out parts that could result in a
fire or electric shock. Never spill liquid of any
kind on the product.
SERVICING — Do not attempt to service this
product yourself as opening or removing covers
may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.
DAMAGE REQUIRING SERVICE — Unplug this
product from the wall outlet and refer servicing
to qualified service personnel under the
following conditions:
• When the power-supply cord or plug is
damaged.
• If liquid has been spilled, or objects have fallen
into the product.
• If the product has been exposed to rain or water.
• If the product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the product to its normal operation.
• If the product has been dropped or damaged in
any way.
• When the product exhibits a distinct change in
performance — this indicates a need for service.
REPLACEMENT PARTS — When replacement parts
are required, be sure the service technician has
used replacement parts specified by the
manufacturer or have the same characteristics
as the original part. Unauthorized substitutions
may result in fire, electric shock, or other
hazards.
SAFETY CHECK — Upon completion of any service
or repairs to this product, ask the service
technician to perform safety checks to
determine that the product is in proper
operating condition.
WALL OR CEILING MOUNTING — The product
should not be mounted to a wall or ceiling.
HEAT — The product should be situated away from
heat sources such as radiators, heat registers,
stoves, or other products (including amplifiers)
that produce heat.
ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT
Fig. A
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC — NATIONAL ELECTRICAL CODE
D1-4-2-2_En
WARNING
This equipment is not waterproof. To prevent a fire
or shock hazard, do not place any container filed
with liquid near this equipment (such as a vase or
flower pot) or expose it to dripping, splashing, rain
D3-4-2-1-3_A_En
or moisture.
WARNING: Handling the cord on this product or
cords associated with accessories sold with the
product will expose you to lead, a chemical known to
the State of California and other governmental
entities to cause cancer and birth defects or other
reproductive harm.
Wash hands after handling
D36-P4_En
CAUTION
– PREVENT ELECTRIC SHOCK DO
NOT USE THIS (POLARIZED) PLUG
WITH AN EXTENSION CORD.
RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT
BLADE EXPOSURE.
ATTENTION – POUR PREVENIR LES CHOCS
ELECTRIQUES NE PAS UTILISER
CETTE FICHE POLARISEE AVEC UN
PROLONGATEUR UNE PRISE DE
COURANT OU UNE AUTRE SORTIE
DE COURANT, SAUF SI LES LAMES
PEUVENT ETRE INSEREES A FOND
SANS EN LAISSER AUCUNE PARTIE
D2-4-4-1_EF
A DECOUVVERT.
01
CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION : THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.
D6-8-2-1_En
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
–
–
–
–
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
D8-10-1-2_En
Consult the dealer or an experienced radio/TV technician for help.
Information to User
Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate
D8-10-2_En
the equipment.
CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the
unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and
D8-10-3a_En
televisions, use shielded cables and connectors for connections.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.
D8-10-1-3_EF
IMPORTANT NOTICE – THE SERIAL NUMBER FOR THIS EQUIPMENT IS LOCATED IN THE REAR.
PLEASE WRITE THIS SERIAL NUMBER ON YOUR ENCLOSED WARRANTY CARD AND
D1-4-2-6-1_En
KEEP IN A SECURE AREA. THIS IS FOR YOUR SECURITY.
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights. Use of this
copyright protection technology must be authorized
by Rovi Corporation, and is intended for home and
other limited viewing uses only unless otherwise
authorized by Rovi Corporation. Reverse engineering
or disassembly is prohibited.
This product includes FontAvenue® fonts licenced
by NEC corporation. FontAvenue is a registered
trademark of NEC Corporation.
3
01
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate
your model properly.
÷ This component may not stand up to continuous long use in severe environments.
÷ Pioneer disclaims all responsibility for any losses or other incidental damages arising from accidents or other use of this component.
We Want You Listening For A Lifetime
Selecting fine audio equipment such as the unit
you’ve just purchased is only the start of your
musical enjoyment. Now it’s time to consider how
you can maximize the fun and excitement your
equipment offers. This manufacturer and the
Electronic Industries Association’s Consumer
Electronics Group want you to get the most out of
your equipment by playing it at a safe level. One that
lets the sound come through loud and clear without
annoying blaring or distortion-and, most importantly,
without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing
“comfort level” adapts to higher volumes of sound.
So what sounds “normal” can actually be loud and
harmful to your hearing. Guard against this by
setting your equipment at a safe level BEFORE your
hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it
comfortably and clearly, and without distortion.
Once you have established a comfortable sound
level:
• Set the dial and leave it there.
Used wisely, your new sound equipment will
provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often
undetectable until it is too late, this manufacturer
and the Electronic Industries Association’s
Consumer Electronics Group recommend you avoid
prolonged exposure to excessive noise. This list of
sound levels is included for your protection.
Decibel
Level Example
30
40
50
60
70
80
Quiet library, soft whispers
Living room, refrigerator, bedroom away from traffic
Light traffic, normal conversation, quiet office
Air conditioner at 20 feet, sewing machine
Vacuum cleaner, hair dryer, noisy restaurant
Average city traffic, garbage disposals, alarm clock
at two feet.
THE FOLLOWING NOISES CAN BE DANGEROUS
UNDER CONSTANT EXPOSURE
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers,
thunderclap
140 Gunshot blast, jet plane
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
Taking a minute to do this now will help to prevent
hearing damage or loss in the future. After all, we
want you listening for a lifetime.
S001_En
4
Contents
01 Before you start
Features ................................................................. 7
What’s in the box .................................................. 8
Putting the batteries in the remote control ........ 8
Using the remote control ................................. 8
Disc / Content Format Playback Compatibility ... 9
General disc compatibility ............................... 9
CD-R/RW compatibility .................................... 9
DVD-R/RW compatibility .................................. 9
PC-created disc compatibility .......................... 9
DVD-Video regions ............................................ 9
02 Connecting up
Rear panel connections ..................................... 10
Easy connections ................................................ 11
Connecting using the S-video output ................ 12
Connecting using the component video
output .......................................................... 12
Connecting to an AV receiver ............................ 13
03 Controls and displays
Front panel ........................................................... 14
About progressive scan video ............................ 15
Remote control .................................................... 16
Displaying disc information ............................... 17
04 Getting started
Switching on ........................................................ 18
Using the on-screen displays ............................. 18
05 Initial Settings menu
Using the Initial Settings menu ......................... 19
Digital Audio Out settings .................................. 19
Digital Out ....................................................... 19
Dolby Digital Out ............................................. 20
DTS Out ........................................................... 20
96kHz PCM Out ............................................... 20
MPEG Out ........................................................ 20
Video Output settings ......................................... 21
TV Screen ......................................................... 21
S-Video Out ...................................................... 21
Still Picture ...................................................... 21
01
Language settings .............................................. 22
Audio Language .............................................. 22
Subtitle Language ........................................... 22
Selecting languages using the
Language Code List .................................... 22
Auto Language ................................................ 23
DVD Menu Language ..................................... 23
Subtitle Display ............................................... 23
Display settings ................................................... 24
On Screen Display .......................................... 24
Angle Indicator ................................................ 24
Background ..................................................... 24
Screen Saver ................................................... 24
Option .................................................................. 25
Parental Lock ................................................... 25
06 Playing discs
Basic playback controls ..................................... 28
DVD-Video disc menus ....................................... 29
Video CD PBC menus ......................................... 29
Using the Disc Navigator to browse
the contents of a disc ................................. 30
Switching subtitles ............................................. 31
Switching DVD audio language ........................ 31
Switching VR format DVD-RW audio
channel ........................................................ 31
Switching Video CD audio channel ................... 31
Switching camera angles ................................... 31
Scanning discs .................................................... 32
Playing in slow motion ....................................... 32
Frame advance/frame reverse ........................... 32
Looping a section of a disc ................................ 33
Using repeat play ................................................ 33
Creating a program list ....................................... 34
Editing a program list ..................................... 35
Other functions available from the
program menu ............................................ 35
Searching a disc ................................................. 36
Zooming the screen ............................................ 36
07 Audio Settings menu
Audio DRC ........................................................... 37
Virtual Surround .................................................. 37
5
01
Contents
08 Video Adjust menu
Video Adjust ........................................................ 39
Creating your own interlace output
presets ......................................................... 39
Creating your own progressive output
presets ......................................................... 40
Delete Groups ................................................. 59
Divid a Previously Input Group ...................... 60
Merge Groups ................................................. 61
Execute a Barcode Stacks /
Command Stacks ....................................... 62
11 Additional information
09 Advanced Setup Menu
To acces the ADV. SETUP menu ........................ 41
Power On Start .................................................... 42
Key Lock ............................................................... 44
To Temporarily Suspend KEY LOCK ............... 44
KEY LOCK Indicator Display Specifications ... 45
Extend Terminal ................................................... 46
Recording Settings ......................................... 46
Changing The Setting ..................................... 48
10 Barcode Stack / Command Stack
Barcode / Command Stack Function ................ 49
Basic Operation .............................................. 49
Advanced Functions ....................................... 50
Barcode Stack/Command Stack Settings .... 50
How to set SUBTITLE, AUDIO, ANGLE .......... 56
Performing chapter search or frame
search only .................................................. 56
To change numbers during input .................. 56
To cancel an operation during input ............. 56
Retain (Preserve) Barcode Stack/Command
Stack Settings ............................................. 57
Erase Barcode Stack/Command
Stack Settings ............................................. 57
Modify Barcode Stack/Command
Stack Settings ............................................. 57
Add Barcode Stack/Command
Stack Settings ............................................. 58
Grouping Barcode Stacks and
Command Stacks ....................................... 59
Create a Group ................................................ 59
Switch Between Groups ................................. 59
6
Taking care of your player and discs ................. 63
Handling discs ................................................ 63
Storing discs ................................................... 63
Discs to avoid .................................................. 63
Cleaning the unit’s exterior ............................ 64
Cleaning the pickup lens ............................... 64
Problems with condensation ......................... 64
Hints on installation ....................................... 64
Moving the player ........................................... 64
Power cable caution ....................................... 64
Screen sizes and disc formats ........................... 65
Widescreen TV users ...................................... 65
Standard TV users ........................................... 65
Titles, Chapters and Tracks ................................ 65
DVD-Video Regions ............................................. 65
Play Duration & Power-On Time Display ........... 66
Confirm the Firmware Version ........................... 66
Resetting the Player ............................................ 66
Language Code List ............................................ 67
Country Code List ................................................ 67
Extend Terminal ................................................... 68
Function Assignment ..................................... 68
Controller ......................................................... 70
Interface Connector ............................................ 71
Serial Interface Pin Specification .................. 71
Computer Control Functions ......................... 72
Serial Control .................................................. 72
Command Structure ....................................... 73
Glossary ............................................................... 76
Trobleshooting ..................................................... 77
Specifications ...................................................... 79
Before you start
01
Chapter 1
Before you start
Features
approved by Dolby Laboratories for Virtual Dolby
Digital sound. See Virtual Surround on page 37.
NTSC/PAL dual playback
PureCinema progressive scan
DVD discs in either the NTSC format or the PAL
format can be played back.
When connected to a progressive scancompatible TV or monitor using the component
video outputs, you can enjoy extremely stable,
flicker free images, with the same frame refresh
rate as the original movie.
Interface with external signals
(RS-232C, extend terminal)
The device is fitted with an RS-232C connection
so that commands can be given to support DVD,
Video CD and CD.
Other than the RS-232C interface connector, an
extend terminal is provided. By simply connecting a switch to this terminal, operation is
possible for DVD-VIDEO menu selection calls as
well as operation of the remote control unit.
24-bit/192kHz compatible DAC
This player is fully compatible with high sampling-rate discs, capable of delivering betterthan-CD sound quality in terms of dynamic
range, low-level resolution and high-frequency
detail.
Excellent audio performance
with Dolby*1 Digital and DTS*2
software
Logos: 1
When connected to a suitable AV amplifier or
receiver, this player gives great surround sound
with Dolby Digital and DTS discs.
Virtual Dolby Digital using SRS
TruSurround*3
Logo:
SRS TruSurround creates a realistic surroundsound effect from any Dolby Digital source using
just two speakers. SRS TruSurround is a process
Frame search function
When the frame search function is used,
searching is possible in units smaller than when
searching by chapter and time, and any point
can be found.
When frame segment playback is used, it is
possible to play back from any point to any point
in a video with still playback at the end.
• The frame search function cannot be used
with a multi PGC disc (time is not displayed
on the TV screen), with a VR format DVDRW or with a Video CD, etc. Frame segment
playback is possible with the DVD barcode,
RS-232C control and a Barcode/Command
stack.
Picture zoom
While a DVD or Video CD is playing, you can
zoom in on any part of the picture at up to 4x
magnification for a closer look. See Zooming the
screen on page 36.
*1 Manufactured under license from Dolby
Laboratories. "Dolby" and the double-D symbol
are trademarks of Dolby Laboratories.
*2 "DTS" and "DTS Digital Out" are registered
trademarks of Digital Theater Systems, Inc.
*3 TruSurround, SRS and
symbol are
trademarks of SRS Labs, Inc. TruSurround
technology is incorporated under license from
SRS Labs, Inc.
7
01
Before you start
What’s in the box
Please confirm that the following accessories are
in the box when you open it.
• Remote control
• AA/R6P dry cell batteries x2
• Audio/video cable (red/white/yellow plugs)
• Power cable
• Operating instructions
• Warranty card
1
Open the battery compartment cover on
the back of the remote control.
2
Insert two AA/R6P batteries into the
battery compartment following the
indications (, ) inside the compartment.
3
Close the cover.
Putting the batteries in
the remote control
Incorrect use of batteries can result in hazards
such as leakage and bursting. Please observe
the following:
• Don’t mix new and old batteries together.
• Don’t use different kinds of battery togetheralthough they may look similar, different
batteries may have different voltages.
• Make sure that the plus and minus ends of
each battery match the indications in the
battery compartment.
• Remove batteries from equipment that isn’t
going to be used for a month or more.
• When disposing of used batteries, please
comply with governmental regulations or
environmental public instruction’s rules that
apply in your country or area.
8
Using the remote control
Keep in mind the following when using the
remote control:
• Make sure that there are no obstacles
between the remote and the remote sensor
on the unit.
• The remote has a range of about 7m (23ft.).
• Remote operation may become unreliable if
strong sunlight or fluorescent light is
shining on the unit’s remote sensor.
• Remote controllers for different devices can
interfere with each other. Avoid using
remotes for other equipment located close
to this unit.
• Replace the batteries when you notice a fall
off in the operating range of the remote.
Before you start
01
Disc / Content Format
Playback Compatibility
General disc compatibility
This player was designed and engineered to be
compatible with software bearing one or more of
the following logos:
DVD-Video
DVD-R
DVD-RW
DVD-R/RW compatibility
• This unit will play DVD-R/RW discs recorded
using the DVD-Video format that have been
finalized using a DVD-recorder.
• This unit will play DVD-RW discs recorded
using the Video Recording (VR) format.
• When playing a VR format DVD-RW discs
that was edited on a DVD recorder, the
screen may go momentarily black at edited
points and/or you may see scenes from
immediately before the edited point.
• This unit cannot record DVD-R/RW discs.
• Unfinalized DVD-R/RW discs cannot be
played in this player.
PC-created disc compatibility
Audio CD
Video CD
CD-R
CD-RW
is a trademark of DVD Format/Logo Licensing Corporation.
This player can play discs recorded in either PAL
or NTSC format. Use those discs which indicates
“NTSC” or “PAL” on the jacket.
Other formats, including but not limited to the
following, are not playable in this player:
DVD-Audio / SACD / DVD-RAM
DVD-ROM / CD-ROM
DVD-R/RW and CD-R/RW discs (Audio CDs and
Video CDs) recorded using a DVD recorder, CD
recorder or personal computer may not be
playable on this unit. This may be caused by a
number of possibilities, including but not limited
to: the type of disc used; the type of recording;
damage, dirt or condensation on either the disc
or the player’s pick-up lens. See below for notes
about particular software and formats.
CD-R/RW compatibility
• This unit will play CD-R and CD-RW discs
recorded in CD Audio or Video CD format.
However, any other content may cause the
disc not to play, or create noise/distortion in
the output.
• This unit cannot record CD-R or CD-RW
discs.
• Unfinalized CD-R/RW discs recorded as CD
Audio can be played, but the full Table of
Contents (playing time, etc.) will not be
displayed.
• If you record a disc using a personal
computer, even if it is recorded in a
“compatible format” as listed above, there
will be cases in which the disc may not be
playable in this machine due to the setting
of the application software used to create
the disc. In these particular instances,
check with the software publisher for more
detailed information.
• Check the DVD-R/RW or CD-R/RW software
disc boxes for additional compatibility
information.
Due to the unique construction of DVD-R/
RW and CD-R/RW discs, leaving them for
extended periods of time in the pause mode
at a single place on the disc may result in
the discs’ becoming difficult to play at that
location on the disc. When playing discs
containing important data, users are recommended to construct backup archive discs.
DVD-Video regions
1
ALL
All DVD-Video discs carry a region mark on the
case somewhere that indicates which region(s)
of the world the disc is compatible with. Your
DVD player also has a region mark, which you
can find on the rear panel. Discs from incompatible regions will not play in this player. Discs
marked ALL will play in any player.
9
02
Connecting up
Chapter 2
Connecting up
Rear panel connections
1
8
7
6
2
5
3
4
When connecting this player up to your TV, AV receiver or other components, make sure that all
components are switched off and unplugged.
1 DIGITAL AUDIO OUT
This is a digital audio output for connection to a
PCM, Dolby Digital and/or DTS-compatible AV
receiver that has a coaxial digital input.
Connect using a commercially available coaxial
digital cable.
2 COMPONENT VIDEO OUT
This is a high quality video output for connection
to a TV, monitor or AV receiver that has component video inputs.
Connect using a commercially available threeway component video cable. Be careful to match
the colors of the jacks and cables for correct
connection.
3 AUDIO OUT L / R
This pair of analog audio outputs connects to
your TV, AV receiver or stereo system. Even if you
are connecting up one of the digital outputs, we
still recommend you connect these jacks.
Use the supplied audio/video cable when
connecting these jacks. Match the colors of the
jacks and cables for correct stereo sound.
10
4 AC IN
Connect the supplied power cable here, then
plug into a power outlet.
5 VIDEO OUT
This is a standard video output that you can
connect to your TV or AV receiver using the
supplied audio/video cable.
6 S (S-video output)
This is an S-video output that you can use
instead of the video output described in 5 above.
7 RS-232C
This is a RS-232C terminal (D-sub 9-pin, male).
8 EXT TERMINAL
This is a RS-232C and Extend terminal (D-sub 15pin, female).
You may find it useful to have the manuals
supplied with your other components handy
when connecting this player.
Connecting up
02
Easy connections
The setup described here is a basic setup that allows you to play discs using just the cables supplied
with the player. In this setup, stereo audio is played through the speakers in your TV.
A/V IN
TV
To power outlet
• This player is equipped with copy protection technology. Do not connect this player to your TV via a
VCR using AV cables, as the picture from this player will not appear properly on your TV. (This
player may also not be compatible with some combination TV/VCRs for the same reason; refer to
the manufacturer for more information.)
• When connecting to your TV as shown above, do not set the COMPONENT VIDEO OUT setting to
Progressive (page 15).
1
2
Connect the VIDEO OUT and AUDIO OUT
L/R jacks to a set of A/V inputs on your TV.
Use the supplied Audio/video cable,
connecting the red and white plugs to the
audio outputs and the yellow plug to the
video output.
See next page if you want to use a component
or S-video cable for the video connection.
Connect the supplied AC power cable to
the AC IN inlet, then plug into a power
outlet.
When COMPONENT VIDEO OUT is set to
Progressive, there is no video output from
the VIDEO OUT (composite) and S (S-video)
jacks. If you want to display video on more
than one monitor simultaneously, make
sure that it is set to Interlace. Press
PROGRSSIVE on the front panel to switch
the player back to Interlace.
11
02
Connecting up
Connecting using the
S-video output
If your TV (or other equipment) has an S-video
input, you can use this instead of the standard
(composite) output for a better quality picture.
•
Use an S-video cable (not supplied) to
connect the S-VIDEO OUT to an S-video
input on your TV (or monitor or AV
receiver).
Line up the small triangle above the jack
with the same mark on the plug before
plugging in.
Connecting using the
component video output
You can use the component video output instead
of the standard video out jack to connect this
player to your TV (or other equipment). This
should give you the best quality picture from the
three types of video output available.
•
Use a component video cable (not
supplied) to connect the COMPONENT
VIDEO OUT jacks to a component video
input on your TV, monitor or AV receiver.
COMPONENT
VIDEO IN
S-VIDEO
IN
TV
TV
When COMPONENT VIDEO OUT is set to
Progressive, there is no video output from
the S (S-video) jack. If you want to display
video on the monitor, make sure that it is set
to Interlace. Press PROGRSSIVE on the
front panel to switch the player back to
Interlace.
12
• Only NTSC video is output when set to
progressive scan.
• To set up the player for use with a progressive scan TV, see About progressive scan
video on page 15.
Connecting up
02
Connecting to an AV
receiver
2
To enjoy multichannel surround sound you need
to connect this player to an AV receiver using a
digital output. This player has coaxial digital jack.
In addition to a digital connection, we recommend also connecting using the stereo analog
connection.
You’ll probably also want to connect a video
output to your AV receiver. You can use any of the
video outputs available on this player (the
illustration shows a standard (composite)
connection).
1
Connect the analog AUDIO OUT L/R and
VIDEO OUT jacks on this player to a set
of analog audio and video inputs on
your AV receiver.
AV receiver
AUDIO/
VIDEO IN
Connect DIGITAL AUDIO OUT jack on this
player to a digital input on your AV
receiver.
DIGITAL IN
(COAXIAL)
The diagram shows standard video
connections, but you can alternatively use
the S-video or component video connections
if they’re available.
AV receiver
3
This enables you to listen to multichannel
surround sound.
For a coaxial connection, use a coaxial
cable (similar to the supplied video cable) to
connect the DIGITAL AUDIO OUT jack to a
coaxial input on your AV receiver.
Connect the AV receiver’s video output
to a video input on your TV.
• You usually have to connect the same kind
of video cable between your DVD player and
AV receiver, and between your AV receiver
and TV.
• If you don’t mind mono sound, you can buy
a stereo RCA-to-mono RCA cable from an
electronics store. Connect the stereo end to
this player and the mono end to your TV.
13
03
Controls and displays
Chapter 3
Controls and displays
Front panel
1
2
3
4
5
6
STEP
PLAY/PAUSE
7
8
MENU
TOP MENU
HOME
MENU
PROGRESSIVE
POWER
PLAY
PROGRAM
DISC IN
KEY LOCK
STANDBY/ON
19
18 17 16 15 14
1 STANDBY/ON
Press to switch the player on or into standby.
2 PROGRESSIVE button/indicator
Press to switch the component video output
mode between Progressive and Interlace. The
indicator lights in progressive scan mode. See
page 15 for more information.
ENTER
RETURN
DISPLAY
13 12
20
11
10
9 MENU
Press to display a DVD disc menu, or the Disc
Navigator if a VR format DVD-RW, CD or Video
CD disc is loaded.
10 RETURN
Press to return to a previous menu screen.
3 Disc tray
11 HOME MENU
Press to display (or exit) the on-screen display.
4 /
Press to stop the disc.
In the stop mode, press to open or close the disc
tray.
12 DISPLAY
Press to display information about the disc
playing (see Displaying disc information on page
17).
5 STEP Use for frame advance.
13 Remote control sensor
The remote control has a range of up to about
7m (23ft).
6 PLAY/PAUSE /
Press to start playback.
In the play mode, press to pause playback. Press
again to restart.
7 TOP MENU
Press to display the top menu of a DVD disc.
8 ENTER & cursor buttons
Use to navigate on-screen displays and menus.
Press ENTER to select an option or execute a
command.
14
9
14 KEY LOCK
When this indicator is lighted, the player cannot
be operated using the front panel controls or the
remote control unit.
Settings can be changed by ADV. SETUP.
(See Key Lock on page 44.)
15 DISC IN
Flashes during disc discriminating, and lights
when a disc is loaded,
Controls and displays
16 PROGRAM
Lights when repeat play, program play or
command stack function is operated.
17 PLAY
Lights during playback, and flashes when
starting up.
18 POWER
Lights green when the player is on.
Lights orange when the player is in the standby
mode.
About progressive scan
video
Compared to interlace video, progressive scan
video effectively doubles the scanning rate of the
picture, resulting in a very stable, flicker-free
image.
Progressive scan video is available only from the
COMPONENT VIDEO OUT. Use the PROGRESSIVE button on the front panel to switch the
COMPONENT VIDEO OUT between Interlace
and Progressive. With a DVD-Video disc you can
do this during playback, or when the disc is
stopped. For other types of disc, the player must
be stopped.
If you connect a TV that is not compatible
with a progressive scan signal and switch
the player to Progressive, you will not be
able to see any picture at all. In this case,
press the PROGRESSIVE button on the front
panel to switch back to Interlace (the
PROGRESSIVE indicator should be unlit).
03
19 and Press and hold for fast reverse/forward scanning.
Press to jump to the previous/next chapter or
track.
20
This mark indicates compatibility with
DVD-RW discs recorded on a DVD recorder in
Video Recording mode.
• You can’t switch the video output when an
OSD is on-screen.
• The picture on some TVs may momentarily
break up when you switch the video output
of this player.
Compatibility of this unit with
progressive-scan TVs.
This player is compatible with progressive video
Macro Vision System Copy Guard.
CONSUMERS SHOULD NOTE THAT NOT ALL
HIGH DEFINITION TELEVISION SETS ARE
FULLY COMPATIBLE WITH THIS PRODUCT
AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525
PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS
RECOMMENDED THAT THE USER SWITCH THE
CONNECTION TO THE “STANDARD DEFINITION” OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY
WITH THIS MODEL 525p DVD PLAYER,
PLEASE CONTACT OUR CUSTOMER SERVICE
CENTER.
• When COMPONENT VIDEO OUT is set to
Progressive, there is no video output from
the VIDEO OUT (composite) and S (S-video)
jacks. If you want to display video on more
than one monitor simultaneously, make
sure that it is set to Interlace. Press
PROGRSSIVE on the front panel to switch
the player back to Interlace.
15
03
Controls and displays
7 HOME MENU
Press to display (or exit) the on-screen display.
Remote control
OPEN/CLOSE
STANDBY/ON
1
3
2
4
5
AUDIO
SUBTITLE
ANGLE
15
1
2
3
CLEAR
16
4
5
6
ENTER
17
10 Press to jump to the beginning of the current
chapter or track, then to previous chapters/
tracks.
7
8
9
0
18
11 Press to pause playback (still); press again to
restart.
MENU
TOP MENU
RETURN
7
19
8
20
10
21
12
13
12 PLAY MODE
Press to display the Play Mode menu. (You can
also get to the Play Mode menu by pressing
HOME MENU and selecting Play Mode).
ENTER
HOME
MENU
11
9 Press to start playback.
14
6
9
8 and /
Use for reverse slow motion playback, frame
reverse and reverse scanning.
PLAY MODE SURROUND
ZOOM
DISPLAY
23
24
13 SURROUND
Press to activate/switch off 2V/SRS
TruSurround.
22
DVD
1 STANDBY/ON
Press to switch the player on or into standby.
2 AUDIO
Press to select the audio channel or language
(see Switching DVD audio language on page 31).
3 SUBTITLE
Press to select a subtitle display (see Switching
subtitles on page 31).
4 Number buttons
5 TOP MENU
Press to display the top menu of a DVD disc.
6 ENTER & cursor buttons
Use to navigate on-screen displays and menus.
Press ENTER to select an option or execute a
command.
16
14 OPEN/CLOSE
Press to open or close the disc tray.
15 ANGLE
Press to change the camera angle during DVD
multi-angle scene playback (see Switching
camera angles on page 31).
16 CLEAR
Press to clear a numeric entry.
17 ENTER
Use to select menu options, etc. (works exactly
the same as the ENTER button in 6 above).
18 MENU
Press to display a DVD disc menu, or the Disc
Navigator if a VR format DVD-RW, CD or Video
CD disc is loaded.
19 RETURN
Press to return to a previous menu screen.
20 and /
Use for forward slow motion playback, frame
advance and forward scanning.
21 Press to jump to the next chapter or track.
Controls and displays
03
22 Press to stop the disc.
24 ZOOM
Press to change the zoom level (see Zooming the
screen on page 36).
23 DISPLAY
Press to display information about the disc
playing (see Displaying disc information).
Displaying disc information
• VR format DVD-RW displays
Various track, chapter and title information, as
well as the video transmission rate for DVD
discs, can be displayed on-screen while a disc is
playing.
Play
3
Title
Current / Total
1/32
1
Audio Dolby Digital
3
Play
To show/switch the information displayed,
press DISPLAY.
When a disc is playing, the information appears
at the top of the screen. Press DISPLAY again to
change the displayed information.
• DVD displays
3
Play
Title
Frame
1 English
Audio Dolby Digital
3
Play
Chapter
Frame
#
Elapsed
2.23
4295
3/2.1CH
Remain
138.36
1 English
Subtitle
Total
138.59
250470
Elapsed
0.06
196
Remain
1.40
Tr. Rate :
Title
Frame
Angle
Total
1.46
3180
1
Audio
Remain
19. 55
Total
20. 00
36000
--
English
Subtitle
Original
Tr. Rate
4.3Mbps
• Video CD displays
Play
3
Track
Current / Total
2/16
Play
3
VCD
Elapsed
0.23
Remain
4.20
Total
4.43
Elapsed
0.23
Remain
58.51
Total
57.14
Elapsed
1.07
Remain
4.40
Total
5.47
Elapsed
28.00
Remain
30.20
Total
58.20
VCD
Play
Track
Current / Total
2/16
Play
DVD
Elapsed
0. 05 00
151
DVD-RW
Subtitle
• CD displays
6.0Mbps
Current / Total
1/1
Total
30.30
-2/0CH
Disc
The # mark displayed with some DVD-Video
discs means that the video is playing at 24
frames/second, progressive.
When the disc is paused, the display also
shows the frame number.
Still
Remain
30.22
1
DVD
Current / Total
2/36
Original
Elapsed
0.08
Current / Total
1/1
Chapter
DVD
Current / Total
1/3
DVD-RW
1
Track
CD
CD
You can see disc information (number of
titles/chapters, tracks and so on) from the
Disc Navigator screen. See Using the Disc
Navigator to browse the contents of a disc
on page 30.
Angle
17
04
Getting started
Chapter 4
Getting started
Switching on
After making sure that everything is connected
properly and that the player is plugged in, press
STANDBY/ON on the front panel, or on the
remote control to switch the player on.
Also, switch on your TV and make sure that it is
set to the input you connected the DVD player to.
Make sure that the TV is set to the correct video
input (not a TV channel). For example, if you
connected this player to the VIDEO 1 inputs on
your TV, switch your TV to VIDEO 1.
Throughout this manual, “Select” means
use the cursor buttons to highlight an item
on-screen, then press ENTER.
Button
What it does
HOME MENU Display/exit the on-screen
display.
Using the on-screen
displays
For ease of use, this player makes extensive use
of graphical on-screen displays (OSDs). You
should get used to the way these work as you’ll
need to use them when setting up the player,
using some of the playback features, such as
program play, and when making more advanced
settings for audio and video.
All the screens are navigated in basically the
same way, using the cursor buttons (///
) to change the highlighted item and pressing
ENTER to select it.
///
Changes the highlighted menu
item.
ENTER
Selects the highlighted menu
item.
RETURN
Returns to the main menu
without saving changes.
• The buttons to navigate the on-screen
displays are available on the remote control
as well as the front panel.
• The button guide at the bottom of every
OSD screen shows you which buttons you’ll
need to use for that screen.
STANDBY/ON
ENTER
MENU
TOP MENU
STEP
PLAY/PAUSE
HOME
MENU
PROGRESSIVE
POWER
STANDBY/ON
PLAY
PROGRAM
DISC IN
KEY LOCK
RETURN
DISPLAY
HOME MENU
18
ENTER
RETURN
Initial Settings menu
05
Chapter 5
Initial Settings menu
Using the Initial Settings menu
The Initial Settings menu is where you can set
preferences for language, audio and video
output, and so on.
If a menu option is grayed out it means that it
cannot be changed at the current time. This is
usually because a disc is playing. Stop the disc,
then change the setting.
1
Press HOME MENU and select “Initial
Settings” from the on-screen display.
Audio Settings
Video Adjust
Play Mode
Disc Navigator
Initial Settings
2
Select the setup category from the list
on the left, then select an item from the
menu list to the right.
3
Make the setting you want.
Digital Audio Out settings
Digital Out
You only need to make this setting if you
connected this system to an AV receiver (or
other component) using the digital output.
• Default setting is On.
Initial Settings
Digital Audio Out
Video Output
Language
Digital Out
Dolby Digital Out
DTS Out
Display
Option
96 kHz PCM Out
MPEG Out
On
Off
If at any time you need to switch off the digital
audio output, set this to Off, otherwise leave it
On.
The language options shown in the onscreen display illustrations on the following
pages may not correspond to those
available in your country or region.
19
05
Initial Settings menu
Dolby Digital Out
96kHz PCM Out
You only need to make this setting if you
connected this system to an AV receiver (or
other component) using the digital output.
You only need to make this setting if you
connected this player to an AV receiver (or other
component) using the digital output.
• Default setting is Dolby Digital.
Initial Settings
Initial Settings
Digital Audio Out
Video Output
Language
Digital Out
Dolby Digital Out
DTS Out
Display
Option
96 kHz PCM Out
MPEG Out
Dolby Digital
Dolby Digital > PCM
If your AV receiver (or other connected component) is Dolby Digital compatible, set to Dolby
Digital, otherwise set to Dolby Digital > PCM.
DTS Out
You only need to make this setting if you
connected this player to an AV receiver (or other
component) using the digital output.
• Default setting is Off.
Initial Settings
Digital Audio Out
Digital Out
Off
Video Output
Language
Display
Dolby Digital Out
DTS Out
96 kHz PCM Out
DTS
Option
MPEG Out
If your AV receiver (or other connected component) has a built-in DTS decoder, set this to DTS,
otherwise set to Off. Check the manual that
came with the other component if you’re unsure
whether it is DTS compatible.
• If you set to DTS with a non-DTS compatible
amplifier, noise will be output when you play
a DTS disc.
• DTS sound is no output from the AUDIO
OUT (analog audio output) jacks.
20
• Default setting is 96kHz > 48kHz.
Digital Audio Out
Video Output
Language
Digital Out
Dolby Digital Out
DTS Out
Display
Option
96 kHz PCM Out
MPEG Out
96 kHz > 48 kHz
96 kHz
If your AV receiver (or other connected component) is compatible with high sampling rates (96
kHz), set this to 96kHz, otherwise set it to 96kHz
> 48kHz (96 kHz audio is converted to a more
compatible 48 kHz). Check the manual that
came with the other component if you’re unsure
whether it is 96 kHz compatible.
MPEG Out
You only need to make this setting if you
connected this player to an AV receiver (or other
component) using the digital output.
• Default setting is MPEG > PCM.
Initial Settings
Digital Audio Out
Video Output
Digital Out
Dolby Digital Out
Language
Display
DTS Out
96 kHz PCM Out
Option
MPEG Out
MPEG
MPEG > PCM
If your AV receiver (or other connected component) is compatible with MPEG audio, set this to
MPEG, otherwise set it to MPEG > PCM (MPEG
audio is converted to more compatible PCM
audio). Check the manual that came with the
other component if you’re unsure whether it is
MPEG audio compatible.
Initial Settings menu
Video Output settings
TV Screen
• Default setting is 16:9 (Wide).
05
Still Picture
This player uses one of two processes when
displaying a still frame from a DVD disc.
• Default setting is Frame.
Initial Settings
Initial Settings
Digital Audio Out
Video Output
Language
TV Screen
S-Video Out
Still Picture
4:3 (Letter Box)
4:3 (Pan&Scan)
16:9 (Wide)
Display
Option
If you have a widescreen TV, select the 16:9 (Wide)
setting-widescreen DVD software is then shown
using the full screen area. When playing
software recorded in conventional (4:3) format,
the settings on your TV will determine how the
material is presented-see the manual that came
with your TV for details on what options are
available.
If you have a conventional TV, select either
4:3 (Letter Box) or 4:3 (Pan & Scan). In Letter
Box mode, widescreen software is shown with
black bars at the top and bottom of the screen.
Pan & Scan chops the sides off widescreen
material to make it fit the 4:3 screen (so even
though the image looks larger on the screen,
you’re actually seeing less of the picture). See
also Screen sizes and disc formats on page 65.
Digital Audio Out
Video Output
Language
TV Screen
S-Video Out
Still Picture
Field
Frame
Auto
Display
Option
The default Frame setting produces a sharper
image, but more prone to shake than field stills.
• Field – produces a stable, generally shakefree image
• Auto – automatically chooses the best
setting each time
Depending on the disc, there are times
when the picture quality may not become
clear, even if Field is selected.
S-Video Out
You only need to make this setting if you
connected this player to your TV using an Svideo cable.
• Default setting is S2.
Initial Settings
Digital Audio Out
Video Output
Language
Display
Option
TV Screen
S-Video Out
Still Picture
S1
S2
If you find that the picture is stretched or
distorted on the default S2 setting, try changing
it to S1.
21
05
Initial Settings menu
Subtitle Language
Language settings
• Default setting is English.
Audio Language
Initial Settings
• Default setting is English.
Digital Audio Out
Video Output
Language
Display
Option
Initial Settings
Digital Audio Out
Video Output
Language
Display
Option
Audio Language
Subtitle Language
Auto Language
DVD Menu Lang.
Subtitle Display
English
Other Language
• You can change or switch off the subtitles
on a DVD disc during playback using the
SUBTITLE button. (This does not affect this
setting.) See Switching subtitles on page
31.
• Some DVD discs set the subtitle language
automatically when loaded, overriding the
Subtitle Language setting.
• Discs with two or more subtitle languages
usually allow you to select the subtitle
language from the disc menu. Press MENU
to access the disc menu.
• You can switch between the languages
recorded on a DVD disc during playback
using the AUDIO button. (This does not
affect this setting.) See Switching DVD
audio language on page 31.
• Some DVD discs set the audio language
automatically when loaded, overriding the
Audio Language setting.
• Discs with two or more audio languages
usually allow you to select the audio
language from the disc menu. Press MENU
to access the disc menu.
Some of the language options (such as “Audio
Language” in the Language setting) allow you
to set your prefered language from any of the
136 languages listed in the Language Code
List on page 67.
22
English
Other Language
This setting is your preferred subtitle language
for DVD discs. If the language you specify here is
recorded on a disc, the player automatically
plays the disc with those subtitles.
The DVD format recognizes 136 different
languages. Select Other Language if you want
to specify a language other than English. See
also Selecting languages using the Language
Code List.
This setting is your preferred audio language for
DVD discs. If the language you specify here is
recorded on a disc, the player automatically
plays the disc in that language.
The DVD format recognizes 136 different
languages. Select Other Language if you want
to specify a language other than English. See
also Selecting languages using the Language
Code List.
Selecting languages using the
Language Code List
Audio Language
Subtitle Language
Auto Language
DVD Menu Lang.
Subtitle Display
1
2
3
Select “Other Language.”
Use the / (cursor left/right) buttons
to select either a code letter or a code
number.
Use the / (cursor up/down) buttons
to select a code letter or a code number.
See Language Code List on page 67 for a
complete list of languages and codes.
Initial Settings menu
Auto Language
05
DVD Menu Language
• Default setting is On.
• Default setting is w/Subtitle Lang..
Initial Settings
Initial Settings
Digital Audio Out
Audio Language
On
Video Output
Language
Subtitle Language
Auto Language
Off
Display
Option
DVD Menu Lang.
Subtitle Display
When set to On, the player always selects the
default audio language on a DVD-Video disc
(French dialog for a French movie, for example),
and displays subtitles in your preferred subtitle
language only if that is set to something
different. In other words, movies in your native
language won’t have any subtitles, while foreign
language movies will be shown with subtitles.
Set to Off to have the player play discs strictly
according to your Audio Language and Subtitle
Language settings.
For Auto Language to work, the Audio
Language and Subtitle Language settings
must be the same (see also page 22).
Digital Audio Out
Video Output
Language
Display
Option
Audio Language
Subtitle Language
Auto Language
DVD Menu Lang.
Subtitle Display
w/Subtitle Lang.
Other Language
Some multilingual discs have disc menus in
several languages. This setting specifies in
which language the disc menus should appear.
Leave on the default setting for menus to appear
in the same language as your Subtitle Language—see page 22.
The DVD format recognizes 136 different
languages. Select Other Language if you want
to specify a language other than those listed. See
also Selecting languages using the Language
Code List on page 22.
Subtitle Display
• Default setting is On.
Initial Settings
You can still switch audio and subtitle
language on playback using the AUDIO and
SUBTITLE buttons.
Digital Audio Out
Video Output
Audio Language
Subtitle Language
Language
Display
Auto Language
DVD Menu Lang.
Option
Subtitle Display
On
Off
Assist Subtitle
When set to On, the player displays subtitles
according to the Subtitle Language and Auto
Language settings. Set to Assist Subtitle to have
the player display the extra assistive subtitles
recorded on to some DVD discs. Set to Off to
switch subtitles off altogether.
23
05
Initial Settings menu
Display settings
Screen Saver
• Default setting is Off.
On Screen Display
Initial Settings
• Default setting is On.
Initial Settings
Digital Audio Out
Video Output
Language
On Screen Display
Angle Indicator
Background
Display
Option
Screen Saver
On
Off
This sets whether operation displays are shown
on-screen (Play, Scan and so on.)
Angle Indicator
• Default setting is On.
Initial Settings
Digital Audio Out
Video Output
Language
On Screen Display
Angle Indicator
Background
Display
Option
Screen Saver
On
Off
If you prefer not to see the camera icon onscreen during multi-angle scenes on DVD discs,
change this setting to Off.
Background
• Default setting is Blue.
Initial Settings
Digital Audio Out
Video Output
On Screen Display
Angle Indicator
Language
Display
Option
Background
Screen Saver
Blue
Black
This specifies the color of the screen when the
player is stopped.
24
Digital Audio Out
Video Output
Language
On Screen Display
Angle Indicator
Background
Display
Option
Screen Saver
On
Off
If a constant image is displayed on a conventional CRT-type TV, it can “burn in” leaving a
ghost image on the screen. Switch to On to
make sure that a constant image is not displayed
for a dangerously long time.
Initial Settings menu
Option
Parental Lock
• Default level: Off
05
Registering a new password
You must register a password before you can
change the Parental Lock level or enter a Country
code.
1
• Default password: none
• Default Country code: us (2119)
Some DVD-Video discs feature a Parental Lock
level. If your player is set to a lower level than the
disc, the disc won’t play. This gives you some
control about what your children watch on your
DVD player.
Some discs also support the Country code
feature. The player does not play certain scenes
on these discs, depending on the Country code
you set.
Before you can set the Parental Lock level or the
Country code you must register a password. As
the password owner, you can change the
Parental Lock level or Country code whenever
you like. You can also change the password.
• Not all discs that you may consider
inappropriate for your children use the
Parental Lock feature. These discs will
always play without requiring the password
first.
• If you forget your password, you’ll need to
reset the player to its factory settings (see
Resetting the Player on page 66), then
register a new password.
Select “Password.”
Initial Settings
Digital Audio Out
Parental Lock
Password
Video Output
Language
Level Change
Country Code
Display
Option
2
Use the number buttons on the Remote
control to enter a 4-digit password.
Initial Settings
Digital Audio Out
Video Output
Language
Display
Option
Parental Lock: Register Code Number
_
_ _
_
The numbers you enter show up as
asterisks (*) on-screen.
3
Press ENTER to register the password
and return to the Option menu screen.
If you forget your password, you can reset
the player then register a new one. See
Resetting the Player on page 66 for how to
reset the player.
25
05
Initial Settings menu
Changing your password
To change your password, confirm your existing
password then enter a new one.
1
Setting/changing the Parental Lock
level
1
Select “Password Change.”
Select “Level Change.”
Initial Settings
Initial Settings
Digital Audio Out
Video Output
Language
Parental Lock
Digital Audio Out
Video Output
Language
Password Change
Level Change
Country Code
2
Use the number buttons on the Remote
control to enter your existing password,
then press ENTER.
The numbers appear as asterisks as you
enter them.
Digital Audio Out
Video Output
Language
Display
Option
Display
Option
Parental Lock : Password Change
Password
Use number buttons on the Remote
control to enter your password, then
press ENTER.
Initial Settings
Initial Settings
Digital Audio Out
Video Output
Language
Password Change
Level Change
Country Code
Display
Option
Display
Option
2
Parental Lock
Parental Lock : Level Change
Password
_ _ _ _
1 2 3 4 5 6 7 8 off
_ _ _ _
New Password
3
Select a new level.
Initial Settings
3
Enter a new password.
Digital Audio Out
Video Output
Language
Display
Option
Initial Settings
Digital Audio Out
Video Output
Language
Display
Option
4
26
Parental Lock : Password Change
Password
* * * *
New Password
_ _ _ _
Press ENTER to register the new password and return to the Option menu
screen.
Parental Lock : Level Change
Password
* ***
1 2 3 4 5 6 7 8 off
Press (cursor left) repeatedly to lock
more levels (more discs will require the
password); press (cursor right) to unlock
levels. You can’t lock level 1.
4
Press ENTER to set the new level and
return to the Option menu screen.
Initial Settings menu
05
Setting/changing the Country code
• Select by code number:
Press (cursor right) to select the 4-digit
Country code input.
Then use / (cursor up/down) to select
the number for each digit and use /
(cursor left/right) to move the digit,
or use the number buttons on the Remote
control to enter the 4-digit Country code
(you can find the Country Code List on page
67).
You may also want to refer to the Country Code
List on page 67.
1
Select “Country Code.”
Initial Settings
Digital Audio Out
Parental Lock
Video Output
Language
Password Change
Level Change
Country Code
Display
Option
2
Initial Settings
Digital Audio Out
Video Output
Language
Use number buttons on the Remote
control to enter your password, then
press ENTER.
Display
Option
Parental Lock : Change Country Code
Password
Country Code List
us
* ***
Code
2 1 1 9
Initial Settings
Digital Audio Out
Video Output
Language
Display
Option
3
Parental Lock : Change Country Code
Password
_ _ _ _
Country Code List
Code
us
2 1 1 9
Select a Country code.
There are two ways you can do this.
4
Press ENTER to set the new Country code
and return to the Option menu screen.
Changing the Country code does not take
effect until the next disc is loaded (or the
current disc is reloaded).
• Select by code letter:
Use / (cursor up/down) to change the
Country code.
Initial Settings
Digital Audio Out
Video Output
Language
Display
Parental Lock : Change Country Code
Password
* ***
Country Code List
Code
us
2 1 1 9
Option
27
06
Playing discs
Chapter 6
Playing discs
Basic playback controls
Throughout this manual, the term “DVD” means
DVD-Video and DVD-R/RW. If a function is
specific to a particular kind of DVD disc, it is
specified.
1
2
3
4
The table below shows the basic controls on the
remote for playing discs. The following chapter
covers more playback features in more detail.
If the player isn’t already on, press
STANDBY/ON to switch it on.
If you’re playing a DVD or Video CD, also
turn on your TV and make sure that it is set
to the correct video input.
Press / (stop, open/close) to open the
disc tray.
Load a disc.
• Load a disc with the label side facing up,
using the disc tray guide to align the disc.
• Never load more than one disc at a time.
Button
What it does
Starts playback.
Pauses a disc that’s playing, or
restarts a paused disc.
/
Stops playback.
Open/close the disc tray.
Press and hold for fast reverse
scanning; press for previous
track/chapter skip.
Press and hold for fast forward
scanning; press for next
track/chapter skip.
Numbers
(remote
buttons)
Use to enter a title/track number.
Press ENTER to select (or wait a
few seconds).
• If the disc is stopped, playback
starts from the selected title (for
DVD) or track number (for CD/
Video CD ).
• If the disc is playing, playback
jumps to the start of the selected
chapter or track.
Press PLAY/PAUSE to start playback.
If you’re playing a DVD or Video CD, a menu
may appear. See DVD-Video disc menus on
page 29 and Video CD PBC menus on page
29 for more on how to navigate these.
STANDBY/ON
Disc tray
MENU
TOP MENU
STEP
POWER
STANDBY/ON
PLAY
PROGRAM
DISC IN
KEY LOCK
ENTER
DISPLAY
STEP
28
PLAY/PAUSE
HOME
MENU
PROGRESSIVE
PLAY/PAUSE
RETURN
Playing discs
06
Button
What it does
Video CD PBC menus
Press to advance a frame at a
time.
Some Video CDs have menus from which you
can choose what you want to watch. These are
called PBC (Playback control) menus.
You can play a PBC Video CD without having to
navigate the PBC menu by starting playback
using a number button to select a track, rather
than the (play) button.
DVD-Video disc menus
Many DVD-Video discs contain menus from
which you can select what you want to watch.
They may give access to additional features,
such as subtitle and audio language selection, or
special features such as slideshows. See the
disc packaging for details.
Sometimes DVD-Video menus are displayed
automatically when you start playback; others
only appear when you press MENU or TOP
MENU.
Button
What it does
RETURN
Displays the PBC menu.
Numbers
(remote
buttons)
Use to enter a numbered menu
option. Press ENTER to select.
Displays the previous menu
page (if there is one).
Displays the next menu page (if
there is one).
Button
What it does
(remote
button)
TOP MENU
Displays the “top menu” of a
DVD disc-this varies with the
disc.
(remote
button)
MENU
Displays a DVD disc menu-this
varies with the disc and may be
the same as the “top menu.”
///
Moves the cursor around the
screen.
ENTER
Selects the current menu option.
RETURN
Returns to the previously
displayed menu screen.
Numbers
(remote
buttons)
Highlights a numbered menu
option (some discs only). Press
ENTER to select.
Remote control
1
2
3
CLEAR
4
5
6
ENTER
7
8
9
0
MENU
TOP MENU
ENTER
HOME
MENU
TOP MENU
HOME
MENU
RETURN
MENU
ENTER
RETURN
29
06
Playing discs
TOP MENU
HOME
MENU
For a VR (Video Recording) mode DVD-RW
disc select beween the Playlist and
Original areas of the disc, or a title. Press
(cursor right) to preview the title.
MENU
ENTER
RETURN
• It’s not possible to switch between Original
and Playlist during playback.
• Not all VR format DVD-RW discs have a
Playlist.
Using the Disc Navigator to browse the contents of a disc
Disc Navigator
DVD-RW
Original
Play List
Use the Disc Navigator to browse through the
contents of a disc to find the part you want to
play. You can use the Disc Navigator when a disc
is playing or stopped.
1
The screen for CDs and Video CDs shows a
list of tracks. (The screen below show a CD
loaded.)
Press HOME MENU and select “Disc
Navigator” from the on-screen display.
Alternatively, if a VR format DVD-RW, CD or
Video CD disc is loaded, you can press
MENU, which takes you straight to the Disc
Navigator screen.
Audio Settings
Video Adjust
Play Mode
Disc Navigator
Disc Navigator
Track (1-10)
CD
3
Initial Settings
2
Select what you want to play.
Depending on the type of disc you have loaded,
the Disc Navigator looks slightly different.
The screen for DVD discs shows the titles
on the left and the chapters on the right.
Select a title, or a chapter within a title.
Disc Navigator
DVD
30
Title (1-10)
Chapter (1-003)
Title 01
Title 02
Title 03
Title 04
Title 05
Title 06
Title 07
Title 08
Chapter 01
Chapter 02
Chapter 03
Title(1-03)
01. 3/31 FIRST LEAGUE
02. 4/28 SECOND LEAGUE
03. 4/29 FINAL ROUND
Track 01
Track 02
Track 03
Track 04
Track 05
Track 06
Track 07
Track 08
Playback starts after you press ENTER.
• The Disc Navigator is not available unless
there is a disc loaded.
• It's not possible to use the Disc Navigator
when playing a Video CD in PBC mode, or
an unfinalized CD-R/RW disc.
• Another way to find a particular place on a
disc is to use one of the search modes. See
Searching a disc on page 36.
Playing discs
06
Remote control
STANDBY/ON
AUDIO
Switching VR format
DVD-RW audio channel
OPEN/CLOSE
SUBTITLE
ANGLE
Switching subtitles
Some DVD discs have subtitles in one or more
languages; the disc box will usually tell you
which subtitle languages are available. You can
switch subtitle language during playback.
Press SUBTITLE repeatedly to select a subtitle
option.
Subtitle
1
When playing a VR format DVD-RW disc
recorded with dual-mono audio, you can switch
between the main, sub, and mixed channels
during playback.
Press AUDIO repeatedly to select an audio
channel option.
Audio
1L
Dolby Digital 1+1CH
Switching Video CD
audio channel
When playing a Video CD, you can switch
between stereo, just the left channel or just the
right channel.
English
• Some discs only allow you to change
subtitle language from the disc menu.
Press TOP MENU to access.
• To set subtitle preferences, see Subtitle
Language on page 22.
Press AUDIO repeatly to select an audio
channel option.
Audio
Stereo
Switching DVD audio
language
Switching camera angles
When playing a DVD disc recorded with dialog in
two or more languages, you can switch audio
language during playback.
Some DVD discs feature scenes shot from two or
more angles-check the disc box for details.
When a multi-angle scene is playing, a
icon
appears on screen to let you know that other
angles are available (this can be switched off if
you prefer-see Angle Indicator on page 24).
Press AUDIO repeatedly to select an audio
language option.
Audio
1
French
Dolby Digital 3/2.1CH
• Some discs only allow you to change audio
language from the disc menu. Press TOP
MENU to access.
• To set audio language preferences, see
Audio Language on page 23.
During playback (or when paused), press
ANGLE to switch angle.
Angle
Current / Total
1/4
31
06
Playing discs
Remote control
PLAY MODE SURROUND
ZOOM
DISPLAY
Scanning discs
You can fast-scan discs forward or backward at
various different speeds.
During playback, press and hold or
on the front panel to scan.
2
3
4
During playback, press or to
start scanning.
2
Press repeatedly to increase the scanning
speed.
The scanning speed is shown on-screen.
3
To resume normal playback, press (play).
• Sound can be heard while scanning audio
CDs.
• When scanning a Video CD track, playback
automatically resumes at the end or
beginning of the track.
• There is no sound while scanning DVDs and
Video CDs, and no subtitles while scanning
DVDs.
• Depending on the disc, normal playback
may automatically resume when a new
chapter is reached on a DVD disc.
Press repeatedly to change the slow
motion speed.
The slow motion speed is displayed onscreen.
To resume normal playback, press (play)
(PLAY/PAUSE on the front panel).
• The picture quality during slow motion
playback is not as good as during normal
playback.
• Depending on the disc, normal playback
may automatically resume when a new
chapter is reached.
[When using remote control]
1
Press and hold / or / until
slow motion playback starts.
• The slow motion speed is shown on-screen.
• There is no sound during slow motion
playback.
Frame advance/frame
reverse
You can advance or back up a DVD disc frameby-frame. With Video CDs and VR format DVDRWs, you can only use frame advance.
1
During playback, press (pause) (PLAY/
PAUSE or STEP on the front
panel).
2
Press / or / to reverse or
advance a frame at a time.
3
To resume normal playback, press (play)
(PLAY/PAUSE on the front panel).
Playing in slow motion
You can play DVDs and Video CDs at four
different forward slow motion speeds. DVD discs
can also be played at two reverse
speeds. (With Video CDs, you can only use
forward slow motion playback.)
1
32
During playback, press (pause) (PLAY/
PAUSE or STEP on the front
panel).
• The picture quality when using frame
reverse is not as good as frame advance.
• Depending on the disc, normal playback
may automatically resume when a new
chapter is reached.
• When changing direction with a DVD disc,
the picture may “move” in an unexpected
way. This is not a malfunction.
Playing discs
Looping a section of a
disc
The A-B Repeat function allows you to specify
two points (A and B) within a track (CD and
Video CD) or title (DVD) that form a loop which is
played over and over.
You can’t use A-B Repeat with Video CDs in
PBC mode, or unfinalized CD-R/RW discs.
1
During playback, press PLAY MODE and
select “A-B Repeat” from the list of
functions on the left.
06
Using repeat play
There are various repeat play options, depending
on the kind of disc loaded. It’s also possible to
use repeat play together with program play to
repeat the tracks/chapters in the program list
(see Creating a program list on page 34).
You can’t use Repeat play with Video CDs in
PBC mode, or unfinalized CD-R/RW discs.
1
Play Mode
A-B Repeat
Repeat
Program
Search Mode
Command Stack
2
A(Start Point)
B(End Point)
Off
During playback, press PLAY MODE and
select “Repeat” from the list of functions
on the left.
“All Repeat” will be displayed as an option
when the TITLE PLAY MODE is set to “All”
on the ADV. SETUP menu (see page 41).
Play Mode
A-B Repeat
Repeat
Program
Search Mode
Command Stack
All Repeat
Title Repeat
Chapter Repeat
Repeat Off
Press ENTER on “A(Start Point)” to set
the loop start point.
2
Play Mode
A-B Repeat
Repeat
A(Start Point)
B(End Point)
Program
Search Mode
Off
Select a repeat play option.
If program play is active, select Program
Repeat to repeat the program list, or
Repeat Off to cancel.
Play Mode
Command Stack
3
Press ENTER on “B(End Point)” to set the
loop end point.
A-B Repeat
Repeat
Program
Program Repeat
Repeat Off
Search Mode
Command Stack
Play Mode
A-B Repeat
Repeat
Program
A(Start Point)
B(End Point)
Off
Search Mode
Command Stack
• After pressing ENTER, playback jumps back
to the start point and plays the loop.
• The minimum loop time is 2 seconds.
4
For DVD discs, select All Repeat, Title
Repeat or Chapter Repeat (or Repeat Off).
Play Mode
A-B Repeat
Repeat
Program
Search Mode
Command Stack
All Repeat
Title Repeat
Chapter Repeat
Repeat Off
To resume normal playback, select “Off”
from the menu.
33
06
Playing discs
For CDs and Video CDs, select Disc Repeat
or Track Repeat (or Repeat Off).
The Program edit screen that appears
depends on the kind of disc loaded.
On the left side is the program list, then to
the right is a list of titles (if a DVD disc is
loaded) or tracks (for CDs and Video CDs).
On the far right is a list of chapters (for
DVD).
Play Mode
A-B Repeat
Repeat
Program
Disc Repeat
Track Repeat
Repeat Off
Search Mode
Command Stack
3
If you switch camera angle during repeat
play, repeat play is canceled.
Creating a program list
This feature lets you program the play order of
titles/chapters/tracks on a disc.
You can’t use Program play with VR format
DVD-RW discs, Video CDs playing in PBC
mode, or while a DVD disc menu is being
displayed.
1
Press PLAY MODE and select “Program”
from the list of functions on the left.
Play Mode
A-B Repeat
Repeat
Create/Edit
Playback Start
Program
Search Mode
Command Stack
Playback Stop
Program Delete
Program Memory
Select a title, chapter or track for the
current step in the program list.
For a DVD disc, you can add a whole title, or
a chapter within a title to the program list.
• To add a title, select the title.
Program
Program Step
Title (1-38)
Chapter (1-004)
01. 01
02.
03.
04.
05.
06.
07.
08.
Title 01
Title 02
Title 03
Title 04
Title 05
Title 06
Title 07
Title 08
Chapter 01
Chapter 02
Chapter 03
Chapter 04
• To add a chapter, first highlight the title,
then press (cursor right) and select a
chapter from the list.
Program
Program Step
Title (1-38)
Chapter (1-004)
01. 01-003
02.
03.
04.
05.
06.
07.
08.
Title 01
Title 02
Title 03
Title 04
Title 05
Title 06
Title 07
Title 08
Chapter 01
Chapter 02
Chapter 03
Chapter 04
Off
For a CD or Video CD, select a track to add
to the program list.
2
Select “Create/Edit” from the list of
program options.
Play Mode
A-B Repeat
Create/Edit
Repeat
Program
Search Mode
Command Stack
Playback Start
Playback Stop
Program Delete
Program Memory
Off
Program
Program Step
Track (1~12)
01. 04
02.
03.
04.
05.
06.
07.
08.
Track 01
Track 02
Track 03
Track 04
Track 05
Track 06
Track 07
Track 08
After pressing ENTER to select the title/
chapter/track, the step number automatically moves down one.
34
Playing discs
4
Repeat step 3 to build up a program list.
A program list can contain up to 24 titles/
chapters/tracks.
5
To play the program list, press (play).
Program play remains active until you turn
off program play (see below), erase the
program list (see below), eject the disc or
switch off the player.
When an item on the step is currently being
played, its title characters change color.
• To save your program list and exit the
program edit screen without starting
playback, press PLAY MODE or HOME
MENU. (Don’t press RETURN – your
program list won’t be saved.)
• During program play, press to skip to
the next program step.
• Press CLEAR during playback to switch off
program play. Press while stopped to erase
the program list.
06
• To save your program list and exit the
program edit screen without starting
playback, press PLAY MODE or HOME
MENU.
• If you want to exit the program edit screen
without saving the changes you made,
press RETURN.
Other functions available from
the program menu
As well as creating and editing a program list,
you can start program play, cancel program play,
erase the program list, and memorize a program
list from the Play Mode menu.
1
Play Mode
Editing a program list
After creating a program list, you can add, delete
and change steps.
1
Press PLAY MODE and select “Program”
from the list of functions on the left.
2
Select “Create/Edit” from the list of
program options.
3
To clear a step, highlight the step
number and press CLEAR.
4
To insert a step in the middle of the
program list, highlight the step where
you want the new step to appear, then
select a title/chapter/track to add.
After pressing ENTER, the new step is
inserted into the list.
5
To add a step to the end of the program
list, highlight the next free step then
select a title/chapter/track to add.
Press PLAY MODE and select “Program”
from the list of functions on the left.
2
A-B Repeat
Repeat
Program
Create/Edit
Playback Start
Playback Stop
Search Mode
Command Stack
Program Delete
Program Memory
Off
Select a program play function.
• Create/Edit – See above
• Playback Start – Starts playback of a saved
program list
• Playback Stop – Turns off program play, but
does not erase the program list
• Program Delete – Erases the program list
and turns off program play
• Program Memory (DVD only) – Select On
to save the program list for the disc loaded.
(Select Off to cancel the program memory
for the disc loaded)
• Program lists are saved for the DVD disc
loaded. When you load a disc with a saved
program list, program play is automatically
turned on.
• You can save program lists for up to 24
discs. After that, the oldest one is replaced
with the new one saved.
35
06
Playing discs
Searching a disc
Zooming the screen
You can search DVD discs by title or chapter
number, by time or frame. CDs can be searched
by track number, and Video CDs by track number
or time.
Using the zoom feature you can magnify a part of
the screen by a factor of 2 or 4, while watching a
DVD or Video CD.
1
Press PLAY MODE and select “Search Mode”
from the list of functions on the left.
The search options that appear depend on
the kind of disc loaded. The screen below
shows the DVD search options.
1
During playback, use the ZOOM button
to select the zoom factor.
• Normal
• 2x
• 4x
Normal
Play Mode
A-B Repeat
Repeat
Program
Title Search
Chapter Search
Time Search
Search Mode
Command Stack
Frame Search
Zoom 2x
2
Select a search mode.
3
Use the number buttons to enter a title,
chapter, track number, a time or a frame.
Zoom 4x
Play Mode
A-B Repeat
Repeat
Program
Title Search
Chapter Search
Time Search
Search Mode
Command Stack
Frame Search
0 0 1
Press ENTER to start playback.
• The disc must be playing in order to use
time search or frame search.
• Search functions are not available with
Video CDs in PBC mode, or unfinalized CDR/RW discs.
• The frame search function cannot be used
with a VR format DVD-RW.
36
Zoom 4x
Input Chapter
For a time search, enter the number of
minutes and seconds into the currently
playing title (DVD) or track (Video CD) you
want playback to resume from. For example,
press 4, 5, 0, 0 to have playback start from
45 minutes into the disc. For 1 hour, 20
minutes and 30 seconds, press 8, 0, 3, 0.
4
Zoom 2x
Since DVD and Video CD have a fixed
resolution, picture quality will deteriorate,
especially at 4x zoom. This is not a malfunction.
2
Use the cursor buttons to change the
zoomed area.
You can change the zoom factor and the
zoomed area freely during playback.
• If the navigation square at the top of the
screen disappears, press ZOOM again to
display it.
• We do not recommend using DVD disc
menus when the screen is zoomed as menu
options will not be highlighted.
• If you are displaying subtitles, these will
disappear when the screen is zoomed. They
will reappear when you return the screen to
normal.
Audio Settings menu
07
Chapter 7
Audio Settings menu
Audio DRC
• Default setting is Off.
When watching Dolby Digital DVDs at low
volume, it’s easy to lose the quieter sounds
completely-including some of the dialog.
Switching Audio DRC (Dynamic Range Control)
to On can help by bringing up the quieter
sounds, while controlling loud peaks.
How much of a difference you hear depends on
the material you’re listening to. If the material
doesn’t have wide variations in volume, you may
not notice much change.
1
Press HOME MENU and select “Audio
Settings” from the on-screen display.
Audio Settings
Video Adjust
Play Mode
Disc Navigator
• Audio DRC is only effective with Dolby
Digital audio sources.
• Audio DRC is only effective through the
digital output when Digital Out (see page
19) is set to On, and Dolby Digital Out (see
page 20) is set to Dolby Digital > PCM.
• The effect of Audio DRC depends on your
speakers and AV receiver settings.
Virtual Surround
• Default setting is Off.
Switch on Virtual Surround to enjoy surround
sound effects from just two speakers.
When you play a Dolby Digital soundtrack,
TruSurround technology from SRS produces a
deep, realistic 3D soundspace from a pair of
stereo speakers. SRS TruSurround is a process
approved by Dolby Laboratories for Virtual Dolby
Digital sound.
Initial Settings
2
Highlight Audio DRC, then use the /
(cursor left/right) buttons to change to
“On” or “Off,” as required.
1
Press HOME MENU and select “Audio
Settings” from the on-screen display.
Audio Settings
3
Audio DRC
Off
Virtual Surround
Off
Press ENTER to make the setting and exit
the Audio Settings screen.
Audio Settings
Video Adjust
Play Mode
Disc Navigator
Initial Settings
37
07
Audio Settings menu
2
Highlight Virtual Surround, then use the
/ (cursor left/right) buttons to
change to “2V/SRS TruSurround” or
“Off” as required.
Audio Settings
3
Audio DRC
Off
Virtual Surround
Off
Press ENTER to make the setting and exit
the Audio Settings screen.
You can also use the SURROUND button on
the remote control to switch Virtual
Surround on (2V/SRS TruSurround)/Off.
• Virtual Surround doesn’t work with DTS or
96kHz linear PCM audio through either the
analog or digital outputs.
• If the player is outputting Dolby Digital or
MPEG bitstream audio (in other words, no
conversion to PCM), Virtual Surround has
no effect on the audio from the digital
output. See Digital Audio Out settings on
page 19 for how to set up the digital output
formats.
• How good the surround effect is varies with
the disc.
38
Video Adjust menu
08
Chapter 8
Video Adjust menu
Video Adjust
• Default setting is Standard.
From the Video Adjust screen you can select the
standard video presentation or define presets of
your own.
1
Press HOME MENU and select “Video
Adjust” from the on-screen display.
Audio Settings
Video Adjust
Play Mode
Disc Navigator
Creating your own interlace
output presets
These presets are available when the video
output is set to interlace. (Use the front panel
PROGRESSIVE button to switch between
interlace and progressive video output. See also
page 15)
1
Select one of the Memory presets (see
above).
2
Press (cursor down) to select “Detailed
Settings” then press ENTER.
Video Adjust
I.Memory1
Detailed Settings
Initial Settings
2
Use the / buttons (cursor left/right)
to select a preset.
3
Adjust the picture quality settings.
Interlace Memory 1 (I. Memory 1)
Recall Settings
Video Adjust
Standard
• Standard – Normal
• I. Memory1–2 / P. Memory1–2 – Use for
making your own interlaced / progressive
presets (see below)
3
Press ENTER to make the setting and exit
the Video Adjust screen.
Depending on the disc and the TV/monitor,
you may not see the effect clearly.
I.Memory1
Fine Focus
On
Contrast
min
max
Sharpness
soft
fine
Chroma Level
min
max
Hue
green
red
• Use the / buttons (cursor up/down) to
select a setting.
• Use the / buttons (cursor left/right) to
adjust the current setting.
• Press DISPLAY to switch between full and
single view.
• You can change the preset number from the
Recall Settings menu item.
You can adjust any or all of the following
picture quality settings:
• Fine Focus – Switch On to reveal greater
detail (high resolution) in the picture.
• Contrast – Adjusts the contrast between
light and dark elements in the picture.
39
08
Video Adjust menu
• Sharpness – Adjusts the sharpness of the
mid-frequency (less detailed) elements in
the picture. (This setting is only effective
when Fine Focus is On.)
• Chroma Level – Adjusts how saturated
colors appear.
• Hue – Adjusts the overall color balance
between red and green. (This is only
effective when the player is connected using
the VIDEO OUT or S-VIDEO OUT jacks.)
4
You can adjust any or all of the following
picture quality settings:
• PureCinema – When watching DVD movies,
PureCinema optimizes the picture quality.
The default setting is Auto, but if the
picture appears unnatural, then set to On or
Off, as appropriate.
• Sharpness – Adjusts the sharpness of the
mid-frequency (less detailed) elements in
the picture. (This setting is only effective
when Fine Focus is On.)
• Contrast – Adjusts the contrast between
light and dark elements in the picture.
• Brightness – Adjusts the overall brightness
of the picture.
• Chroma Level – Adjusts how saturated
colors appear.
• Hue – Adjusts the overall color balance
between red and green.
Press ENTER to save the preset and exit
the Video Adjust screen.
Creating your own progressive
output presets
These presets are available when the video
output is set to progressive. (Use the front panel
PROGRESSIVE button to switch between
interlace and progressive video output. See also
page 15)
1
Select one of the Memory presets (see
above).
2
Press (cursor down) to select “Detailed
Settings” then press ENTER.
Video Adjust
P. Memory1
Detailed Settings
3
Adjust the picture quality settings.
Progressive Memory 1 (P. Memory 1)
Recall Settings
P.Memory1
PureCinema
Auto
Sharpness
soft
fine
Contrast
min
max
Brightness
Chroma Level
Hue
off
fine
min
max
green
red
• Use the / buttons (cursor up/down) to
select a setting.
• Use the / buttons (cursor left/right) to
adjust the current setting.
• Press DISPLAY to switch between full and
single view.
• You can change the preset number from the
Recall Settings menu item.
40
4
Press ENTER to save the preset and exit
the Video Adjust screen.
Video on a DVD discs may be either video
material (originally shot on video) or film
material (originally shot on film). Video
material has a frame rate of 30 frames/sec.
(NTSC), compared with 24 frames/sec. for
film. This player converts film material to 60
frames/sec. (in progressive scan mode).
PureCinema adjusts the picture so that it
matches more closely the picture quality of
a cinema screen.
You can see whether video on a DVD disc is
film or video material by displaying the video
transmission rate (see page 17). If a hash
mark (#) appears next to the transmission
rate display, it is film material.
Advanced Setup Menu
09
Chapter 9
Advanced Setup Menu
In addition to the normal setup menu, this player
includes an advanced setup menu for selecting
special functions.
To access the ADV.
SETUP menu
Press and hold HOME MENU button for one
second.
The screen displays the Advanced Setup
(ADV. SETUP) menu.
• COMMAND STACK
Press ENTER to begin inputting Command
Stacks (see page 49).
• POWER ON START
Automatic playback has no effect on the
POWER ON START function.
Use / (cursor left/right) buttons to
alternate between ON and OFF (Default
setting is OFF).
OFF: POWER ON START function is
disabled.
ON: POWER ON START function is
enabled. Press ENTER to set this
function (see page 42).
• TITLE PLAY MODE
Use / (cursor left/right) buttons to
alternate between Single and All (Default
setting is Single).
Single:
All:
When a NAVI command
(“Return to Menu”, “Search for
Specific Title”, “Playback from
Beginning of Title”, etc.) follows
a title, the specified operation is
performed after the title finishes
playing.
When playback of a single DVD
disc title is complete, the next
title plays and so on until all
titles have played.
• KEY LOCK
The Key Lock allows commands to be sent
through the remote control and front panel
buttons. However, EXTEND TERMINAL
commands are always supported, regardless
of this setting.
Use / (cursor left/right) buttons to
alternate between ON and OFF (Default
setting is OFF).
OFF: Commands from remote control
and front panel buttons are
allowed.
ON: Commands from remote control
and front panel buttons are
limited. Press ENTER to set the
KEY LOCK (see page 44).
• REPEAT MODE
The Repeat command provides a way to loop
playback for all or part of a DVD-Video disc.
Use / (cursor left/right) buttons to
select OFF/CHAPTER/TITLE/DISC (Default
setting is OFF).
(When TITLE PLAY MODE is set to All,
“DISC” appears as an additional option).
OFF: No repeat play is performed.
CHAPTER: With DVD discs, repeat play is
performed for a single chapter.
With CD and video CD discs,
repeat play is performed of a
single track.
TITLE: A single title is repeated.
DISC: All content on the disc plays back
again (repeats).
41
09
Advanced Setup Menu
• SERIAL PORT
Set the RS-232C interface to use with a 15-pin
connector or 9-pin connector. Only a single
type of connector may be used at a time.
Use / (cursor left/right) buttons to
alternate between 15 Pin and 9 pin (Default
setting is 15 Pin).
15 Pin: When connecting to a PC using
a Pioneer or other brand 15-pin
to 9-pin cable.
9 Pin: When connecting to a PC using
a commercial 9-pin cross-cable.
Power On Start
Sets playback mode when power is turned on.
1
Press and hold HOME MENU for one
second.
The screen displays the ADV. SETUP menu.
2
Use the (cursor down) button to
select POWER ON START.
3
Use the / (cursor left/right) buttons
to select a mode other than OFF, then
press ENTER.
When OFF is selected, Power On Start
function is disabled.
4
Use the / (cursor up/down) buttons
to select 1, 2, or 3, then press ENTER.
• BAUD RATE
Sets the Baud rate for the RS-232C
interface.
Use / (cursor left/right) buttons to
alternate between 19200 bps and 9600 bps
(Default setting is 19200 bps).
• EXTEND TERMINAL
Use the Extend Terminal to select a switchkey setting.
Use / (cursor left/right) buttons to
alternate between Standard and User
(Default setting is Standard).
Standard: The unit responds according to
established standard setting
(see pages 68 – 70).
User: The user selects how the
external option key responds.
Press ENTER to activate this
option (see page 46).
• SYNC OUT (DURING SQ)
Use SYNC OUT to determine if a video signal
is sent when the player is not playing video.
Use / (cursor left/right) buttons to
alternate between ON and OFF (Default
setting is OFF).
OFF: Video is output constantly; the
sync signal is ON.
ON: Video is not output except
during playback and when
displaying menu screens (sync
signal is off).
42
• If the power is interruputed while saving the ADV. SETUP menu settings during
video playback and the disc is still spinning, the settings are not recoreded.
When disconnecting the power cord, always turn off the main power switch
first (the power indicator is not lit) or use the remote control to set the unit to
Standby mode (the power indicator changes to orange).
Advanced Setup Menu
If “TOP MENU” is selected in step 4
Press ENTER again to set the Power On Start
mode. This option displays the top menu when
the power is turned ON.
09
• If the (cursor left) button is pressed
before ENTER is pressed, the menu returns
to the TITLE option screen.
• When RETURN is pressed, the option is not
set and the POWER ON START screen
returns to the ADV. SETUP menu.
If “BARCODE/COMMAND STACK” is
selected in step 4
When “GROUP” flashes, use the / (cursor
up/down) buttons or number buttons to input the
group number.
Press ENTER to perform the series of commands
in the barcode when the power is turned on.
• If the loaded disc does not have a top menu,
the player enters the Stop mode.
• If the (cursor left) button is pressed
before ENTER is pressed, the selection is
canceled.
• When RETURN is pressed, the option is not
set and the POWER ON START screen
returns to the ADV. SETUP menu.
If “TITLE” is selected in step 4
When “TITLE” flashes, use the / (cursor up/
down) buttons or number buttons to input the
desired title number.
When either ENTER or (cursor right) button is
pressed, the “CHAPTER” flashes. Use the /
(cursor up/down) buttons or number buttons to
input the chapter number.
Press ENTER again to confirm playback of a title
or chapter when power is turned on.
• If the (cursor left) button is pressed
before ENTER is pressd, the menu returns
to the BARCODE/COMMAND setting
screen.
• When RETURN is pressed, the option is not
set and the POWER ON START screen
returns to the ADV. SETUP menu.
The selected group is automatically set
“Stack Repeat” function.
Setting to turn on player power only
When selecting a title, enter a title which is not
on the disc.
Example: Enter title 99.
43
09
Advanced Setup Menu
• 2. IR (Enable/Disable)
With the IR Disable, the unit ignores
commands sent from the remote control or
through barcodes.
• 3. FRONT (Enable/Disable)
With the Front Disable, the unit ignores
commands issued from the front panel.
Key Lock
The Key Lock sets whether remote control or
front panel buttons are enabled or disabled.
1
Press and hold HOME MENU for one
second.
The screen displays the ADV. SETUP menu.
2
Use the (cursor down) button to
select KEY LOCK.
5
Press RETURN to cause the display to
return from the KEY LOCK setting screen
to the ADV. SETUP menu.
To Temporarily Suspend KEY
LOCK
The Key Lock setting is preserved even when the
player’s power is turned OFF. However, the Key
Lock function can be temporarily suspended if
necessary to change discs or modify other
settings.
3
Use the / (cursor left/right) buttons to
toggle the setting ON then press ENTER.
Select OFF to disable the Key Lock function.
4
Use the / (cursor up/down) buttons
to select an item, then the / (cursor
left/right) buttons to set the item.
• 1. TRAY LOCK (Off/On)
With the Tray Lock ON, the disc tray cannot
be opened by using the remote control’s
OPEN/CLOSE button, the front panel’s
button, or the RS-232C Tray Open
command.
44
To temporarily suspend the Key Lock, hold
down the RETURN, the (cursor down), and
the buttons simultaneously for
approximately 2 seconds.
• This release operation can be performed
during playback if necessary.
• All KEY LOCK, TRAY LOCK functions are
released and ordinary operations can be
performed. This condition does not change
any settings preserved in the player. If the
power is turned off then back on, the unit
reverts to the previous locked condition.
• With the KEY LOCK function temporarily
suspended, hold down the RETURN, the (cursor down), and the buttons
simultaneously for approximately 2 seconds.
The suspended condition ends and the unit
returns to a locked status.
While the KEY LOCK function is temporarily
suspended, even if the ADV. SETUP menu is
opened and the KEY LOCK setting is
changed, the temporarily suspended state
continues when the ADV. SETUP menus is
closed. The newly selected KEY LOCK
setting only takes effect when the temporary
suspension is ended.
Advanced Setup Menu
09
MENU
TOP MENU
STEP
PLAY/PAUSE
HOME
MENU
PROGRESSIVE
POWER
PLAY
PROGRAM
DISC IN
KEY LOCK
STANDBY/ON
ENTER
RETURN
DISPLAY
KEY LOCK indicator
RETURN
Remote control
STANDBY/ON
OPEN/CLOSE
KEY LOCK Indicator Display Specifications
The status of the KEY LOCK indicator on the front panel is as follows:
KEY LOCK Setting
KEY LOCK indicator display
TRAY LOCK
IR
FRONT
Off
Enable
Enable
[Not lighted]
On
Enable
Enable
[Not lighted]
Flashes for 2 seconds when remote control’s OPEN/CLOSE
button is pressed or when the front panel’s button
is pressed while the unit is in the stop mode.
Off
Disable
Enable
[Lighted]
Flashes for 2 seconds when remote control button is
pressed.
On
Disable
Enable
[Lighted]
Flashes for 2 seconds when a remote control button is
pressed or when the front panel’s button is pressed
while the unit is in the stop mode.
Off
Enable
Disable
[Lighted]
Flashes for 2 seconds when the front panel’s control button
is pressed.
On
Enable
Disable
[Lighted]
Flashes for 2 seconds when the front panel’s control button
or the remote control’s OPEN/CLOSE button is pressed.
Off
Disable
Disable
[Lighted]
Flashes for 2 seconds when the front panel’s control button
or the remote control’s OPEN/CLOSE button is pressed.
On
Disable
Disable
[Lighted]
Flashes for 2 seconds when the front panel’s control button
or the remote control button is pressed.
45
09
Advanced Setup Menu
Recording Settings
Extend Terminal
Sets the function of the switch connected to the
EXT TERMINAL (see page 68).
1
2
Press and hold HOME MENU for one
second.
The screen displays the ADV. SETUP menu.
Use the (cursor down) button to
select EXTEND TERMINAL.
ì Selecting “Current” Settings
• Up to 30 “Current” settings can be recorded.
• Use the / (cursor up/down) buttons to
select the desired item.
Extend Terminal Settings
Current
1.
2.
New
PLAY
STOP
3.
4.
PAUSE
STEP FWD
5. ENTER
6. GROUP 1
7. GROUP 2
STEP REV
SCAN FWD
SCAN REV
8. GROUP 3
SKIP FWD
Move
Select ENTER Delete CLEAR Exit
HOME MENU
ì Selecting Cursor Functions
• Eight cursor functions can be selected
• Use the /// (cursor left/right/up/
down) buttons to select then press ENTER.
Cancelation is not possible.
3
Use the / (cursor left/right) buttons
to select “User” then press ENTER.
• Selecting “Standard” sets the unit to
respond according to established standard
setting (see pages 68 – 70).
• When “User” is selected, the function of the
terminal switch can be set by the user.
Extend Terminal Settings
Current
1.
2.
New
PLAY
STOP
3.
4.
PAUSE
STEP FWD
5. ENTER
6. GROUP 1
7. GROUP 2
STEP REV
SCAN FWD
SCAN REV
8. GROUP 3
SKIP FWD
Extend Terminal Settings
Current
1.
2.
3.
New
Move
PLAY
STOP
PAUSE
4.
5. ENTER
6. GROUP 1
STEP FWD
STEP REV
SCAN FWD
7. GROUP 2
SCAN REV
8. GROUP 3
SKIP FWD
Select ENTER
Exit
HOME MENU
ì Operation functions
• Up to 24 operation functions are available.
• Use the /// (cursor left/right/up/
down) buttons to select then press ENTER.
Cancelation is not possible.
Extend Terminal Settings
Move
4
Select ENTER Delete CLEAR Exit
HOME MENU
Press RETURN to move from the Extend
Terminal Setting menu to the ADV.
SETUP menu.
Press HOME MENU to return from Extend
Terminal Setting menu to the idle condition.
Current
1.
2.
3.
4.
5.
6.
7.
8.
PLAY
STOP
PAUSE
STEP FWD
ENTER
GROUP 1
GROUP 2
GROUP 3
Move
46
New
STEP REV
SCAN FWD
SCAN REV
SKIP FWD
Select ENTER
Exit
HOME MENU
Advanced Setup Menu
Number Functions
Return To Factory Default Setting
• Up to 21 number functions are available.
• Use the /// (cursor left/right/up/
down) buttons to select then press ENTER.
Cancelation is not possible.
Extend Terminal Settings
Current
1.
2.
09
With “Default Setting” selected, press
ENTER to reset the unit to its factory default
settings.
Extend Terminal Settings
Current
25. STOP
New
1
GROUP
GROUP
1
2
GROUP
GROUP
3
4
3.
4.
2
3
4
5. ENTER
6. GROUP 1
5
6
GROUP
GROUP
5
6
7. GROUP 2
8. GROUP 3
7
8
GROUP
GROUP
7
8
28.
29.
30.
Select ENTER
Exit
PLAY
STOP
PAUSE
STEP FWD
7
8
9
STEP REV
SCAN FWD
SCAN REV
Default Setting
Move
Move
New
26. PAUSE
27. TOP MENU
Select ENTER
SKIP FWD
Exit
HOME MENU
HOME MENU
Command Stack Functions
• Up to 27 command stack functions are
available.
• Use the /// (cursor left/right/up/
down) buttons to select then press ENTER.
Cancelation is not possible.
Extend Terminal Settings
Current
1.
2.
New
1
2
3
4
5
6
3.
4.
5.
6.
7.
8.
ENTER
GROUP 1
GROUP 2
GROUP 3
Move
7
8
Select ENTER
GROUP
GROUP
1
2
GROUP
GROUP
3
4
GROUP
GROUP
GROUP
GROUP
5
6
7
8
Exit
HOME MENU
Not-Set Function
In the Current mode, press CLEAR to force
the non-set condition (a button does not
respond even if pressed).
Extend Terminal Settings
Current
1. nothing
2.
3.
4.
5.
6.
7.
8.
New
PLAY
STOP
PAUSE
ENTER
GROUP 1
GROUP 2
GROUP 3
Move
STEP FWD
STEP REV
SCAN FWD
SCAN REV
SKIP FWD
Select ENTER Delete CLEAR Exit
HOME MENU
47
09
Advanced Setup Menu
5
Changing The Setting
The function of the diode assignment can be
changed within a range of 1 to 30 (Current).
Press button (cursor right) .
Extend Terminal Settings
Current
1.
2.
Example:
New
PLAY
STOP
Changing “GROUP 3” (Default) to “MENU”.
3.
4.
PAUSE
STEP FWD
1
5. ENTER
6. GROUP 1
7. GROUP 2
STEP REV
SCAN FWD
SCAN REV
8. GROUP 3
SKIP FWD
Press and hold HOME MENU for one
second.
The screen displays the ADV. SETUP menu.
2
Use button (cursor down) to select
EXTEND TERMINAL.
3
Use / button (cursor left/right) to
select “User” then press ENTER.
Move
6
Select ENTER
Exit
HOME MENU
Use button (cursor down) to select
MENU.
Extend Terminal Settings
Extend Terminal Settings
Current
1.
2.
Current
1.
2.
3.
New
PLAY
STOP
3.
4.
PAUSE
STEP FWD
5. ENTER
6. GROUP 1
7. GROUP 2
STEP REV
SCAN FWD
SCAN REV
8. GROUP 3
SKIP FWD
4.
5.
6.
7.
8.
4
Select ENTER Delete CLEAR Exit
7
5.
6.
7.
8.
2.
New
PLAY
STOP
3.
4.
5. ENTER
6. GROUP 1
7. GROUP 2
8. MENU
STEP REV
SCAN FWD
SCAN REV
SKIP FWD
Move
Move
48
Select ENTER Delete CLEAR Exit
Exit
HOME MENU
Extend Terminal Settings
PAUSE
STEP FWD
ENTER
GROUP 1
GROUP 2
GROUP 3
Select ENTER
Press ENTER.
Current
1.
Extend Terminal Settings
3.
4.
TOP MENU
RETURN
DISPLAY
AUDIO
ANGLE
HOME MENU
Use button (cursor down) to select
“GROUP 3.”
Current
1.
2.
SKIP REV
ENTER
MENU
ENTER
GROUP 1
GROUP 2
GROUP 3
Move
Move
New
HOME MENU
8
New
SKIP REV
ENTER
MENU
TOP MENU
RETURN
DISPLAY
AUDIO
ANGLE
Select ENTER Delete CLEAR Exit
HOME MENU
Press RETURN to move from the Extend
Terminal Setting menu to the ADV.
SETUP menu.
• Press HOME MENU to return from Extend
Terminal Setting menu to the idle condition.
• Changed settings are saved within the
player even if the power is disconnected.
Barcode Stack / Command Stack
10
Chapter 10
Barcode Stack / Command Stack
Barcode / Command
Stack Function
The following operations can be performed
within a Barcode Stack / Command Stack
function:
• Pre-recording of barcode commands in
player (barcode stack function).
• Remote control used to set commands
when barcodes are not available or when
desired commands are not available in
barcodes (command stack function).
• Remote control can be used to call up
recorded contents for continuous or step-bystep performance.
Barcode stack and command stack
functions cannot be used with video CDs or
music CDs.
• The player allows a maximum of 300 step.
• The recorded data is preserved even if the
power is disconnected.
Basic Operation
Basic use of barcode stack/command stack
functions are as follows:
For detailed explanations of each item, refer to
the page indicated after the arrow ():
1
Use the remote control to select the
barcode stack/command stack setting
menu
Page 50
2
Use a barcode reader to read barcodes
and transfer the data to the player
Page 51
Use the remote control to read/transfer
barcodes
Pages 50 – 56
3
Perform repetitive input as from step 2
(Using a barcode reader to read barcodes and
transfer data to the player)
4
Retain data in player memory after input
Page 57
5
Command execution
Page 62
49
10
Barcode Stack / Command Stack
Advanced Functions
The barcode stack/command stack functions
can be memorized in separate groups so as not
to affect previously input commands.
For example, recording the contents of multiple
discs separately or allow multpile people to use a
single player.
Barcode Stack/Command Stack
Settings
DVD barcode commands are recorded by the
player. These commands can be called up to
perform continuous or step-by-step playback.
The recorded data is retained even if the power is
disconnected.
Record commands in a separate group
from previously input contents
Access Barcode Stack / Command
Stack Menu
1
1
Press and hold HOME MENU for one
second.
The screen displays the ADV. SETUP menu.
2
Use the (cursor down) button to
select “COMMAND STACK.”
3
Press ENTER.
Create new group
Page 59
At the left side of the barcode stack/
command stack input screen is the current
memory group number (ex. Group001).
This group number is necessary for
performing commands. The user should
make note of these for later reference.
2
Use a barcode reader to read barcodes
and transmit to player
Page 51
The remote control unit can also be used to
input the numbers.
Pages 50 – 56
3
Repeat step 2 in the desired playback
order
4
After inputting the commands, retain
the data in player memory
Page 57
5
Execute
Page 62
Select the group number as noted in step 1.
Command Stack
Group(1-001)
Group001
Command(0-000)
001
002
003
004
005
006
Commands already recorded in the player’s
memory can be reordered in one or more
groups.
Pages 60 – 61
However, the order of commands cannot be
changed.
50
007
008
Move
Select
ENTER
Exit
HOME MENU
• Instructions for using this menu screen are
available in the following sections.
• To set a barcode stack/command stack, use
either a barcode reader (sold separately) or
the remote control.
Barcode Stack / Command Stack
10
Direct setting using a barcode
reader
Using the remote control unit to
make settings
1
Use the barcode reader to input the
barcodes.
2
Transmit to player.
The remote control unit can be used to set the
five operating commands PLAY, PAUSE, STEP
FWD/REV, and STOP, as well as WAIT and GO
TO GROUP.
Other related commands available through the
remote control include Chapter Search, Chapter
Play, Frame Search, and Frame Segment Play.*
[Example 1]
Read in and transmit to player: “PLAY.”
[Example 2]
Read in and transmit to player: “Playback
chapters 5 – 12 of title 8 as subtitle 3, audio 2,
angle 1.”
* Frame Segment Play plays back a desired frame internval.
Example 1: “PLAY”
1
Press ENTER in the command input area.
2
Use the / (cursor up/down) buttons
to select “COMMAND” then press ENTER.
Command Stack
Group(1-001)
Group001
Command(0-000)
001
SEGMENT PLAY
002 CHAPTER PLAY
003
004
005
006
007
COMMAND
008
Move
3
Select
ENTER Return RETURN Exit
HOME MENU
Use the /// (cursor up/down/
left/right) buttons to select “PLAY” then
press ENTER.
Command Stack
Group(1-001)
Group001
• Attempting to use the remote control or
player control buttons while performing
barcode operations can cause the player to
malfunction.
• When barcodes are used to operate the
player, On Screen Displays (OSD: operation
indicators such as [Play] and [Stop]) do not
appear.
• Commands other than DVD barcodes are
ignored.
Command(0-000)
001
PLAY
PAUSE
STOP
002 STEP REV
STEP FWD
003
WAIT
000 sec.
004 REPEAT GROUP
005 GO TO GROUP
000
006 DIVIDE GROUP
007 MERGE GROUP
008
Move
Select
ENTER Return RETURN Exit
HOME MENU
51
10
Barcode Stack / Command Stack
Example 2: Input wait time
3
1
Press ENTER in the command input area.
2
Use the / (cursor up/down) buttons
to select “COMMAND” then press ENTER.
4
Press 1 2 3 0 0 0 ENTER.
• The starting frame number is designated.
• To enter this sequence during playback, use
the search function to find the desired
starting frame.
• It does not operate the search function,
when the (cursor down) button is pressed
without pressing the ENTER.
5
Press 1 2 9 0 0 0 ENTER.
• The ending frame number is marked.
• During playback, press the ENTER button
instead of using the number buttons from
steps 4 – 5. This action causes the currently
playing frame to be input as the ending
frame number.
6
Use the /// (cursor up/down/
left/right) buttons to select “OK” then
press ENTER.
Command Stack
Group(1-001)
Group001
Command(0-000)
001
SEGMENT PLAY
002 CHAPTER PLAY
003 COMMAND
004
005
006
007
008
Move
3
Select
ENTER Return RETURN Exit
HOME MENU
Use the /// (cursor up/down/
left/right) buttons to select “WAIT”
then use the number buttons to select
the desired time (wait for ‘x’ seconds)
and press ENTER.
Command Stack
Group(1-001)
Group001
Command Stack
Command(0-000)
001
PLAY
PAUSE
STOP
002 STEP REV
STEP FWD
003
WAIT
999 sec.
004 REPEAT GROUP
005 GO TO GROUP
000
006
007
008
Press number button 3 then press ENTER.
Title 3 is designated and frame input mode
is set.
Group(1-001)
Group001
DIVIDE GROUP
MERGE GROUP
Command(0-000)
001
TITLE
03
002 SEARCH FRAME 123000
003 MARK FRAME
129000
004
005
006
OK
CANCEL
007
008
Move
Select
ENTER Return RETURN Exit
HOME MENU
The wait length can be set up to 999 seconds.
Example 3: “Play title 3, frames
123000 to 129000”
1
Press ENTER in the command input area.
2
Use the / (cursor up/down) buttons
to select “SEGMENT PLAY” then press
ENTER.
Command Stack
Group(1-001)
Group001
52
Move
Command(0-000)
001
SEGMENT PLAY
002 CHAPTER PLAY
003 COMMAND
004
005
006
007
008
Select
ENTER Return RETURN Exit
HOME MENU
Move
Select
ENTER Return RETURN Exit
HOME MENU
• The must be a difference of at least 25
frames the “SEARCH FRAME” (starting
frame) and the “MARK FRAME” (ending
frame).
This method is unavailable for fewer than 24
frames.
• Frame search and frame segment playback
cannot be used with VR formatted DVD-RW
discs.
Barcode Stack / Command Stack
10
Example 4: “Play title 5, chapter 3
to 7, subtitle 3, audio 2, angle 1”
Example 5: Select subtitle 1, audio 2,
angle 3
1
Press ENTER in the command input area.
1
Press ENTER in the command input area.
2
Use the / (cursor up/down) buttons
to select “CHAPTER PLAY” then press
ENTER.
2
Use the / (cursor up/down) buttons to
select “SEGMENT PLAY” then press ENTER.
Command Stack
Command Stack
Group(1-001)
Group001
Group(1-001)
Group001
Command(0-000)
001
SEGMENT PLAY
002 CHAPTER PLAY
003 COMMAND
Command(0-000)
001
SEGMENT PLAY
002 CHAPTER PLAY
003 COMMAND
004
005
006
004
005
006
007
008
007
008
Move
Select
ENTER Return RETURN Exit
HOME MENU
3
Use the / (cursor up/down) buttons
to select “SUBTITLE” then press number
button 1 followed by ENTER.
Subtitle 1 is selected and the audio input
mode is set.
4
To play to the end of chapter 7, the “MARK
CHAPTER” command is given a value of 1
increment higher (8).
Press number button 2 then press ENTER.
Audio 2 is selected and angle input mode is
set.
5
Press number button 3 then press ENTER.
Angle 3 is assigned.
The ending chapter number is assigned.
6
Use the /// (cursor up/down/
left/right) buttons to select “OK” then
press ENTER.
Move
Select
ENTER Return RETURN Exit
HOME MENU
3
Press number button 5 then press ENTER.
Title 5 is selected and the chapter input
mode is set.
4
Press number button 3 then press ENTER.
The starting chapter number is assigned.
5
Press number button 8 then press ENTER.
6
Press number button 3 then press ENTER.
Subtitle 3 is selected.
7
Press number button 2 then press ENTER.
Audio 2 is selected.
8
Press number button 1 then press ENTER.
Angle 1 is selected.
9
Use the /// (cursor up/down/
left/right) buttons to select “OK” then
press ENTER.
Command Stack
Group(1-001)
Group001
Command(0-000)
001
TITLE
00
002 SEARCH FRAME 000000
003
004 SUBTITLE
01
005
006
007
AUDIO
ANGLE
OK
2
3
CANCEL
008
Command Stack
Group(1-001)
Group001
Command(0-000)
001
TITLE
002 SEARCH CHAPTER
003 MARK CHAPTER
004 SUBTITLE
005 AUDIO
006 ANGLE
OK
CANCEL
007
Move
05
03
08
03
2
1
008
Move
Select
ENTER Return RETURN Exit
HOME MENU
Select
ENTER Return RETURN Exit
HOME MENU
When using the play command with a
starting frame and ending frame, the
subtitle, audio, and angle commands
cannot be set simultaneously. By inputting
the subtitle, audio, and angle setting
commands before the frame interval play
command, the selected settings are applied
to the selected playback interval.
53
10
Barcode Stack / Command Stack
Command Stack
Group(1-001)
Group001
Command(1-002)
001 SUBTITLE 01 AUDIO 2 ANGLE 3
002 03:123000-129000
003
004
005
Example 6: To loop commands in
example 3 — Play title 3, frames
123000 – 129000 — (repeat play)
1
Perform steps 1 through 6 in example 3.
2
Press ENTER after all commands noted
above are entered.
006
007
Command Stack
008
Group(1-001)
Group001
Move
Select
ENTER Delete CLEAR Exit
Command(1-001)
001 03:123000-129000
002
003
HOME MENU
In this example, if commands are input in
the order shown above then Title 3 Frames
123000 – 129000 are played back as subtitle
1, audio 2, angle 3.
004
005
006
007
008
Move
With the exception of the frame interval play
command, when the frame search, chapter
search, or chapter interval play commands
are used, the various settings designated
within the commands are supported.
3
Select
ENTER Delete CLEAR Exit
HOME MENU
Use the / (cursor up/down) buttons
to select “COMMAND” then press ENTER.
Command Stack
Group(1-001)
Group001
Command(1-001)
001 03:123000-129000
002
SEGMENT PLAY
003 CHAPTER PLAY
004 COMMAND
005
006
007
008
Move
4
Select
ENTER Return RETURN Exit
HOME MENU
Use the /// (cursor up/down/
left/right) buttons to select “REPEAT”
then press ENTER.
Command Stack
Group(1-001)
Group001
Command(1-001)
001 S03:123000-129000
PLAY
PAUSE
STOP
002 03:010000-015000
STEP REV
STEP FWD
003
WAIT
000 sec.
004 REPEAT GROUP
005 GO TO GROUP
000
006
007
008
Move
54
Select
DIVIDE GROUP
MERGE GROUP
ENTER Return RETURN Exit
HOME MENU
Barcode Stack / Command Stack
Example 7: Input command to jump
to another group
1
Press ENTER in the command input area.
2
Use the / (cursor up/down) buttons
to select “COMMAND” then press ENTER.
10
By creating a wait-screen group to run after
each group of commands is executed, the
display can return to the wait screen rather
than continuing.
<Conceptual Diagram>
GROUP - 001
Command Stack
Group(1-002)
Group001
Command(1-002)
001 SUBTITLE 01 AUDIO 2 ANGLE 3
002 03:123000-129000
Group002
003
004
005
006
007
*
*
*
*
SEGMENT PLAY
CHAPTER PLAY
COMMAND
REPEAT
Jump (select with remote control unit)
008
Move
3
Select
GROUP - 002
ENTER Return RETURN Exit
HOME MENU
Use the /// (cursor up/down/left/
right) buttons to select “GO TO GROUP.”
Press a number button corresponding to
the number of the group you wish to
jump to then press ENTER.
*
*
*
*
GO TO GROUP - 001
GROUP - 003
Command Stack
Group(1-002)
Group001
Group002
Command(1-002)
001 SUBTITLE 01 AUDIO 2 ANGLE 3
PLAY
PAUSE
STOP
002 03:010000-015000
STEP REV
STEP FWD
003
WAIT
000 sec.
004
005
006
007
008
Move
Select
REPEAT GROUP
GO TO GROUP
DIVIDE GROUP
MERGE GROUP
*
*
*
*
GO TO GROUP - 001
002
ENTER Return RETURN Exit
GROUP - 004
HOME MENU
*
*
*
• To modify (correct) the number
*
GO TO GROUP - 001
of a previously input GO TO
GROUP command, the number
must be input again.
<Conceptual Diagram>
Page 57
GROUP - 001
GROUP - 004
(Modify Barcode Stack /
Command Stack Settings)
By using this command,
multiple groups of commands
can be executed in sequence.
*
*
*
*
GO TO GROUP - 002
GROUP - 002
GROUP - 010
*
*
*
*
*
*
*
*
GO TO GROUP - 007
REPEAT
GROUP - 007
*
*
*
*
*
*
*
*
GO TO GROUP - 004
GO TO GROUP - 010
55
10
Barcode Stack / Command Stack
How to set SUBTITLE, AUDIO,
ANGLE
Performing chapter search or
frame search only
SUBTITLE:
• Input 00 to cause the backgorund to change
to the GUI menu’s background color and
the Playback Menu to disappear.
At a MARK CHAPTER or MARK FRAME item,
do not enter a setting but press ENTER at the
“OK” message.
After performing search, the player displays
a still image.
• Input 01 – 32 to display the corresponding
subtitle.
• Input 33 to hide any subtitles when playback
starts.
• Input 34 to restore the Playback Menu
previously hidden with the 00 command.
• Input 99 to retain the previous status. Use
this command to preserve the SUBTITLE
setting while changing other settings.
• Numbers 35 – 98 are not supported.
AUDIO
• Input 0 to playback video without audio.
• Input 1 – 8 to select the corresponding
audio for playback.
• Input 9 to preserve the previous status.
ANGLE
• Input 1 – 8 to select the corresponding
angle for playback.
• Input 9 to preserve the previous status.
• Input 0 to select angle 9 for playback.
• When a command is used to “preserve the
previous status,” an asterisk (*) appears on
the input screen.
• If an input number does not correspond to a
number actually recorded on the disc, the
command stack is ignored.
56
The frame search function cannot be used
on DVD-VR discs.
To change numbers during input
Use the number buttons to input the correct
number (including “0”) again.
To return to the above setting location, press
the (cursor up) button.
To cancel an operation during
input
Press RETURN.
Barcode Stack / Command Stack
Retain (Preserve) Barcode Stack/
Command Stack Settings
1
Press HOME MENU or RETURN with the
group or command selected.
2
Use the / (cursor left/right) buttons
to select “OK” then press ENTER.
The selected step is erased and the
following steps increment up.
3
Command(1-003)
001 SUBTITLE 01 AUDIO 2 ANGLE 3
002 03:123000-129000
003 GO TO GROUP-02
004
005
Group002
006
007
008
Save changes ?
Move
OK
Select
ENTER
CANCEL
RETURN
Exit
HOME MENU
Modify Barcode Stack/Command
Stack Settings
Example: To change audio setting
from 2 to 1 on step 003
1
Settings are not be saved if ENTER is
pressed when “CANCEL” is highlighted.
Use the / (cursor up/down) buttons
to select step 003 then press ENTER.
Command Stack
Group(1-001)
Group001
Erase Barcode Stack/Command
Stack Settings
1
Save the change.
During the save step after an erase
operation, the step will not be erased if
ENTER is pressed on “CANCEL.” The
erasure is confirmed and recorded only
when ENTER is pressed on “OK.”
Command Stack
Group(1-002)
Group001
10
Command(1-003)
001 PLAY
002 03:123000-129000
003 05:03-07
03 2 1
004
005
006
007
008
Use the / (cursor up/down) buttons
to select the step to be erased.
Command Stack
Group(1-001)
Group001
Command(1-003)
001 PLAY
002 03:123000-129000
003 05:03-07
03 2 1
004
Move
2
005
006
007
008
Move
2
Select
ENTER Delete CLEAR Exit
HOME MENU
Command Stack
Group(1-001)
Group001
Move
Command(1-002)
001 03:123000-129000
002 05:03-07
03 2 1
003
004
005
006
007
008
Select
ENTER Delete CLEAR Exit
ENTER Delete CLEAR Exit
HOME MENU
Command Stack
Group(1-001)
Group001
Press CLEAR.
Select
Use the / (cursor up/down) buttons
to select “STACK CORRECTING” then
press ENTER.
“STACK CORRECTING” appears only after a
step has been entered.
Move
Command(1-003)
001 PLAY
002 03:123000-129000
003 05:03-07
03 2 1
SEGMENT PLAY
004 CHAPTER PLAY
005 COMMAND
006 STACK CORRECTING
007
008
Select
ENTER Return RETURN Exit
HOME MENU
HOME MENU
57
10
Barcode Stack / Command Stack
3
Press ENTER or the (cursor down)
button 4 times to select “AUDIO.”
Press the number button 1 followed by
ENTER.
Command Stack
Group(1-001)
Group001
Command(1-003)
001 PLAY
TITLE
002 03:123000-129000
SEARCH CHAPTER
003
004
005
006
007
008
Move
4
Select
05
03
05:03-07
03 2 1 05
MARK CHAPTER
SUBTITLE
03
AUDIO
1
ANGLE
1
OK
CANCEL
ENTER Return RETURN Exit
Command Stack
Command(1-003)
001 PLAY
TITLE
05
002 03:123000-129000
SEARCH CHAPTER
03
003 05:03-07
03 2 1 05
MARK CHAPTER
004 SUBTITLE
03
005 AUDIO
1
006 ANGLE
1
OK
CANCEL
007
008
Move
5
Select
ENTER Return RETURN Exit
HOME MENU
Save the change.
Changes are only saved when “OK” is
highlighted and ENTER is pressed.
If “CANCEL” is highlighted when the ENTER
is pressed, all corrections are lost.
58
1
Use the / (cursor up/down) buttons
to select where the new command will
be inserted.
2
Press ENTER.
3
Build a Barcode Stack/Command Stack
according to the previous instructions
(Pages 50 – 56).
4
Save the addition.
HOME MENU
Use the /// (cursor up/down/
left/right) buttons to select “OK” then
press ENTER.
Group(1-001)
Group001
Add Barcode Stack/Command
Stack Settings
Changes are only saved when “OK” is
highlighted and ENTER is pressed.
If “CANCEL” is highlighted when the ENTER
is pressed, all corrections are lost.
Barcode Stack / Command Stack
Grouping Barcode
Stacks and Command
Stacks
Barcode stacks and command stacks can be
assembled into groups. By creating multiple
groups, their commands can be saved together.
When executed, stacks can be performed as a
single series of commands, or a single step can
be selected from a group for independent
execution. Grouped stack can also be divided
and/or steps erased if desired.
10
Switch Between Groups
Use the / (cursor up/down) buttons to
highlight the desired group.
• Press the (cursor down) button to move
to the next group.
• Press the (cursor up) button to move to
the previous group.
Command Stack
Group(1-002)
Group001
Command(1-003)
001 PLAY
Group002
002 03:123000-129000
003 05:03-07
004
005
006
007
008
Create a Group
1
Highlight GROUP and press ENTER.
2
Use the / (cursor up/down) buttons
to select “CREATE GROUP.”
Move
Select
HOME MENU
Command(1-002)
001 SUBTITLE 01 AUDIO 2 ANGLE 3
002 03:010000-015000
003
004
005
006
007
008
005
006
007
008
Select
ENTER Return RETURN Exit
Move
HOME MENU
Press ENTER.
The display changes to the input screen for
the first step of the next group.
Select
ENTER
Exit
HOME MENU
Delete Groups
1
Command Stack
Group(1-002)
Group001
Group002
Exit
Command Stack
Group(1-002)
Group001
Group002
Group(1-001)
Command(1-003)
Group001 CREATE001
PLAY
GROUP
03:123000-129000
DELETE002
GROUP
003 05:03-07
03 1 1
004
3
ENTER
Command Stack
Move
03 2 1
Use the / (cursor up/down) buttons
to select the group to be deleted.
Command Stack
Command(0-000)
001
002
003
004
Group(1-002)
Group001
Group002
005
006
007
Command(1-003)
001 PLAY
002 03:123000-129000
003 05:03-07
03 2 1
004
005
006
007
008
008
Move
Select
ENTER Delete CLEAR Exit
HOME MENU
From this point, you can select the next
barcode stack/command stack step for the
group.
Move
2
Select
ENTER
Exit
HOME MENU
Press ENTER then use the / (cursor
up/down) buttons to select “DELETE
GROUP.”
59
10
Barcode Stack / Command Stack
3
Command Stack
Group(1-002)
Command(1-003)
Group001 CREATE001
PLAY
GROUP
Group002 DELETE002
03:123000-129000
GROUP
003 05:03-07
03 2 1
004
Use the / (cursor up/down) buttons
to select “COMMAND” then press ENTER.
Command Stack
Group(1-001)
Group001
Command(1-003)
001 PLAY
002 03:123000-129000
SEGMENT PLAY
003 05:03-07
03 2 1
CHAPTER PLAY
004 COMMAND
005
006
007
005
006
008
Move
3
Select
ENTER Return RETURN Exit
HOME MENU
Press ENTER.
Move
Command Stack
Group(1-001)
Group001
Command(1-002)
001 SUBTITLE 01 AUDIO 2 ANGLE 3
4
002 03:010000-015000
003
Move
Select
ENTER
Group(1-001)
Group001
ENTER Return RETURN Exit
HOME MENU
Exit
Command(1-003)
001 PLAY
PLAY
PAUSE
STOP
002 03:123000-129000
STEP REV
STEP FWD
003 05:03-07
03000
2 1
WAIT
sec.
004 REPEAT GROUP
005 GO TO GROUP
000
006 DIVIDE GROUP
007 MERGE GROUP
HOME MENU
008
Save the change.
Move
Deletions are only saved when “OK” is
highlighted and ENTER is pressed.
If “CANCEL” is highlighted when the ENTER
is pressed, all deletions are ignored.
5
Select
ENTER Return RETURN Exit
HOME MENU
Press ENTER.
The group is divided and a new group is
created.
Command Stack
Group(1-002)
Group001
Group002
Divid a Previously Input Group
1
Select
Use the /// (cursor up/down/left/
right) buttons to select “DIVIDE GROUP.”
Command Stack
004
005
006
007
008
4
STACK CORRECTING
007
008
Use the / (cursor up/down) buttons
to select the group to be divided.
Highlight the first step of the group to be
separated.
Command(1-002)
001 03:123000-129000
002 05:03-07
03 2 1
003
004
005
006
007
008
Command Stack
Group(1-001)
Group001
Move
2
60
Command(1-003)
001 PLAY
002 03:123000-129000
003 05:03-07
03 2 1
004
005
006
007
008
Select
Press ENTER.
ENTER Delete CLEAR Exit
Move
Select
ENTER Delete CLEAR Exit
HOME MENU
The display changes to the barcode stack/
command stack input menu at the first step
of the newly created group.
6
HOME MENU
Save the change.
Group splits are only saved when “OK” is
highlighted and ENTER is pressed.
If “CANCEL” is highlighted when the ENTER
is pressed, all divisions are removed.
Barcode Stack / Command Stack
5
Merge Groups
1
Use the / (cursor up/down) buttons
to select the next available step.
The group divider is here.
10
Press ENTER.
Command Stack
Group(1-001)
Group001
002 06:22-23
***
003 PLAY
004 03:123000-129000
Command Stack
Group(1-002)
Group001
Command(1-002)
001 02:000150-002050
002 06:22-23
***
003
Group002
005 05:03-07
006
Select
03 2 1
007
008
004
005
006
007
008
Move
Command(1-005)
001 02:000150-002050
Move
ENTER Delete CLEAR Exit
HOME MENU
2
Press ENTER.
3
Use the / (cursor up/down) buttons
to select “COMMAND” then press ENTER.
Select
ENTER Return RETURN Exit
HOME MENU
• The group divider is erased and the previous
group is merged with the following group.
• The group number is adjusted for each
subsequent group.
6
Save the change.
Command Stack
Group(1-002)
Group001
Group002
Merges are only saved when “OK” is
highlighted and ENTER is pressed.
If “CANCEL” is highlighted when the ENTER
is pressed, all merges are reversed.
Command(1-002)
001 02:000150-002050
002 06:22-23
***
003
SEGMENT PLAY
004 CHAPTER PLAY
005
006
007
COMMAND
008
Move
4
Select
ENTER Return RETURN Exit
HOME MENU
Use the / (cursor up/down) buttons
to select “MERGE GROUP.”
Command Stack
Group(1-002)
Group001
Group002
Command(1-002)
001 02:000150-002050
PLAY
PAUSE
STOP
002 06:22-23
* * * FWD
STEP REV
STEP
003
WAIT
000 sec.
004
005
006
007
008
Move
Select
REPEAT GROUP
GO TO GROUP
DIVIDE GROUP
MERGE GROUP
If the power is interrupted while saving a
barcode stack/command stack during video
playback and the disc is still spinning, the
settings are not recorded.
When disconnecting the power cord, always
turn off the main power switch first (the
power indicator is not lit) or use the remote
control to set the unit to Standby mode (the
power indicator changes to orange).
000
ENTER Return RETURN Exit
HOME MENU
61
10
Barcode Stack / Command Stack
Execute a Step within a Group
Execute a Barcode
Stacks / Command
Stacks
1
Load the disc.
2
Press PLAY MODE and select “Command
Stack.”
3
Select “Select Command” and press
ENTER.
4
Use the / (cursor up/down) buttons
to select the number of the command
group you wish to execute and press
ENTER or the (cursor right) button.
5
Use the / (cursor up/down) buttons
to select the number of the step you
wish to execute.
Execute a Group
1
Load the disc.
2
Press PLAY MODE and select “Command
Stack.”
Play Mode
A-B Repeat
Select Command
Repeat
Program
Search Mode
Command Stack
Command Stack
Group(1-002)
Group001
Group002
3
Select “Select Command” and press ENTER.
Command(1-002)
001 02:000150-002050
002 06:22-23
***
003
004
005
006
007
Play Mode
A-B Repeat
Repeat
Program
Search Mode
Command Stack
Select Command
008
Move
6
4
Use the / (cursor up/down) buttons
to select the number of the command
group you wish to execute.
Command Stack
Group(1-002)
Group001
Group002
Command(1-002)
001 02:000150-002050
002 06:22-23
***
003
004
Step
Play
Exit
HOME MENU
Press PLAY or ENTER.
• The set group and step begin executing.
• If the / button is pressed instead of
PLAY , execution proceeds one step at a
time. To proceed to the next step, press the
button. To return to the previous step,
press the button.
• If “Stack Repeat” is selected in PLAY
MODE, execution of the group plays/loops
repeatedly.
005
006
007
008
Move
5
Play
Exit
HOME MENU
Press PLAY .
The set group begins executing.
When playing VR formatted DVD-RW discs,
steps including frame search or frame
segment play commands are ignored and
operation skips to the next step.
62
Some titles do not support calling up and
executing steps.
Example: Titles without on-screen chapters,
time displays or that do not support search
functions will reject a search command.
Additional information
11
Chapter 11
Additional information
Taking care of your
player and discs
Handling discs
When holding discs of any type, take care not to
leave fingerprints, smears or scratches on the
disc surface. Hold the disc by an edge or
pinched between the center hole and an edge.
Damaged or dirty discs can affect playback
performance. Take care also not to scratch the
label side of the disc. Although not as fragile as
the recorded side, scratches can still result in a
disc becoming corrupted or unusable.
Should a disc become marked with fingerprints,
dust, etc., clean using a soft, dry cloth, wiping
the disc lightly from the center to an outside
edge as shown in the diagram below.
Storing discs
Although CDs and DVD discs are more durable
than vinyl records, you should still handle and
store discs carefully. When not in use, return the
disc to its jewele case or jacket and store
vertically. Avoid leaving discs in excessively cold,
humid, or hot environments (including in direct
sunlight).
Do NOT place paper stickers onto the disc.
When writing on a disc, do NOT mark with a
pencil, ball-point pen, or other sharp-tipped
writing instrument that may damage a disc.
For more detailed care information see the
instructions that come with discs.
Do not load more than one disc into the player at
a time.
Discs to avoid
Discs spin at high speeds inside the player. Discs
that are cracked, chipped or warped can damage
or possibly destroy the player’s optics.
Wipe lightly from the center of the disc
using straight strokes.
Don't wipe the disc surface using
circular strokes.
If necessary, use a cloth soaked in alcohol, or a
commercially available CD/DVD cleaning kit to
clean a disc more thoroughly. Never use benzine
or any other cleaning agents, including products
designed for cleaning vinyl records.
This player is designed for use with conventional,
circular discs only. Shaped discs such as
business card sized are not recommended for
this product. Pioneer disclaims all liability arising
in connection with the use of shaped discs.
63
11
Additional information
Cleaning the unit’s exterior
• Use a polishing cloth or dry cloth to wipe off
dust and dirt. If the surfaces are very dirty,
wipe with a soft cloth dipped in some
neutral cleanser diluted five or six times
with water. Wrung out the cloth well before
wiping then use a dry cloth to wipe again.
• Do not use furniture wax or cleaners. Never
use thinners, benzine or insecticide sprays
or other chemicals on or near this unit since
these chemicals can corrode the surfaces.
• If you use a chemically-treated cleaning
cloth, read the instructions carefully before
use. These cloths may leave smear marks
on half-mirror finish surfaces; if this
happens, finish with a dry cloth.
• Unplug the unit when cleaning.
Cleaning the pickup lens
The DVD player’s lens should not become dirty in
normal use, but if for some reason it should
malfunction due to dust or dirt, consult your
nearest Pioneer-authorized service center.
Although lens cleaners for CD players are
commercially available, we do not recommend
using them since some may damage the lens.
Problems with condensation
Condensation may form inside the player if it is
brought into a warm room from outside, or if the
temperature of the room rises quickly. Although
the condensation won’t damage the player, it
may temporarily impair its performance. For this
reason you should allow it to adjust to the
warmer/cooler temperature for approximately an
hour before switching on the unit.
Hints on installation
We want you to enjoy using this product for years
to come, so please bear in mind the following
points when choosing a suitable location for it:
Do...
• Use in a well-ventilated room.
• Place on a solid, flat, level surface, such as
a table, shelf or stereo rack.
64
Don’t...
• Place where exposed to high temperatures
or humidity, including near radiators and
other heat-generating appliances.
• Place on a window sill or other place where
the player will be exposed to direct sunlight.
• Use in an excessively dusty or damp
environment.
• Place directly on top of an amplifier, or other
component in your playback system that
becomes hot in use.
• Use near a television or monitor as you may
experience interference-especially if the
television uses an indoor antenna.
• Use close to a room where the player may
be exposed to smoke or steam.
• Use on a thick rug or carpet or cover with
cloth-this may prevent proper cooling of the
unit.
• Place on an unstable surface, or one that is
not large enough to support all four of the
unit’s supports.
Moving the player
If you need to move the player, first press
STANDBY/ON on the front panel to turn the
player off. Wait for POWER indicator to turn
orange, then unplug the power cable. Never lift
or move the unit when a disc is playing or is still
spinning as this shift may cause damage.
Power cable caution
Handle the power cable by the plug part. Do not
pull out the plug by tugging the cable. Never
touch the power cable when your hands are wet
as this could cause a short circuit or electrical
shock. Do not place anything on the power cord
that could pinch or damage the cable in any
other way. Never make a knot in the cable or tie it
in a bundle with other cables. Power cables
should be routed so that they are not likely to be
stepped on. A damaged power cable can cause a
fire or give an electric shock. Inspect the cord
periodically for damage or wear. If it needs to be
replaced, ask your nearest Pioneer authorized
service center or your dealer for a replacement.
Additional information
Screen sizes and disc
formats
DVD-Video discs come in several different screen
aspect ratios, ranging from TV programs, which
are generally 4:3, to CinemaScope widescreen
movies, with an aspect ratio of up to about 7:3.
Televisions, too, come in different aspect ratios;
“standard” 4:3 and widescreen 16:9.
Widescreen TV users
For Widescreen TVs, set the player’s TV Screen
option (page 21) to the widescreen aspect ratio
16:9 (Wide).
When watching discs with the standard 4:3, use
the TV controls to select how the picture
appears. Your TV may offer various zoom and
stretch options; see the operating instructions
provided with your TV or monitoring system.
Please note that some movie aspect ratios are
wider than 16:9. Thus, although the picture is
shown in widescreen, these video clips play in a
“letter box” style with black bars at the top and
bottom of the screen.
11
Please note that many widescreen productions
override the player’s settings so that the disc is
shown in the author’s chosen aspect ratio,
regardless of the setting.
Using the 16:9 (Wide) setting with a
standard 4:3 TV/monitor, or either of the 4:3
settings with a widescreen TV, results in a
distorted picture.
Titles, Chapters and
Tracks
DVD discs are generally divided into one or more
titles. Titles may be further subdivided into
chapters.
Title 1
Title 2
Title 3
Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 1 Chapter 2
CDs and Video CDs are divided into tracks.
Standard TV users
If you have a standard TV, the TV Screen setting
(page 21) of this player should be set to 4:3
(Letter Box) or 4:3 (Pan&Scan), depending on
you preferences.
4:3 (Letter Box), widescreen discs are shown
with black bars above and below the picture.
4:3 (Pan&Scan), widescreen discs are shown
with the left and right sides cropped. While the
picture appears larger, the visible area is
actually reduced.
Track 1
Track 2
Track 3 Track 4
Track 5
Track 6
DVD-Video Regions
DVD-Video region marks designate compatible
playback area(s) for each DVD-Video disc. DVD
players also have a region mark, usually found
on the rear panel. Discs and players with
different regions are incompatible.
Discs marked ALL are compatible with this
player model.
The diagram below shows the various DVD
regions of the world.
1
5
2
6
2
1
3
4
5
2
4
65
11
Additional information
Play Duration & PowerOn Time Display
Confirm the Firmware
Version
This unit is capable of displaying how long the
unit has been playing discs (accumulative) and
how long the power has been turned ON.
The play time and power ON time can be
displayed as described below.
1
1
Press HOME MENU and select “Initial
Settings” from the on-screen display.
Press and hold DISPLAY on the front
panel of the main unit before turning
power ON then press STANDBY/ON.
The following is an example:
Audio Settings
Video Adjust
Play Mode
Disc Navigator
Initial Settings
2
Select “Option” and press DISPLAY.
The firmware version appears in the window.
Initial Settings
Digital Audio Out
Video Output
Language
Display
Option
Parental Lock
Level 6(us)
Region : 2 / Ver : 1.006(16) / AVI : 2.0/2.7
• Power on time: 109 hours 37 minutes
• Total play time: 56 hours 58 minutes
2
When an operation (playback from the
remote, for example) is performed, the
time information disappears and normal
operation begins.
• Time is measured by the CPU clock thus the
information includes up to a 2% error
margin.
• This feature is incapable of resetting the
total play time or power ON time to a
working condition or maintenance timing of
0.
Move
Select
ENTER
Exit
SETUP
Here, the “Ver: 1.006” indicates the version of
firmware; “(16)” indicates the capacity of the
Flash Memory (16 Mbit) being used.
Resetting the Player
Use this procedure to reset all the player’s
settings to the factory default.
1
Switch the player into Standby mode.
2
Using the front panel buttons, hold
down and press STANDBY/ON
to turn the player back on.
The settings have returned to the defaults.
PROGRESSIVE
POWER
STANDBY/ON
66
Additional information
11
Language Code List
Language (Language code letter), Language code
Japanese (ja), 1001
English (en), 0514
French (fr), 0618
German (de), 0405
Italian (it), 0920
Spanish (es), 0519
Chinese (zh), 2608
Dutch (nl), 1412
Portuguese (pt), 1620
Swedish (sv), 1922
Russian (ru), 1821
Korean (ko), 1115
Greek (el), 0512
Afar (aa), 0101
Abkhazian (ab), 0102
Afrikaans (af), 0106
Amharic (am), 0113
Arabic (ar), 0118
Assamese (as), 0119
Aymara (ay), 0125
Azerbaijani (az), 0126
Bashkir (ba), 0201
Byelorussian (be), 0205
Bulgarian (bg), 0207
Bihari (bh), 0208
Bislama (bi), 0209
Bengali (bn), 0214
Tibetan (bo), 0215
Breton (br), 0218
Catalan (ca), 0301
Corsican (co), 0315
Czech (cs), 0319
Welsh (cy), 0325
Danish (da), 0401
Bhutani (dz), 0426
Esperanto (eo), 0515
Estonian (et), 0520
Basque (eu), 0521
Persian (fa), 0601
Finnish (fi), 0609
Fiji (fj), 0610
Faroese (fo), 0615
Frisian (fy), 0625
Irish (ga), 0701
Scots-Gaelic (gd), 0704
Galician (gl), 0712
Guarani (gn), 0714
Gujarati (gu), 0721
Hausa (ha), 0801
Hindi (hi), 0809
Croatian (hr), 0818
Hungarian (hu), 0821
Armenian (hy), 0825
Interlingua (ia), 0901
Interlingue (ie), 0905
Inupiak (ik), 0911
Indonesian (in), 0914
Icelandic (is), 0919
Hebrew (iw), 0923
Yiddish (ji), 1009
Javanese (jw), 1023
Georgian (ka), 1101
Kazakh (kk), 1111
Greenlandic (kl), 1112
Cambodian (km), 1113
Kannada (kn), 1114
Kashmiri (ks), 1119
Kurdish (ku), 1121
Kirghiz (ky), 1125
Latin (la), 1201
Lingala (ln), 1214
Laothian (lo), 1215
Lithuanian (lt), 1220
Latvian (lv), 1222
Malagasy (mg), 1307
Maori (mi), 1309
Macedonian (mk), 1311
Malayalam (ml), 1312
Mongolian (mn), 1314
Moldavian (mo), 1315
Marathi (mr), 1318
Malay (ms), 1319
Maltese (mt), 1320
Burmese (my), 1325
Nauru (na), 1401
Nepali (ne), 1405
Norwegian (no), 1415
Occitan (oc), 1503
Oromo (om), 1513
Oriya (or), 1518
Panjabi (pa), 1601
Polish (pl), 1612
Pashto, Pushto (ps), 1619
Quechua (qu), 1721
Rhaeto-Romance (rm), 1813
Kirundi (rn), 1814
Romanian (ro), 1815
Kinyarwanda (rw), 1823
Sanskrit (sa), 1901
Sindhi (sd), 1904
Sangho (sg), 1907
Serbo-Croatian (sh), 1908
Sinhalese (si), 1909
Slovak (sk), 1911
Slovenian (sl), 1912
Samoan (sm), 1913
Shona (sn), 1914
Somali (so), 1915
Albanian (sq), 1917
Serbian (sr), 1918
Siswati (ss), 1919
Sesotho (st), 1920
Sundanese (su), 1921
Swahili (sw), 1923
Tamil (ta), 2001
Telugu (te), 2005
Tajik (tg), 2007
Thai (th), 2008
Tigrinya (ti), 2009
Turkmen (tk), 2011
Tagalog (tl), 2012
Setswana (tn), 2014
Tonga (to), 2015
Turkish (tr), 2018
Tsonga (ts), 2019
Tatar (tt), 2020
Twi (tw), 2023
Ukrainian (uk), 2111
Urdu (ur), 2118
Uzbek (uz), 2126
Vietnamese (vi), 2209
Volapuk (vo), 2215
Wolof (wo), 2315
Xhosa (xh), 2408
Yoruba (yo), 2515
Zulu (zu), 2621
Country Code List
Country, Country code, Country code letter
Argentina, 0118, ar
Australia, 0121, au
Austria, 0120, at
Belgium, 0205, be
Brazil, 0218, br
Canada, 0301, ca
Chile, 0312, cl
China, 0314, cn
Denmark, 0411, dk
Finland, 0609, fi
France, 0618, fr
Germany, 0405, de
Hong Kong, 0811, hk
India, 0914, in
Indonesia, 0904, id
Italy, 0920, it
Japan, 1016, jp
Korea, Republic of, 1118, kr
Malaysia, 1325, my
Mexico, 1324, mx
Netherlands, 1412, nl
New Zealand, 1426, nz
Norway, 1415, no
Pakistan, 1611, pk
Philippines, 1608, ph
Portugal, 1620, pt
Russian Federation, 1821, ru
Singapore, 1907, sg
Spain, 0519, es
Sweden, 1905, se
Switzerland, 0308, ch
Taiwan, 2023, tw
Thailand, 2008, th
United Kingdom, 0702, gb
USA, 2119, us
67
11
Additional information
Extend Terminal
To activate a function, create a switch contact with an electrical ground (Pin 1). Refer to page 71
“Interface Connector” to verify pin (Pin 6 through Pin 13) and terminal (SW1 – SW8) assignments.
There are three (SW) functions in the EXTEND TERMINAL CONTROL.
1
To recall Barcode/Command Stacks and execute
The function, STACK GROUP 1 to STACK GROUP 27, is similar to a combination of remote control
buttons to recall and execute a stack.
2
To execute the function as a remote control command
The function acts in the same manner as remote control the buttons (ENTER, PLAY, STOP, etc.)
excluding SCAN FWD/REV.
When the remote control’s SCAN buttons (, ) are pressed and released, the scan operation
continue, However, the SCAN FWD/SCAN REV keys on the Extend Terminal operate only while held
down; the operation stops when the keys are released.
3
To execute as an advanced remote control button
Advanced remote control commands such as numbers from 10 to 20 may be sent as a switch control
command.
Function Assignment
Create a Circuit Controller or a Diode Matrix Circuit (refer to the table below).
Diode Assignment List (Standard setting and User default setting)
SW2
SW3
SW4
SW5
ENTER
SW6
X
SW7
Y
SW8
Z
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Function
ENTER
STACK GROUP1
STACK GROUP2
STACK GROUP3
10
11
12
OPEN/CLOSE
DISPLAY
1
2
3
4
5
6
68
SW1
X
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Additional information
No.
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
SW1
SW2
SW3
SW4
11
SW5
ENTER
X
X
X
SW6
X
X
SW7
Y
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
SW8
Z
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Function
PLAY
STOP
PAUSE
TOP MENU
7
8
9
STEP FWD
STEP REV
RETURN
SCAN FWD
SCAN REV
SKIP FWD
SKIP REV
STACK GROUP4
STACK GROUP5
STACK GROUP6
13
14
15
16
17
18
19
20
STACK GROUP7
STACK GROUP8
STACK GROUP9
STACK GROUP10
STACK GROUP11
STACK GROUP12
STACK GROUP13
STACK GROUP14
STACK GROUP15
STACK GROUP16
STACK GROUP17
STACK GROUP18
STACK GROUP19
STACK GROUP20
STACK GROUP21
STACK GROUP22
STACK GROUP23
STACK GROUP24
STACK GROUP25
STACK GROUP26
STACK GROUP27
MENU
RECALL
69
11
Additional information
No.
72
73
74
75
76
77
78
79
80
81
82
SW1
X
X
SW2
SW3
SW4
X
X
X
X
X
X
X
X
X
SW5
ENTER
X
X
X
X
X
X
X
X
X
X
X
SW6
X
SW7
Y
X
SW8
Z
X
X
X
X
X
X
X
X
X
X
Function
HOME MENU
MEMORY
> 10
REPEAT
REPEAT A-B
AUDIO
ANGLE
SUBTITLE
TITLE/CHP/FRM/TIME
0
CLEAR
Controller
Switch Specifications
On Resistance
Off Resistance
Type
Less than 1 ohm
More than 1 M ohms
Non-Locking
Diode Specifications
Forward Voltage Drop (VF)
Less than 0.7 (IF 1 ma)
Surge Forward Current (IFSM) Less than 100 ma
Forward Current
Less than 10 µa
SW1
UP ARROW ()
SW2
DOWN ARROW ()
SW3
LEFT ARROW ()
SW4
RIGHT ARROW ()
SW5
ENTER
SW6
GROUP1
SW7
GROUP2
SW8
GROUP3
Diode Matrix Circuit
SW1
UP ARROW ()
SW2
DOWN ARROW ()
SW3
LEFT ARROW ()
SW4
RIGHT ARROW ()
SW5
ENTER
SW6
GROUP1
SW7
GROUP2
SW8
GROUP3
1
2
3
4
5
6
7
8
9
10
11
12
70
Please refer to the “DVD-V5000 COMMAND PROTOCOL MANUAL”
for details about the serial control and the extend terminal control.
Additional information
11
Interface Connector
A computer may be connected to the DVD-V5000 using a 15-pin D-Sub connector (e.g., a JAE DALCJ15SAF connector with a suitable plug such as the JAE DA-15PF-N) to the RS-232C serial port or to the
parallel port.
This unit includes a 9-pin male connector for use as a serial control connector. Through the ADV.
SETUP menu, either a 15-pin or 9-pin connector can be used. However, the 9-pin and 15-pin connectors
cannot be accessed simultaneously.
The pins are identified below:
8
1
15
1
9
6
5
9
Serial Interface Pin Specification
15-pin D-Sub connector
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Terminal
GND
TxD
RxD
DTR
POWER
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
DLTST
Input/Output
-Output
Input
Output
Input
Input
Input
Input
Input
Input
Input
Input
Input
Input
NC
Function
ground
send data
receive data
enable data receiving
external power control
Extend Terminal
Extend Terminal
Extend Terminal
Extend Terminal
Extend Terminal
Extend Terminal
Extend Terminal
Extend Terminal
Extend Terminal
used only for servicing the unit — reserved
Input/Output
Function
Input
Output
Output
-Input
Output
Input
receive data
send data
enable data receiving
ground
data set ready
request to send
clear to send
9-pin D-Sub connector
Pin #
1
2
3
4
5
6
7
8
9
Terminal
NC
RxD
TxD
DTR
GND
DSR
RTS
CTS
NC
71
11
Additional information
Computer Control Functions
Serial Control
The player and computer are based upon the
RS-232C protocol and connect through the TxD,
RxD, DTR and GND terminals.
Extend Terminal
Control the player with the Extend Terminal
(SW#).
External Power Control
Control the player’s power with the Power Pin
within the Interface Connector.
If the player detects a high signal throughput (100
msec or more) during the Standby mode, the
player powers ON. If the player detects the same
signal during the Power ON mode, the player
powers OFF and switches to the Standby mode.
The specifications for the Power pin are as
follows:
Maximum Input Voltage
High Level Signal
Low level Signal
Less Than 12 V
More Than 4.5 V
Less Than 0.5 V
Standby mode
more Than
100 msec
Power ON
Power ON mode
more Than
100 msec
Power OFF
Communication with a Computer
The DVD-V5000 communicates to the computer
through the RS-232C port using pins 2 and 3 for
communication and Pin 1 on the 15-pin D-sub
connector or Pin 5 on the 9-pin D-sub connector
for grounding. Control or “handshaking” lines
other than the TxD and RxD connections are not
required. Please refer to the diagram below for
clarification.
Computer
DVD-V5000
TxD
RxD
RxD
TxD
GND
GND
Some computers require the CTS port to be set
to HIGH during communication. It is best to
connect the CTS and DSR port on the computer
to the DTR port on the player. During normal
operation the player’s DTR is set to HIGH thus
the unit is able to receive a command at any
time.
Command and Status
During normal operation when a computer
transmits commands to a DVD-V5000, the player
responds with the status message, “execution
complete”.
Example
COMPUTER
(1) “Search to Frame 1000” (2) Search Execution
(3) Complete
The signal interface is a standard RS-232C
connection.
Data Type
Data Length: 8 bit
Stop Bit:
1 bit
Parity bit:
No Parity
(4) “Play to Frame 2000”
Data Transfer Speed (Baud Rate)
The data transfer speed may be set to
either 19200 or 9600 bps through the
ADV. SETUP menu (see page 42).
The factory default is 19200 bps.
72
DVD-V5000
Serial Control
Example
10SE 20PL<CR> :
(5) Play Execution
(6) Complete
Search to Chapter 10
then play to 20
The command string enters the buffer with the
first character and continues sequentially from
left to right. When <CR> is entered, the
commands are executed sequentially beginning
with the first command in the buffer. In the
example above, the first command is 10SE.
Additional information
11
When all the commands in a string have finished executing, the player transmits or returns the
“complete” message that is represented by a capital letter R.
If an error occurs, the player returns an error message such as E04. The message indicates an error
has occurred as well as the type of error. Error messages are in the form of EXX where XX represents a
2-digit error code.
Error Messages
If an error occurs during a command execution, the player returns an error code. The table below lists
each code with a description of the error:
Code
E00
E04
Message
Communication error
Feature not available
E06
E11
E12
E15
E16
Missing argument
Disc does not exist
Search error
Picture stop
Interrupt by other device
E99
Panic
Description
Communication Line Error due to framing error or buffer overflow
Non-Usable Function has been tried – either the command mnemonic is
wrong or the command can not be used in this mode
Correct parameter is not specified
There is no disc in the tray
Search address is missing
Playback has been stopped by VOBU Still while in the Auto Play mode
The command(s) sent via the serial line were not executed before
commands were sent from the front panel buttons and/or remote
control
Unrecoverable Error occurred – possible that a disc cannot be loaded
and/or playing cannot continue
Command Structure
The DVD-V5000 supports the commands listed below.
COMMAND
Name
Open
Close
Reject
Start
Play
Pause
Still
Step Forward
Step Reverse
Scan Forward
Scan Reverse
Scan Stop
Multi-Speed Forward
Multi-Speed Reverse
Speed
Search
Search & Play
Stop Marker
Lead Out Symbol
Clear
Frame
Mnemonic
OP
CO
RJ
SA
(adrs)
PL
PA
ST
SF
SR
NF
NR
NS
(adrs)
MF
(adrs)
MR
arg
SP
adrs
SE
adrs
SL
adrs
SM
LO
CL
FR
DVD
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
SUPPORTING FORMAT
CD
VCD
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
73
11
Additional information
COMMAND
Name
Time
Chapter
Title
Track
Select Subtitle
Select Audio
Select Aspect
Select Angle
Select Parental-Level
Audio Control
Video Control
Display Control
Keylock
Stack Group Set
Barcode / Command Stack Play
Command Stack Data Upload
Command Stack Data Download
P-Block Number Request
Title/Track Number Request
Chapter Number Request
Time Code Request
Frame Number Request
Total Frame Request
TOC Information Request
Disc Region Code Request
DVD Disc Status Request
CD Disc Status Request
Register A Set (Display)
Register D Set (TxD Term)
Print Character
Clear Screen
Advanced Setup
Communication Control Set
Player Active Mode Request
Player Model Name Request
Advanced Setup Request
Player Region Code Request
CCR Mode Request
Input Number Request
Error Code Request
Firmware Version Request
Input Unit Request
Input Barcode Data Request
Register A Request
Register D Request
Menu Call
74
arg
arg
arg
arg
arg
arg
arg
arg
arg
arg
arg
arg
arg
arg
arg
arg
arg
Mnemonic
TM
CH
TI
TR
SU
AU
AP
AG
PT
AD
VD
DS
KL
GP
BS
BU
BD
?A
?R
?C
?T
?F
?Y
?Q
?G
?V
?K
RA
RD
PR
CS
MS
CM
?P
?X
?S
?H
?M
?N
?E
?Z
#I
#B
$A
$D
MC
DVD
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
SUPPORTING FORMAT
CD
X
VCD
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Additional information
COMMAND
Name
Numeric Button
Button Select
ENTER Button
Get Information
Memory Data Upload *1
Mnemonic
arg
NB
arg
CU
(arg)
ET
arg
GI
MU
11
DVD
X
X
X
X
X
SUPPORTING FORMAT
CD
VCD
X
X
arg (argument) or ards (address) prefaces a command with an argument or address parameter.
If the arg or ards is in parentheses ( ), the parameter is optional.
Command Mnemonic
Each command is expressed as two (2) ASCII characters. There is no distinction between uppercase
and lowercase letters except when the Character strings are in a PR command.
Argument
An Argument, expressed in either ASCII characters or ten digits, consists of either an address or an
integer. If a command requires an argument, it is always placed before the command.
An Address can be a Title, a Chapter, a Track, a Frame Number, or a Time Code depending upon how
the address flag is set. The Address must not exceed ten characters and/or digits.
Address Type
Title Number
Chapter Number
Frame Number
Time Code
Track Number
Media Type
DVD
DVD
DVD
DVD
CD/VCD
CD/VCD
Format
N1N2
N1N2
N1N2N3N4N5N6N7
N1N2N3N4N5
N1N2N3N4
N1N2
Range (Min – Max)
0 – 99
0 – 99
0 – 1079999
0 – 599 : 59
0 – 99 : 59
1 – 99
75
11
Additional information
MPEG audio
Glossary
Analog audio
An electrical signal that directly represents
sound. Compare this to digital audio which can
be an electrical signal, but is an indirect
representation of sound. See also Digital audio.
Aspect ratio
The width of a TV screen relative to its height.
Conventional TVs are 4:3 (in other words, the
screen is almost square); widescreen models are
16:9 (the screen is almost twice as wide as it is
high).
Digital audio
An indirect representation of sound by numbers.
During recording, the sound is measured at
discrete intervals (44,100 times a second for CD
audio) by an analog-to-digital converter, generating a stream of numbers. On playback, a digitalto-analog converter generates an analog signal
based on these numbers. See also Sampling
frequency and Analog audio.
Dolby Digital
1
Using a maximum of 5.1 channels of audio, this
high quality surround system is used in many of
the finer movie theaters around the world.
The on-screen display shows which channels are
active, for example showing 3/2.1. The 3 being
the two front channels and the center channel;
the 2 being the surround channels, and the .1
being the LFE channel.
DTS
DTS stands for Digital Theater Systems. DTS is a
surround system different from Dolby Digital that
has become a popular surround sound format
for movies.
Dynamic range
The difference between the quietest and loudest
sounds possible in an audio signal (without
distorting or getting lost in noise). Dolby Digital
and DTS soundtracks are capable of a very wide
range, delivering dramatic cinema-like effects.
76
An audio format used on Video CDs and some
DVD discs. This unit can convert MPEG audio to
PCM format for wider compatibility with digital
recorders and AV amplifiers. See also PCM
(Pulse Code Modulation).
MPEG video
The video format used for Video CDs and DVDs.
Video CD uses the older MPEG-1 standard, while
DVD uses the newer and much better quality
MPEG-2 standard.
PBC (PlayBack Control) (Video CD only)
A system of navigating a Video CD through onscreen menus recorded onto the disc. Especially
good for discs that you would normally not watch
from beginning to end all at once—karaoke
discs, for example.
PCM (Pulse Code Modulation)
The most common system of encoding digital
audio, found on CDs and DAT. Excellent quality,
but requires a lot of data compared to formats
such as Dolby Digital and MPEG audio. For
compatibility with digital audio recorders (CD,
MD and DAT) and AV amplifiers with digital
inputs, this unit can convert Dolby Digital, DTS
and MPEG audio to PCM. See also Digital audio.
Regions (DVD-Video only)
These associate discs and players with particular
areas of the world. This unit will only play discs
that have compatible region codes. You can find
the region code of your unit by looking on the
rear panel. Some discs are compatible with more
than one region (or all regions).
Sampling frequency
The rate at which sound is measured to be
turned into digital audio data. The higher the
rate, the better the sound quality, but the more
digital information is generated. Standard CD
audio has a sampling frequency of 44.1kHz,
which means 44,100 samples (measurements)
per second. See also Digital audio.
Additional information
Troubleshooting
A slight operational mistake may make the DVD
player appear to be broken. Always check other
factors in your system such as the monitor or
television, the AV amplifier and speakers, etc.
When the problem is not obvious after this
inspection, please review the points below before
contacting the store where you bought the player
or the take the player to your nearest PIONEER
authorized service center.
Power does not come on.
Connect the power cord to the outlet
properly.
Even when the disc tray is closed, it comes
out.
Set the disc in the disc tray properly (page
28).
Clean the disc (page 63).
Check the region no. (pages 9, 65).
The screen does not appear.
Check the setting of the video output
selector at the rear of this player with the
connected video terminal (page 11, 12).
Confirm that connections are correct (pages
11–13).
Make the television or AV amplifier setting,
etc., to DVD playback setting.
Cannot play back.
Clean the disc (page 63).
Set the disc in the disc tray properly (page
28).
Remove the condensation in the player
(page 64).
SECAM format discs cannot be played back.
Insert the disc with the proper side up.
The contents of the settings disappear.
When the power has been turned off due to
a power outage and the power cord having
been pulled out while the power is turned
on, the contents of the settings disappear.
Make sure to pull out the power cord after
the STANDBY/ON button has been
11
pressed and the POWER indicator has
turned orange.
The screen stops and the commands from the
buttons are not accepted.
After pressing STOP button, play back once
more.
The player is set “Key Lock” (page 44).
Cannot use the remote control.
Operate within the usage range of the
remote control (page 8).
Replace the dry cell batteries of the remote
control with new ones (page 8).
The player is set “Key Lock” (page 44).
No sound comes from the speakers or the
sound is distorted.
Confirm that the audio cable is properly
connected (pages 11, 13).
Some discs prohibit 96 kHz digital output of
Linear PCM audio. With these kinds of
discs, even if the [96 kHz PCM Out] setting
of [Digital Audio Out] of Initial setting
menu screen is set to [96 kHz], it is
automatically changed to 48 kHz and output
(page 20).
Clean the disc (page 63).
If it has been set to the pause or slow
playback mode, change to the playback
mode (page 32).
If the volume of the television or AV
amplifier, etc., has been set to “minimum,”
raise the volume.
Confirm that the connector plug has been
sufficiently inserted and that it has not been
disconnected.
If the connector plug and terminal are dirty,
wipe them.
DTS sound is no output from the AUDIO
OUT (analog audio output) jacks.
Screen is extended vertically or horizontally.
Adjust the [TV Screen] setting (pages 21,
65).
77
11
Additional information
There are difference in volume between DVD
and CD.
This is due to the difference in the disc
recording methods.
The picture is distorted or dark during DVD
playback
This player has the copy guard of an analog
copy protect system. Some discs have a
copy prohibition signal. When those types of
discs are played back, a condition such as
lateral stripes on part of the screen appears,
but this is not a malfunction.
The playback screen is distorted when a DVD
video has been recorded on a VCR and
played back on a VCR
This player has the copy guard of an analog
copy protect system. Some discs have a
copy prohibition signal and when that kind
of disc is played back on a VCR, and
recorded and played back on a VCR, it
cannot be played back normally due to the
copy guard.
The television, etc., malfunctions
Some televisions with a wireless remote
control function malfunction due to the
remote control of this player. Use them
separated from this player.
Cannot control the player with RS-232C
interface.
Confirm the “SERIAL PORT” setting in ADV.
SETUP menu (page 42).
78
This player may not operate normally due to
outside influences such as static electricity.
At such times it may operate normally after
the power cord has been temporarily
unplugged and plugged in again. When the
problem has not been solved by this
procedure, consult the store where you
purchased the player or the nearest service
provider.
Additional information
Specifications
General
System ................................................. DVD player
Power requirements ............... AC 120 V, 50/60 Hz
Power consumption ....................................... 11 W
Power consumption (standby) ..................... 0.7 W
Weight .......................................... 2.5 kg / 5 lb 8 oz
Dimensions .......... 420 (W) x 55 (H) x 283 (D) mm
(16.5 (W) x 2.2 (H) x 11.1 (D) in.)
Operating temperature ............... +5 °C to +35 °C
(+41 °F to +95 °F)
Operating humidity ............................ 5 % to 85 %
(no condensation)
Component video output
Y (luminance) - Output level ............. 1 Vp-p (75 Ω)
PB (color) - Output level ............... 0.65 Vp-p (75 Ω)
PR (color) - Output level ............... 0.65 Vp-p (75 Ω)
Jack ........................................................ RCA jacks
11
Digital audio characteristics
Frequency response ....................... 4 Hz to 44 kHz
(DVD fs: 96 kHz)
S/N ratio ....................................................... 118 dB
Dynamic range ............................................ 105 dB
Total harmonic distortion ....................... 0.0025 %
Wow and flutter ................. Limit of measurement
(±0.001 % W. PEAK) or lower
Other terminals
Coaxial digital output .............................. RCA jack
RS-232C .................................... D-sub 9-pin, male
RS-232C and extended ....... D-sub 15-pin, female
Accessories
Audio/video cable ................................................. 1
Power cable ........................................................... 1
Remote control ...................................................... 1
AA/R6P dry cell batteries ..................................... 2
Operating Instructions ......................................... 1
Warranty card ........................................................ 1
S-video output
Y (luminance) - Output level ............. 1 Vp-p (75 Ω)
C (color) - Output level .............. 265 mVp-p (75 Ω)
Jack ..................................................... S-video jack
The specifications and design of this
product are subject to change without
notice, due to improvement.
Video output
Output level ....................................... 1 Vp-p (75 Ω)
Jack .......................................................... RCA jack
Audio output (1 stereo pair)
Output level .......................... During audio output
200 mVrms (1 kHz, –20 dB)
Number of channels ............................................. 2
Jack ........................................................ RCA jacks
79
Should this product require service in the U.S.A. and you wish to locate the nearest Pioneer
Authorized Independent Service Company, or if you wish to purchase replacement parts,
operating instructions, service manuals, or accessories, please call the number shown
below.
(800) 421-1404
Please do not ship your product to Pioneer without first calling the Customer Support
Division at the above listed number for assistance.
Pioneer Electronics (USA) Inc.
Customer Support Division
P.O. BOX 1760, Long Beach,
CA 90801-1760, U.S.A.
For warranty information please see the Limited Warranty sheet included with your product.
Should this product require service in Canada, please contact a Pioneer Canadian
Authorized Dealer to locate the nearest Pioneer Authorized Service Company in Canada.
Alternatively, please contact the Customer Satisfaction Department at the following address:
Pioneer Electronics of Canada, Inc.
Customer Satisfaction Department
300 Allstate Parkway, Markham, Ontario L3R OP2
(905)479-4411
1(877)283-5901
For warranty information please see the Limited Warranty sheet included with your product.
Si ce produit doit être réparé au Canada, veuillez vous adresser à un distributeur autorisé
Pioneer du Canada pour obtenir le nom du Centre de Service Autorisé Pioneer le plus près
de chez-vous. Vous pouvez aussi contacter le Service à la clientèle de Pioneer:
Pioneer Électroniques du Canada, Inc.
Service à la clientèle
300, Allstate Parkway, Markham, Ontario L3R OP2
(905)479-4411
1(877)283-5901
Pour obtenir des renseignements sur la garantie, veuillez vous reporter au feuillet sur la
garantie restreinte qui accompagne le produit.
S021IS_EF
Published by Pioneer Corporation.
Copyright © 2004 Pioneer Corporation.
All rights reserved.
PIONEER CORPORATION
1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan
PIONEER ELECTRONICS (USA) INC.
P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404
PIONEER ELECTRONICS OF CANADA, INC.
Industrial Products Department: 300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: +1-905-479-4411
Printed in
<DRC1219-D>
