Electrolux EI15IM55GS - 15 Inch Ice Maker Use & care guide

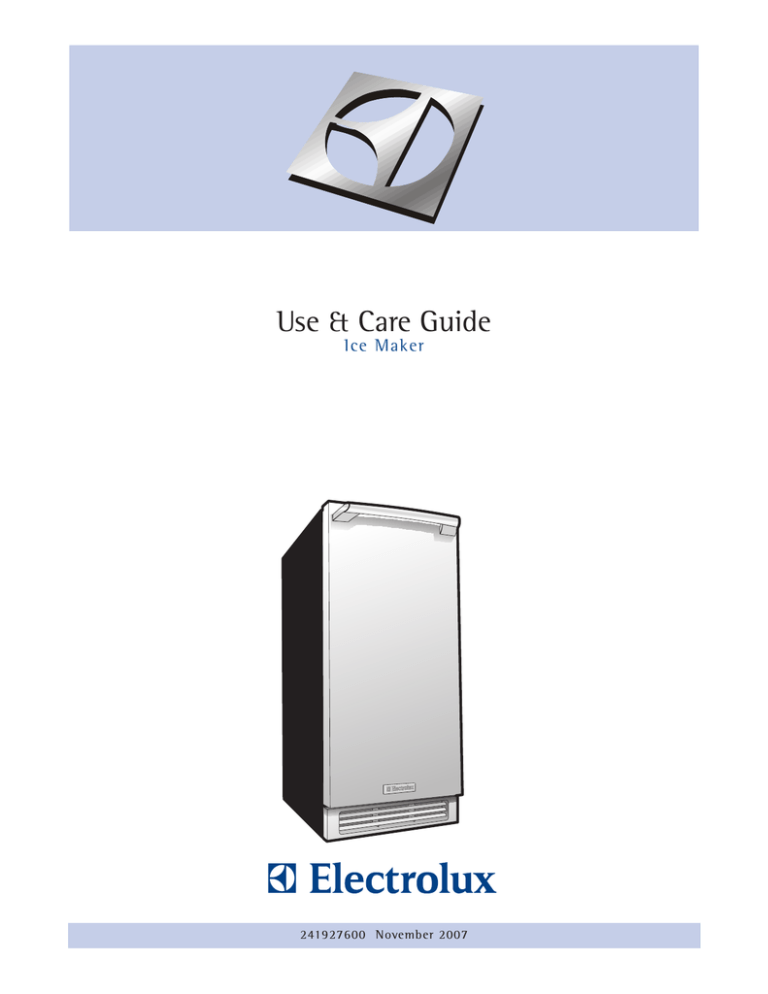

Use & Care Guide
Ice Maker
241927600 November 2007
2
Finding Information
Please read and save this
guide
Keep a record for quick
reference
Thank you for choosing Electrolux, the new
premium brand in home appliances. This Use &
Care Guide is part of our commitment to customer
satisfaction and product quality throughout the
service life of your new ice maker.
Whenever you call to request information or
service, you will need to know your model number
and serial number. You can find this information on
the serial plate located on the inside wall of your
unit and on the product registration card.
We view your purchase as the beginning of a
relationship. To ensure our ability to continue
serving you, please use this page to record key
product information.
IMPORTANT
PLEASE READ all instructions completely before
attempting to install or operate the unit.
All ice makers require a connection to both a
water supply and an electrical power source.
Improper hook-up can result in substantial
property damage! Proper installation, in
accordance with the manufacturer’s specifications
and all local codes, is the sole responsibility of the
consumer. The manufacturer is not responsible
for any installation expenses or damages incurred
due to improper installation. If you are unsure of
your ability to safely make electric power, water
supply, and water drain connections to the unit,
consult licensed and insured professionals to
perform all electrical and plumbing work.
Once you have your unit installed, we suggest
you keep this manual in a safe place for future
reference. Should any problems occur, refer to
the Troubleshooting section of this manual. This
information will help you quickly identify a problem
and get it remedied. In the event you require
assistance, please contact the dealer where you
purchased your unit.
NOTE
Registering your product with Electrolux
enhances our ability to serve you. You can
register online at www.electroluxusa.com or by
dropping your Product Registration Card in the
mail.
Please record the purchase date of your Electrolux
unit and your dealer’s name, address and
telephone number.
________________________________________
Purchase Date
________________________________________
Electrolux Model Number
________________________________________
Electrolux Serial Number
________________________________________
Dealer Name
________________________________________
Dealer Address
________________________________________
Dealer Telephone
Keep this manual and the sales receipt together in
a safe place for further reference.
Questions?
For toll-free telephone support in the U.S. and
Canada: 1-877-4ELECTROLUX (1-877-435-3287)
For online support and product information visit
http://www.electroluxusa.com
©2007 Electrolux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA
Finding Information
Table of Contents
Finding Information.................................................. 2
Please read and save this guide...............................................2
Keep a record for quick reference............................................2
Questions?...............................................................................2
Table of contents.....................................................................3
Safety................................................................... 4
Important Safety Instructions..................................................4
Safety Precautions................................................................4
Definitions............................................................................4
General Precautions.............................................................4
Installation............................................................. 5
Installation Dimensions ..........................................................5
Installing the Drain...................................................................5
Gravity Drain....................................................................5
Connecting a Drain Pump........................................................6
Site Preparation....................................................... 7
Preparing the Site ...................................................................7
Operation............................................................ 14
Normal Operation..................................................................14
Ice Cube Thickness................................................................14
Ice Dispenser Operation and Care..........................................14
Ice Cube Thickness Adjustment.............................................15
Drain Pump............................................................................15
Maintenance......................................................... 16
Special Considerations..........................................................16
Maintaining and Cleaning Your Ice Maker..............................16
Exterior Cleaning - As Required..........................................16
Stainless Steel Models........................................................16
Interior Cleaning - As Required..........................................16
Condenser Cleaning - Every 3 Months...................................17
Self Cleaning - Every 6 Months..............................................17
Inlet Screen Cleaning - Every Year.........................................19
Storing, Vacation and Moving.................................... 19
Draining for Non-Use.............................................................19
Water Supply Connection............................................ 8
Connecting the Water Supply..................................................8
Troubleshooting..................................................... 20
Before you Call for Service....................................................20
If Service is Required.............................................................21
Leveling................................................................ 9
Leveling the Unit......................................................................9
Warranty Information.............................................. 22
Door Reversal....................................................... 10
Reversing the Door (some models) ......................................10
Adjusting the Door . ..............................................................12
Built-In Installation / Start-Up.................................... 13
Installing a Built-In.................................................................13
Initial Start-Up.......................................................................13
Blackout Mode....................................................................13
Normal Operating Sounds.....................................................13
WARNING
You must follow these guidelines to ensure
that your refrigerator’s safety mechanisms are
operating correctly.
3
4
Safety
Important Safety Instructions
Safety Precautions
Do not attempt to install or operate your unit until you have
read the safety precautions in this manual. Safety items
throughout this manual are labeled with a Danger, Warning
or Caution based on the risk type.
Definitions
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury, product damage, or
property damage.
IMPORTANT
Indicates installation, operation or maintenance
information which is important but not hazard
related.
General Precautions
DANGER
RISK OF CHILD ENTRAPMENT. Before you
throw away your old appliance, take off the
doors and leave shelves in place so that
children may not easily climb inside.
IMPORTANT
To turn off power to your ice maker, unplug the
power cord from the wall outlet.
WARNING
• Never attempt to repair or perform
maintenance on the unit until the
electricity has been disconnected.
• Altering, cutting of power cord, removal
of power cord, removal of power plug, or
direct wiring can cause serious injury,
fire and/or loss of property and/or life
and will void the warranty.
• Do not lift unit by door handle.
CAUTION
• Use care when moving the unit. Some
edges are sharp and may cause
personal injury. Wear gloves when
moving or repositioning the unit.
• Never install the unit behind closed
doors. Be sure front grille is free of
obstruction. Obstructing free air flow
can cause the unit to malfunction, and
may void the warranty.
• Allow unit temperature to stabilize for 24
hours before use.
• Never use an ice pick or other sharp
instrument to help speed up defrosting.
These instruments can puncture the
inner lining or damage cooling unit
• Failure to clean the condenser every
three months can cause the unit
to malfunction. This could void the
warranty.
CAUTION
• Using a heater to speed up defrosting
can cause personal injury and damage
to the inner lining. DO NOT use any type
of heater to defrost.
• Use only genuine Electrolux
replacement parts. Imitation parts can
reduce ice rate, cause water to overflow
from ice maker mold, damage the unit,
and may void the warranty.
Installation
Installation Dimensions
24”
(61)
14 - 15/16”
(37.9)
34 - 1/8”
(86.7)
FULL
RETRACT
HEIGHT
5”
(12.7)
WATER
DRAIN
WATER
OUTLET
WATER
VALVE
21 - 3/4”
(55.2)
Installing the Drain
CAUTION
PLEASE READ all instructions completely
before attempting to install or operate the unit.
All ice makers require a connection to the
water supply and improper hook-up can result
in substantial property damage! All water
and drain connections MUST BE made by a
licensed/qualified plumbing contractor. Failure
to follow recommendations and instructions
may result in damage and/or harm.
• Drain lines must have a 1 inch drop per 48
inches of run (1/4 inch per foot) and must not
create traps.
• The floor drain must be large enough to
accommodate drainage from all drains.
• Insulate the bin drain line to prevent
condensation.
CAUTION
Plumbing installation must observe all
state and local codes. All water and drain
connections MUST BE made by a licensed/
qualified plumbing contractor. Failure to follow
recommendations and instructions may result
in damage and/or harm.
Model EI15IM55GS can be installed using a gravity
drain or the Electrolux EIMP60, optional drain
pump kit.
Follow these guidelines when installing drain lines
to prevent water from flowing back into the ice
maker storage bin and/or potentially flowing onto
the floor causing water damage:
Gravity Drain
• Drain lines must have a 5/8 inch inside
diameter.
Figure 1
5
6
Installation
Connecting a Drain Pump
If a gravity drain connection is not available, we
strongly recommend the use of the Electrolux
EIMP60 drain pump. The Electrolux EIMP60
drain pump is available through your Dealer, or
direct from Electrolux with complete installation
instructions. If a pump other than the Electrolux
EIMP60 drain pump is to be used, it must meet the
following specifications:
• It must be UL listed and have a UL listed,
120 VAC, 3-wire grounded power cord.
• It must have overall maximum outside
dimensions of 8-3/4” wide x 5-3/4” deep x
7-3/4” high.
• It must have a minimum flow rate of 15
gallons per hour at 10 feet of lift.
• It must have a sealed sump which does not
allow water leakage in the case of a power
outage, restricted drain or pump failure.
• It must have a check valve in the discharge
line to prevent waste water return to the
pump.
• It must have an overflow protection control
which will shut off power to the ice maker in
the event of a pump failure.
• It must have an operating temperature range
of 50°F to 110°F (10°C to 43°C).
CAUTION
In the event of a power outage, restricted drain
or pump failure, the failure to use the
Electrolux EIMP60 drain pump or a pump with
the above listed specifications, could result
in substantial water leakage and pooling with
severe and costly water damage and related
consequential damages and harm.
Site Preparation
Preparing the Site
IMPORTANT
It is extremely important that the unit is level. If it
is not level, the ice mold will not fill evenly. This
can cause a reduction in ice rate, uneven sized
cubes or water spilling into the storage area
which will cause the ice in the bin to melt prematurely. Remember that floors near drains have
a tendency to slope towards the drain.
1 Position the unit on a flat, level surface,
capable of supporting the entire weight of
the unit. Remember that the unit will be
significantly heavier once it is fully loaded.
7 The unit must be installed according to your
local codes and ordinances.
NOTE
The door of the unit may be mounted on either
side of the cabinet (see REVERSING THE
DOOR). All units require zero clearance when
installed flush with a cabinet or wall (see Figure
2). Electrolux stainless steel models require
a minimum 2-3/4 inch handle clearance when
installed against a wall or cabinet that extends
beyond the front edge of the unit (see Figure 3).
2 The surrounding air temperature must be at
least 50°F (10°C) but must not exceed 110°F
(43°C).
CABINET
OR WALL
3 The unit must not be located near heatgenerating equipment or in direct sunlight.
DANGER
DOOR
SWING
0"
CLEARANCE
NEEDED
ELECTROCUTION HAZARD!
Electrical Grounding Required. This appliance
is equipped with a three prong (grounding)
polarized plug for your protection against
possible shock hazards.
• NEVER remove the round grounding
prong from the plug.
Figure 2
UL124A
• NEVER use a two-prong grounding
adapter.
• NEVER use an extension cord to
connect power to the unit.
Where a two-prong wall receptacle is
encountered or a longer power cord is
required, contact a qualified electrician to
have it replaced in accordance with applicable
electrical codes.
4 The unit must be located to allow clearance
for water, drain and electrical connections in the rear of the ice maker.
2 - 3/4”
Figure 3
8 Position the unit to allow free air flow through
the front grille (see Figure 4).
9 Wipe out inside of unit with a damp cloth.
5 Connect the unit to a grounded and polarized
115 VAC, 60 Hz, 15 A circuit (normal
household current).
6 Avoid connecting the unit to a Ground
Fault Interruptor (GFI). GFIs are prone to
nuisance tripping which will cause the unit to
shut down. GFIs are generally not used on
circuits which power equipment that must run
unattended for long periods of time.
EXHAUST
Figure 4
INTAKE
7
8
Water Supply Connection
Connecting the Water Supply
When connecting the water supply, follow these
guidelines:
•
Review the local plumbing codes before you
install the unit.
• The water pressure should be between 30
and 120 psi.
After completing the installation, turn on
the water and recheck water and drain
connection for leaks. Apply additional
tightening if needed. Do NOT use thread
sealing compound or tape.
4 Plug in the power cord.
CAUTION
If you are using a filter system you will need
to have at least 20 psi for 3 minutes every 15
minutes.
•
CAUTION
Make certain a SHUT-OFF VALVE is installed
in the 1/4 inch water supply line.
5 Gently push the unit into position. If desired
the unit may be recessed into cabinet or wall.
6 Allow at least 1-1/2 inches clearance behind
the unit for electrical, water supply and drain
connections.
• Connect sufficient tubing to the unit to
allow the unit to be moved for cleaning and
servicing. However, make certain that the
tubing is not pinched or damaged during
installation.
• Electrolux recommends the use of copper
tubing for installation. Do not use plastic
water supply line since it may crack or
rupture with age and may cause water
damage to your house.
Figure 6
WATER
CONNECTION
Figure 5
UL103_CO
1 Locate the compression fitting and ferrule
packed in the unit. Slide the compression
fitting and ferrule over the 1/4 inch water
supply line. Do not use thread sealing
compound or tape. Using two wrenches,
tighten the compression fitting on the supply
line (see Figure 6).
Figure 7
2 Carefully bend the water supply line into
position and connect the line to the solenoid
valve. Avoid kinking the water supply line.
3 For recessed installations, allow extra water
supply line length to provide slack for easy
removal from the recessed area (see Figure
8). This will also safeguard against kinking
the line.
Figure 8
UL134
Leveling
Leveling the unit
1 Use a level to check the levelness of the ice
maker from front to back and from side to
side (see Figure 10).
CHECK
LEVEL
Figure 10
2 If the ice maker is not level, adjust the feet
on the corners of the unit as necessary (see
Figure 11).
TURN FOOT TO ADJUST
Figure 11
3 Check the levelness after each adjustment
and repeat the previous steps until the unit is
level.
9
10
Door Reversal
Reversing the Door (some models)
All Electrolux units may be left or right hand
opening. The door opening is easily reversed by
moving the hinge hardware to the opposite side
(see Figure 12).
2 Remove plastic screw plugs (3 top and 3
bottom) from new hinge location (see Figure
14), and remove hinge pin hole plug in top of
door (see Figure 15). Do not discard.
SCREW
PLUGS
Figure 14
UL308
Hole
Plug
Figure 12
To reverse the door:
1 Remove top hinge screw pin from cabinet
using a Phillips® head screwdriver (see
Figure 13). Remove door by tilting forward
and lifting off bottom hinge pin.
Figure 15
Figure 13
3 Remove top hinge (3 screws), reinstall hinge
screw pin, and remount on opposite side
BOTTOM (see Figure 16).
HINGE
SCREW
PIN
Figure 16
UL313
Door Reversal
4 Remove the two door closer inserts from the
existing bottom hinge and install as shown on
the new bottom hinge (see Figure 17).
7 Holding door upright with top of door tilted
forward, place hole of door pivot plate on
bottom hinge screw pin (see Figure 19). Be
sure that the bosses on the closers align with
holes in hinge and hinge plate.
Figure 17
Figure 19
DOOR
CLOSER
INSERTS
BOSS
BOSS
UL312
5 Remove existing bottom hinge (3 screws)
and remount on opposite side TOP. Remove
hinge screw pin.
6 With bottom of door facing up, remove pivot
plate (2 screws), flip over, and remount on
opposite side of door (see Figure 18).
Figure 18
UL319
CLRCO008
8 Tilt top of door into position in top hinge and
install top hinge screw pin.
9 In empty hinge holes, install plastic screw
plugs (3 top and 3 bottom) and door hole
plug (1,door top) removed in step 2.
11
12
Door Adjustment
Adjusting the Door
Your door is aligned at the factory before shipment.
Occasional re-adjustment may be necessary,
especially if an overlay panel is installed. The
following procedure will correct for up to 1/4”
alignment.
The door should never be flush with the top of the
cabinet. Even when level, the top edge of the door
will be 1/8” below the top of the cabinet (see Figure
20).
4 If door edge opposite the hinges needs to
move up, move plate toward outside of door.
If door edge needs to move down, move
plate toward inside of door (see Figure 22).
Repeat until top edge of door is parallel with
top of cabinet and tighten screws securely.
Figure 22
SLOTTED
MOUNTING
HOLES
NOTCH
To adjust :
1 Compare the top edge of the door (opposite
the hinges) to the top edge of the cabinet
and note the type of adjustment (up or down)
needed.
2 Remove the top hinge pivot pin with a
Phillips® head screwdriver (see Figure 21)
and lift door off bottom hinge pin. Be careful
not to lose door closers (see Figure 23).
3 With door upside-down, loosen but do not
remove the two hinge plate screws.
RAISE
OUTSIDE
DOOR EDGE
LOWER
OUTSIDE
DOOR EDGE
CLRCO001a
5 After adjustment is complete, remove the
door closers from the bottom hinge, clean
thoroughly and apply petroleum jelly to the
mating surfaces of the closers (see Figure
23). Be sure that bosses on closers align with
holes in hinge and hinge plate. Mount door
and install top hinge pivot pin.
1/8”
Figure 23
Figure 20
DOOR
CLOSER
INSERTS
BOSS
Figure 21
UL312
Built-In Installation / Start-Up
Installing a Built-In
Your Electrolux product has been designed for
either free-standing or built-in installation. When
built-in, your ice maker does not require additional
air space for top, sides or rear. However, the front
grille must NOT be obstructed.
To ease unit installation and removal, the unit
must be located to allow clearance for water,
drain and electrical connections in the rear of the
ice maker.
LIGHT,
DOWN BLACKOUT MODE
ARROW & OTHER FUNCTIONS
ICE
Figure 24
1. Touch and hold the LIGHT button for ten
seconds, then release (the °F symbol will
flash briefly at the end of the ten second
period).
2. The control display will go dark for 36 hours.
3. To exit the Blackout Mode, repeat step 1.
Built-In Cabinet Dimensions
EI15IM55GS
DISPLAY
Blackout Mode (not Star-K certified)
NOTE
Model
UP
POWER ARROW
Unit Dimensions
Width
Height
Depth
14-15/16”
34-1/8”
24”
CAUTION
DO NOT install unit behind closed doors.
Initial Start-Up
Once installation and leveling is complete, the unit
is ready for initial start-up and operation. All units
are shipped with controls that are preset. No initial
adjustments are required.
IMPORTANT
It is possible that dirt or scale will dislodge in the
water line. Always throw away all ice cubes made
during the first two to three hours of operation.
Plug into a 115 volt polarized and grounded
electrical outlet.
Normal Operating Sounds
All models incorporate rigid foam insulated
cabinets to provide high thermal efficiency and
maximum sound reduction for it’s internal working
components. In spite of this technology, your model
may make sounds that are unfamiliar.
Normal operating sounds may be more noticeable
because of the unit’s environment. Hard surfaces
such as cabinets, wood/vinyl/tiled floors and
paneled walls have a tendency to reflect normal
operating noises.
Common refrigeration components and a brief
description of the normal operating sounds they
make are listed below. NOTE: Your unit may not
contain all the components listed.
• Compressor: The compressor makes a hum
or pulsing sound that may be heard when it
operates
• Evaporator: Refrigerant flowing through an
evaporator may sound like boiling liquid.
Open the water supply valve at the main water
source.
• Condenser Fan: Air moving through a
condenser may be heard.
To turn the unit on or off, touch and hold
the POWER button on the display panel for
approximately five seconds, then release.
• Automatic Ice Maker: You will hear ice as it
drops from the mold into the ice bin/tray.
• A small LED above the icon will illuminate to
confirm the touch of any controller icon.
• The electronic display will show “ICE” when
the unit is on, and “OFF” when the unit is off.
• Turning the unit off will override any other
control function.
• Water Valve: The water valve will make an
occasional buzzing sound and running water
will be heard.
13
14
Operation
Normal Operation
The ice maker is designed to make clear ice
from most water sources on a consistent basis.
Water is constantly circulated over the evaporator
assembly. As the water freezes, gravity causes
any sediment to drop into the water trough and not
become imbedded in the ice. This gives a clearer
ice cube with a low mineral content. When the
ice reaches the desired thickness, it falls off the
evaporator and into the storage bin. The cycle is
then repeated. When the level of ice reaches the
top of the storage bin the unit shuts off. As the ice
level in the bin drops the unit will automatically
restart to keep the bin full. Your unit’s ice production
rate may vary depending on many considerations.
Ambient air temperatures, water temperatures,
condenser cleanliness and ice-maker cleanliness
are all contributing factors to how quickly the unit
produces ice. Certain sounds are normal during
the unit’s operation. You may hear the compressor
or fan motor, the water valve, the water circulation
pump or ice dropping into the ice storage bin.
• Cube “slabbing”: Electrolux clear ice
makers produce a “slab” of ice that falls from
the vertical mold, relying on gravity to break
the ice bridges. Depending on the control
setting, and the fullness of the ice bucket, it
maybe necessary to tap the ice slab with the
ice scoop to break it apart.
Ice Dispenser Operation & Care
The ice cube thickness control is factory set for
best overall performance. The factory setting is
designed to maintain an ice bridge of approximately
1/16” to 1/8” under normal conditions resulting in a
dimple of approximately 1/4” to 1/2” in depth (see
Figure 26a and 26b). A fuller cube with less of a
dimple results in a thicker ice bridge. As the ice
bridge becomes thicker, the tendency for the cubes
to stay together as a slab increases. A bridge
thicker than 1/8” may cause cubes to over-fill the
ice bucket.
1/16" TO 1/8"
ICE BRIDGE
1/4" TO 1/2"
DIMPLE
Ice Cube Thickness
Your Electrolux ice maker uses advanced
technology to make ice that is crystal clear. This
technology cascades a flow of water over a chilled
ice mold that is mounted vertically so no water sits
in it. Because of this ice making technology, clear
ice cubes differ significantly from regular ice cubes.
Differences are illustrated in Figure 25.
1/16" TO 1/8"
ICE BRIDGE
1/4" TO 1/2"
DIMPLE
GOOD
Figure 26a
BRIDGE
TOO THICK
BRIDGE
TOO THIN
DIMPLE
TOO DEEP
LITTLE OR
NO DIMPLE
DIMPLES
Figure 25
ICE BRIDGE
GOOD
ICE001
•
Dimples: Electrolux clear ice cubes have
“dimples” on one side from the cascading
water process.
• Cube Variations: Cubes made from different
batches, or even cubes within the same
batch may have varying dimples, thickness
and/or sizes due to the cascading water
process.
BAD
Figure 26b
ICE002
BRIDGE
TOO THIN
DIMPLE
TOO DEEP
Operation
Ice Cube Thickness Adjustment
SAMPLE AREA
Interval - As Required
Ice thickness adjustments are made using the
control panel as follows:
UP
POWER ARROW
DISPLAY
LIGHT,
DOWN BLACKOUT MODE
ARROW & OTHER FUNCTIONS
ICE
Figure 28
ICE005
Figure 27
1. To enter the thickness adjustment mode:
a. Touch and hold the UP ARROW button.
b. Touch and release the DOWN ARROW button three times, then release the UP ARROW button.
c. The display will switch to “0,” to confirm the thickness adjustment mode has been selected.
2. The factory setting is “0,” and the total
range of adjustment is -5 to +5. Use the
UP ARROW button to raise the setting
and thicken the ice bridge, or the DOWN
ARROW button to lower the setting to thin
the ice bridge.
IMPORTANT
Ice thickness adjustment should only be made
one increment at a time. Allow ice maker
production to stabilize for 24 hours before
rechecking ice thickness.
3. Touch and release the LIGHT button key to
exit the ice thickness adjustment mode.
4. Remove all ice from the storage bin.
5. Ice cubes in any given batch will vary, so
it is necessary to choose cubes from the
sample area (Figure 28) for comparison
when making adjustments. If further
adjustments are desired, repeat steps 1
through 4.
IMPORTANT
It is extremely important that Clear Ice models are
level. If not level, the ice mold will not fill evenly.
15
16
Maintenance
Special Considerations
• For best performance, keep the unit out of
direct sunlight.
• Turn the unit OFF and dispose of any ice
cubes if the unit will not be used for 5 days
or more. Prop door open to allow for air
circulation and prevent mold and mildew.
• If the ambient temperature is expected to
drop below 45°F (7°C), drain all water from
the unit to prevent freezing damage not
covered by the warranty.
• High ambient temperatures, 110°F (43°C) or
higher, may reduce the unit’s ability to reach
low temperatures and may also reduce the
ice production rate.
Maintaining and Cleaning
Your Icemaker
Periodic cleaning and proper maintenance will
ensure efficiency, top performance, and long
life. The maintenance intervals listed are based
on normal conditions. You may want to shorten
the intervals if you have pets or other special
considerations.
Exterior Cleaning - As Required
The door, grille and cabinet may be cleaned with a
mild detergent and warm water solution. Do not use
solvent based or abrasive cleaners.
Use a soft sponge and rinse with clean water. Wipe
with a soft, clean towel to prevent water spotting.
Stainless Steel Models
• Stainless steel models may discolor when
exposed to chlorine gas, pool chemicals, salt
water or cleaners with bleach.
• Keep your stainless unit looking new by
cleaning with a high quality, all-in-one
stainless steel cleaner/polish on a monthly
basis. Frequent cleaning will remove surface
contamination that could lead to rust. Some
installations will require cleaning on a weekly
basis.
• DO NOT CLEAN WITH STEEL WOOL PADS.
• DO NOT USE CLEANERS THAT ARE
NOT SPECIFICALLY INTENDED FOR
STAINLESS STEEL (this includes glass, tile
and counter cleansers).
• If any surface discolors or rusting appears,
clean it quickly with Bon-Ami or Barkeepers
Friend Cleanser and a non-abrasive cloth.
Always clean in the direction of the grain.
Always finish this process with a high quality,
all-in-one stainless steel cleaner/polish to
prevent further problems.
• USE OF ABRASIVE PADS SUCH AS
SCOTCHBRITE WILL CAUSE THE
GRAINING IN THE STAINLESS TO
BECOME BLURRED.
• Rust that is allowed to linger can penetrate
into the surface of the stainless steel and
become impossible to remove.
CAUTION
Stainless steel models exposed to
chlorine gas and moisture, such as areas
with spas or swimming pools, may have
some discoloration of the stainless steel.
Discoloration from chlorine gas is normal.
Follow exterior cleaning instructions.
Interior Cleaning - As Required
1 Disconnect power to the ice maker.
2 Open the door and remove any ice from the
storage bin.
3 Wipe down the interior and storage bin with
a solution of non-abrasive mild soap or
detergent and warm water. Rinse with clean
water.
4 Sanitize the bin with a solution of 1
tablespoon of bleach in 1 gallon of warm
water. Rinse thoroughly with clean water.
5 Check that all drain connections are in place.
CAUTION
• DO NOT use solvent cleaning agents or
abrasives on the interior. These cleansers
may transmit taste to the ice cubes, or
damage or discolor the interior.
• DO NOT use any cleaner on the evaporator
plate other than Ice Machine Cleaner.
Other cleaners may affect ice quality,
or cause damage to the unit that
is not covered under warranty. See
AUTOMATIC CLEAN CYCLE for more
information.
6 Reconnect power to the unit.
Maintenance
Condenser Cleaning — Every Self Cleaning — Every 6 Months
To maintain operational efficiency, clean the unit
3 Months
To maintain operational efficiency, clean the
condenser every three months (depending on
environmental conditions, more or less frequent
cleaning may be necessary).
every six months (depending on water conditions
more or less frequent cleaning may be necessary).
If the ice maker requires more frequent cleaning,
consult a qualified plumber to test the water quality
and recommend appropriate treatment.
WARNING
WARNING
Disconnect electric power to the ice maker
before cleaning the condenser.
To remove and replace the grille for access to the
condenser fins follow this procedure (see Figure
29):
1 Remove the screws at each end of the grille.
2 Remove the grille.
Figure 29
Wear rubber gloves and safety goggles and/
or face shield when handling Ice Machine
Cleaner.
CAUTION
Use only Electrolux Ice Machine Cleaner (part
number EIM30046).
It is a violation of Federal law to use this
solution in a manner inconsistent with its
labeling. Use of any other cleaner can ruin
the finish of the evaporator and will void the
warranty.
Read and understand all labels printed on the
package before use.
Ice machine cleaner is used to remove lime scale
and other mineral deposits. Refer to the following
steps for mineral deposit removal.
CAUTION
WARNING
DO NOT touch the condenser fins. The
condenser fins are SHARP. The fins can also
be easily damaged.
CAUTION
DO NOT use any type of cleaner on the
condenser unit.
3 Clean the condenser coil using a brush with
a “combing” action, or a vacuum cleaner. Do
not touch the condenser coil.
4 Clean the grille, then position the grille to
align the screw holes with the cabinet.
5 Insert the grille screws and tighten. Do not
over tighten.
Never use anything to force ice from the
evaporator. Damage may result.
1 Turn the ice maker off (allowing any ice to
melt off of the evaporator) as follows:
a Touch and hold the POWER button.
b The display will switch from ICE to OFF to confirm that the ice maker is off. (See Figure 30.)
UP
POWER ARROW
DISPLAY
LIGHT,
DOWN BLACKOUT MODE
ARROW & OTHER FUNCTIONS
OFF
Figure 30
17
18
Maintenance
2 Remove all ice from the storage bin.
8 Reinstall inside front cover.
3. Remove inside front cover. (See figure 31.)
9 When the self-cleaning process stops
(approximately 45 minutes) the unit will
remain off for an additional 15 minutes. When
the clean cycle is completed, the display will
automatically switch back to set temperature
and unit will run as normal operation.
10 Clean the storage bin. (See INTERIOR
CLEANING). Sanatize the bin with a solution
of 1 tablespoon of bleach and 1 gallon of
warm water. Rinse thoroughly with clean
water.
FRONT
COVER
11 To ensure the drain system is working
properly, pour 1 gallon of cool, fresh water
into the ice bin. The water should drain freely.
If the unit is equipped with a drain pump, it
should drain the ice bin.
Figure 31
4. Remove Remove the overflow tube by lifting
it while using a slight back and forth motion
to loosen it from the drain hole. The water in
the reservoir will flow down the drain. (See
figure 32.)
When ice production resumes, the water fill valve
will energize, fill the water reservoir, and shutoff after three minutes. The compressor begins
to operate and water flows over the evaporator
assembly (ice cube tray). Initially, the water flow
may not be uniform, causing uneven sized cubes
or water to spill into the ice storage bin. This is a
normal situation that will correct itself within the first
24 hours of operation.
IMPORTANT
• Discard all ice produced in the first harvest.
OVERFLOW
• If power gets interrupted during the selfclean cycle, it will be necessary to repeat
the complete cleaning cycle after power is
restored.
UL209a
Figure 32
5 Replace the overflow tube after all of the
water has drained from the reservoir.
6 Start the cleaning cycle as follows:
a Touch and hold the POWER button.
b Touch and release the LIGHT button three times, then release the POWER button.
c The display will show “CL” to confirm the beginning of the cleaning cycle.
7 When water begins to flow over the
evaporator (approximately 3 minutes), add
one package of Electrolux Ice Machine
Cleaner to the water reservoir.
Maintenance / Storage, Vacation and Moving
Inlet Screen Cleaning — Every Year
The solenoid valve inlet screen must be cleaned at
least once each year as follows:
1 Shut off the water at the water supply valve.
2 Pull the unit out to access the back panel.
3 Disconnect electrical power to the unit.
4 Disconnect the entire hose connector from
the water solenoid valve (see Figure 33).
5 Use a tooth brush to clean sediment from the
inlet screen. DO NOT remove the screen.
6 Re-connect the water supply line to the water
solenoid valve. Tighten connector securely.
Open the water supply valve and check for
leakage at the water connection. Make sure
the water supply line is not kinked.
7 Reconnect power to the unit before reinstalling.
8 Make sure the drain system is working
properly and the drain hose is not pinched or
kinked. Pour one gallon of cool, fresh water
into the ice bin. The water should drain freely.
If your ice maker is equipped with a drain
pump, the pump should drain the ice bin.
Draining for non-use
If the unit is to be stored, moved or not used for
extended periods, it will be necessary to drain the
system of water.
WARNING
Electrical Shock Hazard. Disconnect power
before servicing. Before operating replace all
panels. Failure to do so can result in death or
electrical shock.
1 Disconnect power from the unit.
2 Remove ice from the storage bin.
3 Shut off water supply at the main water
source.
NOTE
Back panel must be removed prior to
disconnecting the water lines.
4 Disconnect the inlet and outlet lines to the
water valve and allow them to drain.
CAUTION
If the ambient temperature is expected to
drop below 45°F (7°C), drain all water from the
unit to prevent freezing damage, which is not
covered by the warranty.
IMPORTANT
WATER
CONNECTION
The use of antifreeze or other products of this
nature is not necessary and is not recommended.
5 Reconnect inlet and outlet lines to the water
valve.
6 Replace back panel.
7 Drain water from the water trough and drain
line by removing the overflow tube (see
Figure 32).
UL103_CO
Figure 33
8 Clean the ice maker and storage bin before
next use.
9 Prop door open to allow for air circulation and
prevent mold and mildew.
IMPORTANT
It is possible that dirt or scale will dislodge in the
water line. Always throw away all ice cubes made
during the first 24 hours of operation when the
unit is returned to service.
19
20
Troubleshooting
Before You call For Service
If the unit appears to be malfunctioning, read through Normal Operation first. If the problem persists,
check the Troubleshooting Guide. Locate the problem in the guide and refer to the cause and its remedy
before calling for service. The problem could be something very simple which can be solved without a
service call.
DANGER
ELECTROCUTION HAZARD
NEVER attempt to repair or perform maintenance on the unit until the main electrical power has
been disconnected.
Troubleshooting Guide
Troubleshooting – What to check when problems occur
Problem
Possible Cause
Remedy
Unit does not operate.
x No electrical power to the unit.
x Cycle selector switch set
improperly.
x Low air temperature around unit.
x Make sure power cord is plugged in. Check for
blown fuse or tripped circuit breaker.
x Make sure cycle selector switch is set to ICE/ON.
x Surrounding air temperature must be at least
45°F (7°C).
Unit runs but no ice is produced.
x No water being supplied to the
unit.
x Check to see that water is connected and turned
on to the unit.
Unit runs but produces very little ice.
x Dirty condenser coils.
x High air temperature around unit.
x Clean the condenser. See Maintenance.
x Surrounding air temperature of over 90°F (32°C).
Low ice production at high temperatures is
normal.
x Clean unit. See Maintenance.
x Remove items blocking airflow.
x Scale and mineral buildup in unit.
x Inadequate airflow at the front of
the unit.
x Cleaning cycle recently performed
Ice is slow to release or does not
release from the evaporator.
x Ice-making system is dirty.
x Allow unit to reach the set temperature to produce
ice normally
x Run unit through automatic clean cycle. See
Maintenance.
x Unit is not level.
x See Leveling the Unit.
x Low air temperature around the unit. x Surrounding air temperature must be at least 50°F
(10°C).
Troubleshooting
Troubleshooting – What to check when problems occur
Problem
Possible Cause
Remedy
Poor ice quality (soft or unclear).
x Poor incoming water quality.
x Consult a qualified plumber to test the water
quality and recommend appropriate treatment.
x Run unit through automatic clean cycle. See
Maintenance.
x Ice-making system is dirty.
Unit produces shallow or
incomplete cubes, or the ice fill
pattern on the evaporator is
incomplete.
Water leaking from under the unit.
x Low water level.
x Hot incoming water.
x Incorrect incoming water
pressure.
x Unit is not level.
x Supply line leaking.
x Fill tube leaking.
x Bin drain leaking.
x Check to see that overflow tube is fully seated.
x Connect the unit to a cold water supply. See
Installation.
x Water pressure must be 20-120 psi.
x See Leveling the Unit.
x Check to see that the water inlet line is attached to
inlet valve properly. See Connecting the Water
Supply.
x Check connection at water valve outlet.
x Check integrity of bin drain hose and clamp.
Ice storage bin full of water.
x Obstructed drain.
x Check to see that storage bin drain opening is free
from obstruction and debris.
Electronic display is blank with door
OPEN
x A display function has changed.
x Touch and hold the UP ARROW button and touch
and release the POWER button three times, then
release the UP ARROW button. The display should
become visible.
Electronic display shows repeating, x A factory control mode has been
randomly flashing symbols and partial inadvertently entered.
characters.
x Touch and hold the UP ARROW button and touch
and release the LIGHT button three times, then
release the UP ARROW button and exit the factory
control mode.
Electronic display shows one or more x The unit is displaying an error code.
of the following: E1, E2, E4, E5, E6,
E7, E8, E9, E10, P1
x Record the error code(s) displayed and call for
service
If Service is required
If the need for service arises, contact the dealer from whom the unit was purchased. State the Model
Number and Serial Number and explain the problem. The Model and Serial Number plate is located inside
the unit at the upper right hand corner.
If you do not know the name of the selling dealer or local service company, you can check online at www.
electroluxusa.com, or call 877-435-3287.
21
22
Warranty Information
ICE MAKER WARRANTY Your ice maker is protected by this warranty
WARRANTY
PERIOD
THROUGH OUR AUTHORIZED SERVICERS,
WE WILL:
THE CONSUMER WILL BE
RESPONSIBLE FOR:
FULL ONE-YEAR
WARRANTY
One year from
original purchase
date.
Pay all costs for repairing or replacing any parts of this
appliance which prove to be defective in materials or
workmanship.
Costs of service calls that are listed under
NORMAL RESPONSIBILITIES OF THE
CONSUMER.*
LIMITED 2nd– 5TH
YEAR WARRANTY
(Cabinet Liner and
Sealed System)
Second through fifth
years from original
purchase date.
Repair or replace any parts in the cabinet liner or sealed
refrigeration system (compressor, condenser, evaporator,
dryer or tubing) which prove to be defective in materials or
workmanship.
Costs for pickup and delivery of the appliance
required because of service. Costs for labor, parts
and transportation other than with respect to the
cabinet liner or sealed refrigeration system.
LIMITED
WARRANTY
(Applicable to the
State of Alaska)
Time periods listed
above.
All of the provisions of the full warranties above and the
exclusions listed below apply.
Costs of the technician's travel to the home and any
costs for pick up and delivery of the appliance
required because of service.
In the U.S.A., your appliance is warranted by Electrolux Home Products, Inc. We authorize no person to change or add to any of our obligations
under this warranty. Our obligations for service and parts under this warranty must be performed by us or an authorized Electrolux Home Products,
Inc. servicer. In Canada, your appliance is warranted by Electrolux Canada Corp.
*NORMAL
RESPONSIBILITIES
OF THE CUSTOMER
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items
listed below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by a licensed and insured professional, in accordance with instructions provided with the appliance
and in accordance with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which
are not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or
exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by servicers other than Electrolux Home Products, Inc., Electrolux Canada
Corp., or its authorized servicers; use of parts other than genuine Electrolux Home Products parts; obtained from
persons other than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
IF YOU NEED
SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the
warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all
receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to state.
Service under this warranty must be obtained by contacting Electrolux Home Products, Inc. or Electrolux Canada Corp.
This warranty only applies in the 50 States of the U.S.A. and Puerto Rico, and Canada. Product features or specifications as described or illustrated
are subject to change without notice. All warranties are made by Electrolux Home Products, Inc. In Canada, your appliance is warranted by
Electrolux Canada Corp.
USA
877-435-3287
Electrolux Home Products, Inc.
P.O. Box 212378
Augusta, GA 30917
Canada
866-213-9397
Electrolux Canada Corp.
6150 McLaughlin Road
Mississauga, Ontario
L5R 4C2
