Casio IT-800 Series Specifications

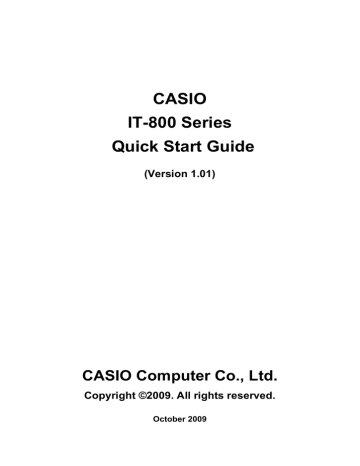

CASIO
IT-800 Series
Quick Start Guide
(Version 1.01)
CASIO Computer Co., Ltd.
Copyright ©2009. All rights reserved.
October 2009
Table of the Contents
Chapter 1.
1.1
1.2
1.3
Chapter 2.
2.1
2.2
2.3
Chapter 3.
3.1
3.2
3.3
3.4
Chapter 4.
4.1
4.2
Chapter 5.
5.1
5.1.1
5.1.2
5.2
5.3
5.4
5.5
5.6
Chapter 6.
6.1
6.2
Chapter 7.
7.1
7.2
7.3
7.3.1
7.3.2
7.3.3
7.4
Chapter 8.
8.1
8.2
8.3
Chapter 9.
Editorial Record
Preface
Product Overview
Features at a Glance
Library
Development Manuals
Prerequisites
Skills Required
Hardware Required
Software Required
Installing BDK to PC
Application Development
Installing CASIO BDK Files
Installing Library
Installing Online Help
Connecting Power Supply to Cradle
HA-H60IO
HA-H62IO
Connecting the IT-800 to PC
Connection via USB Cradle
ActiveSync via USB
Windows Mobile Device Center via USB
Connection via IrDA
Connection via WLAN
Connection via Ethernet Cradle
Accessing Shared Network Drive on Your LAN
Direct TCP/IP Connection from Visual Studio
Setting Up the Development Environment
Installing CAB Files
Visual Studio 2005
Device Emulator
Software Required
Starting Up the Device Emulator
Using the Device Emulator
IT-800WM Device Emulator
I/O Simulator
Connecting via ActiveSync
Debugging Applications
Visual Studio
Developing in C++
Developing in VB
Developing in C#
Resources
2
4
5
6
6
8
9
10
10
11
13
14
14
15
17
18
19
19
21
23
24
25
25
26
27
32
33
34
36
36
37
38
38
39
40
40
41
46
48
50
51
55
57
60
No part of this document may be produced or transmitted in any form or by any means, electronic
or mechanical, for any purpose, without the express written permission of CASIO Computer Co.,
Ltd. in Tokyo Japan. Information in this document is subject to change without advance notice.
CASIO Computer Co., Ltd. makes no representations or warranties with respect to the contents or
use of this manual and specifically disclaims any express or implied warranties of merchantability
or fitness for any particular purpose.
© 2009 CASIO Computer Co., Ltd. All rights reserved.
3
Editorial Record
Manual
Version
no.
1.00
1.01
Date edited
Page
August 2009
October 2009
all
P7
P8, P9,
P36
Content
Original version
Chinese Sensible Code (HanXin Code) is added.
Bluetooth library is deleted.
4
Preface
This guide clearly and concisely sets out the information developers need to know to get started with
the CASIO IT-800 series handheld terminals with the integrated Windows Mobile® Version 6.5 OS.
The best methods of connecting to your development system are covered and step by step
instructions for installing and testing the CASIO Basic Development Kit (BDK) are included.
The purpose of this guide is to get you to the point where you can start development; you should
refer to the library manuals for detailed information on the specific APIs.
The words, “the terminal”, “the IT-800”, “the IT-800 series”, and “IT-800 device”, used in this
reference manual mean IT-800 series handheld terminal with the integrated Windows Mobile® as its
OS unless otherwise noted.
5
1. Product Overview
1.1 Features at a Glance
The IT-800 has been designed using the new concept of the Human-centered Design Processes and
is capable of performing a wide variety of powerful functions.
The following is a brief overview of the features available on the IT-800 series handheld terminals.
For further detail on the hardware specifications, refer to IT-800 Series Hardware Manual.
Outstanding development environment
• Microsoft® Windows Mobile® 6.5 English Version as the built-in OS
• Visual Studio 2008
• Visual Studio 2005
Various communication systems
• Built-in ultra-small WLAN module compatible with the IEEE802.11b/g standard
• Built-in WWAN module combines GSM, GPRS and EDGE modules with GPS receiver
designed for use in transportation and logistics.
• High speed infrared communication with IrDA Version. 1.3
• Bluetooth® Version 2.0
• Serial interface with USB version 1.1 (Host/Client)
Small size, light weight
• Dimensions : Approx. 78 (W) x 159.5 (D) x 25 (H) mm
• Weight
: Approx. 267g (model dependant)
Improved durability
• Impact resistance
• Dust/Water-splash proof
: 1.5 m in height *
: IP54 level (compliant with IEC60529 International Standard)
* The drop durability height is a measured value resulting from actual testing. It does not necessarily guarantee the
product from damage.
6
Scanning industrial standard bar code symbologies
• Readable bar code symbologies with laser scanner:
EAN8, EAN13, UPC-A/E, Codabar (NW-7), CODE39, CODE93, CODE128/EAN128, ITF,
MSI, IATA, Industrial 2of5, GS1 DataBar Omnidirectional (RSS-14), GS1 DataBar Limited
(RSS Limited), GS1 DataBar Expanded (RSS Expanded), GS1 DatBar Stacked (RSS-14
Stacked), GS1 DataBar Expanded Stacked(RSS Expanded Stacked)
• Readable bar code symbologies with C-MOS imager:
1D:
EAN8, EAN13, UPC-A/E, Codabar (NW-7), CODE11, CODE32, CODE39, CODE93,
CODE128/EAN128, ITF, MSI, IATA, Industrial 2of5, GS1 DataBar Omnidirectional (RSS-14),
GS1 DataBar Limited (RSS Limited), GS1 DataBar Expanded (RSS Expanded)
2D Stacked:
PDF417, Micro PDF, CODE49, Composite, Codablock F, TLC39, GS1 DataBar Stacked
Omnidirectional (RSS-14 Stacked), GS1 DataBar Expanded Stacked (RSS Expanded Stacked),
GS1 DatBar Stacked (RSS-14 Stacked)
2D Matrix:
Aztec, DataMatrix, Maxicode, QR Code, Micro QR, Chinese Sensible Code (HanXin Code)
CPU, Memory
• High-performance CPU
Marvell® PXA320 Application Processor (runs at maximum 624 MHz)
• Large-capacity memory
RAM
: 128 MB
F-ROM
: 256 MB
7
1.2 Library
The IT-800WM Basic Development Kit (“BDK”) provides various libraries including those listed in
the table.
Table 1.1
Description
C++
Library that is used to control the system.
Library that is used to control the built-in laser scan engine.
Library that is used to control the built-in CMOS Imager.
Library that is used to control the built-in CAMERA module.
Library that is used to control to communicate with IC card.
Library that is used to control the built-in WANGPRS
module.
Library that is used to handle and manipulate JPEG image
functions.
Library that is used to control and carry out
transmission/reception of files between PC and other device.
Yes
Yes
Yes
Yes
Yes
Yes
VB
C#
Yes
Yes
Yes
Yes
Yes
Yes
Yes
-
Yes
Yes
Library
System Library
Laser Scanner Library
Imager Library
Camera Library
NFC Library
WANGPRS Library
JPEG Library
FLINK Library
Note:
The abbreviations used in the table are;
C++ : Visual C++
VB
: Visual Basic .NET
C#
: Visual C# .NET
Table 1.2 shows each file name of the Dynamic Link Library and Dynamic Link Class Library.
Table 1.2
Library
System Library
Laser Scanner Library
Imager Library
Camera Library
NFC Library
WANGPRS Library
JPEG Library
FLINK Library
Dynamic Link Library
SystemLib.dll
OBReadLib.dll
ImagerLib.dll
CameraLib.dll
NFCLib.dll
WangprsLib.dll
JpegCe.dll
FlinkLib.dll
8
Dynamic Link Library
(Class Library)
SystemLibNet.dll
OBReadLibNet.dll
ImagerLibNet.dll
CameraLibNet.dll
NFCLibNet.dll
WangprsLibNet.dll
None
MoFlinkLib.dll
1.3 Development Manuals
The IT-800WM Basic Development Kit (“BDK”) provides various development reference manuals
as described in the table below.
Table 1.3
Development Manual
Quick Start Guide
Software Manual
Hardware Manual
System Library Manual
Laser Scanner Library Manual
Imager Library Manual
Camera Library Manual
NFC Library Manual
WANGPRS Library Manual
JPEG Library Manual
FLINK Library Manual
Description
This reference manual.
Reference manual that describes software specifications in detail for all
the software integrated in IT-800 handheld terminal.
Reference manual that describes hardware specifications in detail on
each dedicated option and IT-800 handheld terminal
Reference manual that describes individual functions in detail for System
Library.
Reference manual that describes individual functions in detail for Laser
Scanner Library.
Reference manual that describes individual functions in detail for Imager
Library.
Reference manual that describes individual functions in detail for
Camera Library.
Reference manual that describes individual functions in detail for NFC
Library.
Reference manual that describes individual functions in detail for
WANGPRS Library.
Reference manual that describes individual functions in detail for JPEG
Library.
Reference manual that describes individual functions in detail for FLINK
Library.
9
2. Prerequisites
2.1 Skills Required
The following skills are required by developers aiming to develop application software for the
IT-800 terminal.
• Windows programming
• A good knowledge of one or more of the following.
- Visual C++
- Visual Basic .NET
- Visual C#
- Browser based applications (not covered in this guide)
The following skills or experience are also desirable.
• Windows CE devices
• ActiveSync
• Some networking experience
10
2.2 Hardware Required
The following models of the IT-800 series and dedicated options are available.
Table 2.1
List of available models
Model no.
Scan
Engine
Laser
Laser
Laser
Imager
Imager
Imager
Laser
Laser
Imager
Imager
Camera NFC
Extention
Slot
SDIO
SDIO
microSD
microSD
microSD
microSD
microSD
microSD
microSD
microSD
SDIO
SDIO
microSD
microSD
WWAN
GPS
No
Yes
No
No
Yes
No
No
Yes
No
No
No
Yes
No
Yes
IT-800R-05
No
Yes
IT-800RGC-05
Yes
Yes
IT-800R-15
No
Yes
IT-800RC-15
Yes
Yes
IT-800RGC-15
Yes
Yes
IT-800R-35
No
Yes
IT-800RC-35
Yes
Yes
IT-800RGC-35
Yes
Yes
IT-800R-15-CN
No
Yes
IT-800RC-15-CN
Yes
Yes
IT-800EC-05 *
Yes
Yes
IT-800GC-05 *
Yes
Yes
IT-800EC-35 *
Yes
Yes
IT-800GC-35 *
Yes
Yes
Notes:
•
Model with “-CN” at the end of its model umber is for China.
•
Model with “*” at the end of its model number is for USA and Canada.
Table 2.2 List of the dedicated options
Option
Product
Cradle
USB Cradle
Model no.
HA-H60IO
HA-H60IO-CN
Ethernet Cradle
HA-H62IO
HA-H62IO-CN
Battery
Battery Pack
HA-D20BAT
HA-D20BAT-CN
Large-capacity Battery Pack HA-D21LBAT
HA-D21LBAT-CN
Battery charger Dual Battery Charger
HA-D32DCHG
HA-D32DCHG-CN
Cradle-type Battery Charger HA-H30CHG
HA-H30CHG-CN
Car Mounted-type Battery
HA-H35CHG
Charger
HA-H35CHG-CN
AC adaptor
AD-S42120B-N
(For HA-H60IO, HA-H62IO, HA-D32DCHG) AD-S42120BE-CN
AC adaptor
AD-S15050BE
(For IT-800, HA-H30CHG)
AD-S15050BE-CN
AD-S15050B-N
Power Cable
AC-CORD-EU
(For AD-S42120B-N, AD-S15050B-N)
AC-CORD-US
AC-CORD-TW
AC-CORD-KR
AC-CORD-AU
Cable
USB cable
DT-380USB
Continue.
11
WLAN
(802.11 b/g)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
Bluetooth
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Remark
For China
For China
For China
For China
For China
For China
For China
Without power cable accompanied
For China
For China
Without power cable accompanied
For Europe
For USA/Canada
For Taiwan
For Korea
For Australia/New Zealand
For cradle - PC
Others
Screen Protect Sheet
Trigger Grip
HA-H90PS5B
HA-H90PS5B-CN
HA-H51TG
HA-H51TG-CN
External views of IT-800 and dedicated options
Figure 2.1
12
For China
For China
2.3 Software Required
The following software tools and libraries are required in order to develop software for the IT-800.
Please ensure that you download or purchase the correct Microsoft tools as appropriate.
Development platform
Table 2.3
Programming
Development Platform
Language
Visual C++
Microsoft Visual Studio 2005 + SP1
Visual Basic .NET
Microsoft Visual Studio 2008 + SP1
Visual C#
Communication Software
• Microsoft ActiveSync 4.5 (or later)
Download for free from;
http://www.microsoft.com/downloads/details.aspx?familyid=9E641C34-6F7F-404D-A04B-DC0
9F8141141&displaylang=en
• Microsoft Windows Mobile Device Center 6.1 (for Windows Vista)
Download for free from;
http://www.microsoft.com/downloads/details.aspx?familyid=46F72DF1-E46A-4A5F-A791-09F
07AAA1914&displaylang=en
SDK
• Microsoft Windows Mobile 6 Professional SDK (Mandatory)
Download for free from;
http://www.microsoft.com/downloads/details.aspx?familyid=06111A3A-A651-4745-88EF-3D4
8091A390B&displaylang=en
• Microsoft Windows Mobile 6.5 Developer Tool Kit (Not mandatory)
http://www.microsoft.com/downloads/details.aspx?displaylang=en&FamilyID=20686a1d-97a84f80-bc6a-ae010e085a6e
CASIO IT-800WM BDK
Download the IT-800WM BDK from
http://www2.casio.co.jp/system_en/pa/PADealer/
(The site requires your user name and password. Enter your user name and password as issued by CASIO.)
13
3. Installing BDK to PC
3.1 Application Development
This chapter explains about what you need to set up for the development environment before
starting your application development.
1. Installing Development Platform
Install Microsoft’s development platform which supports Visual Studio 2008 and Visual Studio
2005.
Install SDK (Microsoft Windows Mobile 6 Professional SDK)
For detail, refer to Chapter 2.3 “Software Required”.
2. Installing CASIO BDK to PC
Install CASIO’s BDK (“Basic Development Kit”) and various libraries if necessary. For
installation method, refer to Chapter 3.2 “Installing CASIO BDK Files”.
3. Connecting IT-800 to PC (via either ActiveSync or Windows Mobile Device Center)
Connect the IT-800 to PC via Microsoft’s ActiveSync (for Windows XP or any other OS before
Windows XP) or via Windows Mobile Device Center (for Windows Vista). For connection
method, refer to Chapter 5 “Connecting the IT-800 to PC”.
4. Setting up the Development Environment
Transmit the CASIO’s libraries to the IT-800.
For detail, refer to Chapter 6 “Setting Up the Development Environment”.
5. Installing the Device Emulator
Install the Device Emulator for the IT-800. For installation method, refer to Chapter 7 “Device
Emulator”. If not necessary to install, go to “6. Application Development” below.
6. Application Development
Now, the application development environment is set up and your development with the
development platform can be started. After application is developed, transmit it to the Device
Emulator or an actual terminal of the IT-800 via ActiveSync or Windows Mobile Device Center
for check on the operability. For application development method and transmitting your
application, refer to Chapter 8 “Visual Studio”.
14
3.2 Installing CASIO BDK Files
Download the CASIO IT-800WM BDK installation CD image file from the following site and
write it to a CD-ROM media.
http://www2.casio.co.jp/system_en/pa/PADealer/
(The site requires your user name and password. Enter your user name and password as issued by CASIO.)
Notes:
• If you had already installed IT-800WM BDK Ver. 1.xx, be sure to uninstall it before installing
Ver. 2.xx.
• If any file of the IT-800WM BDK Ver. 1.xx is remained in the following folders after
uninstalling, delete it manually.
C:\Program Files\CASIO\MBSYS
C:\Program Files\Windows CE Tools\wce500
•
If your PC runs in the Window Vista, first you must disable the User Account Control (“UAC”)
by following the process below before installing the CASIO BDK Files.
- Navigate to Control Panel → User Accounts → Enable or Disable the User
Account Control. Remove the check on User Account Control (UAC) to protect your
PC, and then click OK button.
15
Installation Steps
1. When the CASIO IT-800WM BDK CD-ROM is inserted in the drive of PC, the following menu
screen appears automatically.
Figure 3.1
2. Click Installation List in Figure 3.1. The installation screen appears.
Figure 3.2
3. Choose the component you wish to install in the screen.
16
3.3 Installing Library
The IT-800 Library is available for the below development platforms.
•
•
Microsoft Visual Studio 2008
Microsoft Visual Studio 2005
Notes:
1. The Library header file (*.h) and the Import library file (*.lib) are installed in the following
folders respectively.
C:\Program Files\CASIO\MBSYS\include
: Header file
C:\Program Files\CASIO\MBSYS\lib\ARMV4I
: Import library file
2. The Class library DLL file (*.dll) is installed in the following folder.
C:\Program Files\CASIO\MBSYS\WindowsCE
3. When the Library is installed in PC, the Help file (*.chm) is installed in the following folder.
C:\Program Files\CASIO\MBSYS\HELP
The Help file can be accessed by navigating to Start menu → All Programs → CASIO Basic
Development Kit → Help
17
3.4 Installing Online Help
Besides the Help file described in the previous page, the Online Help is also available for the below
development platforms. The installation of the Online Help is initiated in the Installation List.
•
•
Microsoft Visual Studio 2008
Microsoft Visual Studio 2005
After the installation is complete, Microsoft Visual Studio starts up. The Online Help file can be
accessed by navigating to Help → Contents menu.
18
4. Connecting Power Supply to Cradle
4.1 HA-H60IO
Use the dedicated AC adaptor (AD-S42120B) for supplying power to the HA-H60IO USB Cradle.
Ensure that you connect the AC adaptor to the cradle before starting communication between the
IT-800 and PC via the cradle. Follow the steps below to connect the power supply to the IT-800
using the dedicated AC adaptor.
1. Plug the AC adaptor into the AC adaptor jack where “DCIN12V” is printed on the back of the
cradle.
Figure 4.1
2. After connecting the power cable to the AC adaptor, plug in the plug to an electrical outlet.
Figure 4.2
3. Make sure the selector switch on the back of the cradle is set to position B.
Figure 4.3
19
4. Connect a USB cable (DT-380USB) to the USB client port on the back of the cradle, and then
connect the other end of the cable to the PC. USB host port is used when connecting the cradle
with other USB peripheral devices.
Figure 4.4
5. Align the USB cradle mount holes on the back of the IT-800 with the mount hooks on the cradle
after aligning the power/signal contacts on the bottom of the IT-800 with the power/signal
contacts of the cradle. The power LED on the front of the cradle will light green if the IT-800 has
been properly mounted.
Figure 4.5
Status of Indicator 1 on IT-800
Orange : Charging
Red
: Standby due to battery pack error or the surrounding temperature is out of the range (charging
begins when the temperature returns within the correct range.)
Green
: Charging complete
Notes:
• Always remove the IT-800 from the cradle when switching the selector switch on the cradle.
• Never short the power/signal contacts of the cradle. This damages the cradle.
• Do not subject the IT-800 and cradle to vibration or impact during communication. This results
in communication being interrupted.
• When mounting the IT-800, securely attach it to the mount hooks of the cradle and check that
the power LED on the front of the cradle lights green. Charging the battery pack or
communication will not proceed if it is not mounted properly.
20
4.2 HA-H62IO
Use the dedicated AC adaptor (AD-S42120B) for supplying power to the HA-H62IO Ethernet
Cradle. Ensure that you connect the AC adaptor to the cradle before starting communication
between the IT-800 and PC via the cradle. Follow the steps below to connect the power supply to
the IT-800 using the dedicated AC adaptor.
1. Plug the AC adaptor into the AC adaptor jack on the back of the Ethernet Cradle.
Figure 4.6
2. After connecting the AC adaptor to the power cable, plug in the plug of the power cable to an
electrical outlet.
Figure 4.7
3. Set the selector switch on the back of the Ethernet cradle to the port that will be used. Set the
switch to “LAN” to use the LAN port or to “USB” to use the USB port.
Figure 4.8
21
4. Before using the cradle ports, remove the caps from the ports. When using a LAN, connect one
end of the LAN cable to the LAN port and the other end to the PC or hub. When using a USB
connection, connect one end of the USB cable (DT-380USB) to the USB port and the other end
to the PC.
Figure 4.9
5. Align the power/signal contacts on the underside of the IT-800 with the power/signal contacts on
the Ethernet Cradle and then set the IT-800 into the cradle so that mount holes in the back of the
IT-800 are aligned with the mount hooks on the cradle. Once the IT-800 is properly set in the
cradle, the power LED on the front of the Ethernet cradle lights green.
Figure 4.10
Status of Indicator 1 on IT-800
Orange
: Charging
Red
: Standby due to battery pack error or the surrounding temperature is out of range
(charging begins when the temperature is within the correct range.)
Green
: Charging complete
Notes:
• Always remove the IT-800 from the Ethernet Cradle before changing the selector switch setting.
• Never short out the power/signal contacts of the cradle. This damages the cradle.
• Do not subject the IT-800 and cradle to vibration or impact during communication. This results
in communication being interrupted.
• When mounting the IT-800, securely attach it to the mount hooks of the cradle and check that
the power LED on the front of the cradle lights green. Charging battery pack or communication
will not proceed if it is not mounted properly.
• The LAN and USB connections cannot be used concurrently.
• Always cap ports that are not being used. Using the Ethernet Cradle while the ports are
uncapped can cause damage.
22
5. Connecting the IT-800 to PC
To make connection establishment with PC, use one of the methods, depending on the OS your PC
runs, described below.
•
ActiveSync 4.5 or a later version (for Windows XP or any other OS earlier)
Use the ActiveSync to connect the IT-800 to PC if the PC runs in Windows XP or other OS
earlier than Windows XP. The ActiveSync can be downloaded at the URL below.
http://www.microsoft.com/downloads/details.aspx?familyid=9E641C34-6F7F-404D-A04B-DC0
9F8141141&displaylang=en
•
Windows Mobile Device Center 6.1 or a later version (for Windows Vista)
Use the Windows Mobile Device Center to connect the IT-800 to PC if the PC runs in Windows
Vista OS. The Windows Mobile Device Center (“WMDC”) can be downloaded at the URL
below.
http://www.microsoft.com/downloads/details.aspx?familyid=46F72DF1-E46A-4A5F-A791-09F
07AAA1914&displaylang=en
23
5.1 Connection via USB Cradle
Before making connection using ActiveSync or Windows Mobile Device Center, check the USB
Connection settings on the terminal.
Follow the steps below:
1. Navigate to Start → Settings → System tab → USB Connection.
2. Tap Connect Utility tab.
Figure 5.1
3. Confirm that “Windows Mobile Device Center/ActiveSync” is selected. If not, select the radio
button and tap ok.
24
5.1.1 ActiveSync via USB
To establish connection via USB interface with PC runs in Windows XP or any other OS earlier
than Windows XP, use ActiveSync.
Follow the steps below:
1. Install ActiveSync to the PC, if not installed.
2. Connect the USB cable to the PC and the other end to the USB Cradle and also the AC adaptor to
the USB Cradle.
3. Make sure the selector switch on the back of the cradle is set to position B.
4. Put the IT-800 on the cradle and confirm that the green LED on the front of the cradle is lit. If not,
be sure the IT-800 is positioned firmly on the cradle.
5. Follow a message appeared in the ActiveSync on the PC.
5.1.2 Windows Mobile Device Center via USB
To establish connection via USB interface with PC runs in Windows Vista, use Windows Mobile
Device Center (“WMDC”).
Follow the steps below:
1. Install WMDC to the PC, if not installed.
2. Connect the USB cable to the PC and the other end to the USB Cradle and also the AC adaptor to
the USB Cradle.
3. Make sure the selector switch on the back of the cradle is set to position B.
4. Put the IT-800 on the cradle and confirm that the green LED on the front of the cradle is lit. If not,
be sure the IT-800 is positioned firmly on the cradle.
5. Follow a message appeared in the WMDC on the PC.
25
5.2 Connection via IrDA
If the PC has an IrDA interface, it is possible to connect the IT-800 to the PC via IrDA using
ActiveSync.
Follow the steps below:
1. Set the COM port used by ActiveSync on the PC to Infrared Port(IR).
2. Place the IT-800 so that the IrDA port located on the left side of the IT-800 faces with the IrDA
port on the PC. Communication can be established if the distance is between zero and
approximately 20cm.
3. On the IT-800, from Start menu, navigate to Programs → ActiveSync to start up
ActiveSync.
4. Tap Menu → Connect via IR.
Figure 5.2
26
5.3 Connection via WLAN
To establish communication between the IT-800 with WLAN module integrated (see Table 2.1 for
applicable models) and PC via WLAN configuration, follow the steps, 1 to 6, below to set up a
WLAN configuration on the IT-800. After setting up the configuration, be sure to perform a site
survey prior to starting communication via WLAN.
1. Navigate to Start → Settings → Connection tab→ WLANConfig and then tap IP tab.
Figure 5.3
Table 5.1
Parameter
Enable DHCP or Configure IP
IP
MASK
GateWay
DNS1
DNS2
WINS1
WINS2
Description
Determines “Enable” or “Disable” for DHCP.
Determines IP address.
Determines subnet mask.
Determines default gateway.
Determines primary DNS address.
Determines secondary DNS address.
Determines primary WINS address.
Determines secondary WINS address.
If any of the settings in Figure 5.3 is omitted, the process described in the following table will
automatically take place in the field.
Table 5.2
Parameter
Enable DHCP or
Configure IP
IP
MASK
GateWay
DNS1
DNS2
WINS1
WINS2
Nothing is set (DHCP)
“Enable DHCP” is assumed.
“Configure IP” is set
“Configure IP” is set.
Does not determine IP address.
Does not determine subnet mask.
Does not determine gateway.
Does not determine primary DNS address.
Does not determine secondary DNS address.
Does not determine primary WINS address.
Does not determine secondary WINS
address.
Entered address is set as is.
Entered address is set as is.
Entered address is set as is.
Entered address is set as is.
Entered address is set as is.
Entered address is set as is.
Entered address is set as is.
27
2. Tap Basic tab. Set up each parameter in the tab by referring to the descriptions for the
parameters in Table 5.3.
Figure 5.4
Table 5.3
Parameter
SSID
Security
Disable
WEP
WPA
WPA2
Key
Description
Enter the SSID of the network you want to connect to.
None.
Open in Authentication field.
PSK in Authentication field (if selected, the Key field must be set also.)
EAP-PEAP in Authentication field
EAP-TLS in Authentication field
Enter 26 (maximum) alphanumeric digits (13 hex pairs) in the Key field if 128 bit
radio button is selected. Or, enter 10 (maximum) alphanumeric digits (5 hex pairs) in
the Key field if 64 bit radio button is selected.
The field displays the number of characters that have been entered.
***** in the field implies that the key has been extracted from the ini file. If ***** in
the field is edited, a new key has been deemed to be set. Or, if it has never been edited,
the key extracted from the ini file becomes effective as is.
If EAP-PEAP radio button in Authentication field is selected, tap the EAP-Properties button that
appears when selecting the EAP-PEAP radio button to set also the following parameters.
Table 5.4
Parameters in
Description
Default
EAP-Properties screen
User name
Input a user name in alphanumeric (maximum 100
None
alphanumeric).
Password
Input a password in alphanumeric (maximum 100
None
alphanumeric).
Domain
Validate server
certificate
***** in the field implies that the password has been
extracted from the ini file. If ***** in the field is
edited, a new password has been deemed to be set.
Or, if it has never been edited, the password extracted
from the ini file becomes effective as is.
Input a domain in alphanumeric (maximum 100
alphanumeric).
Set up the requisition for server certificate.
With check mark : certificate is required.
Without check mark: certificate is not required.
28
None
Certificate is not necessary
If EAP-TLS radio button in Authentication field is selected, tap the EAP-Properties button that
appears when selecting the EAP-TLS radio button to set the following settings.
Table 5.5
Parameters in
EAP-Properties screen
User name
Certificate
Domain
Validate server
certificate
Description
Input a user name in alphanumeric (maximum 100
alphanumeric).
Select a client certificate installed already (maximum
100 alphanumeric).
Default
None
None
Search button in the field will display a list of
installed client certificates. Select one by highlighting
it.
Input in alphanumeric (maximum 100 alphanumeric) None
Set up the requisition for server certificate.
Certificate is required.
With check mark : certificate is required.
Without check mark : certificate is not required.
3. Tap WLAN tab.
Figure 5.5
Table 5.6
Field / Radio
Buttons
Adapter power
Power save
Standard
RSSI Level for
initiating roaming
Description
On
Off
Enable
Disable
b
b/g
No roaming
Default
High
Enable power to the integrated WLAN module.
Disable power to the integrated WLAN module.
Enable power save mode for the WLAN module.
Disable power save mode for the WLAN module.
Set up IEEE802.11b standard effect.
Set up IEEE802.11b/g standard effect.
Set up “-100 dBm” for roaming starting threshold level,
a level where communication via WLAN is practically
impossible, so that roaming should not be carried out.
Set up “-78 dBm” for the roaming starting threshold
level.
Set up “-72 dBm” for roaming starting threshold level,
for faster (more frequent) roaming
29
Default
Yes
Yes
Yes
Yes
4. Tap Detail Settings tab.
Figure 5.6
Table 5.7
Field / Radio Buttons
When WLAN is not hide popup
connected to a
network
show popup
Enable AdHoc network setting
Enable all authentication settings
Inifile comment
Description
Hides popup window when WLAN is not
connected to a network.
Shows popup window when WLAN is not
connected to a network.
With check mark : enable the setting.
Without check mark : disable the setting.
With check mark : enable the setting.
Without check mark : disable the setting.
Enter a comment of up to 100 characters to be
written in the ini file.
30
Default
Yes
Yes
Yes
None
5. If OK button is clicked, the screen in Figure 5.7 appears. Tap OK button to perform a reset on the
terminal so that the setting takes effect.
Figure 5.7
6. Check to make sure that the connection has been established using the NetSearch utility, and
then navigating to the Ping function in there. Enter HostName first and then tap Ping to check
that you are connected to the network correctly.
31
5.4 Connection via Ethernet Cradle
This chapter describes how to establish a high speed LAN connection on the WLAN non-integrated
models with HA-H62IO Ethernet cradle.
Follow the steps below:
1. Connect the dedicated AC adapter to the Ethernet cradle as described in Chapter 4.2.
2. Connect one end of the network cable to the Ethernet cradle and the other end to the network hub.
3. Make sure the selector switch on the back of the HA-H62IO Ethernet cradle is set to the position
“LAN”.
4. Place the IT-800 in the cradle and navigate to Start → Settings → Connections tab →
Network Cards.
5. The following screen appears. Double tap “AX88772”.
Figure 5.8
6. The following TCP/IP screen appears. Set up all the parameters in IP Address and Name
Servers tabs as required and tap ok button.
Figure 5.9
7. If the connection is established correctly, the icon (
32
) in the Taskbar changes to (
).
5.5 Accessing Shared Network Drive on Your LAN
Assuming you have a valid network connection established, you can access shared drives on your
PC from the File Explorer on the IT-800. The following shows the steps to initiate this.
1.
2.
3.
4.
5.
Configure a network connection on the IT-800.
Double tap My Device.
Type \\xxxx\ where xxxx is the network name of the PC.
A network logon dialog box will appear. Enter a valid User ID, Password and Network Domain.
Any shared network drives on the target PC will be displayed and you will be able to copy files
freely between them and the IT-800.
33
5.6 Direct TCP/IP Connection from Visual Studio
If you have a network connection to the IT-800 (for example, via WLAN or the Ethernet cradle)
then you can establish a direct link to the development PC without using ActiveSync.
For Visual Studio 2005
1. Download the files listed below to the IT-800.
Clientshutdown.exe
ConmanClient2.exe
CMAccept.exe
DeviceDMA.dll
eDbgTL.dll
TcpConnectionA.dll
The source folder in the PC:
C:\Program Files\Common Files\Microsoft Shared\CoreCon\1.0\Target\wce400\armv4i
The destination folder in the IT-800:
\Windows
2. Run ConmanClient2.exe on the IT-800.
3. Set the device IP address in Visual Studio 2005.
4. Navigate to Tools in the main menu of Visual Studio 2005 → Options… → Device Tools
→ Devices.
5. Choose Windows Mobile 6 Professional Device in the pull-down menu of Devices: and
click Properties….
6. Click Transport: to access Configure… and set up Device IP address as shown in Figure
5.10.
Figure 5.10
7. Run CMAccept.exe on the IT-800.
8. Navigate to Tools in the main menu of Visual Studio 2005 → Connect to Device….
34
9. Choose Windows Mobile 6 Professional Device in the list of Devices: and click
Connect button. The screen in Figure 5.11 if appear indicates the success of connection
establishment.
Figure 5.11
35
6. Setting Up the Development Environment
6.1 Installing CAB Files
1. After installing the library files, the CAB files in Table 6.1 will be installed in the folder
below.
C:\Program Files\CASIO\MBSYS\CAB
Table 6.1
Library
CAB file
Preinstalled
System Library
en_SystemLib.ARMV4I.CAB
Yes
Laser Scanner Library en_OBReadLib.ARMV4I.CAB
Yes
Camera Library
en_CameraLib.ARMV4I.CAB
Yes
Imager Library
en_ImagerLib.ARMV4I.CAB
Yes
WANGPRS Library
en_WANGPRSLib.ARMV4I.CAB
No
JPEG Library
enJPEG.ARMV4I.CAB
Yes
FLINK Library
en_Flink.ARMV4I.CAB
Yes (note 2)
NFC Library
en_NFCLib.ARMV4I.CAB
Yes
Notes:
1. The library with "Yes" in "Preinstalled" column is preinstalled in the IT-800 and in the
Device Emulator. Thus, it is not necessary to install it, unless it has been updated or
changed.
2. The CAB file, en_Flink.ARMV4I.CAB, in the table does not operate for the IT-800. Use
the FlinkLib.dll installed by default in the terminal.
2. Copy all the CAB files in Table 6.1 to any folder on the IT-800 via ActiveSync.
3. Carry out each CAB file.
4. When the installation starts, the installation status will appear.
36
6.2 Visual Studio 2005
Follow the steps in Chapter 5 “Connecting the IT-800 to PC” before checking the steps below to
confirm that you can connect to the IT-800 from Visual Studio 2005.
1. Establish connection with the IT-800 via ActiveSync.
2. Open the application project for VB or C# in Visual Studio 2005.
3. Choose Windows Mobile 6 Professional Device in the pull-down menu box.
Figure 6.1
4. Click the button shown in the red box below (see Figure 6.2) to make sure that Visual Studio
2005 has recognized the connection established with the IT-800 via ActiveSync. If it does not,
start up ActiveSync again to establish connection.
Figure 6.2
5. You will now be able to deploy solutions and also debug applications on the attached IT-800
using the Visual Studio 2005 debugging features.
37
7. Device Emulator
The Device Emulator provides application developers with an environment that, without having
the actual terminal available, allows them to debug basic functions and performance of an
application at source level by stepping through the code.
7.1 Software Required
The Device Emulator requires the software(s) listed below before installing the emulator.
•
•
•
•
•
•
ActiveSync 4.5 or a later version (If required)
http://www.microsoft.com/downloads/details.aspx?familyid=9E641C34-6F7F-404D-A04B-DC0
9F8141141&displaylang=en
Visual Studio 2008 or Visual Studio 2005 (Mandatory)
Microsoft Device Emulator 3.0 (If required)
http://www.microsoft.com/downloads/details.aspx?displaylang=en&FamilyID=a6f6adaf-12e3-4
b2f-a394-356e2c2fb114
Windows Mobile 6 Professional SDK Refresh
http://www.microsoft.com/downloads/details.aspx?familyid=06111A3A-A651-4745-88EF-3D4
8091A390B&displaylang=en
Windows Mobile 6 Emulator Image for CASIO IT-800 (Mandatory)
IO Simulator (Mandatory)
38
7.2 Starting Up the Device Emulator
After installing all required software described in Chapter 7.1, follow the steps below to start up the
Device Emulator on your PC.
1. Navigate to Start menu → All Programs → CASIO Device Emulator and click IT-800WM.
2. Make sure that the IT-800WM Device Emulator has started up on the screen. See Figure 7.1.
3. Navigate to Start menu → All Programs → CASIO Device IO Simulator and click IO
Simulator.
4. Make sure that the IO Simulator has started up on the screen. See Figure 7.2.
5. When both Figure 7.1 and Figure 7.2 appear on your PC, you are ready to use the emulator.
Figure 7.1
IT-800WM Emulator
Figure 7.2
I/O Simulator
Terminology of Emulator and Simulator;
The Emulator described in this reference manual is a software application that behaves in a very
similar way to the actual device by imitating individual hardware components or protocols present in
the actual hardware.
On the other hand, the Simulator is also a software application that logically integrates application
programming interfaces (“API”) and certain other functions to allow debugging of the application
program using external events. The Emulator performs in a pseudo CPU and hardware
environment and it is impossible for the application to recognize whether it is in the actual device
environment or pseudo environment. However, actions carried out by the Simulator are not as
alike to those performed by actual components but merely mimic them very closely.
39
7.3 Using the Device Emulator
7.3.1 IT-800WM Device Emulator
The IT-800WM Device Emulator emulates various operations carried out by the actual IT-800 on
the PC’s screen such as mouse operation, input on PC’s keyboard, displaying execution of
applications, and operations by actual devices such as the scanner. Figure 7.3 shows an emulated
IT-800 on the screen of a PC.
Figure 7.3
Key Input
The emulator offers key input capability similar to that of the actual IT-800. For instance, a key on
the emulated keyboard of IT-800 on the screen (see Figure 7.3) can be clicked with PC mouse as
well as key input made directly on the PC’s keyboard.
Reading Bar Codes
The emulator enables bar codes pre-registered in the I/O Simulator (see Figure 7.2) to be input when
clicking Trigger key on the emulated keyboard (see Figure 7.3). Note however that the Trigger key
must be continuously pressed for a second or more otherwise an incorrect key input may result.
Sound
The emulator offers beep and sound capability similar to that of the actual IT-800.
40
7.3.2 I/O Simulator
The I/O Simulator simulates registration of bar codes, generation of low battery warning, detection
of terminal being mounted on the cradle.
Registration of bar code symbologies
1.
Registration
Click ADD1D or ADD2D button (circled in red in Figure 7.4) to go into the bar code
registration mode.
Figure 7.4
2.
Bar code registration
Choose a bar code symbology in the Code Type pull-down menu that you wish to register in
the I/O Simulator.
Figure 7.5
41
3.
Registration of bar code and note
Enter bar code data in the Code field (see Figure 7.6) and a note about the bar code in the
Note field if necessary. Click OK button to complete the bar code registration.
Figure 7.6
4.
Completion of registration
After completion of the bar codes registration, the screen in Figure 7.7 shows a list of bar codes
that have been registered in the I/O Simulator. Prior to debugging with the Device
Emulator, make sure that you register all bar codes you wish to use in debugging.
Figure 7.7
42
5.
Editing registered bar code content
Highlight a bar code in the list of registered bar codes (see Figure 7.7) and click Edit button.
Figure 7.8 appears for editing the bar code and its information.
Figure 7.8
6.
Deleting registered bar code content
Highlight a bar code in the list of registered bar codes (see Figure 7.7) and click the Del button.
Dialogue screen in Figure 7.9 appears for you to confirm the deletion. If it is okay to delete,
click Yes button, otherwise click No button.
Figure 7.9
43
Detection of Terminal in Cradle and Low Battery Warning
If you check the I/O Box and Low Battery boxes in STATE SETTING field (see Figure 7.10), the
Simulator simulates the respective events in the emulator.
Figure 7.10
I/O Box
If this box is checked, a notification is issued that the connection between the IT-800WM Device
Emulator and cradle has been established. This notification can be utilized by the application.
Low Battery
If this box is checked, a notification that a low battery state has occurred is raised. The icon in the
Toolbar in the emulated screen appears, too. The notification can be utilized by the application to
recognize the low battery state in the hardware.
44
Indications
The I/O Simulator expresses a change of state that occurred in the IT-800WM Device Emulator.
LED
When the IT-800WM Device Emulator turns on the LED, the LED icon (LED2) in the I/O
Simulator also turns on. See Figure 7.11.
Vibration
When the IT-800WM Device Emulator vibrates, the vibration icon in the I/O Simulator also
turns on. See Figure 7.11.
Figure 7.11
45
7.3.3 Connecting via ActiveSync
If debugging with the IT-800WM Device Emulator is carried out in Visual Studio 2008 or Visual
Studio 2005, or transmission/reception of a file with the Device Emulator is carried out,
ActiveSync must be used.
Setting ActiveSync
1. Start up ActiveSync and then navigate to File → Connection Settings ….
Figure 7.12
2. In Connection Settings screen, check in the Allow connections to one of the following
box and choose DMA in the pull-down menu. See Figure 7.13.
Figure 7.13
46
Connection via ActiveSync
The way to establish connection of the Device Emulator via ActiveSync is;
1. Start up the Device Emulator by referring to Chapter 7.2 “Starting Up the Device Emulator”.
2. Start up Visual Studio 2008 or Visual Studio 2005, and then navigate to Tools → Device
Emulator Manager. Right-click IT-800WM Emulator in the list and then choose Cradle in
the popup menu. See Figure 7.14.
Figure 7.14
3. Make sure ActiveSync has started up and the
icon in the status bar changes to the
icon.
See the emulated screen of IT-800WM in Figure 7.15. The icon indicates that the connection via
ActiveSync has been established.
Figure 7.15
Figure 7.16
47
7.4 Debugging Applications
This chapter describes how to debug your application using the Device Emulator. Before starting
to “Build”, establish a connection between the IT-800WM Device Emulator and your PC via
ActiveSync by referring to Chapter 7.3 “Using the Device Emulator”.
For the basic order of developing an application, refer to Chapter 8 “Visual Studio”.
Setting Build Configuration
Choose Debug in the Solution Configurations pull-down menu in Visual Studio 2008 or Visual
Studio 2005 and IT-800WM Emulator in the target device pull-down menu. See Figure 7.17.
Figure 7.17
Debugging Applications
Basic Debug Operation
The debug operation used for the Device Emulator in Visual Studio 2008 or Visual Studio
2005 is the same as an ordinary debug operation using the actual terminal.
Debugging with the Device Emulator
With the Device Emulator, it is possible to set a break point in the source code of the
application for step-by-step debugging.
1. Navigate to Debug menu → Start Debugging to start up the debugger.
Figure 7.18
48
2. Similar to ordinary debugging operations with an actual IT-800, the Device Emulator allows
break point setting (circled in red in Figure 7.19) in the source code and step-by-step debugging.
Figure 7.19
49
8. Visual Studio
This chapter describes application development steps in Visual Studio 2008 or Visual Studio 2005 to
create an example program. The example program referred to in this chapter is an application
program developed in three development environments - C++, Visual Basic and C# - using the
CASIO Common Device Control Library or Common Device Control Class Library. The example
program for all three environments repeats turning on and off the LED to brink for a period of 5
seconds. See Chapters 8.1 “Developing in C++”, 8.2 “Developing in VB” and 8.3 “Developing in
C#” for each development environment.
For the list of the libraries provided by the IT-800WM BDK, refer to Chapter 1.2 “Library”. For
detail about each function of the Common Device Control Library and Common Device Control
Class Library, refer to Common Device Control Library Manual.
The example program in this chapter runs also in the Device Emulator. To use the emulator, rename
IT-800 Device to IT-800 Emulator.
Notes:
• Functions of the Common Device Control Library which control various individual devices
integrated in the IT-800 have different name spaces and names from those available for the
previous CASIO handheld terminals. They are not compatible with the ones in the previous
CASIO library. The exceptions are DT-X7, DT-X11, and IT-600 that use the same libraries.
• Applications developed with any functions of CASIO dedicated library must be rewritten by
replacing the dedicated functions with the appropriate functions from the Common Device
Control Library.
• Take care when using Visual Studio 2008 or Visual Studio 2005 to upgrade an existing
application and always keep a backup of your existing project.
50
8.1 Developing in C++
This chapter describes necessary steps to develop the example application program (see Chapter 8)
in C++ environment using the Common Device Control Library.
Before proceeding to creating the project, check if the installation folder for the Common Device
Control Library has been registered in Visual Studio 2008 or Visual Studio 2005 by following steps,
1 to 8, below.
1.
2.
3.
4.
5.
Navigate to Tools → Options … and open Options screen.
Navigate to Projects and Solutions → Directories.
Choose Windows Mobile 6 Professional SDK (ARMV4I) in Platforms.
Choose Include files in Show directories for:.
If the installation folder has not been registered, append the following.
C:\Program Files\CASIO\MBSYS\include
6. Choose Library files in Show directories for:.
7. If the files have not been registered, append the following.
C:\Program Files\CASIO\MBSYS\lib\ARMV4I
8. Click OK button to close the screen.
Application Development Procedure
Subsequent steps show how to create and start up a simple program using one of the system
functions. When running the program, the LED will blink in red for 5 seconds.
1. First, create Win32 Smart Device Project with its device name SmartDeviceApp for Visual
C++ in Visual Studio 2008 or Visual Studio 2005.
2. Choose Pocket PC 2003 in the Selected BDKs (SDKs in the screen) field in the Platforms of
Win32 Smart Device Project Wizard and click < button.
Figure 8.1
51
Choose Windows Mobile 6 Professional SDK in the Installed SDKs field and click >
button.
Figure 8.2
3. Click Next > button while IT-800 is kept being highlighted in the Selected SDKs field.
Figure 8.3
4. Choose Console Application for the Application type in the Application Settings menu, and click
Finish button.
5. In Solution Explorer, click SmartDeviceApp.cpp and then append the source code below
subsequent to “#include <commctrl.h>”.
#include <SystemLib.h>
#if !defined(_countof)
#define _countof(_Array) (sizeof(_Array) / sizeof(_Array[0]))
#endif
52
6. Append the source code below in the main function of SmartDeviceApp.cpp.
DWORD result;
TCHAR msg[16];
result = SysSetLED(LED_RED, 5, 8, 8);
if(result == TRUE)
{
result = SysGetLED();
switch(result & 0x0000000F) {
case LED_OFF:
wcscpy_s( msg, _countof(msg), TEXT("LED_OFF") );
break;
case LED_RED:
wcscpy_s( msg, _countof(msg), TEXT("LED_RED") );
break;
case LED_GREEN:
wcscpy_s( msg, _countof(msg), TEXT("LED_GREEN") );
break;
case LED_ORANGE:
wcscpy_s( msg, _countof(msg), TEXT("LED_ORANGE") );
break;
case LED_BLUE:
wcscpy_s( msg, _countof(msg), TEXT("LED_BLUE") );
break;
case LED_CYAN:
wcscpy_s( msg, _countof(msg), TEXT("LED_CYAN") );
break;
case LED_MAGENTA:
wcscpy_s( msg, _countof(msg), TEXT("LED_MAGENTA") );
break;
default:
wcscpy_s( msg, _countof(msg), TEXT("LED_UNKNOWN") );
break;
}
MessageBox(NULL, msg, TEXT("LED"), MB_OK);
}
53
7. Choose Properties in the Project of Visual Studio 2008 or Visual Studio 2005, and navigate to
Configuration Properties → Linker → Input → Additional Dependencies and then
append SystemLib.lib (see red circle in Figure 8.4).
Figure 8.4
8. Choose Windows Mobile 6 Professional Device for the Target Device to establish
connection with the PC.
9. Choose Debug in Visual Studio 2008 or Visual Studio 2005 and then click either Start Debugging
or Start Without Debugging.
10. The project will be built and copied to the “\Program Files\<name of project>” folder by default
in the IT-800.
11. Check that the program runs correctly on the IT-800.
54
8.2 Developing in VB
This chapter describes necessary steps to develop the example application program (see Chapter 8)
in VB environment using the Common Device Control Class Library.
Application Development Procedure
Subsequent steps show how to create and start up a simple program using one of the system
functions. When running the program, the LED will blink in red for 5 seconds.
1. Create a new VB Smart Device Application in Visual Studio.
2. In Solution Explorer, right-click References and click Add Reference…
3. Click Browse and navigate to the folder where you have stored the CASIO .NET library files.
Highlight SystemLibNet.dll and click it to open. Click OK button.
Figure 8.5
4. Add a button to the form, rename it LED, and double click it.
55
5. In the event function for the button to click, add the following code.
Dim result As Int32
Dim msg As String
result = Calib.SystemLibNet.Api.SysSetLED( _
Calib.SystemLibNet.Def.LED_RED, 5, 8, 8)
'.NET vales of “true” and “false” are “-1” and “0” respectively.
If result = -1 Then
result = Calib.SystemLibNet.Api.SysGetLED()
Select Case (result And &HF)
Case Calib.SystemLibNet.Def.LED_OFF
msg = "LED_OFF"
Case Calib.SystemLibNet.Def.LED_RED
msg = "LED_RED"
Case Calib.SystemLibNet.Def.LED_GREEN
msg = "LED_GREEN"
Case Calib.SystemLibNet.Def.LED_ORANGE
msg = "LED_ORANGE"
Case Calib.SystemLibNet.Def.LED_BLUE
msg = "LED_BLUE"
Case Calib.SystemLibNet.Def.LED_CYAN
msg = "LED_CYAN"
Case Calib.SystemLibNet.Def.LED_MAGENTA
msg = "LED_MAGENTA"
Case Else
msg = "LED_UNKNOWN"
End Select
MessageBox.Show(msg, "LED")
End If
Note:
If you type this code manually you should see the IntelliSense offer you suitable options as
appropriate. If you do not, make sure you review steps 1 to 5 to make sure you have added the
reference correctly.
6. Choose Windows Mobile 6 Professional Device for the Target Device to establish
connection with the PC.
7. Choose Deploy <name of project> on Build menu.
8. The project will be built and copied to the IT-800. By default, it will be copied to \Program
Files\<name of project> folder. SystemLibNet.dll will be deployed to the same folder.
9. Check that the program works correctly on the IT-800.
56
8.3 Developing in C#
This chapter describes necessary steps to develop the example application program (see Chapter 8)
in C# environment using the Common Device Control Class Library.
Application Development Procedure
Subsequent steps show how to create and start up a simple program using one of the system
functions. When running the program, the LED will blink in red for 5 seconds.
1. Create a new C# Smart Device Application in Visual Studio .NET.
2. In Solution Explorer, right click References and click Add Reference…
3. Click Browse and navigate to the folder where you have stored the CASIO .NET library files.
Highlight SystemLibNet.dll and click Open. Click OK button.
Figure 8.6
4. At the top of your source file add the following code.
using Calib;
57
5. Add a button to your form, rename it LED and double click it and then add the following code:
Int32 result = new Int32();
string msg;
result = SystemLibNet.Api.SysSetLED(SystemLibNet.Def.LED_RED, 5,
8, 8);
// .Net values “true” and “false” are “-1” and “0” respectively.
if(result == -1)
{
result = SystemLibNet.Api.SysGetLED();
switch(result & 0x0000000F)
{
case SystemLibNet.Def.LED_OFF:
msg = "LED_OFF";
break;
case SystemLibNet.Def.LED_RED:
msg = "LED_RED";
break;
case SystemLibNet.Def.LED_GREEN:
msg = "LED_GREEN";
break;
case SystemLibNet.Def.LED_ORANGE:
msg = "LED_ORANGE";
break;
case SystemLibNet.Def.LED_BLUE:
msg = "LED_BLUE";
break;
case SystemLibNet.Def.LED_CYAN:
msg = "LED_CYAN";
break;
case SystemLibNet.Def.LED_MAGENTA:
msg = "LED_MAGENTA";
break;
default:
msg = "LED_UNKNOWN";
break;
}
MessageBox.Show( msg, "LED");
}
Note:
If you add this code manually you should see the IntelliSense offer you suitable options as
appropriate. If you do not see this, then review steps 2 to 4 in the previous page to make sure you
have not made a mistake.
58
6. Choose Windows Mobile 6 Professional Device for the Target Device to establish
connection with the PC.
7. Select Deploy <name of project> on Build menu.
8. The project will be built and copied to the IT-800. By default, it will be copied to \Program
Files\<name of project> folder. SystemLibNet.dll will be deployed to the same folder.
9. Check that the program works correctly on the device.
59
9. Resources
Microsoft’s own http://msdn.microsoft.com/mobility/ is an extremely comprehensive resource for
programmers targeting WindowsCE .NET based devices. It includes links to most other useful web
based resources. You will find detailed Software and Library manuals on
http://world.casio.com/system/pa.
60
