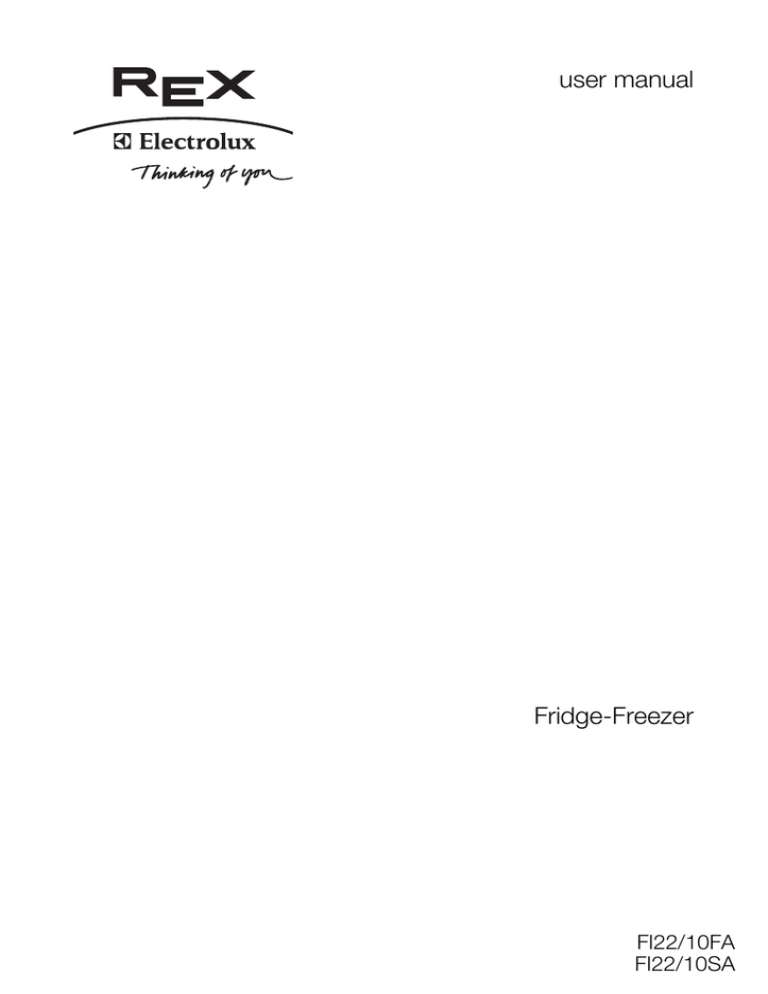

user manual

Fridge-Freezer

FI22/10FA

FI22/10SA

2 electrolux

Contents

Safety information

Operation

First use

Daily use

Helpful hints and tips

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

2

4

4

4

6

Care and cleaning

What to do if…

Technical data

Installation

Environmental concerns

6

8

10

10

14

Subject to change without notice

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

Caution! Keep ventilation openings clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.

• Do not use a mechanical device or any artificial means to speed up the thawing process.

• Do not use other electrical appliances

(such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

– avoid open flames and sources of ignition

– thoroughly ventilate the room in which the appliance is situated

electrolux 3

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

Warning! Any electrical component

(power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.

3. Make sure that you can come to the mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the lamp cover

1)

of interior lighting.

• This appliance is heavy. Care should be taken when moving it.

• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

• Avoid prolonged exposure of the appliance to direct sunlight.

Daily Use

• Do not put hot pot on the plastic parts in the appliance.

• Do not store flammable gas and liquid in the appliance, because they may explode.

• Do not place food products directly against the air outlet on the rear wall.

2)

• Frozen food must not be re-frozen once it has been thawed out.

• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.

• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.

• Do not place carbonated or fizzy drinks in the freezer compartment as it creates

1) If the lamp cover is foreseen

2) If the appliance is Frost Free

3) If a water connection is foreseen pressure on the container, which may cause it to explode, resulting in damage to the appliance.

• Ice lollies can cause frost burns if consumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

• Do not clean the appliance with metal objects.

• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.

• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

• The appliance must not be located close to radiators or cookers.

• Make sure that the mains plug is accessible after the installation of the appliance.

• Connect to potable water supply only.

3)

Service

• Any electrical work required to do the servicing of the appliance should be carried out

4 electrolux by a qualified electrician or competent person.

• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be dis-

Operation

Switching on

Insert the plug into the wall socket.

Turn the Temperature regulator clockwise to a medium setting.

Switching off

To turn off the appliance, turn the Temperature regulator to the "O" position.

Temperature regulation

The temperature is automatically regulated.

To operate the appliance, proceed as follows:

• turn the Temperature regulator toward lower settings to obtain the minimum coldness.

• turn the Temperature regulator toward higher settings to obtain the maximum coldness.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brandnew product, then dry thoroughly.

Daily use

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh foods it is not necessary to change the medium setting.

However, for a faster freezing operation, turn the temperature regulator toward higher settings to obtain the maximum coldness.

carded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol

are recyclable.

A medium setting is generally the most suitable.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature

• how often the door is opened

• the quantity of food stored

• the location of the appliance.

Important! If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Important! In this condition, the refrigerator compartment temperature might drop below

0°C. If this occurs reset the temperature regulator to a warmer setting.

Place the fresh food to be frozen on the top compartment.

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the com-

electrolux 5 partment let the appliance run at least 2 hours on the higher settings.

If large quantities of food are to be stored, remove all drawers and baskets from appliance and place food on cooling shelves to obtain the best performance.

Warning! Make sure that foods do not exceed the load limit stated on the side of the upper section (where applicable)

Important! Do not use metallic instruments to remove the trays from the freezer.

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Important! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

Freezing Calendar

The symbols show different types of frozen goods.

The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and treating before freezing.

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes. Fill these trays with water, then put them in the freezer compartment.

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

To make these adjustments proceed as follows: gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.

6 electrolux

Helpful hints and tips

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.

• If the ambient temperature is high and the

Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator

• do cover or wrap the food, particularly if it has a strong flavour

• position food so that air can circulate freely around it

Hints for refrigeration

Useful hints:

Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc..: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

Care and cleaning

Caution! Unplug the appliance before carrying out any maintenance operation.

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;

• the freezing process takes 24 hours. No further food to be frozen should be added during this period;

• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;

• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

• lean foods store better and longer than fatty ones; salt reduces the storage life of food;

• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;

• not open the door frequently or leave it open longer than absolutely necessary.

• Once defrosted, food deteriorates rapidly and cannot be refrozen.

• Do not exceed the storage period indicated by the food manufacturer.

This appliance contains hydrocarbons in its cooling unit; maintenance and re-

electrolux 7 charging must therefore only be carried out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.

• regularly check the door seals and wipe clean to ensure they are clean and free from debris.

• rinse and dry thoroughly.

Important! Do not pull, move or damage any pipes and/or cables inside the cabinet.

Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush or a vacuum cleaner. This operation will improve the performance of the appliance and save electricity consumption.

Important! Take care of not to damage the cooling system.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains supply.

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.

Defrosting the freezer

A certain amount of frost will always form on the freezer shelves and around the top compartment.

Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm.

Important! About 12 hours prior to defrosting, set the Temperature regulator toward higher settings , in order to build up sufficient chill reserve for the interruption in operation.

To remove the frost, follow the instructions below:

1. Switch off the appliance.

2. Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.

Caution! Do not touch frozen goods with wet hands. Hands can freeze to the goods.

3. Leave the door open and insert the plastic scraper in the appropriate seating at the bottom centre, placing a basin underneath to collect the defrost water

In order to speed up the defrosting process, place a pot of warm water in the freezer compartment. In addition, remove pieces of ice that break away before defrosting is complete.

8 electrolux

Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

disconnect the appliance from elec- tricity supply

• remove all food

• defrost 4) and clean the appliance and all accessories

• leave the door/doors ajar to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

4. When defrosting is completed, dry the interior thoroughly and keep the scraper for future use.

5. Switch on the appliance.

6. After two or three hours, reload the previously removed food into the compartment.

Warning! Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

What to do if…

Warning! Before troubleshooting, disconnect the mains plug from the mains socket.

Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem

The appliance does not operate. The lamp does not operate.

Possible cause

The appliance is switched off.

The mains plug is not connected to the mains socket correctly.

The appliance has no power.

There is no voltage in the mains socket.

The lamp does not work.

The lamp is in stand-by.

The lamp is defective.

The compressor operates continually.

The temperature is not set correctly.

Solution

Switch on the appliance.

Connect the mains plug to the mains socket correctly.

Connect a different electrical appliance to the mains socket.

Contact a qualified electrician.

Close and open the door.

Refer to "Replacing the lamp".

Set a higher temperature.

The door is not closed correctly.

Refer to "Closing the door".

The door has been opened too frequently.

Do not keep the door open longer than necessary.

4) If foreseen.

electrolux 9

Problem Possible cause

The product temperature is too high.

Solution

Let the product temperature decrease to room temperature before storage.

Decrease the room temperature.

Water flows on the rear plate of the refrigerator.

The temperature in the refrigerator is too high.

The temperature in the freezer is too high.

There is too much frost.

The room temperature is too high.

During the automatic defrosting process, frost defrosts on the rear plate.

The water outlet is clogged.

This is correct.

Water flows into the refrigerator.

Water flows on the ground.

The temperature in the appliance is too low.

The temperature in the appliance is too high.

Clean the water outlet.

Products prevent that water flows into the water collector.

The melting water outlet does not flow in the evaporative tray above the compressor.

The temperature regulator is not set correctly.

Make sure that products do not touch the rear plate.

Attach the melting water outlet to the evaporative tray.

Set a higher temperature.

The temperature regulator is not set correctly.

Set a lower temperature.

The door is not closed correctly.

Refer to "Closing the door".

The product temperature is too high.

Let the product temperature decrease to room temperature before storage.

Many products are stored at the same time.

There is no cold air circulation in the appliance.

Store less products at the same time.

Make sure that there is cold air circulation in the appliance.

Products are too near to each other.

The temperature regulator is not set correctly.

Store products so that there is cold air circulation.

Food is not wrapped correctly.

Wrap the food correctly.

The door is not closed correctly.

Refer to "Closing the door".

Set a higher temperature.

Replacing the lamp

1. Disconnect the mains plug from the mains socket.

2. Remove the screw from the lamp cover.

3. Remove the lamp cover (refer to the illustration).

4. Replace the used lamp with a new lamp of the same power (the maximum power is shown on the lamp cover).

5. Install the lamp cover.

6. Tighten the screw to the lamp cover.

7. Connect the mains plug to the mains socket.

8. Open the door. Make sure that the lamp comes on.

10 electrolux

Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to "Installation".

3. If necessary, replace the defective door gaskets. Contact the Service Center.

Technical data

Dimension of the recess

Rising Time

Height

Width

Depth

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

Installation

Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Ambient temperature Climate class

SN

N

ST

T

+10°C to + 32°C

+16°C to + 32°C

+16°C to + 38°C

+16°C to + 43°C

1780 mm

560 mm

550 mm

20 h

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.

The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

electrolux 11

Door reversibility

The door of the appliance opens to the right.

If you want to open the door to the left, do these steps before you install the appliance:

1. Loosen and remove the upper pin.

2. Remove the upper door.

3. Remove the spacer.

4. Loosen the middle hinge.

5. Remove the lower door.

6. Loosen and remove the lower pin.

On the opposite side:

1. Tighten the lower pin.

2. Install the lower door.

3. Tighten the middle hinge.

4. Install the spacer.

5. Install the upper door.

6. Tighten the upper pin.

Ventilation requirements

The airflow behind the appliance must be sufficient.

50 - min. 200 cm 2 min.

200 cm 2

Installing the appliance

Caution! Make sure that the mains cable can move freely.

Do these steps.

1. Install the appliance in the niche.

Push the appliance in the direction of the arrows (1) until the upper gap cover stops against the kitchen furniture. Make sure that the distance between the appliance and the cupboard front-edge is

44 mm.

Push the appliance in the direction of the arrows (2) against the cupboard on the opposite side of the hinge. Make sure that the clearance between the appliance and the cupboard is 4 mm.

12 electrolux

2

1

I

2. Adjust the appliance in the niche.

The lower hinge cover (in the accessories bag) makes sure that the distance between the appliance and the kitchen furniture is correct.

Open the door. Put the lower hinge cover in position.

4. Push the sealing strip between the appliance and the adjacent cabinet.

4mm

44mm

3. Attach the appliance to the niche with 4 screws.

5. Remove the correct part from the hinge cover (E). Make sure to remove the part

DX, in the case of right hinge, SX in opposite case.

6. Attach the covers (C, D) to the lugs and the hinge holes.

Install the vent grille (B).

electrolux 13

Attach the hinge covers (E) to the hinge.

Ha Hb

D

C

E Hc

Hd

E B

7. Connect the appliance laterally to the kitchen furniture sidewall: a) Loosen the screws of the part (G) and move the part (G) till the furniture sidewall.

b) Tighten the screws of the part (G) again.

c) Attach the part (H) to the part (G).

9. Install the part Ha on the inner side of the kitchen furniture.

ca. 50 mm

90°

21 mm

90°

G

H ca. 50 mm

21 mm

10. Push the part Hc on the part Ha.

Ha

8. Disconnect the parts Ha, Hb, Hc and Hd

Hc

11. Open the appliance door and the kitchen furniture door at an angle of 90°.

Insert the small square (Hb) into guide

(Ha).

14 electrolux

Put together the appliance door and the furniture door and mark the holes.

8 mm

Align the kitchen furniture door and the appliance door by adjusting the part Hb.

Ha

Hb

Hb

12. Remove the brackets and mark a distance of 8 mm from the outer edge of the door where the nail must be fitted (K).

14. Press the part Hd on the part Hb.

8 mm

Hb

K

Hd

Ha

13. Place the small square on the guide again and fix it with the screws supplied.

Environmental concerns

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for

Do a final check to make sure that:

• All screws are tightened.

• The magnetic sealing strip is attached tightly to the cabinet.

the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

electrolux 15

www.electrolux.com

212715131-00-13102009

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF

advertisement
