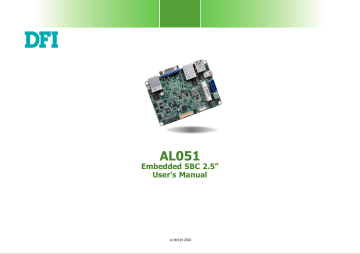

AL051 Embedded SBC 2.5” User’s Manual A-469-M-2002 1 Copyright FCC and DOC Statement on Class B This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes. • • • Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information. • Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio TV technician for help. © 2019. All Rights Reserved. Notice: Trademarks 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners. 2 Table of Contents I/O Connectors...............................................................18 Digital I/O Connector...................................................... Front Audio Connector.................................................... COM (Serial) Port........................................................... SATA (Serial ATA) Connector............................................ Expansion Slots.............................................................. SMBus Connector........................................................... Front Panel Connector..................................................... LVDS LCD Panel Connector.............................................. LCD/Inverter & SATA Power Connector.............................. Battery.......................................................................... Copyright.................................................... 2 Trademarks................................................. 2 FCC and DOC Statement on Class B............ 2 Warranty.................................................... 4 Static Electricity Precautions........................ 4 Safety Measures......................................... 4 About the Package...................................... 5 Optional Items............................................ 5 Before Using the System Board................... 5 Chapter 1 - Introduction.............................. 6 Chapter 3 - BIOS Setup.............................24 Overview........................................................................24 Insyde BIOS Setup Utility................................................25 Main............................................................................. Advanced...................................................................... Security........................................................................ Boot............................................................................. Exit............................................................................... 25 25 33 33 34 Updating the BIOS..........................................................35 Notice: BIOS SPI ROM.....................................................35 Specifications................................................................... 6 Chapter 4 - Supported Software.................36 Appendix A - Troubleshooting Checklist.......42 Features.......................................................................... 7 Chapter 2 - Hardware Installation................ 8 Board Layout................................................................... 8 Block Diagram.................................................................. 9 Mechanical Drawing.......................................................... 9 System Memory..............................................................10 Installing the SODIMM Module......................................... 10 Jumper Settings..............................................................11 Panel Power Select......................................................... 11 M.2 Signal Select........................................................... 12 Heat Spreader Assembly..................................................13 Rear Panel I/O Ports.......................................................15 2-Pin Terminal Block (DC 12V)......................................... Graphics Interfaces......................................................... RJ45 LAN Ports.............................................................. USB Ports...................................................................... 18 18 19 20 20 21 21 22 22 23 15 16 16 17 3 Warranty Static Electricity Precautions 1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications. It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up. 2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product. 1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it. 3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work. 2. Wear an antistatic wrist strap. 3. Do all preparation work on a static-free surface. 4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections. 4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered. 5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends. Important: Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection. Safety Measures To avoid damage to the system: • Use the correct AC input voltage range. To reduce the risk of electric shock: • Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. 4 About the Package The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance. • • • • One One One One AL051 board Serial ATA data cable (Length: 155mm) Y cable for SATA and inverter power (Length: 155mm) Heat spreader (Height: 11mm) Optional Items • • • • • • • USB port cable (Length: 200mm) COM port cable (Length: 300mm) Power adapter (60W, 12V, DC Jack) 2-pole terminal to DC Jack cable Audio cable (Length: 160mm) Heat sink for E series CPU 0 to 60°C/wide temp (Height: 22.6mm) Heat sink for N series CPU 0 to 60°C (Height: 19mm) The board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative. Before Using the System Board Before using the system board, prepare basic system components. If you are installing the system board in a new system, you will need at least the following internal components. • Storage devices such as hard disk drive, etc. You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor. 5 Chapter 1 Chapter 1 - Introduction Specifications SYSTEM GRAPHICS EXPANSION AUDIO POWER Processor Intel Atom® Processor E3900 Family, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Memory One 204-pin SODIMM up to 8GB Single Channel DDR3L 1866MHz BIOS Insyde SPI 64Mbit (supports UEFI boot only) Controller Intel® HD Graphics Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4 Display 1 x Mini DP++ 1 x VGA 1 x LVDS Mini DP++: resolution up to 4096x2160 @ 60Hz VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 18/24-bit, resolution up to 1920x1200 @ 60Hz Triple VGA + Mini DP++ + LVDS Displays Interface 1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen 1/USB 2.0) 1 x M.2 B key 2242 (PCIe/USB 2.0/SATA 3.0) Realtek ALC888S-VC2-GR Audio Codec Type Connector Single 12V +/-10% DC 2-pin Terminal Block 2-pin Vertical Type Connector (opt.) RTC Battery CR2032 Coin Cell Consumption Typical: E3950:12V @ 0.51A (6.12Watt) Max.: E3950:12V @ 2.00A (24.00Watt) OS SUPPORT Microsoft/Linux Windows 10 IoT Enterprise (64-bit) (UEFI ONLY) Ubuntu 16.04 ENVIRONMENT Temperature Operating: 0 to 60°C, Option: -20 to 70°C/-40 to 85°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 497,857 hrs @ 25°C; 318,774 hrs @ 45°C; 213,436 hrs @ 60°C MECHANICAL Dimensions 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83") Height PCB: 1.6mm Top Side: 15mm, Bottom Side: 8mm CERTIFICATIONS CE, FCC, RoHS ETHERNET Controller 2 x Intel® I210AT PCIe (10/100/1000Mbps) 2 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request) REAR I/O Ethernet 2 x GbE (RJ-45) USB 2 x USB 3.1 Gen 1 1 x Mini DP++ Display 1 x VGA 1 x LVDS INTERNAL I/O Serial 1 x RS-232/422/485 (1.27mm pitch) USB 2 x USB 2.0 (1.27mm pitch) Display 1 x LVDS LCD Panel Connector Audio 1 x Audio (Line-out/Mic-in) SATA 1 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO SMBus 1 x SMBus WATCHDOG Output & System Reset, Programmable via Software from 1 to 255 Seconds TIMER Interval SECURITY TPM fTPM2.0 6 Chapter 1 Introduction www.dfi.com Chapter 1 • Wake-On-LAN Features This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA interrupt. • Watchdog Timer The Watchdog Timer function allows your application to regularly “clear” the system at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate. • ACPI STR The system board is designed to meet the ACPI (Advanced Configuration and Power Interface) specification. ACPI has energy saving features that enable PCs to implement power management and plug-and-play with operating systems that support power management features. • DDR3L DDR3L SDRAM provides backward compatibility to DDR3 memory modules but can operate at the same or at a lower power level. With ACPI, the system can further utilize the Ethernet adapter’s wake-on-LAN (WOL) capability that enables remote wake-up if the Ethernet adapter supports such feature. • Graphics The integrated Intel® HD graphics engine delivers an excellent blend of graphics performance and features to meet business needs. It provides excellent video and 3D graphics with outstanding graphics responsiveness. These enhancements deliver the performance and compatibility needed for today’s and tomorrow’s business applications. Supports 1 x Mini DP++, 1 x VGA and 1 x LVDS interfaces for triple display outputs. • Serial ATA Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s. • Gigabit LAN Two Intel® I210AT PCI Express Gigabit Ethernet controllers or two optional Intel® I210IT PCI Express Gigabit Ethernet controllers support up to 1Gbps data transmission. • Audio The Realtek ALC888S-VC2-GR audio codec provides 2.1-channel High Definition audio output. • Power Failure Recovery When power returns after an AC power failure, you may choose to either power-on the system manually or let the system power-on automatically. • USB The system board supports the USB 3.1 Gen 1. It is capable of running at a maximum transmission speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s) and USB 1.1 (12Mb/s). USB 3.1 Gen 1 reduces the time required for data transmission, reduces power consumption, and is backward compatible with USB 2.0. It is a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals. 7 Chapter 1 Introduction www.dfi.com Chapter 2 Chapter 2 - Hardware Installation Board Layout 2-Pin Terminal Block (DC 12V) USB 3.1 Gen 1 Mini DP++ SATA 3.0 USB 0-1 7 1 Standby Power LED SATA 0 USB 2.0 Mini PCIe 10 9 2 1 SPI Flash BIOS Buzzer USB 2-3 LCD/Inverter 5 & SATA Power LAN 1 1 1 2 LVDS LCD Panel 18 1 8 PTN3460 VGA 39 1 1 F81803 Realtek ALC888S 2 6 9 1 5 1 9 1 10 2 6 2 10 2 3 3 2 Battery M.2 Signal Select (JP5) E3900 Series 40 16 LAN 2 Intel Atom M.2 B Key Intel I210AT or I210IT (opt.) 47 1 2 DDR3L_ SODIMM Panel Power 5 Select (JP2) 6 27 Intel I210AT or I210IT (opt.) 1 5 DIO Front Panel 2 10 1 9 COM 1 SMBus Front Audio Top View Bottom View 8 Chapter 2 Hardware Installation www.dfi.com Chapter 2 Block Diagram VGA Mechanical Drawing IT6516 Mini DP++ GLAN 1 GLAN 2 I210AT I210 IT (opt.) I210AT I210 IT (opt.) eDP PCIe x1 SATA 3.0 PCIe x1 USB 2.0 USB 2.0 2x DDR3L 1866MHz SODIMM PTN3460 LVDS Channel A USB 3.1 Gen 1 USB 3.1 Gen 1/2.0 2x 72 69.08 DDI Intel Atom® Processor E3900 Series USB 2.0 SATA 3.0 PCIe x1 USB 2.0 M.2 1x PCIe x1 (USB 3.1 Gen1 x1 opt.) USB 2.0 HD Audio (Line-out, Mic-in) SATA 1x SMBus 22.22 Full-size Mini PCIe Digital I/O 8-bit 3.04 0 SMBus SPI 97.05 100 85.13 58.50 Super IO with WDT 0 2.97 13.45 RS232/422/485 1x 31.13 LPC Bus 9 Chapter 2 Hardware Installation www.dfi.com Chapter 2 Installing the SODIMM Module Important: Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in boards, and other components. Perform installation procedures at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection. Note: The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only. 1. Make sure the PC and all other peripheral devices connected to it has been powered down. 2. Disconnect all power cords and cables. System Memory 3. Locate the SODIMM socket on the system board. Important: When the Standby Power LED lights red, it indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components. 4. Note the key on the socket. The key ensures the module can be plugged into the socket in only one direction. Standby Power LED 27 47 DDR3L Features • One 204-pin SODIMM up to 8GB • Single Channel DDR3L 1866MHz 10 Chapter 2 Hardware Installation www.dfi.com Chapter 2 5. Grasping the module by its edges, align the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket. Jumper Settings Panel Power Select 5 3 1 JP2 6 4 2 1-3 On: +5V 5 3 1 6 4 2 3-5 On: +3.3V (default) 3 6. Push down the module until the clips at each end of the socket lock into position. You will hear a distinctive “click”, indicating the module is correctly locked into position. JP2 is used to select the power supplied with the LCD panel. Clip Clip Important: Before powering-on the system, make sure that the power settings of JP2 match the LCD panel’s specification. Selecting the incorrect voltage will seriously damage the LCD panel. 11 Chapter 2 Hardware Installation www.dfi.com Chapter 2 M.2 Signal Select 1 2 3 1-2 On: SATA (default) 1 2 3 2-3 On: PCIe 3 JP5 JP5 is used to select the M.2 signal: SATA (default) or PCIe. 12 Chapter 2 Hardware Installation www.dfi.com Chapter 2 ssis ha To C n Heat Spreader Assembly is s s ha is ass Please follow the steps to mount the module and heat spreader combo onto your chassis. ChcompoA heat spreader may be included in your standard package. The heat spreaderToand nents required for mounting are illustrated below. w* Scre n 4 ff * d-o Stan C Step 1: Locate the mounting holes or screws on your chassis reserved for mounting the stand-offs. The chassis is typically customized, in which case additional screws that conform to the chassis design may be required to secure the stand-offs onto the chassis. Use a wrench to fasten the stand-offs onto the chassis. r*1 e ead r t Sp Hea 4 etal M ace rf Inte Leg is s s ha is ass h To C C sis has C The heat spreader T isodesigned to be mounted onto the module as illustrated below. Please make sure the contacting sides of the heat spreader and the module are correct — the CPU side of the module shall be facing the interface metal side with legs of the heat spreader. Rotate the module horozontally so the interface metal would sit right on top of the CPU. face r Inte ide al S Met Step 2: Rotate the module and heat spreader combo so that the I/O is facing the desired side, and place the combo onto the stand-offs. Please make sure the screw holes of the combo align to those of the stand-offs. Place the screws that come with the standard package into the screw holes, and use a screw driver to fasten the screws until the combo is securely fixed onto the chassis. n Dow is ass h To C der prea tS Hea *1 face r Inte al Met sis has To C Leg p de U Si CPU sis has To C 13 er * read 1Chapter Leg 2 Hardware Installation www.dfi.com Chapter 2 Note: The chassis may come with customized or pre-installed stand-offs and screws. The illustrations here are for reference only. The combo can be mounted onto the chassis in two manners — 1) module side to the chassis, or 2) heat spreader side to the chassis as illustrated below. This shall depend entirely on the design of the chassis with regard to interior spacing, thermal, and I/O. ide al S t e M wn Do1) Module side to the chassis face r Inte ide al S t e M n Dow 2) Heat spreader side to the chassis p de U U Si d-of Stan C p is ass 4 f*4 is s s a Ch is ass h To C de U Si CPU h To C w* Scre is ass h To C w* Scre r*1 de prea tS Hea al et ce M St 4 Leg f*4 Chapter 2 Hardware Installation -of rfa and Inte is ass h To C r*1 de prea tS Hea fa r Inte al et ce M g 14 Le www.dfi.com Chapter 2 Rear Panel I/O Ports 2-Pin Terminal Block (DC 12V) 2-Pin Terminal Block (DC 12V) - 2-Pin Terminal Block (DC 12V) + + - 3 Mini DP++ This 2-pin terminal block is considered a low power solution. Connect a power adapter and a 2-pole terminal to DC Jack cable to this terminal block. Using a voltage more than the recommended range may fail to boot the system or cause damage to the system board. USB 3.1 Gen 1 LAN 1 VGA LAN 2 The rear panel I/O consists of the following ports: • • • • • 1 1 2 2 1 2-pin terminal block (DC 12V) Mini DP++ port USB 3.1 Gen 1 ports GbE (RJ-45) VGA port 15 Chapter 2 Hardware Installation www.dfi.com Chapter 2 Graphics Interfaces RJ45 LAN Ports The display ports consist of the following: • • 1 Mini DP++ port 1 VGA port LAN 1 Mini DP++ VGA 3 LAN 2 3 Features • Mini DP++ Port The Mini DP++ port is a digital display interface used to connect a display device such as a computer monitor. It is used to transmit audio and video simultaneously. The interface, which is developed by VESA, delivers higher performance features than any other digital interfaces. 2 Intel® I210AT PCI Express Gigabit Ethernet controllers or 2 optional Intel® I210IT PCI Express Gigabit Ethernet controllers The LAN ports enable the system board to connect to a local area network by means of a network hub. BIOS Setting VGA Port Configure the onboard LAN in the “ACPI Configuration” submenu of the Advanced menu in the BIOS. Refer to Chapter 3 for more information. The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port. After you plug the monitor’s cable connector into the VGA port, gently tighten the cable screws to hold the connector in place. Driver Installation Driver Installation Install the LAN drivers. Refer to Chapter 4 for more information. Install the graphics driver. Refer to Chapter 4 for more information. 16 Chapter 2 Hardware Installation www.dfi.com Chapter 2 USB Ports USB 1 USB 2-3 USB 0 VCC -Data1 +Data1 GND N.C. USB 3.1 Gen 1 10 9 VCC -Data0 +Data0 GND N.C. 2 1 3 USB 2.0 The USB device allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals. The system board is equipped with 2 onboard USB 3.1 Gen 1 ports (USB 0-1). The 10-pin connector allows you to connect 2 additional USB 2.0 ports (USB 2-3). The additional USB ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and then insert the USB port cables to a connector. BIOS Settings Configure the onboard USB in the “USB Boot” field of the Boot menu in the BIOS. Refer to Chapter 3 for more information. 17 Chapter 2 Hardware Installation www.dfi.com Chapter 2 Front Audio Connector I/O Connectors Digital I/O Connector 27 47 3 10 9 9 10 1 2 GND NC Mic-JD NC Line-JD 2 1 Mic-L Mic-R Line-R GND Line-L Digital I/O Front Audio The Digital I/O connector supports 8-bit digital input/output signals to provide the ability of monitoring and controlling the states of the connected external devices. Front Audio Digital I/O Connector The front audio connector allows you to connect to line-out and mic-in jacks that are at the front panel of your system. Pin Function Pin Function 1 DIO7 2 DIO6 Driver Installation 3 DIO5 4 DIO4 Install the audio driver. Refer to Chapter 4 for more information. 5 DIO3 6 DIO2 7 DIO1 8 DIO0 9 5V 10 GND 18 Chapter 2 Hardware Installation www.dfi.com Chapter 2 COM (Serial) Port COM 1 Pin RS232 RS422 Full Duplex RS485 1 DCD- TX- DATA- 2 RD TX+ DATA+ 3 TD RX+ N.C. 4 DTR- RX- N.C. 5 GND GND GND 6 DSR- N.C. N.C. 7 RTS- N.C. N.C. 8 CTS- N.C. N.C. 9 RI- N.C. N.C. 10 GND GND GND 3 COM 1: RS232/422/485 9 10 1 2 COM 1 can be selected among RS232, RS422 and RS485 via BIOS setting. The serial port is asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices. BIOS Setting Configure the serial port in the “SIO FINTEK81803” submenu of the Advanced menu in the BIOS. Refer to Chapter 3 for more information. 19 Chapter 2 Hardware Installation www.dfi.com Chapter 2 SATA (Serial ATA) Connector Expansion Slots GND TXP TXN GND RXN RXP GND SATA 0 1 7 Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen 1/USB 2.0) 3 3 M.2 with PCIe/USB 2.0/SATA 3.0 signals Mini PCI Express Slot Features • 1 Serial ATA 3.0 port with data transfer rate up to 6Gb/s • Integrated Advanced Host Controller Interface (AHCI) controller The full-size Mini PCIe socket supports PCIe x1 (opt. USB 3.1 Gen 1) and USB 2.0 signals and is used to install a Mini PCIe card. M.2 B Key 2242 Socket The M.2 B key 2242 socket is the Next Generation Form Factor (NGFF) which is designed to support multiple modules and make the M.2 more suitable in application for solid-state storage. The Serial ATA connector is used to connect the Serial ATA device. Connect one end of the Serial ATA data cable to a SATA connector and the other end to your Serial ATA device. BIOS Setting Configure the Serial ATA drive in the Advanced menu (“SATA Configuration” submenu) of the BIOS. Refer to Chapter 3 for more information. 20 Chapter 2 Hardware Installation www.dfi.com Chapter 2 27 HDD LED Front Panel Connector 47 Power LED SMBus Connector 2 4 6 1 2 SMBus Front Panel HDD-LED - HDD LED 3 3V3SB SMB_CLK SMB_ALERT 5 6 Power Button Reset Button 1 3 5 GND SMB_DATA GND This LED will light when the hard drive is being accessed. RESET-SW - Reset Button This switch allows you to reboot without having to power off the system. The System Management Bus (SMBus) connector is used to connect SMBus devices. It is a multiple device bus that allows multiple chips to connect to the same bus and enable each one to act as a master by initiating data transfer. PWR-BTN - Power Button This switch is used to power on or off the system. PWR-LED - Power/Standby LED When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds. Pin Pin Name HDD-LED PWR-LED 6 HDD_LED 3 GND 4 SUS_LED 2 V_LED Pin Pin Name RESETSW PWR-BTN 5 Reset Button 3 GND 1 Power Button 3 GND 21 Chapter 2 Hardware Installation www.dfi.com Chapter 2 LVDS LCD Panel Connector LVDS LCD Panel Connector LCD/Inverter & SATA Power Connector Pin Function LCD/Inverter & SATA Power Connector Pin Function Pin Pin Name 1 GND 2 GND 1 +12V 3 LVDS_Out3+ (Odd_3+) 4 LVDS_Out7+ (Even_3+) 2 GND 5 5 LVDS_Out3- (Odd_3-) 6 LVDS_Out7- (Even_3-) 3 Panel Backlight On/Off Control 1 7 GND 8 GND 4 Dimming Control 9 LVDS_Out2+ (Odd_2+) 10 LVDS_Out6+ (Even_2+) 5 +5V 11 LVDS_Out2- (Odd_2-) 12 LVDS_Out6- (Even_2-) 13 GND 14 GND 15 LVDS_Out1+ (Odd_1+) 16 LVDS_Out5+ (Even_1+) 17 LVDS_Out1- (Odd_1-) 18 LVDS_Out5- (Even_1-) 19 GND 20 GND 21 LVDS_Out0+ (Odd_0+) 22 LVDS_Out4+ (Even_0+) 23 LVDS_Out0- (Odd_0-) 24 LVDS_Out4- (Even_0-) 25 GND 26 GND 27 LVDS_CLK1+ (Odd_CLK+) 28 LVDS_CLK2+ (Even_CLK+) 29 LVDS_CLK1- (Odd_CLK-) 30 LVDS_CLK2- (Even_CLK-) 31 GND 32 GND 33 DDC_CLK 34 N.C. 35 DDC_DATA 36 +3.3V 37 Panel Power 38 Panel Power 39 Panel Power 40 Panel Power LCD/Inverter & SATA Power LVDS LCD Panel 2 3 1 39 40 The system board allows you to connect a LCD Display Panel by means of the LVDS LCD panel connector and the LCD/Inverter power connector. These connectors transmit video signals and power from the system board to the LCD Display Panel. Refer to the right side for the pin functions of these connectors. BIOS Setting Configure the LCD panel in the Advanced menu of the BIOS. Refer to Chapter 3 for more information. Note: 1. DFI board's LVDS LCD panel connector: 2. DFI board's LCD/Inverter & SATA power connector: Manufacturer: V-STAR Part No: W100V40TP2 Description: 2*20, 1.0mm, BOX header Manufacturer: E-call Part No: 0110-3221050 Description: 1*5pin, 1.25mm, Wafer 22 Chapter 2 Hardware Installation www.dfi.com Chapter 2 GND +3.3V Battery 3 Battery Connector Battery 2 1 Connect to the battery connector The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off. Safety Measures • Danger of explosion if battery incorrectly replaced. • Replace only with the same or equivalent type recommended by the manufacturer. • Dispose of used batteries according to local ordinance. 23 Chapter 2 Hardware Installation www.dfi.com Chapter 3 Chapter 3 - BIOS Setup Legends Overview The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to configure the system and save the configuration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a configuration change has been made such as a hard drive replaced or a device added. It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to install a new CMOS battery and reconfigure the BIOS settings. Note: The BIOS is constantly updated to improve the performance of the system board; therefore the BIOS screens in this chapter may not appear the same as the actual one. These screens are for reference purpose only. Default Configuration Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration. Keys Function Right and Left arrows Moves the highlight left or right to select a menu. Up and Down arrows Moves the highlight up or down between submenu or fields. <Esc> Exit to the BIOS Setup Utility. <F5> Scrolls forward through the values or options of the highlighted field. <F6> Scrolls backward through the values or options of the highlighted field. <F1> Displays general help <F9> Optimized defaults <F10> Saves and resets the setup program. <Enter> Press <Enter> to enter the highlighted submenu. Scroll Bar When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields. Entering the BIOS Setup Utility The BIOS Setup Utility can only be operated from the keyboard and all commands are keyboard commands. The commands are available at the right side of each setup screen. Submenu The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. 24 Chapter 3 BIOS Setup www.dfi.com Chapter 3 Insyde BIOS Setup Utility Advanced Main The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference. The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. Main Advanced Project Name BIOS Version Security InsydeH2O Setup Utility Boot Exit AL051 B185.31A Intel(R) Atom(TM) E3930 @ 1.30GHz Pentium(R)Processor CPU N4200 @ 1.10GHz CPU Speed 1300 MHz CPUID 0x506C9 L1 Data Cache 24 KB L1 Instruction Cache 32 KB L2 Cache 1024 KB L3 Cache 0 KB Number Of Processors 2 Core(s) / 2 Thread(s) BXT SOC B1 Stepping Microcode Rev 0000002E Total Memory System Memory Speed SODIMM 0 4096 MB 1600 MHz 4096 MB TXE FW Version 3.1.50.2222 System Time System Date [09:57:24] [06/15/2018] F1 Help Esc Exit ↑/↓ Select Item ←/→ Select Item F5/F6 Change Values Enter Select SubMenu Rev. 5.0 Important: Setting incorrect field values may cause the system to malfunction. This is the help for the hour, minute, second field. Valid range is from 0 to 23, 0 to 59, 0 to 59. INCREASE/REDUCE: +/-. Main Advanced Security InsydeH2O Setup Utility Boot Exit ACPI Configuration Setting ACPI Configuration CPU Configuration Video Configuration Audio Configuration SATA Configuration PCI Express Configuration Console Redirection SIO FINTEK81803 F9 Setup Defaults F10 Save and Exit F1 Help Esc Exit ↑/↓ Select Item ←/→ Select Item Rev. 5.0 F5/F6 Change Values Enter Select SubMenu F9 Setup Defaults F10 Save and Exit System Time The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59. System Date The date format is <month>, <date>, <year>. Month displays the month, from 01 to 12. Date displays the date, from 01 to 31. Year displays the year, from 2000 to 2099. 25 Chapter 3 BIOS Setup www.dfi.com Chapter 3 ACPI Configuration Note: If Quiet Boot of Boot menu is set to enabled, BGRT Logo field will appear for configuration. Refer to the Boot menu in this chapter for more information. This section configures the system ACPI parameters. InsydeH2O Setup Utility Rev. 5.0 Advanced Wake On LAN After G3 <Disabled> <Always Off> InsydeH2O Setup Utility Enable/Disable Wake On LAN capability Wake On LAN After G3 BGRT Logo F1 Help Esc Exit ↑/↓ Select Item ←/→ Select Item F5/F6 Change Values Enter Select SubMenu Rev. 5.0 Advanced <Disabled> <Always Off> <Enabled> Support display logo with ACPI BGRT table. F9 Setup Defaults F10 Save and Exit F1 Help Esc Exit Wake On LAN ↑/↓ Select Item ←/→ Select Item F5/F6 Change Values Enter Select SubMenu F9 Setup Defaults F10 Save and Exit BGRT Logo This field is used to enable or disable the LAN signal to wake up the system. This field is used to enable or disable to support display logo with ACPI BGRT table. After G3 This field is to specify what state the system should be in when power is re-applied after a power failure (G3, the mechanical-off, state). Always On The system working state. Always Off Off, except for trickle current to devices such as the power button. 26 Chapter 3 BIOS Setup www.dfi.com Chapter 3 CPU Configuration Video Configuration This section is used to configure the CPU. This section configures the video settings. InsydeH2O Setup Utility InsydeH2O Setup Utility Rev. 5.0 Advanced EIST Turbo Mode C-States <Enabled> <Enabled> <Enabled> Rev. 5.0 Advanced Primary Display Integrated Graphics Device PTN3460 Function LCD Panel Type LCD Panel Color Depth Enable/Disable Intel SpeedStep Select which of IGD/PCIe Graphics device should be Primary Display <IGD> <Enabled> <Enabled> <1024x768> <24 Bit> Primary Display IGD PCIe F1 Help Esc Exit ↑/↓ Select Item ←/→ Select Item F5/F6 Change Values Enter Select SubMenu F1 Help Esc Exit F9 Setup Defaults F10 Save and Exit ↑/↓ Select Item ←/→ Select Item F5/F6 Change Values Enter Select SubMenu F9 Setup Defaults F10 Save and Exit Primary Display EIST Select either IGD or PCIe Graphics device to be the primary display. This field is used to enable or disable the Enhanced Intel SpeedStep® Technology, which helps optimize the balance between system’s power consumption and performance. After it is enabled in the BIOS, you can enable the EIST feature using the operating system’s power management. Integrated Graphics Device Turbo Mode PTN3460 Function This field is used to enable or disable processor turbo mode (requires that EIST is enabled too), which allows the processor core to automatically run faster than the base frequency when the processor’s power, temperature, and specification are within the limits of TDP. Enable or disable PTN3460 LCD features. C-States Please check the specifications of your LCD monitor. Select the type of LCD panel connected to the system’s LCD connector: 800x480, 800x600, 1024x768, 1366x768, 1280x1024, 1920x1080 or 1920x1200. Keep IGD enabled or disabled based on the setup options. LCD Panel Type Enable or disable CPU Power Management. It allows CPU to go to C States when it’s not 100% utilized. LCD Panel Color Depth Select the LCD panel color depth: 18 Bit, 24 Bit, 36 Bit or 48 Bit. 27 Chapter 3 BIOS Setup www.dfi.com Chapter 3 Audio Configuration SATA Configuration This section is used to configure the audio settings. This section configures the SATA controller. InsydeH2O Setup Utility Advanced Audio Controller F1 Help Esc Exit ↑/↓ Select Item ←/→ Select Item Rev. 5.0 InsydeH2O Setup Utility Enable/Disable HD-Audio Support <Enabled> F5/F6 Change Values Enter Select SubMenu Rev. 5.0 Advanced SATA Controller SATA Mode Selection SATA Speed Selection SATA Port 0 SATA Port 0 Hot Plug SATA Port 1 SATA Port 1 Hot Plug F9 Setup Defaults F10 Save and Exit F1 Help Esc Exit <Enabled> <AHCI> <Gen3> [Not Installed] <Enabled> <Disabled> [Not Installed] <Enabled> <Disabled> ↑/↓ Select Item ←/→ Select Item F5/F6 Change Values Enter Select SubMenu Enables or Disables the Chipset SATA Controller. F9 Setup Defaults F10 Save and Exit Audio Controller SATA Controller Control the support of the high-definition audio device. This field is used to enable or disable the Serial ATA controller. Disabled HD Audio will be disabled. SATA Mode Selection The mode selection determines how the SATA controller(s) operates. Enabled HD Audio will be enabled. AHCI Mode This option allows the Serial ATA devices to use AHCI (Advanced Host Controller Interface). SATA Speed Selection Select Serial ATA controller(s) speed from Gen1 (1.5 Gbit/s), Gen2 (3.0 Gbit/s) or Gen 3 (6.0 Gbit/s). Serial ATA Port 0/1 and Hot Plug These fields are used to enable or disable the serial ATA ports and their hot plug function. 28 Chapter 3 BIOS Setup www.dfi.com Chapter 3 PCI Express Configuration InsydeH2O Setup Utility This section configures settings relevant to PCI Express root ports. InsydeH2O Setup Utility PCI Express Root Port 2 (Mini PCIE) Hot Plug PCIe Speed Rev. 5.0 Advanced PCI PCI PCI PCI Express Express Express Express Root Port Root Port Root Port Root Port 1 2 3 4 F1 Help Esc Exit F1 Help Esc Exit ↑/↓ Select Item ←/→ Select Item <Enabled> <Disabled> <Auto> Control the PCI Express Root Port. Enable: Enable PCIe root port Disable: Disable PCIe root port (LAN 2) (Mini PCIE) (M.2 B Key) (LAN 1) F5/F6 Change Values Enter Select SubMenu Rev. 5.0 Advanced ↑/↓ Select Item ←/→ Select Item F5/F6 Change Values Enter Select SubMenu Control the PCI Express Root Port. Enable: Enable PCIe root port Disable: Disable PCIe root port F9 Setup Defaults F10 Save and Exit PCI Express Root Port 1/2/3/4 F9 Setup Defaults F10 Save and Exit This field is used to enable or disable the PCI Express Root Port. Hot Plug InsydeH2O Setup Utility This field is used to enable or disable the PCI Express Hot Plug. Rev. 5.0 Advanced PCI Express Root Port 1 (LAN 2) F1 Help Esc Exit ↑/↓ Select Item ←/→ Select Item <Enabled> F5/F6 Change Values Enter Select SubMenu PCIe Speed Control the PCI Express Root Port. Enable: Enable PCIe root port Disable: Disable PCIe root port Select the speed of the PCI Express Root Port: Auto, Gen1 or Gen2. F9 Setup Defaults F10 Save and Exit 29 Chapter 3 BIOS Setup www.dfi.com Chapter 3 Console Redirection When Console Serial Redirect is set to enabled, the screen will appear like below: This section configures settings relevant to console redirection. InsydeH2O Setup Utility Rev. 5.0 Advanced InsydeH2O Setup Utility Rev. 5.0 Console Serial Redirect Terminal Type Baud Rate Data Bits Parity Stop Bits Flow Control Advanced Console Serial Redirect <Disabled> Enable Console Redirection Function <Enabled> <VT_100> <115200> <8 Bits> <None> <1 Bit> <None> Enable Console Redirection Function COMA Enable VT-100, 115200, N81 F1 Help Esc Exit F1 Help Esc Exit ↑/↓ Select Item ←/→ Select Item F5/F6 Change Values Enter Select SubMenu F9 Setup Defaults F10 Save and Exit ↑/↓ Select Item ←/→ Select Item F5/F6 Change Values Enter Select SubMenu F9 Setup Defaults F10 Save and Exit Terminal Type Console Serial Redirect Select terminal type: VT_100, VT_100+, VT_UTF8 or PC_ANSI. This field is used to enable or disable the console serial redirection function. Baud Rate Select baud rate: 115200, 57600, 38400, 19200 or 9600. Data Bits Select data bits: 7 Bits or 8 Bits. Parity Select parity bits: None, Even or Odd. Stop Bits Select stop bits: 1 Bit or 2 Bits. Flow Control Select flow control type: None, RTS/CTS or XON/XOFF. 30 Chapter 3 BIOS Setup www.dfi.com Chapter 3 When UseGlobalSetting is set to disabled, the screen will appear like below: COMA InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Advanced COMA COMA PortEnable UseGlobalSetting F1 Help Esc Exit Rev. 5.0 Advanced ↑/↓ Select Item ←/→ Select Item <Enabled> <Enabled> F5/F6 Change Values Enter Select SubMenu PortEnable UseGlobalSetting Terminal Type Baud Rate Data Bits Parity Stop Bits Flow Control F9 Setup Defaults F10 Save and Exit F1 Help Esc Exit ↑/↓ Select Item ←/→ Select Item <Enabled> <Disabled> <VT_100> <115200> <8 Bits> <None> <1 Bit> <None> F5/F6 Change Values Enter Select SubMenu F9 Setup Defaults F10 Save and Exit PortEnable This field is used to enable or disable the COM port to redirect the console. UseGlobalSetting This field is to enable or disable to use global setting. When enabled the global setting, setting of the COM port will be the same as those in Console Redirection section. When disabled the global setting, setting of the COM port can be configured independently in this section. 31 Chapter 3 BIOS Setup www.dfi.com Chapter 3 SIO FINTEK81803 PC Health Status This section configures the system super I/O chip parameters. This section displays the PC health status. InsydeH2O Setup Utility InsydeH2O Setup Utility Rev. 5.0 COM Port 1 Base I/O Address Interrupt Type WDT PC Health Status F1 Help Esc Exit ↑/↓ Select Item ←/→ Select Item PC Health Status Configure Serial port using options: [Disable] No Configuration [Enable] User Configuration <Enable> <3F8> <IRQ4> <RS232> <Disable> F5/F6 Change Values Enter Select SubMenu Rev. 5.0 Advanced Advanced Voltage VCORE VDDQ 3VSB 3VCC 5VA 3VA 0.792 V 1.384 V 3.312 V 3.296 V 5.016 V 3.312 V Temperature CPU (oC/oF) System (oC/oF) 43 C/109 F 45 C/113 F F1 Help Esc Exit F9 Setup Defaults F10 Save and Exit ↑/↓ Select Item ←/→ Select Item F5/F6 Change Values Enter Select SubMenu F9 Setup Defaults F10 Save and Exit COM Port 1 Configure the settings to use the serial port. Disable No configuration Enable User configuration Type Choose RS232/RS422/RS485 (Peer-to-Peer) for COM type. WDT Enable or disable the watchdog function. A counter will appear if you select to enable WDT. Input any value between 1 to 255 seconds. 32 Chapter 3 BIOS Setup www.dfi.com Chapter 3 Security Boot Main Advanced Security InsydeH2O Setup Utility Boot Exit Current TPM Device TPM State TPM Availability TPM Operation Clear TPM <TPM 2.0 (FTPM)> All Hierarchies Enabled, UnOwned <Available> <No Operation> [ ] Supervisor Password Not installed Main Rev. 5.0 Advanced Security Setup Prompt Timeout Numlock Quiet Boot Network Stack PXE Boot capability USB Boot When Hidden, don’t exposes TPM to 0 InsydeH2O Setup Utility Boot Exit [0] <On> <Disabled> <Disabled> <Disabled> <Enabled> Rev. 5.0 The number of seconds that the firmware will wait before booting the original default boot selection. Set Supervisor Password F1 Help Esc Exit ↑/↓ Select Item ←/→ Select Item F5/F6 Change Values Enter Select SubMenu F1 Help Esc Exit F9 Setup Defaults F10 Save and Exit ↑/↓ Select Item ←/→ Select Item F5/F6 Change Values Enter Select SubMenu F9 Setup Defaults F10 Save and Exit Setup Prompt Timeout TPM Availability Show or hide the TPM availability and its configurations. Setup the number of seconds that the firmware will wait before booting the original default boot selection. TPM Operation Numlock Enable or disable the TPM function. It displays the following options: Select the power-on state for numlock. No Operation No changes to current state. Quiet Boot Enable Enable and activate TPM. Disable Disable and activate TPM. Enable or disable booting in text mode. Clear TPM Network Stack Remove all TPM context associated with a specific owner. This field is used to enable or disable network stack. Set Supervisor Password PXE Boot capability Set the supervisor’s password and the length of the password must be greater than one character. Disabled Suppoort Network Stack UEFI IPv4/IPv6 USB Boot Enable or disable booting to USB boot devices. 33 Chapter 3 BIOS Setup www.dfi.com Chapter 3 Exit Note: AL051 only support UEFI boot, no Legacy boot. Main Advanced Security InsydeH2O Setup Utility Boot Exit Exit system setup and save your changes. Exit Saving Changes Load Optimal Defaults Discard Changes Save Setting to file F1 Help Esc Exit ↑/↓ Select Item ←/→ Select Item Rev. 5.0 F5/F6 Change Values Enter Select SubMenu F9 Setup Defaults F10 Save and Exit Exit Saving Changes Select Yes and press <Enter> to exit the system setup and save your changes. Load Optimal Defaults Select YES and press <Enter> to load optimal defaults. Discard Changes Select YES and press <Enter> to exit the system setup without saving your changes. Save Setting to file Select this option to save BIOS configuration settings to a USB flash device. Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore setting from the USB flash device. 34 Chapter 3 BIOS Setup www.dfi.com Chapter 3 Updating the BIOS Notice: BIOS SPI ROM To update the BIOS, you will need the new BIOS file and a flash utility. Please contact technical support or your sales representative for the files. For updating Insyde BIOS in UEFI mode, you may refer to the how-to-video at https://www.dfi.com/Knowledge/Video/31 . 1. The Intel® Trusted Execution Engine has already been integrated into this system board. Due to the safety concerns, the BIOS (SPI ROM) chip cannot be removed from this system board and used on another system board of the same model. 2. The BIOS (SPI ROM) on this system board must be the original equipment from the factory and cannot be used to replace one which has been utilized on other system boards. 3. If you do not follow the methods above, the Intel® Trusted Execution Engine will not be updated and will cease to be effective. Note: a. You can take advantage of flash tools to update the default configuration of the BIOS (SPI ROM) to the latest version anytime. b. When the BIOS IC needs to be replaced, you have to populate it properly onto the system board after the EEPROM programmer has been burned and follow the technical person's instructions to confirm that the MAC address should be burned or not. 35 Chapter 3 BIOS Setup www.dfi.com Chapter 4 Chapter 4 - Supported Software 3. Go through the readme document for more installation tips then click “Install”. Please download drivers, utilities and software applications required to enhance the performance of the system board at https://www.dfi.com/DownloadCenter . Intel Chipset Software Installation Utility The Intel Chipset Software Installation Utility is used for updating Windows® INF files so that the Intel chipset can be recognized and configured properly in the system. To install the utility, download “AL051 Chipset Driver” zip file at our website. 1. Setup is ready to install the utility. Click “Next”. 4. The step displays the installing status in the progress. 2. Read the license agreement then click “Accept”. 5. After completing installation, click “Restart Now” to exit setup. Restarting the system will allow the new software installation to take effect. 36 Chapter 4 Supported Software www.dfi.com Chapter 4 Intel Graphics Driver 3. Go through the readme document for system requirements and installation tips then click “Next”. To install the driver, download “AL051 Graphics Driver” zip file at our website. 1. Setup is now ready to install the graphics driver. Click “Next”. 4. Setup is now installing the driver. Click “Next” to continue. By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is enabled. With this enabled, after installing the graphics driver and the system rebooted, the screen will turn blank for 1 to 2 minutes (while WinSAT is running) before the Windows 10 desktop appears. The “blank screen” period is the time Windows is testing the graphics performance. We recommend that you skip this process by disabling this function then click “Next”. 2. Read the license agreement then click “Yes”. 5. Click “Yes, I want to restart this computer now” then click “Finish”. Restarting the system will allow the new software installation to take effect. 37 Chapter 4 Supported Software www.dfi.com Chapter 4 Audio Driver Intel LAN Driver To install the driver, download “AL051 Audio Driver” zip file at our website. To install the driver, download “AL051 LAN Driver” zip file at our website. 1. Setup is ready to install the driver. Click “Next”. 1. Setup is ready to install the driver. Click “Next”. 2. Click “Yes, I want to restart my computer now” then click “Finish”. 2. Click “I accept the terms in the license agreement” then click “Next”. Restarting the system will allow the new software installation to take effect. 3. Select the program features you want installed then click “Next”. 38 Chapter 4 Supported Software www.dfi.com Chapter 4 Intel Trusted Execution Engine Driver 4. Click “Install” to begin the installation. To install the driver, download “AL051 TXE Driver” zip file at our website. 1. Tick “I accept the terms in the License Agreement“ and then click “Next.” 5. The step displays the installing status in the progress. 2. The step shows the components which will be installed. Then, Click Next. 6. After completing installation, click “Finish”. 39 Chapter 4 Supported Software www.dfi.com Chapter 4 SIO Driver 3. The step displays the installing status in the progress. To install the driver, download “AL051 SIO Driver” zip file at our website. 1. Setup is ready to install the driver. Click “Next”. 4. Click “Finish“ when the installation is complete. 2. Read the license agreement carefully. Tick “I accept the terms in the License Agreement” then click “Next”. 40 Chapter 4 Supported Software www.dfi.com Chapter 4 3. Go through the readme document for system requirements and installation tips then click “Next”. 5. Setup is now installing the driver. 4. Setup is ready to install the driver. Click “Next”. 6. Click “Yes, I want to restart this computer now” then click “Finish”. Restarting the system will allow the new software installation to take effect. 41 Chapter 4 Supported Software www.dfi.com Appendix A Appendix A - Troubleshooting Checklist The picture seems to be constantly moving. Troubleshooting Checklist 1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync. This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To efficiently troubleshoot your system, treat each problem individually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes. 2. Move away any objects, such as another monitor or fan, that may be creating a magnetic field around the display. Some of the most common things to check when you encounter problems while using your system are listed below. The screen seems to be constantly wavering. 3. Make sure your video card’s output frequencies are supported by this monitor. 1. The power switch of each peripheral device is turned on. 1. If the monitor is close to another monitor, the adjacent monitor may need to be turned off. Fluorescent lights adjacent to the monitor may also cause screen wavering. 2. All cables and power cords are tightly connected. Power Supply 3. The electrical outlet to which your peripheral devices connected is working. Test the outlet by plugging in a lamp or other electrical device. When the computer is turned on, nothing happens. 4. The monitor is turned on. 1. Check that one end of the AC power cord is plugged into a live outlet and the other end properly plugged into the back of the system. 5. The display’s brightness and contrast controls are adjusted properly. 2. Make sure that the voltage selection switch on the back panel is set for the correct type of voltage you are using. 6. All add-in boards in the expansion slots are seated securely. 3. The power cord may have a “short” or “open”. Inspect the cord and install a new one if necessary. 7. Any add-in board you have installed is designed for your system and is set up correctly. Monitor/Display If the display screen remains dark after the system is turned on: 1. Make sure that the monitor’s power switch is on. 2. Check that one end of the monitor’s power cord is properly attached to the monitor and the other end is plugged into a working AC outlet. If necessary, try another outlet. 3. Check that the video input cable is properly attached to the monitor and the system’s display adapter. 4. Adjust the brightness of the display by turning the monitor’s brightness control knob. 42 Appendix A Troubleshooting Checklist www.dfi.com Appendix A Hard Drive System Board Hard disk failure. 1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is loose, power off the system, re-install the card and power up the system. 1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS. 2. Check the jumper settings to ensure that the jumpers are properly set. 2. If the system is configured with two hard drives, make sure the bootable (first) hard drive is configured as Master and the second hard drive is configured as Slave. The master hard drive must have an active/bootable partition. 3. Verify that all memory modules are seated securely into the memory sockets. 4. Make sure the memory modules are in the correct locations. Excessively long formatting period. 5. If the board fails to function, place the board on a flat surface and seat all socketed components. Gently press each component into the socket. If your hard drive takes an excessively long period of time to format, it is likely a cable connection problem. However, if your hard drive has a large capacity, it will take a longer time to format. 6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults. Serial Port The serial device (modem, printer) doesn’t output anything or is outputting garbled characters. 1. Make sure that the serial device’s power is turned on and that the device is on-line. 2. Verify that the device is plugged into the correct serial port on the rear of the computer. 3. Verify that the attached serial device works by attaching it to a serial port that is working and configured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting. 4. Make sure the COM settings and I/O address are configured correctly. Keyboard Nothing happens when a key on the keyboard was pressed. 1. Make sure the keyboard is properly connected. 2. Make sure there are no objects resting on the keyboard and that no keys are pressed during the booting process. 43 Appendix A Troubleshooting Checklist www.dfi.com
