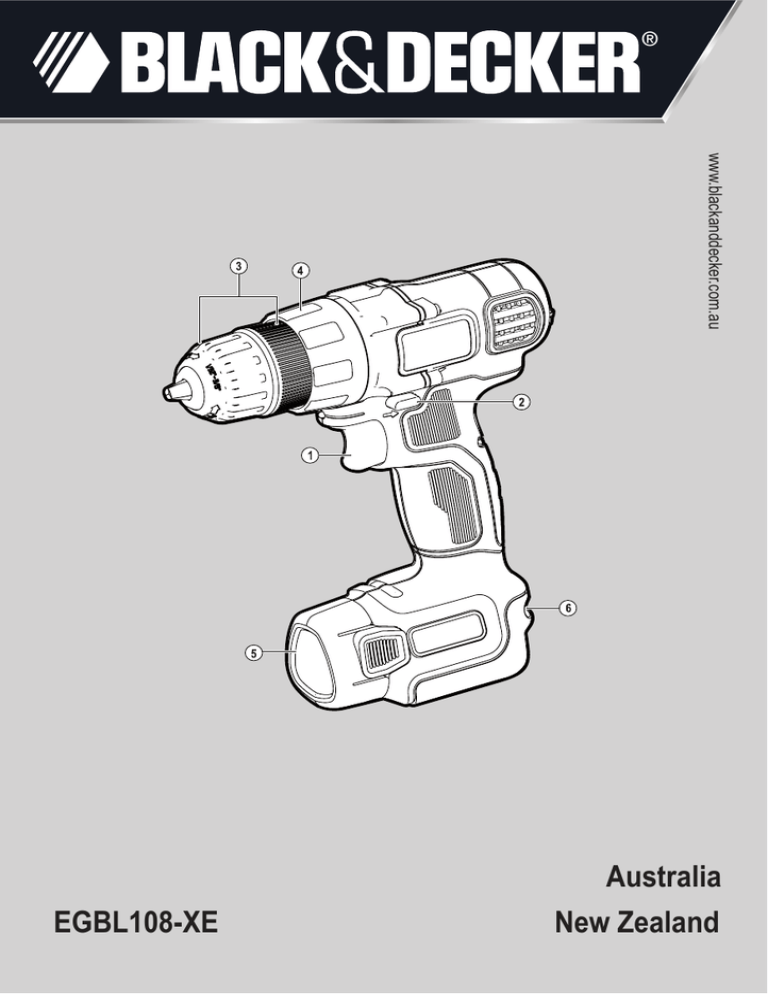

Black & Decker EGBL108-XE Instruction manual

®
www.blackanddecker.com.au
EGBL108-XE
Australia
New Zealand
A
B
C
D
E
2
(Original instructions)
Intended use
Your Black & Decker drill/screwdriver has been designed for
screwdriving applications and for drilling in wood, metal and
plastics. This tool is intended for consumer use only.
Safety instructions
General power tool safety warnings
@
Warning! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions listed below may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in all of the warnings listed below refers
to your mains operated (corded) power tool or battery
operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b. Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases
or dust. Power tools create sparks which may ignite the
dust or fumes.
c. Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
e. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
ENGLISH
3. Personal safety
a. Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal
injury.
b. Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal
injuries.
c. Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites
accidents.
d. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
f. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
g. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will do
the job better and safer at the rate for which it was
designed.
b. Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the
battery pack from the power tool before making any
adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d. Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
3
ENGLISH
(Original instructions)
e. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tools
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.





5. Battery tool use and care
a.
manufacturer. A charger that is suitable for one type of
another battery pack.
b.
battery packs. Use of any other battery packs may create
c. When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws, or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause burns


additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.

@
Additional power tool safety warnings


4
Warning! Additional safety warnings for drills
and impact drills
Wear ear protectors with impact drills. Exposure to
noise can cause hearing loss.
Use auxiliary handles supplied with the tool. Loss of
control can cause personal injury.
location of wiring and pipes.
Avoid touching the tip of a drill bit just after drilling, as it
may be hot.
This tool is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure
that they do not play with the appliance.
The intended use is described in this instruction manual.
The use of any accessory or attachment or performance
of any operation with this tool other than those
recommended in this instruction manual may present a
risk of personal injury and/or damage to property.
Safety of others
d. Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
6. Service
a.
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
b. Power to the tool should always be supplied via residual
current device with a rated residual current of 30mA or
less.
Hold power tool by insulated gripping surfaces when
performing an operation where the cutting accessory/
fastener may contact hidden wiring. Cutting accessory/
fastener contacting a "live" wire may make exposed metal
parts of the power tool "live" and could give the operator
an electric shock.
Use clamps or another practical way to secure and
support the workpiece to a stable platform. Holding the
work by hand or against your body leaves it unstable and
may lead to loss of control.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Residual risks.
Additional residual risks may arise when using the tool which
may not be included in the enclosed safety warnings. These
risks can arise from misuse, prolonged use etc.
Even with the application of the relevant safety regulations
and the implementation of safety devices, certain residual
risks can not be avoided. These include:
 Injuries caused by touching any rotating/moving parts.
 Injuries caused when changing any parts, blades or
accessories.
 Injuries caused by prolonged use of a tool. When using
any tool for prolonged periods ensure you take regular
breaks.
 Impairment of hearing.
(Original instructions)

Health hazards caused by breathing dust developed when
using your tool (example:- working with wood, especially
oak, beech and MDF.)
#
ENGLISH
Electrical safety
Labels on tool
Your charger is double insulated; therefore no
earth wire is required. Always check that the
mains voltage corresponds to the voltage on the
rating plate. Never attempt to replace the charger
unit with a regular mains plug.
The following symbols are shown on the tool:
:
Warning! To reduce the risk of injury, the user
must read the instruction manual.
Additional safety instructions for batteries and
chargers
Batteries
 Never attempt to open for any reason.
 Do not expose the battery to water.
 Do not store in locations where the temperature may
exceed 30 °C.
 Charge only at ambient temperatures between 4 °C and
40 °C.
 Charge only using the charger provided with the tool.
 When disposing of batteries, follow the instructions given
in the section "Protecting the environment".
p
If the supply cord is damaged, it must be replaced by the
manufacturer or an authorised Black & Decker Service
Centre in order to avoid a hazard.
Features
This tool includes some or all of the following features.
1. Variable speed switch
2. Forward/reverse slider
3. Chuck
4. Torque adjustment collar
5. Battery
6. Bit holder
Fig. A
7. Charger
8. Charging indicator
Assembly
Do not attempt to charge damaged batteries.
Chargers
 Use your Black & Decker charger only to charge the
battery in the tool with which it was supplied. Other
batteries could burst, causing personal injury and damage.
 Never attempt to charge non-rechargeable batteries.
 Have defective cords replaced immediately.
 Do not expose the charger to water.
 Do not open the charger.
 Do not probe the charger.
$

The charger is intended for indoor use only.
Read the instruction manual before use.
Warning! Before assembly, remove the battery from the tool.


tool. Slide the battery into the receptacle and push until
the battery snaps into place.
To remove the battery, push the release button (9) while at
the same time pulling the battery out of the receptacle.
Fitting and removing a drill bit or screwdriver bit
exchange of bits.
 Grasp the rear half of the chuck (3) with one hand and use
your other hand to rotate the front half in the
counterclockwise direction, as viewed from the chuck end.
 Insert the bit shaft (10) into the chuck.
 Firmly tighten the chuck by holding the rear half of the
chuck and rotating the front portion in the clockwise
direction as viewed from the chuck end.
5
ENGLISH
(Original instructions)
Use
Charger diagnostics
Warning! Let the tool work at its own pace. Do not overload.
If the charger detects a weak or damaged battery, the
follows:
 Re-insert the battery (5).

easily done before. The battery may become warm while
charging; this is normal and does not indicate a problem.
Warning! Do not charge the battery at ambient temperatures
below 4 °C or above 40 °C. Recommended charging
temperature: approx. 24 °C.
Note: The charger will not charge a battery if the cell
temperature is below approximately 0 °C or above 40 °C.
The battery should be left in the charger and the charger
will begin to charge automatically when the cell
temperature warms up or cools down.
 To charge the battery (5), insert it into the charger (7). The

force. Be sure that the battery is fully seated in the
charger.
Plug in the charger and switch on at the mains.
(slowly).
The charge is complete when the charging indicator (8) lights
green continuously. The charger and the battery can be left
occasionally tops up the battery charge. The charging
indicator (8) will be lit as long as the battery is connected to
the plugged-in charger.
 Charge discharged batteries within 1 week. Battery life will
be greatly diminished if stored in a discharged state.
Leaving the battery in the charger
The charger and battery pack can be left connected with the
pack fresh and fully charged.
6
rate, use a different battery to determine if the charging
process works properly.
 If the replaced battery charges correctly, the original
battery is defective and should be returned to a service
centre for recycling.
 If the new battery gives the same indication as the original
battery, take the charger to be tested at an authorised
service centre.
Note: It may take as long as 60 minutes to determine that
the battery is defective. If the battery is too hot or too
cold, the LED will alternately blink red, fast and slow, one
For drilling and for tightening screws, use forward (clockwise)
rotation. For loosening screws or removing a jammed drill bit,
use reverse (counterclockwise) rotation.
 To select forward rotation, push the forward/reverse slider
(2) to the left.
 To select reverse rotation, push the forward/reverse slider
to the right.
 To lock the tool, set the forward/reverse slider into the
centre position.
Selecting the torque
screwdriving and drilling applications. Large screws and hard
workpiece materials require a higher torque setting than small
b
symbol refer to the listing below.
 For drilling in wood, metal and plastics, set the torque
adjustment collar (4) to the symbol.
 For screwdriving, set the collar to the desired setting. If
you do not yet know the appropriate setting, proceed as
follows:
- Set the torque adjustment collar (4) to the lowest torque
setting.
- If the clutch ratchets before the desired result is
achieved, increase the collar setting and continue
tightening the screw. Repeat until you reach the correct
setting. Use this setting for the remaining screws.
(Original instructions)
Drilling/screwdriving
Select forward or reverse rotation using the forward/
reverse slider (2).
u To switch the tool on, press the switch (1). The tool speed
depends on how far you press the switch.
u To switch the tool off, release the switch.
u
Hints for optimum use
Drilling
u Always apply a light pressure in a straight line with the drill
bit.
u Just before the drill tip breaks through the other side of the
workpiece, decrease pressure on the tool.
u Use a block of wood to back up workpieces that may
splinter.
u Use spade bits when drilling large diameter holes in wood.
u Use HSS drill bits when drilling in metal.
u Use masonry bits when drilling in soft masonry.
u Use a lubricant when drilling metals other than cast iron
and brass.
u Make an indentation using a centre punch at the centre of
the hole to be drilled in order to improve accuracy.
Screwdriving
u Always use the correct type and size of screwdriver bit.
u If screws are difficult to tighten, try applying a small
amount of washing liquid or soap as a lubricant.
u Always hold the tool and screwdriver bit in a straight line
with the screw.
Maintenance
Your Black & Decker tool has been designed to operate over a
long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper tool
care and regular cleaning.
Your charger does not require any maintenance apart from
regular cleaning.
Warning! Before performing any maintenance on the tool,
remove the battery from the tool. Unplug the charger before
cleaning it.
u Regularly clean the ventilation slots in your tool and
charger using a soft brush or dry cloth.
u Regularly clean the motor housing using a damp cloth. Do
not use any abrasive or solvent-based cleaner.
u Regularly open the chuck and tap it to remove any dust
from the interior.
ENGLISH
Protecting the environment
Z
Separate collection. This product must not be
disposed of with normal household waste.
Should you find one day that your Black & Decker product
needs replacement, or if it is of no further use to you, do not
dispose of it with household waste. Make this product
available for separate collection.
z
Separate collection of used products and
packaging allows materials to be recycled and
used again.
Re-use of recycled materials helps prevent
environmental pollution and reduces the demand
for raw materials.
Local regulations may provide for separate collection of
electrical products from the household, at municipal waste
sites or by the retailer when you purchase a new product.
Black & Decker provides a facility for the collection and
recycling of Black & Decker products once they have reached
the end of their working life. To take advantage of this service
please return your product to any authorised repair agent who
will collect them on our behalf.
You can check the location of your nearest authorised repair
agent by contacting your local Black & Decker office at the
address indicated in this manual. Alternatively, a list of
authorised Black & Decker repair agents and full details of our
after-sales service and contacts are available on the Internet
at: www.2helpU.com
Batteries
Z
u
Run the battery down completely, then remove it
from the tool.
NiCd, NiMH and Li-Ion batteries are recyclable. Take them
to any authorised repair agent or a local recycling station.
7
(Original instructions)
ENGLISH
Technical data
EGBL108-XE
10.8
Voltage
V
No-load speed
Min
Max. torque
Nm
12/24
Chuck capacity
mm
10
mm
10/25
DC
0-600
-1
Max Drilling capacity
Steel/wood
Charger
Input Voltage
V
230
Output Voltage
V
10.8
Current
A
2.0
min
30
AC
DC
Approx. charge time
Battery
BL1110
BL1310
BL1510
Voltage
V
10.8
10.8
10.8
Capacity
Ah
1.1
1.3
1.5
Li-Ion
Li-Ion
Li-Ion
Type
8
DC
E16062
6
5
Partial support - Only parts shown available
Nur die aufgefuerten teile sind lieferbar
Reparation partielle - Seules les pieces indiquees sont disponibles
Supporto parziale - Sono disponibili soltanto le parti evidenziate
Solo estan disponibles las peizas listadas
So se encontram disponiveis as pecas listadas
Gedeeltelijke ondersteuning - alleen de getoonde onderdelen
zijn beschikbaar
www.2helpU.com
1
2
EGBL108-XE
3
22 - 04 - 10
8
7
TYP.
H1
Australia
Stanley Black & Decker
82 Taryn Drive, Epping Vic, 3076,
Australia
New Zealand
Stanley Black & Decker
90583364
Tel. 1800 444 224
Tel. +0800 339 258
03/2012
