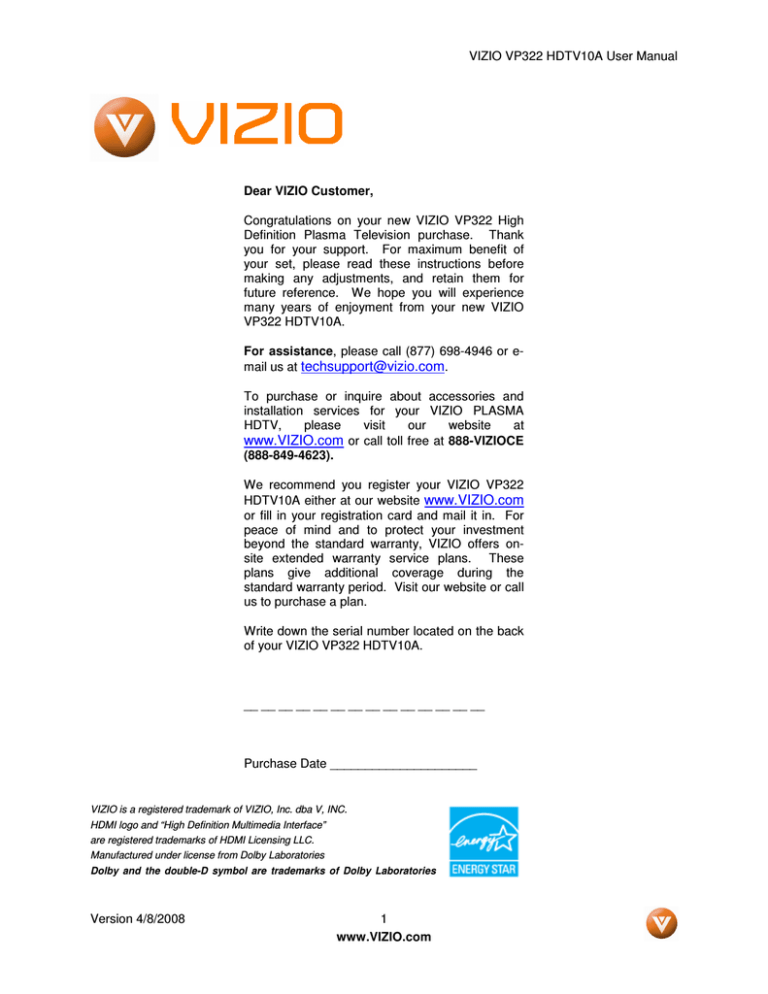

VIZIO VP322 HDTV10A User Manual
Dear VIZIO Customer,
Congratulations on your new VIZIO VP322 High
Definition Plasma Television purchase. Thank
you for your support. For maximum benefit of
your set, please read these instructions before
making any adjustments, and retain them for
future reference. We hope you will experience
many years of enjoyment from your new VIZIO
VP322 HDTV10A.
For assistance, please call (877) 698-4946 or email us at techsupport@vizio.com.
To purchase or inquire about accessories and
installation services for your VIZIO PLASMA
HDTV,
please
visit
our
website
at
www.VIZIO.com or call toll free at 888-VIZIOCE
(888-849-4623).
We recommend you register your VIZIO VP322
HDTV10A either at our website www.VIZIO.com
or fill in your registration card and mail it in. For
peace of mind and to protect your investment
beyond the standard warranty, VIZIO offers onsite extended warranty service plans. These
plans give additional coverage during the
standard warranty period. Visit our website or call
us to purchase a plan.
Write down the serial number located on the back
of your VIZIO VP322 HDTV10A.
__ __ __ __ __ __ __ __ __ __ __ __ __ __
Purchase Date _____________________
VIZIO is a registered trademark of VIZIO, Inc. dba V, INC.
HDMI logo and “High Definition Multimedia Interface”
are registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories
Dolby and the double-D symbol are trademarks of Dolby Laboratories
Version 4/8/2008
1
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
Important Safety Instructions
This product is designed and manufactured to operate within defined design limits, and misuse
may result in electric shock or fire. To prevent the product from being damaged, the following
rules should be observed for the installation, use and maintenance of the product. Read the
following safety instructions before operating the display. Keep these instructions in a safe place
for future reference.
•
•
•
•
•
•
•
•
•
•
•
To reduce the risk of electric shock or component damage, switch off the power before connecting other components to the VP322
HDTV10A.
Unplug the power cord before cleaning the VP322 HDTV10A PLASMA. A damp cloth is sufficient for cleaning the VP322 HDTV10A. Do
not use a liquid or a spray cleaner for cleaning the product. Do not use abrasive cleaners.
Always use the accessories recommended by the manufacturer to insure compatibility.
When moving the VP322 HDTV10A from an area of low temperature to an area of high temperature, condensation may form on the
housing. Do not turn on the VP322 HDTV10A immediately after this to avoid causing fire, electric shock or component damage.
Do not place the VP322 HDTV10A on an unstable cart, stand, or table. If the VP322 HDTV10A falls, it can injure a person and cause
serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the VP322 HDTV10A.
A distance of at least 3 feet should be maintained between the VP322 HDTV10A and any heat source, i.e. radiator, heater, oven,
amplifier etc. Do not install the product close to smoke. Operating the product close to smoke or moisture may cause fire or electric
shock.
Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the VP322
HDTV10A and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the VP322 HDTV10A in
a bookcase or cabinet unless proper ventilation is provided.
Never push any object into the slot on the VP322 HDTV10A cabinet. Do not place any objects on the top of the product. It could short
circuit parts causing a fire or electric shock. Never spill liquids on the VP322 HDTV10A.
The VP322 HDTV10A should be operated only from the type of power source indicated on the label. If you are not sure of the type of
power supplied to your home, consult your dealer or local power company.
The power cable must be replaced when using different voltage from that specified in the User Manual. For more information, contact
your dealer.
The VP322 HDTV10A is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only
into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire
plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely.
Do not defeat the safety purpose of the grounded plug.
•
•
Appliance inlet (or AC inlet) is used as the disconnect device.
Use only with the cart, stand, tripod, bracket or table specified by manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
The lightning flash with arrowhead symbol , within an equilateral triangle, is intended to alert the user to the
presence of not isolated dangerous voltage within the inside of the product that may be sufficient magnitude to
constitute a risk of electric shock to persons.
to
•
The exclamation point within an equilateral triangle is intended to alert the user
the presence of important operating and servicing instructions in the literature
accompanying the appliance.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
The wall socket shall be installed near the equipment and shall be easily accessible.
Only the marked power source can be used for the product. Any power source other than the specified
one may cause fire or electric shock.
Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.
Unplug the unit during a lightening storm or when it will not be used for long period of time. This will protect the VP322 HDTV10A from
damage due to power surges.
Do not attempt to repair or service the product yourself. Opening or removing the back cover may expose you to high voltages, the risk
of electric shock, and other hazards. If repair is required, please contact your dealer and refer all servicing to qualified service personnel.
Keep the product away from moisture. Do not expose this appliance to rain or moisture. If water penetrates into the product, unplug
the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.
Do not use the product if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your
dealer immediately. Do not try to repair the product yourself.
Avoid using dropped or damaged appliances. If the product is dropped and the housing is damaged, the internal components may
function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of the product may cause
fire or electric shock.
Do not install the product in an area with heavy dust or high humidity. Operating the product in environments with heavy dust or high
humidity may cause fire or electric shock.
Follow instructions for moving the product. Ensure that the power connector and any other cables are unplugged before moving the
product.
Hold the power connector when removing the power cable. Pulling the power cable itself may damage the wires inside the cable and
cause fire or electric shock. When the product will not be used for an extended period of time, unplug the power connector.
To reduce risk of electric shock, do not touch the connector with wet hands.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Version 4/8/2008
2
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
•
•
•
Insert batteries in accordance with instructions. Incorrect polarities may cause damage and leakage of the batteries, operator injury
and contamination the remote controller.
If any of the following occurs please contact the dealer:
o
The power connector fails or frays.
o
Liquid sprays or any object drops into the VP322 HDTV10A.
o
The Display is exposed to rain or other moisture.
o
The Display is dropped or damaged in any way.
o
The performance of the Display changes substantially.
Operating environment. Temperature: 40˚F ~ 95˚F, Humidity: 20% ~ 80% non-condensing, Altitude: 0 ~ 6500ft (0 ~ 2000m)
Television Antenna Connection Protection
External Television Antenna Grounding
If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the
antenna or cable system is electrically grounded to provide some protection against voltage surges and
static charges.
Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge
unit, size of the grounding conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements of the grounding electrode.
Lightning Protection
For added protection of the High Definition TV during a lightning storm or when it is left unattended or
unused for long periods of time, unplug the TV from the wall outlet and disconnect the antenna or cable
system.
Power Lines
Do not locate the antenna near overhead light or power circuits, or where it could fall into such power
lines or circuits.
Remember, the screen of the coaxial cable is intended to be connected to earth in the building
installation.
Version 4/8/2008
3
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
Opening the Package
Your VIZIO VP322 Plasma HDTV10A and its accompanying accessories are carefully packed in a
cardboard carton that has been designed to protect it from transportation damage. Now you have
opened the carton check that the VP322 Plasma HDTV10A is in good condition and that all of the
accessories are included.
The VP322 Plasma HDTV10A weighs approximately 40 lbs and is nearly 32” wide and we advise that you
take sensible lifting precautions when you unpack and install the HDTV.
The screen can easily be scratched or broken so please handle the product gently and never place the
HDTV with the glass facing downwards on a surface without protective padding.
IMPORTANT: Save the carton and packing material for future shipping.
Package Contents
Contents
VIZIO VP322 HDTV10A
VIZIO Remote Control VR2
Power Cord
This User Manual
VIZIO Bezel and Screen Cleaning Cloth
Quick Setup Guide
Registration Card
VIP Services Brochure
2 (Double A) Batteries for the Remote Control
VIZIO Warranty and Repair Information
Version 4/8/2008
4
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
Additional Certified Accessories for the VIZIO
VP322 HDTV10A are sold separately
Wall Mounts
High Definition Cables
Extra or replacement Remote
VIZIO also offers Installation Services and Extended Warranty Services for your VIZIO VP322 HDTV10A
To purchase or inquire about additional accessories and services for your VIZIO product, visit our web
site at www.VIZIO.com or call us toll free at 888-VIZIOCE (888-849-4623)
Installation
Installation Preparation
Please read this user manual carefully before installing your VIZIO HDTV.
The power consumption of the High Definition TV is about 220W, please use the power cord designated
for TV. When an extension cord is required, use one with the correct power rating. The cord must be
grounded and the grounding feature must not be defeated.
The TV should be installed on a flat surface to avoid tipping. For proper ventilation, you must allow space
between the back of the High Definition TV and the wall. If you would like to mount your TV on the wall,
please see below ‘Preparing Your PLASMA HDTV for Wall Mounting’ for additional information. Avoid
installing the TV in places with high humidity, dust or smoke so as not to shorten the service life of the
electronic components.
Install the TV in landscape orientation; any 90˚ clockwise or counter-clockwise installation may induce
poor ventilation and excessive component damage.
VIZIO offers professional installation services. Please contact VIZIO for more information on these
services at 888-VIZIOCE (888-849-4623) or www.VIZIO.com.
Version 4/8/2008
5
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
Preparing Your PLASMA HDTV for Wall Mounting
To remove the stand base
1. Unplug all of the cables and cords
from your VIZIO VP322 Plasma
HDTV10A.
2. Place the VP322 PLASMA face down
on a soft and flat surface (blanket,
foam, cloth, etc) to prevent any
damage to the TV.
3. Remove the four (4) screws holding
the base to the VP322 PLASMA.
4. Carefully remove the stand base.
Now, the VP322 Plasma HDTV10A can fit
securely to a mount (sold separately) by
utilizing the mounting holes in the center of
the back panel of the High Definition TV.
Please make sure to read the instructions of
your specific mount to properly hang the
VP322 Plasma HDTV10A.
The pitch of the mounting holes is 400mm
horizontally and 200mm vertically.
The screw type required is metric M6, 20mm
long, 1.0mm pitch. The length of the screws
will depend on the thickness plate being
attach to the TV; our brackets come with
different length screws.
To find the perfect mount for the VIZIO VP322 Plasma, browse VIZIO’s certified mount selection at
www.VIZIO.com or call directly 888-VIZIOCE (888-849-4623).
Version 4/8/2008
6
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
Table of Contents
Contents
Chapter 1 Basic Controls and Connections ................................................................
.................................................................
................................. 9
1.1 Front Panel..........................................................................................................................................................9
1.2 Right Side Panel Controls ...................................................................................................................................9
1.3 Left Side Panel Connections .............................................................................................................................10
1.4 VIZIO Remote Control.......................................................................................................................................11
1.4.1 Insertion of Batteries in the Remote Control ..............................................................................................12
1.4.2 Remote Control Range ..............................................................................................................................12
1.4.3 VIZIO Remote Control Precautions ...........................................................................................................12
Chapter 2 Connecting Equipment................................
Equipment ................................................................
.................................................................................
................................................. 13
2.1 Which Video Connection Should I Use?............................................................................................................13
2.2 Connecting Coaxial (RF) ...................................................................................................................................14
2.2.1 Using Your Antenna or Digital Cable for DTV /TV .....................................................................................14
2.2.2 Using the Antenna or Cable through your VCR .........................................................................................14
2.3 Connecting Your HDTV Set-Top Box ................................................................................................................15
2.3.1 Using HDMI ...............................................................................................................................................15
2.3.2 Using Component Video............................................................................................................................17
2.4 Connecting Your Basic Set-Top Box .................................................................................................................18
2.4.1 Using Coaxial (RF) ....................................................................................................................................18
2.4.2 Using Composite Video .............................................................................................................................18
2.5 Connecting Your DVD Player ............................................................................................................................19
2.5.1 Using HDMI ...............................................................................................................................................19
2.5.2 For DVD Players with DVI .........................................................................................................................20
2.5.3 Using Component Video............................................................................................................................21
2.5.4 Using S-Video (AV)....................................................................................................................................22
2.5.5 Using Composite (AV) Video .....................................................................................................................22
2.6 Connecting Your VCR or Video Camera ..........................................................................................................23
2.7 Connecting an external Receiver/Amp ..............................................................................................................24
2.7.1 Optical Output of Audio received with HD Programs .................................................................................24
2.8 Connecting a PC Computer ..............................................................................................................................25
2.8.1 Preset PC Resolutions...............................................................................................................................26
Chapter
Chapter 3 Setting Up to Watch Television ................................................................
.................................................................
................................. 27
3.1 Basic Plasma HDTV Start Up............................................................................................................................27
3.2 Watching a TV Program ....................................................................................................................................32
3.3 Adjusting Basic HDTV Settings .........................................................................................................................33
3.4 Program Information..........................................................................................................................................34
3.5 Information on HDTV Status .............................................................................................................................34
Chapter 4 Advanced Adjustment of HDTV................................
HDTV................................................................
..................................................................
.................................. 35
4.1 Using the On Screen Display (OSD) .................................................................................................................35
4.2 DTV / TV Input Picture Adjustment....................................................................................................................36
4.2.1 Picture Mode .............................................................................................................................................36
4.2.2 Brightness..................................................................................................................................................37
4.2.3 Contrast .....................................................................................................................................................37
4.2.4 Color ..........................................................................................................................................................37
4.2.5 Tint.............................................................................................................................................................38
4.2.6 Sharpness .................................................................................................................................................38
4.2.7 Color Temperature.....................................................................................................................................39
4.2.8 Advanced Video ........................................................................................................................................39
4.3 DTV / TV Input Audio Adjustment......................................................................................................................41
4.3.1 Volume ......................................................................................................................................................41
4.3.2 Bass...........................................................................................................................................................41
4.3.3 Treble ........................................................................................................................................................42
4.3.4 Balance......................................................................................................................................................42
4.3.5 Surround....................................................................................................................................................42
4.3.6 Digital Audio Out........................................................................................................................................42
4.3.7 Speakers ...................................................................................................................................................43
4.3.8 Lip Sync.....................................................................................................................................................43
4.4 DTV / TV Tuner Setup.......................................................................................................................................44
4.4.1 Tuner Mode ...............................................................................................................................................44
4.4.2 Auto Search...............................................................................................................................................44
Version 4/8/2008
7
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.4.3 Skip Channel .............................................................................................................................................44
4.4.4 MTS ...........................................................................................................................................................45
4.4.5 Time Zone .................................................................................................................................................45
4.4.6 Daylight Saving..........................................................................................................................................45
4.5 DTV / TV Input Setup ........................................................................................................................................46
4.5.1 Language...................................................................................................................................................46
4.5.2 Sleep Timer ...............................................................................................................................................46
4.5.3 Wide ..........................................................................................................................................................46
4.5.4 Input Naming .............................................................................................................................................47
4.5.5 Closed Caption (CC)..................................................................................................................................48
4.5.6 Closed Caption On Mute (CC On Mute) ....................................................................................................48
4.5.7 Digital Closed Caption Style (Digital CC Style)..........................................................................................49
4.5.8 Reset All Settings ......................................................................................................................................49
4.5.9 Image Cleaner ...........................................................................................................................................49
4.6 DTV / TV Input Parental Control........................................................................................................................50
4.6.1 Channel Block ...........................................................................................................................................50
4.6.2 TV Rating...................................................................................................................................................51
4.6.3 Movie Rating..............................................................................................................................................52
4.6.4 Check for New DTV Rating........................................................................................................................52
4.6.5 Blocked Unrated Programming..................................................................................................................53
4.6.6 Change the Password ...............................................................................................................................53
4.7 HDMI Input Picture Adjustment .........................................................................................................................54
4.8 HDMI Input Audio Adjustment ...........................................................................................................................54
4.9 HDMI Input Setup..............................................................................................................................................54
4.10 Video Input Picture Adjustment .......................................................................................................................55
4.11 Video Input Audio Adjustment .........................................................................................................................55
4.12 Video Input Setup............................................................................................................................................56
4.12.1 Auto Phase (for Component input) ..........................................................................................................56
4.13 Video Input Parental Control ...........................................................................................................................56
4.14 PC Input Picture Adjustment ...........................................................................................................................57
4.14.1 Auto Adjust ..............................................................................................................................................57
4.14.2 Brightness................................................................................................................................................57
4.14.3 Contrast ...................................................................................................................................................58
4.14.4 Color Temperature...................................................................................................................................58
4.14.5 H-SIZE.....................................................................................................................................................59
4.14.6 H. Position ...............................................................................................................................................59
4.14.7 V. Position ...............................................................................................................................................59
4.14.8 Fine Tune ................................................................................................................................................59
4.15 PC Input Audio Adjustment .............................................................................................................................60
4.16 PC Input Setup................................................................................................................................................60
4.17 Understanding Viewing Features ....................................................................................................................61
4.17.1 Viewing Modes ........................................................................................................................................61
4.18 Using a Cable or Satellite Remote ..................................................................................................................62
Chapter 5 Maintenance and Troubleshooting................................
Troubleshooting............................................................
............................................................62
............................ 62
5.1 Maintenance......................................................................................................................................................62
5.2 Troubleshooting Guide ......................................................................................................................................63
5.3 Telephone & Technical Support ........................................................................................................................64
5.4 Compliance .......................................................................................................................................................65
5.5 FCC Class B Radio Interference Statement......................................................................................................65
Chapter 6 Miscellaneous Information
Information ................................................................
..........................................................................
..........................................66
.......... 66
6.1 Specifications ....................................................................................................................................................66
6.2 Glossary – Standard Definitions ........................................................................................................................67
6.3 Index .................................................................................................................................................................68
Version 4/8/2008
8
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
Chapter 1 Basic Controls and Connections
1.1 Front Panel
POWER ‘VIZIO’ LIGHT– The VIZIO name lights white
when powered on and orange when powered off.
REMOTE CONTROL SENSOR – This is the window
through which all of the remote control signals pass to
the sensor. Point the remote control directly at this
window for the best response to the remote signal.
1.2 Right Side Panel Controls
POWER (
) – Switch the VP322 HDTV10A on by pressing the button once.
Press the button again to turn the VP322 Plasma HDTV10A off.
MENU – This button activates the On Screen Display (OSD). If a sub-menu is
active, pressing this button will return to the previous menu level.
CH (+ or -) – Use these buttons to step up or down the TV channels. While the
OSD is active, these buttons function as up and down controls in the OSD
menus.
VOL (+ or -) – Use these buttons to increase or decrease to the speaker volume.
While the OSD is active, these buttons function as left and right controls in the
OSD menus.
INPUT – Repeated pressing of this buttons steps
through the input sources in the following
sequence: TV, AV (S-VIDEO), Component, RGB,
HDMI1, HDMI2 and HDMI3. Once you have
stepped through the entire sequence, you will
return to the beginning.
Version 4/8/2008
9
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
1.3 Left Side Panel Connections
DTV/TV – Connect to an antenna or digital cable (no Cable Box) for Digital TV.*
OPTICAL AUDIO OUT – When an audio signal is associated with an input which is
selected for viewing, the audio associated with the programming will be available on this
SPDIF Optical connector for connection to your home theatre system. The white color
band on the TV indicates this connection.
AV/S-VIDEO IN – Connect the source for composite video devices, such as a VCR or
video game. Use the white and red connectors to connect the external audio from the
same source. This connection is on the side of the High Definition TV. The signal being
carried by the S-Video cable and connector; if connected, will take priority over the video
(yellow connector) RCA connector. Keep in mind that if audio is needed then left (white
connector) and right (red connector) must be connected to the signal source using the RCA
audio patch cables.
COMPONENT (YPb/CbPr/Cr with Audio L/R) – Connect the primary source for
component video devices such as a DVD Player or set top box here. From top to bottom,
use red for Pr (or Cr), blue for Pb (or Cb), red for right audio and white for left audio inputs.
The green color band indicates this connection.
RGB PC – Connect the video and audio from a computer here. The blue color band on the
TV indicates this connection. A 1/8” plug stereo cable is needed to connect the audio out
from the computer to the 1/8” jack connector on the side of the High Definition TV.
HDMI 3 – Connect the third source for digital video such as a DVD multimedia player or set
top box through this digital connector. The white color band on the TV indicates this
connection. For users who want to connect to a DVI enabled device, use a DVI-HDMI
cable and connect the Analog Audio output of the device to the L+R AUDIO here. Your
VIZIO Certified HDMI and HDMI-DVI cables are available for purchase from
www.VIZIO.com or by calling 888-VIZIOCE (888-849-4623).
HDMI 2 – Connect the secondary source for digital video such as a DVD multimedia player
or set top box through this digital connector. The white color band on the side of the High
Definition TV indicates this connection.
HDMI 1 – Connect the primary source for digital video such as a DVD multimedia player or
set top box through this digital connector. The white color band on the side of the TV
indicates this connection.
SERVICE – This custom communication port is for factory service only. Use of this input
for any purpose other than factory authorized service will void the manufacturer’s
warranty of this equipment.
ANALOG AUDIO OUT – Connect the audio from the Plasma HDTV to an external
device, such as a home theatre system, external amplifier or stereo. Speakers
cannot be connected directly to here. The white color band on the side of the TV
indicates this connection.
AC IN – Plug-in the supplied AC Power Cord here.
* For digital TV stations in your area visit www.antennaweb.org.
Version 4/8/2008
10
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
1.4 VIZIO Remote Control
GUIDE – This button displays program information. Press this button once and the information of the
program being viewed is shown. Press it a second time and the Electronic Programming Guide will
appear in the screen.
POWER – Press this button to turn the TV on from the Standby mode. Press it again to return to the
Standby mode.
TV – Press this button to select TV.
AV – Press this button to select the Audio Video input. Pressing this button
repeatedly will get you to the AV input. Keep in mind that if S-Video cable is
being used, then AV will show the signal going through this input as the Svideo takes priority.
COMP – Press this button to select the Component (YPbPr) input. Pressing
this button repeatedly will take you through the Component input.
HDMI – Press this button to select the HDMI input. Pressing this button
repeatedly will get you through the HDMI (HDMI1, HDMI2 and HDMI3)
different inputs.
MENU – Use this button for the On-Screen Display (OSD) menus. When use
within the OSD menus, pressing this key will make the selection of an option.
- These buttons navigate the On-Screen Display (OSD).
MUTE – This button turns the sound on and off.
LAST – This button recalls the previously viewed channel when it is used in
TV mode; meaning that the TV unit has control over the signal or program
being watched. This button also has different functions when being used in
conjunction with the On-Screen Display (OSD) menu.
VOL ▲/▼ – This button turns the volume up or down.
CH ▲/▼ – This button changes the channels up or down.
NUMBER BUTTON PAD – Use these buttons to
select a channel or enter a password.
INPUT – This button allows the user to cycle
through the inputs. Repeatedly pressing of this
button will step you through the input sources in
the following sequence: TV, AV (S-Video),
Component, RGB, HDMI1, HDMI2 and HDMI3.
Once you have stepped through the entire
sequence, you will return to the beginning.
- (DASH) – When selecting a digital channel
directly, use this button for the separation of
main and sub-channels. For example, channel
28-2 would be selected by the button sequence
2 8 - 2.
Version 4/8/2008
11
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
1.4.1 Insertion of Batteries in the Remote Control
Press and slide out the battery cover by following the direction shown by the molded arrow on the surface
of the cover.
Insert two AA batteries into the remote control. Make sure that you match the (+) and (-) symbols on the
batteries with the (+) and (-) symbols inside the battery compartment.
Press and slide the battery cover back into place.
Precautionary Tips for Inserting the Batteries:
Only use the specified AA batteries.
Do not mix new and old batteries. This may result in cracking or leakage
that may pose a fire risk or lead to personal injury.
Inserting the batteries incorrectly may also result in cracking or leakage
that may pose a fire risk or lead to personal injury.
Dispose of the batteries in accordance with local laws and regulations.
Keep the batteries away from children and pets.
1.4.2 Remote Control Range
Point the remote control at the remote control sensor to transmit the commands.
Do not place any obstacles between the remote control and the receiver window.
The effective range of the remote control is approximately 30 feet (10 meters) from the front of the
receiver window, 30° to the left and right, 20° up and down.
1.4.3 VIZIO Remote Control Precautions
The remote control should be kept dry and away from heat sources. Avoid humidity.
If the TV responds erratically to the remote control or does not respond at all, check the batteries. If the
batteries are low or exhausted, replace them with fresh batteries.
When not using the remote control for a long period of time, remove the batteries.
Do not take the batteries apart, heat them, or throw them into a fire.
Do not subject the remote control to undue physical stress, such as striking or dropping it.
Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean, damp cloth.
Version 4/8/2008
12
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
Chapter 2 Connecting Equipment
2.1 Which Video Connection Should I Use?
Use?
The VIZIO VP322 PLASMA has six different ways to connect your video equipment from a basic
connection to the most advanced for digital displays.
Connection
Quality (type)
Best
(digital)
Best
(digital)
-----------Good
(analog)
Best
(analog)
Better
(analog)
Good
(analog)
Connector
SIDE
Panel
Color
Codes
Description
White
HDMI (High-Definition Multimedia Interface) - It is the
first and only industry-supported, uncompressed, alldigital audio/video interface. HDMI provides an
interface between any audio/video source, such as a
set-top box, DVD player, or A/V receiver and an
audio and/or video monitor, such as a digital
television (DTV), over a single cable.
Black
DTV Coaxial RF. When used for MPEG2 encoded bit
streams from ATSC broadcast programming, this
input takes advantage of the High Definition content.
-------------------------------------TV Coaxial RF. This is the connection for standard
NTSC TV using antenna or cable.
Blue
RGB PC (VGA) – This video input has separate red,
green and blue color components. The signal carries
horizontal and vertical sync information on the green
signal. This is most commonly used for PC input.
Green
Component - The video signal is separated into three
signals, one containing the black-and-white
information and the other two containing the color
information. This enhancement over S-Video takes
advantage of the superior picture provided by
progressive scan DVD players and HDTV formats.
Yellow
and
Red
Composite (AV) - The complete video signal is
carried through this single (yellow) pin connector.
This is the most commonly used video connection.
S-Video (AV) - The video signal is separated into two
signals, one containing the black-and-white
information and the other containing the color
information. Separating the color in this way avoids
‘cross color’ effects where closely spaced black and
white lines are erroneously displayed in color. It also
enables text to be displayed more sharply.
Note: For more info refer to the Quick Start Guide
Version 4/8/2008
13
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
2.2 Connecting Coaxial (RF)
2.2.1 Using Your Antenna or Digital
Digit al Cable for DTV /TV
1.
2.
3.
4.
Turn off the power to the HDTV.
Connect the coaxial (RF) connector from your antenna
or digital cable (out-of-the-wall, not from the Cable
Box) to the DTV/TV CABLE/ANTENNA connector.
Turn on the power to the HDTV.
Select DTV using the INPUT button on the remote or side of the High Definition TV,
or directly by pressing the TV button on the Remote Control.
Note:
a)
b)
c)
d)
Not all digital TV broadcasts are High Definition (HD). Refer to the
program guides, or consult your cable, satellite or TV station operator.
Digital broadcasts are not available in all areas.
Refer to
www.antennaweb.org for detailed information.
Make sure the antenna and coaxial cable are correctly grounded.
For Professional antenna installation contact us at www.VIZIO.com or
call 1-888-VIZIOCE (1-888-849-4623).
2.2.2 Using the Antenna or Cable through your
VCR
1.
2.
3.
4.
Turn off the power to the HDTV and VCR.
Connect the “Output to TV”, “RF Out” or “Antenna Out” connector on the rear of your
VCR to the DTV/TV CABLE/ANTENNA connector at the left hand side of the High
Definition TV.
Turn on the power to the HDTV and VCR.
Select TV using the INPUT button on the remote or side of the High Definition TV, or
directly by pressing the TV button on the Remote Control.
Note: If you have an off-air antenna or cable TV, connect it to
the “Antenna In” connector on the rear of your VCR.
Version 4/8/2008
14
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
2.3 Connecting Your HDTV SetSet-Top Box
2.3.1 Using HDMI
HDTV Set-Top Boxes that have a HDMI digital interface should be connected to the HDMI
input of the Plasma HDTV for optimal results.
Note: To maintain the display quality, use a VIZIO certified
HDMI cable. Length is available up to 10 meters. See
www.VIZIO.com or call 1-888-VIZIOCE (1-888-849-4623)
for details.
Connecting your HDTV SetSet - Top Box (Best):
(Best):
1.
2.
3.
4.
5.
Turn off the power to the HDTV and HDTV Set-Top Box.
Connect a HDMI cable to the HDMI output of your HDTV Set-Top Box and the
other end to the HDMI Input (white color area) at the left hand side of the High
Definition TV.
Turn on the power to the HDTV and HDTV Set-Top Box.
Select HDMI 1 using the INPUT button on the remote or side of the High Definition
TV, or directly by pressing the HDMI button on the Remote Control.
If HDMI 1 is being used, used either HDMI2 or HDMI3 as the input and follow
steps 1 through 3; and then select either HDMI2 or HDMI3 in step 4.
Note:
a)
b)
Version 4/8/2008
The HDMI input on the HDTV supports High-bandwidth Digital
Content Protection (HDCP). HDCP encrypts the transmission
between the video source and the digital display for added
security and protection.
Refer to your HDTV Set-Top Box user manual for more
information about the video output requirements of the product
or consult your cable or satellite operator.
15
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
For HDTV SetSet - Top Boxes with DVI:
DVI:
1.
2.
3.
4.
5.
Turn off the power to the HDTV and HDTV Set-Top Box.
Using a HDMI-DVI cable, connect the DVI end to your HDTV Set-Top Box and the
HDMI3 end to the HDMI Input (white color area) at the left hand side of the High
Definition TV.
Using an audio cable (white and red connectors), connect the cable to the audio
output connectors associated with the DVI output on your HDTV Set-Top Box and
connect the other end to the audio connectors associated with the HDMI input
(white area) at side of the High Definition TV.
Turn on the power to the HDTV and HDTV Set-Top Box.
Select HDMI3 using the INPUT button on the remote or side of the High Definition
TV, or directly by pressing the HDMI button on the Remote Control.
Note:
a)
b)
Version 4/8/2008
The HDMI input on the HDTV supports Highbandwidth Digital Content Protection (HDCP). HDCP
encrypts the transmission between the video source
and the digital display for added security and
protection.
Refer to your HDTV Set-Top Box user manual for
more information about the video output requirements
of the product or consult your cable or satellite
operator.
16
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
2.3.2 Using Component
Component Video
Connecting your HDTV SetSet - Top Box (Better):
(Better):
1.
2.
3.
4.
5.
6.
7.
Turn off the power to the HDTV and HDTV Set-Top Box.
Connect the Y (green color) connector on your HDTV Set-Top Box to the
corresponding Y (green color) connector in the Component group (green color
area, row of connectors) at the left hand side of the High Definition TV.
Connect the Pb (blue color) connector on your HDTV Set-Top Box to the
corresponding Pb (blue color) connector in the Component group (green color
area) at the left hand side of the High
Definition TV.
Connect the Pr (red color) connector
on your HDTV Set-Top Box to the
corresponding Pr (red color) connector
in the Component group (green color
area -
row of connectors) at the side of the High Definition TV.
Using an audio cable (white and red connectors), connect the cable to the audio
output connectors associated with the Component output on your HDTV Set-Top
Box and connect the other end to the audio connectors associated with the
Component input (green color area) at the left hand side of the High Definition
TV.
Turn on the power to the HDTV and HDTV Set-Top Box.
Select Component using the INPUT button on the remote or side of the High
Definition TV, or directly by pressing the COMP button on the Remote Control.
Note:
Refer to your HDTV Set-Top Box user manual for more
information about the video output requirements of the
product or consult your cable or satellite operator.
Version 4/8/2008
17
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
2.4 Connecting Your Basic SetSet-Top Box
2.4.1 Using Coaxial
Coaxial (RF)
1.
2.
3.
4.
Turn off the power to the HDTV and Set-Top Box.
Using a Coax (RF) cable, connect one end to the TV OUT (RF) on your Set Top Box
and the other end to the DTV/TV input at the left hand side of the High Definition TV.
Turn on the power to the HDTV and Set-Top Box.
Select TV using the INPUT button on the remote or side of the High Definition TV, or
directly by pressing the TV button (below the GUIDE button) on the Remote Control.
2.4.2 Using Composite Video
1.
2.
3.
4.
5.
Turn off the power to the HDTV and Set-Top Box.
Using the AV Cable, connect the Video (yellow color) connector on your Set-Top
Box to the corresponding Video (yellow color) connector in the AV group (yellow
color area) at the left hand side of the High Definition TV.
Using the white and red connectors, connect the cable to the audio output
connectors associated with the Video output on your Set-Top Box and connect the
other end to the audio connectors associated with the AV input (yellow color area) at
the left hand side of the High Definition TV.
Turn on the power to the TV and Set-Top Box.
Select AV using the INPUT button on the remote or side of the High Definition TV, or
directly by pressing the AV button on the Remote Control.
Note: Refer to your Set Top Box user manual for more information
about selecting the video or RF output of the product.
Version 4/8/2008
18
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
2.5 Connecting Your DVD Player
You have several options for connecting your DVD player to your VIZIO VP322 HDTV10A; HDMI,
Component, AV (S-Video or Composite) inputs. Based on your configuration, you can decide which
option is right for you.
2.5.1 Using HDMI
DVD players that have a digital interface such as HDMI (High Definition Multimedia Interface)
should be connected to the HDMI input of the VIZIO VP322 PLASMA for optimal results.
Note: To maintain the display quality, use a VIZIO certified HDMI cable available up
to 10 meters.
See www.VIZIO.com or call 1-888-VIZIOCE (1-888-849-4623) for details.
Connecting your DVD Player (Best):
(Best):
1.
2.
3.
4.
5.
Version 4/8/2008
Turn off the power to the High Definition TV and DVD player.
Connect a HDMI cable to the HDMI output of your DVD player and the other end
to the HDMI Input (white color area) at the left hand side of the High Definition TV.
Turn on the power to the High Definition TV and DVD player.
Select HDMI 1 using the INPUT button on the remote or side of the High Definition
TV, or directly by pressing the HDMI button on the Remote Control.
If HDMI 1 is being used, connect to either HDMI 2 or HDMI 3 as the input and
follow steps 1 through 3; and then select either HDMI 2 or HDMI 3 in step 4.
19
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
2.5.2 For DVD Players with DVI
1.
2.
3.
4.
5.
Turn off the power to the High Definition TV and DVD player.
Using a HDMI-DVI cable, connect the DVI end to your DVD player and the HDMI3
end to the HDMI Input (white color area) at the left hand side of the High Definition
TV.
Connect an audio cable (white and red connectors) to the audio output connectors
associated with the DVI output of the DVD player and connect the other end to the
audio connectors by the HDMI input (white area) at the left side of the High
Definition HDTV.
Turn on the power to the High Definition TV and your DVD player.
Select HDMI3 using the INPUT button on the remote or side of the High Definition
TV, or directly by pressing the HDMI button on the Remote.
Note: Refer to your DVD player user manual for more
information about the video output requirements of the product.
Version 4/8/2008
20
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
2.5.3 Using Component Video
Connecting your DVD Player (Better):
(Better):
1.
2.
3.
4.
5.
6.
7.
Turn off the power to the High Definition TV and DVD player.
Connect the Y (green color) connector on your DVD player to the corresponding
Y (green color) connector in the Component group (green color area) at the left
hand side of the High Definition TV.
Connect the Pb (blue color) connector on your DVD
player to the corresponding Pb (blue color) connector in
the Component group (green
color area - row of connectors)
at the left hand side of the High
Definition TV.
Connect the Pr (red color) connector on your DVD player to the corresponding Pr
(red color) connector in the Component group (green color area - row of
connectors) at left hand the side of the High Definition TV.
Using an audio cable (white and red connectors), connect the cable to the audio
output connectors associated with the Component output on your DVD player
and connect the other end to the audio connectors associated with the
Component input (green color area) at the left side High Definition TV.
Turn on the power to the High Definition TV and DVD player.
Select Component using the INPUT button on the remote or side High Definition
TV, or directly by pressing the COMP button on the Remote Control.
Note:
Refer to your DVD player user manual for more
information about the video output requirements of the product.
Version 4/8/2008
21
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
2.5.4 Using SS -Video (AV)
Connecting your DVD Player (Good):
1.
2.
3.
4.
5.
Turn off the power to the HDTV and DVD player.
Connect the S-Video jack on the rear of your DVD player to the S-Video jack
in the AV/S-VIDEO group (yellow/red color area) at the left hand side of the
High Definition TV.
Connect an audio cable (white and red connectors) to the audio output
connectors associated with the S-Video output on your DVD player and
connect the other end to the audio connectors
associated with the AV/S-VIDEO input at the left hand side of the High
Definition TV.
Turn on the power to the TV and DVD player.
Select AV using the INPUT button on the remote or side High Definition TV,
or directly by pressing the AV button on the Remote Control.
2.5.5 Using Composite (AV) Video
Connecting your DVD Player (Good)
1.
2.
3.
4.
5.
Turn off the power to the HDTV and DVD player.
Connect the Video (yellow color) connector on your DVD player to the Video
(yellow color) connector in the AV group (yellow/red color area) at the left
hand side of the High Definition TV.
Connect the R (red color) and L (white color) audio connectors on your DVD
player to the corresponding R (red color) and L (white color) audio input
connectors in the AV group (yellow/red color area).
Turn on the power to the TV and DVD Player.
Select AV using the INPUT button on the remote or side of the High
Definition TV, or directly by pressing the AV button on the Remote Control.
.
Note:
Refer to your DVD player user manual for more information about
the video output requirements of the product.
Version 4/8/2008
22
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
2.6 Connecting Your VCR or Video Camera
1.
2.
3.
4.
5.
Turn off the HDTV and VCR or Video Camera.
Connect the S-Video jack on the rear of your VCR or Video Camera to the
S-Video jack in the AV group on the side of the High Definition TV.
Connect an audio cable (white and red connectors) cable to the audio
output connectors associated with the S-Video output on your VCR or Video
Camera and connect the other end to the audio
connectors associated with the AV input at the left hand side of the High
Definition TV.
Turn on the power to the HDTV and VCR or Video Camera.
Select AV using the INPUT button on the remote or side of the High
Definition TV.
Note:
Refer to your VCR or Video Camera user manual for more
information about the video output requirements of the product.
Version 4/8/2008
23
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
2.7 Connecting an external Receiver/Amp
2.7.1 Optical
Programs
Output
of
Audio
received
with
HD
If your sound system has a SPDIF (optical) digital audio input you can connect it to the
optical DIGITAL AUDIO OUT (white area) at the left hand side of the PLASMA HDTV. This
is active when receiving audio with the program being viewed no matter what input (TV, AV,
Component or HDMI) is being used.
1.
Turn off the power to
the Plasma HDTV and
Receiver/Amp.
2.
Using an audio cable
(optical cable), connect
the cable to the audio input connector on the Receiver/Amp and connect the
other end to the OPTICAL OUT (white area) audio connector at the side of the
Plasma HDTV.
3.
Turn on the power to the Plasma HDTV and Receiver/Amp.
4.
Then press the MENU button on the remote control to open the On-Screen
Display (OSD) menu.
5.
Press the
on the remote control to select the Audio menu.
6.
Press the
on the remote control to select SPEAKERS.
7.
Press the
on the remote control to select OFF so that the sound from the
Plasma HDTV will now be routed through your Receiver/Amp system.
Press the LAST key once to return to the previous screen or repeatedly to return to your
program if task has been completed.
Note:
a)
b)
Version 4/8/2008
Refer to your Receiver/Amp user manual to select the corresponding audio
input.
The audio output can not be connected directly to external speakers.
24
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
2.8 Connecting a PC Computer
1.
2.
3.
4.
5.
Turn off the power to the High Definition TV and PC Computer.
Connect a 15-pin D-Sub RGB (VGA) cable to the RGB output of your pc computer
and the other end to the RGB PC input (blue area) at the left hand side of the High
Definition TV.
Connect the Audio Out on your pc computer to the RGB PC Audio (this connection
will require an 1/8” stereo mini plug at the end which goes into the TV) input (blue
area) at the left hand side of the High Definition TV.
Turn on the HDTV and PC Computer.
Select RGB using the INPUT button on the remote or side of the High Definition
TV.
Note:
a)
b)
Version 4/8/2008
For the best picture quality when connecting a pc computer through RGB PC,
set your pc computer timing mode to VESA 1366x768 at 60Hz. Please refer to
the pc or graphic card’s user guide for additional information on how to set the
timing mode and the video output requirements of the product.
A RGB (VGA) cable and stereo mini jack cable are not included and can be
purchased at an electronics store.
25
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
2.8.1 Preset PC Resolutions
If connecting to a PC through the RGB PC input, set the TV timing mode to VESA 1366x768 at 60Hz
for best picture quality (refer to the graphic card’s user guide for questions on how to set this timing
mode). Please see the table below for the factory preset resolutions.
Resolution
Refresh (Hz)
H.Freq (kHz)
V.Freq (Hz)
H.Sync
V.Sync
Pixel Freq (MHz)
640x480
60
31.500
59.940
N
N
25.175
640x480
75
37.500
75.000
N
N
31.500
720x400
70
31.460
70.080
N
P
28.320
800x600
60
37.900
60.317
P
P
40.000
800x600
72
48.077
72.188
P
P
50.000
800x600
75
46.900
75.000
P
P
49.500
1024X720
60
47.700
60.000
P
N
85.500
1024x768
60
48.400
60.010
N
N
65.000
1024x768
70
54.476
70.069
N
N
75.000
1024x768
75
60.000
75.030
P
P
78.750
1360 x 768
60
47.700
60.000
P
N
85.500
1366 X 768
60
47.550
59.810
P
N
85.500
NOTES: N = Negative, P = Positive.
Version 4/8/2008
26
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
Chapter 3 Setting Up to Watch Television
For ‘Preparing Your Plasma HDTV for Wall Mounting’, see page 6.
3.1 Basic Plasma HDTV Start Up
1. Connecting the Power Cable
Connect the power cord to the power cord connector on the back of the High Definition TV, and
then plug the power cord into an AC wall socket.
2. Connect Audio and Video Cables to the HDTV
(see pages 13 ~ 25 for detailed steps)
3. Turning Power On
Once all the components are connected, press the Power ON button on the side of the High
Definition TV, or press the Power ON (Orange) button on the remote control.
4. Initial Setup
After powering on the TV set, the Initial
Setup screen will come up; please press
the button on the remote control.
a. The Language choice screen will
be displayed, the default English
option is highlighted. If you wish
to change the OSD language to
Español or Français, press the
button on the remote control to
select the language you want.
Press the
button on the
remote to go to the next screen.
Note: At this point, if a Set-Top Box from your Local Cable or Satellite Service Company or other
equipment is being used, please press the LAST key on the remote control and go to Step 5. If this is not
your case, please continue at Step b.
Version 4/8/2008
27
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
b. The Tuner screen will be
displayed; default choice is
Antenna. If you are using Cable
(No Box) Service, press the
button on the remote control to
highlight CABLE.
Press the
button on the remote
to go to the next screen.
c.
The Channel Scan screen will be
displayed, default choice is Scan.
Press the
button on the remote
control to commence the search
for available channels to be stored
into memory.
If you do not want to scan for
channels at this time, press the
LAST key on the remote control.
Note: If you select to skip this step by pressing the LAST key, next time that you decide to complete this
procedure; you will need to select the TV as input (through the Input key) and then go through the Menu
option to select the Tuner setup to get the option of scanning the channels again.
Version 4/8/2008
28
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
d. The screen will now change to
show the progress of the search
for Analog (NTSC) and Digital
(ATSC) channels.
Note: DTV digital broadcast is not available in all areas. Refer to www.antennaweb.org to get information
about availability in your area, type of antenna and in which direction to point your antenna. The channel
availability through cable depends upon which channels your cable operator supplies in Clear QAM;
consult your cable operator for more information.
e. When finished, the Complete
screen will be displayed to inform
you that the HDTV has completed
the Initial Setup.
Press the
button on the
remote control to exit and begin
watching TV.
5. Select Input Source
Select the Input Source for the HDTV by pressing the INPUT
button on the side of the High Definition TV or using the Input button
on the remote control. Pressing this button will cycle you through the
following options: TV, AV (S-VIDEO), Component, RGB, HDMI1,
HDMI2 and HDMI3.
Now follow the procedures below to display channels from a
different signal (External TV Tuner, VCR, Cable Box or Satellite
Receiver) source, using different inputs at the side of your TV set.
a. Select the correct input connection; RF (DTV/TV) connector, Composite (Yellow, Red
and White) connectors, Component (Red, Green, Blue plus Red and White) connectors, HDMI
connectors or Separate-Video (S-Video) plus Red and White connectors (if applicable). Make the
physical connection or hook up.
Version 4/8/2008
29
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
b. If you have an HD service you must use the HDMI (best) or Component connection.
Note: Composite (AV) and S-Video (AV) Cables can only be used for SD (480i) pictures.
c. Turn on your Cable Box, VCR, External TV Tuner or Satellite Receiver and you will see
a picture on your TV set. If there is no picture, make sure you have selected the correct input on the TV
set.
d. If the selected input is RF, you should be aware that the TV set needs to be on either
channel 3 or channel 4 matching the channel which has been selected on the back of the
VCR, Cable Box, External TV Tuner or Satellite Receiver; please refer to Owner or
User’s Manual of such equipment for details.
Note: The TV set will be displaying any television station or program selected by the Cable Box, VCR,
External Tuner or Satellite Receiver. The TV set will not be able to change programs or channels; this is
controlled by the equipment sending the signal. If the service being used is the one which setup
includes a box with two different outputs for two different (distant) rooms, then scanning
channels would help you to find the signal. Be aware that the channel to be selected varies from
provider to provider; meaning that, you may have to call your provider company so they could
provide you the specific channel when using high definition TV sets. Some examples of these
channels are: 105, 106, 115 and 116.
6. Fine Tuning your TV set for Home Use.
After completing Procedure 4 or
Procedure 5; please follow the steps
below to optimize your TV set display:
a. Press the Menu key to bring up the
Menu display. Use the
or
button
to scroll to the Color Temperature option.
b. Press the
button to select it.
c. Press either
or
button to change setting
to Normal, and then press the LAST key again to
go back to previous screen.
Version 4/8/2008
30
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
d. Press either
or
button to
select the Picture Mode option.
e. Press either
or
button to change the Picture Mode option to Standard.
f. Press the LAST key repeatedly to exit the on
screen display Menu.
Note: If Procedure 4 had been done, you would
like to do the following to ensure that the correct
program times are shown when pressing the
Guide key:
Press the Menu key, this will bring up the picture
mode menu.
Pressing either
or
button scroll across to
the icon showing the little satellite dish or antenna.
The next screen will appear showing Time Zone.
Press either
or
button to select the Time
Zone option.
Press either
or
button to choose the proper
Time Zone of your area.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
Your new TV set is now ready to automatically reproduce the best picture quality out of the input signal
which is been fed into it. Enjoy your TV watching!!
Version 4/8/2008
31
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
3.2 Watching a TV Program
Progra m
Before you start watching TV, please make sure that any cable, satellite or off-air antenna connections
are secure. Also, verify that the power cord is plugged into a correctly grounded electrical outlet or surge
protector.
1.
Press the power button on the remote or on the side of the High Definition TV. The VIZIO
logo on the front will change from orange to white.
2.
There are 3 options for selecting your programming:
a. If you are using an antenna or cable connected through the DTV/TV CABLE/ANTENNA
input, you can select TV directly by pressing the TV button on the remote, or by pressing
the INPUT button on the remote or on the side of the High Definition TV.
b. If you are watching broadcasts through a cable or satellite set-top box connected by an
HDMI cable, select HDMI directly by pressing the HDMI button on the remote, or by
pressing the INPUT button on the remote or on the side of the High Definition TV.
c.
If you are watching broadcasts through a cable or satellite set-top box connected by a
Component (YPbPr) cable, select Component directly by pressing the COMP button on
the remote, or by pressing the INPUT button on the remote or on the side of the High
Definition TV.
Note: You should be able to see a picture. If you do not,
make sure that all of the HDTV connections are secure and
you have selected the correct video input source.
3.
When using option 2a, press the Channel buttons on the remote or the CH+ / CH- buttons on
the side of the High Definition TV to change the channel. Note: The Channel buttons, on the
side of the High Definition TV and on the remote control will not work if you are watching a
program using HDMI, Component and AV inputs.
Version 4/8/2008
32
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
3.3 Adjusting Basic HDTV Settings
Volume
To adjust the volume, press and hold the VOL+ or VOL- button
on the side of the Plasma HDTV or remote control until the
desired level is reached.
TV Channels
To step up or down through the available TV channels, press
the CH+ or CH- button on the side of the HDTV or remote
control once for the next or previous channel, or hold the button
until the desired channel is reached. Note: Channel up and
down will only operate in DTV and TV modes.
Wide
Using this feature, you can watch video content in different size modes on the
HDTV. Press the MENU button on the remote control to bring up the OSD
screen.
Press either the
or
button to select Setup (wrench look alike icon)
options.
Press the
button scroll down to Wide and select it.
Press either the
or
button to select among the modes.
Fore more information see Section 4.17.1 – Viewing Modes, on page 61.
Version 4/8/2008
33
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
3.4 Program Information
Press the GUIDE button on the remote and program information for the channel you are watching will be
displayed on the screen with the live program content in a small window in the lower left corner.
Press the GUIDE button again and the following screen will appear showing you the Electronic
Programming Guide.
Press the
or
button to scroll up or down the channels. Each time you pause at a channel, the
program list will update with the program schedule for the channel and the window will show the live
program for that channel. Press the GUIDE button to exit this feature.
3.5 Information on HDTV Status
When you change TV channels or inputs or when the GUIDE key is pressed, an Information Banner is
displayed for a few seconds to tell you the status of the PLASMA HDTV.
Program Information:
Provided by Broadcaster
Program
Rating
Version 4/8/2008
Closed Caption
is available
Audio is Stereo
TV Channel
Number
Station Name: provided
by Broadcaster
NTSC SDTV (Standard Definition TV)
34
www.VIZIO.com
Source
is Cable
VIZIO VP322 HDTV10A User Manual
Chapter 4 Advanced Adjustment of HDTV
4.1 Using the On Screen Display (OSD)
The remote control or the control buttons on the right hand side of the High Definition TV can control all
the function settings. The On Screen Display (OSD) allows you to adjust the brightness, contrast and
other settings. The TV will save changes made to the settings, even if the TV is turned off.
The OSD consists of several menu options: Picture Adjust, Audio Adjust, Setup, TV Tuner Setup and
Parental Controls. The main menu options may vary depending on your selected input source.
Note: Some of the main menu options may have additional submenus, i.e. the TV Rating submenu for
Parental Controls.
1.
Press the MENU button on the remote
control or the side of the High
Definition TV and the Picture menu
will be shown on the screen.
2.
Press the
or
button on the
remote control or the VOL + or VOL –
button on the side of the High
Definition TV to select one of the other
menu options.
Picture Adjust
3.
Audio Adjust
TV Tuner Setup
Setup
Parental Controls
Once the menu option is displayed, press the MENU button on the remote control or the CH
+ or CH – button on the side of the High Definition TV to select one of the items to adjust.
4.
Press the
button on the remote control or the VOL – button on the side of the High
Definition TV to begin adjustment of the item.
5.
Press MENU when finished.
6.
Repeat steps 2 through 5 to adjust additional options within this menu.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
35
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.2 DTV / TV Input Picture Adjustment
4.2.1 Picture Mode
When the MENU button is pressed, the On Screen
Display (OSD) appears on the PICTURE
adjustment page. Press the
button to highlight
the Picture Mode selection.
Use the
or
button to choose from Custom,
Standard, Movie and Game.
If Standard, Movie or Game is chosen for the
Picture Mode, still the Picture adjustments are
available for you to set or adjust them to your
preferred settings.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
36
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.2.2 Brightness
Press the
button to highlight the Brightness selection.
Press the
button to start adjusting the brightness and the menu page will disappear and be replaced
by a small Brightness Indicator Bar so you can see the brightness level between the minimum and
maximum available levels.
Use the
or
button to adjust the level.
The Brightness adjusts the black levels in the picture. If the brightness is too low you will not be able to
see the detail in darker parts of the picture and if the brightness is too high the picture will look washed
out.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
4.2.3 Contrast
Press the
button to highlight the Contrast selection.
Press the
button to start adjusting the contrast and the menu page will disappear and be replaced by a
small Contrast Indicator Bar so you can see the contrast level between the minimum and maximum
available levels.
Use the
or
button to adjust the level.
The Contrast adjusts the white levels in the picture. If the contrast is too low the picture will look washed
out and if the contrast is too high you will not be able to see any detail in the bright parts of a picture.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
4.2.4 Color
Press the
button to highlight the Color selection.
Press the
button to start adjusting the color and the menu page will disappear and be replaced by a
small Color Indicator Bar so you can see the color level between the minimum and maximum available
levels.
Use the
or
button to adjust the level.
The Color adjusts the amount of color in the picture.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
37
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.2.5 Tint
Press the
button to highlight the Tint selection.
Press the
button to start adjusting the tint and the menu page will disappear and be replaced by a
small Tint Indicator Bar so you can see the tint adjustment to the left or right of the nominal position.
Use the
or
button to adjust the level.
The Tint adjusts the hue of the picture. The easiest way to set tint is to look at flesh tones and adjust for
a realistic appearance. In most cases, the default
middle position is correct. If people’s faces look
too orange try reducing the level of color first as
the case of this is often too much color.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
4.2.6 Sharpness
Press the
button to highlight the Sharpness
selection.
Press the
button to start adjusting the sharpness and the menu page will disappear and be replaced
by a small Sharpness Indicator Bar so you can see the sharpness level between the minimum and
maximum available levels.
Use the
or
button to adjust the level.
The Sharpness adjusts the sharpness of the picture.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
38
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.2.7 Color Temperature
Press the
button to highlight the option for Color Temperature selection.
The default is COOL; this is the 9300K setting.
Press the button to select Color Temperature if you want to
Press the
or
button to choose between the Normal, Warm or Custom options.
If you choose the Custom option, then a new menu will be displayed showing the primary color items,
Red, Green and Blue. Press the
button to
highlight the color you wish to adjust.
Press the
button to start adjusting the color and
the menu page will disappear and be replaced by
a small Color (Red, Green or Blue) Indicator Bar
as before.
Use the
or
button to adjust the color.
Repeat the procedure to adjust the other colors if
desired.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
4.2.8 Advanced Video
Press the
button to highlight the option for
Advanced Video selection.
Press the MENU button. A new menu will be
displayed showing the advanced functions
available for fine tuning of the picture.
DNR
Press the
button to highlight DNR (Dynamic
Noise Reduction). Use this feature to diminish
picture artifacts caused by the digitizing of image
motion content that may be present in the picture.
Press the
or
button to choose from the Off,
Low, Medium or Strong setting.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
39
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
Black Level Extender
Press the
button to highlight Black Level Extender. Use this feature to increase the picture
reproduction performance in the dark areas of the picture.
Press the
or
button to turn this feature On or Off.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
White Peak Limiter
Press the
button to highlight White Peak Limiter.
Use this feature to limit excessive white in bright
areas of the picture, caused by a lower sync level for
a channel being received from the antenna or cable.
Press the
or
button to turn this feature On or
Off.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if task
has been completed.
CTI
Press the
button to highlight CTI (Color Transient Improvement). This feature can be used to reduce
the time taken to transition from one color to another.
The effect will be seen as sharpening the border
between colors.
Press the
or
button to choose from the Off,
Low, Medium or Strong setting.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
Flesh Tone
Press the
button to highlight Flesh Tone. In
some cases, activation of this feature can result in a
more pleasing production of sky and flesh color.
Press the
or
button to turn this feature On or Off.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Adaptive Luma
Press the
button to highlight Adaptive Luma. Large areas of darkness in a picture will result in a
lower Average Picture Level (APL) and the overall picture will look too dark; activation of this feature will
raise the APL to counteract this effect.
Press the
or
button to turn this feature On or Off.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
40
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.3 DTV / TV Input Audio Adjustment
4.3.1 Volume
When the MENU button is pressed, the On Screen
Display (OSD) appears on the PICTURE
adjustment page. Press the
button to display
the AUDIO ADJUST page.
Press the
button to highlight the Volume
selection.
Press the
button to start adjusting the volume
and the menu page will disappear and be replaced
by a small Volume Indicator Bar so you can see
the volume level between the zero and maximum
available levels.
Use the
or
button to adjust the level.
The Volume Indicator Bar will also appear when watching a program on your TV is the Volume button on
the remote or the side of the High Definition TV is pressed.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
4.3.2 Bass
Press the
button to highlight the Bass selection.
Press the
button to start adjusting the bass and the menu page will disappear and be replaced by a
small Bass Indicator Bar, as before, so you can see the bass level between the zero and maximum
available levels.
Use the
or
button to adjust for bass boost or attenuation.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
41
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.3.3 Treble
Press the
button to highlight the Treble selection.
Press the
button to start adjusting the treble and the menu page will disappear and be replaced by a
small Treble Indicator Bar, as before, so you can see the treble level between the zero and maximum
available levels.
Use the
or
button to adjust for treble boost or attenuation.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
4.3.4 Balance
Press the
button to highlight the Balance
selection.
Press the
button to start adjusting the balance
and the menu page will disappear and be replaced
by a small Balance Indicator Bar, as before, so
you can see the balance adjustment to the left or
right of the nominal position.
Use the
or
button to adjust the left/right
balance.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
4.3.5 Surround
Press the
button to highlight the Surround
selection.
Press the
or
button to select for the
simulated surround sound feature to be On or Off.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
4.3.6 Digital Audio Out
Press the
button to highlight the Digital Audio Out selection.
Press the
or
button to make the proper selection. The options being Dolby Digital, PCM and OFF.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
42
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.3.7 Speakers
Speaker s
Press the
button to highlight the Speakers selection.
Press either
or
button to turn the internal speakers On or Off. You may want to turn-off the internal
speakers when listening to the audio through your Home Theatre System.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
4.3.8 Lip Sync
Included with the advanced technology of your TV, a feature which will compensate the shortcomings of
signal transmission called audio sync (Lip Sync). Lip Sync is designed to adjust the audio of the program
being viewed so that it matches the movement of the lips of someone talking on the screen. This feature
is built into your set, and it can be applied to all
inputs. To use this feature, follow the steps below.
Press the MENU key to bring up the OSD.
Using either the
or
button scroll across to
the microphone icon, the Audio menu will be
displayed.
Press either
or
button to scroll either up or
down to Lip Sync.
Press either
or
button to make the
appropriate adjustment.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
Version 4/8/2008
43
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.4 DTV / TV Tuner Setup
When you first use your VIZIO VP322 HDTV10A you will have to setup your TV for DTV / TV channels
using the Initial Setup screens. If you did not do this or if your setup has changed, you can do this from
the TV TUNER SETUP menu.
4.4.1 Tuner Mode
When the MENU button is pressed, the On Screen
Display (OSD) appears on the PICTURE
adjustment page. Press the
button to display
the TV page.
Press the
button to highlight the Tuner Mode
selection.
Press either
or
button to choose Cable or Air
(Antenna) depending upon which equipment you
have attached to the DTV / TV Input.
4.4.2 Auto Search
Press the
button to highlight the Auto Search
selection.
Press the
button to Auto Search for TV
channels available. The TV will automatically
search for analog and digital channels.
4.4.3 Skip Channel
After the TV has stored all of the available DTV channels in memory you will find that some channels will
be too weak to watch comfortably or they may be channels you do not want to see. Select the channel
you wish to remove.
Press the MENU and
buttons to open the TV TUNER SETUP menu.
Press the
button to highlight SKIP CHANNEL.
Press the
button to select this channel to be skipped when using the CH+ or CH- button. You will still
be able to select this channel using the number buttons on the remote control.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
44
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.4.4 MTS
This feature allows you, the user, to select the different languages in which the signal provider or
broadcaster is transmitting the audio with the program you are watching. This signal is usually or in most
cases Spanish language.
Press the
button as many times as it takes to scroll down to this option and get it highlighted.
Press either
or
button to go through the settings of this feature to make your selection.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
4.4.5 Time Zone
Setting the correct Time Zone for your area will
ensure that the correct program times are shown
after pressing the GUIDE button on the remote
control.
Press the
button to highlight the Auto Search
selection.
Press either
or
button to select your area.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
4.4.6 Daylight Saving
As for Time Zone, setting the daylight saving time for your area will ensure that the correct program times
are shown after pressing the GUIDE button on the remote control.
Press the
button to highlight the Daylight Saving selection.
Press either the
or
button to select On or Off.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
45
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.5 DTV / TV Input Setup
4.5.1 Language
When the MENU button is pressed, the On Screen
Display (OSD) appears on the PICTURE
adjustment page. Press the
button until the
SETUP page is displayed.
Press the
button to highlight the Language
selection. The default is English.
Press either
or
button to select Español or
Français.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
4.5.2 Sleep Timer
Press the
button to highlight the Sleep Timer selection.
Press either
or
button to select the timer to turn-off the TV in 30, 60, 90 or 120 minutes.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
4.5.3 Wide
The Wide option is the feature which allows you to
select how your display would be size wise. When
in TV mode; the selections are Normal, Wide and
Panoramic views.
Press the
button as many times as it takes to
scroll down to this option and highlight it.
Press either
or
button to make the correct
selection, you will see the screen adjusting to the
different sizes which apply to this feature.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if task has been completed.
Version 4/8/2008
46
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.5.4 Input Naming
This feature has been added to facilitate you, the user, in identifying or label the input and signal which is
being watched. You could use up to 8 characters;
either letters or numbers or combinations of both.
Press
button to highlight this option.
Press
button to obtain the next screen which
shows the different inputs.
Press
button to select the desired input which
you want to label or name (Examples: VCR, DVD,
etc.) it with any name which will make easier for
you to recognize it.
Press the MENU key to go to the first space (_) in
the bracket.
Press either the
or
button and select either
the letter or number belongs to this place.
Press the
button to go to the next space (_)
and again
Using either the
or
button to select the
next character of the name given to this Input.
Repeat the last previous two steps until the name
of the input is completed.
Press the MENU key to accept the name of the input or the LAST key to cancel the setting.
Press the LAST key when you have finished to go to
the previous menu.
Since you may have named an input; it is
recommendable to name all the inputs which are
being used as well as these for which you have an
idea what their name is going to be.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
47
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.5.5 Closed Caption (CC)
When watching TV, the CC feature is available in
the Setup menu.
Press the
button to highlight the CC selection.
Press the
button to select Off, CC1, CC2, CC3
or CC4 for standard analog (NTSC) TV. Select Off,
CC1, CC2, CC3, CC4, or Service1 through 6 for
Digital (ATSC) TV.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
Closed Caption for regular TV is usually CC1
or CC2.
4.5.6 Closed Caption On Mute (CC On Mute)
When selecting Closed Caption as a feature to be used; Closed Caption On Mute will provide you with
the option to obtain closed captioning when you press the key labeled mute on your Remote Control.
Press
button as many times as it takes to get this option highlighted.
Press either
or
button to toggle between Off and On to make the correct selection.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
48
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.5.7 Digital Closed Caption Style (Digital CC Style)
When watching DTV, the Digital CC Style feature is available in the Setup menu.
Press the
button to highlight the Digital CC Style selection.
Press the
button to go to the next screen.
Press either
or
button to toggle between the two options: Broadcaster and Custom.
If Custom is selected then you will have the control to customize the way Closed Caption will be displayed
by changing these different parameters to your
like: Font Size (letters size), Font Color (letters
color), Font Opacity (transparency of the letters),
Background Color (color of the background area
where Closed Caption is going to be displayed),
Background Opacity (allows to either see
through at the scene being played or it could be a
solid screen), Window Color (it allows you to
change the color to the area where characters will
be displayed on) and finally Window Opacity
(allows the area surrounding characters to be
changed). There are no recommendations of
setting these parameters since you, the user,
would have your own taste or like of them.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
4.5.8 Reset All Settings
Press the
button to highlight the Reset All Settings selection.
Press the
button to reset the TV to the default factory settings.
Press either the MENU key to return to the previous menu display or the LAST key to return to your
program if task has been completed.
Note: This does NOT reset the Parental Control Password.
4.5.9 Image Cleaner
This feature may allow ghosts of previous images to be removed.
Press the
button to highlight the Image Cleaner option.
Press the
button to turn this feature On.
It usually takes 60 or more minutes for this feature to run a full cycle, and then the TV will turn off
automatically without any supervision.
Note: Prolonged display of stationary images (such as on a video game or a computer or a still
picture) will cause them to remain on the screen. Higher brightness and contrast levels will make the
panel more susceptible to image retention. To minimize image retention, reduce the degree of
brightness and contrast of the screen when displaying a still image. Image Cleaner will not remove
images that have been displayed for too long. Image sticking is not covered under standard
warranty.
Version 4/8/2008
49
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.6 DTV / TV Input Parental Control
4.6.1 Channel Block
If you want to restrict certain channel and program viewing, you can do this by turning on the Parental
Control. Selected programs, movies and channels can then be made available only after an authorized
password has been entered and accepted by the TV.
When the MENU button is pressed, the On
Screen Display (OSD) appears on the PICTURE
adjustment page. Press the
button to display
the PARENTAL page.
The Password must be entered before the TV will
continue with Parental settings. The default
password set in the factory is 0 0 0 0. If you are
going to use the Parental Control feature you
should change the password.
Note: Make sure you write down and store the new password in a secure place.
The Reset All Settings feature (see page 49) does NOT reset the password.
Version 4/8/2008
50
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
Press the
button to highlight the Channel Block selection.
Press the
button to go to the next screen.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
4.6.2 TV Rating
Follow the procedure in the previous section 4.6.1 to display the Parental Control menu and then press
the
button to highlight the TV Rating selection.
Press the
button and the Block TV Rating
screen will be displayed.
In the Block TV Rating screen you can customize
the program blocking of the following TV ratings:
Y – All children
Y7 – Older children
G – General audience
PG – Guidance suggested
14 – Strongly cautioned
MA – Mature audience
You can also customize the TV ratings for the
following content:
A – All sub-ratings
D – Sexual dialog
L – Adult language
S – Sexual situations
V - Violence
FV – Fantasy violence
Press the
or
button to navigate through
the TV rating options. Press the MENU key to
block (locked) or allow (unlocked).
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
51
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.6.3 Movie Rating
Press the
button to highlight the Movie Rating
selection.
Press the
button and the Block Movie Rating
panel will be displayed.
In the Block Movie Rating panel you can
customize the program blocking of the following
Movie ratings:
G – General audience
PG – Parental guidance suggested
PG-13 – Recommended for children 13 years of
age or older
R – Mature audience
NC-17 – No one under 17 years of age
X – No one under 17 years of age
Press either
or
button to navigate through the Movie rating options.
Press the MENU button to block (locked) or allow (unlocked).
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
4.6.4 Check for New DTV Rating
This option is designed to update the TV or Movie table of different ratings for programs being viewed in
your local or regional area. It will allow the
parental guidance control feature in your TV to
have the most current parental control database
for a digital signal. This option may be available in
the future for activation. This option works as
follows: Whenever you decide to use the Parental
Control feature and this option has been activated
in your area, the Check for New DTV Rating will
be a solid color indicating that an update is
available for the TV Rating or Movie Rating table.
After entering the password, the Parental menu
will appear on the screen, and then do the
following.
Observe the status of the Check for New DTV
Rating. If option is faded out, no update is available (the option is not activated in your area). If it is not
faded out,
press either
or
button to select this option.
Press
button to execute this operation. Please follow the on screen instructions to complete this
procedure.
Press either
or
button to select and then adjust any other option in this menu.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
52
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.6.5 Blocked Unrated Programming
Follow the procedure in the previous section 4.6.1 to
display the Parental Control menu and then press
the
button to highlight the Block Unrated TV
selection.
Press either
or
button to select YES or NO
to block programs that do not have a rating.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if task
has been completed.
4.6.6 Change the Password
Press the
button to highlight the Access Code
Edit selection.
Press the
button and the new Password screen
will be displayed.
Enter the new, 4-digit password using the number
buttons on the remote. Enter it a second time to
confirm you entered it correctly.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
Note: Make sure you write down and store the new password in a secure place.
The Reset All Settings feature (see page 49) does NOT reset the password.
Version 4/8/2008
53
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.7 HDMI Input Picture Adjustment
The Picture Adjust menu operates in the same
way for the HDMI Input as for the DTV / TV input
in section 4.2. The menu difference is that there is
no icon along the top for DTV / TV or Parental
Control adjustments.
4.8 HDMI Input Audio Adjustment
The Audio Adjust menu operates in the same way
for the HDMI Input as for the DTV / TV input in
section 4.3. The menu difference is that there is
no icon along the top for DTV / TV or Parental
Control adjustments.
4.9 HDMI Input Setup
The Setup menu operates in the same way for the
HDMI Input as for the DTV/TV input in section 4.5.
The menu difference is that there is no icon along
the top for DTV / TV or Parental Control
adjustments.
Version 4/8/2008
54
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.10 Video Input Picture Adjustment
The Picture Adjust menu operates in the same
way for Video Inputs (Component and AV) as for
the DTV / TV input in section 4.2. The menu
difference is that there is no icon along the top for
DTV / TV adjustments.
4.11 Video Input
Input Audio Adjustment
The Audio Adjust menu operates in the same way
for Video Inputs (Component and AV) as for the
DTV / TV input in section 4.3. The menu difference
is that there is no icon along the top for DTV / TV
adjustments.
Version 4/8/2008
55
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.12 Video Input Setup
The Setup menu operates in the same way for
Video Inputs (Component and AV) as for the
DTV/TV input in section 4.5. The menu difference
is that there is no icon along the top for TV
adjustments.
4.12.1 Auto Phase (for Component input)
Press the
button to highlight the H/V Position.
Press the
button and the new H/V Position
submenu will be displayed.
Press the
button to highlight Auto Phase.
Press the
button to execute this option. The TV
will automatically look for the phase of the signal
to fine tune the picture.
Once the adjustments are completed press the
LAST button repeatedly to exit the OSD
completely.
4.13 Video Input Parental Control
The Parental Control menu operates in the same
way for Video Inputs (Component and AV) as for
the DTV / TV input in section 4.6. The menu
difference is that there is no icon along the top for
DTV / TV adjustments.
Version 4/8/2008
56
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.14 PC Input Picture Adjustment
The Picture Adjust menu operates in the same way for the PC Input as for the DTV / TV input in section
4.2 for Brightness, Contrast, and Color Temperature.
4.14.1 Auto Adjust
When the MENU button is pressed, the On Screen
Display (OSD) appears on the PICTURE
adjustment page. Press the
button to highlight
the Auto Adjust selection.
Press the
button for the PLASMA HDTV to
adjust to the PC signal timing automatically.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
4.14.2 Brightness
Press the
button to highlight the Brightness
selection.
Press the
button to start adjusting the
brightness and the menu page will disappear and
be replaced by a small Brightness Indicator Bar so
you can see the brightness level between the
minimum and maximum available levels.
Use the
or
button to adjust the level.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
The Brightness adjusts the black levels in the picture. If the brightness is too low you will not be able to
see the detail in darker parts of the picture and if the brightness is too high the picture will look washed
out.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
57
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.14.3 Contrast
Press the
button to highlight the Contrast selection.
Press the
button to start adjusting the contrast and the menu page will disappear and be replaced by a
small Contrast Indicator Bar so you can see the contrast level between the minimum and maximum
available levels.
Use the
or
button to adjust the level.
The Contrast adjusts the white levels in the picture. If the contrast is too low the picture will look washed
out and if the contrast is too high you will not be able to see any detail in the bright parts of a picture.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
4.14.4 Color Temperature
Press the
button to highlight the option for
Color Temperature selection.
The default is COOL; this is the 9300K setting.
Press the
or
button if you want to choose
the Normal, Warm or Custom option.
If you choose the Custom option, then a new
menu will be displayed showing the primary color
items, Red, Green and Blue.
Press the
button to highlight the color you
wish to adjust.
Press the
button to start adjusting the color and the menu page will disappear and be replaced by a
small Color (Red, Green or Blue) Indicator Bar as before.
Use the
or
button to adjust the color.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
58
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.14.5 H-SIZE
Press the
button to highlight the H-Size selection.
Press the
button to start adjusting the horizontal size of the picture.
Use the
or
button to adjust the horizontal size.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
4.14.6 H. Position
Press the
Shift selection.
button to highlight the Horizontal
button to start adjusting the
Press the
horizontal position of the picture.
Use the
or
button to adjust the horizontal
position.
Press the LAST key once to return to the previous
screen or repeatedly to return to your program if
task has been completed.
4.14.7 V. Position
Press the
button to highlight the Vertical Shift selection.
Press the
button to start adjusting the vertical position of the picture.
Use the
or
button to adjust the vertical position.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
4.14.8 Fine Tune
Press the
button to highlight the Fine Tune selection.
Press the
button to start tuning the to the PC signal.
Use the
or
button to adjust the tuning.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Version 4/8/2008
59
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.15 PC Input Audio Adjustment
The Audio Adjust menu operates in the same way
for the PC Input as for the DTV / TV input in
section 4.3. The menu difference is that there are
no icons along the top for DTV / TV and Parental
Control adjustments.
4.16 PC Input Setup
The Setup menu operates in the same way for the
PC Input as for the DTV / TV input in section 4.5.
The menu difference is that there is no icon along
the top for TV adjustments and no Closed Caption.
Version 4/8/2008
60
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.17 Understanding Viewing Features
You can switch viewing modes using the remote control; please see instructions in page 33.
4.17.1 Viewing Modes
Normal Mode
The original 4:3 aspect ratio (1.33:1 source) is preserved, so black bars are
added to the left and right of the display image. Standard TV broadcasts are
displayed with a 4:3 Aspect Ratio. Movies in 4:3 Aspect Ratio may be referred
to as pan-and-scan or full frame. These movies were originally filmed in 16:9
(widescreen), and then modified to fit a traditional TV screen (4:3).
Wide Mode
When watching a standard broadcast or full-frame movie in this mode,
the display image is stretched proportionately to fill the TV screen.
When watching a widescreen (1.78:1 source) program or movie, the
display image fills the TV screen. If you are watching a widescreen
(1.85:1 or 2.35:1 source) program or movie, there will still be black
bars at the top and bottom.
When watching a standard definition 4:3 aspect ratio (1.33:1 source)
the picture will fill the screen but will be stretched horizontally; people
will look fatter than they are.
.
Panoramic Mode
When watching a widescreen broadcast or in this mode, the 16:9
Aspect Ratio (1.78:1 source) display image is shrunk horizontally on the
left and right sides to fill the TV screen. The center of the image is not
stretched.
Version 4/8/2008
61
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
4.18 Using a Cable or Satellite Remote
Your VIZIO remote uses codes 11758 and 10178 to work your PLASMA HDTV. To use a cable or
satellite remote to work the PLASMA HDTV, refer to your cable or satellite remote user guide for more
information on how to program the remote. If your cable or satellite remote uses a 5-digit code (like most
Direct TV units), first try 11758 and then, if that does not work, 10178. If your cable or satellite remote
uses a 4-digit code, try 1758 and then 0178 as an alternative. If your cable or satellite remote uses a 3digit code (Echostar or Dish Network for example), use code 627.
Note: Some buttons may not function as expected on your cable or satellite remote. Typically power,
volume and mute will work.
Chapter 5 Maintenance and Troubleshooting
5.1 Maintenance
Important
1.
2.
Make sure that the power cable is removed from the socket before cleaning the TV.
Do not use volatile solvent (such as toluene, rosin and alcohol) to clean the TV. Such
chemicals may damage the housing, screen glass and remote control, and cause paint to
peel.
Cleaning the Housing and Remote Control
1.
2.
Use a soft cloth for cleaning.
If the housing or remote control is seriously contaminated, use a soft cloth moistened with
diluted neutral cleaner to clean the display. Wring water out of the cloth before cleaning to
prevent water from penetrating into the housing. Wipe the display with a dry cloth after
cleaning.
Cleaning the Screen
Screen
1.
2.
Use a soft cotton cloth to gently clean the screen.
The screen glass is very fragile. Do not scrape it with any sharp object. Do not press or tap
the screen to avoid cracking. When the screen is seriously contaminated, use a soft cloth
moistened with diluted neutral cleaner to clean the display. Wring water out of the cloth
before cleaning to prevent water from penetrating into the housing. Wipe the display with a
dry cloth after cleaning.
Version 4/8/2008
62
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
5.2 Troubleshooting Guide
If the TV fails or the performance changes dramatically, check the display in accordance with the
following instructions. Remember to check the peripherals to pinpoint the source of the failure. If the
display still fails to perform as expected, contact the VIZIO for assistance by calling 1-(877) 698-4946 or
e-mail us at techsupport@vizio.com.
Problem
Solution
No power.
Make sure the power button is ON (White VIZIO Logo).
Make sure AC power cord is securely connected to the AC socket.
Plug another electrical device (like a radio) to the power outlet to verify that the
outlet is supplying the proper voltage.
No sound.
Check your audio connection
Press MUTE on the remote control, so that mute symbol disappears from the screen
Check your audio settings, your TV audio may be set to SAP, min or speakers off
Press the Volume + (Up) key on your remote control
Make sure that headphones are not connected
If the screen is black.
Check your input connections.
Power is ON but no screen
image.
Make sure the video cable supplied with the TV is secured to the correct video
output port on the back of the VCR and the side of TV. Make any cable you have
attached to the TV is secured to the correct output your Set-Top Box, DVD, etc.
A
 djust brightness and contrast.
Check Source settings.
Wrong or abnormal colors
appear.
If any colors (red, green, or blue) are missing, check the video cable to make sure it
is securely connected.
Control buttons do not work.
Press only one button at a time.
Remote
work.
Make sure batteries are inserted correctly
Batteries could be weak.
Control
does
not
There appears to be image
quality issues.
For best image quality, view HD wide screen programs when possible. If HD
content is not available view “Standard Definition” from a digital source. Standard,
analog TV will always be noticeably inferior to HD because your digital flat panel TV
has video that is many times better than old TV’s and so you can see interference
and deficiencies you did not know you had.
You cannot see a picture.
Make sure that the power cord is plugged into a grounded electrical outlet.
Make sure that the power button is turned on.
Make sure that the selected input source is connected to a working input source.
If your TV is connected to your computer in RGB or HDMI mode, press any key on
your keyboard to “wake” your computer.
You see a distorted picture or
hear unusual sound.
You may be getting interference from electrical appliances, cars, motorcycles, or
fluorescent lights. If you have not mounted it on the wall, try moving your TV to
another location to see if this is the cause of the problem.
The picture has abnormal
patterns.
Make sure that the input source cable is attached securely and correctly to the side
of your TV.
Make sure that the video input source is within the range of your TV. Compare the
video input source’s specifications with your TV specifications.
The display image does not
cover the entire screen.
If you are using RGB mode, make sure that H Position and V Position in the On
Screen Display (OSD) are set correctly.
Version 4/8/2008
63
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
Problem
Solution
If you are using TV, AV-C, AV-S or Component with 480i input, follow steps on page
33 on how to set the WIDE screen modes.
You can see a picture but you
cannot hear sound.
Make sure that the volume is not turned down.
Make sure that the sound is not muted.
Make sure that your audio input source cables are connected securely and correctly.
The TV has pixels that are
always dark or colored.
Your PLASMA HDTV is manufactured using an extremely high level of precision
technology; however, sometimes some pixels of your PLASMA HDTV may not
display. Pixel defects within industry specifications are inherent to this type of
product and do not constitute a defective product.
You see “noise” or “trash” on
the screen.
When your PLASMA HDTV’s digital capabilities exceed a digital broadcast signal,
the signal is up-converted (increased) to match your TV’s display capabilities. Upconverting can cause noise or trash.
You switch to a different input
and the volume changes.
The TV remembers the volume level from the last time you adjusted it. If the sound
level is higher or lower from another source, then the loudness will change.
You switch to a different input
and the screen size changes.
The TV remembers the viewing mode from the last time you used a particular input
(AV, Component, HDMI and TV).
Tips for High-Definition Users.
The PLASMA HDTV is an ideal platform for viewing High Definition Content.
Best Image Quality will be achieved by the HDMI Input, then YPbPr, then RGB.
However, due to variances in broadcast practices, it is possible some image
distortions can occur.
Tips for Letterbox Content
Users.
Letterboxed (or “Widescreen”) versions of DVD movies are most commonly
formatted for standard 4:3 Televisions. The PLASMA HDTV has the capability of
expanding this content so the entire screen is filled at the expense of image
accuracy. To use this function follow the instructions given in page 33.
5.3 Telephone & Technical Support
Products are often returned due to a technical problem rather than a defective product that may result in
unnecessary shipping charges billed to you. Our trained support personnel can often resolve the problem
over the phone. For more information on warranty service or repair, after the warranty period, please
contact our Support Department at the number below.
Customer support and quality service are integral parts of VIZIO’s commitment to service excellence.
For technical assistance contact our VIZIO Technical Support Department via email or phone.
E-mail: techsupport@vizio.com
Tel: (877) 698-4946
Hours of operations:
6:00am – 9:00pm PST Monday – Friday
10:00am – 2:00pm PST Saturday – Sunday
Please have your VIZIO model number, serial number and date of purchase available before you call.
VIZIO
39 Tesla, Irvine, CA 92618
Tel: (877) 698-4946 Fax: (949) 585-9514
Web: www.VIZIO.com
Version 4/8/2008
64
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
5.4 Compliance
Caution: Always use a power cable that is properly grounded. Please use the AC cords listed below for
each area.
USA
Canada
Germany
UK
Japan
UL
CSA
VDE
BASE/BS
Electric Appliance Control Act
5.5 FCC Class B Radio Interference Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1.
Reorient or relocate the receiving antenna.
2.
Increase the separation between the equipment and receiver.
3.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4.
Consult the dealer or an experienced radio/TV technician for help.
Notice:
1.
2.
3.
The changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Shielded interface cables and AC power cord, if any, must be used in order to comply with
the emission limits.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modification to this equipment. It is the responsibilities of the user to correct such interference.
Version 4/8/2008
65
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
Chapter 6 Miscellaneous Information
6.1 Specifications
Specifications
Panel
32” Diagonal, 16:9 Aspect Ratio
Resolution
1024 x 720 pixels
Pixel (Dot) Pitch
0.690mm (H) x 0.555mm (V)
Display Compatibility
720P (HDTV)
Colors
16.77 Million (8-bit)
Brightness
1000 cd/m
Contrast
30,000:1
Viewing Angle
>178° (horizontal and vertical)
Inputs
1xRF (F Connector for internal
ATSC/QAM/NTSC Hybrid Tuner)
3x HDMI (v1.3) with HDCP plus Stereo Audio
(RCA Connectors)
1x S-Video (Sharing Audio with Composite
Video)
Outputs
1x SPDIF Optical Digital Audio, 1x Stereo Audio (RCA connectors)
Features
CC, V-Chip, 3D Comb Filter, Motion Adaptive De-Interlace, Picture Enhancement, MPEG-2
Decoding via DTV input, NTSC Video decoding via Video (AV, S-Video or Component),
Progressive Scan Video via HDMI, Component or RGB, HDTV via HDMI, Component or RGB
(Set-Top Box required), Computer 640x480, 800x600, 1024x768, 1366x768 via RGB and
HDMI, Sound Enhancement. Signal Compatibility: 480i (SDTV), 480P (EDTV), 720P (HDTV),
1080i (HDTV). Color Temperature of 6500K/5400K/9300K (default) in Video, 6500K/9300K in
VGA, Independent Red/Green/Blue adjustment in TV/Video/HDMI/VGA for user fine tuning of
color temperature with reset.
Speakers
Built-in, 10W x 2
Panel Life
60,000 hours to half the original brightness
2
1x Component YPbPr plus Stereo Audio
1x RGB PC plus Stereo Audio
1x Composite Video plus Stereo Audio
Power
Input
IEC Connector for direct power line connection
Voltage Range
100 ~ 240Vac at 50/60Hz
Power Consumption
250W (max)
Environmental Conditions
Operating
Temperature: 5°C~35°C, Relative Humidity: 20~80%, Altitude: 0~14,000 ft
Non-Operating
Temperature: -20°C~50°C, Relative Humidity: 10~90%, Altitude: 0~40,000 ft
Dimensions
32.44” W x 22.54” H x 7.95” D with stand; 32.44” W x 21.08” H x 3.50” D without stand
Net Weight
39.68lbs with stand, 39.02lbs without stand
Gross Weight
48.50lbs
Certifications
CSA/CSA-US, FCC Class B
*Product specifications may change without notice or obligation.
Version 4/8/2008
66
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
6.2 Glossary – Standard Definitions
Analog TV: Today’s TV system using radio frequency waves to transmit and display pictures and sound.
Aspect Ratio (4:3): Traditional TV “aspect ratio”, that is, the screen’s width as compared to its height.
For example, a “32 inch TV screen” would be 25 inches wide and 19 inches tall.
Aspect Ratio (16:9): “Wide screen TV” aspect ratio which is more like a movie screen than a traditional
TV. For example, a “32 inch TV screen” would be 28 inches wide and 16 inches tall.
Digital TV (DTV): Television delivered and displayed using radio frequency waves that contain
information that is digitally encoded for improved quality and efficiency.
Enhanced Definition TV (EDTV): A better digital television transmission than SDTV with at least 480P,
in a 16:9 or 4:3 display and Dolby digital surround sound. 480P is the quality used by most DVD players.
EDTV provides 300-400,000 pixels.
HDTV Monitor (sometimes called HDTV Ready): A set that can display HDTV programming if you have
a separate HDTV tuner, HD Cable Set-Top Box or HD Satellite Set-Top-Box Receiver.
HDTV Tuner (also decoder, receiver, set-top box): A device capable of receiving and outputting HDTV
signals for display. It may be stand-alone or integrated in the set.
High-Definition Television (HDTV): The best quality picture, wide screen (16:9) display with at least 720
progressively scanned lines (720P) or 1080 interlaced lines (1080i) and Dolby digital surround sound.
HDTV provides 900,000-2.1 million pixels.
Integrated HDTV: An HDTV that has the digital tuner built into the set. It does not need a separate settop box to receive over-the-air DTV signals.
Interlace Scan: A way to scan vertical lines onto a TV picture by scanning all the odd lines first, then
filling the in the even lines (this happens instantaneously).
Plug-and-Play or Digital Cable Ready: A DTV or other device for digital cable consumers that plugs
directly into the cable jack and does not require a separate set-top box. Plug-and-Play TV owners must
obtain a CableCARD from their cable company in order to view scrambled programming services.
Progressive Scan: A way to scan vertical lines onto a TV picture by scanning all the lines consecutively
(progressively).
Standard Definition TV (SDTV): Basic digital television transmission that may be displayed with fewer
than 480 progressively scanned lines (480P) in 16:9 or 4:3 format. 480 interlaced (480i) is the quality of
today’s analog TV system.
Source: Buying a Digital Television, CEA, HDTV Guide, 2005
Note: The Federal Communications Commission (FCC), the Consumer Electronics Association (CEA)
and the Consumer Electronics Retailers Coalition (CERC) have made a new tip sheet available for digital
television (DTV) retailers to reproduce and distribute to consumers on the sales floor. The file may be
downloaded online at www.dtv.gov. While you’re there, check out the other useful information in the FCC
is making available to consumers interested in learning more about the analog to digital transition.
Version 4/8/2008
67
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
6.3 Index
A
Accessories, 5
Adjustments
Selecting the Screen Size, 33, 61, 67
Stepping through TV Channels, 33
Volume, 9, 33, 63
Advanced Video Features
Adaptive Luma, 40
Black Level Extender, 40
CTI (Color Transient Improvement, 40
DNR (Dynamic Noise Reduction, 39
Flesh Tone, 40
White Peak Limiter, 40
Language, 46
Reset, 49
Sleep Timer, 46
DTV Tuner Setup
Auto Search, 44
Daylight Saving, 45
Skip Channel, 44
Time Zone, 45
Tuner Mode, 44
DVI
Connecting your DVD Player, 20
Connecting your HDTV Set-Top Box, 16
G
Glossary, 67
C
Cleaning your VIZIO TV, 62
Coax (RF)
Connecting for DTV, 14
Connecting your Basic Set Top Box, 18
Component
Connecting your DVD Player, 21
Connecting your HDTV Set-Top Box, 17
Composite (AV)
Connecting your Basic Set-Top Box, 18
Connecting your DVD Player, 22
Controls
Front Panel, 9
Side Panel, 9
D
DTV
Audio Adjustment, 41
Parental Control, 50
Picture Adjustment, 36
Special Features, 46
Tuner Setup, 44
DTV Audio Adjust
Balance, 42
Bass, 41
Simulated Surround Sound, 42
Speakers On/Off, 42
Treble, 42
Volume, 41
DTV Picture Adjust
Advanced Video, 39
Brightness, 37, 57
Color, 37
Color Temperature, 39, 58
Contrast, 37, 58
Picture Mode, 36
Sharpness, 38
Tint, 38
DTV Special Features
Closed Caption, 49
Version 4/8/2008
H
HDMI
Connecting your DVD Player, 19
Connecting your HDTV Set-Top Box, 15
HDMI Input
Audio Adjustment, 54
Picture Adjustment, 54
Setup, 54
I
Inputs
Antenna, 3
Connectors, 13
Rear Label, 10
Installation
Base removal, 6
Preparation, 5
Wall Mounting, 5, 6, 27
O
OSD
Brightness Adjustment, 66
Color Adjustment, 13
Contrast Adjustment, 66
Outputs
Using 5.1 Surround with a Home Theatre System, 24
P
Parental Control
Block Unrated Programming, 53
Channel Block, 50
Movie Rating, 52
Password change, 53
TV Rating, 51
PC Input
Audio Adjustment, 60
68
www.VIZIO.com
VIZIO VP322 HDTV10A User Manual
Picture Adjustment, 57
Setup, 60
PC Picture Adjust
Auto Adjust, 57
Fine Tune, 59
Horizontal Position, 59
Horizontal Size, 59
Vertical Position, 59
PC Resolutions, 26
PIP and POP Inputs, 61
R
Remote
Batteries, 12
Layout, 11, 12
Range, 12
Remote Control
Using your Cable or Satellite Remote to Operate your
VIZIO TV, 62
RGB
Connecting your PC, 25
S
Screen Size explanation, 61
S-Video
Connecting your DVD Player, 22
Connecting your VCR, 23
Connecting your Video Camera, 23
T
Technical Specifications, 66
Troubleshooting Guide, 63
TV
Audio Adjustment, 41
Parental Control, 50
Picture Adjustment, 36
Special Features, 46
TV Audio Adjust
Balance, 42
Bass, 41
Version 4/8/2008
Simulated Surround Sound, 42
Speakers On/Off, 42
Treble, 42
Volume, 41
TV Picture Adjust
Advanced Video, 39
Brightness, 37, 57
Color, 37
Color Temperature, 39, 58
Contrast, 37, 58
Picture Mode, 36
Sharpness, 38
Tint, 38
TV Special Features
Closed Caption, 48
Language, 46
Reset, 49
Sleep Timer, 46
TV Tuner Setup, 44
Auto Search, 44
Skip Channel, 44
Tuner Mode, 44
V
Video Input
Audio Adjustment, 55
Auto Phase, 56
Parental Control, 56
Picture Adjustment, 55
Setup, 56
W
Watching TV
Basic Adjustments, 33
Basic connections, 27
First Startup, 27
Getting your Programs, 32
Program Information, 34
Status Information, 34
69
www.VIZIO.com
