MATRIX SWITCHERS

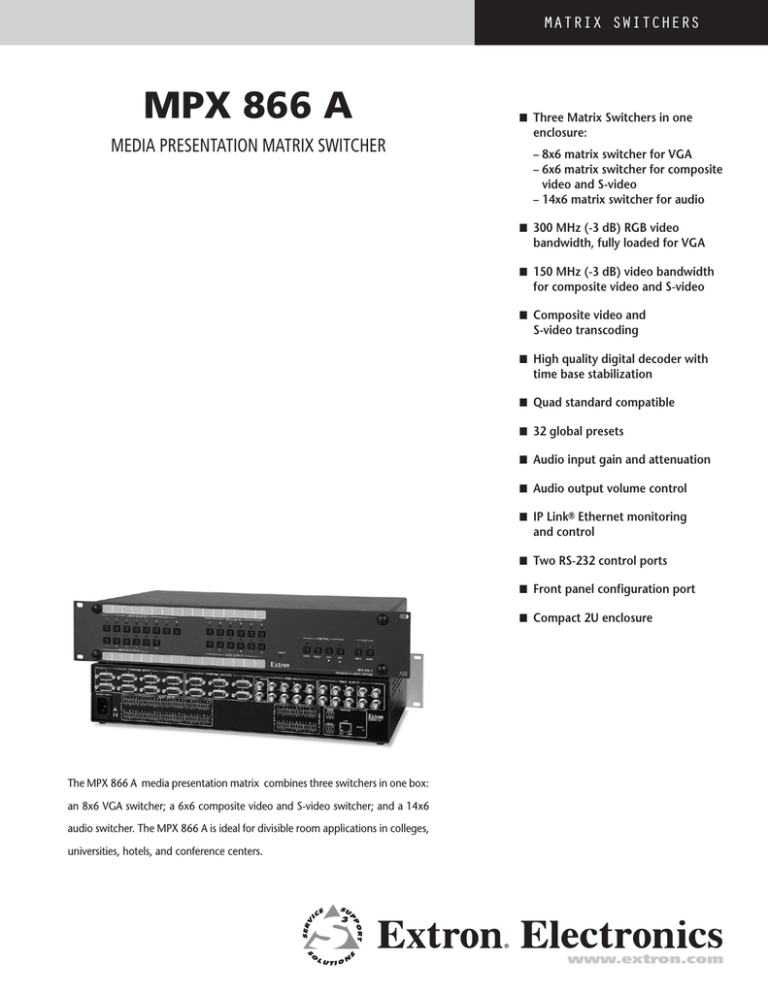

MPX 866 A
MEDIA PRESENTATION MATRIX SWITCHER
n Three Matrix Switchers in one
enclosure:
– 8x6 matrix switcher for VGA
– 6x6 matrix switcher for composite
video and S-video
– 14x6 matrix switcher for audio
n 300 MHz (-3 dB) RGB video
bandwidth, fully loaded for VGA
n 150 MHz (-3 dB) video bandwidth for composite video and S-video n Composite video and S-video transcoding
n High quality digital decoder with
time base stabilization
n Quad standard compatible
n 32 global presets
n Audio input gain and attenuation
n Audio output volume control
n IP Link® Ethernet monitoring and control
n Two RS-232 control ports
n Front panel configuration port
n Compact 2U enclosure
The MPX 866 A media presentation matrix combines three switchers in one box:
an 8x6 VGA switcher; a 6x6 composite video and S-video switcher; and a 14x6
audio switcher. The MPX 866 A is ideal for divisible room applications in colleges,
universities, hotels, and conference centers.
www.extron.com
DESCRIPTION
Features
The MPX 866 A is a media presentation matrix switcher that combines
three switchers in a single, compact enclosure: an 8x6 VGA switcher; a
6x6 composite video and S-video switcher; and a 14x6 audio switcher.
n 300 MHz (-3 dB) RGB video bandwidth, fully loaded – Designed
for routing most common high resolution computer-video rates
without signal degradation. The MPX 866 A provides a minimum
300 MHz (-3 dB) of RGB video bandwidth at full performance
capability when one input drives all outputs.
The MPX 866 A provides outputs to match the VGA, S-video, and
composite video inputs found on many projectors. To simplify video
signal routing, the MPX 866 A is capable of encoding S-video to
composite video and decoding composite video to S-video.
The MPX 866 A provides an ideal, one-box solution for many
presentation systems or divisible-room applications, where multiple
displays or a variety of room configurations must be supported.
VGA Switcher
As an 8x6 VGA switcher, the MPX 866 A features 300 MHz (-3 dB)
RGB video bandwidth, fully loaded. This ensures that the MPX 866 A
delivers exceptionally high performance when routing high resolution
computer-video. All inputs and outputs are on female 15-pin HD
connectors. The VGA switcher is compatible with RGBHV, RGBS, RGsB,
RsGsBs, and component analog video formats.
Composite Video and S-Video Switcher
The 6x6 video switcher integrated into the MPX 866 A offers
150 MHz (-3 dB) video bandwidth, fully loaded. All inputs and
outputs are on female BNC connectors. Two inputs are configured for
composite video only while four of the inputs can accept composite
video or S-video.
n 150 MHz (-3 dB) video bandwidth, fully loaded – Ensures
switching and distribution of composite and S-video signals without
degradation. The MPX 866 A provides a minimum 150 MHz (-3 dB)
of video bandwidth at full performance capability when one input
drives all outputs.
n Video genlock (composite video and S-video only) – Allows for
vertical interval switching and enables smooth, seamless transitions
when switching between synchronous video sources.
n Bi-directional video transcoding – Encodes S-video to composite
video and decodes composite video to S-video.
n High quality digital decoder with time base stabilization –
Broadcast-quality digital decoder eliminates jitter, dot crawl, and
other decoding artifacts while also stabilizing and improving the
video from older analog VCRs or worn videotapes. This feature
applies to composite to S-video decoded signals only.
n Audio input gain and attenuation – Allows users to set the level of
audio gain or attenuation for each audio input channel, eliminating
noticeable differences when switching between sources.
When switching between video inputs, vertical interval switching
is possible for smooth, seamless transitions between synchronous
video sources. Two outputs are configured for encoding S-video to
composite video while the other two outputs will decode composite
video to S-video. The video switcher is compatible with NTSC 3.58,
NTSC 4.43, PAL, and SECAM video standards.
n Audio output volume control – Can be set dynamically for each
channel through the front panel, IP Link, or serial control, eliminating
the need for audio preamplifiers in many system designs.
Audio Switcher
The MPX 866 A also includes a 14x6 audio switcher, with all inputs
and outputs on captive screw connectors. Audio can be switched
independently from any video group. The MPX 866 A supports both
audio follow video and audio breakaway modes. Full adjustment of
both audio input gain and attenuation and audio output volume and
muting is available via the front panel, RS-232, or IP Link.
n QS-FPC™ - QuickSwitch Front Panel Controller – Provides a
discrete button for each input and output, allowing for simple,
intuitive operation.
All audio adjustments can be saved when the unit is shut down. When
the switcher is powered back up, it recalls the last configuration and
the saved audio settings are restored. The advanced audio capabilities
of the MPX 866 A facilitate system integration by eliminating the need
for separate audio preamplifiers in many system designs, which, in
turn, contributes to an overall savings in equipment expense.
Front Panel and RS-232 Control Options
The MPX Plus 866 A is equipped with both primary and secondary RS-232
serial ports for divided room applications. An RS-232 configuration
port is featured on the front panel of the MPX Plus 866 A to enable
easy configuration without having to access the switcher’s rear panel.
IP Link Ethernet Control
The MPX 866 A is equipped with Extron’s IP Link, an intelligent
network solution specifically engineered to meet the needs of
professional A/V environments – from K-12 classrooms to large
universities, businesses, and residential media systems.
n Audio Breakaway – Provides the capability to break an audio
signal away from its corresponding video signal, allowing the audio
channels to be operated as a separate matrix switcher.
n Global presets – Thirty-two global presets can be saved and
recalled, with 26 presets accessible via the front panel. This timesaving feature allows you to set up I/O configurations and store
them in memory for future use.
n RS-232 front panel control port – Using serial commands, the
MPX 866 A can be controlled and configured via the Extron
Windows®-based control program, or integrated into third-party
control systems. Extron products use the SIS™ - Simple Instruction
Set command protocol, a set of basic ASCII code commands that
allow for quick and easy programming.
n IP Link Ethernet monitoring and control – Engineered to meet
the needs of professional A/V environments, IP Link enables the
MPX 866 A to be proactively monitored and managed over a LAN,
WAN, or the Internet, using standard TCP/IP protocols. IP Link provides
for remote selection of input and output ties, adjustment and control
of audio input and output levels, and advanced system diagnostics.
n Front panel security lockout – Prevents unauthorized use in
non-secure environments.
n Rack-mountable – 2U, full rack width metal enclosure.
n Internal international power supply – Provides worldwide
power compatibility.
specifications
Audio
Video
Routing
RGB/VGA............................................
S-video/composite video....................
Gain......................................................
Bandwidth
RGB/VGA............................................
S-video/composite video....................
Differential phase error..........................
Differential gain error.............................
Crosstalk
RGB/VGA............................................
S-video/composite video....................
Switching speed....................................
8 x 6 matrix
6 x 6 matrix
Unity
300 MHz (-3 dB), fully loaded
150 MHz (-3 dB), fully loaded
1.0º at 3.58 MHz and 4.43 MHz
1.0% at 3.58 MHz and 4.43 MHz
<-50 dB @ 10 MHz, <-30 dB @ 100 MHz
-50 dB @ 5 MHz
100 ms (max.)
Video input
Number/signal type
RGB/VGA............................................ 8 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs
S-video/composite video.................... Up to 4 S-video and 2 composite video or 6
composite video
Nominal level......................................... 1 Vp-p for Y of S-video and for composite video
0.7 Vp-p for RGB
0.3 Vp-p for C of S-video
Minimum/maximum levels
RGB/VGA............................................ Analog: 0.3 V to 1.5 Vp-p with no offset
S-video/composite video.................... Analog: 0.5 V to 2.0 Vp-p with no offset
Impedance............................................ 75 ohms
Horizontal frequency (RGB).................... 15 kHz to 145 kHz
Vertical frequency (RGB)........................ 30 Hz to 170 Hz
Return loss
RGB/VGA............................................ <-40 dB @ 5 MHz
S-video/composite video.................... <-30 dB @ 5 MHz
DC offset (max. allowable,
S-video or composite video)............... 1.5 V
External sync (genlock,
S-video or composite video)............... 0.3 V to 0.4 Vp-p
Video output
Number/signal type
RGB/VGA............................................ 6 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs,
(follows input type)
S-video/composite video.................... 2 S-video, 2 S-video or composite video, and
2 composite video
Nominal level......................................... 1 Vp-p for Y of S-video and for composite
0.7 Vp-p for RGB
0.3 Vp-p for C of S-video
Minimum/maximum levels
RGB/VGA............................................ Analog: 0.3 V to 1.5 Vp-p with no offset
S-video/composite video.................... Analog: 0.0 V to 2.0 Vp-p with no offset
Impedance............................................ 75 ohms
Return loss
RGB/VGA............................................ -40 dB @ 5 MHz
S-video/composite video.................... -30 dB @ 5 MHz
DC offset............................................... ±5 mV with input at 0 offset
Switching type
RGB/VGA............................................ Triple-Action
S-video/composite video.................... Vertical interval
Sync
Input type (VGA group).........................
Output type (VGA group)......................
Genlock connector.................................
Standards..............................................
Input level..............................................
Output level...........................................
Input impedance...................................
Output impedance................................
Max input voltage.................................
Max. propagation delay.........................
Max. rise/fall time..................................
Polarity..................................................
RGBHV, RGBS, RGsB, RsGsBs
RGBHV, RGBS, RGsB, RsGsBs (follows input)
1 BNC female (video input 1)
NTSC 3.58, NTSC 4.43, PAL, SECAM
1.9 V to 5.0 Vp-p
TTL: 5.0 Vp-p, unterminated for RGBHV, RGBS
510 ohms
75 ohms
5.0 Vp-p
30 ns
4 ns
Positive or negative (follows input)
Routing.................................................. 14 x 6 stereo matrix
Gain...................................................... Unbalanced output: -6 dB; balanced
output: 0 dB
Frequency response............................... 20 Hz to 20 kHz, ±0.05 dB
THD + Noise.......................................... 0.03% @ 1 kHz, 0.3% @ 20 kHz at nominal
S/N........................................................ >90 dB, balanced, at maximum output (21 dBu)
(unweighted)
Crosstalk................................................ <-120 dB @ 1 kHz, fully loaded
Stereo channel separation...................... >80 dB @ 1 kHz
CMRR.................................................... >75 dB @ 20 Hz to 20 kHz
Volume range........................................ -98 dB to 0 dB
(volume numbers 0 to 64 in 1.0 dB steps)
Audio input
Number/signal type...............................
Impedance............................................
Nominal level.........................................
Maximum level......................................
Input gain adjustment...........................
14 stereo, balanced/unbalanced
>25k ohms unbal., 50k ohms bal., DC coupled
-10 dBV (316 mVrms)
+20 dBu, (bal. or unbal.) at 1% THD+N
–18 dB to +24 dB, adjustable per input by
RS-232, Ethernet, or front panel
NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Audio output
Number/signal type...............................
Connectors............................................
Impedance............................................
Gain error..............................................
Maximum level (Hi-Z)............................
6 stereo, balanced/unbalanced
(6) 3.5 mm captive screw connectors, 5 pole
50 ohms unbalanced, 100 ohms balanced
±0.1 dB channel to channel
>+20 dBu, bal. or unbal. at 1% THD+N
Control/remote — switcher
Serial host control port.......................... ( 2) RS-232: 2 rear panel 3.5 mm captive screw
connectors, 3 pole;
1 front panel 2.5 mm stereo mini jack
(in parallel with the rear panel secondary port)
Baud rate and protocol.......................... 9600 baud; 8 data bits, 1 stop bit, no parity
Serial control pin configurations............. Captive screw: 1 = TX, 2 = RX, 3 = GND
Mini jack: tip = TX, ring = RX, sleeve = GND
Ethernet host control port...................... 1 RJ-45 female connector
Ethernet data rate.................................. 10/100Base-T, half/full duplex autodetect
Ethernet protocol................................... ARP, DHCP, ICMP (ping), TCP/IP, Telnet, HTTP,
SMTP
Default settings...................................... Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Gateway = 0.0.0.0
DHCP = off
Web server............................................. Up to 200 simultaneous sessions
1 MB nonvolatile user memory
Power.................................................... 100 VAC to 240 VAC, 50/60 Hz, 15 watts
Temperature/humidity........................... Storage: -40 to +158 °F (-40 to +70 °C) /
10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) /
10% to 90%, noncondensing
Rack mount........................................... Yes
Enclosure type....................................... Metal
Enclosure dimensions............................. 3.5" H x 17.0" W x 9.4" D (2U high)
8.9 cm H x 43.2 cm W x 23.9 cm D
Product weight...................................... 15 lbs (6.8 kg)
Shipping weight.................................... 25 lbs (12 kg)
Vibration................................................ ISTA 1A in carton
Listings.................................................. UL, CUL
Compliances.......................................... CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF..................................................... 30,000 hours
Warranty................................................ 3 years parts and labor
NOTE: All nominal levels are at ±10%.
Model
MPX 866 A
Version Description
Part Number
Media Presentation Matrix..................................... 60-825-01
Specifications are subject to change without notice.
Application Diagram
Projector
Projector
DV
R
TO
EC
OJ
PR
F
OF F
OF
ON
ON
VO
TO
AU ETO
AU E
AG
IM AG
IM
MU
TE
VC
R
R
VC
LU
X
AU
EO
VID
3
D
D
DV
2
5
6
PC
1
4
PC
OP
PT
LA
CON
ME
FIG
IR
MLC
6 IP
22
Extron
MLC 226 IP
MediaLink
Controller
DV
EC
OJ
PR
R
TO
TO
AU ETO
AU E
AG
IM AG
IM
F
OF F
OF
ON
ON
12
ID
Y/V
T
VID
10
9
EO
OU 11
C
Y
PA
7
IN
EO
VID 13
ID
Y/V
12
K
LOC 11
GEN
ID
Y/V
CO
MP
UT
ER
IN 5
6
5
4
4
3
2
2
1
I
N
P
U
T
S
7
8
6
3
1
ER
OU
T
EO
VID
5
10
6
EO
VID
4
C
1
O
U
T
P
U
T
S
UG
VC
R
R
VC
D
D
DV
2
5
X
AU
EO
VID
3
6
PC
1
4
PC
OP
PT
LA
CON
FIG
IR
MLC
6 IP
22
O
U
T
P
U
T
S
2
-23
RS RY
IMA
PR
EO
LA
N
Extron
MLC 226 IP
MediaLink
Controller
H
C
VID
6
RO
TE
T
SE
RE
Rx
Tx
2
K
-23 Y
RSNDAR
LIN
T
CO
AC
SE
5
4
2
7
Extron
MPX 866A
UT
MP 3
TH
MU
ME
O
IDE TE
S-V MO
RE
8
C
2
9
CO
1
14
ID
Y/V
3
C
SS
LU
VO
14
I
N
P
U
T
S
13
12
11
10
9
8
DVDs
Matrix Switcher
VCRs
LCD Displays
Laptop Computers
panel Drawings
1
2
3
COMPUTER INPUTS
4
5
6
7
8
9
10
VIDEO INPUTS
11
12
13
14
I/O
CONTROL
1
2
3
4
5
6
7
8
COMPUTER OUTPUTS
9
10
11
CONFIG
12
ENTER
PRESET
ESC
VIEW
VIDEO
AUDIO
VIDEO OUTPUTS
MPX 866 A
PRESENTATION MATRIX SWITCHER
MPX 866 A - front
1
3
2
COMPUTER IN
4
6
COMPUTER OUT
1
7
5
3
2
8
4
5
6
9
10
GENLOCK
11
1
2
3
4
5
6
8
9
10
11
12
13
7
14
I
N
P
U
T
S
Y/VID
14
9
7
VIDEO OUT
11
10
Y
Y/VID
12
Y/VID
8
C
VIDEO
I
N
P
U
T
S
VIDEO IN
12
13
Y/VID
VIDEO
O
U
T
P
U
T
S
C
C
C
1
2
3
4
5
6
VIDEO
O
U
T
P
U
T
S
RS-232
PRIMARY
Tx Rx
C
S-VIDEO
REMOTE
LAN
RS-232
SECONDARY
Tx Rx
PASS THROUGH
RESET
ACT LINK
MPX 866 A - back
© 2006 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners.
06-05
68-1278-01
REV. A
