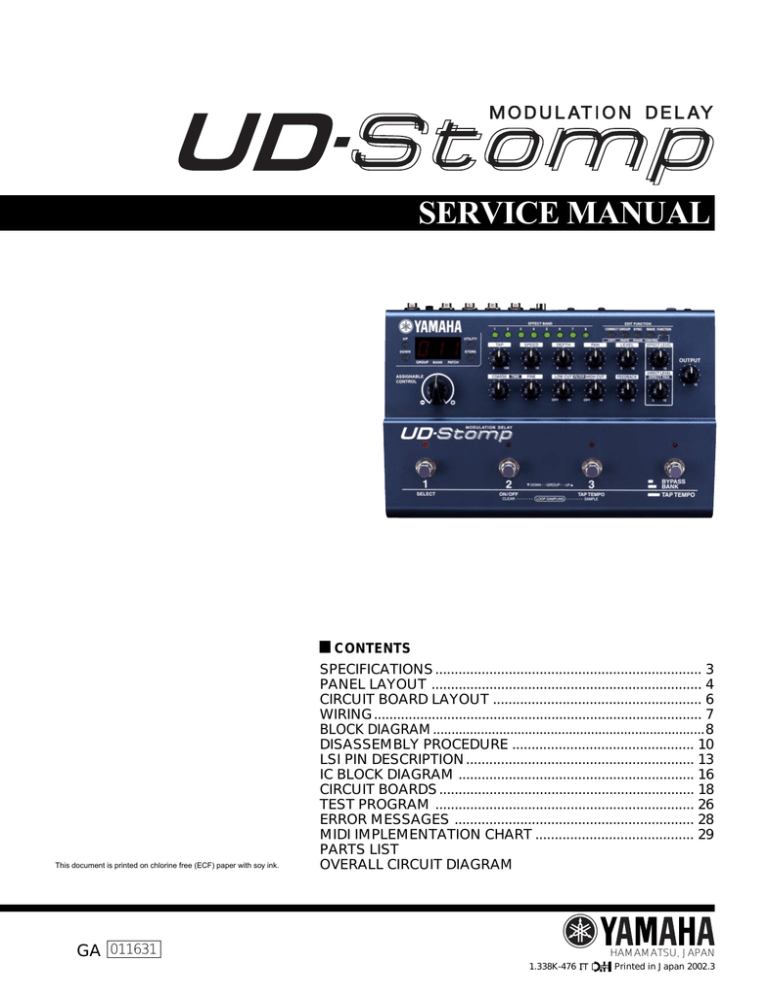

Yamaha UD-Stomp Service manual

UD-Stomp
SERVICE MANUAL
CONTENTS
This document is printed on chlorine free (ECF) paper with soy ink.
SPECIFICATIONS ..................................................................... 3
PANEL LAYOUT ...................................................................... 4
CIRCUIT BOARD LAYOUT ...................................................... 6
WIRING..................................................................................... 7
BLOCK DIAGRAM ..........................................................................8
DISASSEMBLY PROCEDURE ............................................... 10
LSI PIN DESCRIPTION ........................................................... 13
IC BLOCK DIAGRAM ............................................................. 16
CIRCUIT BOARDS .................................................................. 18
TEST PROGRAM ................................................................... 26
ERROR MESSAGES .............................................................. 28
MIDI IMPLEMENTATION CHART ......................................... 29
PARTS LIST
OVERALL CIRCUIT DIAGRAM
GA 011631
HAMAMATSU, JAPAN
1.338K-476
Printed in Japan 2002.3
1
UD-Stomp
IMPOR TANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed
that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have therefore not been restated.
WARNING :
Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components and failure of the product to perform as specified. For
these reasons, we advise all Yamaha product owners that all service required should be performed by an
authorized Yamaha Retailer or the appointed service representative.
IMPORTANT :
This presentation or sale of this manual to any individual or firm does not constitute authorization certification, recognition of any applicable technical capabilities, or establish a principal-agent relationship of
any form.
The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and
service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable
and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to
exist, please contact the distributor’s Service Division.
WARNING :
Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to
this bus.)
IMPORTANT :
Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power
to the unit.
LITHIUM BATTER Y HANDLING
This product uses a lithium battery for memory back-up.
WARNING :
Lithium batteries are dangerous because they can be exploded by improper handling. Observe the following precautions when handling or replacing lithium batteries.
Leave lithium battery replacement to qualified service personnel.
Always replace with batteries of the same type.
When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells.
Never solder directly to the cells. Perform the soldering as quickly as possible.
Never reverse the battery polarities when installing.
Do not short the batteries.
Do not attempt to recharge these batteries.
Do not disasemble the batteries.
Never heat batteries or throw them into fire.
ADVARSEL!
Lithiumbatteri-Eksplosionsfare ved fejlagtig handtering. Udskiftning ma kun ske med batteri af samme fabrikat og type. lever det brugte
batteri tilbage til leverandren.
VARNING
Explosionsfara vid felaktigt batteribyte.
Anvand samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren.
Kassera anvant batteri enligt fabrikantens instruktion.
VAROITUS
Paristo voi rajahtaa, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiiin.
Havita kaytetty paristo valmistajan ohjeiden mukaisesti.
The following information complies with Dutch official Gazette 1995. 45; ESSENTIALS OF ORDER ON THE COLLECTION OF BATTERIES.
• Please refer to the diassembly procedure for the removal of Back-up Battery.
• Leest u voor het verwijderen van de backup batterij deze beschrijving.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly
other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT
SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling
food.
WARNING
Components having special characteristics are marked
originally installed.
2
and must be replaced with parts having specification equal to those
UD-Stomp
SPECIFICATIONS
Digital Section
• 8-Band Delay (Delay Time: 696msec max per band)
• Delay Time, Loop Filter (High Cut, Low Cut), Feedback, Tap,
Pan, Level parameters can be set for each individual Effect
Band.
• Effect Bands can be connected in series or parallel
• Effect Bands can be grouped together
• Maximum delay time (8 bands grouped) is 5890msec
• The same number of delay outputs as the number of delays
used in the Group are available.
• Tap Tempo Function (Delay Time)
• Loop Sampling Function
• Individual Modulation Settings (Speed, Depth) for each Effect
Band are available.
• Two types of modulation waves can be set simultaneously
(Sine + Triangle/Saw Up/Saw Down).
• Modulation sync between bands is available.
Connections/Jacks
INPUT: Standard Monaural Phone Jack
OUTPUT L/MONO, R: Standard Monaural Phone Jack
PHONES: Standard Stereo Phone Jack
EXP. PEDAL: Standard Stereo Phone Jack
DIGITAL OUT: COAXIAL (Samplling Rate : 44.1 kHz)
MIDI IN, MIDI OUT: 5 pin DIN
A/D Converter
20 bit + 3 bit Floating
D/A Converter
20 bit
Sampling Frequency
44.1 kHz
Memory Allocations
MIDI Functions
Receive: Program Change (Program Change Table can be
created), Control Change, Bulk In
Transmit: Program Change, Control Change, Bulk Out, Merge
Out
Controller Switch
Top Panel
Push Switch x17
UP, DOWN, UTILITY, STORE, EFFECT BAND (1 - 8),
CONNECT, GROUP, SYNC, WAVE, FUNCTION
Knob x14
ASSIGNABLE CONTROL, TIME COARSE, TIME FINE,
LOW CUT FILTER, HIGH CUT FILTER, FEEDBACK,
DIRECT LEVEL/PAN, TAP, SPEED, DEPTH, PAN, LEVEL,
EFFECT LEVEL, OUTPUT
Footswitch x4
1, 2, 3, BANK
Preset: 90
User: 90
Input Level/Impedance
(When using preamp bypass)
INPUT HIGH: -25dBm/1MΩ
INPUT LOW: -15dBm/1MΩ
Output Level/Impedance
OUTPUT L/MONO, R: 0dBm/1kΩ
PHONES: 0dBm/47Ω (47Ω load)
Power
Exclusive Power Adaptor (AC-10)
AC Output: AC12V, 1000mA
Power Consumption
15W
Dimensions (WxHxD)
Rear Panel
STAND-BY ON/OFF, INPUT LOW/HIGH
280x70x184mm (11.0”x2.8”x7.2”)
Weight
Display
7 Segment LED (3 digit) x1
Push Switch LED x17
Foot Switch LED x4
2.2kg (4lbs 14oz)
Accessories
Power Adaptor (AC-10)
Owner’s Manual
3
UD-Stomp
PANEL LAYOUT
Top Panel
Controller Section
Display & Main Section
Footswitch Section
Display & Main Section
q
e
w
r
t
4
1
2
3
4
5
Up Button (UP)
Down Button (DOWN)
Utility Button (UTILITY)
Store Button (STORE)
Display
UD-Stomp
Controller Section
u
i
!4
!5
!6
!7
!8
!9
o
!0
!1
!2
!3
@0
@1
y
6
7
8
9
10
11
12
13
ASSIGNABLE CONTROL
EFFECT BAND 1-8
EDIT FUNCTION
Delay Time Control: Coarse (TIME COARSE)
Delay Time Control: Fine (TIME FINE)
LOW CUT FILTER Control
HIGH CUT FILTER Control
FEEDBACK Control
14
15
16
17
18
19
20
21
TAP Control
SPEED Control
DEPTH Control
PAN Control
Delay Level Control (LEVEL)
EFFECT LEVEL Control
DIRECT LEVEL/DIRECT PAN Control
OUTPUT Level Control
Footswitch Section
@2
@3
22 Footswitches 1, 2, 3
23 Bank Switch (BYPASS, BANK, TAP TEMPO)
5
UD-Stomp
Rear Panel
@4
24
25
26
27
28
@5
@6
Power Switch (STAND-BY ON/OFF)
Power Adaptor Jack (AC IN 12V 1A)
MIDI OUT Jack
MIDI IN Jack
DIGITAL OUT Jack
CIRCUIT BOARD LAYOUT
DM
PN 1/2
PN 2/2
6
@7
@8
29
30
31
32
33
@9
#0
#1
#2 #3
Expression Pedal Jack (EXP. PEDAL)
Headphones Jack (PHONES)
Output Jacks (OUTPUT R, L/MONO)
Input Level Switch (LOW/HIGH)
INPUT Jack
UD-Stomp
WIRING
PN 1/2
Shield Sheet
CN301
CN304
CN305
CN302
CN303
(V610850)
PN 2/2
CN306
CN310
CN307
CN309
CN308
(V611460)
(V611470)
(V611450)
Note) When installing the DM circuit board, use care not to
have the wire assembly caught by the bottom case.
CN1
CN2
CN3
DM
CN103
(V611480)
V839830
1
7
UD-Stomp
BLOCK DIAGRAM
A
DM
PN 1/2
SW101
2
4
1
3
1
IC103
IC103
2
6
1
CN103
7
VR314
26
5
CN301
CN301
6
IC101
2
1
IC102
6
7
3
IC102
4
IC104
27
X1
X2
IC10, IC11
IC2, IC3
IC1
IC8
DOUT
16
IC12
SW-R0~R3
PN-PB0~PB7
(DM1/2-CN1)
AN0~AN3, SELECT A, SELECT B
(DM-CN3)
(PN1/2-CN304)
PN 1/2
(PN1/2-CN302)
PN 2/2
A'
8
UD-Stomp
A
PN 1/2
VR314
CN103
CN301
IC105
3
1
CN301
IC105
5
2
3
1
7
IC106
3
1
IC106
5
7
2
4
1
TRS BALANCE OUT
2
4
1
TRS BALANCE OUT
2
3
1
LED-FOOT SW-010
LED-REV SW-100
LED-MOD SW-LINE
SW-001
(DM-CN2)
RXDO, TXDO
15,17
(PN1/2-CN303)
PN 2/2
IC112, IC113, IC114
KEC-54241 1
A'
9
UD-Stomp
DISASSEMBLY PROCEDURE
1.
Bottom Case (Manhour requirement: 1 min.)
Remove the six (6) screws marked [30]. The bottom
case can then be removed. (Fig. 1)
Bottom
[30]
[30]
[30]:Bind Head Tapping Screw-B 3.0x8 MFZN2BL (EP600190)
Fig.1
2.
2-1.
2-2.
DM Circuit Board
(Manhour requirement: 6 min.)
Remove the bottom case. (See Procedure 1.)
Remove the one (1) screw marked [T110A], three
(3) screws marked [T120], five (5) hexagonal nuts
marked [T50] and five (5) flat washers marked [T60]
from the rear panel and the three (3) screws marked
[T110B] from the DM circuit board. The DM circuit
board can then be removed. Remove the five (5)
toothed washer internal tooth forms marked [T70]
as well when removing the DM circuit board from
the main body. (Fig. 2)
Battery VS246400
VS246300(Battery holder for VS246400)
• Notice for back-up battery removal
Push against the holder hook, then the
battery will pop up.
• Druk tegen de houder, de batterij springt
dan naar voren.
Battery
Battery holder
Rear
[T110A]
[T120]
[T50][T60]
[T50]:Hexagonal Nut 9.0 12x2 MFNI33 (LX200060)
[T60]:Flat Washer 9x14 0.5 FNM3 (VL802300)
[T110]:Bind Head Tapping Screw-B 3.0x8 MFZN2BL (EP600190)
[T120]:Bind Head Tapping Screw-P 3.0x12 MFZN2BL (VC161100)
10
UD-Stomp
Topcover
[T70]
DM
[T110B]
[T70]:Washer 9.0 MFZN2Y (ET800150)
[T110]:Bind Head Tapping Screw-B 3.0x8 MFZN2BL (EP600190)
Fig.2
3.
3-1.
3-2.
3-3.
4.
4-1.
4-2.
4-3.
PN1/2 Circuit Boards
(Manhour requirement: 13 min.)
Remove the bottom case. (See Procedure 1.)
Remove the DM circuit board. (See Procedure 2.)
Remove the controls, knobs and the fourteen (14)
hexagonal nuts A from the front panel, the three (3)
screws marked [T110] and the shield film from the
PN1/2 circuit board. The PN1/2 circuit board can then
be removed. (Fig. 3)
PN 2/2 Circuit Board (Manhour requirement: 10 min.)
Remove the bottom case. (See Procedure 1.)
Remove the DM circuit boards. (See Procedure 2.)
Remove the four (4) hexagonal nuts B and the four (4)
flat washers marked [T80] from foot switches. The PN
2/2 circuit board can then be removed. (Fig. 3)
Hexagonal Nut A
[T110]
PN 1/2
[T110]
shield sheet
Hexagonal Nut A
Hexagonal Nut B
Hexagonal Nut B
PN 2/2
[T80]
[T80]
[T80]:Flat Washer 12x17 0.5 MFNI33 (V7407400)
[T110]:Bind Head Tapping Screw-B 3.0x8 MFZN2BL (EP600190)
Fig.3
11
UD-Stomp
5.
5-1.
5-2.
5-3.
Heat Sink (Manhour requirement: 8 min.)
Remove the bottom case. (See Procedure 1.)
Remove the DM circuit board. (See Procedure 2.)
Remove the two (2) screws marked [A-a] from the
soldered face of the DM circuit board and the three
(3) screws marked [A-b] from IC112, IC113 and
IC114. The heat sink can then be removed from the
DM circuit board. (Fig. 4)
Heat Sink
[A-a]
IC114
IC113
[A-b]
IC112
[A-a]
Fig.4
12
UD-Stomp
LSI PIN DESCRIPTION
HD6413002FP16 (XQ375A00) CPU
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
NAME
I/O
PA6
PA7
VCC
PB0
PB1
PB2
PB3
PB4
PB5
O
O
PB6//DREQ0
PB7//DREQ1
/RESO
VSS
P90/TXD0
P91/TXD1
P92/RXD0
P93/RXD1
P94/SCK0
P95/SCK1
P40/D0
P41/D1
P42/D2
P43/D3
VSS
P44/D4
P45/D5
P46/D6
P47/D7
D8
D9
D10
D11
D12
D13
D14
D15
VCC
A0
A1
A2
A3
A4
A5
A6
A7
VSS
A8
A9
A10
A11
I
I
I
I
I
I
I
I
O
O
O
I
I
O
I
I/O
I/O
I/O
I/O
FUNCTION
Port A
Port A
Power supply
Port B
Reset
Ground
Port 9
(Ground)
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Data bus
Power supply
O
O
O
O
O
O
O
O
Address bus
(Ground)
O
O
O
O
DM: IC12
PIN
NO.
NAME
I/O
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
A12
A13
A14
A15
A16
A17
A18
A19
VSS
P60//WAIT
P61//BREQ
P62//BACK
Ø
/STBY
/RES
NMI
VSS
EXTAL
XTAL
VCC
/AS
/RD
/HWR
/LWR
MD0
MD1
MD2
AVCC
VREF
P70/AN0
P71/AN1
P72/AN2
P73/AN3
P74/AN4
P75/AN5
P76/AN6
P77/AN7
AVSS
P80
P81//CS3
P82//CS2
P83//CS1
P84//CS0
VSS
PA0
PA1
PA2
PA3
PA4
PA5
O
O
O
O
O
O
O
O
FUNCTION
Address bus
Ground
I
I
I
O
I
I
I
I
O
O
O
O
O
I
I
I
I
I
I
I
I
I
I
I
I
O
O
O
O
O
Port 6
Øout, Ø=FAI
Stand-by mode signal
Reset
Non-maskable interrupt
Ground
Clock
Clock
Power supply
Address strobe
Read strobe
Write strobe (High)
Write strobe (Low)
Mode select
Analog power supply
Reference voltage
Port 7 (ANALOG INPUT)
Analog ground
Port 8
Chip select
Ground
I
I
I
O
O
O
Port A
13
UD-Stomp
YSS910-S (XV988A00) DSP6 (Digital Signal Processor)
14
PIN
NO.
NAME
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
Vdd
Vss
XI
XO
Vdd5
/SYNCI
/SYNCO
Vdd5
CKI
CKO
CKSEL
Vss
MCKS
/SSYNC
/IC
/TEST
BTYP
/IRQ
TRIG
Vdd5
Vss
/CS
/WR
/RD
CA7
CA6
CA5
CA4
CA3
CA2
CA1
Vss
Vdd
CD15
CD14
CD13
CD12
CD11
CD10
CD09
CD08
CD07
CD06
Vss
Vdd
Vdd5
CD05
CD04
CD03
CD02
CD01
CD00
/WAIT
Vss
SI0
SI1
SI2
SI3
SI4
SI5
SI6
SI7
Vss
Vdd5
SO0
SO1
SO2
SO3
SO4
SO5
SO6
SO7
Vss
DB00
DB01
DB02
DB03
DB04
DB05
DB06
DB07
DB08
DB09
DB10
DB11
DB12
Vdd5
Vdd
I/O
I
O
I
O
I
O
I
I
I
I
I
I
O
I/O
I
I
I
I/O
I/O
I/O
I/O
I/O
I/O
I/O
FUNCTION
Power supply (3.3 V)
Ground
System master clock input (60 MHz or 30 MHz)
System master clock output (High or 30 MHz)
Power supply (5 V)
Sync. signal input
Sync. signal output
Power supply (5 V)
System clock input (30 MHz)
System clock output (30 MHz)
System master clock select (0: 60 MHz, 1: 30 MHz)
Ground
Serial I/O master clock input (128 x Fs)
Serial I/O Sync. signal output
Initial clear (RESET)
Test mode setting (0: Test, 1: Normal)
Data bus type select (0: 8 bit, 1: 16 bit)
IRQ output
Trigger signal input/output
Power supply (5 V)
Ground
chip select signal input
Write signal input
Read signal input
Address bus of internal register
Ground
Power supply (3.3 V)
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Data bus of internal register
Ground
Power supply (3.3 V)
Power supply (5 V)
I/O
I/O
I/O
I/O
I/O
I/O
O
I
I
I
I
I
I
I
I
Data bus of internal register
WAIT output
Ground
Serial data input
Ground
Power supply (5 V)
O
O
O
O
O
O
O
O
Serial data output
Ground
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Parallel data bus
Power supply (5 V)
Power supply (3.3 V)
PIN
NO.
NAME
Vss
89
DB13
90
DB14
91
DB15
92
DB16
93
DB17
94
DB18
95
DB19
96
DB20
97
DB21
98
DB22
99
Vss
100
Vdd
101
DB23
102
DB24
103
DB25
104
DB26
105
DB27
106
DB28
107
DB29
108
DB30
109
DB31
110
111 TIMO/DBOB
Vss
112
Vdd5
113
DA00
114
DA01
115
DA02
116
DA03
117
DA04
118
DA05
119
DA06
120
DA07
121
Vss
122
DA08
123
DA09
124
DA10
125
DA11
126
DA12
127
DA13
128
DA14
129
DA15
130
Vss
131
Vdd
132
(n.c)
133
Vdd5
134
DA16
135
DA17
136
DA18
137
DA19
138
DA20
139
DA21
140
DA22
141
DA23
142
Vss
143
DA24
144
DA25
145
DA26
146
DA27
147
DA28
148
DA29
149
DA30
150
DA31
151
Vdd5
152
Vss
153
A00
154
A01
155
A02
156
A03
157
A04
158
A05
159
A06
160
A07
161
A08
162
A09
163
Vss
164
Vdd
165
A10
166
A11
167
A12
168
A13
169
A14
170
171 A15/RAS
172 A16/CAS
173 A17/CE
/WE
174
/OE
175
Vdd5
176
DM: IC8
I/O
FUNCTION
Ground
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Parallel data bus
Ground
Power supply (3.3 V)
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Parallel data bus
Timing signal output/ Parallel data bus output/ input
Ground
Power supply (5 V)
Memory data bus
Ground
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Memory data bus
Ground
Power supply (3.3 V)
Not used
Power supply (5 V)
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Memory data bus
Ground
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Memory data bus
Power supply (5 V)
Ground
O
O
O
O
O
O
O
O
O
O
Memory address (SRAM, PSRAM, DRAM)
Ground
Power supply (3.3 V)
O
O
O
O
O
O
O
O
O
O
Memory address (SRAM, PSRAM, DRAM)
Memory address (SRAM, PSRAM)
Memory address (SRAM, PSRAM), /RAS (DRAM)
Memory address (SRAM, PSRAM), /CAS (DRAM)
Memory address (SRAM), /CE (PSRAM)
Memory write enable signal
Memory output enable signal
Power supply (5 V)
UD-Stomp
YM3437C-F (XM530A00) DIT2 (Digital Format Interface Transmitter)
PIN
NO.
1
2
3
4
NAME
I/O
Vss
MCLK
DM0
DM1
I
I
I
5
6
7
RSTN
WCIN
DIN
I
I
I
8
VDD
PIN
NO.
Ground
9
Master clock input
10
DIN/BCLK/WCLK format select
11
DM1,DM0=0,0 DSP,LDSP (64 bit,LSB first) 12
DM1,DM0=0,1stereo,DSP (64 bit,MSB first)
DM1,DM0=1,0 DSP2 (128 bit,MSB first)
DM1,DM0=1,1 BB (64 bit,MSB first)
System reset
13
Word clock input
14
Digital audio serial data input
15
FUNCTION
Power supply (+5 V)
16
DM: IC17
NAME
I/O
FUNCTION
MUTE
VFL
CCK
CIN
I
I
I
I
Mute
Validity flag
C,U bit clock input/C bit data input
C,U bit data input/U bit data input
CLD
CNTR
CSM
I
I
I
DOUT
O
End of C,U bit input/16,20 bit/24 bit select
32 bit counter reset/Top of block
Channel status input mode select
CSM=0 Asynchronous mode
CSM=1 Synchronous mode
Digital interface formatted data output
AK4520A-VF-E2 (XT802A00) DAC & ADC
PIN
NO.
NAME
I/O
1 VREFH
2 VREFL
3 AINR+
4 AINR5 AINL+
6 AINL7
VA
8 AGND
9
DIF0
10
DIF1
11 LRCK
12 SCLK
13
SDTI
14 SDTO
I
I
I
I
I
I
I
I
I
I
I
O
FUNCTION
Positive Voltage Reference Input, VA
Negative Voltage Reference Input, AGND
Rch Analog Positive Input
Rch analog Negative Input
Lch Analog Positive Input
Lch analog Negative Input
Analog Power Supply
Analog Ground
Audio Data Interface Format
Audio Data Interface Format
Input/Output Channel Clock
Audio Serial Data Clock
Audio Serial Data Input
Audio Serial Data Output
DM: IC104
PIN
NO.
NAME
15 MCLK
16 DEM0
17 DEM1
18 TST3
19 TST2
20 TST1
21
VD
22 DGND
23 /PWDA
24 /PWAD
25 CMODE
26 AOUTL
27 AOUTR
28 VCOM
I/O
I
I
I
I/O
I/O
I
I
I
I
O
O
O
FUNCTION
Master Clock Input
De-emphasis Frequency Select
De-emphasis Frequency Select
Test Pins (Pull Down Pins)
Digital Power Supply
Digital Ground
DAC power-Down Mode
ADC power-Down Mode
Master Clock Select (“H”:384 fs,“L”:256 fs)
Lch Analog Output
Rch Analog Output
Common Voltage Output, VA/2
15
UD-Stomp
IC BLOCK DIAGRAM
MB3790PF(XR967A00)
DM: IC4
ASSP
R CN 0.5Ω
V IN 14
V IN 13
3
CONTROL 16
N.C.
1
16
2
15
Reference
Voltage
Power Supply
Circuit
N.C.
V OUT
3
14
V IN
V OUT
4
13
V IN
1.24V
5
12
V SENSE
ALARM1
6
11
CT
ALARM1
7
10
RESET
GND
8
9
RESET
6
ALARM1
7
ALARM2
9
RESET
10
RESET
V IN
2.65V
500Ω
V IN
S
V BAT2
V OUT
V OUT
SBD
CONTROL
590kΩ
V BAT1
4
100Ω
3µA
Q
2.37V
V SENSE 12
R
V OUT
240kΩ
V th:3V
V OUT
V th:1.5V
V BAT2
2
V BAT1
5
74AHC32DT(XZ103A00)
74HC08DT(XZ108A00)
74HC175DT(XZ113A00)
DM: IC5, IC6
DM: IC7
DM: IC110
OR
AND
Quad D-Type Flip-Flop
16
Vcc
15
Q3
14
Q3
4
13
D3
D1
5
12
D2
Q1
6
11
Q2
Q1
7
10
Q2
GND
8
9
CP
1A
1
14
VCC
1A
1
14
Vcc
MR
1
1B
2
13
4B
1B
2
13
4B
Q0
2
1Y
3
12
4A
1Y
3
12
4A
Q0
3
2A
4
11
4Y
2A
4
11
4Y
D0
3B
2B
5
10
3A
2B
5
10
2Y
6
9
3A
2Y
6
9
3B
GND
7
8
3Y
GND
7
8
3Y
Q CL
CK
Q D
Q D
CK
Q CL
C LQ
CK
D Q
D
Q
CK
CL Q
74HC244DT(XZ109A00)
74HCU04DT (XZ110A00)
TC74HC4040F(XR684A00)
DM: IC14, IC15, IC16
DM: IC107
DM: IC108
Bus Buffer
INVERTER
12-Stage Binary Ripple Counter
1OE
1
20
Vcc
2
19
2OE
1A
1A0
2Y0
1A1
3
4
18
17
16
14
Vcc
Q12
1
Q12
Q6
1A2
6
15
2A1
2Y2
7
14
1Y2
2Y3
9
12
1Y3
GND 10
11
2A3
Q11
6A
Q6
2A
3
12
6Y
Q5
3
Q5
Q10
14
Q10
5A
Q7
4
Q7
Q8
13
Q8
5Y
Q4
5
Q4
Q9
12
Q9
Q3
CL
11
CLR
Q2
CK
10
Input Pulses (
Q1
9
Q1
3A
8
15
13
4
11
1Y1
1A3
Vcc
Q11
2
2A0
5
16
1Y
1Y0
2Y1
13
1
2
2Y
16
11
CT
GND 8
5
10
6
3Y
6
9
4A
Q3
GND
7
8
4Y
Q2
7
GND
8
2A2
)
UD-Stomp
74HC374DT(XZ102A00)
74HC4052DT(XZ101A00)
NJM072M(XC458A00)
PN: IC301~IC307
PN: IC308, IC309
DM: IC101
D-FF
Multiplexer
OP AMP
1
OE
Vcc
20
Q0
2
Q
D0
3
D CK
OE
Q
19
Q7
2Y0
1
CK D
18
D7
2Y2
2
OE
2Y0
1Y2
1Y2
Non-Inverting
Input A
–DC Voltage
Supply
D6
2Z
3
2Z
1Y1
14
1Y1
Q6
2Y3
4
2Y3
1Z
13
1Z
Q
15
Q5
2Y1
5
2Y1
1Y0
12
1Y0
CK D
14
D5
1Y3
11
1Y3
CK D
OE
13
D4
VEE
7
S0
10
S0
Q
12
Q4
GND
8
9
S1
11
CP
Q
Q2
6
Q
7
OE
D CK
OE
D2
D3
8
D CK
OE
Q3
9
Q
GND
10
CK D
3
Vcc
16
5
2
15
17
4
1
16
Q
D1
Q1
D CK
OE
2Y2
Output A
Inverting
Input A
4
8
+DC Voltage
Supply
7
Output B
–+
+–
–V
6
Inverting
Input B
5
Non-Inverting
Input B
OE
E
6
E
S1
NJM5532M (XC011A00)
DM: IC102, IC103, IC106
NJM4556AMT1 (XQ138A00)
DM: IC105
OP AMP
A OUT
A IN
1
8
2
7
A+IN
3
6
V
4
5
V+
B OUT
B IN
B+IN
17
UD-Stomp
CIRCUIT BOARDS
A
DM Circuit Board
OUT
INPUT
LOW
HIGH
L/MONO
R
CN103: to PN1/2-CN301
A'
Battery VS246400
VS246300(Battery holder for VS246400)
Battery
• Notice for back-up battery removal
Push against the holder hook, then the
battery will pop up.
• Druk tegen de houder, de batterij springt
dan naar voren.
Battery holder
18
to PN1
UD-Stomp
A
AC IN
12V 1A~
to PN1/2-CN302 to PN1/2-CN303
to PN1/2-CN304
STANDBY
ON OFF
Component side
A'
CNA-V838990
1
19
UD-Stomp
DM Circuit Board
A
A'
20
UD-Stomp
A
Pattern side
A'
21
UD-Stomp
A
PN 1/2 Circuit Board
to PN2/2-CN306
to DM-CN3
A'
A
PN 2/2 Circuit Board
A'
LD302, LD303, LD304 and LD305 installation
Anode
SW301~SW317 installation
Cathode side:
Red mark
PN: CNA-V838980
22
1
UD-Stomp
A
to DM-CN3
to DM-CN2
to DM-CN1
to DM-CN103
A'
Component side
A
A'
Component side
23
UD-Stomp
PN 1/2 Circuit Board
A
A'
PN 2/2 Circuit Board
A
A'
24
UD-Stomp
A
Pattern side
A'
A
to PN1/2-CN305
A'
Pattern side
25
UD-Stomp
TEST PROGRAM
A. CONNECTION OF TERMINALS
• INPUT
Monaural input
• OUT L/MONO
Monaural output (RL 47KΩ)
• OUT R
Monaural output (RL 47KΩ)
• HEAD PHONES
Stereo output (RL 33Ω each)
• EXP. PEDAL
FC7 or Connect VR of B50K.
JK pin 1: MIN of VR
JK pin 2: MAX of VR
JK pin 3: CENTER of VR
• DIGITAL OUT
Connect the DA converter.
• MIDI IN, MIDI OUT
Connect IN and OUT with the
DIN 5P cable.
• HIGH/LOW SW
Input Level Select
OFF: 0dB
ON: +10dB
• AC IN
Connect the AC adaptor
• STAND-BY SW
Power switch
B. CONTENTS OF THE TEST PROGRAM
0: LED Check
1: SW Check
2: VR Check
3: BATTERY Check
4: SRAM Check
5: FLASH ROM Check
6: DSP Check
C. STARTING THE TEST PROGRAM AND CHECKING
While pressing the UTILITY, STORE and SYNC
switches, turn on the POWER switch. The TEST
program will then be started. At this time, check to make
sure that the model name “Ud.S” is displayed for about
2 seconds. The digit at the left end of the 7-segment
LED indicates the test No.
D. SELECTING THE TEST NUMBER
• Using the UP and DOWN switches, select the test
number and press the STORE switch to start testing.
E. OPERATION OF THE TEST PROGRAM AND CHECKING
0: LED check
(1) Using the UP and DOWN switches, select “0”.
(This step can be skipped if “0” is already selected.)
(2) Press the STORE switch.
• LED segments light up one after another starting
with “UP”. When “FUNCTION” is reached, “BANK”,
“3”, “2” and “1” light up followed by 7 segments in
the following order from the left end. After that, all
LED segments light up and go out.(Fig.1)
1
2
1
6
5
7
4
2
3
8
Fig.1
26
3
1:
SW Check
(1) Using the UP and DOWN switches, select “1”.
(This step can be skipped if “1” is already selected.)
(2) Press the STORE switch.
(3) Starting with the UP switch, press each switch whose
LED lights up one after another. After “FUNCTION”,
“BANK”, “3”, “2” and “1”, all LED segments should light
up and then go out.
• A number (0 to 20) is indicated at the right end of
the 7 segment LED.
• If “E” representing an error appears at the left end
of the LED, press the UTILITY switch for resetting.
2:
VR Check (Be sure to set each of VR and EXP
PEDAL to be checked at its center position.)
(1) Using the UP and DOWN switches, select “2”.
(This step can be skipped if “2” is already selected.)
(2) Press the STORE switch to start checking.
LED display
2. 0
(3) Turn ASSIGNABLE CONTROLL p counterclockwise.
LED display
2 0.
(4) Turn ASSIGNABLE CONTROLL p clockwise.
LED display
2. 1
(5) Set ASSIGNABLE CONTROLL p at the center position.
(6) Turn COARSE q counterclockwise.
LED display
2 1.
(7) Turn COARSE q clockwise.
LED display
2. 2
(8) Set COARSE q at the center position.
(9) Check other VRs w to !1 (Fig. 2) one after
another until EFFECT LEVEL !2 finally.
LED display
2.13
(10) Return EXP. PEDAL.!3
LED display
2 13.
(11) Push in the EXP. PEDAL. !3
• All LED segments light up and go out, and then the
checking proceeds to Battery check.
• If VR or EXP PEDAL is not set at its center position,
checking will result in an error and E. 0 will appear
at the left end of LED.
In such case, set it to the center position and press
UTILITY SW for resetting.
• To advance the VR No. (0-13) to be checked, press
UTILITY SW.
UD-Stomp
!3
FC7 Foot Controller
!2
p
3:
4:
u
i
o
!0
!1
q
w
e
r
t
Battery check
(1) Using the UP and DOWN switches, select “3”.
(This step can be skipped if “3” has already been
selected.)
(2) Press the STORE switch.
• If the check result is OK, all lights light up, go off and
the program proceed to the next step.
• If the check result is unsatisfactory, “E” appears at
the left end of the LED.
MIDI Check
(1) Using the UP and DOWN switches, select “4”.
(This step can be skipped if “4” is already selected.)
(2) Press the STORE switch.
• If the check result is OK, all LED segments light up
and go out. The checking function will proceed to the
next step.
• In case of an error, “E” appears at the left end of
the LED. “0” at the right end indicates transmission
and “1” indicates reception.
Fig.2
y
5:
SRAM Check
(1) Using the UP and DOWN switches, select “5”.
(This step can be skipped if “5” is already selected.)
(2) Press the STORE switch.
• If the check result is OK, all LED segments light up
and go out. The checking function will proceed to the
next step.
• In case of an error, “E” appears at the left end of the LED.
“0” at the right end indicates IC2 and “1” indicates IC3.
6:
DSP Electric Characteristic
(1) Using the UP and DOWN switches, select “6”.
(This step can be skipped if “6” is already selected.)
(2) Press the STORE switch.
• An input signal will be output when the STORE
switch is pressed. “1” appears at the right end of
the LED. (Table.1)
• The sine waveform can be checked in all of the analog
circuit, A/D, DSP-6 and D/A where the signal has
passed.
• Initial setting : OUTPUT VR ••• MAX
: HIGH/LOW SW ••• OFF (LOW)
: The input impedance of the measuring
in strum ent should be 1MΩ or more.
27
UD-Stomp
Table1
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
F.
INPUT Sensitivity
INPUT Sensitivity
INPUT Sensitivity
INPUT Sensitivity
INPUT Sensitivity
INPUT Sensitivity
INPUT Sensitivity
INPUT Sensitivity
INPUT Sensitivity
INPUT Sensitivity
INPUT Sensitivity
INPUT Sensitivity
INPUT Sensitivity
INPUT Sensitivity
INPUT Sensitivity
NOISE LEVEL
NOISE LEVEL
NOISE LEVEL
NOISE LEVEL
DISTORTION FACTOR
DISTORTION FACTOR
DISTORTION FACTOR
DISTORTION FACTOR
INPUT Sensitivity
INPUT
OUTPUT
JK101(INPUT) -5dBm(1KHz)
JK101(INPUT) -5dBm(10KHz)
JK101(INPUT) -5dBm(100Hz)
JK101(INPUT) -25dBm(100Hz)
JK101(INPUT) -25dBm(10KHz)
JK101(INPUT) -25dBm(1KHz)
JK101(INPUT) -5dBm(1KHz)
JK101(INPUT) -5dBm(10KHz)
JK101(INPUT) -5dBm(100Hz)
JK101(INPUT) -25dBm(100Hz)
JK101(INPUT) -25dBm(10KHz)
JK101(INPUT) -25dBm(1KHz)
JK101(INPUT) -35dBm(1KHz) HIGH/LOW SW ON
JK101(INPUT) -35dBm(10KHz) HIGH/LOW SW ON
JK101(INPUT) -35dBm(100Hz) HIGH/LOW SW ON after operation OFF
Disconnect the jack of JK101 (INPUT), without filter
Disconnect the jack of JK101 (INPUT), without filter
Disconnect the jack of JK101 (INPUT), without filter
Disconnect the jack of JK101 (INPUT), without filter
JK101(INPUT) -5dBm (1KHz)
JK101(INPUT) -25dBm (1KHz)
JK101(INPUT) -5dBm (1KHz)
JK101(INPUT) -25dBm (1KHz)
JK101(INPUT) -15dBm (1KHz)
JK103(OUT L/MONO)+1.0dBm ± 3dB
JK103(OUT L/MONO)+1.0dBm ± 3dB
JK103(OUT L/MONO)+1.0dBm ± 3dB
JK104(OUT R)-1.0dBm ± 3dB
JK104(OUT R)-1.0dBm ± 3dB
JK104(OUT R)-1.0dBm ± 3dB
JK102(HP L)-0.5dBm ± 3dB
JK102(HP L)-0.5dBm ± 3dB
JK102(HP L)-1.5dBm ± 3dB
JK102(HP R)-3.5dBm ± 3dB
JK102(HP R)-2.5dBm ± 3dB
JK102(HP R)-2.5dBm ± 3dB
JK104(OUT R)-0.5dBm ± 3dB
JK104(OUT R)-0.5dBm ± 3dB
JK104(OUT R)-0.5dBm ± 3dB
JK103(OUT L/MONO)-45dBm or less
JK104(OUT R)-45dBm or less
JK102(HP L)-45dBm or less
JK102(HP R)-45dBm or less
JK103(OUT L/MONO) 0.5% or less
JK104(OUT R) 0.5% or less
JK102(HP L) 0.5% or less
JK102(HP R) 0.5% or less
JK2(Digital Out) Lch:-18dBm ± 3dB, Rch: ± 0dBm ± 3dB
CHEKING OF THE ROM VERSION
While pressing the DOWN and UTILITY switches, turn
on the POWER switch. The model name “Ud.S” is
displayed for about 2 seconds. As the version number
“1.00” (each * representing a number) appears after that,
check it. Then the mode will return to the normal mode.
ERROR MESSAGES
If an error occurs during operation, one of the following error message numbers will appear in the display.
Stop operation of the device and follow the proper solution described below.
E 1: MIDI Receive Buffer Full
CAUSE:
Too much MIDI data is being received at one time.
SOLUTION: Try reducing the amount of data being sent or, break the data into smaller blocks.
E 2: Communication Error.
CAUSE:
An abnormality is detected during MIDI communications.
SOLUTION: Check all connections, etc. and try again.
E 3: Bulk Receive Check Sum Error.
CAUSE:
The check sum does not match the received MIDI bulk data.
SOLUTION: Check all connections and data, and try again.
E 4: Bulk Receive Data Abnormality.
CAUSE:
An abnormality is detected in the received MIDI bulk data.
SOLUTION: Check all connections and data, and try again.
E 5: Backup Battery Error.
CAUSE:
Backup battery power is depleted.
SOLUTION: Continued use of the device will result in the loss of data.
28
UD-Stomp
YAMAHA
[ Modulation Delay]
Date:14-Dec-2001
Model UD stomp MIDI Implementation Chart
Version : 1.0
+----------------------------------------------------------------------+
:
: Transmitted
:
Recognized
:
Remarks
:
:
Function ... :
:
:
:
:-------------------+----------------+----------------+----------------:
:Basic
Default
: 1 - 16
: 1 - 16, off
: memorized
:
:Channel Changed
: 1 - 16
: 1 - 16, off
:
:
:-------------------+----------------+----------------+----------------:
:
Default
: 1,3
: 1,3
: memorized
:
:Mode
Messages : x
: x
:
:
:
Altered
: ************** : x
:
:
:-------------------+----------------+----------------+----------------:
:Note
: x
: x
:
:
:Number : True voice: ************** : x
:
:
:-------------------+----------------+----------------+----------------:
:Velocity Note ON
: x
: x
:
:
:
Note OFF : x
: x
:
:
:-------------------+----------------+----------------+----------------:
:After
Key's
: x
: x
:
:
:Touch
Ch's
: x
: x
:
:
:-------------------+----------------+----------------+----------------:
:Pitch Bender
: x
: x
:
:
:-------------------+----------------+----------------+----------------:
:
0 : x
: x
:
:
:
1 - 31 : o
: o
:
:
:
32 - 63 : x
: x
:
:
:
64 - 95 : o
: o
:
:
: Control 95 -127 : x
: x
:
:
:
:
:
:
:
: Change
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:-------------------+----------------+----------------+----------------:
:Prog
: o 0 - 127
: o 0 - 127
:
:
:Change : True #
: ************** :
:
:
:-------------------+----------------+----------------+----------------:
:System Exclusive
: o
: o
: Bulk Dump
:
:-------------------+----------------+----------------+----------------:
:System : Song Pos. : x
: x
:
:
:
: Song Sel. : x
: x
:
:
:common : Tune
: x
: x
:
:
:-------------------+----------------+----------------+----------------:
:System
:Clock
: x
: x
:
:
:Real Time :Commands: x
: x
:
:
:-------------------+----------------+----------------+----------------:
:Aux :All Sound OFF: x
: x
:
:
:
:Reset All Cntrls : x
: x
:
:
:
:Local ON/OFF : x
: x
:
:
:
:All Notes OFF: x
: x
:
:
:Mes- :Active Sense : o
: x
:
:
:sages:Reset
: x
: x
:
:
:-------------------+----------------+----------------+----------------:
:
:
:
:
+-------------------+----------------+----------------+----------------+
Mode 1 : OMNI ON, POLY
Mode 2 : OMNI ON, MONO
o : Yes
Mode 3 : OMNI OFF, POLY
Mode 4 : OMNI OFF, MONO
x : No
29
PARTS LIST
CONTENTS
OVERALL ASSEMBLY ............................................................. 2
ELECTRICAL PARTS ................................................................ 4
Notes : DESTINATION ABBREVIATIONS
A : Australian model
B : British model
C : Canadian model
D : German model
E : European model
F : French model
H : North European model
I : Indonesian model
J : Japanese model
M : South African model
O : Chinese model
Q : South-east Asia model
T : Taiwan model
U : U.S.A. model
V : General export model (110V)
W: General export model (220)
N,X : General export model
Y : Export model
WARNING
Components having special characteristics are marked
specification equal to those originally installed.
and must be replaced with parts having
The numbers “QTY” show quantities for each unit.
The parts with “--” in “PART NO.” are not available as spare parts.
This mark “ } ” in the REMARKS column means these parts are interchangeable.
) part number is O, not zero.
The second letter of the shaded (
) part number is I, not one.
The second letter of the shaded (
UD-Stomp
OVERALL ASSEMBLY
40
60
T60
T50
50
T20
70
T120
T10
T110
T80
10
T40 (1/2)
T90
T40 (2/2)
T130
T160
T150
T140
T170
T70
T110
T100
T110
T30
20
T180
T110
30
80
2
UD-Stomp
10
20
30
40
50
PART NO.
--V8398400
EP600190
V3694100
V5852300
60
70
80
VZ429100 Button
VZ968600 Button
VU859300 Leg
REF NO.
*
DESCRIPTION
Overall Assembly
Top Cover Assembly
Bottom Case
Bind Head Tapping Screw-B
Knob
Knob
T10
T20
* T30
* T40a
* T40b
T50
T60
T70
T80
T90
-V8398800
V5734500
V8389900
AAX33470
AAX33480
LX200060
VL802300
ET800150
V7407400
V5852100
TOP COVER ASSEMBLY
Top Cover Assembly
Top Cover
Meter Cover
Circuit Board
Circuit Board
Circuit Board
Hexagonal Nut
Flat Washer
Toothed Lock Washer-A
Flat Washer
Button
T100
T110
T120
T130
T140
T150
T160
T170
T180
-EP600190
VC161100
-----VS246400
Shield Sheet
Bind Head Tapping Screw-B
Bind Head Tapping Screw-P
Connector Assembly
Connector Assembly
Connector Assembly
Connector Assembly
Connector Assembly
Lithium Battery
*
ACCESSORIES
V 5 8 8 2 8 0 0 AC Adapter
V 5 8 8 3 0 0 0 AC Adapter
V 5 8 8 3 1 0 0 AC Adapter
: New Parts
REMARKS
(V839770)
(V839830)
3.0X8 MFZN2BL
GRAY
NO.947 CD-GRAY
ASSIGNABLE CONTROL
TAP,SPEED,DEPTH,PAN,
LEVEL,EFFECT LEVEL,
COARDE,FINE,LOW CUT,
HIGH CUT,FEEDBACK,
DIRECT LEVEL,OUTPUT
LOW/HIGH
STAND BY ON/OFF
QTY
RANK
6
13
01
02
02
4
01
01
01
(V839830)
02
DM
PN 1/2
PN 2/2
9.0 12X2 MFNI33
9X14 0.5 FNM3
9.0 MFZN2Y
12X17 0.5 MFNI33
(V838980)
(V838980)
UP,DOWN,UTILITY,STORE,
EFFECT BAND1-8,
EDIT FUNCTION(CONNECT,
GROUP,SYNC,WAVE,FUNCTION)
(V839890)
3.0X8 MFZN2BL
3.0X12 MFZN2BL
C&C #28 14P L 50
C&C #28 12P L100
C&C #28 11P L100
C&C #28 9P L100
C&C #28 6P L250
CR2450
AC-10 J
AC-10 U,C
AC-10 H
5
5
5
4
17
01
01
01
01
01
7
3
01
01
(V610850)
(V611450)
(V611460)
(V611470)
(V611480)
03
J
U,C
H
08
08
08
RANK: Japan only
3
UD-Stomp
ELECTRICAL PARTS
REF NO.
*
*
*
*
BT001
C0001
-0009
C0010
C0011
-0018
C0019
C0020
-0029
C0030
C0031
C0032
C0033
C0034
C0035
C0036
C0037
C0048
C0056
C0057
C0058
C0059
-0070
C0073
C0074
C0075
C0076
C0077
C0078
C0079
C0101
C0102
C0103
C0104
C0105
C0106
C0107
C0108
C0109
C0110
C0111
C0112
C0113
C0114
C0115
C0116
C0117
-0122
C0123
C0124
C0125
C0126
C0127
C0128
C0129
-0132
C0133
C0134
C0135
C0136
C0137
PART NO.
DESCRIPTION
ELECTORICAL PARTS
V 8 3 8 9 9 0 0 Circuit Board
AAX33470 Circuit Board
AAX33480 Circuit Board
V8389900
-VB763800
VK863100
VS246300
UX145100
UX145100
UR838100
UX145100
UX145100
UR838100
UX145100
UX145100
UR857100
UX145100
UX145100
UR857100
UX145100
UX061120
UX061120
UR838100
UR838100
UX145100
UX064100
UX064100
UX145100
UX145100
UX145100
UX062220
UX064100
UX064100
UX145100
UX145100
UX064100
UY065220
UX062100
UR857100
V6197100
V6197100
UX061100
UX145100
UX145100
UX061220
UX063100
V6197100
UX061680
UX061220
UX063100
UR857100
UX145100
UR857100
UR857100
UX145100
UX145100
UR857100
UR857100
UX145100
UX145100
UR857100
V6197100
UX061220
UR857100
V6197000
UX063100
V6197100
: New Parts
4
Circuit Board
Heat Sink
Bind Head Screw
IC Socket
Battery Holder
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Electrolytic Cap.
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Electrolytic Cap.-BP
Electrolytic Cap.-BP
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.-BP
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Ceramic Capacitor (Chip)
Electrolytic Cap.
Electrolytic Cap.
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Electrolytic Cap.
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Electrolytic Cap.-BP
Ceramic Capacitor (Chip)
Electrolytic Cap.
Electrolytic Cap.-BP
Ceramic Capacitor (Chip)
Electrolytic Cap.-BP
DM
PN1/2
PN2/2
DM
SP 3.0X12 MFZN2Y
DICF-42CS-E
CR2450BH
0.1000 25V Z
0.1000 25V Z
100.00 16.0V
0.1000 25V Z
0.1000 25V Z
100.00 16.0V
0.1000 25V Z
0.1000 25V Z
10.00 35.0V
0.1000 25V Z
0.1000 25V Z
10.00 35.0V
0.1000 25V Z
12P 50V J
12P 50V J
100.00 16.0V
100.00 16.0V
0.1000 25V Z
0.0100 50V K
0.0100 50V K
0.1000 25V Z
0.1000 25V Z
0.1000 25V Z
220P 50V J
0.0100 50V K
0.0100 50V K
0.1000 25V Z
0.1000 25V Z
0.0100 50V K
0.2200 50V Z
100P 50V J
10.00 35.0V
10.00 35.0V
10.00 35.0V
10P 50V D
0.1000 25V Z
0.1000 25V Z
22P 50V J
1000P 50V K
10.00 35.0V
68P 50V J
22P 50V J
1000P 50V K
10.00 35.0V
0.1000 25V Z
10.00 35.0V
10.00 35.0V
0.1000 25V Z
0.1000 25V Z
10.00 35.0V
10.00 35.0V
0.1000 25V Z
0.1000 25V Z
10.00 35.0V
10.00 35.0V
22P 50V J
10.00 35.0V
47.00 25.0V
1000P 50V K
10.00 35.0V
REMARKS
UD-STOMP
(X2186B0)
(V838980)(X2180B0)
(V838980)(X2180B0)
QTY
RANK
5
01
03
03
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
(X2186B0)
(V573470)
01
01
RANK: Japan only
UD-Stomp
REF NO.
C0138
C0139
C0140
C0141
C0142
C0143
C0144
C0145
C0146
C0147
C0148
C0149
C0150
C0151
C0152
C0153
C0154
C0155
C0156
C0157
C0158
C0159
C0161
-0163
C0164
C0166
C0167
C0168
C0169
C0170
C0171
-0174
C0175
-0178
C0179
C0180
C0181
C0182
C0191
C0192
C0193
-0196
C0198
C0199
CN001
CN002
CN003
CN103
D0001
D0101
-0104
D0105
D0106
D0107
-0115
* IC001
IC002
IC002
IC003
IC003
IC004
IC005
IC006
IC007
IC008
IC010
IC011
IC012
IC013
IC013
PART NO.
UX061220
UR857100
V6197000
UX063100
UX061220
UR857100
V6197100
UX062100
UX061220
UR857100
V6197100
UX062100
UR848100
UR848100
UR857100
UR857100
UR866100
UR866470
UR848100
UX145100
UX145100
UR848100
UY065100
UY065100
V6196900
UY065100
UX145100
UR838100
UR839100
UR839100
UR858470
UR868470
UY065100
UX145100
UR848100
UR848100
UR848220
UR848220
UX060500
UX060500
UX145100
UX145100
UR866100
UR866100
VV067200
VV067100
VV066900
VV066600
VT332900
VT332900
VT332900
VT532500
VT332900
VT532500
VT532500
X2201B00
XV411A00
XZ388A00
XV411A00
XZ388A00
XR967A00
XZ103A00
XZ103A00
XZ108A00
XV988A00
XV077B00
XV077B00
XQ375A00
VN686000
VR903700
: New Parts
DESCRIPTION
Ceramic Capacitor (Chip)
Electrolytic Cap.
Electrolytic Cap.-BP
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Electrolytic Cap.-BP
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Electrolytic Cap.-BP
Ceramic Capacitor (Chip)
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Electrolytic Cap.
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Electrolytic Cap.
Electrolytic Cap.
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Diode
Diode
Diode
Diode
Diode
Diode
Diode
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
Photo Coupler
Photo Coupler
REMARKS
22P 50V J
10.00 35.0V
47.00 25.0V
1000P 50V K
22P 50V J
10.00 35.0V
10.00 35.0V
100P 50V J
22P 50V J
10.00 35.0V
10.00 35.0V
100P 50V J
100.00 25.0V
100.00 25.0V
10.00 35.0V
10.00 35.0V
1.00 50.0V
4.70 50.0V
100.00 25.0V
0.1000 25V Z
0.1000 25V Z
100.00 25.0V
0.1000 50V Z
0.1000 50V Z
3300 35.0V
0.1000 50V Z
0.1000 25V Z
100.00 16.0V
1000 16.0V
1000 16.0V
470.00 35.0V
470.00 50.0V
0.1000 50V Z
0.1000 25V Z
100.00 25.0V
100.00 25.0V
220.00 25.0V
220.00 25.0V
5P 50V C
5P 50V C
0.1000 25V Z
0.1000 25V Z
1.00 50.0V
1.00 50.0V
M2426XX 12P TE
M2426XX 11P TE
M2426XX
9P TE
M2426XX
6P TE
1SS355 TE-17
1SS355 TE-17
1SS355 TE-17
1SR154-400
1SS355 TE-17
1SR154-400
1SR154-400
MSM27C802CZ-NRS
W24258S-70LE-EL10
W24257S-70LL-EL10
W24258S-70LE-EL10
W24257S-70LL-EL10
MB3790PF
74AHC32DT
74AHC32DT
74HC08DT
YSS910-S
MSM514260E-60JS
MSM514260E-60JS
HD6413002FP16
PC410T
HCPL-M600
QTY
RANK
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
ROM 8M
SRAM 256K
SRAM 256K
SRAM 256K
SRAM 256K
ASSP
OR
OR
AND
DSP6
DRAM 4M
DRAM 4M
CPU
07
05
07
05
05
01
01
01
10
09
04
04
RANK: Japan only
5
UD-Stomp
REF NO.
IC014
-016
IC017
IC018
IC101
IC102
IC103
IC104
IC105
IC106
IC107
IC108
IC109
IC110
IC111
IC112
IC113
IC114
JK001
JK002
JK003
JK101
JK102
JK103
JK104
JK105
J0001
-0107
K0101
L0001
-0006
L0007
L0008
L0101
R0001
R0002
-0007
R0009
R0010
R0012
R0013
R0014
-0016
R0017
R0018
R0019
R0020
R0021
R0022
R0023
R0024
R0025
R0026
R0027
R0030
R0101
R0102
R0103
R0104
R0105
R0106
R0108
R0109
R0110
R0111
R0112
R0113
R0114
R0115
R0116
PART NO.
XZ109A00
XZ109A00
XM530A00
XU965A00
XC458A00
XC011A00
XC011A00
XT802A00
XQ138A00
XC011A00
XZ110A00
XR684A00
XZ112A00
XZ113A00
XZ162A00
XJ607A00
XD853A00
XD854A00
V6177500
V6178000
V6177700
V3633400
V6177700
V3633400
V3633400
V6177200
--VV075700
VS740100
VS740100
VC548200
V6178900
VG238200
RG007100
RG005100
RG005100
RG005270
RG007100
RG006100
RG005220
RG007100
RG007100
RG006220
RG005220
RG005220
RG006100
RG006100
RG009100
RG004470
RG004750
RG007100
RG007100
RG000000
RG000000
RG007100
RG009100
RG006470
RG006470
RG007220
RG007120
RG107100
RG107220
RG106330
RG007100
RG007100
RG006560
RG006560
RG005470
RG005470
: New Parts
6
DESCRIPTION
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
DIN Connector
Pin Connector
Phone Jack
Phone Jack
Phone Jack
Phone Jack
Phone Jack
Connector
Jumper Wire
Jumper Wire
Terminal Plate
Chip Inductance
Chip Inductance
Pulse Transformer
Noise Filter
LC Filter
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
74HC244DT
74HC244DT
YM3437C-F
UPC29M33T-E1
NJM072M
NJM5532M
NJM5532M
AK4520A-VF-E2
NJM4556AM(T1)
NJM5532M
74HCU04DT
TC74HC4040F
74HC164DT
74HC175DT
NJM78M05DLA
NJM7805FA
NJM7815FA
NJM7915FA
JACK 5P3 HDC-052A
JACK HSP-241V1B
STEREO HTJ-064-12D
HTJ-064-12I
STEREO HTJ-064-12D
HTJ-064-12I
HTJ-064-12I
HTJ-020-05A
0.55
0.55
BLM21B751S 2125
BLM21B751S 2125
TC-1019-06 7mm
ZJYS51R5-2PT
PLT2003C
10K 0.1 J
100 0.1 J
100 0.1 J
270 0.1 J
10K 0.1 J
1.0K 0.1 J
220 0.1 J
10K 0.1 J
10K 0.1 J
2.2K 0.1 J
220 0.1 J
220 0.1 J
1.0K 0.1 J
1.0K 0.1 J
1.0M 0.1 J
47 0.1 J
75 0.1 J
10K 0.1 J
10K 0.1 J
0 0.1 J
0 0.1 J
10K 0.1 J
1.0M 0.1 J
4.7K 0.1 J
4.7K 0.1 J
22K 0.1 J
12K 0.1 J
10K 0.1 F
22K 0.1 F
3.3K 0.1 F
10K 0.1 J
10K 0.1 J
5.6K 0.1 J
5.6K 0.1 J
470 0.1 J
470 0.1 J
REMARKS
BUFFER
BUFFER
DIT2
REGULATOR +3.3V
OP AMP
OP AMP
OP AMP
ADC & DAC
OP AMP
OP AMP
INVERTER
B.COUNTER
SHIFT REGISTER
D-FF
REGULATOR +5V
REGULATOR +5V
REGULATOR +15V
REGULATOR -15V
MIDI(IN/OUT)
DIGITAL OUT
EXP. PEDAL
INPUT
PHONES
OUTPUT(l/MONO)
OUTPUT(R)
AC IN 12V 1A
(VA07890)
(VA07890)
QTY
RANK
02
02
07
03
03
03
03
07
03
03
01
03
02
02
03
02
03
03
03
01
03
01
03
01
01
03
01
03
03
04
04
04
RANK: Japan only
UD-Stomp
REF NO.
R0117
R0118
R0119
R0120
R0121
R0122
R0123
R0124
R0125
R0126
R0127
R0128
R0129
R0130
R0131
R0132
R0133
R0134
R0135
R0136
R0137
R0138
R0139
R0140
R0141
R0142
R0143
R0144
R0145
R0146
R0147
R0148
R0149
R0150
R0151
R0152
R0153
R0154
R0155
R0156
R0157
R0158
R0159
R0160
R0161
R0162
R0163
R0164
R0165
R0166
R0167
R0168
R0169
RA001
-018
SW101
SW102
TR001
TR002
TR101
-106
TR107
TR108
X0001
X0002
X0101
ZD101
ZD102
ZD103
ZD104
PART NO.
RG107100
RG105470
RG106270
RG006560
RG006560
RG005470
RG005470
RG006470
RG004330
RG006470
RG203470
RG006100
RG007100
RG006100
RG007100
RG008100
RG007100
RG006100
RG204470
RG007100
RG008100
RG008100
RG007100
RG006100
RG204470
RG007100
RG008100
RG007100
RG006220
RG006100
RG007100
RG008100
RG007100
RG006220
RG006100
RG007100
RG008100
RG007100
RG008100
RG007220
RG008100
RG006220
RG008100
RG008100
RG006470
RG006470
RG009100
RG005680
RG005220
RG205100
RG205100
RG006220
RG006220
RH047100
RH047100
V3633600
V4577800
VV556400
VV556400
VD303700
VD303700
VV556400
VJ927200
VU682100
VE463500
VR013200
VU170900
VU170900
VU173000
VU173000
: New Parts
DESCRIPTION
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Resistor Array
Resistor Array
Push Switch
Push Switch
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Quartz Crystal Unit
Quartz Crystal Unit
Quartz Crystal Unit
Zener Diode
Zener Diode
Zener Diode
Zener Diode
REMARKS
10K 0.1 F
470 0.1 F
2.7K 0.1 F
5.6K 0.1 J
5.6K 0.1 J
470 0.1 J
470 0.1 J
4.7K 0.1 J
33 0.1 J
4.7K 0.1 J
4.7 1/4 J
1.0K 0.1 J
10K 0.1 J
1.0K 0.1 J
10K 0.1 J
100K 0.1 J
10K 0.1 J
1.0K 0.1 J
47 1/4 J
10K 0.1 J
100K 0.1 J
100K 0.1 J
10K 0.1 J
1.0K 0.1 J
47 1/4 J
10K 0.1 J
100K 0.1 J
10K 0.1 J
2.2K 0.1 J
1.0K 0.1 J
10K 0.1 J
100K 0.1 J
10K 0.1 J
2.2K 0.1 J
1.0K 0.1 J
10K 0.1 J
100K 0.1 J
10K 0.1 J
100K 0.1 J
22K 0.1 J
100K 0.1 J
2.2K 0.1 J
100K 0.1 J
100K 0.1 J
4.7K 0.1 J
4.7K 0.1 J
1.0M 0.1 J
680 0.1 J
220 0.1 J
100 1/4 J
100 1/4 J
2.2K 0.1 J
2.2K 0.1 J
10KX4
10KX4
SPPJ22SE01
SDKLA10200
“2SC2412K Q,R,S “
“2SC2412K Q,R,S “
“2SC3326 A,B TE85R “
“2SC3326 A,B TE85R “
“2SC2412K Q,R,S “
“2SA1162 O,Y
“
30.00M HZ DOC-49S2
AT-49/12.0000MHZ
22.5792M AT-49
UDZ 2.0BTE-17 2.0V
UDZ 2.0BTE-17 2.0V
UDZ 15B TE-17 15V
UDZ 15B TE-17 15V
LOW/HIGH
STAND BY ON/OFF
QTY
RANK
02
03
01
01
01
01
01
01
06
03
03
01
01
01
01
RANK: Japan only
7
UD-Stomp
REF NO.
*
*
C0301
-0315
CN301
CN302
CN303
CN304
CN305
CN306
CN307
-310
D0301
-0321
IC301
-307
IC308
IC309
LD301
LD302
LD303
LD304
LD305
L0301
-0309
R0301
R0302
-0304
R0305
-0321
R0322
-0345
R0346
-0362
R0363
-0366
SW301
SW302
SW303
SW304
SW305
SW306
SW307
SW308
SW309
SW310
SW311
SW312
SW313
SW314
SW315
SW316
SW317
VR301
VR302
VR303
VR304
VR305
VR306
VR307
VR308
VR309
VR310
PART NO.
DESCRIPTION
AAX33470
AAX33480
V6220800
V6624600
-V6124500
Circuit Board
Circuit Board
Spacer
LED Holder
Connector Assembly
Push Switch
LED3-1A
C& #24 2P L60
ADS-003-A10
UX145100
UX145100
VV068000
VV068300
VV068500
VV068600
VV068800
VV067400
VV066200
VV066200
VT332900
VT332900
XZ102A00
XZ102A00
XZ101A00
XZ101A00
V5801000
VV620800
VV620800
VV620800
VV620800
VS740100
VS740100
RG006100
RG006100
RG006100
RG005560
RG005560
RG005820
RG005820
RG007100
RG007100
RG005560
RG005560
VK701100
VK701100
VK701100
VK701100
VK701100
VK701100
VK701100
VK701100
VK701100
VK701100
VK701100
VK701100
VK701100
VK701100
VK701100
VK701100
VK701100
V5264800
V5264800
V5264800
V5264800
V5264800
V5264800
V5264800
V5264800
V5264800
V5264800
Ceramic Capacitor (Chip)
Ceramic Capacitor (Chip)
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Connector Base Post
Diode
Diode
IC
IC
IC
IC
LED Display
LED
LED
LED
LED
Chip Inductance
Chip Inductance
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Carbon Resistor (chip)
Push Switch
Push Switch
Push Switch
Push Switch
Push Switch
Push Switch
Push Switch
Push Switch
Push Switch
Push Switch
Push Switch
Push Switch
Push Switch
Push Switch
Push Switch
Push Switch
Push Switch
Rotary Variable Resistor
Rotary Variable Resistor
Rotary Variable Resistor
Rotary Variable Resistor
Rotary Variable Resistor
Rotary Variable Resistor
Rotary Variable Resistor
Rotary Variable Resistor
Rotary Variable Resistor
Rotary Variable Resistor
0.1000 25V Z
0.1000 25V Z
M2426XXR 6P SE
M2426XXR 9P SE
M2426XXR 11P SE
M2426XXR 12P SE
M2426XXR 14P SE
M2426XX 14P TE
M2426XX
2P TE
M2426XX
2P TE
1SS355 TE-17
1SS355 TE-17
74HC374DT
74HC374DT
74HC4052DT
74HC4052DT
LTC-5836E
LT311G-41-C13 RE
LT311G-41-C13 RE
LT311G-41-C13 RE
LT311G-41-C13 RE
BLM21B751S 2125
BLM21B751S 2125
1.0K 0.1 J
1.0K 0.1 J
1.0K 0.1 J
560 0.1 J
560 0.1 J
820 0.1 J
820 0.1 J
10K 0.1 J
10K 0.1 J
560 0.1 J
560 0.1 J
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
SKHQFN GREEN
RK09L1140 10KB
RK09L1140 10KB
RK09L1140 10KB
RK09L1140 10KB
RK09L1140 10KB
RK09L1140 10KB
RK09L1140 10KB
RK09L1140 10KB
RK09L1140 10KB
RK09L1140 10KB
: New Parts
8
REMARKS
PN1/2
PN2/2
QTY
RANK
8
4
4
4
05
(V838980)(X2180B0)
(V838980)(X2180B0)
(V654510)
1(SELECT),2(ON/OFF),
3(TAP TEMPO),
BYPASS/BANK/TAP TEMPO
01
01
01
01
01
01
01
01
01
01
02
02
02
02
05
01
01
01
01
03
03
D-FF
D-FF
MULTIPLEXER
MULTIPLEXER
GROUP/BANK/PATCH
1
2
3
BANK
UP
DOWN
UTILITY
STORE
EFFECT BAND 1
EFFECT BAND 2
EFFECT BAND 3
EFFECT BAND 4
EFFECT BAND 5
EFFECT BAND 6
EFFECT BAND 7
EFFECT BAND 8
CONNECT
GROUP
SYNC
WAVE
FUNCTION
ASSIGNABLE CONTROL
COARSE
FINE
LOW CUT
HIGH CUT
FEEDBACK
DIRECT LEVEL
TAP
SPEED
DEPTH
02
02
02
02
02
02
02
02
02
02
02
02
02
02
02
02
02
03
03
03
03
03
03
03
03
03
03
RANK: Japan only
UD-Stomp
REF NO.
VR311
VR312
VR313
VR314
PART NO.
V5264800
V5264800
V5264800
V5265100
DESCRIPTION
Rotary Variable Resistor
Rotary Variable Resistor
Rotary Variable Resistor
Rotary Variable Resistor
VS246400 Lithium Battery
: New Parts
RK09L1140 10KB
RK09L1140 10KB
RK09L1140 10KB
RK09L12D0 20KA X2
CR2450
REMARKS
PAN
LEVEL
EFFECT LEVEL
OUTPUT
QTY
RANK
03
03
03
03
03
RANK: Japan only
9
A
B
C
D
E
F
G
H
I
J
K
L
UD-Stomp
UD-Stomp OVERALL CIRCUIT DIAGRAM 1/3 (DM)
1
DM
Photo Coupler
MIDI OUT MIDI IN
2
BT1
Socket for CR2450
ASSP
SRAM 256K
ROM 8M
AND
SRAM 256K
BUFFER
OR
OR
OR
CPU
to P2.G3
OR
3
OR
to PN1/2-CN304
BUFFER
AND
OR
4
OR
AND
OR
BUFFER
to PN1/2-CN303
from P2.K6
5
to PN1/2-CN302
to P2.K6
6
DSP6
DRAM 4M
EXP.PEDAL
7
DIGITAL
OUT
DIT2
INVERTER
from P2.K6
from P2.K6
DRAM 4M
8
REGULATOR +3.3V
UD-Stomp
KEC-54242-2
UD-Stomp
Note : See parts list for details of circuit board component parts.
1
P1
: Ceramic Capacitor (Chip)
9
A
B
C
D
E
F
G
H
I
J
K
L
A
B
C
D
E
F
G
H
I
J
K
UD-Stomp
UD-Stomp OVERALL CIRCUIT DIAGRAM 2/3 (DM)
1
L
DM
OP AMP
2
OP AMP
to PN1/2-CN301
INPUT
OPAMP
OPAMP
PHONSE
OPAMP
3
OP AMP
from P1.E3
ADC & DAC
OPAMP
OUTPUT
(L/MONO)
OPAMP
4
INVERTER
OPAMP
OUTPUT
(R)
OP AMP
5
REGULATOR +5V
SHIFT
REGISTER
D-FF
B. COUNTER
INVERTER
AND
from P1.A6
to P1.A5, P1.G8
6
REGULATOR +5V
NJM78M05DLA (XZ162A00)
NJM7805FA (XJ607A00)
DM: IC111
DM: IC112
REGULATOR +5V
REGULATOR +5V
AC IN
12V 1A
2
1
1
3
REGULATOR
+15V
7
2
3
1: INPUT
2: GND
3: OUTPUT
REGULATOR
-15V
1: INPUT
2: GND
3: OUTPUT
NJM7815FA (XD853A00)
NJM7915FA (XD854A00)
DM: IC113
DM: IC114
REGULATOR +15V
REGULATOR -15V
1
2
3
3
1: INPUT
2: GND
3: OUTPUT
2
1
1: OUTPUT
2: COMMON
3: INPUT
8
KEC-54242-3
1
UD-Stomp
UD-Stomp
P2
9
A
B
C
D
E
F
G
H
I
J
K
L
A
B
C
D
E
F
G
H
I
J
K
UD-Stomp OVERALL CIRCUIT DIAGRAM 3/3 (PN 1/2, PN 2/2)
L
UD-Stomp
1
2
STORE
UTILITY
DOWN
UP
PN 1/2
D-FF
D-FF
BAND4
BAND3
BAND2
BAND1
7 segment LED
3 figures
3
D-FF
SYNC
BAND8
4
WAVE
BAND7
BAND6
GROUP
CONNECT
BAND5
D-FF
D-FF
FUNCTION
D-FF
to DM-CN103
5
to DM-CN1
to DM-CN2
TIME
ASSIGNABLE CONTROL
COARSE
FILTER
FINE
LOW CUT
HIGH CUT
FEEDBACK
DIRECT
LEVEL
DIRECT
PAN
TAP
SPEED
DEPTH
PAN
LEVEL
6
EFFECT LEVEL
PN
2/2
7
FOOT SW1
FOOT SW2
FOOT SW3
FOOT SW BANK
MULTIPLEXER
MULTIPLEXER
KEC-54243-2
to DM-CN3
1
8
UD-Stomp
UD-Stomp
P3
9
A
B
C
D
E
F
G
H
I
J
K
L
