s

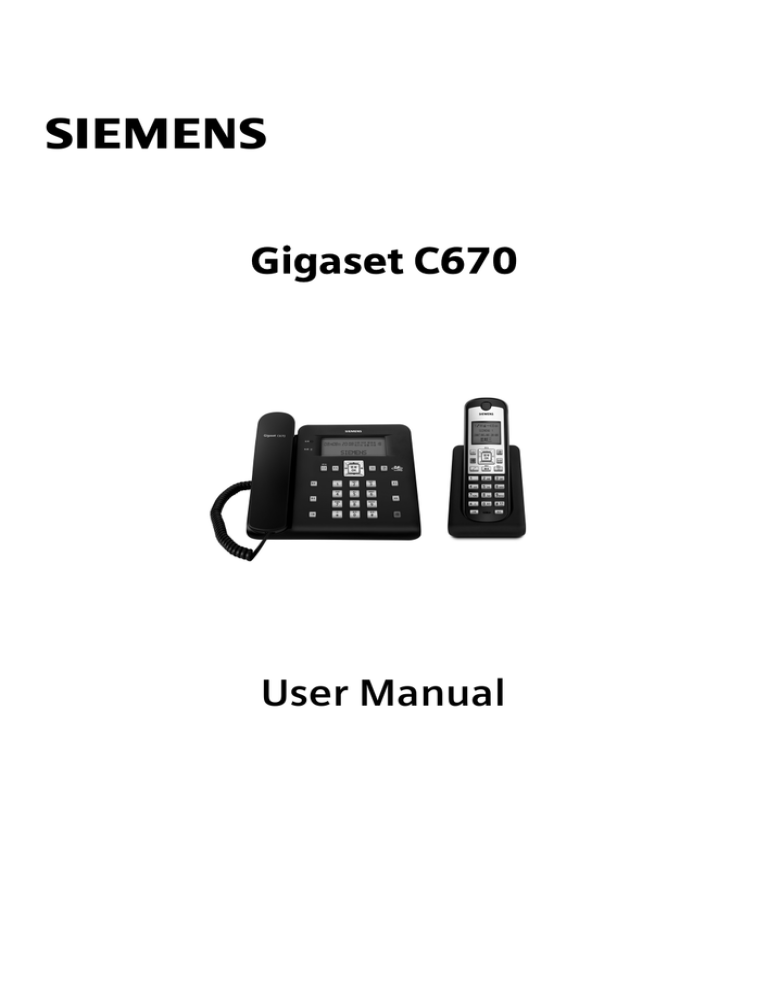

Gigaset C670
User Manual
C675 User manual system English
Catalog
Safty precaution……………………………………………….………………………………………………………………..2
Installing the base………………………………………….…………………………………………………………………………………..3
Inserting the battery and charging …………………………………………………………………………………………………………..3
Handset at a glance……………………………………………………………………………………………………………………………….5
Base at a glance…………………………………………………………………………………………………………………………………….6
Registering handsets…………………………………………………………………………………………………………………………..…8
Deregistering handsets………………………………………………………………………………………………………………………… .8
Paging handsets……………………………………………………………………………………………………………………………………8
Setting date and time…………………………………………………………………………………………………………………………….8
Basic Operation………………………………………………………………………………………………………………….9
Activating/Deactivating keypad lock ……………………………………………………………………………………………………….. 9
Activating/Deactivating ringer tone…….…………………………………………………………………………………………………….9
Back to the idle……………………………………………………………………………………………………………………………………. 9
Operating the menu………………………………………………………………………………………………………………………………9
Correcting wrong input…………………………………………………………………………………………………………………………..9
Making calls………………………………………………………….………………………………………………………...10
Making an external call…………………………………………………………………………………………………………………….….10
Mute…………………………………………………………………………………………………………………………………………………10
Ending a call………………………………………………………………………………………………………………………………………10
Accepting a call………………………………………………………………………………………………………………………………….10
Activating/deactivating Auto answer………………………………………………………………………………………………………10
Caller ID…………………………………………………………………………………………………………………………………………….10
Using directory…………..…………………………………….………………………………………………………………11
Phonebook………………………………………………………………………………………………………………………………………...11
Last number redial list………………………………………………………………………………………………………………………….11
Calls list……………………………………………………………………………………………………………………………………………..11
IP dialing…………………………………………………………………………………………………………………………12
Using several handsets…………………………………………………….……………………………………………….13
Intercom……………………………………………………………………………………………………………………………………………13
Conference call……………………………………………………………………………………………………………………………………13
Handset setting………………………………….…………………………………………………………………………….14
Ringer tone setting………………………………………………………………………………………………………………………………14
Contrast setting…………………………………………………………………………………………………………………………..………14
Activating/Deactivating the keypad beep……………………………………………………………………………………………… …14
Language setting………………………………………………………………………………………………………………………..………14
Handset reset……………………………………………………………………………………………………………………………..………14
Base station setting………………………………….……………………………………………………………………….15
Base tone setting……….………………………………………………………………………………………………………………………..15
Base reset……….………………………………………………………………………………………………………………..………………..15
Prefix PABX number……………………………………………………………………………………………………………………………..16
Appendix…………………………………………….…………………………………………………………………………..17
Menu tree …………….…………………………………….……………………………………………………….………….18
Standard character………………………………………….………..………………………………………………………20
1
C675 User manual system English
Safety precaution
Caution:
Read the safety precaution and the instruction before use.
Explain the contents to your children and the potential hazards associated with using the telephone.
$ Only use the main adapter supplied.
Fit only the recommended rechargeable batteries of the same type! Do not use any other battery type or
non-rechargeable batteries as this could result in significant health risks and personal injury.
‹ Insert rechargeable batteries as indicated by their polarity symbols, and use them according to these instructions
Œ
(polarity symbols can be seen in the handset’s battery compartments).
The operation of medical appliances may be affected. Be aware of the technical conditions in your particular
environment, e.g. operation rooms.
The handset may cause an unpleasant humming noise in hearing aids.
Eo not install the base station in bathrooms or showers. The handset and base are not waterproof.
Switch off your phone when onboard aircraft. Ensure that it cannot be switched on and again accidentally.
Do not use your phone in environments with a potential explosion hazard, e.g. auto paint shops.
ƒ
If you give your Gigaset to someone else, make sure you also give them the operating manual.
Dispose of the batteries and phone in accordance with environmental regulations.
2
C675 User manual system English
Preparing to use the phone
Installing the base
Connect the Base to power cord (220V) and phone cord, place the cords in the cord recesses.
Connect Power Cord
Connect Phone Cord
Notice:
Using the phone in a dry and indoor environment.
Try to place the phone on the center of your house.
Keep the phone away from hot things or other electric appliances, and no sunshine allowed.
Try to keep the phone away from other wireless equipment.
Keep the phone away from dust and corrosive liquid and air.
Remind with friendliness:
Keep the power adapter connects with Base all the time, or the Handset can’t dialing out.
Inserting the battery and charging
Notice:
It’s recommended to use the batteries supplied by SIEMENS, i.e.never use the conventional
(non-rechargeable) battery or other type of battery, or it could cause significant damage to
health or property. For example: the outer casing of the battery could be destroyed or the
battery could explode. The phone could also malfunction or be damaged as a result of using
batteries that are not of the recommended type.
Install the batteries as the polarity indicated in the case.
3
C675 User manual system English
Closing the battery cover
Put the cover on the phone as indicated on the picture below, push the cover upward until
click sound is heard, means the cover is fixed properly.
Open the cover
Push downward to open the cover.
First time battery charging
Put the handset on the base for charging. Please continue charging for more than15 hours
when first time using.
The battery icon
will flash on the top right of the display.
Remind with friendliness:
„ After the first time charging, the handset can be put on the base (or charger) after
talking/operation.
„ The battery pack heats up during charging. This is normal and not dangerous.
„ After a time, the battery capacity will decrease for technical reasons.
4
C675 User manual system English
Handset at a glance
1, Display
2, Navi Key/Incoming Call
3, Phonebook
4, Menu/OK
5, Hands free
1
6, Talk
7, Digital keys
2
3
4
5
8, *Key (Ringer off by long press)
10
9, Flash
11
12
13
6
10,IP Dialing
11,Intercom Key
12,End/Back (On/Off by long press)
13,Radial/Delete
14,#Key (Lock keypad by long press)
7
15,Mute Key
8
9
14
15
Handset LCD
1
2
3 4
5
6
7
8
9
10
11
1,
2,
3,
4,
5,
6,
Radio signal
Talk
Incoming Call
Ringer off
Keypad lock
Hands free
7, Phonebook
8, Battery Icon
9, Handset Name
10,Date and Time
11,Weekday
5
C675 User manual system English
Base at a glance
123
4
5
67
8 9
10
11
12
18 17 16
15
1,Using LED
2,Power LED
3,Intercom/Paging
4,Incoming Call
5,Menu/OK
6,Navi-key(Forward/Backward)
7,Volume key(Increase/Decrease)
8,Phonebook
9,IP Dialing
6
14
13
10,Back
11, Delete
12,Hands free
13,#/Pause Key
14,Digital Key
15,*/tone off
16,Redial Key
17, Mute Key
18,Flash Key
C675 User manual system English
Base LCD
1
1,
2,
3,
4,
5,
6,
7,
8,
9,
2
3
45
6
7
8
9
Date
Time
Registering
Ringer OFF
Intercom
Setting
Incoming Call
Storage
Counts of Incoming Call log
7
C675 User manual system English
Quick Index
Register
Registering Handset
Handset will auto register to base on first using.
If auto register failed, please do the operations as belowing.
Operations on Handset:
Press 菜 单
v ▲ ▼ Select A D V A N C E D S E T . OK
v ▲ ▼ R E G I S T R A T I O N OK v R E G I S T E R H A N D S E T ?
OK
v P L E A S E C O N F I R M R E G I S T R A T I O N OK v H O L D B A S E P A G E W A I T F O R B E E P
Operations on Base:
Hold Base Paging key until Beep v I n p u t H a n d s e t N a m e OK
After registered successfully, the handset goes back to idle status. The and the
handset number will display on the displayer.
You can register 4 handsets on 1 Base at most.
If fail to register, please repeat the operation above and try again.
Deregister
Deregistering handsets
Notice: Don’t do this unless necessary!
Press 菜 单
v ▲ ▼ Select A D V A N C E D S E T . OK
v ▲ ▼ D E R E G I S T R A T I O N OK v M O V E T O B A S E C O N F I R M D E R E G OK
v DEREGISTERED
Handset will ask for registering after deregistered, otherwise you will not able to
dial by handset.
Paging
Paging handsets
You can locate your handset using the base station.
Briefly press 对讲/呼叫 (paging) v P A G I N G E X T E N S I O N ?
v Input the number of handset for paging, press * Key for all handsets.
Handset paged will ring, even if the ringer tone was switched off.
End paging:
briefly press 对讲/呼叫 (paging) key on the base station or a key on handset.
Time
Setting
Setting Time and Date
Press 菜 单
v ▲ ▼ Select T I M E S E T T I N G OK v Input Time/Date OK
e.g.(only for reference):
Setting Time/Date to 2008-7-17 20:38
Enter T I M E S E T T I N G ,Ordinal inputing:203820080717 OK
Remind with friendliness:
You do not need to set Time/Date again on base, for handset will synchronize this
setting to base automatically.
8
C675 User manual system English
Quick Index
keypad lock
Basic Operations
Activating/Deactivating keypad lock
Long press R (handset) to toggle lock / unlock. LCD will display Ø.
It will unlock automatically while a call incoming. And Re-lock after talking.
Ringer
OFF/ON
Ringer OFF/ON
Long press P to turn off ringer tone.
Handset LCD will display Ú, Base LCD will display 免 打 扰
Long press P once again to turn on ringer.
End / Back
Back to the idle
You can go back to the idle status by the following ways:
Press a key (Handset) back to the idle.
Press 退 出
Menu / OK
key (Base) back to the idle.
Operating the menu
Your telephone's functions are accessed from a menu with a number of levels-Main menu and sub-menu.
To open the main menu, press 菜 单 with the handset in idle status.
Delete
Scroll to the required function with ▲ ▼ and press OK to access the function.
Correcting wrong inputs
Scroll
Press 删除 (Handset/Base) to delete the latest inputs.
Scrolling to display long number
If a telephone number is more than 12 digits in Phonebook or Redial list,
LCD will display g
You can use the 翻页 (Handset/Base)for scrolling to display next digits of the
whole number.
9
C675 User manual system English
Quick Index
c d
(Make a call)
Making calls
Making an external calls
Enter the phone number then press c or d.
Or:
Press c or d and then enter number.
Remind with friendliness:
You can also dial out by using the number stored in phonebook or redial list.
Accepting a call
Press c or d to accept an incoming call.
If the handset is in the base and the A U T O A N S W E R function is activated, the
handset will take a call automatically when you lift it out of the cradle.
Adjusting talking volume
You can press - + to adjust talking volume
静音
(Mute On)
a
(End a call)
Auto answer
Mute
Press 静 音 to deactivate the microphone during the talk with external line.
Screen display M U T E O N
Press 静 音 again to talk with external line again.
Ending a call
Press a to end a talk.
Activating/deactivating Auto answer
When this function is activated, when a call arrives you can simply lift the handset
out of the base without having to press the talk key c.
Press 菜 单 v ▲ ▼ P E R S O N A L S E T . OK v ▲ ▼ A U T O A N S W E R OK
v▲ ▼ Select ON / OFF OK
Caller ID
10
Caller ID
Requirements: you have applied the CID service.
When you get a call, the caller's phone number will be displayed on your handset.
The caller's name and number will be both displayed if it is stored in the
phonebook
Remark:
The phone was made according to the national standards. However sometimes
the CID function can’t be displayed properly for the reason of some special using
condition: e.g. connecting several phone on a single line or the PABX not a
standard appliance. Please contact with your local telecom service supplier.
C675 User manual system English
Quick Index
Phonebook
Using the phonebook and lists
Phonebook
You can save up to 50 phone numbers
Press h to open the phonebook in idle. Press ▲ ▼ to look for entries
Add entry (HS/BS)
Add entry
Press h v OK v ▲ ▼ Select A D D E N T R Y OK v E N T E R N A M E OK
v E N T E R N U M B E R OK
Length of entry
Name: 15 letters
Phonebook number: 24 digits
Dialling with the directory
Press h v ▲ ▼ Select an entry v Press c to dial.
Edit entry
Edit entry (HS/BS)
Press h v OK v ▲ ▼ Select E D I T E N T R Y OK v E D I T N A M E OK
v E D I T N U M B E R OK
Delete entry (HS/BS)
Delete
entry
Press h v OK v ▲ ▼ Select D E L E T E E N T R Y OK
v ▲ ▼ Select an entry OK v D E L E T E ? OK v D E L E T E D
Please delete needless entries to keep up the phonebook storage
Delete list (HS/BS)
Delete list
Press h v OK v ▲ ▼ Select D E L E T E L I S T OK v D E L E T E ? OK v D E L E T E
A L L ? OK v D E L E T E D
Redial list (HS/BS)
重拨
Redial
来电
CID List
This list contains the 10 last dialled numbers.
Press 重 拨 v ▲ ▼ Select a number v Press c to dial.
CID List (HS/BS)
Press ▲ ▼/来 电 v ▲ ▼ Select a number v Press c to dial.
Precondition:
Had applied CID, and there are some incoming calls stored in the list.
Last 30 entries will be stored into the list.
Setting to display ALL CALLS / MISSED CALL
Press 菜 单 v ▲ ▼ P E R S O N A L S E T . OK v ▲ ▼ C A L L L O G S OK
v ▲ ▼ Select ALL CALLS / MISSED CALL OK
If you set missed call, only missed call will be stored into the list.
11
C675 User manual system English
Quick Index
IP dialling
Store IP number
IP number
Press IP (LCD display the former record) v Press IP again v E N T E R N A M E OK
v E N T E R N U M B E R OK。
The method that input IP number below is for your reference since it may
different from various cards.
1, Input the IP access number. E.g. 17910
2, Insert “P” by double press key # if necessary (such as a voice prompt interrupt).
e.g. 17910P1P(means insert an pause P, select Chinese language, then insert
pause again)
3, Input IP number and Password, end with #.
e.g. 1 7 9 1 0 P 1 P 2 2 9 0 2 1 6 9 9 3 9 8 # 5 8 0 0 #
Press OK after all the input.
Remind with friendliness:
The IP dialling mentioned here refers to the function of the chargeable card, not
the service that supplied by telecom
IP dialling
Using the IP dialling
There are three ways to dial with IP
1, Input a long distance number v press IP
2, Select a number in phonebook/redial list v press IP
3, Press c or d v press IP v input long distance number
12
C675 User manual system English
Quick Index
Intercom
Using several handsets
Intercom
Handsets that registered on the same base can talk each other without calling fee.
Calling handsets
Press 对 讲
v Input the number of Handset you want to call
(Handsets1~4, Base 0, * for all)
The other Handset/Base answering the call by pressing c or d
Ending a call
Press a to end the call.
Transfer an external call to other handset
During the talk with external call, press 对 讲 v press the handset number you
want to transfer. You can press a immediately or inform another handset before
you end tall.
Internal consulting call
During the talk with external call, you can call another handset for consulting.
Press 对 讲 v press the handset number you want to consult with. Intercom
builds up after another handset answering that call.
It will auto come back to the external talk when the intercom ends.
Conference
call
Conference call
You are conducting an external call. An internal caller can listen in on this call and
take part in the conversation.
Precondition: The “CONFERENCE” function must be activated.
Activate/Deactivate conference call
Press 菜 单 v ▲ ▼ C O N F E R E N C E OK v ▲ ▼ Select ON / OFF OK
Start a conference call:
When you want to start a conference call during an external talk:
Press c or d to start a conference call by other handset.
The external call remains if one of the handset leave the conference call by
pressing a
13
C675 User manual system English
Quick Index
Handset Setting
Handsets have default set, you can change them to your personal set.
Audio Setting
Audio Setting
Volume
Press 菜 单 v ▲ ▼ A U D I O S E T T I N G OK v ▲ ▼ R I N G E R V O L U M E OK
v ▲ ▼ Select(HIGH,MEDIUM,LOW,OFF,ASCENDING)OK
Melody
Press 菜 单 v ▲ ▼ A U D I O S E T T I N G OK v ▲ ▼ R I N G E R M E L O D Y OK
v ▲ ▼ Select(MELODY 1 to MELODY 10)OK
Contrast
Contrast
Press 菜 单 v ▲ ▼ P E R S O N A L S E T . OK v ▲ ▼ C O N T R A S T OK
v ▲ ▼ Select(LEVEL 1 to LEVEL 3)OK
Key Beep
Key Beep ON/OFF
Press 菜 单 v ▲ ▼ P E R S O N A L S E T . OK v ▲ ▼ K E Y B E E P OK
v ▲ ▼ Select(ON / OFF)OK
Language
Language Setting
Press 菜 单 v ▲ ▼ P E R S O N A L S E T . OK v ▲ ▼ L A N G U A G E OK
v ▲ ▼ Select(ENGLISH / CHINESE)OK
Handset
Reset
Handset Reset
Press 菜 单 v ▲ ▼ A D V A N C E D S E T . OK v ▲ ▼ H A N D S E T R E S E T OK
v ▲ ▼ Select(NO / YES)OK
14
C675 User manual system English
Quick Index
Time
Setting
Base Setting
Time Setting
There is no need to set time again if you have set by handset.
Press 菜 单 v ▲ ▼ T I M E S E T T I N G OK
v T I M E / D A T E Input Time/Date OK v W E E K D A Y Input Weekday OK
Base Tone
Audio Setting
Volume
Press 菜 单 v ▲ ▼ A U D I O S E T T I N G OK vR I N G E R V O L U M E OK
v ▲ ▼ Select (H I G H ,MEDIUM,LOW,OFF) OK
Melody
Press 菜 单 v ▲ ▼ A U D I O S E T T I N G OK v R I N G E R M E L O D Y OK
v ▲ ▼ Select (MELODY 1 to MELODY 10) OK
Key Beep
Key Beep ON/OFF
Press 菜 单 v ▲ ▼ K E Y B E E P OK
v ▲ ▼ Select ON / OFF OK
Contrast
Contrast
Press 菜 单 v ▲ ▼ C O N T R A S T OK
v ▲ ▼ Select LEVEL1-LEVEL3 OK
Base
Reset
Base Reset
Press 菜 单 v ▲ ▼ B A S E R E S E T OK
v ▲ ▼ Select NO / YES OK
15
C675 User manual system English
Quick Index
Base Setting under PABX
Only if your Base connected to PABX, the following settings shall effect
TONE / PAUSE
Tone/Pause
Press 菜 单 v ▲ ▼ A D V A N C E S E T OK
v ▲ ▼ Select TONE / PAUSE OK
FLASH TIME
Flash Time
Press 菜 单 v ▲ ▼ A D V A N C E S E T OK v FLASH TIME OK
v ▲ ▼ Select (1 0 0 , 3 0 0 , 6 0 0 ) OK
PABX/PREFIX
PABX PREFIX
Normally the prefix number, such as “0”, is need to be added when you want to
dial an external number if you phone is under PABX. This number can be
automatically added if you set it in the Prefix.
Press 菜 单 v ▲ ▼ A D V A N C E S E T OK v P A B X P R E F I X OK
v Input a PREFIX number (2 digits at most) OK
NET WORK
Net Work Setting
Press 菜 单 v ▲ ▼ A D V A N C E S E T OK v NET WORK OK
v ▲ ▼ Select (P U B L I C N E T or P R I V A T E N E T ) OK
Dial an external number
Precondition: Set Network to P R I V A T E N E T and set a PABX PREFIX number.
Enter the phone number then press c or d
e.g.
Set PABX PREFIX number to 9
Enter 1234,Press c or d,number dialled out is 1 2 3 4
Enter 12345,Press c or d,number dialled out is 9 P 1 2 3 4 5
Caution:
PABX PREFIX will not implement if you press c or d and then enter number.
16
C675 User manual system English
Appendix
Care
Wipe the base station and handset with a damp cloth (no solvents) or an antistatic cloth.
Never use a dry cloth. This can cause static.
Contact with liquid
If the handset has come into contact with liquid:
Switch off the handset and remove the battery pack immediately.
Allow the liquid to drain from the handset.
Pat all parts dry, then with the battery compartment open and the keypad facing down place
the handset in a dry, warm place for at least 72 hours (not in a microwave, oven etc.).
Do not switch on the handset again until it is completely dry.
When it has fully dried out, you will normally be able to use it again.
General specifications
Standard
Range
Power supply
Temperature
Handset size
Handset weight
Battery
Calling time
Standby time
WDCT
up to 300 m outdoors,
up to 50 m in buildings
220V~/50HZ
0-45°C
152x52x28mm
138g
750mAh
6 hours
140 hours
Questions and answers
If you have any queries about the use of your phone, you can contact us any time at
www.siemens.com.cn/shc.
Or
Call hotline: 4006 706 007
17
C675 User manual system English
Menu Tree (Handset)
AUDIO SETTING
VOLUME
HIGH
MEDIUM
LOW
OFF
ASCENDING
MELODY
MELODY 1
…to
MELODY 10
CONFERENCE
ON
OFF
TIME SETTING
PERSONAL
SET.
CALL LOGS
AUTO ANSWER
CONTRAST
ALL CALLS
MISSED CALL
ON
OFF
LEVEL 1
LEVEL 2
LEVEL 3
KEY BEEP
ON
OFF
LANGUAGE
CHINESE
ENGLISH
ADVANCED
SET.
REGISTERATION
DEREGISTERATION
HANDSET RESET
NO
YES
18
C675 User manual system English
Menu Tree (Base)
TIME SETTING
AUDIO SETTING
RINGER VOLUME
HIGH
MEDIUM
LOW
OFF
RINGER MELODY
MELODY 1
to
MELODY 10
KEY BEEP
ON
OFF
CONTRAST
1/2/3
FLASH TIME
TONE/PULSE
100/300/600
TONE
PULSE
PUBLIC NET.
NETWORK
PRIVATE NET.
BASE RESET
YES
NO
NO.OF RINGS
3 RINGS
6 RINGS
TOLL SAVER
PABX PREFIX
19
C675 User manual system English
Standard characters
You can input some characters (e.g. during phonebook edit) by continue pressing a key:
1 x
20
2 x
3 x
4 x
5 x
0
0
A
Space
å
Ï
!
1
B
A
B
C
(
2
3
D
E
F
)
3
D
G
H
I
/
4
E
J
K
L
‘
5
F
M
N
O
å
6
G
P
Q
R
S
7
H
T
U
V
?
8
9
W
X
Y
Z
9
:
Ï
;
#
P
