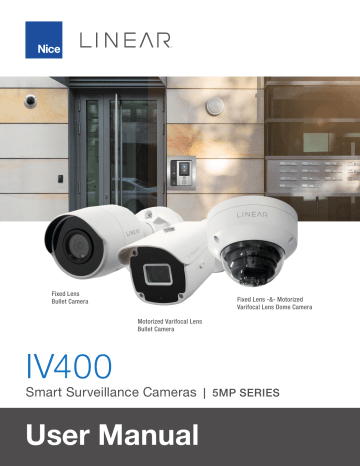

Fixed Lens
Bullet Camera
Fixed Lens -&- Motorized
Varifocal Lens Dome Camera
Motorized Varifocal Lens
Bullet Camera
IV400
Smart Surveillance Cameras | 5MP SERIES
User Manual
About This Document
This document intends to explain different aspects of the IV400 Cameras. It aims at simplifying
the tasks to be done with the application based on IV400. It will also help you learn some key
concepts. In this document, you will learn about different events and settings.
An overview of the Artificial Intelligence (AI) events and settings is as follow,
Event
• AI Events are different occurrences or incidents triggered by the camera.
• Each AI event has individual settings which allow you to tune them for optimal accuracy in
your environment.
• Motion Detection
• Camera Tamper Detection
• Intrusion Detection
• Line Cross Detection
• Loiter Detection
• Object Left/Removed Detection
• Object Classification
Settings
• Camera settings allow you to tune your image quality.
• System settings allow you to manage users or also perform a reset for your camera.
• Event Output allows you to define what the camera should do when a particular event
occurs.
Copyrights
Copyright ©2022 Nortek Security & Control LLC
All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in
any form or by any means, including photocopying, recording, or other electronic or mechanical
methods, without the prior written permission of the publisher, except in the case of brief
quotations embodied in critical reviews and certain other noncommercial uses permitted by
copyright law.
Nortek Security & Control LLC
Carlsbad, CA
www.linear-solutions.com
2
Smart Surveillance
1. Abbreviations & Key Concepts����������������������������������������������������������������������������������������������������������������������� 5
1.1 Abbreviations������������������������������������������������������������������������������������������������������������������������������������������������������� 5
1.2 Key Concepts������������������������������������������������������������������������������������������������������������������������������������������������������ 5
1.3 Prerequisites ������������������������������������������������������������������������������������������������������������������������������������������������������� 6
2. Introduction to Linear IV400 Management Application������������������������������������������������������������������������ 6
2.1 Need of the Application������������������������������������������������������������������������������������������������������������������������������������� 6
2.2 Features��������������������������������������������������������������������������������������������������������������������������������������������������������������� 6
2.3 Technical Specifications������������������������������������������������������������������������������������������������������������������������������������ 7
2.4 Camera Types����������������������������������������������������������������������������������������������������������������������������������������������������� 8
Fixed Dome Camera Images for Illustration���������������������������������������������������������������������������������������������8
Motorized Varifocal Lens Dome Camera Images for Illustration���������������������������������������������������������������9
Fixed Lens Bullet Camera Images for Illustration�����������������������������������������������������������������������������������10
Motorized Varifocal Lens Bullet Camera Images for Illustration��������������������������������������������������������������11
2.5 Software Specifications ���������������������������������������������������������������������������������������������������������������������������������� 12
3. Getting Started���������������������������������������������������������������������������������������������������������������������������������������������������� 12
3.1 Accessing the IV400 camera in any Web Browser using HTTPS or HTTP Protocol:����������������������������� 12
3.2 Logging into the Application��������������������������������������������������������������������������������������������������������������������������� 13
3.3. Changing the Password��������������������������������������������������������������������������������������������������������������������������������� 14
4. Live View (Home/Landing Page)������������������������������������������������������������������������������������������������������������������ 15
5. Event Lists Section�������������������������������������������������������������������������������������������������������������������������������������������� 16
6. Settings������������������������������������������������������������������������������������������������������������������������������������������������������������������� 17
6.1 System > Information�������������������������������������������������������������������������������������������������������������������������������������� 17
6.2 System > Time������������������������������������������������������������������������������������������������������������������������������������������������� 19
6.3 System > Maintenance����������������������������������������������������������������������������������������������������������������������������������� 20
6.4 System > Logs������������������������������������������������������������������������������������������������������������������������������������������������� 22
7. Camera������������������������������������������������������������������������������������������������������������������������������������������������������������������� 23
7.1 Camera > Video����������������������������������������������������������������������������������������������������������������������������������������������� 23
7.2 Camera > Audio����������������������������������������������������������������������������������������������������������������������������������������������� 24
7.3 Camera > Image���������������������������������������������������������������������������������������������������������������������������������������������� 25
General������������������������������������������������������������������������������������������������������������������������������������������������25
Image Quality���������������������������������������������������������������������������������������������������������������������������������������26
Exposure����������������������������������������������������������������������������������������������������������������������������������������������27
Privacy Mask����������������������������������������������������������������������������������������������������������������������������������������28
7.4 Events���������������������������������������������������������������������������������������������������������������������������������������������������������������� 29
General.......................................................................................................................................... ������29
3
Motion Detector�����������������������������������������������������������������������������������������������������������������������������������31
Camera Tamper Detector���������������������������������������������������������������������������������������������������������������������32
Intrusion Detector���������������������������������������������������������������������������������������������������������������������������������33
Line Cross Detector������������������������������������������������������������������������������������������������������������������������������34
Loiter Detector�������������������������������������������������������������������������������������������������������������������������������������35
Object Left/Removed Detector�������������������������������������������������������������������������������������������������������������36
Object Classification ����������������������������������������������������������������������������������������������������������������������������37
7.5 Storage ������������������������������������������������������������������������������������������������������������������������������������������������������������� 38
7.6 Network������������������������������������������������������������������������������������������������������������������������������������������������������������� 39
Static Setting����������������������������������������������������������������������������������������������������������������������������������������39
DHCP (Dynamic Host Configuration Protocol) Settings�������������������������������������������������������������������������40
Port Configuration��������������������������������������������������������������������������������������������������������������������������������41
SMTP/Email�����������������������������������������������������������������������������������������������������������������������������������������42
FTP������������������������������������������������������������������������������������������������������������������������������������������������������43
HTTP Post��������������������������������������������������������������������������������������������������������������������������������������������44
7.7 Security ������������������������������������������������������������������������������������������������������������������������������������������������������������ 44
Users���������������������������������������������������������������������������������������������������������������������������������������������������44
HTTPS�������������������������������������������������������������������������������������������������������������������������������������������������47
8. Logging Out���������������������������������������������������������������������������������������������������������������������������������������������������������� 48
9 FAQs�������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 49
10 Troubleshooting������������������������������������������������������������������������������������������������������������������������������������������������� 50
11 Customer Support��������������������������������������������������������������������������������������������������������������������������������������������� 50
4
Smart Surveillance
1. Abbreviations & Key Concepts
1.1 Abbreviations
Table 1: Description of Abbreviation
IP Cam
Internet Protocol Camera
NTP
Network Time Protocol
DST
Daylight Saving Time
DHCP
Dynamic Host Configuration Protocol
DNS
Domain name server
CBR
Constant Bitrate
VBR
Variable Bitrate
FPS
Frames per second
MJPEG
Motion JPEG
SMTP
Simple Mail Transfer Protocol
RTSP
Real Time Streaming Protocol
FoV
Field of View
IVA
IntelliVision Analytics
FDFR
Face Detection Face Recognition
RoI
Region of Interest
1.2 Key Concepts
Table 2: Description of Key Concepts
NTP
Network Time Protocol used to synchronize computer clock times in a network.
Force sync
Forcefully synchronizes time and date of the camera.
NTP Sync Interval
How often the camera synchronizes time to the Network Time Server.
Factory Reset
Used to reset all the settings to default values.
Reboot
Shuts down and restarts the camera.
Restore Default
Used to reset all the settings to default value, except for network settings.
HTTPS
Security protocol designed to facilitate privacy & data security for communications over the internet.
H.264
H.265
Popular compression for HD video, achieving high quality video in relatively low bit rates.
MJPEG
Motion JPEG (M-JPEG or MJPEG) is a video compression format in which each video frame or interlaced field of
a digital video sequence is compressed separately as a JPEG image.
DHCP
Dynamic Host Configuration Protocol (DHCP) is a network protocol that enables a server to automatically
assign an IP address to a computer from a defined range of numbers configured for a given network.
Static IP
A static IP address is an address that is manually assigned to your network devices. The IP address remains
constant until manually changed.
PoE, Power over Ethernet provides Local Area Network (LAN) connection and Power to the IP Camera over the Ethernet cable.
5
1.3 Prerequisites
The prerequisites are as follows:
• Make sure your camera is always connected to a PoE LAN connection.
• Web browser (Firefox/Chrome/Safari/Microsoft Edge).
2. Introduction to Linear IV400 Management Application
An Internet Protocol camera (IP) camera is a digital video camera that receives data and sends
image data via the LAN or WAN using Internet Protocol. They're used for surveillance and can
be directly accessed over a network connection. This makes them easy to install and connect
to your system, and you can view live camera feeds at any time with any web browser, RTSP
client, or on a smartphone mobile app. IP cameras can handle recording video, images and alarm
management. The camera can record directly to remote storage media such as a Network Video
Recorder (NVR), local SD card or cloud platform.
2.1 Need of the Application
A security camera system is required for effective surveillance of perimeter and internal monitoring,
as well as creating a record for events.
You can stay connected to your daily operations by monitoring with your surveillance system. This
allows you to manage store lines, employee activities, and streamline workflow based on live or
recorded video footage of your business or organization during working hours.
You can monitor, with clear video, large areas such as parking lots of any suspicious activity or
accidents with a powerful video surveillance system.
Video surveillance can help enormously with crowd control as well as prevent crime. It equips
security staff with real-time images from an event. Advance Security Systems can zoom in on
suspicious behavior before it becomes a problem. Law enforcement can also view a video of
public places like parks and common public places via a Security Operations Center (SOC), from
their smartphones or a vehicle laptop.
Video surveillance can help in monitoring traffic, such as counting the cars passing through or
improving the flow of traffic for better travel times. HD cameras can even record fast-moving cars
in challenging lighting conditions.
Video surveillance can help in transport Safety. Cameras can allow the vehicle or train operator to
confirm that people are clear of closing doors and that everyone is safe.
2.2 Features
The Linear® IV400 cameras includes advanced AI features including Motion Detection, Intrusion
Detection, Camera Tamper Detection, Object Classification, Loiter Detection, Line Crossing
Detection, Object Left/Removed Detection and Face Recognition (optional license required).
Feature descriptions are included with the event in the 7.4 Events section of the manual.
6
Smart Surveillance
2.3 Technical Specifications
The technical specifications are listed in the following table. Understanding the technical
specifications will help you technically know your camera better.
Model
IV400- 5DFW
5MP Fixed Lens Dome
Camera
IV400-5DVW
5MP Varifocal Lens Dome
Camera
IV400-5BFW
5MP Fixed Lens Bullet
Camera
IV400-5BVW
5MP Varifocal Lens Bullet
Camera
SOC Information
64-bit ARM® Quad Core
Cortex™-A53
64-bit ARM Quad Core
Cortex™-A53
64-bit ARM Quad Core
Cortex™-A53
64-bit ARM Quad Core
Cortex™-A53
Flash
256MB
256MB
256MB
256MB
RAM
512MB
512MB
512MB
512MB
Scanning System
Progressive
Progressive
Progressive
Progressive
Image Sensor
OV OS05A
OV OS05A
OV OS05A
OV OS05A
Max Resolution
2592x1944
2592x1944
2592x1944
2592x1944
Lens
2.8 mm Fixed
2.8 -12 mm MFZ
4 mm Fixed
2.8 -12 mm MFZ
Angle of view for(h/v/d)
104/77/136
90-31/65-23/118-38
77/57/101
90-31/65-23/118-38
Day/Night
Auto (ICR) / Color / B/W
Auto (ICR) / Color / B/W
Auto (ICR) / Color / B/W
Auto (ICR) / Color / B/W
Wide Dynamic Range
120dB
120dB
120dB
120dB
Noise Reduction
3D DNR
3D DNR
3D DNR
3D DNR
Lens
2.8 mm Fixed
2.8 -12 mm MFZ
2.8 mm Fixed
2.8 -12 mm MFZ
Field of view for(h/v/d)
103°/79°/134°
88°-30°/65°-23°/115°-38°
103°/79°/134°
88°-30°/65°-23°/115°-38°
Ethernet
RJ-45 (l0/l00Base-T)
RJ-45 (l0/l00Base-T)
RJ-45 (l0/l00Base-T)
RJ-45 (l0/l00Base-T)
Internal Storage
MicroSD/SDHC/SDXC
MicroSD/SDHC/SDXC
MicroSD/SDHC/SDXC
MicroSD/SDHC/SDXC
Audio IO
External audio I/O cable
Line in/Line out
External audio I/O cable Line
in/Line out
External audio I/O cable Line
in/Line out
Product Description
Built-in Mic
External audio I/O cable Line
in/Line out
PoE IEEE 802.3af Class 2
PoE IEEE 802.3af Class 0
PoE IEEE 802.3af Class 2
PoE IEEE 802.3af Class 0
DC 12V
DC 12V
DC 12V
DC 12V
Max. 6.49 W (IR on)
Max. 12.95 W (IR on)
Max. 6.49 W (IR on)
Max. 12.95 W (IR on)
Max. 3.6 W (IR off)
Max. 9 W (IR off)
Max. 3.6 W (IR off)
Max. 9 W (IR off)
Dimensions
Ø117 x 89.5 mm
Ø133.15mm X10 9.82mm
177 x 72.3 mm
215.46 x 85 mm
Weight
558g
1.12kg
550g
760g
Min: -30°C Max: +50°C
Min: -30°C Max: +50°C
Min: -30°C Max: +50°C
Min: -30°C Max: +50°C
(Min -22° F Max 122° F)
(Min -22° F Max 122° F)
(Min -22° F Max 122° F)
(Min -22° F Max 122° F)
Relative Humidity
Less than 95% RH
Less than 95% RH
Less than 95% RH
Less than 95% RH
Ingress Protection
IP66 IK10 Housing
IP66 IK10 Housing
IP66 IK10 Housing
IP66 IK10 Housing
Regulatory
CE/FCC/UL
CE/FCC/UL
CE/FCC/UL
CE/FCC/UL
Power Input
Power Consumption
Operating Temperature
7
2.4 Camera Types
There are four types of camera available: Fixed Dome, Motorized Varifocal Dome, Fixed Bullet and
Motorized Varifocal Bullet.
Fixed Dome Camera Images for Illustration
Figure 1: Fixed Lens Dome Camera
The following figure shows front view and rear view of the camera.
Figure 2: Front View of Fixed
Lens Dome Camera
8
Figure 3: Rear View of Fixed
Lens Dome Camera
Smart Surveillance
Motorized Varifocal Lens Dome Camera Images for Illustration
Figure 4: Motorized Varifocal Lens Dome Camera
The following figure shows front view and rear view of the camera.
Figure 5: Front View of Motorized
Varifocal Lens Dome Camera
Figure 6: Rear View of Motorized
Varifocal Lens Dome Camera
9
Fixed Lens Bullet Camera Images for Illustration
Figure 7: Fixed Bullet Camera
The following figure shows front view and rear view of the camera.
Figure 8: Front View of Fixed Lens
Bullet Camera
10
Figure 9: Rear View of Fixed Lens
Bullet Camera
Smart Surveillance
Motorized Varifocal Lens Bullet Camera Images for Illustration
Figure 10: Motorized Varifocal Lens Bullet Camera
The following figure shows front view and rear view of the camera.
Figure 11: Front View of Motorized
Varifocal Lens Bullet Camera
Figure 12: Rear View of Motorized
Varifocal Lens Bullet Camera
11
2.5 Software Specifications
Computer must be installed with any of the following browser.
• Web browser (Firefox/Chrome/Safari/IE/Microsoft Edge).
3. Getting Started
3.1 Accessing the IV400 camera in any Web Browser using HTTPS or
HTTP Protocol:
1.
Start your computer system, and launch any installed browser.
2.
Enter the IV400 camera IP in the address bar to access its web UI. (for example:
https://192.168.0.230), then press Enter.
3.
A warning message may appear on web browser UI.
4.
If so, click Advanced.
Figure 13: Connection Private
Figure 14: Advanced button options
12
Smart Surveillance
5.
Click the Continue to 192.168.0.230 unsafe link to access the IV400 Camera (IP). The Login
page is displayed.
Figure 15: Login Window
Accessing the IV400 camera using HTTP protocol:
1.
Launch any browser.
2.
Enter the IV400 camera IP in the address bar to access its web UI. (for example:
http://192.168.0.230), then press Enter.
3.
The Login page is displayed.
Notes:
• Make sure that IV400 camera is connected to the required power supply through "LAN/
WAN" network with POE Switch or NVR.
• Make sure the IV400 camera firmware is up to date and the camera is powered on.
• The default static IP for the IV400 Camera is 192.168.0.230.
• In the Mozilla Firefox browser, live view cannot be accessed using Self-signed certificate if
attempting to access IV400 Camera using HTTPS protocol.
3.2 Logging into the Application
To log into the system, follow these steps:
1.
Launch any web browser, enter the IV400 camera (IP) then press Enter.
2.
Enter valid User Name & Password on the Login page (Default User Name = admin /
Default Password = linear).
3.
Click the Submit button.
13
4.
After authorizing provided credentials, the Change Password login screen will be displayed.
Figure 16: Change Password
3.3. Changing the Password
To change the default password provided:
1.
Enter new password in Password and Confirm Password fields.
2.
Click Update.
Figure 17: Update Password
Notes:
• Be certain the Password entries match. If needed, click the
icon to confirm.
• If the new password is rejected, a prompt will be displayed. Confirm that all password
requirements have been met, and then try again.
NOTE: If for some reason the password cannot be recalled, a Factory Reset will be required.
3.
14
After the password has been updated and user login is successful, the Live View tab will be
displayed.
Smart Surveillance
4. Live View (Home/Landing Page)
Figure 18: Live View (Homepage)
1.
Live View Streaming: Monitor the camera's Live Streaming video.
2.
(Live View lower right) to access Live View full-screen. To exit Full
Full Screen: Click
Screen Live View, move your mouse to the top of the screen and click the X icon, press the
Esc key or click
(extreme bottom-right side) of screen.
Speaker: Adjust speaker volume (Minimum to Maximum level) using a slider. Click the speaker
icon to Mute or Unmute audio.
3.
Figure 19: Adjust Speaker Volume / Mute
4.
Microphone: Click the Mic icon to activate the mic and communicate (speak or announce).
This option is available only when accessing the IV400 camera web-UI using HTTPS method
rather than HTTP.
15
5.
Streams: Select a desired stream (“Stream 2” or “Stream 1”). Once selected, adjust options
for resolutions with encoding type supported by the IV400 camera. If any encoding type [for
example: H265 with higher resolution(5MP)] is not supported on Web browser UI, a warning
prompt will appear on the Live View screen.
6.
Zoom: Increasing (+) or Decreasing (-) to Zoom the camera. Once the Zoom is set, a few
seconds must pass before the new Zoom view will appear on live streaming.
7.
Focus: Adjust camera focus by Increasing (+) or Decreasing (-). Once the Focus is set, a few
seconds must pass before the new Zoom view will appear on live streaming.
8.
Auto Focus: Click Autofocus to allow the camera to focus to an optimal level to better view
unclear objects in the scene.
NOTE: Zoom, Focus & Autofocus functionality is supported only for the IV400-5BVW and IV4005DVW Camera types.
5. Event Lists Section
1.
This section will provide frequently generated events captured by the IV400 camera. A
maximum of 10 events can be listed.
Figure 20: Events List
2.
To filter displayed Events, hover the mouse over the Column Filter icon, and select or deselect
checkboxes. Click Apply. Event data detailed information will display selected information.
Figure 21: Filter Events List
16
Smart Surveillance
3.
To sort event data, hover your mouse over the Event Type filter. Select or deselect desired
checkboxes, then select Apply. Only selected events type will be displayed.
6. Settings
Configure various system settings to customize the live streaming experience.
6.1 System > Information
1.
Displays general information such as; Camera Name, Camera Model, Firmware Version, Kernel
version, Mac Address, IVA Licenses and License for FDFR.
Figure 22: Settings/System - Information
17
1.
Edit Camera Name: Click the Edit icon
adjacent to Camera Name. The Edit Camera
Name pop-up appears on-screen. Enter the new name, and then click Save.
Figure 23: Edit Camera Name
Figure 24: FDFR License
2.
18
FDFR License Validation: Enter a FDFR License key, then select Submit to validate the
license. Once validated, the camera's FDFR feature can be used.
Smart Surveillance
Figure 25: Set Date and Time via NTP
6.2 System > Time
Set the Date & Time for the IV400 camera. There are
three methods available.
1.
NTP - Network Time Protocol (NTP) synchronizes
computer clocks by periodically querying an
NTP Server. Date and Time settings for NTP are
displayed.
• Select Time Zone: On the map, click the
desired zone.
• Selected Zone: The selected location on the map is displayed.
• DST (Day Light Saving): After selecting a time zone, DST will be set to Enable by default (if
applicable to the location). Click Disable to turn off DST.
• NTP Server URL: For each region, an IP address or domain name for the timeserver can
be assigned. With no IP address or domain entered, the Network Camera connects to the
default time servers. For this option to take affect, the camera must have the access to the
Internet.
• NTP Server Interval (In Minutes): Click on the slider option and move left or right to adjust
the NTP Sync Interval time.
• Force Sync: Click the checkbox to forcefully sync camera time with NTP server time
whenever required.
Click Save to keep the new settings.
19
2.
Manual: Manually Set the Date and Time by clicking on Date (
popup menus.
3.
Sync with Computer: Click the checkbox to synchronize the camera's date and time with the
computer's operating system.
) & Time (
) and using the
Figure 26: Set Date and Time Manually
Select Save to keep the updated date and time settings.
6.3 System > Maintenance
Use Upgrade the camera firmware, Restore Default, Factory Reset and Reboot options to perform
camera maintenance on the IV400 camera.
Figure 27: System > Maintenance
20
Smart Surveillance
1.
IV400 Camera Upgrade: This feature allows you to upgrade the firmware of your Network
Camera.
To upgrade the firmware:
a. Download the latest firmware file from the link provided in the release document. The file is
in <IV400-NORK-xxxxxxx>.dat file format.
b. Click Browse, and then locate the firmware ".dat" file in your computer.
c. Click Upgrade. The Network Camera will begin the process below and will reboot
automatically when the upgrade completes.
• Upload firmware files to camera.
• Downloading firmware files on camera.
• Unpacking & Validating firmware files.
• Upgrading camera with new firmware.
• Rebooting the camera.
If the upgrade is successful: An Upgrade Successful message will appear on-screen. Click OK
to validate the upgrade.
If upgrade process fails: a warning message will be appear on-screen. The previous firmware
version will remain until a successful upgrade.
IMPORTANT: Do not power off the Network Camera or refresh the web UI of IV400 Camera
while the upgrade process is in progress.
2.
Restore Default: This option restores the camera to default settings, taking 1-2 minutes to
complete. The camera resets to default parameters for various Configuration settings other
than the Network-IP setting. Other data such as Event, Logs, Users will also remain.
21
3.
Factory Reset: Perform a factory reset on the camera, taking about 2-4 minutes to complete.
The Factory Reset feature will wipe all configurations, data and logs from the camera.
Once completed, the camera will operate with as it did straight from the factory. If
troubleshooting attempts cannot return the camera to normal operation, a factory reset is an
option to erase unforeseen problems preventing use of the IV400 Camera.
Press Factory Reset, then click Yes to confirm. Once reset, use the default IP address of
192.168.0.230, user name "admin" and password "linear" to login. Follow the prompts to
change the password from default.
4.
Reboot: This feature allows you to reboot the Network Camera, taking about 1-2 minutes
to complete. Click Reboot, then click Yes to confirm. If the network connection fails after
rebooting, manually enter the IP address in the address field.
6.4 System > Logs
This feature allows you to view IV400 Camera logs (for example: Time Stamp, Action, Applicant
and Account Details). View a list of all users who have accessed the system, as well as the actions
they performed.
Figure 28: System Logs
Diagnostics Logs: These logs help discover the root cause of any failure on the camera.
To store log in local system: Click Download, confirm the download then click Save to store the
log on the computer. Please share this encrypted log file with Linear technical support for further
troubleshooting.
22
Smart Surveillance
7. Camera
7.1 Camera > Video
Set various configuration related to Video settings.
Figure 29: Video Settings
Adjust settings such as Encoding Type, Resolution, Bitrate Type, FPS and Quality. View three
qualities of video streams, dictated by internet speed. Click Save when finished.
• Stream 1: Perform live streaming with highest resolution (up to 5MP).
• Stream 2: This is default stream used for live streaming. Video Analytics are available only
when using Stream 2. It supports live streaming at medium resolution up to 1080P.
• Stream 3 (Mjpeg): This stream supports live streaming at lowest resolution. This resolution
option is not available for Live View. If required, live streaming is available using any thirdparty media player (such as VLC player).
1.
URL: It contains the URL which can be used to play live streaming on third party media player
like VLC.
• RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media.
• By default, the port number is set to 554. If you want to use an VLC player to do live
streaming, you must set the video mode to H.264 or H.265 and use the RTSP URL to
request transmission of the streaming data with the correct login credentials.
• URL: rtsp://<ip address>/<access name for stream 1 to 3> (for example:
rtsp://192.168.0.230/stream1)
• Copy the URL by clicking on icon available at end on URL field. Check live view streaming
in a third party media player such as VLC.
2.
Encoding Type: Select an encoding type (H264 or H265).
3.
Resolution: This is the amount of detail the camera can capture, measured in pixels. Higher
resolutions offer better quality.
4.
FPS (Frames Per Second): FPS is a measurement for the number of recorded images a
camera will record each second. Low end digital video cameras typically have a frame rate of
30fps.
23
5.
Bit Rate: Bit rate is defined by kilobits per second (Kbps). The higher the bit rate, the better
the video quality.
• Constant Bit Rate: Select this option to perform live streaming at constant bit rate,
regardless of network bandwidth available.
• Variable Bit Rate: Select this option to perform live streaming at variable bit rate that varies
based to the network bandwidth available.
7.2 Camera > Audio
Select an audio Encoding Type and supported Sample Rate, and adjust Mic and Speaker settings
for better audio quality during live streaming.
Figure 30: Audio Settings
1.
Mic-Gain: Adjust microphone volume level by moving slider from 1%-100%.
2.
Mic-Mute: Disable the Network Camera's microphone.
3.
Speaker-Volume: Adjust speaker volume level by moving slider from 1%-100%.
4.
Speaker-Mute: Disable the Network Camera's speaker.
5.
Encoding Type with Sample rate: Select an encoding type from drop-down menu with its
associated sampling bit rate:
• G7.11A & G.711U support 8kHz & 16K=HZ sample rates.
• G.726 is a speech codec standard setting, covering voice transmission at rates of 16, 24,
32, and 40k bits.
• Opus encoding supports 48 kHz sample rate.
When finished, click Save to enable the settings.
NOTE: Audio encoding type ‘G.711A’ is not supported for .mp4 files.
24
Smart Surveillance
7.3 Camera > Image
General
Enable overlay for Date and Time and Video Analytics. Night Vision options are available, as well
as an option to Flip the Live View display. When finished making revisions, click Save.
Figure 30: Image Settings
Preview Window: Previews the Live View display.
Date & Time Overlay: When enabled, use the two pull-down options to select a Date and Time
Overlay format, as well as where the overlay will be located on the Live View screen.
Video Analytics Overlay (Stream 2 Only): Select required option available in dropdown.
• None: video analytics overlay will not be displayed for any motion observed.
• Video Analytics Tracking: a bounding-box will be displayed with its event-type.
• Face Recognition Tracking: a bounding-box surrounding a recognized face displays the
known person's name. "Unknown State" will be displayed for unknown detected faces.
Flip Action: flip Live View. Options include None, Rotate, Vertical and Horizontal.
Night Vision: Enable or disable Night Vision. Options include On, Off or Auto.
Night Vision Threshold (Only for Auto mode): Select High, Medium or Low, based on lighting
condition.
Smart IR Settings: Slide the pointer to balance lighting for Live View.
Infrared LED cameras have the capability to capture video in low light or no light areas. Infrared
cameras (IR) are sometimes referred to as Night Vision Security Cameras. Infrared cameras have
IR LEDs positioned around the outer edges of the camera lens, which provides the camera its
Night Vision.
Infrared Cameras can capture acceptable video in total darkness. Even a small amount of ambient
light helps the overall night vision capability of IR cameras.
25
Image Quality
Use the sliders to adjust image quality settings, or use the pull-down menu to select a White
Balance setting. When finished making revisions, click Save.
Figure 31: Image Quality
1.
Preview Window: Previews Live View.
2.
Brightness: Adjust the overall lightness or darkness of the image. When set to the lower side,
contrast is provided to highlight areas and the medium tone is made darker. When set on the
higher side, the scene can be brighter while overblown highlights are prevented.
3.
Contrast: Adjust the range between lightness and darkness in the processed image. It
controls the gradation between the darkest and lightest portions of the image.
4.
Sharpness: Adjust the strength of a subject’s contours. A lower number softens an image,
and a higher number setting sharpens an image. Keep in mind that increasing video sharpness
increases video noise.
5.
Noise Filter: This noise filter is used to reduce visible noise.
6.
Saturation: Adjust the color intensity in the image. When saturation is set toward the lower side,
the image looks lighter and less vivid. When set toward the higher side, the image appears
darker and more vivid.
7.
White Balance (On, Off or Auto): This setting defines how the camera processes video images
to render true colors in a scene. When this setting is On, the camera maintains automatic
color balance for most lighting conditions, including scenes that are outdoors, scenes with
changing lighting conditions or in scenes with more than one type of light source. Human eyes
and brain compensate for different types of light. Digital cameras need help to emulate this
process to compensate for different types of lighting and render a white object white.
26
Smart Surveillance
Exposure
A photograph's exposure determines how light or dark an image appears when captured by
camera. The IV400 has various available exposure camera settings. When finished making
revisions, click Save.
Figure 32: Image Exposure
1.
Preview Window: It is actual preview of Live View-Image.
2.
Auto Exposure: Enabled this setting to auto-adjust exposure level. Disable this option to set
exposure manually.
3.
AE Metering Mode: Metering allows your camera to determine a correct shutter speed and
aperture, depending on the amount of light detected by the camera. The metering mode refers
to the manner in which a camera determines exposure. Cameras generally allow a selection of
spot, center-weighted average or customized metering modes. Set the exposure according to
selected settings:
• Spot: Only evaluates the light around your focus point and ignores everything else. It
evaluates a single zone/cell and calculates exposure based on that single area.
• Center: Evaluates the light in the middle of the frame and its surroundings. It ignores the
corners.
• Average: Best used when shooting low contrast scenes such as patterns on walls or floors.
• Custom: allows you to customize settings, depending on the scene.
4.
AE Target Ratio: Slide the pointer to set the AE Target ratio of Auto Exposure.
5.
Minimum Sensor Shutter Time: When a slower shutter speed is selected, a longer time
passes from the moment the shutter opens and closes. More time is available for subject
movement to be recorded as a blur.
6.
Maximum Sensor Shutter Time: Faster shutter speeds can cause a moving subject to
appear unnaturally frozen.
7.
Manual Sensor Shutter Time: Set the Sensor shutter time manually.
8.
Maximum Sensor Gain: A digital camera setting that controls the amplification of the signal
from the camera sensor. Use the slider to set the Maximum Sensor Gain.
9.
Manual Sensor Gain: Set the sensor gain manually. Use the slider to set the Maximum
Sensor Gain.
27
10. Shutter Speed: A camera's shutter speed determines when the camera sensor will be
open or closed to incoming light. The shutter speed specifically refers to how long this light
is permitted to enter the camera. A faster shutter speed means a shorter exposure time.
Excessively fast shutter speeds can cause a moving subject to appear unnaturally frozen.
11. Slow Shutter Mode: When a slower shutter speed is selected, a longer time passes from the
moment the shutter opens and closes. More time is available for movement in the subject to
be recorded as a blur. Enable or disable Slow Shutter Mode as required.
12. Anti-Flicker Mode: Anti-Flicker is should be used if you are in a room with fluorescent lights
or you plan on shooting a television screen. Often when using a camera in these environments,
there is a noticeable flicker. This setting helps reduce flicker.
• Sets the Anti-Flicker mode on
• Setting it to 50Hz or 60 Hz depends on grid frequency
• North and South America: 60Hz
• Europe and Asia: 50Hz
13. WDR (Wide Dynamic Range) Strength: Sometimes part of image is extremely dark, and the
other part is extremely light. This makes it difficult to capture the information, especially during
surveillance of area like a store entrance. WDR balances that lighting to produce a clear
image. Use the slider to balance lighting for the image with wide Dynamic Range of lighting.
Privacy Mask
Add Privacy Zones to indicate areas of the camera's view that will not trigger camera recording.
Privacy Mask Switch: Click the switch ON to enable the Privacy Mask option. Click to OFF to
disable the option.
Add Zone: Click Add Zone to add a zone to the camera feed. Use the handles on the zone to
shape the zone to cover the areas of the screen that will not trigger camera recording.
Click Add Zone again, and repeat the process to add more zones.
ClickClick the Undo icon ( ) to revert back to the zone's previous state. Click the Edit icon again
to return to the edit process.
Click (
) to lock the zone's position.
Click (
) to delete a zone.
Click Save to save Privacy Mask settings.
28
Smart Surveillance
7.4 Events
General
Adjust settings for various general event options.
Events are generated whenever there is change in scene where the camera is focusing. For
example, someone tampering with a camera, an object is detected in the scene, motion is
detected or if someone is dwelling or loitering in the scene. There are various settings available for
event generation.
Figure 33: Events-General Settings
1.
Sensitivity: Use the slider to select the sensitivity between Low and High.
2.
Object Size-Set Size: Set the Minimum Size or Maximum Size for an object for event
generation in scene.
3.
Foreground Extract Mode: Select the mode as Standard, Advanced or Ultimate.
• Standard: Background is clear.
• Advanced: Background is blurred or not clear.
• Ultimate: Background is blurred or not clear. It's more effective than the Advanced option.
4.
Single Event per Object: When enabled, one event is generated per object until the object
disappears from the scene. When disabled, the application continuously fires an event for
same object until it exits from scene (at a regular interval, specified under Min. Interval Time).
Minimum interval is set as 10 seconds by default.
You can set the minimum interval when you disable Single Event per Object.
5.
Scene Type: Specify the scene as Outdoor or Indoor. Accordingly, IVA will work because
many parameters will change if the camera is kept indoor or outdoor (for example: Pattern of
light in scene (Day-Night), Climate condition, etc.).
29
6.
Camera View: Set the camera view as Horizontal, Overhead or Angled. The camera estimates
the angle in which event generation will be more accurate.
7.
Ignore Area: This option is defined for the area of the scene that does not come under region
of interest. It also helps improve performance and reduces false alarms. Ignore Area examples
include:
• Part of scene which is not required to process for an event generation.
• Part of scene in which there is no movement of an object or person.
8.
To configure Ignore Area settings for camera:
A. Click the toggle switch to ON to activate Ignore Area. The visible area is displayed in grid
format.
B. Perform any one of the following procedures:
• Select Grid Size: Select one of the grid sizes available in the dropdown (∨).
• Select Area: Using this option (
Ignore Area.
), select the required number of cells from the grid for
• Select Area (All): Using this option (
• Erase Area: Using this option (
Ignore Area.
), select entire grid for Ignore Area.
), clear the required number of cells from the grid for
• Erase Area (All): Using this option (
), clear entire grid for Ignore Area.
Figure 34: Grid Size / Grid Area
8.
Relearn Background: Click this option to have the application relearn the background from
current camera scene.
When finished adjusting settings, click Save.
30
Smart Surveillance
Motion Detector
Motion detection is a monitoring algorithm that detects motions that triggers the surveillance
camera to begin capturing an event. An advanced motion detection surveillance system can
analyze the type of motion to determine if it warrants an alarm.
Figure 35: Motion Detector
To enable camera Motion Detector:
1.
Click the toggle switch to turn on the Motion Detector toggle.
2.
Use the slider to select Sensitivity from the scale of Low to High.
The visible area is displayed in grid format and perform any one of the following procedures.
• Select Grid Size: Select one of the grid sizes available in the dropdown (∨).
• Select Area: Using this option (
event detection.
), select required number of cells from the grid for motion
• Select Area (All): Using this option (
• Erase Area: Using this option (
event detection.
), select entire grid for motion event detection.
), clear required number of cells from the grid for motion
• Erase Area (All): Using this option (
), clear entire grid for motion event detection.
When completed with the settings on this page, click on Save. All the events captured will be
reflected within the Events List tab.
1.
Check Ignore Continuous Motion box if continuously moving objects are in field of view such
as trees moving.
2.
Enable Short Motion to filter out activity that occurs for less than the specified duration. Select
the duration from the drop down list 1 - 5 seconds.
31
Camera Tamper Detector
Camera Tamper Detector is a setting within the IP camera that will send a notification when the
camera has been tampered with. The alert signals your video management system to monitor
recorded events.
Light Change: Light ON and Light OFF events are generated according to the light condition in
the scene.
Figure 36: Camera Tamper Detector
To enable camera tamper detection:
1.
To enable camera Tamper Detection and Light Change, click each option's toggle switch to
the ON setting.
2.
Move the slider left or right to adjust sensitivity toward Low or High.
When finished adjusting settings, click Save.
All the events captured will be reflected in the Events List tab.
32
Smart Surveillance
Intrusion Detector
New Zone (Red)
New Zone (Yellow)
Figure 37: Intrusion Detector
To enable Intrusion detector:
1.
Toggle Intrusion Entered/Exited events ON or OFF.
2.
Class Validation: Click check box to filter the intrusion validation based on classification as a
Human, Pet or Vehicle.
3.
Perform any one of the following procedures:
• Add Zone: Click Add Zone. Each newly created zone (Rectangle) will be listed under Zones
list in a unique color. To move the new zone, simply drag-drop to a new position in scene.
• Edit Zone: Clicking the Edit icon ( ) adjacent to the zone to be edited. Select and drag
the corners of a zone to set exact intrusion areas. Click the Undo icon ( ) to revert back
to the zone's previous state. Click the Edit icon again to return to the edit process. To save
changes, click the Save icon ( ).
• Delete Zone: Click the Delete icon (
) to remove a zone.
When finished adjusting settings, click Save.
All the events captured will be reflected in the Events List tab.
33
Line Cross Detector
Line Crossing detects a moving object that crosses over a defined line. The entry/exit direction
can be defined. The line can be drawn in any direction. Event notifications can be sent when a line
is crossed in a specific direction, or a count can be maintained to determine entry/exit counts.
Figure 39: Line Crossing Detector
To enable Line Cross Detector:
1.
Click the Line Cross Detector toggle switch to the ON setting.
2.
Perform any one of the following procedures:
• Draw Line: Add a horizontal or vertical line in the scene (Live View) by drawing a line on
the display. An event will be generated when an object crosses the line in the designated
direction.
• Reverse Direction: Click this option to reverse the direction arrow displayed on the newly
drawn line.
When finished creating the line crossing, click Save.
All the events captured will be reflected under Events List tab.
34
Smart Surveillance
Loiter Detector
The Loitering event detects objects standing or lingering in a selected area. This event detection
is based on Loitering Detector Time. It can be deployed indoors/outdoors, day or night, at any
venue.
Figure 40: Loiter Detector
To configure Loitering Detector settings for camera:
1.
Click the Loiter Detector toggle switch to the ON setting.
2.
Perform any one of the following procedures:
• Add Zone: Click Add Zone. Each newly created zone (Rectangle) will be listed under Zones
list in a unique color. To move the new zone, simply drag-drop to a new position in scene.
• Edit Zone: Clicking the Edit icon ( ) adjacent to the zone to be edited. Select and drag
the corners of a zone to set exact intrusion areas. Click the Undo icon ( ) to revert back
to the zone's previous state. Click the Edit icon again to return to the edit process. To save
changes, click the Save icon ( ).
• Delete Zone: Click the Delete icon (
) to remove a zone.
• Detection Time: Set loitering detection time in seconds.
When finished setting up the detector, click Save.
All the events captured will be reflected under Events List tab.
35
Object Left/Removed Detector
Object Left/Removed Detector identifies if an object is left or removed from the scene. Object Left
detects if an object that has been left unattended for too long a period of time. It looks for objects
that are not part of the normal scene. Object Removed can detect and alert when a specific object
has been removed from the scene.
Handles
Figure 41: Object Left/Removed Detector
To configure Object Left/Removed settings for camera, click the checkbox for Object Left Detector
or Object Removed Detector to enable the detector.
Use the four handles on the red or blue detection areas to shape that as needed.
When finished making changes, click Save.
All the events captured will be reflected under Events List tab.
36
Smart Surveillance
Object Classification
Object Classification uses Deep Learning AI technology to monitor for Humans, Vehicles or Pets.
The camera will notify only when an object of interest is detected, According to motion of any
object (Human, Vehicle or Pet), an event is generated.
Figure 42: Object Classification
To enable Object Classification:
To configure Object Classification settings for camera, click the Human Detector, Vehicle Detector
or Pet Detector to toggle switch to the ON setting.
When finished making changes, click Save.
All the events captured will be reflected under Events List tab.
37
7.5 Storage
This feature allows storage of the “live streaming data or event data” in .mp4 format on an external
SD Card and explains how to manage the local storage on the Network Camera.
If the SD Card setting is enabled, avoid using FTP for video storage to avoid load (heavy data)
processing. Either an SD Card or FTP server can be used to store event data.
Figure 49: Storage
1.
Save Video Files on SD Card: Click the toggle switch to ON to enable this parameter only if
the SD card is already inserted in an SD-card slot of any IV400 camera. SD card storage
usage is displayed in %.
2.
Format: Delete (clear all) existing data stored on SD Card. Click Format, then follow onscreen instructions.
NOTE: If an SD Card exists in a camera, and the SD Card cannot be enabled, perform a ‘Format
(Vfat format)’ action, so the SD Card will be compatible with IV400 Camera Hardware.
3.
Recording Type: There are two modes available:
a. Event Recording – In this mode, only the events generated in front of IV400 Camera are
recorded. Event data is stored in .mp4 format to the selected directory path. For each event
detected, a folder is created with the combination of “<Date>< Timestamp>” having 6 sec
.mp4 clips under directory path provided for SD card.
b. Continuous Recording – Select this mode if you want to enable continuous recording on
an SD Card. A folder (Name) is created with the combination of “<Date>< Timestamp>” to
directory path provided.
4.
Maintenance: Select Stop Recording or Cyclic Recording. These options are only activated
when the SD card storage capacity exceeds more that 90%.
a. Stop Recording – Select this option if you want to enable stop recording.
b. Delete Older Files – Select this option if you want to delete older files. When the maximum
capacity is reached, the oldest file will be overwritten by the newest.
5.
Directory Path: Choose the directory path to save the recordings on SD Card.
NOTES:
• The system supports vfat format to make an SD Card compatible with IV400 cameras.
• Only Insert/Remove the SD Card with the system power OFF to ensure proper SD Card
functionality, and prevent SD Card corruption.
38
Smart Surveillance
7.6 Network
This section explains how to configure a wired network connection for the Network Camera.
Select this option when the Network Camera is deployed on a local area network (LAN) and is
intended to be accessed by local computers.
It's necessary to configure the server settings so that the Network Camera will know the action to
take (such as where the server sends media files) when any event is generated.
There are four server types available for configuration: SMTP/Email, FTP, HTTP Post (Server) and
SD Card storage.
Static Setting
Allows you to manually configure the IP setting with all the information necessary for successful
network communications.
Default static IP for an IV400 camera is 192.168.0.230.
Figure 50: Network-Static
IP Address: Select DHCP or Static IP as required. The IP address will be displayed in IP Address
field.
Subnet Mask: This is used to determine if the destination is in the same subnet. The default value
is “255.255.255.0”.
Primary DNS1: The primary domain name server that translates hostnames into IP addresses.
Secondary DNS2: Secondary domain name server that backups the Primary DNS.
Default Gateway(router): This is the gateway used to forward frames to destinations in a different
subnet.
An invalid router setting will disable the transmission to destinations across different subnets.
To configure Network IP settings:
1.
Select required method (DHCP or Static) for IP configuration.
2.
Edit all required IP related details, and click Save.
39
Figure 51: Network-DHCP
DHCP (Dynamic Host Configuration Protocol) Settings
DHCP is a dynamic network management protocol used to assign an Internet Protocol (IP)
address to any device or node on a network, so they can communicate using IP.
Select this option to obtain an available dynamic IP address assigned for the IV400 Camera.
DHCP can be used to initially setup a surveillance system, but it is recommended that surveillance
and access control systems have permanent static IP Addresses.
40
Smart Surveillance
Port Configuration
This feature allows mapping new ports to HTTP, HTTPS for accessing the IV400 web interface, as
well as mapping new port for RSTP (to perform live streaming using third party media player like
VLC) instead of default ports.
Figure 52: Network-Port Configuration
To configure Network Port Configuration settings:
2. Enter valid port in HTTP, HTTPS and RSTP.
3. Click Save.
Try to access IV400 Camera web UI with the newly introduced port using HTTP and HTTPS. Also,
for live streaming on third party application like VLC, the RTSP port will be used.
41
SMTP/Email
Send event notification alerts via Email whenever an event is generated by the IV400 Camera.
Figure 53: Network-SMTP/Email
To configured the SMTP/Email for IV400 Camera:
1.
Enter all required data in each field as mentioned above (see below).
2.
Click Save.
All event alert or data will be sent via email to respective recipient email address
SMTP Email: Enter the valid sender email address.
SMTP Username: Enter the user name of the email account.
SMTP Password: Enter the password of the email account.
SMTP Server: Enter the domain name or IP address of the email server.
Port: Enter valid port number associated with SMTP server.
Use TLS: If your SMTP server requires a secure connection, then click the Use TLS check box.
Subject: Enter the subject line for sending email to recipient.
Email Recipient: Enter the valid email address of recipient.
42
Smart Surveillance
FTP
This feature allows you to send video (events data) to an FTP Server whenever any event is
generated by the IV400 camera. Also new folder (Folder Name: Mac ID of IV400 Camera) gets
created on FTP server which will have recorded event data as per ‘<Date><Timestamp> with 6
seconds .mp4 clips each.
End user needs to add require FTP login details as below example.
Figure 54: Network-FTP
To configure the FTP for IV400 Camera, follow below steps:
1.
Enter all required data.
2.
Click Save.
All event alert or data will be uploaded on the FTP Server.
NOTE: Use the FTP server to store event data only when the SD Card feature is disabled.
FTP IP / URL: Enter the FTP server URL.
Port: Enter manually required valid port number associated with FTP server.
Username: Enter the FTP account user name.
Password: Enter the FTP account password.
43
HTTP Post
Send event notification alerts data to an HTTP Server whenever an event is generated.
Network-HTTP Post
To configure the HTTP Post for IV400 Camera:
1.
Enter the server URL.
2.
Click Save.
All event alert or data will be uploaded to the HTTP Server in json format.
HTTP Server URL: Enter the URL of the HTTP server to receive event data.
7.7 Security
Users
The Admin User can add a new user, change user passwords or delete users.
There are three types of users: Administrator, Operators and User.
Admin Role: No restriction to create, modify or remove any camera settings.
Operator Role: Has limited capabilities to change camera and event settings. The operator
cannot change System Maintenance, logs or create new users.
User Role: View only access. Can access Live View, Events List and Settings page without
any restrictions but cannot modify any configuration. Cannot make setting changes to System
Maintenance and System logs.
By default, Admin is a "Super-Admin" that cannot be deleted.
44
Smart Surveillance
Add User: Admin can add new user (see below):
Figure 56: Add User
1.
Click Add User.
2.
Enter the Username.
3.
Select User Type (Admin, Operator or User)
4.
Enter Password.
5.
Click Save.
The newly added user will be listed on the user list (see Figure 57, next page).
Figure 57: Listed Users
45
Change Password
Figure 57: Change User Password
1.
Click the Change Password icon (
2.
Enter a New Password.
) visible under Actions.
NOTE: Password must contain minimum 8 characters, with at least 1 letter and 1 numeric
character.
3.
Confirm New Password.
4.
Click Save to complete the password change process.
Delete User: Admin can delete an existing user by following these steps:
1.
2.
Click the Delete icon ( ) associated with the user to delete.
Confirm the warning message "Are you sure you want to delete ‘Username’?" by clicking
Yes. The user will be removed from the list.
Figure 58: New Password / Delete User Icons
46
Smart Surveillance
HTTPS
Generate an SSL certificate (if required). It will be valid for next 10 years (Validity 3650) from "date
of issue".
By default, HTTP and HTTPS protocol is supported by the IV400 camera.
If required, HTTP can be disabled by clicking the ON/OFF toggle switch.
NOTE: The IV400 Camera has a Self-signed HTTPS certificate by default.
Figure 59: HTTPS
To upload a valid SSL Certificate:
1.
Select the Upload Certificate option is available on Web UI.
2.
Click Browse, then locate the certificate file.
3.
Click Upload.
If the certificate is valid, it will be applied, and the end user needs to re-access the IV400 Camera.
If the certificate is not valid, an error message will appear and the existing certificate will continue
to be used.
NOTE: Upload the SSL Certificate and Private key in a compressed .zip file.
47
Figure 60: Generate New SSL Certificate
To generate valid SSL Certificate:
1.
Click the Generate Certificate option.
2.
Enter the required details for Organization, Organization Unit, City/Locality, State/Province and
Country.
3.
Click the Generate button. A newly generated certificate will be issued and replace the
existing HTTPS certificate.
4.
Access the IV400 Camera to apply the new certificate.
NOTE: The country name should be in standard Alpha-2 code.
Access List
1.
Enable Access List by selecting ON.
2.
Click Add IP Address to allow or deny an IP Address, click Save.
3.
Click Save to update the Access List.
8. Logging Out
Click the Logout icon (
48
) (located at the top right of the screen). The login page will be displayed.
Smart Surveillance
9 FAQs
Question
How to access web UI of camera?
Answer
Open any web browser, and enter the camera IP address to access the
IV400 camera web UI (default: 192.168.0.230).
Question
What are the supported internet browsers?
Answer
Mozilla Firefox, Google Chrome, Microsoft Edge and Safari.
Question
What is my camera's default IP?
Answer
192.168.0.230
Question
How do I set object sizes and sensitivity precisely?
Answer
To precisely set the object sizes, go to the Event > General > Set Object
option to set maximum and minimum size of object.
Question
Where can I find events detected?
Answer
You can find events detected in Events List tab (next to Live View).
Question
What is intrusion detection?
Answer
Intrusion detection monitors activity within a defined area within the
cameras field of view, and issue alerts when activity is discovered. You can
set the area to apply the intrusion detection alarm by adding a zone.
Question
What is Camera tamper?
The Camera Tamper detector is a setting within your IP camera that will
send a notification when the camera is tampered with.
Answer
The camera sends a notification if someone is making contact with the
camera or blocking its view. The alert prompts you to log into your video
management system and review the event.
Question
How to check my license validity?
Answer
License validity can be checked in System > Information under the
Settings tab. License Valid/Invalid status is displayed.
49
10 Troubleshooting
Question
Camera web UI is not accessible?
Answer
Check whether the camera is active and connected to LAN.
Question
How to revert camera to default settings?
Answer
You can revert the camera settings to default by restoring default
settings. Restore Default resets all settings except network settings. If
you want to reset all settings, click Factory Reset.
Question
Why small objects are not detected by camera?
Answer
Reduce the minimum width/height of the object or
Try increasing the sensitivity.
Question
Why large objects are not detected by camera?
Answer
Please check if maximum width/height are set properly.
Question
Why many false objects are detected?
Answer
Try reducing the sensitivity and/or try increasing the Maximum object
size. Enable/Define Ignore area to some part of scene if it doesn’t need
to be monitored.
Question
Why any events are not generated?
Answer
Check ignore area settings, ignore area should not mask entire area of
the active area window.
11 Customer Support
USA & Canada Toll Free: 800-421-1587 or call 760-438-7000
|
www.linear-solutions.com
©2022 Nice North America LLC. Linear is a registered trademark of Nice North America LLC. All rights reserved.
10030158 Rev-A

advertisement

Key Features

  • AI-powered event detection for enhanced accuracy and reduced false alarms
  • Customizable settings for motion detection, intrusion detection, and more
  • 5MP resolution for crystal-clear video footage
  • Fixed or motorized varifocal lens options for flexible field of view
  • Rugged construction for durability and weather resistance

Related manuals

Frequently Answers and Questions

How do I access the camera's live view?
You can access the live view by logging into the IV400 camera application using HTTPS or HTTP protocol.
Can I change the camera's password?
Yes, you can change the password from the System > Information section in the camera settings.
How do I set up event detection?
You can customize event detection settings from the Event Lists section in the camera settings.
Can I adjust the camera's video quality?
Yes, you can adjust the camera's video settings from the Camera > Video section in the camera settings.
How do I perform maintenance on the camera?
You can perform maintenance tasks, such as resetting the camera, from the System > Maintenance section in the camera settings.

advertisement
