MSI MD 5000 Specifications

Getting Started

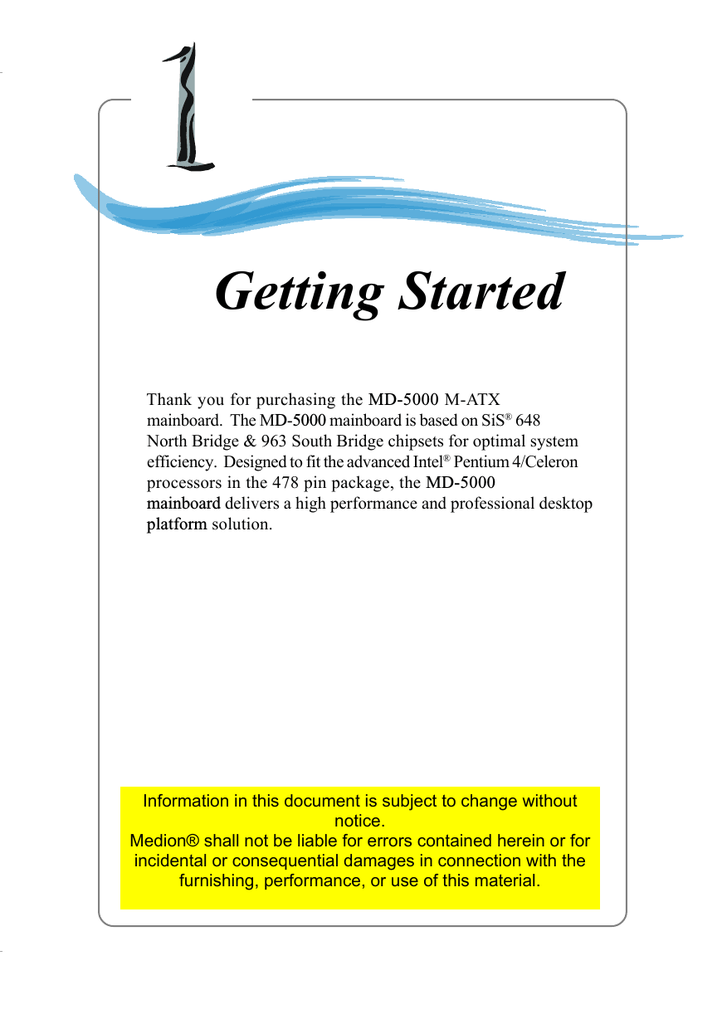

Chapter 1. Getting

Started

Getting Started

Thank you for purchasing the MD-5000 M-ATX mainboard. The MD-5000 mainboard is based on SiS ®

648

North Bridge & 963 South Bridge chipsets for optimal system efficiency. Designed to fit the advanced Intel ® Pentium 4/Celeron processors in the 478 pin package, the MD-5000 mainboard delivers a high performance and professional desktop platform solution.

Information in this document is subject to change without notice.

Medion® shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

1-1

MD5000 M-ATX Mainboard

Mainboard Specifications

CPU h Supports Socket 478 for P4/Celeron processors (Willimate and Northwood core) with 400/533 MHz h Core Frequency from 1.3 GHz to 2.8 GHz and up

Chipset h SiS ® 648 chipset

- Supports Intel Pentium 4 processors with data transfer rate up to 533 MHz

- Supports 64-bit high performance DDR333+/DDR333/DDR266 memory controller

- Supports AGP 8X/4X interface

- Supports bi-directional 16-bit data bus with 1 GHz bandwidth MuTIOL h SiS ® 963 chipset

- Supports Dual-IDE ATA 66/100/133

- Integrated audio controller with AC97 interface

- Low pin count interface for SIO

- Advanced power management and PC2001 compliance

Main Memory h Supports two 184-pin DDR DIMMs h Supports up to 2GB PC2700/2100/1600 DDR SDRAMs h Supports 2.5v DDR SDRAM

Slots h One AGP (Accelerated Graphics Port) 4x/8x slot.

h Three 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).

On-Board IDE h Dual-IDE controller integrated in SiS 963 chipset h Supports PIO, Bus Master and Ultra DMA133/100/66/33 operation modes h Can connect up to four IDE devices.

On-Board Peripherals h On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes

- 1 serial port

1-2

Getting Started

- 1 parallel port

- Audio * 3 in vertical for 6 channels Line-out, 2 in vertical for MIC & Linein

- 1 standard 1394 connector

- 1 mini 1394 connector

- 5 USB ports (3 front + 2 rear)

- 1 RJ-45 Lan Jack (optional)

- PS2 KB/Mouse

Onboard IEEE1394 h Integrated in SiS 963 SB h AGREE FW803

Audio h S/W RealTek ALC650 6-channel audio codec with SPDIF in/out

LAN h Realtek RTL8201BL

BIOS h The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.

h The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

Dimension h M-ATX Form Factor: 24.4 cm x 23.0 cm

Mounting h 6 mounting holes.

Others h Suspend to RAM/Disk (S3/S4) h PC2001 compliant h Chassis Intrusion Detection

1-3

M D-5000 M-ATX Mainboard

Mainboard Layout

Top : mouse

Bottom: keyboard

JPW1 CPUFAN1

Top : LPT

Bottom:

COM A

SPDIF in

SPDIF out

T: RJ45 LAN jack

B: USB ports

Mini IEEE

1394 Port

6-Channel

Line-out

IEEE1394

Port

J7

J9

MIC

Line-in

BIOS

Winbond

83697HF

SiS

648

AGP Slot

AGERE

FW803

PCI Slot 1

JSPDIF1

REALTEK

RTL8201BL

PCI Slot 2

PCI Slot 3

SiS650

Audio Codec

JCD1 JVEDIO1

BATT

+

JBAT1

JAUDIO1

M D-5000 M-ATX Mainboard

SiS

963

JUSB1

F_P1

1-4

Hardware Setup

Chapter 2. Hardware

Setup

Hardware Setup

This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as how to setup the jumpers on the mainboard. Also, it provides the instructions on connecting the peripheral devices, such as the mouse, keyboard, etc.

While doing the installation, be careful in holding the components and follow the installation procedures.

2-1

M D-5000 M-ATX Mainboard

Quick Components Guide

JPW1, p.2-9 CPU, p.2-3 CPUFAN1, p.2-17

Back Panel

I/O, p.2-10

DDR DIMMs, p.2-7

CONN1, p.2-9

FDD1, p.2-15

J7, p.2-26

J9, p.2-26

JSPDIF1, p.2-23

JCD1, p.2-25

JVEDIO1, p.2-17

JBAT1, p.2-25

JAUDIO1, p.2-19

PCI Slots, p.2-28

IDE1 & IDE2 p.2-16

AGP Slot, p.2-28

JUSB1, p.2-27

F_P1, p.2-17

2-2

Central Processing Unit: CPU

Hardware Setup

The mainboard supports Intel ® Pentium ® 4 processor in the 478 pin package. The mainboard uses a CPU socket called PGA478 for easy CPU installation. When you are installing the CPU, make sure the CPU has a

heat sink and a cooling fan attached on the top to prevent overheating. If you do not find the heat sink and cooling fan, contact your dealer to purchase and install them before turning on the computer.

CPU Core Speed Derivation Procedure

If CPU Clock

Core/Bus ratio

then CPU core speed =

=

=

=

=

100MHz

14

Host Clock x Core/Bus ratio

100MHz x 14

1.4 GHz

MSI Reminds You...

Overheating

Overheating will seriously damage the CPU and system, always make sure the cooling fan can work properly to protect the CPU from overheating.

Replacing the CPU

While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s power cord from grounded outlet first to ensure the safety of CPU.

2-3

M D-5000 M-ATX Mainboard

CPU Installation Procedures for Socket 478

1.

Please turn off the power and unplug the power cord before installing the CPU.

2.

Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90degree angle.

3. Look for the gold arrow. The gold arrow should point towards the lever pivot. The

CPU can only fit in the correct orientation.

4. If the CPU is correctly installed, the pins should be completely embedded into the socket and can not be seen.

Please note that any violation of the correct installation p r o c e d u r e s m a y c a u s e permanent damages to your mainboard.

5.

Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move while the lever is being closed, always close the lever with your fingers pressing tightly on top of the CPU to m a k e s u r e t h e C P U i s properly and completely embedded into the socket.

Sliding

Plate

Gold arrow

Gold arrow

Gold arrow

Press down the CPU

Open Lever

90 degree

Correct CPU placement

O

Incorrect CPU placement

X

Close

Lever

2-4

Hardware Setup

Memory

The mainboard provides 2 slots for 184-pin DDR SDRAM DIMM

(Double In-Line Memory Module) modules and supports the memory size up to 2GB. You can install DDR200/266/333 modules on the DDR DIMM slots

(DIMM 1~2).

DDR DIMM Slots

(DDR 1~2)

2-7

M D-5000 M-ATX Mainboard

DIMM Module Combination

Install at least one DIMM module on the slots. You can install either single- or double-sided modules in any order to meet your own needs.

Memory modules can be installed in any combination as follows:

Slot Memory Module Total Memory

DIMM 1

(Bank 0 & 1)

DIMM 2

(Bank 2 & 3)

S/D 64MB~1GB

S/D 64MB~1GB

Maximum System Memory Supported 64MB~2GB

S: Single Side D: Double Side

Installing DDR Modules

1.

The DDR DIMM has only one notch on the center of module. The module will only fit in the right orientation.

2.

Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the golden finger on the memory module is deeply inserted in the socket.

3. The plastic clip at each side of the DIMM slot will automatically close.

Volt Notch

2-8

MSI Reminds You...

You can barely see the golden finger if the module is properly

inserted in the socket.

Hardware Setup

Power Supply

The mainboard supports ATX power supply for the power system. Before inserting the power supply connector, always make sure that all components are installed properly to ensure that no damage will be caused.

ATX 20-Pin Power Connector: CONN1

This connector allows you to connect to an ATX power supply. To connect to the ATX power supply, make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned. Then push down the power supply firmly into the connector.

ATX 12V Power Connector: JPW1

This 12V power connector is used to provide power to the CPU.

3

1

4

2

11 1

JPW1

20

CONN1

10

PIN

7

8

5

6

3

4

1

2

9

10

CONN1 Pin Definition

SIGNAL

3.3V

3.3V

GND

5V

GND

5V

GND

PW_OK

5V_SB

12V

PIN

15

16

17

18

11

12

13

14

19

20

SIGNAL

3.3V

-12V

GND

PS_ON

GND

GND

GND

-5V

5V

5V

JPW1 Pin Definition

PIN

3

4

1

2

SIGNAL

GND

GND

12V

12V

2-9

M D-5000 M-ATX Mainboard

Back Panel

The back panel provides the following connectors:

Mouse

Parallel

LAN

(Optional)

6 Channel

L-out

MIC

Keyboard COM A SPDIFin

SPDIFout

USB IEEE1394

Ports

L-in

Mouse Connector

The mainboard provides a standard PS/2 ® mouse mini DIN connector for attaching a PS/2 ® mouse. You can plug a PS/2 ® mouse directly into this connector. The connector location and pin assignments are as follows:

4

6 5

3

2 1

PS/2 Mouse (6-pin Female)

PIN

3

4

1

2

5

6

Pin Definition

SIGNAL

Mouse DATA

NC

GND

VCC

Mouse Clock

NC

DESCRIPTION

Mouse DATA

No connection

Ground

+5V

Mouse clock

No connection

2-10

Hardware Setup

Keyboard Connector

The mainboard provides a standard PS/2 ® keyboard mini DIN connector for attaching a PS/2 ® keyboard. You can plug a PS/2 ® keyboard directly into this connector.

4

6 5

3

2

1

PS/2 Keyboard (6-pin Female)

PIN

3

4

1

2

5

6

Pin Definition

SIGNAL

Keyboard DATA

NC

GND

VCC

Keyboard Clock

NC

DESCRIPTION

Keyboard DATA

No connection

Ground

+5V

Keyboard clock

No connection

USB Connectors

The mainboard provides an OHCI (Open Host Controller Interface) Universal Serial Bus root for attaching USB devices such as keyboard, mouse or other USB-compatible devices. You can plug the USB device directly into the connector.

1 2 3 4

5 6 7 8

USB Ports

PIN

7

8

5

6

3

4

1

2

USB Port Description

SIGNAL

VCC

-Data 0

+Data0

GND

VCC

-Data 1

+Data 1

GND

DESCRIPTION

+5V

Negative Data Channel 0

Positive Data Channel 0

Ground

+5V

Negative Data Channel 1

Positive Data Channel 1

Ground

2-11

M D-5000 M-ATX Mainboard

Parallel Port Connector: LPT1

The mainboard provides a 25-pin female centronic connector as LPT.

A parallel port is a standard printer port that supports Enhanced Parallel Port

(EPP) and Extended Capabilities Parallel Port (ECP) mode.

13 1

PIN

13

14

15

16

9

10

11

12

7

8

5

6

3

4

1

2

21

22

23

24

25

17

18

19

20

25 14

Pin Definition

SIGNAL

SLIN#

GND

GND

GND

GND

GND

GND

GND

GND

STROBE

DATA0

DATA1

DATA2

DATA3

DATA4

DATA5

DATA6

DATA7

ACK#

BUSY

PE

SELECT

AUTO FEED#

ERR#

INIT#

DESCRIPTION

Strobe

Data0

Data1

Data2

Data3

Data4

Data5

Data6

Data7

Acknowledge

Busy

Paper End

Select

Automatic Feed

Error

Initialize Printer

Select In

Ground

Ground

Ground

Ground

Ground

Ground

Ground

Ground

2-12

Hardware Setup

RJ-45 LAN Jack (Optional)

The mainboard provides a RJ-45 connector that allows your computer to be connected to a network environment.

LAN Jack

(RJ-45)

4

5

6

7

8

Pin Signal

1 TDP

2

3

TDN

RDP

NC

NC

RDN

NC

NC

Description

Transmit differential pair

Transmit differential pair

Receive differential pair

Not used

Not used

Receive differential pair

Not used

Not used

Audio Port Connectors

Line Out is a connector for Speakers or Headphones. Line In is used for external CD player, Tape player, or other audio devices. Mic is a connector for microphones.

MIC

Line-in

Line-out

(subwoofer speaker)

Line-out

(rear speakers)

Line-out

(front speaker)

MSI Reminds You...

For advanced audio application, RealTek ALC650 audio chip

is provided as an option to offer support for 6-channel audio

operation and can turn rear audio connectors from 2-channel to 4-/6-channel audio.

2-13

M D-5000 M-ATX Mainboard

IEEE1394 Ports

The mainboard provides two IEEE 1394 ports. The mini IEEE1394 port is designed for you to connect the IEEE1394 device with external power.

The standard IEEE1394 port connects to IEEE1394 devices without external power. The IEEE1394 high-speed serial bus complements USB by providing enhanced PC connectivity for a wide range of devices, including consumer electronics audio/video (A/V) appliances, storage peripherals, other PCs, and portable devices.

IEEE1394 Port

(Standard)

IEEE1394 Port

(Mini)

SPDIF Connectors

The SPDIF connectors privided on the back pannel can be used to connect your digital audio equipment.

SPDIF

IN

SPDIF

OUT

2-14

Hardware Setup

Serial Port Connector: COM A

The mainboard offers one 9-pin male DIN connector as serial port COM

A. The port is a 16550A high speed communication port that sends/receives

16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to the connector.

1 2 3 4 5

6 7 8 9

9-Pin Male DIN Connector

PIN

7

8

5

6

9

3

4

1

2

Pin Definition

SIGNAL

DCD

SIN

SOUT

DTR

GND

DSR

RTS

CTS

RI

DESCRIPTION

Data Carry Detect

Serial In or Receive Data

Serial Out or Transmit Data

Data Terminal Ready)

Ground

Data Set Ready

Request To Send

Clear To Send

Ring Indicate

2-15

M D-5000 M-ATX Mainboard

Connectors

The mainboard provides connectors to connect to FDD, IDE HDD, case, modem, LAN, USB Ports, IR module and CPU/System FAN.

Floppy Disk Drive Connector: FDD1

The mainboard provides a standard floppy disk drive connector that supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.

FDD1

2-16

Hardware Setup

Hard Disk Connectors: IDE1 & IDE2

The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/

100/133 controller that provides PIO mode 0~4, Bus Master, and Ultra DMA

33/66/100/133 function. You can connect up to four hard disk drives, CD-

ROM, 120MB Floppy (reserved for future BIOS) and other devices.

IDE2 IDE1

IDE1 (Primary IDE Connector)

The first hard drive should always be connected to IDE1. IDE1 can connect a Master and a Slave drive. You must configure second hard drive to Slave mode by setting the jumper accordingly.

IDE2 (Secondary IDE Connector)

IDE2 can also connect a Master and a Slave drive.

MSI Reminds You...

If you install two hard disks on cable, you must configure the second drive to Slave mode by setting its jumper. Refer to the hard disk documentation supplied by hard disk vendors for jumper setting instructions.

2-17

M D-5000 M-ATX Mainboard

Fan Power Connector: CPUFAN1

The CPUFAN1 (processor fan) supports system cooling fan with +12V.

It supports a three-pin head connector. When connecting the wire to the connector, always take note that the red wire is the positive and should be connected to the +12V, the black wire is Ground and should be connected to

GND. If the mainboard has a System Hardware Monitor chipset on-board, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.

GND

+12V

SENSOR

CPUFAN1

2-18

MSI Reminds You...

1. Always consult the vendors for proper CPU cooling fan.

2. CPUFAN supports the fan control. You can install the PC

Alert utility that will automatically control the CPU fan speed according to the actual CPU temperature.

Hardware Setup

Front Panel Connector: F_P1

The mainboard provides one front panel connector for electrical connection to the front panel switches and LEDs.

1

8

F_P1

PS-ON

PWR_LED

HDD_LED

Reset

2-19

M D-5000 M-ATX Mainboard

Front Panel Audio Connector: JAUDIO1

The JAUDIO1 front panel audio connector allows you to connect to the front panel audio and is compliant with Intel ® Front Panel I/O Connectivity

Design Guide.

2

1

JAUDIO1

10

9

7

9

3

5

Pin

1

JAUDIO1 Pin Definition

Description

Speaker_R

Speaker_L

GND

MIC_IN

MIC_IN_S

4

6

Pin

2

8

10

Description

Front_R

Front_L

GND

Line_Next_R

Line_Next_L

2-20

MSI Reminds You...

If you don’t want to connect to the front audio header, pins 1 & 2, 3 & 4 have to be jumpered in order to have signal output directed to the rear audio ports. Otherwise, the Line-Out connector on the back panel will not function.

2 4

Hardware Setup

Front USB Connector: JUSB1

The mainboard provides one front Universal Serial Bus connector for users to connect USB devices.

1 2

7

9

11

13

3

5

Pin

1

15

17

JUSB1 Pin Definition

Description

Power

D1+

D1-

GND

SGND

GND

D3-

D3+

Power

8

10

12

14

4

6

Pin

2

16

18

Description

Power

D0+

D0-

GND

SGND

GND

D2-

D2+

Power

17 18

JUSB1

2-21

M D-5000 M-ATX Mainboard

CD-In Connector: JCD1

The connector is for CD-ROM audio connector.

Audio Connector: JVEDIO1

This connector allows you to connect to a TV Tuner Card.

2-22

JCD1

R GND L

JVEDIO1

VIDEO-R G

N

D

VIDEO-L

Hardware Setup

SPDIF Connector: JSPDIF1

The connector is used to connect an optional bracket for SPDIF (Sony

& Philips Digital Interconnect Format) digital audio transmission.

1 4

3 6

JSPDIF1

JSPDIF1 Pin Definition

3

5

Pin Description

1 VCC5

SPDIF-O

GND

4

6

Pin

2

Description

VCC3

NC

SPDIF-I

2-23

M D-5000 M-ATX Mainboard

IEEE 1394 Connector: J7 (Optional)

The mainboard provides one IEEE1394 connector with housing that allows you to connect optional IEEE 1394 ports.

1 2

9

J7

10

7

9

3

5

PIN SIGNAL

1 IEGND

TPA0-

Power

TPB0+

GND

Pin Definition

PIN

2

4

6

8

10

SIGNAL

GND

TPA0+

Power

TPB0-

IEGND

2-24

Hardware Setup

Joystick/Game Connector: J9 (Optional)

You can connect a joystick or game pad to this connector.

1 2

11

J9

12

J9 Pin Definition

7

9

11

3

5

Pin

1

Description Pin

FVCC5 (power) 2

RXD

GP5

4

6

GP7

GP1

GP3

8

10

12

Description

Key pin

GP4

GP6

GP2

GP0

TXD

2-25

M D-5000 M-ATX Mainboard

Jumpers

The motherboard provides the following jumpers for you to set the computer’s function. This section will explain how to change your motherboard’s function through the use of jumpers.

Clear CMOS Jumper: JBAT1

There is a CMOS RAM on board that has a power supply from external battery to keep the data of system configuration. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, use the JBAT1 (Clear CMOS Jumper ) to clear data. Follow the instructions below to clear the data:

1

Keep Data

3

1 3

Clear Data

1 3

JBAT1

MSI Reminds You...

You can clear CMOS by shorting 2-3 pin while the system is off.

Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the mainboard.

2-26

Hardware Setup

Slots

The motherboard provides one AGP slot and three 32-bit PCI bus slots.

AGP Slot

PCI Slots

PCI Combo Slot for the use of special combo cards

AGP (Accelerated Graphics Port) Slot

The AGP slot allows you to insert the AGP graphics card. AGP is an interface specification designed for the throughput demands of 3D graphics.

It introduces a 66MHz, 32-bit channel for the graphics controller to directly access main memory. The mainboard supports 4x/8x 1.5V AGP card.

PCI (Peripheral Component Interconnect) Slots

The PCI slots allow you to insert the expansion cards to meet your needs.

When adding or removing expansion cards, make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to make any necessary hardware or software settings for the expansion card, such as jumpers, switches or BIOS configuration. The third PCI slot supports

2 master devices.

2-27

M D-5000 M-ATX Mainboard

PCI Interrupt Request Routing

The IRQ, acronym of interrupt request line and pronounced I-R-Q, are hardware lines over which devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to the PCI bus INT

A# ~ INT D# pins as follows:

PCI Slot 1

PCI Slot 2

PCI Slot 3

Order 1

INT B#

INT C#

INT D#

Order 2

INT C#

INT D#

INT A#

Order 3

INT D#

INT A#

INT B#

Order 4

INT A#

INT B#

INT C#

2-28
