CCTV

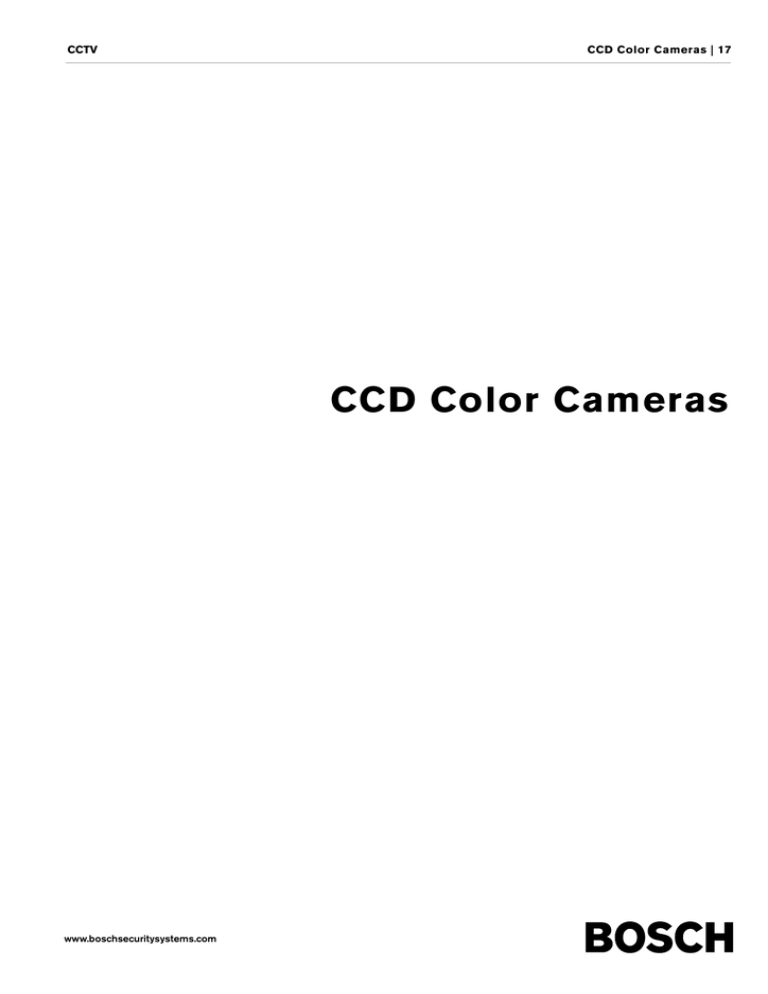

CCD Color Cameras | 17
CCD Color Cameras
www.boschsecuritysystems.com
18 | CCD Color Cameras
LTC 0435 Series Color Cameras
CCTV
Functions
Bilinx Technology The LTC 0435 series cameras incorporate
Bilinx. Bilinx is a bi-directional communication capability
embedded in the video signal of all Bosch Dinion cameras.
With Bilinx technicians can check status, change camera
settings and even update firmware from virtually anywhere along
the video cable. Bilinx reduces service and installation time,
provides for more accurate set-up and adjustment, and improves
overall performance. In addition, Bilinx uses the standard video
cable to transmit alarm and status messages, providing superior
performance without additional installation steps.
Parts Included
Qty
Components
1
LTC 0435 Series Color Camera
Certifications and Approvals
The LTC 0435 series are compact rugged, 1/3-inch image
format digital color CCD cameras. Their superior sensitivity and
resolution provide optimal performance in virtually all
environments.
Easy Installation, digital signal processing, on screen displays,
superior picture quality and reliability brings the video
performance of standard resolution color cameras to a level
never reached before and makes the LTC 0435 series the best
choice for first time and professional users.
This fully automatic camera is ready to work for you, and is easy
to install in even the most demanding applications. On- screen
Displays (OSD) provide quick and easy access to all camera
features.
The LTC 0435 cameras also comes with a lens wizard that
automatically detects the type of lens installed and provides an
OSD guide that allows the installer to easily adjust the lens level
and focus without special tools or filters.
The automatic black level feature, now introduced in color
cameras, enhances contrast by removing veiling glare from the
picture.
The wide range of through the lens automatic sensing tracking
white balance provides true to life color images for indoor and
outdoor applications.
The ability to operate on AC or DC provides added flexibility to
system designs and reduces the amount of training and support
items to keep on-hand.
Features
• 1/3- inch format CCD imager
• High sensitivity
• Advanced digital signal
• Processing
• Standard resolution
• Auto detection of lens type
• Easy to install
• Accepts AC or DC voltages
www.boschsecuritysystems.com
Electromagnetic compatibility:
EMC immunity:
According EN50130-4
EMC emission:
According EN505022 class B
According FCC, class B part 15
Safety:
LTC 0435/10 and LTC 0435/50: EN60065
LTC 0435/20 and LTC 0435/60: UL6500
CCTV
CCD Color Cameras | 19
Technical Specifications
Electrical
Model No.
Mechanical
Connectors
Rated Voltage
Voltage Range
System
12 VDC
24 VAC
50 Hz
10.8-39 VDC
12-28 VAC
45-65 Hz
PAL
12 VDC
24 VAC
60 Hz
10.8-39 VDC
12-28 VAC
45-65 Hz
NTSC
LTC 0435/50
230 VAC
50Hz
85-265 VAC
45-65 Hz
PAL
LTC 0435/60
120 VAC
60Hz
85-265 VAC
45-65 Hz
NTSC
LTC 0435/10
LTC 0435/20
Power
- Video Output
BNC
- Video/DC-iris connector
4-pin EIA-J
LTC 0435/10 and LTC 0435/20: push type
connectors, polarity independent, isolated
from video output terminals
LTC 0435/50: 2-wire power cord with Euro
plug
LTC 0435/60: 2-wire power cord with
polarized plug
Camera mounting
Top and Bottom, 1/4-inch 20 UNC.
Lens mounting
C and CS.
Power Consumption
4 W, excluding lens.
Dimensions
58 x 66 x 122 mm
Imager
Interline transfer CCD, 1/3-inch image
(H x W x D)
(2.28 x 2.6 x 4.8 inch).
format
including connectors
Active Picture Elements
Weight
0.45 kg (0.99 lb).
PAL Models: 500 H x 582 V
NTSCModels: 510 H x 494 V
Sensitivity (3200 k)
Operating
Usable Picture (50 IRE)
Scene illumination1)
Imager illumination
Environmental
0.39 lux (0.039 fc)
0.06 lux (0.006 fc)
-20°C to 50°C (-4°F to 122°F).
Full Video
Temperature
1.6 lux
Storage Temperature
-25°C to 70°C (-13°F to 158°F).
(0.16 fc)
Operating Humidity
5% to 93% non-condensing.
0.24 lux
(0.024 fc)
1) F/1.2, 89% reflection, SenseUp off
Ordering Information
Model & Description
Horizontal Resolution
330 TVL
Signal-to-noise Ratio
50 dB
AGC
21 dB (max)
Electronic Shutter
Automatic, 1/50 to 1/125000 sec.
(CCIR), 1/60 to 1/150000 sec. (EIA)
Aperture Correction:
Horizontal & vertical symmetrical
Backlight Compensation
Center window weighting
White Balance
Automatic sensing (2500-9000 K)
Video Output
Composite video 1.0 Vpp, 75 ohm
Synchronization
Line-Lock
(When powered by AC only) Synchronizes the camera to the power
line zero crossing for roll-free vertical interval switching. Vertical phase
delay can be adjusted (0 - 358 degrees) to allow vertical
synchronization in multi-phase power installations Free Running
(When DC-supply or L/L off): Internal crystal reference is standard on
all models.
Controls
Video level.
Shutter: AES / Off / Flickerless
AGC: On / Off
BLC: On / Off
Auto ATW: On / Hold Black: On / Off
R-offset
B-offset
Vphase Adjustment: 0 - 358 degrees
www.boschsecuritysystems.com
LTC 0435/10 Color Camera
1/3-inch Color camera PAL, low voltage
LTC 0435/20 Color Camera
1/3-inch Color camera NTSC, low voltage
LTC 0435/50 Color Camera
1/3-inch Color camera PAL, high voltage
LTC 0435/60 Color Camera
1/3-inch Color camera NTSC, high voltage
Hardware Accessories
LTC 3364/40 Varifocal Lens
1/3-inch, 2.8 – 12 mm, DC-iris, CS-mount, F/1.4 - 360, 4 pin
LTC 3374/20 Varifocal Lens
1/3-inch, 5 – 50 mm, DC-iris, CS-mount, F/1.4-185, 4-pin
TC120PS Power Transformer
Power Supply Unit (120 VAC, 60 Hz/15 VDC, 9 VA)
TC220PS Power Transformer
Power Supply Unit (220 - 240 VAC, 50/60 Hz/15 VDC, 9 VA)
TC220PSX-24 Power Transformer
Power Supply Unit (220 –240 VAC, 50/60 Hz/24 VAC, 20 VA)
TC1334 Power Transformer
Power Supply Unit (120 VAC, 60 Hz/24 VAC, 30 VA)
20 | CCD Color Cameras
LTC 0455 Series Color Cameras 540 TVL
CCTV
Functions
Bilinx Technology
The LTC 0455 series cameras incorporate Bilinx. Bilinx is a
bi-directional communication capability embedded in the video
signal of all Bosch Dinion cameras. With Bilinx technicians can
check status, change camera settings and even update firmware
from virtually anywhere along the video cable. Bilinx reduces
service and installation time, provides for more accurate set-up
and adjustment, and improves overall performance. In addition,
Bilinx uses the standard video cable to transmit alarm and status
messages, providing superior performance without additional
installation steps.
Parts Included
Qty
Components
1
LTC 0455 Series Color Camera
Certifications and Approvals
The LTC 0455 series are compact rugged, 1/3-inch image
format digital color CCD cameras. Their superior sensitivity,
540 TVL resolution and picture quality provide optimal
performance in virtually all situations. Easy Installation, digital
signal processing, on screen displays, superior picture quality
and reliability, brings the video performance of high resolution
color cameras to a level never reached before and makes the
LTC 0455 series the best choice for first time and professional
users.
This fully automatic camera is ready to work for you, and is easy
to install in even the most demanding applications. On-screen
Displays (OSD) provide quick and easy access to all camera
features. The LTC 0455 cameras also comes with a lens wizard
that automatically detects the type of lens installed and provides
an OSD guide that allows the installer to easily adjust the lens
level and focus without special tools or filters.
The automatic black level feature, now introduced in color
cameras, enhances contrast by removing veiling glare from the
picture. NightSense is used to further extend the excellent
sensitivity by a factor 3 in monochrome operation. This mode can
be automatically activated under low light situations.
Automatic sensing for tracking white balance, provides true to
life color images in indoor and outdoor applications.
The ability to operate on AC or DC provides added flexibility to
system designs and reduces the amount of training and support
items to keep on-hand.
Features
• 1/3-inch format CCD imager
• High sensitivity
• Advanced digital signal processing
• 540 TVL resolution with outstanding picture quality
• Extended sensitivity with nightsense
• Auto detection of lens type with lens wizard
• Easy to install
• Accepts AC or DC voltages
www.boschsecuritysystems.com
Electromagnetic compatibility:
EMC immunity:
According EN50130-4
EMC emission:
According EN505022 class B,
According FCC, class B part 15
Safety:
LTC 0455/10 and LTC 0455/50: EN60065
LTC 0455/20 and LTC 0455/60: UL6500
CCTV
CCD Color Cameras | 21
Technical Specifications
Electrical
Mechanical
Connectors
Model No.
Rated Voltage
Voltage Range
LTC 0455/11
12 VDC
24 VAC 50 Hz
10.8-39 VDC
12-28 VAC
45-65 Hz
PAL
12 VDC
24 VAC 60 Hz
10.8-39 VDC
12-28 VAC
45-65 Hz
NTSC
LTC 0455/21
System
Power
- Video Output
BNC
- Video/DC-IRIS connector
4-pin EIA-J
LTC 0455/10 and LTC 0455/20
push type connectors, polarity
independent, isolated from video output
terminals
LTC 0455/50: 2-wire power cord with
LTC 0455/51
230 VAC 50Hz
85-265 VAC
45-65 Hz
PAL
LTC 0455/61
120 VAC 60Hz
85-265 VAC
45-65 Hz
NTSC
Euro plug
LTC 0455/60: 2-wire power cord with
polarized plug
Camera mounting
Top and Bottom, 1/4-inch 20 UNC.
Power Consumption
4 W, excluding lens.
Lens mounting
C and CS.
Imager
Interline transfer CCD,
Dimensions
58 x 66 x 122 mm
1/3-inch image format.
(H x W x D)
(2.28 x 2.6 x 4.8 inch).
Active Picture Elements
including connectors
PAL Models
752 H x 582 V.
NTSC Models
768 H x 494 V.
Weight
Sensitivity (3200 k)
0.45 kg (0.99 lb).
Environmental
Scene illumination1)
fc
(color mode)
lx
Imager illumination
fc
(color mode)
lx
Scene illumination1)
fc
(night mode)
lx
Imager illumination
fc
(night mode)
lx
Usable
(30 IRE)
Usable
(50 IRE)
Full
Video
0.03
0.30
0.07
0.65
0.26
2.6
0.005
0.045
0.010
0.10
0.040
0.40
0.012
0.12
0.026
0.26
0.104
1.04
0.002
0.018
0.004
0.040
0.016
0.16
1) for f/1.2 lens, 89% scene reflectance.
Horizontal Resolution
540 TVL
Signal-to-noise Ratio
50 dB
AGC
21 dB, (max)
Electronic Shutter
Automatic, 1/50 to 1/125000 sec.
(CCIR), 1/60 to 1/150000 sec. (EIA)
Aperture Correction
Horizontal and vertical, symmetrical
Backlight Compensation
Center window weighting
White Balance
Automatic sensing (2500 - 9000 K).
Video Output
Composite video 1.0 Vpp, 75 Ohm
Synchronization
Line-Lock
(When powered by AC only) Synchronizes the camera to the power
line zero crossing for roll-free vertical interval switching. Vertical phase
delay can be adjusted (0 - 358 degrees) to allow vertical
synchronization in multi-phase power installations. Free Running
(When DC-supply or L/L off): Internal crystal reference is standard on
all models.
Controls
Video level
Shutter: AES / Off / Flickerless
AGC: On / Off
BLC: On / Off
Auto Black: On / Off
NightSense On / Auto / Forced
ATW: On / Hold
R-offset, B-offset
Vphase Adjustment: 0 – 358 degrees
www.boschsecuritysystems.com
Operating
-20°C to 50°C (-4°F to 122°F).
Temperature
Storage Temperature
-25°C to 70°C (-13°F to 158°F).
Operating Humidity
5% to 93% non-condensing.
Ordering Information
Model & Description
LTC 0455/11 Color Camera
1/3-inch Color camera PAL, hr, low voltage, 540 TVL
LTC 0455/21 Color Camera
1/3-inch Color camera NTSC, hr, low voltage, 540 TVL
LTC 0455/51 Color Camera
1/3-inch Color camera PAL, hr, high voltage, 540 TVL
LTC 0455/61 Color Camera
1/3-inch Color camera NTSC, hr, high voltage, 540 TVL
Hardware Accessories
LTC 3364/40 Varifocal Lens
1/3-inch, 2.8 – 12 mm, DC-iris, CS-mount, F/1.4 - 360, 4 pin
LTC 3374/20 Varifocal Lens
1/3-inch, 5 – 50 mm, DC-iris, CS-mount, F/1.4-185, 4-pin
TC120PS Power Transformer
Power Supply Unit (120 VAC, 60 Hz/15 VDC, 9 VA)
TC220PS Power Transformer
Power Supply Unit (220 - 240 VAC, 50/60 Hz/15 VDC, 9 VA)
TC220PSX-24 Power Transformer
Power Supply Unit (220 –240 VAC, 50/60 Hz/24 VAC, 20 VA)
TC1334 Power Transformer
Power Supply Unit (120 VAC, 60 Hz/24 VAC, 30 VA)
22 | CCD Color Cameras
LTC 0485 Series DinionXF Color
Cameras - 540 TVL
CCTV
Functions
XF-Dynamic
Extended dynamic range is brought to a new level on the
LTC 0485 Series Camera by XF-Dynamic technology.
XF-Dynamic automatically processes the highly accurate 15-bit
digital signal to optimally capture the detail in both the highlight
and lowlight areas of the scene simultaneously, to maximize the
information visible in the picture.
Bilinx Technology
The LTC 0485 series cameras incorporate Bilinx. Bilinx is a
bi-directional communication capability embedded in the video
signal of all Bosch Dinion cameras. With Bilinx technicians can
check status, change camera settings and even update firmware
from virtually anywhere along the video cable. Bilinx reduces
service and installation time, provides for more accurate set-up
and adjustment, and improves overall performance. In addition,
Bilinx uses the standard video cable to transmit alarm and status
messages, providing superior performance without additional
installation steps.
The LTC 0485 Series of High Performance 1/3-inch Digital CCD
Color Cameras create the best possible image, even under the
most difficult light and scene conditions. Based on unique 15-bit
digital video processing technology and employing
XF-Dynamic, these cameras provide excellent sensitivity with
extended dynamic range. By employing the best 1/3-inch CCD
available, advanced front end processing, combined with the
outstanding Dinion DSP, the cameras achieve an astonishing
sensitivity, providing better color images in low light situations
and sharper daytime images. Intelligent White balance
algorithms, supported by a White Balance Hold function and
even full manual white balance, ensure the most accurate color
reproduction possible. All Dinion cameras are supplied ready to
operate. Simply attach and focus the lens, and connect power to
provide optimal pictures under virtually all scene conditions. No
tools are required for back focus and power connection.
For extra challenging situations where fine tuning or special
settings are required, the camera parameters can be individually
set using the control buttons on the side of the camera and
On-screen Display (OSD). Also, to aid installation, the camera
automatically detects the lens type, and using the Lens Wizard
ensures accurate (back) focusing for perfectly sharp pictures at
all times
Video Motion Detection
The built-in video motion detector allows you to select up to four
fully programmable areas with individual thresholds. The global
scene change detector minimizes false alarms caused by
sudden lighting condition changes, such as switching on or off
the indoor or security lighting. When motion is detected alarms
may be displayed in the video signal, the output relay can be
closed in addition to alarm message transmission on Bilinx.
Auto Black
The automatic black level feature, enhances contrast by
removing veiling glare from the picture or when contrast is
reduced by fog or mist.
Default Shutter
When viewing moving objects a fast shutter speed is required.
When using a fast shutter speed the lens opening or gain control
needs to be increased to maintain the video signal.
The camera sensitivity is limited by the fast shutter speed.
The default shutter setting of the LTC 0485 offers the best of all
worlds, fast shutter speed as long as there is sufficient light,
however as the light level falls, when other adjustments have
been exhausted, the shutter reverts to the standard setting
maintaining the cameras excellent sensitivity.
Back Light Compensation (BLC)
Features
• 15-bit DSP technology
• XF-dynamic
• Bilinx communication
• NightSense
• Default shutter
• Lens wizard
Offering a fully programmable BLC area of interest, and a
variable BLC level, the camera can be easily set up for even the
most challenging entrance applications.
Lens Wizard
The LTC 0485 series automatically detects the type of lens
installed. The Lens Wizard will focus the lens at the maximum
lens opening, to ensure that focus is maintained throughout the
entire 24-hour day/night cycle. No special tools or filters are
required.
• Auto black
Programmable Modes
• Video motion detection
The camera supports three independent operating modes.
The 3 modes are preprogrammed for typical applications,
but are fully programmable for individual situations. Switching
between modes is easy via Bilinx or the external alarm input.
• 540 TVL resolution
www.boschsecuritysystems.com
CCTV
CCD Color Cameras | 23
NightSense
The LTC 0485 cameras feature NightSense. With NightSense
the sensitivity is increased by 9 dB in monochrome mode.
NighSense can be automatically activated in low light situations,
or remotely using Bilinx.
Technical Specifications
Electrical
Type no.
LTC 0485/11
LTC 0485/21
LTC 0485/51
LTC 0485/61
CCD type
1/3-inch interline
SensUp
Active pixels
752 x 582 (PAL)
By increasing the integration time on the CCD up to 10 times,
the effective sensitivity is dramatically enhanced, especially
useful where there is no artificial lighting and you rely on the
moon, stars and scattered radiation.
Sensitivity
2.4 lux
(Full video)*
Sensitivity
Parts Included
Illumination
Qty
Components
Illumination
1
LTC 0485 Series DinionXF Color Camera
Minimum
Certifications and Approvals
540 TVL
SNR
> 50 dB
Video output
1 Vpp, 75 Ω
Y/C output
Y: 1 Vpp / C: 0.3 Vpp
Sync.
Internal, Line Lock, HV-lock and Genlock
(Burst lock) selectable
Emission
EN55022 class B, FCC class B part 15
Immunity
EN50130-4 Alarm Systems, Part 4
Camera with 500 gr (1.1 lbs) lens according to
IEC60068-2-27
Shutter
EN60065 (/10 and /50 models)
Flickerless, Default
Sensitivity
Off, Automatic continuous up to 10x
Auto Black
On, Off selectable
Range
32x dynamic range enhancement
Dynamic Noise
Auto, Off selectable
Contour
Sharpness enhancement level selectable
BLC
Off, Area and Level selectable
Gain
Auto (maximum level selectable to 28 dB) or
UL6500, cUL CAN/CSA E60065-00 (/20 and /60 models)
fixed level selectable
Lens Mount
C/CS
White balance
ATW (2500 - 10000 K), AWB hold, Manual WB
Installation/Configuration Notes
LENS 4-PIN
selectable
67 (2.638")
VMD
4 area, sensitivity selectable
Alarm output
VMD or Bilinx
Alarm Input
Profile switching, +5 V nominal, +40 VDC max
29
(TTL)
29.6
59 (2.323")
1/4"-20 UNC
DinionXF Color Camera
Auto (1/60 (1/50) to 1/500000), Fixed,
Reduction
Safety
33 (1.30)
0.024 lux / 0.010 lux (NightSense)
Min. Resolution
Electro Magnetic Compatibility
117 (4.606")
85 (3.346)
0.24 lux / 0.10 lux (NightSense)*
with Sens up
Spare male 4 – pin lens connector
Vibration
0.59 lux / 0.24 lux (NightSense)
50 IRE*
Minimum
1
768x492 (NTSC)
DinionXF Color Camera
1/4"-20 UNC
48 (1.889")
122 (4.803")
Dimensions in mm (inches).
Alarm Output
max. 30 VAC or +40 VDC, Max 0,5 A
Relay
continuous, 10 VA
External sync
75 Ω or High Impedance selectable
input
133 (5.236")
Cable
Up to 1000 m (3000 ft) coax without external
compensation
amplifiers (automatic set-up in combination with
Camera ID
16 character editable string, position selectable
Lens types
Manual, DC and Video Iris auto-detect with
coaxial communication)
DinionXF Color Camera
override DC-IRIS drive: max 50 mA continuous
Dimensions in mm (inches)
Video iris: 11.5 ± 0.5 VDC, max 50 mA
continuous
Remote control
Bi-directional coaxial communication
Power
4W
Consumption
Power
/11 and /21
Supply
45 – 65 Hz
11 - 39 VDC
/51 and /61
www.boschsecuritysystems.com
12 - 28 VAC,
85 – 265 VAC
45 - 65 Hz
24 | CCD Color Cameras
Electrical
CCTV
Ordering Information
Dimensions
59 x 67 x 122 mm (2.28 x 2.6 x 4.8 inch)
Model & Description
(H x W x L)
without lens
LTC 0485/11 High Performance Color Camera
Weight
450 g (0.99 lbs) without lens
Tripod mount
Bottom (isolated) and top 1/4-inch 20 UNC
Controls
OSD with softkey operation
DinionXF, 1/3-inch Color, PAL, low voltage
LTC 0485/21 High Performance Color Camera
DinionXF, 1/3-inch Color, NTSC, low voltage
LTC 0485/51 High Performance Color Camera
*F1.2, 89% scene reflectivity, SensUp Off
Environmental
Operating
LTC 0485/61 High Performance Color Camera
-20°C to +50°C(-4°F to +122°F)
Temperature
Storage
DinionXF, 1/3-inch Color, PAL, high voltage
-25°C to +70°C(-13°F to +158°F)
Temperature
Ambient
Operating: 20% to 93% RH,
humidity
storage up to 98% RH
DinionXF, 1/3-inch Color, NTSC, high voltage
Hardware Accessories
LTC 3364/21 Varifocal Lens
1/3-inch, 2.8 – 6 mm, DC-iris, CS-mount F/1.4 - 300, 4 pin
LTC 3364/31 Varifocal Lens
1/3-inch, 3.5 – 8 mm, DC-iris, CS-mount, F/1.4 - 300, 4 pin
LTC 3364/40 Varifocal Lens
1/3-inch, 2.8 – 12 mm, DC-iris, CS-mount, F/1.4 - 360, 4 pin
LTC 3374/20 Varifocal Lens
1/3-inch, 5 – 50 mm, DC-iris, CS-mount, F/1.4-185, 4-pin
LTC 3384/21 Zoom Lens
1/3-inch, 6 – 60 mm, DC-iris, CS-mount, F/1.4-360, 4-pin
TC120PS Power Transformer
Power Supply Unit (120 VAC, 60 Hz/15 VDC, 9 VA)
TC220PS Power Transformer
Power Supply Unit (220 - 240 VAC, 50/60 Hz/15 VDC, 9 VA)
TC220PSX-24 Power Transformer
Power Supply Unit (220 –240 VAC, 50/60 Hz/24 VAC, 20 VA)
TC1334 Power Transformer
Power Supply Unit (120 VAC, 60 Hz/24 VAC, 30 VA)
Software Options
VP-CFGSFT Configuration Software
for cameras using Bilinx, includes VP-USB Adaptor
www.boschsecuritysystems.com
26 | CCD Color Cameras
LTC 0495 Series DinionXF
Day\Night Cameras - 540 TVL
CCTV
Functions
XF-Dynamic
The highly accurate 15-bit digital signal is automatically
processed to optimally capture the detail in both the high and
low light areas of the scene simultaneously, maximizing the
information visible in the picture.
Bilinx Technology
Bilinx is a bi-directional communication capability embedded in
the video signal of all Bosch Dinion cameras. Technicians can
check status, change camera settings and even update firmware
from virtually anywhere along the video cable. Bilinx reduces
service and installation time, provides for more accurate set-up
and adjustment, and improves overall performance. In addition,
Bilinx uses the standard video cable to transmit alarm and status
messages, providing superior performance without additional
installation steps.
Video Motion Detection
The LTC 0495 High Performance 1/3-inch Digital CCD
Day/Night Camera ensures the highest image quality possible at
any time. Depending on the available light the camera will
automatically switch from color to monochrome.
A unique combination of 15-bit digital video processing that
enhances sensitivity and XF-Dynamic which extends the
dynamic range provides a sharper, more detailed image with
outstanding accuracy in color reproduction.
All Dinion cameras are supplied ready to operate. Simply attach
and focus the lens, then connect power. No tools are required
for back focus and power connection. For especially challenging
situations where fine tuning or special settings are required, the
camera parameters can be individually set using the control
buttons on the side of the camera and On-screen Display
(OSD). The camera automatically detects the lens type. The
Lens Wizard ensures accurate back-focusing for perfectly sharp
pictures at all times.
Features
• 15-bit DSP Technology
• High sensitivity
• Mechanically switching IR filter for IR sensitivity at night
• XF-Dynamic for unsurpassed wide dynamic range
• Bilinx Communication for remote set-up and control
• Default Shutter eliminates motion blurring
• Four area video motion detection
• 540 TVL resolution
The built-in video motion detector allows you to select up to four
fully programmable areas with individual thresholds. The global
scene change detector minimizes false alarms caused by
sudden lighting condition changes, such as switching on or off
the indoor or security lighting. When motion is detected alarms
may be displayed in the video signal while the output relay can
be closed in addition to alarm message transmission on Bilinx.
Auto Black
The automatic black level feature enhances contrast by
compensating for reduced contrast (i.e. glare, fog, mist).
Default Shutter
The LTC 0495 features a fast, default shutter speed in sufficient
lighting conditions to capture moving objects. When light levels
fall and other adjustments have been exhausted, the shutter
speed reverts to the standard setting to maintain sensitivity.
Back Light Compensation (BLC)
Offering a fully programmable BLC area of interest, and a
variable BLC level, the camera can be easily set up for even the
most challenging entrance applications.
Lens Wizard
The Lens Wizard automatically detects the lens type and helps
focus the lens at the maximum opening to ensure proper focus is
maintained throughout the 24-hour cyle. No special tools or
filters are required.
Programmable Modes
Three independent, preprogrammed operating modes support
typical applications, but are fully programmable for individual
situations. Switching between modes is easy via Bilinx or the
external alarm input.
Day/Night Mode
The Day/Night Mode LTC 0495 provides enhanced night
viewing by increasing the IR sensitivity. The IR filter can switch
from color to monochrome automatically by either sensing the
illumination level or via the alarm input. The filter can be switched
manually via the alarm input, through the camera menu or via the
Bilinx coaxial control interface. An internal through the lens IR
detector enhances the monochrome mode stability, as it
prevents reverting to the color mode when IR illumination is
dominant.
SensUp
By increasing the integration time on the CCD up to 10 times,
the effective sensitivity is dramatically enhanced.
This is especially useful when relying only on moonlight for
illumination.
www.boschsecuritysystems.com
CCTV
CCD Color Cameras | 27
Parts Included
Technical Specifications
Electrical
Quant.
Component
1
LTC 0495 Series DinionXF
1
C/CS – mount conversion ring
1
Spare male 4 – pin lens connector
Type No.
LTC0495/11
LTC0495/51
CCD type
LTC0495/21
LTC0495/61
1/3-inch interline
Active pixels
752 x 582 (PAL)
Sensitivity
768x492 (NTSC)
2.4 lux*
(Full video)
Certifications and Approvals
Sensitivity
0.59 lux / 0.08 lux (Monochrome mode)*
50 IRE
Electro Magnetic Compatibility
Emission
Minimum
EN55022 class B, FCC class B part 15
0.24 lux / 0.038 lux (Monochrome mode)*
illumination
Minimum
Immunity
EN50130-4 Alarm Systems, Part 4
Vibration
Camera with 500 gr (1.1 lbs) lens according
0.024 lux / 0.0038 lux (Monochrome mode)
Illumination
with Sensup
Min. Resolution
to IEC60068-2-27
540 TVL
SNR
Safety
> 50 dB
1 Vpp, 75 Ω
Video output
Y/C output
EN60065 (/11 and /51 models)
Y: 1 Vpp / C: 0.3 Vpp
Synchronization
Internal, Line Lock, HV-lock and Genlock
(Burst lock) selectable
UL6500, cUL CAN/CSA E60065-00 (/20 and /60 models)
Shutter
Installation/Configuration Notes
Auto (1/60 (1/50) to 1/500000), Fixed, Flickerless,
Default
Sensitivity up
Off, Automatic continuous up to 10x
Auto Black
117 (4.606")
85 (3.346)
1/4"-20 UNC
DinionXF Day/Night Camera
LENS 4-PIN
32x dynamic range enhancement
Dynamic Noise
59 (2.323")
33 (1.30)
On, Off selectable
Range
67 (2.638")
DinionXF Day/Night Camera
1/4"-20 UNC
48 (1.889")
122 (4.803")
Auto, Off selectable
Reduction
Dimensions in mm (inches).
133 (5.236")
Contour
Sharpness enhancement level selectable
BLC
Off, Area and Level selectable
Gain
Auto (maximum level selectable to 28 dB)
or fixed level selectable
Lens Mount
CS (max lens protrusion 5 mm, 0.2 inch)
White balance
DinionXF Day/Night Camera
ATW (2500 - 10000 K), AWB hold,
Manual WB selectable
VMD
4 area, sensitivity selectable
Alarm output
Alarm Input
Dimensions in mm (inches)
VMD or Bilinx
Profile switching, +5 V nominal, +40 VDC max
(TTL)
Alarm Output
Relay
max. 30 VAC or +40 VDC, Max 0,5 A continuous,
10 VA
75 Ω or High Impedance selectable
External sync
input
Cable
compensation
Up to 1000 m (3000 ft) coax without external
amplifiers (automatic set-up in combination with
coaxial communication)
Camera ID
16 character editable string, position selectable
Lens types
Manual, DC and Video Iris auto-detect with
override DC-IRIS drive: max 50 mA
continuous
Video iris: 11.5 ± 0.5 VDC, max 50 mA
continuous
Remote control
Bilinx coaxial communication
Power Consumption
Power Supply
/11, /21
4W
12 - 28 VAC,
45 - 65 Hz
11 - 39 VDC
/51, /61
www.boschsecuritysystems.com
110 - 240 VAC
45 - 65 Hz
28 | CCD Color Cameras
Mechanical
CCTV
Ordering Information
Dimensions
59 x 67 x 122 mm
Model & Description
(H x W x L)
(2.28 x 2.6 x 4.8 inch) without lens
LTC 0495/11 DinionXF Day/Night Cameras
Weight
450 g (0.99 lbs) without lens
Tripod mount
Bottom (isolated) and top 1/4-inch 20 UNC
Controls
OSD with softkey operation
DinionXF, 1/3-inch Day/Night, PAL, Low Voltage
LTC 0495/21 DinionXF Day/Night Cameras
DinionXF, 1/3-inch Day/Night, NTSC, Low Voltage
LTC 0495/51 DinionXF Day/Night Cameras
Environmental
Operating Temperature
-20°C to +50°C (-4°F to 122°F)
Storage Temperature
-25°C to +70°C (-13°F to +158°F)
Ambient humidity
20% to 93% RH, storage up to 98% RH
Operating
DinionXF, 1/3-inch Day/Night, PAL, High Voltage
LTC 0495/61 DinionXF Day/Night Cameras
DinionXF, 1/3-inch Day/Night, NTSC, High Voltage
LTC 3364/40 Varifocal Lens
1/3-inch DC-IRIS, 2.8-11 mm F1.4-360 - IR
Hardware Accessories
LTC 3364/21 Varifocal Lens
1/3-inch, 2.8 – 6 mm, DC-iris, CS-mount F/1.4 - 300, 4 pin
LTC 3364/31 Varifocal Lens
1/3-inch, 3.5 – 8 mm, DC-iris, CS-mount, F/1.4 - 300, 4 pin
LTC 3384/21 Zoom Lens
1/3-inch, 6 – 60 mm, DC-iris, CS-mount, F/1.4-360, 4-pin
TC120PS Power Transformer
Power Supply Unit (120 VAC, 60 Hz/15 VDC, 9 VA)
TC220PS Power Transformer
Power Supply Unit (220 - 240 VAC, 50/60 Hz/15 VDC, 9 VA)
TC220PSX-24 Power Transformer
Power Supply Unit (220 –240 VAC, 50/60 Hz/24 VAC, 20 VA)
TC1334 Power Transformer
Power Supply Unit (120 VAC, 60 Hz/24 VAC, 30 VA)
Software Options
VP-CFGSFT Configuration Software
for cameras using Bilinx, includes VP-USB Adaptor
www.boschsecuritysystems.com
30 | CCD Color Cameras
LTC 0610 Series DinionXF Color
Cameras - 540 TVL
CCTV
Functions
XF-Dynamic
Extended dynamic range is brought to a new level on the
LTC 0610 Series Camera by XF-Dynamic technology.
XF-Dynamic automatically processes the highly accurate 15-bit
digital signal to optimally capture the detail in both the highlight
and lowlight areas of the scene simultaneously, to maximize the
information visible in the picture.
Bilinx Technology
The LTC 0610 series cameras incorporate Bilinx. Bilinx is a
bi-directional communication capability embedded in the video
signal of all Bosch Dinion cameras. With Bilinx technicians can
check status, change camera settings and even update firmware
from virtually anywhere along the video cable. Bilinx reduces
service and installation time, provides for more accurate setup
and adjustment, and improves overall performance. In addition,
Bilinx uses the standard video cable to transmit alarm and status
messages, providing superior performance without additional
installation steps.
The LTC 0610 Series of High Performance 1/2-inch Digital CCD
Color Cameras create the best possible image, even under the
most difficult light and scene conditions. Based on unique 15-bit
digital video processing technology and employing
XF-Dynamic, these cameras provide the ultimate sensitivity with
extended dynamic range. By employing the best 1/2-inch CCD
available, advanced front end processing, combined with the
outstanding Dinion DSP, the cameras achieve an astonishing
sensitivity, providing better color images in low light situations
and sharper daytime images.
Intelligent White balance algorithms, supported by a White
Balance Hold function and even full manual white balance,
ensure the most accurate color reproduction possible.
All Dinion cameras are supplied ready to operate. Simply attach
and focus the lens, and connect power to provide optimal
pictures under virtually all scene conditions. No tools are
required for back focus and power connection.
For extra challenging situations where fine tuning or special
settings are required, the camera parameters can be individually
set using the control buttons on the side of the camera and
On-screen Display (OSD). Also, to aid installation, the camera
automatically detects the lens type, and using the Lens Wizard
ensures accurate (back) focusing for perfectly sharp pictures at
all times.
Features
• 15-bit DSP technology
• XF-Dynamic
Video Motion Detection
The built-in video motion detector allows you to select up to four
fully programmable areas with individual thresholds.
The global scene change detector minimizes false alarms
caused by sudden lighting condition changes, such as switching
on or off the indoor or security lighting. When motion is detected
alarms may be displayed in the video signal, the output relay can
be closed in addition to alarm message transmission on Bilinx.
Auto Black
The automatic black level feature, enhances contrast by
removing veiling glare from the picture or when contrast is
reduced by fog or mist.
Default Shutter
When viewing moving objects a fast shutter speed is required.
When using a fast shutter speed the lens opening or gain control
needs to be increased to maintain the video signal.
The camera sensitivity is limited by the fast shutter speed.
The default shutter setting of the LTC 0610 offers the best of all
worlds, fast shutter speed as long as there is sufficient light,
however as the light level falls, when other adjustments have
been exhausted, the shutter reverts to the standard setting
maintaining the cameras excellent sensitivity.
Back Light Compensation (BLC)
Offering a fully programmable BLC area of interest, and a
variable BLC level, the camera can be easily set up for even the
most challenging entrance applications.
Lens Wizard
• Default shutter
The LTC 0610 series automatically detects the type of lens
installed. The Lens Wizard will focus the lens at the maximum
lens opening, to ensure that focus is maintained throughout the
entire 24-hour day/night cycle.No special tools or filters are
required.
• Lens wizard
Programmable Modes
• Auto black
The camera supports three independent operating modes.
The 3 modes are preprogrammed for typical applications,
but are fully programmable for individual situations. Switching
between modes is easy via Bilinx or the external alarm input.
• Bilinx communication
• NightSense
• Video motion detection
• 540 TVL resolution
www.boschsecuritysystems.com
CCTV
CCD Color Cameras | 31
NightSense
The LTC0610 cameras feature NightSense. With NightSense the
sensitivity is increased by 9 dB in monochrome mode.
NightSense can be automatically activated in low light situations,
or remotely using Bilinx.
Technical Specifications
Electrical
Type No.
LTC 0610/11
LTC 0610/51
CCD type
SensUp
Active pixels
By increasing the integration time on the CCD up to 10 times,
the effective sensitivity is dramatically enhanced, especially
useful where there is no artificial lighting and you rely on the
moon, stars and scattered radiation.
Sensitivity (Full
1/2-inch interline
752 x 582 (PAL)
video)*
Sensitivity
0.35 lux / 0.14 lux (NightSense)
50 IRE*
0.18 lux / 0.08 lux (NightSense)
Illumination*
Parts Included
Minimum
0.018 lux / 0.008 lux (NightSense)
Illumination
Qty
Components
1
LTC 0610 Series DinionXF Color Camera
with Sens Up
Minimum
Spare male 4 – pin lens connector
540 TVL
Resolution
SNR
Certifications and Approvals
> 50dB
Video output
1Vpp, 75Ω
Y/C output
Electro Magnetic Compatibility
Sync.
Emission
EN55022 class B, FCC class B part 15
Shutter
Immunity
EN50130-4 Alarm Systems, Part 4
Y: 1Vpp / C: 0.3Vpp
Internal, Line Lock, HV-lock and Genlock
(Burst lock) selectable
Auto (1/60 (1/50) to 1/500000), Fixed,
Flickerless, Default
NightSense
Auto, Forced, Off
Sensitivity up
Vibration
Off, Automatic continuous up to 10x
Camera with 500 gr (1.1 lbs) lens according to
Auto Black
IEC60068-2-27
Dynamic Range
32x dynamic range enhancement
Dynamic Noise
Auto, Off selectable
On, Off selectable
Reduction
Safety
Contour
EN60065 (/11 and /51 models)
UL6500, cUL CAN/CSA E60065-00 (/21 and /61 models)
Sharpness enhancement level selectable
BLC
Off, Area and Level selectable
Gain
Auto (maximum level selectable to 28dB)
or fixed level selectable
Lens Mount
White
Installation/Configuration Notes
balance
117 (4.606")
85 (3.346)
LENS 4-PIN
67 (2.638")
four area, sensitivity selectable
Alarm output
Alarm Input
29
59 (2.323")
DinionXF Color Camera
C/CS
ATW (2500 - 10000K), AWB hold, Manual WB
selectable
VMD
1/4"-20 UNC
29.6
33 (1.30)
768x492 (NTSC)
1.4lux
Minimum
1
LTC 0610/21
LTC 0610/61
DinionXF Color Camera
VMD or Bilinx
Profile switching, +5V nominal, +40VDC max
(TTL)
Alarm Output
1/4"-20 UNC
Relay
max. 30VAC or +40VDC, Max 0,5A
continuous, 10VA
External sync
75Ω or High Impedance selectable
48 (1.889")
122 (4.803")
Dimensions in mm (inches).
input
133 (5.236")
Cable
compensation
Camera ID
Up to 1000m (3000ft) coax without external
amplifiers (automatic setup in combination with
coaxial communication)
16 character editable string, position selectable
DinionXF Color Camera
Lens types
Manual, DC and Video Iris auto-detect with
override DC-IRIS drive: max 50mA continuous
Dimensions in mm (inches)
Video iris: 11.5 ± 0.5VDC, max 50mA
continuous
Remote control
Bi-directional coaxial communication
Power
4W
Consumption
Power Supply
/11 and /21
12 - 28 VAC,
45 - 65 Hz
11 - 39 VDC
/51 and /61
www.boschsecuritysystems.com
85 - 265 VAC
45 - 65 Hz
32 | CCD Color Cameras
Mechanical
CCTV
Ordering Information
Dimensions
59 x 67 x 122mm
Model & Description
(H x W x L)
(2.28 x 2.6 x 4.8in) without lens
LTC 0610/11 High Performance Color Camera
Weight
450g (0.99lbs) without lens
Tripod mount
Bottom (isolated) and top 1/4-inch 20 UNC
Controls
OSD with softkey operation
DinionXF, 1/2-inch Color, PAL, low voltage
LTC 0610/21 High Performance Color Camera
DinionXF, 1/2-inch Color, NTSC, low voltage
LTC 0610/51 High Performance Color Camera
Environmental
Operating
-20°C to +50°C (-4°F to +122°F)
Temperature
Storage
-25°C to +70°C( -13°F to +158°F)
LTC 0610/61 High Performance Color Camera
DinionXF, 1/2-inch Color, NTSC, high voltage
Hardware Accessories
Temperature
Ambient
DinionXF, 1/2-inch Color, PAL, high voltage
20% to 93% RH, storage up to 98% RH
humidityOpe
rating
LTC 3264/30 Varifocal Lens
1/2-inch Varifocal lens 4.5 – 10 mm, DC-IRIS, CS-mount
f/1.6 - 360, 4 pin
LTC 3274/41 Varifocal Lens
1/2-inch, 7.5 – 75 mm, DC-iris, F2.2-360
LTC 3283/20 Zoom Lens
1/2-inch, 8.0 – 48 mm, Video-IRIS, CS-mount f/1.4-360, 4-pin
TC120PS Power Transformer
Power Supply Unit (120 VAC, 60 Hz/15 VDC, 9 VA)
TC220PS Power Transformer
Power Supply Unit (220 - 240 VAC, 50/60 Hz/15 VDC, 9 VA)
TC220PSX-24 Power Transformer
Power Supply Unit (220 –240 VAC, 50/60 Hz/24 VAC, 20 VA)
TC1334 Power Transformer
Power Supply Unit (120 VAC, 60 Hz/24 VAC, 30 VA)
Software Options
VP-CFGSFT Configuration Software
for cameras using Bilinx, includes VP-USB Adaptor
www.boschsecuritysystems.com
34 | CCD Color Cameras
LTC 0620 Series DinionXF
Day\Night Cameras - 540 TVL
CCTV
Functions
XF-Dynamic
The highly accurate 15-bit digital signal is automatically
processed to optimally capture the detail in both the high and
low light areas of the scene simultaneously, maximizing the
information visible in the picture.
Bilinx Technology
Bilinx is a bi-directional communication capability embedded in
the video signal of all Bosch Dinion cameras. Technicians can
check status, change camera settings and even update firmware
from virtually anywhere along the video cable. Bilinx reduces
service and installation time, provides for more accurate set-up
and adjustment, and improves overall performance. In addition,
Bilinx uses the standard video cable to transmit alarm and status
messages, providing superior performance without additional
installation steps.
Video Motion Detection
The LTC 0620 High Performance 1/2-inch Digital CCD
Day/Night Camera ensures the highest image quality possible at
any time. Depending on the available light the camera will
automatically switch from color to monochrome.
A unique combination of 15-bit digital video processing that
enhances sensitivity and XF-Dynamic which extends the
dynamic range provides a sharper, more detailed image with
outstanding accuracy in color reproduction.
All Dinion cameras are supplied ready to operate. Simply attach
and focus the lens, then connect power. No tools are required
for back focus and power connection. For especially challenging
situations where fine tuning or special settings are required,
the camera parameters can be individually set using the control
buttons on the side of the camera and On-screen Display
(OSD). The camera automatically detects the lens type.
The Lens Wizard ensures accurate back-focusing for perfectly
sharp pictures at all times.
Features
• 15-bit DSP Technology
• Superb sensitivity
• Mechanically switching IR filter for IR sensitivity at night
• XF-Dynamic for unsurpassed wide dynamic range
• Bilinx Communication for remote set-up and control
• Default Shutter eliminates motion blurring
• Four area video motion detection
• 540 TVL resolution
The built-in video motion detector allows you to select up to four
fully programmable areas with individual thresholds.
The global scene change detector minimizes false alarms
caused by sudden lighting condition changes, such as switching
on or off the indoor or security lighting. When motion is detected
alarms may be displayed in the video signal while the output
relay can be closed in addition to alarm message transmission
on Bilinx.
Auto Black
The automatic black level feature enhances contrast by
compensating for reduced contrast (i.e. glare, fog, mist).
Default Shutter
The LTC 0620 features a fast, default shutter speed in sufficient
lighting conditions to capture moving objects. When light levels
fall and other adjustments have been exhausted, the shutter
speed reverts to the standard setting to maintain sensitivity.
Back Light Compensation (BLC)
Offering a fully programmable BLC area of interest, and a
variable BLC level, the camera can be easily set up for even the
most challenging entrance applications.
Lens Wizard
The Lens Wizard automatically detects the lens type and helps
focus the lens at the maximum opening to ensure proper focus is
maintained throughout the 24-hour cyle. No special tools or
filters are required.
Programmable Modes
Three independent, preprogrammed operating modes support
typical applications, but are fully programmable for individual
situations. Switching between modes is easy via Bilinx or the
external alarm input.
Day/Night Mode
The Day/Night Mode LTC 0620 provides enhanced night
viewing by increasing the IR sensitivity. The IR filter can switch
from color to monochrome automatically by either sensing the
illumination level or via the alarm input. The filter can be switched
manually via the alarm input, through the camera menu or via the
Bilinx coaxial control interface. An internal through the lens IR
detector enhances the monochrome mode stability, as it
prevents reverting to the color mode when IR illumination is
dominant.
www.boschsecuritysystems.com
CCTV
CCD Color Cameras | 35
SensUp
By increasing the integration time on the CCD up to 10 times,
the effective sensitivity is dramatically enhanced. This is
especially useful when relying only on moonlight for illumination.
Technical Specifications
Electrical
Type No.
LTC0620/11
CCD type
Active pixels
Parts Included
Quant.
LTC0620/61
1/2-inch interline
752 x 582 (PAL)
Sensitivity
Component
1
LTC0620/21
LTC0620/51
768x492 (NTSC)
1.4 lux*
(Full video)
LTC 0620 Series Dinion
Sensitivity
XF
1
C/CS – mount conversion ring
1
Spare male 4-pin lens connector
0.31 lux / 0.052 lux (Monochrome Mode)*
50 IRE
Minimum
0.18 lux / 0.024 lux (Monochrome Mode)*
illumination
Minimum
0.018 lux / 0.0024 lux (Monochrome Mode)
Illumination
Certifications and Approvals
with sens up
Min. Resolution
Electro Magnetic Compatibility
540 TVL
SNR
Emission
EN55022 class B, FCC class B part 15
Video output
Immunity
EN50130-4 Alarm Systems, Part 4
Y/C output
> 50 dB
1 Vpp, 75 Ω
Y: 1 Vpp / C: 0.3 Vpp
Sync.
Vibration
Internal, Line Lock, HV-lock and Genlock
(Burst lock) selectable
Camera with 500 gr (1.1 lbs) lens according to
IEC60068-2-27
Shutter
Safety
Auto (1/60 (1/50) to 1/500000), Fixed,
Flickerless, Default
Sensitivity up
Off, Automatic continuous up to 10x
Auto Black
EN60065 (/10 and /50 models)
UL6500, cUL CAN/CSA E60065-00 (/20 and /60 models)
On, Off selectable
Range
32x dynamic range enhancement
Noise
Auto, Off selectable
Reduction
Contour
Installation/Configuration Notes
117 (4.606")
85 (3.346)
Off, Area and Level selectable
Gain
Auto (maximum level selectable to 28 dB)
or fixed level selectable
Lens Mount
CS (max lens protrusion 5 mm, 0.2 inch)
1/4"-20 UNC
DinionXF Day/Night Camera
59 (2.323")
33 (1.30)
67 (2.638")
DinionXF Day/Night Camera
Sharpness enhancement level selectable
BLC
White
ATW (2500 - 10000 K), AWB hold,
Manual WB selectable
balance
LENS 4-PIN
1/4"-20 UNC
VMD
48 (1.889")
122 (4.803")
4 area, sensitivity selectable
Dimensions in mm (inches).
Alarm output
Alarm Input
VMD or Bilinx
Profile switching, +5 V nominal, +40 VDC max
133 (5.236")
(TTL)
Alarm Output
max. 30 VAC or +40 VDC,
Max 0,5 A continuous, 10 VA
Relay
DinionXF Day/Night Camera
75 Ω or High Impedance selectable
External sync
input
Dimensions in mm (inches)
Cable
compensation
Up to 1000 m (3000 ft) coax without external
amplifiers (automatic set-up in combination
with coaxial communication)
Camera ID
16 character editable string, position selectable
Lens types
Manual, DC and Video Iris auto-detect with
override
DC-IRIS drive: max 50 mA continuous
Video iris: 11.5 ± 0.5 VDC, max 50 mA
continuous
Remote control
Power
Bilinx Coaxial Communication
4W
Consumption
Power Supply
/10 and /20
12 - 28 VAC,
45 - 65 Hz
11 - 39 VDC
/50 and /60
www.boschsecuritysystems.com
85 – 265 VAC
45 - 65 Hz
36 | CCD Color Cameras
Mechanical
CCTV
Ordering Information
Dimensions
59 x 67 x 122 mm
Model & Description
(H x W x L)
(2.28 x 2.6 x 4.8 inch) without lens
LTC 0620/11 DinionXF Day/Night Cameras
Weight
450 g (0.99 lbs) without lens
Tripod mount
Bottom (isolated) and top 1/4-inch 20 UNC
Controls
OSD with softkey operation
-20°C to +50°C(-4°F to +122°F)
Temperature
Storage
DinionXF, 1/2-inch Day/Night, NTSC, Low Voltage
DinionXF, 1/2-inch Day/Night, PAL, High Voltage
LTC 0620/61 DinionXF Day/Night Cameras
-25°C to +70 °C(-13°F to +158°F)
Temperature
Ambient
LTC 0620/21 DinionXF Day/Night Cameras
LTC 0620/51 DinionXF Day/Night Cameras
Environmental
Operating
DinionXF, 1/2-inch Day/Night, PAL, Low Voltage
DinionXF, 1/2-inch Day/Night, NTSC, High Voltage
Hardware Accessories
20% to 93% RH, storage up to 98% RH
humidity
Operating
LTC 3264/30 Varifocal Lens
1/2-inch Varifocal lens 4.5 – 10 mm, DC-IRIS, CS-mount
f/1.6 - 360, 4 pin
LTC 3274/41 Varifocal Lens
1/2-inch, 7.5 – 75 mm, DC-iris, F2.2-360
LTC 3283/20 Zoom Lens
1/2-inch, 8.0 – 48 mm, Video-IRIS, CS-mount f/1.4-360, 4-pin
TC120PS Power Transformer
Power Supply Unit (120 VAC, 60 Hz/15 VDC, 9 VA)
TC220PS Power Transformer
Power Supply Unit (220 - 240 VAC, 50/60 Hz/15 VDC, 9 VA)
TC220PSX-24 Power Transformer
Power Supply Unit (220 –240 VAC, 50/60 Hz/24 VAC, 20 VA)
TC1334 Power Transformer
Power Supply Unit (120 VAC, 60 Hz/24 VAC, 30 VA)
Software Options
VP-CFGSFT Configuration Software
for cameras using Bilinx, includes VP-USB Adaptor
www.boschsecuritysystems.com
38 | CCD Color Cameras
V118xP Bullet Cameras
CCTV
Technical Specifications
Electrical – V1180p
Power
Input Voltage
12 VDC
Input Current
<160 mA
Video
Pick-up
B&W 1/3-inch CCD, CCD Area
Device
Sensor; 512 (H) x 582 (V)
SYNC System
Internal
Output
1.0 to 1.1 Vpp CCIR Composite
Minimum Illumination
0.03 Lux
Gamma
0.45
Backlight Compensation
On
Lens & Iris
lens
The V1180P and V1182P provide a wide range of features.
These small, sleek, rugged cameras can be easily installed in
almost any architectural design and provide the ultimate in
anti-vandalism protection with their diecast aluminum housings.
The V1180P and V1182P are even submersible in water to a
depth of 3 m.
These cameras provide a variety of features that make choosing
the best camera for a particular application easy and affordable.
3.6 mm monofocal
Auto iris
CCD shutter iris
Iris Speed
1/50–1/50000 s.
S/N Ratio
>50 dB
Resolution
>380 TV Lines
Submersible depth
3 meter
Mechanical
Housing
Dimensions
57 x 19 mm
(H x Dia.)
(2.24x0.75 inch)
Environmental
The Black & White fixed focus (3.6-mm) camera (V1180P)
delivers 380 TV lines of horizontal resolution with a signal-tonoise ratio greater than 50 dB at light levels as low as 0.03 Lux.
Ambient Temperature
The color fixed focus camera (V1182P) provides 330 TV lines of
horizontal resolution with a signal-to-noise ratio greater than
46 dB at light levels as low as 0.3 Lux through its 3.6-mm lens.
Power
-10°C to +50°C
Electrical – V1182p
Input Voltage
12 VDC
Input Current
<120 mA
Video
Features
Pick-up
• Choice of color or black & white camera
Device
512 (H) x 582 (V)
SYNC System
Internal
Output
1 Vpp PAL
• Rugged die-cast aluminum housing
• Mounting bracket supplied
• Resistant to vandalism
Color 1/3-inch CCD, Interline Transfer;
Composite
Minimum Illumination
0.3 Lux
(F1.2 10 IRE)
• Easy to install
Gamma
0.45
Backlight Compensation
On
Lens & Iris
Ordering Information
lens
Model & Description
Auto iris
CCD shutter iris
V1180P Bullet Camera
Iris Speed
1/50–1/100000 s.
S/N Ratio
>46 dB
Resolution
>330 TVL
Submersible depth
3 meter
1/3-inch b/w bullet cam. 3.6 mm
V1182P Bullet Camera
1/3-inch color bullet cam. 3.6 mm pal
3.6 mm monofocal
Mechanical
Housing
Dimensions
71 x 21 mm
(H x Dia.)
(2.8 x 0.83 inch)
Environmental
Ambient Temperature
www.boschsecuritysystems.com
-10°C to +50°C
