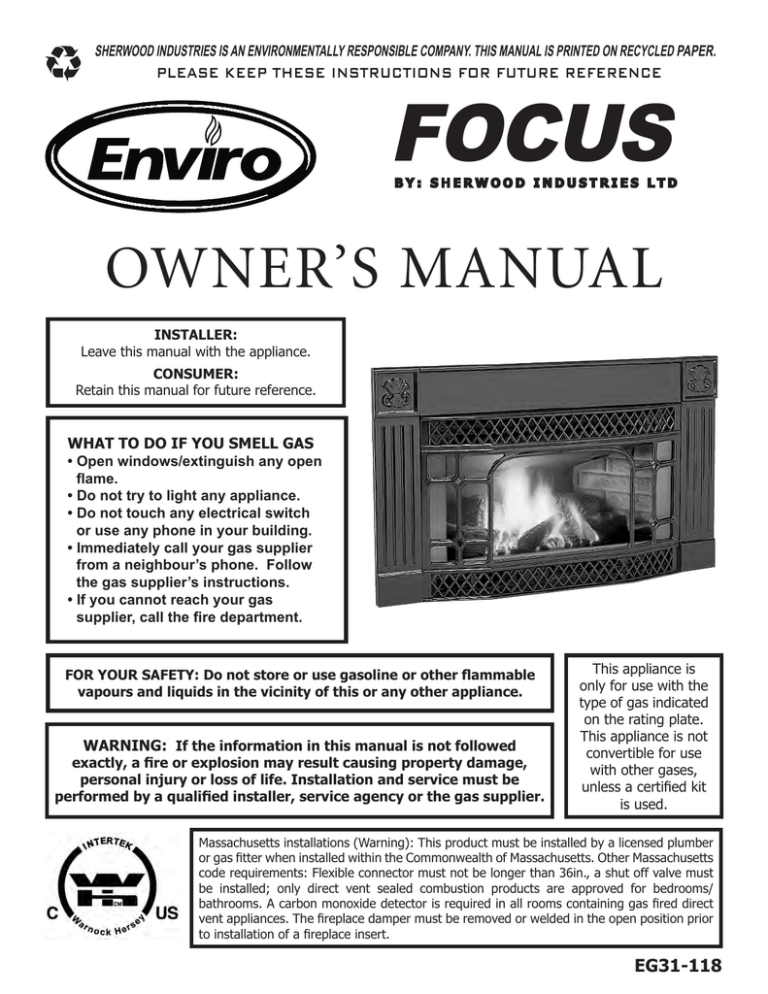

Enviro C-11288 Owner`s manual

SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
FOCUS
BY: SHERWOOD INDUSTRIES LTD
OWNER’S MANUAL
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WHAT TO DO IF YOU SMELL GAS
• Open windows/extinguish any open
flame.
• Do not try to light any appliance.
• Do not touch any electrical switch
or use any phone in your building.
• Immediately call your gas supplier
from a neighbour’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas
supplier, call the fire department.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable
vapours and liquids in the vicinity of this or any other appliance.
WARNING: If the information in this manual is not followed
exactly, a fire or explosion may result causing property damage,
personal injury or loss of life. Installation and service must be
performed by a qualified installer, service agency or the gas supplier.
This appliance is
only for use with the
type of gas indicated
on the rating plate.
This appliance is not
convertible for use
with other gases,
unless a certified kit
is used.
Massachusetts installations (Warning): This product must be installed by a licensed plumber
or gas fitter when installed within the Commonwealth of Massachusetts. Other Massachusetts
code requirements: Flexible connector must not be longer than 36in., a shut off valve must
be installed; only direct vent sealed combustion products are approved for bedrooms/
bathrooms. A carbon monoxide detector is required in all rooms containing gas fired direct
vent appliances. The fireplace damper must be removed or welded in the open position prior
to installation of a fireplace insert.
EG31-118
Safety Precautions
FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER,
PLEASE CAREFULLY READ THE FOLLOWING INFORMATION:
• All ENVIRO gas-fired appliances must be installed
in accordance with their instructions. Carefully read all
the instructions in this manual first. Consult the building
authority having jurisdiction to determine the need for
a permit prior to commencing the installation.
• NOTE: Failure to follow these instructions could
cause a malfunction of the fireplace, which could
result in death, serious bodily injury, and/or property
damage.
• Failure to follow these instructions may also void
your fire insurance and/or warranty.
GENERAL
• Installation and repair should be done by a
qualified service person. The appliance should be
inspected before the first use and, at least, annually
by a qualified service person. More frequent
cleaning may be required due to excessive lint from
carpeting, bedding material, etc. It is imperative the
control compartments, burners and circulating air
passageways of the appliance be kept clean.
• Due to high temperatures, the appliance should
be located out of high traffic areas and away from
furniture and draperies.
Children and adults should be alerted to the
hazards of high surface temperatures and
should stay away to avoid burn or clothing
ignition.
• Young children should be carefully supervised
when in the same room as the appliance.
• Clothing or other flammable materials should not
be placed on or near the appliance.
FOR YOUR SAFETY
• Installation and service must be performed by a
qualified installer, service agency or gas supplier.
• This installation must conform to local codes or, in
the absence of local codes, to the current CAN/CGAB149 installation code (Canada) or National Fuel Gas
Code ANSI Z223.1.2 (USA)
2
• To prevent injury, do not allow anyone who is
unfamiliar with the stove to operate it.
• To prevent injury, if the pilot or pilot and
burners have gone out on their own, open the
glass door and wait 5 minutes to air out before
attempting to re-light the stove.
• Always keep the area around these appliances
clear of combustible material, gasoline and other
flammable liquids and vapours.
• These appliances should not be used as a drying
rack for clothing or for hanging Christmas stockings/
decorations.
• Due to the paint curing on the stove, a faint odor
and slight smoking will likely be noticed when the
stove is first used. Open a window until the smoking
stops.
Always connect this gas stove to a vent system and
vent to the outside of the building envelope. Never
vent to another room or inside the building. Make sure
the specified vent pipe is used; properly sized and of
adequate height to provide sufficient draft. Inspect
the venting system annually for blockage and signs of
deterioration.
WARNING: Failure to position the parts in accordance
with the diagrams in this booklet, or failure to use only
parts specifically approved with this appliance may
result in property damage or personal injury.
WARNING: Do not operate with the glass front
removed, cracked or broken. Replacement of the
glass should be done by a licensed or qualified service
person.
• Never use solid fuels such as wood, paper,
cardboard, coal, or any flammable liquids, etc., in this
appliance.
• Do not use this heater if any part has been under
water. Immediately call a qualified service technician
to inspect the heater and to replace any part of the
control or gas control systems that have been under
water.
• Do not abuse the glass by striking it or slamming
the door shut.
Table of Contents
Safety Precautions.....................................................................................................2
Table of Contents......................................................................................................3
Codes And Approvals.................................................................................................4
Specifications............................................................................................................5
Dimensions....................................................................................................5
Rating Label Location.....................................................................................5
Operating Instructions...............................................................................................6
Lighting Instructions.......................................................................................6
Adjusting Venturi Air Settings..........................................................................7
Blower speed.................................................................................................7
Normal Sounds During Operation.....................................................................7
Maintenance And Service...........................................................................................8
Routine Maintenance......................................................................................8
Glass Door Removal........................................................................................8
Cleaning The Glass.........................................................................................8
Cleaning The Firebox......................................................................................8
Replacing the Glass........................................................................................8
Maintaining Fascia And Surround Finishes........................................................9
Burner and Blower Removal............................................................................9
Fuel Conversion............................................................................................10
Initial Installation....................................................................................................12
Clearances to Combustibles...........................................................................12
B Vent Model................................................................................................12
Automatic Flue Gas Spill Switch.....................................................................12
Direct Vent Model.........................................................................................13
Direct Vent Restrictor Ring............................................................................13
Preparing Your Focus For Installation.............................................................13
Fan Controller & Burner Switch Installation.....................................................15
Converting A Direct Vent Fireplace To A B-Vented Fireplace..............................16
Converting A B-Vent Fireplace To A Direct Vented Fireplace..............................16
Venting Fireplace Inserts...............................................................................17
Electrical Requirements.................................................................................18
Gas Line Connection.....................................................................................19
Secondary Installation.............................................................................................20
Log Set and Ember Installation......................................................................20
Brick Panel Installation..................................................................................21
Trouble Shooting.....................................................................................................22
Parts List - Components...........................................................................................23
Parts Diagram - Body...............................................................................................25
Parts List - Surrounds & Fascia.................................................................................26
Parts Diagram - Surrounds & Fascia..........................................................................27
Parts List - Cast.......................................................................................................28
Parts Diagram- Cast Bay Front..................................................................................30
Warranty.................................................................................................................31
Installation Data Sheet.............................................................................................34
3
Codes And Approvals
DIRECT VENT: This type is identified by the suffix DV. This appliance draws all of its air for combustion from
outside the dwelling, through a specially designed vent pipe system.
This appliance has been tested and approved for installations from 0 feet to 4500 feet (1372 m) above sea level.
BV: This Vented appliance draws all of its combustion air from the dwelling and must be vented using listed B or L
vent. May also be vented through a conventional chimney using a chimney liner kit.
This appliance has been tested and approved for installations from 0 feet to 2000 (610 m) above sea level.
In the USA: The appliance may be installed at higher altitudes. Please refer to your American Gas Association
guidelines which state: the sea level rated input of Gas Designed Appliances installed at elevations above 2000
(610 m) feet is to be reduced 4% for each 1000 feet (305 m) above sea level. Refer also to local authorities or
codes which have jurisdiction in your area regarding the de-rate guidelines.
In Canada: When the appliance is installed at elevations above 4500 feet (1372 m), the certified high altitude
rating shall be reduced at the rate of 4% for each additional 1000 feet (305 m).
•
This appliance has been tested by INTERTEK (Warnock Hersey) and found to comply with the established
VENTED GAS FIREPLACE HEATER standards in CANADA and the USA as follows:
VENTED GAS FIREPLACE HEATER (FOCUS BV/DV; NG/LPG)
TESTED TO: ANSI Z21.88a-2003/CSA 2.33a-2003 VENTED GAS FIREPLACE HEATERS
CAN/CGA 2.17-M91 GAS FIRED APPLIANCES FOR HIGH ALTITUDES
CSA P.4.1-02 TESTING METHOD FOR MEASURING ANNUAL FIREPLACE EFFICIENCY
This ENVIRO FOCUS Fireplace:
• Has been certified for use with either natural or propane gases. (See rating label.)
• Is not for use with solid fuels.
• Is approved for bedroom or bed sitting room. (IN CANADA: must be installed with a listed wall thermostat. IN
USA: see current ANSI Z223.1 for installation instructions.)
• Must be installed in accordance with local codes. If none exist, use current
installation code CAN/CGA B149 in Canada or ANSI Z223.1/NFPA 54 in the USA.
• Must be properly connected to an approved venting system and not connected to a
chimney flue serving a separate solid-fuel burning appliance.
• Is not approved for closet or recessed installations.
• Must have inner flat unit glass installed before bay window can be installed.
IMPORTANT NOTICE (Regarding first fire up): When the unit is turned on
for the first time, it should be turned onto high without the fan on for the first 4
hours. This will cure the paint, logs, gasket material and other products used in the
manufacturing process. It is advisable to open a window or door, as the unit will
start to smoke and can irritate some people. After the unit has gone through the
first burn turn the unit off including the pilot, let the unit get cold then remove the
glass door and clean it with a good gas fireplace glass cleaner, available at your
local ENVIRO dealer.
4
Specifications
WARNING: Operation of this heater when not connected to a properly installed and maintained
venting system can result in carbon monoxide (CO) poisoning and possible death.
DIMENSIONS:
30 5/16" (77cm)
18" (45.7cm)
14 3/16"
(36.0cm)
12 1/16"
(30.6cm)
42" (106.7
3"
(7.6cm)
27 7/8"
(70.8 cm)
13 1⁄4"
(33.7cm)
18 15/16" (48.1cm)
14 3/8"
(36.5cm)
19 1⁄2"
(49.5cm)
31 13/16" (80.8cm)
Figure 1: Focus Exterior Dimensions.
RATING LABEL LOCATION:
The rating label is located under the control panel and is attached to a rectangular metal sheet that is
chained to the fireplace.
5
Operating Instructions
For Your Safety, Read Safety Precautions And
Lighting Instructions Before Operating
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION MAY
RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OF LOSS OF LIFE.
LIGHTING INSTRUCTIONS:
CAUTION:
Hot while operating. Do not touch, severe burns may result. Keep children, clothing,
furniture, gasoline or other flammable vapors away.
CAUTION: Do not operate this fireplace with the glass removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or
qualified person! This appliance needs fresh air for safe operation and must be installed with provisions for combustion and ventilation air. See
installation and operating instructions manual. Keep burner and control compartment clean.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage, or loss of life. Refer to owner's
information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier.
See installation and operating instructions accompanying appliance. Installation and service must be performed by a qualified installer, service agency,
or the gas supplier.
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
C) Use only your hand to push in or turn the gas control knob;
A) This appliance is equipped with a pilot, which must be lit by hand by
NEVER use tools. If the knob will not push in or turn by hand, do
following these instructions exactly.
not try to repair it. Call a qualified service technician. Force or
B) BEFORE LIGHTING smell all around the appliance area for gas and next to
attempted repair may result in a fire or explosion.
the floor because some gas is heavier than air and will settle on the floor.
D) Do not use this appliance if any part has been under water.
WHAT TO DO IF YOU SMELL GAS:
Immediately call a qualified service technician to inspect the
Do not try to light any appliance. Do not touch any electrical switch: do not
appliance and to replace any part of the control system and any
use any phone in your building. Immediately call your gas supplier from a
gas control which has been under water.
neighbor's phone. Follow the gas suppliers instructions. If you cannot reach
your gas supplier, call the fire department.
LIGHTING INSTRUCTIONS
WARNING: this gas valve has a lockout device, which will not allow the
pilot burner to be relit until the thermocouple has cooled. If the knob does
not pop up when released, stop and immediately call your service
technician or gas supplier.
If the pilot does not stay lit after several tries, turn the gas control knob
to “OFF” and call your service technician or gas supplier.
6. Turn the gas control knob counter clockwise
to the “ON”
position. Flip the burner switch to “ON” THEN TURN THE “HI/LOW”
knob to the desired setting.
7. Turn on the electrical power to the unit.
OUT
TP TH
I
L
O
H
TP
O FF
PI L OT
TH
ON
STOP! Read the safety information above on this label.
Turn off all electrical power to this appliance.
Turn off the gas control knob clockwise
to the off position.
Open door. Wait fIve (5) minutes to clear out any gas. Close door. If
you smell gas STOP! Follow “B” in the above safety information. If
you do not smell gas go to the next step.
5. Find pilot-located to the left under the front log. Turn the gas control
knob counter-clockwise
to “PILOT”. Push the gas control in fully
and hold, keep knob depressed for about 30 seconds after
the pilot is lit. Release knob. If pilot goes out, repeat
steps 4 through 5.
IN
1.
2.
3.
4.
LO
PI T
TO TURN OFF GAS TO APPLIANCE
1. Flip burner switch to “OFF”
2. Turn the gas control knob clockwise
to the “OFF” position.
3. Turn off all electrical power to the appliance if service is to be performed.
�������
Figure 2. Lighting Instruction Label
Thermopile
Figure 3: Gas Valve.
6
Thermocouple
Figure 4: Pilot Burning.
Operating Instructions
ADJUSTING VENTURI AIR SETTINGS:
There is only one (1) venturi and one (1) air shutter
to be adjusted.
When installing the burner top, ensure that
the venturi tube is engaged to the air shutter
adjustment rod.
Use this small venturi adjustment rod to achieve a
proper and efficient flame, shown in Figure 5.
Adjust rod until the flame pattern is similar to
Figure #.
Table 1: Venturi Setting.
Venturi Setting Rear
Natural Gas
1/16” min.
Propane
3/16” min.
Move the rod located behind the
piezo ignitor to increase or decrease
primary air at the venturi tube.
Figure 5: Venturi Air Setting Rod
BLOWER SPEED:
The blower will come on only when the fireplace is up to temperature (approximately 20 minutes). The
speed of the fan can be changed by turning the fan control knob. To turn the blower off, turn the knob
COUNTER CLOCKWISE until it “clicks” off.
It is advisable not to operate the blower below 1/3 speed as it puts a strain on the windings of the blower
and running the blower at lower speeds could also cause premature fan failure.
NORMAL SOUNDS DURING OPERATION:
Table 2: Normal Sounds.
Component
Sound & Reason
Focus & Fascia
Creaking when heating up or cooling down.
Burner
Light pop or poof when turned off; this is more common with LP units.
Temperature Sensor
Clinking when it senses to turn the blower on or off.
Pilot Flame
Quiet whisper while the pilot flame in on.
Blower / Fan
Air movement that increase and decreases with the speed of the blower. The
blower is pushing the heat from the fireplace into the room.
Gas Control Valve
Dull click when turning on or off, this is the valve opening and closing.
7
Maintenance And Service
ROUTINE MAINTENANCE:
At least once a year, run through the following procedures to ensure the system is clean and working
properly. Check the burner to see if all the ports are clear and clean. Check the pilot to make sure it is not
blocked by anything. The pilot flame should be blue with little or no yellow on the tips.
Warning: Clearances must be sufficient to allow access for maintenance and service
Warning: Failure to position the parts in accordance with this manual, or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.
The venting system must be periodically examined; it is recommended the examination is done by a
qualified agency.
GLASS DOOR REMOVAL:
Turn unit off and wait until the appliance has cooled down.
Remove the decorative fascia or clip-on bay window by lifting it up
and removing it from the slots in the body of the unit.
Undo the two (2) 5/16’’ bolts at the top of the door frame and then lift
the glass and frame, being careful that the glass does not fall out of
the door frame assembly. Install in the reverse order.
Ensure the door is properly fastened after cleaning before attempting
to re-light the appliance.
Figure 6: Top bolts for glass door.
CLEANING THE GLASS:
When the fireplace has cooled, remove the face of the fireplace along with the glass. See MAINTENANCE
AND SERVICE - GLASS DOOR REMOVAL. Check the gasket material on the back of the glass, making sure that
it is attached and intact.
During a cold start up, condensation will sometimes form on the glass. This is a normal condition with all
fireplaces. However, this condensation can allow dust and lint to cling to the glass surface. Initial paint
curing of the appliance can leave a slight film behind the glass, a temporary problem. The glass will need
cleaning about two weeks after installation. Use a mild glass cleaner and a soft cloth; abrasive
cleaners will damage the glass and plated surfaces. Depending on the amount of use, the glass
should require cleaning no more than two or three times a season. Do not clean the glass when it is
hot.
CLEANING THE FIREBOX:
Remove the logs carefully, as they are very fragile. Gently remove all the embers and rock wool and place
on a paper towel. Vacuum the bottom of the firebox thoroughly. Carefully clean any dust off the logs and
remove any lint from the burner and pilot. At this time, inspect the burner pan for cracking or severe
warping. If a problem is suspected, contact the dealer. Check the logs for deterioration or large amounts
of soot; a small amount on the bottom side of the logs is normal. Replace the logs and embers as in the
SECONDARY INSTALLATION - LOG SET AND EMBER INSTALLATION section. If new/more embers and rock wool are
required, contact your nearest ENVIRO dealer.
REPLACING THE GLASS:
The glass in the fireplace is a high temperature ceramic. If the glass is damaged in any way, a factory
replacement is required (see PARTS LIST). Wear gloves when handling damaged glass door assembly
8
Maintenance And Service
to prevent personal injury. When the glass door assembly is being transported, it must be wrapped in
newsprint and tape and/or a strong plastic bag. Do not operate with the glass front removed, cracked
or broken. Removal and replacement of the glass from the door must be done by a licensed or qualified
service person. The glass must be purchased from an ENVIRO dealer. No substitute materials
are allowed.
MAINTAINING FASCIA AND SURROUND FINISHES:
When a plated surround or face is received, it should be unpacked/unwrapped carefully to avoid getting
anything on the surface of the finish, including cleaners, polish and finger prints. If your fingers come into
contact with the finishes, the oils left as fingerprints on the plating can become permanently etched in
the surface. To prevent this, clean the painted surfaced with a damp cloth and clean plated finishes with
denatured alcohol after the installation and prior to first firing of the fireplace. If your fingers come into
contact with the antique copper finish, the oils left as fingerprints on the copper can cause discoloration,
which will eventually turn green in that area. You can clean the patina or discolored areas of the antique
copper finish with “OO” 3M green sanding pads. These can be purchased from most hardware stores. On
the areas with discoloration, use the sanding pads to sand in the same direction as the brushed finish,
then blend the finish by feathering in the surrounding area. This refinishing procedure has been approved
by the manufacturer and will not harm the finish. Please note: ANTIQUE COPPER IS THE ONLY FINISH
THAT CAN BE SANDED, DO NOT SAND PEWTER, GOLD OR NICKEL FINISHES.
BURNER AND BLOWER REMOVAL:
1. Turn the unit off, remove the glass door (see MAINTENANCE AND SERVICE - GLASS DOOR REMOVAL) and the
log set. Caution: Bleed lines before lighting and light pilot with door open.
2. Remove the burner tray top by removing the two (2) T-20 screws located in the center of the burner
tray (see Figure 7). Slide tray to the left and lift out.
3. Remove brick panels (see SECONDARY INSTALLATION - BRICK PANELS INSTALLATION).
4. Remove the surround panel by lifting it straight up and then out to free it from the body of the unit.
5. Turn the gas supply off and remove gas connection and disconnect the wiring from the side of the
appliance.
6. Remove the three (3) T-20 screws that hold the air deflector in place on the back firewall (see Figure 7)
and undo the remaining screws that hold the burner assembly in the appliance. Carefully remove the
gas tray assembly from the firebox,
Air deflector
ensuring that wires and gas lines are
not damaged.
Gas and electrical
7. Remove the blower and housing from
tray complete
the gas tray assembly by removing
the fastening screws located on
the back of the gas tray assembly.
Burner top
Disconnect the wiring from the fan
temperature sensor and remove.
To install; follow steps 1 through 7 in
reverse. Perform a gas leak check on all
gas line with a soap and water solution
or an approved method and check
burner and blower assembly for proper
operation.
Figure 7: Removing Burner and Gas Tray.
9
Maintenance And Service
FUEL CONVERSION:
TO BE INSTALLED BY A QUALIFIED SERVICE AGENCY ONLY
Please read and understand these instructions before installing.
Warning: This conversion kit shall be installed by a qualified service agency in accordance
with the manufacturer’s instructions and all applicable codes and requirements of the
authority having jurisdiction. If the information in these instructions is not followed
exactly, a fire, explosion or production of carbon monoxide may result causing property
damage, personal injury or loss of life. The qualified service agency is responsible for
the proper installation of this kit. The installation is not proper or complete until the
operation of the converted appliance is checked as specified in the manufacturer’s
instructions supplied with the kit.
Kit Parts List:
1 - Orifice (NG #38 DMS or LP #52 DMS)
1 - Pilot Injector (NG 0.62 mm; LP 0.35 mm)
1 - Installation instruction sheet
1 - Conversion label
Carefully inspect all parts supplied with this conversion kit. If any parts have been damaged or are
missing, contact your dealer, distributor or courier company to have them replaced before starting this
installation.
Conversion Kit Installation:
1. Turn control knob on the gas valve to the “OFF” position and shut the gas supply off at the shut-off
valve upstream of the unit. CAUTION: The gas supply must be shut off prior to disconnecting the
electrical power and before proceeding with the conversion. Allow the valve and unit to cool down
to room temperature.
2. Remove the glass as shown in the MAINTENANCE AND SERVICE - OPENING THE DOOR.
3. Carefully remove the log set and ember material if they are installed.
4. Remove the burner as shown in the MAINTENANCE AND SERVICE - BURNER REMOVAL.
5. Convert the burner orifice(s):
a) Remove the main burner orifice with a 1⁄2 inch deep socket.
b) Put a bead of pipe-thread sealant or approved Teflon tape on the orifice
threads before installing into the brass elbow.
c) Install the new orifice(s) from the kit into the brass elbow.
6. Convert the pilot injector:
a) Pull the pilot hood straight up to access the pilot injector.
b) Using a 5/32” or 4 mm Allen key, remove the pilot injector.
c) Install the new pilot injector supplied with this conversion kit. Simply screw
the new injector inside the pilot hood using the Allen key,
d) Reinstall the hood by placing the hood on the assembly, line up the key
way, and snap into place.
Figure 8: Removing
valve cap.
10
Maintenance And Service
7.
Convert the SIT gas valve:
a) Remove the black protection cap from the HI/LO knob by hand shown in Figure 8.
b) Insert a 5/32” or 4 mm Allen wrench into the
hexagonal key-way of the screw (see Figure 9),
rotate it counter-clockwise until it is free and
extract it.
c) Check that the screw is clean and if necessary
Loosen
remove dirt.
Tighten
d) Flip the screw (refer to Figure 10).
e) Using the Allen wrench as shown in Figure 9,
rotate the screw clockwise until a torque of 9 inch
lbs. WARNING! Do not over tighten the screw.
It is recommended that you grip the wrench by
the short side.
f) Verify that if the conversion is from NG to LPG,
the screw must be re-assembled with the red oring visible (refer to Figure 11). If the conversion
is from LPG to NG, the red o-ring of the screw Figure 10: Flip valve
must be not visible.
Figure 9: Removing valve
screw.
screw.
Red o-ring
Red o-ring
g) Re-attach the black protection
is visible
is not visible
cap that was removed in step a
(Figure 8).
8. Reinstall the burner, brick panels,
log set, embers, and glass door. Also
refer to SECONDARY INSTALLATION INSTALLING LOG SET AND EMBERS. When
LPG Configuration
re-installing the burner, ensure that
Figure 11: O-ring on valve screw.
the burner to pilot hood relationship
is similar to what is shown in Figure 12. On some units you will need
to pay special attention when installing the burner that the venturi
adjustment rod is properly installed into the venturi adjustment piece
welded to the burner venturi tube
9. Reconnect the main gas line if it was disconnected and open the
shut-off valve at the gas line to the unit.
10. Use a small brush to apply a warm soapy water solution to all gas
connections (use a half dish soap and half warm water). If a gas leak
is present, bubbling will occur. Gas leaks can be repaired by using an
approved pipe thread sealant or approved Teflon tape. NEVER USE
Figure 12: Burner to pilot hood
AN OPEN FLAME WHEN TESTING FOR LEAKS.
relationship.
11. Reconnect the electrical power to the unit.
12. Relight the main burner in both the “HI” and “LO” positions to verify proper burner ignition and
operation and proper flame appearance. Also refer to SECONDARY INSTALLATION - LOG SET AND EMBERS
INSTALLATION for a flame appearance picture.
13. MAKE SURE that the conversion label is installed on or close to the rating label to signify that the
unit has been converted to a different fuel type.
11
Initial Installation
WARNING: Operation of this heater when not connected to a properly installed and maintained
venting system can result in carbon monoxide (CO) poisoning and possible death.
Warning: Failure to position the parts in accordance with this manual, or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.
CLEARANCES TO COMBUSTIBLES:
Mantle pillar to glass door
9” (22.8 cm)
From floor to 8” wide mantle
38” (96.5 cm)
Minimum non-combustible surface in front of unit 11” (27.9 cm)
Warning: Clearances must be sufficient to allow access for operation, maintenance and service. Stove
must sit on a non-combustible surface.
Depth of unit into fireplace 16” (41 cm)
Depth of unit out of fireplace 3’’ (7.6 cm)
Minimum fireplace size:
Width 34” (86.36 cm)
Height 21” (53.3 cm)
Depth 18” (45.7 cm)
B VENT MODEL:
WARNING: This appliance has been designed to operate by drawing combustion air and dilution air
from the room. It is also designed to draw room air for proper heat circulation from the sides of the
unit. Blocking or modifying the louvers in any way can create hazardous situations, either through poor
venting or by overheating. It is important that this unit has sufficient air circulation for proper venting
and combustion. Provisions must be made for the supply of adequate combustion and ventilation air.
These openings must not be blocked. The appliance must not be connected to a chimney flue servicing
a separate solid fuel burning appliance.
AUTOMATIC FLUE GAS SPILL SWITCH:
NOTE: This heater must be properly connected to a venting system. This heater is equipped with a vent
safety shutoff system designed to protect against improper venting of combustion products. This safety
switch is located on the rear of the appliance close to the draft hood relief opening. If the switch trips
more than once, the venting should be inspected by a qualified service technician for possible blockage
or severe down draft conditions.
BV Only: The draft hood must be in the same pressure zone as the air inlet. To inspect draft from
the front of the unit, locate the 1⁄4” tube between
the louvers (see Figure 13) and check for a draft
using smoke. A vacuum or suction into the tube will
Check draft
indicate proper drafting.
with a match
This model can be vented with 4” aluminum or
stainless steel flex vent and/or certified Type B Gas
Vent. The flue collar of the appliance will fit inside
of a standard 4” vent and may be fastened directly
to the vent, check periodically that the vent is
unrestricted and an adequate draft is present when
the unit is in operation.
12
or smoke in
a 1⁄4" (6 mm)
tube located
here.
Figure 13: Draft Check.
Initial Installation
QUALIFIED INSTALLERS ONLY
DIRECT VENT MODEL:
WARNING: This appliance has been designed to draw room air for proper heat circulation
from the sides of the unit. Blocking or modifying the louvers in any way can create hazardous
situations.
This model is vented with TWO (2) 3” aluminum or stainless steel flex vent leading into a co-linear to coaxial vent adaptor and using a Simpson Dura Vent vertical termination cap. The flue collars of this model
will fit inside of standard 3” vent and may be fastened directly to the vent. The Exhaust vent is in the
center of the flue connector. The Air Intake is on the left side of the vent collar plate (this outlet is not in
the center it is off to one side of the vent collar plate.)
Check periodically that the vents are unrestricted. Also ensure that all direct vent pipes have been
properly sealed and installed after routine inspection or cleaning. The air intake and exhaust pipes must
be installed in the correct locations on the removable draft hood connector.
DIRECT VENT RESTRICTOR RING:
DIRECT VENT ONLY: The maximum vertical vent
height for a direct vent installation is 25 feet (7.62 m).
Use the vent restrictor ring for installations above 15
feet (4.57 m). See Figure 14 for installation of restrictor
ring.
Vent Restrictor Ring
Figure 14: Direct vent restrictor ring installation.
PREPARING YOUR FOCUS FOR INSTALLATION:
1. Remove the appliance and surround panels from the packaging; check to make sure there is no
damage. Carefully check the glass door. Do not use the unit if it is damaged. In the event damage is
found, please report it to both the courier and your dealer as soon as possible.
2. Carefully clean the fireplace and flue before installing the stove. Failure to do so may result in fumes
or dirt being blown into the room and may cause a fire leading to death or serious injury.
3. Remove the glass door; see MAINTENANCE AND SERVICE - GLASS DOOR REMOVAL.
4. Remove log and ember set and all wrapping material from inside the stove. Remove wrapping material
from log and embers and check for any damage. If damage is observed, do not use unit and contact
your local dealer.
5. Remove the vent collar plate from the top of the stove by unscrewing the two (2) T-20 Torx screws
located on the center top of the stove. Slide collar plate backwards. Properly secure the vent collar
plate to the flexible vent pipe liner(s) previously installed in the chimney. Be careful not to over-stretch
the liner(s).
13
Initial Installation
6. Install the leveling legs. Thread the two (2) 5”
(13 cm) bolts and locknut up into the captive nuts
at each end of the leveling leg bracket (refer to
Figure 15).
Leveling legs bracket
7. Place the unit part way into the fireplace.
Connect the fireplace insert’s flexible gas line to
the household gas supply, using locally approved
methods. Place the electric cable so it can be
connected to the power supply.
8. As you push the unit into its final position in the
fireplace, reinstall the vent collar plate to the
stove by sliding it along the draft hood and secure
with the screw. Adjust the leveling legs to ensure
the unit is level.
Figure 15: Installation of Leveling Legs.
8. The trim set for your surround panel, must be
installed before installing the surround panel onto
the unit.
a) Attach one side trim to the top trim using a corner bracket
(see Figure 16) to secure pieces together. There are two
(2) main pieces to each corner bracket (see Figure 17).
When installing the corner pieces into the trim the “B
FACE” sides must face each other and the screw heads
are to face out. With the bracket in place and the top and
a side trim snug together use a flat head screwdriver to
turn the two (2) screws in the bracket in to tighten it into
the trim.
Surround Panel
b) Slide the two (2) attached trim pieces onto the surround
panel.
c) Attach the other side trim piece to the top trim using the
Figure 16: Corner brackets for trim.
same method used in Step a.
d) Place the second side of the
trim on the surround panel in
#8 screw
the same manner use on the
first side and secure in the same
Side
manner.
Trim
e) On the side trims there are holes
2” (50 mm) from either end.
Using a Phillips screwdriver to
place a #8 screw 11⁄4” long in
each hole and tighten (refer to
Figure 18). This will keep the
trim tight against the surround.
Surround Panel
NOTE: The notch at the bottom of
the left trim is so the power cord
can be run to the outside of the
Figure 17: Two pieces of corner bracket.
panel.
Figure 18: Screw to hold the
trim against the surround.
14
Initial Installation
QUALIFIED INSTALLERS ONLY
10. Connect the wires from the unit to the ON/OFF/
THERMOSTAT switch and the FAN CONTROLLER (see
INITIAL INSTALLATION - ELECTRICAL REQUIREMENTS).
11. Place the assembled surround panel around the
stove, align the slots. Push back then down to
engage the surround panel hooks with the slots in the
fireplace. Install the decorative fascia or bay window
options to the appliance by aligning the hooks and
the slots in the fireplace as seen in the surround panel
installation.
Figure 19: Surround Panel installation.
FAN CONTROLLER & BURNER SWITCH INSTALLATION:
The fan controller and burner switch may be installed in one of three places. Keep the wires away from
the bottom of the firebox or any other hot surfaces.
Option 1 - Unit Panel, Cast Iron Faceplate, Bay Door
Assembly, or Custom Surround Panel.
The fan controller and burner switch are to be installed
into the Focus’ control panel (see Figure 20). Remove the
knob and screw from the fan controller and place the fan
controller through the round hole in the control panel from
the back. Tighten nut onto fan controller from the front of
control panel and push on the knob. The burner switch is
just pushed into place from the front of the control panel.
Route the wiring harness as shown in Figure 20.
Option 2 - Standard Surround Panel.
A
Wiring harness
Fan controller location
Burner switch location
Figure 20: Component placement.
The standard surround panel comes with a fan controller and burner switch so the set that comes with
the unit panel can be kept as spare parts. The fan controller comes pre-mounted in the surround panel
and burner switch is pressed into a notch in the trim. Route the wiring harness through the hole in the
side of the unit marked with an “A” in Figure 20.
Option 3 - Cast Iron Faceplate or Bay Door Assembly.
The fan controller is to be installed into the Focus’ control panel but the burner switch can be installed
into the fascia (see Figure 20). To accomplish this, cut one wire tie so that the wires can be properly
routed. Place the orange and white wires through through the hole in the side of the unit, marked with
an “A” in Figure 20, then along behind the front edge of the fireplace bottom to the control panel. Use
the wire ties provide to bundle and secure wire. Remove the knob and screw from the fan controller
and place the fan controller through the round hole in the control panel from the back. Tighten nut onto
fan controller from the front of control panel and push on the knob. The burner switch is pressed into a
notch on the edge of the fascia.
15
Initial Installation
QUALIFIED INSTALLERS ONLY
CONVERTING A DIRECT VENT FIREPLACE TO A B-VENTED FIREPLACE:
Parts required for conversion
1 - 300°F (149°C) manual reset spill switch
and wires
1 - Drafthood (4’’ chimney connection)
2 - Air channels
1 - Drafthood diverter
300°F (140°F)
Spill Switch
1. Remove the chimney connector, fresh air
cover plates and draft hood cover plate.
2. Install the 300°F (149°C) spill switch in the
location provided.
3. Install the two fresh air channels in the
correct locations.
Drafthood
Diverter
Chimney
Connector
Air Channels (x2)
Figure 21: Converting To A BV Fireplace.
4. Install a new 4’’ chimney liner into the
existing and attach with three (3) sheet metal screws evenly spaced to new 4’’ chimney connector.
5. Test fire the appliance and ensure proper operation. A venturi adjustment could be required to achieve
an efficient flame. Improper operation or adjustment could result in Carbon Monoxide production
causing personal injury or property damage.
CONVERTING A B-VENT FIREPLACE TO A DIRECT VENTED FIREPLACE:
Parts required for conversion
1 - Drafthood (2 - 3’’ dual pipe chimney
connector)
2 - Air channel cover plates
1 - Drafthood cover plate.
1. Remove the chimney connector, 300° spill
switch, two (2) B-vent air channels and Bvent draft diverter plate.
2. Install the two (2) air channel cover plates in
the locations provided.
3. Install the draft hood cover plate in the
location provided.
Drafthood
Cover Plate
Chimney
Connector
Air Channel
Cover Plate (x2)
Figure 22: Converting To A DV Fireplace.
4. Install two (2) 3’’ chimney liners in the
existing chimney, securing the 3’’ liners with
three (3) sheet metal screws evenly spaced
to the new chimney connector.
5. Test fire the appliance and ensure proper operation. A venturi adjustment could be required to achieve
an efficient flame. Improper operation or adjustment could result in Carbon Monoxide production
causing personal or property damage.
16
Initial Installation
QUALIFIED INSTALLERS ONLY
VENTING FIREPLACE INSERTS:
The ENVIRO FOCUS may be installed and vented into any solid fuel fireplace that has been installed
in accordance with the National, Provincial/State and local building codes and has been constructed of
non-combustible materials.
An approved chimney liner and rain cap must be used. A throat connector or flashing must be installed
to ensure a tight seal, top performance, safety and efficiency. Carefully follow the manufacturer’s
instructions which accompany the chimney liner kit.
Remove the vent collar plate from the top of the insert and connect it securely with sheet metal screws
and/or hose clamps. Check for any tears in the liner at this point.
IMPORTANT: The screws that hold the vent collar plate in its approved position must be installed.
Install sealed throat connector or
flashing to prevent leakage of room
air up through chimney.
DV Only: Before installing vent
liners, mark each liner on both
ends to designate which is the
intake and the exhaust.
Measure the height of the chimney
before hand and purchase the
appropriate kit. Never attempt to
over-stretch a flexible liner to
accommodate the height of the
chimney.
Any flue damper must be removed
or blocked permanently in the open
position.
The chimney must be clean, in
good working order and constructed
of non-combustible materials.
�� �����
Make sure that all chimney
cleanouts are tightly fitting and will
not permit air to leak into the
chimney
�� �����
Figure 23: Installation of Focus DV and BV.
17
Initial Installation
QUALIFIED INSTALLERS ONLY
ELECTRICAL REQUIREMENTS:
The Focus will operate without electrical
power. This model has a Millivolt gas control
which uses the pilot flame to generate enough
electricity to operate the main burners. This
appliance when equipped with a blower, must
be electrically connected and grounded in
accordance with local codes or in the absence
of local codes, with the current CSA C22.1
CANADIAN ELECTRICAL CODE Part 1, SAFETY
STANDARDS FOR ELECTRICAL INSTALLATIONS,
OR THE NATIONAL ELECTRICAL CODE ANSI /
NFPA 70 in the U.S.
WARNING: Electrical grounding instructions.
This appliance is equipped with a three-prong
(grounding) plug for your protection against
shock hazard, and should be plugged directly
into a properly grounded three-prong outlet.
DO NOT cut or remove the grounding prong
from this plug.
Figure 24: Focus Wiring Diagram.
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation. Verify proper operation after servicing.
Blue
Thermocouple
Thermopile
O
N
FF
70 ° F
ON/OFF/REMOTE
Thermostat Switch
Optional
Remote
Control
O
Manifold
Pressure
Tap
Purple
Gas
Control
Valve
Grey
70 ° F
Optional
Wall Switch
UP
DOWN
COOL / HEAT
PROGRAM
Inlet
Pressure
Tap
Optional
Thermostat
Pilot
Adjustment
Screw
Figure 25: Wiring of a Thermostat.
18
Table 3. Recommended Thermostat
Wire Size.
Wire Size
Max. Length
14 gauge
100 ft (30.48 m)
16 gauge
60 ft (18.29 m)
18 gauge
40 ft (12.00 m)
20 gauge
25 ft (7.62 m)
22 gauge
18 ft (5.49 m)
Initial Installation
QUALIFIED INSTALLERS ONLY
GAS LINE CONNECTION:
Warning: Only persons licensed to work with gas piping may make the necessary gas connections to
this appliance.
Gas Line Connection:
•This fireplace is equipped with a certified flexible pipe located on the right side of the unit, terminating
in a 3⁄8” male NPT fitting. Consult the local authorities for local codes or use the CAN/CGA B149 (1 or 2)
installation code in Canada. In the US, gas installations follow either local codes or the current edition of
the National Fuel Gas Code ANSI Z223.1.
•The efficiency of this unit is a product thermal efficiency rating determined under continuous operating
conditions and was determined independently of any installed system.
�����
�������� ���
��������
�������� ���
IN
OUT
TP TH
I
L
O
TP
H
The unit must be isolated from the gas
supply piping system by closing its’
individual manual shut off valve during any
pressure testing of the gas supply piping
system at pressures equal to or less than
1⁄2 psig (3.45 KPa).
O FF
PI L OT
TH
ON
LO
PI T
����� ����������
�����
������
����
The appliance and its’ shut-off valves must
be disconnected from the gas supply piping
system during any pressure testing where
the pressure exceeds 1⁄2 psig (3.45 KPa) or
the valve will be damaged.
Always check for gas leaks with a soap
and water solution after completing
the required pressure test.
��� �������
����
Figure 26: Fully Labeled Gas Valve.
TO TEST VALVE PRESSURES:
The pressure taps are located on the top right of
the valve.
• Turn set screw 1 turn counterclockwise to
loosen.
• Place 5/16 in (8 mm) I.D. hose over the
pressure taps.
• Check pressures using a manometer.
• When finished, release pressure, remove hose
and tighten set screw.
Table 4: Pressure and BTU Information.
Main Burner
Natural Gas
(in W.C./KPa)
Propane Gas
(in W.C./KPa)
Orifice:
#38 DMS
#52 DMS
Manifold Press:
3.8 / 0.95
11.0 / 2.74
Min. Manifold Press:
1.1 / 0.27
2.7 / 0.67
Max. Supply Press:
7.0 / 1.74
13.0 / 3.28
Min. Supply Press:
5.0 / 1.24
12.0 / 2.98
Max. BTU Input:
30,000/ 8.8 KW∙h
28,500/ 8.2 KW∙h
Min. BTU Input:
15,000/ 4.4 KW∙h
14,000/ 4.1 KW∙h
NEVER USE AN OPEN FLAME FOR LEAK TESTING.
19
Secondary Installation
LOG SET AND EMBER INSTALLATION:
The placement of the logs is not arbitrary. If they are positioned incorrectly, the flames can be “pinched”
and will not burn correctly. The burner comes with placement pins and rest areas, which make alignment
easier. Using Figures 27 to 31, carefully set the logs in place.
Back Placement/Support Pins
NOTE: The logs are fragile and should
be handled with care.
Place the rear log on the two back placement
pins.
Install the left front log on the left placement
pin with the narrow end of the log resting on
the rectangular rest area.
Figure 27: Focus burner.
Install the right front log on the right
placement pin with the narrow end
of the log resting on the rectangular
rest area. The last two logs should
meet tip to tip on the rest area.
One end of the big log twig will rest
on the pin on the right log and the
other will lay within the left rest
area.
The small log twig should be placed
so it sit completely within the right
rest area.
Once the logs are in place the embers
can be placed lightly between the
logs. Bags of ceramic fiber embers
and rock wool are provided. The
ceramic fiber comes in chunks that
are about 2”-4” (5-10cm) long.
Break these roughly in half and
place them irregularly around the
burner. When there is a sparse but
even layer of embers, spread the
rock wool in the same manner. DO
NOT pack this ember material as this
could create an unsafe condition.
The pieces should be lightly place so
they don’t completely block any of
the tiny ports. DO NOT allow any of
the embers to rest against the pilot
assembly.
Figure 28: Focus Log Placement 1.
Figure 29: Focus Log Placement 2.
Figure 30: Focus Log Placement 3.
20
Secondary Installation
Caution: Use only the type of ember material supplied with this fireplace. Due to the irregular
size of the ember material, there may be more than required. Use of other foreign materials
on the burners may create dangerous conditions.
If over time, through cleaning and servicing, these embers require replacement , contact your nearest
Enviro dealer.
IMPORTANT: Upon the first light
up after installing logs and embers,
watch for ignition to ALL burner
ports. If a long delay is noted wait
for the appliance to cool down:
• Open the front door of the
appliance
• Carefully reposition the embers,
making sure that the burner ports
are not plugged or blocked.
Figure 31: Focus Log Placement Complete.
Figure 32: Focus Log Set Burning.
BRICK PANEL INSTALLATION:
Remove the glass door and the log set. Remove
the burner tray by undoing the hold-down screws
located in the center of the pan burner and sliding
the assembly to the left, then up.
Gently pull right brick side panel inward from the
bottom back. Pull towards the back then out,
freeing it from the front retainer.
Caution: The pilot may damage panel. Remove
left side panel in the same fashion.
To install, insert front edge of brick panel into the
retainer and very gently move panel forward and
out until flush against firebox side.
Figure 33: Brick Panel Installation.
21
Trouble Shooting
Problem
Possible Cause
The main burner The gas valve may not be on.
does not ignite Thermostat is not calling for
when called for.
heat.
• Check that the gas control knob is in the “ON” position.
• Adjust the thermostat several degrees above ambient temperature.
Problem with gas valve.
• Use a DC voltmeter to measure the voltage across the TPTH and
TP terminals. Main operator voltage: Open circuit ≥ 325mV Closed
circuit ≥ 100mV
• If voltage is not present, check the control circuit for proper
operation.
• If proper control system voltage is present, replace the gas control.
Spark will not
light the pilot
after repeatedly
pressing the
spark ignitor.
Defective piezo ignitor.
• Check connections to ignitor.
• If ignitor connections are good but no spark, replace ignitor.
Broken spark electrode.
• Check for broken ceramic insulation, replace electrode if broken.
Misaligned spark electrode.
• If spark is not arcing from electrode to pilot, loosen the screws on the
pilot base adjust and tighten.
Pilot will not
remain lit.
Problem with thermocouple
circuit.
• Check for proper connection of the thermocouple to the rear of the
valve. If loose, fully tighten.
• Check pilot for full flame impingement around thermocouple. If flame
is too small, check gas pressure, adjust pilot rate screw, check pilot
head for damage.
• Check thermocouple voltage at valve. It must be greater than 5 mV.
If low, replace thermocouple.
Air in gas line (pilot dies while
knob is depressed).
• Bleed line.
• Check gas line pressure.
• Contact dealer.
Burners will not
remain lit.
Problem with thermopile
circuit.
• Check gas line pressure .
• Check for flame impingement on thermopile. If low, see “Pilot will not
remain lit”.
• Check thermopile for minimum of 300 mV when burner is switched
on.
• Check wiring to thermostat for breaks.
BV ONLY: Check for spillage at draft hood that may trip spill switch
Flame lifting
Leak in vent pipe
• Check for leaks in vent connections.
Improper vent configuration
• Check vent configuration with manual.
Terminal may be recirculating
flue gases
• Check to see if terminal is on correctly.
• May need to install high wind termination cap.
• Contact dealer.
Glass fogs up
Normal Condition: after the appliance warms up the glass will clear.
**Due to additives in gas, glass may get hazy during operation** Clean as needed.
Blue Flames
Normal during start up: flames will yellow as the fireplace heats up.
Flames are
Flame impingement
burning “dirty” or
sooting
• Check log positioning.
• Increase primary air by opening the venturi shutter and/or by
opening the vent restrictor.
See also “Burners will not remain lit.”
Remote control
doesn’t work
Problem with the remote
• One or more of the batteries are dead. See remote control
instructions.
Problem with fireplace
• The on/off switch is turned to OFF.
• The gas control valve is turned to PILOT or OFF.
• The pilot has gone out.
BV ONLY:
Insufficient air
for combustion
22
Solution
• Air tight house.
• Supply make up air to the unit.
• A vacuum in room due to
other air-moving device.
Parts List - Components
Reference Number
1
2
3
3
3
3
3
3
3
3
4
5
6
6
7
8
8
9
Part Description
120°F (49°C) Ceramic Fan Temperature Sensor
300°F (149°C) Spill Switch
Thermocouple
Spark Electrode with Ignitor Cable
Thermopile
Fully Assembled Pilot NG
Fully Assembled Pilot LP
Pilot Orifice NG Threaded
Pilot Orifice LP Threaded
Pilot Gasket
S.I.T. Piezo Ignitor
Stainless Steel Flex Connector with 3⁄8” Elbow 18” Long
FPI Burner Switch
FPI Fan Controller - 115 V
FPI Fan Controller Knob
Domestic Power Cord - 115 V
Heyco Strain Relief
Embers (Coal & Wool)
Convection Blower - 115 V
Burner Control Assembly NG
Burner Control Assembly LP
Burner Switch Bracket
Relief Door Gasket
Window Channel Tape (6 feet)
1 Piece Glass With Tape (6 feet)
Part Number
EC-001
EC-003
EC-009
EC-011
EC-012
EC-015
EC-016
EC-019
EC-020
EC-021
EC-023
EC-024
EC-026
EC-039
EC-041
EC-042
EC-044
EC-046
EC-069
EG31-052
EG31-053
EG31-075
EG31-087
EG31-089
EG31-090
23
Parts List - Components
Reference Number
10
11
12
13
14
15
16
17
24
Part Description
Door Only - Painted
Venturi
Owner’s Manual
3⁄8” NTP Male 3⁄8 Comp. 90° Elbow
1⁄4” NTP Female 3⁄8 Comp. 90° Elbow
LP to NG Conversion Kit
NG to LP Conversion Kit
Conversion Kit BV to DV
Conversion Kit DV to BV
Extension Knob (Pilot)
Extension Knob (HI-LO)
Relief Door & Gasket
Blank Orifice #73
BV Flue Collar Gasket
DV Flue Collar Gasket
Log Set & Embers
Ceramic Brick Liner
Dual Bulb Door Gasket (10 feet)
Pan Burner Only
S.I.T. Nova Valve Convertible
Focus Conversion Kit LP to NG Convertible
Focus Conversion Kit NG to LP Convertible
S.I.T. Valve Conversion Screw With O-Ring
S.I.T. Valve Conversion Screw Cap
Control Panel Decal
Part Number
EG31-092
EG31-099
EG31-118
EG31-124
EG31-125
EG31-200
EG31-202
EG31-205
EG31-206
30-030
30-031
30-034
50-343
50-528
50-529
50-588
50-610
50-634
50-897
50-1421
50-1434
50-1435
50-1450
50-1451
50-1539
����� ����
����� � ����������
�
��
�
�
�
�
��
��
��
��
�
��
�
��
�
�
��
Parts Diagram - Body
25
Parts List - Surrounds & Fascia
Reference Number
18
18
18
18
19
19
20
20
21
21
22
23
23
23
23
24
24
24
25
25
25
26
27
26
Part Description
Steel Bay Face - Nickel
Steel Bay Face With Glass - Painted
Steel Bay Cover - Gold
Steel Bay Cover - Nickel
Steel Bay 3 Pieces Glass Set with Tape
Standard Surround Panel - Black Trim
Standard Surround Trim Only - Brass
Standard Surround Trim Only - Black
Standard Surround Trim Only - Nickel
Oversized Surround Panel - Black Trim
Oversized Surround Trim Only - Nickel
Arched Face - Painted Black
Arched Face - Gold
Square Face - Painted Black
Square Face - Gold
Cottage Face - No Trim
Cottage Trim Kit - Painted Black
Cottage Trim Kit - Gold
Cottage Trim Kit - Pewter
Cottage Trim Kit - Antique Copper
Cape Cod Fascia - Brushed Nickel
Cape Cod Fascia - Brushed Gold
Cape Cod Fascia - Painted
Cape Cod Doors - Brushed Nickel
Cape Cod Doors - Brushed Gold
Cape Cod Doors - Painted
Unit Panel & Keystone - Painted
Unit Louvre Set - Painted
Part Number
50-092
50-141
50-142
50-143
EG31-091
50-111
EG31-103
50-123
50-135
50-112
50-131
EG31-106
EG31-108
EG31-110
EG31-112
50-695
50-696
50-597
50-598
50-599
50-1074
50-1075
50-1077
50-1079
50-1080
50-1082
50-1377
50-1378
Parts Diagram - Surrounds & Fascia
����� � �������� ������
����� ����
��
��
��
��
��
��
��
��
��
��
27
Parts List - Cast
Reference Number
28
Part Description
Part Number
Cast surround only - Painted
30-036
Cast surround only - Antique White
30-035AW
Cast surround only - Diamond Black
30-035DB
Cast surround only - Inferno Red
30-035IR
Cast surround only - Pearl Grey
30-035PG
Cast surround only - Wedgewood Blue
30-035WB
Cast surround only - Westport Green
30-035WG
Cast surround only - Antique Chestnut
50-886
28
Cast surround top piece.only - Painted
50-381
28
Cast surround top piece.only - Antique White
50-382
28
Cast surround top piece.only - Diamond Black
50-383
28
Cast surround top piece.only - Inferno Red
50-384
28
Cast surround top piece.only - Pearl Grey
50-385
28
Cast surround top piece.only - Wedgewood Blue
50-386
28
Cast surround top piece.only - Westport Green
50-387
28
Cast surround top piece.only - Antique Chestnut
50-887
29
Cast surround left piece.only - Painted
50-388
29
Cast surround left piece.only - Antique White
50-389
29
Cast surround left piece.only - Diamond Black
50-390
29
Cast surround left piece.only - Inferno Red
50-391
29
Cast surround left piece.only - Pearl Grey
50-392
29
Cast surround left piece.only - Wedgewood Blue
50-393
29
Cast surround left piece.only - Westport Green
50-394
29
Cast surround left piece.only - Antique Chestnut
50-888
30
Cast surround right piece.only - Painted
50-395
30
Cast surround right piece.only - Antique White
50-396
30
Cast surround right piece.only - Diamond Black
50-397
30
Cast surround right piece.only - Inferno Red
50-398
30
Cast surround right piece.only - Pearl Grey
50-399
30
Cast surround right piece.only - Wedgewood Blue
50-400
30
Cast surround right piece.only - Westport Green
50-401
30
Cast surround right piece.only - Antique Chestnut
50-889
31
Cast front only (no surround, glass, valve door, or clip-on) - Painted
50-402
Parts List - Cast
Reference Number
Part Description
Part Number
31
Cast front only (no surround, glass, valve door, or clip) - Antique White
50-403
31
Cast front only (no surround, glass, valve door, or clip) - Diamond Black
50-404
31
Cast front only (no surround, glass, valve door, or clip) - Inferno Red
50-405
31
Cast front only (no surround, glass, valve door, or clip) - Pearl Grey
50-406
31
Cast front only (no surround, glass, valve door, or clip) - Wedgewood Blue 50-407
31
Cast front only (no surround, glass, valve door, or clip) - Westport Green
50-408
31
Cast front only (no surround, glass, valve door, or clip) - Antique Chestnut
50-890
32
Cast valve access door - Painted
30-028
32
Cast valve access door - Antique White
50-451
32
Cast valve access door - Diamond Black
50-452
32
Cast valve access door - Inferno Red
50-453
32
Cast valve access door - Pearl Grey
50-454
32
Cast valve access door - Wedgewood Blue
50-455
32
Cast valve access door - Westport Green
50-456
32
Cast valve access door - Antique Chestnut
50-891
33
Cast iron front complete - Painted
50-743
33
Cast iron front complete - Antique White
50-744
33
Cast iron front complete - Diamond Black
50-745
33
Cast iron front complete - Pearl Grey
50-746
33
Cast iron front complete - Inferno Red
50-747
33
Cast iron front complete - Wedgewood Blue
50-748
33
Cast iron front complete - Westport Green
50-749
33
Cast iron front complete - Antique Chestnut
50-811
34
Cast trim piece - Painted
EG31-399
34
Cast trim piece - Antique White
EG31-399AW
34
Cast trim piece - Diamond Black
EG31-399DB
34
Cast trim piece - Inferno Red
EG31-399IR
34
Cast trim piece - Pearl Grey
EG31-399PG
34
Cast trim piece - Wedgewood Blue
EG31-399WB
34
Cast trim piece - Westport Green
EG31-399WG
34
Cast trim piece - Antique Chestnut
50-812
Clip-on assembly only (for cast bay door)
50-462
Cast Bay 3 pieces Glass set with tape
50-496
35
29
Parts Diagram- Cast Bay Front
����� � ���� ��� �����
����� ����
��
��
��
��
��
��
��
��
30
Warranty
Sherwood Industries Ltd. is the manufacturer of the Enviro line of heating products. At Sherwood
Industries, our commitment to the highest level of quality and customer service is the most important
thing we do. Each Enviro stove is built on a tradition of using only the finest materials and is backed by
our Exclusive Lifetime Limited Warranty to the original purchaser. With Enviro, you’re not just buying a
fireplace or stove, you’re buying a company with years of unequalled performance and quality.
Limited Lifetime Warranty:
Under this warranty, Sherwood Industries Ltd. covers the fireplace or stove body and accessories against
defects in materials and workmanship, for part repair or replacement for the first seven (7) years and
limited labour for the first two (2) years to the original purchaser. This Warranty covers: Firebox, Heat
Exchanger, Steel Firebox Panels, Ceramic Logs & Panels, Burner, Ceramic Glass, Pedestals, Panels and
Legs. Please see the exclusions and limitation section below as certain restrictions and exclusions apply
to this warranty.
Limited Two (2) Year Warranty:
Under this warranty, Sherwood Industries Ltd. covers: Gas Assembly, Blower, Blower control, Temperature
Sensors and Wire Harness against defects in materials and workmanship, for part repair or replacement
for the first two (2) years and limited labour for the first two (2) years to the original purchaser. Please see
the exclusions and limitation section below as certain restrictions and exclusions apply to this warranty.
Limited One (1) Year Warranty:
Under this warranty, Sherwood Industries Ltd. covers all exterior surface finishes against defects in
materials and workmanship, for part repair or replacement and limited labour for the first (1) year to
the original purchaser. Please see the exclusions and limitations section below as certain restrictions and
exclusions apply to this warranty.
Here is how our Warranty works
If you have any concerns with your Enviro product, please contact the dealer where you purchased the
fireplace or stove. Your dealer shall make all claims under this warranty in writing.
To the Dealer
When filling out a warranty claim, please complete the following information on an official warranty claim
form:
Customer information: Name, address and telephone number of purchaser and date of purchase.
Dealer information: Date of installation, name of installer and dealer, serial number of the appliance,
nature of complaint, defects or malfunction, description and part numbers of any parts replaced.
To the Distributor
Sign and verify that work and information are correct.
Exclusions and Limitations:
1. This Warranty does not cover tarnish, discoloration or wear on the plating or paint.
2. This Warranty excludes wear and tear or breakage caused by cleaning, moving or service on log set
and panels.
3. A qualified installer must install this stove or fireplace. This Limited Warranty covers defects in
materials and workmanship only if the product has been installed in accordance with local building
and fire codes; in their absence, refer to the owner’s manual. If the product is damaged or broken as
a result of any alteration, willful abuse, mishandling, accident, neglect, or misuse of the product, the
Limited Warranty does not apply.
31
Warranty
4. The stove must be operated and maintained at all times in accordance with the instructions in the
Owner’s Manual. If the unit shows signs of neglect or misuse, it is not covered under the terms of
this Warranty policy. Performance problems due to operator error will not be covered by the Limited
Warranty policy.
5. As this is a heating appliance, some changes in colour of surface finishes may occur. This is not a flaw
and as such is not covered under this warranty.
6. Some minor expansion, contraction, or movement of certain parts and resulting noise, is normal and
not a defect and, therefore, is not covered under this Limited Warranty.
7. Misuse includes over-firing. Over-firing this appliance can cause serious damage and will nullify the
Limited Warranty.
8. The Limited Warranty will cover glass thermal breakage only and will not cover misuse of the stove
glass, including but not limited to glass that is struck, has surface contaminates or has had harsh or
abrasive cleaners used on it.
9. This warranty does not cover products made or provided by other manufacturers and used in
conjunction with the operation of this stove without prior authorization from Sherwood Industries Ltd.
The use of such products may nullify the Limited Warranty on this stove. If unsure as to the extent of
this Limited Warranty, contact your authorized Enviro dealer before installation.
10. Sherwood Industries Ltd. will not be responsible for inadequate performance caused by environmental
conditions.
11. The Limited Warranty does not cover installation and operational related problems such as use of
downdrafts or spillage caused by environmental conditions. Environmental conditions include but
are not limited to nearby trees, buildings, roof tops, wind, hills, mountains, inadequate venting
or ventilation, excessive offsets, negative air pressures or other influences caused by mechanical
systems such as furnaces, fans, clothes dryers etc.
12. The Limited Warranty is void if:
a) The stove has been operated in atmospheres contaminated by chlorine, fluorine or other damaging
chemicals.
b) The stove is subject to submersion in water or prolonged periods of dampness or condensation.
c) Any damage to the unit, combustion chamber or other components due to water, or weather
damage which is the result of, but not limited to, improper chimney/venting installation.
c) Salt air in coastal areas or high humidity can be corrosive to the finish; these environments can
cause rusting. Damage caused by salt air or high humidity is not covered by the Limited Warranty.
13. Exclusions to the Limited Warranty include: injury, loss of use, damage, failure to function due to
accident, negligence, misuse, improper installation, alteration or adjustment of the manufacturer’s
settings of components, lack of proper and regular maintenance, alteration, or act of God.
14. The Limited Warranty does not cover damage caused to the fireplace or stove while in transit. If this
occurs, do not operate the stove and contact your courier and/or dealer.
15. Limited Warranty does not extend to or include firebox paint, door or glass gaskets with damage
caused by normal wear and tear, or exterior paint discoloration or chipping, worn gaskets, etc.
16. The Limited Warranty does not include damage to the unit caused by abuse, improper installation,
or modification of the unit.
17. Damage to plated surfaces caused by fingerprints, scratches, melted items, or other external scores
and residues left on the plated surfaces from the use of abrasive cleaners or polishes is not covered
in this warranty.
18. The Limited Warranty does not cover tarnish, discoloration or wear on the plated surfaces.
19. The paint on the Metal Brick Liner may peel. This is due to the extreme conditions applied to the paint
during normal usage. It is not a flaw and is not covered under warranty.
32
Warranty
20. Sherwood Industries Ltd. is free of liability for any damages caused by the fireplace or stove, as
well as inconvenience expenses and materials. The Limited Warranty does not cover incidental or
consequential damages.
21. The Limited Warranty does not cover any loss or damage incurred by the use or removal of any
component or apparatus to or from the Enviro fireplace or stove without the express written
permission of Sherwood Industries Ltd. and bearing a Sherwood Industries Ltd. label of approval.
22. Any statement or representation of Enviro products and their performance contained in Enviro
advertising, packaging literature, or printed material is not part of the Limited Warranty.
23. The Limited Warranty is automatically voided if the fireplace or stove’s serial number has been
removed or altered in any way. If the stove is used for commercial purposes, it is excluded from the
Limited Warranty.
24. No dealer, distributor, or similar person has the authority to represent or warrant Enviro products
beyond the terms contained within the Limited Warranty. Sherwood Industries Ltd. assumes no
liability for such warranties or representations.
25. Sherwood Industries Ltd. will not cover the cost of the removal or re-installation of the stove, hearth,
facing, mantels, venting or other components.
26. Labour to replace or repair items under this Limited Warranty will be covered per our warranty service
fee reimbursement schedule. Labour rates are set per component and as such total labour costs may
not be covered.
27. Sherwood Industries Ltd. is not liable for freight or labour on any stove replaced in-field and is not
liable for travel costs for service work. In the event of in-home repair work, the customer will pay any
in-home travel fees or service charges required by the Authorized Dealer.
28. At no time will Sherwood Industries Ltd. be liable for any consequential damages which exceed the
purchase price of the unit. Sherwood Industries Ltd. has no obligation to enhance or modify any
stove once manufactured (example: as a stove evolves, field modifications or upgrades will not be
performed).
29. This Limited Warranty is applicable only to the original purchaser and it is non-transferable.
30. This warranty only covers Enviro products that are purchased through an authorized Enviro dealer.
31. If for any reason any section of the Limited Warranty is declared invalid, the balance of the warranty
remains in effect and all other clauses shall remain in effect.
32. The Limited Warranty is the only warranty supplied by Sherwood Industries Ltd., the manufacturer
of the stove. All other warranties, whether express or implied, are hereby expressly disclaimed and
purchaser’s recourse is expressly limited to the Limited Warranty.
33. Sherwood Industries Ltd. and its employees or representatives will not assume any damages, either
directly or indirectly, caused by improper usage, operation, installation, servicing or maintenance of
this stove.
34. Sherwood Industries Ltd. reserves the right to make changes without notice. Please complete and
mail the warranty registration card and have the installer fill in the installation data sheet in the back
of the manual for warranty and future reference.
35. Sherwood Industries Ltd. is responsible for stocking parts for a maximum of seven (7) years after
discontinuing the manufacture or incorporation of the item into its products. An exception to this
would be if an OEM supplier is not able to supply a part.
33
Installation Data Sheet
The following information must be recorded by the installer for warranty purposes and future reference.
NAME OF OWNER:
NAME OF DEALER:
_________________________________________
_________________________________________
ADDRESS:
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
PHONE:___________________________________
PHONE:___________________________________
MODEL:___________________________________
NAME OF INSTALLER:
SERIAL NUMBER:___________________________
DATE OF PURCHASE: _____________
DATE OF INSTALLATION:___________(dd/mm/yyyy)
� NATURAL GAS (NAT)
_________________________________________
(dd/mm/yyyy)
� PROPANE(LPG)
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
INLET GAS PRESSURE:_________in wc
PHONE:___________________________________
MAIN BURNER ORIFICE:__________# DMS
PILOT ORIFICE #_________OR________in diam.
INSTALLER’S SIGNATURE:
_________________________________________
MANUFACTURED BY:
SHERWOOD INDUSTRIES LTD.
6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3
www.envirofire.biz
March 23, 2007
C-11288
34
