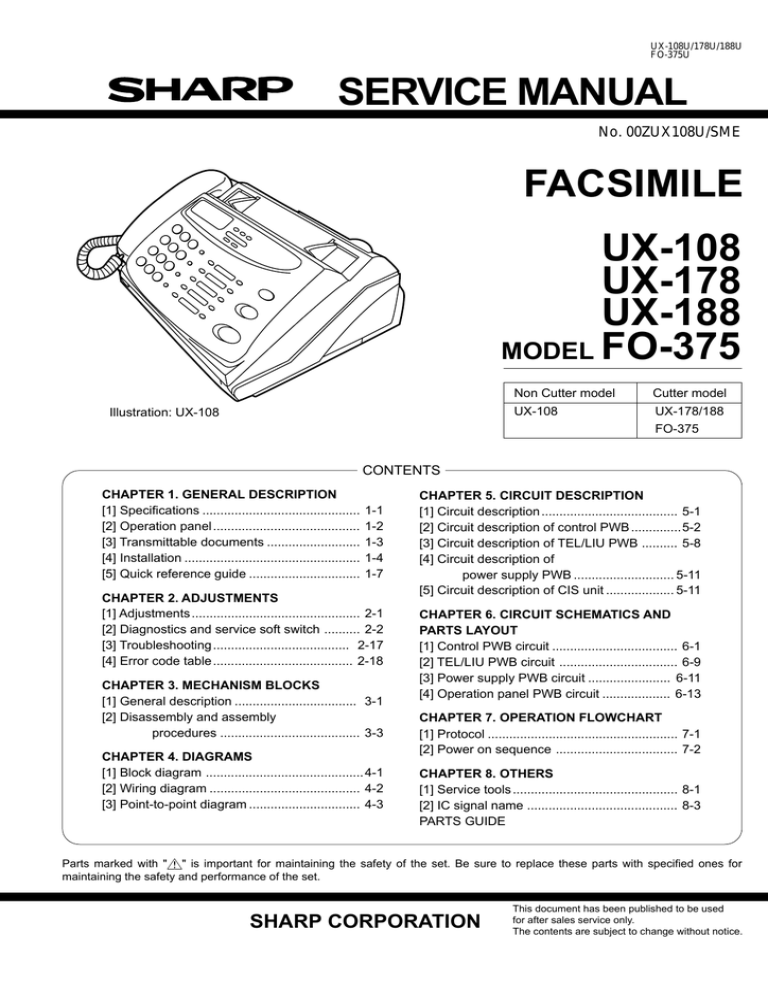

Sharp UX-188 Service manual

UX-108U/178U/188U
FO-375U
SERVICE MANUAL
No. 00ZUX108U/SME
FACSIMILE
UX-108
UX-178
UX-188
MODEL FO-375
Non Cutter model
UX-108
Illustration: UX-108
Cutter model
UX-178/188
FO-375
CONTENTS
CHAPTER 1. GENERAL DESCRIPTION
[1] Specifications ............................................
[2] Operation panel.........................................
[3] Transmittable documents ..........................
[4] Installation .................................................
[5] Quick reference guide ...............................
CHAPTER 5. CIRCUIT DESCRIPTION
[1] Circuit description ...................................... 5-1
[2] Circuit description of control PWB ..............5-2
[3] Circuit description of TEL/LIU PWB .......... 5-8
[4] Circuit description of
power supply PWB ............................ 5-11
[5] Circuit description of CIS unit ................... 5-11
1-1
1-2
1-3
1-4
1-7
CHAPTER 2. ADJUSTMENTS
[1] Adjustments ............................................... 2-1
[2] Diagnostics and service soft switch .......... 2-2
[3] Troubleshooting ...................................... 2-17
[4] Error code table....................................... 2-18
CHAPTER 6. CIRCUIT SCHEMATICS AND
PARTS LAYOUT
[1] Control PWB circuit ................................... 6-1
[2] TEL/LIU PWB circuit ................................. 6-9
[3] Power supply PWB circuit ....................... 6-11
[4] Operation panel PWB circuit ................... 6-13
CHAPTER 3. MECHANISM BLOCKS
[1] General description .................................. 3-1
[2] Disassembly and assembly
procedures ....................................... 3-3
CHAPTER 7. OPERATION FLOWCHART
[1] Protocol ..................................................... 7-1
[2] Power on sequence .................................. 7-2
CHAPTER 4. DIAGRAMS
[1] Block diagram ............................................4-1
[2] Wiring diagram .......................................... 4-2
[3] Point-to-point diagram ............................... 4-3
CHAPTER 8. OTHERS
[1] Service tools .............................................. 8-1
[2] IC signal name .......................................... 8-3
PARTS GUIDE
Parts marked with " " is important for maintaining the safety of the set. Be sure to replace these parts with specified ones for
maintaining the safety and performance of the set.
SHARP CORPORATION
1-1
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
UX-108U/178U/188U
FO-375U
CAUTION FOR BATTERY REPLACEMENT
(Danish)
ADVARSEL !
Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kun ske med batteri af samme fabrikat og type.
Levér det brugte batteri tilbage til leverandoren.
(English)
Caution !
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the equipment manufacturer.
Discard used batteries according to manufacturer’s
instructions.
(Finnish)
VAROITUS
Paristo voi räjähtää, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan
tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden
mukaisesti.
(French)
ATTENTION
Il y a danger d’explosion s’ il y a remplacement incorrect
de la batterie. Remplacer uniquement avec une batterie du
même type ou d’un type recommandé par le constructeur.
Mettre au rébut les batteries usagées conformément aux
instructions du fabricant.
(Swedish)
VARNING
Explosionsfare vid felaktigt batteribyte.
Använd samma batterityp eller en ekvivalent
typ som rekommenderas av apparattillverkaren.
Kassera använt batteri enligt fabrikantens
instruktion.
(German)
Achtung
Explosionsgefahr bei Verwendung inkorrekter Batterien.
Als Ersatzbatterien dürfen nur Batterien vom gleichen Typ oder
vom Hersteller empfohlene Batterien verwendet werden.
Entsorgung der gebrauchten Batterien nur nach den vom
Hersteller angegebenen Anweisungen.
1–2
UX-108U/178U/188U
FO-375U
CHAPTER 1. GENERAL DESCRIPTION
[1] Specifications
Automatic dialing:
Rapid Key Dialing: 10 numbers
Speed Dialing: 20 numbers
Fax paper:
Initial starter roll (included with fax
machine): 49 ft. (10 m) roll
Recommended replacement roll:
FO-40PRw 164 ft. (50 m) roll
Automatic document feeder: 10 sheets max.
Paper cutting method:
UX-108: Tear off by hand
UX-178/188/FO-375: Automatic cutter
Modem speed:
9600 bps with automatic fallback to
7200, 4800, or 2400 bps
Transmission time* :
Approx. 15 seconds (Sharp special mode)
Display:
16-digit LCD display
Reception modes:
Auto/Manual/Answering machine
(for connecting answering machine)
Resolution:
Horizontal:
203 pels/inch (8 dots/mm)
Vertical:
Standard: 98 lines/inch
(3.85 lines/mm)
Fine/Halftone: 196 lines/inch
(7.7 lines/mm)
Super fine: 391 lines/inch
(15.4 lines/mm)
Effective scanning width:
8.3" (210 mm) max.
Contrast control:
Automatic/Dark selectable
Copy function:
Standard
Telephone function:
Standard
(cannot be used if power fails)
Power requirements:
120 V AC, 60 Hz
Operating environment:
41 to 95°F (5 to 35°C)
Humidity:
Maximum: 85 %
Power consumption:
Stand-by: 5.0 W
Maximum: 100 W
Dimensions:
Width: 12.1" (308 mm)
Depth: 10.4" (256 mm)
Height: 5.4" (138 mm)
Weight:
UX-108:
Approx. 5.5 lbs. (2.5 kg)
UX-178/UX-188/FO-375:
Approx. 5.7 lbs. (2.6 kg)
*
Recording system:
Thermal recording
Halftone (grayscale):
64 levels
Applicable telephone line:
Public switched telephone network
Compatibility:
ITU-T (CCITT) G3 mode
Configuration:
Half-duplex, desktop transceiver
Compression scheme:
MH, MR, Sharp special mode
Scanning method:
Sheet-feeder CIS (Contact Image Sensor)
Effective recording width:
8.3" (210 mm) max.
Input document size:
Automatic feeding:
Width  5.8 to 8.5"
(148 to 216 mm)
Length  5.5 to 11"
(140 to 279 mm)
Manual feeding:
Width  5.8 to 8.5"
(148 to 216 mm)
Length  5.5 to 23.6"
(140 to 600 mm)
Based on ITU-T (CCITT) Test Chart #1 at standard resolution in Sharp
special mode, excluding time for protocol signals (i.e., ITU-T phase C
time only).
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for procduct
improvement without prior notice. The performance specifications figures indicated are nominal values of production units. There may be some
deviation from these values in individual units.
1–1
UX-108U/178U/188U
FO-375U
[2] Operation panel
1
2
3
RECEPTION
MODE FUNCTION
TEL FAX
DOWN
5
4
VOLUME
6
7
RESOLUTION
UP
TEL/FAX A.M.
ABC
STOP
DEF
SPEED DIAL
GHI
JKL
TUV
2
3
4
5
6
7
8
MNO
COPY/HELP
REDIAL
PQRS
1
WXYZ
SEARCH
R
START
SYMBOL
SPEAKER
9
8
9
10 11 12
10/POLL
13
14
15
10. REDIAL key
1. Display
Press this key to automatically redial the last number
dialed.
This displays various messages during operation
and programming.
11. SPEAKER key
2. PANEL RELEASE
Press this key to hear the line and fax tones through the
speaker when sending a document.
Note: This is not a speakerphone. You must pick up the
handset to talk with the other party.
Pull this release toward you to open the operation
panel.
3. RECEPTION MODE key
Press this key to select the reception mode. An arrow
in the display will point to the currently selected reception
mode.
12. HOLD/SEARCH key
Press this key to search for an automatic dialing number,
or, during a phone conversation, press this key to put the
other party on hold.
4. FUNCTION key
Press this key to select various special function.
13. Rapid Dial keys
5. RESOLUTION key
Press one of these keys to dial a fax or voice number
automatically. (Note that you must attach the Rapid Key
labels.)
Press this key to adjust the resolution and contrast before
sending or copying a document.
6. VOLUME keys
14. START key
Press these keys to adjust the volume of the handset when
the handset is lifted, the volume of the speaker when the
SPEAKER key has been pressed, or the volume of the ringer
at all other times.
Press this key to send or receive a document.
15. COPY/HELP key
When a document is in the feeder, press this key to make
a copy. At any other time, press this key to print out the
Help List, a quick refernce guide to the opeation of your
fax.
7. STOP key
Press this key to stop operation before they are completed.
8. Number keys
Use these keys to dial numbers, and enter number and letters
during number/name storing procedures.
9. SPEED DIAL key
Press this key to dial a 2-digit Speed Dial number.
1–2
UX-108U/178U/188U
FO-375U
[3] Transmittable documents
