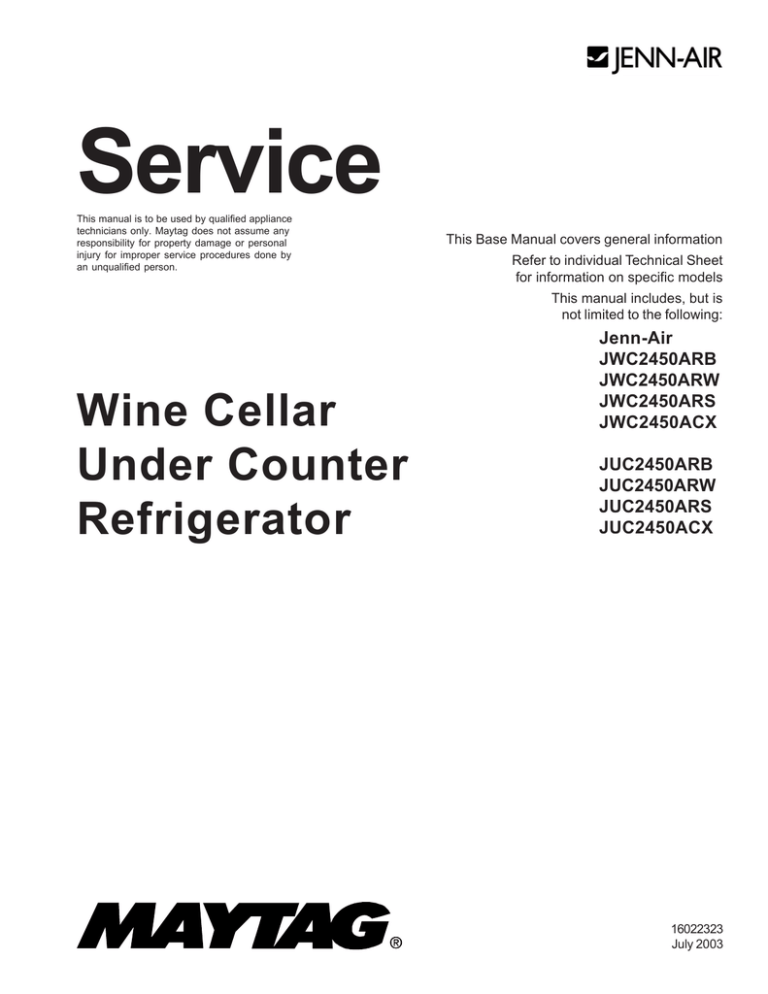

Service
This manual is to be used by qualified appliance
technicians only. Maytag does not assume any
responsibility for property damage or personal
injury for improper service procedures done by
an unqualified person.
This Base Manual covers general information
Refer to individual Technical Sheet
for information on specific models
This manual includes, but is
not limited to the following:
Wine Cellar
Under Counter
Refrigerator
Jenn-Air
JWC2450ARB
JWC2450ARW
JWC2450ARS
JWC2450ACX
JUC2450ARB
JUC2450ARW
JUC2450ARS
JUC2450ACX
16022323
July 2003
Important Information
Important Notices for Servicers and Consumers
Maytag will not be responsible for personal injury or property damage from improper service procedures. Pride and
workmanship go into every product to provide our customers with quality products. It is possible, however, that
during its lifetime a product may require service. Products should be serviced only by a qualified service technician
who is familiar with the safety procedures required in the repair and who is equipped with the proper tools, parts,
testing instruments and the appropriate service information. IT IS THE TECHNICIAN’S RESPONSIBILITY TO
REVIEW ALL APPROPRIATE SERVICE INFORMATION BEFORE BEGINNING REPAIRS.
!
WARNING
To avoid risk of severe personal injury or death, disconnect power before working/servicing on appliance to avoid
electrical shock.
To locate an authorized servicer, please consult your telephone book or the dealer from whom you purchased this
product. For further assistance, please contact:
Customer Service Support Center
CAIR Center
Web Site
Telephone Number
WWW.AMANA.COM ............................................... 1-800-843-0304
WWW.JENNAIR.COM ............................................ 1-800-536-6247
WWW.MAYTAG.COM ............................................. 1-800-688-9900
CAIR Center in Canada .......................................... 1-800-688-2002
Amana Canada Product .......................................... 1-866-587-2002
Recognize Safety Symbols, Words, and Labels
! DANGER
DANGER—Immediate hazards which WILL result in severe personal injury or death.
!
WARNING
WARNING—Hazards or unsafe practices which COULD result in severe personal injury or death.
!
CAUTION
CAUTION—Hazards or unsafe practices which COULD result in minor personal injury, product or property
damage.
2
16022323 Rev. 0
©2003 Maytag Appliances Company
Table of Contents
Important Information ................................................... 2
Model Identification .................................................... 4
Component Testing
Compressor ............................................................. 5
Capacitor ................................................................. 6
Condenser ............................................................... 6
PTC Relay ............................................................... 7
(SSAC) Electronic Control ....................................... 7
Condenser Motor ..................................................... 7
Cabinet Light Switch ................................................ 7
Drier ......................................................................... 7
Evaporator ................................................................ 8
Thermistor ................................................................ 8
Troubleshooting ...................................................... 9-13
Disassembly Procedures
Replacing the Evaporator ....................................... 14
Compressor Removal ............................................. 14
Compressor Installation ......................................... 14
Condenser Removal ............................................... 15
Condenser Installation ............................................ 15
Condenser Fan Removal ........................................ 15
Evaporator Thermistor Removal .............................. 15
Evaporator Thermistor Installation .......................... 15
Wiring Diagram ...................................................... 16
Appendix A
Wine Cellar Owners Guide .................................... A-1
Appendix B
Under Counter Refrigerator Owners Guide ............. B-1
©2003 Maytag Appliances Company
16022323 Rev. 0
3
Model Identification
Wine Cellar / Under Counter models vary in trim and
accessories, but all models have the same basic
construction. "Operating Instructions" and "Service
Instructions" apply to all cabinets unless stated
otherwise.
For positive identifications of individual units, state
complete serial number, model, and type. This
information is found on the serial plate located on front
upper right hand corner of foodliner or on some models,
exterior back of the outer casing.
Jenn-Air Model Identification
J
WC
2
4
5
0
AR
W
Color
W  White
B  Black
S  Stainless
X  Accepts Panel
Special Features
Dimensions
24  Inches Wide
Product
WC  Wine Cellar
UC  Under Counter Refrigerator
Jenn-Air
4
16022323 Rev. 0
©2003 Maytag Appliances Company
Component Testing
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
©2003 Maytag Appliances Company
16022323 Rev. 0
5
Component Testing
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
Component
6
Description
Test Procedures
16022323 Rev. 0
©2003 Maytag Appliances Company
Component Testing
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
Compressor
When compressor electrical circuit is
energized, the start winding current
causes relay to heat. After an amount of
starting time, the start winding circuit
turns off. The relay will switch off the
start winding circuit even though
compressor has not started (for
example, when attempting to restart
after momentary power interruption).
Resistance test
1. Disconnect power to unit.
2. Discharge capacitor by shorting across terminals with a resistor for 1
minute.
NOTE: (Some compressors do not have a run capacitor.)
3. Remove leads from compressor terminals.
4. Set ohmmeter to lowest scale.
5. Check for resistance between
Terminals “S” and “C”, start winding
Terminals “R” and “C”, run winding
With “open” relay, compressor will not
If either compressor winding reads open (infinite or very high resistance)
start because there is little or no current
or dead short (0 ohms), replace compressor.
to start windings. Overload protection
Ground test
will open due to high locked rotor run
1. Disconnect power to refrigerator.
winding current.
2. Discharge capacitor, if present, by shorting terminals through a resistor.
With “shorted” relay or capacitor,
compressor will start and overload
protector will quickly open due to high
current of combined run and start
windings.
3. Remove compressor leads and use an ohmmeter set on highest scale.
4. Touch one lead to compressor body (clean point of contact) and other probe
to each compressor terminal.
• If reading is obtained, compressor is grounded and must be replaced.
Operation test
If voltage, capacitor, overload, and motor winding tests do not show cause for
failure, perform the following test:
With open or weak capacitor,
1. Disconnect power to refrigerator.
compressor w ill start and run as normal
2. Discharge capacitor by shorting capacitor terminals through a resistor.
but will consume more energy.
3. Remove leads from compressor terminals.
4. Wire a test cord to power switch.
5. Place time delayed fuse with UL rating equal to amp rating of motor in test
cord socket. (Refer to Technical Data Sheet)
6. Remove overload and relay.
To AC supply
7. Connect start, common
and run leads of test cord on appropriate terminals
of compressor.
Switch
8. Attach capacitor leads of test cord together. If capacitor is used, attach
capacitor lead to a known good capacitor of same capacity.
Compressor
Fuses
C
S
R
Capacitor
Test configuration
©2003 Maytag Appliances Company
9. Plug test cord into multimeter to determine start and run wattage and to
check for low voltage, which can also be a source of trouble indications.
10. With power to multimeter, press start cord switch and release.
• If compressor motor starts and draws normal wattage, compressor is
okay and trouble is in capacitor, relay/overload, freezer temperature
control, or elsewhere in system.
• If compressor does not start when direct wired, recover refrigerant at
high side. After refrigerant is recovered, repeat compressor direct wire
test. If compressor runs after recovery but would not run when direct
wired before recover, a restriction in sealed system is indicated.
• If compressor
16022323
Rev. 0does not run when wired direct after recovery, replace 7
faulty compressor.
Component Testing
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
8
16022323 Rev. 0
©2003 Maytag Appliances Company
Component Testing
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
Component
Capacitor
Description
Run capacitor connects to relay
terminal 3 and N side of line.
Some compressors do not require a run
capacitor; refer to the Technical Data
Sheet for the unit being serviced.
Test Procedures
!
WARNING
To avoid electrical shock which can cause severe personal injury or
death, discharge capacitor through a resistor before handling.
1. Disconnect power to refrigerator.
2. Remove capacitor cover and disconnect capacitor wires.
3. Discharge capacitor by shorting across terminals with a resistor for 1 minute.
4. Check resistance across capacitor terminals with ohmmeter set on “X1K”
scale.
• Good—needle swings to 0 ohms and slowly moves back to infinity.
• Open—needle does not move. Replace capacitor.
• Shorted—needle moves to 0 and stays. Replace capacitor.
• High resistance leak —needle jumps toward 0 and then moves back to
constant high resistance (not infinity).
Condenser
Condenser is a tube and fin construction Leaks in condenser can usually be detected by using an electronic leak
located in machine compartment.
detector or soap solution. Look for signs of compressor oil when checking for
leaks. A certain amount of compressor oil is circulated with refrigerant.
Condenser is on high pressure
discharge side of compressor.
Leaks in post condenser loop are rare because loop is a one-piece copper
Condenser function is to transfer heat
tube.
absorbed by refrigerant to ambient.
For minute leaks:
Higher pressure gas is routed to
1. Separate condenser from rest of refrigeration system and pressurize
condenser where, as gas temperature
condenser up to a maximum of 235 PSI with a refrigerant and dry nitrogen
is reduced, gas condenses into a high
combination.
pressure liquid state. Heat transfer takes 2. Recheck for leaks.
place because discharged gas is at a
higher temperature than air that is
passing over condenser. It is very
To avoid severe personal injury or death from sudden eruption of high
important that adequate air flow over
pressures gases, observe the following:
condenser is maintained.
Protect against a sudden eruption if high pressures are required for
leak checking.
Condenser is air cooled by condenser
Do not use high pressure compressed gases in refrigeration systems
fan motor. If efficiency of heat transfer
without a reliable pressure regulator and pressure relief valve in the
from condenser to surrounding air is
lines.
impaired, condensing temperature
becomes higher. High liquid temperature
means liquid will not remove as much
heat during boiling in evaporator as
under normal conditions. This would be
indicated by high than normal head
pressures, long run time, and high
wattage. Remove any lint or other
accumulation, that would restrict normal
air movement through condenser.
!
WARNING
From condenser the refrigerant flows
into the drier to evaporator and into
compressor through suction line.
©2003 Maytag Appliances Company
16022323 Rev. 0
9
Component Testing
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
Component
PTC Relay
Description
When voltage is connected and relay is
cool, current passes through relay to
start winding.
After a short time, current heats the
resistor in relay and resistance will rise
blocking current flow through relay.
Test Procedures
1. Disconnect power to the refrigerator.
2. Remove relay cover and disconnect leads.
3. Check resistance across terminals 2 and 3 with an ohmmeter:
Normal = 3 to 12 ohms
Shorted = 0 ohms
Open = infinite ohms
Start winding remains in the circuit
through run capacitor.
Solid state relay plugs directly on
compressor start and run terminals. Relay
terminals 2 and 3 are connected within
relay. Run capacitor is connected to relay
terminal 3. L2 side of 120 VAC power is
connected to relay terminal 2.
(SSAC) Electronic Electronic control that uses a thermistor to 1. Check resistance of thermistor before replacing Electronic control.
control
sense temperature of cabinet and
2. If resistance of thermistor is good replace Electronic control
rheostat to adjust temperature.
Condenser motor Condenser fan moves cooling air across Check resistance across coil.
condenser coil and compressor body.
Condenser fan motor is in parallel circuit
with compressor.
Cabinet light
switch
Single pole, single throw switch
completes circuit for light when door is
open.
Check resistant across terminals.
Switch arm depressed
“NO” terminals
Switch arm up
“NO” terminals
10
16022323 Rev. 0
Open
Closed
©2003 Maytag Appliances Company
Component Testing
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
Drier
Drier is placed at post condenser loop
Drier must be changed every time the system is opened for testing
outlet and passes liquefied refrigerant to or compressor replacement.
capillary.
NOTE: Drier used in R12 sealed system is not interchangeable with
drier used in R134a sealed system. Always replace drier in R134a
Desiccant (20) 8 x 12 4AXH - 7 M>S> system.
Grams
Before opening refrigeration system, recover HFC134a refrigerant for safe
disposal.
1.
2.
3.
4.
5.
6.
7.
Cut drier out of system using the following procedure. Do not unbraze drier.
Applying heat to remove drier will drive moisture into the system.
Score capillary tube close to drier and break.
Reform inlet tube to drier allowing enough space for large tube cutter.
Cut circumference of drier 1 ¼" below condenser inlet tube joint to drier.
Remove drier.
Apply heat trap paste on post condenser tubes to protect grommets from
high heat.
8. Unbraze remaining part of drier. Remove drier from system.
9. Discard drier in safe place. Do not leave drier with customer. If refrigerator
is under warranty, old drier must accompany warranty claim.
!
WARNING
To avoid death or severe personal injury, cut drier at correct location.
Cutting drier at incorrect location will allow desiccant beads to scatter. If
spilled, completely clean area of beads.
Component
Evaporator
Description
Inner volume of evaporator allows liquid
refrigerant discharged from capillary to
expand into refrigerant gas.
Test Procedures
Test for leaks in evaporator with electronic leak detector or with soap solution.
Compressor oil is circulated with refrigerant; check for oil when checking for
leaks.
Expansion cools evaporator tube and fin For minute leaks:
temperature to approximately -20°F
1. Separate evaporator from rest of refrigeration system and pressurize
transferring heat from freezer section to
evaporator up to a maximum of 140 PSI with a refrigerant and dry nitrogen
refrigerant.
combination.
2. Recheck for leaks.
Passing through suction line to
compressor, the refrigerant picks up
To avoid severe personal injury or death from sudden erruption of
superheat (a relationship between
high pressurres gases, observe the following:
pressure and temperature that assures
complete vaporization of liquid
• Protect against a sudden eruption if high pressures are required
for leak checking.
refrigerant) as the result of capillary
• Do not use high pressure compressed gases in refrigeration
tube soldered to suction line.
systems without a reliable pressure regulator and pressure relief
valve in the lines.
Refrigerant gas is pulled through suction
line by compressor, completing
refrigeration cycle.
! WARNING
©2003 Maytag Appliances Company
16022323 Rev. 0
11
Component Testing
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
Thermistor
12
Temperature sensing bulb changes
Check resistance vs. temperature. See chart:
resistance with change of temperature.
Resistance vs. Temperature Chart
RESISTANCE
TEMPERATURE C
TEMPERATURE F
(KOHMS)
-15
5
11.350
-10
14
8.918
-5
23
6.700
0
32
5.630
5
41
4.520
10
50
3.652
15
59
2.970
20
68
2.430
25
77
2.000
16022323 Rev. 0
©2003 Maytag Appliances Company
Troubleshooting
To avoid risk electrical shock, personal injury, or death,
always disconnect electrical power source to the freezer
before attempting to service, unless test procedures require
power to be connected. When removing any wiring from terminals they must be replaced on the same terminals.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
! WARNING
PROBLEM
Interior too cold or
contents freezing.
CHECK
Thermostat setting
The evaporator for the
presence of a uniform
frost pattern. Is the frost
confined to left wing and
the left side of the back?
Note: Compressor should
be operating for least 5
minutes with door open to
perform this check.
Thermostat (compressor
control) thermo bulb
mounting or routing.
©2003 Maytag Appliances Company
POSSIBLE CAUSE
Thermostat set to too cold
of a setting for ambient
conditions.
Refrigerant leak or low
refrigerant charge in the
sealed system.
Refrigerant volume in
evaporator is not sufficient
to cool the region of the
plate where the
evaporator plate sensing
thermostat’s thermo bulb
mounts. Therefore the
control thermostat never
reaches its cutout
temperature and the
compressor operates
100% of the time. The
remaining evaporator
volume is sufficient to cool
the air temperature below
freezing.
Mounting location
incorrect. Model should be
on the right wing of the
evaporator plate. All other
models mount at the rear
top center of the
evaporator.
Thermostat sensing tube
(capillary tube) resting on
or above compressor
dome in mechanical
compartment causing
false sensing.
Thermostat thermo bulb
mounting bracket not
secure, causing false
sensing.
Insufficient thermo bulb
contact area on
evaporator U-shaped loop
with 3-inch long legs
required. Bracket should
be located at mid point of
each 3-inch leg. Both legs
secured under bracket.
16022323 Rev. 0
REMEDY
Adjust thermostat warmer
setting (lower number on
knob).
Locate and correct cause
of refrigerant leak.
Replace drier, evacuate
and recharge sealed
refrigerant system with the
proper amount of charge
as listed on the unit’s data
plate.
Relocate thermo bulb to
proper location.
Reroute sensing tube
clear of compressor dome
area.
Securely tighten thermo
bulb mounting bracket.
Adjust thermo bulb contact
area to achieve sufficient
contact. A U-shaped loop
with 3-inch long legs is
required. The mounting
bracket should be located
at the mid-point of each 3inch leg. Both legs
secured under bracket.
9
Troubleshooting
To avoid risk electrical shock, personal injury, or death,
always disconnect electrical power source to the freezer
before attempting to service, unless test procedures require
power to be connected. When removing any wiring from terminals they must be replaced on the same terminals.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
! WARNING
PROBLEM
Interior too warm
(compressor operates).
CHECK
POSSIBLE CAUSE
REMEDY
Placement of glass
shelves in cabinet interior.
Do not space the glass
shelf out away from the
molded in liner shelf
supports on the back of
the cabinet interior the
cold air from the
evaporator can be
“trapped” above the shelf
resulting in the area
above the shelf becoming
too cold and below too
warm (This applies to
models with glass shelves
only).
Thermostat set to too low
(warm) of a setting.
Properly place the glass
shelves in the unit. White
rubber “shelf bumper”
must be placed so as to
create a air space gap
between the rear edge of
the glass shelf and the
molded shelf supports on
the back of the cabinet
interior.
Thermostat
Thermostat failed, cutting
compressor off too soon.
10
The evaporator for the
presence of a frost
pattern. If frost not present
with compressor
operating.
Refrigerant leak.
High and low side
pressures in the sealed
system.
Compressor valve failure,
preventing compressor
from developing required
refrigerant pressures for
system operation.
Restriction in the sealed
refrigerant system causing
high compressor
discharge pressures and
low pressures or vacuum
conditions on the suction
side. Pressure does not
equalize quickly when the
compressor is turned off.
16022323 Rev. 0
Adjust thermostat to a
colder setting (higher
number on knob).
Replace thermostat. Leak
check the sealed.
Refrigeration system.
Locate and correct the
source of the leak.
Replace the drier and
recharge to proper
amount.
Leak check the sealed
refrigeration system.
Locate and correct the
source of the leak.
Replace the drier and
recharge to proper
amount.
Replace compressor and
drier, evacuate and
recharge with refrigerant
to the proper amount.
Locate the restriction and
correct the cause.
Evacuate, replace drier
and recharge the sealed
refrigeration system to the
proper level.
©2003 Maytag Appliances Company
Troubleshooting
To avoid risk electrical shock, personal injury, or death,
always disconnect electrical power source to the freezer
before attempting to service, unless test procedures require
power to be connected. When removing any wiring from terminals they must be replaced on the same terminals.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
! WARNING
PROBLEM
CHECK
Condenser fan operation.
Condenser airflow
blocked or restricted.
Excessive frost build-up
on evaporator (interior
temperatures are normal
and frost pattern is
uniform).
Cabinet for proper sealing
(absence of air leaks).
POSSIBLE CAUSE
Failed light activation
switch not turning off light
when switch is depressed.
Wiring connection to or
from light activation switch
improperly wired
bypassing switch.
Door light activation
switch over-ride switch in
the “on” position
permitting light to remain
“on” with door closed.
(Present on some but not
all models).
Condenser fan blade
jammed against shroud or
otherwise bound.
Wiring connection to and
from fan motor, terminal
block and thermostat
loose or incorrect
Condenser fan motor
failed
Condenser air flow
blocked by dirt, lint, trash,
etc.
Airflow in or out of toe
space grille restricted.
Exterior door of unit not
hanging straight
preventing proper gasket
sealing.
Door hinges bent
Air leaks at locations
where refrigerant or
thermostat line electrical
wiring or thermostat
capillary tubes enter
cabinet interior.
Door gasket torn or has
lost magnetism.
©2003 Maytag Appliances Company
16022323 Rev. 0
REMEDY
Replace light activation
switch.
Correct improper wiring
connection.
Place over-ride switch in
the “door” position. Verify
light goes out.
Correct loose or incorrect
wiring connections.
Correct loose or incorrect
wiring connections.
Replace condenser fan
assembly.
Clean condenser to
restore airflow.
Clear restriction to airflow
through toe space grille.
No obstruction to air flow
permitted in an area 3 feet
out from the grille.
Install door shim kit to
correct hang of door.
Install new hinge kit to
correct hang of door. Door
shims may also be
required. See hinge and
shim installation
instructions.
Seal around these entry
points with refrigeration
putty (permagum) to
eliminate air leaks.
Replace gasket if stiff, torn
or has stiff, torn or weak
magnetism.
11
Troubleshooting
To avoid risk electrical shock, personal injury, or death,
always disconnect electrical power source to the freezer
before attempting to service, unless test procedures require
power to be connected. When removing any wiring from terminals they must be replaced on the same terminals.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
! WARNING
PROBLEM
Compressor, fan and
interior light do not
function.
CHECK
Power supply
Interior light functions but
compressor will not run.
Power cord and wiring
connections within unit
from power cord to
thermostat and terminal
block.
Compressor control
thermostat.
Compressor runs; fan
does not run.
Fan motor and blade
assembly.
Fan runs, but compressor
does not run.
PTC starter
Wiring PTC start to
terminal start to terminal.
Compressor
Interior light will not turn
off when door is closed.
Striker plate on bottom of
door.
Light activation switch.
12
POSSIBLE CAUSE
Unit not plugged into
power outlet.
REMEDY
Plug unit into power Plug
unit into power.
Fuse or circuit breaker
tripped.
Replace fuse. Reset
circuit breaker. Correct
power supply problem.
Correct loose or incorrect
wiring connections.
Loose or incorrect wiring
connections at power
cord, thermostat input or
terminal block.
Compressor control
thermostat.
Wiring connections from
compressor control
thermostat to terminal
block loose or incorrect.
Fan blade jammed by
shroud, refrigerant line,
mount bracket, foreign
object, etc.
Fan motor failed
Connection loose or
incorrect on wiring from
fan motor to terminal
block.
Failed PTC starter.
Loose or incorrect wiring
connections at PTC
starter to terminal block.
Failed motor in
compressor
Compressor cycled off on
thermal overload
protection.
Striker plate not present
or not positioned properly
to depress light switch
when door is closed.
Failed light activation
switch.
16022323 Rev. 0
Replace compressor
control thermostat.
Correct loose or incorrect
wiring connections.
Free fan blade so fan
operates freely.
Replace fan motor.
Correct loose or incorrect
wiring connections.
Replace PTC starter.
Correct loose or incorrect
wiring.
Replace compressor
Unplug unit. Allow
compressor to cool 30-45
minutes. Plug unit in. If
compressor starts, locate
cause of thermal overload.
May be power interruption,
system restriction, high
ambient temperature, or
fan/condenser blocked.
Replace or install striker
plate so light switch is
depressed when door is
closed.
Replace light activation
switch.
©2003 Maytag Appliances Company
Troubleshooting
To avoid risk electrical shock, personal injury, or death,
always disconnect electrical power source to the freezer
before attempting to service, unless test procedures require
power to be connected. When removing any wiring from terminals they must be replaced on the same terminals.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
! WARNING
PROBLEM
CHECK
Position of door light
activation over-ride
switch. Is it in the “on”
position?
Over-ride switch
operation.
©2003 Maytag Appliances Company
POSSIBLE CAUSE
If over-ride switch is in the
“on” position instead of
the “door” position, the
light will remain on with
the door closed. This is
intended for glass door
viewing with door closed.
Failed over-ride switch.
16022323 Rev. 0
REMEDY
Place over-ride switch in
the “door” position. Verify
light goes out when door
is closed by depressing
light activation switch and
confirming light goes out.
Replace over-ride switch
13
Disassembly Procedures
!
To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before following any
disassembly procedures.
WARNING
Replacing the Evaporator:
Compressor Removal:
1. Disconnect power,
2. Remove the screws securing the evaporator plate.
3. Remove the machine compartment and rear panel at
the rear of the unit.
4. Remove the putty from the opening in the rear of the
liner.
5. Remove the three screws that secure the baseplate
to the cabinet on the bottom of the unit.
6. Gently slide the mechanical out the rear of the unit
just enough to gain access to the assembly.
7. Install the access valve and recover refrigerant. After
recovering, be sure to cap off the access valve to
prevent contamination of the system.
8. Remove the cap from the rear of the compressor.
9. Disconnect the PTC starter relay at the compressor
by pulling off. You will not need to disconnect the
three wires.
10.Un-braze and remove the capillary tube from the drier
assembly.
11. Un-braze and remove the drier assembly at the
condenser.
12.Un-braze and remove the suction line at the
compressor.
13.Un-braze the discharge line at the compressor.
14.Remove the compressor by removing the two locknuts on the mounting plate of the compressor. Lift the
compressor off of the carriage bolts.
15.Install the four rubber grommets in the bottom of the
new compressor and install the two sleeves where
the carriage bolts will be located. Mount the new
compressor and install the two washers and locknuts and tighten to 45 in-lb.
1. Disconnect power.
2. Remove the machine compartment and rear panel at
the rear of the unit.
3. Remove the three screws that secure the baseplate
to the cabinet on the bottom of the unit.
4. Gently slide the mechanical out the rear of the unit
just enough to gain access to the compressor
assembly.
5. Install sealed system access valve(s) and recover
refrigerant. After recovering, be sure to cap off the
access valve to prevent contamination of the system.
6. Remove the cap from the rear of the compressor.
7. Disconnect the PTC starter relay at the compressor
by pulling off. You will need to disconnect the three
wires from the old PTC starter and then connect the
new one.
8. Un-braze and remove the capillary tube from the drier
assembly.
9. Un-braze discharge tube from compressor at the
compressor.
10.Un-braze and remove the drier assembly from
condenser out tube.
11. Un-braze and remove the suction line at the
compressor.
12.Remove the compressor by removing the two locknuts on the mounting plate of the compressor. Lift the
compressor off of the carriage bolts.
Note:
Do not remove the rubber plugs at the tube stubs
on the compressor at this time.
16. Remove the insulation tube on the evaporator tubing
harness.
17.Remove the evaporator from the front of the unit. The
evaporator will need to be tilted 90 degrees down and
the tubing harness with the accumulator will fit
through the opening in the liner.
Installation:
Reverse the removal instructions for installation. Remove
the plugs from the compressor right before brazing.
Make certain that the suction line and tubing harness
insulation tube are installed and sealed. Also, check the
thermistor to make sure it has full contact and is secure.
Be sure to check for leaks and evacuate to 50 microns.
14
Compressor Installation:
1. Install the four rubber grommets in the bottom of the
new compressor and install the two sleeves where
the carriage bolts will be located. Mount the new
compressor and install the two washers and locknuts and tighten to 45 in-lb.
Note:
Do not remove the rubber plugs at the tube
stubs on the compressor at this time.
2. Install and braze the new drier assembly to the
condenser. Then install and braze the capillary tube
and the discharge out.
3. Remove the plug for the discharge line at the
compressor. Install and braze the discharge line to
the compressor.
4. Remove the plug for the process tube on the
compressor. Install and braze in the process tube. Be
sure to cap off the end to prevent any contamination.
5. Remove the plug for the suction line on the
compressor. Install and braze in the suction line from
the evaporator. Be sure to also reinstall the suction
line and tubing harness insulation tubes.
6. Reinstall PTC starter and wire according to wire
diagram.
7. Reinstall compressor cap.
16022323 Rev. 0
©2003 Maytag Appliances Company
Disassembly Procedures
!
To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before following any
disassembly procedures.
WARNING
Condenser Removal:
Evaporator Thermistor Removal:
1. Disconnect power.
2. Remove the machine compartment panel.
3. Remove the three screws that secure the baseplate
to the cabinet on the bottom of the unit.
4. Gently slide the mechanical out the rear of the unit
enough to gain access to the condenser coil and fan
shroud.
5. Install sealed system access valve(s) and recover
refrigerant. After recovering, be sure to cap off the
access valve to prevent contamination of the system.
6. Remove the fan by removing the screws on the fan
mounting bracket at the baseplate. The fan wire
leads can be left connected. Set the fan assembly to
the side of the machine compartment.
7. Un-braze the capillary tube from the drier assembly.
8. Un-braze and remove the drier assembly.
9. Un-braze the discharge line from the compressor at
the top of the condenser coil.
10. Remove with electric drill rivets holding condenser to
baseplate.
1. Disconnect power, water line, and drain line.
2. Remove the machine compartment panel and rear
panel from the rear of the unit.
3. Disconnect the red and black wires to the
“EVAPORATOR THERMISTOR” terminals on the
electronic control.
4. Remove the evaporator thermistor by removing the
screw securing it.
5. Feed the thermistor’s wire out through the opening in
the rear of the unit.
Evaporator Thermistor Installation:
Reverse the removal procedure for installation. Be sure
to thoroughly tighten the thermistor’s screw for proper
bracket to thermistor contact.
Condenser Installation:
Reverse the removal procedure. Be sure to evacuate to
50 microns before weight charging. If contamination
was found or determined, the evaporator should also
be replaced at this time.
Condenser Fan Removal:
1. Disconnect power.
2. Remove the machine compartment panel.
3. Remove the three screws that secure the baseplate
to the cabinet on the bottom of the unit.
4. Gently slide the mechanical out the rear of the unit
enough to gain access to the condenser fan.
5. Remove the screws that secure the condenser fan.
6. Disconnect the neutral white wire lead (black ribbed
wire) at the terminal block and the hot wire lead
(black smooth wire) at the electronic control.
7. Remove the condenser fan.
Condenser Fan Installation:
Reverse the removal procedure for installation.
©2003 Maytag Appliances Company
16022323 Rev. 0
15
Wiring Diagram and Schematic
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to freezer before servicing, unless
testing requires it. Wires removed during disassembly must be replaced on proper terminals to insure correct
grounding and polarization.
!
CAUTION
High Voltage
BLACK, RIBBED (NEUTRAL)
BLACK, SMOOTH (HOT)
POTENTIOMETER
(BLACK, NONPOLARIZED)
THERMISTOR (GREY
SLEEVE, NONPOLARIZED)
WHITE
136
BLACK (RIBBED)
BLACK (SMOOTH)
CONDENSER
FAN
5
1
2
6
4
7 ON8
4
5
RED
8
2
WHITE
R
C
WHITE WITH
YELLOW STRIPE
5
OV'LD
11
S
3
2
3
1
RED
WHITE
P.T.C.
BLACK
RELAY
CAP.
COMPRESSOR
FAN SWITCH
WHITE
RED
BLACK
RED
LIGHT SWITCH
TRANSFORMER
RED
INTERIOR FAN
ON/OFF
SWITCH
BLUE
BLUE
BLACK
DIMMER
16
OPTIONAL FEATURE
SWITCH
16022323 Rev. 0
WHITE
LIGHT
41006543 REV. E
©2003 Maytag Appliances Company
Appendix A
©2003 Maytag Appliances Company
16022323 Rev. 0
A -1
JENN-AIR WINE CHILLER
O WN E R ’ S
G U I DE
TA B L E
OF
CONTENTS
Introduction..............................................................................1
Safety ........................................................................................2
Installation.........................................................................3–11
Operation................................................................................12
Features ..................................................................................13
Care and Cleaning..............................................................14
Before Calling for Service ................................................15
Warranty..................................................................................17
Guide du propriétaire ........................................................18
Guía del Propietario............................................................35
Form No. A/05/03
Part No. 41007605
Litho U.S.A.
Introduction
Congratulations on the purchase of a Jenn-Air
Refrigerated Wine Chiller.
Before Calling for Service . . .
We appreciate your purchase decision and feel
confident you will be happy with this appliance for
years to come. For best results, please read this guide
carefully. You will find instructions on the proper
operation and maintenance.
If something seems unusual, please check the “Before
Calling For Service” section, which is designed to help
solve basic problems before calling a servicer.
Should you ever need our future assistance with your
wine chiller, a complete model and serial number
recorded in the spaces below will be extremely helpful.
These numbers are found on a data plate inside the
wine chiller located on the upper left side.
Model Number__________________________________
Serial Number __________________________________
Purchase Date __________________________________
Dealer Name ___________________________________
Dealer Address _________________________________
What if These Features are Different
from Mine?
This book is intended to show the variety of features
that are available in the product line. If you have
questions, write us (include your model number and
phone number) or call:
Jenn-Air Customer Assistance
P.O. Box 2370
Cleveland, TN 37320-2370
U.S.A and Canada 1-800-JENNAIR
(1-800-536-6247)
1-800-688-2080 (U.S.A. TTY for hearing
or speech impaired)
(Mon.-Fri., 8 a.m.-8 p.m. Eastern Time)
Internet: http://www.jennair.com
Dealer Phone ___________________________________
What You Need to Know About
Safety Instructions
Warning and Important Safety Instructions appearing in
this manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining or operating appliance.
Always contact your dealer, distributor, service agent or
manufacturer about problems or conditions you do not
understand.
Recognize Safety Symbols, Words,
Labels
DANGER
DANGER – Immediate hazards which WILL result
in severe personal injury or death.
WARNING
WARNING – Hazards or unsafe practices which
COULD result in severe personal injury or death.
CAUTION
CAUTION – Hazards or unsafe practices which
COULD result in minor personal injury.
1
Important Safety Instructions
WARNING
• When using your appliance, always follow basic
precautions.
• Use the wine chiller only for its intended purpose.
NOTE: This product is not intended for food storage.
• To prevent possibility of hazard due to electrical
shock, never plug the wine chiller into a receptacle
which has not been grounded adequately and in
accordance with the local and national electrical
codes. See
warning and the grounding
instructions that follow.
• Disconnect the power cord to the wine chiller before
cleaning, servicing or replacing a light bulb.
• In case of power failure, minimize door openings.
• Any electrical service cord that becomes frayed or
damaged should be immediately repaired or
replaced. Never unplug your appliance by pulling on
the power cord.
WARNING
• This appliance is designed to operate on a normal
115 volt, 15 amp, 60 cycle line. There should be a
separate, grounded circuit serving this appliance
only. Do not use an extension cord. Do not use
any device that will alter the electrical
performance of this appliance.
This appliance is equipped with a three-pronged
grounding plug for your protection against possible
electrical shock hazards. It must be plugged into a
grounding receptacle. Where a standard two-prong
wall receptacle is encountered, it is the personal
responsibility and obligation of the customer to have it
replaced with a properly grounded three-prong wall
receptacle. Do not under any circumstances, cut or
remove the third (ground) prong from the power cord.
Do not use an adapter plug.
Power supply cord with
three-prong grounding plug
• To prevent fire hazard, your wine chiller should not
be operated in the presence of gasoline or other
flammable vapors and liquids.
• To prevent injury, children should not climb, hang or
stand on this wine chiller.
IMPORTANT: Child entrapment and suffocation are
not problems of the past. Junked or abandoned
refrigeration products are still dangerous…even if they
will sit for “just a few days.” If you are getting rid of
your old refrigeration products, please follow the
instructions below to help prevent accidents.
Grounding type
wall receptacle
WARNING
• This wine chiller should not, under any
circumstances, be ungrounded.
• Take off the doors.
• Leave the shelves in
place so that children
may not easily climb
inside.
Save These Instructions For Future Reference
2
Installation
Materials Needed
•
•
•
•
•
Cabinet Cutout Dimensions
⁄8" Allen wrench
⁄16" socket
1
5
Phillips screwdriver
Putty knife
Carpenter’s level
A
Select Location
B
The wine chiller was designed to be installed under the
counter. Its proper location will ensure peak
performance. Choose a location indoors, away from
heat and out of direct sunlight. Best performance will
be maintained when installed within the following
parameters:
Ideal Ambient
Temperature Range
Built-In ........................................................65 - 80° F
(18 - 27° C)
Provisions for electricity should be determined before
placing the wine chiller in its final location (see page 2).
C
UNDER COUNTER CUTOUT
A
24" (61.0 cm)*
B
Min. 341⁄2" (87.6 cm)
Max. 351⁄4" (89.5 cm)
C
241⁄8" (61.27 cm)
* If door is recessed between cabinets, cabinet cutout
must be 241⁄4" (61.6 cm) in width.
Cabinet Clearance
Ventilation is required from the bottom front section of
the wine chiller. Keep this area open and clear of any
obstructions.
The adjacent cabinets and counter top can be built
around the wine chiller as long as no top trim or
counter top is installed lower than the top of the hinge.
Installation should allow for the wine chiller to be
moved if service is ever required.
3
Dimensions
Leveling Legs
Install leveling legs (located in literature pack):
Front
min. 34"
(86.4 cm)
max. 35"
(88.9 cm)
with
leveling
legs fully
extended
3"
(7.6 cm)
• With at least two people, tip wine chiller backwards
until there is approximately 12" (31 cm) of clearance
between the floor and the wine chiller.
Weldnut
(each bottom
corner of unit)
Bottom of
wine chiller
Leveling leg
(4 per wine chiller)
23 ⁄8"
(60.6 cm)
7
• Screw one front leveling leg into the screw
impression found in each corner. Leveling legs
should be screwed in until snug.
Side
471⁄4"
(120.0 cm)
• Repeat the above procedures to install the rear
leveling legs.
WARNING
• To prevent injury, one person should not attempt to
tilt the wine chiller by himself. Have someone else
assist to prevent the wine chiller from falling during
leveling leg installation.
CAUTION
• The wine chiller should remain upright at least
30 minutes prior to plugging it in.
Level the Wine Chiller
22"
(55.9 cm)
241⁄4"
(61.6 cm)
Using a carpenter’s level, check to be sure the wine
chiller is level from side to side and from front to back.
Leveling adjustments can be made by turning the
leveling legs counter-clockwise to increase height and
clockwise to reduce height.
NOTE: The wine chiller should not wobble. Use shims
to add stability when needed.
4
Installation, cont.
Reversing the Glass Door
Lock body
Lock cam
Phillips
screw
WARNING
• To avoid electrical shock which can cause personal
injury or death, disconnect power to the wine chiller
before reversing the door.
Lock
extension
Key
Glass
door
The wine chiller door can have a left or right hand
swing. Typically the door is installed on the wine
chiller with a right hand swing configuration. To
change to a left hand swing, follow the instructions
listed below.
el
Pan
Door
gasket
Lock retainer nut
Materials Needed
• 1⁄8" Allen wrench
• Phillips screwdriver with magnetic tip
• Needle-nose pliers
• 5⁄16" nut driver
• Small flat-blade screwdriver
Black or white framed model:
• 15 mm deep-well socket and wrench
Custom wood frame or stainless steel frame overlay model:
• 15 mm open-end wrench
1. Note the thermostat control knob setting so you
can reset the thermostat knob to its proper setting
after the door reversal is complete.
2. Turn the thermostat control knob counterclockwise
until the “OFF” setting is at the 12:00 position. The
wine chiller’s refrigeration system will shut off.
3. Using the 1⁄8" Allen wrench, remove the screw from
the top hinge of the wine chiller. Be sure to
support the door so that it does not fall. Lift the
door gently up and away from the bottom hinge.
4. Lay the glass door face down on a smooth, nonabrasive surface protected by towels or rugs to
avoid accidental damage.
5. Using the 5⁄16" nut driver, remove the 5⁄16" hex head
screws which are holding the top and bottom
hinges. Set screws and hinges aside for later.
6. Using the Phillips screwdriver, remove the Phillips
head hinge pin from the bottom hinge. Set the
hinge, hinge pin and plastic washer aside for later.
For custom wood frame model, skip to step 12.
7. Pull the door gasket out of the door’s back frame,
enough to allow access to the screw holes and the
back of the door lock.
8. Using the Phillips screwdriver, remove the Phillips
screw at the end of the door lock. Set the Phillips
screw lock washer, lock cam and lock/cam
extension pieces aside for later.
9. Stainless steel frame overlay model only: Remove
the ten screws that secure the stainless steel frame
overlay to the glass door. Set the screws aside for
later.
10. Black or white framed model: Use the 15 mm
deep-well sock and wrench.
Stainless steel frame overlay model: use the 15 mm
open-end wrench.
Loosen the retaining nut that secures the lock to
the door frame. If the nut falls back into the door
frame, use the needle-nose pliers to retrieve it and
set the nut aside for later.
11. Gently lift the door end up where the lock is
currently located and let the lock fall out and away
from the door. Set the lock aside for later.
12. Using the Phillips screwdriver, remove the two
screws holding the light striker plate to the back
side of the door.
The following graphic shows the striker plate hole
locations when changing to a left hand door swing.
Remove the light switch striker from the bottom of
the right hand swing door and install the striker
plate in the holes as shown.
⁄32" (0.4 cm) diameter
two holes, striker plate
5
(Back view of glass door)
5
Door
gasket
13. Relocate the light striker plate to the opposite end of
the door, lining up the two holes in the striker plate,
with the two holes at the opposite center of the
door. Remove the two hole plugs (select models)
and resecure the striker plate with the two screws.
For custom wood frame model, skip to step 21.
14. Lift the door or stainless steel frame overlay end
up, opposite of where the door lock was previously
located and insert the lock from the front side.
Hold the lock in place and gently lower the door or
stainless steel frame overlay back down.
Black or white framed model: Use the 15 mm
deep-well socket and wrench.
Stainless steel frame overlay: 15 mm open-end
wrench.
Reassemble the door lock’s retaining nut to the
lock. Follow step 15 before tightening the door
lock’s nut.
15. Reassemble the Phillips screw, lock washer and
lock cam back into the lock in the order they were
removed. Position the door lock’s cam so that it
projects upward from the top of the door. Make
sure the key slot on the front is aligned vertically,
from top to bottom. Lightly tighten the Phillips
screw to secure the lock assembly. Now tighten
the door lock’s retaining nut.
Stainless steel frame overlay model: Now tighten
the retaining nut.
Black or white framed model: Mark the alignment
of the door lock and then remove the Phillip’s
screw and lock cam. Now tighten the retaining
nut, then reassemble the lock cam and Phillip’s
screw.
Steps 16 – 19 are needed for stainless steel frame
overlay model only. If reversing the door on a
black or white framed model, skip to step 20.
16. Using the Phillips head screwdriver, remove the
door lock’s Phillips screw at the end of the door
lock’s extension and remove the lock cam. Set the
lock cam aside for reassembly later. Resecure the
lock extension to the lock with the Phillips screw.
holes in the glass door and align these holes with
the threaded weld nuts in the overlay. Use the ten
screws removed in step 9 to resecure the stainless
steel frame overlay to the glass door.
18. Remove the door lock’s Phillips screw and reassemble
the lock cam to the lock extension and resecure.
19. Check to see that the lock easily turns a quarter
turn from vertical to horizontal.
20. Reinstall the door gasket by pressing it back into
the door channel. Make certain the door gasket is
secure and sealed. If necessary, use the small flatblade screwdriver to help push the arrowhead,
section of the door gasket into the gasket channel.
21. Locate the two hinges that were removed from the
right-hand side of the wine chiller. Insert the hinge
pin screw into the hinge that was on top and
tighten securely. This hinge will be the bottom
hinge on the left side of the cabinet.
22. Remove the six plastic hole plugs from the left
hand side hinge mounting holes.
23. Using the 5⁄16" nut driver, mount the hinges on the
left side of the wine chiller using the six set-aside
5
⁄16" hex screws. Tighten screws securely.
24. Install custom wood frame panel (select models,
refer to page 7).
25. Gently lift the door up and place the door on the
bottom hinge/hinge pin assembly. Make sure the
plastic washer is installed on the bottom hinge
before placing the door on it.
26. Using the 1⁄8" Allen wrench, secure the door to the
top hinge with the Allen hinge pin screw.
27. Make certain that the door swings freely, the door
gasket seals properly and the interior light goes on
and off as the door opens and closes.
28. Confirm that door lock turns a quarter turn from
vertical to horizontal and that this locks the door
closed.
29. Replace all hole plugs.
30. Reconnect the power to the wine chiller. Return
the control knob to its previous setting.
17. Lay the stainless steel frame overlay face down on
a smooth surface. Align the glass door directly
over the stainless steel frame overlay so that the
lock extension will go through the hole in the glass
door that is on the opposite end of where the lock
was originally located. Look for the mounting
6
Installation, cont.
Prepare the Custom Door
Wood Frame
Custom Handle
1. A custom handle (not supplied) must be installed.
2. Drill pilot holes through the custom panel to match
the handle. Countersink the holes in the back of
the panel.
3. Attach the custom handle to the front door panel
assembly.
NOTE: The custom handle screws should be installed
through custom panel and into the custom handle.
The screw heads should be countersunk so the inside
panel surface can be installed flush with the wine
chiller door.
Door Wood Frame Dimensions
Overall width: .....................................................237⁄16" (59.5 cm)
31⁄2" (8.9 cm) toe kick height: ..........................305⁄16" (77 cm)
Assemble Door Hinge Brackets
NOTE: Skip this step if hinges are already attached.
1. Attach the top and bottom door hinges to the door
with the 10-32 machine screws and a 1⁄8" Allen
head driver as shown in the following figure.
2. Press in the shoulder bushings to the top and
bottom door hinges. Make certain that the
shoulder is to the outside of the door as shown in
the following figure.
3. Test fit the door to the wine chiller to make certain
door will hang correctly. The door is hung correctly
when the top of the door is parallel to the top of
the wine chiller. Adjustments can be made by
loosening the door hinge machine screws and
moving the door hinge on the door.
4. Tighten all four machine screws after adjustments
have been made.
5. Remove the door from the wine chiller by removing
the top hinge set screw and angling the door off
the bottom hinge pin.
Shoulder bushing
4" (10.2 cm) toe kick height: ......................2913⁄16" (75.7 cm)
Door hinge
Door frame minimum width
to cover door extrusion:...................................123⁄32" (4.4 cm)
10-32 machine
screws
Thickness:....................... ⁄8" to ⁄4" (1.6 to 1.9 cm) maximum
5
3
Wood Screws
Door hinge
screw holes
1. #8 pan head wood screws are recommended to
properly secure the custom wood panel to the
wine chiller door.
Door front
surface
2. A total of ten screws will be needed for a 31⁄2" (8.9 cm)
toe kick or eight screws for a 4" (10.2 cm) toe kick.
3. Use only pan head screws.
4. Be sure the screw length is NOT longer than the
wood thickness at the screw locations.
5. Use the following pilot hole drill sizes for the frame
material.
Type of
Wood
7
Pilot Hole Drill Size for
#8 Pan Head Wood Screws
Hardwood
3
⁄32" (0.24 cm)
Softwood
5
⁄64" (0.20 cm)
This surface parallel
to the wine chiller.
Right
hand
swing
door
Typical top and
bottom door hinge
assembly.
Lock Hole Detail
Center Line
237⁄16"
(59.5 cm)
Thickness:
5
⁄8" to 3⁄4"
(1.6 to 1.9 cm)
1123⁄32"
(29.8 cm)
Mounting surface
(non-face) side of
wood frame
⁄32" (1.2 cm)
diameter through hole
15
⁄32" (1.2 cm)
15
13
⁄16" (2.1 cm)
diameter counterbore
7
⁄16" (1.1 cm) deep
Back view of overlay
wood frame panel
123⁄32" (4.4 cm)
width to cover
door extrusion
Prepare the Wood Frame
For a 31⁄2" (8.9 cm) toe kick
(covers the entire door extrusion)
155⁄8"
(39.7 cm)
Optional for a 4" (10.2 cm) toe kick
(to match existing cabinetry toe kick height)
155⁄8"
(39.7 cm)
713⁄16"
(19.8 cm)
713⁄16"
(19.8 cm)
23
⁄32"
(1.8 cm)
713⁄16"
(19.8 cm)
23
⁄32"
(1.8 cm)
Back side of door
155⁄32"
(38.5 cm)
w
vie
ck
a
B
305⁄16"
(77.0 cm)
23
⁄32"
(1.8 cm)
155⁄32"
(38.5 cm)
w
vie
k
c
Ba
2913⁄16"
(75.7 cm)
221⁄2"
(57.1 cm)
23
⁄32"
(1.8 cm)
221⁄2"
(57.1 cm)
Pre-drilled pilot holes
10 places do not drill
through wood frame
Mounting surface
(non-face) side
713⁄16"
(19.8 cm)
Pre-drilled pilot holes
8 places do not drill
through wood frame
Mounting surface
(non-face) side
⁄4" (0.6 cm) x 3⁄8" (1.0 cm) deep hinge screw clearance
1
hole. Locate and drill using door hinge hole after the
door has been aligned to the wine chiller and when
the wood is positioned on door.
Mounting surface
(non-face) side
Mounting surface
(non-face) side
⁄4" (0.6 cm) x 3⁄8" (1.0 cm) deep hinge screw clearance
hole. Locate and drill using door hinge hole after the
door has been aligned to the wine chiller and when
the wood is positioned on door.
1
8
Installation, cont.
Attach the Wood Panel to the Wine
Chiller Door
Bottom Hinge Corner
WARNING
• To avoid electrical shock which can cause severe
personal injury or death, disconnect power to wine
chiller before installing wood frame.
CAUTION
Wood frame
Door hinge
• Door can become disengaged if washers are not
installed.
Shoulder bushing
Washer
• Door may not swing properly if all nylon
components are not installed as shown.
Washer
1. If the door is attached to the wine chiller, remove it
by unscrewing the top Allen head set screw at the
top hinge. Remove the door by angling the door
off of the bottom hinge pin.
Top Hinge Corner
Cabinet hinge
Washer
Shoulder bushing
Door hinge
Wood frame
9
2. Install the supplied lock body into the wood panel.
The lock and key assembly is supplied with your
wine chiller. Secure the lock body by using the
supplied 15 mm lock retaining nut and screwing it
on the lock body’s threaded section. Make sure
that the lock’s key slot is vertical, then tighten the
15 mm nut with a 15 mm deep-well socket.
Lock body
Lock cam
Phillips
screw
Key
Lock
extension
od
Wo nel
pa
Glass
door
Door
gasket
Lock retainer nut
8. Reinstall the door gasket by pressing into door
channel. Make certain the corners are inserted
fully. Insert the key into the lock and make sure
the lock operates properly.
9. Install the door to the wine chiller. Use the
washers (if provided) as shown on page 9.
10. Realigning the door may be necessary. Final door
adjustments can be made using a 1⁄8" Allen wrench
to adjust the door hinges (see figure below).
11. Attach the door to the wine chiller by reversing
step number one above.
12. Make certain that the glass door swings freely, the
door gasket seals properly and the interior light
goes on and off as the door opens and closes.
13. Confirm that door lock turns a quarter turn from
vertical to horizontal and that this locks the door
closed.
14. Reconnect the power to the wine chiller. Return
the control knob to its previous setting.
Magnetic door gasket
3
⁄8" (1.0 cm)
clearance
holes for wood
frame wood
screws
3. Peel back door gasket on the glass door to provide
access to the screw holes used to mount the
wooden frame and the hole for the lock’s extension
section at the top of the door.
4. Place the custom wood panel on a non-abrasive
surface, protected by towels or rugs, to avoid
accidental damage to the door finish.
5. Set the wood frame flush to the front of the door in
the desired location clamp wood frame to the door
if necessary. Check to see that the back of the
lock in the wood frame lines up with the hole in
the door.
Rear of door
Not required
for 4" toe kick
6. Insert the wood screws through the back of the
door into the pilot holes in the wood frame and
tighten.
7. Assemble the door lock Phillips screw, lock
extension, lock cam and mount them to the back of
the lock body. Position the door lock cam so that it
projects upward from the top of the door. Tighten
the Phillips screw to secure the lock assembly.
⁄8" Allen head screws for
1
hinge adjustment (top
and bottom of door).
Attached
wood
Frame
Light door
striker plate
Bottom of door
10
Installation, cont.
Wine Racks
The wine chiller features slide out racks at the mid and
lower level. The upper two racks are fixed.
To be able to pull the wine racks out from the wine
chiller, the door from a closed position must be opened
a minimum of 150°.
Verify before completing installation of your wine
cooler at it’s proposed location will allow the door to
open sufficiently so that the wine racks can be pulled
out, if desired. As a possible solution, reversing the
door swing may provide enough door swing to pull out
the wine racks.
You may also alleviate the door swing situation, by
keeping the wine chiller’s door pulled out further than
the cabinet fronts.
150°
11
CAUTION
• Do not attempt to remove a rack while it has wine
bottles stored. Always empty the rack prior to
removing it from the cabinet.
Operation
Loading Tips and Suggestions:
1. Setting the Control:
The available settings of 1 through 7 provide a
temperature range in the wine chiller from the low
forties to the mid sixties.
7
CO
2
5
LDER
1
OFF
6
4
3
Use a coin to initially turn
the control clockwise to
the middle thermostat
setting (4). Allow at least
48 hours for the wine
chiller to stabilize before
making any adjustments to
the initial setting.
The mid setting on the control (4) provides
approximately 55° F (13° C) which is the
appropriate temperature for long term storage of
all types of wine.
The coldest setting (7) provides a storage
temperature of approximately 45° F (7° C) which is
the serving temperature for white wine.
The temperature can be adjusted by turning the
control clockwise for a colder temperature or
counterclockwise for a warmer temperature.
2. Insert Wine Bottles: The top two racks each hold
six bottles, with the necks alternating front (rear
bottles) to back (front bottles). The middle four
racks each hold eight bottles, with necks
alternating front (rear bottles) to back (front
bottles). The bottom rack holds six bottles and are
loaded with necks facing the rear. Tall bottles
should not be loaded on the bottom rack because
they may prevent the door from closing.
Front bottles
(necks facing
rear)
1. As with most refrigeration products, there is a
slight temperature variance at different locations
within the wine chiller.
The coolest areas will be at the rear of the four
middle racks. The front locations on these racks
are generally a few degrees warmer than the rear
locations.
The overall warmest storage location in the wine
chiller will be the upper two racks. This location in
the wine chiller is approximately 3° to 7° F (-1.5° to
-4° C) warmer.
2. Position white wines on the middle or lower racks
and red wines on the upper racks.
3. Turn off the light when it is not needed, as bottles
directly under the light will be exposed to a slightly
higher temperature when the light is on.
4. Place wines that are being stored for aging or long
term at the rear of the racks.
5. Place wines that will be used sooner on the front
half of the racks where labels are more readily
visible.
6. Magnums and other large bottles can be stored on
the upper right and left positions of the wine chiller
or on any of the middle racks, by removing the
rack directly above them.
Rear bottles
(necks facing
front)
Warmest locations
(better for red wine
storage)
Coldest locations
are at the rear of
these shelves
(better for white
wine storage)
1
OFF
7
2
6
5
4
C OL
DE
Light control knob
R
Temperature control knob
12
3
Features
• Adjustable Temperature Control: The temperature
control is adjustable from the low forties to the mid
sixties. The temperature range allows flexibility for
storage temperature preferences and accommodates
storage of a variety of red, white and sparkling wines.
• Interior Light: The light control knob is located on
the lower right front of the wine chiller, in the toe
kick area.
The light automatically illuminates to full intensity any
time the door is opened, to make it easier to view the
wine labels.
To view the display of your wine collection, while the
door is closed, turn the light control knob (see page
12).
NOTE: When the knob is turned fully counterclockwise, the light is off when the door is closed.
In the full clockwise position, the light remains on
continuously. The knob can be set at any position in
between to achieve the desired level of light intensity.
The dimming feature only affects the light when the
door is closed. The light is always at full intensity
when the door is open.
Remember to turn off the light when it is no longer
needed.
• Single Bottle Racks: Because bottles are not
stacked on top of each other, you can easily view
and access your inventory without disturbing other
bottles.
• Lock: To secure your wine collection, the wine
chiller can be locked. Use the ejectable key that has
been shipped with your appliance to securely lock
the door.
NOTE: Lock is designed so key cannot stay inserted
into the lock.
• Wood Rack Fronts: There are four unfinished solid
maple rack fronts packed with your wine chiller.
These can be finished to match the surrounding
cabinetry in your home. Follow the finishing
instructions provided by the stain manufacturer.
NOTE: In many cases stains and/or finishes have
odors that may be objectionable in an enclosed area.
To Install: Place one rack front on each of the
middle four racks. Align the holes in the wood up to
rack front and gently tighten down.
• Pull-out Racks: The middle four racks may be
pulled out approximately 6" (15 cm) to facilitate
adding or removing bottles
CAUTION
• Do not attempt to remove a rack while it has wine
bottles stored. Always empty the rack prior to
removing it from the cabinet.
13
Care and Cleaning
Cleaning
Light Bulb Replacement
WARNING
• To avoid electrical shock which can cause severe
personal injury or death, disconnect power to the
wine chiller before cleaning.
• Condenser: The condenser tubing inside the wine
chiller does not require frequent cleaning; however,
satisfactory cooling depends on adequate ventilation
over the coils. Be sure that nothing obstructs the
required air flow openings in front of the wine chiller.
At least twice a year brush or vacuum lint and dirt
from the condenser for efficient performance by
unscrewing the grille on the bottom front of the wine
chiller.
• Wine Chiller: The painted cabinet can be washed
with mild detergent and water and thoroughly rinsed
with clear water. Never use abrasive scouring
powders.
• Stainless Steel Door Frame: Use a soft cloth or
sponge and wipe with the grain of the stainless steel.
Use mild detergent and water for light soil, Bon Ami*
for more moderate soil and Cameo Stainless Steel
Cleaner* for discoloration. Do not use chlorine
bleach or products containing chlorine bleach on
stainless steel.
After cleaning, rinse and dry. To restore luster and
remove streaks, follow with Stainless Steel Magic
Spray* (Jenn-Air model A912, part number
20000008).
WARNING
• To avoid electrical shock which can cause severe
personal injury or death, disconnect power to the
wine chiller before replacing light bulb. After
replacing light bulb, connect power.
CAUTION
To avoid personal injury or property damage,
observe the following:
• Allow light bulb to cool.
• Wear gloves when replacing light bulb.
The wine chiller uses a 15 watt, intermediate base bulb
and is located inside the light shield. The light shield is
on the ceiling of the wine chiller and is held in place by
three screws. Remove the three screws and light
shield to remove the light bulb. Do not use a
replacement light bulb greater than 15 watts.
In the Event of a Power Failure
If the power fails, open the door as infrequently as
possible to maintain the temperature. A gradual rise in
temperature should not have any adverse effect on the
wine.
If it is extremely hot, you may want to move the wine to
the coolest location you can find until power is
restored.
• Interior: Wash interior compartment with mild
detergent and water. Do not use an abrasive
powder, solvent, polish cleaner or undiluted
detergent.
• Glass Door: Use a glass cleaner or mild detergent
and water and soft cloth to clean the glass door. Do
not use abrasive powders.
• Door Gasket: The vinyl gasket may be cleaned
with mild detergent and water, or a solution of
2 tablespoons baking soda to 1 quart warm water.
* Brand names for cleaning products are registered trademarks of the respective manufacturers.
14
Before Calling for Service
Before calling for service check the troubleshooting table below. This table lists possible problems that you can
remedy without difficulty to avoid an unnecessary service call.
PROBLEM
POSSIBLE CAUSE/SOLUTIONS
Odor in wine chiller
• Interior needs cleaning.
Noisy operation
• Wine chiller not level.
• Weak floor.
Wine chiller vibrates
• Wine chiller not level.
• Weak floor.
Wine chiller light not
working
• Bulb burned out.
Appliance will not run
• Temperature control turned to “OFF”.
• No power at outlet.
• Line cord not plugged in.
• No power at electrical outlet.
• House fuse blown or circuit breaker open.
Appliance runs long
• Prolonged door openings.
• Control set too cold.
• Condenser needs cleaning.
Moisture collects inside
• Too many door openings.
• Hot, humid weather increases condensation.
Moisture collects on
outside surface
• Hot, humid weather increases condensation.
As humidity decreases, moisture will disappear.
• Control improperly set.
Interior too hot/too cold
• Control improperly set.
• Temperature is being checked with a faulty thermometer.
• Move the thermometer to center of wine chiller and recheck.
If you do need service, contact your dealer or the manufacturer. In any correspondence, refer to the model number
and serial number of your wine chiller which is located inside the wine chiller, on the upper left side. Retain your
proof of purchase. Record these numbers in the space provided on page 1.
15
Notes
16
Warranty
Full One Year Warranty
For one (1) year from the original retail purchase date,
any part which fails in normal home use will be repaired
or replaced free of charge.
Limited Warranties - Major Refrigeration
Components
Second Through Fifth Years - After the first year from
the original purchase date through the end of the fifth
year, the manufacturer will repair or replace, at its option,
free of charge for parts and labor (only), any part of the
sealed refrigeration system (consisting of the compressor,
evaporator, condenser, dryer and connecting tubing)
which fail in normal home use. All other costs, including
mileage, transportation, trip charge and diagnostic
charge, if required, shall be the responsibility of the
owner.
Limited Warranties - Other Parts
Second Year - Parts other than major refrigeration
components which fail in normal home use during the
second year following the original retail purchase date
will be repaired or provided free of charge for the part
itself, with the owner paying all other costs, including
labor, mileage, transportation, trip charge and diagnostic
charge, if required.
NOTE: The full warranty and the limited warranties
apply when the refrigeration product is located in the
U.S.A. or Canada. Products located elsewhere are
covered by the limited warranties only including parts
that fail during the first year.
LIMITATIONS OF LIABILITY
The warrantor shall not be liable for any incidental or
consequential damages, including food loss. Some states
do not allow the exclusion or limitation of consequential
damages, so the above limitation or exclusion may not
apply to you.
The specific warranties expressed above are the ONLY
warranties provided by the manufacturer. These warranties
give you specific legal rights, and you may also have other
rights which vary from state to state.
To receive warranty service:
To locate an authorized service company in your area
contact the Jenn-Air dealer from whom your appliance was
purchased; or call Maytag ServicesSM, Jenn-Air Customer
Assistance at the number listed below. Should you not
receive satisfactory warranty service, please call or write:
Maytag ServicesSM
Attn: Jenn-Air CAIR® Center
P.O. Box 2370
Cleveland, TN 37320-2370
U.S.A. and Canada . . . . . . . . . . . . . . .1-800-JENNAIR
(1-800-536-6247)
U.S.A. customers using
TTY for deaf, hearing impaired
or speech impaired . . . . . . . . . . . . . .1-800-688-2080
NOTE: When writing or calling about a service problem,
please include the following information:
– Your name, address and telephone number;
– Model number, serial number and revision number;
– Name and address of your dealer and the date the
appliance was bought;
– A clear description of the problem you are having;
– Proof of purchase (sales receipt).
What is Not Covered By These Warranties:
1. Conditions and damages resulting from any of the
following:
a. Improper installation, delivery, or maintenance.
b. Any repair, modification, alteration, or adjustment not
authorized by the manufacturer or an authorized
servicer.
c. Misuse, abuse, accidents, or unreasonable use.
d. Incorrect electric current, voltage, or supply.
e. Improper setting of any control.
2. Warranties are void if the original serial numbers have
been removed, altered or cannot be readily determined.
3. Light bulbs.
4. Products purchased for commercial or industrial use.
5. The cost of service or service call to:
a. Correct installation errors.
b. Instruct the user on the proper use of the product.
c. Transport the appliance to the servicer.
6. Consequential or incidental damages sustained by any
person as a result of any breach of these warranties.
Some states do not allow the exclusion or limitation of
consequential or incidental damages, so the above may not
apply.
User’s guides, service manuals and parts information are available from Maytag ServicesSM, Jenn-Air Customer Assistance.
Jenn-Air • 403 West Fourth Street North • P.O. Box 39 • Newton, Iowa 50208
17
Appendix B
©2003 Maytag Appliances Company
16022323 Rev. 0
B -1
41007710 ENG 5/03 6/11/03 10:58 AM Page 1
UNDER
JENN-AIR
C O U N T E R R E F R I G E R ATO R
O WN E R ’ S
G U I DE
TA B L E
OF
CONTENTS
Introduction..............................................................................1
Safety ........................................................................................2
Installation ...........................................................................3–7
Operation ..................................................................................8
Features.....................................................................................8
Care and Cleaning ................................................................9
Before Calling for Service ................................................10
Warranty..................................................................................11
Guide de l'utilisateur..........................................................12
Guía del Usuario..................................................................24
Form No. A/05/03
Part No. 41007710
Litho U.S.A.
41007710 ENG 5/03 6/11/03 10:58 AM Page 2
Introduction
Congratulations on the purchase of a Jenn-Air
Refrigerator.
Before Calling for Service . . .
We appreciate your purchase decision and feel
confident you will be happy with this appliance for
years to come. For best results, please read this guide
carefully. You will find instructions on the proper
operation and maintenance.
If something seems unusual, please check the “Before
Calling For Service” section, which is designed to help
solve basic problems before calling a servicer.
Should you ever need our future assistance with your
refrigerator, a complete model and serial number
recorded in the spaces below will be extremely helpful.
These numbers are found on a data plate located on
the upper left side inside the refrigerator.
Model Number__________________________________
Serial Number __________________________________
Purchase Date __________________________________
Dealer Name ___________________________________
Dealer Address _________________________________
What if These Features are Different
from Mine?
This book is intended to show the variety of features
that are available in the product line. If you have
questions, write us (include your model number and
phone number) or call:
Maytag ServicesSM
Attn: Jenn-Air CAIR® Center
P.O. Box 2370
Cleveland, TN 37320-2370
U.S.A and Canada 1-800-JENNAIR
(1-800-536-6247)
1-800-688-2080 (U.S.A. TTY for hearing
or speech impaired)
(Mon.-Fri., 8 a.m.-8 p.m. Eastern Time)
Internet: http://www.jennair.com
Dealer Phone ___________________________________
What You Need to Know About
Safety Instructions
Warning and Important Safety Instructions appearing in
this manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining or operating appliance.
Always contact your dealer, distributor, service agent or
manufacturer about problems or conditions you do not
understand.
Recognize Safety Symbols, Words,
Labels
DANGER
DANGER – Immediate hazards which WILL result in
severe personal injury or death.
WARNING
WARNING – Hazards or unsafe practices which
COULD result in severe personal injury or death.
CAUTION
CAUTION – Hazards or unsafe practices which COULD
result in minor personal injury.
1
41007710 ENG 5/03 6/11/03 10:58 AM Page 3
Important Safety Instructions
WARNING
• When using your appliance, always follow basic
precautions.
• Use the refrigerator only for its intended purpose.
• To prevent possibility of hazard due to electrical
shock, never plug the refrigerator in to a receptacle
which has not been grounded adequately and in
accordance with the local and national electrical
codes. See
warning and the grounding
instructions that follow.
• Disconnect the power cord to the refrigerator before
cleaning, servicing or replacing a light bulb.
• In case of power failure, minimize door openings.
• Any electrical service cord that becomes frayed or
damaged should be immediately repaired or
replaced. Never unplug your appliance by pulling on
the power cord.
WARNING
• This appliance is designed to operate on a normal
115 volt, 15 amp, 60 cycle line. There should be a
separate, grounded circuit serving this appliance
only. Do not use an extension cord. Do not use
any device that will alter the electrical
performance of this appliance.
This appliance is equipped with a three-pronged
grounding plug for your protection against possible
electrical shock hazards. It must be plugged in to a
grounding receptacle. Where a standard two-prong
wall receptacle is encountered, it is the personal
responsibility and obligation of the customer to have it
replaced with a properly grounded three-prong wall
receptacle. Do not, under any circumstances, cut or
remove the third (ground) prong from the power cord.
Do not use an adapter plug.
Power Supply Cord With
3-prong Grounding Plug
• To prevent fire hazard, your refrigerator should not be
operated in the presence of gasoline or other
flammable vapors and liquids.
• To prevent injury, children should not climb, hang or
stand on this refrigerator.
DANGER
Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigeration
products are still dangerous…even if they will sit for
“just a few days.” If you are getting rid of your old
refrigeration products, please
follow the instructions below
to help prevent accidents.
Grounding Type
Wall Receptacle
WARNING
• This refrigerator should not, under any
circumstances, be ungrounded.
• Take off the doors.
• Leave the shelves in place
so that children may not
easily climb inside.
Save These Instructions For Future Reference
2
41007710 ENG 5/03 6/11/03 10:58 AM Page 4
Installation
Materials Needed
•
•
•
•
•
Cabinet Cutout Dimensions
⁄8" Allen wrench
⁄16" socket
1
5
Phillips screwdriver
Putty knife
Carpenter’s level
A
Select Location
B
The refrigerator was designed to be installed under the
counter. Its proper location will ensure peak
performance. Choose a location indoors, away from
heat and out of direct sunlight. Best performance will
be maintained when installed within the following
parameters:
Ideal Ambient
Temperature Range
Built-In..........................................................65-80° F
(18.3-26.7° C)
Provisions for electricity should be determined before
placing the refrigerator in its final location (see page 2).
C
UNDER COUNTER CUTOUT
A
24" (61.0 cm)*
B
Min. 341⁄2" (87.6 cm)
Max. 351⁄4" (89.5 cm)
C
241⁄8" (61.3 cm)
* If door is recessed between cabinets, cabinet cutout
must be 241⁄4" (61.6 cm).
Cabinet Clearance
Ventilation is required from the bottom front
section of the refrigerator for efficient operation.
Keep this area open and clear of any obstructions.
The adjacent cabinets and countertop can be built
around the refrigerator as long as no top trim or
countertop is installed lower than the top of the hinge.
Installation should allow for the refrigerator to be
moved if service is ever required.
3
41007710 ENG 5/03 6/11/03 10:58 AM Page 5
Dimensions
Leveling Legs
Front
Install leveling legs (located in literature pack):
• At least 2 people are needed to tip the refrigerator
backwards until there is approximately 12" (30.5 cm)
of clearance between the floor and the refrigerator.
305⁄16"
(77 cm)
min. 34"
(86.4 cm)
max. 35"
(88.9 cm)
with
leveling
legs fully
extended
Weldnut
(each bottom
corner of
refrigerator)
Bottom of
Refrigerator
Leveling Leg
(4 per refrigerator)
3"
(7.6 cm)
• Screw one front leveling leg into the screw
impression found in each corner. Leveling legs
should be screwed in until snug.
237⁄8"
(60.6 cm)
• Repeat the above procedures to install the rear
leveling legs.
Side
47 ⁄4"
(120.0 cm)
1
WARNING
• To prevent injury, one person should not attempt to
tilt the refrigerator by himself. Have someone else
assist to prevent the refrigerator from falling during
leveling leg installation.
CAUTION
• The refrigerator should remain upright at least
30 minutes prior to plugging it in.
Level the Refrigerator
22"
(55.9 cm)
241⁄4"
(61.6 cm)
Using a carpenter’s level, check to be sure the
refrigerator is level from side to side and from front to
back. Leveling adjustments can be made by turning
the leveling legs counter-clockwise to increase height
and clockwise to decrease height.
NOTE: The refrigerator should not wobble. Use shims
to add stability when needed.
4
41007710 ENG 5/03 6/11/03 10:58 AM Page 6
Installation, cont.
Reversing the Door
• Using a Phillips screwdriver, remove the 6 screws
that are attaching the liner to the door. The
screw covers will rotate with the screws.
WARNING
• To avoid electrical shock which can cause severe
personal injury or death, disconnect power to the
refrigerator before reversing the door.
Top of
1. Turn OFF the refrigerator
Hinge
Refrigerator
and disconnect the
Pin
power. Remove top
hinge pin with a
1
⁄8" Allen wrench.
Out
Remove door by pulling
it out and upward off
Hinge
bottom hinge pin. Set
Bracket
aside, face down on
surface that will not
Up
scratch the finish.
Remove the small plastic washer from bottom
hinge pin.
Hole Plugs
2. Remove the six small
plastic hole plugs from the
left hand hinge holes
using the putty knife.
Move
Using a 5⁄16" socket,
wrench or nut-driver,
remove bottom hinge.
Reinstall hinge, moving it
to the top left hand side.
Using a 1⁄8" Allen wrench, remove the hinge pin
from the top left hinge, and install in top right
hinge. Now move top right hinge to left bottom.
Reinstall the small plastic washer on the bottom
hinge pin. Install hole plugs in right side.
3. Reverse the door interior liner.
5
• Reinstall the screws into the well nuts by first
starting all 6 screws and then tightening all 6
screws. This will reattach the door liner to the
door. Close the screw covers.
• Move the striker plate to the opposite end of the
door.
NOTE: Be sure to install the spacer behind the
striker plate in its correct orientation. Failure to
do this can interfere with the ability to reinstall
the striker plate correctly.
• Reinstall the door seal by pressing it into the
door channel, making certain the corners are
fully inserted.
Door
Door liner
Well nuts
Rotate
180°
Spacer
Striker plate
• Remove the door seal.
• Open the 6 hinged screw covers
found on the door liner by
sliding the blade of thin putty
knife into the seam on each
cover (be careful not to run the
knife through the hinge found
Hinge
on each screw cover).
• Rotate the door liner 180º and align the screw
holes in the door liner with the well nuts in the
door.
Seam
41007710 ENG 5/03 6/11/03 10:58 AM Page 7
4. Reinstall the door by
Hinge
locating it over the
Pin
bottom hinge pin and
Top of
pushing down and in.
Refrigerator
Reinstall the top
Hinge
hinge pin. Check the Bracket
door for proper
In
alignment. The top
and sides of the door
should run parallel to
Down
the top and side
edges of the cabinet.
Some misalignment is acceptable, but the door
gasket must seal fully against the cabinet.
Realigning the door may be necessary. Using a 1⁄8"
Allen wrench, loosen the two screws on the top
and bottom adjustable door hinge bracket. Adjust
the door to proper alignment. Make sure door
gasket seals fully against the cabinet front.
Retighten screws after making adjustments.
5. Reconnect power to the refrigerator and turn
the control back to the ON setting.
Installing the Custom Door
Panel (select models)
WARNING
• To avoid electrical shock which can cause severe
personal injury or death, disconnect power to
refrigerator before installing the custom door
panel.
The dimensions for a decorative custom door panel are:
233⁄4" (60.3 cm) Width
305⁄16" (77 cm) Height
3
⁄4" (1.9 cm) Thickness (maximum)
1. Turn OFF the refrigerator and disconnect the
power.
A
2. Remove 1⁄8" top hinge
pin (A). Remove the
door off the bottom
hinge pin, noting
washer location.
B
3. Remove the door seal
(B) to expose the screw
holes.
Custom Handle
1. A custom handle (not supplied) must be installed.
2. Drill pilot holes through the custom panel to match
the handle. Countersink the holes on the back of
the panel.
3. Attach the custom handle to the front door panel
assembly.
NOTE: The custom handle screws should be installed
through the custom panel and into the custom handle.
The screw heads should be countersunk, so the inside
panel surface can be installed flush with the
refrigerator door.
6
41007710 ENG 5/03 6/11/03 10:58 AM Page 8
Installation, cont.
Wood Screws
1. #8 pan head wood screws are recommended to
properly secure the custom wood panel to the
refrigerator door.
2. A total of 10 screws are needed.
3. Use only pan head screws.
Attach the Wood Panel to the
Refrigerator Door
1. Place the custom wood panel on a non-abrasive
surface, protected by towels or rugs, to avoid
accidental damage to the door finish.
4. Be sure the screw length is NOT longer than the
wood thickness at the screw locations.
2. Place the refrigerator door flush with the inside
surface of the custom wood panel. Clamp the
wood panel to the door, if necessary.
5. Use the following pilot hole drill sizes.
3. Mark the hole locations with a pencil.
Type of
Wood
Pilot Hole Drill Size for
#8 Pan Head Wood Screws
Hardwood
3
Softwood
5
⁄32" (.23 cm)
⁄64" (.20 cm)
Prepare the Wood Panel
233⁄4"
(60.3 cm)
10 Pilot Hole
Locations
4. Drill the pilot holes into the custom panel.
5. Insert the wood screws through the back of the
door and into the pilot holes in the custom wood
panel and tighten.
6. Reinstall the door seal by pressing it into the door
channel, making certain the corners are fully
inserted.
7. Install the door back on the refrigerator using the
supplied plastic washers (as shown below).
8. Realigning the door may be necessary (see page 6).
Custom panel
thickness:
5
⁄8" to 3⁄4"
(1.6-1.9 cm)
CAUTION
• Door can become disengaged if washers are not
installed.
• Door may not swing properly if all nylon components
are not installed as shown.
305⁄16"
(77 cm)
Cabinet Hinge
Washer
(Optional)
Inside of Door
Top Hinge Corner
Shoulder Bushing
Door Hinge
Door Hinge
Bottom Hinge
Corner
Shoulder Bushing
Washer
Cabinet Hinge
7
41007710 ENG 5/03 6/11/03 10:58 AM Page 9
Operation
Interior Light
1. Setting the Control:
The temperature control knob is located at the
bottom front of the refrigerator, near the center of
the grille.
7
Adjustable Shelves
CAUTION
CO
2
5
LDER
1
OFF
The interior light makes it easy to view what is stored
in the refrigerator.
The light automatically comes on when the door is
opened.
6
4
3
Initially turn the control
clockwise to the middle
thermostat setting (4).
Allow at least 48 hours
for the refrigerator to
stabilize before making
any adjustments to the
initial setting.
Features
• To prevent injury, do not attempt to adjust a shelf
while it is loaded. Always empty the shelf prior to
adjusting it or moving it to another location.
The temperature can be adjusted by turning the
control clockwise for a colder temperature or
counterclockwise for a warmer temperature.
The interior refrigerator shelves are adjustable.
All refrigerator models automatically defrost. No
manual defrosting is required.
The shelves rest on rails formed in the side of the
refrigerator cabinet.
NOTE: Turning the control knob to OFF stops
cooling but does not shut off power to the
refrigerator. To disconnect power, the refrigerator
must be unplugged or the circuit breaker or fuse
board turned off.
To adjust shelf height:
• Unload the shelf completely.
• Lift the rear of the shelf up slightly.
• Pull the shelf straight out.
• Slide the shelf onto an alternative railing.
8
41007710 ENG 5/03 6/11/03 10:58 AM Page 10
Care and Cleaning
Cleaning
Light Bulb Replacement
WARNING
• To avoid electrical shock which can cause severe
personal injury or death, disconnect power to the
refrigerator before cleaning.
• Condenser: The condenser tubing inside the
refrigerator does not require frequent cleaning;
however, satisfactory cooling depends on adequate
ventilation over the coils. Be sure that nothing
obstructs the required air flow openings in front of
the refrigerator. At least twice a year, brush or
vacuum lint and dirt from the condenser for efficient
performance by unscrewing the grille on the bottom
front of the refrigerator.
• Cabinet: The painted cabinet can be washed with
mild detergent and water, and thoroughly rinsed with
clear water. Never use abrasive scouring powders.
• Stainless Steel Door: Use a soft cloth or sponge
and wipe with the grain of the stainless steel. Use
mild detergent and water for light soil, Bon Ami* for
more moderate soil and Cameo Stainless Steel
Cleaner* for discoloration. Do not use chlorine
bleach or products containing chlorine bleach on
stainless steel.
After cleaning, rinse and dry. To restore luster and
remove streaks, follow with Stainless Steel Magic
Spray* (Jenn-Air model A912, part number
20000008).
• Interior: Wash interior compartment with mild
detergent and water. Do not use an abrasive
powder, solvent, polish cleaner or undiluted
detergent.
WARNING
• To avoid electrical shock which can cause severe
personal injury or death, disconnect power to the
refrigerator before replacing light bulb. After
replacing light bulb, connect power.
CAUTION
To avoid personal injury or property damage,
observe the following:
• Allow light bulb to cool.
• Wear gloves when replacing light bulb.
The refrigerator uses a 15-watt appliance light bulb. To
replace the light bulb, proceed as follows:
1. Unplug the power cord from the wall receptacle.
2. Open the cabinet door.
3. Remove lower shelf.
4. Remove the 3 screws on the front face of the light
lens.
5. Remove the lens.
6. Unscrew the existing bulb and replace with an
equivalent 15-watt, threaded, intermediate base
appliance bulb. Do not replace with a bulb higher
than 15 watts.
7. Reassemble.
8. Reconnect power.
• Door Gasket: The vinyl gasket may be cleaned with
mild detergent and water or a solution of
2 tablespoons baking soda to 1 quart of warm water.
* Brand names for cleaning products are registered trademarks of the respective manufacturers.
9
41007710 ENG 5/03 6/11/03 10:58 AM Page 11
Before Calling for Service
Before calling for service check the troubleshooting table below. This table lists possible problems that you can
remedy without difficulty to avoid an unnecessary service call.
PROBLEM
POSSIBLE CAUSE/SOLUTIONS
Odor in refrigerator
• Interior needs cleaning.
Noisy operation
• Refrigerator not level.
• Weak floor.
Refrigerator cabinet
vibrates
• Refrigerator not level.
Refrigerator light
not working
• Bulb burned out.
Appliance will not run
• Temperature control turned to OFF.
• Weak floor.
• No power at outlet.
• Line cord not plugged in.
• No power to electrical outlet.
• House fuse blown.
Appliance runs long
• Prolonged door openings.
• Control set too cold.
• Condenser needs cleaning.
Moisture collects inside
• Too many door openings.
• Hot, humid weather increases condensation.
Moisture collects on
outside surface
• Hot, humid weather increases condensation.
As humidity decreases, moisture will disappear.
• Control improperly set.
Interior too hot/too cold
• Control improperly set.
• Temperature is being checked with a faulty thermometer.
If you do need service, contact your dealer or the manufacturer. In any correspondence, refer to the model number
and serial number of your refrigerator which is located on the lower front refrigerator flange. Retain your proof of
purchase. Record these numbers in the space provided on page 1.
10
41007710 ENG 5/03 6/11/03 10:58 AM Page 12
Warranty
Full One Year Warranty
For one (1) year from the original retail purchase date,
any part which fails in normal home use will be repaired
or replaced free of charge.
Limited Warranties - Major Refrigeration
Components
Second Through Fifth Years - After the first year from
the original purchase date through the end of the fifth
year, Maytag ServicesSM will repair or replace, at its option,
free of charge for parts and labor (only), any part of the
sealed refrigeration system (consisting of the compressor,
evaporator, condenser, dryer and connecting tubing)
which fail in normal home use. All other costs, including
mileage, transportation, trip charge and diagnostic
charge, if required, shall be the responsibility of the
owner.
Limited Warranties - Other Parts
Second Year - Parts other than major refrigeration
components which fail in normal home use during the
second year following the original retail purchase date
will be repaired or provided free of charge for the part
itself, with the owner paying all other costs, including
labor, mileage, transportation, trip charge and diagnostic
charge, if required.
NOTE: The full warranty and the limited warranties
apply when the refrigeration product is located in the
U.S.A. or Canada. Products located elsewhere are
covered by the limited warranties only including parts
that fail during the first year.
LIMITATIONS OF LIABILITY
The warrantor shall not be liable for any incidental or
consequential damages, including food loss. Some states
do not allow the exclusion or limitation of consequential
damages, so the above limitation or exclusion may not
apply to you.
The specific warranties expressed above are the ONLY
warranties provided by the manufacturer. These warranties
give you specific legal rights, and you may also have other
rights which vary from state to state.
To Receive Warranty Service:
To locate an authorized service company in your area
contact the Jenn-Air dealer from whom your appliance was
purchased; or call Maytag ServicesSM, Jenn-Air Customer
Assistance at the number listed below. Should you not
receive satisfactory warranty service, please call or write:
Maytag ServicesSM
Attn: Jenn-Air CAIR® Center
P.O. Box 2370
Cleveland, TN 37320-2370
U.S.A. and Canada . . . . . . . . . . . . . . .1-800-JENNAIR
(1-800-536-6247)
U.S.A. customers using
TTY for deaf, hearing impaired
or speech impaired . . . . . . . . . . . . . .1-800-688-2080
NOTE: When writing or calling about a service problem,
please include the following information:
– Your name, address and telephone number;
– Model number, serial number and revision number;
– Name and address of your dealer and the date the
appliance was bought;
– A clear description of the problem you are having;
– Proof of purchase (sales receipt).
What is Not Covered By These Warranties:
1. Conditions and damages resulting from any of the
following:
a. Improper installation, delivery, or maintenance.
b. Any repair, modification, alteration, or adjustment not
authorized by the manufacturer or an authorized
servicer.
c. Misuse, abuse, accidents, or unreasonable use.
d. Incorrect electric current, voltage, or supply.
e. Improper setting of any control.
2. Warranties are void if the original serial numbers have
been removed, altered or cannot be readily determined.
3. Light bulbs.
4. Products purchased for commercial or industrial use.
5. The cost of service or service call to:
a. Correct installation errors.
b. Instruct the user on the proper use of the product.
c. Transport the appliance to the servicer.
6. Consequential or incidental damages sustained by any
person as a result of any breach of these warranties.
Some states do not allow the exclusion or limitation of
consequential or incidental damages, so the above may not
apply.
User’s guides, service manuals and parts information are available from Maytag ServicesSM, Jenn-Air Customer Assistance.
Jenn-Air • 403 West Fourth Street North • P.O. Box 39 • Newton, Iowa 50208
11
