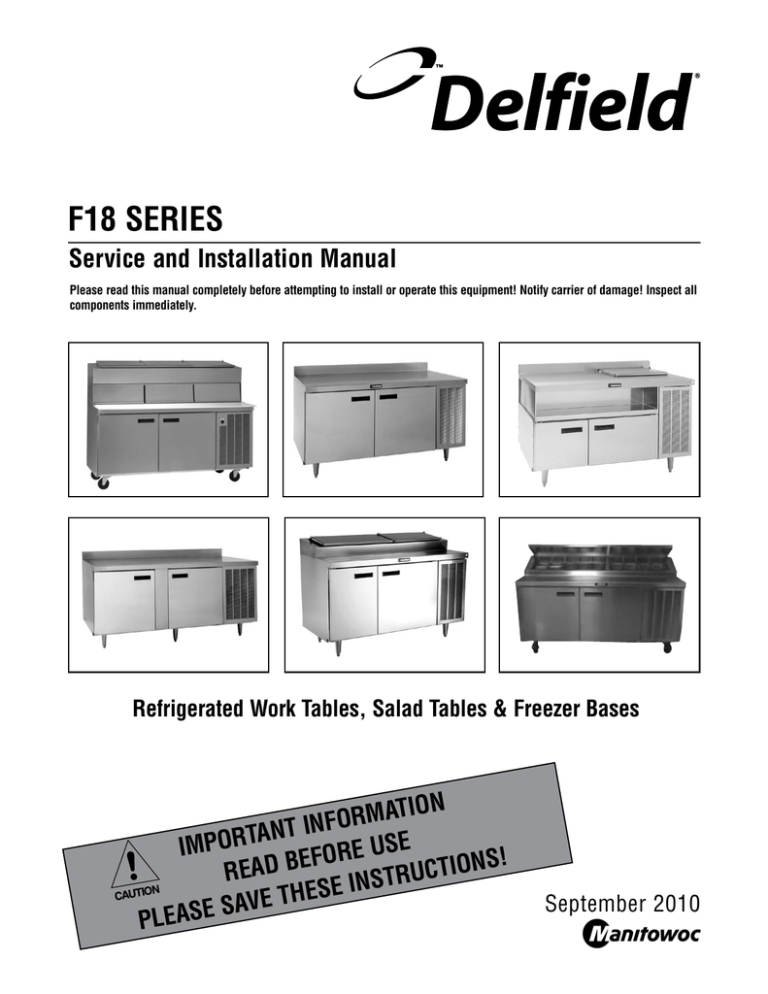

Delfield F18BC Installation manual

F18 SERIES
Service and Installation Manual
Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all
components immediately.
Refrigerated Work Tables, Salad Tables & Freezer Bases
ION
T
A
M
R
INFO
T
N
A
T
R
USE
IMPO
E
R
O
F
E
NS!
O
I
T
C
READ B
U
NSTR
I
E
S
E
H
ET
V
A
S
E
S
PLEA
September 2010
F18 Series Service and Installation Manual
Important Warning And Safety Information
WARNING Read This Manual Thoroughly Before Operating, Installing, Or Performing
Maintenance On The Equipment.
WARNING Failure To Follow Instructions In This Manual Can Cause Property Damage,
Injury Or Death.
WARNING Do Not Store Or Use Gasoline Or Other Flammable Vapors Or Liquids In The
Vicinity Of This Or Any Other Appliance.
WARNING Unless All Cover And Access Panels Are In Place And Properly Secured, Do
Not Operate This Equipment.
WARNING Do Not Clean With Water Jet.
CAUTION Observe the following:
•
Minimum clearances must be maintained from all walls and combustible
materials.
•
Keep the equipment area free and clear of combustible material.
•
Adequate clearance for air openings.
•
Operate equipment only on the type of electricity indicated on the
specification plate.
•
Retain this manual for future reference.
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
F18 Series Service and Installation Manual
Contents
Serial Number Location
Serial Number Location.........................................................3
Receiving & Inspecting..........................................................3
Specifications..................................................................... 4-6
Installation.............................................................................7
Operation...............................................................................8
Pressure Control Settings......................................................8
Maintenance..................................................................... 9-10
The serial number on all self-contained F18 Series refrigerated
work tables and freezer bases is located on the electrical
specifications tag affixed inside the compressor section next
to the pressure control.
On remote refrigerated bases with doors, the tag is inside the
unit on the coil side. On remote refrigerated bases with drawers,
the tag is affixed to the drawer divider. On remote freezer bases,
the tag is located on the inside back of the unit.
Always have the serial number of your unit available when
calling for parts or service. A complete list of authorized
Delfield parts depots is available at www.delfield.com.
Wiring Diagrams............................................................ 11-12
Replacement Part Lists.................................................. 13-16
Replacement Part Assemblies....................................... 17-20
©2010 The Delfield Company. All rights reserved. Reproduction without
written permission is prohibited. “Delfield” is a registered trademark of The
Delfield Company.
Warranties..................................................................... 21-23
Receiving and Inspecting the Equipment
Even though most equipment is shipped crated, care should be
taken during unloading so the equipment is not damaged while
being moved into the building.
1. Visually inspect the exterior of the package an skid or
container. Any damage should be noted and reported to
the delivering carrier immediately.
2. If damaged, open and inspect the contents with the
carrier.
3. In the event that the exterior is not damaged, yet upon
opening, there is concealed damage to the equipment
notify the carrier. Notification should be made verbally as
well as in written form.
4. Request an inspection of the concealed equipment. This
should be done within 10 days from receipt of the
equipment.
5. Check the lower portion of the unit to be sure legs or
casters are not bent.
6. Also open the compressor compartment housing and
visually inspect the refrigeration package. Be sure lines are
secure and base is still intact.
7. Freight carriers can supply the necessary forms upon
request.
8. Retain all crating material until an inspection has been
made or waived.
Uncrating the Equipment
First cut and remove the banding from around the crate.
Remove the front of the crate material, use of some tools will
be required. If the unit is on legs remove the top of the crate as
well and lift the unit off the skid. If the unit is on casters it can
be "rolled" off the skid.
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
F18 Series Service and Installation Manual
Specifications
Remote Refrigerated Work Tables
Model
# Of Doors
Shelf Max Base Storage Shelf
Load (lbs) Cap. FT3 Area FT2
Volts/Hertz/
Phase
Amps
BTU Load
EVAP. BTU/°TD
F18WR31
(1) 19”
70
7.56
2.56
115/60/1
3.0
383
120/3°
F18WR39
(1) 27”
124
10.23
3.95
115/60/1
3.0
465
120/4°
F18WR44
(2) 19”
70
12.14
5.12
115/60/1
3.0
605
120/5°
F18WR52
(1) 19” & (1) 27”
70/124
15.12
6.51
115/60/1
3.0
686
120/6°
F18WR60
(2) 27”
124
18.10
7.90
115/60/1
3.0
768
120/6°
F18WR70
(2) 32”
140
21.23
9.64
115/60/1
3.0
869
120/7°
F18WR79
(2) 27” & (1) 19”
124/70
24.48
10.29
115/60/1
6.0
1050
240/4°
F18WR87
(3) 27”
124
27.46
11.85
115/60/1
6.0
1131
240/5°
Volts/Hertz/
Phase
Amps
BTU Load
BTU System Cap.
R-404A
oz.
H.P.
NEMA
Plug
Self-Contained Refrigerated Work Tables
Model
# Of Doors
Shelf Max Base Storage Shelf
Load (lbs) Cap. FT3 Area FT2
F18WC39
(1) 19”
70
7.56
2.56
115/60/1
8.0
383
1462
16
1/5
5-15P
F18WC47
(1) 27”
124
10.23
3.95
115/60/1
8.0
465
1462
16
1/5
5-15P
F18WC52
(2) 19”
70
12.14
5.12
115/60/1
8.0
605
1462
16
1/5
5-15P
F18WC60
(1) 19” & (1) 27”
70/124
15.12
6.51
115/60/1
8.0
686
1462
16
1/5
5-15P
F18WC68
(2) 27”
124
18.10
7.90
115/60/1
10.0
768
1462
16
1/4
5-15P
F18WC78
(2) 32”
140
21.23
9.64
115/60/1
10.0
869
1994
16
1/4
5-15P
F18WC87
(2) 27” & (1) 19”
124/70
24.48
10.29
115/60/1
10.0
1050
2261
16
1/4
5-15P
F18WC95
(3) 27”
124
27.46
11.85
115/60/1
10.0
1131
2261
16
1/4
5-15P
Amps
BTU Load
Base/Rail
EVAP. BTU/°TD
Base/Rail
Remote Refrigerated Mega Top Salad Tables
Model
# Of Doors
Shelf Max Base Storage
Volts/Hertz/
Load (lbs) Cap. FT3 # of Pans
Phase
F18MR31A
(1) 19”
70
4.14
6
115/60/1
3.0
280/265
120/2°/12/22°
F18MR44A
(2) 19”
70
7.15
6
115/60/1
3.0
444/265
120/4°/12/22°
F18MR44D
(2) 19”
70
7.15
12
115/60/1
3.0
444/529
120/4°/22/25°
F18MR52A
(1) 19” & (1) 27”
70/124
8.97
6
115/60/1
3.0
515/265
120/4°/12/22°
F18MR52D
(1) 19” & (1) 27”
70/124
8.97
12
115/60/1
3.0
515/529
120/4°/22/25°
F18MR52E
(1) 19” & (1) 27”
70/124
8.97
18
115/60/1
3.0
515/794
120/4°/31/26°
Amps
BTU Load
Base/Rail
BTU System Cap.
Base/Rail
R-404A
oz.
H.P.
NEMA
Plug
115/60/1
10.0
280/265
1903/925
16
1/4
5-15P
Self-Contained Refrigerated Mega Top Salad Tables
Model
# Of Doors
Shelf Max Base Storage
Volts/Hertz/
Load (lbs) Cap. FT3 # of Pans
Phase
F18MC39A
(1) 19”
70
4.14
6
F18MC39D
(1) 19”
70
4.14
12
115/60/1
10.0
280/529
1903/1156
16
1/4
5-15P
F18MC52A
(2) 19”
70
7.15
6
115/60/1
10.0
444/265
1903/925
16
1/4
5-15P
F18MC52D
(2) 19”
70
7.15
12
115/60/1
10.0
444/529
1903/1156
16
1/4
5-15P
F18MC52E
(2) 19”
70
7.15
18
115/60/1
10.0
444/794
1903/1321
16
1/4
5-15P
F18MC60A
(1) 19” & (1) 27”
70/124
8.97
6
115/60/1
10.0
515/265
2314/864
16
1/4
5-15P
F18MC60D
(1) 19” & (1) 27”
70/124
8.97
12
115/60/1
10.0
515/529
2314/1141
16
1/4
5-15P
F18MC60E
(1) 19” & (1) 27”
70/124
8.97
18
115/60/1
10.0
515/794
2314/1361
16
1/4
5-15P
F18MC60F
(1) 19” & (1) 27”
70/124
8.97
24
115/60/1
10.0
515/1058
2314/1540
16
1/4
5-15P
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
F18 Series Service and Installation Manual
Specifications
Remote Refrigerated Salad Top Tables
Model
# Of Doors
Shelf Max Base Storage
Load (lbs) Cap. FT3
# of
Pans
Volts/Hertz/
Phase
Amps
BTU Load
Base/Rail
Evap. BTU/°TD
Base/Rail
F18SR31A
(1) 19”
70
4.14
6
115/60/1
3.0
280/265
120/2°/13/21°
F18SR44A
(2) 19”
70
7.15
6
115/60/1
3.0
491/441
120/4°/13/21°
F18SR44B
(2) 19”
70
7.15
8
115/60/1
3.0
491/441
120/4°/16/22°
F18SR44C
(2) 19”
70
7.15
10
115/60/1
3.0
491/441
120/4°/19/23°
F18SR52A
(1) 19” & (1) 27”
70/124
8.97
6
115/60/1
3.0
532/529
120/4°/13/21°
F18SR52B
(1) 19” & (1) 27”
70/124
8.97
8
115/60/1
3.0
532/529
120/4°/16/22°
F18SR52C
(1) 19” & (1) 27”
70/124
8.97
10
115/60/1
3.0
532/529
120/4°/19/23°
F18SR52D
(1) 19” & (1) 27”
70/124
8.97
12
115/60/1
3.0
532/529
120/4°/23/23°
Self-Contained Refrigerated Salad Top Tables
Model
# Of Doors
Shelf Max Base Storage
Load (lbs) Cap. FT3
# of
Pans
Volts/Hertz/
Phase
Amps
BTU Load
Base/Rail
BTU System R-404A
Cap. Base/Rail oz.
H.P.
NEMA
Plug
F18SC39A
(1) 19”
70
4.14
6
115/60/1
10.0
280/265
1903/745
16
1/4
5-15P
F18SC39B
(1) 19”
70
4.14
8
115/60/1
10.0
280/353
1903/867
16
1/4
5-15P
F18SC52A
(2) 19”
70
7.15
6
115/60/1
10.0
444/265
1903/745
16
1/4
5-15P
F18SC52B
(2) 19”
70
7.15
8
115/60/1
10.0
444/353
1903/867
16
1/4
5-15P
F18SC52C
(2) 19”
70
7.15
10
115/60/1
10.0
444/441
1903/971
16
1/4
5-15P
F18SC52D
(2) 19”
70
7.15
12
115/60/1
10.0
444/529
1903/1061
16
1/4
5-15P
F18SC60A
(1) 19” & (1) 27”
70/124
8.97
6
115/60/1
10.0
515/265
2314/667
16
1/4
5-15P
F18SC60B
(1) 19” & (1) 27”
70/124
8.97
8
115/60/1
10.0
515/353
2314/798
16
1/4
5-15P
F18SC60C
(1) 19” & (1) 27”
70/124
8.97
10
115/60/1
10.0
515/441
2314/916
16
1/4
5-15P
F18SC60D
(1) 19” & (1) 27”
70/124
8.97
12
115/60/1
10.0
515/529
2314/1023
16
1/4
5-15P
BTU Load
Base/Rail
Evap. BTU/°TD
Base/Rail
H.P.
NEMA
Plug
Remote Refrigerated Reduced Height Rail
Model
# Of Doors
Shelf Max Base Storage Shelf
Load (lbs) Cap. FT3 Area FT2
# of
Pans
Volts/Hertz/
Phase
Amps
F18DR44
(2) 19”
70
9.54
5.12
10
115/60/1
3.0
547/441
120/5°/19/23°
F18DR52
(1) 19” & (1) 27”
70/124
13.89
6.51
12
115/60/1
3.0
625/529
120/5°/23/23°
F18DR60
(2) 27”
124
16.64
7.9
16
115/60/1
5.0
703/617
120/6°/26/24°
F18DR70
(2) 32”
140
22.96
9.64
18
115/60/1
5.0
800/794
120/7°/32/24°
F18DR79
(1) 19” & (2) 27”
70/124
22.47
10.29
18
115/60/1
5.0
962/882
240/4°/36/25°
F18DR87
(3) 27”
124
25.22
11.85
22
115/60/1
5.0
1032/970
240/4°/39/25°
Self-Contained Refrigerated Reduced Height Rail
Model
# Of Doors
Shelf Max Base Storage Shelf
Load (lbs) Cap. FT3 Area FT2
# of
Pans
Volts/Hertz/
Phase
Amps
BTU Load
Base/Rail
BTU System R-404A
Cap. Base/Rail oz.
F18DC52
(2) 19”
70
9.54
5.12
12
115/60/1
10.0
547/529
1903/1061
16
1/4
5-15P
F18DC60
(1) 19” & (1) 27”
70/124
13.89
6.51
14
115/60/1
12.0
625/617
2314/1121
24
1/3
5-15P
F18DC68
(2) 27”
124
16.64
7.9
18
115/60/1
12.0
703/794
2314/1544
24
1/3
5-15P
F18DC82
(2) 32”
140
22.96
9.64
20
115/60/1
14.0
800/882
3097/1648
32
1/2
5-20P
F18DC91
(1) 19” & (2) 27”
70/124
22.47
10.29
22
115/60/1
14.0
962/1058
3807/1839
32
1/2
5-20P
F18DC99
(3) 27”
124
25.22
11.85
24
115/60/1
14.0
1032/1147
3807/1839
32
1/2
5-20P
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
F18 Series Service and Installation Manual
Specifications
Remote Refrigerated Reduced Height Rail
Model
# Of Doors
Shelf Max Base Storage Shelf Volts/Hertz/
Load (lbs) Cap. FT3 Area FT2
Phase
Amps
BTU Load
Base/Rail
Evap. BTU/°TD
Base/Rail
# of
Pans
F18RR44
(2) 19”
70
9.49
5.12
115/60/1
3.0
547/441
120/5°/19/23°
10
F18RR52
(1) 19” & (1) 27”
70/124
11.81
6.51
115/60/1
3.0
625/529
120/5°/23/23°
12
F18RR60
(2) 27”
124
14.14
7.9
115/60/1
5.0
703/617
120/6°/26/24°
16
F18RR70
(2) 32”
140
17.05
9.64
115/60/1
5.0
800/794
120/7°/32/24°
18
F18RR79
(1) 19” & (2) 27”
70/124
18.68
10.29
115/60/1
5.0
962/882
240/4°/36/25°
18
F18RR87
(3) 27”
124
21.30
11.85
115/60/1
5.0
1032/970
240/4°/39/25°
22
BTU Load
Base/Rail
BTU System
Cap. Base/Rail
# of
Pans
R-404A
oz.
H.P.
NEMA
Plug
Self-Contained Refrigerated Reduced Height Rail
Model
# Of Doors
Shelf Max Base Storage Shelf Volts/Hertz/
Load (lbs) Cap. FT3 Area FT2
Phase
Amps
F18RC52
(2) 19”
70
9.49
5.12
115/60/1
10.0
547/529
1903/1061
12
16
1/4
5-15P
F18RC60
(1) 19” & (1) 27”
70/124
11.81
6.51
115/60/1
12.0
625/617
2314/1121
14
24
1/3
5-15P
F18RC68
(2) 27”
124
14.14
7.9
115/60/1
12.0
703/794
2314/1544
16
24
1/3
5-15P
F18RC82
(2) 32”
140
17.05
9.64
115/60/1
14.0
800/882
3097/1648
20
32
1/2
5-20P
F18RC91
(1) 19” & (2) 27”
70/124
18.68
10.29
115/60/1
14.0
962/1058
3807/1839
22
32
1/2
5-20P
F18RC99
(3) 27”
124
21.30
11.85
115/60/1
14.0
1032/1147
3807/1839
24
32
1/2
5-20P
BTU Load
Base/Rail
Evap. BTU/°TD
Remote Freezer Base
Model
# Of Doors
Shelf Max Base Storage Shelf Volts/Hertz/
Load (lbs) Cap. FT3 Area FT2
Phase
Amps
F18FR35
(1) 19”
70
5.58
2.56
115/60/1
10.0
943
160/6°
F18FR50
(2) 19”
70
12.21
5.12
115/60/1
10.0
1471
160/9°
F18FR58
(1) 19” & (1) 27”
70/124
15.00
6.51
115/60/1
10.0
1844
160/10°
F18FR66
(2) 27”
124
17.79
7.9
115/60/1
10.0
2020
160/11°
F18FR76
(2) 32”
140
21.28
9.64
115/60/1
10.0
2437
160/13°
BTU Load
Base/Rail
BTU System
Cap. Base/Rail
H.P.
Self-Contained Freezer Base
Model
# Of Doors
Shelf Max Base Storage Shelf Volts/Hertz/
Load (lbs) Cap. FT3 Area FT2
Phase
Amps
R-404A NEMA
oz.
Plug
F18FC43
(1) 19”
70
5.58
2.56
115/60/1
10.0
943
1558
1/3
24
5-15P
F18FC62
(2) 19”
70
12.21
5.12
115/60/1
12.0
1471
1776
1/2
40
5-15P
F18FC70
(1) 19” & (1) 27”
70/124
15.00
6.51
115/60/1
16.0
1647
2713
3/4
56
5-20P
F18FC78
(2) 27”
124
17.79
7.9
115/60/1
16.0
1824
2713
3/4
56
5-20P
F18FC88
(2) 32”
140
21.28
9.64
115/60/1
16.0
2045
2713
3/4
56
5-20P
BTU Load
Base/Rail
BTU System
Cap. Base/Rail
H.P.
424/1058
2001/1865
1/5, 1/3
40
5-20P
703/1588
2001/3174
1/5. 1/2
48
5-20P
Self-Contained Dual Rails
Model
# Of Doors
F18PD48
(1) 27”
F18PD72
(2) 27”
Shelf Max Base Storage Shelf Volts/Hertz/
Load (lbs) Cap. FT3 Area FT2
Phase
Amps
9.38
3.95
124
115/60/1
10.0
16.64
7.90
124
115/60/1
12.7
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
R-404A NEMA
oz.
Plug
F18 Series Service and Installation Manual
Installation
Location
These units are intended for indoor use only. Be sure the
location chosen has a floor strong enough to support the
total weight of the cabinet and contents. A fully loaded 72”
(183cm) long model may weigh as much as 1500 pounds
(680kg)! Reinforce the floor as necessary to provide for
maximum loading.
It is very important to allow for proper air flow, both inside
and outside.
Avoid hot corners and locations near stoves, ovens and
other pieces of cooking equipment.
It is recommended that the unit be installed no
closer than 1” (2.54cm) from any wall. Do not
install the unit near any combustible material or
object affected by heat or moisture.
PDL models also require 14" (36cm) clearance
at the top and 6" (15cm) clearance at the bottom
(casters).
Leveling
A level cabinet looks better and will perform better because
the drain pan will drain properly, the doors will line up with
the frames properly, and the cabinet will not be subject to
undue strain.
A unit on legs will have an adjustable bullet foot on each
leg, adjust each for a level unit. A unit on casters will not
be adjustable. Be sure the unit is on a level floor, make
necessary changes to the floor for proper level.
Lock all front casters to ensure the stability of the unit.
Plumbing
Self-contained models are standard with a condensate evaporator.
If, for some reason a unit does not have a condensate evaporator,
or if the evaporator fails, the unit’s drain must have an outlet to
an appropriate drainage area or container. A refrigerated rail
will have a 1" (2.54cm) drain which will need to be run to an
appropriate floor drain or container. The drain will be stubbed
to the bottom of the machine compartment. Either run drain
to a floor drain or add a valve to the base of the machine
compartment and drain the rail to a container when convenient.
The LiquiTec option will NOT have a drain available.
Moisture collecting from improper drainage can
create a slippery surface on the floor and a hazard
to employees. It is the owner’s responsibility to
CAUTION provide a container or outlet for drainage.
Electrical connection
Refer to the specification pages amperage data, the serial tag,
your local code or the National Electrical Code to be sure the unit
is connected to the proper power source. A protected circuit of
the correct voltage and amperage must be run for connection of
the line cord, or permanent connection of the unit.
Self-contained units with a cord and plug have an ON/OFF
switch located directly behind the louvered panel covering the
compressor section. Simply turn the switch to ON to begin
operation.
The power switch must be turned to OFF and the
unit disconnected from the power source whenever
performing service or maintenance functions.
Never operate the unit without the louvered panel
in place!
If electrical receptacles are to be mounted in the unit’s
backsplash, they must be wired independently from the
existing unit wiring.
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
F18 Series Service and Installation Manual
Operation
After turning the ON/OFF switch to ON the unit’s compressor
will begin operating. Delfield refrigerated bases are designed
to maintain an operational temperature of 36°F to 40°F (2°C to
4°C). Temperature in the salad top and refrigerated rail opening
is 33°F to 41°F (0°C to 5°C) with pans recessed 2” (5.1cm) on
a standard wrapped refrigerated rail or flush with the LiquiTec
option at 86°F (30°C) ambient room temperature. Freezer
bases are designed to maintain an operational temperature of
0°F (-18°C).
Do not place hot pans on/against the blue ABS liner.
Do not throw items into the storage area. Failure
to heed these recommendations could result in
damage to the interior of the cabinet or to the
blower coil.
Overloading the storage area, restricting the air
flow, and continuous opening and closing of the
doors and drawers will hamper the units ability to
maintain operational temperature.
Refrigerated rail units
Product in the rail should be removed to the refrigerated base
at the end of the day. This allows you to turn the rail off at night
to save energy and the rail will have time to defrost as needed.
It also helps maintain product quality. The standard wrapped
refrigerated units are controlled by the pressure control which
is set to maintain the proper rail temperature. An on/off switch
is also provided for the rail and is required to be shut off at
night. The rail switch shuts off the rail only. With a LiquiTec rail
a thermostat is provided to maintain rail temperature as well as
the rail on/off switch. The LiquiTec rail is required to be shut
off at night as well to allow for defrosting. To ensure product
quality in the rail it is recommended that product be rotated
every four hours.
If adding any item to the unit, be sure to keep
in mind the location of the refrigeration lines on
wrapped rail units. A refrigeration leak in a rail
is extremely difficult and costly to repair. In some
cases it cannot be repaired at all.
Pressure Control Settings
Factory recommended low-pressure control settings are:
HFC-404A refrigerators:
85psi (5.86bar) cut-in and 65psi
(4.48bar) cut-out to maintain
approximate interior temperature of
38°F (3°C).
Differential setting of 20psi (1.38bar).
HFC-404A freezers:
32psi (2.21bar) cut-in and 8psi (.552bar)
cut-out to maintain approximate
interior temperature of 0°F to 5°F
(-18°C to -15°C).
Differential setting of 24psi (1.65bar).
HFC-404A refrigerators with LiquiTec Rail:
20psi (1.38bar) cut-in and 10psi
(.689bar) cut-out
Differential setting of 10psi (.689bar)
Temperature control for LiquiTec Rail,
25°F (-4°C) cut in and 18°F (-8°C) cutout.
Pressure control settings are measured in pressure,
not temperature.
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
F18 Series Service and Installation Manual
Maintenance
Door Gasket Maintenance
Reassembly
Door gaskets require regular cleaning to prevent mold and mildew
build up and also to retain the elasticity of the gasket. Gasket cleaning
can be done with the use of warm soapy water. Avoid full strength
cleaning products on gaskets as this can cause them to become
brittle and crack. Never use sharp tools or knives to scrape or clean
the gasket. Gaskets can be easily replaced and do not require the use
of tools or an authorized service person. The gaskets are “Dart” style
and can be pulled out of the groove in the door and new gaskets can
be “pressed” back into place.
Push the drawer tracks into the drawer cage. The blue safety clip
must remain pushed towards the back. Lift up and slide the drawer
track all the way into the drawer cage. The blue safety clip will lock
in place automatically. Once all tracks are replaced, insert the drawer
box. Rest the drawer box bottom track on the front track roller. Then
push the drawer back in place SLOWLY. When the drawer box is about
half way in you will hit a STOP. You must lift the front of the drawer up
approximately ½” (1.3cm) to continue inward. Clean tracks as often
as possible. The cleaner the tracks are the better they will operate.
Drain Maintenance - Base
Caster Maintenance
Each unit has a drain located inside the unit that removes the
condensation from the evaporator coil and routes it to an external
condensate evaporator pan. Each drain can become loose or
disconnected during normal use. If you notice water accumulation
on the inside of the unit be sure the drain tube is connected to the
evaporator drain pan. If water is collecting underneath the unit make
sure the end of the drain tube is in the condensate evaporator in the
machine compartment. The leveling of the unit is important as the
units are designed to drain properly when level. Be sure all drain lines
are free of obstructions.
Wipe casters with a damp cloth monthly to prevent corrosion.
Drawer Maintenance
Drawer Assembly Cleaning
The drawer assembly is designed to be cleaned easily. Both drawer
and tracks are removable without tools. The drawer tracks are
dishwasher safe or can be cleaned in a sink with detergents and a
soft bristle brush. Drawers and tracks should be cleaned on a weekly
basis.
Remove Drawers
Pull the drawer box out until it stops. Lift up on the drawer front and
pull the drawer box completely out. Using a soft bristle brush, clean
the track on the bottom of the drawer box. When finished, it should
be wiped clean of all food and debris.
Tracks
The drawer box assembly must be removed. Pull the drawer tracks
out until they hit a stop. Locate blue safety clips towards the back
of each drawer track. Blue safety clips have a tab on the top. Push
the tab back until it clicks. Lift up and pull the drawer tracks all
the way out of the drawer
cage. The drawer tracks
are dishwasher safe or
can be cleaned in a sink
with detergents and a soft
bristle brush. Drawers and
tab on top of
blue safety clip tracks should be cleaned on
a weekly basis. Using a soft
bristle brush, wash the track making sure each roller is thoroughly
cleaned. The drawer cage should be cleaned with a soft bristle brush,
removing any food and debris gathered on the bottom ledge. Once it’s
cleaned thoroughly with a soft bristle brush, wipe remaining debris
clean with a soft towel.
The power switch must be turned to OFF and the
unit disconnected from the power source whenever
performing service, maintenance functions or cleaning
the refrigerated area.
Refrigerators and Freezers
The interior and exterior can be cleaned using soap and warm water.
If this isn’t sufficient, try ammonia and water or a nonabrasive liquid
cleaner. When cleaning the exterior, always rub with the “grain” of
the stainless steel to avoid marring the finish. Do not use an abrasive
cleaner because it will scratch the stainless steel and can damage the
breaker strips and gaskets.
Stainless Steel Care and Cleaning
To prevent discoloration of rust on stainless steel several important
steps need to be taken. First, we need to understand the properties
of stainless steel. Stainless steel contains 70- 80% iron, which will
rust. It also contains 12-30% chromium, which forms an invisible
passive film over the steels surface, which acts as a shield against
corrosion. As long as the protective layer is intact, the metal is still
stainless. If the film is broken or contaminated, outside elements
can begin to breakdown the steel and begin to form discoloration of
rust. Proper cleaning of stainless steel requires soft cloths or plastic
scouring pads.
NEVER USE STEEL PADS, WIRE BRUSHES OR SCRAPERS!
Cleaning solutions need to be alkaline based or non-chloride cleaners.
Any cleaner containing chlorides will damage the protective film of
the stainless steel. Chlorides are also commonly found in hard water,
salts, and household and industrial cleaners. If cleaners containing
chlorides are used be sure to rinse repeatedly and dry thoroughly.
Routine cleaning of stainless steel can be done with soap and water.
Extreme stains or grease should be cleaned with a non-abrasive
cleaner and plastic scrub pad. Always rub with the grain of the
steel. There are stainless steel cleaners available which can restore
and preserve the finish of the steels protective layer. Early signs of
stainless steel breakdown are small pits and cracks. If this has begun,
clean thoroughly and start to apply stainless steel cleaners in attempt
to restore the passivity of the steel.
Never use an acid based cleaning solution! Many food
products have an acidic content, which can deteriorate
the finish. Be sure to clean the stainless steel surfaces
of ALL food products. Common items include, tomatoes,
peppers and other vegetables.
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
F18 Series Service and Installation Manual
Maintenance, continued
Cleaning the Condenser Coil
Preventing blower coil corrosion
In order to maintain proper refrigeration performance, the
condenser fins must be cleaned of dust, dirt and grease regularly.
It is recommended that this be done at least every three months.
If conditions are such that the condenser is totally blocked in three
months, the frequency of cleaning should be increased. Clean the
condenser with a vacuum cleaner or stiff brush. If extremely dirty, a
commercially available condenser cleaner may be required.
To help prevent corrosion of the blower coil, store all acidic items,
such as pickles and tomatoes, in sealable containers. Immediately
wipe up all spills.
Failure to maintain a clean condenser coil can initially cause high
temperatures and excessive run times. Continuous operation with
a dirty or clogged condenser coil can result in compressor failure.
Neglecting the condenser coil cleaning procedures will void any
warranties associated with the compressor and cost to replace the
compressor.
Units with pans should be operated with pans in place.
Operating the unit without all pans in place will lower
efficiency and may damage the unit.
Continuous opening and closing of the doors will hamper the unit’s
ability to maintain optimum refrigeration temperature. Top section is
not intended for overnight storage. Product should be removed from
pans. Pans can remain in unit while empty.
Never use a high-pressure water wash for this cleaning
procedure as water can damage the electrical components
located near or at the condenser coil.
Doors/Hinges
Over time and with heavy use doors the hinges may become loose. If
this happens tighten the screws that mount the hinge brackets to the
frame of the unit. Loose or sagging doors can cause the hinges to pull
out of the frame, which may damage both the doors and the hinges. In
some cases this may require qualified service agents or maintenance
personnel to perform repairs.
Do not place hot pans on/against the blue ABS liner.
Do not throw items into the storage area. Failure to
follow these recommendations could result in damage
to the interior of the cabinet or to the blower coil.
Overloading the storage area, restricting the airflow,
and continuous opening and closing of the doors and
drawers will hamper the units ability to maintain
operational temperature.
Refrigerated rail units
Product in the rail should be removed to the refrigerated base at the
end of the day. This allows you to turn the rail off at night to save
energy and to defrost the rail. It also helps maintain product quality.
The standard wrapped refrigerated rail units are controlled by a lowpressure control that is set to maintain the proper rail temperature.
An on/off switch is also provided for the rail and is required to be shut
off at night. With a LiquiTec rail a thermostat is provided to maintain
rail temperature as well as the rail on/off switch. The LiquiTec rail
is required to be shut off at night as well to allow for defrosting. To
ensure product quality in the rail it is recommended that product be
rotated every four hours.
If adding any item to the unit, be sure to keep in mind
the location of the refrigeration lines on wrapped rail
units. A refrigeration leak in a rail is extremely difficult
and costly to repair. In some cases it cannot be repaired
at all.
10
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
F18 Series Service and Installation Manual
Wiring Diagram, F18WC
L1
N
G
ON/OFF SWITCH
CONDENSING UNIT
PRESSURE CONTROL
POWER CORD
PROVIDED ON
SELF-CONTAINED
MODELS
EVAPORATOR FAN(S)
Wiring Diagram, F18MC, F18SC, F18BC & F18RC
L1
N
G
ON/OFF SWITCH
CONDENSING UNIT
PRESSURE CONTROL
POWER CORD
PROVIDED ON
SELF-CONTAINED
MODELS
BASE
EVAPORATOR FAN(S)
T'STAT
SOLENOID VALVE(S)
Only on LiquiTec
RAIL
SWITCH
T'STAT
SOLENOID VALVE
*Not on LiquiTec
RECEPTACLE FOR OPTIONAL
FAN PACKAGE
*NOTE: with
LiquiTec same
drawing but
remove receptacle
for optional fan
package.
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
11
F18 Series Service and Installation Manual
Wiring Diagram, F18PD
L1
NEUTRAL
POWER SWITCH
BASE CONDENSING UNIT
RAIL SWITCH
RAIL CONDENSING UNIT
BASE COIL
Wiring Diagram, F18FC
L1
N
ON/OFF SWITCH
CONDENSING UNIT
BLACK/
ORANGE
2
C1
PRESS
SWITCH
4
C1
X
PURPLE
ORANGE
FAN
DELAY
C1
1
C1
TIMER
N
WHITE
EVAP
FANS
RED
DEFROST
HEATER
DOOR FRAME
HEATER
MULLION
HEATER
12
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
G
GROUND
F18 Series Service and Installation Manual
Replacement Parts
F18DC
2190154
Switch, rocker
2194201
Thermostat, rail
3516225
Valve, expansion (rail)
3516102
Valve, solenoid (rail)
3516053
Coil, solenoid, 120V/50/60HZ (rail)
**000-248-0001
Coil assembly, R404A
*000-248-0002
Coil assembly, R404A, with solenoid
*000-BN5-0035
Condensing unit, 1/2hp, R404a
*000-BN5-0037
Condensing unit, 1/3hp, R404a
F18FC
*000-BN5-0030
Condensing unit, 1/4hp, R404a
*000-AMR-0030
Condensate Evaporator Pan Assembly
2193927
Control, presure, low
*000-BN5-003G
Condensing unit, 1/3HP, low temp
3234392
Hinge, pan cover, center
*000-BN5-0034
Condensing unit, 3/4HP, low temp
3234282
Hinge, pan cover, left
*000-BN5-0033
Condensing unit, 1/2HP, low temp
3234266
Hinge, pan cover, right
*000-249-0000
Coil, assembly, freezer, R404a
9321374
Hinge, pin (for pan cover)
2193942
Control, pressure, dual
0160179
Hinge Kit
2193927
Control, pressure, low
3234645
Leg, 6", s/s
0160179
Hinge Kit
3977984
Shelf, 19" door
3234645
Leg, 6", s/s
3977998
Shelf, 24" door
9321040
Shelf support screw (coil side)
3978014
Shelf, 27" door
9321132
Shelf support screw (wall side)
3977983
Shelf, 32" door
3234290
Shelf support, 1" blue
2190154
Switch, rocker
3977984
Shelf, 19" door
3516225
Valve, expansion (rail)
3977998
Shelf, 24" door
3516102
Valve, solenoid (rail)
3978014
Shelf, 27" door
3234290
Shelf support, 1" blue
3977983
Shelf, 32" door
9321040
Shelf support screw (coil side)
2194099
Switch, SPST, 15amp
9321132
Shelf support screw (wall side)
2194241
Switch, SPST, 20amp
2194151
Timer, defrost
F18DR
3516053
Coil, solenoid, 120V/50/60HZ (rail)
F18FR
*000-248-0001
Coil assembly, R404A
*000-249-0000
Coil, assembly, freezer, R404a
3234392
Hinge, pan cover, center
3516053
Coil, solenoid, 120V/50/60HZ
3234282
Hinge, pan cover, left
0160179
Hinge Kit
3234266
Hinge, pan cover, right
3234645
Leg, 6", s/s
9321374
Hinge, pin (for pan cover)
9321040
Shelf support screw (coil side)
0160179
Hinge Kit (left or right hinged)
9321132
Shelf support screw (wall side)
3234645
Leg, 6", s/s
3234290
Shelf support, 1" blue
3977984
Shelf, 19" door
3977984
Shelf, 19" door
3977998
Shelf, 24" door
3977998
Shelf, 24" door
3978014
Shelf, 27" door
3978014
Shelf, 27" door
3977983
Shelf, 32" door
3977983
Shelf, 32" door
3234290
Shelf support, 1" blue
3516056
Temperature control
9321040
Shelf support screw (coil side)
2194151
Timer, defrost
9321132
Shelf support screw (wall side)
3516102
Valve, solenoid
*Replacement part assemblies on pages 17-20.
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
13
F18 Series Service and Installation Manual
Replacement Parts, continued
F18MC
F18PD48
3516053
Coil, solenoid, 120V/50/60HZ (rail)
*000-248-0001
Coil assembly, R404A, with thermostat and
solenoid
*000-BN5-0030
Condensing unit, 1/4hp, R404a
2193927
Control, pressure, low
3234392
Hinge, pan cover, center
3234282
Hinge, pan cover, left
3234266
Hinge, pan cover, right
9321374
Hinge, pin (for pan cover)
0420068
Hinge kit, lo profile (left or right)
2190154
Switch, rocker
3516225
Valve, expansion (rail)
3516102
Valve, solenoid (rail)
3234645
Leg, 6", s/s
*000-248-0003
Coil Assembly, r404a, std
*000-BN5-0040
Condensing Assembly, 1/3-1/5 Stacked
2193927
Control, pressure, low
*000-402-0056
Cover Assembly, hinged, 6 pan, l/t
*000-187-006B
Door Assembly, ref, 27x26, lt
3234645
Leg, 6, s/s, removable Foot
*356-478-0038
Panel, louver, 14.0, sw Cut, lh
3978014
Shelf, wire, coated
3234290
Support, shelf, plastic
2190154
Switch, rocker, 20a/125v
3516135
Thermometer, hanging, 4
000-282-0051
Tstat Assembly, danfoss
F18PD72
F18MR
3516053
Coil, solenoid, 120V/50/60HZ (rail)
*000-248-0001
Coil assy, R404A, w/ thermostat & solenoid
3234392
Hinge, pan cover, center
3234282
Hinge, pan cover, left
3234266
Hinge, pan cover, right
9321374
Hinge, pin (for pan cover)
0420068
Hinge kit, lo profile (left or right)
3234645
Leg, 6", s/s
9321041
Nut, acorn (for pan cover)
2190154
Switch, rocker
2194201
Thermostat, rail
3516225
Valve, expansion (rail)
3516102
Valve, solenoid (rail)
*000-248-0003
Coil Assembly, r404a, std
*000-BN5-003Y
Condensing Assembly, 1/2-1/5 Stacked
2193927
Control, pressure, low
000-282-003Z
Control Assembly, t-stat, 2sw,l/t
*000-402-0056
Cover Assembly, hinged, 6pan, l/t
*000-187-006B
Door Assembly, ref, 27x26, lt
*000-187-006A
Door Assembly, ref, 27x26, rt
3234645
Leg, 6, s/s, removable Foot
*356-478-0039
Panel, louver, 18.0, sw Cut, lh
3978014
Shelf, wire, coated
3234290
Support, shelf, plastic
2190154
Switch, rocker, 20a/125v
3516135
Thermometer, hanging, 4
000-282-0051
Tstat Assembly, danfoss
*Replacement part assemblies on pages 17-20.
14
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
F18 Series Service and Installation Manual
Replacement Parts, continued
F18RC
9321040
Shelf support screw (coil side)
9321132
Shelf support screw (wall side)
2190154
Switch, rocker
3516225
Valve, expansion (rail)
3516102
Valve, solenoid (rail)
3516053
Coil, solenoid, 120V/50/60HZ (rail)
*000-248-0001
Coil assembly, R404A
*000-248-0002
Coil assembly, R404A, with solenoid
*000-BN5-0035
Condensing unit, 1/2hp, R404a
*000-BN5-0037
Condensing unit, 1/3hp, R404a
F18SC
*000-BN5-0030
Condensing unit, 1/4hp, R404a
3516053
Coil, solenoid, 120V/50/60HZ (rail)
2193927
Control, pressure, low
Coil assembly, R404A, with thermostat and
solenoid
3234392
Hinge, pan cover, center
*000-248-0001
3234282
Hinge, pan cover, left
*000-BN5-0030
Condensing unit, 1/4hp, R404a
3234266
Hinge, pan cover, right
2193927
Control, presure, low
9321374
Hinge, pin (for pan cover)
3234392
Hinge, pan cover, center
0160179
Hinge Kit
3234282
Hinge, pan cover, left
3234645
Leg, 6", s/s
3234266
Hinge, pan cover, right
3977984
Shelf, 19" door
9321374
Hinge, pin (for pan cover)
3977998
Shelf, 24" door
0420068
Hinge kit, lo profile (left or right)
3978014
Shelf, 27" door
3234645
Leg, 6", s/s
3977983
Shelf, 32" door
2190154
Switch, rocker
3234290
Shelf support, 1" blue
3516225
Valve, expansion (rail)
9321040
Shelf support screw (coil side)
3516102
Valve, solenoid (rail)
9321132
Shelf support screw (wall side)
2190154
Switch, rocker
3516225
Valve, expansion (rail)
3516102
Valve, solenoid (rail)
F18SR
3516053
Coil, solenoid, 120V/50/60HZ (rail)
*000-248-0001
Coil assembly, R404A, with thermostat and
solenoid
F18RR
3234392
Hinge, pan cover, center
3516053
Coil, solenoid, 120V/50/60HZ (rail)
3234282
Hinge, pan cover, left
*000-248-0001
Coil assembly, R404A
3234266
Hinge, pan cover, right
*000-248-0002
Coil assembly, R404A, with solenoid
9321374
Hinge, pin (for pan cover)
3234392
Hinge, pan cover, center
0420068
Hinge kit, lo profile (left or right)
3234282
Hinge, pan cover, left
3234645
Leg, 6", s/s
3234266
Hinge, pan cover, right
2190154
Switch, rocker
9321374
Hinge, pin (for pan cover)
2194201
Thermostat, rail
0160179
Hinge Kit
3516225
Valve, expansion (rail)
3234645
Leg, 6", s/s
3516102
Valve, solenoid (rail)
3977984
Shelf, 19" door
3977998
Shelf, 24" door
3978014
Shelf, 27" door
3977983
Shelf, 32" door
3234290
Shelf support, 1" blue
*Replacement part assemblies on pages 17-20.
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
15
F18 Series Service and Installation Manual
Replacement Parts, continued
F18WC
*000-248-0003
Coil assembly, R404A
*000-BN5-0030
Condensing unit, 1/4hp, R404a
*000-BN5-0031
Condensing unit, 1/5hp, R404a
2193927
Control, pressure, low
0160179
Hinge Kit
3234645
Leg, 6", s/s
3977984
Shelf, 19" door
3977998
Shelf, 24" door
3978014
Shelf, 27" door
3977983
Shelf, 32" door
2194099
Switch, SPST, 15amp
3234290
Shelf support, 1" blue
9321040
Shelf support screw (coil side)
9321132
Shelf support screw (wall side)
F18WR
*000-248-0001
Coil assembly, R404A
*000-248-0002
Coil assembly, R404A, with solenoid
0160179
Hinge Kit (left or right hinged)
3234645
Leg, 6", s/s
3977984
Shelf, 19" door
3977998
Shelf, 24" door
3978014
Shelf, 27" door
3977983
Shelf, 32" door
3234290
Shelf support, 1" blue
9321040
Shelf support screw (coil side)
9321132
Shelf support screw (wall side)
*Replacement part assemblies on pages 17-20.
16
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
F18 Series Service and Installation Manual
Replacement Part Assemblies
4
1
2
1
2
9
3
5
3
7
8
6
5
4
7
9
6
8
10
Key
1
2
3
4
5
6
7
8
9
10
-
Part Number
000-248-0001
3516103
3516102
3516273
3516095
3516172
2194536
2162691
039-231-0000
270-235-0000
3516173
2183312
Key
1
2
3
4
5
6
7
8
9
Description
Coil Assembly, R404A
Solenoid Coil
Solenoid Valve
Expansion Valve
Evap Coil
Fan Blade
Thermostat
Fan Motor
Drip Pan
Fan Motor Bracket
Fan Guard
Harness, coil, with solenoid
Part Number
000-248-0002
3516095
3516173
3516103
2162691
039-231-0000
3516102
3516273
3516172
270-235-0000
Description
Coil Assembly, R404A, Solenoid
Evap Coil
Fan Guard
Solenoid Coil
Fan Motor
Drip Pan
Solenoid Valve
Expansion Valve
Fan Blade
Fan Motor Bracket
1
1
2
3
2
6
3
5
4
4
9
5
7
8
7
Key
1
2
3
4
5
6
7
Part Number
000-248-0003
2162691
3516095
3516273
3516173
3516172
039-231-0000
270-235-0000
6
Description
Coil Assembly, R404A, STD
Fan Motor
Evap Coil
Expansion Valve
Fan Guard
Fan Blade
Drip Pan
Fan Motor Bracket
Key
1
2
3
4
5
6
7
8
9
-
Part Number
000-249-0000
3516173
3516172
3516271
2194046
031-264-0000
2162691
3516073
000-BNH-Z0000
2194034
2194631
2183310
2194235
3977980
Description
Coil Assembly, Freezer, R404A
Guard, fan
Blade, fan
Valve, expansion, 1/2hp, R404a
Control, limit, fan delay/defrost
Bracket, fan motor
Motor, fan, 115V
Coil, Evaporator
Pan, freezer evaporator
Heater, defrost
Fuse, defrost heater, 7amp
Harness, coil
Switch, safety heater
Tie, wire, stainless
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
17
F18 Series Service and Installation Manual
Replacement Part Assemblies, continued
2
4
4
3
1
1
2
3
5
5
6
6
7
7
8
8
Key
1
2
3
4
5
6
7
8
-
Part Number
000-BN5-0030
3516457
2160020
2162717
3526999
2194787
3516322
075-231-0030
3516454
3516444
Description
Assembly, 1/4 HP Condensing Unit
Fan Blade
Fan Guard
Fan Motor
Compressor, Danfoss, NF5.5CLX
Start Capacitor
Filter Dryer
Condensate Pan
Condenser Coil
Comp, Relay, Overload, NF5.5CLX
5
Key
1
2
3
4
5
6
7
8
-
Part Number
000-BN5-0031
3516457
2160020
2162717
3526997
2194787
3516322
075-231-0030
3516454
3516446
6
1
Description
Assembly, 1/5 Condensing Unit
Fan Blade
Fan Guard
Fan Motor
Compressor, Danfoss, TF4CLS
Start Capacitor
Filter Dryer
Condensate Pan
Condenser Coil
Comp, Relay, Danfoss
2
4
3
1
2
7
8
3
9
Key
1
2
3
4
5
6
7
8
9
-
18
4
Part Number
000-BN5-0033
3516554
2160019
2162716
3516324
3527001
3516322
2194789
3516441
3516455
024-034-0031
Description
Assembly, 1/2HP Cond, Low
Blade, Fan, 9.00”
Guard, Fan, Wire
Motor, Fan, 16W, 115V, CW
Cutout, High Pressure
Compressor, SC12CLX.2,115/60HZ
Drier, Filter, (2)Inlet
Capacitor, Start, 240MFD
Relay, Comp, SC12CLX.2
Coil, Condenser, 1/2 HP
Pan, Comp, 18.00
Key
1
1
1
2
2
3
4
Part Number
000-BN5-0034
2160019
2162716
3516433
3527002
3516442
3516322
3516456
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
Description
Assembly, 3/4 HP Cond, Low
Guard, fan condenser
Motor, condenser fan 16W, 155V
Blade, fan 10” CW
Compressor, SC18CLS.2, 115V60hz
Capacitor, start, run assembly
Filter drier
Coil, condenser, 3/4hp
F18 Series Service and Installation Manual
Replacement Part Assemblies, continued
6
5
1
4
3
2
3
2
4
1
7
8
9
Key
1
2
3
4
5
6
7
8
9
5
Part Number
000-BN5-0035
3516554
2160019
2162716
3516462
3527026
3516331
3516322
075-231-0031
3516455
8
Description
Assembly, 1/2HP Condenser, Med
Condenser fan blade
Condenser fan guard
Condenser fan motor, 115V
Capacitor, start-run assy
Compressor, Danfoss, SC12MLX
Hi pressure switch
Filter Drier
Pan, Condensate
Condenser coil
Key
1
2
3
4
5
6
7
8
-
4
6
7
Part Number
000-BN5-0037
3516457
2160020
3527000
2194788
3516322
075-231-0030
2162717
3516454
3516438
Description
Assembly, 1/3 Condensing Unit
Fan Blade
Fan Guard
Compress, Danfoss, NF7CLS
Start Capacitor
Filter Drier
Pan, Condensate
Fan Motor
Condenser Coil
Relay, overload, compressor
3
1
2
1
5
6
7
8
Key
1
2
3
4
5
6
7
8
Delfield Part #
000-BN5-003G
3516457
2162717
2160020
3527000
3516324
2194788
3516438
3516454
Description
Condensing Unit Assembly, 115V
Blade, Fan, 7.25”
Motor, fan, 9W, 115V
Guard, Fan, 7.25”
Compressor, NF7.0. 115V/60Hz, Danfoss
High pressure switch
Capacitor, Start 320MFD
Compressor relay and overload, NF7CLX
Condenser Coil
Key
1
-
Part Number
000-AMR-0030
2194199
2183387
Description
Assembly, Condensate Evap Pan
Element, Heating, Cond Evap
Cord, #51C Evap
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
19
F18 Series Service and Installation Manual
Replacement Part Assemblies, continued
000-BN5-003Y
3516457
3516433
2194789
2194787
3516454
3516455
3526997
3527001
3516322
2160020
2160019
2162717
2162513
3516193
3516446
3516441
3516225
000-BN5-0040
3516457
2194787
2194788
3516454
3526997
3527000
3516322
2160020
2162717
3516193
3516446
3516438
3516225
20
Assembly, 1/2-1/5 Stacked,
Blade, Fan, 7.25 Dia.,
Blade, fan, 25deg, 10", cw
Capacitor, start, 240mfd
Capacitor, start, 280mfd
Coil, Condenser, 1/5, 1/4,
Coil, Condenser, 1/2 Hp
Compressor, 1/5hp, 115/60, r404a
Compressor, sc12clx.2, 115/60hz,
Drier, filter, (2)inlet
Guard, Fan, 7.25
Guard, fan, wire
Motor, fan, 9w, 115v, cw
Motor, fan, 35w, blast
Regulator, pressure, 1/2
Relay, Compressor, Danfoss
Relay, compressor, sc12clx.2
Valve, expansion, frz, 1/4ton
Assy, 1/3-1/5 Stacked,
Blade, Fan, 7.25 Dia.
Capacitor, start, 280mfd
Capacitor, start, 320mfd
Coil, Cond., 1/5, 1/4
Comp, 1/5hp, 115/60, r404a
Comp, nf7cls, 115v/60hz
Drier, filter, (2)inlet
Guard, Fan, 7.25
Motor, fan, 9w,115v,cw
Regulator, pressure, 1/2
Relay, Comp, Danfoss
Relay, comp, ovld, nf7clx
Valve, exp, frz, 1/4ton
359-478-003E
Panel, louver, 15.0, ptb
359-478-003D
Panel, louver, 18.0, ptb
356-478-0038
Panel, louver, 14.0, sw Cut,lh
356-478-0039
Panel, louver, 18.0, sw Cut, lh
000-187-0081
Door Assembly, ref, 27x26, rt, 430
000-187-0082
Door Assembly, ref, 27x26, lt, 430
000-187-006B
Door Assembly, ref, 27x26, lt
000-187-006A
Door Assembly, ref, 27x26, rt
1701185
Gasket, door, 27, mark7
0420067
Hinge Kit
000-402-0054
Cover Assembly, hinged, 6 Pan, ptl
000-402-0056
Cover Assembly, hinged, 6pan, l/t
9321374
Pin, hinge, salad Pan
3234266
Hinge, pan Cover, end, rh,
3234282
Hinge, pan Cover, end, lh,
3234392
Hinge, pan Cover,
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
F18 Series Service and Installation Manual
Standard One Year Warranty (one year parts, 90 days labor)
The Delfield Company (“Delfield”) warrants to the Original
Purchaser of the Delfield product (herein called the “Unit”) that
such Unit, and all parts thereof, will be free from defects in
material and workmanship under normal use and service for
a period of one (1) year from the date of shipment of the Unit
to the Original Purchaser or, if the Original Purchaser returns
the warranty card completely filled out including the date of
installation within thirty (30) days of receipt of the Unit, one (1)
year from the date of installation. During this one year warranty
period, Delfield will repair or replace any defective part or
portion there of returned to Delfield by the Original Purchaser
which Delfield determines was defective due to faulty material
or workmanship. The Original purchaser will pay all labor,
crating, freight and related costs incurred in the removal of the
Unit of defective component and shipment to Delfield, except
that during a period of either ninety (90) days from the date of
shipment of the Unit to the Original Purchaser or, if the Original
Purchaser returns the warranty card completely filled out
including the date of installation within thirty (30) days of receipt
of the Unit, ninety (90) days from the date of installation Delfield
will pay all related labor costs. Delfield will pay the return costs
if the Unit or part thereof was defective.
The term “Original Purchaser” as used herein means that
person, firm, association, or corporation for whom the Unit was
originally installed.
This warranty does not apply to any Unit or part thereof that has
been subjected to misuse, neglect, alteration, or accident, such
as accidental damage to the exterior finish, operated contrary
to the recommendations specified by Delfield; or repaired or
altered by anyone other than Delfield in any way so as to, in
Delfield’s sole judgement, affect its quality or efficiency. This
warranty does not apply to any Unit that has been moved from
the location where it was originally installed. This warranty also
does not cover the refrigerator drier or the light bulbs used in the
Unit. The warranty is subject to the user’s normal maintenance
and care responsibility as set forth in the Service and Installation
Manual, such as cleaning the condenser coil, and is in lieu of
all other obligations of Delfield. Delfield neither assumes, nor
authorizes any other person to assume for Delfield, any other
liability in connection with Delfield’s products.
Removal or defacement of the original Serial Number or Model
Number from any Unit shall be deemed to release Delfield from
all obligations hereunder or any other obligations, express or
implied.
Parts furnished by suppliers to Delfield are guaranteed by
Delfield only to the extent of the original manufacturer’s express
warranty to Delfield. Failure of the Original Purchaser to receive
such manufacturer’s express warranty to Delfield. Failure of
the Original Purchaser to receive such manufacturers warranty
shall in no way create any warranty, expressed or implied,
or any other obligation or liability on Delfield’s part in respect
thereof.
If shipment of a replacement part is requested prior to the
arrival in the Delfield factory of the part claimed to be defective,
the Original Purchaser must accept delivery of the replacement
part of a C.O.D. basis, with credit being issued after the part has
been received and inspected at Delfield’s plant and determined
by Delfield to be within this warranty.
Under no condition does this warranty give the Original
Purchaser the right to replace the defective Unit with a complete
Unit of the same manufacturer or of another make. Unless
authorized by Delfield in writing, this warranty does not permit
the replacement of any part, including the motor-compressor, to
be made with the part of another make or manufacturer.
No claims can be made under this warranty for spoilage of any
products for any reason, including system failure.
The installation contractor shall be responsible for building
access, entrance and field conditions to insure sufficient
clearance to allow any hood(s), vent(s), or Unit(s) if necessary,
to be brought into the building. Delfield will not be responsible
for structural changes or damages incurred during installation
of the Unit or any exhaust system.
Delfield shall not be liable in any manner for any default or
delay in performance hereunder caused by or resulting from
any contingency beyond Delfield’s control, including, but not
limited to, war, governmental restrictions or restraints, strike,
lockouts, injunctions, fire, flood, acts of nature, short or reduced
supply of raw materials, or discontinuance of the parts by the
original part manufacturer.
Except as provided in any Additional Four Year Protection Plan,
if applicable, and the Service Labor Contract, if applicable, the
foregoing is exclusive and in lieu of all other warranties, whether
written or oral, express or implied. This warranty supersedes
and excludes any prior oral or written representations or
warranties. Delfield expressly disclaims any implied warranties
of merchantability, fitness for a particular purpose of compliance
with any law, treaty, rule or regulation relating to the discharge
of substances into the environment. The sole and exclusive
remedies of any person relating to the Unit, and the full liability
of Delfield for any breach of this warranty, will be as provided
in this warranty.
Other than this Delfield Standard One Year Limited Warranty,
any applicable Delfield Additional Four Year Protection Plan
or applicable Delfield Service Labor Contract, the Original
Purchaser agrees and acknowledges that no other warranties
are offered or provided in connection with or for the unit or any
other part thereof.
In no event will Delfield be liable for special, incidental or
consequential damages, or for damages in the nature of
penalties.
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
21
F18 Series Service and Installation Manual
F18PD One Limited Year Warranty (One Year Parts And Labor)
Delfield warrants to the Original Purchaser of the Delfield product
(herein called the “Unit”) that such Unit, and all parts thereof, will be
free from defects in material and workmanship under normal use and
service for a period of one (1) year from the date of shipment of the
Unit to the Original Purchaser or, if the Original Purchaser returns the
warranty card completely filled out including the date of installation
within thirty (30) days of receipt of the Unit, one (1) year from the
date of installation. During this one year warranty period, Delfield
will pay labor, crating and freight incurred in the removal of the Unit
or defective component and shipment to Delfield. Reimbursement is
subject to the following limitations: A maximum of 1-hour is allowed to
diagnose a defective component; A maximum of 1-hour is allowed for
retrieval of parts not in stock; A maximum travel distance of 100 miles
round trip and 2-hours will be reimbursed. Overtime, installation/startup, normal control adjustments, general maintenance, glass breakage,
freight damage, and/or correcting an end-user installation error will not
be reimbursed under warranty unless pre-approved with a Service Work
Authorization from Delfield. Delfield will pay the return costs if the Unit
or part thereof was defective.
The term “Original Purchaser” as used herein means that person, firm,
association, or corporation for whom the Unit was originally installed.
This warranty does not apply to any Unit or part thereof that has
been subjected to misuse, neglect, alteration, or accident, such as
accidental damage to the exterior finish, operated contrary to the
recommendations specified by Delfield; or repaired or altered by anyone
other than Delfield in any way so as to, in Delfield’s sole judgement,
affect its quality or efficiency. This warranty does not apply to any Unit
that has been moved from the location where it was originally installed.
This warranty also does not cover the refrigerator drier or the light
bulbs used in the Unit. The warranty is subject to the user’s normal
maintenance and care responsibility as set forth in the Service and
Installation Manual, such as cleaning the condenser coil, and is in
lieu of all other obligations of Delfield. Delfield neither assumes, nor
authorizes any other person to assume for Delfield, any other liability
in connection with Delfield’s products.
Removal or defacement of the original Serial Number or Model Number
from any Unit shall be deemed to release Delfield from all obligations
hereunder or any other obligations, express or implied.
Parts furnished by suppliers to Delfield are guaranteed by Delfield only
to the extent of the original manufacturer’s express warranty to Delfield.
Failure of the Original Purchaser to receive such manufacturers warranty
shall in no way create any warranty, expressed or implied, or any other
obligation or liability on Delfield’s part in respect thereof.
22
If shipment of a replacement part is requested prior to the arrival in the
Delfield factory of the part claimed to be defective, the Original Purchaser
must accept delivery of the replacement part on a C.O.D. basis, with
credit being issued after the part has been received and inspected at
Delfield’s plant and determined by Delfield to be within this warranty.
Under no condition does this warranty give the Original Purchaser the
right to replace the defective Unit with a complete Unit of the same
manufacturer or of another make. Unless authorized by Delfield in
writing, this warranty does not permit the replacement of any part,
including the motor-compressor, to be made with the part of another
make or manufacturer.
No claims can be made under this warranty for spoilage of any products
for any reason, including system failure.
The installation contractor shall be responsible for building access,
entrance and field conditions to insure sufficient clearance to allow any
hood(s), vent(s), or Unit(s) if necessary, to be brought into the building.
Delfield will not be responsible for structural changes or damages
incurred during installation of the Unit or any exhaust system.
Delfield shall not be liable in any manner for any default or delay in
performance hereunder caused by or resulting from any contingency
beyond Delfield’s control, including, but not limited to, war, governmental
restrictions or restraints, strike, lockouts, injunctions, fire, flood, acts of
nature, short or reduced supply of raw materials, or discontinuance of
the parts by the original part manufacturer.
Except as provided in any Additional Four Year Protection Plan, if
applicable, and the Service Labor Contract, if applicable, the foregoing
is exclusive and in lieu of all other warranties, whether written or
oral, express or implied. This warranty supersedes and excludes
any prior oral or written representations or warranties. Delfield
expressly disclaims any implied warranties of merchantability,
fitness for a particular purpose or compliance with any law, treaty,
rule or regulation relating to the discharge of substances into
the environment. The sole and exclusive remedies of any person
relating to the Unit, and the full liability of Delfield for any breach of
this warranty, will be as provided in this warranty.
Other than this Delfield Standard One Year Limited Warranty, any
applicable Delfield Additional Four Year Protection Plan or applicable
Delfield Service Labor Contract, the Original Purchaser agrees and
acknowledges that no other warranties are offered or provided in
connection with or for the Unit or any other part thereof.
In no event will Delfield be liable for special, incidental or consequential
damages, or for damages in the nature of penalties.
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
F18 Series Service and Installation Manual
Additional Four Year Protection Plan (for Motor-Compressor only)
Delfield Model# Serial #
Installation
Date
In addition to the Standard One Year Warranty on the MotorCompressor contained in the above listed Delfield product
(the “Unit”), The Delfield Company (“Delfield”) also agrees to
repair, or exchange with similar or interchangeable parts in
design and capacity at Delfield’s option, the defective MotorCompressor contained in the Unit (the “Motor-Compressor),
or any part thereof, for the Original Purchaser only, at any
time during the four (4) years following the initial one (1) year
period commencing on the date of installation for the Original
Purchaser. Failure of the Original Purchaser to register the
registration card containing the Original Purchasers name,
address, date of installation, model number and serial number
of the Unit containing the Motor-Compressor within 30 days
from the date of installation shall void this warranty. This
additional warranty is only available if the Motor-Compressor is
inoperative due to defects in material or factory workmanship,
as determined by Delfield in its sole judgement and discretion.
The Original Purchaser shall be responsible for returning the
defective Motor-Compressor to Delfield prepaid, F.O.B. at the
address shown on the back cover of this manual.
The term “Original Purchaser” as used herein means that
person, firm, association, or corporation for whom the Unit was
originally installed.
The term “Motor-Compressor” as used herein does not include
unit base, air or water cooled condenser, receiver, electrical
accessories such as relay, capacitors, refrigerant controls, or
condenser fan/motor assembly. This warranty does not cover
labor charges incidental to the replacement of parts. This
warranty further does not include any equipment to which said
condensing unit is connected, such as cooling coils, temperature
controls or refrigerant metering devices. This warranty shall
be void if the Motor-Compressor, in Delfield’s sole judgement,
has been subjected to misuse, neglect, alteration or accident,
operated contrary to the recommendations specified by the
Unit manufacturer, repaired or altered by anyone other than
Delfield in any way so as, in Delfield’s sole judgment, to affect
its quality or efficiency or if the serial number has been altered,
defaced or removed. This Warranty does not apply to a MotorCompressor in any Unit that has been moved from the location
where it was originally installed. The addition of methyl chloride
to the condensing unit or refrigeration system shall void this
warranty.
General Conditions
Delfield shall not be liable in any manner for any default or
delay in performance hereunder caused by or resulting from
any contingency beyond Delfield’s control, including, but not
limited to, war, governmental restrictions or restraints, strike,
lockouts, injunctions, fire, flood, acts of nature, short or reduced
supply of raw materials, or discontinuance of any part or the
Motor-Compressor by the unit manufacturer.
Replacement of a defective Motor-Compressor is limited to one
(1) Motor-Compressor by us during the four (4) year period.
Delfield shall replace the Motor-Compressor at no charge.
This warranty does not give the Original Purchaser of the MotorCompressor the right to purchase a complete replacement
Motor-Compressor of the same make or of another make. It
further does not permit the replacement to be made with
a Motor-Compressor of another kind unless authorized by
Delfield. In the event Delfield authorizes the Original Purchaser
to purchase a replacement Motor-Compressor locally, only the
wholesale cost of the Motor-Compressor is refundable.
Expressly excluded from this warranty are damages resulting
from spoilage of goods.
Except as provided in any applicable Standard One Year Limited
Warranty or applicable Service Labor Contract, the foregoing is
exclusive and in lieu of all other warranties, whether written or
oral, express or implied. This Warranty supersedes and excludes
any prior oral or written representations or warranties. Delfield
expressly disclaims any implied warranties of merchantability,
fitness for a particular purpose or compliance with any law,
treaty, rule or regulation relating to the Motor-Compressor, and
the full liability of Delfield for any breach of this warranty, will be
as provided in this warranty.
Other than any applicable Delfield Standard One year Limited
Warranty, this Delfield Additional Four Year Protection Plan and
any applicable Delfield Service Labor Contract, the Original
Purchaser agrees and acknowledges that no other warranties
are offered or provided in connection with or for the MotorCompressor or any part thereof.
In no event will Delfield be liable for special, incidental or
consequential damages, or for damages in the nature of
penalties.
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
23
Covington, TN
Mt. Pleasant, MI
Thank you for choosing Delfield!
Help is a phone call away. Help our team of professional, courteous
customer service reps by having your model number and serial number
available at the time of your call (800) 733-8829.
Model:_____________________ S/N: ____________________
Installation Date:_____________
For a list of Delfield’s authorized parts depots,
visit our website at www.delfield.com.
980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (989) 773-7981 or (800) 733-8829 • Fax (989) 773-3210 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2010 The Delfield Company. All rights reserved. Printed in the U.S.A.
DM18 09/10
