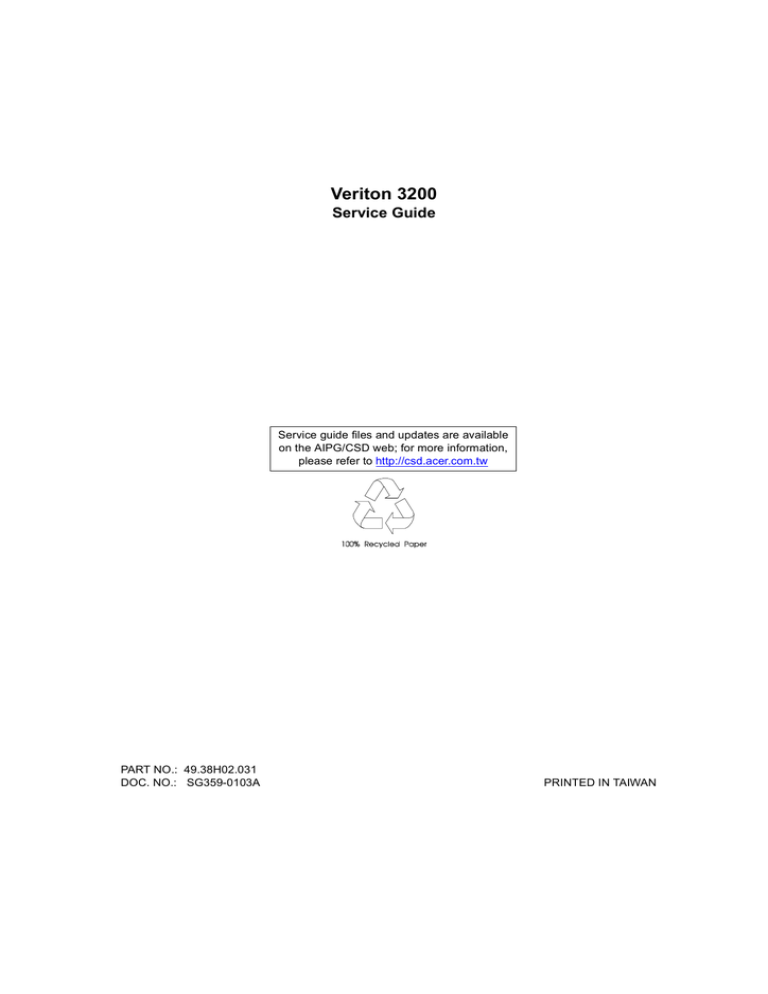

Veriton 3200
Service Guide
Service guide files and updates are available
on the AIPG/CSD web; for more information,
please refer to http://csd.acer.com.tw
PART NO.: 49.38H02.031
DOC. NO.: SG359-0103A
PRINTED IN TAIWAN
Copyright
Copyright © 1999 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.
II
Conventions
The following conventions are used in this manual:
Screen messages
Denotes actual messages that appear
on screen.
NOTE
Gives bits and pieces of additional
information related to the current
topic.
WARNING
Alerts you to any damage that might
result from doing or not doing specific
actions.
CAUTION
Gives precautionary measures to
avoid possible hardware or software
problems.
IMPORTANT
Reminds you to do specific actions
relevant to the accomplishment of
procedures.
III
Preface
Before using this information and the product it supports, please read the following general information.
IV
1.
This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.
2.
Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.
Table of Contents
Chapter 1
System Specifications
1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Main Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Programmable keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Internet/Suspend keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Multimedia keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Volume control/Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Cursor keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Lock keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Windows keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Power Management Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Chapter 2
System Utilities
20
Entering Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Disk Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Onboard Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Boot Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
System Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Setting a Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Changing or Removing the Password . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Bypassing the Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Advanced Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Memory/Cache Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
PnP/PCI Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Chipset Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Load Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Abort Settings Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Exiting Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Chapter 3
Machine Disassembly and Replacement
48
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Disassembly Procedure Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Opening the Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Removing the Housing Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Removing the Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Removing the EMI Audio Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Removing the Modem Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Removing the AGP VGA Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Removing the FDD and DVD Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Removing the USB and Audio Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Removing the Hard Disk Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
V
Table of Contents
Removing the DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Removing the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Removing the RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Removing the Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Removing the Main board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Chapter 4
Troubleshooting
60
Power-On Self-Test (POST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
POST Error Messages List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Error Symptoms List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Chapter 5
Jumper and Connector Information
70
Jumpers and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Jumper Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Chapter 6
FRU (Field Replaceable Unit) List
74
Veriton 3200 Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Appendix A
Model Definition and Configuration
84
Veriton 3200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Appendix B
Test Compatible Components
86
MS DOS V6.22 Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Microsoft Windows ME Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Microsoft Windows 2000 Professional Environment Test . . . . . . . . . . . . . . . . . .89
Microsoft NT 4.0 Workstation Environment Test . . . . . . . . . . . . . . . . . . . . . . . .90
IBM OS/2 Warp 4.0 Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Novell Netware 4.12 & 5.1 Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . .92
SCO UNIX/Red Hat Linux Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Appendix C
Index
VI
Online Support Information
94
96
Table of Contents
VII
Chapter 1
System Specifications
Overview
The Veriton 3200 supports Intel® Pentium III Flip Chip-Pin Grid Array (FC-PGA) processor based Micro ATX,
IBM PC/AT compatible system with PCI/AGP bus.
Chapter 1
1
Features
Performance
!
Intel Pentium® III and Celeron processor with integrated L2 cache memory in Flip Chip (FC)-PGA
370 socket form factor
Expandable system memory to a maximum of 512 MB
!
NOTE: Due to a chipset limitation you can only use two DIMM sockets (DIMM1 and DIMM2) when you install
a 133 MHZ front side bus CPU. If you install a 100 MHz front side bus CPU then you can use all of the
DIMM sockets.
!
Power management function
!
Reserved keylock and intrusion alarm function
!
3.5-inch floppy disk drive
!
CD-ROM/DVD-ROM/CD-RW drive
!
High-capacity, Enhanced-IDE hard disk
Multimedia
128-bit graphics accelerator onboard with an additional AGP card slot
!
NOTE: The onboard VGA function will automatically be disabled when you install an AGP VGA card in the
AGP slot.
!
3-D quality audio system via onboard audio controller
!
Supports CRT (cathode-ray tube) monitors
Audio-in/Line-in, Audio-out/Line-out, Headphone-out, Mic-in, and Game/MIDI interfaces
!
NOTE: The system has two microphone-in ports (front and rear). However, you can not use both of them at
the same time. The default setting for your system enables the microphone-in port in front and disables
the one at the back. You must first enable the front microphone-in port before you can use it.
Connectivity
2
!
PS/2 mouse and keyboard interface
!
One parallel interface and two serial interfaces (internal and external)
!
Universal Serial Bus (USB) ports (available on front and rear panels)
!
High-speed fax/data PCI modem (optional)
!
10Base-T/100Base-TX network support with remote wake-up function
Chapter 1
Front Panel
Label
Icon
Component
a
Floppy disk drive light-emitting diode (LED)
b
3.5-inch floppy disk drive
c
Floppy disk drive eject button
d
CD-ROM/DVD-ROM/CD-RW Headphone/Earphone port
e
Volume tuner
f
CD-ROM/DVD-ROM/CD-RW LED
g
CD-ROM/DVD-ROM/CD-RW tray
h
CD-ROM/DVD-ROM/CD-RW emergency eject slot
i
Stop/Eject button
j
Power switch
k
Power LED
l
System activity LED
m
Hard disk drive activity LED
n
Headphone-out port
o
Microphone-in port*
p
USB ports
* The system has two microphone-in ports (front and rear). However, you can not use both of them at the
same time. The default setting for your system enables the microphone-in port in front and disables the
one at the back. You must first enable the front microphone-in port before you can use it.
Chapter 1
3
Rear panel
Label
Icon
Color
Component
a
Power supply
b
Voltage Selector switch
c
Keyhole
d
Green
PS/2 mouse port
e
White
Network port
f
Burgundy
Parallel/Printer port
g
Gold
Game/MIDI port
h
Blue
VGA port*
i
Blue
Handset/telephone line ports
j
Expansion slots
k
Microphone-in port†
l
Light blue
Audio-in/Line-in jack
m
Lime
Audio-out/Line-out jack
n
Blue
CRT monitor port
o
Teal or Turquoise
Serial port
p
Black
USB ports
q
Purple
PS/2 keyboard port
r
Power cord socket
* The CRT monitor port is automatically disabled when an add-on VGA card is installed into the system.
Connect the monitor to the VGA port instead.
† The system has two microphone-in ports (front and rear). However, you can not use both of them at the
same time. The default setting for your system enables the microphone-in port in front and disables the
one at the back. You must first enable the front microphone-in port before you can use it.
4
Chapter 1
Main Board Layout
1
2
3
4
5
6
7 8
9
10
11
12
13
14
16
17
18
19
20
15
21
22
U13
23 24 25 26
29 30
2728
31
Chapter 1
32
33
34
1
Floppy disk drive connector
18
DIMM sockets 1
2
IDE 1 HDD connector
19
ATX power connector
3
IDE 2 HDD connector
20
FC-PGA CPU socket
4
Battery
21
Intel 82815 chipset
5
Firmware HUB (BIOS)
22
3-pin CPU fan connector
6
IDE LED connector
23
CD-ROM audio connector
7
Power LED connector
24
Audio connector for USB-audio board
8
Wake on LAN connector
25
AGP slot
9
Turbo/LAN active LED connector
26
PCI slots 1
10
ATX power switch
27
PCI slots 2
11
Buzzer
28
Audio chipset
12
USB connector for USB-audio board
29
FAX-VOICE
13
Intrusion alarm connector
30
Serial port 2 (COM2) connector (optional)
14
Intel 82801BA chipset
31
PS/2 mouse (upper) and keyboard (lower) ports
15
PCI slots 3
32
Network (upper) and USB (lower) ports
16
DIMM sockets 3
33
Parallel (upper), VGA (lower right) and serial
port 1 (lower left) ports
17
DIMM sockets 2
34
MIDI/Game (Upper), Line-Out (Left), Line-In
(Middle), and Mic-In Ports (Right)
5
Keyboard
The keyboard that came with your computer has full-sized keys that include separate cursor keys, two
Windows keys, and twelve function keys.
Programmable keys
The programmable keys help you directly access a URL (Web site) or launch any program, file, or application
in your system. The fifth key is set to launch the media player. If you want to configure the settings of each key,
right-click on the Magic Keyboard icon located on your Windows desktop.
Internet/Suspend keys
The Internet/Suspend keys consist of three buttons:
Icon
6
Key
Description
Email
Launches your email application.
Web browser
Launches your current default browser.
Suspend/Resume
Press this button to put the system to sleep. Press again to
wake the system up.
Chapter 1
Multimedia keys
The multimedia keys allow you to play, pause, stop, step forward, or step back a song or movie conveniently
using your keyboard.
Icon
Key
Description
Play/Pause
Press to start playing an audio or video file. Press again to
pause.
Stop
Press to stop playing the audio or video file.
Forward
Press to skip forward to the next file and start playing.
Backward
Press to skip backward to the previous file and start playing.
Volume control/Mute
The volume control/mute knob controls the speaker volume. Turn it clockwise or counterclockwise to
adjust the volume. Press it to toggle between mute and sound.
Cursor keys
The cursor keys, also called the arrow keys, let you move the cursor around the screen. They serve the same
function as the arrow keys on the numeric keypad when the Num Lock is toggled off.
Lock keys
The keyboard has three lock keys which you can toggle on and off to switch between two functions
Lock Key
Description
Caps Lock
When activated, all alphabetic characters typed appear in uppercase
(same function as pressing Shift + <letter>).
Num Lock
When activated, the keypad is set to numeric mode; i.e., the keys
function as a calculator (complete with arithmetic operators such as +, -,
*, and /).
Scroll Lock
When activated, the screen moves one line up or down when you press
the up arrow or down arrow respectively. Take note that Scroll Lock
may not work with some applications.
Chapter 1
7
Windows keys
The keyboard has two keys that perform Windows-specific functions
.
Key
Windows logo key
Description
Start button. Combinations with this key perform special functions, such
as:
Windows + Tab: Activate the next Taskbar button
Windows + E: Explore My Computer
Windows + F: Find Document
Windows + M: Minimize All
Shift + Windows + M: Undo Minimize All
Windows + R: Display Run dialog box
Application key
8
Opens the applications context menu (same function as clicking the
right button of the mouse).
Chapter 1
Hardware Specifications and Configurations
Processor
Item
Specification
Type
Intel® Celeron and Intel® Pentium III processors with Flip Chip-PGA package
Slot
Socket 370
Speed
Celeron processor upto 766 MHz and Pentium III processor upto 1 GHz
Minimum operating speed
0 MHz (If Stop CPU Clock in Sleep State the BIOS Setup is set to Enabled.)
Voltage
Processor voltage can be detected by the system without setting any jumper.
BIOS
Item
Specification
BIOS code programmer
Acer
BIOS version
V4.0
BIOS ROM type
Flash ROM
BIOS ROM size
4Mbits
BIOS ROM package
32-pin DIP package
Support protocol
PCI 2.1, APM1.2, DMI 2.00.1, E-IDE, ACPI 1.0, ESCD 1.03, ANSI ATA 3.0, PnP
1a, Bootable CD-ROM 1.0, ATAPI
Boot from CD-ROM feature
Yes
Support to LS-120 drive
Yes
Support to BIOS boot block feature No
NOTE: The BIOS can be overwritten/upgraded using the AFLASH utility (AFLASH.EXE).
BIOS Hotkey List
Hotkey
+
Function
+
F8
Description
Enter BIOS Setup Utility
Press while the system is booting to enter BIOS
Setup Utility.
Enable hidden page of BIOS Setup Utility
Press in BIOS Setup Utility main menu screen,
the Advanced Options menu then appears.
The items on the Advanced Options menu are:
Memory/Cache Options
PnP/PCI Options
Alt + F4
Enable hidden page of BIOS Setup Utility
Press in BIOS Setup Utility main menu screen,
the Advanced Options menu then appears.
The items on the Advanced Options menu are:
Memory/Cache Options
PnP/PCI Options
Chips Options
System Memory
Item
Specification
Memory socket number
3 sockets (3 banks)
Support memory size per socket
64/128/256MB
Support maximum memory size
512MB
Support memory type
SDRAM
Support memory speed
100/133MHz (PC100/ PC133)
Chapter 1
9
System Memory
Item
Specification
Support memory voltage
3.3 V
Support memory module package
168-pin DIMM
Support to parity check feature
Yes
Support to Error Correction Code (ECC)
feature.
Yes
Memory module combinations
You can install memory modules in any combination as long as they match
the Memory Combination specifications.
Memory Combinations-100 MHz
DIMM 1
DIMM 2
DIMM 3
TOTAL
128M
128M
128M
384M
256M
256M
0M
512M
64M
64M
64M
192M
32M
32M
32M
96M
16M
16M
16M
48M
Memory Combinations-133 MHz
DIMM 1
256/DS M
DIMM 2
256/DS M
DIMM 3
TOTAL
0M
512M
64/SS M
64/SS M
64/SS M
192M
128/SS M
128/SS M
128/SS M
384M
NOTE: For Memory Combinations-133 MHz, if memory is double-sided, only slot 1 and slot 2 will work. The
maximum memory size of S58M is 512M. Users can make different combinations of double-sided
memory in slot 1 and slot 2; single-sided memory in slot 1, 2, and 3, but, the total memory should not go
beyond 512M
.
Cache Memory
Item
Specification
First-Level Cache Configurations
Cache function control
Enable/Disable by BIOS Setup (Advanced options)
Second-Level Cache Configurations
Below information is only applicable to system with installed Intel® Celeron and Pentium III processors.
L2 Cache RAM type
PBSRAM
L2 Cache RAM size
Pentium III processor: 256 KB
Celeron processor: 128 KB
L2 Cache RAM speed
One-half the processor core clock frequency ?????
L2 Cache RAM voltage
Pentium III processor: 1.65V
Celeron processor: ????/
10
L2 Cache function control
Enable/Disable by BIOS Setup
L2 Cache scheme
Fixed in write-back
Chapter 1
Video Interface
Item
Specification
Video controller
Embedded in Intel 815E
Video controller resident bus
AGP bus (AGP 2X/4X for AGP slot)
Video interface support
Video YUV texture in all texture formats
H/W DVD accelerator
*32 - 24bpp color data is processed using a 32bpp data format
.
Bits Per Pixel
(Frequency in Hz)
8-bit Indexed
Display Screen Resolution
Bits Per Pixel
(Frequency in Hz)
16-bit Indexed)
Bits Per Pixel
(Frequency in Hz)
24-bit Indexed
320x240
70
70
70
320x240
70
70
70
352x480
70
70
70
352x576
70
70
70
400x300
70
70
70
512x384
70
70
70
640x400
70
70
70
640x480
60, 70, 72, 75, 85
60, 70, 72, 75, 85
60, 70, 72, 75, 85
720x480
75, 85
75, 85
75, 85
720x576
60, 75, 85
60, 75, 85
60, 75, 85
800x600
60, 70, 72, 75, 85
60, 70, 72, 75, 85
60, 70, 72, 75, 85
1024x768
60, 70, 72, 75, 85
60, 70, 72, 75, 85
60, 70, 72, 75, 85
1152x864
60, 70, 72, 75, 85
60, 70, 72, 75, 85
60, 70, 72, 75, 85
1280x720
60, 75, 85
60, 75, 85
60, 75, 85
1280x960
60, 75, 85
60, 75, 85
60, 75, 85
1280x1024
60, 70, 72, 75, 85
60, 70, 72, 75, 85
60, 70, 72, 75, 85
1600x900
60, 75, 85
60, 75, 85
60, 75, 85
1600x1200
60, 70, 72, 75, 85
Not available
Not available
NOTE: You may disable the on-board video function in the BIOS Utility.
Chapter 1
11
Audio Interface
Item
Audio controller
Specification
Embedded in Intel 82801BA ICH II
Audio controller resident bus
AC’97 link
Audio function control
Enable/disable by BIOS Setup
Mono or stereo
Stereo
Resolution
16 bits
Compatibility
AC’97 2.1 compliant
Sound Blaster Pro compatible
Mixed digital and analog high performance chip
Enhanced stereo full duplex operation
High performance PCI audio accelerator
Full native DOS games compatibility
High-Quality ESFM music synthesizer
MPU-401(UART mode) interface for wavetable synthesizers and MIDI devices
Integrated dual game port
Meets PC 97/PC98 and WHQL specifications
Music synthesizer
Yes
Sampling rate
44.1 KHz
MPU-401 UART support
Yes
Microphone jack
Supported
On audio-I/O board (connects via CN8)
Headphone jack
Supported
On audio-I/O board (connects via CN8)
Package
QFP64
IDE Interface
Item
Specification
IDE controller
Embedded in Intel 82801BA ICH II
IDE controller resident bus
PCI bus
Number of IDE channel
2 on-board: 40-pin hard disk drive connector,
Support IDE interface
E-IDE (up to PIO mode 4 and Ultra DMA/33, Ultra DMA/66 and Ultra DMA/100
mode 2) ANSIS ATA rev.4.0 ATAPI
Support bootable CD-ROM
Yes
Floppy disk drive Interface
Item
12
Specification
Floppy disk drive controller
Embedded in LPC 47B277
Floppy disk drive controller resident bus
LPC
Support FDD format
360KB, 720KB, 1.2MB, 1.44MB, 2.88MB; 3-mode
Chapter 1
Parallel Port
Item
Specification
Parallel port controller
Embedded in LPC 47B277
Parallel port controller resident bus
LPC
Number of parallel ports
1
Support ECP/EPP
ECP / EPP 1.7 & 1.9
Connector type
25-pin D-type female connector
Parallel port function control
Enable/disable by BIOS Setup
Optional ECP DMA channel
(in BIOS Setup)
DMA channel 1
DMA channel 3
Optional parallel port I/O address
(via BIOS Setup)
378h
278h
Optional parallel port IRQ
(via BIOS Setup)
IRQ5
IRQ7
Serial Port
Item
Specification
Serial port controller
Embedded in Intel 82801BA ICH II
Serial port controller resident bus
LPC
Number of serial port
2
Serial ports location
CN4, COM 2
16550 UART support
Yes
Connector type
10-pin connector
Optional serial port I/O address
(via BIOS Setup)
3F8h, 2F8h, 3E8h, 2E8h
Optional serial port IRQ
(via BIOS Setup)
4, 3
LAN Interface
Item
Specification
LAN controller
Intel 82562ET LAN controllers
LAN controller resident bus
PCI bus
LAN port
One RJ-45 on board (CN??)
Function control
Enable/disable by BIOS Setup
Modem
Item
Specification
Fax modem data baud rate (bps)
14.4K bps
Data modem data baud rate (bps)
56K bps
Voice modem
Yes
Modem connector type
RJ11
Full duplex
Not applicable
Chapter 1
13
USB Port
Item
Specification
Universal HCI
USB 1.0
USB Class
Support legacy keyboard for legacy mode
Memory Address Map
Address
Size
Function
000000 - 07FFFF
512KBytes
Host Memory
080000 - 09FFFF
128KBytes
Host/PCI Memory
0A0000 - 0BFFFF
128KBytes
PCI/ISA Video Buffer Memory
0C0000 - 0C7FFF
32KBytes
Video BIOS Memory
0C8000 - 0DFFFF
96Kbytes
ISA Card BIOS & Buffer Memory
0E0000 - 0EFFFF
64Kbytes
BIOS Extension Memory
Setup and Post Memory
PCI Development BIOS
0F0000 - 0FFFFF
64Kbytes
System BIOS Memory
100000 - UPPER LIMIT
Main Memory
UPPER LIMIT - 4GBytes
PCI Memory
PCI INTx# and IDSEL Assignment Map
PCI INTx #
PCI Devices
Device IDSEL: ADxx
INTA#
PCI Slot 1
AD16
INTB#
PCI slot 2
AD17
INTC#
PCI slot 3
AD22
PCI Slot IRQ Routing Map
PCI INTX#
14
INTA
INTB
INTC
INTD
Bus Mastering
PCI 1
Route 1
Route 2
Route 3
Route 4
Enabled
PCI 2
Route 4
Route 1
Route 2
Route 3
Enabled
PCI 3
Route 3
Route 4
Route 1
Route 2
Enabled
Chapter 1
I/O Address Map
Hex Range
Devices
000-00F
DMA Controller-1
020-021
Interrupt Controller-1
040-043
System Timer
060-060
Keyboard Controller 8742
061-061
System Speaker
070-071
CMOS RAM Address and Real Time Clock
081-08F
DMA Controller-2
0A0-0A1
Interrupt Controller-2
0C0-0DF
DMA Controller-2
0F0-0FF
Math Co-Processor
170-177
Secondary IDE
1F0-1F7
Primary IDE
278-27F
Parallel Printer Port 2
2F8-2FF
Serial Asynchronous Port 2
378-37F
Parallel Printer Port 1
3F0-3F5
Floppy Disk Controller
3F6-3F6
Secondary IDE
3F7-3F7
Primary IDE
3F8-3FF
Serial Asynchronous Port 1
0CF8
Configuration Address Register
0CFC
Configuration Data Register
778-77A
Parallel Printer Port 1
IRQ Assignment Map
IRQx
IRQ0
System Devices
Timer
Add-On-Card Devices
N
IRQ1
Keyboard
N
IRQ2
Cascade Interrupt Control
N
IRQ3
Serial Alternate
Reserved
IRQ4
Serial Primary
Reserved
IRQ5
Parallel Port (Alternate)
Reserved
IRQ6
Floppy Diskette
Reserved
IRQ7
Parallel Port
Reserved
IRQ8
Real Time Clock
N
IRQ9
N
Reserved
IRQ10
N
Reserved
IRQ11
N
Reserved
IRQ12
PS/2 Mouse
Reserved
IRQ13
Math Co-processor Exception
N
IRQ14
Fix Diskette
Reserved
IRQ15
Fix Diskette
Reserved
NOTE: N - Not in use
Chapter 1
15
DRQ Assignment Map
DRQx
System Devices
Add-On-Card Devices
DRQ0
N
Reserved
DRQ1
N
Reserved
DRQ2
Floppy Diskette
N
DRQ3
N
Reserved
DRQ4
Cascade
N
DRQ5
N
Reserved
DRQ6
N
Reserved
DRQ7
N
Reserved
NOTE: N - Not in use
Main Board Major Chips
Item
Controller
North Bridge
Intel 82815 GMCH
South Bridge
Intel 82801BA ICH II
Super I/O controller
SMSC LPC47B277
Audio controller
Built-in Intel 82801 ICH
LAN controller
Intel 82562ET
HDD controller
Built-in Intel 82801BA ICH II
Keyboard controller
Built-in Intel 82801BA ICH II
RTC
Built-in Intel 82801BA ICH II
Environmental Requirements
Item
Specifications
Temperature
Operating
+10 ~ +35°C
Non-operating
-20 ~ +60°C (Storage package)
Humidity
Operating
20% to 80% RH
Non-operating
20% to 80% RH
Vibration
Operating (unpacked)
5 ~ 16.2 Hz: 0.38 mm
16.2~250 Hz: 0.2G
Non-operating (packed)
5 ~ 27.1 Hz: 0.6 G
27.1 ~ 50 Hz: 0.4 mm
50 ~ 500 Hz: 2 G
Mechanical Specifications
Item
Weight
One 3.5 FDD and one 3.5 HDD
Specification
Depends on local configuration
(without packing)
16
Chapter 1
Switching Power Supply 145W
Input Frequency
Frequency Variation Range
50Hz
47Hz to 53Hz
60Hz
57Hz to 63Hz
Input Voltage
Variation Range
100 - 120 VRMS
90-132 VRMS
200 - 240 VRMS
180-264 VRMS
Input Current
Measuring Range
4A
90 -132 VRMS
3A
180 - 264 VRMS
(This is for 145 power supply)
NOTE: 1. This "4A" includes the outlet supply current: 2A.
2. Measure at line input 90VRMS and maximum load condition.
Output Requirements
Regulation
Current Rating
+5V
+-5%
15A
+12V
+-5%
3A
-12V
+-10%
0.3A
+3.3V
+-5%
12A
-5V
+-10%
0A
+5Vaux
+-5%
1A
NOTE: +5V and 3.3V total power is 100W max.
Chapter 1
17
Power Management Functions
Device Standby Mode
!
Independent power management timer for hard disk drive devices
(0-15 minutes, time step=1 minute).
!
Hard disk drive goes into Standby mode (for ATA standard interface).
!
Disable V-sync to control the VESA DPMS monitor.
!
Resume method: device activated (Keyboard for DOS, keyboard & mouse for Windows).
!
Resume recovery time: 3-5 sec.
Global Standby Mode
!
Global power management timer (2-120 minutes, time step=10 minute).
!
Hard disk drive goes into Standby mode (for ATA standard interface).
!
Disable H-sync and V-sync signals to control the VESA DPMS monitor.
!
Resume recovery time: 7-10 sec.
Suspend Mode
!
Independent power management timer (2-120 minutes, time step=10 minutes) or pushing external
switch button
!
CPU goes into SMM.
!
CPU asserts STPCLK# and goes into the Stop Grant State.
!
LED on the panel turns amber color.
!
Hard disk drive goes into SLEEP mode (for ATA standard interface).
!
Disable H-sync and V-sync signals to control the VESA DPMS monitor.
!
Return to original state by pushing external switch button.
Suspend to RAM
18
!
The system context is maintained in system memory
!
Power is shut to non-critical circuits.
!
Memory is retained, and refreshes continually.
!
All clocks shut except RTC.
!
Return to original state by pushing external switch button & “PME” events at ACPI mode.
Chapter 1
Chapter 1
19
Chapter 2
System Utilities
Most systems are already configured by the manufacturer or the dealer. There is no need to run
Setup when starting the computer unless you get a Run Setup message.
The Setup program loads configuration values into the battery-backed nonvolatile memory called CMOS RAM.
This memory area is not part of the system RAM.
NOTE: If you repeatedly receive Run Setup messages, the battery may be bad. In this case, the system
cannot retain configuration values in CMOS.
Before you run Setup, make sure that you have saved all open files. The system reboots immediately after
you exit Setup.
Chapter 2
20
Entering Setup
To enter Setup, press the key combination
NOTE: You must press
.
simultaneously while the system is booting.
The Setup Utility main menu then appears:
Setup Utility
System Information
Product Information
Disk Drives
Onboard Peripherals
Power Management
Boot Options
Date and Time
System Security
!
!
!
!
!
!
!
!
Load Default Settings
Abort Settings Change
The system supports two BIOS Utility levels: Basic and Advanced. The above screen is the BIOS Utility Basic
Level screen. It allows you to view and change only the basic configuration of your system.
If you are an advanced user, you may want to check the detailed configuration of your system. Detailed
system configurations are contained in the Advanced Level. To view the Advanced Level menu, press F8 or
the Alt + F4 keys simultaneously.
NOTE: The F8 and Alt + F4 keys work only when you are in the main menu. This means that you can
activate the advanced level and hidden information only when you are in the main menu.
The following screen shows the Advanced Level main menu:
!
Setup Utility
System Information
Product Information
Disk Drives
Onboard Peripherals
Power Management
Boot Options
Date and Time
System Security
!
Advanced Options
!
!
!
!
!
!
!
Load Default Settings
Abort Settings Change
21
Chapter 2
The command line at the bottom of the menu tells you how to move within a screen and from one screen to
another.
!
To select an option, move the highlight bar by pressing
!
Press
!
To change a parameter setting, press
!
Press
to return to the main menu. If you are already in the main menu, press
exit Setup.
to move to the next page or
or
then press
.
to return to the previous page.
or
until the desired setting is found.
again to
The parameters on the screens show default values. These values may not be the same as those in your
system.
The grayed items on the screens have fixed settings and are not user-configurable.
Chapter 2
22
System Information
The following screen appears if you select System Information from the main menu.
System Information
Processor ...........................
Processor Speed .....................
Level 1 Cache .......................
Level 2 Cache .......................
Floppy Drive A ......................
Floppy Drive B ......................
Pentium III
600 MHz
32 KB, Enabled
256 KB, Enabled
1.44 MB 3.5-inch
None
IDE Primary Channel Master ..........
IDE Primary Channel Slave ...........
IDE Secondary Channel Master ........
IDE Secondary Channel Slave .........
Total Memory ........................
1st Bank...........................
2nd Bank...........................
3rd Bank...........................
HardDisk,xxxx M.B.
None
IDE CD-ROM
None
64 MB
SDRAM, 32 MB
SDRAM, 32 MB
None
Serial Port 1 .......................
Serial Port 2 .......................
Parallel Port .......................
PS/2 Mouse ..........................
3F8h, IRQ 4
Disabled
378h, IRQ 7
Installed
This page shows the current basic configuration of your system.
The following table describes the parameters found in the System Information pages:
Parameter
23
Description
Format
Processor
Specifies the type of processor currently installed
in your system.
Processor Speed
Specifies the speed of the processor currently
installed in your system.
Level 1 Cache
Specifies the first-level or the internal memory
(i.e., the memory integrated into the processor)
size, and whether it is enabled or disabled.
Cache size in KB
Level 2 Cache
Specifies the second-level cache memory size
currently supported by the system.
Cache size in KB
Floppy Drive A
Shows the diskette drive A type.
Capacity, dimension
Floppy Drive B
Shows the diskette drive B type.
Capacity, dimension
IDE Primary Channel Master Specifies the current configuration of the IDE
device connected to the master port of the primary
IDE channel.
Drive type, capacity
IDE Primary Channel Slave
Drive type, capacity
Specifies the current configuration of the IDE
device connected to the slave port of the primary
IDE channel.
Chapter 2
Parameter
Description
Format
IDE Secondary Channel
Master
Specifies the current configuration of the IDE
device connected to the master port of the
secondary IDE channel.
Drive type, capacity
IDE Secondary Channel
Slave
Specifies the current configuration of the IDE
device connected to the slave port of the
secondary IDE channel.
Drive type, capacity
Total Memory
Specifies the total amount of onboard memory.
The memory size is automatically detected by
BIOS during the POST. If you install additional
memory, the system automatically adjusts this
parameter to display the new memory size.
Memory size in MB
1st Bank
Indicates the type of DRAM installed in the DIMM
1 socket. The None setting indicates that there is
no DRAM installed.
DIMM type, capacity in MB
2nd Bank
Indicates the type of DRAM installed in the DIMM
2 socket. The None setting indicates that there is
no DRAM installed.
DIMM type, capacity in MB
3rd Bank
Indicates the type of DRAM installed in the DIMM
3 socket. The None setting indicates that there is
no DRAM installed.
DIMM type, capacity in MB
Serial Port 1
If enabled, indicates the IRQ and I/O port Address
assigned to serial port 1.
I/O port address
Serial Port 2
If enabled, indicates the IRQ and I/O port Address
assigned to serial port 2.
I/O port address
Parallel Port
If enabled, indicates the IRQ and I/O port Address
assigned to the parallel port.
I/O port address
PS/2 Mouse
Specifies the presence of a PS/2 mouse
Installed or Disabled
Chapter 2
24
Product Information
The screen below appears if you select Product Information from the main menu:
Product Information
Product Name .................... Acer Veriton 3200
System S/N ....................... N/A
Main Board ID .................... S58M
Main Board S/N ................... N/A
System BIOS Version .............. V4.0
SMBIOS Version ................... 2.3
*System BIOS ID .................. R01-A0-EN
BIOS Release Date ................ Jan 03,00
NOTE: The asterisk (*) mark indicates that the parameter appears only when you are in the Advanced Level.
The Product Information menu contains general data about the system, such as the product name, serial
number, BIOS version, etc. These information is necessary for troubleshooting (maybe required when asking
for technical support).
The following table describes the parameters found in this menu:
Parameter
25
Description
Product Name
Displays the model name of your system.
System S/N
Displays your system’s serial number.
Main Board ID
Displays the main board’s identification number.
Main Board S/N
Displays your main board’s serial number.
System BIOS Version
Specifies the version of your BIOS utility.
SMBIOS version
The System Management Interface (SM) BIOS allows you to check your
system hardware components without actually opening your system.
Hardware checking is done via software during start up. This parameter
specifies the version of the SMBIOS utility installed in your system.
System BIOS ID
Specifies the version ID of the BIOS utility.
BIOS Release Date
Displays the release date of the BIOS utility.
Chapter 2
Disk Drives
Select Disk Drives from the main menu to configure the drives installed in your system.
NOTE: The following screen shows the Disk Drives menu:
The asterisk (*) mark indicates that the parameter appears only when you are in the Advanced Level.
Disk Drives
Floppy Drive A .................. [1.44 MB 3.5-inch]
Floppy Drive B ................... [None]
*IDE
*IDE
*IDE
*IDE
Primary Channel Master
Primary Channel Slave
Secondary Channel Master
Secondary Channel Slave
The following table describes the parameters found in this menu.
Parameter
Description
Floppy Drive A / B
Allows you to configure your floppy drive
IDE Primary Channel Master
Lets you configure the hard disk drive
connected to the master port of IDE channel
1.
IDE Primary Channel Slave
Lets you configure the hard disk drive
connected to the slave port of IDE channel 1.
IDE Secondary Channel Master
Lets you configure the hard disk drive
connected to the master port of IDE channel
2.
IDE Secondary Channel Slave
Lets you configure the hard disk drive
connected to the slave port of IDE channel 2.
Chapter 2
Options
None
360 KB, 5.25-inch
1.2 MB, 5.25-inch
720 KB, 3.5-inch
1.44 MB, 3.5-inch
2.88 MB, 3.5-inch
26
The following screen appears if you select any of the IDE drive parameters:
IDE Primary Channel Master
Device Detection Mode .............. [Auto]
Device Type .................... Hard Disk
Cylinder .......................
Head ...........................
Sector .........................
Size ...........................
Hard Disk LBA Mode ...............
*Hard Disk Block Mode ............
*Hard Disk 32 Bit Access .........
*Advanced PIO Mode ...............
*DMA Transfer Mode ...............
[8354]
[16]
[63]
[4311] M.B.
[Auto]
[Auto]
[Enabled]
[Auto]
[Auto]
NOTE: The asterisk (*) mark indicates that the parameter appears only when you are in the Advanced Level.
IDE Primary Channel Slave
Device Detection Mode ............... [Auto]
Device Type........................ None
Cylinder...........................
Head...............................
Sector.............................
Size...............................
27
[0]
[0]
[0]
[0] M.B.
Chapter 2
IDE Secondary Channel Master
Device Detection Mode ............... [Auto]
Device Type........................ None
Cylinder........................... [0]
Head............................... [0]
Sector............................. [0]
Size............................... [0] M.B.
IDE Secondary Channel Slave
Device Detection Mode ............... [Auto]
Device Type ........................ IDE CD-ROM
*Advanced PIO Mode ................... [Auto]
*DMA Transfer Mode ................... [Auto]
NOTE: The asterisk (*) mark indicates that the parameter appears only when you are in the Advanced Level.
The following table describes the parameters found in this menu.
Parameter
Description
Options
Device Detection Mode
Lets you specify the type of hard disk installed in your
system. If you want BIOS to automatically configure
your hard disk, select Auto. If you know your hard
disk type, you can enter the setting manually.
Auto, None, or User. The User
setting allows you to enter your
settings manually if you know
your hard disk type. The Auto
setting also sets the Cylinder,
Head, Sector, and Size
parameters.
Setting this parameter also sets the Cylinder, Head,
Sector, and Size parameters.
Chapter 2
28
Parameter
29
Description
Options
Device Type
Display the type of device installed.
Not configurable. The default
is Hard Disk.
Cylinder
Specifies your hard disk’s number of cylinders, and is
automatically set depending on your Type parameter
setting.
Only Device Detection Mode is
set to User, the item Cylinder
will be available; Otherwise it is
non-configurable.
Head
Specifies your hard disk’s number of heads, and is
automatically set depending on your Type parameter
setting.
Only Device Detection Mode is
set to User, the item Head will
be available; Otherwise it is
non-configurable.
Sector
Specifies your hard disk’s number of sectors, and is
automatically set depending on your Type parameter
setting.
Only Device Detection Mode is
set to User, the item Sector will
be available; Otherwise it is
non-configurable.
Size
Specifies the size of your hard disk, in MB, and is
automatically set depending on your Type parameter
setting
It will turn to gray and will be
non- configurable.
Hard Disk LBA Mode
Set to “Auto” under DOS and Windows. Set to
“Disabled” under Novell Netware and Unix.
Auto or Disabled
Hard Disk Block Mode
This function enhances disk performance depending
on the hard disk in use. If you set this parameter to
Auto, the BIOS utility automatically detects if the
installed hard disk drive supports the Block Mode
function. If supported, it allows data transfer in blocks
(multiple sectors) at a rate of 256 bytes per cycle.
Auto or Disabled
Hard Disk 32-bit Access
Enabling this parameter improves system
performance by allowing the use of the 32-bit hard
disk access. This enhanced IDE feature works only
under DOS, Windows 3.x, Windows 95/98, Windows
NT, and Novell NetWare.
Enabled or Disabled
Advanced PIO Mode
When set to Auto, the BIOS utility automatically
detects if the installed hard disk supports the function,
it allows for faster data recovery and read/ write
timing that reduces hard disk activity time. This
results in better hard disk performance.
Auto, Mode 0, 1, 2, 3 or 4
DMA Transfer Mode
The Ultra DMA and Multi-DMA modes enhance hard
disk performance by increasing the transfer rate.
However, besides enabling these features in the
BIOS Setup, both the Ultra DMA and Multi-DMA
modes require the DMA driver to be loaded.
Auto
Multiword Mode 0, 1, 2
Ultra Mode 0, 1, 2, 3, 4
Disabled
Chapter 2
Onboard Peripherals
The Onboard Peripherals menu allows you to configure the onboard devices. Selecting this option from the
main menu displays the following screen:
Onboard Peripherals
Serial Port 1 ....................... [Enabled]
Base Address ....................... [3F8h]
IRQ ................................ [4]
Serial Port 2 ........................ [Disabled]
Base Address ....................... [---]
IRQ ................................ [---]
Parallel Port .......................
Base Address .......................
IRQ ................................
Operation Mode .....................
ECP DMA Channel ..................
[Enabled]
[378h]
[7]
[EPP]
[-]
Floppy Disk Controller ..............
IDE Controller ......................
PS/2 Mouse Controller ...............
USB Host Controller .................
USB Legacy Mode ....................
[Enabled]
[Both]
[Enabled]
[Enabled]
[Enabled]
Onboard Audio Chip ..................
Game Port Address ...................
Midi Port Address ...................
Midi Port IRQ .......................
[Enabled]
[201]
[330]
[5]
The following table describes the parameters found in this menu.
Parameter
Description
Options
Serial Port 1
Lets you enable or disable the serial port 1.
Enabled or Disabled
Serial Port 2
Lets you enable or disable the serial port 2.
Disabled or Enabled
Base Address
Lets you set a logical base address for each
serial port. This parameter is configurable
only if the Serial Port parameter is enabled.
3F8h (for serial port 1), 2F8h (for
serial port 2), 3E8h, 2E8h
IRQ
Lets you assign an interrupt for each serial
port. This parameter is configurable only if
the Serial Port parameter is enabled.
4 or 11(for serial port 1), 3 or 10 (for
serial port 2)
Parallel Port
Lets you enable or disable the parallel port.
Enabled or Disabled
Base Address
3BCh, 378h, 278h
Lets you set a logical base address for the
parallel port. This parameter is configurable
only if the Parallel Port parameter is enabled.
IRQ
Lets you assign an interrupt for the parallel
port. This parameter is configurable only if
the Parallel Port parameter is enabled.
7 or 5
Operation Mode
Lets you set your parallel port’s operation
mode. This parameter is configurable only if
the Parallel Port parameter is enabled.
Enhanced Parallel Port (EPP)
Bidirectional
Standard Parallel Port (SPP)
Extended Capabilities Port (ECP)
Chapter 2
30
Parameter
31
Description
Options
ECP DMA Channel
Allows you to assign a DMA channel for the
ECP parallel port function. This parameter is
configurable only if you select the Extended
Capabilities Port (ECP) as the operation
mode.
1 or 3
Floppy Disk Controller
Lets you enable or disable the onboard
floppy disk controller.
Enabled or Disabled
IDE Controller
Lets you enable or disable the onboard
primary, secondary or both IDE interfaces.
Both, Primary, or Disabled
PS/2 Mouse Controller
Lets you enable or disable the onboard PS/2
mouse controller
Enabled or Disabled
USB Host Controller
Lets you enable or disable the onboard USB
host controller.
Enabled or Disabled
USB Legacy Mode
Lets you activate or deactivate the USB
keyboard connected to your system. When
activated, the USB keyboard functions in a
DOS environment.
Enabled or Disabled
Onboard Audio Chip
Lets you enable or disable the onboard audio
controller
Enabled or Disabled
Game Port Address
Sets the I/O base address of the game port.
201, 209, or Disabled
Midi Port Address
Sets the I/O base address of the midi port.
330, 300, or Disabled
Midi Port IRQ
Sets the IRQ channel of the midi port.
5 or 10
Chapter 2
Power Management
The Power Management menu lets you configure the system power-management feature. It works only under
APM mode.
IMPORTANT:If an ACPI-aware operating system such as Windows 98 or Windows 2000 is installed in ACPI
mode, the operating system will use the ACPI interfaces. Then the settings in Power Management
page is non-effective.
The following screen shows the Power Management parameters and their default settings:
Power Management
Power Management Mode ............... [Enabled]
IDE Hard Disk Standby Timer ........ [OFF]
System Sleep Timer ................. [OFF]
Sleep Mode ....................... [-------]
Power Switch < 4 sec ................ [Suspend]
System wake-up event
Modem Ring Indicator ............... [Disabled]
PCI Power Management ............... [Enabled]
RTC Alarm ......................... [Disabled]
Resume Day .......................[--]
Resume Time ......................[--:--:--]
Restart on AC/Power Failure ....... [Disabled]
ACPI Sleep State ................... [S1]
The following table describes the parameters found in this menu.
Parameter
Description
Options
Power Management Mode
Allows you to reduce the system’s power
consumption. When enabled, the IDE hard
disk and system timers become
configurable.
Enabled or Disabled
IDE Hard Disk Standby Timer
Allows the hard disk to enter Standby mode
after inactivity of 1 to 15 minutes, depending
on your setting.
Off or 1 to 15 minutes
System Sleep Timer
Automatically puts the system to powersaving mode after a specified period of
inactivity. Any keyboard or mouse action, or
any activity detected from the IRQ channels
resumes system operation.
Off, or 2, 5, 10, 15, 20, 30, 40,
50...120 minutes
Sleep Mode
Lets you specify the power-saving mode
that the system will enter after a specified
period of inactivity. This parameter is
configurable only if the System Sleep Timer
is enabled.
Suspend or Standby
Chapter 2
32
Parameter
33
Description
Options
Suspend or Power Off
Power Switch < 4 sec.
Lets you specify whether to automatically
turn off the machine or put the system to
Suspend mode when the power switch is
pressed for less than 4 seconds.
System Wake-up Event
Lets you specify the activity that will resume
the system to normal operation.
Modem Ring Indicator
Wakes the system from Sleep mode once
any fax/modem activity is detected.
Disabled or Enabled
PCI Power Management
Allows the system to be awaken by the PME
function.
Enabled or Disabled
RTC Alarm
Allows you to set a certain time on a certain
day to wake-up your system from suspend
mode.
Disabled or Enabled
Resume Day
If RTC alarm is enabled, the system will
User Input
resume operation at the time indicated here.
Resume Time
If RTC alarm is enabled, the system will
User Input
resume operation at the time indicated here.
Restart on AC/ Power Failure
When power failure occurs, your system
automatically stops functioning. Setting this
parameter to Enabled lets you set your
computer to automatically turn on once
power resumes. The Disabled setting
leaves the computer off.
Disabled or Enabled
ACPI Sleep State
When set to S1, system enters standby
mode when power management mode is
enabled. When set to S3, system enters
suspend to RAM mode.
S1 or S3
Chapter 2
Boot Options
This option allows you to specify your preferred settings for bootup.
The following screen appears if you select Boot Options from the main menu:
Boot Options
Boot Sequence
1st. [IDE CD-ROM]
2nd. [Floppy Disk A:]
3rd. [Hard Disk C:]
4th. [Intel ® Boot Agent Version 3.0]
Primary Display Adapter.............. [Auto]
Fast Boot ........................... [Auto]
Silent Boot ......................... [Enabled]
Num Lock After BOOT ................. [Enabled]
Memory Test ......................... [Disabled]
*Configuration Table ................. [Enabled]
Update BIOS with Boot Block ......... [Disabled]
Network Boot ROM ................... [Disabled]
Language Type
[English]
NOTE: The asterisk (*) mark indicates that the parameter appears only when you are in the Advanced Level.
The following table describes the parameters found in this menu.
Parameter
Boot Sequence
Description
Allows you to specify the boot search sequence.
Options
IDE CD-ROM
Floppy Disk
Hard Disk
Intel (R) Boot Agent Version
3.0 ( boot from LAN)
Primary Display Adapter
Lets you activate the onboard video controller as
your primary adapter, or automatically disable it
once BIOS detects that there is a video card
installed in your system.
Auto or Onboard
Fast Boot
Allows you to define your system’s booting
process, whether to skip some POST routines or
proceed with the normal booting process.
Auto or Disabled
Chapter 2
34
Parameter
Silent Boot
Description
Options
When enabled, BIOS is in graphical mode and
Enabled or Disabled
displays only an identification logo during POST
and while booting. Then, the screen displays the
operating system prompt (as in DOS) or logo (as
in Windows). If any error occurs while booting,
the system automatically switches to the text
mode.
You may also switch to the text mode while
booting by pressing F9 after you hear a beep that
indicates the activation of the keyboard.
35
Num Lock After Boot
Allows you to activate or deactivate the Num
Lock function upon booting.
Enabled or Disabled
Memory Test
Lets you specify whether you want BIOS to
perform or bypass the memory test. This
parameter is only available when Fast Boot is
disabled.
Disabled or Enabled
Configuration Table
This parameter allows you to enable or disable
the display of the configuration table after POST
but before booting. The configuration table gives
a summary of the hardware devices and settings
that BIOS detected during POST.
Enabled or Disabled
Update BIOS w/ Boot Block When enabled, it automatically flashed the BIOS
file from the hard disk drive in case the system
fails to boot up.
Disabled or Enabled
Network Boot ROM
Allows you to enable or disable the control of the
local area network (LAN) BIOS. Setting this
parameter to Disabled speeds up the booting of
the computer.
Disabled or Enabled
Language Type
Select the language.
English or Japanese
Chapter 2
Date and Time
The following screen appears if you select the Date and Time option from the main menu:
Date and Time
Date.................................. [Mon Jan 03, 2000]
Time.................................. [HH:MM:SS]
The following table describes the parameters found in this menu:
Parameter
Date
Description
Lets you set the date following the weekdaymonth-day-year format.
Options
Weekday: Sun, Mon, Tue, Wed, Thu,
Fri, Sat
Month: Jan, Feb...Dec
Day: 1 to 31
Year: 1980 to 2099
Time
Lets you set the time following the hourminute-second format.
Hour: 0 to 23
Minute: 0 to 59
Second: 0 to 59
Chapter 2
36
System Security
The Setup program has a number of security features to prevent unauthorized access to the system and its
data.
The following screen appears if you select System Security from the main menu:
System Security
Supervisor Password ................. [None]
User Password ....................... [----]
Password on Boot .................... [----]
Disk Drive Controller
Floppy Drive ....................... [Normal]
Hard Disk Drive .................... [Normal]
Processor Serial Number ............. [Disabled]
The following table describes the parameters found in this menu.
Parameter
Description
Supervisor Password
Prevents unauthorized access to the BIOS
utility.
User Password
Secures your system against unauthorized
use. Once you set this password, you have
to type it whenever you boot the system.
Password on Boot
Allows you to protect your User Password.
Options
None or Present. The Present
setting allows you to set a Setup
password. For instructions on how
to set a Setup password, refer to
“Setting a Password” on page 38.
Disabled or Enabled
When enabled, retype the password then
press enter.
Disk Drive Controller
Allows you to protect your system’s floppy
drive and hard disk data from being modified
(possible under DOS mode only).
Floppy Drive
Protects your floppy drive data from being
modified.
Normal, Write Protect All Sectors,
Write Protect Boot Sectors
Hard Disk Drive
Protects your hard disk data from being
modified.
Normal, Write Protect All Sectors,
Write Protect Boot Sectors
Processor Serial Number
37
Chapter 2
Setting a Password
3.
Enter the BIOS utility and select “System Security” .
4.
Highlight the “Supervisor Password” parameter to set a Setup password, or “User Password” to set a
power-on password. Then press the left or right arrow key. The following creen appears:
Supervisor Password
Enter your Password twice. The Password
may be up to 7 characters long.
Enter Password ...................... [!!!!!!!]
Enter Password again ................ [!!!!!!!]
Set or Change Password
5.
Type a password. The password may consist of up to seven characters. Then press Enter.
6.
Retype the password then press Enter.
7.
After setting the password, highlight the “Set or Change Password” option.
8.
Press Esc to return to the System Security screen. If you have set a Supervisor password (and/or User
password), the Supervisor Password (and/or User password) setting automatically changes to Present.
9.
Press Esc to return to the Main menu.
10. Press Esc to exit the BIOS utility. A dialog box appears asking if you want to save the CMOS data.
11. Select “Yes” to save the changes and reboot the system.
If you have set a Supervisor password, the next time you want to enter the BIOS utility, you must key-in your
Supervisor password.
If you have set a User password, you will be prompted to enter that password every time you boot your
system.
Chapter 2
38
Changing or Removing the Password
If you want to change one of your passwords, do the following:
1.
Enter the BIOS utility and select “System Security”.
2.
Highlight the “Supervisor Password” parameter (for Supervisor password) or the “User Password”
parameter (a Supervisor Password must be set first before you can change the User password). The
Password menu appears.
3.
From the Password menu, highlight the “Set or Change Password” option.
4.
Enter a new password.
5.
Press Esc to return to the System Security screen.
6.
Press Esc to return to the main menu.
7.
Press Esc to exit the BIOS utility. A dialog box appears asking if you want to save the CMOS data.
8.
Select “Yes” to save the changes.
To remove the password, simply select the “Supervisor Password” parameter (for Supervisor password) or
the “User Password” parameter (a Supervisor Password must be set first before you can change the User
password) from the System Security menu and set it to “None”.
Bypassing the Password
If you forgot your password, you can bypass the password security feature thru hardware configuration.
RTC Battery
Follow these steps to bypass the password:
1.
Turn off and unplug the system.
2.
Open the system housing. Take off battery and short it.
3.
Place on RTC battery, reboot the system and enter setup menu, to load default setting.
Clear CMOS
Follow these steps to bypass the password:
1.
Reset CMOS, by adjusting JPX1 to 1-2
2.
Reboot the system.
3.
Adjust the JPX1 back to 2-3
Password Check
Follow the step to bypass the password:
1.
39
Adjust JPXB to 2-3
Chapter 2
Advanced Options
NOTE: The Advanced Options menu is only available if you press F8 or Alt + F4 in the main menu.
The “Advanced Options” menu allows you to configure the system memory and PCI device settings.
The following screen shows the Advanced Options parameters:
Advanced Options
!
Memory/Cache Options
PnP/PCI Options
!
CAUTION: Do not change any settings in the Advanced Options menu if you are not a qualified technician to
avoid damaging the system.
Memory/Cache Options
Selecting “Memory/Cache Options” from the Advanced Options menu displays the following screen:
This menu lets you configure the system memory.
Memory/Cache Options
Level 1 Cache ....................... [Enabled]
Level 2 Cache ....................... [Enabled]
Memory at 15MB-16MB Reserved for .... [System]
CPU frequency Multiplier .............[3X]
The following table describes the parameters found in this sub-menu.
Parameter
Description
Options
Level 1 Cache (processor
Cache)
Lets you enable or disable the primary cache
memory, i.e., the processor memory.
Enabled or Disabled
Level 2 Cache
Lets you enable or disable the secondary
cache memory.
Enabled or Disabled
Chapter 2
40
Parameter
41
Description
Options
Memory at 15MB-16MB
Reserved for
To prevent memory address conflicts between
the system and expansion boards, reserve
this memory range for the use of either the
system or an expansion board. Some VGA
cards have required settings for this feature.
Check your VGA card manual before setting
this parameter.
System or Expansion board
CPU Frequency Multiplier
Sets the Core/bus ratio of your system. The
clock speed of the bus does not necessarily
equal the CPU’s (core). The bus clock speed
is often slower than the CPU clock speed.
3X, 3.5X, 4X, 4.5X.......8X
Chapter 2
PnP/PCI Options
The PnP/PCI Options menu allows you to specify the settings for your PCI devices. Selecting this option
displays the following screen:
PnP/PCI Options
PCI IRQ Setting ..................... [Auto]
INTA
PCI Slot 1 ............. [--]
PCI Slot 2 ............. [--]
PCI Slot 3 ............. [--]
INTB
[--]
[--]
[--]
PCI IRQ Sharing ......................
VGA Palette Snoop ...................
Graphics Aperture Size ..............
Plug and Play OS ....................
Reset Resource Assignments ..........
INTC
[--]
[--]
[--]
INTD
[--]
[--]
[--]
[Yes]
[Disabled]
[64] MB
[Yes]
[No]
The following table describes the parameters found in this sub-menu.
Parameter
PCI IRQ Setting
Description
Options
Select Auto to let BIOS automatically configure the plug- Auto or Manual
and-play (PnP) devices installed in your system.
Otherwise, select Manual.
Note: Refer to your PCI card manual for technical
information.
PCI Slot 1
When you set the PCI IRQ Setting parameter to Auto,
these parameters specify the auto-assigned interrupt for
each of the PCI devices. If you set the PCI IRQ Setting
parameter to Manual, you need to specify the interrupt
that you want to assign for each PCI device installed in
your system.
User input
PCI IRQ Sharing
Setting this parameter to Yes allows you to assign the
same IRQ to two different devices. To disable the
feature, select No.
Yes or No
Note: If there are no IRQs available to assign for the
remaining device function, we recommend that you
enable this parameter.
VGA Palette Snoop
This parameter permits you to use the palette snooping
feature if you installed more than one VGA card in the
system. The VGA palette snoop function allows the
control palette register (CPR) to manage and update the
VGA RAMDAC (Digital Analog Converter, a color data
storage) of each VGA card installed in the system. The
snooping process lets the CPR send a signal to all the
VGA cards so that they can update their individual
RAMDACs. The signal goes through the cards
continuously until all RAMDAC data has been updated.
This allows the display of multiple images on the screen.
Disabled or Enabled
Note: Some VGA cards have required settings for this
feature. Check your VGA card manual before setting this
parameter.
Chapter 2
42
Parameter
Description
Options
Graphics Aperture Size
This parameter determines the effective size of the
graphics aperture. Graphics aperture is the address
range that the AGP video and the CPU use to manage
graphical objects. The lowest setting is 8 MB and the
highest is 256 MB.
User input
Plug and Play OS
When this parameter is set to Yes, BIOS initializes only
PnP boot devices such as SCSI cards. When set to No,
BIOS initializes all PnP boot and non-boot devices such
as sound cards.
Yes or No
Note: Set this parameter to Yes only if your operating
system is Windows 95/98/2000.
Reset Resource
Assignments
Set this parameter to Yes to avoid IRQ conflict when
installing non-PnP or PnP ISA cards. This clears all
resource assignments and allows BIOS to reassign
resources to all installed PnP devices the next time the
system boots. After clearing the resource data, the
parameter resets to No.
No or Yes
Chipset Settings
The Chipset Settings will be shown only if you press Alt + F4 in main menu:
Advanced Options
!
Memory/Cache Options
!
PnP/PCI Options
!
*Chipset Settings
Press Enter to view the Chipset settings information.
43
Chapter 2
The following screen displays the Chipset settings menu:
Chipset Settings
•
Spread Spectrum ............... [Enabled]
•
ICH Audio Codec ............... [Enabled]
•
ICH SMBUS Controller .......... [Enabled]
•
Delay Transaction ............. [Enabled]
•
Determine DIMM Frequency ...... [Auto]
Parameter
Description
Options
Spread Spectrum
This parameter lets you enable or disable the
spread spectrum.
Enabled or Disabled
ICH Audio Codec
This parameter lets you enable or disable the
ICH Audio Codec.
Enabled or Disabled
ICH SMBUS Controller
This parameter lets you enable or disable the
ICH SMBUS controller.
Enabled or Disabled
Delay Transaction
This parameter lets you enable or disable delay
transaction.
Enabled or Disabled
Determine DIMM Frequency
This parameter lets you set the frequency of
DIMM.
Auto, PC100 or PC133
Chapter 2
44
Load Default Settings
You need to reload the BIOS default settings every time you make changes to your system hardware
configuration (such as memory size, CPU type, hard disk type, etc.); otherwise, BIOS will keep the previous
CMOS settings. Selecting this option displays the following dialog box:
Load Default Settings
Do you want to load default settings?
[Yes]
*[No]
Choosing Yes enables BIOS to automatically detect the hardware changes that you have made in your
system. This option also allows you to restore the default settings.
Choosing No returns you to the main menu without loading the default settings.
45
Chapter 2
Abort Settings Change
Selecting the Abort Settings Change option from the main menu displays the following dialog box:
Abort Settings Change
Do you really want to abort settings change?
*[Yes]
[No]
Choosing Yes discards all the changes that you have made and reverts the parameters to their previously
saved settings.
Choosing No returns you to the main menu. BIOS retains all changes that you have made.
Chapter 2
46
Exiting Setup
To exit the BIOS utility, simply press Esc. The following dialog box appears:
Exit Setup
Settings have been changed.
Do you really want to exit setup?
*[Yes]
[No]
Select Yes to exit Setup. Select No to return to the main menu.
Exit Setup
Settings have been changed.
Do you want to save CMOS settings?
*[Yes]
[No]
If you have made changes in the parameter settings, you will be asked if you want to keep the changes made
to the BIOS. Select Yes to save your changes before you exit Setup. Select No to discard all changes and
exit Setup.
47
Chapter 2
Chapter 3
Machine Disassembly and Replacement
This chapter contains step-by-step procedures on how to disassemble the Veriton 3200 desktop computer for
maintenance and troubleshooting.
To disassemble the computer, you need the following tools:
!
Wrist grounding strap and conductive mat for preventing electrostatic discharge
!
Flat-bladed screwdriver
!
Phillips screwdriver
!
Hexagonal screwdriver
Plastic stick
NOTE: The screws for the different components vary in size. During the disassembly process, group the
screws with the corresponding components to avoid mismatches when putting back the components.
!
Chapter 3
48
General Information
Before You Begin
Before proceeding with the disassembly procedure, make sure that you do the following:
49
1.
Turn off the power to the system and all peripherals.
2.
Unplug the AC adapter and all power and signal cables from the system.
Chapter 3
Disassembly Procedure Flowchart
The flowchart on the succeeding page gives you a graphical representation on the entire disassembly
sequence and instructs you on the components that need to be removed during servicing.
Main Unit
Upper Case
FDD &
DVD
Bracket
DVDROM
FDD
HDD
Bracket
Power
Supply
Front
Panel
DIMM
CPU
Fan
Modem
Card
Audio &
USB
Board
CPU
HDD
Main
board
Chapter 3
50
Opening the Housing
This section tells you how to open the housing cover when you need to install additional components inside
the system unit.
CAUTION: Before you proceed, make sure that you have turned off the system and all peripherals connected
to it.
Removing the Housing Cover
51
1.
Place the system unit on a flat, steady surface.
2.
Turn the housing back.
3.
Remove the two screws using a screw driver from the rear panel as shown here. Set the screws aside,
you will need them when replacing the right panel of the unit.
4.
Slide the upper case back out about an inch and then gently pull it outward to detach it from the housing.
Chapter 3
Removing the Front Panel
1.
See “Opening the Housing” on page 51
2.
Detach the front bezel from the front panel gently.
3.
Detach the front bezel from the front panel gently.
Removing the EMI Audio Cover
1.
See “Opening the Housing” on page 51
2.
See “Removing the Front Panel” on page 52
3.
Remove the EMI audio cover from the lower case.
Chapter 3
52
Removing the Modem Card
1.
See “Opening the Housing” on page 51
2.
Remove the screw as shown below and then remove the modem card from the slot.
Removing the AGP VGA Card
1.
See “Opening the Housing” on page 51
2.
Remove the screw as shown here and then remove the AGP VGA card from the slot.
Removing the FDD and DVD Frame
53
1.
See “Opening the Housing” on page 51
2.
Push the two latches of both sides then lift up the FDD and DVD frame.
Chapter 3
3.
Disconnect the power and floppy disk drive cables from the floppy disk drive.
4.
Disconnect the power cable, IDE cable, and audio cable from the DVD-ROM drive.
5.
Disconnect the micro switch cable from the main board.
6.
Pull the FDD and DVD frame from the lower case.
7.
Remove the four screws as shown here then detach the DVD-ROM drive from the frame.
Chapter 3
54
8.
Remove the four screws as shown here then detach the floppy disk drive from the frame.
9.
Disconnect micro switch cable from the FDD and DVD frame.
Removing the USB and Audio Board
55
1.
See “Opening the Housing” on page 51
2.
See “Removing the Front Panel” on page 52
3.
See “Removing the EMI Audio Cover” on page 52
4.
Disconnect the USB board cable and audio board cable from the USB and audio board.
Chapter 3
5.
Remove the two screws as shown here then detach the USB and audio board from the lower case.
Removing the Hard Disk Drive
1.
See “Opening the Housing” on page 51
2.
See “Removing the FDD and DVD Frame” on page 53
3.
Disconnect the IDE cable and HDD power cable from the hard disk drive.
4.
Remove the three screws as shown here and then hold the hard disk drive frame.
5.
Slide the hard disk drive frame to the right and then gently move it inward to detach it from
the lower case.
Chapter 3
56
6.
Remove the two screws as shown and then detach the hard disk drive from the frame.
Removing the DIMM
1.
See “Opening the Housing” on page 51
2.
To release the system memory, press down and out on the levers on both sides of the DIMM socket.
3.
Gently pull the DIMM out of the socket.
Removing the Power Supply
57
1.
See “Opening the Housing” on page 51
2.
Remove the four screws as shown here.
Chapter 3
3.
Gently remove the power supply from the system.
4.
Disconnect the power cable from the main board.
Removing the RTC Battery
1.
See “Opening the Housing” on page 51
2.
To remove the RTC battery from the holder, gently remove it from the holder by hand.
Removing the Processor
1.
See “Opening the Housing” on page 51
2.
Disconnect the fan/heatsink cable from the main board and then insert a flat screw driver into the fan/
heatsink metal bracket.
Chapter 3
58
3.
Press down and pry the screwdriver outward to detach the metal bracket from the socket.
4.
Lift up the socket lever and then pull the CPU out from the socket carefully.
Removing the Main board
59
1.
See “Opening the Housing” on page 51
2.
See “Removing the FDD and DVD Frame” on page 53
3.
Remove the seven screws as shown here then detach the main board from the lower case.
Chapter 3
Chapter 4
Troubleshooting
This chapter provides troubleshooting information for the Veriton 3200:
Chapter 4
!
Power-On Self-Test (POST)
!
Index of Error Messages
!
Index of Error Codes and Error Beeps
!
Index of Error Symptoms
!
Undetermined Problems
60
Power-On Self-Test (POST)
Each time you turn on the system, the Power-on Self Test (POST) is initiated. Several items are tested during
POST, but is for the most part transparent to the user.
The Power-On Self Test (POST) is a BIOS procedure that boots the system, initializes and diagnoses the
system components, and controls the operation of the power-on password option. If POST discovers errors in
system operations at power-on, it displays error messages on screen, generates a check point code at port
80h or even halts the system if the error is fatal.
The main components on the main board that must be diagnosed and/or initialized by POST to ensure system
functionality are as follows:
61
!
Microprocessor with built-in numeric co-processor and cache memory subsystem
!
Direct Memory Access (DMA) controller
!
Interrupt system
!
Three programmable timers
!
ROM subsystem
!
RAM subsystem
!
RTC RAM subsystem and real time clock/calendar with battery backup
!
Onboard serial interface controller
!
Onboard parallel interface controller
!
Embedded hard disk interface and one diskette drive interface
!
Keyboard and auxiliary device controllers
!
I/O ports
!
PS/2-compatible mouse port
!
PS/2-compatible keyboard port
!
Serial ports
!
Parallel ports
!
USB port
Chapter 4
POST Error Messages List
If you cannot run the diagnostics program tests but did receive a POST error message, use “POST Error
Messages List” to diagnose system problems. If you did not receive any error message, look for a description
of your error symptoms in “Error Symptoms List” on page 64.
NOTE: When you have deemed it necessary to replace an FRU, and have done so, you must run a total
system check to ensure that no other activity has been affected by the change. This system check can
be done through the diagnostics program.
NOTE: Check all power supply voltages, switch, and jumper settings before you replace the main board. Also
check the power supply voltages if you have a “system no-power” condition.
If you are unable to correct the problem by using the “BIOS Messages List” table and “Error Symptoms List”
table, go to “Undetermined Problems” on page 68.
NOTE: To diagnose a problem, first find the BIOS error messages in the left column. If directed to a check
procedure, replace the FRU indicated in the check procedure. If no check procedure is indicated, the
first Action/FRU listed in right column is the most likely cause.
BIOS Messages
Action/FRU
I/O Parity Error
1. Main board
CPU Clock Mismatch
1. Enter BIOS Setup and load the default settings.
2. Ensure BIOS setting for processor is set correctly.
Real Time Clock Error
1. Enter BIOS Setup and load the default settings.
2. RTC Battery.
3. Main board.
CMOS Battery Bad
CMOS Checksum Error
Equipment Configuration Error
1. Ensure the system configuration set in BIOS Setup is
correct.
2. Enter BIOS Setup and load the default settings.
3. RTC battery.
4. Main board.
System Management Memory Bad
1. Insert the memory modules in the DIMM sockets
properly, then reboot the system.
2. Memory module.
3. Main board.
Memory Error at MMMM:SSSS:OOOOh
RAM Parity Error
1. Enter BIOS Setup to disable parity check.
2. Memory module
3. Main board
PS/2 Keyboard Error or Keyboard Not Connected
1.
2.
3.
4.
5.
PS/2 Keyboard Interface Error
PS/2 Keyboard Locked
Re-connect PS/2 keyboard and mouse.
Enter BIOS Setup and load the default settings.
PS/2 keyboard
PS/2 mouse
Main board
Onboard xxx... Conflict(s)
1. Enter BIOS Setup and load the default settings.
2. Remove all adapter cards that are NOT factoryinstalled, then reboot the system.
Floppy Disk Controller Error
1. Diskette drive cable/connection.
2. Diskette drive.
3. Main board
Floppy Drive A Error
Floppy Drive B Error
On Board Parallel Port Conflict(s)
On Board Serial Port 1 Conflict(s)
On Board Serial Port 2 Conflict(s)
Floppy Drive(s) Write Protected
Hard Disk Drive(s) Write Protected
Chapter 4
1. Enter BIOS Setup and load the default settings.
2. Remove all adapter cards that are NOT factoryinstalled, then reboot the system.
1. Ensure that the diskette drive is not set to [Write
Protected] in the Security Options in BIOS Setup.
2. Load default settings in Setup.
62
BIOS Messages
IDE Drive 0 Error
IDE Drive 1 Error
IDE Drive 2 Error
IDE Drive 3 Error
IRQ Setting Error
Expansion ROM Allocation Fail
I/O Resource Conflict(s)
Memory Resource Conflict(s)
1.
2.
3.
4.
5.
Enter BIOS Setup and load the default settings.
Check IDE drive jumper.
IDE hard disk drive power.
IDE hard disk drive cable/connection.
IDE hard disk drive.
1. Load default settings in Setup.
2. Enter BIOS Setup and set the Reset Resource
Assignments of the PnP/PCI Options to Yes,
then reboot the system.
3. Remove all adapter cards that are NOT factoryinstalled, then reboot the system
PCI Device Error
1. Load default settings in Setup.
2. Enter BIOS Setup and set the Reset Resource
Assignments of the PnP/PCI Options to Yes,
then reboot the system.
3. Remove all adapter cards that are NOT factoryinstalled, then reboot the system.
PS/2 Pointing Device Interface Error
1.
2.
3.
4.
5.
PS/2 Pointing Device Error
63
Action/FRU
Re-connect PS/2 keyboard and mouse.
Enter BIOS Setup and load the default settings.
PS/2 mouse
PS/2 keyboard
Main board
DMI Table Was Destroyed
1. Flash BIOS
Press Ctrl + Alt + Esc key to enter Setup or F1 key to
continue
1. Press Ctrl+Alt+Del to enter Setup and reconfigure the
system.
Press Esc to turn off NMI, or any key to reboot
1. Press Esc to reject NMI error or press any other key to
reboot the system.
Insert system diskette and press <Enter> key to
reboot
1. Insert a bootable disk into the floppy disk drive or
remove this disk if a hard disk is installed.
Chapter 4
Error Symptoms List
NOTE: To diagnose a problem, first find the error symptom in the left column. If directed to a check procedure,
replace the FRU indicated in the check procedure. If no check procedure is indicated, the first Action/
FRU listed in right column is the most likely cause.
Error Symptom
Action/FRU
Processor / Processor Fan
NOTE: Normally, the processor fan should be operative, and the processor clock setting should be
exactly set to match its speed requirement before diagnosing any processor problems.
Processor fan does not run but power supply
fan runs.
1. Ensure the system is not in power saving mode. See “Power
Management” in chapter 2.
2. With the system power on, measure the voltage of processor fan
connector. Its reading should be +12Vdc.
3. Main board.
Processor test failed.
1. Processor.
2. Main board.
Main board and Memory
NOTE: Ensure the memory modules are installed properly and the contact leads are clean before
diagnosing any system problems.
Memory test failed.
1. See "Memory"
2. Main board
Incorrect memory size shown or repeated
during POST.
1. Insert the memory modules in the DIMM sockets properly, then
reboot the system.
2. Memory module.
3. Main board.
System works but fails to enter power saving
mode when the Power Management Mode
is set to Enabled, and power saving timer
set in BIOS has elapsed.
1. Enter BIOS Setup and load default settings.
In Windows 98, check settings in Power Management Property
of Control Panel.
2. Reload software from Recovery CD.
System hangs before system boot.
1. See "Index of Symptoms"
2. See "Undetermined Problems"
System hangs after system boot.
1. Execute a system test and set it to stop at “Halt on Error” to see
the potential cause of the problem.
2. See “Undetermined Problems”.
Blinking cursor only; system does not work.
1.
2.
3.
4.
Diskette/IDE drive connection/cables
Diskette/IDE disk drives
See “Undetermined Problems”.
Main board
Diskette Drive
NOTE: Ensure the diskette drive is configured correctly in BIOS Setup and its read/write head is
clean before diagnosing any diskette drive problems.
Media and drive are mismatched.
1. Ensure the diskette drive is configured correctly in the Disk
Drives of BIOS Setup.
2. Ensure the diskette drive is correctly formatted.
3. Diskette drive connection/cable
4. Diskette drive
5. Main board
Diskette drive does not work.
1. Ensure the diskette drive is not set to None in the Disk Drives of
BIOS Setup.
2. Diskette drive power
3. Diskette drive connection/cable
4. Diskette drive
5. Main board
Chapter 4
64
Error Symptom
Action/FRU
Diskette drive read/write error.
1. Diskette.
2. Ensure the diskette drive is not set to Write protect in the
Security Options of BIOS Setup.
3. Diskette drive cable.
4. Diskette drive.
5. Main board.
Diskette drive LED comes on for more than 2
minutes when reading data.
1.
2.
3.
4.
Diskette
Diskette drive connection/cable
Diskette drive
Main board
Diskette drive LED fails to light, and the drive
is unable to access for more than 2 minutes.
1.
2.
3.
4.
5.
Diskette
Diskette drive power
Diskette drive connection/cable
Diskette drive
Main board
Diskette drive test failed.
1.
2.
3.
4.
Diskette
Diskette drive
Diskette drive cable
Main board
Hard Disk Drive
NOTE: Ensure hard disk drive is configured correctly in BIOS Setup, cable/jumper are set correctly
before diagnosing any hard disk drive problems.
Hard disk drive test failed.
1.
2.
3.
4.
Enter BIOS Setup and Load default settings.
Hard disk drive cable.
Hard disk drive.
Main board.
Hard disk drive cannot format completely.
1.
2.
3.
4.
Enter BIOS Setup and Load default settings.
Hard disk drive cable.
Hard disk drive.
Main board.
Hard disk drive has write error.
1. Enter BIOS Setup and Load default settings.
2. Hard disk drive.
Hard disk drive LED fails to light, but system
operates normally.
1. With the system power on, measure the voltage of hard disk LED
connector.
2. Hard drive LED cable.
CD/DVD-ROM Drive
NOTE: Ensure CD/DVD-ROM drive is configured correctly in BIOS Setup, cable/jumper are set
correctly and its laser beam is clean before diagnosing any CD/DVD-ROM drive problems.
CD/DVD-ROM drive LED doesn't come on
but works normally.
1. CD/DVD-ROM drive
CD/DVD-ROM drive LED flashes for more
than 30 seconds before LED shutting off.
1. CD/DVD-ROM may have dirt or foreign material on it. Check with
a known good disc.
2. CD/DVD-ROM is not inserted properly.
3. CD/DVD-ROM is damaged.
Software asks to reinstall disc.
Software displays a reading CD/DVD error.
65
CD/DVD-ROM drive cannot load or eject
when the system is turned on and its eject
button is pressed and held.
1. Disconnect all cables from CD/DVD-ROM drive except power
cable, then press eject button to try to unload the disk.
2. CD/DVD-ROM drive power.
3. CD/DVD-ROM drive
CD/DVD-ROM drive does not read and there
are no messages are displayed.
1. CD may have dirt or foreign material on it. Check with a known
good disc.
2. Ensure the CD/DVD-ROM driver is installed properly.
3. CD/DVD-ROM drive.
CD/DVD-ROM drive can play audio CD but
no sound output.
1.
2.
3.
4.
Ensure the headphone jack of the CD/DVD-ROM has an output.
Turn up the sound volume.
Speaker power/connection/cable.
CD/DVD-ROM drive.
Chapter 4
Error Symptom
Action/FRU
Real-Time Clock
Real-time clock is inaccurate.
1. Ensure the information in the Date and Time of BIOS Setup is
set correctly.
2. RTC battery.
3. Main board
Audio
Audio software program invokes but no sound
comes from speakers.
1. Speaker power/connection/cable.
Modem ring cannot wake up system from
suspend mode.
1. Ensure the Modem Ring Indicator in BIOS Setup or Power
Management is set to Enabled.
2. If PCI modem card is used, reinsert the modem card to PCI slot
firmly or replace the modem card.
3. If ISA modem card is used, ensure the modem ring-in cable from
the modem card to main board is connected properly.
4. In Win 98, ensure the telephone application is configured
correctly for your modem and set to receive messages and/or
fax.
Data/fax modem software program invokes
but cannot receive/send data/fax
1. Ensure the modem card is installed properly.
Fax/voice modem software program invokes
but has no sound output. (Data files are
received normally; voice from modem cannot
be produced, but system sound feature works
normally.)
1. Ensure the modem voice-in cable from modem adapter card to
main board
Modem
Video and Monitor
Video memory test failed.
Video adapter failed.
Display problem:
- Incorrect colors
No high intensity
Missing, broken, or incorrect characters
1. Remove all non-factory-installed cards.
2. Load default settings (if screen is readable).
3. Main board
1.
2.
3.
4.
Monitor signal connection/cable.
Monitor
Video adapter card
Main board
Blank monitor(dark)
Blank monitor(bright)
Distorted image
Unreadable monitor
Other monitor problems
Display changing colors.
1. Monitor signal connection/cable
2. Monitor
3. Main board
Display problem not listed above (including
blank or illegible monitor).
1. “Monitor".
2. Load default settings (if screen is readable).
3. Main board
Chapter 4
66
Error Symptom
Action/FRU
Parallel/Serial Ports
Execute “Load BIOS Default Settings” in BIOS Setup to confirm ports presence before diagnosing any parallel/serial
ports problems.
Serial or parallel port loop-back test failed.
1. Make sure that the LPT# or COM# you test is the same as the
setting in BIOS Setup.
2. Loop-back.
3. Main board.
Printing failed.
1. Ensure the printer driver is properly installed. Refer to the printer
service manual.
2. Printer.
3. Printer cable.
4. Main board.
Printer problems.
1. Refer to the service manual for the printer.
Keyboard
Some or all keys on keyboard do not work.
1. Keyboard
Power Supply
Pressing power switch does not turn off
system. (Only unplugging the power cord
from electrical outlet can turn off the system.)
1. Ensure the Power Switch < 4 sec. in BIOS Setup of Power
Management is not set to Suspend.
2. Power switch cable assembly
Pressing power switch does not turn on the
system.
1. Ensure the power override switch (situated at the back of the
machine, just above the connector for the power cable) is not set
to OFF.
2. Power switch cable assembly.
Executing software shutdown from
Windows98 Start menu does not turn off the
system. (Only pressing power switch can turn
off the system).
1. Load default settings.
2. Reload software from Recovery CD.
No system power, or power supply fan is not
running.
1. Power Supply
2. Main board
Other Problems
Any other problems.
67
1. Undetermined Problems
Chapter 4
Undetermined Problems
If an error message is present, go to “POST Error Messages List” on page 62. If you did not receive any
messages, see if the symptom is listed in “or “Error Symptoms List” on page 64. If you still cannot solve the
problem, continue with this check:
1.
Check the power supply voltages. If the voltages are correct continue with the following steps:
2.
Power off the system unit.
3.
Perform the following checks, one by one, until you have isolated the
problem FRU.
4.
Load default settings in setup.
5.
Check all main board jumper positions and switch settings.
6.
Check all adapter card jumper positions.
7.
Check all device jumper positions.
8.
Check all cables and connectors for proper installation.
9.
If the jumpers, switches and voltage settings are correct, remove or disconnect the following, one at a
time:
10. Non-Acer devices
!
External devices
!
Any adapter card (modem card, LAN card or video card, if installed)
!
CD/DVD-ROM drive
!
Diskette drive
!
Hard disk drive
!
DIMM
!
Processor
!
Main board
11. Power on the system unit.
12. Repeat steps 2 through 5 until you find the failing device or adapter.
Chapter 4
68
69
Chapter 4
Chapter 5
Jumper and Connector Information
Jumpers and Connectors
Refer to the following figure for the location of the jumpers and connectors on the main board:
JPX1
IDELED
PWRLED
WOL
U14
BT1
JPX3
IDE2
IDE1
FDC
Main board
ACT
PS-ON
BZ1
USB2
INTRUDER
U19
JPXB
JPXA
DIMM3
DIMM2
DIMM1
PWR
JP3
U4
SL3
U10
FN2
U13
JPX2
CN2
COM2
CN3
CN4
Chapter 5
AUDIO2
CN10
SL1
SL2
U17
FAX-VOICE
CD-IN
JPX4
CN8
70
Connector Description
Connector No.
71
Description
ACT
Turbo/LAN active LED connector
AUDIO2
Audio connector for USB-audio board
BT1
Battery
BZ1
Buzzer
CD-IN
CD-ROM audio connector
CN2
PS/2 mouse (upper) and keyboard (lower) ports
CN3
Network (upper) and USB (lower) ports
CN4
Parallel (upper), VGA (lower right) and serial port 1 (lower left) ports
CN8
MIDI/game (upper), line-out (left), line-in (middle), and mic-in (right) ports
CN10
AGP slot
COM2
Serial port 2 (COM2) connector (optional)
DIMM 1 to 3
DIMM sockets 1 to 3
FDC
Floppy disk drive connector
FN2
3-pin CPU fan connector
IDELED
IDE LED connector
IDE1
IDE 1 HDD connector
IDE2
IDE 2 HDD connector
INTRUDER
Intrusion alarm connector
PS-ON
ATX power switch
PWR
ATX power connector
PWRLED
Power LED connector
SL 1 to 3
PCI slots 1 to 3
USB2
USB connector for USB-audio board
U4
FC-PGA CPU socket
U10
Intel 82815 chipset
U13
Super I/O chipset
U14
Firmware HUB (BIOS)
U17
Audio chipset
U19
Intel 82801BA chipset
WOL
Wake on LAN connector
Chapter 5
Jumper Setting
Jumper
Function and settings
JP2
Line-out options
1-3, 2-4
Unamplified
3-5, 4-6*
Amplified
JP3
LAN EEPROM
1-2*
Enabled
2-3
Disabled
JPXA
Boot block
1-2
Enabled
2-3*
Disabled
JPXB
Check password
1-2
Enabled
2-3*
Disabled
JPX1
CMOS clear
1-2
Clear CMOS
2-3*
Normal
JPX2
CPU speed
1-2
Safe mode
2-3*
Normal
JPX3
Support CPU
1-2*
Coppermine/Celeron
2-3
VIA (Cyrix)/Joshua
JPX4
Onboard LAN
1-2*
Enabled
2-3
Disabled
NOTE: *: Default Settings
Chapter 5
72
Audio Board
Connector No.
Description
JP1
Audio connector - connects to the AUDIO2 connector of the mainboard
CN1
USB connector - connects to the USB2 connector of the mainboard
CN2 and CN3
USB ports
JK1
Microphone-in port*
JK2
Audio-out port
* The system has two microphone-in ports (front and rear). However, you can not use both of them at the
same time. The default setting for your system enables the microphone-in port in front and disables the
one at the back. You must first enable the front microphone-in port before you can use it.
73
Chapter 5
Chapter 6
FRU (Field Replaceable Unit) List
This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of Veriton 3200. Refer
to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).
IMPORTANT: Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date
information available on your regional web or channel. For whatever reasons a part number change
is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE
PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU
list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer
office to order FRU parts for repair and service of customer machines.
NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or
regulations on how best to dispose it, or follow the rules set by your regional Acer office on how to
return it.
NOTE: The number indicates the location shown on exploded diagram or “NS” indicates “Not shown” on it.
74
Veriton 3200 Exploded Diagram
75
Chapter 6
No.
Partname
Description
CPU COPPERMINE IGMHZ INTEL
IC CPU COPP1GHZ/133 256K
FCPGA
Part No.
CPU/Processor
NS
01.COPRM.1GB
IC CPU COP733/133FSB C0 FCPG IC CPU COP733/133FSB C0
FCPG
01.COPRM.73D
CPU COPPERMINE 800MHZ
INTEL
IC CPU COP800/133FSB C0
FCPG
01.COPRM.80K
CPU COPPERMINE 866MHZ
INTEL
IC CPU COPP866/133/256/0D
SECC
01.COPRM.86A
CPU COPPERMINE 933MHZ
INTEL
IC CPU COP933/133FSB C0
FCPG
01.COPRM.93B
CPU COPPERMINE 750MHZ
INTEL
IC CPU COP750/100FSB C0
FCPG
01.COPRM.75H
CPU COPPERMINE 800MHZ
INTEL
IC CPU COP800/100FSB C0
FCPG
01.COPRM.80J
CPU COPPERMINE 850MHZ
INTEL
IC CPU COP850/100FSB C0
FCPG
01.COPRM.85D
CPU CELERON 700MHZ 128K
INTEL
IC CPU CEL700/128K OD C0
FCPGA
01.ICLON.70C
CPU CELERON 733MHZ 128K
INTEL
IC CPU CELON733/128K
FCPGA
01.ICLON.733
CPU CELERON 766MHZ 128K
INTEL
IC CPU CELERON766MHZ/
128K C-0
01.ICLON.766
Heatsink
CPU FANSINK 60*54*38MM
90.00028.655
Heatsink
Fan Sink SKT370 3-pin AI
90.00028.632
Heatsink
FAN SINK H34
90.00028.319
MEMORY DIMM 128M INFINEON
DIMM 128M
HYS64V16300GU-8-C2(A)
72.64163.L01
MEMORY SDIMM 64M
SDIMM 64MB
MT4LSDT864AG-133B1
72.04864.L01
MEMORY DIMM 128M MICRON
SDIMM 128M
MT8LSDT1664AG-133B1
72.81664.L01
MEMORY DIMM 64M INFINEON
DIMM 64M HYS64V8301GU7.5-C2(A
72.64831.L01
MEMORY DIMM 128M INFINEON
DIMM MODULE 128M
HY64V16300GU-
72.64163.L03
MEMORY DIMM 256M
SDIMM 256M 64V32300GU7.5-A(A)
72.64323.L02
Heatsink
NS
Memory
NS
Chapter 6
76
No.
Partname
Description
Part No.
FDD/Floppy Disk Drive
3
FDD 1.44M PANASONI/JU256A046P
FDD 1.44 JU-256A046P ACER
V.H
56.01057.195
NS
HDD 20G SEAGATE/ST320413A
HDD U5 20GB SEG/
ST320413A GC85
56.02B34.121
HDD 10GB SEAGATE/ST310211A
GC85
HDD U5 10GB SEG/
ST310211A GC85
56.02A73.041
HDD 30GB SEAGATE/ST330621A
GC85
HDD U5 30GB SEG/
ST330621A GC85
56.02B94.041
HDD 40GB SEAGATE/ST340823A
GC85
HDD U5 40GB SEG/
ST340823A GC85
56.02C11.031
HDD/Hard Disk Drive
HDD 10G QUANTUM/LD10
HDD 10G 4500 QTM/LD10
56.02A71.121
HDD 20G QUANTUMM/LD20
HDD 20G 4500 QTM/LD20
56.02B33.071
HDD 30G QUANTUM/LD30
HDD 30G 4500 QTM/LD30
56.02B92.041
HDD 40G QUANTUM/LD40
HDD 40G 4500 QTM/LD40
56.02C16.001
HDD 20G MAXTOR/32049H2
HDD 20G 5400 PRX MAX/
32049H2
56.02B32.091
HDD 30G MAXTOR/33073H3
HDD 30G 5400 PRX MAX/
33073H3
56.02B93.051
HDD 40G MAXTOR/34098H4
HDD 30G 5400 PRX MAX/
33073H3
56.02C10.031
HDD 20G MAXTOR/52049H3
HDD 20G 7200 NEBULA MT/
52049H3
56.02B34.111
HDD 30G QUANTUM/LM30.0
HDD 30G 7200RPM QTM/
LM30.0
56.02B92.031
NS
CD-ROM 48X LIT/LTN-485S JU03
CD-ROM 48X LIT/LTN-485S
JU03
56.10183.022
NS
CD-RW 8/4/32X LG/CED-8080B
CD-RW 8/4/32X LG/CED8080B AC
56.1938H.021
CD-ROM Drive
CD-RW Drive
CD-RW 8/4/32 SONY/CRX140E-AC CD-RW 8/4/32 SONY/
CRX140E-AC
77
56.1938H.011
Chapter 6
No.
Partname
Description
Part No.
DVD-ROM Drive
NS
DVD-ROM 12X HITACHI/GD7500AC0
DVD 12X HITACHI/GD7500AC0
56.2238H.001
DVD-ROM 40X LG/DRD-8120B
ACER
DVD-ROM 40X LG/DRD8120B ACER
56.2230K.021
NS
POWER CORD 10A 125V
CORD SP 3C 10A 125V
13F9959
27.01118.131
NS
AUDIO CABLE
W.A 4P 2C AUDIO 520MM
H61
50.37702.041
NS
CABLE 80P 300MM
C.A 80P 2C 300MM ULTRA66
H26
50.96804.001
NS
USB CABLE
C.A USB/10P 260MM H61
50.92216.001
NS
AUDIO CABLE 6/5P 385MM
W.A 6/5P 385MM S58M
AUDIO BD
50.38H01.001
NS
CABLE 40/40P 300MM
C.A.40/40P CDR 300MM H34
50.97502.001
9-12
POWER LED CABLE
W.A 3P/PWR LED 500MM LX45
50.93302.001
1-11
TURBO LED CABLE
W.A 2P/TURBO LED 500MM
LX-45
50.93303.001
1-10
HDD LED CABLE
W.A 4P/HDD LED 500MM LX45
50.93304.001
1-9
POWER SWITCH
W.A 2P/PWR SW 500MM LX45
50.93305.001
NS
MAINBOARD/S58M
S58M-1 MAIN BOARD
55.38H01.D61
Cables
Main Board
Chapter 6
78
No.
Partname
Description
Part No.
Boards
NS
VGA BOARD 8M
VGA 8MB LT VANTA LOW
PROFILE
54.02130.001
VGA BOARD 32M
VGA 2MX32MB
LOWPROFILE LEADTEX
54.0205E.091
NS
AUDIO/USB BOARD
S58M AUDIO/USB BOARD
55.38H02.D11
NS
MODEM BOARD 56K AMBIT
MODEM 56K 90 AMBIT/
T62M154.04
54.09011.461
MODEM BOARD 56K ASKEY
MODEM 56K ASKEY/
1456VQH20E-004
54.09262.121
POWER SUPPLY 145W FSP/FSP145-60SA
SPS 145W FSP/PFC FSP145-60SA
56.04145.GA1
POWER SUPPLY 145W PFC SPI/
FSP145-60SA
SPS 145W PFC SPI/FSP14560SA
56.04145.GC1
1-5
I/O BRACKET
ASSEMBLY IO
BRACKET(S58M)H34
60.97504.001
1-1
HDD BRACKET
BRACKET HDD SECC H34
33.97501.001
1-6
UPPER CASE
ASSEMBLY UP CASE D002
H34
60.97503.001
Power Supply
2
Case/Cover/Bracket assembly
79
Chapter 6
No.
Partname
Description
Part No.
1-7
LOWER CASE
ASSEMBLY LOW CASE D002
H34
60.97502.001
NS
FRONT BEZEL
ASSY FRONT BEZEL VT3200
H34
60.97505.001
1-4
ROTATE FRAME
ASSEMBLY ROTATE FRAME
H34
60.97506.001
1-3
SCREW
SCRW TAP HEX ZINC
M3*.5*5
86.BA224.5R0
NS
SCREW
SCREW TAP HEX ZNIC #632*4/16"
86.BA226.016
Screws
NS
SCREW
SCRW TAP HEX ZN #6*5/32"
86.BA226.010
1-2
SCREW
SCRW TAP HEX ZN #6*3/16"
86.BA226.012
NS
FOOT STAND
ASSY FOOT STAND ABS 501
H34
60.97507.011
1-22
EMI USB COVER
EMI USB COVER TIN H34
34.97502.001
NS
KEYBOARD US 104KEYS
KB US 104KEYS
99.P5181.041
KEYBOARD 105KEYS SWISS/US
KB 105KEYS SWISS/US
91.62C07.040
KEYBOARD US 104 KEY API
6511-CX(62C)
KB US 104 KEY API 6511CX(62C)
91.62C07.041
KEYBOARD 105KEYS SPANISH/U
KB 105KEYS SPANISH/U
91.62C07.042
KEYBOARD 104KEYS THAILAND
KB 104KEYS THAILAND
91.62C07.043
KEYBOARD 104KEYS
INTERNATIONAL/US
KB 104KEYS
INTERNATIONAL/US
91.62C07.046
KEYBOARD 104KEYS CZECH/US
KB 104KEYS CZECH/US
91.62C07.049
KEYBOARD 104KEYS ARABIC/U
KB 104KEYS ARABIC/U
91.62C07.04A
KEYBOARD 105KEYS BELGIUM/
US
KB 105KEYS BELGIUM/US
91.62C07.04B
Miscellaneous parts
Keyboard
Chapter 6
80
No.
NS
81
Partname
KEYBOARD 104KEYS CHINESE/
US
Description
KB 104KEYS CHINESE/US
Part No.
91.62C07.04C
KEYBOARD 105KEYS DANISH/US KB 105KEYS DANISH/US
91.62C07.04D
KEYBOARD 105KEYS ITALIAN/US
KB 105KEYS ITALIAN/US
91.62C07.04E
KEYBOARD 105KEYS FRENCH/
US
KB 105KEYS FRENCH/US
91.62C07.04F
KEYBOARD 105KEYS GERMAN/
US
KB 105KEYS GERMAN/US
91.62C07.04G
KEYBOARD 104KEYS HEBREW/
US
KB 104KEYS HEBREW/US
91.62C07.04H
KEYBOARD 104KEYS
SLOVAKIAN/US
KB 104KEYS SLOVAKIAN/US
91.62C07.04L
KEYBOARD 105KEYS ICELAND/
US
KB 105KEYS ICELAND/US
91.62C07.04M
KEYBOARD 105KEYS
NORWEGIAN
KB 105KEYS NORWEGIAN
91.62C07.04N
KEYBOARD 105KEYS HOLLAN
KB 105KEYS HOLLAN
91.62C07.04O
KEYBOARD 105KEYS
PORTUGUESE
KB 105KEYS PORTUGUESE
91.62C07.04P
KEYBOARD 105KEYS TURKEY-F
6512-CX4Q
KB 105KEYS TURKEY-F
6512-CX4Q
91.62C07.04Q
KEYBOARD 104KEYS RUSSIAN/
US
KB 104KEYS RUSSIAN/US
91.62C07.04R
KEYBOARD 105KEYS SPANISH
KB 105KEYS SPANISH
91.62C07.04S
KEYBOARD 105KEYS TURKEY
6512-CX4T
KB 105KEYS TURKEY 6512CX4T
91.62C07.04T
KEYBOARD 105KEYS UK 6512CX4U
KB 105KEYS UK 6512-CX4U
91.62C07.04U
KEYBOARD 105KEYS CANDIAN/
FRENCH
KB 105KEYS CANDIAN/
FRENCH
91.62C07.04V
KEYBOARD 105KEYS SWEDEN
6512-CX4W
KB 105KEYS SWEDEN 6512CX4W
91.62C07.04W
KEYBOARD 105KEYS HUNGARIA/ KB 105KEYS HUNGARIA/US
US
91.62C07.04X
KEYBOARD 104KEYS GREEK/US
6511-CX4Y
91.62C07.04Y
KB 104KEYS GREEK/US
6511-CX4Y
KEYBOARD SWISS 105KEYS
KB SWISS 105KEYS
99.P5181.040
KEYBOARD US 104KEYS
KB US 104KEYS
99.P5181.041
KEYBOARD SPANISH/US
105KEYS
KB SPANISH/US 105KEYS
99.P5181.042
KEYBOARD THAILAND 104KEYS
KB THAILAND 104KEYS
99.P5181.043
KEYBOARD INTERN/US
104KEYS
KB INTERN/US 104KEYS
99.P5181.046
KEYBOARD CZECH 104KEYS
KB CZECH 104KEYS
99.P5181.049
KEYBOARD ARABIC 104KEYS
KB ARABIC 104KEYS
99.P5181.04A
KEYBOARD BELGIUM 105KEY
KB BELGIUM 105KEY
99.P5181.04B
KEYBOARD CHINESE 104KEYS
KB CHINESE 104KEYS
99.P5181.04C
KEYBOARD DANISH 105KEYS
KB DANISH 105KEYS
99.P5181.04D
KEYBOARD ITALIAN 105KEYS
KB ITALIAN 105KEYS
99.P5181.04E
KEYBOARD FRENCH 105KEYS
KB FRENCH 105KEYS
99.P5181.04F
Chapter 6
No.
NS
Partname
Description
Part No.
KEYBOARD GERMANY 105KEYS
KB GERMANY 105KEYS
99.P5181.04G
KEYBOARD HEBREW 104KEYS
KB HEBREW 104KEYS
99.P5181.04H
KEYBOARD POLISH 105KEYS
KB POLISH 105KEYS
99.P5181.04I
KEYBOARD JAPANESE 109KEYS
KB JAPANESE 109KEYS
99.P5181.04J
KEYBOARD ICELAND 105KEYS
KB ICELAND 105KEYS
99.P5181.04M
KEYBOARD NORWEGIAN
105KEYS
KB NORWEGIAN 105KEYS
99.P5181.04N
KEYBOARD HOLLAND 105KEYS
KB HOLLAND 105KEYS
99.P5181.04O
KEYBOARD PORTUGUESE
105KEYS
KB PORTUGUESE 105KEYS
99.P5181.04P
KEYBOARD RUSSIAN 104KEYS
KB RUSSIAN 104KEYS
99.P5181.04R
KEYBOARD SPANISH 105KEYS
KB SPANISH 105KEYS
99.P5181.04S
KEYBOARD TURKEY 105KEYS
KB TURKEY 105KEYS
99.P5181.04T
KEYBOARD UK 105KEYS
KB UK 105KEYS
99.P5181.04U
KEYBOARD CANDIAN/FRE
105KEYS
KB CANDIAN/FRE 105KEYS
99.P5181.04V
KEYBOARD SWEDEN 105KEYS
KB SWEDEN 105KEYS
99.P5181.04W
KEYBOARD GREEK 104KEYS
KB GREEK 104KEYS
99.P5181.04Y
KEYBOARD 104 KEYS US
KB 104 KEYS US
99.P5181.061
KEYBOARD 105 KEYS UK
KB 105 KEYS UK
99.P5181.06U
KEYBOARD BRAZIAL 107KEYS
KB BRAZIAL 107KEYS
99.P518A.044
MOUSE LOGITEC
MOUSE LOGITEC/9305410000 S59P
90.34J26.001
MOUSE LOGITEC
MOUSE WHEEL LOGITECH/
S48A S61
90.35G26.001
MOUSE LOGITEC
MOUSE PRIMAX/BA088X03
90.34J26.002
USB SPEAKER
SPK USB POWER
CHARMING/V-1
90.38H12.001
Pointing device
NS
Speaker
NS
Chapter 6
82
83
Chapter 6
Appendix A
Model Definition and Configuration
Veriton 3200
The Veriton 3200 Model No. Define:
1.
Trade Mark:
2.
Brand Name: Acer
3.
Description: Acer Veriton Series, PIII & Celeron Socket 370 Based PC System
4.
Model No: VT3200
5.
Product Name: Veriton 3200
Appendix A
84
85
Appendix A
Appendix B
Test Compatible Components
This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system
functions are tested under MS DOS V6.22, Microsoft Windows ME, Microsoft Windows 2000 Professional,
Microsoft NT 4.0 Workstation, IBM OS/2 Warp 4.0, Novell Netware 4.12 & 5.1, and SCO UNIX/Red Hat Linux
environment.
Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.
Regarding configuration, combination and test procedures, please refer to the Veriton 3200 Compatibility Test
Report released by the Acer Desktop System Testing Department.
Appendix B
86
MS DOS V6.22 Environment Test
Item
Processor
Specifications
Coppermine 766/66 MHz
Coppermine 850/100 MHz
Coppermine 1GB/133 MHz
Memory
64 MB
128 MB
256 MB
Cache
128 KB
256 KB
Diskette Drive
EIDE Channel 1 Master
Panasonic JU-256A
Seagate U5 20.4 GB
API 650P
EIDE Channel 1 Slave
EIDE Channel 2 Master
AOpen CD-948E
API 640A-247
Quamtum 20.4 GB
EIDE Channel 2 Slave
Seagate 10.2 GB
Mouse
Logitech Wheel Mouse S48A
Keyboard
API 62C
Primax Wheel Mouse MOSXK
API 32TW
Monitor
Acer View 19”
Acer View 77C
87
Appendix B
Microsoft Windows ME Environment Test
Item
Processor
Specifications
Coppermine 733/66 MHz
Coppermine 800/100 MHz
Coppermine 933/133 MHz
Memory
64 MB
192 MB
256 MB
Cache
128 KB
Floppy Disk Drive
Panasonic JU-256A
256 KB
EIDE Channel 1 Master
Seagate 20.4 GB
Quantum 15 GB
EIDE Channel 1 Slave
Maxtor 30 GB
AOpen CD-948E
EIDE Channel 2 Master
Quantum 20.4 GB
EIDE Channel 2 Slave
AOpen CD-948E Pro
API 640A-247
Seagate 10.2 GB
Mouse
Logitech Wheel Mouse S48A
Primax Wheel USB
Keyboard
API 62C
API USB
Monitor
Acer View 19”
Acer View 77C
Sound/MPEG Adapter
Onboard AD1881
Diamond Monster Sound M80 PCI Card
Creative Sound Blaster PCI 64
Video Adapter
Winfast 3D S325 32 MB PCI
ATI 128 PRO Pro 16 MB PCI
ATI 128 PRO Pro 32 MB PCI
Fax/Modem Adapter
Ambit 56K HCF PCI
Askey 56K HCF PCI
Joystick/Game Pad
Microsoft SideWinder Precision Pro
Microsoft SideWinder Force Feedback Pro
Microsoft SideWinder Game Pad
Primax RAPTOR 3D USB Gamestick
USB Devices
HP Desk Jet 895C USB Printer
Logitech Pagescan USB
Acer Digital Video Camera
Primax USB Joystick
Microsoft USB Joystick
AcerScan Prisa 310U
Intel USB Digital Video Camera
Printer
HP Desk Jet 695C
Epson Stylus Color 440
Canon BJC-4130 SP
Appendix B
88
Microsoft Windows 2000 Professional Environment Test
Item
Processor
Specifications
Coppermine 700/100 MHz
Coppermine 866/133 MHz
Memory
64 MB
256 MB
Cache
256 KB
Diskette Drive
Panasonic JU-256A
EIDE Channel 1 Master
Seagate 30 GB
EIDE Channel 1 Slave
Quantum 20.4 GB
EIDE Channel 2 Master
API 640A-247
EIDE Channel 2 Slave
AOpen CD-940E Pro
Mouse
Logitech Wheel Mouse S48A
Keyboard
API 62C
Primax Wheel Mouse MOSXK
API 32TW
Monitor
Acer View 19”
Acer View 77C
Sound Adapter
Onboard AD1881
Video Adapter
ATI Rage 128 PRO 32MB PCI
LAN Adapter
3COM 3C905C-TXM
Acer TNT2 AGP 4X 16MB PCI
ANI ALN-325
Acer NIC-559A
89
Appendix B
Microsoft NT 4.0 Workstation Environment Test
Item
Processor
Specifications
Coppermine 750/100 MHz
Coppermine 866/133 MHz
Memory
64 MB
256 MB
Cache
256 KB
Diskette Drive
Panasonic JU-256A
EIDE Channel 1 Master
Seagate 20 GB
EIDE Channel 1 Slave
Quantum 20.4 GB
EIDE Channel 2 Master
API 640A-247
EIDE Channel 2 Slave
AOpen CD-940E Pro
Mouse
Logitech Wheel Mouse S48A
Keyboard
API 62C
Primax Wheel Mouse MOSXK
API 32TW
Monitor
Acer View 19”
Acer View 77C
Appendix B
90
IBM OS/2 Warp 4.0 Environment Test
Item
91
Specifications
Processor
Coppermine 600/100 MHz
Memory
256 MB
Cache
256 KB
Diskette Drive
Panasonic JU-256A
EIDE Channel 1 Master
Seagate 20.4 GB
EIDE Channel 2 Master
API 640A-247
Mouse
Logitech Wheel Mouse S48A
Keyboard
API 62C
Monitor
Acer View 19”
Appendix B
Novell Netware 4.12 & 5.1 Environment Test
Item
Processor
Specifications
Coppermine 500/66 MHz
Coppermine 600/100 MHz
Coppermine 800/133 MHz
Coppermine 866/2133 MHz
Memory
64 MB
96 MB
128 MB
256 MB
Cache
128 KB
256 KB
Diskette Drive
Panasonic JU-256A
EIDE Channel 1 Master
Seagate 30 GB
EIDE Channel 1 Slave
Quantum 20.4 GB
EIDE Channel 2 Master
API 640A-247
EIDE Channel 2 Slave
AOpen CD-940E Pro
Mouse
Logitech Wheel Mouse S48A
Keyboard
API 62C
Primax Wheel Mouse MOSXK
API 32TW
Monitor
Acer View 19”
Acer Vew 77C
LAN Adapter 1
3COM 3C905C-TXM
Acer NIC-559A
ANI ALN-325
LAN Adapter 2
3COM 3C339
3COM 3C905C-TXM
D-Link DFE-500TX
IBM Token Ring PCI
LAN Adapter 3
ANI ALN-325
IBM Token Ring PCI
3COM 3C339
3COM 3C905C-TXM
SCSI Adapter
AHA-2940UW
AHA-3940UW
AHA-3940AUW
SCSI HDD
Seagate 8 GB
IBM 4 GB
Quantum 2 GB
Appendix B
92
SCO UNIX/Red Hat Linux Environment Test
Item
Processor
Specifications
Coppermine 500/100 MHz
Coppermine 866/133 MHz
Memory
64 MB
256 MB
Cache
256 KB
Diskette Drive
Panasonic JU-256A
EIDE Channel 1 Master
Seagate 30 GB
EIDE Channel 1 Slave
Quantum 20.4 GB
EIDE Channel 2 Master
API 640A-247
EIDE Channel 2 Slave
AOpen CD-940E Pro
Mouse
Logitech Wheel Mouse S48A
Keyboard
API 62C
Primax Wheel Mouse MOSXK
API 32TW
Monitor
Acer View 19”
Acer View 77C
93
Appendix B
Appendix C
Online Support Information
This section describes online technical support services available to help you repair your Acer Systems.
If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch
office. Acer Branch Offices and Regional Business Units may access our website. However some information
sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.
Acer's Website offers you convenient and valuable support resources whenever you need them.
In the Technical Information section you can download information on all of Acer's Notebook, Desktop and
Server models including:
!
Service guides for all models
!
User's manuals
!
Training materials
!
Main manuals
!
BIOS updates
!
Software utilities
!
Schematics
!
Spare parts lists
!
Chips
!
TABs (Technical Announcement Bulletin)
The service repair section provides you with downloadable information on:
!
Troubleshooting guides
!
Tooling box information
!
Repair instructions for specific models
!
Basic repair guidelines
!
Debug cards for Acer's latest models
For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our
technical material.
Also contained on this website are:
!
Detailed information on Acer's International Traveler's Warranty (ITW)
!
Returned material authorization procedures
!
An overview of all the support services we offer, accompanied by a list of telephone, fax and email
contacts for all your technical queries.
We are always looking for ways to optimize and improve our services, so if you have any suggestions or
comments, please do not hesitate to communicate these to us.
Appendix C
94
95
Appendix C
Index
A
Compatibility Test 86
Connectors 70
Advanced Options 40
Description 71
description 71
PnP/PCI 42
Assignment Map 14
controllers 16
Audio
audio 12
serial port 13
video 11
controller 12
Audio Board 73
Current 17
Audio Interface 12
D
B
Date 36
Basic level 21
Device Standby Mode 18
BIOS Setup 20
Disk Drives 26
Entering Setup 21
Setup Utility 21
cylinder 29
DMA transfer mode 29
floppy drives A/B 26
Hard disk 32-bit access 29
Hard disk block mode 29
head 29
IDE primary channel master 26
IDE primary channel slave 26
IDE secondary channel master 26
IDE secondary channel slave 26
sector 29
size 29
type 28
BIOS Utility 43
Abort Settings Change 46
Advanced Options 40
Boot Options 34
Date 36
Disk Drives 26
Exiting Setup 47
Load Default Settings 45
Memory/Cache Options 40
Onboard Peripherals 30
PnP/PCI Options 42
Power Management 32
Product Information 25
System Security 37
Time 36
DRQ Assignment Map 16
E
Boot Options 34
ECP 13
boot sequence 34
fast boot 34
memory test 35
Num Lock after boot 35
silent boot 35
Environmental Requirements 16
EPP 13
Error Codes 64
Error Sysmptoms List 64
F
C
features 2
Cache Memory 10
connectivity 2
multimedia 2
performance 2
scheme 10
size 10
speed 10
type 10
voltage 10
Floppy disk drive Interface 12
Frequency 17
Chipset Settings 43
FRU 74
System Utilities 43
Chipsets 16
G
CMOS Setup 20
Index
96
Global Standby Mode 18
Microsoft Win2000 Environment Test 89
Graphics Aperture Size 43
Model Definition 84
Modem 13
H
data 13
fax 13
voice 13
Hardware Specifications and Configurations 9
Housing 51
MPU-401 12
Opening the 51
MS DOS V6.22 Environment Test 87
Humidity 16
N
I
Novell Netware 4.12 & 5.1 Environment Test 92
I/O Address Map 15
NT 4.0 Environment Test 90
IBM OS/2 Warp 4.0 Environment Test 91
IDE Interface 12
O
IDSEL 14
Onboard Peripherals 30
Interface
base address 30
ECP DMA channel 31
IRQ 30
operation mode 30
serial port 1/2 30
audio 12
IDE 12
Video 11
IRQ Assignment Map 15
IRQ Sharing 42
Online Support Information 94
Overview 1
J
Jumper and Connector Information 70
Jumpers 70
P
Parallel Port 13
Password
K
keyboard 6
cursor keys 7
lock keys 7
windows-keys 8
bypassing 39
changing 39
removing 39
setting 38
Setup 37
PCI INTx# 14
L
PCI Slot IRQ 14
LAN 13
POST 61
Load Default Settings 45
Power Management 18, 32
M
Machine Disassembly 48
cover 51
Housing Cover 51
Main board 70
Main Board Layout 5
Mechanical Specifications 16
Memory
removing 57
size 9
system 9
Memory Address Map 14
IDE hard disk timer 32
modem ring indicator 33
modes 32
power switch > 4 seconds 33
Sleep mode 32
system sleep timer 32
system wake-up event 33
Power-On Self-Test (POST) 61
Product Information 25
DMI BIOS version 25
main board ID 25
product name 25
system BIOS version 25
system serial number 25
Memory/Cache Options 40
external cache 40
internal cache 40
97
Index
R
Processor 23
Processor speed 23
PS/2 mouse 24
serial port 1 24
total memory 24
rear panel 4
Removal and Replacement 48
Replacement
System Memory 57
Assembly, Machine 48
System Security
RIMM
Power-on password 37
System Specifications 1
Features 2
Removing 57
RMA 74
System Utilities 20
Routing Map 14
Abort Settings Change 46
Advanced Options 40
Boot Options 34
Date 36
Disk Drives 26
Exiting Setup 47
Load Default Settings 45
Memory/Cache Options 40
Onboard Peripherals 30
PnP/PCI Options 42
Power Management 32
Product Information 25
System Security 37
Time 36
S
SCO UNIX/Linux Environment Test 93
Security 37
disk drive control 37
floppy drive 37
hard disk drive 37
Setup password 37
Serial Port 13
socket
memory 9
Socket 370 9
Suspend Mode 18
Switching
T
Temperature 16
Power Supply 102W 17
Test Compatible Components 86
Symptoms List 64
Audio 66
CD/DVD-ROM Drive 65
Diskette Drive 64
Keyboard 67
Memory 64
Modem 66
Monitor 66
Other 67
Parallel Port 67
Power Supply 67
Processor / Processor Fan 64
Real-Time Clock 66
Serial Port 67
System Board 64
Video 66
Time 36
To 21
Troubleshooting 60
U
UART 13
Undetermined Problems 68
Universal HCI 14
USB Port 14
V
VGA Palette Snoop 42
System 20
Vibration 16
System Information
video
1st bank 24
2nd bank 24
External cache size 23
Floppy drive A 23
Floppy drive B 23
IDE primary channel master 23
IDE primary channel slave 23
IDE secondary channel master 24
IDE secondary slave 24
Internal cache size 23
parallel port 24
Index
controller 11
Video controller 11
Voltage 17
W
Weight 16
Windows 98 Environment Test 88
98
99
Index
