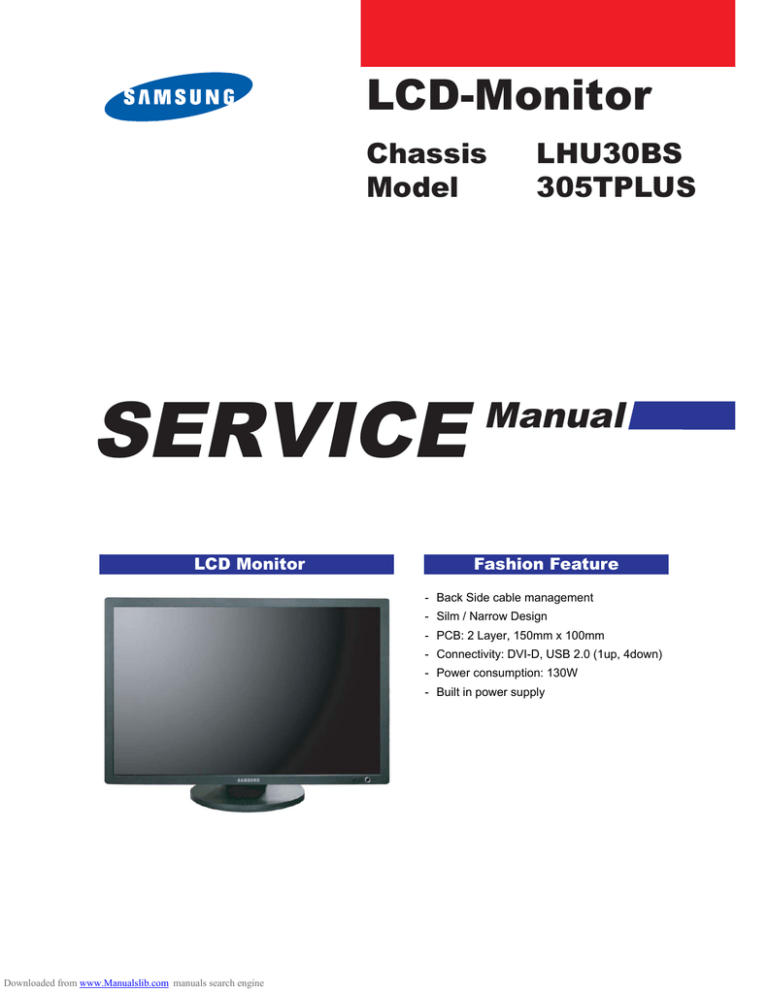

LCD-Monitor
Chassis
Model
SERVICE
LCD Monitor
LHU30BS
305TPLUS
Manual
Fashion Feature
- Back Side cable management
- Silm / Narrow Design
- PCB: 2 Layer, 150mm x 100mm
- Connectivity: DVI-D, USB 2.0 (1up, 4down)
- Power consumption: 130W
- Built in power supply
Downloaded from www.Manualslib.com manuals search engine
-This Service Manual is a property of Samsung
Electronics Co., Ltd.
Any unauthorized use of Manual can be punished
under applicable International and/or domestic
law.
Downloaded from www.Manualslib.com manuals search engine
Samsung Electronics Co.,Ltd.
416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Gyeonggi-Do, Korea, 443-742
Printed in Korea
P/N : BN82-00169A-01
URL : http://itself.sec.samsung.co.kr/
3 Alignments and Adjustments
3 Alignments and Adjustments
This section of the service manual explains how to use the RS232 JIG.
This function is needed for AD board change and program memory (IC200) change.
3-1 Required Equipment
The following equipment is necessary for adjusting the monitor:
Computer with Windows 95, Windows 98, or Windows NT.
MTI-2055 DDC MANAGER JIG
3-2 DDC EDID Data Input
1. Input DDC EDID data when replacing AD PCB.
2. Receive/Download the proper DDC file for the model from HQ quality control department.
Install the below jig (Figure 1) and enter the data.
MTI-2055
DDC Manager
Parallel Connector
(25P Cable)
Connect Monitor
(Signal Cable)
Figure 1.
3-3 Hidden Key list
3-1
Downloaded from www.Manualslib.com manuals search engine
3 Alignments and Adjustments
3-4 EDID Installation with Dos Program
1.Execute "DDC21.exe"±
2.Click "LOAD FILE"±
3.File Name "305T.DDC"
4. Click "WRITE EEPROM"±
Confirm the "OK" Sign
Error Massage: Check the Signal Cable
or Interface Board
3-2
Downloaded from www.Manualslib.com manuals search engine
3 Alignments and Adjustments
3-5 EDID Installation with Windows Program
1. Execute "WinDDC.exe"
2. Click "Sys Config"±
Select "Station : Write station".
Check "Serial No and Week : Don't change"±
Click "Save"±
3. Click "Open" icon.
Select "Connected Port #1" and Next "OK".
* File Name - 305T.DDC
Press enter key on your keyboard.
4. Confirm the "DDC OK".
- After Replacing the Main Board
-EDID Installation (Analog and Digital)
-Factory Reset(Using Power key)
During Power off, press Power key for 5 seconds.
With 1 beep sound, Factory Reset executes.
3-3
Downloaded from www.Manualslib.com manuals search engine
3 Alignments and Adjustments
Memo
3-4
Downloaded from www.Manualslib.com manuals search engine
7 Block Diagrams
7 Block Diagram
7-1 Block Diagram (Main)
7-1
Downloaded from www.Manualslib.com manuals search engine
7 Block Diagrams
7-2 Block Diagram (SMPS)
7-2
Downloaded from www.Manualslib.com manuals search engine
13 Circuit Descriptions
13 Circuit Descriptions
13-1 BLOCK discription (MAIN)
13-1
Downloaded from www.Manualslib.com manuals search engine
13 Circuit Descriptions
No
BLOCK
1
MICOM
2
USB
3
DC/DC
4
DVI-D INPUT
5
DESCRIPTION
NAME
IC-MICROCONTROLLER,PLCC,44P,16Bit
WT61P4
IC-USC, USB2504,8Bit,TQFP,64P
USB2504
FET-SILICON, SI4435DY,P,-30V,+-8.0A,
0.014ohm,2.5W,SO-8
SI4435
CN_DSUB_24_3R_G2, CONNECTOR-DVI,
24P,3R,FEMALE,ANGLE,AUF
CONNECTOR-DVI
USB PORT
JACK_USB_08_G4, JACK-USB, 4P/2C,AUF,
BLK,ANGLE,A TYPE
USB_DN
6
USB PORT
JACK_USB_04_G2, JACK-USB, 4P/1C,AU,IVR,
ANGLE,B TYPE
USB_UP
7
SIGNAL
CONNECTOR
CN_SMD_S_030, CONNECTOR-HEADER,
BOX,30P,1R,1.25mm,SMD-A,Sn+Pb,IVR
LVDS CONNECTOR
CN_S_015_G2, CONNECTOR-HEADER,
BOX,15P,1R,1.25mm,SMD-A,SnPb,IVR
DATA CONNECTOR
CN_S_016, HEADER-BOARD TO CABLE,
BOX,16P,1R,2mm,ANGLE,SN,IVORY
POWER CONNECTOR
CN_S_006_G2, CONNECTOR-HEADER,
BOX,6P,1R,1.25mm,SMD-A,SnPb,IVR
FUNCTION
8
DATA
CONNECTOR
9
POWER
CONNECTOR
10
FUNCTION
CONNECTOR
11
inverter
connector
CN_S_014,HEADER-BOARD TO CABLE,
BOX,14P,1R,2mm,ANGLE,SN,IVORY
13-2
Downloaded from www.Manualslib.com manuals search engine
INVERTER
CONNECTOR
13 Circuit Descriptions
13-2 BLOCK discription (SMPS)
13-3
Downloaded from www.Manualslib.com manuals search engine
13 Circuit Descriptions
No
BLOCK
1
EMI Filter
2
Inrush current
3
PFC section
4
DESCRIPTION
NAME
Coil Line filter
LX801s
For continued protection
FP801S
Power Factor Correction (PFC) allows power distribution to
operate at its maximum efficiency
PFC Circuit
M-power
Multiple-chip power Device
F9222L
5
STD 6V
Standby power is the power consumed by an appliance during
the lowest possible electricity consuming mode
Standby power
6
Rectifier &
Filtering
Rectification is the conversion of alternating current (AC) to
direct current (DC).
13-4
Downloaded from www.Manualslib.com manuals search engine
11 Disassembly and Reassembly
11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the 305TLCD monitor.
WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling
these components.
11-1 Disassembly
Cautions:
1. Disconnect the monitor from the power source before disassembly.
Description
Picture Description
1. Place monitor face down on cushioned table.
Remove 4 screws and lift up the Stand ass'y
2. Lift up the stand cover from front cover
11-1
Downloaded from www.Manualslib.com manuals search engine
11 Disassembly and Reassembly
Description
3. Disconnect cables and remove the inverter
power and function cable
4. Remove 1screws from the Shield.
5. Remove 4screws from the Shield between
LCD_psanel and Shield
6. Disconnect cables LVDS and Signal from Panel
control board
11-2
Downloaded from www.Manualslib.com manuals search engine
Picture Description
11 Disassembly and Reassembly
Description
Picture Description
7. Remove 2screws from DVI input connector
8. Up and down the chassis ass'y
9. Remove 2 screw on the main board
10.Remove 3 screws on the SMPS board
11-3
Downloaded from www.Manualslib.com manuals search engine
11 Disassembly and Reassembly
Description
11.Disconnect cables LVDS and Signal and Power
from Main board
11-3 Reassembly
Reassembly procedures are in the reverse order of disassembly procedures.
11-4
Downloaded from www.Manualslib.com manuals search engine
Picture Description
6 Electrical Parts List
6 Electrical Parts List
You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
6-1. LS30HUXCB/XSF Parts List
Level
Loc. No.
Code No.
Description & Specification
LS30HUXCB/XSF
305TPLUS,WQA1/S30A0-LHU,30,LCD-MO,CHINA
Q'ty
SA/SNA
0.1
M0001
BN90-01014G
ASSY COVER FRONT;LS30HUX_305T PLUS
1
..2
T0003
BN96-03652F
ASSY COVER P-FRONT;LS30HUX(305T PLUS),,H
1
S.N.A
S.A
...3
M0112
BN63-02663D
COVER-FRONT;LS30HUX (305T PLUS),HIPS HB
1
S.N.A
...3
T0022
BN64-00504A
KNOB-CONTROL;HUBBLE,HIPS HB,T2.0,UT-0510
1
S.N.A
...3
T0054
BN64-00505A
KNOB-DECORATION;HUBBLE,ABS HB,T2.0,NATUR
1
S.N.A
...3
M0145
BN96-04050A
ASSY BOARD P-FUNCTION;HUBBLE,SJ06-01-013
1
..2
T0382
BP61-00495C
HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm
0.2
S.N.A
0.1
M0002
BN90-01015A
ASSY COVER REAR;LS30HUBCB/XAA
1
S.N.A
..2
M0013
BN96-03991A
ASSY COVER P-REAR;HUBBLE,,HIPS HB,,BK26,
1
S.A
...3
M0006
BN63-02664A
COVER-REAR;HUBBLE,HIPS HB,3.2,BK26
1
S.N.A
S.N.A
S.A
0.1
M0216
BN90-01194C
ASSY STAND;LS30HU
1
..2
M0003
BN96-04718B
ASSY STAND P;-,HUBBLE27,-,HIPS HB,BK26,L
1
S.A
...3
T0081
6001-001547
SCREW-MACHINE;BH,+,M4,L10(5),ZPC(BLK),SW
4
S.A
...3
M0081
6003-000275
SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S
5
S.N.A
...3
M0081
6003-001119
SCREW-TAPTITE;FH,+,-,S,M4,L10,ZPC(BLK),S
11
S.N.A
...3
HC+CW
6009-001370
SCREW-SPECIAL;PWH,+,-,M4,L8,ZPC(WHT),SWR
1
S.N.A
...3
CIS4
BN61-01438A
HOLDER-STAND;MATISSE HAS-STAND,SWRCH18A
1
S.N.A
...3
BN61-02570A
BRACKET-STAND BOTTOM;HUBBLE,SECC,3.0
1
S.N.A
...3
BN61-02572A
BRACKET-STAND BOTTOM;HUBBLE,ALDC
1
S.N.A
...3
BN61-02575A
BRACKET-STAND BODY;HUBBLE,SECC,T2.0
1
S.N.A
...3
BN61-02576A
BRACKET-STAND LIFT;HUBBLE,SECC,2.0
1
S.N.A
...3
BN61-02581A
HOLDER-SWIVEL RING;HUBBLE,ACETAL,2.5
1
S.N.A
...3
BN61-02634A
GUIDE-STAND RETAINER;HUBBLE,ACETALl,T2.0
2
S.N.A
...3
BN61-03118A
GUIDE-STAND LIFT;HUBBLE 27",ACETAL
1
S.N.A
BN63-02666A
COVER-STAND TOP;HUBBLE,ABS HB,2.5,BK26
1
S.N.A
...3
BN63-02668A
COVER-STAND LIFT FRONT;HUBBLE,HIPS HB,2.
1
S.N.A
...3
BN63-02669A
COVER-STAND LIFT REAR;HUBBLE,HIPS HB,2.5
1
S.N.A
...3
BN63-02670A
COVER-STAND LIFT FRONT;HUBBLE,HIPS HB,2.
1
S.N.A
...3
BN63-02671A
COVER-STAND LIFT REAR;HUBBLE,HIPS HB,2.5
1
S.N.A
BN63-02672A
COVER-SWIVEL BASE;HUBBLE,HIPS HB,2.5,BK2
1
S.N.A
BN63-03079A
COVER-STAND VESA;HUBBLE27",ABS HB,2.8,BK
1
S.N.A
BN63-03082A
COVER-STAND BASE;HUBBLE27",ABS HB,2.8,BK
1
S.N.A
...3
...3
M0174
M0412
...3
...3
T0004
...3
T0081
BN73-00085A
RUBBER CUSHION;MATISSE,##4.5(IN SIDE),CL
1
S.N.A
...3
M0007
BN96-01524C
ASSY STAND P-STOPPER;-,HUBBLE30",-,SUS,-
1
S.N.A
...3
M0126
BN96-05623A
ASSY STAND P-SPRING;-,HUBBLE 30",-,SUS,B
2
S.N.A
...3
T0054
BN96-04908C
ASSY HINGE P;HUBBLE,SK5,T2.0,275T
1
S.N.A
...3
T0132
BN73-00077A
RUBBER FOOT;MATISSE,BUMPON,##13.5,T2.0,6
4
S.N.A
0.1
M0017
BN91-01124A
ASSY CHASSIS-SPZ,W/W;LS30HUB*
1
S.N.A
..2
M0081
6003-000282
SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW
3
S.A
..2
M0081
6003-000282
SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW
4
S.A
..2
M0081
6003-001439
SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW
1
S.N.A
..2
M0014
BN94-01009S
ASSY PCB MAIN-SPZ,W/W;LS30HUB*
1
S.A
...3
CN102
3701-001173
CONNECTOR-DVI;24P,3R,FEMALE,ANGLE,AUF
1
S.A
...3
CN330
3711-000057
HEADER-BOARD TO CABLE;BOX,3P,1R,2.5MM,AN
1
S.A
...3
CN330
3711-005955
HEADER-BOARD TO CABLE;BOX,16P,1R,2mm,ANG
1
S.A
...3
CN821
3722-001101
JACK-USB;4P/1C,AU,IVR,ANGLE,B TYPE
1
S.A
...3
CN801
3722-001414
JACK-USB;4P/2C,AUF,BLK,ANGLE,A TYPE
1
S.A
6-1
Downloaded from www.Manualslib.com manuals search engine
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
...3
CN802
3722-001414
JACK-USB;4P/2C,AUF,BLK,ANGLE,A TYPE
1
S.A
...3
T0174
BN97-01026Z
ASSY SMD;LS30HUB*
1
S.N.A
....4
SUB05
0202-001477
SOLDER-CREAM;LST309-M,-,D20~45##,96.5Sn/
1.048
S.N.A
....4
D100
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D101
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D102
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D103
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D104
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D105
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D106
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D107
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D116
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D117
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D118
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D119
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D120
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D121
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D821
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D822
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D0254
0402-000553
DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2
1
S.A
....4
D0254
0402-000553
DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2
1
S.A
....4
D0254
0402-000553
DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2
1
S.A
....4
D0254
0402-000553
DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2
1
S.A
....4
D115
0403-000258
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
1
S.A
....4
ZD104
0403-000258
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
1
S.A
....4
ZD106
0403-000258
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
1
S.A
....4
ZD108
0403-000258
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
1
S.A
....4
ZD801
0403-000258
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
1
S.A
....4
ZD802
0403-000258
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
1
S.A
....4
ZD803
0403-000258
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
1
S.A
....4
ZD804
0403-000258
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
1
S.A
....4
D802
0403-001411
DIODE-ZENER;-,5.49-5.73V,200mW,SOD-323,T
1
S.A
....4
D804
0403-001411
DIODE-ZENER;-,5.49-5.73V,200mW,SOD-323,T
1
S.A
....4
ZD107
0403-001435
DIODE-ZENER;QZX363C5V6,5.32-5.88V,200MW,
1
S.A
....4
ZD200
0406-001061
DIODE-TVS;MMQA5V6T3,5.32/5.6/5.88V,24W,S
1
S.A
....4
Q101
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q401
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q404
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q812
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-001957
FET-SILICON;NTR2101P,P,-8V,-3.7A,0.052oh
1
S.A
....4
T0596
0904-001972
IC-USC;USB2504,8Bit,TQFP,64P,10x10x1.4mm
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
1
S.A
....4
IC112
1103-001314
IC-EEPROM;24C16,2Kx8,SOP,8P,5x4mm,2.7/5.
1
S.A
....4
IC112
1103-001314
IC-EEPROM;24C16,2Kx8,SOP,8P,5x4mm,2.7/5.
1
S.A
....4
T0087
1203-002842
IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P
1
S.A
....4
T0087
1203-002842
IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P
1
S.A
....4
P803T
1404-001223
THERMISTOR-PTC;45mohm,20,6V,-,40A,4A,TP
1
S.A
....4
R110
2007-000060
R-CHIP;100Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000060
R-CHIP;100Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000060
R-CHIP;100Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000060
R-CHIP;100Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000060
R-CHIP;100Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
6-2
Downloaded from www.Manualslib.com manuals search engine
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
6-3
Downloaded from www.Manualslib.com manuals search engine
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000075
R-CHIP;220ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000076
R-CHIP;330ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000083
R-CHIP;3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
6-4
Downloaded from www.Manualslib.com manuals search engine
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000091
R-CHIP;12Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000093
R-CHIP;20Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000109
R-CHIP;1Mohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000119
R-CHIP;560ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000570
R-CHIP;220OHM,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000570
R-CHIP;220OHM,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001002
R-CHIP;510ohm,5%,1/10W,TP,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000426
C-CER,CHIP;0.018nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000426
C-CER,CHIP;0.018nF,5%,50V,C0G,1608
1
S.A
6-5
Downloaded from www.Manualslib.com manuals search engine
6 Electrical Parts List
6-2 LS17VDP Others
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
C120
2203-000426
C-CER,CHIP;0.018nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000426
C-CER,CHIP;0.018nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000426
C-CER,CHIP;0.018nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005261
C-CER,CHIP;1000nF,10%,25V,X7R,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C846
2402-001033
C-AL,SMD;220uF,20%,16V,GP,TP,8.3x8.3x10
1
S.A
....4
C411
2402-001079
C-AL,SMD;100uF,20%,35V,WT,TP,10.3x10.3x1
1
S.A
....4
C400
2402-001081
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
1
S.A
....4
C404
2402-001081
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
1
S.A
6-6
Downloaded from www.Manualslib.com manuals search engine
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
C600
2402-001081
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
1
S.A
....4
C611
2402-001081
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
1
S.A
....4
C614
2402-001081
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
1
S.A
....4
C605
2402-001128
C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm
1
S.A
....4
C120
2402-001254
C-AL,SMD;10uF,20%,50V,WT,TP,6.3x5.2mm
1
S.A
....4
C608
2402-001254
C-AL,SMD;10uF,20%,50V,WT,TP,6.3x5.2mm
1
S.A
....4
C842
2409-001065
C-ORGANIC;82uF,20%,16V,WT,TP,8X6.9mm,-
1
S.A
....4
C844
2409-001065
C-ORGANIC;82uF,20%,16V,WT,TP,8X6.9mm,-
1
S.A
....4
X202
2801-003326
CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
1
S.A
....4
X202
2801-003326
CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
1
S.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001412
BEAD-SMD;60ohm,2012,800mA,TP,65ohm/110MH
1
S.N.A
....4
T0568
3301-001412
BEAD-SMD;60ohm,2012,800mA,TP,65ohm/110MH
1
S.N.A
....4
T0568
3301-001412
BEAD-SMD;60ohm,2012,800mA,TP,65ohm/110MH
1
S.N.A
....4
T0568
3301-001412
BEAD-SMD;60ohm,2012,800mA,TP,65ohm/110MH
1
S.N.A
....4
T0568
3301-001412
BEAD-SMD;60ohm,2012,800mA,TP,65ohm/110MH
1
S.N.A
....4
T0568
3301-001412
BEAD-SMD;60ohm,2012,800mA,TP,65ohm/110MH
1
S.N.A
....4
T0568
3301-001412
BEAD-SMD;60ohm,2012,800mA,TP,65ohm/110MH
1
S.N.A
....4
T0568
3301-001412
BEAD-SMD;60ohm,2012,800mA,TP,65ohm/110MH
1
S.N.A
....4
T0568
3301-001594
BEAD-SMD;90ohm,2.0*1.2*1.3mm,-,TP,-,-,-
1
S.N.A
....4
T0568
3301-001594
BEAD-SMD;90ohm,2.0*1.2*1.3mm,-,TP,-,-,-
1
S.N.A
....4
T0568
3301-001594
BEAD-SMD;90ohm,2.0*1.2*1.3mm,-,TP,-,-,-
1
S.N.A
....4
T0568
3301-001594
BEAD-SMD;90ohm,2.0*1.2*1.3mm,-,TP,-,-,-
1
S.N.A
....4
T0568
3301-001594
BEAD-SMD;90ohm,2.0*1.2*1.3mm,-,TP,-,-,-
1
S.N.A
....4
T0077
BN41-00768A
PCB MAIN;Hubble,FR-4,2L,1.0,1.6,150*100,
1
S.N.A
....4
MICOM
BN97-01071L
ASSY MICOM-SPZ,W/W;LS30HUB*,W/W
1
S.A
.....5
IC520
0903-001397
IC-MICROCONTROLLER;WT61P4,8Bit,PLCC,44P,
1
S.N.A
....4
IC202
1203-001559
IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC,
1
S.A
....4
D801
0406-001217
DIODE-TVS;NUP4301MR6,6/-/-V,500W,TSOP-6
1
S.A
....4
D803
0406-001217
DIODE-TVS;NUP4301MR6,6/-/-V,500W,TSOP-6
1
S.A
....4
CN330
3711-005470
HEADER-BOARD TO CABLE;BOX,30P,1R,1.25mm,
1
S.A
....4
CN330
3711-005497
HEADER-BOARD TO CABLE;BOX,15P,1R,1.25MM,
1
S.A
....4
CN330
3711-005543
HEADER-BOARD TO CABLE;BOX,6P,1R,1.25mm,S
1
S.A
....4
R110
2007-000512
R-CHIP;2.4Kohm,5%,1/10W,TP,1608
1
S.A
....4
Q409
0505-002169
FET-SILICON;Si4435BDY-T1-E3,P,-30V,-9.1A
1
S.N.A
....4
Q409
0505-002169
FET-SILICON;Si4435BDY-T1-E3,P,-30V,-9.1A
1
S.N.A
...3
CN402
3711-004121
HEADER-BOARD TO BOARD;BOX,14P,1R,2mm,ANG
1
...3
T0245
0202-001608
SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0.
0.003
..2
M0006
BN96-03656A
ASSY SHIELD P-COVER;HUBBLE,SECC,T0.8
1
S.N.A
...3
M0107
BN63-02673A
SHIELD-COVER;HUBBLE,SECC,0.8
1
S.N.A
...3
M0114
AA61-20129A
HOLDER-WIRE;-,NYLON-66,-,-,-,NTR,DAFC-25
1
S.N.A
...3
M0131
BN63-00647A
GASKET;GH19BS,CONDUCTIVE FAB,0.3MM,20MM,
1
S.N.A
...3
M0131
BN63-02969A
GASKET;GASKET EMI,Polyurethane Sponge+Po
1
S.N.A
...3
M0131
BN63-02970A
GASKET;GASKET EMI,Polyurethane Sponge+Po
1
S.N.A
...3
M0131
BN63-02971A
GASKET;GASKET EMI,Polyurethane Sponge+Po
1
S.N.A
...3
M0131
BN63-02972A
GASKET;GASKET EMI,Polyurethane Sponge+Po
2
S.N.A
...3
M0131
BN63-02973A
GASKET;GASKET EMI,Polyurethane Sponge+Po
1
S.N.A
...3
M0131
BN63-02975A
GASKET;GASKET EMI,Polyurethane Sponge+Po
1
S.N.A
...3
M0114
AA61-20069A
HOLDER-WIRE;-,NYLON-66,-,-,-,NTR,V0,PAWH
1
S.N.A
S.A
S.N.A
6-7
Downloaded from www.Manualslib.com manuals search engine
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
..2
M2893
BN39-00482B
LEAD CONNECTOR;HUBBLE,UL2835#28,UL/CSA,1
1
..2
T0297
BN39-00753A
CABLE FORM CONN.COAX-TMDS HARN;HUBBLE,UL
1
S.A
..2
T0159
BN96-03938A
ASSY PCB P-SMPS;FreeVoltage SMPS,Hubble3
1
S.A
..2
MP1.0
BN96-04386A
ASSY BRACKET P-GUIDE POWER;-,HUBBLE30",-
1
S.N.A
...3
T0514
BN61-02582A
BRACKET-SUPPORT;HUBBLE,SPTE,0.3
1
S.N.A
...3
M0131
BN63-02967A
GASKET;GASKET EMI,Polyurethane Sponge+Po
1
S.N.A
...3
M0131
BN63-02969A
GASKET;GASKET EMI,Polyurethane Sponge+Po
1
S.N.A
..2
M0251
BN96-04422A
ASSY CABLE P;HUBBLE,SEC VD DIVISION,WORL
1
S.A
..2
T0081
6006-000245
SCREW-MACHINE;PH,+,WSP,M4,L8,ZPC(WHT),SW
1
S.N.A
BN96-04553A
ASSY SHIELD P-EMI;HUBBLE30",SECC,T0.8
1
S.N.A
T0528
BN63-03046A
GASKET-SHIELD;HUBBLE30",SECC,T0.8
1
S.N.A
...3
M0131
BN63-03064A
GASKET;HUBBLE,Polyurethane Sponge+Polyes
1
S.N.A
..2
T0562
6046-001013
STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40
2
S.N.A
..2
CCMM1
BN73-00174A
SILICON/RUBBER;HUBBLE,GP1500,60x30x5,k=1
1
S.N.A
0.1
M0112
BN91-01139A
ASSY SHIELD;LS30HUBCB/XAA
1
S.N.A
..2
M0081
6003-000282
SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW
2
S.A
..2
M0081
6003-001439
SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW
4
S.N.A
..2
BN96-04387A
ASSY BRACKET P-CASE TOP;-,HUBBLE30",-,SP
1
S.N.A
...3
BN63-02674A
SHIELD-CONNECTOR;HUBBLE,SPTE,0.3
1
S.N.A
S.N.A
..2
...3
S.A
...3
M0131
BN63-02966A
GASKET;GASKET EMI,Polyurethane Sponge+Po
1
...3
M0131
BN63-02968A
GASKET;GASKET EMI,Polyurethane Sponge+Po
1
S.N.A
...3
M0131
BN63-03264A
GASKET;LS27HUB(HUBBLE 27"),Fabric Gasket
1
S.N.A
..2
M2893
BN39-00757A
LEAD CONNECTOR;HUBBLE,UL1007#26,UL/CSA,1
1
S.A
..2
CIS1
0203-002475
TAPE-AL;DK-100-360-93-1S,AL-Foil, Flame
1
S.N.A
0.1
T0852
BN91-01858A
ASSY LCD-SPZ;LS30HUX*
1
S.N.A
..2
M0215
BN07-00470A
LCD-PANEL;LTM300M1-P02,Hubble,8BIT,677.3
1
S.A
0.1
M0113
BN92-01751Z
ASSY P/MATERIAL;LS30HUUBCB/XAA
1
S.N.A
..2
T0376
6902-000061
BAG AIR;LDPE,T0.2,L1000,W500,TRP,,,
0.003
S.N.A
..2
T0376
6902-000379
BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,--
0.007
S.N.A
..2
T0003
6902-000604
BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP,
5.75
S.N.A
..2
M0081
6902-000609
BAG ROLL;LDPE,T0.05,W2400,L1000,TRP,-,-
0.135
S.N.A
..2
T0524
6902-000410
BAG PE;HDPE/NITRON,T0.015/T0.5,W850,L800
1
S.N.A
0.1
M0019
BN92-02330V
ASSY LABEL;LS30HUBCB/XSF
1
S.N.A
0.1
M0003
BN92-02989E
ASSY BOX;LS30HUXCB/XSF,305TPLUS
1
S.N.A
..2
M0045
BN69-02102B
BOX-MONITOR;LS30HUB(S/M305T Plus),CB,A1,
1.01
S.N.A
0.1
M0045
BN92-02999B
ASSY ACCESSORY;LS30HUXCB/XSF
1
S.N.A
..2
T0725
BN39-00397C
CBF INTERFACE-USB;SPL-07,4P/4P,2725(USB2
1
S.A
..2
T0299
BN39-00754A
CBF SIGNAL-DVI-D DUAL LINK;HUBBLE,24P/24
1
S.A
..2
M0045
BN96-06367C
ASSY ACCESSORY;LS30HUXCB/XSF
1
S.A
...3
T0268
3903-000082
CBF-POWER CORD;DT,CN,IP3/YES(A),I(IEC C1
1
S.A
...3
T0524
6902-000110
BAG PE;LDPE,T0.05,W250,L400,TRP,28,2
1
S.N.A
...3
M0113
BH68-70455A
CARD-TESTED GOODS;ALL (CHINA),SAMAUNG,CH
1
S.N.A
...3
ACCESSORY BH75-00146B
UNIT-11,WARRANTY;CHINA,-,ASS'Y-W/CARD,BH
1
S.N.A
....4
CIS
BH68-00297E
MANUAL FLYER-11,WARRANTY CARD;SAMSUNG BA
1
S.N.A
....4
CIS
BH68-00297F
MANUAL FLYER-10,WARRANTY CARD;ENVELOPE,S
1
S.N.A
...3
ACCESSORY BN68-01118A
MANUAL-02,TCO99 CARD;COMM,W/W,Mojo 100g,
1
S.N.A
...3
M0215
BN96-03966N
ASSY MANUAL P-IB+QSG;305T,305TPLUS,-,Syn
1
S.N.A
....4
CD
BN59-00565N
S/W DRIVER-1,IB;305T,305TPLUS,W/W,SyncMa
1
S.N.A
....4
QSG
BN68-01073A
MANUAL FLYER-QSG;305T,SyncMaster,Multe,M
1
S.N.A
6-8
Downloaded from www.Manualslib.com manuals search engine
6 Exploded View & Parts List
5 Exploded View and Parts List
-You can search for updated part codes through ITSELF web site.
URL : http://itself. sec. samsung.co.kr
5-1. Exploded View
T0003
M0215
M0145
M0014
M0006
T0514
M0002
M0003
5-1
Downloaded from www.Manualslib.com manuals search engine
5 Exploded View & Parts List
5-1-1. LS30HUXCB/XSF Parts List
Location
Code.No
Item & Specification
Q'ty
SA/SNA
T0003
BN96-03652F
ASSY COVER P-FRONT;LS30HUX(305T PLUS),,H
1
S.A
M0215
BN07-00470A
LCD-PANEL;LTM300M1-P02,Hubble,8BIT,677.3
1
S.A
M0145
BN96-04050A
ASSY BOARD P-FUNCTION;HUBBLE,SJ06-01-013
1
S.A
M0014
BN94-01009S
ASSY PCB MAIN-SPZ,W/W;LS30HUB*
1
S.A
M0006
BN96-03656A
ASSY SHIELD P-COVER;HUBBLE,SECC,T0.8
1
S.N.A
T0514
BN61-02582A
BRACKET-SUPPORT;HUBBLE,SPTE,0.3
1
S.N.A
M0002
BN90-01015A
ASSY COVER REAR;LS30HUBCB/XAA
1
S.N.A
M0003
BN96-04718B
ASSY STAND P;-,HUBBLE27,-,HIPS HB,BK26,L
1
S.A
5-2
Downloaded from www.Manualslib.com manuals search engine
Remark
10 Operating Instructions and Installation
10 Operating Instructions and Installation
10-1 Product Features
0o(Standard)
Swivle
- Improved Response Time by Adopting RTA
: 6 ms (Based on "Gray to Gray")
- High contrast ratio & high aperture structure
- High speed response
- WQXGA (2560 x 1600 pixels) resolution
- S-PVA (Super Patterned Vertical Alignment) mode
- Direct BLU Structure (Cold Cathod Fluorescent
Tube)
Tilt
- Sync & DE(Data Enable) mode
- Dual Link TMDS serial interface (4pixel/clock)
- RoHS compliance
- Pb-free compliance
- VESA Mount 200 x 100 mm, 100 x 100 mm
10-2 Component & Function
1. Brightness button
Push the button to adjust brightness.
¡ã : The screen is getting bright.
¡å : The screen is getting dark.
2. Power button / Power indicator
Turns the monitor on/off. /
This light glows blue during normal operation, and
blinks blue once as the monitor saves your adjustments.
10-1
Downloaded from www.Manualslib.com manuals search engine
10 Operating Instructions and Installation
10-3 Installation Instructions
(The configuration at the back of the monitor may vary from product to product.)
1. USB DOWNSTREAM :
Connect the USB DOWN port of the USB monitor and a USB
device with the USB cable.
2. USB UPSTREAM :
nnect the USB UP port of the monitor and the USB port of the
computer with the USB cable.
DVI IN
Connect the DVI-D (Dual link) Cable to the DVI IN port on the
back of your monitor.
1. ON [ | ] / OFF [O]
Switch the monitor on and off.
2. POWER
Connect the power cord for your monitor to the POWER port on
the back of the monitor.
Stand Stopper
Remove the fixing pin on the stand to lift the monitor up and
down.
10-2
Downloaded from www.Manualslib.com manuals search engine
12 PCB Layout
12 PCB Diagram
12-1 PCB Diagram (Main)
12-1
Downloaded from www.Manualslib.com manuals search engine
12 PCB Layout
12-2 PCB Diagram (SMPS)
12-2
Downloaded from www.Manualslib.com manuals search engine
1 Precautions
1 Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.
1-1 Safety Precautions
1-1-1 Warnings
1.
For continued safety, do not attempt to modify the circuit
board.
2.
Disconnect the AC power and DC power jack before
servicing.
1-1-2 Servicing the LCD Monitor
1.
When servicing the LCD Monitor, Disconnect the AC
line cord from the AC outlet.
2.
It is essential that service technicians have an accurate
voltage meter available at all times. Check the
calibration of this meter periodically.
1-1-3 Fire and Shock Hazard
Before returning the monitor to the user, perform the
following safety checks:
1.
Inspect each lead dress to make certain that the leads are
not pinched or that hardware is not lodged between the
chassis and other metal parts in the monitor.
2.
Inspect all protective devices such as nonmetallic control
knobs, insulating materials, cabinet backs, adjustment
and compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
3.
Leakage Current Hot Check (Figure 1-1):
WARNING : Do not use an isolation
transformer during this test.
Use a leakage current tester or a metering system that
complies with American National Standards Institute
(ANSI C101.1, Leakage Current for Appliances), and
Underwriters Laboratories (UL Publication UL1410,
59.7).
Figure 1-1. Leakage Current Test Circuit
4.
With the unit completely reassembled, plug the AC line
cord directly into a 120V AC outlet. With the unit’s AC
switch first in the ON position and then OFF, measure
the current between a known earth ground (metal water
pipe, conduit, etc.) and all exposed metal parts,
including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and
repeat the test.
1-1-4 Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by
replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are
identified by
on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics
as the recommended replacement part might create shock, fire
and/or other hazards. Product safety is under review
continuously and new instructions are issued whenever
appropriate.
1-1
Downloaded from www.Manualslib.com manuals search engine
1 Precautions
1-2 Servicing Precautions
WARNING:
An electrolytic capacitor installed with the wrong polarity might explode.
Caution:
Before servicing units covered by this service manual, read and follow the Safety Precautions section
of this manual.
Note:
If unforeseen circumstances create conflict between the following servicing precautions and any of the safety
precautions, always follow the safety precautions.
1-2-1 General Servicing
Precautions
1.
2.
3.
Always unplug the unit's AC power cord from the AC
power source and disconnect the DC Power Jack before
attempting to:
(a) remove or reinstall any component or assembly, (b)
disconnect PCB plugs or connectors, (c) connect a test
component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit
board for safety. An insulation tube or tape is sometimes
used. The internal wiring is sometimes clamped to
prevent contact with thermally hot components. Reinstall
all such elements to their original position.
4.
Check the insulation between the blades of the AC plug
and accessible conductive parts (examples: metal panels,
input terminals and earphone jacks).
5.
Insulation Checking Procedure: Disconnect the power
cord from the AC source and turn the power switch ON.
Connect an insulation resistance meter (500 V) to the
blades of the AC plug.
The insulation resistance between each blade of the AC
plug and accessible conductive parts (see above) should
be greater than 1 megohm.
6.
After servicing, always check that the screws,
components and wiring have been correctly reinstalled.
Make sure that the area around the serviced part has not
been damaged.
Always connect a test instrument’s ground lead to the
instrument chassis ground before connecting the positive
lead; always remove the instrument’s ground lead last.
1-3 Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called
Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The
following techniques will reduce the incidence of component damage caused by static electricity.
1.
Immediately before handling any semiconductor
components or assemblies, drain the electrostatic charge
from your body by touching a known earth ground.
Alternatively, wear a discharging wrist-strap device. To
avoid a shock hazard, be sure to remove the wrist strap
before applying power to the monitor.
2.
After removing an ESD-equipped assembly, place it on a
conductive surface such as aluminum foil to prevent
accumulation of an electrostatic charge.
3.
Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage ESDs.
4.
Use only a grounded-tip soldering iron to solder or
desolder ESDs.
5.
Use only an anti-static solder removal device. Some
solder removal devices not classified as “anti-static” can
generate electrical charges sufficient to damage ESDs.
1-2
Downloaded from www.Manualslib.com manuals search engine
6.
Do not remove a replacement ESD from its protective
package until you are ready to install it. Most
replacement ESDs are packaged with leads that are
electrically shorted together by conductive foam,
aluminum foil or other conductive materials.
7.
Immediately before removing the protective material
from the leads of a replacement ESD, touch the
protective material to the chassis or circuit assembly into
which the device will be installed.
Caution: Be sure no power is applied to the
chassis or circuit and observe all
other safety precautions.
8.
Minimize body motions when handling unpackaged
replacement ESDs. Motions such as brushing clothes
together, or lifting your foot from a carpeted floor can
generate enough static electricity to damage an ESD.
1 Precautions
1-4 Installation Precautions
1. For safety reasons, more than two people are
required for carrying the product.
2. Keep the power cord away from any heat emitting
devices, as a melted covering may cause fire or
electric shock.
3. Do not place the product in areas with poor
ventilation such as a bookshelf or closet. The
increased internal temperature may cause fire.
6. Keep the antenna far away from any high-voltage
cables and install it firmly. Contact with the highvoltage cable or the antenna falling over may
cause fire or electric shock.
7. When installing the product, leave enough space
(10cm) between the product and the wall for
ventilation purposes.
A rise in temperature within the product may
cause fire.
4. Bend the external antenna cable when connecting
it to the product. This is a measure to protect it
from being exposed to moisture. Otherwise, it
may cause a fire or electric shock.
5. Make sure to turn the power off and unplug the
power cord from the outlet before repositioning
the product. Also check the antenna cable or the
external connectors if they are fully unplugged.
Damage to the cord may cause fire or electric
shock.
1-3
Downloaded from www.Manualslib.com manuals search engine
1 Precautions
Memo
1-4
Downloaded from www.Manualslib.com manuals search engine
2 Product Specifications
2 Product Specifications
2-1 Fashion Feature
-. Improved Response Time by Adopting RTA: 6ms (Based on "Gray to Gray")
-. High contrast ratio & high aperture structure
-. High speed response
-. WQXGA (2560 x 1600 pixels) resolution
-. S-PVA (Super Patterned Vertical Alignment) mode
-. Direct BLU Structure (Cold Cathod Fluorescent Tube)
-. Sync & DE(Data Enable) mode
-. Dual Link TMDS serial interface (4pixel/clock)
-. RoHS compliance
-. Pb-free compliance
2-2 Spec Comparison
Key Specification
Model
LHU30BS
305T PLUS
Screen Size
30"
Brightness
300cd/m
Contrast
1000 : 1
Fast Response Time
RTA chip
6ms (g to g)
16ms (w to b)
Magic color
X
Magic Pivot
X
Magic Tune
X
Magic Zone
X
Detail control
Gamma,
Color temperature
X
Sharpness
X
Magic Bright
X
2
2-1
Downloaded from www.Manualslib.com manuals search engine
2 Product Specifications
2-3 Specifications
Item
Description
LCD Panel
TFT-LCD panel, RGB vertical stripe, normally black transmissive,
30-Inch viewable, 0.2505 (H) x 0.2505 (V) mm pixel pitch
Scanning Frequency
Horizontal : 98.7kHz
Vertical : 60Hz
Display Colors
16.7 Million colors
Maximum Resolution
Horizontal : 2560 Pixels
Vertical : 1600 Pixels
±
Input Video Signal
Input Sync Signal
Type : Seperate H/V sync
Maximum Pixel Clock rate
268.5 MHz
Active Display
Horizontal/Vertical
641.28 mm / 400.8 mm
AC power voltage & Frequency
AC 90 ~ 264 Volts, 60/50 Hz
Power Consumption
130W (Max)
Dimensions
Set (W x D x H)
690.2 x 502 x 280 mm (27.2 x 19.8 x 11 inch)
Weight (Set)
12 kg
Environmental Considerations
°
°
°
°
°
°
°
°
-Designs and specifications are subject to change without prior notice.
2-2
Downloaded from www.Manualslib.com manuals search engine
2 Product Specifications
2-4 Spec Comparison to the Old Models
LHU30BS(305T PLUS)
LS17VDP(770P)
LS19VDP(970P)
Repones Time
6ms (Gray to Gray)
The IC for the enhancement of the response time is applied.
8ms (Gray to Gray)
The IC for the enhancement of the response time is applied.
Magic pivot
X
AUTO(Pivot program + Sensor IC)
X
Ver 3.6 Applied
Model
Design
Magic color
Magic zone
Magic tune
Main PBA
SMPS PBA
2-3
Downloaded from www.Manualslib.com manuals search engine
2 Product Specifications
2-5 Option Specification
Item
Item Name
CODE.NO
Quick Setup Guide
BN68-00847B
Warranty Card
(Not available in all locations)
2-4
Downloaded from www.Manualslib.com manuals search engine
BH75-00146B
User's manual,
Monitor Driver
BN59-00565A
Power Cord
3903-000082
DVI Cable
BN39-00754A
Remark
14 Reference Infomation
14 Reference Infomation
14-1 Technical Terms
-TFT-LCD
(Thin film Transistor Liquid Crystal Display)
ADC(Analog to Digital Converter)
This is a circuit that converts from analog signal to
digital signals.
-Image Lock
This means "Fineness adjustment " in LCD
Monitor, the features are "Fine" and "Coarse"
-FINE
"Fine" adjustment is used to adjust visibility by
-PLL(Phase Locked Loop)
During progressing ADC, Device makes clock syn-
control phase difference.
chronizing HSYNC with Video clock
-COARSE
This is a adjustment by tuning with Video colck
and PLL clock.
-Inverter
Device that supply Power to LCD panel lamp. this
device gernerate about 1,500~2,000V.
AC Adapter
Device that converts AC(90V~240V) to DC(+12V
or 14V)
SMPS(Switching Mode Power Supply)
Switching Mode Power supply. This design technology is used to step up/down the input power by
switching on/off
-DVI (Digital Visual Interface)
This provides a high speed digital connection for
visual data types that is display technology independent. this interface is primarily forcused at providing a connection between a computer and
its display device.
-L.V.D.S.(Low Voltage Differential Signaling)
a kind of transmission method for Digital.It can be
used from Main PBA to Panel.
-FRC(Frame Rate Controller)
Technology that change image frame quantity displayed on screen for one second.
Actually TFT-LCD panel require 60 pcs of frame
for one second.
-T.M.D.S
(Transition minimized Differential Signaling)
a kind of transmission method for Digital.
It can be used from Video card to Main PBA.
so,this technology is needed to convert input
image to 60 pcs regardless input frame quantity.
-DDC(Display data channel)
It is a communication method between Host
Computer and related equipment.
-Image Scaler
Technology that convert various input resolution to
other resolution.(ex. 640* 480 to 1024*768)
It can make it Plug and Play between PC and
Monitor.
-Auto Configuration(Auto adjustment)
This is an algorithm to adjust monitor to optimum
condition by pushing one key.
-OSD(On Screen Display)
-EDID
Extended Display Identification Data PC can recognize the monitor information as Product data,
Product name,Display mode,Serial number and
Signal source,etc through DDC Line communicating with PC and Monitor.
On screen display. customer can control the
screen easily with this.
14-1
Downloaded from www.Manualslib.com manuals search engine
14 Reference Infomation
-Dot Pitch
The image on a monitor is composed of red, green
and blue dots. The closer the dots, the higher the
resolution. The distance between two dots of the
same color is called the 'Dot Pitch'. Unit: mm
-Vertical Frequency
The screen must be redrawn several times per
second in order to create and display an image for
the user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate.
Unit: Hz
Example: If the same light repeats itself 60 times
per second, this is regarded as 60 Hz.
-Horizontal Frequency
The time to scan one line connecting the right
edge to the left edge of the screen horizontally is
called Horizontal Cycle. The inverse number of the
Horizontal Cycle is called Horizontal Frequency.
Unit: kHz
-Interlace and Non-Interlace Methods
Showing the horizontal lines of the screen from the
top to the bottom in order is called the NonInterlace method while showing odd lines and then
even lines in turn is called the Interlace method.
The Non-Interlace method is used for the majority
of monitors to ensure a clear image. The Interlace
method is the same as that used in TVs.
-Plug & Play
This is a function that provides the best quality
screen for the user by allowing the computer and
the monitor to exchange information automatically.
This monitor follows the international standard
VESA DDC for the Plug & Play function.
-Resolution
The number of horizontal and vertical dots used to
compose the screen image is called 'resolution'.
This number shows the accuracy of the display.
High resolution is good for performing multiple
tasks as more image information can be shown on
the screen.
Example: If the resolution is 1280 x 1024 , this
means the screen is composed of 1280 horizontal
dots (horizontal resolution) and 1024 vertical lines
(vertical resolution).
14-2
Downloaded from www.Manualslib.com manuals search engine
14 Reference Infomation
14-2 Connecting Your Monitor
1. Connect the power cord for your monitor to the POWER port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
2. Using the DVI-D (Digital) connector on the video card.
Connect the DVI-D cable to the DVI-D port on the back of your monitor.
3. Turn on your computer and monitor. If your monitor displays an image, installation is complete.
14-3
Downloaded from www.Manualslib.com manuals search engine
14 Reference Infomation
14-3 Pin Assignments
Sync
Type
Pin No.
24P DVI-D
1
Rx2-
13
Data Rx3+
2
Rx2+
14
+5V_M
3
GND
15
+5V_M GND
4
Data Rx4-
16
Hot plug D
5
Data Rx4+
17
Rx0-
6
DDC Clock (SCL)
18
Rx0+
7
DDC Data (SDA)
19
GND
8
NC
20
Data Rx5-
9
Rx1-
21
Data Rx5+
10
Rx1+
22
GND
11
NC
23
RxC+
12
Data Rx3-
24
RxC-
14-4
Downloaded from www.Manualslib.com manuals search engine
14 Reference Infomation
14-4 Timing Chart
This section of the service manual describes the timing that the computer industry recognizes as standard for computergenerated video signals.
Table 2-1 Timing Chart
VESA-Reduced Blanking
Mode
1280/60Hz
1280X800
2560/60Hz
2560X1600
fH (kHz)
49.306
98.713
A μsec
20.282
10.13
B μsec
0.451
0.119
C μsec
1.127
0.298
D μsec
18.028
9.534
E μsec
0.676
0.179
fV (Hz)
59.91
59.972
O msec
16.692
16.675
P msec
0.122
0.061
Q msec
0.284
0.375
R msec
13.225
16.209
S msec
0.061
0.030
Clock
Freq.
(MHz)
71.00
268.500
Polarity
H.Sync
Positive
Positive
V.Sync
Negative
Negative
Timing
<Separate Sync Only>
H/V Composite Sync
Separate Sync
Video
Video
C
D
E
Q
R
S
Sync-on-Green
Sync
Sync
B
P
A
O
A : Line time total
B : Horizontal sync width
O : Frame time total
P : Vertical sync width
C : Back porch
D : Active time
Q : Back porch
R : Active time
E : Front porch
S : Front porch
14-5
Downloaded from www.Manualslib.com manuals search engine
14 Reference Infomation
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the screen horizontally is called
Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an
image to the user. The frequency of this repetition is called Vertical Frequency or Refresh Rate. Unit: Hz
14-6
Downloaded from www.Manualslib.com manuals search engine
14 Reference Infomation
14-5 Panel Description
Maker
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
for TV
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
VENDOR P/N
PANEL_CODE
PANEL_ABB
LT140X1-002
LT150XS-L01
LT150XS-L01-B
LTM150XS-L02
LT181E2-132
LT150XS-T01
LTM181E3-132
LT170E2-131
LT181E2-131
LTM170E4-L01
LTM240W1-L01
LTM213U3-L01
LTM150XH-L01
LTM150XH-L03
LTM150XS-L01
LTM181E4-L01
LTM170EH-L01
LTM170E5-L01
LTM150XH-L11
LTM213U4-L01
LTM150XH-L01(ZPD)
LTM150XH-L04
LTM170W1-L01
LTM150XH-L06
BN07-00004A
BN07-00009A
BN07-00022A
BN07-00005A
BN07-00001A
BN07-00010A
BN07-00019A
BN07-10001D
BN07-10001E
BN07-00018A
BN07-00015A
BN07-00016A
BN07-00026A
BN07-00027A
BN07-00032A
BN07-00034A
BN07-00036A
BN07-00037A
BN07-00041A
BN07-00039A
BN07-00045A
BN07-00046A
BN07-00047A
BN07-00053A
SA
SB
SC
SD
SE
SF
SG
SH
SJ
SK
SL
SM
SN
SP
SQ
SR
SS
SU
SV
SW
SX
SY
SZ
EA
LTM153W1-L01
LTM170EH-L05
LTM170E5-L03
LTM190E1-L01
LTM181E5-L01
LTM150XP-L01
LTM240W1-L02
LTM170EU-L01
LTM170E5-L04
LTA220W1-L01
LTM170E6-L02
LTM170W1-L01
LTM170EH-L01
LTM170E5-L01
LTM170EH-L05
LTM170E5-L03
LTM170EU-L01
LTM170E5-L04
LTM170E6-L02
LTM150XH-L06
LTM153W1-L01
LTM170W1-L01
LTM170EH-L05
LTA400W1-L01
LTM153W1-L01
LTM150XH-L06
LTM170W1-L01
LTM170EH-L05
LTM220W1-L01
LTM150XH-L06
LTM153W1-L01
LTM170WP-L01
LTM213U4-L01
LTA260W1-L01
LTA220W1-L01
LTA320W1-L01
BN07-00054A
BN07-00055A
BN07-00056A
BN07-00057A
BN07-00061A
BN07-00065A
BN07-00062A
BN07-00071A
BN07-00072A
BN07-00074A
BN07-00075A
BN07-00082A
BN07-00080A
BN07-00081A
BN07-00083A
BN07-00084A
BN07-00085A
BN07-00086A
BN07-00087A
BN07-00091A
BN07-00092A
BN07-00100A
BN07-00097A
BN07-00109A
BN07-00110A
BN07-00111A
BN07-00112A
BN07-00113A
BN07-00114A
BN07-00117A
BN07-00118A
BN07-00119A
BN07-00039A
BN07-00121A
BN07-00074B
BN07-00108A
EB
EC
ED
EE
EF
EG
EH
EJ
EK
EL
EM
EN
EP
EQ
ER
ES
ET
EU
EV
EW
EX
EY
EZ
S1
S2
S3
S4
S5
S6
S7
S8
S9
E1
E2
E3
E4
STICKER_CODE
BN68-00239H
Remarks
DELL(ZPD)
PVA
TN
PVA
PVA
ZPD
New panel with high brightness
Panel for TV
Panel for TV/ High luminance for 450cd _ SONY&EOS Team Panel
Use NIKE MODEL
Panel EOS proj. for high brightness of 17" EH-L05
Dell 1702FP pro. E4. EH mechanicalCompatible
DELL 1900 FP
18" narrow bezel GH18PS
AMLCD PVA PANEL
Panel for 15" Wide TV
Slim design, TN
E5-L04 6 bits FRC... for IBM
Panel for 22" TV
AMLCD Narrow & slim design 17" PVAmode
LTM170W1-L01 ZPD panel
LTM170EH-L01 ZPD panel
LTM170E5-L01 ZPD panel
LTM170EH-L05 ZPD panel
LTM170E5-L03 ZPD panel
LTM170EU-L01 ZPD panel
LTM170E5-L04 ZPD panel
LTM170E6-L02 ZPD panel
Color coordinates change for LCD TV
AMLCD WIDE 15",9/10
Color Coordinates change code management
LTM170E5-L05 Color Coordinates Change Panel Code
PANEL of AMLCD 40" TV
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
ZPD Panel for AMLCD 22" TV
ZPD Panel code
ZPD Panel code
PVA Panel for NIKE
21.3" NARROW
VENUS
Panel B-level panel code for 22" TV Panel
Panel for AMLCD 32" TV
14-7
Downloaded from www.Manualslib.com manuals search engine
14 Reference Infomation
Maker
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
VENDOR P/N
PANEL_CODE
LTM213U4-L01
LTM170E6-L04
LTM190E1-L01
M150X4-L06
LTA170V1
LTM190E1-L02
LTM170EX-L01
LTM170E8-L01
LTM170E6-L04
LTA320W1-L02
LTM190E1-L03
LTM240W1-L03
LTM190E1-L02
LTM190E4-L01
LTM170E8-L01
LTM170EX-L01
LTM190E1-L03
LTA460H1-L01
LTM170EU-L11
LTM240W1-L03
LTM190E4-L01
LTM240W1-L03
LTM150XO-L01
LTM150XO-L01
LTM170EU-L11
LTA320W2-L01
LTM213U4-L01
LTM170EU-L11
LTM170EU-L11
LTM240W1-L04
LTM240W1-L04
LTM190EX-L01
LTM190EX-L02
LTA230W1-L02
LTA260W2-L01
LTA400W2-L01
LTM240M1-L01
LTM150XO-L01
LTM150XO-L01
LTM170EU-L21
LTA460W2-L03
LTM240M1-L01
M170EX-L21
LTA460H3-L01
LTM170EU-L15
LTM170E8-L21
LTM190EX-L21
LTM201U1-L01
LTM190E4-L21
LTA570H1-L01
LTM150XO-L21
LTA260W2-L11
LTA400WS-LH1
LTM213U6-L01
LTM213U6-L01
LTA320WS-LH2
LTA400WS-LH1
LTM190M2-L01
LTM201UX-L01
LTM240M1-L02-A05
LTA320W3-L02
14-8
Downloaded from www.Manualslib.com manuals search engine
BN07-00124A
BN07-00129A
BN07-00088A
BN07-00137A
BN07-00139A
BN07-00128A
BN07-00143A
BN07-00144A
BN07-00129B
BN07-00108B
BN07-00151A
BN07-00134A
BN07-00128B
BN07-00145A
BN07-00158A
BN07-00159A
BN07-00151B
BN07-00157A
BN07-00160A
BN07-00134B
BN07-00145B
BN07-00134B
BN07-00164A
BN07-00164B
BN07-00160B
BN07-00172A
BN07-00124B
BN07-00189A
BN07-00189B
BN07-00188A
BN07-00188B
BN07-00191A
BN07-00191B
BN07-00184A
BN07-00185A
BN07-00186A
BN07-00195A
BN07-00197A
BN07-00197B
BN07-00202A
BN07-00187A
BN07-00195B
BN07-00206A
BN07-00200A
BN07-00214A
BN07-00218A
BN07-00222A
BN07-00190B
BN07-00223A
BN07-00196A
BN07-00229A
BN07-00239A
BN07-00245A
BN07-00231A
BN07-00231B
BN07-00244A
BN07-00245A
BN07-00227A
BN07-00249A
BN07-00250A
BN07-00219A
PANEL_ABB
E5
E6
E7
E8
E9
E10
E11
E12
E13
E14
E15
E16
E17
E18
E19
E20
E21
E22
E23
E24
E25
E26
E27
E28
E29
SPZ
SPZ
STH
STZ
SPH
SPZ
STH
STZ
SPZ
SPZ
SPZ
SPH
STH
STZ
STZ
SPZ
SPZ
STZ
SPZ
STZ
SPZ
STZ
SPZ
SPZ
SPZ
STZ
SPZ
SPZ
SPZ
SPH
SPZ
SPZ
STZ
STZ
SPZ
SPZ
STICKER_CODE
Remarks
NARROW BEZEL 21 " PANEL
HIGHLAND 17" LOW PANEL (Panel only for TCO03)
LTM190E1-L01 ZPD panel
15" Narrow & Slim panel
17" Panel for Muse 4:3 VGA TV
New Panel from AMLCDl, Specification : 6bit Driver IC
Development new Panel from AMLCD
Development new Panel from AMLCD
ZPD panel for AMLCD (Panel only for TCO03)
Creat B-level Panel code for AMLCD 32" TV
Development new 19" Panel form AMLCD (Panel only for TCO03)
AMLCD 24" panel development
New Panel from AMLCD, Specification : 6bit Driver IC(ZPD)
AMLCD 24" new panel development
ZPD code derivation
ZPD code derivation
Creat new panel code for AMLCD 19" (Panel only for TCO03)
creat panel code for AMLCD 46" TV
creat new panel code for AMLCD 17" (Panel only for TCO03)
24" panel ZPD code derivation
AMLCD 19" ZPD Panel code derivation
24" panel ZPD code derivation
AMLCD 15" XO-L01 new panel development
AMLCD 15" XO-L01 ZPD code derivation
AMLCD 17" NEW panel code derivation
AMLCD 32" NEW panel
21.3" Narrow PANEL ZPD Panel derivation
AMLCD EU-L11 Pb free panel code derivtion
AMLCD EU-L11 Pb free panel ZPD code derivation
24" A-DCC NEW panel
24" A-DCC panel ZPD code derivation
AMLCD 19" TN NEW Panel
AMLCD 19" TN NEW Panel ZPD
AMLCD 23" 16:9 NEW Panel
AMLCD 26" 16:9 NEW Panel
AMLCD 40" 16:9 NEW Panel
24" high brightness panel
AMLCD 15" XO-L01 Pb free panel code
AMLCD 15" XO-L01 Pb free panel ZPD code
AMLCD EU-L21 ZPD NEW code derivation
BEETOVEN 46"ZPD NEW Panel
24" high brightness panel ZPD code derivation
AMLCD LTM170EX-L21 ZPD NEW code derivation
AMLCD 46" LED BLU panel
High brightness For AMLCD EU-L15 TV ZPD NEW code derivation
AMLCD LTM170E8-L21 PVA ZPD NEW code derivation
DISPLAY LCD
AMLCD 20.1" Normal panel ZPD code derivation
HAYDN 17" PZD code PANELderivation
AMLCD 57" NEW Panel
AMLCD 15" XO-L21 8ms panel code
AMLCD 26" 16:9 7Line NEW Panel
AMLCD 40" 16:9 SPVA 90% NEW Panel
AMLCD 21.3" PVA NEW Panel Code
AMLCD 21.3" PVA Panel HPD Code
AMLCD 32" 16:9 SPVA 90% NEW Panel
AMLCD 40" 16:9 SPVA 90% NEW Panel
AMLCD 19" TN Wide NEW Panel Code
AMLCD 20.1" TN NEW Panel Code
24" High brightness Slim panel ZPD code derivation
AMLCD 32" NEW FFL Panel
14 Reference Infomation
Maker
VENDOR P/N
PANEL_CODE
PANEL_ABB
STICKER_CODE
Remarks
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
SEC
LTA320W2-L11
LTA460WS-L02
LTA400WT-L01
LTM240M2-L02
LTM210M2-L02
LTA320WT-L11
LTM190EX-L21-G
LTA320WT-L14
LTM190M2-L01-D016
LTM190EX-L31
LTM190M2-L02
LTA400WS-L01
LTA460WS-L01
LTM190E4-L31
LTM170EX-L31
LTA460HS-LH1
LTA320WT-LF1
LTA460WT-L02
LTA400WH-LH1
LTM240M1-L02-D015
LTM300M1-P01
BN07-00259A
BN07-00252A
BN07-00264A
BN07-00267A
BN07-00230A
BN07-00257A
BN07-00274A
BN07-00247A
BN07-00280A
BN07-00279A
BN07-00287A
BN07-00246A
BN07-00311A
BN07-00316A
BN07-00278A
BN07-00291A
BN07-00323A
BN07-00284A
BN07-00271A
BN07-00331A
BN07-00326A
SPZ
SPZ
SPZ
SPZ
SPZ
SPZ
STZ
SPZ
STZ
STZ
STZ
SPZ
SPZ
SPZ
STZ
SPZ
SPZ
SPZ
SPZ
SPZ
SPZ
IP Board for AMLCD 32" 16:9 NEW Panel
AMLCD 46" 16:9 SPVA 72% NEW Panel
All LCD Monitor 24" wide SPVA ZPD NEW code derivation
AMLCD 19" TN Glare NEW Panel Code
AMLCD 19" TN Wide change Gamma Panel Code
AMLCD 19" TN NEW Panel Code
AMLCD 19" TN Wide High brightness NEW Panel Code
Display-LCD (Div) 07AH
AMLCD LTM170EX-L31 ZPD
AMLCD 46" 16:9 FHD / 60Hz / 8bit / SPVA 92%
AMLCD 46" 16:9 HD / 60Hz / 8bit / SPVA 72% /
AMLCD 40" 16:9 SPVA 92% 10bit 120Hz
-
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CPT
CLAA150XG09
CLAA170EA02
CLAA170EA02
CLAA150XG09
CLAA150XP01
CLAA150XP01
CLAA170EA07
CLAA170EA07
CLAA170EA07Q
CLAA170EA07Q
CLAA150XP01F
CLAA201WA03Q
CLAA320WA01
CLAA170ES01
CLAA070VA02
BN07-00141A
BN07-00148A
BN07-00148B
BN07-00141B
BN07-00173A
BN07-00173B
BN07-00174A
BN07-00174B
BN07-00220A
BN07-00220B
BN07-00236A
BN07-00269A
BN07-00276A
BN07-00261A
BN07-00265A
PA
PB
PC
PTZ
PTH
PTZ
PTH
PTZ
PTZ
PTH
PTZ
PTZ
PMZ
PTZ
PTZ
CPT 15" Monitor new panel development
17" CPT NEW development panel
17" CPT ZPD panel code derivation
CPT 15" panel ZPD code derivation (GOYA-PJT)
CPT 15" PSWG code derivation
CPT 15" PSWG panel ZPD code derivation
CPT 17" PSWG code derivation
CPT 17" PSWG type New Panel code
CPT 17" PSWG R/T 8msec code derivation
CPT 17" PSWG R/T 8msec HPD code derivation
CPT 15" PSWG panel ZPD & Lead free code derivation
CPT 20.1" wide TN ZPD New code derivation
CPT 32" 16:9 MVA 8bit 60Hz / Panel brown
CPT 17" Slim TN ZPD Type New code derivation
CPT Panel code derivation for Digital Album
TOSHIBA
TOSHIBA
TOSHIBA
TOSHIBA
TOSHIBA
TOSHIBA
TOSHIBA
TOSHIBA
LTM15C419(A)
LTM15C423(B)
LTM18C161
LTM15C443
LTM15C458
LTM15C458S
LTM15C458
LTM15C458S
BN07-00002A
BN07-00006A
BN07-00008A
BN07-00031A
BN07-00043A
BN07-00077A
BN07-00078A
BN07-00099A
TA
TB
TC
TD
TE
TF
TG
TH
TSB 15" high brightness Panel
Toshiba ZPD panel
TSB LTM15C458S ( ZPD )
HANNSTAR
HANNSTAR
HANNSTAR
HANNSTAR
HANNSTAR
HANNSTAR
HANNSTAR
HANNSTAR
HANNSTAR
HSD150MX41A(A)
HSD150MX12
HSD170ME13
HSD170ME13
HSD190ME12
HSD150MX17-A
HSD190ME12-A10
HSD190ME13-D11
HSD190ME13-A13
BN07-00020A
BN07-00030A
BN07-00180A
BN07-00180B
BN07-00210A
BN07-00226A
BN07-00256A
BN07-00270A
BN07-00317A
NA
NB
NTH
NTZ
NTZ
NTZ
NTZ
NTZ
NTZ
TTL type
TTL type
Hannstar 17" TN new panel development
Hannstar 17" TN new panel development ZPD code derivation
Hannstar 19" TN new panel development
Hannstar 15" slim panel ZPD code derivation
Hannstar 19" TN PSWG 8ms new panel development
Hannstar 19" TN Slim 5ms new panel development
TORISAN
TORISAN
TORISAN
TORISAN
TM150XG-22L03(A)
TM150XG-26L06
TM181SX-76N01
TM150XG-26L06
BN07-00021A
BN07-00042A
BN07-00048A
BN07-00059A
RA
RB
RC
RD
15" XGA TN MODE(ZPD)
14-9
Downloaded from www.Manualslib.com manuals search engine
14 Reference Infomation
Maker
VENDOR P/N
PANEL_CODE
PANEL_ABB
STICKER_CODE
Remarks
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TORISAN
TM290WX-71N31
TM396WX-71N31
TM150XG-26L09
TM150XG-26L10
TM150XG-26L10
TM190SX-70N01
TM181SX-76N01
TM190SX-70N01
TM290WX-71N31
TM396WX-71N31
TM22OWX-71N31
TM22OWX-71N31
TM396WX-71N32A
TM190SX-70N02
TM190SX-70N02
TM150XG-A01
TM150XG-A01
BN07-00063A
BN07-00064A
BN07-00073A
BN07-00089A
BN07-00090A
BN07-00098A
BN07-00106A
BN07-00107A
BN07-00115A
BN07-00116A
BN07-00125A
BN07-00127A
BN07-00150A
BN07-00154A
BN07-00154B
BN07-00162A
BN07-00162B
RE
RF
RG
RH
RJ
RK
RL
RM
RN
RP,Q
RR
RS
RT
RMH
RMZ
RTH
RTZ
RS24NS (TORISAN 29" NEW PANEL)
RS24NS (TORISAN 40" NEW PANEL)
Panel for 15" TV
L10(change except D/IC) ZPD
L10 NORMAL
Torisan 19" Panel
ZPD Panel code
ZPD Panel code
Color Coordinates change panel for TORISAN 29" TV
Color Coordinates change panel for TORISAN 40" TV
Development TORISAN 22" TV PANEL (ZPD)
Development TORISAN 22" TV PANEL (HPD)
120V inverter Exclusive panel
Torisan 6bit panel code Derivation
Torisan 6bit panel code Derivation
Torisan 15" Narrow & Slim panel development
Torisan 15" N&S panel ZPD code derivation
SHARP
SHARP
SHARP
LQ181E1DG11(A)
LQ150X1LW71
LQ370T3LZ41
BN07-10001C
BN07-00067A
BN07-00216A
PA
PB
FAZ
SHARP 15" PVA PANEL
Rome2
HITACHI
HITACHI
HITACHI
HITACHI
HITACHI
HITACHI
HITACHI
TX38D12VC0CAA(A)
TX43DVCOCAB
TX43D15VC0CAB
TX51D11VC0CAB
TX54D11VC0CAB
TX80D12VC0CAB
TX54D11VC0CAB
BN07-00003A
BN07-00060A
BN07-00101A
BN07-00122A
BN07-00123A
BN07-00169A
BN07-00123B
HA
HB
HC
HD
HE
HIZ
HIZ
17" SXGA PVA MODE
ZPD Panel
20.1" NARROW
21.3" NARROW
Development new panel for Hitachi 32" TV (ZPD)
Hitachi 21.3"ZPD panel
IBM
ITSX94S
BN07-00017A
IA
-
UNIPAC
UM170E0
BN07-00028A
UA
Loaded by cisdba
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
HYUNDAI
Derivation
HT15X13
HT17E11-200
HT17E11-300
HT17E11-400
HT17E11-400
HT17E12
HT17E12
HT15X15-D00
HT15X15-D01
HT17E13-100
HT17E13-100
HT170EX1-100
HT201V01-100
HT170EX1-101
BN07-00035A
BN07-00049A
BN07-00093A
BN07-00094A
BN07-00095A
BN07-00096A
BN07-00105A
BN07-00146A
BN07-00146B
BN07-00167A
BN07-00167B
BN07-00240A
BN07-00263A
BN07-00266A
DA
DB
DC
DD
DE
DF
DG
DH
DJ
DTH
DTZ
DTZ
DTZ
DTZ
TN MODE
HT17E11-300 ZPD panel
HT17E11-400 normal panel
HT17E11-400 ZPD panel code
HT17E12 ( Narow & slim Design )
ZPD Panel code
Development for Ares 15" Hydis TV
Derivation panel HPD for Ares 15" Hydis TV
PINEHURST-2(IBM) PJT 17" HYDIS PANEL Derivation
PINEHURST-2(IBM) Hydis 17" ZPD code Derivation
17" EX compatible Hydis Slim panel development
Hydis 20.1" 4:3 VGA Mode TN NEW Panel
17" EX compatible Hydis Slim panel multi channel IC NEW
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
L170E3
M170EN05
M170EN05
M190EN02
M190EN02
M170EN06
T260XW01
A201SN01
M170EN06
T315XW01
M170EG01
BN07-00044A
BN07-00076A
BN07-00102A
BN07-00170A
BN07-00170B
BN07-00171A
BN07-00163A
BN07-00177A
BN07-00171B
BN07-00194A
BN07-00192A
AA
AB
AC
AMH
AMZ
ATH
AMZ
ATZ
ATZ
AMZ
ATH
TN(ADT)
AU 17" Panel ( Narrow & slim design )
ZPD Panel code
AU Monitor 19" new panel development (P19-1S)
AU 19" ZPD code derivation (ZPD)
AU Monitor 17" New panel development
AU 26" new panel development (NF26EO)
AU TV panel 20.1" TN SVGA new panel development
AU Monitor 17" ZPD code Derivation
New AU 32"
AU TN PSWG type New Panel code
14-10
Downloaded from www.Manualslib.com manuals search engine
14 Reference Infomation
Maker
VENDOR P/N
PANEL_CODE
PANEL_ABB
STICKER_CODE
Remarks
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ACER
ve
ACER
grade * Panel
ACER
ACER
ACER
ACER
ACER
T315XW01
ACER
ACER
ACER
ACER
ACER
M170EG01
M190EN04
T260XW02
M170EG01 V8
T260XW02
T315XW01
M190EN03
T315XW01
BN07-00192B
BN07-00203A
BN07-00208A
BN07-00221A
BN07-00233A
BN07-00234A
BN07-00224A
BN07-00237A
ATZ
ATH
AMZ
ATZ
AMZ
AMZ
AMZ
AMZ
AU TN PSWG type New Panel ZPD Derivation code
AU Monitor 19" ZPD New code Derivation
AUO 26"
AU TN PSWG type New Panel (8msec) ZPD Derivation code
AUO 26" New Panel (Cosmetic spec down grade)
AUO 32" New Grade (Cosmetic spec down grade)]
AU Monitor 19" MVA New code Derivation
New LCD TV VE project : delete DBEF sheet * Panel, model division
T315XW01
BN07-00238A
AMZ
New LCD TV VE project : delete DBEF sheet + &#039;A-&#039;
M201UN02 V3
M201UN02 V3
M190EN04 V7
A070VW01
T315XW01
BN07-00168A
BN07-00168B
BN07-00248A
BN07-00235A
BN07-00253A
AMZ
AMH
ATZ
ATZ
AMZ
AU Monitor 19" TN Glare ZPD New code Derivation
New Panel code Derivation for Digital Album
LCD TV VE item model * Panel, Model division add version:
T260XW02
M170EU01
T370XW01
T315XW02(V3),
A201SN02 V5
BN07-00254A
BN07-00260A
BN07-00255A
BN07-00324A
BN07-00314A
AMZ
ATZ
AMZ
AMZ
ATZ
AUO 26" VE item apply model
AUO 17" Slim TN ZPD Type New code Derivation
for ROME 37" model development
-
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
CHIMEI
M170E3-LO1
M150X3-L01
M170E4-L01
M150X2-L01
M150X3-L01
M170E3-L01
M170E4-L01
V296W1-L01
M170E6-L02
M190E2-L01
M150X4-L06
M170E6-L01
M170E6-L01
V201V1-T01
M170E6-L02
M170E6-L05
M170E6-L05
M150X4-L06
M170E5-L05
M170E5-L05
V230W1-L02
V320B1-L01
V270W1-L01
M190E5-L0A
M190E3-L0A
M170E7-L01
M190A1-L01
V201V1-T03
M201P1-L01
M220Z1-L01
M190E5-L0G
BN07-00050A
BN07-00051A
BN07-00052A
BN07-00066A
BN07-00079A
BN07-00103A
BN07-00104A
BN07-00120A
BN07-00126A
BN07-00131A
BN07-00137A
BN07-00133A
BN07-00133B
BN07-00135A
BN07-00126B
BN07-00152A
BN07-00152B
BN07-00137B
BN07-00165A
BN07-00165B
BN07-00209A
BN07-00207A
BN07-00136A
BN07-00213A
BN07-00212A
BN07-00232A
BN07-00228A
BN07-00275A
BN07-00268A
BN07-00321A
BN07-00337A
CA
CB
CC
CD
CE
CF
CG
CH
CJ
CK
CL
CM
CN
CP
CQ
CR
CS
CT
CTH
CTZ
CMZ
CMZ
CMZ
CTZ
CMZ
CTZ
CTZ
CTZ
CTZ
CTZ
CTZ
TN PANEL
COMPATIBLE
MVA PANEL
CHIME 15"I PVA PANEL
Chimei ZPD panel
ZPD Panel code
ZPD Panel code
MVA
HIGHLAND 17" LOW PANEL
GH19AS,BS CHIMEI PANEL
15" Narrow & Slim panel
2003-03-11 vendor change
ZPD derivation panel
CHIMEI 20.1" panel development
HIGHLAND 17" LOW PANEL ZPD derivation panel
CMO 17" new panel development code
CMO 17" ZPD panel code derivation
Chimei 15" Narrow & Slim panel ZPD derivation
CMO 17" new panel development code (GOYA2-PJT)
CMO 17" ZPD panel(GOYA2-PJT)
CMO 23" new development
CMO 32" new development
CHI MEI 27" panel development
CMO M190E3-L0A MVA Type New code derivation
CMO 17" Slim TN ZPD Type New code derivation
CMO 19" Wide TN ZPD Type New code derivation
CMO 20.1" (V201V1-T01) VE model
CMO 20.1" TN ZPD derivation
NEC
NEC
SVA150XG04TB
SVA170SX01TB
BN07-00225A
BN07-00272A
BTZ
BTZ
SVA NEC 15" panel ZPD code
SVA NEC 17" panel ZPD code Brown
14-11
Downloaded from www.Manualslib.com manuals search engine
14 Reference Infomation
Memo
14-12
Downloaded from www.Manualslib.com manuals search engine
4 Troubleshooting
4 Troubleshooting
Notes:
1. Before troubleshooting, setup the PC ’ s display as below.
• Resolution: 2560 x 1600
• H-frequency: 98.7 kHz
• V-frequency: 60 Hz
2. If no picture appears, make sure the power cord is correctly connected.
3. Check the following circuits.
• No raster appears: Function PBA, Main PBA, Inverter, Panel
• 5V develop but no screen: Main PBA
• +24V, +18V does not develop: SMPS, Main PBA
4-1 No Power (SMPS)
Plug in the Power Cable
Stand by LED On?
No
Check related circuit with IC801S
Vcc and Drain-Source Waveform
(DSW) 2
1
Yes
3
Aroind 20V at 2pin on
No
Check the Vcc Circuit from DS803
Yes
4
No
Change ICM801S and check the
related circuit
No
Check the related circuit whit ICP 801S
and QP801S
Check DSW at ICM801S
Yes
Around 380V on CP803
Yes
Replace LCD Panel.
Check 24V output related circuit with
zener diode (DZM854)
Check IC 8008 DC/DC convertor for
5.4V output
Check ICM853(379Roo) for 18V output
4-1
Downloaded from www.Manualslib.com manuals search engine
4 Troubleshooting
WAVEFORMS
1
2
3
4
4-2
Downloaded from www.Manualslib.com manuals search engine
4 Troubleshooting
4-2 No Power (Main)
Check Function ass'y.
Does proper DC 6V
appear at Pin 1 of
CN601?
No
Check the FP801S at SMPS board
and related circuit
Yes
When Pin 1 of IC601 is DC 6V
does proper DC 3.3V appear at
Pin 3 of IC601?
No
Check IC601 and related circuit.
Yes
X-200 oscillate Properly?
(Where pin 9 of IC200)
No
Check X200, IC200 and related
circuit.
Yes
Dose proper DC3.3V appear at
pin 34 of IC200
No
Check IC200 and related circuit.
Yes
Dose proper +18V_Panel at pin
9-12 of CN401
No
Check IC401 and related circuit
Yes
Dose proper +24V_IN at
pin 14-16 of CN600
No
Check +24 output of the SMPS and
related circuit
Yes
Check LCD Panel and replace LCD
Panel
4-3
Downloaded from www.Manualslib.com manuals search engine
4 Troubleshooting
4-3 No Video (DIGITAL)
Check signal cable connection and
power.
1
X200 oscillate properly?
No
Replace or check related circuit.
Yes
Is there input data at
8
9
No
Check input part.
R122, R124, R127, R128,
R129 and R130?
Yes
Is there wave from 3 4
Does the output signal appear
at Pin 2, 3 of CN401?
No
Check LCD Panel and related circuit.
Yes
Is there wave form 7
at pin 13 of CN401?
Yes
Replace LCD Panel.
4-4
Downloaded from www.Manualslib.com manuals search engine
No
Check the LCD_ON at pin 33 of
IC200
4 Troubleshooting
WAVEFORMS
1
2
3
4
5
6
7
8
9
10
4-5
Downloaded from www.Manualslib.com manuals search engine
4 Troubleshooting
Memo
4-6
Downloaded from www.Manualslib.com manuals search engine
8 Wiring Diagram
8 Wiring Diagram
8 Wiring Diagram
8-1 Wiring Diagram (Main PCB)
8-1
Downloaded from www.Manualslib.com manuals search engine
8 Wiring Diagram
8-2 Wiring Diagram (SMPS PCB)
8-2
Downloaded from www.Manualslib.com manuals search engine
11 Schematic Diagrams
9 Schematic Diagrams
- This Document can not be used without Samsung s authorization.
9-1 Schematic Diagrams
9-1
Downloaded from www.Manualslib.com manuals search engine
11 Schematic Diagrams
9-2 Connection Diagrams
9-2
Downloaded from www.Manualslib.com manuals search engine
11 Schematic Diagrams
9-3 Micom Diagrams
9-3
Downloaded from www.Manualslib.com manuals search engine
11 Schematic Diagrams
9-4 Power inverter Schematic Diagrams
9-4
Downloaded from www.Manualslib.com manuals search engine
11 Schematic Diagrams
WAVEFORMS
1
3
5
7
9
2
4
6
8
10
9-5
Downloaded from www.Manualslib.com manuals search engine
11 Schematic Diagrams
9-5 SMPS Schematic Diagrams
9-6
Downloaded from www.Manualslib.com manuals search engine
11 Schematic Diagrams
9-6 SMPS Schematic Diagrams
9-7
Downloaded from www.Manualslib.com manuals search engine
11 Schematic Diagrams
WAVEFORMS
1
2
9-8
Downloaded from www.Manualslib.com manuals search engine
3
4
