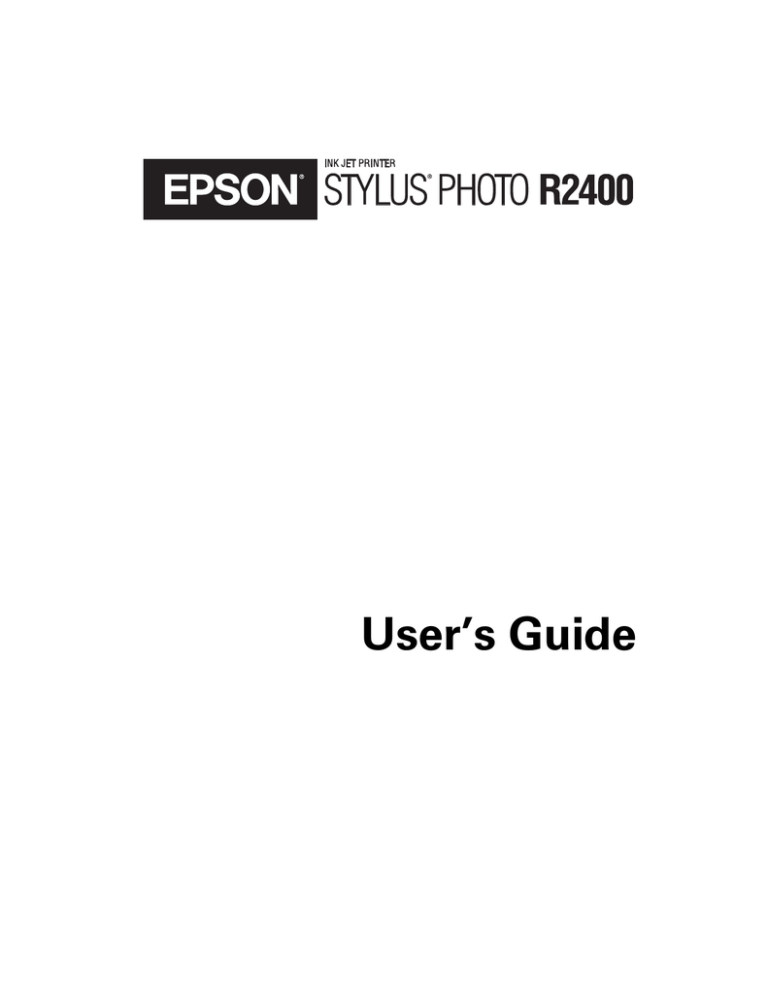

User’s Guide
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of Seiko Epson Corporation. The information contained herein is designed only for use with
this Epson printer. Epson is not responsible for any use of this information as applied to other printers.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for
damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of
this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to
strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.
Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or
any consumable products other than those designated as Original Epson Products or Epson Approved Products by
Seiko Epson Corporation.
A Note Concerning Responsible Use of Copyrighted Materials
Epson encourages each user to be responsible and respectful of the copyright laws when using any Epson product.
While some countries’ laws permit limited copying or reuse of copyrighted material in certain circumstances, those
circumstances may not be as broad as some people assume. Contact your legal advisor for any questions regarding
copyright law.
Trademarks
Epson, Epson Stylus, Epson UltraChrome, and Epson UltraChrome Hi-Gloss are registered trademarks, and
Epson UltraChrome K3 and Exceed Your Vision are trademarks of Seiko Epson Corporation.
Peizo Pro, BorderFree, RPM, and UltraSmooth are registered trademarks, PhotoEnhance is a trademark, and
Epson PhotoCenter and Epson Connection are service marks of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of
their respective owners. Epson disclaims any and all rights in those marks.
© 2007 Epson America, Inc. 4/07
CPD-19428R3
Contents
Welcome!
7
About Exif Print
About Your Software
8
8
About Your Documentation
Viewing the On-screen Reference Guide
9
10
Loading Paper
11
Loading Paper in the Sheet Feeder
Loading Special Paper in the Sheet Feeder
Loading Multiple Sheets of Matte Paper
Loading Special Paper in the Single Sheet Guide
Loading Roll Paper or Canvas
Loading Thick Media in the Front Path
12
14
15
17
21
25
Printing From Start to Finish
27
Basic Printing in Windows
Selecting the Settings You Use Most Often
Customizing Your Windows Print Settings
Basic Printing With Mac OS X
Customizing Your Macintosh Print Settings
Selecting the Correct Paper Type
28
30
31
33
39
41
Printing Special Photos
43
Printing on Roll Paper
Selecting Roll Paper Print Settings
Removing Your Printed Photos
Removing and Storing Roll Paper
43
44
48
48
Contents
3
4
Printing Borderless Cut Sheets
Windows
Mac OS X
Managing Color With Profiles
Printing With a Color Profile
Solving Color Management Problems
Printing a Custom Profile Test Target
Creating a Custom Profile
Easy Printing With Photoshop Elements 3.0
Matching Black Ink to Paper Type
Swapping the Black Ink Cartridges
Confirming the Swapped Cartridge Settings
Advanced Black and White Photo Printing
Windows
Mac OS X
49
50
51
53
53
62
62
66
67
68
70
71
73
74
76
Maintaining Your Printer
79
Cleaning the Print Head
Automatically Checking and Cleaning the Print Head
Running the Head Cleaning Utility
Replacing an Ink Cartridge
Checking the Ink Cartridge Status
Purchasing Ink Cartridges
Ink Cartridge Precautions
Removing and Installing Ink Cartridges
Aligning the Print Head
Automatically Aligning the Print Head
Manually Aligning the Print Head
Cleaning the Printer
Transporting the Printer
79
80
81
82
83
83
84
84
86
86
87
88
89
Contents
Solving Problems
91
Printer Parts
Printer Buttons
92
93
Printer Lights
Diagnosing Printer Problems
Running a Printer Check
Problems and Solutions
Setup and Software Installation Problems
Printer Problems
Quality Problems
Paper Problems
Miscellaneous Problems
Uninstalling and Reinstalling Printer Software
Where To Get Help
Epson Technical Support
Technical Support for Other Photo Software
94
94
96
97
97
98
99
101
104
105
106
106
107
Requirements and Notices
109
Windows System Requirements
Macintosh System Requirements
Important Safety Instructions
Ink Cartridge Safety Instructions
FCC Compliance Statement
Declaration of Conformity
Epson America, Inc. Limited Warranty
109
109
110
111
112
113
113
Index
115
Contents
5
6
Contents
Welcome!
Your Epson Stylus® Photo R2400 gives you beautiful archival prints on a wide variety
of glossy and matte papers in many sizes.
Your outstanding printouts result from these advanced features:
■
Nine individually replaceable Epson® ink cartridges let you print at up to
5760 × 1440 dpi (dots per inch).
■
Large gamut, pigment-based, Epson UltraChrome K3TM inks and compatible
papers deliver brilliant, long-lasting, water-resistant prints.
■
Light Black, Light Light Black, and either Photo Black or Matte Black ink
cartridges provide neutrality and tonal scale accuracy for demanding black and
white photographs.
■
Advanced printing options give you control over grayscale color tonalities (such as
cool, neutral, warm, and sepia).
■
Large format and thick media capabilities let you print panoramics, portraits, and
specialty prints up to 13 × 44 inches.
■
Versatile paper handling lets you create BorderFree,® frame-ready prints in popular
sizes, including 4 × 6, 5 × 7, 8 × 10, Letter, 11 × 14, 12 × 12, 13 × 19, and others.
■
Roll paper feeder allows continuous printing of multiple photos or panoramics on
canvas and photo paper.
■
Automatic print head cleaning and alignment utilities analyze your print quality
and improve it quickly and easily.
■
Hi-Speed USB 2.0 and FireWire® (IEEE 1394) ports provide fast connections.
Note: To achieve the highest USB speed, your computer must also have a
Hi-Speed USB 2.0 port connected to the printer with a Hi-Speed USB 2.0 cable.
7
About Exif Print
The Exif (Exchangeable Image File) Print format includes information about your
digital camera settings in JPEG/TIFF files so your printer and application can use
them to create accurate print settings. Most digital cameras store Exif Print
information such as shutter speed, metering, flash, and exposure settings, resolution,
and lens use in the JPEG/TIFF image file. Your printer uses the information to ensure
the most accurate image reproduction.
About Your Software
Your printer CD-ROM includes all the software you need for printing. See the
Start Here sheet for installation instructions.
■
Your printer driver runs your printer and lets you control how your documents
look. You can’t print without it.
Tip: It’s a good idea to check Epson’s support website periodically for free
updates to your printer driver. Visit http://support.epson.com. Download
instructions are posted for your convenience.
■
Your photo software includes these great tools:
Epson EasyPrint Module (for Windows®) works with certain photo printing
applications to make printing on your Stylus Photo R2400 fast and easy.
Epson Premium ICC Color Profiles work with Adobe Photoshop and other
ICC-aware applications to achieve more accurate color in your prints on various
paper types. You can download additional profiles at http://support.epson.com.
Epson PhotoCenterSM is Epson’s free photo-sharing web site where you can store,
organize, and share your photos; print high-resolution photos straight from the
web; and create free online postcards. Your printer software installer lets you add a
link to Epson PhotoCenter on your desktop.
8
Welcome!
About Your Documentation
To set up your printer and install its software, see the Start Here sheet.
This book contains instructions on:
■
Loading all types of paper
■
Printing with Windows or Mac® OS X
■
Maintaining the printer
■
Troubleshooting
At the end of the book, you’ll also find the system requirements, important safety
information, and the product’s warranty.
Please follow these guidelines throughout:
Warnings must be followed carefully to avoid bodily injury.
Cautions must be observed to avoid damage to your equipment.
Notes contain important information about your printer.
Tips contain hints for better printing.
For more details about your printer, network setup instructions and specifications, see
your on-screen Reference Guide, as described in the next section.
Welcome!
9
Viewing the On-screen Reference Guide
Follow the instructions on the Start Here sheet to install the on-screen Reference
Guide, if you haven’t already.
Note: You need a browser—such as Microsoft® Internet Explorer 4.0 or later,
Safari™ 1.0 or later, Mozilla® Firefox® 1.0 or later, or Netscape® Navigator® 3.0 or
later—to view the manual. If you are using a different browser, the pages may
not display correctly.
1. Double-click the SPR2400 Reference Guide icon on your desktop.
2. Click a topic on the left to expand the table of contents.
3. Click the topic you want to view.
■
If there’s a right arrow
■
If there’s a down arrow
, click it to view subtopics, then click on a topic.
, click it to close a subtopic list.
Closed list;
click to
expand
Click to go
to topic
Note: If you see an icon for an unloaded graphic when viewing your Reference
Guide in Netscape Navigator, click the Reload button to load the graphic.
10
Welcome!
Loading Paper
You can load a variety of paper types in your printer, as described in these sections:
Paper/Media
Where to load
See page
Plain paper
Sheet feeder
12, 14
Single sheet guide
17
Epson Premium Photo Paper Glossy
Epson Premium Glossy Photo Paper
Epson Ultra Premium Photo Paper Luster
Epson Premium Luster Photo Paper
Epson Premium Photo Paper Semi-gloss
Epson Premium Semigloss Photo Paper
Epson Presentation Paper Matte
Epson Photo Quality Ink Jet Paper
Epson Premium Presentation Paper Matte*
Epson Matte Paper Heavyweight*
Epson Premium Presentation Paper Double-sided*
Epson Double-sided Matte Paper*
Epson Ultra Premium Presentation Paper Matte*
Epson Enhanced Matte Paper*
Epson Proofing Paper Semimatte
Epson Bright White Paper
Epson Premium Bright White Paper
Epson Photo Quality Self Adhesive Sheets
Epson UltraSmooth® Fine Art Paper
TM
PremierArt Matte Scrapbook Photo Paper for
Epson
Epson Velvet Fine Art Paper
Epson Watercolor Paper - Radiant White
11
Roll paper, including PremierArt Water Resistant
Canvas and Piezo Pro® Matte Canvas
Roll paper holder
21
Thick media or posterboard (1.0 - 1.3 mm thickness)
Front path
25
* This matte paper requires the matte sheet support when loading multiple sheets larger than
letter-size; smaller paper can be loaded without it. See page 15 for instructions.
Loading Paper in the Sheet Feeder
1. Open the paper support and pull up the support extensions.
2. Push in the bottom of the output tray. The tray opens and moves up.
12
Loading Paper
3. Pull out the output tray extension.
4. Place your paper in the printer and slide it against the right side of the sheet
feeder.
Letter-size
media
4 x 6” media
Output tray
Output tray
extension
Check the following as you load paper:
■
Always load the short edge first, even for printing landscape-oriented
documents.
■
Load the printable side face-up. It’s usually whiter or brighter than the other
side.
■
Load letterhead or preprinted paper into the printer top edge first.
■
Don’t load paper above the arrow on the left edge guide.
5. Adjust the left edge guide to fit lightly against the paper.
Note: The left edge guide moves slightly during paper handling and printing. Do
not adjust the guide during printing.
Loading Paper
13
Loading Special Paper in the Sheet Feeder
You can load these Epson inkjet papers in the sheet feeder as follows:
Paper type
Loading capacity
Epson Premium Photo Paper Glossy
Epson Premium Glossy Photo Paper
20 sheets (10 sheets for
A3 or Super B sizes)
Epson Premium Photo Paper Luster
Epson Premium Luster Photo Paper
Epson Premium Photo Paper Semi-gloss
Epson Premium Semigloss Photo Paper
Epson Premium Presentation Paper Matte*
Epson Matte Paper Heavyweight*
Epson Premium Presentation Paper Matte Double-sided*
Epson Double-sided Matte Paper*
Epson Ultra Premium Presentation Paper Matte*
Epson Enhanced Matte Paper*
Epson Presentation Paper Matte
Epson Photo Quality Ink Jet Paper
100 sheets (50 sheets for
A3 or Super B sizes)
Epson Bright White Paper
Epson Premium Bright White Paper
80 sheets
Epson Photo Quality Self Adhesive Sheets
1 sheet at a time
* This matte paper requires the matte sheet support when loading multiple sheets larger than
letter-size; smaller paper can be loaded without it. See page 15 for instructions.
Check the paper package for additional handling instructions.
Note: Always keep unused paper in the original package and store it flat to
prevent curling.
14
Loading Paper
Loading Multiple Sheets of Matte Paper
If you are loading multiple sheets of the following papers in sizes larger than letter
(8.5 × 11 inches), attach the matte sheet support to the top of the sheet feeder to help
separate the sheets of paper and prevent misfeeds:
■
Epson Ultra Premium Presentation Paper Matte
■
Epson Enhanced Matte Paper
■
Epson Premium Presentation Paper Matte
■
Epson Matte Paper Heavyweight
1. Open the paper support and pull up its extensions.
Loading Paper
15
2. Place the hook on the back of the matte sheet support over the paper support
extension, and hold the top extension with one hand while sliding the matte sheet
support all the way down.
Matte sheet
support
3. Load your paper as described on page 12.
Note: Remove the matte sheet support when you load other types of paper.
16
Loading Paper
Loading Special Paper in the Single Sheet
Guide
Load these types of paper in the single sheet guide:
■
Epson Watercolor Paper - Radiant White
■
Epson Velvet Fine Art Paper
■
Epson UltraSmooth Fine Art Paper
■
PremierArt Matte Scrapbook Photo Paper for Epson
1. Remove the roll paper holder if it’s installed (see page 21).
2. Slide the roll paper edge guide all the way to the right.
Loading Paper
17
3. Line up the notches on the single sheet guide with the slots on the back of the
printer and insert them as shown. Then insert the tabs on the top of the guide
into the slot beneath the printer cover.
4. Turn on the printer (the printer must be on to load paper in the single sheet guide
correctly).
5. Insert one sheet of paper against the right edge, then slide the left edge guide
against the sheet.
18
Loading Paper
6. Guide the paper into the slot and feed it into the printer until the paper meets
resistance.
7. Maintain constant pressure against the paper until the printer pulls it in slightly.
Continue to apply light pressure until the paper begins feeding, then let go of the
paper to allow the printer to adjust the paper position.
Loading Paper
19
8. Open the printer cover and look down into the printer to make sure the paper is
loaded correctly. It should be straight and the leading edge of the paper should
not be visible.
Paper is loaded correctly
If edge is visible, reload paper
If the paper isn’t loaded correctly, press the z roll paper button for 3 seconds to
back the paper out. Remove the paper, then press the ) paper button to clear the
paper out error. Reload the paper.
9. Before printing, select Manual - Roll as the Source setting (Windows) or
Manual - Roll as the paper source setting within the Paper Size menu
(Macintosh®) in your printer software (see page 28 for Windows or page 33 for
Macintosh).
20
Loading Paper
Loading Roll Paper or Canvas
You can load 4-inch, 8.3-inch, or 13-inch wide roll paper or 8.3-inch canvas for
printing multiple photos or panoramas, with or without borders.
Note: Instructions apply to both roll paper and canvas unless otherwise noted.
Tip: It’s a good idea to check your ink levels before loading and printing on roll
paper (see page 83). If you need to replace a cartridge with roll paper loaded, you
should remove the paper or marks may appear in your printout.
1. Turn on the printer and remove any paper loaded in the sheet feeder.
2. Close the paper support at the top of the printer.
3. If the output tray and extension are open, push them in, but leave the flap at the
end of the tray down.
4. Swing out the roll paper guides until they are straight.
Tip: Use lint-free, white cotton gloves when handling the media to avoid soiling it
with the oils on your fingertips.
Loading Paper
21
5. Place the roll paper on the holders as shown, then remove the tape and protective
paper from the end of the roll.
90°
6. Make sure the end of the paper is cut straight across, with 90° corners. If the end
is cut diagonally, you may have problems feeding the paper.
If you’re loading canvas, it is important to cut the edge so it’s straight and even.
7. If the paper curls at the end, roll it backwards between a folded sheet of paper to
uncurl it.
Avoid touching the printable surface of the roll paper with your hands.
22
Loading Paper
8. Insert the left roll paper holder (marked with an orange triangle) into the far left
slot (also marked with an orange triangle). Then insert the other holder into the
corresponding slot on the right.
9. While holding the paper, feed it part of the way into the roll paper feeder (under
the white rollers), then slide the right roll paper edge guide to fit lightly against
the paper.
Caution: Don’t load roll paper into the sheet feeder or the slot behind the paper
support; make sure it is loaded below the white rollers.
Loading Paper
23
10. Push the paper into the feeder until it meets resistance. Maintain pressure on the
paper until the printer feeds the paper automatically.
Note: You may need to reload canvas or thicker roll media to ensure accurate
paper registration.
When loading canvas, leave ample slack between the roll and the printer to
ensure smooth paper feeding. Be sure to maintain slack while printing. If you
don’t, your prints may show distortion of shapes, fuzzy text, or banding.
When cutting canvas or other roll paper, it is important to have a straight edge.
An uneven or frayed edge may result in misfeeds, misregistration, or
unacceptable print quality.
11. Open the printer cover and look down into the printer to make sure the paper is
loaded correctly. It should be straight and the leading edge of the paper should
not be visible.
Paper is loaded correctly
If edge is visible, reload paper
If the paper isn’t loaded correctly, press the z roll paper button for 3 seconds to
back the paper all the way out.
Then turn the roll paper holder knobs to roll up the paper. Press the ) paper
button to clear the paper out error. Repeat steps 7 through 9 to reload the paper.
Follow the instructions on page 43 to print on roll paper.
24
Loading Paper
Loading Thick Media in the Front Path
You can load media 1.0 to 1.3 mm thick into the front path, in sizes from 8 × 10
inches to A3+.
Note: Since the media feeds through the printer from the front to the rear, make
sure there is enough space behind the printer for the media to move completely
through the printer.
1. Turn on the printer and remove any paper loaded in the sheet feeder at the top of
the printer.
2. Close the paper support at the top of the printer.
3. If the output tray and extension are open, push them in, but leave the flap at the
end of the tray down.
4. Open the printer cover. Then open the front path door completely by pressing the
front path door release area.
5. Close the printer cover.
Loading Paper
25
6. Insert the media two or three inches into the printer, and push the left edge guide
against the media’s edge. Maintain slight pressure on the guide while inserting the
media the rest of the way into the printer. Stop when the front edge of the media
is aligned with the arrow on the right side.
7. Press the ) paper button. The media is fed into the printer automatically. When
the P power light stops flashing, the printer is ready to print. (To remove the
thick media without printing, press the ) paper button again.)
8. Before printing, select Manual - Front as the Source setting (Windows) or
Manual - Front as the paper source setting within the Paper Size menu
(Macintosh) in your printer software (see page 28 for Windows or page 33 for
Macintosh).
Note: If the printer fails to load the media and displays an error, remove the
media and turn off the printer. Then turn the printer on again.
26
Loading Paper
Printing From Start to Finish
Follow the steps in these sections to print using your printer’s basic features:
■
“Basic Printing in Windows” on page 28
■
“Customizing Your Windows Print Settings” on page 31
■
“Basic Printing With Mac OS X” on page 33
■
“Customizing Your Macintosh Print Settings” on page 39
■
“Selecting the Correct Paper Type” on page 41
To print on roll paper or borderless cut sheets, or color-managed photos, see “Printing
Special Photos” beginning on page 43.
Note: During printing, the left edge guide moves away from the paper slightly.
Do not adjust it while the printer is printing. The printer will re-adjust the edge
guide when printing is complete.
Tip: Whenever you print, make sure you:
■
Use the right paper.
For the best-looking photos, most vivid colors, and greatest detail, always use
genuine Epson papers and Epson UltraChrome K3 inks.
■
Choose the right printer settings for the paper.
Your printer automatically adjusts itself for the type of paper you’ve selected, so
make sure your printer settings are correct for the paper you loaded.
27
Basic Printing in Windows
Follow the steps below to print a document or image using the basic printer settings.
For roll paper printing, see page 43. For borderless printing, see page 49.
1. From the File menu, click Print. You see a Print window like this one:
Check for your
printer name here
Click here to open your
printer software
2. Make sure EPSON Stylus Photo R2400 is selected.
3. Click the Properties or Preferences button. (If you see a Setup, Printer, or
Options button, click it first.)
4. Click the Main tab in the printer settings window to see your basic settings.
Select the type of
document you’re
printing
Select your
paper source
Select your paper
type (see page 41)
Select your paper
size
28
Printing From Start to Finish
Select your
print options
Select your
document or
orientation
5. Select one of these document types as the Quality Option setting:
■
Draft: For rough drafts with reduced print quality
■
Text: For text-only documents (like letters) with good print quality
■
Text & Image: For documents with text and images with higher print quality
■
Photo: For photos and graphics with good print quality and speed
■
Best Photo: For photos or graphics with high print quality
6. Select the way your paper is loaded as the Source setting:
■
Sheet: For paper loaded in the sheet feeder at the top of the printer
■
Roll: For roll paper loaded in the roll paper feeder on the back of the printer
(see page 43)
■
Manual - Roll: For paper loaded in the single sheet guide
■
Manual - Front: For poster and matte boards loaded in the front path (see
page 25)
7. Select the type of paper you loaded as the Type setting. See page 41 for details.
Note: The media types listed will vary depending upon the type of black ink
cartridge currently installed. See page 68 for details.
For printing photos without borders on certain paper types, click the Borderless
checkbox. See page 49 for details.
8. Select the size of paper you loaded as the Size setting.
9. Select the direction in which you want your image or document to print as the
Orientation setting. Select Portrait for vertical orientation or Landscape for
horizontal.
10. Select any other options you want to use in the Print Options box:
■
PhotoEnhanceTM: Improves the contrast, saturation, and color balance of
low-resolution photos (affects only your printout)
■
Reverse Order: Prints multiple page documents last-page-first so you don’t
need to reorder the pages
■
Print Preview: Displays a preview of your printed image or document before
printing so you can check its position on the page
Printing From Start to Finish
29
Note: For more information about printer settings, click the ? or Help button. For
additional print settings, click the Advanced button at the bottom of the screen
and see page 31 for details.
11. Click OK to return to the Print window.
12. Click OK or Print to start printing.
During printing, this window appears. Use it to cancel, pause, or resume printing and
check ink cartridge status.
Click to cancel
printing
Click to pause or
resume printing
Caution: Don’t open Epson Status Monitor, pause printing, or respond to ink
messages when your printer is printing. This may cause your printer to pause and
leave an uneven surface on your printout. If ink is low, wait until printing finishes
before checking ink levels or replacing a cartridge. If you replace an ink cartridge
in the middle of a print job, the quality of your printout may decline. For best
results, check ink levels and replace cartridges, if necessary, before printing large
or high-resolution print jobs.
Selecting the Settings You Use Most Often
Your printer settings apply only to the program you’re currently using. If you want,
you can change the Windows default printer settings for all your programs.
1. Right-click the
printer icon in the lower right corner of your screen.
2. Select Printer Settings. You see the window shown on page 28.
3. Select the default settings you want for all your applications, then click OK.
You can still change the printer settings in individual programs, if necessary.
30
Printing From Start to Finish
Customizing Your Windows Print Settings
Follow these steps to print a document or image using advanced printer settings:
1. On the Main tab, click the Advanced button in the bottom right corner.
2. Click Continue. The Basic settings change to the Advanced settings:
Print quality
Note: If you want to use the Advanced screen each time you access your printer
settings, select the Show this screen first checkbox.
3. The Advanced settings include the same options as the Basic settings, plus these:
■
Print quality: Lets you specify a print quality for your selected paper type,
including Photo (1440 × 720), Best Photo (1440 × 1440), and
Photo RPM® (5760 × 1440 dpi) for the highest print quality on certain paper
types. (Printing takes longer in this mode.)
■
High Speed: Speeds up printing by allowing printing back and forth across
the page, instead of in just one direction. (Print quality may decrease.)
Printing From Start to Finish
31
■
Edge Smoothing: Prints smoother edges on low-resolution images, such as
bars in a graph.
■
Color Controls: Lets you adjust the Brightness, Contrast, Saturation, and
cyan, magenta, and yellow levels in your printout.
■
Advanced B&W Photo: Lets you access Color Toning, Toning, and other
image adjustments when printing black and white images. Choose a preset
Color Toning with the menu or create a custom setting by clicking Settings.
See “Advanced Black and White Photo Printing” on page 73 for more details.
Note: The availability of the Advanced B&W Photo setting depends on the
ink cartridge installed (Photo Black or Matte Black), the Paper Type setting,
and the print quality setting.
■
ICM: Uses standard color profiles for your printer to help match colors in
your image, for use with certain ICM-enabled applications. If you’re using
custom or Epson Premium ICC profiles in a program such as Photoshop,
select ICM and then check the Off (No Color Adjustment) box.
Caution: Incorrectly applying this function or using it in an incomplete color
management workflow may result in excessively light or dark prints.
Note: To print with custom or Premium ICC color profiles using Photoshop,
see “Managing Color With Profiles” on page 53.
4. Once you’ve finished selecting advanced settings, you can:
32
■
Click OK to save your settings, return to the Print dialog box, and print.
■
Click the Basic button to return to the Basic settings.
■
Click the Page Layout tab and continue with step 5 to select layout options.
Printing From Start to Finish
5. Select the following page layout settings as necessary:
Select image or
document position
options here
Select multi-page
document options
here and here
Select image or
document resizing
options here; these
affect only your
printed image
Adjust the size of
borderless images
here (available
when borderless is
selected on the
Main tab)
Add a watermark
to your printed page
here
Note: For more information on printer settings, or instructions on saving them as
a group so you can reuse them later, click the Help or ? button.
6. Click OK to save your settings, return to the Print dialog box, and print.
Basic Printing With Mac OS X
Follow the steps below to print a document or image on a Macintosh using the basic
printer settings.
For roll paper printing, see page 43. For borderless printing, see page 49.
Note: Make sure you added your printer in the Printer Setup Utility or Print
Center, as described on the Start Here sheet.
1. From the File menu, select Page Setup.
Printing From Start to Finish
33
2. Open the Format for menu and select your printer.
Select Stylus Photo R2400
Select your document or
image orientation
3. Open the Paper Size menu and select the size of the paper you loaded. Then select
the source setting from the submenu for that size.
Choose the
paper size
34
Choose a
source
setting
■
For prints on paper loaded in the sheet feeder with borders around the image,
select just a paper size in the menu or submenu.
■
For borderless prints on paper loaded in the sheet feeder, select a size with
Sheet Feeder - Borderless as the source.
■
For prints with borders around the image on paper loaded in the single sheet
guide, select a size with Manual - Roll as the source.
■
For borderless prints on paper loaded in the single sheet guide, select a size
with Manual - Roll(Borderless) as the source.
Printing From Start to Finish
■
For prints made on thick media loaded into the front path, choose
Manual - Front as the source.
For roll paper printing instructions, see page 43. For details on borderless
printing, see page 49.
Caution: When printing non-borderless print jobs using a custom paper size,
make sure the selected size matches the paper you loaded and is within the
printable area for your printer. For example, never choose a paper size wider than
your printer’s sheet feeder or longer than your paper length. The maximum width
for custom paper sizes is 12.95 inches.
4. Select the direction you want your image or document to print as the Orientation
setting. Select
for vertical orientation,
for horizontal facing left, or
for
horizontal facing right.
5. Click OK.
6. Select Print from the File menu. You see a screen like this:
Select Stylus Photo
R2400
Click here and select
Print Settings
7. Open the Printer menu and select Stylus Photo R2400.
8. Select Print Settings from the pop-up menu.
Note: In certain programs you may need to select Advanced before you can
select Print Settings.
Printing From Start to Finish
35
You see your basic print settings:
Select your paper type
(see page 41)
Select the ink setting
Select Automatic mode
Select Quality or Speed
9. Select the type of paper you loaded as the Media Type setting; see page 41.
Note: If you don’t see the paper type you want to use, check your Page Setup
settings to make sure you selected the correct paper size and source; see
page 34, or that you have the correct black ink cartridge installed; see page 68.
10. For the color setting, select Color (for color documents and black and white
photographs), or Advanced B&W Photo (for accessing Color Toning and other
image adjustments when printing black and white photographs; see page 73), or
Black (for black text documents).
Note: The availability of the Advanced B&W Photo setting depends on the ink
cartridge installed (Photo Black or Matte Black), the Media Type setting, and the
print quality setting.
11. Select Automatic as the Mode setting for the best results printing basic
documents or images. (For instructions on using Advanced mode, see page 39.)
12. If available, move the slider to the Quality setting to print images or documents
using higher print quality, or to the Speed setting for faster printing.
Note: For more information about printer settings, click ?.
36
Printing From Start to Finish
13. You can also choose these options in the pop-up menu:
■
Copies & Pages, to select the number of copies or a page range
■
Layout, to select page layout options
■
Output Options, to save your print job as a PDF file
■
Scheduler, to specify a time for a document to print
■
Paper Handling, to reverse page order and set other page options
■
ColorSync, to select Quartz® filters through ColorSync®
■
Color Management, to select ColorSync (for use with certain
ColorSync-enabled applications), adjust the color controls, change the gamma
setting, or turn off color adjustments by the printer software (see page 40 for
color management details)
■
Expansion (if you selected a Borderless option as the paper size/source
setting), adjusts the image size to remove borders completely
■
Extension Setting, select Thick paper to correct ink smearing when
printing on thick paper
■
Summary, to view a list of all your selections
14. Click Print.
Caution: Don’t open Epson Status Monitor, pause printing, or respond to ink
messages when your printer is printing. This may cause your printer to pause and
leave an uneven surface on your printout. If ink is low, wait until printing finishes
before checking ink levels or replacing a cartridge. If you replace an ink cartridge
in the middle of a print job, the quality of your printout may decline. For best
results, check ink levels and replace cartridges, if necessary, before printing large
or high-resolution print jobs.
Printing From Start to Finish
37
15. To monitor the progress of your print job, click your printer’s
icon or the
Print Center icon when it appears in the dock. Then double-click Stylus
Photo R2400. You see this screen:
16. Monitor the progress of your print job or do one of the following:
■
Click the print job, then click Delete to delete the job
■
Click the print job, then click Hold to pause printing
■
Click a print job marked “Hold” and click Resume to resume printing
■
If multiple print jobs are listed, click a print job, then click the Priority arrow
as necessary to reorder the jobs
17. When you’re finished, close your printer’s status window (OS X 10.3 and 10.4) or
Print Center (OS X 10.2).
38
Printing From Start to Finish
Customizing Your Macintosh Print Settings
Follow these steps to print a document or image using advanced printer settings:
1. From the File menu, select Print.
2. Select Print Settings from the pop-up menu.
Note: In certain programs you may need to select Advanced before you can
select Print Settings.
3. To access advanced settings, click Advanced.
4. In addition to the basic settings, you can select these advanced options:
■
Print Quality: Lets you specify a print quality for your selected paper type,
including Photo (1440 × 720), Best Photo (1440 × 1440), and Photo RPM
(5760 × 1440 dpi) for the highest print quality on certain paper types.
(Printing takes longer in this mode.)
■
High Speed: Speeds up printing by allowing printing back and forth across
the page, instead of in just one direction. (Print quality may decrease.)
Printing From Start to Finish
39
■
Mirror Image: Inverts the image horizontally.
■
Finest Detail: Places ink droplets in the most precise manner for high quality
printing. (Printing takes longer in this mode.)
Note: For more information on printer settings, click ?.
5. To select Color Management options, select Color Management from the
pop-up menu. Select Color Management options as follows:
■
Color Controls: Lets you adjust the Brightness, Contrast, Saturation,
Gamma, and cyan, magenta, and yellow levels in your printout. (Click the
Advanced Settings arrow to access these adjustments.)
■
ColorSync: Uses standard ColorSync profiles for your printer to help match
colors in your image, for use with certain ColorSync-enabled applications.
If you’re using custom or Epson Premium ICC profiles in a program such as
Photoshop, select Off (No Color Adjustment) instead.
■
Off (No Color Adjustment): Turns off your printer’s color management
features so you can use ICC profiles in an ICC-aware application such as
Adobe Photoshop instead.
Caution: Incorrectly applying this function or using it in an incomplete color
management workflow may result in excessively light or dark prints.
Note: To print with custom or Premium ICC color profiles using Photoshop,
see “Managing Color With Profiles” on page 53.
6. Click Print.
40
Printing From Start to Finish
Selecting the Correct Paper Type
Select the correct Type or Media Type setting so your printer knows what kind of
paper you’re using and adjusts the ink coverage accordingly. Certain paper types may
be unavailable depending on which black ink cartridge is installed. See “Matching
Black Ink to Paper Type” on page 68.
Paper loaded
Type or Media Type setting
Plain paper sheets
Plain Paper
Epson Bright White Paper
Epson Premium Bright White Paper
Epson Presentation Paper Matte
Epson Photo Quality Ink Jet Paper
Presentation Paper Matte
Epson Photo Quality Self Adhesive Sheets
Epson Ultra Premium Presentation Paper Matte
Epson Enhanced Matte Paper
Ultra Premium Presentation Matte
Epson Premium Presentation Paper Matte
Epson Matte Paper Heavyweight
Piezo Pro Matte Canvas for Epson*
Premium Presentation Paper Matte
Epson Premium Presentation Paper Matte
Double-sided
Epson Double-sided Matte Paper
Double-sided Matte Paper
Epson Premium Photo Paper Glossy
Epson Premium Glossy Photo Paper
Premium Photo Paper Glossy
Epson Ultra Premium Photo Paper Luster
Epson Premium Luster Photo Paper
Ultra Premium Photo Paper Luster
PremierArt Water Resistant Canvas for Epson*
Epson Premium Photo Paper Semi-gloss
Epson Premium Semigloss Photo Paper
Premium Photo Paper Semi-Gloss
Epson Watercolor Paper - Radiant White
Watercolor Paper - Radiant White
Epson UltraSmooth Fine Art Paper (325)
UltraSmooth Fine Art Paper
PremierArt Matte Scrapbook Photo Paper for
Epson
Epson Velvet Fine Art Paper
Velvet Fine Art Paper
* These papers are optimized for use with premium ICC profiles. See page 53 for details.
Printing From Start to Finish
41
42
Printing From Start to Finish
Printing Special Photos
When you need to print photos using the special Stylus Photo R2400 printing
features, follow the instructions in these sections:
■
“Printing on Roll Paper” below
■
“Printing Borderless Cut Sheets” on page 49
■
“Managing Color With Profiles” on page 53
■
“Easy Printing With Photoshop Elements 3.0” on page 67
■
“Matching Black Ink to Paper Type” on page 68
■
“Advanced Black and White Photo Printing” on page 73
Printing on Roll Paper
Before you print on roll paper, load the paper as described on page 21.
Then follow the steps in the next sections to select your roll paper settings, control
printing, and remove and store roll paper.
Caution: Don’t open Epson Status Monitor, pause printing, or respond to ink
messages when your printer is printing. This may cause your printer to pause and
leave an uneven surface on your printout. If ink is low, wait until printing finishes
before checking ink levels or replacing a cartridge. If you replace an ink cartridge
in the middle of a print job, the quality of your printout may decline. For best
results, check ink levels and replace cartridges, if necessary, before printing large
or high-resolution print jobs.
43
Selecting Roll Paper Print Settings
Follow the steps in one of these sections to select your roll paper print settings:
■
“Windows” below
■
“Mac OS X” on page 45
Windows
1. Start your print application, open your photo file, and resize it as necessary.
2. Open the File menu, click Print, then click Properties or Preferences.
3. Select the type of roll paper you loaded as
the Type setting:
■
Premium Photo Paper Semi-Gloss
■
Ultra Premium Photo Paper Luster
■
Premium Photo Paper Glossy
Note: For PremierArt Water Resistant
Canvas, choose Ultra Premium Photo Paper
Luster. For Piezo Pro Matte Canvas, choose
Premium Presentation Paper Matte. When
printing on canvas, choose Best Photo or
Photo RPM and turn High Speed off.
For the best color prints on either Epson
canvas medium, be sure to use the Premium
ICC Profile.
4. If you’ll be printing photos without any borders, click the Borderless box.
5. Select the photo size as the Size setting.
If you’re printing a panoramic photo, select User Defined from the Size list and
enter the size of your photo. Make sure the width of your photo is 4, 8.3, or
12.95 inches maximum, depending on the width of the roll paper you loaded.
Also set the margins to 0 in your printing software.
Note: Don’t select PhotoEnhance when printing on roll paper. For the Source setting,
don’t choose Sheet or Manual - Roll.
44
Printing Special Photos
6. Choose Roll as the Source setting. The Roll Paper
Options dialog box pops up:
7. Select the roll paper settings, including whether to
print a page frame, based on the type of printing
you’re doing (see the table below); then click OK:
Type of printing
Roll Paper Options
Borderless photos
Cut Sheet Mode or Banner Mode (if
your photo is over 27 inches long)
Photos with borders or panoramics
Cut Sheet Mode
8. Click OK.
9. Click OK or Print.
Follow the steps on page 48 to remove your printed photos.
Mac OS X
1. Start your print application, open your photo file, and resize it as necessary.
2. From the File menu, select Page Setup.
3. Open the Format for menu and select your printer:
Select Stylus Photo R2400
Select the size and roll paper
setting for the photo you’re
printing
Printing Special Photos
45
4. Open the Paper Size menu and select your photo size. Then select a Roll Paper or
Roll Paper - Borderless setting from the submenu for that size.
To print without a border between photos, choose a Roll Paper - Borderless
Banner setting for your photo size.
Make sure the width of your photo is 4, 8.3, or 13 inches maximum, depending
on the width of the roll paper you loaded. Also set the margins to 0 in your
printing software.
5. Click OK.
6. Select Print from the File menu.
7. Open the Printer menu and select Stylus Photo R2400.
8. Select Print Settings from the pop-up menu.
Note: In certain programs you may need to select Advanced before you can
select Print Settings.
Select Stylus Photo R2400
46
Printing Special Photos
9. Select the type of roll paper you loaded as the Media Type setting:
■
Premium Photo Paper Semi-Gloss
■
Ultra Premium Photo Paper Luster
■
Premium Photo Paper Glossy
Note: For PremierArt Water Resistant Canvas, choose Ultra Premium Photo
Paper Luster. For Piezo Pro Matte Canvas, choose Premium Presentation
Paper Matte. When printing on canvas, choose Best Photo or Photo RPM and
turn High Speed off. For the best color prints on either Epson canvas medium,
be sure to use the Premium ICC Profile.
10. Move the slider to the Quality setting (if available).
11. Choose Roll Paper Option from the pop-up menu.
12. Select the roll paper settings, including whether to include a page frame, based on
the type of printing you’re doing.
Type of printing
Roll Paper Options
Borderless photos
Cut Sheet Mode
Banner Mode (if your photo is over
27 inches long)
Photos with borders or panoramics
Cut Sheet Mode
13. Click Print.
Printing Special Photos
47
Removing Your Printed Photos
Follow these steps to remove your printed photos:
1. Press the z roll paper button once to
feed the paper forward.
2. Cut the paper on the printed cutting
line.
3. If you want to print another job on roll
paper, press the z roll paper button
once again; the paper returns to the
correct print position.
Removing and Storing Roll Paper
Follow these steps when you’re ready to remove and store your roll paper:
1. Press the z roll paper button for 3 seconds. The paper feeds backwards out of the
printer. (If it doesn’t feed all the way out, repeat this step.)
Knob
2. Turn the knobs to roll the rest of the paper onto the holder. Then press the
) paper button to turn off the ) paper light.
3. Pull the roll paper holder off the printer and remove the roll paper from it.
Return the unused roll to its original package. Store your printouts in resealable
plastic bags, photo albums, or glass-covered picture frames. Keep both printed and
unused roll paper away from high temperatures, humidity, and direct sunlight.
48
Printing Special Photos
Printing Borderless Cut Sheets
You can print your photos with no margins, extending the image all the way to the
edges of the page. Although borderless printing is a bit slower, you get beautiful
portraits and enlargements, without trimming, on these papers:
■
Epson Premium Photo Paper Glossy or
Epson Ultra Premium Glossy Photo Paper
■
Epson Premium Presentation Paper Matte* or
Epson Matte Paper Heavyweight*
■
Epson Ultra Premium Presentation Paper Matte* or
Epson Enhanced Matte Paper*
■
Epson Premium Presentation Paper Matte Double-sided* or
Epson Double-Sided Matte Paper *
■
Epson Ultra Premium Photo Paper Luster
Epson Premium Luster Photo Paper
■
Epson Premium Photo Paper Semi-gloss
Epson Premium Semigloss Photo Paper
■
Epson Watercolor Paper - Radiant White**
■
Epson Velvet Fine Art Paper**
■
Epson UltraSmooth Fine Art Paper**
■
PremierArt Matte Scrapbook Photo Paper for Epson**
* If you are loading multiple sheets of matte paper that are larger than letter-size, use
the matte sheet support. See page 15.
** These papers must be loaded in the single sheet guide. See page 17.
Caution: Don’t open Epson Status Monitor, pause printing, or respond to ink
messages when your printer is printing. This may cause the printer to pause and
leave an uneven surface on your printout. If ink is low, wait until printing finishes
before checking ink levels or replacing a cartridge. If you replace an ink cartridge
in the middle of a print job, the quality of your printout may decline. For best
results, check ink levels and replace cartridges, if necessary, before printing large
or high-resolution print jobs.
Printing Special Photos
49
Follow the steps in one of these sections to print BorderFree photos on cut sheet
paper:
■
“Windows” below
■
“Mac OS X” on page 51
Windows
1. Start your print application and open
your photo file.
2. Open the File menu, click Print, then
click Properties or Preferences.
3. Select Photo or Best Photo as the
Quality Option.
4. Choose Sheet as the Source setting.
5. Select the type of paper you loaded as the
Type setting. See page 41 for details.
6. Click the Borderless checkbox.
7. Select your paper size as the Size setting.
8. Select Portrait or Landscape as the orientation setting.
9. Click the Page Layout tab, then adjust the Expansion setting. Choose Min for
the least amount of image expansion (with a chance that there may be small
borders around the edges) or Max for the greatest amount of expansion (some of
the image will be cut off around the edges, but it will extend to the edge of the
paper).
10. Click OK.
11. Click OK or Print.
50
Printing Special Photos
Mac OS X
1. Start your print application and open your photo file.
2. From the File menu, select Page Setup.
3. Open the Format menu and select your printer.
Select Stylus Photo R2400
Select the size of the paper you
loaded here
4. Open the Paper Size menu and select the paper size for the paper you loaded.
Then select a Sheet Feeder - Borderless setting from the submenu.
5. Select one of the portrait or landscape orientation icons as the Orientation setting.
6. Click OK.
7. Select Print from the File menu.
8. Open the Printer menu and select Stylus Photo R2400.
Printing Special Photos
51
9. Select Print Settings from the pop-up menu.
Note: In certain programs you may need to select Advanced before you can
select Print Settings.
10. Select the type of paper you loaded as the Media Type setting. See page 41 for
details.
Note: If you can’t choose your paper type, check the Paper Size settings on the
Page Setup window to make sure you selected the correct paper size and source,
or that you have the correct black ink cartridge installed (see page 70 for
information).
11. Move the slider to the Quality setting.
12. Choose Expansion from the pop-up menu, then adjust the Expansion setting.
Choose Min for the least amount of image expansion (with a chance that there
may be small borders around the edges) or Max for the greatest amount of
expansion (some of the image will be cut off around the edges, but it will extend
to the edge of the paper).
13. Click Print.
52
Printing Special Photos
Managing Color With Profiles
Follow the steps in this section to use color profiles for printing with Adobe
Photoshop (the instructions cover Photoshop 7, CS, CS2, and CS3).
Carefully follow the instructions in these sections for the best results:
■
“Printing With a Color Profile” below
■
“Solving Color Management Problems” on page 62
■
“Printing a Custom Profile Test Target” on page 62
■
“Creating a Custom Profile” on page 66
Printing With a Color Profile
To print an image using a profile, follow the steps in one of these sections.
■
“Windows” below
■
“Mac OS X” on page 58
Windows
Opening Your Image
1. Open Adobe Photoshop.
2. Select Edit > Color Settings.
3. Select U.S. Prepress Defaults or
North America Prepress 2 from the
Settings pull-down menu. This sets
Adobe RGB (1998) as the RGB working
space and activates warning messages for
profile mismatches and missing profiles.
Click OK.
4. Open the photo you want to print.
Printing Special Photos
53
5. If you see this message, select Use the
embedded profile (instead of the working
space) and click OK. It is generally best to use
the embedded profile.
6. If you see this message, select Assign
working RGB: Adobe RGB (1998) and
click OK:
7. When your image appears, evaluate the color balance and contrast as displayed on
your monitor. If they need improvement, select Image > Mode >
Assign Profile (for Photoshop CS and 7) or Edit > Assign Profile (for
Photoshop CS2 and CS3). Select one of the following as the Profile setting:
■
A different RGB working space, such as ColorMatch RGB or sRGB
IEC61966-2.1
■
A scanner profile for your scanner
■
A camera profile for your digital camera
Also click the Preview box so you can see the effects of your profile choice on the
screen.
Tip: This is most effective when your monitor is calibrated using a hardware
device such as the X-Rite® Eye-One® Display 2 or Color vision® Spyder2.TM
8. Click OK.
Note: Assigning a profile to the image doesn’t alter the image data, only the
interpretation of the data by your software and how it appears on your monitor
and in a printout. This is the best way to improve the color balance and contrast in
your image.
54
Printing Special Photos
Selecting Your Print Settings
1. Select File > Page Setup.
2. Select the Size for your paper and the correct Orientation for your image:
Select the correct size
Select Portrait or Landscape
3. Click OK.
4. Select File > Print or Print with Preview.
5. If necessary, click More Options or Show More Options. If you see Output,
select Color Management from the pull-down menu.
Additional options appear:
Photoshop 7, CS
Photoshop CS3
Printing Special Photos
55
6. Under Color Handling in Photoshop CS2, select Let Photoshop Determine
Colors. In CS3, select Photoshop Manages Colors.
7. Under Profile or Printer Profile, select the Epson Premium ICC profile that
matches your printer, the paper you’ll use for the print, and the quality setting.
Note: The Epson Premium ICC profiles can be identified with the suffix “.icc,” for
example, “SPR2400 PremLuster BstPhoto.icc.”
8. For the Intent or Rendering Intent setting, select Relative Colorimetric.
Note: If your image contains very saturated colors, select Perceptual instead.
This reduces the color saturation so that the colors fit within the printer’s color
gamut.
9. Select the Use Black Point Compensation checkbox.
Printing Your Color-Managed Photo
1. Click the Print button.
2. Make sure your printer is selected, and click the Properties or Preferences
button.
3. If you are using an Epson Premium ICC profile, set the Quality Option setting to
match your profile.
4. Select the Type setting for the paper you’ll use for the print.
Note: For printouts on PremierArt Water Resistant Canvas, select Ultra
Premium Photo Paper Luster for the paper type setting. For printouts on
Piezo Pro Matte Canvas, select Premium Presentation Paper Matte.
Additionally, make sure the Photo Black ink cartridge is installed. See “Matching
Black Ink to Paper Type” on page 68.
5. Click the Advanced button, then click Continue.
6. Turn off the High Speed and Edge Smoothing settings, if they are available.
56
Printing Special Photos
7. Click the ICM button under Color Management, then Select Off (No Color
Adjustment).
IMPORTANT!
Select Off (No Color
Adjustment)
Note: Make sure that you select Off (No Color Adjustment). If you don’t, the
printer driver will apply additional correction to the image data, producing
inaccurate results.
8. Click OK.
9. Click OK or Print to print your photo.
Printing Special Photos
57
Mac OS X
Opening Your Image
1. Open Adobe Photoshop.
2. Select Color Settings from the
Photoshop menu (Photoshop 7 or CS)
or the Edit menu (Photoshop CS2
or CS3).
3. Select U.S. Prepress Defaults or
North America Prepress 2 from the
Settings pull-down menu. This sets
Adobe RGB (1998) as the RGB working
space and activates warning messages for
profile mismatches and missing profiles.
Click OK.
4. Open the photo you want to print.
5. If you see the message shown below, select Use the embedded profile (instead
of the working space) and click OK. It is generally best to use the embedded
profile.
6. If you see the message shown below, select Assign working RGB: Adobe RGB
(1998) and click OK.
58
Printing Special Photos
7. When your image appears, evaluate the color balance and contrast as displayed on
your monitor. If they need improvement, select Image > Mode > Assign
Profile (for Photoshop CS and 7) or Edit > Assign Profile (for Photoshop CS2
and CS3). Select one of the following as the Profile setting:
■
A different RGB working space, such as ColorMatch RGB or sRGB
IEC61966-2.1
■
A scanner profile for your scanner
■
A camera profile for your digital camera
Also click the Preview box so you can see the effects of your profile choice on the
screen.
Tip: This is most effective when your monitor is calibrated using a hardware
device such as the X-Rite Eye-One Display 2 or Color vision Spyder2.
8. Click OK.
Note: Assigning a profile to the image doesn’t alter the image data, only the
interpretation of the data by your software and how it appears on your monitor
and in a printout. This is the best way to improve the color balance and contrast in
your image.
Selecting Your Print Settings
1. Select File > Print or
Print with Preview. If
you see a window like this,
click More Options or
Show More Options.
2. Click the Page Setup
button to change the page
size and orientation
settings as necessary, then
click OK.
Printing Special Photos
59
3. Click Color Management from the pop-up menu:
Photoshop 7, CS
Photoshop CS3
4. Under Color Handling in Photoshop CS2, select Let Photoshop Determine
Colors. In CS3, select Photoshop Manages Colors.
5. Under Profile or Printer Profile, select a profile for your printer and the paper
you’ll use for the print. If you’re printing with Epson Premium ICC profiles,
select the profile that matches the print quality you want to use.
Note: The Epson Premium ICC profiles can be identified with the suffix “.icc,” for
example, “SPR2400 PrmGlsy BstPhoto.icc.”
6. For the Intent or Rendering Intent setting, select Relative Colorimetric.
Note: If your image contains very saturated colors, select Perceptual. This
reduces the color saturation so that the colors fit within the printer’s color gamut.
7. Select the Black Point Compensation checkbox.
Printing Your Color-Managed Photo
1. Click the Print button.
2. Select Stylus Photo R2400 from the Printer menu.
60
Printing Special Photos
3. Select Print Settings from the
pop-up menu.
Note: In certain programs you may
need to select Advanced before you
can select Print Settings.
4. Select the Media Type setting for the
paper you’ll use for the print.
Note: For printouts on Epson
PremierArt Water Resistant Canvas,
select Ultra Premium Photo Paper
Luster for the paper type setting. For
printouts on Piezo Pro Matte Canvas,
select Premium Presentation Paper
Matte. Additionally, make sure the
Photo Black ink cartridge is installed.
See “Matching Black Ink to Paper
Type” on page 68.
5. Click the Advanced button.
6. If you are using an Epson Premium ICC profile, set the Print Quality setting to
match your profile.
7. Turn off the High Speed setting.
8. Select Color Management from
the pop-up menu.
9. Select Off (No Color
Adjustment).
Note: Make sure that you select Off
(No Color Adjustment). If you don’t,
the printer driver will apply additional
correction to the image data,
producing inaccurate results.
10. Click Print to print your photo.
IMPORTANT!
Select Off (No Color Adjustment)
Printing Special Photos
61
Solving Color Management Problems
If you selected the wrong combination of source profile, printer profile, and color
management settings, you’ll get unexpected results. Try these solutions:
■
If your printed image is darker than expected and/or has a strong yellow-brown
cast, you probably turned off color management in both Photoshop and the
Epson printer driver.
Return to the Print or Print with Preview instructions for Adobe Photoshop on
page 59 (for Mac OS X) or page 55 (for Windows). Make sure the Source Space Document option is not set to Untagged RGB. Also make sure you selected the
correct profile for your printer in the Print Space - Profile menu.
■
If your printed image is lighter than expected and/or has a strong light blue cast,
you probably turned on color management in both Photoshop and the Epson
printer driver.
Return to the instructions on page 61 (for Mac OS X) or page 57 (for Windows).
Make sure to select Off (No Color Adjustment) in the printer driver Advanced
screen or Color Management menu to turn off color management in your Epson
printer driver.
Printing a Custom Profile Test Target
Follow the steps in this section to create and print individual custom profile test
targets for each paper type you plan to print on. For Mac OS X, see below. For
Windows, see page 65.
Mac OS X
1. Open Adobe Photoshop and open the profile target file provided by your
profile-building software manufacturer.
2. If you see a missing profile screen, select Leave as is (don’t color manage).
3. Select File > Print with Preview.
4. In the Print window, click Show More Options, then choose Color
Management in the pop-up menu.
62
Printing Special Photos
5. Select No Color Management (Photoshop CS2 or CS3) or Same as Source
(Photoshop CS or 7) as the Print Space: Profile setting.
6. Click the Page Setup button. You see this window:
7. Select Stylus Photo R2400 from the Format for menu.
8. Select the appropriate Paper Size and Orientation settings, then click OK.
9. Click the Print button.
10. Select your printer from the Printer menu, then select Print Settings from the
pop-up menu.
Note: In certain programs you may need to select Advanced before you can
select Print Settings.
Printing Special Photos
63
11. Select the Media Type setting for the profile you’re printing.
12. Click the Advanced button.
13. Select your desired level as the Print Quality setting.
14. Turn off the High Speed setting.
15. Select Color Management from the pop-up menu.
16. Select Off (No Color Adjustment).
IMPORTANT!
Select Off (No Color
Adjustment)
17. Click Print to print your test target.
18. Repeat these steps to print a test target for each paper type and Print Quality
setting you plan to print with.
64
Printing Special Photos
Windows
1. Open Adobe Photoshop and open the profile target file provided by your
profile-building software manufacturer.
2. If you see a missing profile screen, select Leave as is (don’t color manage).
3. Select File > Print or Print with
Preview.
4. In the Print window, click the
Show More Options checkbox,
then choose Color Management
in the pull-down menu.
5. Select No Color Management
(Photoshop CS2 or CS3) or Same
as Source (Photoshop CS or 7) as
the Print Space: Profile setting.
6. Click the Print or Print One
button.
7. Click the Properties or Preferences button.
8. Click the Advanced button, then click Continue.
9. Select the media type setting for the paper you’ll use for the print.
Printing Special Photos
65
10. Select the print quality desired: Photo (1440 × 720 dpi), Best Photo
(1440 × 1440 dpi), or PhotoRPM (5760 × 1440 dpi).
11. Turn off the High Speed and Edge Smoothing settings, if they are available.
12. Click the ICM button under Color Management and click the Off (No Color
Adjustment) button.
IMPORTANT!
Select ICM, then click
Off (No Color Adjustment)
13. Click OK.
14. Click OK or Print to print your test target.
15. Repeat these steps to print a test target for each paper type and Quality Option
setting you plan to print with.
Creating a Custom Profile
If you’re creating a custom profile for your printer, follow the instructions provided
with your profile-building software (such as MonacoPROFILERTM by X-Rite or
GretagMacbeth® ProfileMaker) to create your custom profile using the test target you
printed. Once you create the profile, be sure to place it in the correct folder on your
computer, as recommended by Microsoft or Apple.®
66
Printing Special Photos
Easy Printing With Photoshop Elements 3.0
If you are using Adobe Photoshop Elements 3.0 with Windows, you can take
advantage of the Epson EasyPrint interface when you’re ready to print. It lets you
select your basic settings directly from the Print window, so you don’t need to open
the Properties or Preferences window to access the printer driver.
This one-stop printing feature also prevents conflicts between software and driver
settings by making them both match.
Complete instructions for using Adobe Photoshop Elements 3.0 are provided in the
Getting Started Guide installed with Photoshop Elements.
Follow these steps to open Elements and access the EasyPrint interface:
1. To start the program, double-click the Adobe Photoshop Elements 3.0 icon
on your desktop.
2. Select View and Organize Photos. You see the Photo Browser workspace and
Organizer at the top of the screen to indicate Organizer mode.
3. Select Get Photos from the File menu and choose an option such as From Files
and Folders. Then select the folder containing your photo(s) and select the
photo(s) you want to print.
If you need to edit a photo, go to step 4. If you are ready to print, go to step 5.
4. To edit a photo, click the Edit button to enter Edit mode. Choose either Go To
Quick Fix or Go To Standard Edit. When you finish editing and are ready to
print, click Photo Browser to return to Organizer mode. Do not print from
Editor mode.
Note: If you print from Editor mode, you do not see the Epson EasyPrint
interface. To access the printer driver settings, you must click File > Print > Print,
select your printer name, and then click Properties.
Printing Special Photos
67
5. Select Print from the File menu. You see the Epson EasyPrint interface:
Select EPSON
Stylus Photo R2400
Select your paper type
Choose your paper
size and orientation
Click here for
borderless printing
Select other print
settings
Click here for more print options
6. Change your print settings as necessary.
7. Click Print to start printing.
Tip: If you’re printing a borderless print and it comes out with one or more
borders, select Crop to Fit.
Matching Black Ink to Paper Type
In order to generate the best output on a wide variety of paper types, your printer can
use either the Matte Black (T059820) or Photo Black (T059120) ink cartridge. Only
one can be installed in the printer at any time, but you can swap these cartridges
depending on your paper type. Both are included with your printer.
68
Printing Special Photos
Use the Matte Black ink cartridge for professional results with the following paper
types:
■
Presentation Paper Matte
Photo Quality Ink Jet Paper
■
Ultra Premium Presentation Paper Matte
Enhanced Matte Paper
■
Premium Presentation Paper Matte
Matte Paper - Heavyweight
■
Premium Presentation Paper Matte Double-sided
Double-Sided Matte Paper
■
Velvet Fine Art Paper
■
Watercolor Paper - Radiant White
■
UltraSmooth Fine Art Paper
Tip: Although these media types are available when the Photo Black cartridge is
installed, printing on Matte type media with Photo Black will not yield
professional or optimal results. The ability to print on matte media with Photo
Black is for convenience only.
Use the Photo Black cartridge for professional results with the following paper types:
■
Premium Photo Paper Glossy
Premium Glossy Photo Paper
■
Ultra Premium Photo Paper Luster
Premium Luster Photo Paper
■
Premium Photo Paper Semi-gloss
Premium Semigloss Photo Paper
■
Proofing Paper Semimatte
■
PremierArt Water Resistant Canvas
You cannot select these paper types when the Matte Black cartridge is installed.
Printing Special Photos
69
Swapping the Black Ink Cartridges
Be sure you have the other black cartridge handy before you begin. Once you start
replacing a cartridge, you must complete all the steps in one session.
You can replace a cartridge whether the red H ink light is off, flashing, or on.
1. Make sure the printer is turned on (the green P power light should be on, but not
flashing). Then open the printer cover.
2. Press the H ink button.
The print head moves and the green P power light flashes.
3. Lift up the cartridge cover.
4. Press in the tab on the back of the black cartridge, and lift it out of the printer as
shown below. Store this cartridge in a sealable plastic bag for later use.
5. Shake the new cartridge four or five times before
opening its package. (Don’t shake it after it’s
unwrapped.)
6. Remove the new cartridge from its package.
Caution: Don’t touch the green circuit board on
the front of the cartridge; you may inhibit normal
operation and printing.
7. Slide the new cartridge into its slot. The side with the green circuit board goes in
the front of the slot.
70
Printing Special Photos
8. Press the cartridge down until it clicks into
place.
9. Close the cartridge cover, press down on the
top until it clicks, then close the printer
cover.
10. Press the H ink button. The printer begins
charging the new cartridge.
The green P power light and red H ink lights
flash and the printer makes noise. Charging takes about 90 seconds. When it’s
finished, the green P power light stops flashing and stays on. The red H ink light
and the light above the cartridge go out.
Caution: Never turn off the printer while the green P power light is flashing,
unless the printer hasn’t moved or made noise for more than 5 minutes.
Confirming the Swapped Cartridge Settings
Once you’ve swapped the black ink cartridges, you need to confirm that the printer
driver settings are correct for the new cartridge.
Windows
1. Right-click the Status Monitor. Choose Printer Settings from the pop-up menu.
2. Click the Maintenance tab, then click Printer and Option Information.
3. Verify the new black ink cartridge is selected. Click OK.
Printing Special Photos
71
4. Click OK in the Optional Ink Cartridge Notification dialog box.
5. Click OK in the Properties window.
Note: It may be necessary to close and re-open the application from which you’re
printing to update the paper Type selections.
Macintosh
1. Close any printing programs you may have open.
2. Open the Printer Setup Utility (OS X 10.3 and 10.4) or Print Center
(OS X 10.2).
3. Select Stylus Photo R2400 from the list and click the Utility button.
4. Click the Epson Status Monitor button.
5. Click the black ink cartridge and verify the new cartridge type. Then click OK.
6. Close the Epson Printer Utility window.
72
Printing Special Photos
Advanced Black and White Photo Printing
The Advanced B&W Photo mode lets you easily produce neutral and toned
black-and-white prints using your Epson driver and offers an alternative
black-and-white workflow. Advanced B&W Photo mode also provides settings for
more advanced black-and-white controls. These controls can be applied to color
image files without the need to save a separate grayscale version. This mode is only
available when printing at specific Quality settings on the following media types:
■
Premium Photo Paper Glossy
Premium Glossy Photo Paper
■
Ultra Premium Photo Paper Luster
Premium Luster Photo Paper
■
Premium Semi-gloss Photo Paper
Premium Photo Paper Semigloss
■
Premium Presentation Paper Matte
Matte Paper-Heavyweight
■
Ultra Premium Presentation Paper Matte
Enhanced Matte Paper
■
Watercolor Paper-Radiant White
■
Velvet Fine Art Paper
■
UltraSmooth Fine Art Paper
Follow the steps in one of these sections to use Advanced B&W Photo settings:
■
“Windows” on page 74
■
“Mac OS X” on page 76
Printing Special Photos
73
Windows
1. Start your printing application and open your photo file.
2. Open the File menu and click Print, then click Properties or Preferences.
3. Select the appropriate Source, Type, and Size for your printout.
4. Click the Advanced button, if necessary. The Basic settings change to the
Advanced Settings.
5. Click Advanced B&W Photo in the Color Management section.
Select Advanced B&W Photo
Then choose a preset Color
Toning option, or click Settings
to customize Toning options
74
Printing Special Photos
6. Select a Color Toning option from the menu, or click Settings to create a
customized Toning option. If you click Settings, the following window appears:
7. You can adjust the following settings:
■
Color Toning: Allows you to add tone (hue) to your black and white output.
The default is Neutral, which will provide you with a neutral tonal scale print.
You can also choose other popular presets such as Cool, Warm, and Sepia.
Note that the presets will affect the target found in the Tone Color Circle.
■
Tone: Allows you to easily change the entire tonal scale of your black and
white output.
■
Brightness: Adjusts the overall lightness and darkness of your image.
■
Contrast: Adjusts the difference between the light and dark areas of your
image.
■
Shadow and Highlight Tonality: Allows you to control tonality only in the
shadow or highlight areas of your image.
■
Max Optical Density: Adjusts the focus of the print. Create a soft focus print
by setting the density to lower.
■
Highlight Point Shift: If your image is prone to gloss differential, checking
Highlight Point Shift will help to reduce gloss differential by adding density
to the highlights of your image.
Printing Special Photos
75
■
Tone Color Circle: Click on any portion of this color wheel or enter
corresponding values to customize the tone (hue) to add to your black and
white print. The closer you select to the edge of the wheel, the more color you
will add to your black and white print.
■
Preview: Approximates the image tone based on your settings. Please note
this preview will always be of the same image and is not color managed.
Mac OS X
1. Start your print application and open your photo file.
2. From the File menu, choose Page Setup.
3. Select the Stylus Photo R2400 printer in the Format For menu, and choose the
appropriate Paper Size and Orientation for your printout. Then click OK.
4. Select Print from the File menu. Then open the Printer menu and select Stylus
Photo R2400.
5. Select Print Settings from the pop-up menu. Select the appropriate Media Type
setting for your printout.
Note: In certain programs you may need to select Advanced before you can
select Print Settings.
6. Select Advanced B&W Photo from the Color menu. Uncheck High Speed.
76
Printing Special Photos
7. Select Color Management from the pop-up menu.
8. You can adjust the following settings:
■
Color Toning: Allows you to add tone (hue) to your black and white output.
The default is Neutral, which will provide you with a neutral tonal scale print.
You can also choose other popular presets such as Cool, Warm, and Sepia.
Note that the presets will affect the target found in the Tone Color Circle.
■
Tone: Allows you to easily change the entire tonal scale of your black and
white output.
■
Brightness: Adjusts the overall lightness and darkness of your image.
■
Contrast: Adjusts the difference between the light and dark areas of your
image.
■
Shadow and Highlight Tonality: Allows you to control tonality only in the
shadow or highlight areas of your image.
■
Max Optical Density: Adjusts the focus of the print. Create a soft focus print
by setting the density to lower.
■
Highlight Point Shift: If your image is prone to gloss differential, checking
Highlight Point Shift will help to reduce gloss differential by adding density
to the highlights of your image.
Printing Special Photos
77
■
Tone Color Circle: Click on any portion of this color wheel or enter
corresponding values to customize the tone (hue) to add to your black and
white print. The closer you select to the edge of the wheel, the more color you
will add to your black and white print.
■
Preview: Approximates the image tone based on your settings. Please note
this preview will always be of the same image and is not color managed.
78
Printing Special Photos
Maintaining Your Printer
Follow the instructions in this chapter to keep your printer working at its best and to
prepare it for moving, if necessary:
■
“Cleaning the Print Head” below
■
“Replacing an Ink Cartridge” on page 82
■
“Aligning the Print Head” on page 86
■
“Cleaning the Printer” on page 88
■
“Transporting the Printer” on page 89
Cleaning the Print Head
If your printouts are unexpectedly light, or dots or lines are missing, you may need
to clean the print head. This unclogs the nozzles so they can deliver ink properly.
Print head cleaning uses ink, so clean it only if quality declines.
Caution: When you don’t turn on your printer for a long time, print quality can
decline, so turn it on at least once a month to maintain good print quality.
This section explains how to clean the print head using the Auto Nozzle Check and
Cleaning utility and the Head Cleaning utility. Use the Auto Nozzle Check and
Cleaning utility first to let the printer check and clean the nozzles. If you still notice
problems with quality, you can manually clean the print head.
Note: You can also clean the print head by holding down the H ink button on the
printer for three seconds (when the red H ink light is off).
79
Automatically Checking and Cleaning the Print
Head
The Auto Nozzle Check and Cleaning utility prints a nozzle check pattern that the
printer then reads to see if you have any clogged nozzles. If cleaning is needed, the
printer automatically cleans the print head.
1. Make sure the printer is turned on but not printing, and the red H ink light is off.
(If the H ink light is flashing or on, you need to replace a cartridge; see page 82.)
2. Load several sheets of plain, letter-size paper in the printer’s sheet feeder.
3. Do one of the following:
Windows: Right-click the
icon on your taskbar (in the lower right corner of
your screen). Select Auto Head Cleaning.
Note: If the icon does not appear, click Start > Printer (and Faxes), right-click on
EPSON Stylus Photo R2400, and select Printing Preferences. Select the
Maintenance tab and click Auto Nozzle Check and Cleaning.
Mac OS X: Open the Applications folder and select EPSON Printer Utility.
Select SP R2400, click OK, and select Auto Nozzle Check and Cleaning.
4. Follow the instructions on the screen. The printer prints and examines the nozzle
check pattern shown below. If cleaning is necessary, it then cleans the print head
and prints and checks another nozzle check pattern.
5. The utility prints and checks up to five times. If some print head nozzles are still
clogged, it displays an on-screen message telling you to manually clean the print
head. Follow the instructions on page 81 to clean the print head, if necessary.
If you still have print quality problems, check the solutions beginning on page 99.
You can also turn the printer off and wait overnight—this allows any dried ink to
soften—and then try cleaning the print head again.
80
Maintaining Your Printer
Running the Head Cleaning Utility
1. Make sure the printer is turned on but not printing, and the red H ink light is off.
(If the H ink light is flashing or on, you need to replace a cartridge; see page 82.)
2. Do one of the following:
Windows: Right-click the
icon on your taskbar (in the lower right corner of
your screen). Select Head Cleaning.
Note: If the icon does not appear, click Start > Printer (and Faxes), right-click on
EPSON Stylus Photo R2400, and select Printing Preferences. Select the
Maintenance tab and click Head Cleaning.
Mac OS X: Open the Applications folder and select EPSON Printer Utility.
Select SP R2400, click OK, and select Head Cleaning.
3. Follow the instructions on the screen to clean the print head.
Cleaning takes about two minutes,
during which the printer makes noise
and the green P power light flashes.
Caution: Never turn off the printer
while the green P power light is
flashing, unless the printer hasn’t
moved or made noise for more
than 5 minutes.
4. When the green P power light stops flashing, make sure paper is loaded in the
printer. Click Print nozzle check pattern, then click Print (Windows) or click
Confirmation, then click Next (Macintosh). The nozzle check pattern prints.
5. If the nozzle check pattern has no gaps or lines (as shown below), click Finish.
Maintaining Your Printer
81
If the pattern has white lines or gaps (as shown below), click Clean to clean the
print head again.
If you don’t see any improvement after cleaning the print head three or four times,
check the solutions beginning on page 99. You can also turn the printer off and wait
overnight—this allows any dried ink to soften—and then clean the print head again.
Replacing an Ink Cartridge
When the red H ink light flashes, an ink cartridge is low on ink.
When the red H ink light stays on, you need to replace a cartridge.
You can open the printer cover to check the ink light indicating which cartridge is low
on ink or needs to be replaced.
When a cartridge is more than six months old, you may need to replace it if printouts
don’t look their best. If the quality doesn’t improve after cleaning and aligning the
print head, you can replace the cartridge even if the red H ink light is off.
Caution: Don’t open Epson Status Monitor, pause printing, or respond to ink
messages when your printer is printing. This may cause your printer to pause and
leave an uneven surface on your printout. If ink is low, wait until printing finishes
before checking ink levels or replacing a cartridge. If you replace an ink cartridge
in the middle of a print job, the quality of your printout may decline. For best
results, check ink cartridge status and replace cartridges, if necessary, before
printing large or high-resolution print jobs.
82
Maintaining Your Printer
Checking the Ink Cartridge Status
To check your ink cartridge status, do one of
the following:
■
Windows: Double-click the
taskbar.
icon on the Windows
You see a window like this:
■
Mac OS X: Choose Applications > EPSON Printer
Utility > SP R2400 > EPSON StatusMonitor.
You see a window like this:
Click a cartridge image to display information about the
cartridge.
Purchasing Ink Cartridges
Use these Epson ink cartridges within six months of installing them and before the
expiration date on the package:
Ink cartridge
Part number
Light Light Black
T059920
Light Magenta
T059620
Light Cyan
T059520
Light Black
T059720
Photo Black
T059120
Matte Black
T059820
Cyan
T059220
Magenta
T059320
Yellow
T059420
Caution: To ensure good results, use genuine Epson ink cartridges and do not
refill them. Other products may cause damage to your printer not covered by
Epson’s warranty.
Maintaining Your Printer
83
You can purchase genuine Epson ink and paper from an authorized Epson reseller. To
find the nearest reseller, please call 800-GO-EPSON (800-463-7766). Or you can
purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian
sales).
Ink Cartridge Precautions
Warning: Keep ink cartridges out of the reach of children and don’t drink the ink.
If ink gets on your hands, wash them thoroughly with soap and water. If ink gets
in your eyes, flush them thoroughly with water.
Caution: To avoid damaging the printer, never move the print head by hand.
You cannot print if an ink cartridge is expended. Leave the cartridge you need to
replace installed in the printer until you have obtained a replacement. Otherwise
the ink remaining in the print head nozzles may dry out.
Removing and Installing Ink Cartridges
Be sure you have a new ink cartridge before you begin. Once you start replacing a
cartridge, you must complete all the steps in one session.
You can replace a cartridge whether the red H ink light is off, flashing, or on.
1. Make sure the printer is turned on (the green P power light should be on, but not
flashing). Then open the printer cover.
2. Press the H ink button.
The print head moves and the green P power light flashes.
If a red ink light is flashing or on (indicating a low or expended cartridge), the
cartridge(s) indicated beneath the light(s) needs to be replaced.
3. Lift up the cartridge cover.
84
Maintaining Your Printer
4. Press in the tab on the back of the cartridge, lift it out of the printer, and dispose
of it carefully.
5. Shake the new cartridge four or five times before
opening its package. (Don’t shake it after it’s
unwrapped.)
6. Remove the new cartridge from its package.
Caution: Don’t touch the green circuit board on
the front of the cartridge; you may inhibit normal
operation and printing.
7. Slide the new cartridge into its slot. The side with the green circuit board goes in
the front of the slot.
8. Press the cartridge down until it clicks into place.
9. If you need to replace any other ink cartridges, repeat steps 4 through 8.
10. Close the cartridge cover, press down on the top until it clicks, then close the
printer cover.
Maintaining Your Printer
85
11. Press the H ink button. The printer begins charging the ink delivery system.
The green P power light and red H ink lights flash and the printer makes noise.
Charging takes about 90 seconds. When it’s finished, the green P power light
stops flashing and stays on. The red H ink light and the light(s) above the
cartridge(s) go out.
Caution: Never turn off the printer while the green P power light is flashing,
unless the printer hasn’t moved or made noise for more than 5 minutes.
Aligning the Print Head
If your printouts contain misaligned vertical lines, or you see light or dark horizontal
banding, you may need to align the print head. You can have the printer
automatically check and align the print head or you can check and adjust it yourself.
Automatically Aligning the Print Head
1. Make sure the printer is turned on but not printing.
2. Load at least three sheets of letter-size Epson Presentation Paper Matte (Photo
Quality Ink Jet Paper).
3. Do one of the following:
Windows: Right-click the
icon on your taskbar (in the lower right corner of
your screen). Select Print Head Alignment.
Note: If the icon does not appear, click Start > Printer (and Faxes), right-click on
EPSON Stylus Photo R2400, and select Printing Preferences. Select the
Maintenance tab and click Print Head Alignment.
Mac OS X: Open the Applications folder and select EPSON Printer Utility.
Select SP R2400, click OK, and select Print Head Alignment.
86
Maintaining Your Printer
You see a screen like this:
4. Click the Automatic button, if necessary,
then click OK.
5. On the next screen, click Start. The printer
prints and checks an alignment pattern, and
then prints and checks two more patterns.
6. When alignment is finished, click Finish on the last screen.
Manually Aligning the Print Head
1. Make sure the printer is turned on but not printing.
2. Load letter-size Epson Presentation Paper Matte (Photo Quality Ink Jet Paper).
3. Do one of the following:
Windows: Right-click the
icon on your taskbar (in the lower right corner of
your screen). Select Print Head Alignment.
Note: If the icon does not appear, click Start > Printer (and Faxes), right-click on
EPSON Stylus Photo R2400, and select Printing Preferences. Select the
Maintenance tab and click Print Head Alignment.
Mac OS X: Open the Applications folder and select EPSON Printer Utility.
Select SP R2400, click OK, and select Print Head Alignment.
4. Click the Manual button, then click OK.
You see a screen like this as the printer
prints an alignment check pattern:
5. On the check page, select the box in each
pattern with the least noticeable lines. You
may need to use a magnifying glass. Select
one box for each pattern numbered 1
through 3. Then enter the box number for
each pattern in the boxes on the screen.
If box #5 is not the best-aligned box in
each pattern, click Realignment to print another test page and repeat this step.
6. When box #5 is the best-aligned in all the patterns, click Finish.
Maintaining Your Printer
87
Cleaning the Printer
To keep your printer working at its best, you should clean it several times a year.
1. Turn off the printer, unplug the power cord, and disconnect the interface cable.
2. Remove all the paper, then use a soft brush to clean the paper feeders.
3. Clean the exterior of the printer with a soft, damp cloth. Keep the paper support
and printer cover closed as you clean the printer.
4. If you need to clean ink out of the inside of the printer, use a soft cloth to clean
only the black plastic area shown below:
Clean here
only
Warning: Don’t touch the gears or rollers inside the printer.
Caution: Never use a hard or abrasive brush, or benzine, alcohol, or thinner for
cleaning; they can damage the printer components and case.
Don’t get water on the printer components and don’t spray or apply lubricants or
oils inside the printer.
Don’t use any cleaning sheets included with special paper; they may jam inside
the printer.
88
Maintaining Your Printer
Transporting the Printer
If you move your printer some distance, you need to prepare it for transportation in
its original box or a similar one. Follow these steps:
1. Turn on the printer, and wait for the ink cartridge holder to move right to the
home position.
2. Turn off the printer, unplug the power cord, and disconnect the interface cable.
3. Open the printer cover and tape the ink cartridge holder to the printer case using
packing tape. Then close the printer cover.
Tape the ink
cartridge holder to
the printer case
Caution: Be sure to remove the tape after installing the printer in its new
location.
4. Remove any paper from the printer, then remove the roll paper holder or single
sheet guide, if it is installed.
5. Close the output tray and the paper support.
6. Repack the printer and its attachments in the original box using the protective
materials that came with them.
Keep the printer level as you transport it.
After transporting the printer, remove the tape you used in step 3. Then test your
printer. If you notice a decline in print quality, clean the print head (see page 79); if
output is misaligned, align the print head (see page 86).
Maintaining Your Printer
89
90
Maintaining Your Printer
Solving Problems
See “Diagnosing Printer Problems” on page 94 to help determine what the cause of
your printer problem may be. Then see these sections for solutions:
■
“Setup and Software Installation Problems” on page 97
■
“Printer Problems” on page 98
■
“Quality Problems” on page 99
■
“Paper Problems” on page 101
■
“Miscellaneous Problems” on page 104
■
“Uninstalling and Reinstalling Printer Software” on page 105
■
“Where To Get Help” on page 106
Tip: It’s a good idea to check Epson’s support website periodically for free
updates to your printer driver. Visit http://support.epson.com. Download
instructions are posted for your convenience.
91
Printer Parts
Paper support and
extensions
Sheet feeder
Left edge guide
Printer cover
Output tray
Output tray
extension
Roll paper guides
Ink cartridge holder
(in home position)
Paper support closed
Front path
Roll paper edge guide
USB port
Roll paper holder
92
Solving Problems
IEEE 1394 (FireWire)
port
Buttons and lights
(control panel)
Printer Buttons
The table below summarizes the functions of the printer buttons.
Button
Uses
P power
Turns the printer on and off. Hold down the button until the P power
light comes on or goes off.
) paper
Loads or ejects paper.
Resumes printing after a paper-out or multiple-sheet-feed error.
Clears paper error after unloading roll paper.
Cancels a print job while printing.
H ink
Moves the print head to the ink cartridge replacement position and
returns it to its home position.
Cleans the print head. Hold down the button for 3 seconds when the
red H ink light is off.
z roll paper
Prints a cutting guideline and feeds roll paper to the removal position
after roll paper printing.
Returns roll paper to the printing position after cutting.
Reverses roll paper or paper in the single sheet guide out of the printer
when held down for 3 seconds.
Solving Problems
93
Printer Lights
The table below summarizes the functions of the printer lights.
Light
Meaning
Red ) paper out
On: printer is out of paper, multiple sheets have fed, or the wrong
size sheet has fed.
Flashing: paper isn’t loaded for the currently selected paper path,
or paper is jammed.
Red H ink (eight)
On: an ink cartridge is expended, or the Photo Black or Matte
Black cartridges were swapped during printing.
Flashing: an ink cartridge is low on ink.
Green P power
On: printer is turned on.
Flashing: printer is receiving a print job, printing, replacing or
charging ink, or cleaning the print head.
Diagnosing Printer Problems
First, check the printer’s lights (see below) or run a printer check (see page 96).
Lights
Explanation
Green P power light
flashes
The printer is receiving a print job, printing, replacing or
changing ink, or cleaning the print head.
Red H ink light flashes
An ink cartridge is low on ink. Make sure you have a
replacement cartridge, then follow the steps on page 84 to
install it.
Red H ink light on
An ink cartridge is expended, not installed, not installed
correctly, or is not compatible with the printer. Follow the
steps on page 84 to install or reinstall the cartridge
correctly.
The Photo Black or Matte Black cartridges were swapped
during printing. Replace the original cartridge type in use
before the error occurred.
94
Solving Problems
Lights
Explanation
Red ) paper light on
Your paper ran out, or multiple sheets fed.
Sheet Feeder: If paper is out, load more paper and press
the ) paper button. If multiple sheets fed, press the
) paper button to eject the paper, then turn your printer
off and then on. For loading instructions, see page 12.
Single Sheet Guide: See page 17 for instructions on
loading single sheets of special papers.
Roll Paper: See page 21 for instructions on loading or
reloading roll paper.
Front Path: See page 25 for instructions on loading or
reloading thick media.
Red ) paper light flashes
Jammed paper is blocking print head movement, or you’re
trying to print on paper loaded into a path different than the
path specified in the printer driver.
If you suspect a paper jam, turn off the printer and pull out
the jammed paper. Open the cover and remove any
jammed or torn paper. Then do one of the following:
Sheet Feeder or Single Sheet Guide: Turn on the printer,
reload paper, and press the ) paper button.
Roll Paper: Cut off the printed portion, then remove the
paper (see page 43) and reload it (see page 21).
Front Path: See page 25 for instructions on loading or
reloading thick media.
If a print job was sent to one paper path, but media is
loaded only for another paper path, load the paper in the
correct path.
Red ) paper light flashes
quickly
Red H ink light flashes
quickly
Jammed paper or a foreign object is preventing the print
head from returning to the home position, or paper is
loaded in the sheet feeder and the front path door is open.
Turn off the printer, open the printer cover, and remove
any jammed or torn paper, or foreign object. Close the
front path door if it is open. Then turn the printer back on. If
the error persists, contact your dealer or Epson; see
page 106.
Solving Problems
95
Lights
Explanation
Green P power light
flashes
An unknown printer error has occurred.
Red ) paper light flashes
slowly
Turn off the printer, wait a few seconds, and turn it on
again. If the lights are still flashing, contact your dealer or
Epson; see page 106.
Red H ink light flashes
slowly
Running a Printer Check
You can run a printer check to determine whether a problem comes from the printer
or some other source.
1. Turn off your printer and computer, then disconnect the printer’s interface cable.
2. Load letter-size paper in the sheet feeder.
3. Hold down the ) paper button, then press and release the P power button.
Continue to hold down the ) paper button until the P power light flashes.
4. A test page prints the printer’s ROM version number and a nozzle check pattern.
■
If the check page prints, the problem probably lies in your software settings,
interface cable, or computer, or your software may not be installed correctly.
■
If the check page doesn’t print, the printer may have a problem.
Try the suggestions in “Problems and Solutions” beginning on page 97.
5. Turn off the printer, connect the interface cable, and turn on your printer and
computer.
96
Solving Problems
Problems and Solutions
Setup and Software Installation Problems
The printer makes noise after ink cartridge installation.
■
When you install ink cartridges, the printer must charge its print head for about
two and a half minutes. Wait until it’s finished (the green P power light stops
flashing) before you turn off the printer, or it may use excess ink the next time you
turn it on.
■
Make sure the ink cartridges are inserted completely, the ink cover is closed, and
no packing material remains in the printer. Turn off the printer, wait a moment,
then turn it back on to clear the error.
You’re having problems installing or using the printer software.
■
Make sure your printer is turned on and its cable is securely connected at both
ends. Follow the installation steps on the Start Here sheet, and make sure your
system meets the requirements on page 109.
■
Close other programs, including screen savers and virus protectors, and install
again.
■
If you see an error message with Windows 2000, you may not have software
installation privileges. Contact your System Administrator.
■
If you’re using Windows and the USB port, make sure your system was not
upgraded from Windows 95; the USB driver may not install correctly.
■
If you’re using Windows Vista, you cannot connect the printer using a FireWire
cable; you must use a USB cable.
■
If you’re printing over a network, see your on-screen Reference Guide for
instructions on configuring your printer for use on a network.
■
In Windows, make sure your printer is selected as the default printer in the
Printers utility.
Solving Problems
97
Printer Problems
Only the green P power light is on, but nothing prints.
■
Make sure the interface cable is securely connected at both ends and meets the
system requirements on page 109.
■
Run a printer check as described on page 96. If the test page prints, make sure
your software is installed correctly.
■
If you’re printing on a network, make sure you set up your printer for network
printing, as described in your on-screen Reference Guide.
The printer sounds as though it is printing, but nothing prints.
■
The print head may need cleaning; see page 79 for instructions.
■
The printer won’t operate properly if it’s tilted or at an angle. Place it on a flat,
stable surface.
Your printer makes noise when you turn it on or after it has been sitting for
awhile.
Your printer is performing routine maintenance.
Printing is too slow.
Make sure your system meets the recommended requirements listed on page 109.
You may also need to:
■
Clear space on your hard drive or run a defragmentation utility.
■
Close open programs that you’re not using.
■
Increase your system’s memory (RAM).
For the fastest printing:
98
■
Select Draft (Windows) or set the Quality/Speed slider to Speed (Macintosh).
■
Turn High Speed on and turn Finest Detail off, if available.
■
If your printer is connected to a USB hub, disconnect any unused USB devices.
Use a Hi-Speed USB 2.0 cable connected to a Hi-Speed USB 2.0 port.
Solving Problems
Quality Problems
You see banding (light lines).
■
Clean the print head; see page 79 for
instructions.
■
Select a higher print quality and turn off
High Speed mode; see page 31 (Windows)
or page 39 (Macintosh).
■
Select the correct Type or Media Type
setting for your paper; see page 41.
■
Make sure the printable side of the paper is face-up; it’s usually whiter or shinier.
■
The ink cartridges may need replacing; see page 82.
■
Align the print head as described on page 86.
Your print is blurry or smeared.
■
Make sure your paper isn’t damp, curled, or
loaded face down (load new paper face-up).
■
Use a support sheet with special paper, or
try loading your paper one sheet at a time.
■
Make sure your paper meets the
specifications listed in the on-screen
Reference Guide.
■
Use Epson papers for proper saturation and absorption of Epson inks. If you use a
paper not listed under the supported paper types, you may see smears, roller
marks, misting, or other problems in your printouts; see page 11.
■
Align the print head as described on page 86.
■
Select the Thick paper checkbox in your printer software. Access the setting from
the printer settings window as follows:
Windows: Click Maintenance and select Printer and Option Information.
Mac OS X: Select Extension Setting from the pop-up menu.
Solving Problems
99
Your printout is faint or has gaps.
■
Clean the print head; see page 79 for
instructions.
■
The ink cartridges may be old or low on
ink; see page 82.
■
Select the correct Type or Media Type
setting for your paper in the printer driver;
see page 41.
■
Make sure your paper isn’t damaged, old, dirty, or loaded face-down. For best
results, use genuine Epson paper.
Caution: Don’t open Epson Status Monitor, pause printing, or respond to ink
messages when your printer is printing. This may cause your printer to pause and
leave an uneven surface on your printout. If ink is low, wait until printing finishes
before checking ink levels or replacing a cartridge. If you replace an ink cartridge
in the middle of a print job, the quality of your printout may decline. For best
results, check ink levels and replace cartridges, if necessary, before printing large
or high-resolution print jobs.
Your printout is grainy.
■
Use a higher quality paper or select a higher print quality (for Windows, see
page 31; for Macintosh, see page 39).
■
Align the print head as described on page 86.
■
Increase the image resolution or print it in a smaller size; see your software
documentation.
■
Make sure you’re not printing a PostScript® file.
You see wrong or missing colors.
100
■
Make sure Color ink is selected (Macintosh), even when printing black and white
photographs, unless you are using Advanced B&W Print settings.
■
Clean the print head; see page 79 for instructions.
■
The ink cartridges may be old or low on ink; see page 82.
Solving Problems
■
Try turning off PhotoEnhance (Windows). Also check if you’re using a special
effect that alters image colors, like Sepia.
■
Change the Gamma setting (Macintosh); see page 39.
■
Your printed colors can never exactly match your on-screen colors. However, you
can use a color management system to get as close as possible. See the Photoshop
color management instructions on page 53. If your photos have a dark,
underexposed and/or yellow-brown cast or a light, overexposed and or light-blue
cast after using color management, see the solutions on page 62.
Paper Problems
Paper doesn’t eject fully or is wrinkled.
■
If the paper doesn’t eject fully, you may have set the wrong paper size. Press the
) paper button to eject the paper, then select the correct paper size.
■
If it’s wrinkled when it ejects, the paper may be damp or too thin. Load new
paper.
Paper sheets don’t feed correctly.
■
If paper doesn’t feed or multiple pages feed, remove it from the sheet feeder. Fan
the edges of the sheets, reload them against the right side of the feeder, and slide
the left edge guide against the paper, but not too tightly. Don’t load paper above
the arrow on the left edge guide.
■
If you are loading multiple sheets of matte paper that are larger than letter-size,
use the matte paper support. See page 15.
Paper sheets jam in the printer.
Press the ) paper button to eject the jammed paper. If that doesn’t work, try the
following:
1. Turn off the printer.
2. Remove any jammed paper from the printer’s output tray.
Solving Problems
101
3. Remove any jammed paper from the sheet feeder or open the printer cover and
remove any paper jammed inside. Press the ) paper button to clear the error.
Roll paper or canvas doesn’t feed correctly or jams in the printer.
■
Cut the end of the paper straight across. If the edge is uneven or frayed, the paper
won’t feed smoothly.
■
If the roll paper end is curled, place the end inside a folded sheet of paper and roll
it backwards against the curl.
■
Make sure the paper is loaded in the roll paper feeder, not the sheet feeder; see
page 21.
■
As you load the paper, gently hold it in the roll paper feeder and wait for it to
load; don’t force the paper in.
■
Select Roll as the Source (Windows) or the correct size and source of Roll Paper
for the Paper Size (Macintosh). Other settings will feed too much paper. See
page 43 for instructions.
■
If extra paper feeds, press the z roll paper button for three seconds to rewind the
paper all the way (repeat if necessary). If the ) paper light is on, press the
) paper button. Reload the paper as described on page 21.
Note: For certain paper types, clearing a paper jam may leave behind a fine layer
of paper dust, which may then appear on your next printout. To prevent this, use
a can of compressed air to blow paper dust out of the printer after clearing a
paper jam. Open the front path door and direct the airflow through the roll paper
feeder (under the white rollers) at the back of the printer. Start on the home
position side and move across. Do not blow paper dust into the home position
area.
102
Solving Problems
There is fiber or dust on the paper rollers, preventing paper from feeding
properly.
Paper dust may have built up on the paper rollers, preventing paper from feeding
properly. Use Epson Ink Jet Printer Cleaning Sheets (part number S041150) to clean
the rollers.
Caution: Do not use the cleaning sheets that come with Epson special papers;
they may jam inside your printer.
Follow these steps to clean the paper rollers:
1. Remove any paper loaded in the printer’s sheet feeder.
2. Remove the instruction sheet from the sticky side of the cleaning sheet.
Caution: Do not follow the loading instructions on the sheet; they are not correct
for your printer. Follow the steps here instead.
3. Position the cleaning sheet in the printer’s sheet feeder as shown below. Make sure
the sticky side of the cleaning sheet is face-up.
Sticky side is face-up
Cut corner
4. Press the ) paper button to feed the sheet through the printer.
5. When the sheet ejects, repeat steps 3 and 4 to feed the sheet through two more
times. Then discard the cleaning sheet.
Solving Problems
103
Miscellaneous Problems
The image is inverted, as if viewed in a mirror.
Turn off Mirror Image in the printer software or the mirror setting in your program.
See page 31 (Windows) or page 39 (Macintosh) for instructions.
The printer prints blank pages.
■
Make sure your printer is selected in the Print window, or in the Macintosh
Printer Setup Utility or Print Center.
■
Clean the print head; see page 79 for instructions.
You see incorrect characters.
■
Make sure the interface cable is securely connected at both ends and meets the
system requirements on page 109.
■
Make sure your printer is selected in the Print window, or in the Macintosh
Printer Setup Utility or Print Center.
■
If you’re using a switch box or USB hub with your printer, connect the printer
directly to your computer instead.
The margins are incorrect.
104
■
Make sure the paper settings are correct for your paper size. See page 28
(Windows) or page 33 (Macintosh).
■
Choose the correct margins for your paper size. The margins must be within the
printable area of the page; see “Printer Specifications” in your on-screen Reference
Guide.
■
Place your paper against the right side of the feeder with the left edge guide snug
against it.
■
Make sure the Borderless setting is set correctly for your margins; see page 43 for
roll paper or page 49 for cut sheets.
Solving Problems
Too many copies printed.
Make sure that the Copies option in your printer software or program is not set for
multiple copies.
Image size/position is incorrect.
Make sure the paper and layout options are set correctly.
Uninstalling and Reinstalling Printer
Software
You may need to uninstall and then reinstall your printer driver and utilities if, for
example, you upgrade your Windows operating system. You don’t need to uninstall
your other photo software or the Epson Reference Guide.
Windows
1. Click Start, and select Programs or All Programs.
2. Point to EPSON or EPSON Printers, then select EPSON Printer Software
Uninstall.
3. In the next window, select EPSON Stylus Photo R2400 and click OK. Then
follow the on-screen instructions.
In Windows Vista, when you see the User Account Control screen, click
Continue, then go to step 4.
4. Restart your computer, then see the Start Here sheet to reinstall your software.
Mac OS X
1. Open the Applications folder, then the Utilities folder.
2. Select Printer Setup Utility or Print Center, select Stylus Photo R2400, and
click the Delete button.
3. Insert your Epson Printer Software CD-ROM into your drive.
Solving Problems
105
4. Double-click the SPR2400 icon, then double-click the Vise icon. Click
Continue.
5. Select Uninstall from the drop-down menu, then follow the on-screen
instructions to remove the printer software.
6. Restart your Macintosh, then see the Start Here sheet to reinstall your software.
Where To Get Help
If you need help with your printer, see the information below.
For help with other software that came with your printer, see page 107.
Epson Technical Support
Epson provides these technical support services:
Internet Support
Visit Epson’s support website at epson.com/support and select your product for
solutions to common problems. You can download drivers and documentation, get
FAQs and troubleshooting advice, or e-mail Epson with your questions.
Speak to a Support Representative
Before you call for support, please have the following information ready:
106
■
Product name (Epson Stylus Photo R2400)
■
Product serial number (located on the back of the printer and on its box)
■
Proof of purchase (such as a store receipt) and date of purchase
■
Computer configuration and operating system version
■
Description of the problem
Solving Problems
Then call:
■
U.S.: (562) 276-7296, 6 AM to 8 PM, Pacific Time, Monday through Friday and
7 AM to 4 PM, Saturday.
■
Canada: (905) 709-2567, 6 AM to 6 PM, Pacific Time, Monday through Friday.
Toll or long distance charges may apply.
Purchase Supplies and Accessories
You can purchase genuine Epson ink and paper from an authorized Epson reseller.
To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). Or you can
purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian
sales).
Technical Support for Other Photo Software
Software
Web site or e-mail
Telephone
nik Multimedia
supportus@nikmultimedia.com
(619) 725-3150, 8:30 AM to
5 PM, Monday to Friday,
Pacific Time
Solving Problems
107
108
Solving Problems
Requirements and Notices
Windows System Requirements
To use your printer and its software, we recommend that your system has:
■
Microsoft Windows compatible PC with a Pentium® III-class 800 MHz or higher processor
(Pentium 4-class, 2 GHz or higher recommended)
■
Windows 2000, XP, XP Professional x64 Edition, or Windows Vista
■
512MB RAM (2GB recommended)
■
300MB hard disk space (1GB recommended)
■
4x or faster CD-ROM or DVD-ROM drive for installing the printer software
■
USB connection: a Windows-compliant USB 1.1 port or Hi-Speed USB 2.0 port (recommended)
and a shielded USB “AB” cable (Hi-Speed USB 2.0 recommended), 2 meter (6.5 ft) max. length
IEEE-1394 (FireWire) connection: an OHCI-compliant IEEE-1394 port and an IEEE-1394
cable; FireWire connection not supported in Windows Vista
Macintosh System Requirements
To use your printer and its software, we recommend that your system has:
■
An Apple® Mac-class computer with one or more: PowerPC® G4 733 MHz (1 GHZ
recommended), PowerPC G5, or Intel® CoreTM processor
■
Mac OS X 10.2.8, 10.3.9 through 10.4.x
■
512MB RAM (2GB recommended)
■
300MB hard disk space (1GB recommended)
■
4x or faster CD-ROM or DVD-ROM drive for installing the printer software
■
USB connection: a shielded USB “AB” cable (Hi-Speed USB 2.0 recommended), 2 meter (6.5 ft)
max. length
FireWire connection: an OHCI-compliant FireWire port and a FireWire cable
109
Important Safety Instructions
Before using your printer, read these safety instructions to make sure you use it safely and effectively:
■
Be sure to follow all warnings and instructions marked on the printer.
■
Use only the type of power source indicated on the printer’s label.
■
Connect all equipment to properly grounded power outlets. Avoid using outlets on the same
circuit as photocopiers or air control systems that regularly switch on and off.
■
Place the printer near a wall outlet where the plug can be easily unplugged.
■
Do not let the power cord become damaged or frayed.
■
If you use an extension cord with the printer, make sure the total ampere rating of the devices
plugged into the extension cord does not exceed the cord’s ampere rating. Also, make sure the total
ampere rating of all devices plugged into the wall outlet does not exceed the outlet’s ampere rating.
■
Keep your printer and computer system away from potential sources of electromagnetic
interference, such as loudspeakers or cordless telephone base units.
■
Avoid locations that are subject to rapid changes in heat or humidity, shocks or vibrations, or dust.
■
Leave enough room around the printer for sufficient ventilation, leaving at least 3.9 inches
between the back of the printer and the wall.
■
Do not place the printer near a radiator or heating vent or in direct sunlight.
■
Place the printer on a flat, stable surface that extends beyond the printer base in all directions. The
printer will not operate properly if it is tilted or at an angle.
■
When transporting or storing the printer, don’t tilt it, stand it on its side, or turn it upside-down.
This may allow ink to leak from the ink cartridges.
■
Turn off and unplug the printer before cleaning. Clean with a damp cloth only. Do not spill liquid
on the printer.
Caution: Always turn the printer off using the P power button. Don’t switch off the power
strip or unplug the printer until the green P power light is off.
■
Do not block or cover the openings in the printer’s case or insert objects through the slots.
■
Except as specifically explained in this manual, do not attempt to service the printer yourself.
■
Unplug the printer and refer servicing to qualified service personnel under the following
conditions:
If the power cord or plug is damaged; if liquid has entered the printer; if the printer has been
dropped or the case damaged; if the printer does not operate normally or exhibits a distinct change
in performance. Adjust only those controls that are covered by the operating instructions.
110
Requirements and Notices
Ink Cartridge Safety Instructions
■
Keep ink cartridges out of the reach of children.
■
Be careful when you handle used ink cartridges; there may be ink remaining around the ink supply
port. If ink gets on your skin, wash it off with soap and water. If it gets in your eyes, flush them
immediately with water.
■
Do not put your hand inside the printer or touch a cartridge during printing.
■
Do not move the print head by hand. You may damage the printer.
■
Install the ink cartridge immediately after you remove it from its package. Leaving the cartridge
unpacked for a long time before use can result in reduced print quality.
■
Do not use an ink cartridge beyond the date printed on the cartridge carton. For best results, use
up the ink cartridges within six months of first installing them.
■
Store ink cartridges in a cool, dark place.
■
Store ink cartridges with the bottom of the packaging facing down.
■
After bringing an ink cartridge inside from a cold storage site, allow it to warm up at room
temperature for at least three hours before using it.
■
Shake an ink cartridge 4 or 5 times before removing it from its package.
■
Do not shake an ink cartridge after removing it from its package; this can cause leakage.
■
Do not remove or tear the label on an ink cartridge; this can cause leakage.
■
Do not dismantle the ink cartridges or try to refill them. This could damage the print head.
■
Do not touch the green IC chip on the front of the cartridge. This may affect normal operation
and printing.
■
If you remove an ink cartridge for later use, protect the ink supply area from dirt and dust and
store it in the same environment as the printer. Note that there is a valve in the ink supply port,
making covers or plugs unnecessary, but care is needed to prevent the ink from staining items that
the cartridge touches. Do not touch the ink cartridge ink supply port or surrounding area.
Requirements and Notices
111
FCC Compliance Statement
For United States Users
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio or television reception. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause interference to radio
and television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and receiver.
■
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
■
Consult the dealer or an experienced radio/TV technician for help.
WARNING: The connection of a non-shielded equipment interface cable to this equipment will
invalidate the FCC Certification of this device and may cause interference levels which exceed the
limits established by the FCC for this equipment. It is the responsibility of the user to obtain and use a
shielded equipment interface cable with this device. If this equipment has more than one interface
connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly
approved by the manufacturer could void the user’s authority to operate the equipment.
For Canadian Users
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
112
Requirements and Notices
Declaration of Conformity
According to 47CFR, Part 2 and 15 for Class B Personal Computers and Peripherals; and/or
CPU Boards and Power Supplies used with Class B Personal Computers:
We:
Epson America, Inc.
Located at:
MS: 3-13
3840 Kilroy Airport Way
Long Beach, CA 90806
Telephone: (562) 290-5254
Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and
15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative
unit tested and found to be compliant with the standards. Records maintained continue to reflect the
equipment being produced can be expected to be within the variation accepted, due to quantity
production and testing on a statistical basis as required by 47CFR §2.909. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Trade Name:
Epson
Type of Product: Ink Jet Printer
Model:
B321A
Epson America, Inc. Limited Warranty
What Is Covered: Epson America, Inc. (“Epson”) warrants to the original retail purchaser that the
Epson printer covered by this limited warranty statement, if purchased and operated only in the United
States or Canada, conforms to the manufacturer’s specifications and will be free from defects in
workmanship and materials for a period of one (1) year from the date of original purchase. Epson also
warrants that the consumable ink cartridges enclosed with the printer will perform to the
manufacturer’s specified usage, which usage may expire before the expiration of the limited warranty
for the Epson printer. For warranty service, you must provide proof of the date of original purchase.
What Epson Will Do To Correct Problems: Should your Epson printer prove defective during the
warranty period, please call the Epson Connection SM at (562) 276-7296 (U.S.) or (905) 709-2567
(Canada) for warranty repair instructions and return authorization. An Epson service technician will
provide telephone diagnostic service to determine whether the printer requires service. If service is
needed, Epson will, at its option, exchange or repair the printer without charge for parts or labor. If
Epson authorizes an exchange for the defective unit, Epson will ship a replacement printer to you,
freight prepaid, so long as you use an address in Canada or the U.S. (excluding Puerto Rico and U.S.
Possessions). Shipments to other locations will be made freight collect. You are responsible for securely
packaging the defective unit and returning it to Epson within five (5) working days of receipt of the
replacement. Epson requires a debit or a credit card number to secure the cost of the replacement
Requirements and Notices
113
printer in the event that you fail to return the defective one. If your printer is being repaired, Epson will
direct you to send your printer to Epson or its authorized service center, where the printer will be fixed
and sent back to you. You are responsible for packing the printer and for all costs to and from the
Epson authorized service center. When warranty service involves the exchange of the printer or a part,
the item replaced becomes Epson property. The replacement printer or part may be new or refurbished
to the Epson standard of quality, and, at Epson’s option, may be another model of like kind and
quality. Epson’s liability for replacement of the covered printer will not exceed the original retail selling
price of the covered printer. Exchange products and parts assume the remaining warranty period of
your original product covered by this limited warranty.
What This Warranty Does Not Cover: This warranty does not apply to refurbished or reconditioned
products. This warranty covers only normal use in the United States and Canada. Using this product
for continuous production or similar high duty purposes is not considered normal use; damage,
maintenance or service from such use will not be covered under this warranty. This warranty is not
transferable. This warranty does not cover any color change or fading of prints or reimbursement of
materials or services required for reprinting. This warranty does not cover damage to the Epson
product caused by parts or supplies not manufactured, distributed or certified by Epson. This warranty
does not cover ribbons, ink cartridges or third party parts, components, or peripheral devices added to
the Epson product after its shipment from Epson, e.g., dealer or user-added boards or components.
Epson is not responsible for warranty service should the Epson label or logo or the rating label or serial
number be removed or should the product fail to be properly maintained or fail to function properly as
a result of misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters
such as fire, flood, and lightning, improper electrical current, software problems, interaction with
non-Epson products, or service other than by an Epson Authorized Servicer. If a claimed defect cannot
be identified or reproduced, you will be held responsible for the costs incurred.
THE WARRANTY AND REMEDY PROVIDED ABOVE ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT OR
FITNESS FOR A PARTICULAR PURPOSE. SOME LAWS DO NOT ALLOW THE
EXCLUSION OF IMPLIED WARRANTIES. IF THESE LAWS APPLY, THEN ALL EXPRESS
AND IMPLIED WARRANTIES ARE LIMITED TO THE WARRANTY PERIOD IDENTIFIED
ABOVE. UNLESS STATED HEREIN, ANY STATEMENT OR REPRESENTATIONS MADE
BY ANY OTHER PERSON OR FIRM ARE VOID. EXCEPT AS PROVIDED IN THIS
WRITTEN WARRANTY, NEITHER EPSON AMERICA, INC. NOR ITS AFFILIATES SHALL
BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE
OR INABILITY TO USE THE EPSON PRODUCT, WHETHER RESULTING FROM BREACH
OF WARRANTY OR ANY OTHER LEGAL THEORY.
In Canada, warranties include both warranties and conditions.
Some jurisdictions do not allow limitations on how long an implied warranty lasts, and some
jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations and exclusions may not apply to you. This warranty gives you specific legal rights and
you may have other rights which vary from jurisdiction to jurisdiction.
Epson America, Inc. ■ P. O. Box 93012 ■ Long Beach, CA 90809-3012
114
Requirements and Notices
Index
A
Adobe Photoshop, managing color with, 53 to
66
Advanced B&W Photo mode, 73 to 78
Advanced settings
Macintosh, 39 to 40
Windows, 31 to 33
Aligning print head, 86 to 87
Automatic
print head aligning, 86 to 87
print head cleaning, 80
Automatic mode, Macintosh, 36
B
Background printing, 38
Banding, 99
Basic printing
Macintosh, 33 to 38
Windows, 28 to 30
Best Photo setting, 29, 50
Blank pages, 104
Blurry images, 99
Borderless setting, 29, 49 to 52
Bright White Paper, 14, 41
Browser, 10
Buttons, 93, 95 to 96
C
Cable, printer, 109
Cancelling printing
Macintosh, 38
Windows, 30
Canvas, see Roll paper
Characters, incorrect, 104
Checking printer, 96
Cleaning
print head, 79 to 82
printer, 88
Color management
menu, Macintosh, 37
problems, 62
settings, 31 to 32, 37, 40, 53 to 66
with color profiles, 53 to 66
Color problems, 62, 100
ColorSync, 40
Control panel, 92 to 93, 96
Controlling printing
Macintosh, 38
Windows, 30
Custom profiles, 62 to 66
Custom settings
Macintosh, 39 to 40
Windows, 31 to 33
D
Declaration of Conformity, 113
Default settings, Windows, 30
Documentation, 9 to 10
Draft setting, 29, 98
Dust, paper, 102
E
Edge Smoothing setting
color management, 56, 61, 64, 66
Windows, 32
Electronic manual, 9 to 10
Enhanced Matte Paper, 14, 41
Epson
help, 106 to 107
papers, 14, 41, 49
PhotoCenter, 8
warranty, 113 to 114
115
Exif Print, description, 8
Expansion setting, 50, 52
Extension setting, 37, 99
F
Faint images, 100
FCC Compliance Statement, 112
Features, 7
J
G
L
Gamma setting, Macintosh, 101
Glossy photo paper, 14, 41, 44, 47, 49
Grainy prints, 100
Layout problems, 105
Layout settings
Macintosh, 37
Windows, 33
Letterhead, 13
Light Black ink cartridge, 7, 83
Light Light Black ink cartridge, 7, 83
Lights, 94 to 96
Luster photo paper, 14, 41, 44, 47
H
Head Cleaning utility, 81 to 82
Help
Epson, 106 to 107
other software, 107
see also Troubleshooting
High Speed setting, 98 to 99
I
ICM (Image Color Matching) setting, 32, 57,
66
Incorrect
characters, 104
colors, 62, 100
margins, 104
Ink cartridge
level of ink in, 83
ordering, 83 to 84
problems, solving, 94, 97
replacing, 82 to 86
safety instructions, 84, 111
116
Ink level, checking
Macintosh, 83
Windows, 83
Installation problems, 97
Inverted image, 104
Jams, paper, 95, 101 to 102
M
Macintosh
basic printing, 33 to 38
custom printing, 39 to 40
system requirements, 109
uninstalling software, 105 to 106
Maintaining printer, 79 to 88
Margins, incorrect, 104
Matte Black ink cartridge, 7, 68, 83
Matte paper, 14, 15, 41, 49
Matte sheet support, 15 to 16
Media Type setting, Macintosh, 36, 41, 47
Mirror images, 104
Monitoring ink level
Macintosh, 83
Windows, 83
Moving printer, 89
N
Network printing, 97
Noise, printer, 98
Nozzle Check, 80 to 82
O
Orientation setting, 29, 35
P
Page Setup, Macintosh, 35
Paper
Epson, 14, 41, 49
feeding problems, 101 to 102
jams, 95, 101 to 102
loading in sheet feeder, 12 to 13
loading in single sheet guide, 17 to 20
loading multiple matte sheets, 15 to 16
loading special, 14
roll, see Roll paper
Paper dust, 102
Paper Size setting, 34 to 35
Paper Source setting, 20, 26, 35
Paper Type setting, Windows, 29, 41, 44
Photo Black ink cartridge, 7, 68, 83
Photo RPM setting, 31, 39
Photo setting, 29, 50
Photo software, 8
PhotoCenter, Epson, 8
PhotoEnhance, 29, 101
PremierArt Paper, 17, 49
Premium Bright White Paper, 14, 41
Premium Glossy Photo Paper, 14, 41, 44, 47,
49
Premium Luster Photo Paper, 14, 41, 44, 47, 49
Premium Semigloss Photo Paper, 14, 41, 44,
47, 49
Preprinted paper, 13
Print Center, Macintosh, 38
Print dialog box, Windows, 28, 30
Print head
aligning, 86 to 87
cleaning, 79 to 82
Print Head Alignment utility, 86 to 87
Print Quality
problems, 99 to 100
setting, 39, 64
Print Settings menu, Macintosh, 36
Printer
cable, 109
check, 96
cleaning, 88
control panel, 92 to 93, 96
maintaining, 79 to 88
noise, 98
parts, 92
problems, 94 to 96, 98
transporting, 89
Printing
Macintosh, advanced, 39 to 40
Macintosh, basic, 33 to 38
Windows, advanced, 31 to 33
Windows, basic, 28 to 30
Problems
diagnosing, 94 to 96
installing software, 97
miscellaneous, 104 to 105
paper feeding, 101 to 102
print quality, 99 to 100
printer, 98
solving, 91 to 107
uninstalling software, 105 to 106
Q
Quality Option setting, 29, 50, 56, 66
Quality/Speed setting, 36, 47, 52, 98
117
R
T
Reference Guide, 9 to 10
Reinstalling software, 106
Roll paper
button, 48
controlling printing, 48
holder, 22 to 24, 48
loading, 21 to 24, 43
options, 45, 47
printing on, 43 to 47
problems, solving, 95, 102
removing, 48
storing, 48
Technical support, 106 to 107
Testing printer, 96
Text & Image setting, 29
Text setting, 29
Thick paper setting, 37, 99
Transporting printer, 89
Troubleshooting, 91 to 107
Type setting, Windows, 29, 41, 44
S
Safety instructions, 110 to 111
Semigloss photo paper, 14, 41, 44, 47
Service, 106 to 107
Sheet feeder
loading paper in, 12 to 13
problems, solving, 95, 101 to 102
Single sheet guide, 17 to 20
Size setting, 29, 44
Slow printing, 98
Smeared printout, 37, 99
Software
installation problems, solving, 97
photo, 8
reinstalling, 106
summary, 8
uninstalling, 105 to 106
Source setting, 20, 26, 29, 45, 50
Support, 106 to 107
System requirements, 109
118
U
Uninstalling software, 105 to 106
USB, 97, 104, 109
Utilities
Auto Nozzle Check and Cleaning, 80
Head Cleaning, 81 to 82
Nozzle Check, 80 to 82
Print Head Alignment, 86 to 87
V
Velvet Fine Art Paper, 17, 49
W
Warranty, 113 to 114
Watermark, 33
Windows
advanced printing, 31 to 33
basic printing, 28 to 30
default settings, 30
system requirements, 109
uninstalling software, 105 to 106
