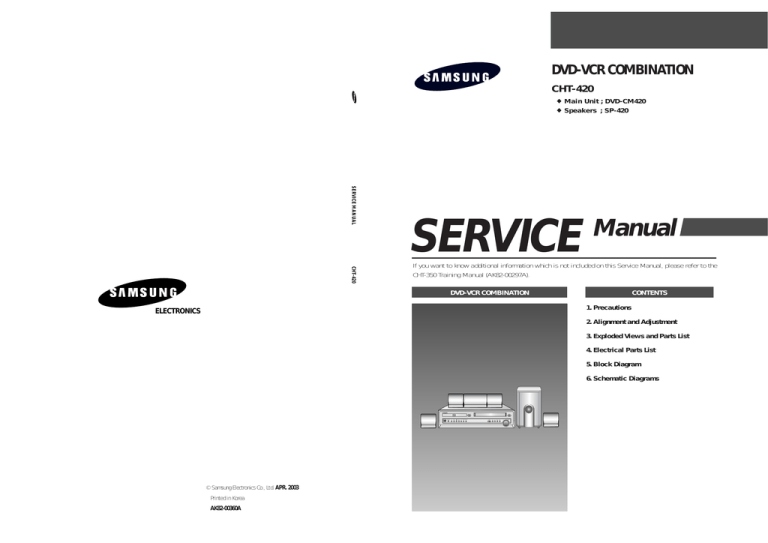

Samsung DVD-CM350 Service manual

DVD-VCR COMBINATION
CHT-420
◆ Main Unit ; DVD-CM420
◆ Speakers ; SP-420
SERVICE MANUAL
SERVICE
Manual
CHT-420
If you want to know additional information which is not included on this Service Manual, please refer to the
CHT-350 Training Manual (AK82-00297A).
DVD-VCR COMBINATION
CONTENTS
1. Precautions
ELECTRONICS
2. Alignment and Adjustment
3. Exploded Views and Parts List
4. Electrical Parts List
5. Block Diagram
6. Schematic Diagrams
EJECT
OPEN/CLOSE
PHONES
© Samsung Electronics Co., Ltd. APR. 2003
Printed in Korea
AK82-00360A
REC
S.MODE S.EFFECT
CHANNEL
DVD
VCR
FM/AM
INPUT
VOL
IMPORTANT SERVICE GUIDE
◆ MODE SWITCH (PROGRAM SWITCH) ASSEMBLY POINT
1) When installing the ass’y deck on the Main PCB, be sure to align the assembly point of mode switch.
ASSEMBLY POINT
VCR MAIN PCB
Fig. 1
◆ HOW TO EJECT THE CASSETTE TAPE
(If the tape is stuck in the unit)
1) Turn the Gear Worm Πclockwise in the direction of arrow with screwdriver. (See Fig. 2)
(Other method ; Remove the screw of Motor Load Ass’y, Separate the Motor Load Ass’y)
2) When Slider S, T are approach the unloading position, rotate holder Clutch counterclockwise after inserting screwdriver in the
frame’s bottom hole in order to wind the unwound tape. (Refer to Fig. 3)
(If you rotate Gear Worm Πcontinuously when tape is in state of unwinding, you may cause tape contamination by grease and
tape damage. Be sure to wind the unwound tape in the state of set horizontally.)
3) Rotate Gear Worm Πclockwise using screw driver again up to the state of eject mode and then pick out the tape. (Refer to Fig. 2)
ΠGEAR WORM
FRAME
Fig. 2
Fig. 3
1. Precautions
1-1 Safety Precautions
1) Before returning an instrument to the customer,
always make a safety check of the entire instrument,
including, but not limited to, the following items:
(1) Be sure that no built-in protective devices are
defective or have been defeated during servicing.
(1)Protective shields are provided to protect both
the technician and the customer. Correctly replace
all missing protective shields, including any
removed for servicing convenience.
(2)When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place
all protective devices, including, but not limited to,
nonmetallic control knobs, insulating fish papers,
adjustment and compartment covers/shields, and
isolation resistor/capacitor networks. Do not operate this instrument or permit it to be operated without all protective devices correctly installed and
functioning.
(2) Be sure that there are no cabinet openings through
which adults or children might be able to insert
their fingers and contact a hazardous voltage. Such
openings include, but are not limited to, excessively wide cabinet ventilation slots, and an improperly fitted and/or incorrectly secured cabinet back
cover.
(3) Leakage Current Hot Check-With the instrument
completely reassembled, plug the AC line cord
directly into a 120V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage
current tester or a metering system that complies
with American National Standards institute (ANSI)
C101.1 Leakage Current for Appliances and
Underwriters Laboratories (UL) 1270 (40.7). With
the instrument’s AC switch first in the ON position
and then in the OFF position, measure from a
known earth ground (metal water pipe, conduit,
etc.) to all exposed metal parts of the instrument
(antennas, handle brackets, metal cabinets, screwheads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis.
Any current measured must not exceed 0.5mA.
Reverse the instrument power cord plug in the outlet and repeat the test. See Fig. 1-1.
Any measurements not within the limits specified
herein indicate a potential shock hazard that must
be eliminated before returning the instrument to
the customer.
(READING SHOULD
NOT BE ABOVE
0.5mA)
LEAKAGE
CURRENT
TESTER
DEVICE
UNDER
TEST
TEST ALL
EXPOSED METER
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EARTH
GROUND
Fig. 1-1 AC Leakage Test
(4) Insulation Resistance Test Cold Check-(1) Unplug
the power supply cord and connect a jumper wire
between the two prongs of the plug. (2) Turn on the
power switch of the instrument. (3) Measure the
resistance with an ohmmeter between the
jumpered AC plug and all exposed metallic cabinet
parts on the instrument, such as screwheads,
antenna, control shafts, handle brackets, etc. When
an exposed metallic part has a return path to the
chassis, the reading should be between 1 and 5.2
megohm. When there is no return path to the chassis, the reading must be infinite. If the reading is
not within the limits specified, there is the possibility of a shock hazard, and the instrument must be
repared and rechecked before it is returned to the
customer. See Fig. 1-2.
Antenna
Terminal
Exposed
Metal Part
ohm
ohmmeter
Fig. 1-2 Insulation Resistance Test
Samsung Electronics
1-1
Precautions
2) Read and comply with all caution and safety related notes on or inside the cabinet, or on the chassis.
3) Design Alteration Warning-Do not alter or add to
the mechanical or electrical design of this instrument. Design alterations and additions, including
but not limited to, circuit modifications and the
addition of items such as auxiliary audio output
connections, might alter the safety characteristics of
this instrument and create a hazard to the user. Any
design alterations or additions will make you, the
servicer, responsible for personal injury or property
damage resulting therefrom.
4) Observe original lead dress. Take extra care to
assure correct lead dress in the following areas:
(1) near sharp edges, (2) near thermally hot parts (be
sure that leads and components do not touch thermally hot parts), (3) the AC supply, (4) high voltage,
and (5) antenna wiring. Always inspect in all areas
for pinched, out-of-place, or frayed wiring, Do not
change spacing between a component and the
printed-circuit board. Check the AC power cord for
damage.
1-2
5) Components, parts, and/or wiring that appear to
have overheated or that are otherwise damaged
should be replaced with components, parts and/ or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.
6) Product Safety Notice-Some electrical and mechanical parts have special safety-related characteristics
which are often not evident from visual inspection,
nor can the protection they give necessarily be
obtained by replacing them with components rated
for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by shading,
an (
)or a (
)on schematics and parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire and/or
other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate.
Samsung Electronics
Precautions
1-2 Servicing Precautions
CAUTION : Before servicing units covered by this
service manual and its supplements, read and follow
the Safety Precautions section of this manual.
Note : If unforseen circument create conflict between
the following servicing precautions and any of the
safety precautions, always follow the safety precautions. Remember: Safety First.
1-2-1 General Servicing Precautions
(1) a. Always unplug the instrument’s AC power cord
from the AC power source before (1) re-moving
or reinstalling any component, circuit board,
module or any other instrument assembly, (2)
disconnecting any instrument electrical plug or
other electrical connection, (3) connecting a test
substitute in parallel with an electrolytic capacitor in the instrument.
b. Do not defeat any plug/socket B+ voltage interlocks with which instruments covered by this
service manual might be equipped.
c. Do not apply AC power to this instrument and
/or any of its electrical assemblies unless all
solid-state device heat sinks are correctly installed.
d. Always connect a test instrument’s ground lead
to the instrument chassis ground before connecting the test instrument positive lead. Always
remove the test instrument ground lead last.
(4) An insulation tube or tape is sometimes used and
some components are raised above the printed
wiring board for safety. The internal wiring is
sometimes clamped to prevent contact with heating components. Install such elements as they
were.
(5) After servicing, always check that the removed
screws, components, and wiring have been installed correctly and that the portion around the
serviced part has not been damaged and so on.
Further, check the insulation between the blades of
the attachment plug and accessible conductive
parts.
1-2-2 Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet
and turn the power ON. Connect the insulation resistance meter (500V) to the blades of the attachment
plug. The insulation resistance between each blade of
the attachment plug and accessible conductive
parts(see note) should be more than 1 Megohm.
Note : Accessible conductive parts include metal panels, input terminals, earphone jacks, etc.
Note : Refer to the Safety Precautions section ground
lead last.
(2) The service precautions are indicated or printed on
the cabinet, chassis or components. When servicing, follow the printed or indicated service precautions and service materials.
(3) The components used in the unit have a specified
flame resistance and dielectric strength.
When replacing components, use components
which have the same ratings. Components ientified
by shading, by( ) or by ( ) in the circuit diagram
are important for safety or for the characteristics of
the unit. Always replace them with the exact
replacement components.
Samsung Electronics
1-3
Precautions
1-3 ESD Precautions
Electrostatically Sensitive Devices (ESD)
Some semiconductor (solid state) devices can be damaged easily by static electricity.
Such components commonly are called Electrostatically Sensitive Devices(ESD). Examples of typical ESD
devices are integrated circuits and some field-effect
transistors and semiconductor chip components. The
following techniques should be used to help reduce
the incidence of component damage caused by static
electricity.
(1) Immediately before handling any semiconductor
component or semiconductor-equipped assembly,
drain off any electrostatic charge on your body by
touching a known earth ground. Alternatively,
obtain and wear a commercially available discharging wrist strap device, which should be
removed for potential shock reasons prior to applying power to the unit under test.
(7) Immediately before removing the protective materials from the leads of a replacement ESD device,
touch the protective material to the chassis or circuit assembly into which the device will be
installed.
CAUTION : Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
(8) Minimize bodily motions when handling unpackaged replacement ESD devices. (Otherwise harmless motion such as the brushing together of your
clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient
to damage an ESD device).
(2) After removing an electrical assembly equipped
with ESD devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
(3) Use only a grounded-tip soldering iron to solder or
unsolder ESD devices.
(4) Use only an anti-static solder removal devices.
Some solder removal devices not classified as
“anti-static” can generate electrical charges sufficient to damage ESD devices.
(5) Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage
ESD devices.
(6) Do not remove a replacement ESD device from its
protective package until immediately before your
are ready to install it.(Most replacement ESD
devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or
comparable conductive materials).
1-4
Samsung Electronics
Precautions
1-4 Handling the optical pick-up
The laser diode in the optical pick up may suffer electrostatic breakdown because of potential static electricity from clothing and your body.
WRIST-STRAP
FOR GROUNDING
1M
The following method is recommended.
(1) Place a conductive sheet on the work bench (The
black sheet used for wrapping repair parts.)
(2) Place the set on the conductive sheet so that the
chassis is grounded to the sheet.
(3) Place your hands on the conductive sheet(This
gives them the same ground as the sheet.)
(4) Remove the optical pick up block
(5) Perform work on top of the conductive sheet. Be
careful not to let your clothes or any other static
sources to touch the unit.
THE UNIT
1M
CONDUCTIVE SHEET
Fig.1-3
(6) Short the short terminal on the PCB, which is inside the Pick-Up ASS’Y, before replacing the PickUp. (The short terminal is shorted when the PickUp Ass’y is being lifted or moved.)
(7) After replacing the Pick-up, open the short terminal on the PCB.
◆ Be sure to put on a wrist strap grounded to the
sheet.
◆ Be sure to lay a conductive sheet made of copper
etc. Which is grounded to the table.
Samsung Electronics
1-5
Precautions
1-5 Pick-up disassembly and reassembly
1-5-1 Disassembly
1-5-2 Assembly
1) Remove the power cord.
2) Disassemble the Deck-Assy.
3) Make solder land 2 points short on Pick-up.
(See Fig. 1-4)
4) Disassembly the Pick-up.
1) Replace the Pick-up.
2) Remove the soldering 2 points on Pick-up.
3) Reassemble the Deck-Assy.
Note : If the assembly and disassembly are not done in correct sequence, the Pick-up may be damaged.
PICK-UP ASS'Y
SOLDER LAND 2 POINTS SHORT
Fig. 1-4
1-6
Samsung Electronics
2. Alignment and Adjustments
2-1 VCR Adjustment
2-1-1 Reference
1) X-Point (Tracking center) adjustment, “Head switching adjustment” and “NVRAM option setting” can be adjusted with remote control.
2) When replacing the VCR Main PCB Micom (IC601) and NVRAM (IC603 ; EEPROM) be sure to adjust the “Head switching adjustment”
and “NVRAM option setting”.
3) When replacing the cylinder ass’y, be sure to adjust the “X-Point” and “Head switching adjustment”.
4) How to adjustment.
- Press the “SW718 (TEST)” button on Function-Timer PCB to set the adjustment mode.
- If the corresponding adjustment button is pressed, the adjustment is performed automatically.
2-1-1(a) Location of adjustment button of remote control
X-Point (Tracking Center) Adjustment ;
POWER
TV POWER
OPEN/CLOSC
MUTE
EJECT
SPEAKER
NVRAM Option Setting ;
TEST
Head Switching Adjustment ;
MODE
REPEAT
1
2
3
4
5
6
7
8
9
0
ZOOM
ATR
100+
ANGLE
TV VOL.
SOUND
MODE
SOUND
EFFECT
DIGEST
CH/TRK
TV
STEP
AMP VOL.
TV INPUT
SELECT
DVD
VCR
FM/AM
INPUT
CLEA
R
Y
DISPLA
U
EN
M
SE
TU
P
SC
DI
ENTER
REC
RETURN
MARK
TITLE
SUBTITLE
SEARCH
SPEED
TIMER
AUDIO
SCREEN FIT
TV/VCR
Fig. 2-1
Samsung Electronics
2-1
Alignment and Adjustments
2-1-1(b) TEST location for adjustment mode setting
TEST (SW718) BUTTON
Fig. 2-2 Function-Timer PCB (Top View)
2-2
Samsung Electronics
Alignment and Adjustments
2-1-2 Head Switching Point Adjustment
1) Playback the alignment tape.
2) Press the “SW718(TEST)” button on Function-Timer PCB to set the adjustment mode. (See Fig. 2-2)
3) Press the “1, 0” buttons; remote control adjustment operates automatically. (See Fig. 2-1)
2-1-3 NVRAM Option Setting
1) NVRAM Option is adjusted in the factroy.
2) In case VCR Main PCB Micom (IC601) and NVRAM (IC603 ; EEPROM) are replaced, be sure to set the corresponding option number of
the required model. (If the option is not set, the unit will not operate.)
1) Press the “SW718(TEST)” button on Function-Timer PCB to set the adjustment mode. (See Fig. 2-2)
2) Press the “1, 4” buttons on the remote control. The option setting appears. (See Fig. 2-3)
3) Select the option number (See table 2-1) of corresponding model with “ , , , ” buttons on the
remote control.
4) After selecting the option number is completed, press the “ ” button of remote control.
(If “ ” button is pressed, the selected number is changescolor. ; See Fig. 2-4)
5) Press the “ENTER” button of remote control again to store the option number.
6) Turn the Power off.
01 02 03 04 05 06 07 08
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
33 34 35 36 37 38 39 40
MOVE :
SAVE :
ENTER
Fig. 2-3
MOVE :
COMPLETE
Fig. 2-4
<Table 2-1 NVRAM Option Table>
MODEL
DVD-CM420
Samsung Electronics
OPTION NUMBERS
2, 3, 4, 7, 10, 17, 25, 32
2-3
Alignment and Adjustments
2-2 DVD Adjustment
2-2-1 Location of Test Point
Fig. 2-5 Location of test Point (DVD Main PCB - Top Side)
2-4
Samsung Electronics
Alignment and Adjustments
2-2-2 Skew Adjustment
2-2-2(a) Adjustment Spec. and Test Point
◆ Test Disc ; Service not Available
<Table 2-2>
Test Disc
Adjustment Spec.
Test Point
Adjustment Location
TDV-533
Chapter 14
Flat Waveform
“ENV”
(DVD Main PCB - Top Side)
(See Fig. 2-5)
Ass’y Deck - Bottom Side
(See Fig. 2-6)
◆ SKEW (Tangential) : The shift on the Vertical axis of Spindle Motor movement.
◆ SKEW (Radial) : The shift on the Direction of the Spindle Motor movement.
A
T
R
B
Fig. 2-6 Ass’y Deck (Bottom Side)
Samsung Electronics
2-5
Alignment and Adjustments
2-2-2(b) SKEW Adjustment Method
Needed to minimize the variations in Skew of the Pick-up unit and to provide optimum match with the recorded
signal on the Disc.
1) Remove the Ass’y Deck.
Place the Ass’y Deck on a flat horizontal position.
2) Connect an Oscilloscope to the “ENV” Test Point. (See Fig. 2-5)
◆ Set the Oscilloscope Range as follows :
(Voltage ; 50mV/Div., Frequency ; 10m Sec.)
3) Connect Power, Open the Tray and Play the TDV-533 Disc, Chapter 14.
4) Adjust the Screws “A” and “B” (See Fig. 2-6) using a Hex screwdrvier until you obtain a Flat Waveform and
the picture is stable.
Then, go to Chapter 1 and make sure the Waveform is Flat here as well.
If not, you have to go back to Chapter 14 and adjust again.
If you cannot obtain a Flat waveform, then the unit is defective.
Note : The Deck must be in a horizontal position. Use both “A” and “B” screws to adjust, but mostly “A”.
Typical Waveform before Adjustment
Waveform after Correct Adjustment
Fig. 2-7 Envelope Waveform
2-6
Samsung Electronics
Alignment and Adjustments
2-2-3 RF SUM Level Adjustment
2-2-3(a) Adjustment Spec. and Test Point
<Table 2-3>
Test Disc
Adjustment Spec.
Test Point
Adjustment Location
TDV-525
1.7 ± 0.2V
“RF EQC”
(DVD Main PCB - Top Side)
(See Fig. 2-5)
VR1
(DVD Main PCB - Top Side)
(See Fig. 2-8)
Fig. 2-8 Location of VR1 (DVD Main PCB - Top Side)
Samsung Electronics
2-7
Alignment and Adjustments
2-2-3(b) RF SUM Level Adjustment Method
1) Connect an Oscilloscope to the “RF EQC ” Test Point. (See Fig. 2-5)
2) Play a Normal DVD disc and set the Oscilloscope Range as follows :
(Voltage ; 50mV/Div., Frequency ; 10m Sec.)
3) Adjust the RF SUM Level by turning the Semi-Variable Resistor (VR1) on the DVD Main PCB (See Fig. 2-8).
4) Adjust according the to table on the previous pages :
◆ 1.7V ± 0.2V
⌘ Warning : Do not turn the Voltage up too high, as this may damage the Laser Diode permanently.
Fig. 2-9 RF SUM Level Wavefrom
2-8
Samsung Electronics
Alignment and Adjustments
2-3 VCR Mechanical Adjustment
2-3-1 Tape Transport System and Adjustment Locations
The tape transport system has been adjusted precisely in the factory. Alignment is not necessary except for the
following :
1) Noise observed on the screen.
2) Tape damage.
3) Parts replacement in the tape transport system.
Lower flange height of tape guide is used as the reference for the transport adjustment.
To maintain the height of the tape guide and prevent damage, do not apply excessive force onto the main base.
CYLINDER ASS'Y
GUIDE ROLLER "S"
GUIDE ROLLER "T"
FULL ERASE HEAD
HEIGHT SCREW
#3 GUIDE POST
TENSION POST
PINCH ROLLER
TILT SCREW
X - POSITION
ADJUST SILT
#9 GUIDE POST
AZIMUTH SCREW
CAPSTAN
#8 GUIDE POST
TAKE UP REEL DISK
SUPPLY REEL DISK
Fig. 2-10 Location of Tape Transport Adjustment
PINCH ROLLER
FE HEAD
CYLINDER ASS'Y
GUIDE ROLLER "S"
GUIDE ROLLER "T"
POST TENSION
#8 GUIDE POST #9 GUIDE POST
#3 GUIDE POST
MAIN BASE
ACE HEAD
CAPSTAN SHAFT
Fig. 2-11 Tape Travel Diagram
Samsung Electronics
2-9
Alignment and Adjustments
2-3-2 Tape Transport System Adjustment
When parts are replaced, perform the required adjustments by referring to procedures for the tape transport
system. If there are any changes to the tape path, first run a T-120 tape and make sure excessive tape wrinkle does
not occur at the tape guides.
◆ If tape wrinkle is observed at the guide roller S, T, turn the guide roller S, T until wrinkle disappears.
◆ If the tape wrinkle is still observed at the tape guide, perform the tilt adjustment of the ACE head.
(1) ACE Head Assembly Adjustment
a. ACE HEAD HEIGHT ADJUSTMENT
1) Run the alignment tape (Color bar) in the playback mode.
2) Observe surface of the audio head using a dental mirror.
3) Turn screw (C) clockwise or counterclockwise until the gap of lower tape edge and the lower edge of the
control head is about 0.25mm. (Refer to Fig. 2-12 and 2-13)
SCREW (A)
TLIT ADJUST
SCREW (C)
HEIGHT ADJUST
X-POSITION
ADJUSTING SLIT
SCREW (D)
X-POSITION LOCKING
SCREW (B)
AZIMUTH ADJUST
Fig. 2-12 Location of ACE Head Adjustment Screw
AUDIO HEAD
VIDEO HEAD
0 ~ 0 .25 mm
CONTROL HEAD
Fig. 2-13 ACE Head Height Adjustment
2-10
Samsung Electronics
Alignment and Adjustments
b. ACE HEAD TILT ADJUSTMENT
1) Playback a blank tape and observe the position of the tape at the lower flange of tape guide.
2) Confirm that there is no curl or wrinkle at the lower flange of tape guide as shown in Fig. 2-14 (B).
3) If a curl or wrinkle of the tape occurs, slightly turn the screw (A) tilt adjust on the ACE head ass’y.
4) Reconfirm the ACE head height.
(A)
(B)
(BAD)
(GOOD)
WRINKLE
Fig. 2-14 Tape Guide Check
c. AUDIO AZIMUTH ADJUSTMENT
1) Load alignment tape (Mono scope) and playback the 7KHz signal.
2) Connect channel-1 scope probe to audio output.
3) Adjust screw (B) to achieve maximum audio level. (See Fig. 2-12)
Samsung Electronics
2-11
Alignment and Adjustments
d. ACE HEAD POSITION (X-POINT) ADJUSTMENT
1) Playback the alignment tape (Color bar).
2) Press the “SW718(TEST)” button on Function-Timer PCB to set the adjustment mode. (See Fig. 2-2)
3) Press the “0, 5” remote control buttons, then adjustment is operates automatically. (See Fig. 2-1)
4) Connect the CH-1 probe to “Envelope” the CH-2 probe to “H’D switching pulse” and then trigger to CH-1.
5) Insert the (-) driver into the X-Point adjustment hole and adjust it so that envelope waveform is maximum.
Test point :
TP2 (Audio Output)
TP3 (Envelope)
TP4 (H’D S/W -Trigger)
TP5 (Control Pulse)
CONTROL PULSE
HEAD SWITCHING
ENVELOPE
AUDIO OUTPUT
Fig. 2-15 Location of Test point (VCR Main PCB-Top View)
2-12
Samsung Electronics
Alignment and Adjustments
(2) Linearity adjustment (Guide roller S, T adjustment)
1) Playback the Mono Scope alignment tape (SP mode).
2) Observe the video envelope signal on an oscilloscope (triggered by the video switching pulse).
3) Make sure the video envelope waveform (at its minimum) meets the specification shown in Fig. 2-16.
If it does not, adjust as follows :
Note :
a=Maximum output of the video RF envelope.
b=Minimum output of the video RF envelope at the entrance side.
c=Minimum output of the video RF envelope at the center point.
d=Maximum output of the video RF envelope at the exit side.
4) If the section A in Fig. 2-17 does not meet the specification, adjust the guide roller S up or down.
5) If the section B in Fig. 2-17 does not meet the specification, adjust the guide roller T up or down.
c
a
b
d
abcd
63%
c,b,d/a
Fig. 2-16 Envelope Waveform Adjustment
H'D SWITCHING PULSE
A
ENVELOPE
A
B
B
Fig. 2-17 Adjustment Points
Samsung Electronics
2-13
Alignment and Adjustments
6) Play back the Mono Scope alignment tape (SP mode).
7) Connect an oscilloscope CH-1 to the “Envelope” and CH-2 to the “H’D SW Pulse” for triggering.
8) Turn the guide roller heads with a flat head (
) driver to obtain a flat video RF envelope as shown in Fig. 2-18.
IDEAL ENVELOPE
S HEIGHT TOO HIGH
S HEIGHT TOO LOW
T HEIGHT TOO HIGH
GUIDE ROLLER S
T HEIGHT TOO LOW
GUIDE ROLLER T
Fig. 2-18 Guide Roller S, T Height Adjustment
2-14
Samsung Electronics
Alignment and Adjustments
(3) Check Transitional Operation from RPS to Play
Check transition from RPS mode to play mode : Using a pre-recorded SP tape, make sure the entry side of envelope comes to an appropriate steady state within 3 seconds (as shown in Fig. 2-19).
If the envelope waveform does not reach specified peak-to peak amplitude within 3 seconds, adjust as follows :
1) Make sure there is no gap between the supply roller lower flange and the tape.
If there is a gap, adjust the supply guide roller again.
2) Change operation mode from the RPS to the play mode (again) and make sure the entry side of envelope rises
within 3 second.
ENTRANCE SIDE ENVELOPE
Fig. 2-19 Video Envelope Rising when Operation mode Changes from RPS to Play Mode
(4) Envelope Check
1) Make recordings on T-120 (E-120) and T-160 (E-180) tape.
Make sure the playback output envelope meets the specification as shown in Fig. 2-20.
2) Play back a self recorded tape (recording made on the unit using with T-120 (E-120).
The video envelope should meet the specification as shown in Fig. 2-20.
In SP mode, (A) should equal (B).
If the head gap is wide, upper cylinder should be checked.
A
B
Fig. 2-20 Envelope Input and Output Level
(5) Tape Wrinkle Check
1) Run the T-160 (E-180) tape in the playback, FPS, RPS and Pause modes and observe tape wrinkle at
each guide.
2) If excessive tape wrinkle is observed, perform the following adjustments in Playback mode :
◆ Tape wrinkle at the guide roller S, T section : Linearity adjustment.
◆ Tape wrinkle at tape guide flange : ACE head assembly coarse adjustment.
Samsung Electronics
2-15
Alignment and Adjustments
2-3-3 Reel Torque
1) The rotation of the capstan motor causes the holder clutch ass’y to rotate through the belt pulley.
2) The spring wrap PLAY/REV of holder clutch ass’y drives the disk reel S, T through gear idler by rotation of
gear center ass’y.
3) Brake is operated by slider cam at FF/REW mode.
4) Transportation of accurate driving force is done by gears. (Gear Center Ass’y)
Note : If the spec. does not meet the followings specifications, replace the holder clutch ass’y and then recheck.
<Table 2-4>
MODE
TORQUE g/cm
GAUGE
PB
42 ± 11
Cassette Torquemeter
RPS
145 ± 30
Cassette Torquemeter
2-16
Samsung Electronics
3. Exploded View and Parts List
3-1 Cabinet Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-2
3-2 VCR Mechanical Parts (Top Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-4
3-3 VCR Mechanical Parts (Bottom Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-6
3-4 DVD Mechanical Parts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-8
3-5 Speakers System - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-10
Samsung Electronics
3-1
3-2
157
3
BRACKET-FRAME (S.N.A.)
VCR DECK (S.N.A.)
DVD DECK (S.N.A.)
157
21
2
153
5
702
22
LD601A
154
1
S602A
701A
156
101
S.N.A. : Service Not Available
701 (FUNCTION-TIMER PCB)
10
601 (VCR MAIN PCB)
603 (S.M.P.S. PCB)
200
DVD
AUDIO
TITLE
SPEED
MARK
TIMER
SUBTITLE
STEP
DIGEST
INPUT
AMP VOL.
TV/VCR
SCREEN FIT
RETURN
U
EN
M
SEARCH
ENTER
CLEAR
FM/AM
TV INPUT
SOUND
MODE
SOUND
EFFECT
C
DIS
REC
Y
DISPLA
VCR
SELECT
TV
9
0
ZOOM
ATR
8
7
100+
ANGLE
CH/TRK
6
5
4
TV VOL.
REPEAT
MODE
TEST
2
1
MUTE
SPEAKER
EJECT
TV POWER
POWER
3
UT01
OPEN/CLOSC
155
SE
TU
P
602 (DVD MAIN PCB)
Exploded View and Parts List
3-1 Cabinet Assembly
Samsung Electronics
Exploded View and Parts List
Loc. No
Parts No.
1
2
3
5
10
21
22
101
153
154
155
156
157
200
601
602
603
701
702
701A
LD601A
S602A
UT01
AK97-00257K
AK64-00139B
AC61-00267A
AK64-00080A
3103-001124
AK64-00138K
AC61-62032A
AK64-00067B
AC60-12126A
6003-000276
6003-000275
6003-001076
AC60-10063A
AC39-10200N
AC92-01413A
AK92-00172A
AC92-01325A
AC94-00195A
AK92-00190A
3711-005008
AC61-21009A
AC61-00229A
AK59-00015A
Samsung Electronics
Description ; Specification
Remark
ASSY-PANEL FRONT;HIPS V2,DVD-CM420/XAA,DOOR-TRAY;DVD-CM350,ABS 94HB,-,-,-,-,-,SPRING ETC-DOOR TRAY;DVD-V5000K,SUS304,KNOB-VOLUME B;DVD-CM350,ABS 94HB ,-,-,-,
FAN-DC;12V,70MA,4000RPM,0.1M^3/MI,2.3
DOOR-CASSETTE;DVD-CM420/XAA,HIPS V2,-,-,
SPRING ETC-MASK;SV-C130,SUS,4.4,-,-,-,-,
CABINET-TOP;DVD-CM350/XAA,PCM,0.525,430,
SCREW-BH;-,-,FE,FZY,BH,-,-,4*12,-,SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(YEL),SWC
SCREW-TAPTITE;BH,+,B,M3,L10,BLK ,SWCH101
SCREW-TAPTITE;BH,+,S,M3,L6,ZPC(BLK),SWRC
SCREW-TAPTITE;-,-,L12,ZPC3,+,-,M3,-,SWRC
CBF POWER CORD;EP2,SPT-2,AWG#18,1.8MT,WA
ASSY PCB-MAIN;THEATER2,COMBO
ASSY PCB-DVD AMP;CHT-420/XAA,DVD,MAIN
ASSY OPT PCB-SMPS;DVD-CM350/XAA,SMPS
ASSY PCB-F/TIMER;THEATER2,COMBO
ASSY OPT PCB-VOLUME;SV-DVD6000,VOLUME
CONNECTOR-HEADER;NOWALL,20P,1R,1.5MM,STR
HOLDER-LED;X-9,POM(M90-44),-,-,-,BLK,HOLDER-SENSOR;SCORPIO2,POM,-,-,-,BLACK,REMOCON-ASSY;Combo Theater(1.5),SEC,-,-,
3-3
Exploded View and Parts List
3-2 VCR Mechanical Parts (Top Side)
G001
K490
K502
K530
G530
G555
B474
G450
G510
G680
B473
G420
G480
K250
(OPTIONAL)
K546
G560
K240
(OPTIONAL)
K248
B475
G681
B410
K350
K110
B440
K182
B448
K340
K330
B452
G546
K470
K140
K188
G527
G070
G520
G060
3-4
Samsung Electronics
Exploded View and Parts List
Loc. No
B410
B440
B448
B452
B473
B474
B475
G001
G060
G070
G420
G450
G480
G510
G520
G527
G530
G546
G555
G560
G680
G681
K110
K140
K182
K188
K240
K248
K250
K330
K340
K350
K470
K490
K502
K530
K546
Parts No.
AC31-00018A
AC60-10515A
AC66-00008A
AC66-00011A
AC61-00105A
AC61-30180A
AC47-00003A
AC97-02008A
6006-001092
AC61-00161A
AC66-80142A
AC66-80141A
AC97-01655A
AC60-10518A
AC66-00033A
AC61-60553A
AC33-00007A
AC66-00005A
AC66-00032A
AC61-00122A
AC66-00046A
AC61-50686A
AC66-10267A
AC66-10268A
AC66-30524A
AC66-00039A
AC66-00035A
AC61-00107A
AC69-00104A
AC66-30550A
AC66-30549A
AC61-00106A
AC66-00020A
AC61-00120A
AC61-60561A
AC66-00034A
AC61-50658A
Samsung Electronics
Description ; Specification
MOTOR-LOADING ASSY;-,SCORPIO2(TS-10A),-,
SCREW-MACHINE;-,-,M3,L3,PH,+,-,-,ZPC,GEAR-WORM WHEEL;TS-10,POM,0.8,40,-,NAT,3
GEAR-FL CAM;TS-10,POM,0.8,59,-,BLK,48.48
SPRING ETC-PINCH DRIVE;TS-10,SUS304-WPB,
PLATE-JOINT;X-9,SECC20/20,T0.8,-,-,-,DAMPER-CAPSTAN;SCORPIO2,POM, NATUAL,-,-,
ASSY-CYLINDER;NTSC,CTS9-DS(KHAN),6NAJ
SCREW-ASS’Y MACH;WS,PH,+,M3.0,L6.0,ZPC(Y
PLATE-GROUND DECK;TS-10,SPTE,T0.3,-,-,-,
SLIDER-SUPPLY ASSY;X-9,X-9(TS),-,-,-,-,SLIDER-TAKE UP ASSY;X-9,X-9(TS),-,-,-,-,
ASSY-HEAD ACE;-,SCORPIO2(TS-10A),HVMXA11
SCREW-TAP TITE;-,-,M2.6,L5.6,PH,+,SW+ZW,
LEVER-#9 GUIDE ASS’Y;TS-10,-,-,-,-,-,-,SPRING ETC-GUIDE 9;X-9,SUS304-WPB,0.25,HEAD-FE;-,-,HVFHPOO43A,-,LEVER-FL DOOR;TS-10,POM,-,-,-,-,NAT,LEVER-UNIT PINCH ASS’Y;TS-10,-,-,-,-,-,POST-#8 GUIDE ASS’Y;TS-10,POM+SUS 303
LEVER-HEAD CLEANER ASS’Y;TS-10,POM+URETH
SLEEVE-HEAD CLEANER;-,POM,-,-,-,-,-,-,TS
REEL-DISK S;X-9,POM,-,-,-,-,-,REEL-DISK T;X-9,POM,-,-,-,-,-,LEVER-IDLER;-,POM,-,-,-,-,-,GEAR-IDLE;TS-10,PET K3372,0.5,-,-,NTR,28
LEVER-TENSION ASS’Y;TS-10,SECC E20/20+SU
SPRING ETC-TENSION LEVER;TS-10,SUS304-WP
BAND-BRAKE ASS’Y;TS-10,-,-,-,-,-,LEVER-S.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
LEVER-T.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
SPRING ETC-BRAKE;TS-10,SUS304-WPB,-,-,-,
SLIDER-FL DRIVE;TS-10,SECC E20/20,1.0,-,
HOLDER-FL CASS. ASS’Y;TS-10,-,-,-,-,-,SPRING ETC-FL.LEVER-LR;X-9,SUS304 WPB,OD
LEVER-FL ARM ASS’Y;TS-10,-,-,-,-,-,-,GUIDE-CASS. DOOR;X-9,POM,-,-,-,NTR
Remark
(OPTIONAL)
(OPTIONAL)
3-5
Exploded View and Parts List
3-3 VCR Mechanical Parts (Bottom Side)
G542
B462
B561
B456
B460
B560
B500
B458
B464
B501
B484
B488
B489
B468
K222
K200
K225
K221
B478
B570
3-6
Samsung Electronics
Exploded View and Parts List
Loc. No
B456
B458
B460
B462
B464
B468
B478
B484
B488
B489
B500
B501
B560
B561
B570
G542
K200
K221
K222
K225
Parts No.
AC66-00009A
AC66-00012A
AC61-00090A
AC60-10517A
AC66-00019A
AC66-00017A
AC66-00016A
AC66-00030A
AC66-00023A
AC66-00021A
AC66-00024A
AC66-00022A
AC31-00016A
3809-001270
AC60-10514A
AC66-60051A
AC61-21012A
AC66-20581A
AC60-30306A
AC66-00006A
Samsung Electronics
Description ; Specification
Remark
GEAR-JOINT 1;TS-10,POM,1.5,17.5(22),-,NA
GEAR-JOINT 2;TS-10,POM,1.0,23,-,BLK,24.6
BRACKET-GEAR;TS-10,SECC E20/20,0.8,-,-,SCREW-TAP TITE;-,-,M2.6,L5,PH,+,-,-,ZPC,
SLIDER-CAM;TS-10,SECC E20/20,1.2,-,-,-,LEVER-PINCH DRIVE;TS-10,SECC E20/20,1.0
LEVER-TENSION DRIVE;TS-10,SECC E20/20,1
GEAR-LOADING DR. ASS’Y;TS-10,POM+SWPB,-,
LEVER-S LOADING;TS-10,POM,-,-,-,-,NAT,LINK-LOADING S;TS-10,SECC E20/20,0.8,-,LEVER-T LOADING;TS-10,POM,-,-,-,-,NAT,LINK-LOADING T;TS-10,SECC E20/20,0.8,-,MOTOR-CAPSTAN;F2QVB05,SCORPIO2(TS-10A),CABLE-FLAT;30V,80C,140MM,10P,1.25MM,UL28
SCREW-CAPSTAN;-,-,M2.6,L6,PH,+,-,-,-,BELT-PULLEY;-,5CM-70,2 * 2,-,71.3,-,X-9
HOLDER-CLUTCH ASSY;X-9,-,-,-,-,-,GEAR-CENTER ASSY;-,POM,M=O.5,-,HIGHT T.,
FASTENER-WASHER SLIT;-,-,ID2.1,OD5.0,T0.
LEVER-UP DOWN;TS-10,POM,-,-,-,-,NAT,-
3-7
Exploded View and Parts List
3-4 DVD Mechanical Parts
H107
H105
905
H106
H103
H102
S.N.A.
H108
H212
H104
H241
H250
H211
H203
H207
901
H208
900
H202
906
S.N.A.
904
H204
903
H206
H205
H210
H209
3-8
Samsung Electronics
Exploded View and Parts List
Loc. No
900
901
903
904
905
906
H102
H103
H104
H105
H106
H107
H108
H202
H203
H204
H205
H206
H207
H208
H209
H210
H211
H212
H241
H250
Parts No.
6003-001157
6001-001522
6009-001245
6001-001466
6001-001257
AH60-00010A
AH66-00111B
AH66-00123A
AH31-00024A
6602-001076
AH66-00124A
AH66-00125A
AH63-00422A
AH73-00023A
AH61-50327A
AH66-00075A
AH66-00170A
AC60-30306A
AH31-00032A
AH61-00403A
AH61-00513A
AH31-00016A
AH97-00900X
AH61-00891A
3809-001303
AH92-00900A
Samsung Electronics
Description ; Specification
Remark
SCREW-TAPTITE;PWH,+,B,M2,L6,ZPC(YEL),SWR
SCREW-MACHINE;FH,+,M2.6,L7,ZPC(YEL),SWRC
SCREW-SPECIAL;SWRCH18A,NYLOCK,SOCKET,HEX
SCREW-MACHINE;BH,+,M2,L6,ZPC(BLK),SWRCH1
SCREW-MACHINE;PWH,+,M1.7,L3,ZPC(YEL),SWR
SCREW-MACHINE-MOTOR;-,+,SWCH18AK,M1.7,L2
CLAMPER-ASSY;DP-5,POM+MAGNET,-,-,-,-,-,PULLEY-GEAR;DP-7,POM M90-44,-,-,-,-,-,MOTOR-LOAD ASSY;SM-2412L2,DP-7,-,-,-,-,BELT-RECTANGULAR;CR,T1.2,4.3%,1.2X25.1,B
GEAR-TRAY;DP-7,POM,M90-44,-,-,-,-,-,-,SLIDER-HOUSING;DP-7,POM,-,-,-,-,TRAY-DISC;-,ABS,-,-,-,-,BLK,DP-7S
RUBBER-INSULATOR;BUTYL RUBBER,-,DP-3,¡¯?
SHAFT-P/U;DP-3,SUS420J2,L84.7,OD3,-,-,GEAR-FEED A;-,POM M90-44,-,-,-,-,-,-,-,GEAR-FEED B;DP-7S,POM M90-44,0.5,14,-,-,
FASTENER-WASHER SLIT;-,-,ID2.1,OD5.0,T0.
MOTOR SPINDLE;RSM-2610F1,DP-7S,-,-,-,12V
SPRING ETC-SPINDLE;DP-5,SWPB,PI4.9,-,-,CHASSIS-SUB;DP-7,ABS(SR-0320),-,-,-,-,-,
MOTOR-FEED ASSY;-,DP-5,-,ASSY-PICK UP;-,SOH-DS2A,ASSY-PICK-UP
HOLDER-FFC;DP-7S,PP,1,-,-,NTR,CABLE-FLAT;30V,80C,230MM,24P,1MM,UL2896
ASSY-HOUSING PCB;DVD-M101,MILLENO DECK(B
3-9
Exploded View and Parts List
3-5 Speakers System
Center Speaker
SPK-2
Surround
Speaker (R)
CAB-6
Surround
Speaker (L)
CAB-2
CAB-5
SPEAKERS
SPK-6
SPK-5
CENTER
SURROUND L
FRONT L
ON
RIDIO ANT.
IN
POWER
DVD & VCR
RF OUT
CAB-4
OFF
(FROM ANT.)
FM
75
COAXAL
LINE IN 1
LINE IN 3
WOOFER
SURROUND R
(TO TV)
OPTICAL INPUT
AC-3/PCM
(LINE IN 2)
AM
VIDEO
L - AUDIO - R
LINE IN 2
VIDEO
SPEAKERS
FRONT R
L - AUDIO - R
CENTER
SURROUND L
FRONT L
WOOFER
SURROUND R
FRONT R
DVD Olny
S-VIDEO OUT
LINE OUT
COMPONENT VIDEO OUT
SPK-4
SPK-3
CAB-1
Front Speaker (R)
Front Speaker (L)
CAB-3
SPK-1
SPEAKER CABLE
Subwoofer
(for LFE)
Loc. No
CAB-1
CAB-2
CAB-3
CAB-5
CAB-4
CAB-6
SPK-1
SPK-2
SPK-3
SPK-4
SPK-5
SPK-6
3-10
Parts No.
AK82-00289A
AK82-00286A
AK82-00285A
AK82-00284A
AK82-00288A
AK82-00287A
AK82-00290A
AK82-00291A
AK82-00292A
AK82-00293A
AK82-00294A
AK82-00295A
Description ; Specification
Remark
A/S MATERIAL ASSY-C-VIOLET;CHT-350/XAA,S
A/S MATERIAL ASSY-C-GREEN;CHT-350/XAA,SE
A/S MATERIAL ASSY-C-RED;CHT-350/XAA,SEA,
A/S MATERIAL ASSY-CABLE;CHT-350/XAA,SEA,
A/S MATERIAL ASSY-C-GRAY;CHT-350/XAA,SEA
A/S MATERIAL ASSY-C-WHITE;CHT-350/XAA,SE
A/S MATERIAL ASSY-S-WOOFER;SP-350,SEA,SU
A/S MATERIAL ASSY-C-CENTER;SP-350,SEA,CE
A/S MATERIAL ASSY-S-FRONT R;SP-350,SEA,F
A/S MATERIAL ASSY-S-FRONT L;SP-350,SEA,F
A/S MATERIAL ASSY-S-SURR R;SP-350,SEA,SU
A/S MATERIAL ASSY-S-SURR L;SP-350,SEA,SU
Samsung Electronics
4. Electrical Parts List
Loc.No
601
Part No
AC92-01413A
POWER DRIVE PARTS
C1P101
2401-001730
C1P102
2401-002075
C1P103
2401-001730
C1P104
2401-000598
C1P105
2401-002075
C1P106
2401-001730
C1P107
2401-002075
C1P108
2401-003107
C1P110
2401-001730
C1P111
2401-003046
C1P112
2401-002075
C1P113
2401-000598
C1P114
2401-003046
C1P115
2401-003046
C1P116
2401-001915
C1P117
2401-001730
C1P119
2401-002299
C1P120
2401-001730
C1P121
2401-000598
CN01
3711-000683
CN02
3708-000270
CN022B
3809-001316
D1P101
0402-000127
D1P102
0402-000127
D1P103
0401-000101
D1P104
0401-000101
D1P105
0401-000101
D1P107
0401-000101
D1P108
0401-000101
D1P109
0401-000101
D1P110
0402-000127
D1P111
0402-000127
D1P112
0402-000127
L1P101
2701-000002
Q1P101
0501-000616
Q1P102
0504-000142
Q1P103
0501-000398
Q1P104
0502-000416
Q1P105
0501-000616
Q1P106
0501-000616
Q1P107
0501-000616
Q1P108
0504-000142
Q1P109
0501-000398
Q1P110
0501-000616
Q1P111
0501-000616
Q1P112
0501-000616
Q1P113
0501-000398
Q1P114
0504-000142
R1P101
2001-000855
R1P102
2001-000008
R1P103
2001-000362
R1P104
2001-000449
R1P105
2001-000405
R1P108
2001-000062
R1P109
2001-000515
R1P110
2001-000449
R1P111
2001-000855
R1P114
2001-000362
Samsung Electronics
Description ; Specification
ASSY PCB-MAIN;THEATER2,COMBO
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5
C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5
C-AL;1uF,20%,50V,GP,TP,3x5,5
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-AL;4.7uF,20%,50V,GP,TP,5x7,5
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-AL;1uF,20%,50V,GP,TP,4x7,5
CONNECTOR-HEADER;BOX,13P,1R,2mm,STRAIGHT
CONNECTOR-FPC/FFC/PIC;33P,1.25mm,STRAIGH
CABLE-FLAT;30V,80C,80MM,33P,1.25MM,UL289
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
TR-DIGITAL;KSR2001,PNP,300MW,4.7K/4.7K,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-POWER;2SD1273P,NPN,2W,TO-220F,BK,800
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
TR-DIGITAL;KSR2001,PNP,300MW,4.7K/4.7K,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-DIGITAL;KSR2001,PNP,300MW,4.7K/4.7K,T
R-CARBON;560OHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;560OHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
Remark
Loc.No
Part No
Description ; Specification
R1P115
R1P116
R1P117
ZD1P01
ZD1P02
ZD1P03
ZD1P04
ZD1P05
ZD1P06
ZD1P08
2001-000449
2001-000290
2001-000734
0403-000390
0403-001211
0403-000720
0403-000717
0403-001211
0403-000717
0403-000720
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
DIODE-ZENER;UZP33B,33V,31.4-34.6V,1W,DODIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ5.1B,5.1V,4.94-5.2V,500m
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ5.1B,5.1V,4.94-5.2V,500m
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
LOGIC PARTS
C602
C603
C604
C605
C606
C607
C608
C609
C610
C611
C613
C614
C615
C616
C617
C618
C619
C622
C623
C624
C625
C626
C627
C628
C629
C630
C631
C632
C633
C634
C635
C636
C643
C644
C651
C657
C661
C663
C664
C665
CN604
CN701
D601
D603
D604
D605
D606
IC603
IC6B1
2203-000260
2203-000260
2203-000260
2401-000360
2202-000797
2203-000260
2401-002165
2203-000609
2203-000966
2203-000361
2401-003107
2203-000260
2202-000797
2203-000206
2401-003107
2203-000429
2203-000429
2203-000476
2202-000121
2401-002165
2203-000260
2203-000206
2203-001245
2401-001169
2203-001579
2401-003107
2203-000260
2203-001077
2203-000142
2203-001077
2203-000260
2203-000260
2203-000260
2203-000260
2202-000205
2203-000260
2401-000199
2202-000205
2202-000205
2202-000205
3711-004833
3710-001146
0401-000101
0402-000127
0402-000127
0401-000101
0402-000127
1103-001149
AC14-12006C
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,+80-20%,50V,Y5V,TP,2
C-CERAMIC,CHIP;0.15NF,5%,50V,C0G,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;0.018NF,5%,50V,C0G,TP,201
C-CERAMIC,CHIP;0.018NF,5%,50V,C0G,TP,201
C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201
C-AL;33uF,20%,16V,GP,-,6.3x7,2.5mm
C-CERAMIC,CHIP;15nF,10%,50V,NP0,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;1000uF,20%,6.3V,GP,TP,10x12.5,
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
CONNECTOR-HEADER;BOX,12P,2R,2MM,STRAIGHT
CONNECTOR-SOCKET;20P,1R,1.5mm,ANGLE,SN
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
IC-EEPROM;524C80D41,4KBit,DIP,8P,300MIL,
IC;KA7533,DIP,-
Remark
4-1
Electrical Parts List
Loc.No
L601
L602
LD601
PT601
PT602
Q601
R601
R602
R603
R604
R605
R607
R609
R613
R614
R615
R616
R617
R618
R619
R621
R622
R623
R624
R630
R631
R632
R634
R635
R638
R639
R641
R643
R644
R645
R646
R647
R648
R649
R650
R651
R652
R653
R654
R656
R660
R661
R662
R664
R665
R666
R667
R668
R669
R671
R673
R674
R676
R677
R681
R682
R690
R691
R692
S602
SW602
4-2
Part No
3301-000297
2701-000002
0601-000517
0604-001206
0604-001206
0504-000119
2007-000586
2007-000572
2001-000522
2001-000515
2001-000111
2007-000738
2001-000429
2001-000290
2001-000429
2007-000981
2001-000429
2007-000221
2007-001039
2001-000290
2007-000931
2007-000931
2007-000300
2007-000300
2001-000864
2001-000864
2001-000786
2007-000068
2001-000429
2001-000591
2007-000518
2001-000290
2001-000290
2001-000290
2001-000290
2007-000981
2007-000766
2007-000766
2007-000872
2007-000872
2007-000872
2001-000290
2001-000429
2001-000429
2001-000290
2007-001124
2001-000429
2001-000290
2001-000429
2001-000458
2001-000281
2001-000281
2001-000429
2007-000290
2001-000281
2001-000429
2001-000429
2001-000429
2001-000429
2001-000281
2001-000281
2001-000429
2001-000429
2001-000429
0603-001011
AC34-20100B
Description ; Specification
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
LED-IR;RECTANGULA,4x6.0mm,75mW,6V,950
PHOTO-INTERRUPTER;TR,-,150mW,CY5894102,B
PHOTO-INTERRUPTER;TR,-,150mW,CY5894102,B
TR-DIGITAL;KSR1004,NPN,300MW,47K/47K,TOR-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CHIP;30KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;56KOHM,5%,1/10W,DA,TP,2012
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;470KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;330OHM,5%,1/10W,DA,TP,2012
R-CHIP;330OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;68KOHM,1%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
PHOTO TR;NPN,35V,6V,50mA,75mW,BK
SWITCH-REC;-,-,X-9,-
Remark
Loc.No
Part No
Description ; Specification
Remark
SW603
XT601
AC34-20100A
2801-001384
SWITCH-MODE;-,-,X-9,CRYSTAL-UNIT;14.31818MHz,30ppm,28-AAA,16
A/V PARTS
C301
C302
C303
C304
C305
C306
C307
C308
C310
C312
C313
C314
C315
C316
C317
C318
C319
C320
C321
C322
C323
C324
C325
C326
C327
C328
C329
C330
C331
C332
C333
C334
C335
C336
C358
C359
C360
C371
C372
C3A01
C3A02
C3A03
C3A04
C3A05
C3A06
C3A07
C3A08
C3A09
C3A10
C3A11
C3A12
C3A14
C3A15
C3A16
C3A17
C3A18
C3A19
C3A20
C3A21
CN301
CN3A01
CN3A02
2401-000598
2203-001721
2203-000192
2203-000408
2401-000598
2203-000192
2401-003107
2401-000922
2401-000598
2203-000192
2401-000407
2203-000476
2401-000598
2401-001915
2401-000598
2202-000797
2202-000797
2203-000260
2401-003107
2203-000192
2401-000598
2203-000260
2401-000598
2203-000609
2401-001915
2401-003107
2202-002037
2203-000192
2203-000966
2203-000966
2203-000966
2401-003107
2203-000239
2203-001579
2202-000797
2203-000260
2203-000260
2203-001077
2203-000260
2202-002037
2401-000918
2203-000192
2401-003107
2401-002069
2203-000192
2203-000417
2203-000260
2401-000407
2401-001250
2301-000174
2401-003107
2203-000938
2203-001665
2203-000495
2401-001250
2203-001214
2203-000260
2301-001014
2301-000110
3708-000391
3708-001165
3710-001648
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;360pF,5%,50V,NPO,TP,2012,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;0.18NF,5%,50V,C0G,TP,2012
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;22uF,20%,16V,GP,TP,5x5,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;10uF,20%,16V,GP,TP,3.5x5,2.5
C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,3x5,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-AL;1uF,20%,50V,GP,TP,3x5,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;47nF,+80-20%,50V,Y5V,TP,2
C-CERAMIC,CHIP;47nF,+80-20%,50V,Y5V,TP,2
C-CERAMIC,CHIP;47nF,+80-20%,50V,Y5V,TP,2
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,2012
C-CERAMIC,CHIP;15nF,10%,50V,NP0,TP,2012
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-AL;22uF,20%,16V,GP,-,6.3x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;33uF,20%,16V,GP,TP,6.3x5,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;18nF,10%,50V,X7R,TP,2012,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,16V,GP,TP,3.5x5,2.5
C-AL;4.7uF,20%,35V,GP,TP,4x5,5
C-FILM,PEF;15nF,5%,100V,TP,7.2x4.0x7.5mm
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;0.47NF,5%,50V,C0G,TP,2012
C-CERAMIC,CHIP;0.56nF,10%,50V,X7R,TP,201
C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
C-AL;4.7uF,20%,35V,GP,TP,4x5,5
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-FILM,PEF;6.8nF,5%,50V,TP,7x3x6,5mm
C-FILM,PEF;1.8nF,5%,100V,TP,7x3.0x6.5mm,
CONNECTOR-FPC/FFC/PIC;10P,1.25mm,STRAIGH
CONNECTOR-FPC/FFC/PIC;6P,1.25mm,STRAIGHT
CONNECTOR-SOCKET;2P,1R,2.5mm,STRAIGHT,SN
Samsung Electronics
Electrical Parts List
Loc.No
Part No
CN3A1B
IC301
L301
L302
L303
L304
L305
L3A01
L3A02
L3A03
L3A04
Q302
Q303
Q304
Q305
Q3A02
Q3A03
Q3A04
Q3A05
Q3A06
R301
R302
R303
R304
R305
R308
R309
R310
R311
R312
R313
R314
R315
R316
R317
R318
R319
R320
R321
R322
R343
R344
R346
R348
R349
R3A01
R3A02
R3A03
R3A04
R3A05
R3A06
R3A07
R3A08
R3A09
R3A11
R3A12
R3A13
R3A14
R3A16
R3A17
R3A18
R3A24
R3A50
R3A51
W304
XT301
3809-001206
1204-001952
2701-000002
2701-000002
2701-000002
2701-000002
2701-000002
2702-000120
2701-000113
2701-000002
2702-000166
0501-000303
0501-000398
0501-000398
0504-000119
0501-000303
0501-000442
0501-000442
0501-000442
0501-000303
2007-000409
2007-001055
2007-000267
2007-000267
2001-000734
2007-000565
2007-000532
2001-000449
2007-001113
2007-000221
2001-000258
2007-000241
2007-001177
2001-000290
2001-000411
2001-000411
2001-000290
2007-000241
2001-000812
2001-000290
2007-001001
2007-001001
2007-000468
2001-000449
2001-000362
2001-000723
2007-000221
2007-000029
2007-001224
2007-000757
2007-000401
2007-000653
2007-000468
2001-000221
2007-000267
2007-000290
2007-000941
2001-000522
2007-000300
2001-000449
2001-000449
2001-000522
2001-000800
2001-000290
2701-000002
2801-003610
Samsung Electronics
Description ; Specification
CABLE-FLAT;30V,-20to+80C,140mm,6P,1.25mm
IC-VIDEO PROCESS;LA71207,QFP,80P,14X14MM
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
INDUCTOR-RADIAL;15mH,5%,6.2x7.4mm
INDUCTOR-AXIAL;100uH,5%,2.5x3.4mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
INDUCTOR-RADIAL;47uH,5%,6x6.4mm
TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-DIGITAL;KSR1004,NPN,300MW,47K/47K,TOTR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9
TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9
TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9
TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
R-CHIP;15KOHM,5%,1/10W,DA,TP,2012
R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;220KOHM,5%,1/10W,DA,TP,2012
R-CHIP;200KOHM,5%,1/10W,DA,TP,2012
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;680KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;510OHM,5%,1/10W,DA,TP,2012
R-CHIP;510OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;9.1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;330KOHM,5%,1/10W,DA,TP,2012
R-CHIP;150OHM,5%,1/10W,DA,TP,2012
R-CHIP;27KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
CRYSTAL-UNIT;3.579545MHz,8ppm,28-AAA,S,1
Remark
Loc.No
Part No
Description ; Specification
TM PARTS
C401
C402
C403
C404
C405
C406
C407
C408
R401
R402
TM401
2203-000192
2401-002144
2203-000192
2401-003046
2203-000206
2203-000206
2203-000192
2401-001479
2001-000995
2001-000995
AC40-00019A
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;470uF,20%,10V,GP,TP,-,R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM
TM BLOCK;TMZH2008A,NTSC-M,181CH,-,25DB,
HI-FI PARTS
C501
C502
C503
C504
C505
C506
C507
C508
C509
C510
C511
C512
C513
C514
C515
C516
C517
C518
C519
C520
C521
C522
C523
C526
C527
C528
C529
C530
C531
C532
C533
C534
C535
C536
C537
C538
C540
C541
C542
C543
C544
D503
IC501
L501
L502
L503
L504
R501
R503
R506
R507
2203-000206
2401-000414
2401-001254
2401-000414
2401-001254
2401-000598
2401-001169
2401-000414
2401-000414
2301-000224
2203-000206
2203-000126
2203-000260
2203-000260
2203-000260
2401-003107
2203-000206
2401-000598
2401-001931
2301-000224
2401-000414
2401-000414
2401-001169
2401-001254
2401-001931
2401-001020
2401-000598
2203-000260
2401-003107
2203-000206
2203-000206
2203-000609
2401-000407
2401-001919
2401-000414
2202-000797
2401-003107
2203-000260
2401-000414
2301-000224
2401-000414
0401-000101
1204-001754
2701-000002
3301-000297
2701-000002
2701-000126
2007-001141
2007-001141
2007-000774
2001-000429
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;33uF,20%,16V,GP,-,6.3x7,2.5mm
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;1.2nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;220nF,20%,50V,-,TP,4x7mm,5
C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;33uF,20%,16V,GP,-,6.3x7,2.5mm
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-AL;220nF,20%,50V,-,TP,4x7mm,5
C-AL;3.3UF,20%,50V,GP,TP,4X7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,16V,GP,TP,3.5x5,2.5
C-AL;2.2uF,20%,50V,-,TP,4x7mm,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
IC-SIGNAL PROCESSOR;AN3663FBP,QFP,64P,-,
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;150uH,5%,2.4x3.4mm
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;33KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Remark
4-3
Electrical Parts List
Loc.No
R510
R512
R514
R515
R516
R517
R518
R519
R520
R521
R522
R525
Part No
Description ; Specification
2001-000005
2001-000005
2001-000780
2001-000878
2001-000780
2001-000679
2007-001224
2001-000786
2001-000786
2007-000518
2007-000518
2001-000472
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;6.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;36KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;9.1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
AM/FM RECEIVER PARTS
AM/FMAC40-00021A
C871
2401-003107
C872
2203-000260
L802
2701-000002
L871
2702-000108
R871
2001-000281
R872
2001-000281
R873
2001-000281
R874
2001-000281
R875
2001-000281
R876
2001-000281
TUNER;H-0200,SV-DVD700A,-,-,-,-,75OH
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
INDUCTOR-RADIAL;100uH,5%,6x6.4mm
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
INPUT-OUTPUT PARTS
C901
2203-000476
C902
2203-000476
C904
2401-000414
C905
2203-000476
C906
2203-000476
C907
2401-003107
C908
2401-003107
C909
2203-000260
C910
2401-000414
C911
2401-000414
C912
2401-002165
C913
2203-000260
C914
2401-000414
C915
2401-000598
C916
2401-000598
C917
2401-000598
C918
2401-000598
C919
2401-001730
C920
2401-001730
C921
2401-001730
C922
2401-001730
C923
2401-000407
C924
2401-000598
C925
2401-000598
C928
2203-000784
C929
2203-000716
C930
2401-001479
C931
2203-000716
C932
2401-002144
C940
2401-002144
C990
2401-000598
C991
2401-000598
D903
0401-000101
D904
0401-000101
D905
0401-000101
D906
0401-000101
D907
0401-000101
D908
0401-000101
D909
0401-000101
C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-AL;10uF,20%,16V,GP,TP,3.5x5,2.5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,2012
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-AL;470uF,20%,10V,GP,TP,-,C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
4-4
Remark
Loc.No
D910
D911
D912
D913
FR10
FR11
FR12
FR13
FR14
FR24
FR26
IC801
JK801
L901
L904
Q901
Q990
Q991
R901
R902
R904
R905
R906
R907
R908
R909
R910
R911
R912
R913
R914
R916
R917
R918
R919
R920
R921
R922
R950
R981
R982
R983
R984
R992
R993
ZD905
ZD906
ZD907
ZD908
ZD909
ZD910
ZD911
ZD912
ZD913
Part No
0401-000101
0401-000101
0401-000101
0401-000101
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
1204-001763
3722-002033
2701-000002
2701-000002
0501-000303
0501-000398
0501-000398
2001-000429
2001-000429
2001-000969
2001-000281
2001-000429
2007-000653
2007-000653
2007-001166
2007-000941
2007-000941
2001-000429
2001-000429
2001-000429
2001-000429
2001-000281
2001-000969
2007-000468
2001-000429
2001-000429
2001-000429
2007-001166
2007-000300
2007-000221
2007-000300
2007-000300
2007-000300
2007-000221
0403-001211
0403-001211
0403-001211
0403-001211
0403-001211
0403-001211
0403-001211
0403-001211
0403-001211
Description ; Specification
Remark
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
IC-AUDIO PROCESSOR;LA73024V,SSOP,44P,154
JACK-PIN;9P/9C,NI,RED/WHT/YELx2,ANGLE
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;27KOHM,5%,1/10W,DA,TP,2012
R-CHIP;27KOHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
Samsung Electronics
Electrical Parts List
Loc.No
Part No
602
AC14
AC21
AC22
AC23
AC24
AC25
AC26
AC27
AC9
AD1
AD2
AD4
AD5
AE11
AE12
AE13
AE14
AE15
AE16
AE21
AE3
AE5
AIC101
AIC151
AIC201
AIC251
AIC300
AIC4
AIC401
AIC402
AQ3
AQ6
AQ7
AQ8
AQ9
AR101
AR14
AR15
AR151
AR16
AR17
AR28
AR29
AR30
AR31
AR41
AR42
AR43
AR44
AR45
AR46
AR47
AR48
AR49
AR50
AR51
AR53
AR54
AR55
AR60
CN101
CON102
DAC10
DAC101
DAC102
AK92-00172A
2203-001607
2203-000315
2203-005148
2203-000125
2203-005148
2203-000315
2203-000125
2203-005148
2203-001607
0407-000114
0407-000114
0401-000008
0407-000114
2401-000918
2401-003107
2401-000918
2401-003107
2401-000438
2401-000303
2401-000303
2401-000918
2401-000918
1201-001909
1201-001909
1201-001909
1201-001909
1201-001909
1201-000163
1201-001909
1201-001909
0501-000341
0501-000341
0504-000128
0504-000156
0501-000314
2007-000070
2007-000090
2007-000074
2007-000070
2007-000074
2007-000078
2007-000090
2007-000074
2007-000074
2007-000078
2007-001179
2007-000078
2007-000092
2007-000097
2007-000097
2007-001179
2007-000078
2007-000092
2007-000097
2007-000097
2007-000078
2007-000102
2007-000102
2007-000077
2007-001135
3708-000270
AC39-00081A
2401-000414
2203-000257
2203-000975
Samsung Electronics
Description ; Specification
ASSY PCB-DVD AMP;CHT-420/XAA,DVD,MAIN
C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
C-CERAMIC,CHIP;0.12NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;1.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;0.12NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;1.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTDIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTDIODE-SWITCHING;DAN217,80V,100mA,SOT-23,
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTC-AL;22uF,20%,16V,GP,-,6.3x7,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;22uF,20%,16V,GP,-,6.3x7,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;10uF,20%,25V,GP,-,5x11,2mm
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;22uF,20%,16V,GP,-,6.3x7,5
C-AL;22uF,20%,16V,GP,-,6.3x7,5
IC-AUDIO AMP;TAS5110,TSSOP,32P,11X6.2MM,
IC-AUDIO AMP;TAS5110,TSSOP,32P,11X6.2MM,
IC-AUDIO AMP;TAS5110,TSSOP,32P,11X6.2MM,
IC-AUDIO AMP;TAS5110,TSSOP,32P,11X6.2MM,
IC-AUDIO AMP;TAS5110,TSSOP,32P,11X6.2MM,
IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m
IC-AUDIO AMP;TAS5110,TSSOP,32P,11X6.2MM,
IC-AUDIO AMP;TAS5110,TSSOP,32P,11X6.2MM,
TR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOTTR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP
TR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23,
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R-CHIP;68OHM,5%,1/8W,DA,TP,3216
CONNECTOR-FPC/FFC/PIC;33P,1.25mm,STRAIGH
CBF HARNESS;-,24AWG,-,10P,80,-,-,-,MOLEX
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
Remark
Loc.No
DAC103
DAC104
DAC105
DAC107
DAC109
DAC11
DAC111
DAC112
DAC113
DAC114
DAC115
DAC116
DAC117
DAC12
DAC13
DAC14
DAC15
DAC16
DAC17
DAC18
DAC19
DAC2
DAC20
DAC21
DAC22
DAC24
DAC25
DAC26
DAC3
DAC6
DAC7
DAC8
DAC9
DAD1
DAD101
DAIC11
DAIC12
DAIC13
DAIC14
DAIC15
DAIC17
DAL2
DAL3
DAR1
DAR101
DAR102
DAR103
DAR104
DAR105
DAR107
DAR108
DAR11
DAR111
DAR112
DAR113
DAR114
DAR12
DAR13
DAR14
DAR18
DAR19
DAR2
DAR20
DAR21
DAR22
DAR25
Part No
2203-005148
2203-000888
2401-000414
2203-005148
2203-005148
2203-005148
2203-005148
2401-000414
2203-005148
2401-000414
2203-000440
2401-000414
2203-005148
2203-005148
2203-005148
2401-000414
2401-000414
2401-000414
2203-005148
2401-000414
2401-001225
2401-000414
2401-001225
2401-003107
2401-000598
2401-000414
2401-001479
2401-001479
2203-005148
2401-000414
2203-005148
2203-005148
2401-000414
0407-000114
0407-000116
1204-002040
0801-002781
0801-002780
1205-002191
1201-001686
0505-001679
3301-000353
3301-000353
2007-000502
2007-000309
2007-000074
2007-000075
2007-000694
2007-002425
2007-000090
2007-000090
2007-000074
2007-000694
2007-000074
2007-000694
2007-000084
2007-000074
2007-000074
2007-000458
2007-000076
2007-000076
2007-000881
2007-000881
2007-000070
2007-000070
2007-000090
Description ; Specification
Remark
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;4.7uF,20%,16V,GP,TP,3x5,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;4.7uF,20%,16V,GP,TP,3x5,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;470uF,20%,10V,GP,TP,-,C-AL;470uF,20%,10V,GP,TP,-,C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-AL;10uF,20%,16V,GP,TP,4x7,5
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOTDIODE-ARRAY;DAP202K,80V,100mA,CK2-3,SOTIC-MODULATOR;TAS5026CPAG,TQFP,64P,10X10M
IC-CMOS LOGIC;SN74LV123APWR,MONO - MULTI
IC-CMOS LOGIC;SN74LVC1G17,SCHMITT-TRIGGE
IC-CODEC;AK4586VQ,LQFP,44P,10X10MM,PLAS
IC-AUDIO AMP;3544,SOP,8P,173MIL,DUAL,6.0
FET-SILICON;FDC6301N,N,25V,0.22A,5OHM,0.
CORE-FERRITE BEAD;AB,120ohm,2x1.25x0.9mm
CORE-FERRITE BEAD;AB,120ohm,2x1.25x0.9mm
R-CHIP;2.2OHM,5%,1/10W,DA,TP,2012
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;220ohm,5%,1/16W,DA,TP,1608
R-CHIP;3.3OHM,5%,1/10W,DA,TP,2012
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;3.3OHM,5%,1/10W,DA,TP,2012
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;3.3OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;18Kohm,5%,1/16W,DA,TP,1608
R-CHIP;330ohm,5%,1/16W,DA,TP,1608
R-CHIP;330ohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7OHM,5%,1/10W,DA,TP,2012
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4-5
Electrical Parts List
Loc.No
Part No
DAR26
DAR27
DAR28
DAR3
DAR4
DAR5
DAR6
DAR7
DAR8
DAR9
DC1
DC2
DCN1
DCN2
DCN3
DD1
DQ1
DQ2
DQ3
DR1
DR2
DR3
DR4
DR5
DR6
DR7
DR8
FC1
FC2
FC3
FC4
FC5
FC6
FR1
FR10
FR2
FR3
FR4
FR5
FR6
FR7
FR8
FR9
HEAT S
HPL1
HPL2
HPL3
JACK1
JACK1B
MC1
MC10
MC15
MC16
MC17
MC18
MC2
MC3
MC4
MC5
MC6
MC7
MC8
MC9
MIC1
MIC2
MIC3
2007-000090
2007-000090
2007-000090
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2203-005148
2203-005148
3708-001696
3708-001695
3711-001018
0407-000116
0501-000341
0501-000341
0501-000341
2007-000090
2007-000090
2007-000075
2007-000090
2007-000090
2007-000075
2007-000116
2007-000116
2203-000626
2203-000626
2203-000626
2203-000626
2203-000626
2203-000626
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
AK61-00049A
3301-001419
3301-001419
3301-001419
3722-001914
AK63-00030A
2203-000257
2203-005148
2203-000626
2203-000626
2203-000626
2203-000626
2203-000257
2203-000257
2203-000257
2203-000257
2203-005148
2203-005148
2203-000257
2203-000257
0903-001288
1107-001369
0801-001072
4-6
Description ; Specification
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
CONNECTOR-FPC/FFC/PIC;24P,1MM,STRAIGHT,S
CONNECTOR-FPC/FFC/PIC;13P,1MM,STRAIGHT,S
CONNECTOR-HEADER;BOX,5P,1R,2mm,STRAIGHT,
DIODE-ARRAY;DAP202K,80V,100mA,CK2-3,SOTTR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOTR-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;220ohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;220ohm,5%,1/16W,DA,TP,1608
R-CHIP;120ohm,5%,1/16W,DA,TP,1608
R-CHIP;120ohm,5%,1/16W,DA,TP,1608
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
BRACKET-AMP ASSY;DVD-CM350,EGI+PC SHEET,
CORE-FERRITE BEAD;AB,220ohm,1.6x0.8x0.8m
CORE-FERRITE BEAD;AB,220ohm,1.6x0.8x0.8m
CORE-FERRITE BEAD;AB,220ohm,1.6x0.8x0.8m
JACK-PIN;3P,3.2MM,NI,BLK(GRN/BLU/RED),GROUND-PCB;DVD-CM350,PBS,T0.2,63,24.5,-,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
IC-MICROCONTROLLER;ZR36705,32BIT,QFP,100
IC-FLASH MEMORY;MBM29LV800BA-90PFTN,512K
IC-CMOS LOGIC;74ACT32,OR GATE,SOP,14P,15
Remark
Loc.No
MIC4
MR1
MR10
MR11
MR12
MR13
MR14
MR16
MR17
MR18
MR19
MR2
MR20
MR24
MR25
MR26
MR27
MR28
MR29
MR3
MR30
MR31
MR32
MR35
MR37
MR38
MR39
MR4
MR40
MR41
MR42
MR43
MR44
MR45
MR46
MR47
MR48
MR49
MR5
MR50
MR51
MR52
MR53
MR56
MR57
MR58
MR59
MR6
MR60
MR61
MR62
MR63
MR64
MR7
MR8
MR9
MY1
PAC101
PAC102
PACC1
PACC10
PACC11
PACC12
PACC13
PACC14
PACC15
Part No
1103-001204
2007-000084
2007-000074
2007-000084
2007-000084
2007-000084
2007-000078
2007-000074
2007-000074
2007-000090
2007-000090
2007-000084
2007-000084
2007-000084
2007-000097
2007-000097
2007-000084
2007-000084
2007-000090
2007-000125
2007-000090
2007-000090
2007-000090
2007-000084
2007-000070
2007-000074
2007-000074
2007-000090
2007-000074
2007-000074
2007-000070
2007-000084
2007-000084
2007-000070
2007-000070
2007-000084
2007-000084
2007-000070
2007-000090
2007-000078
2007-001179
2007-001179
2007-001179
2007-000074
2007-000074
2007-000074
2007-000074
2007-000125
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000125
2007-000090
2007-000074
2802-001154
2203-000257
2203-000440
2203-000236
2305-000412
2301-001549
2301-001549
2203-000257
2203-000257
2401-003580
Description ; Specification
Remark
IC-EEPROM;24C021,256x8Bit,SOP,8P,150MIL,
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608
R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608
R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
RESONATOR-CERAMIC;12.5MHZ,0.5%,TP,10.0X5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-AL;1000uF,20%,35V,WT,TP,13x20mm,5
Samsung Electronics
Electrical Parts List
Loc.No
Part No
PACC16
PACC17
PACC2
PACC3
PACC4
PACC5
PACC6
PACC7
PACC8
PACC9
PACF1
PACF10
PACF11
PACF12
PACF13
PACF14
PACF15
PACF16
PACF17
PACF18
PACF19
PACF2
PACF20
PACF21
PACF22
PACF23
PACF24
PACF25
PACF26
PACF27
PACF28
PACF29
PACF3
PACF30
PACF31
PACF32
PACF4
PACF5
PACF6
PACF7
PACF8
PACF9
PACR1
PACR10
PACR11
PACR12
PACR13
PACR14
PACR15
PACR16
PACR17
PACR18
PACR19
PACR2
PACR20
PACR21
PACR22
PACR23
PACR24
PACR25
PACR26
PACR27
PACR28
PACR29
PACR3
PACR30
2203-000440
2203-000257
2203-005148
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-005757
2203-005757
2203-000236
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-005757
2203-005757
2203-005757
2203-005757
2305-000412
2203-005148
2305-000412
2301-001549
2301-001549
2301-001549
2301-001549
2203-000257
2203-000257
2203-000257
2203-000257
2401-003580
2203-000236
2401-003580
2203-000440
2203-000257
2203-005148
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000236
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-005757
2203-005757
2203-005757
2203-005757
2305-000412
2203-005148
2305-000412
2301-001549
2301-001549
2301-001549
2301-001549
2203-000257
2203-000257
2203-000257
2203-000257
2401-003580
2203-000236
2401-003580
Samsung Electronics
Description ; Specification
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-AL;1000uF,20%,35V,WT,TP,13x20mm,5
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-AL;1000uF,20%,35V,WT,TP,13x20mm,5
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-AL;1000uF,20%,35V,WT,TP,13x20mm,5
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-AL;1000uF,20%,35V,WT,TP,13x20mm,5
Remark
Loc.No
Part No
PACR31
PACR32
PACR4
PACR5
PACR6
PACR7
PACR8
PACR9
PACW1
PACW10
PACW11
PACW12
PACW13
PACW14
PACW15
PACW16
PACW17
PACW18
PACW19
PACW2
PACW20
PACW21
PACW22
PACW23
PACW24
PACW25
PACW26
PACW27
PACW28
PACW29
PACW3
PACW30
PACW4
PACW5
PACW6
PACW7
PACW8
PACW9
PAE101
PALC3
PALC4
PALF5
PALF6
PALF7
PALF8
PALR5
PALR6
PALR7
PALR8
PALW5
PALW6
PALW7
PALW8
PAR103
PAR104
PARC1
PARC2
PARC3
PARC4
PARC5
PARC6
PARC7
PARC8
PARC9
PARF1
PARF10
2203-000440
2203-000257
2203-005148
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-000236
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2203-005757
2203-005757
2203-005757
2203-005757
2305-000412
2203-005148
2305-000412
2301-001549
2301-001549
2301-001549
2301-001549
2203-000257
2203-000257
2401-003580
2401-003580
2203-000440
2203-000236
2203-000257
2203-005148
2203-000206
2203-000206
2203-000206
2203-000206
2203-000206
2401-000463
AK27-00001A
AK27-00001A
AK27-00001A
AK27-00001A
AK27-00001A
AK27-00001A
AK27-00001A
AK27-00001A
AK27-00001A
AK27-00001A
AK27-00001A
AK27-00001A
AK27-00001A
AK27-00001A
2007-002425
2007-000029
2007-000309
2007-000309
2007-000381
2007-000381
2007-008541
2007-008541
2007-002425
2007-002425
2007-002425
2007-000309
2007-008541
Description ; Specification
Remark
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-CERAMIC,CHIP;33nF,10%,200V,X7R,TP,3216
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-FILM,MPEF;390NF,5%,50V,TP,7.3X5.7X7.3M
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-AL;1000uF,20%,35V,WT,TP,13x20mm,5
C-AL;1000uF,20%,35V,WT,TP,13x20mm,5
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,35V,GP,-,5x5,2mm
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
COIL CHOKE;SBPSC-11R310-100A,SBPSC COILS
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
4-7
Electrical Parts List
Loc.No
Part No
PARF11
PARF12
PARF13
PARF14
PARF15
PARF16
PARF17
PARF2
PARF3
PARF4
PARF5
PARF6
PARF7
PARF8
PARF9
PARR10
PARR11
PARR12
PARR13
PARR14
PARR15
PARR16
PARR17
PARR18
PARR19
PARR3
PARR4
PARR5
PARR6
PARR7
PARR8
PARR9
PARW1
PARW10
PARW11
PARW12
PARW13
PARW14
PARW15
PARW2
PARW3
PARW4
PARW5
PARW6
PARW7
PARW8
PARW9
PC1
PC10
PC11
PC12
PC13
PC14
PC15
PC2
PC3
PC4
PC5
PC6
PC7
PC8
PC9
PE1
PE10
PE11
PE12
2007-008541
2007-008541
2007-002425
2007-002425
2007-002425
2007-002425
2007-002425
2007-000309
2007-000309
2007-000309
2007-000381
2007-000381
2007-000381
2007-000381
2007-008541
2007-000381
2007-008541
2007-008541
2007-008541
2007-008541
2007-002425
2007-002425
2007-002425
2007-002425
2007-002425
2007-000309
2007-000309
2007-000309
2007-000309
2007-000381
2007-000381
2007-000381
2007-000309
2007-008541
2007-008541
2007-008541
2007-002425
2007-002425
2007-002425
2007-000309
2007-000309
2007-000309
2007-000381
2007-000381
2007-000381
2007-000381
2007-008541
2203-005148
2203-005148
2203-005148
2203-005148
2203-005148
2203-005148
2203-005148
2203-005148
2203-005148
2203-005148
2203-000257
2203-005148
2203-005148
2203-005148
2203-005148
2401-000303
2401-002165
2401-002165
2401-002165
4-8
Description ; Specification
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;1OHM,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP,MELF;1.5OHM,1%,1/4W,-,TP,1.4X3.6M
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
Remark
Loc.No
PE2
PE3
PE4
PE5
PE6
PE7
PE8
PE9
PIC1
PIC2
PIC3
PIC5
PL1
PL2
PL3
PL7
PR1
PR4
PR5
RC1
RC14
RC15
RC16
RC17
RC18
RC19
RC2
RC20
RC21
RC22
RC23
RC24
RC25
RC26
RC27
RC3
RC30
RC31
RC32
RC33
RC34
RC35
RC37
RC38
RC4
RC41
RC5
RC50
RC6
RC7
RC8
RC9
RE1
RE10
RE12
RE13
RE14
RE22
RE29
RE39
RE40
RE41
RIC1
RL11
RL3
RQ1
Part No
2401-000303
2401-002165
2401-002165
2401-002165
2401-002165
2401-000414
2401-000414
2401-000598
1203-002178
1203-002577
1203-002185
1203-002185
2703-000398
2703-000398
2703-000398
3301-000353
2007-000084
2007-000097
2007-000097
2203-000560
2203-005148
2203-005148
2203-005148
2203-000975
2203-000975
2203-000560
2203-005148
2203-000236
2203-000560
2203-005148
2203-005148
2203-005148
2007-000070
2203-005148
2203-005148
2203-005148
2203-000257
2203-000236
2203-005148
2203-005065
2203-000440
2203-005148
2203-000236
2203-000140
2203-005148
2203-005148
2203-005148
2203-001607
2203-005148
2203-005148
2203-005148
2007-000070
2401-000414
2401-000918
2401-000918
2401-000414
2401-000414
2401-002165
2401-000414
2401-000414
2401-002165
2401-000414
AH13-00009A
3301-000353
2703-000398
0501-000279
Description ; Specification
Remark
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
IC-VOLTAGE REGULATOR;1563,SOP,7P,173MIL,
IC-VOLTAGE REGULATOR;MM1561J,SOP,7P,173M
IC-VOLTAGE REGULATOR;3RD13,TO-220,4P,402
IC-VOLTAGE REGULATOR;3RD13,TO-220,4P,402
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
CORE-FERRITE BEAD;AB,120ohm,2x1.25x0.9mm
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
C-CERAMIC,CHIP;220nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-CERAMIC,CHIP;220nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;220nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;1000nF,+80-20%,10V,Y5V,TP
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;22uF,20%,16V,GP,-,6.3x7,5
C-AL;22uF,20%,16V,GP,-,6.3x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
IC ASIC;KS1462B,DVD-M201/XAA,80,+5V,-4
CORE-FERRITE BEAD;AB,120ohm,2x1.25x0.9mm
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
TR-SMALL SIGNAL;KSA1182-Y,PNP,150mW,SOT-
Samsung Electronics
Electrical Parts List
Loc.No
RQ2
RR1
RR10
RR12
RR13
RR14
RR15
RR16
RR2
RR21
RR22
RR23
RR24
RR26
RR3
RR32
RR33
RR34
RR36
RR37
RR4
RR6
RR7
RR8
RR9
SC10
SC11
SC12
SC13
SC14
SC15
SC16
SC17
SC18
SC19
SC2
SC20
SC21
SC23
SC24
SC25
SC26
SC27
SC28
SC29
SC30
SC32
SC33
SC34
SC35
SC36
SC37
SC38
SC39
SC40
SC41
SC42
SC43
SC44
SC45
SC46
SC47
SC48
SC49
SC50
SC52
Part No
0501-000279
2007-000091
2007-000312
2007-000102
2007-000102
2007-000091
2007-000090
2007-000078
2007-000091
2007-000091
2007-000091
2007-000655
2007-000134
2007-000102
2007-000091
2007-000102
2007-000102
2007-000087
2007-001235
2007-000084
2007-001179
2007-000082
2007-000077
2007-000312
2007-000078
2203-001634
2203-000715
2203-000140
2203-001652
2203-000257
2203-005148
2203-002398
2203-001126
2203-005148
2203-002398
2203-005148
2203-005148
2203-005148
2203-000491
2203-000491
2203-005221
2203-005221
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000681
2203-000681
2203-000257
2203-000257
2203-000257
2203-000257
2203-000626
2203-000626
2203-000626
2203-000257
2203-000626
2203-000257
2203-005148
2203-000257
2203-000257
2203-000257
2203-005148
2203-005148
2203-005148
Samsung Electronics
Description ; Specification
TR-SMALL SIGNAL;KSA1182-Y,PNP,150mW,SOTR-CHIP;12Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10OHM,5%,1/8W,DA,TP,3216
R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R-CHIP;12Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;12Kohm,5%,1/16W,DA,TP,1608
R-CHIP;12Kohm,5%,1/16W,DA,TP,1608
R-CHIP;12Kohm,5%,1/16W,DA,TP,1608
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R-CHIP;12Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1608
R-CHIP;910Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608
R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R-CHIP;10OHM,5%,1/8W,DA,TP,3216
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,1608,
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.68nF,10%,50V,X7R,TP,160
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;15nF,10%,50V,X7R,TP,1608,
C-CERAMIC,CHIP;15nF,10%,50V,X7R,TP,1608,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
Remark
Loc.No
SC54
SC55
SC56
SC57
SC58
SC59
SC60
SC61
SC62
SC63
SC7
SC8
SC9
SC90
SE1
SE11
SE2
SE3
SE4
SE6
SE7
SE8
SE9
SIC1
SIC2
SIC3
SIC4
SJACK
SPKJ
SQ1
SR1
SR14
SR15
SR16
SR18
SR19
SR2
SR20
SR21
SR23
SR24
SR25
SR26
SR27
SR29
SR30
SR31
SR32
SR4
SR40
SR44
SR48
SR49
SR50
SR51
SR55
SR56
SR57
SR58
SR59
SR60
SR61
SR67
SR68
SR69
SR70
Part No
2203-001222
2203-005148
2203-005148
2203-005148
2203-005148
2203-005148
2203-005148
2203-005148
2203-005148
2203-005148
2203-001222
2203-005148
2203-005148
2203-000975
2401-002165
2401-000414
2401-000414
2401-000414
2401-000414
2401-001225
2401-001225
2401-001225
2401-000302
AH13-00006A
1105-001243
1003-001521
0801-002097
3722-001375
3716-001202
0504-000156
2007-000381
2007-000078
2007-000090
2007-000133
2007-000102
2007-000091
2007-000113
2007-001235
2007-000092
2007-000091
2007-000091
2007-000093
2007-000092
2007-000092
2007-000124
2007-000124
2007-000124
2007-000124
2007-000078
2007-000078
2007-000109
2007-000078
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000082
2007-000087
2007-000082
2007-000107
2007-000034
2007-000034
2007-000655
2007-000090
Description ; Specification
Remark
C-CERAMIC,CHIP;820pF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;820pF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;4.7uF,20%,16V,GP,TP,3x5,5
C-AL;4.7uF,20%,16V,GP,TP,3x5,5
C-AL;4.7uF,20%,16V,GP,TP,3x5,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
IC ASIC;KS1454,DVD-611/XAA,160,+3.3V,+
IC-DRAM;416C256,256KX16BIT,SOJ,40P,400
IC-MOTOR DRIVER;FAN8727,QFPH,48P,550MIL,
IC-CMOS LOGIC;7ST08,AND GATE,SOP,5P,110M
JACK-DIN;4P,-,NI,BLK,TERMINAL-BLOCK;ANGLE,12P,2.30MM,1KV,TR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
R-CHIP;13Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;330Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R-CHIP;12Kohm,5%,1/16W,DA,TP,1608
R-CHIP;33ohm,5%,1/16W,DA,TP,1608
R-CHIP;910Kohm,5%,1/16W,DA,TP,1608
R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R-CHIP;12Kohm,5%,1/16W,DA,TP,1608
R-CHIP;12Kohm,5%,1/16W,DA,TP,1608
R-CHIP;20Kohm,5%,1/16W,DA,TP,1608
R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1608
R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R-CHIP;470Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1OHM,5%,1/4W,DA,TP,3216
R-CHIP;1OHM,5%,1/4W,DA,TP,3216
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
4-9
Electrical Parts List
Loc.No
SR71
SR72
SR73
SR74
SR75
SR76
SR77
SR79
SR8
SR9
SY1
VC10
VC11
VC12
VC13
VC14
VC15
VC16
VC17
VC18
VC5
VC6
VC7
VC9
VE1
VE11
VE13
VE5
VE7
VE9
VIC1
VL10
VL11
VL5
VL7
VL8
VL9
VR1
VR17
VR18
VR19
VR20
VR21
VR22
VR23
VR28
VR30
VR34
VR35
VR36
VZ1
VZ10
VZ2
VZ3
VZ4
VZ5
VZ6
VZ7
VZ8
VZ9
ZC1
ZC2
ZC20
ZC21
ZC22
ZC23
4-10
Part No
2007-000090
2007-000090
2007-000090
2007-000084
2007-000093
2007-000093
2007-000092
2007-000090
2007-000799
2007-000097
2801-000261
2203-005148
2203-001607
2203-001607
2203-001607
2203-001607
2203-001607
2203-005148
2203-005148
2203-005148
2203-005148
2203-005148
2203-005148
2203-000257
2401-002165
2401-002165
2401-000302
2401-000918
2401-001479
2401-001479
1201-001836
3301-001419
3301-001419
2703-000398
3301-001419
3301-001419
3301-001419
2104-001068
2007-001164
2007-001164
2007-001164
2007-001164
2007-001164
2007-000073
2007-000073
2007-000070
2007-000070
2007-000070
2007-000070
2007-000070
0403-001083
0403-001083
0403-001083
0403-001083
0403-001083
0403-001083
0403-001083
0403-001083
0403-001083
0403-001083
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
Description ; Specification
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;20Kohm,5%,1/16W,DA,TP,1608
R-CHIP;20Kohm,5%,1/16W,DA,TP,1608
R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;360ohm,5%,1/16W,DA,TP,1608
R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
CRYSTAL-UNIT;33.8688MHz,50ppm,28-AAA,12p
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;22uF,20%,16V,GP,-,6.3x7,5
C-AL;470uF,20%,10V,GP,TP,-,C-AL;470uF,20%,10V,GP,TP,-,IC-VIDEO AMP;MM1567AJBE,SOP,34P,300MIL,CORE-FERRITE BEAD;AB,220ohm,1.6x0.8x0.8m
CORE-FERRITE BEAD;AB,220ohm,1.6x0.8x0.8m
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
CORE-FERRITE BEAD;AB,220ohm,1.6x0.8x0.8m
CORE-FERRITE BEAD;AB,220ohm,1.6x0.8x0.8m
CORE-FERRITE BEAD;AB,220ohm,1.6x0.8x0.8m
VR-SMD;10Kohm,25%,1/20W,TOP
R-CHIP;75ohm,1%,1/16W,DA,TP,1608
R-CHIP;75ohm,1%,1/16W,DA,TP,1608
R-CHIP;75ohm,1%,1/16W,DA,TP,1608
R-CHIP;75ohm,1%,1/16W,DA,TP,1608
R-CHIP;75ohm,1%,1/16W,DA,TP,1608
R-CHIP;91ohm,5%,1/16W,DA,TP,1608
R-CHIP;91ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
DIODE-ZENER;UDZ9.1B,9.1V,8.85-9.23V,200m
DIODE-ZENER;UDZ9.1B,9.1V,8.85-9.23V,200m
DIODE-ZENER;UDZ9.1B,9.1V,8.85-9.23V,200m
DIODE-ZENER;UDZ9.1B,9.1V,8.85-9.23V,200m
DIODE-ZENER;UDZ9.1B,9.1V,8.85-9.23V,200m
DIODE-ZENER;UDZ9.1B,9.1V,8.85-9.23V,200m
DIODE-ZENER;UDZ9.1B,9.1V,8.85-9.23V,200m
DIODE-ZENER;UDZ9.1B,9.1V,8.85-9.23V,200m
DIODE-ZENER;UDZ9.1B,9.1V,8.85-9.23V,200m
DIODE-ZENER;UDZ9.1B,9.1V,8.85-9.23V,200m
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
Remark
Loc.No
ZC24
ZC25
ZC26
ZC27
ZC28
ZC29
ZC3
ZC30
ZC31
ZC32
ZC33
ZC34
ZC35
ZC36
ZC37
ZC38
ZC39
ZC4
ZC40
ZC41
ZC42
ZC43
ZC44
ZC45
ZC46
ZC5
ZC59
ZC6
ZC60
ZC61
ZC62
ZC63
ZC65
ZC66
ZC67
ZC7
ZC76
ZC77
ZC8
ZE3
ZE4
ZE5
ZE6
ZE7
ZIC1
ZIC2
ZIC4
ZL1
ZL11
ZL13
ZL15
ZL2
ZL3
ZL4
ZL5
ZL7
ZL8
ZR2
ZR23
ZR3
ZR30
ZR31
ZR32
ZR33
ZR34
ZR35
Part No
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-005148
2203-000257
2203-000257
2203-000257
2203-005148
2203-000815
2203-000257
2203-000815
2203-000257
2203-000815
2203-000815
2203-001567
2203-000384
2203-000257
2203-000257
2203-000626
2203-000257
2203-000257
2203-000257
2203-000257
2401-002165
2401-002165
2401-001479
2401-003107
2401-003107
1204-002039
1105-001305
0801-002097
2703-000398
3301-000353
3301-000353
3301-001419
3301-001419
3301-001419
3301-001419
3301-001419
3301-000353
3301-000353
2007-001164
2007-000070
2007-001164
2007-000070
2007-000118
2007-001164
2007-001164
2007-001164
2007-001164
Description ; Specification
Remark
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C-CERAMIC,CHIP;0.033NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.033NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.033NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.033NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;0.01nF,0.5pF,50V,NP0,TP,1
C-CERAMIC,CHIP;0.015NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-AL;470uF,20%,10V,GP,TP,-,C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
IC-DECODER;ZR36732,MQFP,160P,28X28MM,PLA
IC-DRAM;4S641632,1Mx16x4Bit,TSOP,54P,4
IC-CMOS LOGIC;7ST08,AND GATE,SOP,5P,110M
INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm
CORE-FERRITE BEAD;AB,120ohm,2x1.25x0.9mm
CORE-FERRITE BEAD;AB,120ohm,2x1.25x0.9mm
CORE-FERRITE BEAD;AB,220ohm,1.6x0.8x0.8m
CORE-FERRITE BEAD;AB,220ohm,1.6x0.8x0.8m
CORE-FERRITE BEAD;AB,220ohm,1.6x0.8x0.8m
CORE-FERRITE BEAD;AB,220ohm,1.6x0.8x0.8m
CORE-FERRITE BEAD;AB,220ohm,1.6x0.8x0.8m
CORE-FERRITE BEAD;AB,120ohm,2x1.25x0.9mm
CORE-FERRITE BEAD;AB,120ohm,2x1.25x0.9mm
R-CHIP;75ohm,1%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;75ohm,1%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;390ohm,5%,1/16W,DA,TP,1608
R-CHIP;75ohm,1%,1/16W,DA,TP,1608
R-CHIP;75ohm,1%,1/16W,DA,TP,1608
R-CHIP;75ohm,1%,1/16W,DA,TP,1608
R-CHIP;75ohm,1%,1/16W,DA,TP,1608
Samsung Electronics
Electrical Parts List
Loc.No
Part No
Description ; Specification
ZR36
ZR37
ZR38
ZR39
ZR4
ZR40
ZR41
ZR43
ZR44
ZR46
ZR47
ZR49
ZR5
ZR50
ZR51
ZR52
ZR53
ZR54
ZR55
ZR56
ZR57
ZR60
ZR61
ZR62
ZR63
ZR64
ZR66
ZR67
ZR68
ZR69
ZR8
ZY1
2007-000090
2007-000113
2007-000113
2007-000113
2007-001164
2007-000113
2007-000090
2007-000078
2007-000078
2011-000816
2011-000816
2007-000070
2007-001164
2007-000070
2007-000070
2007-000070
2007-000090
2007-000090
2007-000090
2007-000074
2007-000075
2007-000593
2007-000029
2007-000658
2007-000029
2007-000070
2007-000074
2007-000074
2007-000074
2007-000074
2007-000075
2801-004065
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;33ohm,5%,1/16W,DA,TP,1608
R-CHIP;33ohm,5%,1/16W,DA,TP,1608
R-CHIP;33ohm,5%,1/16W,DA,TP,1608
R-CHIP;75ohm,1%,1/16W,DA,TP,1608
R-CHIP;33ohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-NETWORK;100OHM,5%,1/16W,L,CHIP,8P,TP
R-NETWORK;100OHM,5%,1/16W,L,CHIP,8P,TP
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;75ohm,1%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;10KOHM,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;220ohm,5%,1/16W,DA,TP,1608
R-CHIP;22OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;27OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;220ohm,5%,1/16W,DA,TP,1608
CRYSTAL-UNIT;27MHZ,10PPM,28-AAM,20PF,20O
603
BDV3
BDV4
C03
C04
C11
C12
C13
C14
C15
C16
C32
C37
CD34
CD35
CD36
CE201
CV30
CV31
CV33
CV34
CV35
D05
D10
D201
DD32
DD33
DD34
DD36
DV30
DV31
DV32
DV34
AC92-01325A
3301-000297
3301-000297
2201-000963
2201-000963
2305-001029
2401-001200
2301-000383
2201-000129
2401-001915
2401-001200
2401-001992
2307-000103
2401-003480
2401-003046
2401-001353
2401-000302
2401-003137
2401-001126
2401-003480
2401-001126
2401-000385
0401-000101
0402-001195
0402-000127
0404-001180
0404-001180
0402-001195
0402-001195
0402-001195
0402-001194
0404-001180
0402-001195
ASSY OPT PCB-SMPS;DVD-CM350/XAA,SMPS
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
C-FILM,MPEF;10nF,10%,630V,TP,12x9x12.5,5
C-AL;33UF,20%,50V,WT,TP,6.3X11,2.5
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-CERAMIC,DISC;0.1NF,10%,1KV,Y5P,TP,7X4M
C-AL;1uF,20%,50V,GP,TP,3x5,5
C-AL;33UF,20%,50V,WT,TP,6.3X11,2.5
C-AL;2200UF,20%,10V,WT,TP,10X20MM,5
C-FILM,MPCF;100nF,5%,50V,TP,-,5mm
C-AL;1000UF,20%,10V,LZ,TP,10X16MM,5
C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5
C-AL;470uF,20%,10V,GP,TP,8x11.5,5
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;330UF,20%,50V,WT,TP,10X16MM,5
C-AL;330uF,20%,25V,WT,TP,10x12.5,5
C-AL;1000UF,20%,10V,LZ,TP,10X16MM,5
C-AL;330uF,20%,25V,WT,TP,10x12.5,5
C-AL;10uF,20%,100V,GP,TP,6.3x11,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-SCHOTTKY;SE55,45V,5000MA,TO-220A,B
DIODE-SCHOTTKY;SE55,45V,5000MA,TO-220A,B
DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
DIODE-RECTIFIER;UG2D,200V,2A,DO-204AC,TP
DIODE-SCHOTTKY;SE55,45V,5000MA,TO-220A,B
DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
Samsung Electronics
Remark
Loc.No
IC01
IC02
IC03
L31
LV32
PB1
PC1
PC103
PC105
PC113
PC13
PC14
PC2
PC201
PC3
PC34
PC37
PC4
PC41
PC5
PC50
PC9
PCE10
PCE17
PCE18
PCE27
PCE6
PCE7
PCN1
PCN2
PCN3
PCN4
PD1
PD14
PD16
PD17
PD18
PD2
PD202
PD3
PD4
PD5
PD7
PFD1
PIC1
PIC3
PIC5
PL1
PL2
PL3
PQ1
PQ201
PR102
PR104
PR105
PR111
PR112
PR121
PR13
PR14
PR15
PR16
PR2
PR201
PR21
PR22
Part No
1203-002805
0604-000186
AC14-12006D
AC27-12001N
AC27-12001N
3301-000297
2306-000321
2301-000383
2201-000322
2301-000008
2301-000402
2201-000863
2306-000321
2307-000103
2201-000963
2307-000103
2201-000963
2201-000963
2201-000129
2201-000286
2301-000402
2305-001029
2401-002036
2401-003243
2401-003243
2401-001902
2401-003850
2401-003850
3711-000178
AC39-00082A
3711-000595
3711-000827
0402-001533
0402-001195
0402-001569
0402-000012
0402-001569
0402-001533
0402-000127
0402-001533
0402-001533
0401-000101
0402-000012
3601-000414
1203-001951
0604-000186
AC14-12006D
AC29-00004A
AC29-00004A
AC27-00007A
0505-001667
0501-000616
2001-000055
2001-000065
2003-000556
2001-000071
2001-000764
2001-000113
2005-001017
2001-000042
2001-000611
2001-000027
2004-005062
2001-000036
2001-000302
2003-000855
Description ; Specification
Remark
IC-PWM CONTROLLER;ICE2BS01,PDIP,8P,9.52X
PHOTO-COUPLER;TR,-,200mW,DIP-4,ST
IC;KA431Z,TO-92,TAPING
COIL CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,COIL CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
C-FILM,MPPF;470NF,5%,275V,TP,-,22.5
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-CERAMIC,DISC;2.2NF,10%,2KV,Y5P,TP,13X5
C-FILM,PEF;2.2nF,5%,50V,TP,5.5X7X3,5mm
C-FILM,PEF;1nF,5%,50V,TP,5x7x2.8mm,5mm
C-CERAMIC,DISC;0.68NF,10%,50V,Y5P,TP,5X3
C-FILM,MPPF;470NF,5%,275V,TP,-,22.5
C-FILM,MPCF;100nF,5%,50V,TP,-,5mm
C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
C-FILM,MPCF;100nF,5%,50V,TP,-,5mm
C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
C-CERAMIC,DISC;0.1NF,10%,1KV,Y5P,TP,7X4M
C-CERAMIC,DISC;1NF,10%,1KV,Y5P,BK,8X5MM,
C-FILM,PEF;1nF,5%,50V,TP,5x7x2.8mm,5mm
C-FILM,MPEF;10nF,10%,630V,TP,12x9x12.5,5
C-AL;1uF,20%,50V,GP,TP,5x11,2.5
C-AL;150uF,20%,400V,WT,BK,25x30,10
C-AL;150uF,20%,400V,WT,BK,25x30,10
C-AL;100uF,20%,50V,GP,-,6.3x11,2.5
C-AL;1000UF,20%,50V,WT,TP,12.5 X 25
C-AL;1000UF,20%,50V,WT,TP,12.5 X 25
CONNECTOR-HEADER;1WALL,2P,1R,3.96mm,STRA
CBF HARNESS;-,24AWG,-,13P,85,-,-,-,MOLEX
CONNECTOR-HEADER;BOX,10P,1R,2mm,ANGLE,SN
CONNECTOR-HEADER;BOX,2P,1R,2mm,STRAIGHT,
DIODE-RECTIFIER;1N5408,1000V,3A,DO-201AD
DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
DIODE-RECTIFIER;-,400,16A,ITO-220,DIODE-RECTIFIER;UF4007,1KV,1A,DO-41,TP
DIODE-RECTIFIER;-,400,16A,ITO-220,DIODE-RECTIFIER;1N5408,1000V,3A,DO-201AD
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-RECTIFIER;1N5408,1000V,3A,DO-201AD
DIODE-RECTIFIER;1N5408,1000V,3A,DO-201AD
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;UF4007,1KV,1A,DO-41,TP
FUSE-CARTRIDGE;250V,5A,SLOW-BLOW,GLASS,5
IC-PWM CONTROLLER;3844,DIP,8P,300MIL,PLA
PHOTO-COUPLER;TR,-,200mW,DIP-4,ST
IC;KA431Z,TO-92,TAPING
FILTER LINE NOISE;SV-DVD3500A,SQ-2828 L
FILTER LINE NOISE;SV-DVD3500A,SQ-2828 L
COIL CHOKE;-,-,22UH,-,-,0.02OHM MAX,-,BA
FET-SILICON;SPA07N60C3,N,600V,4.3A,0.6OH
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
R-CARBON;4.7KOHM,5%,1/4W,AA,TP,2.4X6.4M
R-CARBON;10KOHM,5%,1/4W,AA,TP,2.4X6.4MM
R-METAL OXIDE(S);2.2ohm,5%,2W,AA,TP,4x12
R-CARBON;22KOHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CARBON;43KOHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CARBON;18KOHM,5%,1/4W,AA,TP,2.4X6.4MM
R-WIRE WOUND,NON;0.15ohm,1%,1W,AA,TP,4.3
R-CARBON;1KOHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CARBON;3.9KOHM,5%,1/4W,AA,TP,2.4X6.4M
R-CARBON;100OHM,5%,1/4W,AA,TP,2.4X6.4MM
R-METAL;6.75Kohm,1%,1/4W,AA,TP,2.4X6.4
R-CARBON;330OHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL OXIDE(S);47Kohm,5%,3W,AA,TP,6x16
4-11
Electrical Parts List
Loc.No
Part No
Description ; Specification
PR24
PR3
PR31
PR40
PR41
PR5
PSW1
PTD1
PTD2
PTH01
PZD1
PZD201
Q10
R11
R12
R13
R14
R15
R16
R160
R17
R18
R19
R20
R201
R21
R31
R32
R33
R34
R35
RD30
ZD10
ZD11
2003-002290
2004-005063
2001-001153
2002-001090
2001-000588
2003-000471
3811-000389
AC26-00010A
AC26-00002L
1404-001195
0403-000753
0403-000384
0505-001729
2001-000546
2001-000546
2001-000546
2001-000281
2001-000598
2005-001184
2001-000290
2001-000325
2006-000273
2001-000527
2004-000459
2001-001153
2006-000273
2001-000780
2001-000429
2001-000429
2004-000869
2004-000459
2001-000440
0403-001318
0403-000713
R-METAL OXIDE;180KOHM,5%,1W,AD,TP,3.3X9M
R-METAL;708ohm,1%,1/4W,AA,TP,2.4X6.4mm
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-COMPOSITION;2.7MOHM,5%,1/2W,AA,TP,4.0X
R-CARBON;3.3KOHM,5%,1/4W,AA,TP,2.4X6.4M
R-METAL OXIDE(S);10ohm,5%,2W,AA,TP,4x12m
WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
TRANS SWITCHING;EER-4042,J2A,SV-DVD3500A
TRANS SWITCHING;EER3531,SV-DVD90,FREE,-,
THERMISTOR-NTC;5.1ohm,15%,2900,27mW/C,BK
DIODE-ZENER;MTZJ27D,27V,26.29-27.64V,500
DIODE-ZENER;UZP20B,20V,18.9-21.1V,1W,DOFET-SILICON;SPA04N60C3,N,600V,4.5A,0.85O
R-CARBON;270KOHM,5%,1/4W,AA,TP,2.4X6.4M
R-CARBON;270KOHM,5%,1/4W,AA,TP,2.4X6.4M
R-CARBON;270KOHM,5%,1/4W,AA,TP,2.4X6.4M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-WIRE WOUND,NON;0.33OHM,5%,1W,AA,TP,4.3
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;120OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CEMENT;27KOHM,5%,2W,CA,BK,6.4X6.5X18M
R-CARBON;22OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL;2.2Kohm,1%,1/8W,AA,TP,1.8x3.2m
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CEMENT;27KOHM,5%,2W,CA,BK,6.4X6.5X18M
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R-METAL;2.2Kohm,1%,1/8W,AA,TP,1.8x3.2m
R-CARBON;1OHM,5%,1/8W,AA,TP,1.8X3.2MM
DIODE-ZENER;MTZJ4.3B,4.17-4.43V,500mW,DO
DIODE-ZENER;MTZJ20B,20V,18.63-17.7V,500m
701
C701
C702
C703
C704
C705
C706
C707
C708
C709
C711
CN701
CN702
D703
D704
D705
D706
D707
D708
DT701
IC701
JK701
L701
L702
L703
L704
LD701
Q701
R701
R702
R703
AC94-00195A
2202-000121
2202-000121
2401-002165
2202-000173
2202-000797
2202-000797
2401-000118
2202-000797
2202-000797
2401-000118
3710-001145
3711-001062
0401-000101
0401-000101
0401-000101
0401-000101
0401-000101
0401-000101
AC07-00063A
1003-001561
3722-001917
2701-000113
2701-000113
2701-000002
2701-000002
0601-001715
0501-000303
2001-000273
2001-000832
2001-000429
ASSY PCB-F/TIMER;THEATER2,COMBO
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P,TP,1
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-AL;1000uF,20%,10V,GP,TP,10x12.5,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-AL;1000uF,20%,10V,GP,TP,10x12.5,5
CONNECTOR-SOCKET;20P,1R,1.5mm,STRAIGHT,S
CONNECTOR-HEADER;BOX,6P,1R,2mm,STRAIGHT,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
LED DISPLAY;LTG-0149AM,CHT-420/XAA,7 SEG
IC-LED DRIVER;PT6961,SOP,32P,300MIL,-,40
JACK-PHONE;6P,3.6PI,SN,BLK,INDUCTOR-AXIAL;100uH,5%,2.5x3.4mm
INDUCTOR-AXIAL;100uH,5%,2.5x3.4mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
LED;ROUND,BLUE,3MM,475NM,3X5MM
TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
4-12
Remark
Loc.No
Part No
Description ; Specification
Remark
R704
R705
R706
R707
R708
R709
R710
R711
R712
RM701
SW701
SW702
SW703
SW704
SW705
SW706
SW707
SW708
SW709
SW711
SW712
SW713
SW714
SW715
SW716
SW717
ZD701
ZD702
ZD703
ZD704
2001-000429
2001-000429
2001-000837
2001-000290
2001-000290
2001-000281
2001-000281
2001-000290
2001-000290
AC32-00010A
3404-001188
3404-001188
3404-001188
3404-001188
3404-001188
3404-001188
3404-001188
3404-001188
3404-001188
3404-001188
3404-001188
3404-001188
3404-001188
3404-001188
3404-001188
3404-001188
0403-000720
0403-000720
0403-000720
0403-000720
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;51KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
MODULE REMOCON;GP1UA281RK,38KHZ,-,10.1*5
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
SWITCH-TACT;12V,50MA,100GF,6X6X5,SPST
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
702
CN00
LDV1
LDV2
QV1
RV1
RV2
VR101
AK92-00190A
AC39-00083A
0601-001715
0601-001715
0504-000142
2001-000362
2001-000362
3406-001082
ASSY OPT PCB-VOLUME;SV-DVD6000,VOLUME
CBF HARNESS;-,26AWG,-,6P,83,-,-,-,MOLEX
LED;ROUND,BLUE,3MM,475NM,3X5MM
LED;ROUND,BLUE,3MM,475NM,3X5MM
TR-DIGITAL;KSR2001,PNP,300MW,4.7K/4.7K,T
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
SWITCH-ROTARY;DC 5V,1MA,24PULSE/NO CLICK
H250
HCN1
HSW1
AH92-00900A
AH39-00266B
3409-001119
ASSY-HOUSING PCB;DVD-M101,MILLENO DECK(B
CONNECT WIRE;-,#26,-,-,-,WHT/BLK,-,-,-,SWITCH-DETECTOR;5V DC,1.0A,DPST,30gf,-
Samsung Electronics
5. Block Diagram
TIMER PCB
VCR PCB
FM/AM/ANT
Remocon
TV
Display/Key matrix
FM/AM Tuner
(LA1837+LC72131)
IC701 (uPD16311GC)
VFD Driver
MIC1 (ZR36705)
DVD Main Controller
ANT
VCR Deck
IC301 (LA712017)
A/V Processor
IC601(MN101D02X)
Front Controller
TM401 TV Tuner
LINE IN 3
LINE IN 2
MIC2
8M FLASH
MIC4
2K EEPROM
L2 "H "
Motors/pick up ass 'y
IC802 BU4053
LINE IN 1
SIC3
(KA3017)
Driver
DAIC14 (AK4586)
CODEC
RIC1
(KS1462B)
RF
DIR
IC801 (LA73024V)
MUX
LINE OUT
ADC
OPT IN (LINE3)
ZIC1 (ZR36732)
AV Decoder
DAC
SIC1
(KS1454)
Servo+DSP
SIC2
4M DRAM
Y/Cb/Cr
Y/C
ZIC2
16M SDRAM
SMPS
Headphones
AIC101/151/201
AIC251/300/401/402
(TAS5110)
PWM Power Amp
DAIC11 (TAS5026)
DAP & PWM
6Speakers
DVD PCB
Samsung Electronics
5-1
Block Diagram
MEMO
5-2
Samsung Electronics
6. Schematic Diagrams
◆ Block Identification of Main PCB- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-2
6-1 S.M.P.S.-1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-3
6-2 S.M.P.S.-2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-4
6-3 Function-Timer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-5
6-4 Volume - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-6
For schematic Diagram
- Resistors are in ohms, 1/8W unless otherwise noted.
Special note :
Most semiconductor devices are electrostatically sensitive and therefore require the special handling techniques described under the
“electrostatically sensitive (ES) devices” section of this service manual.
Note :
Do not use the part number shown on this drawing for ordering. The correct part number is shown in the parts list (may be slightly
different or amended since this drawing was prepared).
VCR Main PCB
6-5 Power Drive - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Note
6-7
6-6 Logic - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-8
6-7 A/V - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-9
6-8 Hi-Fi/MTS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-10
6-9 TM - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-11
6-10 AM/FM Receiver - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-12
6-11 Input-Output - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-13
Important safety notices :
Components identified with the mark
Use only the same type.
have the special characteristics for safety. When replacing any of these components.
DVD Main PCB
6-12 DVD Micom- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-14
6-13 DVD AV Decoder - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-15
6-14 DVD Servo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-16
6-15 DVD Audio/Video Interface - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-17
6-16 Digital Amp- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-18
Samsung Electronics
6-1
Schematic Diagrams
◆ Block Identification of Main PCB
IC801
LA73024V
IC801
LA73024V
VCR MAIN PCB
LA
36
63
FB
P
LA
36
63
FB
P
<Conductor Side>
<Component Side>
DVD MAIN PCB
<Component Side>
6-2
Samsung Electronics
Schematic Diagrams
6-1 S.M.P.S.-1
Samsung Electronics
6-3
Schematic Diagrams
6-2 S.M.P.S.-2
6-4
Samsung Electronics
Schematic Diagrams
6-3 Function-Timer
Samsung Electronics
6-5
Schematic Diagrams
6-4 Volume
6-6
Samsung Electronics
Schematic Diagrams
6-5 Power Drive
Samsung Electronics
6-7
Schematic Diagrams
6-6 Logic
6-8
Samsung Electronics
Schematic Diagrams
6-7 A/V
Samsung Electronics
6-9
Schematic Diagrams
6-8 Hi-Fi/MTS
6-10
Samsung Electronics
Schematic Diagrams
6-9 TM
Samsung Electronics
6-11
Schematic Diagrams
6-10 AM/FM Receiver
AM/FM
6-12
Samsung Electronics
Schematic Diagrams
6-11 Input-Output
Samsung Electronics
6-13
Schematic Diagrams
6-12 DVD Micom
Repair Zoran Program Board
6-14
Samsung Electronics
Schematic Diagrams
6-13 DVD AV Decoder
Samsung Electronics
6-15
Schematic Diagrams
6-14 DVD Servo
6-16
Samsung Electronics
Schematic Diagrams
6-15 DVD Audio/Video Interface
Samsung Electronics
6-17
Schematic Diagrams
6-16 Digital Amp
6-18
Samsung Electronics
