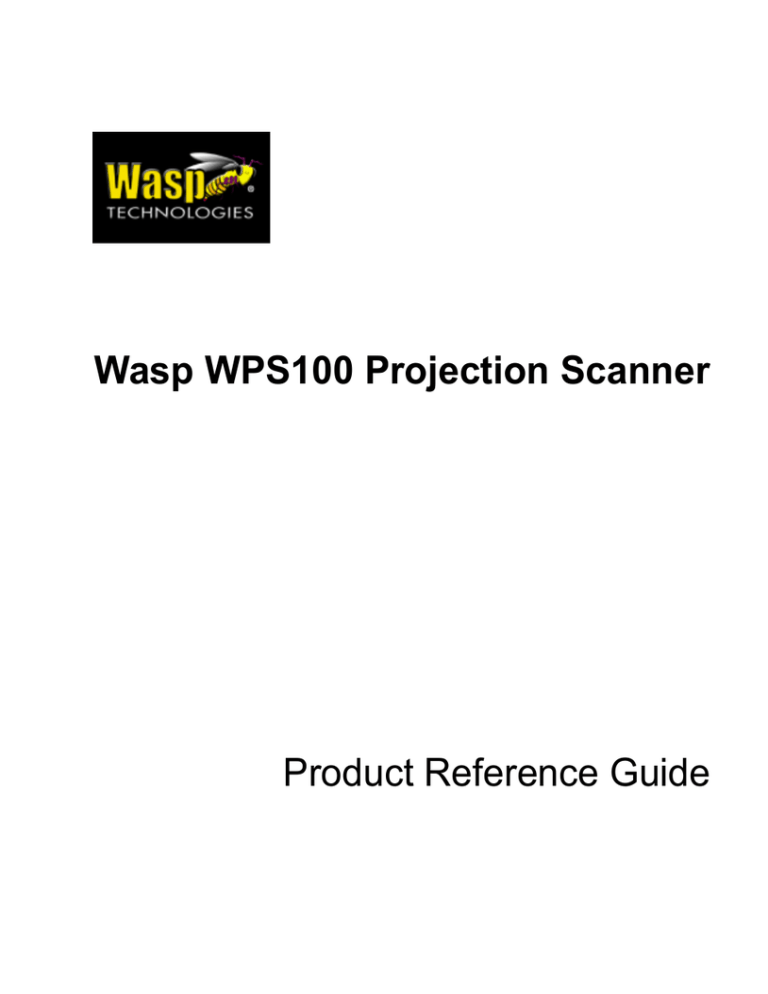

Wasp WPS100 Projection Scanner
Product Reference Guide
Wasp WPS100 Projection Scanner
Product Reference Guide
Revision A
© 2004 Wasp Technologies, Inc. All rights reserved.
Wasp Technologies, Inc.
1400 10th Street
Plano, TX 75074
http://www.waspbarcode.com
Contents
About This Guide
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Chapter Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Notational Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Wasp Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Chapter 1.
Getting Started
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unpacking Your Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting Up the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Interface Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting Power (if required) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring Your Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the Interface Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-1
1-2
1-3
1-3
1-4
1-4
1-4
Chapter 2.
Scanning
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Scanning in Single-Line Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Scanning in Omni Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Beeper Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Selecting Beeper Volume using Trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
LED Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Decode Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
iii
Wasp WPS100 Product Reference Guide
Chapter 3.
Maintenance and Technical Specifications
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Scanner Signal Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Chapter 4.
User Preferences
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Scanning Sequence Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Errors While Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
User Preferences Default Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
User Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Set Default Parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Beeper Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Beeper Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Volume Change Trigger Delay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Laser On Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Beep After Good Decode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Low Power Blink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Scan Pattern Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Single-Line Aim Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
Timeout Between Decodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Time Delay to Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Linear UPC/EAN Decode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
Chapter 5.
Keyboard Wedge Interface
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Connecting a Keyboard Wedge Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Keyboard Wedge Default Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Keyboard Wedge Host Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Keyboard Wedge Host Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Keyboard Wedge Country Types (Country Codes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Ignore Unknown Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Keystroke Delay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
Intra-Keystroke Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
Alternate Numeric Keypad Emulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13
Caps Lock On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14
iv
Contents
Caps Lock Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Convert Wedge Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Function Key Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FN1 Substitution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Send Make Break . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keyboard Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASCII Character Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-15
5-16
5-17
5-18
5-19
5-20
5-23
Chapter 6.
USB Interface
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Connecting a USB Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
USB Default Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
USB Host Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
USB Device Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
USB Country Keyboard Types (Country Codes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
USB Keystroke Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
USB CAPS Lock Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11
USB Ignore Unknown Characters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12
Emulate Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13
USB Keyboard FN1 Substitution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
Function Key Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15
Simulated Caps Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
Convert Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
ASCII Character Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18
Chapter 7.
Symbologies
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
Scanning Sequence Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
Errors While Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
Symbology Default Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3
UPC/EAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-8
Enable/Disable UPC-A/UPC-E. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-8
Enable/Disable UPC-E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-9
Enable/Disable EAN-13/JAN-13/EAN-8/JAN-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-10
Enable/Disable Bookland EAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-11
Decode UPC/EAN Supplementals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12
UPC/EAN Supplemental Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-15
Transmit UPC-A/UPC-E/UPC-E1 Check Digit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-16
UPC-A Preamble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-18
UPC-E Preamble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-19
v
Wasp WPS100 Product Reference Guide
UPC-E1 Preamble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-20
Convert UPC-E to UPC-A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-21
Convert UPC-E1 to UPC-A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-22
EAN Zero Extend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-23
UCC Coupon Extended Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-24
Code 128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-25
Enable/Disable Code 128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-25
Enable/Disable UCC/EAN-128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-26
Enable/Disable ISBT 128. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-27
Code 128 Decode Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-28
Code 128 Decode Performance Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-29
Code 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-30
Enable/Disable Code 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-30
Enable/Disable Trioptic Code 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-31
Convert Code 39 to Code 32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-32
Code 32 Prefix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-33
Set Lengths for Code 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-34
Code 39 Check Digit Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-36
Transmit Code 39 Check Digit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-37
Enable/Disable Code 39 Full ASCII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-38
Code 39 Buffering (Scan & Store) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-39
Code 39 Decode Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-43
Code 39 Decode Performance Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-44
Code 93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-45
Enable/Disable Code 93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-45
Set Lengths for Code 93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-46
Code 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-48
Code 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-48
Set Lengths for Code 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-49
Code 11 Check Digit Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-51
Transmit Code 11 Check Digits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-52
Interleaved 2 of 5 (ITF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-53
Enable/Disable Interleaved 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-53
Set Lengths for Interleaved 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-54
I 2 of 5 Check Digit Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-56
Transmit I 2 of 5 Check Digit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-57
Convert I 2 of 5 to EAN-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-58
Discrete 2 of 5 (DTF). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-59
Enable/Disable Discrete 2 of 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-59
Set Lengths for Discrete 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-60
Chinese 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-62
Enable/Disable Chinese 2 of 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-62
Codabar (NW - 7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-63
Enable/Disable Codabar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-63
vi
Contents
Set Lengths for Codabar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLSI Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NOTIS Editing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enable/Disable MSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Set Lengths for MSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MSI Check Digits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transmit MSI Check Digit(s). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MSI Check Digit Algorithm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RSS (Reduced Space Symbology) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RSS 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RSS Limited . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RSS Expanded . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Convert RSS to UPC/EAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Symbology - Specific Security Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Redundancy Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Symbology - Intercharacter Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11-64
11-66
11-67
11-68
11-68
11-69
11-71
11-72
11-73
11-74
11-74
11-75
11-76
11-77
11-80
11-80
11-83
11-85
Chapter 8.
Miscellaneous Scanner Options
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Scanning Sequence Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-2
Errors While Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-2
Miscellaneous Default Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3
Miscellaneous Scanner Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-4
Transmit Code ID Character. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-4
Prefix/Suffix Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-5
FN1 Substitution Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-8
Scan Data Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-9
Transmit “No Read” Message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-12
Chapter 9.
Advanced Data Formatting
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using ADF Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADF Bar Code Menu Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rule 1: The Code 128 Scanning Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rule 2: The UPC Scanning Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Alternate Rule Sets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rules Hierarchy (in Bar Codes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Default Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13-1
13-2
13-2
13-3
13-3
13-4
13-5
13-6
vii
Wasp WPS100 Product Reference Guide
Special Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-7
Pause Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-7
Begin New Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-7
Save Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-8
Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-8
Quit Entering Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-9
Disable Rule Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-10
Criteria. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-12
Code Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-12
Code Lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-20
Message Containing A Specific Data String . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-30
Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-34
Send Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-34
Setup Field(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-42
Modify Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-53
Pad Data with Zeros . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-66
Beeps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-76
Send Keystroke (Control Characters and Keyboard Characters) . . . . . . . . . . . . . . . . . . . . 13-77
Send Right Control Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-162
Send Graphic User Interface Characters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-163
Turn On/Off Rule Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-175
Alphanumeric Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-178
Appendix A.
Standard Default Parameters
Appendix B.
Programming Reference
Symbol Code Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-1
AIM Code Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-3
Appendix C.
Sample Bar Codes
Code 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1
UPC/EAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1
UPC-A, 100 % . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1
EAN-13, 100 % . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2
Code 128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2
Interleaved 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2
RSS 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-3
viii
Contents
Appendix D.
Numeric Bar Codes
0, 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2, 3, 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5, 6, 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8, 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cancel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
D-1
D-2
D-3
D-4
D-5
Glossary
Index
ix
Wasp WPS100 Product Reference Guide
x
About This Guide
Introduction
The Wasp WPS100 Product Reference Guide provides general instructions for setting up,
operating, maintaining and troubleshooting the WPS100 scanner.
Chapter Descriptions
•
Chapter 1, Getting Started provides a product overview and unpacking
instructions.
•
Chapter 2, Scanning describes parts of the scanner, beeper and LED definitions,
how to use the scanner in hand-held and hands-free modes.
•
Chapter 3, Maintenance and Technical Specifications provides information on how
to care for your scanner, troubleshooting, and technical specifications.
•
Chapter 4, User Preferences provides the programming bar codes necessary for
selecting user preference features for your scanner.
•
Chapter 5, Keyboard Wedge Interface covers information for setting up your
scanner for Keyboard Wedge operation.
•
Chapter 6, USB Interface covers information for setting up your scanner for USB
operation.
•
Chapter 7, Symbologies describes all symbology features and provides the
programming bar codes necessary for selecting these features for your scanner.
•
Chapter 8, Miscellaneous Scanner Options includes commonly used bar codes to
customize how your data is transmitted to your host device.
•
Chapter 9, Advanced Data Formatting (ADF) describes how to customize scanned
data before transmitting to the host.
xi
Wasp WPS100 Product Reference Guide
•
Appendix A, Standard Default Parameters provides a table of all host devices and
miscellaneous scanner defaults.
•
Appendix B, Programming Reference provides a table of AIM code identifiers,
ASCII character conversions, and keyboard maps.
•
Appendix C, Sample Bar Codes includes sample bar codes.
•
Appendix D, Numeric Bar Codes includes the numeric bar codes to scan for
parameters requiring specific numeric values.
xii
About This Guide
Notational Conventions
The following conventions are used in this document:
•
Bullets (•) indicate:
•
action items
•
lists of alternatives
•
lists of required steps that are not necessarily sequential
•
Sequential lists (e.g., those that describe step-by-step procedures) appear as
numbered lists.
•
Throughout the programming bar code menus, asterisks (*) are used to denote
default parameter settings.
* Indicates Default
*Baud Rate 9600
Feature/Option
Related Publications
The Wasp WPS100 Quick Reference Guide, provides general information to help the user
get started with the scanner. It includes basic set-up and operation instructions.
For the latest versions of the WPS100 Quick Reference Guide and Product Reference
Guide go to: http://support.waspbarcode.com.
Wasp Technical Support
If you have a problem with your equipment, Submit a Ticket at:
http://support.waspbarcode.com.
xiii
Wasp WPS100 Product Reference Guide
xiv
Chapter 1
Getting Started
Introduction
The WPS100 projection scanner provides multiple scan pattern capabilities that support
various applications at the POS (point of sale). For fast, intuitive, hands-free scanning, use
the rastering, 100-line, omni-directional scan pattern. To read bar code menus and pick
lists, use the Single-Scan line. The scanner can also be picked up to scan heavy or bulky
merchandise. The scanner reads all retail symbologies and has multi-interface capability to
allow it to interface to all popular POS devices..
Decode
LED
Finger Grips
Single Scan
Line Trigger
and Volume
Control
Exit Window
Beeper
Hands-Free
Adjustable
Stand
Figure 1-1. WPS100 Scanner
1-1
Wasp WPS100 Product Reference Guide
The WPS100 scanner supports the following interfaces:
•
Keyboard Wedge connection to a host. Scanned data is interpreted by your host
as keystrokes.
• International Keyboards supported (for Windows™ environment): North
American, German, French, Spanish, Italian, Swedish, UK English, Brazilian/
Portuguese and Japanese.
• International Keyboards supported (for Win XP/2000™ environment):French
Canadian
• International Keyboards supported (for Win 95/98 environment):French
Canadian
•
USB connection to a host. The scanner autodetects a USB host and defaults to the
HID keyboard interface type. Other USB interface types are selectable by scanning
programming bar code menus.
• International Keyboards supported (for Windows™ environment): North
America, German, French, French International, Spanish, Italian, Swedish,
British, and Japanese.
Unpacking Your Scanner
Remove the scanner from its packing and inspect it for damage. KEEP THE PACKING. It
is the approved shipping container and should be used if you ever need to return your
equipment for servicing.
1-2
Getting Started
Setting Up the Scanner
Installing the Interface Cable
1. Connect the interface cable to the host computer.
2. Plug the interface cable modular connector into the interface cable port on the rear
of the WPS100 (See Figure 1-2.)
3. Push the connector into the housing until a “click” sound is heard. The green LED
lights up and three short high beeps sound, indicating that the scanner is
operational..
Interface cable
modular connector
Cable interface
port
To host
Figure 1-2. Installing the Interface Cable
Note: Different cables are required for different hosts. The connectors
illustrated in each host chapter are examples only. Your connectors
may be different than those illustrated, but the steps to connect your
scanner remain the same.
1-3
Wasp WPS100 Product Reference Guide
Connecting Power (if required)
If your host does not provide power to the scanner, you will need an external power
connection to the scanner:
1. Connect the interface cable to the back of the scanner, as described in Installing
the Interface Cable on page 1-3.
2. Connect the other end of the interface cable to the host (refer to your host manual
to locate the correct port).
3. Plug the power supply into the power jack on the interface cable.
4. Plug the other end of the power supply into an AC outlet.
Configuring Your Scanner
Configure your scanner using the bar codes included in this manual. Refer to Chapter 4,
User Preferences for information about programming your scanner using bar code menus.
The scanner supports Keyboard Wedge and USB interfaces. Each host specific chapter
describes how to set up each of these connections.
Removing the Interface Cable
To remove the interface cable:
1. Unplug the installed cable’s modular connector by depressing the connector clip
and gently pulling back.
2. Follow the steps for Installing the Interface Cable on page 1-3 to connect a new
cable.
1-4
Chapter 2
Scanning
Introduction
This chapter covers the techniques involved in scanning bar codes, beeper and LED
definitions, and general instructions and tips about scanning.
Decode
LED
Finger Grips
Single Scan
Line Trigger
and Volume
Control
Exit Window
Beeper
Hands-Free
Adjustable
Stand
Figure 2-1. WPS100 Scanner Parts
2-1
Wasp WPS100 Product Reference Guide
Scanning in Single-Line Mode
Install and program your scanner. (Refer to each host chapter and Chapter 4, User
Preferences, Chapter 7, Symbologies, Chapter 8, Miscellaneous Scanner Options, and
Chapter 9, Advanced Data Formatting for instructions on programming your scanner.) If
you need assistance, contact Wasp Technical Support at http://support.waspbarcode.com.
1. Ensure all connections are secure. (Refer to the host chapter for your scanner.)
2. Pick up the scanner. Press and then release the trigger. A single scan line
displays.
Figure 2-2. Scanning in Hand-Held Mode
3. Ensure the scan line crosses every bar and space of the symbol.
RIGHT
012345
WRONG
012345
4. Depress and hold the trigger until either:
a.
The scanner reads the bar code. The scanner beeps, the LED flashes and the
laser turns off.
b.
The scanner does not read the barcode and the laser turns off.
5. Release the trigger. This causes the aim scan line to reappear. To read another
bar code in single-line mode, repeat steps 2, 3 and 4. This step can be repeated
as often as desired.
6. After a programmable time period, the omni-directional scan pattern displays. This
indicates the scanner is ready to read bar codes without use of the trigger.
7. For more information on beeper definitions, refer to Table 2-1.
2-2
Scanning
Scanning in Omni Mode
In this mode, an omni scan pattern provides rapid, orientation-free scanning. This scan
pattern is used with either hands-free or hand-held scanning..
To scan a bar code, direct it in toward the window of the scanner (“presentation” scanning,
see Figure 2-7 on page 2-6) or from side to side in a sweeping motion (“swipe” scanning,
see Figure 2-8 on page 2-6).
1. Ensure all cable connections are secure.
2. Insert the scanner in the optional hands-free stand by placing the front of the
scanner into the stand’s “cradle” (see Figure 2-3) or place the scanner on a flat
surface (see Figure 2-4).
3. To scan a bar code, present the bar code and ensure the scan lines cross every
bar and space of the symbol. The scan pattern becomes steady when the scanner
detects the bar code. See Figure 2-5 on page 2-5 for scanning in hands-free mode
and Figure 2-6 on page 2-5 for scanning in hand-held mode.
4. Upon successful decode, the scanner beeps and the green LED flashes
momentarily.
2-3
Wasp WPS100 Product Reference Guide
Figure 2-3. Scanner in the Stand
Figure 2-4. Scanner Standing Alone
2-4
Scanning
A rastering, 100-line, omni-directional scan pattern provides rapid, orientation-free
scanning. This scan pattern can be used in either hands-free or hand-held mode.
(with stand)
(on table-top)
Figure 2-5. Hands-Free Mode
Figure 2-6. Hand-Held Mode
2-5
Wasp WPS100 Product Reference Guide
To scan a bar code, present it to the exit window of the scanner (“presentation” scanning)
or move it from side-to-side in a sweeping motion (“swipe” scanning) as show below:
Figure 2-7. “Presentation” scanning
Figure 2-8. “Swipe” scanning
2-6
Scanning
Beeper Definitions
The scanner communicates with the user by emitting different beeper sequences and
patterns. Table 2-1 defines beep sequences that occur during both normal scanning and
while programming the scanner.
Table 2-1. Standard Beeper Definitions
Beeper Sequence
Indication
Standard Use
3 short high beeps
Power up.
Short high beep
A bar code symbol was decoded (if decode beeper
is enabled).
4 long low beeps
A transmission error was detected in a scanned
symbol. The data is ignored. This occurs if a unit is
not properly configured. Check option setting.
5 low beeps
Conversion or format error.
Lo/hi/lo beep
Transmit error.
Hi/hi/hi/lo beep
Receive error.
Parameter Menu Scanning
Short high beep
Correct entry scanned or correct menu sequence
performed.
Lo/hi beep
Input error, incorrect bar code or “Cancel” scanned,
wrong entry, incorrect bar code programming
sequence; remain in program mode.
Hi/lo beep
Keyboard parameter selected. Enter value using
bar code keypad.
Hi/lo/hi/lo beep
Successful program exit with change in the
parameter setting.
Low/hi/low/hi beep
Out of host parameter storage space. Scan Set
Default Parameter on page 4-5.
Code 39 Buffering
Hi/lo beep
New Code 39 data was entered into the buffer.
3 long high beeps
Code 39 buffer is full.
2-7
Wasp WPS100 Product Reference Guide
Table 2-1. Standard Beeper Definitions
Beeper Sequence
Indication
Lo/hi/lo beep
The Code 39 buffer was erased or there was an
attempt to clear or transmit an empty buffer.
Lo/hi beep
A successful transmission of buffered data.
Host Specific
USB only
4 short high beeps
Scanner has not completed initialization. Wait
several seconds and scan again.
Scanner gives a power-up
beep after scanning a USB
Device Type.
Communication with the bus must be established
before the scanner can operate at the highest
power level.
This power-up beep occurs
more than once.
The USB bus may put the scanner in a state where
power to the scanner is cycled on and off more than
once. This is normal and usually happens when the
PC cold boots.
Selecting Beeper Volume using Trigger
The scanner emits a short beep when it successfully reads a bar code. The volume of the
beep can be changed either by scanning the appropriate bar code in Beeper Volume on
page 4-7, or by utilizing the trigger as follows:
1. Press and hold the trigger for an extended period of time (approximately 5
seconds). The scanner cycles through three settings (Low, Medium, High) emitting
a 2-beep tone at each setting.
2. To select a particular setting, release the trigger after the desired 2-beep tone is
heard.
2-8
Scanning
LED Definitions
In addition to beeper sequences, the scanner communicates with the user using an LED
display. Table 2-2 defines LED flashes that display during scanning.
Table 2-2. Standard LED Definitions
LED
Indication
Off
No power is applied to the scanner.
Green
The scanner is on and “ready to scan.”
Momentary flash
A bar code was successfully decoded.
Slow continuous flashing
The scanner is in programming mode.
Fast continuous flashing
There is a internal problem; the laser is shut off for
regulatory reasons.
2-9
Wasp WPS100 Product Reference Guide
Aiming
Do not hold the scanner directly over the bar code. Laser light reflecting directly back into
the scanner from the bar code is known as specular reflection. This specular reflection can
make decoding difficult.
You can tilt the scanner up to 45° forward or back and achieve a successful decode (Figure
2-9). Simple practice quickly shows what tolerances to work within.
Specular
Reflection
+4
45
45
Bar
Code
Figure 2-9. Maximum Tilt Angles and Dead Zone
2-10
Scanning
Decode Zone
Note: Typical performance at 73.4
on high quality symbols.
F (23
C)
1.0
0
0
cm
5
12.7
W
i
d
t
h
0
LS 9208
0
in.
5 mil
0
F
i
e
l
d
2.5
7.8 mil (60%)
10.4 mil (80%)
13 mil 100% UPC
o
f
5
6.0
12.7
7.5
9.0
Figure 2-10. WPS100 Decode Zone
2-11
Wasp WPS100 Product Reference Guide
2-12
Chapter 3
Maintenance and Technical Specifications
Introduction
This chapter covers suggested scanner maintenance, troubleshooting, technical
specifications, and signal descriptions (pinouts).
Maintenance
Cleaning the exit window is the only maintenance required. A dirty window may affect
scanning accuracy.
•
Do not allow any abrasive material to touch the window.
•
Remove any dirt particles with a damp cloth.
•
Wipe the window using a tissue moistened with ammonia/water.
•
Do not spray water or other cleaning liquids directly into the window.
3-1
Wasp WPS100 Product Reference Guide
Troubleshooting
Problem
Possible Causes
Possible Solutions
The omni-line scan pattern
No power to the scanner.
does not display when you
follow the directions for
installing the interface cable on
1-3
Interface cable is not
properly connected.
Ensure the host has power, and is on.
If the scanner uses a separate power
supply, ensure it’s connected to a
working AC outlet.
Scan line(s) display, but bar
code cannot be read.
Scanner is not
programmed to read the
bar code type.
Ensure scanner is programmed to
read the bar code type you are
scanning.
Bar code is damaged.
Try scanning other bar codes of the
same bar code type.
Bar code is too far from
scanner.
Move the bar code closer to the
scanner.
Triggered scanning is
being used incorrectly.
Press the trigger to activate
decoding. Follow directions on page
2-2.
The host has disabled
scanning or overridden
parameter settings.
See the technical person in charge of
scanning.
Bar code is decoded, but not
transmitted to the host.
Scanner is not
programmed for the
correct host type.
Scan the appropriate host type bar
code.
Scanned data is incorrectly
displayed on the host.
Scanner is not
• Ensure proper host is selected.
programmed to work with • For keyboard wedge, ensure
the host. Check scanner
scanner is programmed with the
host type parameters or
correct country code and that the
editing options.
CAPS LOCK key is off.
• Ensure editing options (e.g.,
UPCE-to-UPCA Conversion) are
properly programmed.
Check for loose cable connections.
Although the green Power LED The scanner has gone
Press the trigger to awaken the unit,
is on, the scanner does not
into the Low Power “Shut or change the “Low Power Blink”
produce the omni-directional
Down” Mode.
parameter on page 4-11.
scan pattern.
3-2
Maintenance and Technical Specifications
Note: If after performing these checks the symbol still does not scan,
contact Wasp Technical Support at http://
support.waspbarcode.com.
3-3
Wasp WPS100 Product Reference Guide
Technical Specifications
Table 3-1. Technical Specifications
Item
Description
Physical Characteristics
Dimensions:
without stand: Height
Width
Depth
with stand: Height
Width
Depth
Weight
5.51 in. (14 cm)
3.49 in. (8.8 cm)
2.96 in. (7.5 cm)
7.18 in. (18.24 cm)
4.83 in. (12.27 cm)
3.73 in. (9.47 cm)
Scanner only: 10.2 oz/320 g
With adjustable stand: 21.5 oz/670 g
Power Source
Power drawn from Host terminal or external power
supply; depends on Host type.
Voltage
5.0 VDC ± 10%
Nominal Current
390 mA
Power
2 watts
Mounting Options
Adjustable multi-mount stand
Color
Cash Register White and Twilight Black
Performance Characteristics
Light Source
650nm visible laser diode
Yaw Tolerance (Typical)1
Omnidirectional: ± 50°
Single scan line: ± 50°
Pitch Tolerance (Typical)1
Omnidirectional: ± 50°
Single scan line: ± 60°
Roll Tolerance (Typical)1
Omnidirectional: 0 to 360°
Single scan line: ± 40°
Print Contrast
25% minimum reflective difference
1Refers
3-4
to 100% UPC bar code (80% contrast) located 4 in./10 cm from the scanner nose.
Maintenance and Technical Specifications
Table 3-1. Technical Specifications (Continued)
Item
Description
Scan Patterns
Omnidirectional: 20 interlocking lines,
5 scan lines,
4 lines per angle rastering @ 5Hz
Single scan line capability
Scan Rate
Omnidirectional: 1500 scans/second
Single scan line: 75 scans/second
Depth of Field
0-9 in./0-22.9 cm @ 13 mil (100% UPC/EAN)
Nominal Working Range
5 mil: (38%) 1 to 2.5 in./ 2.5 to 6.4 cm
7.8 mil: (60%) 0 to 6 in./ 0 to 15.2 cm
10.4 mil: (80%) 0 to 7.5 in./ 0 to 19 cm
13 mil: (100%) 0 to 9 in./ 0 to 22.9 cm
Width of Field
1.6 in. (40 mm) @ Face
6.7 in. (170 mm) @ 9 in.
Minimum Resolution
5 mil
Decode Capability
UPC/EAN/JAN, UPC/EAN with Supplementals, UCC/
EAN 128, Code 128, ISBT 128, Code 39, Code 39
Trioptic, Interleaved 2 of 5, Discrete 2 of 5, Code 93,
Code 11, Codabar, MSI, RSS Variants
Interfaces Supported
USB and Keyboard Wedge
User Environment
Operating Temperature
32° to 104°F (0° to 40°C)
Storage Temperature
-40° to 158°F (-40° to 70°C)
Humidity
5% to 95% (non-condensing)
Drop Specifications
Functions normally after repeated 4 ft (1.2m) drops to
concrete
Ambient Light Immunity
Immune to normal artificial indoor and natural outdoor
(direct sunlight) lighting conditions.
Fluorescent, Incandescent, Mercury Vapor and
Sodium Vapor: 450 Ft Candles (4,844 Lux)
Sunlight: 8000 Ft Candles (86,111 Lux)
Regulatory
3-5
Wasp WPS100 Product Reference Guide
Table 3-1. Technical Specifications (Continued)
Item
3-6
Description
Electrical Safety
Certified to UL 1950, CSA C22.2 No. 950 EN60825
Laser Safety
CDRH Class IIa Laser Product
IEC 60825 Class 1 Laser Product
EMC
CISPR B, FCC B
Maintenance and Technical Specifications
Scanner Signal Descriptions
Back of scanner
Cable interface port
PIN 10
PIN 1
Interface cable
modular connector
Figure 3-1. Scanner Cable Pinouts
3-7
Wasp WPS100 Product Reference Guide
The signal descriptions in Table 3-2 apply to the connector on the scanner and are for
reference only.
Table 3-2. Scanner Signal Pin-outs
Pin
3-8
USB
Keyboard Wedge
1
Jump to Pin 6 Reserved
2
Power
Power
3
Ground
Ground
4
Reserved
KeyClock
5
D+
TermData
6
Jump to Pin 1 KeyData
7
D-
TermClock
8
Reserved
Reserved
9
Reserved
Reserved
10 Reserved
Reserved
Chapter 4
User Preferences
Introduction
You have the option to program the WPS100 scanner to perform various functions, or
activate different features. This chapter describes each user preference feature and
provides the programming bar codes necessary for selecting these features for your
WPS100 scanner. Before programming, follow the instructions in Chapter 1, Getting
Started.
Your WPS100 is shipped with the settings shown in the User Preferences Default Table on
page 4-3 (also see Appendix A, Standard Default Parameters for all host device and
miscellaneous scanner defaults). If the default values suit your requirements, programming
may not be necessary.
Features values are set by scanning single bar codes or short bar code sequences. The
settings are stored in non-volatile memory and are preserved even when the scanner is
powered down.
4-1
Wasp WPS100 Product Reference Guide
If you are not using a USB cable, you must select a host type (see each host chapter for
specific host information). After you hear the power-up beeps, select a host type. This only
needs to be done once, upon the first power-up when connected to a new host.
To return all features to their default values, all you need to do is scan the Set All Defaults
bar code on page 4-5. Throughout the programming bar code menus, default values are
indicated with asterisks (*).
* Indicates Default
*High Frequency
Feature/Option
Scanning Sequence Examples
In most cases you need only scan one bar code to set a specific parameter value. For
example, if you want to set the beeper tone to high, simply scan the High Frequency
(beeper tone) bar code listed under Beeper Tone on page 4-6. The scanner issues a short
high beep and the LED turns green, signifying a successful parameter entry.
Other parameters, such as specifying Serial Response Time-Out or setting Data
Transmission Formats, require that you scan several bar codes. Refer to Host Serial
Response Time-out on page 6-20 and Scan Data Options on page 8-9 for descriptions of
this procedure.
Errors While Scanning
Unless otherwise specified, if you make an error during a scanning sequence, just re-scan
the correct parameter.
4-2
User Preferences
User Preferences Default Parameters
Table 4-1 lists the defaults for user preferences parameters. If you wish to change any
option, scan the appropriate bar code(s) provided in the User Preferences section
beginning on page 4-5.
Note: See Appendix A, Standard Default Parameters for all user
preferences, hosts, symbologies, and miscellaneous default
parameters.
Table 4-1. User Preferences Default Table
Parameter
Default
Page
Number
User Preferences
Set Default Parameter
All Defaults
4-5
Beeper Tone
High
4-6
Beeper Volume
High
4-7
Volume Change Trigger Delay
5.0 Sec
4-8
Laser On Time
3.0 Sec
4-9
Beep After Good Decode
Enable
4-10
Low Power Blink
Blink
4-11
Scan Pattern Mode
Rastering
4-12
Single-Line Aim Duration
2 sec
4-13
Time-out Between Same Symbol
0.6 sec
4-15
Time-out Between Different Symbols
0.2 sec
4-15
Time Delay to Low Power Mode
30 Minutes
4-16
4-3
Wasp WPS100 Product Reference Guide
Table 4-1. User Preferences Default Table
Parameter
Linear UPC/EAN Decode
4-4
Default
Disable
Page
Number
4-18
User Preferences
User Preferences
Set Default Parameter
Scanning this bar code returns all parameters to the default values listed in Table A-1 on
page A-1.
Set All Defaults
4-5
Wasp WPS100 Product Reference Guide
Beeper Tone
To select a decode beep frequency (tone), scan the Low Frequency, Medium Frequency,
or High Frequency bar code.
Low Frequency
Medium Frequency
*High Frequency
4-6
User Preferences
Beeper Volume
To select a beeper volume, scan the Low Volume, Medium Volume, or High Volume bar
code.
Low Volume
Medium Volume
*High Volume
4-7
Wasp WPS100 Product Reference Guide
Volume Change Trigger Delay
The volume on the WPS100 scanner is adjusted by pressing and holding the trigger for a
certain amount of time, after which the scanner changes the volumes, and beeps with the
new volume.
The parameters below control the length of time needed to hold the trigger before the
volume is adjusted.
Volume Trigger Duration 3 sec
*Volume Trigger Duration 5 sec
Volume Trigger Duration 7 sec
4-8
User Preferences
Laser On Time
This parameter sets the maximum time that decode processing continues during a scan
attempt. It is programmable in 0.1 second increments from 0.5 to 10 seconds. The default
Laser On Time is 3.0 seconds.
To set a Laser On Time, scan the bar code below. Next, scan two numeric bar codes
beginning on page D-1 in Appendix D that correspond to the desired on time. Single digit
numbers must have a leading zero. For example, to set an On Time of 0.5 seconds, scan
the bar code below, then scan the “0” and “5” bar codes. If you make an error, or wish to
change your selection, scan Cancel on page D-5.
Laser On Time
4-9
Wasp WPS100 Product Reference Guide
Beep After Good Decode
Scan a bar code below to select whether or not the scanner beeps after a good decode. If
Do Not Beep After Good Decode is selected, the beeper still operates during parameter
menu scanning and indicates error conditions.
*Beep After Good Decode
(Enable)
Do Not Beep After Good Decode
(Disable)
4-10
User Preferences
Low Power Blink
After a period of inactivity, the scanner will go into a reduced power mode. This parameter
controls how aggressively power is conserved, and therefore determines the method of
waking the scanner up.
If “Low Power - Blink Mode” is selected, then the scanner (after a period of inactivity) will
blink infrequently to save power. To restore the scanner to full power mode, the user must
simply use the scanner by presenting a barcode.
If “Motor and Laser Shut Down” is selected, then the scanner (after a period of inactivity)
will turn off the motor and laser, but leave the green Power LED lit. The user must then
depress the trigger to awaken the scanner to its full power mode.
*Low Power - Blink Mode
Low Power - Shut Down
4-11
Wasp WPS100 Product Reference Guide
Scan Pattern Mode
The WPS100 has a very aggressive scan pattern that is not only omnidirectional, but also
raster. If a static omnidirectional pattern is desired, scan the “Omnidirectional Pattern”
parameter below to change the scan pattern.
*Rastering Omnidirectional Pattern
Omnidirectional Pattern
4-12
User Preferences
Single-Line Aim Duration
The LS 9200 can enter the single-line scan mode by tapping the trigger. Once in this mode,
each trigger pull will attempt to decode the barcode in front of the scanner. After a period
of inactivity while the trigger is not pressed, the scanner will revert to the omnidirectional
pattern.
This parameter controls the length of the period of inactivity in single-line mode before the
scanner reverts to the omnidirectional pattern.
*Aim Duration 2 sec
Aim Duration 3 sec
4-13
Wasp WPS100 Product Reference Guide
Single-Line Aim Duration (Continued)
Aim Duration 4 sec
Aim Duration 5 sec
4-14
User Preferences
Timeout Between Decodes
Timeout Between Decodes, Same Symbol
This parameter sets the minimum time between decodes of different symbols. It is
programmable in 0.1-second increments from 0.0 to 9.9 seconds. Setting this above 0.4
seconds is recommended.) The default for this parameter is 0.6 seconds.
Scan the bar code below to select a new timeout. Next, scan two numeric bar codes
beginning in Numeric Bar Codes on page D-1 that correspond to the desired timeout.
Single digit numbers must have a leading zero. For example, to set a timeout of 0.5
seconds, scan the bar code below, then scan the “0” and “5” bar codes. If you make an
error, or wish to change your selection, scan Cancel on page D-5.
Timeout Between Same Symbol
Timeout Between Decodes, Different Symbol
This parameter sets the minimum time between decodes of different symbols. It is
programmable in 0.1-second increments from 0.0 to 9.9 seconds. The default for this
parameter is 0.2 seconds.
Scan the bar code below to select a new timeout. Next, scan two numeric bar codes
beginning in Numeric Bar Codes on page D-1 that correspond to the desired timeout.
Single digit numbers must have a leading zero. For example, to set a timeout of 0.5
seconds, scan the bar code below, then scan the “0” and “5” bar codes. If you make an
error, or wish to change your selection, scan Cancel on page D-5.
Timeout Between Different Symbol
4-15
Wasp WPS100 Product Reference Guide
Time Delay to Low Power Mode
This parameter sets the time that the scanner remains active after any scanning activity.
Scan one of the four options. Depending on the selection, the scanner enters a sleep mode
15, 30, 60 or 90 minutes after the last attempted decode. To awaken the scanner, please
refer to the explanation of the Low Power Blink parameter on page 4-11.
15 Minutes
*30 Minutes
4-16
User Preferences
Time Delay to Low Power Mode (Continued)
60 Minutes
90 Minutes
4-17
Wasp WPS100 Product Reference Guide
Linear UPC/EAN Decode
This option applies to code types containing two adjacent blocks (e.g., UPC-A, EAN-8,
EAN-13). When enabled, a bar code is transmitted only when both the left and right blocks
are successfully decoded within one laser scan. Enable this option when bar codes are in
proximity to each other.
Enable Linear UPC/EAN Decode
*Disable Linear UPC/EAN Decode
4-18
Chapter 5
Keyboard Wedge Interface
Introduction
This chapter covers Keyboard Wedge interface information for setting up your scanner.
This interface type is used to attach the scanner between the keyboard and host computer.
The scanner translates the bar code data into keystrokes. The host computer accepts the
keystrokes as if they originate from the keyboard.
This mode of operation allows adding bar code reading functionality to a system designed
for manual keyboard input. In this mode the keyboard keystrokes are simply passed
through.
Throughout the programming bar code menus, default values are indicated with asterisks
(*).
* Indicates Default
*North American
Feature/Option
5-1
Wasp WPS100 Product Reference Guide
Connecting a Keyboard Wedge Interface
Male DIN Keyboard
Y-cable
Power supply
(if needed)
Figure 5-1. Keyboard Wedge Connection with Y-cable
To connect the Keyboard Wedge Y-cable:
1. Switch off the host and unplug the keyboard connector.
2. Attach the modular connector of the Y-cable to the cable interface port on the
scanner. (See Installing the Interface Cable on page 1-3.)
3. Connect the round male DIN host connector of the Y-cable to the keyboard port on
the host device.
4. Connect the round female DIN keyboard connector of the Y-cable to the keyboard.
5. If needed, attach the optional power supply to the connector in the middle of the Ycable.
6. Ensure that all connections are secure.
7. Switch on your host system.
8. Scan the appropriate bar codes in this chapter to configure the scanner.
5-2
Keyboard Wedge Interface
Keyboard Wedge Default Parameters
Table 5-1 lists the defaults for Keyboard Wedge host parameters. If you wish to change any
option, scan the appropriate bar code(s) provided in the Keyboard Wedge Host Parameters
section beginning on page 5-4.
Note: See Appendix A, Standard Default Parameters for all user
preferences, hosts, symbologies, and miscellaneous default
parameters.
Table 5-1. Keyboard Wedge Host Default Table
Parameter
Default
Page
Number
Keyboard Wedge Host Parameters
Keyboard Wedge Host Type
IBM PC/AT & IBM PC Compatibles1
5-4
Country Types (Country Codes)
North American
5-6
Ignore Unknown Characters
Send Bar Codes
5-10
Keystroke Delay
No Delay
5-11
Intra-Keystroke Delay
Disable
5-12
Alternate Numeric Keypad Emulation
Disable
5-13
Caps Lock On
Disable
5-14
Caps Lock Override
Disable
5-15
Convert Wedge Data
No Convert
5-16
Function Key Mapping
Disable
5-17
FN1 Substitution
Disable
5-18
Send Make Break
Disable
5-19
1User
selection is required to configure this interface and this is the most common selection.
5-3
Wasp WPS100 Product Reference Guide
Keyboard Wedge Host Types
Keyboard Wedge Host Types
Select your keyboard wedge host by scanning one of the bar codes below.
IBM PC/AT & IBM PC Compatibles1
IBM PS/2 (Model 30)
IBM AT NOTEBOOK
5-4
Keyboard Wedge Interface
Keyboard Wedge Host Types (Continued)
IBM XT
NCR 7052
Note: 1User selection is required to configure this interface and this is the
most common selection.
5-5
Wasp WPS100 Product Reference Guide
Keyboard Wedge Country Types (Country Codes)
Scan the bar code corresponding to your keyboard type. If your particular keyboard type is
not listed, see Alternate Numeric Keypad Emulation on page 5-13.
*North American
German Windows
French Windows
5-6
Keyboard Wedge Interface
Keyboard Wedge Country Types (Continued)
French Canadian Win 95/98
French Canadian Windows XP/2000
Spanish Windows
5-7
Wasp WPS100 Product Reference Guide
Keyboard Wedge Country Types (Continued)
Italian Windows
Swedish Windows
UK English Windows
5-8
Keyboard Wedge Interface
Keyboard Wedge Country Types (Continued)
Japanese Windows
Brazilian/Portuguese Windows
5-9
Wasp WPS100 Product Reference Guide
Ignore Unknown Characters
Unknown characters are characters the host does not recognize. When Send Bar Codes
With Unknown Characters is selected, all bar code data is sent except for unknown
characters, and no error beeps sound on the scanner. When Do Not Send Bar Codes
With Unknown Characters is selected, bar code data is sent up to the first unknown
character and then an error beep will sound on the scanner.
*Send Bar Codes With Unknown
Characters
Do Not Send Bar Codes With Unknown Characters
5-10
Keyboard Wedge Interface
Keystroke Delay
This is the delay in milliseconds between emulated keystrokes. Scan a bar code below to
increase the delay when hosts require a slower transmission of data.
*No Delay
Medium Delay (20 msec)
Long Delay (40 msec)
5-11
Wasp WPS100 Product Reference Guide
Intra-Keystroke Delay
When enabled, an additional delay is inserted between each emulated key depression and
release. This sets the Keystroke Delay parameter to a minimum of 5 msec as well.
Enable
*Disable
5-12
Keyboard Wedge Interface
Alternate Numeric Keypad Emulation
This allows emulation of most other country keyboard types not listed in Keyboard Wedge
Country Types (Country Codes) on page 5-6 in a Microsoft operating system environment.
Enable Alternate Numeric Keypad
*Disable Alternate Numeric Keypad
5-13
Wasp WPS100 Product Reference Guide
Caps Lock On
When enabled, the scanner emulates keystrokes as if the Caps Lock key is always
pressed.
Enable Caps Lock On
*Disable Caps Lock On
5-14
Keyboard Wedge Interface
Caps Lock Override
When enabled, on AT or AT Notebook hosts, the keyboard ignores the state of the Caps
Lock key. Therefore, an ‘A’ in the bar code is sent as an ‘A’ no matter what the state of the
keyboard’s Caps Lock key.
Enable Caps Lock Override
*Disable Caps Lock Override
Note: If both Caps Lock On and Caps Lock Override are enabled, Caps
Lock Override takes precedence.
5-15
Wasp WPS100 Product Reference Guide
Convert Wedge Data
When enabled, the scanner will convert all bar code data to the selected case.
Convert to Upper Case
Convert to Lower Case
*No Convert
5-16
Keyboard Wedge Interface
Function Key Mapping
ASCII values under 32 are normally sent as a control-key sequences (see Table 6-2 on
page 6-18). When this parameter is enabled, the keys in bold are sent in place of the
standard key mapping. Table entries that do not have a bold entry remain the same
whether or not this parameter is enabled.
Enable
*Disable
5-17
Wasp WPS100 Product Reference Guide
FN1 Substitution
When enabled, this allows replacement of any FN1 characters in an EAN 128 bar code with
a Key Category and Key Value choose by the user (see FN1 Substitution Values on page
8-8).
Enable
*Disable
5-18
Keyboard Wedge Interface
Send Make Break
When enabled, the scan codes for releasing a key are not sent.
*Send Make and Break Scan Codes
Send Make Scan Code Only
5-19
Wasp WPS100 Product Reference Guide
Keyboard Maps
The following keyboard maps are provided for prefix/suffix keystroke parameters. To
program the prefix/suffix values, see the bar codes on page 8-5.
Figure 5-2. IBM PS2 Type Keyboard
.
5001
5002
5003
5004
7008
7014
7009
7012
7003
7004
7006
7013
5005
5006
5007
5008
5009
5010
7011
Figure 5-3. IBM PC/XT
5-20
7002
Keyboard Wedge Interface
5001
5002
5003
5004
7008
7009
7014
7012
7003
7013
5005
5006
5007
5008
5009
5010
7004
7011
7002
Figure 5-4. IBM PC/AT
5001
5002
1045
5013
5003
5004
5014
5015
5005
5006
1043
5016
5007
5008
5017
5018
5009
5010
7013
5019
5011
1048
5012
1046
(1048 if double key)
(7013 if double ke
Figure 5-5. NCR 7052 32-KEY
5-21
Wasp WPS100 Product Reference Guide
1065
1066
1067
1068
1072
1073
1074
1079
1080
1081
5001
5002
5011
5003
1069
1070
1071
1075
1076
1077
1078
1082
1083
1084
1085
1045
5013
1086
5004
5014
5015
1087
5005
5006
1043
5016
1088
5007
5008
5017
5018
1089
5009
5010
7013
5019
1090
1048
5012
1046
(1048 if double key)
(1043 if double key)
Figure 5-6. NCR 7052 58-KEY
5-22
Keyboard Wedge Interface
ASCII Character Set
Note: Code 39 Full ASCII interprets the bar code special character
($ + % /) preceding a Code 39 character and assigns an ASCII
character value to the pair. For example, when Code 39 Full ASCII
is enabled and a +B is scanned, it is interpreted as b, %J as ?, and
%V as @. Scanning ABC%I outputs the keystroke equivalent of
ABC >.
Table 5-2. Keyboard Wedge ASCII Character Set
ASCII
Value
Full ASCII Code
39 Encode Char.
Keystroke
1001
$A
CTRL A
1002
$B
CTRL B
1003
$C
CTRL C
1004
$D
CTRL D
1005
$E
CTRL E
1006
$F
CTRL F
1007
$G
CTRL G
1008
$H
CTRL H/
BACKSPACEa
1009
$I
CTRL I/
HORIZONTAL
TAB1
1010
$J
CTRL J
1011
$K
CTRL K
1012
$L
CTRL L
1013
$M
CTRL M/
ENTER1
1014
$N
CTRL N
1015
$O
CTRL O
5-23
Wasp WPS100 Product Reference Guide
Table 5-2. Keyboard Wedge ASCII Character Set (Continued)
5-24
1016
$P
CTRL P
1017
$Q
CTRL Q
1018
$R
CTRL R
1019
$S
CTRL S
1020
$T
CTRL T
1021
$U
CTRL U
1022
$V
CTRL V
1023
$W
CTRL W
1024
$X
CTRL X
1025
$Y
CTRL Y
1026
$Z
CTRL Z
1027
%A
NONE/ESC1
1028
%B
NONE
1029
%C
NONE
1030
%D
NONE
1031
%E
NONE
1032
Space
Space
1033
/A
!
1034
/B
“
1035
/C
#
1036
/D
$
1037
/E
%
1038
/F
&
1039
/G
‘
1040
/H
(
1041
/I
)
1042
/J
*
Keyboard Wedge Interface
Table 5-2. Keyboard Wedge ASCII Character Set (Continued)
1043
/K
+
1044
/L
,
1045
-
-
1046
.
.
1047
/O
/
1048
0
0
1049
1
1
1050
2
2
1051
3
3
1052
4
4
1053
5
5
1054
6
6
1055
7
7
1056
8
8
1057
9
9
1058
/Z
:
1059
%F
;
1060
%G
<
1061
%H
=
1062
%I
>
1063
%J
?
1064
%V
@
1065
A
A
1066
B
B
1067
C
C
1068
D
D
1069
E
E
5-25
Wasp WPS100 Product Reference Guide
Table 5-2. Keyboard Wedge ASCII Character Set (Continued)
5-26
1070
F
F
1071
G
G
1072
H
H
1073
I
I
1074
J
J
1075
K
K
1076
L
L
1077
M
M
1078
N
N
1079
O
O
1080
P
P
1081
Q
Q
1082
R
R
1083
S
S
1084
T
T
1085
U
U
1086
V
V
1087
W
W
1088
X
X
1089
Y
Y
1090
Z
Z
1091
%K
[
1092
%L
\
1093
%M
]
1094
%N
^
1095
%O
_
1096
%W
‘
Keyboard Wedge Interface
Table 5-2. Keyboard Wedge ASCII Character Set (Continued)
1097
+A
a
1098
+B
b
1099
+C
c
1100
+D
d
1101
+E
e
1102
+F
f
1103
+G
g
1104
+H
h
1105
+I
i
1106
+J
j
1107
+K
k
1108
+L
l
1109
+M
m
1110
+N
n
1111
+O
o
1112
+P
p
1113
+Q
q
1114
+R
r
1115
+S
s
1116
+T
t
1117
+U
u
1118
+V
v
1119
+W
w
1120
+X
x
1121
+Y
y
1122
+Z
z
1123
%P
{
5-27
Wasp WPS100 Product Reference Guide
Table 5-2. Keyboard Wedge ASCII Character Set (Continued)
5-28
1124
%Q
|
1125
%R
}
1126
%S
~
ALT Keys
Keystroke
2065
ALT A
2066
ALT B
2067
ALT C
2068
ALT D
2069
ALT E
2070
ALT F
2071
ALT G
2072
ALT H
2073
ALT I
2074
ALT J
2075
ALT K
2076
ALT L
2077
ALT M
2078
ALT N
2079
ALT O
2080
ALT P
2081
ALT Q
2082
ALT R
2083
ALT S
2084
ALT T
2085
ALT U
2086
ALT V
2087
ALT W
Keyboard Wedge Interface
Table 5-2. Keyboard Wedge ASCII Character Set (Continued)
2088
ALT X
2089
ALT Y
2090
ALT Z
GUI Shift Keys
The Apple™ iMac keyboard has an apple key on either
side of the space bar. Windows-based systems have a
GUI key to the left of the left ALT key, and to the right of
the right ALT key.
Other
Value
Keystroke
3000
Right Control Key
3048
GUI 0
3049
GUI 1
3050
GUI 2
3051
GUI 3
3052
GUI 4
3053
GUI 5
3054
GUI 6
3055
GUI 7
3056
GUI 8
3057
GUI 9
3065
GUI A
3066
GUI B
3067
GUI C
3068
GUI D
3069
GUI E
3070
GUI F
3071
GUI G
3072
GUI H
5-29
Wasp WPS100 Product Reference Guide
Table 5-2. Keyboard Wedge ASCII Character Set (Continued)
5-30
3073
GUI I
3074
GUI J
3075
GUI K
3076
GUI L
3077
GUI M
3078
GUI N
3079
GUI O
3080
GUI P
3081
GUI Q
3082
GUI R
3083
GUI S
3084
GUI T
3085
GUI U
3086
GUI V
3087
GUI W
3088
GUI X
3089
GUI Y
3090
GUI Z
F Keys
Keystroke
5001
F1
5002
F2
5003
F3
5004
F4
5005
F5
5006
F6
5007
F7
5008
F8
Keyboard Wedge Interface
Table 5-2. Keyboard Wedge ASCII Character Set (Continued)
5009
F9
5010
F10
5011
F11
5012
F12
5013
F13
5014
F14
5015
F15
5016
F16
5017
F17
5018
F18
5019
F19
5020
F20
5021
F21
5022
F22
5023
F23
5024
F24
Numeric
Keypad
Keystroke
6042
*
6043
+
6044
undefined
6045
-
6046
.
6047
/
6048
0
6049
1
6050
2
6051
3
5-31
Wasp WPS100 Product Reference Guide
Table 5-2. Keyboard Wedge ASCII Character Set (Continued)
5-32
6052
4
6053
5
6054
6
6055
7
6056
8
6057
9
6058
Enter
6059
Num Lock
Extended
Keypad
Keystroke
7001
Break
7002
Delete
7003
Pg Up
7004
End
7005
Pg Dn
7006
Pause
7007
Scroll Lock
7008
Backspace
7009
Tab
7010
Print Screen
7011
Insert
7012
Home
7013
Enter
7014
Escape
7015
Up Arrow
7016
Dn Arrow
7017
Left Arrow
7018
Right Arrow
Keyboard Wedge Interface
a. The Keystroke in bold is sent only if the “Function Key Mapping” parameter is enabled. Otherwise, the unbolded keystroke is sent.
5-33
Wasp WPS100 Product Reference Guide
5-34
Chapter 6
USB Interface
Introduction
This chapter covers the connection and setup of the scanner to a USB host. The scanner
attaches directly to a USB host, or a powered USB hub, and is powered by it. No additional
power supply is required.
Throughout the programming bar code menus, default values are indicated with asterisks
(*).
*North American, Standard USB Keyboard
* Indicates Default
Feature/Option
6-1
Wasp WPS100 Product Reference Guide
Connecting a USB Interface
USB Series A Connector
Interface cable
Figure 6-1. USB Connection
The scanner connects with USB capable hosts including:
•
Desktop PCs and Notebooks
•
Apple™ iMac, G4, iBooks (North America only)
•
IBM SurePOS terminals
•
Sun, IBM, and other network computers that support more than one keyboard.
The following operating systems support the scanner through USB:
•
Windows 98, 2000, ME, XP
•
MacOS 8.5 and above
•
IBM 4690 OS.
The scanner will also interface with other USB hosts which support USB Human Interface
Devices (HID). For more information on USB technology, hosts, and peripheral devices,
visit www.symbol.com/usb.
To set up your scanner:
1. Connect the USB interface cable to the rear of the scanner, as described in
Installing the Interface Cable on page 1-3.
6-2
USB Interface
2. Plug the series A connector in the USB host or hub, or plug the Plus Power
connector in an available port of the IBM SurePOS terminal.
3. Select the USB device type. See USB Device Type on page 6-5.
4. On first installation when using Windows, the software prompts you to select or
install the "Human Interface Device" driver. To install the "Human Interface Device"
driver provided by Windows click "Next" through all the choices and click "Finished"
on the last choice. The scanner powers up during this installation.
5. If you are not using a North American keyboard, scan the appropriate country bar
code under USB Country Keyboard Types (Country Codes) on page 6-6.
If you are having any problems with your system, see Troubleshooting on page 3-2.
6-3
Wasp WPS100 Product Reference Guide
USB Default Parameters
Table 6-1 lists the defaults for USB host parameters. If you wish to change any option, scan
the appropriate bar code(s) provided in the Parameter Descriptions section beginning on
page 6-5.
Note: See Appendix A, Standard Default Parameters for all user
preferences, hosts, symbologies, and miscellaneous default
parameters.
Table 6-1. USB Host Default Table
Parameter
Default
Page
Number
USB Host Parameters
USB Device Type
HID (Human Interface
Device) Keyboard
Emulation
6-5
USB Country Keyboard Types (Country Codes)
North American
6-6
USB Keystroke Delay
No Delay
6-10
USB CAPS Lock Override
Disable
6-11
USB Ignore Unknown Characters
Send Bar Codes
6-12
Emulate Keypad
Disable
6-13
USB Keyboard FN1 Substitution
Disable
6-14
Function Key Mapping
Disable
6-15
Simulated Caps Lock
Disable
6-16
Convert Case
Disable
6-17
6-4
USB Interface
USB Host Parameters
USB Device Type
Select the desired USB device type.
Note: When changing USB Device Types, the scanner automatically
restarts. The scanner issues the standard startup beep sequences.
*HID Keyboard Emulation
IBM Table Top USB
IBM Hand-Held USB
6-5
Wasp WPS100 Product Reference Guide
USB Country Keyboard Types (Country Codes)
Scan the bar code corresponding to your keyboard type. This setting applies only to the
USB HID Keyboard Emulation device.
Note: When changing Country Selection, the scanner automatically
restarts. The scanner issues the standard startup beep sequences.
*North American, Standard USB Keyboard
French, Windows
German, Windows
6-6
USB Interface
USB Country Keyboard Types (Continued)
French Canadian, Windows
French Canadian, Windows 2000/XP
Spanish (Traditional), Windows
6-7
Wasp WPS100 Product Reference Guide
USB Country Keyboard Types (Continued)
Italian, Windows
Swedish, Windows
UK English, Windows
6-8
USB Interface
USB Country Keyboard Types (Continued)
Japanese, Windows (ASCII)
Portuguese-Brazilian, Windows
6-9
Wasp WPS100 Product Reference Guide
USB Keystroke Delay
This parameter sets the delay, in milliseconds, between emulated keystrokes. Scan a bar
code below to increase the delay when hosts require a slower transmission of data.
*No Delay
Medium Delay (20 msec)
Long Delay (40 msec)
6-10
USB Interface
USB CAPS Lock Override
This option applies only to the HID Keyboard Emulation device. When enabled, the case of
the data is preserved regardless of the state of the caps lock key. This setting is always
enabled for the “Japanese, Windows (ASCII)” keyboard type and can not be disabled.
Override Caps Lock Key
(Enable)
*Do Not Override Caps Lock Key
(Disable)
6-11
Wasp WPS100 Product Reference Guide
USB Ignore Unknown Characters
This option applies only to the HID Keyboard Emulation device and IBM device. Unknown
characters are characters the host does not recognize. When Send Bar Codes With
Unknown Characters is selected, all bar code data is sent except for unknown characters,
and no error beeps sound. When Do Not Send Bar Codes With Unknown Characters is
selected, bar codes containing at least one unknown character are not sent to the host, and
an error beep sounds.
.
*Send Bar Codes With Unknown Characters
Do Not Send Bar Codes With Unknown
Characters
6-12
USB Interface
Emulate Keypad
When enabled, all characters are sent as ASCII sequences over the numeric keypad. For
example ASCII A would be sent as “ALT make” 0 6 5 “ALT Break”.
*Disable Keypad Emulation
Enable Keypad Emulation
6-13
Wasp WPS100 Product Reference Guide
USB Keyboard FN1 Substitution
This option applies only to the USB HID Keyboard Emulation device. When enabled, this
allows replacement of any FN1 characters in an EAN 128 bar code with a Key Category
and value chosen by the user (see FN1 Substitution Values on page 8-8 to set the Key
Category and Key Value).
Enable
*Disable
6-14
USB Interface
Function Key Mapping
ASCII values under 32 are normally sent as a control-key sequences (see Table 6-2 on
page 6-18). When this parameter is enabled, the keys in bold are sent in place of the
standard key mapping. Table entries that do not have a bold entry remain the same
whether or not this parameter is enabled.
*Disable Function Key Mapping
Enable Function Key Mapping
6-15
Wasp WPS100 Product Reference Guide
Simulated Caps Lock
*Disable Simulated Caps Lock
Enable Simulated Caps Lock
6-16
USB Interface
Convert Case
When enabled, the scanner will convert all bar code data to the selected case.
*No Case Conversion
Convert All to Upper Case
Convert All to Lower Case
6-17
Wasp WPS100 Product Reference Guide
ASCII Character Set
Table 6-2. USB ASCII Character Set
ASCII Value
6-18
Full ASCII Code
39 Encode Char.
Keystroke
1001
$A
CTRL A
1002
$B
CTRL B
1003
$C
CTRL C
1004
$D
CTRL D
1005
$E
CTRL E
1006
$F
CTRL F
1007
$G
CTRL G
1008
$H
CTRL H/
BACKSPACEa
1009
$I
CTRL I/
HORIZONTAL
TABa
1010
$J
CTRL J
1011
$K
CTRL K
1012
$L
CTRL L
1013
$M
CTRL M/
ENTERa
1014
$N
CTRL N
1015
$O
CTRL O
1016
$P
CTRL P
1017
$Q
CTRL Q
1018
$R
CTRL R
1019
$S
CTRL S
1020
$T
CTRL T
1021
$U
CTRL U
USB Interface
Table 6-2. USB ASCII Character Set (Continued)
1022
$V
CTRL V
1023
$W
CTRL W
1024
$X
CTRL X
1025
$Y
CTRL Y
1026
$Z
CTRL Z
1027
%A
NONE/ESCa
1028
%B
NONE
1029
%C
NONE
1030
%D
NONE
1031
%E
NONE
1032
Space
Space
1033
/A
!
1034
/B
“
1035
/C
#
1036
/D
$
1037
/E
%
1038
/F
&
1039
/G
‘
1040
/H
(
1041
/I
)
1042
/J
*
1043
/K
+
1044
/L
,
1045
-
-
1046
.
.
1047
/O
/
1048
0
0
6-19
Wasp WPS100 Product Reference Guide
Table 6-2. USB ASCII Character Set (Continued)
6-20
1049
1
1
1050
2
2
1051
3
3
1052
4
4
1053
5
5
1054
6
6
1055
7
7
1056
8
8
1057
9
9
1058
/Z
:
1059
%F
;
1060
%G
<
1061
%H
=
1062
%I
>
1063
%J
?
1064
%V
@
1065
A
A
1066
B
B
1067
C
C
1068
D
D
1069
E
E
1070
F
F
1071
G
G
1072
H
H
1073
I
I
1074
J
J
1075
K
K
USB Interface
Table 6-2. USB ASCII Character Set (Continued)
1076
L
L
1077
M
M
1078
N
N
1079
O
O
1080
P
P
1081
Q
Q
1082
R
R
1083
S
S
1084
T
T
1085
U
U
1086
V
V
1087
W
W
1088
X
X
1089
Y
Y
1090
Z
Z
1091
%K
[
1092
%L
\
1093
%M
]
1094
%N
^
1095
%O
_
1096
%W
`
1097
+A
a
1098
+B
b
1099
+C
c
1100
+D
d
1101
+E
e
1102
+F
f
6-21
Wasp WPS100 Product Reference Guide
Table 6-2. USB ASCII Character Set (Continued)
1103
+G
g
1104
+H
h
1105
+I
i
1106
+J
j
1107
+K
k
1108
+L
l
1109
+M
m
1110
+N
n
1111
+O
o
1112
+P
p
1113
+Q
q
1114
+R
r
1115
+S
s
1116
+T
t
1117
+U
u
1118
+V
v
1119
+W
w
1120
+X
x
1121
+Y
y
1122
+Z
z
1123
%P
{
1124
%Q
|
1125
%R
}
1126
%S
~
ALT Keys
6-22
Keystroke
2065
ALT A
2066
ALT B
USB Interface
Table 6-2. USB ASCII Character Set (Continued)
2067
ALT C
2068
ALT D
2069
ALT E
2070
ALT F
2071
ALT G
2072
ALT H
2073
ALT I
2074
ALT J
2075
ALT K
2076
ALT L
2077
ALT M
2078
ALT N
2079
ALT O
2080
ALT P
2081
ALT Q
2082
ALT R
2083
ALT S
2084
ALT T
2085
ALT U
2086
ALT V
2087
ALT W
2088
ALT X
2089
ALT Y
2090
ALT Z
6-23
Wasp WPS100 Product Reference Guide
Table 6-2. USB ASCII Character Set (Continued)
GUI Shift Keys
The Apple™ iMac keyboard has an apple key on either side
of the space bar. Windows-based systems have a GUI key
to the left of the left ALT key, and to the right of the right ALT
key.
Other Value
6-24
Keystroke
3000
Right Control Key
3048
GUI 0
3049
GUI 1
3050
GUI 2
3051
GUI 3
3052
GUI 4
3053
GUI 5
3054
GUI 6
3055
GUI 7
3056
GUI 8
3057
GUI 9
3065
GUI A
3066
GUI B
3067
GUI C
3068
GUI D
3069
GUI E
3070
GUI F
3071
GUI G
3072
GUI H
3073
GUI I
3074
GUI J
3075
GUI K
USB Interface
Table 6-2. USB ASCII Character Set (Continued)
3076
GUI L
3077
GUI M
3078
GUI N
3079
GUI O
3080
GUI P
3081
GUI Q
3082
GUI R
3083
GUI S
3084
GUI T
3085
GUI U
3086
GUI V
3087
GUI W
3088
GUI X
3089
GUI Y
3090
GUI Z
F Keys
Keystroke
5001
F1
5002
F2
5003
F3
5004
F4
5005
F5
5006
F6
5007
F7
5008
F8
5009
F9
5010
F10
5011
F11
6-25
Wasp WPS100 Product Reference Guide
Table 6-2. USB ASCII Character Set (Continued)
5012
F12
5013
F13
5014
F14
5015
F15
5016
F16
5017
F17
5018
F18
5019
F19
5020
F20
5021
F21
5022
F22
5023
F23
5024
F24
Numeric
Keypad
6-26
Keystroke
6042
*
6043
+
6045
-
6046
.
6047
/
6048
0
6049
1
6050
2
6051
3
6052
4
6053
5
6054
6
6055
7
USB Interface
Table 6-2. USB ASCII Character Set (Continued)
6056
8
6057
9
6058
Enter
6059
Num Lock
Extended
Keypad
Keystroke
7001
Break
7002
Delete
7003
PgUp
7004
End
7005
Pg Dn
7006
Pause
7007
Scroll Lock
7008
Backspace
7009
Tab
7010
Print Screen
7011
Insert
7012
Home
7013
Enter
7014
Escape
7015
Up Arrow
7016
Down Arrow
7017
Left Arrow
7018
Right Arrow
a. The Keystroke in bold is sent only if the
“Function Key Mapping” parameter is enabled. Otherwise, the unbolded keystroke is
sent.
6-27
Wasp WPS100 Product Reference Guide
6-28
Chapter 7
Symbologies
Introduction
This chapter describes all symbology features and provides the programming bar codes
necessary for selecting these features for your WPS100 scanner. Before programming,
follow the instructions in Chapter 1, Getting Started.
Your scanner is shipped with the settings shown in the Symbology Default Table on page
7-3 (also see Appendix A, Standard Default Parameters for all host device and
miscellaneous scanner defaults). If the default values suit your requirements, programming
may not be necessary. Features values are set by scanning single bar codes or short bar
code sequences.
To return all features to their default values, all you need to do is scan the Set All Defaults
bar code on page 4-5.
If you are not using a USB cable you must select a host type. Refer to each host chapter
for specific host information.
7-1
Wasp WPS100 Product Reference Guide
Scanning Sequence Examples
In most cases you need only scan one bar code to set a specific parameter value. For
example, if you want to transmit bar code data without the UPC-A check digit, simply scan
the Do Not Transmit UPC-A Check Digit bar code listed under Transmit UPC-A/UPC-E/UPCE1 Check Digit on page 7-16. The scanner issues a short high beep and the LED turns
green, signifying a successful parameter entry.
Other parameters, such as Set Length(s) for D 2 of 5 require that you scan several bar
codes in the proper sequence. Refer to the individual parameter, like Set Length(s) for D
2 of 5, for this procedure.
Errors While Scanning
Unless otherwise specified, if you make an error during a scanning sequence, just re-scan
the correct parameter.
7-2
Symbologies
Symbology Default Parameters
Table 7-1 lists the defaults for all symbologies parameters. If you wish to change any
option, scan the appropriate bar code(s) provided in the Symbologies Parameters section
beginning on 7-8.
Note: See Appendix A, Standard Default Parameters for all user
preferences, hosts, symbologies, and miscellaneous default
parameters.
Table 7-1. Symbology Default Table
Parameter
Default
Page
Number
UPC/EAN
UPC-A
Enable
7-8
UPC-E
Enable
7-8
UPC-E1
Disable
7-9
EAN-8/JAN-8
Enable
7-10
EAN-13/JAN-13
Enable
7-10
Bookland EAN
Disable
7-11
Decode UPC/EAN Supplementals (2 and 5 digits)
Ignore
7-12
Decode UPC/EAN Supplemental Redundancy
20
7-15
Transmit UPC-A Check Digit
Transmit
7-16
Transmit UPC-E Check Digit
Transmit
7-17
Transmit UPC-E1 Check Digit
Transmit
7-17
7-3
Wasp WPS100 Product Reference Guide
Table 7-1. Symbology Default Table (Continued)
Parameter
Default
Page
Number
UPC-A Preamble
System Character
7-18
UPC-E Preamble
System Character
7-19
UPC-E1 Preamble
System Character
7-20
Convert UPC-E to A
Disable
7-21
Convert UPC-E1 to A
Disable
7-22
EAN-8 Zero Extend
Disable
7-23
UCC Coupon Extended Code
Disable
7-24
Code 128
Enable
7-25
UCC/EAN-128
Enable
7-26
ISBT 128 (non-concatenated)
Enable
7-27
Code 128 Decode Performance
Enable
7-28
Code 128 Decode Performance Level
Level 3
7-29
Code 39
Enable
7-30
Trioptic Code 39
Disable
7-31
Convert Code 39 to Code 32 (Italian Pharma Code)
Disable
7-32
Code 32 Prefix
Disable
7-33
Set Length(s) for Code 39
2 to 55
7-34
Code 39 Check Digit Verification
Disable
7-36
Code 128
Code 39
7-4
Symbologies
Table 7-1. Symbology Default Table (Continued)
Parameter
Default
Page
Number
Transmit Code 39 Check Digit
Do not transmit
7-37
Code 39 Full ASCII Conversion
Disable
7-38
Buffer Code 39
Disable
7-39
Code 39 Decode Performance
Enable
7-43
Code 39 Decode Performance Level
Level 3
7-44
Code 93
Disable
7-45
Set Length(s) for Code 93
4 to 55
7-46
Code 11
Disable
7-48
Set Lengths for Code 11
4 to 55
7-49
Code 11 Check Digit Verification
Enable
7-51
Transmit Code 11 Check Digit
Do not transmit
7-52
Interleaved 2 of 5 (ITF)
Disable
7-53
Set Length(s) for I 2 of 5
14
7-54
I 2 of 5 Check Digit Verification
Disable
7-56
Transmit I 2 of 5 Check Digit
Do not transmit
7-57
Convert I 2 of 5 to EAN 13
Disable
7-58
Code 93
Code 11
Interleaved 2 of 5 (ITF)
Discrete 2 of 5 (DTF)
7-5
Wasp WPS100 Product Reference Guide
Table 7-1. Symbology Default Table (Continued)
Parameter
Default
Page
Number
Discrete 2 of 5
Disable
7-59
Set Length(s) for D 2 of 5
12
7-60
Disable
7-62
Codabar
Disable
7-63
Set Lengths for Codabar
5 to 55
7-64
CLSI Editing
Disable
7-66
NOTIS Editing
Disable
7-67
MSI
Disable
7-68
Set Length(s) for MSI
1 to 55
7-69
MSI Check Digits
One
7-71
Transmit MSI Check Digit
Disable
7-72
MSI Check Digit Algorithm
Mod 10/Mod 10
7-73
RSS 14
Enable
7-74
RSS Limited
Disable
7-75
RSS Expanded
Enable
7-76
Convert RSS to UPC/EAN
Disable
7-77
Chinese 2 of 5
Enable/Disable Chinese 2 of 5
Codabar (NW - 7)
MSI
RSS (Reduced Space Symbology)
7-6
Symbologies
Table 7-1. Symbology Default Table (Continued)
Parameter
Default
Page
Number
Symbology - Specific Security Levels
Redundancy Security Levels
1
7-80
Security Level
0
7-83
Normal
7-85
Symbology - Intercharacter Gap
Intercharacter Gaps
7-7
Wasp WPS100 Product Reference Guide
UPC/EAN
Enable/Disable UPC-A/UPC-E
To enable or disable UPC-A or UPC-E, scan the appropriate bar code below.
*Enable UPC-A
Disable UPC-A
*Enable UPC-E
7-8
Symbologies
Enable/Disable UPC-A/UPC-E (Continued)
Disable UPC-E
Enable/Disable UPC-E1
To enable or disable UPC-E1, scan the appropriate bar code below.
Note: UPC-E1 is not a UCC (Uniform Code Council) approved symbology.
Enable UPC-E1
*Disable UPC-E1
7-9
Wasp WPS100 Product Reference Guide
Enable/Disable EAN-13/JAN-13/EAN-8/JAN-8
To enable or disable EAN-13/JAN-13 or EAN-8/JAN-8, scan the appropriate bar code
below.
*Enable EAN-13/JAN-13
Disable EAN-13/JAN-13
*Enable EAN-8/JAN-8
7-10
Symbologies
Enable/Disable EAN-13/EAN-8 (Continued)
Disable EAN-8/JAN-8
Enable/Disable Bookland EAN
To enable or disable Bookland EAN, scan the appropriate bar code below.
Enable Bookland EAN
*Disable Bookland EAN
7-11
Wasp WPS100 Product Reference Guide
Decode UPC/EAN Supplementals
Supplementals are bar codes appended according to specific format conventions (e.g.,
UPC-A+2, UPC-E+2, EAN 13+2). Six options are available.
•
If Decode UPC/EAN Only With Supplementals is selected, UPC/EAN symbols
without supplementals are not decoded.
•
If Ignore Supplementals is selected, and the scanner is presented with a
UPC/EAN with a supplemental, the UPC/EAN is decoded and the supplemental
bar code is ignored.
•
An Autodiscriminate Option is also available. If this option is selected, choose an
appropriate UPC/EAN Supplemental Redundancy value from the next page. A
value of 5 or more is recommended.
•
Select Enable 378/379 Supplemental Mode to enable only EAN-13 bar codes
starting with a ‘378’ or ‘379’ prefix to be delayed by the supplemental search
process. All other UPC/EAN bar codes are exempted from the search and are
reported instantly upon their decode.
•
Select Enable 978 Supplemental Mode to enable only EAN13 bar codes starting
with a ‘978’ prefix to be delayed by the supplemental search process. All other
UPC/EAN bar codes are exempted from the search and are reported instantly upon
their decode.
•
Select Enable Smart Supplemental Mode to enable only EAN13 bar codes
starting with a ‘378’, ‘379’, or ‘978’ prefix to be delayed by the supplemental search
process. All other UPC/EAN bar codes are exempted from the search and are
reported instantly upon their decode.
Note: In order to minimize the risk of invalid data transmission, it is
recommended that you select either to decode or ignore
supplemental characters.
Decode UPC/EAN Only With Supplementals
7-12
Symbologies
Decode UPC/EAN Supplementals (Continued)
*Ignore Supplementals
Autodiscriminate UPC/EAN Supplementals
³
2
0
1
0
E
0
4
Enable 378/379 Supplemental Mode
7-13
Wasp WPS100 Product Reference Guide
Decode UPC/EAN Supplementals (Continued)
Enable 978 Supplemental Mode
Enable Smart Supplemental Mode
7-14
Symbologies
UPC/EAN Supplemental Redundancy
With Autodiscriminate UPC/EAN Supplementals selected, this option adjusts the
number of times a symbol without supplementals is decoded before transmission. The
range is from two to thirty times. Five or above is recommended when decoding a mix of
UPC/EAN symbols with and without supplementals, and the autodiscriminate option is
selected. The default is set at 20.
Scan the bar code below to set a decode redundancy value. Next, scan two numeric bar
codes beginning on page D-1 in Appendix D. Single digit numbers must have a leading
zero. If you make an error, or wish to change your selection, scan Cancel on page D-5.
UPC/EAN Supplemental Redundancy
7-15
Wasp WPS100 Product Reference Guide
Transmit UPC-A/UPC-E/UPC-E1 Check Digit
The check digit is the last character of the symbol used to verify the integrity of the data.
Scan the appropriate bar code below to transmit the bar code data with or without the UPCA, UPC-E or UPC-E1 check digit. It is always verified to guarantee the integrity of the data.
*Transmit UPC-A Check Digit
Do Not Transmit UPC-A Check Digit
7-16
Symbologies
Transmit UPC-A/UPC-E/UPC-E1 Check Digit (Continued)
*Transmit UPC-E Check Digit
Do Not Transmit UPC-E Check Digit
*Transmit UPC-E1 Check Digit
7-17
Wasp WPS100 Product Reference Guide
Transmit UPC-A/UPC-E/UPC-E1 Check Digit (Continued)
Do Not Transmit UPC-E1 Check Digit
UPC-A Preamble
Preamble characters are part of the UPC symbol consisting of Country Code and System
Character. Three options are given for transmitting UPC-A preamble to the host device:
transmit System Character only, transmit System Character and Country Code (“0” for
USA), and no preamble transmitted. Select the appropriate option to match your host
system.
No Preamble
(<DATA>)
*System Character
(<SYSTEM CHARACTER> <DATA>)
7-18
Symbologies
UPC-A Preamble (Continued)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)
UPC-E Preamble
Preamble characters are part of the UPC symbol consisting of Country Code and System
Character. Three options are given for transmitting UPC-E preamble to the host device:
transmit System Character only, transmit System Character and Country Code (“0” for
USA), and no preamble transmitted. Select the appropriate option to match your host
system.
No Preamble
(<DATA>)
*System Character
(<SYSTEM CHARACTER> <DATA>)
7-19
Wasp WPS100 Product Reference Guide
UPC-E Preamble (Continued)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)
UPC-E1 Preamble
Preamble characters are part of the UPC symbol consisting of Country Code and System
Character. Three options are given for transmitting UPC-E1 preamble to the host device:
transmit System Character only, transmit System Character and Country Code (“0” for
USA), and no preamble transmitted. Select the appropriate option to match your host
system.
No Preamble
(<DATA>)
*System Character
(<SYSTEM CHARACTER> <DATA>)
7-20
Symbologies
UPC-E1 Preamble (Continued)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)
Convert UPC-E to UPC-A
When enabled, UPC-E (zero suppressed) decoded data is converted to UPC-A format
before transmission. After conversion, the data follows UPC-A format and is affected by
UPC-A programming selections (e.g., Preamble, Check Digit).
When disabled, UPC-E decoded data is transmitted as UPC-E data, without conversion.
Convert UPC-E to UPC-A
(Enable)
*Do Not Convert UPC-E to UPC-A
(Disable)
7-21
Wasp WPS100 Product Reference Guide
Convert UPC-E1 to UPC-A
When enabled, UPC-E1 decoded data is converted to UPC-A format before transmission.
After conversion, the data follows UPC-A format and is affected by UPC-A programming
selections (e.g., Preamble, Check Digit).
When disabled, UPC-E1 decoded data is transmitted as UPC-E1 data, without conversion.
Convert UPC-E1 to UPC-A
(Enable)
*Do Not Convert UPC-E1 to UPC-A
(Disable)
7-22
Symbologies
EAN Zero Extend
When enabled, this parameter adds five leading zeros to decoded EAN-8 symbols to make
them compatible in format to EAN-13 symbols.
When disabled, EAN-8 symbols are transmitted as is.
Enable EAN Zero Extend
*Disable EAN Zero Extend
7-23
Wasp WPS100 Product Reference Guide
UCC Coupon Extended Code
The UCC Coupon Extended Code is an additional bar code adjacent to a UCC Coupon
Code. To enable or disable UCC Coupon Extended Code, scan the appropriate bar code
below.
Enable UCC Coupon Extended Code
*Disable UCC Coupon Extended Code
7-24
Symbologies
Code 128
Enable/Disable Code 128
To enable or disable Code 128, scan the appropriate bar code below.
*Enable Code 128
Disable Code 128
7-25
Wasp WPS100 Product Reference Guide
Enable/Disable UCC/EAN-128
To enable or disable UCC/EAN-128, scan the appropriate bar code below.
*Enable UCC/EAN-128
Disable UCC/EAN-128
7-26
Symbologies
Enable/Disable ISBT 128
ISBT 128 is a variant of Code 128 used in the blood banking industry. To enable or disable
ISBT 128, scan the appropriate bar code below. Concatenation of the ISBT data, if
required, must be performed in the host.
*Enable ISBT 128
Disable ISBT 128
7-27
Wasp WPS100 Product Reference Guide
Code 128 Decode Performance
This option offers three levels of decode performance or “aggressiveness” for Code 128
symbols. Increasing the performance level reduces the amount of required bar code
orientation, which is useful if you are scanning very long and/or truncated bar codes.
Increased levels reduce decode security.
If you enable this option, you may select a Decode Performance level from the following
pages to suit your performance needs.
*Enable Code 128 Decode Performance
Disable Code 128 Decode Performance
7-28
Symbologies
Code 128 Decode Performance Level
This option offers three levels of decode performance or “aggressiveness” for Code 128
symbols. Increasing the performance level reduces the amount of required bar code
orientation, which is useful if you are scanning very long and/or truncated bar codes.
Increased levels reduce decode security.
This option must be enabled (see Code 128 Decode Performance Enable).
Code 128 Decode Performance Level 1
Code 128 Decode Performance Level 2
*Code 128 Decode Performance Level 3
7-29
Wasp WPS100 Product Reference Guide
Code 39
Enable/Disable Code 39
To enable or disable Code 39, scan the appropriate bar code below.
*Enable Code 39
Disable Code 39
Note: When a large gap bar code is encountered, refer to Symbology Intercharacter Gap on page 7-85
7-30
Symbologies
Enable/Disable Trioptic Code 39
Trioptic Code 39 is a variant of Code 39 used in the marking of computer tape cartridges.
Trioptic Code 39 symbols always contain six characters. To enable or disable Trioptic Code
39, scan the appropriate bar code below.
Enable Trioptic Code 39
*Disable Trioptic Code 39
Note: Trioptic Code 39 and Code 39 Full ASCII should not be enabled
simultaneously.
7-31
Wasp WPS100 Product Reference Guide
Convert Code 39 to Code 32
Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the
appropriate bar code below to enable or disable converting Code 39 to Code 32.
Note: Code 39 must be enabled in order for this parameter to function.
Enable Convert Code 39 to Code 32
*Disable Convert Code 39 to Code 32
7-32
Symbologies
Code 32 Prefix
Scan the appropriate bar code below to enable or disable adding the prefix character “A”
to all Code 32 bar codes.
Note: Convert Code 39 to Code 32 must be enabled for this parameter to
function.
Enable Code 32 Prefix
*Disable Code 32 Prefix
7-33
Wasp WPS100 Product Reference Guide
Set Lengths for Code 39
The length of a code refers to the number of characters (i.e., human readable characters),
including check digit(s) the code contains. Lengths for Code 39 may be set for any length,
one or two discrete lengths, or lengths within a specific range. If Code 39 Full ASCII is
enabled, Length Within a Range or Any Length are the preferred options.
Note: When setting lengths for different bar code types by scanning single
digit numbers, single digit numbers must always be preceded by a
leading zero.
One Discrete Length - This option allows you to decode only those Code 39 symbols
containing a selected length. Lengths are selected from the numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode only Code 39 symbols with 14
characters, scan Code 39 - One Discrete Length, then scan 1 followed by 4. If you make
an error or wish to change your selection, scan Cancel on page D-5.
Code 39 - One Discrete Length
Two Discrete Lengths - This option allows you to decode only those Code 39 symbols
containing either of two selected lengths. Lengths are selected from the numeric bar
codes beginning on page D-1 in Appendix D. For example, to decode only those Code 39
symbols containing either 2 or 14 characters, select Code 39 - Two Discrete Lengths,
then scan 0, 2, 1, and then 4. If you make an error or wish to change your selection,
scan Cancel on page D-5.
7-34
Symbologies
Set Lengths for Code 39 (Continued)
Code 39 - Two Discrete Lengths
Length Within Range - This option allows you to decode a Code 39 symbol with a
specific length range. The length range is selected from numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode Code 39 symbols containing
between 4 and 12 characters, first scan Code 39 - Length Within Range. Then scan 0, 4,
1, and 2 (single digit numbers must always be preceded by a leading zero). If you make an
error or wish to change your selection, scan Cancel on page D-5.
Code 39 - Length Within Range
Any Length - Scanning this option allows you to decode Code 39 symbols containing any
number of characters within the scanner capability.
Code 39 - Any Length
7-35
Wasp WPS100 Product Reference Guide
Code 39 Check Digit Verification
When this feature is enabled, the scanner checks the integrity of all Code 39 symbols to
verify that the data complies with specified check digit algorithm. Only those Code 39
symbols which include a modulo 43 check digit are decoded when this feature is enabled.
This feature should only be enabled if your code 39 symbols contain a module 43 check
digit.
Enable Code 39 Check Digit
*Disable Code 39 Check Digit
7-36
Symbologies
Transmit Code 39 Check Digit
Scan a bar code below to transmit Code 39 data with or without the check digit.
Transmit Code 39 Check Digit
(Enable)
*Do Not Transmit Code 39 Check Digit
(Disable)
Note: Code 39 Check Digit Verification must be enabled for this parameter
to function.
7-37
Wasp WPS100 Product Reference Guide
Enable/Disable Code 39 Full ASCII
Code 39 Full ASCII is a variant of Code 39 which pairs characters to encode the full ASCII
character set. To enable or disable Code 39 Full ASCII, scan the appropriate bar code
below.
Code 39 Full ASCII to Full ASCII Corelation is host-dependent, and therefore described in
the “ASCII Character Set” Table for the appropriate interface.
Enable Code 39 Full ASCII
*Disable Code 39 Full ASCII
Note: Trioptic Code 39 and Code 39 Full ASCII should not be enabled
simultaneously.
7-38
Symbologies
Code 39 Buffering (Scan & Store)
This feature allows the scanner to accumulate data from multiple Code 39 symbols.
When you select the Scan and Store option (Buffer Code 39), all Code 39 symbols having
a leading space as a first character are temporarily buffered in the unit to be transmitted
later. The leading space is not buffered.
Decode of a valid Code 39 symbol with no leading space causes transmission in sequence
of all buffered data in a first-in first-out format, plus transmission of the “triggering” symbol.
See the following pages for further details.
When the Do Not Buffer Code 39 option is selected, all decoded Code 39 symbols are
transmitted immediately without being stored in the buffer.
This feature affects Code 39 only. If you select Buffer Code 39, we recommend that you
configure the scanner to decode Code 39 symbology only.
Buffer Code 39
(Enable)
7-39
Wasp WPS100 Product Reference Guide
Code 39 Buffering (Scan & Store)(Continued)
*Do Not Buffer Code 39
While there is data in the transmission buffer, selecting Do Not Buffer Code 39 is not
allowed. The buffer holds 200 bytes of information.
To disable Code 39 buffering when there is data in the transmission buffer, first force
the buffer transmission (see Transmit Buffer on page 7-41) or clear the buffer.
Buffer Data
To buffer data, Code 39 buffering must be enabled and a Code 39 symbol must be read
with a space immediately following the start pattern.
•
Unless the data overflows the transmission buffer, the scanner issues a lo/hi beep
to indicate successful decode and buffering. (For overflow conditions, see
Overfilling Transmission Buffer.)
•
The scanner adds the decoded data excluding the leading space to the
transmission buffer.
•
No transmission occurs.
Clear Transmission Buffer
To clear the transmission buffer, scan the Clear Buffer bar code below, which contains only
a start character, a dash (minus), and a stop character.
•
The scanner issues a short hi/lo/hi beep.
•
The scanner erases the transmission buffer.
•
No transmission occurs.
Clear Buffer
7-40
Symbologies
Note: The Clear Buffer contains only the dash (minus) character. In order
to scan this command, be sure Code 39 length is set to include
length 1.
Transmit Buffer
There are two methods to transmit the Code 39 buffer.
1. Scan the Transmit Buffer bar code below. Only a start character, a plus (+), and a stop
character.
•
The scanner transmits and clears the buffer.
•
The scanner issues a lo/hi beep.
Transmit Buffer
2. Scan a Code 39 bar code with a leading character other than a space.
•
The scanner issues a hi/lo beep to indicate a good decode and that buffering of the
decode data has occurred.
•
The scanner transmits and clears the buffer.
•
The scanner signals that the buffer was transmitted with a lo/hi beep.
Note: The Transmit Buffer contains only a plus (+) character. In order to
scan this command, be sure Code 39 length is set to include length
1.
7-41
Wasp WPS100 Product Reference Guide
Overfilling Transmission Buffer
The Code 39 buffer holds 200 characters. If the symbol just read results in an overflow of
the transmission buffer:
•
The scanner indicates that the symbol was rejected by issuing three long, high
beeps.
•
No transmission occurs. The data in the buffer is not affected.
Attempt to Transmit an Empty Buffer
If the symbol just read was the Transmit Buffer symbol and the Code 39 buffer is empty:
•
A short lo/hi/lo beep signals that the buffer is empty.
•
No transmission occurs.
•
The buffer remains empty.
7-42
Symbologies
Code 39 Decode Performance
This option offers three levels of decode performance or “aggressiveness” for Code 39
symbols. Increasing the performance level reduces the amount of required bar code
orientation, which is useful if you are scanning very long and/or truncated bar codes.
Increased levels reduce decode security.
If you enable this option, you may select a Decode Performance level from the following
pages to suit your performance needs.
Note: This option only works with Code 39 One Discrete Length.
*Enable Code 39 Decode Performance
Disable Code 39 Decode Performance
7-43
Wasp WPS100 Product Reference Guide
Code 39 Decode Performance Level
This option offers three levels of decode performance or “aggressiveness” for Code 39
symbols. Increasing the performance level reduces the amount of required bar code
orientation, which is useful if you are scanning very long and/or truncated bar codes.
Increased levels reduce decode security.
This option must be enabled (see Code 39 Decode Performance).
Code 39 Decode Performance Level 1
Code 39 Decode Performance Level 2
*Code 39 Decode Performance Level 3
7-44
Symbologies
Code 93
Enable/Disable Code 93
To enable or disable Code 93, scan the appropriate bar code below.
Enable Code 93
*Disable Code 93
7-45
Wasp WPS100 Product Reference Guide
Set Lengths for Code 93
The length of a code refers to the number of characters (i.e., human readable characters),
including check digit(s) the code contains. Lengths for Code 93 may be set for any length,
one or two discrete lengths, or lengths within a specific range. discrete lengths, or lengths
within a specific range.
Note: When setting lengths for different bar code types by scanning single
digit numbers, single digit numbers must always be preceded by a
leading zero.
One Discrete Length - This option allows you to decode only those Code 93 symbols
containing a selected length. Lengths are selected from the numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode only Code 93 symbols with 14
characters, scan Code 93 - One Discrete Length, then scan 1 followed by 4. If you make
an error or wish to change your selection, scan Cancel on page D-5.
Code 93 - One Discrete Length
Two Discrete Lengths - This option allows you to decode only those Code 93 symbols
containing either of two selected lengths. Lengths are selected from the numeric bar
codes beginning on page D-1 in Appendix D. For example, to decode only those Code 93
symbols containing either 2 or 14 characters, select Code 93 - Two Discrete Lengths,
then scan 0, 2, 1, and then 4. If you make an error or wish to change your selection,
scan Cancel on page D-5.
7-46
Symbologies
Set Lengths for Code 93 (Continued)
Code 93 - Two Discrete Lengths
Length Within Range - This option allows you to decode a Code 93 symbol with a
specific length range. The length range is selected from numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode Code 93 symbols containing
between 4 and 12 characters, first scan Code 93 - Length Within Range. Then scan 0, 4,
1, and 2 (single digit numbers must always be preceded by a leading zero). If you make an
error or wish to change your selection, scan Cancel on page D-5.
Code 93 - Length Within Range
Any Length - Scanning this option allows you to decode Code 93 symbols containing any
number of characters within the scanner’s capability.
Code 93 - Any Length
7-47
Wasp WPS100 Product Reference Guide
Code 11
Code 11
To enable or disable Code 11, scan the appropriate bar code below.
Enable Code 11
*Disable Code 11
7-48
Symbologies
Set Lengths for Code 11
The length of a code refers to the number of characters (i.e., human readable characters),
including check digit(s) the code contains. Lengths for Code 11 may be set for any length,
one or two discrete lengths, or lengths within a specific range. discrete lengths, or lengths
within a specific range.
Note: When setting lengths for different bar code types by scanning single
digit numbers, single digit numbers must always be preceded by a
leading zero.
One Discrete Length - This option allows you to decode only those Code 11 symbols
containing a selected length. Lengths are selected from the numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode only Code 11 symbols with 14
characters, scan Code 11 - One Discrete Length, then scan 1 followed by 4. If you make
an error or wish to change your selection, scan Cancel on page D-5.
Code 11 - One Discrete Length
Two Discrete Lengths - This option allows you to decode only those Code 11 symbols
containing either of two selected lengths. Lengths are selected from the numeric bar
codes beginning on page D-1 in Appendix D. For example, to decode only those Code 11
symbols containing either 2 or 14 characters, select Code 11 - Two Discrete Lengths,
then scan 0, 2, 1, and then 4. If you make an error or wish to change your selection,
scan Cancel on page D-5.
Code 11 - Two Discrete Lengths
7-49
Wasp WPS100 Product Reference Guide
Set Lengths for Code 11 (Continued)
Length Within Range - This option allows you to decode a Code 11 symbol with a
specific length range. The length range is selected from numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode Code 11 symbols containing
between 4 and 12 characters, first scan Code 11 - Length Within Range. Then scan 0, 4,
1, and 2 (single digit numbers must always be preceded by a leading zero). If you make an
error or wish to change your selection, scan Cancel on page D-5.
Code 11 - Length Within Range
Any Length - Scanning this option allows you to decode Code 11 symbols containing any
number of characters within the scanner capability.
Code 11 - Any Length
7-50
Symbologies
Code 11 Check Digit Verification
This feature allows the scanner to check the integrity of all Code 11 symbols to verify that
the data complies with the specified check digit algorithm. This selects the check digit
mechanism for the decoded Code 11 bar code. The options are to check for one check digit,
check for two check digits, or disable the feature.
To enable this feature, scan the bar code below corresponding to the number of check digits encoded in your Code 11 symbols.
Disable
*One Check Digit
Two Check Digits
7-51
Wasp WPS100 Product Reference Guide
Transmit Code 11 Check Digits
This feature selects whether or not to transmit the Code 11 check digit(s).
Transmit Code 11 Check Digit
(Enable)
*Do Not Transmit Code 11 Check Digit
(Disable)
Note: Code 11 Check Digit Verification must be enabled for this parameter
to function.
7-52
Symbologies
Interleaved 2 of 5 (ITF)
Enable/Disable Interleaved 2 of 5
To enable or disable Interleaved 2 of 5, scan the appropriate bar code below, and select an
Interleaved 2 of 5 length from the following pages.
Enable Interleaved 2 of 5
*Disable Interleaved 2 of 5
7-53
Wasp WPS100 Product Reference Guide
Set Lengths for Interleaved 2 of 5
The length of a code refers to the number of characters (i.e., human readable characters),
including check digit(s) the code contains. Lengths for I 2 of 5 may be set for any length,
one or two discrete lengths, or lengths within a specific range.
Note: When setting lengths for different bar code types by scanning single
digit numbers, single digit numbers must always be preceded by a
leading zero.
One Discrete Length - This option allows you to decode only those I 2 of 5 symbols
containing a selected length. Lengths are selected from the numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode only I 2 of 5 symbols with 14
characters, scan I 2 of 5 - One Discrete Length, then scan 1 followed by 4. If you make
an error or wish to change your selection, scan Cancel on page D-5.
I 2 of 5 - One Discrete Length
Two Discrete Lengths - This option allows you to decode only those I 2 of 5 symbols
containing either of two selected lengths. Lengths are selected from the numeric bar
codes beginning on page D-1 in Appendix D. For example, to decode only those I 2 of 5
symbols containing either 2 or 14 characters, select I 2 of 5 - Two Discrete Lengths,
then scan 0, 2, 1, and then 4. If you make an error or wish to change your selection,
scan Cancel on page D-5.
I 2 of 5 - Two Discrete Lengths
7-54
Symbologies
Set Lengths for Interleaved 2 of 5 (Continued)
Length Within Range - This option allows you to decode an I 2 of 5 symbol with a
specific length range. The length range is selected from numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode I 2 of 5 symbols containing
between 4 and 12 characters, first scan I 2 of 5 - Length Within Range. Then scan 0, 4,
1, and 2 (single digit numbers must always be preceded by a leading zero). If you make an
error or wish to change your selection, scan Cancel on page D-5.
I 2 of 5 - Length Within Range
Any Length - Scanning this option allows you to decode I 2 of 5 symbols containing any
number of characters within the scanner capability.
Note: Due to the construction of the I 2 of 5 symbology, it is possible for a
scan line covering only a portion of the code to be interpreted as a
complete scan, yielding less data than is actually encoded in the bar
code. To prevent this from happening, it is recommended that
specific lengths (I 2 of 5 - One Discrete Length - Two Discrete
Lengths) be selected for I 2 of 5 applications.
I 2 of 5 - Any Length
7-55
Wasp WPS100 Product Reference Guide
I 2 of 5 Check Digit Verification
When this feature is enabled, the scanner checks the integrity of all I 2 of 5 symbols to verify
the data complies with either the specified Uniform Symbology Specification (USS), or the
Optical Product Code Council (OPCC) check digit algorithm.
*Disable
USS Check Digit
OPCC Check Digit
7-56
Symbologies
Transmit I 2 of 5 Check Digit
Scan the appropriate bar code below to transmit I 2 of 5 data with or without the check digit.
Transmit I 2 of 5 Check Digit
(Enable)
*Do Not Transmit I 2 of 5 Check Digit
(Disable)
7-57
Wasp WPS100 Product Reference Guide
Convert I 2 of 5 to EAN-13
This parameter converts a 14 character I 2 of 5 code into EAN-13, and transmits to the host
as EAN-13. In order to accomplish this, the I 2 of 5 code must be enabled, and the code
must have a leading zero and a valid EAN-13 check digit.
Scanning a single bar code below, Convert I 2 of 5 to EAN-13 (Enable), accomplishes this
function.
Convert I 2 of 5 to EAN-13
(Enable)
*Do Not Convert I 2 of 5 to EAN-13
(Disable)
7-58
Symbologies
Discrete 2 of 5 (DTF)
Enable/Disable Discrete 2 of 5
To enable or disable Discrete 2 of 5, scan the appropriate bar code below.
Enable Discrete 2 of 5
*Disable Discrete 2 of 5
7-59
Wasp WPS100 Product Reference Guide
Set Lengths for Discrete 2 of 5
The length of a code refers to the number of characters (i.e., human readable characters),
including check digit(s) the code contains. Lengths for D 2 of 5 may be set for any length,
one or two discrete lengths, or lengths within a specific range.
Note: When setting lengths for different bar code types by scanning single
digit numbers, single digit numbers must always be preceded by a
leading zero.
One Discrete Length - This option allows you to decode only those D 2 of 5 symbols
containing a selected length. Lengths are selected from the numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode only D 2 of 5 symbols with 14
characters, scan D 2 of 5 - One Discrete Length, then scan 1 followed by 4. If you make
an error or wish to change your selection, scan Cancel on page D-5.
D 2 of 5 - One Discrete Length
Two Discrete Lengths - This option allows you to decode only those D 2 of 5 symbols
containing either of two selected lengths. Lengths are selected from the numeric bar
codes beginning on page D-1 in Appendix D. For example, to decode only those D 2 of 5
symbols containing either 2 or 14 characters, select D 2 of 5 - Two Discrete Lengths,
then scan 0, 2, 1, and then 4. If you make an error or wish to change your selection,
scan Cancel on page D-5.
D 2 of 5 - Two Discrete Lengths
7-60
Symbologies
Set Lengths for Discrete 2 of 5 (Continued)
Length Within Range - This option allows you to decode an D 2 of 5 symbol with a
specific length range. The length range is selected from numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode D 2 of 5 symbols containing
between 4 and 12 characters, first scan D 2 of 5 - Length Within Range. Then scan 0, 4,
1, and 2 (single digit numbers must always be preceded by a leading zero). If you make an
error or wish to change your selection, scan Cancel on page D-5.
D 2 of 5 - Length Within Range
Any Length - Scanning this option allows you to decode D 2 of 5 symbols containing any
number of characters within the scanner capability.
Note: Due to the construction of the D 2 of 5 symbology, it is possible for a
scan line covering only a portion of the code to be interpreted as a
complete scan, yielding less data than is actually encoded in the bar
code. To prevent this from happening, it is recommended that
specific lengths (D 2 of 5 - One Discrete Length - Two Discrete
Lengths) be selected for D 2 of 5 applications.
D 2 of 5 - Any Length
7-61
Wasp WPS100 Product Reference Guide
Chinese 2 of 5
Enable/Disable Chinese 2 of 5
To enable or disable Chinese 2 of 5, scan the appropriate bar code below.
Enable Chinese 2 of 5
*Disable Chinese 2 of 5
7-62
Symbologies
Codabar (NW - 7)
Enable/Disable Codabar
To enable or disable Codabar, scan the appropriate bar code below.
Enable Codabar
*Disable Codabar
Note: When a large gap bar code is encountered, refer to Symbology Intercharacter Gap on page 7-85
7-63
Wasp WPS100 Product Reference Guide
Set Lengths for Codabar
The length of a code refers to the number of characters (i.e., human readable characters),
including check digit(s) the code contains. Lengths for Codabar may be set for any length,
one or two discrete lengths, or lengths within a specific range.
Note: When setting lengths for different bar code types by scanning single
digit numbers, single digit numbers must always be preceded by a
leading zero.
One Discrete Length - This option allows you to decode only those Codabar symbols
containing a selected length. Lengths are selected from the numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode only Codabar symbols with 14
characters, scan Codabar - One Discrete Length, then scan 1 followed by 4. If you make
an error or wish to change your selection, scan Cancel on page D-5.
Codabar - One Discrete Length
Two Discrete Lengths - This option allows you to decode only those Codabar symbols
containing either of two selected lengths. Lengths are selected from the numeric bar
codes beginning on page D-1 in Appendix D. For example, to decode only those Codabar
symbols containing either 2 or 14 characters, select Codabar - Two Discrete Lengths,
then scan 0, 2, 1, and then 4. If you make an error or wish to change your selection,
scan Cancel on page D-5.
Codabar - Two Discrete Lengths
7-64
Symbologies
Set Lengths for Codabar (Continued)
Length Within Range - This option allows you to decode a Codabar symbol with a
specific length range. The length range is selected from numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode Codabar symbols containing
between 4 and 12 characters, first scan Codabar - Length Within Range. Then scan 0, 4,
1, and 2 (single digit numbers must always be preceded by a leading zero). If you make an
error or wish to change your selection, scan Cancel on page D-5.
Codabar - Length Within Range
Any Length - Scanning this option allows you to decode Codabar symbols containing any
number of characters within the scanner capability.
Codabar - Any Length
7-65
Wasp WPS100 Product Reference Guide
CLSI Editing
When enabled, this parameter strips the start and stop characters and inserts a space after
the first, fifth, and tenth characters of a 14-character Codabar symbol. Enable this feature
if your host system requires this data format.
Note: Symbol length does not include start and stop characters.
Enable CLSI Editing
*Disable CLSI Editing
7-66
Symbologies
NOTIS Editing
When enabled, this parameter strips the start and stop characters from a decoded Codabar
symbol. Enable this feature if your host system requires this data format.
Enable NOTIS Editing
*Disable NOTIS Editing
7-67
Wasp WPS100 Product Reference Guide
MSI
Enable/Disable MSI
To enable or disable MSI, scan the appropriate bar code below.
Enable MSI
*Disable MSI
7-68
Symbologies
Set Lengths for MSI
The length of a code refers to the number of characters (i.e., human readable characters),
including check digit(s) the code contains. Lengths for MSI may be set for any length, one
or two discrete lengths, or lengths within a specific range.
Note: When setting lengths for different bar code types by scanning single
digit numbers, single digit numbers must always be preceded by a
leading zero.
One Discrete Length - This option allows you to decode only those MSI symbols
containing a selected length. Lengths are selected from the numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode only MSI symbols with 14 characters,
scan MSI - One Discrete Length, then scan 1 followed by 4. If you make an error or wish
to change your selection, scan Cancel on page D-5.
MSI - One Discrete Length
Two Discrete Lengths - This option allows you to decode only those MSI symbols
containing either of two selected lengths. Lengths are selected from the numeric bar
codes beginning on page D-1 in Appendix D. For example, to decode only those MSI
symbols containing either 2 or 14 characters, select MSI - Two Discrete Lengths, then
scan 0, 2, 1, and then 4. If you make an error or wish to change your selection, scan
Cancel on page D-5.
MSI - Two Discrete Lengths
7-69
Wasp WPS100 Product Reference Guide
Set Lengths for MSI (Continued)
Length Within Range - This option allows you to decode an MSI symbol with a
specific length range. The length range is selected from numeric bar codes beginning
on page D-1 in Appendix D. For example, to decode MSI symbols containing between
4 and 12 characters, first scan MSI - Length Within Range. Then scan 0, 4, 1, and 2
(single digit numbers must always be preceded by a leading zero). If you make an error or
wish to change your selection, scan Cancel on page D-5.
MSI - Length Within Range
Any Length - Scanning this option allows you to decode MSI symbols containing any
number of characters within the scanner capability.
Note: Due to the construction of the MSI symbology, it is possible for a
scan line covering only a portion of the code to be interpreted as a
complete scan, yielding less data than is actually encoded in the bar
code. To prevent this from happening, it is recommended that
specific lengths (MSI - One Discrete Length - Two Discrete
Lengths) be selected for MSI applications.
MSI - Any Length
7-70
Symbologies
MSI Check Digits
With MSI symbols, one check digit is mandatory and always verified by the reader. The
second check digit is optional. If your MSI codes include two check digits, enable the
verification of the second check digit by scanning the barcode below.
Refer to MSI Check Digit Algorithm on page 7-73 for the selection of second digit
algorithms.
*One MSI Check Digit
Two MSI Check Digits
7-71
Wasp WPS100 Product Reference Guide
Transmit MSI Check Digit(s)
Scan a bar code below to transmit MSI data with or without the check digit.
Transmit MSI Check Digit(s)
(Enable)
*Do Not Transmit MSI Check Digit(s)
(Disable)
7-72
Symbologies
MSI Check Digit Algorithm
Two algorithms are possible for the verification of the second MSI check digit. Select the
bar code below corresponding to the algorithm used to encode your check digit.
MOD 10/MOD 11
*MOD 10/MOD 10
7-73
Wasp WPS100 Product Reference Guide
RSS (Reduced Space Symbology)
The variants of RSS are RSS 14, RSS Expanded, and RSS Limited. The limited and
expanded versions have stacked variants. Scan the appropriate bar code below to enable
or disable each variant of RSS.
RSS 14
*Enable RSS 14
Disable RSS 14
7-74
Symbologies
RSS Limited
Enable RSS Limited
*Disable RSS Limited
7-75
Wasp WPS100 Product Reference Guide
RSS Expanded
*Enable RSS Expanded
Disable RSS Expanded
7-76
Symbologies
Convert RSS to UPC/EAN
The 14-digit Global Trade Item Number (GTIN) format will become a standard by January
2005 and will uniquely identify products worldwide. Although it is defined as a 14-digit
structure, the barcode may contain 13 digits (EAN-13), 12 digits (UPC), or 8 digits (EAN-8)
of data.
This parameter only applies to RSS-14 and RSS Limited symbols not decoded as part of a
Composite symbol. When this conversion is enabled, RSS-14 and RSS Limited symbols
beginning with 010 followed by 13 digits will be converted to EAN-13, and the leading 010
will be stripped.
0
1
0
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
E.g. 0101234567890128 will be converted to 1234567890128.
Symbols beginning with 0100 followed by 12 digits will be converted to UPC-A, and the
leading 0100 will be stripped.
0
1
0
0
X
X
X
X
X
X
X
X
X
X
X
X
0
X
X
X
X
X
X
X
X
X
X
X
X
(if the UPC-A Preamble is "System Character and Country Code")
7-77
Wasp WPS100 Product Reference Guide
Convert RSS to UPC/EAN (Continued)
or
X
X
X
X
X
X
X
X
X
X
X
X
(if the UPC-A Preamble is "System Character")
or
X
X
X
X
X
X
X
X
X
X
X
(if the UPC-A Preamble is "No Preamble")
E.g. 0100123456789012 will be converted to 0123456789012 if the UPC-A Preamble is
"System Character and Country Code", 123456789012 if the UPC-A Preamble is "System
Character", and 23456789012 if the Preamble is "No Preamble".
Symbols beginning with 01 and followed by six zeroes and then 8 digits will not be
converted.
0
1
0
0
0
0
0
0
X
X
E.g. 0100000012345670 will remain 0100000012345670.
7-78
X
X
X
X
X
X
Symbologies
Convert RSS to UPC/EAN (Continued)
Enable Convert RSS to UPC/EAN
*Disable Convert RSS to UPC/EAN
7-79
Wasp WPS100 Product Reference Guide
Symbology - Specific Security Levels
Redundancy Level
The WPS100 offer four levels of decode redundancy. Higher redundancy levels are
selected for decreasing levels of bar code quality. As redundancy levels increase, the
scanner’s aggressiveness decreases.
Select the redundancy level appropriate for the bar code quality.
Redundancy Level 1
The following code types must be successfully read twice before being decoded:
Table 7-2. Redundancy Level 1 Code Types
Code Type
Length
Codabar
8 characters or less
MSI
4 characters or less
D 2 of 5
8 characters or less
I 2 of 5
8 characters or less
*Redundancy Level 1
7-80
Symbologies
Redundancy Level 2
The following code types must be successfully read twice before being decoded:
Table 7-3. Redundancy Level 2 Code Types
Code Type
All
Length
All
Redundancy Level 2
Redundancy Level 3
Level 3 ensures that the enabled linear bar code types are read twice before reporting a
good decode. The following codes must be read three times:
Table 7-4. Redundancy Level 3 Code Types
Code Type
Length
MSI
4 characters or less
D 2 of 5
8 characters or less
I 2 of 5
8 characters or less
Codabar
8 characters or less
Redundancy Level 3
7-81
Wasp WPS100 Product Reference Guide
Redundancy Level 4
The following code types must be successfully read three times before being decoded:
Table 7-5. Redundancy Level 4 Code Types
Code Type
All
Length
All
Redundancy Level 4
7-82
Symbologies
Security Level
The WPS100 offer four levels of decode security for the delta bar codes. These include the
Code 128 family, UPC/EAN, Code 93 and Scanlet. Increasing levels of security are
provided for decreasing levels of bar code quality. There is an inverse relationship between
security and scanner aggressiveness, so be sure to choose only that level of security
necessary for any given application.
Security Level 0
This is the default setting which allows the scanner to operate fastest, while providing
sufficient security in decoding most “in-spec” bar codes.
* Security Level 0
Security Level 1
Choose this option if misdecodes occur. This level should eliminate most misdecodes.
Security Level 1
7-83
Wasp WPS100 Product Reference Guide
Security Level 2
Choose this option if Security Level 1 fails to eliminate misdecodes.
Security Level 2
Security Level 3
If you have tried Security Level 2, and are still experiencing misdecodes, select this security
level. Be advised, selecting this option is an extreme measure against misdecoding
severely out of spec bar codes. Selection of this level of security may significantly impair
the decoding ability of the scanner. If this level of security is necessary, you should try to
improve the quality of your bar codes.
Security Level 3
7-84
Symbologies
Symbology - Intercharacter Gap
The Code 39 and Codabar symbologies have an intercharacter gap that is customarily
quite small. Due to various bar code-printing technologies, this gap may grow larger than
the maximum size allowed, causing the scanner to be unable to decode the symbol. If this
problem is encountered, then the “Large Intercharacter Gaps” parameter should be
scanned, to tolerate these out-of-specification barcodes.
*Normal Intercharacter Gaps
Large Intercharacter Gaps
7-85
Wasp WPS100 Product Reference Guide
7-86
Chapter 8
Miscellaneous Scanner Options
Introduction
This chapter includes commonly used bar codes to customize how your data is transmitted
to your host device. In addition to these bar codes for data formatting, refer to each host
chapter for the appropriate host connections and host device features for your scanner.
Refer to Chapter 7, Symbologies and Chapter 9, Advanced Data Formatting for
customizing data for transmission to your host device.
Before programming, follow the instructions in Chapter 1, Getting Started.
Your scanner is shipped with the settings shown in the Miscellaneous Scanner Options
Default Table on page 8-3 (also see Appendix A, Standard Default Parameters for all host
device and miscellaneous scanner defaults). If the default values suit your requirements,
programming may not be necessary. Features values are set by scanning single bar codes
or short bar code sequences.
8-1
Wasp WPS100 Product Reference Guide
Scanning Sequence Examples
In most cases you need only scan one bar code to set a specific parameter value.
Parameters, such as Prefix Value, require that you scan several bar codes in the proper
sequence. Refer to each individual parameter for descriptions of this procedure.
Errors While Scanning
Unless otherwise specified, if you make an error during a scanning sequence, just re-scan
the correct parameter.
8-2
Miscellaneous Scanner Options
Miscellaneous Default Parameters
Table 8-1 lists the defaults for miscellaneous scanner options parameters. If you wish to
change any option, scan the appropriate bar code(s) provided in the Miscellaneous
Scanner Parameters section beginning on page 8-4.
Note: See Appendix A, Standard Default Parameters for all user
preferences, hosts, symbologies, and miscellaneous default
parameters.
Table 8-1. Miscellaneous Scanner Options Default Table
Parameter
Default
Page
Number
Transmit Code ID Character
Disable
8-4
Suffix Value (Value 1)
<CR><LF>
8-5
Prefix Value (Value 2)
None
8-5
FN1 Substitution Values
7013
8-8
Scan Data Options
Data as is
8-9
Transmit “No Read” Message
Disable
8-12
8-3
Wasp WPS100 Product Reference Guide
Miscellaneous Scanner Parameters
Transmit Code ID Character
A Code ID character identifies the code type of a scanned bar code. This may be useful
when the scanner is decoding more than one code type. In addition to any single character
prefix already selected, the Code ID character is inserted between the prefix and the
decoded symbol.
The user may select no Code ID character, a Symbol Code ID character, or an AIM Code
ID character. For Code ID Characters, see Symbol Code Identifiers on page B-1 and AIM
Code Identifiers on page B-3.
Symbol Code ID Character
AIM Code ID Character
8-4
Miscellaneous Scanner Options
Transmit Code ID Character (Continued)
*None
Prefix/Suffix Values
A prefix/suffix may be appended to scan data for use in data editing. These values are set
by scanning a four-digit number (i.e., four bar codes) that corresponds to key codes for
various terminals. Code 39 Full ASCII to Full ASCII Coorelation is host-dependent, and
therefore described in the “ASCII Character Set” Table for the appropriate interface.
Numeric bar codes begin on page D-1 in Appendix D. If you make an error or wish to
change your selection, scan Cancel on page D-5.
Scan Suffix (Value 1)
Scan Prefix (Value 2)
8-5
Wasp WPS100 Product Reference Guide
Prefix/Suffix Values (Continued)
Set Value 3
Set Value 4
8-6
Miscellaneous Scanner Options
Prefix/Suffix Values (Continued)
Set Value 5
Set FN1 Substitution Value (Value 6)
8-7
Wasp WPS100 Product Reference Guide
FN1 Substitution Values
The Wedge and USB HID Keyboard hosts support a FN1 Substitution feature. In this
feature, if enabled, any FN1 character (0x1b) in an EAN128 barcode is substituted for this
value. This value defaults to 7013 (Enter Key)
1. Scan the bar code below.
FN1 Substitution Value (Value 6)
2. Look up the keystroke for FN1 Substitution in the ASCII Character Set table for the
currently installed host interface. Enter the 4-digit “ASCII Value” by scanning each
digit in the Numeric Bar Codes on page D-1.
8-8
Miscellaneous Scanner Options
Scan Data Options
To change the Scan Data Transmission Format, scan the Scan Options bar code below.
Then select one of four options:
•
Data As Is
•
<DATA> <SUFFIX>
•
<PREFIX> <DATA>
•
<PREFIX> <DATA> <SUFFIX>
When you have made your selection, scan the Enter bar code on page 8-11. If you make
a mistake, scan the Data Format Cancel bar code on page 8-11.
If you need to have a carriage return/enter after each bar code scanned, scan the following
bar codes in order:
1. <SCAN OPTIONS>
2. <DATA> <SUFFIX>
3. Enter (on page 8-11)
Scan Options
8-9
Wasp WPS100 Product Reference Guide
Scan Data Transmission Format (Continued)
*Data As Is
<DATA> <SUFFIX>
<PREFIX> <DATA>
8-10
Miscellaneous Scanner Options
Scan Data Transmission Format (Continued)
<PREFIX> <DATA> <SUFFIX>
Enter
Data Format Cancel
8-11
Wasp WPS100 Product Reference Guide
Transmit “No Read” Message
Scan a bar code below to select whether or not a “No Read” message is transmitted. When
enabled, the characters NR are transmitted when a bar code is not decoded. Any prefixes
or suffixes which are enabled are appended around this message. When disabled, if a
symbol does not decode, nothing is sent to the host.
Enable No Read
*Disable No Read
8-12
Chapter 9
Advanced Data Formatting
Introduction
Advanced Data Formatting (ADF) is a means of customizing data before transmission to
your host device. Scan data can be edited to suit your particular requirements.
ADF can be implemented through scanning a related series of bar codes, which begin on
page 9-7.
Rules: Criteria Linked to Actions
In ADF, data is customized through rules. These rules perform detailed actions when the
data meets certain criteria. One rule may consist of single or multiple criteria applied to
single or multiple actions.
For instance, a data formatting rule could be the following:
Criteria:
When scan data is Code 39, length 12, and data at the start position is
the string “129”,
Actions:
pad all sends with zeros to length 8,
send all data up to X,
send a space.
If a Code 39 bar code of 1299X1559828 is scanned, the following is transmitted:
00001299<space>. If a Code 39 bar code of 1299X15598 is scanned, this rule is ignored
because the length criteria has not been met.
The rule specifies the editing conditions and requirements before data transmission occurs.
9-1
Wasp WPS100 Product Reference Guide
Using ADF Bar Codes
When you program a rule, make sure the rule is logically correct. Plan ahead before you
start scanning.
To program each data formatting rule:
•
Start the Rule. Scan the Begin New Rule bar code on page 9-7.
•
Criteria. Scan the bar codes for all pertinent criteria. Criteria can include code type
(e.g., Code 128), code length, or data that contains a specific character string (e.g.,
the digits “129”). These options are described in Criteria on page 9-12.
•
Actions. Scan all actions related to, or affecting, these criteria. The actions of a
rule specify how to format the data for transmission. These options are described
in ADF Bar Code Menu Example on page 9-2.
•
Save the Rule. Scan the Save Rule bar code on page 9-8. This places the rule in
the “top” position in the rule buffer.
•
If you make errors during this process, some special-purpose bar codes may be
useful: Erase Criteria and Start Again, Erase Actions and Start Again, Erase
Previously Saved Rule, etc.
Criteria, actions, and entire rules may be erased by scanning the appropriate bar code (see
page 9-8).
Scanning in Single-Line Mode on page 2-2 help guide you through the programming steps.
ADF Bar Code Menu Example
This section provides an example of how ADF rules are entered and used for scan data.
An auto parts distribution center wants to encode manufacturer ID, part number, and
destination code into their own Code 128 bar codes. The distribution center also has
products that carry UPC bar codes, placed there by the manufacturer. The Code 128 bar
codes have the following format:
MMMMMPPPPPDD
Where:
M = Manufacturer ID
P = Part Number
D = Destination Code
9-2
Advanced Data Formatting
The distribution center uses a PC with dedicated control characters for manufacturer ID
<CTRL M>, part number <CTRL P>, and destination code <CTRL D>. At this center the
UPC data is treated as manufacturer ID code.
The following rules need to be entered:
When scanning data of code type Code 128, send the next 5 characters, send the
manufacturer ID key <CTRL M>, send the next 5 characters, send the part number key
<CTRL P>, send the next 2 characters, send the destination code key <CTRL D>.
When scanning data of code type UPC/EAN, send all data, send the manufacturer ID
key <CTRL M>.
To enter these rules, follow the steps below:
Rule 1: The Code 128 Scanning Rule
Step
Bar Code
On Page
Beep Indication
1
Begin New Rule
9-7
High High
2
Code 128
9-14
High High
3
Send next 5 characters
9-36
High High
4
Send <CTRL M>
9-81
High High
5
Send next 5 characters
9-36
High High
6
Send <CTRL P>
9-82
High High
7
Send next 2 characters
9-35
High High
8
Send <CTRL D>
9-78
High High
9
Save Rule
9-8
High Low High Low
Rule 2: The UPC Scanning Rule
Step
Bar Code
On Page
Beep Indication
1
Begin New Rule
9-7
High High
2
UPC/EAN
9-17
High High
3
Send all remaining data
9-34
High High
4
Send <CTRL M>
9-81
High High
5
Save Rule
9-8
High Low High Low
9-3
Wasp WPS100 Product Reference Guide
If you made any mistakes while entering this rule, scan the Quit Entering Rules bar code
on page 9-9. If you already saved the rule, scan the Erase Previously Saved Rule bar
code on page 9-9.
Alternate Rule Sets
ADF rules may be grouped into one of four alternate sets which can be turned on and off
when needed. This is useful when you want to format the same message in different ways.
For example, a Code 128 bar code contains the following information:
Class (2 digits), Stock Number (8) digits, Price (5 digits)
This bar code might look like this:
245671243701500
where:
Class = 24
Stock Number = 56712437
Price = 01500
Ordinarily you would send this data as follows:
24 (class key)
56712437 (stock key)
01500 (enter key)
But, when there is a sale, you may want to send only the following:
24 (class key)
56712437 (stock key)
and the cashier will key the price manually.
To implement this, you would first enter an ADF rule that applies to the normal situation.
This rule may look like this:
When scanning a bar code of length 15, send the next 2 characters, send the
class key, send the next 8 characters, send the stock key, send the data that
remains, send the Enter key.
The “sale” rule may look like this:
When scanning a bar code of length 15, send the next 2 characters, send the
class key, send the next 8 characters, send the stock key.
9-4
Advanced Data Formatting
To switch between the two sets of rules, a “switching rule” must be programmed. This rule
specifies what type of bar code must be scanned to switch between the rule sets. For
example, in the case of the “sale” rule above, the rule programmer wants the cashier to
scan the bar code “M” before a sale. To do this, a rule can be entered as follows:
When scanning a bar code of length 1 that begins with “M”, select rule set
number 1.
Another rule could be programmed to switch back.
When scanning a bar code of length 1 that begins with “N”, turn off rule set
number 1.
The switching back to normal rules can also be done in the “sale” rule. For example, the
rule may look like this:
When scanning a bar code of length 15, send the next 2 characters, send the
class key, send the next 8 characters, send the stock key, turn off rule set 1.
It is recommended that you scan the Disable All Rule Sets bar code on page 9-11 after
programming a rule belonging to an alternate rule set.
In addition to enabling and disabling rule sets within the rules, you can enable or disable
them by scanning the appropriate bar codes on 9-11.
Rules Hierarchy (in Bar Codes)
The order of programming individual rules is important.The most general rule should be
programmed last.
All programmed rules are stored in a buffer. As they are programmed, they are stored at
the “top” of a rules list. If three rules have been created, the list would be configured as
follows:
Third Rule
Second Rule
First Rule
When data is scanned, the rules list is checked from top to bottom to determine if the criteria
matches (and therefore, if the actions should occur). Input is modified into the data format
specified by the first matching set of criteria it finds. Be sure that your most general rule is
the last one programmed.
9-5
Wasp WPS100 Product Reference Guide
For example, if the THIRD rule states:
When scanning a bar code of any length, send all data, then send the ENTER key.
And the SECOND rule states:
When scanning a Code 128 bar code of length 12, send the first four characters,
then send the ENTER key, then send all remaining data.
If a Code 128 bar code of length 12 were scanned, the THIRD rule would be in effect. The
SECOND rule would appear to not function.
Note also that ADF rules are actually created when you use the standard data editing
functions. Scan options are entered as ADF rules, and the hierarchy mentioned above also
applies to them. For the LS2108, this applies to prefix/suffix programming in the parameter
Scan Data Transmission Format.
These rules reside in the same “rule list” as ADF Rules, so the order of their creation is also
important.
Default Rules
Every unit has a default rule to send all scan data. Units with custom software may have
one or more default rules burned in. The rules hierarchy checks user programmable rules
first, then the default rules. Default rules can be disabled by entering the following general
rule in the user programmable buffer:
When receiving scan data, send all data.
Since this rule always applies, ADF will never go into the default rules.
9-6
Advanced Data Formatting
Special Commands
Pause Duration
This parameter allows a pause to be inserted in the data transmission. Pauses are set by
scanning a two-digit number (i.e., two bar codes), and are measured in 0.1 second
intervals. For example, scanning bar codes “0” and “1” inserts a 0.1 second pause; “5” and
“0” gives you a 5 second delay. Numeric bar codes begin on page D-1 in Numeric Bar
Codes. If you make an error or wish to change your selection, scan Cancel bar code on
page 8-11. The default for Pause Duration is 1 second.
Pause Duration
Begin New Rule
Scan this bar code to start entering a new rule.
Begin New Rule
9-7
Wasp WPS100 Product Reference Guide
Save Rule
Scan this bar code to save the rule you entered.
Save Rule
Erase
Use these bar codes to erase criteria, actions, or rules.
Erase Criteria And
Start Again
Erase Actions And
Start Again
9-8
Advanced Data Formatting
Erase (Continued)
Erase Previously
Saved Rule
Erase All Rules
Quit Entering Rules
Scan this bar code to quit entering rules.
Quit Entering Rules
9-9
Wasp WPS100 Product Reference Guide
Disable Rule Set
Use these bar codes to disable rule sets.
Disable Rule Set 1
Disable Rule Set 2
Disable Rule Set 3
9-10
Advanced Data Formatting
Disable Rule Set (Continued)
Disable Rule Set 4
Disable All Rule Sets
9-11
Wasp WPS100 Product Reference Guide
Criteria
Code Types
Select any number of code types to be affected. All selected codes must be scanned in
succession, prior to selecting other criteria. If you don't select a code type, all code types
will be affected.
Code 39
Codabar
9-12
Advanced Data Formatting
Code Types (Continued)
RSS 14
RSS Limited
RSS Expanded
9-13
Wasp WPS100 Product Reference Guide
Code Types (Continued)
Scan the bar codes for all code types desired before selecting other criteria.
Code 128
D 2 OF 5
9-14
Advanced Data Formatting
Code Types (Continued)
Scan the bar codes for all code types desired before selecting other criteria.
IATA 2 OF 5
I 2 OF 5
Code 93
9-15
Wasp WPS100 Product Reference Guide
Code Types (Continued)
Scan the bar codes for all code types desired before selecting other criteria.
UPC-A
UPC-E
EAN-8
9-16
Advanced Data Formatting
Code Types (Continued)
EAN-13
MSI
EAN 128
9-17
Wasp WPS100 Product Reference Guide
Code Types (Continued)
UPC-E1
Bookland
Trioptic
9-18
Advanced Data Formatting
Code Types (Continued)
Chinese 2 of 5
Coupon Code
9-19
Wasp WPS100 Product Reference Guide
Code Lengths
Define the number of characters the selected code type must contain. If you don't select a
code length, selected code types of any length will be affected.
Scan these bar codes to define the number of characters the selected code types must
contain. Select one length per rule only.
1 Character
2 Characters
3 Characters
9-20
Advanced Data Formatting
Code Lengths (Continued)
4 Characters
5 Characters
6 Characters
9-21
Wasp WPS100 Product Reference Guide
Code Lengths (Continued)
7 Characters
8 Characters
9 Characters
9-22
Advanced Data Formatting
Code Lengths (Continued)
10 Characters
11 Characters
12 Characters
9-23
Wasp WPS100 Product Reference Guide
Code Lengths (Continued)
13 Characters
14 Characters
15 Characters
9-24
Advanced Data Formatting
Code Lengths (Continued)
16 Characters
17 Characters
18 Characters
9-25
Wasp WPS100 Product Reference Guide
Code Lengths (Continued)
19 Characters
20 Characters
21 Characters
9-26
Advanced Data Formatting
Code Lengths (Continued)
22 Characters
23 Characters
24 Characters
9-27
Wasp WPS100 Product Reference Guide
Code Lengths (Continued)
25 Characters
26 Characters
27 Characters
9-28
Advanced Data Formatting
Code Lengths (Continued)
28 Characters
29 Characters
0
30 Characters
9-29
Wasp WPS100 Product Reference Guide
Message Containing A Specific Data String
Use this feature to select whether the formatting affects data that begins with a specific
character or data string, or contains a specific character or data string.
There are 4 features:
•
Specific String at Start
•
Specific String, Any Location
•
Any Message OK
•
Rule Balloonist Set
Specific String at Start
Scan this bar code, then scan the bar codes representing the desired character or
characters (up to a total of 8) in the Alphanumeric Keyboard on page 9-178.
After scanning the following bar code:
1. Enter a string using the Alphanumeric Keyboard beginning on page 9-178.
2. Scan End Of Message on page 9-199.
Specific String At Start
9-30
Advanced Data Formatting
Specific String, Any Location
Scan this bar code, then, using the Numeric Bar Codes on page D-1, scan a two-digit
number representing the position (use a leading “zero” if necessary). Then scan the
desired character or characters (up to a total of 8) on the Alphanumeric Keyboard on page
9-178, followed by the End Of Message bar code on page 9-199.
After scanning the following bar code:
1. Enter a location using the Numeric Bar Codes on page D-1
2. Enter a string using the Alphanumeric Keyboard beginning on page 9-178.
3. Scan End Of Message on page 9-199.
Specific String Any Location
Any Message OK
By not scanning any bar code, all selected code types are formatted, regardless of
information contained.
9-31
Wasp WPS100 Product Reference Guide
Rule Belongs To Set
Select the set a rule belongs to. (There are four possible rule sets.) Refer to Alternate Rule
Sets on page 9-4 for more information about rule sets.
Scan a bar code below to select which set a rule belongs to.
Rule Belongs To Set 1
Rule Belongs To Set 2
9-32
Advanced Data Formatting
Rule Belongs To Set (Continued)
Rule Belongs To Set 3
Rule Belongs To Set 4
9-33
Wasp WPS100 Product Reference Guide
Actions
Select how to format the data for transmission.
Send Data
Send all data that remains, send all data up to a specific character selected from the
Alphanumeric Keyboard on page 9-178, or send the next N characters. N = any number
from 1 to 254, selected from the Alphanumeric Keyboard.
Use these bar codes to send data.
Send All Data That Remains
Send Data Up To
Character
Send Next Character
9-34
Advanced Data Formatting
Send Data (Continued)
Send Next
2 Characters
Send Next
3 Characters
Send Next
4 Characters
9-35
Wasp WPS100 Product Reference Guide
Send Data (Continued)
Send Next
5 Characters
Send Next
6 Characters
Send Next
7 Characters
9-36
Advanced Data Formatting
Send Data (Continued)
Send Next 8
Characters
Send Next
9 Characters
Send Next
10 Characters
9-37
Wasp WPS100 Product Reference Guide
Send Data (Continued)
Send Next
11 Characters
Send Next
12 Characters
Send Next
13 Characters
9-38
Advanced Data Formatting
Send Data (Continued)
Send Next
14 Characters
Send Next
15 Characters
Send Next
16 Characters
9-39
Wasp WPS100 Product Reference Guide
Send Data (Continued)
Send Next
17 Characters
Send Next
18 Characters
Send Next
19 Characters
9-40
Advanced Data Formatting
Send Data (Continued)
Send Next
20 Characters
9-41
Wasp WPS100 Product Reference Guide
Setup Field(s)
Table 9-1. Setup Field(s) Definitions
Parameter
Description
Page
Move Cursor
Move Cursor To a Character
Scan the Move Cursor To Character bar code 9-43
on page 9-43, then any printable ASCII character
from the Alphanumeric Keyboard. When this is
used, the cursor moves to the position after the
matching character. If the character is not there,
the rule fails and ADF tries the next rule.
Move Cursor to Start of Data
Scan this bar code to move cursor to the
beginning of the data.
9-43
Move Cursor Past a Character This parameter moves the cursor past all
9-43
sequential occurrences of a selected character.
For example, if the selected character is ‘A’, then
the cursor moves past ‘A’, ‘AA’, ‘AAA’, etc. Scan
the Move Cursor Past Character bar code on
page 9-44, then select a character from the
Alphanumeric Keyboard. If the character is not
there, the cursor does not move (i.e., has no
effect).
Skip Ahead “N” Characters
Scan one of these bar codes to select the number 9-44
of positions ahead you wish to move the cursor.
Skip Back “N” Characters
Scan one of these bar codes to select the number 9-48
of positions back you wish to move the cursor.
Send Preset Value
9-51
Send Values 1 through 6 by scanning the
appropriate bar code. These values must be set
using the prefix/suffix values in Table 6-4 on page
6-30.
Value 1 = Scan Suffix; Value 2 = Scan Prefix
Value 6 = FN1 Substitution Value
9-42
Advanced Data Formatting
Move Cursor
Scan a bar code below to move the cursor in relation to a specified character. Then enter
a character by scanning a bar code from the Alphanumeric Keyboard beginning on page 9178.
Note: If there is no match when the rule is interpreted and the rule fails, the
next rule is checked.
Move Cursor To
Character
Move Cursor To Start
9-43
Wasp WPS100 Product Reference Guide
Move Cursor (Continued)
Move Cursor Past
Character
Scan the barcode below to insert a pause in the transmission of data. The length of this
pause is controlled by the value of the Pause Duration parameter.
Send Pause
Skip Ahead
Use the following bar codes to skip ahead characters.
Skip Ahead
1 Character
9-44
Advanced Data Formatting
Skip Ahead (Continued)
Skip Ahead
2 Characters
Skip Ahead
3 Characters
Skip Ahead
4 Characters
9-45
Wasp WPS100 Product Reference Guide
Skip Ahead (Continued)
Skip Ahead
5 Characters
Skip Ahead
6 Characters
Skip Ahead
7 Characters
9-46
Advanced Data Formatting
Skip Ahead (Continued)
Skip Ahead
8 Characters
Skip Ahead
9 Characters
Skip Ahead
10 Characters
9-47
Wasp WPS100 Product Reference Guide
Skip Back
Use the following bar codes to skip back characters.
Skip Back
1 Characters
Skip Back
2 Characters
Skip Back
3 Characters
9-48
Advanced Data Formatting
Skip Back (Continued)
Skip Back
4 Characters
Skip Back
5 Characters
Skip Back
6 Characters
9-49
Wasp WPS100 Product Reference Guide
Skip Back (Continued)
Skip Back
7 Characters
Skip Back
8 Characters
Skip Back
9 Characters
9-50
Advanced Data Formatting
Skip Back (Continued)
Skip Back
10 Characters
Send Preset Value
Use these bar codes to send preset values.
Send Value 1
Send Value 2
9-51
Wasp WPS100 Product Reference Guide
Send Preset Value (Continued)
Send Value 3
Send Value 4
Send Value 5
9-52
Advanced Data Formatting
Send Preset Value (Continued)
Send Value 6
Modify Data
Modify data in the ways listed. The following actions work for all send commands that follow
it within a rule. If you program pad zeros to length 6, send next 3 characters, stop padding,
send next 5 characters, three zeros are added to the first send, and the next send is
unaffected by the padding. These options do not apply to the Send Keystroke or Send
Preset Value options.
Remove All Spaces
To remove all spaces in the send commands that follow, scan this bar code.
Crunch All Spaces
To leave one space between words, scan this bar code. This also removes all leading and
trailing spaces.
Stop Space Removal
Scan this bar code to disable space removal.
Remove Leading Zeros
Scan this bar code to remove all leading zeros.
Stop Zero Removal
Scan this bar code to disable the removal of zeros.
9-53
Wasp WPS100 Product Reference Guide
Modify Data (Continued)
Use the bar codes below to modify data.
Remove All Spaces
Crunch All Spaces
Stop Space Removal
9-54
Advanced Data Formatting
Modify Data (Continued)
Remove Leading
Zeros
Stop Zero Removal
Pad Data with Spaces
To pad data to the left, scan the bar code containing the desired number of spaces. This
parameter is activated by Send commands
Pad Spaces To
Length 1
9-55
Wasp WPS100 Product Reference Guide
.Pad
Data with Spaces (Continued)
Pad Spaces To
Length 2
Pad Spaces To
Length 3
Pad Spaces To
Length 4
9-56
Advanced Data Formatting
Pad Data with Spaces (Continued)
Pad Spaces To
Length 5
Pad Spaces To
Length 6
Pad Spaces To
Length 7
9-57
Wasp WPS100 Product Reference Guide
Pad Data with Spaces (Continued)
Pad Spaces To
Length 8
Pad Spaces To
Length 9
Pad Spaces To
Length 10
9-58
Advanced Data Formatting
Pad Data with Spaces (Continued)
Pad Spaces To
Length 11
Pad Spaces To
Length 12
Pad Spaces To
Length 13
9-59
Wasp WPS100 Product Reference Guide
Pad Data with Spaces (Continued)
Pad Spaces To
Length 14
Pad Spaces To
Length 15
Pad Spaces To
Length 16
9-60
Advanced Data Formatting
Pad Data with Spaces (Continued)
Pad Spaces To
Length 17
Pad Spaces To
Length 18
Pad Spaces To
Length 19
9-61
Wasp WPS100 Product Reference Guide
Pad Data with Spaces (Continued)
Pad Spaces To
Length 20
Pad Spaces To
Length 21
Pad Spaces To
Length 22
9-62
Advanced Data Formatting
Pad Data with Spaces (Continued)
Pad Spaces To
Length 23
Pad Spaces To
Length 24
Pad Spaces To
Length 25
9-63
Wasp WPS100 Product Reference Guide
Pad Data with Spaces (Continued)
Pad Spaces To
Length 26
Pad Spaces To
Length 27
Pad Spaces To
Length 28
9-64
Advanced Data Formatting
Pad Data with Spaces (Continued)
Pad Spaces To
Length 29
Pad Spaces To
Length 30
Stop Pad Spaces
9-65
Wasp WPS100 Product Reference Guide
Pad Data with Zeros
To pad data to the left, scan the bar code containing the desired number of zeros. This
parameter is activated by Send commands.
Pad Zeros To
Length 1
Pad Zeros To
Length 2
Pad Zeros To
Length 3
9-66
Advanced Data Formatting
Pad Data with Zeros (Continued)
Pad Zeros To
Length 4
Pad Zeros To
Length 5
Pad Zeros To
Length 6
9-67
Wasp WPS100 Product Reference Guide
Pad Data with Zeros (Continued)
Pad Zeros To
Length 7
Pad Zeros To
Length 8
Pad Zeros To
Length 9
9-68
Advanced Data Formatting
Pad Data with Zeros (Continued)
Pad Zeros To
Length 10
Pad Zeros To
Length 11
Pad Zeros To
Length 12
9-69
Wasp WPS100 Product Reference Guide
Pad Data with Zeros (Continued)
Pad Zeros To
Length 13
Pad Zeros To
Length 14
Pad Zeros To
Length 15
9-70
Advanced Data Formatting
Pad Data with Zeros (Continued)
Pad Zeros To
Length 16
Pad Zeros To
Length 17
Pad Zeros To
Length 18
9-71
Wasp WPS100 Product Reference Guide
Pad Data with Zeros (Continued)
Pad Zeros To
Length 19
Pad Zeros To
Length 20
Pad Zeros To
Length 21
9-72
Advanced Data Formatting
Pad Data with Zeros (Continued)
Pad Zeros To
Length 22
Pad Zeros To
Length 23
Pad Zeros To
Length 24
9-73
Wasp WPS100 Product Reference Guide
Pad Data with Zeros (Continued)
Pad Zeros To
Length 25
Pad Zeros To
Length 26
Pad Zeros To
Length 27
9-74
Advanced Data Formatting
Pad Data with Zeros (Continued)
Pad Zeros To
Length 28
Pad Zeros To
Length 29
Pad Zeros To
Length 30
9-75
Wasp WPS100 Product Reference Guide
Pad Data with Zeros (Continued)
Stop Pad Zeros
Beeps
Select a beep sequence for each ADF rule.
Beep Once
Beep Twice
9-76
Advanced Data Formatting
Beeps (Continued)
Beep Three Times
Send Keystroke (Control Characters and Keyboard
Characters)
Control Characters
Scan the “Send __” bar code for the keystroke you wish to send.
Send Control 2
Send Control A
9-77
Wasp WPS100 Product Reference Guide
Control Characters (Continued)
Send Control B
Send Control C
Send Control D
9-78
Advanced Data Formatting
Control Characters (Continued)
Send Control E
Send Control F
Send Control G
9-79
Wasp WPS100 Product Reference Guide
Control Characters (Continued)
Send Control H
Send Control I
Send Control J
9-80
Advanced Data Formatting
Control Characters (Continued)
Send Control K
Send Control L
Send Control M
9-81
Wasp WPS100 Product Reference Guide
Control Characters (Continued)
Send Control N
Send Control O
Send Control P
9-82
Advanced Data Formatting
Control Characters (Continued)
Send Control Q
Send Control R
Send Control S
9-83
Wasp WPS100 Product Reference Guide
Control Characters (Continued)
Send Control T
Send Control U
Send Control V
9-84
Advanced Data Formatting
Control Characters (Continued)
Send Control W
Send Control X
Send Control Y
9-85
Wasp WPS100 Product Reference Guide
Control Characters (Continued)
Send Control Z
Send Control [
Send Control \
9-86
Advanced Data Formatting
Control Characters (Continued)
Send Control ]
Send Control 6
Send Control -
9-87
Wasp WPS100 Product Reference Guide
Keyboard Characters
Scan the “Send __” bar code for the keyboard characters you wish to send.
Send Space
Send !
Send “
9-88
Advanced Data Formatting
Keyboard Characters (Continued)
Send #
Send $
Send %
9-89
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send &
Send ‘
Send (
9-90
Advanced Data Formatting
Keyboard Characters (Continued)
Send )
Send *
Send +
9-91
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send ,
Send -
Send .
9-92
Advanced Data Formatting
Keyboard Characters (Continued)
Send /
Send 0
Send 1
9-93
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send 2
Send 3
Send 4
9-94
Advanced Data Formatting
Keyboard Characters (Continued)
Send 5
Send 6
Send 7
9-95
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send 8
Send 9
Send :
9-96
Advanced Data Formatting
Keyboard Characters (Continued)
Send ;
Send <
Send =
9-97
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send >
Send ?
Send @
9-98
Advanced Data Formatting
Keyboard Characters (Continued)
Send A
Send B
Send C
9-99
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send D
Send E
Send F
9-100
Advanced Data Formatting
Keyboard Characters (Continued)
Send G
Send H
Send I
9-101
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send J
Send K
Send L
9-102
Advanced Data Formatting
Keyboard Characters (Continued)
Send M
Send N
Send O
9-103
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send P
Send Q
Send R
9-104
Advanced Data Formatting
Keyboard Characters (Continued)
Send S
Send T
Send U
9-105
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send V
Send W
Send X
9-106
Advanced Data Formatting
Keyboard Characters (Continued)
Send Y
Send Z
Send [
9-107
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send \
Send ]
Send ^
9-108
Advanced Data Formatting
Keyboard Characters (Continued)
Send _
Send ‘
Send a
9-109
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send b
Send c
Send d
9-110
Advanced Data Formatting
Keyboard Characters (Continued)
Send e
Send f
Send g
9-111
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send h
Send i
Send j
9-112
Advanced Data Formatting
Keyboard Characters (Continued)
Send k
Send l
Send m
9-113
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send n
Send o
Send p
9-114
Advanced Data Formatting
Keyboard Characters (Continued)
Send q
Send r
Send s
9-115
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send t
Send u
Send v
9-116
Advanced Data Formatting
Keyboard Characters (Continued)
Send w
Send x
Send y
9-117
Wasp WPS100 Product Reference Guide
Keyboard Characters (Continued)
Send z
Send {
Send |
9-118
Advanced Data Formatting
Keyboard Characters (Continued)
Send }
Send ~
Send ALT Characters
Send Alt 2
9-119
Wasp WPS100 Product Reference Guide
Send ALT Characters (Continued)
Send Alt A
Send Alt B
Send Alt C
9-120
Advanced Data Formatting
Send ALT Characters (Continued)
Send Alt D
Send Alt E
Send Alt F
9-121
Wasp WPS100 Product Reference Guide
Send ALT Characters (Continued)
Send Alt G
Send Alt H
Send Alt I
9-122
Advanced Data Formatting
Send ALT Characters (Continued)
Send Alt J
Send Alt K
Send Alt L
9-123
Wasp WPS100 Product Reference Guide
Send ALT Characters (Continued)
Send Alt M
Send Alt N
Send Alt O
9-124
Advanced Data Formatting
Send ALT Characters (Continued)
Send Alt P
Send Alt Q
Send Alt R
9-125
Wasp WPS100 Product Reference Guide
Send ALT Characters (Continued)
Send Alt S
Send Alt T
Send Alt U
9-126
Advanced Data Formatting
Send ALT Characters (Continued)
Send Alt V
Send Alt W
Send Alt X
9-127
Wasp WPS100 Product Reference Guide
Send ALT Characters (Continued)
Send Alt Y
Send Alt Z
Send Alt [
9-128
Advanced Data Formatting
Send ALT Characters (Continued)
Send Alt \
Send Alt ]
Send Alt 6
9-129
Wasp WPS100 Product Reference Guide
Send ALT Characters (Continued)
Send Alt -
Send Keypad Characters
Send Keypad *
Send Keypad +
9-130
Advanced Data Formatting
Send Keypad Characters (Continued)
Send Keypad -
Send Keypad .
Send Keypad /
9-131
Wasp WPS100 Product Reference Guide
Send Keypad Characters (Continued)
Send Keypad 0
Send Keypad 1
Send Keypad 2
9-132
Advanced Data Formatting
Send Keypad Characters (Continued)
Send Keypad 3
Send Keypad 4
Send Keypad 5
9-133
Wasp WPS100 Product Reference Guide
Send Keypad Characters (Continued)
Send Keypad 6
Send Keypad 7
Send Keypad 8
9-134
Advanced Data Formatting
Send Keypad Characters (Continued)
Send Keypad 9
Send Keypad Enter
Send Keypad Numlock
9-135
Wasp WPS100 Product Reference Guide
Send Keypad Characters (Continued)
Send Break Key
Send Delete Key
Send Page Up Key
9-136
Advanced Data Formatting
Send Keypad Characters (Continued)
Send End Key
Send Page Down Key
Send Pause Key
9-137
Wasp WPS100 Product Reference Guide
Send Keypad Characters (Continued)
Send Scroll Lock Key
Send Backspace Key
Send Tab Key
9-138
Advanced Data Formatting
Send Keypad Characters (Continued)
Send Print Screen Key
Send Insert Key
Send Home Key
9-139
Wasp WPS100 Product Reference Guide
Send Keypad Characters (Continued)
Send Enter Key
Send Escape Key
Send Up Arrow Key
9-140
Advanced Data Formatting
Send Keypad Characters (Continued)
Send Down Arrow Key
Send Left Arrow Key
Send Right Arrow Key
9-141
Wasp WPS100 Product Reference Guide
Send Keypad Characters (Continued)
Send Back Tab
Character
Send Function Key
Send F1 Key
Send F2 Key
9-142
Advanced Data Formatting
Send Function Key (Continued)
Send F3 Key
Send F4 Key
Send F5 Key
9-143
Wasp WPS100 Product Reference Guide
Send Function Key (Continued)
Send F6 Key
Send F7 Key
Send F8 Key
9-144
Advanced Data Formatting
Send Function Key (Continued)
Send F9 Key
Send F10 Key
Send F11 Key
9-145
Wasp WPS100 Product Reference Guide
Send Function Key (Continued)
Send F12 Key
Send F13 Key
Send F14 Key
9-146
Advanced Data Formatting
Send Function Key (Continued)
Send F15 Key
Send F16 Key
Send F17 Key
9-147
Wasp WPS100 Product Reference Guide
Send Function Key (Continued)
Send F18 Key
Send F19 Key
Send F20 Key
9-148
Advanced Data Formatting
Send Function Key (Continued)
Send F21 Key
Send F22 Key
Send F23 Key
9-149
Wasp WPS100 Product Reference Guide
Send Function Key (Continued)
Send F24 Key
Send F25 Key
Send F26 Key
9-150
Advanced Data Formatting
Send Function Key (Continued)
Send F27 Key
Send F28 Key
Send F29 Key
9-151
Wasp WPS100 Product Reference Guide
Send Function Key (Continued)
Send F30 Key
Send PF1 Key
Send PF2 Key
9-152
Advanced Data Formatting
Send Function Key (Continued)
Send PF3 Key
Send PF4 Key
Send PF5 Key
9-153
Wasp WPS100 Product Reference Guide
Send Function Key (Continued)
Send PF6 Key
Send PF7 Key
Send PF8 Key
9-154
Advanced Data Formatting
Send Function Key (Continued)
Send PF9 Key
Send PF10 Key
Send PF11 Key
9-155
Wasp WPS100 Product Reference Guide
Send Function Key (Continued)
Send PF12 Key
Send PF13 Key
Send PF14 Key
9-156
Advanced Data Formatting
Send Function Key (Continued)
Send PF15 Key
Send PF16 Key
Send PF17 Key
9-157
Wasp WPS100 Product Reference Guide
Send Function Key (Continued)
Send PF18 Key
Send PF19 Key
Send PF20 Key
9-158
Advanced Data Formatting
Send Function Key (Continued)
Send PF21 Key
Send PF22 Key
Send PF23 Key
9-159
Wasp WPS100 Product Reference Guide
Send Function Key (Continued)
Send PF24 Key
Send PF25 Key
Send PF26 Key
9-160
Advanced Data Formatting
Send Function Key (Continued)
Send PF27 Key
Send PF28 Key
Send PF29 Key
9-161
Wasp WPS100 Product Reference Guide
Send Function Key (Continued)
Send PF30 Key
Send Right Control Key
The “Send Right Control Key” action will send a tap (press and release) of the Right Control
Key.
Send Right Control Key
9-162
Advanced Data Formatting
Send Graphic User Interface Characters
The “Send Graphic User Interface Character” actions will tap the specified key while
holding the System Dependant Graphic User Interface (GUI) Key. The definition of the
Graphic User Interface key is dependant upon the attached system
Send GUI 0
Send GUI 1
Send GUI 2
9-163
Wasp WPS100 Product Reference Guide
Send Graphic User Interface Characters (Continued)
Send GUI 3
Send GUI 4
Send GUI 5
9-164
Advanced Data Formatting
Send Graphic User Interface Characters (Continued)
Send GUI 6
Send GUI 7
Send GUI 8
9-165
Wasp WPS100 Product Reference Guide
Send Graphic User Interface Characters (Continued)
Send GUI 9
Send GUI A
Send GUI B
9-166
Advanced Data Formatting
Send Graphic User Interface Characters (Continued)
Send GUI C
Send GUI D
Send GUI E
9-167
Wasp WPS100 Product Reference Guide
Send Graphic User Interface Characters (Continued)
Send GUI F
Send GUI G
Send GUI H
9-168
Advanced Data Formatting
Send Graphic User Interface Characters (Continued)
Send GUI I
Send GUI J
Send GUI K
9-169
Wasp WPS100 Product Reference Guide
Send Graphic User Interface Characters (Continued)
Send GUI L
Send GUI M
Send GUI N
9-170
Advanced Data Formatting
Send Graphic User Interface Characters (Continued)
Send GUI O
Send GUI P
Send GUI Q
9-171
Wasp WPS100 Product Reference Guide
Send Graphic User Interface Characters (Continued)
Send GUI R
Send GUI S
Send GUI T
9-172
Advanced Data Formatting
Send Graphic User Interface Characters (Continued)
Send GUI U
Send GUI V
Send GUI W
9-173
Wasp WPS100 Product Reference Guide
Send Graphic User Interface Characters (Continued)
Send GUI X
Send GUI Y
Send GUI Z
9-174
Advanced Data Formatting
Turn On/Off Rule Sets
Use these bar codes to turn rule sets on and off.
Turn On Rule Set 1
Turn On Rule Set 2
9-175
Wasp WPS100 Product Reference Guide
Turn On/Off Rule Sets (Continued)
Turn On Rule Set 3
Turn On Rule Set 4
Turn Off Rule Set 1
9-176
Advanced Data Formatting
Turn On/Off Rule Sets (Continued)
Turn Off Rule Set 2
Turn Off Rule Set 3
Turn Off Rule Set 4
9-177
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard
Space
#
$
9-178
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
%
*
+
9-179
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
-
.
/
9-180
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
!
“
&
9-181
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
‘
(
)
9-182
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
:
;
<
9-183
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
=
>
?
9-184
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
@
[
\
9-185
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
]
^
_
9-186
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
Bar codes on this page should not be confused with those on the numeric keypad.
`
0
1
9-187
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
Bar codes on this page should not be confused with those on the numeric keypad.
2
3
4
9-188
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
Bar codes on this page should not be confused with those on the numeric keypad.
5
6
7
9-189
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
Bar codes on this page should not be confused with those on the numeric keypad.
8
9
A
9-190
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
B
C
D
9-191
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
E
F
G
9-192
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
H
I
J
9-193
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
K
L
M
9-194
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
N
O
P
9-195
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
Q
R
S
9-196
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
T
U
V
9-197
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
W
X
Y
9-198
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
Z
Cancel
End Of Message
9-199
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
a
b
c
9-200
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
d
e
f
9-201
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
g
h
i
9-202
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
j
k
l
9-203
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
m
n
o
9-204
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
p
q
r
9-205
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
s
t
u
9-206
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
v
w
x
9-207
Wasp WPS100 Product Reference Guide
Alphanumeric Keyboard (Continued)
y
z
{
9-208
Advanced Data Formatting
Alphanumeric Keyboard (Continued)
|
}
~
9-209
Wasp WPS100 Product Reference Guide
9-210
Appendix A
Standard Default Parameters
Table A-1. Standard Default Parameters Table
Parameter
Default
Page
Number
User Preferences
Set Default Parameter
All Defaults
4-5
Beeper Tone
High
4-6
Beeper Volume
High
4-7
Volume Change Trigger Delay
5 sec
4-8
Laser On Time
3.0 Sec
4-9
Beep After Good Decode
Enable
4-10
Low Power Blink
Blink
4-11
Scan Pattern Mode
Rastering
4-12
Single-Line Aim Duration
2 sec
4-13
1User
selection is required to configure this interface and this is the most common selection.
A-1
Wasp WPS100 Product Reference Guide
Table A-1. Standard Default Parameters Table (Continued)
Parameter
Default
Page
Number
Time-out Between Same Symbol
0.6 sec
4-15
Time-out Between Different Symbols
0.2 sec
4-15
Time Delay to Low Power Mode
30 Minutes
4-16
Linear UPC/EAN Decode
Disable
4-18
Keyboard Wedge Host Type
IBM PC/AT& IBM PC
Compatibles1
5-4
Country Types (Country Codes)
North American
5-6
Ignore Unknown Characters
Transmit
5-10
Keystroke Delay
No Delay
5-11
Inter-Keystroke Delay
Disable
5-12
Alternate Numeric Keypad Emulation
Disable
5-13
Caps Lock On
Disable
5-14
Caps Lock Override
Disable
5-15
Convert Wedge Data
No Convert
5-16
Function Key Mapping
Disable
5-17
FN1 Substitution
Disable
5-18
Send Make Break
Disable
5-19
Baud Rate
9600
6-9
Parity
None
6-11
Keyboard Wedge Host Parameters
1User
A-2
selection is required to configure this interface and this is the most common selection.
Standard Default Parameters
Table A-1. Standard Default Parameters Table (Continued)
Parameter
Default
Page
Number
Check Receive Errors
Enable
6-13
Hardware Handshaking
None
6-14
Software Handshaking
None
6-17
Host Serial Response Time-out
2 Sec
6-20
RTS Line State
Low RTS
6-22
Stop Bit Select
1
6-23
Data Bits
8-Bit
6-24
Beep on <BEL>
Disable
6-25
Intercharacter Delay
0 msec
6-26
Nixdorf Beep/LED Options
Normal Operation
6-28
Ignore Unknown Characters
Send Bar Codes
6-29
USB Device Type
HID (Human Interface
Device) Keyboard
Emulation
6-5
USB Country Keyboard Types (Country Codes)
North American
6-6
USB Keystroke Delay
No Delay
6-10
USB CAPS Lock Override
Disable
6-11
USB Ignore Enable Transmission
Enable
6-11
Emulate Keypad
Disable
6-13
USB Host Parameters
1User
selection is required to configure this interface and this is the most common selection.
A-3
Wasp WPS100 Product Reference Guide
Table A-1. Standard Default Parameters Table (Continued)
Parameter
Default
Page
Number
USB Keyboard FN1 Substitution
Disable
6-14
Function Key Mapping
Disable
6-15
Simulated Caps Lock
Disable
6-16
Convert Case
Disable
6-17
UPC-A
Enable
7-8
UPC-E
Enable
7-8
UPC-E1
Disable
7-9
EAN-8/JAN-8
Enable
7-10
EAN-13/JAN-13
Enable
7-10
Bookland EAN
Disable
7-11
Decode UPC/EAN Supplementals (2 and 5 digits)
Ignore
7-12
Decode UPC/EAN Supplemental Redundancy
20
7-15
Transmit UPC-A Check Digit
Transmit
7-16
Transmit UPC-E Check Digit
Transmit
7-17
Transmit UPC-E1 Check Digit
Transmit
7-17
UPC-A Preamble
System Character
7-18
UPC-E Preamble
System Character
7-19
UPC-E1 Preamble
System Character
7-20
UPC/EAN
1User
A-4
selection is required to configure this interface and this is the most common selection.
Standard Default Parameters
Table A-1. Standard Default Parameters Table (Continued)
Parameter
Default
Page
Number
Convert UPC-E to A
Disable
7-21
Convert UPC-E1 to A
Disable
7-22
EAN-8 Zero Extend
Disable
7-23
UCC Coupon Extended Code
Disable
7-24
Code 128
Enable
7-25
UCC/EAN-128
Enable
7-26
ISBT 128 (non-concatenated)
Enable
7-27
Code 128 Decode Performance
Enable
7-28
Code 128 Decode Performance Level
Level 3
7-29
Code 39
Enable
7-30
Trioptic Code 39
Disable
7-31
Convert Code 39 to Code 32 (Italian Farmer Code)
Disable
7-32
Code 32 Prefix
Disable
7-33
Set Length(s) for Code 39
2 to 55
7-34
Code 39 Check Digit Verification
Disable
7-36
Transmit Code 39 Check Digit
Do Not Transmit
7-37
Code 39 Full ASCII Conversion
Disable
7-38
Code 128
Code 39
1User
selection is required to configure this interface and this is the most common selection.
A-5
Wasp WPS100 Product Reference Guide
Table A-1. Standard Default Parameters Table (Continued)
Parameter
Default
Page
Number
Buffer Code 39
Disable
7-39
Code 39 Decode Performance
Ensable
7-43
Code 39 Decode Performance Level
Level 3
7-44
Code 93
Disable
7-45
Set Length(s) for Code 93
4 to 55
7-46
Code 11
Disable
7-48
Set Lengths for Code 11
4 to 55
7-49
Code 11 Check Digit Verification
Disable
7-51
Transmit Code 11 Check Digit
Do Not Transmit
7-52
Interleaved 2 of 5 (ITF)
Enable
7-53
Set Length(s) for I 2 of 5
14
7-54
I 2 of 5 Check Digit Verification
Disable
7-56
Transmit I 2 of 5 Check Digit
Do Not Transmit
7-57
Convert I 2 of 5 to EAN 13
Disable
7-58
Code 93
Code 11
Interleaved 2 of 5 (ITF)
Discrete 2 of 5 (DTF)
1User
A-6
selection is required to configure this interface and this is the most common selection.
Standard Default Parameters
Table A-1. Standard Default Parameters Table (Continued)
Parameter
Default
Page
Number
Discrete 2 of 5
Disable
7-59
Set Length(s) for D 2 of 5
12
7-60
Disable
7-62
Codabar
Disable
7-63
Set Lengths for Codabar
5 to 55
7-64
CLSI Editing
Disable
7-66
NOTIS Editing
Disable
7-67
MSI
Disable
7-68
Set Length(s) for MSI
1 to 55
7-69
MSI Check Digits
One
7-71
Transmit MSI Check Digit
Disable
7-72
MSI Check Digit Algorithm
Mod 10/Mod 10
7-73
RSS 14
Enable
7-74
RSS Limited
Disable
7-75
RSS Expanded
Enable
7-76
Chinese 2 of 5
Enable/Disable Chinese 2 of 5
Codabar (NW - 7)
MSI
RSS (Reduced Space Symbology)
1User
selection is required to configure this interface and this is the most common selection.
A-7
Wasp WPS100 Product Reference Guide
Table A-1. Standard Default Parameters Table (Continued)
Parameter
Convert RSS to UPC/EAN
Default
Page
Number
Disable
7-77
Redundancy Security Levels
1
7-80
Security Level
0
7-83
Normal
7-85
Transmit Code ID Character
Disable
8-4
Suffix Value (Value 1)
<CR><LF>
8-5
Prefix Value (Value 2)
None
8-5
FN1 Substitution Values
7013
8-8
Scan Data Options
Data as is
8-9
Transmit “No Read” Message
Disable
8-12
Symbology - Specific Security Levels
Symbology - Intercharacter Gap
Intercharacter Gaps
Miscellaneous Scanner Options
1User
A-8
selection is required to configure this interface and this is the most common selection.
Appendix B
Programming Reference
Symbol Code Identifiers
Table B-1. Code Characters
Code Character
Code Type
A
UPC/EAN
B
Code 39, Code 39 Full ASCII, Code 32
C
Codabar
D
Code 128, ISBT 128
E
Code 93
F
Interleaved 2 of 5
G
Discrete 2 of 5, IATA
H
Code 11
J
MSI Plessey
K
UCC/EAN-128
L
Bookland EAN
B-1
Wasp WPS100 Product Reference Guide
Table B-1. Code Characters (Continued)
B-2
Code Character
Code Type
M
Code 39 Trioptic
N
Coupon Code
R
RSS
Programming Reference
AIM Code Identifiers
Each AIM Code Identifier contains the three-character string ]cm where:
]=Flag Character (ASCII 93)
c=Code Character
m=Modifier Character
Table B-2. AIM Code Characters
Code Character
Code Type
A
Code 39, Code 39 Full ASCII, Code 32
C
Code 128 (all variants), Coupon (Code 128 portion)
E
UPC/EAN, Coupon (UPC/EAN portion)
F
Codabar
G
Code 93
H
Code 11
I
Interleaved 2 of 5
M
MSI Plessey
S
Discrete 2 of 5, IATA
X
Bookland EAN, Code 39 Trioptic
e
RSS
B-3
Wasp WPS100 Product Reference Guide
The modifier character is the sum of the applicable option values based on Table B-3.
Table B-3. Modifier Characters
Code Type
Option Value
Option
Code 39
0
No Check character.
1
Reader has checked one check character.
3
Reader has checked and stripped check character.
4
Reader has performed Full ASCII character conversion.
5
Reader has performed Full ASCII character conversion and
checked one check character.
7
Reader has performed Full ASCII character conversion and
checked and stripped check character.
Example: A Full ASCII bar code with check character W, A+I+MI+DW, is transmitted
as ]A7AimId where 7 = (3+4).
Trioptic Code 39
0
No option specified at this time. Always transmit 0.
Example: A Trioptic bar code 412356 is transmitted as ]X0412356
Code 128
0
Standard data packet, No Function code 1 in first symbol position.
1
Function code 1 in first symbol character position.
2
Function code 1 in second symbol character position.
Example: A Code (EAN) 128 bar code with Function 1 character in the first position,
FNC1 Aim Id is transmitted as ]C1AimId
B-4
Programming Reference
Table B-3. Modifier Characters
Code Type
Option Value
Option
I 2 of 5
0
No check digit processing.
1
Reader has validated check digit.
3
Reader has validated and stripped check digit.
Example: An I 2 of 5 bar code without check digit, 4123, is transmitted as ]I04123
Codabar
0
Standard Codabar
1
ABC Codabar
Example: A standard Codabar bar code, 4123, is transmitted as ]F04123
Code 93
0
No options specified at this time. Always transmit 0.
Example: A Code 93 bar code 012345678905 is transmitted as ]G0012345678905
MSI Plessey
0
Mod 10 check digit validated and transmitted.
1
Mod 10 check digit validated but not transmitted.
Example: An MSI Plessey bar code 4123, with Mod 10 check digit validated, is
transmitted as ]M04123
D 2 of 5
0
No options specified at this time. Always transmit 0.
Example: A D 2 of 5 bar code 4123, is transmitted as ]S04123
B-5
Wasp WPS100 Product Reference Guide
Table B-3. Modifier Characters
Code Type
Option Value
Option
0
Standard packet in full EAN country code format, which is 13 digits
for UPCA and UPCE (not including supplemental data).
1
Two digit supplement data only.
2
Five digit supplement data only.
4
EAN-8 data packet.
UPC/EAN
Example: A UPCA bar code 012345678905 is transmitted as ]E00012345678905
Bookland EAN
0
No options specified at this time. Always transmit 0.
Example: A Bookland EAN bar code 123456789X is transmitted as ]X0123456789X
B-6
Programming Reference
Table B-3. Modifier Characters
Code Type
Option Value
Option
RSS Family
No option specified at this time. Always transmit 0. RSS-14 and
RSS-Limited transmit with an Application Identifier “01”.
Note: In UCC/EAN-128 emulation mode, RSS is transmitted using
Code 128 rules (i.e., ]C1).
Example: An RSS-14 bar code 100123456788902 is transmitted as
]e001100123456788902.
B-7
Wasp WPS100 Product Reference Guide
B-8
Appendix C
Sample Bar Codes
Code 39
123ABC
UPC/EAN
UPC-A, 100 %
0
12345 67890
5
C-1
Wasp WPS100 Product Reference Guide
UPC/EAN (Continued)
EAN-13, 100 %
3 456789 012340
Code 128
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
Interleaved 2 of 5
1234567890123
C-2
Sample Bar Codes
RSS 14
Note: RSS 14 must be enabled to read the bar code below (see RSS 14
on page 7-74).
7612341562341
C-3
Wasp WPS100 Product Reference Guide
C-4
Appendix D
Numeric Bar Codes
0, 1
For parameters requiring specific numeric values, scan the appropriately numbered bar
code(s).
0
1
D-1
Wasp WPS100 Product Reference Guide
2, 3, 4
2
3
4
D-2
Numeric Bar Codes
5, 6, 7
5
6
7
D-3
Wasp WPS100 Product Reference Guide
8, 9
8
9
D-4
Numeric Bar Codes
Cancel
If you make an error or wish to change your selection, scan the bar code below.
Cancel
D-5
Wasp WPS100 Product Reference Guide
D-6
Glossary
Aperture
The opening in an optical system defined by a lens or baffle that
establishes the field of view.
AIM
The Automatic Identification Manufacturers Inc., a trade association.
ASCII
American Standard Code for Information Interchange. A 7 bit-plusparity code representing 128 letters, numerals, punctuation marks,
and control characters. It is a standard data transmission code in the
U.S.
Autodiscrimination
The ability of an interface controller to determine the code type of a
scanned bar code. After this determination is made, the information
content is decoded.
Bar
The dark element in a printed bar code symbol.
Bar Code Density
The number of characters represented per unit of measurement
(e.g., characters per inch).
Bar Height
The dimension of a bar measured perpendicular to the bar width.
Bar Width
Thickness of a bar measured from the edge closest to the symbol start
character to the trailing edge of the same bar.
Baud Rate
A measure of the data flow or number of signaling events occurring
per second. When one bit is the standard "event," this is a measure of
bits per second (bps). For example, a baud rate of 50 means
transmission of 50 bits of data per second.
Bit
Binary digit. One bit is the basic unit of binary information. Generally,
eight consecutive bits compose one byte of data. The pattern of 0 and
1 values within the byte determines its meaning.
Glossary-1
Wasp WPS100 Product Reference Guide
Byte
On an addressable boundary, eight adjacent binary digits (0 and 1)
combined in a pattern to represent a specific character or numeric
value. Bits are numbered from the right, 0 through 7, with bit 0 the loworder bit. One byte in memory is used to store one ASCII character.
CDRH
Center for Devices and Radiological Health. A federal agency
responsible for regulating laser product safety. This agency specifies
various laser operation classes based on power output during
operation.
CDRH Class 1
This is the lowest power CDRH laser classification. This class is
considered intrinsically safe, even if all laser output were directed into
the eye's pupil. There are no special operating procedures for this
class.
CDRH Class 2
No additional software mechanisms are needed to conform to this
limit. Laser operation in this class poses no danger for unintentional
direct human exposure.
Character
A pattern of bars and spaces which either directly represents data or
indicates a control function, such as a number, letter, punctuation
mark, or communications control contained in a message.
Character Set
Those characters available for encoding in a particular bar code
symbology.
Check Digit
A digit used to verify a correct symbol decode. The scanner inserts the
decoded data into an arithmetic formula and checks that the resulting
number matches the encoded check digit. Check digits are required
for UPC but are optional for other symbologies. Using check digits
decreases the chance of substitution errors when a symbol is
decoded.
Codabar
A discrete self-checking code with a character set consisting of digits
0 to 9 and six additional characters: ( - $ : / , +).
Code 128
A high density symbology which allows the controller to encode all 128
ASCII characters without adding extra symbol elements.
Code 3 of 9 (Code
39)
A versatile and widely used alphanumeric bar code symbology with a
set of 43 character types, including all uppercase letters, numerals
from 0 to 9, and 7 special characters (- . / + % $ and space). The code
name is derived from the fact that 3 of 9 elements representing a
character are wide, while the remaining 6 are narrow.
Code 93
An industrial symbology compatible with Code 39 but offering a full
character ASCII set and a higher coding density than Code 39.
Glossary-2
Glossary
Code Length
Number of data characters in a bar code between the start and stop
characters, not including those characters.
Continuous Code
A bar code or symbol in which all spaces within the symbol are parts
of characters. There are no intercharacter gaps in a continuous code.
The absence of gaps allows for greater information density.
Dead Zone
An area within a scanner's field of view, in which specular reflection
may prevent a successful decode.
Decode
To recognize a bar code symbology (e.g., UPC/EAN) and then
analyze the content of the specific bar code scanned.
Decode Algorithm
A decoding scheme that converts pulse widths into data
representation of the letters or numbers encoded within a bar code
symbol.
Depth of Field
The range between minimum and maximum distances at which a
scanner can read a symbol with a certain minimum element width.
Discrete Code
A bar code or symbol in which the spaces between characters
(intercharacter gaps) are not part of the code.
Discrete 2 of 5
A binary bar code symbology representing each character by a group
of five bars, two of which are wide. The location of wide bars in the
group determines which character is encoded; spaces are
insignificant. Only numeric characters (0 to 9) and START/STOP
characters may be encoded.
EAN
European Article Number. This European/International version of the
UPC provides its own coding format and symbology standards.
Element dimensions are specified metrically. EAN is used primarily in
retail.
Element
Generic term for a bar or space.
Encoded Area
Total linear dimension occupied by all characters of a code pattern,
including start/stop characters and data.
Host Computer
A computer that serves other terminals in a network, providing such
services as computation, database access, supervisory programs,
and network control.
IEC
International Electrotechnical Commission. This international agency
regulates laser safety by specifying various laser operation classes
based on power output during operation.
Glossary-3
Wasp WPS100 Product Reference Guide
IEC (825) Class 1
This is the lowest power IEC laser classification. Conformity is
ensured through a software restriction of 120 seconds of laser
operation within any 1000 second window and an automatic laser
shutdown if the scanner's oscillating mirror fails.
Intercharacter Gap
The space between two adjacent bar code characters in a discrete
code.
Interleaved Bar
Code
A bar code in which characters are paired together, using bars to
represent the first character and the intervening spaces to represent
the second.
Interleaved 2 of 5
A binary bar code symbology representing character pairs in groups
of five bars and five interleaved spaces. Interleaving provides for
greater information density. The location of wide elements (bar/
spaces) within each group determines which characters are encoded.
This continuous code type uses no intercharacter spaces. Only
numeric (0 to 9) and START/STOP characters may be encoded.
LASER - Light
Amplification by
Stimulated
Emission of
Radiation
The laser is an intense light source. Light from a laser is all the same
frequency, unlike the output of an incandescent bulb. Laser light is
typically coherent and has a high energy density.
Laser Diode
A gallium-arsenide semiconductor type of laser connected to a power
source to generate a laser beam. This laser type is a compact source
of coherent light.
LED Indicator
A semiconductor diode (LED - Light Emitting Diode) used as an
indicator, often in digital displays. The semiconductor uses applied
voltage to produce light of a certain frequency determined by the
semiconductor's particular chemical composition.
MIL
1 mil = 1 thousandth of an inch.
Misread
(Misdecode)
A condition which occurs when the data output of a reader or interface
controller does not agree with the data encoded within a bar code
symbol.
Nominal
The exact (or ideal) intended value for a specified parameter.
Tolerances are specified as positive and negative deviations from this
value.
Nominal Size
Standard size for a bar code symbol. Most UPC/EAN codes are used
over a range of magnifications (e.g., from 0.80 to 2.00 of nominal).
Parameter
A variable that can have different values assigned to it.
Glossary-4
Glossary
Percent Decode
The average probability that a single scan of a bar code would result
in a successful decode. In a well-designed bar code scanning system,
that probability should approach near 100%.
Print Contrast
Signal (PCS)
Measurement of the contrast (brightness difference) between the bars
and spaces of a symbol. A minimum PCS value is needed for a bar
code symbol to be scannable. PCS = (RL - RD) / RL, where RL is the
reflectance factor of the background and RD the reflectance factor of
the dark bars.
Programming Mode The state in which a scanner is configured for parameter values. See
SCANNING MODE.
Quiet Zone
A clear space, containing no dark marks, which precedes the start
character of a bar code symbol and follows the stop character.
Reflectance
Amount of light returned from an illuminated surface.
Resolution
The narrowest element dimension which is distinguished by a
particular reading device or printed with a particular device or method.
RSS
Reduced Space Symbology: A family of space efficient symbologies
developed by UCC.EAN.
Scan Area
Area intended to contain a symbol.
Scanner
An electronic device used to scan bar code symbols and produce a
digitized pattern that corresponds to the bars and spaces of the
symbol. Its three main components are:
1. Light source (laser or photoelectric cell) - illuminates a bar code.
2. Photodetector - registers the difference in reflected light (more light
reflected from spaces).
3. Signal conditioning circuit - transforms optical detector output into a
digitized bar pattern.
Scanning Mode
The scanner is energized, programmed, and ready to read a bar code.
Scanning Sequence A method of programming or configuring parameters for a bar code
reading system by scanning bar code menus.
Self-Checking Code A symbology that uses a checking algorithm to detect encoding errors
within the characters of a bar code symbol.
Space
The lighter element of a bar code formed by the background between
bars.
Specular Reflection The mirror-like direct reflection of light from a surface, which can
cause difficulty decoding a bar code.
Glossary-5
Wasp WPS100 Product Reference Guide
Start/Stop
Character
A pattern of bars and spaces that provides the scanner with start and
stop reading instructions and scanning direction. The start and stop
characters are normally to the left and right margins of a horizontal
code.
Substrate
A foundation material on which a substance or image is placed.
Symbol
A scannable unit that encodes data within the conventions of a certain
symbology, usually including start/stop characters, quiet zones, data
characters, and check characters.
Symbol Aspect
Ratio
The ratio of symbol height to symbol width.
Symbol Height
The distance between the outside edges of the quiet zones of the first
row and the last row.
Symbol Length
Length of symbol measured from the beginning of the quiet zone
(margin) adjacent to the start character to the end of the quiet zone
(margin) adjacent to a stop character.
Symbology
The structural rules and conventions for representing data within a
particular bar code type (e.g. UPC/EAN, Code 39).
Tolerance
Allowable deviation from the nominal bar or space width.
UPC
Universal Product Code. A relatively complex numeric symbology.
Each character consists of two bars and two spaces, each of which is
any of four widths. The standard symbology for retail food packages
in the United States.
Visible Laser Diode
(VLD)
A solid state device which produces visible laser light.
Glossary-6
Index
A
actions . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-2
ADF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1
actions . . . . . . . . . . . . . 13-1, 13-33, 13-34
move cursor . . . . . . . . . 13-43, 13-44
send data . . . . . . . . . . . . . . . . . 13-34
alphanumeric keyboard . . 13-178, 13-179
alternate rule sets . . . . . . . . . . . . . . . 13-4
bar code menu example . . . . . . . . . . 13-2
beep . . . . . . . . . . . . . . . . . . . 13-76, 13-77
code lengths . . . . . . . . . . . . . . . . . . 13-20
code types . . . . . . . . . . . . . . . . . . . . 13-12
criteria . . . . . . . . . . . . . . . . . . 13-1, 13-12
default rules . . . . . . . . . . . . . . . . . . . . 13-6
move cursor past a character . . . . . 13-42
move cursor to a character . . . . . . . 13-42
move cursor to start of data . . . . . . . 13-42
pad spaces . . . . . . . . . . . . . . . . . . . 13-55
pad zeros . . . . . . . . . . 13-66, 13-67, 13-68
rules . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1
rules hierarchy . . . . . . . . . . . . . . . . . . 13-5
send control characters . . . . . . . . . . 13-77
send function key . . . . . . . . . . . . . . 13-142
send keyboard characters . . 13-88, 13-89,
13-90
send keypad characters . . . . . . . . 13-130
send preset value . . . . . . . . . . . . . . 13-42
send value . . . . . . . . . 13-51, 13-52, 13-53
skip ahead characters 13-44, 13-46, 13-47
skip ahead "n" characters . . . . . . . . 13-42
skip back characters . 13-48, 13-50, 13-51
skip back "n" characters . . . . . . . . . 13-42
space removal . . . . . . . . . . . . . . . . . 13-53
special commands . . . . . . . . . . . . . . . 13-7
specific data string . . . . . . . . . . . . . 13-30
specific string
any location . . . . . . . . . . . . . . . 13-31
any message ok . . . . . . . . . . . 13-31
at start . . . . . . . . . . . . . . . . . . . 13-30
rule belongs to set . . . . . 13-32, 13-33
turn off rule sets . 13-175, 13-176, 13-177
zero removal . . . . . . . . . . . . . . . . . . 13-53
advanced data formatting . . . . . . . . . . . . 13-1
actions . . . . . . . . . . . . . . . . . . 13-1, 13-33
alphanumeric keyboard . . 13-178, 13-179
alternate rule sets . . . . . . . . . . . . . . . 13-4
bar code menu example . . . . . . . . . . 13-2
beep . . . . . . . . . . . . . . . . . . . 13-76, 13-77
code lengths . . . . . . . . . . . . . . . . . . 13-20
code types . . . . . . . . . . . . . . . . . . . 13-12
criteria . . . . . . . . . . . . . . . . . . . 13-1, 13-12
default rules . . . . . . . . . . . . . . . . . . . 13-6
pad spaces . . . . . . . . . . . . . . . . . . . 13-55
pad zeros . . . . . . . . . 13-66, 13-67, 13-68
rules . . . . . . . . . . . . . . . . . . . . . . . . . 13-1
rules hierarchy . . . . . . . . . . . . . . . . . 13-5
send control characters . . . . . . . . . 13-77
send function key . . . . . . . . . . . . . 13-142
send keyboard characters . 13-88, 13-89,
13-90
send keypad characters . . . . . . . . 13-130
send preset value . . . 13-51, 13-52, 13-53
skip ahead characters 13-44, 13-46, 13-47
skip back characters . 13-48, 13-50, 13-51
space removal . . . . . . . . . . . . . . . . 13-53
special commands . . . . . . . . . . . . . . 13-7
specific data string . . . . . . . . . . . . . 13-30
turn off rule sets . 13-175, 13-176, 13-177
Index-1
Wasp WPS100 Product Reference Guide
zero removal . . . . . . . . . . . . . . . . . . 13-53
AIM code identifiers . . . . . . . . . . . . . . . . . . B-3
aiming . . . . . . . . . . . . . . . . . . . . . . . 2-10, 2-11
B
bar codes
beep after good decode . . . . . . . . . . 4-10
beeper tone . . . . . . . . . . . . . . . . . . . . . 4-6
beeper volume . . . . . . . . . . . . . . . . . . 4-7
code 11
lengths . . . . . . . . . . . . . . . . . . . 11-50
code 39
transmit buffer . . . . . . . . . . . . . 11-41
data options . . . . . . . . . . . . . . . . . . . 12-4
pause duration . . . . . . . . . . . . . . 13-7
prefix/suffix values . . . . . . . . . . . 12-5
transmit code ID character . . . . . 12-4
discrete 2 of 5
lengths . . . . . . . . . . . . . . . . . . . 11-61
interleaved 2 of 5 . . . . . . . . . . . . . . 11-53
convert to EAN-13 . . . . . . . . . . 11-58
lengths . . . . . . . . . . . . . . 11-54, 11-55
keyboard wedge
alternate numeric keypad emulation 513
caps lock on . . . . . . . . . . . . . . . . 5-14
capsl ock override . . . . . . . . . . . 5-15
country keyboard types (country
codes) . . . . . . . . . . . . . . 5-6
default table . . . . . . . . . . . . . . . . . 5-3
host types . . . . . . . . . . . . . . . 5-4, 5-5
ignore unknown characters . . . . 5-10
intra-keystroke delay . . . . . . . . . 5-12
keystroke delay . . . . . . . . . . . . . 5-11
laser on time . . . . . . . . . . . . . . . . . . . . 4-9
linear code type security level . . . . . 11-80
miscellaneous
scan data options . . . . . . . . . . . 12-9
transmit no read msg . . . . . . . . 12-12
numeric bar codes . . . . . . . . . . . . . . . D-5
set defaults . . . . . . . . . . . . . . . . . . . . . 4-5
symbologies
bookland EAN . . . . . . . . . . . . . 11-11
Index-2
buffering . . . . . . . . . . . . . . . . . . 11-39
codabar . . . . . . . . . . . . . . . . . . . 11-63
codabar CLSI editing . . . . . . . . 11-66
codabar lengths . . . . . . . . . . . . 11-64
codabar NOTIS editing . . . . . . . 11-67
code 11 . . . . . . . . . . . . . . . . . . . 11-48
code 11 lengths . . . . . . . . . . . . 11-49
code 128 . . . . . . . . . . . . . . . . . . 11-25
code 39 . . . . . . . . . . . . . . . . . . . 11-30
code 39 check digit verification . 11-36
code 39 full ASCII . . . . . . . . . . . 11-38
code 39 lengths . . . . . . . . . . . . 11-34
code 39 transmit check digit . . . 11-37
code 93 . . . . . . . . . . . . . . . . . . . 11-45
code 93 lengths . . . . . . . . . . . . 11-46
convert UPC-E to UPC-A . . . . . 11-21
convert UPC-E1 to UPC-A . . . . 11-22
default table . . . . . . . . . . . . . . . . 11-3
discrete 2 of 5 . . . . . . . . . . . . . . 11-59
discrete 2 of 5 lengths . . . . . . . . 11-60
EAN zero extend . . . . . . . . . . . . 11-23
EAN-13/EAN-8 . . . . . . . 11-10, 11-11
I 2 of 5 check digit verification . . 11-56
I 2 of 5 convert to EAN-13 . . . . 11-58
I 2 of 5 transmit check digit . . . . 11-57
ISBT 128 . . . . . . . . . . . . . . . . . . 11-27
MSI . . . . . . . . . . . . . . . . . . . . . . 11-68
MSI check digit algorithm . . . . . 11-73
MSI check digits . . . . . . . . . . . . 11-71
MSI lengths . . . . . . . . . . . . . . . . 11-69
MSI transmit check digit . . . . . . 11-72
supplementals . . . . . . . . . . . . . . 11-12
UCC coupon extended code . . . 11-24
UCC/EAN-128 . . . . . . . . . . . . . 11-26
UPC-A preamble . . . . . . . . . . . . 11-18
UPC-A/E/E1 check digit 11-16, 11-17
UPC-A/UPC-E . . . . . . . . . 11-8, 11-9
UPC-E preamble . . . . . . . . . . . . 11-19
UPC-E1 . . . . . . . . . . . . . . . . . . . . 11-9
UPC/EAN
coupon code . . . . . . . . . . . . . . . 11-24
supp redundancy . . . . . . . . . . . 11-15
supplemental redundancy . . . . . 11-15
USB
Index
caps lock override . . . . . . . . . . . 7-11
country keyboard types . . . . . . . . 7-6
default table . . . . . . . . . . . . . . . . . 7-4
device type . . . . . . . . . . . . . . . . . . 7-5
keystroke delay . . . . . . . . . . . . . 7-10
unknown characters . . . . . . . . . . 7-12
C
cables
installing . . . . . . . . . . . . . . . . . . . . . . . . 1-3
interface . . . . . . . . . . . . . . . . . . . . . . . . 1-4
removing cables . . . . . . . . . . . . . . . . . 1-4
codabar bar codes
CLSI editing . . . . . . . . . . . . . . . . . . . 11-66
codabar . . . . . . . . . . . . . . . . . . . . . . 11-63
lengths . . . . . . . . . . . . . . . . . . . . . . . 11-64
NOTIS editing . . . . . . . . . . . . . . . . . 11-67
code 11 bar codes
code 11 . . . . . . . . . . . . . . . . . . . . . . 11-48
lengths . . . . . . . . . . . . . . . . . . . . . . . 11-49
code 128 bar codes
code 128 . . . . . . . . . . . . . . . . . . . . . 11-25
ISBT 128 . . . . . . . . . . . . . . . . . . . . . 11-27
UCC/EAN-128 . . . . . . . . . . . . . . . . . 11-26
code 39 bar codes
buffering . . . . . . . . . . . . . . . . . . . . . . 11-39
check digit verification . . . . . . . . . . . 11-36
code 39 . . . . . . . . . . . . . . . . . . . . . . 11-30
full ASCII . . . . . . . . . . . . . . . . . . . . . 11-38
lengths . . . . . . . . . . . . . . . . . . . . . . . 11-34
transmit check digit . . . . . . . . . . . . . 11-37
code 93 bar codes
code 93 . . . . . . . . . . . . . . . . . . . . . . 11-45
lengths . . . . . . . . . . . . . . . . . . . . . . . 11-46
code ID characters
AIM . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
code identifiers
Symbol code IDs . . . . . . . . . . . . . . . . . B-1
code types
ADF . . . . . . . . . . . . . . . . . . . . . . . . . 13-12
connecting power . . . . . . . . . . . . . . . . . . . . 1-4
D
default parameters . . . . . . . . . . . . . . . . . . . 4-3
keyboard wedge . . . . . . . . . . . . . . . . . 5-3
miscellaneous scanner options . . . . . 12-3
standard default table . . . . . . . . . . . . . A-1
symbologies . . . . . . . . . . . . . . . . . . . 11-3
USB . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
user preferences . . . . . . . . . . . . . . . . . 4-3
discrete 2 of 5 bar codes
discrete 2 of 5 . . . . . . . . . . . . . . . . . 11-59
lengths . . . . . . . . . . . . . . . . . . . . . . 11-60
H
host types
keyboard wedge . . . . . . . . . . . . . . 5-4, 5-5
I
interleaved 2 of 5 bar codes
check digit verification . . . . . . . . . . . 11-56
convert to EAN-13 . . . . . . . . . . . . . 11-58
transmit check digit . . . . . . . . . . . . . 11-57
K
keyboard wedge connection . . . . . . . . . . . 5-2
keyboard wedge default parameters . . . . . 5-3
keyboard wedge parameters . . . . . . . . . . . 5-4
M
maintenance . . . . . . . . . . . . . . . . . . . . . . . 3-1
miscellaneous scanner parameters . . . . . 12-3
MSI bar codes
check digit algorithm . . . . . . . . . . . . 11-73
check digits . . . . . . . . . . . . . . . . . . . 11-71
lengths . . . . . . . . . . . . . . . . . . . . . . 11-69
MSI . . . . . . . . . . . . . . . . . . . . . . . . . 11-68
transmit check digit . . . . . . . . . . . . . 11-72
N
notational conventions . . . . . . . . . . . . . . . .ii-xiii
Index-3
Wasp WPS100 Product Reference Guide
P
parameters
keyboard wedge . . . . . . . . . . . . . . . . . 5-4
USB . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
pinouts
scanner signal descriptions . . . . . . . . . 3-7
power supply
connecting . . . . . . . . . . . . . . . . . . . . . 1-4
programming bar codes
time delay to low power mode . 4-16, 4-17
timeout between decodes . . . . . . . . . 4-15
S
scanner defaults . . . . . . . . . . . . . . . . . . . . . 4-3
scanner parts . . . . . . . . . . . . . . . . . . . . . . . 2-1
scanning
aiming . . . . . . . . . . . . . . . . . . . . 2-10, 2-11
errors . . . . . . . . . . . . . . . . 4-2, 11-2, 12-2
hand-held . . . . . . . . . . . . . . . . . . . . . 2-10
hands-free . . . . . . . . . . . . . . . . . . . . . . 2-3
sequence example . . . . . . 4-2, 11-2, 12-2
setup
connecting a USB interface . . . . . . . . 7-2
connecting interface cable . . . . . . . . . 1-4
connecting keyboard wedge interface 5-2
connecting power . . . . . . . . . . . . . . . . 1-4
connecting power supply . . . . . . . . . . 1-4
installing the cable . . . . . . . . . . . . . . . 1-3
unpacking . . . . . . . . . . . . . . . . . . . . . . 1-2
Index-4
signal descriptions . . . . . . . . . . . . . . . . . . . . 3-7
specifications . . . . . . . . . . . . . . . . . . . . . . . . 3-4
standard default parameters . . . . . . . . . . . .A-1
standard defaults . . . . . . . . . . . . . . . . . . . . . 4-3
symbology default parameters . . . . . . . . . 11-3
T
technical specifications . . . . . . . . . . . . . . . . 3-4
U
unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
UPC/EAN bar codes
bookland EAN . . . . . . . . . . . . . . . . . 11-11
check digit . . . . . . . . . . . . . . 11-16, 11-17
convert UPC-E to UPC-A . . . . . . . . . 11-21
convert UPC-E1 to UPC-A . . . . . . . . 11-22
EAN zero extend . . . . . . . . . . . . . . . 11-23
supplementals . . . . . . . . . . . . . . . . . 11-12
UCC coupon extended code . . . . . . 11-24
UPC-A preamble . . . . . . . . . . . . . . . 11-18
UPC-A/UPC-E . . . . . . . . . . . . . 11-8, 11-9
UPC-E preamble . . . . . . . . . . . . . . . 11-19
UPC-E1 . . . . . . . . . . . . . . . . . . . . . . . 11-9
UPC/EANbar codes
EAN-13/EAN-8 . . . . . . . . . . . 11-10, 11-11
USB connection . . . . . . . . . . . . . . . . . . . . . 7-2
USB default parameters . . . . . . . . . . . . . . . 7-4
USB parameters . . . . . . . . . . . . . . . . . . . . . 7-5
user preferences parameters . . . . . . . . . . . 4-3
WASP WPS100 Product Reference Guide
Revision A
Wasp Technologies, Inc. 1400 10th Street Plano, TX 75074
http://support.waspbarcode.com
