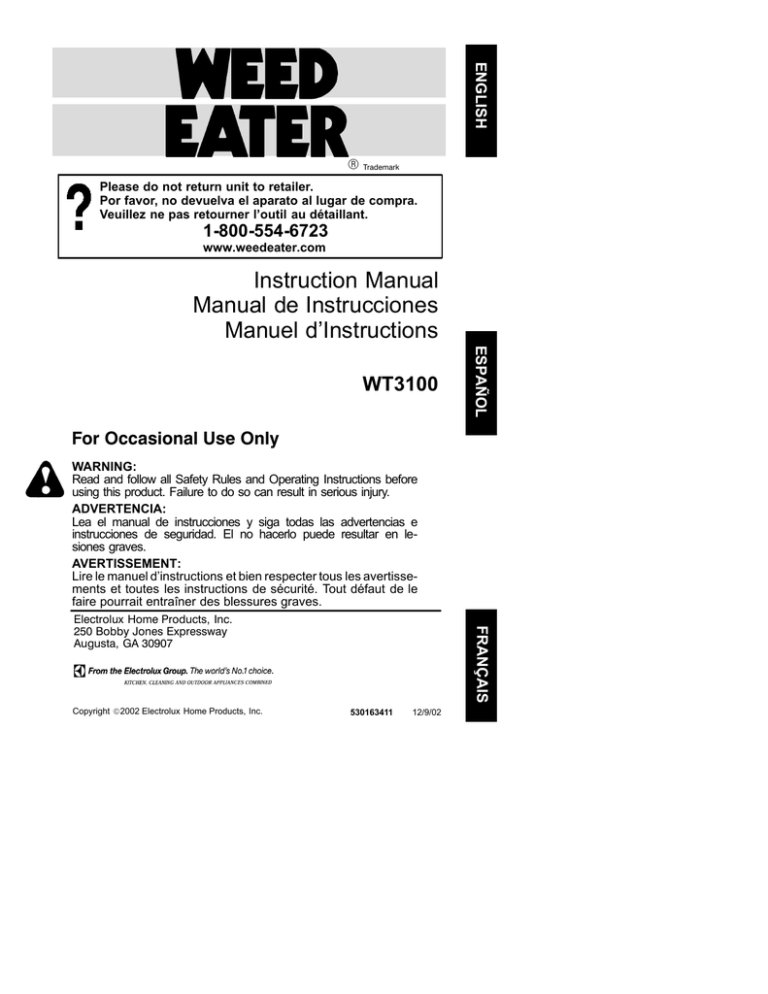

Electrolux WT3100 Instruction manual

ENGLISH
R Trademark
Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l’outil au détaillant.
1-800-554-6723
www.weedeater.com
Instruction Manual
Manual de Instrucciones
Manuel d’Instructions
ESPAÑOL
WT3100
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en lesiones graves.
AVERTISSEMENT:
Lire le manuel d’instructions et bien respecter tous les avertissements et toutes les instructions de sécurité. Tout défaut de le
faire pourrait entraîner des blessures graves.
Copyright E2002 Electrolux Home Products, Inc.
FRANÇAIS
Electrolux Home Products, Inc.
250 Bobby Jones Expressway
Augusta, GA 30907
530163411
12/9/02
SAFETY RULES
WARNING: When using gardening appliances, basic safety precautions should always be followed to reduce the risk of fire and
serious injury. Read and follow all instructions.
This power unit can be dangerous! Operator
is responsible for following unit and manual
instructions and warnings. Read entire instruction manual before using unit! Be thoroughly familiar with the controls and the proper use of the unit. Restrict the use of this unit
to persons who read, understand, and follow
unit and manual instructions and warnings.
Never allow children to operate this unit.
INSTRUCTION
MANUAL
SAFETY INFORMATION
ON THE UNIT
S Always wear heavy, long pants, long sleeves,
boots, and gloves. Wearing safety leg guards
is recommended.
S Always wear foot protection. Do not go barefoot or wear sandals. Stay clear of spinning
line.
S Secure hair above shoulder length. Secure or
remove loose clothing or clothing with loosely
hanging ties, straps, tassels, etc. They can
be caught in moving parts.
S Being fully covered also helps protect you
from debris and pieces of toxic plants thrown
by spinning line.
S Stay Alert. Do not operate this unit when you
are tired, ill, upset or under the influence of alcohol, drugs, or medication. Watch what you
are doing; use common sense.
S Wear hearing protection.
S Never start or run inside a closed room or
building. Breathing exhaust fumes can kill.
S Keep handles free of oil and fuel.
UNIT / MAINTENANCE SAFETY
DANGER: Never use blades, wire or
flailing devices. Unit is designed for line trimmer use only. Use of any other accessories or
attachments will increase the risk of injury.
WARNING: Trimmer line throws objects violently. You and others can be blinded/
injured. Wear safety glasses and leg protection. Keep body parts clear of rotating line.
Safety Glasses or similar eye protection
HAZARD ZONE
Boots
50 ft.
(15 m)
Keep children, bystanders, and animals 50
feet (15 meters) away. If approached stop unit
immediately.
If situations occur which are not covered in
this manual, use care and good judgement. If
you need assistance, contact your authorized
service dealer or call 1-800-554-6723.
OPERATOR SAFETY
S Dress properly. Always wear safety glasses
or similar eye protection when operating, or
performing maintenance, on your unit (safety
glasses are available). Eye protection should
be marked Z87.
S Always wear face or dust mask if operation is
dusty.
DANGER: Never start the engine with
the clutch shroud removed. The clutch will fly
apart and cause serious injury.
S Turn engine off and disconnect spark plug before performing maintenance except carburetor adjustments.
S Inspect unit before use. Look for and replace
damaged or loose parts before each use.
Make sure all handles, guards, and fasteners
are in place and securely fastened. Look for
and repair fuel leaks before use. Keep in good
working condition.
S Replace trimmer head that is chipped,
cracked, broken, or damaged in any other
way before using the unit.
S Maintain unit according to recommended procedures. Keep cutting line at proper length.
S Use only 0.115” diameter Weed EaterR
brand cut length line (see REPLACING
THE LINE). Never use wire, rope, string,
etc.
S Make sure unit is assembled correctly as
shown in this manual.
S Make carburetor adjustments with lower
end supported to prevent line from contacting any object.
S Keep others away when making carburetor
adjustments.
S Use only recommended Weed EaterR accessories and replacement parts.
S Have all maintenance and service not explained in this manual performed by an authorized service dealer.
FUEL SAFETY
S
S
S
S
Mix and pour fuel outdoors.
Keep away from sparks or flames.
Use a container approved for fuel.
Do not smoke or allow smoking near fuel or
the unit.
S Avoid spilling fuel or oil. Wipe up all fuel spills.
2
S Move at least 10 feet (3 meters) away from
fueling site before starting engine.
S Stop engine and allow to cool before removing fuel cap.
S Always store gasoline in a container approved for flammable liquids.
CUTTING SAFETY
WARNING: Inspect the area before
each use. Remove objects (rocks, broken
glass, nails, wire, etc.) which can be thrown
by or become entangled in line. Hard objects
can damage trimmer head and be thrown
causing serious injury.
S Use unit properly. Use only for trimming,
mowing, and sweeping. Do not use for edging, pruning, or hedge trimming. Do not force
unit. It will do the job better, and with less risk
of injury, at the rate for which it was designed.
S Keep firm footing and balance. Do not overreach.
S Keep all parts of your body away from spinning line and muffler. Keep engine and cutting
head below waist level. A hot muffler can
cause serious burns.
S Cut only from your right to your left. Cutting
with the line on right side of the shield will
throw debris away from the operator.
S Use only in daylight or in good artificial light.
S Use only for jobs explained in this manual.
TRANSPORTING AND STORAGE
S Stop the unit when not in use.
S Carry or transport the unit with engine
stopped.
S Allow the engine to cool; secure unit before
storing or transporting in vehicle.
S Empty the fuel tank before storing or transporting the unit. Use up fuel left in the carburetor by starting the engine and letting it
run until it stops.
S Store unit and fuel in an area where fuel vapors cannot reach sparks or open flames
from water heaters, electric motors or
switches, furnaces, etc.
S Store the unit out of the reach of children
SPECIAL NOTICE: This unit is not
equipped with a temperature limiting muffler
and spark arresting screen which meets the
requirements of California Codes 4442 and
4443. All U.S. forest land and the states of
California, Idaho, Maine, Minnesota, New
Jersey, Oregon, and Washington require by
law that many internal combustion engines to
be equipped with a spark arrestor screen. If
you operate in a locale where such regulations exist, you are legally responsible for
installing and maintaining the operating condition of these parts. Failure to do so is a violation of the law. If a spark arrestor is required
in your area, contact your authorized service
dealer for the proper kit.
SAFETY NOTICE: Exposure to vibrations
through prolonged use of gasoline powered
hand tools could cause blood vessel or nerve
damage in the fingers, hands, and joints of
people prone to circulation disorders or abnormal swellings. Prolonged use in cold
weather has been linked to blood vessel damage in otherwise healthy people. If symptoms
occur such as numbness, pain, loss of
strength, change in skin color or texture, or
loss of feeling in the fingers, hands, or joints,
discontinue the use of this tool and seek medical attention. An anti-vibration system does
not guarantee the avoidance of these problems. Users who operate power tools on a
continual and regular basis must monitor
closely their physical condition and the condition of this tool.
ASSEMBLY
WARNING: If received assembled,
repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.
Examine parts for damage. Do not use damaged parts.
NOTE: If you need assistance or find parts
missing or damaged, call 1-800-554-6723.
It is normal for the fuel filter to rattle in the
empty fuel tank.
Finding fuel or oil residue on muffler is normal
due to carburetor adjustments and testing
done by the manufacturer.
4. Align holes and insert curved head tube
bolt through upper and lower handles.
5. Re--install and securely tighten upper wing
nut onto bolt.
6. Retighten lower wing nut securely.
Upper handle
Lower handle
ATTACH THE HANDLE
1. Remove upper wing nut and curved head
tube bolt from upper handle.
2. Loosen lower wing nut on lower handle.
3. Insert upper handle over lower handle.
NOTE: Ensure upper handle grips are in
position as shown in the following illustrations
(throttle handle grip on left side).
Upper wing nut
Lower wing nut
3
Tube bolt
NOTE: When performing the following step,
be sure the starter rope is not caught under
the cable clamps. The starter rope must
hang freely to operate properly.
Cable
clamps
7. Align one cable clamp above the tube bolts
and the other below the starter rope handle. Install the cable clamps one at a time
around the tube and throttle cable.
NOTE: Ensure throttle cable is in groove of
clamps and lies flat against the upper handle
tube after installation (see illustration above).
Starter rope
Throttle
cable
OPERATION
KNOW YOUR TRIMMER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT.
Compare the illustrations with your unit to familiarize yourself with the location of the various controls
and adjustments. Save this manual for future reference.
Throttle Trigger
Choke Lever
Starter Rope
Handle
Shield
ON/OFF
Switch
Upper Handle
Primer Bulb
Muffler
Lower Handle
Trimmer Head
Shield
ON/OFF SWITCH
CHOKE
The ON/OFF switch is used to stop engine. To
stop the engine, move the switch to the OFF
position.
The CHOKE helps to supply fuel to the engine
to aid in cold starting. Activate the choke by
moving the choke lever to the FULL CHOKE
position. After the engine attempts to start, move
the choke lever to the HALF CHOKE position.
Once engine has started, move the choke lever
to the OFF CHOKE position.
PRIMER BULB
The PRIMER BULB removes air from the carburetor and fuel lines and fills them with fuel.
This allows you to start the engine with fewer
pulls on the starter rope. Activate the primer
bulb by pressing it and allowing it to return to
its original form.
4
BEFORE STARTING ENGINE
tact with the muffler. A hot muffler can cause
serious burns.
WARNING: Be sure to read the fuel
information in the safety rules before you begin. If you do not understand the safety rules,
do not attempt to fuel your unit. Call
1-800-554-6723.
STARTING A COLD ENGINE (or a
warm engine after running out of
fuel)
FUELING ENGINE
WARNING: Remove fuel cap slowly
when refueling.
This engine is certified to operate on unleaded gasoline. Before operation, gasoline
must be mixed with a good quality synthetic
2-cycle air-cooled engine oil designed to be
mixed at a ratio of 40:1. Poulan/Weed Eater
brand synthetic oil is recommended. Mix gasoline and oil at a ratio of 40:1. A 40:1 ratio is
obtained by mixing 3.2 ounces (95 ml) of oil
with 1 gallon (4 liters) of unleaded gasoline.
DO NOT USE automotive oil or boat oil.
These oils will cause engine damage. When
mixing fuel, follow instructions printed on container. Once oil is added to gasoline, shake
container momentarily to assure that the fuel
is thoroughly mixed. Always read and follow
the safety rules relating to fuel before fueling
your unit.
IMPORTANT
Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or
methanol) can attract moisture which leads to
separation and formation of acids during storage. Acidic gas can damage the fuel system
of an engine while in storage. To avoid engine
problems, empty the fuel system before storage for 30 days or longer. Drain the gas tank,
start the engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel next
season.Never use engine or carburetor
cleaner products in the fuel tank or permanent
damage may occur. See the STORAGE section for additional information.
HOW TO STOP YOUR UNIT
S To stop the engine, move the ON/OFF
switch to the OFF position until the unit has
fully stopped.
S If engine does not stop, move choke to the
FULL CHOKE position.
Choke Lever
ON/OFF
Switch
1. Move ON/OFF switch to the ON position.
2. Slowly press the primer bulb 6 times.
3. Move choke lever to the FULL CHOKE
position.
4. Squeeze the throttle trigger fully and hold
through all remaining steps.
5. Pull starter rope handle sharply until engine
sounds as if it is trying to start, but do not pull
rope more than 6 times.
6. As soon as engine sounds as if it is trying to
start, move choke lever to HALF CHOKE
position.
7. Pull starter rope sharply until engine runs,
but no more than 6 pulls. NOTE: If the engine doesn’t start after 6 pulls (at the HALF
CHOKE position), move the choke lever to
the FULL CHOKE position and press the
primer bulb 6 times. Squeeze and hold the
throttle trigger and pull the starter rope 2
more times. Move the choke lever to the
HALF CHOKE position and pull the starter
rope until the engine runs, but no more
than 6 pulls. If the engine still doesn’t start,
it is probably flooded. Proceed to STARTING A FLOODED ENGINE.
8. Once the engine starts, allow it to run 10
seconds, then move the choke lever to the
OFF CHOKE position. Allow the unit to run
for 30 more seconds at OFF CHOKE before releasing the throttle trigger.
NOTE: If engine dies with the choke lever in the OFF CHOKE position, move the
choke lever to the HALF CHOKE position
and pull the rope until engine runs, but no
more than 6 pulls.
STARTING A WARM ENGINE
1. Move ON/OFF switch to the ON position.
2. Move the choke lever to the HALF CHOKE
position.
3. Squeeze and hold the throttle trigger. Keep
throttle trigger fully squeezed until the engine
runs smoothly.
4. Pull starter rope sharply until engine runs,
but no more than 5 pulls.
5. Allow engine to run 15 seconds, then move
the choke lever to OFF CHOKE.
NOTE: If engine has not started, pull starter
rope 5 more pulls. If engine still does not run, it
is probably flooded.
STARTING A FLOODED ENGINE
Primer Bulb
Muffler
HOW TO START YOUR UNIT
WARNING: The trimmer head will
turn while starting the engine. Avoid any con-
Flooded engines can be started by placing
the choke lever in the OFF CHOKE position;
then, pull the rope to clear the engine of excess fuel. This could require pulling the starter
handle many times depending on how badly
the unit is flooded.
If the unit still doesn’t start, refer to
TROUBLESHOOTING TABLE or call
1-800-554-6723.
5
OPERATING INSTRUCTIONS
OPERATING POSITION
ALWAYS USE:
Eye
Protection
Heavy Long
Pants
Heavy
Shoes
Cut from your right to your left.
NOTE: Keep left and right hands on grips
during operation of unit as shown above to
avoid covering air intake holes located on underside of upper handle.
WARNING: Always wear eye protection. Never lean over the trimmer head.
Rocks or debris can ricochet or be thrown into
eyes and face and cause blindness or other
serious injury.
Do not run the engine at a higher speed than
necessary. The cutting line will cut efficiently
when the engine is run at less than full throttle.
At lower speeds, there is less engine noise and
vibration.
Always release the throttle trigger and allow the
engine to return to idle speed when not cutting.
To stop engine:
S Release the throttle trigger.
S Move the ON/OFF switch to the OFF position.
MAINTENANCE
WARNING: Disconnect the spark
plug before performing maintenance except
for carburetor adjustments.
CHECK FOR LOOSE
FASTENERS AND PARTS
S
S
S
S
Spark Plug Boot
Air Filter
Housing Screws
Debris Shield
CHECK FOR DAMAGED OR
WORN PARTS
Contact an authorized service dealer for replacement of damaged or worn parts.
S ON/OFF Switch -- Ensure ON/OFF switch
functions properly by moving the switch to
the OFF position. Make sure engine stops;
then restart engine and continue.
S Fuel Tank -- Discontinue use of unit if fuel
tank shows signs of damage or leaks.
S Debris Shield -- Discontinue use of unit if
debris shield is damaged.
INSPECT AND CLEAN UNIT AND
LABELS
WARNING: Stop your unit before attempting to clean the intake screen. DO NOT
USE GARDEN HOSE OR PRESSURE
WASHER TO CLEAN THIS UNIT!
S Clean the intake screen periodically with a
nylon brush.
CLEAN THE AIR FILTER
A dirty air filter decreases engine performance and increases fuel consumption and
harmful emissions. Always clean with engine
stopped. Clean filter after every 5 hours of operation.
1. Clean the air filter cover and the area
around the cover to prevent dirt from falling
into the carburetor chamber when the cover is removed.
2. Remove parts as illustrated. It is not necessary to remove the air filter hose from
the air filter cover.
NOTE: If the air filter hose becomes unattached from the cover or lower handle during
cleaning, reattach before attempting to restart
the engine or operate the unit.
Air Filter
Hose
S After each use, inspect complete unit for
loose or damaged parts. Clean the unit and
labels using a damp cloth with a mild detergent.
S Wipe off unit with a clean dry cloth.
Air
Filter
CLEAN THE AIR INTAKE SCREEN
The air intake screen allows air to circulate to
keep the engine functioning properly and prevents debris from entering the engine.
Air intake screen
Air Filter Cover
Screws
NOTE: Do not clean filter in gasoline or other flammable solvent to avoid creating a fire
hazard or producing harmful evaporative
emissions.
3. Wash the filter in soap and water.
4. Allow filter to dry.
5. Add 10 -- 15 drops of oil to the filter;
squeeze the filter to distribute oil.
NOTE: FILTER MUST BE OILED!
6. Replace parts.
6
REPLACE SPARK PLUG
Replace the spark plug each year to ensure
the engine starts easier and runs better. Set
spark plug gap at 0.025 inch. Ignition timing is
fixed and nonadjustable.
1. Twist, then pull off spark plug boot.
2. Remove spark plug from cylinder and discard.
3. Replace with Champion RCJ-6Y spark plug
and tighten securely with a 3/4 inch socket
wrench.
4. Reinstall the spark plug boot.
SERVICE AND ADJUSTMENTS
REPLACING THE LINE
For unit to operate properly, the cutting line
should be replaced when line becomes worn to
less than 3 inches in length from the edge of the
line exit tunnels on each side of the cutting head.
WARNING: Only replace cutting line
with engine switch in the OFF position.
1. Remove and discard worn line before
installing new line.
2. Use only .115” diameter Weed EaterR
brand cut length line.
3. Insert one end of the line through the positioning tunnel.
4. Continue to feed line through tunnel until
line is centered (leaving equal amounts on
each side). See illustration below.
Positioning
tunnel
CARBURETOR ADJUSTMENTS
WARNING: Keep others away when
making idle speed adjustments. The trimmer
head will be spinning during most of this procedure. Wear your protective equipment and
observe all safety precautions. After making
adjustments, the trimmer head must not
move/spin at idle speed.
The carburetor has been carefully set at the
factory. Adjustments may be necessary if you
notice any of the following conditions:
S Engine will not idle when the throttle is released.
S The trimmer head moves/spins at idle.
Make adjustments with the unit supported so
the cutting attachment is off the ground and
will not make contact with any object. Hold
the unit by hand while running and making adjustments. Keep all parts of your body away
from the cutting attachment and muffler.
Idle Speed Adjustment
5. Insert ends of line one at a time through the
line exit tunnels.
6. Pull the line and make sure the line is extended fully through the tunnels.
Allow engine to idle. Adjust speed until engine
runs without trimmer head moving or spinning
(idle too fast) or stalling (idle speed too slow).
S Turn idle speed screw clockwise to increase engine speed if engine stalls or dies.
S Turn idle speed screw counterclockwise to
decrease engine speed if trimmer head
moves or spins at idle.
WARNING: Recheck the idle speed
after each adjustment. The trimmer head
must not move or spin at idle speed to avoid
serious injury to the operator or others.
Line exit
tunnels
7. Correctly installed line will be the same
length on both ends.
Air Filter
Cover
Idle Speed Screw
If you require further assistance or are unsure
about performing this procedure, contact an
authorized
service
dealer
or
call
1--800--554--6723.
7
STORAGE
WARNING: Perform the following
steps after each use:
S Allow engine to cool, and secure the unit
before storing or transporting.
S Store unit and fuel in a well ventilated area
where fuel vapors cannot reach sparks or
open flames from water heaters, electric
motors or switches, furnaces, etc.
S Store unit with all guards in place. Position
unit so that any sharp object cannot accidentally cause injury.
S Store unit and fuel well out of the reach of
children.
SEASONAL STORAGE
Prepare unit for storage at end of season or if
it will not be used for 30 days or more.
If your unit is to be stored for a period of time:
S Clean the entire unit before lengthy storage.
S Store in a clean dry area.
S Lightly oil external metal surfaces.
FUEL SYSTEM
Under FUELING ENGINE in the OPERATION section of this manual, see message labeled IMPORTANT regarding the use of gasohol in your engine.
Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits
during storage. Add stabilizer to the gasoline
in the fuel tank or fuel storage container. Follow the mix instructions found on stabilizer
container. Run engine at least 5 minutes after
adding stabilizer.
ENGINE
S Remove spark plug and pour 1 teaspoon of
40:1, 2-cycle engine oil (air cooled) through
the spark plug opening. Slowly pull the
starter rope 8 to 10 times to distribute oil.
S Replace spark plug with new one of recommended type and heat range.
S Clean air filter.
S Check entire unit for loose screws, nuts,
and bolts. Replace any damaged, broken,
or worn parts.
S At the beginning of the next season, use
only fresh fuel having the proper gasoline to
oil ratio.
OTHER
S Do not store gasoline from one season to
another.
S Replace your gasoline can if it starts to rust.
8
TROUBLESHOOTING TABLE
WARNING: Always stop unit and disconnect spark plug before performing all of the
recommended remedies below except remedies that require operation of the unit.
TROUBLE
Engine will not
start.
CAUSE
REMEDY
1. Engine flooded.
1. See “Starting a Flooded Engine” in
Operation Section.
2. Fill tank with correct fuel mixture.
3. Install new spark plug.
4. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
5. Contact an authorized service dealer.
2. Fuel tank empty.
3. Spark plug not firing.
4. Fuel not reaching
carburetor.
5. Carburetor requires
adjustment.
Engine will
not idle
properly.
Engine will not
accelerate,
lacks power,
or dies under
a load.
Engine
smokes
excessively.
1. Carburetor requires
adjustment.
2. Crankshaft seals worn.
3. Compression low.
1. Air filter dirty.
2. Spark plug fouled.
1. See “Carburetor Adjustment” in
Service and Adjustments Section.
2. Contact an authorized service dealer.
3. Contact an authorized service dealer.
1. Clean or replace air filter.
2. Clean or replace plug
and regap.
3. Contact an authorized service dealer.
3. Carburetor requires
adjustment.
4. Carbon build-up on
muffler outlet screen.
5. Compression low.
1. Choke partially on.
2. Fuel mixture incorrect.
4. Contact an authorized service dealer.
5. Contact an authorized service dealer.
1. Adjust choke.
2. Empty fuel tank and refill with
correct fuel mixture.
3. Clean or replace air filter.
4. Contact an authorized service dealer.
3. Air filter dirty.
4. Carburetor requires
adjustment.
Engine runs
hot.
1. See “Fueling Engine” in Operation
section.
2. Replace with correct spark plug.
3. Contact an authorized service dealer.
1. Fuel mixture incorrect.
2. Spark plug incorrect.
3. Carburetor requires
adjustment.
4. Carbon build-up on
muffler outlet screen.
4. Contact an authorized service dealer.
9
LIMITED WARRANTY
ELECTROLUX HOME PRODUCTS, INC.,
warrants to the original purchaser that each
new Weed Eater brand gasoline tool or attachment is free from defects in material and
workmanship and agrees to repair or replace
under this warranty any defective gasoline
product or attachment as follows from the
original date of purchase.
2 YEARS -- Parts and Labor, when used for
household purposes.
60 DAYS -- Parts and Labor, when used for
commercial, professional, or income producing purposes.
30 DAYS -- Parts and Labor, if used for rental
purposes.
This warranty is not transferable and does not
cover damage or liability caused by improper
handling, improper maintenance, or the use
of accessories and/or attachments not specifically recommended by ELECTROLUX
HOME PRODUCTS, INC., for this tool. Additionally, this warranty does not cover tuneups, spark plugs, filters, starter ropes, starter
springs, cutting line, or rotating head parts
that will wear and require replacement with
reasonable use during the warranty period.
This warranty does not cover predelivery set-
up or normal adjustments explained in the operator’s manual.
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE
OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
NO CLAIMS FOR CONSEQUENTIAL OR
OTHER DAMAGES WILL BE ALLOWED,
AND THERE ARE NO OTHER EXPRESS
WARRANTIES EXCEPT THOSE EXPRESSLY STIPULATED HEREIN.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS OR EXCLUSION MAY NOT
APPLY TO YOU.
The policy of ELECTROLUX HOME PRODUCTS, INC., is to continuously improve its
products. Therefore, ELECTROLUX HOME
PRODUCTS, INC., reserves the right to
change, modify, or discontinue models, designs, specifications, and accessories of all
products at any time without notice or obligation to any purchaser.
U.S. EPA / ENVIRONMENT CANADA
EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS: The U. S. Environmental Protection
Agency, Environment Canada and ELECTROLUX HOME PRODUCTS, INC., are
pleased to explain the emissions control system
warranty on your year 2002--2004 small off-road engine. ELECTROLUX HOME PRODUCTS, INC., must warrant the emission control
system on your small off--road engine for the periods of time listed below provided there has
been no abuse, neglect, or improper maintenance of your small off--road engine. Your emission control system includes parts such as the
carburetor and the ignition system. Where a
warrantable condition exists, ELECTROLUX
HOME PRODUCTS, INC., will repair your small
off--road engine at no cost to you. Expenses
covered under warranty include diagnosis,
parts and labor. MANUFACTURER’S WARRANTY COVERAGE: If any emissions related
part on your engine (as listed under Emissions
Control Warranty Parts List) is defective or a defect in the materials or workmanship of the engine causes the failure of such an emission related part, the part will be repaired or replaced
by ELECTROLUX HOME PRODUCTS, INC.
OWNER’S WARRANTY RESPONSIBILITIES: As the small off--road engine owner, you
are responsible for the performance of the required maintenance listed in your instruction
manual. ELECTROLUX HOME PRODUCTS,
INC., recommends that you retain all receipts
covering maintenance on your small off--road
engine, but ELECTROLUX HOME PRODUCTS, INC., cannot deny warranty solely for
the lack of receipts or for your failure to ensure
the performance of all scheduled maintenance.
As the small off--road engine owner, you should
be aware that ELECTROLUX HOME PRODUCTS, INC., may deny you warranty coverage
if your small off--road engine or a part of it has
failed due to abuse, neglect, improper maintenance, unapproved modifications, or the use of
parts not made or approved by the original
equipment manufacturer. You are responsible
for presenting your small off--road engine to an
ELECTROLUX HOME PRODUCTS, INC., authorized repair center as soon as a problem exists. Warranty repairs should be completed in a
reasonable amount of time, not to exceed 30
days. If you have any questions regarding your
warranty rights and responsibilities, you should
contact your nearest authorized service center
or call ELECTROLUX HOME PRODUCTS,
WARRANTY
INC., at 1--800--554--6723.
COMMENCEMENT DATE: The warranty period begins on the date the small off--road engine
is purchased. LENGTH OF COVERAGE: This
warranty shall be for a period of two years from
the initial date of purchase. WHAT IS COVERED: REPAIR OR REPLACEMENT OF
PARTS. Repair or replacement of any warranted part will be performed at no charge to the
owner at an approved ELECTROLUX HOME
PRODUCTS, INC., servicing center. If you
have any questions regarding your warranty
10
rights and responsibilities, you should contact
your nearest authorized service center or call
ELECTROLUX HOME PRODUCTS, INC., at
1--800--554--6723. WARRANTY PERIOD: Any
warranted part which is not scheduled for replacement as required maintenance, or which is
scheduled only for regular inspection to the effect of “repair or replace as necessary” shall be
warranted for 2 years. Any warranted part which
is scheduled for replacement as required maintenance shall be warranted for the period of time
up to the first scheduled replacement point for
that part. DIAGNOSIS: The owner shall not be
charged for diagnostic labor which leads to the
determination that a warranted part is defective
if the diagnostic work is performed at an approved ELECTROLUX HOME PRODUCTS,
INC., servicing center. CONSEQUENTIAL
DAMAGES: ELECTROLUX HOME PRODUCTS, INC., may be liable for damages to other
engine components caused by the failure of a
warranted part still under warranty. WHAT IS
NOT COVERED: All failures caused by abuse,
neglect, or improper maintenance are not covered. ADD--ON OR MODIFIED PARTS: The
use of add--on or modified parts can be grounds
for disallowing a warranty claim. ELECTRO-
LUX HOME PRODUCTS, INC., is not liable to
cover failures of warranted parts caused by the
use of add--on or modified parts. HOW TO FILE
A CLAIM: If you have any questions regarding
your warranty rights and responsibilities, you
should contact your nearest authorized service
center or call ELECTROLUX HOME PRODUCTS, INC., at 1--800--554--6723. WHERE TO
GET WARRANTY SERVICE: Warranty services or repairs shall be provided at all ELECTROLUX HOME PRODUCTS, INC., service
centers. Call 1--800--554--6723. MAINTENANCE, REPLACEMENT AND REPAIR OF
EMISSION RELATED PARTS: Any ELECTROLUX HOME PRODUCTS, INC., approved
replacement part used in the performance of
any warranty maintenance or repair on emission related parts will be provided without
charge to the owner if the part is under warranty.
EMISSION CONTROL WARRANTY PARTS
LIST: Carburetor, Ignition System: Spark Plug
(covered up to maintenance schedule), Ignition
Module. MAINTENANCE STATEMENT: The
owner is responsible for the performance of all
required maintenance as defined in the instruction manual.
The information on the product label indicates which standard your engine is certified.
Example: (Year) EPA Phase 1 or Phase 2 and/or CALIFORNIA.
This engine is certified to be emissions compliant for the following use:
Moderate (50 hours)
Intermediate (125 hours)
Extended (300 hours)
11
