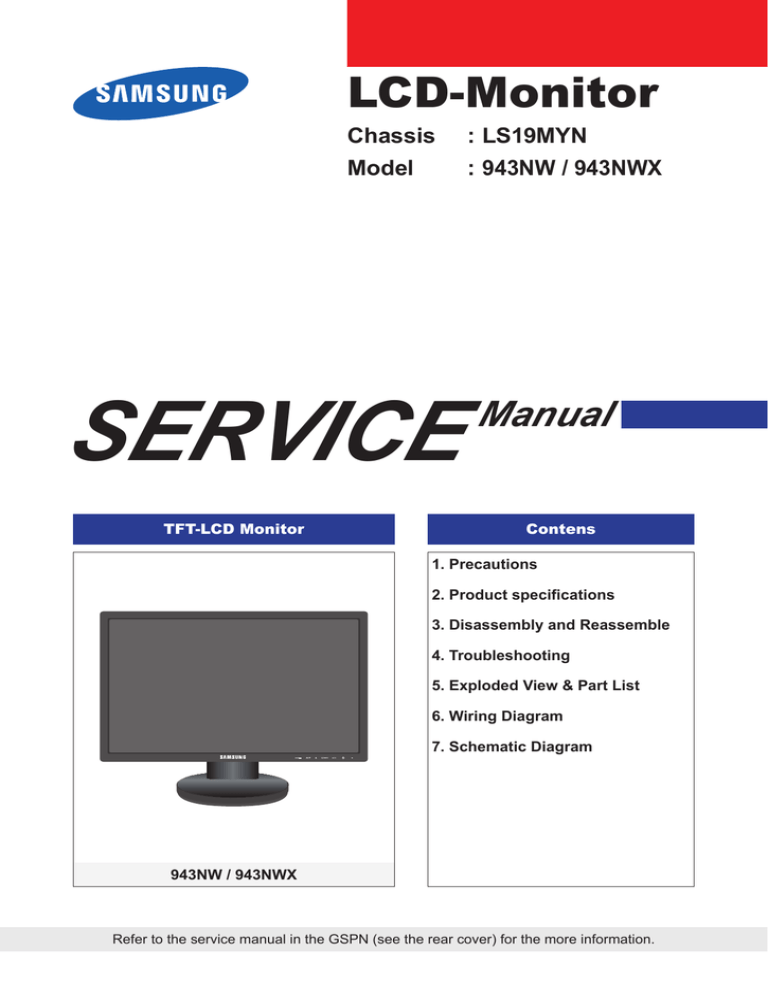

LCD-Monitor
Chassis
:LS19MYN
Model
:943NW / 943NWX
SERVICE
TFT-LCD Monitor
Manual
Contens
1. Precautions
2. Product specifications
3. Disassembly and Reassemble
4. Troubleshooting
5. Exploded View & Part List
6. Wiring Diagram
7. Schematic Diagram
943NW / 943NWX
Refer to the service manual in the GSPN (see the rear cover) for the more information.
Contents
1. Precautions............................................................................................................... 1-1
1-1. Safety Precautions.......................................................................................................... 1-1
1-2. Servicing Precautions...................................................................................................... 1-2
1-3. Static Electricity Precautions........................................................................................... 1-2
1-4. Installation Precautions................................................................................................... 1-3
2. Product specifications............................................................................................. 2-1
2-1. Feature & Specifications.................................................................................................. 2-1
2-2. Spec Comparison to the Old Models............................................................................... 2-2
2-3. Accessories..................................................................................................................... 2-3
2-4. Accessories (Sold separately)......................................................................................... 2-3
3. Disassembly and Assembly.................................................................................... 3-1
3-1. SIMPLE STAND Disassembly......................................................................................... 3-1
3-2. HAS STAND Disassembly............................................................................................... 3-4
4. Troubleshooting....................................................................................................... 4-1
4-1. Troubleshooting............................................................................................................... 4-1
4-2. When the Power Does Not Turn On................................................................................ 4-2
4-3. When the screen is blank (Analog).................................................................................. 4-4
4-4. Error Examples and Actions............................................................................................ 4-7
4-5. Adjustment....................................................................................................................... 4-8
5. Exploded View & Part List....................................................................................... 5-1
5-1. SIMPLE STAND Exploded View...................................................................................... 5-1
5-2. SIMPLE STAND Parts List............................................................................................... 5-3
5-3. HAS STAND Exploded View .................................................................................................. 5-9
5-4. HAS STAND Parts List................................................................................................... 5-11
6. Wiring Diagram......................................................................................................... 6-1
6-1. Wiring Diagram - Main Board.......................................................................................... 6-1
6-2. Wiring Diagram - IP Board............................................................................................... 6-2
6-3. Connector Functions....................................................................................................... 6-3
6-4. Cables............................................................................................................................. 6-3
7. Schematic Diagram.................................................................................................. 7-1
7-1. Circuit Descriptions.......................................................................................................... 7-1
7-2. Schematic Diagrams (Scaler Part).................................................................................. 7-2
7-3. Schematic Diagrams (Power Flowchart)......................................................................... 7-2
7-4. Schematic Diagrams (IP Board)...................................................................................... 7-3
7-5. Schematic Diagrams (Main PBA)................................................................................... 7-3
GSPN (Global Service Partner Network)
Area
Web Site
North America
http://service.samsungportal.com
Latin America
http://latin.samsungportal.com
CIS
http://cis.samsungportal.com
Europe
http://europe.samsungportal.com
China
http://china.samsungportal.com
Asia
http://asia.samsungportal.com
Mideast & Africa
http://mea.samsungportal.com
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© 2007 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea
P/N: BN82-00288A-00
3. Disassembly and Assembly
3. Disassembly and Assembly
This section describes the disassembly and reassembly sequences for this monitor.
Warning:As this monitor has parts that are sensitive to static electricity, be careful when handling them.
3-1. SIMPLE STAND Disassembly
Caution:
1. Turn the monitor off before beginning the disassembly process.
2. Disassemble the monitor carefully as directed in the following procedures.
3. W
hen disassembling the monitor, do not use any metal tools except for the provided jig.
Description
Screws
1. Place a soft cloth on the table and place
the monitor onto it with the front part facing
downwards. Hold the monitor set with one hand
and hold and pull the stand body backwards with
the other hand to remove the stand body from the
monitor set.
Caution : : If you do not tilt the stand and use too
much force to remove it, the connection
pin may break.
2. ① Turn the monitor over and insert your hands
into the top of the monitor at the center and
separate the front cover in the direction of the
arrow as shown in the figure.
② Separate the sides of the front cover up to the
directed line as shown in the figure.
①
②
3. Turn the monitor over again to remove the back
cover.
3-1
3. Disassembly and Assembly
Description
Screws
4. Remove the SHIELD-LAMP using the provided JIG.
Caution: The SHIELD-LAMP is sharp.
5. Remove the LVDS, LAMP wire, FUNCTION
cable, and SPEAKER cable, and then remove
the SHIELD-COVER.
LVDS
LAMP
WIRE
FUNCTION
6. Remove the LCD panel..
7. Remove the four (4) screws shown in the figure.
8. Remove the four (4) screws shown in the figure
and remove the Bracket support.
3-2
3. Disassembly and Assembly
Description
Screws
9. Remove the main PCB and IP boards from the
SHIELD-cover.
※ The assembly is in the reverse order of disassembly.
3-3
3. Disassembly and Assembly
3-2. HAS STAND Disassembly
Description
1. If the Stopper PIN at the back of the stand is
not removed, place a soft cloth on the table and
place the monitor on it, and then hold the monitor
set and remove the Stopper PIN at the back of
the stand.
2. T
urn the monitor over. Remove the two (2) screws
that hold the stand in place and then remove the
stand.
Caution: W
hen removing the screws, hold
the stand body with one hand
so that the stand does not fall.
3. The following steps are the same as steps 2 to 9 for disassembling the SIMPLE stand.
※ The assembly is in the reverse order of disassembly.
3-4
Screws
5. Exploded View & Part List
5. Exploded View & Part List
M0027
BN63-03965A
T0514
M0081
T0003
M0081
M0215
M0174
M0006
M0003
M0013
5-1. SIMPLE STAND Exploded View (LS19MYNKFZ/XBM)
5-1
5. Exploded View & Part List
5-1-1. LS19MYNKFZ/XBM Parts List (943NWX)
Location No.
Code No.
Description & Specification
Q’ty
SA/SNA
T0003
BN96-07592B
ASSY COVER P-FRONT;[Mckinley]LS19MYW,ABS
1
S.A
M0215
BN07-00462A
LCD-PANEL;M190A1-L07
1
S.A
M0174
BN44-00121K
IP BOARD;PWI1904SJ(J),MCKINLEY 943NW/BW,
1
S.A
M0081
6003-000115
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
2
S.A
M0081
6003-001439
SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW
1
S.N.A
T0514
BN61-03557A
BRACKET-SUPPORT;2043BW/NW[Mckinley],SPTE
1
S.N.A
M0006
BN96-06381R
ASSY SHIELD P-COVER;943NW(CMO PANEL),SEC
1
S.N.A
BN63-03965A
SHIELD-LAMP;943BW/NW,SPTE,T0.3,(Wide)
1
S.N.A
M0013
BN96-06380N
ASSY COVER P-REAR;LS19MYN,HIPS HB,BK26,S
1
S.A
M0003
BN96-06388A
ASSY STAND P;-,943BW,-,SECC T2.0,-,-
1
S.A
M0027
BN96-06672A
ASSY STAND P-BASE;LS17MY,ABS HB,BK26,H/G
1
S.A
5-2
Remark
5. Exploded View & Part List
5-2. LS19MYNKFZ/XBM Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level
Location No.
Code No.
Description & Specification
LS19MYNKFZ/XBM
943NWX,SAL1/S19B8-LMY,19,LCDMO,ECUADOR
Q’ty
SA/SNA Remark
0.1
M0002
BN90-01584A
ASSY COVER REAR;LS19MYNKBZ/XSF,CMO
PANEL
1
S.N.A
..2
M0013
BN96-06380N
ASSY COVER P-REAR;LS19MYN,HIPS
HB,BK26,S
1
S.A
...3
M0113
BN61-01581A
BRACKET-VESA;BI17/19BS,SECC,T1.0
2
S.N.A
...3
M0006
BN63-03940A
COVER-REAR SUB;2043BW/NW,HIPS HB,BK26
1
S.N.A
...3
M0006
BN63-03982G
COVER-REAR;943BW/NW,HIPS
HB,BK26,CMO,SIM
1
S.N.A
...3
M0126
BN73-00162A
RUBBER-PANEL;943BW/
NW,RUBBER,BLACK,(Wide
6
S.N.A
...3
M0126
BN73-00164A
RUBBER-PANEL;LS19MYW,RUBBER,BLACK
3
S.N.A
0.1
M0001
BN90-01631A
ASSY COVER FRONT;LS19MYNKFZ/XBG,CMO
PANE
1
S.N.A
..2
T0003
BN96-07592B
ASSY COVER P-FRONT;[Mckinley]LS19MYW,
ABS
1
S.A
...3
CCM1
BN63-02183D
COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20
0.5
S.N.A
...3
M0112
BN63-04551B
COVER-FRONT;[Mckinley]LS19MYW,ABS
HB,T2.
1
S.N.A
...3
M0130
BN67-00209A
LENS LED;Mckinley,PC CLEAR,TP15(TP-1020)
1
S.N.A
1
S.A
S.N.A
...3
M0175
BN96-06485B
ASSY BOARD P-TOUCH
FUNCTION;Mckinley,CT5
....4
M0014
BN94-01772C
ASSY PCB MAIN-FUNCTION
PCB,BN9;LS17MY*
1
.....5
M2893
BN39-01007A
LEAD CONNECTOR;Mckinley,UL1571#30,5 to 5
1
S.A
.....5
BN61-03552A
GUIDE-CONTROL;2043BW/NW,ABS HB,GR70
1
S.N.A
.....5
BN74-00011A
TAPE-FUNCTION TAPE;DOUBLE FACE
TAPE,Poly
1
S.N.A
.....5
BN74-00012A
TAPE-FUNCTION TAPE;DOUBLE FACE
TAPE,Poly
1
S.N.A
.....5
T0174
BN97-02132L
ASSY SMD;LS17MY*
1
S.N.A
......6
CD1
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
......6
CD2
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
......6
L0405
0601-002461
LED;SMD,InGaN Blue,1.6X3.2X1.1mm,468nm,1
1
S.A
1
S.A
......6
U1
1209-001706
IC-SENSOR;TS08N,MLF,32P,5x5mm,PLASTIC
,5V
......6
R110
2007-000081
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
1
S.A
......6
R110
2007-000081
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
1
S.A
......6
R110
2007-000105
R-CHIP;200Kohm,5%,1/10W,TP,1608
1
S.A
......6
R110
2007-000107
R-CHIP;470Kohm,5%,1/10W,TP,1608
1
S.A
......6
R110
2007-000123
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
1
S.A
......6
R110
2007-000123
R-CHIP;1.5Kohm,5%,1/10W,TP,1608
1
S.A
......6
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
......6
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
......6
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
3711-006471
CONNECTOR-HEADER;BOX,5P,1R,1mm,SMDA,AU,
1
S.A
......6
CN906
5-3
5. Exploded View & Part List
......6
PCB
BN41-00947A
0.1
M0112
..2
PCB SUB-FUNCITION;Mckinley function,FR-4
1
S.N.A
BN91-01877A
ASSY SHIELD;MCKINLEY 19,LS19MYW
1
S.N.A
BN63-03965A
SHIELD-LAMP;943BW/NW,SPTE,T0.3,(Wide)
1
S.N.A
0.1
M0107
BN91-02069A
ASSY LCD-CTZ;LS19MYN*
1
S.N.A
..2
M0215
BN07-00462A
LCD-PANEL;M190A1-L07
1
S.A
0.1
M0017
BN91-02070A
ASSY CHASSIS-CTZ;LS19MYNKB/XSF
1
S.N.A
..2
M0081
6003-000115
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SW
RC
2
S.A
..2
M0081
6003-000115
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SW
RC
1
S.A
..2
M0081
6003-001439
SCREW-TAPTITE;BH,+,,S,M4,L8,ZPC(WHT),SW
1
S.N.A
..2
M0174
BN44-00121K
IP BOARD;PWI1904SJ(J),MCKINLEY 943NW/
BW,
1
S.A
..2
T0514
BN61-03557A
BRACKET-SUPPORT;2043BW/
NW[Mckinley],SPTE
1
S.N.A
..2
M0014
BN94-01702A
ASSY PCB MAIN-CTZ;LS19MYNKB/XSF
1
S.A
...3
T0245
0202-001608
SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0.
0.003
S.N.A
1
S.A
...3
CN101
3701-001219
CONNECTOR-DSUB;15P,3R,FEMALE,ANGLE,
AUF
...3
CN600
3711-004261
HEADER-BOARD TO
BOARD;BOX,12P,1R,2mm,ANG
1
S.A
...3
T0174
BN97-02079A
ASSY SMD;LS19MYNKB/XSF
1
S.N.A
0.457
S.N.A
....4
SUB05
0202-001477
SOLDER-CREAM;LST309-M,,D20~45um,96.5Sn/
....4
D108
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200m
A,SO
1
S.A
....4
D109
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200m
A,SO
1
S.A
....4
D110
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200m
A,SO
1
S.A
....4
D600
0402-001614
DIODE-RECTIFIER;S1G,400V,1A,DO-214AC,TP
1
S.A
....4
D601
0402-001614
DIODE-RECTIFIER;S1G,400V,1A,DO-214AC,TP
1
S.A
....4
ZD104
0403-001411
DIODE-ZENER;-,5.49-5.73V,200mW,SOD323,T
1
S.A
....4
ZD105
0403-001411
DIODE-ZENER;-,5.49-5.73V,200mW,SOD323,T
1
S.A
....4
ZD202
0403-001411
DIODE-ZENER;-,5.49-5.73V,200mW,SOD323,T
1
S.A
....4
ZD203
0403-001411
DIODE-ZENER;-,5.49-5.73V,200mW,SOD323,T
1
S.A
....4
ZD204
0403-001411
DIODE-ZENER;-,5.49-5.73V,200mW,SOD323,T
1
S.A
....4
ZD601
0403-001411
DIODE-ZENER;-,5.49-5.73V,200mW,SOD323,T
1
S.A
....4
ZD201
0406-001061
DIODE-TVS;MMQA5V6T3,5.32/5.6/5.88V,24W,S
1
S.A
1
S.A
....4
Q203
0501-000445
TR-SMALL SIGNAL;KTC3875SY,NPN,150mW,SOT
....4
Q204
0501-000445
TR-SMALL SIGNAL;KTC3875SY,NPN,150mW,SOT
1
S.A
....4
Q601
0501-000445
TR-SMALL SIGNAL;KTC3875SY,NPN,150mW,SOT
1
S.A
....4
Q202
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,S
C-59
1
S.A
5-4
5. Exploded View & Part List
....4
Q205
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,S
C-59
1
S.A
....4
Q207
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,S
C-59
1
S.A
....4
Q409
0505-001165
FET-SILICON;SI3443BDV,P,-20V,+-4.4A,65mo
1
S.A
....4
IC112
1103-001410
IC-EEPROM;S-24CS08AFJ-TB1GE,8Kbit,1Kx8,
1
S.A
....4
T0087
1203-003695
IC-POSI.FIXED REG.;NCP1117ST33T3G,SOT22
1
S.A
....4
T0087
1203-003696
IC-POSI.FIXED REG.;NCP1117DT18T5G,DPA
K,3
1
S.A
....4
IC109
1205-003364
IC-LCD CONTROLLER;SE717MLF,PQFP,128P,20
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000080
R-CHIP;2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000080
R-CHIP;2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000083
R-CHIP;3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000083
R-CHIP;3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000088
R-CHIP;7.5Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
5-5
5. Exploded View & Part List
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000821
R-CHIP;390ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000821
R-CHIP;390ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001044
R-CHIP;56ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001044
R-CHIP;56ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000626
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000626
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000626
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
5-6
5. Exploded View & Part List
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C231
2402-001128
C-AL,SMD;100μF,20%,16V,-,TP,6.3X5.7mm
1
S.A
....4
C629
2402-001128
C-AL,SMD;100μF,20%,16V,-,TP,6.3X5.7mm
1
S.A
....4
C639
2402-001128
C-AL,SMD;100μF,20%,16V,-,TP,6.3X5.7mm
1
S.A
1
S.A
....4
X202
2801-003667
CRYSTAL-SMD;14.31818MHz,30ppm,28AAN,16p
....4
T0568
3301-001407
BEAD-SMD;30ohm,1608,300mA,TP,,,0.4ohm
1
S.N.A
....4
T0568
3301-001407
BEAD-SMD;30ohm,1608,300mA,TP,,,0.4ohm
1
S.N.A
....4
CN400
3708-001150
CONNECTOR-FPC/FFC/PIC;30P,1mm,SMDA,SN,Y
1
S.A
....4
T0077
BN41-00877A
PCB MAIN;Mckinley,CEM-3 Silver,2,MP1.0,1
1
S.N.A
1
S.N.A
....4
M0018
BN97-02035A
ASSY MICOM;Mckinley,LMY19NS,MX25L1005
,20
.....5
IC115
1107-001614
IC-FLASH MEMORY;MX25L1005,1Mbit,1Mx1Bit,
1
S.N.A
..2
M0251
BN96-02854N
ASSY CABLE P;Fininfarina,FLAT CABLE,-,15
1
S.A
ASSY SHIELD P-COVER;943NW(CMO
PANEL),SEC
1
S.N.A
..2
M0006
BN96-06381R
...3
T0073
AA63-01141C
GASKET-EMI;42D5,T1.5,10,40,Fabric
4
S.N.A
AA65-00011C
CLAMPER CORE-WIRE;ALL MODEL,NYLON
66,V2,
1
S.N.A
...3
BN61-02429D
STUD-PEM;PNB,M2.8,D7,L20,ZPC(SIL),SUM2
4L
1
S.N.A
...3
BN61-03573F
BRACKET-SUPPORT
STAND;LS19MYW,SECC,T1.6,
1
S.N.A
...3
BN61-03594A
SPRING ETC-STAND;Mckinley,SUS304,T0.3,SI
1
S.N.A
SHIELD-COVER;LS19MYW,SECC,T0.8,BOE
Panel
1
S.N.A
...3
T0527
...3
M0107
BN63-03962D
0.1
M0113
BN92-02621Z
ASSY P/MATERIAL;LS19MYWKBA/XSF*
1
S.N.A
..2
T0376
6902-000061
BAG AIR;LDPE,T0.2,L1000,W500,TRP,,,
0.005
S.N.A
..2
T0524
6902-000241
BAG PE;NITRON/HDPE,T0.5/T0.012,W600,L600
1
S.N.A
5-7
5. Exploded View & Part List
..2
T0376
6902-000379
BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,--
0.001
S.N.A
..2
T0003
6902-000604
BAG WRAPPING;LDPE,T0.02,W500,L10000,T
RP,
0.79
S.N.A
..2
M0081
6902-000609
BAG ROLL;LDPE,T0.05,W2400,L1000,TRP,-,-
0.017
S.N.A
0.1
M0019
BN92-03163N
ASSY LABEL;LS17MYAKB/XAZ
1
S.N.A
0.1
M0003
BN92-03351E
ASSY BOX;LS19MYNKFZ/XBM
1
S.N.A
BN69-02296A
BOX-02,MONITOR;943NWX-Simple,CB,SY01,A1
1.02
S.N.A
..2
0.1
M0045
BN92-03437B
ASSY ACCESSORY;LS19MYNKFZ/XBM
1
S.N.A
..2
M0003
BN96-06388A
ASSY STAND P;-,943BW,-,SECC T2.0,-,-
1
S.A
...3
BN63-03985A
COVER-STAND FRONT;LS19MYW,HIPS
HB,BK26,S
1
S.N.A
...3
BN63-03992A
COVER-STAND REAR;LS19MYW,HIPS
HB,BK26,Si
1
S.N.A
...3
T0022
BN96-06383A
ASSY HINGE P-SIMPLE;943BW,SPCC,
HGI,T2.0
1
S.N.A
...3
T0524
6902-000675
BAG PE;LDPE,T0.05,W200,L250,PINK,28,-,3
1
S.N.A
4
S.A
...3
M0081
6003-000282
SCREW-TAPTITE;BH,+,,B,M3,L8,ZPC(BLK),SW
..2
M0027
BN96-06672A
ASSY STAND P-BASE;LS17MY,ABS
HB,BK26,H/G
1
S.A
...3
T0524
6902-000110
BAG PE;LDPE,T0.05,W250,L400,TRP,28,2
1
S.N.A
...3
CIS4
BN61-01717A
HOLDER-STAND;BIZET,NI PLT,CH,+,M4,L11(5)
1
S.N.A
...3
CCM1
BN63-02183K
COVER-SHEET;Rhcm,PE Vinyl,T 0.05,250MM,2
0.25
S.N.A
BN63-04210A
COVER-STAND BASE;943BW,743B,743BM,AB
S,HB
1
S.N.A
BN96-06529A
ASSY HOLDER P-WIRE;MCKINLEY,ABS
HB,BK26
1
S.N.A
...3
T0004
...3
....4
6902-000336
BAG ZIPPER;LDPE,T0.05,W70,L80,TRP,-,--
1
S.N.A
....4
M0114
BN61-03555A
HOLDER-WIRE;MCKINLEY,ABS HB,BK26
1
S.N.A
...3
T0132
BN73-00077A
RUBBER FOOT;MATISSE,BUMPON,Ф13.5,T2.
0,6
4
S.N.A
BN96-07639B
ASSY ACCESSORYCABLE&MANUAL;LS19MYNKFZ/X
1
S.A
..2
...3
T0268
3903-000085
CBF-POWER CORD;DT,US,BP3/YES,I(IEC
C13/C
1
S.A
...3
T0524
6902-000110
BAG PE;LDPE,T0.05,W250,L400,TRP,28,2
1
S.N.A
AA68-03727A
MANUAL FLYER-01,WARRANTY
CARD;All,SAMSUN
1
S.N.A
BN63-02368A
CLOTH;LS07BTT,SUEDE,0.6,160,120
1
S.N.A
1
S.N.A
...3
T0175
...3
...3
M0215
BN96-06906A
ASSY MANUAL PIB+QSG;943NW,943NWX,MOJO 8
....4
CCM1
BN59-00666A
S/W DRIVER-02,IB;943NW,943NWs,W/
W,SyncMa
1
S.N.A
....4
QSG
BN68-01377A
MANUAL FLYER-QSG;2043BW,SyncMaster,W/
W,M
1
S.N.A
..2
M0114
BN39-00244G
CBF SIGNAL;D-sub cable,15P/15P,20276N,15
1
S.A
5-8
1. Precautions
1. Precautions
1-1. Safety Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
1. For continued safety, do not attempt to modify the circuit board.
2. Disconnect the AC power and DC power jack before servicing.
1-1-2. Servicing the LCD Monitor
1. When servicing the LCD Monitor, Disconnect the AC line cord from the AC outlet.
2. It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of
this meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the monitor to the user, perform the following safety checks:
1. Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the
chassis and other metal parts in the monitor.
2. Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
3. Leakage Current Hot Check (Figure 1-1):
WARNING : Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI
C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7).
(READING SHOULD)
NOT BE ABOVE 0.5mA
LEAKAGE
CURRENT
TESTER
DEVICE
UNDER
TEST
TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
*ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EARTH
GROUND
Figure 1-1. Leakage Current Test Circuit
4. With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch
first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit,
etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identified by
on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, fire and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.
1-1
1. Precautions
1-2. Servicing Precautions
WARNING: An electrolytic capacitor installed with the wrong polarity might explode.
Caution:
Before servicing units covered by this service manual, read and follow the Safety Precautions section of
this manual.
If unforeseen circumstances create conflict between the following servicing precautions and any of the
Note:
safety precautions, always follow the safety precautions.
1-2-1 General Servicing Precautions
1. Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before
attempting to:
(a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test
component in parallel with an electrolytic capacitor.
2. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes
used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such
elements to their original position.
3. After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that
the area around the serviced part has not been damaged.
4. Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels,
input terminals and earphone jacks).
5. Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON.
Connect an insulation resistance meter (500 V) to theblades of the AC plug.
The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be
greater than 1 megohm.
6. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead;
always remove the instrument’s ground lead last.
1-3. Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.
2. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent
accumulation of an electrostatic charge.
3. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESDs.
4. Use only a grounded-tip soldering iron to solder or desolder ESDs.
5. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static” can generate
electrical charges sufficient to damage ESDs.
6. Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
7. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective
material to the chassis or circuit assembly into which the device will be installed.
Caution: Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
8. Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together,
or lifting your foot from a carpeted floor can generate enough static electricity to damage an ESD.
1-2
1. Precautions
1-4. Installation Precautions
1. For safety reasons, more than two people are required for carrying the product.
2. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock.
3. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal
temperature may cause fire.
4. Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed
to moisture. Otherwise, it may cause a fire or electric shock.
5. Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause fire or electric
shock.
6. Keep the antenna far away from any high-voltage cables and install it firmly. Contact with the highvoltage cable or the
antenna falling over may cause fire or electric shock.
7. When installing the product, leave enough space (10cm) between the product and the wall for ventilation purposes.
A rise in temperature within the product may cause fire.
1-3
1. Precautions
Memo
1-4
2. Product specifications
2. Product specifications
2-1. Feature & Specifications
Model
943NW / 943NWX
Feature
� Panel Specifications: 300 cd/m2, 5 ms, CR 1000:1, 170/160 (CR>10)
� DPMS : <1W
� TCO’03
� Off-Timer function for reducing standby power usages
� Windows Vista authentication
� Picture;a screen size desire
� Supported Color Effect: Black and white/Sepia/Aqua/Green
Specifications
Item
LCD Panel
Description
TFT-LCD panel, RGB vertical stripe, normally white transmissive,
19” wide Viewable 0.258(H) mm x 0.258(V) mm pixel pitch
Scanning Frequency
Horizontal : 30 kHz ~ 81 kHz (Automatic)
Vertical: 56 Hz ~ 75 Hz(WSXGA+ : 60Hz)
Display Colors
16.7 Million colors
Maximum resolution
Horizontal: 1440 Pixels
Vertical: 900 Pixels
Input Signal
Analog
Input Sync Signal
Seperate H/V sync, Composite H/V, Sync-on-Green
Level: TTL level
Maximum Pixel Clock rate
137 Mhz
Active Display
(Horizontal/Vertical)
408.24(H) x 255.15(V)
AC power voltage & Frequency
AC 110V~130V, 60Hz & AC, 200V~240V 50Hz
Power Consumption
38 W (Max)
Dimensions Set
(W x D x H)
439 x 68.4 x 290 mm [Without Stand]
SIMPLE STAND
HAS STAND
Weight
(Set/Package)
SIMPLE STAND
439 x 185 x 368 mm [With Stand]
439 x 65.5 x 290 mm [Without Stand]
439 x 190 x 357.3mm [With Stand]
Set : 3.5 kg [Without Stand], 3.8 kg [With Stand]
Package : 5.1 Kg
HAS STAND
Set : 3.5 kg [Without Stand], 5.0 kg [With Stand]
Package : 6.55 Kg
Environmental Considerations
Operating Temperature: 10˚C ~ 50˚C(50˚F ~ 122˚F)
Operating Humidity : 10% ~ 90%
Operating Temperature: -20˚C ~ 45˚C(-4˚F ~ 113˚F)
Operating Humidity: 5% ~ 90%
Note: Designs and specifications are subject to change without prior notice.
2-1
2. Product specifications
2-2. Spec Comparison to the Old Models
Model
Mckinley(943NW / 943NWX)
Mendel(931BW)
19”
19”
1440 x 900
1440 x 900
Analog / DVI Digital with HDCP
Analog / Digital with HDCP
Response Time
5ms(W to B)
4ms(G to G)
Viewing Angle
170/160(CR>10)
160/160(CR>10)
300cd/m²
300cd/m²
Contrast
1000:1
700:1
MagicBright
7 step
7 step
Magic Color
Color Effect
Magic Bright3
Magic Tune (Premium)
Magic Color
Magic Bright3
Magic Tune (Premium)
Design
Size
Resolution
Input
Brightness
Feature
*Color Effect
- Grey scale: Images are displayed in a grey tone on the screen.
- Green: Images are displayed in a green tone on the screen.
- Aqua: Images are displayed in a blue tone on the screen.
- Sepia: Images are displayed in a brown tone on the screen.
Image Size : If the resolution is not wide resolution, this option allows the screen size to be selected as normal or wide.
2-2
2. Product specifications
2-3. Accessories
Product
Description
Ccde. No
Quick Setup Guide
BH68-00376L
Warranty Card
(Not available in all locations)
BH68-00633B
User’s Guide,
Monitor Driver,
Natural Color Pro Software
BN59-00585A
D-Sub(15 Pin) Cable
BN39-00244G
Power Cord
3903-000082
Remark
Samsung Electronics
Service center
2-4. Accessories (Sold separately)
Product
Description
Ccde. No
Remark
DVI Cable
BN39-00246K
Samsung Electronics
Service center
2-3
2. Product specifications
Memo
2-4
7. Schematic Diagram
7. Schematic Diagram
7-1. Circuit Descriptions
Location
Scaler
IC200
Flash
Memory
IC201
Function
Remark
Besides the ADC, LVDS, and scaling part, an MCU is embedded as well. All of
them are integrated into one chip.
SE556M-LF
Stores the MCU program embedded in the scaler. It is of a flash type and
rewritable.
MX25LV512
IC203
Stores the OSD and various timing values.
24C08
IC202
The memory to which DIGITAL DDC data is input
24C02
Regulator
An IC that receives DC voltage inputs. It is used in circuits that stabilize the DC
voltage.
NCP117DT18T5G
APL1117-33VC
7-1
7. Schematic Diagram
7-2. Schematic Diagrams (Scaler Part)
SE717M-LF
(PC)ANALOG
R
G
B
HSYNC
VSYNC
Display
Processing
Engine
8Bit
LVDS
Panel
Interface
Interface
Engine
Clock
Generator
OSD
P
A
N
E
L
MCU
+5
ISP
14.318MHz
XTAL
3.3V
Regulator
+5
Function Key
1MB
Flash
24C08
EEPROM
1.8V
Regulator
+5
Inverter
7-3. Schematic Diagrams (Power Flowchart)
5V
Panel
IP
IP
Board
Board
5V
IC 601
(NCP1117ST33T3G)
IC 602
(NCP1117DT1815G)
7-2
3.3V
IC 201
(MX25L1005MC)
3.3V
IC 203
(AT24C08)
3.3V
1.8V
IC 200
Scaler
7. Schematic Diagram
7-4. Schematic Diagrams (IP Board)
 SMPS Part
7-3
7. Schematic Diagram
 Inverter Part
7-4
GND_4
5.6V
ZD104
AGND
ZD105
5.6V
C3
A2
C4
D109
100OHM
R120
4.7NF
C112
AGND
OUT VSYNC
OUT CHK_DSUB
OUT BLU+
OUT HSYNC
RED+
GRNSOG
GRN+
BLU-
OUT DDC_SDA_VGA
OUT DDC_SCL_VGA
OUT REDOUT
OUT
OUT
OUT
OUT
SDR3.3
+3.3V
AVDC3.3
1
IN
MGND1
2
AGND
C630
100NF
16V
GND
OUT
3
OUT
AGND
C628
100NF
16V
AGND
+5V_IP_3
IC601
AGND
C629
TP1
AGND
AGND
100NF
16V
100NF
16V
100NF
16V
AGND
C627
C626
AGND
C637
100NF
16V
S1G
400V
D600
+5V_IP
C623
VDVI
+3.3V
S1G
400V
D601
3
AGND
1
ADJ
VIN VOUT
C640
C639
+1.8V
AGND
5.6V
ZD601
AGND
100UF
100NF 105'C
16V
16V
AGND
2
NCP1117DT18T5G
IC602
+1.8V
AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND
+3.3V
100UF
105'C
16V
NCP1117ST33T3G
+5V_IP
AGND AGND AGND AGND AGND
R225
100KOHM
S
G
AGND
100NF
16V
R212
R213
100OHM
100OHM
R252
100OHM
S-24CS08AFJ-TB-1GE
8 VCC
VCC
7 WC
/WC
6 SCL
SCL
5 SDA
VSS SDA
1
NC
2
NC
3
E2
4
IC203
C234
6
5
4
C
B
2
KTC3875S-Y
R215
10KOHM
GND_5
GND_6
GND_7
MGND1
MGND2
CN600
CN_S_012_G2
AGND
100NF
R602
16V
10KOHM
C610
KEY2_OUT
KEY1_OUT
LED_G
+3.3V
BL_EN
BL_ADJ_ANALOG
+5V_IP_1
+5V_IP_2
R600
GND_8
7.5KOHM
GND_9
+14V
BL_ADJ_PWM
AGND AGND
12
11
10
9 1
8
7
6
5
4
3
2 1
1
E
C
AGND
B
2
E
+3.3V
E
C
X201
2
C204
10NF 100NF
50V 16V
AGND AGND
C218
AGND
C211
22PF
50V
R232
R226
10KOHM
IN BL_EN
AGND
R217
10KOHM
LVB1P
LVB2M
LVB2P
DDCD_SCL
REXT
AVDD_33
LVBCKP
LVB3M
LVB3P
NC
RX2N
GND
RX1P
RX1N
LVA1P
LVA2M
AVDD_33
AVDD_18
LVA1M
LVA0P
IC200
LVA0M
RXCKN
RXCKP
VDDP
GND
GND
RX0N
RX0P
NC
LVBCKM
RX2P
Scaler : SE757MH-LF
LVB1M
LVB0M
GND
BYPASS
LVB0P
AVDD_33
LVACKP
LVA3M
LVA3P
BIN0P
GIN0M
GIN0P
SOGIN0
I2C_MDA/GPIO_P11
MODE
GPIO_P23/PWM1
DDCA_SCL
DDCA_SDA
VSYNC0
HSYNC0
REFP
REFM
GND
RIN0P
R250
R251
R245
100OHM
100OHM
100OHM
CS
SO
WP
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
VDDP
VCC
SI
IC201
GND
WP# SCLK
SO HOLD#
CS#
8
7
6
5
AGND
LVA0M
LVA0P
LVA1M
LVA1P
LVA2M
LVA2P
LVACKM
LVACKP
LVA3M
LVA3P
LVB0M
LVB0P
LVB1M
LVB1P
LVB2M
LVB2P
LVBCKM
LVBCKP
LVB3M
LVB3P
F_PROTECT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
AGND
C212
100NF
16V
VDDC
10KOHM
AGND
IN SCK
IN SDI
C206
100NF
+3.3V
VCC_F
HOLD
SCLK
SI R612
AGND MX25L1005MC-12G
1
2
3
4
R214
10KOHM
GND_10
R255
100OHM
IN BL_ADJ_ANALOG
OUT KEY2
OUT KEY1
IN LED_GREEN
CSZ IN
SDO IN
F_PROTECT IN
SDR3.3
AGND
+3.3V +1.8V
AGND
C208
1UF
10V
OUT
BL_ADJ_ANALOG
7-3
7. Schematic Diagrams
Scaler : SE657MRH-LF
VDDP
VDDP
NC
GND
GND
NC
VDDP
GND
GPO_P03/PWM3
VDDC
GPO[7]
GPO[6]
LVA2P
LVACKM
BIN0M
RIN0M
E
C
R218
3KOHM
R219
4.7KOHM
DDCD_SDA
ZD204
5.6V
100NF 10NF 5.6V
5.6V
50V
16V
AGND
AGND
AGND AGND AGND
IN BL_ADJ_PWM
AGND
100NF
16V
C209
KTC3875S-Y
Q204
C207
2 B
10UF
10V
+5V_IP
+5V_IP
R271
10KOHM
GPIO_P16
GPIO_P15
GPIO_P14/PWM0
GND
C205 C221 ZD203 ZD202
IN WR_PROTECT
OUT MCL
OUT MDA
R233
10KOHM AGND
AGND 1
R223
4.7KOHM
100OHM
10OHM
10OHM
C210
22PF
50V
R230
R273
14.31818MHZ
AGND
B
KTC3875S-Y
AVDC1.8
+1.8V
R209
3.3KOHM
+1.8V
R208
3.3KOHM
R601
10KOHM
Q601
KTC3875S-Y
+14V
+5V_IP +3.3V
1
2
AGND
3KOHM
Q203
C220
10V
1UF
3
2
3
BL_EN OUT
R234
4
4.7KOHM
5
DDC_SDA_DVI IN
6
AGND DDC_SCL_DVI IN
7
+3.3V
8
VDVI
R235
9
RX2+ IN
390OHM 10
RX2- IN
11
12
RX1+ IN
13
RX1- IN
14
15
RX0+ IN
16
RX0- IN
17
18
RXC+ IN
19
RXC- IN
AVDC3.3 20
21
22
BLU- IN
23
BLU+ IN
24
GRN- IN
25
C213
GRN+ IN
26
100NF SOG IN
16V
27
RED- IN
C228
28
IN
RED+
1UF
29
10V
C229
30
100PF 50V
31
32
HSYNC IN
33
VSYNC IN
34
DDC_SDA_VGA IN
35
DDC_SCL_VGA IN
36
LED_GREEN OUT
37
38
MDA IN
Q201
R216
100OHM
+5V_EDID
Inverter & Function Connector
NC_1
NC_2
E2
VSS
D
D
Q206
D
D
SI3443BDV
1
2
3
OUT
EDID_PROTECT
+5V_PANEL
LVB2P
LVB2M
LVB1P
LVB1M
LVB0P
LVB0M
IN
IN
IN
IN
IN
IN
C230
100NF
16V
LVA0P
LVA0M
LVB3P
LVB3M
LVBCKP
LVBCKM
IN
IN
IN
IN
IN
IN
IN LVA1P
IN LVA1M
LVA3P
LVA3M
LVACKP
LVACKM
LVA2P
LVA2M
IN
IN
IN
IN
IN
IN
OUT
1
2
AGND
+5V_IP
R222
10KOHM
AGND
30
LVB2P
LVB2M
LVB1P
LVB1M
LVB0P
LVB0M
LVA0P
LVA0M
LVB3P
LVB3M
LVBCKP
LVBCKM
LVA1P
LVA1M
R224
Q205 10KOHM
AGND 2SC2412K-Q
+3.3V_DIODE
R126
10KOHM
+3.3V
22PF
50V
15PF
50V
AGND
C115
56OHM
R122
C116
56OHM
R121
2
4.7NF
4.7NF
10NF
4.7NF
4.7NF
C107
C108
C109
C110
C111
1
4.7NF
C106
AGND
100PF
50V
100PF
50V
Q202
C613 C614 C617 C618 C619 C620 C621 C622 C638 C635 C636
C117
100NF
16V
BAV99
BAV99
BAV99
R123
2KOHM
100OHM
100OHM
390OHM
100OHM
100OHM
R113
R114
R116
R117
R118
D108
100OHM
100OHM
R207
R111
R206
100OHM
C202
C201
AGND
100NF 100NF 100NF 100NF 100NF 100NF 100NF 100NF 100NF 100NF 100NF 100NF 100NF 100NF 100NF 100NF 100NF 100NF 100NF 100NF
16V
16V
16V
16V
16V
16V
16V
16V
16V
16V
16V
16V
16V
16V
16V
16V
16V
16V
16V
16V
C632 C631 C641 C612
VDDP
D110
C125
100NF
16V
10KOHM
R131
C124
100NF
16V
+3.3V
AGND
AVDC1.8
+1.8V
AGND
R125
10KOHM
2
BD102
1
75OHM
R119
2
75OHM
R115
BD101
1
75OHM
10KOHM
R130
R112
AGND
C603 C604 C601 C605 C600
VDDC
AGND
5
15
10
14
6
1
11
7
2
12
8
3
13
9
4
+1.8V
MGND1
MGND2
C2
A1
C1
ZD201
+3.3V_DIODE
IN
2SC2412K-Q
PANEL_EN
MGND2
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
LVA3P
LVA3M
LVACKP
LVACKM
LVA2P
LVA2M
C231
100UF
105'C
16V
BL_ADJ_PWM
GPIO_P07
SCK
2
GPIO_P06
SDI
1
GPIO_P02/SAR3
GPIO_P22
1
+3.3V
GPIO_P00/SAR1
GPIO_P04
R270
2KOHM
GPIO_P17/SAR0
GPIO_P41
R229
NC
GPIO_P42
AGND
NC
GPIO_P27/PWM2
+5V_PANEL
NC
GPIO_P24
1
NC
GND
1
2
3
4
5
6
7
8
9
VDDP
VDDC
MGND1
GND
VDDP
10KOHM
VDDP
GPO[4]
+5V_IP
GPIO_P25
GPO[2]
R236
GPIO_P43
GPO[0]
+5V_PANEL
GPIO_P12/PWM3
VDDP
CN400
RST
VDDP
(Main PBA)
XOUT
VDDP
CN101
GND_3
1
2
XIN
I2C_MCL/GPIO_P10
MCL IN
Analgo Part
1
2
VDDP
VDDP
This Document can not be used without Samsungs authorization.
1
2
2
1
VDDC
SDO
2
GPIO_P26/PWM2
CSZ
1
GND
NC
3
1
R253
10KOHM
GND
7-5. Schematic Diagrams
2
1
3
1
1
2
R210
10KOHM
GPIO_P01/SAR2
GPIO_P05
OUT
OUT
OUT
OUT
IN
OUT
SDO
CSZ
SCK
SDI
CHK_DSUB
WR_PROTECT
E
R211
10KOHM
VCTRL
3
1
PANEL_EN
CHK_DVI
KEY1
HDCP_HOTPLUG
KEY2
OUT
IN
IN
OUT
IN
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
VDDC
GND
C
GND
E
NC
B
C
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
B
SMAW200A-12P
4. Troubleshooting
4. Troubleshooting
4-1. Troubleshooting
1. Set custom mode as follows before beginning a repair.
• Resolution: 1440 x 900
• V-frequency: 60 Hz
2. If the screen is blank, check whether the power cord is connected correctly.
3. The circuits to check:
• When the raster does not appear: The Function PCB, Main PCB, I/P PBA
• When 5V is generated but a blank screen is displayed: Main PCB
• When 5V is not generated: I/P PBA
4. “Press the MENU button and hold down the, “
factory mode.
(Enter, Source)” button for more than five (5) seconds to return the monitor to
4-1
4. Troubleshooting
4-2. When the Power Does Not Turn On
Symptom
- When turning on the Power button after connecting the power cable, the LED at the front of the
monitor does not operate.
- When turning on the Power button after connecting the power cable, the LED at the front of the
monitor does not operate.
Major checkpoints
- Check the IP board power fuse and the IP board output power.
- Check the connections for the IP board and the Main board inside the monitor.
- Check the Main board power part and also check whether there is any abnormal output at any of
the other output terminals.
CN 600
IC 601
IC 602
Yes
Is DC 5V measured at pins 5, 6 of the
CN600 connector when pins 3, 4 are
0V?
Check the connection status for
the function assy.
No
Replace the IP board.
Yes
Diagnostics
IIs DC 3.3V measured at pin 3 of IC601
when pin 1 is DC 5V?
No
Check the circuits related to
IC601.
No
Check the circuits related to
IC602.
Yes
Is DC 1.8V measured at pin 2 of IC602
when pin 3 is DC 5V?
Yes
Check and replace the IP board.
Caution
4-2
Make sure to disconnect the power before working on the IP board.
4. Troubleshooting
4-2-1. Circuit diagrams when the power does not turn on
4-3
4. Troubleshooting
4-3. When the screen is blank (Analog)
Symptom
- LEven though the LED power turns on, the screen is blank when connecting the VGA cable.
- Even though the LED power turns on, the screen is blank when connecting the VGA cable.
Major checkpoints
- Check the D-sub cable connections.
- Check whether the LVDS cable is connected correctly to the panel.
- Check whether the lamp connector of the panel is connected correctly to the IP board.
CN 400
X 201
IC 200
R111, R114, R118
Check the signal cables and
their connections.
Yes
① Is X201 oscillating correctly?
No
Check and replace the circuits
related to X201.
No
Check the R111, R114, and
R118 input terminals.
No
Check the circuits related to
IC200.
No
Check the circuits related to
CN400.
No
Check the +5V_Panel signal
and the BL_EN signal.
Yes
② Do the RGB inputs appear at R111,
R114, and R118?
Yes
Diagnostics
Do the ③ Hsync and ④ Vsync
waveforms appear at pins 32, 33 of
IC200, respectively?
Yes
Do output signals appear at pins 8 to 30
of CN400?
Yes
Is DC 5V measured at pins 1, 2, and 3
of the CN400?
Yes
Check and replace the panel.
Caution
4-4
Make sure to disconnect the power before working on the IP board.
4. Troubleshooting
4-3-1. When a blank screen is displayed (Analog)
②
①
3
4
4-5
4. Troubleshooting
4-3-2. Waveforms when no screen is displayed (Analog)
①
④
4-6
③
4. Troubleshooting
4-4. Error Examples and Actions
Error Appearance
Symptoms and Actions
Symptom:DVI signals are not recognized.
Cause:
This error occurs because the PC cannot
recognize the mode information since the
DVI DDC is not input to the monitor.
Action:
Input the DVI DDC.
Symptom:A full white screen is displayed regardless of
the signals when turning on the monitor.
Cause:
This error occurs when only lamp power
is supplied and the video signals are not
input to the panel due to an LVDS cable
connection error.
Action:
Replace the LVDS cable or connect the
cable correctly so that the video signals can
be supplied to the panel.
Remarks
*On how to input DDC, refer to the
training manual.
* A Full White pattern is a feature of a
TN panel when no video signals are
supplied.
4-7
4. Troubleshooting
4-5. Adjustment
4-5-1. Service Adjustment Conditions
1. Precautions before a Service Adjustment
1) Check whether the devices for the service adjustment are operating normally.
2) Secure a space that is sufficiently wide for disassembling the monitor.
3) Prepare a soft mat on which the monitor will be disassembled.
2. Entering Service Mode
Entering:
Exiting:
Menu
Power OFF
Brightness 0
Contrast 0
Hold down the Enter button for five (5) seconds.
Power ON
3. Basic Service Items to Perform after Replacing a Board
1) Check the PC color adjustment status.
2) Input DDC (input both of Analog and Digital).
3) Check whether the appropriate MCU code for the model is input.
4) Hard power the monitor off after entering service mode and performing a reset.
4. DDC EDIT Data Input
1) Use when updating the AD board code.
2) Download the WinDDC program, DDC Input program, and Hex and DDC files appropriate to the model through the
Quality Control department of Samsung Electronics. Install the jig and input the data, as shown in the figure.
Monitor needing
adjustment
Parallel
Connector
(25P Cable)
4-8
MTI-2031
DDC Manger
Connect Monitor
(Signal Cable)
4. Troubleshooting
4-5-2. Service Function Specifications
 Checking the Code Version
1. Check the MCU code version and checksum after entering SVC Mode.
2. Entering SVC Mode
- Adjust the Brightness and Contrast values to 0.
- Hold down the Enter button for five (5) seconds.
- The SVC Function OSD is displayed.
- To exit the SVC Function, turn the power off.
3. Safe Mode
- When the input signal is higher than the supported frequency of the product, safe mode gives users some time (one
minute) to change the video card settings to the Recommended Mode settings.
Panel information
Select the Auto Auto option
Select the PixelShift option.
Country
Scaler Vender
Micom version
Micom checksum
 Service Mode (Moving around)
1. Press the + button to move to other items.
4-9
4. Troubleshooting
2. Press the - button to change the setting to On or Off.
 When replacing the panel
After replacing the panel, move to the Panel item and hold down the Menu button for five (5) seconds.
The Ch. No is incremented by 1 and then both the On Time and Cycle are set to 0.
This number is incremented by 1.
4-10
4. Troubleshooting
 Inputting the DDC Data
1
2
3
4
5
Use the DDC Manager MTI-2050 version or later.
1) Click the Open [F5] icon.
2) Select a port.
3) Open a DDC file.
4) Select a date and click the OK [Save] button.
5) Click the Next [OK] button.
6
6) Enter the serial number and then press the Enter button
※ When inputting digital data after inputting analog data, repeat steps 2 to 5.
4-11
4. Troubleshooting
 Inputting the MCU Data
1
1) Check the following options.
- Manufacture: MSTAR
- Device Type:TSUM16_ROM128K_ext_flash
- Communication Port: DSUB15 (Analog)
- External Memory: PMC25LV010E
2
2) Click the LoadFile button, select an MCU code file, and then click the Open [O] button.
4-12
4. Troubleshooting
3
3) Click the Auto Program button.
4) When programming and verification are complete, hard power the monitor off and then on again.
4-13
4. Troubleshooting
Memo
4-14
6. Wiring Diagram
6. Wiring Diagram
6-1. Wiring Diagram - Main Board
Lamp wire for Panel
LVDS for Panel
VGA Input
6-1
6. Wiring Diagram
6-2. Wiring Diagram - IP Board
LVDS Connector
(Connect to Panel)
3711-003847
IP board
3708-001150
EEPROM
Flash memory
Scaler
SE717M-LF
3701-001219
Function Connector
(Connect to IP-Board)
RGB Connector
(PConnect to PC)
6-2
6. Wiring Diagram
6-3. Connector Functions
Connector
CN600
Functions
Supplies 5V from the power board to the main board and transmits the PWM output from the
power board to the inverter.
*When a problem occurs: The No Power and Blank Screen errors may occur.
CN1 ~ CN4 In
Transmits the lamp current (6mA ~ 7mA) generated in the inverter to the lamp of the panel.
* When a problem occurs: The Blank Screen error may occur.
CN101
Connects the function board.
* When a problem occurs: The No LED screen and Function failure errors may occur.
CN400
Transmits the LVDS signals from the main board to the panel.
* When a problem occurs: The Blank screen and No Power errors may occur.
6-4. Cables
Use
LVDS 30P FFC cable
Code
BN96-02854J
6-3
6. Wiring Diagram
Memo
6-4
