Canon IP2800 series Specifications

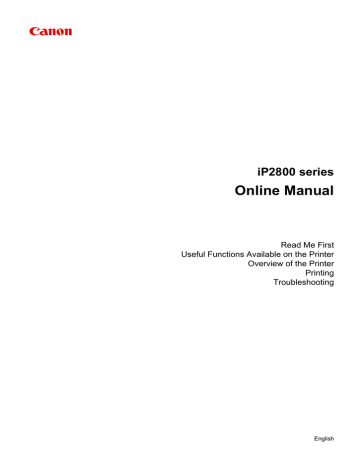

iP2800 series
Online Manual
Read Me First
Useful Functions Available on the Printer
Overview of the Printer
Printing
Troubleshooting
English
Contents
Read Me First. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Symbols Used in This Document. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Trademarks and Licenses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Search Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Notes on Operation Explanations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Useful Functions Available on the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Useful Functions Available from Applications and the Main Unit. . . . . . . . . . . . . . . . . . . . 15
Overview of the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Safety Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Regulatory and Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
Main Components and Basic Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Main Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Rear View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
Inside View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
About the Power Supply of the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Confirming that the Power Is On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Turning the Printer On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
Notice for the Power Plug/Power Cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Notice for Unplugging the Power Cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
36
Loading Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Loading Plain Paper / Photo Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Loading Envelopes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41
Media Types You Can Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Paper Load Limit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Media Types You Cannot Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Printing Area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Printing Area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Other Sizes than Letter, Legal, Envelopes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Letter, Legal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Envelopes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Replacing a FINE Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Replacing a FINE Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
When Printing Becomes Faint or Colors Are Incorrect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Maintenance Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Printing the Nozzle Check Pattern. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Examining the Nozzle Check Pattern. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
65
Cleaning the Print Head. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Performing Maintenance from a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Cleaning the Print Heads from Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Cleaning Inside the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
70
Cleaning the Paper Feed Rollers from Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Use Your Computer to Print a Nozzle Check Pattern. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Aligning the Print Head Position from Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Cleaning the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Cleaning the Exterior of the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Cleaning the Paper Feed Roller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
78
Cleaning the Inside of the Printer (Bottom Plate Cleaning). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Changing the Printer Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Changing Printer Settings from Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
82
Checking the Ink Status from Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Registering a Changed Printing Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Setting the Ink Cartridge to be Used. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Managing the Printer Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
87
Reducing the Printer Noise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Changing the Printer Operation Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Tips for Ensuring Optimal Printing Quality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Useful Information about Ink. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Key Points to Successful Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Be Sure to Make Paper Settings after Loading Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Storing Printed Images. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
95
Printer Handling Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Key to Enjoying Consistent Printing Quality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Precautions for Safe Transport of the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
98
Legal Limitations on Use of Your Product and Use of Images. . . . . . . . . . . . . . . . . . . . . . 99
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
102
Printing from a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Printing with Application Software that You are Using (Printer Driver). . . . . . . . . . . . . . . . . . . . . . . . . 104
Printing with Easy Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Setting the Media Type with the Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Various Printing Methods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Setting the Number of Copies and Printing Order. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Setting the Stapling Margin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Scaling the Printing to Fit the Paper Size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Scaled Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Page Layout Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Displaying the Print Results before Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
119
Setting Paper Dimensions (Custom Size). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Changing the Print Quality and Correcting Image Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Setting the Print Quality Level (Custom). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Printing a Color Document in Monochrome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Specifying Color Correction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Optimal Photo Printing of Image Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Adjusting Colors with the Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Printing with ICC Profiles (Specifying an ICC Profile from the Application Software). . . . . . 128
Printing with ICC Profiles (Specifying an ICC Profile from the Printer Driver). . . . . . . . . . . . 130
Adjusting Color Balance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
131
Adjusting Brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Adjusting Intensity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Adjusting Contrast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Overview of the Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Canon IJ Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
How to Open the Printer Driver Setup Window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Page Setup Dialog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Print Dialog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Quality & Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Color Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Margin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Canon IJ Printer Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Opening the Canon IJ Printer Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
152
Maintenance of this Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Display the Printing Status Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Deleting the Undesired Print Job. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Instructions for Use (Printer Driver). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Updating the Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
158
Obtaining the Latest Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
159
Delete the Unnecessary Canon IJ Printer from the Printer List. . . . . . . . . . . . . . . . . . . . . . . 160
Before Installing the Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Installing the Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
162
Sharing the Printer on a Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Settings on Print Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Settings on Client PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Restrictions on Printer Sharing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Problems with Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Printing Does Not Start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Paper Jams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Paper Does Not Feed Properly/"No Paper" Error Occurs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Printing Stops Before It Is Completed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Problems with Printing Quality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Print Results Not Satisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Cannot Print to End of Job. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
No Printing Results/Printing Is Blurred/Colors Are Wrong/White Streaks. . . . . . . . . . . . . . . . . . . 177
Colors Are Unclear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
179
Lines Are Misaligned. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Printed Paper Curls or Has Ink Blots. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Paper Is Smudged/Printed Surface Is Scratched. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
182
Back of the Paper Is Smudged. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Colors Are Uneven or Streaked. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Ink Is Not Ejected. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Problems with the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
The Printer Cannot Be Powered On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
The Printer Turns Off Unintentionally. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Cannot Connect to Computer Properly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
FINE Cartridge Holder Does Not Move to the Position for Replacing. . . . . . . . . . . . . . . . . . . . . . . . . . 193
Problems with Installation/Downloading. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Cannot Install the Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
About Errors/Messages Displayed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
If an Error Occurs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
A Message Is Displayed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
199
If You Cannot Resolve the Problem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Support Code List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Support Code List (When Paper Is Jammed). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
1300. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Paper Is Jammed inside the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
In Other Cases. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
1000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
1200. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
1203. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
1401. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
1403. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
1485. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
1682. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
1684. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
1686. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
1687. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
1688. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
1700. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
1701. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
1890. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
4100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
4102. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
5100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
5200. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
5400. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
5B00. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
5B01. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
6000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
6800. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
6801. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
6930. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
6931. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
6932. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
6933. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
6940. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
6941. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
6942. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
6943. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
6944. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
6945. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
6946. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
B200. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
B201. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Read Me First
Notes on Online Manual Usage
How to Print
Notes on Online Manual Usage
• Reproduction, diversion or copying of any text, photo or image published in the Online Manual
(hereinafter referred to as "this guide"), in whole or in part, is prohibited.
• In principle, Canon shall change or delete the contents of this guide without prior notice to customers.
In addition, Canon may suspend or stop the disclosure of this guide due to unavoidable reasons.
Canon shall not be liable for any damage suffered by customers as a result of changes in or deletion
of information in this guide, or suspension/stoppage of disclosure of this guide.
• Although the contents of this guide have been prepared with utmost care, please contact the service
center if you find any incorrect or missing information.
• In principle, the descriptions in this guide are based on the product at the time of its initial sale.
• This guide does not disclose the manuals of all the products sold by Canon. See the manual supplied
with the product when using a product that is not described in this guide.
How to Print
Use the print function of your Web browser to print this guide.
To print background colors and images, follow the steps below to display the Print dialog options, then
select the Print backgrounds checkbox.
1. Click Print... from the File menu.
2. Click Show Details or
(Down Arrow).
3. Select Safari from the pop-up menu.
8
Symbols Used in This Document
Warning
Instructions that, if ignored, could result in death or serious personal injury caused by incorrect
operation of the equipment. These must be observed for safe operation.
Caution
Instructions that, if ignored, could result in personal injury or material damage caused by incorrect
operation of the equipment. These must be observed for safe operation.
Important
Instructions including important information. To avoid damage and injury or improper use of the
product, be sure to read these indications.
Note
Instructions including notes for operation and additional explanations.
Basic
Instructions explaining basic operations of your product.
Note
• Icons may vary depending on your product.
9
Trademarks and Licenses
• Microsoft is a registered trademark of Microsoft Corporation.
• Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other
countries.
• Windows Vista is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other
countries.
• Internet Explorer is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or
other countries.
• Mac, Mac OS, AirPort, Safari, Bonjour, iPad, iPhone and iPod touch are trademarks of Apple Inc.,
registered in the U.S. and other countries. AirPrint and the AirPrint logo are trademarks of Apple Inc.
• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under
license.
• Google Cloud Print, Google Chrome, Android, Google Play and Picasa are either registered trademarks
or trademarks of Google Inc.
• Adobe, Photoshop, Photoshop Elements, Lightroom, Adobe RGB and Adobe RGB (1998) are either
registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other
countries.
• Photo Rag is a trademark of Hahnemühle FineArt GmbH.
• Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A. and licensed to Canon Inc.
Note
• The formal name of Windows Vista is Microsoft Windows Vista operating system.
10
Enter keywords in the search window and click
(Search).
You can search for target pages in this guide.
Entry example: "(your product's model name) load paper", "(your product's model name) 1000"
Search Tips
You can search for target pages by entering keywords in the search window.
Note
• The displayed screen may vary.
• Searching for Functions
Enter your product's model name and a keyword for the function you want to learn about
Example: When you want to learn how to load paper
Enter "(your product's model name) load paper" in the search window and perform a search
• Troubleshooting Errors
Enter your product's model name and a support code
Example: When the following error screen appears
Enter "(your product's model name) 1000" in the search window and perform a search
11
Note
• The displayed screen varies depending on your product.
• Searching for Application Functions
Enter your application's name and a keyword for the function you want to learn about
Example: When you want to learn how to print collages with My Image Garden
Enter "My Image Garden collage" in the search window and perform a search
• Searching for Reference Pages
Enter your model name and a reference page title*
* You can find reference pages more easily by entering the function name as well.
Example: When you want to browse the page referred to by the following sentence on a scanning
procedure page
Refer to "Color Settings Tab" for your model from Home of the Online Manual for details.
Enter "(your product's model name) scan Color Settings Tab" in the search window and perform a
search
12
Notes on Operation Explanations
In this guide, most of the operations are described based on the windows displayed when Mac OS X v10.8
is used.
13
Useful Functions Available on the Printer
The following useful functions are available on the printer.
Enjoy pleasant photography experience by utilizing various functions.
Useful Functions Available from Applications and the Main Unit
You can create items such as collages easily or download delightful
printing materials, and print them.
14
Useful Functions Available from Applications and the Main Unit
On the printer, the following useful functions are available from applications and the main unit.
• Print Photos Easily
• Download Content Materials
Print Photos Easily Using an Application
Organize Images Easily
In My Image Garden, you can register the names of people and events to photos.
You can organize photos easily as you can display them not only by folder but also by calendar, event,
and person. This also allows you to find the target photos easily when you search for them later on.
<Calendar View>
<People View>
Display Recommended Items in Slide Shows
Based on the information registered to photos, Quick Menu automatically selects the photos on your
computer and creates recommended items such as collages and cards. The created items appear in
slide shows.
15
If there is an item you like, you can easily print it in just two steps.
1. In Image Display of Quick Menu, select the item you want to print.
2. Print the item with My Image Garden.
Place Photos Automatically
Delightful items are created easily as the selected photos are placed automatically according to the
theme.
Other Various Functions
My Image Garden has many other useful functions.
Refer to "What You Can Do with My Image Garden" for details.
Download a Variety of Content Materials
CREATIVE PARK
A "printing materials site" where you can download all the printing materials for free.
Various types of content such as seasonal cards and paper crafts that can be made by assembling
paper parts are provided.
It is easily accessible from Quick Menu.
CREATIVE PARK PREMIUM
A service where customers using models that support PREMIUM Contents can download exclusive
printing materials.
PREMIUM Contents can be downloaded easily via My Image Garden. Downloaded PREMIUM
Contents can be printed directly with My Image Garden.
To download PREMIUM Contents, make sure that genuine Canon ink tanks/ink cartridges are installed
for all colors on a supported printer.
16
Note
• The designs of PREMIUM Contents provided in this page are subject to change without prior
notice.
17
Overview of the Printer
Safety Guide
Safety Precautions
Regulatory and Safety Information
Main Components and Basic Operations
Main Components
About the Power Supply of the Printer
Loading Paper
Loading Paper
Replacing a FINE Cartridge
Replacing a FINE Cartridge
Checking the Ink Status from Your Computer
Maintenance
When Printing Becomes Faint or Colors Are Incorrect
Performing Maintenance from a Computer
Cleaning the Printer
Changing the Printer Settings
Changing Printer Settings from Your Computer
Tips for Ensuring Optimal Printing Quality
Useful Information about Ink
Key Points to Successful Printing
Be Sure to Make Paper Settings after Loading Paper
Storing Printed Images
Printer Handling Precautions
Key to Enjoying Consistent Printing Quality
Precautions for Safe Transport of the Printer
Legal Limitations on Use of Your Product and Use of Images
Specifications
18
Safety Guide
Safety Precautions
Regulatory and Safety Information
19
Safety Precautions
Choosing a location
• Do not install the machine in a location that is unstable or subject to excessive vibration.
• Do not install the machine in locations that are very humid or dusty, in direct sunlight, outdoors, or
close to a heating source.
To avoid the risk of fire or electric shocks, use the machine under the operating environment specified
in the On-screen Manual.
• Do not place the machine on a thick rug or carpet.
• Do not place the machine with its back attached to the wall.
Power supply
• Ensure that the area around the power outlet is kept clear at all times so you can easily unplug the
power cord if necessary.
• Never remove the plug by pulling on the cord.
Pulling the cord may damage the power cord, leading to possible fire or electrical shock.
• Do not use an extension lead/cord.
Working around the machine
• Never put your hands or fingers in the machine while it is printing.
• When moving the machine, carry the machine at both ends. In case the machine weighs more than
14 kg, it is recommended to have two people lifting the machine. Accidental dropping of the machine
causes injury. For the machine's weight, refer to the On-screen Manual.
• Do not place any object on the machine. Especially do not place metal objects (paper clips, staples,
etc.) or containers of flammable solvents (alcohol, thinners, etc.) on top of the machine.
• Do not transport or use the machine on a slant, vertically or upside-down, as the ink may leak and
damage the machine.
Working around the machine (For the multifunction printer)
• When loading a thick book on the Platen Glass, do not press hard on the Document Cover. The
Platen Glass may break and cause injury.
Print Heads/ink tanks and FINE Cartridges
• Keep ink tanks out of the reach of children. In case ink* is accidentally licked or swallowed, rinse out
mouth or give one or two glasses of water to drink. If irritation or discomfort occurs, obtain medical
advice immediately.
* Clear Ink contains nitrate salts (For models containing Clear Ink).
• In case ink gets in contact with eyes, rinse with water immediately. In case ink gets in contact with
skin, wash with soap and water immediately. If irritation to eyes or skin persists, obtain medical advice
immediately.
• Never touch the electrical contacts on a Print Head or FINE Cartridges after printing.
The metal parts may be very hot and could cause burns.
• Do not throw ink tanks and FINE Cartridges into fire.
• Do not attempt to disassemble or modify the Print Head, ink tanks, and FINE Cartridges.
20
Regulatory and Safety Information
About the disposal of the battery (For models containing lithium battery)
Dispose of used batteries according to the local regulations.
Users in the U.S.A.
FCC Notice (U.S.A. Only)
For 120V, 60Hz model
Model Number: K10389/K10392/K10399
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of a shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If
such changes or modifications should be made, you could be required to stop operation of the equipment.
Canon U.S.A., Inc.
One Canon Park
Melville, New York 11747
1-800-652-2666
European Union (and EEA) only.
This symbol indicates that this product is not to be disposed of with your household waste, according to
the WEEE Directive (2002/96/EC) and your national law. This product should be handed over to a
designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product
or to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper
handling of this type of waste could have a possible negative impact on the environment and human
health due to potentially hazardous substances that are generally associated with EEE. At the same time,
21
your cooperation in the correct disposal of this product will contribute to the effective usage of natural
resources. For more information about where you can drop off your waste equipment for recycling, please
contact your local city office, waste authority, approved WEEE scheme or your household waste disposal
service. For more information regarding return and recycling of WEEE products, please visit www.canoneurope.com/environment.
(EEA: Norway, Iceland and Liechtenstein)
India only.
This product is not to be disposed of with your household waste, according to the e-waste (Management
and Handling) Rules, 2011.
This product should be handed over to a designated collection point, e.g., to an authorized collection site
for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste
could have a possible negative impact on the environment and human health due to potentially hazardous
substances that are generally associated with EEE. At the same time, your cooperation in the correct
disposal of this product will contribute to the effective usage of natural resources. For more information
regarding return and recycling of WEEE products, please visit http://www.canon.co.in/environment/.
Also, this product complies with the "India E-waste Rule 2011" and prohibits use of lead, mercury,
hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations
exceeding 0.1 % by weight and 0.01 % by weight for Cadmium, except for the exemptions set in Schedule
II of the Rule.
Environmental Information
Reducing your environmental impact while saving money
Power Consumption and Activation Time
The amount of electricity a device consumes depends on the way the device is used. This product is
designed and set in a way to allow you to reduce your electricity costs. After the last print it switches to
Ready Mode. In this mode it can print again immediately if required. If the product is not used for a time,
the device switches to its Power Save Mode. The devices consume less power (Watt) in these modes.
If you wish to set a longer Activation Time or would like to completely deactivate the Power Save Mode,
please consider that this device may then only switch to a lower energy level after a longer period of
time or not at all.
Canon does not recommend extending the Activation Times from the optimum ones set as default.
Energy Star®
The Energy Star® programme is a voluntary scheme to promote the development and purchase of
energy efficient models, which help to minimise environmental impact.
Products which meet the stringent requirements of the Energy Star® programme for both environmental
benefits and the amount of energy consumption will carry the Energy Star® logo accordingly.
22
Paper types
This product can be used to print on both recycled and virgin paper (certified to an environmental
stewardship scheme), which complies with EN12281 or a similar quality standard. In addition it can
support printing on media down to a weight of 64g/m2, lighter paper means less resources used and a
lower environmental footprint for your printing needs.
23
Main Components and Basic Operations
Main Components
About the Power Supply of the Printer
24
Main Components
Front View
Rear View
Inside View
25
Front View
(1) paper support
Open to load paper in the rear tray.
(2) paper guide
Align with the left side of the paper stack.
(3) rear tray
Load paper here. Two or more sheets of the same size and type of paper can be loaded at the same
time, and fed automatically one sheet at a time.
Loading Plain Paper / Photo Paper
Loading Envelopes
(4) cover
Open to replace the FINE cartridge or remove jammed paper inside the printer.
(5) paper output tray
Printed paper is ejected. Pull out it before printing.
(6) output tray extension
Extend to support ejected paper. Extend it when printing.
26
* All lamps are shown lit in the above figure for explanatory purposes.
(7) ON/RESUME button
Press to turn the power on or off. You can cancel a print job in progress. You can also press this button
to release from printer error status or to select a maintenance function.
(8) POWER lamp
This lamp lights green after flashing when the power is turned on.
Note
• You can check the status of the printer by the POWER and Alarm lamps.
•
•
•
•
•
POWER lamp is off: The power is off.
POWER lamp lights green: The printer is ready to print.
POWER lamp flashes green: The printer is getting ready to print, or printing is in progress.
Alarm lamp flashes orange: An error has occurred and the printer is not ready to print.
POWER lamp flashes green and Alarm lamp flashes orange alternately: An error that requires
contacting the service center may have occurred.
If an Error Occurs
(9) Alarm lamp
This lamp lights or flashes orange when an error occurs.
27
Rear View
(1) power cord connector
Plug in the supplied power cord.
(2) USB port
Plug in the USB cable to connect the printer with a computer.
Important
• Do not touch the metal casing.
• Do not plug in or unplug the USB cable while printing.
28
Inside View
(1) FINE cartridge (ink cartridges)
A replaceable cartridge that integrates print head and ink tank.
(2) FINE cartridge holder
Install the FINE cartridge.
The color FINE cartridge should be installed into the left slot and the black FINE cartridge should be
installed into the right slot.
Note
• For details on replacing a FINE cartridge, see Replacing a FINE Cartridge.
Important
• The area around the parts (A) may be splattered with ink. This does not affect the performance of the
printer.
• Do not touch the parts (A). The printer may not print properly if you touch them.
29
About the Power Supply of the Printer
Confirming that the Power Is On
Turning the Printer On and Off
Notice for the Power Plug/Power Cord
Notice for Unplugging the Power Cord
30
Confirming that the Power Is On
The POWER lamp is lit green when the printer is turned on.
Note
• It may take a while for the printer to start printing immediately after you turn on the printer.
31
Turning the Printer On and Off
Turning on the printer
1. Press the ON/RESUME button to turn on the printer.
The POWER lamp flashes and then remains lit green.
Confirming that the Power Is On
Note
• It may take a while for the printer to start printing immediately after you turn on the printer.
• If the Alarm lamp lights up or flashes orange, see If an Error Occurs.
• You can set the printer to automatically turn on when a print operation is performed from a
computer. This feature is set to off by default.
Managing the Printer Power
Turning off the printer
Note
• When the paper jam error or paper out error has occurred, you cannot turn the printer off even if you
press the ON/RESUME button on the printer. Dismiss the error, then turn off the printer.
If an Error Occurs
1. Press the ON/RESUME button to turn off the printer.
When the POWER lamp stops flashing, the printer is turned off.
32
Important
• When you unplug the power cord after turning off the printer, be sure to confirm that the
POWER lamp is off.
Note
• You can set the printer to automatically turn off when no print jobs are sent to the printer for a
certain interval. This is the default setting.
Managing the Printer Power
33
Notice for the Power Plug/Power Cord
Unplug the power cord once a month to confirm that the power plug/power cord does not have anything
unusual described below.
•
•
•
•
•
The power plug/power cord is hot.
The power plug/power cord is rusty.
The power plug/power cord is bent.
The power plug/power cord is worn.
The power plug/power cord is split.
Caution
• If you find anything unusual with the power plug/power cord described above, unplug the power cord
and call for service. Using the printer with one of the unusual conditions above may cause a fire or an
electric shock.
34
Notice for Unplugging the Power Cord
To unplug the power cord, follow the procedure below.
Important
• When you unplug the power cord, press the ON/RESUME button, then confirm that the POWER lamp is
off. Unplugging the power cord while the POWER lamp is lit or flashing may cause drying or clogging of
the print head and print quality may be reduced.
1. Press the ON/RESUME button to turn the printer off.
Note
• When the paper jam error or paper out error has occurred, you cannot turn the printer off even if
you press the ON/RESUME button on the printer. Dismiss the error, then turn off the printer.
If an Error Occurs
2. Confirm that the POWER lamp is off.
3. Unplug the power cord.
The specification of the power cord differs depending on the country or region of use.
35
Loading Paper
Loading Paper
36
Loading Paper
Loading Plain Paper / Photo Paper
Loading Envelopes
Media Types You Can Use
Media Types You Cannot Use
Printing Area
37
Loading Plain Paper / Photo Paper
You can load plain paper or photo paper.
Important
• If you cut plain paper into small size such as 4" x 6" (10 x 15 cm) or 5" x 7" (13 x 18 cm) to perform trial
print, it can cause paper jams.
Note
• We recommend Canon genuine photo paper for printing photos.
For details on the Canon genuine paper, see Media Types You Can Use.
• You can use general copy paper.
For the page size and paper weight you can use for this printer, see Media Types You Can Use.
1. Prepare paper.
Align the edges of paper. If paper is curled, flatten it.
Note
• Align the edges of paper neatly before loading. Loading paper without aligning the edges may
cause paper jams.
• If paper is curled, hold the curled corners and gently bend them in the opposite direction until the
paper becomes completely flat.
For details on how to flatten curled paper, see "Load the paper after correcting its curl." in Paper Is
Smudged/Printed Surface Is Scratched.
2. Load paper.
1. Open the paper support.
2. Pull out the paper output tray and the output tray extension.
38
3. Slide the paper guide (A) to the left, and load the paper against the far right of the rear tray
WITH THE PRINT SIDE FACING YOU.
4. Slide the paper guide (A) to align it with the paper stack.
Do not slide the paper guide too hard against the paper. The paper may not be fed properly.
Important
• Always load paper in the portrait orientation (B). Loading paper in the landscape orientation (C) can
cause paper jams.
39
Note
• Do not load sheets of paper higher than the load limit mark (D).
Note
• The printer may make operating noise when feeding paper.
• After loading paper, select the size and type of the loaded paper on the print settings screen of the
printer driver.
40
Loading Envelopes
You can load Envelope DL and Envelope Com 10.
The address is automatically rotated and printed according to the envelope's direction by specifying with the
printer driver properly.
Important
• Do not use the following envelopes. They could jam in the printer or cause the printer to malfunction.
• Envelopes with an embossed or treated surface
• Envelopes with a double flap
• Envelopes whose gummed flaps are already moistened and adhesive
1. Prepare envelopes.
• Press down on all four corners and edges of the envelopes to flatten them.
• If the envelopes are curled, hold the opposite corners and gently twist them in the opposite
direction.
• If the corner of the envelope flap is folded, flatten it.
• Use a pen to press the leading edge in the inserting direction flat and sharpen the crease.
The figures above show a side view of the leading edge of the envelope.
Important
• The envelopes may jam in the printer if they are not flat or the edges are not aligned. Make sure
that no curl or puff exceeds 0.1 inch (3 mm).
2. Load envelopes.
1. Open the paper support.
2. Pull out the paper output tray and the output tray extension.
41
3. Slide the paper guide (A) to the left, and load the envelopes against the far right of the rear
tray WITH THE PRINT SIDE FACING YOU.
The folded flap of the envelope will be faced up on the left side.
Up to 5 envelopes can be loaded at once.
4. Slide the paper guide (A) to align it with the envelopes.
Do not slide the paper guide too hard against the envelopes. The envelopes may not be fed properly.
(B) Rear side
(C) Address side
Note
• Do not load sheets of paper higher than the load limit mark (D).
42
Note
• The printer may make operating noise when feeding paper.
• After loading envelopes, select the size and type of the loaded envelopes on the print settings screen of
the printer driver.
43
Media Types You Can Use
Use plain paper for printing texts or photo paper for printing photos, for the best print results. We
recommend the use of Canon genuine paper for printing your important photos.
Media Types
Commercially available papers
• Plain Paper (including recycled paper)*1
• Envelopes
Canon genuine papers
The Model Number of Canon genuine paper is shown in brackets. Refer to the instruction manual
supplied with the paper for detailed information on the printable side and notes on handling paper. For
information on the page sizes available for each Canon genuine paper, access our website.
Note
• You may not be able to purchase some Canon genuine papers depending on the country or region
of purchase. Paper is not sold in the US by Model Number. Purchase paper by name.
Paper for printing photos:
• Glossy Photo Paper "Everyday Use" <GP-501/GP-601>
• Photo Paper Glossy <GP-601>
• Photo Paper Plus Glossy II <PP-201>
*1 100% recycled paper can be used.
Paper Load Limit
Setting the Media Type with the Printer Driver
Page Sizes
You can use the following page sizes.
Standard sizes:
•
•
•
•
•
•
•
•
•
Letter
Legal
A5
A4
B5
4" x 6" (10 x 15 cm)
5" x 7" (13 x 18 cm)
Envelope DL
Envelope Com 10
Non-standard sizes:
You can print on non-standard size paper within the following ranges.
• Minimum size: 4.00 x 6.00 inches (101.6 x 152.4 mm)
• Maximum size: 8.50 x 26.61 inches (215.9 x 676.0 mm)
44
Paper Weight
You can use paper in the following weight range.
• 17 to 28 lb (64 to 105 g /m2) (except for Canon genuine paper)
Do not use heavier or lighter paper (except for Canon genuine paper), as it could jam in the printer.
Notes on Storing Paper
• Take out only the necessary number of paper from the package, just before printing.
• To avoid curling, when you do not print, put unused paper back into the package and keep it on a
level surface. And also, store it avoiding heat, humidity, and direct sunlight.
45
Paper Load Limit
Commercially Available Papers
Media Name
Rear Tray
Paper Output Tray
Plain Paper (including recycled paper)
Approx. 60 sheets
Approx. 10 sheets
Envelopes
5 envelopes
*1
Canon Genuine Papers
Note
• We recommend that you remove the previously printed sheet from the paper output tray before
continuously printing to avoid blurs and discoloration.
Paper for printing photos:
Media Name <Model No.>
Rear Tray
Glossy Photo Paper "Everyday Use" <GP-501/GP-601>*2
20 sheets: 4" x 6" (10 x 15 cm)
Photo Paper Glossy <GP-601>*2
20 sheets: 4" x 6" (10 x 15 cm)
Photo Paper Plus Glossy II <PP-201>*2
10 sheets: 5" x 7" (13 x 18 cm)
20 sheets: 4" x 6" (10 x 15 cm)
*1 We recommend that you remove the previously printed envelope from the paper output tray before
continuously printing to avoid blurs and discoloration.
*2 When loading paper in stacks, the print side may become marked as it is fed or paper may not feed
properly. In this case, load one sheet at a time.
46
Media Types You Cannot Use
Do not use the following types of paper. Using such paper will cause not only unsatisfactory results, but also
the printer to jam or malfunction.
• Folded, curled, or wrinkled paper
• Damp paper
• Paper that is too thin (weighing less than 17 lb (64 g /m2))
• Paper that is too thick (weighing more than 28 lb (105 g /m2), except for Canon genuine paper)
• Paper thinner than a postcard, including plain paper or notepad paper cut to a small size (when printing
on paper smaller than A5)
• Picture postcards
• Postcards
• Envelopes with a double flap
• Envelopes with an embossed or treated surface
• Envelopes whose gummed flaps are already moistened and adhesive
• Any type of paper with holes
• Paper that is not rectangular
• Paper bound with staples or glue
• Paper with adhesives
• Paper decorated with glitter, etc.
47
Printing Area
Printing Area
Other Sizes than Letter, Legal, Envelopes
Letter, Legal
Envelopes
48
Printing Area
To ensure the best print quality, the printer allows a margin along each edge of media. The actual printable
area will be the area inside these margins.
Recommended printing area
: Canon recommends that you print within this area.
Printable area
: The area where it is possible to print. However, printing in this area can affect the print
quality or the paper feed precision.
49
Other Sizes than Letter, Legal, Envelopes
Size
Printable Area (width x height)
A5
5.56 x 7.49 inches (141.2 x 190.3 mm)
A4
8.00 x 10.92 inches (203.2 x 277.3 mm)
B5
6.90 x 9.34 inches (175.2 x 237.3 mm)
4" x 6" (10 x 15 cm)
3.73 x 5.22 inches (94.8 x 132.7 mm)
5" x 7" (13 x 18 cm)
4.73 x 6.22 inches (120.2 x 158.1 mm)
Recommended printing area
(A) 1.24 inches (31.6 mm)
(B) 1.15 inches (29.2 mm)
Printable area
(C) 0.12 inch (3.0 mm)
(D) 0.66 inch (16.7 mm)
(E) 0.13 inch (3.4 mm)
(F) 0.13 inch (3.4 mm)
50
Letter, Legal
Size
Printable Area (width x height)
Letter
8.00 x 10.22 inches (203.2 x 259.7 mm)
Legal
8.00 x 13.22 inches (203.2 x 335.9 mm)
Recommended printing area
(A) 1.24 inches (31.6 mm)
(B) 1.15 inches (29.2 mm)
Printable area
(C) 0.12 inch (3.0 mm)
(D) 0.66 inch (16.7 mm)
(E) 0.25 inch (6.4 mm)
(F) 0.25 inch (6.3 mm)
51
Envelopes
Size
Recommended Printing Area (width x height)
Envelope DL
3.88 x 7.06 inches (98.8 x 179.5 mm)
Envelope Com 10
3.68 x 7.90 inches (93.5 x 200.8 mm)
Recommended printing area
(A) 0.31 inch (8.0 mm)
(B) 1.28 inches (32.5 mm)
(C) 0.22 inch (5.6 mm)
(D) 0.22 inch (5.6 mm)
52
Replacing a FINE Cartridge
Replacing a FINE Cartridge
Checking the Ink Status from Your Computer
53
Replacing a FINE Cartridge
When remaining ink cautions or errors occur, the Alarm lamp will flash orange to inform you of the error.
Count the number of flashes and take appropriate action.
If an Error Occurs
Note
• For information on the compatible FINE cartridge, refer to the printed manual: Safety and Important
Information.
Replacing Procedure
When you need to replace a FINE cartridge, follow the procedure below.
Important
• Do not touch the electrical contacts (A) or print head nozzle (B) on a FINE cartridge. The printer may
not print properly if you touch them.
• If you remove a FINE cartridge, replace it immediately. Do not leave the printer with the FINE
cartridge removed.
• Use a new FINE cartridge for replacement. Installing a used FINE cartridge may cause the nozzles to
clog.
Furthermore, with such a FINE cartridge, the printer will not be able to inform you when to replace the
FINE cartridge properly.
• Once a FINE cartridge has been installed, do not remove it from the printer and leave it out in the
open. This will cause the FINE cartridge to dry out, and the printer may not operate properly when it
is reinstalled. To maintain optimal printing quality, use a FINE cartridge within six months of first use.
Note
• If a FINE cartridge runs out of ink, you can print with either color or black FINE cartridge, in whichever
ink remains, only for a while. However the print quality may be reduced compared to when printing
with both cartridges. We recommend to use a new FINE cartridge in order to obtain optimum
qualities.
Even when printing with one ink only, print with leaving the empty FINE cartridge installed. If either of
the color FINE cartridge or black FINE cartridge is not installed, an error occurs and the printer
cannot print.
For information on how to configure this setting, see Setting the Ink Cartridge to be Used.
• Color ink may be consumed even when printing a black-and-white document or when black-andwhite printing is specified.
54
Both color ink and black ink are also consumed in the standard cleaning and deep cleaning of the
print head, which may be necessary to maintain the performance of the printer. When ink runs out,
replace the FINE cartridge immediately with a new one.
Useful Information about Ink
1. Make sure that the power is turned on.
2. Retract the paper output tray and the output tray extension.
3. Open the cover.
The FINE cartridge holder moves to the replacement position.
Caution
• Do not hold the FINE cartridge holder to stop or move it forcibly. Do not touch the FINE
cartridge holder until it stops completely.
Important
• The inside of the printer may be stained with ink. Be careful not to stain your hands or clothing
when replacing the FINE cartridge. You can easily wipe off the ink from the inside of the printer
with tissue paper or the like.
For details on the cleaning, refer to Safety and Important Information.
• Do not touch the metallic parts or other parts inside the printer.
• If the cover is left open for more than 10 minutes, the FINE cartridge holder may move and the
Alarm lamp light. In this case, close the cover, then open it again.
4. Remove the empty FINE cartridge.
1. Push down the FINE cartridge until it clicks.
55
2. Remove the FINE cartridge.
Important
• Handle the FINE cartridge carefully to avoid staining of clothing or the surrounding area.
• Discard the empty FINE cartridge according to the local laws and regulations regarding disposal
of consumables.
5. Prepare a new FINE cartridge.
1. Take a new FINE cartridge out of its package and remove the protective tape (C) gently.
56
Important
• If you shake a FINE cartridge, ink may spill out and stain your hands and the surrounding area.
Handle a FINE cartridge carefully.
• Be careful not to stain your hands and the surrounding area with ink on the removed protective
tape.
• Do not reattach the protective tape once you have removed it. Discard it according to the local
laws and regulations regarding disposal of consumables.
• Do not touch the electrical contacts or print head nozzle on a FINE cartridge. The printer may
not print properly if you touch them.
6. Install the FINE cartridge.
1. Insert the new FINE cartridge at a slant into the FINE cartridge holder.
The color FINE cartridge should be installed into the left slot and the black FINE cartridge should be
installed into the right slot.
Important
• Insert the FINE cartridge gently so that it does not hit the electrical contacts on the FINE cartridge
holder.
57
2. Push the FINE cartridge in and up firmly until it snaps into place.
Important
• Check if the FINE cartridge is installed correctly.
58
• The printer cannot print unless both the color FINE cartridge and black FINE cartridge are
installed. Be sure to install both cartridges.
7. Close the cover.
Note
• If the Alarm lamp lights or flashes orange after the cover is closed, take appropriate action.
If an Error Occurs
• The printer may make noise during operation.
8. Adjust the print head position.
After replacing the FINE cartridge, align the print head.
Aligning the Print Head Position from Your Computer
59
Maintenance
When Printing Becomes Faint or Colors Are Incorrect
Performing Maintenance from a Computer
Cleaning the Printer
60
When Printing Becomes Faint or Colors Are Incorrect
Maintenance Procedure
Printing the Nozzle Check Pattern
Examining the Nozzle Check Pattern
Cleaning the Print Head
61
Maintenance Procedure
If print results are blurred, colors are not printed correctly, or print results are unsatisfactory (e.g. misaligned
printed ruled lines), perform the maintenance procedure below.
Important
• Do not rinse or wipe the FINE cartridge. This can cause trouble with the FINE cartridge.
Note
• Check if ink remains in the FINE cartridge.
Checking the Ink Status from Your Computer
• Check if the FINE cartridge is installed correctly.
Replacing Procedure
Also check if the protective tape on the bottom of the FINE cartridge is removed.
• If the Alarm lamp lights or flashes orange, see If an Error Occurs.
• Increasing the print quality in the printer driver settings may improve the print result.
Changing the Print Quality and Correcting Image Data
When the Print Results Are Blurred or Uneven:
Step1
Print the nozzle check pattern.
From the printer
Printing the Nozzle Check Pattern
From the computer
Use Your Computer to Print a Nozzle Check Pattern
Step2
Examine the nozzle check pattern.
If there are missing lines or horizontal white streaks in the pattern:
Step3
Clean the print head.
From the printer
Cleaning the Print Head
From the computer
62
Cleaning the Print Heads from Your Computer
After cleaning the print head, print and examine the nozzle check pattern:
Step1
If the problem is not resolved after cleaning the print head twice:
Step4
Clean the print head deeply.
From the computer
Cleaning the Print Heads from Your Computer
If the problem is not resolved, turn off the power and clean the print head deeply again after 24 hours.
If the problem is still not resolved:
Step5
Replace a FINE cartridge.
Note
• If the problem is still not resolved after replacing the FINE cartridge, contact the service center.
When the Print Results Are Not Even such as the Ruled Lines Are
Misaligned:
Step
Align the print head.
From the computer
Aligning the Print Head Position from Your Computer
63
Printing the Nozzle Check Pattern
Print the nozzle check pattern to determine whether the ink ejects properly from the print head nozzle.
Note
• If the remaining ink level is low, the nozzle check pattern will not be printed correctly. Replace the FINE
cartridge whose ink is low.
You need to prepare: a sheet of A4 or Letter-sized plain paper
1. Make sure that the power is turned on.
2. Load a sheet of A4 or Letter-sized plain paper in the rear tray.
3. Pull out the paper output tray and the output tray extension.
4. Hold down the ON/RESUME button until the POWER lamp flashes green twice, then
release it immediately.
The nozzle check pattern will be printed.
Do not perform any other operations until the printer completes the printing of the nozzle check pattern.
5. Examine the nozzle check pattern.
64
Examining the Nozzle Check Pattern
Examine the nozzle check pattern, and clean the print head if necessary.
1. Check if there are missing lines in the pattern (A) or horizontal white streaks in the pattern
(B).
(C) Number of sheets printed so far
If there are missing lines in the pattern (A):
Cleaning the print head is required.
(D) Good
(E) Bad (lines are missing)
If there are horizontal white streaks in the pattern (B):
Cleaning the print head is required.
(F) Good
(G) Bad (horizontal white streaks are present)
Note
• The total number of sheets printed so far is shown in increments of 50 sheets on the printout of the
nozzle check pattern.
65
Cleaning the Print Head
Clean the print head if lines are missing or if horizontal white streaks are present in the printed nozzle check
pattern. Cleaning unclogs the nozzles and restores the print head condition. Cleaning the print head
consumes ink, so clean the print head only when necessary.
1. Make sure that the power is turned on.
2. Hold down the ON/RESUME button until the POWER lamp flashes green once, then
release it immediately.
The printer starts cleaning the print head.
The cleaning will be complete when the POWER lamp lights green after flashing.
Do not perform any other operations until the printer completes the cleaning of the print head. This takes
about 30 seconds.
3. Check the print head condition.
To check the print head condition, print the nozzle check pattern.
Note
• If the problem is not resolved after cleaning the print head twice, clean the print head deeply.
Cleaning the Print Heads from Your Computer
66
Performing Maintenance from a Computer
Cleaning the Print Heads from Your Computer
Cleaning Inside the Printer
Cleaning the Paper Feed Rollers from Your Computer
Use Your Computer to Print a Nozzle Check Pattern
Aligning the Print Head Position from Your Computer
Checking the Ink Status from Your Computer
67
Cleaning the Print Heads from Your Computer
The print head cleaning function allows you to clear up clogged print head nozzle. Perform print head
cleaning if printing is faint or a specific color fails to print, even though there is enough ink.
The procedure for cleaning the print head is as follows:
Cleaning
1. Select Cleaning from the pop-up menu on the Canon IJ Printer Utility
2. Click the Cleaning icon
When the dialog opens, select the ink group for which cleaning is to be performed.
Click
to display the items you need to check before performing cleaning.
3. Execute cleaning
Make sure that the printer is on and then click OK.
Print head cleaning starts.
4. Complete cleaning
The Nozzle Check dialog opens after the confirmation message.
5. Check the results
To check whether the print quality has improved, click Print Check Pattern. To cancel the check
process, click Cancel.
If cleaning the head once does not resolve the print head problem, clean it once more.
Important
• Cleaning consumes a small amount of ink.
Cleaning the print head frequently will rapidly deplete your printer's ink supply. Consequently, perform
cleaning only when necessary.
Deep Cleaning
Deep Cleaning is more thorough than cleaning. Perform deep cleaning when two Cleaning attempts do
not resolve the print head problem.
1. Select Cleaning from the pop-up menu on the Canon IJ Printer Utility
2. Click the Deep Cleaning icon
68
When the dialog opens, select the ink group for which deep cleaning is to be performed.
Click
to display the items you need to check before performing deep cleaning.
3. Execute deep cleaning
Make sure that the printer is on and then click OK.
Click OK when the confirmation message appears.
Print head deep cleaning starts.
4. Complete deep cleaning
The Nozzle Check dialog opens after the confirmation message.
5. Check the results
To check whether the print quality has improved, click Print Check Pattern. To cancel the check
process, click Cancel.
Important
• Deep Cleaning consumes a larger amount of ink than Cleaning.
Cleaning the print head frequently will rapidly deplete your printer's ink supply. Consequently, perform
cleaning only when necessary.
Note
• If there is no sign of improvement after Deep Cleaning, switch off the printer, wait 24 hours, and then
perform Deep Cleaning again. If there is still no sign of improvement, see "Ink Is Not Ejected."
Related Topic
Use Your Computer to Print a Nozzle Check Pattern
69
Cleaning Inside the Printer
To prevent smudges on the back side of the paper, perform bottom plate cleaning.
Also perform bottom plate cleaning if ink smudges caused by something other than print data appear on the
printed page.
The procedure for performing bottom plate cleaning is as follows:
Bottom Plate Cleaning
1. Select Cleaning from the pop-up menu on the Canon IJ Printer Utility
2. Click the Bottom Plate Cleaning icon
The dialog opens.
3. Load paper in the printer
As instructed in the dialog, fold the A4 size or Letter size plain paper in half horizontally, and then
unfold the sheet.
Load the paper into the rear tray in the portrait orientation with the crest of the crease facing down.
4. Perform the bottom plate cleaning
Make sure that the printer is on and then click OK.
Bottom plate cleaning starts.
70
Cleaning the Paper Feed Rollers from Your Computer
Cleans the paper feed rollers. Perform feed roller cleaning when there are paper particles sticking to the
paper feed rollers and paper is not fed properly.
The procedure for performing the feed roller cleaning is as follows:
Roller Cleaning
1. Prepare the printer
Remove all sheets of paper from the rear tray.
2. Select Cleaning from the pop-up menu on the Canon IJ Printer Utility
3. Click the Roller Cleaning icon
The confirmation message appears.
4. Execute paper feed roller cleaning
Make sure that the printer is on and then click OK.
Paper feed roller cleaning starts.
5. Complete paper feed roller cleaning
After the rollers have stopped, follow the message instructions and load one sheet of plain paper or a
cleaning sheet available on the market into the rear tray. Then click OK.
Paper will be ejected and feed roller cleaning will be completed.
71
Use Your Computer to Print a Nozzle Check Pattern
The nozzle check function allows you to check whether the print head is working properly by printing a
nozzle check pattern. Print the pattern if printing becomes faint, or if a specific color fails to print.
The procedure for printing a nozzle check pattern is as follows:
Nozzle Check
1. Select Test Print from the pop-up menu on the Canon IJ Printer Utility
2. Click the Nozzle Check icon
The confirmation message appears.
Click
to display the items that you need to check before printing the nozzle check pattern.
3. Load paper in the printer
Load one sheet of A4 size or Letter size plain paper into the rear tray.
4. Print a nozzle check pattern
Make sure that the printer is on and click Print Check Pattern.
Printing of the nozzle check pattern begins.
5. Check the print result
When the dialog opens, check the print result. If the print result is normal, click Quit.
If the print result is smudged or if there are any unprinted sections, click Cleaning to clean the print
head.
Related Topic
Cleaning the Print Heads from Your Computer
72
Aligning the Print Head Position from Your Computer
Print head alignment corrects the installation positions of the print head and improves deviated colors and
lines.
The procedure for performing print head alignment is as follows:
Note
• If you are adjusting the head position while the software is being installed from the Setup CD-ROM,
start from Step 3.
Print Head Alignment
1. Select Test Print from the pop-up menu on the Canon IJ Printer Utility
2. Click the Print Head Alignment icon
A message is displayed.
3. Load paper in the printer
Load three sheets of A4 size or Letter size plain paper into the rear tray.
4. Execute head alignment
Make sure that the printer is on and click Align Print Head.
The first pattern is printed.
5. Check the printed pattern
Enter the numbers of the patterns with the least amount of streaks in the associated boxes, and click
OK.
73
Note
• If it is difficult to pick the best pattern, pick the setting that produces the least noticeable vertical
streaks.
(A) Least noticeable vertical streaks
(B) Most noticeable vertical streaks
• If it is difficult to pick the best pattern, pick the setting that produces the least noticeable
horizontal streaks.
(A) Least noticeable horizontal streaks
(B) Most noticeable horizontal streaks
6. Confirm the displayed message and click OK
The second pattern is printed.
7. Check the printed pattern
Enter the numbers of the patterns with the least amount of streaks in the associated boxes, and click
OK.
Note
• If it is difficult to pick the best pattern, pick the setting that produces the least noticeable vertical
streaks.
(A) Least noticeable vertical streaks
(B) Most noticeable vertical streaks
74
8. Confirm the displayed message and click OK
The third pattern is printed.
9. Check the printed pattern
Enter the numbers of the patterns with the least noticeable horizontal stripes in the associated boxes,
and click OK.
Note
• If it is difficult to pick the best pattern, pick the setting that produces the least noticeable
horizontal stripes.
(A) Least noticeable horizontal stripes
(B) Most noticeable horizontal stripes
Note
• After head alignment is completed, you can print and check the current setting. To do so, click the
Print Head Alignment icon and when the message is displayed, click Print Alignment Value.
75
Cleaning the Printer
Cleaning the Exterior of the Printer
Cleaning the Paper Feed Roller
Cleaning the Inside of the Printer (Bottom Plate Cleaning)
76
Cleaning the Exterior of the Printer
Be sure to use a soft and dry cloth such as eyeglasses cleaning cloth and wipe off dirt on the surface gently.
Smooth out wrinkles on the cloth if necessary before cleaning.
Important
• Be sure to turn off the power and unplug the power cord before cleaning the printer.
• Do not use tissue paper, paper towels, rough-textured cloth, or similar materials for cleaning so as not
to scratch the surface.
• Never use volatile liquids such as thinners, benzene, acetone, or any other chemical cleaner to clean
the printer, as this may cause a malfunction or damage the surface of the printer.
77
Cleaning the Paper Feed Roller
If the paper feed rollers are dirty or paper powder is attached to it, paper may not be fed properly.
In this case, clean the paper feed rollers from the computer. Cleaning will wear out the paper feed rollers, so
perform this only when necessary.
Cleaning the Paper Feed Rollers from Your Computer
If the problem is not resolved after cleaning the paper feed rollers from the computer, turn off the power,
unplug the power cord, then wipe the paper feed rollers (the center roller and the right roller) (A) located
inside the rear tray with a moistened cotton swab or the like while rotating them manually. Do not touch the
rollers with your fingers. Rotate the rollers two or more times.
After cleaning the paper feed rollers, turn on the power, then clean the paper feed rollers again.
If the problem is not resolved after cleaning the paper feed rollers, contact the service center.
78
Cleaning the Inside of the Printer (Bottom Plate Cleaning)
Remove stains from the inside of the printer. If the inside of the printer becomes dirty, printed paper may get
dirty, so we recommend performing cleaning regularly.
You need to prepare: a sheet of A4 or Letter-sized plain paper*
* Be sure to use a new piece of paper.
1. Make sure that the power is turned on and remove any paper from the rear tray.
2. Prepare paper.
1. Fold a single sheet of A4 or Letter-sized plain paper in half widthwise, then unfold the paper.
2. Load only this sheet of paper in the rear tray with the open side facing you.
3. Pull out the paper output tray and the output tray extension.
3. Hold down the ON/RESUME button until the POWER lamp flashes green five times, then
release it immediately.
The paper cleans the inside of the printer as it feeds through the printer.
Check the folded parts of the ejected paper. If they are smudged with ink, perform Bottom Plate Cleaning
again.
Note
• When performing Bottom Plate Cleaning again, be sure to use a new piece of paper.
If the problem is not resolved after performing cleaning again, the protrusions inside the printer may be
stained. Wipe off any ink from the protrusions using a cotton swab or the like.
79
Important
• Be sure to turn off the power and unplug the power cord before cleaning the printer.
80
Changing the Printer Settings
Changing Printer Settings from Your Computer
81
Changing Printer Settings from Your Computer
Checking the Ink Status from Your Computer
Registering a Changed Printing Profile
Setting the Ink Cartridge to be Used
Managing the Printer Power
Reducing the Printer Noise
Changing the Printer Operation Mode
82
Checking the Ink Status from Your Computer
You can check the remaining ink level and the FINE cartridge types for your model.
1. Select Ink Level Information from the pop-up menu on the Canon IJ Printer Utility
An illustration of the ink types and their status is displayed.
If a warning or error related to the remaining ink level occurs, the printer driver displays an icon to let you
know.
2. If necessary, click Ink Details
You can check the ink-related information.
Note
• Ink Details is displayed when the ink level is low.
• Click
to check which FINE cartridge your model uses.
• Click Update to display the current remaining ink level.
• When you receive a notice about the remaining ink level, a mark appears above the ink icon.
For example:
The ink is running low. Prepare a new ink cartridge.
83
Registering a Changed Printing Profile
You can name and register the printing profile you made in the Print Dialog. The registered printing profile
can be called up from Presets to be used. You can also delete the unnecessary printing profile.
The procedure for registering a printing profile is as follows:
Registering a Printing Profile
1. In the Print dialog, set the necessary items
2. Select Save Current Settings as Preset... (Save As...) from the Presets
3. Save the settings
In the displayed dialog, enter a name in Preset Name, and if necessary, set Preset Available For.
Then click OK.
Important
• There are also print settings that cannot be saved to preset.
Using Registered Printing Profile
1. On Presets in the Print dialog, select the name of printing profile you want to use
Printing profile in the Print dialog will be updated to the called profile.
84
Deleting Unnecessary Printing Profile
1. Select the printing profile to be deleted
• If you are using Mac OS X v10.8 or Mac OS X v10.7
In the print dialog, select Show Presets... in the Presets section. Then in the dialog that
appears, select the name of the printing profile to be deleted.
• If you are using Mac OS X v10.6.8
On Presets in the Print dialog, select the name of printing profile you want to delete.
2. Delete the printing profile
• If you are using Mac OS X v10.8 or Mac OS X v10.7
Click Delete, and click OK. The selected printing profiles will be deleted from Presets.
• If you are using Mac OS X v10.6.8
On Presets in the Print dialog, click Delete. The selected printing profiles will be deleted from
Presets.
85
Setting the Ink Cartridge to be Used
This feature enables you to specify the most appropriate FINE cartridge among installed cartridges
according to an intended use.
When one of the FINE cartridges becomes empty and cannot be replaced immediately by a new one, you
can specify the other FINE cartridge that still has ink and continue printing.
The procedure for specifying the FINE cartridge is as follows:
1. Select Ink Cartridge Settings from the pop-up menu on the Canon IJ Printer Utility
2. Select the FINE cartridge to be used
Select the FINE cartridge you use for printing, and click Apply.
3. Complete the setup
Click OK when the confirmation message appears.
The specified FINE cartridge will be used from the next printing.
Important
• When a paper type other than Plain Paper or Envelope is selected from the Media Type of the
Quality & Media on the pop-up menu in the Print dialog, Black Only does not function because the
printer uses the color FINE cartridge to print documents.
• Do not detach the FINE cartridge that is not in use. Printing cannot be performed while either FINE
cartridge is detached.
86
Managing the Printer Power
This function allows you to manage the printer power from the printer driver.
The procedure for managing the printer power is as follows:
Power Off
The Power Off function turns off the printer. When you use this function, you will not be able to turn the
printer on from the printer driver.
1. Select Power Settings from the pop-up menu on the Canon IJ Printer Utility
2. Execute power off
Click Power Off, and when the confirmation message appears, click OK.
The printer power switches off.
Auto Power
Auto Power allows you to set Auto Power On and Auto Power Off.
The Auto Power On function automatically turns on the printer when data is received.
The Auto Power Off function automatically turns off the printer when there are no operations from the
printer driver or the printer for a specified period of time.
1. Select Power Settings from the pop-up menu on the Canon IJ Printer Utility
2. Check that the printer is on, and then click Auto Power
A dialog appears.
Note
• If the printer is off or if communication between the printer and the computer is disabled, an
error message may appear because the computer cannot collect the printer status.
3. If necessary, complete the following settings:
Auto Power On
Specifying Enable from the list will turn the printer on upon receipt of print data.
Auto Power Off
Specify the time from the list. When this time lapses without any operations from the printer driver
or the printer, the printer is turned off automatically.
4. Apply the settings
The setting is enabled after this. When you want to disable this function, select Disable from the list
according to the same procedure.
87
Reducing the Printer Noise
The silent function allows you to reduce the operating noise of this printer. Select when you wish to reduce
the operating noise of the printer at night, etc.
Using this function may lower the print speed.
The procedure for using the quiet mode is as follows:
1. Select Quiet Settings from the pop-up menu on the Canon IJ Printer Utility
Note
• If the computer is unable to communicate with the printer, a message may be displayed because
the computer cannot access the function information that was set on the printer. If this happens,
click Cancel to display the most recent settings specified on your computer.
2. Set the quiet mode
If necessary, specify one of the following items:
Do not use quiet mode
Select this option when you wish to use the printer with volume of normal operating noise.
Always use quiet mode
Select this option when you wish to reduce the operating noise of the printer.
Use quiet mode during specified hours
Select this option when you wish to reduce the operating noise of the printer during a specified
period of time.
Set the Start time and the End time of the quiet mode you wish to be activated. If both are set to
the same time, the quiet mode will not function.
Important
• You can set the quiet mode from the printer or the printer driver.
No matter how you use to set the quiet mode, the mode is applied when you perform
operations from the printer or printing from the computer.
• If you specify a time for Use quiet mode during specified hours, quiet mode is not applied to
operations (direct print, etc.) performed directly from the printer.
88
3. Apply the settings
Make sure that the printer is on and click Apply.
Click OK when the confirmation message appears.
The settings are enabled hereafter.
Note
• The effects of the quiet mode may be less depending on the print quality settings.
89
Changing the Printer Operation Mode
If necessary, switch between various modes of printer operation.
The procedure for configuring Custom Settings is as follows:
1. Make sure that the printer is on, and then select Custom Settings from the pop-up menu
on the Canon IJ Printer Utility
Note
• If the computer is unable to communicate with the printer, a message may be displayed because
the computer cannot access the function information that was set on the printer.
If this happens, click Cancel to display the most recent settings specified on your computer.
2. If necessary, complete the following settings:
Ink Drying Wait Time
You can set the length of the printer rest time until printing of the next page begins. Moving the
slider to the right increases the pause time, and moving the slider to the left decreases the time.
If the paper gets stained because the next page is ejected before the ink on the printed page dries,
increase the ink drying wait time.
Reducing the ink drying wait time speeds up printing.
3. Apply the settings
Click Apply and when the confirmation message appears, click OK.
The printer operates with the modified settings hereafter.
90
Tips for Ensuring Optimal Printing Quality
Useful Information about Ink
Key Points to Successful Printing
Be Sure to Make Paper Settings after Loading Paper
Storing Printed Images
Printer Handling Precautions
Key to Enjoying Consistent Printing Quality
Precautions for Safe Transport of the Printer
91
Useful Information about Ink
How is ink used for various purposes other than printing?
Ink may be used for purposes other than printing. Ink is not only used for printing, but also for cleaning the
print head to maintain the optimal printing quality.
The printer has the function to automatically clean the ink jet nozzles to prevent clogging. In the cleaning
procedure, ink is pumped out from the nozzles. Used ink for nozzle cleaning is limited to a small amount.
Does black-and-white printing use color ink?
Black-and-white printing may use ink other than black ink depending on the type of printing paper or the
settings of the printer driver. So, color ink is consumed even when printing in black-and-white.
92
Key Points to Successful Printing
Check the printer status before printing!
• Is the print head OK?
If a print head nozzle is clogged, print will be faint and papers will be wasted. Print the nozzle check
pattern to check the print head.
Maintenance Procedure
• Is the inside of the printer smeared with ink?
After printing large quantities of paper, the area where papers go through may get smeared with ink.
Clean the inside of your printer with Bottom Plate Cleaning.
Check how to load the paper correctly!
• Is the paper loaded in the correct orientation?
To load paper in the rear tray, load paper WITH THE PRINTING SIDE FACING YOU.
Loading Paper
• Is the paper curled?
The curled paper causes paper jam. Flatten the curled paper, then reload it.
"Load the paper after correcting its curl." in Paper Is Smudged/Printed Surface Is Scratched
93
Be Sure to Make Paper Settings after Loading Paper
If the media type setting is not the one for the loaded paper, printing results may not be satisfactory. After
loading paper, be sure to select the appropriate media type setting for the loaded paper.
Print Results Not Satisfactory
There are various types of paper: paper with special coating on the surface for printing photos with optimal
quality and paper suitable for documents.
Each media type has specific preset settings, such as how ink is used and sprayed, distance from nozzles,
etc., so that you can print on that type with optimal image quality.
This allows you to print with the settings best suited for the loaded media type just by selecting that media
type.
94
Storing Printed Images
Store printed images in albums, clear photo sleeves, or glass frames to protect them from direct exposure to
air.
Note
• Storing printed images without sufficient drying may cause blurring or discoloration.
95
Printer Handling Precautions
Do not place any object on the printer!
Do not place any object on the printer. It will fall into the rear tray and cause the printer to malfunction.
Also, place the printer where objects will not fall on it.
96
Key to Enjoying Consistent Printing Quality
The key to printing with the optimal printing quality is to prevent the print head from drying or clogging.
Always observe the following rules for optimal printing quality.
Never unplug the power cord until the power is turned off!
If you press the ON/RESUME button to turn off the power, the printer caps the print head (nozzles)
automatically to prevent from drying. If you unplug the power cord from the wall outlet while the POWER
lamp is lit or flashing, the print head will not be capped properly and this will cause drying or clogging.
When unplugging the power cord, make sure that the POWER lamp is not lit.
Print periodically!
Just as the tip of a felt pen becomes dry and unusable if it has not been used for a long time, even if it is
capped, the print head too, may become dried or clogged if the printer has not been used for a long time.
We recommend you to use the printer at least once a month.
Note
• Depending on the type of paper, ink may blur if you trace the printed area with a highlight pen or
paint-stick, or bleed if water or sweat comes in contact with the printed area.
97
Precautions for Safe Transport of the Printer
When relocating the printer, make sure of the following.
Important
• Pack the printer in a sturdy box so that it is placed with its bottom facing down, using sufficient
protective material to ensure safe transport.
• With the FINE cartridge left installed in the printer, press the ON/RESUME button to turn off the power.
This allows the printer to automatically cap the print head, thus preventing it from drying.
• After packing, do not tilt the box containing the printer or turn it on its side or upside down. Doing so
may cause the ink to leak during transport and cause damage to the printer.
• When a shipping agent is handling transport of the printer, have its box marked "THIS SIDE UP" to
keep the printer with its bottom facing down. Mark also with "FRAGILE" or "HANDLE WITH CARE".
1. Turn the printer off.
2. Confirm that the POWER lamp is off and unplugging the power cord.
Important
• Do not unplug the printer while the POWER lamp is lit or flashing green, as it may cause
malfunction or damage to the printer, making the printer unable to print.
3. Retract the paper output tray and the output tray extension, then close the paper support.
4. Unplug the printer cable from the computer and from the printer, then unplug the power
cord from the printer.
5. Use adhesive tape to secure all the covers on the printer to keep them from opening during
transportation. Then pack the printer in the plastic bag.
6. Attach the protective material to the printer when packing the printer in the box.
98
Legal Limitations on Use of Your Product and Use of Images
It may be unlawful to print the following documents.
The list provided is non-exhaustive. When in doubt, check with a legal representative in your jurisdiction.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Paper money
Money orders
Certificates of deposit
Postage stamps (canceled or uncanceled)
Identifying badges or insignias
Selective service or draft papers
Checks or drafts issued by governmental agencies
Motor vehicle licenses and certificates of title
Traveler's checks
Food stamps
Passports
Immigration papers
Internal revenue stamps (canceled or uncanceled)
Bonds or other certificates of indebtedness
Stock certificates
Copyrighted works/works of art without permission of copyright owner
99
Specifications
General Specifications
Printing resolution (dpi)
4800* (horizontal) x 600 (vertical)
* Ink droplets can be placed with a pitch of 1/4800 inch at minimum.
Interface
USB Port:
Hi-Speed USB *
* A computer that complies with Hi-Speed USB standard is required. Since the
Hi-Speed USB interface is fully upwardly compatible with USB 1.1, it can be
used at USB 1.1.
Print width
8 inches/203.2 mm
Operating environment
Temperature: 59 to 86 °F (15 to 30 °C)
Humidity: 10 to 80 % RH (no condensation)
* For the temperature and humidity conditions of papers such as photo paper,
refer to the paper's packaging or the supplied instructions.
Storage environment
Temperature: 32 to 104 °F (0 to 40 °C)
Humidity: 5 to 95 % RH (no condensation)
Power supply
AC 100-240 V, 50/60 Hz
Power consumption
Printing: Approx. 8 W
Standby (minimum): Approx. 0.8 W *1*2
OFF: Approx. 0.5 W *1
*1 USB connection to PC
*2 The wait time for standby cannot be changed.
External dimensions
Approx. 16.8 (W) x 9.3 (D) x 5.3 (H) inches
Approx. 426 (W) x 235 (D) x 134 (H) mm
* With the Paper Support and Paper Output Tray retracted.
Weight
Approx. 5.0 lb (Approx. 2.3 kg)
* With the FINE Cartridges installed.
Canon FINE Cartridge
Total 1280 nozzles (BK 320 nozzles, C/M/Y each 320 nozzles)
Minimum System Requirements
Conform to the operating system's requirements when higher than those given here.
Windows
Operating System
Windows 8, Windows 8.1
Windows 7, Windows 7 SP1
Windows Vista SP1, Windows Vista SP2
Windows XP SP3 32-bit only
100
Browser
Internet Explorer 8 or later
Hard Disk Space
3 GB
Note: For bundled software installation.
The necessary amount of hard disk space may be changed without notice.
Display
XGA 1024 x 768
Mac OS
Operating System
Mac OS X v10.6.8 or later
Browser
Safari 5 or later
Hard Disk Space
1.5 GB
Note: For bundled software installation.
The necessary amount of hard disk space may be changed without notice.
Display
XGA 1024 x 768
Other Supported OS
Some functions may not be available with each OS. Refer to the manual or the Canon web site for details on
operation with Windows RT.
• An internet connection is required to view the Online Manual.
• Windows: Operation can only be guaranteed on a computer with Windows 8.1, Windows 8,
Windows 7, Windows Vista or Windows XP pre-installed.
• Windows: A CD-ROM Drive or internet connection is required during software installation.
• Windows: Internet Explorer 8, 9 or 10 is required to install Easy-WebPrint EX.
Easy-WebPrint EX for Internet Explorer 9 or 10 can be downloaded from the Canon web site.
•
•
•
•
•
Windows: Some functions may not be available with Windows Media Center.
Windows: .NET Framework 4 or 4.5 must be installed to use the Windows software.
Windows: XPS Essentials Pack is required to print on Windows XP.
Mac OS: Hard Disk must be formatted as Mac OS Extended (Journaled) or Mac OS Extended.
Mac OS: For Mac OS, an internet connection is required during software installation.
Specifications are subject to change without notice.
101
Printing
Printing from a Computer
Printing with Application Software that You are Using (Printer Driver)
102
Printing from a Computer
Printing with Application Software that You are Using (Printer Driver)
103
Printing with Application Software that You are Using (Printer
Driver)
Printing with Easy Setup Basic
Various Printing Methods
Changing the Print Quality and Correcting Image Data
Overview of the Printer Driver
Updating the Printer Driver
Sharing the Printer on a Network
104
Printing with Easy Setup
The simple setup procedure for carrying out appropriate printing on this printer is as follows:
1. Check that the printer is turned on
2. Load paper on the printer
3. Select the printer
Select your model from the Printer list in the Print Dialog.
Note
• Click Show Details (
(the disclosure triangle)) to switch the Setup window to the detailed
display.
4. Select the paper size
For Paper Size, select the paper size to be used.
If necessary, set the number of copies, the pages to be printed, and the orientation.
105
5. Select Quality & Media from the pop-up menu
6. Select the media type
For Media Type, select the same paper type loaded in the printer.
106
7. Select the print quality
For Print Quality, select High, Standard, or Draft according to your purpose.
Important
• The print quality settings that can be selected may differ depending on a printing profile.
8. Complete the setup
Click Print.
When you execute print, the document will be printed in accordance with the type and size of the media.
107
Important
• In the Presets section, click Save Current Settings as Preset... (Save As...) to register the specified
settings.
108
Setting the Media Type with the Printer Driver
When you use this printer, selecting a media type that matches the print purpose will help you achieve the
best print results.
You can use the following media types on this printer.
Commercially available papers
Media name
Media Type in the printer driver
Plain Paper (including recycled paper)
Plain Paper
Envelopes
Envelope
Canon genuine papers (Photo Printing)
Media name <Model No.>
Media Type in the printer driver
Photo Paper Plus Glossy II <PP-201>
Photo Paper Plus Glossy II
Photo Paper Glossy <GP-501/GP-601>
Glossy Photo Paper
109
Various Printing Methods
Setting the Number of Copies and Printing Order
Setting the Stapling Margin
Scaling the Printing to Fit the Paper Size
Scaled Printing
Page Layout Printing
Displaying the Print Results before Printing
Setting Paper Dimensions (Custom Size)
110
Setting the Number of Copies and Printing Order
Collate pages + Reverse Collate pages + Normal
Reverse
The procedure for specifying the number of copies and printing order is as follows:
1. Specify the number of copies to be printed
Specify the number of copies to print from the Copies in the Print Dialog.
2. Select Paper Handling from the pop-up menu
3. Check the Collate pages check box when you are specifying multiple copies in the Copies
box
Check the Collate pages check box to print all the pages of a single copy together.
Uncheck this check box to print all pages with the same page number together.
4. Specify the print order
Check Page Order.
When you select Automatic or Reverse, printing starts from the last page.
When you select Normal, printing starts from the first page.
111
5. Complete the setup
Click Print.
When you execute print, the specified number of copies will be printed with the specified printing order.
Important
• When the application software that you used to create the document has the same function, specify the
settings on the printer driver. However, if the print results are not acceptable, specify the function
settings on the application software. When you specify the number of copies and the printing order with
both the application software and this printer driver, the number of copies may be multiplied numbers of
the two settings or the specified printing order may not be enabled.
112
Setting the Stapling Margin
The procedure for setting the margin width and the staple side is as follows:
1. Select Margin from the pop-up menu on the Print Dialog
2. Set the margin width and the staple side
If necessary, set the Margin width, and select a stapling position from the Stapling Side list.
Note
• The printer automatically reduces the print area depending on the staple position margin.
3. Complete the setup
Click Print.
When you execute print, the data is printed with the specified margin width and staple side.
113
Scaling the Printing to Fit the Paper Size
The procedure for printing a document that is automatically enlarged or reduced to fit the page size to be
used is as follows:
1. Check the paper size
Check that the Paper Size in the Print Dialog is the same as the paper size that you set in the
application software.
2. Select Paper Handling from the pop-up menu
3. Set the print paper size
Check the Scale to fit paper size check box. Then from the Destination Paper Size pop-up menu,
select the paper size that is actually loaded in the printer.
4. If necessary, check the Scale down only check box
When you check this check box, the document will be reduced to fit to the paper size when the
document size is larger than the page size. The document will be printed in the original size when the
document size is smaller than the page size.
5. Complete the setup
114
Click Print.
When you execute print, the document will be enlarged or reduced to fit to the page size.
115
Scaled Printing
The procedure for printing a document with pages enlarged or reduced is as follows:
1. Select the printer
In the Page Setup Dialog, select your model name from the Format For list.
2. Set scaled printing
Specify the scaling factor in the Scale box, and click OK.
Note
• If you are using Mac OS X v10.8 or Mac OS X v10.7, you can set the Scale rate to a value in the
range from 1 to 999%.
If you are using Mac OS X v10.6.8, set a value in the range from 1 to 10000%. If you enter any
other value, an error message will be displayed.
3. Complete the setup
On the Print Dialog, click Print.
When you execute print, the document will be printed with the specified scale.
Important
• When the application software which you used to create the original has the scaled printing function,
configure the settings on your application software. You do not need to configure the same setting in
the Page Setup dialog.
116
Page Layout Printing
The page layout printing function allows you to print more than one page image on a single sheet of paper.
The procedure for performing page layout printing is as follows:
1. Select Layout from the pop-up menu in the Print Dialog
2. Set the number of original you print on one page
In Pages per Sheet, specify the number of page you print on one page.
3. If necessary, set the following items
Layout Direction
To change the page placement order, select an icon from the list.
Border
To print a page border around each document page, select a type of page border.
Reverse page orientation
Select this check box to change the paper orientation.
Flip horizontally
Select this check box to reverse left and right of the document.
117
4. Complete the setup
Click Print.
When you execute print, the specified number of pages will be arranged on each sheet of paper in the
specified order.
118
Displaying the Print Results before Printing
If you are using Mac OS X v10.6.8, you can display and check the print result before printing.
To display the print result before printing, click Preview on the Print Dialog.
Note
• When you click
(the disclosure triangle) in the Print dialog and switch to the detailed display,
Preview is not displayed.
For detailed display, a preview is displayed on the left side of the Print dialog.
119
Setting Paper Dimensions (Custom Size)
You can specify any height and width of paper when that particular size cannot be selected from the Paper
Size menu. Such a paper size is called "custom size."
The procedure for specifying a custom size is as follows:
1. Creating a new custom paper size
In the Print Dialog, select Manage Custom Sizes... from Paper Size.
In the Custom Paper Sizes dialog, click +.
Untitled will be added to the list.
2. Setting details about the custom paper size
Double-click Untitled, enter the name of the paper size you want to register, and specify the Width and
Height of the paper for Paper Size.
Select User Defined or your model for Non-Printable Area, and enter the margins.
3. Registering the custom paper size
Click OK.
The custom size is registered.
Important
• If the application software that created the document has a function for specifying height and width
values, use the application software to set the values. If the application software does not have such a
function or if the document does not print correctly, perform the above procedure from the printer driver
to set the values.
Note
• To duplicate the registered paper size, select the paper size that you want to duplicate from the
Custom Paper Sizes list, and click Duplicate.
• To delete a registered paper size, select the paper size that you want to delete from the Custom Paper
Sizes list, and click -.
120
Changing the Print Quality and Correcting Image Data
Setting the Print Quality Level (Custom)
Printing a Color Document in Monochrome
Specifying Color Correction
Optimal Photo Printing of Image Data
Adjusting Colors with the Printer Driver
Printing with ICC Profiles (Specifying an ICC Profile from the Application Software)
Printing with ICC Profiles (Specifying an ICC Profile from the Printer Driver)
Adjusting Color Balance
Adjusting Brightness
Adjusting Intensity
Adjusting Contrast
121
Setting the Print Quality Level (Custom)
The print quality level can be set in the Custom.
The procedure for setting the print quality level is as follows:
1. Select Quality & Media from the pop-up menu on the Print Dialog
2. Select the print quality
Select Custom for Print Quality.
3. Setting the print quality level
Move the Quality slider to select the print quality level.
4. Complete the setup
Click Print.
When you execute print, the image data is printed with the selected print quality level.
Important
• Certain print quality levels cannot be selected depending on the settings of Media Type.
Related Topics
Specifying Color Correction
Adjusting Color Balance
Adjusting Brightness
Adjusting Intensity
Adjusting Contrast
122
Printing a Color Document in Monochrome
The procedure for printing a color document in monochrome is as follows:
1. Select Quality & Media from the pop-up menu on the Print Dialog
2. Set grayscale printing
Check the Grayscale Printing check box.
3. Complete the setup
Click Print.
When you execute print, the document is converted to grayscale data. It allows you to print the color
document in monochrome.
Note
• During Grayscale Printing, inks other than black ink may be used as well.
123
Specifying Color Correction
You can specify the color correction method suited to the type of document to be printed.
Normally, the printer driver adjusts the colors by using Canon Digital Photo Color so that data is printed with
color tints that most people prefer.
When you want to print by using the color space (Adobe RGB or sRGB) of the image data effectively or by
specifying a printing ICC profile from your application software, select ColorSync. When you want to print
by having the printer driver correct the colors, select Canon Color Matching.
The procedure for specifying color correction is as follows:
1. Select Color Matching from the pop-up menu of the Print Dialog
2. Select color correction
Select the item below that matches your purpose.
ColorSync
Perform color correction using ColorSync.
Canon Color Matching
With Canon Digital Photo Color, you can print with color tints that most people prefer.
3. Complete the setup
Click Print.
When you execute print, the document data is printed with the specified color correction.
Important
• Depending on the application software, when a printing ICC profile is specified from that application
software, Canon Color Matching cannot be selected because ColorSync is selected automatically.
• The Quality & Media setting is necessary even when ColorSync or Canon Color Matching is
selected.
Related Topics
Optimal Photo Printing of Image Data
Adjusting Colors with the Printer Driver
124
Printing with ICC Profiles (Specifying an ICC Profile from the Application Software)
Printing with ICC Profiles (Specifying an ICC Profile from the Printer Driver)
125
Optimal Photo Printing of Image Data
When people print images taken with digital cameras, they sometimes feel that the printed color tones differ
from those of actual image or those displayed on the monitor.
To get the print results as close as possible to the desired color tones, you must select a printing method
that is best suited to the application software used or to your purpose.
Color Management
Devices such as digital cameras, scanners, monitors, and printers handle color differently. Color
management (color matching) is a method that manages device-dependent "colors" as a common color
space.
For Mac OS, a color management system called "ColorSync" is built into the operating system.
Adobe RGB and sRGB are popularly used as common color spaces. Adobe RGB has a wider color space
than sRGB.
ICC profiles convert device-dependent "colors" into a common color space. By using an ICC profile and
carrying out color management, you can draw out the color space of the image data within the color
reproduction area that the printer can express.
Selecting a Printing Method Suited to the Image Data
The recommended printing method depends on the color space (Adobe RGB or sRGB) of the image data
or the application software to be used.
There are two typical printing methods.
Check the color space (Adobe RGB or sRGB) of the image data and the application software to be used,
and then select the printing method suited to your purpose.
Adjusting Colors with the Printer Driver
Describes the procedure for printing by using the color correction function of the printer driver.
• To print using Canon Digital Photo Color
The printer prints data with color tints that most people prefer, reproducing colors of the original
image data and producing three-dimensional effects and high, sharp contrasts.
• To print by directly applying editing and touch-up results of an application software
When printing the data, the printer brings out subtle color difference between dark and light
areas, while leaving the darkest and lightest areas intact.
When printing the data, the printer applies fine adjustment results, such as brightness
adjustments made with an application software.
Printing with ICC Profiles (Specifying an ICC Profile from the Application Software)
Describes the procedure for printing by using the color space of Adobe RGB or sRGB effectively.
You can print with a common color space by setting up the application software and the printer driver
so that the color management matches the input ICC profile of the image data.
The method for setting up the printer driver differs depending on the application software to be used.
126
Adjusting Colors with the Printer Driver
You can specify the color correction function of the printer driver to print with color tints that most people
prefer through the use of Canon Digital Photo Color.
When printing from an application software that can identify ICC profiles and allows you to specify them, use
a printing ICC profile in the application software, and select settings for color management.
The procedure for adjusting colors with the printer driver is as follows:
1. Select Color Matching from the pop-up menu of the Print Dialog
2. Select color correction
Select Canon Color Matching.
3. Set the other items
From the pop-up menu, select Color Options. If necessary, adjust the color balance (Cyan, Magenta,
Yellow) and adjust Brightness, Intensity, and Contrast settings.
4. Complete the setup
Click Print.
When you execute print, the printer driver adjusts the colors when printing the data.
Related Topics
Setting the Print Quality Level (Custom)
Specifying Color Correction
Adjusting Color Balance
Adjusting Brightness
Adjusting Intensity
Adjusting Contrast
127
Printing with ICC Profiles (Specifying an ICC Profile from the
Application Software)
When you print from Adobe Photoshop, Canon Digital Photo Professional, or any application software that
can identify input ICC profiles and allows you to specify such profiles, printer uses the color management
system (ColorSync) built-into Mac OS when printing. The printer prints the editing and touch-up results of
the application software and effectively uses the color space of the input ICC profile specified in the image
data.
To use this printing method, use your application software to select color management items and specify an
input ICC profile and a printing ICC profile in the image data.
Even if you print using a printing ICC profile that you created yourself from your application software, be
sure to select color management items from your application software.
For instructions, refer to the manual of the application software you are using.
1. Select Color Matching from the pop-up menu of the Print Dialog
2. Select color correction
Select ColorSync.
You can leave Profile set to Automatic.
Important
• Depending on the application software you use, you may not be able to select setting items other
than ColorSync.
• If you choose a Profile setting other than Automatic, the printer will not be able to print with the
correct colors.
3. Complete the setup
Click Print.
When you execute print, the printer uses the color space of the image data.
Related Topics
Setting the Print Quality Level (Custom)
Specifying Color Correction
128
Adjusting Color Balance
Adjusting Brightness
Adjusting Intensity
Adjusting Contrast
129
Printing with ICC Profiles (Specifying an ICC Profile from the
Printer Driver)
Print from an application software that cannot identify or specify input ICC profiles by using the color space
of the input ICC profile (sRGB) found in the data.
1. Select Color Matching from the pop-up menu of the Print Dialog
2. Select color correction
Select ColorSync.
You can leave Profile set to Automatic.
Important
• If you choose a Profile setting other than Automatic, the printer will not be able to print with the
correct colors.
3. Complete the setup
Click Print.
When you execute print, the printer uses the color space of the image data.
Important
• You cannot specify an input ICC profile from the printer driver.
Related Topics
Setting the Print Quality Level (Custom)
Specifying Color Correction
Adjusting Color Balance
Adjusting Brightness
Adjusting Intensity
Adjusting Contrast
130
Adjusting Color Balance
You can adjust the color tints when printing.
Since this function adjusts color balance of the output by changing the ink ratios of each color, it changes
the total color balance of the document. Use the application software when you want to change the color
balance significantly. Use the printer driver only when you want to adjust the color balance slightly.
The following sample shows the case when color balance is used to intensify cyan and to diminish yellow so
that the overall colors are more uniform.
No adjustment
Adjust color balance
The procedure for adjusting color balance is as follows:
1. Select Color Options from the pop-up menu of the Print Dialog
2. Adjust color balance
There are individual sliders for Cyan, Magenta, and Yellow. Each color becomes stronger when the
corresponding slider is moved to the right, and becomes weaker when the corresponding slider is moved
to the left. For example, when cyan becomes weaker, the color red becomes stronger.
You can also directly enter a value linked to the slider. Enter a value in the range from -50 to 50. The
current settings are displayed in the settings preview on the left side of the printer driver.
131
Important
• Adjust the slider gradually.
3. Complete the setup
Click Print.
When you execute print, the document is printed with the adjusted color balance.
Important
• When the Grayscale Printing check box is checked for Quality & Media, the color balance (Cyan,
Magenta, Yellow) appear grayed out and are unavailable.
• If you select ColorSync for Color Matching, then the color balance (Cyan, Magenta, Yellow) appear
grayed out and are unavailable.
Related Topics
Setting the Print Quality Level (Custom)
Specifying Color Correction
Adjusting Brightness
Adjusting Intensity
Adjusting Contrast
132
Adjusting Brightness
You can change the brightness of the overall image data during printing.
This function does not change pure white or pure black but it changes the brightness of the intermediate
colors.
The following sample shows the print result when the brightness setting is changed.
Light is selected
Normal is selected
Dark is selected
The procedure for adjusting brightness is as follows:
1. Select Color Options from the pop-up menu of the Print Dialog
2. Specify the brightness
Select Light, Normal, or Dark for Brightness. The current settings are displayed in the settings preview
on the left side of the printer driver.
3. Complete the setup
Click Print.
When you execute print, the data is printed at the specified brightness.
Important
• If you select ColorSync for Color Matching, then the Brightness appears grayed out and is
unavailable.
133
Related Topics
Setting the Print Quality Level (Custom)
Specifying Color Correction
Adjusting Color Balance
Adjusting Intensity
Adjusting Contrast
134
Adjusting Intensity
You can dilute (brighten) or intensify (darken) the colors of the overall image data during printing.
The following sample shows the case when the intensity is increased so that all colors become more intense
when the image data is printed.
No adjustment
Higher intensity
The procedure for adjusting intensity is as follows:
1. Select Color Options from the pop-up menu of the Print Dialog
2. Adjust intensity
Moving the Intensity slider to the right intensifies (darkens) the colors, and moving the slider to the left
dilutes (brightens) the colors.
You can also directly enter a value linked to the slider. Enter a value in the range from -50 to 50. The
current settings are displayed in the settings preview on the left side of the printer driver.
Important
• Adjust the slider gradually.
3. Complete the setup
Click Print.
When you execute print, the image data is printed with the adjusted intensity.
135
Important
• If you select ColorSync for Color Matching, then the Intensity appears grayed out and is unavailable.
Related Topics
Setting the Print Quality Level (Custom)
Specifying Color Correction
Adjusting Color Balance
Adjusting Brightness
Adjusting Contrast
136
Adjusting Contrast
You can adjust the image contrast during printing.
To make the differences between the light and dark portions of images greater and more distinct, increase
the contrast. On the other hand, to make the differences between the light and dark portions of images
smaller and less distinct, reduce the contrast.
No adjustment
Adjust the contrast
The procedure for adjusting contrast is as follows:
1. Select Color Options from the pop-up menu of the Print Dialog
2. Adjust the contrast
Moving the Contrast slider to the right increases the contrast, and moving the slider to the left decreases
the contrast.
You can also directly enter a value linked to the slider. Enter a value in the range from -50 to 50. The
current settings are displayed in the settings preview on the left side of the printer driver.
Important
• Adjust the slider gradually.
3. Complete the setup
Click Print.
When you execute print, the image is printed with the adjusted contrast.
137
Important
• If you select ColorSync for Color Matching, then the Contrast appears grayed out and is unavailable.
Related Topics
Setting the Print Quality Level (Custom)
Specifying Color Correction
Adjusting Color Balance
Adjusting Brightness
Adjusting Intensity
138
Overview of the Printer Driver
Canon IJ Printer Driver
How to Open the Printer Driver Setup Window
Page Setup Dialog
Print Dialog
Quality & Media
Color Options
Margin
Canon IJ Printer Utility
Opening the Canon IJ Printer Utility
Maintenance of this Printer
Display the Printing Status Screen
Deleting the Undesired Print Job
Instructions for Use (Printer Driver)
139
Canon IJ Printer Driver
The Canon IJ printer driver (called printer driver below) is a software that is installed on your computer for
printing data with this printer.
The printer driver converts the print data created by your application software into data that your printer can
understand, and sends the converted data to the printer.
Because different models support different print data formats, you need a printer driver for the specific
model you are using.
Using Help of the Printer Driver
You can display Help function from the Print Dialog.
Select a setup item from the pop-up menu in the Print dialog. Then click
screen to display an explanation of the item.
at the bottom left of the
Help for the printer driver is displayed when the following pop-up menu item is selected:
• Quality & Media
• Color Options
• Margin
140
How to Open the Printer Driver Setup Window
You can display the printer driver setup window from the application software you are using.
Opening the Page Setup Dialog
Use this procedure to set the page (paper) settings before printing.
1. Select Page Setup... from the File menu of the application software
The Page Setup Dialog opens.
Opening the Print Dialog
Use this procedure to set the print settings before printing.
1. Select Print... from the File menu of the application software
The Print Dialog opens.
141
Page Setup Dialog
In the Page Setup dialog, you configure the basic print settings such as the size of paper loaded in the
printer or the scaling ratio.
To open the Page Setup dialog, you typically select Page Setup... from the File menu of your application
software.
Settings
Click the pop-up menu, and then select the following items:
Page Attributes
Set the paper size or scaled printing.
Save as Default
You can save the attributes of the displayed page as the default settings.
Format For
Select the model to be used for printing.
Paper Size
Select the size of the paper to be used for printing.
To set a non-standard size, select Manage Custom Sizes....
Orientation
Select the print orientation.
Scale
Set the scaling percentage.
You can expand or reduce the size of the document when printing.
142
Print Dialog
In the Print dialog, you can set paper type and print quality to start printing.
To open the Print dialog, you typically select Print... from the File menu of your application software.
Printer
Select the model to be used for printing.
When you click Add Printer..., a dialog for specifying the printer opens.
Presets
You can save or delete the settings of the Print dialog.
Note
• If you are using Mac OS X v10.8 or Mac OS X v10.7, you can select Show Presets... to check the
print settings that are set in the Print dialog.
Copies
You can set the number of copies to be printed.
Note
• If you are using Mac OS X v10.6.8, you can also set collate printing.
• If you are using Mac OS X v10.8 or Mac OS X v10.7, you can set collated printing by choosing
Paper Handling from the pop-up menu.
Pages
You can set the range of pages to be printed.
Paper Size
Select the size of the paper to be used for printing.
To set a non-standard size, select Manage Custom Sizes....
Orientation
Select the print orientation.
Pop-up Menu
You can switch between pages in the Print dialog by the pop-up menu. The first menu to appear differs
depending on the application software that opened the Print dialog.
You can choose one of the following items from the pop-up menu.
143
Layout
You can set page layout printing.
Use Reverse page orientation to change the paper orientation, and use Flip horizontally to print
a mirror image of the document.
Color Matching
You can select the color correction method.
Paper Handling
You can set the pages to be printed on paper and the print order.
Cover Page
You can output cover pages both before and after a document.
Scheduler
You can set the print start time and print priorities.
Quality & Media
You can set basic print settings that match the printer.
Color Options
You can adjust the print colors as you desire.
Margin
You can set the stapling side and the stapling margin.
Supply Levels
A rough indication of the remaining ink level is displayed.
Summary
The selected items in the Print dialog are displayed.
Important
• If you are using Mac OS X v10.8 or Mac OS X v10.7, you cannot use Scheduler and Summary.
PDF
You can save a document in PDF (Portable Document Format) format.
Preview
If you are using Mac OS X v10.6.8, when you click
(the disclosure triangle) on the side of Printer
and switch to the simple display, Preview is displayed.
This button allows you to check the print results on the screen before printing.
144
Quality & Media
This dialog allows you to create a basic print setup in accordance with the paper type. Unless special
printing is required, normal printing can be performed just by setting the items in this dialog.
Media Type
Select the type of media to be used.
You must select the type of media actually loaded in the printer. This selection enables the printer to
carry out printing properly for the material of the media used.
Paper Source
Shows the source from which paper is supplied.
Print Quality
Select the one that is closest to the original document type and the purpose.
When one of the radio buttons is selected, the appropriate quality will be set automatically.
High
Gives priority to print quality over printing speed.
Standard
Prints with average speed and quality.
Draft
This setting is appropriate for test printing.
Custom
Select this radio button to specify a quality.
Quality
When you select Custom in Print Quality, you can use the slider bar to adjust the print quality
level.
Grayscale Printing
Set grayscale printing. Grayscale printing refers to the function of converting your document to
grayscale data in the printer to print it in monochrome.
When you check the check box, both monochrome and color documents will be printed in monochrome.
When printing a color document, be sure to uncheck the check box.
145
Related Topics
Setting the Print Quality Level (Custom)
Printing a Color Document in Monochrome
146
Color Options
This dialog allows you to adjust the print color as you like. If the color of the printed image is not as
expected, adjust the properties in the dialog and retry printing.
The adjustments made here do not affect the colors of the original print data unlike application software
dedicated to image processing. Use this dialog just to make fine adjustments.
Preview
Shows the effect of color adjustment.
As you adjust each item, the effects are reflected in the color and brightness. You can check the color
adjustment status easily.
Sample Type
Select an image that you want to display as a sample.
If necessary, select one from Standard, Portrait, Landscape, or Graphics, whichever is most similar
to the print results.
View Color Pattern
Displays a pattern for checking color changes produced by color adjustment.
When you want to display the sample image with a color pattern, check this check box.
When you want to display the sample image with one that you selected with Sample Type, uncheck
this check box.
Note
• When the Grayscale Printing check box is checked in the Quality & Media, the graphic is
displayed in monochrome.
Color balance (Cyan, Magenta, Yellow)
If necessary, adjust the strength of each color. To strengthen a color, drag the slider to the right. To
weaken a color, drag the slider to the left.
You can also directly enter a value linked to the slider. Enter a value in the range from -50 to 50.
Adjusting the color balance will result in variations in the balance among the volumes of the individual
color inks and hence in the hues of the document as a whole.
147
Use the printer driver only when adjusting the color balance slightly. To change the color balance
significantly, use the application software.
Brightness
Select the brightness of printed images.
You cannot change the levels of pure white and black. You can change the contrast of the colors
between white and black.
Intensity
Select this method to adjust the overall density of your print.
To increase the overall intensity, drag the slider to the right. To decrease the overall intensity, drag the
slider to the left.
You can also directly enter a value linked to the slider. Enter a value in the range from -50 to 50.
Contrast
The Contrast function changes the differences between light and dark in images during printing.
To make the differences between the light and dark portions of images greater and more distinct,
increase the contrast. On the other hand, to make the differences between the light and dark portions of
images smaller and less distinct, reduce the contrast.
You can also directly enter a value linked to the slider. Enter a value in the range from -50 to 50.
Important
• When the Grayscale Printing check box is checked for Quality & Media, the color balance (Cyan,
Magenta, Yellow) appear grayed out and are unavailable.
• If you select ColorSync for Color Matching, then the color balance (Cyan, Magenta, Yellow),
Brightness, Intensity, and Contrast appear grayed out and are unavailable.
Related Topics
Specifying Color Correction
Adjusting Color Balance
Adjusting Brightness
Adjusting Intensity
Adjusting Contrast
148
Margin
This dialog allows you to set the stapling side and amount of margin for stapling multiple sheets of paper.
Margin
Specify the amount of margin space for stapling the paper. Enter a value between 0 inches (0 mm) to
1.2 inches (30 mm).
Stapling Side
Specify the stapling side.
Long-side stapling (Left) / Long-side stapling (Right)
Select this option to staple the long side of the paper.
Choose left or right.
Short-side stapling (Top) / Short-side stapling (Bottom)
Select this option to staple the short side of the paper.
Choose top or bottom.
Related Topic
Setting the Stapling Margin
149
Canon IJ Printer Utility
The Canon IJ Printer Utility allows you to perform printer maintenance or change the settings of the printer.
What You Can Do with the Canon IJ Printer Utility
You can switch between pages in Canon IJ Printer Utility by the pop-up menu. You can choose one of the
following items from the pop-up menu.
Cleaning
Clean the printer to prevent print smudges and clear up clogged print head nozzle.
Test Print
Execute a test print to check the condition of the print head nozzle and to adjust the print head
position.
Power Settings
Operate the power of this printer from the printer driver.
Ink Level Information
Check the remaining ink levels.
Ink Cartridge Settings
Selects the FINE cartridge you use for printing.
Quiet Settings
You can reduce the operating noise of the printer.
Custom Settings
Change the settings of this printer.
Note
• To operate the Canon IJ Printer Utility, you must first turn on the printer.
• Depending on the items selected, the computer communicates with the printer to obtain information.
If the computer is unable to communicate with the printer, an error message may be displayed.
If this happens, click Cancel to display the most recent settings specified on your computer.
150
Related Topics
Cleaning the Print Heads from Your Computer
Cleaning Inside the Printer
Cleaning the Paper Feed Rollers from Your Computer
Use Your Computer to Print a Nozzle Check Pattern
Aligning the Print Head Position from Your Computer
Checking the Ink Status from Your Computer
Setting the Ink Cartridge to be Used
Managing the Printer Power
Reducing the Printer Noise
Changing the Printer Operation Mode
151
Opening the Canon IJ Printer Utility
To open the Canon IJ Printer Utility, follow the steps below.
1. Open System Preferences, and select Print & Scan (Print & Fax)
2. Start the Canon IJ Printer Utility
Select your model from the printer list, and click Options & Supplies....
Click Open Printer Utility in Utility tab.
Canon IJ Printer Utility is launched.
152
Maintenance of this Printer
Cleaning the Print Heads from Your Computer
Cleaning Inside the Printer
Cleaning the Paper Feed Rollers from Your Computer
Use Your Computer to Print a Nozzle Check Pattern
Aligning the Print Head Position from Your Computer
Checking the Ink Status from Your Computer
Setting the Ink Cartridge to be Used
Managing the Printer Power
Reducing the Printer Noise
Changing the Printer Operation Mode
153
Display the Printing Status Screen
Check the print progress according to the following procedure:
1. Launch the printing status screen
• If the print data has been sent to the printer
The printing status screen opens automatically. To display the printing status screen, click the
(the printer icon) displayed on the Dock.
• If the print data has not been sent to the printer
Open System Preferences, and select Print & Scan (Print & Fax).
To display the printing status screen, select the name of your printer model from the printer list,
and then click Open Print Queue....
2. Checking the printing status
You can check the name of the file being printed or ready for being printed.
• If you are using Mac OS X v10.8
Deletes the specified print job.
Stops printing the specified document.
Resumes printing the specified document.
Stops printing all documents.
Displayed only when printing of all documents is being stopped, and resumes printing all documents.
• If you are using Mac OS X v10.7 or Mac OS X v10.6.8
154
Deletes the specified print job.
Stops printing the specified document.
Resumes printing the specified document.
Displays the print job information.
Stops printing all documents.
Displayed only when printing of all documents is being stopped, and resumes printing all documents.
155
Deleting the Undesired Print Job
If the printer does not start printing, canceled or failed print job data may be remaining.
Delete unnecessary print jobs from the print status check screen.
1. Open System Preferences, and select Print & Scan (Print & Fax)
2. Select your model, and then click Open Print Queue...
The print status check screen appears.
3. Select the unnecessary print job and click
(
The selected print jobs will be deleted.
156
Delete)
Instructions for Use (Printer Driver)
This printer driver is subject to the following restrictions. Keep the following points in mind when using the
printer driver.
Restrictions on the Printer Driver
• When you set up the Page Setup dialog, be sure to begin by selecting the model you are using from
the Format For list. If you select another printer, printing may not be performed properly.
• If the Canon IJ Printer Utility does not display the remaining ink level in the Ink Level Information,
check whether the FINE cartridge is properly installed.
• When the Canon IJ Printer Utility displays the Ink Level Information, close the cover of the printer.
• The following functions cannot be used in Mac OS, though they can be used in Windows computers.
◦ Duplex Printing
◦ Booklet Printing
◦ Tiling/Poster Printing
• Depending on the application software that you are using, a preview may not be displayed on the left
side of the Print dialog.
• If you connect this printer and AirPort with a USB cable and print, you must install the latest AirPort
firmware.
157
Updating the Printer Driver
Obtaining the Latest Printer Driver
Delete the Unnecessary Canon IJ Printer from the Printer List
Before Installing the Printer Driver
Installing the Printer Driver
158
Obtaining the Latest Printer Driver
By updating the printer driver to the latest version of the printer driver, unresolved problems may be solved.
You can access our website and download the latest printer driver for your model.
Important
• You can download the printer driver for free, but any Internet access charges incurred are your
responsibility.
Related Topics
Before Installing the Printer Driver
Installing the Printer Driver
159
Delete the Unnecessary Canon IJ Printer from the Printer List
A Canon IJ Printer that you no longer use can be deleted from the printer list.
Before deleting the Canon IJ Printer, disconnect the cable that connects the printer to the computer.
The procedure to delete the unnecessary Canon IJ Printer from the printer list is as follows:
You cannot delete the Canon IJ Printer unless you are logged in as a user with the administrative right. For
information about an administrative user, refer to the user's manual for the Mac OS.
1. Open System Preferences, and select Print & Scan (Print & Fax)
2. Delete the Canon IJ Printer from the printer list
From the printer list, select the Canon IJ Printer to be deleted, and then click -.
Note
• Even if a Canon IJ Printer is deleted from the printer list, you can re-register it automatically by
connecting the printer to your computer.
160
Before Installing the Printer Driver
This section describes the items that you should check before installing the printer driver. You should also
refer to this section if the printer driver cannot be installed.
Checking the Printer Status
• Confirm that the USB port of this printer and the computer are firmly connected with the USB cable.
Checking the Personal Computer Settings
• Terminate all running applications.
• Log on as the computer administrator. The installer will prompt you to enter the name and password
of the administrative user. When multiple users are using Mac OS X, log on with the account of the
administrator who registered first.
Important
• When you upgrade from Mac OS X v10.7 to Mac OS X v10.8 or from Mac OS X v10.6.8 to Mac OS X
v10.7, all printer drivers that were installed will be deleted.
If you plan to continue using this printer, re-install the latest printer driver.
Related Topics
Obtaining the Latest Printer Driver
Installing the Printer Driver
161
Installing the Printer Driver
You can access our web site through the Internet and download the latest printer driver for your model.
The procedure for installing the downloaded printer driver is as follows:
1. Mount the disk
Double-click the disk image file you have downloaded.
The file is unpacked, and then the disk is mounted.
2. Start the installer
Double-click "PrinterDriver_XXX_YYY.pkg" (where "XXX" is your model name, and "YYY" is version)
contained in the disk.
3. Start the installation
Install the printer driver according to the messages on the screen.
When the Software License Agreement is displayed, check the contents, and click Continue. If you do
not agree to the terms of the Software License Agreement, you cannot install this software.
4. Selecting the install destination
If necessary, select where you want to install the printer driver, and then click Continue.
5. Executing the installation
Click Install.
When the authentication screen is displayed, enter the name and password of the administrator, and
then click Install Software (OK).
6. Complete the installation
When the completion message appears, click Close.
The printer driver is installed successfully.
Important
• If the Installer does not operate properly, select Quit Installer from the Installer menu of the Finder to
quit the Installer. Then start the Installer again.
• You can download the printer driver for free, but you are responsible for paying any connection fees to
the Internet.
Related Topics
Obtaining the Latest Printer Driver
Delete the Unnecessary Canon IJ Printer from the Printer List
Before Installing the Printer Driver
162
Sharing the Printer on a Network
When multiple computers are being used in the network environment, you can share the printer connected
to one computer with the other computers.
Before carrying out the setup for printer sharing, select Network from System Preferences, and check
whether the network settings have been set.
This section describes the procedure for sharing a printer among Mac.
• Settings on Print Server
This section describes the procedure for setting a computer that connects with this printer directly
through a USB cable.
• Settings on Client PC
This section describes the procedure for setting a computer that uses this printer though a network.
When you execute print, the data is sent to the printer through the print server system.
Related Topic
Restrictions on Printer Sharing
163
Settings on Print Server
When you use the printer on a network, set up the printer driver for sharing on the print server system.
The procedure for setting up the print server systems is as follows:
1. Install the printer driver on the print server system
2. Check that the printer to be used has been added
Open System Preferences, and select Print & Scan (Print & Fax).
The printer list displays the printers that are connected to the computer.
3. Set sharing
Check the Share this printer on the network check box.
Note
• Depending on the environment you are using, a message prompting you to restart the computer may
be displayed. To complete the installation properly, restart the computer.
The setup on the print server system is complete. Next, set up the client systems.
164
Settings on Client PC
After setting up the print server system, set up the client system.
The procedure for setting up the client systems is as follows:
1. Install the printer driver on the client systems
2. Display the printer list
Open System Preferences, and select Print & Scan (Print & Fax).
Click + to display the printer list.
3. Add a printer to be shared
Select a shared printer displayed in the printer list, and then click Add.
The setup on the client systems is now completed.
Note
• The print procedures are the same as when the computer is connected directly to the printer with a USB
cable.
At the Page Setup dialog, select the printer that is connected to the print server to be used.
165
Restrictions on Printer Sharing
These are restrictions that apply when you are using a printer in a network environment.
• Install the same version of the printer driver in the print server system and the client systems. You can
download the latest printer driver from our web site.
• Use printer sharing with users who have the administrator privilege.
• Depending on how the computer is connected with the printer, the computer may not be able to access
the function information that was set on the printer and display the correct settings.
166
Troubleshooting
The Printer Cannot Be Powered On
Printing Does Not Start
Paper Does Not Feed Properly/"No Paper" Error Occurs
Print Results Not Satisfactory
Ink Is Not Ejected
Paper Jams
If an Error Occurs
Search Each Function
Problems with Printing
Problems with Printing Quality
Problems with the Printer
Problems with Installation/Downloading
About Errors/Messages Displayed
If You Cannot Resolve the Problem
167
Problems with Printing
Printing Does Not Start
Paper Jams
Paper Does Not Feed Properly/"No Paper" Error Occurs
Printing Stops Before It Is Completed
168
Printing Does Not Start
Make sure that the power plug is securely plugged in, then press the ON/
RESUME button to turn the printer on.
Check1
While the POWER lamp is flashing, the printer is initializing. Wait until the POWER lamp stops flashing and
remains lit.
Note
• When printing large data such as a photo or graphics, it may take longer to start printing. While the
POWER lamp is flashing, the computer is processing data and sending it to the printer. Wait until printing
starts.
Check2
Make sure that the USB cable is securely plugged in to the printer and the
computer.
When the printer is connected to your computer with a USB cable, check the followings:
• If you are using a relay device such as a USB hub, disconnect it, connect the printer directly to the
computer, and try printing again. If printing starts normally, there is a problem with the relay device. Consult
the reseller of the relay device for details.
• There could also be a problem with the USB cable. Replace the USB cable and try printing again.
Check3
If there are any unnecessary print jobs, delete them.
Deleting the Undesired Print Job
Check4
Make sure that your printer's name is selected in the Print dialog.
The printer will not print properly if you are using a printer driver for a different printer.
Make sure that your printer's name is selected in Printer in the Print dialog.
Note
• To make the printer the one selected by default, select the printer for Default printer.
Check5
Restart your computer.
169
Paper Jams
When paper is jammed, the Alarm lamp flashes orange and a troubleshooting message is displayed on the
computer screen automatically. Take the appropriate action described in the message.
* The screen differs depending on the OS you are using.
For details on how to remove the jammed paper, refer to Support Code List (When Paper Is Jammed).
Note
• You can confirm the actions against errors with Support Codes on your computer by searching a
Support Code.
Click Here to Search
170
Paper Does Not Feed Properly/"No Paper" Error Occurs
Check1
Make sure that paper is loaded.
Loading Paper
Check2
Make sure of the following when you load paper.
• When loading two or more sheets of paper, align the edges of the sheets before loading.
• When loading two or more sheets of paper, make sure that the paper stack does not exceed the paper load
limit.
However, proper feeding of paper may not be possible at this maximum capacity depending on the type of
paper or environmental conditions (either very high or low temperature and humidity). In such cases, reduce
the sheets of paper you load at a time to less than half of the paper load limit.
• Always load the paper in portrait orientation, regardless of the printing orientation.
• When you load the paper, load the paper with the print side facing UP. Align the paper stack against the
right side of the rear tray and slide the paper guide so that it just touches the left edge of the stack.
Loading Paper
Check3
Check to see if the paper you are printing on is not too thick or curled.
Media Types You Cannot Use
Check4
Make sure of the following when you load envelopes.
When printing on envelopes, refer to Loading Paper, and prepare the envelopes before printing.
Once you have prepared the envelopes, load them in portrait orientation. If the envelopes are placed in
landscape orientation, they will not feed properly.
Confirm that the media type and the paper size settings correspond with the
loaded paper.
Check5
Check6
Make sure that there are not any foreign objects in the rear tray.
If the paper tears in the rear tray, see Paper Jams to remove it.
If there are any foreign objects in the rear tray, be sure to turn off the printer, unplug it from the power supply,
then remove the foreign object.
171
Check7
Clean the paper feed roller.
Cleaning the Paper Feed Rollers from Your Computer
Note
• Cleaning the paper feed roller will wear the roller, so perform this procedure only when necessary.
172
Printing Stops Before It Is Completed
Check1
Is the paper loaded?
Make sure that paper is loaded.
If the printer has run out of paper, load paper.
Check2
Do the printing documents have lots of photographs or illustrations?
As printing large data such as photos or graphics takes time for the printer and the computer to process, the
printer may appear to have stopped operating.
In addition, when printing data that uses a large amount of ink continuously on plain paper, the printer may
pause temporarily. In either case, wait until the process is complete.
Note
• If you are printing a document with a large printing area or printing multiple copies of a document, printing
may pause to allow the ink to dry.
Check3
Has the printer been printing continuously for a long period?
If the printer has been printing continuously for a long time, the print head or other parts around it may overheat.
The printer may stop printing at a line break for a period of time and then resume printing.
In this case, wait for a while without operation. If the printing still does not resume, interrupt your print session at
a convenient time and turn the printer off for at least 15 minutes.
Caution
• The print head and the surrounding area can become extremely hot inside the printer. Never touch the
print head or nearby components.
173
Problems with Printing Quality
Print Results Not Satisfactory
Ink Is Not Ejected
174
Print Results Not Satisfactory
If the print result is not satisfactory due to white streaks, misaligned lines, or uneven colors, confirm the
paper and print quality settings first.
Check1
Do the page size and media type settings match the size and type of the loaded
paper?
When these settings are incorrect, you cannot obtain a proper print result.
If you are printing a photograph or an illustration, incorrect paper type settings may reduce the quality of the
printout color.
Also, if you print with an incorrect paper type setting, the printed surface may be scratched.
Confirm the page size and media type settings using the printer driver.
Printing with Easy Setup
Check2
Make sure that the appropriate print quality is selected using the printer driver.
Select a print quality option suitable for the paper and image for printing. If you notice blurs or uneven colors,
increase the print quality setting and try printing again.
You can confirm the print quality setting using the printer driver.
Changing the Print Quality and Correcting Image Data
Check3
If the problem is not resolved, there may be other causes.
See also the sections below:
Cannot Print to End of Job
No Printing Results/Printing Is Blurred/Colors Are Wrong/White Streaks
Colors Are Unclear
Lines Are Misaligned
Printed Paper Curls or Has Ink Blots
Paper Is Smudged/Printed Surface Is Scratched
Back of the Paper Is Smudged
Colors Are Uneven or Streaked
If the Printed Paper Has Been Discolored
Colors may fade with time if the printed paper is left for a long period of time.
After printing, dry the paper sufficiently, avoid high temperatures, high humidity, and direct sunlight, and
store or display indoors at room temperature and normal humidity.
To avoid direct exposure to air, it is recommended that you store the paper in an album, plastic folder,
photo frame, etc.
175
Cannot Print to End of Job
Check
Is the space of your computer's hard disk sufficient?
Delete unnecessary files to free disk space.
176
No Printing Results/Printing Is Blurred/Colors Are Wrong/White
Streaks
No Printing Results
Printing Is Blurred
Colors Are Wrong
White Streaks
177
Check1
Did you confirm the paper and print quality settings?
Print Results Not Satisfactory
Print the Nozzle Check Pattern and perform any necessary maintenance
operations such as Print Head Cleaning.
Check2
Print the Nozzle Check Pattern to determine whether the ink ejects properly from the print head nozzles.
Refer to When Printing Becomes Faint or Colors Are Incorrect for the Nozzle Check Pattern printing, Print Head
Cleaning, and Print Head Deep Cleaning.
• If the Nozzle Check Pattern is not printed correctly:
After performing the Print Head Cleaning, print the Nozzle Check Pattern and examine the pattern.
• If the problem is not resolved after performing the Print Head Cleaning twice:
Perform the Print Head Deep Cleaning.
If the problem is not resolved after performing the Print Head Deep Cleaning, turn off the printer and
perform another Print Head Deep Cleaning after 24 hours.
• If the problem is not resolved after performing the Print Head Deep Cleaning twice:
Ink may have run out. Replace the FINE cartridge.
Check3
When a FINE cartridge runs out of ink, replace it with a new one.
When using paper with one printable surface, make sure that the paper is
loaded with the printable side facing up.
Check4
Printing on the wrong side of such paper may cause unclear prints or prints with reduced quality.
Load paper with the printable side facing up.
Refer to the instruction manual supplied with the paper for detailed information on the printable side.
Check5
Is the FINE cartridge installed properly?
If the FINE cartridge is not installed securely, ink may not be ejected correctly.
Retract the output tray extension and the paper output tray, open the cover, then remove the FINE cartridges.
Then install the FINE cartridges again. Push the FINE cartridge until it clicks into place.
After confirming that the FINE cartridge is installed properly, close the cover.
178
Colors Are Unclear
Check1
Is the Nozzle Check Pattern printed properly?
Print the Nozzle Check Pattern to determine whether the ink ejects properly from the print head nozzles.
Refer to When Printing Becomes Faint or Colors Are Incorrect for the Nozzle Check Pattern printing, Print Head
Cleaning, and Print Head Deep Cleaning.
• If the Nozzle Check Pattern is not printed correctly:
After performing the Print Head Cleaning, print the Nozzle Check Pattern and examine the pattern.
• If the problem is not resolved after performing the Print Head Cleaning twice:
Perform the Print Head Deep Cleaning.
If the problem is not resolved after performing the Print Head Deep Cleaning, turn off the printer and
perform another Print Head Deep Cleaning after 24 hours.
• If the problem is not resolved after performing the Print Head Deep Cleaning twice:
Ink may have run out. Replace the FINE cartridge.
Check2
When a FINE cartridge runs out of ink, replace it with a new one.
Check3
Is the FINE cartridge installed properly?
If the FINE cartridge is not installed securely, ink may not be ejected correctly.
Retract the output tray extension and the paper output tray, open the cover, then remove the FINE cartridges.
Then install the FINE cartridges again. Push the FINE cartridge until it clicks into place.
After confirming that the FINE cartridge is installed properly, close the cover.
Note
• Printed colors may not match screen colors due to basic differences in the methods used to produce
colors. Color control settings and environmental differences can also affect how colors appear on the
screen. Therefore, colors of printing results may be different from those on the screen.
179
Lines Are Misaligned
Check1
Did you confirm the paper and print quality settings?
Print Results Not Satisfactory
Check2
Perform Print Head Alignment.
If printed lines are misaligned or print results are otherwise unsatisfactory, adjust the print head position.
Aligning the Print Head Position from Your Computer
Check3
Increase the print quality and try printing again.
Increasing the print quality in the printer driver may improve the print result.
180
Printed Paper Curls or Has Ink Blots
Printed Paper Has Ink Blots
Printed Paper Curls
Check1
Did you confirm the paper and print quality settings?
Print Results Not Satisfactory
Check2
If the intensity is set high, reduce the intensity setting and try printing again.
If you are using plain paper to print images with high intensity, the paper may absorb too much ink and become
wavy, causing paper abrasion.
You can confirm the intensity using the printer driver.
Adjusting Intensity
Check3
Is Photo Paper used for printing photographs?
When printing data with high color saturation such as photographs or images in deep color, we recommend
using Photo Paper Plus Glossy II or other Canon speciality paper.
Media Types You Can Use
181
Paper Is Smudged/Printed Surface Is Scratched
Paper Is Smudged
The Edges of Paper Are Smudged Printed Surface Is Smudged
Printed Surface Is Scratched
Check1
Did you confirm the paper and print quality settings?
Print Results Not Satisfactory
Check2
Is the appropriate type of paper used? Check the followings:
Check to see if the paper you are printing on is suitable for your printing purpose.
Media Types You Can Use
Check3
Load the paper after correcting its curl.
We recommend putting unused paper back into the package and keeping it on a level surface.
• For Plain Paper
Turn the paper over and reload it to print on the other side.
Leaving the paper loaded on the rear tray for a long time may cause the paper to curl. In this case, load the
paper with the other side facing up. It may resolve the problem.
• For Other Paper
If the curl on the four corners of the paper is more than 0.1 inch / 3 mm (A) in height, the paper may be
smudged or may not be fed properly. In such cases, follow the procedure described below to correct the
paper curl.
1. Roll up the paper in the opposite direction to the paper curl as shown below.
182
2. Check that the paper is now flat.
We recommend printing curl-corrected paper one sheet at a time.
Note
• Depending on the media type, the paper may be smudged or may not be fed properly even if it is not
curled inward. In such cases, follow the procedure described below to curl the paper outward within 0.1
inch / 3 mm (B) in height before printing. This may improve the print result.
(C) Printing side
We recommend printing paper that has been curled outward one sheet at a time.
Check4
If the intensity is set high, reduce the intensity setting and try printing again.
If you are using plain paper to print images with high intensity, the paper may absorb too much ink and become
wavy, causing paper abrasion.
Reduce the intensity setting in the printer driver and try printing again.
1. Open the Print dialog.
How to Open the Printer Driver Setup Window
2. Select Color Options in the pop-up menu.
3. Drag the Intensity slide bar to set the intensity.
Check5
Is printing performed beyond the recommended printing area?
If you are printing beyond the recommended printing area of your printing paper, the lower edge of the paper
may become stained with ink.
Resize your original document in your application software.
Printing Area
Check6
Is the paper feed roller dirty?
Clean the paper feed roller.
Cleaning the Paper Feed Rollers from Your Computer
Note
• Cleaning the paper feed roller will wear the roller, so perform this procedure only when necessary.
Check7
Is the inside of the printer dirty?
183
When performing duplex printing, the inside of the printer may become stained with ink, causing the printout to
become smudged.
Perform the Bottom Plate Cleaning to clean the inside of the printer.
Cleaning Inside the Printer
Note
• To prevent the inside of the printer from stains, set the paper size correctly.
Check8
Set the time to dry the printed surface longer.
Doing so gives the printed surface enough time to dry so that paper smudged and scratched are prevented.
1. Make sure that the printer is turned on.
2. Open the Canon IJ Printer Utility.
Opening the Canon IJ Printer Utility
3. Select Custom Settings in the pop-up menu.
4. Drag the Ink Drying Wait Time: slide bar to set the wait time, and then click Apply.
5. Confirm the message and click OK.
184
Back of the Paper Is Smudged
Check1
Did you confirm the paper and print quality settings?
Print Results Not Satisfactory
Check2
Perform the Bottom Plate Cleaning to clean the inside of the printer.
Cleaning Inside the Printer
Note
• When performing duplex printing or too much printing, the inside may become stained with ink.
185
Colors Are Uneven or Streaked
Colors Are Uneven
Colors Are Streaked
Check1
Did you confirm the paper and print quality settings?
Print Results Not Satisfactory
Check2
Print the Nozzle Check Pattern and perform any necessary maintenance
operations such as Print Head Cleaning.
Print the Nozzle Check Pattern to determine whether the ink ejects properly from the print head nozzles.
Refer to When Printing Becomes Faint or Colors Are Incorrect for the Nozzle Check Pattern printing, Print Head
Cleaning, and Print Head Deep Cleaning.
• If the Nozzle Check Pattern is not printed correctly:
After performing the Print Head Cleaning, print the Nozzle Check Pattern and examine the pattern.
• If the problem is not resolved after performing the Print Head Cleaning twice:
Perform the Print Head Deep Cleaning.
If the problem is not resolved after performing the Print Head Deep Cleaning, turn off the printer and
perform another Print Head Deep Cleaning after 24 hours.
• If the problem is not resolved after performing the Print Head Deep Cleaning twice:
Ink may have run out. Replace the FINE cartridge.
Check3
Perform Print Head Alignment.
186
Aligning the Print Head Position from Your Computer
187
Ink Is Not Ejected
Check1
When a FINE cartridge runs out of ink, replace it with a new one.
Check2
Is the FINE cartridge installed properly?
If the FINE cartridge is not installed securely, ink may not be ejected correctly.
Retract the output tray extension and the paper output tray, open the cover, then remove the FINE cartridges.
Then install the FINE cartridges again. Push the FINE cartridge until it clicks into place.
After confirming that the FINE cartridge is installed properly, close the cover.
Check3
Are the print head nozzles clogged?
Print the Nozzle Check Pattern to determine whether the ink ejects properly from the print head nozzles.
Refer to When Printing Becomes Faint or Colors Are Incorrect for the Nozzle Check Pattern printing, Print Head
Cleaning, and Print Head Deep Cleaning.
• If the Nozzle Check Pattern is not printed correctly:
After performing the Print Head Cleaning, print the Nozzle Check Pattern and examine the pattern.
• If the problem is not resolved after performing the Print Head Cleaning twice:
Perform the Print Head Deep Cleaning.
If the problem is not resolved after performing the Print Head Deep Cleaning, turn off the printer and
perform another Print Head Deep Cleaning after 24 hours.
• If the problem is not resolved after performing the Print Head Deep Cleaning twice:
Ink may have run out. Replace the FINE cartridge.
188
Problems with the Printer
The Printer Cannot Be Powered On
The Printer Turns Off Unintentionally
Cannot Connect to Computer Properly
FINE Cartridge Holder Does Not Move to the Position for Replacing
189
The Printer Cannot Be Powered On
Check1
Press the ON/RESUME button.
Make sure that the power plug is securely plugged into the power cord
connector of the printer, then turn it back on.
Check2
Unplug the printer from the power supply, then plug the printer back in and turn
the printer back on after leaving it for at least 2 minutes.
Check3
If the problem is not resolved, contact the service center.
190
The Printer Turns Off Unintentionally
Check
Deactivate the setting to turn the unit off automatically.
The printer turns off automatically according to the elapsed time you specified if you activate the setting to turn
the unit off automatically.
If you do not want the printer to turn off automatically, open Canon IJ Printer Utility, select Power Settings in the
pop-up menu, then select Disable for Auto Power Off on Auto Power.
191
Cannot Connect to Computer Properly
Printing Speed Is Slow/Hi-Speed USB Connection Does Not Work
If your system environment is not fully compatible with Hi-Speed USB, the printer will operate at a lower
speed provided under USB 1.1. In this case, the printer operates properly but printing speed may slow
down due to communication speed.
Check the following to make sure that your system environment supports HiSpeed USB connection.
Check
• Does the USB port on your computer support Hi-Speed USB connection?
• Does the USB cable or the USB hub support Hi-Speed USB connection?
Be sure to use a certified Hi-Speed USB cable. We recommend that the cable is no longer than around
10 feet / 3 meters.
• Does the operating system of your computer support Hi-Speed USB connection?
Obtain and install the latest update for your computer.
• Does the Hi-Speed USB driver operate properly?
Obtain the latest version of the Hi-Speed USB driver compatible with your hardware and reinstall it on
your computer.
Important
• For details on Hi-Speed USB of your system environment, contact the manufacturer of your computer,
USB cable, or USB hub.
192
FINE Cartridge Holder Does Not Move to the Position for Replacing
Check1
Is the POWER lamp off?
Check if the POWER lamp is lit.
The FINE cartridge holder will not move unless the power is on. If the POWER lamp is off, close the cover and
turn the printer on.
While the POWER lamp is flashing, the printer is initializing. Wait until the POWER lamp stops flashing and
remains lit, and then open the cover again.
Check2
Is the Alarm lamp flashing?
Close the cover, confirm the number of times the Alarm lamp is flashing, take the appropriate action to resolve
the error, and then reopen it. For details on how to resolve the error, see If an Error Occurs.
Check3
Has the cover been left open for 10 minutes or longer?
If the cover is left open for more than 10 minutes, the FINE cartridge holder moves to the position to protect it to
prevent the print head from drying out. Close and reopen the cover to return the FINE cartridge holder to the
position for replacing.
Check4
Has the printer been printing continuously for a long period?
If the printer has been printing continuously for a long time, the FINE cartridge holder may not move to the
position for replacing since the print head may overheat.
Note
• Do not open the cover while printing is in progress; otherwise, an error occurs
193
Problems with Installation/Downloading
Cannot Install the Printer Driver
194
Cannot Install the Printer Driver
Reinstall the printer driver.
When you reinstall the printer driver, install it from our website.
195
About Errors/Messages Displayed
If an Error Occurs
A Message Is Displayed
196
If an Error Occurs
When an error occurs in printing such as the printer is out of paper or paper is jammed, a troubleshooting
message is displayed automatically. Take the appropriate action described in the message.
When an error occurs, the Alarm lamp flashes orange and a Support Code (error number) is displayed on
the computer screen. For some errors, the POWER lamp and the Alarm lamp flashes alternately. Check the
status of the lamps and the message, then take the appropriate action to resolve the error.
Support Code Corresponding to the Number of Flashes of the Alarm Lamp
Example of 2 times flashing:
(A) Flashes
(B) Goes off
Number of flashes Cause
Support Code
2 flashes
There is no paper in the rear tray.
1000
3 flashes
The cover is opened while printing is in progress.
1203
Paper is jammed in the paper output slot or in the rear tray.
1300
4 flashes
The FINE cartridge is not installed properly.
1687
5 flashes
The FINE cartridge is not installed.
1401
The FINE cartridge cannot be recognized.
1403
Appropriate FINE cartridge is not installed.
1485
8 flashes
The ink absorber is almost full.
1700, 1701
9 flashes
The protective material for the FINE cartridge holder or the tape may remain
attached to the holder.
1890
11 flashes
Paper type and paper size settings are incorrect.
4102
12 flashes
You cannot print the contents on CREATIVE PARK PREMIUM.
4100
13 flashes
The ink may have run out.
1686
14 flashes
The ink cartridge cannot be recognized.
1684
15 flashes
The FINE cartridge cannot be recognized.
1682
16 flashes
The ink has run out.
1688
197
Support Code Corresponding to the Number of Alternate Flashes of the
POWER Lamp and the Alarm Lamp
Example of 2 times flashing:
(A) Flashes
(B) Goes off
Number of flashes
Cause
Support Code
2 flashes
Printer error has occurred.
5100
7 flashes
Printer error has occurred.
5B00, 5B01
10 flashes
An error requiring you to contact the service
center has occurred.
B200, B201
Other cases than above Printer error has occurred.
5200, 5400, 6000, 6800, 6801, 6930, 6931,
6932, 6933, 6940, 6941, 6942, 6943, 6944,
6945, 6946
• When a Support Code and a message are displayed on the computer screen:
* The screen differs depending on the OS you are using.
Note
• You can confirm the actions against errors with Support Codes on your computer by searching a
Support Code.
Click Here to Search
For details on how to resolve errors without Support Codes, see A Message Is Displayed.
198
A Message Is Displayed
This section describes some of the errors or messages.
Note
• A Support Code (error number) is displayed on the computer for some error or message. For details on
errors with Support Codes, refer to Support Code List.
The Inkjet Printer/Scanner/Fax Extended Survey Program Icon Appears
If the Inkjet Printer/Scanner/Fax Extended Survey Program is installed, the printer and application
software usage information is scheduled to be sent every month for about ten years. The Inkjet Printer/
Scanner/Fax Extended Survey Program icon appears in the Dock when it is time to send the printer
usage information.
Read the instructions on the screen after clicking the icon, then follow the procedure below.
• If you agree to participate in the survey program:
Click Agree, then follow the on-screen instructions. The printer usage information will be sent via the
Internet. If you have followed the on-screen instructions, the information will be sent automatically
from the second time onward and the confirmation screen will not be displayed again.
Note
• If you deselect the Send automatically from the next time check box, the information will not
be sent automatically from the second time onward and the Inkjet Printer/Scanner/Fax
Extended Survey Program icon will appear in the Dock at the time of the next survey.
199
• If you do not agree to participate in the survey program:
Click Do not agree. The confirmation screen will be closed, and the survey at that time is skipped.
The confirmation screen will be displayed again one month later.
• To stop sending the information:
Click Turn off. The Inkjet Printer/Scanner/Fax Extended Survey Program is stopped, and the
information will not be sent. To resume the survey, see Changing the setting:.
• To uninstall the Inkjet Printer/Scanner/Fax Extended Survey Program:
1. Stop the Inkjet Printer/Scanner/Fax Extended Survey Program.
Changing the setting:
2. Select Applications from the Go menu of Finder, and double-click the Canon Utilities folder,
then the Inkjet Extended Survey Program folder.
3. Place the Canon Inkjet Printer/Scanner/Fax Extended Survey Program.app file into the
Trash.
4. Restart the computer.
Empty the Trash and restart your computer.
• Changing the setting:
To display the confirmation screen every time the printer usage information is sent or to resume
surveying, follow the procedure below.
1. Select Applications from the Go menu of Finder, and double-click the Canon Utilities folder,
then the Inkjet Extended Survey Program folder.
2. Double-click the Canon Inkjet Printer/Scanner/Fax Extended Survey Program icon.
◦ Do not display the confirmation screen when information is sent:
If the check box is selected, the information will be sent automatically.
If the check box is not selected, the Inkjet Printer/Scanner/Fax Extended Survey Program
icon will appear in the Dock at the time of the next survey. Click the icon, then follow the onscreen instructions.
◦ Turn off/Turn on button:
Click the Turn off button to stop the Inkjet Printer/Scanner/Fax Extended Survey Program.
Click the Turn on button to restart the Inkjet Printer/Scanner/Fax Extended Survey Program.
200
If You Cannot Resolve the Problem
If you cannot resolve the problem with any of the workarounds in this chapter, please contact the seller of
the printer or the service center.
Canon support staff are trained to be able to provide technical support to satisfy customers.
Caution
• If the printer emits any unusual sound, smoke, or odor, turn it off immediately. Unplug the power cord
from the outlet and contact the seller or the service center. Never attempt to repair or disassemble the
printer yourself.
• Attempts by customers to repair or take apart the printer will invalidate any warranty regardless of
whether the warranty has expired.
Before contacting the service center, confirm the following:
• Product name:
* Your printer's name is located on the front cover of the setup manual.
• Serial number: please refer to the setup manual
• Details of the problem
• What you tried to solve the problem, and what happened
201
Support Code List
The support code appears on the computer screen when an error occurs.
"Support Code" means the error number and appears with an error message.
When an error occurs, check the support code displayed on the computer screen and take the appropriate
action.
Support Code Appears on the Computer Screen
• 1000 to 1ZZZ
1000 1200 1203 1300 1401 1403
1485 1682 1684 1686 1687 1688
1700 1701 1890
• 4000 to 4ZZZ
4100 4102
• 5000 to 5ZZZ
5100 5200 5400 5B00 5B01
• 6000 to 6ZZZ
6000 6800 6801 6930 6931 6932
6933 6940 6941 6942 6943 6944
6945 6946
• A000 to ZZZZ
B200 B201
About the support code for paper jam, you can also refer to Support Code List (When Paper Is Jammed).
202
Support Code List (When Paper Is Jammed)
If the paper is jammed, remove it following the procedure appropriate for each case.
• If you can see the jammed paper at the paper output slot or the rear tray:
1300
• If the paper tears and you cannot remove it from the paper output slot or from the rear tray:
Paper Is Jammed inside the Printer
• Cases other than above:
In Other Cases
203
1300
Cause
Paper is jammed in the paper output slot or in the rear tray.
Action
Remove the jammed paper following the procedure below.
Important
• When the paper jam error has occurred, you cannot turn the printer off the even if you press the ON/
RESUME button on the printer. Take the appropriate action of the paper jam error, then turn the
printer off.
1. Pull the paper out slowly, either from the rear tray or from the paper output slot,
whichever is easier.
Hold the paper with your hands, then pull the paper out slowly not to tear it.
Note
• If the paper tears and you cannot remove the jammed paper from the paper output slot or the
rear tray, remove the paper from inside the printer.
Paper Is Jammed inside the Printer
2. Reload the paper, and press the ON/RESUME button on the printer.
The printer resumes printing.
Note
• When reloading the paper, confirm that you are using the paper suited for printing and are
loading it correctly.
• We recommend you use paper other than A5 sized one to print documents with photos or
graphics; otherwise, the printout may curl and cause paper exit jams.
204
If you cannot remove the paper or the paper tears inside the printer, or if the paper jam error continues
after removing the paper, contact the service center.
205
Paper Is Jammed inside the Printer
If the jammed paper tears and you cannot remove the paper either from the paper output slot or from the
rear tray, or if the jammed paper remains inside the printer, remove the paper following the procedure
below.
Important
• When the paper jam error has occurred, you cannot turn the printer off the even if you press the ON/
RESUME button on the printer. Take the appropriate action of the paper jam error, then turn the printer
off.
1. Retract the paper output tray, then open the cover.
Important
• Do not touch the clear film (A).
If the paper or your hands touch the clear film and blot or scratch it, the printer can be damaged.
2. Make sure that the jammed paper is not under the FINE cartridge holder.
If the jammed paper is under the FINE cartridge holder, move the FINE cartridge holder to the right edge
or the left edge whichever is easier to remove the paper.
When you move the FINE cartridge holder, hold the FINE cartridge holder and slide it slowly to the right
edge or the left edge.
206
3. Hold the jammed paper with your hands.
If the paper is rolled up, pull it out.
4. Pull the paper slowly not to tear it, then pull the paper out.
5. Make sure that all the jammed paper is removed.
If the paper is torn, a piece of paper may remain inside the printer. Check the following and remove the
piece of paper if it remains.
• Does the piece of paper remain under the FINE cartridge holder?
• Does the little piece of paper remain inside the printer?
207
• Does the piece of paper remain in the right side or the left side space (B) inside the printer?
6. Close the cover.
7. Reload the paper, and press the ON/RESUME button on the printer.
The printer resumes printing.
Note
• When reloading the paper, confirm that you are using the paper suited for printing and are loading
it correctly. If the message about paper jam is displayed on the computer screen when you
resume printing after removing all the jammed paper, a piece of paper may remain inside the
printer. In this case, confirm that no piece of paper remains inside the printer.
If you cannot remove the paper or the paper tears inside the printer, or if the paper jam error continues after
removing the paper, contact the service center.
208
In Other Cases
Make sure of the following:
Check1
Are there any foreign objects around the paper output slot?
Check2
Are there any foreign objects in the rear tray?
If there are any foreign objects in the rear tray, be sure to turn off the printer, unplug it from the power supply,
then remove the foreign object.
Check3
Is the paper curled?
Load the paper after correcting its curl.
209
1000
Cause
There is no paper in the rear tray.
Action
Load paper in the rear tray and press the printer's ON/RESUME button.
Important
• When the paper out error has occurred, you cannot turn the printer off the even if you press the ON/
RESUME button on the printer. Before turning the printer off, take the following actions.
• Load paper to resume printing.
• Cancel printing on the message screen displayed on your computer.
210
1200
Cause
The cover is open.
Action
Close the cover and wait for a while.
211
1203
Cause
The cover is opened while printing is in progress.
Action
If paper is left inside the printer, remove the paper slowly with both hands and close the cover.
Press the printer's ON/RESUME button to dismiss the error.
The printer ejects one blank sheet of paper and resumes printing from the next paper.
The printer will not reprint the page that was printed when the cover is opened. Try printing again.
Important
• Do not open or close the cover while printing is in progress, as this can damage the printer.
212
1401
Cause
The FINE cartridge is not installed.
Action
Install the FINE cartridge.
If the error is not resolved, the FINE cartridge may be damaged. Contact the service center.
213
1403
Cause
The FINE cartridge cannot be recognized.
Action
Replace the FINE cartridge.
If the error is not resolved, the FINE cartridge may be damaged. Contact the service center.
214
1485
Cause
Appropriate ink cartridge is not installed.
Action
Printing cannot be executed because the ink cartridge is not compatible with this printer.
Install the appropriate ink cartridge.
If you want to cancel printing, press the printer's ON/RESUME button.
215
1682
Cause
The FINE cartridge cannot be recognized.
Action
Replace the FINE cartridge.
If the error is not resolved, the FINE cartridge may be damaged. Contact the service center.
216
1684
Cause
The ink cartridge cannot be recognized.
Action
Printing cannot be executed because the ink cartridge may not be installed properly or may not be
compatible with this printer.
Install the appropriate ink cartridge.
If you want to cancel printing, press the printer's ON/RESUME button.
217
1686
Cause
The ink may have run out.
Action
The function for detecting the remaining ink level will be disabled since the ink level cannot be correctly
detected.
If you want to continue printing without this function, press the printer's ON/RESUME button for at least 5
seconds.
Canon recommends to use new genuine Canon cartridges in order to obtain optimum qualities.
Please be advised that Canon shall not be liable for any malfunction or trouble caused by continuation of
printing under the ink out condition.
218
1687
Cause
The FINE cartridge is not installed properly.
Action
Retract the output tray extension and the paper output tray, open the cover, then remove the FINE
cartridges.
Then install the FINE cartridges again. Push the FINE cartridge until it clicks into place.
After installing, close the cover.
219
1688
Cause
The ink has run out.
Action
Replace the ink cartridge and close the cover.
If printing is in progress and you want to continue printing, press the printer's ON/RESUME button for at
least 5 seconds with the ink cartridge installed. Then printing can continue under the ink out condition.
The function for detecting the remaining ink level will be disabled.
Replace the empty ink cartridge immediately after the printing. The resulting print quality is not
satisfactory, if printing is continued under the ink out condition.
220
1700
Cause
The ink absorber is almost full.
Action
Press the printer's ON/RESUME button to continue printing. Contact the service center.
221
1701
Cause
The ink absorber is almost full.
Action
Press the printer's ON/RESUME button to continue printing. Contact the service center.
222
1890
Cause
The protective material for the FINE cartridge holder or the tape may remain attached to the holder.
Action
Make sure that the protective material or the tape does not remain attached to the FINE cartridge holder.
If you find the protective material or the tape remains attached, retract the output tray extension and the
paper output tray to remove the protective material or the tape.
Pull down the tape to remove the protective material.
Close the cover after removing the protective material.
If the problem is not resolved, contact the service center.
223
4100
Cause
The specified data cannot be printed.
Action
When you print the contents on CREATIVE PARK PREMIUM, confirm the message on the computer
screen, make sure that genuine Canon FINE cartridges are all installed properly, then start printing again.
224
4102
Cause
The media type and paper size are not set correctly.
Action
Press the printer's ON/RESUME button to cancel printing, change the media type or paper size setting,
then print again.
• When the media type is set to Photo Paper Plus Glossy II:
Set the paper size to 4"x6" 10x15cm (Windows)/4 x 6 (Mac), or 5"x7" 13x18cm (Windows)/5 x 7
(Mac).
• When the media type is set to Glossy Photo Paper:
Set the paper size to 4"x6" 10x15cm (Windows)/4 x 6 (Mac).
• When the media type is set to Envelope:
Set the paper size to Envelope Com 10 (Windows)/Envelope #10 (Mac) or Envelope DL (Windows/
Mac).
225
5100
Cause
Printer error has occurred.
Action
Cancel printing, turn off the printer. Then clear the jammed paper or protective material that is preventing
the FINE cartridge holder from moving, and turn on the printer again.
If the problem is not resolved, contact the service center.
Important
• When you clear the jammed paper or protective material that is preventing the FINE cartridge holder
from moving, be careful not to touch the components inside the printer. The printer may not print out
properly if you touch it.
226
5200
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
227
5400
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
228
5B00
Cause
Printer error has occurred.
Action
Contact the service center.
229
5B01
Cause
Printer error has occurred.
Action
Contact the service center.
230
6000
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
231
6800
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
232
6801
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
233
6930
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
234
6931
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
235
6932
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
236
6933
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
237
6940
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
238
6941
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
239
6942
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
240
6943
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
241
6944
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
242
6945
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
243
6946
Cause
Printer error has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Plug the printer back in and turn the printer back on.
If the problem is not resolved, contact the service center.
244
B200
Cause
An error requiring you to contact the service center has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Contact the service center.
245
B201
Cause
An error requiring you to contact the service center has occurred.
Action
Turn off the printer, and unplug the power cord of the printer from the power supply.
Contact the service center.
246
