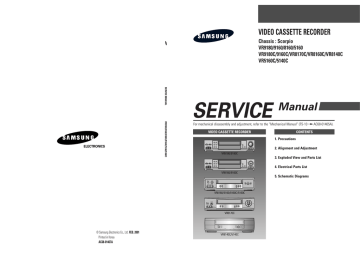

Samsung VR5140C Service manual

VIDEO CASSETTE RECORDER
Chassis : Scorpio
VR9180/9160/8160/5160
VR9180C/9160C/VR8170C/VR8160C/VR8140C
VR5160C/5140C
SERVICE MANUAL
VR9180/9160/9180C/9160C/5160/5160C
ELECTRONICS
SERVICE
Manual
For mechanical disassembly and adjustment, refer to the “Mechanical Manual” (TS-10
VIDEO CASSETTE RECORDER
CONTENTS
1. Precautions
SHUTTLE
JOG/
TV/VCR
POWER
EJECT
MENU
CHANNEL
REC
TRACKING
LINE IN
L AUDIO R
VIDEO
INPUT
TAPE SPEED
PLAY
P/S
2. Alignment and Adjustment
STOP
VR9180/9180C
3. Exploded View and Parts List
TV/VCR
POWER
VIDEO
EJECT
MENU
REW
CHANNEL
REC
TRACKING
LINE IN
L AUDIO R
F.F
INPUT
TAPE SPEED
P/S
STOP
4. Electrical Parts List
VR9160/9160C
5. Schematic Diagrams
POWER
EJECT
REW
PLAY
F.F
LINE IN 2
VIDEO
L AUDIO R
REC
CHANNEL
STOP
MENU
VR8160/5160/8160C/5160C
POWER
EJECT
REW
VIDEO
L AUDIO
REC
CHANNEL
R
STOP
LINE IN 2
MENU
VR8170C
POWER
REW
EJECT
POWER
© Samsung Electronics Co., Ltd. FEB. 2001
Printed in Korea
AC68-01467A
AC68-01405A).
PLAY
REC
VR8140C/5140C
F.F
STOP
PLAY
F.F
IMPORTANT SERVICE GUIDE
♦ MODE SWITCH (PROGRAM SWITCH) ASSEMBLY POINT
1) When installing the ass’y deck on the Main PCB, be sure to align the assembly point of mode switch.
ASSEMBLY POINT
(ALIGN TWO ARROWS)
Fig. 1
♦ HOW TO EJECT THE CASSETTE TAPE
(If the unit does not operate on condition that tape is inserted into housing ass’y)
1) Turn the Gear Worm Πclockwise in the direction of arrow with screw driver. (See Fig. 2)
(Other method ; Remove the screw of Motor Load Ass’y, Separate the Motor Load Ass’y)
2) When Slider S, T are approached in the position of unloading, rotate holder Clutch counterclockwise after inserting screw driver in the
hole of frame’s bottom in order to wind the unwiunded tape. (Refer to Fig. 3)
(If you rotate Gear Worm Πcontinuously when tape is in state of unwinding, you may cause a tape contamination by grease and
tape damage. Be sure to wind the unwiunded tape in the state of set horizontally.)
3) Rotate Gear Worm ˇ clockwise using screw driver again up to the state of eject mode and then pick out the tape. (Refer to Fig. 2)
ΠGEAR WORM
FRAME
Fig. 2
Fig. 3
1. Precautions
1. Be sure that all of the built-in protective devices are
replaced. Restore any missing protective shields.
2. When reinstalling the chassis and its assemblies, be
sure to restore all protective devices, including :
control knobs and compartment covers.
3. Make sure that there are no cabinet openings
through which people--particularly children
--might insert fingers and contact dangerous
voltages. Such openings include the spacing
between the picture tube and the cabinet mask,
excessively wide cabinet ventilation slots, and
improperly fitted back covers.
If the measured resistance is less than 1.0 megohm
or greater than 5.2 megohms, an abnormality exists
that must be corrected before the unit is returned
to the customer.
4. Leakage Current Hot Check (See Fig. 1-1) :
Warning : Do not use an isolation transformer
during this test. Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI C101.1,
Leakage Current for Appliances), and Underwriters
Laboratories (UL Publication UL1410, 59.7).
5. With the unit completely reassembled, plug the AC
line cord directly the power outlet. With the unit’s
AC switch first in the ON position and then OFF,
measure the current between a known earth
ground (metal water pipe, conduit, etc.) and all
exposed metal parts, including : antennas, handle
brackets, metal cabinets, screwheads and control
shafts. The current measured should not exceed
0.5 milliamp. Reverse the power-plug prongs in the
AC outlet and repeat the test.
6. X-ray Limits :
The picture tube is designed to prohibit X-ray
emissions. To ensure continued X-ray protection,
replace the picture tube only with one that is the
same type as the original.
Samsung Electronics
(READING SHOULD
NOT BE ABOVE
0.5mA)
LEAKAGE
CURRENT
TESTER
DEVICE
UNDER
TEST
TEST ALL
EXPOSED METER
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EARTH
GROUND
Fig. 1-1 AC Leakage Test
7. Antenna Cold Check :
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across the
two AC prongs. Connect one lead of the ohmmeter
to an AC prong.
Connect the other lead to the coaxial connector.
8. High Voltage Limit :
High voltage must be measured each time
servicing is done on the B+, horizontal deflection
or high voltage circuits.
Heed the high voltage limits. These include the
X-ray protection Specifications Label, and the
Product Safety and X-ray Warning Note on the
service data schematic.
9. Some semiconductor (“solid state”) devices are
easily damaged by static electricity.
Such components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect transistors.
The following techniques will reduce the
occurrence of component damage caused by static
electricity.
10. Immediately before handling any semiconductor
components or assemblies, drain the electrostatic
charge from your body by touching a known
earth ground. Alternatively, wear a discharging
Wrist-strap device. (Be sure to remove it prior to
applying power--this is an electric shock
precaution.)
1-1
Precautions
11. High voltage is maintained within specified limits
by close-tolerance, safety-related components and
adjustments. If the high voltage exceeds the
specified limits, check each of the special
components.
12. Design Alteration Warning :
Never alter or add to the mechanical or electrical
design of this unit. Example : Do not add
auxiliary audio or video connectors.
Such alterations might create a safety hazard.
Also, any design changes or additions will void
the manufacturer’s warranty.
13. Hot Chassis Warning :
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only if
the AC power plug is inserted so that the chassis
is connected to the ground side of the AC source.
To confirm that the AC power plug is inserted
correctly, do the following : Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the reading
is greater than 1.0V, remove the AC power plug,
reverse its polarity and reinsert. Re-measure the
voltage between the chassis and ground.
14. Some TV chassis are designed to operate with 85
volts AC between chassis and ground, regardless
of the AC plug polarity. These units can be safely
serviced only if an isolation transformer inserted
between the receiver and the power source.
18. Picture Tube Implosion Warning :
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure that
the replacement picture tube is the same as the
original.
19. Do not remove, install or handle the picture tube
without first putting on shatterproof goggles
equipped with side shields. Never handle the
picture tube by its neck. Some “in-line” picture
tubes are equipped with a permanently attached
deflection yoke; do not try to remove such
“permanently attached” yokes from the picture
tube.
20. Product Safety Notice :
Some electrical and mechanical parts have special
safety-related characteristics which might not be
obvious from visual inspection. These safety
features and the protection they give might be
lost if the replacement component differs from the
original--even if the replacement is rated for
higher voltage, wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
(
or
).
Use replacement components that have the same
ratings, especially for flame resistance and
dielectric strength specifications. A replacement
part that does not have the same safety
characteristics as the original might create shock,
fire or other hazards.
15. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of its
assemblies) unless all solid-state heat sinks are
correctly installed.
16. Always connect a test instrument’s ground lead to
the instrument chassis ground before connecting
the positive lead; always remove the instrument’s
ground lead last.
17. Observe the original lead dress, especially near
the following areas : Antenna wiring, sharp
edges, and especially the AC and high voltage
power supplies. Always inspect for pinched, outof-place, or frayed wiring. Do not change the
spacing between components and the printed
circuit board. Check the AC power cord for
damage. Make sure that leads and components
do not touch thermally hot parts.
1-2
Samsung Electronics
2. Alignment and Adjustment
2-1 Reference
1) X-Point (Tracking center) adjustment, “Head switching adjustment” and “NVRAM option setting” can be adjusted with remote control.
2) When replacing the Micom (IC601) and NVRAM (IC603 ; EEPROM) be sure to adjust the “Head switching adjustment” and
“NVRAM option setting”.
3) When replacing the cylinder ass’y, be sure to adjust the “X-Point” and “Head switching adjustment”.
4) Among Samsung VCR remote control used for adjustment as a accessory, only the remote control that has figures buttons (0 ~ 9) is
available for all adjustment regardless of chassis.
5) How to adjustment.
- Momently short-circuit the test point on Main PCB with pincers to set the adjustment mode.
- If the corresponding adjustment button is pressed, the adjustment is performed automatically.
- If the adjustment is completed, be sure to turn the power off.
2-1-1 Location of adjustment button of remote control
POWER
SLOW
VCR
SHUTTLE
TV
V-LOCK
REPLAY
VCR POWER
TV POWER
EJECT
TV/VCR
EJECT
SLOW
X-Point (Tracking Center)
Adjustment
A.TRK
A.TRK
F.ADV/SKIP
100
100
TV/VCR
PREV.CH
ENTER
VOL
SELECT
TV
VCR
REC.SPEED
LIN
E
C
RE
SEA
R C H /E X
IN
Head Switching Adjustment
TRACKING
VOL
CH
AUDIO
PREV.CH
DISPLAY
SEARCH/EXIT
IT CLEAR
DIS
PL
A
Y
D IO
AU
CH/TRK
MENU
NVRAM Option Setting
MENU
REC
P/STILL
REC.SPEED
CLEAR
F.ADV
30S-SKIP
D
FW
RE
V
REPLAY
LINE IN
Remote Control for adjustment is not supplied as a Service Jig.
Fig. 2-1
Samsung Electronics
2-1
Alignment and Adjustment
2-1-2 Test point location for adjustment mode setting
Application Models ; VR9180/9160/9180C/9160C/8160/5160/8170C/8160C/5160C
Short-Circuit for a second and release.
Fig. 2-2 Main PCB (Top View)
2-2
Samsung Electronics
Alignment and Adjustment
Application Models ; VR8140C/5140C
Short-Circuit for a second and release.
Fig. 2-3 Main PCB (Top View)
Samsung Electronics
2-3
Alignment and Adjustment
2-2 Mechanical Adjustment
Note : Refer to the Mechanical Manual “TS-10 (AC68-01405A)” for the adjustment and confirmation of ass’y deck.
2-2-1 The number and position of test point
Test point :
TP601 (Control Pulse)
TP602 (H’D S/W -Trigger)
TP301 (Envelope)
TP302 (Audio output)
TP303 (Video output)
AUDIO OUTPUT
ENVELOPE
HEAD SWITCHING
Fig. 2-4 Location of Test point (Main PCB-Top View)
2-2-2 ACE Head Position (X-Point) Adjustment
(See the 2-2-1(d) ACE Head Position (X-Point) Adjustment
on page 2-2 of the Mechanical Manual)
1) Playback the alignment tape (Color bar).
2) Momently short-circuit the test point on Main
PCB with pincers to set the adjustment mode.
(See Fig. 2-2 and 2-3)
3) Press the “5” button of remote control then adjustment is operated automatically. (See Fig. 2-1)
2-4
4) Connect the CH-1 probe to TP301 (Envelope) the
CH-2 probe to TP602 (H’D switching pulse) and
then trigger to CH-1.
5) Insert the (-) driver into the X-Point adjustment
hole and adjust it so that envelope waveform is
maximum.
6) Turn the Power off.
Samsung Electronics
Alignment and Adjustment
2-3 Head Switching Point Adjustment
1) Playback the alignment tape.
2) Momently short-circuit the test point on Main PCB with pincers to set the adjustment mode.
(See Fig. 2-2 and 2-3)
3) Press the “REC.SPEED” button of remote control then adjustment is operated automatically. (See Fig. 2-1)
4) Turn the Power off.
2-4 NVRAM Option Setting
1) NVRAM Option is adjusted at production line basically.
2) In case Micom (IC601) and NVRAM (IC603 ; EEPROM) is replaced, be sure to set the corresponding option number of the repaired
model. (If the option is not set, the unit is not operated.)
1) Momently short-circuit the test point on Main PCB with pincers to set the adjustment mode.
(See Fig. 2-2 and 2-3)
2) Press the “MENU” button on the remote control about 5 seconds then option setting display is appeared.
(See Fig. 2-5)
3) Select the option number (See Table 2-1) of corresponding model with “FF” and “REW” button on the
remote control.
4) If selecting the option number is completed, press the “STOP” button of remote control.
(If “STOP” button is pressed, the selected number is changes reversed color. ; See Fig. 2-5)
5) Press the “MENU” button of remote control again to store the option number.
(“COMPLETE” is displayed for a second as shown Fig. 2-6 and the setting is completed.)
6) Turn the Power off.
<Table 2-1>
01 02 03 04 05 06 07 08
MODELS
OPTION NUMBER
09 10 11 12 13 14 15 16
VR9180
2, 4, 5, 6, 7, 10, 13, 14, 15, 24, 31, 32, 34, 37
17 18 19 20 21 22 23 24
VR9160
2, 4, 5, 6, 7, 10, 13, 15, 18, 31, 32, 34, 37
25 26 27 28 29 30 31 32
VR8160
2, 4, 5, 6, 7, 10, 15, 18, 25, 31, 34, 37
33 34 35 36 37 38 39 40
VR5160
4, 5, 6, 7, 15, 18, 25, 31, 34, 37
VR9180C
2, 4, 5, 6, 7, 10, 13, 14, 15, 24, 31, 32, 34, 37
VR9160C
2, 4, 5, 6, 7, 10, 13, 15, 18, 31, 32, 34, 37
VR8170C
2, 4, 5, 6, 7, 10, 15, 18, 25, 31, 34, 37
VR8160C
2, 4, 6, 7, 10, 15, 18, 25, 31, 34, 37
VR8140C
2, 4, 6, 7, 10, 12, 15, 20, 28, 30, 31, 37
VR5160C
4, 6, 7, 15, 18, 25, 31, 34, 37
VR5140C
4, 6, 7, 12, 15, 20, 28, 30, 31, 37
MOVE :
SAVE : MENU
Fig. 2-5
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
MOVE :
COMPLETE
Fig. 2-6
Samsung Electronics
2-5
Alignment and Adjustment
MEMO
2-6
Samsung Electronics
3. Exploded View and Parts List
Page
3-1 Cabinet Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-2
3-2 Mechanical Parts (Top Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3-4
3-3 Mechanical Parts (Bottom Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-6
Samsung Electronics
3-1
Exploded View and Parts List
3-1 Cabinet Assembly
155
153
S.N.A : Service Not Available
101
TM401B
CN605B
CN303B
S601A
FULL DECK (S.N.A)
200
FUNCTION PCB (S.N.A)
MAIN-PCB (S.N.A)
LD601A
S602A
BOTTOM-COVER (S.N.A)
157
FUNCTION PCB
(S.N.A)
BRACKET-FRAME
(S.N.A)
ASSY-PANEL FRONT
VR9180/9180C
REMOTE-CONTROL
VR9180/9180C
VR9160/9160C
VCR POWER
TV POWER
EJECT
TV/VCR
SLOW
1
1
A.TRK
100
21
21
SELECT
TV
VCR
TRACKING
VOL
CH
AUDIO
PREV.CH
DISPLAY
SEARCH/EXIT
MENU
REC
P/STILL
REC.SPEED
LINE IN
CLEAR
REPLAY
RE
V
D
FW
22
F.ADV
30S-SKIP
22
VR9160/8160/5160/9160C/8170C/8160C/5160C
POWER
51
EJECT
SLOW
VCR
SHUTTLE
TV
V-LOCK
52
REPLAY
A.TRK
F.ADV/SKIP
100
TV/VCR
PREV.CH
ENTER
VR8170C
VOL
AU
D IO
CH/TRK
REC.SPEED
LIN
EI
C
RE
VR8140C/5140C
SEA
N
RCH/EXIT CLEAR
DIS
PL
A
Y
VR8160/5160/8160C/5160C
MENU
1
1
1
21
21
21
22
3-2
22
VR8410C/5410C
22
Samsung Electronics
Exploded View and Parts List
Loc. No
1
21
22
51
52
101
153
155
157
200
CN303B
CN605B
LD601A
S601A
S602A
TM401B
UT01
Parts No.
Refer to table below
Refer to table below
AC61-62032A
AC64-00616A
AC64-00617A
Refer to table below
AC60-12126A
AC60-12134A
AC60-10063A
AC39-10200N
3809-001206
3809-001131
AC61-21009A
AC61-21008A
AC61-21008A
Refer to table below
Refer to table below
MODELS
VR9180
VR9160
VR8160
VR5160
VR9180C
VR9160C
VR8170C
VR8160C
VR8140C
VR5160C
VR5140C
Samsung Electronics
1
AC97-01273B
AC97-01273A
AC97-01287A
AC97-01287B
AC97-01237E
AC97-01273F
AC97-01278A
AC97-01287C
AC97-01245F
AC97-01287D
AC97-01245G
Description ; Specification
Remark
ASSY-PANEL FRONT;HIPS94V2,VR9180,BLK
DOOR-CASSETTE;VR9180,ABS94HBBLK,-,-,-,-,
SPRING-MASK;X-9,-,SUS,-,4.4,-,SV-C130
KNOB-JOG;01T,ABS,-,-,-,KNOB-SHUTTLE;01T,ABS,-,-,-,-,-,CABINET TOP;VR9160,-,PCM(SECC),-,TM6524
SCREW-BH;-,BH,-,4*12,FE,FZY,-,-,SCREW-TAP BH;-,BH,-,2-4X16,-,FE
SCREW-TAPTITE;BH,+,-,M3,L12,ZPC3,SWRCH18
POWER-CORD;EP2,SPT-2,AWG#18,1.8MT,WAFER,
CABLE-FLAT;30V,-20to+80C,140mm,6P,1.25mm
CABLE-FLAT;30V,80C,110MM,7P,1.25MM,UL289
HOLDER-LED;-,POM(M90-44),-,BLK,-,X-9
HOLDER-SENSOR;-,POM(M90-44),-,BLK,-,X-9
HOLDER-SENSOR;-,POM(M90-44),-,BLK,-,X-9
CONNECTOR-BOARD-ASSY;-,HIPS,-,T2,61,-,BL
REMOCON-ASSY
21
AC64-00606C
AC64-00606A
AC64-00636A
AC64-00636B
AC64-00606E
AC64-00606F
AC64-00637A
AC64-00636C
AC64-00535F
AC64-00636N
AC64-00535G
101
AC64-00124D
AC64-00124D
AC64-00293A
AC64-00293A
AC64-00124B
AC64-00124D
AC64-00293A
AC64-00293A
AC64-00292A
AC64-00293A
AC64-00292A
VR9180/9180C ONLY
VR9180/9180C ONLY
TM401B
AC61-00058A
AC61-00058A
AC61-00058A
AC61-11054A
AC61-00058A
AC61-00058A
AC61-00058A
AC61-00058A
AC61-00002A
AC61-11054A
AC61-00050A
UT01
AC59-00025C
AC59-00024D
AC59-00024C
AC59-00024C
AC59-00025D
AC59-00024D
AC59-00024D
AC59-00024C
AC59-10420H
AC59-00024C
AC59-10420H
3-3
Exploded View and Parts List
3-2 Mechanical Parts (Top Side)
G001
K490
K502
K530
G530
G555
B473
G450
B474
G510
G420
G680
G480
(OPTIONAL)
K546
K250
K240
(OPTIONAL)
K248
B575
G681
B410
K350
K110
B440
K182
B448
K340
K330
B452
G546
K470
K140
K188
G527
G520
G060
3-4
G070
Samsung Electronics
Exploded View and Parts List
Loc. No
B410
B440
B448
B452
B473
B474
B575
G001
G060
G070
G420
G450
G480
G510
G520
G527
G530
G546
G555
G680
G681
K110
K140
K182
K188
K240
K248
K250
K330
K340
K350
K470
K490
K502
K530
K546
Parts No.
AC31-00012A
AC60-10515A
AC66-00008A
AC66-00011A
AC61-00105A
AC61-30180A
AC47-00002A
AC97-01204A
AC97-01202A
6006-001092
AC61-00161A
AC66-80142A
AC66-80141A
AC33-00009A
6006-001075
AC66-00033A
AC61-60553A
AC33-00007A
AC66-00005A
AC66-00032A
AC66-00046A
AC61-50686A
AC66-10267A
AC66-10268A
AC66-30524A
AC66-00039A
AC66-00035A
AC61-00107A
AC69-00104A
AC66-30550A
AC66-30549A
AC61-00106A
AC66-00020A
AC61-00120A
AC61-60561A
AC66-00034A
AC61-50658A
Samsung Electronics
Description ; Specification
MOTOR-LOADING ASSY;-,TS-10,-,-,-,-,-,-,SCREW-MACHINE;-,PH,+,-,M3,L3,ZPC,-,YEL
GEAR-WORM WHEEL;TS-10,POM,0.8,40,-,NAT,3
GEAR-FL CAM;TS-10,POM,0.8,59,-,BLK,48.48
SPRING-PINCH DRIVE;TS-10,SUS304-WPB,-,-,
PLATE-JOINT;-,SECC20/20,T0.8,-,X-9
DAMPER-CAPSTAN;TS-10,POM,-,-,BLACK
ASSY-CYLINDER;NTSC,CTS10,6HD-JUST
ASSY-CYLINDER;NTSC,CTS10,4HD-JUST
SCREW-ASS’Y MACH;WS,PH,+,M3.0,L6.0,ZPC(Y
PLATE-GROUND DECK;TS-10,SPTE,T0.3,SLIDER-SUPPLY ASSY;-,X-9(TS),-,-,-,X-9
SLIDER-TAKE UP ASSY;-,X-9(TS),-,-,-,X-9
HEAD-ACE ASS’Y;-,PPS,TS-10,-,SCREW-ASS’Y TAPT;WSP,PH,+,M2.6,L5.0,ZPC(
LEVER-#9 GUIDE ASS’Y;TS-10,-,-,-,-,-,-,SPRING-#9 GUIDE;-,ES,SUS304-WPB,OD3.1,0.
HEAD-FE;-,-,HVFHPOO43A,-,LEVER-FL DOOR;TS-10,POM,-,-,-,-,NAT,LEVER-UNIT PINCH ASS’Y;TS-10,-,-,-,-,-,LEVER-HEAD CLEANER ASS’Y;TS-10,POM+URETH
SLEEVE-HEAD CLEANER;-,POM,-,-,-,-,-,-,TS
REEL-DISK S;X-9,POM,-,-,-,-,-,REEL-DISK T;X-9,POM,-,-,-,-,-,LEVER-IDLER;-,POM,-,-,-,-,-,GEAR-IDLE;TS-10,PET K3372,0.5,-,-,NTR,28
LEVER-TENSION ASS’Y;TS-10,SECC E20/20+SU
SPRING-TENSION LEVER;TS-10,SUS304-WPB,-,
BAND-BRAKE ASS’Y;TS-10,-,-,-,-,-,LEVER-S.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
LEVER-T.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
SPRING-BRAKE;TS-10,SUS304-WPB,-,-,-,-,-,
SLIDER-FL DRIVE;TS-10,SECC E20/20,1.0,-,
HOLDER-FL CASS. ASS’Y;TS-10,-,-,-,-,SPRING-FL.LEVER-LR;-,ES,SUS304 WPB,PI2.7
LEVER-FL ARM ASS’Y;TS-10,-,-,-,-,-,-,GUIDE-CASS. DOOR;X-9,POM,-,NTR,-,-
Remark
HI-FI MODEL
MONO MODEL
(OPTIONAL)
(OPTIONAL)
3-5
Exploded View and Parts List
3-3 Mechanical Parts (Bottom Side)
G542
B462
B456
B560
B460
B500
B458
B464
B501
B484
B488
B489
B468
K222
K200
K225
K221
B478
B570
3-6
Samsung Electronics
Exploded View and Parts List
Loc. No
B456
B458
B460
B462
B464
B468
B478
B484
B488
B489
B500
B501
B560
B570
G542
K200
K221
K222
K225
Parts No.
AC66-00009A
AC66-00012A
AC61-00090A
AC60-10517A
AC66-00019A
AC66-00017A
AC66-00016A
AC66-00030A
AC66-00023A
AC66-00021A
AC66-00024A
AC66-00022A
AC31-00010A
AC60-10514A
AC66-60051A
AC61-21012A
AC66-20581A
AC60-30306A
AC66-00006A
Samsung Electronics
Description ; Specification
Remark
GEAR-JOINT 1;TS-10,POM,1.5,17.5(22),-,NA
GEAR-JOINT 2;TS-10,POM,1.0,23,-,BLK,24.6
BRACKET-GEAR;TS-10,0.8,-,SCREW-TAP TITE;-,PH,+,-,M2.6,L5,ZPC,-,YE
SLIDER-CAM;TS-10,SECC E20/20,1.2,-,-,-,LEVER-PINCH DRIVE;TS-10,SECC E20/20,1.0
LEVER-TENSION DRIVE;TS-10,SECC E20/20,1
GEAR-LOADING DR. ASS’Y;TS-10,POM+SWPB,-,
LEVER-S LOADING;TS-10,POM,-,-,-,-,NAT,LINK-LOADING S;TS-10,SECC E20/20,0.8,-,LEVER-T LOADING;TS-10,POM,-,-,-,-,NAT,LINK-LOADING T;TS-10,SECC E20/20,0.8,-,MOTOR-CAPSTAN;-,SANKYO,-,SCREW-CAPSTAN;-,PH,+,M2.6,L6,BELT-PULLEY;-,5CM-70,2 * 2,-,71.3,-,X-9
HOLDER-CLUTCH ASSY;-,-,-,-,-,X-9
GEAR-CENTER ASSY;-,POM,M=O.5,-,HIGHT T.,
WASHER-SLIT;-,-,ID2.1,OD5.0,T0.5,-,POLYS
LEVER-UP DOWN;TS-10,POM,-,-,-,-,NAT,-
3-7
Exploded View and Parts List
MEMO
3-8
Samsung Electronics
4. Electrical Parts List
4-1 VR9180/9160/8160/5160/9180C/9160C/8170C/8160C/5160C Only
Loc.No
Part No
-
-
S.M.P.S. PARTS
BD1SR1
3301-000297
BD1SS1
AC27-92001M
BD1SS2
3301-000297
C1SD01
2201-000828
C1SD05
2201-000930
C1SD06
2301-000423
C1SR01
2401-001681
C1SR02
2401-000905
C1SR03
2401-001235
C1SR04
2301-000417
C1SR05
2301-000180
C1SR07
2305-001021
C1SS01
2401-003137
C1SS03
2201-000812
C1SS04
2201-000916
C1SS06
2401-000385
C1SS07
2401-002162
C1SS08
2401-001126
C1SS10
2401-001479
C1SS11
2301-000129
C1SS35
2401-003059
CN1SS1
3711-000178
D1SD01
0401-000101
D1SD02
0401-000101
D1SR01
0401-000101
D1SR02
0401-000101
D1SS01
0402-001196
D1SS02
0402-001196
D1SS03
0402-001196
D1SS04
0402-001196
D1SS05
0402-000012
D1SS06
0402-001194
D1SS07
0402-000431
D1SS08
0402-001195
F1SD01
3601-001122
IC1SS1
0604-001028
IC1SS2
AC14-12006D
L1SS01
AC29-00003A
L1SS02
AC27-12001N
L1SS03
AC27-12001N
PT1SD1
AC26-00002B
Q1SR01
0501-000442
Q1SR02
0502-001123
R1SD01
2001-000490
R1SD02
2001-000515
R1SD03
2001-000429
R1SR01
2002-000320
R1SR02
2003-002117
R1SR03
2003-000314
R1SR04
2003-000314
R1SR05
2001-000003
R1SR06
2003-000119
R1SR07
2001-000734
R1SS01
2003-000994
R1SS02
2003-000994
Samsung Electronics
Description ; Specification
ASSY PCB-MAIN
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,15x
C-CERAMIC,DISC;0.22nF,10%,500V,Y5P,TP,5.
C-FILM,PEF;3.3nF,5%,100V,TP,7x10x4.5mm,5
C-AL;82uF,20%,200V,GP,TP,16x26,7.5m
C-AL;22uF,20%,16V,BP,-,6x11,2.5mm
C-AL;4.7uF,20%,250V,WT,TP,10x12.5,5
C-FILM,PEF;24nF,5%,50V,TP,6.5x10.5x4mm,5
C-FILM,PEF;18nF,0.05,100V,TP,7.2x4.5x8.0
C-FILM,MPEF;100nF,20%,275V,TP,17.5x7x13.
C-AL;330UF,20%,50V,WT,TP,10X16MM,5
C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,BK,12.
C-CERAMIC,DISC;100pF,10%,400V,Y5U,TP,10x
C-AL;10uF,20%,100V,GP,TP,6.3x11,5
C-AL;1000uF,20%,25V,WT,TP,10x20,5mm
C-AL;330uF,20%,25V,WT,TP,10x12.5,5
C-AL;470uF,20%,10V,GP,TP,-,C-FILM,PEF;100nF,5%,50V,TP,10X9X4.3X5,5m
C-AL;1000UF,20%,16V,WT,TP,10X16,5
CONNECTOR-HEADER;1WALL,2P,1R,3.96mm,STRA
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
DIODE-RECTIFIER;UF4007,1KV,1A,DO-41,TP
DIODE-RECTIFIER;UG2D,200V,2A,DO-204AC,TP
DIODE-RECTIFIER;FML-M02S,200V,2.5A,TO-22
DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
FUSE-CARTRIDGE;250V,1.6A,FAST-ACTING,GLA
PHOTO-COUPLER;TR,50-600%,250mW,DIP-4,ST
IC;KA431Z,TO-92,TAPING
FILTER LINE NOISE;-,20mH MIN,-,-,COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,TRANS SWITCHING;-,-,EE2621,-,UL/CSA/DEMK
TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
TR-POWER;KTC4419,NPN,30W,TO-220,ST,10-4
R-CARBON;200OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-COMPOSITION;1.8Mohm,10%,1/2W,AA,TP,3.5
R-METAL OXIDE(S);330Kohm,5%,1W,AA,TP,3.3
R-METAL OXIDE;47ohm,5%,2W,AE,TP,6x16mm
R-METAL OXIDE;47ohm,5%,2W,AE,TP,6x16mm
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-METAL OXIDE;0.68ohm,5%,2W,AE,TP,6x16mm
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
Remark
S.N.A.
HIFI ONLY
Loc.No
R1SS04
R1SS05
R1SS06
VA1SS1
ZD1SR1
Part No
Description ; Specification
2001-000429
2004-000869
2004-000459
1405-001026
0403-000571
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R-METAL;2.2Kohm,1%,1/8W,AA,TP,1.8x3.2m
VARISTOR;470V,600A,9x7mm,TP
DIODE-ZENER;UZP43B,43V,40-46V,1W,DO-41,T
POWER PARTS
C1P101
2401-001730
C1P103
2401-001254
C1P104
2401-001254
C1P105
2401-000598
C1P106
2401-002008
C1P108
2401-003107
C1P112
2401-001254
D1P101
0402-000127
D1P102
0402-000127
D1P106
0401-000101
D1P108
0401-000101
D1P109
0401-000101
L1P101
2701-000002
Q1P101
0501-000616
Q1P102
0501-000616
Q1P104
0501-000398
Q1P107
0501-000616
Q1P108
0504-000142
Q1P109
0501-000398
R1P101
2001-000855
R1P102
2001-000449
R1P103
2001-000515
R1P104
2001-000325
R1P104
2001-000554
R1P105
2001-000515
R1P110
2001-000362
ZD1P01
0403-000390
ZD1P02
0403-000717
ZD1P03
0403-000720
ZD1P05
0403-001211
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,2.5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
TR-DIGITAL;KSR2001,PNP,300MW,4.7K/4.7K,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
R-CARBON;560OHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;120OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
DIODE-ZENER;UZP33B,33V,31.4-34.6V,1W,DODIODE-ZENER;MTZJ5.1B,5.1V,4.94-5.2V,500m
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
LOGIC PARTS
C601
2203-000260
C602
2202-000797
C603
2203-000260
C604
2203-000260
C605
2401-000360
C606
2202-000797
C607
2203-000260
C608
2401-002165
C609
2203-000609
C610
2203-000989
C612
2203-000361
C613
2401-001545
C615
2202-000797
C616
2203-000192
C617
2401-002095
C618
2203-000634
C619
2203-000683
C620
2007-000029
C622
2401-000598
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,2012
C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
C-AL;1uF,20%,50V,GP,TP,4x7,5
Remark
HIFI ONLY
HIFI ONLY
MONO ONLY
HIFI ONLY
MONO ONLY
HIFI ONLY
HIFI ONLY
HIFI ONLY
HIFI ONLY
MONO ONLY
MONO ONLY
4-1
Electrical Parts List
Loc.No
C623
C624
C625
C626
C627
C628
C629
C630
C631
C632
C633
C634
C635
C636
C637
C638
C639
C640
C643
C644
C646
C647
C648
C649
C650
C651
C652
C653
C655
C656
CN601
CN604
CN605
D601
D603
D604
D605
D606
D607
IC601
IC602
IC603
IC6B1
L601
L602
L802
LD601
PT601
PT602
R601
R602
R603
R604
R605
R606
R607
R608
R609
R610
R613
R614
R615
R616
R617
R618
R619
4-2
Part No
2202-000121
2401-002165
2203-000192
2203-000192
2203-001245
2401-002068
2203-001579
2401-003107
2203-000192
2203-001077
2203-000716
2203-001077
2203-000260
2203-000260
2203-000609
2203-000609
2203-000609
2203-000192
2203-000260
2203-000260
2203-000192
2203-000192
2203-000192
2203-000444
2203-000727
2203-000727
2203-000260
2203-000575
2202-000797
2203-000844
AC39-20817S
3711-003749
3708-001302
0401-000101
0402-000127
0402-000127
0401-000101
0402-000127
0402-000127
AC09-00197A
1003-001318
1103-001148
AC14-12006C
3301-000297
2701-000002
3301-000297
0601-000517
0604-001122
0604-001122
2007-000586
2007-000572
2007-000586
2007-000572
2001-000111
2001-000522
2007-000738
2001-000429
2001-000429
2001-000429
2001-000290
2001-000429
2007-000981
2001-000429
2007-000221
2007-001039
2001-000290
Description ; Specification
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201
C-AL;33uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;15nF,10%,50V,NP0,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;3.9nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;3.9nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;39nF,10%,50V,X7R,TP,2012,
LEAD CONNECTOR-ASSY;DP,SMH200-02,YBH200CONNECTOR-HEADER;BOX,8P,2R,2mm,STRAIGHT,
CONNECTOR-FPC/FC/PIC;7P,1.25mm,STRAIGHT,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
IC MICOM;MN101D02D-CP1,VR8170,100P,5V,1
IC-MOTOR DRIVER;LB11880,DIP,30P,417MIL,IC-EEPROM;24C021,2KBIT,DIP,8P,300MIL,10M
IC;KA7533,DIP,CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
LED-IR;RECTANGULA,4x6.0mm,75mW,6V,950
PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,
PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,
R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CARBON;150OHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;30KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;56KOHM,5%,1/10W,DA,TP,2012
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Remark
Loc.No
R620
R621
R622
R623
R624
R630
R631
R632
R634
R635
R637
R638
R639
R641
R642
R643
R644
R645
R646
R647
R648
R649
R650
R651
R652
R653
R656
R660
R664
R665
R668
R669
R690
R691
R692
R6A01
R6F2
R6F3
R6F4
R6JS01
R6JS02
R6JS03
R6JS04
R6JS07
R6JS08
R6JS09
R6JS10
S601
S602
SW602
SW603
XT601
Part No
2001-000290
2007-000931
2007-000931
2007-000300
2007-000300
2001-000864
2001-000864
2001-000786
2007-000068
2001-000429
2001-000281
2001-000591
2007-000518
2001-000429
2001-000429
2007-000300
2007-000300
2007-000300
2007-000981
2007-000766
2007-000766
2007-000872
2007-000872
2007-000872
2007-000300
2001-000429
2007-000300
2007-000001
2007-000703
2007-000282
2003-000111
2007-001024
2001-000429
2001-000429
2001-000429
2001-000290
2001-000786
2007-001141
2007-001141
2007-000546
2007-000546
2007-000546
2007-000546
2001-000273
2001-000273
2001-000290
2001-000290
0603-001011
0603-001011
AC34-20100B
AC34-20100A
2801-001384
AUDIO/VIDEO PARTS
C301
2401-000598
C302
2203-001721
C303
2203-000192
C304
2202-000164
C305
2401-000598
C306
2203-000192
C307
2401-003107
C308
2401-000918
C309
2401-000414
C310
2401-001915
C311
2401-000414
C312
2202-002037
Description ; Specification
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;470KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;330OHM,5%,1/10W,DA,TP,2012
R-CHIP;330OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;68KOHM,5%,1/10W,DA,TP,2012
R-CHIP;3.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R-METAL OXIDE;0.47ohm,5%,1W,AD,TP,4.3x12
R-CHIP;560KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;20KOHM,5%,1/10W,DA,TP,2012
R-CHIP;20KOHM,5%,1/10W,DA,TP,2012
R-CHIP;20KOHM,5%,1/10W,DA,TP,2012
R-CHIP;20KOHM,5%,1/10W,DA,TP,2012
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
PHOTO-TR;NPN,35V,6V,50mA,75mW,BK
PHOTO-TR;NPN,35V,6V,50mA,75mW,BK
SWITCH-REC;-,-,X-9,SWITCH-MODE;-,-,X-9,CRYSTAL-UNIT;14.31818MHz,30ppm,28-AAA,16
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;360pF,5%,50V,NPO,TP,2012,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,MLC-AXIAL;0.18nF,10%,50V,Y5P,T
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;22uF,20%,16V,GP,-,6.3x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,3x5,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
Remark
F-A/V(AUTO) ONLY
HIFI ONY
HIFI ONY
HIFI ONY
VR9180/9180C ONLY
VR9180/9180C ONLY
VR9180/9180C ONLY
VR9180/9180C ONLY
VR9180/9180C ONLY
VR9180/9180C ONLY
VR9180/9180C ONLY
VR9180/9180C ONLY
SQPB ONLY
F-A/V ONLY
Samsung Electronics
Electrical Parts List
Loc.No
C313
C314
C315
C316
C317
C318
C319
C320
C321
C322
C323
C324
C325
C326
C327
C328
C329
C330
C331
C332
C333
C334
C335
C336
C337
C338
C340
C341
C342
C343
C344
C345
C346
C347
C348
C349
C350
C351
C352
C353
C354
C356
C357
C358
C359
C360
C364
C371
C372
C399
CN301
CN301
CN302
CN303
FL301
IC301
L301
L302
L303
L304
L305
L306
L307
Q302
Q303
Q304
Part No
2401-000414
2203-000476
2401-000598
2401-000598
2401-001915
2202-000797
2202-000797
2203-000260
2401-003107
2202-002037
2401-000598
2203-000260
2401-000598
2203-000609
2401-001915
2401-003107
2203-000192
2203-000192
2203-000989
2203-000989
2203-000989
2401-003107
2203-000192
2202-002037
2401-003107
2203-000192
2401-000918
2202-002037
2401-001169
2203-000192
2203-001214
2203-000260
2401-000414
2203-000495
2203-001132
2401-001254
2301-001014
2203-001214
2203-000260
2401-001254
2202-000797
2401-002144
2301-000253
2202-000797
2203-000260
2203-000260
2203-000260
2203-001077
2203-000260
2401-003107
3708-000391
3708-000394
3710-001648
3708-001165
AC27-80100C
1204-001755
3301-000297
3301-000297
3301-000297
3301-000297
3301-000297
2702-000120
2701-000002
0501-000303
0501-000398
0501-000303
Samsung Electronics
Description ; Specification
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,3x5,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-AL;1uF,20%,50V,GP,TP,3x5,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;22uF,20%,16V,GP,-,6.3x7,5
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-AL;33uF,20%,16V,GP,-,6.3x7,2.5mm
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.68nF,5%,50V,NP0,TP,2012
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-FILM,PEF;6.8nF,5%,50V,TP,7x3x6,5mm
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-FILM,PEF;39NF,5%,100V,TP,7.5X4.5X12.5M
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x7,5
CONNECTOR-FPC/FC/PIC;10P,1.25MM,STRAIGHT
CONNECTOR-FPC/FC/PIC;6P,1.25mm,STRAIGHT,
CONNECTOR-SOCKET;2P,1R,2.5mm,STRAIGHT,SN
CONNECTOR-FPC/FC/PIC;6P,1.25mm,STRAIGHT,
COIL-OSC;7mm,2.4mH,IC-VIDEO PROCESS;LA71200M,QFP,80P,-,PLAS
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
INDUCTOR-RADIAL;15mH,5%,6.2x7.4mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
Remark
HIFI ONLY
MONO ONLY
Loc.No
Part No
Description ; Specification
Q305
Q306
Q307
Q308
R301
R302
R303
R304
R305
R308
R309
R310
R311
R312
R313
R314
R315
R316
R317
R318
R319
R320
R320
R322
R322
R326
R327
R328
R329
R330
R331
R332
R333
R334
R335
R336
R337
R338
R339
R340
R341
R342
R343
R344
R345
R346
R347
XT301
0501-000442
0501-000303
0501-000442
0501-000442
2007-000409
2007-001055
2007-000267
2007-000267
2001-000734
2007-000565
2001-000004
2001-000449
2007-001113
2007-000221
2001-000258
2007-000241
2007-001177
2007-000300
2001-000411
2001-000411
2001-000290
2007-000221
2007-000241
2001-000613
2001-000812
2007-000221
2007-000981
2007-000300
2007-000757
2007-000572
2007-000653
2007-000468
2001-000221
2007-000586
2007-000931
2007-000267
2001-000458
2001-000405
2001-000429
2001-000429
2001-000522
2007-000300
2007-001001
2007-001001
2007-001118
2007-001118
2007-000941
2801-003610
TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
R-CHIP;15KOHM,5%,1/10W,DA,TP,2012
R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;220KOHM,5%,1/10W,DA,TP,2012
R-CARBON;200KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;680KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;330KOHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;27KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R-CARBON;2.2OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;510OHM,5%,1/10W,DA,TP,2012
R-CHIP;510OHM,5%,1/10W,DA,TP,2012
R-CHIP;680OHM,5%,1/10W,DA,TP,2012
R-CHIP;680OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
CRYSTAL-UNIT;3.579545MHz,8ppm,28-AAA,S,1
TM-BLOCK
C401
C405
C406
C407
C409
C410
R401
R402
SW401
TM401
2203-000260
2401-002144
2202-000797
2203-000609
2202-002037
2202-000807
2007-000931
2007-000931
3408-001042
AC40-00007A
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
SWITCH-SLIDE;DC 12V,100mA,-,OFF-ON,TM-BLOCK;115VD025AP,NTSC-M,115VD025AP,Y
Remark
MONO ONLY
HIFI ONLY
HIFI ONLY
MONO ONLY
F-AV ONLY
HI-FI PARTS(HI-FI MODEL ONLY)
C501
2203-000192
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C502
2401-000414
C-AL;10uF,20%,16V,GP,TP,4x7,5
C503
2401-001254
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C504
2401-000414
C-AL;10uF,20%,16V,GP,TP,4x7,5
4-3
Electrical Parts List
Loc.No
C505
C506
C507
C508
C509
C510
C511
C512
C513
C514
C515
C516
C517
C518
C519
C520
C521
C522
C523
C526
C527
C528
C529
C530
C531
C532
C533
C534
C535
C536
C537
C538
C540
C541
C542
C543
C544
D503
IC501
L501
L502
L503
L504
R501
R503
R506
R507
R510
R511
R512
R513
R514
R515
R516
R517
R518
R519
R520
R521
R522
R525
R527
R530
R531
Part No
2401-001254
2401-000598
2401-001169
2401-000414
2401-000414
2301-000224
2203-000192
2203-000126
2202-000797
2202-000797
2203-000192
2401-003107
2203-000192
2401-000598
2401-001931
2301-000224
2401-000414
2401-000414
2401-001169
2401-001254
2401-001931
2401-001020
2401-000598
2203-000192
2401-003107
2203-000192
2203-000192
2203-000192
2401-000414
2401-001919
2401-000414
2202-000797
2401-003107
2203-000192
2401-000414
2301-000224
2401-000414
0401-000101
1204-001754
2702-000108
3301-000297
3301-000297
2701-000126
2007-001141
2007-001141
2007-000774
2007-000468
2001-000005
2007-000872
2001-000005
2007-000872
2001-000780
2007-001055
2001-000780
2007-000804
2007-001224
2001-000786
2001-000786
2001-000472
2007-000518
2001-000472
2007-000300
2001-000347
2001-000290
INPUT-OUTPUT PARTS
4-4
Description ; Specification
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;33uF,20%,16V,GP,-,6.3x7,2.5mm
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;1.2nF,10%,50V,X7R,TP,2012
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;220nF,20%,50V,-,TP,4x7mm,5
C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;33uF,20%,16V,GP,-,6.3x7,2.5mm
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-AL;220nF,20%,50V,-,TP,4x7mm,5
C-AL;3.3UF,20%,50V,GP,TP,4X7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;2.2uF,20%,50V,-,TP,4x7mm,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
IC-SIGNAL PROCESSOR;AN3663FBP,QFP,64P,-,
INDUCTOR-RADIAL;100uH,5%,6x6.4mm
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
INDUCTOR-AXIAL;150uH,5%,2.4x3.4mm
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;33KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;36KOHM,5%,1/10W,DA,TP,2012
R-CHIP;9.1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;13KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Remark
Loc.No
C801
C802
C803
C805
C8F1
C8M2
JK801
JK801
Q801
R801
R802
R803
R804
R8F1
R8M1
R8M2
R8M3
R8MF2
Part No
2401-003107
2401-001479
2401-002144
2401-000438
2202-002037
2203-000802
AC37-20001G
AC37-20001H
0501-000303
2001-000969
2001-000025
2001-001026
2007-001166
2001-000786
2007-000941
2007-001224
2001-000786
2007-000981
FUNCTION/DISPLAY PARTS
C701
2203-000444
C702
2203-000260
C703
2401-002165
CN701
3711-004414
CN703
3711-004414
CN703
3711-004625
D701
0401-000101
D702
0401-000101
D704
0401-000101
D705
0401-000101
D706
0401-000101
D707
0401-000101
D708
0401-000101
DT701
0703-001094
Q701
0501-000290
Q702
0501-000290
Q703
0501-000290
Q704
0501-000290
Q705
0501-000290
Q706
0501-000398
Q707
0501-000398
Q708
0501-000398
Q709
0501-000398
Q710
0501-000398
Q711
0501-000398
Q712
0501-000398
Q713
0501-000398
Q714
0501-000290
Q715
0501-000290
R701
2007-000493
R702
2007-000493
R703
2007-000300
R704
2001-000449
R705
2001-000449
R706
2001-000449
R707
2001-000449
R708
2001-000290
R709
2001-000290
R710
2001-000969
R711
2001-000969
R712
2001-000290
R713
2001-000969
R714
2001-000290
R715
2001-000969
R716
2001-000290
R717
2001-000969
Description ; Specification
Remark
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;470uF,20%,10V,GP,TP,-,C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;10uF,20%,25V,GP,-,5x11,2mm
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
F-A/V ONLY
C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012
MONO ONLY
JACK-RCA;DPAE-,6P,HIFI,PI3.3
HIFI ONLY
JACK-RCA;DPAM-,4P,MONO,PI3.3
MONO ONLY
TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CARBON;910OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
F-A/V ONLY
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
MONO ONLY
R-CHIP;9.1KOHM,5%,1/10W,DA,TP,2012
MONO ONLY
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
MONO ONLY
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
F-A/V(MONO) ONLY
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
CONNECTOR-HEADER;3WALL,13P,1R,2mm,STRAIG
CONNECTOR-HEADER;3WALL,13P,1R,2mm,STRAIG VR9180/9180C ONLY
CONNECTOR-HEADER;3WALL,8P,1R,2mm,STRAIGH VR9180/9180C ONLY
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
LED DISPLAY;GRN,7,8,50x18.5mm
TR-SMALL SIGNAL;KSA643-Y,PNP,500mW,TO-92
TR-SMALL SIGNAL;KSA643-Y,PNP,500mW,TO-92
TR-SMALL SIGNAL;KSA643-Y,PNP,500mW,TO-92
TR-SMALL SIGNAL;KSA643-Y,PNP,500mW,TO-92
TR-SMALL SIGNAL;KSA643-Y,PNP,500mW,TO-92
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSA643-Y,PNP,500mW,TO-92
TR-SMALL SIGNAL;KSA643-Y,PNP,500mW,TO-92
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
Samsung Electronics
Electrical Parts List
Loc.No
Part No
Description ; Specification
R718
R719
R720
R721
R722
R723
R724
R741
R743
R744
R745
RM701
W7004
2001-000290
2001-000969
2001-000290
2001-000969
2001-000290
2001-000969
2007-000493
2001-000734
2001-000734
2001-000734
2001-000969
AC32-00002A
2001-000515
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
MODULE-REMOCON;-,GP1U291Q,38KHZ,-,7.3X13
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
CN702
JK702
JK702
SW701
SW702
SW703
SW704
SW705
SW706
SW707
SW709
SW710
SW711
SW715
SW716
3710-001626
AC37-22002G
AC37-22002J
3404-001076
3404-001076
3404-001076
3404-001076
3404-001076
3404-001076
3404-001076
3404-001076
3404-001076
3404-001076
3404-000165
3404-000165
CONNECTOR-SOCKET;8P,1R,2mm,ANGLE,SN
JACK-PIN;3.2mm,DPSE-9813,3P,13mm,ARREY
JACK-PIN;3.2mm,DPSE-9814,2P,13mm,S/W
SWITCH-TACT;12V,50mA,16gf+-50gf,6x6mm,SP
SWITCH-TACT;12V,50mA,16gf+-50gf,6x6mm,SP
SWITCH-TACT;12V,50mA,16gf+-50gf,6x6mm,SP
SWITCH-TACT;12V,50mA,16gf+-50gf,6x6mm,SP
SWITCH-TACT;12V,50mA,16gf+-50gf,6x6mm,SP
SWITCH-TACT;12V,50mA,16gf+-50gf,6x6mm,SP
SWITCH-TACT;12V,50mA,16gf+-50gf,6x6mm,SP
SWITCH-TACT;12V,50mA,16gf+-50gf,6x6mm,SP
SWITCH-TACT;12V,50mA,16gf+-50gf,6x6mm,SP
SWITCH-TACT;12V,50mA,16gf+-50gf,6x6mm,SP
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
CN704
CN705
JK701
JS701
SW721
SW722
SW723
SW724
SW725
SW726
SW727
SW728
SW729
SW730
SW731
SW735
SW736
SW737
3710-001563
3710-001563
AC37-00006A
AC64-00602A
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
3404-000165
ASSY-FUNCTION;VR9180/XAA,TS-10,SEA,J/S
CONNECTOR-SOCKET;13P,1R,2mm,ANGLE,SN
CONNECTOR-SOCKET;13P,1R,2mm,ANGLE,SN
JACK—PIN;3.2MM,DPSE-9872,3P,ARREY,10MM
DIAL-J/S;J/S DIAL,MOLD,8PIN,BLACK,DJS-1
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
Samsung Electronics
Remark
Loc.No
Part No
Description ; Specification
Remark
F-A/V ONLY
F-A/V ONLY
VR8170C/8160 ONLY
VR8170C/8160 ONLY
VR5160 ONLY
S.N.A.
4-5
Electrical Parts List
4-2 VR8140C/5140C Only
Loc.No
Part No
-
-
S.M.P.S. PARTS
BD1SS1
AC27-92001M
BD1SS2
3301-000297
BD1SS3
3301-000297
C1SD01
2201-000828
C1SD05
2201-000930
C1SD06
2301-000423
C1SR01
2401-001681
C1SR02
2401-000905
C1SR03
2401-001235
C1SR04
2301-000417
C1SR05
2301-000180
C1SR07
2305-001021
C1SS01
2401-003137
C1SS03
2201-000812
C1SS04
2201-000916
C1SS06
2401-000385
C1SS07
2401-002162
C1SS08
2401-001126
C1SS10
2401-001479
C1SS11
2301-000129
C1SS35
2401-003059
CN1SS1
3711-000178
D1SD01
0402-001195
D1SR01
0401-000101
D1SR02
0401-000101
D1SS01
0402-001196
D1SS02
0402-001196
D1SS03
0402-001196
D1SS04
0402-001196
D1SS05
0402-000012
D1SS06
0402-001194
D1SS07
0402-000431
D1SS08
0402-001195
F1SD01
3601-001122
IC1SS1
0604-001028
IC1SS2
AC14-12006D
L1SS01
AC29-00003A
L1SS02
AC27-12001N
L1SS03
AC27-12001N
PT1SD1
AC26-00002B
Q1SR01
0501-000442
Q1SR02
0502-001123
R1SD01
2001-000490
R1SD02
2001-000515
R1SD03
2001-000429
R1SD04
2003-000314
R1SR01
2002-000320
R1SR02
2003-002117
R1SR03
2003-000314
R1SR05
2001-000003
R1SR06
2003-000119
R1SR07
2001-000734
R1SS01
2003-000994
R1SS02
2003-000994
R1SS04
2001-000429
R1SS05
2004-000869
R1SS06
2004-000459
VA1SS1
1405-001026
4-6
Description ; Specification
ASSY PCB-MAIN
INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,15x
C-CERAMIC,DISC;0.22nF,10%,500V,Y5P,TP,5.
C-FILM,PEF;3.3nF,5%,100V,TP,7x10x4.5mm,5
C-AL;82uF,20%,200V,GP,TP,16x26,7.5m
C-AL;22uF,20%,16V,BP,-,6x11,2.5mm
C-AL;4.7uF,20%,250V,WT,TP,10x12.5,5
C-FILM,PEF;24nF,5%,50V,TP,6.5x10.5x4mm,5
C-FILM,PEF;18nF,0.05,100V,TP,7.2x4.5x8.0
C-FILM,MPEF;100nF,20%,275V,TP,17.5x7x13.
C-AL;330UF,20%,50V,WT,TP,10X16MM,5
C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,BK,12.
C-CERAMIC,DISC;100pF,10%,400V,Y5U,TP,10x
C-AL;10uF,20%,100V,GP,TP,6.3x11,5
C-AL;1000uF,20%,25V,WT,TP,10x20,5mm
C-AL;330uF,20%,25V,WT,TP,10x12.5,5
C-AL;470uF,20%,10V,GP,TP,-,C-FILM,PEF;100nF,5%,50V,TP,10X9X4.3X5,5m
C-AL;1000UF,20%,16V,WT,TP,10X16,5
CONNECTOR-HEADER;1WALL,2P,1R,3.96mm,STRA
DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
DIODE-RECTIFIER;UF4007,1KV,1A,DO-41,TP
DIODE-RECTIFIER;UG2D,200V,2A,DO-204AC,TP
DIODE-RECTIFIER;FML-M02S,200V,2.5A,TO-22
DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
FUSE-CARTRIDGE;250V,1.6A,FAST-ACTING,GLA
PHOTO-COUPLER;TR,50-600%,250mW,DIP-4,ST
IC;KA431Z,TO-92,TAPING
FILTER LINE NOISE;-,20mH MIN,-,-,COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,TRANS SWITCHING;-,-,EE2621,-,UL/CSA/DEMK
TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
TR-POWER;KTC4419,NPN,30W,TO-220,ST,10-4
R-CARBON;200OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL OXIDE;47ohm,5%,2W,AE,TP,6x16mm
R-COMPOSITION;1.8Mohm,10%,1/2W,AA,TP,3.5
R-METAL OXIDE(S);330Kohm,5%,1W,AA,TP,3.3
R-METAL OXIDE;47ohm,5%,2W,AE,TP,6x16mm
R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-METAL OXIDE;0.68ohm,5%,2W,AE,TP,6x16mm
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R-METAL;2.2Kohm,1%,1/8W,AA,TP,1.8x3.2m
VARISTOR;470V,600A,9x7mm,TP
Remark
S.N.A.
Loc.No
Part No
Description ; Specification
POWER PARTS
C1P101
2401-001730
C1P103
2401-001254
C1P104
2401-001254
C1P105
2401-000598
C1P106
2401-000598
C1P108
2401-003107
C1P109
2401-003107
C1P112
2401-001254
D1P101
0402-000127
D1P102
0402-000127
D1P106
0401-000101
D1P108
0401-000101
D1P109
0401-000101
L1P101
2701-000002
Q1P101
0501-000616
Q1P102
0501-000616
Q1P104
0501-000398
Q1P107
0501-000616
Q1P108
0504-000142
Q1P109
0501-000398
R1P101
2001-000855
R1P102
2001-000449
R1P103
2001-000515
R1P104
2001-000515
R1P110
2001-000515
R1P111
2001-000734
R1P112
2001-000290
ZD1P01
0403-000390
ZD1P02
0403-000717
ZD1P03
0403-000720
ZD1P05
0403-001211
ZD1SR1
0403-000571
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
TR-DIGITAL;KSR2001,PNP,300MW,4.7K/4.7K,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
R-CARBON;560OHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
DIODE-ZENER;UZP33B,33V,31.4-34.6V,1W,DODIODE-ZENER;MTZJ5.1B,5.1V,4.94-5.2V,500m
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;UZP43B,43V,40-46V,1W,DO-41,T
LOGIC PARTS
C601
2203-000260
C602
2202-000797
C603
2203-000260
C604
2203-000260
C605
2401-000360
C606
2202-000797
C607
2203-000260
C608
2401-002165
C609
2203-000609
C610
2203-000989
C612
2203-000361
C613
2401-001545
C615
2202-000797
C616
2203-000192
C617
2401-002095
C618
2203-000634
C619
2203-000683
C620
2203-000683
C621
2203-000634
C622
2401-000598
C623
2202-000121
C624
2401-002165
C625
2203-000192
C626
2203-000192
C627
2203-001245
C628
2401-002068
C629
2203-001579
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,2012
C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201
C-AL;33uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;15nF,10%,50V,NP0,TP,2012
Remark
Samsung Electronics
Electrical Parts List
Loc.No
C630
C631
C632
C633
C634
C635
C636
C637
C638
C639
C640
C643
C644
C646
C647
C648
C649
C650
C651
C652
C653
C655
C656
C6B01
CN601
CN604
CN605
D601
D603
D604
D605
D606
D607
IC601
IC602
IC603
IC6B1
L601
L602
LD601
PT601
PT602
R601
R602
R603
R604
R605
R606
R607
R608
R609
R610
R613
R614
R615
R616
R617
R618
R619
R620
R621
R622
R623
R624
R630
R631
Part No
2401-003107
2203-000192
2203-001077
2203-000716
2203-001077
2203-000260
2203-000260
2203-000609
2203-000609
2203-000609
2203-000192
2203-000260
2203-000260
2203-000192
2203-000192
2203-000192
2203-000444
2203-000727
2203-000727
2203-000260
2203-000575
2202-000797
2203-000844
2401-000199
AC39-20817S
3711-003749
3708-001302
0401-000101
0402-000127
0402-000127
0401-000101
0402-000127
0402-000127
AC09-00197A
1003-001318
1103-001148
AC14-12006C
3301-000297
2701-000002
0601-000517
0604-001122
0604-001122
2007-000586
2007-000572
2007-000586
2007-000572
2001-000111
2001-000522
2007-000738
2001-000429
2001-000734
2001-000734
2001-000290
2001-000429
2007-000981
2001-000429
2007-000221
2007-001039
2001-000290
2001-000290
2007-000931
2007-000931
2001-000290
2001-000290
2001-000864
2001-000864
Samsung Electronics
Description ; Specification
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;3.9nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;3.9nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;39nF,10%,50V,X7R,TP,2012,
C-AL;1000uF,20%,6.3V,GP,TP,10x12.5,
LEAD CONNECTOR-ASSY;DP,SMH200-02,YBH200CONNECTOR-HEADER;BOX,8P,2R,2mm,STRAIGHT,
CONNECTOR-FPC/FC/PIC;7P,1.25mm,STRAIGHT,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
IC MICOM;MN101D02D-CP1,VR8170,100P,5V,1
IC-MOTOR DRIVER;LB11880,DIP,30P,417MIL,IC-EEPROM;24C021,2KBIT,DIP,8P,300MIL,10M
IC;KA7533,DIP,CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
LED-IR;RECTANGULA,4x6.0mm,75mW,6V,950
PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,
PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,
R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CARBON;150OHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;30KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;56KOHM,5%,1/10W,DA,TP,2012
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Remark
Loc.No
R632
R633
R634
R635
R637
R638
R639
R641
R642
R643
R644
R645
R646
R647
R648
R649
R650
R651
R652
R653
R656
R660
R664
R665
R668
R669
R690
R691
R692
R6B01
S601
S602
SW602
SW603
XT601
XT602
Part No
2001-000786
2007-000565
2007-000068
2001-000429
2001-000281
2001-000591
2007-000518
2001-000429
2001-000429
2007-000300
2007-000300
2007-000300
2007-000981
2007-000766
2007-000766
2007-000872
2007-000872
2007-000872
2007-000300
2001-000429
2007-000300
2007-000001
2007-000703
2007-000282
2003-000111
2007-001024
2001-000429
2001-000429
2001-000429
2001-000458
0603-001011
0603-001011
AC34-20100B
AC34-20100A
2801-001384
2801-003318
AUDIO/VIDEO PARTS
C301
2401-000598
C302
2203-001721
C303
2007-000029
C304
2202-000164
C305
2401-000598
C306
2203-000192
C307
2401-003107
C308
2401-000918
C309
2401-000414
C310
2401-000598
C312
2202-002037
C313
2401-000414
C314
2203-000476
C315
2401-000598
C316
2401-000598
C317
2401-000598
C318
2202-000797
C319
2202-000797
C320
2203-000260
C321
2401-003107
C322
2202-002037
C323
2401-000598
C324
2203-000260
C325
2401-000598
C326
2203-000609
C327
2401-001915
C328
2401-003107
C329
2203-000192
Description ; Specification
Remark
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;220KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;330OHM,5%,1/10W,DA,TP,2012
R-CHIP;330OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;68KOHM,5%,1/10W,DA,TP,2012
R-CHIP;3.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R-METAL OXIDE;0.47ohm,5%,1W,AD,TP,4.3x12
R-CHIP;560KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2OHM,5%,1/8W,AA,TP,1.8X3.2MM
PHOTO-TR;NPN,35V,6V,50mA,75mW,BK
PHOTO-TR;NPN,35V,6V,50mA,75mW,BK
SWITCH-REC;-,-,X-9,SWITCH-MODE;-,-,X-9,CRYSTAL-UNIT;14.31818MHz,30ppm,28-AAA,16
CRYSTAL-UNIT;32.768KHz,20ppm,28-AAP,12.5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;360pF,5%,50V,NPO,TP,2012,
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
C-CERAMIC,MLC-AXIAL;0.18nF,10%,50V,Y5P,T
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-AL;22uF,20%,16V,GP,-,6.3x7,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C-AL;1uF,20%,50V,GP,TP,3x5,5
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
4-7
Electrical Parts List
Loc.No
C330
C331
C332
C333
C334
C335
C336
C337
C338
C340
C341
C342
C343
C344
C345
C346
C347
C348
C349
C350
C351
C352
C353
C354
C356
C357
C358
C359
C360
C364
C371
C372
C399
CN301
CN301
CN302
CN303
FL301
IC301
L301
L302
L303
L304
L305
L306
L307
Q302
Q303
Q304
Q305
Q306
Q307
Q308
R301
R302
R303
R304
R305
R308
R309
R310
R311
R312
R313
R314
R315
4-8
Part No
2203-000192
2203-000989
2203-000989
2203-000989
2401-003107
2203-000192
2202-002037
2401-003107
2203-000192
2401-000918
2202-002037
2401-001169
2203-000192
2203-001214
2203-000260
2401-000438
2203-000495
2203-001132
2401-001254
2301-001014
2203-001214
2203-000260
2401-001254
2202-000797
2401-002144
2301-000253
2202-000797
2203-000260
2203-000260
2203-000260
2203-001077
2203-000260
2401-003107
3708-000391
3708-000394
3710-001648
3708-001165
AC27-80100C
1204-001755
3301-000297
3301-000297
3301-000297
3301-000297
3301-000297
2702-000120
2701-000002
0501-000303
0501-000398
0501-000303
0501-000442
0501-000303
0501-000442
0501-000442
2007-000409
2007-001055
2007-000267
2007-000267
2001-000734
2007-000565
2001-000004
2001-000449
2007-001113
2007-000221
2001-000258
2007-000241
2007-001177
Description ; Specification
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;22uF,20%,16V,GP,-,6.3x7,5
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-AL;33uF,20%,16V,GP,-,6.3x7,2.5mm
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,25V,GP,-,5x11,2mm
C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.68nF,5%,50V,NP0,TP,2012
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-FILM,PEF;6.8nF,5%,50V,TP,7x3x6,5mm
C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-FILM,PEF;39NF,5%,100V,TP,7.5X4.5X12.5M
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x7,5
CONNECTOR-FPC/FC/PIC;10P,1.25MM,STRAIGHT
CONNECTOR-FPC/FC/PIC;6P,1.25mm,STRAIGHT,
CONNECTOR-SOCKET;2P,1R,2.5mm,STRAIGHT,SN
CONNECTOR-FPC/FC/PIC;6P,1.25mm,STRAIGHT,
COIL-OSC;7mm,2.4mH,IC-VIDEO PROCESS;LA71200M,QFP,80P,-,PLAS
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
INDUCTOR-RADIAL;15mH,5%,6.2x7.4mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
R-CHIP;15KOHM,5%,1/10W,DA,TP,2012
R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;220KOHM,5%,1/10W,DA,TP,2012
R-CARBON;200KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;680KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012
Remark
VR8140C ONLY
VR5140C ONLY
Loc.No
Part No
Description ; Specification
R316
R317
R318
R319
R320
R320
R322
R322
R326
R327
R328
R329
R330
R331
R332
R333
R334
R335
R336
R337
R338
R339
R340
R341
R342
R343
R344
R346
R347
XT301
2007-000300
2001-000411
2001-000411
2001-000290
2007-000221
2007-000241
2001-000613
2001-000812
2007-000221
2007-000981
2007-000300
2007-000757
2007-000572
2007-000653
2007-000468
2001-000221
2007-000586
2007-000931
2007-000267
2001-000458
2001-000405
2001-000429
2001-000429
2001-000522
2007-000300
2007-001001
2007-001001
2007-001118
2007-000941
2801-003610
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;330KOHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;27KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R-CARBON;2.2OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;510OHM,5%,1/10W,DA,TP,2012
R-CHIP;510OHM,5%,1/10W,DA,TP,2012
R-CHIP;680OHM,5%,1/10W,DA,TP,2012
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
CRYSTAL-UNIT;3.579545MHz,8ppm,28-AAA,S,1
TM-BLOCK
C401
C405
C406
C407
C409
C410
R401
R402
SW401
TM401
2203-000260
2401-002144
2203-000260
2202-000807
2202-002037
2203-000609
2001-000780
2001-000780
3408-001042
AC40-00007A
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V
C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
SWITCH-SLIDE;DC 12V,100mA,-,OFF-ON,TM-BLOCK;115VD025AP,NTSC-M,115VD025AP,Y
Remark
VR5140C ONLY
VR8140C ONLY
VR8410C ONLY
VR5140C ONLY
HI-FI PARTS(HI-FI MODEL ONLY)
C501
2203-000192
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C502
2401-000414
C-AL;10uF,20%,16V,GP,TP,4x7,5
C503
2401-001254
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C504
2401-000414
C-AL;10uF,20%,16V,GP,TP,4x7,5
C505
2401-001254
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C506
2401-000598
C-AL;1uF,20%,50V,GP,TP,4x7,5
C507
2401-001169
C-AL;33uF,20%,16V,GP,-,6.3x7,2.5mm
C508
2401-000414
C-AL;10uF,20%,16V,GP,TP,4x7,5
C509
2401-000414
C-AL;10uF,20%,16V,GP,TP,4x7,5
C510
2301-000224
C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5
C511
2203-000192
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C512
2203-000126
C-CERAMIC,CHIP;1.2nF,10%,50V,X7R,TP,2012
C513
2202-000797
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C514
2202-000797
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C515
2203-000192
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C516
2401-003107
C-AL;47uF,20%,16V,GP,TP,5x7,5
C517
2203-000192
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C518
2401-000598
C-AL;1uF,20%,50V,GP,TP,4x7,5
C519
2401-001931
C-AL;220nF,20%,50V,-,TP,4x7mm,5
C520
2301-000224
C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5
C521
2401-000414
C-AL;10uF,20%,16V,GP,TP,4x7,5
C522
2401-000414
C-AL;10uF,20%,16V,GP,TP,4x7,5
Samsung Electronics
Electrical Parts List
Loc.No
C523
C526
C527
C528
C529
C530
C531
C532
C533
C534
C535
C536
C537
C538
C540
C541
C542
C543
C544
D503
IC501
L501
L502
L503
L504
R501
R503
R506
R507
R510
R511
R512
R513
R514
R515
R516
R517
R518
R519
R520
R521
R522
R525
R527
R530
R531
Part No
Description ; Specification
2401-001169
2401-001254
2401-001931
2401-001020
2401-000598
2203-000192
2401-003107
2203-000192
2203-000192
2203-000192
2401-000414
2401-001919
2401-000414
2202-000797
2401-003107
2203-000192
2401-000414
2301-000224
2401-000414
0401-000101
1204-001754
2702-000108
3301-000297
3301-000297
2701-000126
2007-001141
2007-001141
2007-000774
2007-000468
2001-000005
2007-000872
2001-000005
2007-000872
2001-000780
2007-001055
2001-000780
2007-000804
2007-001224
2001-000786
2001-000786
2001-000472
2007-000518
2001-000472
2007-000300
2001-000347
2001-000290
C-AL;33uF,20%,16V,GP,-,6.3x7,2.5mm
C-AL;4.7uF,20%,35V,GP,TP,4x7,5
C-AL;220nF,20%,50V,-,TP,4x7mm,5
C-AL;3.3UF,20%,50V,GP,TP,4X7,5
C-AL;1uF,20%,50V,GP,TP,4x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-AL;2.2uF,20%,50V,-,TP,4x7mm,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-AL;47uF,20%,16V,GP,TP,5x7,5
C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C-AL;10uF,20%,16V,GP,TP,4x7,5
C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5
C-AL;10uF,20%,16V,GP,TP,4x7,5
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
IC-SIGNAL PROCESSOR;AN3663FBP,QFP,64P,-,
INDUCTOR-RADIAL;100uH,5%,6x6.4mm
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
INDUCTOR-AXIAL;150uH,5%,2.4x3.4mm
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;7.5KOHM,5%,1/10W,DA,TP,2012
R-CHIP;33KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;36KOHM,5%,1/10W,DA,TP,2012
R-CHIP;9.1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;13KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
INPUT-OUTPUT PARTS
C801
2401-002144
C802
2401-001479
C803
2401-002144
C805
2401-000438
C8L1
2401-001730
C8L2
2401-001730
C8M2
2203-000802
JK801
AC37-20001G
JK801
AC37-20001H
L802
3301-000297
Q801
0501-000303
Q8L1
0501-000398
R801
2001-000969
R802
2001-000025
R803
2007-001239
R804
2007-001166
R8L1
2001-000356
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;470uF,20%,10V,GP,TP,-,C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;10uF,20%,25V,GP,-,5x11,2mm
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012
JACK-RCA;DPAE-,6P,HIFI,PI3.3
JACK-RCA;DPAM-,4P,MONO,PI3.3
CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/4W,AA,TP,2.4X6.4MM
R-CHIP;910OHM,5%,1/10W,DA,TP,2012
R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R-CARBON;150KOHM,5%,1/8W,AA,TP,1.8X3.2M
Samsung Electronics
Remark
Loc.No
R8L2
R8L3
R8L4
R8L5
R8M1
R8M2
R8M3
W087
VR5140C ONLY
VR8140C ONLY
VR5140C ONLY
Part No
Description ; Specification
2001-000356
2001-000449
2001-000780
2001-000734
2007-000941
2007-001224
2001-000786
2001-000515
R-CARBON;150KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R-CHIP;9.1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
FUNCTION PARTS
D701
0401-000101
D702
0401-000101
D703
0401-000101
D704
0401-000101
D705
0401-000101
D706
0401-000101
D707
0401-000101
D708
0401-000101
Q705
0501-000290
Q707
0501-000398
Q708
0501-000398
Q709
0501-000398
R707
2001-000449
R709
2001-000290
R712
2001-000290
R714
2001-000290
R716
2001-000290
R718
2001-000290
R720
2001-000290
R722
2001-000290
R744
2001-000734
SW702
3404-000165
SW703
3404-000165
SW704
3404-000165
SW705
3404-000165
SW706
3404-000165
SW707
3404-000165
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
TR-SMALL SIGNAL;KSA643-Y,PNP,500mW,TO-92
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
DISPLAY (LED-LAMP)
C7L01
2401-002008
C7L02
2202-000797
C7L03
2202-000173
CN7L01
3711-004012
LD7L01
0601-001203
LD7L02
0601-001408
LD7L03
0601-001408
LD7L04
0601-001408
LD7L05
0601-001408
LD7L06
0601-001408
LD7L07
0601-001203
R7L01
2001-000290
R7L08
2001-000515
R7L09
2001-000515
R7L10
2001-000515
R7L11
2001-000515
R7L12
2001-000515
R7L13
2001-000515
R7L14
2001-000515
RM7L1
AC59-00011A
C-AL;100uF,20%,16V,GP,TP,6.3x11,2.5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P,TP,1
CONNECTOR-HEADER;NOWALL,16P,1R,2.5MM,ANG
LED;ROUND,RED,3.3mm,700nm
LED;ROUND,GRN,-,LED;ROUND,GRN,-,LED;ROUND,GRN,-,LED;ROUND,GRN,-,LED;ROUND,GRN,-,LED;ROUND,RED,3.3mm,700nm
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
MODULE-REMOCON;-,TSOP2838RF1,-,-,-,-,BK
Remark
VR5140C ONLY
VR5140C ONLY
VR5140C ONLY
4-9
Electrical Parts List
MEMO
4-10
Samsung Electronics
5. Schematic Diagrams
◆ Block Identification of Main PCB- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
5-2
5-1 S.M.P.S./Power - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
5-3
5-2 Logic - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
5-4
5-3 Audio/Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
5-6
5-4 Hi-Fi (Option) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
5-8
5-5 TM-Block/Input-Output- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
5-10
5-6 Display (LED-Module ; VR9180/9160/8160/5160/9180C/9160C/8170C/8160C/5160C) - - - - -
5-11
5-7 Display (LED-Lamp ; VR8140C/5140C) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
5-12
Samsung Electronics
5-1
Schematic Diagrams
Note
For schematic Diagram
- Resistors are in ohms, 1/8W unless otherwise noted.
Special note :
Most semiconductor devices are electrostatically sensitive and therefore require the special handling techniques described under the
“electrostatically sensitive (ES) devices” section of this service manual.
Note :
Do not use the part number shown on this drawing for ordering. The correct part number is shown in the parts list (may be slightly different
or amended since this drawing was prepared).
Important safety notices :
Components identified with the mark
Use only the same type.
have the special characteristics for safety. When replacing any of these components.
◆ Block Identification of Main PCB
Component Side
5-2
Conductor Side
Samsung Electronics
Schematic Diagrams
5-1 S.M.P.S./Power
PWR OFF
Œ
PWR ON
´
ΠQ1SR02-COLLECTOR
POWER OFF/240Vp-p
Samsung Electronics
´ Q1SR02-COLLECTOR
POWER ON/270Vp-p
5-3
Schematic Diagrams
5-2 Logic
‰
Ø
¨
Œ
∏
ˆ
ˇ
´
”
5-4
’
Samsung Electronics
Schematic Diagrams
IC601 MN101D02X
IC601 VOLTAGE TABLE
WAVEFORM
ΠIC601-35
PB/3Vp-p
Ø TP601
PB/3.2Vp-p
´ IC601-34
PB/5Vp-p
∏ IC601-37,38
PB,REC/620mVp-p
ˇ IC601-33
PB/5Vp-p
” IC601-47
PB,REC/2.2Vp-p
¨ CN604-6
PB/5Vp-p
’ IC601-50
PB,REC/1.8Vp-p
ˆ IC602-8
PB/5Vp-p
Samsung Electronics
5-5
Schematic Diagrams
5-3 Audio/Video
¨
Ø
∏
ˇ
´
Œ”
ˆ
5-6
Samsung Electronics
Schematic Diagrams
IC301 LA71200M
Samsung Electronics
IC301 VOLTAGE TABLE
WAVEFORM
ΠIC301-9
REC/3Vp-p
ˆ TP301
PB/600mVp-p
´ IC301-21
PB,REC/440mVp-p
Ø IC301-66
REC(EP)/3.1Vp-p
ˇ IC301-24
PB,REC/250mVp-p
∏ IC301-73
REC(SP)/4Vp-p
¨ IC301-39
PB,REC/400mVp-p
” IC301-10
PB/1.4Vp-p
5-7
Schematic Diagrams
5-4 Hi-Fi (Option)
Œ
ˇ
´
5-8
Samsung Electronics
Schematic Diagrams
IC501 AN3662FBP
IC501 VOLTAGE TABLE
WAVEFORM
ΠIC501-30
PB/50mVp-p
´ IC501-21
PB/50mVp-p
ˇ IC501-53, 57
PB,REC/150mVp-p
Samsung Electronics
5-9
Schematic Diagrams
5-5 TM-Block/Input-Output
ΠTM401-18
REC/100mVp-p
´ TM401-20
REC/100mVp-p
Œ
´
5-10
Samsung Electronics
Schematic Diagrams
5-6 Display (LED-Module ; VR9180/9160/8160/5160/9180C/9160C/8170C/8160C/5160C)s
Samsung Electronics
5-11
Schematic Diagrams
5-7 Display (LED-Lamp ; VR8140C/5140C)
5-12
Samsung Electronics
TS-10 DECK
MECHANICAL MANUAL
TS-10 DECK
MECHANICAL
Manual
◆ File with the SERVICE MANUAL.
TS-10 DECK
CONTENTS
1. Disassembly and Reassembly
ELECTRONICS
2. Alignment and Adjustment
© Samsung Electronics Co., Ltd. JUN. 2001
Printed in Korea
AC68-01451A
1. Disassembly and Reassembly
1-1 Deck Parts Locations
1-1-1 Top View
Œ
ˇ
¨
ˆ
´
Ø
Fig. 1-1 Top parts Location-1
Œ
´
ˇ
¨
ˆ
Ø
GEAR FL CAM
MOTOR LOADING ASS’Y
LEVER FL ARM ASS’Y
HOLDER FL CASSETTE ASS’Y
LEVER FL DOOR
SLIDER FL DRIVE
Samsung Electronics
1-1
Disassembly and Reassembly
´
Œ
Ø
∏
”
ˇ
’” Ô ˝ 
¨
ˆ
Ò
Fig. 1-2 Top Parts Location-2
Œ
´
ˇ
¨
ˆ
Ø
∏
1-2
FE HEAD
CYLINDER ASS’Y
ACE HEAD ASS’Y
LEVER UNIT PINCH ASS’Y
LEVER #9 GUIDE ASS’Y
LEVER TENSION ASS’Y
BAND BRAKE ASS’Y
”
’
˝
Ô

Ò
DISK S REEL
LEVER S BRAKE ASS’Y
GEAR IDLE
LEVER IDLE
LEVER T BRAKE ASS’Y
DISK T REEL
Samsung Electronics
Disassembly and Reassembly
1-1-2 Bottom View
Œ ´
¨
ˇ
”
’
ˆ Ø
∏
˝
Fig. 1-3 Bottom Parts Location
Œ
´
ˇ
¨
ˆ
Ø
∏
”
’
˝
GEAR JOINT 1
GEAR JOINT 2
BRACKET GEAR
MOTOR CAPSTAN ASS’Y
LEVER T LOAD ASS’Y
GEAR LOADING DRIVE
LEVER S LOAD ASS’Y
HOLDER CLUTCH ASS’Y
BELT PULLEY
SLIDER CAM
Samsung Electronics
1-3
Disassembly and Reassembly
1-2 Main Deck
1-2-1 Lever FL Door Removal
1-2-2 Holder FL Cassette Ass’y Removal
1) Push the Holder FL Cassette Ass'y Πabout 20mm
in the direction of arrow “A”.
2) Rotate the Lever FL Door ´ in the direction of
arrow “B”.
3) Release the Hook ˇ and Remove the Lever FL
Door ´ in the direction of arrow “C”.
1) Pull the Holder FL Cassette Ass'y Πto the eject
position.
2) Pull the Holder FL Cassette Ass'y Πas grasping
the Holder FL Cassette Ass'y Πand Lever FL
Cassette-R ´ in the same time to release hooking
from Main Base until the Boss [A] of Holder FL
Cassette Ass'y Πis taken out from the Rail [B].
3) Lift the Holder FL Cassette Ass'y Œ, in this time,
you have to grasp the Lever FL Cassette-R ´
Continuously until the Holder FL Cassette Ass'y
Πis taken out completely.
ΠHOLDER FL CASSETTE ASS'Y
"A"
Note : Be sure to insert Lever FL Cassette-R ´ in the
direction of “A” to prevent separation and breakage
of the Lever FL Cassette-R ´ at disassembling and
reassembling.
"B"
´ LEVER FL DOOR
ˇ HOOK
"C"
Fig. 1-4 Lever FL Door Removal
RAIL [B]
ΠHOLDER FL
CASSETTEE ASS`Y
"A" ´ LEVER FL CASSETTEE -R
BOSS [A]
Fig. 1-5 Holder FL Cassette Ass’y Removal
1-4
Samsung Electronics
Disassembly and Reassembly
1-2-3 Slider FL Drive, Gear FL Cam Removal
1-2-4 Lever FL Arm Ass’y Removal
1) Pull the Slider FL Drive Πto the front direction.
2) Remove the Slider FL Drive Πin the direction of
arrow. (Refer to Fig. 1-6)
3) Remove the Gear FL cam ´.
1) Push the hole “A” in the direction of arrow “B”
use the pin.(about Dia. 2.5)
2) Pull out the Lever FL Arm Ass'y Πfrom the Boss
of Main Base.
3) Remove the Lever FL Arm Ass'y Πin the direction
of arrow “C”.
Note : When reinstalling be sure to reassemble Slider
FL drive Πafter you insert the Boss of Lever FL
ARM-R in Groove of Slider Fl drive Œ.
HOLE "A"
Assembly : Align the Gear FL Cam Πwith the Gear
worm wheel Post as shown drawing.
(Refer to Timing point)
PIN
"B"
"C"
ΠLEVER FL ARM ASS`Y
Fig. 1-8 Lever FL Arm Ass’y Removal
´ GEAR FL CAM
ΠSLIDER FL DRIVE
Fig. 1-6 Slider FL Drive Removal
ΠGEAR FL CAM
GEAR WORM WHEEL
POST
TIMING POINT
Fig. 1-7 Gear FL Cam, Gear Worm
Samsung Electronics
1-5
Disassembly and Reassembly
1-2-5 Gear Worm Wheel Removal
1-2-6 Motor Loading Ass’y Removal
1) Remove the Gear Worm wheel Œ.
1) Remove the screw Œ.
2) Remove the Motor Loading Ass’y ´.
´ MOTOR LOADING ASS`Y
ΠSCREW
ΠGEAR WORM WHEEL
Fig. 1-10 Motor Loading Ass’y Removal
Fig. 1-9 Gear Worm Wheel Removal
1-6
Samsung Electronics
Disassembly and Reassembly
1-2-7 Bracket Gear, Gear Joint 2, 1 Removal
1) Remove the SCREW Œ.
2) Remove the Bracket Gear ´.
3) Remove the Gear Joint 2 ˇ.
4) Remove the Gear Joint 1 ¨.
Assembly :
1) Be sure to align dot mark of Gear Joint 1 Πwith
dot mark of Gear Joint 2 ´ as shown Fig 1-12.
(Refer to Timing point1)
2) Confirm the Timing Point 2 of the Gear Joint 2 ´
and Slider Cam ˇ.
1-2-8 Gear Loading Drive, Slider Cam,
Lever Load S, T Ass’y Removal
1) Remove the Belt Pulley. (Refer to Fig. 1-30)
2) Remove the Gear Loading Drive Πafter releasing
Hook [A] in the direction arrow as shown in detail
drawing.
3) Remove the Slider Cam ´.
4) Remove the Lever Load ˇ, Link Load ˆ & Lever
Load ¨, Link Load Ø.
HOOK(A)
¨ GEAR JOINT 1
´ SLIDE CAM
ˇ GEAR JOINT 2
ΠSCREW
´ BRAKET GEAR
ΠGEAR LOADING DRIVE
¨ LEVER LOAD T
Ø LINK LOAD T
ˇ LEVER LOAD S
ˆ LINK LOAD S
Fig. 1-11 Bracket Gear, Gear Joint 1,2 Removal
Fig. 1-13 Gear Loading Drive, Slider Cam,
Lever T, S Load Ass’y Removal
ΠGEAR JOINT1
´ GEAR JOINT2
ˇ SLIDER CAM
TIMING POINT 1
TIMING POINT 2
Fig. 1-12 Gear Joint 1,2 Assembly
Samsung Electronics
1-7
Disassembly and Reassembly
1-2-9 Gear Loading Drive, Slider Cam,
Lever Load S, T Ass’y Assembly
1-2-10 Lever Pinch Drive,
Lever Tension Drive Removal
1) When reinstalling, be sure to align dot of Lever
Load T Ass'y Œ with dot of Lever Load S Ass'y ´
as shown in drawing, (Refer to Timing Point 1).
2) Insert the Pin A,B,C,D into the Slider Cam ˇ hole,
3) Be sure to align dot of Lever Load T Πand dot of
Gear Loading Drive ¨, (Refer to Timing Point 2).
4) Aline dot of Gear Loading drive ¨ with mark of
Slider Cam ˇ as shown in drawing(Refer to
Timing Point 3).
1) Remove the Lever Pinch Drive Œ, Lever Tension
Drive ´.
ΠLEVER PINCH DRIVE
´ LEVER TENSION DRIVE
TIMING POINT 1
ΠLEVER LOAD T
´ LEVER LOAD S
LEVER LOAD T
LEVER LOAD S
Fig. 1-15 Lever Pinch Drive,
Lever Tension Drive Removal
TIMING POINT 2
TIMING POINT 3
PIN A
PIN C
PIN D PIN B
ˇ SLIDER CAM
Fig. 1-14 Gear Loading Drive, Slider Cam,
Lever Load S, T Ass’y Assembly
1-8
Samsung Electronics
Disassembly and Reassembly
1-2-11 Lever Tension Ass’y,
Band Brake Ass’y Removal
1) Remove the Lever Brake S Ass'y (Refer to Fig 1-17).
2) Remove the Spring Tension Lever Œ.
3) Rotate stopper of Main Base in the direction of
arrow “A”.
4) Lift the Lever Tension Ass'y ´ & Band brake
Ass'y ˇ.
Note :
1) When replacing the Lever Tension Ass'y ´, be sure
to apply Grease on the post,
2) Take care not to touch stain on the felt side, and not
to be folder and broken Band brake Ass'y
3) After Lever Tension Ass'y seated, Rotate stopper of
Main Base to the Mark[B].
1-2-12 Lever Brake S, T Ass’y Removal
1) Release the Hook [A] and the Hook [B], [C] in the
direction of arrow as shown in Fig 1-17.
2) Lift the Lever S, T Brake Ass'y Œ, ´ with spring
brake ˇ.
Assembly :
1)Assembly the Lever S Brake Ass'y Πon the Main
Base.
2)Assembly the Lever T Brake Ass'y ´ with spring
brake ˇ.
Note : Take extreme care not to be folded and
transformed Spring Brake at removing or reinstalling.
ˇ BAND BRAKE ASS`Y
HOOK(A)
´ LEVER TENTION ASS`Y
ˇ SPRING BRAKE
ΠSPRING TENTION LEVER
STOPPER
"A"
MARK[B]
ΠLEVER S BRAKE ASS`Y
HOOK(C)
HOOK(B)
´ LEVER T BRAKE ASS`Y
Fig. 1-16 Lever Tension Ass’y,
Band Brake Ass’y Removal
Fig. 1-17 Lever Brake S, T Ass’y Removal
Samsung Electronics
1-9
Disassembly and Reassembly
1-2-13 Gear Idle Ass’y Removal
1-2-14 Disk S, T Reel Removal
1) Push the Lever Idle Πin the direction of arrow
“A”, “B”.
2) Lift the Lever Idle Œ.
1) Lift the Disk S, T Reel Œ, ´.
ΠDISK S REEL
Assembly :
1) Apply oil in two Bosses of Lever Idle Œ.
2) Assemble the Gear Idle ´ with the Lever Idle Œ.
Note : When replacing the Gear Idle ´, be sure to
add oil in the boss of Lever Idle Œ.
´ DISK T REEL
"A"
ΠLEVER IDLE
´ GEAR IDLE
"B"
´ GEAR IDLE
HOOK "C"
Fig. 1-19 Disk S, T Reel Removal
Fig. 1-18 Gear Idle Ass’y Removal
1-10
Samsung Electronics
Disassembly and Reassembly
1-2-15 Holder Clutch Ass’y Removal
1) Remove the Washer Slit Œ.
2) Lift the Holder Clutch Ass’y ´.
Note : When you reinstall Holder Clutch Ass'y
1) Check the condition of spring as shown in detail A.
2) Don't push Holder Clutch Ass'y down with excessive force Just insert Holder Clutch Ass'y into post
center with dead force and Rotate it smoothly.
Be sure to confirm that spring is in the slit of Gear
Center Ass'y as shown in detail B.
ΠWASHER SLIT
´ HOLDER CLUTCH ASS`Y
1-2-16 Lever Up Down Ass’y, Gear Center
Ass’y Removal
1) Remove the 2 hooks in the direction of arrow as
shown Fig. 1-21 and lift the Lever Up Down Ass’y Œ.
2) Lift the Gear Center Ass’y ´.
Assembly :
1) Insert the Lever Up Down Ass'y Πin the rectangular holes on Main Base as shown in Fig 1-22.
2) Lift the Lever Up Down Ass'y Œ about 35°.
(Refer to Fig 1-22)
3) Insert Ring of the Gear Center Ass'y ´ in the
Guide of the Lever Up Down Ass'y Œ.
4) Insert the Gear Center Ass'y ´ in the post on
Main Base.
5) Push down the Lever Up Down Ass'y Πfor
locking of the Hook.
Note :
1) Take care not to separate and sentence does not
mark sense.
2) Be sure to confirm that Ring of the Gear Center
Ass'y ´ is in the Guide of the Lever Up Down
Ass'y Πafter finishing assembly of Lever Up
Down Ass'y Œ and Gear Center Ass'y ´.
ΠLEVER UP DOWN ASS`Y
´ GEAR CENTER ASS`Y
DETAIL A
<BAD>
SPRING
<GOOD>
DETAIL B
Fig. 1-21 Lever Up Down Ass’y Removal
SPRING
GEAR CENTER ASS'Y
GUIDE
LEVER UP DOWN ASS'Y
<BAD>
<GOOD>
RING
GEAR
POST
HOOK
35
Fig. 1-20 Holder Clutch Ass’y Removal
MAIN BASE
Fig. 1-22 Lever Up Down Ass’y Removal
Samsung Electronics
1-11
Disassembly and Reassembly
1-2-17 Guide Cassette Door Removal
1) Lift the Hook [A].
2) Rotate the Guide Cassette Door Πin the direction
of arrow.
Note : After reinstalling the Guide Cassette Door Œ
sure the Hook [A].
ΠGUIDE CASSETTE DOOR
1-2-18 Lever Unit Pinch Ass’y, Plate Joint,
Spring Pinch Drive Removal
1) Lift the Unit Pinch Ass’y Œ.
2) Remove the Plate Joint ´ from Lever Pinch Drive.
3) Remove the Spring Pinch Drive ˇ.
Note :
1) Take extreme care not to touch the grease on the
Roller Pinch.
2) When reinstalling, be sure to apply grease on the
post pinch roller.
ΠLEVER UNIT PINCH ASS`Y
HOOK [A]
´ PLATE JOINT
ˇ SPRING PINCH DRIVE
Fig. 1-23 Guide Cassette Door Removal
Fig. 1-24 Lever Unit Pinch Ass’y, Plate Joint,
Spring Pinch Drive Removal
1-12
Samsung Electronics
Disassembly and Reassembly
1-2-19 Lever #9 Guide Ass’y Removal
1-2-20 FE Head Removal
1) Remove the Spring #9 Guide Œ.
2) Lift the Spring #9 Guide Ass’y ´ in the direction
of arrow “A”.
1) Remove the screw Œ.
2) Lift the FE Head ´.
Note :
1) Take extreme care not to get grease on the tape
Guide Post.
2) After reinstalling, check the bottom side of the Post
#9 Guide to the top side of Main Base.
ΠFE HEAD
"A"
ΠSPRING #9 GUIDE
´ LEVER #9 GUIDE ASS`Y
"B"
Fig. 1-26 FE Head Removal
Fig. 1-25 Lever #9 Guide Ass’y Removal
Samsung Electronics
1-13
Disassembly and Reassembly
1-2-21 ACE Head Removal
1-2-22 Slider S, T Ass’y Removal
1) Pull out the FPC from connector of ACE Head
Ass’y ´.
2) Remove the screw Œ.
3) Lift the ACE Head Ass’y ´.
1) Move the Slider S, T Ass’y Œ, ´ to slot, and then
lift it to remove. (Refer to arrow)
ΠSLIDER S ASS`Y
ΠSCREW
´ SLIDER T ASS`Y
´ HEAD ACE ASS`Y
Fig. 1-28 Slider S, T Ass’y Removal
Fig. 1-27 ACE Head Removal
1-14
Samsung Electronics
Disassembly and Reassembly
1-2-23 Plate Ground Deck, Cylinder Ass’y Removal
1-2-24 Belt Pulley Removal
1) Remove the 3 Screws Œ.
2) Lift the Plate Ground Deck ´.
3) Lift the Cylinder Ass’y ˇ.
1) Remove the Belt Pulley Œ.
Note : Take extreme care not to get grease on Belt
Pulley Πat assembling or reassembling.
Assembly :
1) Match the 3 holes in the bottom of Cylinder ass'y
ˇ to the 3 holes of Main Base as attending not to
drop or knock the Cylinder ass'y ˇ.
2) Tighten the 1 Screw Œ.
3) Match the Plate Ground Deck ´ to the Hole of
Base Main.
4) Tighten the other 2 Screws Œ.
ΠBELT PULLEY
Note :
1) Take care not to touch the Cylinder Ass'y ˇ and
the tape guide post at reinstalling.
2) When reinstalling, Don't push down too much on
Screw Driver.
Π3 SCREWS
Fig. 1-30 Belt Pulley Removal
´ PLATE GROUND DECK
1-2-25 Level Head Cleaner Ass’y Removal
(Optional)
1) Release the Hook Œ.
2) Lift the Lever Head Cleaner Ass’y ´.
´ LEVER HEAD CLEANER ASS'Y
ΠHOOK
SLEEVE-HEAD CLEANER
ˇ CYLINDER ASS'Y
Fig. 1-29 Plate Ground Deck, Cylinder Ass’y Removal
Samsung Electronics
Fig. 1-31 Level Head Cleaner Ass’y Removal
1-15
Disassembly and Reassembly
1-2-26 Damper Capstan, Motor Capstan Ass’y
Removal
1) Remove the Damper Capstan Πin the direction
of arrow.
2) Remove the 3 Screws ´.
3) Remove the Motor Capstan Ass’y ˇ.
1-2-27 How to Eject the Cassette Tape
(If the unit does not operate on condition that is
inserted into housing ass’y)
1) Turn the Gear worm Πclockwise with screw
driver.(Refer to arrow)
(Other method : Remove the Screw of Motor Load
Ass'y, Separate the Motor Load Ass'y)
Assembly :
1) Match the 3 holes of Motor Capstan Ass’y ˇ to the
3 holes of Main Base. Be careful not to drop or
knock the Motor Capstan Ass'y ˇ.
2) Tighten the 3 Screws ´ in the direction of arrow
as shown detail drawing.
3) Assemble the Damper Capstan Œ.
ΠGEAR WORM
Note : After tightening screws, check if there is gap
between the head of screws and the top side of Main
Base. There should have no gap between the head of
screws and the top side of Main Base.
After reinstalling, adjusting the tape transport
system again.
´ 3 SCREWS
A
B
Fig. 1-33
C
ΠDAMPER CAPSTAN
2) When Slider S,T are approched in the position of
unloading, rotate holder Clutch counterclockwise
after inserting screw driver in the hole of frame's
bottom in order to wind the unwinded tape.
(Refer to Fig.1-34)
(If you rotate Gear Worm Πcontinuously when
tape is in state of unwinding, you may cause a
tape contamination by grease and tape damage.
Be sure to wind the unwinded tape in the state of
set horizently.)
3) Rotate Gear Worm Πclockwise using screw driver
again up to the state of eject mode and then pick
out the tape.(Refer to Fig.1-33)
ˇ MOTOR CAPSTAN ASS'Y
Fig. 1-32 Damper Capstan,Motor Capstan Ass’y Removal
FRAME
Fig. 1-33
1-16
Samsung Electronics
Disassembly and Reassembly
1-3 The table of clearing, Lubrication and replacement time about principal parts
1) The replacement time of parts is not life of parts.
2) The table 1-1 is that the VCR Set is in normal condition (normal temperature, normal humidity).
The checking period may be changed owing to the condition of use, runtime and environmental conditions.
3) Life of the Cylinder Ass’y is depend on the condition of use.
4) See exploded view for location of each parts.
<Table 1-1>
*
T
A
PE
P
A
T
H
S
Y
S
T
E
M
D
R
I
V
I
N
G
S
Y
S
T
E
M
B
R
A
K
E
S
Y
S
T
E
M
Parts Name
POST TENSION
SLANT POST S, T
#8 GUIDE SHAFT
CAPSTAN SHAFT
#9 GUIDE POST
#3 GUIDE POST
GUIDE ROLLER S, T
CYLINDER ASS’Y
FE HEAD
ACE HEAD
PINCH ROLLER
POST REEL S, T
SLEEVE TENSION
POST CENTER
LEVER IDLE BOSS (2Point)
CAPSTAN MOTOR PULLEY
BELT PULLEY
HOLDER CLUTCH ASS’Y
GEAR CENTER ASS’Y
GEAR IDLE (2Point)
LOADING MOTOR
BAND BRAKE ASS’Y
BRAKE T ASS’Y
Checking Period
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
∆
∆
∆
∆
∆
∆
∆
∆
∆
∆
∆
∆
∆
∆
∆
∆
∆
∆
O
∆
O
O
◆
◆
◆
◆
∆
∆
∆
∆
∆
∆
∆
∆
O
∆
O
O
∆
∆
∆
∆
∆
∆
O
O
O
O
O
∆
∆
∆
∆
∆
∆
O
O
O
O
O
◆
◆
◆
◆
O
O
O
O
O
O
O
O
∆
∆
∆
∆
∆
∆
O
O
O
O
O
O
O
O
O
O
O
∆
∆
∆
∆
∆
∆
O
O
O
O
O
◆
◆
◆
◆
O
O
O
O
O
O
O
O
∆
∆
∆
∆
∆
∆
O
O
O
O
O
O
O
O
O
O
O
∆
∆
∆
∆
∆
∆
O
O
O
O
O
◆
◆
◆
◆
∆
O
O
O
O
O
O
O
∆
∆
∆
∆
∆
∆
O
O
O
O
O
◆
◆
◆
◆
O
O
O
O
O
O
O
O
∆
∆
∆ : Cleaning
Samsung Electronics
∆
∆
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O : Check and replacement in necessary
O
O
O
O
O
O
O
O
Remark
- To clean the parts, use patch and
alcohol (solvent).
- After cleaning, use the video tape
after alcohol is gone away completely.
- We recommend to use oil [EP-50]
or solvent.
- One or two drops of oil should be
applied after
cleaning with alcohol.
- Periodic time of applying oil (Apply
oil after cleaning)
- The excessive applying oil may be
the cause of
malfunction.
◆ : Add Oil
1-17
Disassembly and Reassembly
MEMO
1-18
Samsung Electronics
2. Alignment and Adjustment
2-1 Tape Transport System and Adjustment Locations
The tape transport system has been adjusted precisely in the factory. Alignment is not necessary except for the
following :
1) Noise observed on the screen.
2) Tape damage.
3) Parts replacement in the tape transport system.
Lower flange height of tape guide is used as the reference for the transport adjustment.
To maintain the height of the tape guide and prevent damage, do not apply excessive force onto the main base.
CYLINDER ASS'Y
GUIDE ROLLER "S"
GUIDE ROLLER "T"
FULL ERASE HEAD
HEIGHT SCREW
#3 GUIDE POST
TENSION POST
PINCH ROLLER
TILT SCREW
X - POSITION
ADJUST SILT
#9 GUIDE POST
AZIMUTH SCREW
CAPSTAN
#8 GUIDE POST
TAKE UP REEL DISK
SUPPLY REEL DISK
Fig. 2-1 Location of Tape Transport Adjustment
PINCH ROLLER
FE HEAD
CYLINDER ASS'Y
GUIDE ROLLER "S"
GUIDE ROLLER "T"
POST TENSION
#8 GUIDE POST #9 GUIDE POST
#3 GUIDE POST
MAIN BASE
ACE HEAD
CAPSTAN SHAFT
Fig. 2-2 Tape Travel Diagram
Samsung Electronics
2-1
Alignment and Adjustment
2-2 Tape Transport System Adjustment
When parts are replaced, perform the required
adjustments by referring to procedures for the tape
transport system. If there are any changes to the tape
path, first run a T-120 tape and make sure excessive
tape wrinkle does not occur at the tape guides.
1) If tape wrinkle is observed at the guide roller S, T,
turn the guide roller S, T until wrinkle disappears.
2) If the tape wrinkle is still observed at the tape
guide, perform the tilt adjustment of the ACE head.
(See “2. Alignment and Adjustment” of the
Service Manual for Test Point Locations.)
2-2-1(b) ACE HEAD TILT ADJUSTMENT
1) Playback a blank tape and observe the position of
the tape at the lower flange of tape guide.
2) Confirm that there is no curl or wrinkle at the
lower flange of tape guide as shown in Fig. 2-5 (B).
3) If a curl or wrinkle of the tape occurs, slightly turn
the screw (A) tilt adjust on the ACE head ass’y.
4) Reconfirm the ACE head height.
2-2-1 ACE Head Assembly Adjustment
WRINKLE
2-2-1(a) ACE HEAD HEIGHT ADJUSTMENT
1) Run the alignment tape (Color bar) in the playback
mode.
2) Observe surface of the audio head using a dental
mirror.
3) Turn screw (C) clockwise or counterclockwise until
the gap of lower tape edge and the lower edge of
the control head is about 0.25mm.
(Refer to Fig. 2-3 and 2-4)
SCREW (A)
TLIT ADJUST
SCREW (C)
HEIGHT ADJUST
X-POSITION
ADJUSTING SLIT
SCREW (D)
X-POSITION LOCKING
SCREW (B)
AZIMUTH ADJUST
Fig. 2-3 Location of ACE Head Adjustment Screw
(BAD)
(GOOD)
Fig. 2-5 Tape Guide Check
2-2-1(c) AUDIO AZIMUTH ADJUSTMENT
1) Load alignment tape (Mono scope) and playback
the NTSC : 7KHz (PAL : 6KHz) signal.
2) Connect channel-1 scope probe to audio output
test point.
3) Adjust screw (B) to achieve maximum audio level.
(See Fig. 2-3)
2-2-1(d) ACE HEAD POSITION (X-POINT)
ADJUSTMENT
1) See “2. Alignment and Adjustment” for ACE Head
position (X-Point) adjustment.
AUDIO HEAD
VIDEO HEAD
0 ~ 0 .25 mm
CONTROL HEAD
Fig. 2-4 ACE Head Height Adjustment
2-2
Samsung Electronics
Alignment and Adjustment
2-2-2 Linearity adjustment
(Guide roller S, T adjustment)
1) Playback the Mono Scope alignment tape (SP mode).
2) Observe the video envelope signal on an oscilloscope (triggered by the video switching pulse).
3) Make sure the video envelope waveform (at its
minimum) meets the specification shown in
Fig. 2-6.
If it does not, adjust as follows :
c
a
b
abcd
c,b,d/a
d
63%
Fig. 2-6 Envelope Waveform Adjustment
Note :
a=Maximum output of the video RF envelope.
b=Minimum output of the video RF envelope at the
entrance side.
c=Minimum output of the video RF envelope at the
center point.
d=Maximum output of the video RF envelope at the
exit side.
H'D SWITCHING
PULSE
A
ENVELOPE
4) If the section A in Fig. 2-7 does not meet the specification, adjust the guide roller S up or down.
5) If the section B in Fig. 2-7 does not meet the specification, adjust the guide roller T up or down.
B
A
B
Fig. 2-7 Adjustment Points
6) Play back the Mono Scope alignment tape (SP mode).
7) Connect an oscilloscope CH-1 to the Envelope and CH-2 to the H’D SW Pulse for triggering.
) driver to obtain a flat video RF envelope as shown in Fig. 2-8.
8) Turn the guide roller heads with a flat head (
IDEAL ENVELOPE
S HEIGHT TOO HIGH
S HEIGHT TOO LOW
T HEIGHT TOO HIGH
GUIDE ROLLER S
T HEIGHT TOO LOW
GUIDE ROLLER T
Fig. 2-8 Guide Roller S, T Height Adjustment
Samsung Electronics
2-3
Alignment and Adjustment
2-2-3 Check Transitional Operation from
RPS to Play
Check transition from RPS mode to play mode :
Using a pre-recorded SP tape, make sure the entry
side of envelope comes to an appropriate steady state
within 3 seconds (as shown in Fig. 2-9).
If the envelope waveform does not reach specified
peak-to peak amplitude within 3 seconds, adjust as
follows :
1) Make sure there is no gap between the supply
roller lower flange and the tape.
If there is a gap, adjust the supply guide roller
again.
2) Change operation mode from the RPS to the play
mode (again) and make sure the entry side of
envelope rises within 3 second.
2-2-4 Envelope Check
1) Make recordings on T-120 (E-120) and T-160
(E-180) tape.
Make sure the playback output envelope meets the
specification as shown in Fig. 2-10.
2) Play back a self recorded tape (recording made on
the unit using with T-120 (E-120).
The video envelope should meet the specification
as shown in Fig. 2-10.
In SP mode, (A) should equal (B).
If the head gap is wide, upper cylinder should be
checked.
A
B
ENTRANCE SIDE ENVELOPE
Fig. 2-10 Envelope Output and Output Level
2-2-5 Tape Wrinkle Check
Fig. 2-9 Video Envelope Rising when Operation mode Changes
from RPS to Play Mode
1) Run the T-160 (E-180) tape in the playback, FPS,
RPS and Pause modes and observe tape wrinkle at
each guide.
2) If excessive tape wrinkle is observed, perform the
following adjustments in Playback mode :
◆ Tape wrinkle at the guide roller S, T section :
Linearity adjustment.
◆ Tape wrinkle at tape guide flange :
ACE head assembly coarse adjustment.
2-3 Reel Torque
1) The rotation of the capstan motor causes the
Holder Clutch Ass’y to rotate through the Belt
Pulley.
2) The spring wrap PLAY/REV of holder clutch ass’y
drives the disk reel S, T through gear idle by rotation of gear center ass’y.
3) Brake is operated by slider cam at FF/REW mode.
4) Transportation of accurate driving force is done by
gears. (Gear Center Ass’y)
<Table 2-1>
MODE
TORQUE g/cm
GAUGE
PB
42 ± 11
Cassette Torquemeter
RPS
145 ± 30
Cassette Torquemeter
Note : If the spec. does not meet the followings specifications, replace the holder clutch ass’y and then
recheck.
2-4
Samsung Electronics
