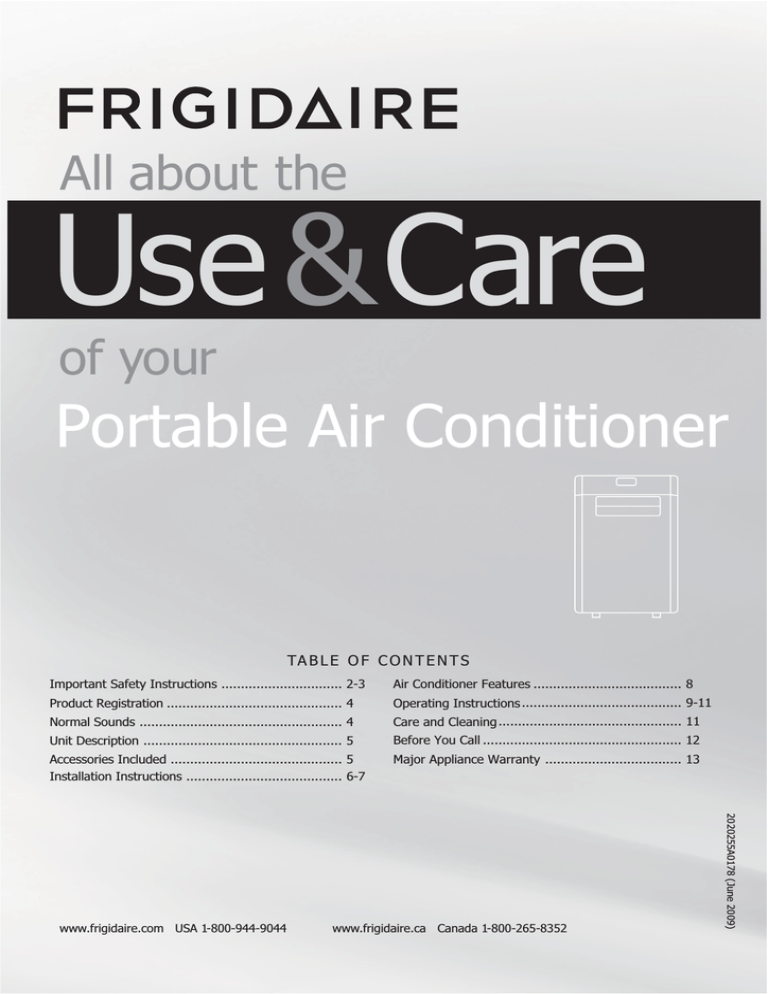

Electrolux Frigidaire Operating instructions

All about the
Use &Care
of your
Portable Air Conditioner
TA B L E O F C O N T E N T S
Important Safety Instructions ............................... 2-3
Air Conditioner Features ...................................... 8
Product Registration ............................................. 4
Operating Instructions ......................................... 9-11
Normal Sounds .................................................... 4
Care and Cleaning ............................................... 11
Unit Description ................................................... 5
Before You Call ................................................... 12
Accessories Included ............................................ 5
Installation Instructions ........................................ 6-7
Major Appliance Warranty ................................... 13
www.frigidaire.ca Canada 1-800-265-8352
2020255A0178 (June 2009)
www.frigidaire.com USA 1-800-944-9044
Important Safety Instructions
NOTE:
This USE & CARE MANUAL provides specific operating instructions for your model. Use the room air conditioner only as
instructed in this USE & CARE MANUAL. These instructions are not meant to cover every possible condition and situation that
may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.
NOTE:
WARNING
The power supply cord with
this air conditioner contains a current
detection device designed to reduce the risk
of fire.
Please refer to the section ‘Operation of
Current Device’ for details.
In the event that the power supply cord is
damaged, it cannot be repaired. It must be
replaced with a cord from the product
manufacturer.
WARNING
Avoid fire hazard or electric shock. Do not
use an extension cord or an adaptor plug. Do
not remove any prong from the power cord.
Grounding type wall
receptacle
For Your Safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance. Read product labels for flammability and other warnings.
WARNING
Prevent Accidents
To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner,
follow basic precautions, including the following:
Be sure the electrical service is adequate for the model you have chosen. This information
can be found on the serial plate, which is located on the side of the cabinet.
If the air conditioner is to be installed in a window, you will probably want to clean both
sides of the glass first.
Be sure the air conditioner has been securely and correctly installed according to the
installation instructions in this manual. Save this manual for possible future use in
removing or reinstalling this unit.
Do not, under any
circumstances, cut,
remove, or bypass the
grounding prong.
WARNING
Electrical Information
The complete electrical rating of your new protable air conditioner is stated on the serial
plate. Refer to the rating when checking the electrical requirements.
Be sure the air conditioner is properly grounded. To minimize shock and fire hazards,
proper grounding is important. The power cord is equipped with a three-prong grounding
plug for protection against shock hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the wall
receptacle you intend to use is not adequately grounded or protected by a time delay fuse
or circuit breaker, have a qualified electrician install the proper receptacle.
Power supply cord
with 3-prong grounding
plug and current
detection device
Do not run air conditioner without outside protective cover in place. This could result in
mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
SAFETY PRECAUTIONS
DANGER! Avoid Serious Injury or Death
This air conditioner contains no user-serviceable parts. Always call an authorized Electrolux servicer for repairs.
Do not insert or place fingers or objects into the air discharge area on top of the unit.
Do not start or stop the air conditioner by unplugging the power cord or turning off the power at the electrical box.
Do not cut or damage the power cord.
If the power cord is damaged, it should only be replaced by an authorized Electrolux servicer.
In the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized
Electrolux servicer.
Do not operate the air conditioner with wet hands.
Do not pull on the power cord.
Do not drink any water that is drained from the air conditioner.
2
2009 Electrolux Home Products, Inc.
All rights reserved.
Important Safety Instructions
SAFETY PRECAUTIONS
CAUTION! Avoid Injury or damage to the unit or other property
Provide occasional ventilation during use. Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups or make
units run excessively.
Do not climb on or place objects on the unit.
Do not hang objects off the unit.
Do not place containers with liquids on the unit.
Turn off the air conditioner at the power source when it will not be used for an extended period of time.
Periodically check the condition of the unit’s installation accessories for any damage.
Do not apply heavy pressure to the radiator fins of the unit.
Operate the unit with air filter in place.
Do not block or cover the intake grille, discharge area and outlet ports.
Ensure that any electrical/electronic equipment is one yard away from the unit.
Do not use or store flammable gases near the unit.
READ THIS SECTION BEFORE ATTEMPTING TO OPERATE AIR CONDITIONER.
Unit must be upright for one hour prior to operating.
The power supply cord contains a current device that senses damage to the power cord. To test
your power supply cord do the following:
Plug in &
press RESET
Plug in the Air Conditioner.
The power supply cord will have TWO buttons on the plug head. Press the TEST button. You will
notice a click as the RESET button pops out.
Press the RESET button. Again you will notice a click as the button engages.
The power supply cord is now supplying electricity to the unit. (On some products this is also indicated by a light on the plug head).
NOTE:
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply cord must be replaced if it fails to reset when either the TEST button is pushed,
or it cannot be reset. A new one can be obtained from the product manufacturer.
If power supply cord is damaged, it CANNOT be repaired. It MUST be replaced by one obtained
from the product manufacturer.
2009 Electrolux Home Products, Inc.
All rights reserved.
3
Product Registration & Normal Sounds
Product Registration
Record Your Model and Serial Numbers
Record in the space provided below the model and serial numbers. On all models, the
serial plate is located on the side of the cabinet.
Model No.
Serial No.
Register Your Product
The self-addressed PRODUCT REGISTRATION CARD should be filled in completely,
signed and returned to the Frigidaire Company.
Normal Sounds
Sound of Rushing Air
At the front of the unit, you may
hear the sound of rushing air
being moved by the fan.
Gurgle/Hiss
“Gurgling or hissing” noise may be
heard due to refrigerant passing
through evaporator during normal
operation.
High pitched Chatter
Today’s high efficiency
compressors may have a
high pitched chatter during
the cooling cycle.
Vibration
Unit may vibrate and make noise
because of uneven floor.
4
2009 Electrolux Home Products, Inc.
All rights reserved.
Unit Description & Accessories Included
Unit Description
CONTROL PANEL
AIR INTAKE
ROOM AIR DISCHARGE
CARRYING HANDLE
(BOTH SIDES)
DEHUMIDIFYING
DRAIN OUTLET
EXHAUST
AIR OUTLET
REMOTE SIGNAL
RECEIVER
REMOTE CONTROL
CASTOR
BOTTOM TRAY DRAIN OUTLET
Fig. 1
Accessories Included
PARTS:
PARTS NAME:
QUANTITY:
Exhaust hose
1 pc
Exhaust Adaptor A
1 pc
Exhaust Adaptor B
1 pc
Window Sliding Kit
1 set
Foam Seal
3 pcs
Remote Control
1 pc
Battery(For remote control)
2 pcs
Ǝ6FUHZ
SFV
Ǝ6FUHZ
SFV
Ǝ+H[+HDG&DS6FUHZ
SFV
6DIHW\/RFN
1 pc
Fig. 2
Check all the accessories are included in the package and please refer to the installation
instructions for their usage.
2009 Electrolux Home Products, Inc.
All rights reserved.
5
Installation Instructions
Installation Instructions
EXHAUSTING HOT AIR
In the COOLING Mode the appliance must be placed close to a window or
opening so that the warm exhaust air can be ducted outside.
First position unit on a flat floor and make sure there’s a minimum of 12"
clearance around the unit, and is within the vicinity of a single circuit outlet
power source.
1. Extend either side of the hose (Fig. 3) and screw the hose to
adaptor A (Fig. 4) .
2. Extend the other side of the hose and screw it to adaptor B (Fig. 5).
3. Slide the assembly onto unit (Fig. 6).
4. Affix the adaptor B into the window slider kit and seal. (Fig. 7&8)
Extend the side of hose
Fig. 3
Vertical
window
Fig. 4
Window Slider Kit
Minimum:26.6"(67.5cm)
Maxmum:48.5"(123cm)
Fig. 7
Fig. 5
Horizontal
window
Window Slider Kit
Minimum:26.6"(67.5cm)
Maxmum:48.5"(123cm)
Slide onto
Fig. 8
Fig. 6
The hose can be extended from its original length of 15" up to 55", but it is
the best to keep the length to minimum required. Also make sure that the
hose does not have any sharp bends or sags. (Fig. 9)
Fig. 9
6
2009 Electrolux Home Products, Inc.
All rights reserved.
Installation Instructions
Installation Instructions
(continued)
Installation in a double-hung sash window
1. Cut the foam seals(adhesive type) to the proper lengths and attach them
to the window and stool. (Fig. 10)
2. Open the window sash and place the window slider kit on the window stool
(Fig. 11). Attach the window slider kit to the window stool. Adjust the length
of the window slider kit according to the width of window. Screw down the
two screws on the window slider kit. See Fig.11. Cut the adjustable window
slider kit if the width of window is less than 26.6 inches (Fig. 12).
3. Close the window sash securely against the window slider kit. (Fig. 13)
4. Drive two 1/2" screws to secure the window slider kit to the window sash.
(FIG. 13)
5. Secure the window slider kit to the window stool (FIG. 13):
A: For wooden windows: Use 3/4" screws for securing.
B: For Vinyl-Clad windows: Use ƎKH[KHDGFDSVFUHZV for securing.
6. To secure lower sash in place, attach right angle sash lock with
ƎPPVFUHZDVVKRZQ),*
NOTE: It is difficult to lock the windows with the sash lock for Vinyl-Clad
windows, so you can use lock by window itself.
7. Cut the foam seal to an appropriate length and seal the open gap
between the top window sash and outer window sash, as shown in Fig.15.
Foam seal A
(adhesive type)
Fig. 10
screws
Window slider kit
26.6"~48.5"
Window stool
Fig. 11
Cut this side to fit your window
ļVFUHZV
Fig. 14
Window slider kit
Foam seal
ļVFUHZVRUļ
hex head cap screws
Fig. 13
Window stool
Foam seal
(adhesive type)
Installation in a sliding sash window
1. Cut the foam seals(adhesive type) to the proper lengths and attach them
to the window frame. See Fig.16.
2. Open the window sash and place the window slider kit on the window stool.
See Fig.17. Attach the window slider kit to the window stool. Adjust the
length of the window slider kit according to the height of window. Screw
down the two screws on the window slider kit. See Fig.17. Cut the adjustable
window slider kit if the height of window is less than 26.6 inches (Fig. 12).
3. Close the sliding sash securely against the window slider kit. (Fig. 18)
4. Drive two 1/2" screws to secure the window slider kit to the window sash.
(Fig. 18)
5. Drive two 3/4" screws to secure the window slider kit to the window stool.
(Fig. 18)
6. Cut the foam seal to an appropriate length and seal the open gap
between the sliding sash and outer window sash, as shown in Fig.19.
7. To secure the sliding sash in place, attach right angle sash lock with 1/2"
(12.7mm) screw as shown.(Fig.20)
Foam seal
Fig. 19
2009 Electrolux Home Products, Inc.
Fig. 12
Fig. 15
Fig. 16
Window stool
Window slider kit
screws
26.6"~48.5"
Fig. 17
Window stool
ļVFUHZV
Window slider kit
ļVFUHZV
Fig. 18
Fig. 20
All rights reserved.
7
Air Conditioner Features
Air Conditioner Features
CONTROL PANEL
DISPLAYS TEMPERATURE/TIME
TURNS UNIT
ON OR OFF
SWING BUTTON
SETS MODE
SETS FAN SPEED
ADJUSTS TEMPERATURE OR TIME
SLEEP MODE
CHECK FILTER
RESET BUTTON
ACTIVATES TIMER
Fig. 21
REMOTE CONTROL
MODE INDICATION
FAN SPEED SELECTION
TEMPERATURE/TIMER
CONTROL BUTTONS
FAN SPEED SELECTOR
MODE SELECTOR
TIMER BUTTONS
SLEEP BUTTON
SWING BUTTON
ON/OFF BUTTON
RESET + LOCK
PIN BUTTONS
Fig. 22
Battery Size: AAA
Warning: 1. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickelcadmium) batteries.
2. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE
The RESET button is depressed when you want to return to the initial factory settings. The LOCK button is depressed to
lock the keypad so the settings cannot be changed. The key symbol will appear in the display of the remote control,
depress the LOCK button again to release. Use a small pin to depress these buttons.
8
2009 Electrolux Home Products, Inc.
All rights reserved.
Operating Instructions
Operating Instructions
NOTE
The following instructions represent the Control Panel, the same instructions can be used for the Remote Control.
COOLING MODE:
In this mode the exhaust adaptor hose MUST be used.
1. Press the MODE button until the "Cool" indicator lights.
2. Press the "
" Temp buttons for desired setting.
3. Press the FAN button for desired fan speed.
HEATING MODE:
(on some models)
In this mode you do not need to use the exhaust adaptor hose.
DRY MODE:
In this mode you do not need to use the exhaust adaptor hose, BUT the water
collected must be discharged. See Drainage Section.
1. Press the MODE button until the "Dry" indicator lights.
2. The fan will run at low speed and the display will show the room temperature.
3. Keep doors & windows closed for best effect.
AUTO MODE:
Always have the exhaust hose attached in this mode.
When you set the air conditioner in AUTO mode, it will automatically select cooling,
heating(inapplicable for cooling only models), or fan only operation depending on what
temperature you have selected and the room temperature. The air conditioner will
control room temperature automatically round the temperature point set by you. Under
AUTO mode, you can not select the fan speed.
FAN MODE:
In this mode there is no need to use the exhaust hose or drainage hose.
However, if you require stale or smokey air to be removed from the room,
hook up the duct accessories as described in the "EXHAUSTING HOT AIR"
section.
1. Press the MODE button until the "Fan" indicator lights.
2. Press the FAN button to choose the desired fan speed.
3. The fan will run at the selected speed and the display will show the room temperature.
TIMER OPERATION:
You can set both delay stop and delay start while unit is in ON position or OFF position.
When unit is in ON position, first press TIMER button to go to delay stop setting, then
“timer off” light will illuminate, tap or hold the UP arrow ( ) or the DOWN arrow ( ) to
change delay stop timer at 0.5 hour increments up to 10 hours, then at 1 hour increments
up to 24 hours. Then press the TIMER button to confirm the setting (the control will confirm
the setting automatically after 5 seconds) and go to delay start setting. Use the same way
as above to set the delay start timing. If you don’t need to set delay start, press the
TIMER button again to exit. After 5 seconds, the control will automatically change the
display back to previous temperature display. If you want to check remain timing, press the
TIMER button. The delay start operation automatically selects mode, temperature and
fan speed the same as last operation you set.
When unit is in OFF position, press TIMER button will first go to delay start setting, then
“timer on” light will illuminate, set the delay start and delay stop timing the same way
as above.
To cancel the timer setting, simply tap ( ) or ( ) button to change the timing to 0.0.
SLEEP OPERATION:
In this mode the selected temperature will increase by 2 °F 30 minutes after the mode
is selected. The temperature will then increase by another 2 °F after an additional 30
minutes. This new temperature will be maintained for 7 hours before it returns to the
originally selected temperature. This ends the "Sleep" mode and the unit will continue to
operate as originally programmed. The "Sleep" mode program can be cancelled at any
time during operation by again pressing the "Sleep" button.
Note: This feature is unavailabe under FAN or DRY modes.
1. Press the MODE button until the "Heat" indicator lights.
2. Press the "
" Temp buttons for the desired heat setting.
2009 Electrolux Home Products, Inc.
All rights reserved.
9
Operating Instructions
Operating Instructions
(continued)
SWING OPERATION:
When you turn on the unit, the louver will swing and stop at a certain angle. You
can press the SWING button to let the louver swing automatically. Press the
SWING button again while you want the louver stop at desired angle.
CHECK FILTER FEATURE:
This feature is a reminder to clean the Air Filter (See Care and Cleaning) for more
efficient operation. The LED (light) which above the "Filter" button will illuminate
after 250 hours of operation. To reset after cleaning the filter, press the "Filter"
button and the light will go off.
FAULT CODE:
If the display reads "EA" , the room temperature sensor has failed. Contact your Authorized
Frigidaire Service Center.
If the display reads "ES" , the evaporator temperature sensor has failed. Contact your
Authorized Frigidaire Service Center.
If the display reads "E4" , the display panel communication has failed. Contact your
Authorized Frigidaire Service Center.
If the display reads "P1" , bottom tray is full. Carefully move the unit to a drain location, remove
the bottom drain plug and let the water drain away. Restart the machine until the "P1" symbol
disappears. If error repeats, call for service.
DRAINAGE:
Remove the
supplied rubber
stopper
During the dehumidifying mode, you will need a
garden hose (sold separately) to drain the condensate
from the unit.
Remove the rubber stopper from the hose connector,
then screw on a garden hose to the connector as shown
on fig 23.
Garden hose
The hose may then:
A. Discharge into a drain that is lower than the unit.
B. Be connected to a condensate pump (sold separately).
Fig. 23
10
2009 Electrolux Home Products, Inc.
All rights reserved.
Operating Instructions, CARE & CLEANING
Operating Instructions
(continued)
ADDITIONAL THINGS
YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in
your control that you should become familiar with.
The "Cool" circuit has an automatic 3 minute time delayed start if the unit is turned
off and on quickly. This prevents overheating of the compressor and possible circuit
breaker tripping. The fan will continue to run during this time.
The control will maintain the set temperature within 2 °F, between 62 °F and
86 °F (17 °C and 30 °C).
The control is capable of displaying temperature in degrees Fahrenheit or degrees
Celsius. To convert from one to the other and back, press and hold the "TEMP"
Up ( ) and Down ( ) buttons together for 3 seconds.
There is a 2-Second delay for the compressor shutting down when selecting
FAN ONLY/HEAT. This is to cover the possibility of having to roll through to select
another mode.
After a power outage, the unit will memorize the last setting and return the unit to
the same setting once power is restored.
CARE & CLEANING
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug
the unit before cleaning to prevent shock or fire hazards.
Filter A
Air Filter Cleaning
This unit has two filters, they are filter A and B. Grasp the upper panel tab and
take off the filter A which behind the grill of the back panel (Fig.24). Remove the
lower filter B by loosening the screws. Take down the air inlet grille, then remove
the air filter as shown in Fig.25 & 26.
Fig. 24
Remove three
screws and
take the air
intake grille
down
Wash the filter using liquid dishwashing detergent and warm water. Rinse filter
thoroughly. Gently shake excess water from the filter. Be sure filter is thoroughly
dry before replacing.
Or, instead of washing you may vacuum the filter clean.
Cabinet Cleaning
Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet
and front may be dusted with an oil-free cloth or washed with a cloth dampened
in a solution of warm water and mild liquid dishwashing detergent. Rinse
thoroughly and wipe dry.
Never use harsh cleaners, wax or polish on the cabinet front.
Be sure to wring excess water from the cloth before wiping around the controls.
Excess water in or around the controls may cause damage to the air conditioner.
Fig. 25
Winter Storage
Remove the filter B
out from the grille
If you plan to store the appliance during the winter, cover it with plastic or return
it to its carton.
Fig. 26
Filter B
2009 Electrolux Home Products, Inc.
All rights reserved.
11
Before You Call
Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not
the result of defective workmanship or materials in this appliance.
OCCURRENCE
SOLUTION
Air conditioner will not operate.
Wall plug disconnected. Push plug firmly into wall outlet.
Plug Current Device Tripped. Press the RESET button.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker.
Control is OFF. Turn Control ON and set to desired setting.
P1 appears in the display window. Drain water as described in Drainage Section.
Shut off in Heat mode. When the air outlet overheats, the automatic heat protection engages. Remove
any blockages and let appliance cool down. If the heating function can not be restarted after fully
cooling down, the thermal fuse may open the heater circuit, then call for service.
Room Temperature lower than the set temperature (Cool Mode). Reset the temperature.
Room Temperature higher than the set temperature (Heat Mode). Reset the temperature.
Air from unit does not feel cold
enough.
Room temperature below 60°F (16°C). Cooling may not occur until room temperature rises above
60°F (16°C).
Reset to a lower temperature.
Compressor shut-off by changing modes. Wait approximately 3 minutes and listen for compressor to
restart when set in the COOL mode.
Air conditioner cooling, but room
is too warm - ice forming
on cooling coil behind decorative
front
Outdoor temperature below 60 O F (16 O C). To defrost the coil, set FAN ONLY mode.
Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY
mode.
Temperature is set too low for night-time cooling. To defrost the coil, set to FAN ONLY mode. Then,
set temperature to a higher setting.
Exhaust duct not connected or blocked. See EXHAUSTING HOT AIR Section.
Air conditioner cooling, but room
is too warm - NO ice forming on
cooling coil behind decorative
front.
Dirty air filter - air restricted. Clean air filter. Refer to Care and Cleaning section.
Temperature is set too high. Set temperature to a lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in
front of unit.
Doors, windows, registers, etc. open - cool air escapes. Close doors, windows, registers, etc.
Unit recently turned on in hot room. Allow additional time to remove “stored heat” from walls, ceiling,
floor and furniture.
Air conditioner turns on and off
rapidly.
Noise when unit is cooling.
Dirty air filter - air restricted. Clean air filter.
Outside temperature extremely hot. Set FAN speed to a faster setting to bring air through cooling coils
more frequently.
Air movement sound. This is normal. If too loud, set to lower FAN setting.
Vibration from uneven floor. Move or support appliance correctly on even surface.
Room too cold.
Set temperature too low. lncrease set temperature.
Room too hot.
Set temperature too high. Lower setting.
If These Solutions Fail, Call 1-800-944-9044 For Frigidaire Service.
12
2009 Electrolux Home Products, Inc.
All rights reserved.
Major Appliance Warranty
Your appliance is covered by a limited one-year warranty and a limited 2-5 year warranty on the sealed system (the compressor,
condenser, evaporator and tubing). For one year from your original date of purchase, Electrolux will pay all costs for repairing or
replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed,
used and maintained in accordance with the provided instructions. From the second to the fifth year from your original purchase
date, Electrolux will repair or replace any parts in the Sealed Refrigeration System (compressor, condenser, evaporator and tubing)
that prove to be defective in materials or workmanship. The consumer will be responsible for diagnostic costs and any removal,
transportation and reinstallation costs which are required because of service, costs for labor, parts and transportation other than
with respect to the Sealed Refrigeration System. (this italic area appears inconsistent with the rest of the warranty where you
indicate that you are responsible for repairing and replacing)
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not
in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,
handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external
causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR
REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST
PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME
STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS
OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS.
YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
Service
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North
America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.
Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under
this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described
or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907
2009 Electrolux Home Products, Inc.
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
All rights reserved.
13
