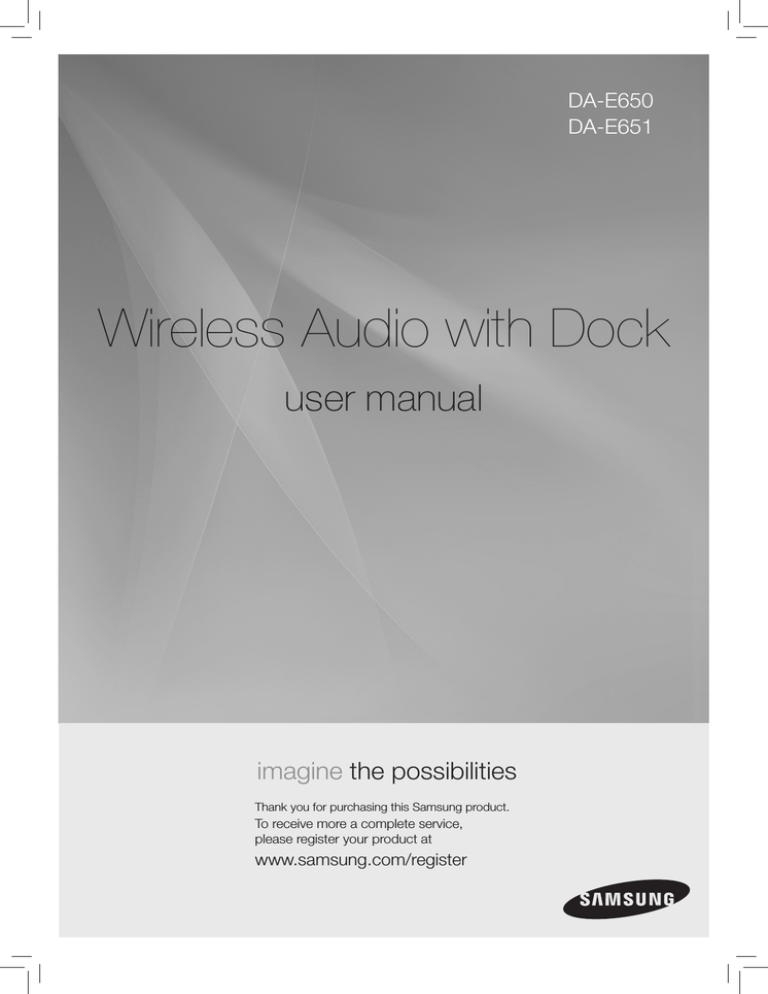

DA-E650
DA-E651
Wireless Audio with Dock
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more a complete service,
please register your product at
www.samsung.com/register
features
Dual Docking Audio Speaker System
Using the system's dual docking station, dock, charge, and then play either Samsung Galaxy devices or Apple
devices through the system's built-in speakers.
USB Host support
Connect and play music files from external USB storage devices such as MP3 players, USB flash memory, etc.
using the Wireless Audio with Dock's USB HOST function.
Bluetooth Function
Connect a Bluetooth device to the Wireless Audio with Dock and enjoy music from the device with high quality
stereo sound, all without wires!
aptX®
aptX enables high quality Bluetooth stereo audio, delivering wired audio quality wirelessly.
LICENSE
iPad, iPhone, iPod, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and
other countries.
2
ENG
safety information
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains
plug shall be readily operable.
CAUTION
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the
apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power
plug must be easily and readily accessible at all times.
3
PRECAUTIONS
68.6mm
2.7 inch
99.1mm
3.9 inch
99.1mm
3.9 inch
99.1mm
3.9 inch
Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the
back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (70~100
mm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This
unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to
leave it unused for a long period of time.
During thunderstorms, disconnect the AC plug from the
wall outlet. Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat sources.
This could cause the unit to overheat and malfunction.
Phones
Protect the product from moisture (i.e. vases) , and excess heat
(e.g.fireplaces) or equipment creating strong magnetic or electric fields
Disconnect the power cable from the AC supply if the unit malfunctions.
Your product is not intended for industrial use. This product is for
personal use only.
Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours
until the unit has reached room temperature before using.
4
The batteries used with this product contain chemicals that are harmful to
the environment.
Do not dispose of batteries in the general household trash.
ENG
contents
FEATURES
2
2
Features
License
SAFETY INFORMATION
3
4
Safety warnings
Precautions
GETTING STARTED
6
6
Before reading the user’s manual
What’s included
DESCRIPTIONS
7
Front/Rear Panel
REMOTE CONTROL
9
Tour of the remote control
2
3
6
7
9
POWER ON AND VOLUME
CONTROL
10
11
CONNECTIONS
PLAYING
18
FUNCTIONS
22
25
26
TROUBLESHOOTING
APPENDIX
10 Turning the Power on/off
10 Adjusting the volume
11 Installing the Troidal Ferrite on the Power
Cable
12 Using Rubber
13 Connecting a device to the Dual Dock
14 Connecting an audio device using AUX IN
16 Connecting to Bluetooth devices
18 Using the TV mode (Sound Share)
18 Using the docking mode with Samsung
Galaxy and Apple Devices
20 Using the Bluetooth mode
21 Using the USB mode
22 Basic functions
23 Advanced functions
24 Software upgrade (only USB mode)
25 Troubleshooting
26 Specifications
5
getting started
BEFORE READING THE USER’S MANUAL
Note the following terms before reading the user manual.
Icons used in this manual
Icon
Term
Caution
Note
Definition
Indicates a situation where a function does not operate or settings may be
canceled.
Indicates tips or instructions on the page that help a function operate.
Safety Instructions and Troubleshooting
1) Familiarise yourself with the Safety Instructions before using this product. (See page 3)
2) If a problem occurs, check Troubleshooting. (See page 25)
Copyright
©2012 Samsung Electronics Co.,Ltd.
All rights reserved; no part or whole of this user’s manual may be reproduced or copied without the prior
written permission of Samsung Electronics Co.,Ltd.
WHAT’S INCLUDED
Check for the supplied accessories shown below.
FUNCTION
MUTE
VOL
BASS
Remote Control / Lithium Battery (3V)
DC Adapter
Power Cable
Audio Cable
Cloth
User Manual
(Rubber-Support: 2EA)
(Rubber-Skin)
Rubber-Support / Rubber-Skin
(Large)
(For Power Cable 1EA)
Ferrite Core
▪▪ The appearance of the accessories may differ slightly from the illustrations above.
6
ENG
descriptions
FRONT/REAR PANEL
1
2
● DESCRIPTIONS
<FRONT>
3
4
<REAR>
DC 14V 4A
USB
AUX IN
ONLY FOR
SERVICE
5V 500mA
DC 14V 4A
USB
AUX IN
ONLY FOR
SERVICE
5V 500mA
DC 14V 4A
USB
AUX IN
ONLY FOR
SERVICE
5V 500mA
DC 14V 4A
USB
5V 500mA
5
7
AUX IN
ONLY FOR
SERVICE
8
6
7
FUNCTION
Switches the mode as follows :
VOLUME -/+
Controls the volume level.
PLAY/PAUSE
Play or pause a music file.
;
;
;
; AUX (LED Off)
Provides a 5 pin dock for Samsung Galaxy devices and a 30 pin dock
for Apple devices.
DUAL DOCK
When you change the mode with the Function button, the selected
mode will be displayed in red on the Function Display.
The LED stops blinking when the power of the unit turns on.
5
DC 14V
Connect the unit's DC adapter to this jack.
6
USB PORT
Connect an external USB storage device such as an MP3 player here
to play files located on the device.
7
AUX IN
Connect to the Analog output of an external device.
8
ONLY FOR
SERVICE
This jack is for service only.
▪▪ When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
▪▪ To upgrade the product's software through the USB Host jack, you must use a USB memory
stick.
▪▪ This unit can connect to mobile devices with high audio output levels. When you connect this
unit to external devices with high output levels, it may lower the audio output to protect the amp
and speakers.
▪▪ When disconnecting the power cable from the wall outlet, hold the plug.
Do not pull the cable.
8
ENG
remote control
TOUR OF THE REMOTE CONTROL
FUNCTION
● REMOTE CONTROL
POWER BUTTON
Turns the unit on and off.
FUNCTION BUTTON
Selects the Function mode.
PLAY/PAUSE BUTTON
Play or pause a music file.
CONTROL BUTTON
Search for the next or previous
music file.
MUTE
VOL
BASS
VOLUME
Adjusts the volume level of the unit.
MUTE BUTTON
Mutes the sound from this unit.
Press again to restore the sound
to the previous volume level.
BASS BUTTON
Optimise the sound based on
your tastes.
Installing battery in the Remote Control
1. Open the cover of the remote
control by putting your fingernail
into the gap between the cover
and body of the remote control.
Then, lift the cover and separate
it completely.
2. Install a 3V Lithium battery.
Insert the battery into the battery
compartment with the + side facing
up.
3. Fit the remote control's cover to the
remote control. Next, lower the cover so
that it is flush with the body of the remote,
and then press the cover into the body by
pushing the edges down with your hand.
▪▪ Be careful not to catch your fingernail in the gap when you lift the cover. You can damage
your fingernail.
Operation Range of the Remote Control
You can use the remote control up to 23 feet (7 meters) in a straight line from the unit. You can also operate the
remote at a horizontal angle of up to 30° from the remote control sensor.
9
power on and volume control
TURNING THE POWER ON/OFF
FUNCTION
or
FUNCTION
MUTE
VOL
BASS
MUTE
VOL
BASS
1.To turn on this unit, touch any button on the unit's front panel when the unit is in Standby mode.
or,
Press POWER on the remote control.
2.To turn off this unit, touch the +# button on the unit's front panel for more than 3 seconds.
or,
Press POWER on the remote control again.
ADJUSTING THE VOLUME
Use +,- buttons to adjust the volume. The function LEDs light from left to right when you turn the volume up and
from right to left when you turn the volume down. The LEDs do not light if you try to increase the volume when it has
already been set to maximum or try to decrease the volume when it has already been set to minimum.
FUNCTION
DC 14V 4A
USB
AUX IN
ONLY FOR
SERVICE
5V 500mA
FUNCTION
or
MUTE
MUTE
VOL
BASS
VOL
BASS
Touch the +/– button on the right side of the front panel.
or,
Press VOL +/– on the remote control.
▪▪ The volume level increases or decreases when you press VOL +/–.
▪▪ You can also use the volume controls of devices connected using the Dual Dock or Bluetooth to control
the volume. However, your ability to control the volume using the volume controls of devices connected
using Bluetooth may be limited.
DC 14V 4A
USB
5V 500mA
10
DC 14V 4A
USB
5V 500mA
AUX IN
ONLY FOR
SERVICE
AUX IN
ONLY FOR
SERVICE
ENG
connections
INSTALLING THE TROIDAL FERRITE ON THE POWER CABLE
● CONNECTIONS
Lift up to release the lock and open the core.
Close the lock back.
Wind Power cable around the core three times.
(Start winding at 5-10cm away from the plugs)
11
USING RUBBER
Attach the Rubber to avoid direct contact with this set when you hold Samsung Galaxy Device and Apple Device.
RUBBER-SUPPORT
1.Attach the Rubber to the proper place considering the size of the device which you want to use.
2.After attach the Rubber-Support, set your device to the Dual dock.
Rubber-Support
RUBBER-SKIN
1.Cover the Rubber-Skin on the Dual dock.
2.After cover the Rubber-Skin on the Dual dock, set your device to the Dual dock.
Rubber-Skin
▪▪ Use the product after removing the Rubber-Skin attached to the product if you have the protection case
for your device.
▪▪ You can use this product only when the thickness of the protection case is under 1.5mm when you attach
the Spacer cover to your device. It is impossible to use this product when the thickness of the protection
case is over 1.5mm or has special shape with round.
12
ENG
CONNECTING A DEVICE TO THE DUAL DOCK
How to connect a device to the Dual Dock.
● CONNECTIONS
1.The DUAL DOCK is located on the front of the product. To open, push it in gently.
2.Touch the
button on the front panel of the Wireless Audio with Dock repeatedly until the icon appears in
the display.
• Each time you press the button, the selection changes as follows :
; ;
; ; AUX (LED Off)
• The selected mode is displayed in red in the Function Display.
3.If you have a Samsung Galaxy device, connect the device to the 5 pin (smaller) connector to connect to the Dual
Dock. If you have an Apple device, connect the device to the 30 pin (larger) connector on the Dual Dock.
▪▪ Turn on your Samsung Galaxy device before you attach it to the Dual Dock.
▪▪ This unit doesn't support the simultaneous docking of Samsung Galaxy and Apple devices.
▪▪ Connect your Samsung Galaxy or Apple device to the Dual Dock before starting Docking mode.
(See page 18)
13
CONNECTING AN AUDIO DEVICE USING AUX IN
This section explains how to connect the unit to an audio device.
This unit is equipped with one audio analog jack for connecting an audio device.
DC 14V 4A
USB
AUX IN
ONLY FOR
SERVICE
5V 500mA
DC 14V 4A
USB
AUX IN
ONLY FOR
SERVICE
5V 500mA
DC 14V 4A
USB
AUX IN
ONLY FOR
SERVICE
5V 500mA
AUX IN
Audio Cable
Earphones
jack
External device
AUX IN
1.Connect AUX IN (Audio) on the back of the unit to the earphone jack of the external device or audio device.
2.Touch the
button repeatedly until the function LEDs are off.
• The AUX mode is active when no function LED is lit.
▪▪ Before moving or installing this product, be sure to turn off the power and disconnect the power cord.
14
You can connect the Wireless Audio with Dock to Bluetooth devices and enjoy music with high quality stereo
sound, all without wires!
ENG
BLUETOOTH
What is Bluetooth?
Bluetooth technology lets Bluetooth-compliant devices interconnect easily with each other using a short
wireless connection.
-- A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or
the Wireless Audio with Dock.
-- It is subject to electrical variation from obstructions caused by a wall, corner, or by office partitioning.
-- It is exposed to electrical interference from same frequency-band devices including medical
equipment, microwave ovens, and wireless LANs.
• Keep the Wireless Audio with Dock and the Bluetooth device close together when pairing.
• The further the distance between the Wireless Audio with Dock and Bluetooth device, the worse the
quality. If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception-sensitivity areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when the Bluetooth device is close to the set. The connection is
automatically cut off if the Bluetooth device moves out of range. Even within range, the sound quality
may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.
▪▪ You may be required to enter a PIN code (password) when connecting the Bluetooth device to
the Wireless Audio with Dock. If the PIN code input window appears, enter <0000>.
▪▪ The Wireless Audio with Dock supports SBC data (44.1kHz, 48kHz).
▪▪ The AVRCP feature is not supported.
▪▪ Connect only to a Bluetooth device that supports the A2DP (AV) function.
▪▪ You cannot connect to a Bluetooth device that supports only the HF (Hands Free) function.
▪▪ Only one Bluetooth device can be paired at a time.
▪▪ Once you have turned off the Wireless Audio with Dock and the pairing is disconnected, the
pairing will not be restored automatically. To reconnect, you must pair the devices again.
▪▪ The Wireless Audio with Dock may not search or connect properly in the following cases:
-- If there is a strong electrical field around the Wireless Audio with Dock.
-- If several Bluetooth devices are simultaneously paired to the Wireless Audio with Dock.
-- If the Bluetooth device is turned off, not in place, or malfunctions
-- Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and
gas stoves use the same frequency range as the Bluetooth device, which can cause electric
interference.
15
● CONNECTIONS
• A Bluetooth device may cause noise or malfunction, depending on usage, when:
CONNECTING TO BLUETOOTH DEVICES
This section explains how to connect the Wireless Audio with Dock to Bluetooth compatible TVs and other
Bluetooth devices.
To connect the Wireless Audio with Dock to a Bluetooth compatible 2012
Samsung TV (Sound Share)
Connect
<To pair to your TV>
To produce TV sound on your Wireless Audio with Dock via Bluetooth connection, you need to pair your system to
the Bluetooth compliant TV first. Once the pairing is established, the pairing information is recorded and kept and no
further Bluetooth connection message will appear from the next time.
1.Turn on the Samsung TV and Wireless Audio with Dock.
•Turn the device “On” in the “SoundShare Settings” menu of the Samsung TV. (Refer to the TV user manual for
instructions)
2.When you change the mode of Wireless Audio with Dock to
, a message asking whether to proceed with
Bluetooth pairing appears. Select <Yes> on the TV screen, then the pairing with the Wireless Audio with Dock
will be completed.
•The Wireless Audio with Dock Bluetooth pairing is complete.
<To cancel pairing to your TV>
If you want to pair your Wireless Audio with Dock to a TV other than the connected TV, you should cancel the
existing pairing in the Wireless Audio with Dock. It is possible to cancel the pairing in the way below.
The
LED will blink once when you press the Play/Pause key on the remote control for 5 seconds in
. This
unit will automatically pair to a TV once you cancel the existing pairing and the new TV is ready for connection.
▪▪ If the TV cannot be connected, please try to reconnect it after pressing the Play/Pause Key on the
remote control for 5 seconds in the Bluetooth
mode.
▪▪ You should update a TV software with the latest version to operate TV pairing (Sound Share) function.
▪▪ Check the instructions for updating and applicable models from the support page on (Samsung. com)
website or contact the call centre.
16
ENG
To connect the Wireless Audio with Dock to a Bluetooth device
Before you begin, confirm that your Bluetooth device supports the Bluetooth compliant stereo headset function.
● CONNECTIONS
Connect
External device
1.Touch the
button on the front panel of the Wireless Audio with Dock repeatedly until the
icon appears in
the display.
• Each time you press the button, the selection changes as follows :
; ;
; ; AUX (LED Off)
• The selected mode is displayed in red in the Function Display.
2.Select the Bluetooth menu on your Bluetooth device.
(Refer to the Bluetooth device's user manual for instructions.)
3.Scan or search for All Devices or for Headsets.
•You will see a list of devices.
4.Select "[Samsung]W_Audio XXXXXX" from the searched list.
•If the Bluetooth device fails to pair with the Wireless Audio with Dock, delete the "[Samsung]W_Audio XXXXXX"
found by the Bluetooth device, and search for the Wireless Audio with Dock again, and then repeat Steps 2, 3,
and 4.
17
playing
USING THE TV MODE (Sound Share)
Touch the
button to select the
mode, and then connect the TV to the Wireless Audio
with Dock. (See page 16)
• The unit will play the TV's audio when it is connected to the TV.
• If you change the Wireless Audio with Docks Bluetooth input source or turn it off, you will
hear audio from the TV again.
▪▪ You can control the volume only with the Wireless Audio with Dock.
USING THE DOCKING MODE WITH SAMSUNG GALAXY AND APPLE
DEVICES
Touch the
button to select the mode, and then connect the Samsung Galaxy or Apple
device to the Dual Dock. (See page 13)
<Samsung Galaxy Devices>
To use your Samsung Galaxy series device with the Dual Dock, you must download and
install the Docking Mode application from the Android Market on the device. To download,
follow these steps:
1. Tap the Play Store (Android Market) icon on the Samsung Galaxy device's main screen.
2. Tap the search icon on the screen to access the search bar.
3. In the search bar, type in the [Samsung Wireless Audio with Dock], and
then search.
4. In the search result list, find, and then tap [Samsung Wireless Audio with
Dock] to start downloading.
5. Tap [install].
To play music, follow these steps:
1-1.If you start the app when the Wireless Audio with Dock is the only device
for the Bluetooth connection,
selecting PLAY in your device automatically establishes the Bluetooth
connection to the Wireless Audio with Dock and the unit plays music.
1-2.If there are multiple devices for Bluetooth connection including Wireless Audio with Dock,
1) When you start the app, the list of the devices which you can connect to the Wireless Audio with Dock will
appear.
2) Play music after connecting to the Wireless Audio with Dock by selecting it on the list of devices.
-- If there exists a Bluetooth device paired to the Wireless Audio with Dock before, it will not appear in the list
and be connected automatically.
2. If you replace the Wireless Audio with Dock which you have paired to your mobile device, you should delete
the remaining settings saved in your device before pairing to the new one.
•
18
; [Clear data].
FUNC.
VOL
ENG
▪▪ Once you started the application, running is not disturbed by charging your mobile device with an
ordinary charger.
▪▪ When you connect other device to the Wireless Audio with Dock after connecting Samsung Galaxy
device in docking mode, you may have to turn off the Bluetooth mode of the Samsung Galaxy device.
▪▪ If you have trouble connecting the Samsung Galaxy device to the Dual Dock, turn off the devices's
Bluetooth mode.
● PLAYING
<Apple Devices>
1.Select the mode as described above, and then connect the Apple device to the Dual Dock as described in
Connecting a Device to the Dual Dock (Page 13). You will hear a ringing sound.
2.Select the <Music> menu in the main screen of the Apple device.
3.Select and play the desired music.
•The music will play through the Wireless Audio with Dock's speakers.
▪▪ While playing a video with your device, Play/Pause/Next/Back operations may not be available.
Use the button on your source device to operate it.
Compatibility list (Apple Device)
Docking mode compatible iPod/iPhone/iPad models
Update the software of your iPod/iPhone/iPad to the latest version before using it with this unit.
-- iPod touch (4th generation)
-- iPod touch (3rd generation)
-- iPod nano (6th generation)
-- iPod nano (5th generation)
-- iPhone 4S
-- iPhone 4
-- iPhone 3GS
-- iPad 2
-- iPad
• Depending on its version of iPod Software, your device may not be compatible or may operate
abnormally.

If you connect an incompatible Apple device, the iPod Function LED will blink.
19
USING THE BLUETOOTH MODE
Touch the
button to select the mode, and then connect the Bluetooth device to the
Wireless Audio with Dock. (See page 17)
To connect your Bluetooth device when the Wireless Audio with Dock is in Bluetooth mode,
search for the Wireless Audio with Dock on the device's Bluetooth list. Select the Wireless
Audio with Dock, and then connect. Once the Wireless Audio with Dock has connected,
select and play the desired music.
The music will play through the Wireless Audio with Dock's speakers.
▪▪ If you want to change the device which is connected through Bluetooth mode to other device,
disconnect the existing device and try to connect to the other device which you want to use.
▪▪ While in Bluetooth communication, Play/Pause/Next/Back operations may not be available
depending on used mobile device and application.
▪▪ Operating Bluetooth device paired to the Wireless Audio with Dock may cause stuttering if operated
while the Wireless Audio with Dock is playing back from AUX input.
To disconnect the Bluetooth device from the Wireless Audio With
Dock
You can cancel Bluetooth pairing from the Wireless Audio with Dock. For instructions, see the Bluetooth
device's user manual.
• The Wireless Audio with Dock will be disconnected.
To disconnect the Wireless Audio with Dock from the Bluetooth
device
Touch the
button on the front panel of the Wireless Audio with Dock to switch from to another
mode or press the Power button on the remote to turn the Wireless Audio with Dock off.
• The currently connected device will be disconnected.
▪▪ The Bluetooth connection only works when the Bluetooth device is close to the set. The
connection is automatically cut off if the Bluetooth device moves out of range. Even within
range, the sound quality may be degraded by obstacles such as walls or doors.
▪▪ If the Bluetooth device comes back into the effective range, you can restart to restore the
pairing with the Bluetooth device.
20
ENG
USING THE USB MODE
1.Connect the USB device to the USB port on the back of the unit.
2.Touch the
button on the front panel of the Wireless Audio with Dock repeatedly until
the
icon appears in the display.
FUNC.
•Each time you press the button, the selection changes as follows :
; ;
; ; AUX (LED Off)
•The selected mode is displayed in red in the Function Display.
● PLAYING
Before you connect a USB device
Read the list below to check compatibility.
• This product may not be compatible with certain types of USB storage media.
• The FAT16 and FAT32 file systems are supported.
-- The NTFS file system is not supported.
• Connect a USB device directly to the USB port of the product.
Otherwise, you may encounter a USB compatibility problem.
• Do not connect multiple storage devices to the product via a multicard reader. It may not operate properly.
• Digital camera PTP protocols are not supported.
• Do not remove the USB device while it is being read.
• DRM-protected music files (MP3, WMA) from a commercial web site
can not be played.
• External HDDs are not supported.
• Compatibility list
Format
File name
File extension
Bit rate
Version
Sampling Frequency
DC 14V 4A
USB
AUX IN
ONLY FOR
SERVICE
5V 500mA
DC 14V 4A
USB
AUX IN
ONLY FOR
SERVICE
5V 500mA
Music
MP3
.MP3
80~320
kbps
44.1KHz
WMA
.WMA
56~128
kbps
V8
44.1KHz

Do not connect your mobile device to the USB port and the Docking station at the same time for
recharging.
21
VOL
functions
BASIC FUNCTIONS
Using the input mode
You can select the following inputs:
; ;
; ; AUX (LED Off).
Press an appropriate button on the remote control to select a desired mode,
or press to select from:
; ;
; ; AUX (LED Off).
Input mode
Display
BLUETOOTH TV
Docking mode
FUNCTION
FUNCTION
VOL
BASS
MUTE
VOL
DC 14V 4A
USB
AUX IN
ONLY FOR
SERVICE
5V 500mA
22
USB mode
BLUETOOTH mode
MUTE
BASS
AUX input
LED Off
POWER
FUNCTION
VOL
MUTE
VOL
BASS
FUNCTION
Play/Pause
During playback, press the +# button.
MUTE
VOL
ENG
ADVANCED FUNCTIONS
BASS
• Press the +# button to stop playing the file temporarily.
Press the +# button again to play the selected file.
● FUNCTIONS
▪▪ This function may not operate in certain mode.
POWER
FUNCTION
VOL
MUTE
VOL
BASS
FUNCTION
During playback, press the [,] button.
MUTE
VOL
Skip Forward/Back
BASS
• When there is more than one file and you press the ] button, the next file
is selected.
• When there is more than one file and you press the [ button, the
previous file is selected.
▪▪ This function may not operate in certain mode.
FUNCTION
This is useful when answering a doorbell or telephone call.
FUNCTION
MUTE
MUTE
VOL
BASS
VOL
BASS
FUNCTION
1.To mute sound of this unit, press the MUTE (
control.
) button of the remote
2.Press MUTE (
) on the remote control again (or press VOLUME +/-) to
restore the sound.
Using the BASS function
Lets you optimise the bass sound according to your tastes.
FUNCTION
MUTE
MUTE
VOL
Muting the sound
BASS
VOL
BASS
Press BASS on the remote control of this unit.
• Each time the button is pressed, the selection changes as follows :
BASS ON ; OFF
23
SOFTWARE UPGRADE (ONLY USB MODE)
1. Visit www.samsung.com.
2. Click SUPPORT on the top right of the page.
3. Enter the product's model number into the search field, and then click Find
Product.
DC 14V 4A
USB
AUX IN
ONLY FOR
SERVICE
5V 500mA
4. Click Get downloads in the Center of the page below the Downloads header.
5. Click Firmware in the Center of the page.
6. Click the ZIP icon in the File column on the right side of the page.
7. Click OK in the pop-up that appears to download and save the firmware file to
your PC.
DC 14V 4A
USB
AUX IN
ONLY FOR
SERVICE
5V 500mA
8. Unzip the zip archive to your computer. You should have a single folder with the
same name as the zip file.
9. Copy the folder to a USB flash drive.
10.Touch the button on the front panel of the Wireless Audio with Dock
repeatedly until the
icon appears in the display. Insert the USB drive into
the USB port on the back panel of the unit.
11.The LED will blink during the Software update process. The product will turn off automatically after completing
the firmware upgrade.
• It may take longer depending on the functions to upgrade. (Maximum 10 minutes)
• Turn on the product again.
▪▪ Do not disconnect the power or remove the USB drive while an upgrade is being applied. The main unit
will turn off automatically after completing the firmware upgrade.
▪▪ When software is upgraded, settings you have made will return to their default (factory) settings.
We recommend you write down your settings so that you can easily reset them after the upgrade.
▪▪ If the firmware fails to upgrade, we recommend formatting the USB drive in the FAT16 format and then
trying again.
▪▪ For upgrading purposes, do not format the USB drive in NTFS format. It is not a supported file system.
▪▪ Depending on the manufacturer, the USB may not be supported.
▪▪ Disconnect the Wireless Audio with Dock from the Internet and any external devices before you upgrade
the software.
▪▪ You cannot charge other external devices through this USB port.
24
ENG
troubleshooting
Before requesting service, please check the following.
Symptom
Check
Remedy
• Is the power cord plugged
into the outlet?
• Connect the power plug to
the outlet.
A function does not work when
the button is pressed.
• Has the Wireless Audio with
Dock or the remote been
exposed to static electricity?
• Disconnect the power plug
and connect it again.
Sound is not produced.
• Is the unit properly
connected to device?
• Is the Mute function on?
• Is the volume set to
minimum?
• Connect it correctly.
• Press the Mute button to
cancel the function.
• Adjust the volume.
The remote control does not
work.
• Are the batteries drained?
• Is the distance between
remote control and main
unit too far?
• Replace with new batteries.
• Operate closer to the main
unit.
The Sound Share (TV pairing)
failed.
• Is your TV a supporting
model?
• Is your TV firmware the
latest version?
• Does an error occur in
connection?
• Check whether your TV is a
supporting model or not.
(Samsung.com)
• Update your TV with the
latest firmware.
• Reset the unit.
Press Play/Pause Button for
5 seconds on the remote
control.
• Contact the call centre.
25
● TROUBLESHOOTING
The unit will not turn on.
appendix
SPECIFICATIONS
Model name DA-E650/ DA-E651
GENERAL
AMPLIFIER
Weight
3.2 kg
Dimensions (W x D x H)
630.8 x 192.3 x 162.9 mm
Operating temperature range
+5°C~+35°C
Operating humidity range
10 % to 75 %
Rated output power
40W, 4OHM, THD = 10%, 1kHz
Input sensitivity/Impedance
800mV/56Kohm
S/N ratio (analog input)
65 dB
Separation(1kHz)
65 dB
FREQUENCY Analog input
RESPONSE Digital input/48kHz PCM
DOCKING
RATING
USB
20Hz~20kHz(±3 dB)
20Hz~20kHz(±3 dB)
iPad
5 V 2.0 A
iPod
5 V 1.0 A
Galaxy
5 V 1.0 A
Type A
USB 1.1
DC output
500mA
* S/N ratio, distortion, separation, and usable sensitivity are based on measurement using AES (Audio Engineering
Society) guidelines.
* Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
- For the power supply and Power Consumption, refer to the label attached to the product.
26
Open Source Announcement
To send inquiries and requests for questions regarding open sources, contact Samsung via Email
(oss.request@samsung.com).
• This product uses some software programs which are distributed under the Independent JPEG Group.
FLAC decoder, Copyright (C) 2001,2002,2003,2004,2005,2006,2007 Josh Coalson
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
-- Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
-- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
-- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or
promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS''
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.“
Ogg/Vorbis decoder, Copyright (c) 2002, Xiph.org Foundation
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
-- Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
-- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
-- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or
promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS''
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer
care centre.
` Asia Pacific
Area
Contact Centre 
AUSTRALIA
NEW ZEALAND
CHINA
1300 362 603
0800 SAMSUNG (0800 726 786)
400-810-5858
HONG KONG
(852) 3698 4698
Web Site
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com/hk
www.samsung.com/hk_en/
VIETNAM
1800 1100 11
3030 8282
1800 3000 8282
1800 266 8282
0800-112-8888
021-5699-7777
1800-88-9999
1-800-10-SAMSUNG(726-7864) for PLDT
1-800-3-SAMSUNG(726-7864) for Digitel
1-800-8-SAMSUNG(726-7864) for Globe
02-5805777
1800-SAMSUNG(726-7864)
1800-29-3232
02-689-3232
0800-329-999
0266-026-066
1 800 588 889
U.A.E
OMAN
KUWAIT
BAHRAIN
Egypt
JORDAN
IRAN
Morocco
Saudi Arabia
800-SAMSUNG (726-7864)
800-SAMSUNG(726-7864)
183-2255
8000-4726
08000-726786
800-22273
021-8255
080 100 2255
9200-21230
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
NIGERIA
0800-726-7864
0800-10077
0302-200077
8000 0077
800-00-0077
7095- 0077
0800 724 000
0800 300 300
0685 88 99 00
0860-SAMSUNG(726-7864 )
www.samsung.com
INDIA
INDONESIA
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND
TAIWAN
` Middle East
` Africa
Ghana
Cote D’ Ivoire
Senegal
Cameroon
KENYA
UGANDA
TANZANIA
SOUTH AFRICA
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
Code no. AH68-02477Z (00)
