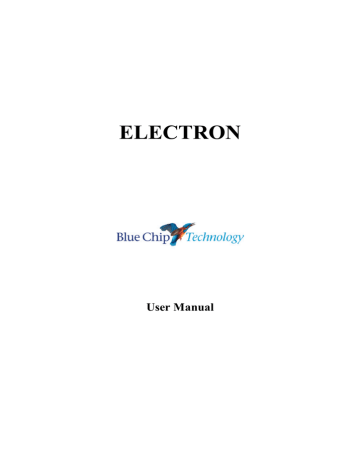

ELECTRON
User Manual
ELECTRON
User Manual
Document Part N
°
Document Reference
Document Issue Level
0127-1028.doc
Electron\..\0127-1028.doc
1.0
Manual covers PCBs with the following Issue N
°
1.x
(x is any digit)and above
All rights reserved. No part of this publication may be reproduced, stored in any retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopied, recorded or otherwise, without the prior permission, in writing, from the publisher. For permission in the
UK contact Blue Chip Technology.
Information offered in this manual is believed to be correct at the time of printing. Blue Chip Technology accepts no responsibility for any inaccuracies. The information contained herein is subject to change without notice. There are no express or implied licences granted herein to any intellectual property rights of Blue Chip Technology Ltd.
All trademarks and registered names acknowledged.
Blue Chip Technology Ltd.,
Chowley Oak, Tattenhall,
Chester, Cheshire,
CH3 9EX
Telephone : 01829 772000 Facsimile : 01829 772001 www.bluechiptechnology.co.uk
Amendment History
Issue
Level
0.1
1.0
Issue
Date
18/5/99
26/2/01
Author
PMD
SO
Amendment Details
1st Issue
CPU Support Updated, Disk-on-chip Additions
COMPANY PROFILE
INTRODUCTION.......................................................................................................................................... 2
MANUAL OBJECTIVES ................................................................................................................................ 2
LIMITATIONS OF LIABILITY ...................................................................................................................... 2
PRECAUTIONS .............................................................................................................................................. 2
Electro-Static Discharges ............................................................................................................................ 2
On-Board LITHIUM cell (BT1: CR2032) ..................................................................................................... 3
RELATED PUBLICATIONS........................................................................................................................... 3
TRADEMARKS .............................................................................................................................................. 3
USER GUIDE ................................................................................................................................................ 4
OVERVIEW.................................................................................................................................................... 4
Board Level Features................................................................................................................................... 5 processor ..................................................................................................................................................... 5
Processor Upgrade ...................................................................................................................................... 5
System Memory ............................................................................................................................................ 6
BUS Expansion Slots.................................................................................................................................... 6
Electromagnetic Compatibility..................................................................................................................... 6
SPECIFICATION ............................................................................................................................................ 7
INSTALLATION ........................................................................................................................................... 8
CPU INSTALLATION .................................................................................................................................. 8
MEMORY INSTALLATION...................................................................................................................... 10
Back panel connecTORS ............................................................................................................................ 14 on-board connectORS ................................................................................................................................ 15
ECP/EPP Parallel PORT P6 (26 way header) ............................................................................................ 18
Bus Connectors .......................................................................................................................................... 22
INTEL I740 AGP GRAPHICS CONTROLLER ............................................................................................ 26
Resolutions supported ................................................................................................................................ 26
BIOS ............................................................................................................................................................. 27
Setup Utility............................................................................................................................................... 27
SOFTWARE DESCRIPTION ..................................................................................................................... 29
BIOS SETUP ................................................................................................................................................. 29
MAIN Menu ............................................................................................................................................... 29 advanced Hard Disk Features .................................................................................................................... 29 advanced Menu.......................................................................................................................................... 30
Power menu ............................................................................................................................................... 30
BIOS EXTENSIONS SOFTWARE INTERFACE.......................................................................................... 31
Accessing Int 50h Functions....................................................................................................................... 31
Int 50h Function Definitions ...................................................................................................................... 31
DISK-ON-CHIP SUPPORT ........................................................................................................................... 33
Installing the Disk-On-Chip ....................................................................................................................... 33
Configuring the Disk-On-Chip as the Boot device ...................................................................................... 33
Configuring the Disk-On-Chip as the first drive ......................................................................................... 34
APPENDICES.............................................................................................................................................. 35
ADDRESS MAPS.......................................................................................................................................... 35
Memory Map.............................................................................................................................................. 35
I/O MAP .................................................................................................................................................... 35
PCI Configuration Space Map ................................................................................................................... 36
Interrupts & DMA Channels ...................................................................................................................... 37
BIOS POST CODES, ERRor messages and beepcodes ............................................................................... 38
Blue Chip Technology Ltd.
0127-1028 Page 1
COMPANY PROFILE
C
OMPANY
P
ROFILE
Blue Chip Technology Ltd is the leading specialist PC product manufacturer in UK/Europe.
Blue Chip Technology Ltd provides innovation with quality design and manufacturing from a single source.
Based in the North West of England, our purpose built complex contains one of the most advanced research and development facility, engineering workshop and production lines.
Specialising in the provision of industrial computing and electronic solutions for a wide range of UK and
European organisations, Blue Chip Technology Ltd has one of the UK's largest portfolios of industrial PCs, peripherals and data acquisition cards. This extensive range of products, coupled with our experience and expertise, enables Blue Chip Technology Ltd to offer an industrial processing solution for any application.
The ELECTRON Single Board PC is the latest addition to our portfolio, providing a cost effective product development and volume production tool for OEMs.
A unique customisation and specialised system integration service is also available, delivering innovative solutions to customers problems. The company's success and reputation in this area has led to a number of large design and manufacturing projects for companies such as BNFL, Aston Martin, JaguarSport and
British Gas.
British Standards Institute approval (BS EN ISO9001) means that all of Blue Chip Technology Ltd’s design and manufacturing procedures are strictly controlled, ensuring the highest levels of quality, reliability and performance.
Blue Chip Technology are also committed to the single European market and continue to invest in the latest technology and skills to provide high performance computer and electronic solutions for a world-wide customer base.
Blue Chip Technology Ltd.
0127-1028 Page 2
ELECTRON User Manual INTRODUCTION
INTRODUCTION
M
ANUAL
O
BJECTIVES
This manual describes in detail the Blue Chip Technology ELECTRON Single Board processor card.
We have tried to include as much information as possible but we have not duplicated information that is provided in the standard IBM Technical References, unless it proved to be necessary to aid in the understanding of the ELECTRON Single Board PC.
The manual is divided into logical sections and includes a User Guide which will help non-technical users get the unit up and running. A Troubleshooting Guide is also included to help should things go wrong.
We strongly recommend that you study this manual carefully before attempting to interface with
ELECTRON or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance.
Please be aware that it is possible to create configurations within the CMOS RAM that make booting impossible. If this should happen, clear the CMOS settings, (see the description of the Jumper Settings for details).
If you have any suggestions or find any errors concerning this manual and want to inform us of these, please contact our Customer Support department with the relevant details.
L
IMITATIONS OF
L
IABILITY
In no event shall Blue Chip Technology be held liable for any loss, expenses or damages of any kind whatsoever, whether direct, indirect, incidental or consequential, arising from the design or use of this product or the support materials supplied with this product. If this product proves to be defective, Blue Chip
Technology is only obliged to replace or refund the purchase price at Blue Chip Technology's discretion according to their Terms and Conditions of Sale.
P
RECAUTIONS
It is imperative that precautions are taken to avoid electro-static discharges, or any maltreatment of the onboard battery.
ELECTRO-STATIC DISCHARGES
The devices on this card can be totally destroyed by static electricity. Ensure that you take necessary static precautions, ideally wear an approved wrist strap or touch a suitable ground to discharge any static build up. This should be repeated if the handling is for any length of time.
When carrying the board around, please place it into the anti-static bag in which it came. This will prevent any static electricity build up. Do not use the black conductive type of anti-static bag as these will discharge the on-board battery.
Blue Chip Technology Ltd.
0127-1028 Page 2
ELECTRON User Manual INTRODUCTION
ON-BOARD LITHIUM CELL (BT1: CR2032)
This board is fitted with a Lithium cell( BT1). Great care should be taken with this type of cell. Under
NO circumstances should :
• °
C
If the battery is mistreated in any way there is a very real possibility of fire, explosion, and personal harm.
R
ELATED
P
UBLICATIONS
The following publications will provide useful information related to the Standard Personal Computer and can be used in conjunction with this manual.
1987.
T
RADEMARKS
IBM, PC, AT and PS/2 are trademarks of International Business Machines Corporation (IBM).
Intel is a registered trademark of the Intel Corporation.
All 80x86 and Pentium processors are registered trademarks of Intel Corporation.
MSDOS and WINDOWS are registered trademarks of the Microsoft Corporation.
Blue Chip Technology Ltd.
0127-1028 Page 3
ELECTRON U SER M ANUAL U SER G UIDE
USER GUIDE
O
VERVIEW
The Blue Chip Technology ELECTRON Single Board PC sets new standards for integration of the latest advances in processor, graphics, memory, and I/O technologies. The ELECTRON complies with the PICMG form factor providing ISA and PCI bus interfaces on a single PC/AT plug-in card. The PICMG single board
PC is an ideal platform for the increasing requirements of today's and tomorrow's embedded applications.
This flexible PICMG design will accept Pentium II
and Pentium III
processors operating at 233 - 700
MHz as well as the SECC (slot 1) Celeron
processors. These Slot 1 processors are supported in a flush mounting Slot 1 connector designed to reduce the overall board dimensions and thereby maximising the slot availability. The Intel 440BX chipset supports 100MHz front side bus (FSB) which provides increased performance over traditional 66MHz bus speeds The memory sub-system is designed to support up to
256MB of unbuffered SDRAM in standard 168-pin DIMM sockets. The memory modules must be PC100 compliant in order to operate at the increased 100MHz FSB. Non PC100 should only be operated at 66MHz
FSB.
The ELECTRON single board PC uses the Intel i740 AGP controller on board to provide outstanding graphics performance and increased integration over other single board PC designs. The Electron supports
AGPx2 (133MHz) data rates and up to 8Mbytes of SGRAM.
The ELECTRON provides PCI Bus Mastering IDE DMA Mode2 controller with two high performance
Enhanced IDE interfaces allowing up to four IDE devices (such as hard drives, CD-ROM readers, etc.)
UltraDMA/33 PIO Mode 3 & 4 are also supported.
An on Board PCI Ultra SCSI II controller (16 bit single ended) is fitted on board using the Industry standard
Adaptec AIC7880. This produces SCSI data rates of up to 40MB/s, and provides expansion for up to sixteen devices.
Networking capability is provided bt an on board PCI based 100/10 Base T ethernet controller. This device can auto-negotiate network speeds and comes complete with drivers for most network environments
Two USB ports provide easy IO expansion to USB Specification Rev 1.0 compliant devices.
A 16 bit quality Sound Blaster compatible audio device is available on board. This provides for mono microphone input, and stereo line in and line out. The codec is Soundblaster
compatible.
The SMC 37C675 Enhanced Super I/O controller integrates the standard PC I/O functions: floppy interface, two FIFO serial ports, one EPP/ECP capable parallel port, keyboard and mouse (PS/2) controller.
The ELECTRON also provides for driving up to four external PCI local bus non bridged slots. These provide a high bandwidth data path for data-movement intensive functions such as frame grabbing or networking. Larger numbers of PCI slots can be supported through PCI bridged backplanes. The
ELECTRON provides a buffered ISA bus. This permits up to twenty ISA slots to be driven to complete the
I/O capability. The ELECTRON should only be used in PICMG back-planes. ISA only back-planes are not recommended for use with ELECTRON as power should be drawn from both the PCI and ISA connectors of the PICMG connectors.
In addition to the superior hardware capabilities, a full set of software drivers and utilities are available to allow advanced operating systems such as Windows™ 95/ 98 to take full advantage of the hardware capabilities. Features such as bus mastering and UDMA33 EIDE, Windows™ 95-ready Plug and Play,
Advanced Power Management (APM) are available for the ELECTRON.
Blue Chip Technology Ltd.
0127-1028 Page 4
ELECTRON U SER M ANUAL U SER G UIDE
BOARD LEVEL FEATURES
•
700MHz operation and above
On-board jumperless CPU voltage regulator
Intel 440BX AGPSet chipset:
824440BX North Bridge
PIIX4E South Bridge
128KB or 512 KB PipeLine Burst Level 2 cache provided on the Celeron/Pentium II/III module.
•
•
Power Management
ISA PnP extensions
Y2K compatible
Two DIMM sockets providing up to 256 MByte of unbuffered SDRAM
Intel i740 AGP graphics controller with:
4/8 MByte SGRAM
Supports resolution upto 1600 x 1200 at 8bpp
Adaptec PCI Ultra SCSI II adapter with on-board termination
•
ESS 1869 16 bit stereo audio codec
PICMG compliant PCI and ISA expansion buses
SMC 37C675 I/O controller providing:
Dual floppy interface
Dual 16C550 RS-232/422/485 serial interfaces
EPP/ECP bi-directional parallel interface
•
PS/2 mouse and keyboard
Real-time clock with on-board battery
Solid State Disk support for M-Systems Disk on Chip with 2- 288MB capacity System monitoring of fans, system temperature and critical supply voltages are provided using the National
•
Semiconductor LM79 hardware monitor.
On-board status LEDs indicate POST , supplies status, network and disk activity
Drive for up to 20 ISA and 4 PCI expansion slots
PROCESSOR
The ELECTRON single board PC is designed to operate with Pentium II/III Processors running at various voltages. An on-board voltage regulator circuit provides the required voltage for the processor core and automatically sets the voltage level to match the processor installed. No links or user intervention is required.
The Pentium II processor maintains full backward compatibility with the 8086, 80286, i386
, Intel486
and Pentium
processors. It supports both read and write burst mode bus cycles, and includes L1 and L2 caches on the slot module. Also integrated into the Pentium II/III processor is an advanced numeric coprocessor which significantly increases the speed of floating point operations, whilst maintaining backward compatibility with i486DX math co-processor and complying to ANSI/IEEE standard 754-1985.
PROCESSOR UPGRADE
The ELECTRON single board PC has a 242 SECC connector (Slot 1) that provides users with a processor upgrade path. Future, faster, lower power processors being developed for use with Slot 1 can provide performance beyond that delivered by the originally installed Pentium II/III Processor. The ELECTRON will support CPUs from 233- 700MHz and beyond.
Blue Chip Technology Ltd.
0127-1028 Page 5
ELECTRON U SER M ANUAL U SER G UIDE
SYSTEM MEMORY
The ELECTRON single board PC provides two 168-pin DIMM sites for memory expansion. The sockets support 8, 16, 32, 64, 128MB unbuffered SDRAM modules giving a current maximum of upto 256MB of system memory. Minimum memory size is 8 MB. Memory timing requires PC100 compliant SDRAM modules when used with a 100MHz FSB CPU. There are no jumper settings required for the memory size, which is automatically detected by the system BIOS.
BUS EXPANSION SLOTS
The ELECTRON is designed for use in a passive backplane providing expansion slots for add-in cards.
There may be up to 20 ISA bus expansion connectors and four PCI expansion connectors. One slot is shared by both types of connector - this is reserved for the ELECTRON processor card. All PCI expansion slots accept PCI bus master cards, and fully support the PCI specification version 2.1.
PCI 3.3 VOLT CAPABILITIES
Support for 3.3 Volts to the PCI connectors requires a power supply with a 3.3V DC output. The
PICMG power connector definition has 3 pins reserved for 3.3V. The ELECTRON on-board voltage regulator only provides 3.3V to the onboard devices and is not available to supply 3.3V PCI expansion boards. 3.3 Volt PCI boards require a 3.3Volt external PSU such as an ATX supply.
ELECTROMAGNETIC COMPATIBILITY
This product meets the requirements of the European EMC Directive (89/336/EEC) and is eligible to bear the CE mark.
It has been assessed operating in a Blue Chip Technology ICON industrial PC. However, because the board can be installed in a variety of computers, certain conditions have to be applied to ensure that the compatibility is maintained. Subject to those conditions, it meets the requirements for an industrial environment (Class A product).
industrial environment.
regarding earthing and the installation of boards.
ensure good metal-to-metal (i.e. earth) contact.
cabling to the board is totally screened, and that the screen of the cable connects to the metal end bracket of the board and hence to earth. It is recommended that round screened cables with a braided wire screen are used in preference to those with a foil screen and drain wire. Use metal connector shells which connect around the full circumference of the screen: they are far superior to those which earth the screen by a simple “pig-tail”.
into the board. Similarly, it will affect the compatibility of the complete system. A fully compatible keyboard must be used otherwise the complete system could be degraded. The keyboard itself may radiate or behave as if keys are pressed when subject to interference. Under these circumstances it may be beneficial to add a ferrite clamp on the keyboard lead as close as possible to the connector. A suitable type is the Chomerics type H8FE-1004-AS.
cable.
Blue Chip Technology Ltd.
0127-1028 Page 6
ELECTRON U SER M ANUAL U SER G UIDE
Failure to observe these recommendations may invalidate the EMC compliance.
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
S
PECIFICATION
ELECTRON Power +5 V ± 5%
Requirement +12 V ± 5%
+3.3 V ± 5%
-5 V ± 5%
Not required for board operation.
-12 V ± 5%
Typical System
Consumption
Temperature
35 Watts (5V) Pentium II 450, 128 MB SDRAM,
<1 Watt (12V) 3½" FDD, 8GB HDD
Non-Operating -40
°
C to +70
°
C
Operating +0
°
C to +55
°
C
(min. airflow of 200 lpm)
EMC Emissions
Immunity
EN55022 (A)
EN50082-1 in a Blue Chip ICON Industrial PC Chassis
MTBF
Dimensions
Calculated
Board only
72,000 Hours
338 x 122 mm
Power Consumption figures given are for a typical configuration.
This information is preliminary and is provided only as a guide to calculating approximate total system power usage when additional resources are added.
Blue Chip Technology Ltd.
0127-1028 Page 7
ELECTRON User Manual INSTALLATION
INSTALLATION
Electro-Static Discharge
Your Single Board Computer is susceptible to damage by electrostatic discharges. In order to avoid damage, you should work at an anti-static bench and observe normal anti-static precautions. Wear an anti-static wrist strap connected to an earth point before opening any packaging.
Where a wrist strap is not available, discharge any static charge you may have built-up by touching an earth point. Avoid any further movement which could build up another static charge. Touch an earth point from time to time to avoid further build-up, and remove the items from their anti-static bags only when required.
CPU INSTALLATION
The ELECTRON board supports a single Slot 1 Celeron or Pentium II/III processor. The processor connects to the board using a 242 pin right angled Slot 1 connector.
Before installing the Pentium II processor, the SDRAM modules should be removed. The CPU fan and/or heatsink assembly must be fitted to the processor prior to installation onto the Electron board. The processor should then be located on the white support bracket and then carefully inserted into the Slot 1 connector. Avoid squeezing against any components mounted on the lower edge of the board. The processor is fully located when the two retaining clips on the processor module click and lock into the retaining holes of the white support bracket.
To remove the processor press the retaining locks on the processor and simultaneously remove the processor.
Blue Chip Technology Ltd.
0127-1028 Page 8
ELECTRON User Manual INSTALLATION
The Electron supports the following processors: (Future CPUs will also be supported)
Processor Type CPU Speed
(MHz)
Pentium III 233
266
300
333
350
400
450
500
Celeron
300
300A
333
366
400
433
466
500
533
550
600
650
700
750
800
850
266
Host Bus Speed
(MHz)
66
66
66
66
100
100
100
100
100
100
100
100
100
100
100
66
66
66
66
66
66
66
66
66
66
0
128
128
128
128
128
128
128
128
256
256
256
256
256
256
256
0
Cache Size
(Kbyte)
256
356
256
256
256
256
256
256
Blue Chip Technology Ltd.
0127-1028 Page 9
ELECTRON User Manual INSTALLATION
MEMORY INSTALLATION
The ELECTRON supports two 168 pin SDRAM DIMMs providing upto 256MB of unbuffered SDRAM.
Modules are available in 8,16,32,64 and 128MB to both PC66 and PC100 specification. The ELECTRON supports both PC memory specifications but the PC100 modules must be used when running 100MHz FSB processors. When running a 66MHz FSB CPU PC66 or PC100 modules may be installed. All SDRAMs must be 3.3Volt, 5Volt modules are not supported.
JUMPER SETTINGS
The ELECTRON has a number of jumpers to allow the user to configure the board to suit specific applications.
The functions of these jumpers is listed below:
J1: CMOS Clearing link:
This jumper is used to clear the contents of the battery backed CMOS memory. This memory is used to retain the system settings such as drive information, boot sequence and certain peripheral device information.
J1
CLEAR
CMOS
MEMORY
CONTENTS
CLR NORM
J1
NORMAL
OPERATING
POSITION
CLR NORM
J2: SCSI Termination power:
This jumper is used to select the power source for the on board SCSI termination. It may be supplied either from the CPU board or from the SCSI bus.
NO JUMPER
SCSI TERMINATION
POWER SUPPLIED BY SCSI
BUS
J2
TPWR
JUMPER FITTED
SCSI TERMINATION
POWER SUPPLIED
BY THE ELECTRON
CPU BOARD
J2
TPWR
Blue Chip Technology Ltd.
0127-1028 Page 10
ELECTRON User Manual INSTALLATION
J3: Half/full duplex:
This jumper is used in conjunction with jumper J5. It is used to select between a half Duplex
RS485 operation on the second on board serial port. When jumper J5 is set to1/2, the J3 jumper should be installed in order to select ½ duplex RS485 operation on COM2. When jumper J5 is set to F, J3 jumper should be removed, thereby selecting RS485 full duplex operation on COM2. When J5 is set to 232 i.e. RS232 on COM2, the J3 jumper should be removed.
NO JUMPER
FULL DUPLEX
SELECTED ON SECOND
SERIAL PORT
(J5 SET TO F)
J3
JUMPER FITTED
HALF DUPLEX
SELECTED ON
SECOND SERIAL PORT
(J5 SET TO 1/2)
J3
J5: RS232/RS485 Full and Half Duplex:
This jumper is used to select between RS232, RS485 full duplex and RS485 half duplex on the second serial port. It is used in conjunction with J3 in order to select between full and half duplex.( see above)
Blue Chip Technology Ltd.
0127-1028 Page 11
ELECTRON User Manual
J5
RS232 SIGNALLING
SELECTED ON SECOND
SERIAL PORT
(J3 NOT FITTED)
INSTALLATION
232
J5 1/2
232
HALF DUPLEX
SELECTED ON
SECOND SERIAL PORT
(J3 FITTED)
J5
232
1/2
FULL DUPLEX
SELECTED ON SECOND
SERIAL PORT
(J3 NOT FITTED)
J5 1/2
Blue Chip Technology Ltd.
0127-1028 Page 12
ELECTRON User Manual INSTALLATION
J4: CPU frequency selector
This four position jumper is used to select the CPU internal frequency. The jumpers set the ratio of the CPU front side bus (FSB)to CPU internal frequency. The FSB is automatically determined by the ELECTRON and there are no user jumper settings for this values. The possible FSB frequencies are 66MHz and 100MHz. Given below are the current supported frequency settings
FSB/CPU
Ratio
1 / 2
1 / 2
1 / 4
1 / 5
2 / 7
2 / 9
CPU Type/speed
FSB: 66MHz, CPU 133MHz
FSB: 100MHz, CPU 200MHz
FSB: 66MHz, CPU 133MHz
FSB: 100MHz, CPU 200MHz
FSB: 66MHz, CPU 266MHz
FSB: 100MHz, CPU 400MHz
FSB: 66MHz, CPU 333MHz
FSB: 100MHz, CPU 500MHz
FSB: 66MHz, CPU 233MHz
FSB: 100MHz, CPU 350MHz
FSB: 66MHz, CPU 300MHz
FSB: 100MHz, CPU 450MHz
J4 setting
J4
4-1
J4
4-1
J4
4-1
J4
4-1
J4
4-1
J4
4-1
Note:- Later Intel CPU's has the frequencey auto selected, it is recommended that J4 is set to Auto detect the
CPU frequency. To do this remove all the jumper links from J4.
Blue Chip Technology Ltd.
0127-1028 Page 13
ELECTRON User Manual INSTALLATION
Connectors
There are three sets of connectors incorporated on the ELECTRON PC board. These provide connectivity to standard external peripherals available through the back panel connectors (network, serial ports, monitor, keyboard, etc.), in-chassis peripherals ( floppy disk, EIDE, etc.), and bus devices i.e. ISA and PCI.
BACK PANEL CONNECTORS
The back panel provides external access to the UTP Ethernet, VGA, PS/2, keyboard/mouse, and the first serial communications port interfaces. All the connectors follow the industry standard. The diagram shows the general location of the connectors.
UTP 10/100 Base T
Ethernet (P21)
VGA (P18)
PS/2 Keyboard &
Mouse (P20)
RS232 Serial Port l
(P19)
100/10 BASE T UTP ETHERNET P21 (RJ45)
PIN NO.
5
7
1
3
SIGNAL
TX Data +ve
RX Data +ve
75R to UTP ground
75R to UTP ground
PIN NO.
6
8
2
4
SIGNAL
TX Data -ve
75R to UTP ground
RX Data -ve
75R to UTP ground
VIDEO CONNECTOR P18 (15 WAY CONDENSED D-TYPE)
PIN NO.
7
9
11
13
15
1
3
5
SIGNAL
Analogue RED
Analogue BLUE
0 Volts (Ground)
0 Volts (Ground)
DDC +ve supply
1K pull up
Horizontal Sync
DDC Clock
PIN NO.
8
10
12
14
2
4
6
SIGNAL
Analogue GREEN
1K pull up
0 Volts (Ground)
0 Volts (Ground)
0 Volts (Ground)
DDC Data
Vertical Sync
Blue Chip Technology Ltd.
0127-1028 Page 14
ELECTRON User Manual INSTALLATION
COMBINED PS/2 MOUSE AND KEYBOARD PORT P20 (6 WAY MINI-DIN)
PIN NO.
1
3
5
SIGNAL
Keyboard Data
Ground
Keyboard Clock
PIN NO.
2
4
6
SIGNAL
Mouse Data
+5 Volts (fused)
Mouse Clock
RS232 SERIAL PORT 1 P19 (9 WAY D-TYPE)
PIN NO.
5
7
1
3
9
SIGNAL
Data Carrier Detect
-Transmit Data
Ground
-Ready To Send
Ringing Indicator
PIN NO.
6
8
2
4
SIGNAL
-Receive Data
-Data Terminal Ready
-Data Set Ready
-Clear To Send
ON-BOARD CONNECTORS
There are connectors on-board for dual EIDE, SCSI II, Floppy Disk Drive, a second serial port (RS232 and RS485), a parallel port, USB, Audio, internal mouse header, utilities header, CMOS/RTC Lithium cell holder, and sensing fan connectors. See the PCB layout diagram at the end of the manual for the position of the connectors.
PRIMARY EIDE CONNECTOR P6 (40 WAY HEADER)
2
1
40
39
PIN NO.
29
31
33
35
21
23
25
27
37
39
1
3
13
15
17
19
5
7
9
11
SIGNAL
-Reset
Data bit 7 (HD)
Data bit 6 (HD)
Data bit 5 (HD)
Data bit 4 (HD)
Data bit 3 (HD)
Data bit 2 (HD)
Data bit 1 (HD)
Data bit 0 (HD)
Ground
Drive Request
-IO Write (HD)
-IO Read (HD)
Drive Ready
Drive Acknowledge
IRQ14
Address 1 (HD)
Address 0 (HD)
-Chip Select 0 (HD)
IDE LED Drive
PIN NO.
30
32
34
36
22
24
26
28
38
40
2
4
14
16
18
20
6
8
10
12
SIGNAL
Ground
Data bit 8 (HD)
Data bit 9 (HD)
Data bit 10 (HD)
Data bit 11 (HD)
Data bit 12 (HD)
Data bit 13 (HD)
Data bit 14 (HD)
Data bit 15 (HD)
Key
Ground
Ground
Ground
Cable select ( 470R to gnd)
Ground
Not Used
Not Used
Address 2 (HD)
-Chip Select 1 (HD)
Ground
Blue Chip Technology Ltd.
0127-1028 Page 15
ELECTRON User Manual INSTALLATION
SECONDARY IDE CONNECTOR P7 (40 WAY HEADER)
2
1
40
39
PIN NO.
31
33
35
37
23
25
27
29
39
1
3
13
15
17
19
21
5
7
9
11
SIGNAL
-Reset
Data bit 7 (HD)
Data bit 6 (HD)
Data bit 5 (HD)
Data bit 4 (HD)
Data bit 3 (HD)
Data bit 2 (HD)
Data bit 1 (HD)
Data bit 0 (HD)
Ground
Drive Request
-IO Write (HD)
-IO Read (HD)
Drive Ready
Drive Acknowledge
IRQ15
Address 1 (HD)
Address 0 (HD)
-Chip Select 0 (HD)
IDE LED Drive
PIN NO.
32
34
36
38
24
26
28
30
40
2
4
14
16
18
20
22
6
8
10
12
SIGNAL
Ground
Data bit 8 (HD)
Data bit 9 (HD)
Data bit 10 (HD)
Data bit 11 (HD)
Data bit 12 (HD)
Data bit 13 (HD)
Data bit 14 (HD)
Data bit 15 (HD)
Key
Ground
Ground
Ground
Cable select ( 470R to gnd)
Ground
Not Used
Not used
Address 2 (HD)
-Chip Select 1 (HD)
Ground
Blue Chip Technology Ltd.
0127-1028 Page 16
ELECTRON User Manual INSTALLATION
WIDE SCSI 2 CONNECTOR P4 (68 WAY HIGH DENSITY SINGLE ENDED )
SIGNAL
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Termination Power
Termination Power
Not Used
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
PIN NO.
27
28
29
30
23
24
25
26
31
32
33
34
18
19
20
21
22
14
15
16
17
10
11
12
13
8
9
6
7
3
4
1
2
5
SIGNAL
Data bit 12
Data bit 13
Data bit 14
Data bit 15
Data Parity P1
Data bit 0
Data bit 1
Data bit 2
Data bit 3
Data bit 4
Data bit 5
Data bit 6
Data bit 7
Data Parity P0
Ground
Ground
Termination Power
Termination Power
Not Used
Ground
ATTENTION
Ground
BUSY
ACKNOWLEDGE
RESET
MESSAGE
SELECT
COMMAND/DATA
REQUEST
IN/OUT
Data bit 8
Data bit 9
Data bit 10
Data bit 11
PIN NO.
61
62
63
64
57
58
59
60
65
66
67
68
52
53
54
55
56
48
49
50
51
44
45
46
47
40
41
42
43
35
36
37
38
39
Blue Chip Technology Ltd.
0127-1028 Page 17
ELECTRON User Manual INSTALLATION
FLOPPY DISK DRIVE CONNECTOR P8 (34 WAY HEADER)
2
1
34
33
PIN N °
1
3
5
15
17
19
21
23
7
9
11
13
25
27
29
31
33
SIGNAL
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
PIN N °
2
4
6
16
18
20
22
24
8
10
12
14
26
28
30
32
34
SIGNAL
RPM/Low Current
Key
+Rate
-Index
-Motor 0
-Drive select 1
-Drive select 0
-Motor 1
+Direction
-Step
-Write Data
-Write Gate
-Track 0
-Write Protect
-Read Data
+Head Select
+Disk Change
ECP/EPP PARALLEL PORT P6 (26 WAY HEADER)
2
1
PIN N
°
13
15
17
19
21
23
25
5
7
1
3
9
11
SIGNAL
-Strobe
Data bit 0
Data bit 1
Data bit 2
Data bit 3
Data bit 4
Data bit 5
Data bit 6
Data bit 7
-Acknowledge
Busy
Paper Empty
Select (Output)
PIN N
°
14
16
18
20
22
24
26
6
8
2
4
10
12
SIGNAL
-Auto Feed
-Error
-Initialise
-Select (input)
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Key
26
25
Blue Chip Technology Ltd.
0127-1028 Page 18
ELECTRON User Manual INSTALLATION
UTILITY CONNECTOR P10 (20 WAY HEADER)
2
1
20
25
PIN N
°
1
3
13
15
17
19
5
7
9
11
SIGNAL
Speaker +ve
Reset +ve
SCSI LED +ve
Keylock +ve
Power LED +ve
Sleep Switch +ve
IDE LED +ve
+5V (fused)
+3Volt Battery
Keyboard Data
PIN N
°
2
4
14
16
18
20
6
8
10
12
SIGNAL
Speaker -ve
Reset -ve (Ground)
SCSI LED -ve
Keylock -ve (Ground)
Power LED -ve (Ground)
Sleep Switch -ve (Ground)
IDE LED -ve
0 Volts (Ground)
0 Volts Battery (Ground)
Keyboard Clock
This connector provide support for functions which would normally be located within the enclosure, and also duplicate connections for some of the external interfaces.
SPEAKER ( P10 pins 1 & 2)
An on-board Piezo speaker is provided on the ELECTRON. An off-board speaker may be connected to the connector. The speaker provides error beep code information during the Power-On Self Test if the system cannot use the video interface.
RESET( P10 pins 3 & 4)
A reset input is supplied on the connector. The two pins ( 3 & 4 ) may be connected to a momentary action normally open SPST switch. When the switch is closed and then opened the system will perform a hard reset and run the POST.
SCSI LED ( P10 pins 5 & 6)
These two pins are used to connect to an LED to provide an indication that a SCSI hard drive connected to the on-board SCSI controller is active. A current limiting resistor is fitted on the board and the user need only connect the LED; Anode to pin 5 Cathode to pin 6.
KEYLOCK ( P10 pins 7 & 8)
These pins can be connected to a key switch to inhibit the use of the keyboard. The keyboard is inhibited when the key lock switch contacts are closed.
POWER LED (P10 pins 9 & 10)
An LED may be wired across these pins to provide a front panel indication that the Computer is powered on. A current limiting resistor is fitted on the board and the user need only connect the LED;
Anode to pin 9 Cathode to pin 10.
SLEEP/RESUME SWITCH (P10 pins 11 & 12)
These pins may be connected to a momentary-action, normally-open SPST switch. The switch may be used to toggle the PC in and out of SMM modes (i.e. Sleep / Resume). The resultant Sleep mode is a power saving mode.
Blue Chip Technology Ltd.
0127-1028 Page 19
ELECTRON User Manual INSTALLATION
IDE LED ( P10 pins 13 & 14)
These two pins are used to connect to an LED to provide an indication that an IDE hard drive connected to the on-board IDE controller is active. This LED is shared by all the Primary and Secondary slave and master IDE devices. A current limiting resistor is fitted on the board and the user need only connect the
LED; Anode to pin 13 Cathode to pin 14.
INTERNAL KEYBOARD ( P10 pins 15,16,19,20)
The keyboard interface is available on connector P10 for applications requiring front panel keyboard or a keyboard compatible keypad. The +5v supply is protected by a 2 Amp resettable fuse.
EXTERNAL BATTERY (P10 pins 17 & 18)
These connections allow the user to connect an external 3 to 3.7V lithium cell to supplement or replace the on-board CR2032 button Lithium cell (BT1). Exercise caution if using this facility ( read the PRECAUTIONS section found earlier in this manual )
RS485 SERIAL PORT 2 P9 (10 WAY HEADER)
2
1
10
9
PIN NO.
1
3
5
7
9
SIGNAL
+Rx FDX
-Rx FDX
+Tx FDX,
+Rx/+Tx HDX
-Tx FDX,
-RX/-Tx HDX
-Term. 10 K to Gnd
PIN NO.
2
4
6
SIGNAL
+Term. 10 K to +5V
No Connect
No Connect
8
10 key
No Connect
RS232 SERIAL PORT 2 P13 (10 WAY HEADER)
2
1
10
9
Pin N
°
1
3
5
7
9
Signal
-Data Carrier Detect
-Receive Data
-Transmit Data
-Data Term Ready
Ground
Pin N
°
2
4
6
8
10
Signal
-Data Set Ready
-Ready To Send
-Clear To Send
-Ringing Indicator key
Blue Chip Technology Ltd.
0127-1028 Page 20
ELECTRON User Manual INSTALLATION
USB CONNECTOR P11 (10 WAY HEADER)
2
1
10
9
Pin N
°
5
7
1
3
9
Signal
+5V
Port 0 -ve
Port 0 +ve
Ground
Chassis
Pin N
°
6
8
2
4
10
Signal
Chassis
Ground
Port 1 +ve
Port 1 -ve
+5v
INTERNAL SVGA CONNECTOR P15 (10 WAY HEADER)
1 2
Pin N
°
5
7
1
3
9
Signal
Red
Green
Blue
Horizontal sync
Vertical sync
9
Pin N
°
6
8
2
4
10
Ground
Ground key
Ground
Ground
Signal
AUDIO CONNECTOR P15 (10 WAY HEADER 2mm)
Pin N
°
5
7
1
3
9
Signal
Line Left In
Ground
Microphone in
Ground
Line Left Out
Pin N
°
6
8
2
4
10
Signal
Line Right In
Ground
NC
Ground
Line Right Out
Blue Chip Technology Ltd.
0127-1028 Page 21
ELECTRON User Manual INSTALLATION
CD AUDIO CONNECTOR P16 (4 WAY JST HEADER)
Pin N
°
3
4
1
2
Signal
CD Left In
Ground
CD Right In
Ground
INTERNAL MOUSE CONNECTOR P14 (5 WAY HEADER)
Pin N
°
1
4
5
2
3
Signal
Mouse Data key
Ground
+5V (thermal fuse)
Mouse Clock
BUS CONNECTORS
The board incorporates the standard PC/AT 16-bit ISA bus, and PCI bus connectors to passive backplanes.
See the appendices for the pin-out details. Note that the PCI connector details the signals at the
ELECTRON processor connector. These are different for each PCI slot on a backplane.
ISA BUS XT CONNECTIONS
A= Large gold fingers on main component side
B= Large gold fingers on reverse side
PIN NO.
A22
A23
A24
A25
A26
A27
A28
A29
A14
A15
A16
A17
A18
A19
A20
A21
A30
A31
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
SIGNAL
SA9
SA8
SA7
SA6
SA5
SA4
SA3
SA2
SA17
SA16
SA15
SA14
SA13
SA12
SA11
SA10
SA1
SA0
-IOCHCK
SD7
SD6
SD5
SD4
SD3
SD2
SD1
SD0
IOCHRDY
AEN
SA19
SA18
PIN NO.
B22
B23
B24
B25
B26
B27
B28
B29
B14
B15
B16
B17
B18
B19
B20
B21
B30
B31
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
SIGNAL
-IOR
-DACK3
DREQ3
-DACK1
DREQ1
-REF
CLK
IRQ7
IRQ6
IRQ5
IRQ4
IRQ3
-DACK2
T/C
BALE
+5 Volts
OSC
Ground
Ground
Resetdrv
+5 Volts
IRQ9
-5 Volts
DREQ2
-12 Volts
-0WS
+12 Volts
Ground
-SMEMW
-SMEMR
-IOW
Blue Chip Technology Ltd.
0127-1028 Page 22
ELECTRON User Manual INSTALLATION
ISA BUS AT CONNECTIONS
C= Large gold fingers on main component side
D= Large gold fingers on reverse side
PIN NO.
C6
C7
C8
C9
C10
C11
C12
C13
C1
C2
C3
C4
C5
C14
C15
C16
C17
C18
SIGNAL
-SBHE
LA23
LA22
LA21
LA20
LA19
LA18
LA17
-MEMR
-MEMW
SD8
SD9
SD10
SD11
SD12
SD13
SD14
SD15
PIN NO.
D6
D7
D8
D9
D10
D11
D12
D13
D1
D2
D3
D4
D5
D14
D15
D16
D17
D18
SIGNAL
-MEMCS16
-IOCS16
IRQ10
IRQ11
IRQ12
IRQ15
IRQ14
-DACK0
DREQ0
-DACK5
DREQ5
-DACK6
DREQ6
-DACK7
DREQ7
+5 Volts
-Master
Ground
Blue Chip Technology Ltd.
0127-1028 Page 23
ELECTRON User Manual INSTALLATION
PCI CONNECTORS
PIN
A44
A45
A46
A47
A48
A49
A38
A39
A40
A41
A42
A43
A32
A33
A34
A35
A36
A37
A25
A26
A27
A28
A29
A30
A31
A19
A20
A21
A22
A23
A24
A13
A14
A15
A16
A17
A18
A7
A8
A9
A10
A11
A12
A1
A2
A3
A4
A5
A6
A55
A56
A57
A58
A59
A60
A50
A51
A52
A53
A54
SIGNAL NAME
STOP-
3.3V
SDONE
SBO-
GND
PAR
AD15
3.3V
AD13
AD11
GND
AD9
AD24
GNT3#
3.3V (NC)
AD22
AD20
GND
AD18
AD16
3.3V (NC)
FRAME-
GND
TRDY-
GND
GND
+12V
No Connect
No Connect
Vcc
INTC#
INTA#
Vcc
CLK3
Vcc
CLK4
GND
GND
GNT2#
SPCIRST-
Vcc
GNT1#
GND
REQ3#
AD30
3.3V
AD28
AD26
GND
KEY
CBEO-
3.3V
AD6
AD4
GND
AD2
AD0
Vcc
SREQ64-
Vcc
Vcc
SIGNAL NAME
GND
PLOCK-
PERR-
3.3V
SERR-
3.3V
CBE1-
AD14
GND
AD12
AD10
GND
3.3V (NC)
CBE3-
AD23
GND
AD21
AD19
3.3V (NC)
AD17
CBE2-
GND
IRDY-
3.3V
DEVSEL-
GND
CLK1
GND
CLK2
GND
REQ1#
Vcc
AD31
AD29
GND
AD27
AD25
-12V
No Connect
GND
No Connect
Vcc
Vcc
INTB#
INTD#-
REQ4#
REQ2#
GNT4#
GND
AD8
AD7
3.3V
AD5
AD3
GND
AD1
Vcc
SACK64-
Vcc
Vcc
PIN
B44
B45
B46
B47
B48
B49
B38
B39
B40
B41
B42
B43
B32
B33
B34
B35
B36
B37
B25
B26
B27
B28
B29
B30
B31
B19
B20
B21
B22
B23
B24
B13
B14
B15
B16
B17
B18
B7
B8
B9
B10
B11
B12
B1
B2
B3
B4
B5
B6
B55
B56
B57
B58
B59
B60
B50
B51
B52
B53
B54
NOTE: The PCI connector details shown here are for the ELECTRON processor card. The PCI connectors of a backplane differ slightly, some pins having a position dependent signal.
Blue Chip Technology Ltd.
0127-1028 Page 24
ELECTRON User Manual INSTALLATION
STATUS LEDS
On the underside of the Electron PCB is are clusters of LEDs. These are arranged in groups to indicate the status of various board functions:
P.O.S.T. DISPLAY
Red LEDs D17 to D24 inclusive display the Power On Self Test (POST) data byte. Diode D17( top) represent the LSB and D24 (bottom) the MSB. The LED is illuminated when the POST data bit is 1.
See the POSTCODE.PDF file for details of the error codes.
POWER SUPPLY INDICATORS
Green LEDs D5-D9 inclusive show the presence of the power supplies. Each LED is illuminated when the appropriate voltage is present.
D12 + 12 Volt supply
D10 - 12 Volt supply
D8 - 5 Volt supply
D13 2.7 Volt supply Video chip-set core voltage
D11 CPU Core voltage ( may glow dimly depending on CPU type fitted)
D9 Host CPU IO and chip-set supply (3.3 Volts)
D7 + 5 Volt (Vcc) supply
IDE ACTIVITY DISPLAY
LED D25 indicates primary and secondary IDE activity (Hard disk or CD-ROM) and is illuminated when active.
SYSTEM RESET STATUS
LED D27 indicates the system reset status. The LED is illuminated when in held in reset.
SCSI STATUS
LED D29 indicates SCSI Bus activity and is illuminated when active.
NETWORK STATUS
LED D29 indicates when the onboard ethernet controller is receiving or transmitting data on the UTP cable.
Blue Chip Technology Ltd.
0127-1028 Page 25
ELECTRON User Manual INSTALLATION
I
NTEL I
740 AGP G
RAPHICS
C
ONTROLLER
The ELECTRON single board PC is equipped with an Intel i740 SVGA graphics controller with 4/8 MB of graphics memory. The Trio64V has a 64-bit graphics engine that provides acceleration for scaling the video display without compromising picture quality or frame rate. The on-chip RAMDAC/clock synthesiser is capable of output pixel data rates of 220 MHz providing screen resolutions of up to 1600 x 1200 x 256 colours at 75 Hz. 3D and 2D Hardware acceleration for graphics functions such as Shading, Mip-mapping,
Z-buffering, Texture colour keying, BitBLTs with ROPs, 2-point line draws, trapezoidal and polygon fills, clipping and cursor support provide high performance operation under Windows™ and other GUI environments. AGP x2 support ensures maximum data throughput by performing parallel data processing from both local dedicated Graphics memory and AGP system memory
The ELECTRON single board PC supports a 10 pin header for internal VGA connections. ELECTRON also supports VESA standards such as the VESA DPMS protocol to put a DPMS compliant monitor into power saving modes and the VESA Display Data Channel (DDC2B) which permits transfer of monitor identification and resolution support data for ease of use.
Note: In certain operating systems such as Win 95/98, the use of non-DDC monitors may result in screen refresh resolutions beyond those supported by the monitor. In order to overcome this potential problem, the
DDC option for the monitor should be disabled in the Display setup
RESOLUTIONS SUPPORTED
RESOLUTION
320 x 200
320 x 240
512 x 384
640 x 350
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x1200
8 BIT
60,72,75,85
60,72,75,85
60,72,75,85
85
56,60,72,75,85
60,72,75,85
60,72,75,85
60,72,75,85
60,75
BITS PER
PIXEL ( FREQ:
HZ)
16 BIT
60,72,75,85
60,72,75,85
60,72,75,85
60,72,75,85
60,72,75,85
60,72,75,85
60,72,75,85
60,72,75,85
24 BIT
60,72,75,85
60,72,75,85
60,72,75,85
85
60, 72, 75,85
56, 60, 72,75,85
60, 70, 75,85
Blue Chip Technology Ltd.
0127-1028 Page 26
ELECTRON User Manual INSTALLATION
B
IOS
The ELECTRON single board PC uses a number of BIOS’ to perform different functions:
System BIOS
Video BIOS
SCSI BIOS
Ethernet BIOS
The Pheonix system BIOS is used by the Operating system to access the onboard peripherals such as EIDE hard disks, floppy disks, USB devices, serial and parallel ports. In addition to providing this interface, the
BIOS provides a setup utility to allow the end user to set up the card for a specific installation eg different drive configurations or boot sequences etc. During the boot up sequence, the BIOS also provides a Power-On
Self Tests (POST) to ensure system integrity. The status of this POST is displayed on a set of LEDs on the underside of the PCB. The meanings of which are described in the file bios-postcode.pdf.
The Intel video BIOS provides an interface between the OS and the video controller, allowing applications to utilise both standard SVGA functions and the i740 specific functions. The video BIOS resides in a Flash based EEPROM and can be upgraded in situ.
The Adaptec SCSI BIOS allows the user to configure the SCSI bus devices and their mode of operation such as termination, transfer rates and transmission protocols.
The Realtek Ethernet BIOS provides a means of remote booting from a network. Most major networking
OS’s are supported.
SETUP UTILITY
The ROM-based Setup utility allows the configuration to be modified without opening the system for most basic changes. The Setup utility is accessible only during the Power-On Self Test (POST) by pressing the
<F2> key after the POST memory test has started and before boot begins.
Blue Chip Technology Ltd.
0127-1028 Page 27
ELECTRON User Manual SOFTWARE DESCRIPTION
SOFTWARE DESCRIPTION
BIOS S
ETUP
An outline describing the general features of the BIOS Setup facility may be found in the Phoenix Setup
Guide -see file bios-setup.pdf (Adobe Acrobat is required).
This section details the differences and describes the additional features of the Electron Bios Setup.
MAIN MENU
SYSTEM DATE
The System Date format is dd/mm/yyyy.
MEMORY CACHE
The Memory Cache menu has been moved to the Advanced Menu.
SYSTEM SHADOW / VIDEO SHADOW
System Shadow and Video Shadow are no longer optional. The System and Video BIOS are automatically shadowed when the BIOS is decompressed during POST.
KEYBOARD FEATURES
The keyboard features menu has been added to the Main Menu .
DISPLAY BOOT-TIME DIAG INFO
This provides the option to reveal or hide the screen output generated by the BIOS.
ADVANCED HARD DISK FEATURES
ULTRA DMA MODE
Ultra DMA Mode is an additional feature added to the hard disk setup options. By setting drive type as
USER, the user may choose Disabled or UDMA Modes between 0 and 6. Selecting drive type as AUTO will let the BIOS interrogate the disk drive to determine the mode. If UDMA is supported , the mode returned by the drive will be chosen and displayed.
Blue Chip Technology Ltd.
0127-1028 Page 29
ELECTRON User Manual SOFTWARE DESCRIPTION
ADVANCED MENU
The following sub-menus have been added to this page:-
PCI CONFIGURATION
Provides further menus to configure the embedded SCSI and Ethernet PCI devices .
AUDIO OPTIONS MENU
Provides setup options for the onboard Sound utilty.
I/O DEVICE CONFIGURATION
Provides setup options for the onboard Serial Ports, Parallel Port and Floppy Disk Controller
ADVANCED CHIPSET CONTROL
Provides setup options for miscellaneous features of the motherboard
LEGACY USB SUPPORT
Allows support for Legacy USB to be enabled or disabled.
POWER MENU
This menu provides the BIOS Power Management options. See the ‘Item Specific Help’ column on the
Setup display for information on the use of each option.
Note: these options may be overruled by the power management settings of the Operating System.
Blue Chip Technology Ltd.
0127-1028 Page 30
ELECTRON User Manual SOFTWARE DESCRIPTION
BIOS E
XTENSIONS
S
OFTWARE
I
NTERFACE
The BIOS extensions provide the programmer with access to some of the additional functionality provided through the hardware. This is achieved through the use of a software interrupt (int 50h). A description of the functions available is described below.
ACCESSING INT 50H FUNCTIONS
Most high level languages allow access to software interrupts through a particular function call. The user loads a particular function code into the AH register followed by a specific set of parameters in the other registers before executing the interrupt.
For example, in Quick Basic
' Read E2 Data via interrupt 50 call
$include:'QB.BI'
DIM INARY%(7),OUTARY%(7)
CONST AX=0,BX=1,CX=2,DX=3,BP=4,SI=5,DI=6,FL=7
INARY%(AX) = &H0400
INARY%(BX) = &H31
' Read e2 data
' address &H31
CALL INT86OLD(&H50,INARY%(),OUTARY%()) ' Call the APEX service
PRINT "E2 ADDRESS &H31 CONTAINS: ";OUTARY%(DX) and similarly in C :-
#include <stdio.h>
#include <dos.h>
#define APEX 0x50 void main(void)
{
union REGS regs;
regs.x.ax = 0x0400; /* read e2 */
regs.x.bx = 0x31;
int86(APEX, ®s, ®s);
/* address 0x31 */
printf("e2 Address 0x31 contains %x\n",regs.x.dx);
}
INT 50H FUNCTION DEFINITIONS
This covers the BIOS extensions supported by the Wildcat board.
All other functions are reserved. If any are called, INT 50h will return with register AH = 01 and the carry flag set.
AH = 03H, WRITE TO E²PROM (SINGLE LOCATION)
The Wildcat board supports an E²PROM that may be accessed via INT 50h calls.
The E²PROM does not require to be completely erased before writing to a single location. It is therefore useful for the storage of configuration information.
There are 64, 16-bit words of E²PROM available.
Input parameters:
AH = 03h
BL = Location to write to (0-63)
DX = Data to Write (16 bit value)
Return values:
Blue Chip Technology Ltd.
0127-1028 Page 31
ELECTRON User Manual SOFTWARE DESCRIPTION
Carry flag clear if successful.
Carry flag Set if unsuccessful.
AH = 04H, READ E²PROM (SINGLE LOCATION)
Input parameters:
AH = 04h
BL = Location to read (0-63)
Return values:
DX = E²PROM Data
AH = 05H, WATCHDOG ENABLE/DISABLE
This function enables the simple 500ms watchdog.
Input parameters:
AH = 05h
AL = 01h - Enable
AL = 00h - Disable
Return values:
Returns with the carry flag clear.
AH = 06H, WATCHDOG TICK
When enabled, the watchdog will generate a hardware reset unless a WATCHDOG TICK function call is made at least once every 500 milliseconds.
This function will reset the watchdog count.
Input parameters:
AH =06h
Return values:
Returns with the carry flag clear
Blue Chip Technology Ltd.
0127-1028 Page 32
ELECTRON User Manual SOFTWARE DESCRIPTION
D
ISK
-O
N
-C
HIP
S
UPPORT
The Electron supports the use of M-Systems’ DiskOnChip 2000 or DiskOnChip Millennium Flash Modules as solid-state disks. The notes below detail the use of the device with MS-DOS. If support is required for other operating systems, please consult Blue Chip Technology Technical Services, or M-Systems web-site at www.m-sys.com
, for drivers and application notes.
The DiskOnChip 2000 and Millennium contain a built-in copy of the M-Systems industry-standard TrueFFS software, which allows the DiskOnChip to operate as a standard disk drive. The DiskOnChip may also contain the operating system thereby permitting systems to boot without a hard disk. The DiskOnChip may also be configured as the boot device in systems with a hard disk (see the section “Configuring the
DiskOnChip as the First Drive”).
The DiskOnChip is a self-contained device, the installation of which does not necessarily require any software installation. The basic design of the DiskOnChip allows for full upward and downward compatibility by supporting an unlimited capacity. Future DiskOnChip devices with higher densities will be fully compatible with today’s capacities of 2 to 288 MBytes, and the standard DiskOnChip socket.
INSTALLING THE DISK-ON-CHIP
Before installing or removing the DiskOnChip, please read the section on Electro-Static Discharges at the beginning of this manual. It is essential that you discharge any static electricity from your body before touching the board or DiskOnChip module. Use the following procedure to install the DiskOnChip:
•
Align pin 1 on the DiskOnChip with pin 1 of the socket (adjacent to the battery).
•
Push the DiskOnChip into the socket carefully until it is fully seated.
•
Check that the DiskOnChip is installed securely, and that there are no bent pins.
Caution: The DiskOnChip may be permanently damaged if installed incorrectly!
To install the DiskOnChip as drive C on a system without a hard disk, set the CMOS setup of drive C to
“not installed” (indicating that no physical magnetic disk is installed), and reboot the computer. The
DiskOnChip will install as drive C. The DiskOnChip should then be formatted with the System files in order for it to be a bootable drive. See “Configuring the DiskOnChip as the BOOT device” below.
To install the DiskOnChip as drive D on a system with a hard disk, reboot the system, and the
DiskOnChip will automatically install as drive D.
To install the DiskOnChip as Drive C on a system with a hard disk, see below “Configuring the
DiskOnChip as the First Drive”.
CONFIGURING THE DISK-ON-CHIP AS THE BOOT DEVICE
To configure the DiskOnChip as the boot device, the operating system files have to be copied to it.
Copying the operating system files into DiskOnChip is done in exactly the same way as any other hard disk. The following is an example of a typical initialisation process:
•
Set the DiskOnChip as a regular drive in your system (not a boot drive).
•
Install a bootable floppy diskette in drive A and boot the system.
•
At the DOS prompt, type SYS C: to transfer the DOS system files to the DiskOnChip (assuming the
DiskOnChip is installed as drive C).
•
Copy any files needed into the DiskOnChip.
•
Remove the floppy diskette and reboot the system.
Blue Chip Technology Ltd.
0127-1028 Page 33
ELECTRON User Manual SOFTWARE DESCRIPTION
The system will boot from the DiskOnChip, and will allow you to run and access any files that have been copied into the DiskOnChip.
CONFIGURING THE DISK-ON-CHIP AS THE FIRST DRIVE
The DiskOnChip can be configured to be installed as the last drive (default), or as the first drive in the system. When configured as the last drive, the DiskOnChip is installed as disk D if there is one other hard drive installed, and as drive C if no other hard disk is installed. When configured as the first drive, the
DiskOnChip is always installed as drive C. The DiskOnChip is shipped from the factory, configured to install as the last drive. To configure the DiskOnChip to be installed as the first drive, proceed as follows:
•
Boot the system and make sure the DiskOnChip is installed correctly as drive D
•
At the DOS prompt type: DUPDATE D: /FIRST /S:DOC123.EXB
After re-booting the system, the DiskOnChip will appear as drive C:
Blue Chip Technology Ltd.
0127-1028 Page 34
ELECTRON U SER M ANUAL A PPENDICES
APPENDICES
A
DDRESS
M
APS
MEMORY MAP
ADDRESS
RANGE
(DECIMAL)
ADDRESS
RANGE
(HEX)
1024K - 131072K 100000 - 8000000
896K - 1023K E0000 - FFFFF
880K - 895K
848K - 879K
800K - 847K
DC000 - DFFFF
D4000 - DBFFF
C8000 - D3FFF
640K - 799K
639K
512K - 638K
0K - 511K
A0000 - C7FFF
9FC00 - 9FFFF
80000 - 9FBFF
00000 - 7FFFF
SIZE
127M
128K
16K
32K
48K
160K
1K
127K
512K
DESCRIPTION
Extended Memory
Pheonix System BIOS
(not available for UMB)
Solid State Disk Pages
BIOS Extensions
Available HI DOS memory
(open to ISA and PCI bus)
On-board video memory and
BIOS
Extended BIOS Data
(moveable by QEMM, 386MAX)
Extended conventional
Conventional
I/O MAP
The following table lists the I/O addresses used by single board PC devices. Some of these devices (e.g.
graphics) may not be present in all configurations. Some devices (serial ports, parallel ports etc.) may be configured for various addresses or disabled. These I/O locations are listed in the Variable Resources column.
ADDRESS
(HEX)
0000 - 000F
0020 - 0021
002E - 002F
0040 - 0043
0060
0061
0064
0070, bit 7
0070, bits 6:0
0071
0080 - 008F
00A0 - 00A1
00B2 - 00B3
00C0 - 00DE
00F0
0100 - 0107
0170 - 0177
01F0 - 01F7
0200 - 0207
0278 - 027B
02E8 - 02EF
02F8 - 02FF
SIZE
Bytes
FIXED RESOURCES
4
8
8
8
8
16
2
2
4
1
1
1
1 bit
PIIX - DMA 1
PIIX - Interrupt Controller 1
Ultra I/O configuration registers
PIIX - Timer 1
Keyboard Controller Data Byte
PIIX - NMI, speaker control
Kbd Controller, CMD/STAT Byte
PIIX - Enable NMI
7 bits 87C307PIIX RTC, Address
1 87C307PIIX RTC, Data
16
2
2
PIIX - DMA Page Register
PIIX - Interrupt Controller 2
PIIX - APM Control / Status
Interrupt Controller 2
31
1
8
8
PIIX - DMA 2
Reset Numeric Error
Reserved for Board Confign.
VARIABLE
RESOURCES
Secondary IDE Channel
Primary IDE Channel
Gameport Joystick
Parallel Port 2
Serial Port 4
Serial Port 2
Blue Chip Technology Ltd.
0127-1028 Page 35
ELECTRON U SER M ANUAL A PPENDICES
ADDRESS
(HEX)
0376
0377
0378 - 037F
03B0 - 03BB
03BC - 03BF
03C0 - 03DF
03E8 - 03EF
03F0 - 03F5
03F6
03F7 (Write)
03F7, bit 7
03F7, bits 6:0
03F8 - 03FF
LPT + 400h
04D0 - 04D1
0CF8 - 0CFC*
0CF9
0CFC - 0CFF
FFA0 - FFA7
FFA8 - FFAF
FF00-FF07
SIZE
Bytes
1
1
1 bit
7 bits
8
3
4
16
8
6
8
4
1
1
1
4
2
4
8
8
8
FIXED RESOURCES
Edge/Level INTR Control Reg.
PCI Config Address Reg.
Turbo & Reset control Reg.
PCI Config Data Reg
VARIABLE
RESOURCES
Sec IDE Chan Cmd Port
Sec IDE Chan Stat Port
Parallel Port 1
I740
Parallel Port 3
I740
Serial Port 3
Floppy Channel 1
Pri IDE Chan Cmnd Port
Floppy Chan 1 Cmd
Floppy Disk Chg Chan 1
Pri IDE Chan Status Port
Serial Port 1
ECP regs, LPT base +
400h
1ary Bus MasterIDE regs
2ary Bus Master IDE regs
IDE Bus Master Reg.
*only accessible by DWORD accesses.
PCI CONFIGURATION SPACE MAP
The Intel 440BX chipset uses Configuration Mechanism 1 to access the PCI configuration space. The PCI
Configuration Address register is a 32-bit I/O register located at 0CF8h, the PCI Configuration Data register is a 32-bit I/O register located at 0CFCh. The PCI Configuration Address register is only accessible by a DWORD access, the PCI Configuration Data register is accessible by DWORD, WORD or
BYTE accesses.
ACCESS TO I/O CONFIGURATION SPACE USING MECHANISM #1
1. Using a DWORD write command, output the required I/O configuration address to I/O port CF8H
2. Using a DWORD read or write command, read or write data from the I/O port CFCH
NOTE: Any address output to CF8H is always on a 4 byte (DWORD) boundary. You can read or write any BYTE, WORD or DWORD in the four byte range by using the correct offset as follows:
DWORD @ CFCh
WORD @ CFCh or CFEh
BYTE @ CFCh, CFDh, CFEh or CFFh
CONFIGURATION ADDRESS REGISTER BIT DEFINITION
BIT
31
30 - 24
23 -16
15 - 11
10 - 8
7 - 2
1
0
FUNCTION / SETTING
1
RESERVED
BUS NUMBER
DEVICE NUMBER
FUNCTION NUMBER
REGISTER NUMBER
0
0
Blue Chip Technology Ltd.
0127-1028 Page 36
ELECTRON U SER M ANUAL A PPENDICES
CONFIG SPACE ENABLE FLAG (Bit 31): Always 1 to indicate I/O access is to configuration space.
RESERVED (Bits 30-24): Always 00h
BUS NUMBER (Bits 23-16): Always 00h unless a bridge card is installed in a PCI slot
DEVICE NUMBER (Bits 15-11): Used to indicate a specific PCI device. The 443BX host has a predefined device number of 00000h. The PIIX4 and four PCI slots also have specific device numbers, that device number is determined by which PCI Address/Data line is connected to the device’s ID SEL pin. The table below details the specific mapping information.
FUNCTION NUMBER (Bits 10-8): Used to indicate a specific function in multifunction PCI devices.
The PIIX is the only multi-function device on ELECTRON located on the single board PC. Use 00h for the basic PIIX device and 01h for the PCI IDE BUS MASTER FUNCTION. For a multi-function PCI add-in card, refer to the card’s documentation to determine the allowable function numbers.
REGISTER NUMBER (Bits 7-2): Defines one of 64 DWORD locations for a specific PCI device.
Note that Bits 1 and 0 must always be 0h for DWORD access.
The table below lists the PCI bus and device numbers used by the single board PC. It also lists the data range that must be written to the I/O Configuration Address register to access the device.
DEVICE
443BX Host controller
PIIX4
PIIX-IDE BUS MASTER
Realtek Ethernet device
Adaptec SCSI II device
PCI SLOT 1
PCI SLOT 2
PCI SLOT 3
PCI SLOT 4
BUS/DEVIC
E/
FUNCTION
00 / 00 / 0
00 / 07 / 0
00 / 07 / 1
00 / 09 / 0
00 / 10 / 0
00 / 14 / 0
00 / 13 / 0
00 / 12 / 0
00 / 12 / 0
ID
SEL
N/A
AD18
AD18
AD20
AD21
AD31
AD30
AD29
AD28
I/O CONFIG ADDRESS
REGISTER
8000 0000 - 8000 00FC
8000 3800 - 8000 38FC
8000 3900 - 8000 39FC
8000 4800 - 8000 48FC
8000 5000 - 8000 50FC
8000 8800 - 8000 88FC
8000 8600 - 8000 86FC
8000 8400 - 8000 84FC
8000 8000 - 8000 80FC
INTERRUPTS & DMA CHANNELS
The following tables list the Interrupt and DMA Channel configuration options for on-board devices. The serial ports, parallel ports, and IDE controller can be configured using SETUP, or any other Plug and Play resource manager (such as the Windows™ 95 Device Manager). The Graphics interrupt is assigned by the auto-configure utility during boot up.
IRQ RESERVED
INTERRUPTS
5
6
3
4
NMI I/O Channel Check
0 Interval Timer
1
2
Keyboard buffer full
Cascade interrupt from slave PIC
Serial 2 (COM2)
Serial 1 (COM1)
Parallel 2 (LPT2)
Floppy Controller
7
8
9
Parallel (LPT1)
Real time clock
Blue Chip Technology Ltd.
0127-1028 Page 37
ELECTRON U SER M ANUAL A PPENDICES
IRQ
10
11
12
13
14
15
RESERVED
INTERRUPTS
PS/2 Mouse
(if present)
Math co-processor
Primary E-IDE
Secondary E-IDE
DMA
6
7
4
5
2
3
0
1
RESERVED
Floppy
Cascade channel
BIOS POST CODES, ERROR MESSAGES AND BEEPCODES
See the file BIOSERR.PDF - (Adobe Acrobat is required).
Blue Chip Technology Ltd.
0127-1028 Page 38
ELECTRON U SER M ANUAL A PPENDICES th
P16:CD Audio
P15:SVGA
P14: Mouse
P7: 2 nd
EIDE
P6: 1 st
EIDE
P8:Floppy
P12: LPT1
P13:Com2
RS232
P9:Com2
RS485
J4:CPU Freq
P21: Ethernet
P18: SVGA
P20: kb/mouse
P19: Com1
J5:232/485 link
P17:Audio
Disk on
Chip
P11:USB
P10:
Utilities
P5: Fan 3
J2: SCSI
Termination
Power
P4: SCSI II
J3:1/2 duplex
P3: Fan 2
P2: Fan 1
DIMMs 1&2
Slot 1
CPU
SECC
Blue Chip Technology Ltd.
J1:CMOS
BT1:Battery
0127-1028 Page 39
ELECTRON U SER M ANUAL A PPENDICES
D10:-12Volt
D12:+12Volt
D17:LSB bit 0
D25: IDE
D27:RESET
D29:Network
D29:SCSI
POST LEDs
D7: +5 Volt
D9:+3.3 Volt
D11:CPU volt
D13:+2.7 Volt
D24:MSB bit 7
Blue Chip Technology Ltd.
0127-1028 Page 40
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 7 INTRODUCTION
- 7 MANUAL OBJECTIVES
- 7 LIMITATIONS OF LIABILITY
- 7 PRECAUTIONS
- 7 Electro-Static Discharges
- 8 On-Board LITHIUM cell (BT1: CR2032)
- 8 RELATED PUBLICATIONS
- 8 TRADEMARKS
- 9 USER GUIDE
- 9 OVERVIEW
- 10 Board Level Features
- 10 processor
- 10 Processor Upgrade
- 11 System Memory
- 11 BUS Expansion Slots
- 11 Electromagnetic Compatibility
- 12 SPECIFICATION
- 13 INSTALLATION
- 13 CPU INSTALLATION
- 15 MEMORY INSTALLATION
- 19 Back panel connecTORS
- 20 on-board connectORS
- 23 ECP/EPP Parallel PORT P6 (26 way header)
- 27 Bus Connectors
- 31 INTEL I740 AGP GRAPHICS CONTROLLER
- 31 Resolutions supported
- 32 Setup Utility
- 34 SOFTWARE DESCRIPTION
- 34 BIOS SETUP
- 34 MAIN Menu
- 34 advanced Hard Disk Features
- 35 advanced Menu
- 35 Power menu
- 36 BIOS EXTENSIONS SOFTWARE INTERFACE
- 36 Accessing Int 50h Functions
- 36 Int 50h Function Definitions
- 38 DISK-ON-CHIP SUPPORT
- 38 Installing the Disk-On-Chip
- 38 Configuring the Disk-On-Chip as the Boot device
- 39 Configuring the Disk-On-Chip as the first drive
- 40 APPENDICES
- 40 ADDRESS MAPS
- 40 Memory Map
- 40 I/O MAP
- 41 PCI Configuration Space Map
- 42 Interrupts & DMA Channels
- 43 BIOS POST CODES, ERRor messages and beepcodes
