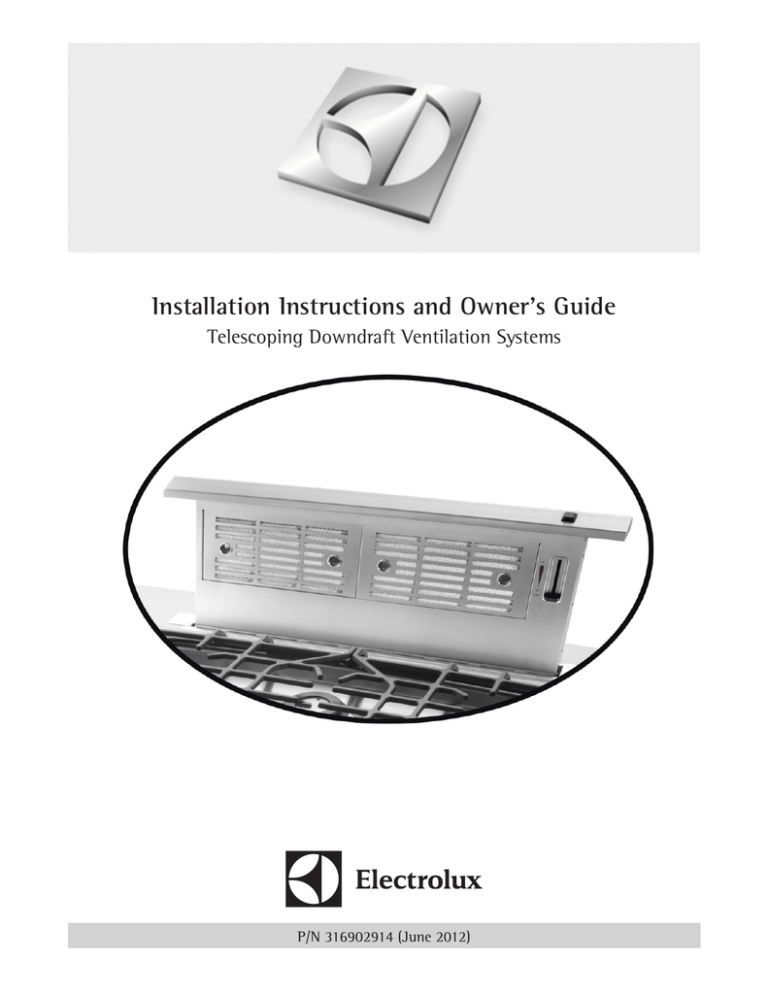

Installation Instructions and Owner’s Guide
Telescoping Downdraft Ventilation Systems
P/N 316902914 (June 2012)
2
Finding Information
Table of contents
Please read & save this guide
Finding Information..................................................2
Thank you for choosing Electrolux, the new premium
brand in home appliances. This Use & Care Guide is
part of our commitment to customer satisfaction and
product quality throughout the service life of your
new appliance.
Important Safety Instructions...................................3
Product Dimensions................................................5
Planning..................................................................6
Installation...............................................................9
Use & Care............................................................12
Solution to Common Problems .............................13
Major Appliance Warranty.....................................14
This unit is intended for
domestic cooking ONLY.
Optional blower systems
We view your purchase as the beginning of a
relationship. To ensure our ability to continue serving
you, please use this page to record important product
information.
Keep a record for quick
reference
Purchase date
Electrolux model number
To Reduce The Risk Of Fire And Electric Shock,
Install Telescoping Downdraft Ventilation system
models EI30DD10KS and EI36DD10KS ONLY
With Remote Blower and accessories listed
below:
Electrolux serial number
Serial plate location
• EI16DDPRKS - 1600 CFM Remote Blower for
indoor installation.
• WK-SP360 - Optional Outdoor Weather Kit for
use with 1600 CFM blower above.
• EI06DDPIKS -Internal 600 CFM Blower.
Serial Plate
INSTALLER:
SAVE THIS MANUAL FOR
ELECTRICAL INSPECTOR AND
HOMEOWNER TO USE.
HOMEOWNER:
IMPORTANT SAFETY
INSTRUCTIONS ON PAGE 3.
USE AND CARE INFORMATION
ON PAGE 13.
NOTE
Registering your product with Electrolux enhances
our ability to serve you. You can register online at
www.electroluxappliances.com or by dropping your
Product Registration Card in the mail.
Questions?
For toll-free telephone support in the U.S. and
Canada:
1-877-4ELECTROLUX (1-877-435-3287)
For online support and Internet production information
visit http://www.electroluxappliances.com
©2012 Electrolux Home Products, Inc.
All rights reserved. Printed in U.S.A.
Important Safety Instructions
What you need to know about safety instructions
Warning and Important Instructions appearing in this guide are not meant to cover all possible conditions and
situations that may occur. Common sense, caution and care must be exercised when installing, maintaining
or operating an appliance.
ALWAYS contact your dealer, distributor, service agent or manufacturer about problems or conditions you
do not understand.
Recognize Safety Symbols, Words, Labels
WARNING — Hazards or unsafe practices
which COULD result in severe personal injury
or death.
CAUTION — Hazards or unsafe practices which
COULD result in minor personal injury.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
• Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number
in the warranty.
• Before servicing or cleaning unit, switch power off
at service panel and lock the service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting
means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the
service panel.
• Installation work and electrical wiring must be
done by a qualified person(s) in accordance with
all applicable codes and standards, including firerated construction codes and standards.
• Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent backdrafting.
Follow the heating equipment manufacturer’s
guideline and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American Society
for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code
authorities.
• When cutting or drilling into wall or ceiling, do
not damage electrical wiring and other hidden
utilities.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING (continued):
• Do not use this range hood with an additional
speed control device.
• Ducted fans must always be vented to the
outdoors.
• To reduce the risk of fire, use only metal
ductwork.
• Do not install this product with the activating
switch directly behind a burner or element.
Minimum distance between the switch and the
edge of the burner should be 4 inches.
• Loose-fitting or hanging clothing should never be
worn when operating this appliance. They may
be ignited by burners/elements on cooktop.
• Children should not be left alone or unattended
in the area where this appliance is in use.
• When flaming foods, turn the blower OFF. An
operating blower may spread the flames.
• This unit must be grounded.
3
4
Important Safety Instructions
TO REDUCE THE RISK OF A RANGE TOP
GREASE FIRE:
• Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low
or medium settings.
• Always turn hood ON when cooking at high
heat or when flaming food (i.e. Crepes Suzette,
Cherries Jubilee, Peppercorn Beef Flambé).
• Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or filter.
• Use proper pan size. Always use cookware
appropriate for the size of the surface element.
• For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and
vapors.
• To avoid motor bearing damage and noisy and/
or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
• Clean filters and grease-laden surfaces
frequently.
• Do not repair or replace any part of this appliance
unless specifically recommended in this manual.
All other servicing should be done by a qualified
technician.
• Please read specification label
Grounding Instructions
TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING*:
• SMOTHER FLAMES with a close-fitting lid,
cookie sheet, or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. If
the flames do not go out immediately, EVACUATE
AND CALL THE FIRE DEPARTMENT.
• NEVER PICK UP A FLAMING PAN - You may be
burned.
• DO NOT USE WATER, including wet dishcloths
or towels - a violent steam explosion will result.
• Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher,
and you already know how to operate it.
B. The fire is small and contained in the area
where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an
exit.
* Based on “Kitchen Firesafety Tips” published by
NFPA.
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The
plug must be plugged into an outlet that is properly
installed and grounded.
Grounding
type wall
receptacle
Do not, under any
circumstances, cut,
remove, or bypass
the grounding
prong.
Power supply
cord with 3-prong
grounding plug
Improper grounding can result in a risk of electric
shock.
Consult a qualified electrician if the grounding
instructions are not completely understood, or if
doubt exists as to whether the appliance is properly
grounded.
Do not use an extension cord. If the power supply
cord is too short, have a qualified electrician install
an outlet near the appliance.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCES
Shipping Pack
Stabilizing
Brackets
Instruction Manual
Cutout Template
Warranty Card
Telescoping
Downdraft
Tools You Will Need
• Phillips Screwdriver
• 1/4” Nut Driver / Ratchet
• Tape Measure
• Carpenter Square
• Vertical Level or Plum Line
• Tools required to cut countertop
IMPORTANT
Retain all packing and materials until the
telescoping downdraft and all components
have been installed.
Hardware (User Supplied)
• (4) Screws appropriate for
mounting stabilizing brackets to
cabinet material / substrate.
5
6
Dimensions
Product Dimensions
Top Trim
A
E
RISE
1-7/16”
(3.7 cm)
nt
ic Ve
cop
Teles
sis
Chas ng
i
Hous
2-1/4”
(5.7 cm)
C
D
ition
Trans
Duct
5-9/16”
(14.1 cm)
Control
Box
B
Model
A
B
C
D
E
Rise
EI30DD10KS
30” (76.2 cm)
26 /8” (68.3 cm)
EI36DD10KS
36” (91.4 cm)
32 7/8” (83.6 cm)
17 /16”
(45.2 cm)
35 /16”
(91.0 cm)
2 /16 ”
(5.5 cm)
10”
(25.4 cm)
7
13
13
3
Cutout Dimensions
26 15/16” [+ 1/16” / - 0”]
(68.4 - 68.6 cm)
Cooktop Edge
Cutout width for 30” model
32 15/16” [+ 1/16” / - 0”]
(83.7 - 83.8 cm)
2 1/16”
(5.2 cm)
Cooktop Edge
Cutout width for 36” model
2 1/16”
(5.2 cm)
Planning
Basic Information
A qualified technician must complete the installation
of this appliance. This downdraft blower system is
designed to be used to exhaust airborne contaminants
when cooking with a variety of gas, electric or
induction cooktops.
It can be mounted in island, peninsula, or conventional
wall locations.
This unit is installed following these basic steps:
• Cut out the countertop opening.
• Mount the unit in the cabinet.
• Connect the ductwork and electrical.
• Install the cooktop.
Take Measurements
Refer to the cooktop installation instructions for
dimensions of the cooktop, countertop cut-out
and cabinet requirements. It is recommended that
oversized cabinets be used for easier installation.
Cooktop depth can vary greatly from one unit to
another. This may cause the fit of the cooktop and
the telescopic downdraft appliances to be tight in the
countertop depending upon the overall depth of the
countertop.
2 5/16”
Cooktop
Downdraft
Top Trim
9-5/8” Chassis
(24.5 cm) Housing
/8”
Chassis
Housing
(5.2 cm)
Front to back
Inside cabinet depth
NOTE
Preformed countertops with a raised lip and/or
backsplash as illustrated in (A) or (B) may not
allow enough flat countertop for proper installation.
Note that a minimum of 2 5/16” of flat countertop is
required behind cooktop and that 2 1/16” is necessary
between the back edge of the cooktop and the inside
of cabinet back.
2 5/16”
(5.8 cm)
Countertop
1
/8”
(0.3 cm)
A
Transition
Duct
Maximum gap to
cabinet back allowed
before installation of a
4-1/2”
wood support is
required for mounting (11.4 cm)
stabilizing brackets
/ Min.
(0.6 cm)
clearance
behind
downdraft
1 4”
2 1/16”
Typical Installation
Cooktop
1
(0.3 cm)
The high level of air flow of this appliance may
affect the gas flame on some gas cooktop models.
Extreme caution must be used to assure proper
flame is generated and maintained through the
operating range of the vent. Refer to cooktop
Installation Instructions and Use and Care guide for
proper gas burner setup. Gas cooktop installation
and service must be performed by a qualified
installer, service agency or gas supplier.
Countertop
(5.8 cm)
Countertop
/ Min.
(0.6 cm)
1 4”
B
Cooktop
Chassis
Housing
2 1/16”
(5.2 cm)
Front to back
Inside cabinet depth
7
8
Planning
Plan the Ductwork
This downdraft blower system is designed for use
with 3¼ x 14” ductwork (can be transitioned to 8” or
10” round).
For best performance, choose the ducting option
which allows the shortest length of ductwork and a
minimum number of elbows and transitions.
The system will operate most efficiently when the
ductwork does not exceed 60 feet of equivalent duct.
The downdraft will operate properly with ductwork
up to 100 equivalent feet of duct. See page 14 for
Calculated Duct Length Table.
The transition duct can be mounted to the chassis
housing to provide exhaust discharge down, as
supplied (Fig. 1), or 90° to the left (Fig. 2) or 90° to
the right (Fig. 3).
The transition duct can also be mounted on the back
of the chassis housing if there is a minimum of 3¾”
(9,5cm) clearance to the back cabinet wall.
Hex
Head
Screws
Hex
Head
Screws
Fig. 2 - Discharge left
NOTE
For left or right discharge, the transition duct needs
to be rotated for proper venting. The transition
duct must be removed to gain access to control
box. Final installation of transition duct can not be
made until blower electrical connection to control
box is complete.
Slide
Tabs
Plan the Discharge
Hex Head
Screws
Hex
Head
Screws
Fig. 3 - Discharge right
**Extra
Hex
Head
Screws
Hex
Head
Screws
Hex
Head
Screws
Fig. 1 - Discharge down (as supplied)
To reduce risk of fire and to properly exhaust
air, be sure to duct air outside – Do not vent
exhaust air into spaces within walls or ceilings
or into attics, crawl spaces, or garages.
Planning
Plan the Electrical Connection
The downdraft blower system draws 4 AMPS and
requires a 120 VAC, 60 Hz circuit.
The unit has a 28 inch long power cord with a 3
pronged grounded plug. Plan to provide a grounded
outlet in a location which will allow the unit’s power
cord to reach.
Install Electrical Supply Outlet
NOTE
If the 30” model is being installed in a 30” wide
cabinet or the 36” model in a 36” wide cabinet,
the outlet cannot be located on the back wall of
cabinet.
Outlet may also be wall-mounted with access hole
in cabinet.
- Mount a standard wiring box, with 3-pronged
grounded receptacle, inside the cabinet. Make sure
the downdraft’s power cord can easily reach it.
- Run appropriate power cable into cabinet and
connect it to receptacle.
M
9-1/2"
(24.1cm)
23-3/4”
(60.3 cm)
22-1/8"
(56.2 cm)
M
19-1/16”
(48.4 cm)
4-5/8"
(11.8 cm)
14-3/4"
(37.5 cm)
8-3/4”
(22.2 cm)
7-7/8”
(20 cm)
6-1/2”
(16.5 cm)
Recommended
Electrical Outlet
Locations
(All Shaded Areas)
Electrical Outlet Location
Model
M - From Center
EI30DD10SK
13 ½” (34.3 cm)
EI36DD10SK
16 ½” (42.0 cm)
All vertical dimensions relative to top surface of the
countertop.
All horizontal dimensions relative to cutout in the
countertop.
Ensure that access to the electrical outlet will not
be blocked by the ducting after installation.
9
10
Installation
Cut Countertop Opening
- Lay out and cut the cooktop cut-out far enough
forward so downdraft will fit behind it (refer to cooktop
installation instructions).
- Set cooktop in place and slide it as far forward
as possible. Center and square it with edges of
countertop.
A ½” minimum
clearance behind
cutout must be
maintained for
proper installation.
Template
- Place the template against the back flange of the
cooktop and center it. Trace around template to mark
the downdraft opening.
- Remove cooktop from countertop.
- Cut downdraft opening. Be careful not to chop edges
of countertop. Mask the countertop to help prevent
scratching the surface.
- A ½” minimum clearance behind cutout must be
maintained behind the telescopic downdraft for proper
installation.
Mount the Unit
Set downdraft into opening and position with the
back of the unit contacting the back edge of the
cutout.
Stabilizing brackets should be installed at the bottom
of the vent housing and just below the bottom of the
cooktop chassis.
Lower stabilizing brackets:
One stabilizing bracket should be installed on each
side of the vent housing. Remove the hex head
screws from the bottom of the vent housing and
use it to attach each bracket to the bottom of the
housing. Slide the brackets to the back wall of the
cabinet so that the vent housing is vertical, check the
level of the vent on both the right and left sides, and
tighten the screws. Attach the stabilizing brackets to
the back wall using the appropriate screws for your
cabinet material and thickness. These screws are
not supplied with downdraft system.
The end of the stabilizing bracket may have to be
bent down for transition duct clearance.
Upper stabilizing brackets:
Caution: Do not attach the upper bracket to the
vent with screws, doing so may jam the vent.
Attach a stabilizing bracket to the left and right
cabinet walls just below the bottom of the cooktop
chassis. The long leg of the bracket must be in
contact with the vent housing.
NOTE
Cabinet constructions may vary. Be sure to
take cabinet frame members into account. They
may have to be removed or relocated. Do not
compromise the structural integrity of the cabinet
in doing so.
Rear Discharge Conversion
- If ducting will be connected to the back of the
unit remove the plate from the back of the chassis.
Remove the Transition Duct from the front of the
chassis and mount to the back. See page 12 for
mounting the Transition Duct.
- Attach the plate removed from the rear of the chassis
to the front.
DO NOT
Screw
Top
Stabilizing
Brackets
to Chassis
Housing
Remove screws
from the chassis
housing and reuse to install the
stabilizing brackets.
Installation
Remove the Duct Transition
Remove the Duct Transition from the Chassis Housing
by removing the two Phillips screws as shown and
sliding the Duct Transition out of the tabs.
Tabs
Duct Transition
Phillips Head Screw
Phillips Head Screw
11
12
Installation
Remove Control Box Cover
Remove the cover to the Control Box by removing
the Phillips screw as shown and sliding the cover
down.
Make Blower Electrical Connection
and Install Remote Blower
- Depending on the type of blower you purchased,
refer to its documentation for proper installation
instructions.
NOTE
If you purchased Internal Blower Kit EI06DDPIKS
refer to the installation manual provided with the kit
for proper installation instructions for this blower
- Push wires into wire compartment.
- Re-install the control box cover, do not pinch wires
when re-installing the cover.
Control Box
Ground (Green)
Line (Black)
Blower Motor
Wiring (Romex
or conduit)
Neutral (White)
Line
Phillips
Screw
Control Box Cover
Wire
Nuts (3)
Neutral
Ground
Downdraft Vent Control Box Blower Wire Connection
Remote Blower Wire Connection
Terminal
Block
Romex
Clamp
Romex Cable or
Wiring in
Metal Conduit
Line
(Black)
Neutral
Ground
(Green/Bare) (White)
Specific to the EI16DDPRKS model
NOTE
The wire nuts supplied with the unit are made for
14 AWG wire. The installer must supply correct wire
nuts if a different wire size is used.
Installation
Install Ductwork
Re-attach Transition Duct
The Transition Base must be installed with the flange
at the top. Position the duct Transition Cover on the
Transition Base for the discharge direction selected.
The top edge of the duct Transition Cover must be
under the tabs of the Transition Base.
Down Discharge – Attach the transition with 4 screws
as shown.
Duct Transition
Cover
Disch
arge
(4) Phillips
Head Screws
Discharge Right
Remove Phillips
Head Screw from
Right Hole and Attach
as Shown
Connect the ductwork
- Use galvanized or aluminum duct in 8” or 10” round
or 3 ¼” x 14” size, or a combination of both. PVC
duct should be used if installing under a poured
concrete slab. Use the shortest and straightest duct
run possible.
Transition
Base
(4) Phillips
Head Screws
Discharge Down (as supplied)
Left or Right Discharge – Remove the Phillips head
screw from the chassis. Attach the transition with 5
screws as shown.
NOTE
Local building codes must be followed in specifying
approved type and specifications of ALL duct used.
Always use an appropriate roof or wall cap with damper.
IMPORTANT
All ductworks must be as installed as per local codes.
Duct Tape Over Seam and Screw
Air Flow
arge
Disch
Screw
Connect Downdraft to Power
- Plug the downdraft’s power cord into the outlet.
- Make sure the power cord is routed beneath the
appliance and away from heat generated by the
cooktop.
Remove Phillips
Head Screw
from Left Hole
and Reattach as
Shown
(4) Phillips
Head
Screws
Discharge Left
Install Cooktop
- Align the cooktop with the downdraft and fasten
cooktop in place.
NOTE
Accurate alignment of cooktop and downdraft is
necessary to ensure that there is no interference
when air vent is raised and lowered. There should
be a gap of 1/8” between the back of the cooktop
and the front of the downdraft cover.
13
14
Installation
Calculating Duct Length Table
For maximum efficiency, use the shortest and straightest duct possible. The system will operate most
efficiently when the ductwork does not exceed 60 feet of equivalent duct. The downdraft will operate
properly with ductwork up to 100 equivalent feet of duct.
Calculations are approximate and based on HVAC industry standards.
8" or 10” (20.3cm or 25.4cm)
ROUND DUCT PIECES
Straight
Round Metal Flex - No Bends
EQUIVALENT
LENGTH X
NUMBER
USED =
Measure length of Straight
duct and write here
EQUIVALENT
LENGTH
Ft. or m
1.5 Ft. (0.45m)
Ft. or m
90° Elbow
10 Ft. (3m)
Ft. or m
45° Elbow
5 Ft. (1.5m)
Ft. or m
Round Wall Cap with Damper
25 Ft. (7.6m)
Ft. or m
Round Roof Cap
25 Ft. (7.6m)
Ft. or m
10” to 8” Transition
5 Ft. (1.5m)
Ft. or m
Straight
Measure length of Straight
duct and write here
Ft. or m
90° Elbow
10 Ft. (3m)
Ft. or m
45° Elbow
5 Ft. (1.5m)
Ft. or m
90° Flat Elbow
15 Ft. (4.6m)
Ft. or m
8” (20.3cm) Round to Rectangular
Transition 90° Elbow
30 Ft. (9m)
Ft. or m
8” (20.3cm) Round to Rectangular
Transition
5 Ft. (1.5m)
Ft. or m
Wall Cap with Damper
25 Ft. (7.6m)
Ft. or m
3¼" x 14" (8.2cm x 35.6cm)
RECTANGULAR DUCT PIECES
TOTAL DUCTWORK
Ft. or m
Use & Care
Operating the Telescoping
Downdraft System
- Raise the downdraft by pressing the raise/lower
push button. The telescoping vent will rise up to full
height.
- The blower can also be turned off by simply
pressing the raise/lower push button and lowering
the telescoping vent.
- The blower can then be turned on by sliding the
control knob up.
- The blower speed can be adjusted by sliding the
control knob between the Hi and Lo positions.
- The blower is turned off by sliding the control knob
to the OFF position.
- Upon raising the telescoping vent again, the blower
will automatically turn on at the selected speed.
- Always turn the downdraft blower ON before you
begin cooking to establish an air flow in the kitchen.
Let the blower run for a few minutes to clean the air
after you turn the cooktop OFF.
NOTE
If there is a power interruption with the telescoping
vent in the up position, pressing the raise/lower
push button will lower the telescoping vent. Normal
operation can then resume.
15
16
Use & Care
Cleaning the Telescoping
Downdraft Vent
It is advised to disconnect power from the downdraft
when cleaning to minimize risk of electrical shock or
damaging the appliance due to spills onto electrical
components.
Before cleaning the telescoping downdraft make
sure the cooktop is Off and all surfaces are cool.
Daily: Wipe spills and spatters from the telescoping
downdraft vent and trim as advised below.
Every three months: To prevent odors and
grease build-up, the filters and the telescoping
downdraft vent should be cleaned.
Preparing to Clean the
Telescoping Downdraft
- Raise the downdraft to its full height by using the
raise/lower push button.
Cleaning the Filters
- Remove the filters by pressing down then pulling
towards you with the provided finger holds.
Cleaning the Telescoping Vent
- Clean the stainless steel and plastic controls with
a dishcloth and hot soapy water.
- Rinse with a dishcloth and clean water.
- Wring excess water from the dishcloth when
cleaning or rinse. Excess water in the controls may
cause permanent damage to the appliance.
- Only use kitchen cleaners that are especially made
for cleaning stainless steel.
- Always be sure to rinse cleaners from the surface
as permanent blueish stains may occur upon
heating.
- DO NOT use cleaners with high concentrations of
chlorides or chlorines.
- DO NOT use commercial oven cleaners on the
downdraft.
- DO NOT use abrasive cloth, steel wool pads or
scouring powders on the downdraft surfaces.
- DO NOT flush downdraft or blower with water or
cleaning agents.
- DO NOT allow grease or other debris to accumulate
on the exterior or interior of the telescoping vent.
Downdraft Operation After
Disconnecting Power
-Once the downdraft is clean and dry, reconnect
power to the downdraft.
- Press the raise/lower push button to reset the unit.
The telescoping vent will lower. Normal operation
can then resume.
Clean ventilating fans frequently. Grease should not
be allowed to accumulate on fan or filter.
Allowing grease to build up on the outside or inside
of the telescoping vent creates a fire risk.
- The grease filters can be washed in a mild detergent
and warm water. After cleaning, rinse with clean
water and dry thoroughly.
- The filters can also be washed in the dishwasher.
- Put the filters back in, by inserting the bottom of the
filter in the front of the telescoping vent and then
gently pushing down then back, again utilizing the
provided finger holds.
Do not operate the ventilation system without the
filters in place.
Solutions to Common Problems
Before you call
Problem
Solution
Telescoping Vent
does not fully
raise
- Check for and remove obstructions. The telescoping vent is designed to tilt and
stop with obstructions. The raise/lower push button will reverse direction of travel
and reset the telescoping vent travel. Allow the telescoping vent to fully raise or
lower after encountering an obstruction.
- If the telescoping vent does not response to the raise/lower push button, it can be
straightened or helped along by hand and the switch should be tried again.
- DO NOT attempt to lubricate the telescoping vent. It is factory lubricated for life.
Blower does not
turn on
- Make sure telescoping vent is in the upper most position.
- Make sure the blower slide adjustment is not in the off position.
- If used for an extended period of time, allow the blower to cool. The blower is
thermally protected and will shut off until cooled sufficiently. It will resume normal
operation when cool.
Questions or for service call: 1-877-4ELECTROLUX (1-877-435-3287)
17
18
Warranty
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will
repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is
installed, used, and maintained in accordance with the provided instructions. In addition, the glass cooktop or radiant surface
element of your appliance (excluding built-in and free-standing range appliances) is covered by a two through five year
limited warranty. During the 2nd through 5th years from your original date of purchase, Electrolux will provide a replacement
glass cooktop or radiant surface element for your appliance which has proven to be defective in materials or workmanship
when such appliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
This warranty does not cover the following:
Products with original serial numbers that have been removed, altered or cannot be readily determined.
Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
Rust on the interior or exterior of the unit.
Products purchased “as-is” are not covered by this warranty.
Products used in a commercial setting.
Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in
ordinary household use or used other than in accordance with the provided instructions.
Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc.,
which are not a part of the appliance when it is shipped from the factory.
Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,
handles, or other cosmetic parts.
Labor or in-home service costs during the additional limited warranty periods beyond the first year from your
original date of purchase.
Pickup and delivery costs; your appliance is designed to be repaired in the home.
Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges,
or mileage expense for service calls to remote areas, including the state of Alaska.
Damages to the finish of appliance or home incurred during transportation or installation, including but not limited
to floors, cabinets, walls, etc.
Damages caused by: services performed by unauthorized service companies; use of parts other than genuine
Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such
as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR
REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE
SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE
FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME
STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU
MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service
be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty
must be obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted
by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance
is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this
warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service
company. Product features or specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Home Products, Inc.,
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4
