Canon Canoscan CS8000F Service manual

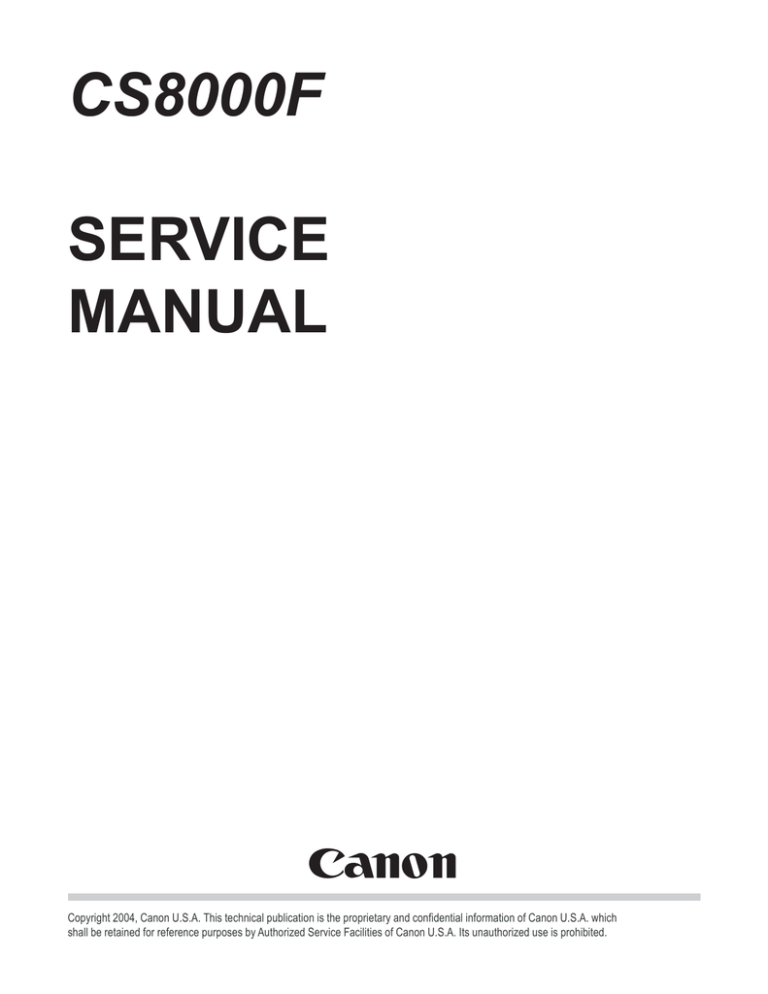

CS8000F
SERVICE
MANUAL
Canon
Copyright 2004, Canon U.S.A. This technical publication is the proprietary and confidential information of Canon U.S.A. which
shall be retained for reference purposes by Authorized Service Facilities of Canon U.S.A. Its unauthorized use is prohibited.
SERVICE
MANUAL
REVISION 0
CanoScan 8000F
JPN
USA
EUR
UK
AUS
CAN/CLA
OCT. 2002
8131A001AA
8131A002AA
6683A003AA
8131A004AA
8131A005AA
8131A006AA
UYV000001-
JY8-1321-00Z
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
COPYRIGHT © 2002 CANON INC.
Printed in Japan
Imprimè au Japon
Use of this manual should be strictly supervised
to avoid disclosure of confidential information.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CONTENTS
CHAPTER 1 : GENERAL DESCRIPTIONS
SPECIFICATIONS ....................... 1-1
A. Precautions ......................... 1-4
II. PARTS CONFIGURATION ........... 1-2
B. Unlocking the Lock Switch .. 1-4
A. Front View .......................... 1-2
C. Connecting the Cables ......... 1-5
B. Back View ........................... 1-3
D. Scanning ............................. 1-6
C. Rear View ............................ 1-3
IV. CUSTOMER’S DAILY MAINTENANCE
III. SETTING UP THE SCANNER ...... 1-4
........................................... 1-9
I.
CHAPTER 2 : OPERATION AND TIMING
I.
BASIC OPERATION .................... 2-1
III. IMAGE PROCESSING ............... 2-12
A. Functions ............................ 2-1
A. Outline .............................. 2-12
B. Electrical System ................ 2-2
B. Image Processing ............... 2-12
C. Main PCB Input and Output . 2-4
IV. CONTROL SYSTEM .................. 2-17
A. Control System Diagram .... 2-17
D. Document Scanning Sequence
B. Main PCB .......................... 2-17
........................................... 2-5
II. OPTICAL SYSTEM ..................... 2-6
V.
INTERFACE ............................. 2-18
A. Outline ................................ 2-6
A. Outline of USB Standard .... 2-18
B. Lamp Lighting Circuit ......... 2-7
B. Signal Definitions .............. 2-18
C. FARE (Film Automatic Retouch-
C. Interface Connection ......... 2-18
ing and Enhancement) ......... 2-9
VI. POWER SUPPLY ....................... 2-19
D. Motor Control Circuit ........ 2-11
CHAPTER 3 : MECHANICAL SYSTEM
PARTS REPLACEMENT .............. 3-1
A. Removing the Main PCB ...... 3-8
A. Precautions ......................... 3-1
B. Removing the Button PCB ... 3-9
II. EXTERNALS .............................. 3-2
IV. OPTICAL SYSTEM ................... 3-10
I.
A. Removing the Film Adapter Unit
........................................... 3-2
B. Removing the Top Cover and
Document Glass Unit ........... 3-3
C. Removing the Front Panel ... 3-6
III. PCBs ......................................... 3-8
A. Removing the Scanning Unit,
Pulley Unit, and Motor Unit 3-10
B. Cautions When Attaching the
Motor Unit ........................ 3-16
C. Cautions When Attaching the
Pulley Unit ........................ 3-18
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 4 : MAINTENANCE AND SERVICING
I.
PERIODICAL REPLACEMENT
III. PERIODICAL SERVICING ........... 4-1
PARTS ....................................... 4-1
IV. SPECIAL TOOLS ........................ 4-1
II. CONSUMABLE PARTS
V.
SOLVENTS AND LUBRICANTS .... 4-1
DURABILITY .............................. 4-1
CHAPTER 5 : TROUBLESHOOTING
I.
INTRODUCTION ........................ 5-1
C. Scanning Unit Movement Failure
A. Initial Check ....................... 5-1
........................................... 5-5
B. Others ................................. 5-1
D. Poor Image Quality .............. 5-5
II. TROUBLESHOOTING FLOWCHART
E. Acoustic Noise ..................... 5-5
........................................... 5-2
IV. CANON SCANNER TEST ............. 5-6
A. Power LED Failure ............... 5-2
A. Outline ................................ 5-6
B. Communication Failure ....... 5-3
B. Operating Environment ....... 5-6
III. PROBLEM, CAUSE AND
C. Functions ............................ 5-7
CORRECTIVE ACTION ............... 5-4
D. Functions Descriptions ....... 5-8
A. Power LED Not Lighting ....... 5-4
E. Error Message ................... 5-16
B. Communication Failure ....... 5-4
CHAPTER 6 : PARTS CATALOG
FIGURE 001 .............................. 6-2
FIGURE 100 .............................. 6-4
APPENDIX
I.
GENERAL CIRCUIT DIAGRAM .... A-1
III. CCD PCB CIRCUIT DIAGRAM ..... A-9
II. MAIN PCB CIRCUIT DIAGRAM ... A-2
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 1
GENERAL DESCRIPTIONS
I.
SPECIFICATIONS ....................... 1-1
A. Precautions ......................... 1-4
II. PARTS CONFIGURATION ........... 1-2
B. Unlocking the Lock Switch .. 1-4
A. Front View .......................... 1-2
C. Connecting the Cables ......... 1-5
B. Back View ........................... 1-3
D. Scanning ............................. 1-6
C. Rear View ............................ 1-3
IV. CUSTOMER’S DAILY MAINTENANCE
III. SETTING UP THE SCANNER ...... 1-4
........................................... 1-9
COPYRIGHT  2002 CANON INC.
CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 1
I. SPECIFICATIONS
Scanner Main Unit
Type
: Flatbed image scanner
Scanning Part
Image sensor
Light source
Document type
Document alignment position
Max. document size
Image output mode
:
:
:
:
:
:
Optical resolution
Scanning time
Film Scanning Part
Film type
Film size
Light source
Scanning time
Interface Part
Interface
Front Panel
Scanner button
Others
Operating environment
Power source
Power consumption
Dimensions
Weight
10,680-pixel 6-line CCD
Cold cathode fluorescent lamp
Sheet, Book
Right-end corner
A4/Letter size (216 x 297mm)
Color 16-bit for RGB each
Grayscale (256 gradations)
Binary (black and white)
: 2400 dpi x 4800 dpi
: 5.4ms/line (600 dpi or lower)
10.8ms/line (601 dpi or higher)
: Color and monochrome, negative and positive
: 35mm sleeve (6 frames x 2)
35mm slide mount (4 frames)
: Cold cathode fluorescent lamp
IR LED (for FARE function)
: 5.4 to 172.8ms/line (automatically selected depending on
films)
: USB connector (Universal Serial Bus 2.0)
FAU connector (6-pin)
Power connector (for AC adapter)
: 4 buttons (COPY, SCAN, FILE, E-MAIL) on the scanner
unit
: Temperature : 10 to 35 degrees
Relative humidity : 10 to 90%RH
Air pressure : 613 to 1013 hPa
: 100V to 120V
220V to 240V
: 15W max. (during operation)
10W (during standby)
: 284.0 (Width) x 498.0 (Depth) x 104.0 (Height) mm
(Height to the document glass: 72.0mm)
: Approximately 4.6kg
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
1-1
CHAPTER 1
II. PARTS CONFIGURATION
A. Front View
1
2
3
4
9
5
6
7
q
w
e
r
t
y
u
i
o
8
Document Cover
Protective Sheet
Film Adapter Unit
Document Glass
COPY Button
SCAN Button
FILE Button
E-MAIL Button
Alignment Mark
Figure 1-1
1-2
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 1
B. Back View
1
q
w
e
r
2
3
4
FAU Cable
FAU Connector
Power Connector
USB Connector
Figure 1-2
C. Rear View
1
q Lock Switch
Figure 1-3
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
1-3
CHAPTER 1
III. SETTING UP THE SCANNER
A. Precautions
*
*
*
*
*
Keep the scanner out of direct sunlight. Direct exposure to the sun or excessive heat may
cause damage to the scanner.
Do not install the scanner in a humid or dusty environment.
Use the supplied AC adapter only.
Place the scanner securely on an even, flat surface. Tilted or uneven surface may cause a
mechanical problem.
Keep the outer carton and packing material in case you may ship the scanner in the future.
B. Unlocking the Lock Switch
Scanning unit is locked by the lock switch to prevent a damage during transport. Unlock the
lock switch by pushing it toward the “unlock” mark to use the scanner.
1
q Lock Switch
Figure 1-4
Note : Ensure to lock the lock switch during transport.
1-4
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 1
C. Connecting the Cables
CanoScan 8000F is used by connected to the USB port on the host computer. Refer to the
“Quick Start Guide” supplied with the product for details. For connecting the host computer’s
cables, refer to the manuals for the host computer.
Note: Install the device driver before connecting the cables to use the scanner.
1. Connecting the FAU Cable, USB Cable and AC Adapter Cable
1) Connect the FAU cable to the FAU connector.
2) Connect the square connector (B plug) of the USB cable to the USB connector on the
scanner, and connect the flat connector (A plug) of the USB cable to the USB port on the
host computer.
3) Connect the AC adapter cable to the power connector on the scanner.
4
1
3
2
q
w
e
r
USB Connector
USB Cable
Power Connector
AC Adapter
Figure 1-5
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
1-5
CHAPTER 1
D. Scanning
1. Scanning an Original
1) Place an original face down on the document glass by aligning its top edge with the
alignment mark.
1
q Alignment Mark
Figure 1-6
2) Close the document cover caring not to displace the original.
3) Send the scan command from the host computer.
1-6
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 1
2. Scanning Film
1) Slide the protective sheet up to remove it from the document cover.
Figure 1-7
2) Insert the film into the film guide.
* Film strips
Open the film holder on the film guide for film strips, insert the strip(s) face down and close
the film holder.
* Slides
Place a slide face down in the film guide for slides.
Figure 1-8
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
1-7
CHAPTER 1
3) Place the loaded film guide by aligning its leading tab with FILM mark on the document
glass and close the document cover.
1
q FILM Mark
Figure 1-9
4) Send the scan command from the host computer.
1-8
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 1
IV. CUSTOMER’S DAILY MAINTENANCE
Dirt on the document glass may cause an unclear image or lines on an image. Clean the
document glass using the following steps.
1) Disconnect all cables from the scanner.
2) Wipe a dirt off the document glass with a soft clean cloth dampened with water and well
wrung.
3) Thoroughly wipe water off the document glass with a dry cloth.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
1-9
CHAPTER 2
OPERATION AND TIMING
I.
BASIC OPERATION .................... 2-1
III. IMAGE PROCESSING ............... 2-12
A. Functions ............................ 2-1
A. Outline .............................. 2-12
B. Electrical System ................ 2-2
B. Image Processing ............... 2-12
C. Main PCB Input and Output . 2-4
IV. CONTROL SYSTEM .................. 2-17
D. Document Scanning Sequence
A. Control System Diagram .... 2-17
........................................... 2-5
II. OPTICAL SYSTEM ..................... 2-6
B. Main PCB .......................... 2-17
V.
INTERFACE ............................. 2-18
A. Outline ................................ 2-6
A. Outline of USB Standard .... 2-18
B. Lamp Lighting Circuit ......... 2-7
B. Signal Definitions .............. 2-18
C. FARE (Film Automatic Retouching
C. Interface Connection ......... 2-18
and Enhancement) .............. 2-9
VI. POWER SUPPLY ....................... 2-19
D. Motor Control Circuit ........ 2-11
COPYRIGHT  2002 CANON INC.
CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 2
I. BASIC OPERATION
A. Functions
The scanner functions are divided into optical system, image processing system, and control
system.
FAU
FAU Lamp
IR LED
BGR
Scanning Lamp
Scanning Unit
Lens
B
G
R
CCD
Optical System
FARE
Unit
Drive Motor
Host
Computer
Control
System
Image Processing System
Figure 2-1
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
2-1
CHAPTER 2
B. Electrical System
1. Outline
The scanner is not equipped with CPU. The device driver installed in the host computer
includes a control program, which functions as CPU. Host computer sends a command to the
ASIC via the USB controller, the ASIC controls the whole electrical circuits and image
processing of the scanner. The image signals read by the CCD are converted into digital data
by analog IC. The digital data is then processed by the ASIC and output to the host computer
via USB interface.
Host Computer
Control
Program
JP9
USB
Controller
J1
Inverter
PCB
J2
+12V
Regulator
AC adapter
FAU
Home
Position
Sensor
FAU Lamp
Scanning
Lamp
JP2
Inverter
PCB
Button PCB
Scanner Button
Power LED
ASIC
JP1
DRAM
CCD PCB
Analog IC
JP8
Motor
Driver
FARE Unit
Drive
Motor
Figure 2-2
2-2
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 2
2. Functions of the Main PCB
1) Analog IC
Converts the image signals (analog signals) read by the CCD into digital data.
- CDS (Correlated Double Sampling)
- AGC (Auto Gain Control)
- 8-bit A/D converter
2) ASIC
Performs various processings:
- DRAM control
- CCD timing clock creation
- Line buffer control
- CCD output line difference adjustment
- Image processing
- Shading correction
- Motor driver control
3) DRAM
Stores the shading correction data when performing shading correction, and the image data
when scanning.
4) Motor Driver
Supplies power to the drive motor.
5) USB Controller
Controls data transfer between the host computer and ASIC.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
2-3
CHAPTER 2
C. Main PCB Input and Output
Main PCB
AC Adapter
J2-1
-2
JP1-1
-2
-3
-4
-5
-6
-7
-8
-9
-10
-11
-12
-13
-14
-15
-16
-17
-18
-19
-20
-21
-22
-23
-24
-25
-26
-27
-28
Scanning Unit
+12V
GND
LAMP_GND
LAMP_GND
LAMP_PWR
LAMP_PWR
CCD_PWR
CCD_PWR
AGND
PHI1
PHI2
PHI3
VAROS_PWR
AGND
ASIC_VAROS
CCD_SHG
CCD_CP
CCD_SHG
CCD_RS
CCD_SHR
VCC
AGND
MTATHOME
AGND
AGND
CCD_B
AGND
CCD_G
AGND
CCD_R
XPA
XPAGND
FAU_DET
VCC
IRLED
XPAGND
XPAGND
XPAGND
Vbus
DD+
GND
J1-1
-2
-3
-4
-5
-6
-7
-8
To FAU
JP9-1
-2
To Host Computer
-3
-4
Power
LED
Scanner
Button
JP2-1
-2
-3
-4
-5
-6
COPY
SCAN
FILE
GND
LED
"H" when power LED is ON
HOTKEY0
HOTKEY1
"H" when Scanner button is
HOTKEY2
pressed
HOTKEY3
E-MAIL
Button PCB
"H" when scanning unit is in
home position
Home Position
Sensor
JP8-1
-2
Drive motor
-3
-4
OUT1B
OUT1A
Drive motor drive signal
OUT2A
OUT2B
Figure 2-3
2-4
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 2
D. Document Scanning Sequence
Scan Command
Sequence
Standby
Setup
Scanning Unit forward
Scanning Unit
backward
Standby
Home Position
Sensor
Scanning Lamp
ON Signal
(Scans 9 lines for
RGB each)
Drive Motor
Interface Signal
Figure 2-4
Seqence
Standby
Setup
Purpose
Operation
Remarks
After the scanner self test is
completed until the scanner
receives a scan command from
the host computer
To maintain the scanner ready
for scan
From the scanner receives a
scan command until it starts
To execute calibration for setting
The data is stored in DRAM
light exposure time, gain data and
shading data
scanning
After the scanner starts scanning
Scanning Unit until whole scan area specified
by the host computer is scanned
Forward
To execute image processing
according to the command from
the host computer while scanning
and send imada data to the
host computer
Scanning Unit
backward
After the scanning unit starts
moving backward until it returns
to the home position
To return the scanning unit to the
home position to ready for the
next scan
Home position is detected
by the home position sensor
Table 2-1
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
2-5
CHAPTER 2
II. OPTICAL SYSTEM
A. Outline
The optical system consists of the scanning lamp, lens and mirrors. When scanning a
reflective document, the scanning lamp in the scanning unit exposes the document and
focuses the reflected light from the document on the light-sensitive device CCD (charge-coupled
device) via the lens and mirrors.
When scanning a film, FAU lamp in the Film Adapter Unit transmits the film and focuses the
transmitted light on the CCD.
When using FARE function, infrared LED transmits a film after FAU lamp does, and FARE
unit operates to scan the film.
Scanning Lamp
Lens
CCD
FARE Unit
Figure 2-5
2-6
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 2
B. Lamp Lighting Circuit
1. Scanning Lamp Lighting Circuit
When the scanner is powered on, or the host computer sends a scan command, ASIC turns
the scanning lamp lighting signal (LAMP) ON to light the scanning lamp.
The reflected light from the document is focused on the light-sensitive device CCD (chargecoupled device) via the five mirrors, lens and FARE unit.
The scanner is provided with a lamp OFF function for energy saving. A built-in timer to be
set by the device driver is counted during lamp ON and turns the scanning lamp OFF when no
scan command is sent for a certain period.
Document Glass
Scanning Lamp
CCD
Lens
FARE Unit
Scanning Unit
Main PCB
LAMP
GND
Host
Computer
CCD
PCB
GND
Inverter
PCB
ASIC
Figure 2-6
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
2-7
CHAPTER 2
2. FAU Lamp Lighting Circuit
When the host computer sends a film scan command, ASIC turns the scanning lamp lighting
signal (LAMP) OFF then turns FAU lamp lighting signal (XPA) ON to light the FAU lamp.
The FAU lamp light is converted into a flat light source by a light guide plate, then diffused via
1st diffusive film, brightness enhancement film and 2nd diffusive film. As a result, exposed
light from a transparent plate has equal light intensity which transmits a film and focuses on
the CCD in the scanning unit.
The FAU lamp also has a lamp OFF function for energy saving as in the case of the scanning
lamp.
3. Infrared LED Lighting Circuit
When the host computer sends a command to light an infrared LED, ASIC turns IRLED signal
ON to light the infrared LED.
The infrared LED light is converted into a flat light source by a light guide plate as in the case
of the FAU lamp, which transmits a film via 1st diffusive film, brightness enhancement film,
2nd diffusive film and transparent plate.
FAU
FAU Lamp
Reflective Film
Light Guide Plate
Inverter PCB
IRLED
1st Diffusive Film
Brightness
Enhancement Film
2nd Diffusive Film
Transparent Plate
Scanner
IRLED
Scanning Unit
XPA
Host
Computer
ASIC
Main PCB
Figure 2-7
2-8
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 2
C. FARE (Film Automatic Retouching and Enhancement)
1. Outline
CanoScan 8000F employs an infrared LED in addition to the FAU lamp (cold cathode
fluorescent lamp) in order to remove scratches and dirt on a film by transmitting a film by two
light sources. This function is called FARE (Film Automatic Retouching and Enhancement).
The infrared LED scans only scratches and dirt on a film as image data. This image data is
compared to the full image data scanned by the FAU lamp, and the overlapping data of
scratches and dirt is subtracted, then this area is compensated for by sampling the ambient
data. Accordingly, the image without scratches and dirt is reproduced.
(FAU LAMP)
(IR LED)
Light
Source
Film
Lens
CCD
Scanned
Figure 2-8
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
2-9
CHAPTER 2
2. Operation of FARE Function
The frequency of the FAU lamp (cold cathode fluorescent lamp) is 380-700nm, while that of
the infrared LED is 880nm, therefore, their light refractive indexes differ resulting in out of
focus (Figure 2-9-2).
As a solution, CanoScan 8000F employs FARE unit between the CCD and lens, which
consists of a refraction glass for changing the light refractive index and of an electromagnetic
switch for changing the position of the refraction glass.
Firstly, the FAU lamp scans a film passing through the refraction glass. Secondly, the
infrared LED scans a film, at the same time, the electromagnetic switch is turned ON to move
the refraction glass to the position where the infrared LED light does not pass through (Figure
2-9-3).
Finally, the FAU lamp and infrared LED can scan a properly focused film.
Light Source
FAU Lamp
IR LED
IR LED
Film
Lens
Refraction Glass
(FARE Unit)
CCD
Figure 2-9-1
2 - 10
Figure 2-9-2
Figure 2-9-3
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 2
D. Motor Control Circuit
Control program analizes a command sent from the host computer, and sends a motor clock
generation command to ASIC. Gate array generates four-phase motor drive pulse signals [I01,
I11, I02, I12], which are sent to the drive motor via motor driver.
When the host computer sends a command to change resolution, the control program
commands the ASIC to change the frequency of the motor drive pulse signal to change the
drive motor rotating speed.
Host Computer
Control
Program
Main PCB
ASIC
I02
OUT1B
JP8-1
I01
OUT1A
-2
OUT2A
-3
OUT2B
-4
I11
I12
Motor
Driver
Drive Motor
Figure 2-10
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
2 - 11
CHAPTER 2
III. IMAGE PROCESSING
A. Outline
Image processing system consists of the CCD, analog IC, and ASIC. Analog signal read by the
CCD is converted into digital data, then output to the host computer.
1. CCD
2.. A/D
Conversion
3. Calibration
4. Filter
Processing
To Host Computer
Figure 2-11
B. Image Processing
1. CCD
The CCD is a single chip photoelectric conversion device which consists of several thousand
photosensitive devices of each several microns square, for reading RGB image signals, with a
built-in scanning circuit.
CanoScan 8000F employs 6-line CCD.
1) 6-line CCD
6-line CCD has two rows of staggered photosensitive devices for RGB each. The 6-line CCD
therefore can scan at 1200dpi x 2 = 2400dpi.
Figure 2-12
2 - 12
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 2
2. A/D Conversion
Output signal from the CCD is an analog signal which cannot be used as image data. So
RGB output signal from the CCD is amplified by analog amplifier to generate analog data. The
generated data is converted into averaged analog signal by D/A converter, then got feedback to
the A/D converter to output constant digital data to the ASIC.
D/A Converter
CCD
R
G
B
Analog
Amplifier
A/D Converter
Digital data
To ASIC
Analog IC
Figure 2-13
1) D/A Converter
D/A converter removes ununiform analog data generated by the CCD. It adjusts CCD output
to keep max. 5V of input signal to the A/D converter, to make the black level of the image
constant.
2) A/D Converter
The A/D converter converts the black-level-corrected image signal (analog signal) to a 16-bit
image data (digital signal) in the order of red, green and blue image signal.
5V is applied to the Vcc terminal and reference voltage is applied to the Vref terminal. A/D
converter outputs “0” when input signal is 5V, and outputs “255” when input signal is
reference voltage. This converts 1 pixel signal into the image data of 65536 gradations for red,
green and blue each.
Image Data
A/D Converter
Blue Image Signal
Green Image Signal
Red Image Signal
Reference Voltage
CCD_B
CCD_G
CCD_R
0 1
0 1
0 1
0 1
Vref
Output
0 1
0 1
+5V
Vcc
0 1
0 1
Figure 2-14
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
2 - 13
CHAPTER 2
3. Calibration
When CCD reads a document of even density, the image signal corresponding to each pixel is
not uniform for the following reasons.
* Light intensity of the scanning lamp is not uniform.
* There is variation in the sensitivity of the light phototransistors.
* There is a slight output from the light phototransistors even when no data is input.
These variations are corrected by the calibration in three steps of Offset calibration, Coarsegain calibration, and Programmable Gain Amplifier (PGA).
1) Offset Calibration
Takes output data when no data is input and normalizes the output data from each pixel at
or near 0.
2) Coarse-Gain Calibration
Finds the optimum gain setting for placing the output voltage from all pixels in the
adjustment range of Programmable Gain Amplifier.
3) Programmable Gain Amplifier (PGA)
Calculates a gain coefficient for uniforming the output by correcting the output difference
among pixels.
4. Filter Processing
When converting resolution and scaling, the image quality tends to be reduced. To prevent
the image quality reduction, filter processing is performed according to the resolution. Filter
processing includes interpolation processing and averaging.
2 - 14
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 2
1) Interpolation Processing
When reading images at higher resolution, the one pixel output of the CCD is treated as two
image data in the horizontal scanning direction, and the one line output of the CCD is treated
as two image data in the vertical scanning direction, causing a reduced image quality. To
prevent the image quality reduction, interpolation processing is performed. Figure 2-15 shows
a change in image density by the interpolation processing.
A
(A)
B
(B)
C
(C)
D
Interpolation processing
A
(A+B)/2
B
(B+C)/2
C
(C+D)/2
D
Density
1 pixel
Interpolation processing
Density
1 pixel
Figure 2-15
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
2 - 15
CHAPTER 2
2) Averaging
When reading images at lower resolution, the thinned data increases resulting in output
image deterioration. Averaging is a process in which the data to be thinned and the data to be
actually output are averaged and output, in order to suppress the image deterioration due to
the data thinning.
CCD
reading
A
B
C
D
E
F
G
H
A
B
C
D
E
F
G
H
B
C
D
E
F
G
H
data
Output
data
Thinned data
CCD
A
reading
data
Output
data
A'
E'
Averaged data=(A+B+C+D)/4
Figure 2-16
2 - 16
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 2
IV. CONTROL SYSTEM
A. Control System Diagram
Host Computer
Control
Program
+12V
Main PCB
USB
Controller
ASIC
Analog
IC
DRAM
AC Adapter
Scanning Unit
Inverter &
Scanning Lamp
Motor
Driver
Drive Motor
Figure 2-17
B. Main PCB
The scanner is not equipped with CPU. The device driver installed in the host computer
includes a control program, which functions as CPU. Control program sends a command to
the ASIC in the main PCB, the ASIC controls the whole electrical circuits and image processing
of the scanner.
Main PCB consists of ASIC, DRAM, USB controller, analog I/C and motor driver.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
2 - 17
CHAPTER 2
V. INTERFACE
A. Outline of USB Standard
CanoScan 8000F employs USB2.0.
Features of USB include;
1. USB is an interface to connect peripheral devices to a host computer.
2. Tree-structure can connect up to 127 devices on a host computer by using "hub".
3. USB has three data transfer modes of "full speed mode" at 12Mbps, "low speed mode" at
1.5Mbps, and "high speed mode" at 480Mbps (new standard of USB 2.0.)
CanoScan 8000F supports USB2.0's "high speed mode".
4. Hot plug (connectable/disconnectable with the power ON) is available.
5. Power source is supplied via USB.
B. Signal Definitions
USB uses two differential signal lines (D+ and D-) only to communicate with the host
computer.
Pin
1
2
3
4
Shell
Chassis
Signal
VBUS
DD+
Signal GND
Chassis GND
2
3
1
4
Table 2-2
C. Interface Connection
USB connector has A plug for connecting to upper layer and B plug for connecting to lower
layer.
A Plug
To Host Computer
B Plug
To Scanner
Figure 2-18
2 - 18
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 2
VI. POWER SUPPLY
DC power is supplied from the supplied AC adapter. Through power regulator, four DC power
sources (+3.3V, +5V, +12V and +16.8V) are used in the circuit. +3.3V and +5V are supplied for
the digital circuit and linear chip, +5V is for the Analog IC and home position sensor, +16.8V is
for the CCD PCB, and +12V is for the motor driver and scanning lamp.
Main PCB
12V
AC Adapter
12V
+3.3V Regulator
Digital Circuit
+5V Regulator
Home Position
Sensor
Analog IC
CCD PCB
16.8V to 12V
Linear
Regulator
12V to16.8V
Linear Regulator
CCD
Drive
Motor
Motor Driver
PWM
PWM
Inverter
Scanning Lamp
FAU Lamp
Inverter
IR LED
FAU
Figure 2-19
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
2 - 19
CHAPTER 3
MECHANICAL SYSTEM
I.
PARTS REPLACEMENT .............. 3-1
A. Removing the Main PCB ...... 3-8
A. Precautions ......................... 3-1
B. Removing the Button PCB ... 3-9
II. EXTERNALS .............................. 3-2
IV. OPTICAL SYSTEM ................... 3-10
A. Removing the Film Adapter Unit
........................................... 3-2
B. Removing the Top Cover and
Document Glass Unit ........... 3-3
C. Removing the Front Panel ... 3-6
III. PCBs ......................................... 3-8
COPYRIGHT  2002 CANON INC.
A. Removing the Scanning Unit,
Pulley Unit, and Motor Unit 3-10
B. Cautions When Attaching the
Motor Unit ........................ 3-16
C. Cautions When Attaching the
Pulley Unit ........................ 3-18
CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 3
I. PARTS REPLACEMENT
A. Precautions
* Disconnect the AC adapter, USB cable, and FAU cable from the scanner before replacing the
parts.
* Wear anti-static gloves and grounding strap around the wrist during the work.
* Follow the instructed steps. Do not remove any screw from the parts that is not to be
replaced.
* Store the removed parts in a clean place and avoid missing.
* Attach the parts in reverse order of the removing steps, unless otherwise specified.
* After replacement, check the quantity and shape of the replaced parts.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-1
CHAPTER 3
II. EXTERNALS
A. Removing the Film Adapter Unit
1) Disconnect the FAU cable.
2) Lift the film adapter unit as shown in Figure 3-1 to remove it.
1
2
q FAU Cable
w Film Adapter Unit
Figure 3-1
3-2
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 3
B. Removing the Top Cover and Document Glass Unit
1) Turn the scanner over and remove two screws.
1
q Screw
Figure 3-2
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-3
CHAPTER 3
2) Return the scanner to the normal position and remove two screws from the top cover.
3) Press and remove two hooks on both sides of the main frame back side.
4) Rotate the top cover backward and remove the hook on the back to remove the top cover.
1
2
4
3
4
q
w
e
r
Screw
Top Cover
Hook (on the back)
Hooks (on both sides)
Figure 3-3
3-4
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 3
5) Slide the document glass unit backward and lift to remove it.
1
q Document Glass Unit
Figure 3-4
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-5
CHAPTER 3
C. Removing the Front Panel
1) Turn the scanner over and remove two screws from the rear of the front panel.
1
q Screw
Figure 3-5
3-6
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 3
2) Remove the film adapter unit, top cover, and document glass unit.
3) Press two hooks on both sides of the front panel inward to remove the front panel.
1
2
q Button Cable
w Front Panel
Figure 3-6
4) Disconnect the button cable.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-7
CHAPTER 3
III. PCBs
A. Removing the Main PCB
1) Turn the scanner over and remove four screws to lift the main PCB.
1
3
2
q Screw
w Button Cable
e Motor Unit Cable
Figure 3-7
Note: Do not lift the main PCB too much because the motor unit cable and button cable are
connected.
3-8
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 3
2) Disconnect the motor unit cable and button cable from the main PCB, and turn the main
PCB over as shown in Figure 3-8.
1
3
2
4
q
w
e
r
Flat Cable
Button Cable Connector
Motor Unit Cable Connector
Main PCB
Figure 3-8
3) Disconnect the flat cable from the main PCB.
B. Removing the Button PCB
1) Remove the film adapter unit, top cover, document glasss unit, and front panel.
2) Remove five screws from the button PCB to remove it.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-9
CHAPTER 3
IV. OPTICAL SYSTEM
A. Removing the Scanning Unit, Pulley Unit, and Motor Unit
Note: Lens and mirrors of the scanning unit are factory adjusted.
Do not touch the lamp, mirrors, and CCD PCB (shaded area) of the scanning unit.
Figure 3-9
3 - 10
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 3
1) Turn the scanner over and remove the main PCB.
2) Remove the film adapter unit, top cover, document glass unit, and front panel.
3) Rotate the gear mounted on the motor unit to move the scanning unit away from the home
position.
4) Remove four screws from the motor cable cover to remove it.
1
2
q Screw
w Motor Cable Cover
Figure 3-10
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
3 - 11
CHAPTER 3
5) Remove three screws from the pulley unit in order of a-b-c in Figure 3-11 to remove it.
Note: Be careful not to lose the pulley as it can easily be removed.
6) Remove two screws from the motor unit in order of d-e in Figure 3-11 to remove it.
a
b
c
d
e
1
2
q Pulley Unit
w Motor Unit
Figure 3-11
3 - 12
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 3
7) Push the sliding rod backward and displace the front part to the side.
Figure 3-12
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
3 - 13
CHAPTER 3
8) Slide the sliding rod forward, then lift with the scanning unit to remove it.
1
2
q Scanning Unit
w Sliding Rod
Figure 3-13
Note: When lifting the scanning unit, displace the hook under the rail.
1
2
q Rail
w Hook
Figure 3-14
3 - 14
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 3
9) Remove the sliding rod and drive belt from the scanning unit.
10) Remove a screw and separate the sliding rod from the motor unit.
1
2
3
q Sliding Rod
w Screw
e Motor Unit
Figure 3-15
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
3 - 15
CHAPTER 3
B. Cautions When Attaching the Motor Unit
1) Apply grease (EM-50L) to the shaft of the gear when attaching the motor unit.
Figure 3-16
2) Ground the motor unit cable as shown in Figure 3-17.
Figure 3-17
3 - 16
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 3
3) When fixing the motor unit to the bottom cover with two screws, make sure the motor unit is
positioned by two embosses on the bottom cover.
1
q Emboss
Figure 3-18
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
3 - 17
CHAPTER 3
C. Cautions When Attaching the Pulley Unit
1) Apply grease (EM-50L) to the shaft of the idle pulley when attaching the pulley unit.
Figure 3-19
3 - 18
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 4
MAINTENANCE AND SERVICING
I.
PERIODICAL REPLACEMENT
III. PERIODICAL SERVICING ........... 4-1
PARTS ....................................... 4-1
IV. SPECIAL TOOLS ........................ 4-1
II. CONSUMABLE PARTS
V.
SOLVENTS AND LUBRICANTS .... 4-1
DURABILITY .............................. 4-1
COPYRIGHT  2002 CANON INC.
CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 4
I. PERIODICAL REPLACEMENT PARTS
None
II. CONSUMABLE PARTS DURABILITY
None
III. PERIODICAL SERVICING
None
IV. SPECIAL TOOLS
None
V. SOLVENTS AND LUBRICANTS
Grease used for disassembly and reassembly of the scanner.
Name
Tool No.
Usage
: MOLYKOTE EM-50L
: HY9-0007
: To be applied to the shaft of the gear of the motor unit and pulley unit.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
4-1
CHAPTER 5
TROUBLESHOOTING
I.
INTRODUCTION ........................ 5-1
C. Scanning Unit Movement Failure
A. Initial Check ....................... 5-1
........................................... 5-5
B. Others ................................. 5-1
D. Poor Image Quality .............. 5-5
II. TROUBLESHOOTING FLOWCHART
E. Acoustic Noise ..................... 5-5
........................................... 5-2
IV. CANON SCANNER TEST ............. 5-6
A. Power LED Failure ............... 5-2
A. Outline ................................ 5-6
B. Communication Failure ....... 5-3
B. Operating Environment ....... 5-6
III. PROBLEM, CAUSE AND
C. Functions ............................ 5-7
CORRECTIVE ACTION ............... 5-4
D. Functions Descriptions ....... 5-8
A. Power LED Not Lighting ....... 5-4
E. Error Message ................... 5-16
B. Communication Failure ....... 5-4
COPYRIGHT  2002 CANON INC.
CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 5
I. INTRODUCTION
A. Initial Check
Check if the operating environment conforms to the following conditions.
*
*
*
*
*
Line voltage is within ±10% of the rated value.
Ambient temperature and humidity conform to the operating environment. (Refer to
CHAPTER 1, I. SPECIFICATIONS)
The scanner is not setup near a water faucet, boiler, humidifier, open flame, or in dusty
place.
The scanner is not exposed to direct sunlight. If it is inevitable to setup in a sunny place,
hang a curtain to block direct sunlight.
The scanner is setup in a well-ventilated place.
B. Others
Moving a scanner from a cold place to a warm place can cause condensation on the metal
parts, resulting in a faulty operation.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-1
CHAPTER 5
II. TROUBLESHOOTING FLOWCHART
A. Power LED Failure
Unlock
Lock Switch
Connect
AC Adapter
No
Power LED is ON ?
Table 5-1
Yes
Connect
USB cable
Figure 5-2
Figure 5-1
5-2
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 5
B. Communication Failure
Scan
Communication
Yes
Table 5-2
failed ?
No
Scanning Unit
failed to move ?
Yes
Table 5-3
No
Yes
Poor
Table 5-4
image quality ?
No
Acoustic noise
originated ?
Yes
Table 5-5
No
End
Figure 5-2
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-3
CHAPTER 5
III. PROBLEM, CAUSE AND CORRECTIVE ACTION
CanoScan 8000F may have the following five problems.
*
*
*
*
*
Power LED not lighting
Communication failure
Scanning unit movement failure
Poor image quality
Acoustic noise
A. Power LED Not Lighting
Possible Cause
AC adapter is unplugged
Related Parts
Check Method
None
Visual check
Corrective Action
Plug the AC adapter into
the outlet
from the outlet
AC Adapter cable is
Visual check
None
Connect the AC adapter cable
to the power connector on the
disconnected from the scanner
scanner
AC adapter output voltage
AC Adapter
failure
Output voltage Replace the AC adapter
(+12V) check
Button PCB failure
Button PCB
Tester check
Replace the button PCB
Main PCB failure
Main PCB
Tester check
Replace the main PCB
(+12V, GND)
Main PCB connection failure
Visual check
None
Properly connect the main PCB
Table 5-1
B. Communication Failure
Possible Cause
USB cable connection failure
Related Parts
USB cable
Check Method
Visual check
Corrective Action
Connect the USB cable
properly
Scanner communication failure Main PCB
Scanning unit failure
Scanning unit
Trial replacement Replace the main PCB
Trial replacement Replace the scanning unit
Table 5-2
5-4
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 5
C. Scanning Unit Movement Failure
Possible Cause
Related Parts
Check Method
Corrective Action
Drive belt broken or worn
Drive belt
Trial replacement Replace the drive belt
Gears broken or worn
Pulley Unit
Trial replacement Replace the pulley unit
Scanner button failure
Button PCB
Trial replacement Replace the button PCB
Drive motor failure
Motor unit
Trial replacement Replace the motor unit
Table 5-3
D. Poor Image Quality
Related Parts
Scanning lamp does not light Scanning unit
Possible Cause
Check Method
Visual check
Corrective Action
Replace the scanning unit
or blinks
Dirt on document glass
Main PCB failure
CCD PCB failure
Document glass Visual check
Clean the document glass
Main PCB
Trial replacement Replace the main PCB
Scanning unit
Trial replacement Replace the scanning unit
Table 5-4
E. Acoustic Noise
Possible Cause
Related Parts
Check Method
Corrective Action
Motor unit failure
Main PCB failure
Scanning unit failure
Dirt on sliding rod
Reference sheet is
improperly positioned
Motor unirt
Main PCB
Scanning unit
None
Document glass
Trial replacement
Trial replacement
Trial replacement
Visual check
Trial replacement
Replace the motor unit
Replace the main PCB
Replace the scanning unit
Clean the sliding rod
Replace the document glass
unit
unit
Table 5-5
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-5
CHAPTER 5
IV. CANON SCANNER TEST
A. Outline
Canon Scanner Test is a utility software to check if faulty operation of CanoScan 8000F is
due to the hardware or the communication with the host computer.
Windows : scantest.exe (English or Japanese is switched according to the language to be used
in Windows.)
Macintosh : chk8000e (English)
chk8000j (Japanese)
B. Operating Environment
The following environment is required for operating the Canon Scanner Test.
Windows platform
* CanoScan 8000F
* PC/AT Compatibles (Pentium or later)
* Windows 98/Me/2000/XP OS
* CanoScan 8000F Device Driver
Macintosh platform
* CanoScan 8000F
* Power Macintosh
* Macintosh OS (Version 9.0 - 9.2)
* CanoScan 8000F Device Driver
Note: Install CanoScan 8000F device driver before using the Canon Scanner Test.
5-6
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 5
C. Functions
1. USB Information (Windows only)
Scanner information connected to the USB port on the PC is displayed.
2. Scanner Information
Control program of CanoScan 8000F connected to the PC is displayed.
3. Scanner Self Test
CanoScan 8000F self test is executed.
4. Scan
An image is scanned at any resolution and saved as an image file in the folder of Canon
Scanner Test.
5. Film Scan
35mm sleeve negative film is scanned by FAU lamp and IR LED with FARE function, then
saved as two image files in the folder of Canon Scanner Test. The film of 1 frame at upper right
in the sleeve film holder is scanned at 1200 dpi fixed.
Note: Calibration function is gray out and unable to click for CanoScan 8000F.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-7
CHAPTER 5
D. Functions Descriptions
1. USB Information (Windows only)
Select “USB Information” from the “Function” menu to display as shown in Figure 5-3
(Windows).
Figure 5-3
*
*
*
*
*
Vendor Description
Device Description
Port Name
Local Name
USB Version
5-8
:
:
:
:
:
Manufacturer name of the scanner "Canon Inc."
Product name of the scanner "CanoScan 8000F"
Port name of the scanner recognized by Windows
Product name of the scanner "CanoScan 8000F"
USB version (USB1.1/USB2.0) that the scanner is operating with.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 5
2. Scanner Information
Select “Scanner information” from the “Function” menu to display as shown in Figure 5-4
(Windows), Figure 5-5 (Macintosh).
Figure 5-4
Figure 5-5
* Vendor ID
* Product ID
* ROM Version
: Manufacturer name of the scanner "CANON"
: "IX-24035H"(CanoScan 8000F)
: Firmware version of the control program of the scanner
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-9
CHAPTER 5
3. Scanner Self Test
Select “Scanner self test” from the “Function” menu to display as shown in Figure 5-6
(Windows), Figure 5-7 (Macintosh).
Figure 5-6
Figure 5-7
5 - 10
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 5
Click “OK” to start scanner self test. When it is completed normally, a dialog is displayed as
shown in Figure 5-8 (Windows), Figure 5-9 (Macintosh).
Figure 5-8
Figure 5-9
When an error occurs, refer to “E. Error Message” to take a corrective action.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
5 - 11
CHAPTER 5
4. Scan
Select “Scan” from the “Function” menu to display as shown in Figure 5-10 (Windows), Figure
5-11 (Macintosh).
Figure 5-10
Figure 5-11
5 - 12
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 5
* Scan count
Set a number from 1 to 100.
* Resolution (dpi)
When the resolution for scanning an image is selected at 75,150, 300, or 600 dpi, whole
document glass area is scanned. When selected at 1200 or 2400 dpi, 6mm forwarded
area from the reference sheet of the document glass is scanned.
* Image handling
When “Read in memory (no file)” is selected, the image is read into the memory, then
abandoned after readout. When “Save to TIFF file” is selected for handling an scanned image,
the file of “img0.tif” is saved in the folder of the Canon Scanner Test. When scan count is set
at 2 or more, the file of “img0.tif”, “img1.tif”, “img2.tif” ... are saved.
File space to be saved is as follows.
75 dpi : 1.5MB, 150 dpi : 6.5 MB, 300 dpi : 26 MB
600 dpi : 105 MB, 1200 dpi : 7.5 MB, 2400 dpi : 30 MB
Note : Confirm before scanning that the available disk space on the HDD in which the
Canon Scanner Test is installed exceeds above file space.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
5 - 13
CHAPTER 5
5. Film Scan
Select “Film Scan” from the “Function” menu to display as shown in Figure 5-12 (Windows),
Figure 5-13 (Macintosh).
Figure 5-12
Figure 5-13
5 - 14
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 5
Only an upper right frame of the 35mm sleeve film guide can be scanned (shaded area in
Figure 5-14.)
Figure 5-14
* Scan count
Set a number from 1 to 100. When 2 or more is set and "Save to TIFF file" is selected, only
a file of specified count is saved.
* Image handling
When “Read in memory (no file)” is selected, the image is read into the memory, then
abandoned after readout. When “Save to TIFF file” is selected, two image files scanned by
FAU lamp and IR LED are saved. "Color24_0.tif" and "IR_0.tif" are saved in the folder of the
Canon Scanner Test. IR.tif is an image of only dirt or dust on the film when FARE function is
used. If FARE function does not normally work, IR.tif image appears all black. When scan
count is set at 2 or more, the file of Color24_0.tif/IR_0.tif, Color24_1.tif/IR_1.tif... are saved.
File space to be saved is as follows.
Color24_0.tif (1200 dpi) : 5.6 MB, IR_0.tif (1200 dpi) : 5.6 MB
Note: When scanning a film, the scanned image is lighter in color than the original film,
because the image is not subjected to the image processing yet.
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
5 - 15
CHAPTER 5
E. Error Message
1. “Unable to find the scanner. Check if the cables are connected properly.”
Cause : Scanner is not detected by the host computer.
Corrective Action : Refer to the “II. Troubleshooting Flowchart”.
2. “Failed to read scanner information.”
Cause : Scanner is not detected by the host computer.
Corrective Action : Refer to the “II. Troubleshooting Flowchart”.
3. “Failed to create a file.” “Failed to open a file.” “Failed to close a file.” “Failed to
write-in a file.”
Cause : Canon Scanner Test is started from a CD-ROM or write-protected HDD.
Corrective Action : Copy the Canon Scanner Test on a writable HDD to use.
4. “Scanner has problem.” “Failed to execute scanner self test.”
Cause : Scanner is not detected by the host computer.
Corrective Action : Refer to the “II. Troubleshooting Flowchart”.
5. “Failed to allocate memory.”
Cause : Scanner is not detected by the host computer.
Corrective Action : Refer to the “II. Troubleshooting Flowchart”.
5 - 16
COPYRIGHT  2002 CANON INC. CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 6
PARTS CATALOG
FIGURE 001 .............................. 6-2
COPYRIGHT  2002 CANON INC.
FIGURE 100 .............................. 6-4
CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
CanoScan 8000F
COPYRIGHT  2002 CANON INC.
CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
6-1
FIGURE 001
ACCESSORY
1
2
3
4
5
6-2
COPYRIGHT  2002 CANON INC.
CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
R
A
N
K
Q'
T
Y
FIGURE
&
KEY NO.
PART NUMBER
001-01
FE2-0017-000
1
CABLE, USB
02
FE2-0018-000
1
ADAPTOR, AC
JAPAN, USA,CAN
03
FE2-0019-000
1
ADAPTOR, AC
EUR
04
FE2-0020-000
1
ADAPTOR, AC
UK,HK
05
FE2-0021-000
1
ADAPTOR, AC
AUS
COPYRIGHT  2002 CANON INC.
DESCRIPTION
SERIAL NUMBER/REMARKS
CANOSCAN 8000F REV.0 OCT. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
6-3
