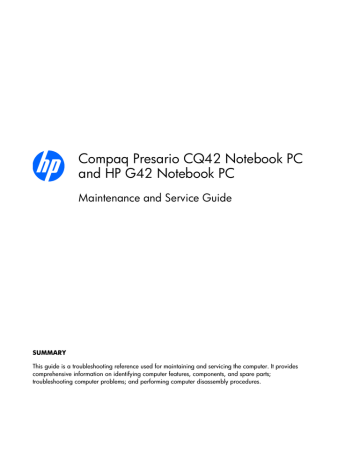

Compaq Presario CQ42 Notebook PC and HP G42 Notebook PC
Maintenance and Service Guide
SUMMARY
This guide is a troubleshooting reference used for maintaining and servicing the computer. It provides comprehensive information on identifying computer features, components, and spare parts; troubleshooting computer problems; and performing computer disassembly procedures.
© Copyright 2010 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard
Company under license. Intel and Arrandale are trademarks of Intel Corporation in the
United States and other countries. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. SD
Logo is a trademark of its proprietor.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
First Edition: April 2010
Document Part Number: 594158-002
Safety warning notice
WARNING!
To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
v
vi
Electrostatic discharge damage .................................................................. 40
Packaging and transporting guidelines ........................................ 41
Workstation guidelines .............................................................. 41
Equipment guidelines ................................................................. 42
Changing the language of Setup Utility ....................................................... 94
Navigating and selecting in Setup Utility ..................................................... 94
System Configuration menu ....................................................................... 97
Navigating and selecting in Computer Setup ............................................... 99
Restoring factory settings in Computer Setup .............................................. 100
System Configuration menu ..................................................................... 103
Using Windows Backup and Restore ........................................................ 114
When to create restore points ................................................... 115
Create a system restore point .................................................... 115
Restore to a previous date and time ........................................... 115
Recovering from the recovery discs ........................................................... 116
Recovering from the dedicated recovery partition (select models only) ........... 116
vii
viii
1 Product description
Category Description
√
√
√
√
√
√
√
HP G42
UMA
√
√
√
√
√
√
√
√
Compaq
Presario
CQ42
Discrete
√
Compaq
Presario
CQ42
Compaq
Presario
CQ42
UMA
Models 150
– 199
UMA
Models 100
– 149
√ √
√
√
√
√
√
√
√
√
√
√
√
1
Category
Chipset
Graphics
Description
DC N830 Tri-core 2.1Ghz 1.5M L2
35W
N620 DDR3-1333 Mhz
DC QC P920 1.6Ghz 2M L2 25W
DC P820 Tri-Core 1.8Ghz 1.5M L2
25W
DC P820 Tri-Core 1.8Ghz 1.5M L2
25W
AMD Turion™ II Processor
DC N530 DC 2.5GHz L2 35W
P520 DDR3-1066 Mh
AMD Athlon™ II Processor
DC N330 2.3GHz 1M L2 35W
P320 DDR3-1066 Mhz
AMD Sempron™ II Processor
N120 DDR3-1066 Mhz
Intel® HM55 Express
AMD
ATI RS880MD (Northbridge)
Intel UMA (integrated)/HD
Graphics with shared video memory
(memory size is dynamic change):
●
Up to 251 MB on computers with 1024 MB of system memory
●
Up to 358 MB on computers with more than 2048 MB of system memory
√
√
√
√
√
√
√
√
√
√
√
√
√
√
HP G42
UMA
√
√
√
√
√
√
√
√
√
√
√
√
Compaq
Presario
CQ42
Discrete
√
Compaq
Presario
CQ42
Compaq
Presario
CQ42
UMA
Models 150
– 199
UMA
Models 100
– 149
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
2 Chapter 1 Product description
Panel
Memory
Category Description
Intel UMA (integrated)/GMA
4500M - GL40 chipset with shared video memory (memory size is dynamic change):
●
Up to 1759 MB for computers with more than 4096 MB of system memory (64 bit)
●
Up to 1309 MB for computers with more than 4096 MB of system memory (32 bit)
●
Up to 1309 MB for computers with more than 3072 MB of system memory
●
Up to 797 MB for computers with more than 2048 MB system memory
●
Up to 285 MB for computers with more than 1024 MB of system memory
ATi Discrete PCI Express x 16
Graphics
ATi Mobility Radeon Park-LP S3 package (ATI Mobility Radeon™
HD5430 with 512-MB of dedicated video memory (64-MB×16 DDR3, 4 pcs, 800-MHz))
Support for BD or HD-DVD playback with HD decoder and
DX10 support
35.6-cm (14.0-in) HD LED
BrightView (1366 x 768 resolution)
16:9 wide aspect ratio
2 SODIMM slots
Supports up to 8 GB of system memory memory (DDR3 1333 MHz can be downgraded to DDR3 1066 MHz)
HP G42
UMA
Compaq
Presario
CQ42
Discrete
Compaq
Presario
CQ42
Compaq
Presario
CQ42
UMA
Models 150
– 199
UMA
Models 100
– 149
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
3
Category
Hard drives
Description
DDR3, 800-MHz, dual-channel memory (DDR3 1333 MHz can be downgraded to DDR3 800 MHz)
●
●
●
●
●
4096 MB (2048 MB × 2)
3072 MB (1024 MB × 1 +
2048 MB × 1)
2048 MB (2048 MB × 1)
2048 MB (1024 MB × 2)
1024 MB (1024 MB × 1)
Supports 9.5-mm, 6.35-cm (2.5-in) hard drives
HP G42
UMA
Compaq
Presario
CQ42
Discrete
Compaq
Presario
CQ42
Compaq
Presario
CQ42
UMA
Models 150
– 199
UMA
Models 100
– 149
√
Supports the following drives:
●
640-GB 5400 RPM
●
500 GB, 7200 rpm
●
320 GB, 7200 rpm
●
250 GB, 7200 rpm
●
160 GB, 7200 rpm
Optical drives Fixed (removal of one screw required)
SATA
Diskette drive
Camera
12.7-mm (0.50-in) tray load
Supports the following drives:
●
Blu-ray ROM with LightScribe
DVD±R/RW SuperMulti DL Drive
●
Blu-ray ROM DVD±R/RW
SuperMulti DL Drive
●
DVD±R/RW SuperMulti DL Drive with LightScribe
●
DVD±R/RW SuperMulti DL Drive
Supports external USB drive only
VGA camera
√
√
√
√
√
√ √ √ √
√ √ √ √
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
4 Chapter 1 Product description
Category Description
√
√
√
√
√
√
√
√
√
√
√
HP G42
UMA
√
√
√
√
√
Compaq
Presario
CQ42
Discrete
Compaq
Presario
CQ42
Compaq
Presario
CQ42
UMA
Models 150
– 199
UMA
Models 100
– 149
√ √
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
5
Category
Ports
Description
Single port configured as either HDMI or 5-in-1 Digital Media Slot
Supports mini versions of SD, MMC, and MS Duo with adapter (adapter not included)
VGA (Dsub 15-pin) supporting 1600 x 1200 resolution at 75 Hz; disabled when connected to devices through
Expansion port 3
Hot plug/unplug and auto detect for wide-aspect or standard-aspect video
HDMI v1.3 supporting 1080p with
HDCP key
Single port configured for either
HDMI or 5-in-1 card reader
USB 2.0 (3)
RJ-11 (modem) with modem option
RJ-45 (Ethernet, with link and activity lights)
Audio-in (mono microphone)
Smart-pin AC adapter plug
Keyboard/ pointing devices
14.0-inch keyboard
Power requirements
TouchPad with 2 buttons and 2-way scroll (taps enabled as default)
6-cell (47-Wh) 2.20-Ah Li-ion battery
Security
Operating system
65-W AC adapter with Smart-Pin DC connector
90-W AC adapter with Smart-Pin DC connector
Security cable slot
Preinstalled:
Windows 7 Professional (32 & 64 bit)
HP G42
UMA
√
√
Compaq
Presario
CQ42
Discrete
√
Compaq
Presario
CQ42
Compaq
Presario
CQ42
UMA
Models 150
– 199
UMA
Models 100
– 149
√
√ √ √
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√ √ √
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
6 Chapter 1 Product description
Category
Serviceability
Description
Windows 7 Home Premium (32 & 64 bit)
Windows 7 Home Basic (32 & 64 bit)
Windows 7 Starter (32 bit)
End-user replaceable parts:
√
√
√
√
√
√
HP G42
UMA
√
√
√
√
√
√
√
√
√
√
Compaq
Presario
CQ42
Discrete
√
Compaq
Presario
CQ42
Compaq
Presario
CQ42
UMA
Models 150
– 199
UMA
Models 100
– 149
√ √
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
7
2 External component identification
Identifying the hardware
Components included with the computer may vary by region and model. The illustrations in this chapter identify the standard features on most computer models.
To see a list of hardware installed in the computer, follow these steps:
1.
Select Start > My Computer.
2.
In the left pane of the System Tasks window, select View system information.
3.
Select Hardware tab > Device Manager.
You can also add hardware or modify computer configurations using Device Manager.
8 Chapter 2 External component identification
Top components
TouchPad
Component
(1) TouchPad off indicator
(2)
(3)
(4)
TouchPad zone
Left TouchPad button
Right TouchPad button
Description
To switch the TouchPad zone on and off, quickly double-tap the TouchPad off indicator.
NOTE: When the TouchPad zone is active, the light is off.
Moves the pointer and selects or activates items on the screen.
Functions like the left button on an external mouse.
Functions like the right button on an external mouse.
There is an unmarked scroll zone inside the right edge of the TouchPad. To scroll up and down using the TouchPad vertical scroll zone, slide your finger up or down inside the right edge of the TouchPad.
For more information about TouchPad features, refer to” Using the TouchPad” section later in this guide.
Top components 9
Lights
Component
(1)
(2)
(3)
Caps lock light
Power light
(4) Wireless light
Description
●
On: The TouchPad is disabled.
●
Off: The TouchPad is enabled.
On: Caps lock is on.
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
●
White: An integrated wireless device, such as a wireless local area network (WLAN) device and/or a
Bluetooth® device, is on.
●
Amber: All wireless devices are off.
10 Chapter 2 External component identification
Button and speakers
Component
(1) Speakers
(2) Power
Description
●
●
●
●
When the computer is off, press the button to turn on the computer.
When the computer is on, press the button briefly to initiate Sleep.
When the computer is in the Sleep state, briefly press the button to exit Sleep.
When the computer is in Hibernation, briefly press the button to exit Hibernation.
If the computer has stopped responding and Windows® shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.
To learn more about your power settings, select Start >
Control Panel > System and Security > Power
Options.
Top components 11
Keys
Component
(1) esc key
(2) fn key
(3)
(4)
(5)
(6)
Windows logo key
Windows applications key
Navigation keys
Action keys
Description
Displays system information when pressed in combination with the fn key.
Displays system information when pressed in combination with the esc key.
Displays the Windows Start menu.
Displays a shortcut menu for items beneath the pointer.
Navigate using the Up, Down, Left and Right arrow keys.
Execute frequently used system actions.
12 Chapter 2 External component identification
Display
Component
(1)
(2)
(3)
Internal microphone
Integrated webcam (select models only)
Integrated webcam light (select models only)
Description
Records sound.
Records audio and video and captures still photographs.
On: The integrated webcam is in use.
Top components 13
Right-side components
(6)
(7)
Component
(1)
(2)
(3)
Optical drive
Optical drive light
USB port
(4) RJ-11 (modem) jack (select models only)
(5) AC light
Power connector
Security cable slot
Description
Reads and writes to optical discs.
Blinking: The optical drive is being accessed.
Connects an optional USB device.
Connects a modem cable.
●
White: The computer is connected to external power and the battery is fully charged.
●
Blinking white: The computer is in the Sleep state.
●
Amber: A battery is charging.
Connects an AC adapter.
Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but it may not prevent the computer from being mishandled or stolen.
14 Chapter 2 External component identification
Left-side components
Component
(1)
(2)
External monitor port
Vent
(3) HDMI port (select models only)
(4)
(5)
(6)
(7)
RJ-45 (network) jack
USB ports (2)
Audio-in (microphone) jack
Audio-out (headphone) jack
(8) Digital Media Slot (select models only)
(9) Drive light
Description
Connects an external VGA monitor or projector.
Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
Connects an optional video or audio device, such as a highdefinition television, or any compatible digital or audio component.
Connects a network cable.
Connects optional USB devices.
Connects an optional computer headset microphone, stereo array microphone, or monaural microphone.
Produces sound when connected to optional powered stereo speakers, headphones, earbuds, a headset, or television audio.
Supports the following optional digital card formats:
●
Memory Stick (MS)
●
Memory Stick Pro (MSP)
●
MultiMediaCard (MMC)
●
Secure Digital (SD) Memory Card
● xD-Picture Card (XD)
On: The hard drive is in use.
Left-side components 15
Bottom components
Component
(1)
(2)
(3)
(4)
Battery bay
Battery release latch
Vents (4)
Memory module compartment
Description
Holds the battery.
Releases the battery from the battery bay.
Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
Contains 2 memory module slots and, on select models, the wireless LAN (WLAN) device.
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.
Holds the hard drive.
(5) Hard drive bay
16 Chapter 2 External component identification
Wireless antennas
At least 2 antennas send and receive signals from one or more wireless devices. These antennas are not visible from the outside of the computer.
NOTE: For optimal transmission, keep the areas immediately around the antennas free from obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
Wireless antennas 17
Additional hardware components
Component
(1)
(2)
(3)
Power cord*
AC adapter
Battery*
*Power cords vary in appearance by country or region.
Description
Connects an AC adapter to an AC outlet.
Converts AC power to DC power.
Powers the computer when the computer is not plugged into external power.
WARNING!
Connecting the internal analog modem to a digital line can permanently damage the modem. Immediately disconnect the modem cable if you accidentally connect it to a digital line.
NOTE: Telephone jacks vary by country or region. To use the modem and the modem cable
(included with select models only) outside the country or region in which you purchased the computer, you must obtain a country- or region-specific modem cable adapter (included with select models or purchased separately). The modem must be connected to an analog telephone line using a 6-pin, RJ-11 modem cable (included with select models only). Jacks for digital PBX systems may resemble analog telephone jacks, but they are not compatible with the modem.
If the modem cable contains noise suppression circuitry, which prevents interference from TV and radio reception, orient the circuitry end of the cable toward the computer.
18 Chapter 2 External component identification
3 Illustrated parts catalog
Serial number location
When ordering parts or requesting information, provide the computer serial number and model number located in the battery bay of the computer.
Serial number location 19
Computer major components
Item
(1)
Description
35.6 cm (14-in), WXGA, BrightView display assembly
NOTE: See
Display assembly components on page 27
for more display assembly internal component spare part information.
●
For use with integrated microphone and webcam; Presario, matte black
20 Chapter 3 Illustrated parts catalog
Spare part number
592146-001
(7)
(8)
Item
(3)
(2)
(4)
(5)
(6)
Description
●
●
●
●
For use with integrated microphone and webcam; Presario, biscotti
For use with integrated microphone and webcam; HP, biscotti
For use with integrated microphone and webcam; HP, silver
For use with integrated microphone and webcam; HP, white
Keyboards
●
For use in Brazil
●
For use in English and French Canada
●
For use in Latin America
●
For use in South Korea
●
For use in Taiwan
●
For use in Thailand
●
For use in the United States
Top cover (includes Touchpad, bracket, button board, and cable)
●
Matte black color
●
Biscotti color
●
Silver color
●
White color
Power button board (includes cable)
Touchpad button board (includes cable)
Thermal module — fan and heat assembly (includes thermal material)
●
For use in models that use UMA graphics subsystem memory and the Intel® GL40 chipset
●
For use in models that use Universal Memory Architecture (UMA) graphics subsystem memory
●
For use in models that use Universal Memory Architecture (UMA) graphics subsystem memory
●
For use in models that use discrete graphics subsystem memory
For use in models that use discrete graphics subsystem memory
Thermal module (includes fan and heat sink) for use in models that use discrete graphics subsystem memory
For use in models that use DSC HD545V graphics subsystem memory
Speaker assembly (includes cable)
System boards (includes replacement thermal material)
●
For use in models with discrete graphics subsystem
Spare part number
597617-001
600163-001
606155-001
606156-001
600175-201
600175-121
600175-161
600175-AD1
600175-AB1
600175-281
600175-001
600181-001
600182-001
606161-001
606162-001
600188-001
604603-001
606573-001
606609-001
595832-001
595833-001
606610-001
617024–001
617029-001
600189-001
595181-001
Computer major components 21
(13)
(10)
(11)
(9)
(12)
Item Description Spare part number
For use in models with discrete graphics subsystem
For use in models with discrete graphics subsystem
●
For use in models with Unified Memory Architecture (UMA) graphics subsystem
●
For use in models with discrete graphics subsystem and HDMI card reader
●
For use in models with UMA graphics subsystem and HDMI card reader
●
For use in models with UMA graphics subsystem memory, Intel® GL40 chipset, and
HDMI card reader
For use in models with UMA graphics subsystem memory,
For use in models with DSC HD5430 MDM CR
For use in models with DSC HD5430
615577–001
615578–001
595182-001
595183-001
595184-001
605140-001
For use in models with UMA graphics subsystem memory,
For use in models with HD545V DSC
For use in models with HD545V DSC CR
For use in models with HD5430/1G DSC
For use in models with HD5430/1G DSC HDMI
Plastics Kit (see Plastics Kit on page 29
for more Plastics Kit information)
(9a) Hard drive compartment cover
(9b) Wireless/memory module mini-card compartment cover
RTC battery (includes mounting adhesive)
Memory modules
●
2048-MB, PC3-10600, 1333-MHz
●
1024-MB, PC3-10600, 1333-MHz
602745-001
598859-001
598856-001
Modem module
●
High-speed 56K modem for use in all countries and regions except Australia and New
Zealand
510100-001
●
High-speed 56K modem for use in Australia and New Zealand 510100-011
WLAN module
Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter
●
For use in Canada, the Cayman Islands, Guam, Puerto Rico, the United States, and the US Virgin Islands
580101-001
592808-001
592811-001
592810-001
592809-001
611554-001
611555-001
608823–001
608824–001
600190-001
22 Chapter 3 Illustrated parts catalog
Item Description
●
Spare part number
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentian,
Armenia, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Barbados, Belgium,
Belize, Benin, Bhutan, Bosnia and Herzegovina, Botswana, Brazil, Brunei, Bulgeria,
Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, Central African Republic,
Chad, Chile, China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus,
Czech Republic, Zaire, Denmark, Djibouti, Dominica, Dominican Republic, Ecuador,
Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France,
Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary,
Iceland, India, Indonesia, Ireland, Italy, Ivory Coast, Jamaica, Japan, Jordan,
Kazakhstan, Kenya, Kiribati, Korea-South, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Martinique, Nether Antilles, French Guiana, Aruba, British Virgin
Islands, Bermuda, Syria, Guadeloupe, Liechtenstein, Lithuania, Luxembourg,
Macedonia, Madagaascar, Malawi, Malaysia, Maldives, Mali, Malta, Marshall
Islands, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro,
Morocco, Mozambique, Namibia, Nauru, Nepal, Netherlands, New Zealand,
Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea,
Paraguay, Peru, Philippines, Poland, Portugal, Republic of Moldova, Romania, rwanda, Samoa, San Marino, Sao tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon
Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St.
Vincent and Gren, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan,
Tanzania, Thailand, Timor (East), Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, United Arab Emirates ,United Kingdom, Uruguay,
Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zambia, and Zimbabwe
580101-002
593530-001 Intel Centrino Wireless-N 1000 802.11b/g/n 1x2
Broadcom 4312G 802.11b/g WiFi Adapter (halogen free)
●
For use in Canada, Cayman Islands, Guam, Puerto Rico, the United States, and the
U.S. Virgin Islands
582562-001
Computer major components 23
(14)
Item Description
●
Spare part number
For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,
Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, The Bahamas, Bahrain,
Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and
Herzegovina, Botswana, Brazil, The British Virgin Islands, Brunei, Bulgaria, Burkina
Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile,
China, Colombia, Comoros, Congo, Costa, Rica, Croatia, Cyprus, The Czech
Republic, Denmark, Djibouti, Dominica, The Dominican Republic, East Timor ,
Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji,
Finland, France, French, Guiana, Gabon, Gambia, Georgia, Germany, Ghana,
Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa,
Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Italy, The
Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia,
Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia,
Madagascar, Malawi, The Maldives, Mali, Malta, The Marshall Islands, Martinique,
Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro,
Morocco, Mozambique, Namibia, Nauru, Nepal, The Nether Antilles, The
Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan,
Palau, Panama, Papua New Guinea, Paraguay, Peru, The Philippines, Poland,
Portugal, Puerto Rico, The Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe Saudi Arabia, Senegal, Serbia and Montenegro,
The Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, The Solomon Islands,
Somalia, South Africa, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent and
Gren, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania,
Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda,
The United Arab Emirates, The United Kingdom, Uruguay, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia and Zimbabwe
582562-002
Realtek RTL8191SE 802.11b/g/n 1x1 WiFi Adapter
SPS-WLAN BGN + BT HMC Combo Matador
SPS-WLAN 802.11 bgn Shiraz HMC
SPS-WLAN BGN (1x1) + BT HMC Combo Rashi
Processor (includes replacement thermal material)
●
Intel Arrandale Core 620M 2.26-GHz
●
Intel Arrandale 540M 2.53-GHz
●
Intel Arrandale 520M 2.4-GHz
●
Intel Arrandale i5-430M 2.26-GHz
●
Intel Arrandale i3-350M 2.26-GHz
●
Intel Arrandale i3-330M 2.13-GHz
Intel Arrandale P6000 1.86.53-GHz
593533-001
600370-001
593836-001
602992-001
587259-001
594188-001
594187-001
597624-001
597623-001
597622-001
613586–001
Intel Arrandale i5-450M 2.4GHz
Intel Arrandale i3-370M 2.4GHz
Intel Celeron 900,2.2GHz
●
Intel Core 2 Duo Mobile processor T3000, 1.8-GHz
●
Intel Core 2 Duo Mobile processor T4400 - 2.2-GHz
613585–001
613584–001
534419–001
572926-001
584296-001
24 Chapter 3 Illustrated parts catalog
Item
(21)
(19)
(20)
(16)
(17)
(18)
(15)
●
●
●
●
●
●
●
●
●
●
Description
●
●
●
●
Intel Core 2 Duo Mobile,T4300, 2.1-GHz
Intel Core 2 Duo Mobile processor T3100 - 1.9-GHz
Intel Core 2 Duo Mobile processor T3300 2.0-GHz
Intel Core 2 Duo Mobile processor T4500 2.3-GHz
Advanced Micro Devices (AMD) processor P320 DDR3-1066 Mhz
Advanced Micro Devices (AMD) processor DDR3-1066 Mhz
Advanced Micro Devices (AMD) processor P520 DDR3-1066 Mh
Advanced Micro Devices (AMD) processor DC N330 2.3GHz 1M L2 35W
Advanced Micro Devices (AMD) processor DC QC P920 1.6Ghz 2M L2 25W
Advanced Micro Devices (AMD) processor DC N530 DC 2.5GHz L2 35W
Advanced Micro Devices (AMD) processor DC P820 Tri-Core 1.8Ghz 1.5M L2 25W
Advanced Micro Devices (AMD) processor N620 DDR3-1333 Mhz
Spare part number
572929-001
572925-001
592399-001
591880–001
594165-001
594171-001
594173-001
594164-001
594170-001
594172-001
594167-001
594166-001
Advanced Micro Devices (AMD) processor DC N930 QC 2.0 GHz
Advanced Micro Devices (AMD) processor DC N830 Tri-core 2.1Ghz 1.5M L2 35W
594169-001
594168-001
USB board (includes cable) 600631-001
Modem (RJ-11) cable (includes RJ-11 connector with modem cable)
Power connector cable (includes power connector and cable)
Base enclosure (with modem cable and ODD cable)
●
For use with HDMI card reader and without modem module, biscotti
●
For use without HDMI card reader and with modem module, biscotti
●
For use with HDMI card reader and without modem module, silver
●
For use with HDMI card reader and without modem, white
●
For use with HDMI card reader without modem, matte black
●
For use without HDMI card reader and with modem module, matte black
Bluetooth module
Bluetooth module cable (illustrated with Bluetooth module)
Battery
●
6-cell 47-WH (2.2-Ah) LI-ion
●
6-cell 55-WH (2.55-Ah) LI-ion
Hard drive (include hard drive bracket)
●
640-GB 5400 RPM
●
500-GB 7200 RPM
610791-001
600630-001
600177-001
600178-001
608912-001
608913-001
600179-001
600180-001
537921-001
602822-001
593553-001
593554-001
615808-001
600170-001
Computer major components 25
(23)
(24)
Item
(22)
Description
●
●
●
320-GB 7200 RPM
250-GB 7200 RPM
160-GB 7200 RPM
Hard drive cable/adapter (included with the cable kit; see
Mass storage devices on page 30 )
Optical drive cable (included in the cable kit)
Optical drives (12.7 mm, SATA, fixed)
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, matte black
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, biscotti
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, silver
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, white
●
DVD±RW SuperMulti DL Drive with LightScribe, matte black
●
DVD±RW SuperMulti DL Drive with LightScribe, biscotti
●
DVD±RW SuperMulti DL Drive with LightScribe, silver
●
DVD±RW SuperMulti DL Drive with LightScribe, white
Spare part number
600169-001
575598-001
600167-001
610791–001
610791-001
600173-001
600174-001
608121-001
608122-001
600171-001
600172-001
608119-001
608120-001
26 Chapter 3 Illustrated parts catalog
Display assembly components
Item
(1)
(2)
(3)
Description Spare part number
Display bezel
●
HP, for use with microphone and webcam
●
Presario, for use with microphone and webcam
592147-001
592148-001
35.6 cm (14-in) high definition, Brightview, display panel (includes display panel cable) 592144-001
Display hinge cover
Display bracket (with hinges)
592150-001
600627-001
Display cable kit 592151-001
Display assembly components 27
Item
(7)
(6)
Description
Display cable (shown with display panel)
(4) Webcam cable
(5) Antennas and cables
Display back cover
●
Presario, matte black
●
Presario, biscotti
●
HP, biscotti
●
HP, silver
●
HP, white
Webcam module
Display screw kit (not illustrated; includes screws and screw covers)
Display rubber display kit (not illustrated)
Spare part number
592149-001
600164-001
600165-001
606157-001
606158-001
600166-001
592152-001
595198-001
28 Chapter 3 Illustrated parts catalog
Plastics Kit
Item Description
(1)
(2)
Plastics kit
Hard drive bay cover (includes captive screws)
Wireless/memory module mini-card compartment cover (includes captive screw)
Spare part number
600190-001
Plastics Kit 29
Mass storage devices
(2)
(1)
Item Description
Hard drive (include hard drive bracket)
●
640–GB 5400 RPM
●
500-GB 7200 RPM
●
320-GB 7200 RPM
●
250-GB 7200 RPM
●
160-GB 7200 RPM
Hard drive hardware kit (contains screws, hard drive bracket, not illustrated)
Hard drive cable/adapter (included in the cable kit)
Optical drives (12.7 mm, SATA, fixed)
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, matte black
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, biscotti
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, silver
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, white
●
DVD±RW SuperMulti DL Drive with LightScribe, matte black
●
DVD±RW SuperMulti DL Drive with LightScribe, biscotti
●
DVD±RW SuperMulti DL Drive with LightScribe, silver
●
DVD±RW SuperMulti DL Drive with LightScribe, white
Spare part number
615808-001
600170-001
600169-001
575598-001
600167-001
600191-001
610791–001
600173-001
600174-001
608121-001
608122-001
600171-001
600172-001
608119-001
608120-001
30 Chapter 3 Illustrated parts catalog
Miscellaneous parts
Description
AC adapters
●
90-W Smart AC adapter with power factor correction (PFC)
●
90-W AC adapter with power factor correction (PFC)
●
65-W AC Smart, slim, AC adapter
●
65-W Smart power adapter with power factor correction (PFC) for use in India
Power cord, AC, 3 wire, black, 1.83-m
●
For use in Argentina
●
For use in Australia
●
For use in Brazil
●
For use in India
●
For use in Italy
●
For use in North America
●
For use in South Korea
●
For use in Taiwan
●
For use in Thailand
●
For use in the People's Republic of China
●
For use in the United Kingdom and Singapore
Rubber kit
Screw kit
●
Phillips M2.0x3.0 screw
●
Phillips M2.5x3.0 screw
●
Phillips M2.5x4.0 screw
●
Phillips M2.5x5.0 screw
●
Phillips M2.5x6.5 screw
Spare part number
613152-001
613160-001
613153-001
613161-001
490371-D01
490371-011
490371-202
490371-D61
490371-061
490371-001
490371-AD1
490371-AB1
490371-201
490371-AA1
490371-031
600184-001
595202-001
Miscellaneous parts 31
Sequential part number listing
Spare part number
Description
490371-001
490371-011
490371-031
490371-061
490371-201
490371-202
Power cord, AC, 3-pin, black, 1.83-m, for use in North America
Power cord, AC, 3-pin, black, 1.83-m, for use in Australia
Power cord, AC, 3-pin, black, 1.83-m, for use in the United Kingdom and Singapore
Power cord, AC, 3-pin, black, 1.83-m, for use in Italy
Power cord, AC, 3-pin, black, 1.83-m, for use in Thailand
Power cord, AC, 3-pin, black, 1.83-m, for use in Brazil
490371-AA1
490371-AB1
490371-AD1
490371-D01
Power cord, AC, 3-pin, black,1.83-m, for use in the People's Republic of China
Power cord, AC, 3-pin, black,1.83-m, for use in Taiwan
Power cord, AC, 3-pin, black,1.83-m, for use in South Korea
Power cord, AC, 3-pin, black,1.83-m, for use in Argentina
490371-D61
510100-001
Power cord, AC, 3-pin, black,1.83-m, for use in India
Modem module, high-speed 56K modem for use in all countries and regions except Australia and New
Zealand
510100-011 Modem module, high-speed 56K modem for use in Australia and New Zealand
534419–001 Intel Celeron 900,2.2GHz
537921-001 Bluetooth module without cable
572925-001
572926-001
572929-001
575598-001
580101-001
Processor, Intel Core 2 Duo Mobile processor T3100 - 1.9-GHz
Processor, Intel Core 2 Duo Mobile processor T3000, 1.8-GHz
Processor, Intel Core 2 Duo Mobile,T4300, 2.1-GHz
Hard disk drive, 250-GB 7200 RPM
Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter for use in Canada, the Cayman Islands, Guam, Puerto
Rico, the United States, and the US Virgin Islands
32 Chapter 3 Illustrated parts catalog
Spare part number
Description
580101-002
582562-001
582562-002
Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter for use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentina, Armenia, Australia, Austria, Azerbaijan, Bahamas, Bahrain,
Barbados, Belgium, Belize, Benin, Bhutan, Bosnia and Herzegovina, Botswana, Brazil, Brunei, Bulgaria,
Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, Central African Republic, Chad, Chile, China,
Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, Czech Republic, Zaire, Denmark, Djibouti,
Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia,
Fiji, Finland, France, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Indonesia, Ireland, Italy, Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Korea-South,
Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Martinique, Nether Antilles, French Guiana,
Aruba, British Virgin Islands, Bermuda, Syria, Guadeloupe, Liechtenstein, Lithuania, Luxembourg,
Macedonia, Madagascar, Malawi, Malaysia, Maldives, Mali, Malta, Marshall Islands, Mauritania,
Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,
Nepal, Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua
New Guinea, Paraguay, Peru, Philippines, Poland, Portugal, Republic of Moldova, Romania, Rwanda,
Samoa, San Marino, Sao tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St.
Kitts and Nevis, St. Lucia, St. Vincent and Gren, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Thailand, Timor (East), Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, United Arab Emirates, United Kingdom, Uruguay, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zambia, and Zimbabwe
Broadcom 4312G 802.11b/g WiFi adapter for use in Canada, Cayman Islands, Guam, Puerto Rico, the
United States, and the U.S. Virgin Islands
Broadcom 4312G 802.11b/g WiFi adapter for use in Afghanistan, Albania, Algeria, Andorra, Angola,
Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, The Bahamas, Bahrain,
Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina,
Botswana, Brazil, The British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, China, Colombia, Comoros, Congo, Costa, Rica, Croatia,
Cyprus, The Czech Republic, Denmark, Djibouti, Dominica, The Dominican Republic, East Timor , Ecuador,
Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French, Guiana,
Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Italy, The
Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, The Maldives, Mali, Malta,
The Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,
Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, The Nether Antilles, The Netherlands, New
Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea,
Paraguay, Peru, The Philippines, Poland, Portugal, Puerto Rico, The Republic of Moldova, Romania, Russia,
Rwanda, Samoa, San Marino, Sao Tome and Principe Saudi Arabia, Senegal, Serbia and Montenegro, The
Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, The Solomon Islands, Somalia, South Africa, Spain,
Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent and Gren, Suriname, Swaziland, Sweden, Switzerland,
Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu,
Uganda, The United Arab Emirates, The United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela,
Vietnam, Yemen, Zaire, Zambia and Zimbabwe
Processor, Intel Core 2 Duo Mobile processor T4400 - 2.2-GHz 584296-001
587259-001 Processor, Intel Arrandale Core 620M 2.26-GHz
591880–001 Processor, Intel Core 2 Duo Mobile processor T4500 2.3-GHz
592144-001 Display panel, 35.6 cm (14-in) high definition, Brightview
592146-001 35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam;
Presario, matte black
Sequential part number listing 33
Spare part number
593553-001
593554-001
593836-001
594164-001
594165-001
594166-001
594187-001
594167-001
594188-001
594168-001
595181-001
594169-001
595182-001
592147-001
592148-001
592149-001
592150-001
592151-001
592152-001
592399-001
592808-001
592809-001
592810-001
592811-001
593530-001
593533-001
Description
594170-001
595183-001
594171-001
595184-001
Display bezel, HP, for use with microphone and webcam
Display bezel, Presario, for use with microphone and webcam
Display back cover, Presario, matte black
Display hinge cover
Display cable kit
Display screw kit (not illustrated)
Processor, Intel Core 2 Duo Mobile processor T3300 2.0-GHz
For use in system boards with UMA
For use in system boards with UMA MDM CR
For use in system boards with HD5430 DSC
For use in system boards with HD5430 DSC MDM CR
Intel Centrino Wireless-N 1000 802.11b/g/n 1x2
Realtek RTL8191SE 802.11b/g/n 1x1 WiFi Adapter
Battery, 6-cell 47-WH (2.2-Ah) LI-ion
Battery, 6-cell 55-WH (2.55Ah) LI-ion
SPS-WLAN 802.11 bgn Shiraz HMC
Processor Advanced Micro Devices (AMD) DC N330 2.3GHz 1M L2 35W
Processor Advanced Micro Devices (AMD) P320 DDR3-1066 Mhz
ProcessorAdvanced Micro Devices (AMD) N620 DDR3-1333 Mhz
Processor, Intel Arrandale 520M 2.4-GHz
Processor Advanced Micro Devices (AMD) DC P820 Tri-Core 1.8Ghz 1.5M L2 25W
Processor, Intel Arrandale 540M 2.53-GHz
Processor Advanced Micro Devices (AMD) DC N830 Tri-core 2.1Ghz 1.5M L2 35W
System board (includes replacement thermal material) for use in models with discrete graphics subsystem
Processor Advanced Micro Devices (AMD) DC N930 QC 2.0 GHz
System board (includes replacement thermal material) for use in models with Unified Memory Architecture
(UMA) graphics subsystem
Processor Advanced Micro Devices (AMD) DC QC P920 1.6Ghz 2M L2 25W
System board (includes replacement thermal material) for use in models with discrete graphics subsystem and
HDMI card reader
Processor Advanced Micro Devices (AMD) N120 DDR3-1066 Mhz
System board (includes replacement thermal material) for use in models with UMA graphics subsystem and
HDMI card reader
34 Chapter 3 Illustrated parts catalog
Spare part number
Description
594172-001
595198-001
594173-001
595202-001
595832-001
595833-001
597617-001
Processor Advanced Micro Devices (AMD) DC N530 DC 2.5GHz L2 35W
Display rubber kit
Processor Advanced Micro Devices (AMD) P520 DDR3-1066 Mhz
Screw kit
Thermal module (includes fan and heat sink) for use in models that use Universal Memory Architecture (UMA) graphics subsystem memory
Thermal module (includes fan and heat sink) for use in models that use discrete graphics subsystem memory
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam;
Presario, biscotti
Processor, Intel Arrandale i3-330M 2.13-GHz
Processor, Intel Arrandale i3-350M 2.26-GHz
597622-001
597623-001
597624-001
598856-001
598859-001
600163-001
Processor, Intel Arrandale i5-430M 2.26-GHz
Memory module, 2048-MB, PC3 10600, 1333-MHz
Memory module, 1024-MB, PC3 10600, 1333-MHz
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam; HP, biscotti
Display back cover, Presario, biscotti
Display back cover, HP, biscotti
600164-001
600165-001
600166-001
600167-001
600169-001
600170-001
600171-001
600172-001
600173-001
600174-001
600175-001
600175-121
600175-161
600175-201
Webcam module
Hard disk drive, 160-GB 7200 RPM
Hard disk drive, 320-GB 7200 RPM
Hard disk drive, 500-GB 7200 RPM
Optical drive, DVD±RW SuperMulti DL Drive with LightScribe, matte black
Optical drive, DVD±RW SuperMulti DL Drive with LightScribe, biscotti
Optical drive, Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, matte black
Optical drive, Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, biscotti
Keyboard for use in the United States
Keyboard for use in English and French Canada
Keyboard for use in Latin America
Keyboard for use in Brazil
600175-281
600175-AB1
Keyboard for use in Thailand
Keyboard for use in Taiwan
600175-AD1 Keyboard for use in South Korea
Sequential part number listing 35
Spare part number
600177-001
Description
600178-001
600179-001
600180-001
600181-001
600182-001
600184-001
600188-001
600189-001
600190-001
600191-001
600370-001
600627-001
600630-001
600631-001
602745-001
602822-001
602992-001
604603-001
605140-001
606155-001
606156-001
606157-001
606158-001
606161-001
606162-001
606573-001
Base enclosure (with modem cable and ODD cable) for use with HDMI card reader and without modem module, biscotti
Base enclosure (with modem cable and ODD cable) for use without HDMI card reader and with modem module, biscotti
Base enclosure (with modem cable and ODD cable) for use with HDMI card reader without modem, matte black
Base enclosure (with modem cable and ODD cable) for use without HDMI card reader and with modem module, matte black
Top cover (includes Touchpad and bracket, button board, and cable), matte black color
Top cover (includes Touchpad and bracket, button board, and cable) , bicotti color
Rubber kit
Power button board (includes cable)
Speaker assembly (includes cable)
Plastics kit (with hard drive compartment cover and memory/wireless compartment cover)
Hard drive hardware kit (screws and hard drive bracket)
SPS-WLAN BGN + BT HMC Combo Matador
Display bracket (with hinges)
Power connector with cable
USB board with cable
RTC battery
Bluetooth cable
SPS-WLAN BGN (1x1) + BT HMC Combo Rashi
Touchpad board (includes cable)
System board (includes replacement thermal material) for use in models with UMA graphics subsystem memory, Intel® GL40 chipset, and HDMI card reader
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam; HP, silver
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam; HP, white
Display back cover, HP, silver
Display back cover, HP, white
Top cover (includes Touchpad and bracket, button board, and cable) , silver color
Top cover (includes Touchpad and bracket, button board, and cable), white color
Thermal module (includes fan and heat sink) for use in models that use UMA graphics subsystem memory and the Intel® GL40 chipset
36 Chapter 3 Illustrated parts catalog
Spare part number
Description
606609-001
606610-001
608119-001
608120-001
608121-001
Thermal module (includes fan and heat sink) for use in models that use UMA graphics subsystem memory
Thermal module (includes fan and heat sink) for use in models that use discrete graphics subsystem memory
Optical drive, DVD±RW SuperMulti DL Drive with LightScribe, silver
Optical drive, DVD±RW SuperMulti DL Drive with LightScribe, white
Optical drive, Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, silver
608122-001 Optical drive, Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, white
608823–001 For use in models with discrete graphics subsystem HM55 HD5430/1G
608824–001 For use in models with discrete graphics subsystem HDMI HD5430/1G
608912-001 Base enclosure (with modem cable and ODD cable) for use with HDMI card reader and without modem module, silver
608913-001 Base enclosure (with modem cable and ODD cable) for use with HDMI card reader and without modem, white
610791-001 Optical drive cable (included in the cable kit)
610791–001 Modem (RJ–11 cable with modem connector included in the cable kit)
610791–001 Hard drive cable/adaptor (included in the cable kit)
613152-001 65-W Smart AC adapter
611554-001
611555-001
613153-001
613160-001
For use in systems boards with HD545V DSC
For use in system boards with HD545V DSC CR
90-W AC adapter with power factor correction (PFC)
90-W AC adapter RC/V EM, with power factor correction (PFC)
613161-001 65-W AC adapter with power factor correction (PFC) for use in India
613584–001 Intel Arrandale i3-370M 2.4GHz
613585–001 Intel Arrandale i5-450M 2.4GHz
613586–001 Intel Arrandale P6000 1.86.53-GHz
615577–001 For use in models with discrete graphics subsystem HM55 HD545V
615578–001 For use in models with discrete graphics subsystem HM55 HDMI HD545V
615808-001 Hard disk drive, 640-GB 5400 RPM
617024–001 Thermal module (includes fan and heat sink) for use in models that use DSC HD545V subsystem memory
617029-001 Thermal module (includes fan and heat sink) for use in models that use DSC HD545v graphics subsystem memory
Sequential part number listing 37
4 Removal and replacement procedures
Preliminary replacement requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
●
Flat-bladed screwdriver
●
Magnetic screwdriver
●
Phillips P0 and P1 screwdrivers
Service considerations
The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all accompanying screws) away from the work area to prevent damage.
Plastic parts
Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.
38 Chapter 4 Removal and replacement procedures
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”
Preliminary replacement requirements 39
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.
CAUTION: To prevent damage to the computer when you are removing or installing internal components, observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Use nonmagnetic tools.
Before touching an electronic component, discharge static electricity by using the guidelines described in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by different activities.
CAUTION: A product can be degraded by as little as 700 V.
Event
Walking across carpet
Walking across vinyl floor
Motions of bench worker
Removing DIPS from plastic tube
Removing DIPS from vinyl tray
Removing DIPS from Styrofoam
Removing bubble pack from PCB
Packing PCBs in foam-lined box
Typical electrostatic voltage levels
Relative humidity
10%
35,000 V
12,000 V
6,000 V
2,000 V
11,500 V
14,500 V
26,500 V
21,000 V
40%
15,000 V
5,000 V
800 V
700 V
4,000 V
5,000 V
20,000 V
11,000 V
55%
7,500 V
3,000 V
400 V
400 V
2,000 V
3,500 V
7,000 V
5,000 V
40 Chapter 4 Removal and replacement procedures
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
●
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
●
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
●
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
●
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when touching a component or assembly.
●
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.
●
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
●
Cover the workstation with approved static-shielding material.
● Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment.
●
Use conductive field service tools, such as cutters, screwdrivers, and vacuums.
●
When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe materials.
●
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and
Styrofoam.
●
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these items only at static-free workstations.
● Avoid contact with pins, leads, or circuitry.
● Turn off power and input signals before inserting or removing connectors or test equipment.
Preliminary replacement requirements 41
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.
●
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
●
Antistatic tape
● Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
● Conductive tabletop workstations with ground cords of one megohm resistance
● Static-dissipative tables or floor mats with hard ties to the ground
●
Field service kits
● Static awareness labels
● Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
● Metal tote boxes
●
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
Material
Antistatic plastic
Carbon-loaded plastic
Metallized laminate
Use
Bags
Floor mats
Floor mats
Voltage protection level
1,500 V
7,500 V
5,000 V
42 Chapter 4 Removal and replacement procedures
Component replacement procedures
This chapter provides removal and replacement procedures.
There are as many as 75 screws, in 12 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw size and location during removal and replacement.
Serial number
The serial number label, located in the battery bay of the computer, provides important information that you may need when contacting technical support.
(1) Product name
(2) Serial number
(3) Product number
(4) Warranty period
(5) Model description (select models)
Component replacement procedures 43
Computer feet
Description
Rubber Feet Kit
Spare part number
600184-001
The computer feet are adhesive-backed rubber pads. The feet attach to the base enclosure in the locations illustrated below.
44 Chapter 4 Removal and replacement procedures
Battery
Description
6-cell 55-WH (2.55Ah) LI-ion
6-cell 47-WH (2.2-Ah) LI-ion
Spare part number
593554-001
593553-001
Before disassembling the computer, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
Remove the battery:
1.
Turn the computer upside down on a flat surface.
2.
Slide the battery release latch (1) to release the battery.
3.
Pivot the battery (2) upward and lift it out of the computer (3).
To insert the battery, insert the rear edge of the battery into the battery bay and pivot the front edge downward until the battery is seated. The battery release latch automatically locks the battery into place.
Component replacement procedures 45
Hard drive
NOTE: All hard drive spare part kits include a hard drive bracket.
Description
640-GB 5400 RPM
500-GB 7200 RPM
320-GB 7200 RPM
250-GB 7200 RPM
160-GB 7200 RPM
Hard drive hardware kit (includes screws and hard drive bracket)
Hard drive cable/adaptor (included in the cable kit)
Spare part number
615808-001
600170-001
600169-001
575598-001
600167-001
600191-001
610791–001
Before removing the hard drive, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Remove the hard drive:
1.
Position the computer with the front toward you.
2.
Remove the two Phillips PM2.5×5.0 screws (1) that secure the hard drive cover to the computer.
46 Chapter 4 Removal and replacement procedures
3.
Lift the left side of the hard drive cover (2), swing it forward, and remove the cover (3). The hard drive cover is included in the plastics kit, spare part number 600190-001.
4.
Remove the three Phillips PM2.5×4.0 screws (1) that secure the hard drive to the computer.
5.
Use the hard drive bracket to lift the hard drive out (2) of the hard drive compartment.
Component replacement procedures 47
6.
Disconnect the hard drive cable from the system board.
7.
Remove the hard drive.
8.
If it is necessary to replace the hard drive bracket, remove the four Phillips PM3.0×3.0 screws (1) that secure the hard drive bracket to the hard drive
9.
Lift the bracket (2) straight up.
Reverse this procedure to install the hard drive.
48 Chapter 4 Removal and replacement procedures
Optical drive
Description
DVD±RW SuperMulti DL Drive with LightScribe, matte black
DVD±RW SuperMulti DL Drive with LightScribe, biscotti
DVD±RW SuperMulti DL Drive with LightScribe, silver
DVD±RW SuperMulti DL Drive with LightScribe, white
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, matte black
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, biscotti
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, silver
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, white
Spare part number
600171-001
600172-001
608119-001
608120-001
600173-001
600174-001
608121-001
608122-001
Before removing the optical drive, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45 ).
Remove the optical drive:
1.
Position the computer upside down with the front toward you.
2.
Remove the Phillips PM2.5x5.0 screw (1) that secures the optical drive to the computer.
3.
Insert a flat-bladed screwdriver or similar tool into the access point through the hard drive compartment (2), and then push the drive bracket to the left to release the optical drive.
Component replacement procedures 49
4.
Remove the optical drive (3).
5.
If it is necessary to replace the optical drive bracket, position the optical drive with the optical drive bracket toward you.
6.
Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical drive.
7.
Remove the optical drive bracket (2).
Reverse the above procedure to reassemble and install the optical drive.
50 Chapter 4 Removal and replacement procedures
WLAN module
Description Spare part number
Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter for use in Canada, the Cayman Islands, Guam,
Puerto Rico, the United States, and the US Virgin Islands
580101-001
Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter for use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentian, Armenia, Australia, Austria, Azerbaijan, Bahamas, Bahrain,
Barbados, Belgium, Belize, Benin, Bhutan, Bosnia and Herzegovina, Botswana, Brazil, Brunei, Bulgeria,
Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, Central African Republic, Chad, Chile,
China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, Czech Republic, Zaire, Denmark,
Djibouti, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia,
Ethiopia, Fiji, Finland, France, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece,
Grenada, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland,
India, Indonesia, Ireland, Italy, Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Korea-
South, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Martinique, Nether Antilles, French
Guiana, Aruba, British Virgin Islands, Bermuda, Syria, Guadeloupe, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagaascar, Malawi, Malaysia, Maldives, Mali, Malta, Marshall Islands,
Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique,
Namibia, Nauru, Nepal, Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman,
Palau, Panama, Papua New Guinea, Paraguay, Peru, Philippines, Poland, Portugal, Republic of
Moldova, Romania, rwanda, Samoa, San Marino, Sao tome and Principe, Saudi Arabia, Senegal,
Serbia and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands,
Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and Gren, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Timor (East), Togo, Tonga,
Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, United Arab Emirates ,United
Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zambia, and Zimbabwe
580101-002
Intel Centrino Wireless-N 1000 802.11b/g/n 1x2 593530-001
Broadcom 4312G 802.11b/g WiFi Adapter for use in Canada, Cayman Islands, Guam, Puerto Rico, the United States, and the U.S. Virgin Islands
582562-001
Broadcom 4312G 802.11b/g WiFi Adapter for use in Afghanistan, Albania, Algeria, Andorra, Angola,
Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, The Bahamas,
Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and
Herzegovina, Botswana, Brazil, The British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi,
Cameroon, Cape Verde, the Central African Republic, Chad, Chile, China, Colombia, Comoros, Congo,
Costa, Rica, Croatia, Cyprus, The Czech Republic, Denmark, Djibouti, Dominica, The Dominican
Republic, East Timor , Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji,
Finland, France, French, Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece,
Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong,
Hungary, Iceland, India, Ireland, Italy, The Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia,
Madagascar, Malawi, The Maldives, Mali, Malta, The Marshall Islands, Martinique, Mauritania,
Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia,
Nauru, Nepal, The Nether Antilles, The Netherlands, New Zealand, Nicaragua, Niger, Nigeria,
Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, The Philippines, Poland,
Portugal, Puerto Rico, The Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao
Tome and Principe Saudi Arabia, Senegal, Serbia and Montenegro, The Seychelles, Sierra Leone,
Singapore, Slovakia, Slovenia, The Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts &
Nevis, St. Lucia, St. Vincent and Gren, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan,
Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, The
United Arab Emirates, The United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia and Zimbabwe
582562-002
Realtek RTL8191SE 802.11b/g/n 1x1 WiFi Adapter 593533-001
Component replacement procedures 51
Description
SPS-WLAN BGN + BT HMC Combo Matador
SPS-WLAN 802.11 bgn Shiraz HMC
SPS-WLAN BGN (1x1) + BT HMC Combo Rashi
Spare part number
600370-001
593836-001
602992-001
Before removing the WLAN module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see
5.
Remove the hard drive cover (see
).
Remove the WLAN module:
1.
Turn the computer upside down with the front toward you.
2.
Loosen the 2 Phillips PM2.5×5.0 captive screws (1) that secure the mini-card compartment cover.
3.
Lift the cover off the computer (2). The mini-card compartment cover is included in the plastics kit, spare part number 600190-001.
4.
Disconnect the two WLAN antenna cables (1) from the WLAN module.
5.
Remove the Phillips PM2.0×3.0 screw (2) that secures the WLAN module to the computer. (The edge of the module opposite the slot rises away from the computer.)
52 Chapter 4 Removal and replacement procedures
6.
Remove the WLAN module (3) by pulling it away from the slot at an angle.
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through
Help and Support.
NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion into the
WLAN module slot.
Reverse this procedure to install a WLAN module.
Component replacement procedures 53
Memory module
Description
2048-MB, PC3 10600, 1333-MHz
1024-MB, PC3 10600, 1333-MHz
Spare part number
598856-001
598859-001
Before removing the memory module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Remove the memory module:
1.
Turn the computer upside down with the front toward you.
2.
Loosen the two Phillips PM2.5×5.0 captive screws that secure the mini-card compartment cover to the computer.
54 Chapter 4 Removal and replacement procedures
3.
Lift cover off the computer. The mini-card compartment cover is included in the plastics kit, spare part number 600190-001.
NOTE: Small tabs hold the cover in place. Firmly pull up on the cover to release the tabs.
4.
Spread the retaining tabs (1) on each side of the memory module slot to release the memory module. (The edge of the module opposite the slot rises away from the computer.)
5.
Remove the module (2) by pulling it away from the slot at an angle.
NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the memory module slot.
Reverse this procedure to install a memory module.
Component replacement procedures 55
Keyboard
Description
Keyboard for use in Brazil
Keyboard for use in English and French Canada
Keyboard for use in for use in Latin America
Keyboard for use in South Korea
Keyboard for use in Taiwan
Keyboard for use in Thailand
Keyboard for use in the United States
Spare part number
600175-201
600175-121
600175-161
600175-AD1
600175-AB1
600175-281
600175-001
Before removing the keyboard, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see
5.
Remove the hard drive (see Hard drive on page 46 )
6.
Remove the mini-card compartment cover (see
).
Remove the keyboard:
1.
Turn the computer upside down with the front toward you.
2.
Remove the six Phillips PM2.5×6.5 screws that secure the keyboard to the computer.
56 Chapter 4 Removal and replacement procedures
3.
Turn the computer display-side up with the front toward you.
4.
Open the computer as far as possible.
5.
Release the top edge of the keyboard by lifting it up to disengage the keyboard from the tabs on the top cover (1).
6.
Slide the top edge of the keyboard back (2) until it rests against the display.
7.
Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached and disconnect the keyboard cable (2) from the system board.
8.
Remove the keyboard.
Reverse this procedure to install the keyboard.
Component replacement procedures 57
Top cover
Description
Top cover (includes Touchpad and bracket, button board, and cable), matte black
Top cover, bicotti
Top cover, silver
Top cover, white
Spare part number
600181-001
600182-001
606161-001
606162-001
Before removing the switch cover, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the following components: a.
Battery (see Battery on page 45 ).
b.
Optical drive (see
c.
Keyboard (see
Remove the switch cover:
1.
Turn the computer upside down with the front toward you.
2.
Remove the four screw covers (1) at the front edge of the computer.
58 Chapter 4 Removal and replacement procedures
3.
Remove the five Phillips PM2.5×6.5 screws (2), the two Phillips PM2.5x4.0 screws (3), and the four Phillips PM2.5x3.0 screws (4) that secure the top cover to the base enclosure.
4.
Turn the computer display-side up with the front toward you.
5.
Open the computer as far as possible.
6.
Release the ZIF connector to which the touchpad (1) is connected and disconnect the cable from the system board.
7.
Release the ZIF connector to which the touchpad button board cable (2) is connected and disconnect the cable from the system board.
8.
Disconnect the speaker cable (3) from the system board.
Component replacement procedures 59
9.
Release the ZIF connector to which the power button board cable (4) is connector and disconnect the cable from the system board.
10.
Remove the Phillips PM2.5×6.5 screw (1) from the top cover, disengage the rear edge of the top cover (2) from the base enclosure, and then remove the cover from the computer (3).
Reverse this procedure to install the switch cover.
60 Chapter 4 Removal and replacement procedures
Speaker assembly
Description
Speaker assembly
Spare part number
600189-001
Before removing the speaker assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45 ).
5.
Remove the following components: a.
Optical drive (see Optical drive on page 49
) b.
Keyboard (see
c.
Top cover (see Top cover on page 58 )
Remove the speaker assembly:
1.
Turn the top cover upside down.
2.
Remove the two Phillips PM2.5×4.0 screws (1) that secure the speaker assembly to the computer.
3.
Lift the speaker assembly (2) straight up to remove it from the top cover.
Reverse this procedure to install the speaker assembly.
Component replacement procedures 61
Power button board
Description
Power button board (with cable)
Spare part number
600188-001
Before removing the power button board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see
5.
Remove the following components: a.
Hard drive (see
b.
Optical drive (see
c.
Keyboard (see
d.
Top cover (see
Remove the power button board:
1.
Turn the top cover upside down with the rear edge toward you.
2.
Remove the Phillips PM2.5×3.0 screw (1) that secures the power button board to the top cover.
3.
Remove the power button board (2).
62 Chapter 4 Removal and replacement procedures
TouchPad button board
Description
TouchPad button board
Spare part number
604603-001
Before removing the TouchPad button board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45 ).
5.
Remove the following components: a.
Hard drive (see Hard drive on page 46 )
b.
Optical drive (see Optical drive on page 49
) c.
Keyboard (see
d.
Top cover (see Top cover on page 58 )
Remove the TouchPad button board:
1.
Turn the top cover upside down with the front toward you.
2.
Remove the two Phillips PM2.5×3.0 screws (1) that secure the TouchPad board to the top cover.
3.
Remove the TouchPad button board (2) from the TouchPad bracket.
Component replacement procedures 63
Reverse the above procedure to reassemble and install the TouchPad button board.
64 Chapter 4 Removal and replacement procedures
Modem module
Description
High-speed 56K modem for use in all countries and regions except Australia and New Zealand
High-speed 56K modem for use in Australia and New Zealand
Modem module cable with RJ-11 connector (included in the cable kit)
Spare part number
510100-001
510100-011
610791-001
Before removing the modem module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45 ).
5.
Remove the following components: a.
Hard drive (see Hard drive on page 46 )
b.
Optical drive (see Optical drive on page 49
) c.
Keyboard (see
d.
Top cover (see Top cover on page 58 )
Remove the modem module:
1.
Turn the computer upright with the front toward you.
2.
Remove the two Phillips PM2.0×3.0 screws (1) that secure the modem module to the system board.
3.
Disconnect the modem module cable (2) from the modem module.
Component replacement procedures 65
4.
Lift up on the front of the modem module (3) to disconnect it from the system board.
5.
Remove the modem module.
Reverse the above procedure to install the modem module, and be sure that the connector on the bottom of the modem module connects firmly into the system board.
66 Chapter 4 Removal and replacement procedures
Bluetooth module
Description
Bluetooth module
Bluetooth module cable
Spare part number
537921-001
602822-001
Before removing the Bluetooth module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45 ).
5.
Remove the following components: a.
Hard drive (see Hard drive on page 46 )
b.
Optical drive (see Optical drive on page 49
) c.
Keyboard (see
d.
Top cover (see Top cover on page 58 )
Remove the Bluetooth module:
1.
Position the computer upright with the front toward you.
2.
Disconnect the Bluetooth module cable (1) from the system board.
3.
Remove the Bluetooth module and cable from the clips in the base enclosure (2).
4.
Remove the Bluetooth module (3) from the base enclosure.
Component replacement procedures 67
Reverse the above procedure to install the Bluetooth module.
68 Chapter 4 Removal and replacement procedures
USB board
Description
USB board (includes cable)
Spare part number
600631-001
Before removing the USB board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45 ).
5.
Remove the following components: a.
Hard drive (see Hard drive on page 46 )
b.
Optical drive (see Optical drive on page 49
) c.
Keyboard (see
d.
Top cover (see Top cover on page 58 )
Remove the USB board:
1.
Position the computer upright with the right side toward you.
2.
Disconnect the USB board cable (1) from the system board.
3.
Remove the Phillips PM2.5×3.0 screw (2) that secures the USB board to the base enclosure.
4.
Lift the USB board (3) straight up to remove it from the computer.
Component replacement procedures 69
Reverse this procedure to install the USB board.
70 Chapter 4 Removal and replacement procedures
Power connector cable
Description
Power connector cable (includes cable and connector)
Spare part number
600630-001
Before removing the power connector cable, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45 ).
5.
Remove the following components: a.
Hard drive (see Hard drive on page 46 )
b.
Optical drive (see Optical drive on page 49
) c.
Keyboard (see
d.
Top cover (see Top cover on page 58 ))
Remove the power connector cable:
1.
Turn the computer upright with the right side toward you.
2.
Disconnect the power connector cable (1) from the system board.
3.
Lift the power connector (2) from the clips built into the base enclosure.
4.
Remove the cable from the base enclosure.
Component replacement procedures 71
Reverse this procedure to install the power connector cable.
72 Chapter 4 Removal and replacement procedures
Display assembly
Description
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam; Presario, matte black
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam; Presario, biscotti
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam; HP, biscotti
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam; HP, silver
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam; HP, white
Spare part number
592146-001
597617-001
600163-001
606155-001
606156-001
Before removing the display assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45 ).
5.
Disconnect the wireless antenna cables from the WLAN module (see WLAN module on page 51
).
6.
Remove the following components: a.
Keyboard (see
b.
Optical drive (see Optical drive on page 49
) c.
Top cover (see Top cover on page 58 )
Remove the display assembly:
1.
Turn the computer display-side up, with the front toward you.
2.
Open the display as far as possible.
3.
Remove the wireless antenna cables (1) from the hole and clips built into the base enclosure.
4.
Disconnect the display panel cable (2) from the system board.
5.
Disconnect the microphone cable (3) from the system board.
Component replacement procedures 73
6.
Disconnect the webcam cable (2) from the system board.
CAUTION: Support the display assembly when removing the display screws in the following steps. Failure to support the display assembly can result in damage to the assembly and other components.
7.
Remove the four black Phillips PM2.5×6.5 screws (1) that secure the display assembly to the computer.
8.
Remove the display assembly (2).
74 Chapter 4 Removal and replacement procedures
9.
If it is necessary to replace any of the display assembly internal components, remove the following screw covers and screws. The display screw covers are included in the display screw kit, spare part number 592152-001.
(1) Two Mylar screw covers on the display bezel bottom edge
(2) Two Phillips PM2.5×4.0 screws
10.
Flex the inside edge of the top (1), the left and right sides (2), and the bottom (3) of the display bezel until the bezel disengages from the display back cover.
11.
Remove the display bezel (4). The display bezel is available using spare part number
592147-001 for HP computers, and 592148-001 for Presario computers.
Component replacement procedures 75
12.
If it is necessary to replace the webcam module, disconnect the webcam cable (1) from the module. Lift the webcam from the double-sided tape on the display back cover, and remove the webcam.
13.
If it is necessary to replace the display panel, remove the eight Phillips PM2.5×5.0 screws (1) that secure the display panel to the display enclosure, and then lift the panel from the enclosure (2).
The display panel is available using the spare part number 592144-001.
14.
If it is necessary to replace the display cable, follow these steps: a.
Turn the display panel upside down in front of you.
b.
Peel back the tape that secures the cable to the display (1).
c.
Unplug the cable from the display (2).
d.
Remove the cable from the display (3).
76 Chapter 4 Removal and replacement procedures
The display cable is available in the display cable kit, spare part number 592151-001.
15.
If it is necessary to replace the display bracket and hinges, remove the Phillips PM2.0×3.0 screws
(1) that secure each bracket to the display.
16.
Remove the display hinges (2) from the display. The display bracket and hinge set is available using spare part number 600627-001.
17.
If it is necessary to replace the wireless antennas and cables, remove the adhesive strip (1) that secures each antenna to the display back cover.
18.
Detach the wireless antenna (2) from the display back cover .
19.
Remove the antenna cables from the clips (3) built into the display enclosure.
Component replacement procedures 77
20.
Remove the wireless antennas and cables (4) from the display enclosure. The wireless antennas and cables are included in the display cable kit, spare part number 592151-001.
21.
If it is necessary to remove the webcam cable, remove the cable from the adhesive strips (1) along the cable path on the display back cover, and then remove the webcam cable (2). The webcam cable is included in the display cable kit, spare part number 592151-001,
78 Chapter 4 Removal and replacement procedures
22.
If it is necessary to remove the microphone, release the microphone cable from the adhesive strips
(1) along the cable path on the display back cover, remove the microphone from the clips on the display back cover (2), and then remove the microphone and microphone cable (3). The microphone and cable is included in the display cable kit, spare part number 592151-001,
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 79
System board
Description
System board for use in models with discrete graphics subsystem
System board for use in models with Unified Memory Architecture (UMA) graphics subsystem
System board for use in models with discrete graphics subsystem and HDMI card reader
System board for use in models with UMA graphics subsystem and HDMI card reader
System board for use in models with UMA graphics subsystem memory, Intel® GL40 chipset, and
HDMI card reader
For use in models with UMA graphics subsystem memory,
For use in models with DSC HD5430 MDM CR
For use in models with DSC HD5430
For use in models with UMA graphics subsystem memory,
For use in models with HD545V DSC
For use in models with HD545V DSC CR
For use in models with discrete graphics subsystem HM55 HD5430/1G
For use in models with discrete graphics subsystem HDMI HD5430/1G
For use in models with discrete graphics subsystem with HM55 HD545V
For use in models with discrete graphics subsystem with HM55 HDMI HD545V
Spare part number
595181-001
595182-001
595183-001
595184-001
605140-001
592808-001
592811-001
592810-001
592809-001
611554-001
611555-001
608823–001
608824–001
615577–001
615578–001
When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:
●
RTC battery (see
●
Memory modules (see
)
●
WLAN module (see
●
Modem module (see Modem module on page 65 )
Before removing the system board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
80 Chapter 4 Removal and replacement procedures
4.
Remove the battery (see Battery on page 45 ).
5.
Remove the following components: a.
Hard drive (see Hard drive on page 46 )
b.
WLAN (see WLAN module on page 51 )
c.
Optical drive (see Optical drive on page 49
) d.
Keyboard (see
e.
Top cover (see Top cover on page 58 )
f.
Speaker assembly (see
g.
Display assembly (see Display assembly on page 73
) h.
Top cover (see Top cover on page 58 )
Remove the following cables from the system board if still connected:
●
Power connector cable (see Power connector cable on page 71
)
●
Bluetooth cable (see
●
USB board cable (see
)
1.
Turn the computer upright with the right side toward you.
2.
Remove the three Phillips PM2.5×3.0 screws that secure the system board to the computer.
3.
Release the optical drive cable (1) from the system board.
4.
Lift the right side of the system board (2).
Component replacement procedures 81
5.
Release the system board by sliding it to the right at an angle (3) until the connectors on the left side of the system board clear the base enclosure, and then remove the system board.
6.
If it is necessary to replace the modem module cable, remove the RJ-11 connector (1) from the clip built into the base enclosure.
7.
Remove the modem module cable (2) from the routing channel built into the base enclosure. The modem module cable is available using spare part number 610791-001.
When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:
●
Fan/heat sink assembly (see
Fan/heat sink assembly on page 87
)
● Processor (see
Reverse the preceding procedure to install the system board.
82 Chapter 4 Removal and replacement procedures
Optical drive SATA cable and connector
Description
Optical drive cable (included in the cable kit)
Spare part number
610791-001
Before removing the optical drive cable, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45 ).
5.
Remove the following components: a.
Hard drive (see Hard drive on page 46 )
b.
WLAN (see WLAN module on page 51 )
c.
Optical drive (see Optical drive on page 49
) d.
Keyboard (see
e.
Top cover (see Top cover on page 58 )
f.
Speaker assembly (see
g.
Display assembly (see Display assembly on page 73
) h.
System board (see
Remove the optical drive cable
1.
Remove the two Phillips PM2.5×6.0 screws (1) that secure the optical drive connector to the system board.
Component replacement procedures 83
2.
Release the cable from the clips on the base enclosure (2), and then remove the cable (3).
84 Chapter 4 Removal and replacement procedures
RTC battery
Description
RTC battery
Spare part number
602745-001
Before removing the RTC battery, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45 ).
5.
Remove the following components: a.
Hard drive (see Hard drive on page 46 )
b.
WLAN (see WLAN module on page 51 )
c.
Optical drive (see Optical drive on page 49
) d.
Keyboard (see
e.
Top cover (see Top cover on page 58 )
f.
Speaker assembly (see
g.
Display assembly (see Display assembly on page 73
) h.
System board (see
Remove the RTC battery:
1.
Turn the system board upside down.
2.
Release the RTC battery from the clips on the system board (1).
Component replacement procedures 85
3.
Remove the RTC battery (2).
Reverse this procedure to install the RTC battery.
86 Chapter 4 Removal and replacement procedures
Fan/heat sink assembly
Description
Fan/heat sink assembly for use in models that use Universal Memory Architecture (UMA) graphics subsystem memory (includes thermal replacement material)
Fan/heat sink assembly for use in models that use discrete graphics subsystem memory (includes thermal material)
Fan/heat sink assembly for use in models that use and UMA graphics subsystem memory and the
Intel® GL40 chipset (includes thermal material)
Fan/heat sink assembly for use in models that use Universal Memory Architecture (UMA) graphics subsystem memory (includes thermal material)
Fan/heat sink assembly for use in models that use discrete graphics subsystem memory (includes thermal material)
Fan/heat sink assembly for use in models that use DSC HD545V graphics subsystem memory
(includes thermal material)
Spare part number
595832-001
595833–001
606573-001
606609-001
606610-001
617029-001
NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the right side and rear panel of the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the computer.
Before removing the fan/heat sink assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45 ).
5.
Remove the following components: a.
Hard drive (see Hard drive on page 46 )
b.
Optical drive (see Optical drive on page 49
) c.
Keyboard (see
d.
Top cover (see Top cover on page 58 )
e.
Speaker assembly (see
f.
Display assembly (see Display assembly on page 73
) g.
System board (see
Component replacement procedures 87
Remove the fan/heat assembly (fan/heat sink appearance may vary):
1.
Turn the system board upside down.
2.
Disconnect the fan cable (1) from the system board.
3.
Follow the sequence embossed on heat sink to loosen the four Phillips PM2.5×7.0 captive screws
(2) that secure the fan/heat sink assembly to the system board.
NOTE: Due to the adhesive quality of the thermal material located between the fan/heat sink assembly and system board components, it may be necessary to move the fan/heat sink assembly from side to side to detach the assembly.
4.
Remove the fan/heat sink assembly (3).
The thermal material must be thoroughly cleaned from the surface of the fan/heat sink assembly (1),
(3) and the processor (2) and video components (4) each time the fan/heat sink assembly is removed.
Thermal pads and thermal paste must be installed on all surfaces before the fan/heat sink assembly is reinstalled.
NOTE: Thermal pads and thermal paste are included with all fan/heat sink assembly, system board, and processor spare part kits.
The following illustration shows the locations for thermal material on systems with discrete graphics subsystems.
88 Chapter 4 Removal and replacement procedures
The thermal material must be thoroughly cleaned from the surface of the fan/heat sink assembly (1) and (3), and the processor component (2), each time the fan/heat sink assembly is removed. Thermal pads and thermal paste must be installed on all surfaces before the fan/heat sink assembly is reinstalled.
The following illustration shows the locations for thermal material on systems with UMA graphics subsystems.
Reverse this procedure to install the fan/heat sink assembly.
Component replacement procedures 89
Processor
NOTE: All processor spare part kits include thermal material.
Description
Intel Arrandale Core 620M 2.26-GHz
Intel Arrandale 540M 2.53-GHz
Intel Arrandale 520M 2.4-GHz
Intel Arrandale i5-430M 2.26-GHz
Intel Arrandale i3-350M 2.26-GHz
Intel Arrandale 370M, 2.4 GHz
Intel Arrandale i5-450M 2.4GHz
Intel Arrandale 3-370M 2.4GHz
Intel Celeron 900,2.2GHz
Intel Arrandale i3-330M 2.13-GHz
Intel Core 2 Duo Mobile processor T3000, 1.8-GHz
Intel Core 2 Duo Mobile processor T4400 - 2.2-GHz
Intel Core 2 Duo Mobile,T4300, 2.1-GHz
Intel Core 2 Duo Mobile processor T3100 - 1.9-GHz
Processor, Intel Core 2 Duo Mobile processor T4500 2.3-GHz
Intel Core 2 Duo Mobile processor T3300 2.0-GHz
Processor Advanced Micro Devices (AMD) P320 DDR3-1066 Mhz
Advanced Micro Devices (AMD) processor N120 DDR3-1066 Mhz
Advanced Micro Devices (AMD) processor P520 DDR3-1066 Mhz
Advanced Micro Devices (AMD) processor DC N330 2.3GHz 1M L2 35W
Advanced Micro Devices (AMD) processor DC QC P920 1.6Ghz 2M L2 25W
Advanced Micro Devices (AMD) processor DC N530 DC 2.5GHz L2 35W
Advanced Micro Devices (AMD) processor DC P820 Tri-Core 1.8Ghz 1.5M L2 25W
Advanced Micro Devices (AMD) processor N620 DDR3-1333 Mhz
Advanced Micro Devices (AMD) processor DC N930 QC 2.0 GHz
Advanced Micro Devices (AMD) processor DC N830 Tri-core 2.1Ghz 1.5M L2 35W
Spare part number
591880–001
592399-001
594165-001
594171-001
594173-001
594164-001
594170-001
594172-001
594167-001
594166-001
594169-001
594168-001
587259-001
594188-001
594187-001
597624-001
597623-001
613586–001
613585–001
613584–001
534419–001
597622-001
572926-001
584296-001
572929-001
572925-001
90 Chapter 4 Removal and replacement procedures
Before removing the processor, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45 ).
5.
Remove the following components: a.
Hard drive (see Hard drive on page 46 )
b.
Optical drive (see Optical drive on page 49
) c.
Keyboard (see
d.
Top cover (see Top cover on page 58 )
e.
Speaker assembly (see
f.
Display assembly (see Display assembly on page 73
) g.
System board (see
h.
Fan/heat sink assembly (see
Fan/heat sink assembly on page 87 )
Remove the processor:
1.
Turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.
Component replacement procedures 91
2.
Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4) embossed on the processor socket when you install the processor.
Reverse this procedure to install the processor.
92 Chapter 4 Removal and replacement procedures
5 Setup Utility
Computer Setup in Windows 7
To view the drives installed on the computer, select Start > Computer.
On models with a secondary hard drive (drive D), the optical drive becomes drive E. The next drive added to the system, such as a new USB drive, will be assigned the next available drive letter.
Starting Setup Utility
Setup Utility is a ROM-based information and customization utility that can be used even when your
Windows® operating system is not working.
The utility reports information about the computer and provides settings for startup, security, and other preferences.
To start Setup Utility:
▲ Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10 .
– or –
1.
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc .
2.
When the Startup Menu is displayed, press f10 .
Computer Setup in Windows 7 93
Using Setup Utility
Changing the language of Setup Utility
The following procedure explains how to change the language of Setup Utility. If Setup Utility is not already running, begin at step 1. If Setup Utility is already running, begin at step 2.
1.
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10 .
– or –
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc . When the
Startup Menu is displayed, press f10 .
2.
Use the arrow keys to select System Configuration > Language, and then press enter .
3.
Use the arrow keys to select a language, and then press enter .
4.
When a confirmation prompt with your language selected is displayed, press enter .
5.
To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving
Changes, and then press enter .
Your change goes into effect immediately.
Navigating and selecting in Setup Utility
Because Setup Utility is not Windows based, it does not support the TouchPad. Navigation and selection are by keystroke.
●
To choose a menu or a menu item, use the arrow keys.
●
To choose an item in a list or to toggle a field, for example an Enable/Disable field, use either the arrow keys or f5 or f6 .
● To select an item, press enter .
●
To close a text box or return to the menu display, press esc .
●
To display additional navigation and selection information while Setup Utility is open, press f1 .
94 Chapter 5 Setup Utility
Displaying system information
The following procedure explains how to display system information in Setup Utility. If Setup Utility is not open, begin at step 1. If Setup Utility is open, begin at step 2.
1.
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10 .
– or –
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc . When the
Startup Menu is displayed, press f10 .
2.
Select the Main menu. System information such as the system time and date, and identification information about the computer is displayed.
3.
To exit Setup Utility without changing any settings, use the arrow keys to select Exit > Exit
Discarding Changes, and then press enter .
Restoring default settings in Setup Utility
The following procedure explains how to restore Setup Utility default settings. If Setup Utility is not already running, begin at step 1. If Setup Utility is already running, begin at step 2.
1.
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10 .
– or –
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc . When the
Startup Menu is displayed, press f10 .
2.
Use the arrow keys to select Exit > Load Setup Defaults, and then press enter .
3.
When the Setup Confirmation is displayed, press enter .
4.
To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving
Changes, and then press enter .
Setup Utility default settings go into effect when the computer restarts.
NOTE: Your password, security, and language settings are not changed when you restore the factory default settings.
Computer Setup in Windows 7 95
Exiting Setup Utility
You can exit Setup Utility with or without saving changes.
●
To exit Setup Utility and save your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Saving Changes, and then press enter .
● To exit Setup Utility without saving your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Discarding Changes, and then press enter .
After either choice, the computer restarts in Windows.
Setup Utility menus
The menu tables in this section provide an overview of Setup Utility options.
NOTE: Some of the Setup Utility menu items listed in this chapter may not be supported by your computer.
Main menu
Select
System information
To do this
●
View and change the system time and date.
●
View identification information about the computer.
●
View specification information about the processor, memory size, system BIOS, and keyboard controller version (select models only).
Security menu
Select
Administrator password
Power-On Password
To do this
Enter, change, or delete an administrator password.
Enter, change, or delete a power-on password.
96 Chapter 5 Setup Utility
System Configuration menu
Select
Language Support
Button Sound (select models only)
Virtualization Technology (select models only)
Processor C6 State (select models only)
LAN Power Saving (select models only)
To do this
Change the language of Setup Utility.
Enable/disable the capacitive button tapping sound.
Enable/disable the processor Virtualization Technology.
Enable/disable the processor C6 sleep state.
Enable/disable LAN Power Saving. When enabled, saves power when the computer is in DC mode.
Enable/disable Card Reader/1394 Power Saving.
Card Reader/1394 Power Saving (select models only)
Fan Always On
Action Keys Mode
Boot Options
Enabled/disable Fan Always On. When enabled, the computer fan will always be on.
Enable/disable Action Keys Mode.
Set the following boot options:
●
POST hotkey delay (sec.)―Set the delay for the f1 , f2 , f9 , f10 , f11 , and f12 functions of Setup Utility in intervals of 5 seconds each (0,
5, 10, 15, 20).
●
CD-ROM Boot―Enable/disable boot from CD-ROM.
●
Floppy Boot―Enable/disable boot from diskette.
●
Internal Network Adapter Boot―Enable/disable boot from the internal network adapter.
●
◦
◦
◦
Boot Order―Set the boot order for:
◦
Notebook Hard Drive
Internal CD/DVD ROM Drive
USB Diskette on Key/USB Hard Disk
USB CD/DVD ROM Drive
◦
USB Floppy
◦
Network Adapter
Diagnostics menu
Select
Hard Disk Self Test
To do this
Run a comprehensive self-test on the hard drive.
NOTE: On models with two hard drives, this menu option is called the
Primary Hard Disk Self Test.
Computer Setup in Windows 7 97
Select To do this
Secondary Hard Disk Self Test (select models only) Run a comprehensive self-test on a secondary hard drive.
Memory Test Run a diagnostic test on the system memory.
98 Chapter 5 Setup Utility
Computer Setup in Linux
Starting Computer Setup
Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will not load.
NOTE: Some of the Computer Setup menu items listed in this guide may not be supported by your computer.
NOTE: Pointing devices are not supported in Computer Setup. You must use the keyboard to navigate and make selections.
NOTE: An external keyboard connected by USB can be used with Computer Setup only if USB legacy support is enabled.
To start Computer Setup, follow these steps:
1.
Turn on or restart the computer.
2.
Before your operating system opens and while the “F10=ROM Based Setup” message is displayed in the lower-left corner of the screen, press f10 .
Using Computer Setup
Navigating and selecting in Computer Setup
The information and settings in Computer Setup are accessed from the File, Security, Diagnostics, and
System Configuration menus.
1.
Open Computer Setup by turning on or restarting the computer, and then pressing f10 while the
"F10 = ROM Based Setup" message is displayed in the lower-left corner of the screen.
Because Computer Setup is not operating system based, it does not support the TouchPad.
Navigation and selection are by keystroke:
●
To choose a menu or a menu item, use the arrow keys.
●
To select an item, press enter .
●
To close open dialog boxes and return to the main Computer Setup screen, press esc .
●
To view navigation information, press f1 .
●
To change the language, press f2 .
2.
Select the File, Security, Diagnostics, or System Configuration menu.
3.
To exit Computer Setup, choose one of the following methods:
●
To exit Computer Setup without saving your preferences, use the arrow keys to select File >
Ignore Changes And Exit. Then follow the instructions on the screen.
●
To save your preferences and exit Computer Setup, use the arrow keys to select File > Save
Changes And Exit. Then follow the instructions on the screen.
Computer Setup in Linux 99
Your preferences go into effect when the computer restarts.
Restoring factory settings in Computer Setup
To return all settings in Computer Setup to the values that were set at the factory, follow these steps:
1.
Open Computer Setup by turning on or restarting the computer, and then pressing f10 while the
"F10 = ROM Based Setup" message is displayed in the lower-left corner of the screen.
2.
Use the arrow keys to select File > Restore Defaults, and then press enter .
3.
When the confirmation dialog box opens, press f10 .
4.
To save your preferences and exit Computer Setup, use the arrow keys to select File > Save
Changes And Exit. Then follow the instructions on the screen.
Your preferences go into effect when the computer restarts.
NOTE: Your password settings and security settings are not changed when you restore the factory settings.
100 Chapter 5 Setup Utility
Computer Setup menus
The menu tables in this section provide an overview of Computer Setup options.
NOTE: Some of the Computer Setup menu items listed in this chapter may not be supported by your computer.
File menu
Select
System information
Restore Defaults
Ignore Changes And Exit
Save Changes And Exit
To do this
●
View identification information for the computer.
●
View specification information for the processor, cache and memory size, and system ROM.
Replace the configuration settings in Computer Setup with the original factory settings. (Password settings and security settings are not changed when you restore the factory settings.)
Cancel any changes entered during the current session. Then exit and restart the computer.
Save any changes entered during the current session. Then exit and restart the computer. Your changes go into effect when the computer restarts.
Computer Setup in Linux 101
Security menu
NOTE: Some of the menu items listed in this section may not be supported by your computer.
Select
Setup Password
Power-On Password
Password Options
DriveLock Passwords
System IDs
Disk Sanitizer
To do this
Enter, change, or delete a setup password.
Enter, change, or delete a power-on password.
●
Enable/disable stringent security.
●
Enable/disable the password requirement on computer restart.
●
Enable/disable DriveLock on any computer hard drive.
●
Enter, change, or disable DriveLock on an optional
MultiBay hard drive.
NOTE: DriveLock settings are accessible only when you enter Computer Setup by turning on (not restarting) the computer.
Enter a user-defined computer asset tracking number and ownership tag.
Run Disk Sanitizer to destroy all existing data on the primary hard drive. The following options are available:
●
Fast: Runs the Disk Sanitizer erase cycle once.
●
Optimum: Runs the Disk Sanitizer erase cycle 3 times.
●
Custom: Allows you to select the desired number of Disk
Sanitizer erase cycles from a list.
CAUTION: If you run Disk Sanitizer, the data on the primary hard drive is destroyed permanently.
Diagnostics menu
Select
HDD Self-Test Options
Memory Check
To do this
Run a comprehensive self-test on any hard drive in the system or on any optional MultiBay hard drive.
Run a comprehensive check on system memory.
102 Chapter 5 Setup Utility
System Configuration menu
NOTE: Some of the listed System Configuration options may not be supported by your computer.
Select
Language
Boot options
Device Configurations
To do this
Change the Computer Setup language.
●
Set an f9 , f10 , and f12 delay when starting up.
●
Enable/disable CD-ROM boot.
●
Enable/disable floppy boot.
●
Enable/disable internal network adapter boot.
●
Enable/disable MultiBoot, which sets a boot order that can include most boot devices in the system.
●
Set the Express Boot Popup delay in seconds.
●
◦
◦
◦
◦
◦
Set the boot order.
◦
1st boot device: USB CD-ROM
2nd boot device: USB floppy
3rd boot device: USB SuperDisk
4th boot device: Notebook hard drive
5th boot device: USB hard disk
6th boot device: Network controller
●
Swap the functions of the fn key and left ctrl key.
●
◦
◦
Enable/disable USB legacy support. When enabled,
USB legacy support allows the following:
Use of a USB keyboard in Computer Setup even when a your operating system is not running.
Startup from bootable USB devices, including a hard drive, diskette drive, or optical drive connected by a USB port to the computer.
●
Enable/disable BIOS DMA data transfers.
●
Enable/disable fan always on while connected to an AC outlet.
●
Enable/disable data execution prevention.
●
Enable/disable LAN power saving mode.
●
Enable/disable SATA Native Mode.
●
Enable/disable Dual Core CPU.
●
Enable/disable HDD translation mode.
Computer Setup in Linux 103
Select
Built-in device options
Port options
●
●
To do this
●
Enable/disable embedded WLAN Device Radio.
●
Enable/disable embedded Bluetooth Device Radio.
●
Enable/disable Network Interface Controller (NIC)
●
Enable/disable LAN/WLAN Switching.
●
Enable/disable Wake on LAN.
Enable/disable the integrated camera (webcam)
Enable/disable USB port.
●
Enable/disable ExpressCard slot.
104 Chapter 5 Setup Utility
6 Specifications
Computer specifications
Dimensions
Depth
Width
Height (front to rear)
Weight (lowest weight configuration)
Input power
Operating voltage
Operating current
Temperature
Operating (not writing to optical disc)
Operating (writing to optical disc)
22.8 cm (8.98 in)
34.2 cm (13.46 in)
31.5 to 36.5 cm (1.24 to 1.44 in)
< 2.20 kg (4.85 lbs)
18.5 V dc @ 4.74 A – 90 W
4.74 A
0°C to 35°C (32°F to 95°F)
5°C to 35°C (41°F to 95°F)
-20°C to 60°C (-4°F to 140°F) Nonoperating
Relative humidity
Operating
Nonoperating
Maximum altitude (unpressurized)
Operating
Nonoperating
10% to 90%
5% to 95%
NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this range of temperatures.
-15 m to 3,048 m (-50 ft to 10,000 ft)
-15 m to 12,192 m (-50 ft to 40,000 ft)
Computer specifications 105
35.6-cm
(14.0-in) display specifications
Dimensions
Height
Width
Diagonal
Number of colors
Contrast ratio
Brightness
Pixel resolution
Pitch
Format
Configuration
Backlight
Character display
Total power consumption
Viewing angle
17.6 cm (17.6 cm)
31.1 cm (12.24 in)
35.7 cm (14.06 in)
Up to 16.8 million
300:1 (typical)
200 nits (typical)
0.259 × 0.259 mm
1280 × 800; HD: 1366 × 768
RGB vertical stripe
LED
80 × 25
4.0 W
±40° horizontal, +120/-40° vertical (typical)
106 Chapter 6 Specifications
Hard drive specifications
500-GB* 320-GB* 250-GB* 160-GB*
Dimensions
Height
Width
Weight
Interface type
Transfer rate
Security
9.5 mm
70 mm
101 g
SATA
100 MB/sec
ATA security
9.5 mm
70 mm
101 g
SATA
100 MB/sec
ATA security
9.5 mm
70 mm
101 g
SATA
100 MB/sec
ATA security
9.5 mm
70 mm
101 g
SATA
100 MB/sec
ATA security
Seek times (typical read, including setting)
Single track
Average
Maximum
Logical blocks
Disc rotational speed
Operating temperature
1.0 ms
14.0 ms
22.0 ms
976,773,168
7200 rpm
1.5 ms
12.0 ms
22.0 ms
625,142,448
7200 rpm
2.0 ms
12.0 ms
22.0 ms
488,397,168
7200 rpm
5°C to 55°C (41°F to 131°F)
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive specifications may differ slightly.
NOTE: Certain restrictions and exclusions apply. Contact technical support for details.
1.5 ms
11.0 ms
22.0 ms
312,581,808
7200 rpm
Hard drive specifications 107
DVD±RW SuperMulti Double-Layer Drive with
LightScribe specifications
Applicable disc
Read
Write
Random access time
DVD
CD
Cache buffer
Data transfer rate
24X CD-ROM
8X DVD-ROM
24X CD-R
16X CD-RW
8X DVD+R
4X DVD+RW
8X DVD-R
4X DVD-RW
2.4X DVD+R(9)
5X DVD-RAM
Transfer mode
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-
CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,
DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM
CD-R and CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM
< 230 ms
< 175 ms
2 MB
3,600 KB/sec
10,800 KB/sec
3,600 KB/sec
2,400 KB/sec
10,800 KB/sec
5,400 KB/sec
10,800 KB/sec
5,400 KB/sec
2,700 KB/sec
6,750 KB/sec
Multiword DMA Mode
108 Chapter 6 Specifications
Blu-ray ROM with LightScribe DVD±R/RW
SuperMulti DL Drive specifications
Applicable disc
Read
Write
Random access time
BD
DVD
CD
Cache buffer
Data transfer rate
24X CD-ROM
8X DVD-ROM
4X BD
24X CD-R
16X CD-RW
8X DVD+R
4X DVD+RW
8X DVD-R
4X DVD-RW
2.4X DVD+R(9)
5X DVD-RAM
1X BD-ROM
1X BD-R read
1X BD-RE read
Transfer mode
BD-ROM, BD-ROM-DL, BD-R, BD-R-DL, BD-RE, BD-RE-DL, DVD-ROM, DVD+R,
DVD+R-DL, DVD+RW, DVD-R, DVD-R-DL, DVD-RW, DVD-RAM (Ver.2), CD-
DA, CD-ROM (mode 1 and mode 2), CD-ROM XA (mode 2, form 1 and form 2), Photo CD (single and multiple sessions), CD Extra, CD-R, CD-RW, and CD-TEXT
DVD-RAM (Ver.2), DVD+R, DVD-R, CD-R, and CD-ROM
< 230 ms
< 180 ms
< 180 ms
8 MB
3,600 KB/sec
10,800 KB/sec
18,000 KB/sec
3,600 KB/sec
2,400 KB/sec
10,800 KB/sec
5,400 KB/sec
10,800 KB/sec
5,400 KB/sec
2,700 KB/sec
6,750 KB/sec
4,500 KB/sec
4,500 KB/sec
4,500 KB/sec
Multiword DMA Mode
Blu-ray ROM with LightScribe DVD±R/RW SuperMulti DL Drive specifications 109
System resource specifications
You can use Device Manager to get a graphical view of the system resources that control how the devices work on the computer. System resources you can access from Device Manager are direct memory access (DMA) channels, input/output (I/O) ports, interrupt request (IRQ) lines, and memory addresses.
If two devices require the same resource and create a device conflict, you can manually change the resource settings in Device Manager to be sure each setting is unique.
CAUTION: Improperly changing resource settings can disable your hardware and cause your computer to malfunction or become inoperable. Only users who have expert knowledge of computer hardware and hardware configurations should change resource settings.
To view resource settings in Windows 7 and Windows Vista:
1.
Select Start > Computer.
2.
Click System properties near the top of the Computer folder.
3.
On the left, click Device Manager.
4.
On the View menu, click one of the following:
●
Resources by type
●
Resources by connection
To view resource settings in Windows XP:
1.
Select Start > My Computer, or double-click My Computer on the desktop.
2.
Under System Tasks, click View system information.
3.
In the System Properties window, select the Hardware tab.
4.
Click Device Manager.
5.
On the View menu, click one of the following:
●
Resources by type
●
Resources by connection
110 Chapter 6 Specifications
7 Backup and recovery
Recovery after a system failure is as complete as your most current backup. HP recommends that you create recovery discs immediately after software setup. As you add new software and data files, you should continue to back up your system on a regular basis to maintain a reasonably current backup.
Tools provided by the operating system and HP Recovery Manager software are designed to help you with the following tasks for safeguarding your information and restoring it in case of a system failure:
●
Creating a set of recovery discs (Recovery Manager software feature). Recovery discs are used to start up (boot) your computer and restore the operating system and software programs to factory settings in case of system failure or instability.
● Backing up your information regularly to protect your important system files.
●
Creating system restore points (operating system feature). System restore points allow you to reverse undesirable changes to your computer by restoring the computer to an earlier state.
●
Recovering a program or driver (Recovery Manager software feature). This feature helps you reinstall a program or driver without performing a full system recovery.
● Performing a full system recovery (Recovery Manager software feature). With Recovery Manager, you can recover your full factory image if you experience system failure or instability. Recovery
Manager works from a dedicated recovery partition (select models only) on the hard drive or from recovery discs you create.
NOTE: Computers with a solid-state drive (SSD) may not have a recovery partition. Recovery discs have been included for computers that do not have a partition. Use these discs to recover your operating system and software. To check for the presence of a recovery partition, select
Start, right-click Computer, click Manage, and then click Disk Management. If the partition is present, an HP Recovery drive is listed in the window.
Windows 7
To protect your information, back up your files and folders. In case of system failure, you can use the backup files to restore your computer.
CAUTION: In the event of a hard drive failure, you cannot use your computer to access the Disaster
Recovery utility. Therefore, HP recommends that you download the Disaster Recovery utility SoftPaq, and then extract it to a USB flash drive as soon as possible after software setup. For details, refer to
“Downloading and extracting the Disaster Recovery utility” later in this section.
Windows 7 111
Depending on your computer model, you may have one of the following backup and recovery solutions:
● Roxio BackOnTrack
● HP Recovery Manager
NOTE: For detailed information, perform a search for these topics in Help and Support.
Creating recovery discs
HP recommends that you create recovery discs to be sure that you can restore your system to its original factory state if you experience serious system failure or instability. Create these discs after setting up the computer for the first time.
Handle these discs carefully and keep them in a safe place. The software allows the creation of only one set of recovery discs.
NOTE: You can use an optional external optical drive (purchased separately) to create recovery discs, or you can purchase recovery discs for your computer from the HP Web site.
Note the following guidelines before creating recovery discs:
NOTE: The external hard drive must be connected to a USB port on the computer, not to a USB port on an external device such as a hub.
● You will need high-quality DVD-R, DVD+R, BD-R (writable Blu-ray), or CD-R discs. All these discs are purchased separately. DVDs and BDs have a much higher capacity than CDs. If you use CDs, up to 20 discs may be required, whereas only a few DVDs or BDs are required.
NOTE: Read-write discs, such as CD-RW, DVD±RW, double-layer DVD±RW, and BD-RE
(rewritable Blu-ray) discs, are not compatible with the Recovery Manager software.
●
The computer must be connected to AC power during this process.
●
Only one set of recovery discs can be created per computer.
●
Number each disc before inserting it into the optical drive.
●
If necessary, you can exit the program before you have finished creating the recovery discs. The next time you open Recovery Manager, you will be prompted to continue the disc creation process.
To create a set of recovery discs:
1.
Select Start > All Programs > Recovery Manager > Recovery Disk Creation.
2.
Follow the on-screen instructions.
112 Chapter 7 Backup and recovery
Backing up your information
As you add new software and data files, you should back up your system on a regular basis to maintain a reasonably current backup. Back up your system at the following times:
● At regularly scheduled times
NOTE: Set reminders to back up your information periodically.
●
Before the computer is repaired or restored
●
Before you add or modify hardware or software
Note the following when backing up:
●
Create system restore points using the Windows® System Restore feature, and periodically copy them to disc.
●
Store personal files in the Documents library and back up this folder periodically.
●
Back up templates stored in their associated programs.
●
Save customized settings in a window, toolbar, or menu bar by taking a screen shot of your settings. The screen shot can be a time-saver if you have to reset your preferences.
To copy the screen and paste it into a word-processing document, follow these steps:
1.
Display the screen.
2.
Copy the screen:
To copy only the active window, press alt+prt sc .
To copy the entire screen, press prt sc .
3.
Open a word-processing document, and then select Edit > Paste.
4.
Save the document.
●
You can back up your information to an optional external hard drive, a network drive, or discs.
●
When backing up to discs, use any of the following types of discs (purchased separately): CD-R,
CD-RW, DVD+R, DVD-R, or DVD±RW. The discs you use will depend on the type of optical drive installed in your computer.
NOTE: DVDs store more information than CDs, so using them for backup reduces the number of recovery discs required.
●
When backing up to discs, number each disc before inserting it into the optical drive of the computer.
Windows 7 113
Using Windows Backup and Restore
To create a backup using Windows Backup and Restore, follow these steps:
NOTE: Be sure that the computer is connected to AC power before you start the backup process.
NOTE: The backup process may take over an hour, depending on file size and the speed of the computer.
1.
Select Start > All Programs > Maintenance > Backup and Restore.
2.
Follow the on-screen instructions to set up and create a backup.
NOTE: Windows® includes the User Account Control feature to improve the security of your computer. You may be prompted for your permission or password for tasks such as installing software, running utilities, or changing Windows settings. Refer to Help and Support for more information.
114 Chapter 7 Backup and recovery
Using system restore points
When you back up your system, you are creating a system restore point. A system restore point allows you to save and name a snapshot of your hard drive at a specific point in time. You can then recover back to that point if you want to reverse subsequent changes made to your system.
NOTE: Recovering to an earlier restore point does not affect data files saved or e-mails created since the last restore point.
You also can create additional restore points to provide increased protection for your system files and settings.
When to create restore points
●
Before you add or extensively modify software or hardware
●
Periodically, whenever the system is performing optimally
NOTE: If you revert to a restore point and then change your mind, you can reverse the restoration.
Create a system restore point
1.
Select Start > Control Panel > System and Security > System.
2.
In the left pane, click System Protection.
3.
Click the System Protection tab.
4.
Under Protection Settings, select the disk for which you want to create a restore point.
5.
Click Create.
6.
Follow the on-screen instructions.
Restore to a previous date and time
To revert to a restore point (created at a previous date and time), when the computer was functioning optimally, follow these steps:
1.
Select Start > Control Panel > System and Security > System.
2.
In the left pane, click System protection.
3.
Click the System Protection tab.
4.
Click System Restore.
5.
Follow the on-screen instructions.
Performing a recovery
NOTE: You can recover only files that you have previously backed up. HP recommends that you use
HP Recovery Manager to create a set of recovery discs (entire drive backup) as soon as you set up your computer.
Windows 7 115
Recovery Manager software allows you to repair or restore the system if you experience system failure or instability. Recovery Manager works from recovery discs or from a dedicated recovery partition
(select models only) on the hard drive. However, if your computer includes a solid-state drive (SSD), you may not have a recovery partition. If that is the case, recovery discs have been included with your computer. Use these discs to recover your operating system and software.
NOTE: Windows has its own built-in repair features, such as System Restore. If you have not already tried these features, try them before using Recovery Manager.
NOTE: Recovery Manager recovers only software that was preinstalled at the factory. Software not provided with this computer must be downloaded from the manufacturer's Web site or reinstalled from the disc provided by the manufacturer.
Recovering from the recovery discs
To restore the system from the recovery discs:
1.
Back up all personal files.
2.
Insert the first recovery disc into the optical drive and restart the computer.
3.
Follow the on-screen instructions.
Recovering from the dedicated recovery partition (select models only)
NOTE: Computers with an SSD may not have a recovery partition. If the computer does not have a recovery partition, you will not be able to recover using this procedure. Recovery discs have been included for computers that do not have a partition. Use these discs to recover your operating system and software.
On some models, you can perform a recovery from the partition on the hard drive, accessed by pressing either the Start button or f11 . This restores the computer to its factory condition.
To restore the system from the partition, follow these steps:
1.
Access Recovery Manager in either of the following ways:
●
Select Start > All Programs > Recovery Manager > Recovery Manager.
– or –
●
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen. Then, press f11 while the “Press
<F11> for recovery” message is displayed on the screen.
2.
Click System Recovery in the Recovery Manager window.
3.
Follow the on-screen instructions.
116 Chapter 7 Backup and recovery
Linux backup and recovery
Use the instructions in this section if SUSE Linux SLED 11 is installed on your computer.
To protect your information, back up your files and folders. Then if the system fails, you can restore your important files from copies. You can also use the options listed in this section to restore the operating system and programs that were installed at the factory.
CAUTION: Using f11 completely erases hard drive contents and reformats the hard drive. All files you have created and any software installed on the computer are permanently removed. The f11 recovery tool reinstalls the original operating system and HP programs and drivers that were installed at the factory. Software, drivers, and updates not installed by HP must be manually reinstalled. Personal files must be restored from a backup.
To recover the original hard drive image using f11 , follow these steps:
1.
If possible, back up all personal files.
2.
Restart the computer, and then press f11 while the “Press <F11> for recovery” message is displayed on the screen.
3.
Follow the on-screen instructions.
NOTE: If you are unable to boot (start up) your computer from the primary operating system or from the recovery f11 method, you must purchase a SUSE Linux Enterprise Desktop Operating System DVD to repair the operating system. For additional information, refer to the
Worldwide Telephone Numbers booklet, included with the computer.
Linux backup and recovery 117
8 Connector pin assignments
Audio-out (headphone)
Pin
1
2
3
Audio-in (microphone)
Signal
Audio out, left channel
Audio out, right channel
Ground
Pin
1
2
3
Signal
Audio signal in
Audio signal in
Ground
118 Chapter 8 Connector pin assignments
External monitor
Pin
11
12
13
14
7
8
9
10
15
5
6
3
4
1
2
Signal
Red analog
Green analog
Blue analog
Not connected
Ground
Ground analog
Ground analog
Ground analog
+5 VDC
Ground
Monitor detect
DDC 2B data
Horizontal sync
Vertical sync
DDC 2B clock
External monitor 119
RJ-11 (modem)
Pin
4
5
6
1
2
3
RJ-45 (network)
Signal
Unused
Tip
Ring
Unused
Unused
Unused
Pin
5
6
3
4
1
2
7
8
120 Chapter 8 Connector pin assignments
Signal
Transmit +
Transmit -
Receive +
Unused
Unused
Receive -
Unused
Unused
HDMI
10
11
12
13
14
8
9
6
7
4
5
2
3
Pin
1
15
16
17
18
19
20
Signal
TMDS data 2+
TMDS data 2 shield
TMDS data 2–
TMDS data 1+
TMDS data 1shield
TMDS data 1–
TMDS data 0+
TMDS data 0 shield
TMDS data 0–
TMDS clock+
TMDS clock shield
TMDS clock–
CEC
No connect
DDC clock
DDC data
Ground
+5V power
Hot plug detect
Shell
HDMI 121
Universal Serial Bus
Pin
1
2
3
4
Signal
+5 VDC
Data -
Data +
Ground
122 Chapter 8 Connector pin assignments
9 Power cord set requirements
The wide range input feature of the computer permits it to operate from any line voltage from 100 to
120 volts AC or from 220 to 240 volts AC.
The 3-conductor power cord set included with the computer meets the requirements for use in the country or region where the equipment is purchased.
Power cord sets for use in other countries or regions must meet the requirements of the country or region where the computer is used.
Requirements for all countries or regions
The requirements listed below are applicable to all countries or regions:
●
The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).
●
All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country or region where the power cord set will be used.
● The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage rating of 125 or 250 V AC, as required by each country or region’s power system.
●
The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320
Standard Sheet C13 connector for mating with the appliance inlet on the back of the computer.
Requirements for all countries or regions 123
Requirements for specific countries or regions
Country/region Accredited agency Applicable note number
Australia
Austria
Belgium
Canada
Denmark
Finland
France
Germany
Italy
Japan
The Netherlands
Norway
The People's Republic of China
South Korea
Sweden
Switzerland
EANSW
OVE
CEBC
CSA
DEMKO
FIMKO
UTE
VDE
IMQ
METI
KEMA
NEMKO
CCC
EK
SEMKO
SEV
1
1
1
2
1
1
1
1
1
3
1
1
5
4
1
1
Taiwan
The United Kingdom
BSMI
BSI
4
1
The United States UL 2
1.
The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
2.
The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.
3.
The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the
Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) configuration.
4.
The flexible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
5.
The flexible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
124 Chapter 9 Power cord set requirements
10 Recycling
Battery
When a battery has reached the end of its useful life, do not dispose of the battery in general household waste. Follow the local laws and regulations in your area for computer battery disposal.
Display
WARNING!
The backlight contains mercury. Exercise caution when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury.
CAUTION: The procedures in this chapter can result in damage to display components. The only components intended for recycling purposes are the liquid crystal display (LCD) panel and the backlight. When you remove these components, handle them carefully.
NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display assembly that might require special handling at end-of-life. Disposal of mercury may be regulated because of environmental considerations. For disposal or recycling information, contact your local authorities, or see the Electronic Industries Alliance (EIA) Web site at http://www.eiae.org
.
This section provides disassembly instructions for the display assembly. The display assembly must be disassembled to gain access to the backlight (1) and the liquid crystal display (LCD) panel (2).
NOTE: The procedures provided in this chapter are general disassembly instructions. Specific details, such as screw sizes, quantities, and locations, and component shapes and sizes, can vary from one computer model to another.
Battery 125
Perform the following steps to disassemble the display assembly:
1.
Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly.
2.
Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of the display bezel until the bezel disengages from the display assembly.
3.
Remove the display bezel (3).
126 Chapter 10 Recycling
4.
Disconnect all display panel cables (1) from the display inverter and remove the inverter (2).
5.
Remove all screws (1) that secure the display panel assembly to the display enclosure.
6.
Remove the display panel assembly (2) from the display enclosure.
7.
Turn the display panel assembly upside-down.
8.
Remove all screws that secure the display panel frame to the display panel.
9.
Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the display panel frame.
Display 127
10.
Remove the display panel frame (2) from the display panel.
11.
Remove the screws (1) that secure the backlight cover to the display panel.
12.
Lift the top edge of the backlight cover (2) and swing it outward.
13.
Remove the backlight cover.
14.
Turn the display panel right-side up.
128 Chapter 10 Recycling
15.
Remove the backlight cables (1) from the clip (2) in the display panel.
16.
Turn the display panel upside-down.
WARNING!
The backlight contains mercury. Exercise caution when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury.
17.
Remove the backlight frame from the display panel.
Display 129
18.
Remove the backlight from the backlight frame.
19.
Disconnect the display panel cable (1) from the LCD panel.
20.
Remove the screws (2) that secure the LCD panel to the display rear panel.
21.
Release the LCD panel (3) from the display rear panel.
22.
Release the tape (4) that secures the LCD panel to the display rear panel.
23.
Remove the LCD panel.
24.
Recycle the LCD panel and backlight.
130 Chapter 10 Recycling
Index
Symbols/Numerics
A
AC adapter
AC adapter, spare part
antenna
audio-in jack, pin
audio-out jack, pin
B backing up customized window, toolbar,
and menu bar settings 113 personal files 113 templates 113
base enclosure, spare part
battery
battery release latch,
bays
BD/DVD±R/RW Super Multi
Double-Layer Combo Drive
bezel
Blu-ray Disc ROM LightScribe with
SuperMulti DVD±R/RW Double-
Layer
Blu-ray ROM with LightScribe DVD
±R/RW SuperMulti DL Drive
Bluetooth module
removal 67 spare part number 25, 67
boot options 97, 103 boot order 97, 103 button sound 97
buttons
C
cable kit, spare part number 26
cables, service considerations 39
camera module
removal 76 spare part number 76
caps lock light, identifying 10
changing the language of Setup
chipset, product description 2
compartments
components
computer feet
locations 44 spare part number 44
Computer Setup
restoring factory settings 100
System Configuration
connector pin assignments
Universal Serial Bus (USB) 122
connectors, service
D
Digital Media Slot light,
Digital Media Slot, identifying 15
Index 131
diskette drive
display assembly
display back cover
display bezel
display bracket and hinge
removal 77 spare part number 77
display cable kit
display component recycling 125
display components
illustrated 20 spare part numbers 20
display enclosure
display hinge kit, spare part
display inverter
display panel
Display screw kit, spare part
displaying system information 95
drives
DVD/CD-RW Combo Drive
DVD±RW and CD-RW Combo
Drive
DVD±RW SuperMulti DL Drive with
LightScribe spare part
DVD±RW SuperMulti Double-Layer
Drive with LightScribe
E
Ethernet, product description 5
external media cards, product
external monitor port
external monitor port,
F
fan/heat sink assembly
removal 82 spare part number 21, 82
feet
locations 44 spare part number 44
G
graphics, product description 2
grounding equipment and
H hard drive
spare part
hard drive bay, identifying 16
hard drive cover
hard drive hardware kit, spare part
HDMI port, pin assignments 121
headphone jack, pin
I inverter
J jacks
K keyboard
keys
esc 12 fn 12 function 12 navigation 12
L
LAN Power Saving 97 language support 97
light
lights
M
mass storage devices, spare part
memory module
memory module compartment,
132 Index
microphone (internal),
microphone jack, pin
microphone, product
mini-card compartment cover
removal 55 spare part number 55
modem cable
noise suppression circuitry 18
modem jack, pin
modem module
removal 65 spare part number 22, 65
modem module cable
monitor port, pin
N
navigating in Setup Utility 94
navigation keys, identifying 12
network jack, pin
noise suppression circuitry
O
ODD cable
removal 83 spare part number 83
operating system, product
optical drive
spare part
optical drive light, identifying 14
P
Plastics kit
contents 29 spare part number 29
plastics kit
pointing device, product
ports
power button board
removal 62 spare part number 62
power connector cable
removal 71 spare part number 25, 71
power connector, identifying 14
power cord set requirements 123
power cord, spare part
power requirements, product
processor
product description
Ethernet 5 external media cards 5
pointing devices 6 ports 6 power requirements 6
R recovering a program or
recovering from the dedicated
recovering from the recovery
removal/replacement
RJ-11 (modem) jack,
RJ-11 jack, pin assignments 120
RJ-45 (network) jack,
RJ-45 jack, pin assignments 120
RTC battery
removal 80 spare part number 22, 80
Rubber Feet Kit, spare part
S
secondary hard drive self test 98
security cable slot, identifying 14
security, product description 6
Index 133
serviceability, product
setup utility
restoring factory settings 100
System Configuration
slots
solid-state drive (SSD) 111, 116
speaker assembly
specifications
Blu-ray ROM with LightScribe
DVD±R/RW SuperMulti DL
DVD ±RW SuperMulti Double-
Layer Drive with
system board
System Configuration
system failure or instability 111
system restore points 111, 115
T thermal paste,
top cover
removal 58 spare part number 21, 58
TouchPad
TouchPad button board
TouchPad zone
U
Universal Serial Bus (USB) port, pin
USB board
removal 69 spare part number 25, 69
V
W webcam
identifying 13 webcam light, identifying 13
Webcam module
Windows applications key,
Windows logo key,
wireless antenna
wireless antennas and cables
removal 78 spare part number 78
wireless antennas and cables,
wireless, product description 5
wireless/memory module compartment cover
removal 52 spare part number 52
WLAN module
134 Index
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 9 Product description
- 16 External component identification
- 16 Identifying the hardware
- 17 Top components
- 17 TouchPad
- 18 Lights
- 19 Button and speakers
- 20 Keys
- 21 Display
- 22 Right-side components
- 23 Left-side components
- 24 Bottom components
- 25 Wireless antennas
- 26 Additional hardware components
- 27 Illustrated parts catalog
- 27 Serial number location
- 28 Computer major components
- 35 Display assembly components
- 37 Plastics Kit
- 38 Mass storage devices
- 39 Miscellaneous parts
- 40 Sequential part number listing
- 46 Removal and replacement procedures
- 46 Preliminary replacement requirements
- 46 Tools required
- 46 Service considerations
- 46 Plastic parts
- 47 Cables and connectors
- 47 Drive handling
- 48 Grounding guidelines
- 48 Electrostatic discharge damage
- 49 Packaging and transporting guidelines
- 49 Workstation guidelines
- 50 Equipment guidelines
- 51 Component replacement procedures
- 51 Serial number
- 52 Computer feet
- 53 Battery
- 54 Hard drive
- 57 Optical drive
- 59 WLAN module
- 62 Memory module
- 64 Keyboard
- 66 Top cover
- 69 Speaker assembly
- 70 Power button board
- 71 TouchPad button board
- 73 Modem module
- 75 Bluetooth module
- 77 USB board
- 79 Power connector cable
- 81 Display assembly
- 88 System board
- 91 Optical drive SATA cable and connector
- 93 RTC battery
- 95 Fan/heat sink assembly
- 98 Processor
- 101 Setup Utility
- 101 Computer Setup in Windows 7
- 101 Starting Setup Utility
- 102 Using Setup Utility
- 102 Changing the language of Setup Utility
- 102 Navigating and selecting in Setup Utility
- 103 Displaying system information
- 103 Restoring default settings in Setup Utility
- 104 Exiting Setup Utility
- 104 Setup Utility menus
- 104 Main menu
- 104 Security menu
- 105 System Configuration menu
- 105 Diagnostics menu
- 107 Computer Setup in Linux
- 107 Starting Computer Setup
- 107 Using Computer Setup
- 107 Navigating and selecting in Computer Setup
- 108 Restoring factory settings in Computer Setup
- 109 Computer Setup menus
- 109 File menu
- 110 Security menu
- 110 Diagnostics menu
- 111 System Configuration menu
- 113 Specifications
- 113 Computer specifications
- 114 35.6-cm (14.0-in) display specifications
- 115 Hard drive specifications
- 116 DVD±RW SuperMulti Double-Layer Drive with LightScribe specifications
- 117 Blu-ray ROM with LightScribe DVD±R/RW SuperMulti DL Drive specifications
- 118 System resource specifications
- 119 Backup and recovery
- 119 Windows 7
- 120 Creating recovery discs
- 121 Backing up your information
- 122 Using Windows Backup and Restore
- 123 Using system restore points
- 123 When to create restore points
- 123 Create a system restore point
- 123 Restore to a previous date and time
- 123 Performing a recovery
- 124 Recovering from the recovery discs
- 124 Recovering from the dedicated recovery partition (select models only)
- 125 Linux backup and recovery
- 126 Connector pin assignments
- 126 Audio-out (headphone)
- 126 Audio-in (microphone)
- 127 External monitor
- 128 RJ-11 (modem)
- 128 RJ-45 (network)
- 129 HDMI
- 130 Universal Serial Bus
- 131 Power cord set requirements
- 131 Requirements for all countries or regions
- 132 Requirements for specific countries or regions
- 133 Recycling
- 133 Battery
- 133 Display
- 139 Index
