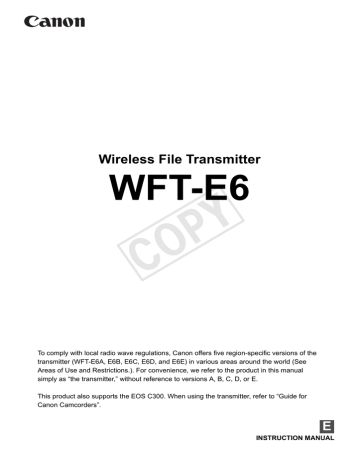

Canon Wireless Transmitter WFT-E6A Instruction manual

Wireless File Transmitter
WFT-E6
C
Y
P
O
To comply with local radio wave regulations, Canon offers five region-specific versions of the
transmitter (WFT-E6A, E6B, E6C, E6D, and E6E) in various areas around the world (See
Areas of Use and Restrictions.). For convenience, we refer to the product in this manual
simply as “the transmitter,” without reference to versions A, B, C, D, or E.
This product also supports the EOS C300. When using the transmitter, refer to “Guide for
Canon Camcorders”.
E
INSTRUCTION MANUAL
Thank you for purchasing a Canon product.
The Wireless File Transmitter WFT-E6 is an accessory for EOS-1D X cameras. In addition to
time syncing with other cameras (over a wireless LAN connection) and Bluetooth connectivity
with GPS devices, the transmitter enables the following operations.
Wireless LAN Functions
FTP Transfer
Transfer images to an FTP server
EOS Utility
Y
P
O
Use EOS Utility to capture, view, and
download images remotely
C
WFT Server
Use a web browser to capture, view,
and download images remotely
Media Server
View images on a DLNA-compatible TV
or other devices
Linked Shooting
Wirelessly trigger shooting by slave
cameras linked to a master camera
2
Sync the Camera Time Wirelessly
Slave camera
Y
P
O
Master camera
Connect to GPS Devices (commercially available) via Bluetooth
C
Connected via Bluetooth
Add the latitude, longitude, altitude, date and time, and
other shooting information to images
3
Conventions Used in this Manual
These instructions should be followed only after your wireless LAN and FTP server settings
are complete. For details on configuring these settings, refer to the documentation provided
with the respective equipment.
Terms in brackets [ ] indicate button or icon names or other software elements. Brackets
also denote camera menu items.
Page numbers in parentheses indicate where you can find additional information.
Instructions on camera operations should be followed only after you have read the Camera
Instruction Manual and are familiar with operating the camera.
Sections of this manual labeled with the following symbols contain information of the
corresponding nature.
: Warnings to avoid potential problems are labeled with a caution symbol.
: Supplemental information is labeled with a note symbol.
C
Y
P
O
Windows is a trademark or registered trademark of Microsoft Corporation in the United
States and other countries.
Macintosh is a registered trademark of Apple Corporation in the United States and other
countries.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Wi-Fi Certified, WPA, WPA2, and the Wi-Fi Certified logo are trademarks of the Wi-Fi
Alliance.
WPS as used on camera settings screens and in this manual signifies Wi-Fi Protected
Setup.
UPnP is a trademark of the UPnP Implementers Corporation.
Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc.
All other corporate and brand names in this manual are trademarks or registered
trademarks of their respective owners.
Using the transmitter for remote image transfer, capture, or viewing requires adequate knowledge of
configuring your wireless LAN and FTP server.
Canon cannot provide support for configuring wireless LANs or FTP servers.
Note that Canon cannot be held liable for any loss or damage to the transmitter from erroneous network
or FTP server settings. In addition, Canon cannot be held liable for any other loss or damage caused by
use of the transmitter.
4
Chapter List
Introduction
2
1
Basic Network Settings
13
2
Transferring Images to an FTP Server
27
3
Remote Capture Using EOS Utility
43
4
Remote Capture Using WFT Server
49
5
Using the Transmitter as a Media Server
6
Linked Shooting
7
Managing Settings Information
79
8
Synchronizing the Camera Time Wirelessly
89
9
Using Bluetooth GPS Devices
93
10
Troubleshooting
97
11
Reference
C
Y
P
O
61
65
113
5
Contents
Introduction
Conventions Used in this Manual ...................................................................................................... 4
Chapter List........................................................................................................................................ 5
Contents............................................................................................................................................. 6
Safety Warnings................................................................................................................................. 8
Nomenclature..................................................................................................................................... 9
Attaching to the Camera .................................................................................................................. 10
Subsequent Organization of This Manual........................................................................................ 11
1
2
3
Basic Network Settings
13
Getting Ready ..................................................................................................................................
Displaying the Connection Wizard ...................................................................................................
Selecting the Communication Method and LAN Type .....................................................................
Using the Wizard to Establish a Connection....................................................................................
WPS Connections (PBC Mode) .......................................................................................................
WPS Connections (PIN Mode) ........................................................................................................
Configuring Network Settings ..........................................................................................................
14
15
16
19
21
22
23
Transferring Images to an FTP Server
27
Configuring FTP Communication Settings.......................................................................................
Automatic Image Transfer After Each Shot .....................................................................................
Transferring Images Individually ......................................................................................................
Batch Transfer .................................................................................................................................
Checking Image Transfer History ....................................................................................................
Viewing Transferred Images ............................................................................................................
28
30
33
36
41
42
Remote Capture Using EOS Utility
43
C
Y
P
O
Configuring EOS Utility Communication Settings ............................................................................ 44
Using EOS Utility ............................................................................................................................. 47
4
5
Remote Capture Using WFT Server
49
Configuring WFT Server Communication Settings ..........................................................................
Displaying WFT Server ....................................................................................................................
Viewing Images................................................................................................................................
Remote Capture [Camera control] ...................................................................................................
Remote Capture [Simple control].....................................................................................................
Remote Capture...............................................................................................................................
Using WFT Server in Linked Shooting.............................................................................................
50
52
53
55
58
59
60
Using the Transmitter as a Media Server
61
Configuring Media Server Communication Settings ........................................................................ 62
Displaying Captured Images on a Television................................................................................... 63
6
Contents
6
7
Linked Shooting
65
Preparing Slave Cameras................................................................................................................
Basic Linked Shooting .....................................................................................................................
Arranging the Slave Cameras..........................................................................................................
Using the Transmitter with WFT Server...........................................................................................
66
67
68
70
Managing Settings Information
79
Checking Settings ............................................................................................................................ 80
Changing Settings............................................................................................................................ 82
Saving and Loading Settings ........................................................................................................... 85
8
Synchronizing the Camera Time Wirelessly
89
Synchronizing the Time ................................................................................................................... 90
9
Using Bluetooth GPS Devices
93
Connecting GPS Devices via Bluetooth........................................................................................... 94
10 Troubleshooting
97
Responding to Error Messages ....................................................................................................... 98
Wireless LAN Notes....................................................................................................................... 111
Checking Network Settings............................................................................................................ 112
11
Reference
Y
P
O
113
Creating and Registering Captions ................................................................................................ 114
Specifications................................................................................................................................. 115
Index .............................................................................................................................................. 124
C
7
Safety Warnings
The following precautions are intended to prevent harm to you and others as well as damage to
equipment. Become familiar with the precautions before using the transmitter to ensure correct
and safe operation.
Warning Preventing Serious Injury or Death
To prevent fire, excessive heat, chemical leakage, or explosion, follow these safety guidelines.
• Do not insert metallic objects between electrical contacts of the transmitter, accessories, or connecting cables.
Do not use the transmitter where there is flammable gas. There is a risk of explosion or fire.
If the transmitter is dropped and internal parts are exposed, do not touch the exposed parts. There is a risk of
electrical shock.
Do not disassemble or modify the transmitter. High-voltage internal parts may cause electrical shock.
Do not store the transmitter in dusty or humid places. There is a risk of fire or electrical shock.
Before using the transmitter on board airplanes or in hospitals, make sure use is permitted. Electromagnetic
waves emitted by the transmitter may interfere with instrumentation or medical equipment.
Caution Preventing Injury or Equipment Damage
Do not leave the transmitter inside a vehicle in hot weather or near a heat source. The transmitter may become
hot and cause burns if touched.
Do not cover or wrap the transmitter with a cloth. This may trap heat inside, posing a risk of case deformation or
fire.
Do not use paint thinner, benzene, or other organic solvents to clean the transmitter. This poses a risk of fire and
may be hazardous to your health.
Y
P
O
If the product malfunctions, becomes damaged, or requires repair, contact your dealer
or the nearest Canon Service Center.
C
Handling Precautions
The transmitter is a precision instrument. Do not drop it or subject it to shock.
The transmitter is not waterproof. Do not use it underwater.
Wipe off any moisture with a clean, dry cloth. If the transmitter has been exposed to salty air,
wipe it with a clean damp cloth after wringing it out to remove excess water.
Never leave the transmitter near any equipment that generates a strong magnetic field,
such as magnets or electric motors.
Do not leave the transmitter in excessive heat, such as in a vehicle in direct sunlight. High
temperature may damage the transmitter.
Do not wipe the transmitter using cleaners containing organic solvents. If the transmitter
becomes difficult to clean, take it to the nearest Canon Service Center.
To avoid corrosion, do not store the transmitter where there are strong chemicals, such as in
darkrooms or chemical labs.
8
Nomenclature
Attachment pin
Tightening screw
Terminal
Y
P
O
Transmitter Case
C
EOS-1D X rear LCD panel
Bluetooth connection
GPS device connection
Wired LAN
connection
Wireless LAN
connection
9
Attaching to the Camera
Turn off the camera before attaching the transmitter.
The transmitter is powered by the camera. Ensure the camera battery has sufficient
charge. If the charge drops below 19%, you cannot transfer captured images.
Removal
1
Open the terminal cover on the camera.
2
Attach the transmitter.
Pull out the system extension terminal cover and
rotate it toward the front.
C
Align the transmitter terminal and attachment pin
with the corresponding camera terminal and hole.
Push the terminal firmly into the camera.
As you push the terminal into the camera with your
left index finger, turn the tightening screw until it
stops rotating to attach the transmitter securely.
Y
P
O
Turn off the camera.
Loosen the tightening screw until it spins freely.
Pull the terminal out of the camera.
10
Subsequent Organization of This Manual
Click one of the following chapter titles to view the corresponding page.
1 Basic Network Settings
(p.13)
2 Transferring Images to an FTP Server
(p.27)
3 Remote Capture Using EOS Utility
(p.43)
4 Remote Capture Using WFT Server
(p.49)
5 Using the Transmitter as a Media Server (p.61)
6 Linked Shooting
Y
P
O
7 Managing Settings Information
C
(p.65)
(p.79)
8 Synchronizing the Camera Time Wirelessly
(p.89)
9 Using Bluetooth GPS Devices
(p.93)
11
C
12
Y
P
O
Basic Network Settings
Y
P
O
Complete the basic network settings by following transmitter connection
instructions on the camera menu screen.
C
13
Getting Ready
[FTP trans.], [EOSUtility], [WFTserver]
The connection instructions help you follow the steps to connect the transmitter to an existing
wireless LAN.
Set up the wireless LAN terminal (wireless LAN access point or adapter) and computer in
advance so that the transmitter can join the wireless network. When configuring the basic
network settings, bring the transmitter within 3 m / 9.8 ft. of the wireless LAN terminal.
Wireless Transmission of Movie
Individual movie files are large, and wireless file transmission takes some time. When setting
up an environment for stable transmission to the wireless LAN terminal, refer to the information
on page 111.
[MediaServ.]
Set up a DLNA*-compatible television, digital photo frame, or similar media player so that it is
ready for use after the transmitter is connected to its network.
* DLNA: Digital Living Network Alliance
[LinkedShot]
Y
P
O
Set up the camera attached with this transmitter, and other cameras compatible with linked
shooting with WFT units attached.
C
14
Displaying the Connection Wizard
This section describes the process of following the connection instructions. If an error is
displayed, refer to “Troubleshooting” in Chapter 10 (p.97) and check the settings.
Pressing the shutter button or other camera controls during configuration by the connection
instructions will close the connection instructions. Do not press the shutter button or other
controls until configuration is finished.
On the [52] tab, set [Auto power off] to [Disable]. If auto power off is activated, the
connection instructions will be closed during the configuration process.
1
Turn the camera on.
2
Display the transmitter menu.
3
Select [Communication func].
On the camera, press the <7> button.
On the [53] tab, select [Communication
settings] and press <0>.
C
Y
P
O
Set [Communication func] to [Enable], and then
press <0>.
X [Network settings] is now available.
4
Select [Network settings].
5
Select [Connection wizard].
X The [Select communication method] screen is
displayed.
X The <Y> lamp on the camera starts blinking.
15
Selecting the Communication Method and LAN Type
Selecting the Communication Method
Turn the <5> dial to select the communication
method, and then press <0>.
Select [OK] and press <0> to go to the next
screen.
• FTP trans.
Select this option to transfer captured images to an FTP server.
Images can be automatically transferred as you shoot them, or you can select images to be
transferred later.
Computer Operating Systems
Use of [FTP trans.] requires that one of the following operating systems be installed on your
computer. In addition, the computer must be set up as an FTP server in advance.
• Windows 7 (Professional, Enterprise, or Ultimate Edition for 32- or 64-bit systems)
• Windows Vista (Business, Enterprise, or Ultimate Edition for 32- or 64-bit systems)
• Windows XP Professional
• Mac OS X 10.6 or 10.7
For instructions on setting up your computer as an FTP server, refer to the computer
documentation.
The following operating systems cannot be used because FTP server functionality is
not provided.
• Windows 7 Home Premium
• Windows Vista Home Premium/Home Basic Edition
• Windows XP Home Edition
C
Y
P
O
• EOSUtility
Select this option for remote capture over a wireless LAN using the EOS Utility software
included with your camera.
In addition to remote capture, all camera operations in EOS Utility are supported. With this
option, a wireless network is used instead of the USB cable.
Requires a computer with EOS Utility (included with EOS-1D X cameras) installed.
16
Selecting the Communication Method and LAN Type
• WFTserver
Select this option for remote capture over a wireless LAN with the transmitter acting as a
server.
Additionally, images on a memory card in the camera can be viewed and downloaded to a
computer.
The camera can be accessed like browsing a webpage, by users at up to three computers.
Computer Operating Systems
Any computer with a web browser can be used, regardless of the operating system.
Even devices other than computers can be used, if they feature a web browser. However, if
the web browser does not support JavaScript, WFT Server functions will be limited. Also
note that devices with limited performance may display images more slowly, and
downloading images to these devices may not be possible.
• MediaServ.
Select this option to view images on a memory card in the camera over a wireless LAN on a
television.
This function requires a DLNA-compatible television, digital photo frame, or similar media
player.
• LinkedShot
Y
P
O
Select this option when performing linked shooting, using multiple compatible cameras with
WFT units attached. Up to 10 slave cameras can be linked to the master camera on which you
will release the shutter. Note that there will be a slight delay after you release the master
camera shutter before the slave cameras shoot. Movie shooting is not supported.
For further instructions on [LinkedShot], refer to page 65 of this manual.
C
17
Selecting the Communication Method and LAN Type
Selecting the LAN Type
For [LinkedShot] instructions, refer to page 65. Note that no information about
[LinkedShot] is given in this chapter.
Turn the <5> dial to select the type of LAN, and
then press <0>.
Select [OK] and press <0> to go to the next
screen.
Wireless LAN
The [Wireless LAN setup method] screen is
displayed.
[Connect with wizard]: See p.19
[WPS (PBC mode)]: See p.21
[WPS (PIN mode)]: See p.22
Y
P
O
Select [WPS (PBC mode)] or [WPS (PIN mode)]
when using a wireless LAN terminal compatible with
Wi-Fi Protected Setup (WPS).
Wired LAN
C
With this option, a wired LAN connection is established using the Ethernet RJ-45 terminal on
the EOS-1D X. For details, refer to the Wired LAN Instruction Manual included with the EOS-1D
X.
18
Using the Wizard to Establish a Connection
Selecting the Wireless Network
When you select [Connect with wizard], active wireless LAN terminals in your area are listed,
accompanied by information about them. Select the SSID (or ESS-ID) of your desired wireless
LAN terminal.
1
2 3
4
1
Select [Connect with wizard].
2
Select the wireless LAN terminal.
Turn the <5> dial to select [Connect with
wizard], and then press <0>.
To select the wireless LAN terminal, press <0>.
Turn the <5> dial to select the wireless LAN
terminal, and then press <0>.
Select [OK] and press <0> to go to the next
screen.
Y
P
O
1 Indicates whether the device is in infrastructure or ad hoc mode
2 An icon is displayed if the wireless LAN terminal is encrypting communication
3 Indicates the first 9 characters of the SSID
4 Indicates the channel used
C
Encryption by Wireless LAN Terminals
If the wireless LAN terminal is encrypting communication, select the corresponding method in
[Authentication] and [Encryption].
[Authentication]: Open system, Shared key, WPA-PSK, or WPA2-PSK
[Encryption]: WEP, TKIP, or AES
[Enter connection] and [Search again]
To configure settings for the wireless LAN terminal manually, select [Enter connection] and
press <0>. Complete the settings for the items displayed, one after another.
To search for wireless LAN terminals again, select [Search again] and press <0>.
19
Using the Wizard to Establish a Connection
Entering the Wireless LAN Encryption Key
Next, enter the encryption key of the wireless LAN terminal. For details on the encryption key,
refer to the device’s instruction manual.
Note that the screens displayed in steps 1 to 3 below vary depending on the authentication and
encryption of the wireless LAN terminal.
1
The [Key index] screen is displayed only if WEP
encryption is used by the wireless LAN terminal.
Turn the <5> dial to select the key index number
specified as the access point, and then press
<0>.
Select [OK] and press <0> to go to the next
screen.
2
Turn the <5> dial to select the key format, and
then press <0>.
Select [OK] and press <0> to go to the next
screen.
3
C
20
Y
P
O
Enter the encryption key.
To switch between input areas, press the <Q>
button.
To move the cursor, turn the <5> dial.
In the bottom input area, turn the <5> dial and
press <0> to enter the encryption key.
If you make a mistake, press the <L> button to
erase it.
When you press the <7> button to complete
the connection with the wireless LAN terminal, the
[Network] screen (p.23) is displayed.
To return to the previous screen, press the
<6> button. The entry is erased.
WPS Connections (PBC Mode)
This is a connection mode when using a wireless LAN terminal compatible with Wi-Fi Protected
Setup (WPS). Pushbutton Connection mode (PBC mode) makes it easy to establish a
connection between the camera and the wireless LAN terminal by pressing the WPS button on
the wireless LAN terminal.
Note that if multiple wireless LAN terminals are active in your area, it may be harder to establish
a connection. In this case, try using [WPS (PIN mode)] to establish a connection.
Confirm the position of the WPS button on the wireless LAN terminal in advance.
It may take about one minute to establish connection.
Connection may not be possible if stealth functions are enabled on the wireless LAN
terminal. Deactivate stealth functions.
1
Select [WPS (PBC mode)].
2
Establish a connection with the
wireless LAN terminal.
Turn the <5> dial to select [WPS (PBC mode)],
and then press <0>.
Select [OK] and press <0> to go to the next
screen.
C
Y
P
O
Press the WPS button on the wireless LAN
terminal. For details about where the button is
located and how long to press it, refer to the
instruction manual of the wireless LAN terminal.
Select [OK] and press <0> to establish a
connection with the wireless LAN terminal.
When the connection with the wireless LAN
terminal is established, the [Network] screen
(p.23) is displayed.
21
WPS Connections (PIN Mode)
This is a connection mode when using a wireless LAN terminal compatible with Wi-Fi Protected
Setup (WPS). In PIN code connection mode (PIN mode), an 8-digit identification number
specified on the camera is set on the wireless LAN terminal to establish a connection.
Even if there are multiple wireless LAN terminals active in your area, this is a relatively reliable
method of establishing a connection using a shared identification number.
It may take about one minute to establish connection.
Connection may not be possible if stealth functions are enabled on the wireless LAN
terminal. Deactivate stealth functions.
1
Select [WPS (PIN mode)].
2
Specify the PIN code on the wireless
LAN terminal.
Turn the <5> dial to select [WPS (PIN mode)],
and then press <0>.
Select [OK] and press <0> to go to the next
screen.
C
3
Y
P
O
On the wireless LAN terminal, specify the 8-digit
PIN code shown on camera LCD monitor.
For instructions on setting PIN codes on the
wireless LAN terminal, refer to the instruction
manual of the wireless LAN terminal.
Select [OK] and press <0> to display the
confirmation screen.
Establish a connection with the
wireless LAN terminal.
22
Select [OK] and press <0> to establish a
connection with the wireless LAN terminal.
When the connection with the wireless LAN
terminal is established, the [Network] screen
(p.23) is displayed.
Configuring Network Settings
Turn the <5> dial to select how to configure the
network settings, and then press <0>.
Select [OK] and press <0> to go to the next
screen.
[Auto setting]
Settings otherwise configured with [Manual setting] can be configured automatically.
However, the IP address and similar settings must be automatically assigned and
configured in environments using DHCP servers or wireless LAN terminals or routers
supporting DHCP server functions.
If an error is displayed, select [Manual setting] regardless of whether the IP address and
similar settings are automatically assigned and configured.
[Manual setting]
The [IP address set.] screen is displayed after you select
[Manual setting]. If [Auto setting] results in an error, enter
the IP address manually. As the IP address, enter the IP
address assigned to the camera.
Enter the [IP address], [Subnet mask], [Gateway], and
[DNS address] on each screen as they are displayed.
If you are not sure what to enter, refer to page 112, “Checking
Network Settings,” or ask the network administrator or
another person knowledgeable about the network.
C
Y
P
O
When entering numbers for the IP address, subnet mask,
and so on, press <0> to move the input position and
turn the <5> dial to enter the number.
23
Configuring Network Settings
Completing Settings for the Communication Method
The following instructions are for settings screens that vary depending on the communication
method (FTP Transfer, EOS Utility, WFT Server, or Media Server), as shown below. Read the
page that introduces the selected communication method.
FTP trans.
Chapter 2 (p.27)
EOSUtility
Chapter 3 (p.43)
C
Y
P
O
Windows 7 and Windows Vista Users
Before performing the operations from page 43, perform the operations below. If these operations are
not performed, the WFT Pairing Software described on page 44 may not start.
Open the [C Drive] [Program Files] [Canon] [EOS Utility] [WFTPairing] folder (in this
order), and then double-click the [WFT FirewallSettings] icon.
After performing this operation, perform the operation on page 43.
WFTserver
Chapter 4 (p.49)
MediaServ.
Chapter 5 (p.61)
24
Configuring Network Settings
Virtual Keyboard Operation
The virtual keyboard is displayed during entry of the encryption key, server name, and other
information.
Switching to other input areas
To switch between input areas, press the <Q>
button.
Moving the cursor
To move the cursor, turn the <5> dial.
You can also move the cursor using <9>.
Entering text
In the bottom input area, turn the <5> dial to move
the cursor and press <0> to enter text.
You can also move the cursor using <9>.
You can check how many characters you have
entered by referring to [*/5] in the upper-right corner of
the screen.
Y
P
O
Deleting text
If you make a mistake, press the <L> button to erase
it.
C
Confirming entries
Press the <7> button to confirm what you have
entered and go to the next screen.
Canceling entries
Press the <6> button to erase the entry and
return to the previous screen.
25
C
26
Y
P
O
Transferring Images
to an FTP Server
Y
P
O
With FTP transfer, you can automatically transfer each image to the FTP
server as you shoot or transfer a set of shots together.
C
27
Configuring FTP Communication Settings
These instructions are continued from Chapter 1.
1
Turn the <5> dial to select [Address setting],
and then press <0>.
2
If you have set the DNS server setting to
[Disable], the screen on the left is displayed.
Press <0> to select the input position, and then
turn the <5> dial to enter the IP address of the
FTP server.
If you have set the DNS server IP address setting
to [Auto assign] or [Manual setting], the screen
on the left is displayed.
For instructions on screen operations, refer to
“Virtual Keyboard Operation” (p.25).
Enter the FTP server’s server name or IP address.
C
3
28
Y
P
O
In [Port number setting], enter 00021, in most
cases.
Turn the <5> dial to select [OK], and then press
<0> to go to the next screen.
4
Complete the [Passive mode] settings.
If an Error 41 (“Cannot connect to FTP server”) is
displayed in step 8, setting [Passive mode] to
[Enable] may resolve it.
5
Complete the [Proxy server] settings.
Turn the <5> dial to select [OK], and then press
<0> to go to the next screen.
Configuring FTP Communication Settings
6
Complete the [Login method] settings.
Turn the <5> dial to select [OK], and then press
<0> to go to the next screen.
7
Complete the [Target folder] settings.
Select [Root folder] to have images saved in the
root folder as specified in FTP server settings.
(p.42)
Select [Select folder] to specify a subfolder in the
root folder. If no folder exists, a folder will be
created automatically.
Turn the <5> dial to select [OK], and then press
<0> to connect to the FTP server.
8
On the confirmation screen displayed next, select
[OK] and press <0>.
X The <Y> lamp on the camera is lit in green.
C
9
Y
P
O
Press <0>. Turn the <5> dial to select the set
number, and then press <0>.
Turn the <5> dial to select [OK], and then press
<0>. After the connection wizard is closed, the
display reverts to the menu screen.
Settings information is stored on the camera. It is
not stored on the transmitter.
The network settings for FTP transfer are now complete.
During image transfer, the <Y> lamp on the camera blinks in green.
29
Automatic Image Transfer After Each Shot
An image can be automatically transferred to the FTP server immediately after shooting. You
can also continue still photo shooting even while images are being transferred.
Before shooting, be sure to insert a memory card in the camera. If you shoot without recording
images, they cannot be transferred.
Note that automatic transfer of movie is not supported. Transfer the movie after shooting, as
described on pages 33-40.
1
Select [Communication settings].
2
Select [Network settings].
3
Select [Set up].
Once you have set [Communication func] to
[Enable], you can select [Network settings].
C
4
Y
P
O
Select [Automatic transfer].
5
Select [Enable].
Take the picture.
X The captured image is transferred to the FTP
server.
During continuous shooting, images are transferred to the FTP server in the order they are captured.
The captured images are also stored on the memory card.
Any images for which transfer fails or is interrupted will be transferred automatically when the
wireless LAN connection is recovered (p.32). These images can also be transferred in batch
manually at a later time (p.36).
30
Automatic Image Transfer After Each Shot
Selecting Particular Sizes or Types of Images to Transfer
With automatic transfer, you can select which images to transfer when recording images of
different sizes to separate cards, or when recording both RAW and JPEG images.
1
Select [Communication settings].
2
Select [Network settings].
3
Select [Set up].
Once you have set [Communication func] to
[Enable], you can select [Network settings].
C
Y
P
O
4
Select [Transfer type/size].
5
Select the size and type of images to
transfer.
31
Automatic Image Transfer After Each Shot
To transfer smaller JPEGs when the camera is set up to record larger JPEGs to one card
and smaller JPEGs to the other, set [JPEG size to trans.] to [Smaller JPEG].
To transfer either RAW or JPEG images when the camera is set up to record RAW images
to one card and JPEGs to the other, specify which images to transfer in the [RAW+JPEG
transfer] setting. Similarly, complete the same setting when RAW+JPEG images are
recorded simultaneously to a single memory card.
When images of the same size are recorded to both cards simultaneously, images recorded
to card 1 are transferred, regardless of image quality (compression).
Auto Retry if Transfer Fails
If transfer fails, the <Y> lamp on the camera
blinks in red. In this case, press the <7> button,
select [Communication settings] on the [53] tab,
and press <0>. When the screen shown on the left
is displayed, check the error number and see page 98
to eliminate the cause of the error.
Once the cause of the error is eliminated, the images
whose transfer previously failed will be transferred automatically. With this option activated,
transfer is attempted again automatically after failure, whether when automatic transfer is used
or when transferring captured images via FTP. Note that when you cancel image transfer, or
turn off the camera, the image will not be re-transferred automatically. See page 36 and transfer
the image manually.
C
Y
P
O
Enabling LAN Power Management
In the menu, select [Communication settings] [Network settings] [Set up] [LAN power save].
When this option is set to [Enable], the transmitter will log off from the FTP server after
transfer and switch to standby mode. Wireless connectivity will be restored automatically
when you attempt to transfer images, and the transmitter will reconnect to the FTP server.
32
Transferring Images Individually
Simply select an image and press <0> to transfer it. You can also add a caption before
transferring images. You can also continue still photo shooting even while images are being
transferred.
Transferring the Current Image
1
Select [Communication settings].
2
Select [Network settings].
3
Select [Set up].
Once you have set [Communication func] to
[Enable], you can select [Network settings].
C
4
Y
P
O
Select [Transfer with SET].
5
Select [Enable].
Select the image.
Press the <x> button on the camera.
Select the image to transfer, and then press <0>
to transfer the image.
Movie cannot be transferred this way.
Selecting movie and pressing <0> will
display the movie playback panel.
33
Transferring Images Individually
Adding a Caption Before Transfer
You can add a registered caption to each image before transfer. This is convenient if you want
to inform the recipient the printing quantity, for example. The caption is also added to images
stored on the camera.
For instructions on creating and registering captions, refer to page 114.
You can check for captions added to images by examining the Exif information, in the user
comments.
1
2
Take the picture.
3
Select [Network settings].
4
Select [Transfer with caption].
Select [Communication settings].
C
Y
P
O
Once you have set [Communication func] to
[Enable], you can select [Network settings].
X The last captured image is displayed.
It is not possible to select other images on the
[Transfer with caption] screen. To select another
image for transfer with a caption, view that image
before following these steps.
34
Transferring Images Individually
5
Select a caption.
6
Transfer the image.
Turn the <5> dial to select the [Caption] frame,
and then press <0>.
Turn the <5> dial to select the content of the
caption, and then press <0>.
C
Turn the <5> dial to select [Transfer], and then
press <0>.
Y
P
O
35
Batch Transfer
After shooting, you can select multiple images as desired and transfer them all at once. You
can also transfer unsent images or images that could not be sent previously.
You can also continue still photo shooting even while images are being transferred.
Selecting Images to Transfer
1
On the [32] tab, select [Image
transfer].
2
Select [Image sel./transfer].
3
Select [Sel.Image].
C
4
Y
P
O
X An image is displayed.
Select images to transfer.
Press <0>. Turn the <5> dial to display <X> in
the upper left corner of the image to transfer.
Press <0> to confirm your selection.
You can select up to 9,999 images.
To display three images per screen, hold the <u>
button and turn the <6> dial left. To display one
image per screen, hold the <u> button and turn
the <6> dial right.
After selecting images to transfer, press the
<7> button.
36
Batch Transfer
5
Transfer the images.
Select [FTP Trans.].
Select [OK] on the confirmation screen displayed
next.
X A transfer progress screen is displayed.
[RAW+JPEG transfer] Options
Selecting [RAW+JPEG transfer] in step 2 on the
preceding page will give you the option of transferring
RAW images, JPEG images, or both types of images.
You will have the same options whether you specify
[Sel. Image], [Sel. n], or [All image] as the image
selection method.
C
Y
P
O
Menu Operation During Image Transfer
You can use the menu even during image transfer. However, to prevent transfer problems,
some menu items are unavailable during transfer, including [Network settings], [Protect
images], [Erase images], [Format card], and [Record func+card/folder sel.].
If you shoot a movie during the image transfer of captured images, the image transfer will be
temporary cancelled during movie shooting.
37
Batch Transfer
Batch Transfer of Images in a Folder
1
On the [32] tab, select [Image
transfer].
2
Select [Image sel./transfer].
3
Select [Sel.n].
4
Select [Folder images not transfer’d].
5
Select a folder.
C
38
Y
P
O
To transfer images that could not previously be
transferred, select [Folder images failed transf.].
Batch Transfer
6
Transfer the images.
Select [FTP Trans.].
Select [OK] on the confirmation screen displayed
next.
X A transfer progress screen is displayed.
C
Y
P
O
Selecting [Clear folder transf. history] will set the transfer history of images in the selected folder to
“unsent.” This enables you to resend all the images in the folder later by selecting [Folder images not
transfer’d].
39
Batch Transfer
Batch Transfer of Images on Memory Cards
1
On the [32] tab, select [Image
transfer].
2
Select [Image sel./transfer].
3
Select [All image].
4
Select [Card images not transferred].
5
Transfer the images.
C
Y
P
O
To transfer images that could not previously be
transferred, select [Card images failed transfer].
Select [FTP Trans.].
Select [OK] on the confirmation screen displayed
next.
X A transfer progress screen is displayed.
Selecting [Clear card’s transf. history] will set the transfer history of images on the memory card to
“unsent.” This enables you to resend all the images on the card later by selecting [Card images not
transferred].
40
Checking Image Transfer History
Checking the Transfer History of Individual Images
To check the transfer history in [Image sel./transfer], select [Sel.Image].
Image not selected for transfer (no icon)
Image selected for transfer
Image could not be transferred
Y
P
O
Image transferred
C
Checking the Transfer History of Memory Cards
On the [Image sel./transfer] screen, you can check
the number of images for transfer as well as the
transfer history of images in the memory card.
Specifically, you can check the number of images
classified as [Images failed trans.] and [Images
transferred].
41
Viewing Transferred Images
Images transferred to the FTP server are stored in the following folder as specified in the FTP
server settings.
Windows
Under the default settings of the FTP server, images are stored in [C drive] [Inetpub]
folder [ftproot] folder, or in a subfolder of this folder.
If the root folder of the transfer destination has been changed in the FTP server settings, ask
the FTP server administrator where images are transferred.
Macintosh
Open the [Macintosh HD] [Users] folder. The folder where images are stored is located
in the folder of the user currently logged on, or in a subfolder there.
Folders for Image Storage
Under the default transmitter settings, transferred images will be stored in the root folder
specified in the FTP server settings, in a folder structure such as A/DCIM/100EOS1D which is
automatically created.
Additionally, when you have selected card 1 for recording and playback, a folder structure such
as “A/DCIM/100EOS1D” is automatically created for image storage. For card 2, the folder
structure is “B/DCIM/100EOS1D”. (Images are stored separated, with card 1 images in folder A
and card 2 images in folder B.)
C
42
Y
P
O
Remote Capture
Using EOS Utility
Y
P
O
You can use EOS Utility to shoot remotely over a wireless LAN.
In addition to remote capture, all EOS Utility camera operations except
firmware updating are supported, because this option utilizes a wireless
network instead of a USB cable.
C
The WFT-E6 cannot be used with the Mac version of EOS Utility (as of November 2011).
Check the Canon website for the latest system requirements, including supported OS
versions.
43
Configuring EOS Utility Communication Settings
These instructions are continued from Chapter 1.
With EOS Utility, you can use the included WFT Pairing Software to establish a connection
between the transmitter and a computer.
WFT Pairing Software is installed automatically during easy installation of the software
provided with the camera. If it is not installed, install it on the computer for communication with
the transmitter before this procedure.
The configuration procedure is as follows, using Windows 7 as an example.
First, the pairing screen is displayed.
Turn the <5> dial to select [OK]. When you press
<0>, the following message is displayed. ******
represents the last six digits of the MAC address of
the WFT-E6 for the connection.
1
2
C
Y
P
O
Start the pairing software.
Normally, it is installed in the same location as
EOS Utility.
X After the pairing software starts up, an icon is
displayed in the task bar.
X When the camera is detected, a message is
displayed.
44
Configuring EOS Utility Communication Settings
3
Double-click the pairing software icon.
X Detected cameras are listed. Cameras that have
already been connected are not included in the
list.
Click [Connect].
If multiple cameras are displayed, identify the
camera to connect to by its [MAC address] or [IP
address].
You can check the [MAC address] and [IP
address] by accessing [Confirm settings] in the
menu (p.80).
Y
4 OP
C
When the camera detects the computer on which
you clicked [Connect] in step 3, the message on
the left is displayed.
Turn the <5> dial to select [OK], and then press
<0>.
5
Press <0>. Turn the <5> dial to select the set
number, and then press <0>.
After you turn the <5> dial to select [OK] and
press <0>, the connection wizard is closed and
EOS Utility starts up.
X The <Y> lamp on the camera is lit in green.
Settings information is stored on the camera. It is
not stored on the transmitter.
The EOS Utility network settings are now complete.
45
Configuring EOS Utility Communication Settings
There is no need to complete pairing again if you will continue using a particular camera,
transmitter, and computer together after pairing without changing the settings.
Before your next PTP session, simply turn on the camera to which the transmitter is
attached and start the pairing software. The connection between the camera and computer
will be established automatically.
You can add the pairing software to the software launched at startup of your computer. In
EOS Utility on the [Preferences] [Basic Settings] tab, select [… Add WFT Pairing
Software to the Startup folder].
C
46
Y
P
O
Using EOS Utility
For EOS Utility instructions, refer to the Software Instruction Manual (PDF). You can take full
advantage of EOS Utility via the transmitter just as via a USB connection, without restrictions.
C
Y
P
O
In Remote Live View shooting, the rate of image transmission is slower than via USB. The motion of
moving subjects cannot be displayed smoothly.
47
C
48
Y
P
O
Remote Capture
Using WFT Server
Y
P
O
Using a web browser, you can view images on a memory card in the camera
and download them to a computer.
Additionally, you can shoot remotely over a wireless LAN. Note that bulb,
mirror lockup, and movie shooting are not supported.
C
49
Configuring WFT Server Communication Settings
These instructions are continued from Chapter 1.
Press <0>. Turn the <5> dial to select the set
number, and then press <0>.
Press <0> again. After the connection wizard is
closed, the display reverts to the menu screen.
X The <Y> lamp on the camera is lit in green.
Settings information is stored on the camera. It is
not stored on the transmitter.
Setting up an Account
Y
P
O
Enter a logon name and password for accessing the camera from a computer. The logon name
and password you specify here are used on the computer when connecting to the camera.
1
C
2
50
Turn the <5> dial to select [Set up], and then
press <0>.
Turn the <5> dial to select [WFT server
settings], and then press <0>.
Configuring WFT Server Communication Settings
3
Turn the <5> dial to select [WFT account], and
then press <0>.
When changing the port number, turn the <5>
dial to select [Port number] and press <0>. Note
that there is normally no need to change the port
number (80).
4
Select a user number.
With WFT Server, you can connect the camera to
up to three computers. Select a user number to
prevent conflicts when users at other computers
are connected to the transmitter simultaneously.
Turn the <5> dial to select [User *], and then
press <0>.
5
After you select [Login name] and [Password],
the following input screen is displayed.
For instructions on input screen operations, refer
to “Virtual Keyboard Operation” (p.25).
C
Y
P
O
The WFT Server network settings are now complete.
51
Displaying WFT Server
In the web browser, display WFT Server, a screen for transmitter operations. Make sure you
have already established a connection between the camera and computer.
1
2
3
Start the web browser.
First, start Internet Explorer or another web
browser.
Enter the URL.
In the address field, enter the IP address assigned
to the camera.
Press the <Enter> key.
Complete the [Login name] and
[Password] settings.
C
4
JavaScript supported
Enter the login name and password as specified in
the procedure on page 51. Click [OK] to display
the WFT Server screen.
Web browsers that support JavaScript now display
the screen on the left below in step 4.
Otherwise, a message is displayed if JavaScript is
not supported. Choosing not to use JavaScript will
display the screen on the right below in step 4,
with limited functions.
Y
P
O
Select the language.
Select a language at the bottom of the screen.
JavaScript not supported
If you don’t know the URL (IP address)
You can check the URL (IP address) by accessing [Confirm settings] in the menu (p.80).
52
Viewing Images
Browse images on the camera’s memory card as follows.
1
Click [Viewer].
2
Select the memory card.
X The image viewing screen is displayed.
Click [CF1] or [CF2].
Click the [DCIM] folder and select the folder
containing the images.
C
3
Y
P
O
Select an image.
To view another image, click the <
>
buttons or jump to other pages.
In JavaScript-compatible web browsers, you can
specify how many thumbnails are shown per
screen by clicking the pull-down list in the upperright corner of the screen.
53
Viewing Images
4
Download images to the computer.
Click a thumbnail.
X The image is displayed at a larger size.
To download the image to your computer, click
<
>.
Click [Return] to return to the image viewing
screen.
Y
P
O
Although actual RAW images and movies are not displayed here, they can be downloaded to
the computer in the same way as JPEGs.
C
54
Remote Capture [Camera control]
First, set up the camera for Live View shooting. Note that remote capture of movies is
not supported.
For web browsers that do not support JavaScript, refer to page 59, “Remote Capture.”
1
Click [Camera control].
X The advanced capture screen is displayed.
①② ③ ④
⑲
⑤⑥
Y
P
O
⑫
⑬
⑭
C
⑯
⑰
⑦
⑧
⑨
⑩
⑪
⑮
⑱
①
Battery check
⑪
Quality
②
Drive mode
⑫
Shooting mode
③
Possible shots
⑬
White balance
④
AF mode
⑭
Metering mode
⑤
Release button
⑮
Menu
⑥
AF/MF switch
⑯
Live View shooting button
⑦
Shutter speed
⑰
Manual focus button
⑧
Aperture
⑱
Live View image size switching button
⑨
ISO speed
⑲
Live View image screen
⑩
Exposure compensation
* Items that cannot be set via WFT Server are shaded on the screen.
55
Remote Capture [Camera control]
⑯
⑱
2
Set the lens focus mode switch to
<f>.
3
Display Live View image.
Under these conditions, click the release button
(⑤). When you let go of the button, the camera
autofocuses and the picture is taken.
With One-Shot AF, the picture is not taken if focus
is not achieved. Try following the next steps to
display Live View image and focus manually.
Click the Live View shooting button (⑯).
X The AF/MF switch (⑥) is set to <g>, and Live
View image is displayed.
If Live View image is not displayed, enable Live
View shooting in the menu (⑮).
To make Live View image display more
responsive, click the Live View image size
switching button (⑱). Live View image is now
displayed at a smaller size, improving
responsiveness. To restore the original size, click
this button again.
Y
4 OP
C
Manually adjust the focus.
Click the buttons <
>, <
>, <
>, <
>,
<
>, and <
> to adjust the focus. Note that
autofocus is not supported during Live View image
display.
To focus more closely, click <
>, <
>, or
<
>. To focus farther away, click <
>,
<
>, or <
>.
Three levels of focus adjustment are available.
<
><
> : Largest increment
<
><
> : Intermediate increment
<
><
> : Smallest increment
56
Remote Capture [Camera control]
5
Configure the shooting settings.
6
Take the picture.
Click setting items (such as quality) to view the
setting details, which you can configure.
Complete the settings as needed.
Click the release button (⑤). When you let go of
the button, the picture is taken.
X The captured image is now displayed.
Captured images are stored on the memory card.
To download images to your computer, refer to
page 53, and use the [Viewer] function.
C
Y
P
O
The Live View image may freeze when shooting if the camera is accessed by multiple computers.
57
Remote Capture [Simple control]
First, set up the camera for Live View shooting. Note that remote capture of movies is
not supported.
For web browsers that do not support JavaScript, refer to page 59, “Remote Capture.”
1
Click [Simple control].
X The basic capture screen is displayed, and then
Live View image is displayed.
Live View image screen
Y
P
O
Manual focus button
C
Release button
58
<
<
><
><
><
><
>: Focuses more closely
>: Focuses farther away
Levels of focus adjustment
<
<
<
><
><
><
>
>
> : Largest increment
: Intermediate increment
: Smallest increment
2
Manually adjust the focus.
3
Take the picture.
Set the lens focus mode switch to <f>.
Click the buttons <
>, <
>, <
>, <
<
>, and <
> to adjust the focus.
>,
Click the release button. When you let go of the
button, the picture is taken.
X The captured image is now displayed.
Captured images are stored on the memory card.
To download images to your computer, refer to
page 53, and use the [Viewer] function.
Remote Capture
The following instructions are for remote capture with web browsers that do not support
JavaScript.
First, set up the camera for Live View shooting. Note that remote capture of movies is
not supported.
Screen
Release button
1
Click [Capture].
2
Take the picture.
X The capture screen is displayed.
Live View image is not displayed.
Set the lens focus mode switch to <g>. Adjust
the focus on the camera.
Click the release button. When you let go of the
button, the picture is taken.
X The captured image is now displayed.
Captured images are stored on the memory card.
C
3
Y
P
O
Download images to the computer.
Click the image.
X The image is displayed at a larger size.
To download the image to your computer, click
<
>.
Click [Return] to return to the capture screen.
Although actual RAW images are not displayed here, they can be downloaded to the computer
in the same way as JPEGs.
59
Using WFT Server in Linked Shooting
Remote Capture in WFT Server can be used in conjunction with the transmitter’s “Linked
Shooting” function (p.70). Additionally, you can view and download images on master or slave
camera memory cards.
Linked Shooting
Slave camera
Slave camera
Slave camera
C
Y
P
O
Master camera
WFT Server
60
Slave camera
Using the Transmitter
as a Media Server
Y
P
O
Images on a memory card in the camera can be viewed over a wireless LAN
on a television.
This function requires a DLNA*-compatible television, digital photo frame, or
C
similar media player. (Subsequently, this equipment is collectively referred
to as the media player.)
* DLNA: Digital Living Network Alliance
61
Configuring Media Server Communication Settings
These instructions are continued from Chapter 1.
Press <0>. Turn the <5> dial to select the set
number, and then press <0>.
Press <0> again. After the connection wizard is
closed, the display reverts to the menu screen.
The information you specified is stored on the
camera. It is not stored on the transmitter.
The media server network settings are now complete.
C
62
Y
P
O
Displaying Captured Images on a Television
Operate the media player controls to display on a television the images on the camera’s
memory card. Note that RAW images and movies cannot be displayed.
The following operations are done on the media player. For details, refer to the media player
instruction manual.
EOS1D
EOS 1D
CF
02/28/2012
1
Display the media player settings
screen on your television.
2
Select the <
icon.
Using the media player functions, display the
EOS1D> (media server) icon on the
<
television.
A different icon may be displayed, depending on
the media player. In that case, locate the icon
labeled EOS1D.
C
100EOS1D
02/28/2012
EOS1D> (media server)
Selecting the <
EOS1D> icon will display an
icon of the memory card. After you select this icon,
you can select folders and images.
Select an image to display it at a larger size on the
television. For details, refer to the media player
instruction manual.
Y
P
O
1-100
02/28/2012
02/28/2012
Information overlay and details displayed on the television vary depending on the media player.
Note that depending on the media player, image information may not be displayed.
Icons labeled 1-100 (for example) contain images grouped by file number in the selected folder
(***EOS1D).
Date information shown for images is based on Exif information added to the images.
Date information shown for memory cards or folders may be the current date set on the camera, in
some cases.
63
C
64
Y
P
O
Linked Shooting
Y
P
O
With linked shooting, up to 10 slave cameras can be linked in a wireless
network (via IEEE 802.11g in ad hoc mode) to the master camera on which
you will release the shutter.
C
Note that there will be a slight delay after you release the master camera
shutter until the slave camera shutters are released. Movie shooting is not
supported.
Slave camera
Master camera
65
Preparing Slave Cameras
After setting up the slave cameras as described on this page, follow the steps on the next page
for basic linked shooting. For instructions to view or download to your computer the images
stored on cameras, refer to page 70.
1
Select [Communication settings].
2
Select [Network settings].
3
Select [Connection wizard].
4
Select [LinkedShot].
5
Set up the slave cameras.
Once you have set [Communication func] to
[Enable], you can select [Network settings].
C
Y
P
O
Select [Slave].
X The slave cameras are now ready, with the
following screen displayed.
When using multiple slave cameras, set up all
slave cameras to slave state.
Once the settings are complete, slaves cannot be
added or removed. You must repeat the setup
process from step 1.
66
Basic Linked Shooting
Shoot with the master camera linked to slave cameras as follows.
1
Set up the master camera.
2
Select [Auto connect].
3
Switch to setting up the slave cameras.
Configure the settings on the master camera
following steps 1-3 on the preceding page, and
then select [Master].
For [Manual connect] instructions, refer to page
71.
Y
P
O
4
C
On the slave cameras, select [OK].
Check the number of slave cameras.
X On the master camera LCD monitor, the number of
slave cameras detected is displayed.
5
Establish the connection.
On the master camera and all slave cameras,
select [OK].
X A screen confirming the connection of the camera
is displayed.
Settings information is stored on the cameras. It is
not stored on the transmitters.
67
Arranging the Slave Cameras
Slave camera
Slave camera
Slave camera
Slave camera
Y
P
O
Master camera
C
Arrange the slave cameras in clear view of the master camera, without objects between
them.
You can arrange master camera in an overall circumference of up to approximately 100 m /
328 ft. However, the distance supported for linked shooting may be shorter depending on
the wireless communication conditions, which are affected by how the cameras are
arranged, the environment of use, and weather conditions.
Pressing the shutter button halfway on the master camera puts slave cameras in the same
state, as if the shutter buttons were pressed halfway. Similarly, fully pressing the shutter
button on the master camera has the same effect on slave cameras, which respond as if the
shutter buttons were fully pressed.
There will be a slight delay after you release the master camera shutter until the slave
camera shutters are released. (Simultaneous capture is not possible.)
68
Arranging the Slave Cameras
Do not use multiple flash units. Although slight, there is a difference in the shutter release timing
which may cause out-of-sync flash firing and inadequate exposure.
Linked shooting is not possible when master and slave cameras are set to [Mirror lockup]
[Enable] or [Enable:Mirror down w/ s].
During linked shooting, when you press the AE lock or depth-of-field preview button, the camera
adjusts the focus and meters as if you had pressed the shutter button halfway.
Once you have established a connection between the master camera and slave cameras, the
settings are retained even after you replace the batteries.
If you will no longer use a slave camera in linked shooting, set [Communication mode] to
[Disconnect] on that slave camera.
Any cameras compatible with linked shooting, when they have WFT series transmitters attached,
can be used as slave cameras, regardless of model.
C
Y
P
O
69
Using the Transmitter with WFT Server
Using WFT Server, you can shoot remotely with a master camera linked to slave cameras that
will shoot at the same time. WFT Server can also be used to access master or slave cameras
for Live View display, and you can adjust the focus and configure remote capture settings as
needed.
Additionally, images on camera memory cards can be viewed and downloaded.
Linked Shooting
Slave camera
Slave camera
Slave camera
C
Y
P
O
Master camera
WFT Server
70
Slave camera
Using the Transmitter with WFT Server
Connect the Master and Slave Cameras
1
2
Set up the slave cameras.
3
Select [Manual connect].
4
Select the connection mode.
5
Specify the channel.
Set up the slave cameras as described on page 66.
Set up the master camera.
Complete settings on the master camera following
steps 1–3 on page 66, and then select [Master].
C
Y
P
O
Select the wireless LAN ad hoc mode supported
by the computer.
When selecting [Manual setting], specify the
same channel on the master camera, slave
cameras, and computer.
71
Using the Transmitter with WFT Server
6
Enter the encryption key.
7
Switch to setting up the slave cameras.
8
Check the number of slave cameras.
Enter a 5-digit encryption (WEP) key and press the
<7> button.
The key entered here will be saved on the
computer and used to access the master camera
from the computer.
X On the slave cameras, select [OK].
X On the master camera LCD monitor, the number of
slave cameras detected is displayed.
Y
9 OP
C
Establish the connection.
On the master camera and all slave cameras,
select [OK].
X A screen confirming the connection of the camera
is displayed.
Settings information is stored on the cameras. It is
not stored on the transmitters.
72
Using the Transmitter with WFT Server
Check the Camera Settings
Check the network settings on the master and slave cameras as follows. Note that without a
good understanding of these settings, you cannot access the cameras from a computer.
1
On the master camera, select
[Communication settings].
2
Select [Network settings].
3
Select [Set up].
Once you have set [Communication func] to
[Enable], you can select [Network settings].
C
4
Y
P
O
Select [Confirm settings].
X The settings are displayed.
73
Using the Transmitter with WFT Server
5
Check the settings.
6
Check the slave camera settings.
Turn the <5> dial to display other screens.
Write down the IP address and SSID.
C
74
Check network settings on the slave cameras just
as you checked the master camera settings.
Write down the IP address of all slave cameras.
Each camera has a different address.
The SSID will match the master camera SSID.
Y
P
O
Using the Transmitter with WFT Server
Configure WFT Server Communication Settings
Enter a login name and password for accessing WFT Server on cameras from a computer.
Although you can specify different login names and passwords for each camera, it is also
possible to use the same information for all cameras.
1
On the master camera, select
[Communication settings].
2
Select [Network settings].
3
Select [Set up].
Once you have set [Communication func] to
[Enable], you can select [Network settings].
C
4
Y
P
O
Select [WFT server settings].
5
Select [WFT account].
Note that there is normally no need to change
[Port number].
75
Using the Transmitter with WFT Server
6
Select a user number.
7
Complete the [Login name] and
[Password] settings.
WFT Server can accept connections from up to
three computers per camera. Select a user
number to prevent conflicts when users at other
computers are connected to the transmitter at the
same time.
After you select [Login name] and [Password],
the following input screen is displayed.
For instructions on input screen operations, refer
to “Virtual Keyboard Operation” (p.25).
Y
P
O
IP Addresses Assigned to Computers
IP addresses assigned to cameras end in 1–11, as in 192.168.1.1–192.168.1.11.
For this reason, assign computer IP addresses that end in a number higher than 11, as in
192.168.1.12.
C
76
Using the Transmitter with WFT Server
Access the Cameras from the Computer
To access the cameras from the computer, use the computer’s standard search function to
detect wireless LAN terminals. For details, refer to the computer instruction manual.
1
From the computer, find cameras on the
network.
2
Connect to a camera.
Use built-in searching on the computer to detect
wireless LAN terminals.
Select a device with the same ID as the SSID you
wrote down in steps 5 and 6 on page 74.
After the computer requests an encryption (WEP)
key, enter the key set in step 6 on page 72.
X The computer is now connected to the camera.
Display WFT Server
1
2
C
3
Y
P
O
Start a web browser on the computer.
First, start Internet Explorer or another web
browser.
Select the camera to connect to.
Enter the IP address you wrote down in steps 5
and 6 on page 74.
X The browser now connects to the camera with the
IP address you entered.
To access a different camera, change the IP
address in this step.
Complete the [Login name] and
[Password] settings.
Enter the [Login name] and [Password] as
specified in the procedure on page 76. Click [OK]
to display the WFT Server screen.
77
Using the Transmitter with WFT Server
4
Select the language.
Select a language on the bottom of the screen.
Web browsers that support JavaScript now display
the screen on the left.
A message is displayed if JavaScript is not
supported. Selecting not to use JavaScript will
display the screen on the right, with limited
functions.
Y
P
O
View Images on the Camera
C
Refer to “Viewing Images” on page 53.
Images on camera memory cards can be viewed and downloaded. To switch cameras,
enter the IP address of the master or slave camera in the web browser.
Shoot Remotely
Refer to “Remote Capture [Camera control]” on page 55. Remote capture as described on
pages 58 and 59 is also possible.
To switch cameras, enter the IP address of the master or slave camera in the web browser.
You can access slave cameras, adjust the focus and configure shooting functions, and then
use the master camera for linked shooting.
When shooting remotely with linked shooting, access the master camera. If you connect to a
slave camera, only that slave camera will shoot, without linked shooting.
78
Managing
Settings Information
C
Y
P
O
79
Checking Settings
Check the network settings as follows.
1
Select [Communication settings].
2
Select [Network settings].
3
Select [Set up].
Once you have set [Communication func] to
[Enable], you can select [Network settings].
Y
4 P
O
C
Select [Confirm settings].
X The settings are displayed.
80
Checking Settings
Example of FTP transfer and wired LAN settings
C
Example of FTP transfer and wireless LAN settings
Y
P
O
81
Changing Settings
Settings originally completed using the connection wizard can be changed as follows. You can
also change IP security settings (IPsec) that cannot be set using the connection wizard, as well
as other settings, such as when an image with the same file name as an existing file is sent to
the FTP server. (p.83)
1
Select [Communication settings].
2
Select [Network settings].
3
Select [Set up].
Once you have set [Communication func] to
[Enable], you can select [Network settings].
C
82
Y
P
O
4
Select [LAN settings].
5
Select the settings number.
Select the settings number that identifies the LAN
settings.
Changing Settings
6
Select [Change].
7
Select the item to change.
After selecting [Change settings name], you can
rename the settings.
Select the desired item from [LAN type], [TCP/IP],
[FTP server], or [Wireless LAN] and change the
setting.
IP Security (IPsec)
Configured in [TCP/IP] [Security].
IPsec is a set of standards for encrypted communication over the Internet. It provides effective
security for both wireless and wired LANs. To use this function, you must enable IPsec in the
network settings of your computer. When IPsec is employed, only transport mode is supported,
and 3DES or AES encryption and SHA1 authentication are used. Note that the IP address of
the computer for communication with the transmitter must be entered in [Destination address]
on the settings screen.
C
Y
P
O
Directory Structure of the Target Folder
Configured in [FTP server] [Directory structure].
Selecting [Camera] automatically creates a folder structure matching that of the camera’s (such
as A/DCIM/100EOS1D) in the server’s root folder for image storage. If you have created a
subfolder in the root folder by changing the [Target folder] setting, a folder structure such as A/
DCIM/100EOS1D is automatically created in that folder for image storage.
Selecting [Default] will use the root folder for image storage. If you have created a subfolder in
the root folder by changing the [Target folder] setting, images are saved in that folder.
83
Changing Settings
Overwriting Files of the Same Name
Configured in [FTP server] [Overwrite same file].
When the transmitter is configured to prevent overwriting
If there is already a file of the same name in the target folder on the FTP server, the new file is
saved with an extension consisting of an underscore and a number, as in IMG_0003_1.JPG.
When you resend images if initial transfer fails
Even if the transmitter is configured to overwrite files of the same name, if you resend an image
file that could not be transferred initially, the existing file may not be overwritten in some cases.
If this happens, the new file is saved with an extension consisting of an underscore, a letter,
and a number, as in IMG_0003_a1.JPG.
Passive Mode
Configured in [FTP server] [Passive mode].
Enable this setting in network environments protected by a firewall. If an Error 41 occurs
(“Cannot connect to FTP server”), setting passive mode to [Enable] may enable access to the
FTP server.
Y
P
O
Preventing Changes to Settings
To prevent accidental changes to LAN settings, set [Protect
settings] to [On].
C
84
Saving and Loading Settings
Network settings can be saved on a memory card for use with other cameras.
Saving Settings
1
Select [Communication settings].
2
Select [Network settings].
3
Select [Set up].
Once you have set [Communication func] to
[Enable], you can select [Network settings].
Y
P
4 O
C
Select [LAN settings].
5
Select the settings number.
Select the settings number that identifies the LAN
settings.
85
Saving and Loading Settings
6
Select [Change].
7
Select [Save settings].
8
Select [Save].
X The settings are now saved as a file on the
memory card.
The settings are saved as a file (WFTNPF**.NIF)
in the area of the memory card shown when the
card is opened (in the root directory).
The file name is determined automatically by the
camera: WFTNPF, followed by a number (01 to
99) and the extension NIF. You can rename the file
as desired by selecting [Change file name].
C
86
Y
P
O
Saving and Loading Settings
Loading Settings
Load settings files stored on a memory card as follows.
Make sure the settings file is saved in the folder shown when the memory card is opened (that
is, the root directory).
1
Select [Load settings].
2
Select the settings file.
3
Load the settings file.
X Select a settings file that matches your network
environment.
Y
P
O
X Information from the settings file is loaded into the
selected settings number.
C
87
C
88
Y
P
O
Synchronizing the
Camera Time Wirelessly
Y
P
O
The time on EOS-1D X cameras can be synchronized over a wired LAN
connection. Also you can wirelessly synchronize multiple EOS-1D X
cameras when WFT-E6 units are attached.
Set the master camera time on up to 10 slave cameras, as needed. Note
that even after synchronization, there will be a slight margin of error
between master and slave camera time of ±0.05 seconds, at most.
C
Slave camera
Master camera
89
Synchronizing the Time
Steps 1–5 are the same on master and slave cameras.
1
On the [53] tab, select [Communication
settings].
2
Select [Network settings].
3
Set [Communication mode] to
[Disconnect].
Once you have set [Communication func] to
[Enable], you can select [Network settings].
Once you have set [Communication mode] to
[Disconnect], you can select [Sync time between
cameras].
Y
4 P
O
C
Select [Sync time between cameras].
X Select [OK] on the next screen displayed, shown
below.
5
90
Select [Wireless].
After selecting [Wireless], select [OK].
Synchronizing the Time
6
Set up the master camera.
7
Set up the slave cameras.
After configuring the master camera settings
following steps 1–5 on the preceding page, select
[Master].
X When the next screen is displayed, the master
camera is ready. Go to step 7 to set up the slave
cameras.
After configuring the slave camera settings
following steps 1–5 on the preceding page, select
[Slave].
X Select [OK] on the next screen displayed, shown
below.
C
8
Y
P
O
To set the time on multiple slave cameras, follow
these steps on each slave camera. The master
camera screen shown in step 8 indicates the
number of slave cameras.
On the master camera, select [OK].
Check the number of slave cameras, and then
select [OK].
X The time on slave cameras is now synchronized to
the master camera time.
Select [OK] to return to the [Network settings]
screen.
91
C
92
Y
P
O
Using Bluetooth GPS
Devices
Y
P
O
Information including the latitude, longitude, elevation, and date and time
can be obtained from commercially-available GPS devices connected via
Bluetooth and added to images. The additional information can be checked
on the camera as well as by using commercially-available GPS-compatible
mapping software.
C
For a list of specific GPS devices supported, contact the Canon Service
Center.
For GPS device instructions, refer to the device’s instruction manual or contact the
manufacturer.
93
Connecting GPS Devices via Bluetooth
1
On the [53] tab, select [Communication
settings].
2
Select [Bluetooth device connection].
3
Select the GPS device.
Once you have set [Communication func] to
[Enable], you can select [Bluetooth device
connection].
X Press <0> when the next screen shown below is
displayed.
C
94
Y
P
O
Nearby Bluetooth® devices in use are listed.
Turn the <5> dial to select the GPS device, and
then press <0>.
Select [OK] and press <0>.
If a Bluetooth® password has been set on the
GPS device, a password input screen is displayed.
Enter the password.
X The transmitter now starts to establish a
connection with the GPS device.
It may take a few minutes to establish a
connection with the GPS device.
Camera operations such as shooting, menu
display, or image playback are not possible
until the connection is established.
Connecting GPS Devices via Bluetooth
4
When the confirmation message is
displayed, select [OK].
The GPS connection status changes to
[Connected]. Pressing <0> under these
conditions will enable you to disconnect the GPS
device.
While the Bluetooth connection is active, <s> and
the <r> are shown on the EOS-1D X rear LCD
panel.
5
6
Confirm operation of the GPS device.
Make sure the GPS device has determined the
current location.
Take the picture.
C
7
Y
P
O
After confirming that <r> is shown on the
EOS-1D X rear LCD panel, shoot when ready.
If the <r> icon is blinking when you shoot,
accurate GPS data will not be added to images.
Check the GPS data.
Playback the image in single image display.
Press the <6> button to display the shooting
information screen with GPS data.
From top to bottom: latitude, longitude,
altitude, and Coordinated Universal Time
When the camera’s power is turned off and on or when it wakes up from auto power off, do not shoot
until the <r> lamp remains lit. If you shoot while the lamp is blinking, the correct GPS information
may not be added to images.
The date and time indicated is the Coordinated Universal Time (UTC) as obtained by the GPS device,
which is nearly the same as Greenwich Mean Time (GMT). In some cases, the date and time of the
zone specified on the GPS device is indicated.
95
Connecting GPS Devices via Bluetooth
Canceling the Bluetooth Connection
The Bluetooth connection with the GPS device will not be terminated if you simply turn off the
camera. To cancel the connection, follow these steps.
1
On the [53] tab, select [Communication
settings].
2
Select [Bluetooth device connection].
Once you have set [Communication func] to
[Enable], you can select [Bluetooth device
connection].
X Press <0> when the next screen shown below is
displayed.
Select [OK].
C
3
Y
P
O
X The Bluetooth connection is canceled.
Select [OK] to return to the [Bluetooth device
connection] screen.
96
Troubleshooting
C
Y
P
O
Transfer speed in ad hoc mode may become extremely slow when the transmitter is used
with certain types of computer. For more information, contact your dealer or nearest Canon
Service Center.
97
Responding to Error Messages
If transmitter errors are displayed on the camera LCD monitor, refer to the examples of
corrective actions in this section to eliminate the cause of the error. In case of errors, the
<Y> lamp on the camera starts blinking. The error details can also be checked on the [53]
tab [Communication settings] [Network settings] [Error description].
Click the error number in the following chart to jump to the corresponding page.
11 (p.99)
12 (p.99)
21 (p.99)
22 (p.100)
23 (p.100)
24 (p.101)
25 (p.102)
41 (p.103)
42 (p.104)
43 (p.104)
44 (p.104)
45 (p.105)
46 (p.105)
47 (p.106)
51 (p.106)
52 (p.106)
53 (p.106)
54 (p.106)
61 (p.107)
62 (p.107)
63 (p.108)
64 (p.108)
66 (p.109)
67 (p.109)
68 (p.109)
69 (p.109)
71 (p.110)
72 (p.110)
73 (p.110)
26 (p.102)
65 (p.108)
82 (p.110)
91 (p.110)
Y
P
O
If [Waiting to retry transfer…] is displayed
If image transfer via FTP fails after shooting, the
screen on the left is displayed, and the camera’s
<Y> lamp blinks in red. Check the error number
and eliminate the cause of the error.
Once the cause of the error is eliminated, the images
whose transfer previously failed will be transferred
automatically.
Note that if you cancel image transfer or turn off the camera, auto retry is not performed. Follow
the steps on page 36 to transfer the images.
C
98
Responding to Error Messages
11: Connection target not found
Is the pairing software running?
X Start the pairing software and follow the instructions to re-establish the connection (p.44).
Are the transmitter and wireless LAN terminal configured with the same encryption
key for authentication?
X This error occurs if the encryption keys do not match when the authentication method for
encryption is [Open system].
The setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct encryption key for authentication is entered on the transmitter (p.20).
12: Connection target not found
Are the target computer and wireless LAN terminal on?
X Turn on the target computer and wireless LAN terminal.
21: No address assigned by DHCP server
What to check on the transmitter
Y
P
O
On the transmitter, the network setting is [Auto setting] or the IP address setting is
[Auto assign]. Does the error occur under these settings?
X If no DHCP server is used, set the transmitter’s network setting to [Manual setting] and
IP address setting to [Manual setting] (p.23).
C
What to check on the DHCP server
Is the DHCP server on?
X Turn the DHCP server on.
Are there enough addresses for assignment by the DHCP server?
X Increase the number of addresses assigned by the DHCP server.
X Remove devices assigned addresses by the DHCP server from the network to reduce the
number of addresses in use.
Is the DHCP server working correctly?
X Check the DHCP server settings to make sure it is working correctly as a DHCP server.
X If applicable, ask your network administrator to ensure the DHCP server is available.
Responding to Error Messages 21 - 26
Also check the following points when responding to errors numbered 21 - 26.
Are the transmitter and wireless LAN terminal configured with the same encryption key for
authentication?
X This error occurs if the encryption keys do not match when the authentication method for
encryption is [Open system]. The setting is case-sensitive, so check upper- and lower-case
characters. Make sure the correct encryption key for authentication is entered on the transmitter
(p.20).
99
Responding to Error Messages
22: No response from DNS server
What to check on the transmitter
On the transmitter, the DNS address setting is [Auto assign] or [Manual setting].
Does the error occur under these settings?
X If no DNS server is used, set the transmitter’s DNS address setting to [Disable] (p.23).
On the transmitter, does the DNS server’s IP address setting match the server’s
actual address?
X Configure the IP address on the transmitter to match the actual DNS server address
(p.23, 112).
What to check on the DNS server
Is the DNS server on?
X Turn the DNS server on.
Are the DNS server settings for IP addresses and the corresponding names
correct?
X On the DNS server, make sure IP addresses and the corresponding names are entered
correctly.
Y
P
O
Is the DNS server working correctly?
X Check the DNS server settings to make sure the server is working correctly as a DNS
server.
X If applicable, ask your network administrator to ensure the DNS server is available.
What to check on the network as a whole
C
Does your network include a router or similar device that serves as a gateway?
X If applicable, ask your network administrator for the network gateway address and enter it
on the transmitter (p.23, 112).
X Make sure the gateway address setting is correctly entered on all network devices,
including the transmitter.
23: Duplicate IP address
What to check on the transmitter
Is another device on the transmitter network using the same IP address as the
transmitter?
X Change the transmitter’s IP address to avoid using the same address as another device
on the network. Otherwise, change the IP address of the device that has a duplicate
address.
X In network environments with a DHCP server, if the transmitter’s IP address setting is
[Manual setting], change it to [Auto assign] (p.23).
100
Responding to Error Messages
24: No response from proxy server
What to check on the transmitter
The transmitter’s proxy server setting is [Enable]. Does the error occur under this
setting?
X If no proxy server is used, set the transmitter’s proxy server setting to [Disable] (p.28).
Do the transmitter’s [Address setting] and [Port No.] settings match those of the
proxy server?
X Configure the transmitter’s proxy server address and port number to match those of the proxy
server (p.28).
In the transmitter’s [Proxy server] settings, have you only entered [Server name]?
X If the proxy server’s [Address] setting is not configured on the transmitter, enter it along
with the DNS server address (p.23). Make sure the server name and port number for the
proxy server are entered correctly (p.28).
What to check on the proxy server
Is the proxy server on?
X Turn the proxy server on.
Y
P
O
Is the proxy server working correctly?
X Check the proxy server settings to make sure the server is working correctly as a proxy
server.
X If applicable, ask your network administrator for the proxy server address or server name
and port number, and then enter them on the transmitter.
C
What to check on the network as a whole
Does your network include a router or similar device that serves as a gateway?
X If applicable, ask your network administrator for the network gateway address and enter it
on the transmitter.
X Make sure the gateway address setting is correctly entered on all network devices,
including the transmitter.
101
Responding to Error Messages
25: Another terminal has set the same IP address
Is another device on the transmitter network using the same IP address as the
transmitter?
X This error occurs if the transmitter is connected to a network where another device
subsequently connects with the same IP address. Change the transmitter’s IP address to
avoid using the same address as another device on the network. Otherwise, change the
IP address of the device that has a duplicate address.
26: No response from DHCP server
What to check on the transmitter
On the transmitter, the network setting is [Auto setting]. Does the error occur under
this setting?
X If no DHCP server is used, set the transmitter’s network setting to [Manual setting]
(p.23).
What to check on the DHCP server
Is the DHCP server on?
X Turn the DHCP server on.
Y
P
O
Are the DHCP server settings for IP addresses and the corresponding names
correct?
X On the DHCP server, make sure IP addresses and the corresponding names are entered
correctly.
C
Is the DHCP server working correctly?
X Check the DHCP server settings to make sure it is working correctly as a DHCP server.
X If applicable, ask your network administrator to ensure the DHCP server is available.
What to check on the network as a whole
Does your network include a router or similar device that serves as a gateway?
X If applicable, ask your network administrator for the network gateway address and enter it
on the transmitter (p.23).
X Make sure the gateway address setting is correctly entered on all network devices,
including the transmitter.
102
Responding to Error Messages
41: Cannot connect to FTP server
What to check on the transmitter
On the transmitter, does the FTP server’s IP address setting match the server’s
actual address?
X Configure the IP address on the transmitter to match the actual FTP server address
(p.28).
Are the transmitter and wireless LAN terminal configured with the same encryption
key for authentication?
X This error occurs if the encryption keys do not match when the authentication method for
encryption is [Open system].
The setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct encryption key for authentication is entered on the transmitter (p.20).
On the transmitter, does the [Port number setting] for the FTP server match the
actual port number of the FTP server?
X Configure the same port number (usually 21) on the transmitter and FTP server.
Configure the port number on the transmitter to match the actual FTP server port number
(p.28).
Y
P
O
If only the FTP server’s [Server name] is configured on the transmitter, are the DNS
server settings complete?
X If the FTP server’s [Address] setting is not configured on the transmitter, enable use of
the DNS server on the transmitter and enter its address (p.23). Make sure the FTP server
name is entered correctly (p.28).
C
What to check on the FTP server
Is the FTP server working correctly?
X Configure the computer correctly to function as an FTP server.
X If applicable, ask your network administrator for the FTP server address and port number,
and then enter them on the transmitter.
Is the FTP server on?
X Turn the FTP server on. The server may have been turned off because of an energysaving mode.
On the transmitter, does the FTP server’s IP address setting (in [Address]) match
the server’s actual address?
X Configure the IP address on the transmitter to match the actual FTP server address
(p.28).
Is a firewall or other security software enabled?
X Some security software uses a firewall to restrict access to the FTP server. Change the
firewall settings to allow access to the FTP server.
X You may be able to access the FTP server by setting [Passive mode] to [Enable] on the
transmitter (p.84).
103
Responding to Error Messages
Are you connecting to the FTP server via a broadband router?
X Some broadband routers use a firewall to restrict access to the FTP server. Change the
firewall settings to allow access to the FTP server.
X You may be able to access the FTP server by setting [Passive mode] to [Enable] on the
transmitter (p.84).
If you are using Windows XP Service Pack 2 or later, is access to the FTP server
blocked by [Windows Firewall]?
X Change the Windows Firewall settings to allow access to the FTP server.
What to check on the network as a whole
Does your network include a router or similar device that serves as a gateway?
X If applicable, ask your network administrator for the network gateway address and enter it
on the transmitter (p.23).
X Make sure the gateway address setting is correctly entered on all network devices,
including the transmitter.
42: FTP server rejected connection
What to check on the FTP server
Y
P
O
Is the FTP server configured to restrict access to only some IP addresses?
X Change the FTP server settings to allow access from the [IP address] configured on the
transmitter in the TCP/IP settings.
43: Cannot connect to FTP server. Error code received from server.
C
What to check on the FTP server
Have you exceeded the maximum number of FTP server connections?
X Disconnect some network devices from the FTP server or increase the maximum number
of connections.
44: Cannot disconnect FTP server. Error code received from server.
This error occurs if the transmitter fails to disconnect from the FTP server for some
reason.
X Turn off and on the FTP server and camera.
104
Responding to Error Messages
45: Cannot login to FTP server. Error code received from server.
What to check on the transmitter
On the transmitter, is the [Login name] entered correctly?
X Check the logon name for accessing the FTP server. The setting is case-sensitive, so
check upper- and lower-case characters. Make sure the correct logon name is entered on
the transmitter (p.29).
On the transmitter, is the [Login password] entered correctly?
X If a logon password is configured on the FTP server, check the upper- and lower-case
characters to make sure the password on the transmitter matches it (p.29).
What to check on the FTP server
Do the user rights for the FTP server allow reading, writing, and log access?
X Configure the FTP server’s user rights to allow reading, writing, and log access.
Is the folder specified as the transfer destination on the FTP server named with
ASCII characters (p.25)?
X Use ASCII characters for the folder name.
Y
P
O
46: For the data session, error code received from FTP server
What to check on the FTP server
The connection was terminated by the FTP server.
X Restart the FTP server.
C
Do the user rights for the FTP server allow reading, writing, and log access?
X Configure the FTP server’s user rights to allow reading, writing, and log access.
Do user rights allow access to the target folder on the FTP server?
X Configure the user rights for access to the target folder on the FTP server to allow saving
images from the transmitter.
Is the FTP server on?
X Turn the FTP server on. The server may have been turned off because of an energysaving mode.
Is the hard disk of the FTP server full?
X Increase available space on the hard disk.
105
Responding to Error Messages
47: Image file transfer completion not confirmed by FTP server
This error occurs if, for some reason, the transmitter fails to receive confirmation
from the FTP server that image file transfer is complete.
X Turn off and on the FTP server and camera and transfer the images again.
51: Connection to Bluetooth device lost
Is the transmitter too far from the GPS device?
X Bring the GPS device closer to the transmitter.
Are any obstacles blocking the line of sight between the transmitter and the GPS
device?
X Move the GPS device to a position visible from the point of view of the transmitter.
The transmitter and GPS device were disconnected, for some reason, and the
connection cannot be restored.
X The connection is more likely to be lost if there are nearby wireless LAN terminals,
cordless telephones, microphones, microwave ovens, or similar devices operating on the
same 2.4 GHz band used for Bluetooth communication. Also note that the connection is
more likely to be lost in poor weather or high humidity.
Is the GPS device on?
X Turn the GPS device on.
Y
P
O
52: Bluetooth device cannot be found
C
Is the GPS device ready for the Bluetooth connection?
X Turn the GPS device on and set it up for connection via Bluetooth.
Is the transmitter too far from the GPS device?
X Bring the GPS device closer to the transmitter.
Is the GPS device on?
X Turn the GPS device on.
53: Incorrect Bluetooth password
Is the same password set on the transmitter and GPS device?
X The setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct password is entered on the GPS device and transmitter.
54: No compatible Bluetooth service available on connected device
The GPS device does not support SPP (Serial Port Profile).
X Confirm that the GPS device supports SPP.
106
Responding to Error Messages
61: Selected SSID wireless LAN network not found
Are any obstacles blocking the line of sight between the transmitter and the
antenna of the wireless LAN terminal?
X Move the antenna to a position clearly visible from the point of view of the transmitter
(p.111).
What to check on the transmitter
On the transmitter, does the SSID setting match that of the wireless LAN terminal?
X Check the SSID on the wireless LAN terminal, and configure the same SSID on the
transmitter (p.19).
What to check on the wireless LAN terminal
Is the wireless LAN terminal on?
X Turn on the wireless LAN terminal.
If you are filtering by MAC address, did you register the transmitter’s MAC address
on the wireless LAN terminal?
X Register the transmitter’s MAC address (p.80) on the wireless LAN terminal.
Y
P
O
62: No response from wireless LAN terminal
What to check on the transmitter
Is the transmitter configured for communication in infrastructure mode?
X Configure the transmitter for communication in ad hoc mode.
C
What to check on the wireless LAN terminal
Is there a nearby wireless LAN terminal for ad hoc communication?
X Set up a wireless LAN terminal for ad hoc communication near the transmitter.
107
Responding to Error Messages
63: Wireless LAN authentication failed
Are the transmitter and wireless LAN terminal configured for the same
authentication method?
X The transmitter supports these authentication methods: [Open system], [Shared key],
[WPA-PSK], and [WPA2-PSK] (p.19).
X When using an AirPort for communication in infrastructure mode, [Open system] is not
supported. Configure a [Shared key] on the transmitter (p.19).
Are the transmitter and wireless LAN terminal configured with the same encryption
key for authentication?
X The setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct encryption key for authentication is entered on the transmitter and wireless LAN
terminal (p.20).
If you are filtering by MAC address, did you register the transmitter’s MAC address
on the wireless LAN terminal?
X Register the transmitter’s MAC address (p.80) on the wireless LAN terminal.
64: Cannot connect to wireless LAN terminal
Y
P
O
Are the transmitter and wireless LAN terminal configured for the same encryption
method?
X The transmitter supports these encryption methods: [WEP], [TKIP], and [AES] (p.19).
If you are filtering by MAC address, did you register the transmitter’s MAC address
on the wireless LAN terminal?
X Register the transmitter’s MAC address (p.80) on the wireless LAN terminal.
C
65: Wireless LAN connection lost
Are any obstacles blocking the line of sight between the transmitter and the
antenna of the wireless LAN terminal?
X Move the antenna to a position clearly visible from the point of view of the transmitter
(p.111).
The wireless LAN connection was lost, for some reason, and the connection
cannot be restored.
X The following are possible reasons: excessive access to the wireless LAN terminal from
other terminals, a microwave oven or similar appliance in use nearby (interfering with
IEEE 802.11b/g/n reception on the 2.4 GHz band), or poor weather or high humidity
(p.111).
108
Responding to Error Messages
66: Incorrect wireless LAN encryption key
Are the transmitter and wireless LAN terminal configured with the same encryption
key for authentication?
X The setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct encryption key for authentication is entered on the transmitter and wireless LAN
terminal (p.20).
Note that if the authentication method is [Open system], an Error 41 (“Cannot connect to
FTP server”) is displayed.
67: Incorrect wireless LAN encryption method
Are the transmitter and wireless LAN terminal configured for the same encryption
method?
X The transmitter supports these encryption methods: [WEP], [TKIP], and [AES] (p.19).
If you are filtering by MAC address, did you register the transmitter’s MAC address
on the wireless LAN terminal?
X Register the transmitter’s MAC address (p.80) on the wireless LAN terminal.
Y
P
O
68: Cannot connect to wireless LAN terminal. Retry from the
beginning.
Have you pressed the Wi-Fi Protected Setup (WPS) button on the wireless LAN
terminal for as long as indicated in the wireless LAN terminal instructions?
X Refer to the instruction manual for the wireless LAN terminal to determine how long to
hold the WPS button.
C
Are you attempting to establish the connection near the wireless LAN terminal?
X Try establishing the connection when both devices are within reach of each other.
69: Multiple wireless LAN terminals have been found. Cannot
connect. Retry from the beginning.
Connection is in progress by other wireless LAN terminals in Pushbutton
Connection mode (PBC mode) of Wi-Fi Protected Setup (WPS).
X Wait a while before trying to establish the connection, or try to establish a connection in
PIN code connection mode (PIN mode) (p.22).
109
Responding to Error Messages
71: Cannot connect to slave camera
Are you following the correct procedure to establish the connection with slave
cameras?
X Operate slave cameras by following the correct instructions (p.66, 67).
Are the slave cameras too far from the master camera?
X Bring the slave cameras closer to the master camera.
72: Cannot connect to master camera
Are you following the correct procedure to establish the connection with master
camera?
X Operate the master camera by following the correct instructions (p.66, 67).
Is the master camera too far from the slave cameras?
X Bring the master camera closer to the slave cameras.
73: Could not synchronize the time
Are you following the correct procedure to establish a connection between the
master and slave cameras?
X Operate the master and slave cameras by following the correct instructions (p.90, 91).
Y
P
O
Are the master and slave cameras too far apart?
X Bring the master and slave cameras closer together.
C
82: Wireless File Transmitter not connected
Is the transmitter attached correctly?
X Make sure the transmitter is securely inserted in the camera (p.10).
91: Other error
Another problem has occurred, identified with an error number other than 11 to 82.
X Turn the camera’s power switch off and on.
110
Wireless LAN Notes
When using the transmitter with a wireless LAN, try the following corrective actions if the
transmission rate drops, the connection is lost, or other problems occur.
Wireless LAN Terminal Installation and Antenna Position
When using the transmitter indoors, install the wireless LAN terminal in the same room
where you are shooting.
Install the wireless LAN terminal higher than the transmitter.
Install the device where people or objects do not come between it and the camera.
Install the device as close as possible to the camera. In particular, note that during
outdoor use in poor weather, rain may absorb radio waves and disrupt the connection.
Nearby Electronic Devices
If the transmission rate over a wireless LAN drops because of interference from the following
electronic devices, switching to a wired LAN can resolve the problem.
The transmitter communicates over wireless LANs via IEEE 802.11b/g/n and Bluetooth
using radio waves in the 2.4 GHz band. For this reason, the wireless LAN transmission
rate may drop if there are nearby microwave ovens, cordless telephones, microphones,
or similar devices operating on the same frequency band.
Y
P
O
If a wireless LAN terminal on the same frequency band as the transmitter is used nearby,
the transmission rate of the wireless LAN may drop.
C
Using Multiple Transmitters
If multiple transmitters are connected to a single wireless LAN terminal, be careful not to
use duplicate camera IP addresses.
Note that the transmission rate drops when multiple transmitters access a single wireless
LAN terminal.
To reduce radio wave interference when there are multiple wireless IEEE 802.11b/g/n
devices on the 2.4 GHz band, leave a gap of four channels between each wireless LAN
channel. For example, use channels 1, 6, and 11, channels 2, 7, and 12, or channels 3, 8,
and 13.
When IEEE 802.11a/n can be used (on the 5 GHz band), switch to IEEE 802.11a/n (on
the 5 GHz band) and specify a different channel.
Security
Wireless LAN radio waves can be easily intercepted. For this reason, we recommend
activating encrypted communication in the wireless LAN terminal settings.
111
Checking Network Settings
Windows
Click the Windows [Start] button [All Programs] [Accessories] [Command Prompt].
Type ipconfig/all and press the <Enter> key.
The IP address assigned to the computer is displayed, as well as the subnet mask, gateway,
and DNS server information.
To avoid using the same IP address for the computer and other devices on the network when
configuring the IP address assigned to the camera (page 23), change the rightmost numbers
here.
Macintosh
In Mac OS X, open the [Terminal] application, type ifconfig -a, and press the <Return> key.
The IP address assigned to the computer is indicated in the [en0] item by [inet], in the format
***.***.***.***.
To avoid using the same IP address for the computer and other devices on the network when
configuring the IP address assigned to the camera (page 23), change the rightmost numbers
here.
* For information on the [Terminal] application, refer to the Mac OS X help.
C
112
Y
P
O
Reference
C
Y
P
O
113
Creating and Registering Captions
Follow these steps to create captions and register them on the camera, as introduced in
“Adding a Caption Before Transfer” (p.34). When creating and registering captions, use a
computer on which EOS Utility is installed.
Before you start, attach the transmitter to the camera and use the USB cable provided
with the camera to connect the camera to the computer. For instructions on connecting the
camera to the computer with the USB cable and starting EOS Utility, refer to the Software
Instruction Manual (PDF) provided with the camera.
1
Start EOS Utility and select [Camera
settings/Remote shooting].
2
On the [
3
Enter the caption or captions.
4
Register the captions on the camera.
X The camera settings/remote
capture screen is displayed.
C
114
Y
P
O
] tab, select [WFT Captions].
X The screen for caption creation is displayed.
To acquire caption data stored on the camera,
select [Load settings].
Enter up to 31 characters (in ASCII format).
Select [Apply to camera] to register your new
captions on the camera.
Specifications
Type
Type:
IEEE 802.11a/b/g/n wireless image transfer accessory (IPseccompatible) with Bluetooth connectivity for GPS devices
Wireless LAN
Standards compliance:
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Transmission method:
DS-SS modulation (IEEE 802.11b)
OFDM modulation (IEEE 802.11a/g/n)
Transmission range:
Approx. 150 m / 492 ft.
* With no obstructions between the transmitting and receiving antennas
and no radio interference
* With a large, high-performance antenna attached to the wireless LAN
access point
Transmission frequency (central frequency):
Version
Frequency
Channels
WFT-E6A
WFT-E6B
C
WFT-E6C
WFT-E6D
WFT-E6E
Connection method:
Security:
2412–2462 MHz
1–11
5180–5320 MHz
36–64
5745–5825 MHz
149–165
Y
P
O
2412–2472 MHz
1–13
5180–5320 MHz
36–64
5500–5700 MHz
100–140
2412–2472 MHz
1–13
5745–5805 MHz
149–161
2412–2462 MHz
1–11
5280–5320 MHz
56–64
5500–5700 MHz
100–140
2412–2472 MHz
1–13
5180–5320 MHz
36–64
5500–5700 MHz
100–140
5745–5825 MHz
149–165
Infrastructure or ad hoc mode
* Wi-Fi Protected Setup supported
Authentication method: Open, shared key, WPA-PSK, and WPA2-PSK
Encryption: WEP, TKIP, and AES
115
Specifications
Network Functions
FTP transfer:
Automatic transfer
Image selection and transfer
Transfer using SET button
Transfer with captions
EOS Utility remote control functions over wireless LAN
Camera control, simple control, basic shooting,
image viewing, and downloading
DLNA compatible
Shooting with up to 10 slave cameras linked to a master camera
Transmission range: Approx. 100 m / 328 ft.
Syncing up to 10 slave cameras to the master camera time
Margin of error with master camera: Approx. ±0.05 seconds
EOS Utility:
WFT Server:
Media Server:
Linked shooting:
Wireless time syncing:
Bluetooth connection
Standards compliance:
Supported devices:
Bluetooth 2.0+EDR
Wireless connectivity with Bluetooth GPS devices
Number of Possible Shots
Connection
Normal Temperature
(23°C / 73°F)
Wireless LAN
950
Approx. number of shots
Low Temperature
(0°C / 32°F)
Y
P
O
750
* Using a fully charged LP-E4N Battery Pack.
* Based on Camera & Imaging Products Association (CIPA) standards.
* Fewer images can be captured when transferring images
consecutively over wireless LAN.
Dimensions and Weight
Dimensions (W x H x D):
Weight:
Operating Environment
Temperature:
Humidity:
C
24.7 x 57.0 x 34.1 mm / 0.97 x 2.24 x 1.34 in.
Approx. 38 g / 1.34 oz. (body only)
0°C–45°C / 32°F–113°F
85% or less
All preceding specifications are based on Canon testing standards.
Transmitter specifications and appearance are subject to change without notice.
116
MEMO
C
Y
P
O
117
MEMO
C
118
Y
P
O
MEMO
C
Y
P
O
119
MEMO
C
120
Y
P
O
MEMO
C
Y
P
O
121
MEMO
C
122
Y
P
O
MEMO
C
Y
P
O
123
Index
A
Account ..................................................... 50
Ad hoc ....................................................... 19
Area of use .... Areas of Use and Restrictions
Authentication...................................... 19, 83
Auto power off ........................................... 15
Batch transfer ................................ 36, 38, 40
Bluetooth ................................................... 93
Browser ..................................................... 52
C
Camera control.......................................... 55
Caption ...................................................... 34
Channel ......... Areas of Use and Restrictions
Connection ................................................ 15
Coordinated Universal Time...................... 95
D
JPEG......................................................... 31
C
Key format................................................. 20
Keyboard................................................... 25
L
LCD panel ................................................... 9
Linked shooting................................... 11, 65
LinkedShot ................................................ 17
Login ......................................................... 29
Logon name .............................................. 50
M
Y
P
O
DHCP server ............................................. 23
Digital photo frame .................................... 61
DLNA......................................................... 61
DNS address ............................................. 23
DNS server................................................ 28
Encryption ........................................... 19, 83
Encryption key........................................... 20
EOS Utility ..................................... 11, 43, 47
EOSUtility .................................................. 16
Error .......................................................... 98
ESS-ID ...................................................... 19
F
File of same name..................................... 84
Folder .................................................. 29, 42
FTP server........................................... 11, 27
FTP trans................................................... 16
G
Gateway .................................................... 23
GPS........................................................... 93
I
IEEE 802.11a/b/g/n ........... Areas of Use and
Restrictions
Image transfer ..................................... 11, 27
124
J
K
B
E
Infrastructure............................................. 19
IP address........................................... 23, 28
IPsec ......................................................... 83
MAC address ............................................ 44
Master camera .................................... 67, 91
Media player ............................................. 61
Media Server....................................... 11, 61
MediaServ................................................. 17
Movie ............................................ 30, 54, 55
N
Network..................................................... 13
O
Open system............................................. 19
P
Pairing................................................. 24, 44
Passive mode ........................................... 84
Password ............................................ 50, 94
PBC mode................................................. 21
PIN code connection mode....................... 22
PIN mode .................................................. 22
Port number .............................................. 28
Protect settings ......................................... 84
Proxy......................................................... 28
Pushbutton connection mode ................... 21
R
RAW.......................................................... 31
RAW+JPEG .............................................. 32
Remote capture .......... 11, 43, 49, 55, 58, 59
Index
Router........................................................ 23
S
Select folder .............................................. 29
Settings information................................... 79
Shared key ................................................ 19
Simple control............................................ 58
Slave camera ...................................... 66, 91
SSID .......................................................... 19
Stealth functions.................................. 21, 22
Storage...................................................... 42
Subnet mask ............................................. 23
Sync camera time...................................... 89
T
Target ........................................................ 29
Target folder .............................................. 83
Television ............................................ 61, 63
TKIP .......................................................... 19
Transfer after shooting .............................. 36
Transfer history ......................................... 41
Transfer with SET...................................... 33
Transferred images ................................... 42
Transferring images, automatic................. 30
Transferring images, individual images..... 33
Troubleshooting......................................... 97
U
C
Y
P
O
URL ........................................................... 52
UTC ........................................................... 95
V
Viewing images ......................................... 53
W
Web ........................................................... 52
WEP .......................................................... 19
WFT Server ......................................... 11, 49
WFTserver................................................. 17
Wi-Fi Protected Setup ............................... 21
Wired LAN ................................................. 18
Wireless LAN specification
...................... Areas of Use and Restrictions
Wizard ....................................................... 15
WPA2-PSK................................................ 19
WPA-PSK.................................................. 19
WPS (Wi-Fi Protected Setup).............. 21, 22
125
CANON INC. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
U.S.A.
CANON U.S.A. INC.
One Canon Plaza, Lake Success, NY 11042-1198, U.S.A.
For all inquires concerning this product, call toll free in the U.S.
1-800-OK-CANON
CANADA
CANON CANADA INC. HEADQUARTERS
6390 Dixie Road, Mississauga, Ontario L5T 1P7, Canada
CANON CANADA INC. MONTREAL BRANCH
5990, Côte-de-Liesse, Montréal Québec H4T 1V7, Canada
CANON CANADA INC. CALGARY OFFICE
2828, 16th Street, N.E. Calgary, Alberta T2E 7K7, Canada
For all inquiries concerning this product, call toll free in Canada
1-800-OK-CANON
EUROPE,
AFRICA &
MIDDLE EAST
CANON EUROPA N.V.
Bovenkerkerweg 59-61, 1185 XB Amstelveen, The Netherlands
CANON FRANCE S.A.S.
17,Quai du Président Paul Doumer, 92414 Courbevoie Cedex, France
CANON UK LTD.
Woodhatch Reigate, Surrey RH2 8BF, United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A10, 47807 Krefeld, Germany
CANON ITALIA S.p.A.
Via Milano 8, 20097 San Donato Milanese, (MI), Italy
CANON Schweiz A.G.
Industriestrasse 12, 8305 Dietlikon, Switzerland
Canon GmbH
Zetschegasse 11, A-1230 Vienna, Austria
CANON España,S.A.
Av. De Europa,6 Alcobendas 28108 Madrid, Spain
CANON Portugal S.A.
Rua Alfredo da Silva,14 Alfragide 2610-016 Amadora, Portugal
C
Y
P
O
CENTRAL &
SOUTH AMERICA
CANON LATIN AMERICA, INC.
703 Waterford Way, Suite 400 Miami, FL 33126, U.S.A.
ASIA
CANON (China) Co., LTD
15F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005, China
CANON HONGKONG CO., LTD.
19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon, Hong Kong
CANON SINGAPORE PTE. LTD.
1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632
CANON KOREA CONSUMER IMAGING INC.
Canon BS Tower 5F, #168-12 Samseong-dong, Gangnam-gu, Seoul, Korea
OCEANIA
CANON AUSTRALIA PTY. LTD.
1 Thomas Holt Drive, North Ryde, Sydney N.S.W. 2113, Australia
CANON NEW ZEALAND LTD.
Akoranga Business Park, Akoranga Drive, Northcote, Auckland, New Zealand
JAPAN
CANON MARKETING JAPAN INC.
16-6, Kohnan 2-chome, Minato-ku, Tokyo 108-8011, Japan
This instruction manual is current as of February 2012. For information on using the transmitter with
accessories introduced after this date, contact your nearest Canon Service Center.
CPA-E008-001
© CANON INC. 2012
