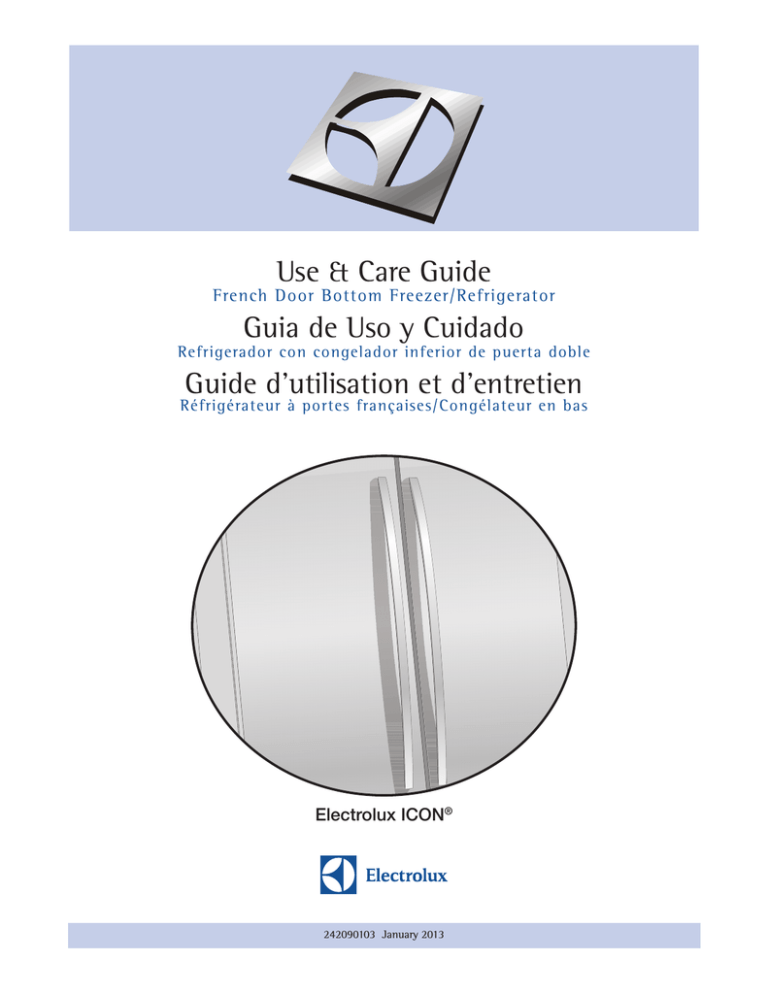

Electrolux 242090103 Use & care guide

Use & Care Guide
French Door Bottom Freezer/Refrigerator
Guia de Uso y Cuidado
Refrigerador con congelador inferior de puerta doble
Guide d’utilisation et d’entretien
Réfrigérateur à portes françaises/Congélateur en bas
Electrolux ICON®
242090103 January 2013
2
Finding Information
Please read and save this guide
Table of contents
Thank you for choosing Electrolux, our new premium
brand in home appliances. This Use & Care Guide is
part of our commitment to customer satisfaction and
product quality throughout the service life of your new
appliance.
Finding Information............................................... 2
Keep a record for quick reference
Safety................................................................ 3
Feature Overview.................................................. 5
Installation.......................................................... 6
Removing the Doors.............................................10
Purchase date
Connecting the Water Supply...................................12
Controls............................................................13
Electrolux model number
Automatic Ice & Water Maker/Dispenser.....................15
Electrolux serial number
Storage Features.................................................16
NOTE
Storing Food and Saving Energy...............................20
Registering your product with Electrolux enhances
our ability to serve you. You can register online at
www.electroluxicon.com or by sending your Product
Registration Card in the mail.
Normal Operating Sounds & Sights...........................21
Changing the Water and Air Filters............................22
Questions?
Care and Cleaning................................................24
For toll-free telephone support in the U.S. and Canada:
1-877-4ELECTROLUX (1-877-435-3287)
Solutions to Common Problems................................27
For online support and product information visit http://
www.electroluxicon.com
Warranty...........................................................30
Installation Checklist
Doors
Ice Maker
 Handles are secure and tight
 House water supply connected to refrigerator
 Door seals completely to cabinet on all sides
 No water leaks present at all connections recheck in 24 hours
 Freezer drawer is level across the top
Leveling
 Refrigerator is level, side-to-side and tilted ¼”
(6 mm) front-to-back
 Toe grille is properly attached to refrigerator
 Cabinet is sitting solid on all corners
Electrical Power
 House power turned on
 Refrigerator plugged in
 Ice maker is turned ON
 Front filter must be flush with filter housing
(select models)
Final Checks
 Shipping material removed
 Fresh food and freezer temperatures set
 Crisper humidity controls set
 Registration card sent in
Safety
Important safety instructions
Safety Precautions
Do not attempt to install or operate your unit until
you have read the safety precautions in this manual.
Safety items throughout this manual are labeled with a
Danger, Warning, or Caution based on the risk type.
Definitions
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
IMPORTANT
Indicates installation, operation, or maintenance
information which is important but not hazard-related.
General Safety
WARNING
Please read all safety instructions before using
your new refrigerator.
• Do not store or use gasoline or other flammable
liquids near this or any other appliance.
Read product labels for warnings regarding
flammability and other hazards.
• Do not operate the refrigerator in the presence of
explosive fumes.
• Avoid contact with any moving parts of the
automatic ice maker.
• Remove all staples from the carton to avoid
injury. Staples can also damage finishes if
they come in contact with other appliances or
furniture.
Child Safety
Packing Materials:
• Packing cartons covered with rugs, bedspreads,
plastic sheets, or stretch wrap may become
airtight chambers and can quickly cause
suffocation.
• Destroy or recycle the product’s carton, plastic
bags, and any other exterior wrapping material
immediately after the refrigerator is unpacked.
Children should never play with these items.
Child Entrapment and Suffocation:
• These problems are not limited to the past.
Whether junked, abandoned, or temporarily
stored (even for a few hours), unattended
refrigerators and freezers are dangerous. Please
take the precautions listed below.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance recycling/
disposal methods. Check with your utility company or
visit www.energystar.gov/recycle for more information
on recycling your old refrigerator.
Before you recycle or dispose of your old refrigerator/
freezer:
• Remove the
doors.
• Leave the
shelves and
baskets in place
so children may
not easily climb
inside.
• Have refrigerant
and compressor
oil removed
by a qualified
service technician.
3
4
Safety
Electrical information
WARNING
You must follow these guidelines to ensure
that your refrigerator’s safety mechanisms are
operating correctly.
• The refrigerator must be plugged into its own
dedicated 115 Volt, 60 Hz, AC-only non-GFCI
electric outlet. The power cord of the appliance
is equipped with a three-prong grounding plug for
your protection against electrical shock hazards.
It must be plugged directly into a properly
grounded three-prong receptacle. The receptacle
must be installed in accordance with local codes
and ordinances. Consult a qualified electrician.
Do not use an extension cord or adapter plug.
• If the power cord is damaged, it should be
replaced by the manufacturer, service technician,
or a qualified person.
• Never unplug the refrigerator by pulling on the
power cord. Always grip the plug firmly and
pull straight out from the receptacle to prevent
damaging the power cord.
• To avoid electrical shock, unplug the refrigerator
before cleaning and before replacing a light bulb
or LED light.
• Performance may be affected if the voltage varies
by 10% or more. Operating the refrigerator with
insufficient power can damage the compressor.
Such damage is not covered under your warranty.
• Do not plug the unit into an outlet controlled by a
wall switch or pull cord to prevent the refrigerator
from being turned off accidentally.
Grounding type wall receptacle
Do not, under any
circumstances,
cut, remove, or
bypass the
grounding prong.
Power cord with
3-prong grounded plug
IMPORTANT
To turn off power to your refrigerator, unplug the
power cord from the wall outlet.
Feature Overview
Understanding features and terms
Your Electrolux refrigerator is designed for optimal convenience and storage flexibility. The illustration below is
provided to assist you with familiarizing yourself with product features and terminology.
NOTE
Features may vary according to model. Model is shown without freezer drawer cover.
Flipper Guide
Incandescent Light
(select models)
LED Light
(select models)
Covered Door Bin
Flipper
Mullion
Air Filter
LuxuryDesignTM
Shelves
Luxury-DesignTM
Shelves
Crisper
Drawer
Crisper
Drawer
Special Items
Rack (inside CTD)
(select models)
Tilt-Out
Bin
LED Light
Water
Filter
Adjustable
Hinges
(select models)
Ice
Maker
Ice
Bucket
IMPORTANT
Features not included with your refrigerator can be
purchased at www.electroluxicon.com or by calling
1-877-435-3287.
LED Light
Custom TempTM
Drawer (CTD)
(select models)
or Cool ZoneTM Drawer
(with humidity slides)
Freezer Baskets
Toe Grille
Wire
WireTilt-Out
Tilt-OutShelf
Shelf
(inside
(inside freezer
freezer drawer)
drawer)
5
6
Installation
Required Tools
You will need the following tools:
Components Provided:
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Tools Necessary:
(OR)
Top Lower
Hinge Hinge
Screw Screw
AND
OR
PhillipsTM Head
or
#2 Square Drive
Head
This Use & Care Guide provides general installation
and operating instructions for your model. We
recommend using a service or kitchen contracting
professional to install your refrigerator. Use the
refrigerator only as instructed in this Use & Care
Guide. Before starting the refrigerator, follow these
important first steps.
Location
• Choose a place that is near a grounded, nonGFCI, electrical outlet. Do Not use an extension
cord or an adapter plug.
• If possible, place the refrigerator out of direct
sunlight and away from the range, dishwasher, or
other heat sources.
• The refrigerator must be installed on a floor that
is level and strong enough to support a fully
loaded refrigerator.
• Consider water supply availability for models
equipped with an automatic ice maker.
CAUTION
DO NOT install the refrigerator where the
temperature will drop below 55° F (13° C) or rise
above 110° F (43° C). The compressor will not be
able to maintain proper temperatures inside the
refrigerator.
DO NOT block the toe grille on the lower front
of your refrigerator. Sufficient air circulation
is essential for the proper operation of your
refrigerator.
Socket
Wrench Set
OR
Adjustable
Wrench
OR
3/8" Fixed
Wrench
1/4" Nut
Driver
Installation
• Allow the following clearances for ease of
installation, proper air circulation, and plumbing
and electrical connections:
Sides & Top
Back
⅜ inch (9.5 mm)
1 inch (25.4 mm)
NOTE
If your refrigerator is placed with the door hinge
against a wall, you may have to allow additional space
so the door can be opened wider.
Door opening
NOTE
The refrigerator doors are designed to shut by
themselves within a 20 degree opening.
Your refrigerator should be positioned to allow easy
access to a counter when removing food. For best
use of refrigerator drawers and freezer baskets, the
refrigerator should be in a position where both can be
fully opened.
Guidelines for final positioning
of your refrigerator
• All four corners of the cabinet must rest firmly on
the floor.
• The cabinet should be level at the front and rear.
• The sides should tilt ¼ inch (6 mm) from front
to back (to ensure that doors close and seal
properly).
• Doors should align with each other and be level.
Most of these conditions can be met by raising or
lowering the adjustable front rollers.
Installation
Leveling Freezer Drawer (if necessary)
2 Remove the toe grille (following the illustrations
below for the toe grille on your model).
1 Check gasket seal around top, bottom, and sides
of freezer drawer.
Figure 1: Remove screws and then gently pull forward.
2 If gasket is not sealed, open drawer and slightly
loosen four drawer screws (two on each side) to
allow drawer to rotate (see illustration).
3 Close drawer and recheck the seal on the gasket
(A). Open the drawer grabbing by the sides in the
center (B). Be careful not to rotate the drawer.
Quite
Montando
Tornillos
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws
Do Not Remove
Other Screws
Figure 1
Figure 2: Lift the toe grille and gently pull forward.
Tornillos
con reborde
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Rejilla
inferior
Tornillo
con reborde
4 Tighten four drawer screws.
Figure 2
5 Recheck gasket seal.
Empoigner
le tiroir au
centre à
partir de
chaque côté
puis retirer
le tiroir
Pousser
contre
le tiroir du
congélateur
A
Gancho
3You can raise or lower each door. Use a ⅜ inch socket
wrench to turn the adjustment screws (one per side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw counterclockwise.
4 Ensure both doors are bind-free with their seals
touching the cabinet on all four sides and that cabinet
is stable.
5 After unit is leveled, lower anti-tip leg until it contacts
the floor.
B
Level Refrigerator & Adjust Doors
Porte
Porte
(if necessary)
Guidelines for final positioning of your refrigerator:
• All four corners of the cabinet must rest firmly on
the floor.
• The sides should tilt ¼ inch (6 mm) from front
to back (to ensure that doors close and seal
properly).
• Doors should align with each other and be level.
Most of these conditions can be met by raising or
lowering the adjustable front rollers.
To level the cabinet using the front rollers:
1 Slightly open freezer drawer.
Soulever
Pata
antibasculement
Ambaisser
6 Install the toe grille by fitting into place (replacing
screws on some models).
7
8
Installation
To adjust the door stop:
5 Re-tighten screw.
Door stop is adjustable between 85 to 145 degrees.
NOTE
View shown is looking up at the bottom of the
refrigerator door.
Rotate
Door
Stop
Door
Stop
Lower
Hinge
Min
Open
Re-tighten
Screw
Re-tighten Screw
Screw
6 Ensure door stops in desired location before
resuming normal use.
Max
Open
Adjustable Door Stop
To level the doors using the adjustable lower hinge
(select models):
1 Open door to provide access to screw.
1 Remove all food items from door bins on door
being adjusted.
2 Loosen screw.
2 Open doors to 90 degrees.
3 Adjust door to desired location.
3 Loosen or remove screw.
Loosen or Remove
Screw
Rotate
Door to Desired
Location
Open
Door
90
Degrees
Bottom of Door
Adjusting Door
4 Rotate door stop until it makes contact with the
lower hinge.
Loosen/Remove Screw (where applicable)
NOTE
Adjustable hinge should only be used after doors
have been leveled with rollers.
Installation
4 Lift the door while adjusting the washer. To
raise the door, rotate washer clockwise (when
viewed from the bottom). To lower door, rotate
washer counter-clockwise (when viewed from the
bottom).
To adjust the flipper mullion:
1Loosen the screw located on the flipper mullion
hinge.
Flipper
Mullion
Lower
Door
Screw
Raise
Door
Hinge
Washer
Raising/Lowering Door
5 Re-tighten the screw (where applicable),
ensuring it is between the spokes of the set
washer. Screw will not be tight, just insert until it
is flush with the hinge.
Flipper
Mullion
Hinge
Adjusting Flipper Mullion Screw
2 Adjust flipper mullion height. For proper
connection with the flipper mullion guide, there
should be a separation about the thickness of a
coin (0.060 inches, or 1.5 mm) between the guide
and flipper mullion.
Re-tighten Screw
Hinge
Washer Spokes
Mullion
Guide
Flipper
Mullion
Screw
Thickness
of a Coin
Screw (where applicable)
NOTE
If after adjusting doors higher the door makes a
popping/clicking sound, remove screw and replace
with the longer one supplied in the handle package.
Adjusting Flipper Mullion Height
3 Re-tighten screw.
9
10 Removing the Doors
Getting through narrow spaces
If your refrigerator will not fit through an entrance area,
you can remove the doors. Check first by measuring the
entrance.
2 Disconnect the harness by grasping both sides of
the connector firmly, depress the latch, and pull
apart. Remove the two screws from the top hinge.
Lift the door off of the bottom hinge and set it
aside.
To prepare for removing the doors:
1 Make sure the electrical power cord is unplugged
from the wall outlet.
2 Open the freezer drawer and remove the toe
grille (see “Installation” section).
3 Remove any food from the door shelves and
close the doors.
To remove the top hinge covers:
1 Remove the two screws from each cover over the
top door hinges.
2 Lift inside edge of hinge cover and tilt back.
Front
Cover Screw
Top Hinge
Cover
Hinge
Screws
Multi-wire
Cables
Leave
Hinge
With
Door
Rear
Cover
Screw
3 Unscrew the three lower hinge screws and hinge
if necessary.
To reinstall the right door, reverse the above steps.
Lower Hinge Removal
Ground
Screw
Top
Hinge
NOTE
DO NOT remove the ground screw from hinge.
To remove the refrigerator doors:
1 Trace lightly around the door’s top hinges with a
pencil. This makes reinstallation easier.
Once both doors are in place, ensure they are aligned
with each other and level (please see the “Installation”
section for more details), and replace the top hinge
cover.
CAUTION
Be sure doors are set aside in a secure position
where they cannot fall and cause personal injury,
or damage to the doors or handles.
Removing the Doors 11
Removing Freezer Drawer
2 Reinstall four drawer screws (two per side),
tighten down, and close drawer (C).
1 Open freezer drawer.
2 Remove drawer screws on right and left sides
(two screws on each side).
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws
Install Screws
(2) Each Side
Do Not Remove
Other Screws
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
3 Check gasket seal around top, bottom, and sides
of freezer drawer.
4 If gasket is not sealed, open drawer and slightly
loosen four drawer screws (two on each side) to
allow drawer to rotate.
CAUTION
Drawer is heavy. Use caution when lifting.
3 Lift drawer up and out to remove.
5 Close drawer and recheck the seal on the gasket
(A). Open the drawer grabbing by the sides in the
center (B). Be careful not to rotate the drawer.
Installing Freezer Drawer
1 With lower slides pulled out, hang drawer onto
slide brackets ensuring pins on each side are
fully inserted into slots on each side.
Drawer
Assembly
Grab Drawer
At Center
From Both Sides
Then
Pull Drawer Out
Push Against
Freezer Drawer
Fully Extend
Drawer Slides
A
Pin
B
Cabinet
Slot
6 Tighten four drawer screws.
7 Recheck gasket seal.
8 Install the toe grille by fitting into place.
12 Connecting the Water Supply
WARNING
To avoid electric shock, which can cause death or
severe personal injury, disconnect the refrigerator
from electrical power before connecting a water
supply line to the refrigerator.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing is
recommended for the water supply line. Water
supply tubing made of ¼ inch plastic is not
recommended to be used. Plastic tubing greatly
increases the potential for water leaks, and the
manufacturer will not be responsible for any
damage if plastic tubing is used for the supply line.
• DO NOT install water supply tubing in areas
where temperatures fall below freezing.
• Chemicals from a malfunctioning softener
can damage the ice maker. If the ice maker
is connected to soft water, ensure that the
softener is maintained and working properly.
IMPORTANT
Ensure that your water supply line connections
comply with all local plumbing codes.
Before Installing The Water Supply Line, You Will Need:
• Basic Tools: adjustable wrench, flat-blade
screwdriver, and PhillipsTM screwdriver
• Access to a household cold water line with water
pressure between 30 and 100 psi.
• A water supply line made of ¼ inch (6.4 mm) OD,
copper or stainless steel tubing. To determine the
length of tubing needed, measure the distance
from the ice maker inlet valve at the back of the
refrigerator to your cold water pipe. Then add
approximately 7 feet (2.1 meters), so the refrigerator
can be moved out for cleaning (as shown).
• A shutoff valve to connect the water supply line
to your household water system. DO NOT use a
self-piercing type shutoff valve.
• Do not reuse compression fitting or use thread
seal tape.
• A compression nut and ferrule (sleeve) for connecting
a copper water supply line to the ice maker inlet valve.
NOTE
Check with your local building authority for
recommendations on water lines and associated materials
prior to installing your new refrigerator. Depending on your
local/state building codes, Electrolux recommends for
homes with existing valves its Smart Choice® water line kit
5305513409 (with a 6 ft. Stainless Steel Water Line) and for
homes without an existing valve, Electrolux recommends
its Smart Choice® water line kit 5305510264 (with a 20 ft.
Copper Water Line with self-tapping saddle valve). Please
refer to www.electroluxicon.com for more information.
To Connect Water Supply Line To Ice Maker Inlet Valve
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket.
Turn ON water supply and flush supply line until
water is clear. Turn OFF water supply at shutoff valve.
3. Remove plastic cap from water valve inlet and
discard cap.
4.If you use copper tubing - Slide brass compression
nut, then ferrule (sleeve) onto water supply line. Push
water supply line into water valve inlet as far as it will
go (¼ inch / 6.4 mm). Slide ferrule (sleeve) into valve
inlet and finger tighten compression nut onto valve.
Tighten another half turn with a wrench; DO NOT
over tighten. See Figure 1.
If you use stainless steel tubing - The nut and
ferrule are already assembled on the tubing. Slide
compression nut onto valve inlet and finger tighten
compression nut onto valve. Tighten another half turn
with a wrench; DO NOT over tighten. See Figure 2.
5. With steel clamp and screw, secure water supply line
(copper tubing only) to rear panel of refrigerator as shown.
6. Coil excess water supply line (copper tubing
only), about 2½ turns, behind refrigerator as
shown and arrange coils so they do not vibrate or
wear against any other surface.
7. Turn ON water supply at shutoff valve and tighten
any connections that leak.
8. Reconnect refrigerator to electrical power source.
9. To turn ice maker on, lower wire signal arm (freezer
ice maker) or set the ice maker’s On/Off power
switch to the “On” position (fresh food ice maker).
Plastic Water Tubing
to Ice Maker
Fill Tube
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Plastic Water Tubing
to Ice Maker
Fill Tube
Stainless
Steel
water line
Copper
water line
Water Valve
Bracket
Water Valve
Bracket
Valve Inlet
Valve Inlet
Water Valve
Copper water line
from household
water supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaning)
Figure 1
Steel
Clamp
Water Valve
6 ft. Stainless Steel water line
from household water supply
Figure 2
IMPORTANT
After connecting the water supply, refer to “How to Prime
the Water Supply System” for important information
about priming an empty water supply system.
Your refrigerator’s water supply system includes
several tubing lines, a water filter, a water valve, and
a water tank. To ensure that your water dispenser
works properly, this system must be completely
filled with water when your refrigerator is first
connected to the household water supply line.
Controls 13
IQ-TouchTM
A red indicator light will be illuminated above most active features.
Touch the icon to activate the options below.
fast freeze
Activates a faster rate for freezing food.
fast ice
Increases the production of ice
energy saver
Conserves energy by increasing the time between automatic defrost. This feature is
automatically activated during long periods between door openings. Energy saver
is manually activated when the red indicator is lit.
water filter
Press and hold for three seconds to reset after filter change.
air filter Filter condition status is always displayed when door is open. Press and hold for
three seconds to reset after filter change.
temp mode Touch to toggle display from Fahrenheit to Celsius.
mute sounds Tones emitted by each key press can be turned off based on user preference. The
sounds are muted when the red indicator is lit. Warning signals will stay active.
default settings
Resets all refrigerator settings such as temp, temp display and tones to their factory default settings.
on off
Press and hold for three seconds to turn off the cooling system to clean the refrigerator. It also turns off the ice maker. The temperature displays will read OFF.
IMPORTANT
Pressing the system on/off icon does not turn off power to your refrigerator. You
must unplug the power cord from the wall outlet.
Setting cooling temperatures
Press the + or – indicator to adjust the temperature to the desired setting.
The temperature display will begin to blink with the first touch. The display will time
out after 10 seconds and return to the basic display.
Alarms
LED COLORS / Assembly
Door Ajar
If the door has been left open for an extended period of time, an alarm will sound
and the door ajar indicator will display on the bottom display of the control panel.
The alarm is turned off by closing the door. The mute sounds key will blink to
prompt the reset of any active alarms. Press this key to reset any system alarms.
High Temp In the event of a high temperature condition, the temperature display will blink and
display “HI”. After 20 minutes, the alarm will sound and the high temp indicator
will be red on the bottom of the control panel. The mute sounds icon will illuminate until pressed, acknowledging the alarm, at which time the highest temperature
reached will be displayed and the refrigerator will resume normal operation. In
case the high temp alarm is not acknowledged at the first alarm sound time out,
when the door is first opened, the alarm sound will be repeated.
Power Fail
In the event of a power failure, the power fail alert will be displayed and the
temperature display will blink until the mute sounds icon is pressed, acknowledging the alarm. Other modes may be turned off until the alarm is acknowledged. The
power fail alert is turned off and the refrigerator will resume normal operation. The
high temp alarm may also be illuminated until a safe operating range temperature has been reached.
14 Controls
IQ-TouchTM “Sabbath Mode”
The Sabbath Mode is a feature that disables portions
of the refrigerator and its controls for IQ-TouchTM, in
accordance with observance of the weekly Sabbath
and religious holidays within the Orthodox Jewish
community.
Sabbath Mode is turned ON and OFF by pressing and
holding the freezer temp “-” and the refrigerator temp
“+” indicators for five seconds. The display shows “Sb”
while in Sabbath mode.
In the Sabbath Mode, the High Temp alarm is active
for health reasons. If a high temperature alarm is
activated during this time, for example due to a door left
ajar, the alarm will sound intermittently for about two
minutes. The alarm will then silence on its own and a
red high temperature icon will display. The high temp
icon will continue to display, even if the door is closed,
until the Sabbath mode is exited and the icon reset.
The refrigerator will function normally once the door is
closed, without any violation of the Sabbath/Holidays.
For further assistance, guidelines for proper
usage and a complete list of models with the
Sabbath feature, please visit the web at
http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the lights nor
the control panel will work until Sabbath Mode is
deactivated.
Refrigerator stays in Sabbath Mode after power failure
recovery. It must be deactivated with the buttons on
the control panel.
NOTE
During Sabbath Mode, the ice maker is turned off by
main control board.
Sabbath Mode and the Custom TempTM Drawer
The Custom TempTM Drawer should be turned off for
the Sabbath/Holidays. Before putting the refrigerator into
the Sabbath mode, turn the Custom TempTM Drawer
off by pressing the drawer on/off button. The display will
show “OFF” and the drawer will turn off. Then enter the
Sabbath mode function on the main refrigerator display.
See the IQ-TouchTM “Sabbath Mode” section. When in
Sabbath mode, the display will not illuminate and the
drawer will remain off. The drawer can still be used as
a non-temp controlled drawer in this mode. When the
refrigerator is taken out of Sabbath mode, the Custom
TempTM Drawer will have to be turned back on.
NOTE
If the Custom TempTM Drawer is not turned off prior
to putting the unit into Sabbath Mode, it will continue
to adjust itself to maintain the set point even if the
display does not illuminate to show that it is still on.
Automatic Ice Maker 15
Ice maker operation & care
After the refrigerator is installed properly, the ice maker
can produce ice within 24 hours. It can completely fill an
ice bin in about three days.
When using the ice maker for the first time and in order
for the ice maker to work properly, it is necessary to
clear air from water filter tubing. Once ice maker begins
making ice, allow the bucket to fill completely, then
discard the first TWO FULL buckets of ice. It will take at
least two days to completely fill the bucket on regular
ice making mode or 1½ days on fast ice mode.
The ice maker produces approximately four pounds of
ice every 24 hours depending on usage conditions.
IMPORTANT
Your ice maker is turned on at the factory so it can
work as soon as you install your refrigerator. If you
cannot connect a water supply, lift the ice maker’s
wire signal arm to turn it off. Otherwise, the ice
maker’s fill valve may make a loud chattering noise
when it attempts to operate without water.
Turning the ice maker on and off
Ice production is controlled by lifting/lowering the ice
maker’s wire signal arm. To gain access to the ice
maker, pull the freezer drawer out. Lift the wire signal
arm to turn the ice maker OFF and lower the wire signal
arm to turn it ON.
• The following sounds are normal when the ice
maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• Ice cubes stored too long may develop an odd
flavor. Empty the ice bin as explained below.
Fast Ice Function
Your refrigerator is equipped with a “Smart” Fast Ice
Function, that will, if activated at your user interface,
allow an increase in ice production. You do not need to
deactivate it, if not needed, your refrigerator will operate
on normal conditions.
CAUTION
If the water supply to your refrigerator is softened,
be sure the softener is properly maintained.
Chemicals from a water softener can damage the
ice maker.
Cleaning the ice maker
Clean the ice maker and ice bin at regular intervals,
especially prior to vacation or moving.
1 Turn off the ice maker.
2 Remove the ice bin.
3 Empty and carefully clean the ice bin with mild
detergent. Do not use harsh or abrasive cleaners.
Rinse with clean water.
4 Allow the ice bin to dry completely before
replacing in the freezer.
5 Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if:
Wire
Signal Arm
• An extended power failure (one hour or longer)
causes ice cubes in the ice bin to melt and freeze
together.
Remove the ice bin and shake to loosen the cubes or
clean as explained above.
CAUTION
Ice maker tips
• If your refrigerator is not connected to a water
supply or the water supply is turned off, turn off
the ice maker by lifting wire signal arm.
NEVER use an ice pick or similar sharp
instrument to break up the ice. This could damage
the ice bin.
To loosen stuck ice, use warm water. Before
replacing the ice bin, make sure it is completely
dry.
16 Storage Features
Shelf features
Drawers
CAUTION
To avoid injury from breakage, handle tempered
glass shelves carefully.
Your refrigerator includes a variety of storage drawers.
These drawers are located in fixed positions at the
bottom of the fresh food compartment.
Crispers
Crisper drawers are designed for storing fruits,
vegetables, and other fresh produce.
NOTE
Features may vary according to model.
Your refrigerator includes glass shelves that are
designed to catch and hold accidental spills.
You can easily adjust shelf positions in the fresh food
compartments to suit your needs. The shelves have
mounting brackets that attach to slotted supports at the
rear of each compartment.
To change the position of a shelf:
1 Before adjusting a shelf, remove all food.
2 Lift the front edge up and pull the shelf out.
3 Replace by inserting the mounting bracket hooks
into the desired support slots.
4 Lower the shelf and lock into position.
Full Custom-DesignTM Shelf
Opening Crisper Drawer
Crisper humidity control
Crisper drawers include a sliding control for adjusting
the humidity inside the crisper. Leafy vegetables keep
best when stored with the Humidity Control set on
Higher Humidity. Fresh fruits keep best when stored
with the Humidity Control set on Lower Humidity.
Humidity Control
Higher
Humidity
or
Lower
Humidity
Adjusting Crisper Humidity
Storage Features 17
To remove the Crisper Drawer for cleaning:
1 Pull the drawer out until it stops.
Special Items
Rack
2 Lift the front slightly and remove the drawer.
Cool Zone (select models)
Removing Crisper Drawer
Special items rack (select models)
The innovative design of the special items rack allows
you to store four bottles of wine or soft drink bottles.
Some models are equipped with a meat keeper drawer
for short-term storage of bulk meat items. This drawer
includes sliding controls for adjusting the humidity
inside.
Any meat to be kept longer than two days should be
frozen. If you store fruits or vegetables in this drawer,
set it to a higher humidity.
Custom TempTM Drawer (select models)
The Custom TempTM Drawer is designed to keep food items at a precise temperature whether cooler, warmer, or
the same as the fresh food section of the refrigerator. The thaw setting holds a temperature for thawing frozen
foods for 12 hours. At the end of that time, it then switches to the mixed items setting to store the thawed food.
To operate:
1 To turn on and off, press the drawer’s On/Off
button. The numeric display will show a temperature
between “28° F and 42° F” when on and “OFF” when
off.
2 Press F/C if you prefer to display Fahrenheit “F,”
or Celsius “C”.
3 Press either the up ∧ or down ∨ scroll buttons to
illuminate the desired item.
6 The three favorite selections provide flexibility to
set and store personal temperature selections.
The temperature is adjusted up by pressing the
+ or – buttons. The drawer will store the selected
temperature setting until it is changed.
7 The control buttons can be locked to prevent
accidental changes by pressing the control lock
button for three seconds. Deactivate by pressing
for three seconds again.
4 Once an option is selected, the drawer will adjust
and maintain the temperature for the setting
selected.
5 When turned off, the Custom TempTM Drawer
functions as a standard meat pan. The Custom
TempTM Drawer is best used for packaged food
products. Leafy vegetables and unpackaged fruits
are best kept in one of the crisper drawers.
Opening the Drawer
18 Storage Features
IMPORTANT
DO NOT clean the display area of the Custom TempTM
Drawer with abrasive or caustic cleaners. Wipe clean
with a moist sponge.
CAUTION
To change the position of an adjustable door bin:
1 Before adjusting a bin, remove all food.
2 Grip the bin firmly with both hands and lift it upward.
3 Remove the bin.
4 Place the bin just above desired position.
5 Lower the bin onto supports until locked in place.
The Custom TempTM Drawer and cover can
be removed for cleaning but the control unit,
attached to the right side of the fridge, cannot
be removed. Do not immerse the Custom TempTM
Drawer cover in water or put it in a dishwasher.
Clean with a damp cloth or sponge.
To remove the Custom TempTM Drawer for cleaning:
1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the drawer.
Adjustable Door Bin
Accessories (varies by model)
Tilt can bins
The can bins allow you to efficiently and securely store
up to eight 12-ounce canned beverages.
Removing the Drawer
NOTE
When the refrigerator is turned off by pressing the
main IQ-TouchTM on/off button, the Custom TempTM
Drawer will also be turned off. When the refrigerator
is turned back on, the Custom TempTM Drawer will
resume operations at the temp setting that was set
before the refrigerator was turned off.
Doors
Tilt Can Bin
Covered Door Bin
Use the covered door bin, at the top of the fresh food
compartment door, for short-term storage of cheese,
spreads, or butter. The covered door bin is designed to be
warmer than the open area and includes a lift-up cover
that may be locked and a dairy divider (select models).
Storage bins
The doors to your fresh food compartment use a
system of modular storage bins. All of these bins are
removable for easy cleaning. Some of them have fixed
positions, while others can be adjusted to your needs.
Lock
Door bins are ideal for storing jars, bottles, cans, and
large drink containers. They also enable quick selection
of frequently used items.
Covered Door Bin
Storage Features 19
Freezer Features (varies by model)
Stabilizer Bar
Dividers Removal
Lift up on the front of the upper divider and pull out.
Middle Basket
Divider
Retainers
Basket
Retainer
Clips
Two Freezer Baskets
To Remove Upper Basket
1 Remove all items from basket.
2 Remove basket by pulling basket out to its full
extension and lift out.
Stabilizer
Bar
Upper Basket Divider
Lift up on the rear of the lower divider and pull out.
Lower Basket
Divider
Spill Guard
Tray
To reinstall upper basket, position basket onto the
retainer clips making sure the front of the basket rests
in the retainer clips on the stabilizer bar.
NOTE
If basket is not resting on stabilizer bar retainer clips,
the drawer will not close properly.
To Remove Lower Basket
Lower Basket Divider &
Spill Guard Tray
1 Remove all items from basket.
2 Remove the basket by tilting it forward and lifting
it from the retainer clips.
Basket
Retainer
Removing Lower Basket
To reinstall lower basket, insert basket into retainer
clips.
Tilt Wire Shelf
The freezer tilt wire shelf (located on the inside of the
freezer drawer) is not designed to be removed.
NOTE
Spill Guard Tray should be hand washed in warm
water.
20 Storing Food and Saving Energy
Ideas for storing foods
Fresh food storage
• Keep the fresh food compartment between 34° F
and 40° F with an optimum temperature of 37° F.
• Avoid overcrowding the refrigerator shelves,
which reduces air circulation and causes uneven
cooling.
Fruits and vegetables
• Store fruits and vegetables in crisper drawers,
where trapped moisture helps preserve food
quality for longer time periods.
• Wash items and remove excess water.
• Wrap any items that have strong odors or high
moisture content.
Meat
• Wrap raw meat and poultry separately and
securely to prevent leaks and contamination of
other foods or surfaces.
• Use the deli drawer or Custom TempTM drawer
and set to meat/poultry setting for short-term
storage. Any meat to be kept longer than two
days should be frozen.
Frozen food storage
• Keep the freezer compartment at 0° F or lower.
• A freezer operates most efficiently when it is at
least ⅔ full.
Packaging foods for freezing
• To minimize food dehydration and quality
deterioration, use aluminum foil, freezer wrap,
freezer bags, or airtight containers. Force as
much air out of the packages as possible and
seal them tightly. Trapped air can cause food to
dry out, change color, and develop an off-flavor
(freezer burn).
• Wrap fresh meats and poultry with suitable
freezer wrap prior to freezing.
• Do not refreeze meat that has completely
thawed.
Loading the freezer
• Prior to grocery shopping, activate “fast freeze”
so that on your return you can ensure your newly
purchased food designated for the freezer will be
preserved as quickly as possible.
• Activating “fast freeze” also will help your
freezer more efficiently maintain the selected
temperature after placing new purchases with
pre-existing frozen foods.
• Avoid adding too much warm food to the freezer
at one time. This overloads the freezer, slows the
rate of freezing, and can raise the temperature of
frozen foods.
• Leave a space between packages, so cold air
can circulate freely, allowing food to freeze as
quickly as possible.
Ideas for saving energy
Installation
• Locate the refrigerator in the coolest part of
the room, out of direct sunlight, and away from
heating ducts or registers.
• Do not place the refrigerator next to heatproducing appliances such as a range, oven, or
dishwasher. If this is not possible, a section of
cabinetry or an added layer of insulation between
the two appliances will help the refrigerator
operate more efficiently.
• Level the refrigerator so that the doors close
tightly.
Temperature settings
• Refer to the “Controls” section for procedures on
temperature settings.
Food storage
• Avoid overcrowding the refrigerator or blocking
cold air vents. Doing so causes the refrigerator to
run longer and use more energy.
• Cover foods and wipe containers dry before
placing them in the refrigerator. This cuts down
on moisture build-up inside the unit.
• Organize the refrigerator to reduce door
openings. Remove as many items as needed at
one time and close the door as soon as possible.
• Do not place a hot container directly on a cold
shelf. Remember, such an extreme temperature
change may damage the glass.
Normal Operating Sounds 21
Understanding the sounds you
may hear
Your new, high-efficiency refrigerator may introduce
unfamiliar sounds. These sounds normally indicate
your refrigerator is operating correctly. Some surfaces
on floors, walls, and kitchen cabinets may make these
sounds more noticeable.
The following is a list of major components in your
refrigerator and the sounds they can cause:
A Evaporator Refrigerant through the evaporator
may create a boiling or gurgling sound.
B Evaporator fan You may hear air being forced
through the refrigerator by the evaporator fan.
C Defrost heater During defrost cycles, water
dripping onto the defrost heater may cause a
hissing or sizzling sound. After defrosting, a
popping sound may occur.
D Automatic ice maker When ice has been
produced, you will hear ice cubes falling into the
ice bin. Ice maker fan, water valve activation, and
refrigerant gas fluid may create sounds from its
operation.
E Electronic control & automatic defrost control
These parts can produce a snapping or clicking
sound when turning the cooling system on and
off.
F Condenser fan You may hear air being forced
through the condenser.
G Compressor Modern, high-efficiency
compressors run much faster than older models.
The compressor may have a high-pitched hum or
pulsating sound.
H Water valve Makes a buzzing sound each time it
opens to fill the ice maker.
I Drain pan (not removable) You may hear water
dripping into the drain pan during the defrost
cycle.
J Condenser May create minimal sounds from
forced air.
K Motorized Custom TempTM drawer damper
May produce a light humming during operation.
L Ice dispensing paddle When dispensing ice,
you will hear a snapping, clicking, or popping
sound when the solenoid opens and closes the
ice chute.
M Motorized damper May produce a light
humming during operation.
N Custom TempTM drawer fan Turns off when door
opens or Custom TempTM drawer is turned off.
NOTE
Energy efficient foam in your refrigerator is not a
sound insulator.
NOTE
During automatic defrost cycle, a red glow in the back
wall vents of your freezer compartment is normal.
22 Changing The Water and Air Filters
Your refrigerator is equipped with separate water and
air filtering systems. The water filter system filters all the
water used to produce ice. The air filter removes odors
and impurities from the refrigerator compartment.
NOTE
It is not necessary to turn the water supply off to
change the filter. Be ready to wipe up any small
amounts of water released during the filter replacement.
1 Push the filter release button above the cartridge
to disconnect it.
Water Filter
Button
The control panel includes controls to monitor the
status of your water and air filters. See the Controls
section for more information.
About your advanced water filter
The PureAdvantageTM NGFC-2000 filter
system is tested and certified by NSF
International to NSF/ANSI Standards
42 and 53 for the reduction of claims
specified on the performance data sheet.
Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection
before or after the system. Systems certified for cyst
reduction may be used on disinfected waters that may
contain filterable cysts.
• Rated Capacity - 240 gallons
• Rated service flow - .5 gallons per minute
• Maximum Rated Pressure - 100 pounds per
square inch
• Recommended Minimum Operating Pressure:
30 pounds per square inch
Water Filter
Cartridge
Push Water Filter Button
2 Slide the old water filter cartridge straight out of
the housing and discard it.
3 Unpack the new filter cartridge and remove the
two protective caps covering the inlet and exit of
the filter. Slide the filter gently into the housing
until it stops against the snap-in connector at the
back of the housing.
Replacement
Water Filter
• Operating Temp.: Min. 33° F, Max. 100° F
Water filter
The water filter is located at the lower left side of the
fresh food compartment.
Replacing your PureAdvantageTM water
filter
In general, you should change the water filter every six
months to ensure the highest possible water quality.
The Water Filter Status light on the Touch Panel
prompts you to replace the filter after the six month time
period has elapsed. The water filter status light on this
model is not performance tested or certified by NSF.
If your refrigerator has not been used for a period of
time (during moving for example), change the filter
before reinstalling the refrigerator.
Remove Two
Protective Caps
Changing The Water and Air Filters 23
4 Push firmly until the cartridge snaps into
place (you should hear two clicks). When fully
engaged, the front of the filter cartridge should be
flush with the filter release button.
Push-In
Until
Two Clicks
Air filter
The air filter is located under the utility bin.
Replacing your PureAdvantageTM air filter
To ensure optimal filtering of refrigerator odors, you
should change the air filter every six months (the filter
status light on the Touch Panel prompts you to replace
the filter after six months).
1 Open the air filter door.
2 Remove the old filter and discard it.
3 Unpack the new filter and slide it into the housing.
4 To close the air filter door, push the top and
bottom to lock the door closed.
Reinstall Water Filter
5 Press and hold the Filter Status button on the
control panel for three seconds. When the display
changes from “Replace” to “Good,” the status
has been reset.
5 Press and hold the Air Filter Reset button on the
control panel for three seconds. When the display
changes from “Replace” to “Good,” the status
has been reset.
6The Air Filter Reset will turn itself off after a few
seconds.
6 After replacing the water filter and in order for
the ice maker to work properly, it is necessary
to clear air from water filter tubing. Once ice
maker begins making ice, allow the bucket to
fill completely, then discard the first TWO FULL
buckets of ice. It will take at least two days to
completely fill the bucket on regular ice making
mode or 1½ days on fast ice mode.
Ordering replacement filters
Order new filters by calling 877-808-4195, online
at www.electroluxicon.com, or through the dealer
where you bought your refrigerator. You may want to
consider ordering extra filters when you first install your
refrigerator.
Water Filter FC-300 PureAdvantageTM
Replacement Cartridge #EWF01
Air Filter Replacement cartridge, part #EAFCBF
24 Care and Cleaning
Protecting your investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills
immediately and clean the freezer and fresh food compartments at least twice a year.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes,
concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors,
gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other abrasive cleaning materials.
• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
NOTE
If you set your temperature controls to turn off cooling, power to lights and other electrical components will
continue until you unplug the power cord from the wall outlet.
• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the
appliance surface.
• Do not remove the serial plate. Removal of your serial plate voids your warranty.
• Before moving your refrigerator, raise the anti-tip brackets so the rollers will work correctly. This will prevent
the floor from being damaged.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side may damage flooring. Be
careful not to move the refrigerator beyond the plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply
system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a
service representative to perform this operation.
Refer to the guide on the next page for details on caring and cleaning specific areas of your refrigerator.
Care and Cleaning 25
Care and cleaning tips
Part
Cleaning Agents
Tips and Precautions
Interior & Door
Liners
•Soap and water
•Baking soda and
water
• Use two tablespoons of baking soda in one quart of warm water.
•Be sure to wring excess water out of sponge or cloth before cleaning
around controls, light bulb or any electrical part.
Door Gaskets
•Soap and water
•Wipe gaskets with a clean soft cloth.
Drawers & Bins
•Soap and water
•Use a soft cloth to clean drawer runners and tracks.
•Do not wash any removable items (bins, drawers, etc.) in dishwasher.
Glass Shelves
•Soap and water
•Glass cleaner
•Mild liquid
sprays
•Allow glass to warm to room temperature before immersing in warm
water.
Toe Grille
•Soap and water
•Mild liquid
sprays
•Vacuum
•Soap and water
•Remove toe grille (see Installation Instructions).
•Vacuum both sides and wipe with sudsy cloth or sponge. Rinse and
dry.
Exterior &
Handles
Exterior &
Handles
(Stainless Steel
Models Only)
•Non abrasive
glass cleaner
•Soap and water
•Stainless steel
cleaners
•Do not use commercial household cleaners containing ammonia,
bleach or alcohol to clean handles.
•Use a soft cloth to clean smooth handles.
•Do not use a dry cloth to clean smooth doors.
•Never use CHLORIDE or cleaners with bleach to clean stainless
steel.
•Clean stainless steel front and handles with non-abrasive soapy water
and a dishcloth. Rinse with clean water and a soft cloth.
•Use a non-abrasive stainless steel cleaner. These cleaners can be
purchased at most home improvement or major department stores.
Always follow manufacturer’s instruction. Do not use household
cleaners containing ammonia or bleach.
•NOTE: Always clean, wipe and dry with grain to prevent scratching.
•Wash the rest of the cabinet with warm water and mild liquid
detergent. Rinse well and wipe dry with a clean soft cloth.
Vacation and moving tips
Occasion
Tips
Short Vacations
•Leave refrigerator operating during vacations of three weeks or less.
•Use all perishable items from refrigerator compartment.
•Turn automatic ice maker off and empty ice bucket, even if you will only be gone a few
days.
Long Vacations
•Remove all food and ice if you will be gone one month or more.
•Turn the cooling system off (see “Controls” section for location of On/Off button) and
disconnect power cord.
•Turn water supply valve to closed position.
•Clean interior thoroughly.
•Leave doors open to prevent odors and mold build-up. Block doors open if necessary.
Moving
•Remove all food and ice.
•If using a handcart, load from the side.
•Adjust rollers all the way up to protect them during sliding or moving.
•Pad cabinet to avoid scratching surface.
26 Care and Cleaning
Replacing LED Lights (select models)
Both the freezer and fresh food compartments of your
refrigerator include LED lights. Always use Electrolux
parts for replacement.
To replace LED Lights:
1 Unplug your refrigerator’s power cord.
2 Remove light cover by pushing up and out.
3 Hold the LED cover with one hand and pull the
connector with the other hand while pressing the
connector latch.
4 Replace LED light and snap in place assuring the
light is facing in toward the unit (inside fresh food
and freezer) or facing outward on bottom of fresh
food doors.
LED Light Removal
LED Light Harness Removal
NOTE
LED lights are in series so if one is bad or unplugged,
several lights may not light up.
Ordering Replacement LED Lights
Order new LEDs by calling 877-808-4195, online at
www.electroluxicon.com, or through the dealer where
you bought the refrigerator. Here is the product number
to request when ordering:
LED Light, Part #241891101
Incandescent Lights (40-watt bulb),
Part #5305514148
Solutions to Common Problems 27
Before you call...
If you experience a concern with your refrigerator or notice a product behavior or condition that you do not
understand, you can usually avoid a call to your service representative by referring to this section for an answer.
Beginning with the following table, this information includes concerns, potential causes, and common solutions.
Automatic Ice Maker
Problem
Cause
Correction
Ice maker is not making
any ice.
• Ice maker is turned off.
• Turn on ice maker. For the fresh food ice maker, press and
hold the “Ice Off” button for four seconds until the indicator
turns off. For the freezer ice maker, lower the wire signal arm.
• Connect the unit to the household water supply and
ensure the supply valve is open.
• Ensure that the supply line does not kink when the refrigerator is pushed into place against the wall.
• Remove and re-install the water filter. Be sure to push the
filter firmly so that you hear it lock solidly into position.
• If water dispenses slowly or not at all, or if the filter is six
months old or older, it should be replaced.
• Turn off household water line valve. Remove valve. Ensure
that valve is not a self-piercing saddle valve. Clean valve.
Replace valve if necessary.
• Refrigerator is not connected to water line or
water valve is not open.
• The water supply line is kinked.
• The water filter is not seated properly.
• The water filter may be clogged with foreign material.
• Saddle valve on cold water pipe is clogged or
restricted by foreign material.
Ice maker is not making
enough ice.
• Ice maker is producing less ice than you expect. • The fresh food and freezer ice makers will each produce
approximately 2.5 pounds of ice every 24 hours
depending on usage conditions.
• The water filter may be clogged with foreign material. • If water dispenses slower than normal, or if the filter is six
months old or older, it should be replaced.
• The water supply line is kinked.
• Ensure that the supply line does not kink when the refrigerator is pushed into place against the wall.
• Saddle valve on cold water pipe is clogged or
• Turn off household water line valve. Remove valve. Ensure
restricted by foreign material.
that valve is not a self-piercing saddle valve. Clean valve.
Replace valve if necessary.
Freezer ice maker will not
stop making ice.
• Ice maker wire signal arm is being held down
by some package in the freezer that has fallen
against the ice maker.
Ice cubes are freezing
together.
• Ice cubes are not being used frequently enough. • Remove ice container and discard ice. The ice maker will
produce fresh supply. Ice should be used at least twice
weekly to keep the cubes separated.
• Ice cubes are hollow (shells of ice with water
• This generally occurs when the ice maker does not get
inside). The hollow cubes break open in the
enough water. This is usually the result of a clogged water
bin and leak their water onto existing ice,
filter. Replace the water filter.
which causes it to freeze together.
• Move the item and release wire signal arm. Remove any
ice cubes that may have frozen together over the wire
signal arm.
Light Is Not On
Concern
Potential Cause
Common Solution
Light is not on.
• Light bulb is burned out or LED light is
damaged.
• No electric current is reaching refrigerator.
• Control system has disabled lights because
one or both doors were left open too long.
•See Replacing Light Bulbs or LED lights in Care and
Cleaning section.
•See “Concern” section, “Refrigerator Operations”.
•Close and reopen door(s) to enable lights.
Concern
Potential Cause
Common Solution
Interior is dirty.
Odors
• Interior needs to be cleaned.
• Food with strong odors is stored in
refrigerator.
• See Care & Cleaning Tips.
• Cover food tightly. Air filter may need to be changed
more frequently if foods with strong odors are routinely
stored in refrigerator.
Odors In Refrigerator
28 Solutions to Common Problems
Opening/Closing Of Doors/Drawers
Concern
Potential Cause
Common Solution
Door(s) will not close.
• Refrigerator is not level. It rocks on the floor
when moved slightly.
• Ensure floor is level and solid, and can adequately
support the refrigerator. Contact a carpenter to correct a
sagging or sloping floor.
• Check for ice or food items blocking drawer.
• An object has fallen from the baskets
blocking the door from closing.
Drawers are difficult to
move.
• Food is touching shelf on top of drawer.
• Drawer is overloaded
• Keep less food in drawer.
• Remove or redistribute food.
Refrigerator Operations
Concern
Potential Cause
Common Solution
Compressor does not
run.
• Cooling system is turned Off.
•Turn cooling system On. See Controls Section for
location of cooling system On/Off button.
• This is normal for a fully automatic defrost refrigerator. The
defrost cycle occurs periodically, lasting about 30 minutes.
•Ensure plug is tightly pushed into outlet.
•Check/replace fuse with a 15 amp time-delay fuse.
Reset circuit breaker.
•Check house lights. Call local Electric Company.
•This is normal. Refrigerator goes on and off to keep
temperature constant.
• Refrigerator is in defrost cycle.
• Plug at wall outlet is disconnected.
• House fuse is blown or a tripped circuit
breaker.
• Power outage.
• Electronic control system keeps the
refrigerator at a constant temperature.
Refrigerator runs too
much or too long.
• Room or outside weather is hot.
• Refrigerator has recently been disconnected
for a period of time.
• Automatic ice maker is operating.
• Doors are opened too frequently or too long.
• Refrigerator/freezer door may be slightly
open.
• Freezer control is set too cold (control found
on side of left hand door).
• Fresh food/freezer gasket is dirty, worn,
cracked, or poorly fitted.
• This model is provided with a high-efficiency,
variable-speed compressor.
Digital temperature
displays are flashing.
• Electronic control system has detected a
performance problem.
•It’s normal for the refrigerator to work longer under
these conditions.
•It takes 8-12 hours for the refrigerator to cool down
completely.
• Ice maker operation causes refrigerator to run slightly more.
•Warm air entering the refrigerator causes it to run more.
Open doors less often.
•Ensure refrigerator is level. Keep food and containers
from blocking door. See Concern section, Opening/
Closing of Doors/ Drawers.
•Set freezer control to warmer setting until refrigerator
temperature is satisfactory. Allow 24 hours for
temperature to stabilize.
•Clean or change gasket. Leaks in door seal will cause
refrigerator to run longer in order to maintain desired
temperatures.
•It is normal for the compressor to run for long periods
of time, instead of starting and stopping frequently.
•Call your Electrolux service representative, who can
interpret any messages or number codes flashing on
the digital displays.
Temperatures Are Too Cold
Concern
Potential Cause
Common Solution
Freezer temperature
too cold. Refrigerator
temperature is
satisfactory.
• Fast Freeze function is activated.
• Freezer control is set too cold.
•Deactivate Fast Freeze function.
•Set freezer control to a warmer setting. Allow 24 hours
for temperature to stabilize.
•It is normal for the freezer compartment to over cool
while automatic ice maker is on.
•Deactivate Fast Ice function.
• Ice maker is on.
• Fast Ice function is activated.
Refrigerator temperature
too cold. Freezer
temperature is satisfactory.
• Refrigerator control is set too cold.
•Set refrigerator control to a warmer setting. Allow 24
hours for temperature to stabilize.
Food stored in drawers
freezes.
• Refrigerator control is set too cold.
•See solution above.
Food stored in Cool Zone
freezes (select models).
• Cool Zone temperature control is set too cold.
• Adjust Cool Zone temperature control to a warmer setting.
Meat should be stored at a temperature just below the
freezing point for maximum fresh storage time. It is normal
for ice crystals to form due to the moisture content of meat.
Solutions to Common Problems 29
Temperatures Are Too Warm
Concern
Potential Cause
Common Solution
Freezer/Refrigerator
temperature is too warm.
• Doors are opened too frequently or too long.
• Warm air enters the refrigerator whenever the door is
opened. Open the door less often.
• See Concern section, Opening/Closing of Doors/
Drawers.
Freezer temperature is
too warm. Refrigerator
temperature is
satisfactory.
• Freezer control is set too warm.
• Set freezer control to a colder setting. Allow 24 hours
for temperature to stabilize.
Refrigerator temperature
is too warm. Freezer
temperature is
satisfactory.
• Refrigerator control is set too warm.
• Set refrigerator control to a colder setting. Allow 24
hours for temperature to stabilize.
Temperature in the Cool
Zone Drawer or Custom
TempTM Drawer is too
warm (select models).
• Temperature control is set too warm.
• Adjust temperature control to a colder setting.
• Door is slightly open.
Water/Moisture/Frost Inside Refrigerator
Concern
Potential Cause
Common Solution
Moisture collects on
inside of refrigerator
walls.
• Weather is hot and humid.
•The rate of frost buildup and internal sweating
increases.
•See Concern section, Opening/Closing of Doors/
Drawers.
•Open door less often to allow internal temperature to
stabilize.
•Keep containers covered.
• Door is slightly open.
• Door is opened too often or too long.
• Open containers.
Water collects on bottom
side of drawer cover.
• Vegetables contain and give off moisture.
•Moisture on the bottom side of the cover is not unusual.
•Move humidity control (select models) to lower setting.
Moisture collects in
bottom of drawer.
• Washed vegetables and fruit drain while in
the drawer.
• Fruits and vegetables are kept past their
prime.
•Dry items before putting them in the drawer. Water
collecting in bottom of drawer is normal.
•Routinely clean out old fruits and vegetables especially if
they begin to break down.
Moisture collects on
outside of refrigerator or
between doors.
• Weather is humid.
•This is normal in humid weather. When humidity is
lower, the moisture should disappear.
•See Concern section, Opening/Closing of Doors/
Drawers.
• Door is slightly open, causing cold air from
inside refrigerator to meet warm air from
outside.
30 Warranty
Major Appliance Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will
repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance
is installed, used, and maintained in accordance with the provided instructions. In addition, the cabinet liner and sealed
refrigeration system (compressor, condenser, evaporator, dryer or tubing) of your appliance is covered by a two through five
year limited warranty. During the 2nd through 5th years from your original date of purchase, Electrolux will repair or replace
any parts in the cabinet liner and sealed refrigeration system which prove to be defective in materials or workmanship when
such appliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
This warranty does not cover the following:
Products with original serial numbers that have been removed, altered or cannot be readily determined.
Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
Rust on the interior or exterior of the unit.
Products purchased “as-is” are not covered by this warranty.
Food loss due to any refrigerator or freezer failures.
Products used in a commercial setting.
Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in
ordinary household use or used other than in accordance with the provided instructions.
Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc.,
which are not a part of the appliance when it is shipped from the factory.
Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,
handles, or other cosmetic parts.
Pickup and delivery costs; your appliance is designed to be repaired in the home.
Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or
mileage expense for service calls to remote areas, including the state of Alaska.
Damages to the finish of appliance or home incurred during transportation or installation, including but not limited to
floors, cabinets, walls, etc.
Damages caused by: services performed by unauthorized service companies; use of parts other than genuine
Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such
as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR
REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE
SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE
FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME
STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS
MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE
OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service
be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty
must be obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted
by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance
is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this
warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service
company. Product features or specifications as described or illustrated are subject to change without notice.
USA
1-877-435-3287
Electrolux Major Appliances
North America
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario,
Canada L5V 3E4
